SAMSUNG LSJ320AP04-E Specification

Page 1
SAMSUNG TFT-LCD
MODEL :
Samsung Secret
DATE : 27. Jan. 2012
The Information Described in this Specification is Preliminary and can be changed without prior notice
LCD Business
Samsung Electronics Co . , LTD.
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
1/28
Page 2
Contents
Samsung Secret
Revision History -------------------------------------------------------------------------------------------- (3) General Description --------------------------------------------------------------------------------------- (4) General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------ (9)
3.1 TFT LCD Module
4. Input Terminal Pin Assignment --------------------------------------------------------------------- (11)
4.1. Input Signal & Power
4.2 LVDS Interface
4.3 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (14)
5.1 Timing Parameters
5.2 Timing Diagrams of interface Signal
5.3 Power ON/OFF Sequence
6. Outline Dimension -------------------------------------------------------------------------------------- (17)
7. Packing --------------------------------------------------------------------------------------------------- (18)
7.1 CARTON(Internal Package)
7.2 Packing Specification
8. Marking & Others ------------------------------------------------------------------------------------- (20)
9. General Precaution ----------------------------------------------------------------------------------- (21)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
2/28
Page 3
Revision History
Date Rev. No Page Summary
Samsung Secret
27.Jan.2012
000 all First issued
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
3/28
Page 4
General Description
Samsung Secret
Description
LSJ320AP04 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT( Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit. The resolution of a 32“ is 1366 x 768 and this model can
display up to 16.7 Million colors with wide viewing angle of 89° or higher in all directions.
This panel is intended to support applications to provide a excellent performance for Flat
Panel Display such as Home-alone Multimedia TFT-LCD TV and High Definition TV.
Features
High contrast Ratio & aperture ratio with wide color gamutSVA (Super Vertical Align) modeWide viewing angle (±178°)High speed response HD resolution (16:9)LVDS (Low Voltage Differential Signaling) interface
General Information
Items Specification Unit Note
713.0(H) x 412.8(V)
Panel Size
1.76(D)
Weight 1.2(Max) kg
Pixel Pitch 0.51075(H) X 0.17025(V) mm
Active Display Area 697.6845(H) X 392.256(V) mm
Surface Treatment Haze 2%, Hard-coating (2H)
Display Colors 8 Bits-True, 16.7 M colors
Number of Pixels 1366 X 768 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
±1.0mm
mm
Max
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
4/28
Page 5
Samsung Secret
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable damage to the device.
(VSS = 0 V)
Item Symbol Min. Max. Unit Note
Power Supply Voltage V
Storage temperature T
DD
STG
10.8 13.2 V (1) 5 40
Glass surface
temperature
Center T
OPR
0 50
(Operation)
Note (1) Ta= 25 ± 2 °C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta ≤ 39 °C) b. Relative Humidity is 90% or less. (Ta > 39 °C) c. No condensation
℃
℃
(2)
(2)
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
5/28
Page 6
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent. Measuring equipment : TOPCON RD-80S, D65 ,ELDIM EZ-Contrast
(Ta = 25 ± 2°C, VDD=12V)
Item Symbol Condition Min. Typ. Max. Unit Note
Samsung Secret
Contrast Ratio
(Center of screen)
Response
Time
Color
Chromaticity
(CIE 1931)
sRGB Concordance - - 98.5 - %
Color Temperature - - 10,000 - K
Viewing
Angle
G-to-G Tg - 10 16 msec
Red
Green
Blue
White
Hor.
Ver.
C/R
Rx Ry 0.330 Gx 0.300 Gy 0.600 Bx 0.150 By 0.060
Wx 0.280
Wy 0.290
q
L
q
R
q
U
q
D
Normal
qL,R=0
qU,D=0
Viewing
Angle
C/R≥10
3,000 4,000 -
0.640
TYP.
-0.03
75 89 ­75 89 ­75 89 ­75 89 -
TYP.
+0.03
Degree
(1)
D65
(3)
RD-80S
(5),(6)
D65
(5)
D65
(6)
EZ-
Contrast
Notice
(a) Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between 40min and 60min after operating the Panel at the given temperature for stabilization of the standard light(SEC use standard illuminant D65 Media). This should be measured in the center of screen. Environment condition : Ta = 25 ± 2 °C
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
6/28
Page 7
Samsung Secret
C R
G
G
/
max
min
Photo detector Field
SR3
RD-80S
TFT - LCD Module
- Definition of test point 320 960 1600
1°
2°
Photo detector
Field
BM-5A : 50㎝ RD-80S : 50㎝ EZ-Contrast:0㎝
LCD Panel
The center of the screen
180
540
900
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point ⑤ of the panel : The measurement goes in D65 Standard Light Source
⑨
⑥
Gmax : Luminance with all pixels white Gmin : Luminance with all pixels black
⑧
⑤ ④
②③
⑦
①
Active Area
Test Point
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
7/28
Page 8
Note (2) Definition of Response time : Sum of Tr, Tf
Samsung Secret
Display data
Optical Instruments
Response
100%
Black (data off)
T
R
White (data on)
90%
10%
0%
※ G-to-G : Average response time between Gray to Gray (Scale)
Note (3) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point ⑤
The measurement goes in D65 Standard Light Source
Black (data off)
T
F
TIME
Note (4) Definition of Viewing Angle
: Viewing angle range (C/R ≥10)
The measurement goes in D65 Standard Light Source
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
8/28
Page 9
Samsung Secret

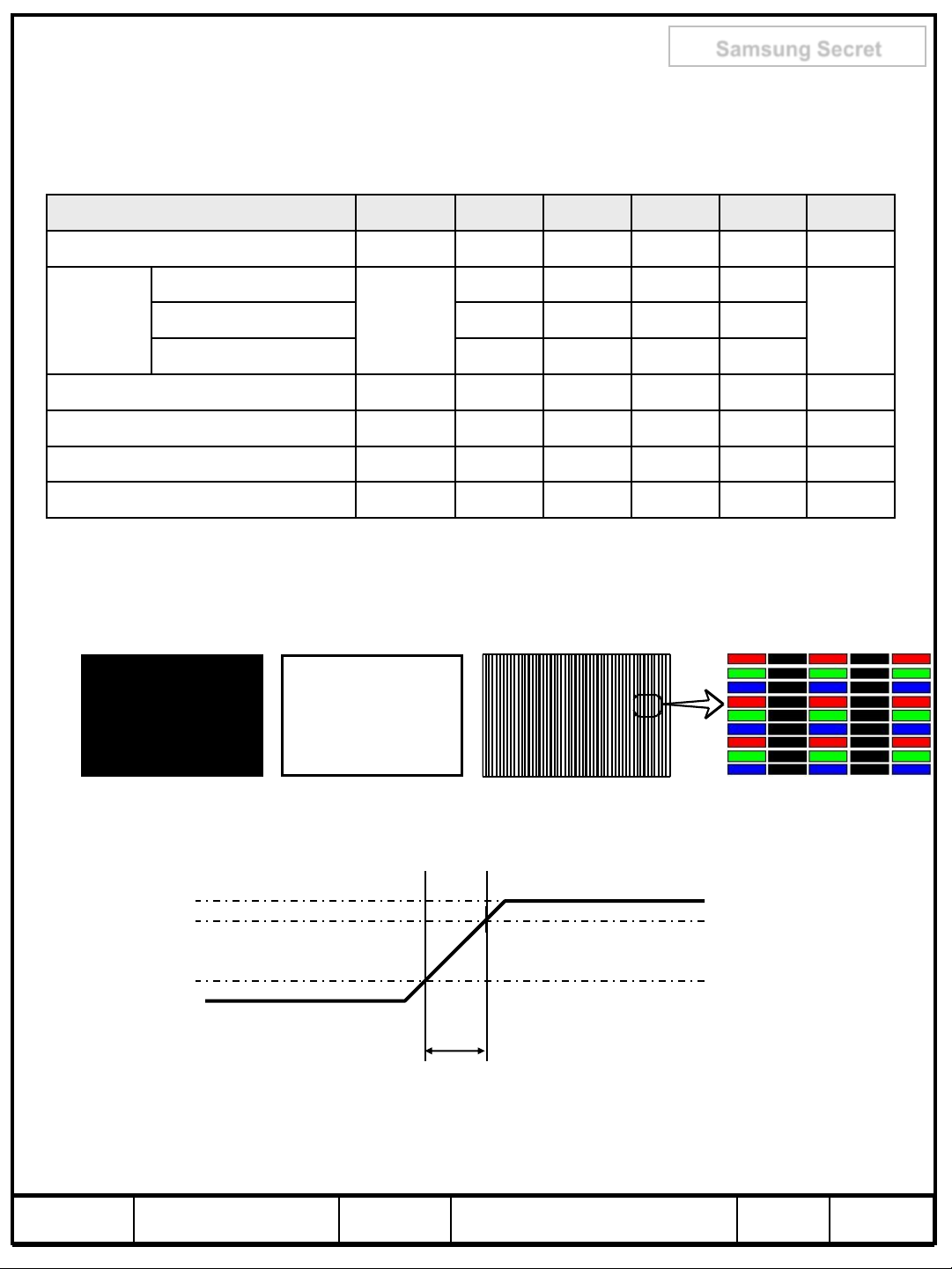

3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 25°C ± 2 °C
Item Symbol Min. Typ. Max. Unit Note Voltage of Power Supply VDD 10.8 12.0 13.2 V (1)
Current of Power
Supply
(a) Black
IDD
(c) N-pattern - - 1600 mA
- 365 830 mA (2),(3)(b) White - 370 830 mA
Vsync Frequency fV 48 60 66 Hz Hsync Frequency fH 44 48 53 kHz Main Frequency Fdclk 72 78 85 MHz Rush Current IRUSH - - 4 A (4)
Note (1) The ripple voltage should be controlled under 10% of VDD.
(2) fV= 60 Hz, fDCLK = 78 MHz, VDD= 12.0V, DC Current. (3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) N-pattern
(4) Measurement Conditions
V
100%
DD
90%
10% GND
T
=470㎲
RUSH
Rush Current I
can be measured when T
RUSH
. is 470㎲.
RUSH
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
9/28
Page 10
4. Input Terminal Pin Assignment
1
WPN
WPN
2
SCL
I2C interface
3
SDA
4
GND
GND
5
LV0_N
LVDS
6
LV0_P
7
GND
GND
8
LV1_N
negative LVDS differential data input (0)
9
LV1_P
positive LVDS differential data input (0)
10
GND
GND
11
LV2_N
negative LVDS differential data input (1)
12
LV2_P
positive LVDS differential data input (1)
13
GND
GND
14
LVCLK_N
negative LVDS differential data input (Clock)
15
LVCLK_P
positive LVDS differential data input (Clock)
16
GND
GND
17
LV3_N
negative LVDS differential data input (3)
18
LV3_P
positive LVDS differential data input (3)
19
GND
GND
20
AGING_ENI
AGING OPTION (Low: Active)
21
LVDS_SEL
LVDS OPTION (Low: JEIDA, High: VESA)
22
WPN
WPN
23
GND
GND
24
GND
25
N.C
26
VIN
Power Supply : +12V
27
VIN
28
VIN
29
VIN
30
VIN
Samsung Secret
4.1. Input Signal & Power Connector : YOUNHO 30Pin, SMD-A
PIN SYMBOL FUNCTION
Note1) No Connection: These PINS are used only for SAMSUNG. (DO NOT CONNECT)
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
10/28
Page 11

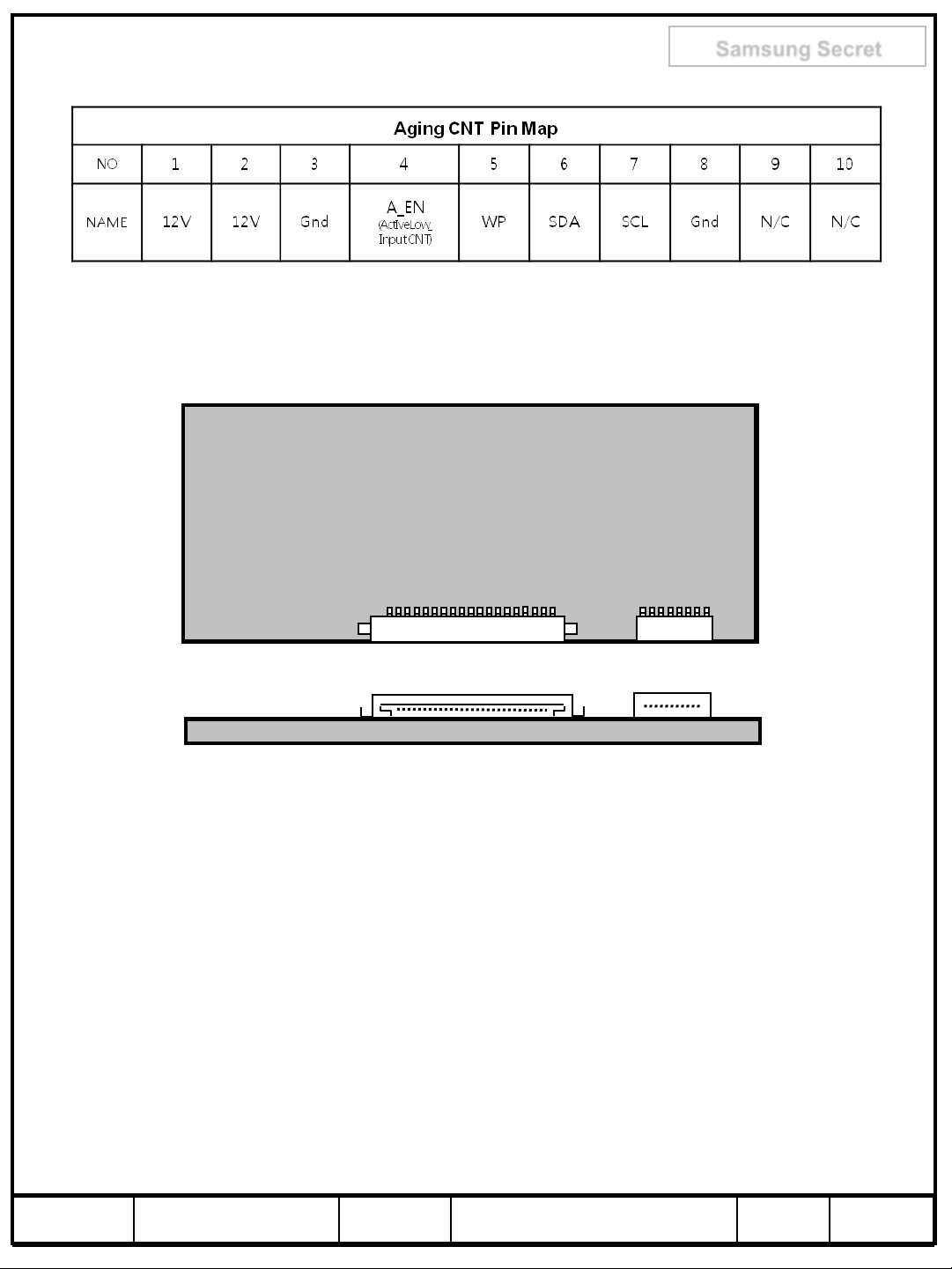

Note(1) Pin number starts from Bottom side
PCB
Samsung Secret
#1 #30
▼
#1
#30
#1
▼
#1 #10
#10
Fig. Connector diagram
a. Power GND pins should be connected to the LCD’s metal chassis.
b. All power input pins should be connected together. c. All NC pin should be separated from other signal or power.
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
11/28
Page 12
4.2 LVDS Interface
LVDS pin
JEIDA -DATA
TxOUT/RxIN0
TxIN/RxOUT0
R2
TxIN/RxOUT1
R3
TxIN/RxOUT2
R4
TxIN/RxOUT3
R5
TxIN/RxOUT4
R6
TxIN/RxOUT6
R7
TxIN/RxOUT7
G2
TxOUT/RxIN1
TxIN/RxOUT8
G3
TxIN/RxOUT9
G4
TxIN/RxOUT12
G5
TxIN/RxOUT13
G6
TxIN/RxOUT14
G7
TxIN/RxOUT15
B2
TxIN/RxOUT18
B3
TxOUT/RxIN2
TxIN/RxOUT19
B4
TxIN/RxOUT20
B5
TxIN/RxOUT21
B6
TxIN/RxOUT22
B7
TxIN/RxOUT24 HSYNC
TxIN/RxOUT25
VSYNC
TxIN/RxOUT26
DEN
TxOUT/RxIN3
TxIN/RxOUT27
R0
TxIN/RxOUT5
R1
TxIN/RxOUT10
G0
TxIN/RxOUT11
G1
TxIN/RxOUT16
B0
TxIN/RxOUT17
B1
TxIN/RxOUT23
RESERVED
- LVDS Receiver : Tcon (merged) - Data Format (JEIDA)
Samsung Secret
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
12/28
Page 13
Samsung Secret

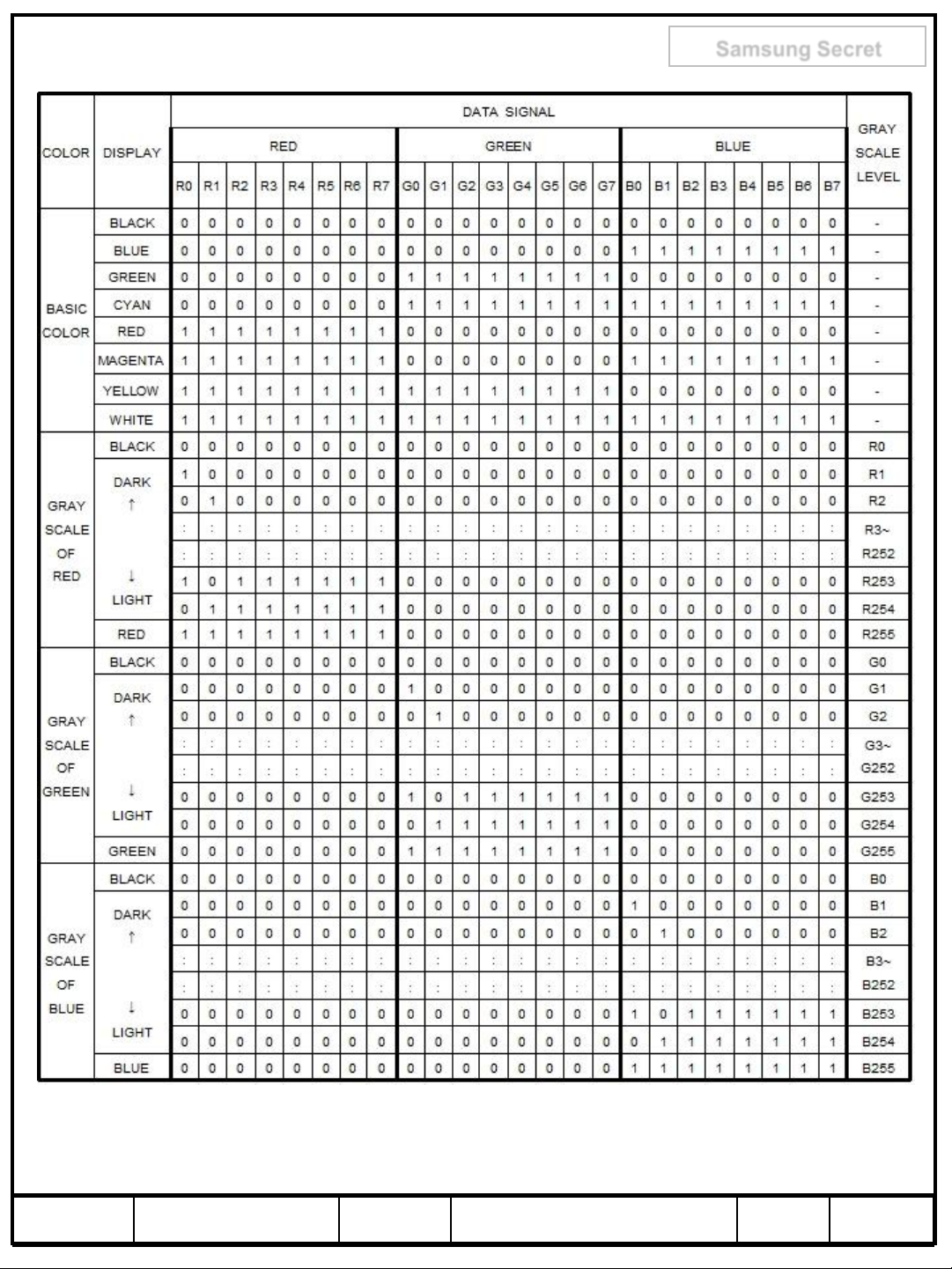

4.3 Input Signals, Basic Display Colors and Gray Scale of Each Color
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
13/28
Page 14
5. Interface Timing
5.1 Timing Parameters ( Timing-Controller )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
Samsung Secret
Clock
Hsync F
Frequency
Vsync F
1/T
C
H
V
72 78 85 MHz
44 48 53 KHz
48 60 66 HZ
Active
Vertical
Display
Period
T
VD
- 768 - Lines
Display Term
Vertical
Total
T
VB
776 802 1200 Lines
Active
Horizontal
Display
Period
T
HD
- 1366 - Clocks
Display Term
Horizontal
Total
T
H
1480 1624 2000 clocks
Note) This product is DE only mode. The input of Hsync & Vsync signal does
not have an effect on normal operation. (1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system (2) Internal VDD = 3.3V (3) Spread spectrum
- Modulation rate (max) : ± 1.5 %
- Modulation Frequency : 30 ~ 300KHz
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
14/28
Page 15

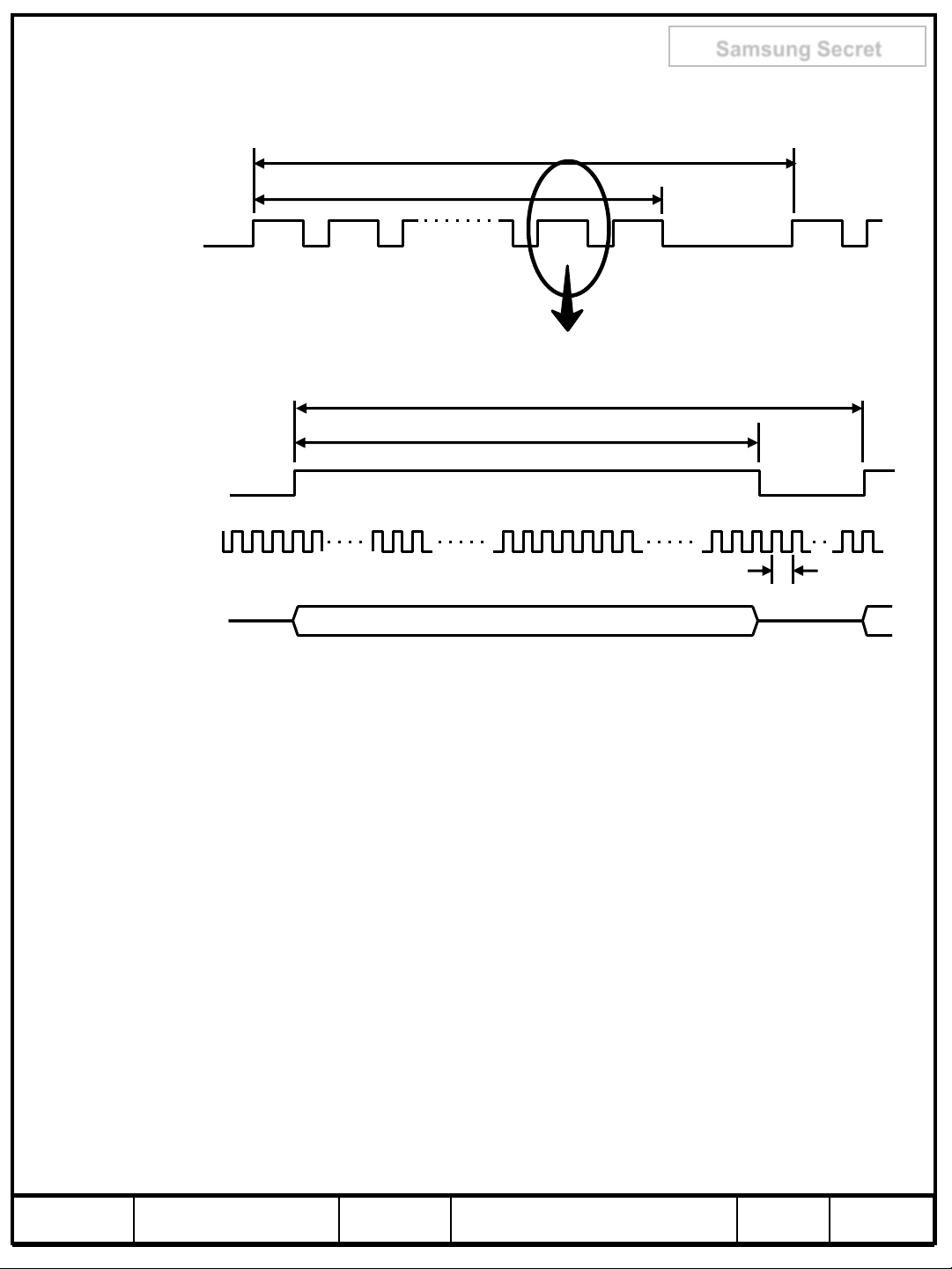

5.2 Timing diagrams of interface signal ( DE only mode )
TV
TVD
DE
TH
THD
DE
DCLK
Samsung Secret
TC
DATA
SIGNALS
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
15/28
Page 16
Samsung Secret

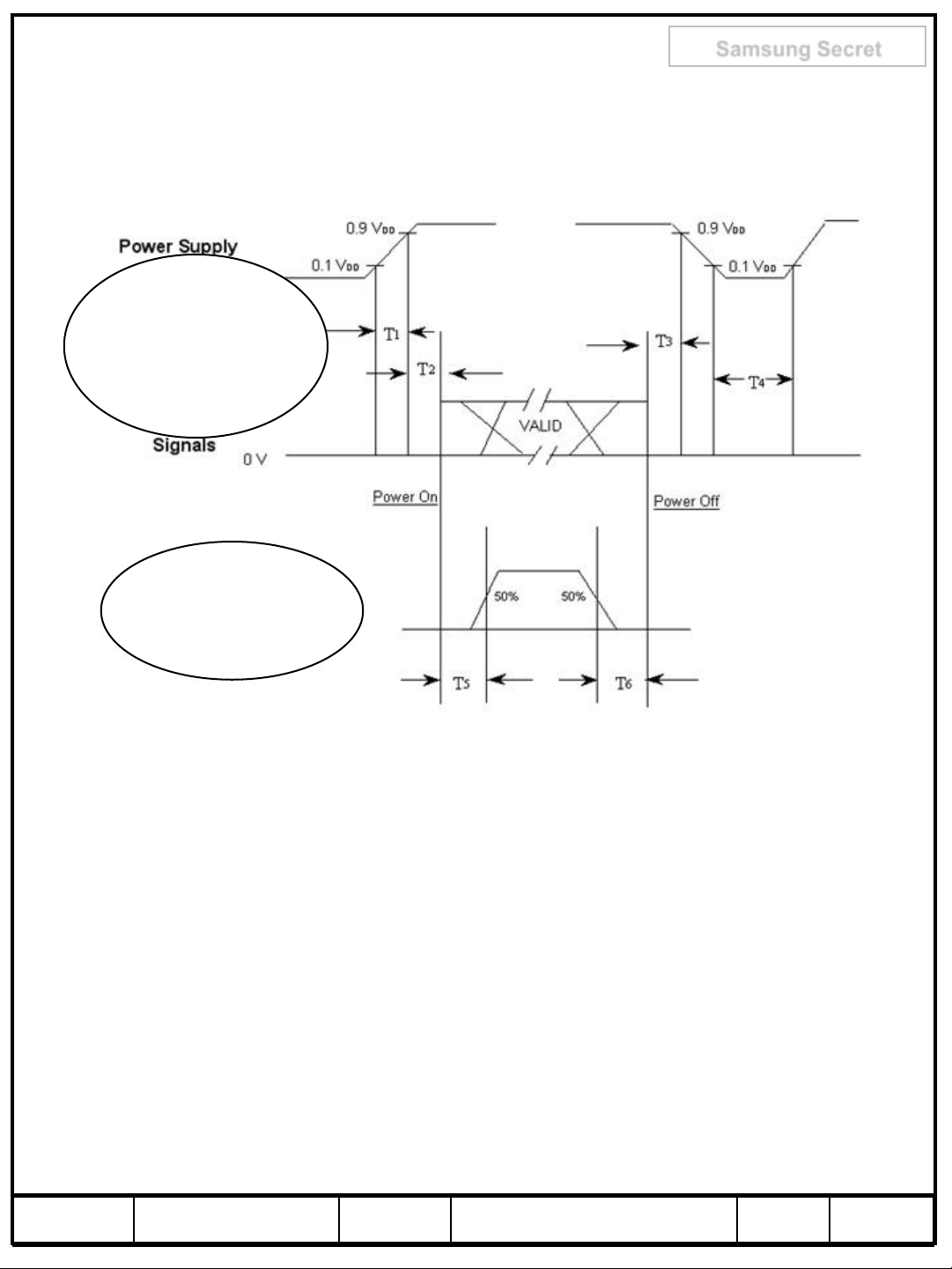

5.3 Power ON/OFF Sequence
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
0.5ms<T1≤10ms
1ms<T2≤50ms
0ms<T3≤50ms
1000ms≤T4
1000ms≤T5
100ms≤T6
T1 : VDDrising time from 10% to 90% T2 : The time from VDDto valid data at power ON. T3 : The time from valid data off to VDDoff at power Off. T4 : VDDoff time for Windows restart T5 : The time from valid data to B/L enable at power ON. T6 : The time from valid data off to B/L disable at power Off.
The supply voltage of the external system for the Module input should be the same
as the definition of VDD.
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off, the display may momentarily show abnormal screen.
In case of VDD= off level,
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
16/28
Page 17

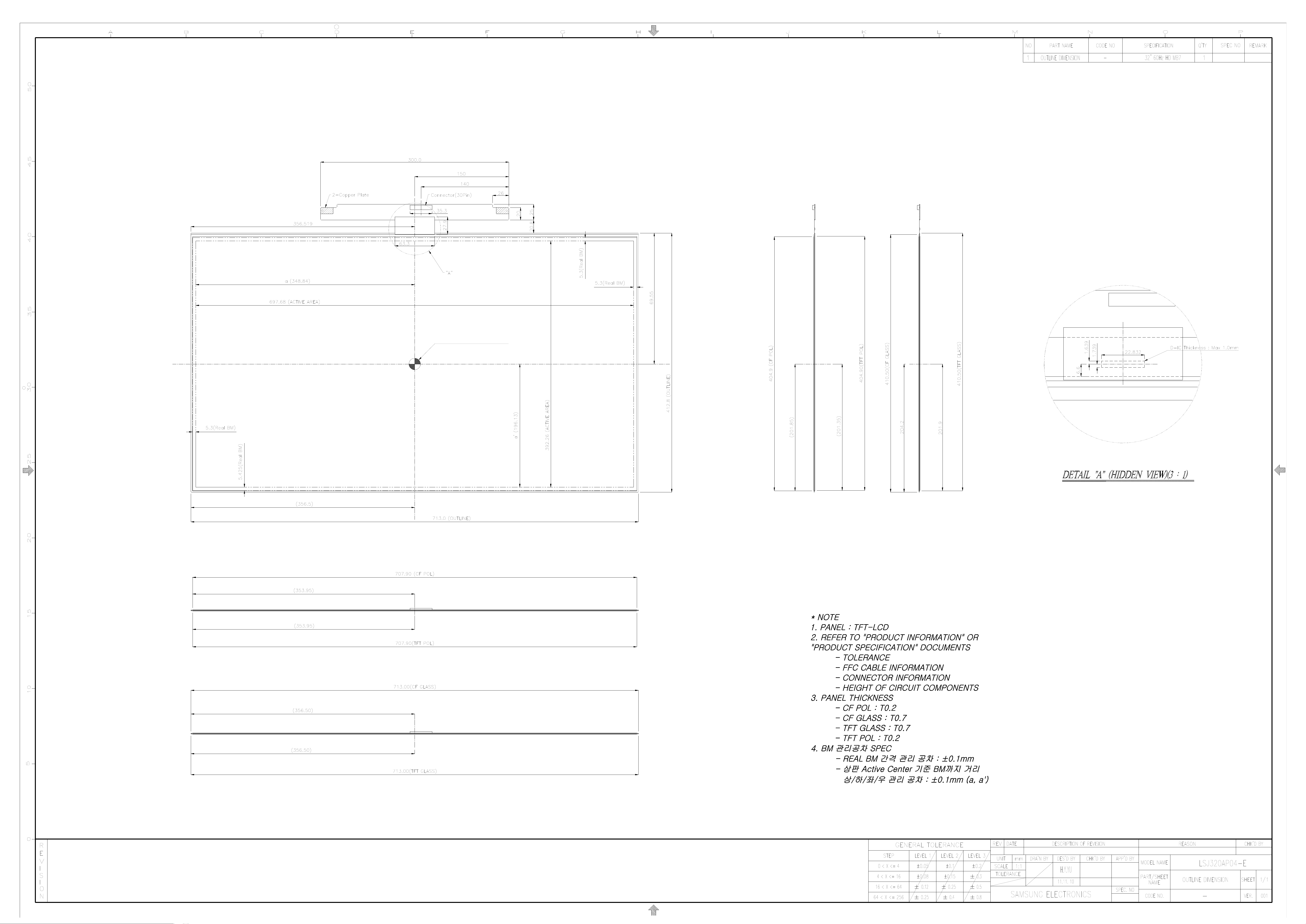

ACTIVE CENTER
Page 18
Samsung Secret

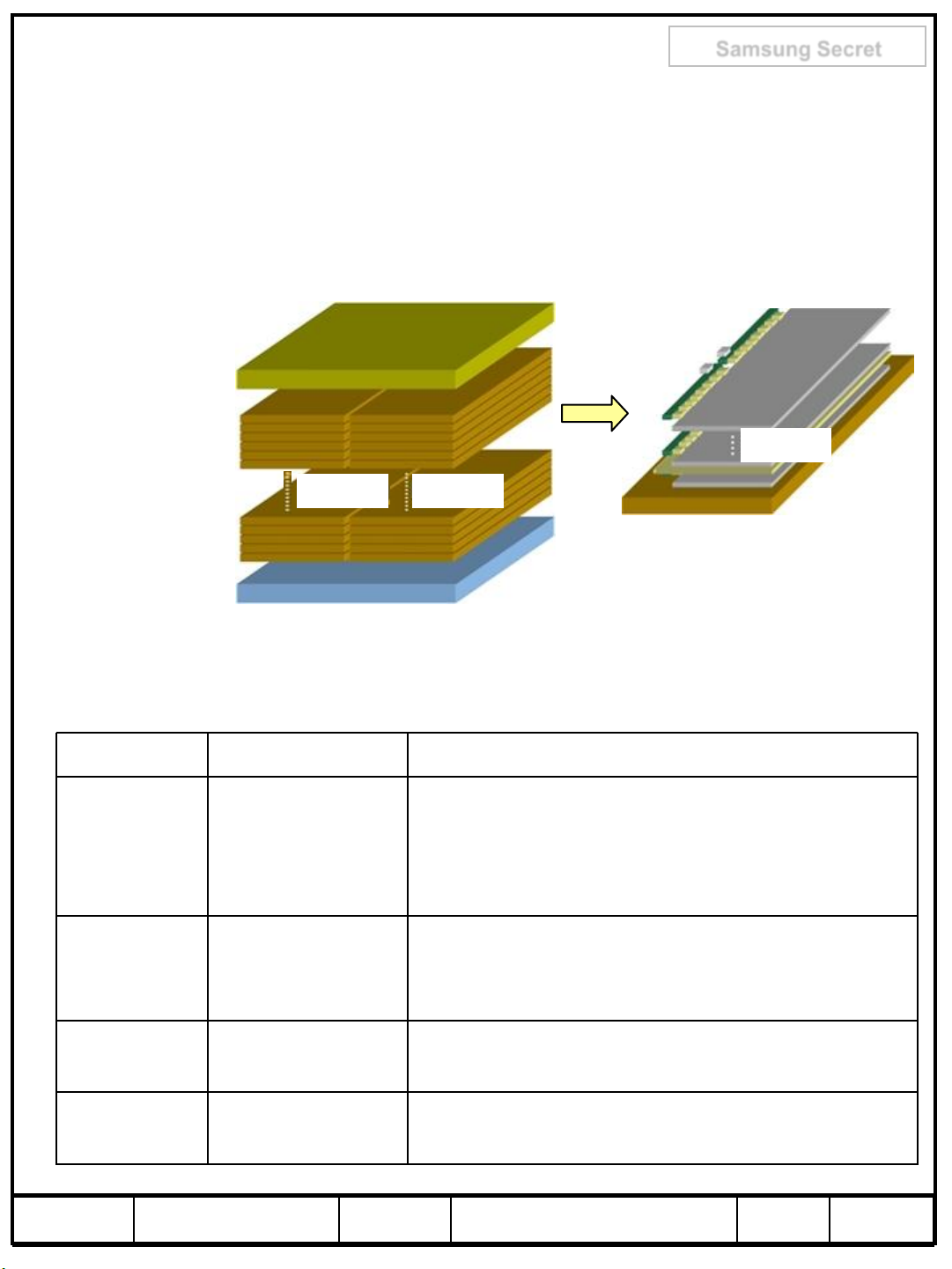

7. PACKING
7.1 CARTON (Internal Package)
(1) Packing Form Corrugated fiberboard box and corrugated cardboard as shock absorber (2) Packing Method
Packing- Upper Box
Pallet Tray
10EA 10EA
Pallet-Plastic
10EA
7.2 Packing Specification
ITEM Specification Remark
1. 1.20 Kg / LCD (7[ea]/Tray, 140[ea]/Pallet)
LCD Packing 140ea / Box
2. 0.04 Kg / Middle sheet (8[ea]/Tray, 160[ea]/Pallet)
3. 2.00 Kg / Panel tray-Bottom (20ea/Pallet)
4. 0.50 Kg / Palel tray-Top (2ea)
7EA
Pallet-Wood 1Box / Pallet
Pallet size H x V x height 1,475mm(H) x 1,150mm(V) x 1,131mm(height)
Total weight 240.4 kg
1. 23 Kg / Pallet-Plastic (1ea)
2. 2.00 Kg / Packing Pallet-Box(1ea)
Pallet(23kg) + Panel tray(40kg) + Panel(168kg) + Middle sheet(6.4Kg) + Packing Box (3kg)
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
18/28
Page 19
Samsung Secret
8. MARKING & OTHERS
A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.

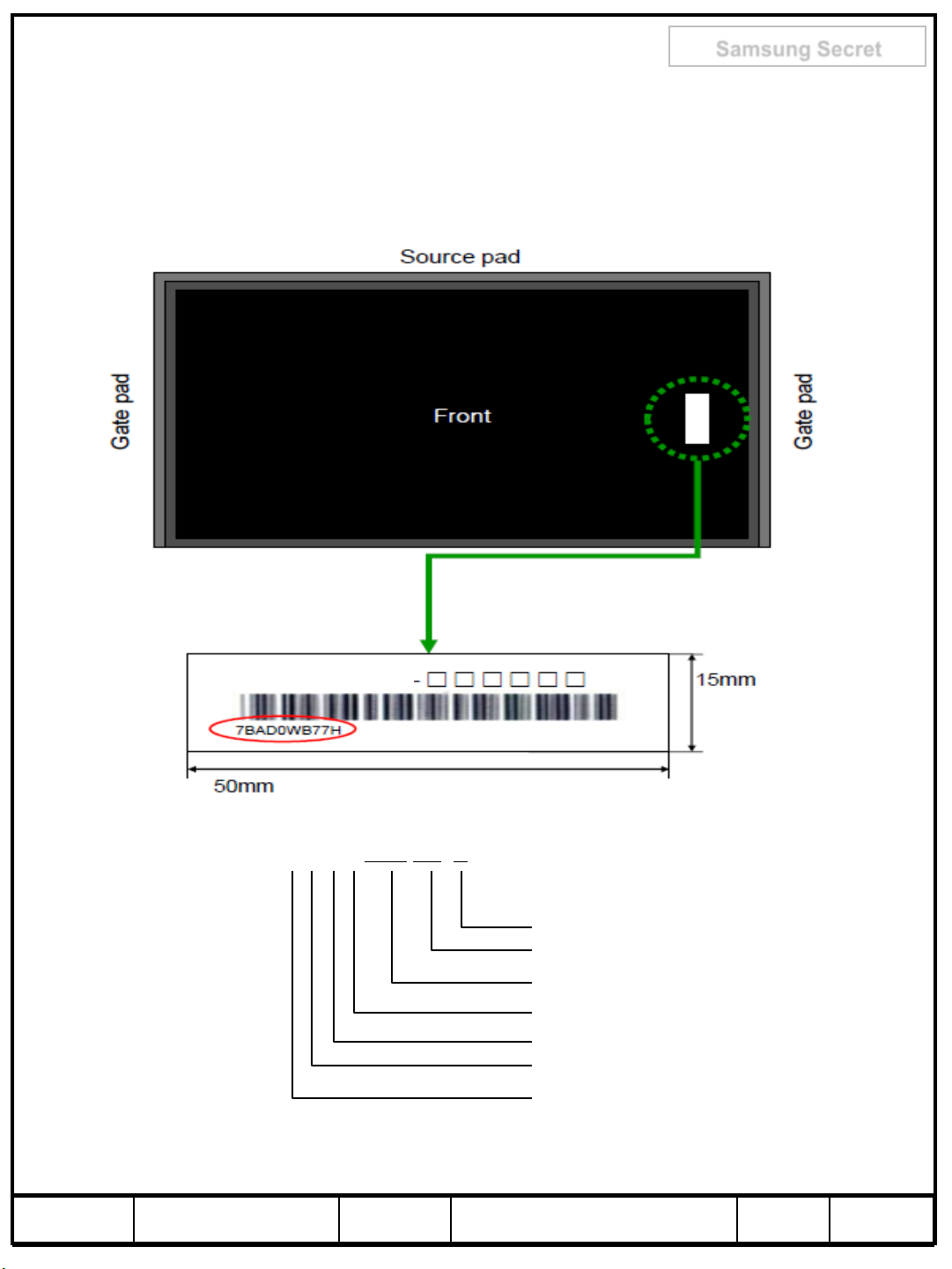

(1) Cell Label
LSJ320AP04
Lot number : X X X X XXX XX X
Cell Position No. (In the Glass) Glass No. (In the one Lot) Lot No. (Glass) Month Year (Note1) Product code Line
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
19/28
Page 20

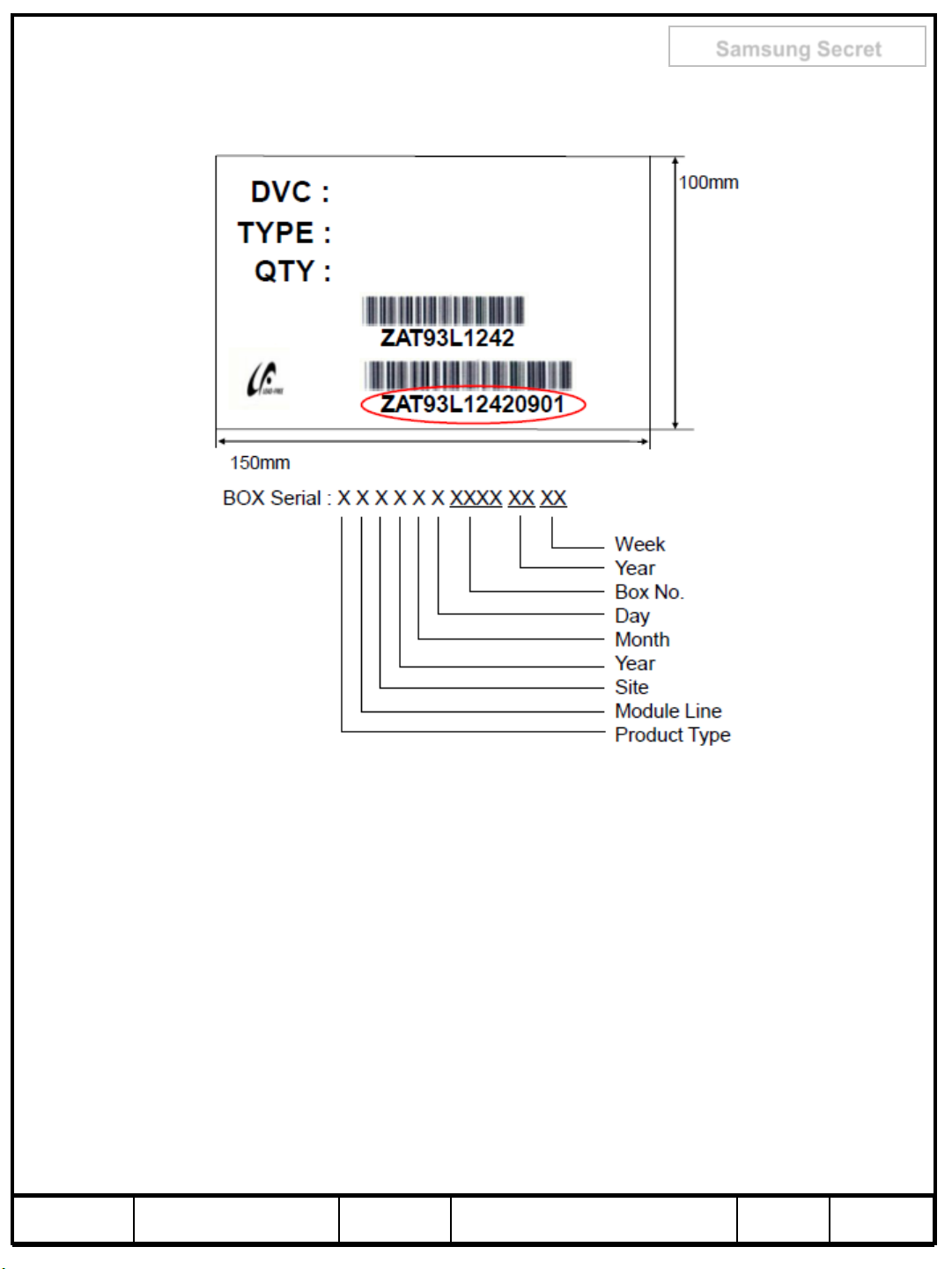

(2) Box Label
Samsung Secret
LSJ320AP04
xxxx
140
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
20/28
Page 21
9. General Precautions
Samsung Secret
9.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module and CCFL back light.
(c) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(d) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur. (e) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth. (f) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(g) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly. (h) Protect the module from Electrostatic discharge. Otherwise the ASIC IC or
Semiconductor would be damaged.
(i) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.

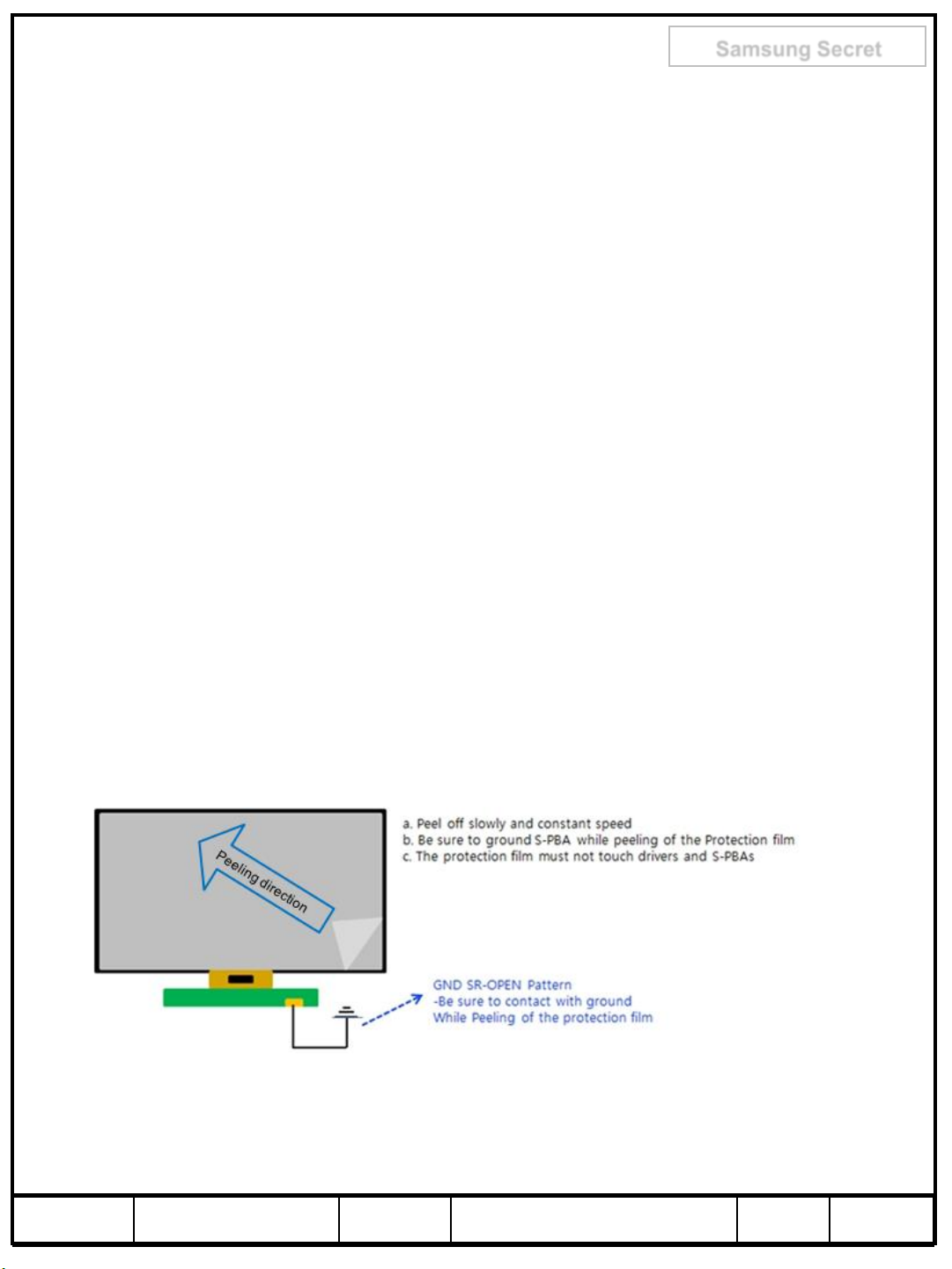

(k) Protection film for polarizer on the Module should be slowly peeled off just before use
so that the electrostatic charge can be minimized. Must put on antistatic glove while
handle a module (l) Pins of I/F connector should not be touched directly with bare hands.
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
21/28
Page 22
* Process Control Standard
Item Management standard value and performance standard
1 Anti-static mat (shelf) 1 to 50 [Mohm]
Samsung Secret
2
3 Ionizer
4 Anti-static wrist band 0.8 to 10 [Mohm]
5
6 Temperature 7 Humidity 60 to 70 [%RH]
Anti-static mat (floor,
desk)
Anti-static wrist band
entry and ground
resistance
1 to 100 [Mohm]
Attenuate from ± 1,000V to ± 100V within 2 sec
Below 1,000 [ohm]
0 ∼ 35℃
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
22/28
Page 23
9.2 Storage
We highly recommend to comply with the criteria in the table below
ITEM Unit Min. Max.
Samsung Secret
Storage
Temperature
Storage
Humidity
Storage life 6 months
- The storage room should provide good ventilation and temperature control.
- Products should not be placed on the floor, but on the Pallet away from
- Prevent products from direct sunlight, moisture nor water; Be cautious of
Storage
Condition
- Avoid other hazardous environment while storing goods.
(℃) 5 40
(%rH) 35 75
a wall. a build up of condensation.
After 1 month 2 month 3 month 4month 5 month 6month
Baking No backing 50℃ 10% 24Hr 50℃ 10% 48Hr
9.3 Operation
(a) Do not connect or disconnect the Module in the "Power On" condition. (b) Power supply should always be turned on/off by the "Power on/off sequence" (c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods may be important to minimize the interference.
(d) The cable between the back light connector and its inverter power supply should
be connected directly with a minimized length. A longer cable between the back light and the inverter may cause lower luminance of lamp(CCFT) and may require higher startup voltage(Vs).
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
23/28
Page 24
9.4 Operation Condition Guide
Samsung Secret
(a) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20±15℃
- Humidity : 55±20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
9.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation. (b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature, and so on) Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen. To avoid image sticking, it is recommended to use a screen saver.
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SEC in advance when you display the same pattern for a long time.
MODEL LSJ320AP04 Doc. No 07-000-G-20120127 Page
24/28
Loading...
