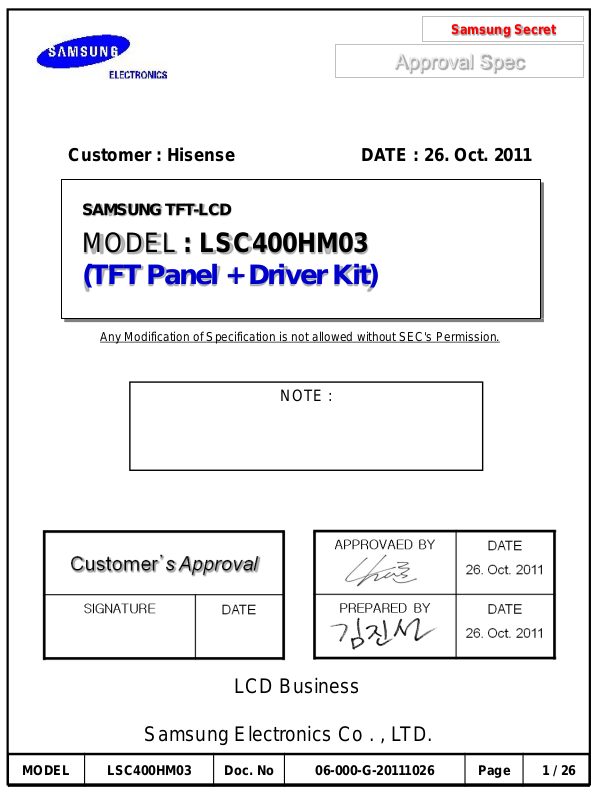

SAMSUNG LSC400HM03 Specification

Samsung Secret

Approval Spec

Customer : Hisense

SAMSUNG TFT-LCD

DATE : 26. Oct. 2011

MODEL : LSC400HM03

(TFT Panel + Driver Kit)

Any Modification of Specification is not allowed without SEC's Permission.

NOTE :

LCD Business

Samsung Electronics Co . , LTD.

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

1 / 26

Contents

Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)

Samsung Secret

1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)

2. Optical Characteristics --------------------------------------------------------------------------------- (6)

3. Electrical Characteristics ------------------------------------------------------------------------------- (9)

3.1 TFT LCD Module

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (10)

4.1 Input Signal & Power

4.2 LVDS Interface

4.3 Input Signals, Basic Display Colors and Gray Scale of Each Color

5. Interface Timing ---------------------------------------------------------------------------------------- (14)

5.1 Timing Parameters (DE only mode)

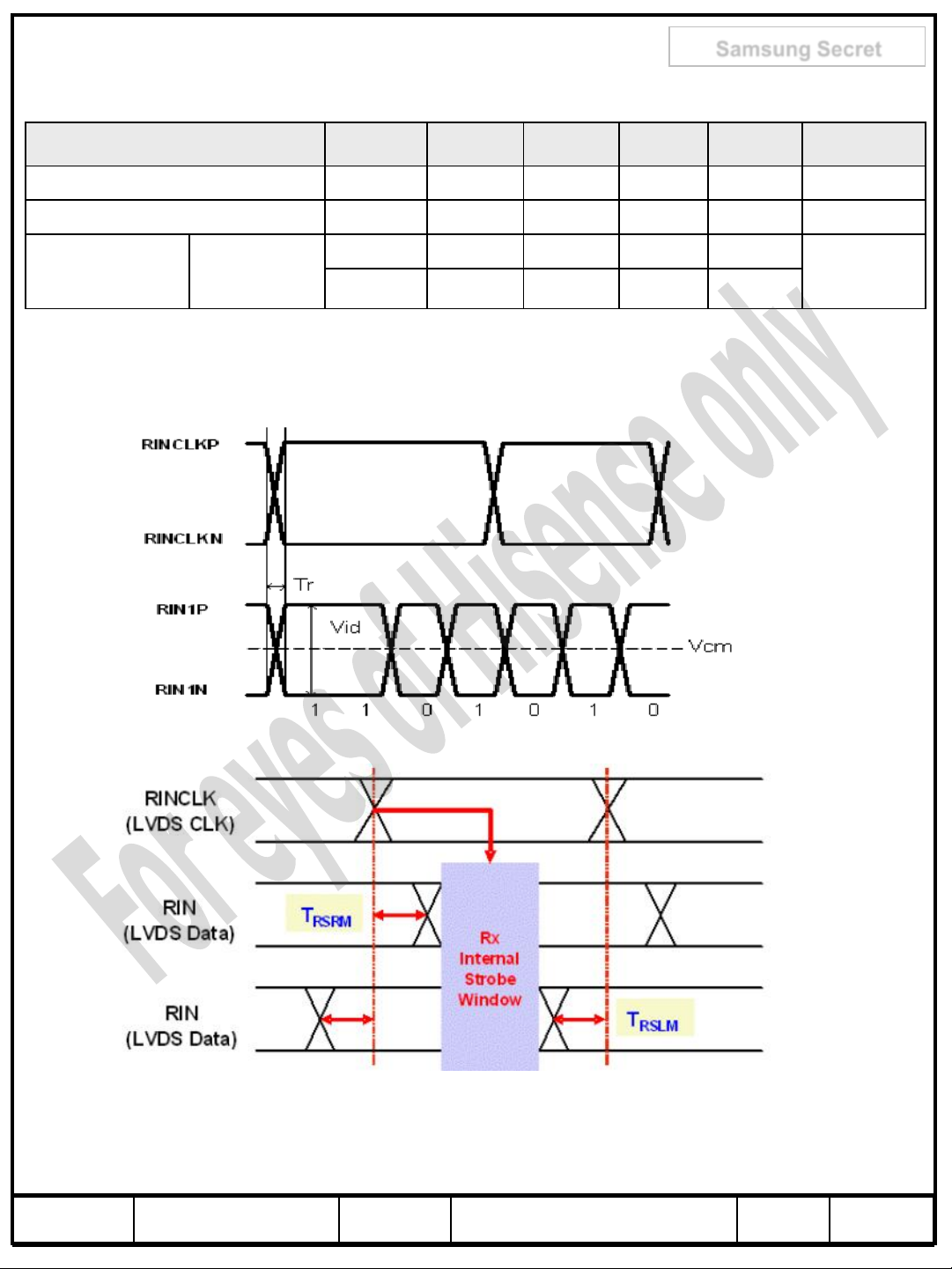

5.2 LVDS Input data Characteristics

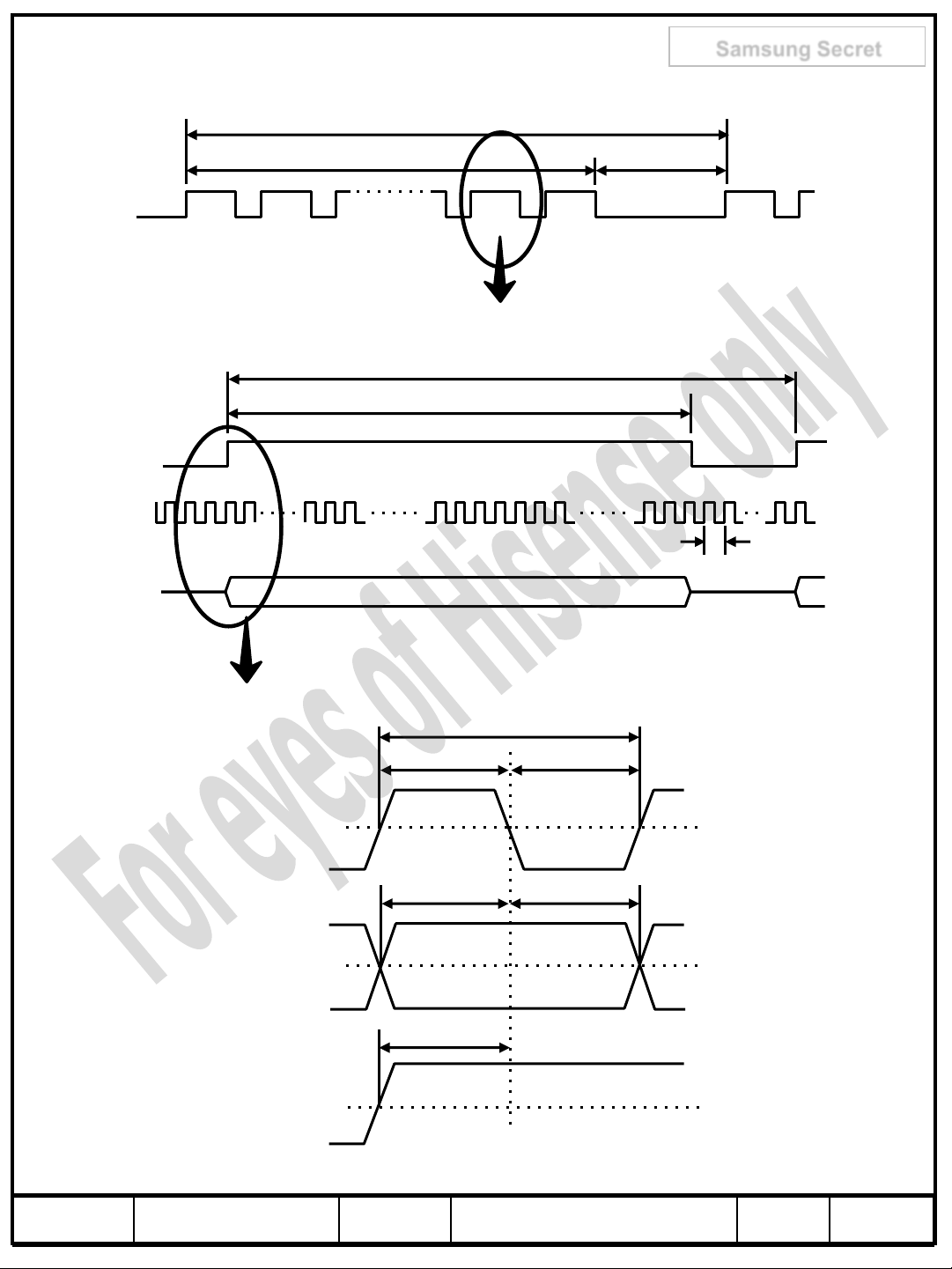

5.3 Timing Diagrams of interface Signal (DE only mode)

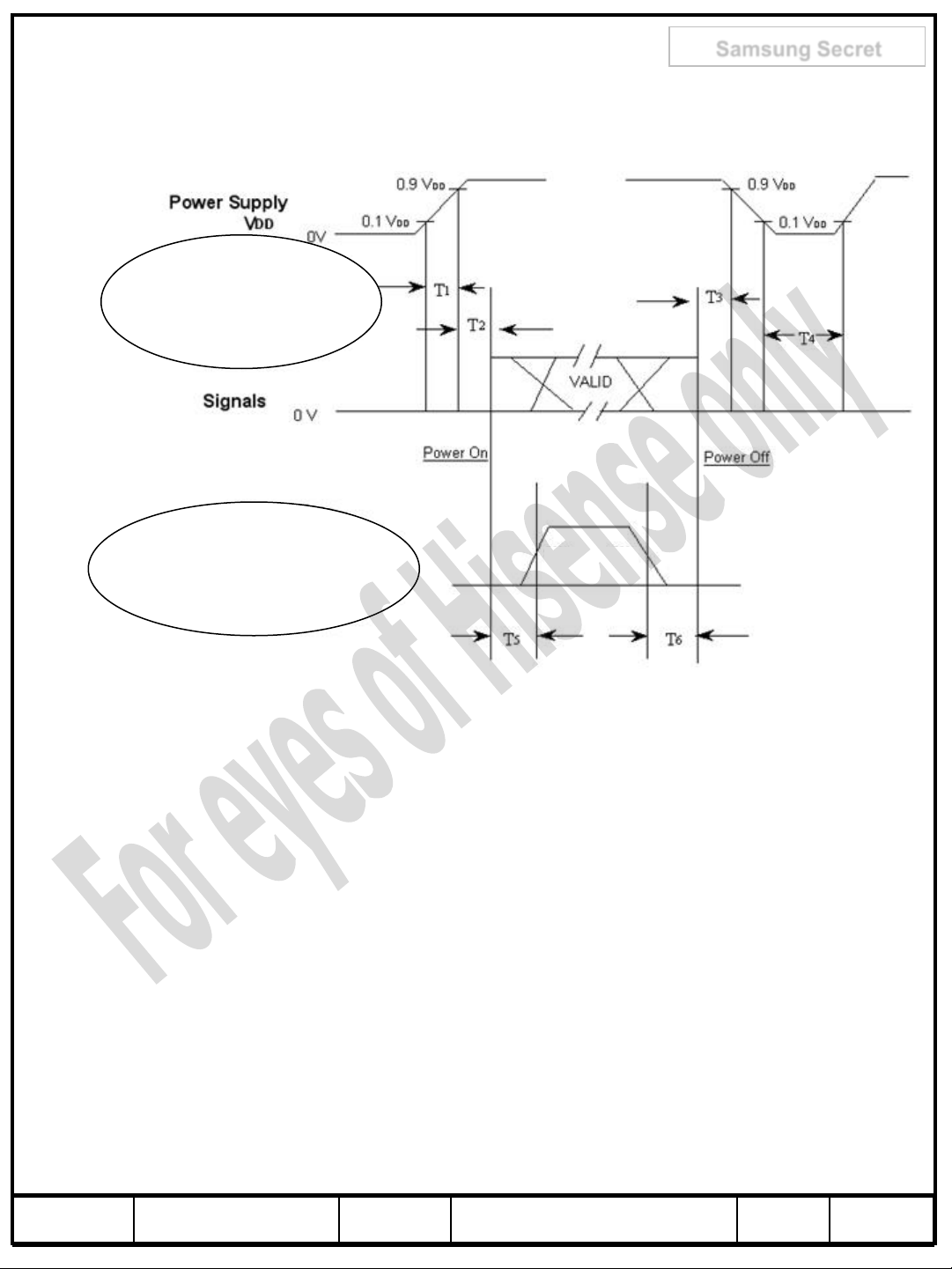

5.4 Power ON/OFF Sequence

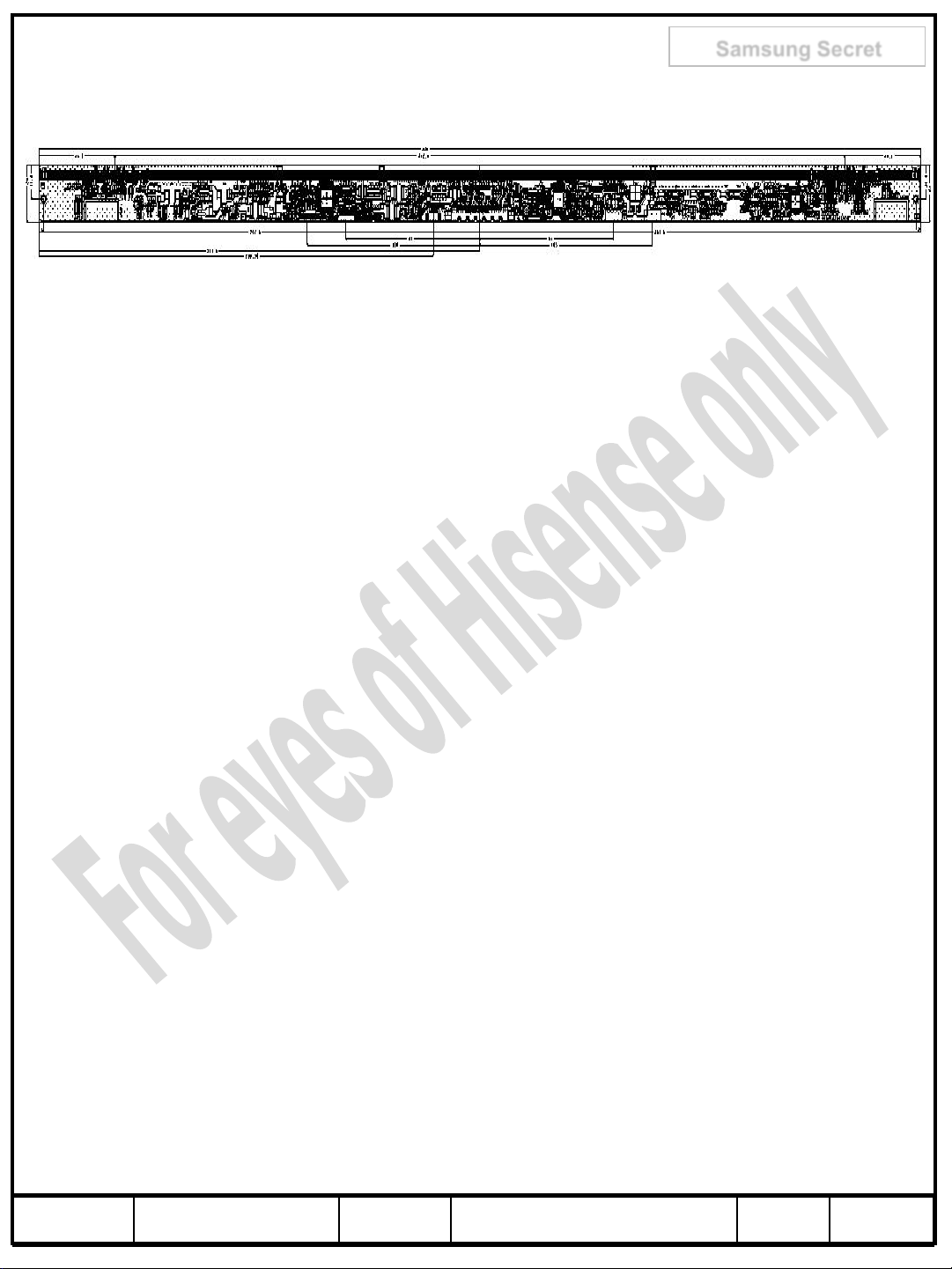

6. Outline Dimension -------------------------------------------------------------------------------------- (18)

7. Reliability Test -------------------------------------------------------------------------------------------- (20)

8. Packing --------------------------------------------------------------------------------------------------- (21)

9. Marking & Others --------------------------------------------------------------------------------------- (22)

10. General Precaution ------------------------------------------------------------------------------------ (24)

10.1 Handling

10.2 Storage

10.3 Operation

10.4 Operation Condition Guide

10.5 Others

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

2 / 26

Revision History

Samsung Secret

Date

26. Oct.
2011

Rev.

No

000 All First issued

Page Summary

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

3 / 26

General Description

Samsung Secret

Description

LSC400HM03 is a color active matrix liquid crystal display (LCD) that uses amorphous

silicon TFT (Thin Film Transistor) as switching components. The resolution of a 40.0“ is

1920 x 1080 and this model can display up to 16.7 Million colors with wide viewing angle
of 89° or higher in all directions. This panel is intended to support applications to provide a

excellent performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD

TV and High Definition TV.

Features

 RoHS compliance (Pb-free)
 High contrast ratio & aperture ratio with wide color gamut

 SPVA(Super Patterned Vertical Align) mode

 Wide viewing angle (±178°)
 High speed response

 FHD resolution (16:9)

 Low Power consumption
 DE (Data Enable) mode
 2ch LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)

General Information

Items Specification Unit Note

Glass Size

Polarizer Size 897.6 X 510.8

Weight 1900(Max) g

Pixel Pitch

Active Display Area 885.6(H) X 498.15 (V) mm

Surface Treatment Anti Glare

Display Colors 8 bit – 16.7 M colors

Number of Pixels

Pixel Arrangement RGB vertical stripe

Display Mode Normally Black

906.4 X 518.0 (TFT)

906.4 X 515.4 (CF)

0.46125 (H) × 0.46125 (V)

1,920 × 1080

mm

mm

mm

pixel

±1.0mm

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

4 / 26

Samsung Secret

1. Absolute Maximum Ratings

If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.

Item Symbol Min. Max. Unit Note

Power Supply Voltage V

Storage temperature T

Operating temperature T

Panel surface temperature T

Storage humidity H

Operating humidity H

DD

STG

OPR

SUR

STG

STG

10.8 13.2 V (1)
5 40
0 50
0 60

℃

℃

℃

35 75 %RH (2), (6)
20 90 %RG (2), (6)

Endurance on static electricity 150 V (4)

Note (1) Ta= 25 ± 2 °C

(2) Temperature and relative humidity range are shown in the figure below.

a. 90 % RH Max. (Ta ≤ 39 °C)
b. Relative Humidity is 90% or less. (Ta ＞39 °C)
c. No condensation

(3) Although abnormal visual problems can be occurred in T

is not damaged in this range.
(4) Set the voltage on static electricity below 150V in the process to put the polarizer on glass.
(5) The storage condition with glass
(6) The operating condition with assembly

range, the polarizer

SUR

(2), (5)
(2), (6)

(3)

Fig. Temperature and Relative humidity range

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

5 / 26

2. Optical Characteristics

The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment : TOPCON RD-80S, TOPCON SR-3 ,ELDIM EZ-Contrast

Samsung Secret

(Ta = 25 ± 2°C, VDD=12.0V, fv=60Hz, f

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio

(Center of screen)

Response

Time

Luminance of White

(Center of screen)

Color

Chromaticity

(CIE 1931)

=148.5MHz, Light source : D65 standard )

DCLK

C/R

G-to-G Tg - 8 - msec

Y

L

Rx

Red

Ry 0.330

Gx 0.290

Green

Gy 0.605

Bx 0.136

Blue

By 0.101

Normal

qL,R=0

qU,D=0

Viewing

Angle

3,000 4,000 -

- 160 - cd/m

0.652

TYP.

-0.03

TYP.

+0.03

(1)

SR-3

(3)

RD-80S

2

(4)

SR-3

(5),(6)

SR-3

Wx 0.307

White

Wy 0.372

Color Gamut - - 70 - %

Color Temperature - - 6400 - K

- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between

40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.

Environment condition : Ta = 25 ± 2 °C

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

(5)

SR-3

6 / 26

Samsung Secret

C R

G

G

/

max

min



Photo detector Field

SR-3

RD-80S

TFT - LCD Module

2°

1°

320 960 1600

Photo detector

Field

SR-3 : 50㎝

RD-80S : 50㎝

EZ-Contrast:0㎝

LCD Panel

The center of the screen

- Definition of test point

180

540

900

: Ratio of gray max (Gmax) & gray min (Gmin) at the center point ⑤ of the panel

⑨

⑥

Note (1) Definition of Contrast Ratio (C/R)

Gmax : Luminance with all pixels white

Gmin : Luminance with all pixels black

⑧

⑦

⑤ ④

②③

①

Active Area

Test Point

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

7 / 26

Note (3) Definition of Response time : Sum of Tr, Tf

Samsung Secret

Display data

Optical Instruments

Response

100%

Black (data off)

T

White (data on)

R

Black (data off)

T

F

90%

10%

0%

※ G-to-G : Average response time between Gray to Gray (Scale)

Note (4) Definition of Luminance of White : Luminance of white at center point ⑤

Note (5) Definition of Color Chromaticity (CIE 1931)

Color coordinate of Red, Green, Blue & White at center point ⑤

TIME

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

8 / 26

Samsung Secret

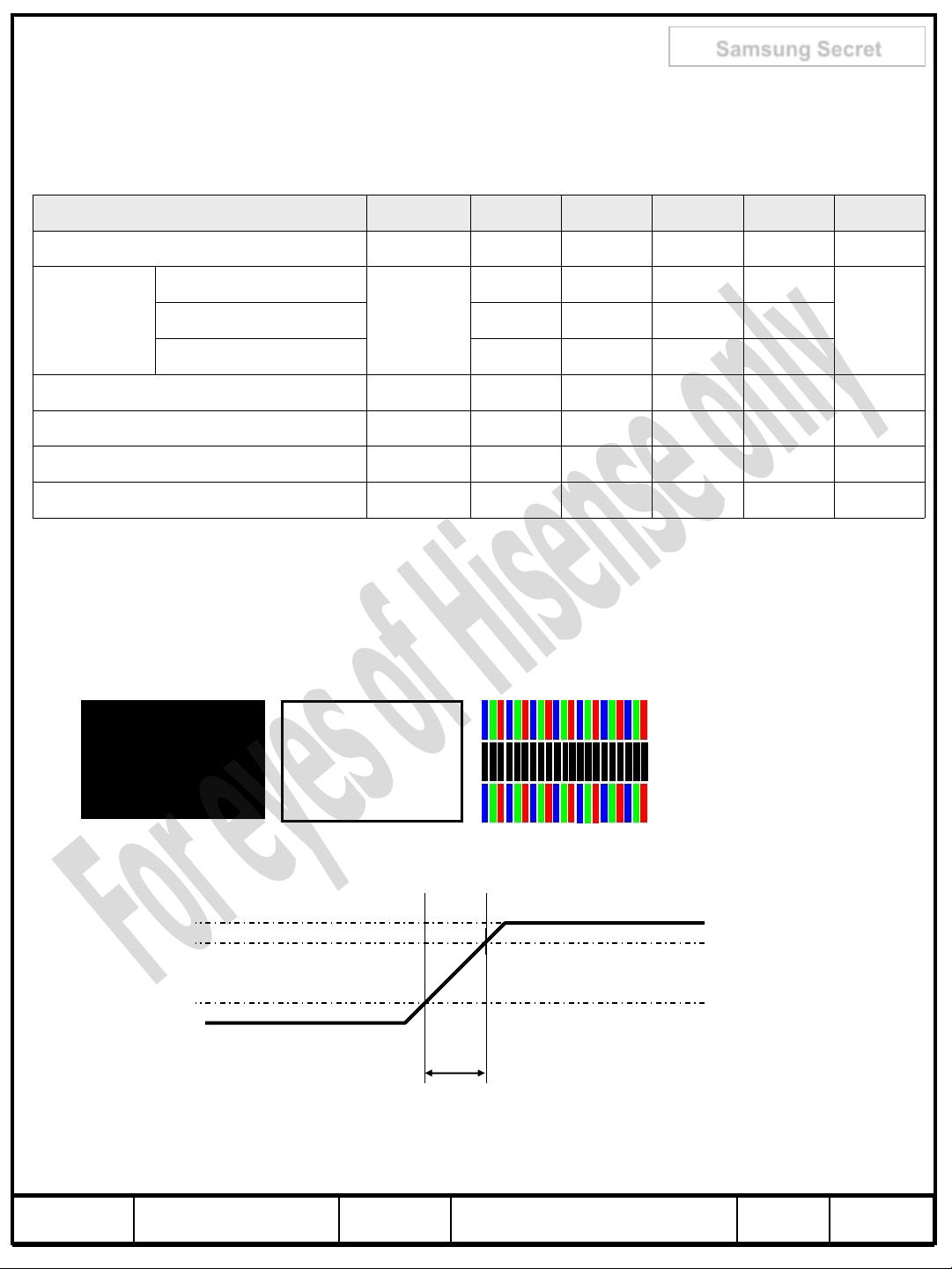

3. Electrical Characteristics

3.1 TFT LCD Module

The connector for display data & timing signal should be connected.

Ta = 25°C ± 2 °C

Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply V

Current of

(a) Black

Power
Supply

(c) H-STRIPE - 1200 1320 mA
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Rush Current I

DD

I

DD

V

H

DCLK

RUSH

10.8 12.0 13.2 V (1)

- 900 1000 mA

45 60 65 Hz
48 67.5 75 kHz

130 148.5 155 MHz

- - 4.5 A (4)

Note (1) The ripple voltage should be controlled under 10% of VDD.

(2) fV=60Hz, fDCLK = 148.5MHz, VDD= 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)

a) Black Pattern b) White Pattern c) H-STRIPE

(2),(3)(b) White - 950 1050 mA

(4) Measurement Conditions

V

100%

DD

90%

10%
GND

T

=470㎲

RUSH

Rush Current I

can be measured when T

RUSH

. is 470㎲.

RUSH

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

9 / 26

4. Input Terminal Pin Assignment

Samsung Secret

4.1. Input Signal & Power Connector : FI-RE51S-HF (JAE)

Pin Symbol Description Pin Symbol Description

1

10

11

12

13

14

15

16

12V DC power supply

2

3

4

5

6

7

8

9

12V DC power supply
12V DC power supply
12V DC power supply
12V DC power supply

NC NOTE1

GND Ground
GND Ground

GND Ground
RO[0]N Odd LVDS Signal ­RO[0]P Odd LVDS Signal +
RO[1]N Odd LVDS Signal ­RO[1]P Odd LVDS Signal +
RO[2]N Odd LVDS Signal ­RO[2]P Odd LVDS Signal +

GND Ground

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

RE[0]P Even LVDS Signal +
RE[1]N Even LVDS Signal ­RE[1]P Even LVDS Signal +
RE[2]N Even LVDS Signal ­RE[2]P Even LVDS Signal +

GND Ground

ROCLK- Even LVDS Clock -

ROCLK+ Even LVDS Clock +

GND Ground
RE[3]N Even LVDS Signal ­RE[3]P Even LVDS Signal +

NC

NOTE1

NC

GND Ground

NC
NC

17

18

19

20

21

22

23

24

25

ROCLK- Odd LVDS Clock -

ROCLK+ Odd LVDS Clock +

GND Ground
RO[3]N Odd LVDS Signal ­RO[3]P Odd LVDS Signal +

NC

NOTE1

NC

GND Ground
RE[0]N Even LVDS Signal -

42

43

44

45

46

47

48

49

50

51

NC
NC
NC

LVDS_SEL NOTE2

NC
NC
NC
NC
NC

NC NOTE1

NOTE1

NOTE1

Note1) No Connection: These PINS are used only for SAMSUNG. (DO NOT CONNECT)

Note2) LVDS OPTION : If this PIN is HIGH (3.3 V) → Normal LVDS format

LOW (GND) → JEIDA LVDS format

SEQUENCE : On = VDD(T1) ≥ LVDS Option ≥ Interface Signal(T2)

OFF = Interface Signal(T3) ≥ LVDS Option ≥ VDD

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

10 / 26

Note(3) Pin number starts from Left side

PCB

▼

Pin No. 1 Pin No. 51

#1 #51

Samsung Secret

#1

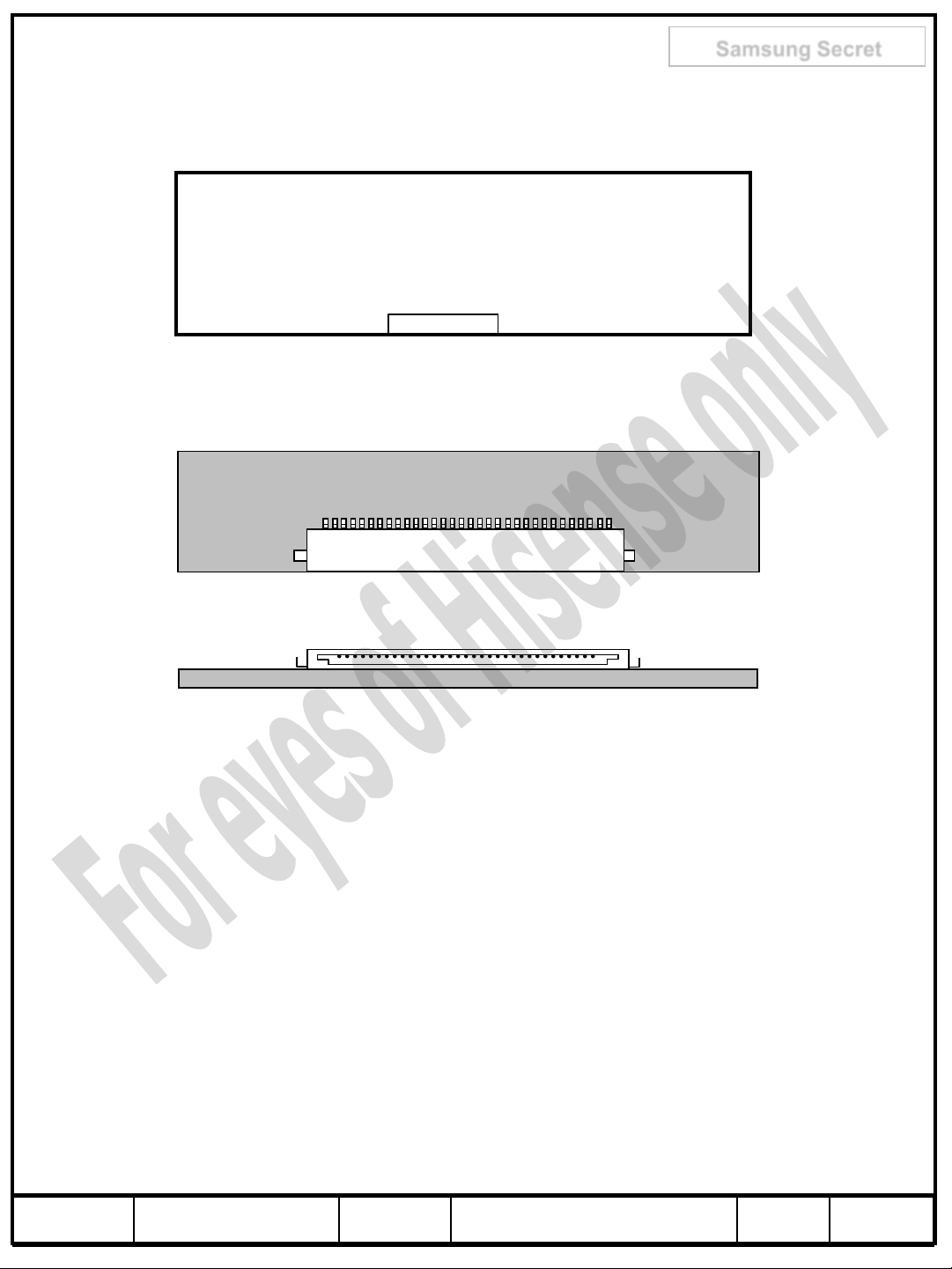

Fig. Connector diagram

a. Power GND pins should be connected to the LCD’s metal chassis.

b. All power input pins should be connected together.

c. All NC pin should be separated from other signal or power.

#51

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

11 / 26

4.2 LVDS Interface

- LVDS Receiver : Tcon (merged)

- Data Format (JEIDA )

TxIN/RxOUT0 R2
TxIN/RxOUT1 R3
TxIN/RxOUT2 R4

Samsung Secret

LVDS pin JEIDA - DATA

TxOUT/RxIN0

TxOUT/RxIN1

TxOUT/RxIN2

TxIN/RxOUT3 R5
TxIN/RxOUT4 R6

TxIN/RxOUT6 R7
TxIN/RxOUT7 G2

TxIN/RxOUT8 G3

TxIN/RxOUT9 G4
TxIN/RxOUT12 G5
TxIN/RxOUT13 G6
TxIN/RxOUT14 G7
TxIN/RxOUT15 B2
TxIN/RxOUT18 B3
TxIN/RxOUT19 B4
TxIN/RxOUT20 B5
TxIN/RxOUT21 B6
TxIN/RxOUT22 B7
TxIN/RxOUT24 HSYNC
TxIN/RxOUT25 VSYNC
TxIN/RxOUT26 DEN
TxIN/RxOUT27 R0

TxIN/RxOUT5 R1
TxIN/RxOUT10 G0

TxOUT/RxIN3

TxIN/RxOUT11 G1
TxIN/RxOUT16 B0
TxIN/RxOUT17 B1
TxIN/RxOUT23 RESERVED

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

12 / 26

Samsung Secret

4.3 Input Signals, Basic Display Colors and Gray Scale of Each Color

COLOR

BASIC

COLOR

GRAY

SCALE

OF

RED

GRAY

SCALE

OF

GREEN

GRAY

SCALE

OF

BLUE

DATA SIGNAL

DISPLAY

(8bit)

R0 R1 R2 R3 R4 R5 R6 R7 G0 G1 G2 G3 G4 G5 G6 G7 B0 B1 B2 B3 B4 B5 B6 B7

BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -

BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 -

GREEN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 -

CYAN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -

RED 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -

MAGENTA 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 -

YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 -

WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ­BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R0

1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1

DARK

LIGHT

RED 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R255

BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G0

DARK

LIGHT

GREEN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G255

BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 B0

DARK

LIGHT

BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 B255

0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R2

↑

↓

↑

↓

↑

↓

: : : : : : : : : : : : : : : : : :

: : : : : : : : : : : : : : : : : :
1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R253
0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R254

0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G1
0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G2

: : : : : : : : : : : : : : : : : :

: : : : : : : : : : : : : : : : : :
0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G253
0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G254

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 B1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 B2

: : : : : : : : : : : : : : : : : :

: : : : : : : : : : : : : : : : : :
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 B253
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 B254

RED GREEN BLUE

GRAY
SCALE
LEVEL

R3~

R252

G3~

G252

B3~

B252

Note) Definition of Gray :

Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)

Input Signal : 0 = Low level voltage, 1 = High level voltage

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

13 / 26

5. Interface Timing

Samsung Secret

5.1 Timing Parameters ( DE mode )

SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE

Clock

Hsync F

Frequency

Vsync F

1/T

C

H

V

130 148.5 155 MHz -

50 67.5 75 KHz -

48 60 62 Hz -

Active

Vertical

Display

Period

T

VD

- 1080 - Lines -

Display Term

Vertical

Total

T

V

1092 1125 1380 Lines -

Active

Horizontal

Display

Period

T

HD

- 1920 - Clocks -

Display Term

Horizontal

Total

T

H

2090 2200 2350 clocks -

Note) This product is DE mode. But the Hsync & Vsync signal must be inputted

(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
(3) Spread spectrum

- Modulation rate (max) : ± 1.5 % , Modulation Frequency : under 100KHz

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

14 / 26

5.2 Timing diagrams of interface signal ( DE mode )

TV

Samsung Secret

DE

DE

DCLK

DATA

SIGNALS

TVD

TVB

TH

THD

TC

TC

TCH

DCLK

TDS TDH

DISPLAY

DATA

TES

DE

Tcl

0.5
V

0.5
V

CC

0.5
V

CC

CC

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

15 / 26

5.3 LVDS Input Data Characteristics

ITEM SYMBOL Min. Typ. Max. UNIT NOTE

Samsung Secret

Input common mode voltage V

Differential Input Voltage |VID| 100 - 600 mV

Input Data Position FIN=80MHz

CM

t

RSRM

t

RSLM

0.4 - 2.4 V -

- - 400 ps

-400 - ps

Note) When the skew is measured the Spread Spectrum should be 0%

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

16 / 26

5.4 Power ON/OFF Sequence

Samsung Secret

To prevent a latch-up or DC operation of the LCD Module, the power on/off

sequence should be as the diagram below.

2 msec<T1≤10msec

0<T2≤50msec
0<T3≤50msec
1000msec≤T4

1000msec≤T5

(Recommend Value)

100msec≤T6

(Recommend Value)

0.5 Vcc

T1 : VDDrising time from 10% to 90%
T2 : The time from VDDto valid data at power ON.
T3 : The time from valid data off to VDDoff at power Off.
T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.

 The supply voltage of the external system for the Module input should be the same

as the definition of VDD.

 Apply the lamp voltage within the LCD operation range. When the back light turns on

before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.

 In case of VDD= off level,

please keep the level of input signals low or keep a high impedance.

 T4 should be measured after the Module has been fully discharged between power off

and on period.

 Interface signal should not be kept at high impedance when the power is on.

 In Case T5 is less than 1000msec and T6 is less than 100msec,

Garbage Display can be seen. (It is not related to electrical function issue, Just for
recommendation to prevent Garbage Display )

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

17 / 26

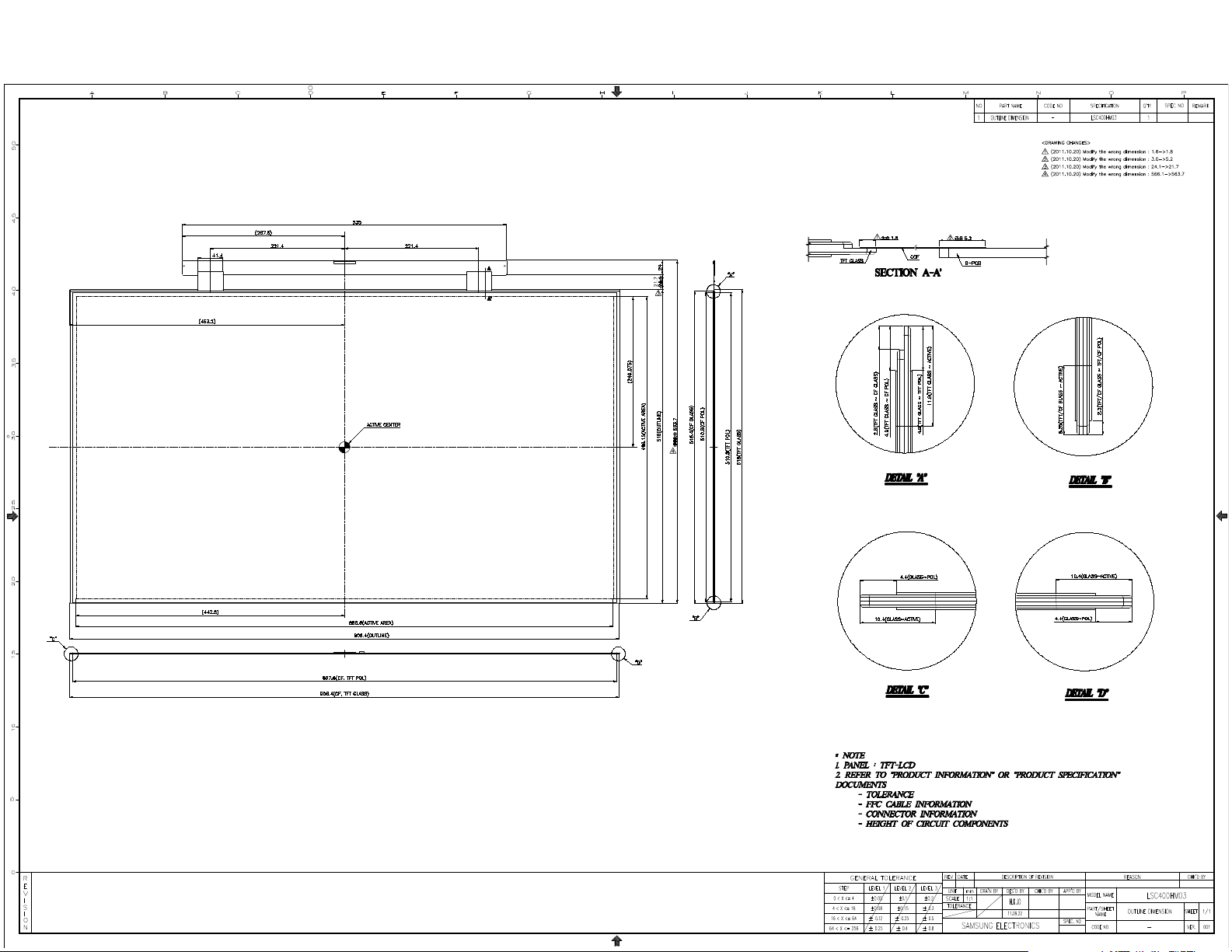

<Source PCB>

Samsung Secret

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

19 / 26

7. Reliability Test

Item

Test Condition

Quantity

HTOL

60℃

8EA

LTOL

-5℃

4EA

THB

50℃/ 90%RH

10EA

ESD

(operation)

contact : ±10 kV ,210Point,1time/Point

3EA

non-contact : ±20 kV,210Point,1time/Point

3EA

TSS

-20℃~65℃

4EA

Image sticking

25℃ Mosaic Pattern(9x10) 12hrs

Rolling pattern 12hrs , 3cycles

8EA

Electric sound

Overall below 23dB

2EA

Immersion

WHTS(2hr)/LTS(-5℃,1hr) 4 cycle

→ Immersion/ Pressure (50℃100mb)

→ THB(50℃90%RH) 48hr

4EA

ASG margin

Max. frequency 25℃~-40℃

Each cell

Min. frequency 60℃, 96hr

Frame spot

WHTS 70℃ 90%RH 168hr storage

→ HTOL 50℃ 96hr Dynamic

4EA

Decompression

-40~50℃, 0m(0ft) ~ 13,700m(45,000ft), 72.5Hr

4EA

Complex test

-20℃~65℃, 0~90%RH, 2cycle

4EA

HTS(70℃) : HTS → HTOL(50℃) 48hr

8EA

LTS(-25℃) : LTS → HTOL(50℃) 48hr

8EA

Distribution

environment

Drop(20cm) → -30~60℃, 90%RH → Pressure

→ Vibration (5~200Hz 1.05Grms, 2hr) → Drop (20cm)

1pallet

Samsung Secret

[ Result Evaluation Criteria]

Under the display quality test conditions with normal operation state, these should
be no change which may affect practical display functions.

* HTOL/ LTOL : High/Low Temperature Operating Life
* THB : Temperature Humidity Bias

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

20 / 26

8. PACKING

Total Pallet Size

W×V×Height [mm]

1475 X 1150 X 1150

Tray

13 [Panel/Tray]

-. Panel : 24.7kg (1.9 kg/Panel, 13ea/Tray))

-. Middle Sheet : 0.9kg (0.05 kg/ea, 18ea/Tray)

-. Panel Tray : 1.7kg (EPS)

-. Silica Gel : 4ea/Tray

Pallet

20 [Tray/Pallet]

-. Pallet 21kg (High-Density Polyethylene )

-. 20ea(10 tray X 2 array) + 2ea(Top tray)

Total Weight

571.6 [kg]

-. Packing Box : 3kg (Paper)

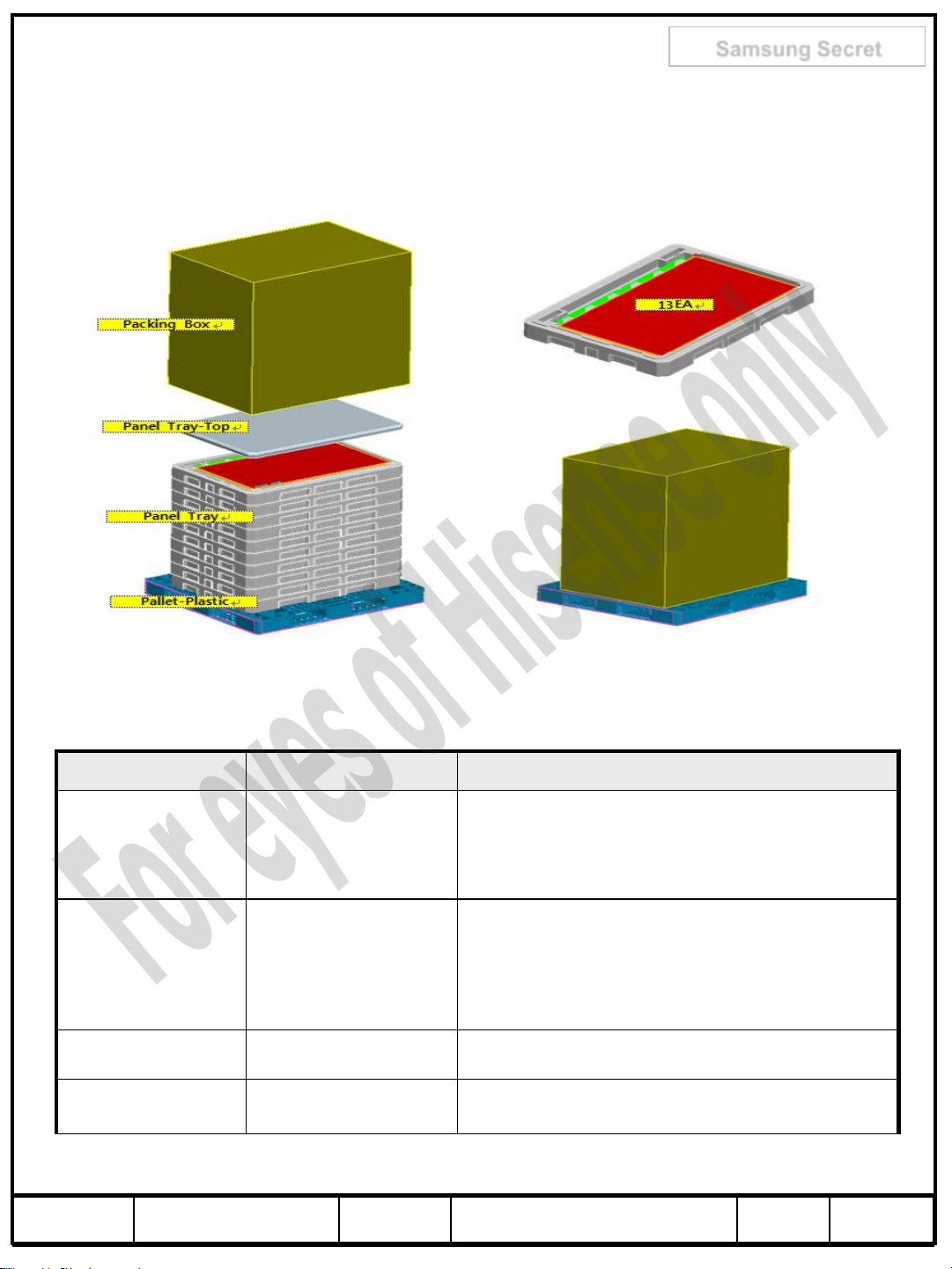

8.1 CARTON of the product

Samsung Secret

8.2 Packing Specification

Item Specification Remark

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

21 / 26

Samsung Secret

9. MARKING & OTHERS

A nameplate bearing followed by is affixed to a shipped product at the specified

location on each product.

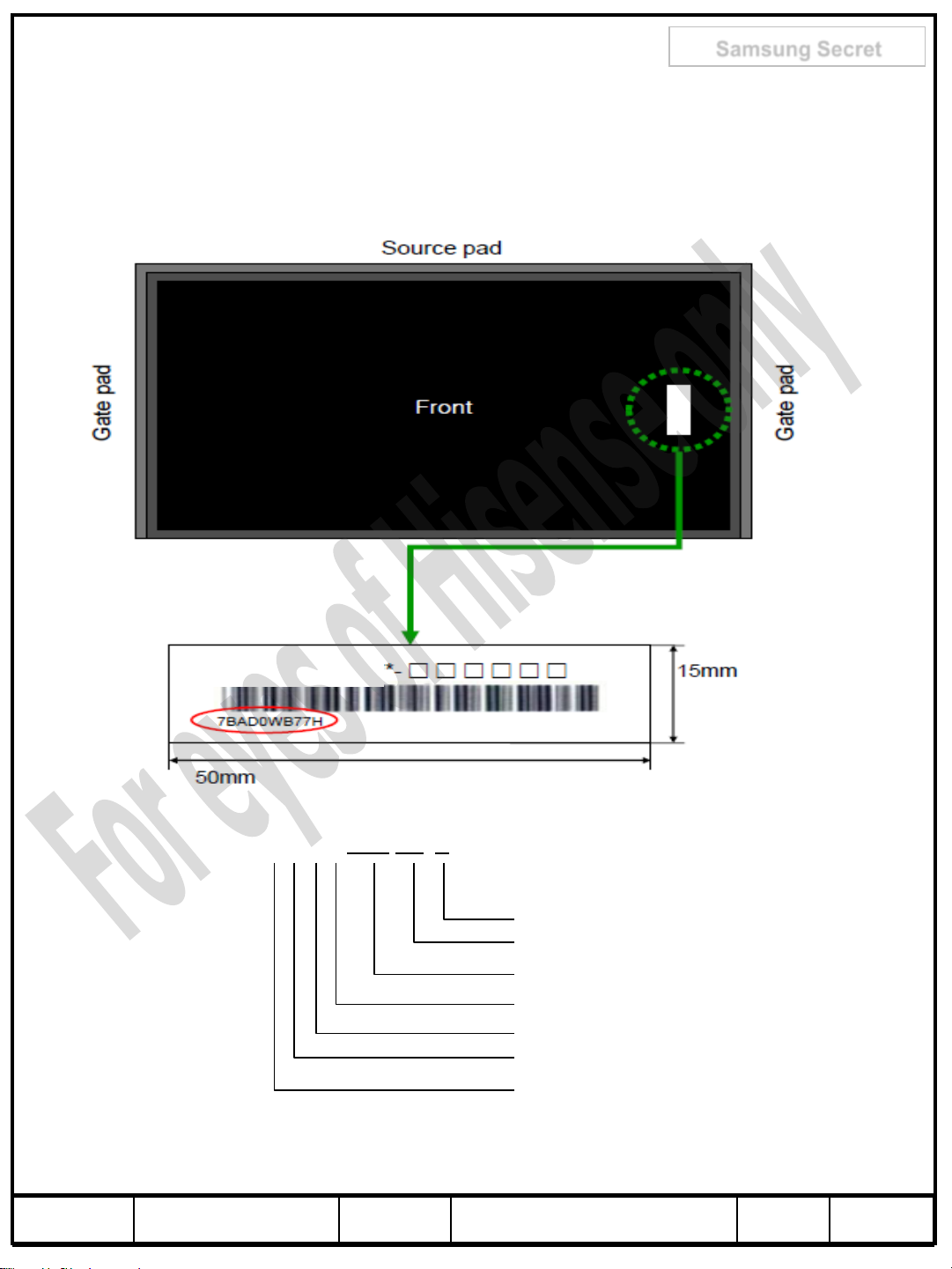

(1) Cell Label

LSC400HM03

Lot number : X X X X XXX XX X

Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

22 / 26

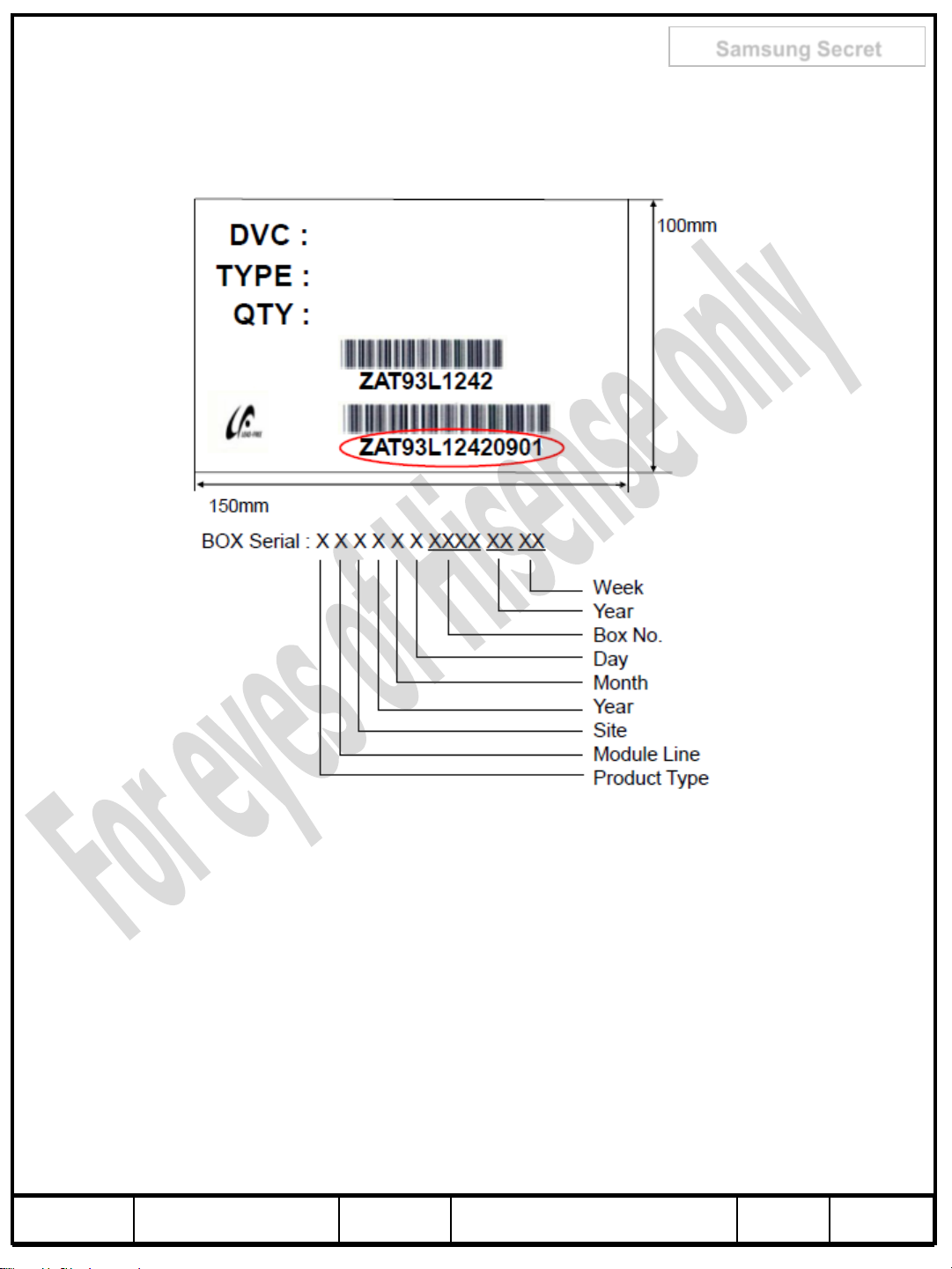

(2) Box Label

Samsung Secret

LSC400HM03

xxxx

260

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

23 / 26

10. General Precautions

Samsung Secret

10.1 Handling

(a) When the module is assembled, It should be attached to the system firmly using

every mounting holes. Be careful not to twist and bend the modules.

(b) Refrain from strong mechanical shock and / or any force to the module. In addition to

damage, this may cause improper operation or damage to the module and back-light.

(c) Note that polarizers are very fragile and could be easily damaged. Do not press or

scratch the surface harder than a HB pencil lead.

(d) Wipe off water droplets or oil immediately. If you leave the droplets for a long time,

staining and discoloration may occur.

(e) If the surface of the polarizer is dirty, clean it using some absorbent cotton or soft

cloth.

(f) The desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane. Do not use

Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl
chloride. It might permanent damage to the polarizer due to chemical reaction.

(g) If the liquid crystal material leaks from the panel, it should be kept away from the

eyes or mouth . In case of contact with hands, legs or clothes, it must be washed

away thoroughly with soap.
(h) Protect the module from static , it may cause damage to the CMOS Gate Array IC.
(i) Use finger-stalls with soft gloves in order to keep display clean during the incoming

inspection and assembly process.

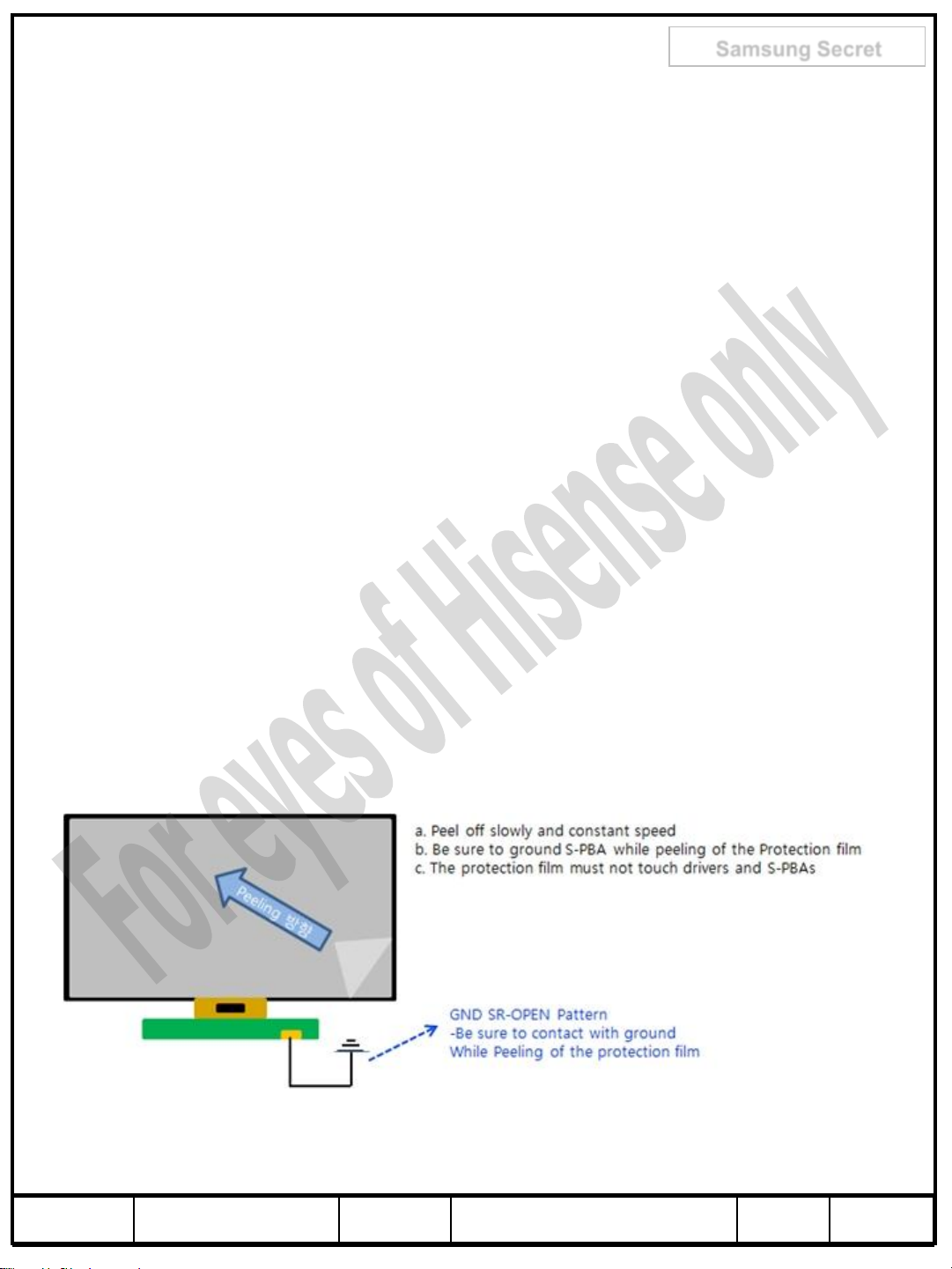

(j) Protection film for polarizer on the module shall be slowly peeled off just before use

so that the electrostatic charge can be minimized.
(j) Pins of I/F connector shall not be touched directly with bare hands.

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

24 / 26

*Process Control Standard

Item

Management standard value and

performance standard

1

Anti-static mat (shelf)
1 to 50 [Mohm]

2

Anti-static mat (floor, desk)
1 to 100 [Mohm]

3

Ionizer

Attenuate from ± 1,000V to ± 100V within 2 sec

4

Anti-static wrist band

0.8 to 10 [Mohm]

5

Anti-static wrist band entry and
ground resistance

Below 1,000 [ohm]

6

Temperature

0 ∼ 35℃

7

Humidity

60 to 70 [%RH]

Samsung Secret

9.2 Storage

ITEM Unit Min. Max.

Storage

Temperature

Storage

Humidity

Storage life 6 months

Storage

Condition

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

(℃) 5 40

(%rH) 35 75

(1) The storage room should provide good ventilation and temperature control.
(2) Products should not be placed on the floor, but on the Pallet away from a wall.
(3) Prevent products from direct sunlight, moisture nor water; Be cautious of a

build up of condensation.

(4) Avoid other hazardous environment while storing goods.
(5) If products delivered or kept in conditions of the recommended temperature

or humidity, we recommend you leave them at a circumstances which is
shown in the following table.

After 1 month 2 month 3 month 4month 5 month 6month

Baking No backing 50℃ 10% 24Hr 40℃ 10% 48Hr

25 / 26

10.3 Operation
(a) Do not connect,disconnect the module in the "Power On" condition.
(b) Power supply should always be turned on/off by the item 6.3 "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic

interference shall be done by system manufacturers. Grounding and shielding methods

may be important to minimize the interference.

(d) The cable between the back-light connector and its inverter power supply shall be a

minimized length and be connected directly. The longer cable between the back-light and
the inverter/converter may cause lower luminance of CCFL/LED and may require higher
startup voltage(Vs).

Samsung Secret

10.4 Operation Condition Guide

(a) The LCD product should be operated under normal conditions.

Normal condition is defined as below;

- Temperature : 20±15℃

- Humidity : 55±20%

- Display pattern : continually changing pattern (Not stationary)

(b) If the product will be used in extreme conditions such as high temperature, humidity,

display patterns or operation time etc.., It is strongly recommended to contact SEC for

Application engineering advice. Otherwise, its reliability and function may not be

guaranteed. Extreme conditions are commonly found at Airports, Transit Stations, Banks,
Stock market, and Controlling systems.

10.5 Others

(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection of

electrode.

(c) Do not exceed the absolute maximum rating value. ( the supply voltage variation, input

voltage variation, variation in part contents and environmental temperature, and so on)
Otherwise the module may be damaged.

(d) If the module displays the same pattern continuously for a long period of time, it can be

the situation when the image "Sticks" to the screen.

(e) This module has its circuitry PCB's on the rear side and should be handled carefully in

order not to be stressed.

MODEL LSC400HM03 Doc. No 06-000-G-20111026 Page

26 / 26
