Samsung LN32A450C1 User Manual

Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Contacte con SAMSUNG WORLDWIDE
Si tiene alguna pregunta o comentario referente a nuestros productos, por favor contacte con nuestro Servicio de Atención al Cliente.
Country
ARGENTINE 0800-333-3733 www.samsung.com/ar
BRAZIL
CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl COLOMBIA 01-8000112112 www.samsung.com.co COSTA RICA 0-800-507-7267 www.samsung.com/latin ECUADOR 1-800-10-7267 www.samsung.com/latin EL SALVADOR 800-6225 www.samsung.com/latin GUATEMALA 1-800-299-0013 www.samsung.com/latin
HONDURAS 800-7919267 -
JAMAICA 1-800-234-7267 www.samsung.com/latin PANAMA 800-7267 www.samsung.com/latin PUERTO RICO 1-800-682-3180 www.samsung.com/latin REP. DOMINICA 1-800-751-2676 www.samsung.com/latin NICARAGUA 00-1800-5077267 ­MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latin VENEZUELA 0-800-100-5303 www.samsung.com/latin
IMPORTADO POR: AV. PRESIDENTE MASARIK #111 INT701 COL. CHAPULTEPEC MORALES C.P.11570 DELEGACION MIGUEL HIDALGO MEXICO. DISTRITO FEDERAL Tel: 01-55-5747-5100 / 01-800-726-7864
Customer Care Center
0800-124-421 4004-0000
www.samsung.com
LCD TV
user manual
BN68-01395E-00
imagine the possibilities
Thank you for purchasing this Samsung product. To receive more complete service, please register your product at
www.samsung.com/global/register
Model Serial No.
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. (See back cover for more informations.)
Precautions When Displaying a Still Image
A still image may cause permanent damage to the TV screen
• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and
center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.
© 2008 Samsung Electronics Co., Ltd. All rights reserved.
Contents
English
GENERAL INFORMATION
List of Features ............................................................................. 2
Accessories ..................................................................................2
Viewing the Control Panel ............................................................ 3
Viewing the Connection Panel ....................................................4
Remote Control ............................................................................ 6
Installing Batteries in the Remote Control .................................... 7
CONNECTIONS (LN26A450C1, LN40A450C1)
Connecting VHF and UHF Antennas ............................................7
Connecting Cable TV ................................................................... 8
Connecting a DVD Player or Cable Box/Satellite receiver
(Set-Top Box) via HDMI ................................................................9
Connecting a DVD Player or Cable Box/Satellite receiver
(Set-Top Box) via DVI ...................................................................9
Connecting a DVD Player or Cable Box/Satellite receiver
(Set-Top Box) via Component cables ......................................... 10
Connecting a Camcorder ..........................................................10
Connecting a VCR ...................................................................... 11
Connecting an Amplier/DVD Home Theater ............................. 12
Connecting a PC ........................................................................ 12
CONNECTIONS (LN32A450C1, LN37A450C1)
Connecting VHF and UHF Antennas ..........................................13
Connecting Cable TV ................................................................. 14
Connecting a DVD Player or Cable Box/Satellite receiver
(Set-Top Box) via HDMI ..............................................................15
Connecting a DVD Player or Cable Box/Satellite receiver
(Set-Top Box) via DVI .................................................................15
Connecting a DVD Player or Cable Box/Satellite receiver
(Set-Top Box) via Component cables ......................................... 16
Connecting a Camcorder ..........................................................16
Connecting a VCR ...................................................................... 17
Connecting an Amplier/DVD Home Theater ............................. 18
Connecting a PC ........................................................................ 18
OPERATION
Turning the TV On and Off .........................................................19
Plug & Play Feature ...................................................................19
Changing Channels .................................................................... 20
Adjusting the Volume ..................................................................20
Viewing the Display .................................................................... 21
Viewing the Menus .....................................................................21
Using the TOOLS Button ............................................................ 21
Memorizing the Channels ........................................................... 22
To Select the Source ..................................................................23
To Edit the Input Source Name .................................................. 23
PICTURE CONTROL
Changing the Picture Standard .................................................. 24
Customizing the Picture Settings ...............................................24
Adjusting the Detailed Settings ..................................................25
Conguring Picture Options .......................................................28
Resetting the Picture Settings to the Factory Defaults ............... 31
Viewing Picture-in-Picture .......................................................... 32
SOUND CONTROL
Changing the Sound Standard ...................................................34
Customizing the Sound .............................................................. 34
Setting the TruSurround XT (SRS TS XT) ..................................35
Choosing a Multi-Channel Sound (MTS) track .......................... 36
Automatic Volume Control .......................................................... 36
Setting the TV Speaker On/Off ................................................... 37
Listening to the Sound of the Sub (PIP) Picture ......................... 37
Connecting Headphones (Sold separately) ................................ 37
CHANNEL CONTROL
Adding and Erasing Channels .................................................... 38
Activating the Child Lock ............................................................ 39
Fine Tuning Analog Channels .................................................... 40
Using the Color System Feature ................................................ 40
PC DISPLAY
Using Your TV as a Computer (PC) Display ............................... 41
Display Modes ............................................................................ 41
Setting up the TV with your PC .................................................. 42
TIME SETTING
Setting the Clock ........................................................................ 44
FUNCTION DESCRIPTION
Selecting a Menu Language ....................................................... 46
Viewing Closed Captions (On-Screen Text Messages) .............. 47
Adjusting the TV On/Off Melody Sound......................................48
Setting the Entertainment mode ................................................. 48
Using the Energy Saving Feature ..............................................49
Using the AV Color System Feature ...........................................49
ABOUT ANYNET+
What is Anynet+? ...................................................................... 50
Connecting Anynet+ Devices ..................................................... 50
Setting Up Anynet+ ....................................................................51
Scanning and Switching between Anynet+ Devices ..................52
Recording ...................................................................................53
Listening through a Receiver (Home theater) ............................53
Troubleshooting for Anynet+ ...................................................... 54
APPENDIX
Troubleshooting .......................................................................... 55
Installing the Stand ..................................................................... 57
Disconnecting the Stand ............................................................57
Wall-Mount Adjustment (Sold separately) (LN32A450C1,
LN37A450C1, LN40A450C1) ..................................................... 58
Wall Mount Kit Specications (VESA) ........................................ 59
Using the Anti-Theft Kensington Lock
(depending on the model) ..........................................................60
Specications ............................................................................. 61
English - 1
Symbol Press Note One-Touch
Button

General Information

List of Features

Adjustable picture settings that can be stored in the TV’s memory. Automatic timer to turn the TV on and off. A special sleep timer.HDMI/DVI connection of your PC to this TV. Excellent Picture Quality
- DNIe technology provides life-like clear images. SRS TruSurround XT
- SRS TruSurround XT provides a virtual surround system.

Accessories

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.
Remote Control & Batteries (AAA x 2)
(Not available in all locations)
Cover-Bottom Owner’s Instructions
Stand
The items color and shape may vary depending on the model.
Power Cord Cleaning Cloth
Stand Screw (M4 X L16)
( LN26A450C1)
(LN32A450C1)
Warranty Card / Registration Card /
Safety Guide Manual
(Not available in all locations)
Stand Screw (M4 X L14)
(LN32A450C1)
English - 2

Viewing the Control Panel

1
2
3
4
5
6
788
Buttons on the Lower-Right Part of the Panel
The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control.
Side Panel buttons
The product color and shape may vary depending on the model.
1
SOURCE
Toggles between all the available input sources
(TV, AV1, AV2, S-Video, Component1, Component2, PC, HDMI1, HDMI2, HDMI3). In the on-screen menu, use this button as you would use the ENTER button on the remote control.
2
MENU
Press to see an on-screen menu of your TV’s features.
3
+ VOL -
Press to increase or decrease the volume. In the on-screen menu, use the + VOL - buttons as you
would use the ◄ and ► buttons on the remote control.
4 < CH >
Press to change channels. In the on-screen menu, use the < CH
would use the ▲ and ▼ buttons on the remote control.
>
buttons as you
5
(POWER)
Press to turn the TV on and off.
6
REMOTE CONTROL SENSOR
Aim the remote control towards this spot on the TV.
7
POWER INDICATOR
Blinks and turns off when the power is on and lights up in stand-by mode.
8
SPEAKERS
English - 3
1 2
90 8 7
3 4 5
6
2
3
1 2
90 8 7
3 4 5
6
3
2
6
2
1 7 3 4 2
3
0 895

Viewing the Connection Panel

Use the connection panel jacks to connect A/V components that will be connected continuously, such as DVD players or a VCR. For more information on connecting equipment, see pages 7~18.
LN26A450C1, LN40A450C1
LN32A450C1, LN37A450C1
[TV Rear Panel]
[TV Rear Panel]
[TV Side Panel]
[TV Side Panel]
The product color and shape may vary depending on the model.
English - 4
1
PC IN [PC] / [AUDIO]
Connects to the video and audio output jacks on your PC.
2
AV IN 1, 2
Video and audio inputs for external devices, such as a camcorder or VCR. S-VIDEO
Connects an S-Video signal from a camcorder or VCR.
3
HDMI IN 1, 2, 3 / DVI IN(HDMI2)[R-AUDIO-L]
Connects to the HDMI jack of a device with an HDMI output.
- No sound connection is needed for an HDMI to HDMI connection. Use the HDMI IN 2 jack for DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI adapter (DVI to HDMI) for video connection and the DVI IN (HDMI2) [R-AUDIO-L] jacks for audio.
- When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
4
ANT IN
Connects to an antenna or cable TV system.
5
SERVICE
- Connector for SERVICE only.
- Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control.
6
(HEADPHONE)
Connects a set of external headphones for private listening.
7
AUDIO OUT
Connects to the audio input jacks on your Amplifier/Home theater.
8
POWER INPUT
Connects the supplied power cord.
9
COMPONENT IN 1, 2
Connects Component video/audio.
0
KENSINGTON LOCK(depending on the model)
The Kensington lock (optional) is a device used to physically fix the system when used in a public place. If you want to use a locking device, contact the dealer where you purchased the TV.
The location of the kensington lock may be different depending on its model.
English - 5

Remote Control

You can use the remote control up to a distance of about 23 feet from the TV.
1
POWER
Turns the TV on and off.
2
TV
Selects the TV mode directly.
3
NUMERIC BUTTONS
Press to change the channel.
4
Use to select a channel over 100. For example, for channel 122, press “ ”, then “2”, then “2”.
5 (
MUTE)
Press to temporarily cut off the
sound.
6
VOL / VOL
Press to increase or decrease
the volume.
7
CH LIST
Used to display Channel Lists on the screen.
8 TOOLS Use to quickly select frequently
used functions.
9 INFO Press to display information on
the TV screen.
0
COLOR BUTTONS
Use these buttons in the
Channel list, etc.
!
SRS
Selects SRS TruSurround XT
mode.
@
E.MODE
Press to select the preset
display and sound modes for sports, cinema and games.
#
Use these buttons in the DMA and Anynet+ modes. ( : This remote can be used to control recording on Samsung recorders with the Anynet+ feature)
$
SOURCE
Press to display and select the
available video sources.
%
PRE-CH
Tunes to the previous channel.
^ CH / CH
Press to change channels.
&
MENU
Displays the main on-screen
menu.
*
CC
Controls the caption decoder.
(
RETURN
Returns to the previous menu.
) UP▲ / DOWN▼ / LEFT◄ /
RIGHT► / ENTER
Use to select on-screen menu
items and change menu values.
a EXIT Press to exit the menu.
b
DMA (Digital Media Adapter)
Use this when connecting a
SAMSUNG DMA device through an HDMI interface and switching to DMA mode. For more information on the operating procedures, refer to the user manual of the DMA. This button is available when “Anynet+(HDMI-CEC)” is “On” (see page 51)
c MTS
Press to choose stereo, mono
or Separate Audio Program (SAP broadcast).
d
FAV.CH

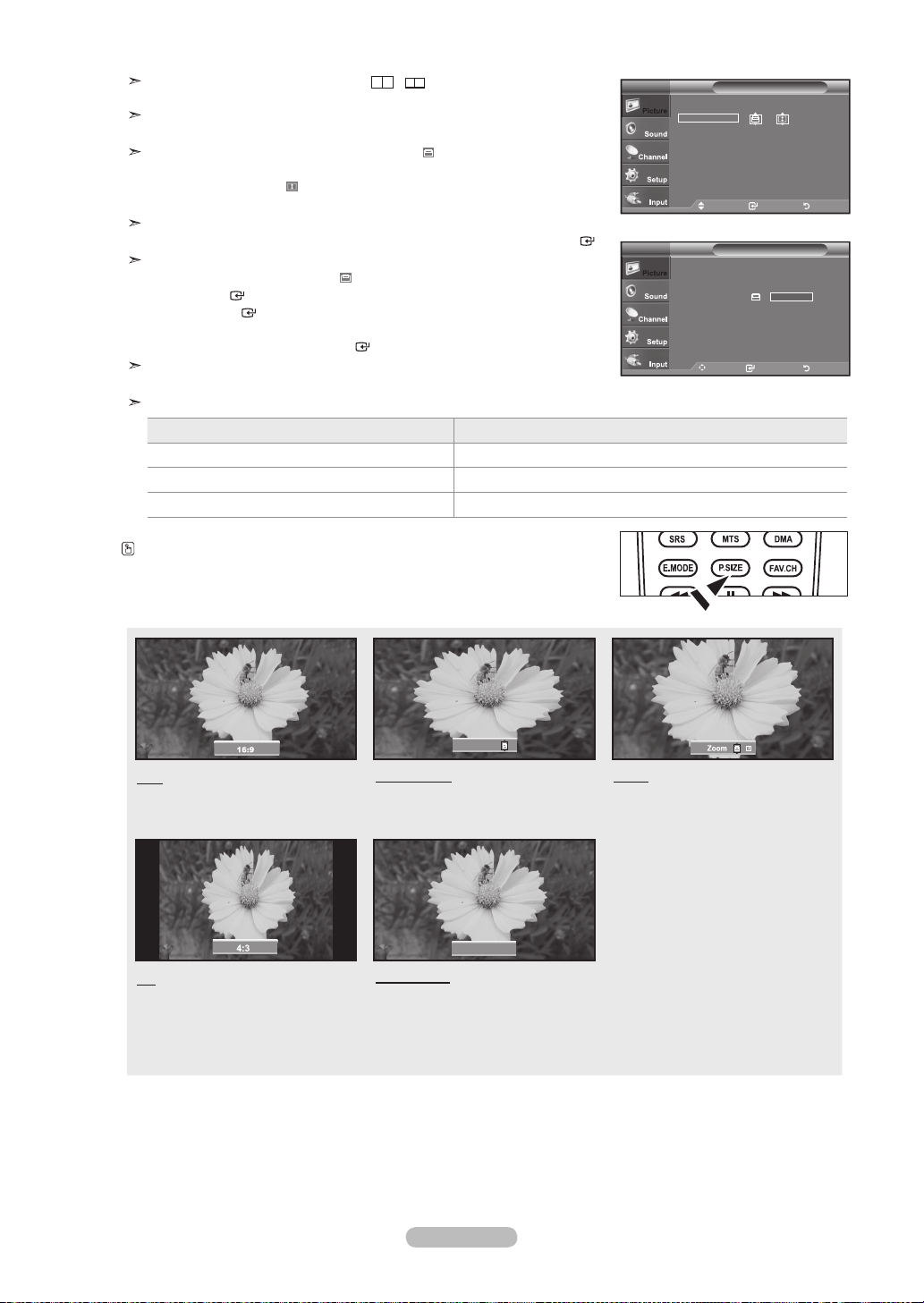

e P.SIZE
Picture size selection.
Not available
The performance of the remote control may be affected by bright light.
English - 6

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.
2. Install two AAA size batteries.
Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment.
3. Replace the cover. Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time.
If the remote control doesn’t work, check the following:
1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?

Connections (LN26A450C1, LN40A450C1)

Connecting VHF and UHF Antennas

If your antenna has a set of leads that look like the diagram to the right, see "Antennas with
300 Ω Flat Twin Leads" below.
If your antenna has one lead that looks like the diagram to the right, see "Antennas with 75 Ω Round Leads". If you have two antennas, see "Separate VHF and UHF Antennas".
Antennas with 300 Ω Flat Twin Leads
If you are using an off-air antenna (such as a roof antenna or "rabbit ears") that has 300 Ω twin at leads, follow the directions
below.
1. Place the wires from the twin leads under the screws on a 300-75 Ω adapter
(not supplied). Use a screwdriver to tighten the screws.
2. Plug the adaptor into the ANT IN terminal on the back of the TV.
ANT IN
Antennas with 75 Ω Round Leads
1. Plug the antenna lead into the ANT IN terminal on the back of the TV.
ANT IN
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).
1. Connect both antenna leads to the combiner.
UHF
VHF
2. Plug the combiner into the ANT IN terminal on the bottom of the rear panel.
English - 7
ANT IN
UHF
VHF

Connecting Cable TV

To connect to a cable TV system, follow the instructions below.
Cable without a Cable Box
1. Plug the incoming cable into the ANT IN terminal on the back of the TV.
Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels.
ANT IN
Connecting to a Cable Box that Descrambles All Channels
1. Find the cable that is connected to the ANT OUT terminal on your cable box. This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".
2. Connect the other end of this cable to the ANT IN terminal on the back of the TV.
ANT IN
ANT OUT
ANT IN
Connecting to a Cable Box that Descrambles Some Channels
If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two­way splitter, an RF (A/B) switch and four lengths of RF cable. (These items are available at most electronics stores.)
1. Find and disconnect the cable that is connected to the ANT IN terminal on your cable box.
This terminal might be labeled "ANT IN", "VHF IN" or simply, "IN".
ANT IN
2. Connect this cable to a two-way splitter.
Incoming
cable
Splitter
3. Connect an RF cable between the OUTPUT terminal on the splitter and the IN terminal on the cable box.
Incoming
cable
Splitter
Cable Box
4. Connect an RF cable between the ANT OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch.
Incoming
cable
Splitter
Cable Box
RF (A/B)
Switch
5. Connect another cable between the other OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch.
Incoming
cable
Splitter
Cable Box
RF (A/B)
Switch
6. Connect the last RF cable between the OUT terminal on the RF (A/B) switch and
ANT IN
the ANT IN terminal on the rear of the TV.
Incoming
cable
Splitter
Cable Box
RF (A/B)
Switch
TV Rear
After you have made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.)
English - 8

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI

This connection can only be made if there is an HDMI Output connector on the external device.
1. Connect an HDMI Cable between the HDMI IN (1, 2 or 3) jack on the TV and the HDMI jack on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
DVD Player or Cable Box/Satellite receiver
(Set-Top Box) Rear Panel
TV Rear Panel
TV Side Panel
What is HDMI?
HDMI Cable (Not supplied)
or
• HDMI(High-Definition Multimedia Interface), is an interface that enables the transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed.
Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI

This connection can only be made if there is a DVI Output connector on the external device.
1. Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HDMI IN 2 jack on the TV and the DVI jack on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the DVI IN (HDMI 2) [R-AUDIO-L] jack on the TV and the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
DVD Player or Cable Box/
Satellite receiver (Set-Top Box)
Audio Cable (Not supplied)
2
TV Rear Panel
DVI to HDMI Cable (Not supplied)1
Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration. When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable. When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
English - 9

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via Component cables

The rear panel jacks on your TV make it easy to connect a DVD Player or Cable Box/Satellite receiver (Set-Top Box) to your TV.
1. Connect a Component Cable between the COMPONENT IN (1 or 2) [Y, PB, PR] jacks on the TV and the COMPONENT [Y, PB, PR] jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the COMPONENT IN(1 or 2) [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
Audio Cable (Not supplied)
2
Component Cable (Not supplied)
1
Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality. Be sure to match the component video and audio connections. For example, if connecting the video cable to COMPONENT IN 1, connect the audio cable to COMPONENT IN 1 also.
Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel
configuration.
When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.
TV Rear Panel

Connecting a Camcorder

The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR.
1. Connect a Video Cable (or S-Video Cable) between the AV IN 2 [VIDEO] (or S-VIDEO) jack on the TV and the VIDEO OUT jack on the camcorder.
2. Connect Audio Cables between the AV IN 2 [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the camcorder.
Camcorder
or
Each Camcorder has a different back panel configuration. When connecting a Camcorder, match the color of the connection terminal to the cable.
S-Video Cable (Not supplied)
1
Video Cable (Not supplied)
1
Audio Cable (Not supplied)
2
TV Side Panel
English - 10

Connecting a VCR

Video Connection
These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 6~7). Skip step 1 if you have not yet connected to an antenna or a cable system.
1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.
4. Connect a Video Cable between the VIDEO OUT jack on the VCR and the AV IN 1 or AV IN 2 [VIDEO] jack on the TV.
5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 1 (or AV IN 2) [R-AUDIO-L] jacks on the TV.
If you have a “mono”
(non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCR is stereo, you must connect two cables.
VCR Rear Panel
Audio Cable (Not supplied)
5
Video Cable (Not supplied)4
RF Cable (Not supplied)3
Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.
Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable.
ANT IN
TV Rear Panel
TV Side Panel
S-Video Connection
Your Samsung TV can be connected to an S-Video jack on a VCR. (This connection delivers a better picture as compared to a standard VCR.)
1. To begin, follow steps 1–3
TV Rear Panel
in the previous section to connect the antenna or cable to your VCR and your
VCR Rear Panel
TV.
2. Connect an S-Video Cable between the S-VIDEO OUT jack on the VCR and the AV IN 2 [S-VIDEO] jack on the TV.
3. Connect Audio Cables
RF Cable (Not supplied)1
S-Video Cable (Not supplied)2
between the AUDIO OUT jacks on the VCR and the AV IN 2 [R-AUDIO-L] jacks
Audio Cable (Not supplied)
3
on the TV.
An S-Video cable may be included with a VCR. (If not, check your local electronics store.)
Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable.
English - 11
TV Side Panel
Connecting an Amplier/DVD Home Theater
1. Connect Audio Cables between the AUDIO OUT [R-AUDIO-L] jacks on the TV and AUDIO IN [R-AUDIO-L] jacks on the Amplifier/DVD Home Theater.
When an audio amplifier is
connected to the "AUDIO OUT [R-AUDIO-L]" jacks: Decrease the volume of the TV and adjust the volume level with the Amplifier’s volume control.

Connecting a PC

Using the D-Sub Cable
1. Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer.
2. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer.
Using the HDMI/DVI Cable
1. Connect a HDMI/DVI cable between the HDMI IN 2 jack on the TV and the PC output jack on your computer.
2. Connect a 3.5 mm Stereo mini-plug/2RCA Cable between the DVI IN(HDMI2) [R-AUDIO-L] jack on the TV and the Audio Out jack of the sound card on your computer.
TV Rear Panel
Amplier/DVD Home Theater
Audio Cable (Not supplied)
Each Amplifier/DVD Home Theater has a different back panel configuration. When connecting an Amplifier/DVD Home Theater, match the color of the connection
terminal to the cable.
Using the D-Sub Cable
PC
PC Audio Cable (Not supplied)2
D-Sub Cable (Not supplied)1
Using the HDMI/DVI Cable
PC
3.5 mm Stereo mini-plug/2RCA Cable (Not supplied)
2
HDMI/DVI Cable (Not supplied)1
TV Rear Panel
TV Rear Panel
Each PC has a different back panel configuration. When connecting a PC, match the color of the connection terminal to the cable. When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
English - 12

Connections (LN32A450C1, LN37A450C1)

Connecting VHF and UHF Antennas

If your antenna has a set of leads that look like the diagram to the right, see "Antennas with
300 Ω Flat Twin Leads" below.
If your antenna has one lead that looks like the diagram to the right, see "Antennas with 75 Ω Round Leads". If you have two antennas, see "Separate VHF and UHF Antennas".
Antennas with 300 Ω Flat Twin Leads
If you are using an off-air antenna (such as a roof antenna or "rabbit ears") that has 300 Ω twin at leads, follow the directions
below.
1. Place the wires from the twin leads under the screws on a 300-75 Ω adapter
(not supplied). Use a screwdriver to tighten the screws.
2. Plug the adaptor into the ANT IN terminal on the back of the TV.
ANT IN
Antennas with 75 Ω Round Leads
1. Plug the antenna lead into the ANT IN terminal on the back of the TV.
ANT IN
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).
1. Connect both antenna leads to the combiner.
UHF
VHF
2. Plug the combiner into the ANT IN terminal on the bottom of the rear panel.
ANT IN
UHF
VHF
English - 13

Connecting Cable TV

To connect to a cable TV system, follow the instructions below.
Cable without a Cable Box
1. Plug the incoming cable into the ANT IN terminal on the back of the TV.
Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels.
ANT IN
Connecting to a Cable Box that Descrambles All Channels
1. Find the cable that is connected to the ANT OUT terminal on your cable box. This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".
ANT IN
ANT OUT
2. Connect the other end of this cable to the ANT IN terminal on the back of the TV.
ANT IN
Connecting to a Cable Box that Descrambles Some Channels
If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two­way splitter, an RF (A/B) switch and four lengths of RF cable. (These items are available at most electronics stores.)
1. Find and disconnect the cable that is
connected to the ANT IN terminal on your cable box.
This terminal might be labeled "ANT IN", "VHF IN" or simply, "IN".
ANT IN
2. Connect this cable to a two-way splitter.
Incoming
cable
Splitter
3. Connect an RF cable between the OUTPUT
terminal on the splitter and the IN terminal on the cable box.
Incoming
cable
Splitter
Cable Box
4. Connect an RF cable between the
ANT OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch.
Incoming
cable
Splitter
Cable Box
RF (A/B)
Switch
5. Connect another cable between the other
OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch.
Incoming
cable
Splitter
Cable Box
RF (A/B)
Switch
6. Connect the last RF cable between the
OUT terminal on the RF (A/B) switch and
ANT IN
the ANT IN terminal on the rear of the TV.
Incoming
cable
Splitter
Cable Box
RF (A/B)
Switch
TV Rear
After you have made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.)
English - 14

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI

This connection can only be made if there is an HDMI Output connector on the external device.
1. Connect an HDMI Cable between the HDMI IN (1, 2 or 3) jack on the TV and the HDMI jack on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
DVD Player or Cable Box/Satellite
receiver (Set-Top Box) Rear Panel
TV Rear Panel
TV Side Panel
or
What is HDMI?
HDMI Cable (Not supplied)
• HDMI(High-Definition Multimedia Interface), is an interface that enables the transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed.
Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI

This connection can only be made if there is a DVI Output connector on the external device.
1. Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HDMI IN 2 jack on the TV and the DVI jack on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the DVI IN (HDMI 2) [R-AUDIO-L] jack on the TV and the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
DVD Player or Cable Box/
Satellite receiver (Set-Top Box)
Audio Cable
2
(Not supplied)
TV Rear Panel
DVI to HDMI Cable (Not supplied)1
Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration. When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable. When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
English - 15
Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via Component cables
The rear panel jacks on your TV make it easy to connect a DVD Player or Cable Box/Satellite receiver (Set-Top Box) to your TV.
1. Connect a Component Cable between the COMPONENT IN (1 or
2) [Y, PB, PR] jacks on the TV and the COMPONENT [Y, PB, PR] jacks on the DVD Player or Cable Box/ Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the COMPONENT IN(1 or 2) [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
Audio Cable (Not supplied)
2
Component Cable (Not supplied)
1
Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality. Be sure to match the component video and audio connections. For example, if connecting the video cable to COMPONENT IN 1, connect the audio
cable to COMPONENT IN 1 also. Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration. When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.
TV Rear Panel

Connecting a Camcorder

The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR.
1. Connect a Video Cable (or S-Video Cable) between the AV IN 2 [VIDEO] (or S-VIDEO) jack on the TV and the VIDEO OUT jack on the camcorder.
2. Connect Audio Cables between the AV IN 2 [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the camcorder.
Camcorder
Each Camcorder has a different back panel configuration. When connecting a Camcorder, match the color of the connection terminal to the cable.
English - 16
S-Video Cable (Not supplied)
1
or
Video Cable (Not supplied)
1
Audio Cable (Not supplied)
2
TV Side Panel

Connecting a VCR

Video Connection
These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 6~7). Skip step 1 if you have not yet connected to an antenna or a cable system.
1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.
4. Connect a Video Cable between the VIDEO OUT jack on the VCR and the AV IN 1 or AV IN 2 [VIDEO] jack on the TV.
5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 1 (or AV IN 2) [R-AUDIO-L] jacks on the TV.
If you have a “mono” (non-stereo)
VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCR is stereo, you must connect two cables.
VCR Rear Panel
Audio Cable (Not supplied)
5
Video Cable (Not supplied)4
RF Cable (Not supplied)3
ANT IN
TV Rear Panel
TV Side Panel
Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.
Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable.
S-Video Connection
Your Samsung TV can be connected to an S-Video jack on a VCR. (This connection delivers a better picture as compared to a standard VCR.)
1. To begin, follow steps 1–3 in the previous section to connect the antenna or cable to your VCR and your TV.
2. Connect an S-Video Cable between the S-VIDEO OUT jack on the VCR and the AV IN 2 [S-
VCR Rear Panel
VIDEO] jack on the TV.
3. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN 2 [R-AUDIO-L] jacks on the TV.
RF Cable (Not supplied)1
S-Video Cable (Not supplied)2
Audio Cable (Not supplied)
3
An S-Video cable may be included with a VCR. (If not, check your local electronics store.)
Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable.
TV Rear Panel
TV Side Panel
English - 17
Connecting an Amplier/DVD Home Theater
1. Connect Audio Cables between the AUDIO OUT [R-AUDIO-L] jacks on the TV and AUDIO IN [R-AUDIO-L] jacks on the Amplifier/DVD Home Theater.
When an audio amplifier is
connected to the "AUDIO OUT [R-AUDIO-L]" jacks: Decrease the volume of the TV and adjust the volume level with the Amplifier’s volume control.

Connecting a PC

Using the D-Sub Cable
1. Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer.
2. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer.
TV Rear Panel
Amplier/DVD Home Theater
Audio Cable (Not supplied)
Each Amplifier/DVD Home Theater has a different back panel configuration. When connecting an Amplifier/DVD Home Theater, match the color of the connection
terminal to the cable.
Using the D-Sub Cable
PC
D-Sub Cable (Not supplied)1
TV Rear Panel
Using the HDMI/DVI Cable
1. Connect a HDMI/DVI cable between the HDMI IN 2 jack on the TV and the PC output jack on your computer.
2. Connect a 3.5 mm Stereo mini­plug/2RCA Cable between the DVI IN(HDMI2) [R-AUDIO-L] jack on the TV and the Audio Out jack of the sound card on your computer.
PC Audio Cable (Not supplied)2
Using the HDMI/DVI Cable
PC
3.5 mm Stereo mini-plug/2RCA Cable (Not supplied)
2
HDMI/DVI Cable (Not supplied)1
TV Rear Panel
Each PC has a different back panel configuration. When connecting a PC, match the color of the connection terminal to the cable. When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
English - 18

Operation

Turning the TV On and Off

Press the POWERP button on the remote control. You can also use the POWERP button on the TV.

Plug & Play Feature

When the TV is initially powered on, basic settings proceed automatically and subsequently :
1. Press the POWER button on the remote control.
The message "Start Plug & Play." is displayed with "OK" selected.
2. Press the ENTER button to enter the language.
Press the ▲ or ▼ button to select language, then press the ENTER button.
The message “Select ‘Home Use’ when installing this TV in your home.” menu is automatically displayed.
3.
Press the ◄ or ► button to select “Store Demo” or “Home Use ”, then, press the
ENTER button.
We recommend setting the TV to “Home Use” mode for the best picture in your
home environment. “Store Demo” mode is only intended for use in retail environments. If the unit is accidentally set to “Store Demo” mode and you want to return to
“Home Use” (Standard): Press the Volume button on the TV. When the volume
OSD is displayed, press and hold the MENU button on the TV for 5 seconds.
4. The message "Check antenna input." is displayed with "OK" selected. Press the ENTER button.
5. Press the ▲ or ▼ button to select "Air", "STD", "HRC", or "IRC", then press the
ENTER button.
6.
Press the ENTER button to select "Start". The TV will begin memorizing all of the
available channels. To stop the search before it has finished, press the ENTER button with
"Stop" selected.
7.
The Clock Set menu is displayed. Press the ◄ or ► button to move to the "Month", "Day", "Year", "Hour", "Minute" or "am/pm".
Set the "Month", "Day", "Year", "Hour", "Minute" or "am/pm" by pressing the ▲ or ▼
button. Press the ENTER button. (Refer to "Setting the Clock"on page 44)
You can set the month, day, year, hour, and minute directly by pressing the
number buttons on the remote control.
8. The message "Enjoy your watching" is displayed. When you have finished, press the ENTER button.
Plug & Play
Start Plug & Play.
OK
Enter
Plug & Play
English
Language
Move Enter
Select ‘Home Use’ when installing this TV in your home.
Store Demo
Move Enter
Check antenna input.
Enter Skip
Air/Cable
Move Enter Skip
Auto Program
Enter Skip
Clock Set Month Day Year Hour Minute am/pm
01 2008 12 00 am
01
Move Adjust Enter
Français Español
Português
Plug & Play
Plug & Play
OK
Plug & Play
Plug & Play
Stop
Plug & Play
Home Use
Air
STD HRC IRC
Air 50
English - 19
Enjoy your watching
OK
If you want to reset this feature...
1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Press the ENTER button again to select “Plug & Play”.
For further details on setting up options, refer to the pages 19.
The “Plug & Play” feature is only available in the TV mode.

Changing Channels

Using the Channel Buttons
1. Press the CH< or CH> button to change channels. When you press the CH< or CH> button, the TV changes channels in
sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels.) You will not see channels that were either erased or not memorized. See page 22 to memorize channels.
Using the Number Buttons
1. Press the number buttons to go directly to a channel. For example, to select
channel 27, press 2, then 7.
For quick channel change, press the number buttons, then press the ENTER
button.
TV
Plug & Play Language : English Time Caption Melody : Off Entertainment : Off Energy Saving : Off
AV Color System : Auto PIP
Move Enter Return
Setup
Using the PRE-CH Button to select the Previous Channel
1. Press the PRE-CH button. The TV will switch to the last channel viewed.
To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel. Then use the PRE-CH button to quickly alternate between them.

Adjusting the Volume

Using the Volume Buttons
1. Press the
Using the MUTE button At any time, you can cut off the sound using the MUTE button.
1. Press MUTE button and the sound cuts off. " " is displayed on the screen.
2. To turn mute off, press the MUTE button again or simply press the VOL- or VOL+ button.
VOL- or VOL+ button to increase or decrease the volume.
English - 20

Viewing the Display

The display identies the current channel and the status of certain audio-video settings.
1. Press the INFO button on the remote control.
The TV will display the channel, the type of sound, and the status of certain picture and sound settings.
Press the INFO button once more or wait approximately 10 seconds and the
display disappears automatically.

Viewing the Menus

1. With the power on, press the MENU button.
The main menu appears on the screen. The menu’s left side has icons: Picture, Sound, Channel, Setup, Input.
2. Press the ▲ or ▼ button to select one of the icons.
Then press the ENTER button to access the icon’s sub-menu.
3. Press the EXIT button to exit.
The on-screen menus disappear from the screen after about one minute.
Air 7 Mono
Picture : Standard Sound : Custom MTS : Stereo SRS TS XT : Off
05 : 54 pm
Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 40 Color 50 Tint G 50 R 50 Detailed Settings Picture Options Reset : OK
Move Enter Exit
PictureTV

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu changes depending on which external input mode you are viewing.
1. Press the TOOLS button. The “Tools” menu will appear.
2. Press the ▲ or ▼ button to select a menu.
3. Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items.
For a more detailed description of each function, refer to the corresponding page.
• Anynet+ (HDMI-CEC): see page 51
• Picture mode: see page 24
• Sound mode: see page 34
• Sleep Timer: see page 45
• SRS TS XT: see page 35
• Energy Saving: see page 49
• MTS: see page 36
• PIP: see page 33
• Auto Adjustment: see page 42
English - 21
Tools
Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off MTS : Mono
Move Enter Exit

Memorizing the Channels

Your TV can memorize and store all of the available channels for both "off-air" (Air) and "Cable" channels. After the available channels are memorized, use the CH< or CH> button to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels (automatic) and adding or deleting channels (Channel Manager).
Selecting the Video Signal-source
Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).
1. Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ENTER button. Repeatedly press the ▲ or ▼ button to cycle through these choices: "Air", "STD", "HRC", or "IRC" (all cable TV).
Press the ENTER button. STD, HRC and IRC identify various types of cable TV systems.
Contact your local cable company to identify the type of cable system that exists in your particular area. At this point, the signal source has been selected.
Air / Cable : Air Auto Program Channel Manager Fine Tune Color System : Auto
Air / Cable : Air
Auto Program Channel Manager Fine Tune Color System : Auto
ChannelTV
Move Enter Return
ChannelTV
AIR
STD
HRC
IRC
Move Enter Return
Storing Channels in Memory (Automatic Method)
1. First, select the correct signal source (Air, STD, HRC, or IRC).
2. Press the ▲ or ▼ button to select "Auto Program", then press the ENTER button.
3. Press the ENTER button to select "Start".
The TV will begin memorizing all of the available channels. The TV automatically cycles through all of the available channels and stores
them in memory. This takes about one to two minutes. Press the
button at any time to interrupt the memorization process and return to the
ENTER
"Channel" menu.
4. After all the available channels are stored, the "Channel" menu reappears. Press the EXIT button to exit.
To stop the search before it has finished, press the ENTER button with "Stop"
selected.
Air / Cable : Air Auto Program Channel Manager Fine Tune Color System : Auto
Enter Return
ChannelTV
Move Enter Return
Auto Program
Air 40
Stop
English - 22

To Select the Source

Use to select TV or other external input sources such as DVD players or Cable Box/ Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice.
1. Press the MENU button to display the menu. Press the▲ or ▼ button to select “Input”, then press the ENTER button.
2. Press the ENTER button to select "Source List".
Press the ▲ or ▼ button to select signal source, then press the ENTER button.
Available signal sources: “TV”, “AV1”, “AV2”, “S-Video”, “Component1”,
“Component2”, “PC”, “HDMI1”, “HDMI2”, “HDMI3”
You can choose only those external devices that are connected to the TV.
Press the SOURCE button on the remote control to view an external signal source.

To Edit the Input Source Name

Name the device connected to the input jacks to make your input source selection easier.
1. Press the MENU button to display the menu.
Press the ▲ or ▼ button to select “Input”, then press the ENTER button. Press the ▲ or ▼ button to select "Edit Name", then press the ENTER button.
Source List : TV Edit Name Anynet+ (HDMI-CEC)
TV
AV1 : ---­AV2 : ---­S-Video : ---­Component1 : ---­Component2 : ---­PC : ---­HDMI1 : ---­HDMI2 : ---­HDMI3 : ----
Source List : TV Edit Name Anynet+ (HDMI-CEC)
InputTV
Move Enter Return
Source ListTV
Move Enter Return
InputTV
2. Press the ▲ or ▼ button to select "AV1", "AV2", "S-Video", "Component1",
"Component2", "PC", "HDMI1", "HDMI2" or "HDMI3" input jack, then press the
ENTER button.
3. Press the ▲ or ▼ button to select "VCR", "DVD", "Cable STB", "Satellite STB",
"PVR STB", "AV Receiver", "Game", "Camcorder", "PC", "TV", "IPTV", "Blu-Ray", "HD DVD", "DMA" input source, then press the ENTER button. Press the EXIT button to exit.
English - 23
Move Enter Return
AV1 : ------
AV2 : ------ S-Video : ------ Component1 : ------ Component2 : ------ PC : ------ HDMI1 : ------ HDMI2 : ------ HDMI3 : ------
AV1 : ------
AV2 : ------ S-Video : ------ Component1 : ------ Component2 : ------ PC : ------ HDMI1 : ------ HDMI2 : ------ HDMI3 : ------
Edit NameTV
Move Enter Return
Edit NameTV
-----
VCR DVD
Cable STB
Satellite STB
PVR STB
AV Receiver
Game
Move Enter Return

Picture Control

Changing the Picture Standard

You can activate either Dynamic, Standard, Movie by making a selection from the menu.
1. Press the MENU button to display the menu.
Press the ENTER button, to select “Picture”.
2. Press the ENTER button to select "Mode".
Press the ▲ or ▼ button to select the “Dynamic”, “Standard” or “Movie”.
Dynamic: Selects the picture for high-denition in a bright room.Standard: Selects the picture for the optimum display in a normal environment.  Movie: Selects the picture for viewing movies in a dark room.
3. Press the EXIT button to exit.
Easy Setting
1. Press the TOOLS button on the remote control.
2. Press the ▲ or ▼ button to select “Picture mode”.
3. Press the ◄ or ► button to select the desired picture mode.
4. Press the EXIT or TOOLS button to exit.
Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 40 Color 50 Tint G 50 R 50 Detailed Settings Picture Options Reset : OK
Mode : Standard
Backlight 7 Contrast 95 Brightness 45 Sharpness 40 Color 50 Tint G 50 R 50 Detailed Settings Picture Options Reset : OK
Anynet+ (HDMI-CEC)
Picture Mode ◄ Standard ►
Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off MTS : Mono
Move Adjust Exit
PictureTV
Move Enter Return
PictureTV
Dynamic
Standard
Movie
Move Enter Return
Tools

Customizing the Picture Settings

Your television has several setting options that allow you to control the picture quality.
1. Press the MENU button to display the menu. Press the ENTER button, to select “Picture”.
2. Press the ▲ or ▼ button to select “Backlight”, “Contrast”, “Brightness”,
“Sharpness”, “Color” or “Tint”, then press the ENTER button.
3. Press the ◄ or ► button to decrease or increase the value of a particular item.
Press the ENTER button.
Press the EXIT button to exit.
When you make changes to “Backlight”, “Contrast”, “Brightness”, “Sharpness”, “Color” or “Tint”, the OSD will be adjusted accordingly.
In PC mode, you can only make changes to “Backlight”, “Contrast”, and “Brightness”. (26, 32, 37 inch)
In PC mode, you can only make changes to “Contrast”, and “Brightness”.
(40 inch)
Settings can be adjusted and stored for each external device you have connected to an input of the TV.
The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and that this will reduce the overall running cost.
Backlight: Adjusts the brightness of LCD back light.
Contrast: Adjusts the contrast level of the picture.
Brightness: Adjusts the brightness level of the picture.
Sharpness: Adjusts the edge definition of the picture.
Color: Adjusts color saturation of the picture.
Tint: Adjusts the color tint of the picture.
Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 40 Color 50 Tint G 50 R 50 Detailed Settings Picture Options Reset : OK
Move Enter Return
Backlight
Move Adjust Return
PictureTV
7
English - 24
Adjusting the Detailed Settings
Samsung's new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed picture settings.
Activating Detailed Settings
1. Press the MENU button to display the menu.
Press the ENTER button to select “Picture”.
2. Press the ENTER button to select “Mode”
Press the ▲ or ▼ button to select "Standard" or "Movie", then press the ENTER
button.
"Detailed Settings" is available in "Standard" or "Movie" mode.
3. Press the ▲ or ▼ button to select “Detailed Settings”, then press the
ENTER button.
In PC mode, you can only make changes to “Dynamic Contrast”, “Gamma” and
“White Balance” from among the “Detailed Settings” items.
Activating Black adjust
You can select the black level on the screen to adjust the screen depth.
4. Press the ▲ or ▼ button to select “Black adjust”, then press the ENTER button.
5. Press the ▲ or ▼ button to select “Off”, “Low”, “Medium” or “High”.
Press the ENTER button.
Off: Turns off the black adjustment function.  Low: Sets the black color depth to low.  Medium: Sets the black color depth to medium.  High: Sets the black color depth to high.
Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 40 Color 50 Tint G 50 R 50 Detailed Settings Picture Options Reset : OK
Black Adjust : Off Dynamic Contrast : Medium Gamma : 0 Color Space : Native White Balance Flesh Tone : 0 Edge Enhancement : On
Black Adjust : Off
Dynamic Contrast : Medium Gamma : 0 Color Space : Native White Balance Flesh Tone : 0 Edge Enhancement : On
PictureTV
Move Enter Return
Detailed SettingsTV
Move Enter Return
Detailed SettingsTV
Off
Low
Medium
High
Activating Dynamic Contrast
You can adjust the screen contrast so that the optimal contrast is provided.
6. Press the ▲ or ▼ button to select “Dynamic Contrast”, then press the
ENTER button.
7. Press the ▲ or ▼ button to select “Off”, “Low”, “Medium” or “High”.
Press the ENTER button.
Off: Turns off the dynamic contrast adjustment function.  Low: Sets the dynamic contrast to low.  Medium: Sets the dynamic contrast to medium.  High: Sets the dynamic contrast to high.
English - 25
Move Enter Return
Detailed SettingsTV
Black Adjust : Off Dynamic Contrast : Medium Gamma : 0 Color Space : Native White Balance Flesh Tone : 0 Edge Enhancement : On
Move Enter Return
Detailed SettingsTV
Black Adjust : Off
Dynamic Contrast : Medium
Gamma : 0 Color Space : Native White Balance Flesh Tone : 0 Edge Enhancement : On
Move Enter Return
Off
Low
Medium
High
Activating Gamma
You can adjust the Primary Color (Red, Green, Blue) Intensity. (-3 ~ +3)
8. Press the ▲ or ▼ button to select “Gamma”, then press the ENTER button.
9. Press the ◄ or ► button to decrease or increase the value.
Press the ENTER button.
Detailed SettingsTV
Black Adjust : Off Dynamic Contrast : Medium Gamma : 0 Color Space : Native White Balance Flesh Tone : 0 Edge Enhancement : On
Move Enter Return
Changing the Color Space
Color space is a color matrix composed of “Red”, “Green” and “Blue” colors. Select your favorite color space to experience the most natural color.
10. Press the ▲ or ▼ button to select “Color Space”, then press the ENTER button.
11. Press the ENTER button again to select “Color Space”.
12. Press the ▲ or ▼ button to select “Auto”, “Native” or “Custom”.
Press the ENTER button.
Auto: Auto Color Space automatically adjusts to the most natural color
• tone based on program sources.
Native: Native Color Space offers deep and rich color tone.
Custom: Adjusts the color range to suit your preference.
(see “Customizing the Color Space”)
Customizing the Color Space
13. Press the ▲ or ▼ button to select “Color”, then press the ENTER button.
“Color” is available when “Color Space” is set to “Custom”.
14. Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or
“Magenta”. Press the ENTER button.
15. Press the ▲ or ▼ button to select “Red”, “Green” or “Blue” to change it.
Press the ENTER button.
16. Press the ◄ or ► button to decrease or increase the value of a particular item.
Press the ENTER button.
In “Color”, you can adjust the RGB values for the selected color.
To reset the adjusted RGB value, select Reset.
Gamma
Adjust Return
Detailed SettingsTV
Black Adjust : Off Dynamic Contrast : Medium Gamma : 0 Color Space : Native White Balance Flesh Tone : 0 Edge Enhancement : On
Move Enter Return
Color Space : Auto
Color : Red Red 50 Green 0 Blue 0 Reset
Color Space : Custom Color : Red Red 50 Green 0 Blue 0 Reset
Color Space : Custom
Color : Red
Red 50 Green 0 Blue 0 Reset
Color SpaceTV
Move Enter Return
Color SpaceTV
Move Enter Return
Color SpaceTV
Auto
Native
Custom
Red
Green
Blue
Yellow
Cyan
Magenta
0
Red: Adjusts the red saturation level.
Green: Adjusts the green saturation level.
Blue: Adjusts the blue saturation level.
Reset: Resets the color space to the default values.
Changing the adjustment value will refresh the adjusted screen.
Settings can be adjusted and stored for each external device you have
connected to an input of the TV.
English - 26
Move Enter Return
Red
Move Adjust Return
50
Activating White Balance
You can adjust the color temperature for more natural picture colors.
17. Press the ▲ or ▼ button to select “White Balance”, then press the ENTER button.
18. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
19. Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button.
R-Offset: Adjusts the red color darkness.  G-Offset: Adjusts the green color darkness.  B-Offset: Adjusts the blue color darkness.  R-Gain: Adjusts the red color brightness.  G-Gain: Adjusts the green color brightness.  B-Gain: Adjusts the blue color brightness.  Reset: The previously adjusted white balance will be reset to the factory
defaults.
Changing the adjustment value will refresh the adjusted screen.
Detailed SettingsTV
Black Adjust : Off Dynamic Contrast : Medium Gamma : 0 Color Space : Native White Balance Flesh Tone : 0 Edge Enhancement : On
Move Enter Return
R-Offset 25 G-Offset 25 B-Offset 25 R-Gain 25 G-Gain 25 B-Gain 25 Reset
R-Offset
Move Adjust Return
White BalanceTV
Move Enter Return
25
Flesh Tone
You can emphasize the pink ‘flesh tone’ in the picture.
20. Press the ▲ or ▼ button to select “Flesh Tone”, then press the ENTER button.
21. Press the ◄ or ► button to decrease or increase the value.
Press the ENTER button.
Changing the adjustment value will refresh the adjusted screen.
Activating Edge Enhancement
You can emphasize object boundaries in the picture.
22. Press the ▲ or ▼ button to select “Edge Enhancement”, then press the ENTER button.
23. Press the ▲ or ▼ button to select “Off” or “On”. Press the ENTER button.
Detailed SettingsTV
Black Adjust : Off Dynamic Contrast : Medium Gamma : 0 Color Space : Native White Balance Flesh Tone : 0 Edge Enhancement : On
Move Enter Return
Flesh Tone
Adjust Return
Detailed SettingsTV
Black Adjust : Off Dynamic Contrast : Medium Gamma : 0 Color Space : Native White Balance Flesh Tone : 0 Edge Enhancement : On
Move Enter Return
Detailed SettingsTV
Black Adjust : Off Dynamic Contrast : Medium Gamma : 0 Color Space : Native White Balance Flesh Tone : 0
Edge Enhancement : On
Move Enter Return
0
Off
On
English - 27
Conguring Picture Options
Activating Picture Options
1. Press the MENU button to display the menu. Press the ENTER button, to select “Picture”.
2. Press the ▲ or ▼ button to select "Picture Options", then press the ENTER
button.
Press the ▲ or ▼ button to select a particular item. Press the ENTER button. When you are satisfied with your setting, press the ENTER button. In PC mode, you can only make changes to the “Color Tone” and “Size” from
among the items in “Picture Options”.
Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 40 Color 50 Tint G 50 R 50 Detailed Settings Picture Options Reset : OK
PictureTV
Move Enter Return
Adjusting the Color Tone
1. Follow the “Activating Picture Options” instructions numbers 1 and 2.
2. Press the ▲ or ▼ button to select “Color Tone”, then press the ENTER button.
3. Press the ▲ or ▼ button to select “Cool2”, “Cool1”, “Normal”, “Warm1” or “Warm2”.
Press the ENTER button. “Warm1” or “Warm2” is only activated when the picture mode is “Movie”.
Settings can be adjusted and stored for each external device you have connected
to an input of the TV.
Changing the Screen Size
Occasionally, you may want to change the size of the image on your screen. Your TV comes with various screen size options, each designed to work best with specific types of video input. Your cable box or satellite receiver may have its own set of screen sizes as well. In general, though, you should view the TV in 16:9 mode as much as possible.
1. Follow the “Activating Picture Options” instructions numbers 1 and 2.
2. Press the ▲ or ▼ button to select “Size”, then press the ENTER button.
3. Press the ▲ or ▼ button to select the screen format you want.
Press the ENTER button. Press the EXIT button to exit.
16:9 : Sets the picture to 16:9 wide mode.
Wide Zoom: Magnify the size of the picture more than 4:3.
Zoom: Magnifies the size of the picture on the screen.
4:3 : Sets the picture to 4:3 normal mode.
Just Scan: Use the function to see the full image without any cutoff when
HDMI (720p/1080i), Component (1080i) signals are input.
Color Tone : Normal ► Size : 16:9 ► Digital NR : Auto
DNle : Off ► HDMI Black Level : Normal
Blue Only Mode : Off
Color Tone : Normal
Size : 16:9 Digital NR : Auto
DNle : Off
HDMI Black Level : Normal
Blue Only Mode : Off
Color Tone : Normal ► Size : 16:9 ► Digital NR : Auto
DNle : Off ► HDMI Black Level : Normal
Blue Only Mode : Off
16:9 Wide Zoom Zoom 4:3
Just Scan
Picture OptionsTV
Move Enter Return
Picture OptionsTV
Cool2
Cool1
Normal
Warm1 Warm2
Move Enter Return
Picture OptionsTV
Move Enter Return
SizeTV
Move Enter Return
English - 28
Loading...
+ 95 hidden pages
