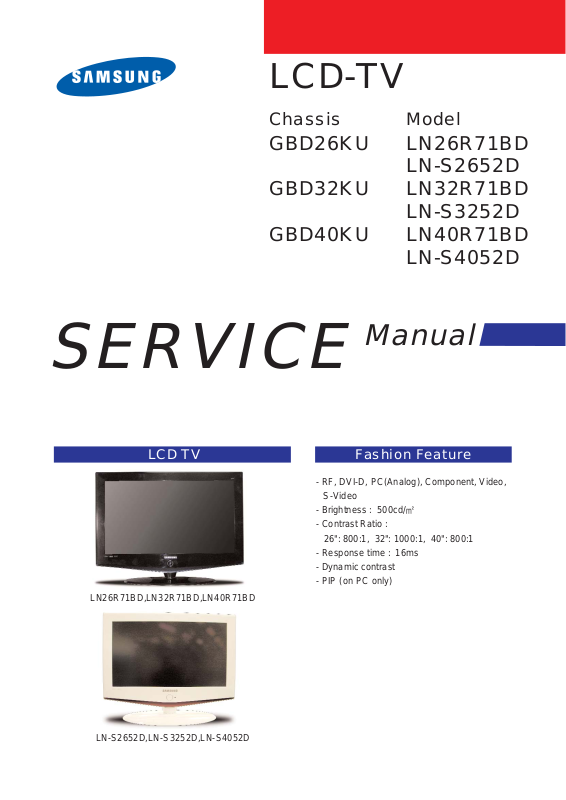

SERVICE

Manual

LCD TV

Fashion Feature

LCD-TV

Chassis Model

GBD26KU LN26R71BD

LN-S2652D

GBD32KU LN32R71BD

LN-S3252D

GBD40KU LN40R71BD

LN-S4052D

- RF, DVI-D, PC(Analog), Component, Video, S-Video

- Brightness : 500cd/㎡

- Contrast Ratio : 26": 800:1, 32": 1000:1, 40": 800:1

- Response time : 16ms

- Dynamic contrast

- PIP (on PC only)

LN26R71BD,LN32R71BD,LN40R71BD

LN-S2652D,LN-S3252D,LN-S4052D

Page 2

photocopied, reproduced, translated, or converted to any electronic or machine readable form without prior written permission of Samsung Electronics Co., Ltd.

GBD26KU/GBD32KU/GBD40KU Service Manual First edition March 2006.

Printed in Korea.

Trademarks

Samsung is the registered trademark of Samsung Electronics Co., Ltd.

GBD26KU/GBD32KU/GBD40KU and MacMaster Cable Adapter are trademarks of Samsung Electronics Co., Ltd.

Macintosh, Power Macintosh are trademarks of Apple Computer, Inc.

All other trademarks are the property of their respective owners.

Page 3

11 Precautions…………………………………………………………………………………………………………………………………………1-1

1-1 Safety Precautions ……………………………………………………………………………………………………………………… 1-1

1-2 Servicing Precautions …………………………………………………………………………………………………………………… 1-2

1-3 Electrostatically Sensitive Devices (ESD) Precautions ……………………………………………………………………………… 1-2

1-4 Installation Precautions ………………………………………………………………………………………………………………… 1-3

2 Product specifications ……………………………………………………………………………………………………………………………2-1

2-1 Fashion Feature…………………………………………………………………………………………………………………………… 2-1

2-2 Specifications ……………………………………………………………………………………………………………………………… 2-2

2-3 Option Specification ……………………………………………………………………………………………………………………… 2-6

3 Alignments and Adjustments ……………………………………………………………………………………………………………………3-1

3-1 General Alignment Instuction …………………………………………………………………………………………………………… 3-1

3-2 Factory Mode Adjustments ……………………………………………………………………………………………………………… 3-2

3-3 White Balance - Calibration ……………………………………………………………………………………………………………… 3-9

3-4 White Ratio (Balance) Adjustment …………………………………………………………………………………………………… 3-10

3-5 Servicing Information …………………………………………………………………………………………………………………… 3-11

3-6 LVDS cable code for each panel ……………………………………………………………………………………………………… 3-12

4 Troubleshooting ……………………………………………………………………………………………………………………………………4-1

4-1 No Power ………………………………………………………………………………………………………………………………… 4-1

4-2 No Video (Analog PC Signal) …………………………………………………………………………………………………………… 4-2

4-3 No Video (HDMI - Digital Signal) ……………………………………………………………………………………………………… 4-4

4-4 No Picture (Tuner_CVBS) ……………………………………………………………………………………………………………… 4-6

4-5 No Picture (Tuner DTV TS) ……………………………………………………………………………………………………………… 4-8

4-6 No Picture(Video CVBS) ……………………………………………………………………………………………………………… 4-10

4-7 No Picture (S-Video Y/C) ……………………………………………………………………………………………………………… 4-11

4-8 No Picture(Component1, 2 : 480i, 480p, 720p, 1080i[ Y, Pb, Pr]) ………………………………………………………………… 4-13

4-9 No Sound ………………………………………………………………………………………………………………………………… 4-15

5 Exploded View and Parts List …………………………………………………………………………………………………………………5-1

6 Electrical Parts List ………………………………………………………………………………………………………………………………6-1

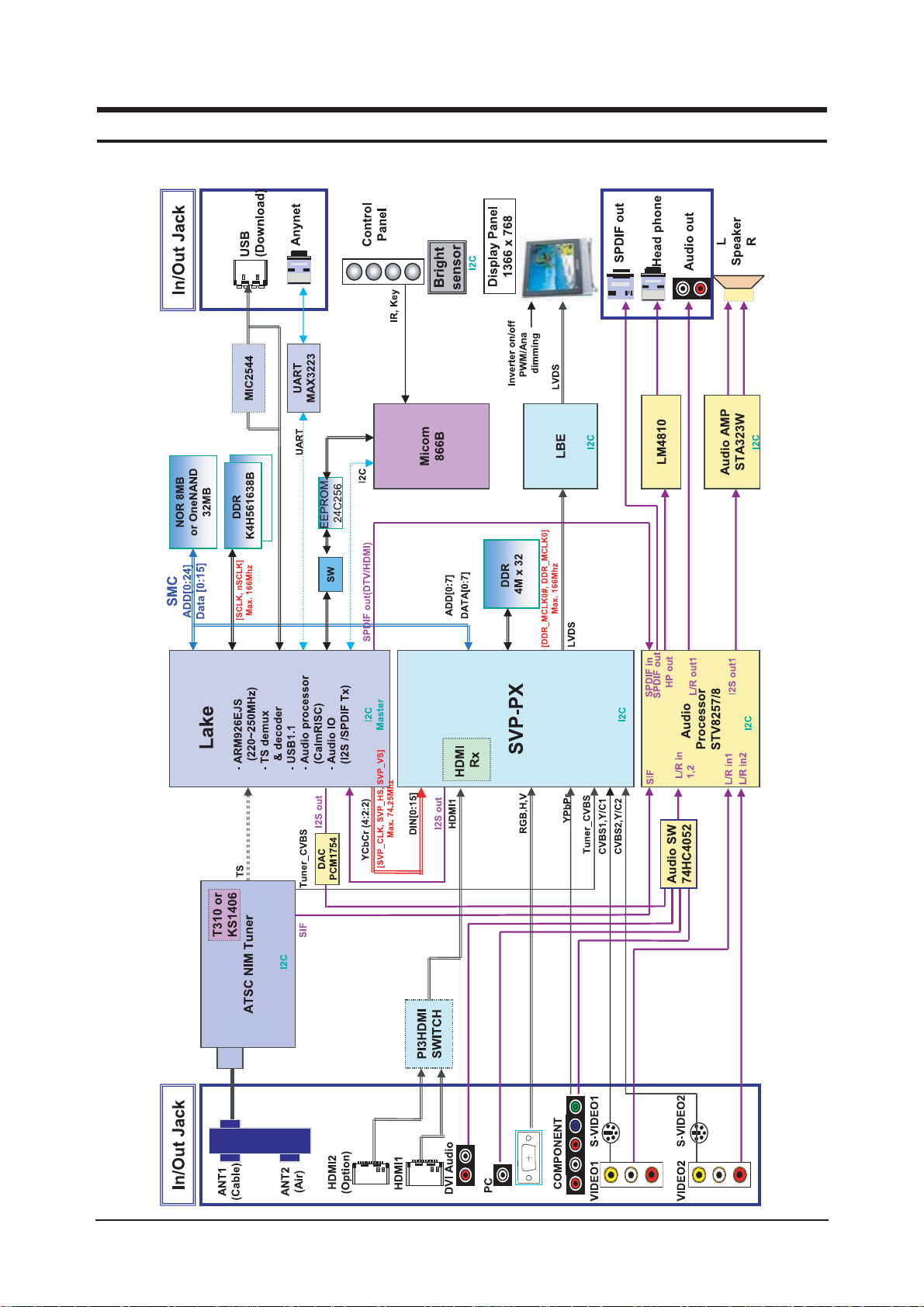

7 Block Diagram ……………………………………………………………………………………………………………………………………7-1

Contents

Page 4

88 Wiring Diagram ……………………………………………………………………………………………………………………………………8-1

8-1 Wiring Diagram …………………………………………………………………………………………………………………………… 8-1

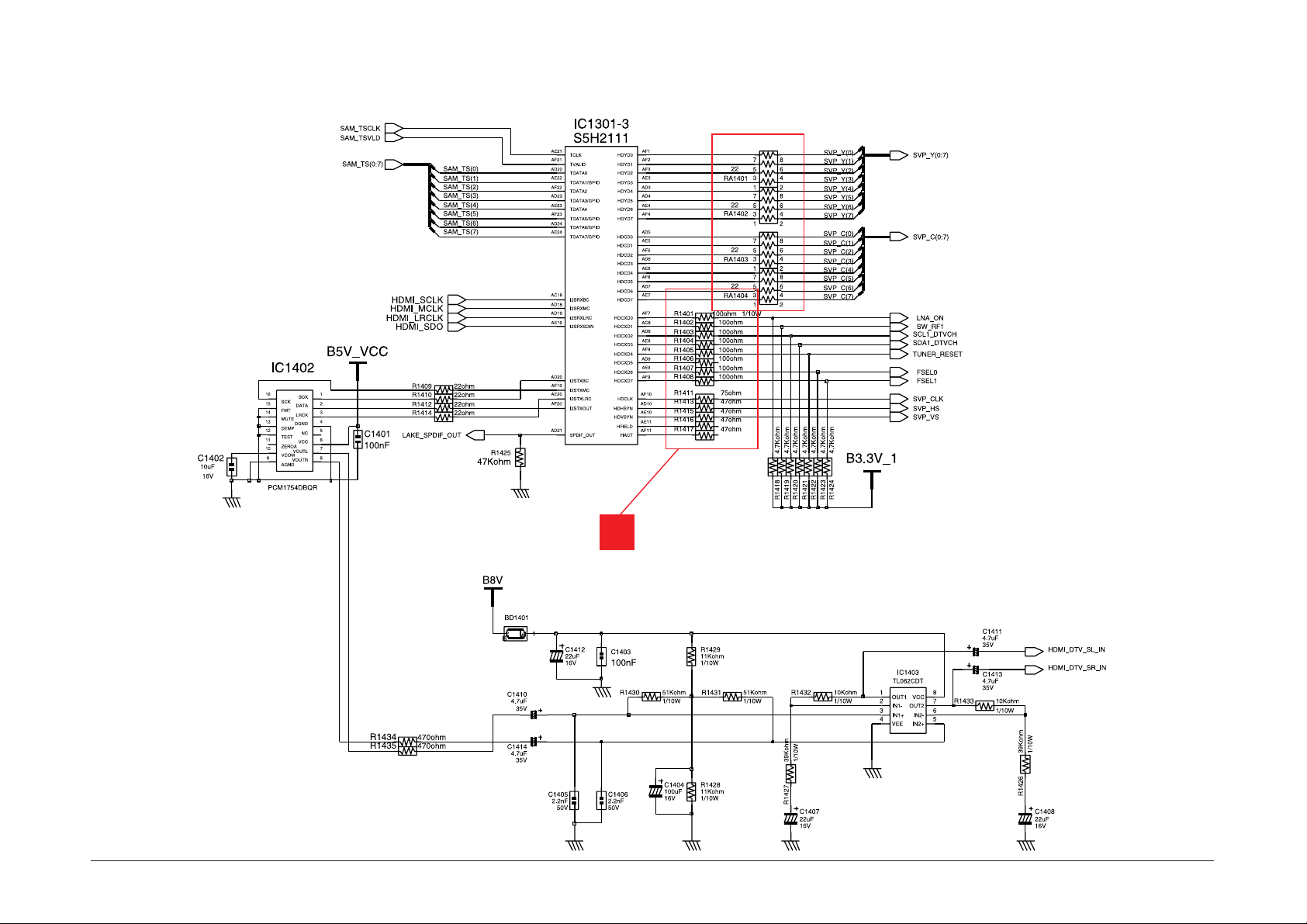

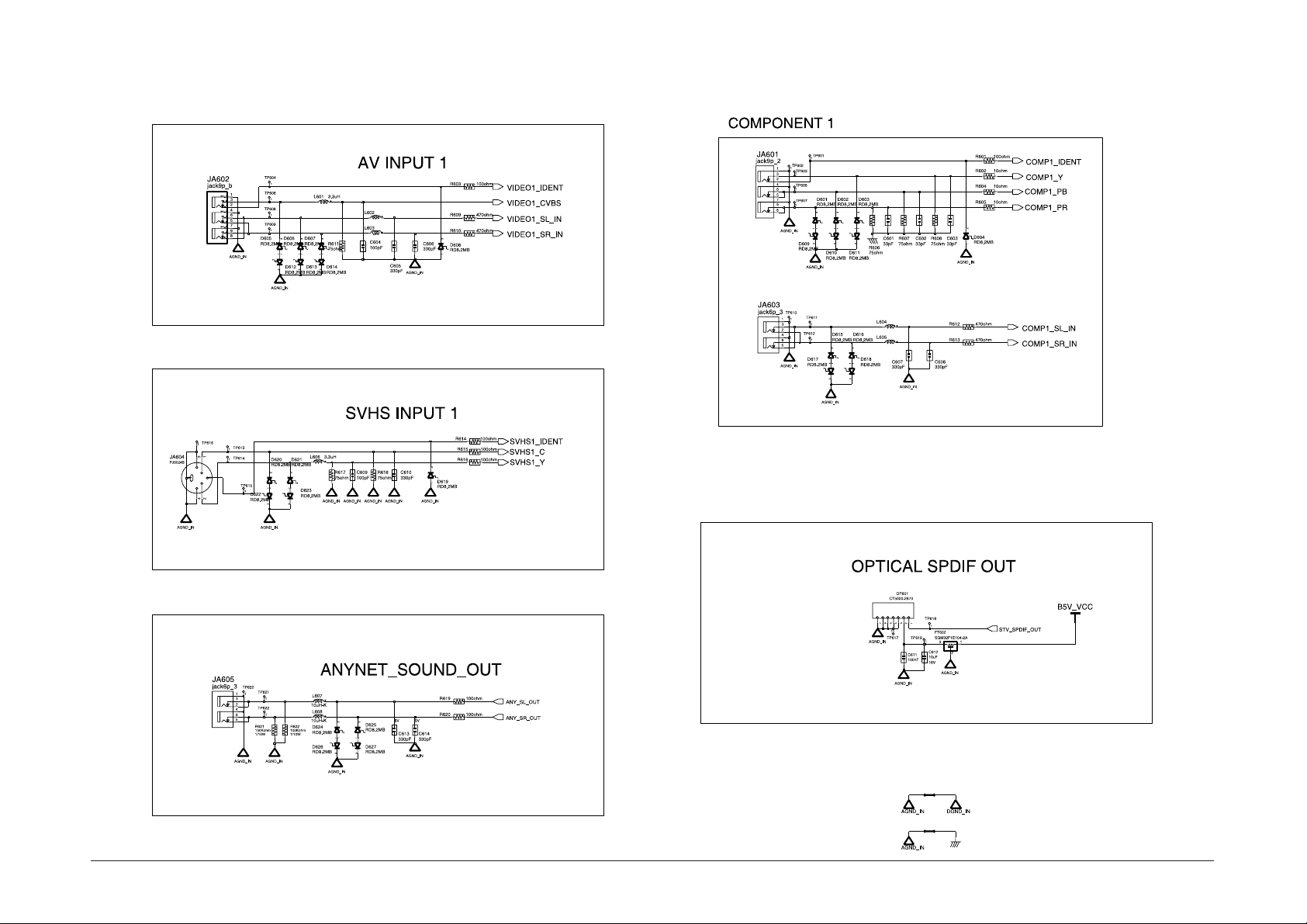

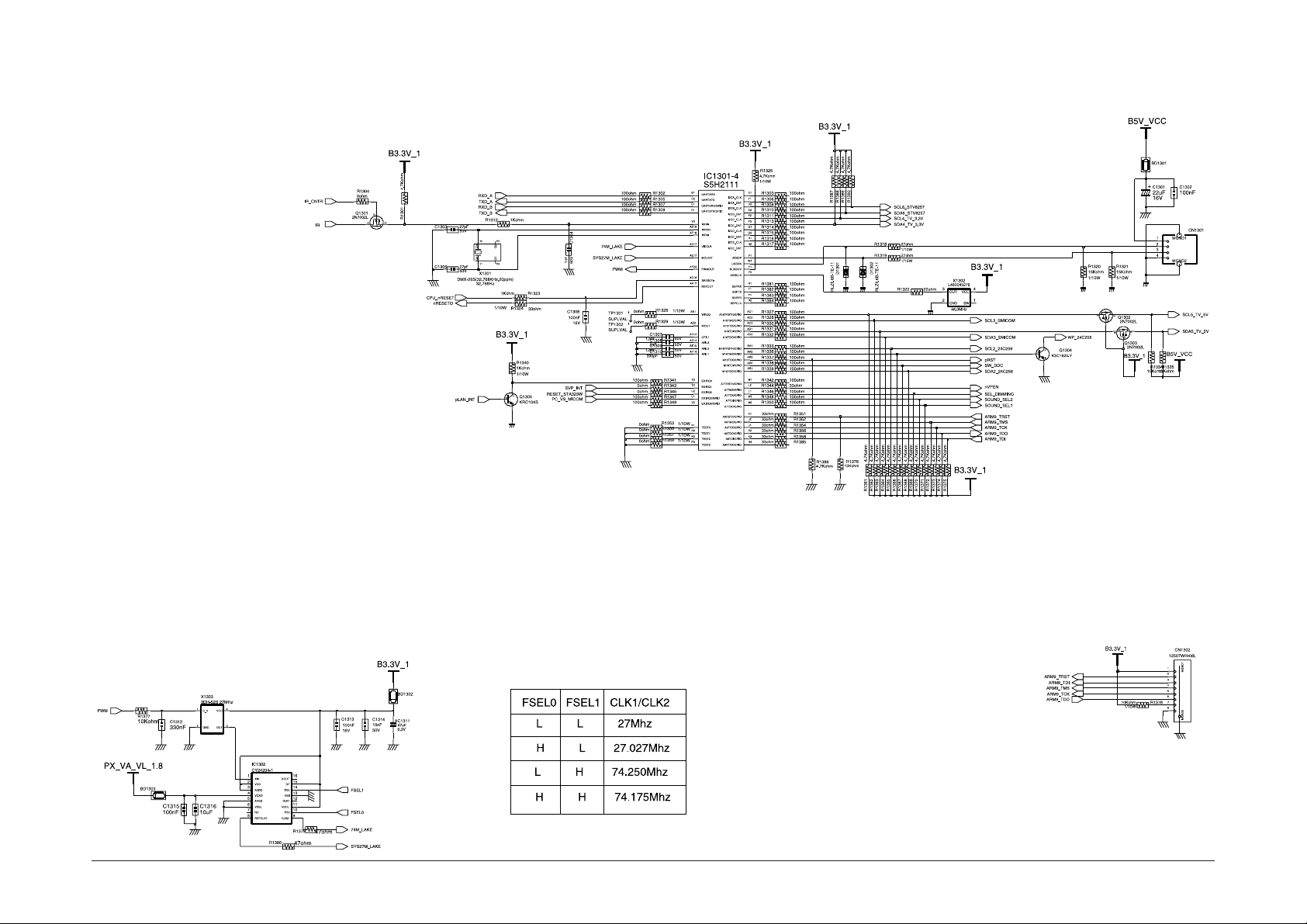

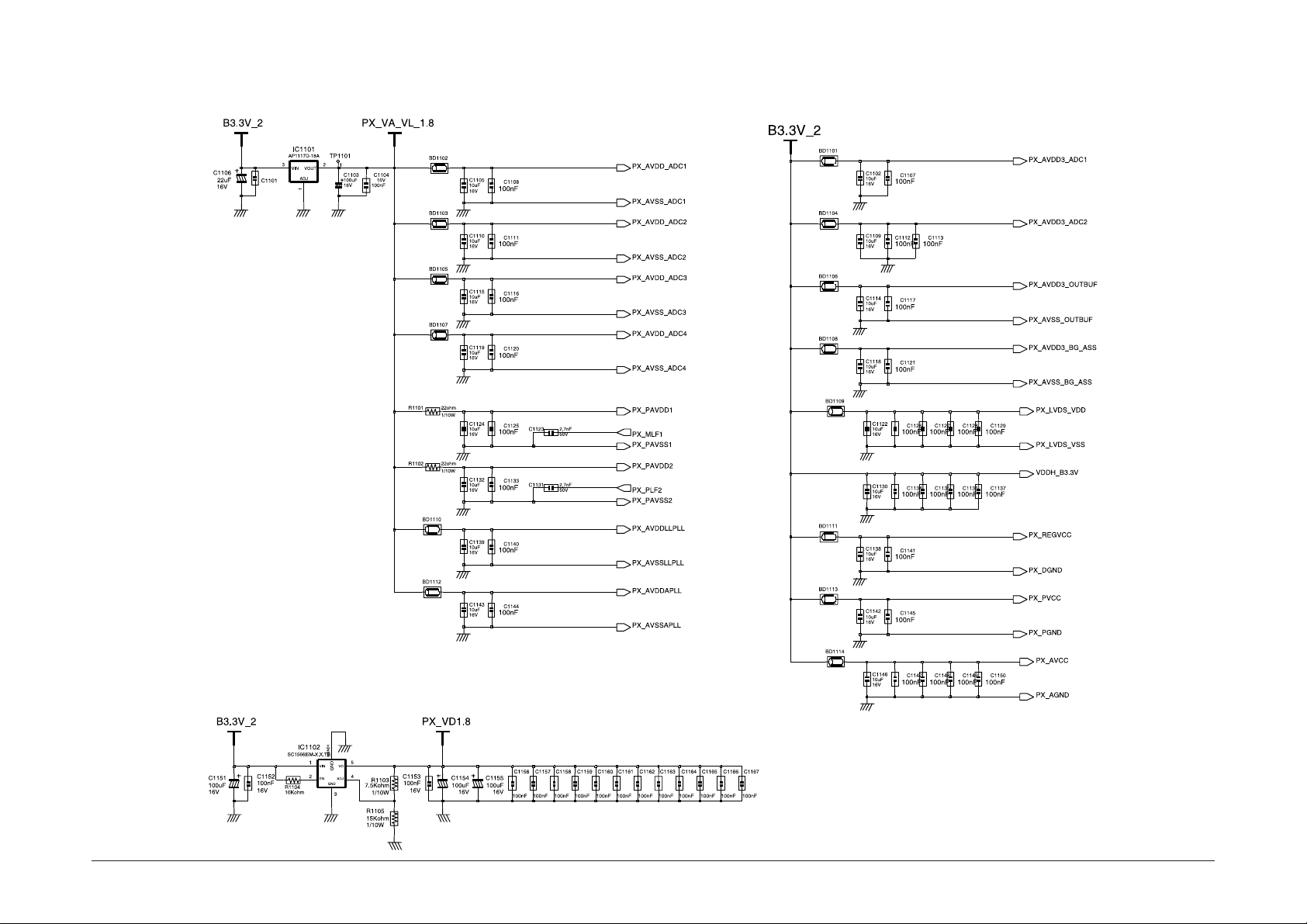

9 Schematic Diagrams ………………………………………………………………………………………………………………………………9-1

10 Operating Instructions and Installation ………………………………………………………………………………………………………10-1

10-1 Front …………………………………………………………………………………………………………………………………… 10-1

10-2 Connection Panel ……………………………………………………………………………………………………………………… 10-2

10-3 Remote Control ………………………………………………………………………………………………………………………… 10-4

11 Disassembly and Reassembly …………………………………………………………………………………………………………………11-1

11-1 Disassembly …………………………………………………………………………………………………………………………… 11-1

11-2 Reassembly …………………………………………………………………………………………………………………………… 11-6

12 Schematic Diagram………………………………………………………………………………………………………………………………12-1

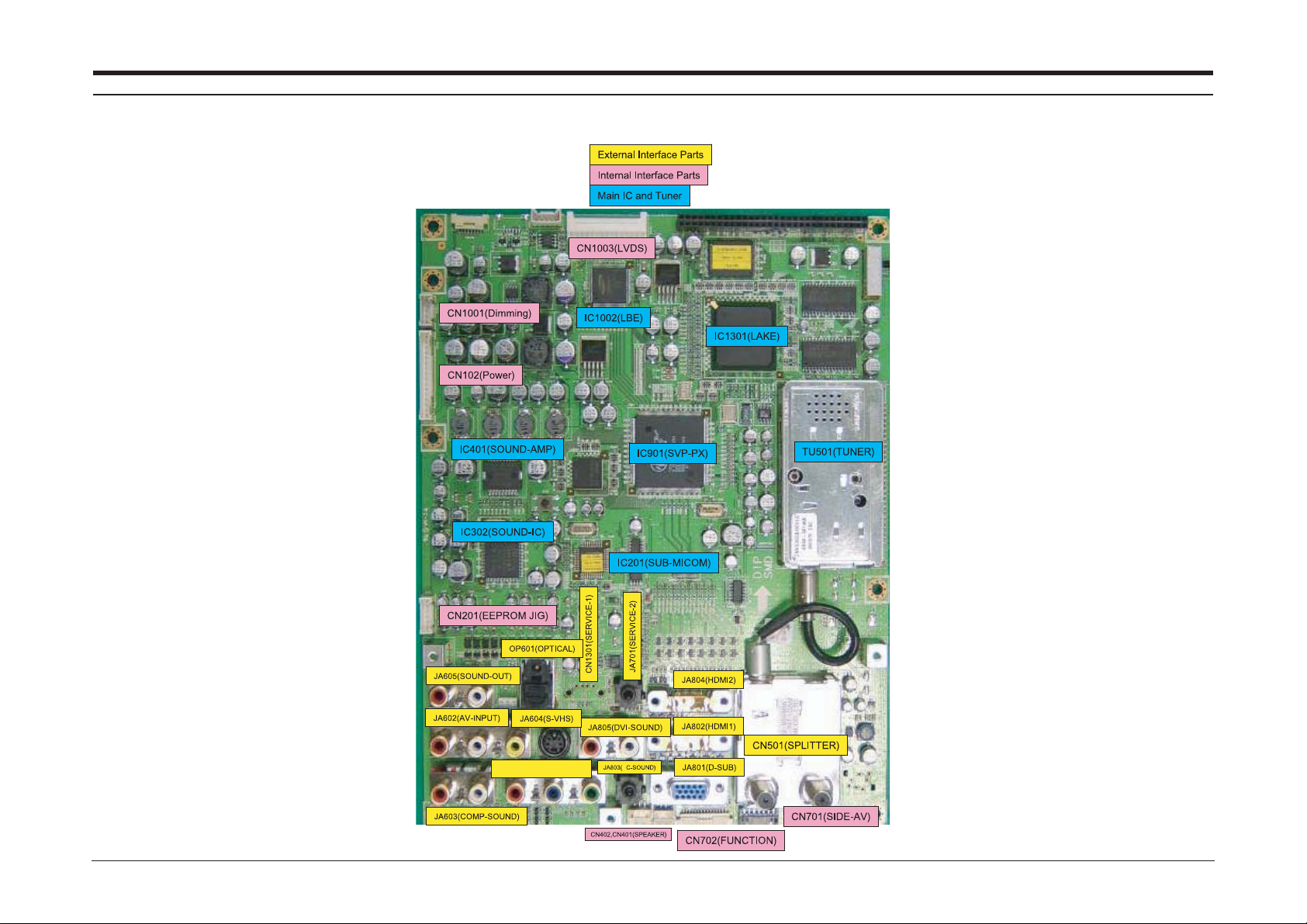

12-1 Main PCB Diagram …………………………………………………………………………………………………………………… 12-1

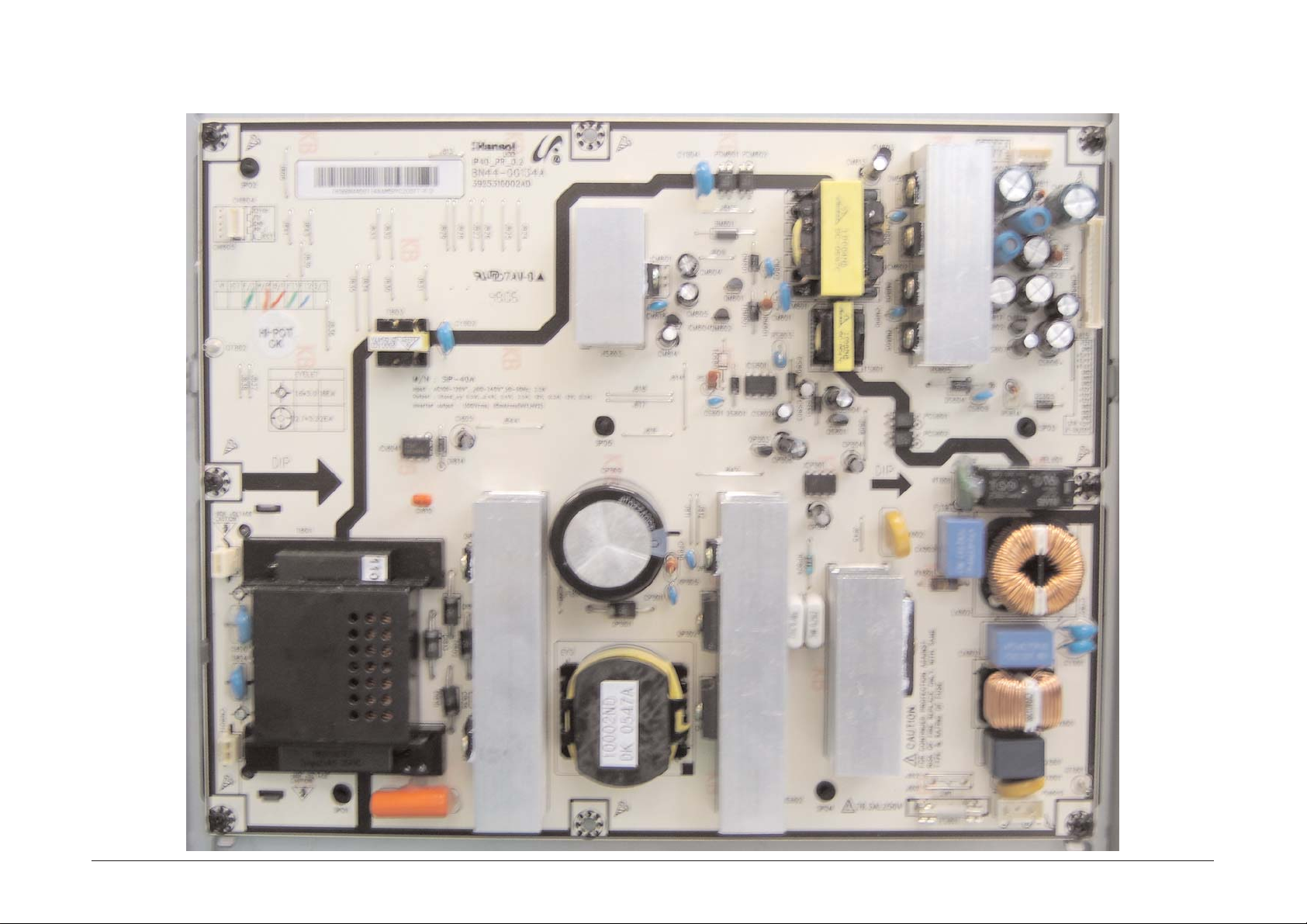

12-2 Power PCB Diagram(26" model) …………………………………………………………………………………………………… 12-2

13 Circuit Descriptions ………………………………………………………………………………………………………………………………13-1

13-1 Block description ……………………………………………………………………………………………………………………… 13-1

14 Reference Infomation ……………………………………………………………………………………………………………………………14-1

14-1 Technical Terms ……………………………………………………………………………………………………………………… 14-1

14-2 Pin Assignments ……………………………………………………………………………………………………………………… 14-4

14-3 Timing Chart …………………………………………………………………………………………………………………………… 14-6

14-4 Panel Description …………………………………………………………………………………………………………………… 14-10

Contents

Page 5

Samsung Electronics Co.,Ltd.

416, Maetan-3Dong, Yeongtong-Gu, Suwon City, Gyeonggi-Do, Korea, 443-742 Printed in Korea P/N : BN82-00139A-00 URL : http://itself.sec.samsung.co.kr/

-This Service Manual is a property of Samsung Electronics Co., Ltd. Any unauthorized use of Manual can be pun-

ished

under applicable International

and/or domestic law.

Page 6

1 Precautions

1-1

1-1-1 Warnings

1. For continued safety, do not attempt to modify the circuit board.

2. Disconnect the AC power and DC power jack before servicing.

1-1-2

Ser vicing the LCD Monitor

1. When servicing the LCD Monitor, Disconnect the AC line cord from the AC outlet.

2. It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this meter periodically.

1-1-3 Fire and Shock Hazard

Before returning the monitor to the user, perform the following safety checks:

1. Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the monitor.

2. Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

3. Leakage Current Hot Check (Figure 1-1):

WARNING : Do not use an isolation

transformer during this test.

Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410,

59.7).

Figure 1-1. Leakage Current Test Circuit

4. With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts. The current measured should not exceed 0.5 milliamp. Reverse the power-plug prongs in the AC outlet and

repeat the test.

1-1-4 Product Safety Notices

Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by on schematics and parts lists. A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate.

1 Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1-1 Safety Precautions

Page 7

1 Precautions

1-2

1-2-1 General Ser vicing

Precautions

1. Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test component in parallel with an electrolytic capacitor.

2. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.

3. After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the area around the serviced part has not been damaged.

1. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard, be sure to remove the wrist strap before applying power to the monitor.

2. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of an electrostatic charge.

3. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESDs.

4. Use only a grounded-tip soldering iron to solder or desolder ESDs.

5. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESDs.

4. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks).

5. Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500 V) to the blades of the AC plug.

The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

6. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.

6. Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.

7. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution:Be sure no power is applied to the

chassis or circuit and observe all other safety precautions.

8. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting your foot from a carpeted floor can generate enough static electricity to damage an ESD.

1-3

Electrostatically Sensitive Devices (ESD) Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

1-2 Ser vicing Precautions

WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section

of this manual.

Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety

precautions, always follow the safety precautions.

Page 8

1 Precautions

1-3

1-4 Installation Precautions

1. For safety reasons, more than two people are required for carrying the product.

2. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock.

3. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.

4. Otherwise, it may cause a fire or electric shock.

5. Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause fire or electric shock.

6. Keep the antenna far away from any high-voltage cables and install it securely. Contact with the highvoltage cable or the antenna falling over may cause fire or electric shock.

7. When installing the product, leave enough space (10cm) between the product and the wall for ventilation purposes. A rise in temperature within the product may cause fire.

Page 9

1 Precautions

1-4

Memo

Page 10

2 Product Specifications

2-1

2 Product Specifications

2-1 Features

- RF, HDMI(DVI-D), PC(Analog), Component, Video, S-Video

- Brightness : 500cd/㎥, CMO : 550cd/㎥

- Contrast Ratio : 26" : 800:1, 32" : 1000:1, 40" : 800 :1, CMO : 1000 : 1

- Response time : 16ms

- Dynamic contrast

- PIP (on PC only)

Page 11

2 Product Specifications

2-2

2-2 Specifications

2-2-1 LN26R71BD, LN-S2652D Specifications

LCD Panel

TFT-LCD panel, RGB vertical stripe, normaly white, 26-Inch viewable, 0.372 (H) x 0.372(V)mm pixel pitch

Scanning Frequency Horizontal : 30 kHz ~ 61 kHz (Automatic)

Vertical : 60 Hz ~ 75 Hz (Automatic) Display Colors 16.7 Million colors Maximum Resolution Horizontal : 1360 Pixels

Vertical : 768 Pixels Input Video Signal Analog 0.7 Vp-p ±5% positive at 75Ω, internally terminated Input Sync Signal Type : Seperate H/V

Level : TTL level

Maximum Pixel Clock rate

80 MHz

Active Display Horizontal/Vertical

AC power voltage & Frequency

AC 110 ,60Hz Power Consumption < 140 W ( < 1W, stand by ) Dimensions(W x D x H)

Set 675 X 75 X 475.5mm_with out stand

675 X 215.5 X 530 mm_ with stand Weight

Set(With stand) 10.1 Kg

Environmental Considerations

Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10 % ~ 80 %

Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)

Storage Humidity : 5 % ~ 95 %

TV System

Antena Input

75Ω

- MAX Internal speaker Out : Right => 3W, Left => 3W

Sound Characteristic

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

System ATSC, NTSC

Item

Description

508.125 mm / 285.696 mm

Tunning Frequency Synthesize

Sound MONO, STEREO, SAP

Page 12

2 Product Specifications

2-3

2-2-2 LN32R71BD, LN-S3252D Specifications

LCD Panel

TFT-LCD panel, RGB vertical stripe, normaly white, 32-Inch viewable, 0.1460 (H) x 0.4365(V)mm pixel pitch

Scanning Frequency Horizontal : 30 kHz ~ 61 kHz (Automatic)

Vertical : 60 Hz ~ 75 Hz (Automatic) Display Colors 16.7 Million colors Maximum Resolution Horizontal : 1360 Pixels

Vertical : 768 Pixels

Input Video Signal Analog 0.7 Vp-p ±5% positive at 75Ω, internally terminated Input Sync Signal Type : Seperate H/V

Level : TTL level

Maximum Pixel Clock rate

80 MHz

Active Display Horizontal/Vertical 596.259 mm / 335.232 mm

AC power voltage & Frequency

AC 110V, 60Hz Power Consumption < 150W (< 1W, stand by ) Dimensions(W x D x H)

Set 800 X 80 X 548.5 mm_with out stand

800 X252 X 603 mm) With stand

Weight Set(With stand) 14.8 kg

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10 % ~ 80 %

Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)

Storage Humidity : 5 % ~ 95 %

TV System

Antena Input

75Ω

- MAX Internal speaker Out : Right => 5W, Left => 5W

Sound Characteristic

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

System ATSC, NTSC

Item

Description

Tunning Frequency Synthesize

Sound MONO, STEREO, SAP

Page 13

2 Product Specifications

2-4

LCD Panel

TFT-LCD panel, RGB vertical stripe, normaly white, 32-Inch viewable, 0.511 (H) x 0.511(V)mm pixel pitch

Scanning Frequency Horizontal : 30 kHz ~ 61 kHz (Automatic)

Vertical : 60 Hz ~ 75 Hz (Automatic) Display Colors 16.7 Million colors Maximum Resolution Horizontal : 1360 Pixels

Vertical : 768 Pixels Input Video Signal Analog 0.7 Vp-p ±5% positive at 75Ω, internally terminated Input Sync Signal Type : Seperate H/V

Level : TTL level Maximum Pixel Clock rate

80 MHz

Active Display Horizontal/Vertical

AC power voltage & Frequency

AC 110V 60Hz Power Consumption < 230W ( < 1W, stand by ) Dimensions(W x D x H)

Set 991.5 X 87 X 658.5 mm_with out stand

991.5X326X713 mm_with stand Weight Set(With stand) 22.8 Kg Environmental Considerations

Operating Temperature : 50˚F~ 104˚F (10˚C ~ 40˚C) Operating Humidity : 10 % ~ 80 % Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C) Storage Humidity : 5 % ~ 95 %

TV System

Antena Input 75Ω

- MAX Internal speaker Out : Right => 7.5W, Left => 7.5W

Sound Characteristic

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

System ATSC, NTSC

Item

Description

697.69 mm / 392.26 mm

Tunning Frequency Synthesize

Sound MONO, STEREO, SAP

2-2-3 LN40R71BD, LN-S4052D Specifications

Page 14

2 Product Specifications

2-5

2-2-4 Spec Comparison

LN-R408D

Model

Design

Frequency

Horizontal Vertical Display Color

30 ~ 61 kHz

60 ~ 75 Hz

16,777,216 colors

30 ~ 61 kHz

60 ~ 75 Hz

16,777,216 colors

PC Resolution

Maximum mode

Input Signal

Sync Signal Video Signal

PPower Consumption Normal Power Saving

100W / 140W / 170W

< 2W

100W / 140W / 170W

< 1W

H/V Separate, TTL, P. or N.

0.7 Vp-p @ 75ohm

H/V Separate, TTL, P. or N.

0.7 Vp-p @ 75ohm

1360 x 768 / 60 Hz 1360 x 768 / 60 Hz

Input source

Difference

DVI-D HDMI

PPIP

PIP(PC Only) PIP, POP

SSound

3W / 5W / 7.5W 3W / 5W / 10W

LN26R71BD/LN32R71BD/LN40R71BD/

LN-S2652D/LN-S3252D/LN-S4052D

Page 15

2 Product Specifications

2-6

Item Item Name

Remote Control &

Batteries (AAA x 2)

Power Cord

Cover-Bottom

Stand

Stand Screw (4 ea)

Owner's Instructions

Cleaning Cloth

Warranty Card /

Registration

Card /Safety Guide Manual

(Not available in all locations)

BN59-00487A

3903-000085

BN63-02177A

26", 32" : BN96-02639A

40" : BN96-02633A

6002-001294

BN68-00860A

Code.No Remark

2-3 Option Specification

Page 16

3 Alignments and Adjustments

3-1

3 Alignments and Adjustments

3-1 General Alignment Instuction

1. Usually, a color LCD-TV needs only slight touch-up adjustment upon installation. Check the basic characteristics such as height, horizontal and vertical sync.

2. Use the specified test equipment or its equivalent.

3. Correct impedance matching is essential.

4. Avoid overload. Excessive signal from a sweep generator might overload the front-end of the TV. When inserting signal markers, do not allow the marker generator to distort test result.

5. Connect the TV only to an AC power source with voltage and frequency as specified on the backcover nameplate.

6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure that the power cord is disconnected before replacing any parts.

7. To protect aganist shock hazard, use an isolation transformer.

Page 17

3 Alignments and Adjustments

3-2

3-2 Factory Mode Adjustments

3-2-1 Entering Factory Mode

To enter 'Service Mode' Press the remote -control keys in this sequence :

- If you do not have Factory remote - control

3-2-2 How to Access Service Mode

¡áUsing the Customer Remote

1.Turn the power off and set to stand-by mode

2.Press the remote buttons in this order; POWER OFF-MUTE-1-8-2-POWER ON to turn the set on.

3.The set turns on and enters service mode.

4.Press the Power button to exit and store data in memory. ¡ØIf you fail to enter service mode, repeat steps 1 and 2 above.

5.Initial SERVICE MODE DISPLAY State

Power OFF 1 8 2 Power OnMUTE

3-2-3 Factory Data

Page 18

3 Alignments and Adjustments

3-3

Page 19

3 Alignments and Adjustments

3-4

Page 20

3 Alignments and Adjustments

3-5

Page 21

3 Alignments and Adjustments

3-6

Page 22

3 Alignments and Adjustments

3-7

AV/S-VIDEO

Calibration Checksum

Option Byte KS1406

White Balance KS1409

W/B Movie Dynamic Contrast

SVP-PX EEPROM Access Count

LBE RESET

SOUND(STV825X)

Sub Micom Download

T-BORDNUS0-0064 Dec 27 2005

T-BORDNUS5-0053 [Sec:47

]

AG C_REF[AIR] 0x50 PACK ET _ERR_TH R 0x8

C R _F _G A IN[AIR] 0xD0B

C R _L _G A I N[AIR] 0x24

EQ_STEP[AIR] 0xB

PILO T _GA IN[AIR] 0x1612

AGC_REF[CABLE] 0x50

C R _F _G A IN[CABLE] 0xD0B

C R _L _G A IN[CA BL E] 0x24

EQ_STEP[CAB LE] 0xB

PILO T _G A IN[CABLE] 0x1

CR_F2_GA IN[CABLE] 0x1612

AV/S-VIDEO

Calibration Checksum

Option Byte KS1406

White Balance KS1409

W/B Movie Dynamic Contrast

SVP-PX EEPROM Access Count

LBE RESET

SOUND(STV825X)

Sub Micom Download

T-BORDNUS0-0064 Dec 27 2005

T-BORDNUS5-0053 [Sec:47

]

Dynam icCE On

Dynam icDimming O n

LBE Y _M EA N READ

Page 23

3 Alignments and Adjustments

3-8

Page 24

3 Alignments and Adjustments

3-9

3-3 White Balance - Calibr ation

3-3-2 White Balance - Adjustment

3-3-1 White Balance -Calibration

3-3-3 Conditions for Measurement

1. Calibration

DTV Calibration PC Calibration (Calibration Condition refer to next page)

3. W/B

(low light) (hight light)

1. On the basis of toshiba ABL pattern : High Light level (57 IRE)

- INPUT SIGNAL GENERATOR : MSPG-925LTH * Mode NO 1 : 744X484@60 Hz

NO 6 : 1280X720@60 Hz (Component 720P) NO 21 : 1024X768@60 Hz

Pattern

NO 15 : Color bar NO 16 : Toshiba ABL Pattern NO 17 : 16 gray

2. Optical measuring device : CA210 (FL) Please use the MSPG-925 LTH generator for model LNR2355W,LNR2755W,LNR3255W.

(W/B adjustment Condition refer next page)

Sub Bright Sub Contrast R offset R gain G offset G gain B offset B gain

Page 25

3 Alignments and Adjustments

3-10

3-4 White Ratio (Balance) Adjustment

1. You can adjust the white ratio in factory mode (1:Calibration, 3:White-Balance).

2. Since the adjustment value and the data value vary depending on the input source, you have to

adjust these in CVBS, Component 1 and HDMI 1 modes.

3. The optimal values for each mode are configured by default. (Refer to Table 1, 2.)

It varies with Panel's size and Specification.

- Equipment : CS-1000

- Pattern: Master MSPG925 #16 "ABL Pattern" as standard

- Use other equipment only after comparing the result with that of the Master equipment.

- Set Aging time : 30min

- Calibration and Manual setting for WB adjustment. HDMI: No Calibration Manual adjustment at #16 pattern (720p) COMP: Calibration at #24 Chessboard Pattern Manual adjustment at #16 pattern (720p) CVBS: Calibration at #24 Chessboard Pattern Manual adjustment at #16 pattern (NTSC) PC : Calibration at #24 Chessboard Pattern No Manual adjustment (1024x768@60Hz)

CVBS

L/L

H/L

L/L

H/L

L/L

T(K) + MPCD

Y (cd/m

)

3.8(1.1Ft)

4.2(1.2Ft)

263

Adjustment Coordinate

263

15000K/0

Component

(720p)

HDMI

(1080i)

-White Balance Manual Adjustment (ABL Pattern)

-Adjustment Specification

White Balance : High light (± 2), Low light (± 3) Luminance : High light (Don't care), Low light (± 0.2 Ft/L)

20mm

Page 26

3 Alignments and Adjustments

3-11

3-5 Ser vicing Infor mation

3-5-1 USB Download Method

1. Downloading boot code (1) Change the boot code's file name into "boot.bin". (2) Copy the "boot.bin" into the path "/bordeaux/us" in USB flash driver. (3) Turn off LCD TV. (4) Insert the USB flash driver into the service 1 jack of LCD TV. (5) Turn on LCD TV. (6) The banner osd "Updating SW..." is displayed. (7) The banner osd "Completed..." is displayed when the updating is completed. (8) Turn off and remove the USB flash driver from LCD TV (9) Check the program version.

2. Downloading application code (1) Change the application code's file name into "appl.rom". (2) Copy the "appl.rom" into the path "/bordeaux/us" in USB flash driver. (3) Turn off LCD TV. (4) Insert the USB flash driver into the service 1 jack of LCD TV. (5) Turn on LCD TV. (6) The banner osd "Updating SW..." is displayed. (7) The banner osd "Completed..." is displayed when the updating is completed. (8) Turn off and remove the USB flash driver from LCD TV (9) Check the program version.

Page 27

3 Alignments and Adjustments

3-12

Model Panel Picture of Panel Code Substitute LVDS Code Inverter Remark

Supplier panel label Code Code

LNS3251D

AUO

T315XW01 V5

BN07-00253A

BN07-00247A

BN07-00253A

BN39-00712C

BN39-00603A

BN39-00603G

- Adjust Factory Mode as below when replacing panel

Factory Mode → Option Byte → Panel Option → 32AUO

- Connect the inverter cable to the CNM803 connector of SMPS Ass'y

- Use the existing cable when replacing panel with BN07-00247A

- Adjust Factory Mode as below when replacing panel

Factory Mode → Option Byte → Panel Option → 32AM

- Connect the inverter cable to the CNM802 connector of SMPS Ass'y

- Order inverter cable BN39-00603A when replacing panel with BN07-00253A

SAMSUNG

LTA320WT-L14

3-6 LVDS cable code for each panel

Page 28

5 Exploded View & Parts List

5-1

5 Exploded View and Parts List

- You can search for updated part codes through ITSELF web site.

URL : http://itself.sec.samsung.co.kr/

5-1 LN26R71BX/XAO, LN26R71BX/XAP Exploded View

M0014

M0013

T0175

T0159

T0447

M0215

T0175

M0013

T0003

Page 29

5 Exploded View & Parts List

5-2

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-03012F ASSY COVER P-FRONT;26R71,SO,ABS+PMMA,HB, 1 S.A

T0175 BN96-03053A ASSY SPEAKER P;16ohm,Bordeuax 26,Left,5W 1 S.A

T0175 BN96-03054A ASSY SPEAKER P;16ohm,Bordeuax 26,Right,5 1 S.A

M0215 BN07-00254A LCD-PANEL;T260XW02,8bit,626.0*373.0*50.0 1 S.A

T0447 BN96-03008C ASSY BRACKET P-PANEL;BORDEAUX,26,AUO,SMP 1 S.N.A

M0014 BN94-01012B ASSY PCB MAIN;LN26R71BX/XAZ,A51O,BORDEAU 1 S.A

T0159 BN96-03058A ASSY PCB P-SMPS;Bordeaux 26 PFC,LE26R71B 1 S.A

M0013 BN96-03014E ASSY COVER P-REAR;26R71,SO,-,ABS+PMMA,BK 1 S.A

M0013 BN96-03358B ASSY STAND P-BASE;23,26R71,-,ABS+PMMA,HB 1 S.A

5-2 LN26R71BX/XAO Parts list
