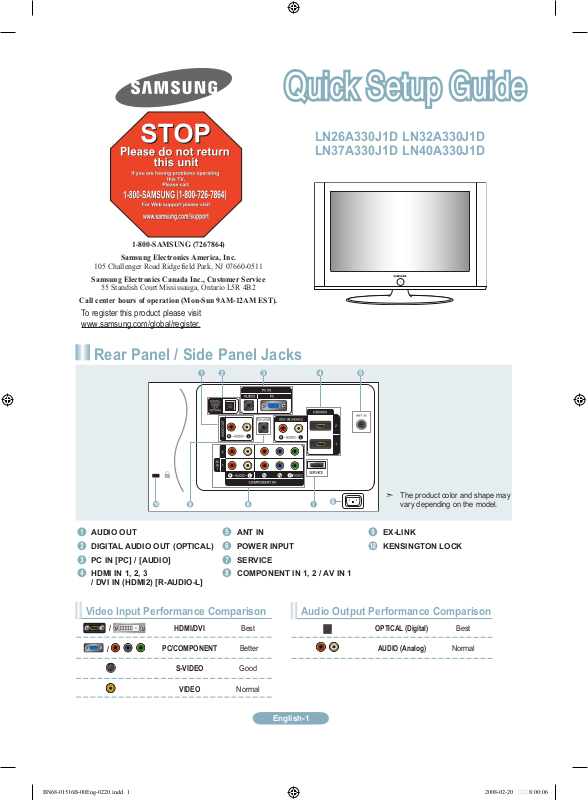

LN26A330J1D LN32A330J1D
LN37A330J1D LN40A330J1D
1-800-SAMSUNG (7267864)
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park, NJ 07660-0511
Samsung Electronics Canada Inc., Customer Service
55 Standish Court Mississauga, Ontario L5R 4B2
Call center hours of operation (Mon-Sun 9AM-12AM EST).
To register this product please visit www.samsung.com/global/register.

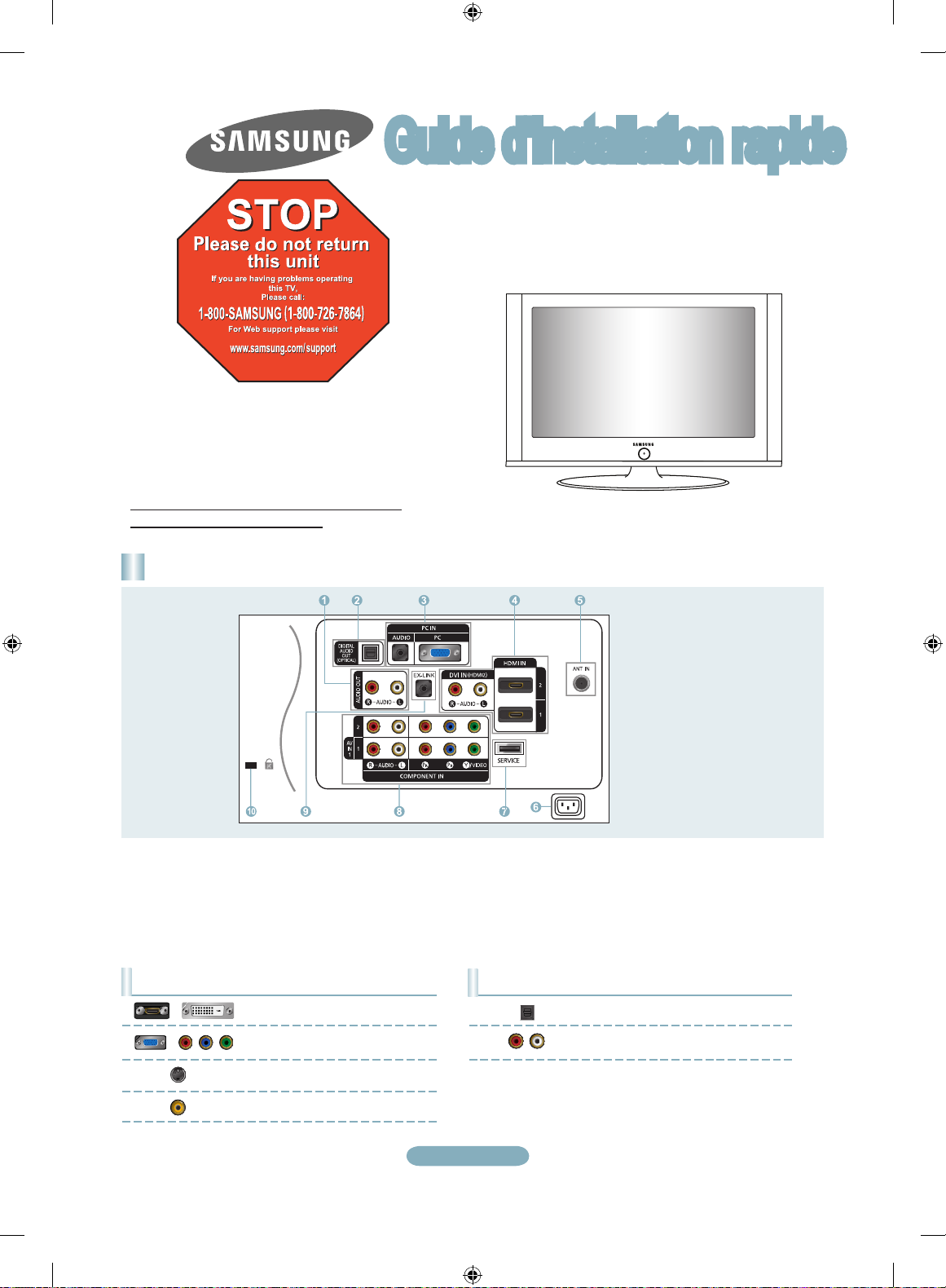

Rear Panel / Side Panel Jacks
|
|
|
The product color and shape may |
|
|
|
vary depending on the model. |
1 AUDIO OUT |
5 ANT IN |
9 |
EX-LINK |
2 DIGITAL AUDIO OUT (OPTICAL) |
6 POWER INPUT |
0 |
KENSINGTON LOCK |
3 PC IN [PC] / [AUDIO] |
7 SERVICE |
|
|
4 HDMI IN 1, 2, 3 |
8 COMPONENT IN 1, 2 / AV IN 1 |
|
|
/ DVI IN (HDMI2) [R-AUDIO-L] |
|
|
|
Video Input Performance Comparison |
|
Audio Output Performance Comparison |
|||||
/ |
HDMI/DVI |
Best |
|
|
OPTICAL (Digital) |
Best |
|
|
|
||||||
|
|
||||||
|
|
||||||
/ |
PC/COMPONENT |
Better |
|
|
AUDIO (Analog) |
Normal |
|
|
S-VIDEO |
Good |
|
|
|
|
|
|
VIDEO |
Normal |
|
|
|
|
English-

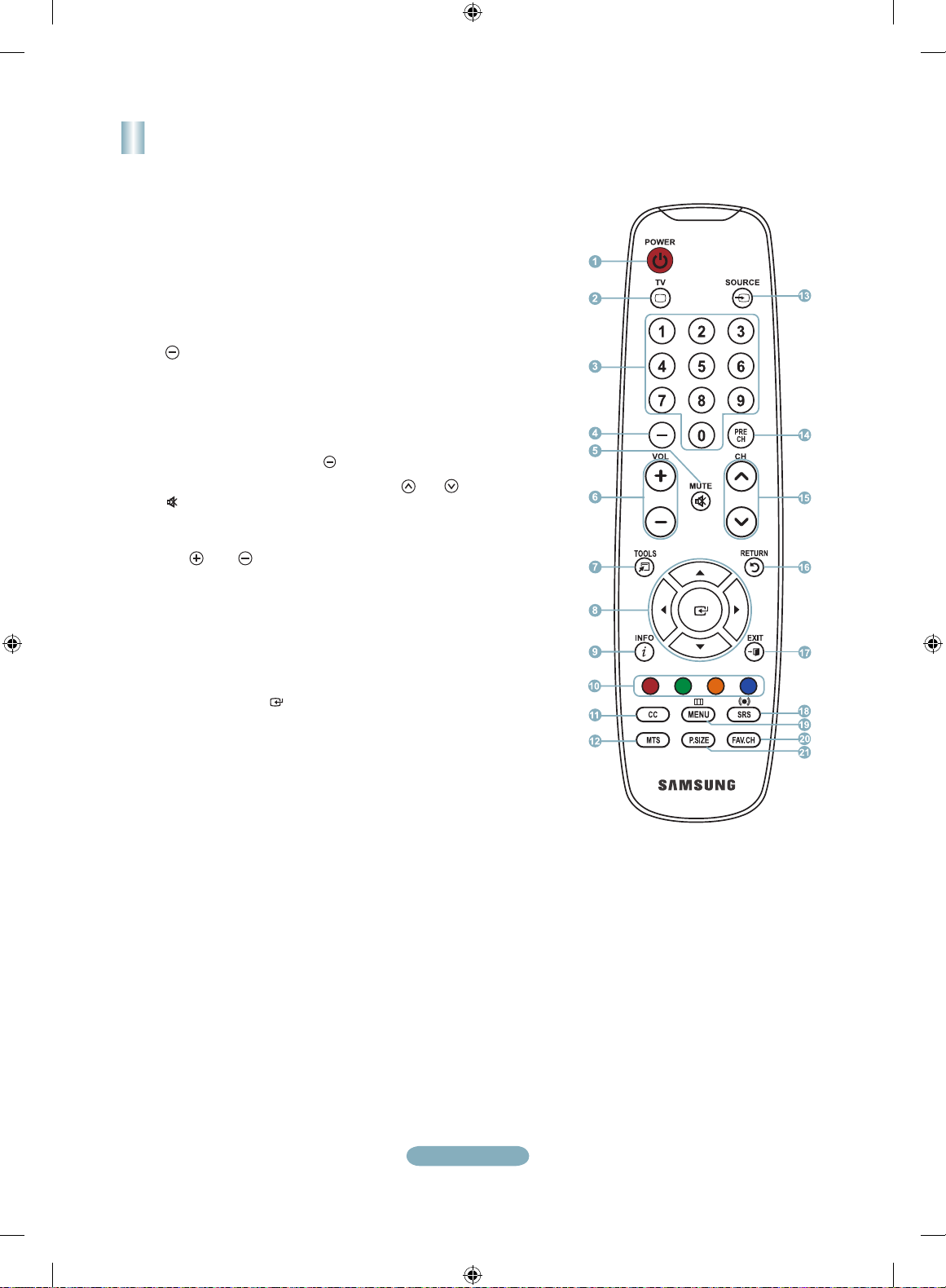

Remote Control
See “Remote Control” in the owner’s instructions for details.
1POWER
Turns the TV on and off.
2TV
Selects the TV mode directly.
3NUMERIC BUTTONS
Press to change the channel.
4
Press to select additional channels(digital and analog) being broadcast by the same station.
For example, to select channel
“54-3”, press “54”, then press ” and “3”.
5 (MUTE)
Press to temporarily cut off the sound.
6 VOL / VOL
Press to increase or decrease the volume.
7TOOLS
Use to quickly select frequently used functions.
8UP▲ / DOWN▼ / LEFT◄ / RIGHT► / ENTER
Use to select on-screen menu items and change menu values.
9INFO
Press to display information on the TV screen.
0 COLOR BUTTONS
Use these buttons in the Channel list, etc.
!CC
Controls the caption decoder.
@MTS
Press to choose stereo, mono or Separate Audio Program
(SAP broadcast).
#SOURCE
Press to display and select the available video sources.
$ PRE CH
Tunes to the previous channel.
%CH / CH
Press to change channels.
^RETURN
Returns to the previous menu.
&EXIT
Press to exit the menu.
*SRS
Selects SRS TruSurround XT mode.
( MENU
Displays the main on-screen menu.
) FAV.CH
Press to switch to your favorite channels.
aP.SIZE
Picture size selection.
English-
BN68-01516B-00Eng-0220.indd 2 |
|
|
2008-02-20 8:00:06 |
|
|
||
|
|
|
|
Connections

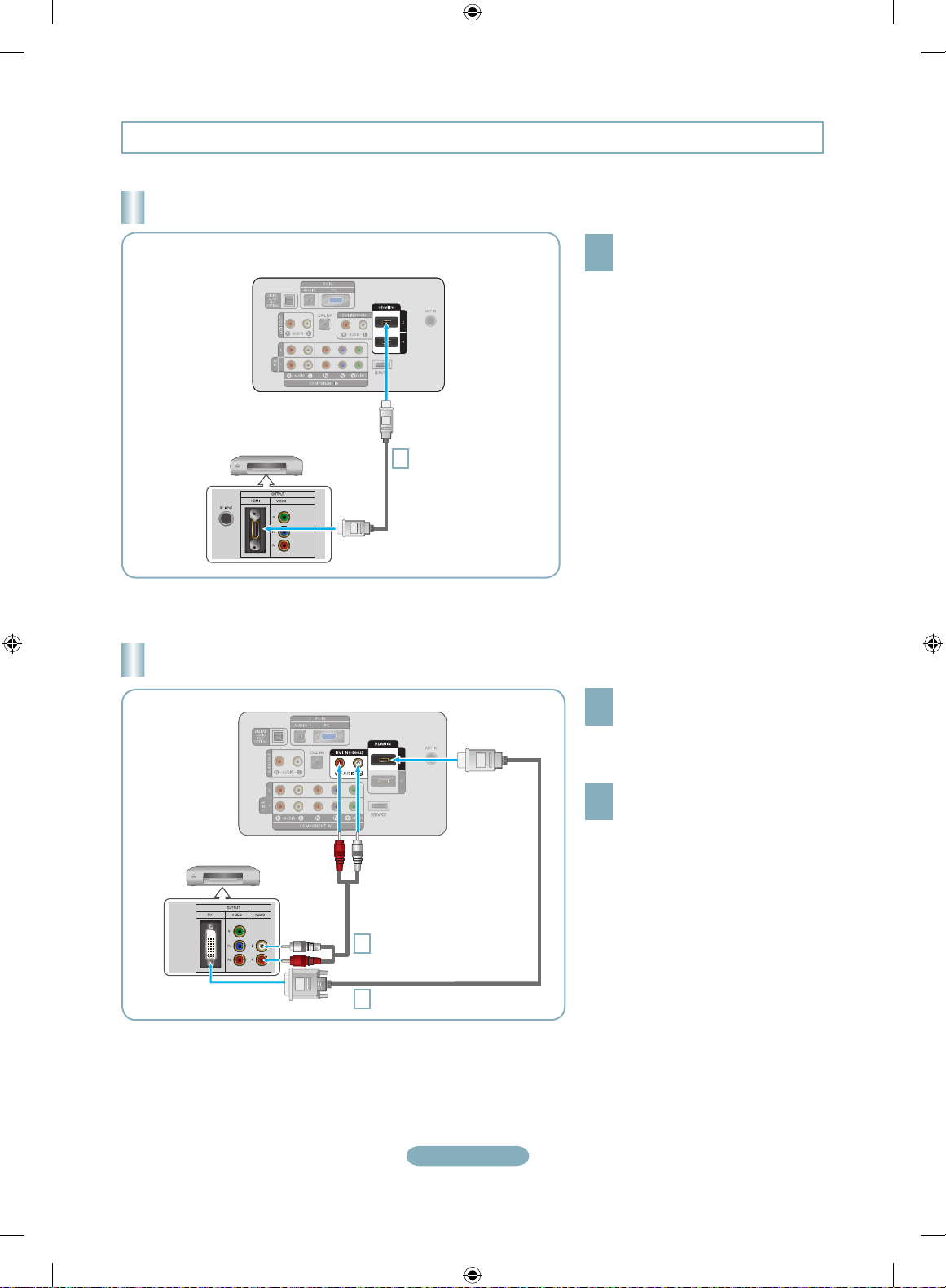

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI
TV Rear Panel
DVD Player or Cable Box/ Satellite receiver (Set-Top Box)
1 HDMI Cable (Not supplied)
1 |
Connect an HDMI Cable between |
the HDMI IN (1 or 2) jack on the |
|
TV and the HDMI jack on the |
|
|
DVD Player or Cable Box/Satellite |
|
receiver (Set-Top Box). |
What is HDMI?
•HDMI(High-Definition Multimedia Interface), is an interface that enables the transmission of digital audio and video signals using a single cable.
•The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed.
Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.
Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI
TV Rear Panel
DVD Player or Cable Box/
Satellite receiver (Set-Top Box)
|
|
1 |
Connect a DVI to HDMI Cable or |
|
DVI-HDMI Adapter between the |
||
|
|
|
HDMI IN 2 jack on the TV and the DVI |
|
|
|
|
|
|
|
jack on the DVD Player or Cable Box/ |
|
|
|
Satellite receiver (Set-Top Box). |
|
|
|
|
2 |
Connect Audio Cables between the |
||
DVI IN (HDMI 2) [R-AUDIO-L] jack on |
the TV and the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
2 Audio Cable (Not supplied)
1 DVI to HDMI Cable (Not supplied)
Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.
When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
English-
BN68-01516B-00Eng-0220.indd 3 |
|
|
2008-02-20 8:00:07 |
|
|
||
|
|
|
|

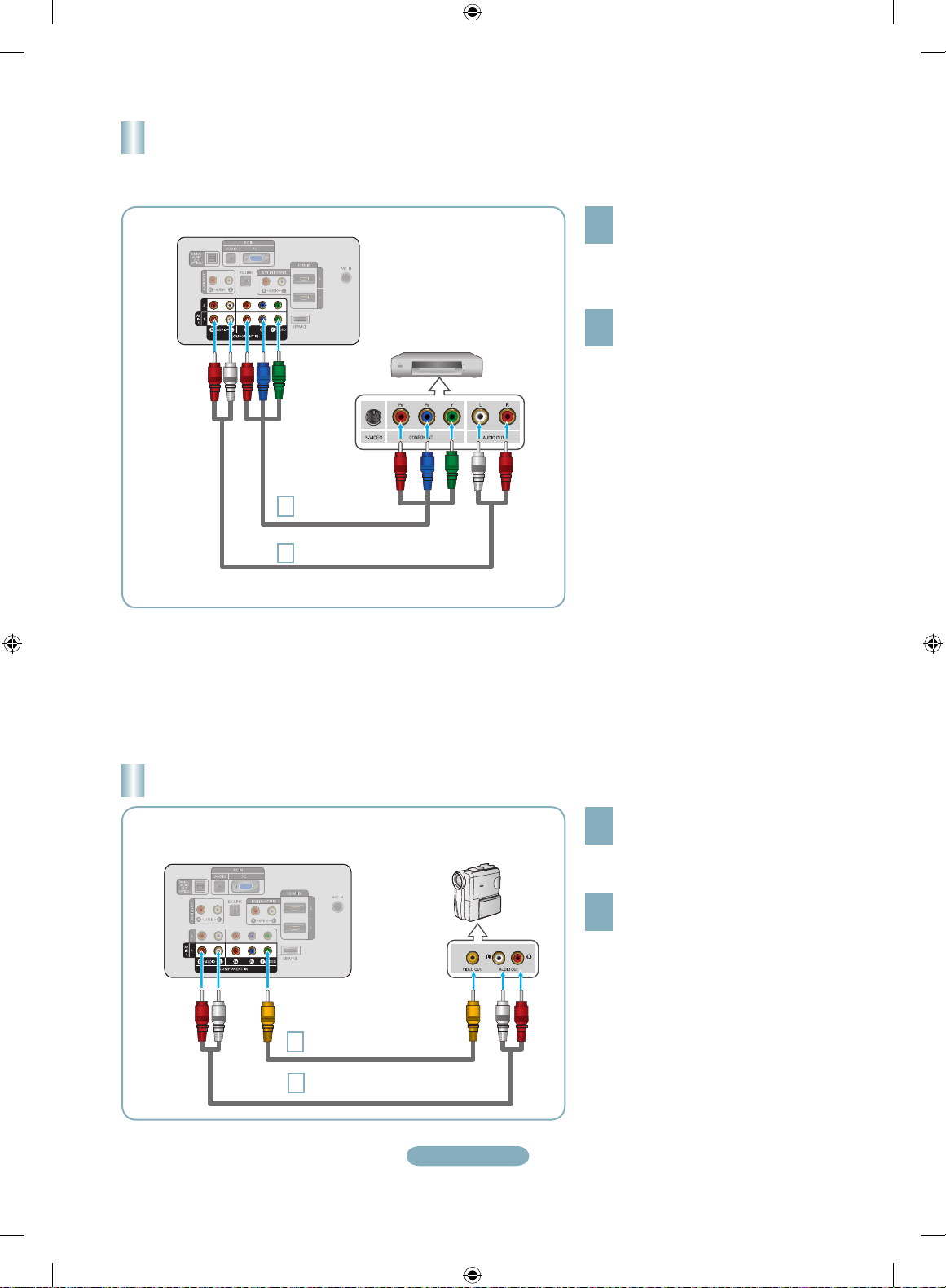

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via Component cables
TV Rear Panel
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
Connect a Component Cable between 1 the COMPONENT IN (1 or 2)
[Y, PB, PR] jacks on the TV and the COMPONENT [Y, PB, PR] jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
Connect Audio Cables between the 2 COMPONENT IN(1 or 2) [R-AUDIO-L]
jacks on the TV and the AUDIO OUT jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
|
|
Component video separates the video |
|
|
|
into Y (Luminance (brightness)), Pb |
|
|
|
(Blue) and Pr (Red) for enhanced video |
|
|
|
quality. |
|
|
|
Be sure to match the component video |
|
|
|
and audio connections. |
|
1 |
Component Cable |
For example, if connecting |
|
a Component video cable to |
|||
(Not supplied) |
|||
|
|
COMPONENT IN 1, connect the audio |
|
2 Audio Cable (Not supplied) |
cable to COMPONENT IN 1 also. |
||
Each DVD Player or Cable Box/ |
|||
|
|
Satellite receiver (Set-Top Box) has a |
|
|
|
different back panel configuration. |
|
|
|
When connecting a DVD Player or |
|
|
|
Cable Box/Satellite receiver (Set-Top |
|
|
|
Box), match the color of the connection |
|
|
|
terminal to the cable. |
Connecting a Camcorder
TV Rear Panel |
Camcoder |
|
1 Video Cable (Not supplied)
2 Audio Cable (Not supplied)
English-
Connect a Video Cable between 1 the AV IN 1 [Y/VIDEO] jack on the
TV and the VIDEO OUT jack on the camcorder.
Connect Audio Cables between the 2 AV IN 1[R-AUDIO-L] jacks on the TV
and the AUDIO OUT jacks on the camcorder.
Each Camcorder has a different back panel configuration.
When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow).
BN68-01516B-00Eng-0220.indd 4 |
|
|
2008-02-20 8:00:08 |
|
|
||
|
|
|
|

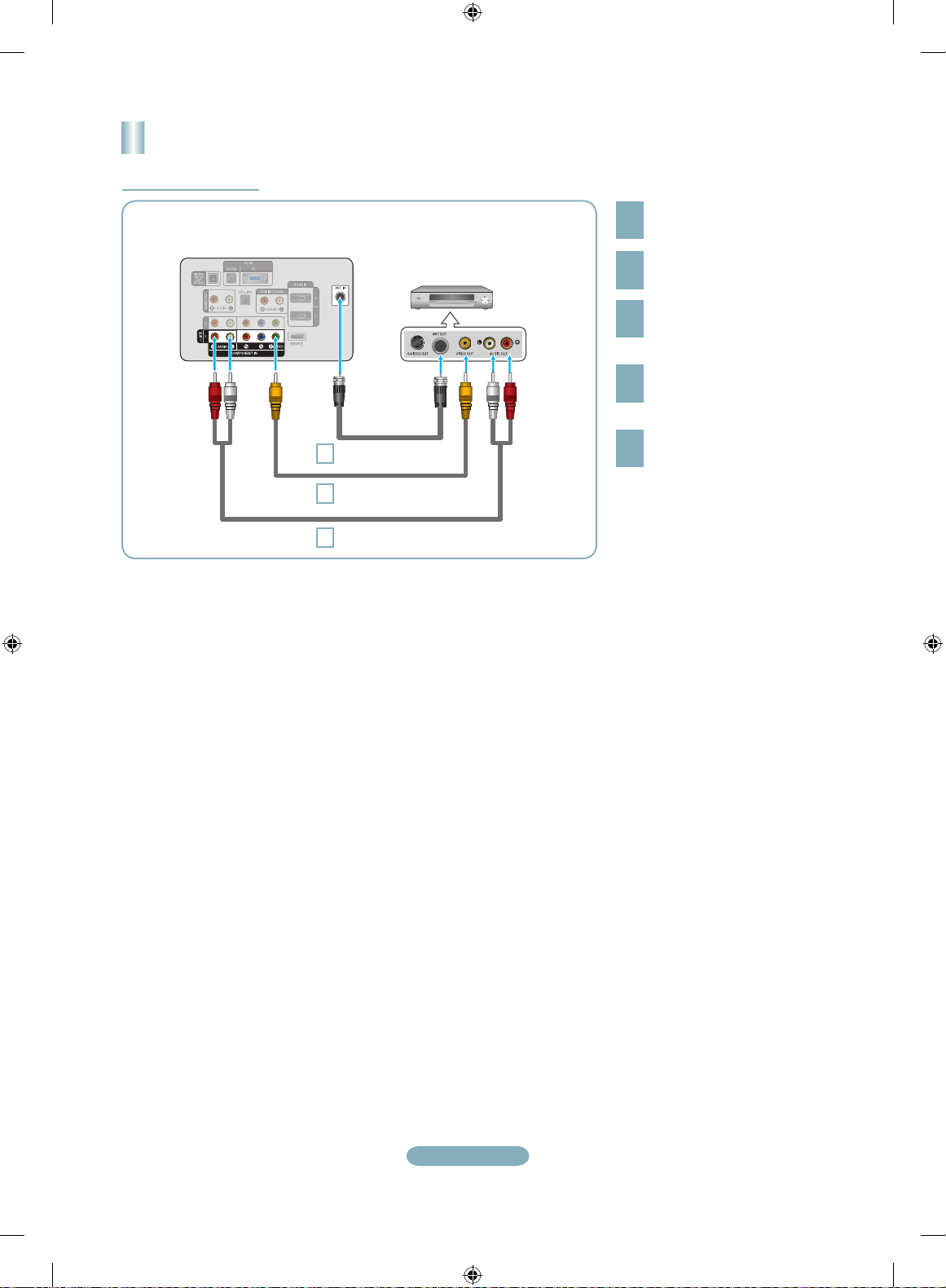

Connecting a VCR
Video Connection
TV Rear Panel
VCR Rear Panel
3 RF Cable (Not supplied)
4 Video Cable (Not supplied)
5 Audio Cable (Not supplied)
Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.
|
Unplug the cable or antenna |
|
1 |
||
from the back of the TV. |
||
|
Connect the cable or antenna |
|
2 |
||
to the ANT IN terminal on the |
||
|
back of the VCR. |
|
|
||
|
Connect an RF Cable between |
|
3 |
||
the ANT OUT terminal on the |
||
VCR and the ANT IN terminal |
||
|
||
|
on the TV. |
|
4 |
Connect a Video Cable between |
|
the VIDEO OUT jack on the |
||
VCR and the AV IN 1 [Y/VIDEO] |
||
|
jack on the TV.
Connect Audio Cables between
5 the AUDIO OUT jacks on the VCR and the AV IN 1 [R- AUDIO-L] jacks on the TV.
If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCR is stereo, you must connect two cables.
Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.
When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow).
English-
BN68-01516B-00Eng-0220.indd 5 |
|
|
2008-02-20 8:00:09 |
|
|
||
|
|
|
|

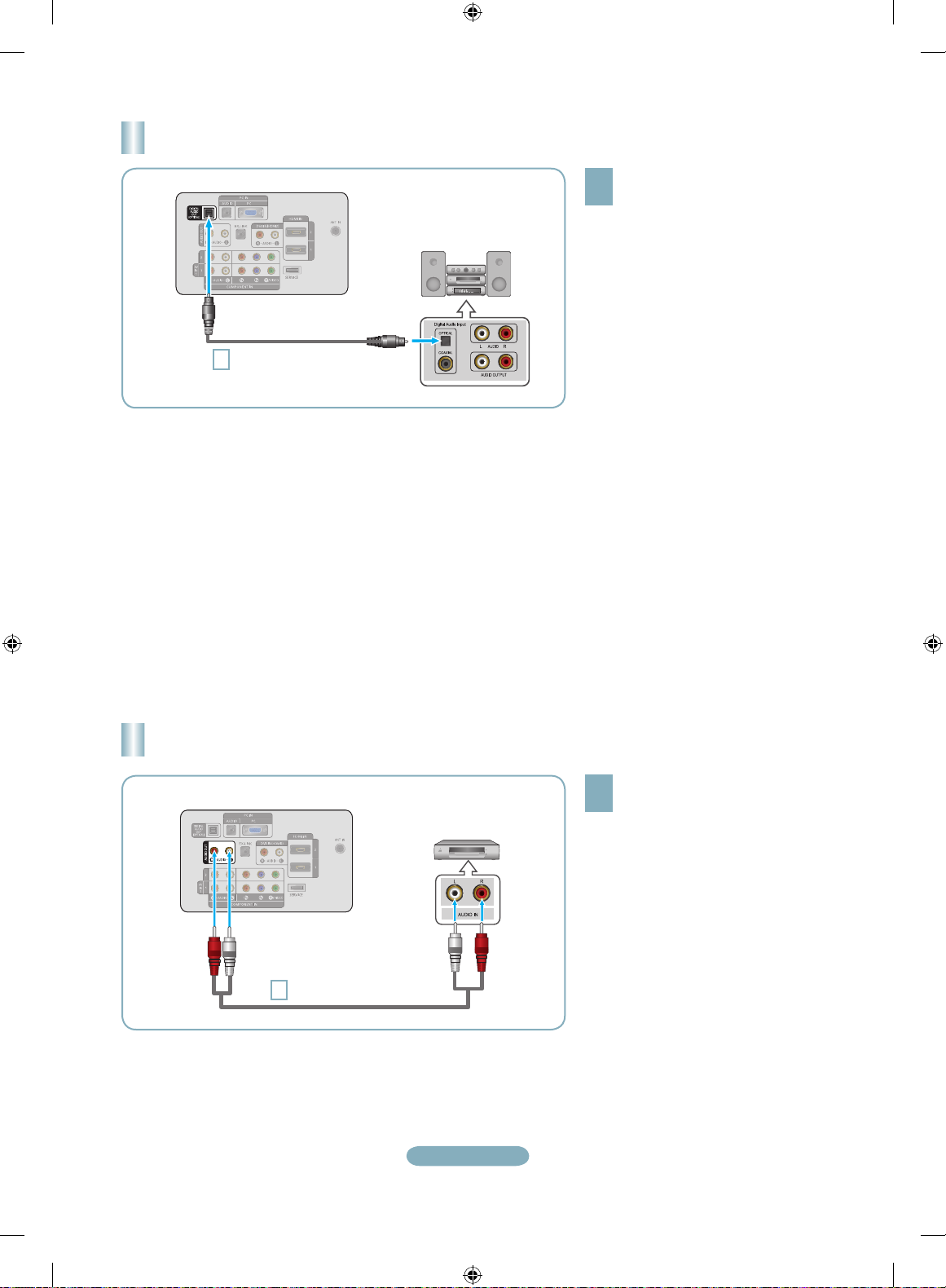

Connecting a Digital Audio System
TV Rear Panel
Digital Audio System
1 Optical Cable (Not supplied)
Connect an Optical Cable between 1 the “DIGITAL AUDIO OUT
(OPTICAL)” jacks on the TV and the Digital Audio Input jacks on the Digital Audio System.
When a Digital Audio System is connected to the “DIGITAL AUDIO OUT (OPTICAL)” jack: Decrease the volume of the TV and adjust the volume level with the system’s volume control.
5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH.
Each Digital Audio System has a different back panel configuration.
When the receiver (home theater) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the
Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box directly to an Amplifier or Home Theater, not the TV.
Connecting an Amplifier/DVD Home Theater
TV Rear Panel
Amplifier/DVD Home Theater
1 Audio Cable (Not supplied)
Connect Audio Cables between the 1 AUDIO OUT [R-AUDIO-L] jacks on the TV and AUDIO IN [R-AUDIO-L]
jacks on the Amplifier/DVD Home Theater.
When an audio amplifier is connected to the "AUDIO OUT [R-AUDIO-L]" jacks: Decrease the volume of the TV and adjust the volume level with the Amplifier’s volume control.
Each Amplifier/DVD Home Theater has a different back panel configuration.
When connecting an Amplifier/DVD Home Theater, match the color of the connection terminal to the cable.
English-
BN68-01516B-00Eng-0220.indd 6 |
|
|
2008-02-20 8:00:09 |
|
|
||
|
|
|
|

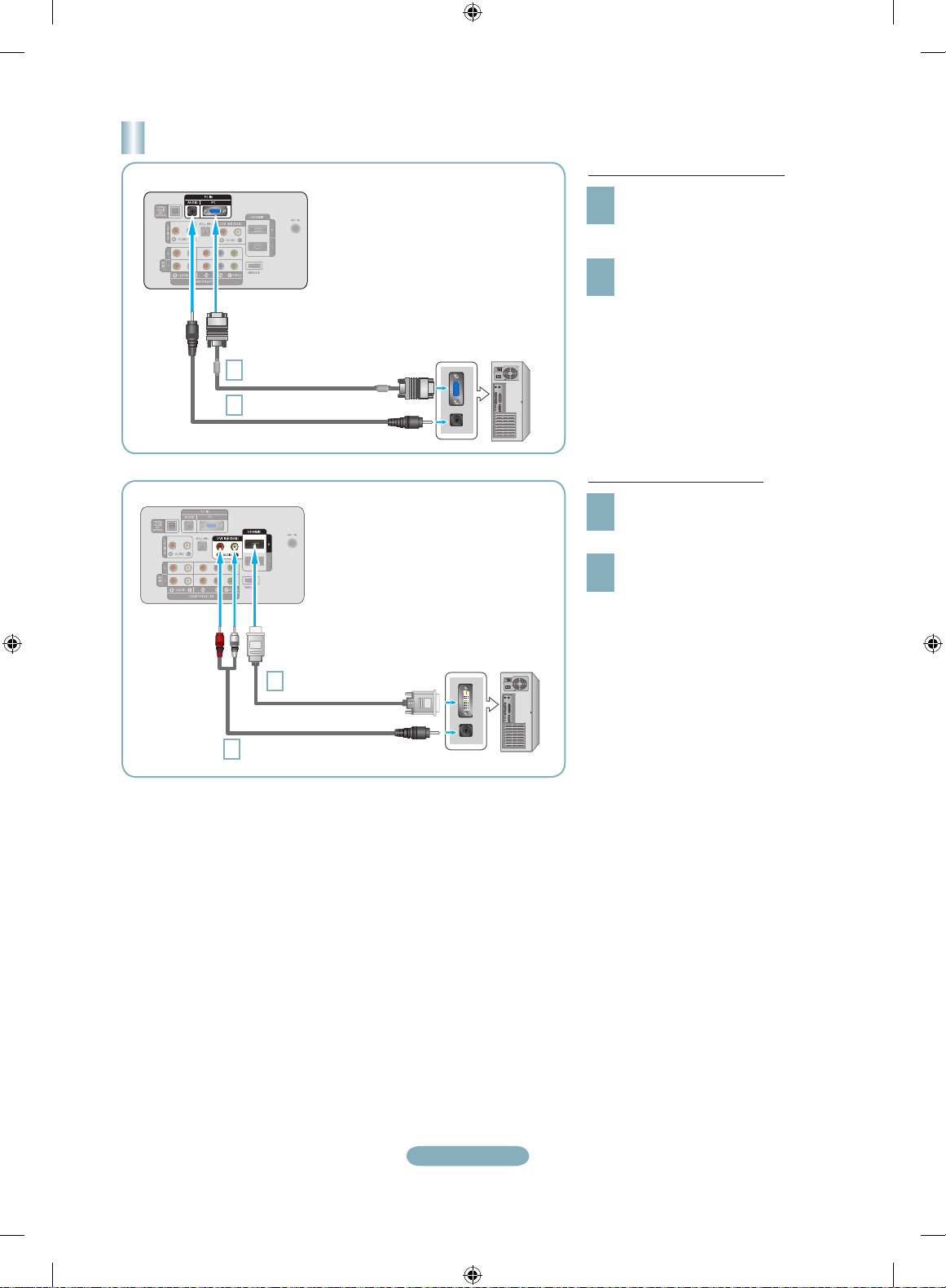

Connecting a PC
TV Rear Panel
PC
|
|
|
|
|
|
|
|
|
|
|
1 |
D-Sub Cable (Not supplied) |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
2 |
PC Audio Cable (Not supplied) |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TV Rear Panel
PC
1 HDMI/DVI Cable (Not supplied)
2 3.5 mm Stereo mini-plug/2RCA Cable (Not supplied)
English-
Using the D-Sub Cable
Connect a D-Sub Cable between 1 PC IN [PC] connector on the TV and the PC output connector on
your computer.
Connect a PC Audio Cable
2 between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer.
Using the HDMI/DVI Cable
Connect an HDMI/DVI cable between 1 the HDMI IN 2 jack on the TV and
the PC output jack on your computer.
Connect a 3.5 mm Stereo mini- 2 plug/2RCA Cable between the DVI
IN(HDMI2) [R-AUDIO-L] jack on the TV and the Audio Out jack of the sound card on your computer.
Each PC has a different back panel configuration.
When connecting a PC, match the color of the connection terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
BN68-01516B-00Eng-0220.indd 7 |
|
|
2008-02-20 8:00:11 |
|
|
||
|
|
|
|

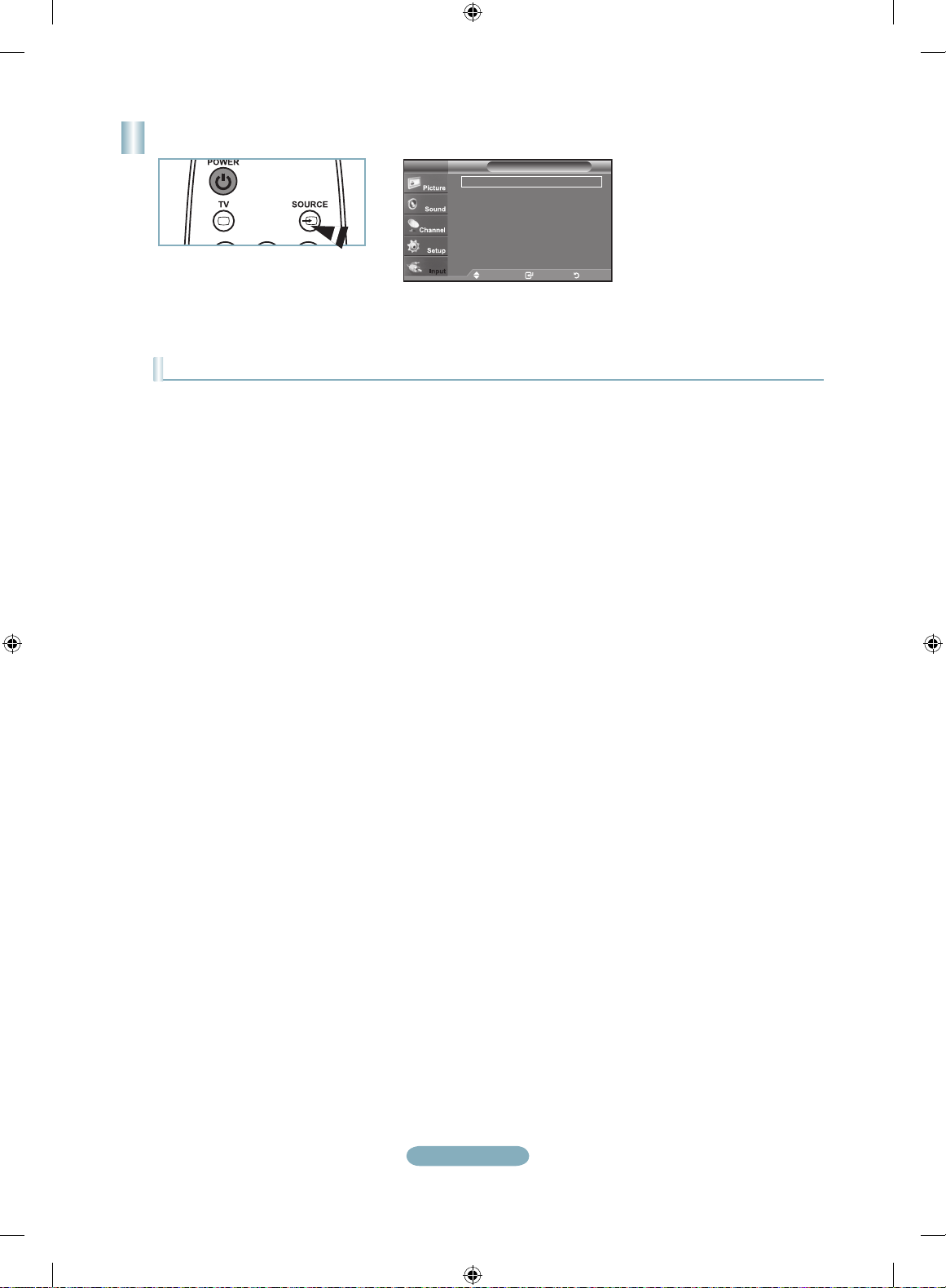

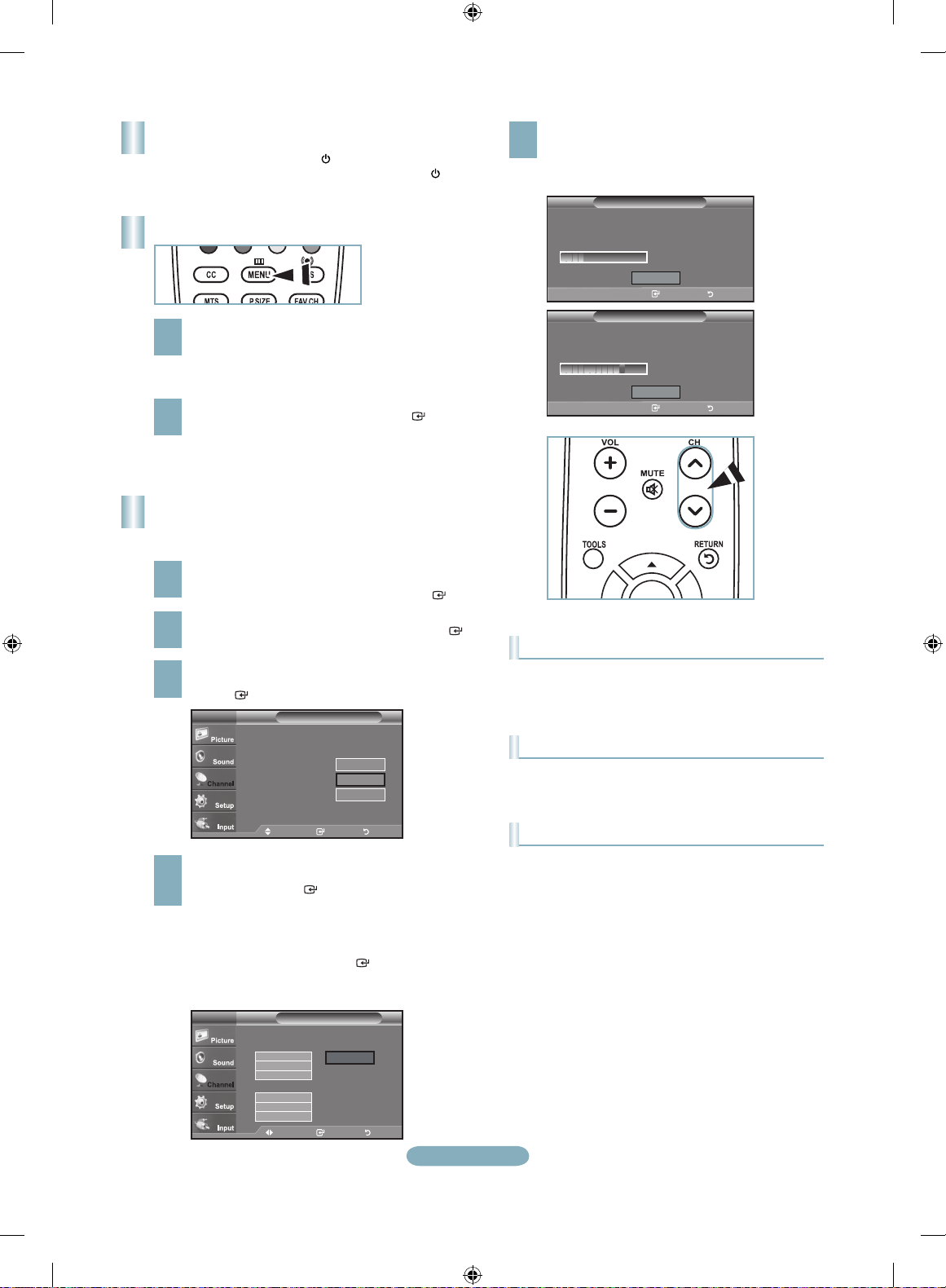

Turning the TV On and Off
Press the POWER button on the remote control. You can also use the POWER
button on the TV.
Viewing the Menus
With the power on, press the MENU button. 1 The main menu appears on the screen.
The menu’s left side has icons: Picture, Sound, Channel, Setup, Input.
Press the ▲ or ▼ button to select one of the icons.
2 Then press the ENTER button to access the icon’s sub-menu. Press the EXIT button to exit.
The on-screen menus disappear from the screen after about one minute.
Storing Channels in Memory
(Automatic Method)
|
|
Press the MENU button to display the menu. |
||||||||||
1 |
||||||||||||
|
Press the ▲ or ▼ button to select “Channel”, then |
|||||||||||
|
|
press the ENTER |
button. |
|
|
|
|
|||||
|
|
|
|
|
||||||||
|
|
Press the ▲ or ▼ button to select “Auto Program”, |
||||||||||
2 |
||||||||||||
|
then press the ENTER |
button. |
|
|
|
|
||||||
|
|
Press the ▲ or ▼ button to select the antenna |
||||||||||
3 |
||||||||||||
|
connection, then press the ENTER |
button. |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
||
|
|
TV |
Auto Program |
|
|
|
|
|||||
|
|
|
|
Selects the antenna to execute the Auto |
|
|
||||||
|
|
|
|
Program function. |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Air |
|
|
Start |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cable |
|
|
Start |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Auto |
|
|
Start |
|
|
|
|
|
|
|
|
|
Move |
|
Enter |
Return |
|
|
When selecting the Cable TV system:
4 Press the ENTER button to start the auto program.
Press the ◄ or ► button, then press the ▲ or ▼ to select the correct analog signal cable system source among “STD”, “HRC”, and “IRC”.
Press the ENTER button.
If you have Digital cable TV, select the cable system signal source for both Analog and Digital.
The TV begins memorizing all available stations. 5 After all the available channels are stored, it start to
remove scrambled channels. Press the EXIT button to exit.
AutoPlugProgram& Play
Auto Program in Progress. |
|
|
|
DTV Cable : -- |
Cable : 11 |
|
|
|
|
Cable |
24 |
|
|
11 |
% |
|
Stop |
|
|
|
Enter |
Return |
AutoPlugProgram& Play
Removing scrambled channel.
DTV Cable 55
80 %
Stop
Enter
Return
To Stop the Auto Program Function
Press the MENU button while the Auto Program function is being executed. You can also press the ENTER button to stop the setup.
Checking to see if Channels were Stored in Memory
Press the CH button. Only the channels stored in memory will be selected (in order).
Selecting the antennas
•Air: “Air” antenna signal.
•Cable: “Cable” antenna signal.
•Auto: “Air” and “Cable” antenna signals.
TV |
Auto Program |
Selects a cable signal type for your location.
Analog |
|
|
|
STD |
Start |
|
|
HRC |
|
|
|
IRC |
|
|
|
Digital |
|
|
|
STD |
|
|
|
HRC |
|
|
|
IRC |
|
|
|
Move |
Enter |
Return |
