LED TV user manual

LED TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model _____________ Serial No. _____________

BN68-03165C-00

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock or news bars at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try to display a full screen image.

• Reducing brightness and contrast will help to avoid the appearance of after-images.

• Use all TV features designed to reduce image retention and screen burn, refer to proper user manual section for details.

Securing the Installation Space

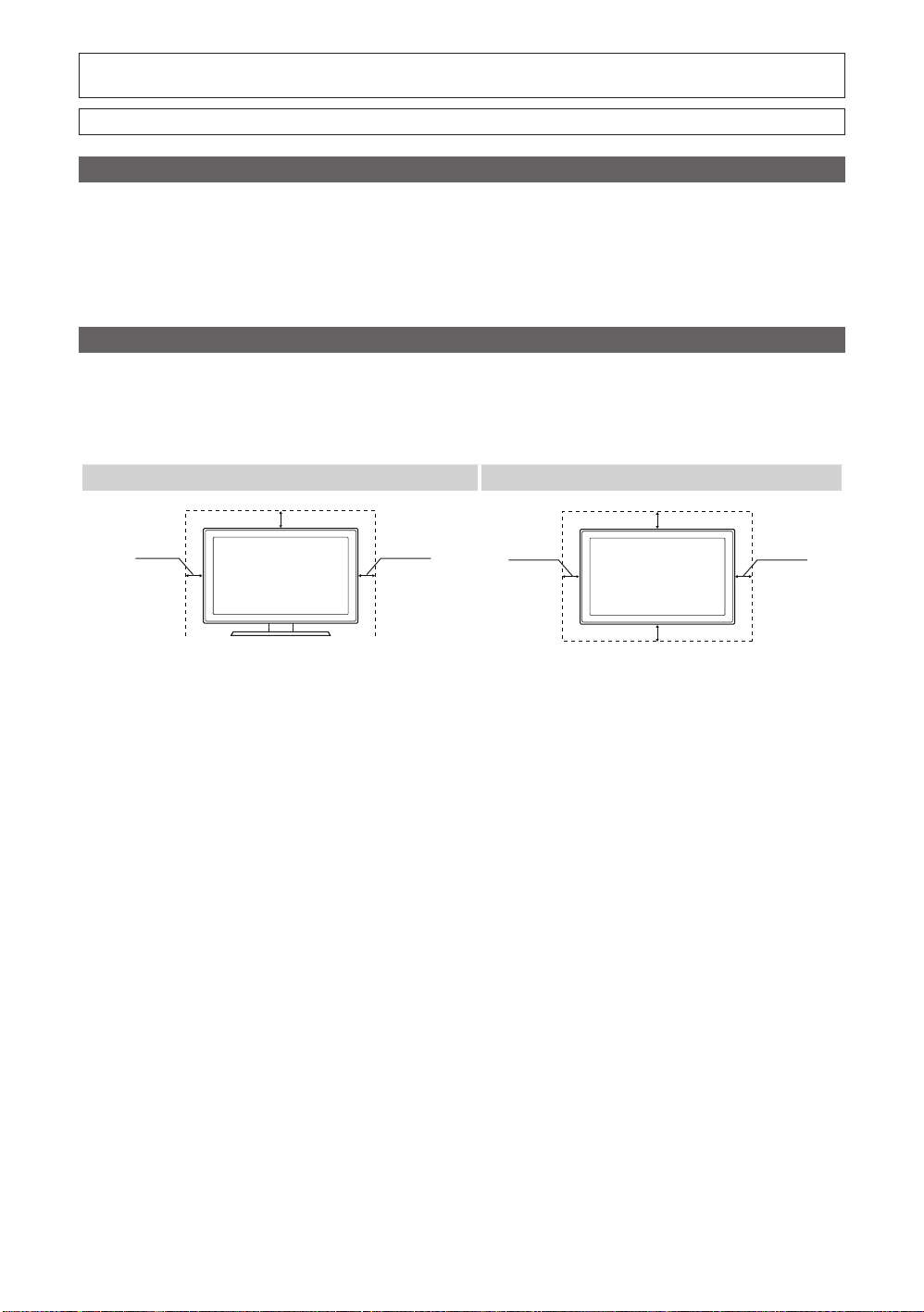

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

✎

Installation with a stand. Installation with a wall-mount.

4 inches

English

Contents

Getting Started

y List of Features ......................................................... 4

y Accessories .............................................................. 4

y Install the Stand ........................................................5

y Viewing the Control Panel ......................................... 6

y Viewing the Remote Control ...................................... 7

y Connecting to an Antenna ........................................ 8

y Plug & Play (Initial Setup) ........................................... 8

Connections

y Connecting to an AV Device ...................................... 9

y Connecting to an Audio Device ............................... 10

y Connecting to a PC ................................................ 11

y Changing the Input Source ..................................... 12

Basic Features

y How to Navigate Menus ..........................................12

y Channel Menu ........................................................ 13

Seeing Channels 13 Using Favorite Channels 13 Memorizing Channels 13 Editing Channels 14 Other Features 14

y Picture Menu .......................................................... 15

Changing the Preset Picture Mode 15 Adjusting Picture Settings 15 Economical Solutions 15 Changing the Picture Options 15 Setting up the TV with Your PC 17

y Sound Menu ........................................................... 18

Changing the Preset Sound Mode 18 Adjusting Sound Settings 18 Sound Settings 18

y Setup Menu ............................................................ 19

Setting the Time 19 Using the Sleep Timer 19 Setting the On / Off Timer 20 Locking Programs 20

Other Features 21 Picture In Picture (PIP) 23

y Support Menu .........................................................23

Advanced Features

y Network Connection ...............................................25

Connecting to a Wired Network 25 Connecting to a Wireless Network 27

y Media Play .............................................................. 31

Connecting a USB Device 31 Connecting to your PC through a network 31 Screen Display 33 Playing Multiple Files 36 Media Play - Additional Functions 36

y Anynet+ ..................................................................38

Setting Up Anynet+ 39 Switching between Anynet+ Devices 39 Recording 39 Listening through a Receiver 40 Troubleshooting for Anynet+ 40

y AllShare .................................................................. 41

About AllShare 41 Setting Up AllShare 41

Other Information

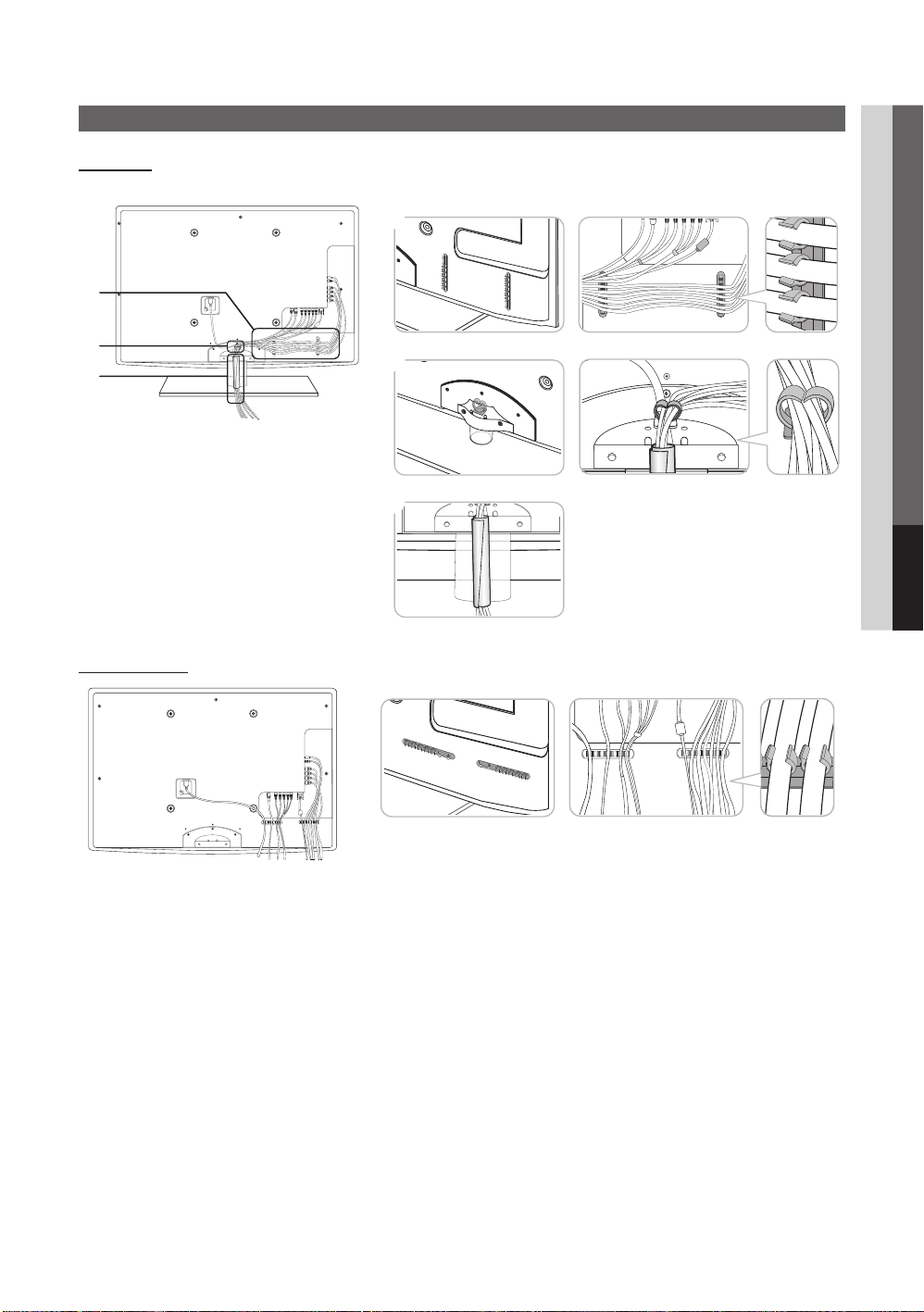

y Assembling the Cables ........................................... 43

y Installing the Wall Mount ......................................... 44

y Anti-theft Kensington Lock ...................................... 45

y Securing the TV to the Wall ..................................... 46

To Avoid the TV from Falling 46

y Troubleshooting ...................................................... 47

y License ...................................................................50

y Speciﬁcations ......................................................... 51

y Index ...................................................................... 52

ENGLISH



TOOLS

This function can be used by pressing the

TOOLS button on the remote control.

Check the Symbol!

Note Step by Step Guide

Indicates additional information. Check here for instructions on how to open

the relevant submenu within the OSD

(on screen display).

English

Getting Started

List of Features

y Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed

without a cable box / STB (Set-Top-Box) satellite receiver.

y Media Play: Allows you to play music ﬁles, pictures and movies saved on a USB device (p. 31). y AllShare: AllShare connects your TV and compatible Samsung mobile phones/devices through a network (p. 41). y Self Diagnosis: You can check to make sure picture and sound operate normally (p. 23).

Accessories

✎

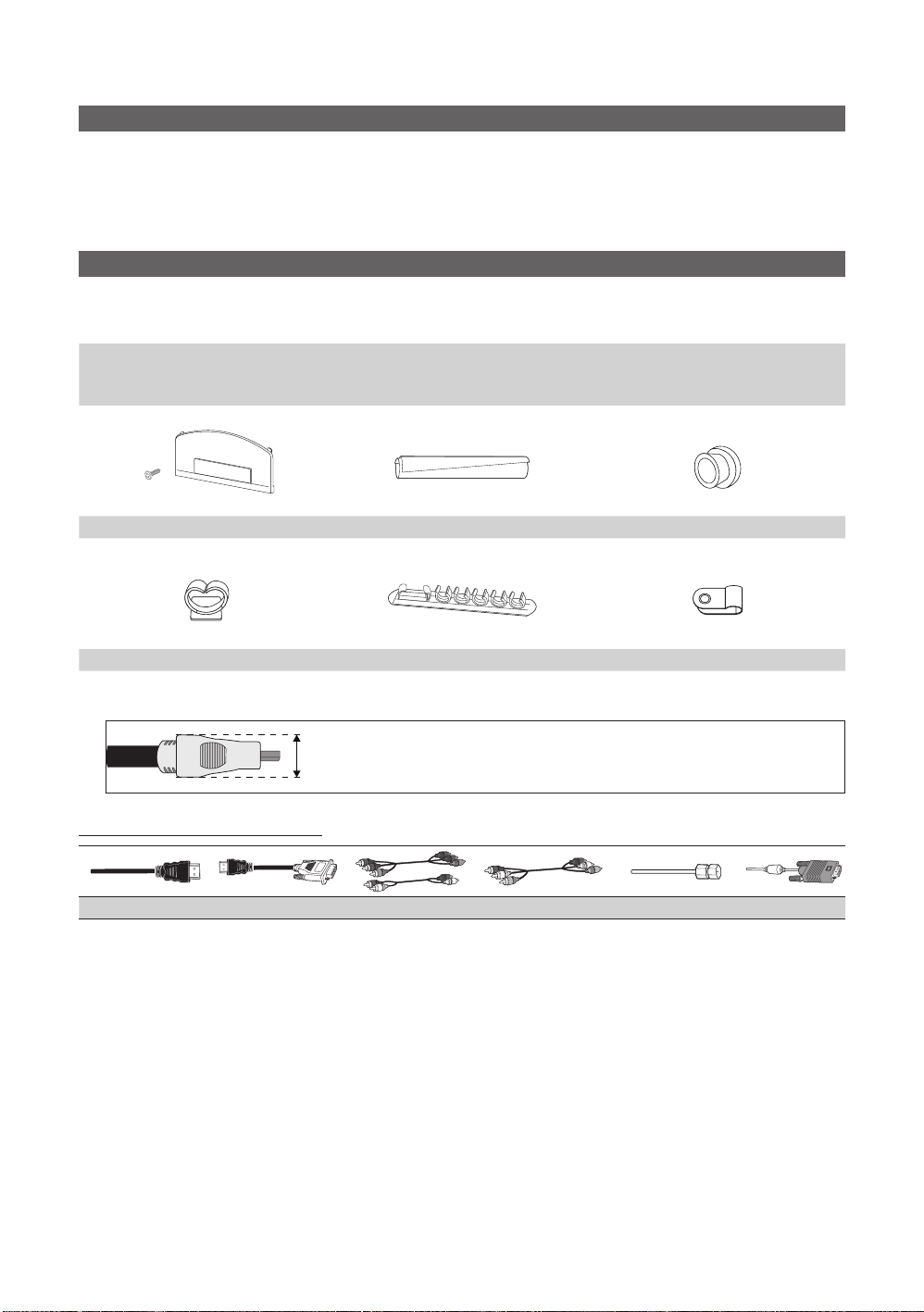

Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.

✎

The items' colors and shapes may vary depending on the models.

y Remote Control & Batteries (AAA x 2) y Owner’s Instructions y Warranty Card / Safety Guide

(M4 X L8)

Blanking Bracket & Screw (1EA) Cable Tie Holder-Ring (4EA)

y Cleaning Cloth y Power Cord

Holder-Wire stand Holder-Wire (3EA) Power Cord Clamp

✎

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

y Maximum thickness - 0.55 inches (14mm)

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA

English

See separate guide for installing the stand.

Install the Stand

01 Getting Started

Stand (1EA) Guide Stand (1EA) Screws (10EA)

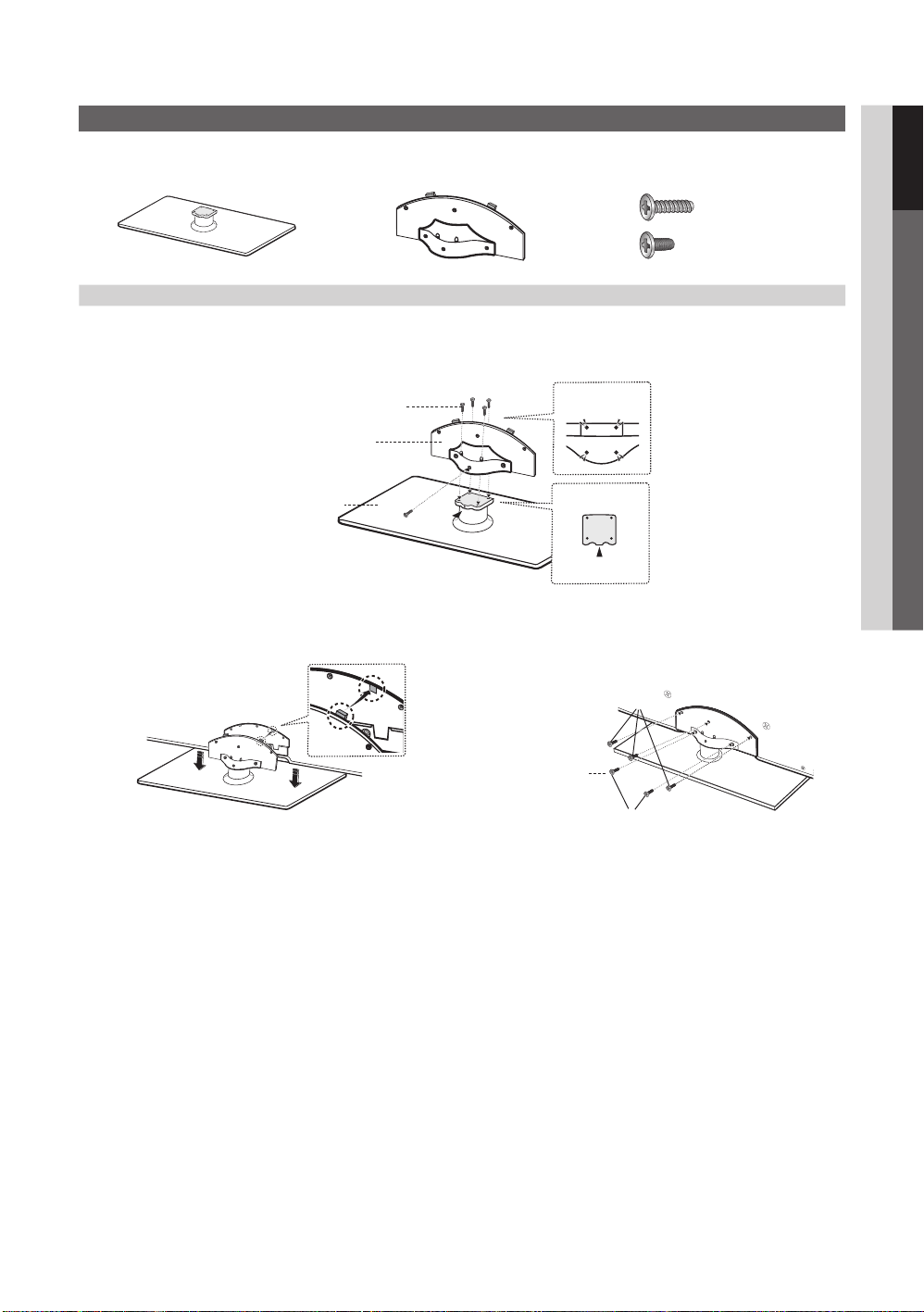

Follow the steps below to connect the TV to the stand.

Screws (M4 X L12)

Guide Stand

Stand

Rear

Top view

1. Connect the Guide Stand to the Stand using ﬁve screws (M4 X L12) as shown.

Front

Rear

(A)

(B)

5EA (M4 X L12)

5EA (M4 X L8)

Screws (M4 X L8)

2. With your TV upright, connect the TV to the Stand as

shown.

✎

NOTE

Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.

Make sure that at least two persons lift and move the LED TV.

Stand the product up and fasten the screws. If you fasten the screws with the LED TV placed down, it may lean to

3. Fasten two screws (M4 X L8) at position 1, and then

fasten three screws (M4 X L8) at position 2.

one side.

English

Getting Started

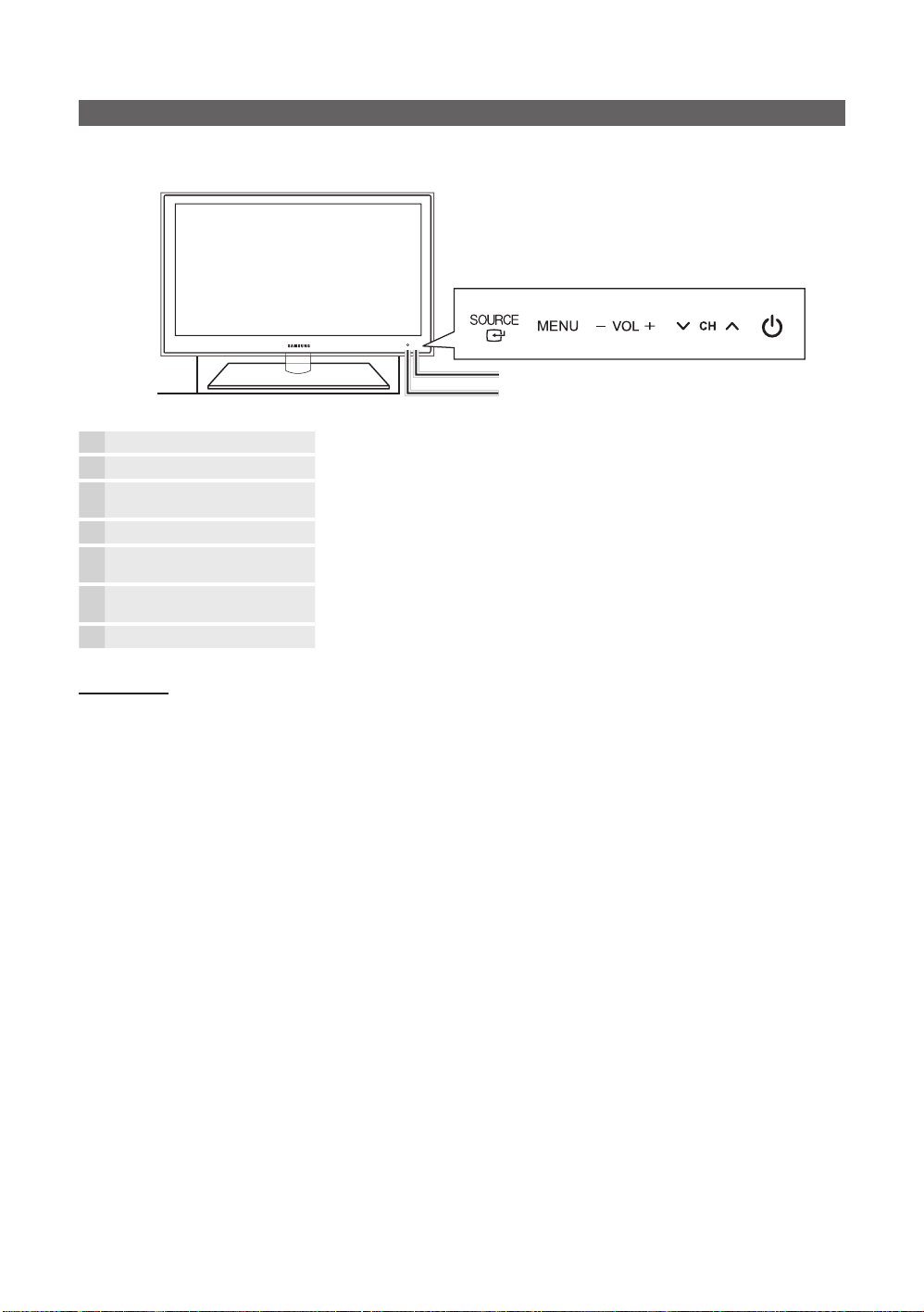

Viewing the Control Panel

✎

The product color and shape may vary depending on the model.

Remote control sensor

Speakers

Power Indicator Blinks and turns off when the power is on and lights up in standby mode. Remote control sensor Aim the remote control towards this spot on the TV.

SOURCE

MENU Displays an on-screen the OSD (on screen display) of your TV’s features.









(Power)

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER button on the remote control.

Adjusts the volume. In the OSD, use the ◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the ▼ and ▲ buttons on the remote control.

Turns the TV on or off.

Power Indicator



buttons as you would use the



buttons as you would use the

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

English

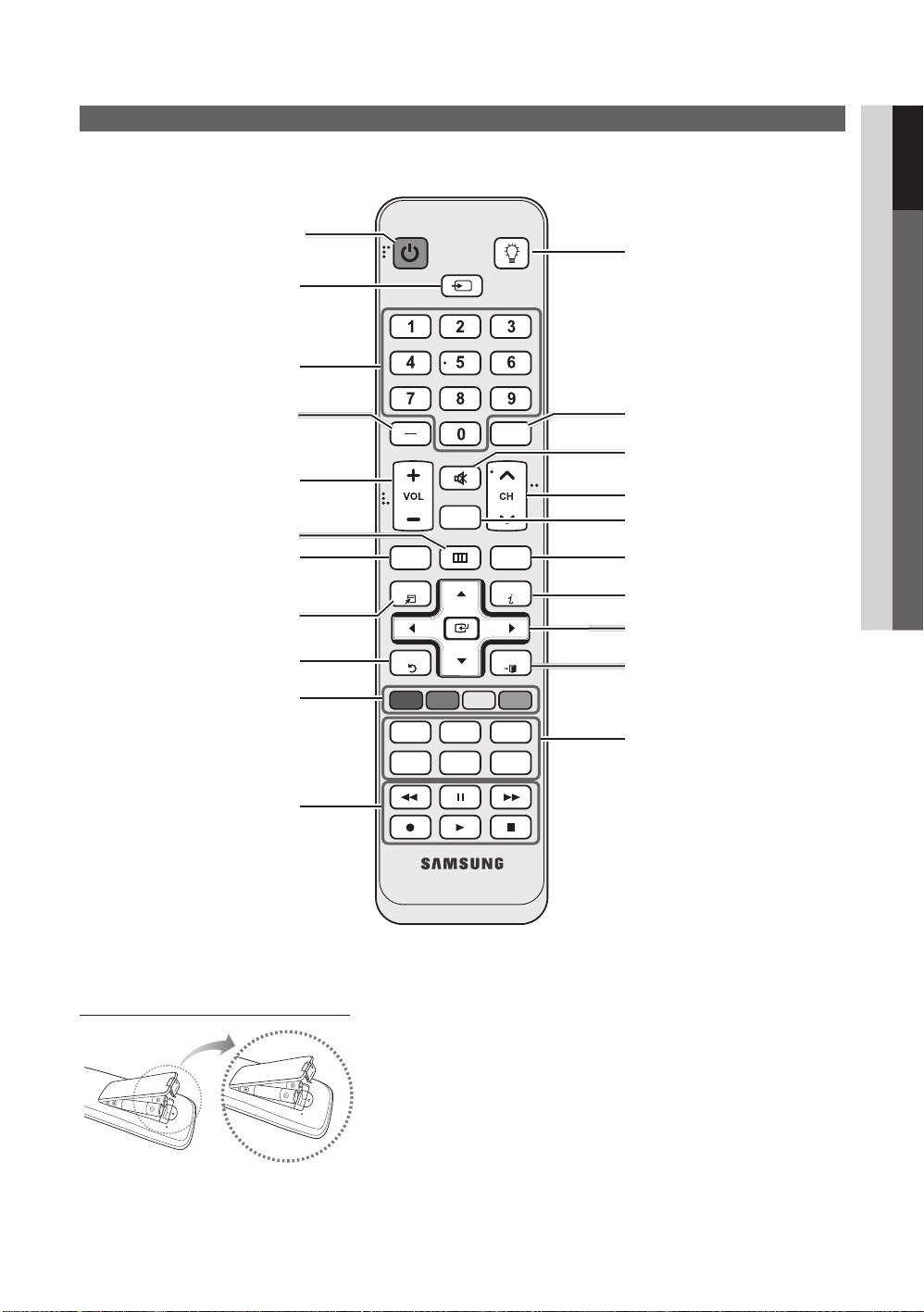

Viewing the Remote Control

✎

This is a special remote control for the visually impaired and has Braille points on the Power, Channel and Volume buttons.

01 Getting Started

Turns the TV on and off.

Displays and selects the available video

sources (p. 12).

Press to directly access channels.

Press to select additional channels

(digital) being broadcasted by the same

station. For example, to select channel

“54-3”, press “54”, then press “-” and

“3”.

Adjusts the volume.

Brings up the OSD.

Displays Media Play (p. 31).

Quickly select frequently used functions.

Returns to the previous menu.

These buttons are for the Channel list,

Media Play menu, etc.

Use these buttons in Media Play

and Anynet+ (HDMI-CEC) modes

(p. 31, 38).

(: Controls recording for Samsung

recorders that have the Anynet+

feature)

POWER

SOURCE

MUTE

CH LIST

MEDIA.P

TOOLS

RETURN

A B C D

S.MODE

SLEEP

P.SIZE

P.MODE

ON/OFF

PRE-CH

FAV.CH

INFO

EXIT

MTS

Turns the remote control light on or off. When on, the buttons become illuminated for a moment when pressed. (Using the remote control with this button set to ON will reduce the battery usage time.)

Returns to the previous channel.

Cuts off the sound temporarily.

Changes channels.

Displays the channel list on the screen (p. 13).

Displays Favorite Channel Lists on the screen (p. 13).

Displays information on the TV screen.

Selects the on-screen menu items and changes the values seen on the menu.

Exits the menu.

S.MODE: Press to select the sound

mode (p. 18).

SLEEP: Use to set the sleep timer

function (p. 19).

MTS: Press to choose stereo, mono

or Separate Audio Program (SAP broadcast) (p. 18, 19).

P.MODE: Press to select the picture

mode (p. 15).

P.SIZE: Selects the picture size (p. 16). CC: Controls the caption decoder

(p. 21).

Installing batteries (Battery size: AAA)

✎

NOTE

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote control.

Avoid use when nearby fluorescent lights or neon signs. The color and shape may vary depending on the model.

English

Getting Started

POWER

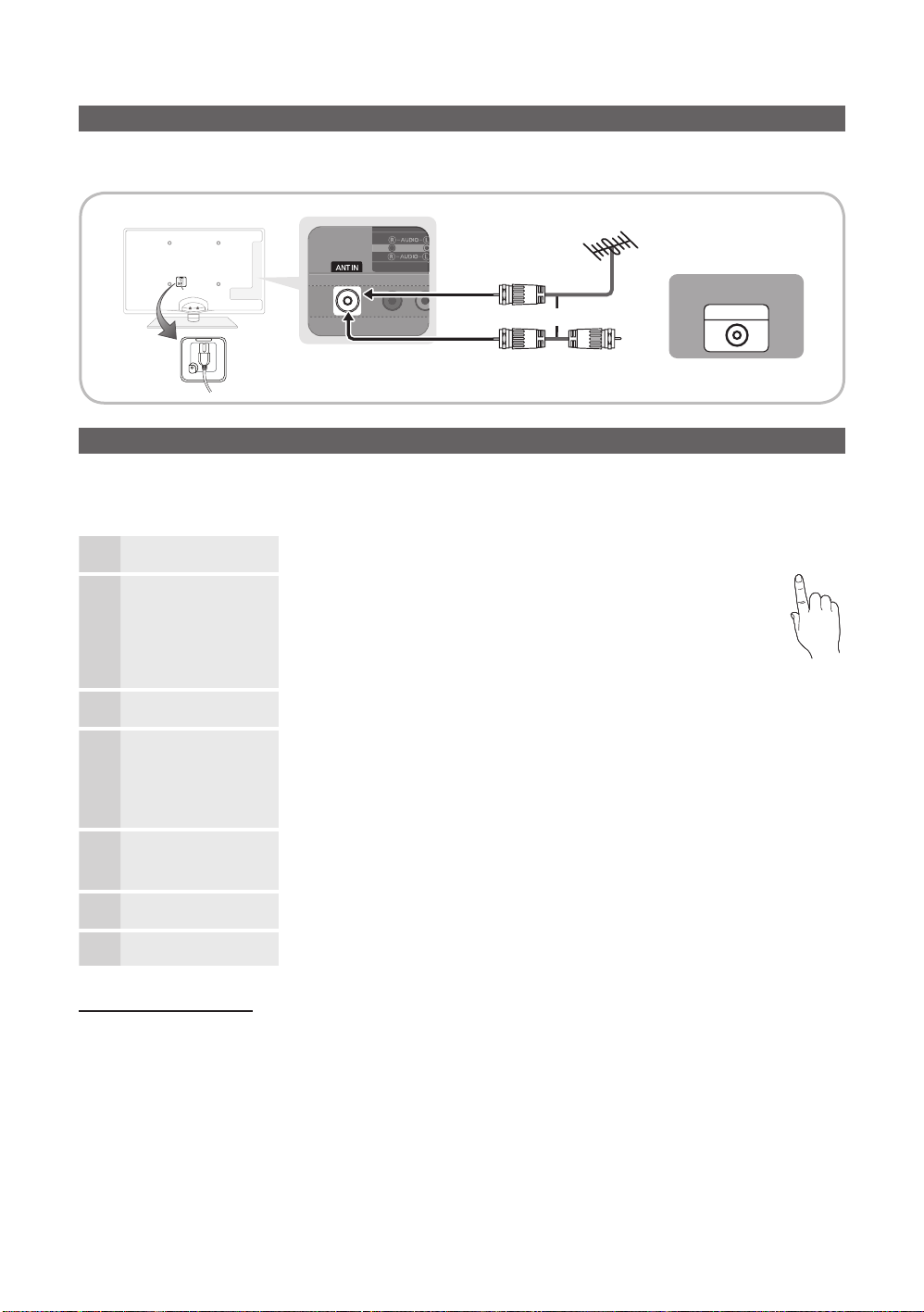

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Connecting the power cord and antenna.

VHF/UHF Antenna

Antenna Cable (Not Supplied)

Cable

Power Input

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER



button. Plug & Play is available only when the Input source is set to TV.

✎

To return to the previous step, press the Red button.

Selecting a language

Selecting Store Demo

or Home Use

Selecting an antenna

Press the ▲ or ▼ button, then press the ENTER desired OSD (On Screen Display) language.

Press the ◄ or ► button, then press the ENTER

y Select the Home Use mode. Store Demo mode is for retail

environments.

y To return the unit’s settings from Store Demo to Home Use

(standard): Press the volume button on the TV. When you see the volume OSD, press and hold MENU for 5 sec.

Press the ▲ or ▼ button, then press the ENTER



button. Select the



button.



button. Select Air, Cable or Auto.

ANT OUT

Selecting a channel

Setting the

Clock Mode

Viewing the

HD Connection Guide. Enjoy your TV.

Press the ▲ or ▼ button, then press the ENTER to memorize. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel → Auto Program (p. 13).

✎

Press the ENTER button at any time to interrupt the memorization process.

Set the Clock Mode automatically or manually.

y Auto: Allows you to select DST (Daylight Saving Time) mode and time zone. y Manual: Allows you to manually set the current date and time (p. 19).

y The connection method for the best HD screen quality is displayed.

Press the ENTER



button.



button. Select the channel source

If You Want to Reset This Feature...



MENU → Setup → Plug & Play → ENTER

English



Connections

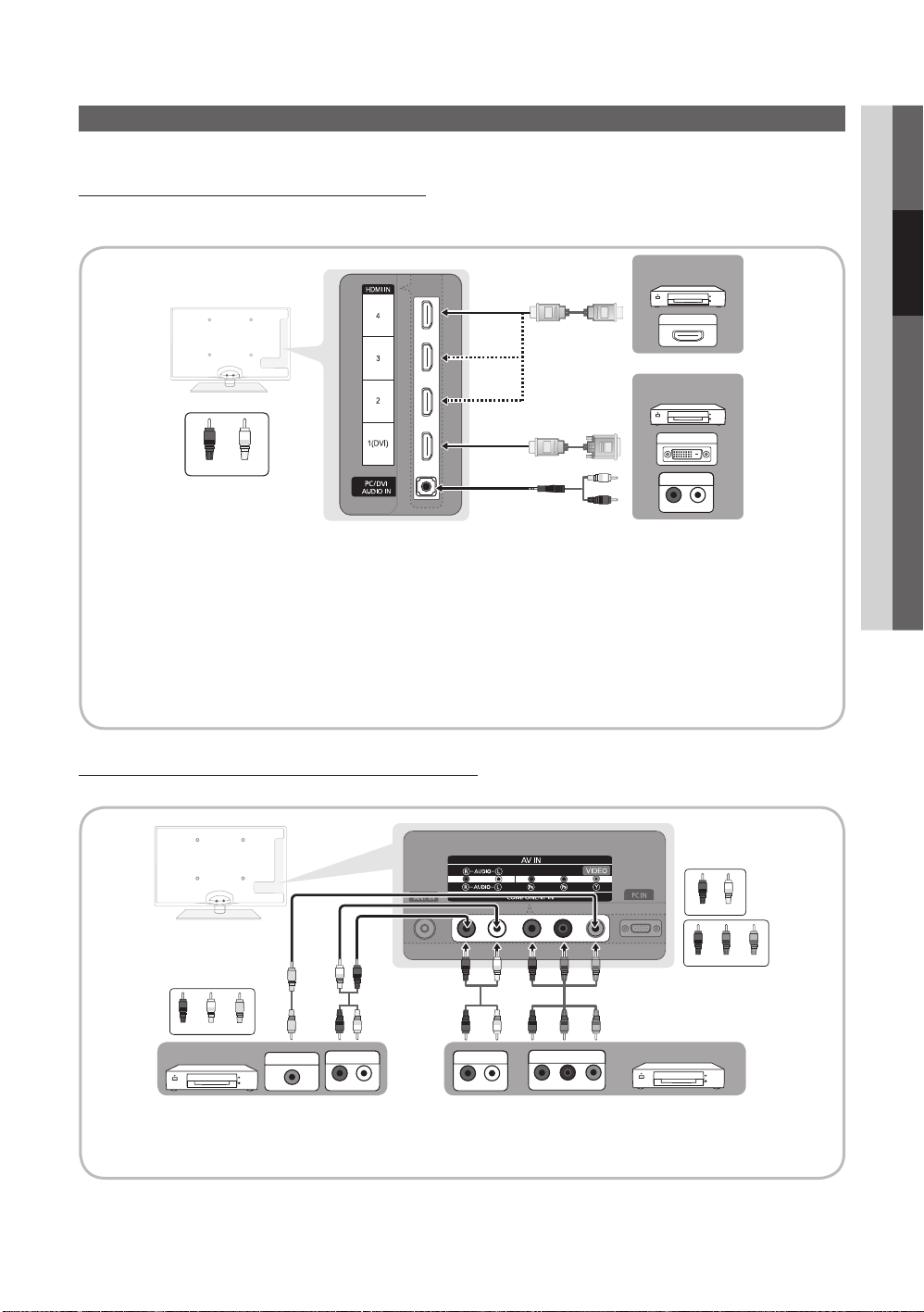

Connecting to an AV Device

✎✎

The✎product✎color✎and✎shape✎m ay✎vary✎depending✎on✎the✎model.

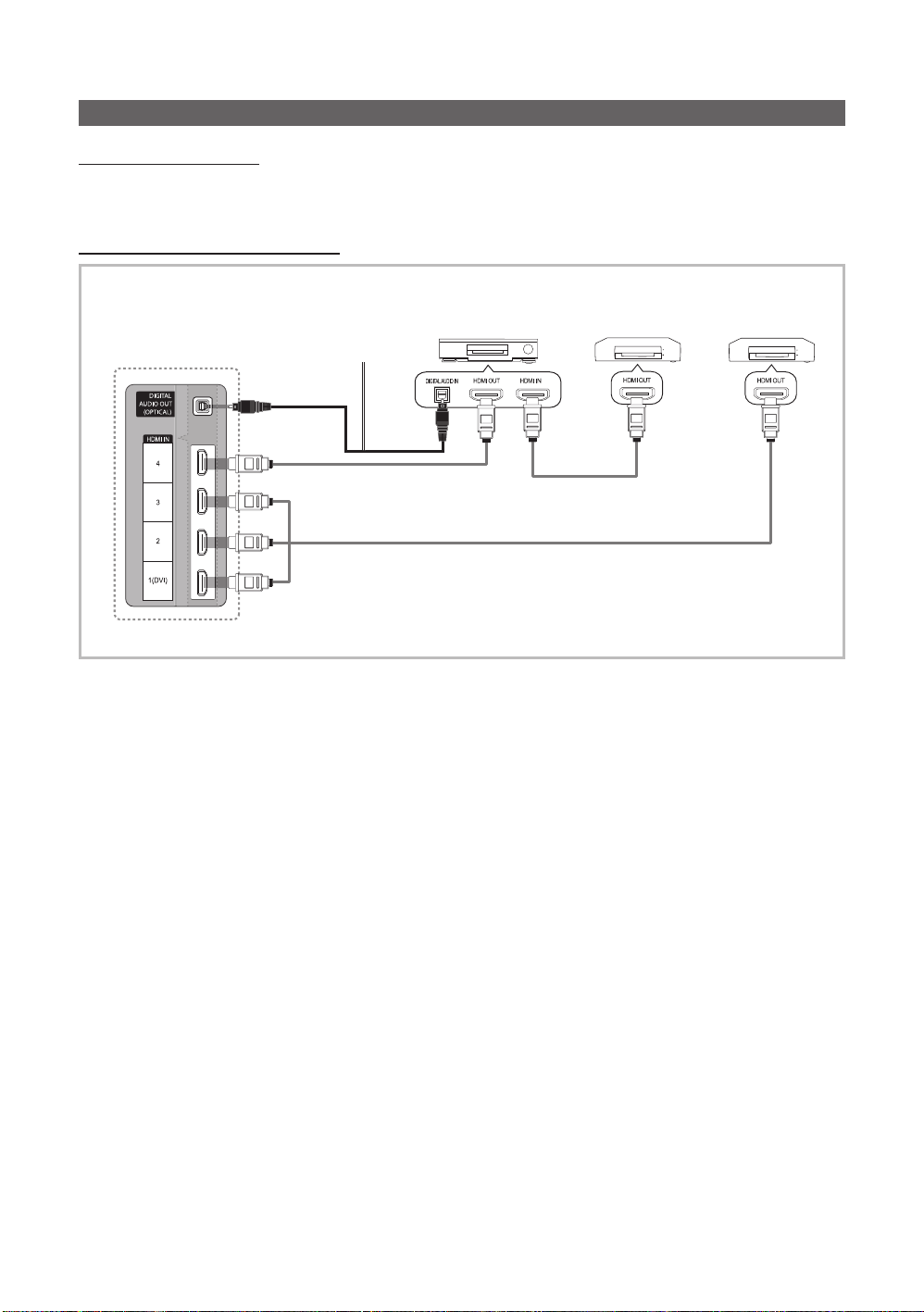

Using an HDMI or HDMI/DVI cable: HD connection (up to 1080p)

We✎recommend✎using✎the✎HDMI✎connection✎for✎the✎best✎quality✎HD✎picture. Available✎devices:✎DVD,✎Blu-ray✎player,✎HD✎cable✎box,✎HD✎STB✎(Set-Top-Box)✎satellite✎receiver

02 Connections

Red White

✎✎

HDMI IN 1(DVI), 2, 3, 4,✎PC/DVI AUDIO IN

When✎using✎an✎HDMI/DVI✎cable✎connection,✎you✎must✎use✎the✎HDMI IN 1(DVI)✎jack✎for✎video.✎A✎DVD,✎Blu-ray✎

✎x

HDMI to DVI Cable (Not Supplied)

player,✎HD✎cable✎box,✎or✎HD✎STB✎satellite✎receiver✎may✎require✎a✎DVI-HDMI✎(DVI✎to✎HDMI)✎cable✎or✎DVI-HDMI✎ (DVI✎to✎HDMI)✎adapter.✎The✎PC/DVI AUDIO IN✎jack✎is✎required✎for✎audio.

Be✎sure✎to✎use✎an✎HDMI✎cable✎with✎a✎thickness✎of✎14✎mm✎or✎less.

✎x

The✎picture✎may✎not✎display✎normally✎(if✎at✎all)✎or✎the✎audio✎m ay✎not✎work✎if✎an✎external✎device✎that✎us es✎an✎older✎

✎x

version✎o f✎HDMI✎mode✎is✎connected✎to✎the✎TV.✎If✎such✎a✎prob lem✎occurs,✎ask✎the✎manufacturer✎of✎the✎exter nal✎ device✎about✎the✎HD MI✎version✎and,✎if✎out✎of✎date,✎request✎an✎upgrade.

Be✎sure✎to✎purchase✎a✎certified✎HDMI✎cable.✎Otherwise,✎the✎picture✎may✎not✎display✎or✎a✎connection✎error✎may✎

✎x

occur.

Using a Component (up to 1080p) or Audio/Video (480i only) Cable

Available✎devices:✎DVD,✎Blu-ray✎player,✎cable✎box,✎STB✎satellite✎receiver,✎VCR

HDMI Cable (Not Supplied)

W R

Audio Cable (Not Supplied)

Device

HDMI OUT

Device

DVI OUT

AUDIO OUT

R-AUDIO-L

Red White

RGB

Video Cable (Not Supplied)

Red White Yellow

✎✎

When✎connecting✎to✎AV IN,✎the✎color✎of✎the✎AV IN [Y/VIDEO]✎ja ck✎(green)✎will✎not✎match✎the✎video✎cable✎(yellow).

✎✎

To✎obtain✎the✎best✎picture✎qual ity,✎the✎Component✎connection✎is✎recommended✎over✎the✎A/V✎connection.

Device

VIDEO OUT

AUDIO OUT

R-AUDIO-L

Audio Cable (Not Supplied)

✎✎

AUDIO OUT

R-AUDIO-L

WR R GB

RGB W R

COMPONENT OUT

Red Blue Green

Component Cable (Not Supplied)

Device

PB Y

English

Connections

R-AUDIO-L

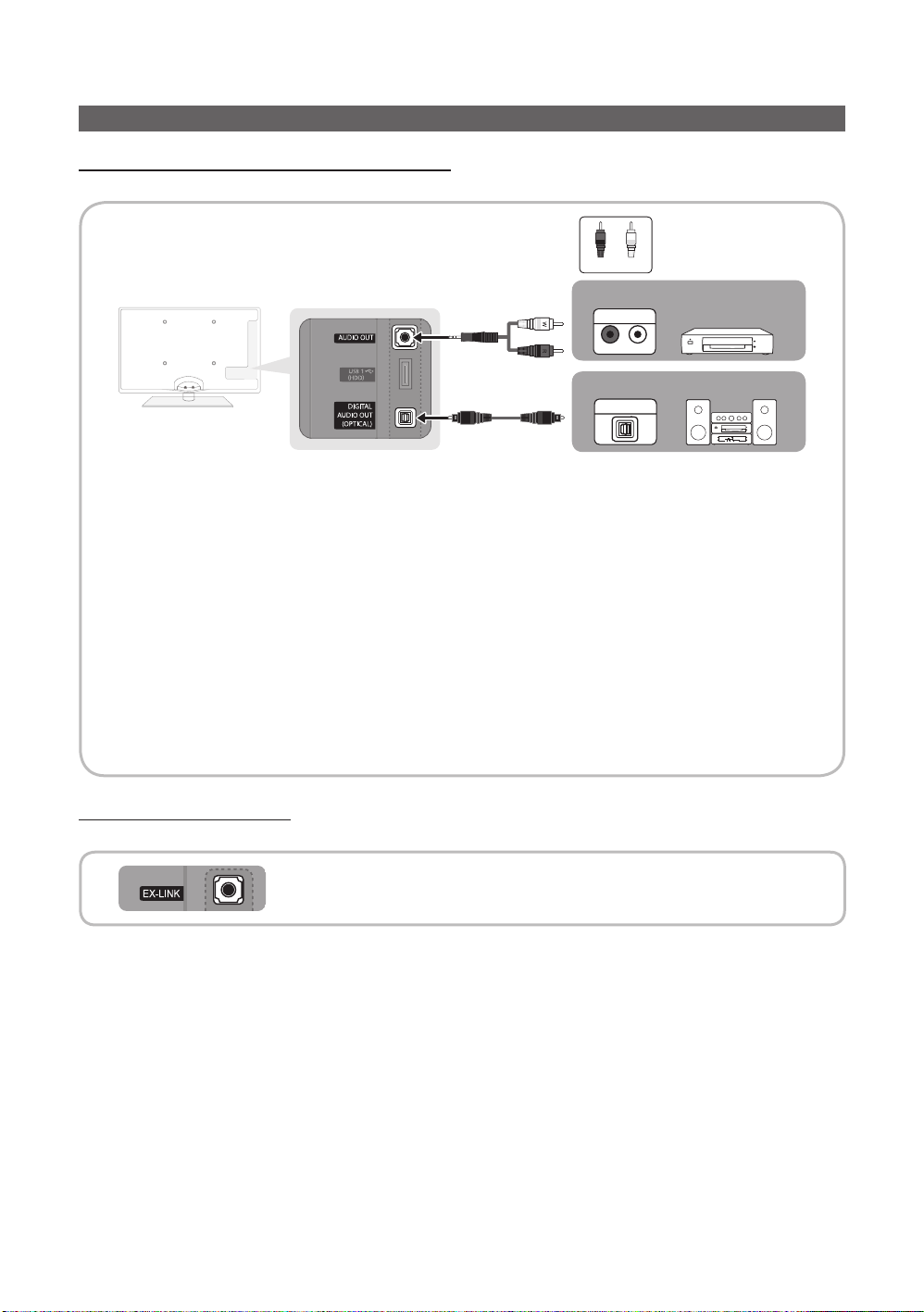

Connecting to an Audio Device

Using an Optical (Digital) or Audio (Analog) Cable Connection

Available devices: Digital Audio System, Ampliﬁer, DVD home theater

Red White

Audio Cable (Not Supplied)

Optical Cable (Not Supplied)

✎

DIGITAL AUDIO OUT (OPTICAL)

When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (amplifier or DVD home theater) is set to on, you can hear sound output from the TV’s

optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the amplifier or DVD home theater. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the amplifier or DVD home theater. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theater.

✎

AUDIO OUT: Connects to the audio input jacks on your amplifier / DVD home theater.

When connecting, use the appropriate connector.

When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust the

volume level with the Amplifier’s volume control.

Using an EX-Link Cable Connection

Available Devices: External devices that support EX-Link

Ampliﬁer / DVD home theater

AUDIO IN

Digital Audio System

OPTICAL

EX-LINK: Connector for service only.

English

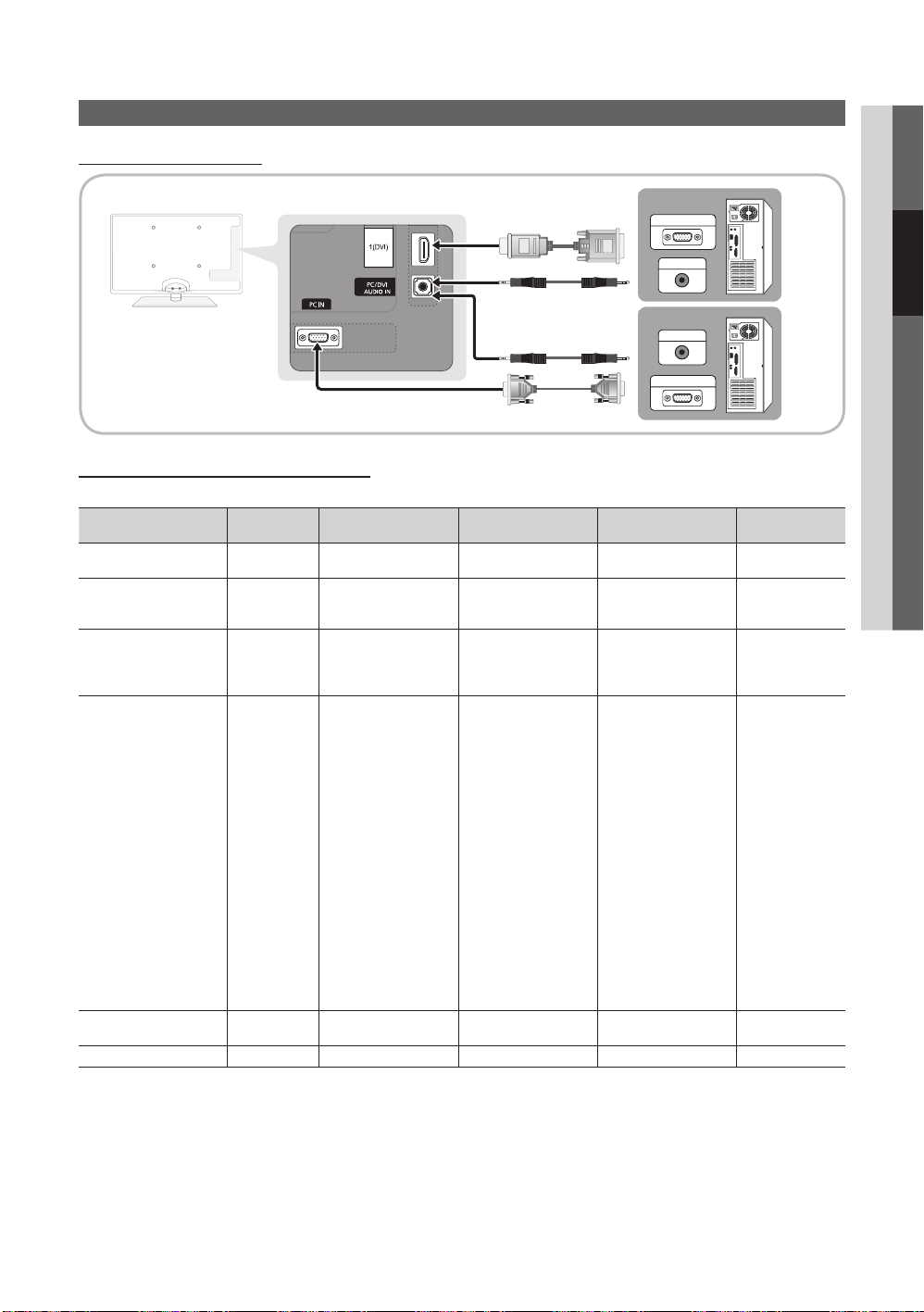

Using an HDMI/DVI Cable or a D-sub Cable

Connecting to a PC

02 Connections

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1920 X 1080 @ 60 Hz.

Mode Resolution

IBM

MAC

VESA CVT

VESA DMT

VESA GTF

VESA DMT / DTV CEA

640 x 350 720 x 400

640 x 480 832 x 624

1152 x 870

720 x 576 1152 x 864 1280 x 720 1280 x 960

640 x 480

800 x 600

800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864

1280 x 1024 1280 x 1024

1280 x 720 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900

1680 x 1050

1280 x 720

1280 x 1024

1920 x 1080p 67,500 60,000 148,500 +/+

Horizontal Frequency

(KHz)

31,469 31,469

35,000 49,726 68,681

35,910 53,783 56,456 75,231

31,469 37,861 37,500 37,879 48,077 46,875 48,363 56,476 60,023 67,500 63,981 79,976 45,000 49,702 62,795 60,000 47,712 55,935 70,635 65,290

52,500 74,620

HDMI to DVI Cable (Not Supplied)

Audio Cable (Not Supplied)

D-Sub Cable (Not Supplied)

Vertical Frequency

(Hz)

70,086 70,087

66,667 74,551 75,062

59,950 59,959 74,777 74,857

59,940 72,809 75,000 60,317 72,188 75,000 60,004 70,069 75,029 75,000 60,020 75,025 60,000 59,810 74,934 60,000 60,015 59,887 74,984 59,954

70,000 70,000

PC OUT

AUDIO OUT

PC OUT

Pixel Clock Frequency

(MHz)

25,175 28,322

30,240 57,284

100,000

32,750 81,750 95,750

130,000

25,175 31,500 31,500 40,000 50,000 49,500 65,000 75,000

78,750 108,000 108,000 135,000

74,250

83,500 106,500 108,000

85,500 106,500 136,750 146,250

89,040 128,943

Sync Polarity

(H / V)

+/-

-/+

-/-

-/+

-/-

-/+/+ +/+ +/+

-/-

-/+/+ +/+ +/+ +/+ +/+

-/+

-/+ +/+ +/+

-/+

-/-

✎

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

The interlace mode is not supported.

The set may operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

English

Connections

H LI

MUT

POWER

SOU

RCE

RE-CH

ON/OFF

TOOLS

RETURN

EXIT

SOURCE

Changing the Input Source

Source List

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.



MENU → Input → Source List → ENTER



■ TV / AV / Component / PC / HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 / USB

✎

You can only choose external devices that are connected to the TV. In the Source List, connected inputs will be highlighted.

✎

In the Source List, PC is always activated.

Basic Features

Edit Name



MENU → Input → Edit Name → ENTER

■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA:

Name the device connected to the input jacks to make your input source selection easier.

✎

When a PC with a resolution of 1920 x 1080 @ 60Hz is connected to the HDMI IN 1(DVI) port, you should set the TV to DVI PC mode under Edit Name.

✎

When connecting an HDMI/DVI cable to the

HDMI IN 1(DVI) port, you should set the TV to DVI PC

or DVI Devices mode under Edit Name.



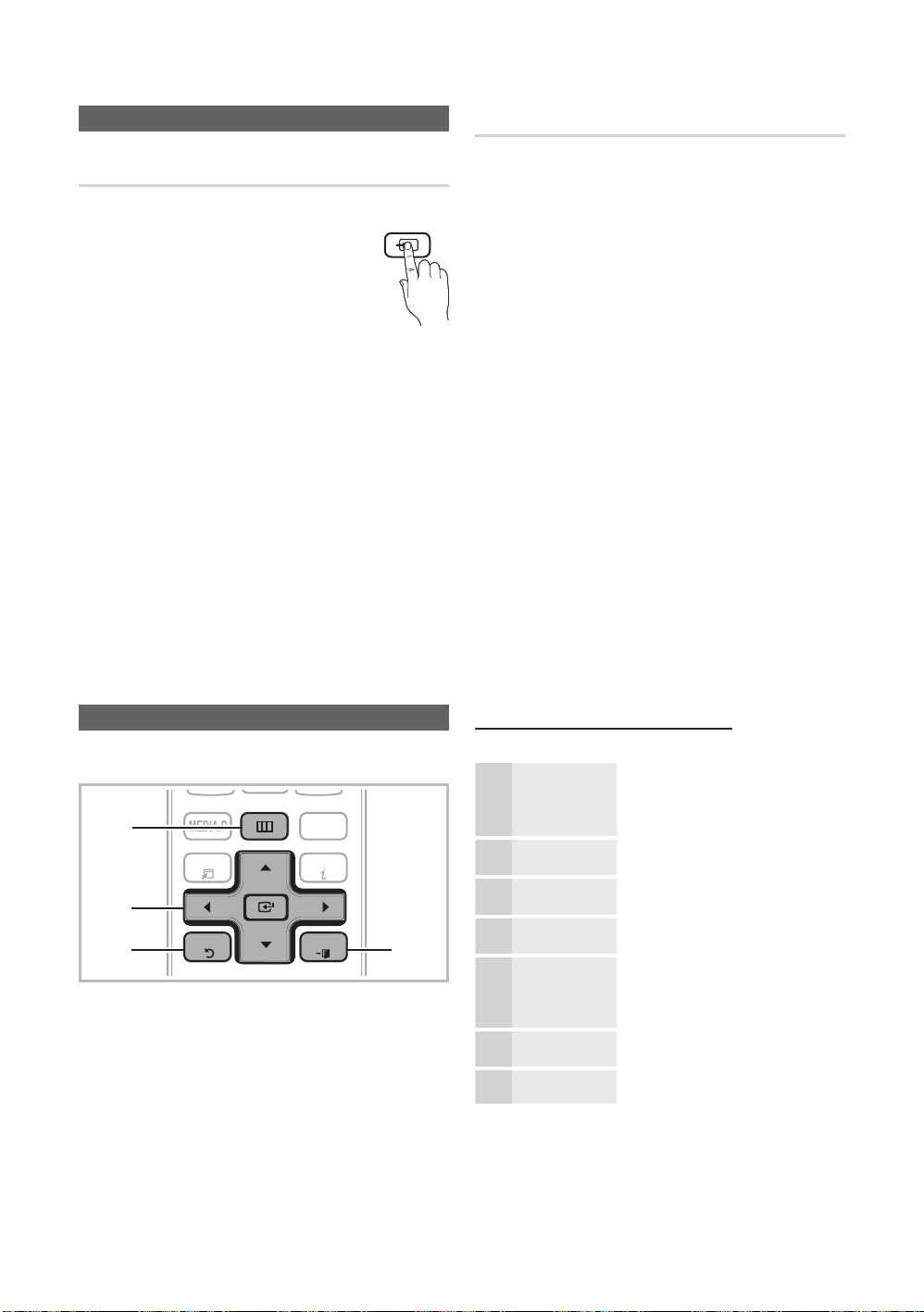

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

1 MENU button: Displays the main on-screen menu. 2 ENTER

select an item. Conﬁrm the setting.

3 RETURN button: Returns to the previous menu. 4 EXIT button: Exits the on-screen menu.

English

RETURN



/ Direction button: Move the cursor and

AV.CH

INF

EXIT

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.



▲ / ▼ Select an icon with the ▲ or ▼

ENTER



▲ / ▼

◄ / ►

ENTER



EXIT



The main menu options appear on the screen:

Picture, Sound, Channel, Setup, Input, Application, Support.

button. Press ENTER to access the

sub-menu. Select the desired submenu with

the ▲ or ▼ button. Adjust the value of an item with the

◄ or ► button. The adjustment in the OSD may differ depending on the selected menu.

Press ENTER to conﬁrm the selection.

Press EXIT.

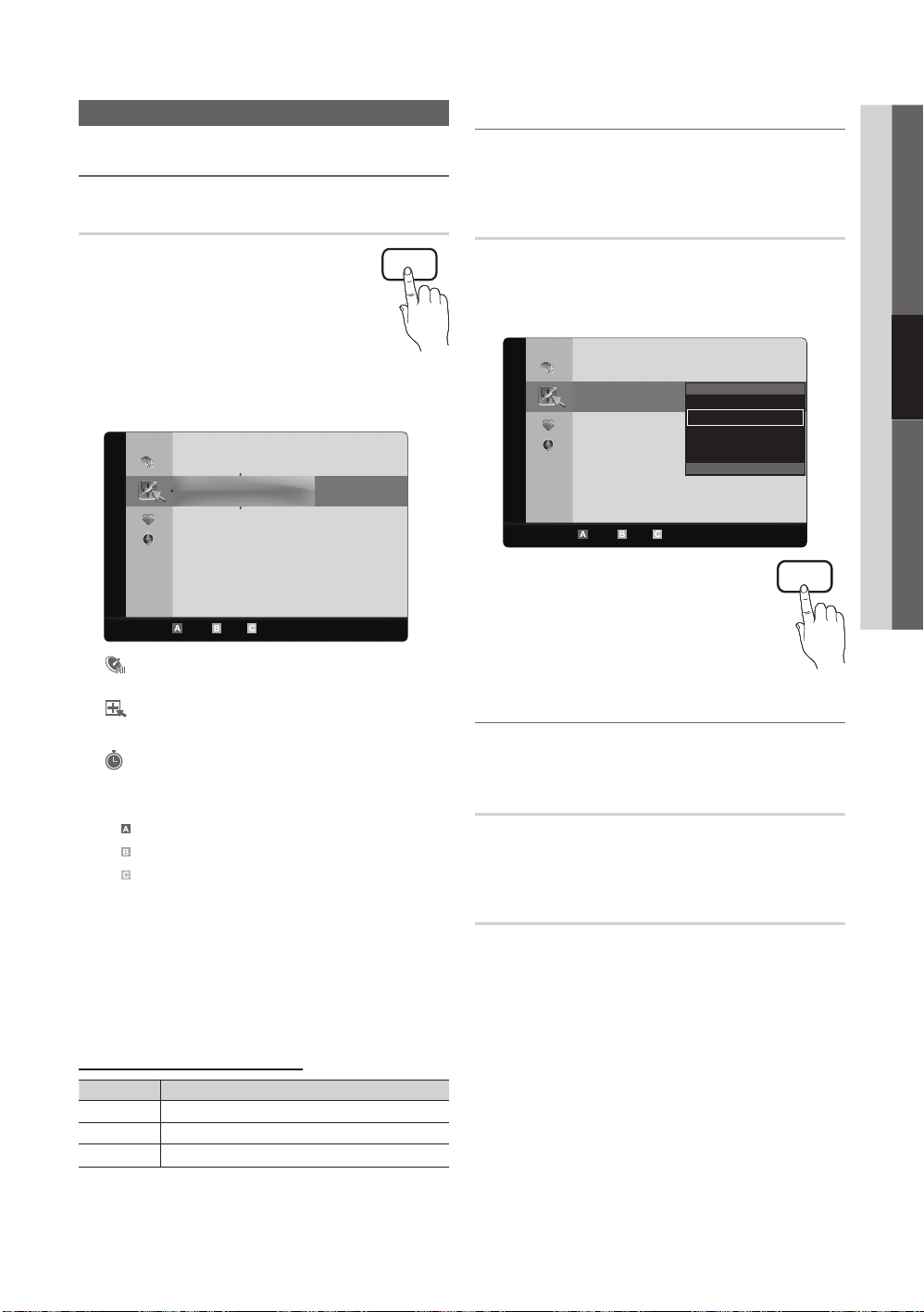

Channel Menu

 Seeing Channels

 Using Favorite Channels



MENU → Channel → Channel List → ENTER

03 Basic Features



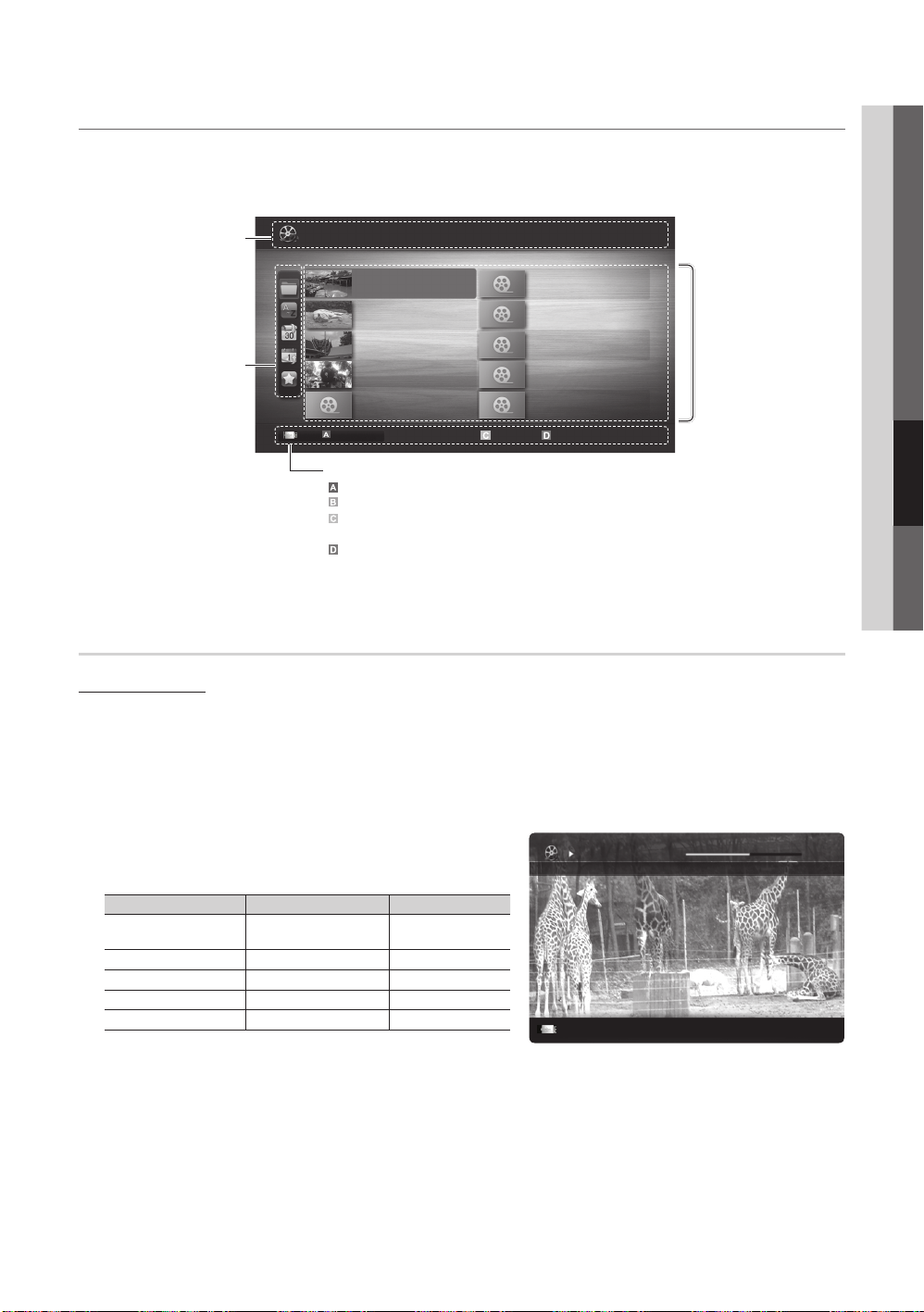

Channel List

Add, delete or set Favorite channels and use the program guide for digital broadcasts.



MENU → Channel → Channel List

→ ENTER

Select a channel in the All Channels, Added Channels, Favorite or Programmed

screen by pressing the ▲ / ▼ and ENTER buttons. Then you can watch the selected channel.

Added Channels



6 Air 6-1 * TV #6

7 Air

8 Air 9 Air

9-1 * TV #9 10 Air

10-1 * TV #10 11-1 * TV #11

Air Antenna Zoom Select  Page

■ All Channels: Shows all currently available channels.

■

Added Channels: Shows all added channels.



■

Favorite: Shows all favorite channels. Programmed: Shows all currently reserved

■ programs.

✎

Using the color buttons with the Channel List

Red (Antenna): Switches to Air or Cable.

Green (Zoom): Enlarges or shrinks a channel

number.

Yellow (Select): Selects multiple channel lists.

Select desired channels and press the Yellow button to set all the selected channels at the same time. The



mark appears to the left of the selected channels.



(Page): Move to next or previous page.



(Tools): Displays the Channel List option menu

(The options menus may differ depending on the situation.).

Channel Status Display Icons

Icons Operations

A channel selected.



A channel set as a Favorite.



A reserved Program.







CH LIST

Tools

Add to Favorite / Delete from Favorite



Set channels you watch frequently as Favorites.

1. Select a channel and press the TOOLS button.

2. Add or delete a channel using the Add to Favorite or Delete from Favorite menu respectively.

Added Channels

To show all Favorite channels, click on the button shown on the right.

6 Air 6-1 * TV #6

7 Air

8 Air 9 Air

9-1 * TV #9 10 Air

10-1 * TV #10 11-1 * TV #11

Air Antenna Zoom Select  Page

Delete Add to Favorite

Timer Viewing Channel Name Edit Select All



Tools

FAV.CH

 Memorizing Channels



MENU → Channel → ENTER

Antenna (Air / Cable)

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).





Auto Program

■ Air: Air antenna signal.

■ Cable: Cable antenna signal.

■ Auto: Air and Cable antenna.

✎

NOTE

When selecting the Cable TV system: STD, HRC

and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point, the signal source has been selected.

English

Basic Features

After all the available channels are stored, it starts

to remove scrambled channels. The Auto Program menu then reappears.

 Editing Channels



MENU → Channel → Channel List → ENTER

Channel Name Edit

1. Select a channel and press the TOOLS button.

2. Edit the channel name using the Channel Name Edit

menu.

■ Channel Name Edit (analog channels only): Assign your

own channel name.



 Other Features



MENU → Channel → ENTER



Clear Scrambled Channel

This function is used to ﬁlter out scrambled channels after Auto Program is completed. This process may take up to 20~30 minutes.

How to Stop Searching Scrambled Channels

1. Press the ENTER

2. Press the ◄ button to select Yes.

3. Press the ENTER

✎

This function is only available in Cable mode.



button to select Stop.



button.

Channel List

Channel List Option Menu Set each channel using the Channel List menu options (Add

/ Delete, Timer Viewing, Select All / Deselect All). Option

menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

■ Add / Delete: Delete or add a channel to display the

channels you want.

✎

NOTE

All deleted channels will be shown on the

All Channels menu. A gray-colored channel indicates the channel

has been deleted. The Add menu only appears for deleted

channels. Delete a channel from the Added Channels or

Favorite menu in the same manner.

■ Timer Viewing: You can set a desired channel to be

displayed automatically at the reserved time. Set the current time ﬁrst to use this function.

1. Press the ◄ / ► / ▲ / ▼ buttons to select the

desired channel in Channel List.

2. Press the TOOLS button, then select

Timer Viewing.

3. Scroll up or down to adjust the settings in the box,

or use the numeric buttons on your remote to enter the date and time.

✎

If you selected Once, Every Week or Everyday in Repeat, you can enter the date you want.

4. Select OK, then press the ENTER

done.

✎

NOTE

Only memorized channels can be reserved.

Reserved programs will be displayed in the

Programmed menu. When a digital channel is selected, press the

► button to view the digital program.

■ Select All: Select all the channels in the channel list.

■ Deselect All: Deselect all the selected channels.

✎

You can only select Deselect All when one or more channels are selected.



button when

Programmed

(in Channel List) You can view, modify or delete a show you have reserved

to watch. Programmed timer viewing is displayed here. Highlight a program and press the TOOLS button to display Options.

■ Change Info: Change a show you have reserved to

watch. Begin with step 3 of “Timer Viewing,” above.

■ Cancel Schedules: Cancel a show you have reserved

to watch.

✎

This deletes the highlighted or selected program(s).

■ Information: Display a show you have reserved to watch

(You can also change the reservation Information.).

✎

Alternatively, you can view Information by highlighting a program and pressing the

ENTER button.

■ Select All / Deselect All: Select or deselect all reserved

programs.

English

Fine Tune

(analog channels only) If the reception is clear, you do not have to ﬁne tune the

channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, ﬁne tune the channel manually. Scroll to the left or right until the image is clear.

✎

Settings are applied to the channel you're currently watching.

✎

Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand side of the channel number in the channel banner.

✎

To reset the fine-tuning, select Reset.

Picture Menu

 Changing the Preset Picture Mode



MENU → Picture → Mode → ENTER



Mode

Select your preferred picture type.

■ Dynamic: Suitable for a bright room.

■ Standard: Suitable for a normal

environment.

■ Natural: Suitable for reducing eye strain.

✎

Natural is not available in PC mode.

■ Movie: Suitable for watching movies in a dark room.

P.MODE

 Economical Solutions

The Eco Function can be used to enhance your power savings.

Eco Solution



MENU → Picture → Eco Solution → ENTER

■ Energy Saving (Off / Low / Medium / High / Picture Off / Auto): This adjusts the brightness of the TV in

order to reduce power consumption. If you select Picture Off, the screen is turned off , but the sound remains on. Press any button except the volume button to turn on the screen.

■ Eco Sensor (Off / On): To enhance your power savings; the picture settings will automatically adapt to the light in the room.

✎

If you adjust the Backlight, the Eco Sensor will be set to Off.

Min Backlight: When Eco sensor is On, the minimum screen brightness can be adjusted manually.

✎

If Eco Sensor is On, the display brightness may change (become slightly darker or brighter) depending on the surrounding light intensity.

■ No Signal Power Off (Off / 15 min. / 30 min. / 60 min.): To avoid unnecessary energy consumption, set how long you want the TV to remain on if it's not receiving a signal.

✎

Disabled when the PC is in power saving mode.

 Changing the Picture Options



03 Basic Features

 Adjusting Picture Settings



MENU → Picture → ENTER



Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R)

Your television has several setting options for picture quality control.

✎

NOTE

When you make changes to Backlight, Contrast,

Brightness, Sharpness, Color or Tint (G/R) the OSD will be adjusted accordingly.

In PC mode, you can only make changes to

Backlight, Contrast and Brightness. Settings can be adjusted and stored for each

external device connected to the TV.

Advanced Settings



MENU → Picture → Advanced Settings → ENTER



(Advanced Settings are available in Standard / Movie mode) Compared to previous models, new Samsung TVs have a

more precise picture.

✎

In PC mode, you can only make changes to

Dynamic Contrast, Gamma, White Balance and LED Motion Plus.

Advanced Settings

Black Tone : Off ► Dynamic Contrast : Medium Shadow Detail : -2 Gamma : 0

Expert Pattern : Off

RGB Only Mode : Off Color Space : Native

▼



Move



Enter



Return

English

Basic Features

■ Black Tone (Off / Dark / Darker / Darkest): Select the

black level to adjust the screen depth.

■ Dynamic Contrast (Off / Low / Medium / High): Adjust

the screen contrast.

■ Shadow Detail (-2~+2): Increase the brightness of dark

images.

■ Gamma: Adjust the primary color intensity.

■ Expert Pattern (Off / Pattern1 / Pattern2): By running the Expert Pattern function, the picture can be calibrated. If the OSD menu disappears or a menu other than the Picture menu is opened, the calibration is saved and the Expert Pattern window disappears.

Off: Turns the Expert Pattern function off. Pattern1: This is a test screen designed to demonstrate

the affects of display settings on shades. Pattern2: This is a test screen designed to demonstrate

the affects of display settings on colors.

✎

After selecting Pattern1 or Pattern2, you can adjust any of the advanced settings to the desired effect.

✎

While the Expert Pattern is running, sound is not output.

✎

Only enabled in DTV, Component and HDMI modes.

■ RGB Only Mode (Off / Red / Green / Blue): Displays the Red, Green and Blue color for making ﬁne adjustments to the hue and saturation.

■ Color Space (Auto / Native / Custom): Adjust the range of colors available to create the image.To adjust Color, Red, Green, Blue and Reset, set Color Space to Custom.

■ White Balance: Adjust the color temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each color's (red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each color's (red, green, blue) brightness.

Reset: Resets the White Balance to it's default settings.

■ 10p White Balance (Off / On): Controls the white balance in 10 point intervals by adjusting the red, green, and blue brightness.

✎

Available when the picture mode is set to Movie and when the external input is set to all input.

✎

Some external devices may not support this function.

Interval: Select interval to adjust. Red: Adjust the red level. Green: Adjust the green level. Blue: Adjust the blue level. Reset: Resets the 10p White Balance to its default

settings.

■ Flesh Tone: Emphasize pink “Flesh Tone.”

■ Edge Enhancement (Off / On): Emphasize object

boundaries.

■ xvYCC (Off / On): Setting the xvYCC mode on

increases detail and color space when watching movies from an external device (e.g. BD/DVD player) connected to the HDMI or Component IN jacks.

✎

Available when the picture mode is set to Movie and when the external input is set to HDMI or Component.

✎

Some external devices may not support this function.

■ LED Motion Plus (Off / On): Removes drag from fast

scenes with a lot of movement to provide a clear picture.

Picture Options



MENU → Picture → Picture Options → ENTER



✎

In PC mode, you can only make changes to the Color Tone, Size and Auto Protection Time.

Picture Options

Color Tone : Normal ► Size : 16:9 Digital Noise Filter : Auto MPEG Noise Filter : Auto

HDMI Black Level : Normal

Film Mode : Off Auto Motion Plus : Standard

■ Color Tone (Cool / Normal / Warm1 / Warm2)

✎

Warm1 or Warm2 will be deactivated when the picture mode is Dynamic.

✎

Settings can be adjusted and stored for each external device connected to an input on the TV.

■ Size: Your cable box/satellite receiver

may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

16:9: Sets the picture to 16:9 wide mode. Zoom1: Use for moderate magniﬁcation.

Zoom2: Use for a stronger magniﬁcation. Wide Fit: Enlarges the aspect ratio of the picture to ﬁt

the entire screen.

✎

Available with HD 1080i / 720p signals in 16:9 mode.

▼



Move



Enter



Return

P.SIZE

English

4:3: Sets the picture to basic (4:3) mode.

✎

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and center of the screen may cause image retention (screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.

✎

NOTE

After selecting Zoom1, Zoom2 or Wide Fit:

1. Press the ► button to select Position.

2. Press the ENTER

3. Press the ▲ or ▼ button to move the picture up

or down.

4. Press the ENTER

5. Press the ► button to select Reset.

6. Press the ENTER

to its default position.

After selecting Screen Fit in HDMI (1080i/1080p) or

Component (1080i/1080p) mode, you may need to center the picture:

1. Press the ◄ or ► button to select Position.

2. Press the ENTER

3. Press the ▲, ▼, ◄ or ► button to move the

picture.

4. Press the ENTER

5. Press the ◄ or ► button to select Reset.

6. Press the ENTER

HD (High Definition): 16:9 - 1080i/1080p (1920x1080),

720p (1280x720) Settings can be adjusted and stored for each

external device you have connected to an input on the TV.

Input Source Picture Size

ATV, AV, Component (480i, 480p) DTV(1080i), Component (1080i, 1080p), HDMI (720p, 1080i, 1080p) PC 16:9, 4:3

■ Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualization): If the broadcast signal received by your TV is weak, you can activate the Digital Noise Filter feature to reduce any static and ghosting that may appear on the screen.

✎

When the signal is weak, try other options until the best picture is displayed.

Auto Visualization: When changing analog channels, displays signal strength.

✎

Only available for analog channels.

✎

When bar is green, that is the best possible signal.



button.



button.



button to reset the picture



button.



button.



button.

16:9, Zoom1, Zoom2, 4:3

16:9, 4:3, Wide Fit, Screen Fit

■ MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide improved

picture quality.

■ HDMI Black Level (Normal / Low): Selects the black level on the screen to adjust the screen depth.

✎

Available only in HDMI mode.

■ Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and process ﬁlm signals from all sources and adjusts the picture for optimum quality.

✎

Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

■ Auto Motion Plus (Off / Clear / Standard / Smooth / Custom / Demo): Removes drag from fast scenes with a lot of movement to provide a clearer picture.

✎

The info screen on your TV displays the resolution and frequency of the incoming video signal (60 Hz). This displayed frequency is not what the TV is displaying by using the Auto Motion Plus function.

✎

If noise occurs on the screen, please set the

Auto Motion Plus to Off. If Auto Motion Plus is Custom, you can set the Blur Reduction, Judder Reduction or Reset manually.

✎

If Auto Motion Plus is Demo, you can compare the difference between on and off modes.

Blur Reduction: Adjusts the blur reduction level from video sources.

Judder Reduction: Adjusts the judder reduction level from video sources when playing ﬁlms.

Reset: Reset the custom settings.

■ Auto Protection Time (2 hours / 4 hours / 8 hours / 10 hours / Off): Set the time the screen remains idle with a still image until the screen saver is activated. The screen saver prevents the formation of ghost images on the screen.

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

 Setting up the TV with Your PC

Set the input source to PC.



MENU → Picture → ENTER

Auto Adjustment

Adjust frequency values/positions and ﬁne tune the settings automatically.

✎

Not available when connecting with an HDMI/DVI cable.





03 Basic Features

English

Basic Features

Screen

■ Coarse / Fine: Removes or reduces picture noise. If the

noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the center of screen.

■ Position: Adjust the PC’s screen positioning if it does

not ﬁt the TV screen. Press the ▲ or ▼ button to adjust the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position.

■ Image Reset: Resets the image to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card,

the actual screens on your PC will probably look different, but the same basic set-up information will apply in most cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

y The correct size setting (resolution) [Optimum: 1920 X

1080 pixels]

y If a vertical-frequency option exists on your display

settings dialog box, the correct value is ‘60’ or ‘60 Hz’. Otherwise, just click ‘OK’ and exit the dialog box.

Sound Menu

 Adjusting Sound Settings



MENU → Sound → Equalizer → ENTER



Equalizer

Adjusts the sound mode (standard sound mode only).

■ Balance L/R: Adjusts the balance between the right and left speaker.

■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of speciﬁc bandwidth frequencies.

■ Reset: Resets the equalizer to its default settings.

 Sound Settings



MENU → Sound → ENTER

SRS TruSurround HD (Off / On)

(standard sound mode only) This function provides a virtual 5.1 channel surround sound

experience through a pair of speakers using HRTF (Head Related Transfer Function) technology.





SRS TruDialog (Off / On)

(standard sound mode only) This function allows you to increase the intensity of a voice

over background music or sound effects so that dialog can be heard more clearly.

 Changing the Preset Sound Mode



MENU → Sound → SRS TheaterSound → ENTER



SRS TheaterSound

■ Standard: Selects the normal sound

mode.

■ Music: Emphasizes music over voices.

■ Movie: Provides the best sound for

movies.

■ Clear Voice: Emphasizes voices over

other sounds.

■ Amplify: Increase the intensity of high-frequency sound

to allow a better listening experience for the hearing impaired.

English

S.MODE

Preferred Language

(digital channels only) Digital-TV broadcasts are capable of

simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages).

✎

You can only select a language among the ones being broadcasted.

MTS

Multi-Track Sound (MTS)



Setup Menu

03 Basic Features

(analog channels only)

■ Mono: Choose for channels that are

broadcasting in mono or if you are having difﬁculty receiving a stereo signal.

■ Stereo: Choose for channels that are

broadcasting in stereo.

■ SAP: Choose to listen to the Separate Audio Program,

which is usually a foreign-language translation.

✎

Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP.

MTS

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

■ Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

Speaker Select (External Speaker / TV Speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker.

✎

When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited.

✎

When Speaker Select is set to External Speaker

TV Speaker: Off , External Speaker: On

✎

When Speaker Select is set to TV Speaker

TV Speaker: On , External Speaker: On

✎

If there is no video signal, both speakers will be mute.

SPDIF Output

SPDIF (Sony Philips Digital Interface) is used to provide digital sound, reducing interference going to speakers and various digital devices such as an A/V Receiver/Home theater.

■ Audio Format: During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital.

■ Audio Delay: Correct audio-video sync problems, when watching TV or video, and when listening to digital audio output using an external device such as an AV receiver (0ms ~ 250ms).

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

 Setting the Time



MENU → Setup → Time → ENTER



Time

■ Clock: Setting the clock is for using various timer

features of the TV.



The current time will appear every time you press the INFO button.

✎

If you disconnect the power cord, you have to set the clock again.

Clock Mode (Auto / Manual)

– Auto: Set the current time automatically using the

time from a digital channel.

✎

The antenna must be connected in order to set the time automatically.

– Manual: Set the current time manually.

✎

Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually.

Clock Set: Set the Month, Day, Year, Hour, Minute and am/pm manually.

✎

Available only when Clock Mode is set to Manual.

✎

You can set the Month, Day, Year, Hour and Minute directly by pressing the number buttons on the remote control.

DST (Daylight Saving Time) (Off / On): Switches the Daylight Saving Time function on or off.

✎

This function is only available when the Clock

Mode is set to Auto.

Time Zone: Select your time zone.

✎

This function is only available when the Clock

Mode is set to Auto.

 Using the Sleep Timer



MENU → Setup → Time → Sleep Timer → ENTER



■ Sleep Timer : Automatically shuts off the

TV after a preset period of time (30, 60, 90, 120, 150 and 180 minutes).

✎

To cancel the Sleep Timer, select Off.

SLEEP

English

Basic Features

 Setting the On / Off Timer



MENU → Setup → Time → Timer 1 →



ENTER

You can set the TV to turn on automatically at a preset time.

■ Timer 1 / Timer 2 / Timer 3: Three different on / off timer settings can be made. You must set the clock ﬁrst.

Timer 1

On Time

▲

Inactivate

▼

Off Time

Inactivate

Volume

20 TV Cable 1

Repeat

Once

On Time / Off Time: Set the hour, minute, and activate / inactivate (To activate the timer with the setting you’ve chosen, set to Activate.)

Volume: Set the desired volume level. Source: Select TV or USB content to be played when

the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV)

Antenna (when the Source is set to TV): Select Air or Cable.

Channel (when the Source is set to TV): Select the

desired channel. Contents (when the Source is set to USB): Select a

folder in the USB device containing music or photo ﬁles to be played when the TV is turned on automatically.

✎

NOTE

If there is no music file on the USB device or the

folder containing a music file is not selected, the Timer function does not operate correctly.

When there is only one photo file in the USB,

the Slide Show will not play. If a folder name is too long, the folder cannot be

selected. Each USB you use is assigned its own folder.

When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you

select Manual, you can set up the day you want to activate the timer.

✎

The  mark indicates the day is selected.

✎

Auto Power Off (available only when the TV is turned on by the Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

00 00 am

Source Antenna Channel

Sun Mon Tue Wed Thu Fri Sat



Move

Adjust 

Enter



Return

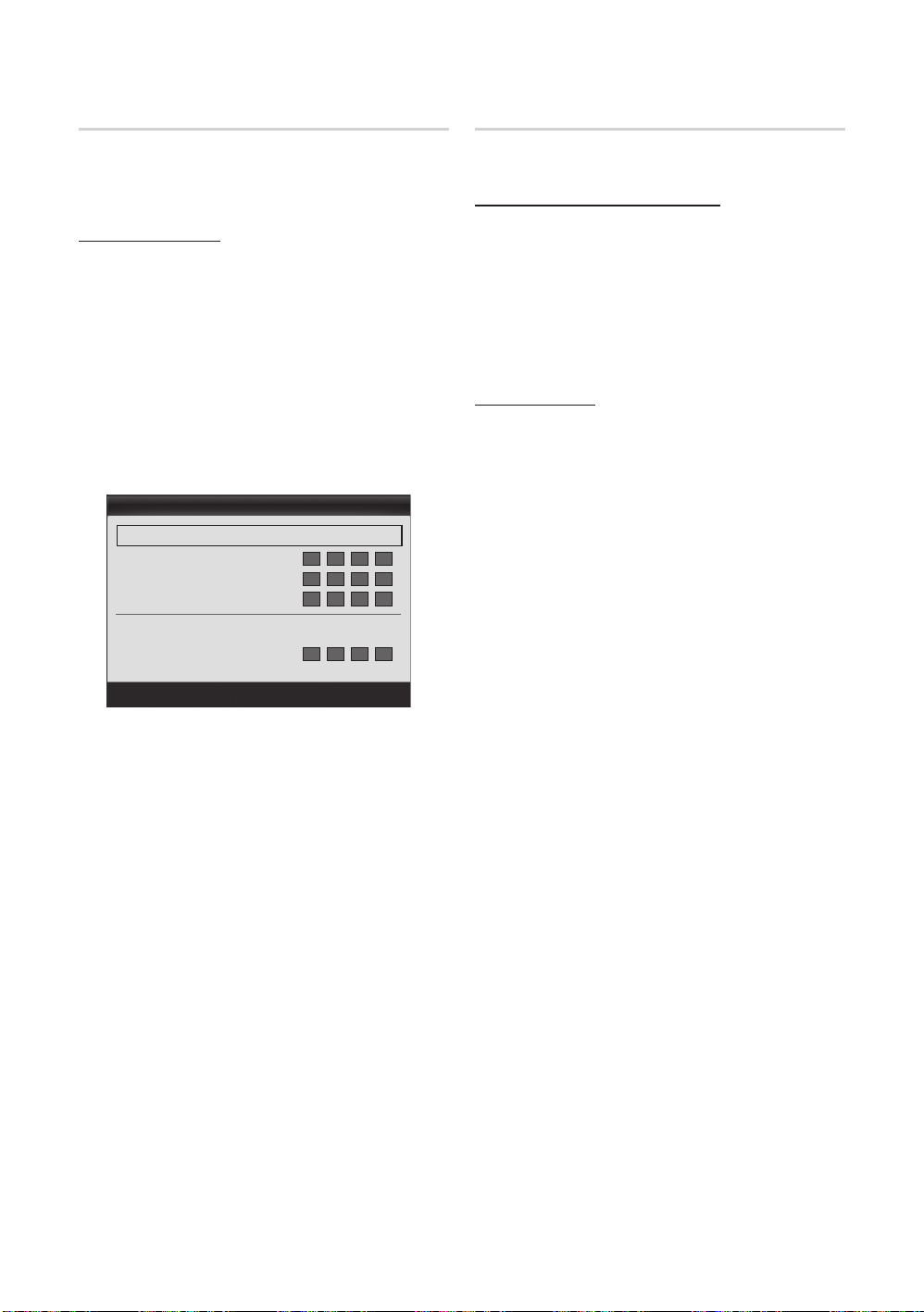

 Locking Programs



MENU → Setup → Security → ENTER



Security

■ V-Chip: The V-Chip feature automatically locks out

programs that are deemed inappropriate for children. The user must enter a PIN (personal identiﬁcation number) before any of the V-Chip restrictions are set up or changed.

✎

NOTE

V-Chip is not available in HDMI, Component

or PC mode. The default PIN number of a new TV set is

“0-0-0-0”. Allow All: Press to unlock all TV ratings.

Block All: Press to lock all TV ratings.

V-Chip Lock (Off / On): You can block rated TV Programs.

TV Parental Guidelines: You can block TV programs depending on their rating. This function allows you to control what your children are watching.

– TV-Y: Young children / TV-Y7: Children 7 and over /

TV-G: General audience / TV-PG: Parental guidance / TV-14: Viewers 14 and over / TV-MA: Mature audience

– ALL: Lock all TV ratings. / FV: Fantasy violence /

V: Violence / S: Sexual situation / L: Adult Language / D: Sexually Suggestive Dialog

✎

The V-Chip will automatically block certain categories dealing with more sensitive material. For example, if you block the TV-Y category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the young adult group will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work similarly. So, if you block the L sub-rating in TV-PG, then the L sub-ratings in TV-14 and TV-MA will automatically be blocked.

MPAA Rating: You can block movies depending on their MPAA rating. The Motion Picture Association of America(MPAA) has implemented a rating system that provides parents or guardians with advanced information on which ﬁlms are appropriate for children.

– G: General audience (no restrictions). / PG: Parental

guidance suggested. / PG-13: Parents strongly cautioned. / R: Restricted. Children under 17 should be accompanied by an adult. / NC-17: No children under age 17. / X: Adults only. / NR: Not rated.

English

✎

The V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the PG-13 category, then R, NC-17 and X will automatically be blocked.

Canadian English: You can block TV programs depending on their Anglophone Canadian rating.

– C: Programming intended for children under age 8. /

C8+: Programming generally considered acceptable for children 8 years and over to watch on their own. / G: General programming, suitable for all audiences. / PG: Parental Guidance. / 14+: Programming contains themes or content which may not be suitable for viewers under the age of 14. / 18+: Adult programming.

✎

The V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the G category, then

PG, 14+ and 18+ will automatically be blocked.

Canadian French: You can block TV programs

depending on their French Canadian rating.

– G: General / 8 ans+: Programming generally

considered acceptable for children 8 years and over to watch on their own. / 13 ans+: Programming may not be suitable for children under the age of 13. / 16 ans+: Programming is not suitable for children under the age of 16. / 18 ans+: Programming restricted to adults.

✎

The V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also.

Downloadable U.S. Rating: Parental restriction information can be used while watching DTV channels.

✎

NOTE

If information is not downloaded from the

broadcasting station, the Downloadable U.S. Rating menu is deactivated.

Parental restriction information is automatically

downloaded while watching DTV channels. It may take several seconds.

The Downloadable U.S. Rating menu

is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use.

Parental restriction levels differ depending on

the broadcasting station. The default menu name and Downloadable US Rating change depending on the downloaded information.

Even if you set the on-screen display to another

language, the Downloadable U.S. Rating menu will appear in English only.

The rating will automatically block certain

categories that deal with more sensitive material.

The rating titles (For example: Humor Level..etc)

and TV ratings (For example: DH, MH, H..etc) may differ depending on the broadcasting station.

■ Change PIN: The Change PIN screen will appear.

Choose any 4 digits for your PIN and enter them. As soon as the 4 digits are entered, the Conﬁrm New PIN screen appears. Re-enter the same 4 digits. When the Conﬁrm screen disappears, your PIN has been memorized.

How to watch a restricted channel

If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear:

This channel is blocked by V-Chip. Please enter the PIN to unblock.

✎

If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to “0-00-0”: POWER (off) → MUTE → 8 → 2 → 4 → POWER (on)

 Other Features



MENU → Setup → ENTER



Menu Language

Set the menu language.

1. Select Menu Language and press the ENTER

button.

2. Choose desired language and press the ENTER

button.

✎

Choose between English, Español and Français.



Caption

(On-Screen Text Messages)

■ Caption (Off / On): You can switch the

caption function on or off. If captions are not available, they will not be displayed on the screen.

✎

The Caption feature doesn’t work in Component, HDMI or PC modes.

03 Basic Features

English

Basic Features

■ Caption Mode: You can select the desired caption mode.

✎

The availability of captions depends on the program being broadcast.

Default / CC1~CC4 / Text1~Text4: (analog channels only) The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device to the TV (Depending on the broadcasting signal, the Analog Caption function may or may not work with digital channels.).

Default / Service1~Service6 / CC1~CC4 / Text1~Text4: (digital channels only) The Digital Captions

function works with digital channels.

✎

Service1~6 may not be available in digital caption mode depending on the broadcast.

■ Digital Caption Options: (digital channels only) Size: Options include Default, Small, Standard and

Large. The default is Standard. Font Style: Options include Default and Styles 0 to 7.

The default is Style 0. Foreground Color: Options include Default, White,

Black, Red, Green, Blue, Yellow, Magenta and Cyan. You can change the color of the letter. The default is White.

Background Color: Options include Default, White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. You can change the background color of the caption. The default is Black.

Foreground Opacity: This adjusts the opacity of text. Options include Default, Transparent, Translucent, Solid and Flashing.

Background Opacity: This adjusts the opacity of the caption background. Options include Default, Transparent, Translucent, Solid and Flashing.

Return to Default: This option sets each Size, Font Style, Foreground Color, Background Color, Foreground Opacity and Background Opacity to its default.

✎

NOTE

Digital Caption Options are available only

when Default and Service1 ~ Service6 can be selected in Caption Mode.

The availability of captions depends on the

program being broadcasted. The Default setting follows the standards set by

the broadcaster. The Foreground and Background cannot be set

to have the same color. You cannot set both the Foreground Opacity

and the Background Opacity to Transparent.

Network (Network Type / Network Setup / Network Test)

For details on set up options, refer to the “Network Connection” instructions (p. 25).

General

■ Game Mode (Off / On): When connecting to a game

console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting the game mode.

✎

NOTE

Precautions and limitations for game mode

– To disconnect the game console and connect

another external device, set Game Mode to Off in the setup menu.

– If you display the TV menu in Game Mode, the

screen shakes slightly.

Game Mode is not available when the input source

is set to TV or PC. After connecting the game console, set Game Mode

to On. Unfortunately, you may notice reduced picture quality.

If Game Mode is On:

– Picture mode is set to Standard and Sound mode

is set to Movie.

– Equalizer is not available.

■ BD Wise (Off / On): Provides the optimal picture quality

for Samsung DVD, Blu-ray and Home Theater products which support BD Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.

✎

Available when connecting Samsung products that support BD Wise through a HDMI cable.

■ Menu Transparency (Bright / Dark): Set the

Transparency of the menu.

■ Melody (Off / Low / Medium / High): Set so that a

melody plays when the TV is turned on or off.

English

 Picture In Picture (PIP)



PIP

You can watch the TV tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.



MENU → Setup → PIP → ENTER

✎

NOTE

For PIP sound, refer to the Sound Select

instructions. If you turn the TV off while watching in PIP mode, the

PIP window will disappear. You may notice that the picture in the PIP window

becomes slightly unnatural when you use the main screen to view a game or karaoke.

While V-Chip is in operation, the PIP function cannot

be used. PIP Settings

Main picture Sub picture Component, HDMI1/DVI,

HDMI2, HDMI3, HDMI4, PCTV

■ PIP (Off / On): Activate or deactivate the PIP function.

■ Air/Cable (Air / Cable): Select either Air or Cable as the input source for the sub-screen.

■ Channel: Select the channel for the sub-screen.



■ Size (

■ Position ( sub-picture.

■ Sound Select (Main / Sub): You can choose the desired sound (Main / Sub) in PIP mode.

/ ): Select a size for the sub-picture.



/  /  / ): Select a position for the



Support Menu



MENU → Support → ENTER



Legal Notice

✎

The Legal Notice may differ depending on the country.

Self Diagnosis

✎

Self Diagnostic might take few seconds, this is part of the normal operation of the TV.

■ Picture Test: Use to check for picture problems. Yes: If the test pattern does not appear or there is

noise in the test pattern, select Yes. There may be a problem with the TV. Contact Samsung’s Call Center for assistance.

No: If the test pattern is properly displayed, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

■ Sound Test: Use the built-in melody sound to check for sound problems.

✎

If you hear no sound from the TV’s speakers, before performing the sound test, make sure

Speaker Select is set to TV Speaker in the Sound menu.

✎

The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

Yes: If you can hear sound only from one speaker or not at all during the sound test, select Yes. There may be a problem with the TV. Contact Samsung’s Call Center for assistance.

No: If you can hear sound from the speakers, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

■ Signal Information: (Digital channels only) An HD channel’s reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.

■ Troubleshooting: If the TV seems to have a problem, refer to this description.

✎

If none of these troubleshooting tips apply, contact the Samsung customer service center.

03 Basic Features

English

Basic Features

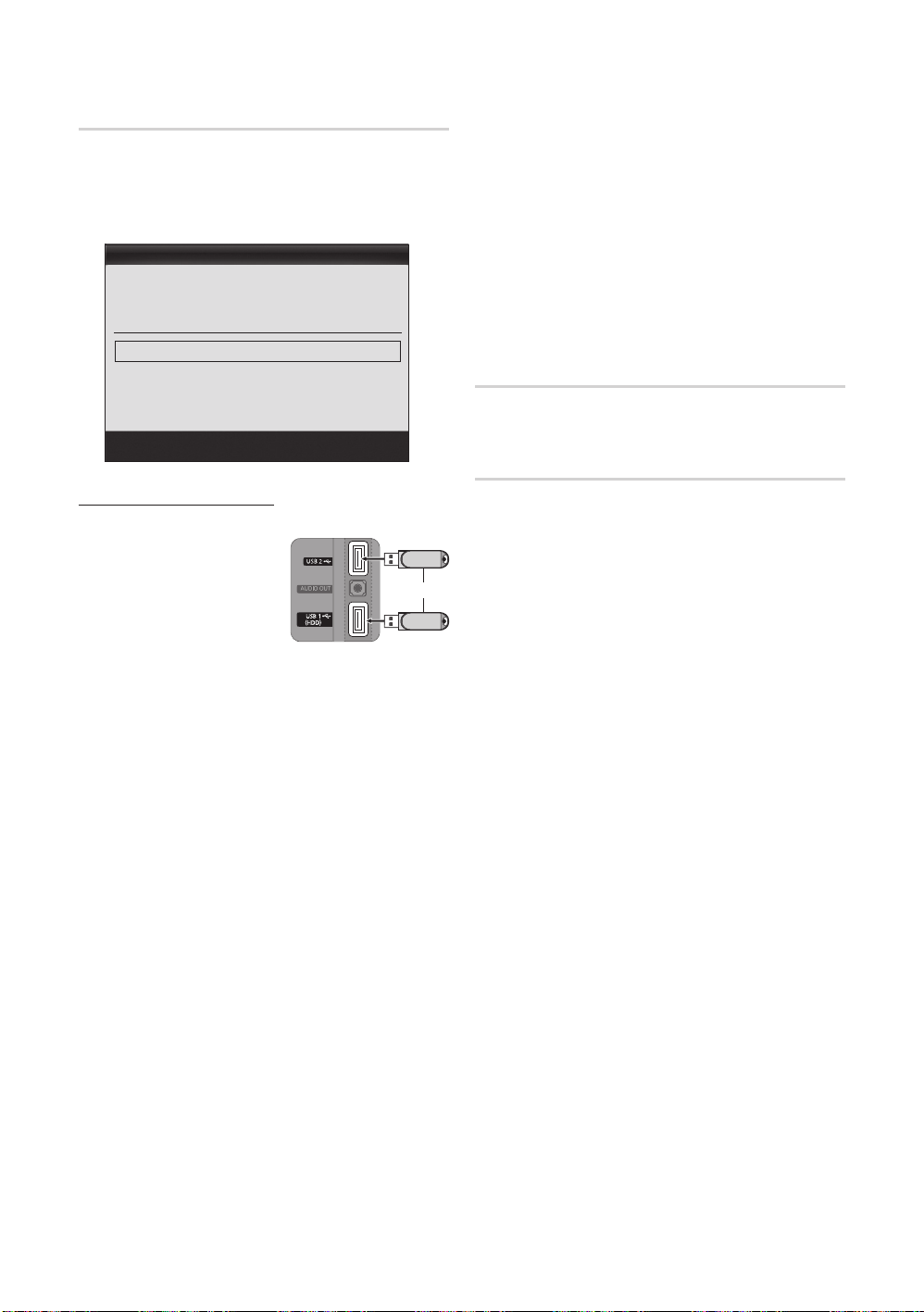

Software Upgrade

Software Upgrade can be performed by network

connection or downloading the latest ﬁrmware from “www. samsung.com,” to a USB memory device.

Current Version - the software already installed in the TV.

✎

Software is represented as “Year/Month/Day_Version”.

Software Upgrade

Current Version 2010/01/18_000001

By USB ► By Online

Alternative Software ----/--/--_------



Move



Enter



Return

Installing the Latest Version

■ By USB: Insert a USB drive

containing the ﬁrmware upgrade ﬁle, downloaded from “www.samsung. com,” into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the ﬁrmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to to write down your settings so that you can easily reset them after the upgrade.

TV Rear Panel

USB Drive

■ By Online: Upgrade the software using the Internet.

✎

First, configure your network. For detailed procedures on using the Network Setup, refer to the "Network Connection" instructions.

✎

If the internet connection doesn’t operate properly, the connection may be broken. Please retry downloading. If the problem persists, download by USB and upgrade.

■ Alternative Software (backup): Displays the software version downloaded through By Online. During the software upgrading, When the Upgrade will discontinue from last step, this function be activated.

HD Connection Guide

Refer to this information when connecting external devices to the TV.

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can ﬁnd information regarding our call centers and how to download products and software.

English

Advanced Features

Network Connection

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection.

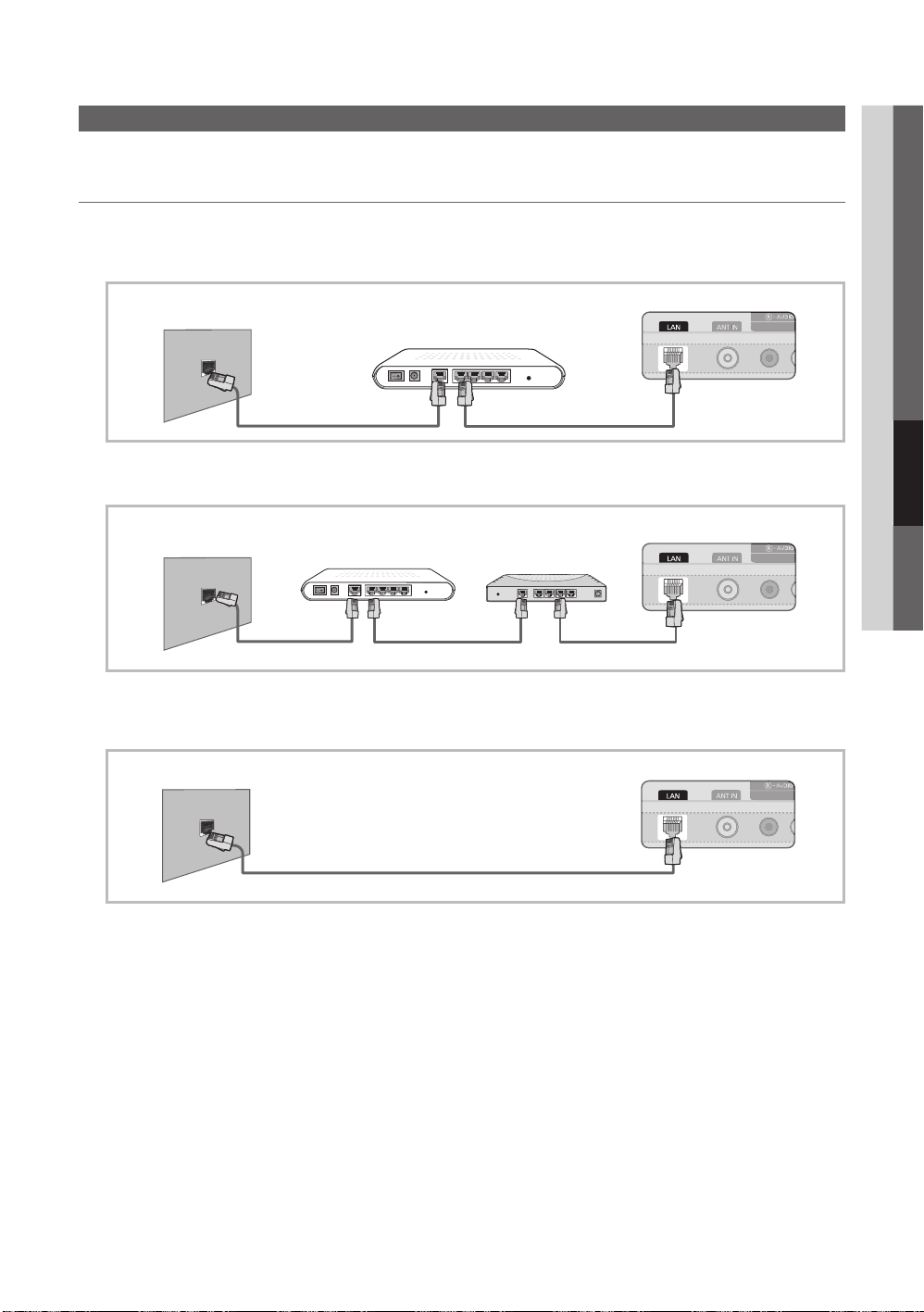

 Connecting to a Wired Network

You can attach your TV to your LAN using cable in three ways:

y You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat

5 cable. See the diagram below.

04 Advanced Features

The Modem Port on the Wall

Modem Cable (Not Supplied)

External Modem

(ADSL / VDSL / Cable TV)

LAN Cable (Not Supplied)

TV Rear Panel

y You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected

to an external modem. Use a Cat 5 cable for the connection. See the diagram below.

The Modem Port on the Wall

Modem Cable

(Not Supplied)

External Modem

(ADSL / VDSL / Cable TV)

LAN Cable

(Not Supplied)

IP Sharer

(having DHCP server)

LAN Cable

(Not Supplied)

TV Rear Panel

y Depending on how your network is conﬁgured, you may be able to attach your TV to your LAN by connecting the LAN

port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.

The LAN Port on the Wall

TV Rear Panel

LAN Cable (Not Supplied)

If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Conﬁguration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you don’t have to enter them manually. Most home networks are Dynamic Networks.

Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your TV’s Cable Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP). If you have a Windows computer, you can also get these values through your computer.

✎

You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that support DHCP also let you use Static IP addresses.

English

Advanced Features

Network Setup (Auto)

Use the Automatic Network Setup when connecting your TV to a network that supports DHCP. To set up your TV’s cable network connection automatically, follow these steps:

How to set up automatically

1. Connect your TV to your LAN as described in the

previous section.

2. Turn on your TV, press the MENU button on your remote, use the ▲ or ▼ button to select Setup, and then press the ENTER

3. Use the ▲ or ▼ button to select Network in the Setup menu, and then press the ENTER Network screen appears.

4. On the Network screen, select Network Type.

5. Set Network Type to Wired.

6. Select Network Setup. The Network Setup screen

appears.

Internet Protocol Setup : Auto ►

IP Address : Subnet Mask : Gateway :

DNS : Auto

DNS Server :

button.

Network Setup

Move

button. The

Enter

Return

Network Setup (Manual)

Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address.

Getting the Network Connection Values

To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the

screen.

2. In the pop-up menu that appears, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The

Network connection values are displayed.

How to set up manually

To set up your TV’s cable network connection manually, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up

automatically” procedure.

2. Set Internet Protocol Setup to Manual.

3. Press the ▼ button on your remote to go to the ﬁrst

entry ﬁeld.

4. Enter the IP Address, Subnet Mask, Gateway, and DNS Server values. Use the number buttons on your

remote to enter numbers and the arrow buttons to move from one entry ﬁeld to another.

5. When done, press the RETURN button on your remote.

6. Select Network Test to check the Internet connectivity.

7. Set Internet Protocol Setup to Auto.

8. Auto acquires and enters the needed Internet values

automatically.

9. Wait two minutes, and then press the RETURN button

on your remote.

10. If the Network Function has not acquired the network connection values, go to the directions for Manual.

English

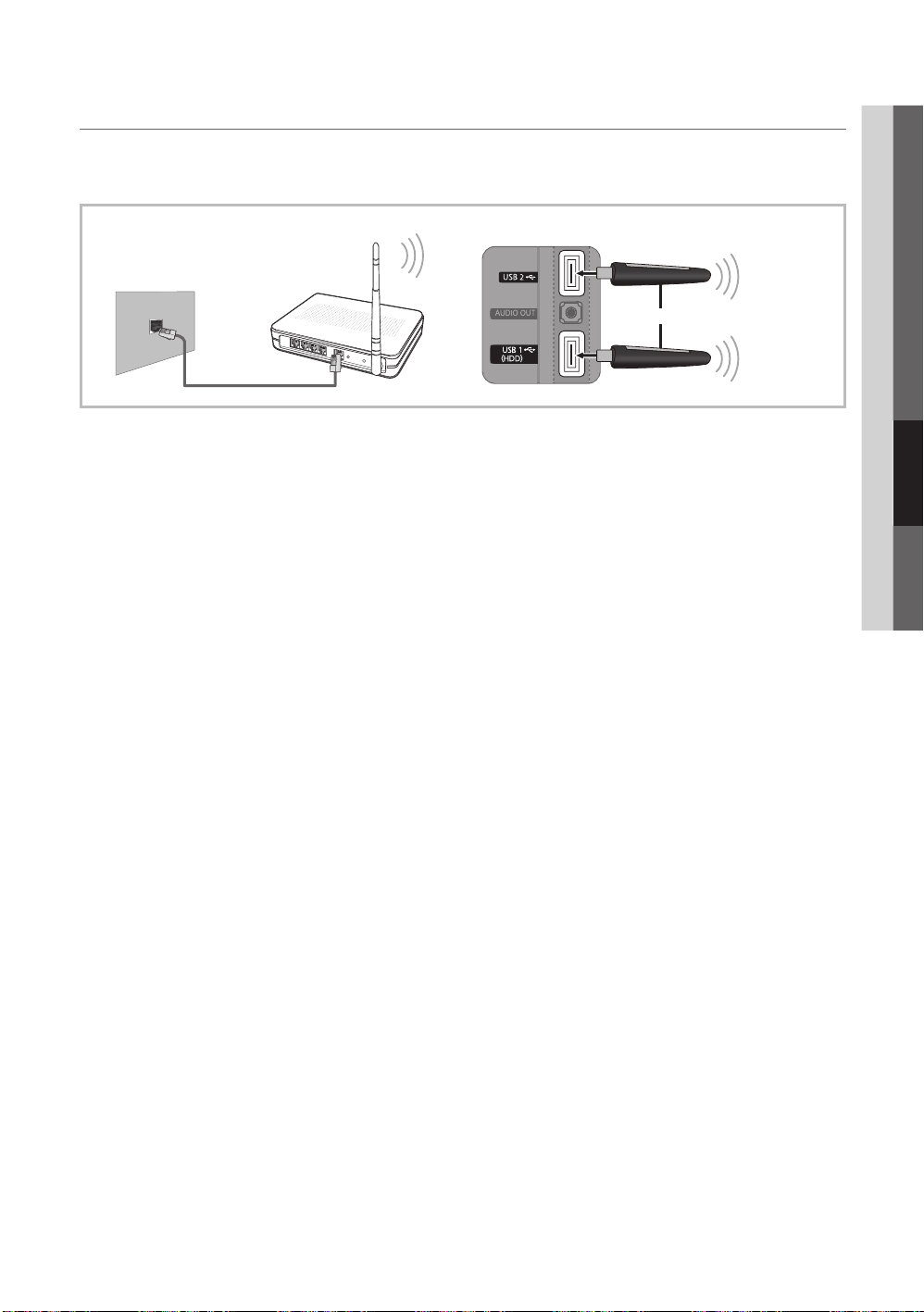

 Connecting to a Wireless Network

To connect your TV to your network wirelessly, you need a wireless router or modem and a Samsung Wireless LAN Adapter (WIS09ABGN, WIS09ABGN2, WIS10ABGN), which you connect to your TV’s back or side panel USB jack. See the illustration below.

04 Advanced Features

The LAN Port on the Wall

Samsung’s Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and Samsungparts. com. Samsung’s Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung recommends using IEEE 802.11N. When you play video over a IEEE 802.11B/G connection, the video may not play smoothly.

✎

NOTE

You must use the “Samsung Wireless LAN Adapter” (WIS09ABGN, WIS09ABGN2, WIS10ABGN) to use a wireless

network. Samsung’s Wireless LAN Adapter is sold separately. The Samsung Wireless LAN Adapter is offered by select

retailers, Ecommerce sites and Samsungparts.com. To use a wireless network, your TV must connect wirelessly to a wireless IP sharer (either a router or a modem). If the

wireless IP sharer supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network. Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer

is currently being used by another device nearby, this will result in interference and communication failure. If you apply a security system other than the systems listed below, it will not work with the TV.

If you select the Pure High-throughput (Greenfield) 802.11N mode and set your AP's Security Encryption type to WEP,

TKIP or TKIPAES (WPS2Mixed), your Samsung TV will not support the connection in compliance with new Wi-Fi certification specifications.

If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button

Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode.

If your router, modem, or device isn’t certified, it may not connect to the TV via the “Samsung Wireless LAN Adapter.”

Connection Methods: You can setup the wireless network connection four ways.

– PBC (WPS) – Auto Setup (Using the Auto Network Search function) – Manual Setup – Ad-Hoc

The Samsung Wireless LAN Adapter may not be recognized or work properly when connecting via a USB hub or via

a USB extension cable other than the one available from Samsung.

Wireless IP Sharer

(AP having DHCP server)

LAN Cable

(Not Supplied)

TV Rear Panel

Samsung Wireless

LAN Adapter

English

Advanced Features

Notice

The picture may appear corrupted or have static for some channels when the TV is connected to the Samsung Wireless LAN Adapter. In such a case, establish a connection using one of the following methods or connect the Samsung Wireless LAN Adapter using a USB cable in a place that is not affected by radio interference.

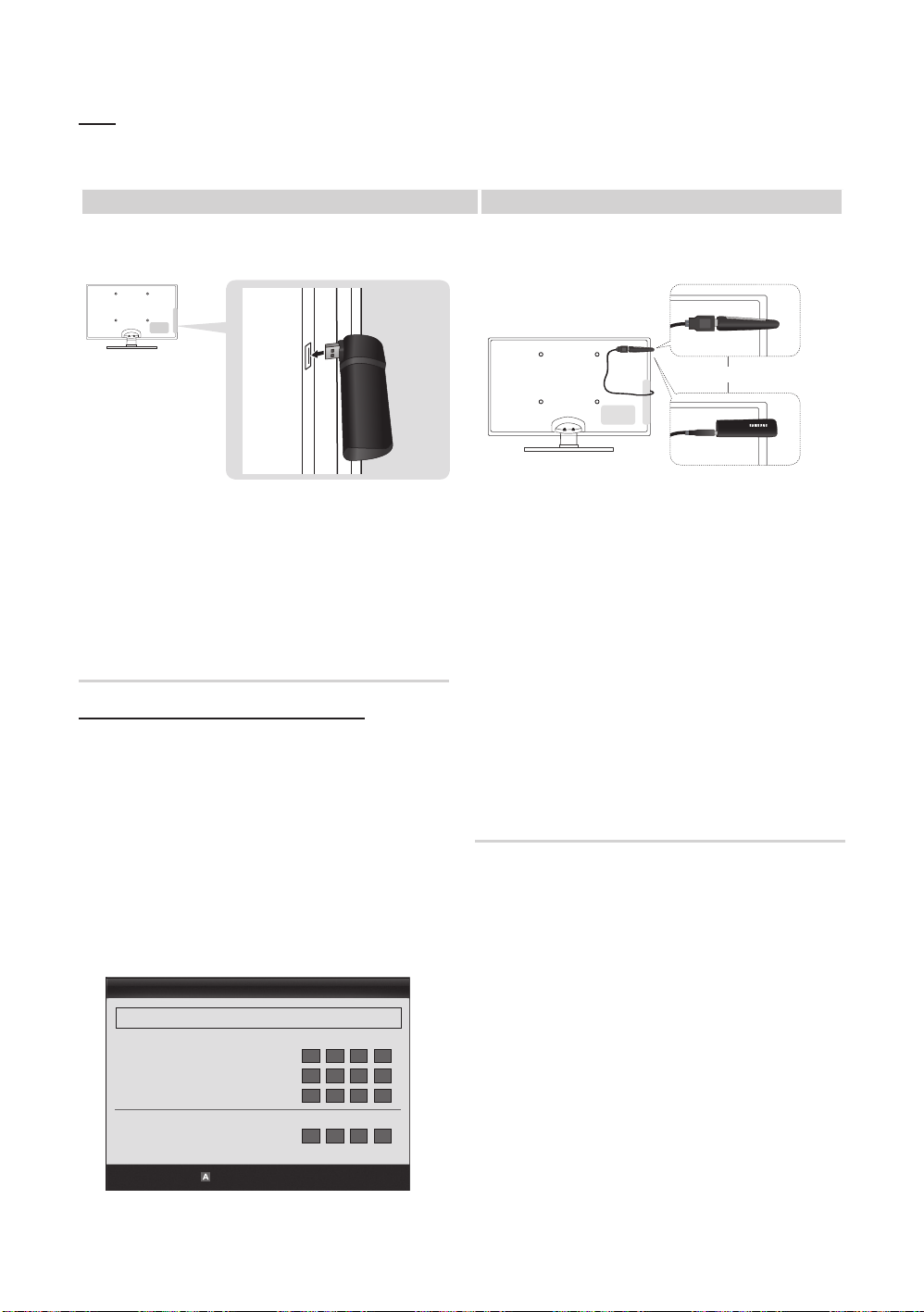

Method 1 Method 2

Connect using the USB right angle adapter Connect via an extension cable

The Samsung Wireless LAN Adapter should be installed in an

✎

interference-free area in order to avoid interference between the adapter and tuner.

To connect the Samsung Wireless LAN Adapter using the USB right angle adapter, follow these steps:

1. Connect the USB right angle adapter to the Samsung Wireless LAN

Adapter.

2. Connect the other end of the right angle adapter to the USB 1 (HDD)

port.

Network Setup (PBC (WPS))

How to set up using PBC (WPS)

If your router has a PBC (WPS) button, follow these steps:

1. Connect your TV to Samsung Wireless LAN Adapter as described in the previous section.

2. Turn on your TV, press the MENU button on your remote, use the ▲ or ▼ button to select Setup, and then press the ENTER

3. Use the ▲ or ▼ button to select Network in the Setup menu, and then press the ENTER

4. On the Network screen, select Network Type.

5. Set Network Type to Wireless.

6. Select Network Setup. The Network Setup screen

appears.

Select a Network : Not Selected ► Internet Protocol Setup : Auto

IP Address : Subnet Mask : Gateway :

DNS : Auto

DNS Server :



button.

Network Setup



button.

To connect the Samsung Wireless LAN Adapter using an extension cable, follow these steps:

1. Connect the extension cable to the USB 1 (HDD) port.

2. Connect the extension cable and Samsung Wireless LAN

Adapter.

3. Attach the Samsung Wireless LAN Adapter to the back of the TV

near the top, using double-sided adhesive tape.

7. Press the Red button on your remote.

8. Press the PBC (WPS) button on your router within 2

minutes. Your TV player automatically acquires all the network setting values it needs and connects to your network.

9. After the network connection is set up, press the

RETURN button to exit the Network Setup screen.

Network Setup (Auto)

Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a speciﬁed length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process.

English

PBC(WPS)



Move



Enter



Return

How to set up automatically

To set up the wireless connection automatically, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up using

PBC (WPS)” (p. 28).

2. Press the ▼ button to select Internet Protocol Setup, and then press the ENTER ▼ button to select Auto, and then press the ENTER button.

3. Press the ▲ button to go to Select a Network, and then press the ENTER searches for available wireless networks. When done, it displays a list of the available networks.

4. In the list of networks, press the ▲ or ▼ button to Select a Network, and then press the ENTER

✎

If the AP is set to Hidden (Invisible), you have to select Add Network and enter the correct Network Name (SSID) and Security Key to establish the connection.

5. If the Security/PIN pop-up appears, go to Step 6. If the Network Connecting Screen appears, go to Step 10.

6. Press the ▲ or ▼ button to select Security or PIN. For most home networks, you would select Security (for Security Key). The Security Screen appears.



button. Press the ▲ or



button. The Network function



button.

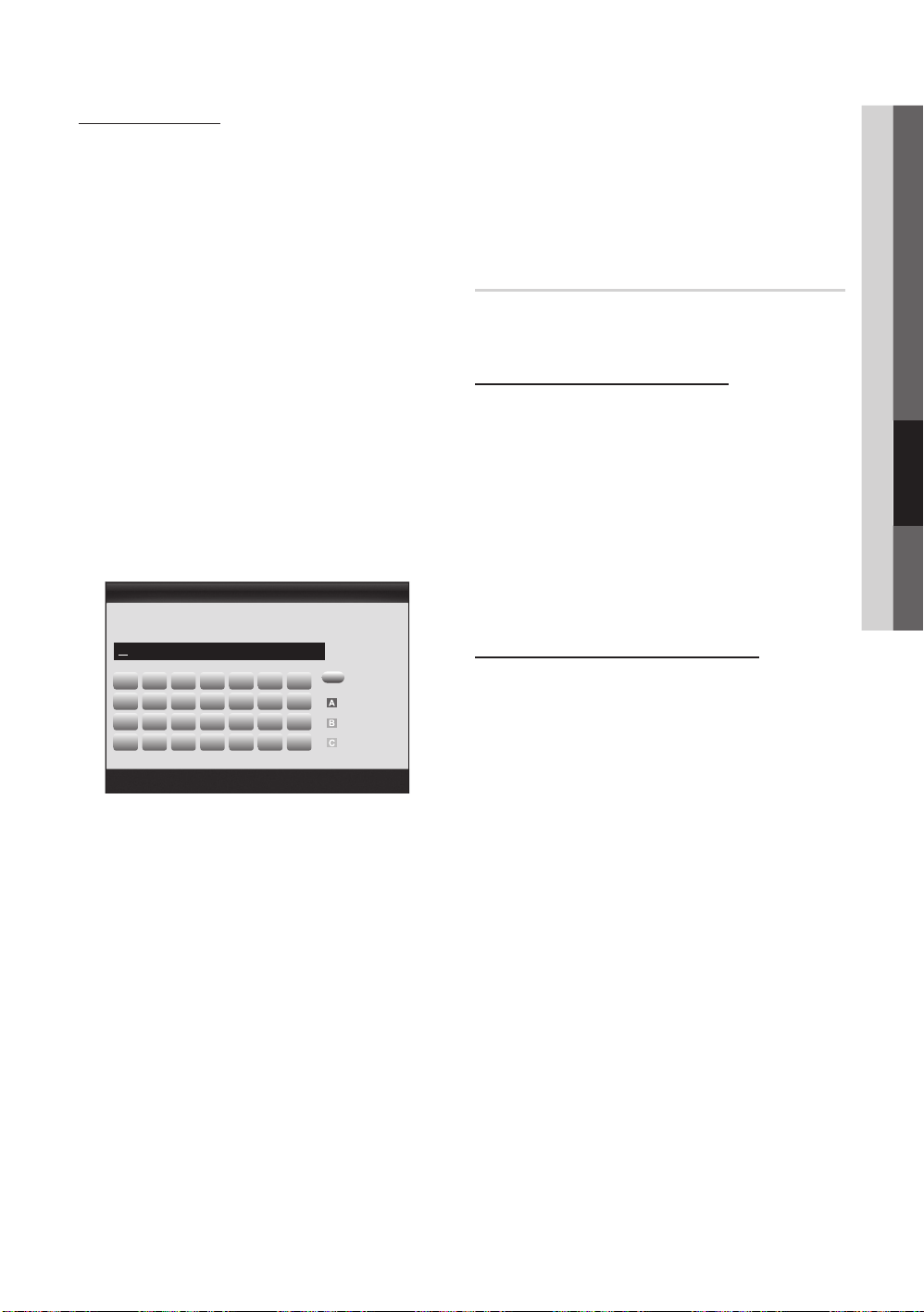

Network Setup

Security Key

0 entered

0~9

Lower case Delete Space



Enter



Number



Return

button.

A B C D E F G

H I J K L M N

O P Q R S T U

V W X Y Z



Move

7. On the Security screen, enter your network’s Pass Phrase.

✎

You should be able to find the Pass Phrase on one of the set up screens you used to set up your router or modem.

8. To enter the Pass Phrase, follow these general directions:

– Press the number buttons on your remote to enter

numbers.

– Use the direction buttons on your remote to move

from button to button on the Security Key screen.

– Press the Red button to change case or display

symbols/characters.

– To a enter letter or symbol, move to the letter or

symbol, and then press the ENTER

– To delete the last letter or number you entered, press

the Green button on your remote.

9. When done, press the Blue button on your remote. The

Network Connecting screen appears.

10. Wait until the connection conﬁrmation message is displayed, and then press the ENTER

Network Setup screen re-appears.

11. To test the connection, press the RETURN button to

select Network Test, and then press the ENTER button.



button. The



Network Setup (Ad-Hoc)

You can connect to a mobile device without an access point through the “Samsung Wireless LAN Adapter” by using a peer to peer network.

How to connect to new Ad-hoc device

1. Follow Steps 1 through 6 in the “How to set up using

PBC (WPS)” (p. 28).

2. Choose Select a Network. A list of devices/networks appears.

3. While in the device list, press the Blue button on the remote.

✎

The message Ad-hoc is a direct Wi-Fi

connection with cell phone or PC. The existing network system may have limited functionality. Do you want to change the network connection? is displayed.

4. Input the generated Network Name (SSID) and Security Key into the device you want to connect.

How to connect an existing Ad-hoc device

1. Follow Steps 1 through 6 in the “How to set up using

PBC (WPS)” (p. 28).

2. Choose Select a Network. The Device/Network list appears.

3. Select the device you want in the Device list.

4. If security key is required, input the security key.

✎

If network doesn’t operate normally, check the Network Name (SSID) and Security Key again. An incorrect Security Key may cause a malfunction.

04 Advanced Features

English

Advanced Features

Network Setup (Manual)

If the other methods do not work, you need to enter the Network setting values manually.

Getting the Network Connection Values

To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the

screen.

2. In the pop-up menu, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support tab, click the Details button. The

Network settings are displayed.

How to set up manually

To enter the Network connection values manually, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up using

PBC (WPS)” (p. 28).

2. Press the ▼ button to select Internet Protocol Setup, and then press the ENTER or ▼ button to select Manual, and then press the

ENTER button.

3. Press the ▼ button to go to the ﬁrst entry ﬁeld (IP

Address).

4. Use the number buttons to enter numbers.

5. When done with each ﬁeld, use the ► button to move

successively to the next ﬁeld. You can also use the other arrow buttons to move up, down, and back.

6. Enter the IP Address, Subnet Mask, and Gateway values.

7. Press the ▲ or ▼ button to go to DNS.

8. Press the ▼ button to go to the ﬁrst DNS entry ﬁeld.

Enter the numbers as above.

9. When done, press the ▲ button to go to Select a Network. Select your network, and then press the

ENTER



button.

10. Go to Step 4 in the “How to set up automatically” (p. 29), and follow the directions from that point on.



button. Press the ▲

If Your TV Fails to Connect to the Internet

Your TV may not be able to connect to the Internet because your ISP has permanently registered the MAC address (a unique identifying number) of your PC or modem, which it then authenticates each time you connect to the Internet as a way of preventing unauthorized access. As your TV has a different MAC address, your ISP can not authenticate its MAC address, and your TV can not connect.

To resolve this problem, ask your ISP about the procedures required to connect devices other than a PC (such as your TV) to the Internet.

If your Internet service provider requires an ID or password to connect to the Internet, your TV may not be able to connect to the Internet. If this is the case, you must enter your ID or password when connecting to the Internet.

The internet connection may fail because of a ﬁrewall problem. If this is the case, contact your Internet service provider.

If you cannot connect to the Internet even after you have followed the procedures of your Internet service provider, please contact Samsung Electronics.

English

+ 74 hidden pages
