Связывайтесь с SAMSUNG по всему миру
Если у вас есть предложения или вопросы по продуктам Samsung, связывайтесь с информационным центром Samsung.
Страна |
Центр поддержки покупателей |
Веб-узел |
ESTONIA |
800-7267 |
www.samsung.ee |
LATVIA |
800-7267 |
www.samsung.com/lv |
LITHUANIA |
8-800-77777 |
www.samsung.lt |
KAZAHSTAN |
8-10-800-500-55-500 |
www.samsung.kz |
KYRGYZSTAN |
00-800-500-55-500 |
- |
RUSSIA |
8-800-555-55-55 |
www.samsung.ru |
TADJIKISTAN |
8-10-800-500-55-500 |
- |
UKRAINE |
8-800-502-0000 |
www.samsung.com |
UZBEKISTAN |
8-10-800-500-55-500 |
www.samsung.uz |
LE32A550/LE32A551/LE32A552/LE32A553
LE37A550/LE37A551/LE37A552/LE37A553
LE40A550/LE40A551/LE40A552/LE40A553
LE46A550/LE46A551/LE46A552/LE46A553
LE52A550/LE52A551/LE52A552/LE52A553
ЖК-ТЕЛЕВИЗОР
руководство пользователя
удивительные возможности
Благодаримзаприобретениепродукциикомпании Samsung. Для получения полного обслуживания зарегистрируйте свое устройство по адресу
www.samsung.com/global/register
Модель |
|
Серийный номер |
BN68-01410E-01
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See back cover for more informations.)
Precautions When Displaying a Still Image
A still image may cause permanent damage to the TV screen.
•Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
•Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders
displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages
caused by the above effect are not covered by the Warranty.
•Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.
© 2008 Samsung Electronics Co., Ltd. All rights reserved.
Contents
Connecting and Preparing Your TV
List of Parts......................................................... |
2 |
Installing the Stand............................................. |
2 |
Installing the Wall Mount Kit............................... |
2 |
Viewing the Control Panel.................................. |
3 |
Viewing the Connection Panel............................ |
4 |
Viewing the Remote Control............................... |
6 |
Installing Batteries in the Remote Control.......... |
7 |
Switching On and Off.......................................... |
7 |
Placing Your Television in Standby Mode.......... |
7 |
Viewing the Menus............................................. |
8 |
Using the TOOLS Button.................................... |
8 |
Plug & Play......................................................... |
9 |
Setting the Channels |
|
Storing Channels Automatically........................ |
10 |
Storing Channels Manually............................... |
11 |
Adding / Locking Channels............................... |
12 |
Sorting the Stored Channels............................. |
13 |
Assigning Channels Names.............................. |
13 |
Fine Tuning Channel Reception....................... |
14 |
LNA (Low Noise Amplifier)................................ |
14 |
Setting the Picture |
|
Changing the Picture Standard......................... |
15 |
Adjusting the Custom Picture........................... |
16 |
Configuring Detailed Settings on the Picture.... |
16 |
Resetting the Picture Settings to the Factory |
|
Defaults............................................................. |
17 |
Configuring Picture Option................................ |
18 |
Viewing the Picture In Picture (PIP).................. |
20 |
Setting the Sound |
|
Sound Features................................................ |
21 |
Selecting the Sound Mode................................ |
22 |
Connecting Headphones (Sold separately)...... |
22 |
Setting the Time |
|
Setting and Displaying the Current Time.......... |
23 |
Setting the Sleep Timer.................................... |
23 |
Switching the Television On and Off |
|
Automatically..................................................... |
24 |
Function Description |
|
Choosing Your Language................................. |
24 |
Setting the Light Effect |
|
(depending on the model)................................. |
25 |
Melody / Entertainment / Energy Saving ......... |
25 |
Selecting the Source......................................... |
27 |
Editing the Input Source Names....................... |
27 |
Setting the PC |
|
Setting up Your PC Software |
|
(Based on Windows XP)................................... |
28 |
Display Modes.................................................. |
28 |
Setting up the TV with your PC......................... |
29 |
WISELINK |
|
Using the WISELINK Function.......................... |
30 |
Using the WISELINK Menu.............................. |
31 |
Using the PHOTO (JPEG) List.......................... |
32 |
Using the MP3 List............................................ |
35 |
Using the Setup Menu...................................... |
36 |
About Anynet+ |
|
What is Anynet+? ............................................. |
37 |
Connecting Anynet+ Devices............................ |
37 |
Setting Up Anynet+........................................... |
38 |
Scanning and Switching between Anynet+ |
|
Devices............................................................. |
39 |
Recording.......................................................... |
41 |
Listening through a Receiver............................ |
41 |
Check Points before Requesting Service......... |
42 |
Recommendations For Use |
|
Teletext Feature................................................ |
43 |
Auto Wall-Mount (Sold separately)................... |
45 |
Using the Anti-Theft Kensington Lock |
|
(depending on the model)................................. |
46 |
Troubleshooting: Before Contacting Service |
|
Personnel.......................................................... |
47 |
Technical and Environmental Specifications ... |
48 |
English
Symbol |
Press |
Note |
|
|
Button |
English - 1
Please make sure the following items are included with your LCD TV.
If any items are missing, contact your dealer.
|
|
|
|
M4 X L16 |
|
|
|
Remote Control |
|
|
|
Stand Screw |
|
|
|
& Batteries |
Power Cord |
Cover-Bottom |
Stand |
Cleaning Cloth |
|||
X 4 |
|||||||
(AAA x 2) |
|
|
|
|
|
||
|
|
|
|
|
|
||
• Owner’s Instructions |
• |
Warranty card |
• Safety Guide |
|
• Registration Cards |
Warranty card / Safety Guide / Registration Cards (Not available in all locations)
The stand and stand screw may not be included depending on the model.
2
1
1.Connect your LCD TV and the stand.
Two or more people should carry the TV.
Make sure to distinguish between the front and back of the stand when assembling them.
2.Fasten two screws at position 1 and then fasten two screw at position 2.
Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side.
The stand is installed for models with the screen size of 37 inch and above.
Wall mount items (sold separately) allow you to mount the TV on the wall.
For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.
Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.
Remove the stand and cover the bottom hole with a cap and fasten with two screws.
English -
|
|
1 |
Front Panel buttons |
|
|
Touch each button to |
|
|
|
2 operate. |
|
|
|
3 |
|
|
|
4 |
|
|
|
5 |
|
|
|
6 |
|
8 |
|
7 |
|
|
|
|
Side Panel buttons |
|
|
1 |
|
|
|
2 |
|
|
|
3 |
|
|
|
4 |
|
|
|
6 |
|
|
|
7 |
|
8 |
8 |
5 |
|
The product colour and shape may vary depending on the model.
1 |
SOURCE |
5 |
Power Indicator |
|
Toggles between all the available input sources |
|
Blinks and turns off when the power is on and |
|
(TV, Ext.1, Ext.2, AV, S-Video, Component, PC, |
|
lights up in stand-by mode. |
|
HDMI1, HDMI2, HDMI3). In the on-screen menu, |
|
|
|
use this button as you use the ENTER button |
6 |
(Power) |
|
on the remote control. |
|
Press to turn the TV on and off. |
2 |
MENU |
7 |
Remote Control Sensor |
|
Press to see an on-screen menu of your TV’s |
|
Aim the remote control towards this spot on |
|
features. |
|
the TV. |
3Press to decrease or increase the volume. In the 8 Speakers on-screen menu, use the buttons as you
use the ◄ and ► buttons on the remote control.
4
Press to change channels.
In the on-screen menu, use the buttons as you use the ▼ and ▲ buttons on the remote control.
(Without the Remote Control, you can turn on the TV by using the Channel buttons.)
English -
|
|
|
|
[Side Panel Jacks] |
1 |
2 |
3 |
4 |
5 |
3
6
7
8
! |
0 Power Input |
9 |
The product colour and shape may vary depending on the model.
Whenever you connect an external device to your TV, make sure that power on the unit is turned off
When connecting an external device, match the colour of the connection terminal to the cable.
1PC IN [PC] / [AUDIO]
-Connect to the video and audio output jack on your PC.
2COMPONENT IN
-Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DVD.
-If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the
DVD and connect the DVD to component connector ("PR", "PB", "Y") on your set.
-The PR, PB and Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and
R-Y or Y, Cb and Cr.
-Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DVD.
3HDMI IN 1, HDMI IN 2, HDMI IN 3
-Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)
-No additional Audio connection is needed for an HDMI to HDMI connection.
-When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
What is HDMI?
-“High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio.
-The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.
English -
The TV may not output sound and pictures may be displayed with abnormal colour when DVD players/Cable Boxes/Satellite receivers supporting HDMI versions older than 1.3 are connected.
When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite receiver to confirm the HDMI version, then request a firmware update. HDMI cables that are not
1.3 may cause annoying flicker or no screen display.
DVI IN(HDMI2) [R-AUDIO-L]
-DVI audio outputs for external devices.
Supported modes for HDMI/DVI and Component
|
480i |
480p |
576i |
576p |
720p |
1080i |
1080p |
|
|
|
|
|
|
|
|
HDMI/DVI 50Hz |
X |
X |
X |
O |
O |
O |
O |
HDMI/DVI 60Hz |
X |
O |
X |
X |
O |
O |
O |
Component |
O |
O |
O |
O |
O |
O |
O |
4ANT IN
To view television channels correctly, a signal must be received by the set from one of the following sources:
-An outdoor aerial / A cable television network / A satellite network
5SERVICE
Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control.
6WISELINK
-Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3)
7S-VIDEO or VIDEO / R-AUDIO-L
-Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
-Connect RCA audio cables to "R-AUDIO-L" on your set and the other ends to corresponding audio out connectors on the A/V device.
8Headphones jack
-Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled.
9AUDIO OUT [R-AUDIO-L]
-Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theatre.
0 EXT 1, EXT 2
Connector |
|
Input |
|
Output |
|
Video |
Audio (L/R) |
RGB |
Video + Audio (L/R) |
EXT 1 |
O |
O |
O |
Only TV output is available. |
EXT 2 |
O |
O |
|
Output you can choose. |
-Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

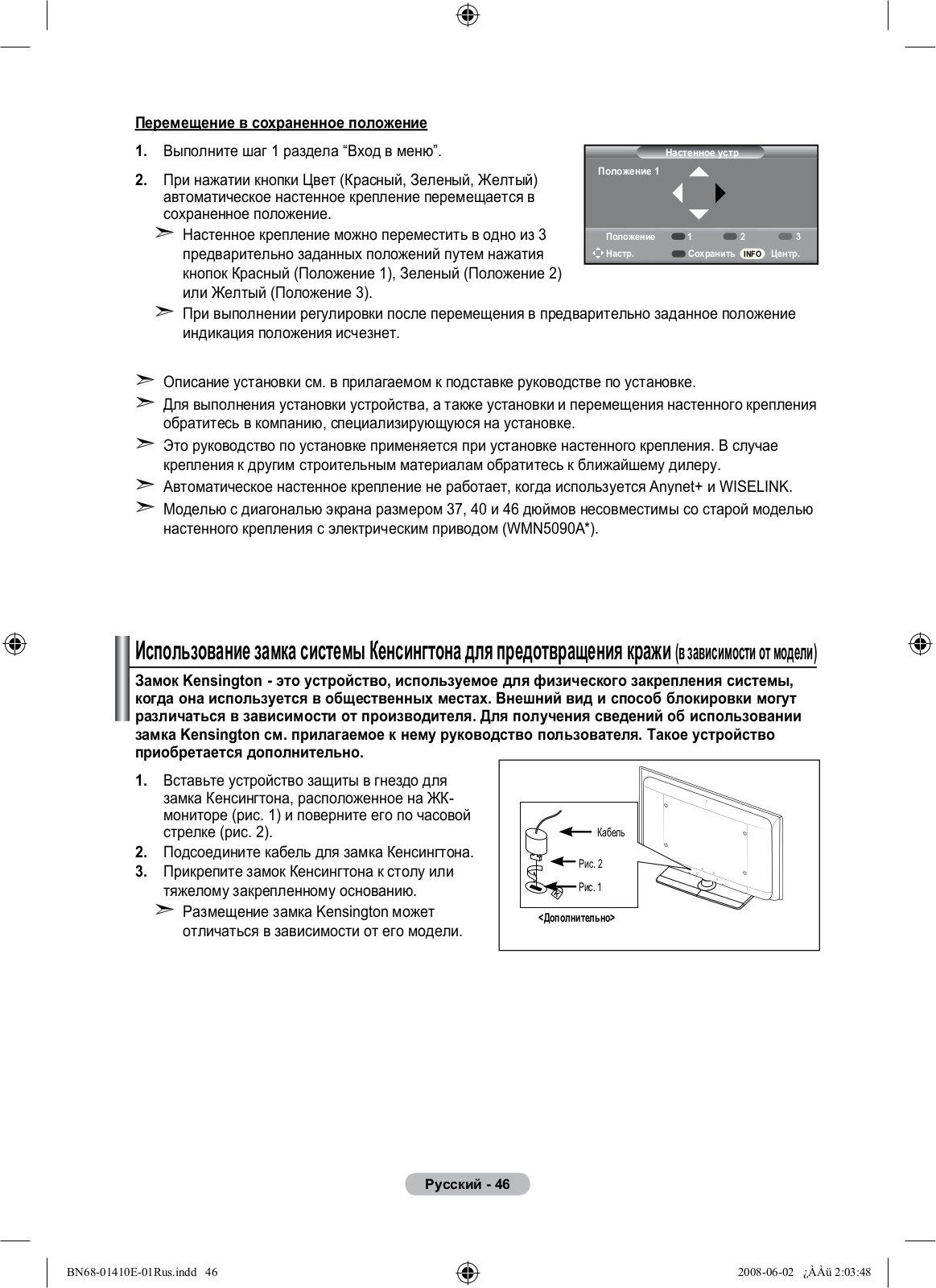

!Kensington Lock (depending on the model)
-The Kensington lock (optional) is a device used to physically fix the system when used in a public place.
-If you want to use a locking device, contact the dealer where you purchased the TV.
-The location of the kensington lock may be different depending on its model.
English -
1Television Standby button
2Selects the TV mode directly
3Number buttons for direct
channel access
4One/Two-digit channel selection
5+: Volume increase -: Volume decrease
6Temporary sound switchoff
7It display "Channel List" on the screen.
8Use to quickly select
frequently used functions.
9Use to see information on the current broadcast
0Colour buttons : Use these buttons in the Channel list and WISELINK, etc.
) Control the cursor in the menu
aExit the on-screen menu
bUse this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button
is available when “Anynet+(HDMI-CEC)" is
“On” (see page 38)
cPicture size selection
dSelects the HDMI mode directly.
ePicture effect selection
@ Press to select the optional |
Teletext Functions |
|
|
|
|
|
|
|
|
|
|
|
|||
display and sound modes |
2 Exit from the teletext display |
|
|
|
|
|
|
for sports, cinema and |
7 Teletext store |
|
|
|
|
|
|
games. |
|
|
|
|
|
||
# Use these buttons in the |
8 Teletext size selection |
|
|
|
|
|
|
DMA, WISELINK, and |
9 Teletext reveal |
|
|
|
|
|
|
Anynet+. |
|
|
|
|
|
||
0 Fastext topic selection |
|
|
|
|
|
||
( |
: This remote can be |
|
|
|
|
|
|
used to control recording |
! Alternately select Teletext, |
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|||
on Samsung recorders |
Double, or Mix. |
|
|
|
|
|
|
|
|
|
|
|
|||
with the Anynet+ feature) |
|
|
|
|
|
||
$ Teletext mode selection |
|
|
|
|
|
||
$ Available source selection |
|
|
|
|
|
||
% Previous channel |
(LIST/FLOF) |
|
|
|
|
|
|
% Teletext sub page |
|
|
|
|
|
||
^ P<: Next channel |
|
|
|
|
|
||
P>: Previous channel |
^ P<: Teletext next page |
|
|
|
|
|
|
& Displays the main on- |
P>: Teletext previous page |
|
|
|
|
|
|
screen menu |
& Teletext index |
|
|
|
|
|
|
* This function enables you |
|
|
|
|
|
||
to view and play photo |
( Teletext hold |
|
|
|
|
|
|
and music files from an |
a Teletext cancel |
|
|
|
|
|
|
external device. |
|
|
|
|
|
|
|
( Returns to the previous |
|
|
|
|
|
|
|
menu |
|
|
|
|
|
|
The performance of the remote control may be affected by bright light.
English -
1.Lift the cover at the back of the remote control upward as shown in the
figure.
2. Install two AAA size batteries.
Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment.
3. Replace the cover.
Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time.
If the remote control doesn’t work, check the following:
1.Is the TV power on?
2.Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage, or is the power cord unplugged? 5. Is there a special fluorescent light or neon sign nearby?
The mains lead is attached to the rear of your set.
1.Plug the mains lead into an appropriate socket.
The standby indicator lights up on your set.
2.Press the Pbutton on your set.
You also can press the POWER button or the TV button on the remote control to turn the TV on.
The programme that you were watching last is reselected automatically.
3.Press the numeric button (0~9) or channel up/down (</>) button on the remote control or button on your set.
When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.
4.To switch your set off, press the POWER button again.
Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).
1.Press the POWERbutton on the remote control.
The screen is turned off and a red standby indicator appears on your set.
2.To switch your set back on, simply press the POWER , numeric buttons (0~9), TV button or channel up/down (</>) button again.
Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example).
It is best to unplug the set from the mains and aerial.
English -
1.With the power on, press the MENU button.
The main menu appears on the screen. The menu’ s left side has icons: Picture, Sound, Channel, Setup, Input.
2.Press the ▲ or ▼ button to select one of the icons.
Then press the ENTER button to access the icon’s sub-menu.
3.Press the EXIT button to exit.
The on-screen menus disappear from the screen after about one minute.
You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu change depending on which external input mode you are viewing.
1.Press the TOOLS button.
The “Tools” menu will appear.
2.Press the ▲ or ▼ button to select a menu.
3.Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.
♦Anynet+ (HDMI-CEC), see page 38
♦Picture Mode, see page 15
♦Sound Mode, see page 21
♦Sleep Timer, see page 23
♦SRS TS XT, see page 21
♦Energy Saving, see page 26
♦Dual l-ll, see page 22
♦PIP, see page 20
♦Auto Adjustment, see page 29
|
|
Picture |
|
|
|
TV |
|
|
|
||
|
Mode |
: Standard |
|
|
|
|
Backlight |
|
|
|
7 |
|
|
|
|||
|
Contrast |
|
95 |
||
|
Brightness |
|
45 |
||
|
Sharpness |
|
50 |
||
|
Colour |
|
50 |
||
|
Tint |
G50 |
R50 |
||
|
Detailed Settings |
|
|
|
|
|
sMore |
|
|
|
|
|
Move |
Enter |
Return |
||
|
|
|
|
|
|
|
|
Tools |
|
|
|
Anynet+ (HDMI-CEC) |
|
|
|||
Picture Mode |
|
: Standard |
|||
Sound Mode |
: |
Custom |
|||
Sleep Timer |
: |
Off |
|||
SRS TS XT |
: |
Off |
|||
Energy Saving |
: |
Off |
|||
Dual l-ll |
: |
Mono |
|||
|
Move |
|
Enter |
Exit |
|
|
|
|
|
|
|
English -
When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.
1. |
Press the POWER button on the remote control. |
|
|
|
The message "Запуск Plug & Play" is displayed with "OK" |
|
|
2. |
selected. |
|
|
Select the appropriate language by pressing the ▲ or ▼ button. |
Вход |
||
|
Press the ENTER |
button to confirm your choice. |
|
|
|
Plug & Play
Запуск Plug & Play
OK
3.Press the ◄ or ► button to select “Store Demo” or “Home Use”, then the ENTER button.
We recommend setting the TV to "Home Use" mode for the best picture in your home environment.
"Store Demo" mode is only intended for use in retail environments.
If the unit is accidentally set to “Store Demo” mode and you want to return to “Home Use” (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.
4.The message "Check antenna input." is displayed with "OK" selected. Press the ENTER button.
Please check that the antenna cable is connected correctly.
5.Select the appropriate country by pressing the▲ or ▼ button. Press the ENTER button to confirm your choice.
6.The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button.
The channel search will start and end automatically.
Press the ENTER button at any time to interrupt the memorization process.
After all the available channels are stored, the "Clock Set" menu appears.
7.Press the ENTER button.
Select the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ◄ or ► button. Set the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ▲ or ▼ button.
You can also set the “Month”, “Day”, “Year”, “Hour” and "Minute" by pressing the number buttons on the remote control.
8.Press the ENTER button to confirm your setting. The message “Enjoy your viewing” is displayed. When you have finished, press the ENTER button.
Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.
♦Language: Select your language.
♦Country: Select your country.
♦Auto Store: Automatically scans for and stores channels available in the local area.
♦Clock Set: Sets the current time for the TV clock.
English -
If you want to reset this feature...
1.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Setup", then press the
ENTER button.
2.Press the ENTER button again, to select "Plug & Play".
For further details on setting up options, refer to the page 9.The “Plug & Play” feature is only available in the TV mode.
-Storing Channels Automatically
-Storing Channels Manually
TV |
Setup |
|
Plug & Play |
:English |
|
Language |
|
|
Time |
|
|
Light Effect |
: In Watching TV |
|
Auto Wall-Mount |
: Off |
|
Melody |
|
|
Entertainment |
: Off |
|
Energy Saving |
: Off |
|
PIP |
|
|
Move |
Enter |
Return |
Plug & Play
Start Plug & Play.
OK
Enter Return
TV |
Channel |
|
Country |
: United Kingdom |
|
Auto Store |
|
|
Manual Store |
|
|
Channel Manager |
|
|
Sort |
|
|
Name |
|
|
Fine Tune |
: Off |
|
LNA |
|
|
Move |
Enter |
Return |
You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.
1.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2.Press the ENTER button to select "Country".
3.Select the appropriate country by pressing the ▲ or ▼ button.
Press the ENTER button to confirm your choice.
4.Press the ▲ or ▼ button to select "Auto Store", then press the ENTER button.
5.Press the ENTER button.
The TV will begin memorizing all of the available channels.
Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.
6.After all the available channels are stored, the "Sort" menu appears. (refer to page 13)
English - 10
Storing Channels Manually |
|
|
|
|
||||
You can store television channels, including those received via |
TV |
|
Channel |
|
||||
cable networks. |
|
|
|
Country |
: United Kingdom |
|||
When storing channels manually, you can choose: |
|
Manual Store |
|
|
||||
|
|
|
|
|
|
Auto Store |
|
|
♦ |
Whether or not to store each of the channels found. |
|
Channel Manager |
|
||||
♦ |
The programme number of each stored channel which you wish |
|
Sort |
|
|
|||
|
Name |
|
|
|||||
|
to identify. |
|
|
|
|
Fine Tune |
: Off |
|
|
|
|
|
|
LNA |
|
||
1. |
Press the MENU button to display the menu. |
|
|
|
|
|||
|
Press the ▲ or ▼ button to select "Channel", then press the |
|
Move |
Enter |
Return |
|||
2. |
ENTER |
button. |
|
TV |
Manual Store |
|
||
Press the ▲ or ▼ button to select "Manual Store", then press |
|
|||||||
|
Programme |
: P 2 |
|
|||||
|
the ENTER |
button. |
|
|
||||
|
|
Colour System |
: Auto |
|
||||
3. |
Select the required option by pressing the ▲ or ▼ button, then |
|
Sound System |
: BG |
|
|||
|
Channel |
: C 3 |
|
|||||
|
press the ENTER |
button. |
|
Search |
: 77 MHz |
|
||
4. |
|
Store |
: ? |
|
||||
When you are satisfied with your setting, press the |
|
|
|
|
||||
|
ENTER |
button. |
|
|
|
|
|
|
5. |
Press the EXIT button to exit. |
|
Move |
Enter |
Return |
|||
|
|
|
|
|
|
♦Programme (Programme number to be assigned to a channel)
-Press the ▲ or ▼ button until you find the correct number.
You can also select the channel number directly by pressing the numeric buttons (0~9).
♦Colour System: Auto/PAL/SECAM/NTSC4.43
-Press the ▲ or ▼ button to select the required colour standard.
♦Sound System: BG/DK/I/L
-Press the ▲ or ▼ button to select the required sound standard.
♦Channel (When you know the number of the channel to be stored)
-Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel).
-Press the ► button, then press the ▲ or ▼ button to select the required number.
You can also select the channel number directly by pressing the numeric buttons (0~9).
If there is abnormal sound or no sound, re-select the sound standard required.
♦Search (When you do not know the channel numbers)
-Press the ▲ or ▼ button to start the search.
-The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen.
♦Store (When you store the channel and associated programme number)
-Set to "OK" by pressing the ENTER button.
Channel mode
-P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.
-C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.
-S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.
English - 11
Using the Channel Manager, you can conveniently lock or add channels.
1.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the
ENTER button.
2.Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.
TV |
Channel |
|
Country |
: United Kingdom |
|
Auto Store |
|
|
Manual Store |
|
|
Channel Manager |
|
|
Sort |
|
|
Name |
|
|
Fine Tune |
: Off |
|
LNA |
|
|
Move |
Enter |
Return |
♦Adding channels
Using the Channel List, you can add channels.
3.Select Channel List by pressing the ENTER button.
4.Move to the () field by pressing the ▲, ▼, ◄ or ► button, select a channel to be added, and press the ENTER button to add the channel.
If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel is not added.
“” is active when "Child Lock" is selected to "On".
TV |
Channel Manager |
|
|
|
Channel List |
|
|
|
Child Lock |
: Off |
|
|
Move |
Enter |
Return |
♦ |
Locking channels |
|
|
|
Channel List |
|||||||
|
This feature allows you to prevent unauthorized users, such as |
|
P |
1 C3 |
|
|
|
|
|
|||
|
children, from watching unsuitable programmes by muting out |
|
|
|
1 / 10 |
|||||||
|
video and audio. |
|
|
|
|
|
|
|
||||
5. |
|
Prog. |
|
|
|
|
|
|||||
|
|
|
|
|
|
|||||||
Press the ▲ or ▼ button to select "Child Lock", then press the |
|
0 |
C-- |
|
|
|
|
|
||||
|
ENTER |
button. |
|
1 |
C3 |
|
|
|
|
|
||
6. |
Select "On" by pressing the ▲ or ▼ button, then press the |
|
2 |
BBC 1 |
|
|
|
|
|
|||
|
ENTER |
button. |
|
3 |
C74 |
|
|
|
|
|
||
7. |
Press the ▲ or ▼ button to select "Channel List", then press |
|
4 |
C75 |
|
|
|
|
|
|||
|
the ENTER button. |
|
5 |
C76 |
|
|
|
|
|
|||
8. |
Move to the ( |
|
) field by pressing the ▲, ▼, ◄ or ► button, |
|
6 |
S3 |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
S4 |
|
|
|
|
|
|
select a channel to be locked, and press the ENTER |
|
|
|
|
|
||||||
|
button. |
|
|
|
|
8 |
S6 |
|
|
|
|
|
|
If you press the ENTER button again, the ( ) symbol |
|
9 |
S7 |
|
|
|
|
|
|||
|
|
|
Add |
|
|
Lock |
||||||
|
next to the channel disappears and the channel lock is |
|
|
|
|
|||||||
|
|
|
|
|
||||||||
|
|
|
|
|
||||||||
|
cancelled. |
|
|
Move |
|
|
Enter |
|||||
|
A blue screen is displayed when "Child Lock" is activated. |
|
|
Page |
|
|
Return |
9.Press the EXIT button to exit.
Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on "" to be active or inactive.
You can select these options by simply pressing the CH LIST button on the remote control
English - 12
This operation allows you to change the programme numbers of the stored channels.
This operation may be necessary after using the auto store.
1.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the
ENTER button.
2.Press the ▲ or ▼ button to select "Sort", then press the
ENTER button.
3.Select the channel number that you wish to change by pressing the ▲ or ▼ button.
Press the ENTER button.
The selected channel number and name are moved to right side.
4.Select the number of the programme to which the channel is to be moved by pressing the ▲ or ▼ button.
5.Press the ENTER button. The channel is moved to its new position and all other channels are shifted accordingly.
6.Repeat steps 3 to 5 for another channel to be sorted.
7.Press the EXIT button to exit.
TV |
Channel |
|
Country |
: United Kingdom |
|
Auto Store |
|
|
Manual Store |
|
|
Channel Manager |
|
|
Sort |
|
|
Name |
|
|
Fine Tune |
: Off |
|
LNA |
|
|
Move |
Enter |
Return |
TV |
|
Sort |
|
Prog. |
Ch. |
Name |
|
|
|
|
|
0 |
C-- |
|
|
1 |
C23 |
|
|
2 |
C16 |
|
|
3 |
C3 |
|
|
4 |
S1 |
|
|
|
|
|
|
|
Move |
Enter |
Return |
Channel names will be assigned automatically when channel information is broadcast. These names can be changed,
allowing you to assign new names.
1.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2.Press the ▲ or ▼ button to select "Name", then press the
ENTER button.
3.If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the ENTER button
The selection bar is displayed around the name box.
4. |
|
|
|
To... |
Then... |
||
|
|||
|
Select a letter, number or symbol |
Press the ▲ or ▼ button |
|
|
|
|
|
|
Move on the next letter |
Press the ► button |
|
|
Move back the previous letter |
Press the ◄ button |
|
|
Confirm the name |
Press the ENTER button |
TV |
Channel |
|
Country |
: United Kingdom |
|
Auto Store |
|
|
Manual Store |
|
|
Channel Manager |
|
|
Sort |
|
|
Name |
|
|
Fine Tune |
: Off |
|
LNA |
|
|
Move |
Enter |
Return |
TV |
|
Name |
|
Prog. |
Ch. |
Name |
|
|
|
|
|
0 |
C-- |
----- |
|
1 |
C23 |
----- |
|
2 |
C16 |
----- |
|
3 |
C3 |
----- |
|
4 |
S1 |
----- |
|
|
|
|
|
|
Move |
Enter |
Return |
The following characters are available: Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters (+, -, *, /, space)
5.Repeat steps 3 to 4 for each channel to be assigned to a new name.
6.Press the EXIT button to exit.
English - 13
Use fine tuning to manually adjust a particular channel for optimal reception.
1.Use the number buttons to directly select the channel that you want to fine tune.
2.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
3.Press the ▲ or ▼ button to select "Fine Tune", then press the ENTER button.
4.Press the ◄ or ► button to adjust the fine tuning. Press the ENTER button.
5.Press the EXIT button to exit.
Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red.
To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER button.
TV |
Channel |
|
Country |
: United Kingdom |
|
Auto Store |
|
|
Manual Store |
|
|
Channel Manager |
|
|
Sort |
|
|
Name |
|
|
Fine Tune |
: Off |
|
LNA |
|
|
Move |
Enter |
Return |
Fine Tune
P 1
0
Reset
Adjust |
Save |
Return |
If the TV is operating in a weak-signal area, the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal).
Not available in DTV or external input mode.
1.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the
ENTER button.
2.Press the ▲ or ▼ button to select "LNA", then press the
ENTER button.
3.Press the ▲ or ▼ button to select "Off" or "On". Press the
ENTER button.
4.Press the EXIT button to exit.
TV |
|
Channel |
|
Country |
|
: United Kingdom |
|
Auto Store |
|
|
|
Manual Store |
|
|
|
Channel Manager |
|
||
Sort |
|
|
|
Name |
Channel |
|
|
Fine Tune |
|
: Off |
|
LNA |
|
|
|
Move |
|
Enter |
Return |
TV |
|
Channel |
|
Country |
|
: United Kingdom |
|
Auto Store |
|
|
|
Manual Store |
|
|
|
Channel Manager |
|
||
Sort |
|
|
|
Name |
|
|
|
Fine Tune |
|
: |
|
LNA |
|
Off |
|
|
|
|
On |
Move |
Enter |
Return |
English - 14
You can select the type of picture which best corresponds to your viewing requirements.
1.Press the MENU button to display the menu.
Press the ENTER button, to select "Picture".
2.Press the ENTER button again, to select "Mode".
3.Press the ▲ or ▼ button to select the desired picture effect.
Press the ENTER button.
4.Press the EXIT button to exit.
♦Dynamic: Selects the picture for high-definition in a bright room.
♦Standard: Selects the picture for optimum display in a normal environment.
♦Movie: Selects the picture for comfortable display in a dark room.
The Picture mode must be adjusted separately for each input source.
You can also press the P.MODE button on the remote control to select one of the picture settings.
|
|
|
Picture |
|
|
|
TV |
|
|
|
|
||
|
Mode |
|
: Standard |
|
|
|
|
Backlight |
|
|
7 |
|
|
|
Contrast |
|
|
95 |
||
|
Brightness |
|
|
45 |
||
|
Sharpness |
|
|
50 |
||
|
Colour |
|
|
50 |
||
|
Tint |
|
G50 |
R50 |
||
|
Detailed Settings |
|
|
|||
|
sMore |
|
|
|
|
|
|
Move |
|
Enter |
Return |
||
|
|
|
Picture |
|
|
|
TV |
|
|
|
|
||
|
Mode |
|
: Dynamic |
|||
|
Backlight |
|
Standard |
|
|
|
|
Contrast |
|
Movie |
|
|
|
|
Brightness |
|
|
45 |
||
|
Sharpness |
|
|
50 |
||
|
Colour |
|
|
50 |
||
|
Tint |
|
G50 |
R50 |
||
|
Detailed Settings |
|
|
|
||
|
sMore |
|
|
|
|
|
|
Move |
|
Enter |
Return |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Easy Setting
1.Press the TOOLS button on the remote control.
2.Press the ▲ or ▼ button to select “Picture Mode”.
3.Press the ◄ or ► button to select the desired picture mode.
4.Press the EXIT or TOOLS button to exit.
|
|
Tools |
|
|
Anynet+ (HDMI-CEC) |
|
|
||
Picture Mode |
◄ Standard ► |
|||
Sound Mode |
: |
Custom |
||
Sleep Timer |
: |
Off |
||
SRS TS XT |
: |
Off |
||
Energy Saving |
: |
Off |
||
Dual l-ll |
: |
Mono |
||
|
Move |
Adjust |
Exit |
English - 15
Your set has several settings which allow you to control picture quality.
1.To select the desired picture effect, follow the
"Changing the Picture Standard" instructions number 1 to 3.
2.Press the ▲ or ▼ button to select a particular item. Press the
ENTER button.
3.Press the ◄ or ► button to decrease or increase the value of a particular item. Press theENTER button.
4.Press the EXIT button to exit.
♦Backlight: Adjusts the screen brightness by adjusting the LCD backlight brightness. (0~10)
♦Contrast: Adjusts the lightness and darkness between objects and the background.
♦Brightness: Adjusts the brightness of the whole screen.
♦Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.
♦Colour: Adjusts the colours, making them lighter or darker.
♦Tint: Adjusts the colour of objects, making them more red or green for a more natural look.
TV |
Picture |
|
Mode |
: Standard |
|
Backlight |
|
7 |
Contrast |
|
95 |
Brightness |
|
45 |
Sharpness |
|
50 |
Colour |
|
50 |
Tint |
G50 |
R50 |
Detailed Settings |
|
|
sMore |
|
|
Move |
Enter |
Return |
▲ |
|
|
Backlight |
|
7 |
▼ |
|
|
|
|
Move |
Adjust |
Return |
The adjusted values are stored according to the selected Picture mode.
In PC mode, you can only make changes to "Backlight”, “Contrast" and “Brightness”.
TV, Ext., AV, S-Video modes of the PAL system, you cannot use the "Tint" Function.
You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 17)
The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and that this will reduce the overall running cost.
You can set detailed picture settings.
1.Press the MENU button to display the menu. Press the ENTER button, to select "Picture".
2.Press the ENTER button to select “Mode”.
Press the ▲ or ▼ button to select “Standard” or “Movie”, then press the ENTER button.
3.Press the ▲ or ▼ button to select "Detailed Settings", then press the ENTER button.
4.Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
5.When you are satisfied with your setting, press the ENTER button.
6.Press the EXIT button to exit.
"Detailed Settings" is available in "Standard" or "Movie" mode.
In PC mode, you can only make changes to “Dynamic Contrast”,
“Gamma” and “White Balance” from among the “Detailed Settings” items.
TV |
Picture |
|
Mode |
: Standard |
|
Backlight |
|
7 |
Contrast |
|
95 |
Brightness |
|
45 |
Sharpness |
|
50 |
Colour |
|
50 |
Tint |
G50 |
R50 |
Detailed Settings |
|
|
sMore |
|
|
Move |
Enter |
Return |
TV |
Detailed Settings |
|
|
|
Black Adjust |
: Off |
|
|
Dynamic Contrast : Medium |
|
|
|
Gamma |
: 0 |
|
|
Colour Space |
: Custom |
|
|
White Balance |
|
|
|
Flesh Tone |
: 0 |
|
|
Edge Enhancement : On |
|
|
|
xvYCC |
: Off |
|
|
Move |
Enter |
Return |
♦Black Adjust: Off/Low/Medium/High
You can directly select the black level on the screen to adjust the screen depth.
♦Dynamic Contrast: Off/Low/Medium/High
You can adjust the screen contrast so that the optimal contrast is provided.
English - 16
♦Gamma: -3 ~ +3
You can adjust the Primary Colour (Red, Green, Blue) Intensity.
Press the ◄ or ► button until you reach the optimal setting.
♦Colour Space: Auto/Native/Custom
Colour space is a Colour matrix composed of “Red”, “Green” and “Blue” Colours.
Select your favourite Colour space to experience the most natural Colour.
♦Auto: Auto Color Space automatically adjusts to the most natural color tone based on program sources.
♦Native: Native Color Space offers deep and rich color tone.
♦Custom: Adjusts the color range to suit your preference.
Customizing the Colour Space
Colour: Red/Green/Blue/Yellow/Cyan/Magenta
Adjusts the Colour range to suit your preference.
“Colour” is available when “Colour Space” is set to “Custom”.
Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or “Magenta”.
Press the ENTER button.
Red/Green/Blue: In “Colour”, you can adjust the RGB values for the selected colour.
Press the ▲ or ▼ button to select "Red", "Green" or "Blue" to change it.
Press the ENTER button.
Press the ◄ or ► button to decrease or increase the value of a particular item. Press the
ENTER button.
Reset: Resets the colour space to the default values.
♦White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset
You can adjust the colour temperature for more natural picture colours.
R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen.
Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting.
Reset: The previously adjusted white balance will be reset to the factory defaults.
♦Flesh Tone: -15 ~ +15
You can emphasize the pink 'flesh tone' in the picture.
Press the ◄ or ► button until you reach the optimal setting.
Changing the adjustment value will refresh the adjusted screen.
♦Edge Enhancement: Off/On
You can emphasize object boundaries in the picture.
♦xvYCC: Off/On
Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature.
Only available in "HDMI" and "Component" on "Movie" mode.
If xvYCC function is active, PIP cannot be selected.
You can return to the factory defaults picture settings.
1.To select the desired picture effect, follow the "Changing the
Picture Standard" instructions number 1 to 3 (On page 15).
2.Press the ▲ or ▼ button to select "Reset", then press the
ENTER button.
3.Press the ▲ or ▼ button to select "OK" or "Cancel". Press the ENTER button.
4.Press the EXIT button to exit.
The "Reset" will be set for each "Picture" mode.
TV |
Picture |
|
More |
|
|
Picture Options |
|
|
Reset |
: |
OK |
|
|
Cancel |
Move |
Enter |
Return |
English - 17
Configuring Picture Option |
|
|
|
|||
1. |
Press the MENU button to display the menu. |
TV |
Picture |
|
||
|
Press the ENTER button, to select "Picture". |
More |
|
|
||
2. |
Picture Options |
|
||||
Press the ▲ or ▼ button to select "Picture Options", then press |
Reset |
: OK |
|
|||
3. |
the ENTER |
button. |
|
|
|
|
Select the required option by pressing the ▲ or ▼ button, then |
|
|
|
|||
|
press the ENTER |
button. |
|
|
|
|
4. |
When you are satisfied with your setting, press the ENTER |
Move |
Enter |
Return |
||
|
button. |
|
|
|||
|
|
|
|
|
|
|
5. |
Press the EXIT button to exit. |
TV |
Picture Options |
|
In PC mode, you can only make changes to the “Colour |
Colour Tone |
: Normal |
|
|
Size |
: Auto Wide |
|||
Tone” and “Size” from among the items in “Picture Options”. |
Screen Mode |
: 16:9 |
|
|
|
Digital NR |
: Auto |
|
|
|
DNIe |
: Off |
|
|
|
HDMI Black Level : Normal |
|
||
♦ Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2 |
Movie Plus |
: Low |
|
|
Blue Only Mode |
: Off |
|
||
You can select the most comfortable colour tone to your eyes. |
Move |
Enter |
Return |
|
The adjusted values are stored according to the selected |
||||
|
|
|
||
"Picture" mode. |
|
|
|
“Warm1” or “Warm2” is only activated when the picture mode is "Movie".
♦ Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan
You can select the picture size which best corresponds to your viewing requirements.
♦Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.
♦16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.
♦Wide Zoom: Magnify the size of the picture more than 4:3.
♦Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.
♦4:3: This is the default setting for a video movie or normal broadcasting.
♦Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/ 1080p) or Component (1080i/1080p) signals are input.
"Auto Wide" function is available only in "TV", "Ext.1", "Ext.2", "AV", and "S-Video" mode.
In PC Mode, only "16:9" and "4:3" mode can be adjusted.
Settings can be adjusted and stored for each external device you have connected to an input of the TV.
Temporary image retention may occur when viewing a static image on the set for more than two hours.
"Wide Zoom": Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ► or ENTER button.
"Zoom": Select by pressing the ◄ or ►button. Use the ▲ or ▼ button to move the picture up and down. After selecting , use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction.
When Double ( , ) mode has been set in PIP, the Picture Size cannot be set.
After selecting “Just Scan” in HDMI (1080i/1080p) or Component (1080i/1080p) mode:
Select by pressing the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture.
Reset: Press the ◄ or ► button to select “Reset”, then press the ENTER button. You can initialize the setting.
If you use the “Just Scan” function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function.
You can select these options by simply pressing the P.SIZE button on the remote control.
English - 18
♦Screen Mode: 16:9/Wide Zoom/Zoom/4:3
When setting the picture size to "Auto Wide" in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.
♦16:9: Sets the picture to 16:9 wide mode.
♦Wide Zoom: Magnify the size of the picture more than 4:3.
♦Zoom: Magnify the size of the picture vertically on screen.
♦4:3: Sets the picture to 4:3 normal mode.
This function is available in "Auto Wide" mode.
This function is not available in "PC", "Component" or "HDMI" mode.
♦Digital NR: Off/Low/Medium/High/Auto
If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.
When the signal is weak, select one of the other options until the best picture is displayed.
♦DNIe: Off/ Demo/On
This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.
DNIe™ (Digital Natural Image engine)
This feature brings you more detailed image with 3D noise reduction, detail enhancement,
contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIe™ technology will fit every signal into your eyes.
This function is not available in "Movie" and "Standard" mode.
♦HDMI Black Level: Normal/Low
You can directly select the black level on the screen to adjust the screen depth.
This function is active only when the external input connects to HDMI(RGB signals).
♦Movie Plus: Off/Low/Medium/High/Demo
You can view more natural skin and clear text even in fast moving scenes.
Use this function when watching movies.
This function is not available in “Wide Zoom” and “Zoom” modes.
This function is not available when "PIP" is set to "On".
It is not supported in HDMI 1080p/24Hz, 25Hz, 30Hz mode.
♦Blue Only Mode: Off/On
This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc.
Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter.
“Blue Only Mode” is available when the picture mode is set to “Movie” or “Standard”.
English - 19
You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.
1.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Setup", then press the
ENTER button.
2.Press the▲ or ▼ button to select "PIP", then press the
ENTER button.
3.Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
4.When you are satisfied with your setting, press the ENTER button.
5.Press the EXIT button to exit.
You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.
TV |
Setup |
|
Plug & Play |
:English |
|
Language |
|
|
Time |
|
|
Light Effect |
: In Watching TV |
|
Auto Wall-Mount |
: Off |
|
Melody |
|
|
Entertainment |
: Off |
|
Energy Saving |
: Off |
|
PIP |
|
|
Move |
Enter |
Return |
TV |
Mode |
: Custom |
|
Equalizer |
PIP |
|
|
|
: On |
||
|
PIP |
|
|
|
SRS TS XT |
: Off |
|
|
Source |
: TV |
|
|
Auto Volume |
: Off |
|
|
Size |
: |
|
|
Internal Mute |
: Off |
|
|
Position |
: |
|
|
Reset |
: P 1 |
|
|
Programme |
||
|
Move |
Enter |
Return |
|
Move |
Enter |
Return |
Easy Setting
1.Press the TOOLS button on the remote control.
2.Press the ▲ or ▼ button to select “PIP”, then press the
ENTER button.
3.Press the ▲ or ▼ button to select a particular item.
4.Press the ◄ or ► button to select the required option.
5.Press the EXIT or TOOLS button to exit.
♦PIP: On/Off
You can activate or deactivate the PIP function.
Main picture |
Sub picture |
|
|
Component |
TV, Ext.1, Ext.2, AV |
|
|
HDMI 1, 2, 3 |
TV, Ext.1, Ext.2, AV |
PC |
TV, Ext.1, Ext.2, AV |
|
|
|
|
Tools |
|
Anynet+ (HDMI-CEC) |
|
||
Picture Mode |
|
: Standard |
|
Sound Mode |
|
: |
Custom |
Sleep Timer |
|
: |
Off |
SRS TS XT |
|
: |
Off |
Energy Saving |
|
: |
Off |
PIP |
|
|
|
Move |
|
Enter |
Exit |
|
|
|
|
|
|
PIP |
|
PIP |
: |
◄ |
On ► |
Source |
: |
|
tV |
Programme |
: |
|
P 1 |
Size |
: |
|
|
Position |
: |
|
|
Move |
|
Adjust |
Return |
♦Source
You can select a source of the sub-picture.
♦Size: / /
You can select a size of the sub-picture.
If main picture is in "HDMI" mode, "Size" is available.
♦Position: / / /
You can select a position of the sub-picture.
In Double ( , ) mode, "Position" cannot be selected.
♦Programme
You can select a channel of the sub-picture only when the "Source" is set to "TV".
English - 20
1.Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2.Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
3.When you are satisfied with your setting, press the ENTER button.
4.Press the EXIT button to exit.
♦Mode: Standard/Music/Movie/Speech/Custom
You can select the type of special sound effect to be used when watching a given broadcast.
Easy Setting
1.Press the TOOLS button on the remote control.
2.Press the ▲ or ▼ button to select "Sound Mode".
3.Press the ◄ or ► button to select the desired sound mode.
4.Press the EXIT or TOOLS button to exit.
TV |
Sound |
|
Mode |
: Custom |
|
Equalizer |
|
|
SRS TS XT |
: Off |
|
Auto Volume |
: Off |
|
TV Speaker |
: On |
|
Sound Select |
: Main |
|
Move |
Enter |
Return |
Tools |
|
|
Anynet+ (HDMI-CEC) |
|
|
|
Picture Mode |
: |
Standard |
|
Sound Mode |
◄ |
Custom |
► |
Sleep Timer |
: |
Off |
|
SRS TS XT |
: |
Off |
|
Energy Saving |
: |
Off |
|
Dual l-ll |
: |
Mono |
|
Move |
Adjust |
Exit |
♦ |
Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz |
TV |
|
Equalizer |
|
|
|
|
|
||
|
The sound settings can be adjusted to suit your personal |
|
|
|
|
|
preferences. |
R |
|
|
|
|
|
|
|
|
|
|
If you make any changes to these settings, the sound mode |
|
|
|
|
|
is automatically switched to "Custom". |
L |
|
|
|
|
|
|
|
|
|
|
|
Balance |
100Hz 300Hz 1kHz 3kHz 10kHz |
||
|
|
Move |
Adjust |
Return |
♦SRS TS XT: Off/On
TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.
Easy Setting
1.Press the TOOLS button on the remote control.
2.Press the ▲ or ▼ button to select “SRS TS XT”.
3.Press the ◄ or ► button to select the "Off" or "On".
4.Press the EXIT or TOOLS button to exit.
|
Tools |
|
|
Anynet+ (HDMI-CEC) |
|
|
|
Picture Mode |
: |
Standard |
|
Sound Mode |
: |
Custom |
|
Sleep Timer |
: |
Off |
|
SRS TS XT |
◄ |
Off |
► |
Energy Saving |
: |
Off |
|
Dual l-ll |
: |
Mono |
|
Move |
Adjust |
Exit |
TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc.
TruSurround XT technology is incorporated under license from SRS Labs,
Inc.
♦Auto Volume: Off/On
Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume
every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.
English - 21
♦TV Speaker: Off/On
If you want to hear the sound through separate speakers, cancel the internal amplifier.
The+,- and MUTE buttons do not operate when the "TV Speaker" is set to Off.
When “TV Speaker” is set to “Off”, you can operate only “Sound Select” (in PIP mode) in Sound menu.
♦Sound Select: Main/Sub
When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.
−Main: Used to listen to the sound of the main picture.
−Sub: Used to listen to the sound of the sub picture.
You can set the sound mode in the "Tools" menu.
When you set to "Dual I-II", the current sound mode is displayed on the screen.
1.Press the TOOLS button on the remote control.
2.Press the ▲ or ▼ button to select “Dual I-II".
3.Press the ◄ or ► button to select required option.
4.Press the ENTER button.
|
Tools |
|
|
Anynet+ (HDMI-CEC) |
|
|
|
Picture Mode |
: |
Standard |
|
Sound Mode |
: |
Custom |
|
Sleep Timer |
: |
Off |
|
SRS TS XT |
: |
Off |
|
Energy Saving |
: |
Off |
|
Dual l-ll |
◄ |
Mono |
► |
Move |
Adjust |
Exit |
|
Audio Type |
|
|
Dual 1/2 |
Default |
||
A2 |
Mono |
|
|
MONO |
Automatic |
||
Stereo |
|
STEREO ↔ MONO |
change |
||||
Stereo |
|
||||||
Dual |
|
DUAL 1 ↔ DUAL 2 |
DUAL 1 |
||||
|
|
||||||
|
Mono |
|
|
MONO |
Automatic |
||
NICAM |
Stereo |
|
MONO ↔ STEREO |
change |
|||
Stereo |
Dual |
|
MONO ↔ DUAL 1 |
|
DUAL 1 |
||
|
|
|
DUAL 2 |
|
|
||
|
|
|
|
|
|
|
If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.
This function is only activated in stereo sound signal. It is deactivated in mono sound signal.
This function is only available in TV mode.
You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.
When you insert the head set jack into the corresponding port, you can operate only "Auto Volume" and "Sound Select"(in PIP mode) in
Sound menu.
TV Side Panel
Prolonged use of headphones at a high volume may damage your hearing.
You will not receive sound from the speakers when you connect headphones to the system.
The headphone volume and TV volume are adjusted differently.
English - 22
You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.
1.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Setup", then press the
ENTER button.
2.Press the ▲ or ▼ button to select "Time", then press the
ENTER button.
3.Press the ENTER button to select "Clock Set".
4. |
|
|
To... |
Press the.... |
|
|
Move to "Month", "Day", "Year", "Hour" |
◄ or ► button. |
|
or "Minute" |
|
|
|
|
|
Set the "Month", "Day", "Year", "Hour" |
▲ or ▼ button. |
|
or "Minute" |
|
|
Confirm the setting |
ENTER button |
|
|
|
|
|
TV |
Mode |
|
: Custom |
|
Equalizer |
Setup |
|
||
|
Plug & Play |
: Off |
|
|
|
SRS TS XT |
|
||
|
Language |
:English |
|
|
|
Auto Volume |
: Off |
|
|
|
Time |
|
: Off |
|
|
Internal Mute |
|
||
|
Light Effect |
: In Watching TV |
||
|
Reset |
|
|
|
|
Auto Wall-Mount |
:Off |
||
|
Melody |
|
||
|
Entertainment |
: Off |
|
|
|
Energy Saving |
: Off |
|
|
|
PIP |
Move |
Enter |
|
|
|
Return |
||
|
|
Move |
Enter |
Return |
TV |
Clock Set |
|
Month |
Day |
Year |
p |
01 |
2008 |
01 |
||
q |
|
|
Hour |
Minute |
|
00 |
00 |
|
Move |
Adjust |
Return |
5. Press the EXIT button to exit.
The current time will appear every time you press the INFO button.
You can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on the remote control.
If you disconnect the power cord, you have to set the clock again.
You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.
1.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Setup", then press the
ENTER button.
2.Press the ▲ or ▼ button to select "Time", then press the
ENTER button.
3.Press the ▲ or ▼ button to select "Sleep Timer", then press the ENTER button.
4.Press the ▲ or ▼ button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180).
Press the ENTER button.
5.Press the EXIT button to exit.
The TV automatically switches to standby mode when the timer reaches 0.
Easy Setting
1.Press the TOOLS button on the remote control.
2.Press the ▲ or ▼ button to select “Sleep Timer”.
3.Press the ◄ or ► button to select the minute.
4.Press the EXIT or TOOLS button to exit.
|
|
|
|
|
TV |
Mode |
|
: Custom |
|
Equalizer |
Setup |
|
||
|
Plug & Play |
: Off |
|
|
|
SRS TS XT |
|
||
|
Language |
:English |
|
|
|
Auto Volume |
: Off |
|
|
|
Time |
|
: Off |
|
|
Internal Mute |
|
||
|
Light Effect |
: In Watching TV |
||
|
Reset |
|
|
|
|
Auto Wall-Mount |
:Off |
||
|
Melody |
|
||
|
Entertainment |
: Off |
|
|
|
Energy Saving |
: Off |
|
|
|
PIP |
Move |
Enter |
|
|
|
Return |
||
|
|
Move |
Enter |
Return |
TV |
Time |
|
Clock Set |
: 00:00 |
|
Sleep Timer |
Off |
|
Timer 1 |
30 |
|
Timer 2 |
60 |
|
Timer 3 |
90 |
|
|
120 |
|
|
150 |
|
|
180 |
|
Move |
Enter |
Return |
Tools |
|
|
Anynet+ (HDMI-CEC) |
|
|
|
Picture Mode |
: |
Standard |
|
Sound Mode |
: |
Custom |
|
Sleep Timer |
◄ |
Off |
► |
SRS TS XT |
: |
Off |
|
Energy Saving |
: |
Off |
|
Dual l-ll |
: |
Mono |
|
Move |
Adjust |
Exit |
English - 23
1. Press the MENU button to display the menu. |
TV |
|
Setup |
|
|||
|
Press the ▲ or ▼ button to select "Setup", then press the |
Plug & Play |
|
:English |
|
||
|
ENTER |
button. |
|
Language |
|
|
|
|
|
Time |
|
|
|
||
2. |
Press the ▲ or ▼ button to select "Time", then press the |
Light Effect |
|
: In Watching TV |
|||
Auto Wall-Mount |
|
||||||
|
ENTER |
button. |
|
Melody |
|
:Off |
|
3. |
|
Entertainment |
: Off |
|
|||
Press the ▲ or ▼ button to select "Timer 1", "Timer 2", |
Energy Saving |
: Off |
|
||||
|
"Timer 3", then press the ENTER |
button. |
PIP |
|
|
|
|
|
|
|
|
|
|||
|
Three different On/Off Timer Settings can be made. |
Move |
|
Enter |
Return |
||
You must set the clock first. |
|
TV |
|
Timer 1 |
|
||
4. |
Press the ◄ or ► button to select the required item below. |
5 |
|
|
|
||
|
Press the ▲ or ▼ button to adjust to the setting satisfied. |
On Time |
|
|
|
||
|
6 |
|
|
|
|||
|
|
|
|
00 : 00 |
|
Off |
|
|
♦ On Time : Select hour, minute and "On"/"Off". |
Off Time |
|
|
|
||
|
00 : 00 |
|
Off |
|
|||
|
(To activate timer with the setting satisfied, set to "On".) |
Volume |
Programme |
|
|||
|
|
|
|
|
|||
|
|
|
|
10 |
|
1 |
|
|
♦ Off Time : Select hour, minute and "On"/"Off". |
Repeat |
|
|
|
||
|
Once |
|
|
|
|||
|
(To activate timer with the setting satisfied, set to "On".) |
|
|
|
|||
|
► Move |
|
Adjust |
Return |
|||
|
|
|
|
|
♦Volume : Select the desired turn on volume level.
♦Repeat : Select "Once", "Everyday", "Mon~Fri", "Mon~Sat" or "Sat~Sun".
♦Programme : When the On Timer is active, you can turn on a specific channel.
You can set the hour and minute directly by pressing the number buttons on the remote control.
Auto Power Off
When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.
When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.
1.Press the MENU button to display the on-screen menu.
Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2.Press the ▲ or ▼ button to select "Language", then press the ENTER button.
3.Select a particular language by pressing the ▲ or ▼ button repeatedly.
Press the ENTER button.
4.Press the EXIT button to exit.
TV |
Setup |
|
Plug & Play |
:English |
|
Language |
|
|
Time |
|
|
Light Effect |
: In Watching TV |
|
Auto Wall-Mount |
:Off |
|
Melody |
|
|
Entertainment |
: Off |
|
Energy Saving |
: Off |
|
PIP |
|
|
Move |
Enter |
Return |
English - 24
You can turn on/off the LED on the front of TV according to the |
TV |
|
|
Setup |
|
|
|||
situation. Use it for saving power or when the LED dazzles your |
|
Mode |
|
: Custom |
|
|
|||
|
Plug & Play |
|
|
|
|||||
|
|
|
|
|
Equalizer |
|
|
|
|
eyes. |
|
|
|
SRS TS XT |
: Off |
|
|
||
|
|
|
Auto Volume |
: Off |
|
|
|||
|
|
|
|
|
Language |
: English |
|
|
|
|
|
|
|
|
Time |
|
: Off |
|
|
|
|
|
|
|
Internal Mute |
|
|
||
1. Press the MENU button to display the on-screen menu. |
|
Light Effect |
: In Watching TV |
|
|||||
|
Reset |
|
|
|
|
||||
|
Press the ▲ or ▼ button to select "Setup", then press the |
|
Auto Wall-Mount |
|
|
||||
|
|
Melody |
: Off |
|
|
||||
|
ENTER |
button. |
|
Entertainment |
: Off |
|
|
||
|
|
Energy Saving |
: Off |
|
|
||||
2. Press the ▲ or ▼ button to select "Light Effect", then press the |
|
PIP |
Move |
Enter |
|
|
|||
|
|
Return |
|
||||||
|
ENTER |
button. |
|
|
Move |
Enter |
Return |
|
|
3. Press the ▲ or ▼ button to select "Off", "In Standby", "In |
|
|
|
|
|
|
|||
|
|
|
|
|
|
||||
|
Watching TV" or "Always". |
|
|
|
|
|
|
||
|
Press the ENTER button. |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
♦Off: LED will not come on. |
|
|
|
LED |
|
|
||
|
♦In Standby: Turns the LED on in standby mode. |
|
|
|
|
|
|
♦In Watching TV: Turns the LED on while watching TV.
♦Always: LED is always on.
Set the "Light Effect" to "Off" to reduce the power consumption.
4.Press the EXIT button to exit.
1.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Setup", then press the
ENTER button.
2.Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
3.When you are satisfied with your setting, press the ENTER button.
4.Press the EXIT button to exit.
|
|
|
|
|
TV |
Mode |
|
: Custom |
|
|
Equalizer |
Setup |
|
|
|
Plug & Play |
: Off |
|
|
|
SRS TS XT |
|
||
|
Language |
:English |
|
|
|
Auto Volume |
: Off |
|
|
|
Time |
|
: Off |
|
|
Internal Mute |
|
||
|
Light Effect |
: In Watching TV |
||
|
Reset |
|
|
|
|
Auto Wall-Mount |
:Off |
||
|
Melody |
|
||
|
Entertainment |
: Off |
|
|
|
Energy Saving |
: Off |
|
|
|
PIP |
Move |
Enter |
|
|
|
Return |
||
|
|
Move |
Enter |
Return |
♦Melody: Off/Low/Medium/High
The TV power on/off melody sound can be adjusted.
The Melody does not play
−When no sound is output from the TV because the MUTE button has been pressed.
−When no sound is output from the TV because the - (Volume) button has been pressed.
−When the TV is turned off by the Sleep Timer function.
English - 25
♦ Entertainment: Off/Sports/Cinema/Game
The “Entertainment” mode enables you to select the optimal display and sound for sports, cinema and games.
− Off: Switch the "Entertainment" function off.
− Sports: Provides the optimal picture and sound quality for sports. You can enjoy more thrilling colour and sound.
− Cinema: Provides the optimal picture and sound quality for cinema. You can experience a richer picture and enhanced sound.
− Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.
If you set any of the three “Entertainment” modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the “Entertainment” mode must be turned off.
The “Entertainment” settings are saved for each input source.
If you set any of the three “Entertainment” modes to On, “SRS TS XT” function is not available.
You can press the E.MODE button on the remote control repeatedly to change the “Entertainment” setting.
♦Energy Saving: Off/Low/Medium/High/Auto
This feature adjusts the screen brightness depending on the surrounding lighting conditions.
−Off: Turns off the energy saving function.
−Low: Sets the TV to low energy saving mode.
−Medium: Sets the TV to medium energy saving mode.
−High: Sets the TV to high energy saving mode.
−Auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes.
Easy Setting
1.Press the TOOLS button on the remote control.
2.Press the ▲ or ▼ button to select “Energy Saving”.
3.Press the ◄ or ► button to select the "Off", "Low", "Medium",
"High" or "Auto".
4.Press the EXIT or TOOLS button to exit.
|
Tools |
|
|
Anynet+ (HDMI-CEC) |
|
|
|
Picture Mode |
: |
Standard |
|
Sound Mode |
: |
Custom |
|
Sleep Timer |
: |
Off |
|
SRS TS XT |
: |
Off |
|
Energy Saving |
◄ |
Off |
► |
Dual l-ll |
: |
Mono |
|
Move |
Adjust |
Exit |
English - 26
You can select among external sources connected to your TV’s input jacks.
1.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Input", then press the
ENTER button.
2.Press the ENTER button again, to select "Source List".
When no external device is connected to your set, only "TV",
"Ext.1", "Ext.2" are activated in the "Source List".
"AV", "S-Video", "Component", "PC", "HDMI1", "HDMI2","HDMI3" are activated only when they are connected to your set.
3.Select the required device by pressing the ▲ or ▼ button.
Press the ENTER button.
TV |
Mode |
: Custom |
|
Equalizer |
Input |
|
|
|
: TV |
||
|
Source List |
|
|
|
SRS TS XT |
: Off |
|
|
Edit Name |
: Off |
|
|
Auto Volume |
|
|
|
Anynet+(HDMI-CEC) |
|
|
|
Internal Mute |
: Off |
|
|
WISELINK |
|
|
|
Reset |
|
|
|
Move |
Enter |
Return |
|
Move |
Enter |
Return |
|
|
Mode |
: Custom |
|
|
TV |
|
|
|||
Equalizer |
Source List |
|
|
||
|
|
TV |
: Off |
|
|
|
|
SRS TS XT |
|
||
|
|
Ext.1 |
: ---- |
|
|
|
|
Auto Volume |
: Off |
|
|
|
|
Ext.2 |
: ---- |
|
|
|
|
Internal Mute |
: Off |
|
|
|
|
AV |
: ---- |
|
|
|
|
Reset |
: ---- |
|
|
|
|
S-Video |
|
|
|
|
|
Component |
: ---- |
|
|
|
|
PC |
: ---- |
|
|
|
|
sMore |
Enter |
Return |
|
|
|
Move |
|||
|
|
Move |
Enter |
Return |
|
|
|
|
|
|
|
Press the SOURCE button on the remote control to toggle between all the available source.
TV mode can be selected by pressing the TV button, number buttons(0~9), and the P</> button on the remote control.
You can also watch HDMI mode simply by pressing the HDMI button on the remote control.
Name the device connected to the input jacks to make your input source selection easier.
1.Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Input", then press the
ENTER button.
2.Press the ▲ or ▼ button to select "Edit Name", then press the
ENTER button.
3.Press the ▲ or ▼ button to select the device that you wish to edit.
Press the ENTER button.
4.Press the ▲ or ▼ button to select the required device.
Press the ENTER button.
5.Press the EXIT button to exit.
When a PC with a resolution of 1920 x 1080@60Hz is connected to the HDMI IN 2 port, you should set the "HDMI2" mode to "PC" in the "Edit Name" of the "Input" mode.
TV |
Mode |
: Custom |
|
Equalizer |
Input |
|
|
|
: TV |
||
|
Source List |
|
|
|
SRS TS XT |
: Off |
|
|
Edit Name |
: Off |
|
|
Auto Volume |
|
|
|
Anynet+(HDMI-CEC) |
|
|
|
Internal Mute |
: Off |
|
|
WISELINK |
|
|
|
Reset |
|
|
|
Move |
Enter |
Return |
|
Move |
Enter |
Return |
TV |
Mode |
: Custom |
|
|
Equalizer |
Edit Name |
|
||
|
: |
---- |
||
|
Ext.1 |
|
||
|
SRS TS XT |
: |
VCR |
|
|
Ext.2 |
: |
||
|
Auto Volume |
: |
DVD |
|
|
AV |
: |
||
|
Internal Mute |
: |
Cable STB |
|
|
S-Video |
: |
||
|
Reset |
: |
Satellite STB |
|
|
Component |
|||
|
PC |
: |
PVR STB |
|
|
AV Receiver |
|||
|
HDMI1 |
: |
s |
|
|
HDMI2 |
: |
|
|
|
|
Return |
||
|
Move |
Enter |
||
|
HDMI3 |
: ---- |
|
|
|
Move |
Enter |
Return |
English - 27
The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases.
(If not, contact your computer manufacturer or Samsung Dealer.)
1.First, click on "Control Panel" on the Windows start menu.
2.When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.
3.When the control panel window appears, click on "Display" and a display dialog-box will appear.
4.Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution): Optimum1920 X 1080
If a vertical-frequency option exists on your display settings dialog box, the correct value is
"60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.
Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended.
D-Sub Input
Mode |
Resolution |
Horizontal |
Vertical |
Pixel Clock |
Sync Polarity |
|
Frequency (kHz) |
Frequency (Hz) |
Frequency (MHz) |
(H/V) |
|||
|
|
|||||
IBM |
640 x 350 |
31.469 |
70.086 |
25.175 |
+ / - |
|
720 x 400 |
31.469 |
70.087 |
28.322 |
- / + |
||
|
||||||
|
640 x 480 |
31.469 |
59.940 |
25.175 |
- / - |
|
|
640 x 480 |
37.861 |
72.809 |
31.500 |
- / - |
|
|
640 x 480 |
37.500 |
75.000 |
31.500 |
- / - |
|
|
800 x 600 |
37.879 |
60.317 |
40.000 |
+ / + |
|
|
800 x 600 |
48.077 |
72.188 |
50.000 |
+ / + |
|
VESA |
800 x 600 |
46.875 |
75.000 |
49.500 |
+ / + |
|
1024 x 768 |
48.363 |
60.004 |
65.000 |
- / - |
||
|
1024 x 768 |
56.476 |
70.069 |
75.000 |
- / - |
|
|
1024 x 768 |
60.023 |
75.029 |
78.750 |
+ / + |
|
|
1280 x 1024 |
63.981 |
60.020 |
108.000 |
+ / + |
|
|
1280 x 1024 |
79.976 |
75.025 |
135.000 |
+ / + |
|
|
1360 x 768 |
47.712 |
60.015 |
85.500 |
+ / + |
|
|
1600 x 1200 |
75.000 |
60.000 |
162.000 |
+ / + |
|
CVT |
1920 x 1080RB |
66.587 |
59.934 |
138.500 |
+ / - |
HDMI/DVI Input
Mode |
Resolution |
Horizontal |
Vertical |
Pixel Clock |
Sync Polarity |
|
Frequency (kHz) |
Frequency (Hz) |
Frequency (MHz) |
(H/V) |
|||
|
|
|||||
|
640 x 480 |
31.469 |
59.940 |
25.175 |
- / - |
|
|
800 x 600 |
37.879 |
60.317 |
40.000 |
+ / + |
|
VESA |
1024 x 768 |
48.363 |
60.004 |
65.000 |
- / - |
|
1280 x 1024 |
63.981 |
60.020 |
108.000 |
+ / + |
||
|
||||||
|
1360 x 768 |
47.712 |
60.015 |
85.500 |
+ / + |
|
|
1600 x 1200 |
75.000 |
60.000 |
162.000 |
+ / + |
|
CEA |
1920 x 1080p |
67.500 |
60.000 |
148.500 |
+ / + |
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
Separate and Composite modes are supported. SOG is not supported.
Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080 or 1600x1200).
English - 28
