LCD TV user manual

LCD TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model _____________ Serial No. _____________



Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are

broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast

transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this speciﬁcation. So, they cannot be workable at this moment.

3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and

DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may

be required to agree to terms and conditions of their business.

5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in

✎

the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconﬁguring TV setting or not.

Still image warning

Avoid displaying still images (like jpeg picture ﬁles) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LCD screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

Avoid displaying the same TV channel for long periods.• Always try do display any image on full screen, use TV set picture format menu for best possible match.• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.• Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.•

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

If you use parts provided by another manufacturer, it may result in a problem with the produ ct or an injury due to the product falling.

The appearance may differ depending on the product.

✎

Installation with a stand. Installation with a wall-mount.

10 cm

English

10 cm

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

10 cm

English

Contents

Getting Started

Connections

Basic Features

Advanced Features

4 Accessories 4 Viewing the Control Panel 5 Viewing the Remote Control 6 Connecting to an Antenna 6 Plug & Play (Initial Setup)

7 Connecting to an AV Device 8 Connecting to an Audio Device 8 Connecting to a PC 10 Changing the Input Source

10 How to Navigate Menus 11 Using the INFO button (Now & Next guide) 11 Planning Your Viewing 12 Channel Menu 14 Picture Menu 17 Sound Menu 19 Setup Menu 21 Support Menu

22 Media Play

Other Information

Check the Symbol!

This function can be used by

pressing the TOOLS button on

the remote control.

26 Analogue Channel Teletext Feature 27 Installing the Wall Mount 28 Anti-Theft Kensington Lock 28 Securing the TV to the Wall 29 Troubleshooting 32 Speciﬁcations 33 Index

Note One-Touch Button

Getting Started

Accessories

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

✎

Remote Control & Batteries (AAA x 2) y Owner’s Instructions y

See separate guide for installing the stand.

1 EA

Stand (1EA) y Stand Screws (3EA) y

Viewing the Control Panel

The product colour and shape may vary depending on the model.

✎

Cleaning Cloth y Warranty Card / Safety Guide (Not available in some locations) y

(M4 X L16)

Power IndicatorRemote control sensor

Speakers

(Power)

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

SOURCE

MENU Displays an on-screen menu, the OSD (on screen display), of your TV’s features.

Remote control sensor Aim the remote control towards this spot on the TV.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power code.

English

Turns the TV on or off.

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTERE button on the remote control.

Adjusts the volume. In the OSD, use the and  buttons on the remote control.

Changes the channels. In the OSD, use the  and  buttons on the remote control.

buttons as you would use the 

buttons as you would use the

01 Getting Started

English

Viewing the Remote Control

MEDIA.P

ABCD

Turn the TV on and off. (P. 6)

Change the channel.

Alternately select Teletext,

Double or MiX.

Adjust the volume.

Display the main on-screen menu.

(P. 10)

View the Media play.

Quickly select frequently used

functions.

Select on-screen menu items and

change menu values.

Return to the previous menu. (P. 10)

Display and select the available video sources. (P. 10)

Return to the previous channel.

Cut off the sound temporarily.

Change channels.

Display Channel Lists on the screen. (P. 14)

Display the EPG (Electronic Programme Guide). (P. 11)

Display information on the TV screen.

Exit the menu. (P. 10)

Buttons in the Channel Manager,

Media Play menu, etc.

Installing batteries (Battery size: AAA)

AD: Audio Description selection. (Not

available in some locations) (P. 18)

P.SIZE: Choose the picture size. (P. 16) SUBT.: Digital subtitle display (P. 20)

NOTE

✎

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote

control. Avoid using nearby special fluorescent light or neon signs.

The colour and shape may vary depending on the model.

Getting Started

POWER

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the mains and antenna.

VHF/UHF Antenna

Power Input

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁ guring basic settings. Press the POWERP button. Plug & Play is available only when the Input source is set to TV.

Selecting a language

Selecting Store Demo

or Home Use

Selecting a country

Selecting an antenna

Selecting a channel

Setting the Clock

Mode Viewing the HD

Connection Guide. Enjoy your TV.

Press the  or  button, then press the ENTER Select the desired OSD (On Screen Display) language. Press the  or  button, then press the ENTERE button.

Select the y Home Use mode. Store Demo Mode is for retail environments.

Return the unit’s settings from y Store Demo to Home Use (standard): Press the volume button on the TV. When the OSD volume is displayed, press and hold MENU for 5 sec.

Press the or  button, then press the ENTER Select the appropriate country. If the desired country does not exist on the menu, select

Others.

✎

After selecting the country in the additional option to setup the pin number.

✎

When you input the PIN number,

Press the  or  button, then press the ENTER Select Air or Cable. Press the  or  button, then press the ENTERE button. Select the channel source to memorise. When setting the antenna source to Cable, a step

appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel  Auto Store. (P. 13)

✎

Press the

Set the Clock Mode automatically or manually. Press the  or  button to select Auto, then press the ENTER The connection method for the best HD screen quality is displayed.

Press the ENTER

ENTERE button at any time to interrupt the memorisation process.

button.

Country menu, some models may proceed with an

0-0-0-0 is not available.

button.

Cable

ANT OUT

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to change the PIN number, use the Change PIN function.

English

Connections

R-AUDIO-L

R PB Y

RGB W R

W R

R W

R PB Y

R-AUDIO-L

R PB Y

R-AUDIO-L

R PB Y

W W

BGRRWY

BGRR

W W

BGRR

Connecting to an AV Device

Using an HDMI / DVI Cable: HD connection (up to 1080p)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, satellite receiver (STB)

DVD

Red White

HDMI OUT

AUDIO OUT

DVI OUT

HDMI (DVI) IN / PC/DVI AUDIO IN

✎

When using an HDMI/DVI cable connection, you must use the HDMI (DVI) IN jack. For the DVI cable connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the PC/DVI

AUDIO IN jacks for audio.

If an external device such as a DVD / Blu-ray player / cable box /



versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound / annoying flicker / abnormal colour).

If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you



suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and request an upgrade.

It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a



connection error may occur.

Using a Component (up to 1080p) or Audio/Video (480i only) Cable and Using a Scart Cable

Available devices: VCR, DVD, Blu-ray player, cable box, STB satellite receiver

STB satellite receiver supporting a HDMI

02 Connections

Yellow Red White

AUDIO OUT

✎

Ext. mode, DTV Out supports MPEG SD Video and Audio only.

✎

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

VIDEO OUT

Blu-ray player DVDVCR

AUDIO OUT

COMPONENT OUT

Red Blue Green

EXT

Connections

Connecting to an Audio Device

Using an Optical or Audio Cable Connection

Available devices: digital audio system, ampliﬁ er, DVD home theatre

✎

DIGITAL AUDIO OUT (OPTICAL)

When a digital audio system is connected to the xDIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (home theatre) is set to on, you can hear sound output from the TV’s xoptical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

OPTICAL

Digital Audio

System

Using an HDMI/DVI Cable / a D-sub Cable

Connecting to a PC

DVI OUT

AUDIO OUT

PC OUT

English

02 Connections

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1360 X 768 @ 60 Hz.1920X1080@60Hz.

Mode Resolution

IBM

MAC

VESA DMT

VESA GTF

VESA GTF 1280 x 720 52.500 70.000 89.040 +/+

NOTE

✎

For HDMI/DVI cable connection, you must use the xHDMI (DVI) IN jack. The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

CONNECTIONS COMMON INTERFACE Slot

640 x 350 31.469 70.086 25.175 +/720 x 400 31.469 70.087 28.322 -/+ 640 x 480 35.000 66.667 30.240 -/832 x 624 49.726 74.551 57.284 -/-

640 x 480

800 x 600

1024 x 768

1280 x 720 45.000 60.000 74.250 +/+ 1360 x 768 47.712 60.015 85.500 +/+

720 x 576 35.910 59.950 32.750 -/+

1280 x 720 56.456 74.777 97.750 -/-

Horizontal Frequency

(KHz)

31.469 59.940 25.175 -/-

37.861 72.809 31.500 -/-

37.500 75.000 31.500 -/-

37.879 60.317 40.000 +/+

48.077 72.188 50.000 +/+

46.875 75.000 49.500 +/+

48.363 60.004 65.000 -/-

56.476 70.069 75.000 -/-

60.023 75.029 78.750 +/+

Vertical Frequency (Hz)

Pixel Clock Frequency

(MHz)

Sync Polarity

(H / V)

To watch paid channels, the “CI or CI+ CARD” must be inserted.

If you don’t insert the “CI or CI+ CARD,” some channels will y display the message “Scrambled Signal”.

The pairing information containing a telephone number, the “CI or y CI+ CARD” ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

When the conﬁguration of channel information has ﬁnished, the y message “Updating Completed” is displayed, indicating the channel list is updated.

NOTE

✎

You must obtain a “CI or CI+ CARD” from a local cable service provider.

When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may

cause damage to it. Insert the “CI or CI+ CARD” in the direction marked on the card.

The location of the xCOMMON INTERFACE slot may be different depending on the model. “CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

If you have any problems, please contact a service provider.

Connections

MEDIA.P

Changing the Input Source

Source List

Use to select TV or other external input sources such as DVD / Blu-ray players / cable box / STB satellite receiver connected to the TV.

TV / Ext. / AV / Component / PC / ■ HDMI/DVI / USB

In the

✎

Source List, connected

inputs will be highlighted.

Ext.

✎

and PC always stay activated.

Basic Features

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

1 MENU button: Displays the main on-screen menu. 2 ENTER

3 RETURN button: Returns to the previous menu. 4 EXIT button: Exits the on-screen menu.

select an item. Conﬁ rm the setting.

/ Direction button: Move the cursor and

Edit Name

VCR / DVD / Cable STB / Satellite STB / PVR STB / ■ AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name

the device connected to the input jacks to make your input source selection easier.

When connecting an HDMI/DVI cable to the

✎

(DVI) IN port, you should set the port to

HDMI/DVI mode under Edit Name.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

The main menu options appears on

1 2

3 4

5 6

▲ / ▼

ENTER

▲ / ▼

◄ / ►

ENTER

EXIT

the screen:

Picture, Sound, Channel, Setup, Input, Application, Support.

Select an icon with the ▲ or ▼ button.

Press ENTERE to access the

sub-menu. Select the desired submenu with

the ▲ or ▼ button. Adjust the value of an item with the

◄ or ► button. The adjustment in the OSD may differ depending on the selected menu.

Press ENTERE to complete the

conﬁ guration. Press EXIT.

HDMI

English

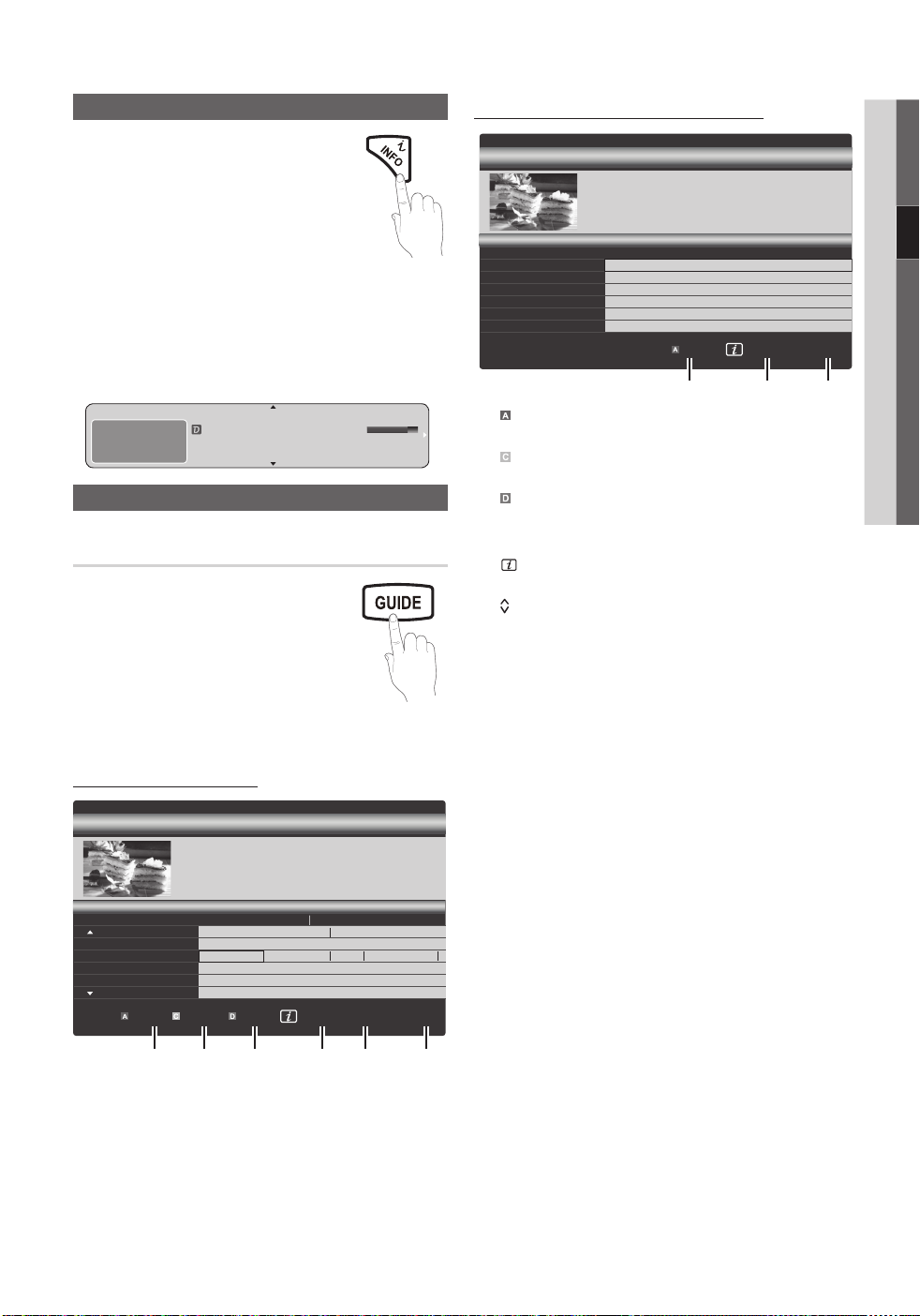

Using the INFO button (Now & Next guide)

MEDIA.P

P . MODE

MTS

DTV Air 800 five

Family Affairs 18:00 - 18:30

Drama

Tanya confesses all to a stunned Babs. Conrad is anxious to hear...

18:30 19:15

Today Today

)

Family Affairs

)

Dark Angel

800 800

five five

800 ﬁve

DTV Air 800 five

Home and Away 18:00 - 18:30

Drama

Dani is devastated when scott makes clear his views on marriage...

27 28 800 24 16 6

Discovery DiscoveryH&L five price-drop.tv QVC R4DTT

American Chopper

Programmes resume at 06:00 Home and... No Information QVC Selection No Information

Tine Team

Fiv...

Today 18:00 - 19:00 19:00 - 20:00

)

Family Affairs

)

Dark Angel

800 ﬁve

The display identiﬁes the current channel and the status of certain audio-video settings.

The Now & Next guide shows daily TV programme information for each channel according to the broadcasting time.

Scroll y ,  to view information for a desired programme while watching the current channel.

Scroll y ,  to view information for other channels. If you want to move to the currently selected channel, press the ENTER

abc1

DTV Air

button.

Unclassified No Detaild In formation



Planning Your Viewing

Guide

The EPG (Electronic Programme Guide) information is provided by broadcasters. Using programme schedules provided by broadcasters, you can specify programmes you want to watch in advance so that the channel automatically changes to the selected programme channel at the speciﬁed time. Programme entries may appear blank or out of date depending on a channel status.

Using Channel View

Guide

18:00 ~ 6:00

18:11 Thu 6 Jan



' Information

2:10 Tue 1 Jun

Using Scheduled View

Guide

Scheduled View

View Mode

Information

1 4 6

Red (View Mode): View the list of programmes that

are playing now or coming up.

Yellow (+24 hours): Viewing the list of programmes to

be broadcasted after 24 hours.

Blue (Ch.Mode): Select the type of channels you want

to display on the Channel View window.

The Ch. Mode differs according to the antenna – source.

4 Information: Displays details of the selected

programme.

(Page): Moves to the previous / next page.

5 6 ENTER

button

When selecting the current programme, you can – watch the selected programme.

When selecting the future programme, you can – reserve to watch the selected programme. To cancel

the schedule, press the ENTER

button again and

select Cancel Schedules.

2:10 Tue 1 Jun

Cancel

03 Basic Features

Channel View - TV

View Mode

+24 Hours Ch. Mode

1 2 3 4 5 6

Information k



Basic Features

c 1 1futech c 2 * 24ore.tv

15 abc1

3 BBC World 23 bid-up.tv 33 Boonerang 32 Cartoon Nwk

5 Class News 4 \ Coming Soon 27 Discovery

All

Radio Data/Other Analogue

c 1 1futech c 2 * 24ore.tv

15 abc1

3 BBC World 23 bid-up.tv 33 Boonerang 32 Cartoon Nwk

5 Class News 4 \ Coming Soon 27 Discovery

All

Radio Data/Other Analogue

Channel Manager

Delete or set favourites channels and use the programme guide for digital broadcasts. Select a channel in the Channels, My Channels or Scheduled screen.

Channels

Air Antena B Zoom Select kT Tools

■ Channels: Shows the channel list according to

channel type.

■

My Channels: Shows the group of the channel.

■ Scheduled: Shows all the currently reserved

✎

Using the colour buttons with the

Red (Antenna): Toggle among Air or Cable.

Green (Zoom): Enlarges or shrinks a channel

number.

Yellow (Select): Select desired channels and press

the Yellow button to set all the selected channels at the same time. The c mark appears to the left of the selected channels.

(Page): Move to next or previous page.

T x (Tools): Displays the Channel Manager option

menu. (The Options menus may differ depending on the situation.)

Channel Status Display Icons

Icons Operations

(

)

programmes.

Channel Manager

An Analogue channel. A channel selected. A channel set as a Favourite. A programme currently being broadcast. A locked channel. A reserved programme.

Using Favourite Channels ¦

My Channels

(in Channel Manager) Shows all favourite channels.

Edit My Channels ■ channels to desired my channels group.

✎ *

” symbol will be displayed and the channel will

The “ be set as a my channel.

1. Select a channel and press the TOOLS button.

2. Add or delete a channel in the my channel groups

you want among 1, 2, 3 and 4.

One or more groups can be selected.

3. After you have changed the settings, the channel list for each group can be viewed in My Channels.

: You can set the selected

Channels

Edit My Channels



Delete Deselect All Select All

Air Antena B Zoom Select kT Tools

Channel Menu

Retuning channels ¦

Antenna (Air / Cable)

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).

Country

The PIN input screen appears. Enter your 4 digit PIN number.

Digital Channel ■ : Change the country for digital channels.

Analogue Channel ■ : Change the country for analogue channels.

English

03 Basic Features

Auto Store

Scans for a channel automatically and stores in the TV.

Automatically allocated programme numbers may not

✎

correspond to actual or desired programme numbers. If a channel is locked using the Child Lock function, the PIN input window appears.

Antenna Source (Air / Cable) ■ : Select the antenna source to memorise.

Channel Source (Digital & Analogue / Digital / ■ Analogue): Select the channel source to memorise.

When selecting Cable  Digital & Analogue or Digital: Provide a value to scan for cable channels.

Search Mode (Full / Network / Quick): Scans for all channels with active broadcast stations and stores them in the TV.

If you set

✎

Network ID, Frequency, Modulation, Symbol Rate manually by press the button on the remote

control.

Network (Auto / Manual): Selects the Network ID setting mode among Auto or Manual.

Network ID: When Network is Manual, you can set up Network ID using the numeric buttons.

Frequency: Displays the frequency for the channel.

(differs in each country)

Modulation: Displays available modulation values. Symbol Rate: Displays available symbol rates.

Quick, you can set up Network,

Manual Store

Scans for a channel manually and stores in the TV.

If a channel is locked using the

✎

the PIN input window appears. Digital Channel (Channel, Frequency, Bandwidth) ■ :

When scanning has finished, channels are updated in the channel list.

When selecting ✎Antenna  Air: Channel, Frequency,

Bandwidth

✎

When selecting

Modulation, Symbol Rate Analogue Channel (Programme, Colour System, ■

Sound System, Channel, Search): If there is abnormal

sound or no sound, reselect the sound standard required.

Channel mode

✎

P x (programme mode): When tuning is complete,

the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode.

(aerial channel mode) / S (cable channel mode):

These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.

Editing channels ¦

Channel Manager Option Menu (in Channel Manager)

1. Select a channel and press the TOOLS button.

2. Edit the channel name or number using the Edit Channel Name or Edit Channel Number menu.

Edit Channel Name ■ (analogue channels only): Assign

your own channel name. Edit Channel Number ■ (digital channels only): Edit the

number by pressing the number buttons desired.

Antenna Cable: Frequency,

Child Lock function,

Other Features ¦

Cable Search Option

(depending on the country) Sets additional search options such as the frequency and

symbol rate for a cable network search.

Freq.Start / Freq.Stop ■ : Set the start or stop frequency (differs in each country)

Modulation ■ : Displays available modulation values. Symbol Rate ■ : Displays available symbol rates.

Basic Features

Channel Manager Option Menu

(in Channel Manager) Set each channel using the Channel Manager menu options

(Lock / Unlock, Timer Viewing, Sort, Delete, Select All / Deselect All). Option menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings. Lock / Unlock ■ : Lock a channel so that the channel

cannot be selected and viewed.

NOTE

✎

This function is available only when the xChild Lock is set to On.

The PIN input screen appears. Enter your 4-digit PIN,

the default of which is “0-0-0-0”. Change the PIN using the Change PIN option.

Timer Viewing ■ : You can set a desired channel to be displayed automatically at the intended time. Set the current time ﬁrst to use this function.

When a digital channel is selected, press the

✎

button to view the digital Programme.

Sort ■ (analogue channels only): This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

Delete: ■ You can delete a channel to display the channels you want.

Select All / Deselect All ■ : Select all the channels or deselect all the selected channels in the channel manager.



Scheduled

(in Channel Manager) You can view, modify or delete a a show you have reserved

to watch.

Change Info ■ : Change a a show you have reserved to watch.

Cancel Schedules ■ : Cancel a show you have reserved to watch.

Information ■ : Display a show you have reserved to watch. (You can also change the reservation information.)

Select All / Deselect All ■ : Select or deselect all reserved programmes.

hannel List

You can see all the channels searched.

Channel List Transfer

Imports or exports the channel map. You should connect a USB storage to use this function.

The PIN number input screen appears. Enter your 4

✎

digit PIN number.

✎

The default PIN number of a new TV set is ‘0-0-0-0’.

Import from USB: ■ Import channel list from USB. Export to USB: ■ Export channel list to USB.

Fine Tune

(analogue channels only) If the signal is weak or distorted, ﬁne tune the channel

manually.

✎

Fine tuned channels are marked with an asterisk “*”. To reset the fine-tuning, select ✎ Reset.

Picture Menu

Changing the Preset Picture Mode ¦

Mode

Select your preferred picture type.

Dynamic ■ : Suitable for a bright room. Standard ■ : Suitable for a normal environment. Movie ■ : Suitable for watching movies in a dark room.

Adjusting picture settings ¦

Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

✎

NOTE

In analogue xTV, Ext., AV modes of the PAL system, the Tint (G/R) function is not available.

In PC mode, you can only make changes to

Backlight, Contrast and Brightness. Settings can be adjusted and stored for each

external device connected to the TV. Lowering picture brightness reduces power

consumption.

English

03 Basic Features

Economical Solutions ¦

ECO Solution

Energy Saving (Off / Low / Medium / High / Picture ■ Off / Auto)

in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on. Press any button to turn on the screen again.

No Signal Power Off (Off / 15 min / 30 min / 60 min) ■ : Activates the Stand-by mode, in the case of “No Signal” or “Check Signal Cable” status for a certain period of time deﬁned by the user.

Changing the Picture Options ¦

Disabled when the PC is in power saving mode.

✎

: Adjust the brightness of the TV

Advanced Settings

(available in Standard / Movie mode) You can adjust the detailed setting for the screen including

colour and contrast.

✎

In PC mode, you can only make changes to Contrast, Gamma and White Balance.

Advanced Settings

   

Dynamic Contrast : Medium

Shadow Detail : 0

Gamma : 0

 

Colour Space : Native



Black Tone (Off / Dark / Darker / Darkest) ■ : Select the black level to adjust the screen depth.

Dynamic Contrast (Off / Low / Medium / High) ■ : Adjust the screen contrast.



U Move E Enter R Return

Dynamic

Shadow Detail (-2~+2) ■ : Increase the brightness of dark

images.

Disabled under PC mode.

✎

Gamma ■ : Adjust the primary colour intensity. RGB Only Mode (Off / Red / Green / Blue) ■ : You can

adjust Colour or Tint of Red, Green or Blue for the picture from an external device (DVD player, home theatre, etc.).

Colour Space (Auto / Native) ■ : Adjust the range of colours available to create the image.

White Balance ■ : Adjust the colour temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue) darkness.

R-Gain/G-Gain/B-Gain: Adjust each colour’s (red, green, blue) brightness.

Reset: Resets the White Balance to it’s default settings. Flesh Tone ■ : Emphasize pink “Flesh Tone.” Edge Enhancement (Off / On) ■ : Emphasize object

boundaries.

Picture Options

In PC mode, you can only make changes to the ✎Colour Tone, Size and Auto Protection Time..

Picture Options

   

 

 

Digital NR : Auto

 

 

 

Colour Tone (Cool / Normal / Warm1 / Warm2) ■

Warm1

✎ ✎

or Warm2 will be deactivated when the

picture mode is Dynamic. Settings can be adjusted and stored for each

external device connected to an input on the TV.



U Move E Enter R Return

Basic Features

Size ■ : Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.

16:9 : Adjusts the picture size to 16:9 for DVDs or wide broadcasting.

Wide Zoom: Magniﬁes the picture size more than 4:3.

Adjusts the Position by using

✎

Zoom: Magniﬁes the 16:9 wide pictures vertically to ﬁt the screen size.

Adjusts the Position or Size by using

✎

4:3 : The default setting for a movie or normal broadcasting.

Do not watch in 4:3 format for a long time. Traces

✎

of borders displayed on the left, right and centre of the screen may cause image retention(screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.

✎

NOTE

After selecting xScreen Fit in HDMI (1080i/1080p) or Component (1080i/1080p) mode, you may need to centre the picture:

1. Press the  or  button to select Position.

2. Press the ENTER

3. Press the or  button to move the

picture.

Depending on the input source, the picture size

options may vary. The available items may differ depending on the

selected mode. In PC mode, only

adjusted. Settings can be adjusted and stored for each

external device connected to an input of the TV. If you use the

input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

16:9 and 4:3 modes can be

Screen Fit function with HDMI 720p

,  buttons.

,  button.

button.

Screen Mode (16:9 / Wide Zoom / Zoom / 4:3) ■ : Available only when picture size is set to Auto Wide. You can determine the desired picture size at the 4:3 WSS (Wide Screen Service) size or the original size. Each European country requires different picture size.

Not available in PC, Component or HDMI mode.

✎

Digital Noise Filter (Off / Low / Medium / High / Auto ■ / Auto Visualisation): When the broadcast signal is

weak, some static and ghosting may appear. Select one of the options until the best picture is displayed.

Auto Visualisation: When changing analogue channels, displays signal strength.

Only available for analogue channels.

✎

When bar is green, you are receiving the best

✎

possible signal.

MPEG Noise Filter (Off / Low / Medium / High / ■ Auto): Reduces MPEG noise to provide an improved

picture quality.

✎

Disabled under PC mode.

HDMI Black Level (Normal / Low) ■ : Selects the black level on the screen to adjust the screen depth.

Available only in HDMI mode (RGB signals).

✎

Film Mode (Off / Auto1 / Auto2) ■ : Sets the TV to automatically sense and process ﬁlm signals from all sources and adjust the picture for optimum quality.

Available in TV, AV, COMPONENT (480i / 1080i)

✎

and HDMI (480i / 1080i).

Auto Protection Time (2 hours/4 hours/8 hours/10 ■ hours/ Off) : If the same image remains on the screen,

Auto Screen Burn Protector will work.

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

English

03 Basic Features

Setting up the TV with Your PC ¦

Set the input source to PC.

Auto Adjustment

Adjust frequency values/positions and ﬁne tune the settings automatically.

✎

Not available when connecting through HDMI/DVI cable.

Screen

Coarse / Fine ■ : Removes or reduces picture noise. If the

noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the centre of screen.

Position ■ : Adjust the PC screen position with direction button ( /  /  / ).

Image Reset ■ : Resets the image to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card,

the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

The correct size setting (resolution) [Optimum: 1360 X y 768 pixels]

If a vertical-frequency option exists on your display y settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.

Sound Menu

Changing the Preset Sound Mode ¦

Mode

Standard ■ : Selects the normal sound mode. Music ■ : Emphasizes music over voices. Movie ■ : Provides the best sound for movies. Clear Voice ■ : Emphasizes voices over other sounds. Amplify ■ : Increase the intensity of high-frequency sound

to allow a better listening experience for the hearing impaired.

Adjusting sound settings ¦

Equalizer

Adjusts the sound mode.

Balance L/R ■ : Adjusts the balance between the right and left speaker.

100Hz / 300Hz / 1KHz / 3KHz / 10KHz ■ (Bandwidth Adjustment): Adjusts the level of speciﬁc bandwidth frequencies.

Reset ■ : Resets the equalizer to its default settings.

Sound Systems, Etc. ¦

Virtual Surround (Off / On)

This function provides a virtual 5.1 channel surround sound experience through a pair of speakers or headphones using HRTF (Head Related Transfer Function) technology.

✎

Speaker Select is set to External Speaker, Virtual

Surround is disabled.

Dialog Clarity (Off / On)

This function allows you to increase the intensity of a voice over background music or sound effects so that dialog can be heard more clearly when viewing a show.

Audio Language

(digital channels only) Change the default value for audio languages.

The available language may differ depending on the

✎

broadcast.

Audio Format (MPEG / Dolby Digital 5.1)

(digital channels only) When sound is emitted from both the main speaker and the

audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

Audio Format

✎

broadcast. 5.1ch Dolby digital sound is only available when connecting an external speaker through an optical cable.

option may differ depending on the

Basic Features

MEDIA.P

Audio Description

(not available in all locations) (digital channels only)

This function handles the Audio Stream for the AD (Audio Description) which is sent along with the Main audio from the broadcaster.

Audio Description (Off / On) ■ : Turn the audio description function on or off.

Volume ■ : Adjust the audio description volume.

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

Night ■ : This mode provides an improved sound

experience compared to Normal mode, making almost no noise. It is useful at night.

Speaker Select (External speaker / TV speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker.

✎

Speaker Select is set to External Speaker, the

When volume and MUTE buttons will not operate and the sound settings will be limited.

✎

Speaker Select is set to External Speaker, you

When should use these settings.

TV Speaker: Off , External

When

✎

Speaker Select is set to TV Speaker, you

should use these settings.

Speaker: On , External Speaker: On

If there is no video signal, both speakers will be mute.

✎

Speaker: On

Additional Setting

(digital channels only)

DTV Audio Level (MPEG / HE-AAC) ■ : This function allows you to reduce the disparity of a voice signal (which is one of the signals received during a digital TV broadcast) to a desired level.

According to the type of broadcast signal,

✎

/ HE-AAC can be adjusted between -10dB and 0dB.

To increase or decrease the volume, adjust

✎

between the range 0 and -10 respectively.

MPEG

SPDIF Output ■ : SPDIF (Sony Philips Digital InterFace)

is used to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player.

Audio Format: During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM, Dolby Digital or DTS.

✎

By connecting to 5.1ch speakers in a Dolby Digital setup, maximize your interactive 3D sound experience.

Audio Delay: Correct audio-video mismatch, when watching TV or video, and listening to digital audio output using an external device such as an AV receiver.

Dolby Digital Comp (Line / RF) ■ : This function minimizes signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound).

Select

✎

Line to obtain dynamic sound, and RF

to reduce the difference between loud and soft sounds at night time.

Line: Set the output level for signals greater or less than

-31dB (reference) to either -20dB or -31dB. RF: Set the output level for signals greater or less than

-20dB (reference) to either -10dB or -20dB.

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

Selecting the Sound Mode ¦

When you set to Dual l ll, the current sound mode is displayed on the screen.

Audio

Type

Stereo

NICAM

Stereo

✎ ✎

Mono MONO

Stereo

Dual

Mono Mono

Stereo

Dual

If the stereo signal is weak and an automatic switching, occurs, then switch to the mono.

Only activated in stereo sound signal. Only available when the ✎Input source is set to TV.

Dual l ll Default

Stereo  mono

Dual l  Dual ll

Mono  stereo

Mono  Dual l

Dual ll

Automatic

change

Dual l

Automatic

change

Dual l

English

03 Basic Features

10 TV ATV2

00 00

▲

▼

00 00

▲

▼

Setup Menu

Setting the Time ¦

Time

Clock ■ : Setting the clock is for using various timer

features of the TV.

The current time will appear every time you press the INFO button.

If you disconnect the power cord, you have to set

✎

the clock again.

Clock Mode (Auto / Manual)

Depending on the broadcast station and signal,

✎

the auto time set up may not be correct. In this case, set the time manually.

The antenna must be connected in order to set

✎

the time automatically.

Clock Set: Set the Day, Month, Year, Hour and Minute manually.

✎

Available only when

Manual.

Using the Sleep Timer ¦

To cancel

Sleep Timer, select Off.

Sleep Timer ■

after a preset period of time. (30, 60, 90, 120, 150 and 180 minutes).

✎

Setting the On/Off Timer ¦

Timer 1 / Timer 2 / Timer 3 ■ : Three different on / off

timer settings can be made. You must set the clock ﬁrst.



Inactivate



Inactivate

Volume

Repeat

Source Antenna Channel



Sun Mon Tue  Thu Fri Sat

Clock Mode is set to

: Automatically shuts off the TV

Timer 1

Move

U Adjust E

Enter R Return

On Time / Off Time: Set the hour, minute, and activate / inactivate. (To activate timer with the setting you’ve chosen, set to Activate.)

Volume: Set the desired volume level. Source: Select TV or USB content to be played when

the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV)

Antenna (when the Source is set to TV): Select ATV or DTV.

Channel (when the Source is set to TV): Select the

desired channel. Contents (when the Source is set to USB): Select a

folder in the USB device containing music or photo ﬁles to be played when the TV is turned on automatically.

✎

If there is no music file on the USB device or the folder containing a music file is not selected, the Timer function does not operate correctly.

When there is only one photo file in the USB

✎

device, the Slide Show will not play. If a folder name is too long, the folder cannot be

✎

selected. Each USB you use is assigned its own folder.

✎

When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you select Manual, you can set up the day you want to activate the timer.

✎ c

✎

Auto Power Off (available only when the TV is turned on by Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

mark indicates the day is selected.

The

Locking Programs ¦

Security

The PIN input screen appears before the setup screen.

✎

Enter your 4-digit PIN, the default of which is “0-0-0-0”.

✎

Change the PIN using the Change PIN option.

Child Lock (Off / On) ■ : Lock channels in Channel Manager, to prevent unauthorized users, such as

children, from watching unsuitable programme.

Available only when the

✎

Parental Lock (Parental Rating) ■ : Prevent unauthorized users, such as children, from watching unsuitable programme with a user-deﬁned 4-digit PIN code.

Allow All: Unlock all TV ratings.

✎

The items of the country.

Parental Lock differs depending on

Input source is set to TV.

Basic Features

POWER

MEDIA.P

FAV . CH

P . MODE

DUAL

MTS

Change PIN ■ : Change your personal ID number required to set up the TV.

If you forget the PIN code, press the remote

✎

control buttons in the following sequence, which resets the PIN to “0-0-0-0”: POWER (off) →

MUTE → 8 → 2 → 4 → POWER (on).

Other Features ¦

Language

Menu Language ■ : Set the menu language. Teletext Language ■ : Set a desired language for teletext.

English is the default in cases where the selected

✎

language is unavailable in the broadcast.

Preference (Primary Audio Language / Secondary ■ Audio Language / Primary Subtitle Language / Secondary Subtitle Language / Primary Teletext Language / Secondary Teletext Language): Select

a language, which will be the default language when a channel is selected.

Subtitle

Use this menu to set the Subtitle mode.

The subtitle feature doesn’t work in

✎

Component or HDMI modes. Subtitle (Off / On) ■ : Switches subtitles

on or off. Mode (Normal / Hearing Impaired) ■ :

Sets the subtitle mode. Subtitle Language ■ : Sets the subtitle language.

If the programme you are watching does not

✎

support the Hearing Impaired function, Normal automatically activates even if the Hearing Impaired mode is selected.

English is the default in cases where the selected

✎

language is unavailable in the broadcast.

Digital Text (Disable / Enable) (UK only)

If the programme broadcasts with digital text, this feature is enabled.

General

Game Mode (Off / On) ■ : When connecting to a game

console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

✎

NOTE

Precautions and limitations for x game mode

To disconnect the game console and connect – another external device, set Game Mode to Off in the setup menu.

If you display the TV menu in – Game Mode, the screen shakes slightly.

Game Mode

After connecting

to On to prevent poor picture quality. If

Game Mode is On: Picture mode is set to

Standard and Sound mode is set to Movie.

Menu Transparency (Bright / Dark) ■ : Se t the

Transparency of the menu. Melody (Off / Low / Medium / High) ■ : Set so that a

melody plays when the TV is turned on or off.

is not available in TV and PC mode.

the game console, set Game Mode

Common Interface

CI Menu ■ : This enables the user to select from the CAM-

provided menu. Select the CI Menu based on the menu PC Card.

Application Info. ■ : View information on the CAM inserted into the CI slot and on the “CI or CI+ CARD” which is inserted into the CAM. You can install the CAM anytime whether the TV is on or off.

1. Purchase a CI CAM module at your nearest dealer or by

phone.

2. Firmly insert the “CI or CI+ CARD” into the CAM in the

direction of the arrow.

3. Insert the CAM with the “CI or CI+ CARD” into the

common interface slot, in the direction of the arrow so that it aligns parallel with the slot.

4. Check if you can see a picture on a scrambled signal

channel.

English

03 Basic Features

Support Menu

Self Diagnosis

Self Diagnostic might take few seconds, this is part of the normal operation of the TV.

Picture Test (Yes / No) ■ : Use to check for picture problems and if the problem continues to occur check the colour pattern.

Sound Test (Yes / No) ■ : Use the built-in melody sound to check for sound problems.

If you hear no sound from the TV’s speakers,

✎

before performing the sound test, make sure

Speaker Select is set to TV speaker in the Sound menu.

The melody will be heard during the test even if

✎

Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

Signal Information ■ : (digital channels only) HDTV channel’s reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.

Trouble Shooting ■ : If the TV seems to have a problem, refer to this description.

If none of these trouble troubleshooting tips apply,

✎

contact the Samsung customer service centre.

Software Upgrade

Software Upgrade can be performed via a broadcasting

signal or by downloading the latest ﬁrmware from samsung. com to a USB memory device.

Current Version the software already installed in the TV.

✎

Software is represented as “Year/Month/Day_Version”.

Installing the Latsted Version

By USB ■ : Insert a USB drive

containing the ﬁrmware upgrade ﬁle, downloaded from www.samsung.com, into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the ﬁrmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to to write down your settings so that you can easily reset them after the upgrade.

By Channel ■ : Upgrade the software using the broadcasting signal.

If the function is selected during the software

✎

transmission period, software will be automatically searched and downloaded.

The time required to download the software is

✎

determined by the signal status.

Standby Mode Upgrade ■ : A manual upgrade will be automatically performed at selected time. Since the power of the unit is turned on internally, the screen may be turned on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is complete.

Alternative ■ Software (backup): If there is an issue with the new ﬁrmware and it is affecting operation, you can change the software to the previous version.

If the software was changed, existing software is

✎

displayed.

TV Rear Panel

USB Drive

Software Upgrade

Current Version 2010/01/18_000001

   

By Channel Standby Mode Upgrade 2 Hours Later

Alternative Software

U Move E Enter R Return

HD Connection Guide

Refer to this information when connecting external devices to the TV.

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can ﬁnd information regarding our call centres, and how to download products and software.

Advanced Features

MEDIA.P

Media Play

Enjoy photos and/or music ﬁ les saved on a USB Mass Storage Class (MSC) device.

Media

Devicename

Music

Change Device

Device Mode

Connecting a USB Device ¦

1. Turn on your TV.

2. Connect a USB device containing photo and/or music ﬁ les to the USB jack on the

rear of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select Media Play.

USB Drive

✎

It might not work properly with unlicensed multimedia files. Need-to-Know List before using ✎Media Play

MTP (Media Transfer Protocol) is not supported.

The file system supports FAT16, FAT32 and NTFS.

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only

Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the TV’s USB port.

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.

SAMSUNG is not responsible for any data file damage or data loss. Do not disconnect the USB device while it is loading.

The higher the resolution of the image, the longer it takes to display on the screen.

The maximum supported JPEG resolution is 15360X8640 pixels.

For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management

(DRM) is a technology that supports the creation, distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.

If more than 2 PTP devices are connected, you can only use one at a time.

If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high

power (more than 500mA or 5V) may not be supported. If an over-power warning message is displayed while you are connecting or using a USB device, the device may not

be recognized or may malfunction. If the TV has been no input during time set in

The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.

If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is

not played, connect the USB device to the PC, format the device and check the connection. If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC

to permanently delete the file.

English

Auto Protection Time, the Screensaver will run.

Enter

Return

TV rear Panel

English

04 Advanced Features

Screen Display ¦

Move to the ﬁle you desired using the up/down/right/left buttons and then press the ENTERE button. The ﬁle is played.

✎

Supports the

Device Mode and Contents Mode in Media Play homepage.

You can ascertain the selected ﬁle

Information :

name and the number of ﬁles and

page.

Sort List Section :

Displays the sorting standard.

The sorting standard is

✎

different depending on the

contents.

Devicename

/Music 01.mp3 1/2

Music

Music 01 2010 no singer other

Music 03 2010 no singer other

Music 05 2010 no singer other

Music 07 2010 no singer other

Change Device

Operation Button

Red (Change Device): Selects a connected device.

Green (Preference): Sets the ﬁle preference. (not supported in Basic view)

Yellow (Select): Selects multiple ﬁles from ﬁle list. Selected ﬁles are marked with a symbol.

Blue (Sorting): Selects the sort list.

Tools: Displays the option menu.

Select D Sorting T Tools

Music

Playing a Music

1. Press the ◄ or ► button to select Music, then press the ENTERE button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired Music in the ﬁle

list.

3. Press the ENTER

During music playback, you can search using – ◄ and ► button.

✎

Only displays files with the MP3 file extension. Other file extensions are not displayed, even if they are saved on the same USB device.

If the sound is strange when playing MP3 files, adjust the

✎

in the Sound menu. (An over-modulated MP3 file may cause a sound problem.)

button.

Equalizer

Music 02 2010 no singer other

Music 04 2010 no singer other

Music 06 2010 no singer other

Music 08 2010 no singer other

E Pause L Jump T Tools R Return

Devicename

Only you Jason

1st Album

Pop

2010

4.2MB

01:10 / 04:02

File List Section : You can conﬁrm the ﬁles and groups that are sorted by each category.

Playlist

Only you

Jason Music 1

No Singer

Music 2

No Singer

Music 3

No Singer

Music 4

No Singer

Music 5

No Singer

3/15

Advanced Features

Photos

Viewing a Photo (or Slide Show)

1. Press the ◄ or ► button to select Photos, then press the

ENTER

button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired photo in the ﬁle list.

3. Press the ENTER

While a photo list is displayed, press the – ENTER remote control to start slide show.

All ﬁles in the ﬁle list section will be displayed in the slide show. – During the slide show, ﬁles are displayed in order from currently –

being shown.

Music files can be automatically played during the Slide Show if the

✎

Background Music is set to On. The

✎

BGM Mode cannot be changed until the BGM has finished

Playing the multiple ﬁles ¦

Playing the selected music/photo ﬁles

1. Press the Yellow button in the ﬁle list to select the desired ﬁle.

2. Repeat the above operation to select multiple ﬁles.

NOTE

✎

The xc To cancel a selection, press the yellow button again.

To deselect all selected files, press the xTOOLS button and select Deselect All.

3. Press the TOOLS button and select Play Selected Contents.

button.

button on the

mark appears to the left of the selected files.

Normal


Devicename E Pause L Previous/Next T Tools R Return

/Music 01.mp3 1/2

Music

Music 01 2010 no singer other

Music 03 2010 no singer other

Music 05 2010 no singer other

Music 07 2010 no singer other

1024x768

Music 02 2010 no singer other

Music 04 2010 no singer other

Music 06 2010 no singer other

Music 08 2010 no singer other

2010/2/1

3/15

Playing the music/photo ﬁle group

1. While a ﬁle list is displayed, move to the any ﬁle in desired group.

2. Press the TOOLS button and select Play Current Group.

English

Devicename

Change Device

Select

Sorting

T Tools

English

04 Advanced Features

Media Play Additional Function ¦

Sorting the ﬁle list

Press the blue button in the ﬁle list to sort the ﬁles.

Category Operations Music Photos

Basic View Displays the whole folder. You can view the photo by selecting the folder.

Title Sorts and displays the ﬁle title in Symbol/Number/Alphabet/Special order.

Preference

Latest Date Sorts and shows ﬁles by the latest date.

Earliest Date Sorts and shows ﬁles by the earliest date.

Artist Sorts the music ﬁle by artist in alphabetical order.

Album Sorts the music ﬁle by album in alphabetical order.

Genre Sorts music ﬁles by the genre.

Mood

Monthly Sorts and shows photo ﬁles by month.

Music/Photos Play Option menu

Option menu Operations Music Photos Repeat Mode You can play movie and music ﬁles repeatedly. Picture Setting You can adjust the picture setting. (P. 14, 15, 16) Sound Setting You can adjust the sound setting. (P. 17, 18)

Stop Slide Show / Start Slide Show

Slide Show Speed You can select the slide show speed during the slide show.

Background Music

Zoom Rotate You can rotate images in full screen mode. Information You can see detailed information about the played ﬁle.

Sorts and displays the ﬁle by preference. You can change the ﬁle preference in the ﬁle list section using the Green button.

Sorts music ﬁles by the mood. You can change the music mood information.

You can start or stop a Slide Show.



Show.

You can zoom into images in full screen mode.

✓ ✓

✓

✓ ✓

✓

Settings

Using the Setup Menu

Information ■ : Select to view information about the connected device.

Other Information

MEDIA.P

BCD

ABCD

Other Information

Analogue Channel Teletext Feature

The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

You can change Teletext pages by pressing the numeric buttons on the remote control.

✎

/ (Teletext on/mix):

Activate the Teletext mode after selecting the channel providing the Teletext service. Press it twice to overlap the Teletext mode with the current broadcasting screen.

8 (store): Store the Teletext

pages.

4 (size): Display the double-

size letters on the upper half of the screen. For the lower half of the screen, press it again. To display the normal screen, press it once again.

9 (hold): Hold the display

on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again

0 (mode): Select the Teletext

mode (LIST/ FLOF). If you press this button in the LIST

mode, the mode is switched into the List save mode. In the List save mode, you can save a Teletext page into list using the 8(store) button.

1 (sub-page): Display the

available sub-page.

2 (page up): Display the next

Teletext page.

3 (page down): Display the

previous Teletext page.

6 (index): Display the index

(contents) page at any time while

you are viewing Teletext.

5 (reveal): Display the hidden

text (answers to quiz games, for

example). To display the normal

screen, press it again.

7 (cancel): Display the current

broadcast when searching for a

8 9 0

Colour buttons (red/green/

yellow/blue): If the FASTEXT

system is used by a broadcasting

company, the different topics

covered on a Teletext page are

colour-coded and can be selected

by pressing the coloured buttons. Press one of them corresponding

to the required. The page is

displayed with other coloured

information that can be selected

in the same way. To display the

previous or next page, press the

corresponding coloured button.

page.

The Teletext pages are organized according to six categories:

Part Contents Part Contents

A Selected page number. D Date and time. B Broadcasting channel identity. E Text.

English

Current page number or search indications.

Status information. FASTEXT

information.

English

05 Other Information

Installing the Wall Mount

45mm

Installing the Wall Mount Kit ¦

Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a

technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the

TV on your own.

Wall Mount Kit Speciﬁcations (VESA)

Wall mount kit is not supplied but sold separately.

✎

Install your wall mount on a solid wall perpendicular to the ﬂoor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

✎

NOTE

Standard dimensions for wall mount kits are shown in the table below.

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.

For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ

depending on their specifications. Do not use screws that do not comply with the VESA standard screw specifications.

Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal

injury. Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or

the consumer fails to follow the product installation instructions. Do not exceed 15 degrees tilt when mounting this TV.

Product

Family

LCD-TV

inches VESA Spec. (A * B) Standard Screw Quantity

19~22

23~29 200 X 100 30~40 200 X 200 M6 46~55 400 X 400 57~65 600 X 400 70~80 800 X 400

80~ 1400 X 800

“If the length of the USB device is equal to or longer than 45 mm when used with 26” or 32” models installed with a wall mount, the USB device may touch the wall. Therefore, using a short type USB device is recommended.”

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

75 X 75

100 X 100

Other Information

1 2

Anti-Theft Kensington Lock

The Kensington Lock is a device used to physically ﬁx the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for proper use.

✎

Please find a “ “

” icon.

1. Insert the locking device into the Kensington slot on the LCD TV 1 and turn

it in the locking direction 2.

2. Connect the Kensington Lock cable 3.

3. Fix the Kensington Lock to a desk or a heavy stationary object.

The locking device has to be purchased separately.

✎

The location of the Kensington Lock may be different depending on its

✎

model.

” icon on the rear of the TV. A kensington slot is beside the

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows.

To avoid the TV from falling

Since the necessary clamps, screws, and string are not supplied,

✎

please purchase these additionally.

1. Drive the screws into the clamps and ﬁrmly fasten them onto the

wall. Make sure the screws are ﬁrmly ﬁxed into the wall.

Screw Specifications

✎

For a 17 ~ 29 Inch LCD TV: M4

For a 32 ~ 40 Inch LCD TV: M6

2. Remove the screws from the centre back of the TV, put the

screws into the clamps, and then fasten the screws onto the TV again.

3. Connect the clamps ﬁxed onto the TV and the clamps ﬁxed onto

the wall with a strong string and then tie the string tightly.

✎

Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

✎

Install the TV near to the wall so that it does not fall backwards. It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.

✎

Untie the string before moving the TV.

✎

TV Rear

Wall

English

05 Other Information

Troubleshooting

If you have any questions about the TV, ﬁrst refer to this list. If none of these troubleshooting tips apply, please visit “www. samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

Picture Quality First of all, please perform the Picture Test and conﬁrm that your TV is properly displaying test image.

The TV image does not look as good as it did in the store.

The picture is distorted: macroblock error, small block, dots, pixelization

Colour is wrong or missing. If you’re using a component connection, make sure the component cables are connected to the •

There is poor colour or brightness. Adjust the • Picture options in the TV menu. (go to Picture mode / Colour / Brightness / Sharpness)

There is a dotted line on the edge of the screen.

The picture is black and white. If you are using an AV composite input, connect the video cable (yellow) to the Green jack of •

When changing channels, the picture freezes or is distorted or delayed.

Sound Quality First of all, please perform the Sound Test to conﬁrm that your TV audio is properly operating.

There is no sound or the sound is too low at maximum volume.

The picture is good but there is no sound. Set the • Speaker Select option to TV speaker in the sound menu. (P. 18)

The speakers are making an inappropriate noise.

(go to MENU - Support - Self Diagnosis - Picture Test) (P. 21) If the test image is properly displayed, the poor picture may caused by the source or signal.

If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component • cables to deliver HD (high deﬁnition) picture quality. Cable/Satellite subscribers: Try HD stations from the channel line up.• Antenna connection: Try HD stations after performing Auto programme.•

Many HD channels are upscaled from SD(Standard Deﬁnition) contents.

✎

Adjust the Cable/Set top box video output resolution to 1080i or 720p.• Make sure you are watching the TV at the minimum recommended distance based on the size and • deﬁnition of the signal.

Compression of video contents may cause picture distortion especially in fast moving pictures such • as sports and action movies. Low signal level or bad quality can cause picture distortion. This is not a TV issue.•

correct jacks. Incorrect or loose connections may cause colour problems or a blank screen.

Adjust • Energy Saving option in the TV menu. (go to MENU - Picture - ECO solution - Energy Saving) Try resetting the picture to view the default picture settings. (go to MENU - • Picture - Picture Reset)

If the picture size is set to • Screen Fit, change it to 16:9. (P. 16) Change cable/set top box resolution.•

component input 1 on the TV. If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until •

the cable box reboots. It may take up to 20 minutes. Set the output resolution of the cable box to 1080i or 720p.•

(go to MENU - Support - Self Diagnosis - Sound Test) (P. 21) If the audio is OK, the sound problem may caused by the source or signal.

Please check the volume the of external device connected to your TV.•

If you are using an external device, make sure the audio cables are connected to the correct audio • input jacks on the TV. If you are using an external device, check the device’s audio output option (ex. you may need to • change your cable box’s audio option to HDMI when you have a HDMI connected to your TV). If you are using a DVI to HDMI cable, a separate audio cable is required.• If your TV has a headphone jack, make sure there is nothing plugged into it.•

Check the cable connections. Make sure a video cable is not connected to an audio input.• For antenna or cable connections, check the signal strength. Low signal level may cause sound • distortion.

Other Information

Issues Solutions and Explanations

No Picture, No Video The TV won’t turn on. Make sure the AC power cord is securely plugged in to the wall outlet and the TV.•

The TV turns off automatically. Ensure the • Sleep Timer is set to Off in the Setup menu. (P. 19)

There is picture/Video. Check cable connections (remove and reconnect all cables connected to the TV and external •

RF(Cable/Antenna) Connection The TV is not receiving all channels. Make sure the Antenna cable is connected securely.•

The picture is distorted: macroblock error small block, dots, pixelization

PC Connection A “Not Supported Mode” message

appears. “PC” is always shown on the source list,

even if a PC is not connected. The video is OK but there is no audio. If you are using a HDMI connection, check the audio output setting on your PC.•

Make sure the wall outlet is working.• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns • on, refer to “The remote control does not work” below.

If your PC is connected to the TV, check your PC power settings.• Make sure the AC power cord is plugged in securely to the wall outlet and the TV.• When watching TV from an antenna or cable connection, the TV will turn off after 10 ~ 15 minutes if • there is no signal.

devices). Set your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the • connections to the TV input. For example, if an external device’s output is HDMI, it should be connect to an HDMI input on the TV. Make sure your connected devices are powered on.• Be sure to select the TV’s correct source by pressing the SOURCE button on the TV remote.•

Please try • Plug & Play (Initial setup) to add available channels to the channel list. Go to MENU - Setup - Plug & Play (Initial setup) and wait for all available channels to be stored. Verify the Antenna is positioned correctly.•

Compression of video contents may cause picture distortion, especially with fast moving pictures • such as sports and action movies. A low signal can cause picture distortion. This is not a TV issue.•

Set your PC’s output resolution and frequency so they match the resolutions supported by the TV. (P. •

9) This is normal; “PC” is always shown on the source list, regardless of whether a PC is connected.•

Others The picture won’t display in full screen. HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3) •

The remote control does not work. Replace the remote control batteries with the poles (+/–) in the right direction.•

The cable/set top box remote control doesn’t turn the TV on or off, or adjust the volume.

A “Not Supported Mode” message appears.

There is a plastic smell from the TV. This smell is normal and will dissipate over time.• The TV Signal Information is unavailable

in the Self Diagnostic Test menu. The TV is tilted to the side. Remove the base stand from the TV and reassemble it.• There are difﬁculties assembling the stand

base. The channel menu is greyed out.

(unavailable)

contents. Black bars on the top and bottom will appear during movies that have aspect ratios different from • your TV. Adjust the picture size options on your external device or TV to full screen.•

Clean the sensor’s transmission window on the remote.• Try pointing the remote directly at the TV from 5~6 feet away.•

Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set user • manual for the SAMSUNG TV code.

Check the supported resolution of the TV, and adjust the external device’s output resolution • accordingly. Refer to the resolution settings on page 9 of this manual.

This function is only available with digital channels from an Antenna / RF/Coax connection. (P. 21)•

Make sure the TV is placed on a ﬂat surface. If you can not remove the screws from the TV, • unnecessary use a magnetized screw driver.

The • Channel menu is only available when the TV source is selected.

English

+ 104 hidden pages
