Page 1
LCD TV
LA32R8
Contact SAMSUNG WORLD-WIDE
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care centre.
Country
AUSTRALIA
CHINA
HONG KONG
INDIA
INDONESIA
JAPAN
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
TAIWAN
VIETNAM
SOUTH AFRICA
U.A.E
Customer Care Centre
1300 362 603
800-810-5858 , 010- 6475 1880
3698 - 4698
3030 8282
1800 1100 11
0800-112-8888
0120-327-527
1800-88-9999
1800-10-SAMSUNG (7267864)
1800-SAMSUNG (7267864)
1800-29-3232
02-689-3232
0800-329-999
1 800 588 889
0860 7267864 (SAMSUNG)
800SAMSUNG (7267864)
8000-4726
www.samsung.com/au
www.samsung.com.cn
www.samsung.com/hk
www.samsung.com/in
www.samsung.com/id
www.samsung.com/jp
www.samsung.com/my
www.samsung.com/ph
www.samsung.com/sg
www.samsung.com/th
www.samsung.com/tw
www.samsung.vn
www.samsung.com/za
www.samsung.com/mea
Web Site
LA37R8
LA40R8
LA40M8
LA46M8
LA52M8
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
BN68-01199A-01
ON-SCREEN MENUS
PC DISPLAY
PICTURE IN PICTURE (PIP)
TELETEXT
Register your product at www.samsung.com/global/register
Record your Model and Serial number here for future reference.
▪ Model _______________ ▪ Serial No. _______________
Page 2
Precautions When Displaying a Still Image
A still image may cause permanent damage to the TV screen.
• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention.
This image retention is also known as "screen burn".
To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.
of the screen caused by the difference of light emission on the screen.
Playing a DVD or a game console may cause a similar effect to the screen.
Damages caused by the above effect are not covered by the Warranty.
© 2007 Samsung Electronics Co., Ltd. All rights reserved.
Page 3
Contents
CONNECTING AND PREPARING YOUR TV
List of Parts ........................................................ 2
Installing the Stand ............................................. 2
Installing the Wall Mount Kit ............................... 2
Viewing the Control Panel .................................. 3
Viewing the Connection Panel ........................... 4
Viewing the Remote Control ............................... 7
Installing Batteries in the Remote Control .......... 8
Switching On and Off ......................................... 8
Placing Your Television in Standby Mode........... 8
Plug & Play ......................................................... 9
SETTING THE CHANNELS
Storing Channels Automatically ....................... 10
Storing Channels Manually ...............................11
Setting the Channel Lists ................................. 12
Activating the Child Lock .................................. 12
Sorting the Stored Channels ............................ 13
Assigning Channels Names ............................. 13
Fine Tuning Channel Reception ....................... 14
SETTING THE PICTURE
Changing the Picture Standard ........................ 14

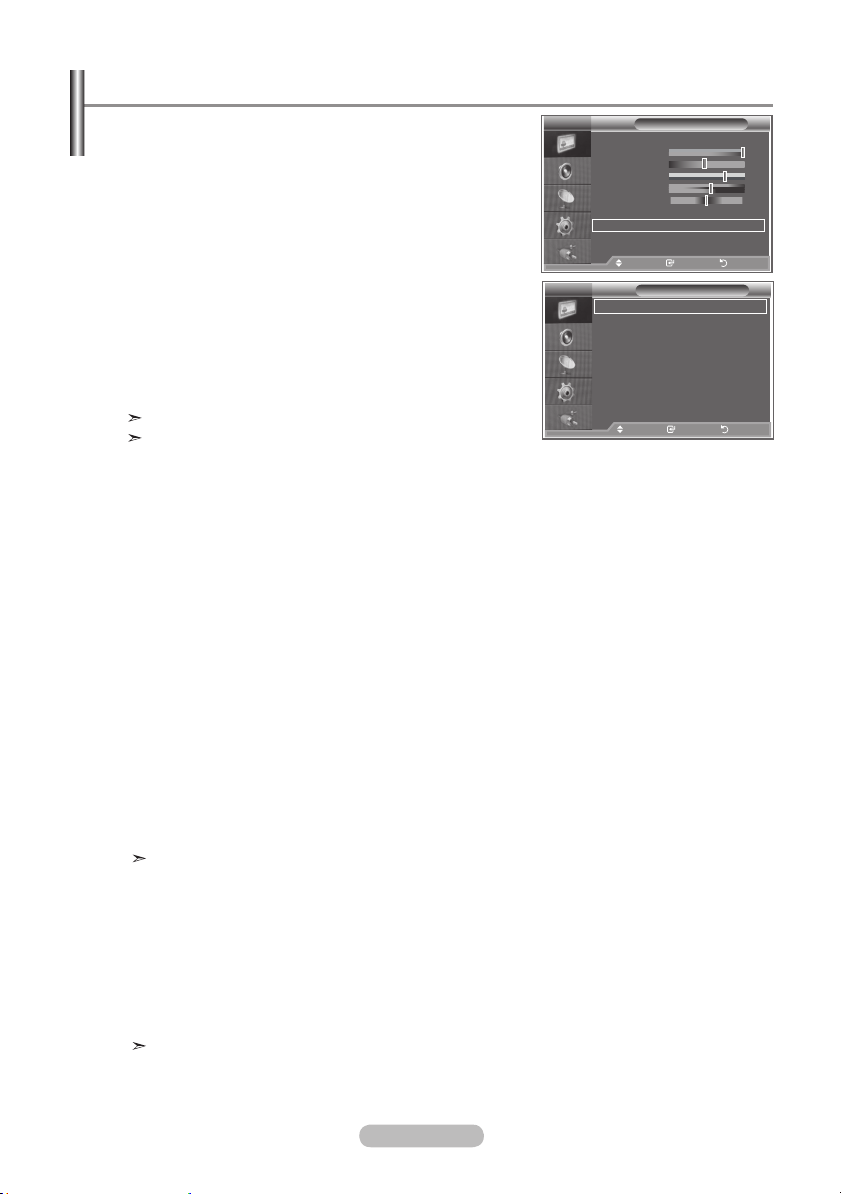

Adjusting the Custom Picture ........................... 15
Changing the Colour Tone................................ 15
Conguring Detailed Settings on the Picture ... 16
Activating Backlight .......................................... 17

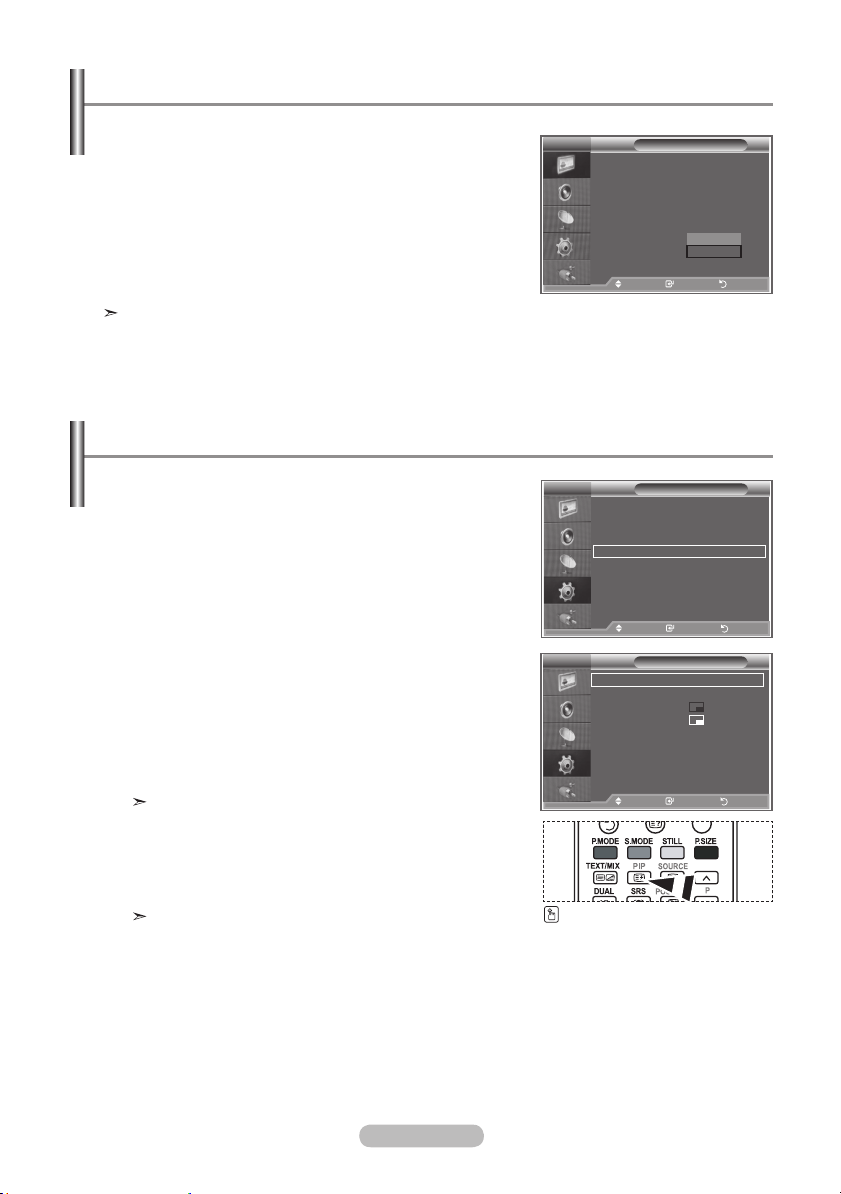

Changing the Picture Size ................................ 17

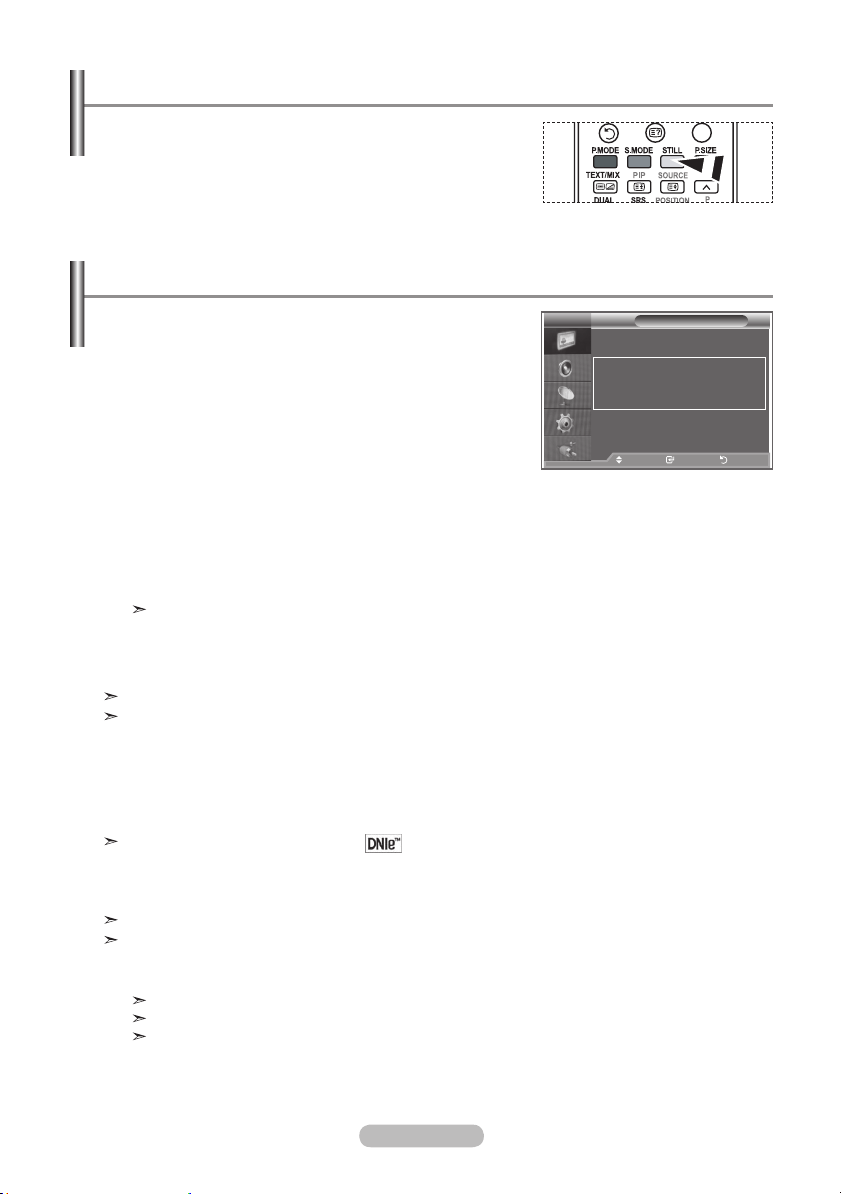

Freezing the Current Picture ............................ 18
Digital NR / Active Colour / DNIe / Movie Plus . 18
Resetting the Picture Settings to the Factory
Defaults ............................................................ 19
Viewing the Picture In Picture (PIP) ................. 19
SETTING THE TIME

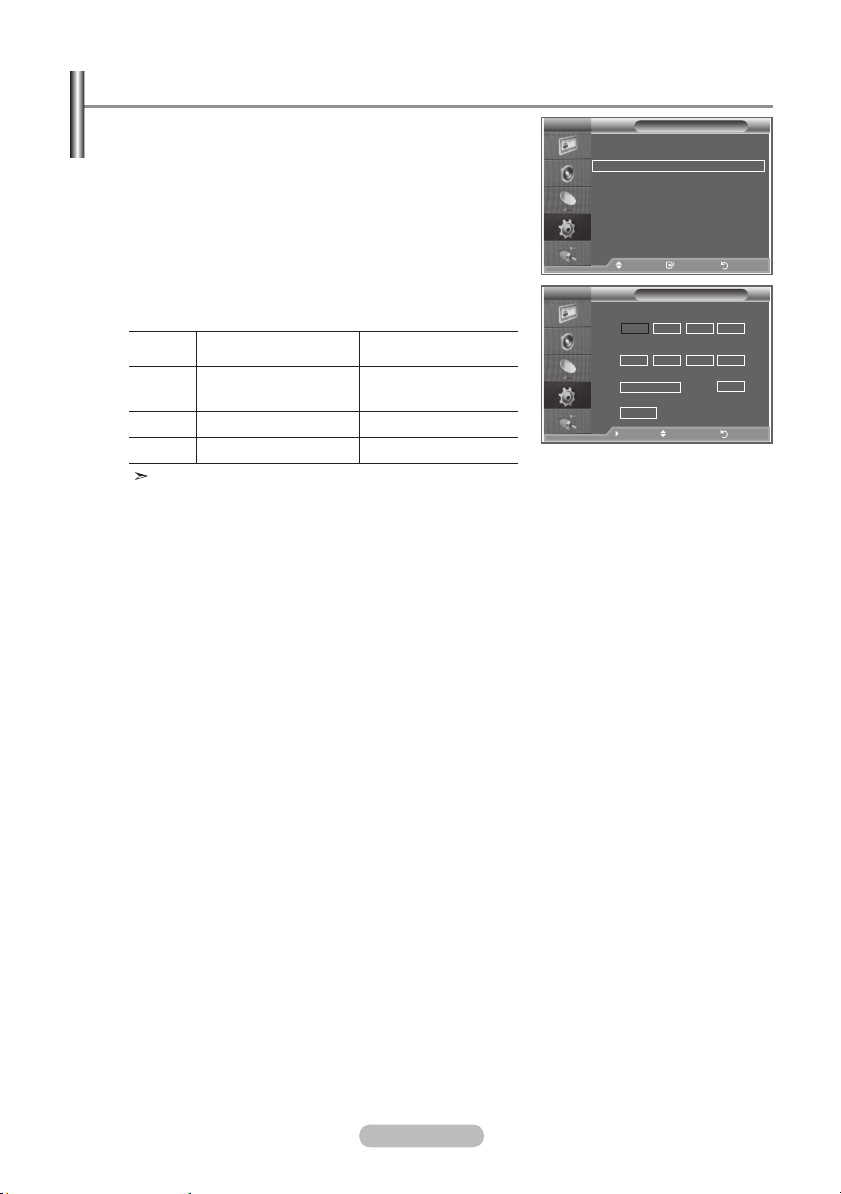

Setting and Displaying the Current Time .......... 25
Setting the Sleep Timer .................................... 25
Switching the Television On and Off
Automatically .................................................... 26
FUNCTION DESCRIPTION

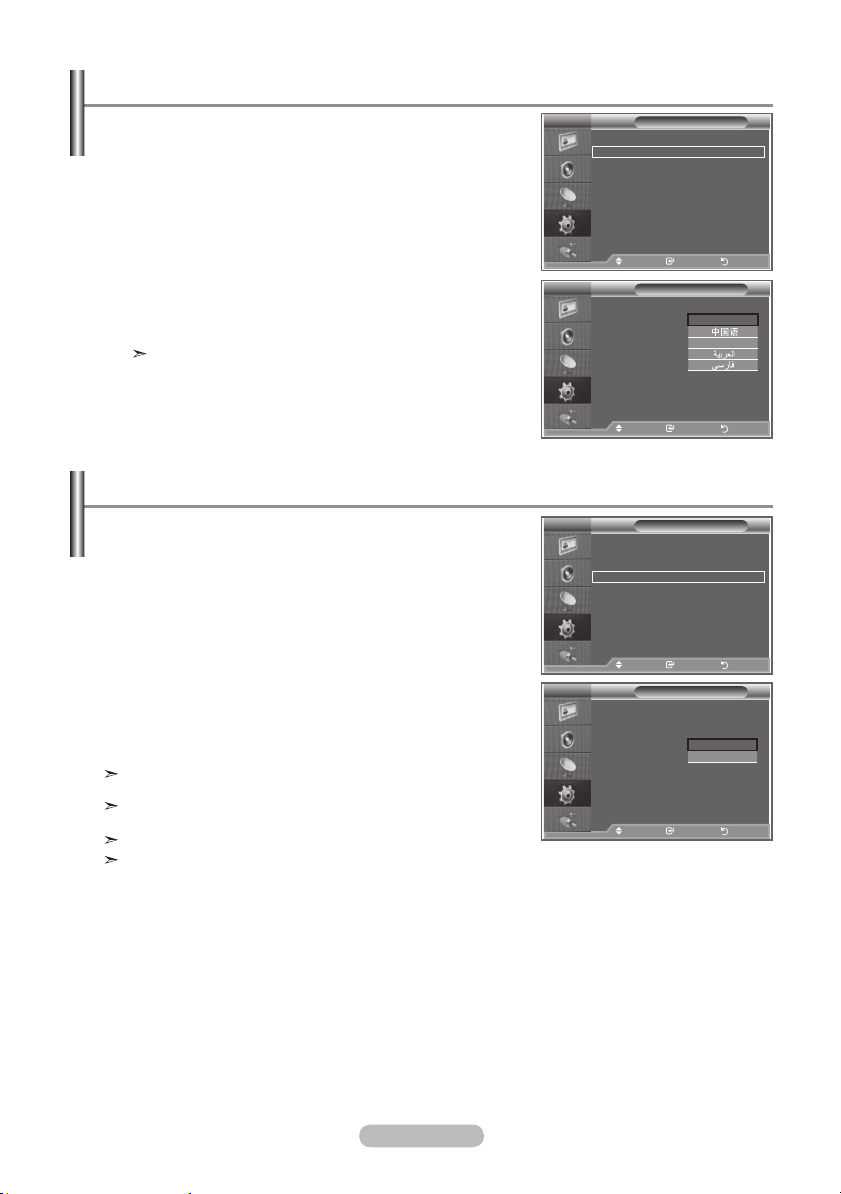

Choosing Your Language ................................. 27
Using Game Mode ........................................... 27
Setting the Blue Screen Mode / Selecting the
Melody ............................................................. 28
Setting the Home Theatre PC .......................... 28
Setting the Light Effect (LA32R8, LA37R8,
LA40R8) ........................................................... 29
Using the Energy Saving Feature .................... 30
HDMI Black Level ............................................. 30
Selecting the Source ........................................ 31
Editing the Input Source Names ...................... 31
USING THE TELETEXT FEATURE
Teletext Decoder .............................................. 32
Displaying the Teletext Information .................. 32
Selecting a Specic Teletext Page ................... 33
Using Fastext to Select a Teletext Page........... 33

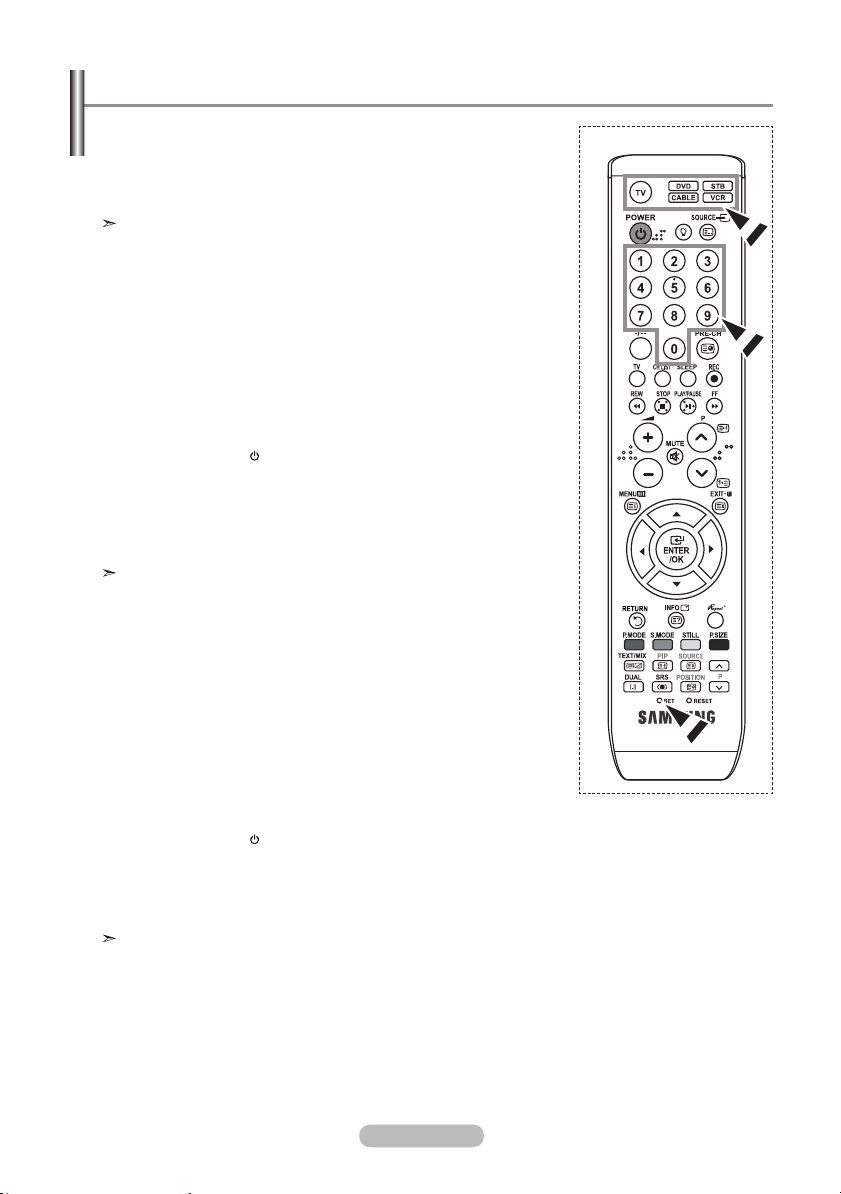

Setting Up Your Remote Control ...................... 34
Remote Control Codes ..................................... 36
SETTING THE PC
Setting up Your PC Software
(Based on Windows XP) .................................. 39
Display Modes .................................................. 39
Setting the PC .................................................. 41
English
SETTING THE SOUND
Changing the Sound Standard ......................... 21
Adjusting the Sound Settings ........................... 21

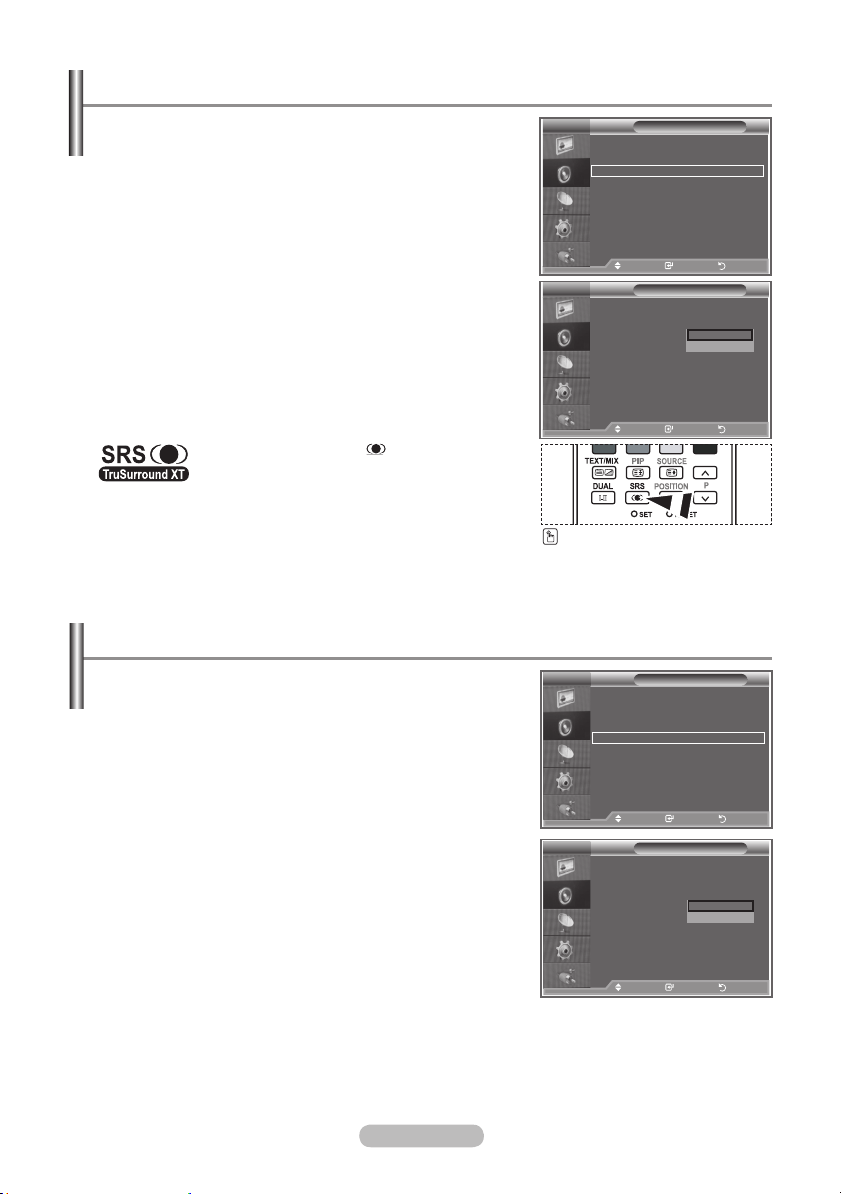

Setting the TruSurround XT (SRS TS XT) ........ 22
Adjusting the Volume Automatically ................. 22
Selecting the Internal Mute .............................. 23
Listening to the Sound of the Sub Picture ........ 23
Resetting the Sound Settings to the Factory
Defaults ............................................................ 24
Connecting Headphones .................................. 24
Selecting the Sound Mode ............................... 24
Symbol Press Important Note One-Touch
Button
English - 1
English - 1
ABOUT ANYNET+
What is Anynet+? ............................................. 42
Connecting Anynet+ Devices ........................... 42

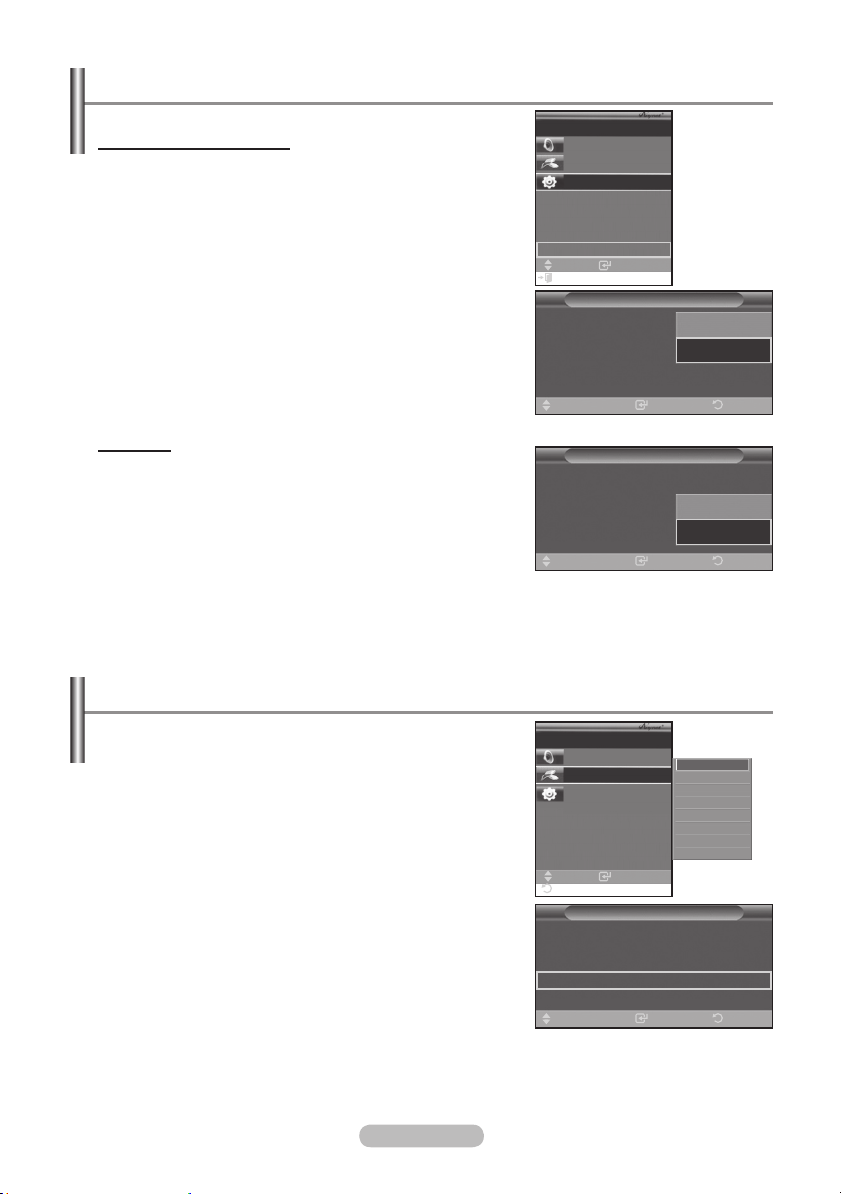

Setting Up Anynet+ ......................................... 43
Scanning and Switching between Anynet+
Devices ........................................................... 43
Recording ........................................................ 44
Listening through a Receiver .......................... 45
Check Points before Requesting Service ........ 45
RECOMMENDATIONS FOR USE
Wall-Mount Adjustment (LA40R8, LA40M8,
LA46M8, LA52M8)(Sold separately) ................ 46
Using the Anti-Theft Kensington Lock .............. 47
Troubleshooting: Before Contacting
Service Personnel ............................................ 47
Technical and Environmental Specications ... 48
Page 4
List of Parts
Please make sure the following items are included with your LCD TV.
If any items are missing, contact your dealer.
M4 X L16
Remote Control
& Batteries
(AAA x 2)
Owner’s Instructions
Warranty card / Safety Guide / Registration Cards (Not available in all locations)
The stand and stand screw may not be included depending on the model.
Power Cord Cover-Bottom
Warranty card Safety Guide Registration Card
Stand Screw
X 4
Installing the Stand
Stand Cleaning Cloth
< 2 >
1. Place the TV faced down on a soft cloth or cushion on a table.
Put the stand into the hole at the bottom of the TV.
2.
3. Insert screw into the hole indicated and tighten.
The stand is installed for models with the screen size of 37 inch and above.
Installing the Wall Mount Kit
Wall mount items (sold separately) allow you to mount
the TV on the wall.
For detailed information on installing the wall mount,
see the instructions provided with the Wall Mount items.
Contact a technician for assistance when installing the
wall mounted bracket.
Samsung Electronics is not responsible for any damage
to the product or injury to yourself or others
if you elect to install the TV on your own.
Remove the stand and cover the bottom hole with a
cap and fasten with two screws.
English - 2
< 3 >
Page 5
Viewing the Control Panel
(LA32R8, LA37R8, LA40R8 )
(LA40M8, LA46M8, LA52M8)
5
The product colour and shape may vary depending on the model.
1
SOURCE
Toggles between all the available input
sources (TV, AV.1, AV.2, S-Video, Component1,
Component2, PC, HDMI1, HDMI2, HDMI3).
In the on-screen menu, use this button as you
use the ENTER/OK button on the remote
control.
2
MENU
Press to see an on-screen menu of your TV’s
features.
3
+ VOL -
Press to increase or decrease the volume.
In the on-screen menu, use the + VOL -
buttons as you use the ◄ and ► buttons on
the remote control.
6
4 CH
Press to change channels.
In the on-screen menu, use the
buttons as you use the ▲ and ▼ buttons on
the remote control.
(Without the Remote Control, you can turn on
the TV by using the Channel buttons.)
5
(POWER)
Press to turn the TV on and off.
Power Indicator
Blinks and turns off when the power is on and
lights up in stand-by mode.
Remote Control Sensor
Aim the remote control towards this spot on
the TV.
6
Speakers
1
2
3
4
5
Front Panel buttons
Touch the right side of
each button to operate.
6
1
2
3
4
CH
English - 3
Page 6
Viewing the Connection Panel
7
4
3
6
1 2 3
0
Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
When connecting an external device, match the colour of the connection terminal to the cable.
1 Connecting External A/V Devices (AV IN 1)
- Connect RCA cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
- Connect RCA audio cables to “R - AUDIO - L” on the rear of your set and the other ends to
corresponding audio out connectors on the A/V device.
2 Connecting AUDIO
- Connect RCA audio cables to “R - AUDIO - L” on the rear of your set and the other ends to
corresponding audio in connectors on the Amplifier or DVD Home Theater.
9
Power Input
8
5
English - 4
Page 7
3 HDMI IN 1, HDMI IN 2, HDMI IN 3
- Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)
- No additional Audio connection is needed for an HDMI to HDMI connection.
What is HDMI?
- "High Definition Multimedia interface" allows the transmission of high definition digital video
data and multiple channels of digital audio (5. 1 channels).
- The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable
(not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size,
has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports
multi - channel digital audio.
DVI IN(HDMI 2)(AUDIO R/L)
- When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console
etc, make sure that it has been set to a compatible video output mode as shown in the table
below. Failure to observe this may result in picture distortion, image breakup or no picture.
- When using an HDMI/DVI cable connection, it is only possible from the HDMI 2 IN terminal.
You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the
“R - AUDIO - L” terminal on DVI for sound output.
Supported modes for HDMI/DVI and Component
LA32R8, LA37R8, LA40R8 Models
480i 480p 576i 576p 720p 1080i
HDMI/DVI 50Hz X X X O O O
HDMI/DVI 60Hz
Component
X O X X O O
O O O O O O
LA40M8, LA46M8, LA52M8 Models
480i 480p 576i 576p 720p 1080i 1080p
HDMI/DVI 50Hz X X X O O O O
HDMI/DVI 60Hz
The external devices that support lower versioned HDMI mode may not implement sound output
Component
for the TV with the latest HDMI version (HDMI 1.3).
(HDMI 2) "R - AUDIO - L" on the back panel of the TV.
Part of lower versioned HDMI cables may cause annoying flickers or no screen display.
In this case use the cable that supports the latest HDMI version (HDMI 1.3).
X O X X O O O
O O O O O O O
In this case, connect to HDMI IN 2 and DVI IN
4 Connecting an Aerial or Cable Television Network
To view television channels correctly, a signal must be received by the set from one of the following
sources:
- An outdoor aerial / A cable television network / A satellite network
6 Connecting External A/V Devices
- Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or
Camcorder.
- Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corre
sponding audio out connectors on the A/V device.
- Headphone may be connected to the headphone output (5) on the rear of your set. While the
head phone is connected, the sound from the built-in speakers will be disabled.
7 Connecting Computer
- Connect the D- Sub cable (optional) to "PC (PC IN)" on the rear of your set and the other end to
the Video Card of your computer.
- Connect the stereo audio cable (optional) to "AUDIO (PC IN)" on the rear of your set and the other
end to "Audio Out" of the sound card on your computer.
8 SERVICE
- Service connection for qualified service engineer.
- Auto Wall-Mount (Refer to page 46)
English - 5
Page 8
9 Connecting Component Devices (DVD)
- Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of
your set and the other ends to corresponding component video out connectors on the DVD.
- If you wish to connect both the Set-Top Box and (or DVD), you should connect the Set-Top Box to
the (or DVD) and connect the (or DVD) to component connector ("PR", "PB", "Y") on your set.
- The PR, PB and Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and
R-Y or Y, Cb and Cr.
- Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to
corresponding audio out connectors on the DVD.
- This LCD TV displays its optimum picture resolution in 720p mode.
- This LCD TV displays its maximum picture resolution in 1080i mode.
0 Kensington Lock
- The Kensington lock (optional) is a device used to physically fix the system when used in a public
place.
- If you want to use a locking device, contact the dealer where you purchased the TV.
- The place of the Kensington Lock may be different depending on its model.
English - 6
Page 9
Viewing the Remote Control
1 Selects a target device to be
controlled by the Samsung
remote control (TV, DVD,
STB, CABLE, VCR)
(Refer to page 36~38)
2 Television Standby button
3 Number buttons for direct
channel access
4
One/Two-digit channel
selection
5 It display "Channel List"
on the screen.
6 Selects the TV mode directly
7 VCR/DVD Functions
Rewind, Stop, Play/Pause,
Fast/Forward
8 Volume increase
Volume decrease
9 Temporary sound switch-off
0 Menu display and
change confirmation
! Returns to the previous
menu.
# Sound effect selection
$ SRS TS XT selection
%
Adjusts 5 separate devices
- TV, DVD, STB, CABLE, or
VCR
.
^ When pressing this button, a
number of buttons on the
remote control (e.g. Selects
a target device, volume,
channel and MUTE buttons)
light up for a few seconds
and then turn off to save
power. This function is to
conveniently use the
remote control at night or
when dark.
& Available source selection
* Previous channel
( Automatic Power-off
) Records for Live
Broadcasting
(Anynet+ function only)
(Refer to page 43)
a P : Next channel
P : Previous channel
b Exit the OSD
c Control the cursor in the
menu
d Use to see information on
the current broadcast
e Runs the Anynet view
functions and sets up Anynet
devices. .
f Picture size selection
g PIP:Picture-In-Picture On / Off
SOURCE: Input source
selection
POSITION: PIP position
selection
P : Next channel
P : Previous channel
h When your remote does not
work, change the batteries
and press the "RESET"
button for 2-3 seconds before
use.
Teletext Functions
8 Exit from the teletext display
0 Teletext index
@ Alternately select Teletext,
Double, or Mix.
& Teletext mode selection
(LIST/FLOF)
( Teletext sub page
b P : Teletext next page
P : Teletext previous page
c Teletext cancel
d Teletext reveal
f Fastext topic selection
g
Teletext Hold
PIP:
g
SOURCE:
g
POSITION:
selection
Teletext Store
Teletext
size
The performance of the remote control may be affected by bright light.
This is a special remote control for the visually impaired, and has Braille points on the Power,
Channel, STOP, PALY/PAUSE and Volume buttons.
English - 7
Page 10
Installing Batteries in the Remote Control
1. Lift the cover at the back of the remote control upward as shown in the
figure.
2. Install two AAA size batteries.
Make sure to match the "+" and "–" ends of the batteries with the
diagram inside the compartment.
3. Replace the cover.
Remove the batteries and store them in a cool, dry place if you won’t be
using the remote control for a long time. The remote control can be used
up to about 23 feet from the TV.
(Assuming typical TV usage, the batteries last for about one year.)
If the remote control doesn’t work, check the following:
1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage, or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?
Switching On and Off
The mains lead is attached to the rear of your set.
1. Plug the mains lead into an appropriate socket.
The standby indicator lights up on the front of the set.
2. Press the
You also can press the POWER button or the TV button on the remote control to turn
the TV on.
The programme that you were watching last is reselected automatically.
3. Press the numeric button (0~9) or channel up/down ( / ) button on the remote control or
CH
When you switch the set on for the very first time, you will be asked to choose language in
which the menus are to be displayed.
4. To switch your set off, press the POWER
button on the front of the set.
button on the right side of the set.
button again.
Placing Your Television in Standby Mode
Your set can be placed in standby mode in order to reduce the power consumption. The standby
mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).
1. Press the POWER
The screen is turned off and a red standby indicator appears on the front of your set.
2. To switch your set back on, simply press the POWER
channel up/down ( / ) button again.
Do not leave your set in standby mode for long periods of time
(when you are away on holiday, for example).
It is best to unplug the set from the mains and aerial.
button on the remote control.
, numeric buttons (0~9), TV button or
English - 8
Page 11
Plug & Play
When the TV is initially powered on, several basic settings
proceed automatically and subsequently. The following
settings are available.
1. Press the POWER
button on the remote control.
The message "Start Plug & Play" is displayed with "OK" selected.
2. Select the appropriate language by pressing the ▲ or ▼ button.
Plug & Play
Start Plug & Play.
OK
Enter Exit
Press the ENTER/OK button to confirm your choice.
3.
Press the ◄ or ► buttons to select “Shop” or “Home”, then the ENTER/OK button.
We recommend setting the TV to Home mode for the best picture in your home envronment.
Shop mode is only intended for use in retail environments.
If the unit is accidentally set to Shop mode and you want to return to Dynamic (Home) mode,
press the Volume button and then hold down the MENU button for five seconds on the side
panel of the TV.
4. The message "Check antenna input." is displayed with "OK" selected.
Press the ENTER/OK button.
Please check that the antenna cable is connected correctly.
5. Select the appropriate country by pressing the ▲ or ▼ button.
Press the ENTER/OK button to confirm your choice.
6.
The "Auto Store" menu is displayed with the "Start" selected. Press the
ENTER/OK
button.
The channel search will start and end automatically.
After all the available channels are stored, the "Clock Set" menu appears.
Press the ENTER/OK button at any time to interrupt the memorization process.
7. Press the ENTER/OK button.
Select the "Month" , "Day" , "Year", "Hour", "Minute", or "am/pm" by pressing the ◄ or ► button..
Set the "Month" , "Day" , "Year", "Hour", "Minute" or, "am/pm" by pressing the ▲ or ▼ button.
You can also set the hour and minute by pressing the number buttons on the remote control.
When you have finished, press the ENTER button
The message “Enjoy your viewing.” is displayed.
8. Press the ENTER/OK button to confirm your setting.
Language
: Select your language.
Area : Select your country.
Auto Store
Clock Set
: Automatically scans for and stores channels available in the local area.
: Sets the current time for the TV clock.
English - 9
Page 12
If you want to reset this feature...
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Setup", then press the
ENTER/OK button.
2. Press the ENTER/OK
button again, to select "Plug & Play".
3. The message to "Start Plug & Play" is displayed.
(On page 9)
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
: Off
Move Enter Return
Plug & Play
Start Plug & Play.
OK
Enter Return
Setup
- Storing Channels Automatically
- Storing Channels Manually
TV
Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Channel
Asia/W.Europe
Move Enter Return
Storing Channels Automatically
You can scan for the frequency ranges available to you (and availability depends on your country).
Automatically allocated programme numbers may not correspond to actual or desired programme
numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.
1. Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the ENTER/OK button.
2. Press the ENTER/OK
3. Select the appropriate area by pressing the ▲ or ▼ button.
Press the ENTER/OK button to confirm your choice.
4. Press the
▲
5. Press the ENTER/OK
The TV will begin memorizing all of the available channels.
Press the ENTER/OK button at any time to interrupt the memorization process and return to the
"Channel" menu.
6. After all the available channels are stored, the "Sort" menu appears.
button to select “Area”.
or ▼ button to select “Auto Store" then press the ENTER/OK button.
button.
English - 10
Page 13
Storing Channels Manually
You can store up to 100 channels, including those received via cable networks.
When storing channels manually, you can choose:
Whether or not to store each of the channels found.
The programme number of each stored channel which you wish to identify.
1. Press the MENU
Press the ▲ or ▼ button to select "Channel", then press the ENTER/OK button.
2. Press the
3. Press the ENTER/OK button to select "Programme".
4. To assign a programme number to a channel, find the correct number by pressing the
button and then press the ENTER/OK button.
You can also set a programme number by pressing number buttons on the remote control.
5. Press the
6. Select the colour standard required by pressing the ▲ or ▼ button then, press the ENTER/OK
button.
7. Press the ▲ or ▼ button to select "Sound System", then press the ENTER/OK button.
8. Select the sound standard required by pressing the ▲ or ▼ button, then press the ENTER/OK
button.
If there is an abnormal sound or no sound, re-select the sound system required.
9. If you know the number of the channel to be stored, press the ▲ or ▼ button to select "Channel".
Press the ENTER/OK button. Select C (Air channel) or S (Cable channel) by pressing the ▲ or ▼
button. Press the ► button to select channel.
Select the required number by pressing the ▲ or ▼ button and then press the ENTER/OK button.
Channel mode: P (Programme mode), C (Air channel mode), S (Cable channel mode)
You can also set a channel number by pressing number buttons on the remote control.
10. If you do not know the channel numbers, press the
Press the ENTER/OK button. Search by pressing the ▲ or ▼ button and then press the
ENTER/OK button.
11. Press the
12. Repeat steps
button to display the menu.
▲
or ▼ button to select "Manual Store", then press the ENTER/OK button.
▲
or ▼ button to select "Colour System", then press the ENTER/OK button.
▲
or ▼ button to select "Search".
▲
or ▼ button to select "Store". Press the ENTER/OK button to select "OK".
3 to 11 for each channel to be stored.
▲
or ▼
Programme: Selects a program number for the channel.
Colour System: Sets the colour supporting system.
Sound System: Sets the sound supporting system.
Channel: Selects a channel.
Search: Scans for the frequency value for the channel.
Store: Saves your settings.
English - 11
Page 14
Setting the Channel Lists
Set the channels according to your preference.
You can easily delete, add, or lock the channel you want.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the
ENTER/OK button.
▲
2. Press the
or ▼ button to select "Channel Manager",
then press the ENTER/OK button.
3. Press the ENTER/OK button again, to select "Channel List".
4. Press the
5. Press the
►
button to select " " line.
▲
or ▼ button to select the undesired channel,
then press the ENTER/OK button to cancel.
6. Repeat steps 5 for each channel to be selected or canceled
7. Press the EXIT button to exit.
" " is active when "Child Lock" is selected to "On".
You can select these options by simply pressing the CH LIST
button on the remote control.
Activating the Child Lock
This feature allows you to prevent unauthorized users, such
as children, from watching unsuitable programmes by muting
out video and audio.
Child Lock cannot be released using the buttons on the side.
Only the remote control can release the Child Lock setting,
so keep the remote control away from children.
1. Press the MENU
Press the ▲ or ▼ button to select "Channel", then press the
ENTER/OK button.
2. Press the
then press the ENTER/OK button.
3. Press the ▲ or ▼ button to select "Child Lock", then press
the ENTER/OK button.
4. Press the
ENTER/OK button.
5. Press the
then press the ENTER/OK button.
6. Press the ► button to select " " line.
7. Press the ▲ or ▼ button to select the channels you want to
lock, then press the ENTER/OK button.
8. Repeat steps 7 for each channel to be locked or unlocked.
9. Press the EXIT button to exit.
Select "On" or "Off" in "Child Lock" to easily turn the channels
which selected on " " to be active or inactive.
button to display the menu.
▲
or ▼ button to select "Channel Manager",
▲
or ▼ button to select "On" or "Off". Press the
▲
or ▼ button to select "Channel List",
Channel List
P 1 C3
Prog.
0 C--
1 C3
2 BBC 1
3 C74
4 C75
5 C76
6 S3
7 S4
8 S6
9 S7
Add Lock
Move Enter
Page Return
TV
Channel List
Child Lock :
Move Enter Return
Channel List
P 2 C4 BBC1
Prog.
0 C--
1 C3
2 BBC 1
3 C74
4 C75
5 C76
6 S3
7 S4
8 S6
9 S7
Add Lock
Move Enter
Page Return
1 / 10
Channel Manager
Off
On
1 / 10
English - 12
Page 15
Sorting the Stored Channels
You can exchange the numbers of two channels, in order to:
Modify the numeric order in which the channels have
been automatically stored.
Give easily remembered numbers to the channels
that you watch most often.
Press the MENU button to display the menu. Press the ▲ or ▼
1.
button to select "Channel", then press the ENTER/OK button.
2. Press the ▲ or ▼ button to select "Sort", then press the
ENTER/OK button.
3. Select the channel number that you wish to change by press
ing the ▲ or ▼ button repeatedly. Press the ENTER/OK
button.
The selected channel number and name are moved to
right side.
4. Press the
▲
or ▼ button to move to the position in which you
would like to change and then press the ENTER/OK button.
The selected channel is exchanged with the one
previously stored to the chosen number.
5. Repeat steps 3 to 4 for another channel to be sorted.
6. Press the EXIT button to exit.
Assigning Channels Names
Channel names will be assigned automatically when channel
information is broadcast. These names can be changed,
allowing you to assign new names.
1. Press the MENU
Press the ▲ or ▼ button to select "Channel", then press the
ENTER/OK button.
2. Press the
ENTER/OK button.
3. If necessary, select the channel to be assigned to a new
name by pressing the ▲ or ▼ button. Press the ENTER/OK
button.
The selection bar is displayed around the name box.
4.
To...
Select a letter, number or symbol
Move on the next letter
Move back the previous letter
Confirm the name
The characters available are : Letters of the alphabet
(A~Z) / Numbers (0~9) / Special characters ( -, space)
5. Repeat steps
name.
6. Press the EXIT button to exit.
button to display the menu.
▲
or ▼ button to select "Name", then press the
Then...
Press the ▲ or ▼ button
Press the ► button
Press the ◄ button
Press the ENTER/OK button
3 to 4 for each channel to be assigned to a new
TV
Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Move Enter Return
TV
Prog. Ch. Name
r
0
C--
1 C23
2 C16
3 C3
4 S1
r
Move Enter Return
TV
Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Move Enter Return
TV
Prog. Ch. Name
r
0 C-- -----
1 C23 -----
2 C16 ----3 C3 ----4 S1 -----
r
Move Enter Return
Channel
Asia/W.Europe
Sort
Channel
Asia/W.Europe
Name
English - 13
Page 16
Fine Tuning Channel Reception
Use fine tuning to manually adjust a particular channel for
optimal reception.
1. Use the number buttons to directly select the channel that
you want to fine tune.
2. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the
ENTER/OK button.
3. Press the ▲ or ▼ button to select "Fine Tune", then press
the ENTER/OK button.
◄
4. Press the
Press the ENTER/OK button.
5. Press the EXIT
or ► button to adjust the fine tuning.
button to exit.
Fine tuned channels that have been saved are marked with
an asterisk "*" on the right-hand side of the channel number
in the channel banner. And the channel number turns red.
To reset the fine-tuning, select "Reset" by pressing the
▲ or ▼ button and then press the ENTER/OK button.
Changing the Picture Standard
You can select the type of picture which best corresponds to
your viewing requirements.
1. Press the MENU
Press the ENTER/OK button to select "Picture".
2. Press the ENTER/OK
3. Press the ▲ or ▼ button to select the desired picture effect.
Press the ENTER/OK button.
4. Press the EXIT
Dynamic: Selects the picture for high-definition in a bright
room.
Standard: Selects the picture for optimum display in a
normal environment.
Movie: Selects the picture for comfortable display in a
dark room.
The Picture mode must be adjusted separately for each input
source.
You can return to the factory defaults picture settings by
selecting the "Reset".
(Refer to "Resetting the Picture Settings to the Factory
Defaults" on page 19)
button to display the menu.
button again, to select "Mode".
button to exit.
TV
Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
P 1
Adjust Save Return
TV
Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1
Detailed Settings
Backlight : 10
sMore
TV
Mode : Dynamic
Contrast 100
Brightness 50
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1
Detailed Settings
Backlight : 10
sMore
Channel
Asia/W.Europe
Move Enter Return
Fine Tune
0
Reset
Move Enter Return
Dynamic
Standard
Movie
Move Enter Return
You can also press the
P.MODE button on the remote
control to select one of the
picture settings.
English - 14
Page 17
Adjusting the Custom Picture
Your set has several settings which allow you to control
picture quality.
1. To select the desired picture effect, follow the
"Changing the Picture Standard" instructions number 1 to 3.
2. Press the ▲ or ▼ button to select a particular item. Press the
ENTER/OK button.
3. Press the ◄ or ► button to decrease or increase the value of
a particular item. Press the ENTER/OK button.
4. Press the EXIT button to exit.
Contrast: Adjusts the lightness and darkness between objects and the background.
Brightness: Adjusts the brightness of the whole screen.
Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.
Colour: Adjusts the colours, making them lighter or darker.
Tint :
Adjusts the colour of objects, making them more red or green for a more natural look.
The adjusted values are stored according to the selected Picture mode.
In PC Mode, Only "Contrast", "Brightness" can be adjusted.
TV
Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1
Detailed Settings
Backlight : 10
sMore
Move Enter Return
Changing the Colour Tone
You can select the most comfortable colour tone to your
eyes.
1. To select the desired picture effect, follow the
"Changing the Picture Standard" instructions number 1 to 3.
(on page 14)
2. Press the ▲ or ▼ button to select "Colour Tone", then press
the ENTER/OK button.
3. Press the ▲ or ▼ button to select the desired colour tone
setting. Press the ENTER/OK button.
4. Press the EXIT button to exit
Cool2: Makes the colour temperature bluer than "Cool1"
menu.
Cool1: Makes whites bluish.
Normal: Keeps whites white.
Warm1: Makes whites reddish.
Warm2: Makes the colour temperature redder than
"Warm1" menu.
The adjusted values are stored according to the selected Picture mode.
When the picture mode is set to Dynamic or Standard, Warm1 and Warm2 cannot be selected.
TV
Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1
Detailed Settings
Backlight : 10
sMore
Move Enter Return
TV
Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1
Detailed Settings
Backlight : 10
sMore
Move Enter Return
Cool 2
Cool 1
Normal
Warm 1
Warm 2
English - 15
Page 18
Conguring Detailed Settings on the Picture
You can set detailed picture settings.
1 Press the MENU button to display the menu.
2 Press the ENTER/OK button, to select "Picture".
3
Press the ▲ or ▼ button to select Detailed Settings, then
press the ENTER/OK button.
4 Select the required option by pressing the ▲ or ▼ button,
TV
Mode : Movie
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1
Detailed Settings
Backlight : 10
sMore
then press the ENTER/OK button.
Available options: Black Adjust, Dynamic Contrast, Gamma,
White Balance, My Colour Control, Edge Enhancement,
Colour Space.
5 When you are satisfied with your setting, press the
ENTER/OK button.
Press the EXIT button to exit.
6
Detailed Settings is available in Standard or Movie mode.
TV
Black Adjust : Off
Dynamic Contrast
Gamma : 0
White Balance
My Colour Control
Edge Enhancement : Off
Colour Space
xvYCC
If DNIe is Off, the Detailed Settings cannot be selected
when the Picture mode is in Standard mode.
Black Adjust: Off/Low/Medium/High
You can directly select the black level on the screen to adjust the screen depth.
Dynamic Contrast: Off/Low/Medium/High
You can adjust the screen contrast so that the optimal contrast is provided.
Gamma: -3 ~ 3
You can adjust the middle brightness of pictures.
Press the ◄ or ► button until you reach the optimal setting.
White Balance: R Offset/G Offset/B Offset/R Gain/G Gain/B Gain/Reset
You can adjust the color temperature for more natural picture colors.
R Offset/G Offset/B Offset/R Gain/G Gain/B Gain: Changing the adjustment value will refresh the
adjusted screen.
Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button.
Press the ◄ or ► button until you reach the optimal setting.
Reset: The previously adjusted white balance will be reset to the factory defaults.
My Colour Control: Pink/Green/Blue/White/Reset
This setting can be adjusted to suit your personal preferences.
Pink/Green/Blue/White: Changing the adjustment value will refresh the adjusted screen.
Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button.
Press the ◄ or ► button until you reach the optimal setting.
Reset: The previously adjusted white balance will be reset to the factory defaults.
Edge Enhancement: On/Off
You can emphasize object boundaries.
Colour Space: Auto/Wide
You can set the colour reproduction space for the input signal to Auto or Wide.
xvYCC : On/Off (LA40M8, LA46M8, LA52M8)
Setting the xvYCC mode to On increases detail and color space when watching movies from an
external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the
Picture Mode to Movie to enjoy this feature.
External devices with an older HDMI version may not implement color space for TVs with the
latest HDMI version (HDMI 1.3).
Move Enter Return
Detailed Settings
: Off
: Auto
: Off
Move Enter Return
English - 16
Page 19

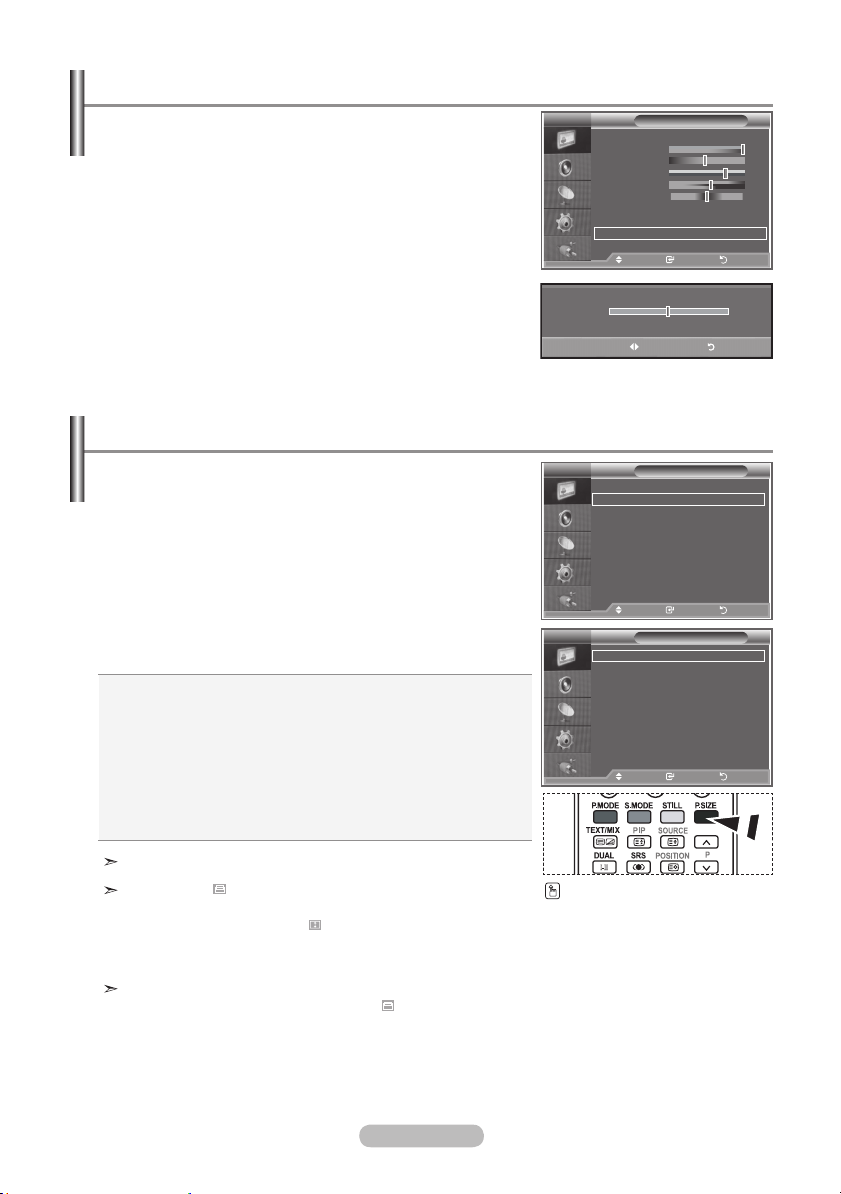

Activating Backlight
You can adjust the screen brightness by adjusting the LCD
backlight brightness. (0~10)
1.
To select the desired picture effect, follow the
"Changing the Picture Standard" instructions number 1 to 3.
(On page 14)
Press the ▲ or ▼ button to select “Backlight”, then press the
2.
ENTER/OK button.
Press the ◄ or ► button to decrease or increase the value of
3.
a particular item.
Press the ENTER/OK button.
4. Press the EXIT button to exit.
Changing the Picture Size
You can select the picture size which best corresponds to
your viewing requirements.
1. Press the MENU
Press the ENTER/OK button , to select "Picture".
2. Press the
ENTER/OK button.
3. Select the required option by pressing the ▲ or ▼ button.
Press the ENTER/OK button.
4. Press the EXIT
16:9:
Adjusts the picture size to 16:9 appropriate for DVDs or
wide broadcasting.
Wide Zoom:
Zoom:
Magnifies the 16:9 wide picture (in the vertical direction)
to fit the screen size.
4:3: This is the default setting for a video movie or normal broadcasting.
Just Scan (HDMI only): Displays the input scenes as they are without
any cutoff when 720p,1080i,1080p(LA40M8,
LA46M8, LA52M8) signals are input.
button to display the menu.
▲
or ▼ button to select "Size", then press the
button to exit.
Magnify the size of the picture more than 4:3.
TV
Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1
Detailed Settings
Backlight : 10
sMore
Move Enter Return
Backlight
TV
TV
Adjust Return
rMore
Size : 16 : 9
Digital NR : Auto
Active Colour : Off
DNle : Off
Movie Plus : On
Reset : OK
Move Enter Return
16 : 9
Wide Zoom
Zoom
4 : 3
Just Scan
Move Enter Return
Size
5
In PC Mode, only "16:9" and "4:3" mode can be adjusted.
Zoom: Select by pressing the ◄ or ► buttons.
Use the ▲ or ▼ button to move the picture up and
down.After selecting , use the ▲ or ▼ button to
magnify or reduce the picture size in the vertical
direction.
Wide Zoom : Move the screen up/down using the▲ or ▼
buttons after selecting the by pressing
the ► or ENTER/OK button.
English - 17
You can select these options
by simply pressing the P.SIZE
button on the remote control.
Page 20
Freezing the Current Picture
Press the STILL button to freeze a moving picture into a
still one. Press again to cancel.
Digital NR / Active Colour / DNIe / Movie Plus
If the broadcast signal received by your TV is weak, you can
activate the Digital Noise Reduction feature to help reduce
any static and ghosting that may appear on the screen.
1. Press the MENU
button to display the menu.
Press the ENTER/OK button , to select "Picture".
2. Select the required option by pressing the ▲ or ▼ button,
then press the ENTER/OK
button.
Available options: Digital NR, Active Colour, DNIe,Movie Plus.
3. When you are satisfied with your setting, press the
ENTER/OK button.
4. Press the EXIT
button to exit.
Digital NR: Off/Low/Medium/High/Auto
If the signal received by the television is weak, you can activate this feature to reduce any static and
ghosting that may appear on the screen.
This function is not available in PC mode.
Active Colour: Off/On
If you turn on this option, the colors of the sky and grass will be stronger and clearer for a more
vivid on-screen picture.
This function is not available in PC mode.
This function is available in Dynamic mode
DNIe : Off/Demo/On
This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you
can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the
applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function,
you can view the difference in the visual quality.
DNIeTM (Digital Natural Image engine)
This feature brings you more detailed image with 3D noise reduction, detail enhancement,
contrast enhancement and white enhancement. New image compensation Algorithm gives
brighter, clearer, more detailed image to you. DNIeTM technology will fit every signal into your eyes.
This function is not available in PC mode.
This function is not available in Movie mode
Movie Plus: Off/On
You can view more natural skin and clear text even in fast moving scenes.
Use this function when watching movies.
The Wide Zoom, Zoom and Just Scan mode is not supported.
This function is not available in PC mode.
TV
rMore
Size : 16 : 9
Digital NR : Auto
Active Colour : Off
DNle : Off
Movie Plus : On
Reset : OK
Move Enter Return
English - 18
Page 21
Resetting the Picture Settings to the Factory Defaults
You can return to the factory defaults picture settings.
1. To select the desired picture effect, follow the
"Changing the Picture Standard" instructions number 1 to 3
(on page 14.)
▲
2. Press the
ENTER/OK button.
3.
Press the ▲ or ▼ button to select “OK”,” Cancel”, then press
or ▼ button to select "Reset", then press the
the ENTER/OK button.
4. Press the EXIT
button to exit.
The "Reset" will be set for each picture mode.
Viewing the Picture In Picture (PIP)
You can display a sub picture within the main picture of set
programme or video input. In this way, you can watch the
picture of set programme or video input from any connected
equipment while watching the main picture.
1. Press the MENU
Press the ▲ or ▼ button to select "Setup", then press the
ENTER/OK button.
2. Press the
ENTER/OK button.
3. Press the ENTER/OK button again.
Press the ▲ or ▼ button to select "On",
then press ENTER/OK button.
4. Press the ▲ or ▼ button to select "Source", then press
ENTER/OK button. Select a source of the sub picture by
pressing the ▲ or ▼ button and press the ENTER/OK
button.
The sub picture can serve different source selections
based on what the main picture is set to.
5. Press the
and then press the ENTER/OK button. Select a size of the sub
picture by pressing the ▲ or ▼ button and then press the
ENTER/OK button.
If main picture is in "PC" and “Component” mode, "Size" is
not available.
button to display the menu.
▲
or ▼ button to select "PIP", then press the
▲
or ▼ button to select "Size" of the sub picture
TV
rMore
Size : 16 : 9
Digital NR : Auto
Active Colour : Off
DNle : Off
Movie Plus : On
Reset : OK
TV
rMore
Wall-Mount Ajustment
Energy Saving : Off
HDMI Black level : Low
PIP
TV
PIP : On
Source : TV
Size :
Position :
Programme : P 1
Press the PIP button on the
remote control repeatedly to activate
or deactivate the "PIP".
OK
Cancel
Move Enter Return
Setup
Move Enter Return
PIP
Move Enter Return
English - 19
Page 22
6. Press the ▲ or ▼ button to select "Position", then press the ENTER/OK button.
Select the position of the sub picture by pressing the ▲ or ▼ button and then press the ENTER/OK
button.
7. Press the ▲ or ▼ button to select "Programme" and then press the ENTER/OK button.
You can select the channel that you want to view through sub picture by pressing the ▲ or ▼
button. Press the ENTER/OK button.
The "Programme" can be active when the sub picture is set to TV.
8. Press the EXIT button to exit.
You may notice that the picture in the PIP window becomes slightly unnatural when you use the
main screen to view a game or karaoke.
Source: Used to select a source of the sub picture.
Size: Used to select a size of the sub picture.
Position: Used to move the sub picture.
Programme: Used to Change the sub picture.
PIP Settings
Main
Sub
Component
HDMI
PC
O: PIP operates, X: PIP doesn’t operate
TV AV1 AV2
S-Video Component1,2 PC HDMI1,2,3
O O O X X X X
O O O X X X X
O O O X X X X
English - 20
Page 23
Changing the Sound Standard
You can select the type of the special sound effect to be used
when watching a given broadcast.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Sound", then press the
ENTER/OK button.
2. Press the ENTER/OK
button again, to select "Mode".
3. Select the required sound effect by pressing the ▲ or ▼
button repeatedly and then press the ENTER/OK button.
4. Press the EXIT
button to exit.
Standard: Selects the normal sound mode.
Music: Emphasizes music over voices.
Movie: Provides live and full sound for movies.
Speech: Emphasizes voices over other sounds.
Custom: Selects your custom sound settings.
(Refer to "Adjusting the Sound Settings")
Adjusting the Sound Settings
TV
Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
Move Enter Return
TV
Mode : Custom
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
Move Enter Return
Sound
Sound
Standard
Music
Movie
Speech
Custom
The sound settings can be adjusted to suit your personal
preferences.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Sound", then press the
ENTER/OK button.
2. Press the ▲ or ▼ button to select "Equalizer", then press the
ENTER/OK button.
3. Press the ◄ or ► button to select a particular item.
Press the ENTER/OK button.
4. Press the ▲ or ▼ button to reach the required setting.
Press the ENTER/OK button.
5. Press the EXIT
button to exit.
If you make any changes to these settings, the Sound Mode
is automatically switched to "Custom".
English - 21
TV
Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
Move Enter Return
TV
Balance 100Hz 300Hz 1kHz 3kHz 10kHz
Balance 100Hz 300Hz 1kHz 3kHz 10kHz
Move Adjust Return
Move Adjust Return
Sound
Equalizer
Equalizer
Page 24
Setting the TruSurround XT (SRS TS XT)
TruSurround XT is a patented SRS technology that solves
the problem of playing 5.1 multichannel content over two
speakers. TruSurround delivers a compelling,virtual surround
sound experience through any two-speaker playback system,
including internal television speakers. It is fully compatible
with all multichannel formats.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Sound", then press the
ENTER/OK button.
2. Press the ▲ or ▼ button to select "SRS TS XT", then press
the ENTER/OK
button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the
ENTER/OK button.
4. Press the EXIT
button to exit.
TruSurround XT, SRS and symbol are
trademarks of SRS Labs, Inc. TruSurround XT
technology is incorporated under license from SRS
Labs, Inc.
Adjusting the Volume Automatically
Each broadcasting station has its own signal conditions, and
so it is not easy for you to adjust the volume every time the
channel is changed. This feature allows you to automatically
adjust the volume of the desired channel by lowering the
sound output when the modulation signal is high or by
raising the sound output when the modulation signal is low.
1. Press the MENU
Press the ▲ or ▼ button to select "Sound", then press the
ENTER/OK button.
2. Press the ▲ or ▼ button to select "Auto Volume", then press
the ENTER/OK
3. Press the ▲ or ▼ button to select "On" or "Off". Press the
ENTER/OK button.
4. Press the EXIT
button to display the menu.
button.
button to exit.
TV
Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
TV
Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
Sound
Move Enter Return
Sound
Move Enter Return
Off
On
You can also set these options
simply by pressing the SRS
button on remote control.
TV
Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
TV
Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
Sound
Move Enter Return
Sound
Off
On
English - 22
Move Enter Return
Page 25
Selecting the Internal Mute
If you want to hear the sound through separate speakers,
cancel the internal amplifier.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Sound", then press the
ENTER/OK button.
2. Press the ▲ or ▼ button to select "Internal Mute", then press
the ENTER/OK
button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the
ENTER/OK button.
4. Press the EXIT
button to exit.
When "Internal Mute" is set to "On’, the Sound menus except
for "Sound Select" (in PIP mode) cannot be adjusted.
TV
TV
Listening to the Sound of the Sub Picture
During the PIP features activation, you can listen to the
sound of the sub picture.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Sound", then press the
ENTER/OK button.
2. Press the ▲ or ▼ button to select "Sound Select", then press
the ENTER/OK
button.
3. Press the ▲ or ▼ button to select "Main".
Press the ENTER/OK button.
4. Press the EXIT
button to exit.
Main : Used to listen to the sound of the main picture.
Sub : Used to listen to the sound of the sub picture.
You can select this option when the “PIP” is set to “On”.
TV
TV
Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
Mode : Standard
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
Mode : Custom
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
Mode : Custom
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
Sound
Move Enter Return
Sound
Off
Sound
Sound
On
Main
Sub
Move Enter Return
Move Enter Return
Move Enter Return
English - 23
Page 26
Resetting the Sound Settings to the Factory Defaults
If Game Mode is On, the Reset Sound function is activated.
Selecting the Reset function after setting the equalizer resets
the equalizer setting to the factory defaults.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Sound", then press the
ENTER/OK button.
2. Press the ▲ or ▼ button to select "Reset", then press the
ENTER/OK button.
TV
Mode : Custom
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
Move Enter Return
3. Press the EXIT button to exit.
You can select this option when the "Game Mode" is set to "On".
Connecting Headphones
You can connect a set of headphones to your set if you wish to
watch a TV programme without disturbing the other people in the
room.
When you insert the head set jack into the corresponding port, you
can operate only "SRS TS XT" and "Auto Volume" in Sound menu.
Prolonged use of headphones at a high volume may damage your
hearing.
You will not receive sound from the speakers when you connect headphones to the system.
The headphone volume and TV volume are adjusted differently.
Sound
Selecting the Sound Mode
You can set the sound mode by pressing the “DUAL” button.
When you press it, the current sound mode is displayed on the
screen.
Audio Type
FM
Stereo
NICAM
Stereo
Mono
Stereo
Dual
Mono
Stereo
Dual
If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.
DUAL 1/2
MONO
STEREO ↔ MONO
DUAL 1 ↔ DUAL 2
MONO
MONO ↔ STEREO
MONO ↔ DUAL 1
DUAL 2
English - 24
Default
Automatic
change
DUAL 1
Automatic
change
DUAL 1
You can also set these
options simply by
pressing the
button on remote control.
DUAL
Page 27

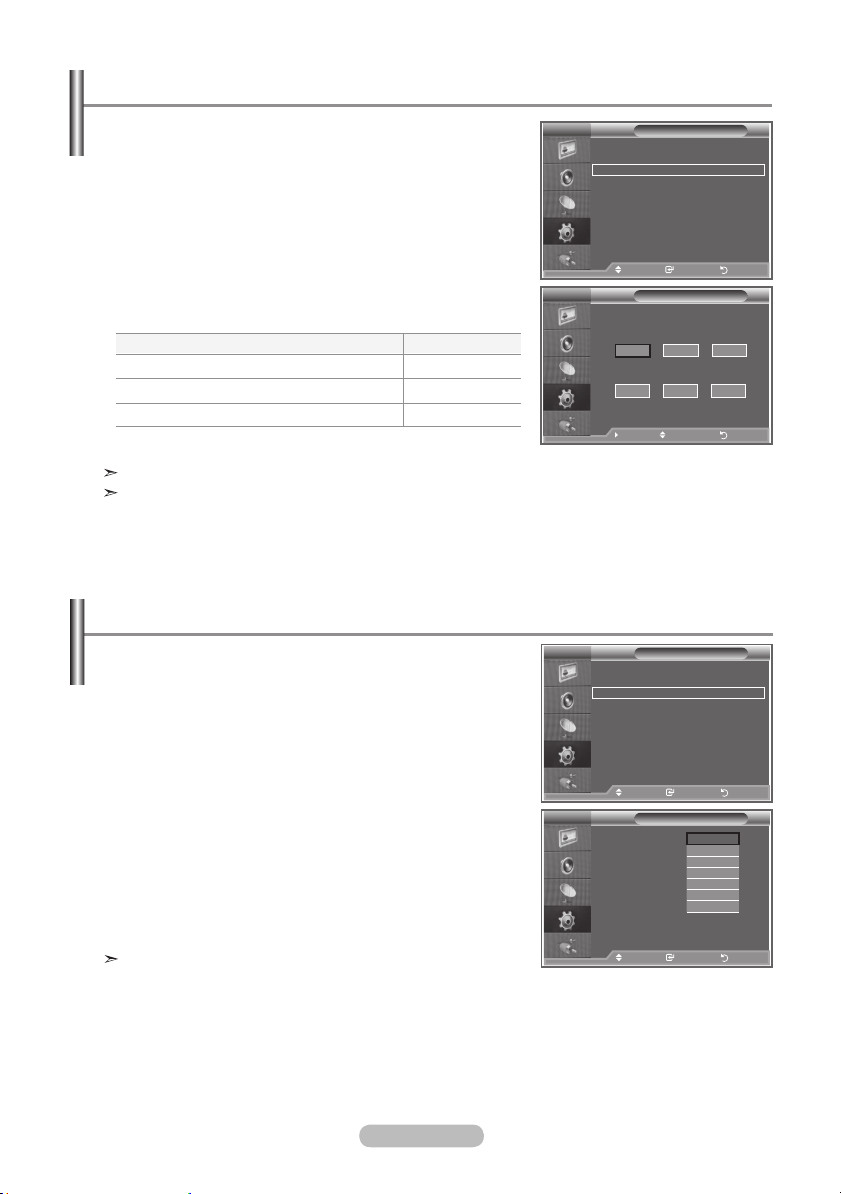

Setting and Displaying the Current Time
You can set the TV’s clock so that the current time is
displayed when you press the INFO button. You must also
set the time if you wish to use the automatic On/Off timers.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Setup", then press the
ENTER/OK button.
2. Press the ▲ or ▼ button to select "Time", then press the
ENTER/OK button.
3. Press the ENTER/OK button to select "Clock Set".
4.
To...
Move to Month, Day, Year, Hour, Minute or "am/pm
Set the Month, Day, Year, Hour
Minute or "am/pm
Press the...
or button.
or button.
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
Move Enter Return
TV
Month
p
01
q
Hour
01
Press the ENTER/OK button.
5. Press the EXIT button to exit.
Move Adjust Return
If you disconnect the power cord, you have to set the clock again.
You can also set Year, Month, Day, Hour and Minute by pressing the number buttons on the
remote control.
Setting the Sleep Timer
You can select a time period of between 30 and 180 minutes
after which the television automatically switches to standby
mode.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Setup", then press the
ENTER/OK button.
2. Press the ▲ or ▼ button to select "Time", then press the
ENTER/OK button.
3. Press the ▲ or ▼ button to select "Sleep Timer", then press
the ENTER/OK button.
4. Press the ▲ or ▼ button dly until the desired time
appears (Off, 30, 60, 90, 120, 150, 180).
Press the ENTER/OK button.
5. Press the EXIT
button to exit.
The TV automatically switches to standby mode when the
timer reaches 0.
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
Move Enter Return
TV
Clock Set :
Sleep Timer :
Timer1 :
Timer2 :
Timer3
Move Enter Return
Setup
: Off
Clock Set
Day
Year
01
2007
Minute
am/pm
00
am
Setup
: Off
Time
Off
30
60
90
120
150
180
English - 25
Page 28
Switching the Television On and Off Automatically
►
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
Move Enter Return
TV
On Time
▲
12
▼
Off Time
12 00 am No
Repeat
Once
Programme
01
Move Adjust Return
1. Press the MENU button to display the menu.
Press the ▲ or ▼ buttons to select "Setup", then press the
ENTER/OK button.
Press the ▲ or ▼ buttons to select "Time", then press the
ENTER/OK button.
Press the ▲ or ▼ buttons to select "Timer 1,Timer 2,Timer 3 ",
2.
then press the ENTER/OK button.
Press the ▲ or ▼ buttons to adjust “Hour”, then press the
3.
button to move to the next step.
Set other items using the same method as above.
Yes/ No Press the ▲or▼ button
Repeat
Select a Once, Everyday,
Press the ▲or▼ button
Mon-Fri, Mon-Sat, Sat-Sun
Volume Adjust a 0~100 Press the ▲or▼ button
Programme
Adjust a Programme Press the ▲or▼ button
When finished, press the RETURN button to return.
• The current time will appear every time you press the
INFO button.
• You can set the hour, minute directly by
pressing the number buttons on the remote control.
Press the EXIT
button to exit.
Setup
: Off
Timer1
00 am:No
:
Volume
10
English - 26
Page 29
Choosing Your Language
When you start using your set for the first time, you must
select the language which will be used for displaying menus
and indications.
1. Press the MENU
button to display the on-screen menu.
Press the ▲ or ▼ button to select "Setup", then press the
ENTER/OK button.
2. Press the ▲ or ▼ button to select "Language", then press
the ENTER/OK
button.
3. Select a particular language by pressing the ▲ or ▼ button
repeatedly.
Press the ENTER/OK button.
You can choose one of 5 languages.
4. Press the EXIT
button to exit.
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
Setup
: Off
Move Enter Return
Setup
English
Français
: Off
Move Enter Return
Using Game Mode
When connecting to a game console such as PlayStationTM
or XboxTM, you can enjoy a more realistic gaming experience
by selecting game menu.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Setup", then press the
ENTER/OK button.
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
2. Press the ▲ or ▼ button to select "Game Mode", then press
the ENTER/OK
3. Press the ▲ or ▼ button to select "On" or "Off". Press the
ENTER/OK button.
4. Press the EXIT
To disconnect the game console and connect another
external device, cancel game mode in the setup menu.
If you display the TV menu in Game mode, the screen
button.
button to exit.
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
shakes slightly.
Game Mode is not available in TV mode.
If Game Mode is On:
• Picture Mode changes to Standard and Sound Mode changes to Custom automatically.
The user cannot change these to other modes.
• Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer.
• The Reset Sound function is activated. Selecting the Reset function after setting the equalizer
resets the equalizer setting to the factory defaults.
Setup
: Off
Move Enter Return
Setup
Off
On
: Off
Move Enter Return
English - 27
Page 30
Setting the Blue Screen Mode / Selecting the Melody
Blue Screen:
If no signal is being received or the signal is very weak, a
blue screen automatically replaces the noisy picture
background. If you wish to continue viewing the poor picture,
you must set the "Blue Screen" mode to "Off".
Melody:
You can hear melody sound when the television is powered
on or off.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select "Setup", then press the
ENTER/OK button.
2. Press the ▲ or ▼ button to select "Blue Screen" or "Melody".
Press the ENTER/OK button.
3. When you are satisfied with your setting, press the
ENTER/OK button.
Blue Screen: Off/On
Melody: Off/Low/Medium/High
4. Press the EXIT
button to exit.
Setting the Home Theatre PC
You can view higher quality pictures by configuring the
screen settings in PC Mode.
If you set the Home Theatre PC function to On, you can
configure the Detailed Settings (
Standard or Movie) as in PC Mode.
1. Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Setup", then press the
ENTER/OK button.
2. Press the ▲ or ▼ button to select "Home Theatre PC".
Press the ENTER/OK button.
3. Press the ▲ or ▼ button to select "Off" or "On".
Press the ENTER/OK button.
4. Press the EXIT
button to exit.
This function is available only in PC mode.
when Picture Mode is set to
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
sMore
Setup
: Off
Move Enter Return
Setup
Off
On
: Off
Move Enter Return
Setup
Off
Low
Medium
: Off
High
Move Enter Return
Setup
: Off
Move Enter Return
Setup
: Off
Off
On
Move Enter Return
English - 28
Page 31
Setting the Light Effect (LA32R8, LA37R8, LA40R8)
You can turn on/off the blue LED on the front of TV
according to the situation. Use it for saving power or when
the LED dazzles your eyes.
1.
Press the MENU button to display the on-screen menu.
Press the
ENTER/OK button.
2.
Press the
the
3.
Select the required option (Off, Standby Mode On, Watching
▲ or ▼
▲ or ▼
ENTER/OK
buttons to select "Setup", then press the
buttons to select “Light Effect”, then press
button.
Mode On, On) by pressing the ▲ or ▼ button. Press the
ENTER/OK button.
• Off: LED will not come on
• Standby Mode On: Turns the LED on in standby mode
• Watching Mode On: Turns the LED on while watching TV.
• On: The LED ON condition if the unit in ON or OFF.
4. Press the EXIT button to exit.
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
: Off
Light Effect :
sMore
Move Enter Return
TV
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC
Home Theatre PC
: Off
Light Effect : Off
sMore
Move Enter Return
Setup
Watching Mode On
Setup
Off
Standby Mode On
Watching Mode On
On
English - 29
Page 32
Using the Energy Saving Feature
This function adjusts the brightness of the TV so as to reduce
power consumption. When you watching TV at night, set the
"Energy Saving " mode option to "High" so as to reduce the
dazzling of your eyes as well as the power consumption.
1. Press the MENU button to display the on-screen menu.
Pressthe▲or▼buttontoselect"Setup",thenpressthe
ENTER/OK button.
2. Pressthe▲or▼buttontoselect"EnergySaving",then
press the ENTER/OK button.
3. Selecttherequiredoption(Off,Low,Medium,High,Auto)by
pressingthe▲or▼button.PresstheENTER/OK button.
4. Press the EXIT button to exit.
HDMI Black Level
You can directly select the black level on the screen to adjust
the screen depth.
1. Press the MENU button to display the menu.
Press the▲or▼buttonstoselect“Setup”,thenpressthe
ENTER/OK button.
2. Pressthe▲or▼buttonstoselect"HDMIBlackLevel",then
press the ENTER/OK button.
3. Pressthe▲or▼buttonstoselect“Normal”or“Low”,then
press the
4. Press the
ENTER/OK button.
EXIT button to exit.
ThisFunctionisactiveonlywhentheexternelinput
connectsHDMI(RGBsiginal).
TV
rMore
Wall-Mount Ajustment
Energy Saving : Off
HDMI Black level : Low
PIP
Move Enter Return
TV
rMore
Wall-Mount Ajustment
Energy Saving : Off
HDMI Black level : Low
PIP
Move Enter Return
TV
rMore
Wall-Mount Ajustment
Energy Saving : Off
HDMI Black level : Normal
PIP
Move Enter Return
TV
rMore
Wall-Mount Ajustment
Energy Saving : Off
HDMI Black level : Low
PIP
Setup
Setup
Setup
Setup
Medium
Normal
Normal
Low
Off
Low
High
Auto
Low
• Normal: Thescreengetsbrighter.
• Low: Thescreengetsdarker.
4. Press the EXIT button to exit.
Move Enter Return
English - 30
Page 33
Selecting the Source
You can select among external sources connected to your
TV’s input jacks.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select “Input”, then press the
ENTER/OK button.
2. Press the ENTER/OK
button again, to select "Source List".
When no external device is connected to your set, only
“TV” are activated in the “Source List”, “AV1”, “AV2”,
“S-Video”, “Component1”, “Component2”, “PC”, “HDMI1” ,
“HDMI2”, “HDMI3” are activated only when they are con-
nected to your set.
3. Select the required device by pressing the ▲ or ▼ button.
Press the ENTER/OK button.
Press the SOURCE button on the remote control to toggel
between all the available source.
TV mode can be selected by pressing the TV button, number
buttons(0~9), and the P / button on the remote control.
But it cannot be selected using the SOURCE button.
Editing the Input Source Names
Mode : Custom
TV
Equalizer
Source List : TV
SRS TSXT : Off
Edit Name
Auto Volume : Off
Anynet+(HDMI-CEC)
Internal Mute : Off
Reset
Move Enter Return
Move Enter Return
Mode : Custom
TV
Equalizer
TV
SRS TSXT : Off
AV1
Auto Volume : Off
AV2
Internal Mute : Off
S-Video : ---Component1 : ----
Reset
Component2 : ---PC : ---HDMI1 : ---HDMI2 : ---HDMI3 : ----
Source List
: ----
: ----
Move Enter Return
Move Enter Return
Input
Name the device connected to the input jacks to make your
input source selection easier.
1. Press the MENU
button to display the menu.
Press the ▲ or ▼ button to select “Input”, then press the
ENTER/OK button.
2. Press the
▲ or ▼ button to select "Edit Name", then press
the ENTER/OK button.
3. Press the ▲ or ▼ button to select the device that you wish
to edit.
Press the ENTER/OK button.
4. Press the
▲ or ▼ button to select the required device.
Press the ENTER/OK button.
5. Press the EXIT
button to exit.
English - 31
Mode : Custom
TV
Equalizer
Source List : TV
SRS TSXT : Off
Edit Name
Auto Volume : Off
Anynet+(HDMI-CEC)
Internal Mute : Off
Reset
Move Enter Return
Move Enter Return
Mode : Custom
TV
Equalizer
AV1 : ----
SRS TSXT : Off
AV2 : ----
Auto Volume : Off
S-Video : ----
Internal Mute : Off
Component1 : ----
Reset
Component2 : -
PC : ----
HDMI1 : ----
HDMI2 :
HDMI3 :
Edit Name
Move Enter Return
Move Enter Return
Input
Cable STB
Satellite STB
----
----
----
VCR
DVD
D-VHS
HD STB
q
Page 34

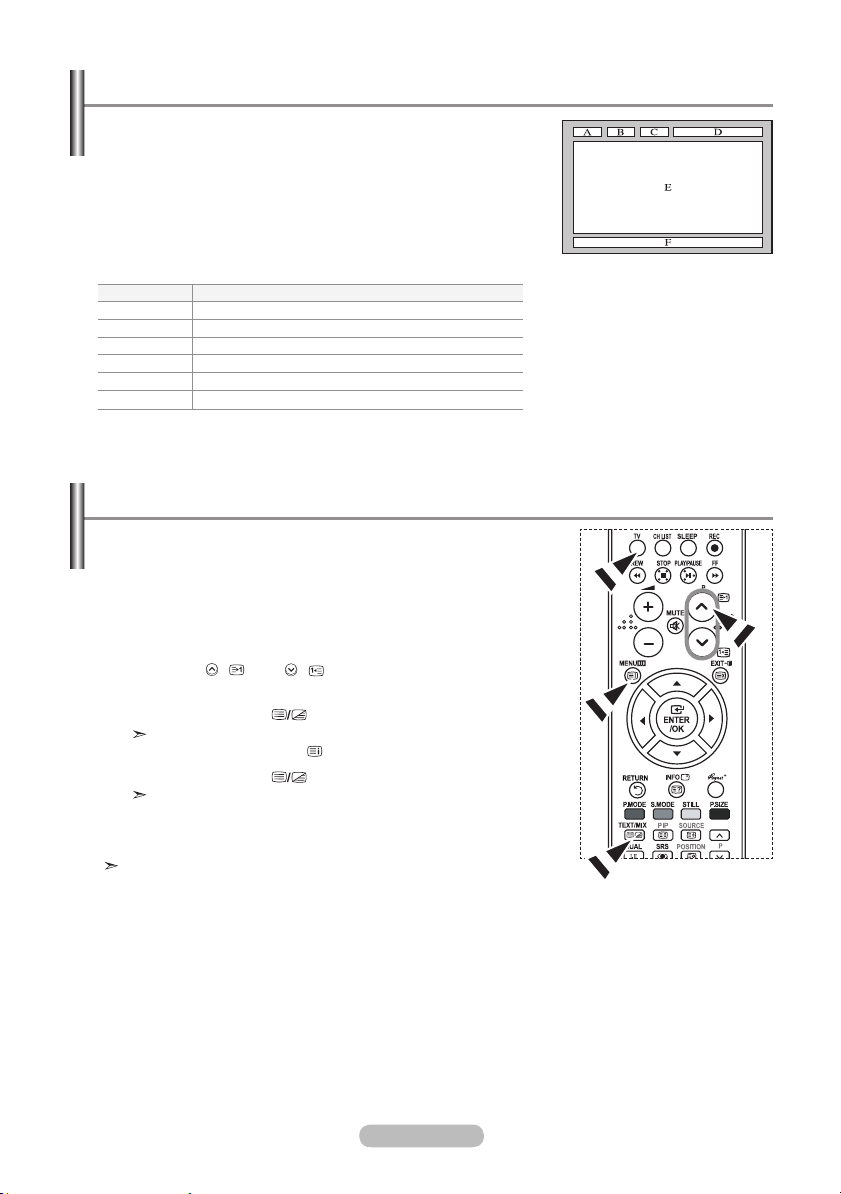

Teletext Decoder
Most set channels carry " teletext ", pages of written
information that provide information such as:
Television programme times.
News bulletins and Weather forecasts.
Sports results.
Subtitles for the hard of hearing.
The teletext pages are organized according to six categories:
Part
A
B
C
D
E
F
Contents
Selected page number.
Broadcasting station identity.
Current page number or search status.
Date and time.
Text.
Status information.
Displaying the Teletext Information
You can display teletext information at any time, but signal reception
must be good. Otherwise:
Information may be missing.
Some pages may not be displayed.
To activate the teletext mode and display the contents page:
1. Using the P ( ) or P ( ) button, select the channel providing
the teletext service.
2. Press the TEXT/MIX
The contents page is displayed. It can be redisplayed at any time
by pressing the MENU ( ) button.
3. Press the TEXT/MIX ( ) button again.
The actual broadcast will be displayed with "Teletext", "Double",
and "Mix" in order on the screen.
4. Press the TV
If any broken character appears while Text is being viewed, make
sure that the Text language is identical with the language in the
"Setup" menu mode. If both languages are different, select the same language with the Text
language on the "Setup" menu.
( ) button to activate the teletext mode.
button to exit from the Text display.
English - 32
Page 35

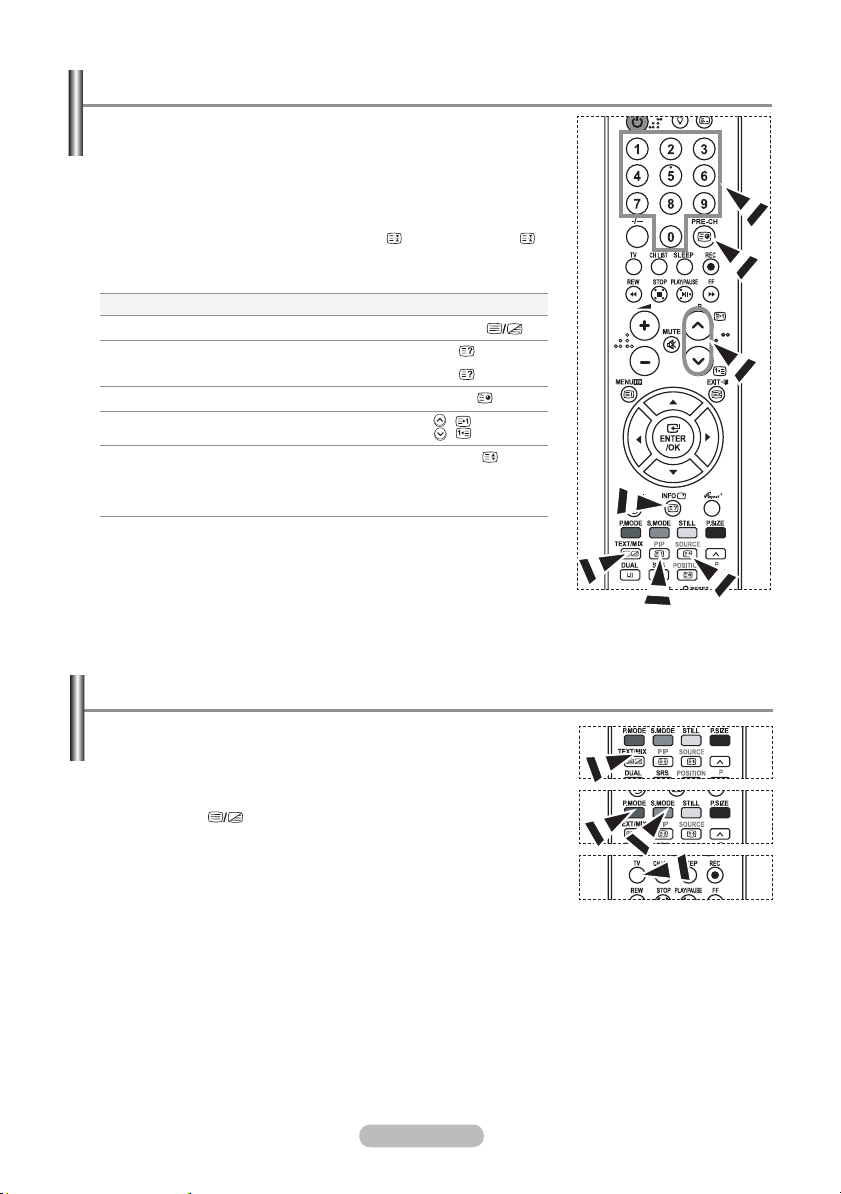

Selecting a Specic Teletext Page
Press the number buttons on the remote control to enter the
page number directly:
1. Enter the three-digit page number listed in the contents by
pressing the corresponding numeric buttons.
2. If the selected page is linked with several secondary pages, the
secondary pages are displayed in sequence. To freeze the
display on a given page, press the PIP ( ) . Press the PIP ( )
button again to resume.
3. Using the various display options:
To display...
Both teletext information and the normal broadcast
Hidden text (answers to quiz games, for example)
The normal screen
A secondary page, by entering its 4-digit number
The next page
The previous page
Double-size letters in the:
Upper half of the screen
Lower half of the screen
Normal screen
Press the...
TEXT/MIX (
INFO (
INFO (
PRE-CH (
P ( )
P
SOURCE
Once
Twice
Three times
)
)
)
( )
( )
)
Using Fastext to Select a Teletext Page
The various topics included in the teletext pages are
colour-coded, and can be selected by pressing the coloured
buttons on the remote control.
1. Display the teletext contents page by pressing the
TEXT/MIX ( ) button.
2. Press the coloured button corresponding to the topic that you
wish to select (The available topics are listed on the status
information line).
3. Press the Red button to display the previous page.
Press the Green button to display the next page.
4. Press the TV
button to exit from the Text display.
English - 33
Page 36
Setting Up Your Remote Control
After it has been set up properly, your remote control can
operate in five different modes: TV, DVD, Cable, Set-Top Box, VCR.
Pressing the corresponding button on the remote control allows
you to switch between these modes, and control whichever piece
of equipment you choose.
The remote control might not be compatible with all DVD Players,
VCRs, Cable boxes, and Set-Top Boxes.
Setting Up the Remote to Operate Your VCR
1. Turn off your VCR.
2. Press the VCR
3. Press the SET button on your TV’s remote control.
4. Using the number buttons on your remote control, enter three digits
of the VCR code listed on page 36 of this manual for your brand of
VCR. Make sure you enter three digits of the code, even if the first
digit is a "0". (If more than one code is listed, try the first one.)
5. Press the POWER
Your VCR should turn on if your remote is set up correctly.
If your VCR does not turn on after set up, repeat steps 2, 3, and
4, but try one of
the other codes listed for your brand of VCR.
If no other codes are listed, try each VCR code, 000 through 080.
Note on Using Remote Control Modes: VCR
When your remote control is in "VCR" mode, the volume buttons still
control your TV’s volume.
Setting Up the Remote to Operate Your Cable Box
1. Turn off your cable box.
2. Press the CABLE
3. Press the SET button on your TV’s remote control.
4. Using the number buttons on your remote control, enter three digits
of the cable box code listed on page 37 of this manual for your brand
of cable box. Make sure you enter three digits of the code, even if the
first digit is a "0".
(If there is more than one code listed, try the first one.)
5. Press the POWER
Your cable box should turn on if your remote is set up correctly.
If your cable box does not turn on after set up, repeat steps 2, 3, and 4,
but try one of the other codes listed for your brand of cable box. If no other codes are listed,
try each code, 000 through 046.
Note on Using Remote Control Modes: Cable Box
When your remote control is in "CABLE" mode, the volume buttons still control your TV’s volume.
button on your TV’s remote control.
button on the remote control.
button on your TV’s remote control.
button on the remote control.
English - 34
Page 37
Setting Up the Remote to Operate Your DVD
1. Turn off your DVD.
2. Press the DVD
button on your TV’s remote control.
3. Press the SET button on your TV’s remote control.
4. Using the number buttons on your remote control, enter three digits
of the DVD code listed on page 37~38 of this manual for your brand
of DVD. Make sure you enter three digits of the code, even if the first
digit is a "0". (If there is more than one code listed, try the first one.)
5. Press the POWER
Your DVD should turn on if your remote is set up correctly.
button on the remote control.
If your DVD does not turn on after set up, repeat steps 2, 3, and 4,
but try one of the other codes listed for your brand of DVD.
If no other codes are list-ed, try each code, 000 through 141.
Note on Using Remote Control Modes: DVD
When your remote control is in "DVD" mode, the volume buttons still
control your TV’s volume.
Setting Up the Remote to Operate Your STB
1. Turn off your STB.
2. Press the STB
button on your TV’s remote control.
3. Press the SET button on your TV’s remote control.
4. Using the number buttons on your remote control, enter three digits
of the STB code listed on page 38 of this manual for your brand of
STB. Make sure you enter three digits of the code, even if the first digit is
a "0". (If there is more than one code listed, try the first one.)
5. Press the POWER
button on the remote control.
Your STB should turn on if your remote is set up correctly.
If your STB does not turn on after set-up, repeat steps 2, 3 and 4, but
try one of the other codes listed for your brand of STB.
(If no other codes are listed, try each code, 000 through 074.)
Note on Using Remote Control Modes: STB
When your remote control is in "STB" mode, the volume buttons still
control your TV’s volume.
English - 35
Page 38
Remote Control Codes
VCR
Brand Code
SAMSUNG 000 001 002 003 004 005 077 078 079
ADMIRAL 020
AIWA 025
AKAI 004 027 032
AUDIO DYNAMICS 007 026
BELL&HOWELL 018
BROKSONIC 022
CANDLE 002 003 006 008 015 055
CANON 021 056
CITIZEN 002 003 006 008 015 055
COLORTYME 007
CRAIG 002 024
CURTIS MATHES 002 007 008 017 021 025 056 064 066
DAEWOO 003 010 011 012 013 014 015 016
DB 007 026
DIMENSIA 017
DYNATECH 025
ELECTROHOME 034
EMERSON
FISHER 018 024 028 029 048 051 061
FUNAI 025
GENERAL ELECTRIC
GO VIDEO 002
HARMAN KARDON 007
HITACHI 019 025 041 042 074
INSTANT REPLAY 021
JC PENNEY
JCL 007 008 018 021 026 037
JVC 081 082 083
KENWOOD 007 008 018 021 026 037
KLH 070
KONIA 036
LG(Goldstar) 006 007 008 009 010
LIOYD 025
LOGIK 038
LXI 025
MAGNAVOX 021 056 059
MARANTZ 007 008 018 021 026 037 062
MARTA 006
MEI 021
MEMOREX 006 021 024 025
MGA 034
MIDLAND 005
MINOLTA 019 041 075
MITSUBISHI 019 034 041 046
001 003 006 021 022 025 030 032 034 040
047 050 052 060 063 065 066 067 069 073
002 005 017 021 056
002 007 018 019 021 026 037 041 054 056
Brand Code
MONTGOMERY WARD
MTC 002 025
MULTITECH 002 005 025 038
NEC 007 008 018 026 037 062 064
OPTIMUS 020
ORION 073 074 075 076
PANASONIC 021 056 071 072
PENTAX 019 041 075
PENTEX
RESEARCH+
PHILCO 021 056 059
PHILIPS 021 080
PIONEER 019 026 039 053
PORTLAND 015 049 055
PROSCAN 017
QUARTZ 018
QUASAR 021 056
RADIO SHACK/
REALISTIC
RCA
SANSUI 026
SANYO 018 024
SCOTT 003 047 052 067
SEARS 006 018 019 024 028 029 041 048 051
SHARP 020 034 045 015
SHIMTOM 027 033 038 058
SIGNATURE 025
SONY 027 033 044
SYLVANIA
SYMPHONIC 025
TANDY 018 025
TASHIKA 006
TATUNG 037
TEAC 025 037 068
TECHNICS 021
TEKNIKA 006 021 025 031
TMK 066
TOSHIBA 003 019 029 051 052
TOTEVISION 002 006
UNITECH 002
VECTOR RESEARCH
VICTOR 026
VIDEO CONCEPTS 007 026
VIDEOSONIC 002
WARDS
YAMAHA 007 008 018 026 037
ZENITH 023 027 033
020
008
006 018 020 021 024 025 029 034 048 056
002 017 019 021 035 041 043 057 068 076
021 025 056 059
007 026
002 003 006 019 020 021 024 025 034 038 041
English - 36
Page 39
CABLE BOX
Brand Code
SAMSUNG 000 001 002 003 004 005 006 007
GI 041
HAMLIN 003 024 031
HITACHI 025 030
JERROLD 038 039
MACOM 025 030
MAGNAVOX 019 023 028
OAK 026
PANASONIC 003 022 027 037 044
PHILIPS 019 021 023 028
PIONEER 004 018 020 044
RCA 014 022 040
REGAL 003
SAMSUNG DVD
Product Code
DVD 000 001 002
DVDR 003 004
BD Record 005 006
VCR COMBO 007 008 009 010 011
VCR Record 012
DHR COMBO 013
DVD
Brand Code
REGENCY 015 023
SA 042 043
SCIENTIFIC ATLAN 042 043
SPRUCER 022
STARGATE 2000 036
SYLVANIA 016
TEXSCAN 016
TOCOM 032
UNIVERSAL 033 034
VIEWSTAR 019 021 023 028
WAMER AMEX 046
ZENITH 017 029 035 037 045
Product Code
Home Theater VCR COMBO 014 015 016
HDD Recorder COMBO 017
TWIN TRAY COMBO 018
STB DVD COMBO 019
DVD Receiver 020
AV Receiver 021
Brand Code
ANAM 030
AUDIOVOX 075
AUDIOLOGIC 085
ANABA 072
APEX DIGITAL 070 071 074 086 083 084 088 111 112
AIWA 114
BROKSONIC 062
BLAUPUNKT 074
B&K 122 123
CURTIS MATHES 027
CYBER HOME 077 078 079 082
CLARION 080 125
CIRRUS 081
CYBER HOME 065
CINEVISION 095
DAEWOO 066
DENON 146
FARENHEIT 067 068
FISHER
GPX 060
GO VIDEO 061 089 133 135
GE
GREENHILL 074
HITACHI 064 113
HITEKER 071
HOYO 073
HARMAN / KARDON 091 110
IRT 089
090
069 074
Brand Code
INTEGRA 092
JBL 091
JVC 022 033 115 116
JATON 073
KENWOOD 051 108 109
KISS 073
KONKA 059 100 106 107
KLH 074 075
LG(Goldstar) 025 031
LOEWE 057
LASONIC 058
MOBILE
AUTHORITY
MEMOREX 055
MALATA 056
MAGNAVOX 076 093
MINTEK 074 094
MONYKA 073
NORCENT 048 049 050
NEXT BASE
NEC 053
NANTAUS 144
NESA
OPTOMEDIA
ELECTRONICS
OPTIVIEW 072
ONKYO 076 092 119
PHILCO 044 045
PRINCETON 046 047
PROSCAN 023
English - 37
054
052
074
105
Page 40
DVD
Brand Code
PANASONIC 024 034 124 134 136 137 138
PHILIPS 036 076
ROTEL 117 118
RIO 120
RCA 023 035 074 075 131 132
RAITE 073
ROWA 038
SAMPO 104
SONY 026 029 126 127 128 129 130 141
SHERWOOD 039 041
SVA 042
SYLVANIA 043 093
SHARP 140
SANSUI 062
SANYO 062 090
SHINSONIC 094
SAMSUNG SET-TOP BOX
Product Code
Ground wave STB 001 002
Satellite STB 003
CABLE STB 004
STB DVD COMBO 008
Satellite STB HDD COMBO Standard 009
SET-TOP BOX
Brand Code
ALPHASTAR 023
ANAM 043
CHANNEL
MASTER
CROSSDIGITAL 019
CHAPARRAL 035
DIRECT TV 015 016 017 019 022 045 060 061 062
DAEWOO 074
DISH NETWORK
SYSTEM
DISHPRO 069
DRAKE 018 024 032
DX ANTENNA 027
ECHOSTAR 025 069 070 071
EXPRESSVU 069
GOI 069
GE 065
GENERAL INSTRUMENT
HTS 069
HOME CABLE 056
HITACHI
HUGHES NETWORK
IQ 020
IQ PRISM
JANEIL 059
JERROID 063
JVC 069 070
LG(Goldstar) 044 073
018 034
065 066 067 068
069 070
046 047 048 063 064
022
015 017
020
English - 38
Brand Code
THOMSON 145
TOSHIBA 028 062 076
TECHNICS 139
TVIEW 072
TOKAI 073
TEAC 096
TECHWOOD 097
TREDEX 098 099 101
URBAN CONCEPTS
VENTURER 075
VOCOPRO 102
YAMAHA 032 063
YAMAKAWA 040 073
XWAVE 103
ZENITH 076 121
Product Code
Satellite STB HDD COMBO Premium 010
CABLE STB HDD COMBO Standard 011
CABLE STB HDD COMBO Premium 012
Ground wave STB HDD COMBO Standard 013
Ground wave STB HDD COMBO Premium 014
Brand Code
MAGNAVOX 016 021 036 038 039 040 041 042
MEMOREX 016
MOTOROLA 064
MACOM 018
MITSUBISHI 015
NEXT LEVEL 047 048 064
PHILIPS 015 016 017 021 033 036 038 039 040
PRIMESTAR
PANASONIC 058 059 061 062
PAYSAT 016
PROSCAN 065 066
RCA 051 052 053 065 066
RADIOSHACK 064
REALISTIC 057
STAR TRAK 026
STS
SKY 031
SKY LIFE 005 006 007
SHACK
STAR CHOICE
SONY 054 060
TOSHIBA
ULTIMATE TV 060 066
UNIDEN 016 021 037 055 056 057
ZENITH 024 031 068
076
041 042 067
046 049 050 063
020 027
064
064
015 017 028 029 030 072
Page 41
Setting up Your PC Software (Based on Windows XP)
The Windows display-settings for a typical computer are shown below. The
actual screens on your PC may be different depending upon your particular
version of Windows and your particular video card. Even if your actual
screens look different, the same, basic set-up information will apply in
almost all cases. (If not, contact your computer manufacturer or Samsung
Dealer.)
1. First, click on "Control Panel" on the Windows start menu.
2. When the control panel window appears, click on "Appearance and Themes"
and a display dialog-box will appear.
3. When the control panel window appears, click on "Display" and a display dialog-box will appear.
4. Navigate to the "Settings" tab on the display dialog-box.
The correct size setting (resolution):
Optimum- (LA32R8, LA37R8, LA40R8) : 1360 X 768
(LA40M8, LA46M8, LA52M8) : 1920 X 1080
If a vertical-frequency option exists on your display settings dialog box, the correct value is
"60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.
Display Modes
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The resolutions in the table are recommended. (All resolutions between the supported limits are
supported)
(LA32R8, LA37R8, LA40R8)
D-Sub Input
Mode
IBM
VESA
Resolution
640 × 350
640 x 480
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1360 x 768
Horizontal
Frequency (kHz)
31.469
31.469
31.469
37.861
37.500
37.879
48.077
46.875
48.364
56.476
60.023
47.712
Vertical
Frequency (Hz
70.086
59.940
70.087
72.809
75.000
60.317
72.188
75.000
60.000
70.069
75.029
60.015
Pixel Clock
)
Frequency (MHz)
25.175
25.175
28.322
31.500
31.500
40.000
50.000
49.500
65.000
75.000
78.750
85.800
Sync Polarity
(H/V)
+ / -
- / -
- / +
- / -
- / + /+
+ /+
+ /+
- / -
- / + /+
+ /+
HDMI/DVI Input
Mode
IBM
VESA
Resolution
Horizontal
Frequency (kHz)
640×350 31.469 70.086 25.175 +/-
720×400 31.469 70.087 28.322 -/+
640×480 31.469 59.940 25.175 -/-
800×600 37.879 60.317 40.000 +/+
1024×768 48.364 60.000 65.000 -/-
1360×768 47.712 60.015 85.800 +/+
Frequency (Hz)
English - 39
Vertical
Pixel Clock
Frequency
(MHz)
Sync Polarity
(H/V)
Page 42
(LA40M8, LA46M8, LA52M8)
D-Sub Input
Mode Resolution
IBM
VESA
640 X 350 31.469 70.086 25.175 + / 640 x 480 31.469 59.940 25.175 - / 720 x 400 31.469 70.087 28.322 - / +
640 X 480 35.000 70.000 28.560 - / +
640 x 480 37.861 72.809 31.500 - / 640 x 480 37.500 75.000 31.500 - / 800 x 600 43.750 70.000 45.500 - / +
800 x 600 37.879 60.317 40.000 + / +
800 x 600 48.077 72.188 50.000 + / +
800 x 600 46.875 75.000 49.500 + / +
1024 x 768 57.672 72.000 78.434 - / 1024 x 768 48.364 60.000 65.000 - / 1024 x 768 56.476 70.069 75.000 - / 1024 x 768 60.023 75.029 78.750 + /+
1152 x 864 67.500 75.000 108.000 + / +
1280 x 960 60.000 60.000 108.000 + / +
1280 x 1024 63.981 60.020 108.000 + / +
1280 x 1024 74.620 70.000 128.943 - / 1280 x 1024 76.824 72.000 132.752 - / 1280 x 1024 79.976 75.025 135.000 + / +
1600 x 1200 75.000 60.000 162.000 + / +
1920 x 1080 66.587 59.934 138.500 + / -
HDMI/DVI Input
Mode
IBM
VESA
Resolution
640 X 350
640 X 480
720 X 400
800×600 37.879 60.317 40.000
1024×768 48.364 60.000 65.000
1280×1024 63.981 60.020 108.000
1920×1080 66.587 59.934 138.500
Horizontal
Frequency (kHz)
Horizontal
Frequency (kHz)
31.469
31.469
31.469
Vertical
Frequency (Hz)
Vertical
Frequency (Hz)
70.086
59.940
70.087
Pixel Clock
Frequency (MHz)
Pixel Clock
Frequency
(MHz)
25.175
25.175
28.322
Sync Polarity
(H/V)
Sync Polarity
(H/V)
+ / -
- / -
- / +
+ / +
- / + / +
+ / -
The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
Separate and Composite modes are supported. SOG is not supported.
English - 40
Page 43
Setting the PC
Coarse and Fine Tuning of the Image (Image Lock):
The purpose of picture quality adjustment is to remove or
reduce picture noise.
If the noise is not removed by Fine-tuning alone, then adjust
the frequency as best as possible (coarse) and Fine-tune
again. After the noise has been reduced, re-adjust the picture
so that it is aligned on the center of screen.
1. Preset: Press the SOURCE
2. Press the MENU
Press the ▲ or ▼ button to select "Setup", then press the
button to display the menu.
button to select PC mode.
ENTER/OK button.
3. Press the ▲ or ▼ button to select "PC", then press the
ENTER/OK button.
4. Press the ENTER/OK
5. Press the
press the ENTER/OK button.
▲ or ▼ button to select "Coarse" or "Fine", then
button to select "Image Lock".
6. Press the ◄ or ► button to adjust the screen quality.
Press the ENTER/OK button.
7. Press the EXIT button to exit.
Changing the Image Position:
Adjust the PC’s screen positioning if it does not fit the
TV screen.
1. Follow the "Coarse and Fine Tuning of the Image
(Image Lock)"
instructions number 1 to 3.
2. Press the ▲ or ▼ button to select "Position", then press the
ENTER/OK button.
3. Press the ▲ or ▼ button to adjusting the Vertical-Position.
Press the ◄ or ► button to adjust the Horizontal-Position.
Press the ENTER/OK button.
4. Press the EXIT
button to exit.
Adjusting the PC Screen Automatically (Auto Adjustment):
Auto adjustment allows the PC screen of set to self-adjust to
the incoming PC video signal. The values of fine, coarse and
position are adjusted automatically.
1. Follow the "Coarse and Fine Tuning of the Image
(Image Lock)" instructions number 1 to 3.
2. Press the ▲ or ▼ button to select "Auto Adjustment", then
press the ENTER/OK
button.
3. Press the EXIT button to exit.
Initializing the Image Settings (Image Reset):
You can replace all image settings with the factory default
values.
1. Follow the "Coarse and Fine Tuning of the Image
(Image Lock)" instructions number 1 to 3.
2. Press the ▲ or ▼ button to select "Image Reset", then press
the ENTER/OK
button.
3. Press the EXIT button to exit.
TV
Image Lock
Position
Auto Adjustment
Image Reset
Move Enter Return
Mode : Custom
TV
Equalizer
SRS TSXT : Off
Coarse 50
Auto Volume : Off
Fine 0
Internal Mute : Off
Reset
TV
TV
Image Lock
Position
Auto Adjustment
Image Reset
TV
Image Lock
Position
Auto Adjustment
Image Reset
Image Lock
Move Enter Return
Move Enter Return
Move Enter Return
Move Enter Return
Move Enter Return
PC
Position
PC
PC
English - 41
Page 44
What is Anynet+?
Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling
all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are
connected.
Connecting Anynet+ Devices
The Anynet+ system supports AV devices supporting Anynet+ only.
Check if there is an Anynet+ mark on the AV device to be connected to the TV.
To directly connect to TV
TV
Anynet+ Device 1 Anynet+ Device 2 Anynet+ Device 3
Connect the [HDMI 1], [HDMI
2] or [HDMI 3] jack on the TV
and the HDMI OUT jack of the
corresponding Anynet+ device
using the HDMI cable.
HDMI 1.3 Cable
HDMI 1.3 Cable
HDMI 1.3 Cable
To connect to Home Theater
TV
1. Connect the [HDMI 1],
[HDMI 2] or [HDMI 3]
jack on the TV and the
Anynet+ Device 1 Anynet+ Device 2
HDMI OUT jack of the
corresponding Anynet+
device using the HDMI
cable.
2. Connect the HDMI IN jack
HDMI 1.3 Cable
Home Theater
HDMI 1.3 Cable
Anynet+ Device 3
of the home theater and
the HDMI OUT jack of the
corresponding Anynet+
device using the HDMI
cable.
HDMI 1.3 Cable
HDMI 1.3 Cable
Connect only one receiver.
➣
You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+
➣
functions.
Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.
➣
Anynet+ supports up to 8 AV devices in total.
➣
English - 42
Page 45
Setting Up Anynet+
The following settings are to use Anynet+ functions.
Using the Anynet+ Function
1. Press the Anynet+ button.
Press the ▲ or ▼ button to select Setup, then press the
ENTER/OK
2. Press the ENTER/OK
button.
button to select Anynet+ (HDMI-CEC),
then press the ENTER/OK button.
3. Press the ▲ or ▼ button to select On, then press the ENTER/
OK
button.
The Anynet+ (HDMI-CEC) function is enabled.
➣
If you select Off, Anynet+ (HDMI-CEC) is disabled.
➣
When the Anynet+ (HDMI-CEC) function is disabled, all the
➣
Anynet+ related operations are deactivated.
Turning an Anynet+ Device Off Automatically when the TV is
Turned Off
1. Pre
ss the ▲ or ▼ button to select Auto Turn Off, then press
the ENTER/OK button.
2. Press the ▲ or ▼ button to select On, then press the ENTER/
OK button.
The Auto turn off function is enabled.
➣
If you select Off, the Auto turn off function is canceled.
➣
Press the EXIT button to exit.
The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function.
➣
If you set Auto Turn Off to On, connected external devices are also turned off when the TV is turned off.
➣
However, if the device is recording, it may not be turned off.
Air 28
View TV
Select Device
Record
Menu on Device
Device Operation
Receiver :Off
Setup
Move
Enter
Exit
Anynet+ (HDMI-CEC)
Auto Turn Off
Searching Connections
Anynet+ (HDMI-CEC)
Auto Turn Off
Searching Connections
: Off
: Off
Setup
: Off
Enter ReturnMove
Setup
: On
Enter ReturnMove
Off
On
Off
On
Scanning and Switching between Anynet+ Devices
1. Press the Anynet+ button.
2. Press the ▲ or ▼ button to select Select Device, then press
the ENTER/OK button.
3. Press the ▲ or ▼ button to select to a particular device and
press the ENTER/OK button.
It is switched to the selected device.
4. If you cannot find a device you want, press the ▲ or ▼ button
to select Searching Connections, then press the ENTER/OK
button.
The meassage Configuring Anynet+ connection... is
displayed. When searching devices completes, the connected
devices are listed in the Anynet+ menu.
Switching to the selected devices may take up to 2 minutes. You
➣
cannot cancel the operation during the switching operation.
The time required to scan for devices is determined by the number
➣
of connected devices.
When the device scan is complete, the number of found devices
➣
is not displayed.
Although the TV automatically scans devices when it is turned on
➣
using the POWER button, devices connected when the TV is on or under a specic circumstance are not
displayed in the device list. Therefore select Searching Connections menu to search devices.
If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+
➣
function. Make sure to switch to an Anynet+ device by using the Anynet+ button.
English - 43
Air 28
View TV
Select Device
Record
Menu on Device
Device Operation
Receiver :Off
Setup
Move
Enter
Return
Anynet+ (HDMI-CEC)
Auto Turn Off
Searching Connections
: On
Setup
: On
Enter ReturnMove
DVDR1
DVDR2
DVD1
DVD2
Page 46
Anynet+ Menu
The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected
to the TV.
Anynet+ Menu Description
View TV
Select Device
Record
Menu on Device
Device Operation
Receiver
Setup You can set the environment for using Anynet+.
TV Remote Control Buttons Available in Anynet+ Mode
Device Type Operating Status Available Buttons
Anynet+ Device
Device with built-in Tuner
Audio Device
Anyview2
The Anynet+ function only works when the remote control is set to TV.
➣
The REC button works only while in the recordable state.
➣
You cannot control Anynet+ devices using the buttons on the side of the TV. You can control Anynet+
➣
devices only using the TV remote control.
The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device.
➣
The Anynet+ functions don’t operate for the products from other manufacturers.
➣
In Anynet+ mode, the color buttons may not work properly.
➣
The ◄◄, ►► operations may differ depending on the device.
➣
Switches from Anynet+ to TV broadcast mode.
Your TV connects to the corresponding device.
Starts a recording. (This menu works only for a device supporting
recording.)
Shows the menu of the connected device.
Example. When a DVD Recorder is connected, the DVD Recorder’s
title menu appears.
Shows the play control menu of the connected device.
Example. When a DVD Recorder is connected, the play control
menu of the DVD Recorder appears.
Sound is output through the receiver.
After switching to the
device, when the menu of
the corresponding device is
displayed on the screen.
After switching to the device,
while playing a file
After switching to the device,
when you are watching a TV
program
When Receiver is activated
When watching TV ►
Numeric buttons
▲/▼/◄/►/ENTER buttons
Color buttons
EXIT button
◄◄(Backward search)
►►(Forward search)
(Stop)
►
(Play/Pause)
CH ▲/▼ button
VOL +/- button
MUTE button
(Play/Pause)
Recording
You can make a recording of a TV program using a recorder.
Press the REC button.
Recording begins. (Only when the Anynet+ enabled recording device is connected.)
The current TV program is recorded in the Watching TV status. If you are watching video from another
➣
device, the video from the device is recorded.
You can also record the source streams by selecting Record after pressing the Anynet+ button.
➣
Before recording, check whether the antenna jack is properly connected to the recording device. For the
➣
antenna connection to the recording device, refer to its user manual.
English - 44
Page 47
Listening through a Receiver
You can listen to sound through a receiver instead of the TV speaker.
button.
button.
button.
, then press the
Air 28
View TV
Select Device
Record
Menu on Device
Device Operation
Receiver :On
Setup
Move
Exit
Enter
1. Press the Anynet+
Press the ▲ or ▼ button to select Receiver, then press the
ENTER/OK
2. Press the ◄ or ► button to select to On
ENTER/OK
Now you can listen to sound through the receiver.
3. Press the EXIT button to exit.
When the receiver is set to On, you can listen to the TV sound
➣
through the 2-channel receiver.
If the receiver is exclusively for a home theater only (supporting
➣
audio only), it may not appear in the device list.
In case of a content with copyright problem, listening through the receiver may not properly operate.
➣
When listening through the receiver, there are restrictions for using the PIP and audio-related menu.
➣
Check Points before Requesting Service
Symptom Solution
Anynet+ does not
work.
I want to start
Anynet+.
I want to exit Anynet+. ■ Select View TV
The Connecting to
Anynet+ device…
message appears on
the screen.
The Anynet+ device
does not play.
The connected device
is not displayed.
The TV program
cannot be recorded.
■ Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+
devices only.
■ Connect only one receiver.
■ Check if the Anynet+ device power cord is properly connected.
■ Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections.
■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.
■ Check whether the TV remote control is in TV mode.
■ Check whether it is Anynet+ exclusive remote control.
■ Anynet+ doesn’t work at a certain condition. (Searching channels)
■ When connecting or removing the HDMI 1.3 cable, please make sure to search
devices again or restart your TV.
■ Check if the Anynet+ Function of Anynet+ device is set on.
■ Check if the Anynet+ device is properly connected to the TV and check if the
Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu.
■ Press the TV
Anynet+ button to show the Anynet+ menu and select a menu you want.
■ Press the SOURCE
than Anynet+ devices.
■ Press any of CH
TV mode. (Note that the channel button operates only when a tuner-embedded
Anynet+ device is not connected.)
■ You cannot use the remote control when you are configuring Anynet+ or
switching to a view mode.
■ Use the remote control when the Anynet+ setting or switching to view mode is
complete.
You cannot use the play function when Plug & Play is in progress.
■ Check whether or not the device supports Anynet+ functions.
■ Check whether or not the HDMI 1.3 cable is properly connected.
■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.
■ Search Anynet+ devices again.
■ You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI
cables may not support Anynet+ functions.
Check whether the antenna jack on the recording device is properly connected.
button on the TV remote control to switch to TV. Then press the
in Anynet+ menu.
button on the TV remote control and select a device other
, CH LIST, PRE-CH, and such to change to the
English - 45
Page 48
Wall-Mount Adjustment (LA40R8, LA40M8, LA46M8, LA52M8)(Sold separately)
Once the wall mount is installed, the position of your TV can be easily adjustable.
TV Rear Panel Auto Wall-Mount
Serial Cable(1P to 1P)(Not supplied)
Entering the menu
Press the MENU button to display the menu.
1.
Press the ▲ or ▼ button to select “Setup”, then press the
ENTER/OK button.
Press the ▲ or ▼ buttons to select “Wall-Mount Adjustment”,
2.
Mode : Custom
TV
Equalizer
rMore
SRS TSXT : Off
Wall-Mount Adjustment
Auto Volume : Off
Energy Saving : Off
Internal Mute : Off
HDMI Black Level
Reset
PIP
Setup
: Off
then press the ENTER/OK button.
3. Adjust to the desired position using the ▲,▼,◄,► buttons
Press the EXIT button to exit.
If you press an arrow button when no OSD is displayed on the
TV screen, the Adjustment screen appears.
Position1
Move Enter Return
Move Enter Return
Wall Mount Adjusment
When you turn the power off, your TV moves to the initial installa-
tion position.
When you turn the power on, your TV moves to the last
remembered position you adjusted.
Position 1 2 3
Adjust Center Exit
INFO
Using the Remote Control Buttons
Button Operations
Wall-mount angle
adjustment
Reset Moves to the initial installation position
Remembering the
position and moving
to the remembered
position
For installation, refer to the Installation Manual provided.
For product installation and the installation and moving of the wall mount, make sure to consult a
specialized installation company.
This installation manual is to be used when attaching the wall mount to a wall.
When attaching to other building materials, please contact your nearest dealer
Tilt Up, Tilt Down, Move right, Move left
Remembers 3 positions with the Red, Green and
Yellow buttons.
Moves to the remembered position using these 3
color buttons.
English - 46
Page 49
Using the Anti-Theft Kensington Lock
The Kensington lock is a device used to physically fix the system when using it in a public place.
The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer. Please refer to the manual provided with
the Kensington lock for proper use.
1. Insert the locking device into
the Kensington slot on the
LCD TV (Figure 1), and turn it
in the locking direction
(Figure 2).
2. Connect the Kensington lock
cable.
3. Fix the Kensington lock to a
desk or a heavy stationary
object.
Cable
Figure 2
Figure 1
<Optional>
The place of the Kensington Lock may be
different depending on its model.
Troubleshooting: Before Contacting Service Personnel
No sound or picture
Normal picture but no
sound
No picture or black and
white picture
Sound and picture
interference
Blurred or snowy picture,
distorted sound
Remote control malfunctions
"Check signal cable."
message is displayed.
On PC mode, "Not Supported
Mode." message is displayed.
The TFT LCD panel uses a panel consisting of sub pixels (3,147,264 (LA32R8, LA37R8, LA40R8),
6,220,800 (LA40M8, LA46M8, LA52M8)) which require sophisticated technology to produce. However,
there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
Check that the mains lead has been connected to a wall socket.
Check that you have pressed the POWER buttons on the front of the set.
Check the picture contrast and brightness settings.
Check the volume.
Check the volume.
Check whether the MUTE button has been pressed on the remote control.
Check if "Internal Mute" is on
Adjust the colour settings.
Check that the broadcast system selected is correct.
Try to identify the electrical appliance that is affecting the set and move it
further away.
Plug your set into a different mains socket.
Check the direction, location and connections of your aerial.
This interference is often due to the use of an indoor aerial.
Replace the remote control batteries.
Clean the upper edge of the remote control (transmission window).
Check the battery terminals.
Check that the signal cable is firmly connected to the PC or video sources.
Check that the PC or video sources are turned on.
Check the maximum resolution and the frequency of the video adaptor.
Compare these values with the data in the Display Modes.
English - 47
Page 50
Technical and Environmental Specications
Model Name
Screen Size (Diagonal)
Power Consumption
PC Resolution
Sound
Output
Dimension (WxDxH)
Body
With stand
Weight
With stand
Environmental
Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Model Name
Screen Size (Diagonal)
Power Consumption
PC Resolution
Sound
Output
Dimension (WxDxH)
Body
With stand
Weight
With stand
Environmental
Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
LA32R8 LA37R8 LA40R8
32 inch 37 inch 40 inch
150 W 170 W 210 W
1360 x 768 @ 60 Hz 1360 x 768 @ 60 Hz 1360 x 768 @ 60 Hz
10 W X 2
800 X 91 X 541 mm
800 X 252 X 581 mm
13.1 kg
10 °C to 40 °C (50 °F to 104 °F)
10 % to 80 %, non-condensing
-20 °C to 45 °C (-4 °F to 113 °F)
5 % to 95 %, non-condensing
10 °C to 40 °C (50 °F to 104 °F)
10 % to 80 %, non-condensing
-20 °C to 45 °C (-4 °F to 113 °F)
5 % to 95 %, non-condensing
10 °C to 40 °C (50 °F to 104 °F)
10 % to 80 %, non-condensing
-20 °C to 45 °C (-4 °F to 113 °F)
5 % to 95 %, non-condensing
LA40M8 LA46M8 LA52M8
40 inch 46 inch 52 inch
240 W 260 W 310 W
1920 X 1080 @ 60 Hz 1920 X 1080 @ 60 Hz 1920 X 1080 @ 60 Hz
10 W X 2
971 x 87 x 628 mm
971 x 300 x 687 mm
20.7 kg
10 °C to 40 °C (50 °F to 104 °F)
10 % to 80 %, non-condensing
-20 °C to 45 °C (-4 °F to 113 °F)
5 % to 95 %, non-condensing
10 W X 2
917 x 107 x 618 mm
917 x 300 x 661 mm
20.1 kg
10 W X 2
1106 x 104x 706 mm
1106 x 326 x 768 mm
29.6 kg
10 W X 2
992 X 107 X 655 mm
992 X 300 X 698 mm
21.1 kg
10 °C to 40 °C (50 °F to 104 °F)
10 % to 80 %, non-condensing
-20 °C to 45 °C (-4 °F to 113 °F)
5 % to 95 %, non-condensing
10 W X 2
1257 x 111 x 800 mm
1257 x 326 x 860 mm
36.4 kg
10 °C to 40 °C (50 °F to 104 °F)
10 % to 80 %, non-condensing
-20 °C to 45 °C (-4 °F to 113 °F)
5 % to 95 %, non-condensing
Stand Swivel (Left / Right)
-20˚ ~ 20˚
Design and specifications are subject to change without prior notice.
This device is a Class B digital apparatus.
For the power supply, refer to the label attached to the product.
English - 48
-20˚ ~ 20˚
Page 51
This page is intentionally
left blank.
Loading...
