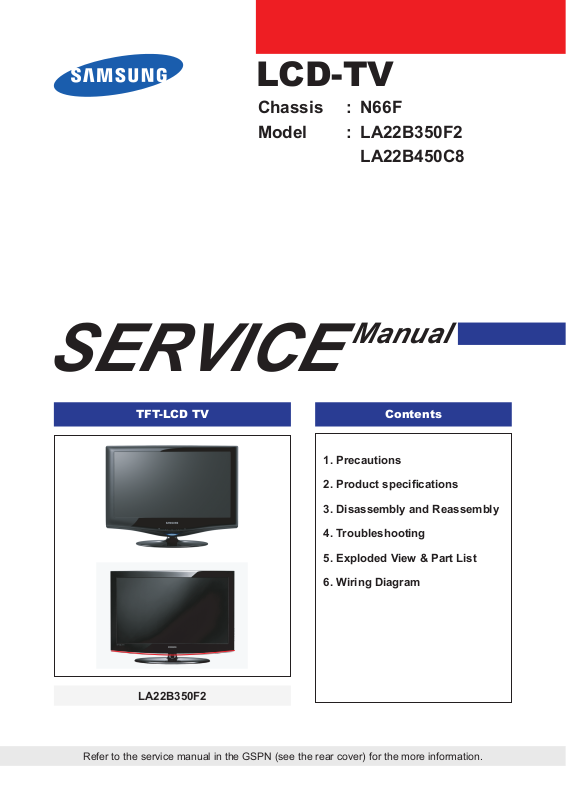

Samsung LA22B350F2 Schematic
LCD-TV
Chassis : N66F
Model : LA22B350F2
LA22B450C8
Manual
SERVICE
TFT-LCD TV Contents
1. Precautions
2. Product specications
3. Disassembly and
4. Troubleshootin
5. Exploded View & Part Lis
6. Wiring Diagra
Reassembly
g
t
m
LA22B350F2
Refer to the service manual in the GSPN (see the rear cover) for the more information.
Contents
1. Precautions .............................................................................................................. 1-1
1-1. Safety Precautions ......................................................................................................... 1-1
1-2. Servicing Precautions .....................................................................................................1-2
1-3. Electrostatically Sensitive Devices (ESD) Precautions .................................................. 1-2
1-4. Installation Precautions .................................................................................................. 1-3
2. Product specications ............................................................................................ 2-1
2-1. Feature & Specications ................................................................................................. 2-1
2-2. Specication Comparison to Old Models ........................................................................ 2-5
2-3. Accessories .................................................................................................................... 2-6
3. Disassembly and Reassembly ............................................................................... 3-1
3-1. Disassembly and Reassembly (LA22B350F2) ............................................................... 3-1
3-2. Disassembly and Reassembly (LA22B450C8) ............................................................... 3-4
4. Troubleshooting ...................................................................................................... 4-1
4-1. Troubleshooting .............................................................................................................. 4-1
4-2. Alignments and Adjustments ........................................................................................ 4-13
4-3. Factory Mode Adjustments ........................................................................................... 4-14
4-4. White Balance - Calibration .......................................................................................... 4-24
4-5. HOW TO UPGRADE .................................................................................................... 4-26
5. Exploded View & Part List ...................................................................................... 5-1
5-1. LA22B350F2 Exploded View .......................................................................................... 5-1
5-2. LA22B450C8 Exploded View .......................................................................................... 5-3
5-3. LA22B350F2 Parts List ................................................................................................... 5-5
5-4. LA22B450C8 Parts List ................................................................................................ 5-20
6. Wiring Diagram ........................................................................................................ 6-1
6-1. Wiring Diagram ............................................................................................................... 6-1
6-2. Wiring Picture ................................................................................................................. 6-3
6-3. Connector Functions ...................................................................................................... 6-4
6-4. Cables ............................................................................................................................ 6-4
GSPN (Global Service Partner Network)
Area Web Site
North America
Latin America
CIS http://cis.samsungportal.com
Europe http://europe.samsungportal.com
China http://china.samsungportal.com
Asia http://asia.samsungportal.com
Mideast & Africa
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
http://service.samsungportal.com
http://latin.samsungportal.com
http://mea.samsungportal.com
© 2009 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
P/N: BN82-00598A-00
3. Disassembly and Reassembly
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LA22B350F2 LCD TV.
WARNING: This LCD TV contains electrostatically sensitive devices. Use caution when handling these components.
3-1. Disassembly and Reassembly (LA22B350F2)
Cautions: 1. Disconnect the LCD TV from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
Description Picture Description Screws
1. Place the TV face down on cushioned table.
Remove the screws from rear cover.
x 3
3-1
3. Disassembly and Reassembly
Description Picture Description Screws
2. Remove the screws from the Stand.
Remove stand.
x 3
3. Disconnect cable from the boards.
3-2
Description Picture Description Screws
4. Remove the Speaker.
3. Disassembly and Reassembly
5. Remove Screw from the the boards.
Reassembly procedures are in the reverse order of disassembly procedures.※
x 8
x 2
x 1
3-3
3. Disassembly and Reassembly
3-2. Disassembly and Reassembly (LA22B450C8)
Cautions: 1. Disconnect the LCD TV from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
Description Picture Description Screws
1. Remove the screws from the Stand.
Remove stand.
x 2
3-4
Description Picture Description Screws
2. Place the TV face down on cushioned table.
Remove the screws from rear cover.
3. Disconnect cable from the boards.
3. Disassembly and Reassembly
x 5
3-5
3. Disassembly and Reassembly
Description Picture Description Screws
4. Remove the Speaker.
5. Remove Screw from the the boards.
Reassembly procedures are in the reverse order of disassembly procedures.※
x 8
x 1
x 2
3-6
5. Exploded View & Part List
5-1. LA22B350F2V Exploded View
M0013
M0174
5. Exploded View & Part List
M0014
M0215
M0027
T0003
T0175
5-1
5. Exploded View & Part List
5-1-1. LA22B350F2V Parts List
Location No. Code No. Description & Specifi cation Q’ty S.A/S.N.A Remark
M0013 BN96-11231C ASSY COVER P-REAR;LB350 22,HIPS,HB,BK500 1 SA
M0014 BN94-02998A ASSY PCB MAIN;LA22B350F2XXZ 1 SA
M0027 BN96-11238A ASSY STAND P-BASE;LB350 22,ABS+PMMA,HB,B 1 SA
M0174 BN44-00302A AC VSS(I);IP-55145T,L650,1.9~2.9mA,8.2~9 1 SA
M0215 BN07-00744A LCD-PANEL;T216HA01-DB,LM216HA,6bit Hi-FR 1 SA
T0003 BN96-11230D ASSY COVER P-FRONT;LB350 22,ABS+PMMA,HB, 1 SA
T0175 BN96-11276A ASSY SPEAKER P;16ohm,4pin,3W,L350 22" 1 SA
5-2
5. Exploded View & Part List
5-2. LA22B350F2V Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specifi cation Q’ty SA/SNA Remark
0.1 BN90-02234D ASSY COVER FRONT;LB350 22 1 SNA
..2 T0003 BN96-11230D ASSY COVER P-FRONT;LB350 22,ABS+PMMA,HB, 1 SA
...3 M0081 6003-001188 SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(WHT),S 3 SNA
...3 T0069 BN60-00027A SPACER-FELT;42P4A,FELT,L20,BLACK,T0.5,W2 4 SNA
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.04,680mm,20 0.45 SNA
...3 CCM1 BN63-05199J COVER-SHEET;AMBER,PE,T0.08,W105mm,200M,C 2 SNA
...3 M0112 BN63-05882D COVER-FRONT;LB350 22,ABS+PMMA,HB,TBK02,H 1 SNA
...3 AD070 BN64-01116A DECORATION-BOTTOM;LB350 22,ABS,HB,BL35 1 SNA
...3 T0920 BN61-05593B GUIDE-STAND;22B650,ABS HB,BK19 1 SA
...3 M0125 BN96-11522D ASSY BOARD P-TOUCH FUNCTION&IR;SS-PJT,12 1 SA
..2 T0175 BN96-11276A ASSY SPEAKER P;16ohm,4pin,3W,L350 22" 1 SA
0.1 M0002 BN90-02237D ASSY COVER REAR;LB350 22 1 SNA
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 3 SA
..2 M0013 BN96-11231C ASSY COVER P-REAR;LB350 22,HIPS,HB,BK500 1 SA
...3 M0113 BN61-01581A BRACKET-VESA;BI17/19BS,SECC,T1.0 2 SNA
...3 M0006 BN63-05910C COVER-REAR;LB350 22,HIPS,HB,BK500 1 SNA
...3 T0071 BN64-01115B INLAY-TERMINAL;LB350,22,CO,PS SHEET,T0.5 1 SNA
...3 T0139 BN65-00002A CLAMPER CORE;BORDEAUX,LDPE,BLK 1 SNA
0.1 M0216 BN90-02240A ASSY STAND;LB350 22 1 SNA
..2 M0027 BN96-11238A ASSY STAND P-BASE;LB350 22,ABS+PMMA,HB,B 1 SA
...3 CCM1 BN63-02183B COVER-SHEET;Rhcm,PE Vinyl,T0.04,150mm,20 0.8 SNA
...3 BN63-05885A COVER-STAND BASE;LB350 22,ABS+PMMA,HB,BK 1 SNA
...3 AR011 BN73-00077A RUBBER FOOT;MATISSE,BUMPON,#13.5,T2.0,60 4 SNA
0.1 BN91-04215D ASSY LCD-CHILIN;BN07-00744A 1 SNA
..2 M0215 BN07-00744A LCD-PANEL;T216HA01-DB,LM216HA,6bit Hi-FR 1 SA
0.1 M0017 BN91-04246A ASSY CHASSIS;LA22B350F2XXZ 1 SNA
..2 M0014 BN94-02998A ASSY PCB MAIN;LA22B350F2XXZ 1 SA
...3 0202-001463 SOLDER-WIRE;LFC2-W3.0,-,D3,99.79Sn/0.2Cu 1.343 SNA
...3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.013 SNA
...3 0204-002420 SOLVENT;1M-1000,C3H70H,96 2.92 SNA
...3 0204-002607 FLUX;DF-234U,13%,14KG,Gravity 0.82 1.895 SNA
...3 3701-001480 CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN 1 SA
...3 HB01A 3711-003846 HEADER-BOARD TO CABLE;BOX,8P,1R,2mm,ANGL 1 SA
...3 PCN1 3711-004712 HEADER-BOARD TO CABLE;BOX,9P,1R,2mm,STRA 1 SA
...3 HB01A 3711-006715 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5mm,AN 1 SNA
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 3 SA
...3 JA332 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 SA
...3 JA331 3722-002703 JACK-PIN;3P,Ni,GRN/BLU/RED,STRAIGHT 1 SA
...3 BN97-01987A ASSY HDCP;BN46-00018A,PS-42V6S,D73A,MSTA 1 SNA
....4 BN46-00018A KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S, 1 SNA
...3 T0174 BN97-03552A ASSY SMD;LA22B350F2X 1 SNA
....4 0202-001477 SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A 0.773 SNA
....4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 15 SA
....4 D1 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 4 SA
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 SA
....4 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 SA
....4 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 10 SA
....4 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 SA
5-3
5. Exploded View & Part List
Level Location No. Code No. Description & Specifi cation Q’ty SA/SNA Remark
....4 D0254 0404-001020 DIODE-SCHOTTKY;BAT54C,30V,200mA,SOT-23,T 2 SA
....4 T0139 0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 2 SNA
....4 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 9 SA
....4 PQ02 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 SA
....4 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 7 SA
....4 Q409 0505-001165 FET-SILICON;Si3443CDV,P,-20V,+-4.4A,65mo 1 SA
....4 Q409 0505-001170 FET-SILICON;FDS9933A,P,-20V,3.8A,0.075oh 1 SA
....4 1006-001266 IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI 1 SA
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 2 SA
....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 SA
....4 1105-001931 IC-DDR2 SDRAM;K4T51163Q,DDR2-800,512Mbit 1 SA
....4 T0085 1201-002487 IC-AUDIO AMP;MAX9728A,QFN,12P,3x3mm,DUAL 1 SA
....4 T0124 1201-002822 IC-POWER AMP;TAS5709,HTQFP,48P,7x7mm,DUA 1 SA
....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,PLAST 1 SA
....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33,TO-252,3P, 2 SA
....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 SA
....4 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 SA
....4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
....4 T0170 1203-005463 IC-SWITCH VOL. REG.;MIC2605YML,MLF,8P,2x 1 SA
....4 1203-005538 IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. 1 SA
....4 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 2 SA
....4 IC109 1205-003695 IC-LCD CONTROLLER;SEMS03-LF,PQFP,296P,32 1 SA
....4 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 SA
....4 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 8 SA
....4 DR1 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 2 SA
....4 PR4 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 2 SA
....4 PR6 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 2 SNA
....4 AR30 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
....4 AR150 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 4 SA
....4 CER04 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 3 SA
....4 MROP1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 6 SA
....4 ZPR3 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA
....4 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 52 SA
....4 AR49 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 4 SNA
....4 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 3 SNA
....4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 17 SNA
....4 R104 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 28 SA
....4 HDR2 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR36 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 6 SNA
....4 MR13 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 SNA
....4 R509 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 SNA
....4 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 34 SNA
....4 HDR17 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 9 SNA
....4 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 22 SNA
....4 UR23 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 10 SNA
....4 MR39 2007-000242 R-CHIP;1.5Kohm,5%,1/16W,TP,1005 1 SNA
....4 KR7 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 SA
....4 MR9 2007-000455 R-CHIP;18Kohm,1%,1/10W,TP,1608 1 SA
....4 WR18B 2007-000463 R-CHIP;18ohm,5%,1/10W,TP,1608 4 SA
....4 FR6 2007-000536 R-CHIP;200ohm,1%,1/10W,TP,1608 1 SA
....4 R38 2007-000640 R-CHIP;270ohm,1%,1/10W,TP,1608 1 SA
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specifi cation Q’ty SA/SNA Remark
....4 R19 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 SNA
....4 R124 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 SNA
....4 R552 2007-000913 R-CHIP;43Kohm,5%,1/10W,TP,1608 2 SA
....4 DR37 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 5 SNA
....4 2007-001237 R-CHIP;910ohm,1%,1/10W,TP,1608 1 SA
....4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 7 SNA
....4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 3 SNA
....4 R1 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 6 SNA
....4 TR30 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 8 SNA
....4 R365 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 4 SNA
....4 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 3 SNA
....4 2007-007297 R-CHIP;110ohm,1%,1/10W,TP,1608 1 SA
....4 2007-007319 R-CHIP;390ohm,1%,1/16W,TP,1005 2 SNA
....4 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 1 SNA
....4 RR17 2007-007549 R-CHIP;4.99Kohm,1%,1/10W,TP,1608 1 SA
....4 R8 2007-007721 R-CHIP;560ohm,1%,1/10W,TP,1608 1 SA
....4 2007-008593 R-CHIP;750ohm,1%,1/16W,TP,1005 1 SA
....4 PRN7 2011-001011 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,3 4 SA
....4 MR38 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 3 SA
....4 DAR09 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 10 SA
....4 AC1 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 4 SA
....4 AD480 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012 1 SA
....4 AC14 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 32 SNA
....4 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 3 SA
....4 C395 2203-000260 C-CER,CHIP;10nF,10%,50V,X7R,2012 1 SNA
....4 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 7 SA
....4 C507 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 4 SA
....4 MC9 2203-000627 C-CER,CHIP;.022nF,5%,50V,C0G,TP,1005 2 SNA
....4 AC109 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 3 SA
....4 DC25 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,1005 3 SA
....4 ZC165 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 6 SA
....4 AD480 2203-000995 C-CER,CHIP;.047nF,5%,50V,C0G,TP,1005 2 SA
....4 AC124 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 SNA
....4 AD480 2203-001412 C-CER,CHIP;0.03nF,5%,50V,NP0,TP,1005 2 SNA
....4 MC22R 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2012 2 SA
....4 C313 2203-001630 C-CER,CHIP;330nF,+80-20%,16V,Y5V,1608 1 SNA
....4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 3 SNA
....4 AD480 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 4 SNA
....4 C178 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012 2 SNA
....4 DC108 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 SC
....4 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 10 SNA
....4 TE3 2203-005261 C-CER,CHIP;1000nF,10%,25V,X7R,TP,3216 1 SNA
....4 C410 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201 10 SNA
....4 AD480 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 SNA
....4 AD480 2203-005533 C-CER,CHIP;1000nF,20%,6.3V,X7R,TP,1608 2 SNA
....4 EC9 2203-005834 C-CER,CHIP;22000nF,+80-20%,10V,Y5V,3216 1 SA
....4 AD480 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 3 SNA
....4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,1005 14 SNA
....4 PC11 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 5 SNA
....4 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 24 SNA
....4 AD480 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 4 SNA
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specifi cation Q’ty SA/SNA Remark
....4 AD480 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 2 SA
....4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 15 SC
....4 HDC11 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 6 SNA
....4 AD480 2203-006618 C-CER,CHIP;2200nF,+80-20%,16V,Y5V,TP,160 2 SNA
....4 AD480 2203-006681 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1005 18 SNA
....4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 7 SNA
....4 VL6 2703-000398 INDUCTOR-SMD;10uH,10%,3225 3 SA
....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225 3 SA
....4 T0052 2703-003559 INDUCTOR-SMD;4.7uH,20%,8080 1 SNA
....4 X202 2801-003773 CRYSTAL-SMD;12MHz,30ppm,28-AAN,20pF,50oh 1 SA
....4 F103 2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP 2 SA
....4 DR32 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 2 SNA
....4 T0568 3301-001186 BEAD-SMD;600ohm,3216,2500mA,TP,553ohm/93 4 SA
....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 3 SNA
....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 15 SA
....4 AC510 3708-001150 CONNECTOR-FPC/FFC/PIC;30P,1mm,SMD-A,SN,Y 1 SA
....4 T0077 BN41-01238A PCB MAIN;SS-Project,FR-4,4,1.2T,244*157, 1 SNA
....4 M0018 BN97-03571A ASSY MICOM;T-LL3MEAM-1005.7,2009.10.21,N 1 SNA
.....5 1107-001735 IC-NOR FLASH;MX25L3205DM2I-12G,32Mbit,16 1 SNA
....4 DS01A 0401-001049 DIODE-SWITCHING;LS4148,75V,150mA,SOD-80, 6 SA
....4 KR24 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 2 SNA
....4 C263 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 2 SA
....4 C745 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R,2012 2 SNA
....4 3701-001591 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU 1 SNA
....4 R133 2007-007651 R-CHIP;9.1Kohm,1%,1/10W,TP,1608 1 SA
....4 IC012 1203-003700 IC-POSI.ADJUST REG.;LD1117ADT-R,DPAK,3P, 2 SA
...3 CIS3 BN40-00142B TUNER;TCPS3001PD11S(H),TCPS3001PD11S(H), 1 SA
...3 T0066 BN62-00042A HEAT SINK-ES;30*30*5,Ceramic,T1.5,TAPE 1 SNA
0.1 BN91-04247A ASSY SHIELD;LA22B350F2XXZ 1 SNA
..2 T0081 6001-000321 SCREW-MACHINE;FH,+,M3,L10,NI PLT,SWRCH18 2 SA
..2 S.N.A 6003-000269 SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW 8 SNA
..2 M0081 6003-001439 SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC 1 SNA
..2 M0174 BN44-00302A AC VSS(I);IP-55145T,L650,1.9~2.9mA,8.2~9 1 SA
..2 M0251 BN96-02854N ASSY CABLE P;Fininfarina,FLAT CABLE,-,15 1 SA
..2 M0081 6006-001096 SCREW-TAPTYPE;BH,+,WP,B,M4.0,L12,ZPC(BLK 1 SNA
..2 CIS1 0203-001586 TAPE-FILAMENT;#893,0.15,25,55 0.14 SNA
0.1 BN92-05023C ASSY BOX;LB350 22 1 SNA
..2 T0077 BH68-00329D LABEL BAR CODE-02;NO CE,NO WT`Y,MPRII,LA 1 SNA
..2 M0245 BN96-02895A ASSY MISC P-01,HANDLE PACKING;ALL MODEL, 1 SNA
...3 BN66-00007A LEVER-TOP;ALL MODEL,LDPE,WHITE,5.8g 1 SNA
...3 BN66-00008A LEVER-BOTTOM;ALL MODEL,LDPE,WHITE,4.01g 1 SNA
..2 BN69-03902D BOX-SET;22LB350,CB,A-01,SW-55,YEL,W618,D 1 SNA
0.1 BN92-05027G ASSY P/MATERIAL;B350,22 1 SNA
..2 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 1.57 SNA
..2 6902-000609 BAG ROLL;LDPE,T0.05,W2400,L1000,TRP,30.0 0.05 SNA
..2 T0524 6902-000996 BAG PE;HDPE/NITRON,T0.015/T0.5,W800,L600 1 SNA
..2 BH69-00457A PACKING INNER-00,PAD;COMM,OTHER,T3.0,113 1 SNA
..2 BN69-00391D PAD-ANGLE;DI19PS,OTHER,T4,50,2000,YEL 1 SNA
..2 BN69-03565K PAD-PLATE;19LB650,CB,SW,YEL,W1150,D1090, 1 SNA
..2 T0246 BN69-03819A CUSHION-SET;22LB350(S-PJT),EPS,18.2g/l,2 1 SNA
..2 T0603 BN69-00131U PALLET;1703FP-HAS,WOOD,1240,1060,120 1 SNA
5-6
5. Exploded View & Part List
Level Location No. Code No. Description & Specifi cation Q’ty SA/SNA Remark
..2 T0214 BN74-00008A TAPE-OPP MASKING;OPP-2,T0.05,W100,L800M, 1.54 SNA
0.1 BN92-06479A ASSY LABEL;LA22B350F2VXXZ 1 SNA
..2 BH68-00670A LABEL BOX-COUNTRYWARD;22,26,32B350,MOJO 1 SNA
..2 BH68-00670C LABEL BOX-COUNTRYWARD;22B350,MOJO 90G,58 1 SNA
..2 CCM1 BN68-01176A LABEL RATING;W/W,SS,PET POLYESTER,T0.05, 1 SNA
..2 BN68-03003A LABEL-PRINTING;22MM,50MM,BLACK,WHITE,Pro 2 SNA
..2 BN68-03009A LABEL-POP;10MM,10MM,RED,Product sold in 1 SNA
0.1 ACCE1 BN92-06480A ASSY ACCESSORY;LA22B350F2VXXZ 1 SNA
..2 M0045 BN96-11507A ASSY ACCESSORY-CABLE;LA22B350F2XXZ 1 SA
...3 M0045 BN96-01800C ASSY ACCESSORY;PEONY/ROSE,-,KO,-,-,Witho 1 SNA
....4 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 SA
....4 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,4-PE M 1 SNA
...3 T0268 3903-000082 CBF-POWER CORD;DT,CN,IP3/YES(A),3P_Lug,2 1 SA
...3 T0074 BN59-00880A REMOCON;DLP,CRT,TM940,CHINA,39,92g 1 SA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 T0524 6902-001107 BAG PE;LDPE,T0.05,W450,L400,TRP,0,3Separ 1 SNA
...3 BN43-00004A BATTERY;BM1L,BATTERY,MN,600mAh,7.9g 2 SNA
..2 BN96-15056A ASSY ACCESSORY-MANUAL;LA22B350F2VXXZ 1 SNA
...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,9.2 1 SNA
...3 T0527 AA68-00764A LABEL-PASSING;SAMSUNG ALL,ART PAPER,CLR, 1 SNA
...3 T0527 AA68-02517A LABEL;PJTV(TTSEC),COPPERPLATE,50,75,YELL 1 SNA
...3 T0059 AA68-03184A MANUAL FLYER-CARD-08;ALL MODEL,CHINESE,2 1 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 BN68-02999A MANUAL USERS-IB;Comm,Samsung,SC,China,W/ 1 SNA
...3 BN68-03006A MANUAL FLYER-NAMEPLATE-CARD;LA22B350,Sam 1 SNA
...3 M0254 AA59-00416B ANT SHIELD BOX;UGC-AS-003A,PAL-BG,DK,I,M 1 SA
5-7
1. Precautions
1. Precautions
1-1. Safety Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
1.
For continued safety, do not attempt to modify the circuit board.
2.
Disconnect the AC power and DC power jack before servicing.
1-1-2. Servicing the LCD TV
1.
When servicing the LCD TV, Disconnect the AC line cord from the AC outlet.
2.
It is essential that service technicians have an accurate voltage meter available at all times.
Check the calibration of this meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the LCD TV to the user, perform the following safety checks:
1.
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the
chassis and other metal parts in the LCD TV.
2.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
3.
Leakage Current Hot Check (Figure 1-1):
WARNING : Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI
C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7).
(READING SHOULD)
NOT BE ABOVE 0.5mA
DEVICE
UNDER
TEST
TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
*ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
4.
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
Figure 1-1. Leakage Current Test Circuit
rst in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit,
etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
1-1
Loading...
