Exploded Views and Parts List

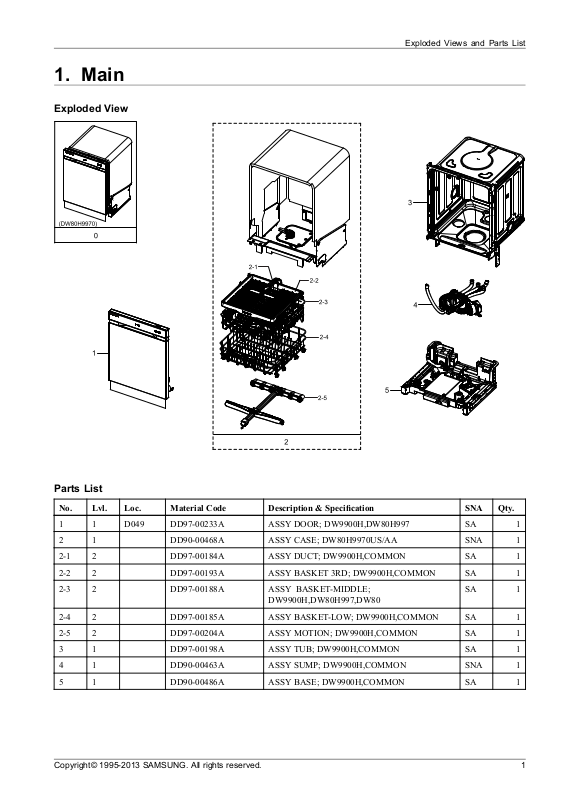

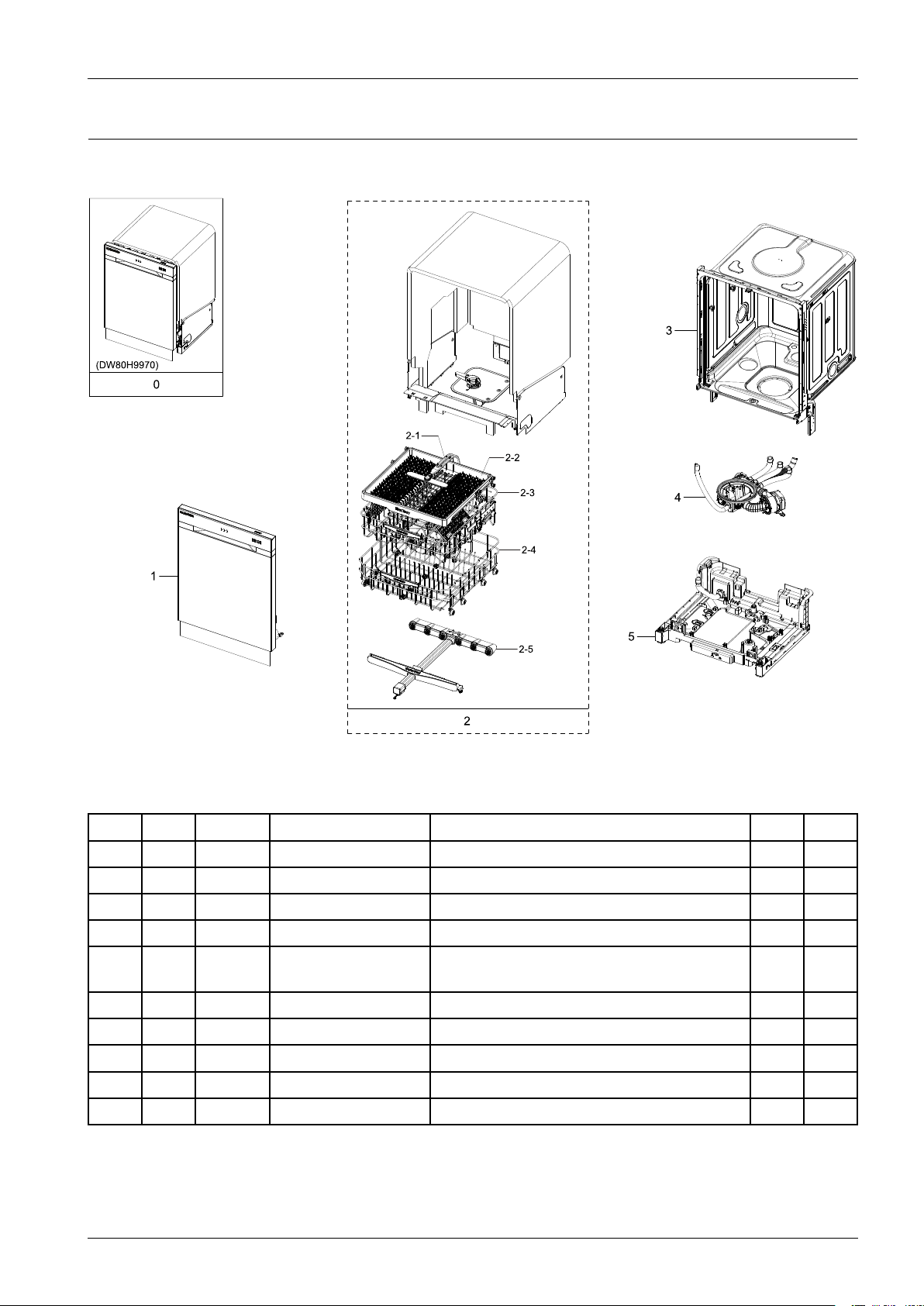

1. Main

Exploded View

Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

1 1 D049 DD97-00233A ASSY DOOR; DW9900H,DW80H997 SA 1

2 1 DD90-00468A ASSY CASE; DW80H9970US/AA SNA 1

2-1 2 DD97-00184A ASSY DUCT; DW9900H,COMMON SA 1

2-2 2 DD97-00193A ASSY BASKET 3RD; DW9900H,COMMON SA 1

2-3 2 DD97-00188A ASSY BASKET-MIDDLE;

DW9900H,DW80H997,DW80

SA 1

2-4 2 DD97-00185A ASSY BASKET-LOW; DW9900H,COMMON SA 1

2-5 2 DD97-00204A ASSY MOTION; DW9900H,COMMON SA 1

3 1 DD97-00198A ASSY TUB; DW9900H,COMMON SA 1

4 1 DD90-00463A ASSY SUMP; DW9900H,COMMON SNA 1

5 1 DD90-00486A ASSY BASE; DW9900H,COMMON SA 1

Page 2

Exploded Views and Parts List

2. Assy Door

Exploded View

Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

0 1 D049 DD97-00233A ASSY DOOR; DW9900H,DW80H997 SA 1

1 2 F085 DD61-00203B BRACKET-COVER FAN;

DMT800,STAINLESS-STS30

SA 1

2 2 DD61-00448A BRACKET DOOR INNER;

DW9900H,GI-SGCC,T0.5,

SA 1

3 2 F175 DD62-00044A SEAL-FAN; DMR78,EPDM,BLK,R-PJT SA 1

4 2 F083 DD63-00112A COVER-FAN;

DMT800,POM,WHT,R3-PJT,0103-001

SA 1

5 2 DD63-00221A CUSHION DUCT-LEFT; DW9900H,PUR

FOAM,50,-,

SA 1

6 2 DD63-00222A CUSHION DUCT-RIGHT; DW9900H,PUR

FOAM,50,-

SA 1

7 2 DD67-00104A RUBBER SKIRT; DW9900H,EPDM,-,BLACK,- SA 1

8 2 DD97-00224A ASSY DOOR-OUTER; DW9900H,DW80H997 SA 1

8-1 3 DD63-00256A ABSORBER-DOOR;

DW-H900,FELT,T10,W600,H625

SA 1

Page 3

Exploded Views and Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

9 2 DD97-00235A ASSY DOOR INNER; DW9900H,COMMON SA 1

9-1 3 DD34-00007A SWITCH DOOR; DC12V,0.01 SA 1

9-2 3 DD59-01002A DISPENSER-SLIDE; GALA-E,AC

110/240V,50/60

SA 1

9-3 3 A079 DD61-00463A HINGE-LEFT; DW9900H,PO-SPHC,T3.0,-,Tappin SA 1

9-4 3 A078 DD61-00464A HINGE-RIGHT;

DW9900H,PO-SPHC,T3.0,-,Tappi

SA 1

9-5 3 DD63-00224A ABSORBER-DOOR; DW9900H,FELT,T5,-,GRAY SA 1

10 2 DD93-01009A ASSY DUCT DRY; DW9900H,COMMON SA 1

10-1 4 M023 DD31-00023A MOTOR FAN;

IS-3215SSDWC,0.15A,8.9W,3000RP

SA 1

10-2 4 DD66-00145A ACTUATOR THERMAL;

DWH900A,POM,T5.0,V0,SPA

SA 1

11 2 DD97-00217A ASSY PANEL BOX; DW80H9970US,- SNA 1

11-1 3 M033 DD39-00015A WIRE HARNESS-SUB; 120V,DWH900A SA 1

11-2 3 D147 DD63-00251A COVER HANDLE; DW9900H,ABS,-,-,INOX

GRAY,H

SNA 1

11-3 3 DD63-00261A PROTECTOR; DW9900H,PET,T0.2,- SA 1

11-4 3 D019 DD64-00148A HANDLE DOOR;

DW9900H,ABS,-,HG-0760GP,-,IN

SA 1

11-5 3 C009 DD64-00153A WINDOW DISPLAY; DW9900H,PC,-,3022IR,-,5g SA 1

11-6 3 DD64-00154A INLAY; DW9900H,Ni+Cr Plating,-,BLACK,CHEF SA 1

11-7 3 DD92-00043B ASSY MODULE; DW80H9970US,DW9900HA

Top che

SA 1

11-8 3 DD97-00200A ASSY PANEL CONTROL; DW9900H,-,- SA 1

11-8-1 4 DD92-00042A ASSY MODULE;

DW80H9950US,DW9900HA,Touch_B

SA 1

11-8-2 4 DD64-00149A PANEL CONTROL;

DW9900H,ABS,-,HG-0760GP,IN

SA 1

11-9 3 Y040 DD07-00017A LED DISPLAY; 8S,4D,IBL SA 1

12 2 DD63-00226A COVER HARNESS;

DW9900H,PP,-,-,BLACK,-,PP-

SA 1

13 2 DA64-04019B MASCOT; ALL,NI,-,T0.06,L65 SA 1

Page 4

Exploded Views and Parts List

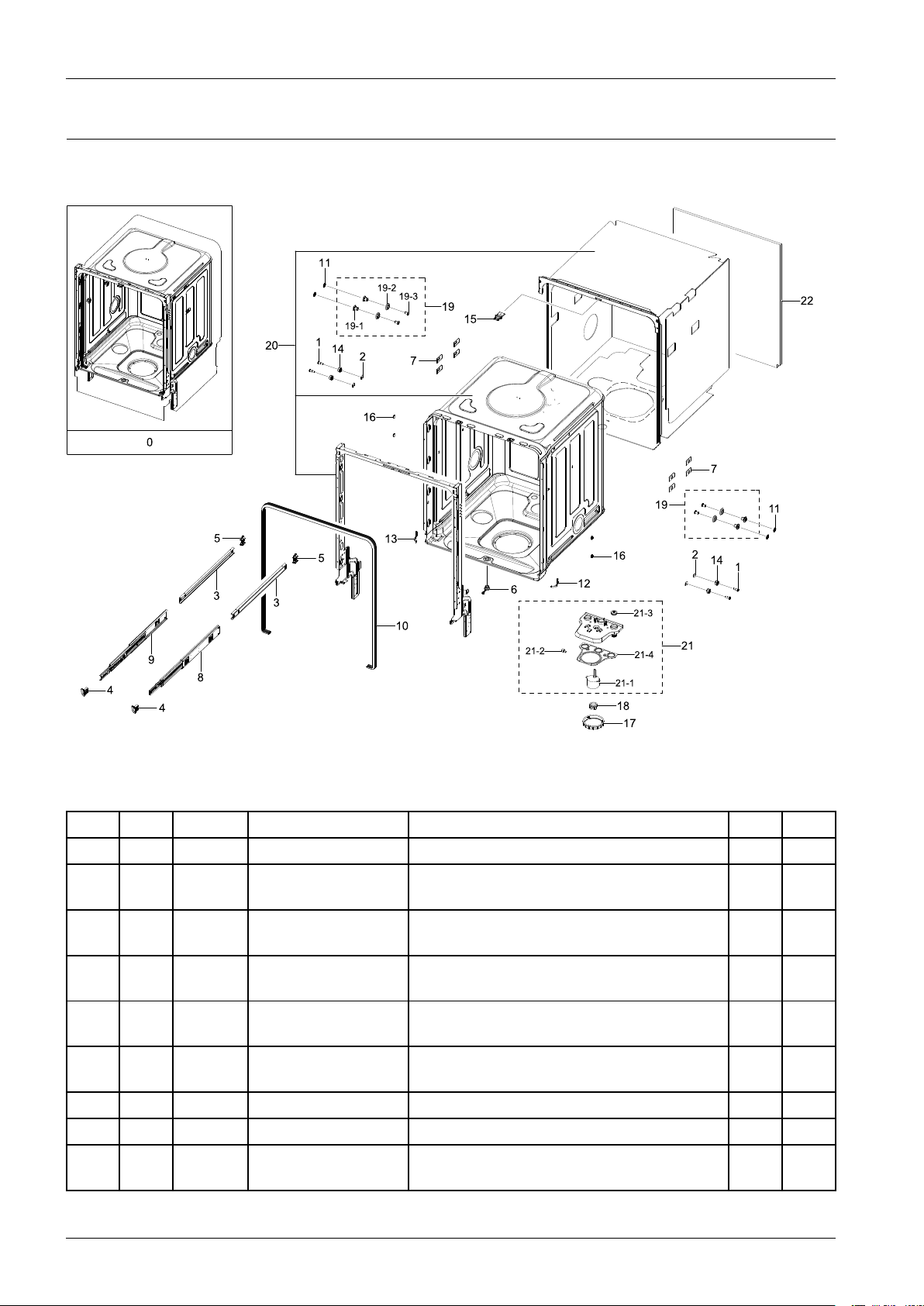

3. Assy Tub

Exploded View

Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

0 1 DD97-00198A ASSY TUB; DW9900H,COMMON SA 1

1 2 F093 6011-001641 BOLT-HEX;

M6,L24(11),ZPC(WHT),SWRCH18A,-

SA 4

2 2 F094 DD61-00185A HOLDER BOLT; GALA-E,MSWR-SWRM,M6

3.0T

SA 4

3 2 DD61-00329A BRACKET RAIL-MID;

GALA-E,COMMON,STAINLESS

SA 2

4 2 DD61-00355A HOLDER-RAIL MIDDLE FRONT;

GALA-E,COMMON,P

SA 2

5 2 DD61-00356A HOLDER-RAIL MIDDLE BACK;

GALA-E,COMMON,PO

SA 2

6 2 DD61-00453A FIXER RUBBER; DW9900H,EPDM,BLACK SA 1

7 2 DD61-00455A BRACKET RAIL; DW9900H,GI-SGCC,T1.0,-,- SA 8

8 2 DD61-00501A BRACKET RAIL-RIGHT;

DW9900H,STAINLESS-STS

SA 1

Page 5

Exploded Views and Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

9 2 DD61-00502A BRACKET RAIL-LEFT;

DW9900H,STAINLESS-STS3

SA 1

10 2 DD62-00097B SEAL TUB PACKING; DW9900H,PUR FOAM,-,- SA 1

11 2 DD62-00136A SEAL TUB; DW9900H,EPDM,BLACK,- SA 4

12 2 DD63-00225A COVER TUB EDGE-RIGHT;

DW9900H,PP,-,-,BLAC

SA 1

13 2 DD63-00238A COVER TUB EDGE-LEFT;

DW9900H,PP,-,-,BLACK

SA 1

14 2 DD66-00020A ROLLER HINGE;

GALA-E,POM,F20-03,NCGO55,GR

SA 4

15 2 DD66-00133A LEVER DOOR; DW9900H,ALDC,-,-,- SA 1

16 2 DD67-00074A CAP DOOR GUIDE;

GALA-E,POM,F20-03,NCGO55,

SA 4

17 2 DD67-00103A CAP-DOWN; DW9900H,PP,-,-,-,LIGHT WARM

GRA

SA 3

18 2 DD67-00106A CAP-MIDDLE; DW9900H,PP,-,-,-,LIGHT WARMGSA 1

19 2 DD97-00194A ASSY ROLLER; DW9900H,COMMON SA 4

19-1 3 DD61-00454A HOLDER RAIL; DW9900H,POM,-,LIGHT

GRAY,-,F

SA 4

19-2 3 DD66-00116A ROLLER-RAIL UP; DW9900H,PP,-,LIGHT

WARM G

SA 4

19-3 3 DD66-00115A SHAFT BASKET-RAIL UP;

DW9900H,POM,LIGHT W

SA 4

20 2 DD97-00215A ASSY TUB SUB; DW9900H,COMMON SNA 1

21 2 DD97-00216A ASSY COVER NOZZLE; DW9900H,COMMON SA 1

21-1 3 DD31-00013B MOTOR GEARED;

SRM-36HR,30,4kgfcm,20.15,12

SA 1

21-2 3 DD32-00011A SENSOR-VANE; DW80H9000,5VDC,HALL IC

type

SA 1

21-3 3 F178 DD62-00053A SEAL-OIL; DMR78,NBR,BLK,R-PJT SA 1

21-4 3 DD62-00128A SEAL CAP GUIDE; DW9900H,EPDM,BLACK,- SA 1

22 2 DD63-00250A ABSORBER-BACK;

DW9900H,FELT,T10,-,GRAY

SA 1

Page 6

Exploded Views and Parts List

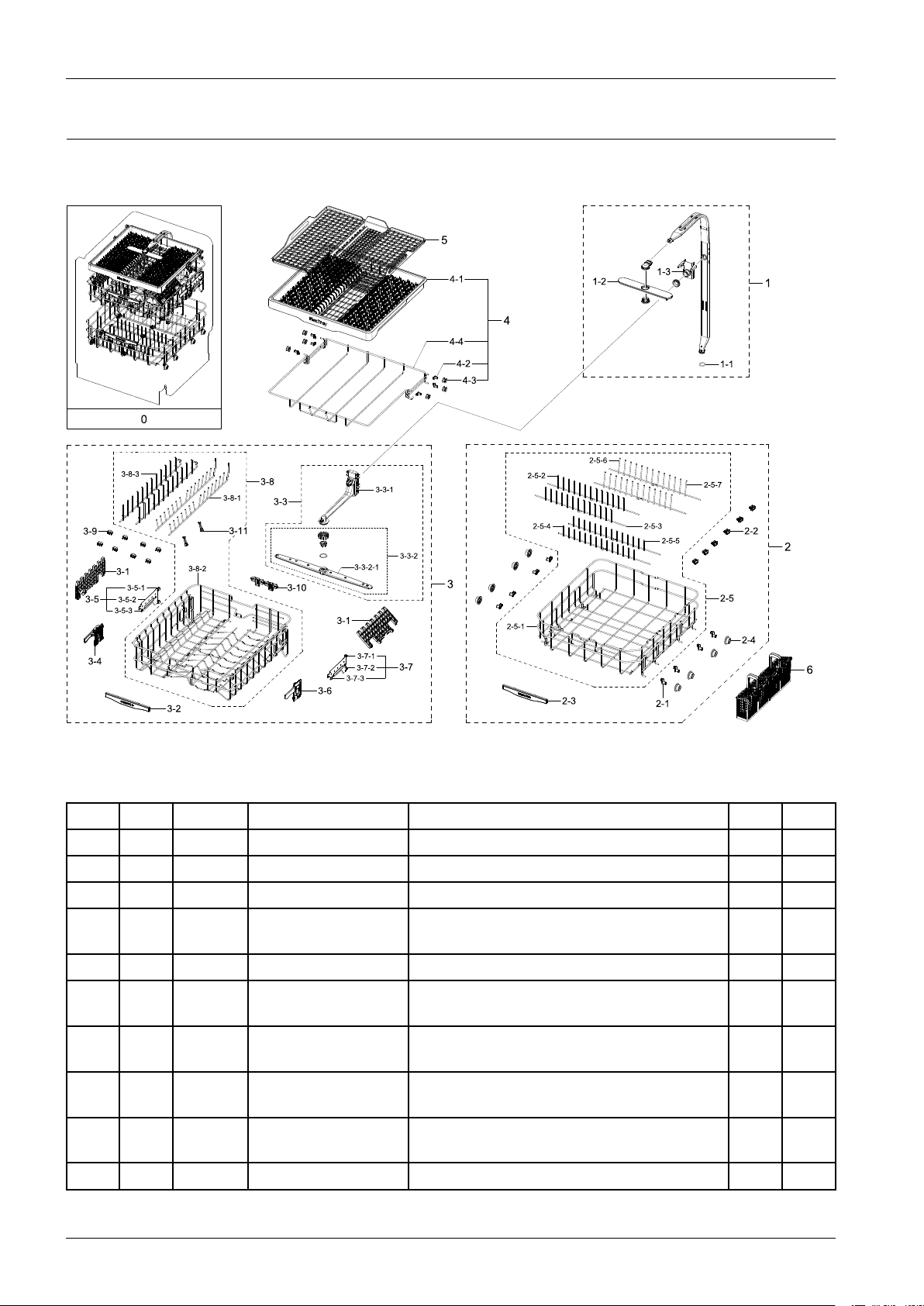

4. Assy Case_Assy Basket&Duct

Exploded View

Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

1 2 DD97-00184A ASSY DUCT; DW9900H,COMMON SA 1

1-1 3 DD62-00129A SEAL RING; DW9900H,EPDM,BLACK,- SA 1

1-2 3 F444 DD94-01082A ASSY ROTOR UPPER; GALA-E,COMMON SA 1

1-3 3 DD61-00432A HOLDER DUCT-MIDDLE;

DW9900H,POM,-,LIGHT W

SA 1

2 2 DD97-00185A ASSY BASKET-LOW; DW9900H,COMMON SA 1

2-1 3 F153 DD61-00351A HOLDER ROLLER;

GALA-E,POM,F20-03,NCGO55,G

SA 8

2-2 3 DD61-00472A HOLDER TINE-LOW; DW9900H,POM,-,LIGHT

WARM

SA 6

2-3 3 DD64-00144A HANDLE BASKET;

DW9900H,PP,-,MT43,-,DARK N

SA 1

2-4 3 DD66-00076A ROLLER-BASKET LOWER; GALA-E,PP,LIGHT

WARM

SA 8

2-5 3 DD97-00197A ASSY BASKET LOWER; DW9900H,COMMON SA 1

Page 7

Exploded Views and Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

2-5-1 4 DD66-00131A BASKET LOWER;

DW9900H,MSWR-SWRM,T5,A, NYL

SNA 1

2-5-2 4 DD66-00135A WIRE FOLDING-MIDDLE LEFT;

DW9900H,MSWR-SW

SNA 2

2-5-3 4 DD66-00136A WIRE FOLDING-MIDDLE RIGHT;

DW9900H,MSWR-S

SNA 2

2-5-4 4 DD66-00137A WIRE FOLDING-FRONT LEFT;

DW9900H,MSWR-SWR

SNA 2

2-5-5 4 DD66-00138A WIRE FOLDING-FRONT RIGHT;

DW9900H,MSWR-SW

SNA 2

2-5-6 4 DD66-00139A WIRE FOLDING-REAR LEFT;

DW9900H,MSWR-SWRM

SNA 2

2-5-7 4 DD66-00140A WIRE FOLDING-REAR RIGHT;

DW9900H,MSWR-SWR

SNA 2

3 2 DD97-00188A ASSY BASKET-MIDDLE;

DW9900H,DW80H997,DW80

SA 1

3-1 3 DD61-00479A SUPPORT CUP; DW9900H,PP,-,-,-,LIGHT

WARM

SA 2

3-2 3 DD64-00144A HANDLE BASKET;

DW9900H,PP,-,MT43,-,DARK N

SA 1

3-3 3 DD97-00180A ASSY ROTOR MID; DW9900H,COMMON SA 1

3-3-1 4 DD97-00181A ASSY DUCT MIDDLE; DW9900H,COMMON SA 1

3-3-2 4 DD97-00182A ASSY ROTOR MIDDLE DUCT;

DW9900H,COMMON

SA 1

3-3-2-1 5 DD97-00183A ASSY ROTOR MIDDLE; DW9900H,COMMON SA 1

3-4 3 DD97-00189A ASSY BASKET ADJUSTER-LEFT;

DW9900H,COMMON

SA 1

3-5 3 DD97-00190A ASSY BASKET ADJUSTER-LEFT;

DW9900H,COMMON

SA 1

3-5-1 4 DD61-00474A SUPT BRACKET;

DW9900H,POM,-,-,F20-03,LIGH

SA 2

3-5-2 4 DD61-00499A BRACKET BASKET MIDDLE-LEFT;

DW9900H,STAIN

SA 1

3-5-3 4 DD66-00146A SHAFT BASKET;

DW9900H,STAINLESS-STS304,-,

SA 2

3-6 3 DD97-00191A ASSY BASKET ADJUSTER-RIGHT;

DW9900H,COMMO

SA 1

3-7 3 DD97-00192A ASSY BASKET ADJUSTER-RIGHT;

DW9900H,COMMO

SA 1

3-7-1 4 DD61-00474A SUPT BRACKET;

DW9900H,POM,-,-,F20-03,LIGH

SA 2

3-7-2 4 DD61-00500A BRACKET BASKET MIDDLE-RIGHT;

DW9900H,STAI

SA 1

3-7-3 4 DD66-00146A SHAFT BASKET;

DW9900H,STAINLESS-STS304,-,

SA 2

Page 8

Exploded Views and Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

3-8 3 DD97-00196A ASSY BASKET MIDDLE-SEMI;

DW9900H,DW80H955

SA 1

3-8-1 4 DD66-00124A WIRE FOLDING;

DW9900H,MSWR-SWRM,T4,BOWL,

SNA 2

3-8-2 4 DD66-00132A BASKET MIDDLE;

DW9900H,MSWR-SWRM,T5,BASKE

SNA 1

3-8-3 4 DD66-00130A WIRE FOLDING;

DW9900H,MSWR-SWRM,T4,GLASS,

SNA 2

3-9 3 DD61-00469A HOLDER TINE; DW9900H,POM,-,LIGHT

WARM GRA

SA 2

3-10 3 DD61-00473A HOLDER TINE-UP; DW9900,POM,-,LIGHT

WARM G

SA 8

3-11 3 DD61-00505A HOLDER ACCESSORY;

DW9900H,POM,T2.5,-,-,F2

SA 2

4 2 DD97-00193A ASSY BASKET 3RD; DW9900H,COMMON SA 1

4-1 3 DD61-00456A BASKET 3RD; DW9900H,PA6,-,-,-,7335F SA 1

4-2 3 DD61-00457A HOLDER ROLLER; DW9900H,POM,-,LIGHT

WARM G

SA 6

4-3 3 DD66-00117A ROLLER-RAIL UP; DW9900H,POM,-,LIGHT

WARM

SA 6

4-4 3 DD66-00118A WIRE FRAME 3RD;

DW9900H,MSWR-SWRM,T5,NYLO

SA 1

5 2 DD61-00491A BASKET 3RD-UP; DW9900H,TPE,T2.0,-,-,XR-10 SA 1

6 2 DD61-00504A BASKET CUTLERY MAIN;

DW9900H,PP,T2.0,-,-,

SA 2

Page 9

Exploded Views and Parts List

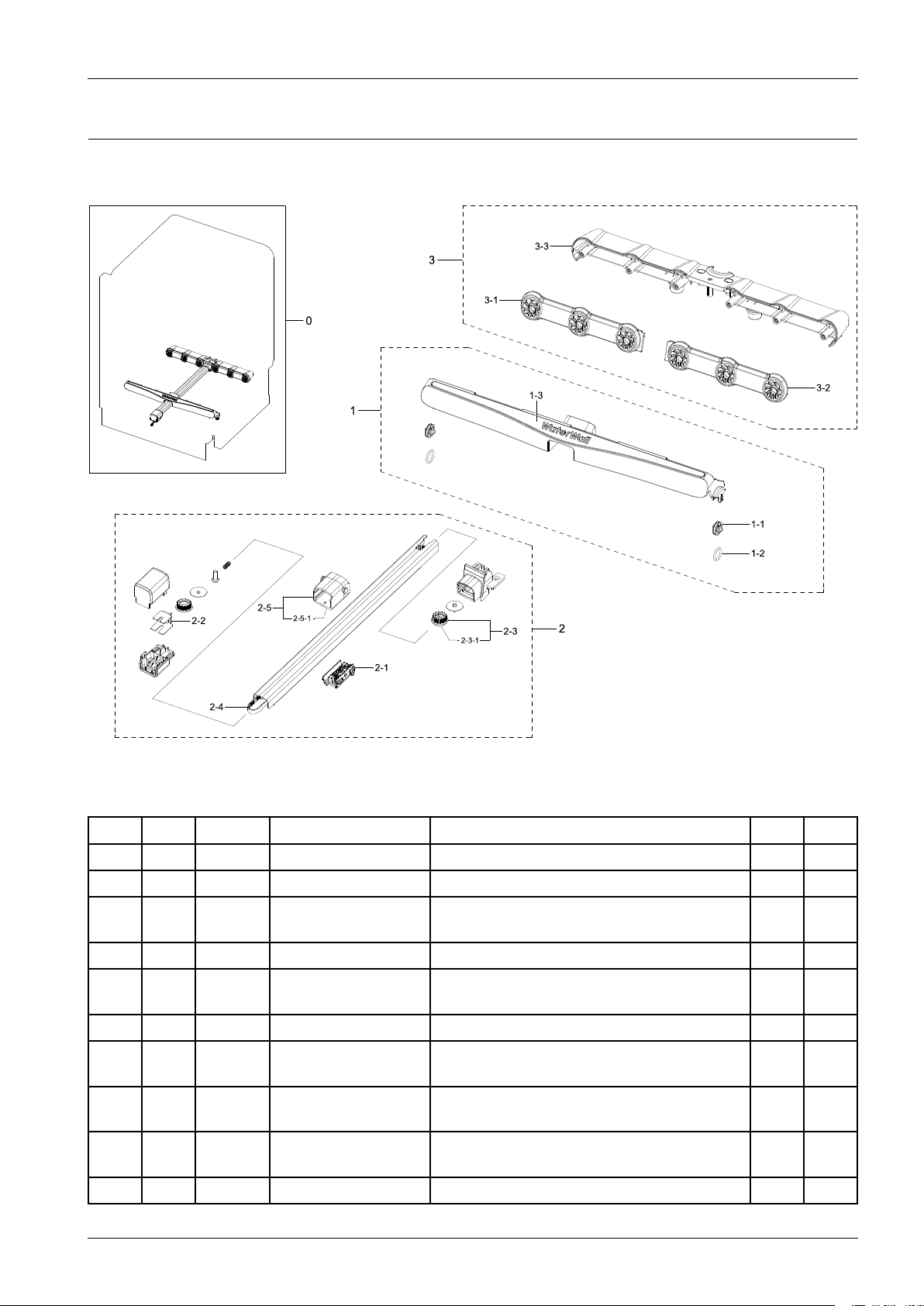

5. Assy Case_Assy Motion

Exploded View

Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

0 2 DD97-00204A ASSY MOTION; DW9900H,COMMON SA 1

1 3 DD97-00206A ASSY VANE; DW9900H,COMMON SA 1

1-1 4 DD66-00109A ROLLER-VANE; DW9900H,POM,-,LIGHT

WARM GRA

SNA 2

1-2 4 DD67-00114A RUBBER DAMPER; DW9900H,EPDM,-,BLACK SNA 2

1-3 4 DD64-00135A DECORATION-VANE;

DW9900H,STS304,T0.4,-,-

SA 1

2 3 DD97-00207A ASSY RAIL; DW9900H,COMMON SA 1

2-1 4 DD61-00441A HOLDER BELT; DW9900H,POM,-,LIGHT

WARM GRA

SA 1

2-2 4 DD61-00443A BRACKET IDLER;

DW9900H,STAINLESS-STS304,T

SA 1

2-3 4 DD66-00105A PULLEY MOTOR-LOW;

DW9900H,POM,-,LIGHT GRA

SNA 1

2-3-1 5 DD61-00462A GUIDE PIN; DW9900H,STS304,T3.0,-,- SA 1

Page 10

Exploded Views and Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

2-4 4 DD66-00144A BELT V-TIMING; TPE,-,-,-,NATURAL SA 1

2-5 4 DD97-00208A ASSY HOLDER VANE; DW9900H,COMMON SNA 1

2-5-1 5 DD61-00440A HOLDER MAGNET; DW9900H,POM,-,LIGHT

WARM G

SA 1

3 3 DD97-00209A ASSY NOZZLE-LOWER; DW9900H,COMMON SA 1

3-1 4 DD62-00126A NOZZLE-FRONT LEFT;

DW9900H,PP,VITALITY OR

SNA 1

3-2 4 DD62-00127A NOZZLE-FRONT RIGHT;

DW9900H,PP,VITALITY O

SNA 1

3-3 4 DD97-00227A ASSY SEMI NOZZLE LOWER;

DW9900H,COMMON

SNA 1

Page 11

Exploded Views and Parts List

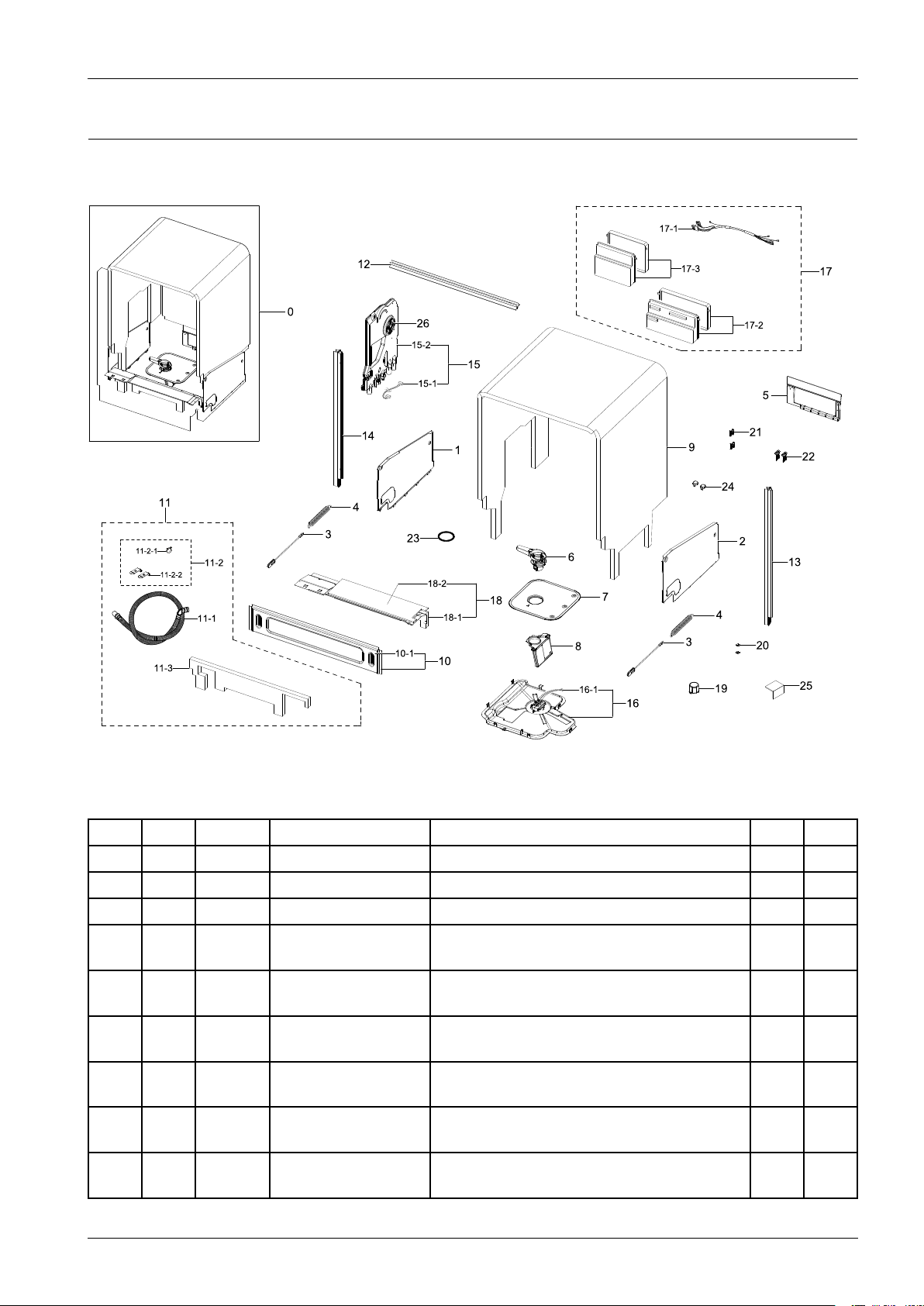

6. Assy Case_Etc

Exploded View

Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

0 1 DD90-00468A ASSY CASE; DW80H9970US/AA SNA 1

1 2 DD61-00451A HOUSING-LEFT; DW9900H,GI-SGCC,T0.4,-,- SA 1

2 2 DD61-00452A HOUSING-RIGHT; DW9900H,GI-SGCC,T0.4,-,- SA 1

3 2 DD61-00467A HOLDER ROPE DOOR;

DW9900H,POM,-,NATURAL,-

SA 2

4 2 DD61-00489A SPRING ETC DOOR;

DW9900H,HSWR-SWRH,72A

SA 2

5 2 DD61-00490A PLATE BACK;

DW9900H,PP,-,BLACK,-,-,PP-COP

SA 1

6 2 DD63-00234A FILTER COARSE; DW9900H,PP,-,LIGHT WARMGRSA 1

7 2 DD63-00235A FILTER FINE;

DW9900H,STAINLESS-STS304,T0.

SA 1

8 2 DD63-00237A FILTER MICRO; DW9900H,PP,-,LIGHT WARM

GRA

SA 1

Page 12

Exploded Views and Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

9 2 F314 DD63-00248A ABSORBER-TOP; DW9900H,FELT,T20,-,GRAY SA 1

10 2 DD97-00226A ASSY COVER PLINTH; DW9900H,COMMON,- SA 1

10-1 3 DD64-00150A TRIM-LOW; DW9900H,PP,EP649N,BLACK,TPV SA 1

11 2 DD90-00485A ASSY ACCESSORY; DW9900H,COMMON SNA 1

11-1 3 DD67-00116A HOSE DRAIN-OUT; DW9900H,PP,-,LIGHT

GRAY,T

SA 1

11-2 3 DD98-01019A ASSY PACKING PARTS; DW9900H,COMMON SNA 1

11-2-1 4 F167 DD65-00001G CLAMPER HOSE; GALA-E,SK5,ID23.7 SA 1

11-2-2 4 DD61-00465A BRACKET INSTALL; DW9900H,GI-SGCC,T0.8,- SA 2

11-3 3 DD63-00263A ABSORBER-LOW;

DW9900H,FELT,T40.0,-,GRAY

SA 1

12 2 DD64-00140A TRIM UPPER;

DW9900H,PP,EP649N,BLACK,TPV

SA 1

13 2 DD64-00151A TRIM-RIGHT;

DW9900H,PP,EP649N,BLACK,TPV

SA 1

14 2 DD64-00152A TRIM-LEFT; DW9900H,PP,EP649N,BLACK,TPV SA 1

15 2 DD94-01091C ASSY CASE BRAKE; DW9900H,COMMON SA 1

15-1 3 DD39-00002A WIRE HARNESS-OVERFLOW;

GALA-E,COMMON,UL15

SA 1

15-2 3 DD61-00372C CASE BRAKE-UP; DW-9900HA,PP,T2.0,-,-,EP64 SA 1

16 2 DD97-00199A ASSY COVER BASE; DW9900H,COMMON,- SA 1

16-1 3 DD39-00001A WIRE HARNESS-LEAKAGE;

GALA-E,COMMON,UL156

SA 1

17 2 DD97-00202A ASSY COVER PCB; DW9900H,COMMON SA 1

17-1 3 DD39-00012A WIRE HARNESS-MAIN; 120V,DWH800A SA 1

17-2 3 F316 DD92-00041A ASSY PCB MAIN;

DW80H9950US,DW9900HA,194*9

SA 1

17-3 3 DD92-00045A ASSY PCB INVERTER;

DW80H9950US,DW9900H IN

SA 1

18 2 DD97-00205A ASSY FRAME FRONT; DW9900H,COMMON SA 1

18-1 3 DD63-00230A ABSORBER-FRAME;

DW9900H,FELT,T20,-,GRAY

SA 1

18-2 3 DD63-00245A ABSORBER-FRAME;

DW9900H,FELT,T5,-,GRAY

SA 1

19 2 DC63-01432A COVER-FILTER;

WA456DRHDWD,HIPS,T1.5,-,NAT

SA 1

20 2 DD61-00450A BRACKET SPRING; DW9900H,GI-SGCC,T2.0,- SNA 2

21 2 DD61-00483A GUIDE HINGE;

DW9900H,POM,-,-,F20-03,LIGHT

SNA 2

22 2 DD61-00497A HOLDER RAIL; DW9900H,POM,-,LIGHT

GRAY,-,F

SA 2

23 2 F052 DD63-00072A GASKET-BRAKE; DMR78,EPDM,BLK,R-PJT SA 1

24 2 DD67-00113A CAP RUBBER; DW9900H,PP,-,-,-,LIGHT WARMGSA 2

Page 13

Exploded Views and Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

25 2 DD97-00236A ASSY HOUSING UPPER; DW9900H,COMMON SNA 1

26 2 DD67-00073A CAP CASE BRAKE;

GALA-E,COMMON,PP,-,HB,TB5

SA 1

Page 14

Exploded Views and Parts List

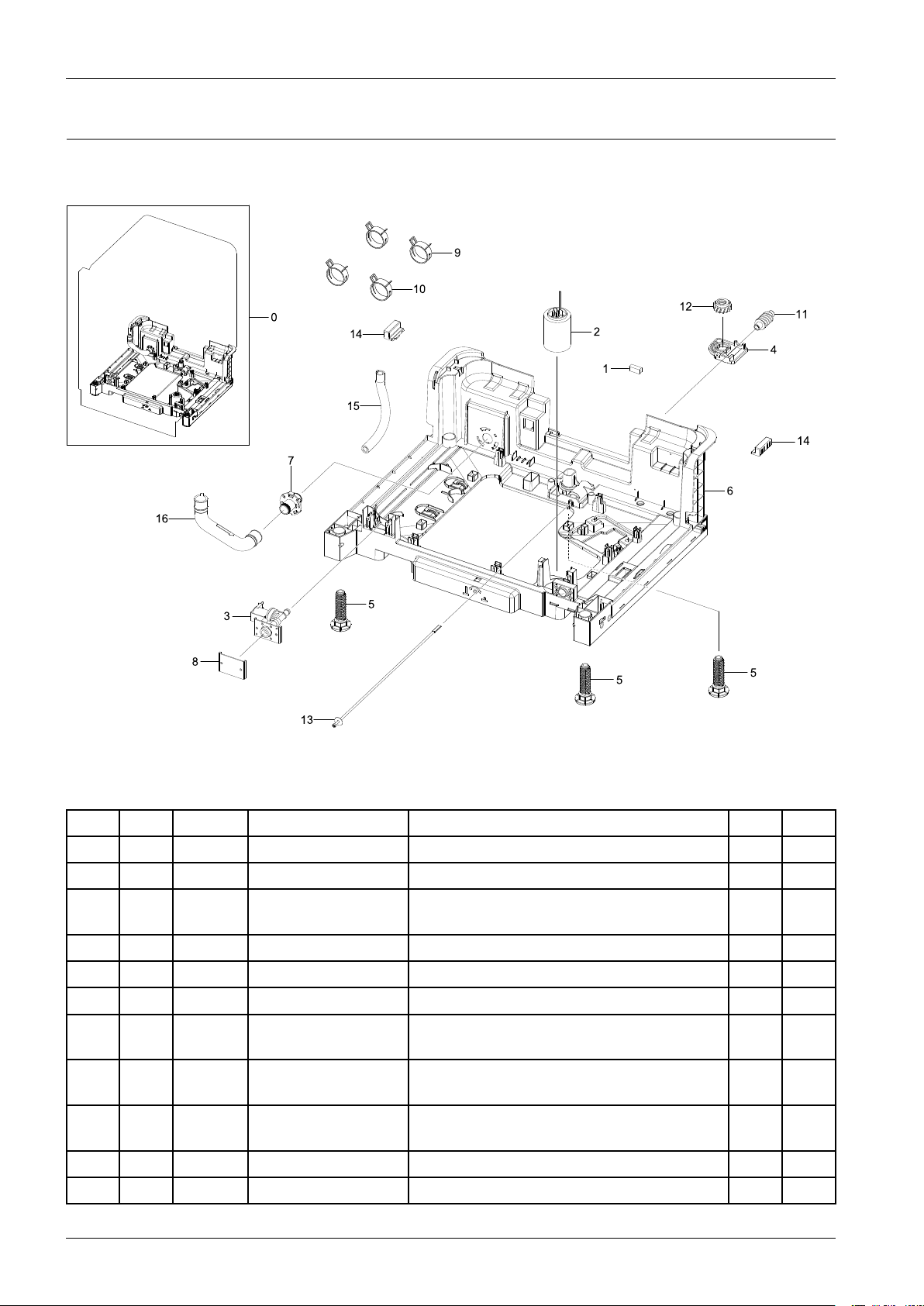

7. Assy Base

Exploded View

Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

0 1 DD90-00486A ASSY BASE; DW9900H,COMMON SA 1

1 2 2504-000009 C-MOTOR RUN-BOX; 0.68,-25to+85,BK,450V, SA 1

2 2 DD29-00006A FILTER EMI; DFCA-2512VS-22C15GW,-,AC

250V

SA 1

3 2 DD33-01001A VALVE WATER; AC110-127V,A-1,mm,#250,4.7L/ SA 1

4 2 F336 DD61-00281A CASE GEAR; GALA-E,BI MODEL,PP,PP-COPO SA 1

5 2 DD61-00331B FOOT FREE STANDING; GALA-E,PA6,NTR SA 3

6 2 DD61-00468A PLATE BASE;

DW9900H,PP,-,BLACK,-,-,PP-COP

SNA 1

7 2 DD61-00494A HOLDER HOSE; DW9900H,POM,-,LIGHT

WARM GRA

SA 1

8 2 DD63-00252A COVER POWER-LOW;

DW9900H,GI-SGCC,T0.8,-,-

SA 1

9 2 F167 DD65-00001G CLAMPER HOSE; GALA-E,SK5,ID23.7 SA 2

10 2 F152 DD65-00001N CLAMPER HOSE; GALA-E,SK5,DACRO COAT SA 2

Page 15

Exploded Views and Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

11 2 F346 DD66-00052A GEAR WORM; DMT800,PA,NTR,1300CRH SA 1

12 2 F345 DD66-00053A GEAR HELICAL; GALA-E,PA,NTR SA 1

13 2 DD66-00122A SHAFT ROD ADJUSTER FOOT;

DW9900H,SWRCH10A

SA 1

14 2 DD66-00123A DAMPER RUBBER;

DW9900H,EPDM,65,BLACK

SA 2

15 2 DD67-00109A HOSE WATER; DW9900H,EPDM,50,BLACK SA 1

16 2 DD67-00111A HOSE DRAIN; DW9900H,EPDM,T2.5,- SA 1

Page 16

Exploded Views and Parts List

8. Assy Sump

Exploded View

Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

0 1 DD90-00463A ASSY SUMP; DW9900H,COMMON SNA 1

1 2 DD31-00016A MOTOR BLDC PUMP; 120V/230V,DRAIN BLDC

PUM

SA 1

2 2 M117 DD32-00009A THERMISTOR; GALA-E,R50= 17.59 K,-20 SA 1

3 2 F089 DD32-00010A SENSOR-TURBIDITY;

DW80H9000,5VDC,Optical

SA 1

4 2 DD62-00130A SEAL SUMP; DW9900H,EPDM,BLACK,V0,65 SA 1

5 2 DD63-00233A COVER CIRCULATION PUMP;

DW9900H,PP,-,-,LI

SA 1

6 2 F167 DD65-00001G CLAMPER HOSE; GALA-E,SK5,ID23.7 SA 2

7 2 F166 DD65-00001H CLAMPER HOSE; GALA-E,SK5,ID19 SA 2

8 2 F152 DD65-00001L CLAMPER HOSE; GALA-E,SK5,DACRO COAT SA 1

9 2 F152 DD65-00001M CLAMPER HOSE; GALA-E,SK5,DACRO COAT SA 1

Page 17

Exploded Views and Parts List

No. Lvl. Loc. Material Code Description & Specication SNA Qty.

10 2 DD66-00114A DAMPER BLDC PUMP;

DW9900H,EPDM,65,BLACK

SA 1

11 2 DD67-00108A HOSE WATER LEVEL SENSOR;

DW9900H,EPDM,2.5

SA 1

12 2 DD67-00112A SUMP; DW9900H,PP,-,LIGHT

GRAY,PP+T20,HT62

SA 1

13 2 DD67-00115A HOSE DRAIN-IN; DW9900H,PP,T2.5,LIGHT

GRAY

SA 1

14 2 DD93-01010A ASSY MOTOR BLDC; DW9900H,COMMON,-,- SA 1

14-1 3 DD31-00011B MOTOR BLDC PUMP;

120V/230V,CIRCULATION BL

SNA 1

15 2 DD97-00222A ASSY GUIDE WATER; DW9900H,COMMON SA 1

15-1 3 S0021 DD34-00006A SWITCH-MICRO; 125/250V,0.1A,60gf,SPST-NO SA 1

15-2 3 F207 DD62-00054A SEAL DISTRIBUTER; GALA-E,SI,BLK SA 1

15-3 3 DD62-00119A SEAL COVER DISTRIBUTE;

DW9900H,NBR,BLACK,

SNA 1

15-4 3 F167 DD65-00001G CLAMPER HOSE; GALA-E,SK5,ID23.7 SA 6

15-5 3 DD67-00110A HOSE CIRCULATION;

DW9900H,EPDM,T2.5,BLACK

SNA 3

15-6 3 M049 DE31-10095B MOTOR AC DRIVE;

M2CD29ZR89-H,8,120V,60Hz,

SA 1
