Samsung HW-K660 Operating Instructions

User manual

HW-K650 HW-K651

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

GETTING STARTED

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that high voltage is

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

Class II product : This symbol indicates that it does not require a safety connection to electrical earth (ground).

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Caution, Consult instructions for use : This symbol instructs the user to consult the user manual for further safety related information.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the

mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

Wiring the Main Power Supply Plug (UK Only)

IMPORTANT NOTICE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord. Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE

LETTER E OR BY THE EARTH SYMBOL

present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol indicates that important literature concerning operation and maintenance has been included with this product.

, OR COLOURED GREEN OR GREEN AND YELLOW.

GETTING STARTED

99.1mm 99.1mm

68.6

99.1mm

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

ENG

During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately

Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash. Do not dispose of batteries in a fire. Do not short circuit, disassemble, or overheat the batteries. There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.

2 hours until the unit has reached room temperature before using.

WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. The remote control supplied withthis product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away

from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

GETTING STARTED

CONTENTS

2 GETTING STARTED

2 Safety Information

5 What’s Included

6 DESCRIPTIONS

6 Front / Right Side Panel

7 Rear / Bottom Panel

8 Remote Control

11 INSTALLATION

11 Installing the Soundbar

11 Installing the Wall Mount

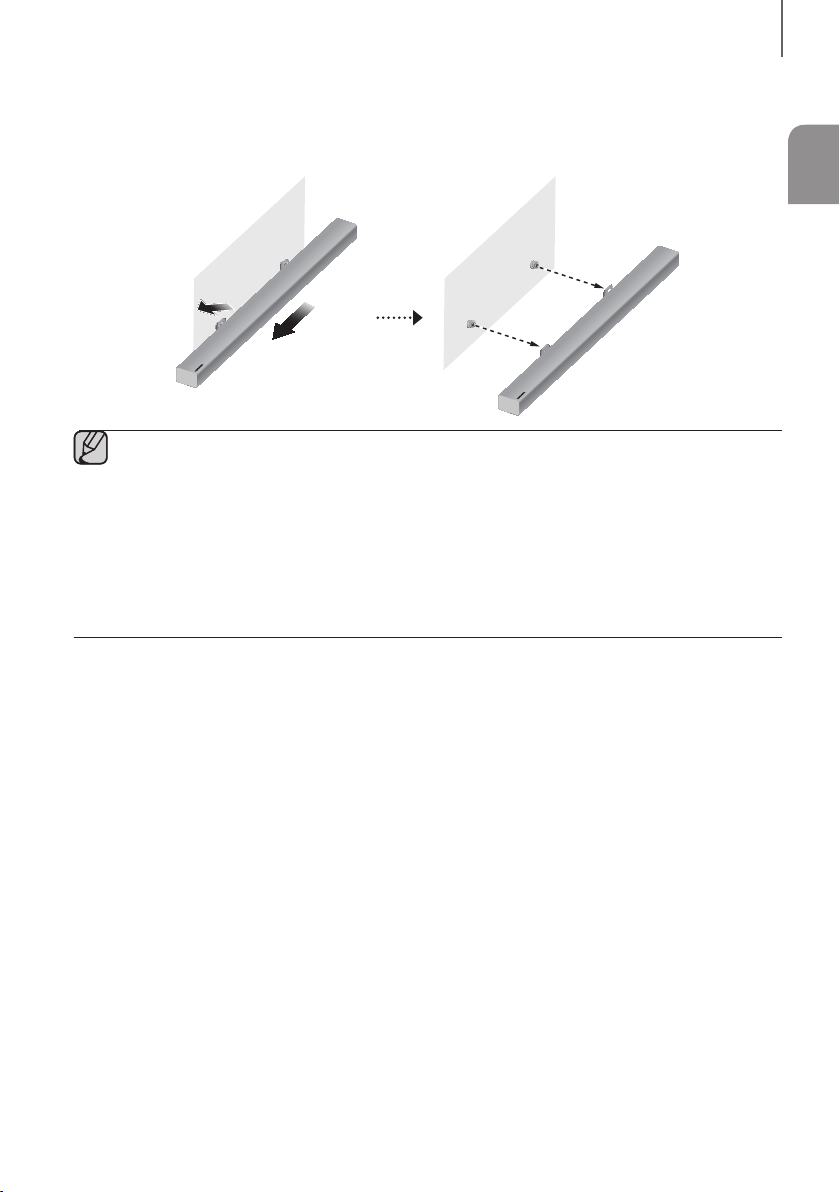

15 Detaching the Soundbar from the Wall

16 CONNECTIONS

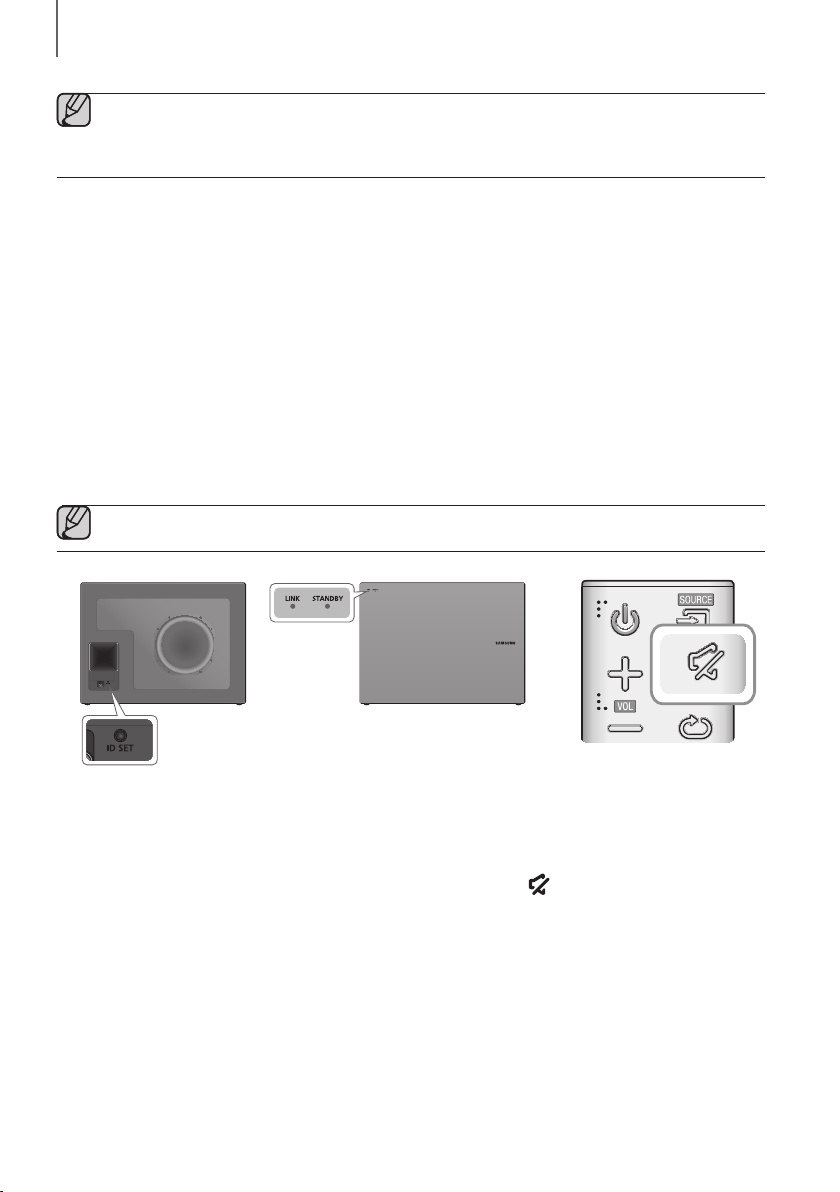

16 Connecting the Subwoofer

18 Connecting to a TV

18 TV SoundConnect

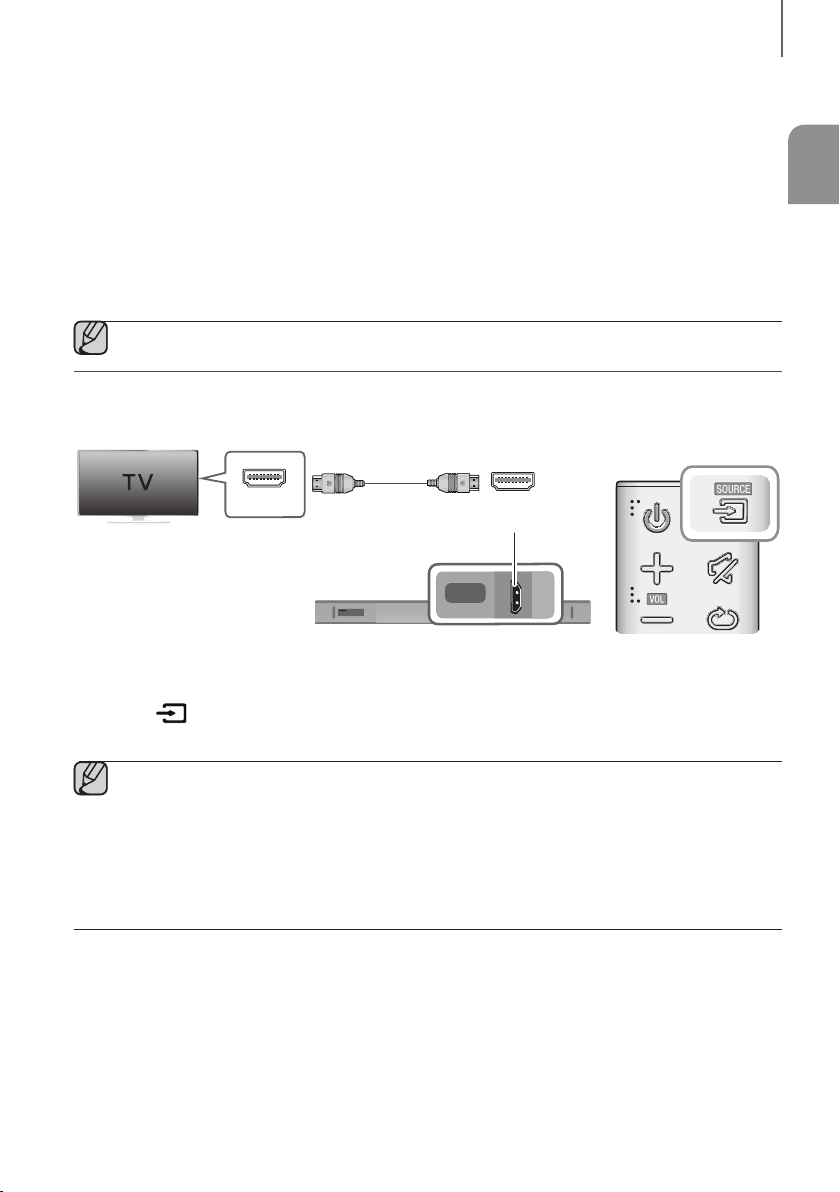

19 Connecting to a TV Using an HDMI (Digital)

Cable

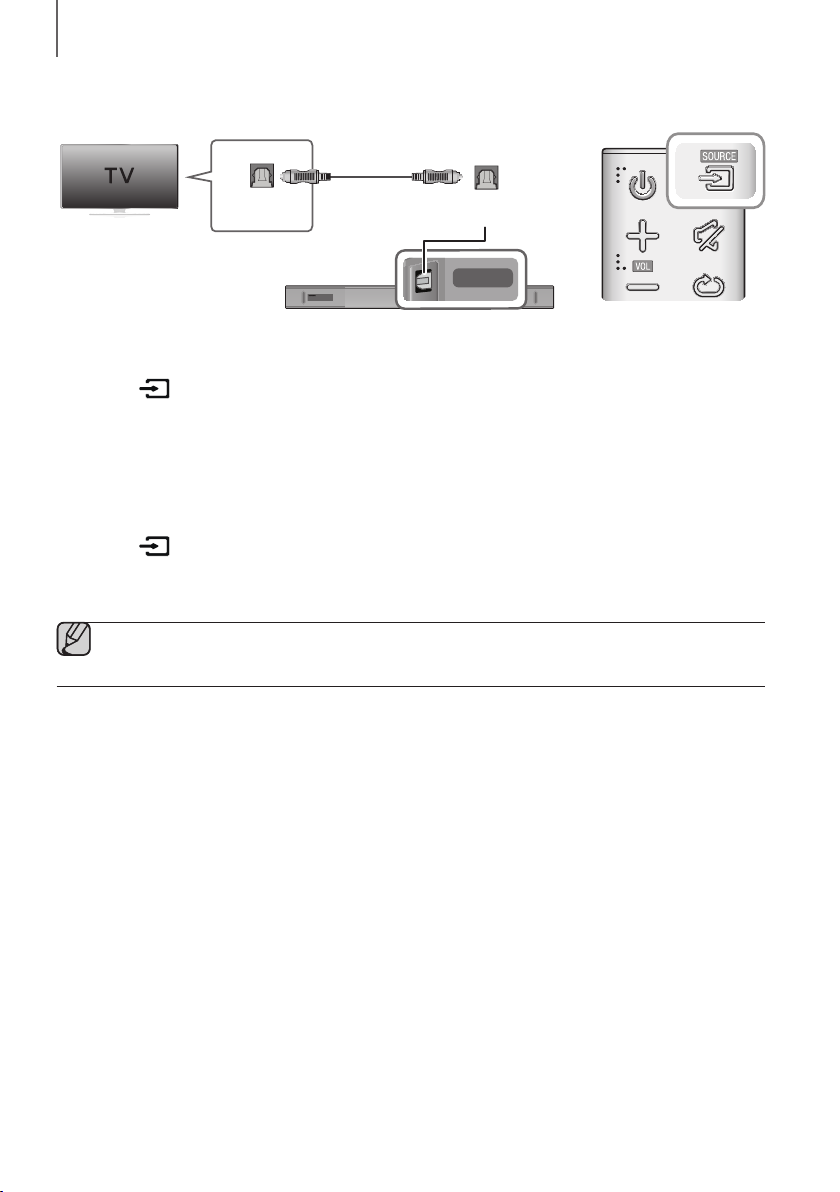

20 Connecting to a TV Using a Digital Optical

Cable

21 Connecting to External Devices

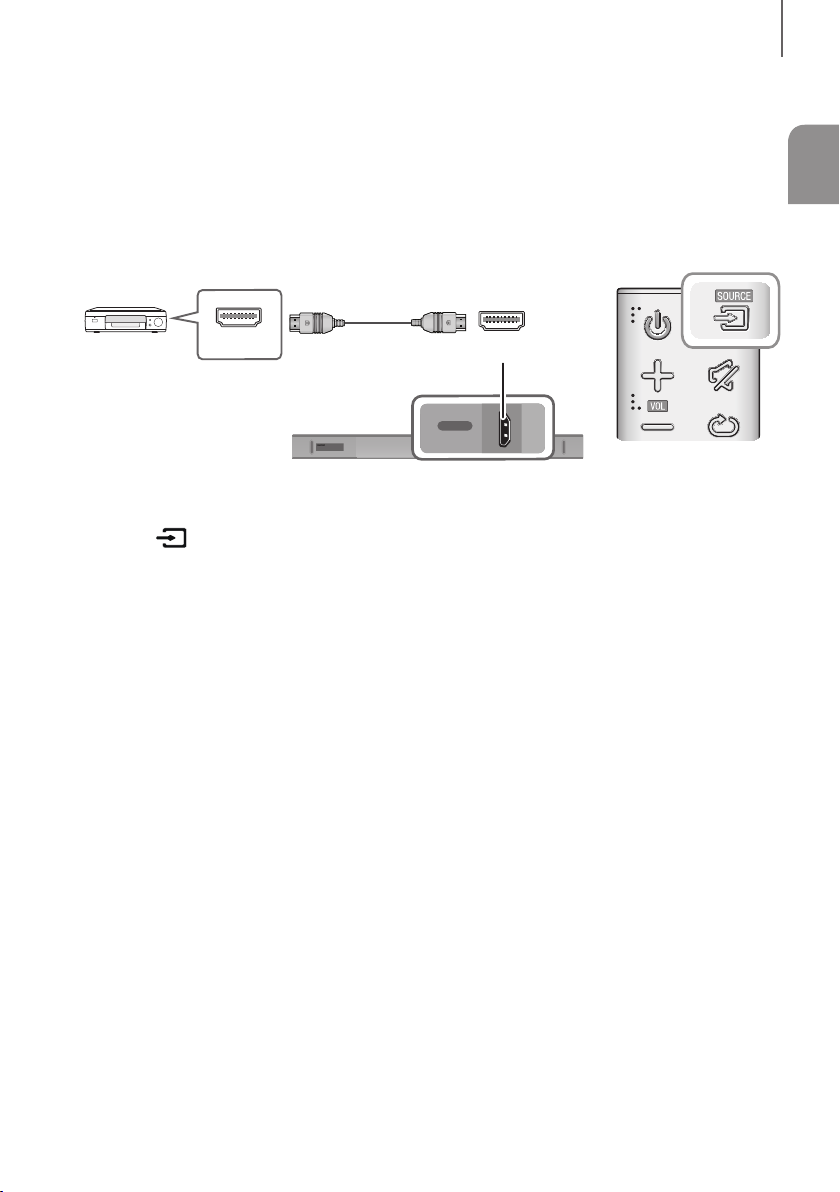

21 HDMI Cable

22 Optical or Analogue Audio Cable

23 FUNCTIONS

23 Input Mode

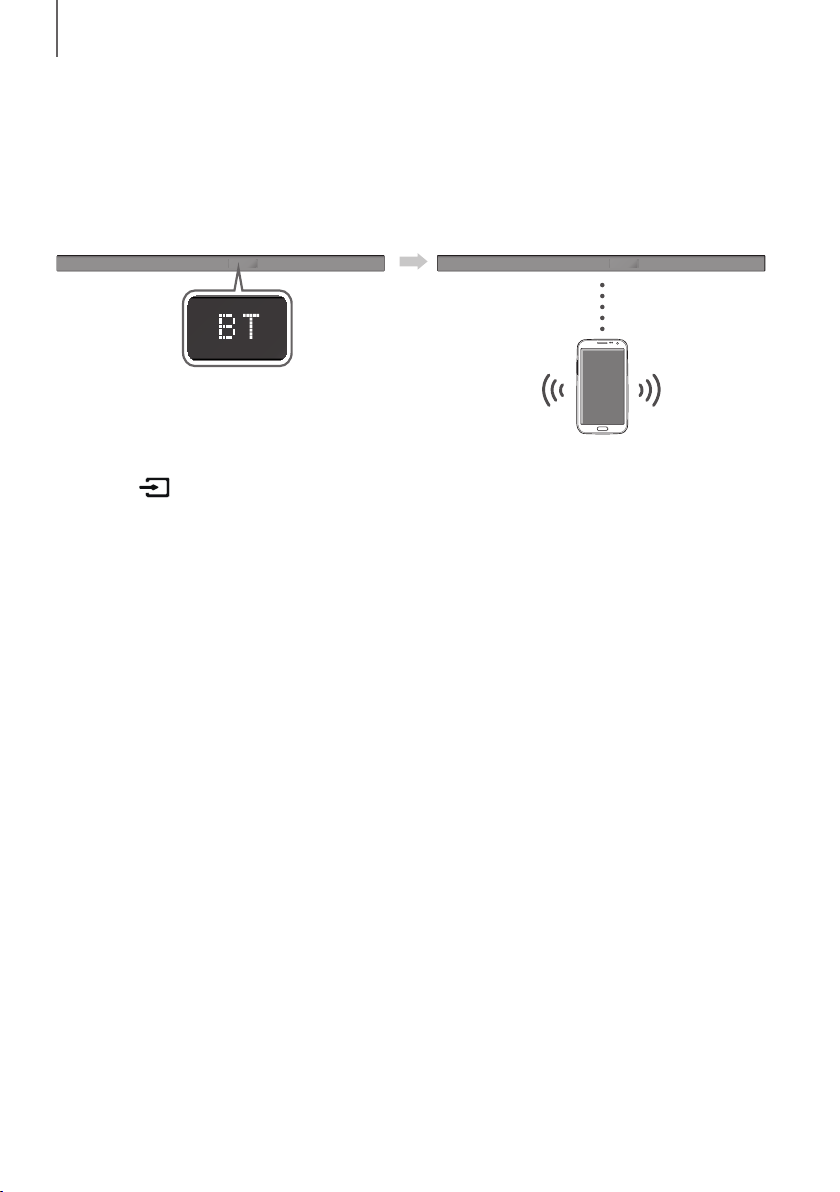

24 Bluetooth

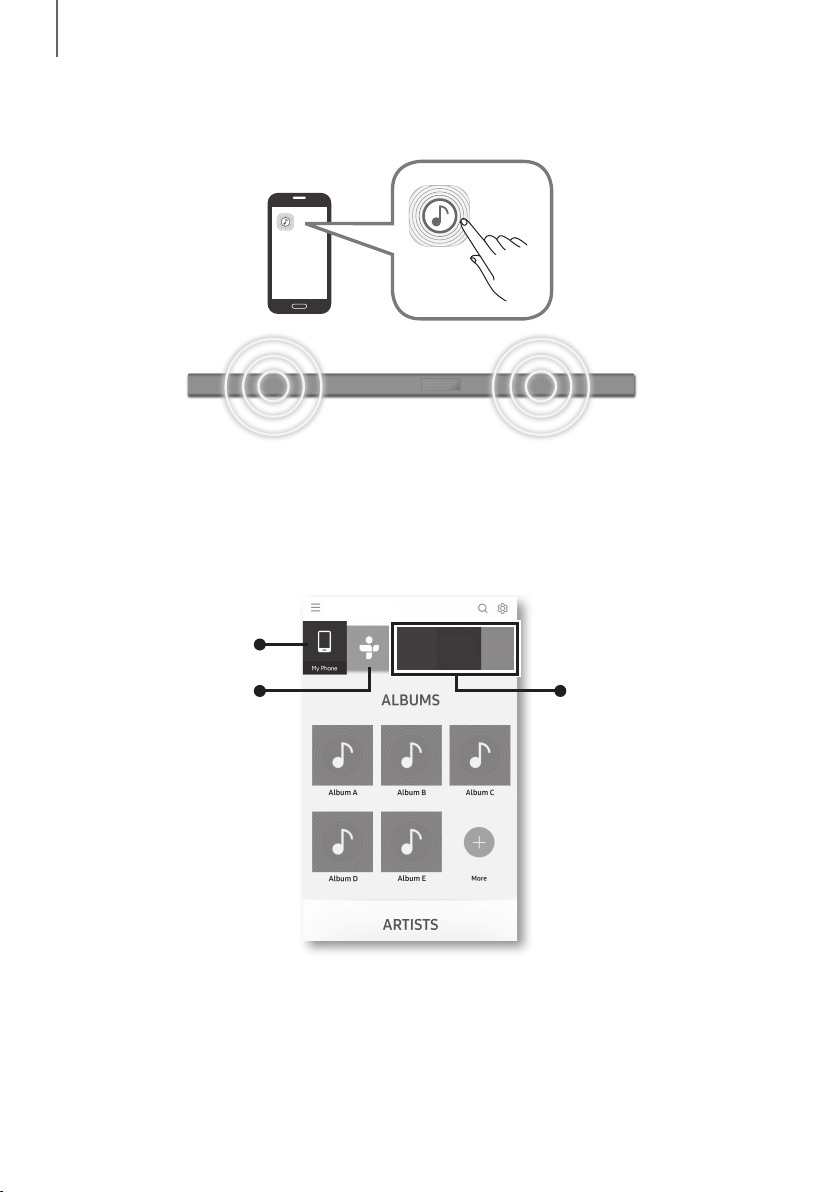

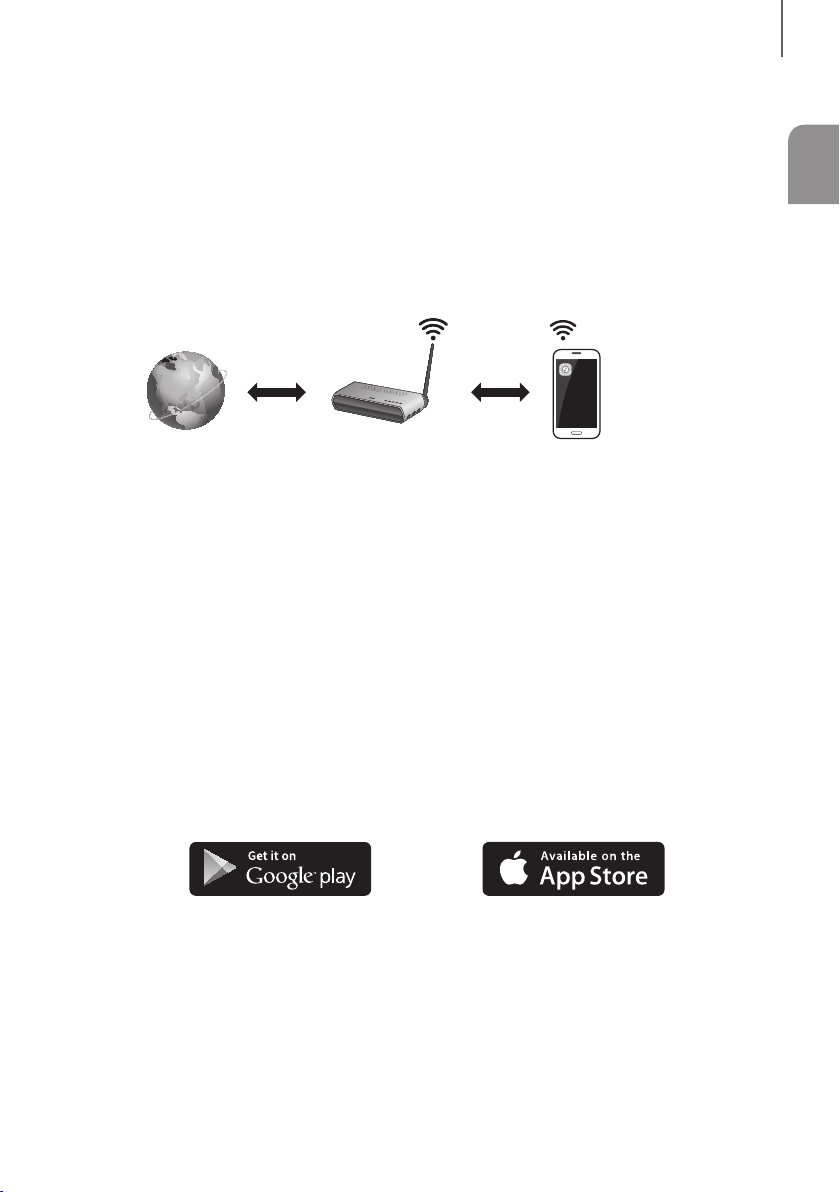

27 Using the Multiroom App

29 Using the Network Standby On

Function

30 Software Update

32 TROUBLESHOOTING

32 Troubleshooting

33 APPENDIX

33 Specifications

● Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

● An administration fee may be charged if either (a) an engineer is called out at your request and

there is no defect with the product (i.e. where the user manual has not been read).

(b) you bring the unit to a repair centre and there is

no defect with the product (i.e. where the user manual has not been read).

● You will be informed of the administration fee amount before a technician visits.

WHAT’S INCLUDED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+ Icons used in this manual

Icon Term Definition

GETTING STARTED

ENG

Caution

Note

Check for the supplied accessories shown below.

Remote Control / Lithium Battery

A B B A

Bracket-Wall Mount L Bracket-Wall Mount R

Indicates a situation where a function does not operate or settings may be cancelled.

Indicates tips or instructions on the page that help you operate a function.

(3V : CR2032)

A-TYPE : 616mm

CENTER LINE

B-TYPE : 360mm

Wall Mount Guide Holder-Screw : 2 EA Screw : 2 EA

Power Cord : 2 EA AC/DC Adapter

● The appearance of the accessories may differ slightly from the illustrations above.

● Micro USB to USB adapter and HDMI cables are sold separately. To purchase, contact a Samsung Service

Centre or Samsung Customer Care.

DESCRIPTIONS

FRONT / RIGHT SIDE PANEL

(Volume) Button

Controls the volume level. The numeric value of the volume level appears in the front panel display.

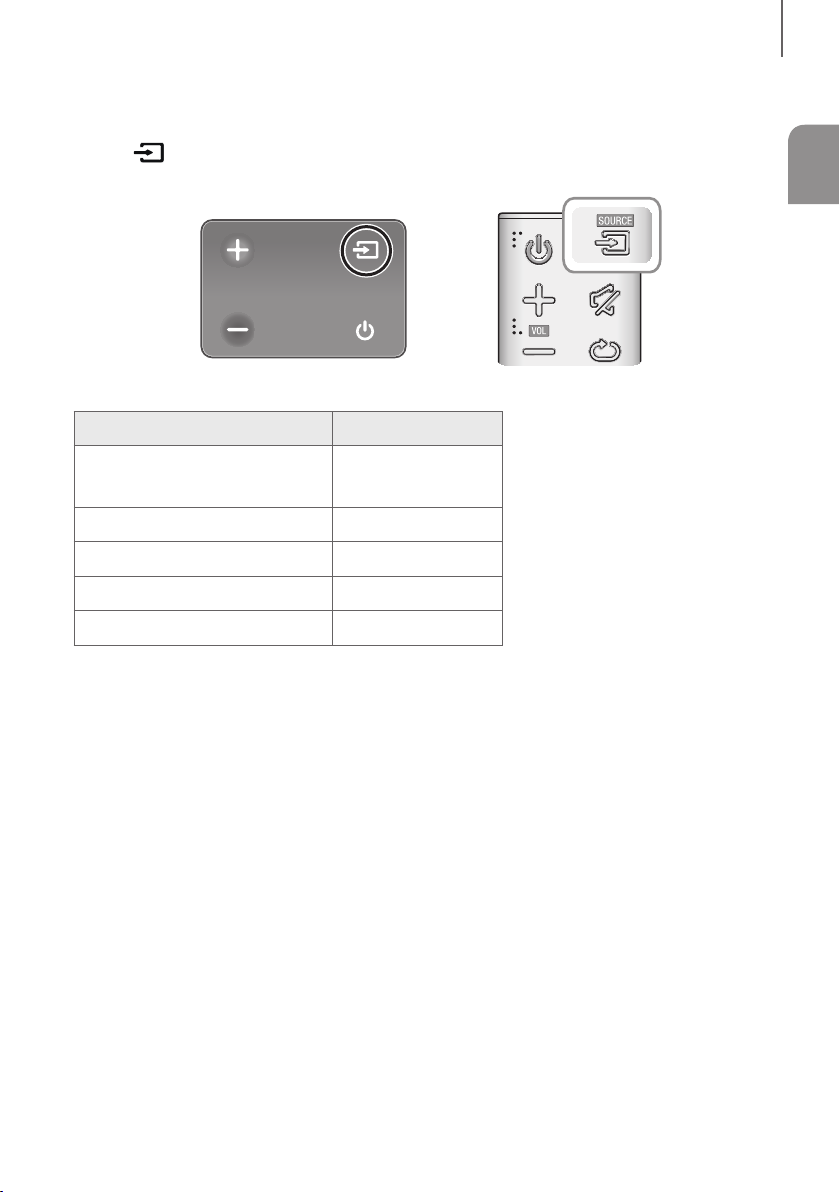

2 (Source) Button

Selects the D.IN, AUX, HDMI, BT, or TV input.

● While the unit is powered on, pressing the for more than 3 seconds sets the button to act as the

(Mute) button. To cancel the (Mute) button setup, press the again.

button for more than 3 seconds

button

Right Side

3 (Power) Button

Turns the power on and off.

Display

Displays the current mode.

● When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

● When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

● If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup

menu of your TV. Refer to the owner's manual supplied with your TV.

Remote Control Sensor

REAR / BOTTOM PANEL

DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of

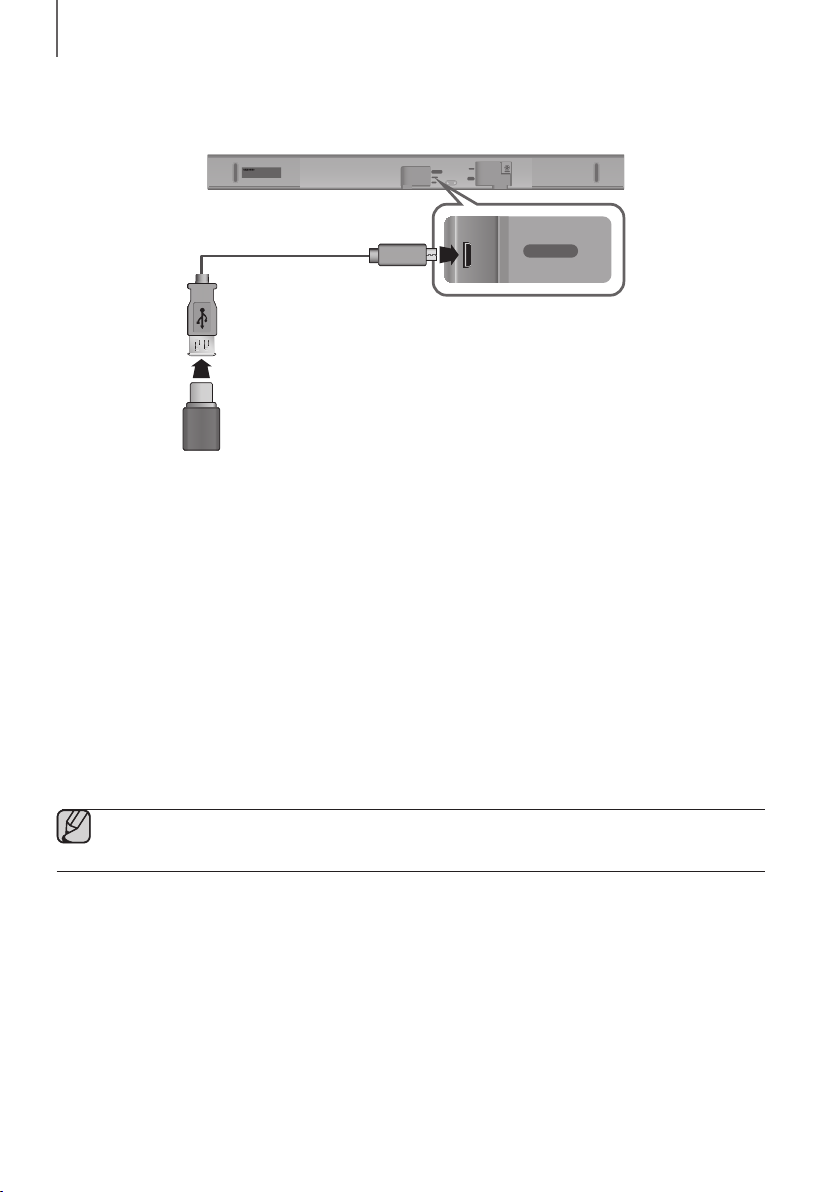

To upgrade the product's software

Connect to the Analogue output of an

an external device.

SERVICE

through the USB Port.

AUX IN

external device.

DIGITAL AUDIO IN (OPTICAL)

SERVICE

AUX IN

DESCRIPTIONS

ENG

DC 24V (Power Supply In)

Connect the DC power adaptor to the power supply jack, and then connect the AC power adaptor plug to a wall outlet.

DC 24V

Wi-Fi SETUP SPK ADD

HDMI IN

HDMI OUT

(TV-ARC)

DC 24V

DIGITAL AUDIO IN (OPTICAL)

SERVICE

AUX IN

HDMI IN

LABEL

Wi-Fi SETUP SPK ADD

Wi-Fi SETUP

Press this button to connect your Soundbar to your network using Wi-Fi setup. (Requires a smart device and the Samsung Multiroom app. See page 27.)

Press the button to connect

the Soundbar to a Samsung

HUB (purchased separately)

or a network. (Requires a

Samsung Multiroom app.

● When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

● Do not connect this unit or other components to an AC outlet until all connections between components

are complete.

● Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it

is hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

SPK ADD

smart device and the

See page 27.)

HDMI IN

HDMI OUT

(TV-ARC)

Outputs digital video and audio signals

Inputs digital video and audio signals simultaneously using an HDMI cable. Use when connecting a supported external device.

HDMI OUT (TV-ARC)

simultaneously using an HDMI cable.

DESCRIPTIONS

REMOTE CONTROL

SOURCE

Press to select a source connected to the Soundbar.

Mute

You can turn the volume down to 0 with the push of a button. Press again to restore the sound to the previous volume level.

Repeat

The Repeat function is available only when playing back music from Songs on phone or DMS of Samsung Multiroom app.

OFF - REPEAT : Cancels Repeat Playback. TRACK - REPEAT : Plays a track repeatedly. ALL - REPEAT : Plays all tracks repeatedly.

Skip Forward

If there is more than one file on the device you are playing, and you press the ] button, the next file is selected.

Bluetooth POWER

Press the Bluetooth POWER button on the remote to turn the Bluetooth POWER On function on and off. See pages 19 and 25 for details.

SOUND

Surround Sound adds depth and spaciousness to the sound. Pressing the

SOUND button repeatedly cycles through the Surround Sound settings :

ON - SURROUND SOUND, OFF - SURROUND SOUND

Press and hold the  button for about 5 seconds to turn the Anynet+ function on or off.

OFF - ANYNET+, ON - ANYNET+

The Anynet+ function lets you control the Soundbar with the remote from an Anynet+ compatible Samsung TV. The Soundbar must be connected to the TV via an HDMI cable.

Press and hold the  button for about 5 seconds to turn the Auto Power Link function on or off.

OFF - POWER LINK, ON - POWER LINK

* Auto Power Link

Synchronizes the Soundbar to a connected Optical source via the Optical jack so it turns on automatically when you turn on your TV. (See page 20) Auto Power Link function is only available in the D.IN mode.

SOUND EFFECT You can select from 6 sound modes - STANDARD (Original Sound), MUSIC,

CLEAR VOICE, SPORTS, MOVIE, and NIGHT - depending on the content

you want to listen to. Select the STANDARD mode if you want to enjoy the original sound.

* DRC (Dynamic Range Control)

Lets you apply dynamic range control to Dolby Digital. Press and hold the SOUND EFFECT button for about 5 seconds in STANDBY mode to turn the DRC (Dynamic Range Control) function on or off.

Power

Turns the Soundbar on and off.

Volume

Adjusts the volume level of the unit.

Play / Pause

Press the

If there is more than one file on the device you are playing, and you press

Press to select TREBLE, BASS, SUBWOOFER LEVEL or AUDIO SYNC.

Then, use the

Press and hold the SOUND CONTROL button for about 5 seconds to adjust

the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz,

5KHz, and 10KHz are selectable and each can be adjusted to a setting between

If the Soundbar is connected to a digital TV and the video appears out of sync

with the audio, press the SOUND CONTROL button to sync the audio with the

0 ms ~ 300 ms. In TV mode, and BT mode, the Audio Sync function may not

, 

buttons to adjust the TREBLE or BASS volume from

-3 ~ +3, SUBWOOFER LEVEL volume from -12, -6 ~ +6.

video. Use the

, 

button to pause a file temporarily.

button again to play the selected file.

Skip Back

[

button, the previous file is selected.

the

SOUND CONTROL

buttons to set the audio delay between

-6 ~ +6.

available.

DESCRIPTIONS

ENG

● Operate the TV using the TV's remote control.

DESCRIPTIONS

+ Controlling the Soundbar using Your TV Remote Control

1. Press and hold the SOUND button for more than 5 seconds while the Soundbar is turned on.

2. “ON - TV REMOTE” appears on the Soundbar’s display.

3. In the TV’s menu, set the TV speaker to external speaker.

● Not available if the TV ARC function or HDMI mode is in use.

● All buttons are not available except the VOL +/- and the

● TV menus differ by manufacturer and model. Refer to the TV's user manual for further information.

● Manufacturers supporting this function:

- VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, GRUNDIG, Hisense, RCA

- This function may not be compatible with your TV's remote depending on the remote control's manufacturer.

● To turn off this function, press the

"OFF - TV REMOTE" appears on the Soundbar's display.

SOUND button for 5 seconds.

buttons in this function.

INSTALLING THE BATTERY IN THE REMOTE CONTROL

1. Use a suitable coin to turn the

remote control's battery cover counterclockwise to remove it as shown in the figure above.

2. Insert a 3V lithium battery. Keep the

positive (+) pole facing up when inserting the battery. Put the battery cover on and align the '●' marks side by side as shown in the figure above.

3. Use a suitable coin to

turn the remote control battery cover clockwise as far as it will go to fix it in place.

INSTALLATION

INSTALLING THE SOUNDBAR

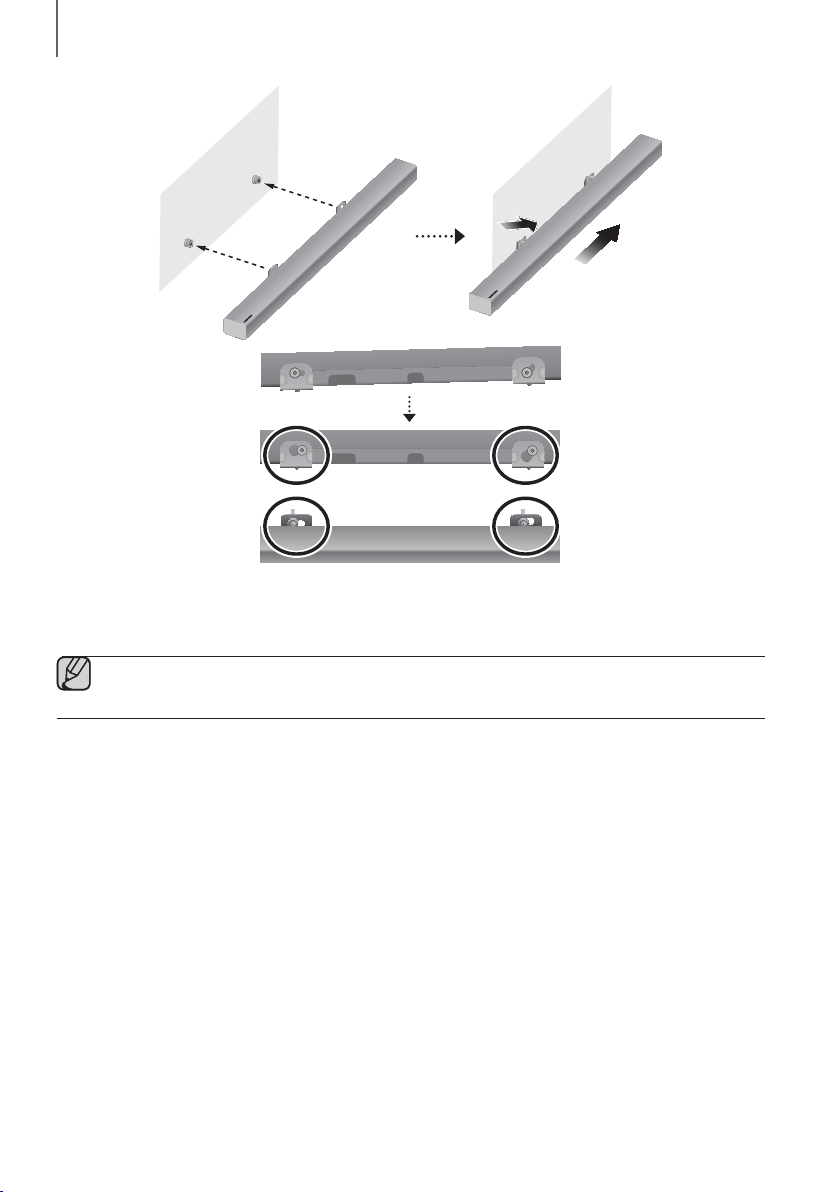

INSTALLING THE WALL MOUNT

+ Installation Precautions

● Install on a vertical wall only.

● For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of the set.

● Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the unit on a different wall that can support the unit's weight.

● Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.

● Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.

- Diameter: M5

- Length: 35 mm or longer recommended.

● Connect cables from the unit to external devices before you install it on the wall.

● Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

ENG

5 cm or more

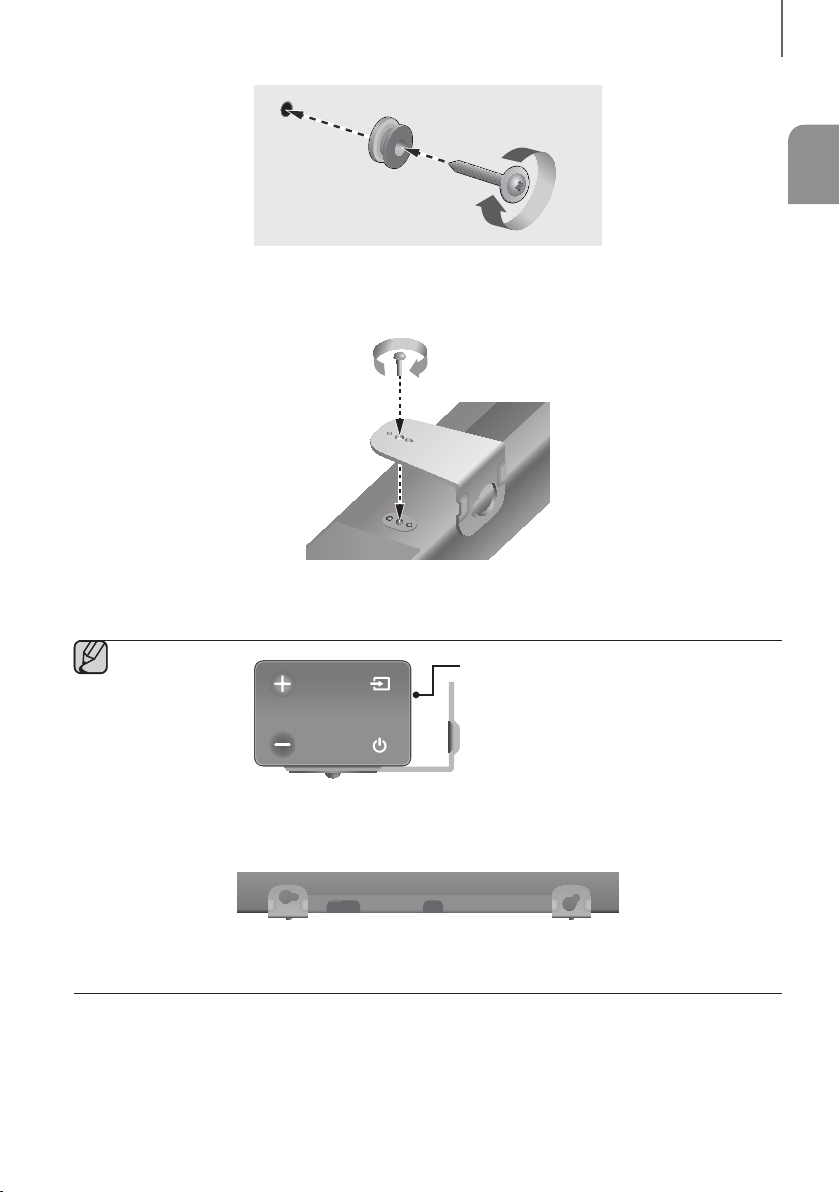

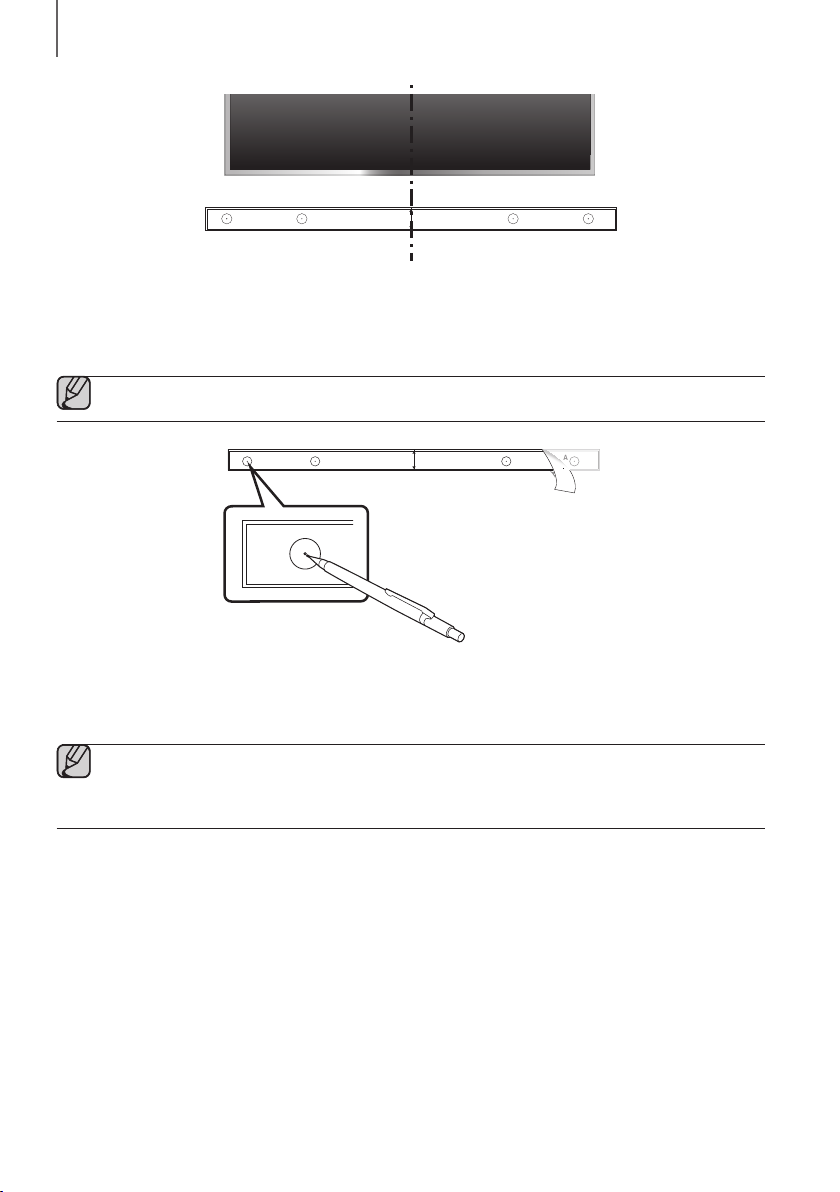

1. Place the Wall Mount Guide against the wall surface.

• The Wall Mount Guide must be level.

• If the TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.
