Samsung HW-H7501/ZA, HW-H7500/ZA User Manual

Download

HW-H7500 HW-H7501

User manual

Curved Soundbar

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

'This Nanum Gothic Eco font is provided by NAVER'

FEATURES

TV SoundConnect

TV SoundConnect lets you listen to audio from your TV on your Soundbar via a Bluetooth connection and lets you control the sound.

HDMI

HDMI transmits video and audio signals simultaneously, and provides a clearer picture. The unit is also equipped with the ARC function which lets you listen to sound from your TV through the Soundbar via an HDMI cable. This function is only available if you connect the unit to an ARC compliant TV.

Surround Sound Expansion

The Surround Sound Expansion feature adds depth and spaciousness to your listening experience. Surround Sound Expansion is powered by Sonic Emotion.

Wireless Subwoofer

Samsung’s wireless module does away with cables running between the main unit and the subwoofer.

Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.

Special Sound Effects

You can select different Sound Effects - MUSIC / VOICE / SPORTS / CINEMA / SMART VOLUME / STANDARD (Original Sound) - depending on the type of content you want to enjoy.

Multi-function Remote Control

You can use the supplied remote control to control various operations with the simple press of a button.

Bluetooth Function

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

LICENSES

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

+ Copyright

USB Host Support

You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Soundbar's USB HOST function.

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lighting flash and arrowhead within the

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

• This product contains chemicals known to the State of California to cause cancer and reproductive toxicity.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

FCC NOTE (for U.S.A):

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet that is on a different circuit than the radio or TV.

• Consult the dealer or an experienced radio/TV technician for help.

Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.

triangle indicates that there is dangerous voltage Inside the product.

The explanation point within the triangle indicates that there are important instructions accompanying the product.

ENG

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these Instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance

with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachment/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

SAFETY INFORMATION

3.9 inch 3.9 inch

2.7 inch

3.9 inch

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until

Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

The batteries used with this product contain chemicals that are harmful to the environment Do not dispose of batteries in the general household trash. Do not dispose of batteries in a fire. Do not short circuit, disassemble, or overheat the batteries. There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.

the unit has reached room temperature before using.

WARNING, DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD, The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used

batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

CONTENTS

ENG

2 FEATURES

2 Licenses

3 SAFETY INFORMATION

3 Safety Warnings

4 Precautions

6 GETTING STARTED

6 Before reading the User’s Manual

6 What’s Included

7 DESCRIPTIONS

7 Top / Front Panel

8 Rear / Bottom Panel

9 REMOTE CONTROL

9 Remote Control Buttons and Functions

11 INSTALLATION

11 TV-mounted Installation

12 Standing Installation

13 Assembling the Clamp-wire

17 FUNCTIONS

17 Input mode

17 ARC (HDMI OUT)

18 Bluetooth

20 TV SoundConnect

21 USB

22 Software Update

22 Auto Power Link

23 TROUBLESHOOTING

24 APPENDIX

24 Specifications

25 Warranty

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

14 CONNECTIONS

14 Connecting the Wireless Subwoofer

15 Connecting an External Device using an

HDMI cable

16 Connecting an External Device using

Audio (analog) cable or Optical (digital) cable

GETTING STARTED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+ Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be canceled.

Note

Indicates tips or instructions on the page that help you operate a function.

+ Safety Instructions and Troubleshooting

1) Be sure to familiarize yourself with the Safety Instructions before using this product. (See page 3)

2) If a problem occurs, check Troubleshooting. (See page 23)

WHAT’S INCLUDED

Check for the supplied accessories shown below.

Holder-Support : 2EA

(AH61-03898A)

Remote Control / Lithium

Battery (3V : CR2032)

(AH59-02631E /

4301-001042)

Power Cord

(3903-000598)

AUX Cable

(BN39-01286A)

User Manual /

Quick Guide

(AH68-02750A) /

(AH68-02675E)

DC Adapter

(BN44-00732A)

Holder-Screw 1 : 4EA

(AH61-03897A)

Bracket-Mount

(AH61-03896A)

Clamp-Wire

(AH61-03911A)

Holder-Screw 2 : 8EA

(6001-001961)

Holder-Fix Mount

(AH61-03909A)

USB Cable

(AH39-01178B)

USB Converter

(HW-H7500 : AH59-02572A,

HW-H7501 : AH59-02572B)

● The appearance of the accessories may differ slightly from the illustrations above.

● Use the dedicated USB cable to connect external USB devices to the unit.

DESCRIPTIONS

TOP / FRONT PANEL

(Power) Button

Turns the power on and off.

DESCRIPTIONS

ENG

VOL. - / +

Controls the volume level. The numeric value of the volume level appears in the front panel display.

Display

Displays the current mode.

● When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

● If you want to enjoy the sound only from the Soundbar, you must turn off the TV's speakers in the

Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

(Function) Button

Selects the D.IN, AUX, HDMI, BT, TV, or USB input.

● While the unit is powered on, pressing the for more than 3 seconds sets the button to act as the button. To cancel the button setup, press the (Function) button for more than 3 seconds again.

(Function) button

(Mute)

DESCRIPTIONS

HDMI OUT (TV)

HDMI IN

OPTICAL IN

AUX IN

REAR / BOTTOM PANEL

HDMI OUT (TV)

Outputs digital video and audio signals simultaneously

using an HDMI cable.

HDMI IN

Inputs digital video and audio signals simultaneously using an

HDMI cable. Use when connecting a supported external device.

OPTICAL IN (D.IN)

Connect to the digital (optical) output of an external device.

AUX IN

Connect to the Analog output of an external device.

HDMI OUT (TV)

HDMI IN

OPTICAL IN

AUX IN

LABEL

DC 24V (Power Supply In)

Connect the DC power adaptor

to the power supply jack, and

then connect the AC power

adaptor plug to a wall outlet.

● When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

● Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

(USB Port)

Connect USB devices such as MP3 players here to play files on the devices.

REMOTE CONTROL

REMOTE CONTROL BUTTONS AND FUNCTIONS

SOURCE

Press to select a source connected to the Soundbar.

Mute

You can turn the volume down to 0 with the push of a button. Press again to restore the sound to the previous volume level.

Repeat

Press to set the Repeat function during music playback from a USB device.

REPEAT OFF : Cancels Repeat Playback. REPEAT FILE : Repeatedly play a track. REPEAT ALL : Repeatedly play all tracks. REPEAT RANDOM : Plays tracks in random order.

(A track that has already been played may be played again.)

Skip Forward

If there is more than one file on the device you are playing, and you press the ] button, the next file is selected.

AUDIO SYNC

If the Soundbar is connected to a digital TV and the video appears out of sync with the audio, press the AUDIO SYNC buttons to sync the audio with the video. and 300 ms. function may not work.

Anynet+

Press the Anynet+ button to turn the Anynet+ function on or off. (Auto Power Link : Default OFF, Anynet+ ON / Power Link Off or Anynet+ OFF / Power Link ON ). The Anynet+ function lets you control the Soundbar with the remote from an Anynet+ compatible Samsung TV. The Soundbar must be connected to the TV via an HDMI cable. * Auto Power Link

Synchronizes the Soundbar to a connected Optical source via the Optical jack so it turns on automatically when you turn on your TV. (See page 22)

EQUALIZER WOOFER

Press to select TREBLE, BASS, or SW. Then, use the the Treble, Bass, or Subwoofer volume from -6 to +6.

Press and hold the EQUALIZER WOOFER button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz,

2.5KHz, 5KHz, 10KHz, and SW are selectable and each can be adjusted to a setting between -6 and +6.

● Adjusting TREBLE, BASS, or SW affects the 10KHz band, the 150Hz band, and SW respectively. For example, when you adjust TREBLE, you are actually adjusting the 10KHz frequency band.

● Soundbar is a Samsung proprietary name.

● Operate the TV using the TV's remote control.

Use the [,] buttons to set the audio delay between 0 ms

In USB mode, TV mode, and BT mode, the Audio Sync

REMOTE CONTROL

[,]

button to adjust

ENG

REMOTE CONTROL

Power

Turns the Soundbar on and off.

Volume

Adjusts the volume level of the unit.

Play / Pause

Press the

If there is more than one file on the device you are playing, and you

You can select from 5 different sound modes - MUSIC, VOICE,

SPORTS, CINEMA, SMART VOLUME, and STANDARD - depending on

Select the STANDARD mode if you want to enjoy the original sound.

Smart Volume regulates and stabilizes the volume level and

prevents drastic volume changes caused by a channel change or

Press the Bluetooth POWER button on the remote to turn the

button to pause the playing of a file temporarily.

Press the

press the

button again to play the selected file.

Skip Back

[

button, the previous file is selected.

SOUND EFFECT

the content you want to listen to.

* Smart Volume

scene transition.

Bluetooth POWER

Bluetooth POWER On function on and off.

See pages 19 and 20 for details.

Surr.Sound (Surround Sound Expansion)

Surr.Sound adds depth and spaciousness to the sound. Pressing the

Surr.Sound button repeatedly cycles through the Surr.Sound settings:

AUTO, ON, OFF.

+ Installing the Battery in the Remote Control

1. Use a suitable coin to turn the

remote control's battery cover counterclockwise to remove it as shown in the figure above.

2. Insert a 3V lithium battery. Keep the

positive (+) pole facing up when inserting the battery. Put the battery cover on and align the '●' marks side by side as shown in the figure above.

3. Use a suitable coin to

turn the remote control battery cover clockwise as far as it will go to fix it in place.

INSTALLATION

AUX IN

OPTICAL IN

HDMI IN

HDMI OUT (TV)

● This Soundbar is compatible with 2014

HU7, HU8, and HU9 series Samsung UHD curved TVs (except the HU7100 models). For a detailed list of compatible TV models, please refer to the Samsung web site.

TV-MOUNTED INSTALLATION

INSTALLATION

ENG

For a TV-mounted installation with a physically compatible, wall-mounted Samsung TV.

NOT recommended for installation on curved TVs 78" or larger.



● The TV-mounted installation is for

compatible wall-mounted Samsung TVs only and requires that you remove the TV's stand. If you remove the TV's stand and replace it with the Curved Soundbar, and then stand the TV on a flat surface, the TV may tip over.

● Do not place objects on top of the

Soundbar if it is TV mounted.

HDMI OUT (TV)

HDMI IN

OPTICAL IN

AUX IN

3. Place the TV screen-side down on the curved

packaging foam that came with the TV.

● Do not place the TV screen-side down on a

flat surface. You can crack the panel.

4. Remove the TV's stand if the stand is attached,

and then insert the bracket guide into the notches on the bottom of the TV. Make sure the screw holes in the Bracket-Mount line up with the screw holes in the TV.

5. Fasten the

Bracket-Mount

to the TV using the

remaining 4 Holder-Screws 2.

6. After attaching the

Bracket-Mount

, mount the TV

on the wall.

1. Place the Soundbar as shown in the illustration,

ensuring that none of its buttons touch the surface it is lying on.

2. Fasten the four Holder-Screws 1 and four of the Holder-Screws 2 to the four holes in the

Soundbar, as shown in the illustration.

● When handling a TV, do not touch the

screen and do not subject it to excessive pressure or a sudden impact.

INSTALLATION

AUX IN

OPTICAL IN

HDMI IN

HDMI OUT (TV)

Soundbar base

HDMI OUT (TV)

TV base, with

Bracket-Mount

attached

7. With the TV mounted on the wall, align the

Soundbar’s center with the

Bracket-Mount

on the bottom of the TV, and then push the Soundbar onto the

Bracket-Mount

as far as it will go, as

shown in the illustration.

8. Fasten the Holder-Fix Mount to the Soundbar,

and then turn it clockwise by hand to fix the Soundbar to the

Bracket-Mount

9. The TV-mounted installation is complete.

Method 2.

For a free-standing installation or an

installation with a physically incompatible TV



HDMI OUT (TV)

HDMI IN

OPTICAL IN

AUX IN

1. Place the Soundbar as shown in the illustration,

ensuring that none of the buttons touch the surface it is lying on.

2. Fasten two Holder-Screws 2 to the HolderSupports as shown in the illustration.

STANDING INSTALLATION

Method 1. For a standing installation with a

compatible Samsung TV



Align the Soundbar’s center with the center of the base of the TV, and then carefully push it onto the stand as far as it will go, as shown in the illustration. Be careful not to unbalance the TV.

3. Center the Soundbar on the flat area in front of the TV.

ASSEMBLING THE CLAMP-

HDMI OUT (TV)

HDMI IN

OPTICAL IN

AUX IN

WIRE

HDMI OUT (TV)

HDMI IN

Clamp-Wire

OPTICAL IN

AUX IN

HDMI OUT (TV)

HDMI IN

OPTICAL IN

AUX IN

Attach the clamp-wire to the unit as shown, and then run the cables through the clamp-wire to keep them neat.

INSTALLATION

ENG

CONNECTIONS

CONNECTING THE WIRELESS SUBWOOFER

The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are turned on. If the Link indicator ( light when the main unit and subwoofer are turned on, please set the ID by following the procedure below.

ID SET

) does not

1. Plug the power cords of the main unit and

subwoofer into an AC wall outlet.

2. Press the ID SET button on the back of the

subwoofer with a small, pointed object for 5 seconds.

• The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.

3. While the main unit is powered off (in STANDBY

mode), press and hold the remote control for 5 seconds.

4. The ID SET message appears on the Soundbar's

display.

5. To finalize the link, turn the main unit’s power on

while the subwoofer’s Blue LED blinks.

• The main unit and the subwoofer should now be linked (connected).

• The Link indicator (Blue LED) on the subwoofer should be on.

• If the Link indicator is not solid blue, the linking process has failed. Turn off the main unit and start again from Step 2.

• You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect. (See page 10)

● Before moving or installing the product,

be sure to turn off the power and disconnect the power cord.

(Mute) on the

● If the main unit is powered off, the

wireless subwoofer will be in standby mode and the STANDBY LED on the upper side will come on after the Link indicator (Blue LED) blinks for 30 seconds.

● If you use a device that uses the same

frequency (2.4GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.

● The transmission distance of the wireless

signal between the main unit and subwoofer is about 33 ft, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal.

● If the main unit doesn't make a wireless

connection, follow steps 1-5 in the left hand column to re-set the connection between the main unit and wireless subwoofer.

● The wireless receiving antenna is built into

the wireless subwoofer. Keep the unit away from water and moisture.

● For optimal listening performance, make

sure that the area around the wireless subwoofer location is clear of any obstructions.

CONNECTIONS

AUX IN

OPTICAL IN

HDMI IN

HDMI OUT

HDMI OUT (TV)

HDMI IN

HDMI OUT HDMI IN

HDMI OUT (TV)

HDMI IN

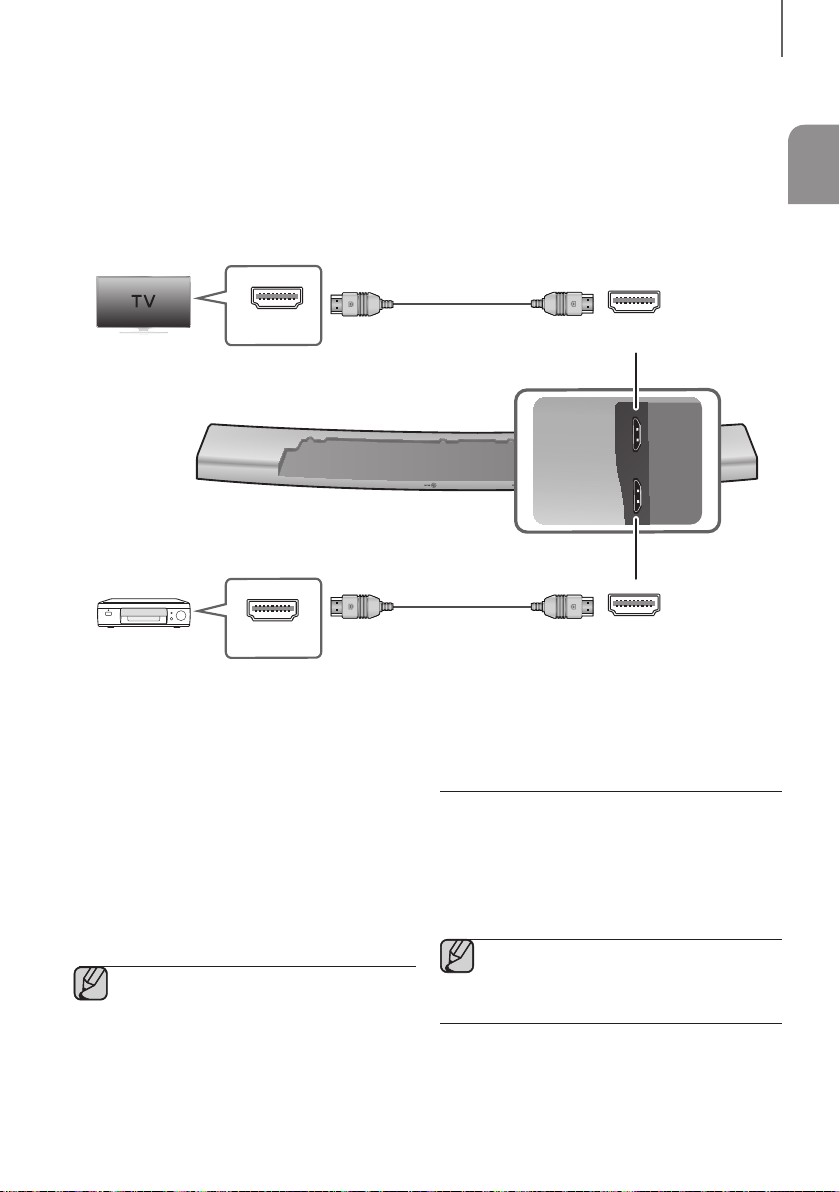

CONNECTING AN EXTERNAL DEVICE USING AN HDMI CABLE

HDMI is the standard digital interface for connecting to TVs, projectors, DVD players, Blu-ray players, set top boxes, and more.

HDMI prevents any degradation to the signal due to conversion to analog and maintains the video and audio quality of the original digital source.

HDMI Cable

(not supplied)

HDMI Cable

(not supplied)

ENG

Digital Devices

HDMI IN

Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital device.

and,

HDMI OUT (TV)

Connect an HDMI cable (not supplied) from the HDMI OUT (TV) jack on the back of the product to the HDMI IN jack on your TV.

● HDMI is an interface that enables the

digital transmission of video and audio data with just a single connector.

● We recommend you use a coreless HDMI

cable if possible. If you use a cored HDMI cable, use one whose diameter is less than

0.55 inches.

ARC (HDMI OUT)

The ARC function allows digital audio to output via the HDMI OUT (ARC) port. It can be enabled only when the Soundbar is connected to a TV that supports the ARC function

● Anynet+ must be turned on.

● This function is not available if the HDMI

cable does not support ARC.

CONNECTIONS

HDMI OUT

HDMI IN

OPTICAL IN

AUX IN

CONNECTING AN EXTERNAL DEVICE USING AUDIO (ANALOG) CABLE OR OPTICAL (DIGITAL) CABLE

This unit comes equipped with one optical in digital jack and one audio analog in jack, giving you two ways to connect it to a TV.

Optical Cable

(not supplied)

BD / DVD player

OPTICAL OUT

/ Set-top box /

Game console

AUX OUT

AUX IN

Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the TV or Source Device. Change the function to AUX.

or,

OPTICAL IN

Connect OPTICAL IN (Audio) on the main unit to the OPTICAL OUT jack of the TV or Source Device. Change the function to D.IN.

OPTICAL IN

HDMI OUT

HDMI IN

OPTICAL IN

AUX IN

Audio Cable

AUX IN

● Do not connect the power cord of this

product or your TV to a wall outlet until all connections between components are complete.

● Before moving or installing this product,

be sure to turn off the power and disconnect the power cord.

FUNCTIONS

INPUT MODE

Press the (Function) button on the main unit’s to select the mode you want.

top panel or the

FUNCTIONS

ENG

SOURCE button on the remote control

Input mode Display

Optical Digital input

AUX input

HDMI input

BLUETOOTH mode

TV SoundConnect

USB mode

D.IN

AUX

HDMI

USB

The unit turns off automatically in the following situations.

● D.IN / HDMI / BT / TV / USB / ARC Mode

- If there is no audio signal for 25 minutes.

● AUX Mode To turn the Auto Power Down function ON or

OFF, press and hold the AUTO POWER DOWN ON / OFF appears on the display.

- If the AUX cable is disconnected for 25 minutes.

- If there is no KEY input for 8 hours when the AUX cable is connected.

button for 5 seconds.

ARC (HDMI OUT)

The ARC (Audio Return Channel) function allows digital audio to output via the HDMI OUT (ARC) port.

HDMI Cable

1. Connect a TV supporting ARC to the Soundbar with an HDMI cable.

2. Turn on the TV, and then turn on the Soundbar’s Anynet+ function.

3. Press the

control to select the D.IN mode.

(Function) button on the main unit’s top panel or the SOURCE button on the remote

● If the HDMI cable does not support the ARC feature, ARC will not work.

● To turn off the ARC function, turn Anynet+ off.

FUNCTIONS

BLUETOOTH

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

+ To connect the Soundbar to a Bluetooth device

Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.

Connect

Bluetooth device

1. Press the

unit’s top panel or the remote control to select the BT mode.

• You will see BT READY on the front display of

the Soundbar.

2. Select the Bluetooth menu on the Bluetooth

device you want to connect. (Refer to the Bluetooth device's user manual.)

3. Select the Stereo headset menu on the Bluetooth

device.

• You will see a list of scanned devices.

4. Select "[Samsung] Soundbar" from the list.

• When the Soundbar is connected to the

Bluetooth device, it will display [Bluetooth device name]

• The device name can only be displayed in English. An underline " _ " will be displayed if the name is not in English.

• If the Bluetooth device has failed to pair with the Soundbar, delete the previous "[Samsung] Soundbar" found by the Bluetooth device and have it search for the Soundbar again.

5. Play music on the connected device.

• You can listen to the music playing on the connected Bluetooth device over the Soundbar.

• In BT mode, the Play / Pause / Next / Prev functions are not available. However, these functions are available in Bluetooth devices supporting AVRCP.

(Function) button on the main

SOURCE button on the



BT on the front display.

● If asked for PIN code when connecting a

Bluetooth device, enter <0000>.

● Only one Bluetooth device can be paired

at a time.

● The Bluetooth connection will be terminated

when you turn the Soundbar off.

● The Soundbar may not perform Bluetooth

search or connection correctly under the following circumstances:

- If there is a strong electrical field around

the Soundbar.

- If several Bluetooth devices are

simultaneously paired with the Soundbar.

- If the Bluetooth device is turned off,

not in place, or malfunctions.

- Note that such devices as microwave

ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference.

● The Soundbar supports SBC data

(44.1kHz, 48kHz).

● Connect only to a Bluetooth device that

supports the A2DP (AV) function.

● You cannot connect the Soundbar to a

Bluetooth device that supports only the HF (Hands Free) function.

● Once you have paired the Soundbar to a Bluetooth device, selecting "[Samsung] Soundbar" from the device's scanned devices list will automatically change the Soundbar to BT mode.

FUNCTIONS

+ Bluetooth POWER On (Bluetooth POWER)

When the Bluetooth POWER On function is on and the Soundbar is turned off, if a previously paired Bluetooth device tries to pair with the Soundbar, the Soundbar turns on automatically.

1. Press the Bluetooth POWER on the remote while the Soundbar is turned on.

2. BLUETOOTH POWER ON appears on the Soundbar's display.

● Available only if the Soundbar is listed among the Bluetooth device’s paired devices. (The Bluetooth

device and the Soundbar must have been previously paired at least once.)

● Soundbar will appear in the Bluetooth device’s searched devices list only when the Soundbar is displaying BT READY.

● In the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.

+ To disconnect the Bluetooth device from the Soundbar

You can disconnect the Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

● The Soundbar will be disconnected.

● When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display

BT DISCONNECTED on the front display.

+ To disconnect the Soundbar from the Bluetooth device

Press the SOURCE button on the remote control or the (Function) button on the product's switch from BT to another mode or turn off the Soundbar.

● The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

● In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the

Soundbar and the Bluetooth device exceeds 16.25 ft.

● The Soundbar automatically turns off after 25 minutes in the Ready state.

top

panel to

ENG

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

● A Bluetooth device may cause noise or malfunction, depending on usage, when:

- A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.

- It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.

- It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

● Pair the Soundbar with the Bluetooth device while they are close together.

● The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.

● In poor reception areas, the Bluetooth connection may not work properly.

● The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.

● This wireless device may cause electric interference during its operation.

FUNCTIONS

TV SOUNDCONNECT

You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV SoundConnect function.

+ Connecting a TV to the Soundbar

Connect

1. Turn on the TV and Soundbar.

• Turn on the menu of the TV.

• Move to Speaker Settings on "Sound" tab.

• Set the "Add New Device" menu to "On".

2. Press the unit’s top panel or the SOURCE button on the remote control to select the TV mode.

3. On the TV, a message asking whether to enable the TV SoundConnect function appears. "[Samsung] Soundbar" is also displayed on the TV screen.

4. Select <Yes> to finish connecting the TV and Soundbar using the TV's remote control.

(Function) button on the main

● Switching the Soundbar’s mode from TV

to another mode automatically terminates TV SoundConnect.

To connect the Soundbar to another TV, the

●

existing connection must be terminated.

● Terminate the connection to the existing

TV, and then press the p button on the remote control for 5 seconds to connect to another TV.

● The TV SoundConnect (SoundShare)

function is supported by some Samsung TVs released from 2012 on. Check whether your TV supports the TV SoundConnect (SoundShare) function before you begin. (For further information, refer to the TV’s user manual.)

● If your Samsung TV was released before

2014, check the SoundShare setting menu.

● If the distance between the TV and

Soundbar exceeds 16.25 ft, the connection may not be stable or the audio may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational range, and then re-establish the TV SoundConnect connection.

● TV SoundConnect Operational Ranges:

- Recommended pairing range: within

20 inches

- Recommended operational range:

within 16.25 ft.

● The Play/Pause, Next, and Prev buttons

on the Soundbar or Soundbar's remote do not control the TV.

+ Using the Bluetooth POWER On

function

The Bluetooth POWER On function is available after you have successfully connected the Soundbar to a Bluetooth compatible TV using TV SoundConnect. When the Bluetooth POWER On function is ON, turning the connected TV on or off will turn the Soundbar's power on and off as well.

1. Connect the TV to your Soundbar using the TV

SoundConnect function.

2. Press the Bluetooth POWER button on the Soundbar remote. BLUETOOTH POWER ON appears on the Soundbar's display.

• BLUETOOTH POWER ON : The Soundbar turns

on and off when you turn the TV on or off.

• BLUETOOTH POWER OFF : The Soundbar

only turns off when you turn the TV off.

● This function is supported by some

Samsung TVs released from 2013 on.

USB

You can play music files located on USB storage devices through the Soundbar.

USB port

HDMI OUT (TV)

HDMI IN

OPTICAL IN

AUX IN

FUNCTIONS

ENG

Display

1. Connect the USB device to the USB port on the

back of the product.

2. Press the

(Function) button on the main

unit’s top panel or the SOURCE button on the remote control to select the USB mode.

3. USB appears on the display screen.

• The Soundbar connection to the USB device is complete.

• The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more than 25 minutes.

+ Before you connect a USB device

Be aware of the following:

● If the file name of a file or folder on a USB device exceeds 10 characters, it is not displayed on the Soundbar's display.

● This product may not be compatible with certain types of USB storage media.

● The Soundbar supports the FAT16 and FAT32 file systems.

- The NTFS file system is not supported.

● Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB compatibility problem.

● Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly.

● Digital camera PTP protocols are not supported.

● Do not remove the USB device while it is

transferring files.

● DRM-protected music files (MP3, WMA) from commercial web sites cannot be played.

● External HDDs are not supported.

● Mobile phone devices are not supported.

● File Format Type Compatibility list:

Format Codec Sampling Rate

MPEG 1 Layer2

*.mp3

MPEG 1 Layer3

MPEG 2 Layer3

MPEG 2.5 Layer3

16KHz ~ 48KHz

Wave_Format_

*.wma

MSAudio1

Wave_Format_

MSAudio2

*.aac

AAC

AAC-LC

16KHz ~ 96KHz

HE-AAC 24KHz ~ 96KHz

*.wav

*.ogg

*.flac

OGG 1.1.0

FLAC 1.1.0, FLAC

1.2.1

16KHz ~ 48KHz

16KHz ~ 96KHz

● If there are too many folders and files

stored in the USB device, reading may take some time.

FUNCTIONS

AUX IN

OPTICAL IN

HDMI IN

HDMI OUT (TV)

SOFTWARE UPDATE

Samsung may offer updates for the Soundbar's system firmware in the future.

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar.

Note that if there are multiple update files, you must load them onto the USB device singly and use them to update the firmware one file at a time.

Please visit samsung.com or contact the Samsung call center to receive more information about downloading updates files.

● I nsert a USB device containing the

firmware update into the USB port on the main unit.

● Updating firmware may not work properly

if audio files supported by the Soundbar are stored in the USB storage device.

● Do not disconnect the power or remove

the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.

● After the update, all settings are reset to

their factory default settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets the subwoofer connection too. If connection to the subwoofer is not re-established automatically after the update, refer to page 14. If the firmware fails to update, we recommend formatting the USB device in FAT16 and trying again.

● Once the software update is completed,

turn off the product and then press and

hold the (

) button on the remote

control for more than 5 seconds. “INIT” appears on the display and the unit is powered off. The updgrade is complete.

● Do not format the USB device in the NTFS

format. The Soundbar does not support the NTFS file system.

● Depending on the manufacturer, some

USB devices may not be supported.

AUTO POWER LINK

If you have connected the main unit to a TV with a digital optical cable, set the Auto Power function ON to have the Soundbar turn on automatically when you turn the TV on.

AUTO POWER

LINK

OFF

1. Connect the Soundbar and an External Device

with an Optical cable.

2. Press the

(Function) button on the main

unit’s top panel or the SOURCE button on the remote control to select the

3. Press the Anynet+ button on the remote

control to toggle the Auto Power Link function on and off.

● Depending on the connected device,

Auto Power Link may not function.

Display

ANYNET+ OFF /

POWER LINK ON

ANYNET+ ON /

POWER LINK OFF

D.IN

mode.

TROUBLESHOOTING

Refer to the table below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864).

The unit will not turn on.

• Is the power cord plugged into the outlet? ¼ Connect the power plug to the outlet.

A function does not work when the button is pressed.

• Is there static electricity in the air? ¼ Disconnect the power plug and connect it again.

Sound is not produced.

• Is the Mute function on?

• Is the volume set to minimum?

The remote control does not work.

• Are the batteries drained?

• Is the distance between the remote control and main unit too far?

¼ Press the

function.

¼ Adjust the Volume.

¼ Replace with new batteries.

¼ Move closer to the unit.

(Mute) button to cancel the

ENG

The TV SoundConnect (TV pairing) failed.

• Does your TV support TV SoundConnect?

• Is your TV firmware the latest version?

• Does an error occur when connecting?

• Reset the TV MODE and connect again.

The red LED on the subwoofer blinks and the subwoofer is not producing sound.

• Your subwoofer may not be connected to the main body of the product.

The subwoofer drones and vibrates noticeably.

• Try to adjust the vibration of your subwoofer.

¼ TV SoundConnect is supported by some

Samsung TVs released from 2012 on. Check your TV to see if it supports TV SoundConnect.

¼ Update your TV with the latest firmware.

¼ Contact the Samsung call center.

¼ Press and hold the

reset the TV SoundConnect connection.

¼ Try to connect your subwoofer again.

(See Page 14)

¼ Press the EQUALIZER WOOFER button on your

remote control to adjust its value (between SW-6 and SW+6).

button for 5 seconds to

APPENDIX

SPECIFICATIONS

Model name

GENERAL

AMPLIFIER

* S/N ratio, distortion, separation, and usable sensitivity are based on measurements using AES (Audio

Engineering Society) guidelines.

* Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

- Weight and dimensions are approximate.

- Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call, (877) 278 - 0799

HW-H7500 / HW-H7501

Main Unit

Power Supply

Standby Power Consumption

Power Consumption

USB

Weight

Dimensions (W x H x D)

Operating Temperature Range

Operating Humidity Range

Rated Output Power

S/N Ratio (Analog Input)

Separation (1kHz)
