Samsung HT-TX55, HT-TX52, HT-X50 User Manual
SAMSUNG ELECTRONICS CANADA, INC.
HEADQUARTERS
55 Standish Court Mississauga, Ontario L5R 4B2 Canada
TEL: 1-905-542-3535
www.samsung.ca
Instruction Manual
ENG
DVD HOME
THEATER SYSTEM
HT-X50
HT-TX52
HT-TX55
SERVICE DIVISION
55 Standish Court Mississauga, Ontario L5R 4B2 Canada
1-800-SAMSUNG (1-800-726-7864)
AH68-01957D
REV: 00
AH68-01957C
REV: 00
COMPACT
DIGITAL AUDIO
2
ENG
3
Precautions
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots
are not covered. Do not stack anything on top of the player. Do not place the player on modules or other equipment which may become
hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the Home Theater to
the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove
the main plug from the wall outlet, especially when left unused for a long period of time.
Protect the player from moisture(i.e. vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields
(i.e.speakers...). Disconnect the power cable from the AC supply if the
player malfunctions. Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc has been stored in cold
temperatures.
If transporting the player during the winter, wait approximately 2 hours
until the unit has reached room temperature before using.
During thunderstorms, disconnect the AC main plug from
the wall outlet.
Voltage peaks due to lightning could damage the unit.
The Mains plug is used as a disconnect device and shall
stay readily operable at any time.
Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and malfunction of the unit.
The batteries used with this product contain chemicals that are
harmful to the environment.
Do not dispose of batteries in the general household trash.
PREPARATION
Safety Warnings
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE REAR COVER (or BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1
LASER product.
Use of controls, adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
CAUTION : INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.
WARNING
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall
be placed on the apparatus.
This reminder is provided to call the CATV system installer’s attention to Section 820~40 of the NEC which
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to
the grounding system of the building, as close to the point of cable entry as practical.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
Note to CATV system installer
Phones
4
ENG
5
Features Contents
Multi-Disc Playback & FM Tuner
The HT-X50/HT-TX52/HT-TX55 combines the convenience of multi-disc playback capability, including DVD-AUDIO,
DVD-VIDEO, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD-R/RW, with a sophisticated FM tuner, all in a single
player.
DVD-Audio compatible
Experience the super high-quality audio performance of DVD-Audio.
The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range,
low-level resolution and high-frequency detail.
Dolby Pro Logic II
Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing
Dolby Pro Logic.
DTS (Digital Theater Systems)
DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency
5.1 channel sound.
Power Saving Function
The HT-X50/HT-TX52/HT-TX55 automatically shuts itself off after 20 minutes in Stop mode.
TV Screen Saver Function
If the main unit remains in stop mode for 3 minutes, Samsung logo appears on TV screen.
The HT-X50/HT-TX52/HT-TX55 automatically switches itself into the power saving mode after 20 minutes in the Screen
Saver mode.
Customized TV Screen Display
The HT-X50/HT-TX52/HT-TX55 allows you to select your favorite image during JPEG or DVD playback and set it as your
background wallpaper.
HDMI
HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.
USB Host Play
You can enjoy media files such as pictures, movies and tunes saved in an MP3 player, digital camera or USB memory
by connecting the storage device to the USB port of the home theater.
Anynet+ (HDMI-CEC) Function
Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the
Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs
that support Anynet+.)
PREPARATION
Safety Warnings ............................................................2
Precautions....................................................................3
Features.........................................................................4
Notes on Discs ..............................................................6
Description.....................................................................8
CONNECTIONS
Connecting the Speakers............................................12
Speaker Installation.....................................................15
Connecting the Optional Wireless
Receiving Amplifier......................................................16
Connecting the Video Out to your TV .........................18
HDMI Function.............................................................19
Connecting Audio from External Components............20
Connecting the FM Antenna........................................22
OPERATION
Before Reading the User's Manual .............................23
Before Using Your Home Theater...............................24

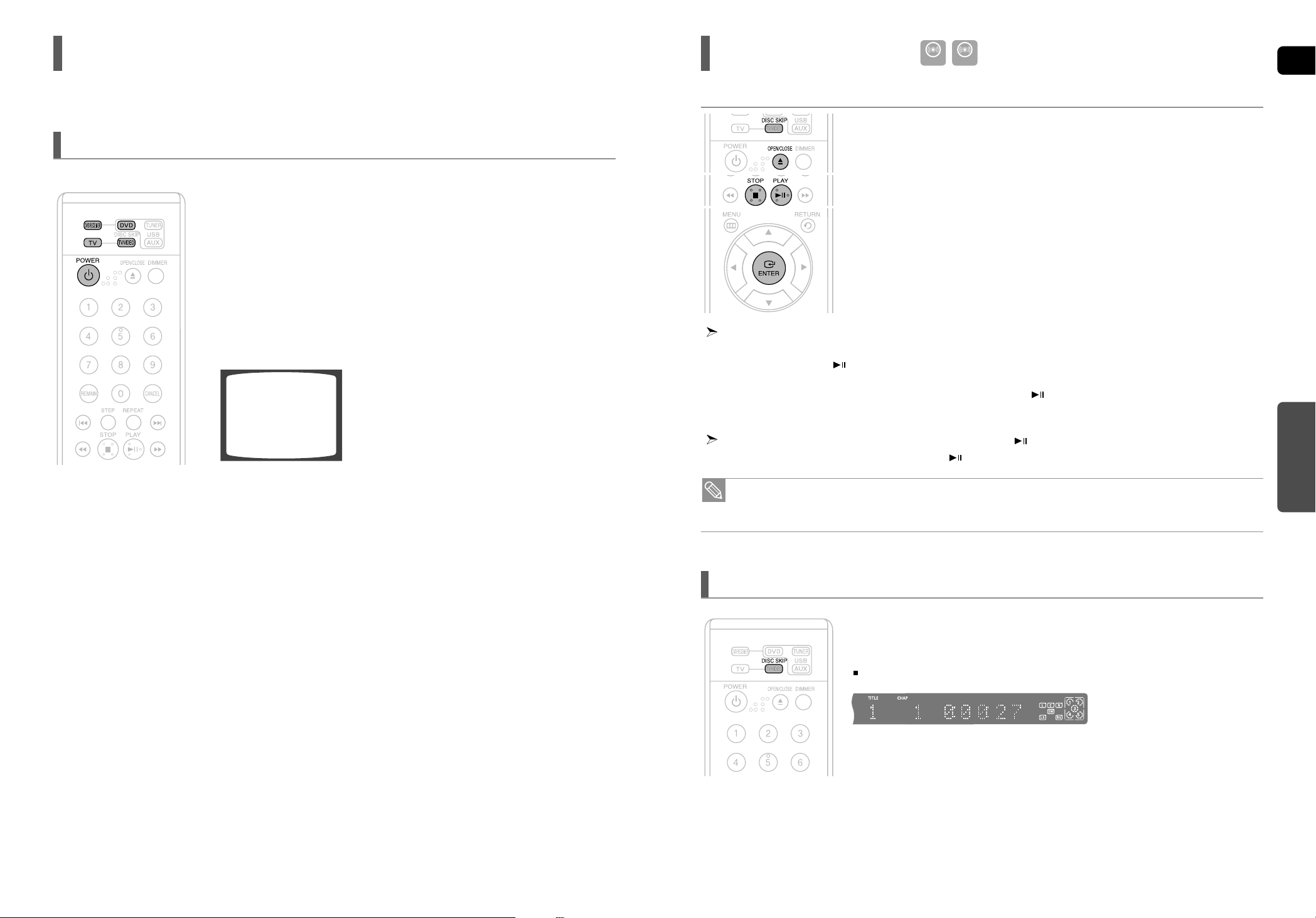

Disc Playback..............................................................25
MP3/WMA-CD Playback .............................................26

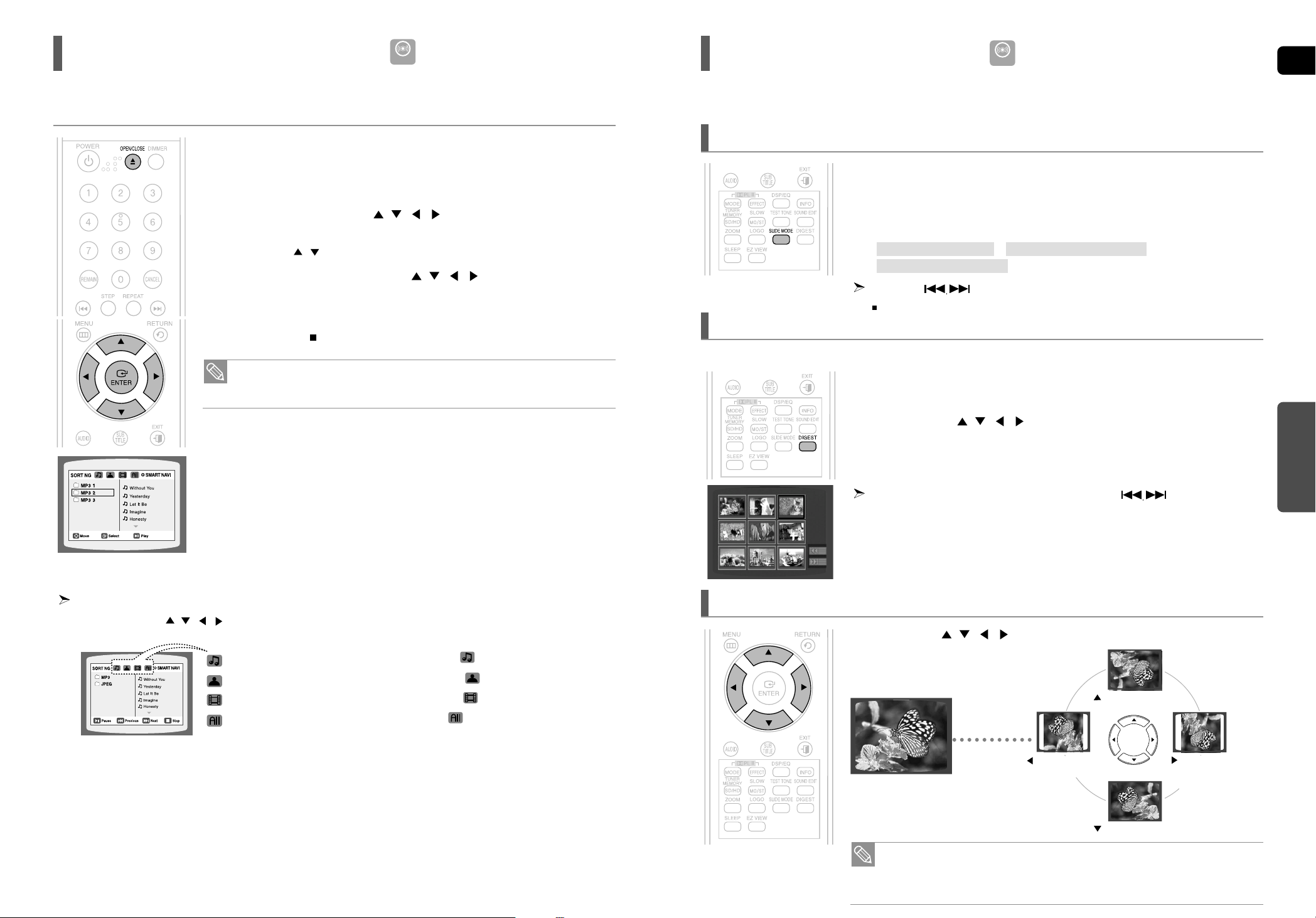

JPEG File Playback.....................................................27
DivX Playback .............................................................28
Using the Playback Function .......................................30
Displaying Disc Information......................................30
Checking the Remaining Time..................................31
Fast Playback...........................................................31
Slow Playback ..........................................................31
Skipping Scenes/Songs ............................................32

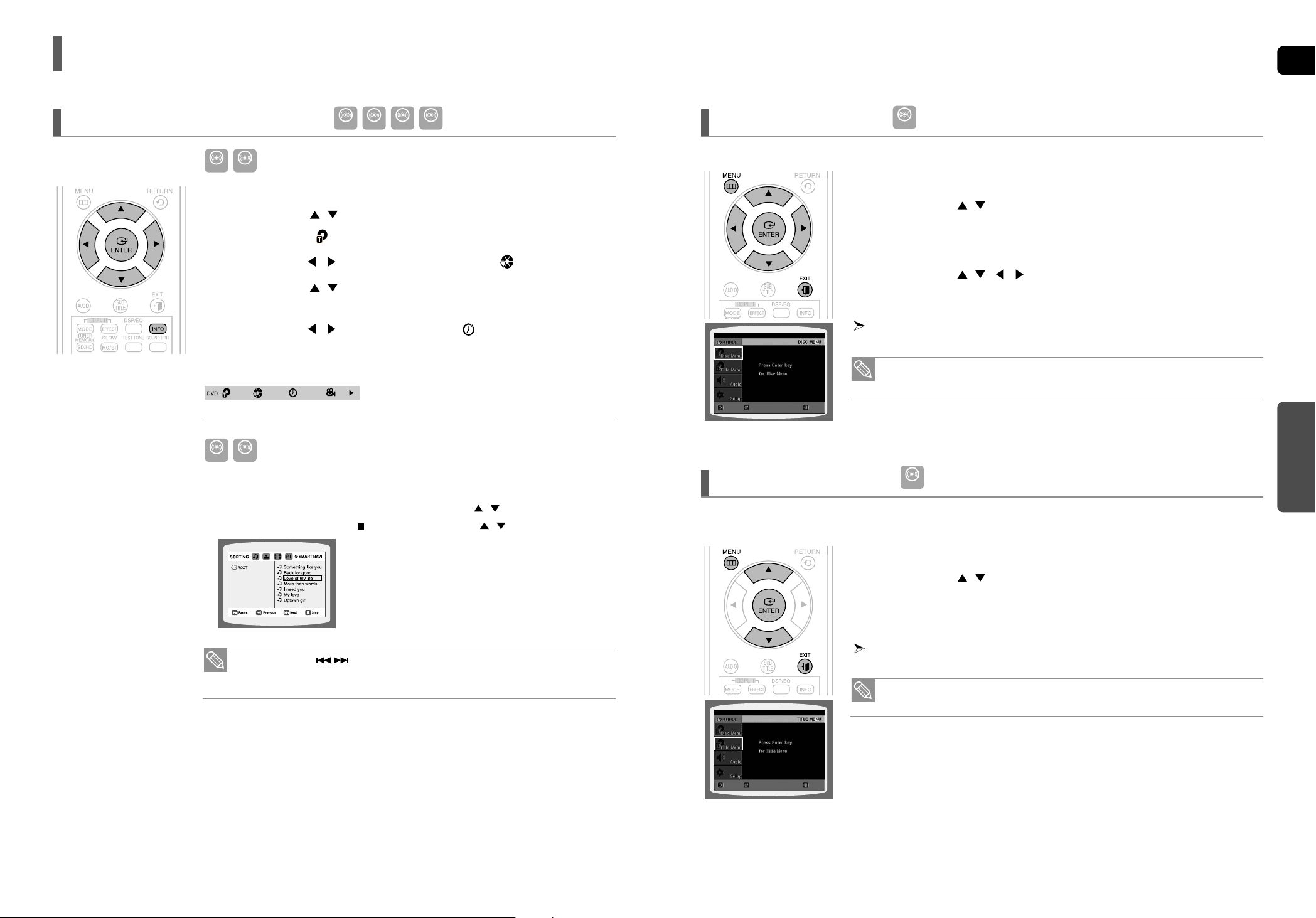

Repeat Playback.......................................................33
To Select a Repeat Playback Mode in the Disc
Information Screen ...................................................33
A-B Repeat Playback................................................34

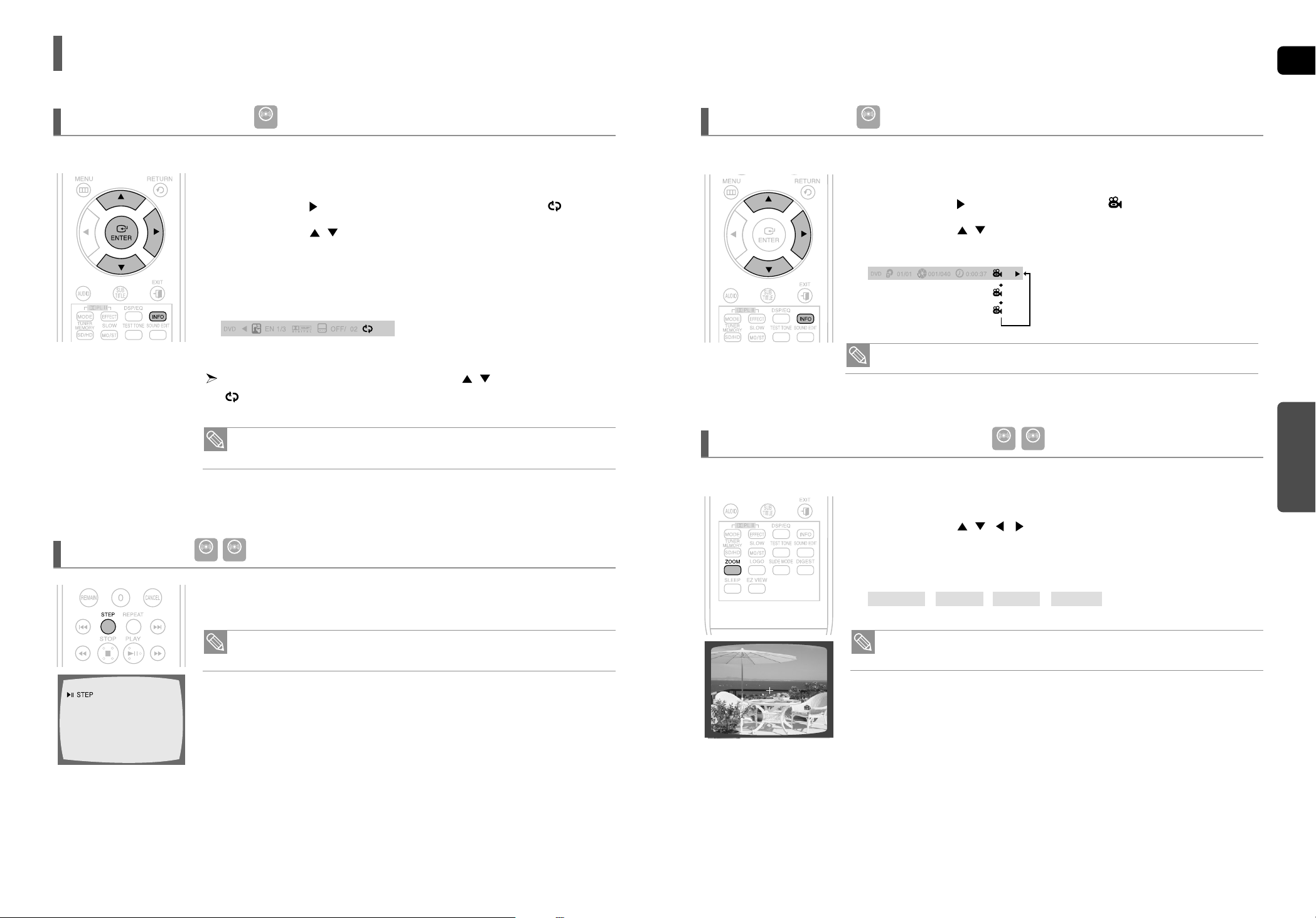

Step Function............................................................34
Angle Function ..........................................................35

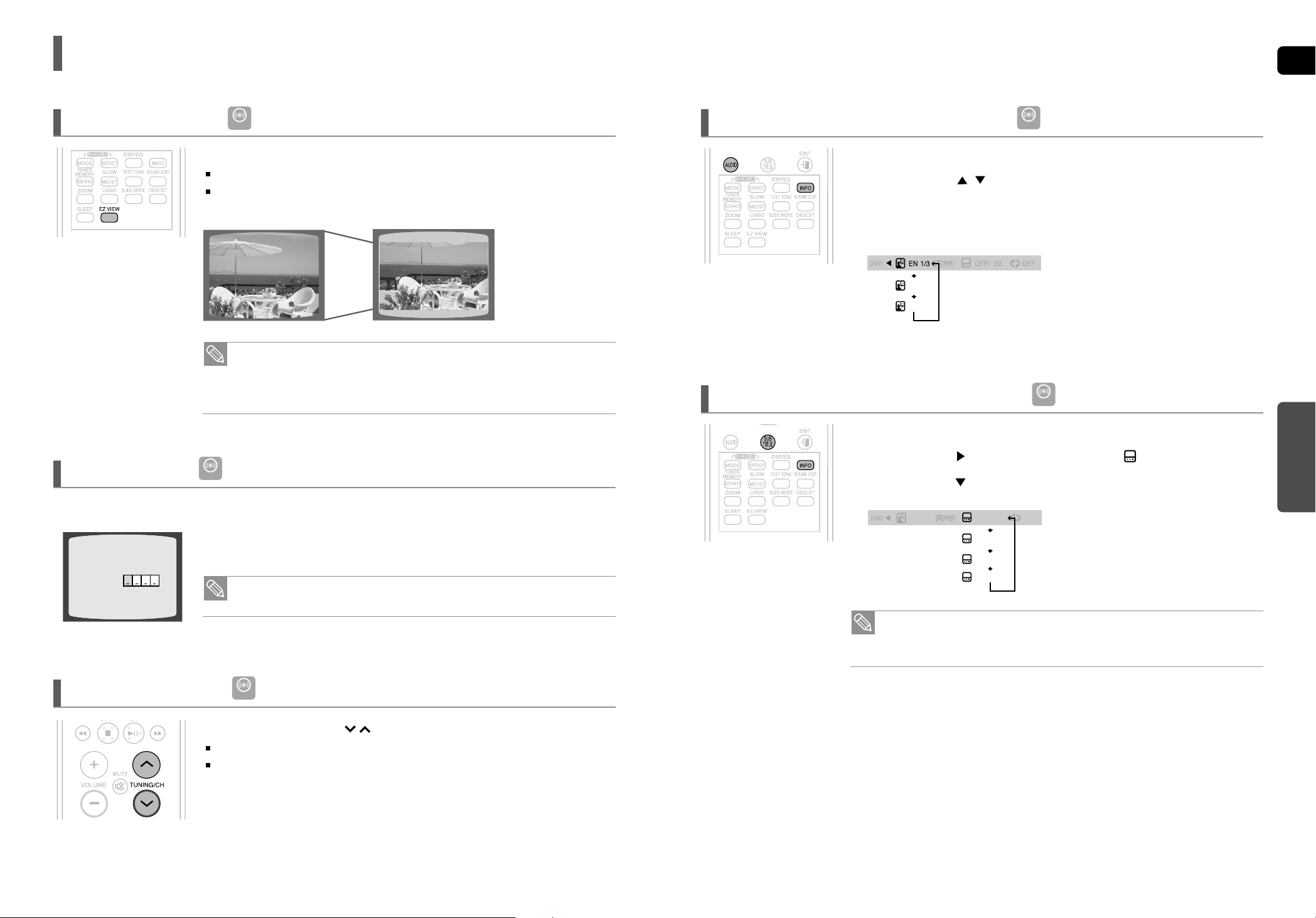

Zoom (Screen Enlarge) Function .............................35
EZ VIEW Function....................................................36
Bonus Group.............................................................36
Navigating Pages......................................................36
Audio Language Selection Function .........................37
Subtitle Language Selection Function......................37
Moving Directly to a Scene/Song .............................38
Using the Disc Menu ................................................39
Using the Title Menu.................................................39
Playing Media Files using the USB HOST Feature .....40
SETUP
Settings........................................................................42
Setting the Language..............................................42

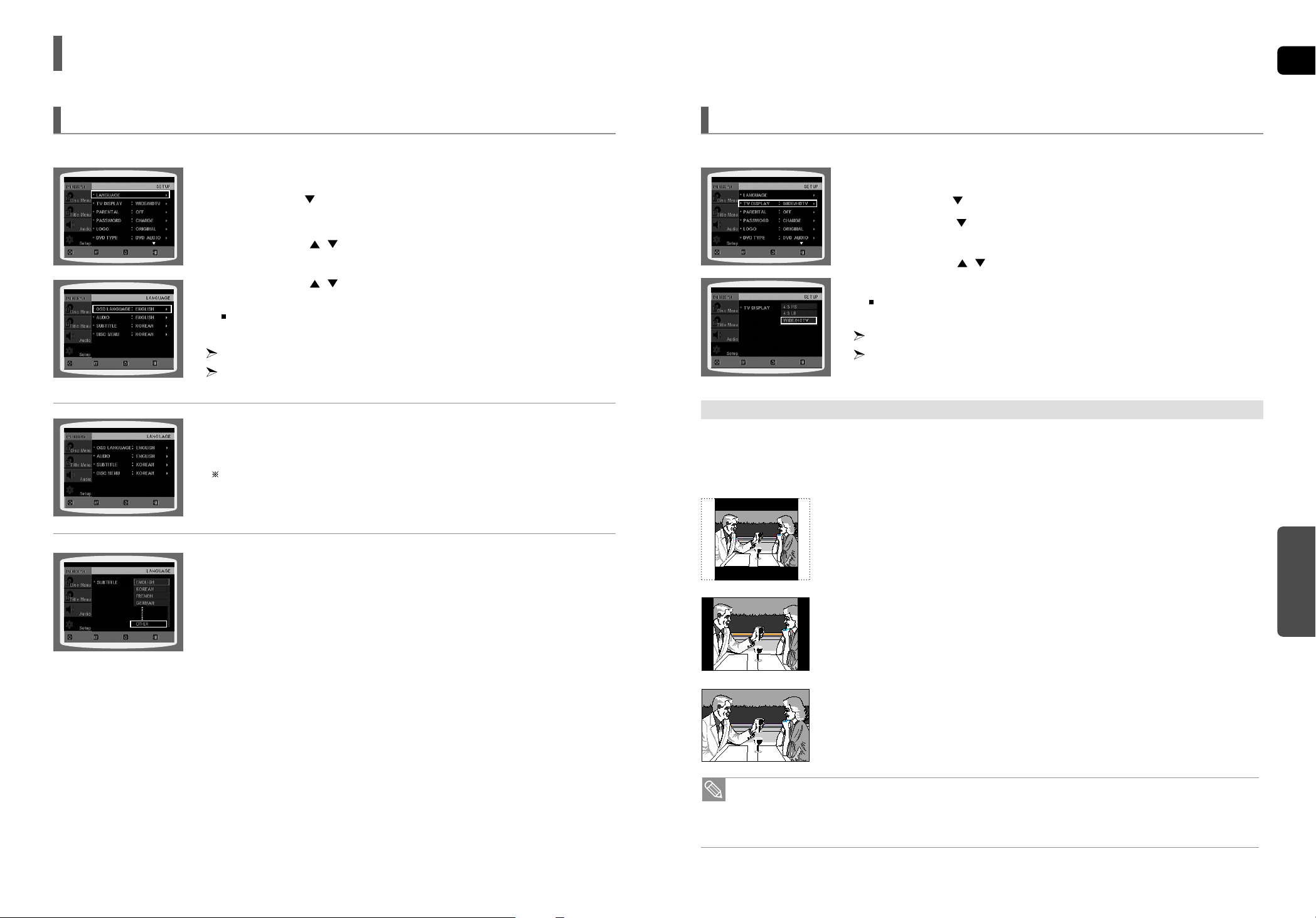

Setting TV Screen type...........................................43
Setting Parental Controls (Rating Level).................44
Setting the Password ..............................................44

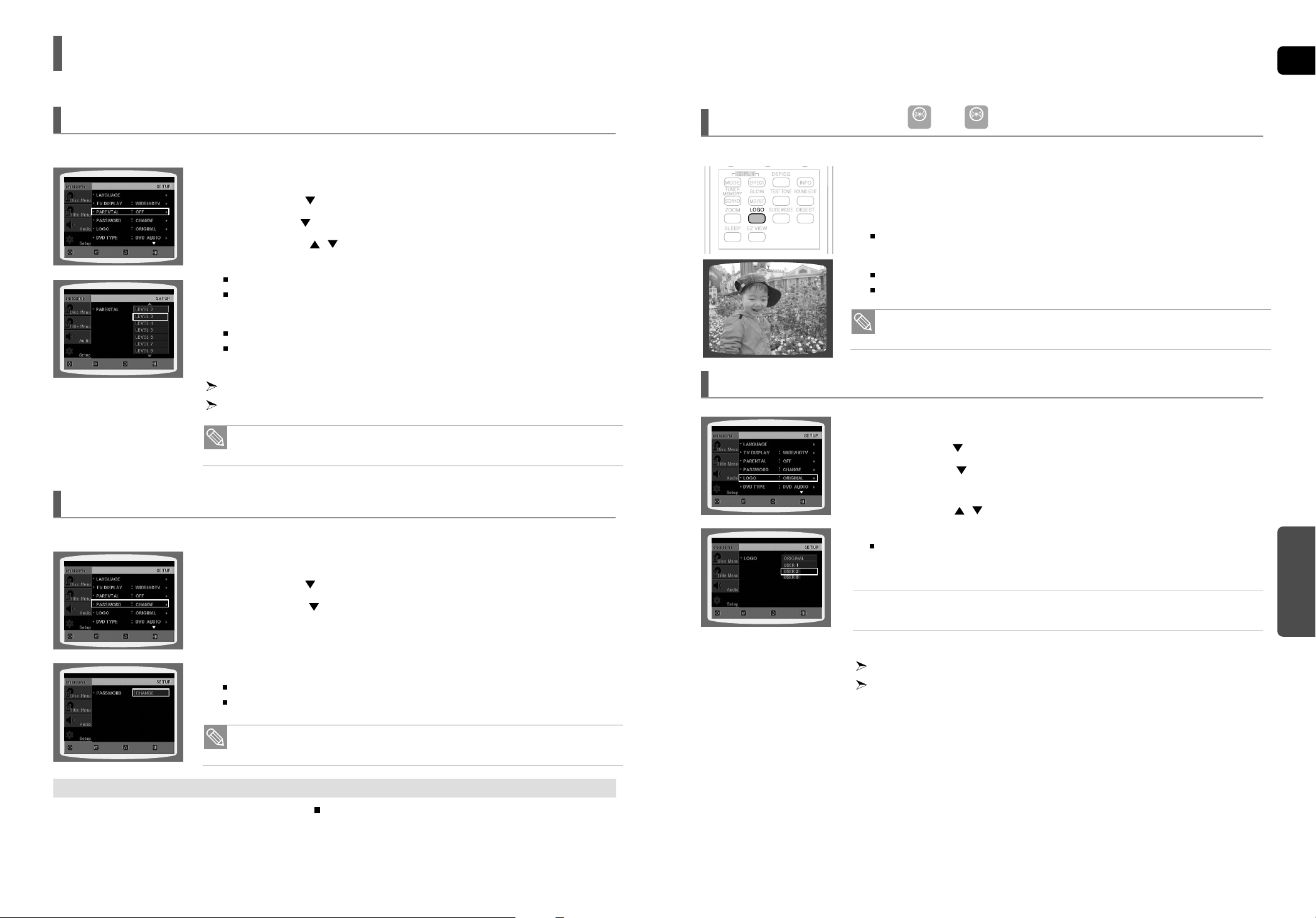

Setting the Wallpaper..............................................45
To Select One of the 3 Wallpaper Settings
you've made............................................................45
DVD Playback Mode...............................................46
DivX (R) registration................................................46
Setting the Speaker Mode.......................................46

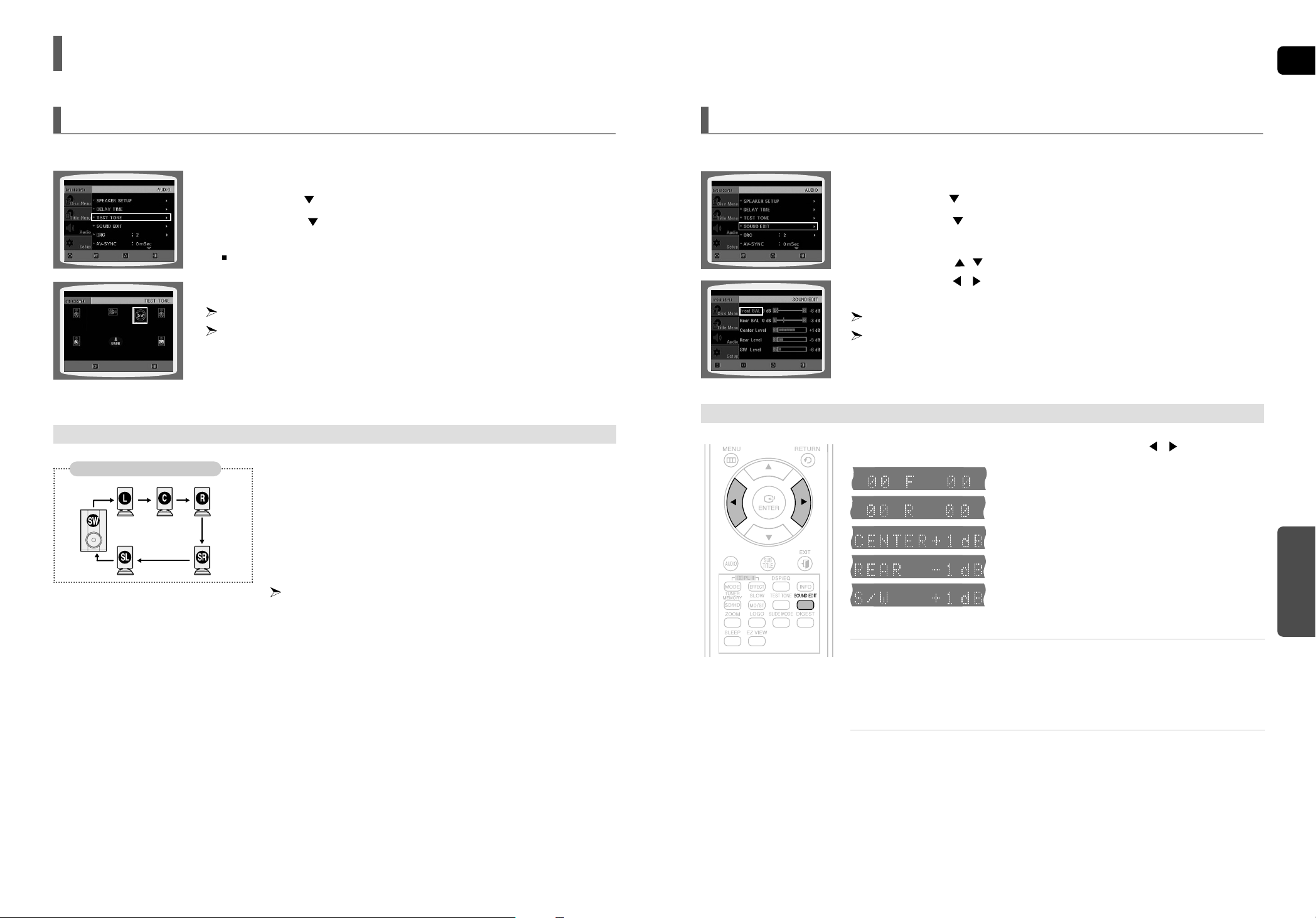

Setting the Delay Time ............................................47
Setting the Test Tone...............................................48
Setting the Audio.....................................................49

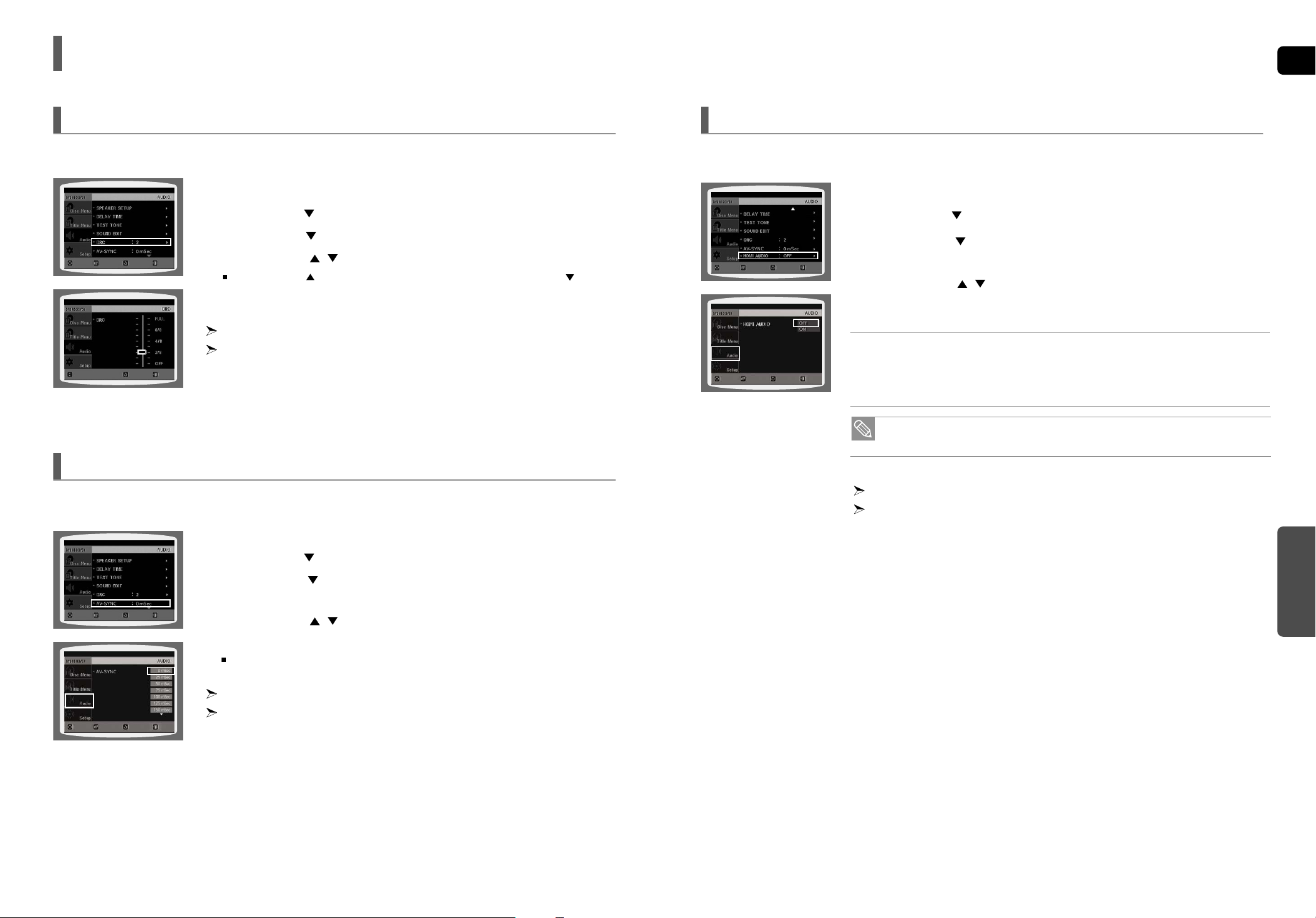

Setting the DRC (Dynamic Range Compression) ...50
Setting the AV SYNC...............................................50
Setting the HDMI Audio...........................................51
Sound Field (DSP)/EQ Function .................................52

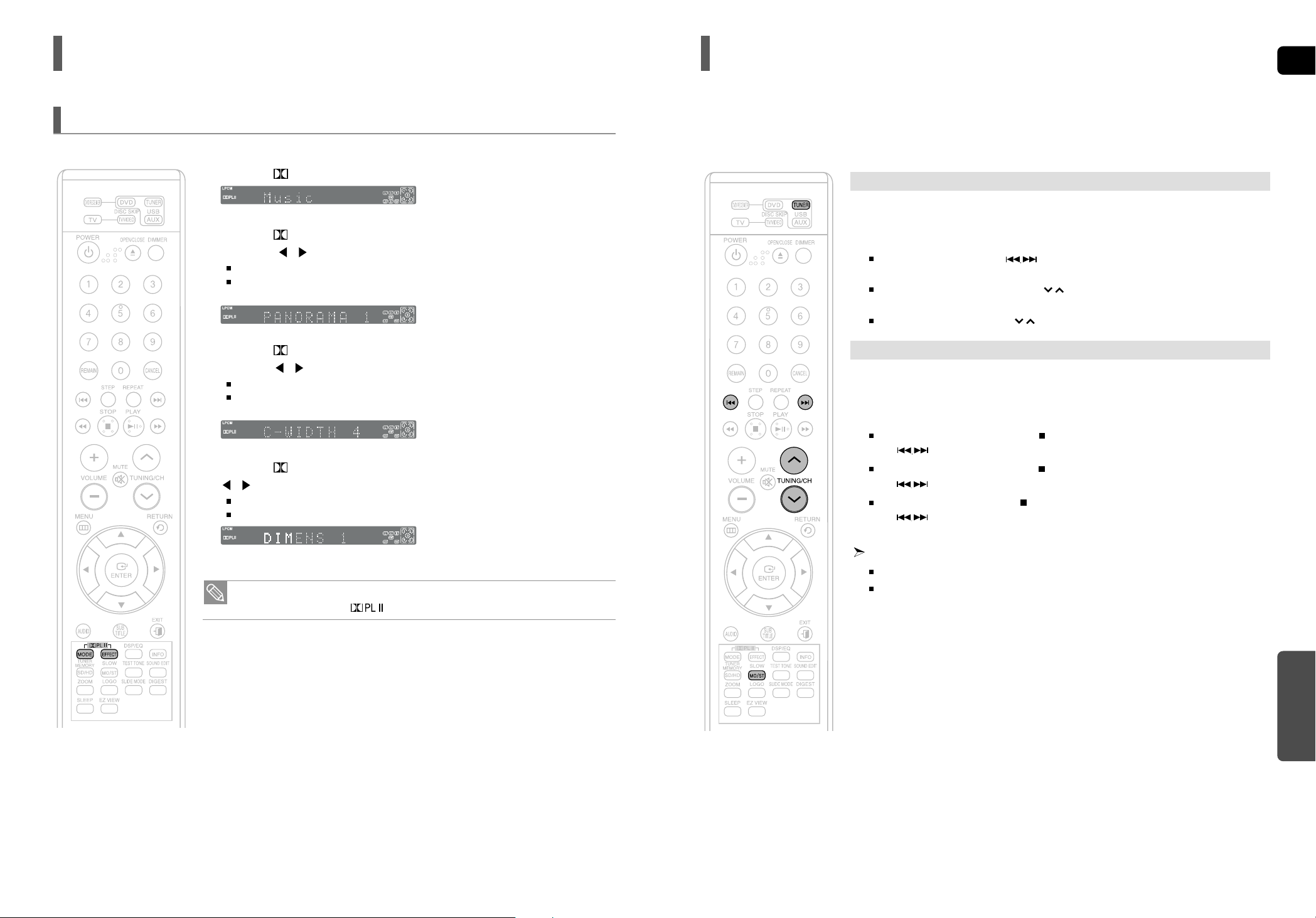

Dolby Pro Logic II Mode..............................................53
Dolby Pro Logic II Effect..............................................54
MISCELLANEOUS

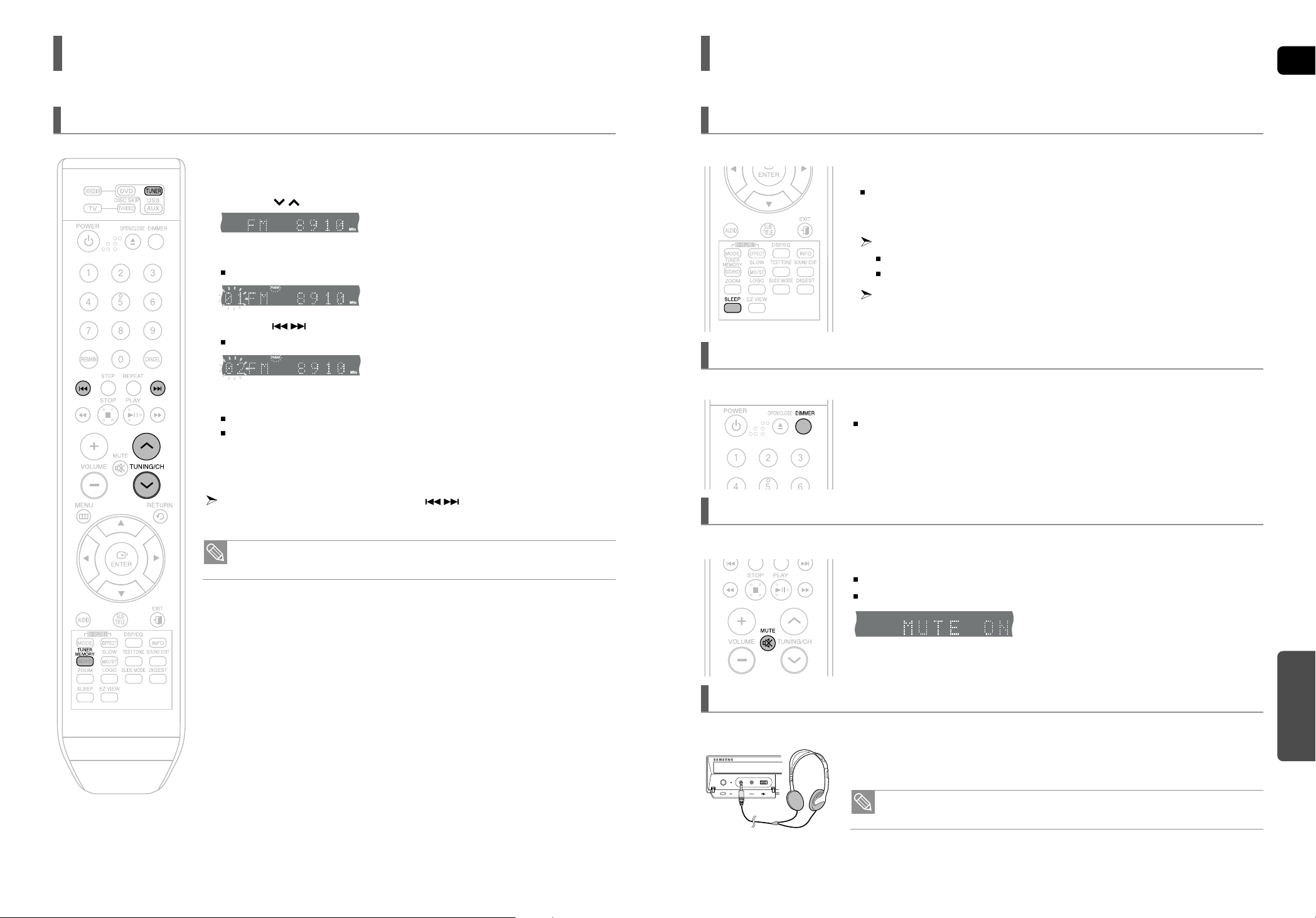

Listening to Radio........................................................55
Convenient Functions ..................................................57
Operating a TV with the Remote Control....................58
Troubleshooting...........................................................60

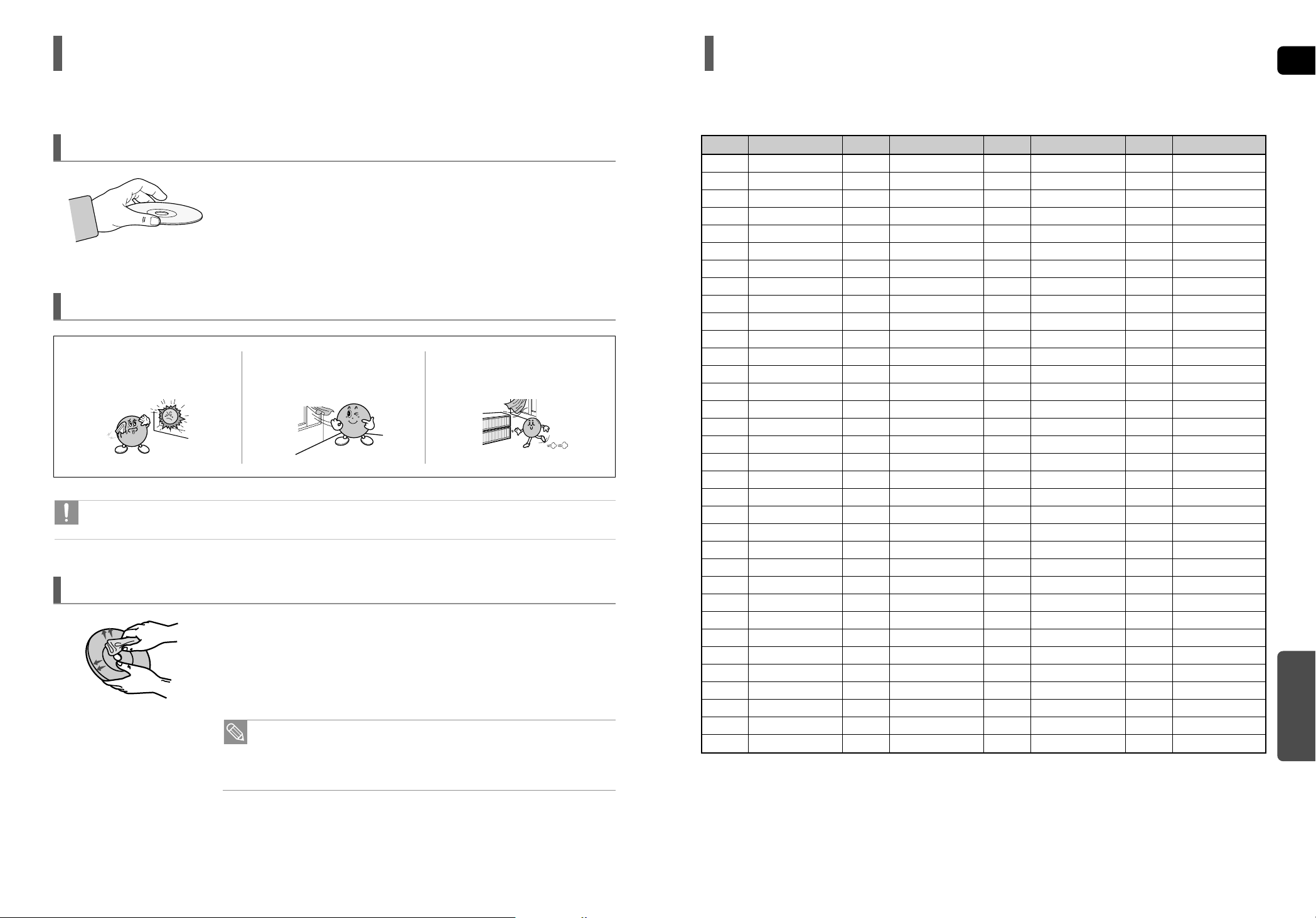

Cautions on Handling and Storing Discs.....................62
Language Code List ....................................................63
USB Host Feature Supported Products ......................64
Specifications...............................................................65
PREPARATION
6
ENG
7
CD-R Discs
•
Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of
the disc.
•
Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minute as they may not be playback.
•
Some CD-RW (Rewritable) media, may not be playable.
•
Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not
be able to fully play the disc.
CD-R JPEG Discs
•
Only files with the "jpg" extensions can be played.
•
If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
•
Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
•
JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
•
Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the
disc can be played only up to the blank segment.
•
A maximum of 9,999 images can be stored on a single CD.
•
When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
•
Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
CD-R MP3 Discs
•
Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
•
MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
•
Use discs recorded with a compression/decompression data rate greater than 128Kbps.
•
Only files with the "mp3" and extensions can be played.
•
Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the
disc can be played only up to the blank segment.
•
If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
•
For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
•
A maximum of 500 tracks can be played per CD.
•
A maximum of 300 folders can be played per CD.
DVD R/RW, CD-R/RW DivX Discs
•
Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user
might not play.
•
Software update for incompatible formats is not supported.
(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)
•
Sections with a high frame rate might not be played while playing a DivX file.
•
For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.net".
This product does not support Secure (DRM) Media files.
Disc Recording Format
PREPARATION
Notes on Discs
DVD players and the discs are coded by region. These regional codes must match
in order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
1 6
~
•
LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.
If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.
•
DVD discs purchased abroad may not play on this player.
If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message appears
on the TV screen.
•
Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD
player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted
picture from copy-protected DVD discs.
•
This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
Mark (Logo)
Audio + Video
DVD-AUDIO
DVD-VIDEO
AUDIO-CD
5"
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
74 min.
20 min.
74 min.
20 min.
3 1/2"
5"
3 1/2"
Audio
Recorded Signals
Disc Type Disc Size Max. Playing Time
DivX
5"
3 1/2"
Audio + Video
Playable Discs
Do not use the following types of disc!
Copy Protection
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.
COMPACT
DIGITAL AUDIO
8
ENG
9
Description
Front Panel Rear Panel
Accessories
Display
Video CableRemote Control FM Antenna
User's Manual
1. Disc Tray
2. Function button
3. Stop ( ) button
4. Play/Pause ( ) button
5. Direct Play buttons
6. Disc Change button
7. Power ( ) button
8. Standby indicator
9. Headphone Jack
10.AUX IN 1 Connector
11. USB Port
12.Tuning Up & Skip ( ) button
Tuning Down & Skip ( ) button
13.Volume Control
14.Open/Close button
1. 5.1 Channel Speaker Output Connector
2. Video Output Connector
Connect the TV's video input jacks (VIDEO IN) to
the VIDEO OUT connector.
3. Component Video Output Connector
Connect a TV with component video inputs to these jacks.
4. External Digital Optical Input Connector
Use this to connect external equipment capable of digital
output.
5. FM 75Ω COAXIAL Jack
6. Cooling Fan
7. TX Card Connection(WIRELESS)
8. AUX IN 2 Connectors
9. HDMI Output Jack
1. DOLBY DIGITALindicator
2. LINEAR PCM indicator
3. DTS indicator
4. TITLE indicator
5. GROUP indicator
6. CHAPTER indicator
7. TRACK indicator
8. PROGRAM indicator
9. REPEAT indicator
10. TUNED indicator
11. STEREO indicator
12. DOLBY PLll indicator
13. DVD AUDIO indicator
14. MPEG indicator
15. DSP indicator
16. System Status Display
17. PBC indicator
18. RADIO FREQUENCY indicator
19. SPEAKER indicator
20. DISC(1~5) indicator
1
7 8
3 4
9
10 12 13 14
2
11 8
9
8
9
10 11
5 6 1
6 7
3 42 5
1 6 73 42 5
141312 1817 201915 16
PREPARATION
10
ENG
11
Description (Con’t)
Remote Control
1. DVD RECEIVER button
2. TV button
3. TV/VIDEO, DISC SKIP button
4. POWER button
5. Number(0~9) buttons
6. REMAIN button
7. STEP button
8. Tuning Preset/CD Skip buttons
9. VOLUME button
10.MENU button
11.AUDIO button
12. PL II EFFECT button
13. PL II MODE button
14.TUNER MEMORY,
SD(Standard Definition)/HD(High Definition) button
15.ZOOM button
16.SLEEP button
17.SLOW, MO/ST button
18.EZ VIEW button
19. DVD button
TUNER button
USB, AUX button
20.OPEN/CLOSE button
21.DIMMER button
22.CANCEL button
23. REPEAT button
24. PLAY/PAUSE button
STOP button
SEARCH buttons
25.TUNING/CH button
26. MUTE button
27. RETURN button
28. Cursor/ENTER button
29. SUBTITLE button
30. EXIT button
31. DSP/EQ button
32. INFO button
33. SOUND EDIT button
34. DIGEST button
35. TEST TONE button
36. SLIDE MODE button
37. LOGO button
1 Remove the battery cover in the direction of the arrow.
2 Insert two 1.5V AAA batteries, paying attention to the correct polarities
(+ and –).
3 Replace the battery cover.
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–).
• Use the correct type of batteries.Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose the batteries to heat or a flame.
Insert Remote Batteries
1
6
7
8
3
4
14
15
16
17
18
9
10
13
12
2
11
5
19
21
20
23
24
25
26
27
29
28
30
32
33
34
35
36
37
22
31
PREPARATION
Operation Range of the Remote Control
The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be
operated at a horizontal angle of up to 30° from the remote control sensor.
ENG
CONNECTIONS
1312
Connecting the Speakers
Rear Speakers
•
Place these speakers behind your listening position.
•
If there isn't enough room, place these speakers so they
face each other.
•
Place them about 60 to 90cm (2 to 3feet) above your ear,
facing slightly downward.
*
Unlike the front and center speakers, the rear speakers
are used to handle mainly sound effects and sound will
not come from them all the time.
Subwoofer
•
The position of the subwoofer is not so critical.
Place it anywhere you like.
Front Speakers
•
Place these speakers in front of your listening position,
facing inwards (about 45°) toward you.
•
Place the speakers so that their tweeters will be at the
same height as your ear.
•
Align the front face of the front speakers with the front face
of the center speaker or place them slightly in front of the
center speakers.
Center Speaker
•
It is best to install it at the same height as the front
speakers.
•
You can also install it directly over or under the TV.
Position of the Home Theater
•
Place it on a stand, cabinet shelf, or under the TV stand.
Selecting the Listening Position
The listening position should be located about 2.5 to 3 times
the distance of the TV's screen size away from the TV.
Example : For 32" TVs 2~2.4m (6~8 feet)
For 55" TVs 3.5~4m (11~13 feet)
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
R
L
C
SR
SL
SW
Red
Black
• If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated
by the speaker. If this occurs, place the speaker away from your TV set.
1 Press and hold the terminal tab.
2 Insert the speaker cord.
3 Release your finger.
• Do not let children play with or near the speakers. They could get hurt if a speaker falls.
• When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct.
• Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or alien
substances into the duct (hole) of the subwoofer speaker.
• Do not hang the subwoofer on the wall through the duct (hole).
1 32
Rear Speaker (R)
Front Speaker (R)
Subwoofer
Center Speaker
Rear Speaker (L)
Front Speaker (L)
HT-X50
L
C
SW
R
SRSL
ENG
CONNECTIONS
1514
Connecting the Speakers
(Con’t)
Rear Speaker (R)
Front Speaker (R)
Subwoofer
Center Speaker
Rear Speaker (L)
Front Speaker (L)
HT-TX52
Rear Speaker (R)
Front Speaker (R)
Subwoofer
Center Speaker
Rear Speaker (L)
Front Speaker (L)
HT-TX55
1 Connect the SPEAKER with the STAND BASE.
2 Turning the screw (B) clockwise, connect to a hole on the
rear of the speaker using a screwdriver as shown in the
illustration.
3 This is the successfully assembled SPEAKER.
How to Install the Speaker and the Stand (Half Tallboy Type)
1
3
2
Speaker Installation
1 Turn the STAND upside-down and connect it to
the STAND BASE.
2 Turning the screw (A) clockwise, connect it to two holes
marked with the arrow using a screwdriver as shown in
the illustration.
3 Turning the supplied screw (B) clockwise, connect it to a
hole on the rear of the Speaker STAND.
4 Connect the assembled stand to the SPEAKER.
5 Turning the screw (B) clockwise, connect to a hole on
the rear of the speaker using a screwdriver as shown
in the illustration.
6 This is the successfully assembled speaker.
How to Install the Speaker and the Stand (Tallboy Type)
•
Make sure that the speaker is installed on a flat and stable area.
Otherwise it may be easily knocked over.
SPEAKER STAND
STAND BASE
Screw (B)Screw (A)
1
3 4
2
5 6
Component
ENG
CONNECTIONS
17
Resetting the Wireless Receiving Module
Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless receiver does not
light up and the "REAR CHECK" message blinks on the main unit's display.
Reset the system while the main unit and the wireless receiver module (SWA-3000) are in Power Standby mode.
1 With the main unit turned off, press and hold the remote
control's REMAIN button for 5 seconds.
■
The STANDBY LED on the front panel of the wireless receiver module
blinks.
2 With the wireless receiver module turned on, use a ball point
pen or a toothpick to press the RESET button on the back of
the unit.
■
The STANDBY LED on the front panel of the wireless receiver module
blinks 2 Times.
3 Turn on the main unit.
■
The LINK LED of the wireless receiver module is lit and the Reset is
completed.
■
If Power Standby mode continues, repeat Steps 1 to 3 above.
• Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close
to the main unit, some sound interruption may be heard due to interference.
• If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device that
uses the same frequency (2.4GHz) near the system, some sound interruption may be heard due to interference.
• The transmission distance of a radio wave is about 33 feet, but may vary depending on your operating
environment. If a steel-concrete wall or metallic wall is between the main unit and the wireless receiver module,
the system may not operate at all, because the radio wave cannot penetrate metal.
• When the wireless receiving module setting is complete, no audio signal is output from the Rear Speaker Output
Connector on the back of the main unit.
• The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and
moisture.
• For optimal listening performance, make sure that the area around the wireless receiver module location is clear of
any obstructions.
• Sound will be heard from the wireless rear speakers in DVD 5.1-CH or Dolby Pro Logic II mode only.
• In 2-CH mode, no sound will be heard from the wireless rear speakers.
16
To connect the rear speakers wirelessly, you have to purchase the wireless receiving module and
TX card from your Samsung retailer.
Connecting the Optional Wireless Receiving Amplifier
Front Speaker (R)
Rear Speaker (L)
Subwoofer
Center Speaker
Front Speaker (L)
Rear Speaker (R)
WIRELESS RECEIVER MODULE
When you have Purchased the Wireless Receiving Module (SWA-3000)
1 Connect the Front, Center and Subwoofer speakers to the main unit,
referring to pages 13~14.
2 With the main unit turned off, insert the TX card into the TX Card
Connection(WIRELESS) on the back of the main unit.
Hold the TX card so that the slanted side faces leftward and insert the
card into the port.
The TX card enables communication between the main unit and the wireless receiver.
3 Connect the left and right rear speakers to the wireless receiving
module.
4 Plug the power cord of the wireless receiving module in the wall outlet
and switch the power switch ‘ON’.
• Do not insert a card other than the TX card dedicated for the product.
The product might be damaged or the card may not be removed easily.
• Do not insert the TX card upside down or in the reverse direction.
• Insert the TX card when the main unit is turned off.Inserting the card
when it is turned on may cause a problem.
• If the TX Card is inserted, sound is not output from the Rear Speaker
connectors on the main unit.
TX card
Slanted side face left
ENG
CONNECTIONS
Choose one of the three methods for connecting to a TV.
Connecting the Video Out to your TV
1918
TV
METHOD 2
METHOD 3
(supplied)
METHOD 1
HDMI Function
What is HDMI (High Definition
Multimedia Interface)?
This device transmits a DVD
video signal digitally without
the process of converting to
analog. You will get sharper
digital pictures when using
an HDMI connection.
In Stop mode, press and hold the SD/HD (Standard Definition/High
Definition)button on the remote control.
■
Resolutions available for the HDMI output are 480p, 720P and 1080i.
■
SD(Standard Definition) resolution is 480p and HD(High Definition) resolution is 720p/1080i.
Resolution Selection
• If the TV does not support the configured resolution, you will not be able to see
the picture properly.
•
When a HDMI TV is connected, composite and component video signals are not
output.
• See your TV owner's manual for more information on how to select the TV's Video
Input source.
This function allows the user to select the screen resolution for HDMI output.
1 Connect the main unit of the Home Theater to a Samsung TV with
an HDMI cable. (See page 18)
2 Set the Anynet+ function on your TV.
(See the TV instruction manual for more information.)
■
You can operate the Home Theater by using the TV remote control.
(Available TV buttons : , , , , , and , buttons, ~ button)
Set the Anynet+(HDMI-CEC) to <On> on your TV.
■
<Receiver : On> : You can listen to audio through the Home Theater.
■
<Receiver : Off> : You can listen to audio through the TV.
Select <THEATER to connector> and set the option of each items below.
■
<View TV> : If Anynet+(HDMI-CEC) set to on and you select View TV, the Home Theater will
automatically switched to DIGITALIN.
■
<THEATER Menu> : You can access the Home Theater menu.
■
<THEATER Operation> : The Home Theater disc playback information will be displayed.
■
<Receiver : On> : You can listen to audio through the Home Theater.
■
<Receiver : Off> : You can listen to audio through the TV.
Using Anynet+(HDMI-CEC)
Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control, Anynet + can be used
by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.)
• The Theater function is available only when you listen to the audio through
the Home Theater with the digital optical cable connected.
• If Anynet+ (HDMI-CEC) is on and you turn off the main unit, your TV will also turn off.
• Anynet+ (HDMI-CEC) will only work while in the DVDmode.
Connect the supplied video cable from the VIDEO OUT jack on the back of the main unit to the VIDEO IN jack on your TV.
METHOD 3 : Composite Video ....... (Good Quality)
Connect the HDMI cable (not supplied) from the HDMI OUT jack on the back of the main unit to the HDMI IN jack
on your TV.
METHOD 1 : HDMI ....... (Best Quality)
If your television is equipped with Component Video inputs, connect a component video cable(not supplied) from
the Component Video Output (Pr, Pb and Y) Connectors on the back of the main unit to the Component Video Input
Connectors on your TV.
METHOD 2 : Component Video ....... (Better Quality)
•
This product operates in
Interlace scan mode(480i Only ) for Component Output.
•
If you use an HDMI cable to connect a Samsung TV to the main unit, you can operate
the Home Theater using the TV's remote control. (This is only available with SAMSUNG TVs
that support Anynet+(HDMI-CEC).)
•
Please check the logo (If your TV has an logo, then it supports Anynet+ function.)
If you select the TV
If you select the THEATER
With Anynet+
You can operate this unit,
power on your TV, or watch a
movie by pressing the Play
button on your Samsung TV's
remote control.
MOVE
ENTER
EXIT
MOVE
ENTER
EXIT
MOVE
ENTER
EXIT
ENG
CONNECTIONS
2120
Audio Cable
(not supplied)
Audio Cable
(not supplied)
Connecting Audio from External Components
AUX2 : Connecting an External Analog Component
Analog signal components such as a VCR.
AUX1 : Connecting an External Analog Component
Analog signal components such as an MP3 Player.
1 Connect AUX IN 2 (Audio) on the Home Theater to the Audio Out of the external analog component.
■
Be sure to match connector colors.
2 Press the AUX button on the remote control to select <AUX2> input.
■
You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝ FM.
1 Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external analog component.
2 Press the AUX button on the remote control to select <AUX1> input.
■
You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝ FM.
Audio Cable
(not supplied)
If the external analog
component has only one
Audio Out, connect either
left or right.
• You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR
to this product.
AUX1 : Front Panel AUX2 : Rear Panel
OPTICAL : Connecting an External Digital Component
Digital signal components such as a Set-Top Box.
1 Connect the Digital Input (OPTICAL) on the Home Theater to the Digital Output of the external digital
component.
2 Press the AUX button on the remote control to select <DIGITAL IN>.
■
You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝ FM.
Optical Cable
(not supplied)
Audio Cable
(not supplied)
OPTICAL : Rear Panel
Loading...
