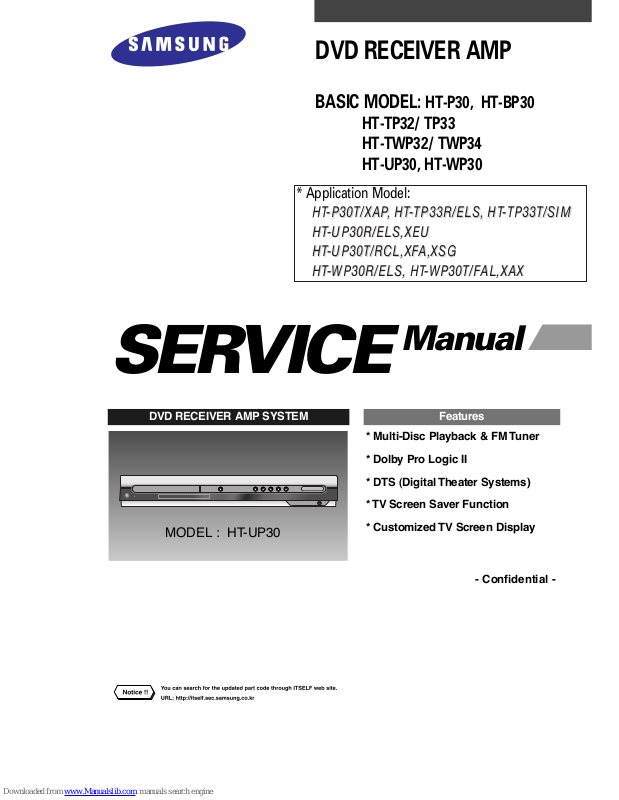

Samsung HT-TP32, HT-TWP32, HT-P30, HT-UP30, TP33 Service Manual

DVD RECEIVER AMP

BASIC MODEL: HT-P30, HT-BP30

HT-TP32/ TP33
HT-TWP32/ TWP34
HT-UP30, HT-WP30

SERVICE

Manual

DVD RECEIVER AMP SYSTEM Features

* Multi-Disc Playback & FM Tuner

* Dolby Pro Logic II

* DTS (Digital Theater Systems)

* TV Screen Saver Function

* Customized TV Screen Display

- Confidential -

MODEL : HT-UP30

* Application Model:

HT

HT

-P30T/XAP

-P30T/XAP,,

HT

HT

-TP33R/ELS

-TP33R/ELS,,

HT

HT

-TP33T/SIM

-TP33T/SIM

HT

HT

-UP30R/ELS

-UP30R/ELS

,XEU

,XEU

HT

HT

-UP30T/RCL,XF

-UP30T/RCL,XF

A,XSG

A,XSG

HT

HT

-WP30R/ELS

-WP30R/ELS,,

HT

HT

-WP30T/F

-WP30T/F

AL,XAX

AL,XAX

©Samsung Electronics Co.,Ltd. APR. 2005

Printed in Korea
Code no. AH68-01642P

ELECTRONICS

14-1 Samsung Electronics

1. Definition of Home Theater

What is Home Theater?

Home theater system is the proper combination of audio and video system at home which enable
you to enjoy more dynamic sound and vivid image in a wide screen of movie theater.

This effect can be implemented with wide screen, high quality projector, Dolby digital and DTS
sound effects.

Now you can enjoy surround sound field wieh realistic presence and Dolby digital at your home as if
you are in a movie theater.

As time goes by, home theater system has become recognized as a system that helps listen sound
closer to the original sound rather than video.In this 21st centur y, most movie and animation films
will be produced for home theater and reproduce sound closer to original sound.

Samsung Electronics 14-2

2. Concept of Sound

What is Sound Range?

People can listen to the sounds with frequency between 200Hz~20.000Hz

As time goes by, home theater system has become recognized as a system that helps listen sound
closer to the original sound rather than video.In this 21st centur y, most movie and animation films
will be produced for home theater and reproduce sound closer to original sound.

What is Sound Pressure?

* A measure of how well speaker converts electr ic signal it receives to sound
* Unit of sound pressure is decibel and mainly measures the size of sound at 1 m away after

sending 1 W power from speaker.

❋ High sound pressure doesn't necessary mean good performance

What is Timbre?

* How well the unique sound of musical instrument is expressed
* Better if violin and cello sound are accurately distinguished. Good timbre means high quality.

14-3 Samsung Electronics

2. Concept of Sound

By reproducing standard channels used during soundtrack recording of movie,
it outputs 3 sounds of movie (words / music / sound effects) from 6 different
speakers and provides surround dynamic sound effects so that you can even
feel the direction of sound.

5 channel

0.1 channel

* Power amp is embedded in active sub woofer
* Require separate amp since there is no amp in passive sub woofer

❋ No difference in performance of active sub woofer and passive sub woofer

Center Speaker :Voice ( over 95%)
Front Speaker (L/R) : Music Sound
Rear Speaker (L/R) : Sound Effect

A

B

C

Subwoofer : Low Sound Effect

D

Samsung Electronics 14-4

4. Home Theater Sound Format

Overview

* As home theater has recently penetrated deep into consumer's market in Korea, Dolby digital and

DTS, the sound format for 5.1 channel home theater, are the mainstream in the mar ket.

* Expanded type of 6.1 channel or 7.1 channel are recently released in the market, but there are

not much DVD title that can suppor t expanded type.

Home theater format...

Stereo

Is used in general audio and analog TV and and consists of 2
channels, at front left/right

Dolby Surround

In this sound format, 4 audio channels (Front left / right / center /
surround) are entered in 2 channel and reproduce in 4 channels
through device with Dolby decoder.

Center channel is not completely separated so that it forms virtual
center channel with help of front left / right channel.

1958 1Ch Mono/ 2Ch Stereo
1982 Matrix 3Ch Dolby Surround
1987 Matrix 4Ch Dolby Pro Logic
1995 5.1Ch Dolby Digital
1997 DTS (Digital Theater System)
1999 Matrix 6.1Ch Dolby Digital Sourround EX

Dolby Prologic

– Provide 4 channels (Front Left/Right/Center/Surround)
– Reinforced from Dolby Surround

① Center channel is completely separated
➁ Separation between channels gets higher

Dolby Digital

– Provide completely separate 5.1 channel

(Front Left/Right, Center, Rear Left/Right, Sub Woofer)
– Main sound format of home theater
– Reinforced from Dolby Prologic
– Rear surround left/right channels give different sound
– Support sub woofer reinforcing Bass

❋ Dolby Digital is also called AC-301

AC-3(Audo-Coding-3) :3rd digital audio coding Dolby Research Center has

developed.

DTS(Digital Theater System)

– Technology of providing 5.1 channel sound, higher quality than

Dolby Digital
– Home appliance produced to apply system installed at 1,800 the-

aters throughout the world.

✪ Comparison of DTS and Dolby Digital(DD)

14-5 Samsung Electronics

Samsung Electronics 14-6

Dolby Prologic

– Latest technology reproducing music CD recorded in 2 channel,

cassette tape and video tape made in Dolby Prologic into 5.1

channel.
– Surround speaker that makes you feel more natural, deeper and

wider than existing Dolby Prologic.

(Ex-Profound sound adds more realistic presence from 5 speakers

and sub woofer when you watch soccer match.)

DTS (Digital Theater System)

THX (Abbreviation of Tomlison Holman's Experiment)

– THX is not a sound format like a Dolby or DTS, but is a standard of sound.Like standard KS mark

in Korea, THX means good certification in sound effects.

– THX issues cer tificate when a movie, theater or home theater system satisfy proper standards.

14-7 Samsung Electronics

5. Home Theater Components

Amp / Receiver

Amp: Device of raising output after tuning signal of CD player or DVD into

unique sound timbre

Various Types and Usages of Amplifier

- For Listening to Music ¡æ For Music+ Movie

- ① AV Receiver (Dedicated Lamp for Home Theater) : Preferred by Home Theater mania.
➁ DVD Receiver (DVD Player+ Amp+ Radio Tuner) : Suitable for beginner of Home Theater

- Many A/V companies adopt DVD receiver type for expansion of easy and economic Home Theater
system.

Popular Korean Products

- Popular for those who pursue relatively good sound quality at low price

- Product priced between 400,000 won~600,000 won are popular.

Samsung Electronics 14-8

Popular Foreign Products

– Popular for those who prefer profound sound volume/output(Hi-fi mania, Home Theater mania)
– Products in the range of middle and low price such as Denon, Yamaha, Onkyo (900,000~1.1 mil-

lion won) are popular.

– There is very expensive product over 10 million won among foreign audio markers such as

Merdian, Mcintosh, Krell.

Type of Amp/Receiver

* Pre Amp

A device that receives, adjusts and sends signal from source devices (tape deck, CD player, radio
tuner, etc.) to power amplifier.

* Power Amp

A device that amplifies the signal from Pre Amp into big sound so that speaker can vibrate.

* Integrated Amp

A device that combines pre-amp and power amp into one.

* Receiver

A device that contains tuner for radio broadcasting and integrated amp.

A/V Receiver

General Amplifier

– Support 2 channels (Left, Right Speaker)
– Mainly reproduce music
– No decoder : cannot cope with various sound formats

A/V Receiver

– Support multi-channel (suppor t 5.1 channel)

Launch products supporting 6.1 channel and 7.1 channel

recently.
– Reproduce music and movie sound realistically
– Has decoder

Can cope with various sound formats such as Dolby Digital.
DTS

– Rich input/output
– Use digital signal type and has no sound

A/V Receiver

A device of implementing home theater more conveniently with
radio and A/V receiver embeded in DVD player.

14-9 Samsung Electronics

How to Select Amp/Receiver

- Select the products that can support both Dolby Digital and DTS since they require both for vivid
sound

- Performance of amp gets better in output(W) but high output is a burden in narrow house.

- Important to match output(W) and capacity(§Ù) of amp and speaker.

- It is advantageous for beginners to purchase DVD receiver type that has amp and radio tuner in
DVD player

- If the budget is tight, it is recommended to continue to upgrade after purchasing a low-priced sys­tem.

* Computer will be of no use when it is outdated.
* But, home theater system can be utilized in various ways due to feature of A/V device.

Speaker

Speaker system consists of speaker unit and enclosure.
The type and price range are diverse from expensive big speaker to miniature thin speaker.
Difference between famous speaker and big A/V speaker

- Speaker units are similar(there are a few several speaker unit makers in the world)

- Design, finishing, assembling and tuning process of enclosure are different.

(Prestige speakers are made manually in whole processes of manufacturing)

Famous speaker brands: B&W, JBL, BOSE, Definitve, B&O, etc.

Samsung Electronics 14-10

Speaker Structure

Speaker Unit

- Divided into for high tone, middle tone and low tong

- Tweeter : for high pitch
Smallest unit suitable for feature of high tone reproduction

- Mid-Range : for middle tone
Mid sound reproduction ability is the most critical standard
of speaker evaluation

- Woofer : for low tone
Much bigger size than other speaker unit

Enclosure

- Case of speaker unit

- Enclosure sways sound quality of reproduction

- Low tone is almost acattered without enclosure, and only
high sound tone is heard.

Type of Speaker System

Full Range Speaker

A speaker system producing sound with one speaker unit.

2 Wa y T ype

A speaker system designed using units of 2 woofers for bass and tweeter for high tone.

3 Wa y T ype

Difference between foreign prestige speaker and big A/V maker's speaker.

1. Precautions

Follow these safety, servicing and ESD precautions to prevent damage and protect against potential hazards
such as electrical shock and X-rays.

Samsung Electronics 1-1

1-1 Safety Precautions

1. Be sure that all of the built-in protective
devices are replaced.

2. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including control knobs and
compartment covers.

3. Make sure that there are no cabinet
openings through which people-­particularly children--might insert fingers
and contact dangerous voltages. Such
openings include the spacing between the
picture tube and the cabinet mask,
excessively wide cabinet ventilation slots,
and improperly fitted back covers.

4. Design Alteration Warning:
Never alter or add to the mechanical or
electrical design of the unit. Example: Do
not add auxiliary audio or video connec­tors. Such alterations might create a safety
hazard. Also, any design changes or addi­tions will void the manufacturer's warran­ty.

5. Leakage Current Hot Check (Figure 1-1):
Warning: Do not use an isolation
transformer during this test. Use a leakage­current tester or a metering system that
complies with American National Standards
Institute (ANSI C101.1, Leakage Current for
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).

With the unit completely reassembled, plug
the AC line cord directly into a 120V AC
outlet. With the unit's AC switch first in
the ON position and then OFF, measure the
current between a known earth ground
(metal water pipe, etc.) and all exposed
metal parts. Examples: Handle brackets,
metal cabinets, screwheads and control
shafts. The current measured should not
exceed 0.5 milliamp. Reverse the power­plug prongs in the AC outlet and repeat.

6. Insulation Resistance Cold Check:
(1) With the unit's AC plug disconnected
from the AC source, connect an electrical
jumper across the two AC prongs. (2) Set
the power switch to ON. (3) Measure the
resistance between the shorted AC plug and
any exposed metallic parts. Example:
Screwheads, antenna, control shafts or
handle brackets.

If any of the exposed metallic parts has a
return path to the chassis, the measured
resistance should be between 1 and 5.2
megohms. If there is no return path, the
measured resistance should be "infinite." If
the resistance is outside these limits, a shock
hazard might exist. See Figure 1-2

Fig. 1-1 AC Leakage Test

Fig. 1-2 Insulation Resistance Test

Samsung Electronics1-2

1-1 Safety Precautions (Continued)

7. Components, parts and wiring that appear
to have overheated or that are otherwise

damaged should be replaced with parts
that meet the original specifications.
Always determine the cause of damage or
overheating, and correct any potential
hazards

8. Observe the original lead dress, especially

near the following areas: Antenna

wiring, sharp edges, and especially the
AC and high voltage power supplies.
Always inspect for pinched, out-of-place,

or frayed wiring. Do not change the

spacing between components and the

printed circuit board. Check the AC

power cord for damage. Make sure that

no wires or components touch thermally

hot parts.

9. Product Safety Notice:
Some electrical and mechanical parts

have special safety-related characteristics
which might not be obvious from visual
inspection. These safety features and the
protection they give might be lost if the
replacement component differs from the
original--even if the replacement is rated
for higher voltage, wattage, etc.

10 Components that are critical for safety are

indicated in the circuit diagram by

shading, or . Use replacement

components that have the same ratings,

especially for flame resistance and

dielectric strength specifications. A

replacement part that does not have the

same safety characteristics as the original

might create shock, fire or other hazards.

1-2 Servicing Precautions

1. Servicing precautions are printed on the
cabinet. Follow them.

2. Always unplug the unit's AC power cord
from the AC power source before
attempting to: (a) Remove or reinstall any
component or assembly, (b) Disconnect an
electrical plug or connector, (c) Connect a
test component in parallel with an
electrolytic capacitor.

3. Some components are raised above the
printed circuit board for safety. An
insulation tube or tape is sometimes used.
The internal wiring may be clamped to
prevent contact with thermally hot
components. Reinstall all such elements to
their original position.

4. After servicing, always check that the
screws, components and wiring have been
correctly reinstalled. Make sure that the
portion around the serviced part has not
been damaged.

5. Check the insulation between the blades of
the AC plug and accessible conductive parts
(examples: metal panels, input terminals
and earphone jacks).

6. Insulation Checking Procedure: Disconnect
the power cord from the AC source and
turn the power switch ON. Connect an
insulation resistance meter (500V) to the
blades of the AC plug.

The insulation resistance between each
blade of the AC plug and accessible
conductive parts (see above) should be
greater than 1 megohm.

7. Never defeat any of the B+ voltage
interlocks. Do not apply AC power to the
unit (or any of its assemblies) unless all
solid-state heat sinks are correctly installed.

8. Always connect a test instrument's ground
lead to the instrument chassis ground
before connecting the positive lead; always
remove the instrument's ground lead last.

Precautions

Warning1: First read the "Safety Precautions" section of this manual. If some unforeseen circumstance creates a conflict

between the servicing and safety precautions, always follow the safety precautions.

Samsung Electronics 1-3

1-3 Precautions for Electrostatically Sensitive Devices (ESDs)

1-4 Special Precautions and Warning Labels for Laser Products

1. Some semiconductor ("solid state") devices
are easily damaged by static electricity.
Such components are called Electrostatically
Sensitive Devices (ESDs). Examples include
integrated circuits and some field-effect
transistors. The following techniques will
reduce the occurrence of component
damage caused by static electricity.

2. Immediately before handling any
semiconductor components or assemblies,
drain the electrostatic charge from your
body by touching a known earth ground.
Alternatively, wear a discharging
wrist-strap device. (Be sure to remove it
prior to applying power--this is an electric
shock precaution.)

3. After removing an ESD-equipped assembly,
place it on a conductive surface such as
aluminum foil to prevent accumulation of
electrostatic charge.

4. Do not use freon-propelled chemicals.
These can generate electrical charges that
damage ESDs.

5. Use only a grounded-tip soldering iron
when soldering or unsoldering ESDs.

6. Use only an anti-static solder removal
device. Many solder removal devices are
not rated as "anti-static" (these can
accumulate sufficient electrical charge to
damage ESDs).

7. Do not remove a replacement ESD from its
protective package until you are ready to
install it. Most replacement ESDs are
packaged with leads that are electrically
shorted together by conductive foam,
aluminum foil or other conductive
materials.

8. Immediately before removing the protective
material from the leads of a replacement
ESD, touch the protective material to the
chassis or circuit assembly into which the
device will be installed.

9. Minimize body motions when handing
unpackaged replacement ESDs. Motions
such as brushing clothes together, or lifting
a foot from a carpeted floor can generate
enough static electricity to damage an ESD.

Precautions

UL : Manufactured for U.S.A. Market.
CSA : Manufactured for Canadian Market.
EU : Manufactured for European Market.
SCAN : Manufactured for Scandinavian

Market.

This Product Complies with
DHHS Rules 21CFR, Sub
chapter J.At date of Manu­facture

(UL)

(UL,CSA,SCAN)

(EU)

CERTIFIED ONLY TO CANADIAN
ELECTRICAL CODE.

CERTIFIE EN VERTU DU CODE
CANADIAN DE LELETRICITE
SEULEMENT

(CSA)

CLASS 1
LASER PRODUCT

(UL,CSA,EU)

Fig. 1-3 Warning Labels (Location: Enclosure Block)

Fig. 1-4 Warning Labels (Location: Disc Clamper, Inner Side of Unit Door or Nearby Unit Chassis )

CAUTION :

INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATEO AVOIDEXPOSURE TO BEAM

ADVARSEL:USYNLIG LASERSTRÅLING VED ABNING

NÅR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION

UNDGA UDSAETTELSE FOR STRALING

VARO:AVATTAESSA JA SUOJALUKITUS OHITETTAESSA

OLET ALTTINA NAKYMATTÖMALLE LASERSATEILYLLE ALA
KATSO SATEESEEN!

VARNING:

OSYNLIG LASERSTRÅLNING NAR DENNA DEL
AR OPPNAD OCH SPARREN AR URKOPPLAD BETRAKTA
EJSTRÅLEN!

Samsung Electronics1-4

1-4 Special Precautions and Warning Labels for Laser Products (Continued)

1-4-1 Warnings

1. When servicing, do not approach the LASER
exit with the eye too closely. In case it is
necessary to confirm LASER beam emission,
be sure to observe from a distance of more
than 30 cm from the surface of the objective
lens on the optical pick-up block.

2. Do not attempt to handle the objective lens
when the DISC is not on the tray.

1-4-2 Laser Diode Specifications

Material: GaAs+ GaAlAs
Wavelength: 760-800 nm
Emission Duration: Continuous

Laser Output: 0.2 mw (measured at a

1.6 mm distance from the objective lens
surface on the optical pick-up block.)

1-4-3 Handling the Optical Pick-up

1. Static electricity from clothing or the body
may cause electrostatic breakdown of the
laser diode in the Optical Pickup. Follow
this procedure:

2. Place a conductive sheet on the work bench
(i.e., the black sheet used for wrapping

repair parts.) Note: The surface of the work

bench should be covered by a copper

ground plane, which is grounded.

3. The repair technician must wear a wrist
strap which is grounded to the copper sheet.

4. To remove the Optical Pickup block:
Place the set on the conductive sheet, and
momentarily touch the conductive sheet

with both hands. (While working, do not

allow any electrostatic sources--such as
clothes--to touch the unit.)

5. Ground the "Short Terminal" (located on the
PCB, inside the Pickup Assembly) before
replacing the Pickup. This terminal should
be shorted whenever the Pickup Assembly

is lifted or moved.

6. After replacing the Pickup, reopen the Short
Terminal. See diagrams below:

Precautions

1-5 Special Precautions for HDD

* HDD Data Maintenance Step

1. Since the data on the HDD is weak to mechanical shock, place the HDD in a safe
location that is free from mechanical shock once it is removed from the main unit.

2. In order to safe keep the data on the HDD, back up the data before the repair or
make sure not to place the HDD near any electrical appliance that generates a strong
magnetic field.

Samsung Electronics 2-1

2. Product Description

1. Specifications

G
E
N
E
R
A

L

T
U
N
E
R

F

M

VIDEO

OUTPUT

Power Consumption
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
Usable Sensitivity
S/N Ratio
Distortion
Composite Video

Scart Jack

70W

3.2Kg
430 x 60 x 340 mm
+5°C~+35°C
10%~75%
10dB
60dB

0.5%

1.0Vp-p(75Ω load)
Compositive Video : 1.0Vp-p(75Ω load)
RGB Signal : 0.714Vp-p(75Ω load)

2-2 Samsung Electronics

2. Notes on discs

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital sur-

round sound and MPEG-2 video compression technology. Now you can enjoy these realistic
effects in the home, as if you were in a movie theater or concert hall.

V I D E O

DVD players and the discs are coded by region.These regional codes must match in order
for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.

(Your DVD player will only play DVDs that are labeled with identical region codes.)

1 6

~

•

LD, CD-G, CD-I, CD-ROM and DVD-ROM cannot be played on this player.
If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.

•

DVD discs purchased abroad may not play on this player.
If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.

Do not use the following types of disc!

•

Many DVD discs are encoded with copy protection. Because of this, you should only connect
your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted pic­ture from copy-protected DVD discs.

•

This product incorporates copyright protection technology that is protected by methods claims of certain
U.S.patents and other intellectual proper ty r ights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.

Copy Protection

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

Mark (Logo)

Audio + Video

DVD

VIDEO-CD

AUDIO-CD

12cm

Approx. 240 min. (single-sided)

Approx. 480 min. (double-sided)

Approx. 80 min. (single-sided)

Approx. 160 min. (double-sided)

74 min.
20 min.
74 min.
20 min.

8cm

12cm

8cm

12cm

8cm

Audio + Video

Audio

Recorded Signals

Disc Type Disc Size Max. Playing Time

Playable Discs

Samsung Electronics 2-3

CD-R Discs

•

Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the
condition of the disc.

•

Use a 650MB/74 minute CD-R disc.
Do not use CD-R disk over 700MB/80 minute as much as possible since it may not be played back.

•

Some CD-RW (Rewritable) media, may not be playable.

•

Only CD-Rs that are properly "closed" can be fully played.If the session is closed but the disc is left open, you
may not be able to fully play the disc.

CD-R JPEG Discs

•

Only files with the ".jpeg" and ".JPEG" extensions can be played.

•

If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

•

Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

•

JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (./ = +).

•

Only a consecutively written multisession disc can be played.If there is a blank segment in the multisession disc, the
disc can be played only up to the blank segment.

•

A maximum of 9,999 images can be stored on a single CD.

•

When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.

•

Picture discs other than Kodak/Fuji Picture CDs may take longer to star t playing or may not play at all.

Disc Recording Format

CD-R MP3 Discs

•

Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.

•

MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (./ = +).

•

Use discs recorded with a compression/decompression data rate greater than 128Kbps.

•

Only files with the ".mp3" and ".MP3" extensions can be played.

•

Only a consecutively written Multisession disc can be played.If there is a blank segment in the Multisession disc,
the disc can be played only up to the blank segment.

•

If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.

•

For files encoded in Variable Bit Rate (VBR) format, i.e.files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.

•

A maximum of 500 tracks can be played per CD.

•

A maximum of 300 folders can be played per CD.

2-4 Samsung Electronics

3. Accessories

AH42-00018A ANTENNA-FM;T150S1F-1,-,-,-,-,-,1500##50m COMMON
AH42-00019A ANT LOOP;S0160BL-16,HT-DS665T,9uH,-,1KH COMMON
AH59-01510B REMOCON-ASSY;HT-P30,EUR,-,-,57KEY,-,-,-, EUROPE

Code no. Description & Specification Remarks

Samsung Electronics 3-1

3. Product Functions

1. SPK connection

RSLS

C

L

SW

R

Rear Speakers

•

Place these speakers behind your listening position.

•

If there isn't enough room, place these speakers to face each other.

•

Place them about 60 to 90cm (2 to 3feet) above your ear, facing
slightly downward.

*

Unlike the front and center speakers, the rear speakers are used
to handle mainly sound effects and sound will not come from
them all the time.

Subwoofer

•

The position of the subwoofer is not so critical.
Place it anywhere you like.

•

Usually, it is placed by a corner near the front speakers.

Front Speakers

•

Place these speakers in front of your listening posi­tion, facing inwards (about 45°) toward you.

•

Place the speakers so that their tweeters will be at
the same height as your ear.

•

Align the front face of the front speakers with the
front face of the center speaker or place them
slightly in front of the center speakers.

Center Speaker

•

It is best to install it at the same height as the front
speakers.

•

You can also install it directly over or under the TV.

Position of the DVD Player

•

Place it on a stand or cabinet shelf, or under
the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from the
TV. Example: For 32" TVs 2~2.4m (6~8feet)

For 55" TVs 3.5~4m (11~13feet)

R

L

C

RS

LS

SW

3-2 Samsung Electronics

Rear Speaker (L)

Front Speaker (L)

Rear Speaker (R)

Front Speaker (R)

Subwoofer

Center Speaker

Press and hold the terminal tab.

Insert the speaker cord.

Release the finger.

1
2

3

12 3

Red

Black

•

Connect the red cord to the red (+) terminal and the black cord to the black (-)
terminal.

Note

Samsung Electronics 3-3

2. Main Functions

2

Load a disc.

•

Depending on the content of the disc, the initial screen may appear different.

1

Press OPEN/
CLOSE button to

open the disc tray.

3

Press OPEN/
CLOSE button to

close the disc tray.

•

Place a disc gently into the
tray with the disc’s label fac­ing up.

Note

To stop playback, press STOP during playback.

• If pressed once, “PRESS PLAY” is displayed and the stop position will be stored in memory.

If PLAY/PAUSE ( ) button or ENTER button is pressed, playback resumes from the stop position.
(This function works only with DVDs.)

•

If pressed twice, “STOP” is displayed, and if PLAY/PAUSE ( ) button is pressed, playback starts from the
beginning.

To temporarily pause playback, press PLAY/PAUSE during playback.

•

To resume playback, press PLAY/PAUSE ( ) button again.

DVD VCD CD

•

Playback starts automatically.

Disc Playback

Selecting the Video Format

Press and hold NT/PAL button on the remote controller for over 5 seconds while the power is turned off.

•

By default, the video format is set to "PAL".

•

"NTSC" or "PAL" will appear in the display.
At this time, press the NT/PAL button shortly to select between "NTSC" and "PAL".

•

Each country has a different video format standard.

•

For normal playback, the video format of the disc must be the same as the video format of your TV.

3-4 Samsung Electronics

•

Depending on the number of languages on a
DVD disc, a different audio language (ENG­LISH, SPANISH, FRENCH, etc.) is selected
each time the button is pressed.

2

Press Cursor ,
buttons or numeric but­tons to select the
desired audio language.

1

Press INFO button
twice.

SP 2/3

FR 3/3

EN 1/3 EN 01/ 03

OFF

SP 02/ 03

FR 03/ 03
OFF / 03

•

You can use the SUBTITLE button on the
remote control to select a subtitle lan­guage.

•

Depending on the disc, the Subtitle and
Audio Language functions may not work.

Audio Language Selection Function

DVD

Subtitle Language Selection Function

DVD

2

Press Cursor
button to move to
SUBTITLE ( )
display.

1

Press INFO button
twice.

3

Press Cursor
button or numeric
buttons to select
the desired subtitle.

Note

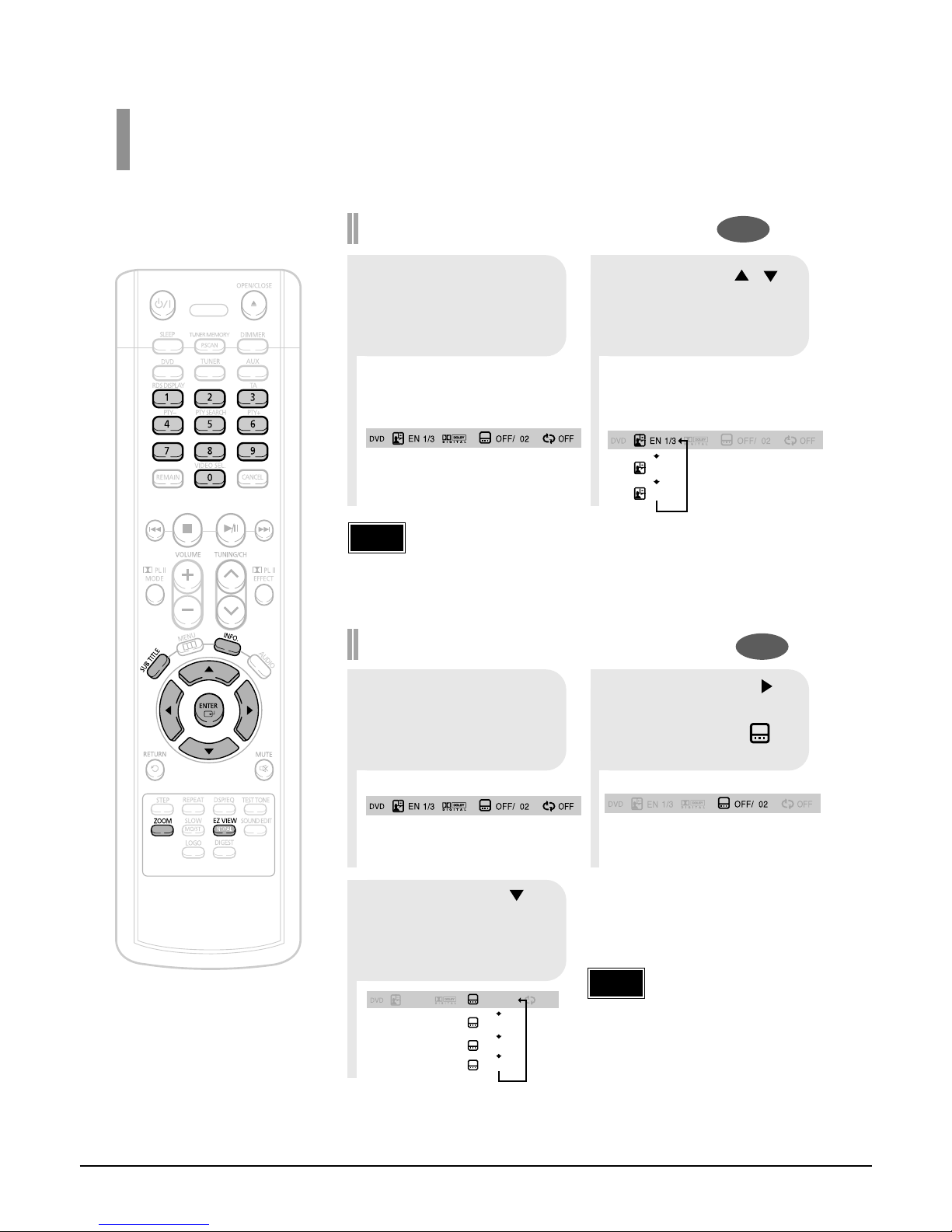

Selecting Audio/Subtitle Language

•

You can use the AUDIO button on the remote control to
select a audio language.

Note

Samsung Electronics 3-5

2

Press Cursor ,
button to move to
‘Title Menu’.

DVD

1

In Stop mode,
press MENU but­ton.

3

Press ENTER but­ton.

•

The title menu appears.

Press MENU button to exit the setup screen.

DVD

2

•

When you select the disc menu that is not support­ed by the disc, the "This menu is not supported"
message appears on the screen.

•

When playing a VCD (version 2.),
this toggles between PBC ON
and OFF.

1

In Stop mode,
press MENU
button.

Press Cursor ,
buttons to move to
‘DISC MENU’ and then
press ENTER button.

3

•

Press ENTER button.

Press Cursor ,

, buttons to
select the desired
item.

PBC (Playback Control) Function

When playing a VCD (version 2.0), you can select and vie w various scenes according to the menu screen.
PBC ON:This VCD disc is version 2.0.The disc is played back according to the menu screen.Some functions

may be disabled.When some functions are disabled, select "PBC OFF" to enable them.

PBC OFF:This VCD disc is version 1.1.The disc is play ed back in the same wa y as with a music CD .

Note

You can use the menus for the audio language, subtitle language, profile, etc.
DVD menu contents differ from disc to disc.

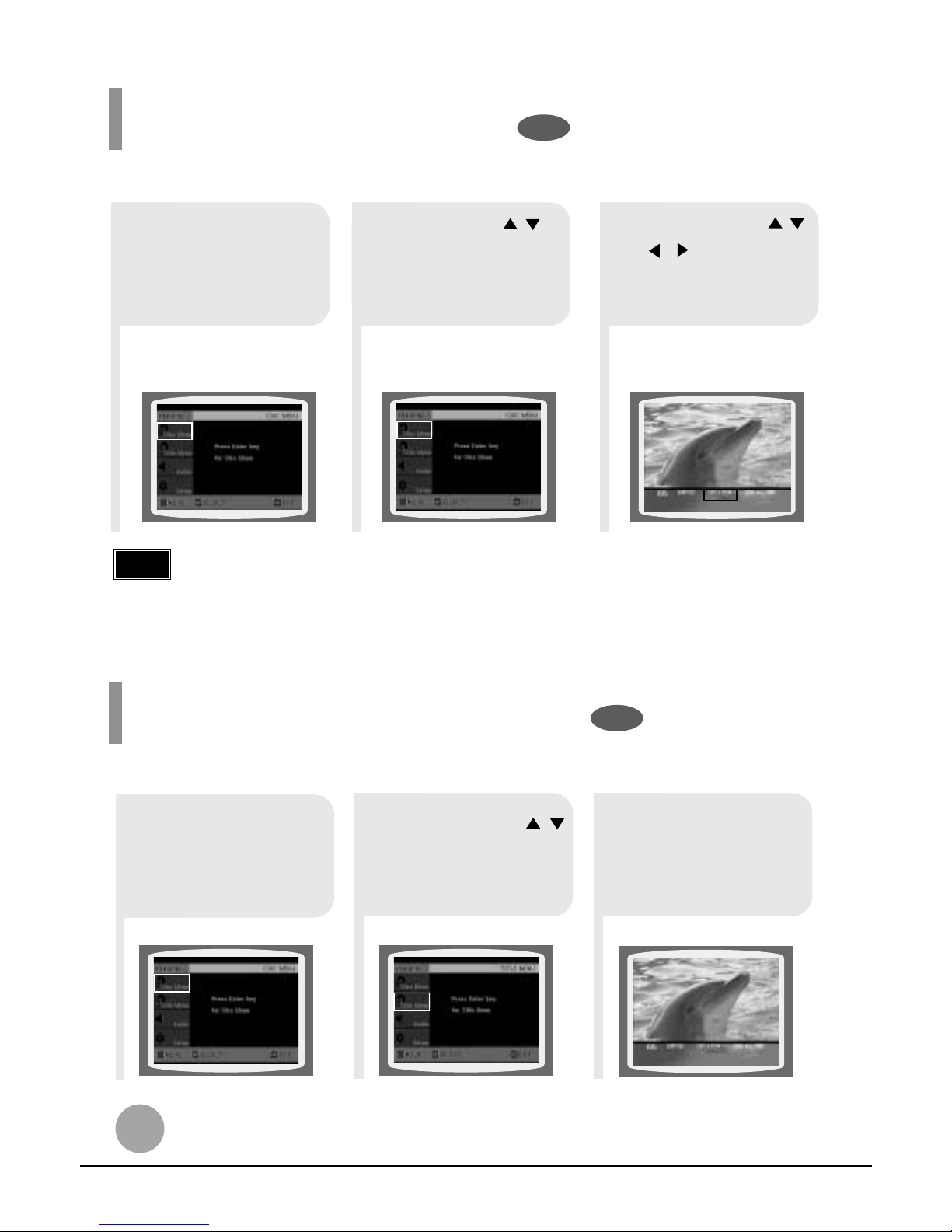

Using Disc Menu

For DVDs containing multiple titles, you can view the title of each movie.
Depending on the disc, the availability of this feature may vary.

Using the Title Menu

3-6 Samsung Electronics

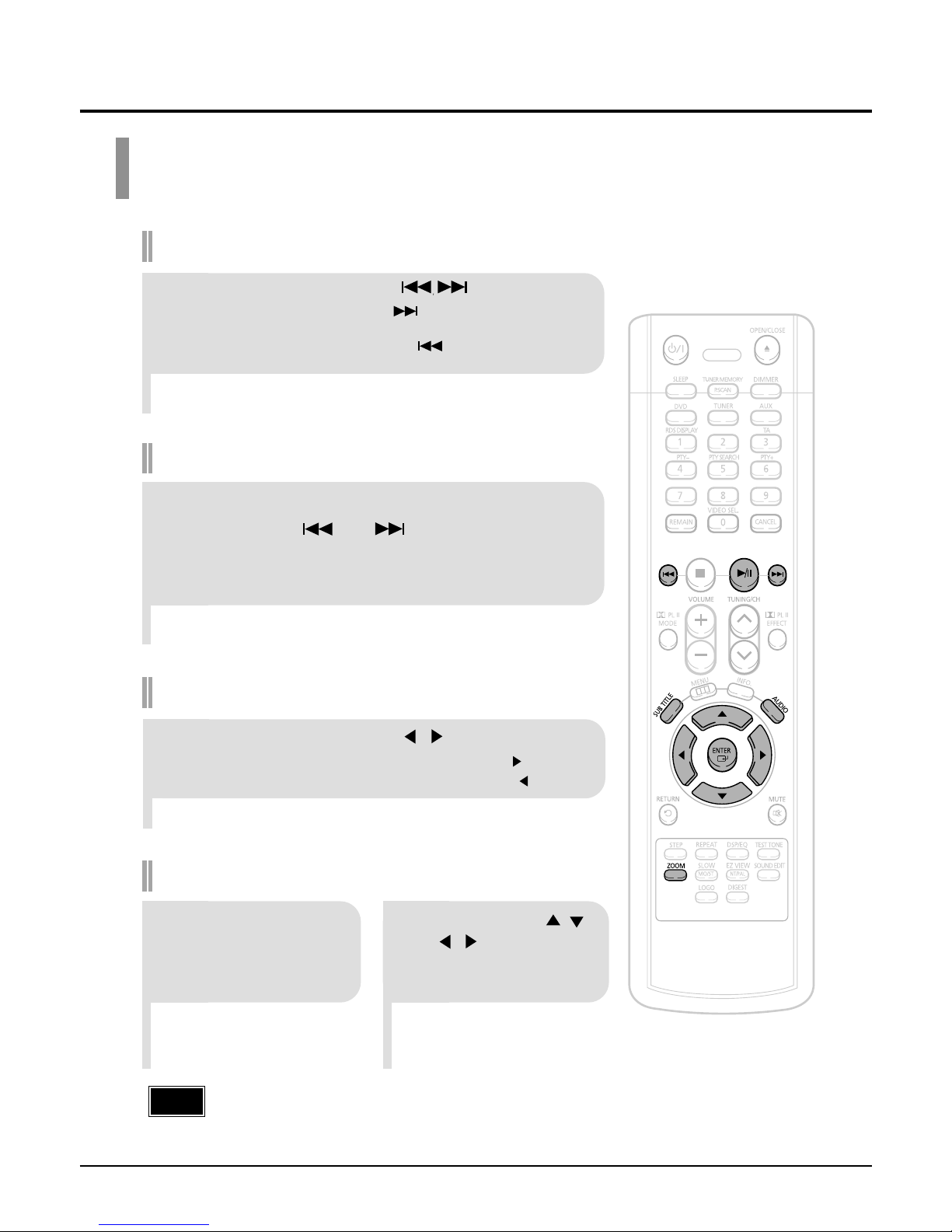

3. New Functions

DivX Playback

Fast playback

Skip Forward/Back

During playback, press the button.

•

Go to the next file whenever you press button, if there are over
2 files in the disk.

•

Go to the previous file whenever you press button, if there are over
2 files in the disk.

To play back the disc at a faster speed,
press and hold or during playback.

•

Each time you press and hold either button, the playback speed will
change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.

•

DIVX file can be zoomed only in ZOOM X2 mode.

Note

Zoom Function

2

Press Cursor , ,

, buttons to
move to the area
you want to enlarge.

1

Press ZOOM
button.

•

Each time you press the button,
your selection will toggle between
“ZOOM X2” and “ZOOM OFF”.

5 Minute Skip function

During playback, press the , button.

•

Go to the screen about 5 minutes after whenever you press button.

•

Go to the screen about 5 minutes earlier whenever you press button.

Samsung Electronics 3-7

•

" " is displayed when there is one supported audio item in the disc.

Note

Format AVI WMA

Surppor ted Versions DivX3.11 ~ 5.1 V1/V2/V3/V7

Press the SUBTITLE button.

•

Each time you press the button, your selection will toggle between “SUBTITLE ON” (1/1, 1/2 ...) and

“SUBTITLE OFF”.

•

If the disc has only one subtitle file, it will be played automatically.

Subtitle Display

Press the AUDIO button.

•

Each time you press the button, your selection will toggle between “AUDIO ON” (1/1, 1/2 ...) and

“”.

Audio Display

DivX(Digital internet video eXpress)

DivX is a video file format developed by Microsoft based on the MPEG4 so as to provide audio, and
video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie
in DVD-quality video and audio.

1. Supported Formats

•

This product only provides the following media formats. If both of the video and audio formats are not
supported simultaneously, the user may experience problems such as broken image or no sound.

2. Caption Related

•

To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX
media file (*.avi) within the same folder.
Example. Root Samsung_Bluetek_007CD1.avi

Samsung_Bluetek_007CD1.smi

•

Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and
Chinese) for the file name.

●

Supported Video Formats

Format MP3 WMA AC3 DTS

Bit Rate 80~384kbps 56~128kbps 128~384kbps N/A

Sampling Frequency

44.1khz 44.1/48khz N/A

•

Aspect Ratio: Although default DivX resolution is 640*480 pixels (4:3), this product supports up to
720*480 pixels (16:9). It will not be supported when the screen resolution is higher than 800.

●

Supported Audio Format

4-1 Samsung Electronics

4. Adjustments

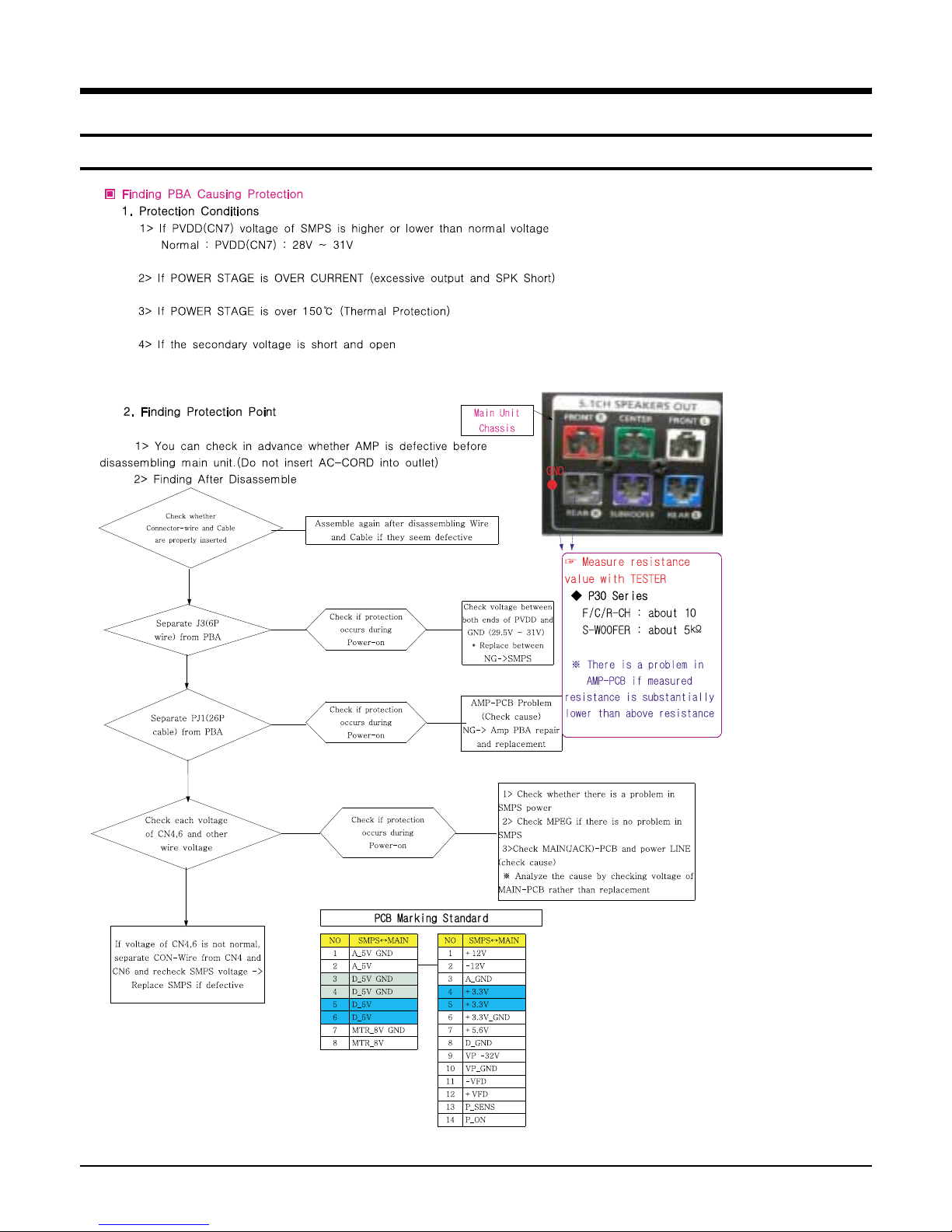

* Protection Mode Explanation

Samsung Electronics 5-1

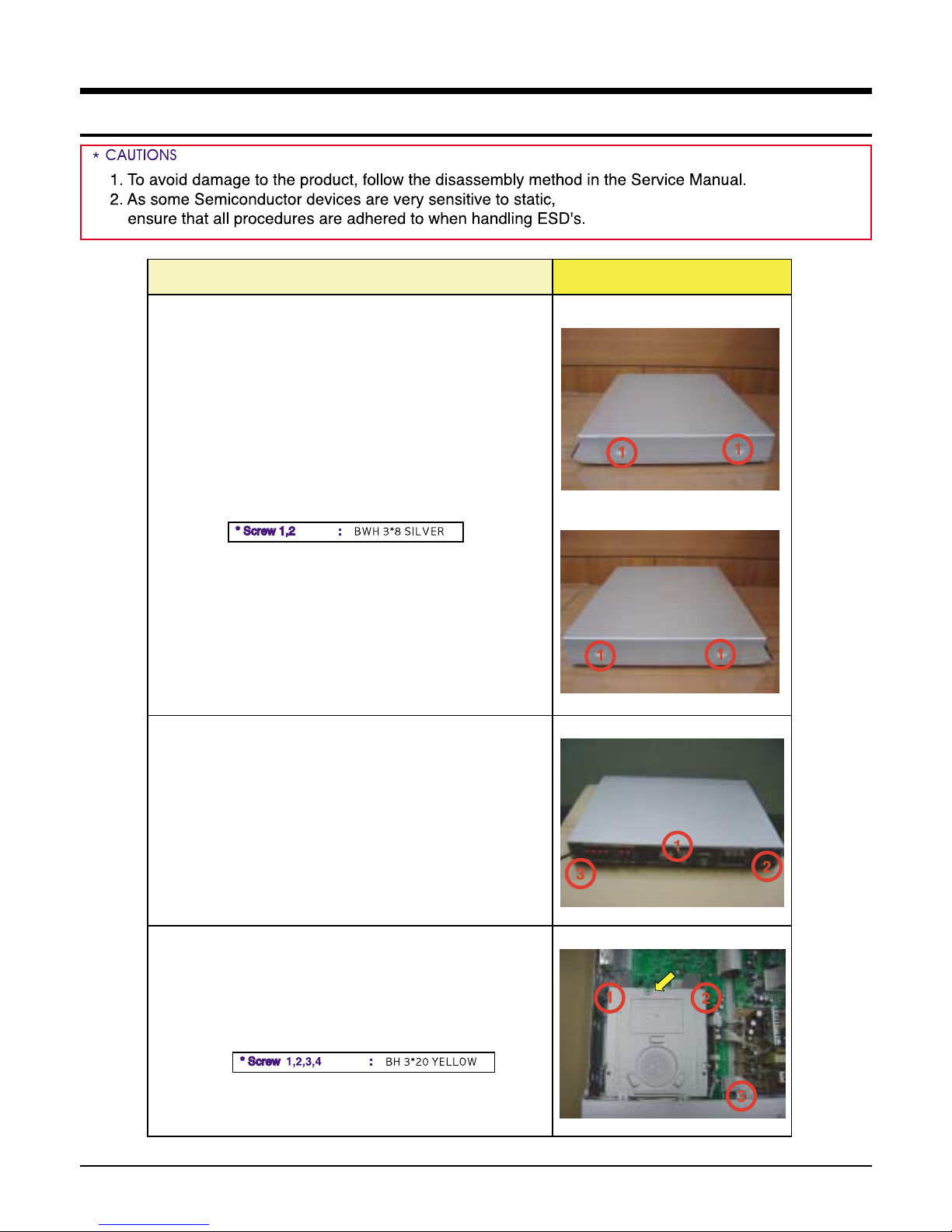

5. How to disassemble

Order (Description)


1. Unfasten 4 screw on the side of CABINET TOP.

SPEC

2. Unfasten 3 screw(1,2,3,4)
on the side of CABINET REAR.

SPEC

3. Unfasten 4 screw(1,2,3)
and lift the back of the MECHA.

5-2 Samsung Electronics

Order (Description)


4. Separate 1 cable in the circle.

5. Unfasten 2 screw(1,2) on the Front.

SPEC

Turn over the hook at 2 places of the bottom
and Separate ASSY-FRONT.

SPEC

6. Unfasten 2 screw(1,2) on the CABINET-BOTTOM.

Samsung Electronics 6-1

6.TroubleShooting

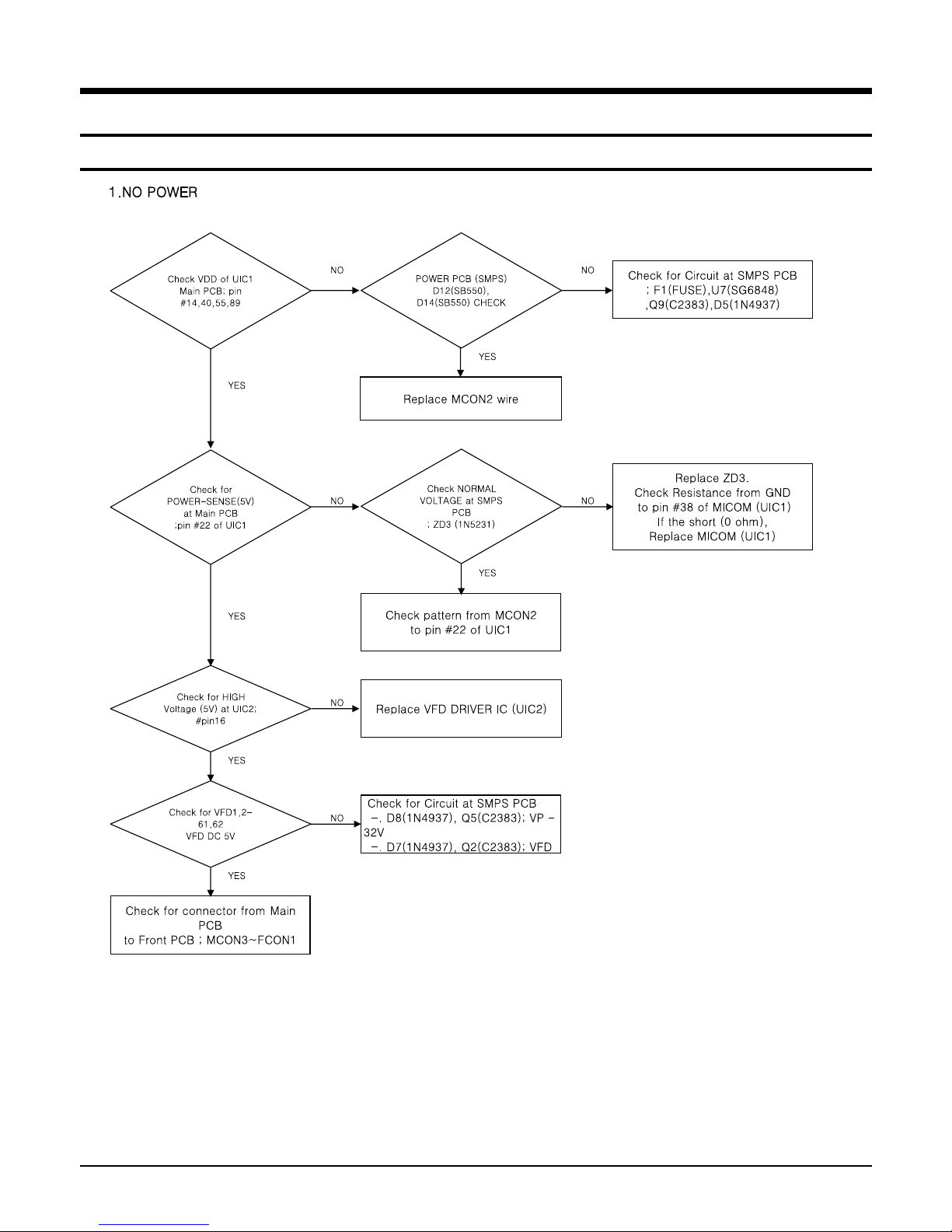

1. NO Power

6-2 Samsung Electronics

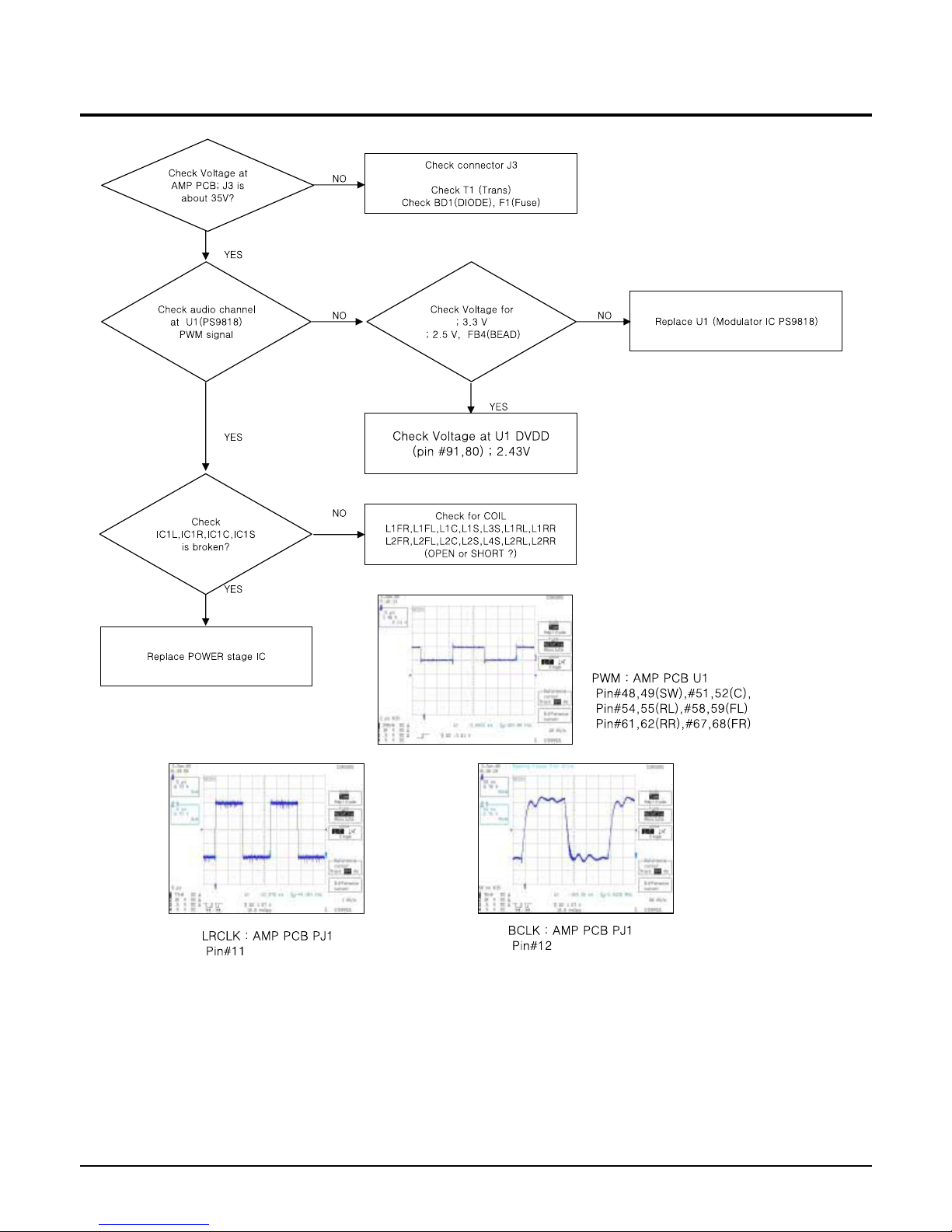

2. NO Output

Samsung Electronics 6-3

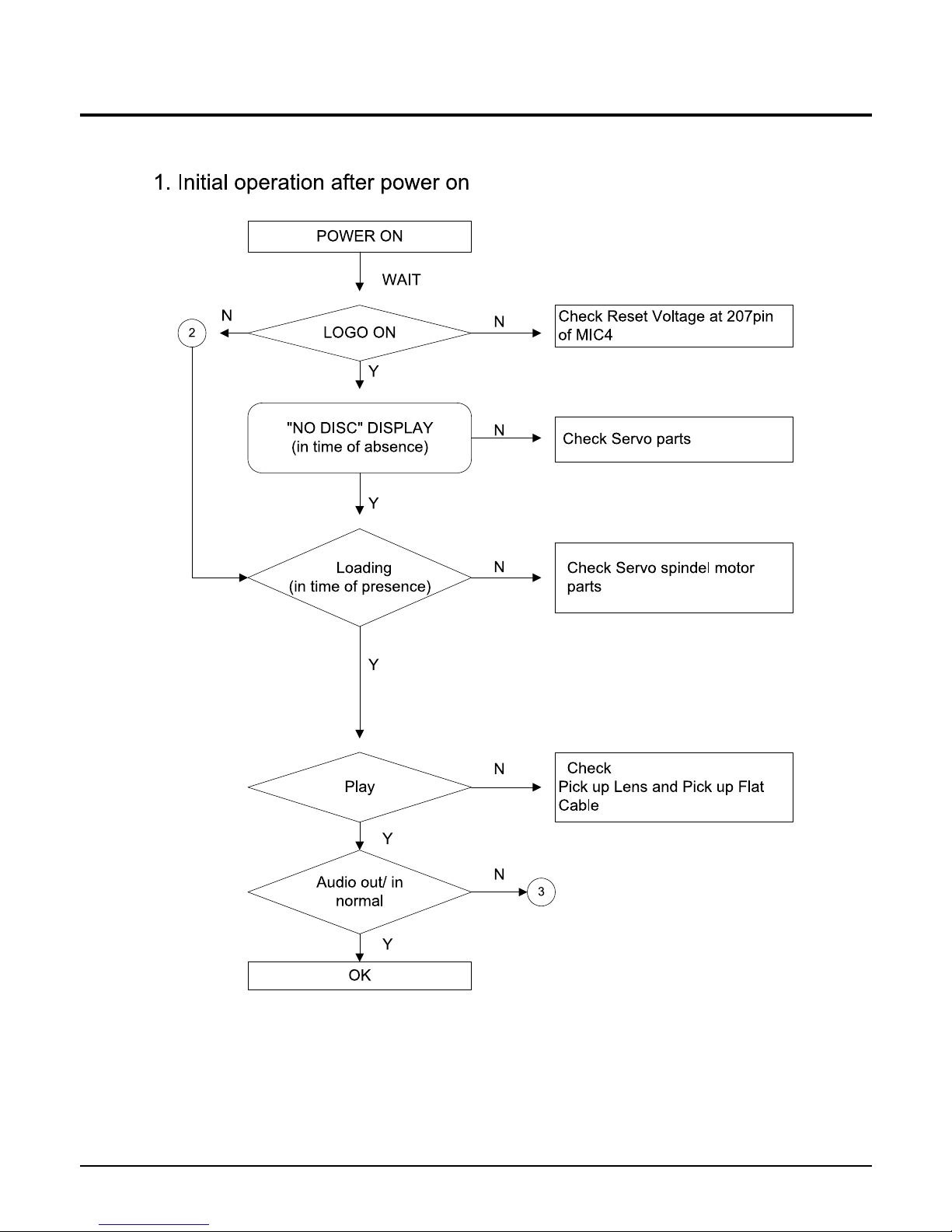

3. DVD MPEG

6-4 Samsung Electronics

Samsung Electronics 6-5

6-6 Samsung Electronics

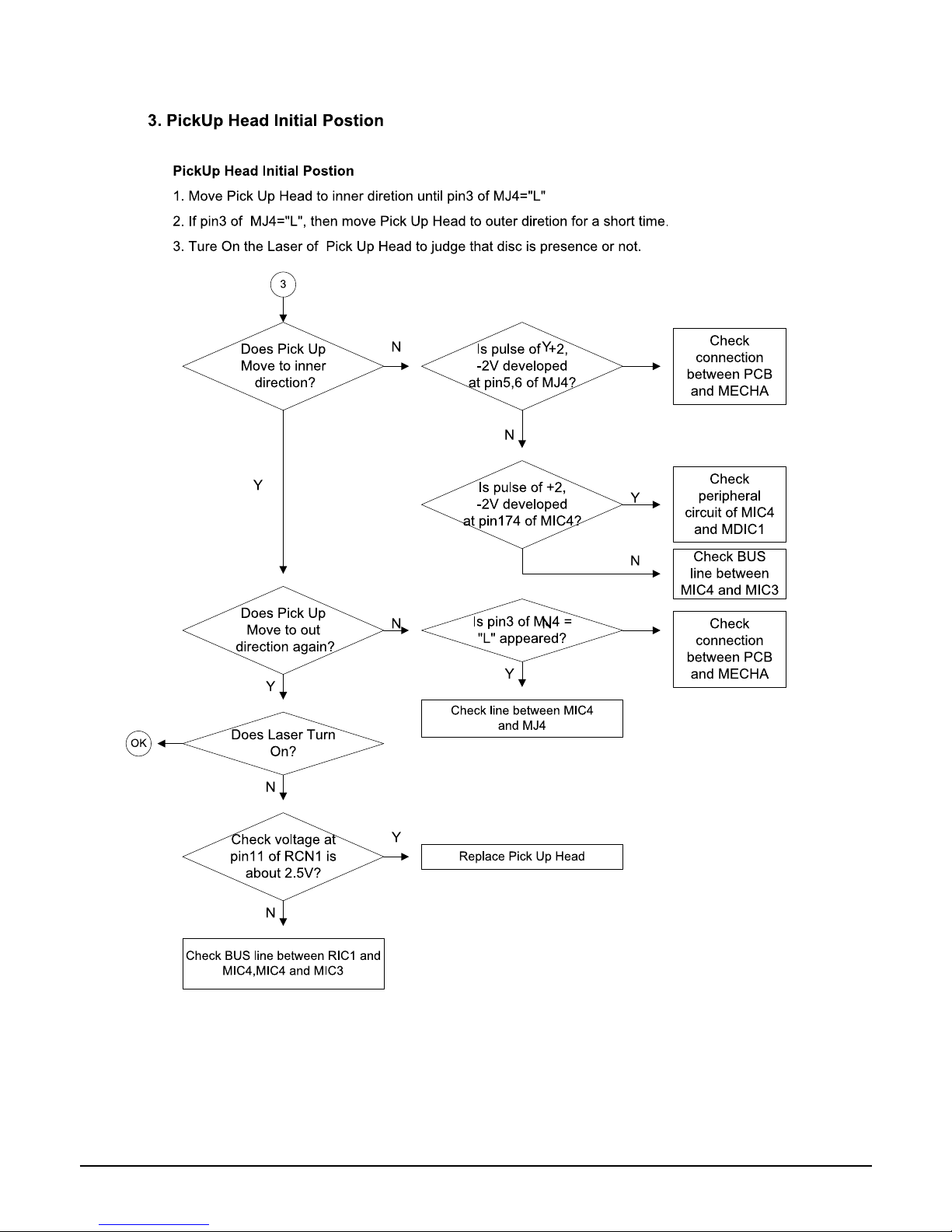

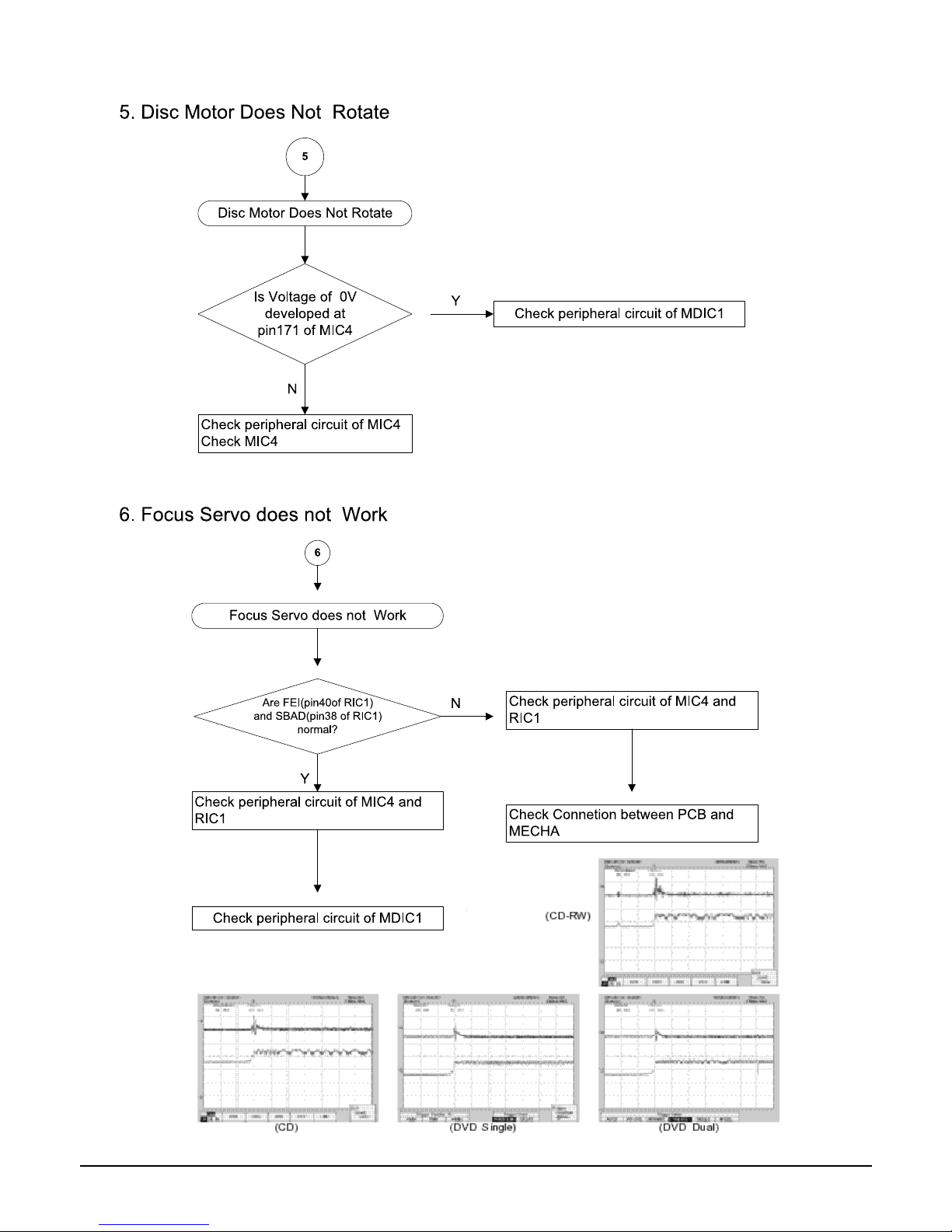

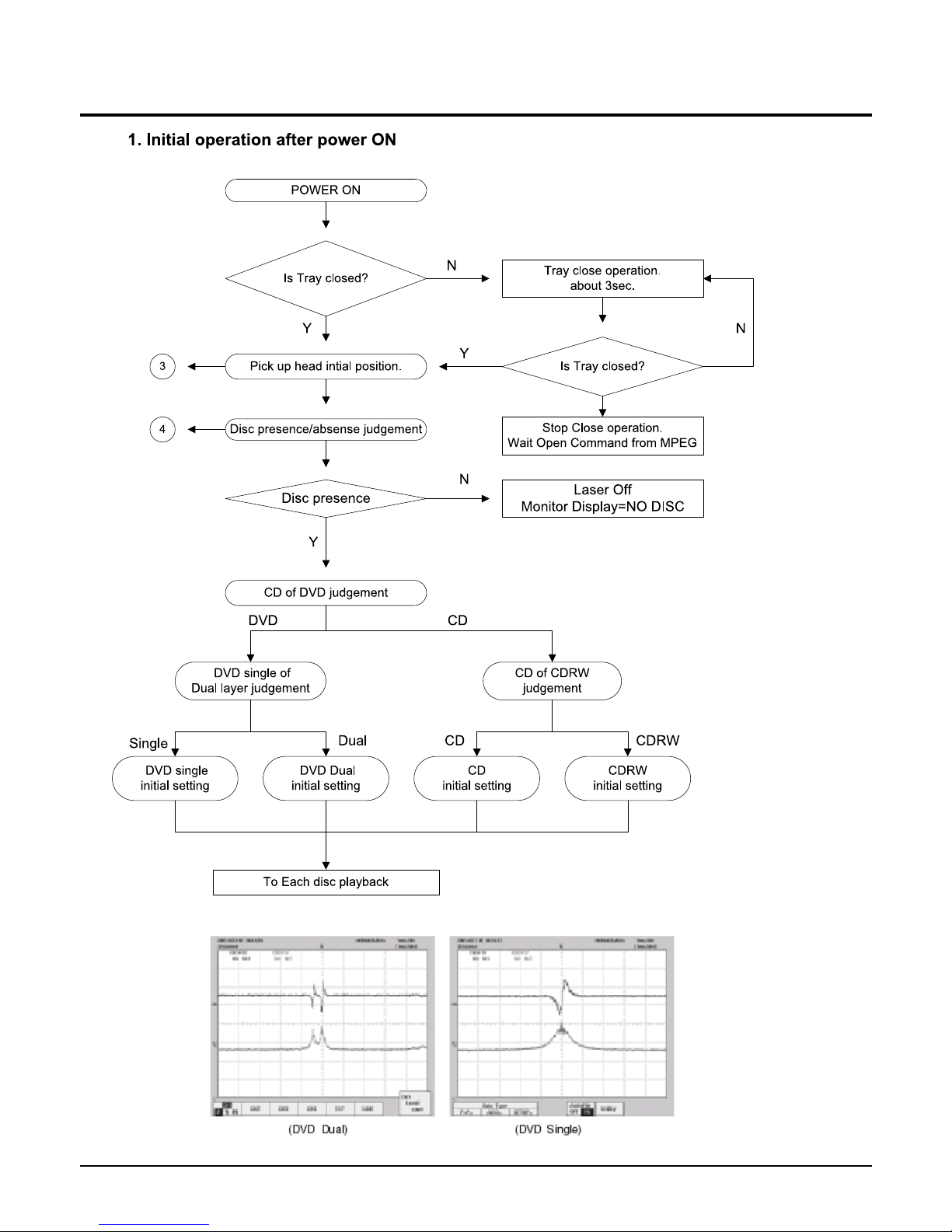

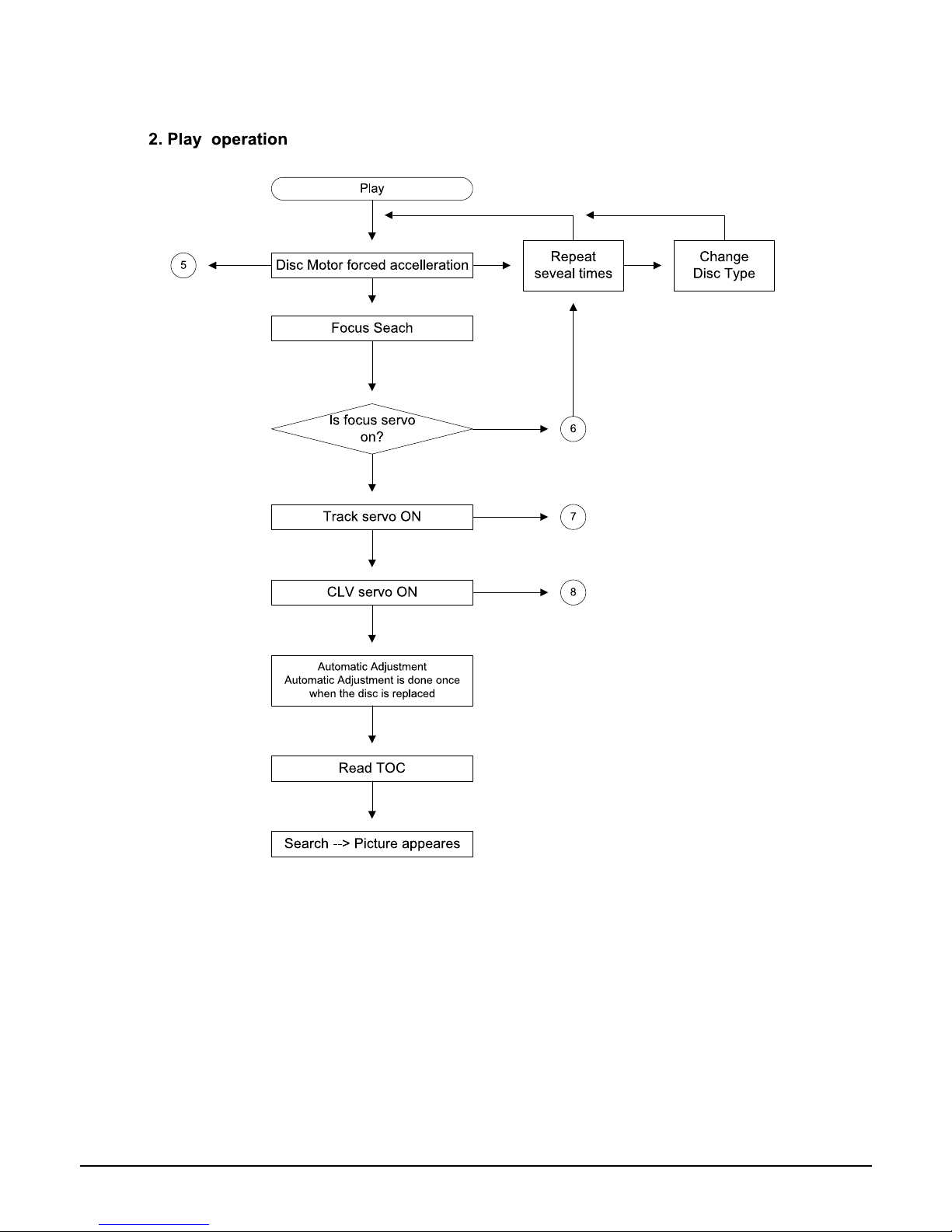

4. DVD SERVO

Samsung Electronics 6-7

6-8 Samsung Electronics

Samsung Electronics 6-9

6-10 Samsung Electronics

Samsung Electronics 6-11

7-1 Samsung Electronics

7.Exploded Views and Parts List

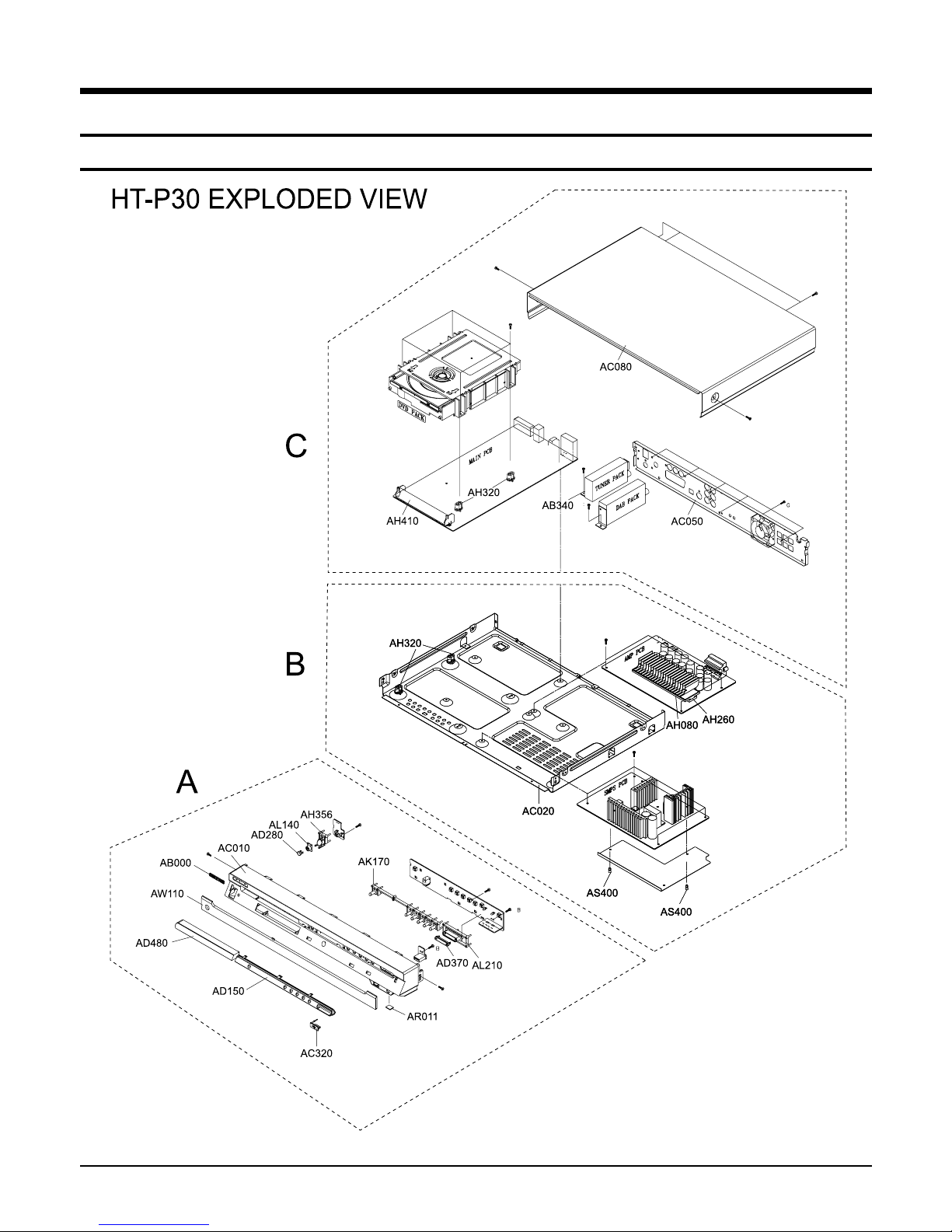

1.Total Exploded View

Samsung Electronics 7-2

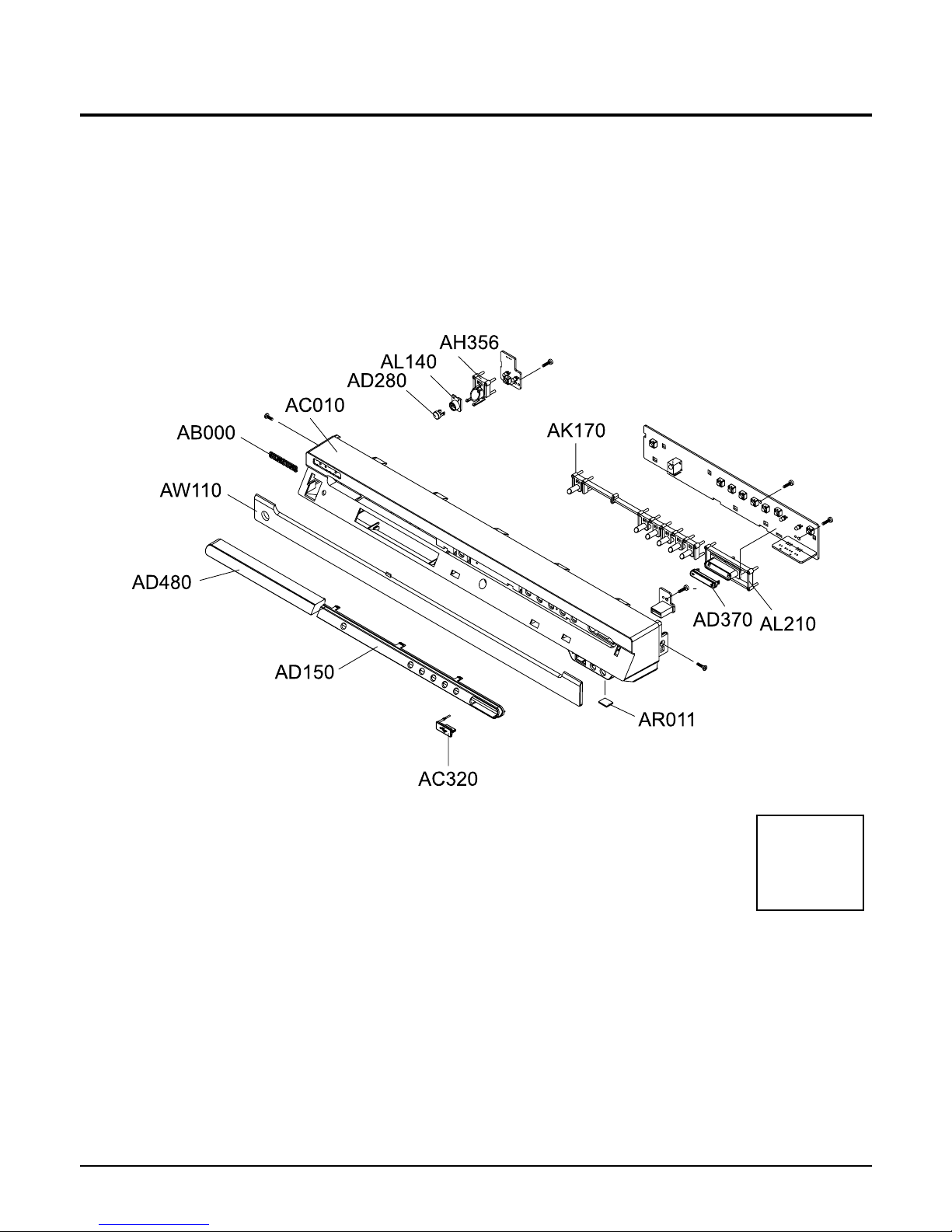

1-1. Exploded View (P AR T1)

A

7-3 Samsung Electronics

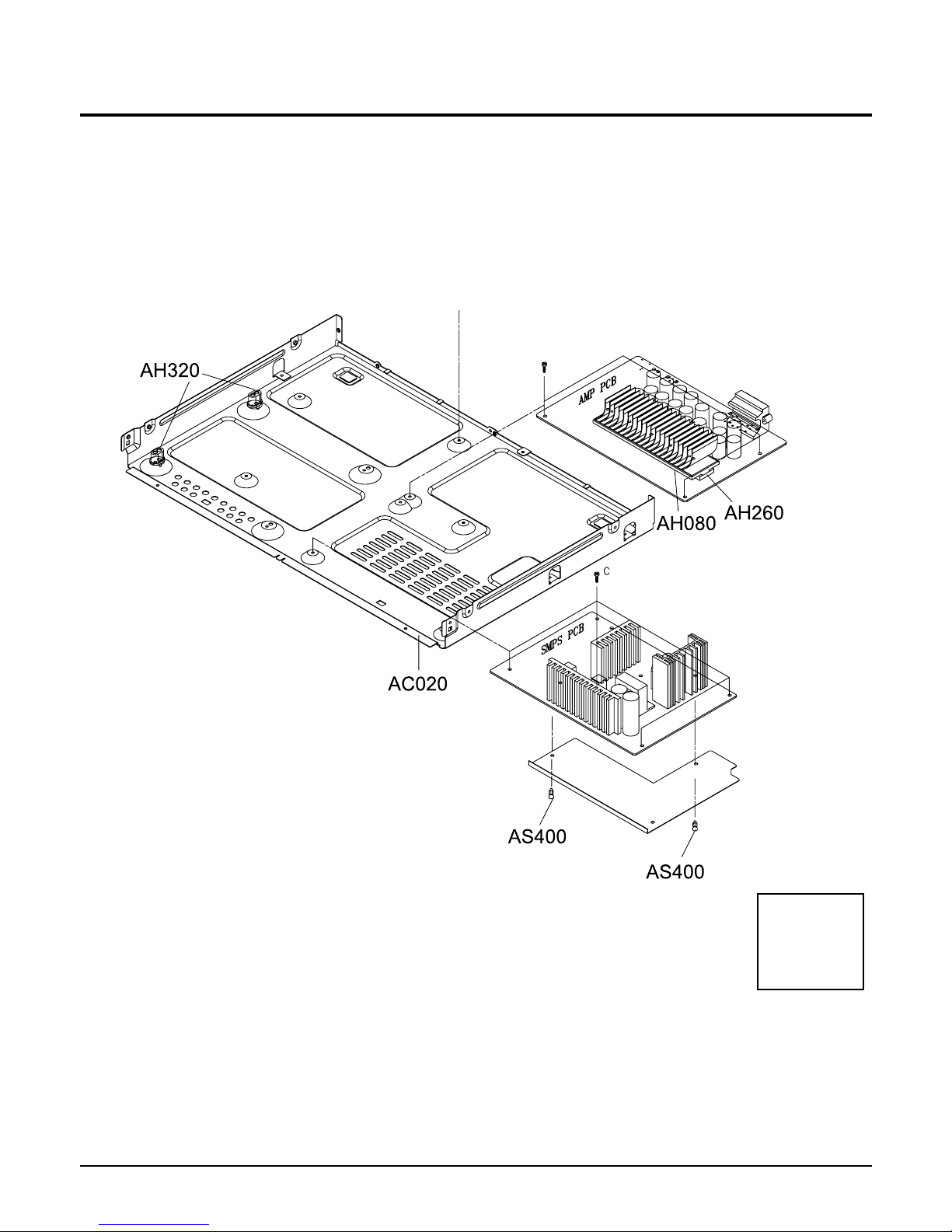

1-2. Exploded View (P AR T2)

B

Samsung Electronics 7-4

1-2. Exploded View (P AR T2)

C

7-5 Samsung Electronics

2. Parts List

Location Code No. Description Specification Q'ty Remark

AB000 AH64-70003D BADGE AL 1

AB340 AH61-01600A BRKT-TUNER SECC 1.0T 1

AH64-03258E 1 HT-P30

AH64-03258F 1 HT-UP30, TP33

AH64-03258P 1 HT-TWP32

AH64-03258J 1 HT-WP30

AC020 AH64-03260A CABINET-BOTTOM SECC 0.6T 1

AH64-03261C 1 HT-UP30, TP33

AH64-03261D 1 HT-P30

AH64-03261H 1 HT-TWP32, WP30

AC080 AH64-03259A CABINET-TOP 1

AC320 AH63-00904B COVER-USB ABS+ELASTOMER 1

AD150 AH64-03273B DECO-FRONT ABS GRAY 1

AD280 AH64-03266B DECO-POWER ABS NATURAL 1

AD370 AH64-03274B DECO-VOLUME ABS NATURAL 1

AD480 AH64-03272B DOOR-CD ABS GRAY 1

AH080 AH62-00135A HEAT-SINK AL SKIVE 1

AH260 AH61-01796A HOLDER-HEATSINK ABS+GF30% 1

AH320 AH61-01825A HOLDER-MECHA ABS BLK 4

AH356 AH61-01823A HOLDER-POWER ABS WHT 1

AH410 AH61-01826A HOLDER-VFD ABS BLK 1

AK170 AH64-03268B KNOB-FUNCTION ABS GRAY 1

AL140 AH67-00332A LENS-POWER PMMA MILKY 1

AL210 AH67-00331A LENS-VOLUME PMMA MILKY 1

AR011 AH73-00005A RUBBER-FOOT EVA 11.5*9 4

AS400 AH61-40014A SUPPORT-RIVET PP 2

AW110 AH64-03271C WINDOW-FRONT PMMA 3.0T 1

AC010

AC050 CABINET-REAR SECC 0.5T

CABINET-FRONT HIPS L/GRY

Samsung Electronics 8-1

AH92-02302B ASSY PCB-MAIN;HT-P30,-

AC1 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5
AC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
AC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
AC12 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
AC16 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

AC17 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
AC18 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
AC2 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5
AC23 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
AC231 2203-000697 C-CER,CHIP;0.002NF,0.25PF,50V,C0G,TP,160

AC24 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
AC25 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
AC26 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
AC27 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
AC3 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5

AC30 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
AC31 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
AC32 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
AC4 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5
AC5 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5

AC56 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm
AC6 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5
AC9 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5
AD3 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
AD5 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323

AIC3 1002-001392 IC-A/D CONVERTER;WM8775EDS,24BIT,SSOP,28
AL1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
AL2 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
AL3 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
AQ1 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23

AQ2 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
AQ3 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
AR1 2007-000830 R-CHIP;39Kohm,5%,1/8W,TP,2012
AR19 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AR2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

AR24 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AR25 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AR28 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AR29 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AR3 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

AR30 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AR31 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AR32 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AR4 2007-000830 R-CHIP;39Kohm,5%,1/8W,TP,2012
AR5 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608

AR55 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
AR56 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
AR6 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608
AR61 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
AR62 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608

AR67 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
AR8 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
AR9 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
C1 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C2 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608

C3 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C4 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
DC1 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
DC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
DC21 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

DC22 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
DC23 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
DC26 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
DC27 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
DC28 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608

DC29 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.
DC3 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1608
DC30 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
DC31 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608
DC32 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

DC33 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
DC34 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.

DC5 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
DC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
DC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

DC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
DC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
DD1 0407-000116 DIODE-ARRAY;DAP202K,80V,100mA,CK2-3,SOT­DD2 0403-001062 DIODE-ZENER;UDZ4.7B,4.55-4.75V,200MW,SOD
DL1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1

DL2 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
DQ1 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23,
DQ2 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP
DR10 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
DR21 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

DR22 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
DR23 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
DR24 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
DR25 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
DR26 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

DR27 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
DR28 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
DR30 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
DR31 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
DR32 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

DR33 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
DR36 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
DR37 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
DR38 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
DR39 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

DR40 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608
DR41 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
DR42 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
DR43 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
DR44 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608

DR45 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR46 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
DR47 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR49 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
DR50 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608

DR51 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
DR52 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR53 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012
DR54 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012
DR55 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608

DR56 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
DR57 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
DR58 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR59 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
DR60 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608

DR61 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
DR62 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
DR63 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012
DR64 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012
DR65 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

DR66 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR67 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
EBD1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
EBD10 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
EBD11 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1

EBD12 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
EBD2 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
EBD3 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
EBD4 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
EBD5 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1

EBD6 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
EBD7 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
EBD8 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
EBD9 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
EDB9 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1

EMC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­EMC2 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­HC20 2203-001640 C-CER,CHIP;0.39nF,10%,50V,X7R,TP,1608
HC23 2203-000315 C-CER,CHIP;0.12NF,5%,50V,C0G,TP,1608
HL20 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

HL23 2703-001254 INDUCTOR-SMD;1.8uH,10%,2012

Location no. Code no. Description & Specification Remarks

Location no. Code no. Description & Specification Remarks

8. Electrical Parts List

*S.N.A. : Service Not Available

JW1 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
JW2 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
JW3 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
JW4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

MC10 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608
MC100 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC101 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC102 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC104 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

MC105 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC16 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,TP,1608
MC17 2203-001052 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1608
MC18 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

MC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC20 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608
MC21 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608
MC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC23 AH39-50030E WIRE HARNESS;HT-P38,-,-,1P,160MM,BLK,-,1

MC24 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608
MC25 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
MC26 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
MC27 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC28 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

MC29 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
MC3 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608
MC30 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608
MC31 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,TP,1608
MC32 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608

MC35 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC36 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC38 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
MC39 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

MC40 2203-001103 C-CER,CHIP;6.8nF,10%,50V,X7R,TP,1608,­MC41 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC42 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC43 2203-000646 C-CER,CHIP;0.024NF,5%,50V,C0G,TP,1608
MC44 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608

MC45 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­MC46 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­MC47 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­MC48 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­MC49 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

MC5 2203-005221 C-CER,CHIP;15nF,10%,50V,X7R,TP,1608,­MC50 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
MC51 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608
MC52 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608
MC53 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

MC54 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC56 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC57 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
MC58 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC59 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

MC6 2203-006170 C-CER,CHIP;220NF,10%,16V,X7R,TP,1608
MC60 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
MC62 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC63 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
MC64 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

MC65 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC66 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608
MC67 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC68 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
MC71 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

MC72 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
MC73 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608
MC74 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC75 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC76 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

MC79 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC8 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608
MC82 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
MC83 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
MC84 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

MC85 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC86 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC87 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC88 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

MC89 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

MC90 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC91 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC92 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC93 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

MC94 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC95 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC96 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC97 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC98 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

MC99 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MCON1 AH39-00736A LEAD CONNECTOR;HT-P30,-,-,8P,60mm,-,-,PH
MCON12 3708-000266 CONNECTOR-FPC/FFC/PIC;32P,1.25MM,STRAIGH
MCON2 AH39-00737A LEAD CONNECTOR;HT-P30,-,-,14P,60mm,-,-,5
MCON3 3708-000181 CONNECTOR-FPC/FFC/PIC;16P,1.25MM,STRAIGH

MCON6 3708-000448 CONNECTOR-FPC/FFC/PIC;6P,1.25MM,STRAIGHT
MCON8 3708-001051 CONNECTOR-FPC/FFC/PIC;13P,1.25MM,ANGLE,S
MDIC1 1003-001764 IC-MOTOR DRIVER;IP5954,SSOPH,28P,10x18.4
MDIC2 1003-001508 IC-MOTOR DRIVER;FAN8082DTF,SOP,8P,200MIL
MDIC3 1201-001842 IC-OP AMP;TL3472CD,SO,TP,8P,-,DUAL,-,PAL

MIC1 0801-002683 IC-CMOS LOGIC;74HCT245,TRANSCEIVER,TSSOP
MIC3 1107-001505 IC-FLASH MEMORY;49BV162AT,1Mx16/2Mx8Bit,
MIC4 1204-002224 IC-PAL/NTSC DECODER;ES6698FD,PQFP,208P,2
MIC6 1103-001334 IC-EEPROM;K524A60X81,1KX8BIT,SOP,8P,5X4M
MIC8 1105-001535 IC-DRAM;M12L128168A-7T,4X2MX16BIT,TSOP

MJ1 3711-004442 CONNECTOR-HEADER;NOWALL,34P,2R,2mm,ANGLE
MJ4 3708-002023 CONNECTOR-FPC/FFC/PIC;6P,1mm,SMD-S,Tin,N
ML10 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML11 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML12 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1

ML14 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
ML16 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML17 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML19 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML1A 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1

ML2 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML20 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML21 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML3 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML4 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1

ML5 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML6 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML7 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML9 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
MR1 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608

MR10 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR100 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR101 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR107 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR11 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

MR112 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR119 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
MR12 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
MR120 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
MR123 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

MR124 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
MR13 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR131 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
MR132 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR133 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608

MR135 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR136 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
MR139 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR14 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR144 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

MR145 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
MR147 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
MR149 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR151 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
MR152 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

MR153 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
MR2 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR20 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608
MR21 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
MR22 2007-000962 R-CHIP;5.1Kohm,1%,1/10W,TP,1608

MR23 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks

8-2 Samsung Electronics

MR24 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR25 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR29 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608
MR3 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

MR30 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608
MR31 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR32 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608
MR33 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608
MR35 2007-000962 R-CHIP;5.1Kohm,1%,1/10W,TP,1608

MR36 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608
MR37 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR38 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR39 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

MR40 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR42 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
MR44 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
MR5 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR54 2007-000694 R-CHIP;3.3ohm,5%,1/8W,TP,2012

MR55 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
MR56 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
MR57 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
MR58 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
MR59 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

MR6 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR63 2011-000651 R-NET;10OHM,5%,1/16W,L,CHIP,8P,TP,32
MR65 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608
MR66 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
MR67 2011-000651 R-NET;10OHM,5%,1/16W,L,CHIP,8P,TP,32

MR68 2011-000651 R-NET;10OHM,5%,1/16W,L,CHIP,8P,TP,32
MR69 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
MR70 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
MR72 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
MR73 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

MR74 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
MR75 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
MR81 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608
MR82 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608
MR85 2007-000118 R-CHIP;390ohm,5%,1/10W,TP,1608

MR86 2007-000608 R-CHIP;240ohm,5%,1/10W,TP,1608
MR89 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608
MR9 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
MR90 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608
MR91 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

MR93 2007-000118 R-CHIP;390ohm,5%,1/10W,TP,1608
MR94 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR95 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR96 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR97 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608

MR98 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MR99 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MREG1 1203-002425 IC-POSI.FIXED REG.;AP1117,SOT-223,3P,138
MREG2 1203-002935 IC-POSI.ADJUST REG.;AIC1117ACE,TO-252,3P
MREG3 1203-002935 IC-POSI.ADJUST REG.;AIC1117ACE,TO-252,3P

OPIC1 1001-001170 IC-AUDIO SWITCH;CS8415A-CZ,RECEIVER&DECO
OPIC2 0802-001007 IC-CMOS LOGIC;74LCX244,BUFFER/LINE DRIVE
OPIC3 0802-001025 IC-CMOS LOGIC;74LCX374,D FILP-FLOP,TSSOP
OPIC4 0801-002518 IC-CMOS LOGIC;74LCX157,2-INPUT MULTIPLEX
OPT1 0603-001164 OPTIC TRANSMITTER;5V,16Mb/s,-,-,650nm,40

PA8 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
PB11 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
PB12 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
PB4 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
PB5 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1

PB6 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
PB7 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
PC1 2401-001102 C-AL;330uF,20%,16V,GP,TP,8x11.5mm,5
PC10 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­PC2 2401-001102 C-AL;330uF,20%,16V,GP,TP,8x11.5mm,5

PC2 2402-000107 C-AL,SMD;100uF,20%,6.3V,GP,TP,6.6x6.6x5
PC24 2202-000780 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5
PC24 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm
PC3 2401-001364 C-AL;470uF,20%,16V,GP,TP,10x12.5,5
PC4 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

PC5 2401-001102 C-AL;330uF,20%,16V,GP,TP,8x11.5mm,5
PC6 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­PC7 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
PC7 2401-001364 C-AL;470uF,20%,16V,GP,TP,10x12.5,5

PC8 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
PC8 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

PC9 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
PC9 2401-001102 C-AL;330uF,20%,16V,GP,TP,8x11.5mm,5
Q1 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP
R1 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608

R2 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
R3 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
R4 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
R5 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
R6 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608

R7 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
R8 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
RC10 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,­RC11 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,­RC12 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,-

RC13 2203-000315 C-CER,CHIP;0.12NF,5%,50V,C0G,TP,1608
RC15 2203-001222 C-CER,CHIP;0.82NF,10%,50V,X7R,TP,1608
RC16 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
RC18 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
RC19 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

RC20 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
RC21 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
RC22 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,TP,1608
RC23 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,TP,1608
RC24 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

RC25 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608
RC26 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
RC27 2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012
RC28 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
RC29 2203-001634 C-CER,CHIP;33nF,10%,50V,X7R,TP,1608,1.6m

RC30 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
RC31 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,­RC32 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
RC33 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
RC35 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608

RC40 2203-001634 C-CER,CHIP;33nF,10%,50V,X7R,TP,1608,1.6m
RC5 2402-000107 C-AL,SMD;100uF,20%,6.3V,GP,TP,6.6x6.6x5
RC50 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608
RC6 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­RC7 2402-000107 C-AL,SMD;100uF,20%,6.3V,GP,TP,6.6x6.6x5

RC8 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­RC9 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,­RCN1 3708-001765 CONNECTOR-FPC/FFC/PIC;24P,0.5MM,SMD-S,SN
RCN2 3710-002203 CONNECTOR-SOCKET;34P,2R,2mm,STRAIGHT,AUF
RD1 0407-000116 DIODE-ARRAY;DAP202K,80V,100mA,CK2-3,SOT-

RIC1 1201-002059 IC-RF AMP;ES6603SF,LQFP,64P,10X10MM,SING
RL1 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
RL2 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
RQ1 0501-000632 TR-SMALL SIGNAL;2SB1197K,PNP,200mW,SOT-2
RQ5 0501-000632 TR-SMALL SIGNAL;2SB1197K,PNP,200mW,SOT-2

RQ6 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP
RQ7 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP
RQ8 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP
RR12 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
RR16 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

RR17 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
RR28 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
RR29 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RR30 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
RR31 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

RR32 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
RR33 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
RR34 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
RR35 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
RR4 2007-000308 R-CHIP;10ohm,5%,1/8W,TP,2012

RR5 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RR50 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
RR6 2007-000308 R-CHIP;10ohm,5%,1/8W,TP,2012
RR7 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RR8 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

RR9 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608
SC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
SC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
SC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
SC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

SC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608

Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks

Samsung Electronics 8-3

SC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
SC16 2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608
SC17 2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608
SC18 2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608

SC19 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
SC20 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608
SC21 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608
SC22 2203-001083 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1608
SC23 2203-001083 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1608

SC24 2203-000448 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608
SC8 2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608
SC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
SIC2 0801-002874 IC-CMOS LOGIC;74LVX138,1-8 DECODER/DEMUX
SIC3 0801-002588 IC-CMOS LOGIC;74LVX125,BUFFER,TSSOP,14P,

SIC4 0801-002455 IC-CMOS LOGIC;74LV74,DUAL D F/F,TSSOP,14
SIC5 0904-001922 IC-USC;ubi9021,8Bit,QFP,48P,9.0x9.0mm
SL1 2703-000185 INDUCTOR-SMD;3.3uH,10%,2012
SL11 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
SL4 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1

SR10 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608
SR11 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
SR14 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
SR17 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
SR18 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608

SR19 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
SR20 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
SR21 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
SR22 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
SR23 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608

SR24 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
SR25 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
SW1 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
UC1 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5
UC10 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

UC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
UC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
UC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
UC17 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,TP,1608
UC21 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608

UC22 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
UC23 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
UC24 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­UC25 2401-000487 C-AL;10uF,20%,50V,GP,TP,6.3x5mm,5
UC26 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

UC3 2409-000123 C-EDL;47000uF,4uA,5.5V,-,BK,-,5mm
UC31 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
UC32 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
UC33 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
UC50 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

UC51 2401-000487 C-AL;10uF,20%,50V,GP,TP,6.3x5mm,5
UC53 2401-000487 C-AL;10uF,20%,50V,GP,TP,6.3x5mm,5
UC54 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­UC55 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­UC56 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

UC57 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
UC6 2401-000752 C-AL;220nF,20%,50V,GP,BK,3x5,1mm
UC60 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
UC61 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
UC62 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

UC63 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
UC7 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
UC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
UC9 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
UCN1 3711-000471 CONNECTOR-HEADER;3WALL,4P,1R,2mm,STRAIGH

UD1 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323
UD2 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323
UD3 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323
UD4 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323
UD5 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323

UD6 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323
UD9 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323
UIC1 0903-001405 IC-MICROCONTROLLER;LC87F5CC8A,8Bit,QFP,1
UIC2 1003-001708 IC-VFD;S5G5128A,LQFP,64P,1063MIL,-,-,
UQ1 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOT-

UR1 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
UR10 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
UR100 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR101 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR102 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR103 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR110 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
UR111 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
UR112 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
UR113 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608

UR118 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR122 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR123 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR124 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
UR130 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

UR15 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608
UR16 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
UR18 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608
UR19 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608
UR2 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608

UR20 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR21 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR22 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR23 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR24 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR25 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR26 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR27 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
UR28 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR29 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

UR3 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
UR30 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR31 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
UR32 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR33 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

UR34 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR35 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR36 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR37 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR38 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR38 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
UR39 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR39 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
UR4 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608
UR40 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR41 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR42 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR42 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
UR43 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR44 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR44 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
UR45 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR46 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR47 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR48 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR48 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
UR49 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR50 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR51 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608
UR52 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR53 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
UR54 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
UR55 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
UR56 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
UR57 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

UR58 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
UR59 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR6 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608
UR61 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR62 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR63 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
UR64 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR65 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR66 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR67 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR68 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
UR69 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR7 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
UR70 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR71 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks

8-4 Samsung Electronics

UR72 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR73 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR74 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR75 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR76 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR77 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR78 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR79 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR8 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
UR80 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR81 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR82 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR83 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR84 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR85 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR86 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR87 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR88 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR89 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR90 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR91 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR92 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR93 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
UR94 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR95 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

UR96 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
UR97 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
UR98 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
VC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
VC2 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

VC20 2401-000918 C-AL;22uF,20%,16V,GP,-,6.3x7,5
VC21 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
VC24 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
VC26 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
VC27 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

VC29 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
VC30 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
VC33 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m
VC34 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m
VC35 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m

VC36 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m
VC37 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m
VC38 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m
VC40 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
VC41 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m

VC42 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m
VC43 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m
VC45 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
VC46 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
VC48 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1608

VC49 2203-000280 C-CER,CHIP;0.01NF,0.5PF,50V,C0G,TP,1608
VC50 2203-000280 C-CER,CHIP;0.01NF,0.5PF,50V,C0G,TP,1608
VC51 2203-000280 C-CER,CHIP;0.01NF,0.5PF,50V,C0G,TP,1608
VFD2 AH07-00153A VF DISPLAY;HNV-12SM87T,HT-P30,118.2 x 16
VIC1 1001-001173 IC-RF AUDIO SWITCH;BA7612F,-,SOIC,8P,173

VJ1 3722-002299 JACK-PIN;4P,SN-PLATING,WHT/REDx2,ANGLE
VJ2 AH37-00005A JACK-RCA;1P,S-440B,YELLOW,-,SHIELD PLAT
VJ4 3722-002283 JACK-SCART;21P+3P,-,SN,BLK,­VJP1 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
VJP2 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012

VJP3 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
VJP4 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
VL1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
VL2 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
VL20 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1

VL21 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
VL22 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
VL26 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
VL27 2703-001254 INDUCTOR-SMD;1.8uH,10%,2012
VL28 2703-001254 INDUCTOR-SMD;1.8uH,10%,2012

VL29 2703-001254 INDUCTOR-SMD;1.8uH,10%,2012
VQ1 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23,
VQ10 0504-000152 TR-DIGITAL;KSR2101,PNP,200mW,4.7K/4.7K,S
VQ11 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
VQ12 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23

VQ13 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP
VQ14 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
VQ15 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP

VQ16 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23,
VQ17 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23,

VQ2 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23,
VQ3 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23,
VQ4 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23,
VQ5 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23,
VQ6 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23,

VQ7 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOT­VR1 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608
VR10 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VR11 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VR12 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608

VR13 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608
VR14 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VR15 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VR16 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VR17 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608

VR2 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608
VR3 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VR30 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
VR31 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
VR32 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

VR33 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
VR35 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
VR36 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
VR4 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VR41 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

VR47 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
VR49 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
VR5 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VR50 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
VR51 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

VR51 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608
VR56 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
VR57 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
VR58 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
VR6 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608

VR61 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
VR62 2007-000308 R-CHIP;10ohm,5%,1/8W,TP,2012
VR7 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608
VR8 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VR9 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608

X1 2801-003863 CRYSTAL-UNIT;48MHz,30ppm,28-AAA,18pF,80o
X2 2801-004284 CRYSTAL-SMD;27MHZ,10PPM,28-AAN,20PF,30OH
XD1 0401-001110 DIODE-SWITCHING;-,80V,100MA,SOD-523,TP
XD10 0401-001110 DIODE-SWITCHING;-,80V,100MA,SOD-523,TP
XD13 0401-001110 DIODE-SWITCHING;-,80V,100MA,SOD-523,TP

XD14 0401-001110 DIODE-SWITCHING;-,80V,100MA,SOD-523,TP
XD20 0401-001110 DIODE-SWITCHING;-,80V,100MA,SOD-523,TP
XD22 0401-001110 DIODE-SWITCHING;-,80V,100MA,SOD-523,TP
X-TAL1 2802-001174 RESONATOR-CERAMIC;10MHZ,0.5%,BK,8X3.5X3M

AH61-01826A HOLDER-VFD;HT-P30,ABS,-,-,-,-,­AH62-00062G HEAT SINK-TR;HT-DS400,AL EXTR,-,-,-,-,-,
AH41-00820A PCB-MAIN;HT-P30,-,2,-,1.6T,330*197,-,2,

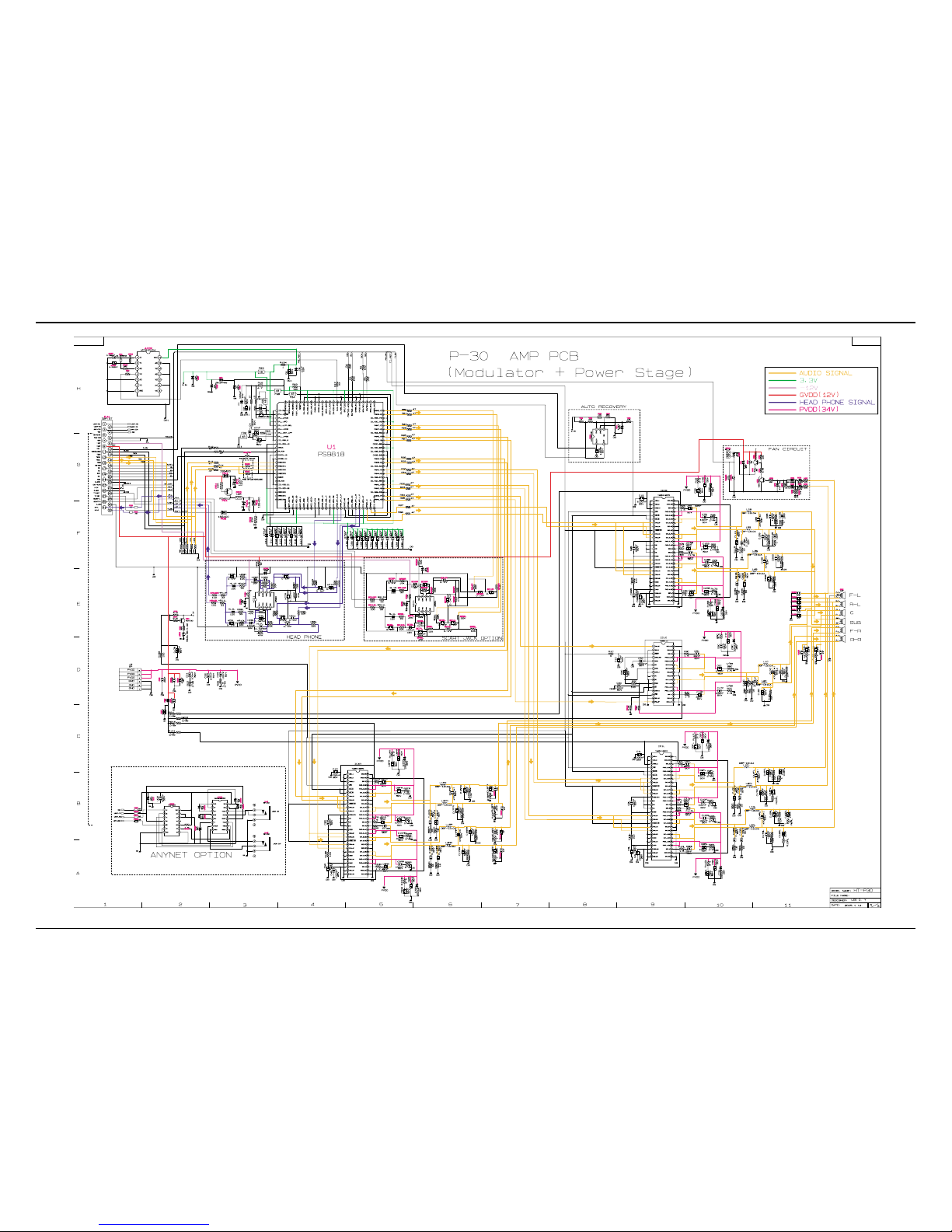

AH92-02303B ASSY PCB-AMP;HT-P30,-

AC36 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1608
AC37 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1608
AD1 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
AIC2 AH14-10004R IC;M74HCU04,SOP,TAPE 14P
AQ1 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T

AR1 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
AR15 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608
AR61 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
AX1 2801-004354 CRYSTAL-UNIT;12.288MHZ,30PPM,ATS-49/U,18
C1 2401-000243 C-AL;100uF,20%,10V,GP,TP,6.3x5,5

C10 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5
C100 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­C101 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­C102 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­C103 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

C104 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­C105 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­C107 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­C108 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­C109 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

C10C 2305-000412 C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm
C10FL 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks

Samsung Electronics 8-5

C10FR 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C10RL 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C10RR 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

C10S 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C11 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5
C110 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­C111 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­C112 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

C11C 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C11FL 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
C11FR 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
C11RL 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
C11RR 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608

C11S 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C12 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C12C 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C12FL 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C12FR 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608

C12RL 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C12RR 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C12S 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C13 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C13C 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608

C13FL 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C13FR 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C13RL 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C13RR 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C13S 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

C14 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C14C 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C14FL 2305-000412 C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm
C14FR 2305-000412 C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm
C14RL 2305-000412 C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm

C14RR 2305-000412 C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm
C14S 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C15 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C15C 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C15FL 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

C15FR 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C15RL 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C15RR 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C15S 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C16 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

C16C 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C16FL 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C16FR 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C16RL 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C16RR 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

C16S 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
C17 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C176 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C17C 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C17FL 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

C17FR 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C17RL 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C17RR 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C17S 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
C18C 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608

C18FL 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C18FR 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C18RL 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C18RR 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C18S 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

C19 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5
C19S 2305-000412 C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm
C1C 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
C1L 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C1R 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C1S 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C2 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C20 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5
C200 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C201 2401-001364 C-AL;470uF,20%,16V,GP,TP,10x12.5,5

C20S 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C21 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C21S 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
C22 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C22S 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608

C23 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C23S 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C24 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C24S 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
C25 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

C25S 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C26 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C26S 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C27 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C27S 2401-003564 C-AL;1000uF,20%,35V,LZ,TP,12.5X25mm

C28 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C28S 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C29 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C29S 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C2C 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C2L 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012
C2R 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012
C2S 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012
C3 2401-000407 C-AL;10UF,20%,16V,GP,TP,3.5X5,2.5
C30 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

C30S 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C31 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012
C32 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012
C33 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012
C35 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012

C36 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012
C37 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,-,2012
C3C 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C3L 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C3R 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

C3S 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C4 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C4C 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C4L 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201
C4R 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C4S 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C5 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C50 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5
C51 2401-000240 C-AL;100uF,20%,10V,GP,TP,5x11,5
C52 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5

C5C 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
C5FL 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C5FR 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C5RL 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C5RR 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

C5S 2401-003564 C-AL;1000uF,20%,35V,LZ,TP,12.5X25mm
C6 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,TP,1608
C6C 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C6FL 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C6FR 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

C6RL 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C6RR 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C6S 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
C7 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,­C7C 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

C7FL 2401-003564 C-AL;1000uF,20%,35V,LZ,TP,12.5X25mm
C7FR 2401-003564 C-AL;1000uF,20%,35V,LZ,TP,12.5X25mm
C7RL 2401-003564 C-AL;1000uF,20%,35V,LZ,TP,12.5X25mm
C7RR 2401-003564 C-AL;1000uF,20%,35V,LZ,TP,12.5X25mm
C7S 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

C8 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
C8C 2401-003564 C-AL;1000uF,20%,35V,LZ,TP,12.5X25mm
C8FL 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
C8FR 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
C8RL 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608

C8RR 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
C8S 2305-000412 C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm
C9 2401-000407 C-AL;10UF,20%,16V,GP,TP,3.5X5,2.5
C9C 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C9FL 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-

C9FR 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C9RL 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C9RR 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­C9S 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­FANR1 2001-001165 R-CARBON(S);56OHM,5%,1/2W,AA,TP,2.4X6.4M

FANR2 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
FB1 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,

Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks

8-6 Samsung Electronics

FB2 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
FB3 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
FB4 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,

FB5 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
FB6 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
FB7 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
FB8 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
HC1L 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

HC1R 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
HC2L 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
HC2R 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
HC3L 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
HC3R 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

HC50 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
HC51 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
HC6L 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608
HC6R 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608
HC7L 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

HC7R 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608
HC8L 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
HC8R 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
HC9L 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
HC9R 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

HIC1 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
HL1L 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
HL1R 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
HR10L 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
HR10R 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608

HR11L 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
HR11R 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
HR12L 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
HR12R 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
HR2L 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

HR2R 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
HR4L 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
HR4R 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
HR50 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608
HR51 2007-000308 R-CHIP;10ohm,5%,1/8W,TP,2012

HR5L 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
HR5R 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
HR6L 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
HR6R 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
HR7L 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

HR7R 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
HR8L 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
HR8R 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
HR9L 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
HR9R 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

IC1C 1201-002054 IC-AUDIO AMP;TAS5111,HTSSOP,32P,11x6.2mm
IC1L 1201-002053 IC-AUDIO AMP;TAS5112DFD,TSSOP,56P,14x6.1
IC1R 1201-002053 IC-AUDIO AMP;TAS5112DFD,TSSOP,56P,14x6.1
IC1S 1201-002053 IC-AUDIO AMP;TAS5112DFD,TSSOP,56P,14x6.1
J3 AH39-00018B LEAD CONNECTOR ASSY;MAX-B420,-,-,6P,-,-,

L1C AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2
L1FL AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2
L1FR AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2
L1RL AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2
L1RR AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2

L1S AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2
L2C AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2
L2FL AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2
L2FR AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2
L2RL AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2

L2RR AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2
L2S AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2
L3S AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2
L4S AH27-00055A COIL CHOKE;DBF-1310A,HT-DS600,10uH,-,-,2
LED1 0601-001238 LED;ROUND,RED,3.1mm,697nm

MD3-JP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
NC1 2401-000048 C-AL;47uF,20%,25V,GP,TP,5x11,5
NC2 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm
NC3 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5
NC4 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5

NC5 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm
NCW1 3711-000820 CONNECTOR-HEADER;BOX,2P,1R,2.5MM,STRAIGH
ND1 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3
ND2 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3
NQ1 0501-000316 TR-SMALL SIGNAL;KSA928A-Y,PNP,1000mW,TO-

NQ2 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOT­NR1 2001-000117 R-CARBON(S);68ohm,5%,1/2W,AA,TP,2.4x6.4m
NR10 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
NR2 2003-000674 R-METAL OXIDE(S);39ohm,5%,1W,AA,TP,3.3x9
NR3 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

NR4 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
NR5 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
NR6 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
NR7 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
NR8 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

NR9 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
PC1 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PD1 0401-001110 DIODE-SWITCHING;-,80V,100MA,SOD-523,TP
PD2 0401-001110 DIODE-SWITCHING;-,80V,100MA,SOD-523,TP
PD3 0401-001110 DIODE-SWITCHING;-,80V,100MA,SOD-523,TP

PJ1 3708-000266 CONNECTOR-FPC/FFC/PIC;32P,1.25MM,STRAIGH
PQ1 0501-000312 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23,
PR1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
PR2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
PR3 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

PZD1 0403-000354 DIODE-ZENER;UZ5.1B,4.8-5.4V,500MW,DO-35,
R1 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
R10 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R100 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
R10C 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

R10FL 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608
R10FR 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608
R10RL 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608
R10RR 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608
R10S 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

R11 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R11C 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608
R11FL 2007-000693 R-CHIP;3.3ohm,1%,1/10W,TP,1608
R11FR 2007-000693 R-CHIP;3.3ohm,1%,1/10W,TP,1608
R11RL 2007-000693 R-CHIP;3.3ohm,1%,1/10W,TP,1608

R11RR 2007-000693 R-CHIP;3.3ohm,1%,1/10W,TP,1608
R11S 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R12 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R124 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608
R12C 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

R12S 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R13 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R131 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R13C 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608
R13L 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

R13R 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
R13S 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
R14 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R14S 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
R15 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

R155 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
R15S 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R16S 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R17 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
R17S 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216

R18S 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608
R19 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608
R19S 2007-000693 R-CHIP;3.3ohm,1%,1/10W,TP,1608
R1C 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
R1FL 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608

R1FR 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608
R1RL 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608
R1RR 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608
R1S 2007-000693 R-CHIP;3.3ohm,1%,1/10W,TP,1608
R2 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

R20 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608
R20C 2007-000457 R-CHIP;18Kohm,5%,1/8W,TP,2012
R20S 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
R21 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608
R21C 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

R21L 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R21R 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R21S 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R22 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R22S 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608

R23 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R24 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks

Samsung Electronics 8-7

R25 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R26 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R27 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

R28 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R29 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R2C 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
R2FL 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R2FR 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216

R2RL 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R2RR 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R2S 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608
R3 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
R30 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

R31 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R32 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R33 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R34 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R35 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

R37 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R38 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R39 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R3C 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608
R3FL 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608

R3FR 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608
R3RL 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608
R3RR 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608
R3S 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R4 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

R4C 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608
R4FL 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R4FR 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R4RL 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R4RR 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216

R4S 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608
R5 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R50 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R51 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
R5C 2007-000693 R-CHIP;3.3ohm,1%,1/10W,TP,1608

R5FL 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R5FR 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R5RL 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R5RR 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R5S 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216

R6 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R6C 2007-002807 R-CHIP;1.5ohm,5%,1/8W,TP,2012
R6FL 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R6FR 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R6RL 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012

R6RR 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R6S 2007-001806 R-CHIP;1.5ohm,5%,1/10W,BK,1608
R7 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R76 2007-000965 R-CHIP;5.1Kohm,5%,1/10W,TP,1608
R77 2007-000965 R-CHIP;5.1Kohm,5%,1/10W,TP,1608

R78 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608
R7C 2007-002807 R-CHIP;1.5ohm,5%,1/8W,TP,2012
R7FL 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
R7FR 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
R7RL 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

R7RR 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
R7S 2007-000253 R-CHIP;1.5ohm,5%,1/4W,TP,3216
R8 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
R8C 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R8FL 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608

R8FR 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608
R8RL 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608
R8RR 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608
R8S 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
R9 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

R9C 2007-000462 R-CHIP;18ohm,5%,1/8W,TP,2012
R9FL 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
R9FR 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
R9RL 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
R9RR 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

R9S 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608
SC1L 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
SC1R 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
SC2L 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
SC2R 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

SC4L 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
SC4R 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
SC50 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm
SC51 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm
SC6L 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

SC6R 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608
SC7L 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608
SC7R 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608
SC8L 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
SC8R 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

SC9L 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
SC9R 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
SIC1 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
SL1L 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
SL1R 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1

SPK 3716-001243 TERMINAL-BLOCK;-,12P,14mm,-,­SR10L 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
SR10R 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
SR11L 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
SR11R 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608

SR12L 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
SR12R 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
SR2L 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
SR2R 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
SR4L 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

SR4R 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608
SR50 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
SR51 2007-000290 R-CHIP;100ohm,5%,1/8W,TP,2012
SR5L 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
SR5R 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

SR6L 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
SR6R 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
SR7L 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
SR7R 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
SR8L 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

SR8R 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
SR9L 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
SR9R 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

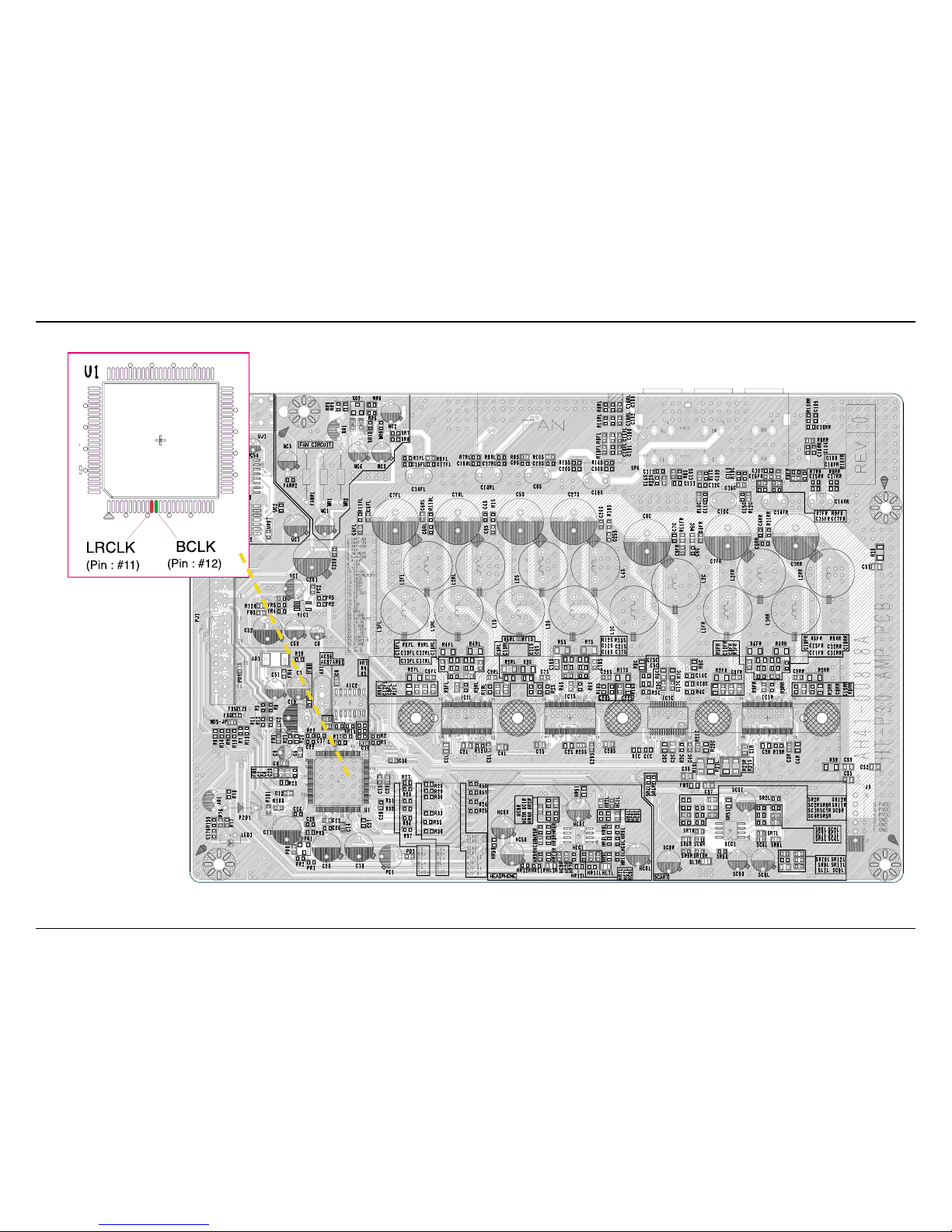

U1 1204-002226 IC-MODULATOR;PS9818,QFP,100P,14X14MM,PLA
UC1 2401-001508 C-AL;47uF,20%,16V,GP,TP,6.3x5,5

UC2 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­UC50 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
UC51 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
UC52 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
UC53 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5

UC54 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
UIC2 0803-000103 IC-TTL;74F08,AND GATE,SOP,14P,150MIL,
UIC3 1003-000262 IC-LINE TRANSCEIVER;MAX232CSE,SOP,16P,15
UR97 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
YC1 2401-001625 C-AL;6.8uF,20%,50V,GP,TP,5x11,5

YC2 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,­YIC1 1202-001061 IC-VOLTAGE COMP.;LMV331M5,SOT-23,5P,3X1.
YR1 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
YR2 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
YR3 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

YR4 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
YR5 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

6003-000276 SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(YEL),SWC
AH39-50001H WIRE HARNESS;RING,1007#24,100MM,BLK
AH61-01608A HOLDER-H/SINK;HT-DS400,ABS+GF30%,-,-,-,B
AH62-00119A HEAT SINK-AMP;HT-DS400,AL EXTR,-,-,-,-,­AH41-00818A PCB-AMP;HT-P30,-,2,-,1.6T,297*197,-,2,

AH92-02304B ASSY PCB-FRONT;HT-UP30,-

FC1 2203-000979 C-CER,CHIP;47nF,10%,50V,X7R,TP,2012
FC2 2203-000203 C-CER,CHIP;100nF,10%,16V,X7R,TP,2012,2mm
FC3 2203-000979 C-CER,CHIP;47nF,10%,50V,X7R,TP,2012
FC4 2203-000979 C-CER,CHIP;47nF,10%,50V,X7R,TP,2012
FC5 2203-000260 C-CER,CHIP;10nF,10%,50V,X7R,TP,2012

FCON1 3708-000451 CONNECTOR-FPC/FFC/PIC;16P,1.25MM,STRAIGH
FCON2 3711-000968 CONNECTOR-HEADER;BOX,4P,1R,2mm,STRAIGHT,
FCON3 3711-004014 CONNECTOR-HEADER;3WALL,7P,1R,2mm,STRAIGH
FCON4 3710-001386 CONNECTOR-SOCKET;7P,1R,2mm,ANGLE,SN
FCW1 AH39-00738A LEAD CONNECTOR;HT-P30,-,-,4P,250mm,-,-,5

FCW2 AH39-00739A LEAD CONNECTOR;HT-P30,-,-,4P,440mm,-,-,P
FD1 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3
FD2 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3
FD3 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3

Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks

8-8 Samsung Electronics

FJ1 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FJ10 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5

FJ11 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FJ12 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FJ13 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FJ14 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5

FJ15 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FJ16 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FJ17 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FJ2 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FJ3 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5

FJ4 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FJ5 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FJ6 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FJ7 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FJ8 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5

FJ9 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
FQ1 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP
FQ2 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
FQ3 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
FR1 2007-000468 R-CHIP;1Kohm,5%,1/8W,TP,2012

FR10 2007-000300 R-CHIP;10Kohm,5%,1/8W,TP,2012
FR11 2007-000300 R-CHIP;10Kohm,5%,1/8W,TP,2012
FR12 2001-000552 R-CARBON;270OHM,5%,1/4W,AA,TP,2.4X6.4MM
FR13 2007-000300 R-CHIP;10Kohm,5%,1/8W,TP,2012
FR14 2007-000300 R-CHIP;10Kohm,5%,1/8W,TP,2012

FR15 2007-000023 R-CHIP;120ohm,5%,1/8W,TP,2012
FR16 2007-000572 R-CHIP;220ohm,5%,1/8W,TP,2012
FR2 2007-000241 R-CHIP;1.5Kohm,5%,1/8W,TP,2012
FR3 2007-000267 R-CHIP;1.8Kohm,5%,1/8W,TP,2012
FR4 2007-000493 R-CHIP;2.2Kohm,5%,1/8W,TP,2012

FR5 2007-000686 R-CHIP;3.3Kohm,5%,1/8W,TP,2012
FR6 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012
FR7 2007-001177 R-CHIP;8.2Kohm,5%,1/8W,TP,2012
FR8 2007-000457 R-CHIP;18Kohm,5%,1/8W,TP,2012
FR9 2007-000300 R-CHIP;10Kohm,5%,1/8W,TP,2012

HC1 2203-000595 C-CER,CHIP;0.22NF,5%,50V,C0G,TP,2012
HC1L 2203-000239 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,2012
HC1R 2203-000239 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,2012
HC2 AH39-50001H WIRE HARNESS;RING,1007#24,100MM,BLK
HC2 2203-000260 C-CER,CHIP;10nF,10%,50V,X7R,TP,2012

HC2L 2203-000533 C-CER,CHIP;2.7nF,10%,50V,X7R,TP,2012,­HC2R 2203-000533 C-CER,CHIP;2.7nF,10%,50V,X7R,TP,2012,­HD1 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3
HD2 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3
HJ 3722-000143 JACK-PHONE;1P(VER),3.4PI,AG,BLK,NO

HL1L 2701-000179 INDUCTOR-AXIAL;33UH,10%,4298
HL1R 2701-000179 INDUCTOR-AXIAL;33UH,10%,4298
LED1 0601-001238 LED;ROUND,RED,3.1mm,697nm
LED2 0601-001490 LED;INVERTER,BLUE,3MM,465-477NM
LED3 0601-001490 LED;INVERTER,BLUE,3MM,465-477NM

LED4 0601-001490 LED;INVERTER,BLUE,3MM,465-477NM
MC12 2203-001164 C-CER,CHIP;0.068nF,5%,50V,SL,TP,2012
MC13 2203-000260 C-CER,CHIP;10nF,10%,50V,X7R,TP,2012
MC14 2203-000595 C-CER,CHIP;0.22NF,5%,50V,C0G,TP,2012
MC4 2203-000239 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,2012

MC5 2203-000239 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,2012
MC6 2203-000260 C-CER,CHIP;10nF,10%,50V,X7R,TP,2012
MC8 2203-001132 C-CER,CHIP;0.68nF,5%,50V,NP0,TP,2012
MC9 2203-001058 C-CER,CHIP;0.56NF,5%,50V,C0G,TP,2012
MD1 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3

MD2 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3
MIC1 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
MQ1 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT­MR1 2007-000493 R-CHIP;2.2Kohm,5%,1/8W,TP,2012
MR10 2007-000300 R-CHIP;10Kohm,5%,1/8W,TP,2012

MR11 2007-000241 R-CHIP;1.5Kohm,5%,1/8W,TP,2012
MR12 2007-000468 R-CHIP;1Kohm,5%,1/8W,TP,2012
MR13 2007-000409 R-CHIP;15Kohm,5%,1/8W,TP,2012
MR14 2007-000518 R-CHIP;2.7Kohm,5%,1/8W,TP,2012
MR15 2007-000282 R-CHIP;100Kohm,5%,1/8W,TP,2012

MR16 2007-000282 R-CHIP;100Kohm,5%,1/8W,TP,2012
MR17 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012
MR2 2007-000282 R-CHIP;100Kohm,5%,1/8W,TP,2012
MR3 2007-001201 R-CHIP;820ohm,5%,1/8W,TP,2012
MR4 2007-000355 R-CHIP;12Kohm,5%,1/8W,TP,2012

MR5 2007-000518 R-CHIP;2.7Kohm,5%,1/8W,TP,2012

MR6 2007-000300 R-CHIP;10Kohm,5%,1/8W,TP,2012
MR7 2007-001201 R-CHIP;820ohm,5%,1/8W,TP,2012
MR8 2007-000468 R-CHIP;1Kohm,5%,1/8W,TP,2012
MR9 2007-000300 R-CHIP;10Kohm,5%,1/8W,TP,2012

REM_EYE 0609-001189 MODULE REMOCON;HORIZONTAL,16.4MM,TR
SW1 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW2 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW3 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW4 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

SW5 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW6 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW7 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW8 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW9 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

USB 3722-002313 JACK-USB;4P/1C,AU30U,BLK,STRAIGHT ,A TYP

AH39-50001K WIRE HARNESS;RING,1007#24,140MM,BLK
AH99-00009L ASSY PCB-FRONT,z;HT-UP30,-,Phantom
AH41-00817A PCB-FRONT;HT-P30,-,1,-,1.6T,297*247,-,4,

3809-001226 CABLE-FLAT;30V,80C,100mm,16P,1.25mm,UL28
3809-001658 CABLE-FLAT;30V,80C,70mm,32P,1.25mm,UL289
3809-001659 CABLE-FLAT;30V,80C,130mm,13P,1.25mm,UL28
6902-000060 BAG PE;LDPE,T0.05,L450,W120,TRP,,,PE
AH31-00041A MOTOR FAN;CD42NL100070,RDL4020S,0.06A,-,
AH39-00258P POWER CORD;VP8400,-,BS,250V,2.5A,1830MM/
AH39-40001V CABLE-AUDIO CABLE;-,-,1P-1P,3000MM,-,-,­AH40-00076C TUNER-PACK;4496 PE01 FM/AM RDS,-,-,-,-,­AH42-00018A ANTENNA-FM;T150S1F-1,-,-,-,-,-,1500##50m
AH42-00019A ANT LOOP;S0160BL-16,HT-DS665T,9uH,-,1KH
AH59-01510B REMOCON-ASSY;HT-P30,EUR,-,-,57KEY,-,-,-,
AH44-00076A SMPS;HT-P30,ORTP-972,AC to DC,500W,

AH59-01436B DECK;S73,HT-P10/P30,-,-,-,-,-,­3101-001300 MOTOR-DC;2670RPM,9G.CM,3.9V,160MA
AH59-01421A DECK-DVD;-,CMS-S73,-,25mm,-,-,-,SLIM
AH30-00068A PICK UP;CMS-S73SS6,3.36(DVD),0.6(DVD),

AH92-02320A ASSY PCB;HT-P10/30,SERVO PCB
AH97-01341A ASSY DVD DECK-EMPTY MECHA;DVD-K100,-,­0205-001106 GREASE-HARD;G-99004X,40~150,1KG
0205-001109 GREASE-HARD;DM5231,HARD,1KG/CAN
3301-001760 CORE-FERRITE;-,33x12x8mm,-,­3409-001138 SWITCH-DETECTOR;5V DC,1A,DPST,30GF,­3809-001627 CABLE-FLAT;30V,80C,90mm,6P,1mm,UL20696
3809-001630 CABLE-FLAT;30V,80C,175mm,24P,0.5mm,UL206
6001-001257 SCREW-MACHINE;PWH,+,M1.7,L3,ZPC(YEL),SWR
6003-000152 SCREW-TAPTITE;PH,+,B,M2,L10,ZPC(YEL),SWR
6003-001375 SCREW-TAPTITE;BH,+,B,M3,L8,ZPC(YEL),SWRC
6003-001446 SCREW-TAPTITE;BH,+,,M2,L5,NI PLT
6003-001476 SCREW-TAPTITE;PWH,+,B,M2,L5,ZPC(YEL)
AH39-00708A WIRE HARNESS;DVD-K100,L/W,-,5,90,WHT,-,­AH41-00560B PCB-SWITCH;SDM-D11,-,-,-,-,-,-,-,-,MOTOR
AH61-01474A SPRING ETC-DECK;CMS-SD100,SUS304,-,-,-,1
AH61-01741A BASE-MAIN;K100,ABS,-,-,-,-,­AH61-01742A BODY CLAMPER-UPPER;-,POM,0.8,-,-,-,WHT,­AH61-01743A BODY CLAMPER-LOWER;-,POM,0.8,-,-,-,WHT,­AH61-01795A BRACKET-HOLDER;SDM-D12,SECC,0.6,-,-,-,­AH63-00695A TRAY-DISK;SDM-D11,ABS,-,-,-,-,GRAY,­AH66-00215A PULLEY MOTOR;CMS-SD100,POM,-,WHITE,-,-,­AH66-00216A GEAR-PULLEY;CMS-SD100,TPE,-,-,-,BLACK,-,
AH66-00217A GEAR-TRAY;CMS-SD100,POM,-,-,-,BLACK,-,-,
AH66-00219A PULLEY-BELT;CMS-SD100,CR 1.5,-,-,-,-,-,­AH66-00261A CAM-SLIDE;K100,POM,-,-,WHT,-,-,-,­AH66-00262A LEVER-LIFT;-,ABS,-,-,-,-,BLK,­AH73-00058A SILICON/RUBBER-DECK;CMS-SD100,SILICON,D1

AH59-01528E SPEAKER SYSTEM;PS-UP30,-,-,-,-,-,-,ELS,E
AH81-01778A A/S PART-PS-P30E SPK SYSTEM;PS-P30E,-,-,
AH81-01450W SPEAKER;PSDS900E,SPK CORD ASS,FOR PSDS
AH81-01778B A/S PART-FRONT SPK SYSTEM;PS-P30E,-,-,FR
AH81-01778C A/S PART-CENTER SPK SYSTEM;PS-P30E,-,-,C
AH81-00924Q A/S PART-TERMINAL;PS3510,-,-,TERMINAL,PU
AH81-01778H A/S PART-NET FRAME_CENTER;PS-P30E,-,-,RE
AH81-01778J A/S PART-FRONT PANEL_CENTER;PS-P30E,-,-,
AH81-01778K A/S PART-REAR CASE_CENTER;PS-P30E,-,-,RE
AH81-01780L SPEAKER;SPK UNIT-FRONT,-,-,-,-,-,­AH81-01778D A/S PART-SUBWOOFER SPK SYSTEM;PS-P30E,-,
AH81-01778P A/S PART-REAR SPK SYSTEM;PS-P30E,-,-,REA
AH81-00924Q A/S PART-TERMINAL;PS3510,-,-,TERMINAL,PU
AH81-01778E A/S PART-NET FRAME_SAT;PS-P30E,-,-,NET F
AH81-01778F A/S PART-FRONT PANEL_SAT;PS-P30E,-,-,FRO
AH81-01778G A/S PART-REAR CASE_SAT;PS-P30E,-,-,REAR
AH81-01780M SPEAKER;PS-P10,SPK UNIT-REAR,-,-,-,-,­AH81-01778Q SPEAKER;PS-P30,CUSHION-SATELLITE-S,-,­AH81-01778R SPEAKER;PS-P30,CUSHION-SUBWOOFER-S,-,­AH81-01778S SPEAKER;PS-P30,CUSHION-SAT-ONE,-,-,-,­AH81-00924Q A/S PART-TERMINAL;PS3510,-,-,TERMINAL,PU
AH81-01778E A/S PART-NET FRAME_SAT;PS-P30E,-,-,NET F
AH81-01778F A/S PART-FRONT PANEL_SAT;PS-P30E,-,-,FRO

Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks

Samsung Electronics 8-9

AH81-01778G A/S PART-REAR CASE_SAT;PS-P30E,-,-,REAR
AH81-01780L SPEAKER;SPK UNIT-FRONT,-,-,-,-,-,­AH81-01778T SPEAKER;PS-P30,CUSHION-SUBW/F-ONE,-,-,
AH81-01431E A/S PART-UNIT SUB WOOFER;PSWS100E,-,F65C
AH81-01778L A/S PART-NET FRAME_SUBWOOFER;PS-P30E,-,­AH81-01778M A/S PART-FRONT PANE_SUBWOOFER;PS-P30E,-,
AH81-01778N A/S PART-DUCT_SUBWOOFER;PS-P30E,-,-,DUCT
AH81-01778W SPEAKER;PS-P30,WOODEN CABINET,-,-,-,-,
AH81-01779G A/S PART-STAND BASE ASSY;PS-TP33,HIPS,-,
AH81-01778U SPEAKER;PS-P30,CARTON BOX-SEPARATE,-,­AH81-01778V SPEAKER;PS-P30,CARTON BOX-ONE,-,-,-,-,

AH68-00093D LABEL CAUTION-DVD;-,-,T.PAPER,-,-,-,-,-,
AH68-00093G LABEL CAUTION-DVD;-,T.PAPER,-,-,-,-,-,-,
AH68-00093H LABEL CAUTION-DVD;-,T.PAPER,-,-,-,-,-,-,
AH68-00410S LABEL RATING;-,-,T.PAPER,-,-,-,-,-,-,S
AH68-00650A WARRANTY CARD-EUROPE;YP-NDU,EUROPE,PAPER
AH68-00967A LABEL-DTS;HT-DL100,TETRON PAPER,-,-,-,-,
AH68-01579E LABEL CAUTION;HT-P38,-,PASCAL 400R,-,-,­AH68-01700B MANUAL USERS;HT-UP30,XEU,ENG,-,MOJO,-,-,
AH68-01706B LABEL-POP;HT-UP30,EUR/CIS,T.PAPER,-,-,-,
AH68-40042C CARD WARRANTY;ALL,ENG,ART,-,L210,-,W145,
AH68-40373A CARD WARRANTY-SERVICE;-,MOJO,A UDIO,L260,
AH68-50080A LABEL-SERIAL;ART-PAPER,-,L135,W42,WHT,-,
AH68-50114A LABEL-SHIPPING;KRAFT,T0.1,L100,W150,BLK,
AH68-50119B LABEL-EAN(B);ART-PAPER,T0.05,L29,W47,WHT
AH68-50275D LABEL-CAUTION;FASCAL,T0.15,-,-,-,-,RCD13
AH68-50285J LABEL-ORIGN;SEHZ,-,KRAFT-PAPER,T0.3,20,7
AH68-50309D LABEL-ORIGN;-,-,T0.05,L5,BLK,W45,-,-,-,­AH68-50482B LABEL-CLASS1_5LANG;MAX445,-,PE 5-LAN,T0.
AH69-01419B MASTER CARTON;HT-P30/EUR,DW1,439,502,417
AH69-20380C CUSHION-SPONGE;MAX850R,EVA SPONGE,-,6,10

Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks

8-10 Samsung Electronics

Samsung Electronics 9-1

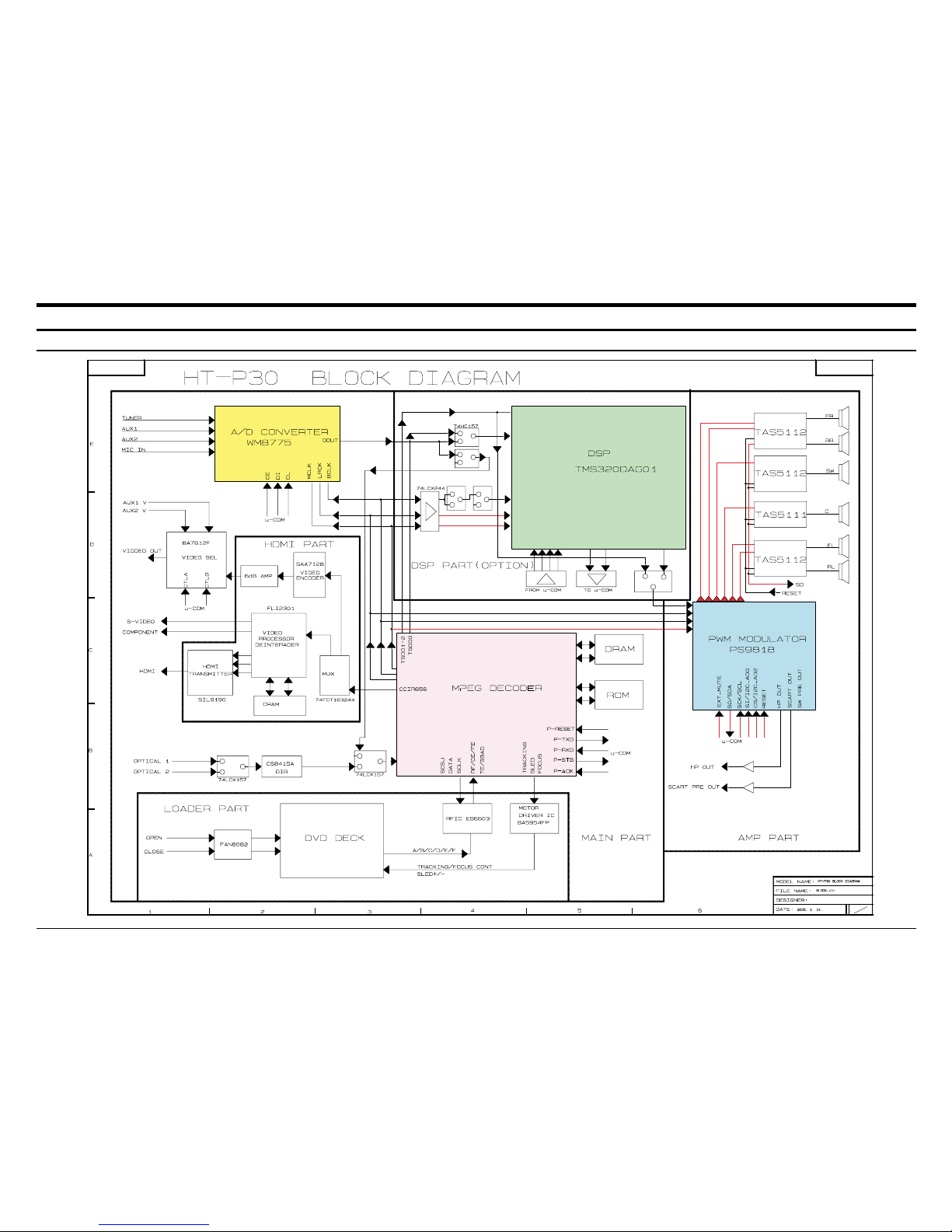

9. Block Diagram

1 MAIN Part

10-1 Samsung Electronics

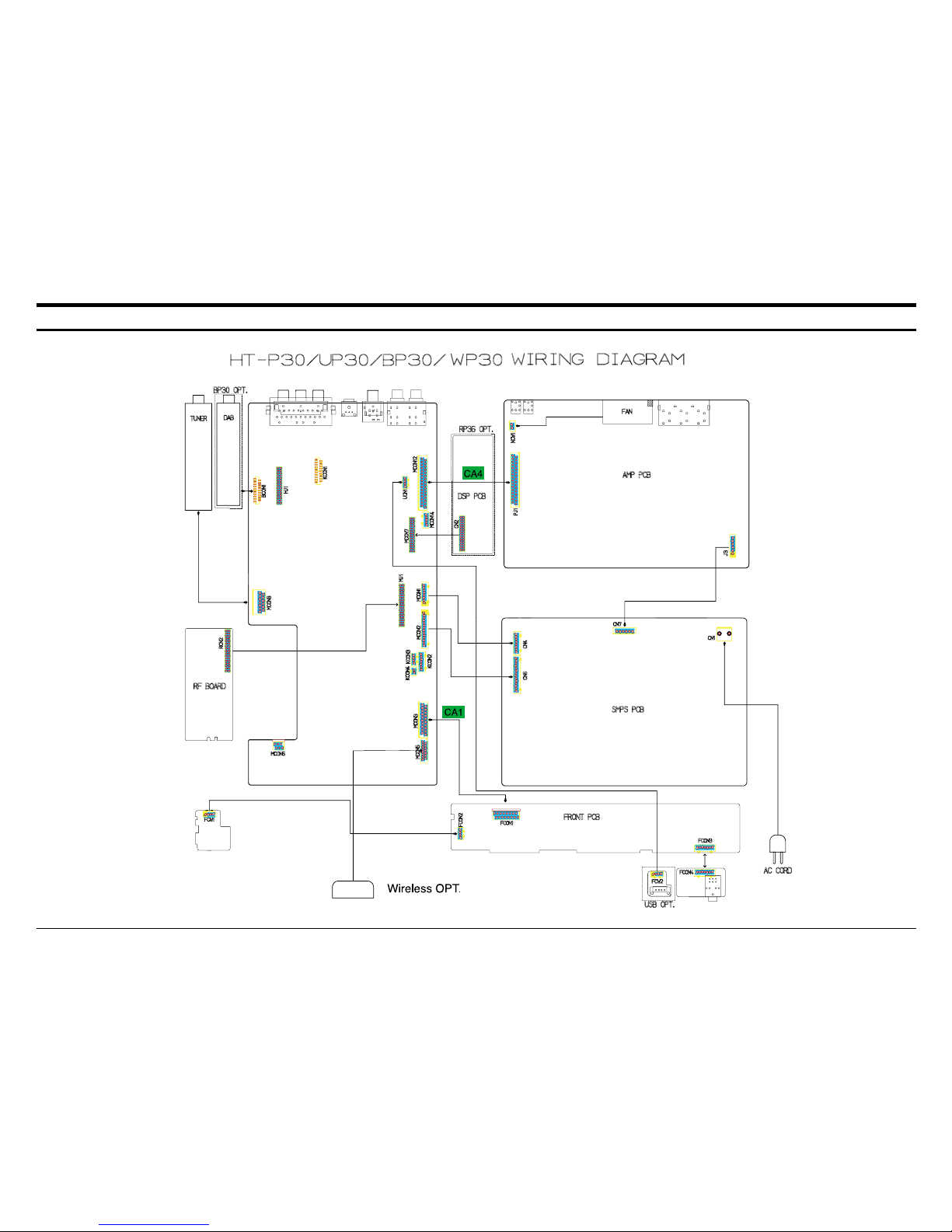

10.Wiring Diagram

Samsung Electronics 11-1

11. PCB Diagram

IC

FLASH

MEMORY

IC

NTSC / PAL

DECODER

IC

MICOM

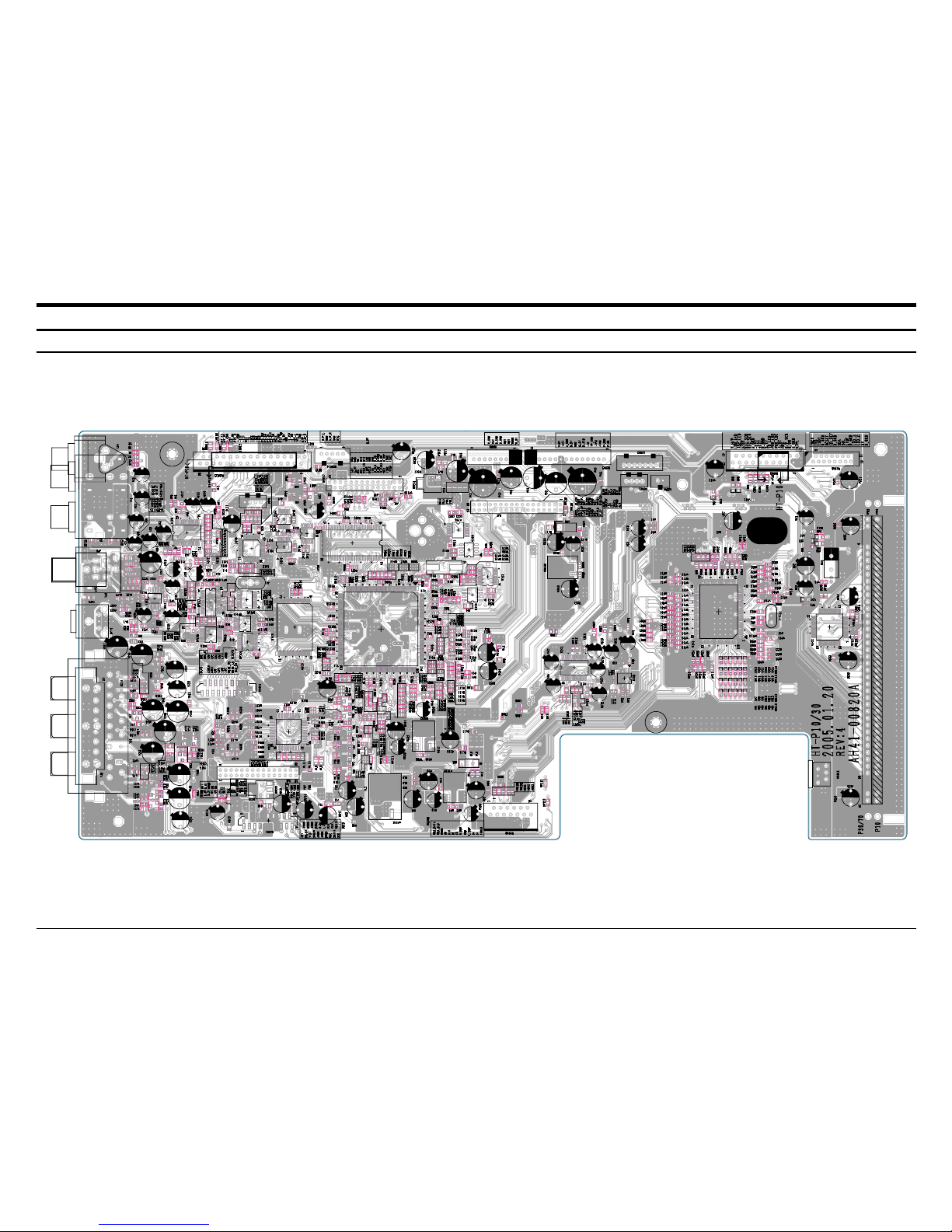

1. MAIN

11-2 Samsung Electronics

2. AMP

IC

MODULATOR

Samsung Electronics 12-1

- This Document can not be used without Samsung’s authorization -

12. Schematic Diagram

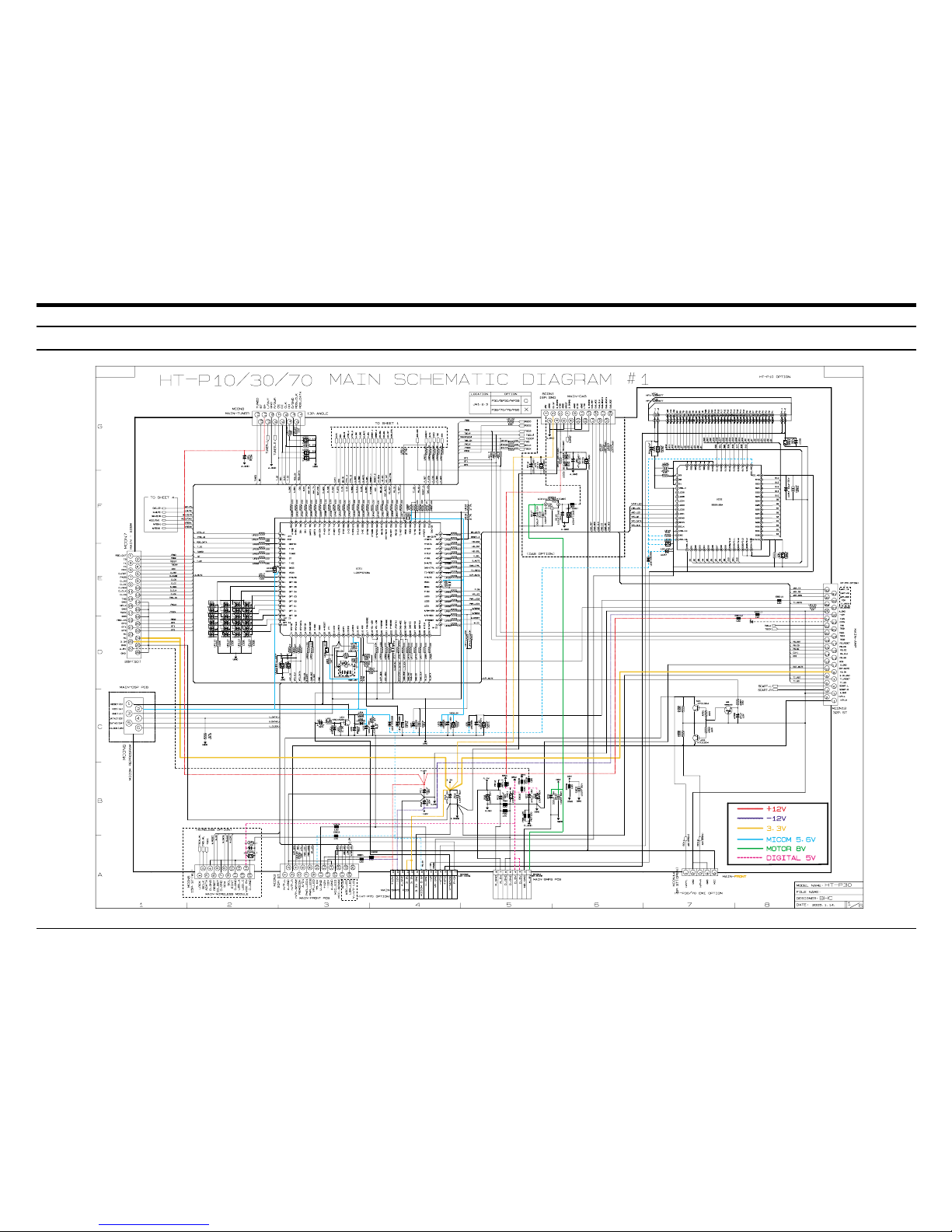

1-1. MAIN (PART1)

12-2 Samsung Electronics

- This Document can not be used without Samsung’s authorization -

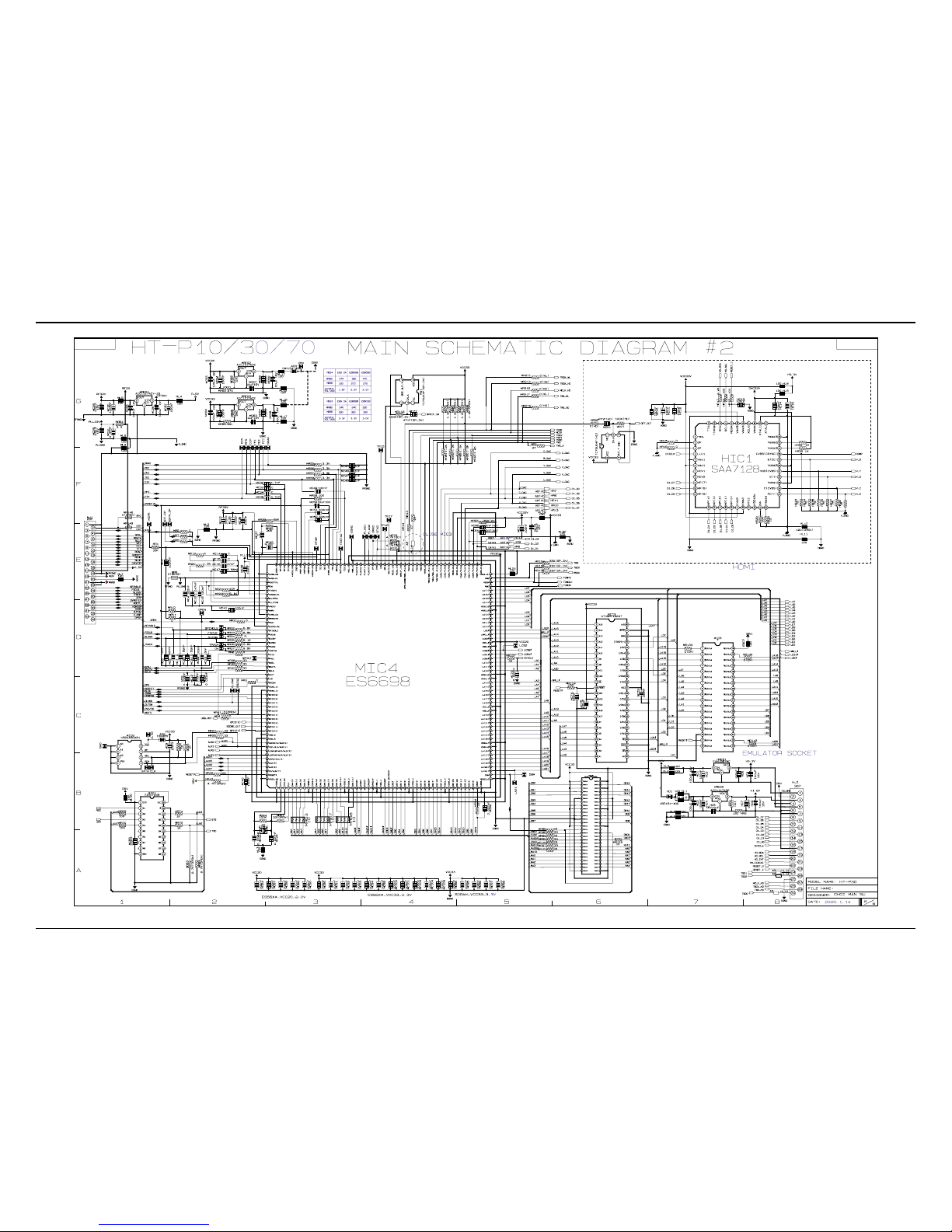

1-2. MAIN (PART2)

Samsung Electronics 12-3

- This Document can not be used without Samsung’s authorization -

1-3. MAIN (PART3)

12-4 Samsung Electronics

- This Document can not be used without Samsung’s authorization -

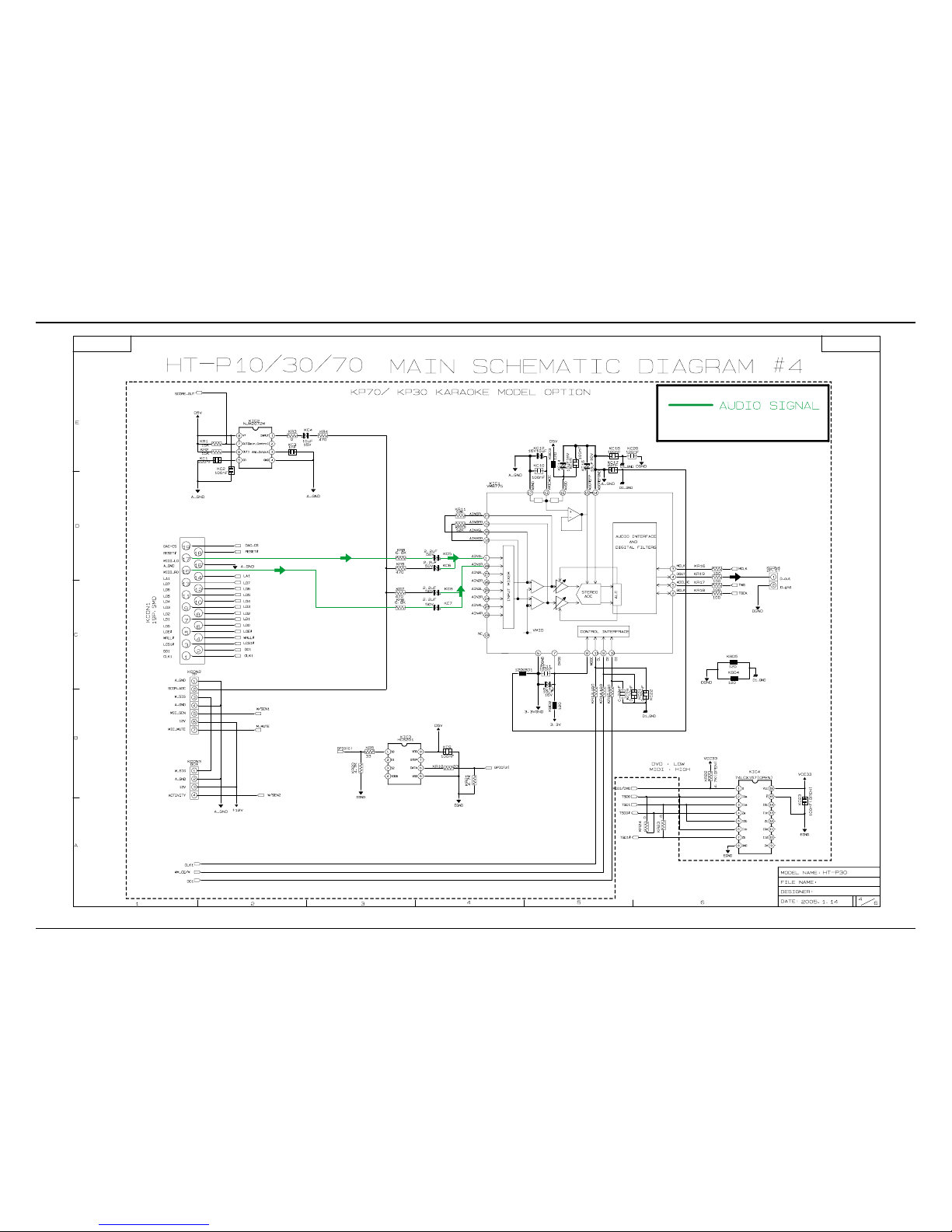

1-4. MAIN (PART4)

Samsung Electronics 12-5

- This Document can not be used without Samsung’s authorization -

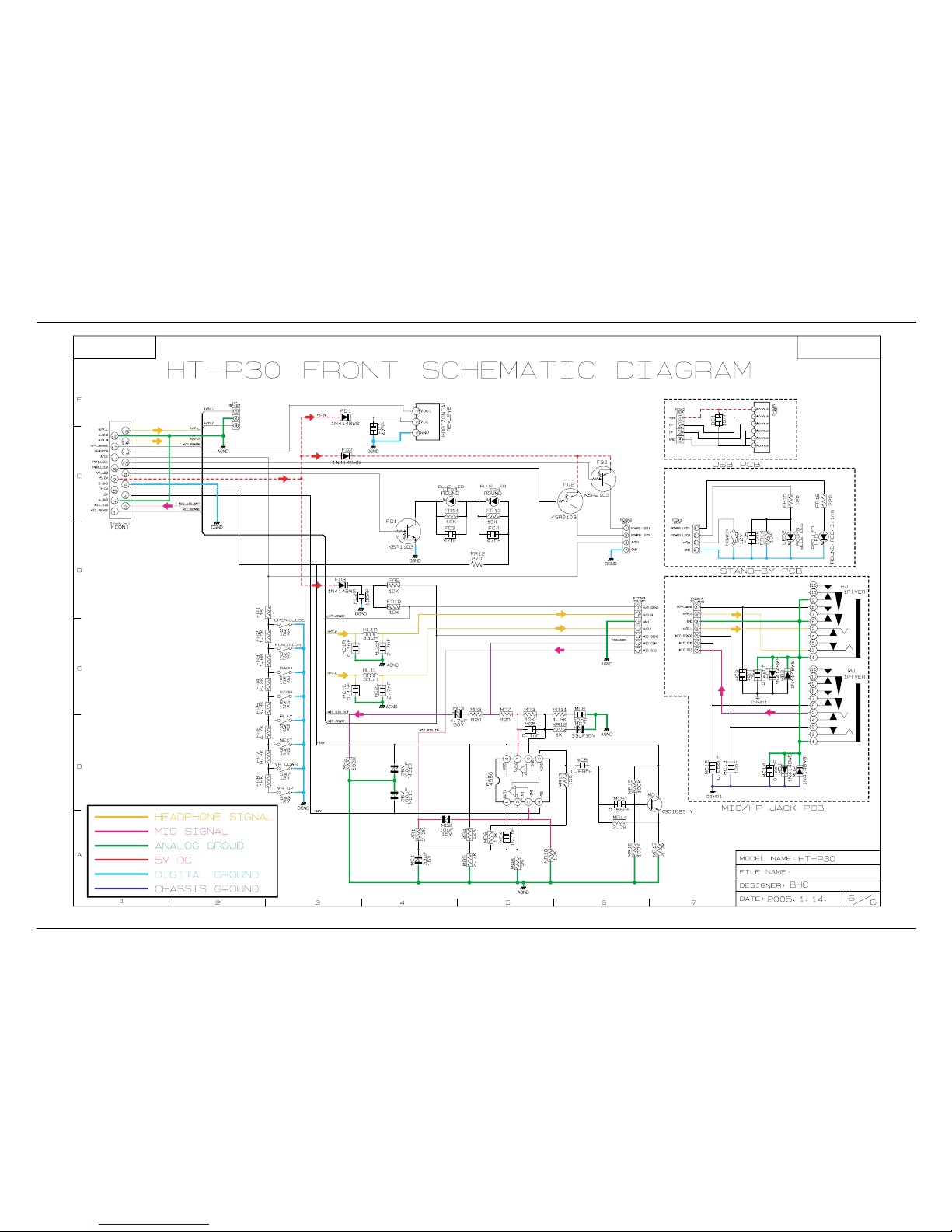

2. FRONT

12-6 Samsung Electronics

- This Document can not be used without Samsung’s authorization -

3. AMP

Samsung Electronics 12-7

- This Document can not be used without Samsung’s authorization -

4. SMPS

12-8 Samsung Electronics

- This Document can not be used without Samsung’s authorization -

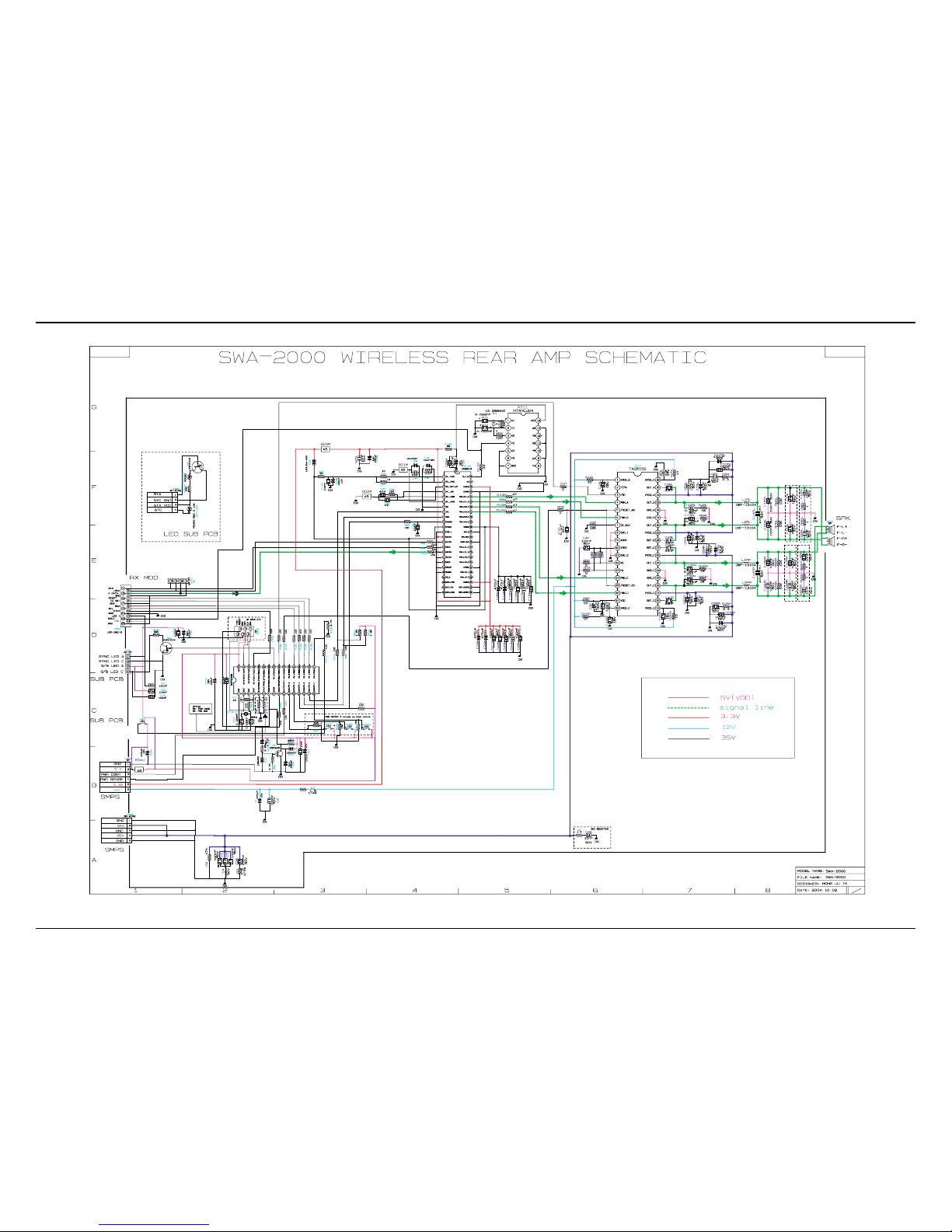

5-1. SWA-2000 (AMP PART)

Samsung Electronics 12-9

- This Document can not be used without Samsung’s authorization -

5-2. SWA-2000 (SMPS PART)

12-10 Samsung Electronics

- This Document can not be used without Samsung’s authorization -

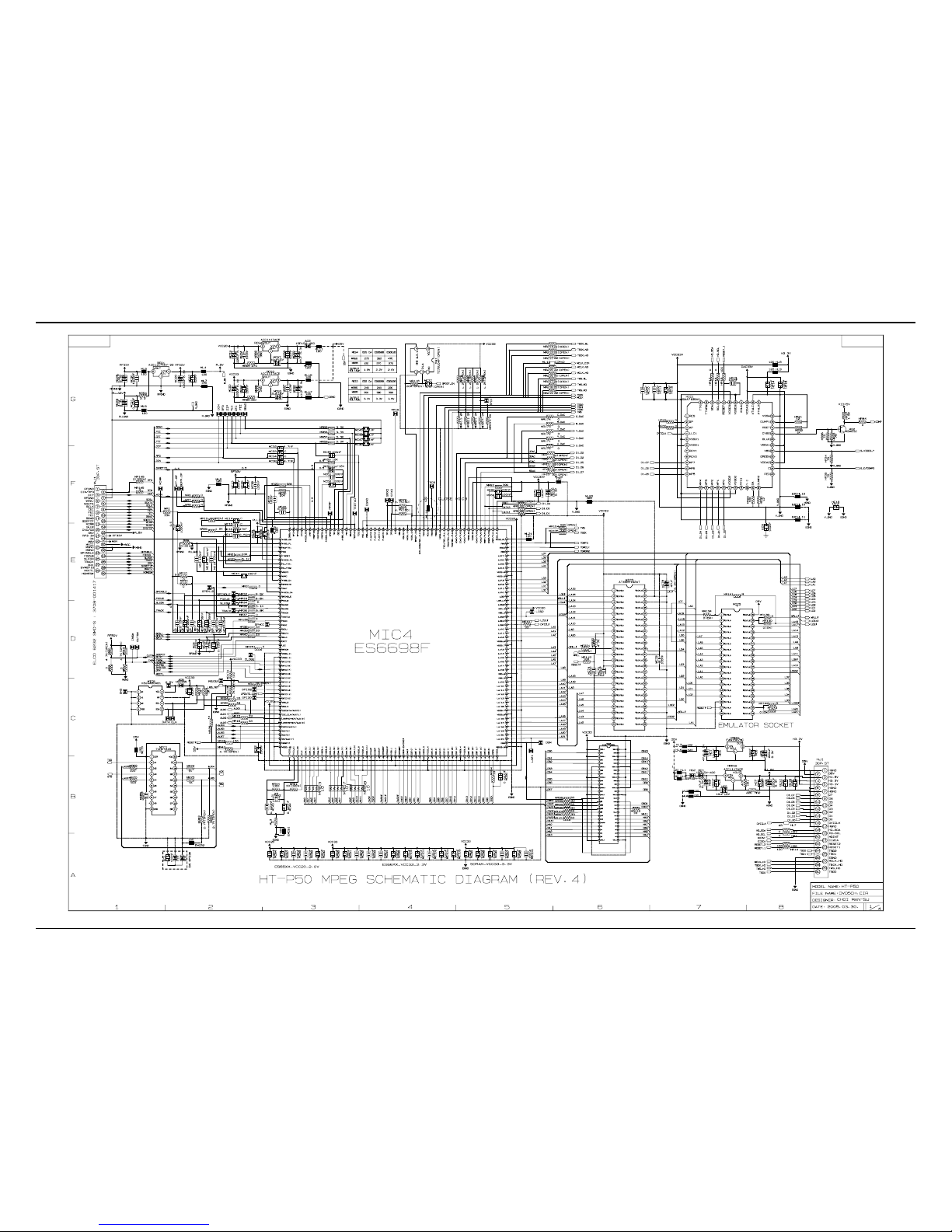

6-1. DVD MPEG

Samsung Electronics 12-11

- This Document can not be used without Samsung’s authorization -

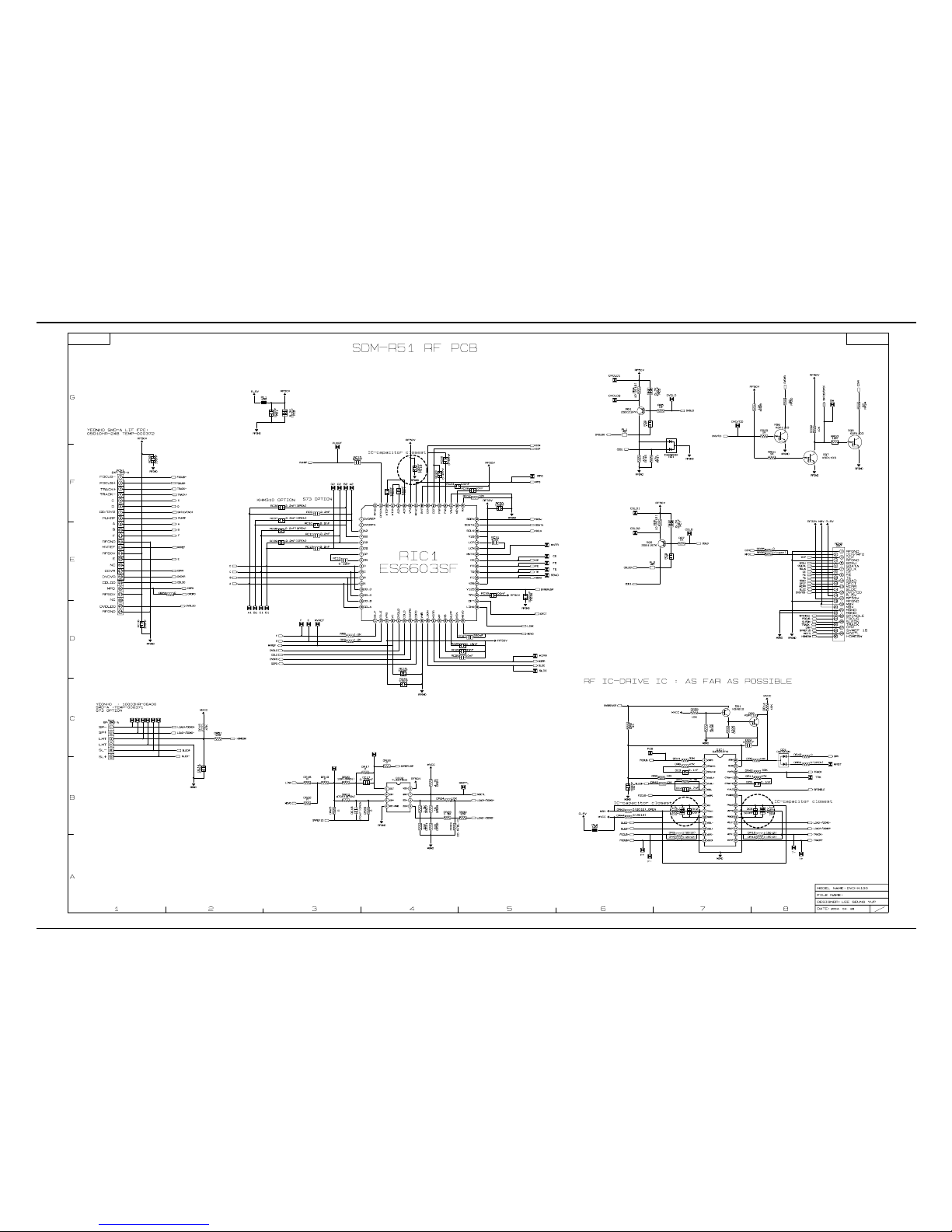

6-2. DVD RF

13-1 Samsung Electronics

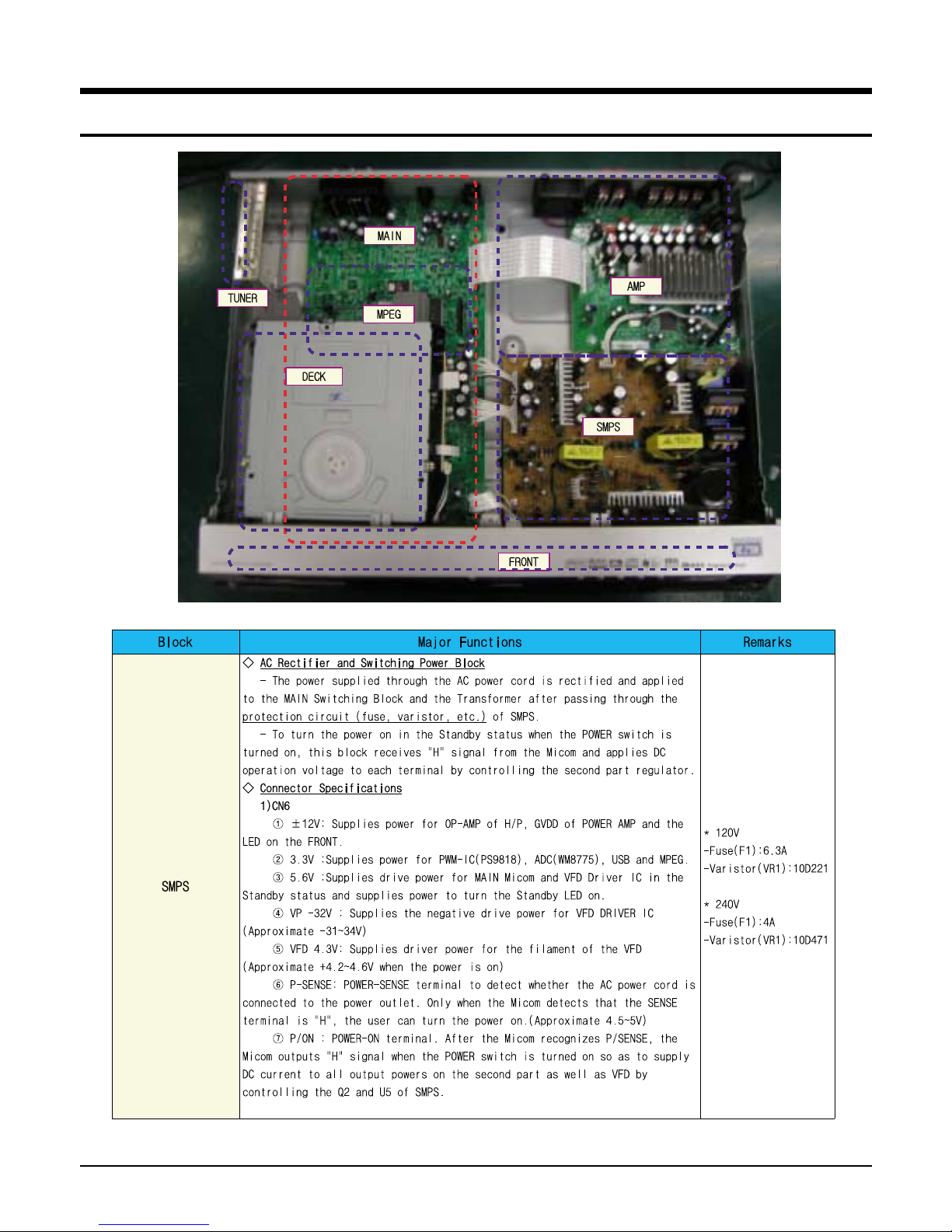

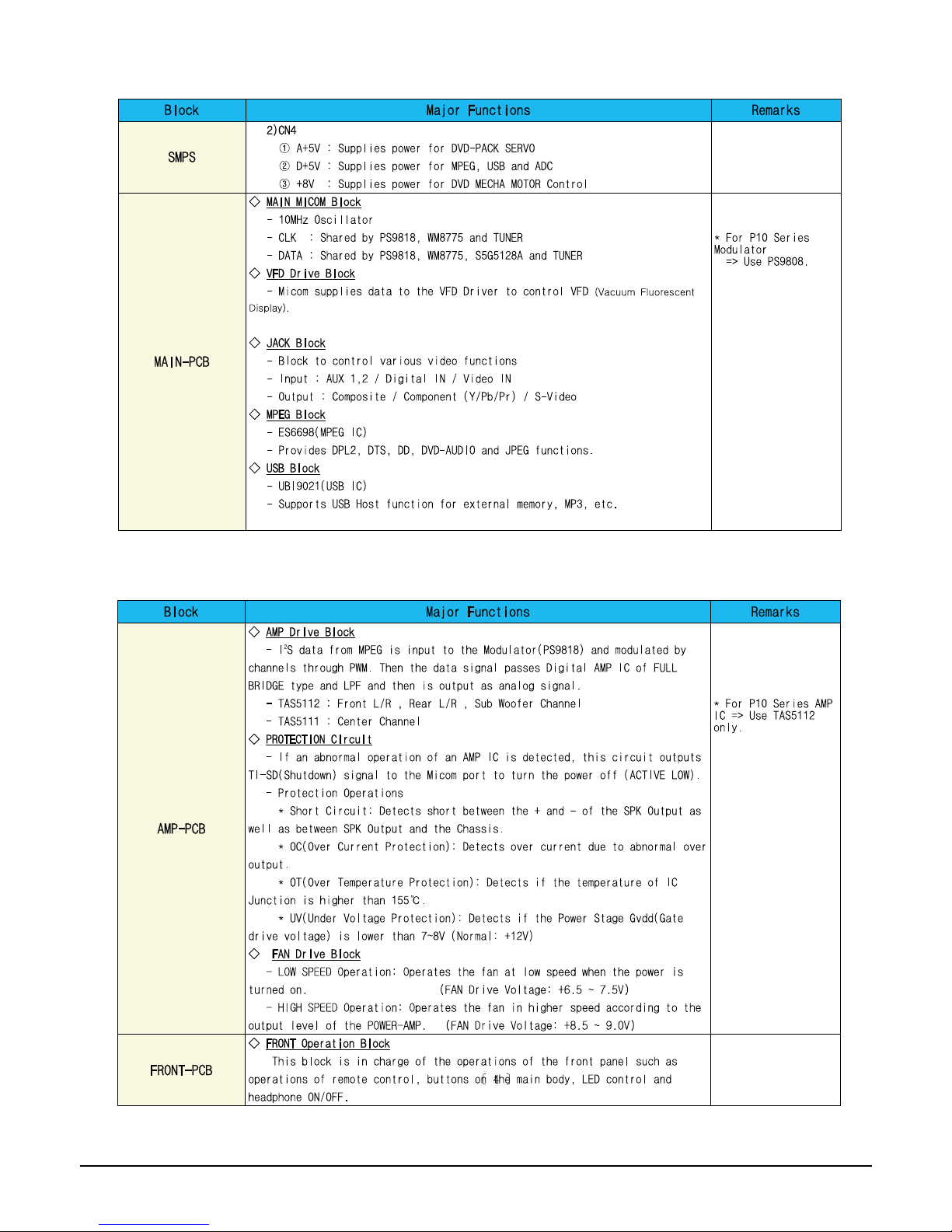

13. Circuit Board Description

Samsung Electronics 13-2

Ch1 Precautions

1-1. Safety Precautions 1-1
1-2. Servicing Precautions 1-2
1-3. Precautions for Electrostatically

Sensitive Device (ESDs) 1-3

1-4. Special Precautions and Warning

Lables for Laser Products 1-4

1-5. Special Precautions for HDD 1-5

INDEX

Ch2 Product Descriptions

1. Product Feature 2-1

2. Specifications 2-2

3. Notes on Discs 2-3

4. Accessories 2-4

Ch3 Product Functions

1. SPK Connection & Setup 3-1

2. Main Functions 3-2

3. New Functions 3-3

Ch4 Adjustments

Protection Mode Explanation 4-1

Ch5 How to disassemble

How to disassemble 5-1

Ch6 Troubleshooting

1.No Power 6-1

2.No Output 6-2

3. DVD MPEG 6-4

4.DVD SERVO 6-6

Ch7 Exploded View & Parts List

1.Total Exploded View 7-1

2.Parts List 7-5

Ch8 Electrical Parts List

Electrical Parts List 8-1

Ch9 Block Diagram

MAIN 9-1
DVD 9-2

Ch10 Wiring Diagram

Wiring Diagram 10-1

Ch11 PCB Diagram

1.MAIN 11-1

2. AMP 11-2

Ch12 Schematic Diagram

1.MAIN 12-1

2. AMP 12-5

3.FRONT 12-6

4. SMPS 12-7

5. SWA2000(AMP, SMPS) 12-8

6. DVD(MPEG,RF) 12-10

Ch13 Circuit Description

Circuit Board Description 13-1

Ch14 HTS Reference

1. HTS (Home Theater Sytsem) 14-1

2. About “Sound” 14-2

3. 5.1 Channel Sound 14-3

4. HTS Sound Format 14-4

5. HTS Devices 14-5
