Page 1

COMPACT

DIGITAL AUDIO

SAMSUNG ELECTRONICS AMERICA, INC.

SERVICE DIVISION

400 Valley Road, Suite 201

Mount Arlington, NJ 07856

1-800-SAMSUNG (1-800-726-7864)

www.samsung.com

Home Theater System with 5 Disc DVD Changer

HT-Q40

Instruction Manual

Page 2

Safety Warnings Precautions

ENG

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Note to CATV system installer :

This reminder is provided to call the CATV system installer’s attention to Section 820~40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

PREPARATION

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on modules or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the Home Theater to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power

During thunderstorms, disconnect AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

This symbol indicates that dangerous voltage which can cause electric shock is present inside

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and malfunction of the unit.

this unit.

This symbol alerts you to important operating and maintenance instructions accompanying the unit.

Phones

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

Protect the player from moisture(i.e. vases) , and excess heat (e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use.

Use of this product is for personal use only. Condensation may occur if your player or disc has been stored in cold

temperatures. If transporting the player during the winter, wait approximately 2 hours

until the unit has reached room temperature before using.

The batteries used with this product contain chemicals

that are harmful to the environment.

Do not dispose of batteries in the general household

trash.

Page 3

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION. 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

Safety Instructions

ENG

READ INSTRUCTIONS

All the safety and operating instructions should be read before the appliance is operated.

RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

HEED WARNINGS

All warnings on the appliance and in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

WATER AND MOISTURE

Do not use this video product near waterfor example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

OVERLOADING

Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

VENTILATION

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video product and to protect it from overheating these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface. This video product should never be placed near or over a radiator or heat register. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been followed.

POWER CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

CLEANING

Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

LIGHTNING

For added protection of this video product receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-line surges.

OBJECT AND LIQUID ENTRY

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

ACCESSORIES

Do not place this video product on an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

CART

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

POWER SOURCES

This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of supply to your home, consult your appliance dealer or local power company. For video products intended to be operated from battery power, or other sources, refer to the operating instructions.

POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

POLARIZATION

This video product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other.) This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

OUTDOOR ANTENNA GROUNDING

If an outside antenna is connected to the

•

antenna terminal, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges.

In the U.S.A section 810 of the National

•

Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See the figure below.

ATTACHMENTS

Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

SERVICING

Do not attempt to service this product yourself

•

as opening or removing covers may expose you to dangerous voltage or other hazards.

Refer all servicing to qualified service personnel.

•

the

REPLACEMENT PARTS

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

SAFETY CHECK

Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

DAMAGE REQUIRING SERVICE

Unplug this video product from the wall outlet refer servicing to qualified service personnel the following conditions. a.

When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have

fallen into the video product.

c. If the video product has been exposed to rain

or water

If the video product does not operate normally

by following the operating instructions.

Adjust only those controls that are covered

by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

e. If the video product has been dropped

or the cabinet has been damaged.

f. When the video product exhibits a distinct

change in performance - this indicates a need for service.

HEAT

This video unit should be situated away from heat sources such as radiators, stoves, or other products (including modules) that produce heat.

and

under

PREPARATION

Page 4

Features

Multi-Disc Playback & FM Tuner

The HT-Q40 combines the convenience of multi-disc playback capability, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD-R/RW, with a sophisticated FM tuner, all in a single player.

USB Host Play

You can enjoy media files such as pictures, movies and tunes saved in an MP3 player, digital camera or USB memory by connecting the storage device to the USB port of the home theater.

Dolby Pro Logic II

Dolby Pro Logic II is a new form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro Logic.

DTS (Digital Theater Systems)

DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel sound.

TV Screen Saver Function

The HT-Q40 automatically brightens and darkens your TV screen after 3 minutes in the stop mode. The HT-Q40 automatically switches itself into the power saving mode after 20 minutes in the screen saver mode.

Power Saving Function

The HT-Q40 automatically shuts itself off after 20 minutes in stop mode.

Customized TV Screen Display

The HT-Q40 allows you to select your favorite image during JPEG and DVD playback and set it as your background wallpaper.

AV SYNC Function

Video may lag behind the audio if the unit is connected to a digital TV. To compensate for this, you can adjust the audio delay time to sync up with the video.

PREPARATION

Safety Warnings .................................................................1

Precautions.........................................................................2

Safety Instructions..............................................................3

Features .............................................................................5

Notes on Discs ...................................................................7

Description..........................................................................9

CONNECTIONS

Connecting the Speakers ...................................................13

Connecting the Video Out to TV ........................................15

P.SCAN(Progressive Scan) Function .................................16

Connecting External Components......................................17

Connecting the FM Antenna...............................................18

OPERATION

Before Using Your Home Theater ......................................19

Disc Playback.....................................................................21

Selecting a Disc in the Disc changer .................................22

MP3/WMA-CD Playback ....................................................23

Displaying Disc Information................................................24

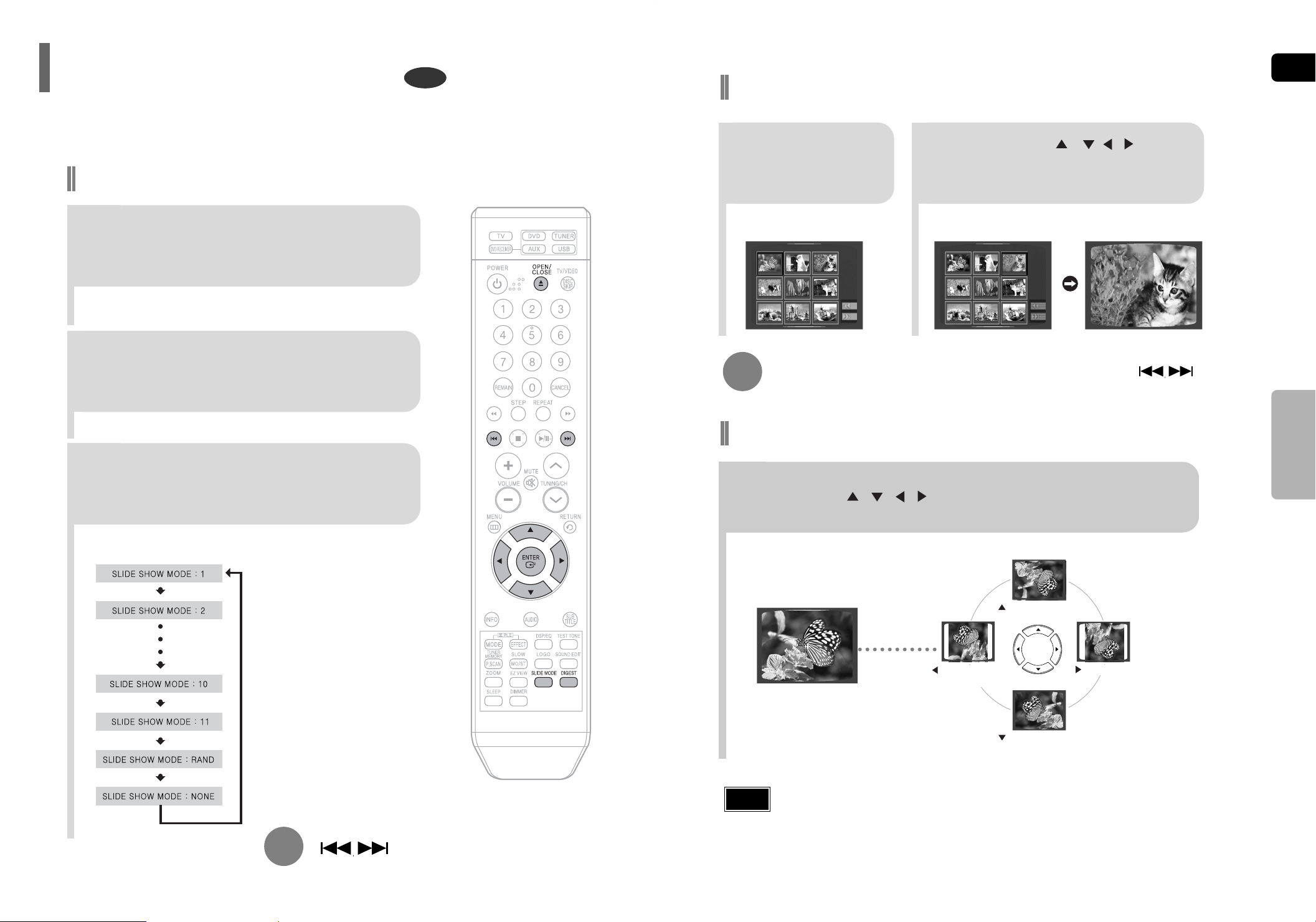

JPEG File Playback............................................................25

DivX Playback ....................................................................27

Checking the Remaining Time ...........................................29

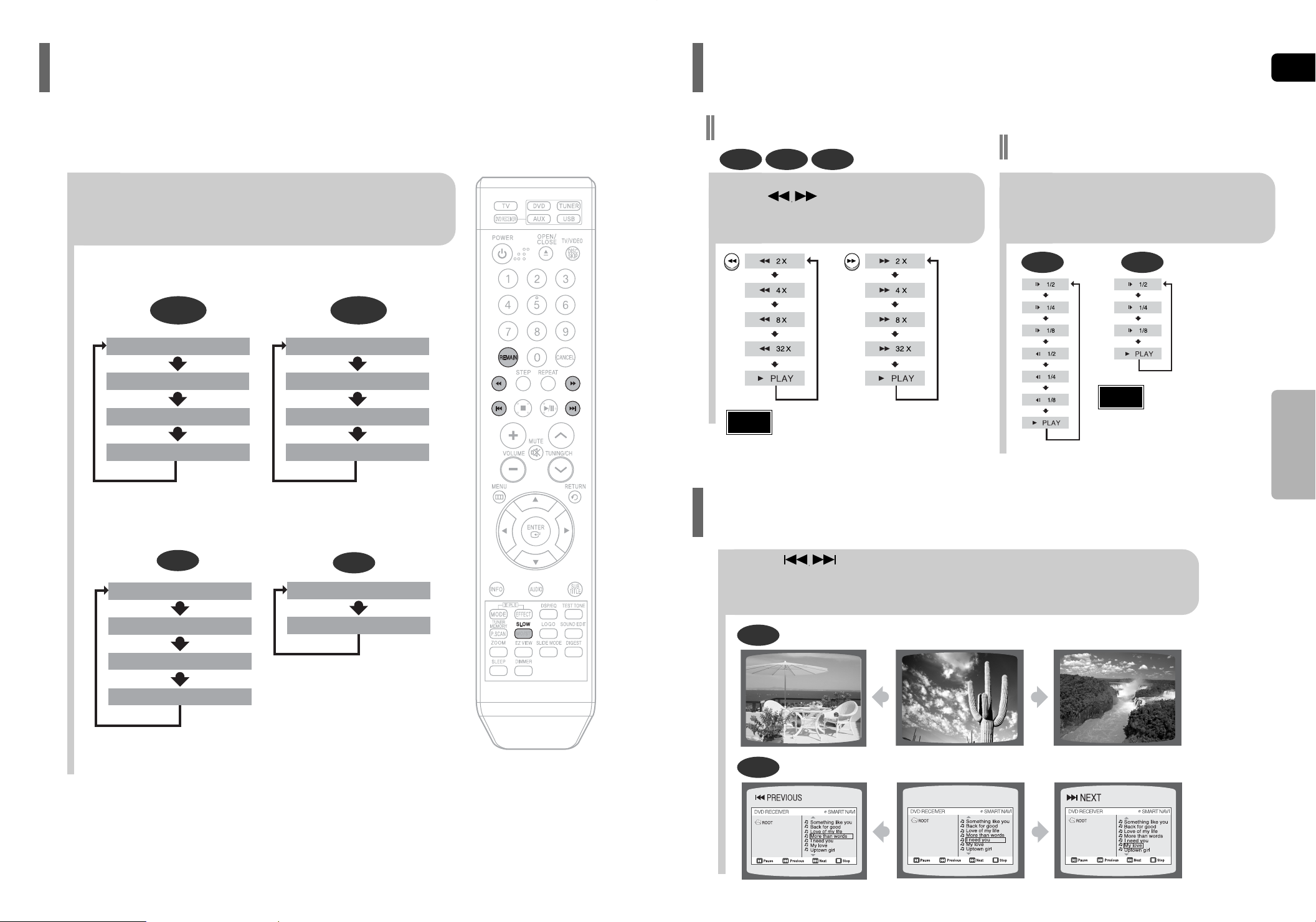

Fast/Slow Playback ............................................................30

Skipping Scenes/Songs......................................................30

Repeat Playback ................................................................31

A-B Repeat Playback .........................................................32

Step Function .....................................................................33

Angle Function....................................................................33

Zoom (Screen Enlarge) Function .......................................34

EZ VIEW Function..............................................................34

Bonus Group / Navigating Pages.......................................35

Selecting Audio/Subtitle Language.....................................36

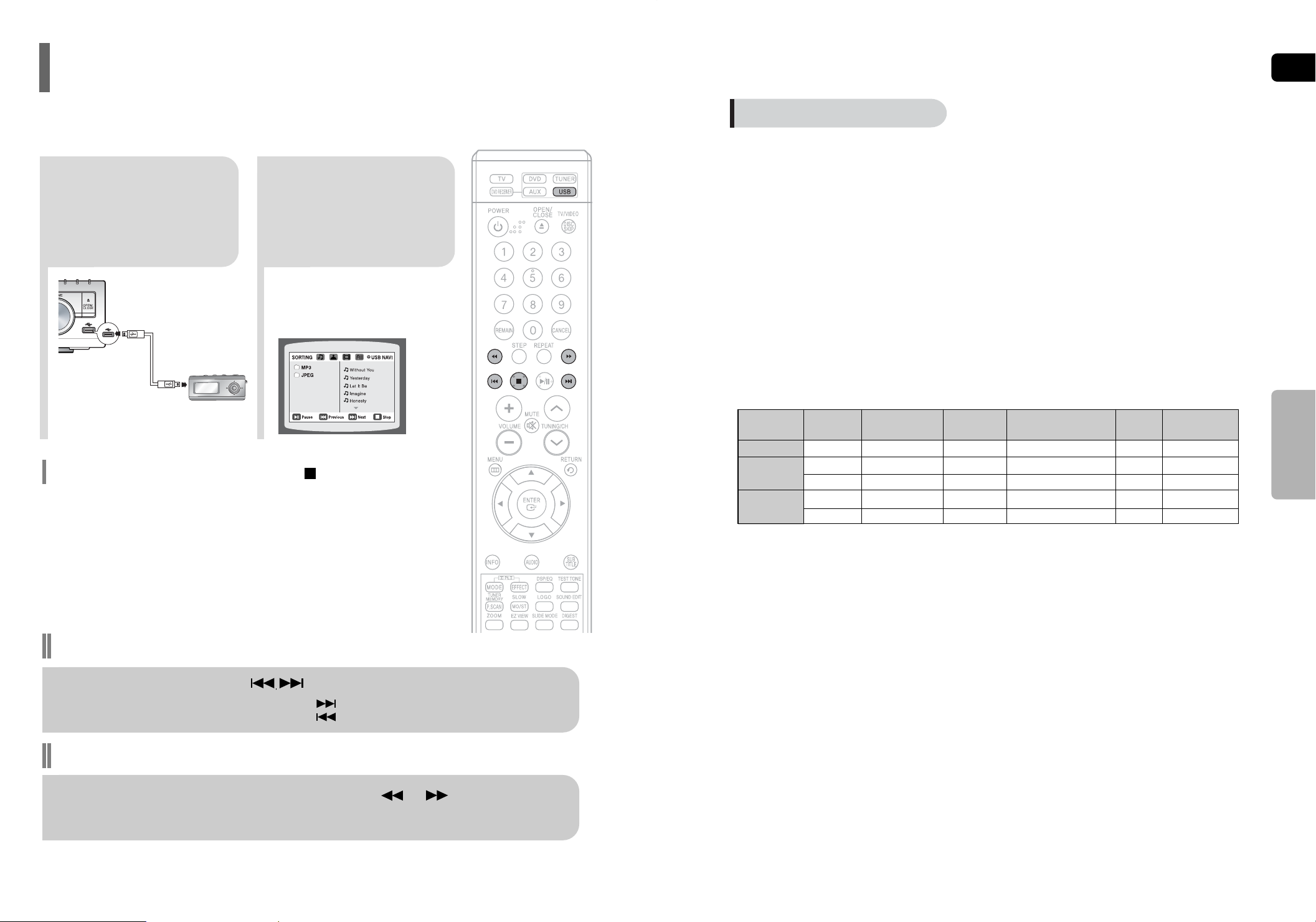

Playing Media Files using the USB HOST feature.............37

Moving Directly to a Scene/Song .......................................39

Using Disc Menu ................................................................40

Using the Title Menu...........................................................40

ENG

PREPARATION

SETUP

Setting the Language .........................................................41

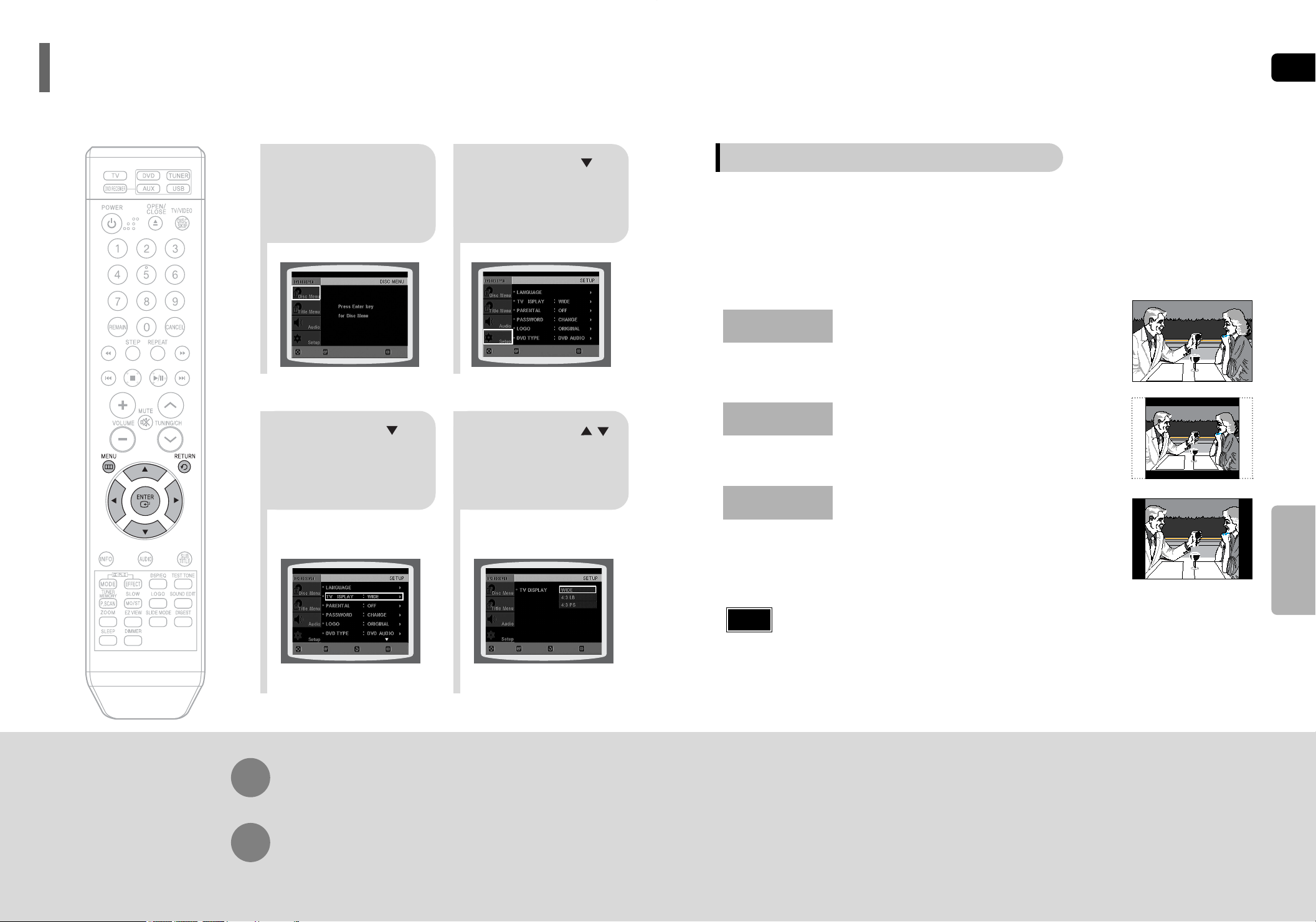

Setting TV Screen type ......................................................43

Setting Parental Controls (Rating Level)............................45

Setting the Password .........................................................46

Setting the Wallpaper .........................................................47

DVD Playback Mode ..........................................................49

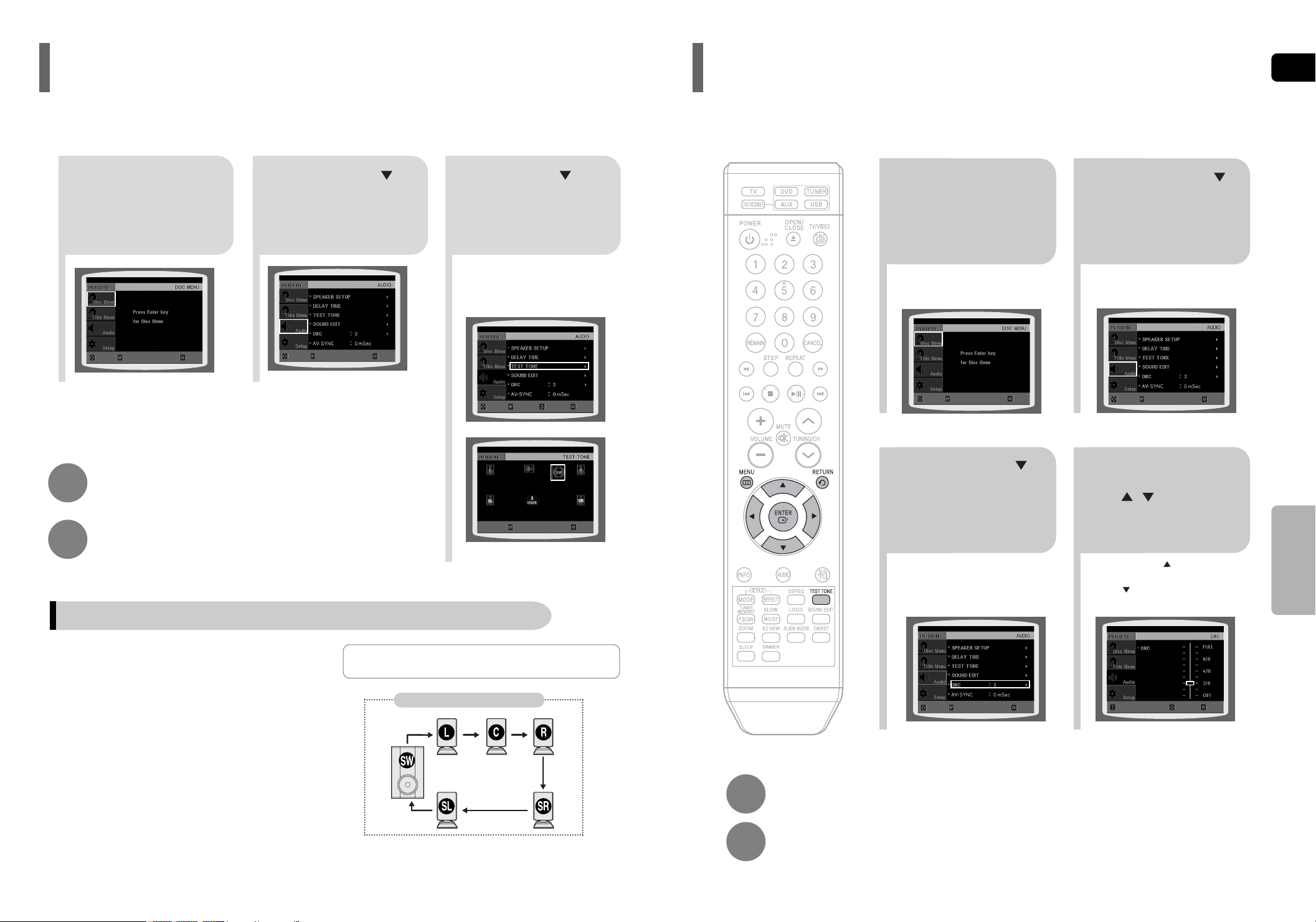

Setting the Speaker Mode..................................................50

Setting the Delay Time.......................................................51

Setting the Test Tone..........................................................53

Setting the DRC (Dynamic Range Compression)..............54

Setting the Audio ...............................................................55

AV SYNC Setup .................................................................57

Sound Field (DSP)/EQ Function ........................................58

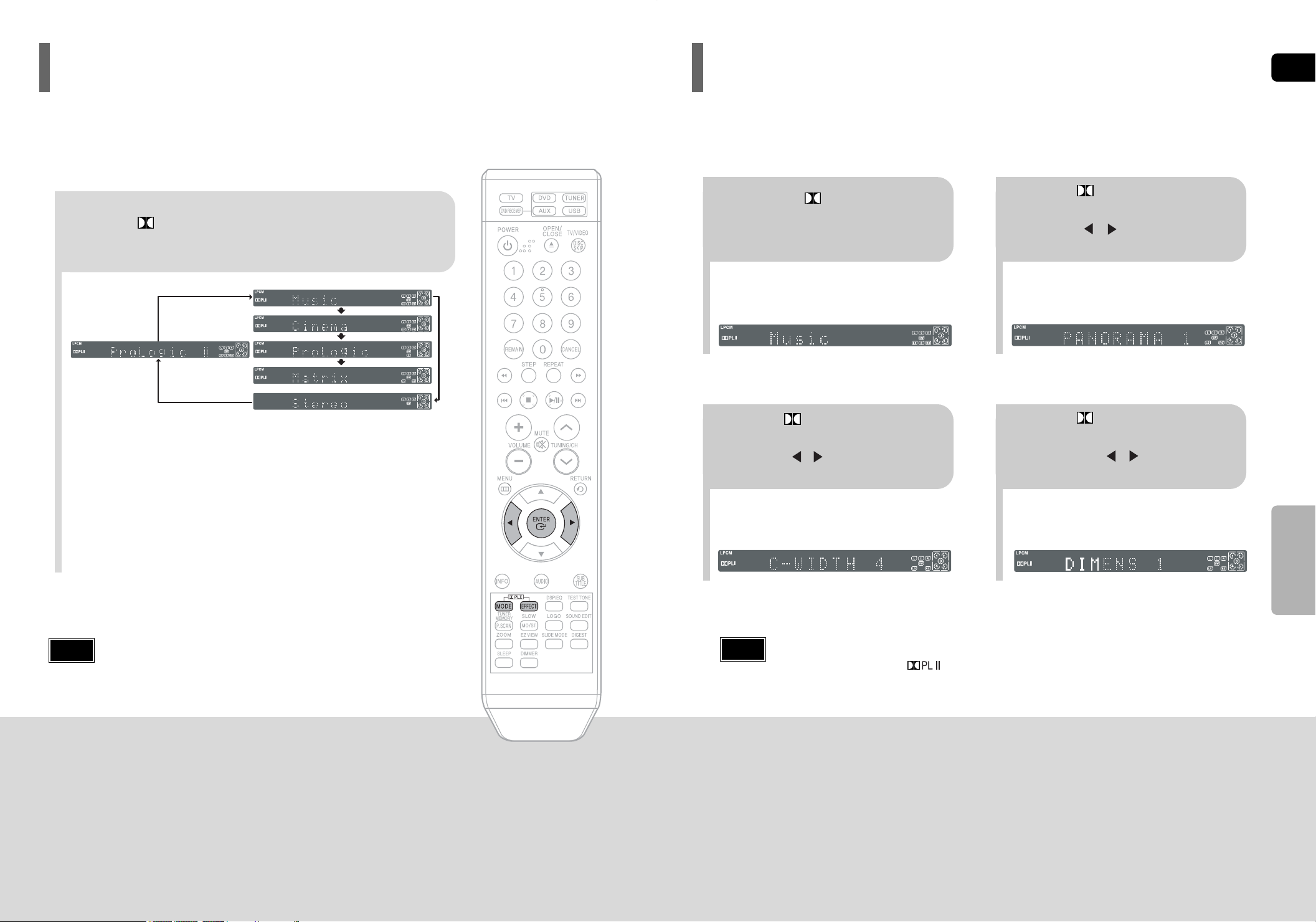

Dolby Pro Logic II Mode.....................................................59

Dolby Pro Logic II Effect.....................................................60

RADIO OPERATION

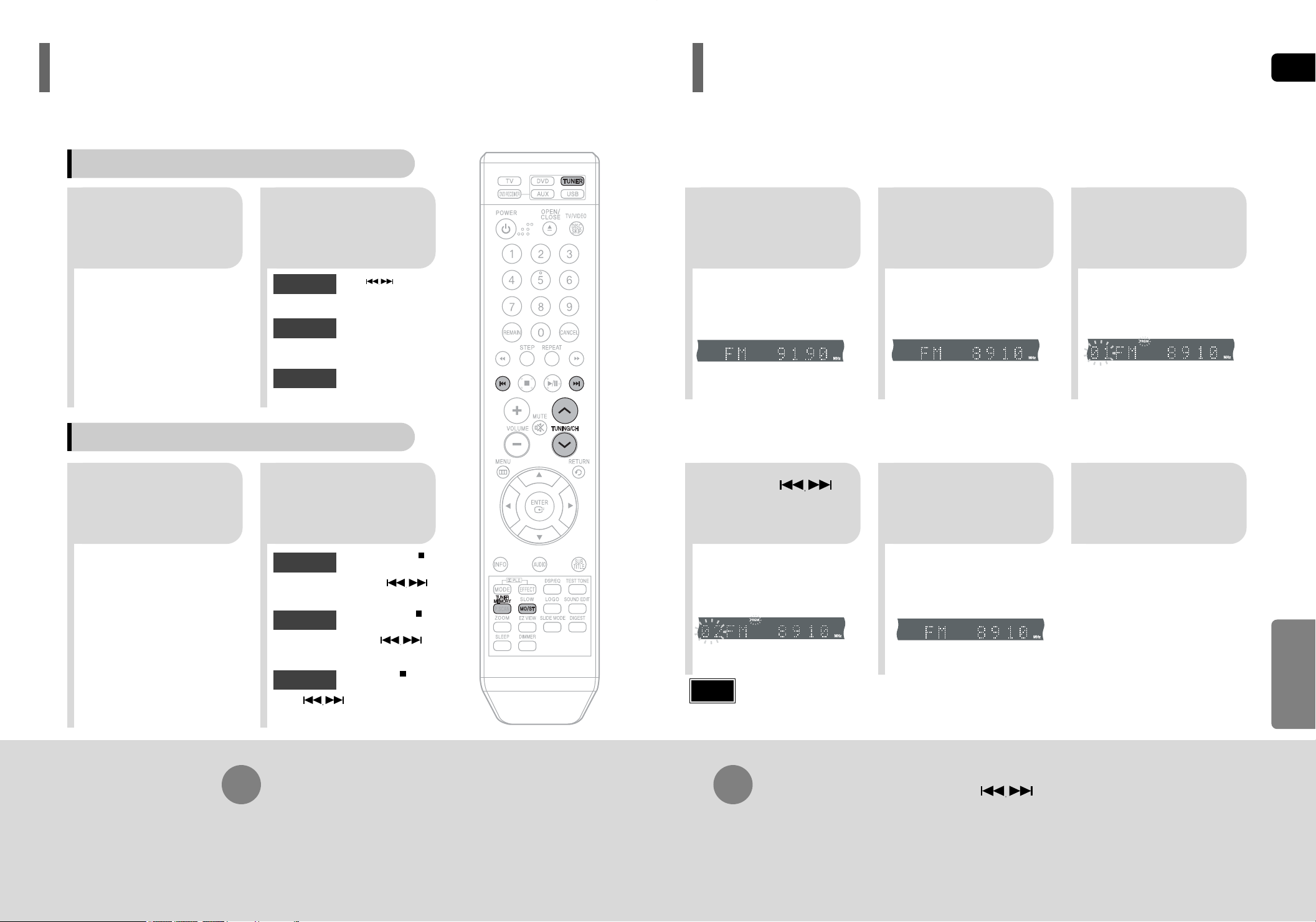

Listening to Radio...............................................................61

Presetting Stations .............................................................62

MISCELLANEOUS

Convenient Functions.........................................................63

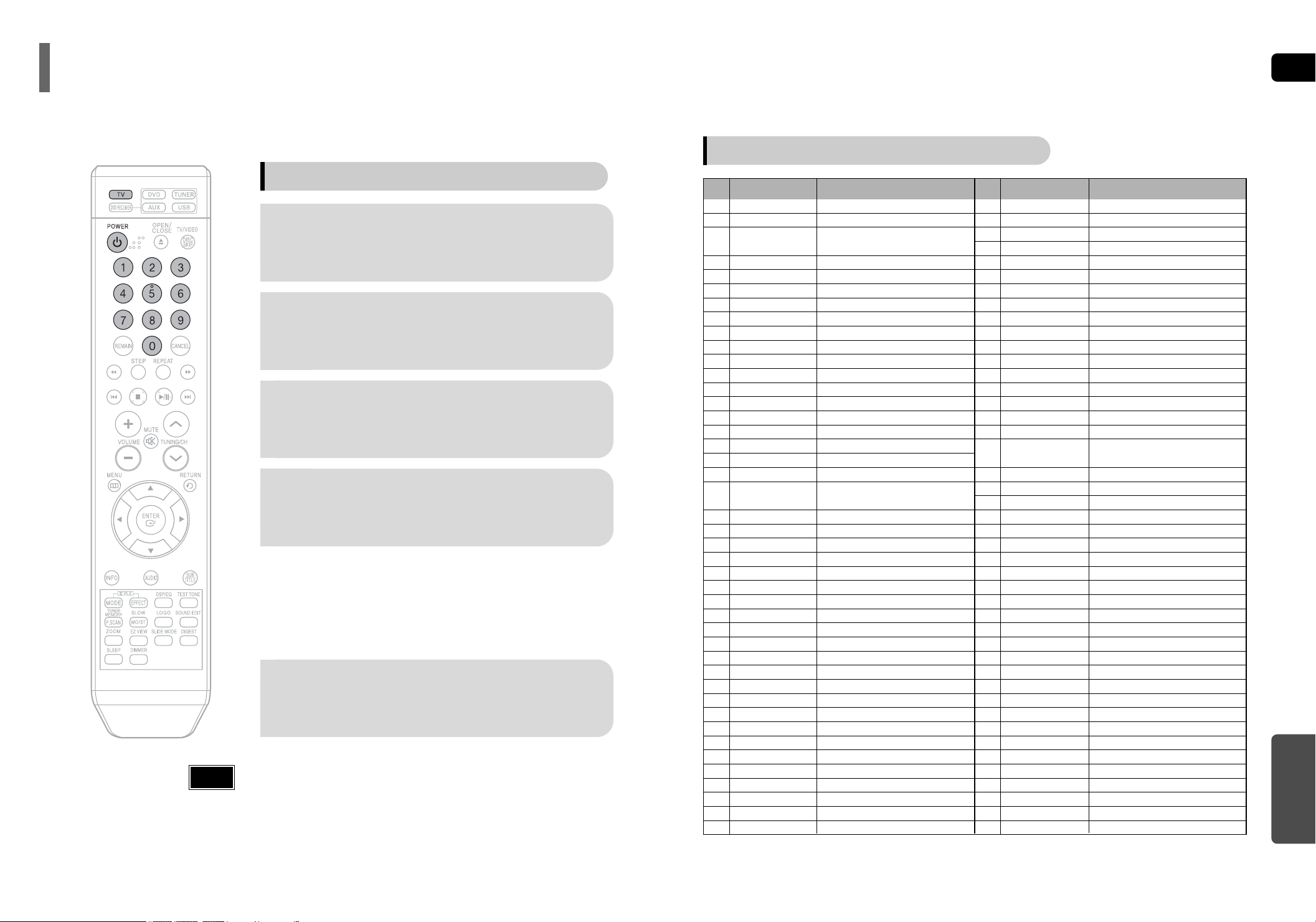

Operating a TV with the Remote Control ...........................65

Before Calling for Service...................................................67

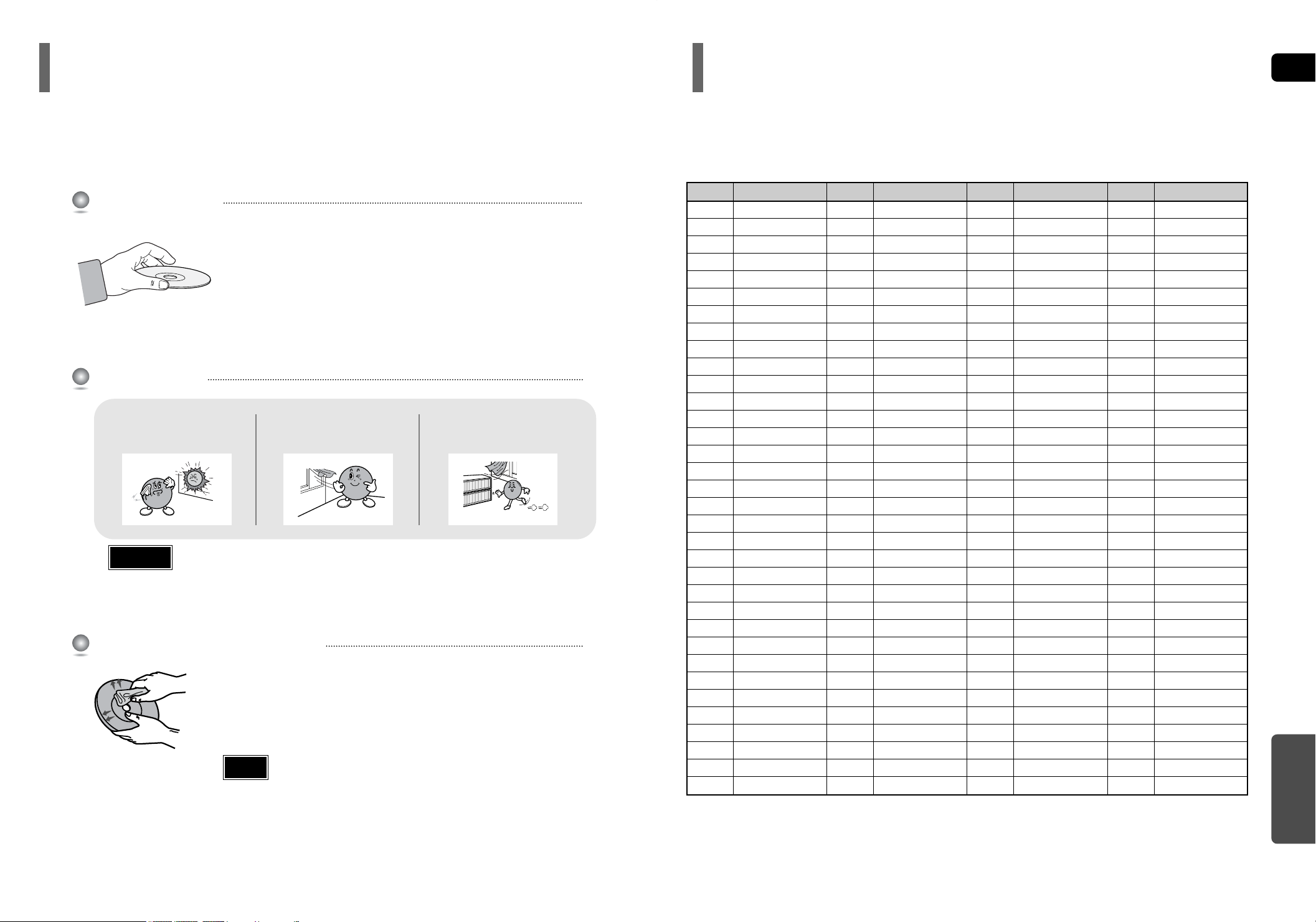

Cautions on Handling and Storing Discs............................69

Language Code List ...........................................................70

USB Host Feature Supported Products .............................71

Specifications .....................................................................72

Page 5

V I D E O

1 6

Notes on Discs

ENG

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital

surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.

DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player.

(Your DVD player will only play DVDs that are labeled with identical region codes.)

Playable Discs

Disc Type Disc Size Max. Playing Time

DVD

AUDIO-CD

DivX

Mark (Logo)

V I D E O

COMPACT

DIGITAL AUDIO

Recorded Signals

Audio + Video

Audio

MPEG4

MP3

3 1/2"

Approx. 240 min. (single-sided)

Approx. 480 min. (double-sided)

Approx. 80 min. (single-sided)

Approx. 160 min. (double-sided)

74 min.

20 min.

74 min.

20 min.

Disc Recording Format

This product does not support Secure (DRM) Media files.

CD-R Discs

Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the

•

condition of the disc. Use a 650MB/74 minute CD-R disc.

•

Do not use CD-R discs over 700MB/80 minute as they may not be played back. Some CD-RW (Rewritable) media, may not be playable.

•

Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you

•

may not be able to fully play the disc.

CD-R MP3 Discs

Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.

•

MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

•

Use discs recorded with a compression/decompression data rate greater than 128Kbps.

•

Only files with the ".mp3" and ".MP3" extensions can be played.

•

Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc,

•

the disc can be played only up to the blank segment. If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.

•

For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate

•

(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback. A maximum of 500 tracks can be played per CD.

•

A maximum of 300 folders can be played per CD.

•

PREPARATION

Do not use the following types of disc!

LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.

•

If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.

DVD discs purchased abroad may not play on this player.

•

If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.

Copy Protection

Many DVD discs are encoded with copy protection. Because of this, you should only connect

•

your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

This product incorporates copyright protection technology that is protected by methods claims of certain

•

U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

CD-R JPEG Discs

Only files with the ".jpeg" and ".JPEG" extensions can be played.

•

If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

•

Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

•

JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

•

Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the

•

disc can be played only up to the blank segment. A maximum of 9,999 images can be stored on a single CD.

•

When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.

•

Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

•

CD-R/RW DivX Discs

Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user

•

might not be played. Software update for unsupported formats is not supported.

•

(Example: QPEL, GMC, resolution higher than 720 x 480 pixels, etc.) Sections with high frame rate might not be played while playing a DivX file.

•

For more information about the formats authorized by DivX Networks, Inc., visit "www.divxnetworks.net".

•

Page 6

Description

ENG

—Front Panel—

Standby indicator

Power ( ) button

Disc Tray

Function button

Tuning Up & Skip ( ) buttons

Tuning Down & Skip ( ) buttons

Volume control

Headphone Jack

Play/Pause ( ) button

Stop ( ) button

Direct Play buttons

Open/ Close button

USB port

—Rear Panel—

External Audio Input Connectors

Cooling Fan

5.1 Channel Speaker Output Terminals

PREPARATION

Video Output Connector

Connect the TV's video input jacks (VIDEO IN) to the VIDEO OUT connector.

External Digital Optical Input Connector

Use this to connect external equipment capable of digital output.

FM Antenna Connector

COMPONENT VIDEO OUTPUT Connectors

Connect a TV with component video inputs to these jacks.

DOLBY DIGITAL indicator

LINEAR PCM indicator

P.SCAN indicator

DTS indicator

MPEG indicator

DVD AUDIO indicator

DOLBY PLll indicator

GROUP indicator

TITLE

indicator

DSP indicator

CHAPTER indicator

TRACK indicator

PROGRAM indicator

System Status Display

REPEAT indicator

FREQUENCY

STEREO indicator

TUNED indicator

RADIO

SPEAKER indicator

indicator

DISC(1~5)

indicator

Accessories

Remote Control

(AH59-01643E)

Video Cable

(AH39-40001V)

FM Antenna

(AH42-00017A)

User's Manual

(AH68-018844C)

Page 7

Description

—Remote Control—

ENG

PREPARATION

Insert Remote Batteries

TV button

DVD Receiver button

POWER button

Number(0~9) buttons

REMAIN button

STEP button

SEARCH buttons

VOLUME button

MENU button

DVD button AUX button

OPEN/CLOSE button TV/VIDEO, DISC SKIP

CANCEL button REPEAT button

Play/Pause button

Tuning Preset/CD Skip button

TUNING/CH button

MUTE button RETURN button

Cursor/Enter button

TUNER

USB button

Stop button

Remove the battery

cover on the back of the remote by pressing down and sliding the cover in the direction of the arrow.

Caution

Follow these precautions to avoid leaking or cracking cells:

Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).

•

Use the correct type of batteries.Batteries that look similar may differ in voltage.

•

Always replace both batteries at the same time.

•

Do not expose batteries to heat or flame.

•

Insert two 1.5V AAA

batteries, paying attention to the correct polarities (+ and –).

Replace the battery

cover.

INFO button

PL II EFFECT button

PL II MODE button

TUNER MEMORY, P.SCAN button

ZOOM button

SLEEP button

SLOW, MO/ST button

DIMMER button

AUDIO button SUB TITLE button DSP/EQ button TEST TONE button

SOUND EDIT button DIGEST button

LOGO button SLIDE MODE button

EZ VIEW button

Range of Operation of the Remote Control

The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

Page 8

SRSL

Connecting the Speakers

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Rear Speaker (R)

ENG

Center Speaker

Rear Speaker (L)

CONNECTIONS

Position of the Home Theater

Place it on a stand, cabinet shelf, or under the

•

TV stand.

Front Speakers

Place these speakers in front of your listening

•

position, facing inwards (about 45°) toward you. Place the speakers so that their tweeters will be at

•

the same height as your ear. Align the front face of the front speakers with the

•

front face of the center speaker or place them slightly in front of the center speakers.

Center Speaker

It is best to install it at the same height as the front

•

speakers. You can also install it directly over or under the TV.

•

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example: For 32" TVs 2~2.4m (6~8 feet)

For 55" TVs 3.5~4m (11~13 feet)

Rear Speakers

Place these speakers behind your listening position.

•

If there isn't enough room, place these speakers so they face each

•

other. Place them about 60 to 90cm (2 to 3feet) above your ear, facing

•

slightly downward.

Unlike the front and center speakers, the rear speakers are used

to handle mainly sound effects and sound will not come from them all the time.

Subwoofer

The position of the subwoofer is not so critical.

•

Place it anywhere you like.

Front Speaker (R)

Press and hold the terminal tab.

Insert the speaker cord.

Release your finger.

Caution

Do not let children play with or near the speakers.

•

They could get hurt if a speaker falls. When connecting the speaker wires to the speakers,

•

make sure that the polarity (+/–) is correct.

Front Speaker (L)

Subwoofer

12 3

Note

If you place a speaker near your TV set,

•

screen color may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set.

Red

Black

Page 9

Connecting the Video Out to TV

P.SCAN(Progressive Scan) Function

ENG

Choose one of the two methods for connecting to a TV.

Unlike regular Interlace Scan, in which two fields of picture information alternate to create the entire picture (odd scan lines, then even scan lines), Progressive Scan uses one field of information (all lines displayed in one pass) to create a clear and detailed picture without visible scan lines.

Press STOP button.

If playing a disc, press the STOP button twice so that “STOP”, appears on the display.

•

Press and hold P.SCAN button on the remote control for over 5 seconds.

Pressing and holding the button for over 5 seconds will select "Progressive Scan" and "Interlace Scan"

•

alternately.

When you select P.SCAN, "P.SCAN" will appear on the display.

•

To set P.Scan mode for DivX discs, press the P.SCAN button on the remote control for more than

•

5 seconds with no disc in the unit (“'NO DISC" on the display), then load the DivX disc and play.

What is Progressive (or Non-Interlaced) Scanning?

Interlaced Scan (1 FRAME = 2 FIELDS)

Progressive Scan (FULL FRAME)

CONNECTIONS

METHOD 1 Composite Video

Connect the supplied video cable from the VIDEO OUT jack on the back panel of the system to the VIDEO IN jack on your television.

METHOD 2 Component (Progressive Scan) Video

If your television is equipped with Component Video inputs, connect a component video cable (not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the corresponding jacks on your television.

When the Progressive scan mode is selected, the VIDEO output (Yellow) does not

Note

•

output any signal.

...............

Good Quality

...............

Best Quality

In interlaced-scan video, a frame consists of two interlaced fields (odd and even), where each field contains every other horizontal line in the frame. The odd field of alternating lines is displayed first, and then the even field is displayed to fill in the alternating gaps left by the odd field to form a single frame. One frame, displayed every 1/30th of a second, contains two interfaced fields, thus a total of 60 fields are displayed every 1/60th of a second. The interlaced scanning method is intended for capturing a still object.

Note

This function works only on TVs equipped with component video inputs (Y, Pr, Pb) that support

•

Progressive Video. (It does not work on TVs with conventional component inputs, i.e., non-progressive scan TVs.) Depending on the capabilities of your TV, this function may not work.

•

The progressive scanning method scans one full frame of video consecutively down the screen, line by line. An entire image is drawn at one time, as opposed to the interlaced scanning process by which a video image is drawn in a series of passes. The progressive scanning method is desirable for dealing with moving objects.

Page 10

Connecting External Components

Connecting an External Digital / Analog Component

Example: Digital signal components such as a Set-Top Box or CD Recorder.

Analog signal components such as a VCR.

Connecting the FM Antenna

ENG

Audio Cable

(not supplied)

If the external analog

component has only one

Audio Out, connect either left

or right.

Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component.

Connect AUX (Audio) In on the Home Theater to Audio Out on the external analog

component.

Be sure to match connector colors.

•

Optical Cable

(not included)

FM Antenna (supplied)

Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal.

Slowly move the antenna wire around until you find a location where reception is good, then fas-

ten it to a wall or other rigid surface.

Cooling Fan

The cooling fan supplies cool air to the unit to prevent overheating.

CONNECTIONS

Press AUX on the remote control to select ‘DIGITAL IN / AUX1/AUX2’ input.

Each time the button is pressed, the selection changes as follows: AUX1 ➝ AUX2 ➝ DIGITAL IN

•

You can also use the FUNCTION button on the main unit.

•

The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX1➝ AUX2 ➝ USB ➝ FM

You can connect the Video Output jack on your VCR to the TV, and connect the Audio

Note

•

Output jacks on the VCR to this product.

Note

Please observe the following cautions for your safety.

•

Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could rise and may damage it.

•

Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)

This unit does not receive AM broadcasts.

•

Page 11

Before Using Your Home Theater

GROUP 1 GROUP 2

TRACK 1 TRACK 2 TRACK 1 TRACK 2TRACK 3

TITLE 1 TITLE 2

CHAPTER 1 CHAPTER 2 CHAPTER 1 CHAPTER 2CHAPTER 3

TRACK 1 TRACK 2 TRACK 4 TRACK 5TRACK 3

FILE 1 FILE 2

Your Home Theater is capable of playing DVD, CD, MP3/WMA and JPEG discs.Depending on the disc you are using, these instructions may vary slightly. Read the instructions carefully before using.

To Operate your Samsung TV and the Home Theater with the HT-Q40's Remote Control

Disc terminology

Groups and tracks (DVD-AUDIO)

DVD-audio is divided into several large sections called "groups" and

•

smaller sections called "tracks". Numbers are allotted to these sections. These numbers are called "group numbers" and "track numbers".

ENG

Plug the main unit's power cord into the

AC power supply.

Press TV/VIDEO

button to select

VIDEO mode on your TV.

VIDEO

Press TV button to

set the remote to TV

mode.

Press DVD RECEIVER

button to switch to

DVD RECEIVER mode.

Press the POWER

button to turn on your Samsung TV with this remote.

Press FUNCTION button

on the main unit or DVD button on the remote to enable DVD/CD playback.

Titles and chapters (DVD-VIDEO)

DVD-video is divided into several large sections called "titles" and smaller

•

sections called "chapters". Numbers are allotted to these sections. These numbers are called "title numbers" and "chapter numbers".

Tracks (Video and music CDs)

Video and music CDs are divided into sections called "tracks".

•

Numbers are allotted to these sections. These numbers are called "track numbers".

OPERATION

Buttons Enabled for TV Operation: POWER, CHANNEL, VOLUME, TV/VIDEO, and Numeric (0-9) buttons.

Note

•

By default, the remote control is set to work with Samsung TVs.

•

See page 65 for more information about remote control operation with other manufacturer's TVs.

Note

Files (DivX)

DivX is divided into sections called "files".

•

Numbers are allotted to these sections. These numbers are called "file numbers".

In this manual, the instructions marked with "DVD ( )" are applicable

•

to DVD-VIDEO, DVD-AUDIO, and DVD-R/RW discs. Where a particular DVD type is mentioned, it is indicated separately.

Depending on the content of the disc, the initial screen may appear different.

•

DVD

Page 12

Disc Playback

Selecting a Disc in the Disc changer

The DVD/CD function is automatically selected when Disc Skip is pushed.

ENG

Press OPEN/CLOSE button to open the

disc tray.

Load a disc.

Place a disc gently into the tray with the disc’s label

•

2 3

facing up.

Press DISC SKIP button.

Rotate the carousel tray so you can load the third, fourth,

•

and fifth discs.

Close the compartment by pressing the

OPEN/CLOSE button again.

To select a specific disc, press the corresponding DIRECT PLAY (1, 2, 3, 4, 5) buttons on the front panel or DISC SKIP on the

remote control, until the required disc indicator flashes.

If the disc selected is not loaded, the next disc is played automatically.

•

To stop playback, press STOP during playback.

• If pressed once, “PRESS PLAY” is displayed and the stop position will be stored in memory.

If PLAY/PAUSE ( ) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.)

• If pressed twice, “STOP” is displayed, and if PLAY/PAUSE ( ) button is pressed, playback starts from the

beginning.

OPERATION

Note

DVD CD

Playback starts automatically.

•

Depending on the content of the disc, the initial screen may appear different.

•

To temporarily pause playback, press PLAY/PAUSE during playback.

To resume playback, press PLAY/PAUSE ( ) button again.

•

Page 13

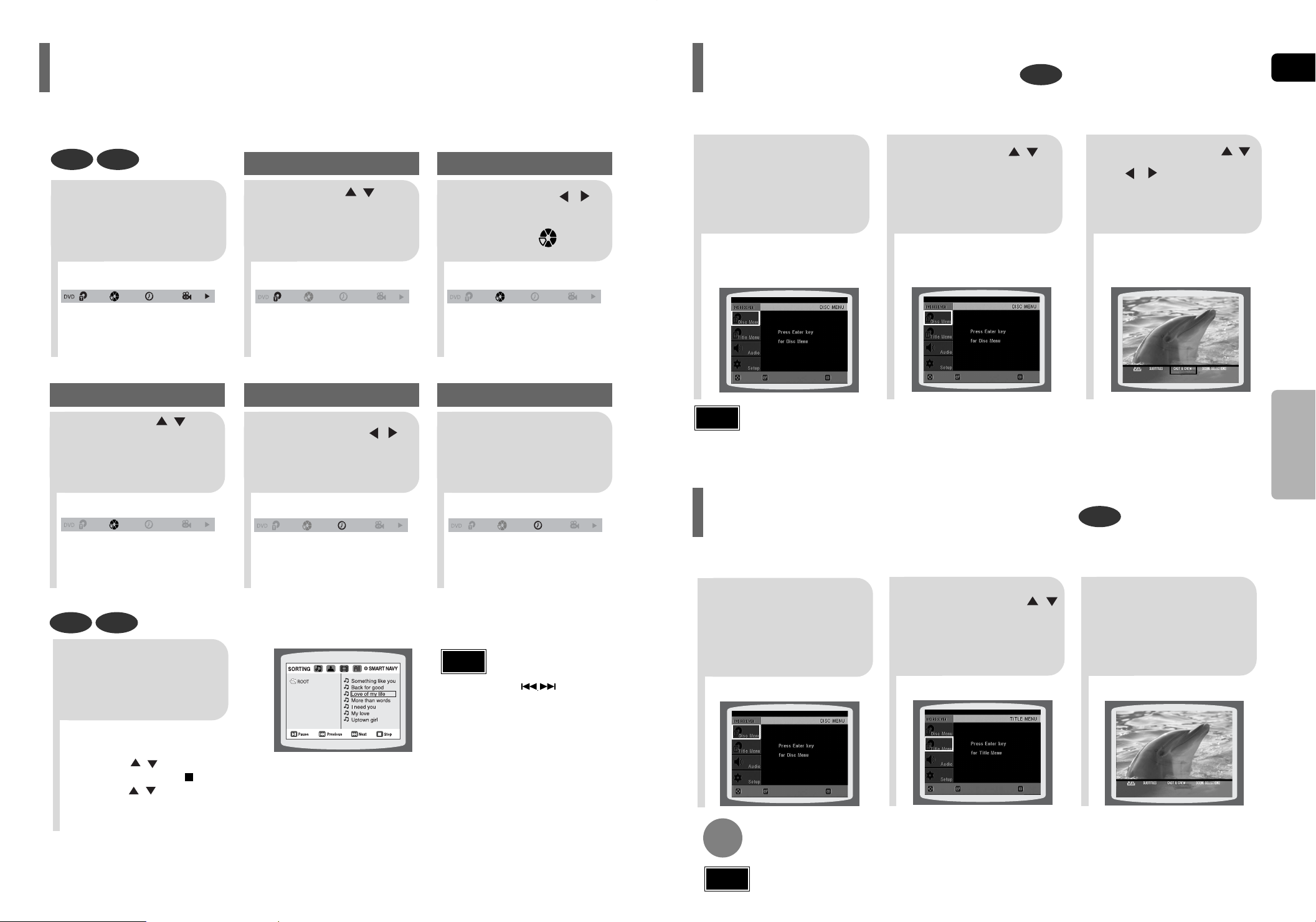

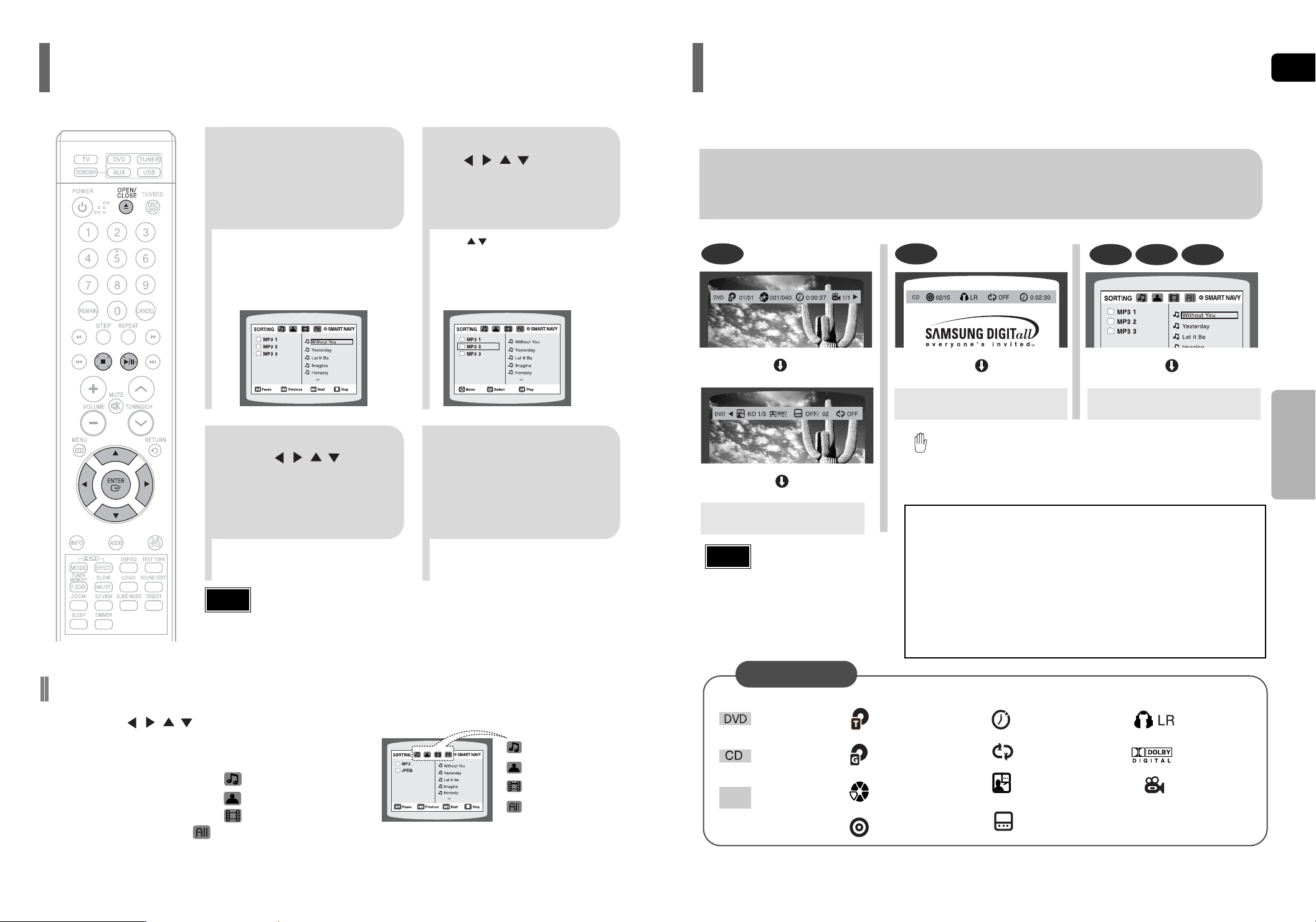

MP3/WMA-CD Playback

Displaying Disc Information

ENG

Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3/WMA format can be played.

Press the

OPEN/CLOSE button

to open the disc tray,

and then load the MP3/WMA disc.

The MP3/WMA menu screen will appear

•

and playback will start. The appearance of the menu depends

•

on the MP3/WMA disc. WMA-DRM files cannot be played.

•

To change the album, use to select another album in Stop mode, and

then press the

ENTER button.

To select another album and track,

•

repeat Steps 2 and 3 above.

Depending on the recording mode, some MP3/WMA-CDs may not play.

Note

•

Table of contents of a MP3-CD varies depending on the MP3/WMA track

•

format recorded on the disc.

To play a file icon in the screen,

In Stop mode, use

to select

the album, and then

press the ENTER

button.

Use to select the track.

•

Press the STOP

button to stop

playback.

You can view disc playback information on the TV screen.

Press INFO button.

Each time the button is pressed, the display changes as follows:

•

DVD

The information Display

disappears from the screen

Note

Depending on the disc, the disc

•

information display may appear different. Depending on the disc, you can also

•

select DTS, DOLBY DIGITAL, or PRO

Screen Display

The information Display

disappears from the screen

appears on the TV screen!

•

If this symbol appears on the TV screen while buttons are being operated, that operation is not possible with the disc currently being played.

What is a Group?

•

A section of tracks contained in a DVD-AUDIO disc.

What is a Title?

•

A movie contained in a DVD-VIDEO disc.

What is a Chapter?

•

Each title on a DVD disc is divided into several smaller sections called "chapters".

What is a Track (File)?

•

A section of video or a music file recorded on a DVD-AUDIO, CD, or MP3CD.

MP3 DivX JPEG

The information Display

disappears from the screen

OPERATION

Press the button when it is in stop status and select a desired icon from the top part of the menu.

To play music files only, select the Icon.

•

To view image files only, select the Icon.

•

To view movie files only, select the Icon.

•

To select all files select the Icon.

•

Music File Icon

•

Image File Icon

•

Movie File Icon

•

All File Icon

•

DVD display

CD display

DVD

DVD-AUDIO display

AUDIO

TITLE display

GROUP display

CHAPTER display

TRACK (FILE) display

ELAPSED TIME display

REPEAT PLAYBACK display

AUDIO LANGUAGE display

SUBTITLE display

STEREO (L/R) display

DOLBY DIGITAL display

ANGLE display

2423

Page 14

JPEG File Playback

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this Home Theater.

JPEG

ENG

Digest Function

You can view 9 JPEG images on the TV screen.

Slide Mode

1 2

Place the JPEG disc on the disc tray.

Press the OPEN/CLOSE button.

Press SLIDE MODE button.

Press DIGEST

button during

playback.

JPEG files will be shown in

•

9 windows.

To view the previous or next image with 9 windows, press .

Press Cursor , , , buttons to select the desired image and

then press ENTER button.

The selected image is played for 5 seconds before moving

•

to the next image.

Rotate/Flip Function

Press Cursor , , , buttons during playback.

OPERATION

Playback starts automatically.

•

Each time the button is pressed, the image makes the transition as follows:

•

From top to bottom

From bottom to top

Rectangular shape in the center

Vertical blinds effect

Each time a new image is displayed, slide modes (1~11) will be applied randomly and automatically.

Cancels the slide mode.

Press to skip to the next slide.

Each time the button is pressed, the slide moves backward or forward.

•

Note

button: Flip Vertically

button: Rotate 90°

Original Image

The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for

•

standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for progressive image files.

Counterclockwise

button: Flip Horizontally

Page 15

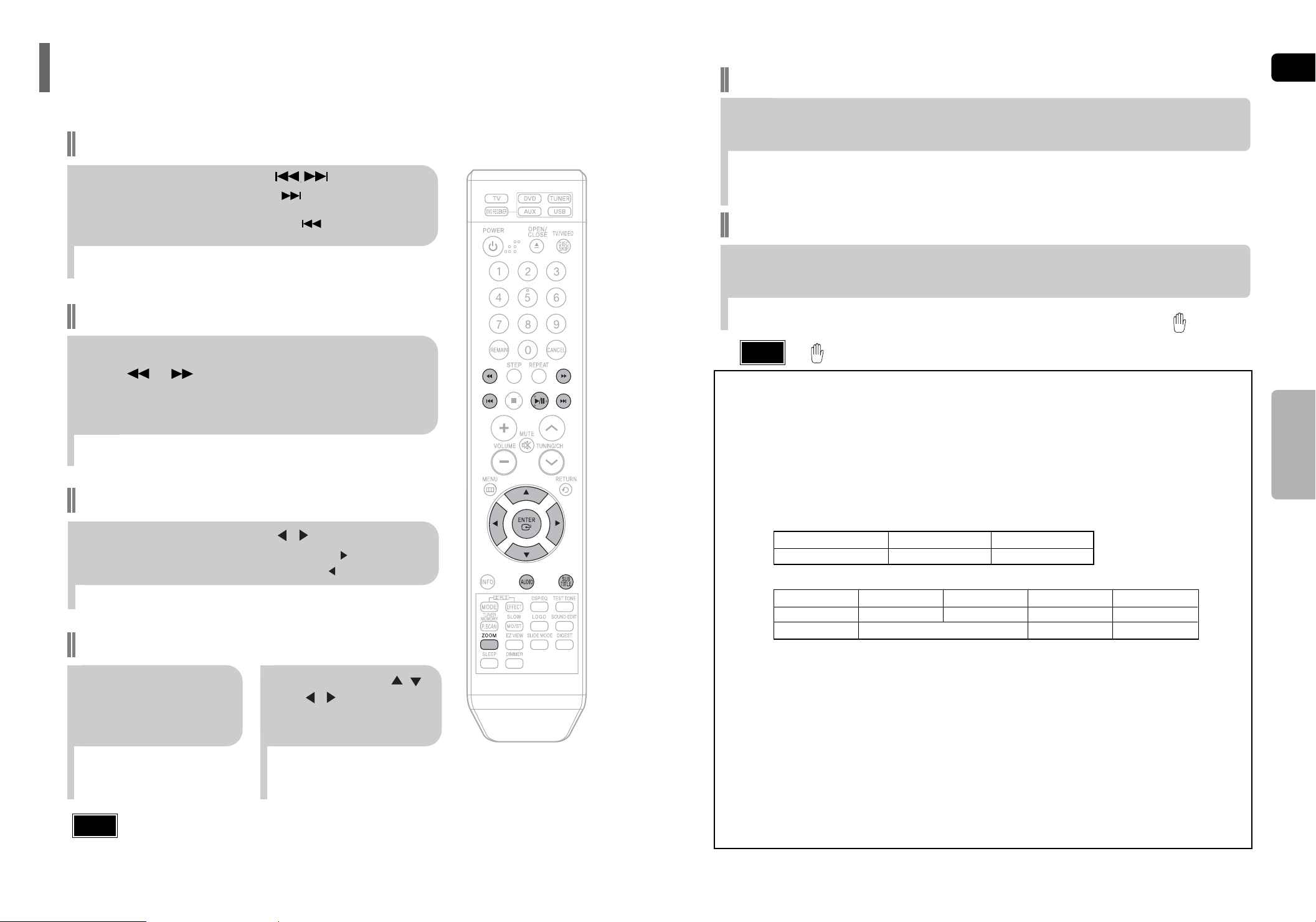

DivX Playback

The functions on this page apply to DIVX disc playback.

Skip Forward/Back

During playback, press the button.

Goes to the next file whenever you press button, if there are over

•

2 files in the disk. Goes to the previous file whenever you press button, if there are

•

over 2 files in the disk.

Fast playback

Subtitle Display

Press the SUBTITLE button.

Each time you press the button, your selection will toggle between “SUBTITLE (1/1, 1/2 ...)” and “SUBTITLE OFF”.

•

If the disc has only one subtitle file, it will be played automatically.

•

See number 2 (Caption Function) below for more details concerning Subtitle usage with DIVX discs.

•

Audio Display

Press the AUDIO button.

If there are multiple audio tracks on a disc, you can toggle between them.

•

Each time you press the button, your selection will toggle between “AUDIO(1/1, 1/2 ...)” and

•

“”.

ENG

To play back the disc at a faster speed, press or during playback.

Each time you press either button, the playback speed will change as

•

follows:

2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.

5 Minute Skip function

During playback, press the , button.

Playback skips 5 minutes forward whenever you press button.

•

Playback skips 5 minutes back whenever you press button.

•

Zoom Function

Press Cursor , ,

Press ZOOM

button.

Each time you press the button,

•

your selection will toggle between “ZOOM X2” and “ZOOM OFF”.

Note

DIVX file can be zoomed only in ZOOM X2 mode.

•

DivX files have .Avi file extensions, however, not all .Avi files are DivX

•

and may not be playable in this unit.

, buttons to move to the area you want to enlarge.

Note

" " is displayed when there is one supported language in the disc.

•

DivX(Digital internet video eXpress)

DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time. MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio.

1. Supported Formats

This product only supports the following media formats.If both video and audio formats are not

•

supported, the user may experience problems such as broken images or no sound.

●

Supported Video Formats

Format AVI WMV

Supported Versions DivX3.11 ~ 5.1 V1/V2/V3/V7

●

Supported Audio Formats

Format MP3 WMA AC3 DTS

Bit Rate 80~384kbps 56~128kbps 128~384kbps 1.5Mbps

Sampling Frequency

DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.

•

Aspect Ratio: Although default DivX resolution is 640*480 pixels (4:3), this product supports up to

•

720*480 pixels (16:9). TV screen resolutions higher than 800 will not be supported. When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may

•

experience shaking on the screen during playback.

2. Caption Function

You must have some experience with video extraction and editing in order to use this feature properly.

•

To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX

•

media file (*.avi) within the same folder. Example. Root Samsung_007CD1.avi

Samsung_007CD1.smi

Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and

•

Chinese) for the file name.

44.1khz 44.1/48khz 44.1khz

OPERATION

Page 16

Checking the Remaining Time

CHAPTER REMAIN

TITLE REMAIN

CHAPTER ELAPSED

TITLE ELAPSED

TRACK REMAIN

GROUP REMAIN

TRACK ELAPSED

GROUP ELAPSED

TRACK REMAIN

TOTAL ELAPSED

TOTAL REMAIN

TRACK ELAPSED

TRACK REMAIN

TITLE 01/05 CHAPTER 002/040

TITLE 01/05 CHAPTER 004/040

Fast/Slow Playback

Fast Playback

DVD CD MP3

Slow Playback

ENG

Press the REMAIN button.

For checking the total and remaining time of a title or chapter

•

being played.

Each time the REMAIN button is pressed

DVD-

VIDEO

DVD-

AUDIO

Press .

Each time the button is pressed during playback,

•

Note

During fast playback of a CD or MP3-CD, sound is

•

heard only at 2x speed, and not at 4x, 8x, and 32x speeds.

Press SLOW button.

Each time the button is pressed during playback,

•

the playback speed changes as follows:

DVD DivX

Notes

No sound is heard during slow

•

playback and step motion playback.

Reverse slow playback does not

•

work with DivX.

Skipping Scenes/Songs

OPERATION

MP3

Press .

Each time the button is pressed briefly during playback, the previous or next chapter, track,

•

or directory (file) will be played. You cannot skip chapters consecutively.

•

DVD

MP3

3029

Page 17

A -

A -?

REPEAT : A—

A - B

REPEAT : A—B

Repeat Playback A-B Repeat Playback

Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). You can repeatedly play back a designated section of a DVD.

DVD CD MP3 JPEG

DVD

Press REPEAT button.

Each time the button is pressed during playback, the repeat playback mode changes as follows:

•

DVD-

VIDEO

DVD-

AUDIO

CDMP3 JPEG

Repeat Playback Options

CHAPTER

Repeatedly plays the selected chapter.

TITLE

Repeatedly plays the selected title.

GROUP

Repeatedly plays the selected group.

RANDOM

Plays tracks in random order. (A track that has already been played may be played again.)

TRACK

Repeatedly plays the selected track.

DIR

Repeatedly plays all tracks in the selected folder.

DISC

Repeatedly plays the entire disc.

OFF

Cancels Repeat Playback.

Press INFO button

twice.

Press Cursor , buttons to select ‘A-’ and then press

ENTER button at the beginning

of the desired segment.

When ENTER button is pressed,

•

the selected position will be stored in memory.

The specified segment will be

•

played repeatedly.

ENG

Press Cursor button to move to REPEAT PLAYBACK ( ) display.

Press ENTER

button at the end

OPERATION

of the desired

To Select a Repeat Playback Mode in the Disc Information Screen

DVD

Press INFO button twice.

Press Cursor button to move to

REPEAT PLAYBACK ( ) display.

Press Cursor button to select the

desired Repeat Playback mode.

Press ENTER button.

For MP3 and JPEG discs, you cannot select Repeat

Play from the information display screen.

To return to normal playback, press Cursor , buttons to select OFF.

Note

The A-B Repeat function does not operate with MP3,CD or JPEG discs.

•

Page 18

1/3

2/3

3/3

1/3

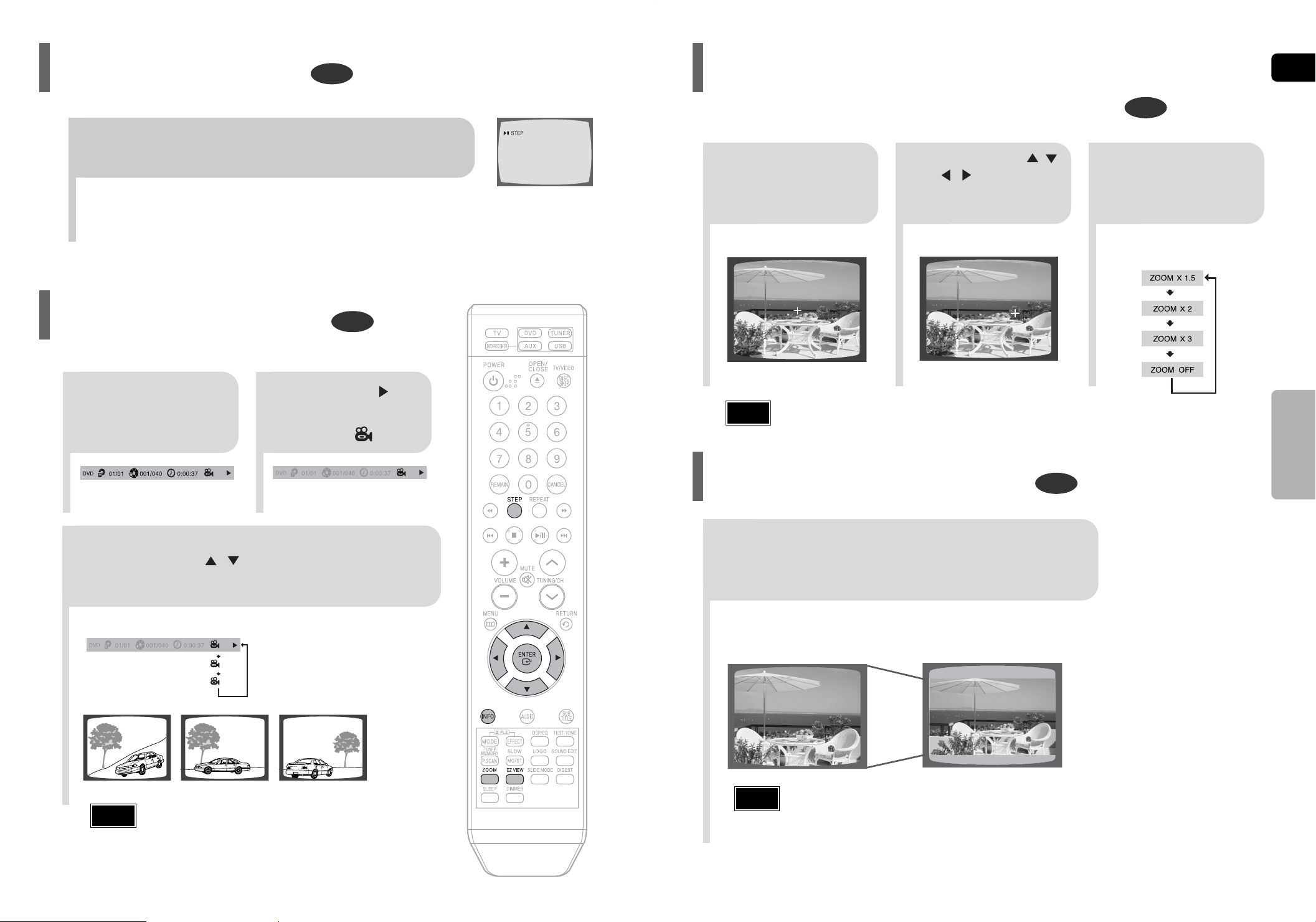

Step Function

DVD

Zoom (Screen Enlarge) Function

ENG

Press STEP button.

The picture moves forward one frame each time the button is pressed

•

during playback.

Angle Function

This function allows you to view the same scene in different angles.

Press Cursor

Press INFO button.

button to move to

ANGLE ( ) display.

DVD

This function allows you to enlarge a particular area of the displayed image.

Press Cursor , ,

Press ZOOM

button.

SELECT ZOOM POSITION

Note

When a DivX disc is being played, only the 2:1 zoom-in is available.

•

, buttons to move to the area you want to enlarge.

DVD

Press ENTER

button.

Each time the button is pressed, the

•

zoom level changes as follows:

OPERATION

Press Cursor , or numeric buttons to

select the desired angle.

Each time the button is pressed, the angle changes as follows:

•

Note

The Angle function works only with discs on which multiple

•

angles have been recorded.

EZ VIEW Function

Press EZ VIEW button.

Each time the button is pressed, the zoom function will switch between On

•

and Off. When a movie is played in Widescreen format, black bars at the top and

•

bottom of the TV screen can be removed by pressing the EZ VIEW button.

EZ VIEW OFFEZ VIEW

Note

This function will not work if the DVD is recorded with multi-camera angle format.

•

Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.

•

This feature is not supported for DivX discs.

•

DVD

Page 19

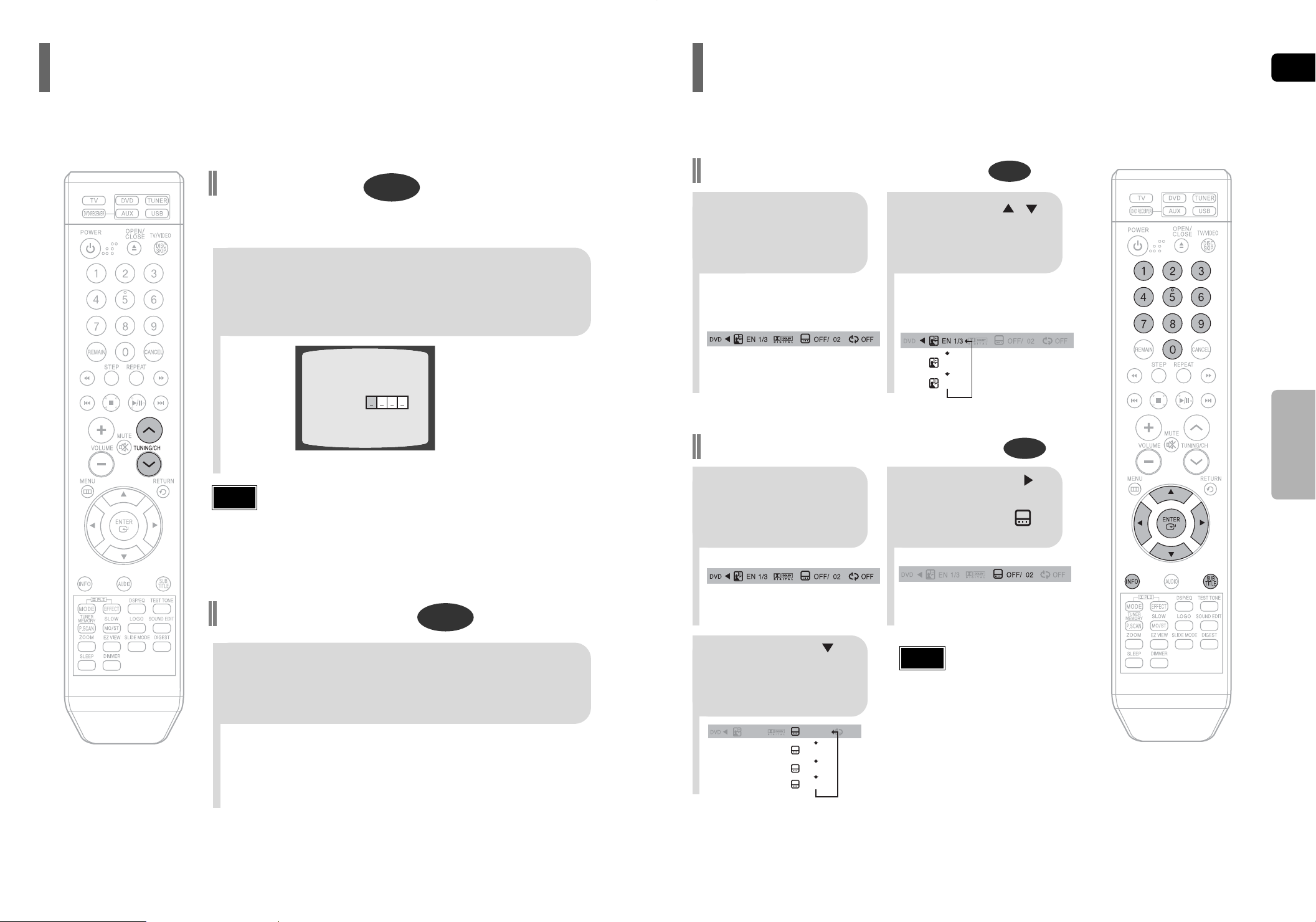

BONUS GROUP KEY NUMBER :

Bonus Group / Navigating Pages

SP 2/3

FR 3/3

EN 1/3 EN 01/ 03

OFF

SP 02/ 03

FR 03/ 03

OFF / 03

Selecting Audio/Subtitle Language

ENG

Bonus Group

Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the-key number.

When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically.

Note

If you eject the disc, switch the power off, or unplug the player, you will need to re-enter

•

the key number.

DVD-

AUDIO

Audio Language Selection Function

Press INFO button

twice.

Press Cursor , buttons or numeric buttons to select the

desired audio language.

Depending on the number of languages on a

•

DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed.

Subtitle Language Selection Function

Press Cursor

Press INFO button

twice.

button to move to

SUBTITLE ( ) display.

DVD

OPERATION

Navigating Pages

During playback, press the TUNING/CH button

on the remote control.

You can select the desired image from a DVD-Audio disc containing still images.

•

With some discs, you may not be able to select images.

•

DVD-

AUDIO

Press Cursor button or numeric buttons to select

the desired subtitle.

Note

To operate this function, you can also

•

press the Select AUDIO or Select SUBTITLE buttons on the remote control. Depending on the disc, the Subtitle

•

and Audio Language functions may not be available.

3635

Page 20

Playing Media Files using the USB HOST feature

ENG

You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or digital camera in high quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater.

Press the FUNCTION

Connect the USB device to the USB

port on the rear of the unit.

button on the main

unit or the USB button

on the remote control to select the USB mode.

“USB” appears on the display screen

•

and then disappears.

USB MENU screen appears on the

•

TV screen and the saved file is played.

To stop playback, press the STOP ( ) button.

Safe USB Removal

To prevent damage to the memory stored in the USB device, perform safe removal

before disconnecting the USB cable.

(1) Press the Stop button twice in a row.

The display will show REMOVE ➞ USB.

(2) Remove the USB cable.

Skip Forward/Back

During playback, press the button.

When there is more than one file, when you press the button, the next file is selected.

•

When there is more than one file, when you press the button, the previous file is selected.

•

Compatible Devices

1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disk in Windows (2000 or later) without additional driver installation.)

2. MP3 Player: HDD and flash type MP3 players.

3. Digital camera: Cameras that support USB Mass Storage v1.0.

Cameras that operate as a removable disk in Windows (2000 or later) without additional driver installation.

•

4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.

You may experience a difference in playback quality when you connect a USB1.1 device.

•

For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.

•

5. USB card Reader: One slot USB card reader and Multi slot USB card reader

Depending on the manufacturer. the USB card reader may not be supported.

•

If you install multiple memory devices into a multi card reader, you may experience problems.

•

6. If you use a USB extension cable, the USB device might not be recognized.

●

Supported Formats

File name

Still Picture JPG JPG .JPEG – – 640*480 –

Music

Movie WMV .WMV 4Mbps V1,V2,V3,V7 720*480 44.1KHz~48KHz

CBI (Control/Bulk/Interrupt) is not supported.

•

Digital Cameras that use PTP protocol or require additional program installation

• when connected to a PC are not supported.

A device using NTFS file system is not supported.

• (Only FAT 16/32 (File Allocation Table 16/32) file system is supported.)

Some MP3 players, when connected to this product,may not operate depending

• on the sector size of their file system.

The USB HOST function is not supported if a product that transfers media files by

• its manufacturer-specific program is connected.

MP3 .MP3 80~384kbps – – 44.1kHz

WMA .WMA 56~128kbps V8 – 44.1kHz

DivX .AVI,.ASF 4Mbps DivX3.11~DivX5.1,Xvid 720*480 44.1KHz~48KHz

File

extension Frequency

Bit rate Version Pixel

Sampling

OPERATION

Fast playback

To play back the disc at a faster speed, press or during playback.

Each time you press either button, the playback speed will change as follows:

•

2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.

Does not operate with Janus enabled MTP(Media Transfer Protocol) devices.

•

The USB host function of this product does not support all USB devices.

•

For information on the supported devices, see pages 71.

3837

Page 21

01/05

001/040 0:00:37 1/1

03/05

001/002 0:00:01 1/1

01/05

001/040 0:00:01 1/1

01/05

025/040 0:00:01 1/1

01/05

028/040 1:30:00 1/1

01/05

025/040 1:17:30 1/1

Moving Directly to a Scene/Song

Using Disc Menu

You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc.

DVD

ENG

DVD CD

Press INFO button.

Moving to a Chapter

Press Cursor , buttons or numeric buttons to select the desired

chapter and then press

ENTER button.

Moving to a Title/Track

Press Cursor , buttons or numeric buttons to select the desired title/track and then

press ENTER button.

Moving to a Specific Time

Press Cursor , buttons to move to

time display.

Moving to a Chapter

Press Cursor , buttons to move to

Chapter ( ) display.

Moving to a Specific Time

Press the numeric buttons to select the desired time and then

press ENTER button.

In Stop mode,

press MENU

button.

ENTERMOVE EXIT

Note

Disc menu display may be different depending on the disc.

•

Press Cursor , buttons to move to

‘DISC MENU’ and then

press ENTER button.

When you select Disc Menu and it is not

•

supported by the disc, the "This menu is not supported" message appears on the screen.

ENTERMOVE EXIT

Press Cursor ,

, buttons to

select the desired item.

Press ENTER button.

•

OPERATION

MP3 JPEG

Press the numeric

buttons.

The selected file will be played.

•

When playing an MP3 or JPEG disc, you

•

cannot use , to move to a folder. To move a folder, press (Stop) and then press , .

Note

You can press on the

•

remote control to move directly to the desired title, chapter, or track. Depending on the disc, you may not

•

be able to move to the selected title or time.

Using the Title Menu

For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature may vary.

In Stop mode,

press MENU

button.

ENTERMOVE EXIT

Press MENU button to exit the setup screen.

Press Cursor , button to move to

‘Title Menu’.

ENTERMOVE EXIT

DVD

Press ENTER

button.

The title menu appears.

•

Note

Title menu display may be different depending on the disc.

•

Page 22

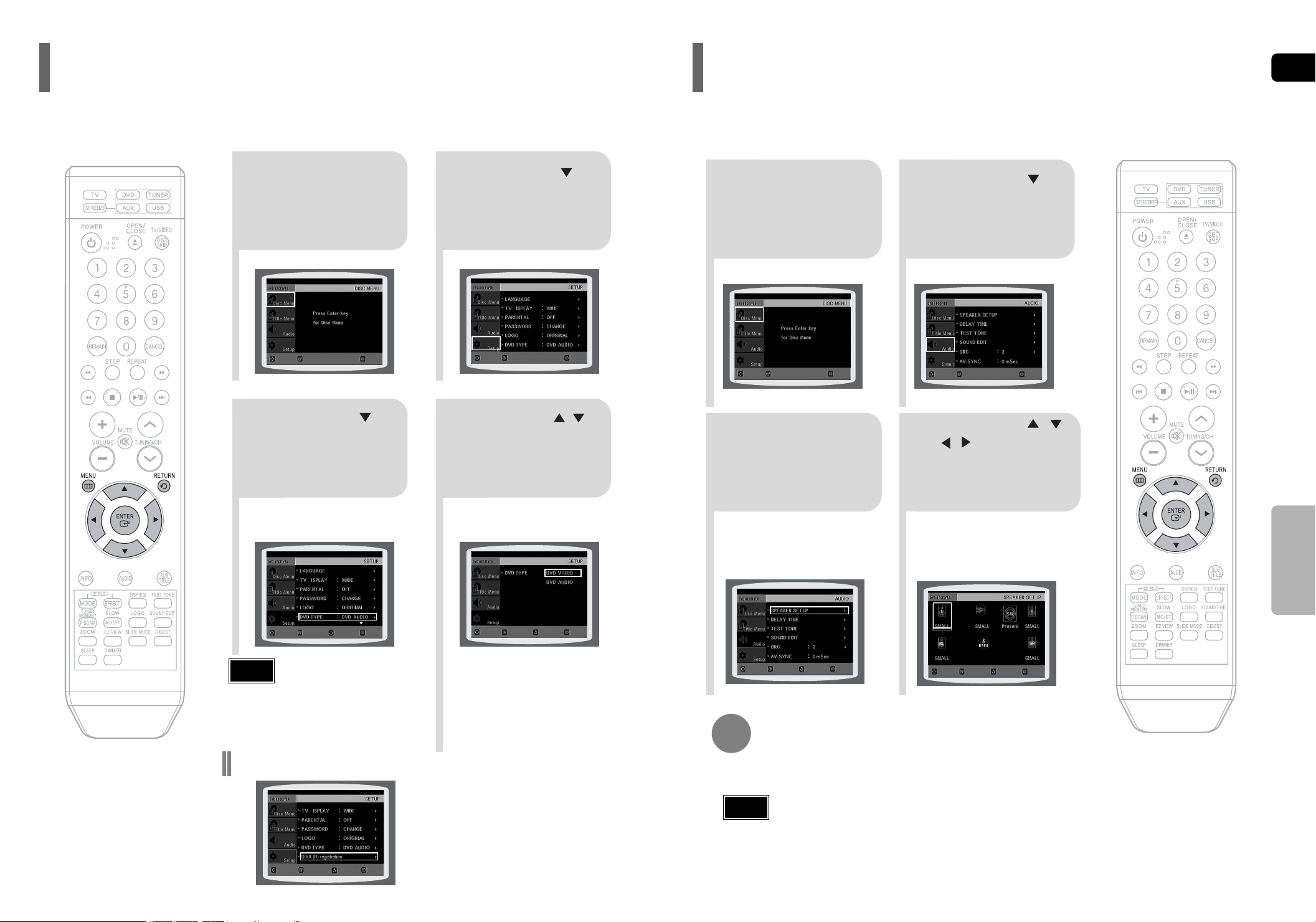

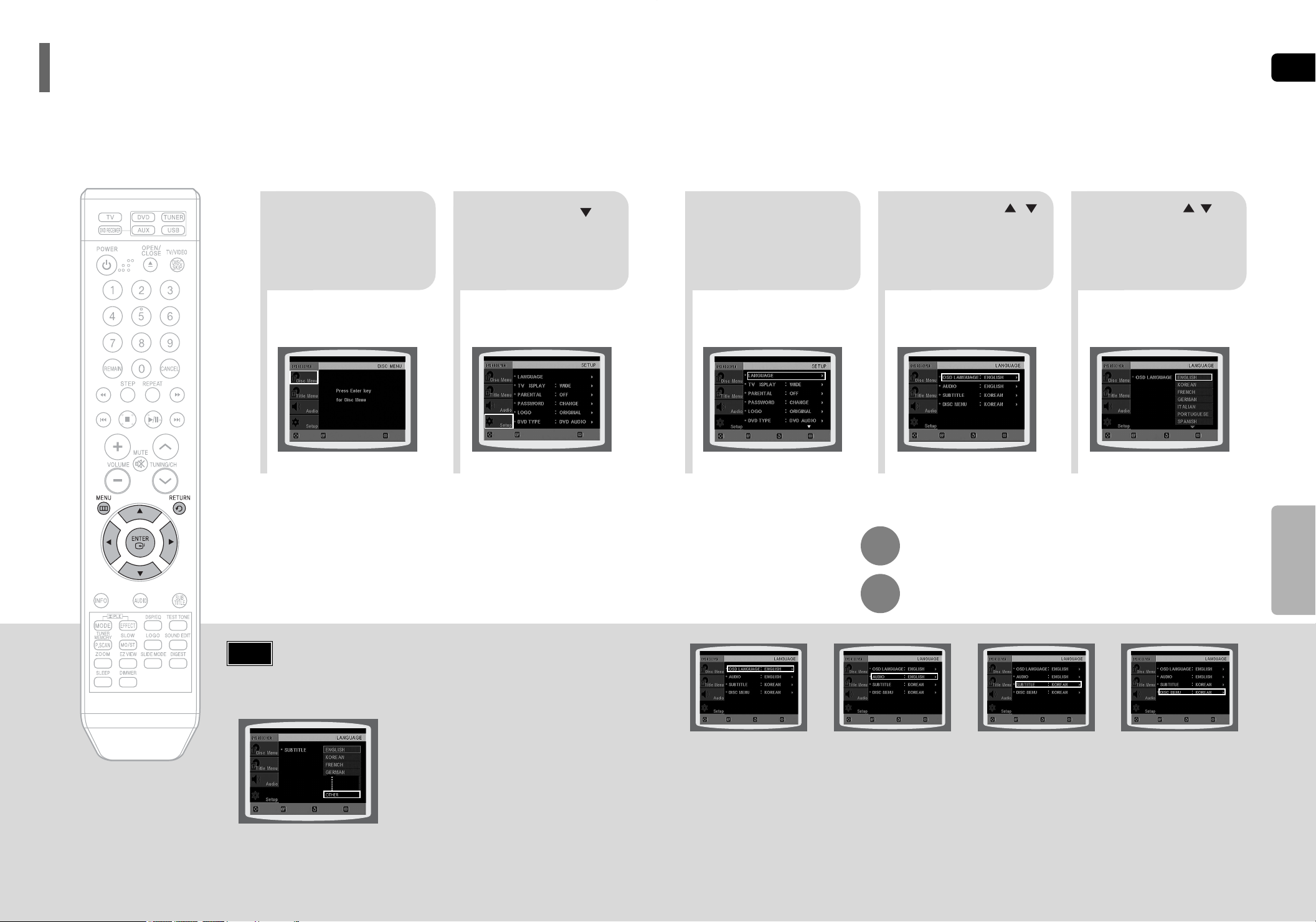

Setting the Language

OSD (On-Screen Display) language is set to English by default.

ENG

In Stop mode,

press MENU

button.

MOVE ENTER EXIT MOVE ENTER EXIT MOVE ENTER EXITRETURN MOVE ENTER EXITRETURN

Press Cursor button to move to

‘Setup’ and then

press ENTER button.

Select ‘Language’

and then press

ENTER button

Press Cursor ,

button to select ‘OSD

Language’ and then press ENTER button.

Press RETURN button to return to the previous level.

Press Cursor , button to select the

desired language and then

press ENTER button.

Once the setup is complete, the OSD will be

•

English if English has been selected as language.

MOVE SELECT EXITRETURN

SETUP

Note

• To select another language, select OTHER and enter the language code of your country. (See page 70 for language codes) AUDIO, SUB TITLE and DISC MENU language can be selected.

MOVE SELECT EXITRETURN

RETURNENTERMOVE EXIT RETURNENTERMOVE EXIT RETURNENTER

Selecting the

OSD Language

Press MENU button to exit the setup screen.

Selecting the

Audio Language

(recorded on the disc)

MOVE

Selecting the

Subtitle Language

(recorded on the disc)

EXIT

ENTER

Selecting the Disc Menu

Language (recorded on the disc)

If the language you selected is

not recorded on the disc, menu language will not change even if you set it to your desired language.

EXIT

RETURNMOVE

Page 23

Setting TV Screen type

Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.

ENG

In Stop mode,

press MENU

button.

ENTERMOVE EXIT

Press Cursor button to move to ‘TV DISPLAY’ and then

press ENTER button.

Press Cursor button to move to

‘Setup’ and then

press ENTER button.

ENTERMOVE EXIT

Press Cursor , button to select the

desired item and then

press ENTER button.

Once the setup is complete, you will

•

be taken to the previous screen.

Adjusting the TV Aspect Ratio (Screen Size)

The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.

• For a standard TV, select either "4:3LB" or "4:3PS" option according to personal preference.

Select "16:9" if you have a widescreen TV.

WIDE

4:3LB

(4:3 Letterbox)

4:3PS

(4:3 Pan&Scan)

: Select this to view a 16:9 picture in the full-screen

mode on your widescreen TV.

• You can enjoy the widescreen aspect.

: Select this to play a 16:9 picture in the letter box

mode on a conventional TV.

• Black bars will appear at the top and bottom of the screen.

: Select this to play a 16:9 picture in the pan & scan

mode on a conventional TV.

• You can see the central portion of the screen only (with the sides of the 16:9 picture cut off).

SETUP

ENTER RETURNMOVE EXIT

SELECT RETURNMOVE EXIT

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Note

• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.

• Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting.

Page 24

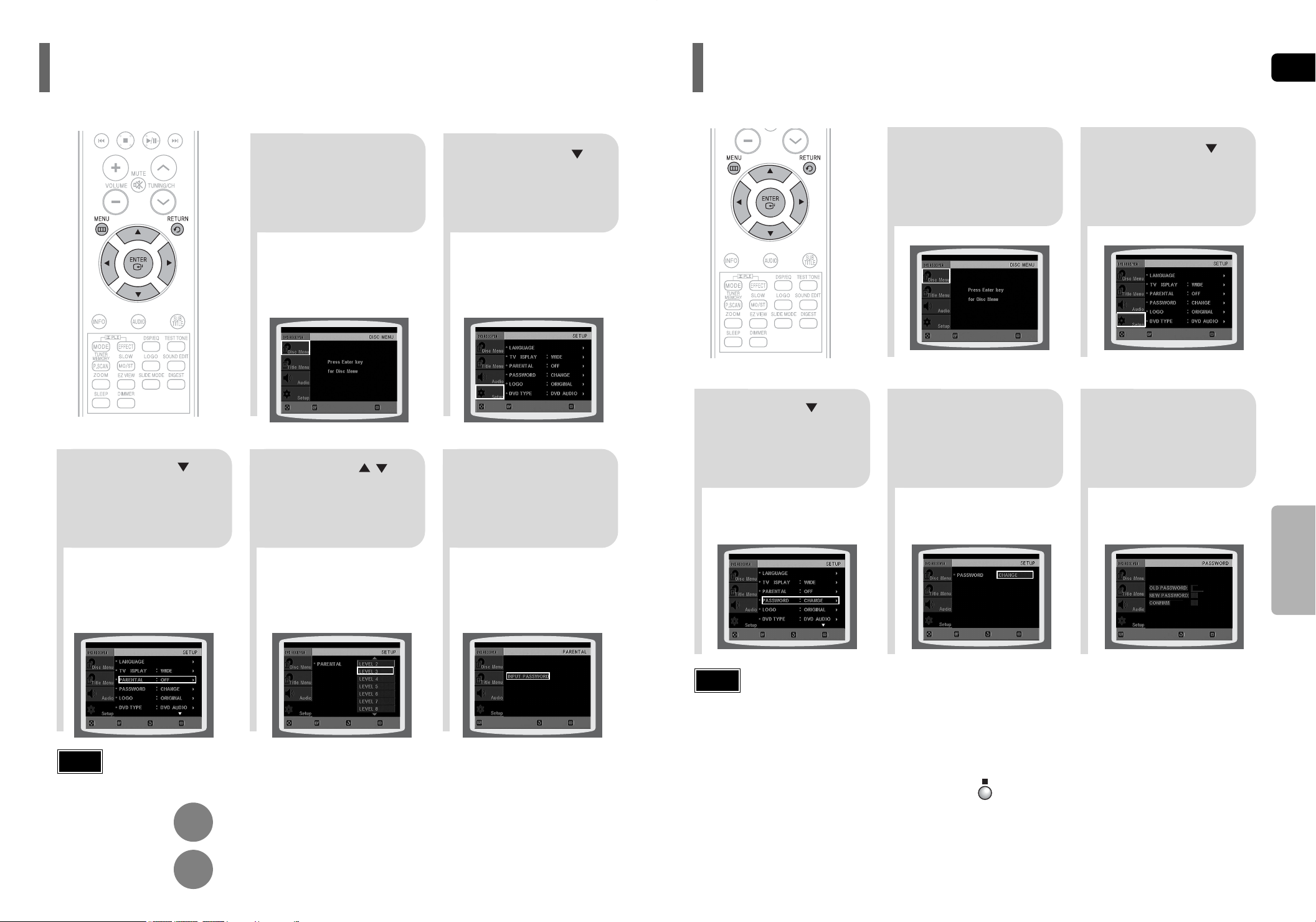

Setting Parental Controls (Rating Level)

Setting the Password

ENG

Use this to restrict playback of adult or violent DVDs you do not want children to view.

In Stop mode,

press MENU

button.

ENTER

MOVE EXIT

Press Cursor button to move to ‘PARENTAL’ and then

3 5

press ENTER button.

Press Cursor , button to select the desired rating level and then press

ENTER button.

Press Cursor button to move to

‘Setup’ and then

press ENTER button.

MOVE

ENTER

Enter the password and then press

ENTER button.

EXIT

You can set the password for the Parental (rating level) setting.

Press MENU button.

MOVE ENTER

EXIT

Press Cursor button to move to ‘PASSWORD’

and then press ENTER

3 5

Press ENTER

button.

Enter the old password, a new

•

password, and confirm new password. The setting is complete.

•

Press Cursor button to move to ‘Setup’ and then

press ENTER button.

MOVE ENTER

EXIT

Enter the password and then press

ENTER button.

SETUP

MOVE

Note

If you have selected Level 6, you

•

cannot view DVDs with Level 7 or higher. The higher the level, the closer the

•

content is to violent or adult material.

ENTER RETURN

This function works only if a DVD disc contains the rating level information.

•

EXIT

MOVE

SELECT RETURN

EXIT

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

The password is set to "7890" by default.

•

Once the setup is complete, you will be

•

taken to the previous screen.

INPUT NUMBER

RETURN

EXIT

INPUT NUMBER

RETURN

EXIT

Note

MOVE ENTER RETURN

The password is set to "7890" by default.

•

EXIT

MOVE SELECT RETURN

If you have forgotten the rating level password, do the following:

While the player is in the no disc mode, hold the main unit's button for longer than 5 seconds. “INITIALIZE” appears

•

on the display and all settings will return to the default values. Press the POWER button.

•

Using the RESET function will erase all stored settings. Do not use this unless necessary.

Page 25

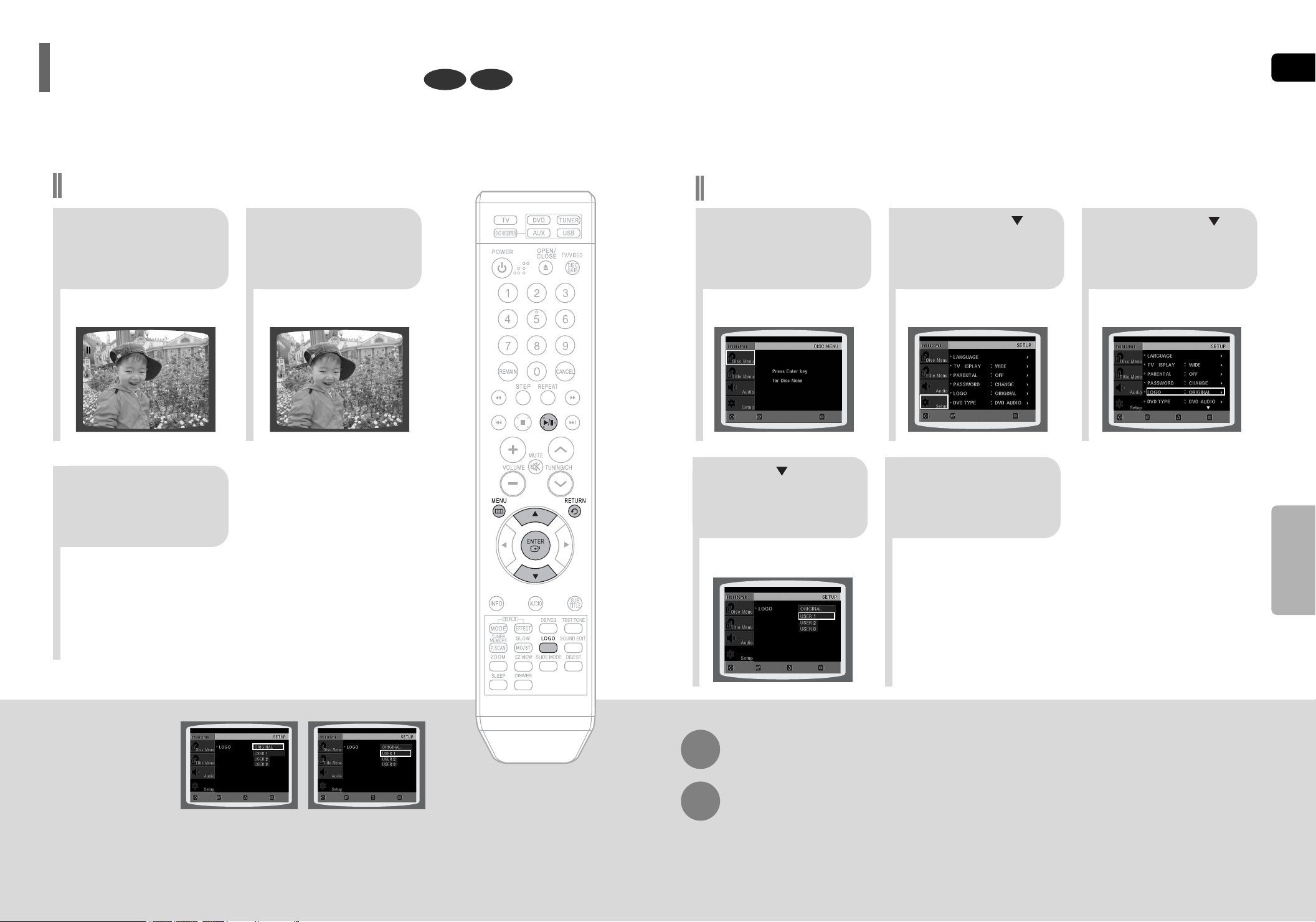

Setting the Wallpaper

While watching a DVD or JPEG CD, you can set the image you like as background wallpaper.

DVDJPEG

ENG

Setting the Wallpaper

During playback, press

PLAY/PAUSE button

when an image you like appears.

PAUSE

The power will turn off and then

back on.

Press LOGO

•

button.

“COPY LOGO DATA” will be

displayed on the TV screen.

COPY LOGO DATA

To select one of the 3 wallpaper settings you've made

In Stop mode,

press MENU

button.

MOVE ENTER

EXIT

Press to select the desired ‘USER’, and then press

ENTER.

Press Cursor button to move to ‘Setup’ and then

21 3

press ENTER button.

MOVE ENTER

EXIT

Press MENU

button to exit the setup screen.

Press Cursor button to move to ‘LOGO’ and then

press ENTER button.

MOVE ENTER RETURN

EXIT

SETUP

The selected wallpaper will be

•

displayed. You can select up to 3 wallpaper

•

settings.

MOVE SELECT RETURN

Select this to set the Samsung Logo image as your wallpaper.

EXIT

MOVE SELECT RETURN

Select this to set the desired image as your wallpaper.

EXIT

This selects one of the 3

•

wallpaper screens

MOVE SELECT RETURN

EXIT

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Page 26

DVD Playback Mode

Setting the Speaker Mode

ENG

Some DVD-Audio discs contain DVD-Video as well as DVD-Audio. To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.

Press the MENU

button while the disc tray is open.

Press Cursor button to move to

‘Setup’ and then

press ENTER button.

MOVE ENTER

EXIT

Press Cursor button to move to ‘DVD TYPE’ and

then press ENTER

MOVE ENTER

Press Cursor , button to move to

‘DVD VIDEO’ and then

press ENTER button.

Set steps 1 ~ 4 again if you want to

•

switch to DVD AUDIO Play mode.

EXIT

Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not.

In Stop mode,

Press Cursor button to move to

press MENU

button.

MOVE ENTER

EXIT

‘Audio’ and then

press ENTER button.

MOVE ENTER

EXIT

Press Cursor , ,

In the Speaker Setup, press the

ENTER button again.

, buttons to move to the desired speaker and then

press ENTER button.

For C, SL, and SR, each time the button

•

is pressed, the mode switches alternately as follows: SMALL

For L and R, the mode is set to SMALL.

•

➝ NONE.

SETUP

MOVE ENTER RETURN

Note

DVD Play mode is set to DVD Audio as

•

factory default setting. Powering off the main unit will automatically

•

switch to the DVD Audio mode.

EXIT

DivX (R) registration

Please use the Registration code to register this

•

player with the DivX (R) video on demand format. To learn more, go to www.divx.com/vod.

EXIT

RETURN

ENTER

MOVE

MOVE SELECT RETURN

When Selecting DVD Play Mode:

DVD VIDEO : set to play the DVD video

•

contents contained on a DVD audio disc.

DVD AUDIO : set to play the default

•

DVD audio.

EXIT

MOVE ENTER RETURN

SMALL

: Select this when using the speakers.

NONE : Select this when no speakers are connected.

Note

Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 59).

•

EXIT

MOVE CHANGE RETURN

EXIT

Page 27

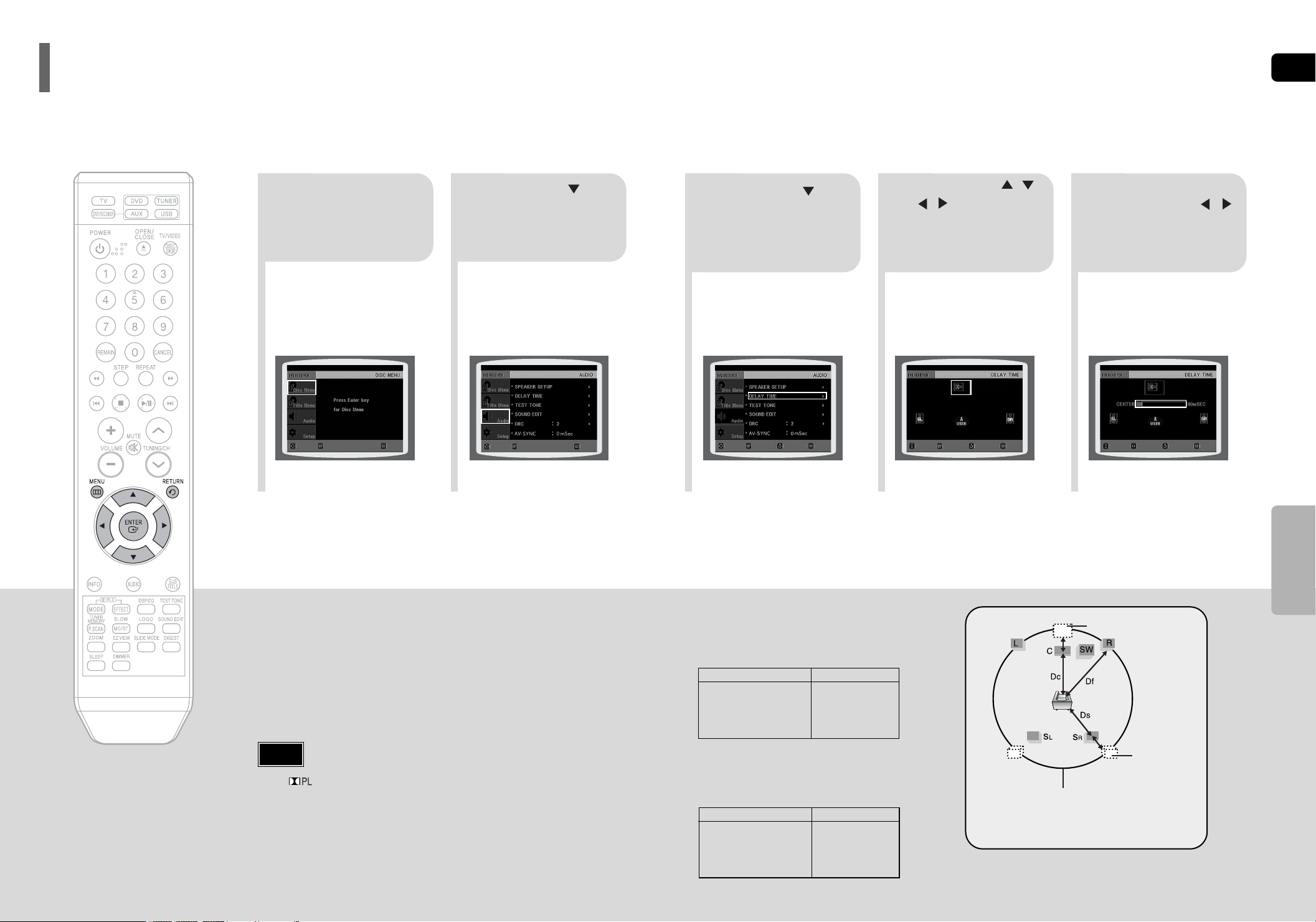

Setting the Delay Time

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers.

ENG

In Stop mode,

press MENU

button.

MOVE ENTER

EXIT

Press Cursor button to move to ‘Audio’ and

then press ENTER

button.

MOVE ENTER

EXIT

Press Cursor button to move to ‘DELAY TIME’ and then press

43 5

ENTER button.

MOVE ENTER

EXITRETURN

Press Cursor , ,

, buttons to move to the desired speaker and then press

ENTER button.

MOVE SELECT RETURN

EXIT

Press Cursor , to set the Delay time.

You can set the delay time for C

•

between 00 and 05mSEC and for SL and SR between 00 and 15mSEC.

MOVE CHANGE RETURN

EXIT

SETUP

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the sound of the Center and Surround Speakers.

Note

With (Dolby Pro Logic II), the delay time may be different for each mode.

•

With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.

•

The Center channel is only adjustable on 5.1 channel discs.

•

Setting CENTER SPEAKER

•

If the distance of Dc is equal to or longer than the distance of Df in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Df and Dc Delay Time

0 inch

13.6 inches

27.2 inches

40.8 inches

4.5 feet

5.6 feet

• Setting REAR (SURROUND) SPEAKERS

If the distance of Df is equal to the distance of Ds in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Df and Ds

0 inch

40.8 inches

6.7 feet

10.0 feet

13.4 feet

16.7 feet

0 ms 1 ms 2 ms 3 ms 4 ms 5 ms

Delay Time

0 ms 3 ms 6 ms

9 ms 12 ms 15 ms

Ideal CENTER SPEAKER placement

Ideal SURROUND SPEAKER placement

It is desirable to place all speakers within this circle.

Df: The distance from FRONT SPEAKER Dc: The distance from CENTER SPEAKER Ds: The distance from SURROUND SPEAKER

Page 28

Setting the Test Tone

Setting the DRC (Dynamic Range Compression)

ENG

Use the Test Tone feature to check the speaker connections.

In Stop or no disc mode,

press MENU

button.

MOVE ENTER

EXIT

Press Cursor button to move to ‘Audio’ and then

press ENTER button.

MOVE ENTER

EXIT

Press Cursor button to move to ‘TEST TONE’ and then press

ENTER button.

The test tone will be sent to L ➝ C ➝

•

R ➝ SR ➝ SL ➝ SW in order.

If the ENTER button is pressed again at this time, the test tone will stop.

MOVE ENTER RETURN

EXIT

This feature balances the range between the loudest and quietist sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

Press Cursor

In Stop or no disc

mode, press

MENU button.

button to move to ‘Audio’ and then

press ENTER

button.

MOVE ENTER

EXIT

MOVE ENTER

EXIT

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Alternate method: press the TEST TONE button on the remote.

Press TEST TONE button.

Test tone will be produced as follows:

•

When playing a DVD or CD, this will work only in Stop mode. Use this function to check that each speaker is correctly

•

connected and that there is no problem.

To end the test tone,

press TEST TONE button again.

L: Front Speaker (L) C: Center Speaker SW: Subwoofer R: Front Speaker (R) SL: Rear Speaker (L) SR: Rear Speaker (R)

Multi-Channel Pro Logic Mode

Start

STOP

EXIT

Press Cursor button to move to

‘DRC’ and then

press ENTER

MOVE ENTER RETURN

EXIT

Press Cursor

the ‘DRC’.

When the Cursor button is pressed,

•

the effect is greater, and when the Cursor button is pressed, the effect is smaller.

CHANGE RETURN

Press RETURN button to return to the previous level.

, to adjust

SETUP

EXIT

Press MENU button to exit the setup screen.

5453

Page 29

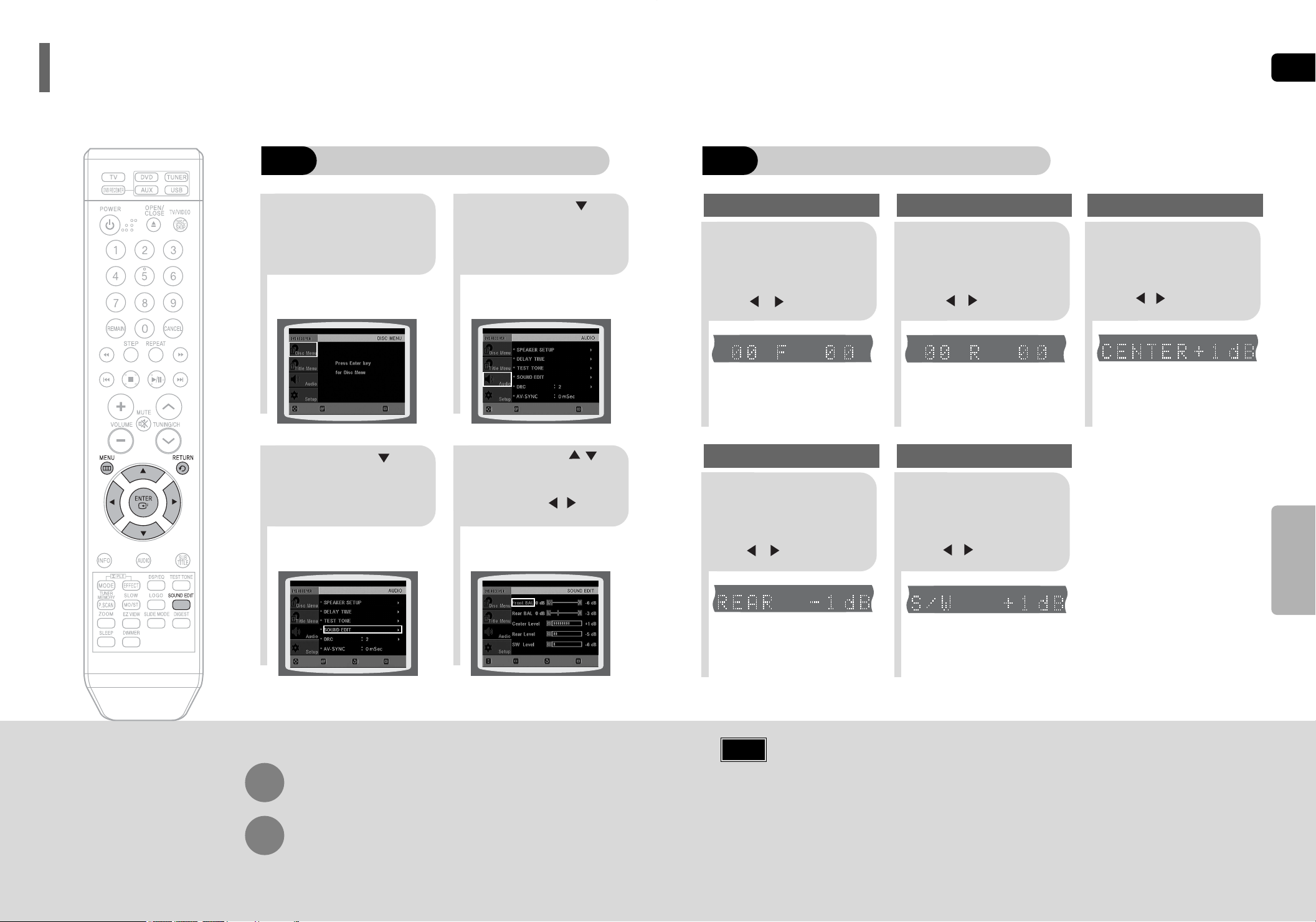

Setting the Audio

You can adjust the balance and level for each speaker.

ENG

In Stop mode,

press MENU

button.

MOVE ENTER

Press Cursor button to move to ‘SOUND EDIT’ and then press

ENTER button.

EXIT

Press Cursor button to move to ‘Audio’ and then press

ENTER button.

MOVE ENTER

Press Cursor , buttons to select and adjust the desired item. Press the , buttons to adjust the settings.

EXIT

Adjusting Front Speaker Balance Adjusting Rear Speaker Balance

Press SOUND EDIT button and

then press Cursor

, .

Adjusting Rear Speaker Level

Press SOUND EDIT button and

then press Cursor

4 5

, .

Adjusting Subwoofer Speaker Level

Press SOUND EDIT button and

then press Cursor

, .

Press SOUND EDIT button and

then press Cursor

, .

Adjusting Center Speaker Level

Press SOUND EDIT button and

then press Cursor

, .

SETUP

MOVE ENTER RETURN

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

EXIT

MOVE CHANGE RETURN

EXIT

Note

Adjusting Front/Rear Speaker Balance

You can select between 00 and –06 and OFF.

•

The volume decreases as you move closer to –6.

•

Adjusting Center/Rear/Subwoofer Speaker Level

The volume level can be adjusted in steps from +6dB to –6dB.

•

The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

•

Page 30

AV SYNC Setup

Sound Field (DSP)/EQ Function

ENG

Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match the video.

Press Cursor , buttons

Press the MENU button.

to move to ‘Audio’ and then

press ENTER button.

Setup menu appears.

•

MOVE ENTER

EXIT

MOVE ENTER

EXIT

DSP(Digital Signal Processor) DSP modes have been designed to simulate different acoustic environments. EQ: You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing

Press DSP/EQ button.

"DSP" appears on the display panel.

•

Each time the button is pressed, the selection changes as follows:

•

Press Cursor , buttons to move to ‘AV-SYNC’ and

then press ENTER button.

MOVE ENTER RETURN

EXIT

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Press Cursor , buttons to select the AV-SYNC Delay

Time and then press the

ENTER button.

You can set the audio delay time between 0 ms

•

and 300 ms. Set it to the optimal status.

MOVE SELECT RETURN

EXIT

Note

POP, JAZZ, ROCK: Depending on the genre of music, you can select POP, JAZZ, and ROCK. STUDIO : Provides a sense of presence as if in a studio. CLUB : Simulates the sound of a dance club with a throbbing bass beat. HALL : Provides a clear vocal as if listening in a concert hall. MOVIE: Provides the feeling of a movie theater. CHURCH: Gives the feel of being in a grand church. PASS: Select this for normal listening.

DSP/EQ function is only available in STEREO mode.

•

Press the PL II mode button to show STEREO on the display. This feature works with CDs, MP3-CDs, 2 channel DVD-Audio,

•

DivX and Dolby Digital discs. When playing a DVD disc encoded with two or more channels,

•

multi-channel mode will be selected automatically and DSP/EQ function does not work.

SETUP

Page 31

Dolby Pro Logic II Mode

Dolby Pro Logic II Effect

ENG

You can select the desired Dolby Pro Logic II audio mode.

Press PL II MODE button.

Each time the button is pressed, the mode changes as follows.

•

This function works only in Dolby Pro Logic MUSIC mode.

Press PL II MODE

Press PL II EFFECT button

to select Panorama, then press

button to select ‘MUSIC’ mode.

Press PL II EFFECT button

to select C-Width, then press Cursor , buttons to select the desired effect setting.

Cursor , buttons to select the desired effect setting.

You can select either 0 or 1.

•

This mode extends the front stereo image to

•

include the surround speakers for an exciting "wraparound" effect with side wall imaging.

Press PL II EFFECT button

to select Dimension, then press the Cursor , buttons to select the desired setting.

Note

When selecting Pro Logic II mode, connect your external device to the

•

AUDIO INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.

PRO LOGIC II

MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.

•

CINEMA: Adds realism to the movie soundtrack.

•

PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front left

•

and right speakers.

MATRIX: You will hear 5.1 channel surround sound.

•

STEREO: Select this to listen to sound from the front left and right speakers and the subwoofer only.

You can select between 0 and 7.

•

This sets the width of the center image.

•

The higher the setting, the less sound comes from the center speaker.

Note

When playing a DVD disc encoded with two or more channels, multi-channel mode will be

•

selected automatically and (Dolby Pro Logic II) button does not work.

You can select between 0 and 6.

•

Incrementally adjusts the sound field (DSP)from

•

the front or rear.

SETUP

Page 32

Listening to Radio

Presetting Stations

ENG

Remote Control Unit

Press the TUNER

button and select the FM band.

Main Unit

Press the

FUNCTION button to

select the FM band.

Tune in to the desired station.

Automatic Tuning 1

Automatic Tuning 2

Manual Tuning

When is pressed, a preset broadcast station is selected.

Press and hold TUNING/CH to automatically search for active broadcasting stations.

Briefly press TUNING/CH to increase or decrease the frequency incrementally.

Select a broadcast station.

Example: Presetting FM 89.1 in the memory

Press the TUNER

button and select the FM band.

Press to select preset number.

Press TUNING/CH

to select "89.10".

Refer to Step 2 on page 61 to

•

automatically or manually tune in to a station.

Press the TUNER

MEMORY button

again.

Press the TUNER

MEMORY button.

“PRGM” flashes in the display.

•

To preset another

station, repeat steps 2 to 5.

Automatic Tuning 1

PRESET and then press button to select the preset station.

Automatic Tuning 2

and then press and hold button to automatically search the band.

Manual Tuning

press to tune in to a lower or higher frequency.

Press MO/ST button to listen in Mono/Stereo.

(This applies only when listening to an FM station.)

Each time the button is pressed, the sound switches between "STEREO" and "MONO".

•

In a poor reception area, select MONO for a clear, interference-free broadcast.

•

Press the STOP ( ) button to select

Press the STOP button to select "MANUAL"

Press STOP MANUAL and then briefly

( )

to select

You can select between 1 and

•

15 presels.

Note

This unit does not receive

•

AM broadcasts.

To tune in to a preset station, press on the remote control to select a channel.

Press the TUNER MEMORY button before

•

‘PRGM’ disappears from the display. ‘PRGM’ disappears from the display and

•

the station is stored in memory.

RADIO OPERATION

Page 33

Convenient Functions

ENG

Sleep Timer Function

You can set the time that the Home Theater will shut itself off.

Press SLEEP button.

"SLEEP" will be displayed. Each time the button is pressed, the preset

•

time changes as follows: 10 ➝ 20 ➝ 30 ➝ 60 ➝ 90 ➝ 120 ➝ 150 ➝ OFF.

To confirm the sleep timer setting, press SLEEP button.

The remaining time before the Home Theater will shut itself off is displayed.

•

Pressing the button again changes the sleep time from what you have set earlier.

•

To cancel the sleep timer, press SLEEP button until

OFF appears on the display.

Mute Function

This is useful when answering a doorbell or telephone call.

Press MUTE button.

MUTE ON’ appears in the display.

‘

•

To restore the sound, press the button again to

•

select ‘MUTE OFF’.

Using Headphones

Use headphones (not supplied) for private listening pleasure.

Adjusting Display Brightness

You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.

Press DIMMER button.

Each time the button is pressed, the brightness changes as follows:

•

DARK ➞ BRIGHT.

Connect the headphones to the PHONES jack for private listening.

Caution

To prevent hearing damage, do not increase the

•

volume excessively when using headphones.

MISCELLANEOUS

Page 34

Operating a TV with the Remote Control

TV Brand Code List

ENG

When operating a TV with the remote control

Press TV button to select TV mode.

Press POWER button to turn on the TV.

2 3

Point the remote control toward the TV.

While holding down POWER, enter the code

Note

The remote control may not work on some brands of TVs. Also, some operations may not be

•

possible depending on your brand of TV. If you do not set the remote control with the code for your brand of TV, the remote control will

•

work on a Samsung TV by default.

corresponding to your brand of TV.

If the code matches the TV's code, the TV will be turned off.

•

If there is more than one code listed for your TV in the table,

•

enter one at a time to determine which code works.

Example: For a Samsung TV

While holding down POWER, use the number buttons to enter 00, 01, 02, 03, 04, and 05.

Point the remote control toward the TV and

press POWER. If the TV turns off or on,

the setting is complete.

You can use the TV POWER, VOLUME, CHANNEL, and Numeric

•

buttons (0~9).

No.

37 38

Brand

Admiral (M.Wards)

A Mark

Anam

AOC

Bell & Howell (M.Wards)

Brocsonic

Candle

Cetronic

Citizen

Cinema

Classic

Concerto

Contec

Coronado

Craig

Croslex

Crown

Curtis Mates

CXC

Daewoo

Daytron

Dynasty

Emerson

Fisher

Funai

Futuretech

General Electric (GE)

Hall Mark

Hitachi

Inkel

JC Penny

KEC

KMC

LG (Goldstar)

Luxman

LXI (Sears)

Magnavox

Marantz

Matsui

MGA

Mitsubishi/MGA

JVC

KTV

Code

056, 057, 058

001, 015

001, 002, 003, 004, 005, 006, 007, 008, 009, 010,

011, 012, 013, 014

001, 018, 040, 148

057, 058, 081

059, 060

018

003

003, 018, 025

097

003

018

046

015

003, 005, 061, 082, 083, 084

062

003

059, 061, 063

003

002, 003, 004, 015, 016, 017, 018, 019, 020, 021, 022, 023, 024,

025, 026, 028, 029, 030, 032, 034, 035, 036, 048, 059, 090

040

003

003, 015, 040, 046, 059, 061, 064, 082, 083, 084, 085

019, 065

003

006, 040, 056, 059, 066, 067, 068

040

015, 018, 050, 059, 069

045

056, 059, 067, 086

070

059, 061, 087, 088

003, 015, 040

015

001, 015, 016, 017, 037, 038, 039, 040, 041, 042, 043, 044

018

019, 054, 056, 059, 060, 062, 063, 065, 071

015, 017, 018, 048, 054, 059, 060, 062, 072, 089

040, 054

054

018, 040

018, 040, 059, 060, 075

No.

Panasonic

Radio Shack

RCA/Proscan

Signature 2000 (M.Wards)

Soundesign

Spectricon

Symphonic

Techwood

Dongyang

Brand

MTC

NEC

Nikei

Onking

Onwa

Penney

Philco

Philips

Pioneer

Portland

Proton

Quasar

Realistic

Sampo

Samsung

Sanyo

Scott

Sears

Sharp

Sony

SSS

Sylvania

Tatung

Teknika

TMK

Toshiba

Vidtech

Videch

Wards

Yamaha

York

Yupiteru

Zenith

Zonda

Code

018

018, 019, 020, 040, 059, 060

003

006, 007, 008, 009, 054, 066, 067, 073, 074

018

003, 015, 017, 018, 048, 054, 059, 062, 069, 090

015, 017, 018, 040, 048, 054, 062, 072

063, 066, 080, 091

015, 018, 059

040

006, 066, 067

017, 048, 056, 060, 061, 075

018, 059, 067, 076, 077, 078, 092, 093, 094

003, 019

040

000, 015, 016, 017, 040, 043, 046, 047, 048, 049,

059, 060, 098

019, 061, 065

003, 040, 060, 061

015, 018, 019

015, 057, 064

057, 058

050, 051, 052, 053, 055

003, 040

001

018

018, 040, 048, 054, 059, 060, 062

061, 095, 096

006

018

003, 015, 018, 025

018, 040

019, 057, 063, 071

018

059, 060, 069

015, 017, 018, 040, 048, 054, 060, 064

018

040

003

058, 079

001

003, 054

MISCELLANEOUS

Page 35

Before Calling for Service

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.

ENG

Symptom Check/Remedy

Disc tray does not open.

Playback does not start.

Playback does not start immediately when the Play/Pause button is

Sound is not produced.

Sound can be heard only from a few speakers and not all six.

Picture does not appear, sound is not produced, or the disc tray opens 2 to 5 seconds later.

Dolby Digital 5.1 CH Surround Sound is not produced.

Is the power cord plugged securely into the outlet?

•

Turn off the power and then turn it back on.

•

Check the region number of the DVD.

•

DVD discs purchased from abroad may not be playable. CD-ROMs and DVD-ROMs cannot be played on this Home

•

Theater. Make sure that the rating level is correct.

•

Are you using a deformed disc or a disc with scratches on

•

the surface? Wipe the disc clean.

•

No sound is heard during fast playback, slow playback, and step

•

motion playback. Are the speakers connected properly? Is the speaker setup

•

correctly customized? Is the disc severely damaged?

•

When listening to a CD or radio, sound is output to the front

•

speakers (L/R) only. Select "PRO LOGIC II" by pressing (Dolby Pro Logic II) on the remote control to use all six speakers. Make sure that the DVD disc is 5.1-CH compatible.

•

If you set C, SL, and SR to NONE in the speaker mode in the

•

audio setup of the setup screen, no sound is heard from the center speaker and the front left and right speakers. Set C, SL, and SR to SMALL.

Was the Home Theater suddenly moved from a cold place to a

•

warm one? When condensation forms inside the player, remove the disc and let the player stand for 1 or 2 hours with the power on. (You can use the player again after condensation disappears.)

Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1

•

CH Surround Sound is produced only if the disc is recorded with

5.1 channel sound. Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in

•

the information display?

Symptom Check/Remedy

• Disc is rotating but no picture is produced.

• Picture quality is poor and picture is shaking.

The remote control does not work.

Audio language and subtitles do not work.

Menu screen does not appear even when the menu function is selected.

Aspect ratio cannot be changed.

•

The main unit is not working.

(Example: The power goes out or strange noise is heard.)

• The Home Theater is not working normally.

The password for rating level has been forgotten.

Can't receive radio broadcast.

Is the TV power on?

•

Are the video cables connected properly?

•

Is the disc dirty or damaged?

•

A poorly manufactured disc may not be playable.

•

Is the remote control being operated within its operation range of

•

angle and distance? Are the batteries exhausted?

•

Have you selected the mode(TV/DVD) functions of the remote

•

control (TV or DVD) correctly?

Audio language and subtitles will not work for DVDs not containing

•

them. And depending on the disc, they may work differently.

Are you using a disc that does not contain menus?

•

You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX

•

mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.

Turn off the power and hold the button on the main unit for

•

longer than 5 seconds.

Using the RESET function will erase all stored settings. Do not use this unless necessary.

While “NO DISC” message appears on the display of main unit, hold

•

the main unit's button for longer than 5 seconds. “INITIALIZE” appears on the display and all settings will return to the default values. Press the POWER button.

•

Using the RESET function will erase all stored settings. Do not use this unless necessary.

Is the antenna connected properly?

•

If the antenna's input signal is weak, install an external FM

•

antenna in an area with good reception.

MISCELLANEOUS

Page 36

Cautions on Handling and Storing Discs

Language Code List

ENG

Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them.

Handling discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc.

Disc Storage

Do not keep in direct sunlight

Caution

Do not allow the discs to become contaminated with dirt.

•

Do not load cracked or scratched discs.

•

Keep in a cool ventilated area

Keep in a clean Protection jacket. Store vertically.

Handling and Storing Discs

When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

When cleaning, wipe gently from the inside to the outside of the disc.

•

Note

Condensation may form if warm air comes into contact with cold parts

•

inside the player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.

Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 41).

Code Language Code Language Code Language Code Language

1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian

1028 Abkhazian 1183 Irish 1345 Malagasy 1507 Samoan

1032 Afrikaans 1186 Scots Gaelic 1347 Maori 1508 Shona

1039 Amharic 1194 Galician 1349 Macedonian 1509 Somali

1044 Arabic 1196 Guarani 1350 Malayalam 1511 Albanian

1045 Assamese 1203 Gujarati 1352 Mongolian 1512 Serbian

1051 Aymara 1209 Hausa 1353 Moldavian 1513 Siswati

1052 Azerbaijani 1217 Hindi 1356 Marathi 1514 Sesotho

1053 Bashkir 1226 Croatian 1357 Malay 1515 Sundanese

1057 Byelorussian 1229 Hungarian 1358 Maltese 1516 Swedish

1059 Bulgarian 1233 Armenian 1363 Burmese 1517 Swahili

1060 Bihari 1235 Interlingua 1365 Nauru 1521 Tamil

1069 Bislama 1239 Interlingue 1369 Nepali 1525 Tegulu

1066 Bengali; Bangla 1245 Inupiak 1376 Dutch 1527 Tajik

1067 Tibetan 1248 Indonesian 1379 Norwegian 1528 Thai

1070 Breton 1253 Icelandic 1393 Occitan 1529 Tigrinya

1079 Catalan 1254 Italian 1403 (Afan) Oromo 1531 Turkmen

1093 Corsican 1257 Hebrew 1408 Oriya 1532 Tagalog

1097 Czech 1261 Japanese 1417 Punjabi 1534 Setswana

1103 Welsh 1269 Yiddish 1428 Polish 1535 Tonga

1105 Danish 1283 Javanese 1435 Pashto, Pushto 1538 Turkish

1109 German 1287 Georgian 1436 Portuguese 1539 Tsonga

1130 Bhutani 1297 Kazakh 1463 Quechua 1540 Tatar

1142 Greek 1298 Greenlandic 1481 Rhaeto-Romance 1543 Twi

1144 English 1299 Cambodian 1482 Kirundi 1557 Ukrainian

1145 Esperanto 1300 Kannada 1483 Romanian 1564 Urdu

1149 Spanish 1301 Korean 1489 Russian 1572 Uzbek

1150 Estonian 1305 Kashmiri 1491 Kinyarwanda 1581 Vietnamese

1151 Basque 1307 Kurdish 1495 Sanskrit 1587 Volapuk

1157 Persian 1311 Kirghiz 1498 Sindhi 1613 Wolof

1165 Finnish 1313 Latin 1501 Sangro 1632 Xhosa

1166 Fiji 1326 Lingala 1502 Serbo-Croatian 1665 Yoruba

1171 Faeroese 1327 Laothian 1503 Singhalese 1684 Chinese

1174 French 1332 Lithuanian 1505 Slovak 1697 Zulu

MISCELLANEOUS

Page 37

USB Host Feature Supported Products

Specifications

ENG

Digital Camera

Product Company Type

Finepix-A340 Fuji Digital Camera Finepix-F810 Fuji Digital Camera Finepix-F610 Fuji Digital Camera Finepix-f450 Fuji Digital Camera Finepix S7000 Fuji Digital Camera Finepix A310 Fuji Digital Camera KD-310Z Konica Digital Camera Finecam SL300R Kyocera Digital Camera Finecam SL400R Kyocera Digital Camera Finecam S5R Kyocera Digital Camera Finecam Xt Kyocera Digital Camera Dimage-Z1 Minolta Digital Camera Dimage Z1 Minolta Digital Camera Dimage X21 Minolta Digital Camera Coolpix4200 Nikon Digital Camera Coolpix4300 Nikon Digital Camera Coolpix 2200 Nikon Digital Camera Coolpix 3500 Nikon Digital Camera Coolpix 3700 Nikon Digital Camera Coolpix 4100 Nikon Digital Camera Coolpix 5200 Nikon Digital Camera Stylus 410 digital Olympus Digital Camera 300-digital Olympus Digital Camera U300 Olympus Digital Camera X-350 Olympus Digital Camera C-760 Olympus Digital Camera C-5060 Olympus Digital Camera X1 Olympus Digital Camera U-mini Olympus Digital Camera Lumix-FZ20 Panasonic Digital Camera DMC-FX7GD Panasonic Digital Camera Lumix LC33 Panasonic Digital Camera LUMIX DMC-F1 Panasonic Digital Camera Optio-S40 Pentax Digital Camera Optio-S50 Pentax Digital Camera Optio 33LF Pentax Digital Camera Optio MX Pentax Digital Camera Digimax-420 Samsung Digital Camera Digimax-400 Samsung Digital Camera Sora PDR-T30 Toshiba Digital Camera Coolpix 5900 Nikon Digital Camera Coolpix S1 Nikon Digital Camera Coolpix 7600 Nikon Digital Camera DMC-FX7 Panasonic Digital Camera Dimage Xt Minolta Digital Camera AZ-1 Olympus Digital Camera

USB Flash Disk

Product Company Type

Cruzer Micro Sandisk USB 2.0 USB Flash Drive 128M Cruzer Mini Sandisk USB 2.0 128M Cruzer Mini Sandisk USB 2.0 256M SONY Micro Vault Sony USB 2.0 64MB FLEX DRIVE Serotech USB 2.0 32MB AnyDrive A.L tech USB 2.0 128MB XTICK LG USB 2.0 128M Micro Mini Iomega USB 2.0 128M iFlash Imation USB 2.0 64M LG XTICK(M) USB 2.0 64M RiDATA EZDrive USB 2.0 64M

MP3 Player

Product Company Type

Creative MuVo NX128M Creative 128 MB MP3 Player Iriver H320 Iriver 20G HDD MP3 Player YH-920 Samsung 20G HDD MP3 Player YP-T7 Samsung MP3 Player YP-MT6 Samsung MP3 Player YP-T6 Samsung MP3 Player YP-53 Samsung MP3 Player YP-ST5 Samsung MP3 Player YP-T5 Samsung MP3 Player YP-60 Samsung MP3 Player YP-780 Samsung MP3 Player YP-35 Samsung MP3 Player YP-55 Samsung MP3 Player iAUDIO U2 Cowon MP3 Player iAUDIO G3 Cowon MP3 Player iAudio M3 Cowon HDD MP3 Player SI-M500L Sharp 256MB MP3 Player H10 Iriver MP3 Player YP-T5 VB Samsung MP3 Player YP-53 Samsung 256MB MP3 Player

Multi Card Reader

Product Company Type

UNICORN Unicorn USB 2.0 Card Reader

Billionton(Taiwan)

USB 2.0 7 IN 1 CARD READER UC-601R

USB 2.0 Card Reader for SD/MMC/RS-MMC(3-in-1)

Power Consumption

Weight

N E

Dimensions (W x H x D)

Operating Temperature Range

Operating Humidity Range

Usable Sensitivity

S/N Ratio

Distortion

I D E O

Composite Video

Component Video

Front speaker output

A M

Center speaker output

Rear speaker output

Subwoofer speaker output

Frequency range

S/N Ratio

Channel separation

E R

Input sensitivity

Speaker system

Impedance

Frequency range

Output sound pressure level

Rated input

A K

Maximum input

Dimensions (W x H x D)

Weights

110W 11Ibs 17 x 3 x 17.1 inches 41°F ~ 95°F 10% ~ 75% 10dB 60dB 1%

1.0Vp-p(75Ω load) Y:1.0Vp-p(75Ω load) Pr:0.70Vp-p(75Ω load) Pb:0.70Vp-p(75Ω load) 133W x 2(3Ω) 133W(3Ω) 133W x 2(3Ω) 135W(3Ω) 20Hz~20KHz 75dB 60dB (AUX)400mV

5.1ch speaker system

Front/Center/Rear speaker

3Ω x 5 145Hz~20KHz 85dB/W/M 133W 266W

Front/Rear

Center

Front/Rear

Center

3.5 x 5.9 x 3.5 inches

7.9 x 3.5 x 3.6 inches

1.3 Ibs/1.1 Ibs

1.4 Ibs

Subwoofer speaker

3Ω 35Hz~140Hz 85dB/W/M 135W 270W

6.9 x 12.6 x 15 inches

11.3 Ibs

MISCELLANEOUS

USB External HDD

Product Company Type

CUTIE Serotech POCKET HARD DISK DRIVE MOMOBAY UX-2 Dvico USB 2.0

Page 38

SAMSUNG Home Theater

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) Year Parts and Labor*

(*90 Days Parts and Labor for Commercial Use)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser.

SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis. Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

Memo

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To obtain warranty hardware service, please contact SAMSUNG at:

SAMSUNG CUSTOMER CARE CENTER

400 Valley Road, Suite 201, Mt. Arlington, NJ 07856

1-800-SAMSUNG (1-800-726-7864) and www.samsung.com

Samsung HT-Q40 User Manual

Safety Warnings Precautions

Safety Instructions

Features

Contents

Notes on Discs

Description

Connecting the Speakers

CONNECTIONS

Connecting the Video Out to TV

P.SCAN(Progressive Scan) Function

Connecting External Components

Connecting the FM Antenna

OPERATION

Disc Playback

Selecting a Disc in the Disc changer

MP3/WMA-CD Playback

Displaying Disc Information

JPEG File Playback

DivX Playback

Checking the Remaining Time

Fast/Slow Playback

Skipping Scenes/Songs

Repeat Playback A-B Repeat Playback

Step Function

Zoom (Screen Enlarge) Function

Angle Function

EZ VIEW Function

Bonus Group / Navigating Pages

Selecting Audio/Subtitle Language

Playing Media Files using the USB HOST feature

Moving Directly to a Scene/Song

Using Disc Menu

Using the Title Menu

Setting the Language

SETUP

Setting TV Screen type

Setting Parental Controls (Rating Level)

Setting the Password

Setting the Wallpaper

DVD Playback Mode

Setting the Speaker Mode

Setting the Delay Time

Setting the Test Tone

Setting the DRC (Dynamic Range Compression)

Setting the Audio

AV SYNC Setup

Sound Field (DSP)/EQ Function

Dolby Pro Logic II Mode

Dolby Pro Logic II Effect

Listening to Radio

Presetting Stations

Convenient Functions

Operating a TV with the Remote Control

Before Calling for Service

Cautions on Handling and Storing Discs

Language Code List

Specifications
