Samsung HT-HDP40 User Manual

Home Theater System
with 5 Disc DVD
Changer and HDMI

HT-HDP40

Instruction Manual

COMPACT

DIGITAL AUDIO

SAMSUNG ELECTRONICS CANADA, INC.

HEADQUARTERS

55 Standish Court Mississauga, Ontar io L5R 4B2 Canada

TEL: [phone]

www.samsung.ca

SERVICE DIVISION

55 Standish Court Mississauga, Ontar io L5R 4B2 Canada

1-800-SAMSUNG (1-800-726-7864)

AH68-01663S

ENG

12

Safety W arnings Precautions

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player.Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation
slots are not covered.Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may
become hot. Before moving the player, ensure the disc tray is empty.This player is designed for continuous use. Switching off the Home
Theater to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power
supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

Protect the player from moisture(i.e.vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields
(i.e.speakers...).Disconnect the power cable from the AC supply if the
player malfunctions. Your player is not intended for industrial use.

Use of this product is for personal use only.
Condensation may occur if your player or disc has been stored in cold

temperatures.
If transporting the player during the winter, wait approximately 2 hours

until the unit has reached room temperature before using.

During thunderstorms, disconnect AC main plug from the
wall outlet.
Voltage peaks due to lightning could damage the unit.

Do not expose the unit to direct sunlight or other heat
sources.

This could lead to overheating and malfunction of the unit.

The batteries used with this product contain chemicals
that are harmful to the environment.
Do not dispose of batteries in the general household
trash.

PREPARATION

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1
LASER product.

Use of controls, adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.

This symbol indicates that dangerous voltage which can cause electric shock is present inside
this unit.

This symbol alerts you to important operating and maintenance instructions accompanying
the unit.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

CAUTION

Note to CATV system installer :

This reminder is provided to call the CATV system
installer’s attention to Section 820~40 of the NEC
which provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be
connected to the grounding system of the building,
as close to the point of cable entry as practical

Phones

43

Multi-Disc Playback & FM Tuner

The HT-HDP40 combines the convenience of multi-disc playback capability, including
DVD-AUDIO, DVD-VIDEO, VCD, CD, MP3-CD, CD-R/RW, and DVD-R/RW, with a
sophisticated AM/FM tuner, all in a single player.

Dolby Pro Logic II

Dolby Pro Logic II is a new for m of multi-channel audio signal decoding technology
that improves upon existing Dolby Pro Logic.

DTS (Digital Theater Systems)

DTS is an audio compression format developed by Digital Theater Systems Inc.
It delivers full-frequency 5.1 channel sound.

Power Saving Function

The HT-HDP40 automatically shuts itself off after 20 minutes in the stop mode.

TV Screen Saver Function

The HT-HDP40 automatically br ightens and darkens your TV screen
after 3 minutes in the stop mode.
The HT-HDP40 automatically switches itself into the power saving mode
after 20 minutes in the screen saver mode.

Customized TV Screen Display

The HT-HDP40 allows you to select your favor ite image during JPEG, DVD or VCD
playback and set it as your background wallpaper.

PREPARATION

PREPARATION

Safety Warnings..................................................................................................................................................................1

Precautions.........................................................................................................................................................................2

Features..............................................................................................................................................................................3

Notes on Discs....................................................................................................................................................................4

Description..........................................................................................................................................................................5

CONNECTIONS

Connecting the Speakers ...................................................................................................................................................11

Connecting the Video Out to TV .........................................................................................................................................13

Connecting the HDMI IN/OUT............................................................................................................................................14

HDMI Function ....................................................................................................................................................................15

Connecting External Components......................................................................................................................................16

How to Connect to Anynet..................................................................................................................................................19

Connecting the FM and AM Antennas ...............................................................................................................................20

Before Using Your Home Theater.......................................................................................................................................21

OPERATION

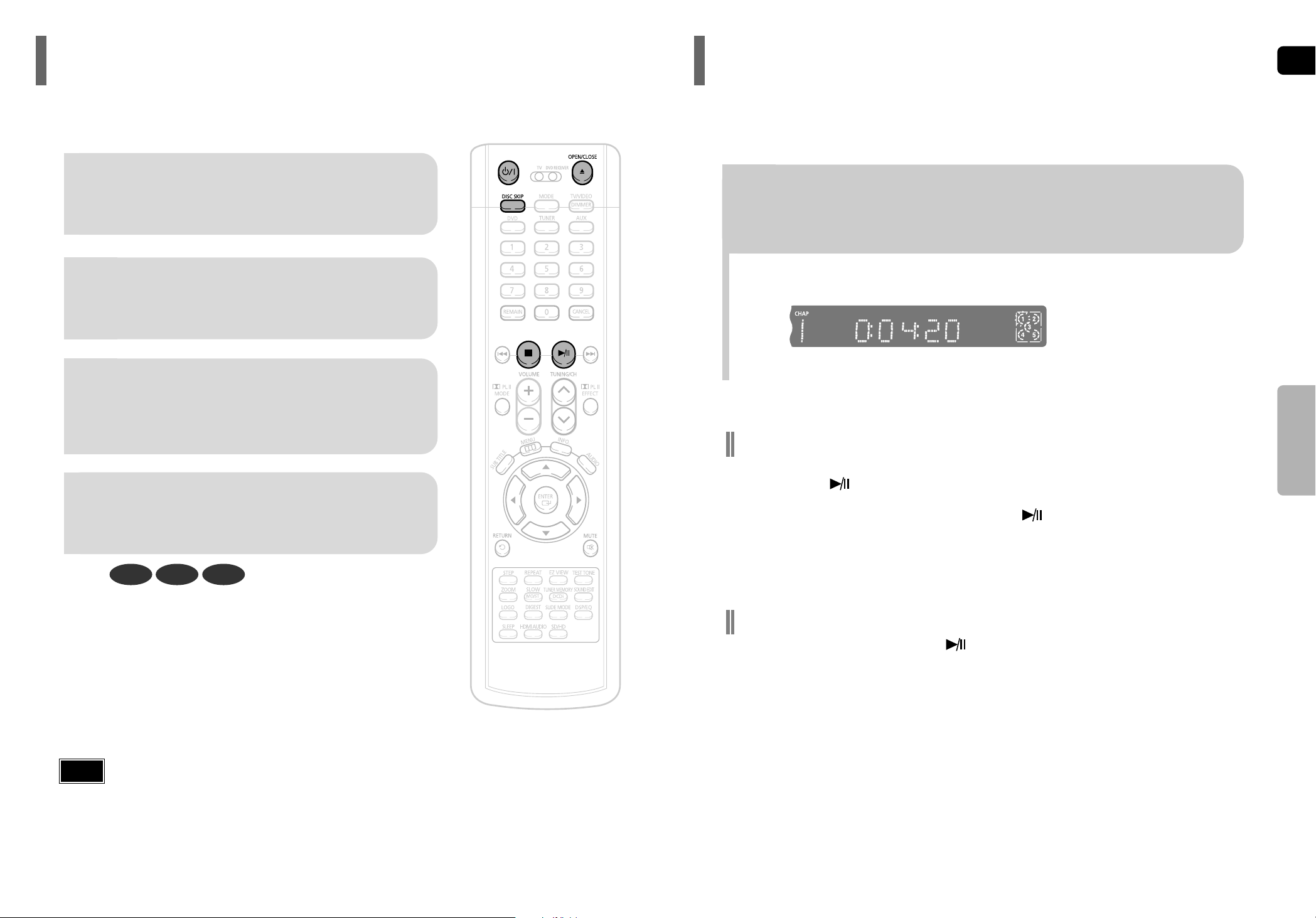

Disc Playback .....................................................................................................................................................................23

Selecting a Disc in the Disc changer..................................................................................................................................24

MP3-CD Playback...............................................................................................................................................................25

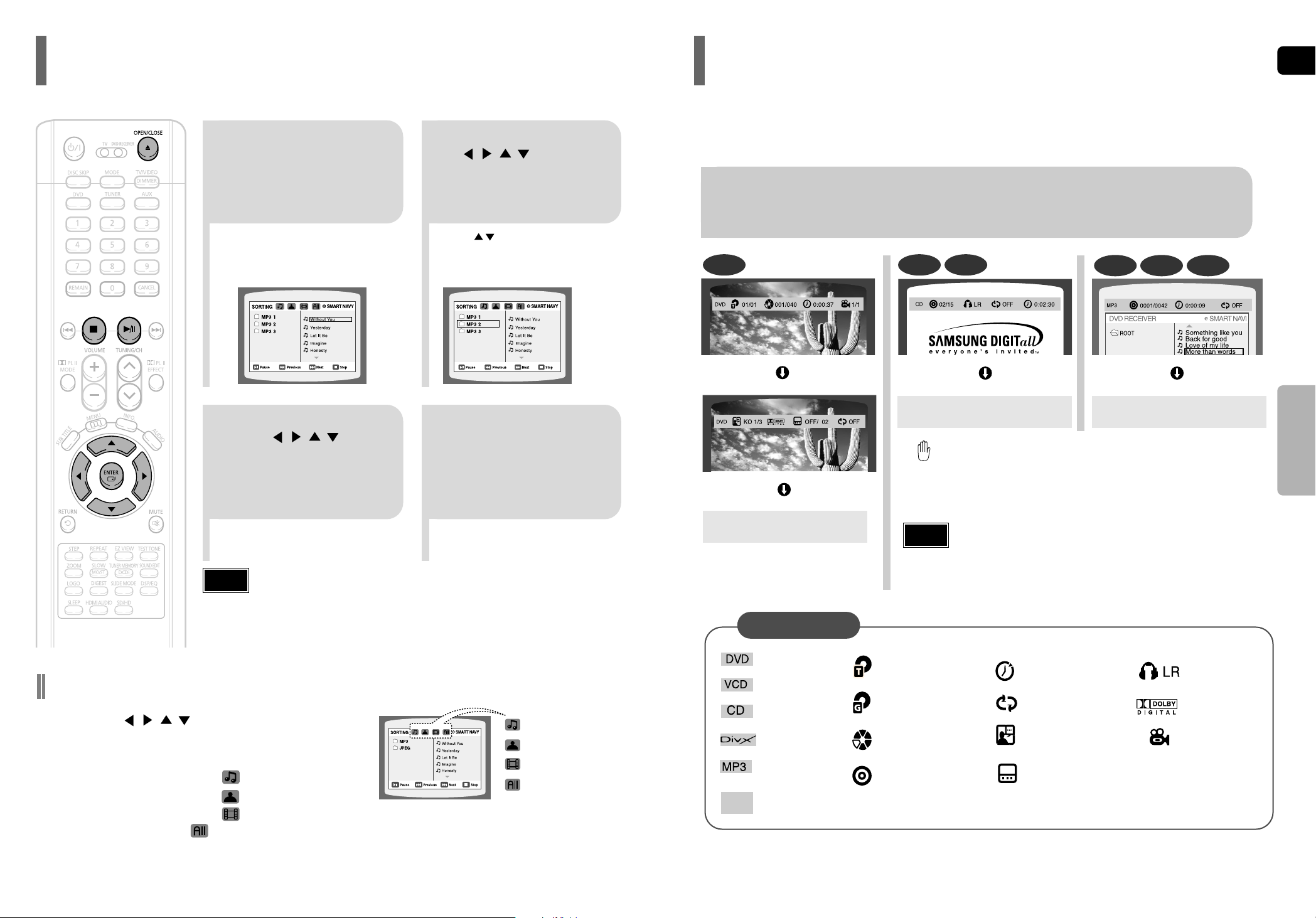

Displaying Disc Information................................................................................................................................................26

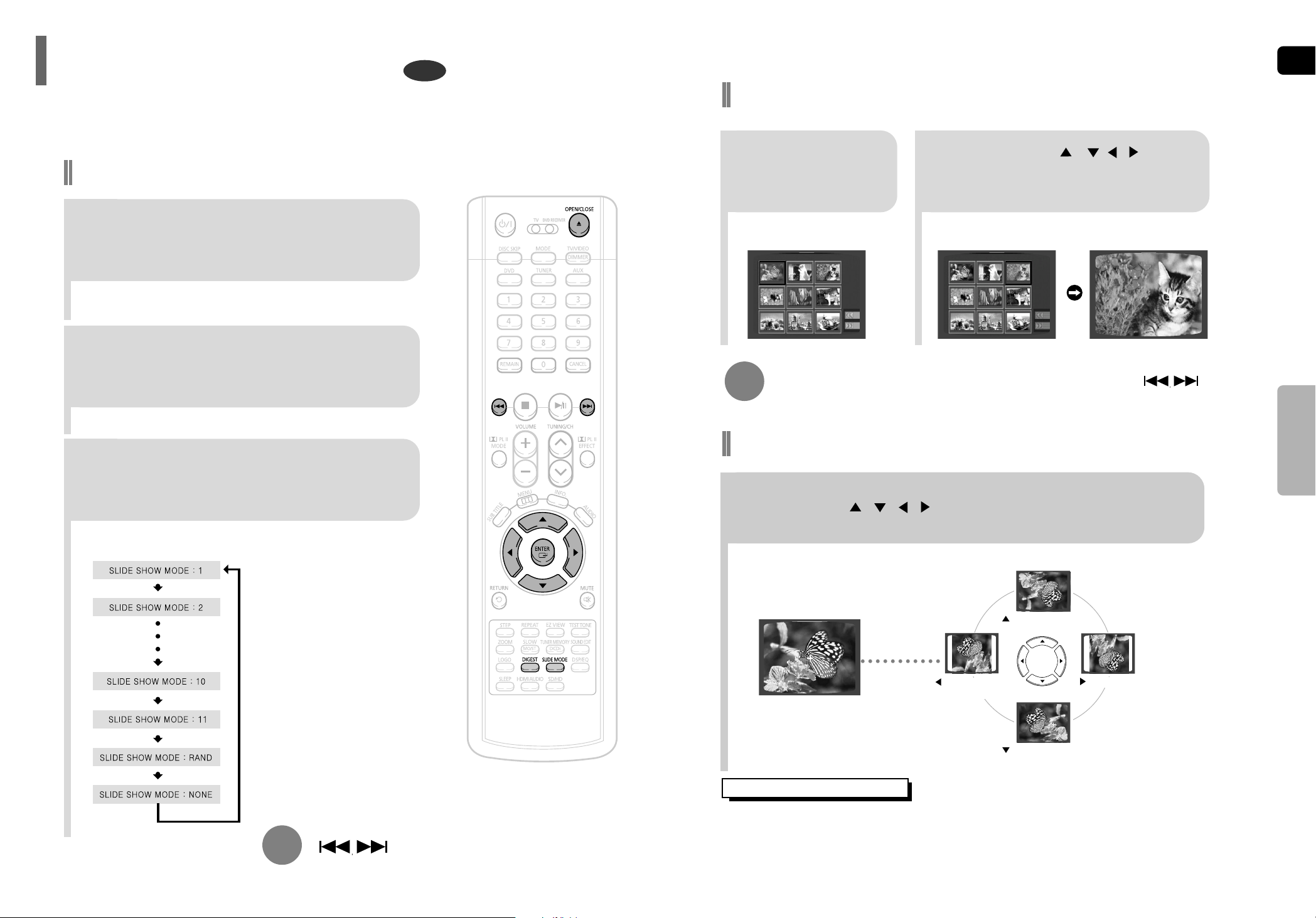

JPEG File Playback............................................................................................................................................................27

DivX Playback.....................................................................................................................................................................29

Checking the Remaining Time............................................................................................................................................31

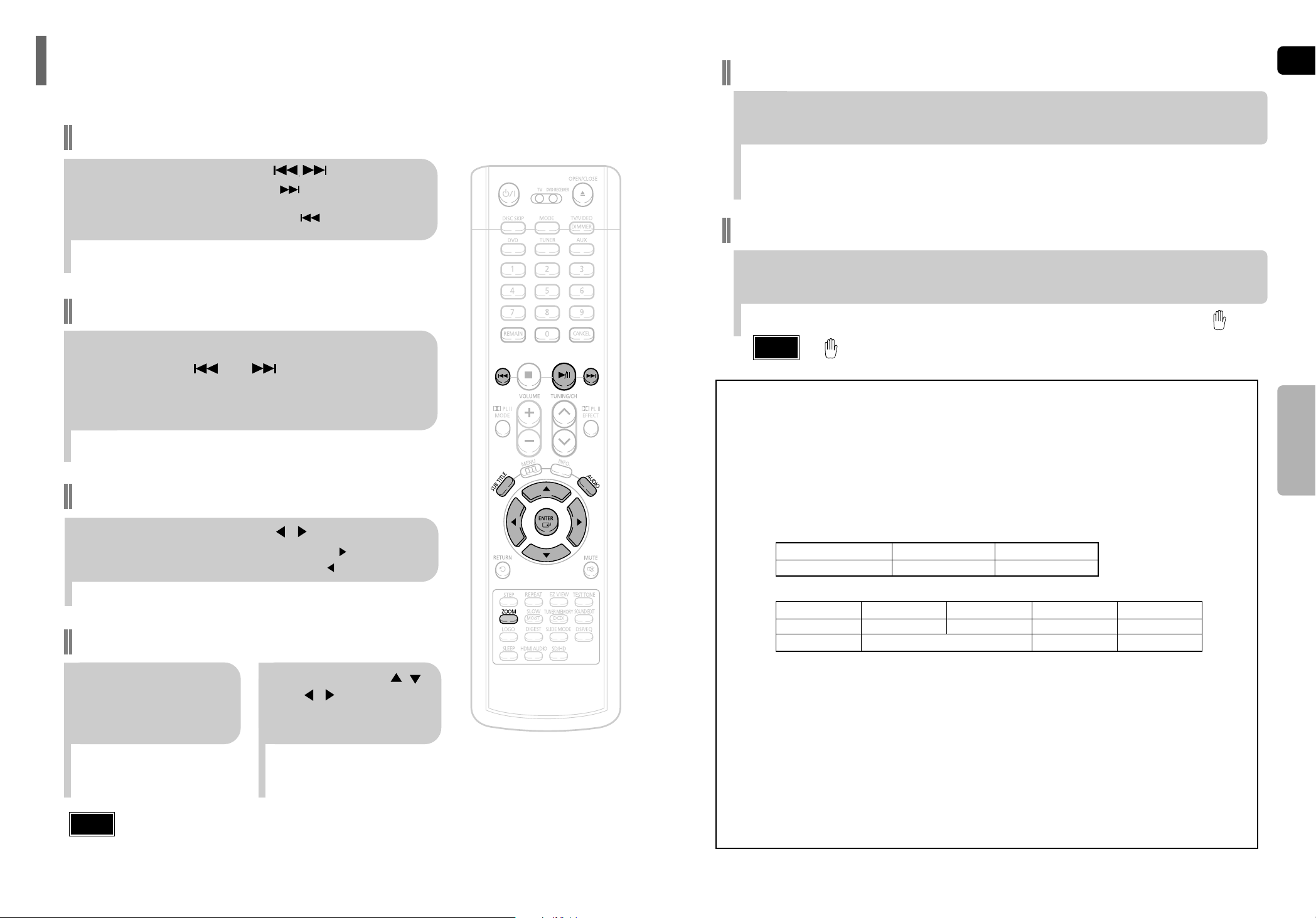

Fast/Slow Playback.............................................................................................................................................................32

Skipping Scenes/Songs ......................................................................................................................................................32

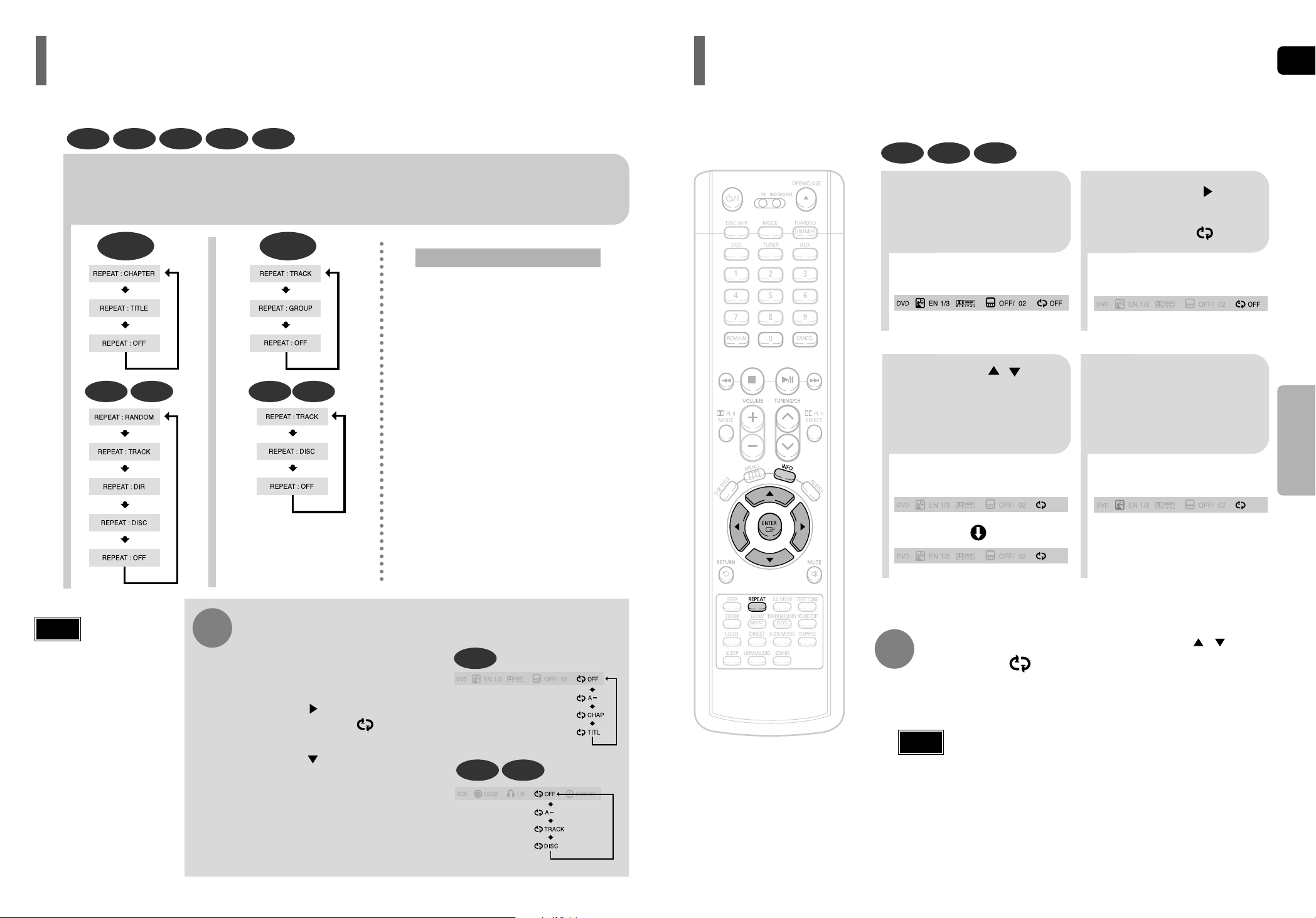

Repeat Playback.................................................................................................................................................................33

A-B Repeat Playback..........................................................................................................................................................34

Step Function......................................................................................................................................................................35

Angle Function ....................................................................................................................................................................35

Zoom (Screen Enlarge) Function .......................................................................................................................................36

EZ VIEW Function ..............................................................................................................................................................36

Bonus Group / Navigating Pages.......................................................................................................................................37

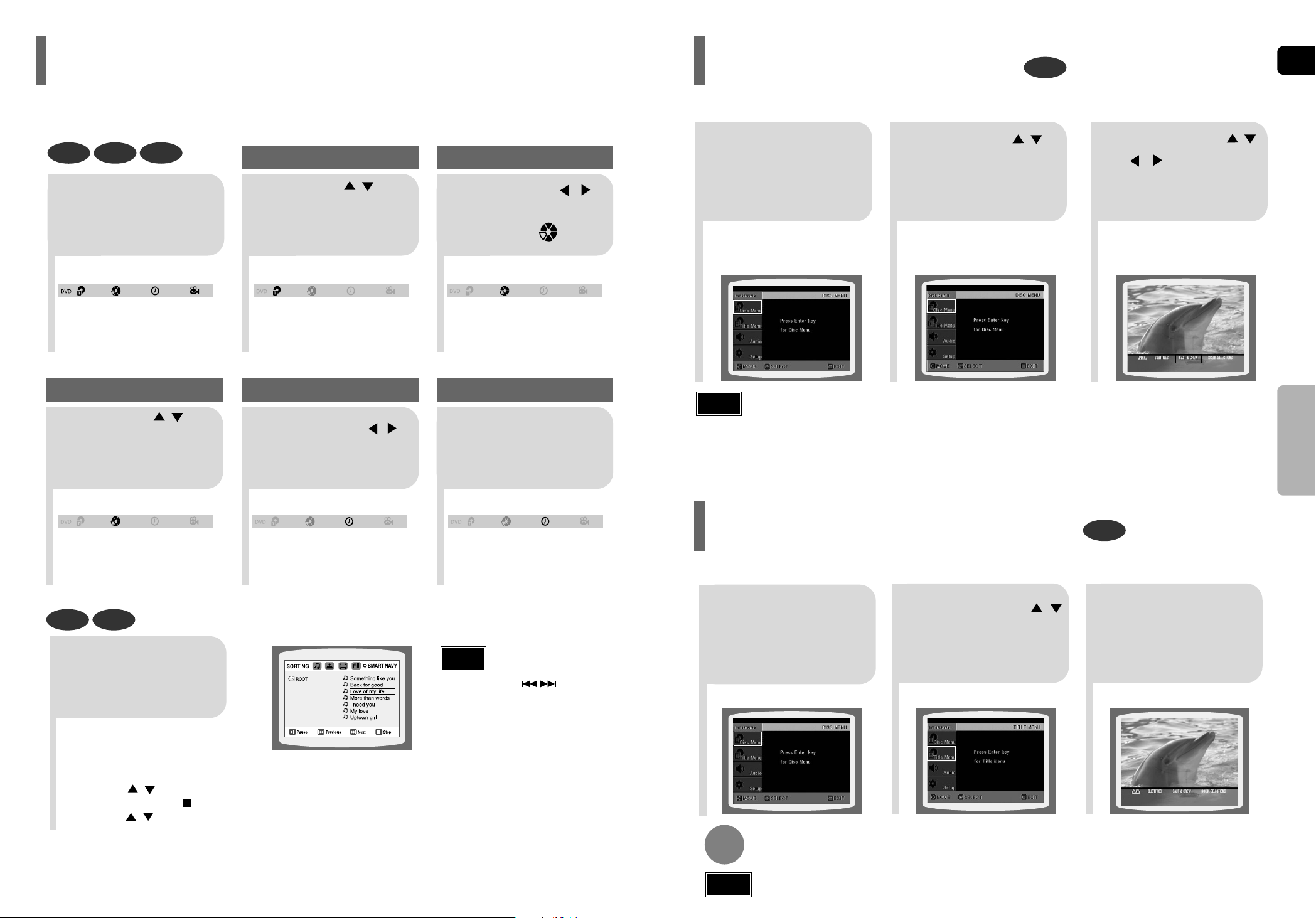

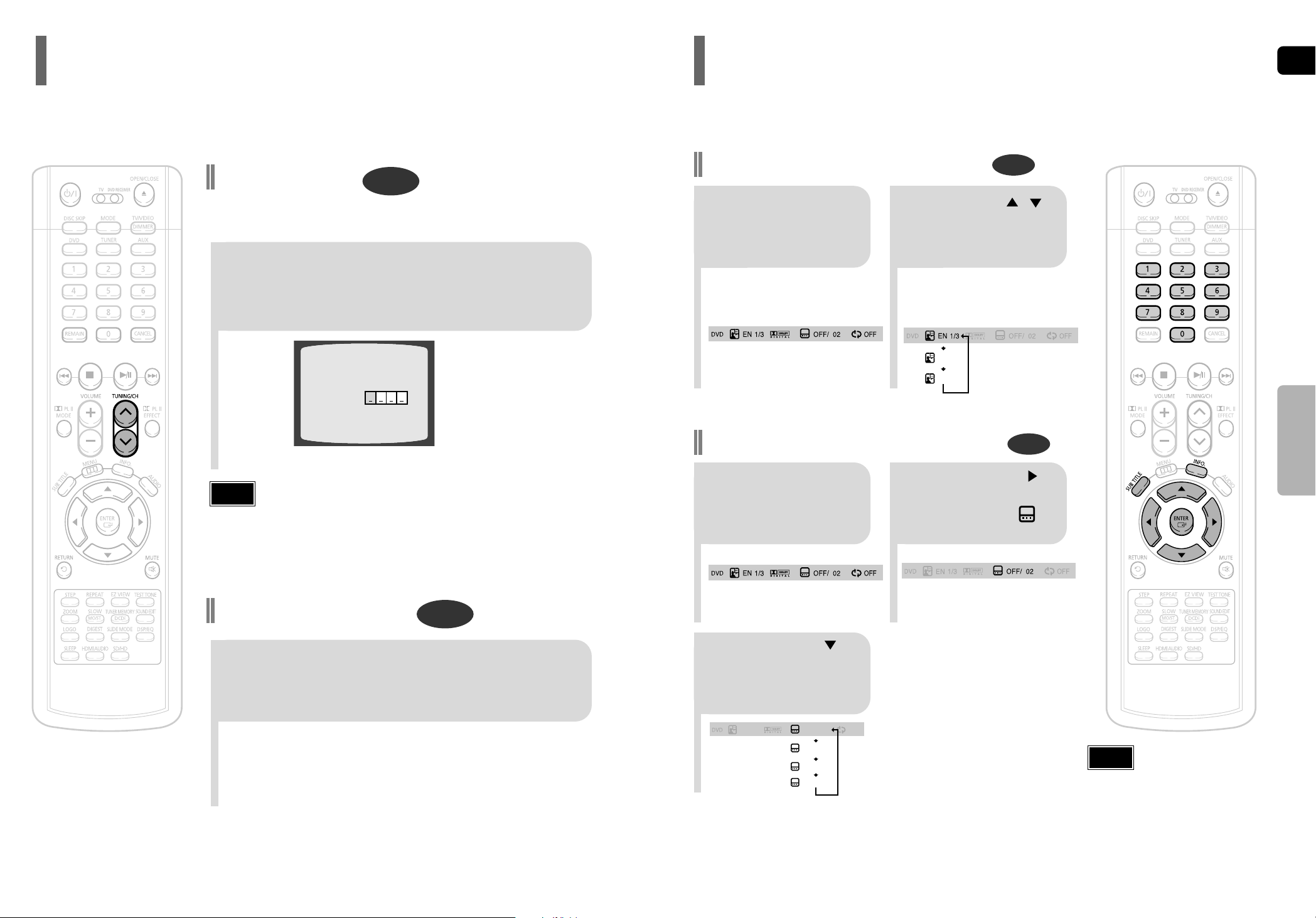

Selecting Audio/Subtitle Language.....................................................................................................................................38

Moving Directly to a Scene/Song .......................................................................................................................................39

Using Disc Menu.................................................................................................................................................................40

Using the Title Menu...........................................................................................................................................................40

SETUP

Setting the Language..........................................................................................................................................................41

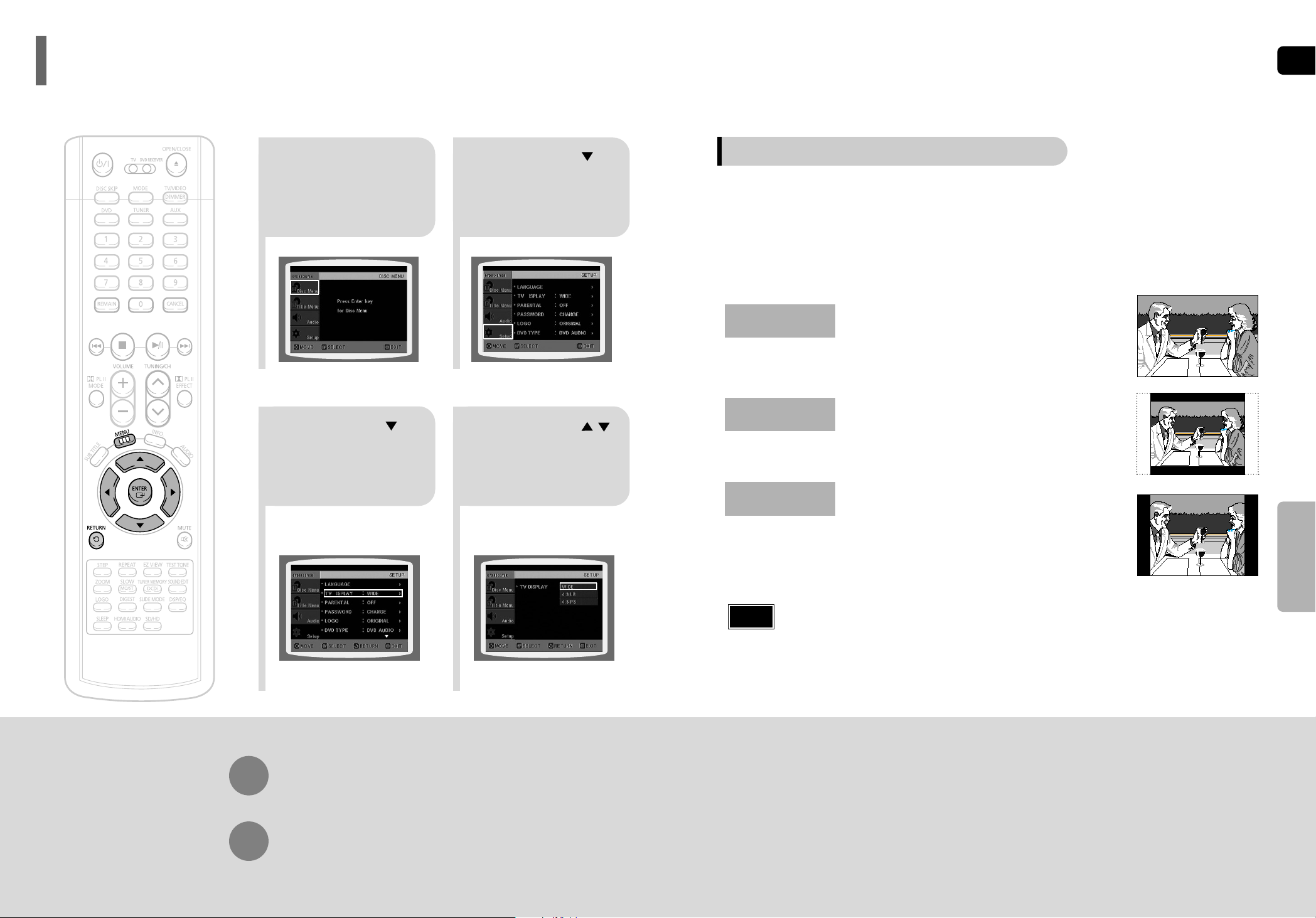

Setting TV Screen type.......................................................................................................................................................43

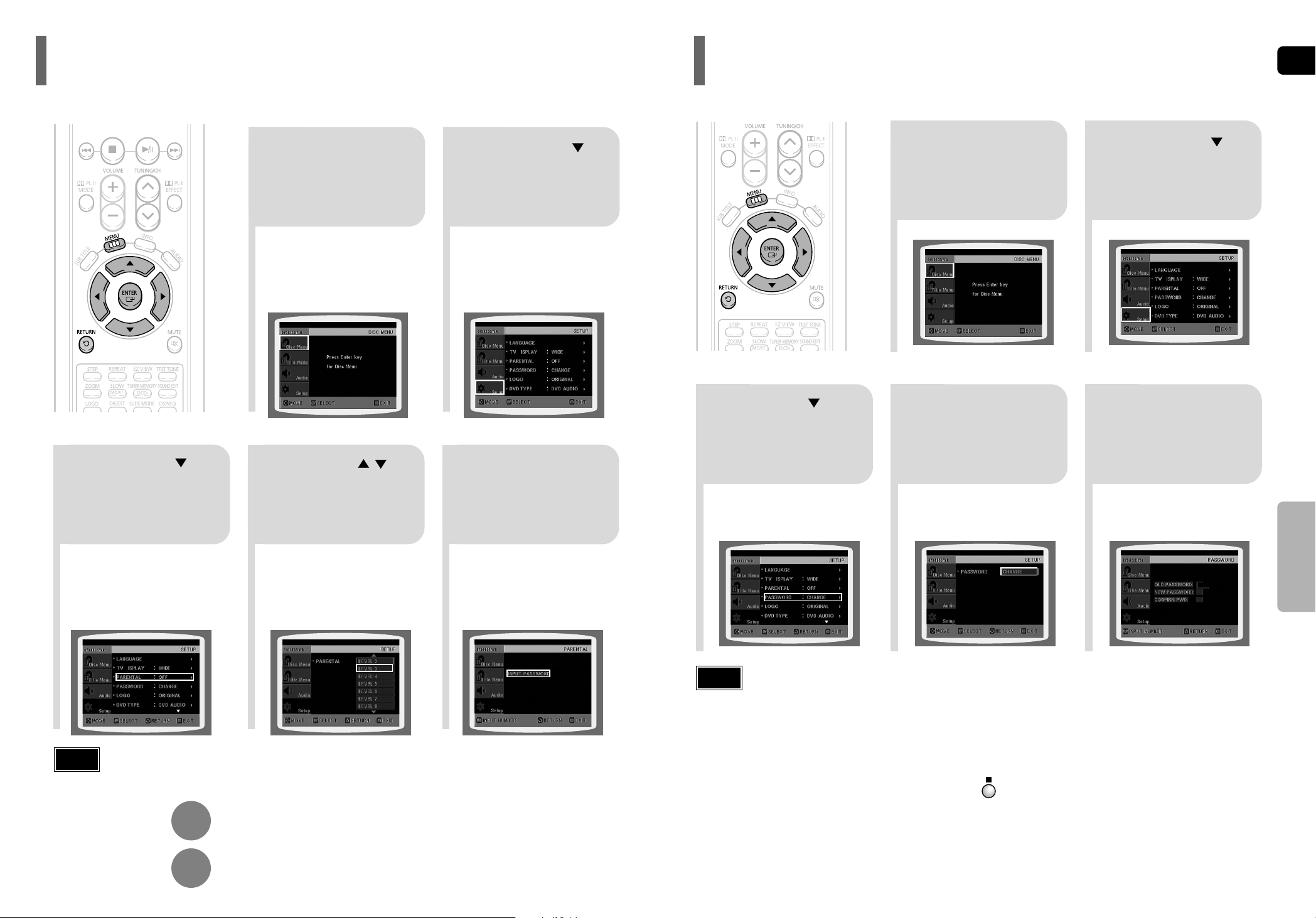

Setting Parental Controls (Rating Level).............................................................................................................................45

Setting the Password..........................................................................................................................................................46

Setting the Wallpaper..........................................................................................................................................................47

DVD Audio Disc Playback Mode .........................................................................................................................................49

Setting the Speaker Mode..................................................................................................................................................50

Setting the Delay Time........................................................................................................................................................51

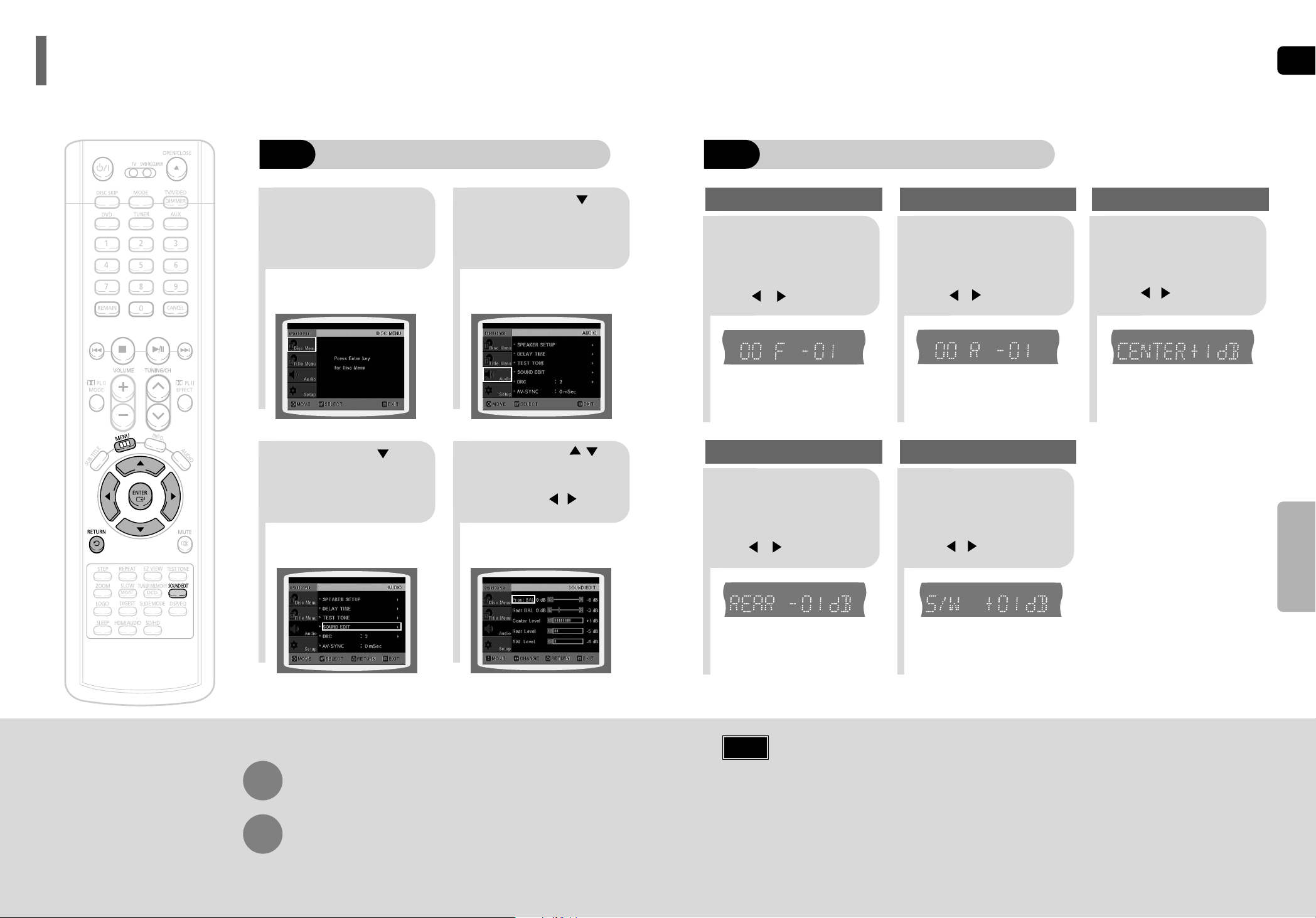

Setting the Test Tone ..........................................................................................................................................................53

Setting the DRC (Dynamic Range Compression) ..............................................................................................................54

Setting the Audio ...............................................................................................................................................................55

AV SYNC Setup..................................................................................................................................................................57

Sound Field (DSP)/EQ Function.........................................................................................................................................58

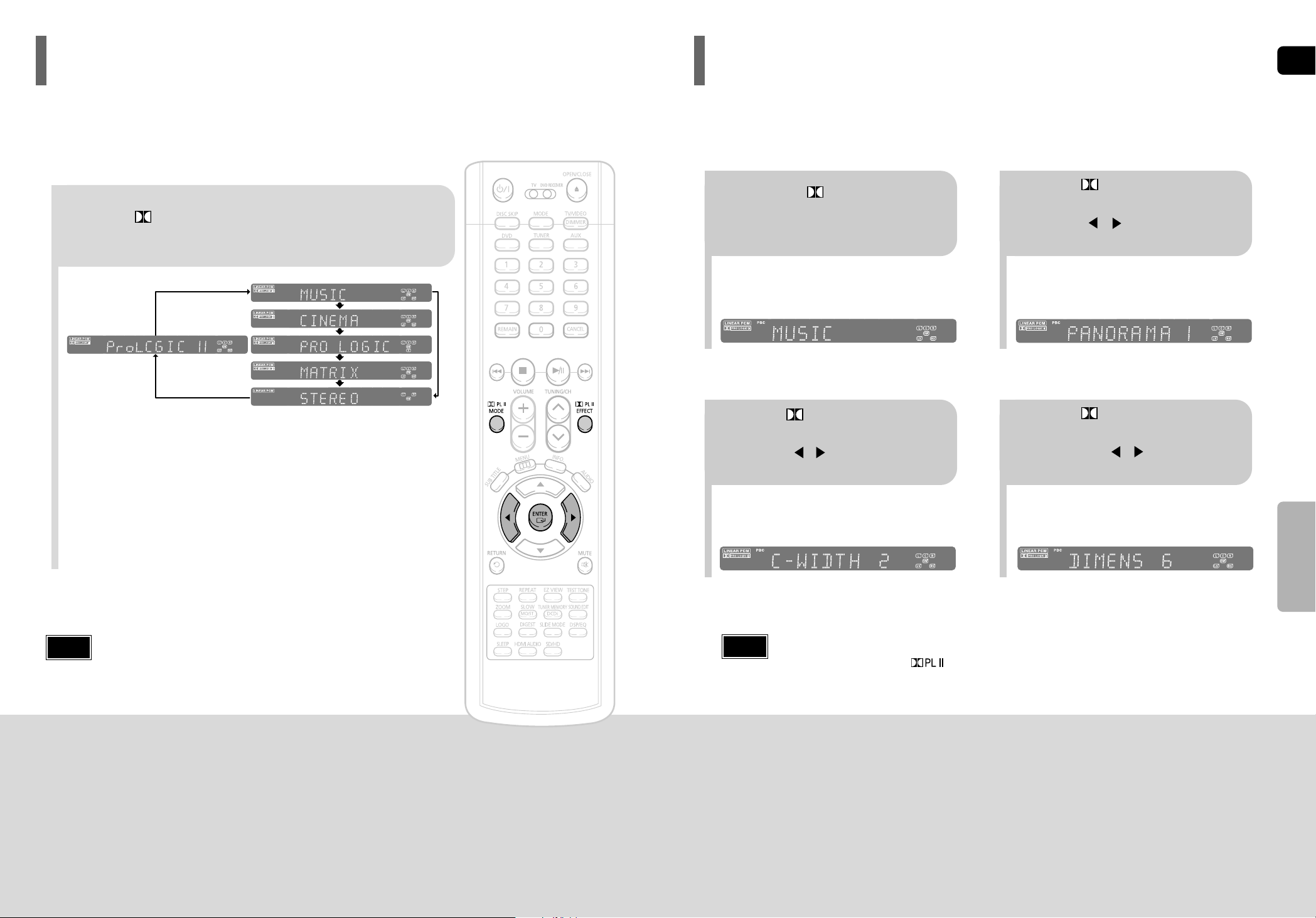

Dolby Pro Logic II Mode.....................................................................................................................................................59

Dolby Pro Logic II Effect.....................................................................................................................................................60

RADIO OPERATION

Listening to Radio...............................................................................................................................................................61

Presetting Stations..............................................................................................................................................................62

MISCELLANEOUS

Convenient Functions.........................................................................................................................................................63

Operating a TV with the Remote Control............................................................................................................................65

Before Calling for Service ...................................................................................................................................................67

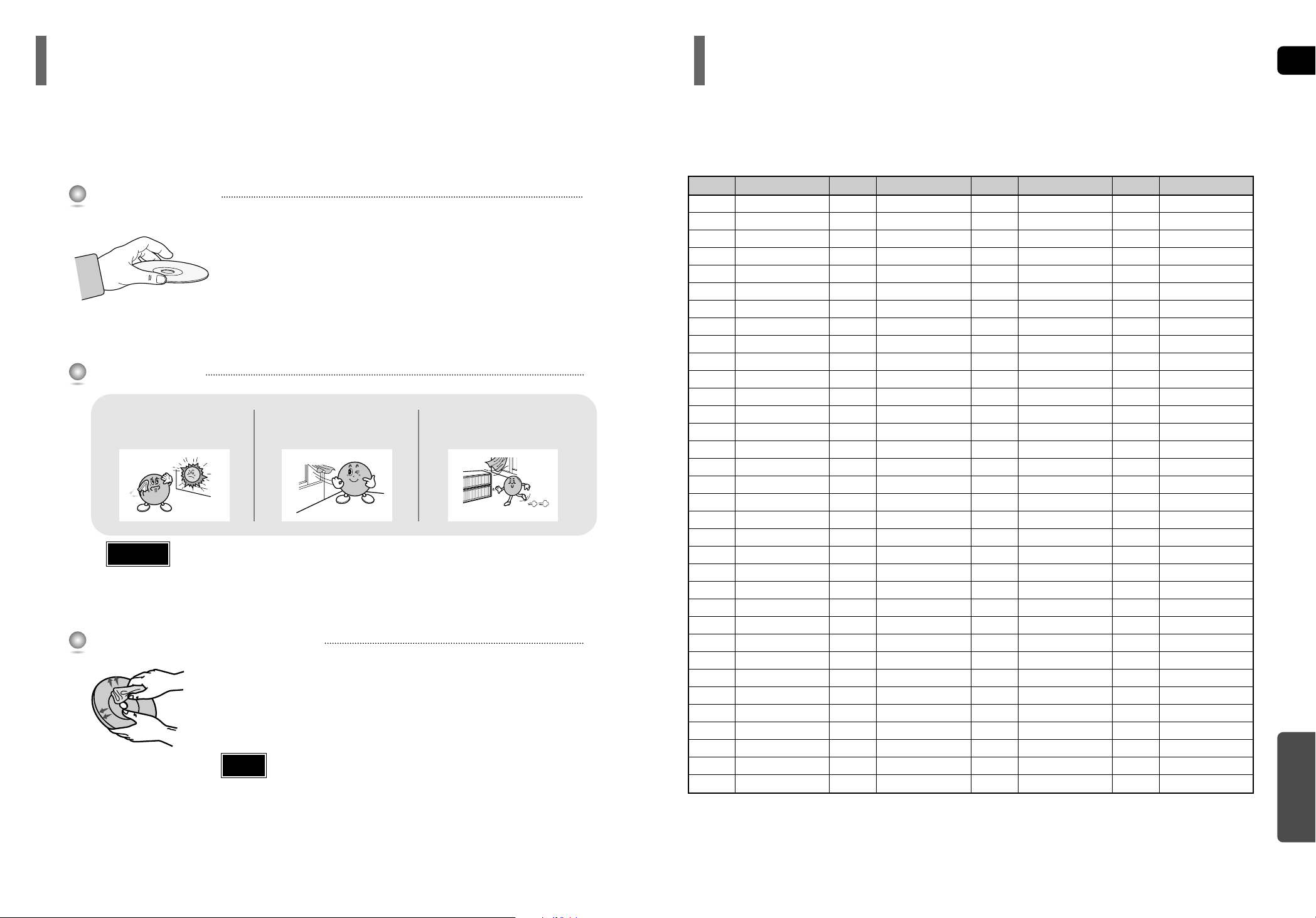

Cautions on Handling and Storing Discs ............................................................................................................................69

Language Code List............................................................................................................................................................70

Specifications......................................................................................................................................................................71

WARRANTY........................................................................................................................................................................72

Features

Contents

ENG

DVD-Audio compatible

Experience the super high-quality audio performance of DVD-Audio.
The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in
terms of dynamic range, low-level resolution and high-frequency detail.

Samsung AV Device Operation using Anynet

Using Anynet you can conveniently operate your Samsung DVD and AV devices with
your Samsung TV remote control.

HDMI

HDMI transmits DVD video and audio signals simultaneously, and provides a clearer
picture.

ENG

CD-R Discs

•

Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the
condition of the disc.

•

Use a 650MB/74 minute CD-R. Other CD-R media, may not be playable.

•

Some CD-RW (Rewritable) media, may not be playable.

•

Only CD-Rs that are properly "closed" can be fully played.If the session is closed but the disc is left open,
you may not be able to fully play the disc.

CD-R JPEG Discs

•

Only files with the ".jpeg" and ".JPEG" extensions can be played.

•

If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

•

Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

•

JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (./ = +).

•

Only a consecutively written multisession disc can be played.If there is a blank segment in the multisession disc, the
disc can be played only up to the blank segment.

•

A maximum of 9,999 images can be stored on a single CD.

•

When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.

•

Picture discs other than Kodak/Fuji Picture CDs may take longer to star t playing or may not play at all.

Disc Recording Format

6

CD-R MP3 Discs

•

Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.

•

MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (./ = +).

•

Use discs recorded with a compression/decompression data rate greater than 128Kbps.

•

Only files with the ".mp3" and ".MP3" extensions can be played.

•

Only a consecutively written Multisession disc can be played.If there is a blank segment in the Multisession disc,
the disc can be played only up to the blank segment.

•

If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.

•

For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g.,
32Kbps ~ 320Kbps), the sound may skip during playback.

•

A maximum of 500 tracks can be played per CD.

•

A maximum of 300 folders can be played per CD.

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital

surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.

Home Theaters and the discs are coded by region. These regional codes must match in
order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.

(Your Home Theater will only play DVDs that are labeled with identical region codes.)

1 6

~

•

LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.
If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.

•

DVD discs purchased abroad may not play on this player.
If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.

5

Do not use the following types of disc!

•

Many DVD discs are encoded with copy protection. Because of this, you should only connect
your Home Theater directly to your TV, not to a VCR. Connecting to a VCR results in a distorted
picture from copy-protected DVD discs.

•

This product incorporates copyright protection technology that is protected by methods claims of certain
U.S.patents and other intellectual property r ights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.

Copy Protection

PREPARATION

Notes on Discs

Mark (Logo)

Audio + Video

DVD-AUDIO
DVD-VIDEO

VIDEO-CD

AUDIO-CD

5"

Approx. 240 min. (single-sided)

Approx. 480 min. (double-sided)

Approx. 80 min. (single-sided)

Approx. 160 min. (double-sided)

74 min.
20 min.
74 min.
20 min.

3 1/2"

5"

3 1/2"

5"

3 1/2"

Audio + Video

Audio

Recorded Signals

Disc Type Disc Size Max. Playing Time

Playable Discs

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

ENG

7

Description

PREPARATION

—Front Panel—

Power ( ) button

Standby indicator

DSP/EQ button

SUB TITLE button

MUTE button

Function button

Headphone Jack

Remote Control Sensor

Disc T ray

Open/Close button

Direct Play buttons

Volume control

Disc Change
button

Tuning Down & Skip ( ) buttons

Tuning Up & Skip ( ) buttons

Play/Pause ( ) button

Stop ( ) button

—Rear Panel—

FM Antenna Connector

External Video Input Connectors

External Audio Input Connectors

5.1 Channel Speaker
Output Terminals

S-Video Output Connector

If the TV is equipped with an S-Video input
connector (S-VIDEO IN), connect it to the
player's S-Video output.

External Digital Optical Input Connector

Use this to connect external equipment capable of digital output.

Cooling Fan

COMPONENT VIDEO OUTPUT
Connectors

Connect a TV with component video inputs
to these jacks.

AM Antenna
Connector

HDMI Output/Input

Connector

Anynet Input/Output

Connector

Video Cable Anynet Cable

AM Antenna

Remote Control

FM Antenna

Accessories

User's Manual

8

Video Output Connector

Connect the TV's video input jacks
(VIDEO IN) to the VIDEO OUT connector.

PRO LOGIC II indicator

LINEAR PCM indicator

DOLBY DIGITAL indicator

DVD AUDIO indicator

TITLE

indicator

GROUP indicator

PROGRAM indicator

CHAPTER indicator

DISC(1~5)

indicator

REPEAT indicator

TRACK indicator

TUNER indicator

STEREO indicator

DSP indicator

RADIO FREQUENCY

indicator

System Status Display

SPEAKER indicator

DTS Disc

indicator

ENG

10

Insert Remote Batteries

The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be
operated at a horizontal angle of up to 30° from the remote control sensor.

Range of Operation of the Remote Control

9

Caution

PREPARATION

Description

Remove the battery
cover on the back
of the remote by
pressing down and
sliding the cover in
the direction of the
arrow.

1

Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and –).

2

Replace the battery
cover.

3

Follow these precautions to avoid leaking or cracking cells:

•

Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).

•

Use the correct type of batteries.Batteries that look similar may differ in voltage.

•

Always replace both batteries at the same time.

•

Do not expose batteries to heat or flame.

PL II MODE button

VOLUME button

MENU button

TV, DVD POWER button

TV indicator

DISC SKIP button

SLEEP button

CANCEL button

RETURN button

Number(0~9) buttons

MODE button

TV/VIDEO, DIMMER button

OPEN/CLOSE button

DVD RECEIVER indicator

Cursor/Enter button

DSP/EQ button

EZ VIEW b utton

SLIDE MODE button

SD/HD button

TUNER MEMORY, DCDi button

SOUND EDIT button

TEST TONE button

AUDIO button

MUTE button

INFO. button

TUNING/CH button

STEP button

ZOOM button

LOGO COPY button

REPEAT button

SLOW, MO/ST button

HDMI AUDIO button

DIGEST button

REMAIN button

SUB TITLE button

PL II EFFECT button

—Remote Control—

DVD button

Play/Pause button

Tuning Preset/CD Skip button

Stop button

AUX button

TUNER button

ENG

SRSL

C

L

SW

R

12

Rear Speakers

•

Place these speakers behind your listening position.

•

If there isn't enough room, place these speakers so they face each
other.

•

Place them about 60 to 90cm (2 to 3feet) above your ear, facing
slightly downward.

*

Unlike the front and center speakers, the rear speakers are used
to handle mainly sound effects and sound will not come from
them all the time.

Subwoofer

•

The position of the subwoofer is not so critical.
Place it anywhere you like.

Front Speakers

•

Place these speakers in front of your listening
position, facing inwards (about 45°) toward you.

•

Place the speakers so that their tweeters will be at
the same height as your ear.

•

Align the front face of the front speakers with the
front face of the center speaker or place them
slightly in front of the center speakers.

Center Speaker

•

It is best to install it at the same height as the front
speakers.

•

You can also install it directly over or under the TV.

Position of the Home Theater

•

Place it on a stand, cabinet shelf, or under the
TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from the
TV. Example: For 32" TVs 2~2.4m (6~8 feet)

For 55" TVs 3.5~4m (11~13 feet)

11

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

CONNECTIONS

R

L

C

SR

SL

SW

Connecting the Speakers

•

Make sure the colors of the speaker terminals
match the colors of the connecting plugs.

Black

Press down the terminal
tab on the back of the
speaker.

1

Insert the black wire into
the black terminal (–) and
the gray wire into the gray
(+) terminal, and then
release the tab.

2

Connect the connecting plugs to
the back of the Home Theater.

3

Gray

Back of the Speakers Back of the Main Unit

Rear Speaker (R)

Front Speaker (R)

Subwoofer

Center Speaker

Rear Speaker (L)

Front Speaker (L)

Blue

Gray

Purple

White

Red

Green

ENG

13

CONNECTIONS

14

Choose one of the four methods for connecting to a TV. HDMI (High-Definition Multimedia Interface) is a next generation TV-type digital interface specification

that enables transmitting digital video and audio over a single cable. In addition, it enables you to enjoy
multi-channel digital audio.

Connecting the Video Out to TV

- Connect the supplied video cable from the VIDEO OUT jack on the back panel of the system
to the VIDEO IN jack on your TV.

Composite Video

.......

(Good Quality)

METHOD 1

- If your television is equipped with an S-Video input, connect an S-Video cable (not supplied) from
the S-VIDEO OUT jack on the back panel of the system to the S-VIDEO IN jack on your television.

S-Video

.......

(Good Quality)

METHOD 2

- If your television is equipped with Component Video inputs, connect a component video cable
(not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the corresponding
jacks on your TV.

Component

.......

(Better Quality)

METHOD 3

- Connect the HDMI out to the HDMI input on your TV.

HDMI

.......

(Best Quality)

METHOD 4

•

This product operates in Progressive scan mode(480p Only ) for Component Output.

•

If the TV only supports a resolution of 576i(480i), the screen may be divided into 2 screens, or
display nothing.

Note

HT-HDP40

TV

METHOD 2

METHOD 3

Green

Green

Blue

Blue

Red

Red

(supplied)

METHOD 1

METHOD 4

Connecting the HDMI IN/OUT

Connect the HDMI OUT port of this unit and the HDMI IN por t of your TV.

2

Press AUX on the remote control to select ‘HDMI IN.

•

Each time the button is pressed, the selection changes as follows:

HDMI IN

➝ DIGITAL IN➝ AUX 1 ➝ AUX 2.

•

You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ HDMI IN ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ FM ➝ AM.

Connect the HDMI IN port of this unit and the HDMI OUT por t of a set-top box
or the DVD player.

1

3

not supplied

not supplied

Set-top box or

DVD player

•

When this unit is turned off, no HDMI video or audio signal is output from this unit.

•

In the HDMI IN Function, the video resolution switch button (SD/HD) does not work.

•

When the output from an external device, which is connected to this device, is DVI, no audio will be
output. In this case, you can listen to the digital audio by connecting the Optical OUT of the source
device and the Optical IN of this device, even if the source device and this device is connected
through DVI interface.

Note

ENG

1615

CONNECTIONS

• Since this product has an embedded Video Upscaler function with Faroudja DCDi technology, it can

enhance a 576i(480i) DVD resolution output to 480p/720p/1080i.

• You do not have to make separate adjustments, since the Home Theater and TV will be automatically

adjust themselves to the optimal resolution and aspect ratio if connected to HDMI.(If the TV is an HDTV
and has an HDMI Input jack, output is automatically converted to 1080i resolution (if supported by the TV).)

• For component video output, only 480P is supported.

• When both HDMI and COMPONENT jacks are connected, COMPONENT video is not displayed.

•

See your TV owner's manual for more infor mation on how to select the TV's Video Input source.

Note

Resolution Selection

•

This function allows the user to select screen resolution for HDMI output.

In Stop mode, press and hold the SD/HD (Standard Definition/High
Definition)button on the remote control.

•

Resolutions available for the HDMI output are 480P, 720P and 1080i.

•

SD(Standard Definition) resolution is 480p and HD(High Definition) resolution is 720p/1080i.

Example: If the TV supports resolution up to 480p

Press the SD/HD button.

•

A 480p video signal is output through the HDMI output.

•

If the TV does not support the configured resolution, you will not be able to see the picture properly.

What is HDMI (High Definition Multimedia Interface)?

This device transmits DVD video signal digitally without the process of converting to analog.
You can get shar per digital pictures by connecting the video to your TV using an HDMI
connection cable.

HDMI Function

HDMI Audio ON/OFF function

•

The audio signals transmitted over the HDMI Cable can be toggled
ON/OFF.

Press the HDMI AUDIO button on the remote
control.

•

This toggles between “AUDIO ON” and “AUDIO OFF” on the display.

•

AUDIO ON :Both video and audio signals are transmitted over the
HDMI connection cable, and audio output is through the TV speakers
only.

•

AUDIO OFF :Video is transmitted over the HDMI connection cable only,
and audio output is through the home theater speakers only.

• The default setting value of this product is HDMI AUDIO OFF.

• HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.

•

If you turn the unit off and on, or switch functions when the HDMI AUDIO
is set to ON, the HDMI AUDIO is automatically set to OFF.

Note

Press and hold DCDi button on the remote
control for over 3 seconds.

•

Each time the button is pressed, the selection alternates between
DCDi ON and DCDi OFF.

Converts the interlace signal to progressive to prevent flickering and to
remove distortion or noise on the edge of screen.

DCDi

(Directional Correlational Deinterlacing)

Function

ENG

1817

CONNECTIONS

Connecting External Components

Press AUX on the remote control to select ‘DIGITAL IN’.

•

Each time the button is pressed, the selection changes as follows:HDMI IN➝ DIGITAL IN➝ AUX 1 ➝ AUX 2.

•

You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ HDMI IN ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ FM ➝ AM.

Connect Video Out on the Home Theater to Video In on the TV.

1

Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component.

3
4

Example: Digital signal components such as a Settop Box or CD Recorder.

Connecting an External Digital Component

Optical Cable

(not supplied)

External Digital

Component

TV

Connect Video In on the Home Theater to Video Out on the external digital component.

2

Press AUX on the remote control to select AUX 1
or AUX 2 input.

•

Each time the button is pressed, the selection changes as
follows:HDMI IN➝ DIGITAL IN➝ AUX 1 ➝ AUX 2.

•

You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ HDMI IN ➝
DIGITAL IN ➝AUX 1 ➝ AUX 2 ➝ FM ➝ AM.

•

If you have connected an exter nal digital
component and also an Analog
component to Video In (1, 2) at the same
time, there will be video from AUX 1 even
when you select DIGITAL IN.

•

If you have connected Audio In (L, R) to
1, connect Video In to 1 as well, and if

you have connected Audio In (L, R) to 2,
connect Video In to 2 also.

•

When you select Aux 1 or 2, you are
selecting Video 1 or 2 inputs respectively.

Connect Audio In on the Home Theater to Audio
Out on the external analog component.

•

Be sure to match connector colors.

Connect Video Out on the Home Theater to
Video In on your TV.

1

Connect Video In on the Home Theater to
Video Out on the external analog component.

2
3

4

Example: Analog signal components such as a VCR or TV.

Connecting an External Analog Component

Video Cable

Audio Cable

If the external analog

component has only

one Audio Out, connect

either left or right.

External Analog

Component

TV

Note

ENG

Use this to connect

Anynet-enabled AV

devices.

What is Anynet?

•

The Anynet function allows you to use your Samsung TV's remote control and menu to control all AV devices.

•

However, this function is available only with Samsung Anynet-enabled models.

Connect the Anynet input terminal on the back of this unit to your Samsung TV's Anynet
output terminal.

1

Connect the Anynet Out Terminal on the back of this unit to the Anynet input of Samsung
external AV devices.

2

Refer to the user's manual of your Anynet-enabled TV and activate the Anynet function.

3

*

This function is available only with Samsung Anynet-enab led TVs.

•

If the Anynet input and output terminals are reversed, communication with the TV will fail and
you will not be able to use the Anynet function.

Caution

Using a Samsung Anynet-enabled TV, you can control the DVD Home Theater System and any other
Samsung Anynet-enabled AV device. For detailed operation instructions and connection diagram, refer
to the user's manual of your Samsung Anynet-enabled TV.

How to Connect to Anynet

Connecting the FM and AM Antennas

The cooling fan supplies cool air to the unit to prev ent ov erheating.

Please observe the following cautions for your safety.

•

Make sure the unit is well-ventilated.If the unit has poor ventilation, the temperature inside the unit could rise
and may damage it.

•

Do not obstruct the cooling fan or ventilation holes.(If the cooling fan or ventilation holes are covered with a
newspaper or cloth, heat may build up inside the unit and fire may result.)

Cooling Fan

FM antenna connection AM antenna connection

1. Connect the FM antenna supplied to the FM

75Ω COAXIAL terminal.

2. Slowly move the antenna wire around until
you find a location where reception is good,
then fasten it to a wall or other rigid surface.

1. Connect the AM loop antenna supplied
to the AM and terminals.

2. If reception is poor, connect an outdoor
single vinyl-covered wire to the AM
terminal. (Keep the AM loop antenna
connected).

Snap the tabs on the loop into the
slots of the base to assemble the
AM loop antenna.

FM Antenna (supplied)

AM Loop Antenna
(supplied)

If AM reception is poor, connect an
outdoor AM antenna(not supplied).

2019

CONNECTIONS

ENG

•

Buttons Enabled for TV Operation: POWER, CHANNEL, VOLUME, TV/VIDEO, and Numer ic (0-9) buttons.

•

By default, the remote control is set to work with Samsung TVs.
See page 65 for more information about remote control operation with other manufacturer's TVs.

21

CONNECTIONS

23

Press MODE button
until the TV indicator
lights red.

TV

DVD RECEIVER

TV

DVD RECEIVER

Press the POWER
button to turn on the
TV.

56

Press FUNCTION button
on the main unit or DVD
on the remote to select
DVD/CD mode.

1

Plug the main unit's
power cord into the
AC power supply.

4

Press the MODE
button until the DVD
RECEIVER indicator
lights green.

•

In this manual, the instructions marked with "DVD ( )" are applicable
to DVD-VIDEO, DVD-AUDIO, and DVD-R/RW discs.

Where a particular DVD type is mentioned, it is indicated separately.

•

Depending on the content of the disc, the initial screen may appear different.

DVD

Note

Note

22

Your Home Theater is capable of playing DVD, CD, MP3 and JPEG discs.Depending on the disc you are using,
these instructions may vary slightly. Read the instructions carefully before using.

Before Using Your Home Theater

Groups and tracks (DVD-AUDIO)

•

DVD-audio is divided into several large sections called "groups" and
smaller sections called "tracks". Numbers are allotted to these sections.

These numbers are called "group numbers" and "track numbers".

GROUP 1 GROUP 2

TRACK 1 TRACK 2 TRACK 1 TRACK 2TRACK 3

Titles and chapters (DVD-VIDEO)

•

DVD-video is divided into several large sections called "titles" and smaller
sections called "chapters". Numbers are allotted to these sections.

These numbers are called "title numbers" and "chapter numbers".

TITLE 1 TITLE 2

CHAPTER 1 CHAPTER 2 CHAPTER 1 CHAPTER 2CHAPTER 3

Tracks (Video and music CDs)

•

Video and music CDs are divided into sections called "tracks".
Numbers are allotted to these sections.These numbers are called

"track numbers".

TRACK 1 TRACK 2 TRACK 4 TRACK 5TRACK 3

Files (DivX)

•

DivX is divided into sections called "files".
Numbers are allotted to these sections.These numbers are called

"file numbers".

FILE 1 FILE 2

Disc terminology

To Operate your Samsung TV and the Home Theater with the HT-HDP40's Remote Control

Press TV/VIDEO
button to select
VIDEO mode.

ENG

2423

OPERATION

To stop playback, press STOP during playback.

•

If pressed once, “PRESS PLAY” is displayed and the stop position will be stored in memory.
If PLAY/PAUSE ( ) button or ENTER button is pressed, playback resumes from the stop position.

(This function works only with DVDs.)

• If pressed twice, “STOP” is displayed, and if PLAY/PAUSE ( ) button is pressed, playback starts from the

beginning.

To temporarily pause playback, press PLAY/PAUSE during playback.

•

To resume playback, press PLAY/PAUSE ( ) button again.

Disc Playback

The DVD/CD function is automatically selected when Disc Skip is pushed.

Selecting a Disc in the Disc changer

2

Load a disc.

•

Place a disc gently into the tray with the disc’s label
facing up.

•

Depending on the content of the disc, the initial screen may appear different.

•

Depending on the recording mode, some MP3-CDs cannot be played.

•

Table of contents of a MP3-CD varies depending on the MP3 track format recorded on the disc.

1

Press OPEN/CLOSE button to open the
disc tray.

3

Press DISC SKIP button.

•

Rotate the carousel tray so you can load the third, four th,
and fifth discs.

4

Close the compartment by pressing the
OPEN/CLOSE button again.

DVD VCD CD

•

Playback starts automatically.

Note

To select a specific disc, press the corresponding DIRECT PLAY
(1, 2, 3, 4, 5) buttons on the front panel or DISC SKIP on the

remote control, until the required disc indicator flashes.

•

If the disc selected is not loaded, the next disc is played automatically.

ENG

2625

OPERATION

Press INFO button.

•

Each time the button is pressed, the display changes as follows:

DVD

The information display

disappears from the screen

The information display

disappears from the screen

The information display

disappears from the screen

VCD CD

•

appears on the TV screen!

If this symbol appears on the TV screen while buttons are being operated,
that operation is not possible with the disc currently being played.

•

Depending on the disc, the disc information display may appear
different.

•

Depending on the disc, you can also select DTS, DOLBY DIGITAL,
or PRO LOGIC.

Note

MP3 DivX JPEG

You can view disc playback infor mation on the TV screen.

Displaying Disc Information

Screen Display

CD display

VCD display

DVD display

TITLE display

MP3 CD display

DivX display

ELAPSED TIME display

TRACK (FILE) display

CHAPTER display

SUBTITLE display

AUDIO LANGUAGE display

REPEAT PLAYBACK display

ANGLE display

DOLBY DIGITAL display

STEREO (L/R) display

DVD-AUDIO display

DVD

AUDIO

GROUP display

•

Depending on the recording mode, some MP3-CDs may not play.

•

Table of contents of a MP3-CD varies depending on the MP3 track format
recorded on the disc.

•

MP3 file support: MPEG1 LAYER3 (BITRATE : 128KBPS~320KBPS ,
SAMPLING FREQ.: 32K/44.1K/48KHz)

Note

2

In Stop mode, use

to select
the album, and then
press the ENTER
button.

•

The MP3 menu screen will appear and
playback will start.

•

The appearance of the menu depends on
the MP3 disc.

•

User to select the track.

1

Press the
OPEN/CLOSE button
to open the disc tray,
and then load the
MP3 disc.

4

Press the STOP
button to stop
playback.

•

To select another album and track,
repeat Steps 2 and 3 above.

3

To change the album,
use to
select another album
in Stop mode, and
then press the
ENTER button.

Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3 for mat can be played.

MP3-CD Playback

•

Music File Icon

•

Image File Icon

•

Movie File Icon

•

All File Icon

Press the button when it is in stop
status and select a desired icon from the top
part of the menu.

•

To play music files only, select the Icon.

•

To view image files only, select the Icon.

•

To view movie files only, select the Icon.

•

To select all files select the Icon.

To play a file icon in the screen,

ENG

Rotate/Flip Function

button: Flip Vertically

button: Flip Horizontally

button: Rotate 90°
Counterclockwise

button: Rotate 90° Clockwise

Digest Function

2

Press Cursor , , , buttons
to select the desired image and
then press ENTER button.

1

Press DIGEST
button during
playback.

•

JPEG files will be shown in
9 windows.

You can view 9 JPEG images on the TV screen.

•

The selected image is played for 5 seconds before moving to
the next image.

28

To view the previous or next image with 9 windows, press .

Press Cursor , , , buttons during playback.

Original Image

Slide Mode

27

Place the JPEG disc on the disc tray.

•

Each time the button is pressed, the slide moves backward or forward.

Press to skip to the next slide.

1

Press the OPEN/CLOSE button.

2

•

Playback starts automatically.

•

Each time the button is pressed, the image makes the transition as follows:

Press SLIDE MODE button.

3

From top to bottom

From bottom to top

Rectangular shape in the center

Vertical blinds eff ect

Each time a new image is displayed, slide modes
(1~11) will be applied randomly and automatically .

Cancels the slide mode.

OPERATION

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then
played back with this Home Theater.

JPEG File Playback

JPEG

The maximum resolution is 5120 x 3840 (or 19.0 MPixel) for baseline images, and 2048 x 1536
(3.0 MPixel) for progressive images.
There is no filesize limitation.
The decoder is device independent, thus above applies to USB and other devices as well.

☞ Progressive JPEG images — those that appear gradually as the image is being downloaded.

JPEG limitation

ENG

Fast playback

30

Skip Forward/Back

During playback, press the button.

•

Goes to the next file whenever you press button, if there are over
2 files in the disk.

•

Goes to the previous file whenever you press button, if there are
over 2 files in the disk.

To play back the disc at a faster speed,
press and hold or during playback.

•

Each time you press and hold either button, the playback speed will
change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.

29

OPERATION

•

DIVX file can be zoomed only in ZOOM X2 mode.

•

Zoom function is not available when playing a MPEG1 video file.

Note

Zoom Function

2

Press Cursor , ,

, buttons to
move to the area
you want to enlarge.

1

Press ZOOM
button.

•

Each time you press the button,
your selection will toggle between
“ZOOM X2” and “ZOOM OFF”.

DivX Playback

5 Minute Skip function

During playback, press the , button.

•

Playback skips 5 minutes forward whenever you press button.

•

Playback skips 5 minutes back whenever you press button.

•

" " is displayed when there is one supported language in the disc.

Note

Press the SUBTITLE button.

•

Each time you press the button, your selection will toggle between “SUBTITLE ON” (1/1, 1/2 ...) and

“SUBTITLE OFF”.

•

If the disc has only one subtitle file, it will be played automatically.

Subtitle Display

Press the AUDIO button.

•

Each time you press the button, your selection will toggle between “AUDIO ON” (1/1, 1/2 ...) and

“”.

Audio Display

Format AVI WMV

Supported Versions DivX3.11 ~ 5.1 V1/V2/V3/V7

DivX(Digital internet video eXpress)

DivX is a video file format developed by Microsoft based on the MPEG4 to provide audio and video
data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie
at near DVD-quality video and audio.

1. Suppor ted Formats

•

This product only provides the following media for mats. If both video and audio formats are not
supported, the user may experience problems such as broken images or no sound.

2. Caption Function

•

You must have some experience with video extraction and editing in order to use this feature properly.

•

To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX
media file (*.avi) within the same folder.
Example. Root Samsung_Bluetek_007CD1.avi

Samsung_Bluetek_007CD1.smi

•

Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and
Chinese) for the file name.

●

Supported Video Formats

Format MP3 WMA AC3 DTS

Bit Rate 80~384kbps 56~128kbps 128~384kbps 1.5Mbps

Sampling Frequency

44.1khz 44.1/48khz 44.1khz

•

DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.

•

Aspect Ratio: Although default DivX resolution is 640*480 pixels (4:3), this product supports up to
720*480 pixels (16:9).TV screen resolutions higher than 800 will not be supported.

•

When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may
experience shaking on the screen during playback.

●

Supported Audio Formats

ENG

3231

OPERATION

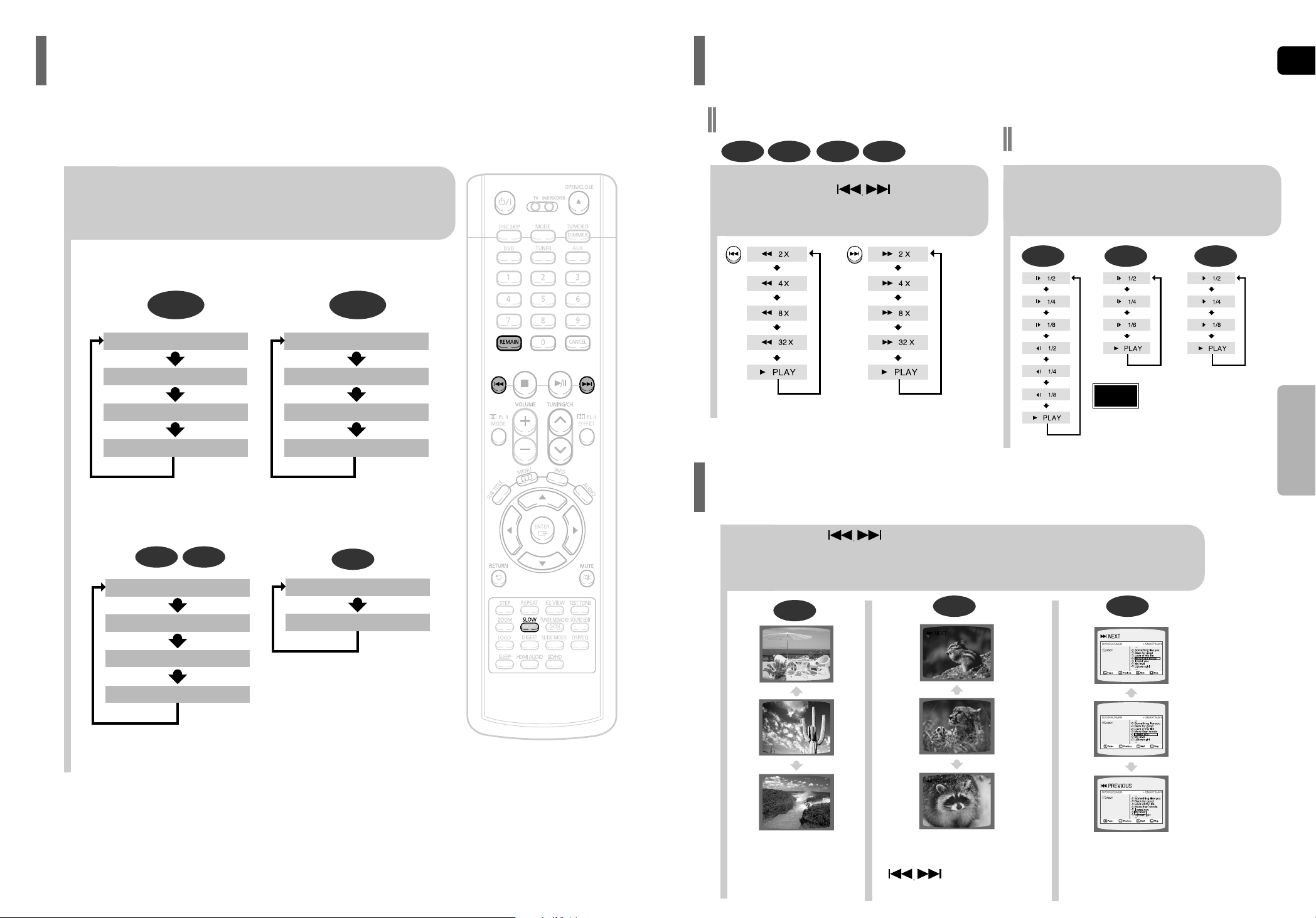

Checking the Remaining Time

Fast/Slow Playback

Press the REMAIN button.

•

For checking the total and remaining time of a title or chapter
being played.

Each time the REMAIN button is pressed

CHAPTER REMAIN

TITLE REMAIN

CHAPTER ELAPSED

TITLE ELAPSED

DVD-

VIDEO

TRACK REMAIN

GROUP REMAIN

TRACK ELAPSED

GROUP ELAPSED

DVD-

AUDIO

CDVCD

TRACK REMAIN

TOTAL ELAPSED

TOTAL REMAIN

TRACK ELAPSED

MP3

TRACK ELAPSED

TRACK REMAIN

Fast Playback

DVD VCD CD MP3

Press and hold .

•

Each time the button is held down during playback,
the playback speed changes as follows:

Press SLOW button.

•

Each time the button is pressed during playback,
the playback speed changes as follows:

Slow Playback

DVD VCD DivX

•

Reverse slow playback does not
work with VCD and DivX.

Note

Skipping Scenes/Songs

DVD

Briefly press .

•

Each time the button is pressed briefly during playback, the previous or next chapter, track,
or directory (file) will be played.

•

You cannot skip chapters consecutively.

TITLE 01/05 CHAPTER 002/040

TITLE 01/05 CHAPTER 004/040

VCD MP3

•

When watching a VCD with a track
longer than 15 minutes, each time

is pressed, playback

will skip back or forward 5 minutes.

ENG

34

•

The A-B Repeat function will not work on an MP3 or JPEG disc.

2

Press Cursor button
to move to REPEAT
PLAYBACK ( ) display.

•

For a VCD or CD, press INFO
button once.

1

Press INFO button
twice.

A -

A -?

REPEAT : A—

A - B

REPEAT : A—B

•

The specified segment will be

played repeatedly.

4

Press ENTER
button at the end
of the desired
segment.

•

When ENTER button is pressed,
the selected position will be stored
in memory.

3

Press Cursor , buttons
to select ‘A-’ and then press
ENTER button at the beginning
of the desired segment.

To retur n to nor mal playback, press Cursor ,
buttons to select OFF.

DVD VCD CD

33

Note

OPERATION

Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). You can repeatedly play back a designated section of a DVD.

Repeat Playback A-B Repeat Playback

Press REPEAT button.

•

Each time the button is pressed during playback, the repeat playback mode changes as follows:

CHAPTER

Repeatedly plays the selected chapter .

TITLE

Repeatedly plays the selected title.

GROUP

Repeatedly plays the selected group .

RANDOM

Plays tracks in random order .
(A track that has already been play ed may be
played again.)

TRACK

Repeatedly plays the selected track.

DIR

Repeatedly plays all tracks in the selected f older .

DISC

Repeatedly plays the entire disc.

OFF

Cancels Repeat Playback.

Repeat Playback Options

To Select a Repeat Playback Mode in the Disc Information Screen

Press INFO button twice.

1

Press Cursor button to move to
REPEAT PLAYBACK ( ) display.

2

Press Cursor button to select the
desired Repeat Playback mode.

3

DVD

VCD CD

*

For MP3 and JPEG discs, you cannot select Repeat
Play from the information display screen.

Press ENTER button.

4

CDVCDMP3 JPEG

DVD-

VIDEO

DVD-

AUDIO

DVD VCD CD MP3 JPEG

•

Repeat playback
operation is not possible
with version 2.0 VCD
discs if PBC is turned on.
To use Repeat Playback
on a VCD with PBC, you
should set the PBC to
OFF in the disc menu.
(See page 40.)

Note

ENG

36

DVD

2

Press Cursor , ,

, buttons to
move to the area
you want to enlarge.

1

Press ZOOM
button.

•

Each time the button is pressed, the
zoom level changes as follows:

3

Press ENTER
button.

Press EZ VIEW button.

•

Each time the button is pressed, the zoom function will switch between On
and Off.

•

When a movie is played in Widescreen format, black bars at the top and
bottom of the TV screen can be removed by pressing the EZ VIEW button.

•

This function will not work if the DVD is recorded with multi-camera angle format.

•

Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.

35

DVD

2

Press Cursor
button to move to
ANGLE ( ) display.

Press INFO button.

1/3

•

Each time the button is pressed, the angle changes as follows:

3

Press Cursor , or numeric buttons to
select the desired angle.

2/3

3/3

1/3

1/3

•

The Angle function works only with discs on which multiple
angles have been recorded.

Note

Note

OPERATION

EZ VIEW OFFEZ VIEW

SELECT ZOOM POSITION

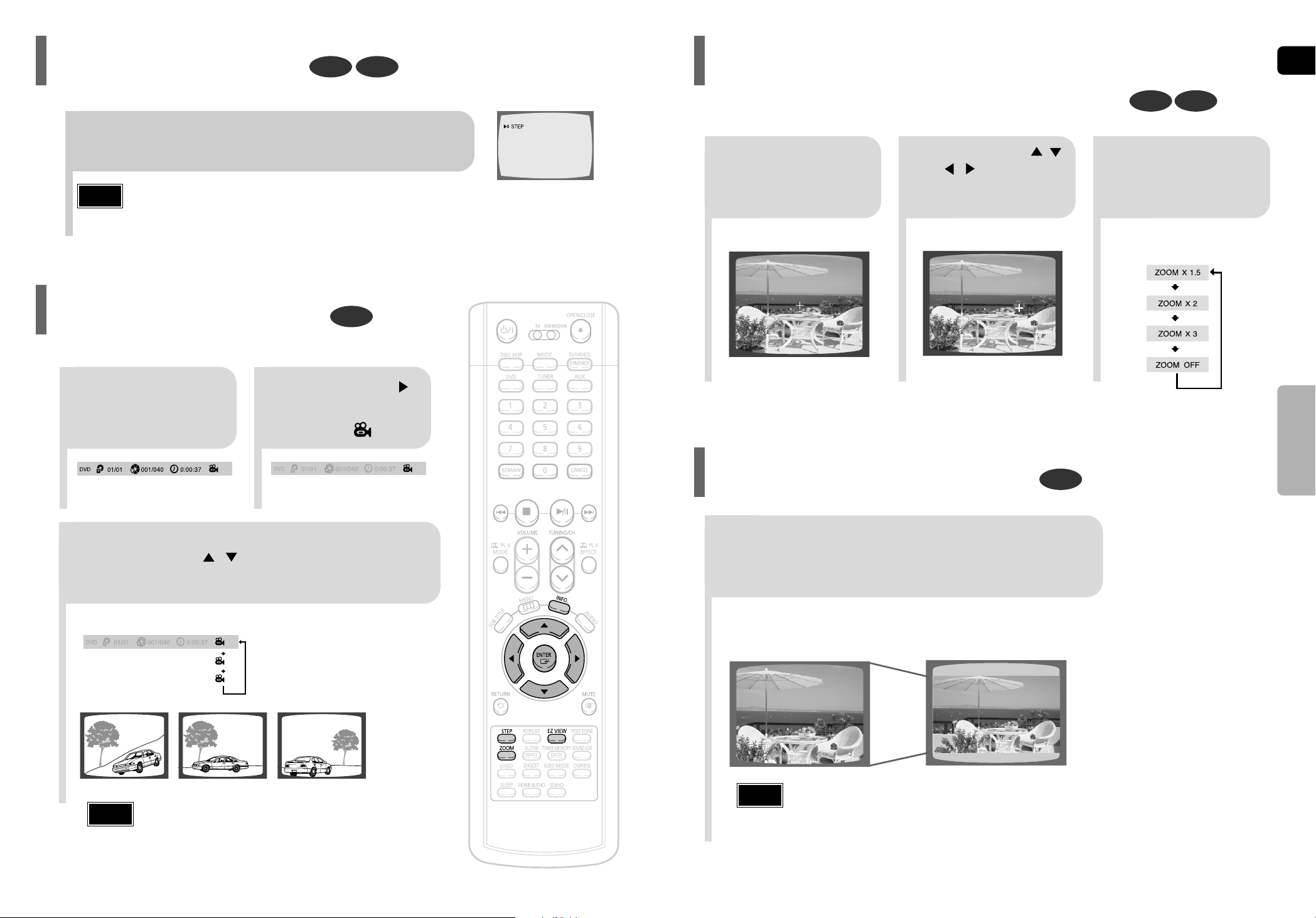

Step Function

This function allows you to enlarge a particular area of the displayed image.

Zoom (Screen Enlarge) Function

EZ VIEW Function

DVD VCD

•

During fast playback of a CD or MP3-CD, sound is heard only at 2x speed,
and not at 4x, 8x, and 32x speeds.

•

No sound is heard during slow playback and step motion playback.

Note

Press STEP button.

•

The picture moves forward one frame each time the button is pressed
during playback.

This function allows you to view the same scene in different angles.

Angle Function

1

DVD VCD

ENG

Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key
number to access. See the disc packaging for details and the-key number.

Bonus Group

When you play a DVD-Audio disc that has a
bonus group, the key number input screen
appears automatically.

•

You can select the desired image from a DVD-Audio disc containing still images.

•

With some discs, you may not be able to select images depending on how the
disc was manufactured.

•

If you eject the disc, switch the power off, or unplug the player, you will need to re-enter
the key number.

Note

DVD-

AUDIO

BONUS GROUP
KEY NUMBER :

Navigating Pages

During playback, press the TUNING/CH button
on the remote control.

DVD-

AUDIO

Bonus Group / Navigating Pages

3837

OPERATION

•

Depending on the number of languages on a
DVD disc, a different audio language
(ENGLISH, SPANISH, FRENCH, etc.) is
selected each time the button is pressed.

2

Press Cursor ,
buttons or numeric
buttons to select the
desired audio language.

1

Press INFO button
twice.

SP 2/3

FR 3/3

EN 1/3 EN 01/ 03

OFF

SP 02/ 03

FR 03/ 03
OFF / 03

•

You can use the SUBTITLE button
on the remote control to select a
subtitle language.

•

Depending on the disc, the Subtitle
and Audio Language functions may
not work.

Audio Language Selection Function

DVD

Subtitle Language Selection Function

DVD

2

Press Cursor
button to move to
SUBTITLE ( )
display.

1

Press INFO button
twice.

3

Press Cursor
button or numeric
buttons to select
the desired subtitle.

Note

Selecting Audio/Subtitle Language

•

The selected file will be played.

•

An MP3 or JPEG disc cannot be moved
in the disc information screen.

•

When playing an MP3 or JPEG disc, you
cannot use , to move to a folder.
To move a folder, press (Stop) and
then press , .

ENG

40

DVD VCD CD

MP3 JPEG

2

Press Cursor , buttons
or numeric buttons to select
the desired title/track and then
press ENTER button.

1

Press INFO button.

01/05

001/040 0:00:37 1/1

03/05

001/002 0:00:01 1/1

01/05

001/040 0:00:01 1/1

Moving to a Title/Track

4

Press Cursor ,
buttons or numeric buttons
to select the desired
chapter and then press
ENTER button.

01/05

025/040 0:00:01 1/1

Moving to a Chapter

6

Press the numeric
buttons to select the
desired time and then
press ENTER button.

01/05

028/040 1:30:00 1/1

Moving to a Specific Time

3

Press Cursor ,
buttons to move to
Chapter ( ) display.

Moving to a Chapter

01/05

025/040 1:17:30 1/1

5

Press Cursor ,
buttons to move to
time display.

Moving to a Specific Time

Press the numeric
buttons.

•

You can press on the
remote control to move directly to the
desired title, chapter, or track.

•

Depending on the disc, you may not
be able to move to the selected title
or time.

39

Note

OPERATION

Moving Directly to a Scene/Song

2

Press Cursor ,
button to move to
‘Title Menu’.

DVD

1

In Stop mode,
press MENU
button.

3

Press ENTER
button.

•

The title menu appears.

Press MENU button to exit the setup screen.

DVD

2

•

When you select the disc menu that is not
supported by the disc, the "This menu is not
supported" message appears on the screen.

1

In Stop mode,
press MENU
button.

Press Cursor ,
buttons to move to
‘DISC MENU’ and then
press ENTER button.

3

•

Press ENTER button.

Press Cursor ,

, buttons to
select the desired
item.

You can use the menus for the audio language, subtitle language, profile, etc.
DVD menu contents differ from disc to disc.

Using Disc Menu

For DVDs containing multiple titles, you can view the title of each movie.
Depending on the disc, the availability of this feature may vary.

Using the Title Menu

•

Title menu display may be different depending on the disc.

Note

•

When playing a VCD (version 2.),
this toggles between PBC ON
and OFF.

PBC (Playback Control) Function

When playing a VCD (version 2.0), you can select and vie w various scenes according to the menu screen.
PBC ON:This VCD disc is version 2.0.The disc is played back according to the menu screen.Some functions

may be disabled.When some functions are disabled, select "PBC OFF" to enable them.

PBC OFF:This VCD disc is version 1.1.The disc is played back in the same way as with a music CD .

•

Disc menu display may be different depending on the disc.

Note

ENG

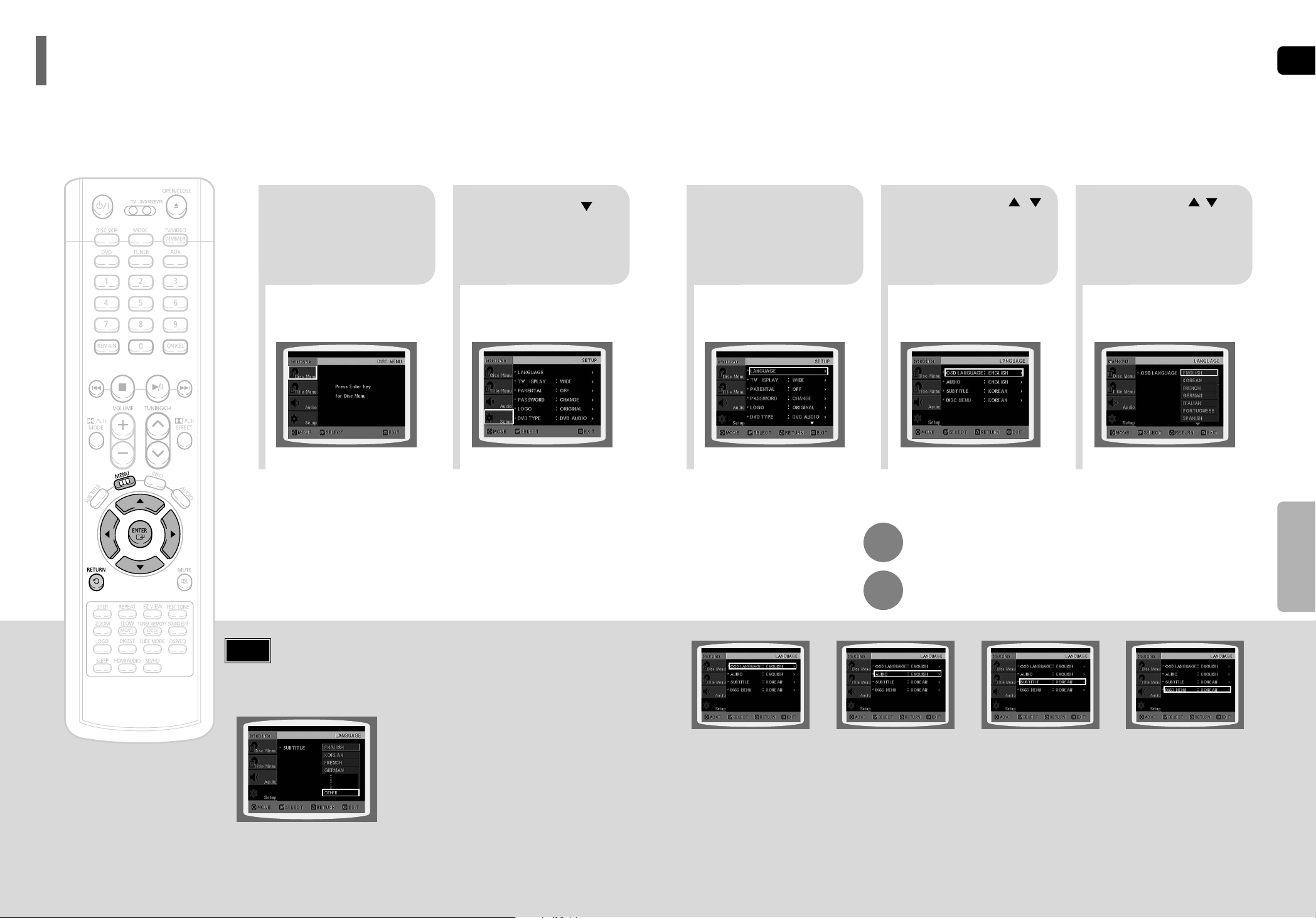

42

SETUP

OSD (On-Screen Display) language is set to English by default.

Setting the Language

41

*

If the language you selected is
not recorded on the disc, menu
language will not change even
if you set it to your desired
language.

Selecting the

OSD Language

Selecting the

Audio Language

(recorded on the disc)

21

In Stop mode,
press MENU
button.

Press Cursor
button to move to
‘Setup’ and then
press ENTER button.

4

•

Once the setup is complete, if the language was
set to English, OSD will be displayed in English.

3

Selecting the

Subtitle Language

(recorded on the disc)

Selecting the Disc Menu

Language (recorded on the disc)

Select ‘Language’
and then press

ENTER button

5

Press Cursor ,
button to select ‘OSD
Language’ and then
press ENTER button.

Press Cursor ,
button to select the
desired language and then
press ENTER button.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

• To select another language, select OTHER and enter the language code of your country.

(See page 70 for language codes)
AUDIO, SUB TITLE and DISC MENU language can be selected.

Note

43

21

43

In Stop mode,
press MENU
button.

Press Cursor
button to move to
‘Setup’ and then
press ENTER button.

•

Once the setup is complete, you will
be taken to the previous screen.

Press Cursor
button to move to ‘TV
DISPLAY’ and then
press ENTER button.

Press Cursor ,
button to select the
desired item and then
press ENTER button.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.

Setting TV Screen type

ENG

44

SETUP

The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high
definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different
screen sizes, you should adjust the aspect ratio to fit your TV or monitor.

• For a standard TV, select either "4:3LB" or "4:3PS" option according to personal preference.

Select "16:9" if you have a widescreen TV.

: Select this to view a 16:9 picture in the full-screen

mode on your widescreen TV.

• You can enjoy the widescreen aspect.

: Select this to play a 16:9 picture in the letter box

mode on a conventional TV.

• Black bars will appear at the top and bottom of the screen.

: Select this to play a 16:9 picture in the pan & scan

mode on a conventional TV.

• You can see the central portion of the screen only (with the
sides of the 16:9 picture cut off).

4:3LB

(4:3 Letterbox)

WIDE

4:3PS

(4:3 Pan&Scan)

• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.

• Since DVD discs are recorded in various image formats, they will look different depending on

the software, the type of TV, and the TV aspect ratio setting.

Note

Adjusting the TV Aspect Ratio (Screen Size)

ENG

•

This function works only if a DVD disc contains the rating level information.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

4

•

The password is set to "7890" by default.

•

Once the setup is complete, you will be
taken to the previous screen.

•

If you have selected Level 6, you
cannot view DVDs with Level 7 or
higher.

•

The higher the level, the closer the
content is to violent or adult material.

3 5

Press Cursor
button to move to
‘PARENTAL’ and then
press ENTER button.

Press Cursor , button
to select the desired rating
level and then press
ENTER button.

Enter the password
and then press

ENTER button.

Note

SETUP

45

21

In Stop mode,
press MENU
button.

Press Cursor
button to move to
‘Setup’ and then
press ENTER button.

Use this to restrict playback of adult or violent DVDs you do not want children to view.

Setting Parental Controls (Rating Level)

4

•

Enter the old password, a new
password, and confirm new password.

•

The setting is complete.

3 5

Press Cursor button to
move to ‘PASSWORD’
and then press ENTER
button.

Press ENTER
button.

Enter the password
and then press

ENTER button.

21

Press MENU button.

Press Cursor
button to move to
‘Setup’ and then
press ENTER button.

•

The password is set to "7890" by default.

Note

If you have forgotten the rating level password, do the following:

•

While the player is in the no disc mode, hold the main unit's button for longer than 5 seconds. “INITIALIZE” appears
on the display and all settings will return to the default values.

•

Press the POWER button.

Using the RESET function will erase all stored settings.
Do not use this unless necessary.

You can set the password for the Parental (rating level) setting.

Setting the Password

46

ENG

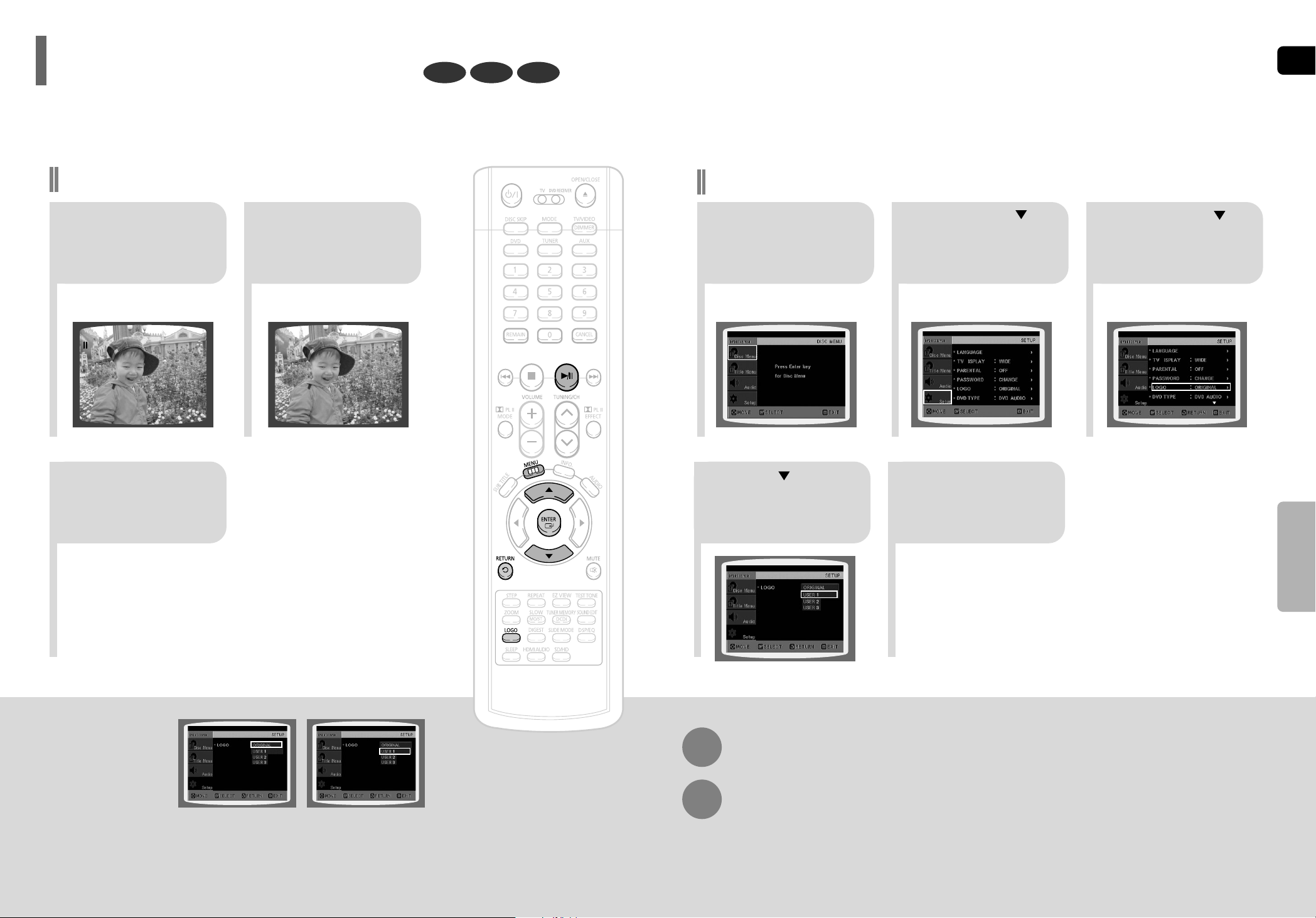

48

SETUP

21 3

In Stop mode,
press MENU
button.

Press Cursor
button to move to
‘Setup’ and then
press ENTER button.

Press Cursor
button to move to
‘LOGO’ and then
press ENTER button.

To select one of the 3 wallpaper settings you've made

54

Press MENU
button to exit the
setup screen.

Press to select
the desired ‘USER’,
and then press
ENTER.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

47

DVD VCDJPEG

Select this to set the
Samsung Logo image as
your wallpaper.

Select this to set the desired
image as your wallpaper.

•

“COPY LOGO DATA” will be

displayed on the TV screen.

•

The selected wallpaper will be
displayed.

•

You can select up to 3 wallpaper
settings.

21

3

During playback, press
PLAY/PAUSE button
when an image you
like appears.

Press LOGO
button.

The power will
turn off and then
back on.

PAUSE

COPY LOGO DATA

Setting the Wallpaper

While watching a DVD, VCD or JPEG CD, you can set the image you like as background wallpaper.

Setting the Wallpaper

ENG

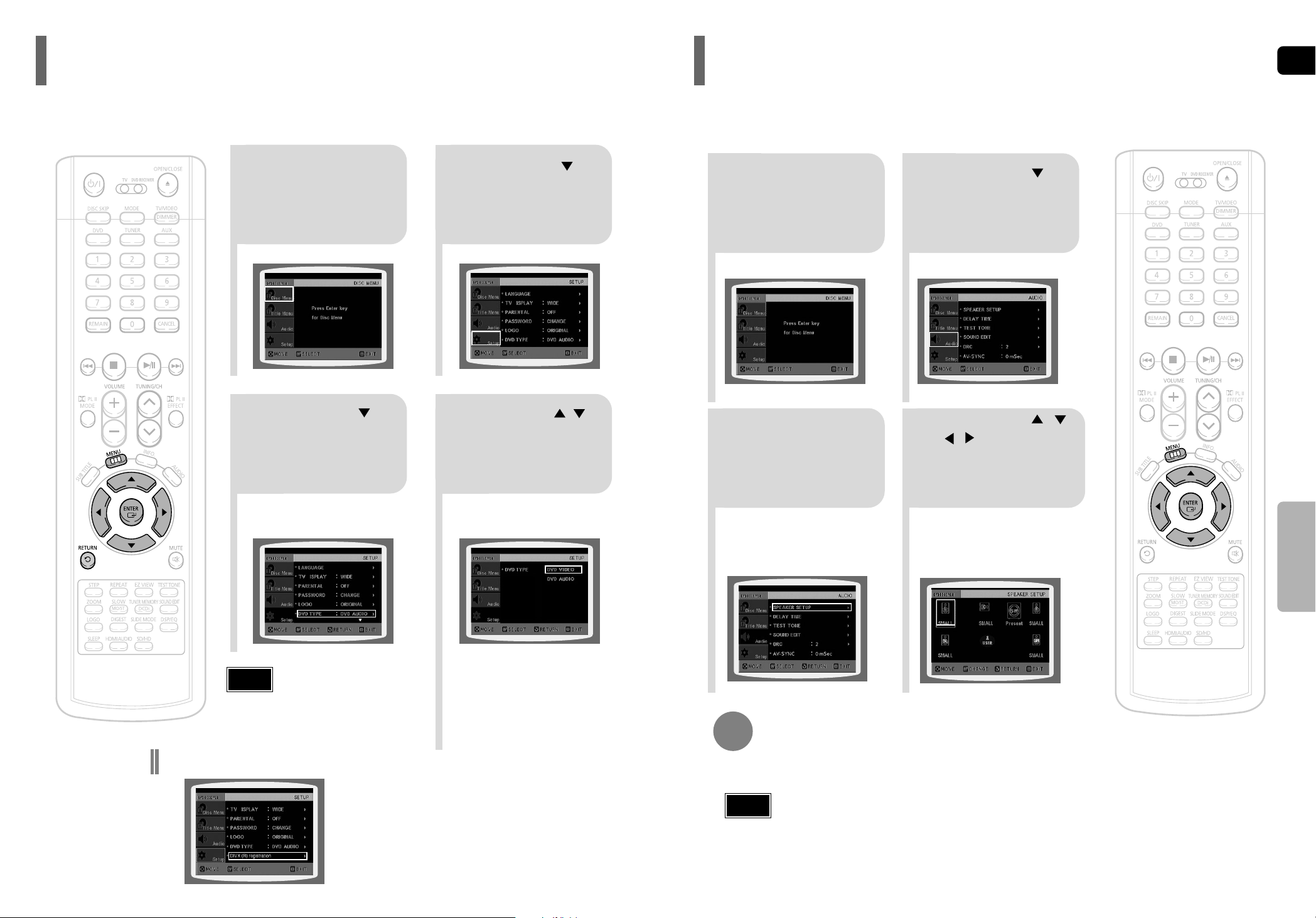

50

SETUP

21

43

In Stop mode,
press MENU
button.

Press Cursor
button to move to
‘Audio’ and then
press ENTER button.

In the Speaker
Setup, press the
ENTER button again.

Press Cursor , ,

, buttons to move
to the desired
speaker and then
press ENTER button.

•

For C, SL, and SR, each time the button
is pressed, the mode switches
alternately as follows: SMALL

➝ NONE.

•

For L and R, the mode is set to SMALL.

49

SMALL

: Select this when using the speakers.

NONE : Select this when no speakers are connected.

•

Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 59).

Note

Signal outputs and frequency responses from the speakers will automatically be adjusted according to your
speaker configuration and whether certain speakers are used or not.

Setting the Speaker Mode

21

Press the MENU
button while the
disc tray is open.

Press Cursor
button to move to
‘Setup’ and then
press ENTER button.

43

Press Cursor
button to move to
‘DVD TYPE’ and then
press ENTER button.

Press Cursor ,
button to move to
‘DVD VIDEO’ and then
press ENTER button.

•

DVD Play mode is set to DVD Audio
as factory default setting.

Note

•

Set steps 1 ~ 4 again if you want to
switch to DVD AUDIO Play mode.

When Selecting DVD Play Mode:

•

DVD VIDEO : set to play the DVD video

contents contained on a
DVD audio disc.

•

DVD AUDIO : set to play the default

DVD audio.

Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.
To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.

DVD Audio Disc Playback Mode

•

Please use the Registration code to register this player
with the DivX (R) video on demand format. To learn more,
go to www.divx.com/vod.

DivX (R) registration

51

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if
the distance between you and each speaker is the same. Since the sounds
arrive at the listening position at different times depending on the
placement of speakers, you can adjust this difference by adding a delay
effect to the sound of the Center Speaker and Surround Speakers.

2

1

In Stop mode,
press MENU
button.

Press Cursor button
to move to ‘Audio’ and
then press ENTER
button.

•

With (Dolby Pro Logic II), the delay time may be different for each mode.

•

With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.

•

The Center channel is only adjustable on 5.1 channel discs.

Note

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of
the audio signals from the center and rear speakers.

Setting the Delay Time

ENG

52

Df: The distance from FRONT SPEAKER
Dc: The distance from CENTER SPEAKER
Ds: The distance from SURROUND SPEAKER

Ideal CENTER
SPEAKER placement

It is desirable to place all speakers within this circle.

Ideal
SURROUND
SPEAKER
placement

SETUP

•

You can set the delay time for C
between 00 and 05mSEC and for
LS and RS between 00 and
15mSEC.

43 5

Press Cursor button
to move to ‘DELAY
TIME’ and then press
ENTER button.

Press Cursor , ,

, buttons to move
to the desired speaker
and then press
ENTER button.

Press Cursor ,
to set the Delay
time.

0 ms
3 ms
6 ms

9 ms
12 ms
15 ms

•

Setting REAR (SURROUND) SPEAKERS

If the distance of Df is equal to the distance of Ds
in the figure, set the mode as 0ms. Otherwise,
change the setting according to the table.

•

Setting CENTER SPEAKER

If the distance of Dc is equal to or longer than the
distance of Df in the figure, set the mode as 0ms.
Otherwise, change the setting according to the table.

Distance between Df and Dc Delay Time

Delay Time

0 ms
1 ms
2 ms
3 ms
4 ms
5 ms

Distance between Df and Ds

0 inch

13.6 inches

27.2 inches

40.8 inches

4.5 feet

5.6 feet

0 inch

40.8 inches

6.7 feet

10.0 feet

13.4 feet

16.7 feet

ENG

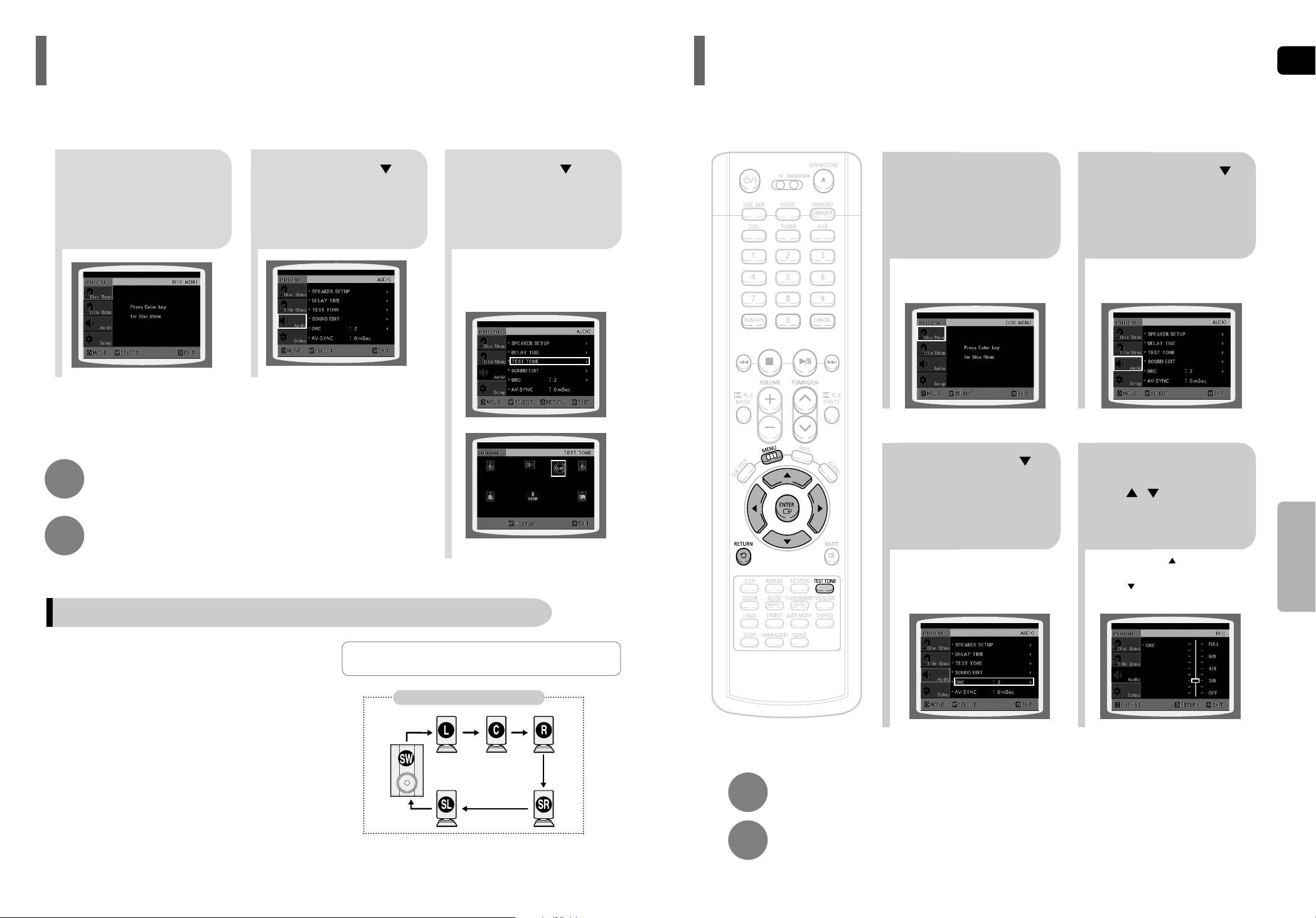

5453

SETUP

12

In Stop or no disc
mode, press
MENU button.

Press Cursor
button to move to
‘Audio’ and then
press ENTER
button.

•

When the Cursor button is pressed,
the effect is greater, and when the
Cursor button is pressed, the effect is
smaller.

34

Press Cursor
button to move to
‘DRC’ and then
press ENTER
button.

Press Cursor

, to adjust

the ‘DRC’.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

Setting the DRC (Dynamic Range Compression)

L: Front Speaker (L) C: Center Speaker SW: Subwoofer
R: Front Speaker (R) SL: Rear Speaker (L) SR: Rear Speaker (R)

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

21

In Stop or no
disc mode,
press MENU
button.

Press Cursor
button to move to
‘Audio’ and then
press ENTER button.

3

Press Cursor button
to move to ‘TEST
TONE’ and then press
ENTER button.

•

The test tone will be sent to L ➝ C ➝
R ➝ SR ➝ SL ➝ SW in order.
If the ENTER button is pressed again
at this time, the test tone will stop.

Press TEST TONE button.

•

Test tone will be produced as follows:
When playing a DVD or CD, this will work only in Stop mode.

•

Use this function to check that each speaker is correctly
connected and that there is no problem.

•

When there is no input signal from the HDMI IN function, the
Test Tone will not work.

To end the test tone,
press TEST TONE button again.

Alternate method: press the TEST TONE button on the remote.

Multi-Channel Pro Logic Mode

Start

Use the Test Tone feature to check the speaker connections.

Setting the Test Tone

ENG

•

The adjustments will appear on the main unit's display, not on your TV screen.

Adjusting Front/Rear Speaker Balance

•

You can select between 00 and –06 and OFF.

•

The volume decreases as you move closer to –6.

Adjusting Center/Rear/Subwoofer Speaker Level

•

The volume level can be adjusted in steps from +6dB to –6dB.

•

The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

Method 2

When manually adjusting with the SOUND EDIT button

21

Adjusting Front Speaker Balance Adjusting Rear Speaker Balance

Press SOUND
EDIT button and

then press Cursor

, .

3

Adjusting Center Speaker Level

4 5

Adjusting Rear Speaker Level

Adjusting Subwoofer Speaker Level

56

Press SOUND
EDIT button and
then press Cursor

, .

Press SOUND
EDIT button and
then press Cursor

, .

Press SOUND
EDIT button and
then press Cursor

, .

Press SOUND
EDIT button and
then press Cursor

, .

Note

SETUP

TITLE

CHAP

PRGM RDS RT

ST

TUNED

kHz

MHz

TITLE

CHAP

PRGM RDS RT

ST

TUNED

kHz
MHz

TITLE

CHAP

PRGM RDS RT

ST

TUNED

kHz
MHz

TITLE

CHAP

PRGM RDS RT

ST

TUNED

kHz
MHz

TITLE

CHAP

PRGM RDS RT

ST

TUNED

kHz
MHz

55

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

21

43

In Stop mode,
press MENU
button.

Press Cursor
button to move to
‘Audio’ and then press
ENTER button.

Press Cursor button
to move to ‘SOUND
EDIT’ and then press

ENTER button.

Method 1

When adjusting the audio quality using the setup screen

Press Cursor ,
buttons to select and
adjust the desired item.
Press the , buttons
to adjust the settings.

You can adjust the balance and level for each speaker.

Setting the Audio

ENG

58

•

"DSP" appears on the display panel.

•

Each time the button is pressed, the selection changes as follows:

POP, JAZZ, ROCK: Depending on the genre of music, you can select POP, JAZZ, and ROCK.
STUDIO : Provides a sense of presence as if in a studio.
CLUB : Simulates the sound of a dance club with a throbbing bass beat.
HALL : Provides a clear vocal as if listening in a concert hall.
MOVIE: Provides the feeling of a movie theater.
CHURCH: Gives the feel of being in a grand church.
PASS: Select this for normal listening.

Press DSP/EQ button.

SETUP

•

DSP/EQ function is only available in STEREO mode.
Press the PL II mode button to show STEREO on the display.

•

This feature works with CDs, MP3-CDs, 2 channel DVD-Audio,
DivX and Dolby Digital discs.

•

When playing a DVD disc encoded with two or more channels,
multi-channel mode will be selected automatically and DSP/EQ
function does not work.

Note

DSP(Digital Signal Processor) DSP modes have been designed to simulate different acoustic environments.
EQ: You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing

Sound Field (DSP)/EQ Function

Video may look slower than the audio if it is connected to a digital TV.
If this occurs, adjust the audio delay time to to match the video.

AV SYNC Setup

57

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

•

'Audio' menu appears.

21

•

Setup menu appears.

•

AV-SYNC screen appears.

3

Press Cursor , buttons
to move to ‘Audio’ and then
press ENTER button.

Press Cursor , buttons
to move to ‘AV-SYNC’ and
then press ENTER button.

Press the MENU button.

4

•

You can set the audio delay time between 0 ms
and 300 ms. Set it to the optimal status.

Press Cursor , buttons
to select the AV-SYNC Delay
Time and then press the

ENTER button.

ENG

60

SETUP

This function works only in Dolby Pro Logic MUSIC mode.

Dolby Pro Logic II Effect

59

Press PL II MODE button.

PRO LOGIC II

•

MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.

•

CINEMA: Adds realism to the movie soundtrack.

•

PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front left

and right speakers.

•

MATRIX: You will hear 5.1 channel surround sound.

STEREO: Select this to listen to sound from the front left and right speakers and the subwoofer only.

•

Each time the button is pressed, the mode changes as follows.

•

When selecting Pro Logic II mode, connect your external device to the
AUDIO INPUT jacks (L and R) on the player. If you connect to only one of
the inputs (L or R), you cannot listen to surround sound.

Note

You can select the desired Dolby Pro Logic II audio mode.

Dolby Pro Logic II Mode

12

•

You can select between 0 and 7.

•

This sets the width of the center image.
The higher the setting, the less sound comes from
the center speaker.

•

You can select between 0 and 6.

•

Incrementally adjusts the sound field (DSP)from
the front or rear.

34

•

When playing a DVD disc encoded with two or more channels, multi-channel mode will be
selected automatically and (Dolby Pro Logic II) button does not work.

•

You can select either 0 or 1.

•

This mode extends the front stereo image to
include the surround speakers for an exciting
"wraparound" effect with side wall imaging.

Press PL II MODE
button to select ‘MUSIC’
mode.

Press PL II EFFECT button
to select Panorama, then press
Cursor , buttons to select
the desired effect setting.

Press PL II EFFECT button
to select C-Width, then press
Cursor , buttons to select
the desired effect setting.

Press PL II EFFECT button
to select Dimension, then press
the Cursor , buttons to
select the desired setting.

Note

ENG

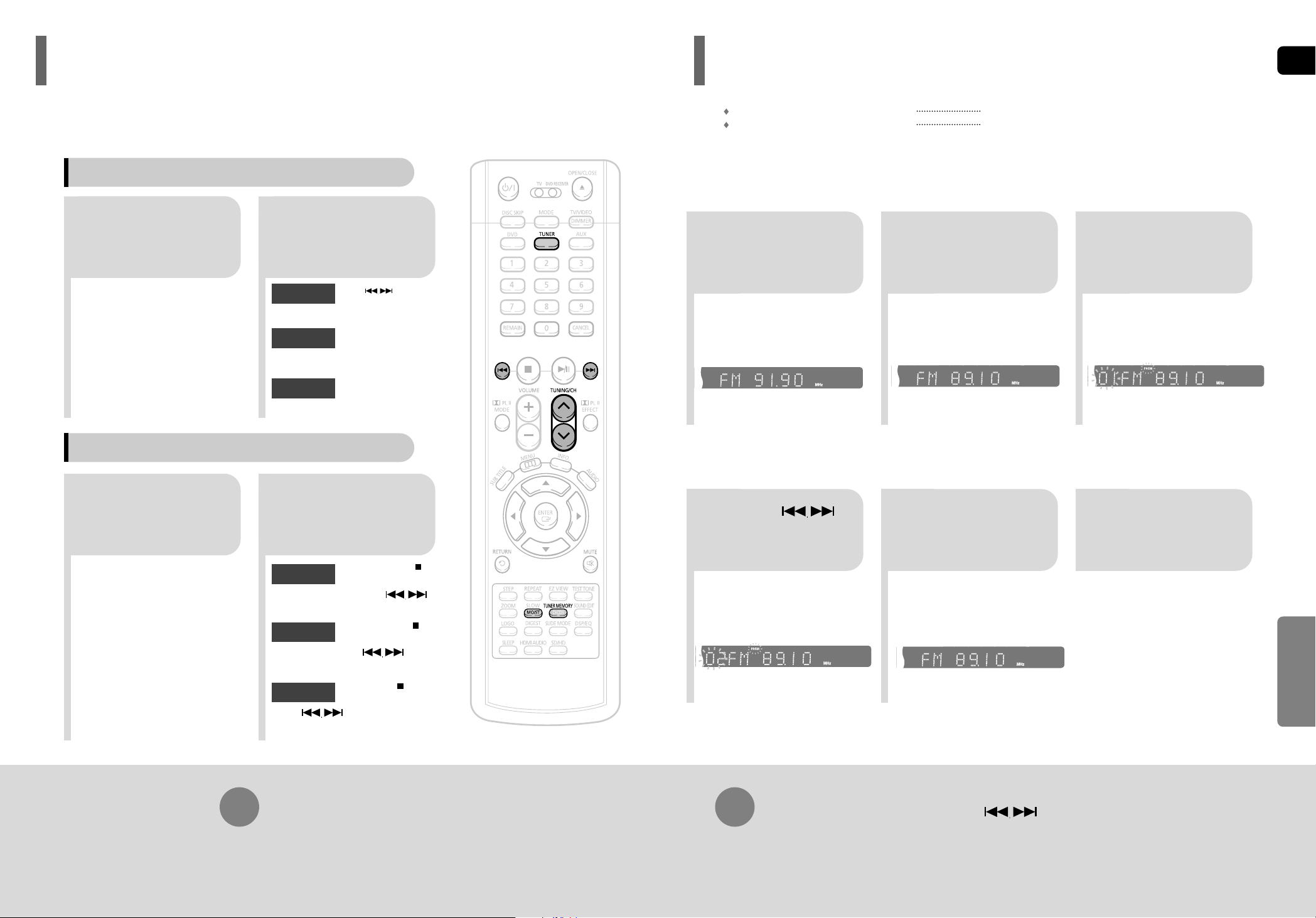

62

To tune in to a preset station, press on the
remote control to select a channel.

•

Refer to Step 2 on page 61 to
automatically or manually tune in
to a station.

21

•

Each time the button is pressed,
the band switches between
"FM

➝

AM".

•

“PRGM” flashes in the display.

3

Example: Presetting FM 89.1 in the memory

Press TUNING/CH
to select "89.10".

Press the TUNER
button and select the
FM band.

•

Press the TUNER MEMORY button before

‘PRGM’ disappears from the display.

•

‘PRGM’ disappears from the display and

the station is stored in memory.

54

•

You can select between 1 and

15.

Press the TUNER
MEMORY button.

Press the TUNER
MEMORY button
again.

6

To preset another
station, repeat
steps 2 to 5.

Press
to select preset
number.

RADIO OPERATION

You can store up to:

15 FM stations
15 AM stations

• FM Frequency Modulation

• AM Medium Wave

Presetting Stations

61

21

•

The selection toggles back and
forth between "FM➝ AM" each
time the FM button is pressed.

Tune in to the
desired station.

Press TUNER
button.

Automatic Tuning 2

Manual Tuning

21

Select a broadcast
station.

Press the STOP ( )

button to select
PRESET and then press
button to select the preset station.

Automatic Tuning 1

Press the Function
button to select the
desired band (FM,
AM).

Press the STOP

( )

button

to select "MANUAL" and
then press and hold button to
automatically search the band.

Automatic Tuning 2

Press STOP

( )

to select

MANUAL and then briefly
press to tune in to a lower or
higher frequency.

Manual Tuning

•

Each time the button is pressed, the sound switches between "STEREO" and "MONO".

•

In a poor reception area, select MONO for a clear, interference-free broadcast.

Press MO/ST button to listen in Mono/Stereo.

(This applies only when listening to an FM station.)

When is pressed, a
preset broadcast station is
selected.

Press and hold TUNING/CH to
automatically search for active
broadcasting stations.

Briefly press TUNING/CH to
increase or decrease the
frequency incrementally.

Automatic Tuning 1

Remote Control Unit

Main Unit

You can listen to the chosen band (FM, AM broadcast stations) by using either the automatic or
manual tuning operation.

Listening to Radio

ENG

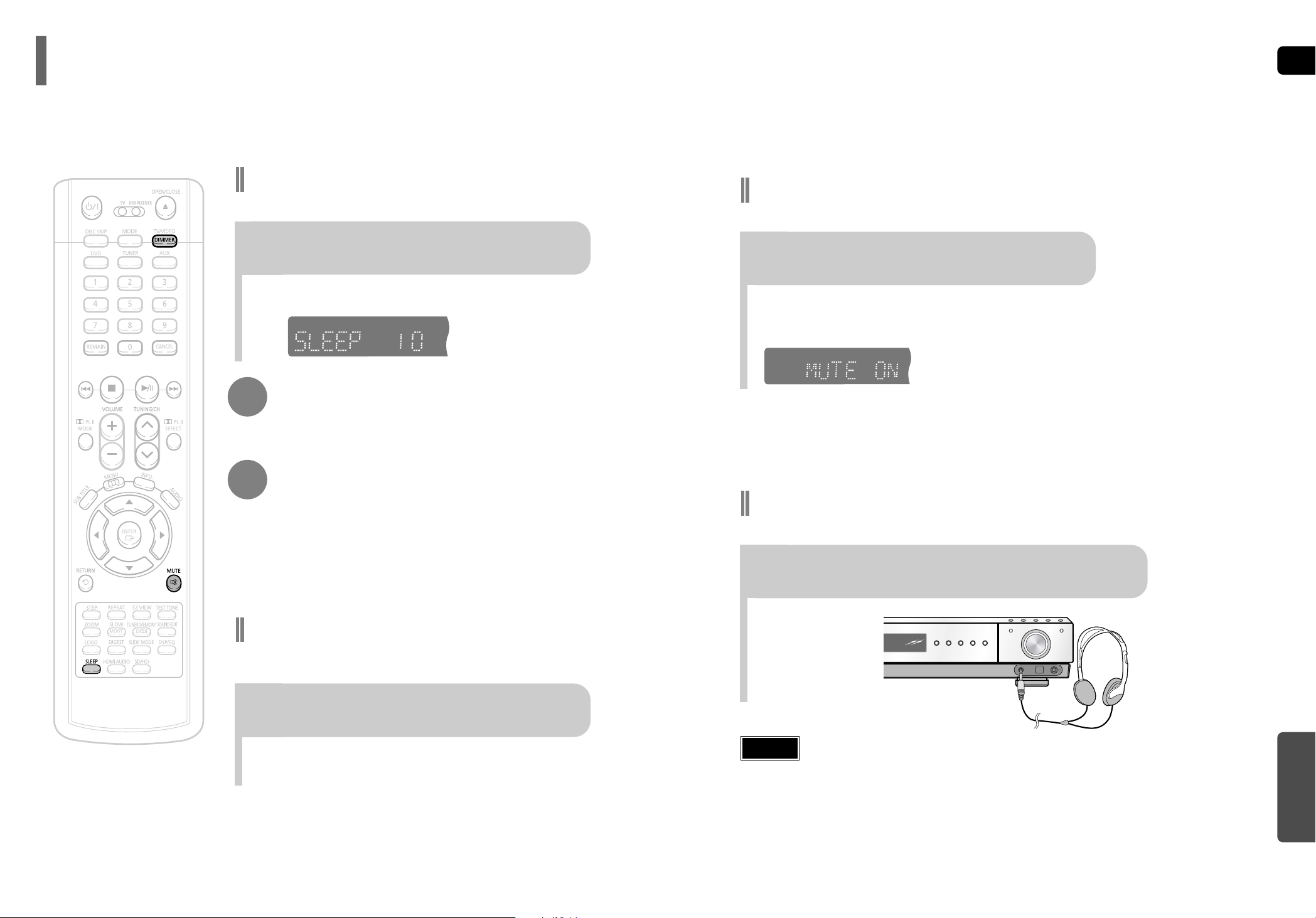

64

•

Each time the button is pressed, the brightness changes as follows:
DARK ➞ BRIGHT.

Adjusting Display Brightness

You can adjust the brightness of the display on the main unit so it won't interfere
with your movie viewing.

Press DIMMER button.

MISCELLANEOUS

63

•

"SLEEP" will be displayed. Each time the button is pressed, the preset
time changes as follows: 10 ➝ 20 ➝ 30 ➝ 60 ➝ 90 ➝ 120 ➝ 150 ➝ OFF.

Press SLEEP button.

Sleep Timer Function

You can set the time that the Home Theater will shut itself off.

Convenient Functions

•

‘

MUTE ON’ appears in the display.

•

To restore the sound, press the button again to
select ‘MUTE OFF’.

Mute Function

This is useful when answering a doorbell or telephone call.

Press MUTE button.

Using Headphones

Use headphones (not supplied) for private listening pleasure.

Connect the headphones to the PHONES jack for private listening.

•

The remaining time before the Home Theater will shut itself off is displayed.

•

Pressing the button again changes the sleep time from what you have set earlier.

To confirm the sleep timer setting, press SLEEP button.

To cancel the sleep timer, press SLEEP button until
OFF appears on the display.

•

To prevent hearing damage, do not increase the
volume excessively when using headphones.

Caution

TITLE

CHAP

PRGM RDS RT

ST

TUNED

kHz
MHz

TITLE

CHAP

PRGM RDS RT

ST

TUNED

kHz

MHz

ENG

Operating a TV with the Remote Control

•

The remote control may not work on some brands of TVs. Also, some operations may not be
possible depending on your brand of TV.

•

If you do not set the remote control with the code for your brand of TV, the remote control will
work on a Samsung TV by default.

When operating a TV with the remote control

1

Press the MODE button to make the TV
indicator on the remote control flash.

2

Press POWER button to turn on the TV.

3

Point the remote control toward the TV.

4

While holding down POWER, enter the code
corresponding to your brand of TV.

•

If the code matches the TV's code, the TV will be turned off.

•

If there is more than one code listed for your TV in the table,
enter one at a time to determine which code works.

Example: For a Samsung TV

While holding down POWER, use the number buttons to enter 00,
01, 02, 03, 04, and 05.

•

You can use the TV POWER, VOLUME, CHANNEL, and Numeric
buttons (0~9).

5

Point the remote control toward the TV and
press POWER. If the TV turns off or on,
the setting is complete.

TV

DVD RECEIVER

Note

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

SAMSUNG

ANAM

DAEWOO

LG

HITACHI

JVC

SHARP

SONY

TOSHIBA

SANYO

MITSUBISHI

MATSUSHITA

TELEFUNKEN

RCA

PANASONIC

SABA

PHILIPS

GRUNDIG

ZENITH

MIVAL

NOBLEX

EMERSON

MAGNAVOX

LOEWE

THOMSON
NORDMENDE
LOEWE OPTA

BLAUPUNKT

SIEMENS

TV Brand Code List

No.

Brand

Code

00(Initial Value), 01, 02, 03, 04, 05, 73

06~11, 59

12~18, 20, 21

05, 20, 21, 22, 53

23, 40, 41, 49

24, 55

27, 33, 34, 35, 54

27, 36

27, 37, 42, 43, 44, 46

27, 30, 31, 32

05, 27, 28

09, 26

41, 49, 51, 57

29, 61

07, 09, 26, 48, 49, 50

40, 41, 47, 48, 49

05, 45, 47, 64, 65, 66, 67, 68, 69

39, 42, 46, 70, 71, 72

38
52
56
19
25

05, 60

40, 41, 49, 62, 63

40, 41, 49
36, 47, 05

39
39

30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57

BRANDT

FERGUSON

PIONEER
TELEAVA

FINLUX
FISHER

AKAI

YOKO

PHONOLA

RADIOLA

SCHNEIDER

NEWSAN

CONTINENTAL EDISON

SALORA
SELECO

NOKIA

REX

MIVAR

IMPERIAL

CGE

BANG & OLUFSEN

BRIONVEGA

FORMENTI

METZ

WEGA

RADIOMARELLI

SINGER

SINUDYNE

No.

Brand

Code

41
41

41, 48, 74

41

05, 42, 47

31
31
05

05, 45, 47

05, 45

05
58
49
48
48
48
48
46
46
46
47
47
47
47
47
47
47
47

66

MISCELLANEOUS

65

ENG

68

•

Is the TV power on?

•

Are the video cables connected properly?

•

Is the disc dirty or damaged?

•

A poorly manufactured disc may not be playable.

• Disc is rotating but no
picture is produced.

• Picture quality is poor and
picture is shaking.

•

Is the remote control being operated within its operation range of
angle and distance?

•

Are the batteries exhausted?

The remote control does not
work.

•

Audio language and subtitles will not work for DVDs not containing
them. And depending on the disc, they may work differently.

Audio language and
subtitles do not work.

•

Are you using a disc that does not contain menus?

Menu screen does not appear even
when the menu function is selected.

•

While “NO DISC” message appears on the display of main unit, hold
the main unit's button for longer than 5 seconds. “INITIALIZE”
appears on the display and all settings will return to the default values.

•

Press the POWER button.

Using the RESET function will erase all stored settings.
Do not use this unless necessary.

•

Turn off the power and hold the button on the main unit for
longer than 5 seconds.

Using the RESET function will erase all stored settings.
Do not use this unless necessary.

The password for rating
level has been forgotten.

•

The main unit is not working.

(Example: The power goes out or
strange noise is heard.)

• The Home Theater is not
working normally.

•

Is the antenna connected properly?

•

If the antenna's input signal is weak, install an external FM
antenna in an area with good reception.

Can't receive radio
broadcast.

Symptom Check/Remedy

•

You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX
mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3
ratio only. Refer to the DVD disc jacket and then select the
appropriate function.

Aspect ratio cannot be
changed.

MISCELLANEOUS

67

•

Is the power cord plugged securely into the outlet?

•

Turn off the power and then turn it back on.

•

Check the region number of the DVD.
DVD discs purchased from abroad may not be playable.

•

CD-ROMs and DVD-ROMs cannot be played on this Home
Theater.

•

Make sure that the rating level is correct.

•

Are you using a deformed disc or a disc with scratches on
the surface?

•

Wipe the disc clean.

Disc tray does not open.

Playback does not start.

Playback does not start
immediately when the
Play/Pause button is pressed.

•

No sound is heard during fast playback, slow playback, and step
motion playback.

•

Are the speakers connected properly? Is the speaker setup
correctly customized?

•

Is the disc severely damaged?

Sound is not produced.

Sound can be heard only
from a few speakers and
not all six.

•

Was the Home Theater suddenly moved from a cold place to a
warm one? When condensation forms inside the player, remove the
disc and let the player stand for 1 or 2 hours with the power on.
(You can use the player again after condensation disappears.)

•

When listening to a CD or radio, sound is output to the front
speakers (L/R) only. Select "PRO LOGIC II" by pressing
(Dolby Pro Logic II) on the remote control to use all six speakers.

•

Make sure that the DVD disc is 5.1-CH compatible.

•

If you set C, SL, and SR to NONE in the speaker mode in the
audio setup of the setup screen, no sound is heard from the
center speaker and the front left and right speakers. Set C, SL,
and SR to SMALL.

Picture does not appear, sound
is not produced, or the disc tray
opens 2 to 5 seconds later.

•

Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1
CH Surround Sound is produced only if the disc is recorded with

5.1 channel sound.

•

Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in
the information display?

Dolby Digital 5.1 CH
Surround Sound is not
produced.

Symptom Check/Remedy

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or
if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer
or Samsung Electronics Service Center.

Before Calling for Service

ENG

70

MISCELLANEOUS

Code Language Code Language Code Language Code Language

1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian
1028 Abkhazian 1183 Irish 1345 Malagasy 1507 Samoan
1032 Afrikaans 1186 Scots Gaelic 1347 Maori 1508 Shona
1039 Amharic 1194 Galician 1349 Macedonian 1509 Somali
1044 Arabic 1196 Guarani 1350 Malayalam 1511 Albanian
1045 Assamese 1203 Gujarati 1352 Mongolian 1512 Serbian
1051 Aymara 1209 Hausa 1353 Moldavian 1513 Siswati
1052 Azerbaijani 1217 Hindi 1356 Marathi 1514 Sesotho
1053 Bashkir 1226 Croatian 1357 Malay 1515 Sundanese
1057 Byelorussian 1229 Hungarian 1358 Maltese 1516 Swedish
1059 Bulgarian 1233 Armenian 1363 Burmese 1517 Swahili
1060 Bihari 1235 Interlingua 1365 Nauru 1521 Tamil
1069 Bislama 1239 Interlingue 1369 Nepali 1525 Tegulu
1066 Bengali; Bangla 1245 Inupiak 1376 Dutch 1527 Tajik
1067 Tibetan 1248 Indonesian 1379 Norwegian 1528 Thai
1070 Breton 1253 Icelandic 1393 Occitan 1529 Tigrinya
1079 Catalan 1254 Italian 1403 (Afan) Oromo 1531 Turkmen
1093 Corsican 1257 Hebrew 1408 Oriya 1532 Tagalog
1097 Czech 1261 Japanese 1417 Punjabi 1534 Setswana
1103 Welsh 1269 Yiddish 1428 Polish 1535 Tonga
1105 Danish 1283 Javanese 1435 Pashto, Pushto 1538 Turkish
1109 German 1287 Georgian 1436 Portuguese 1539 Tsonga
1130 Bhutani 1297 Kazakh 1463 Quechua 1540 Tatar
1142 Greek 1298 Greenlandic 1481 Rhaeto-Romance 1543 Twi
1144 English 1299 Cambodian 1482 Kirundi 1557 Ukrainian
1145 Esperanto 1300 Kannada 1483 Romanian 1564 Urdu
1149 Spanish 1301 Korean 1489 Russian 1572 Uzbek
1150 Estonian 1305 Kashmiri 1491 Kinyarwanda 1581 Vietnamese
1151 Basque 1307 Kurdish 1495 Sanskrit 1587 Volapuk
1157 Persian 1311 Kirghiz 1498 Sindhi 1613 Wolof
1165 Finnish 1313 Latin 1501 Sangro 1632 Xhosa
1166 Fiji 1326 Lingala 1502 Serbo-Croatian 1665 Yoruba
1171 Faeroese 1327 Laothian 1503 Singhalese 1684 Chinese
1174 French 1332 Lithuanian 1505 Slovak 1697 Zulu

Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle”
and/or “Disc Menu” (See page 41).

Language Code List

69

Do not touch the playback side of the disc. Hold
the disc by the edges so that fingerprints will not
get on the surface.
Do not stick paper or tape on the disc.

Do not keep in
direct sunlight

Keep in a cool
ventilated area

Keep in a clean
Protection jacket.
Store vertically.

When you get fingerprints or dirt on the disc, clean it
with a mild detergent diluted in water and wipe with a
soft cloth.

•

When cleaning, wipe gently from the inside to the outside of the disc.

Handling discs

Disc Storage

Handling and Storing Discs

•

Do not allow the discs to become contaminated with dirt.

•

Do not load cracked or scratched discs.

Caution

•

Condensation may form if warm air comes into contact with cold parts
inside the player. When condensation forms inside the player, the player
may not operate correctly. If this occurs, remove the disc and let the
player stand for 1 or 2 hours with the power on.

Note

Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.

Cautions on Handling and Storing Discs

Specifications

74

ENG

MISCELLANEOUS

71

Power Consumption
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
Usable Sensitivity
S/N Ratio
Distortion
Usable Sensitivity
S/N Ratio
Distortion
Composite Video

S-VIDEO

Component Video

HDMI
Front speaker output
Center speaker output
Rear speaker output
Subwoofer speaker output
Frequency range
S/N Ratio
Channel separation
Input sensitivity

Speaker system
Impedance

Frequency range
Output sound pressure level
Rated input
Maximum input

Dimensions (W x H x D)

Weights

G
E
N
E
R
A

L

T
U
N

E
R

F

M

T
U
N
E
R

A

M

O

U

T

P

U

T

V

I
D
E

O

A

M

P

L

I

F

I
E
R

S
P
E
A
K
E
R

Subwoofer speaker

3Ω
40Hz~250Hz
86dB/W/M
130W
260W

7.9 x 15.9 x 14.2 inches

13.4 Ibs

Front/Rear
Center

4.0 x 9.5 x 5.2 inches

13.7 x 4.0 x 5.1 inches

1.7 Ibs

2.2 Ibs

Front/Rear
Center

Front/Center/Rear speaker

3Ω x 5
130Hz~20KHz/125Hz~20KHz
84dB/W/M
134W
268W

140W

13.5Ibs
17 x 3.4 x 16 inches
41°F ~ 95°F
10% ~ 75%
10dB
60dB

0.5%
54dB
40dB
2%

1.0Vp-p(75Ω load)
Luminance Signal: 1.0Vp-p(75Ω load)
Color Signal: 0.286Vp-p(75Ω load)
Y:1.0Vp-p(75Ω load)
Pr:0.70Vp-p(75Ω load)
Pb:0.70Vp-p(75Ω load)
Impedance: 85~115Ω
134W x 2(3Ω)
134W(3Ω)
134W x 2(3Ω)
130W(3Ω)
20Hz~20KHz
75dB
50dB
(AUX)400mV

5.1ch speaker system

Samsung Limited Warranty

Samsung Electronics Canada Inc. (SECA), warrants that this product is

free from defective material and workmanship.
SECA further warrants that if this product fails to operate properly within the

specified warranty period and the failure is due to improper workmanship or
defective material SECA will repair or replace the product at its option.

All warranty repairs must be performed by a SECA authorized service
centre. (The name and address of the location nearest you can be obtained by
calling toll free 1-800-726-7864 or visiting our web site at

www.samsung.ca)

Labour Parts

one (1) year (carry-in) one (1) year

On carry-in models, transportation to and from the service centre is the
customer’s responsibility.

The original dated sales receipt must be retained by the customer and is the
only acceptable proof of purchase. It must be presented to the authorized
service centre at the time service is requested.

Exclusions

This warranty does not cover damage due to accident, fire flood and/or other
acts of God; misuse, incorrect line voltage, improper installation, improper or
unauthorized repairs, commercial use, or damage that occurs in shipping.
Exterior and interior finish, lamps and glass are not covered under this
warranty. Customer adjustments which are explained in the instruction
manual are not covered under the terms of this warranty.
This warranty will automatically be voided for any unit found with a
missing or altered serial number. This warranty is valid only on products
purchased and used in Canada.
