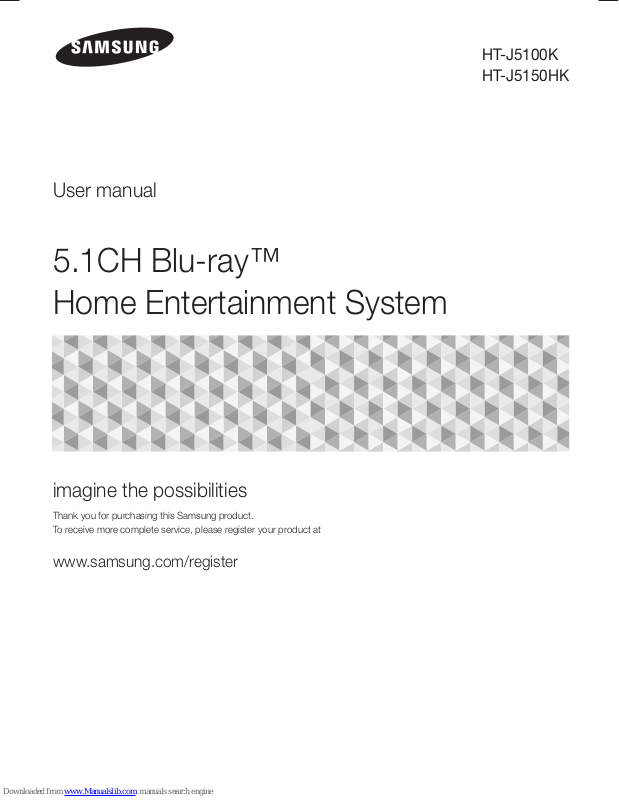

5.1CH Blu-ray™ Home Entertainment System

HT-J5100K HT-J5150HK

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK). THERE ARE NO USER

SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO

QUALIFIED PERSONNEL.

~The slots and openings in the cabinet and in the back

or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered.

- Do not place this apparatus in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.

- Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.

- Do not place vessels (vases etc.) containing water on this apparatus. A water spill can cause a fire or electric shock.

~Do not expose this apparatus to rain or place it near

water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.). If this apparatus accidentally gets wet, unplug it and contact an authorized dealer immediately.

~This apparatus uses batteries. In your community,

there might be environmental regulations that require you to dispose of these batteries properly. Please contact your local authorities for disposal or recycling information.

~Do not overload wall outlets, extension cords or

adaptors beyond their capacity, since this can result in fire or electric shock.

~Route power-supply cords so that they are not likely to

be walked on or pinched by items placed on or against them. Pay particular attention to cords at the plug end, at wall outlets, and the point where they exit from the apparatus.

~To protect this apparatus from a lightning storm, or

when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

~Before connecting the AC power cord to the DC

adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local electrical supply.

~Never insert anything metallic into the open parts

of this apparatus. Doing so may create a danger of electric shock.

~To avoid electric shock, never touch the inside of this

apparatus. Only a qualified technician should open this apparatus.

~Make sure to plug the power cord in until it is firmly

seated. When unplugging the power cord from a wall outlet, always pull on the power cord's plug. Never unplug by pulling on the power cord. Do not touch the power cord with wet hands.

~If this apparatus does not operate normally - in

particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service centre.

~Maintenance of Cabinet.

- Before connecting other components to this

- If you move your product suddenly from a cold place

~Be sure to pull the power plug out of the outlet if the

product is to remain unused or if you are leaving the house for an extended period of time (especially when children, elderly, or disabled people will be left alone in the house).

- Accumulated dust can cause an electric shock, an

~Contact an authorized service centre for information

if you intend to install your product in a location with heavy dust, high or low temperatures, high humidity, chemical substances, or where it will operate 24 hours a day such as in an airport, a train station, etc. Failing to do so may lead to serious damage of your product.

~Use only a properly grounded plug and wall outlet.

- An improper ground may cause electric shock or

~To turn this apparatus off completely, you must

disconnect it from the wall outlet. Consequently, the wall outlet and power plug must be readily accessible at all times.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol indicates that important literature concerning operation and maintenance has been included with this product.

product, be sure to turn them off.

to a warm place, condensation may occur on the operating parts and lens and cause abnormal disc playback. If this occurs, unplug the product, wait for two hours, and then connect the plug to the power outlet. Then, insert the disc, and try to play back again.

electric leakage, or a fire by causing the power cord to generate sparks and heat or the insulation to deteriorate.

equipment damage. (Class l Equipment only.)

2 - English

~Do not allow children to hang on the product. ~Store the accessories (battery, etc.) in a location safely

out of the reach of children.

~Do not install the product in an unstable location such

as a shaky self, a slanted floor, or a location exposed to vibration.

~Do not drop or strike the product. If the product is

damaged, disconnect the power cord and contact a service centre.

~To clean this apparatus, unplug the power cord from

the wall outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air fresheners, lubricants, or detergent. These chemicals can damage the appearance of the product or erase the printing on the product.

~Do not expose this apparatus to dripping or splashing.

Do not put objects filled with liquids, such as vases on the apparatus.

~Do not dispose of batteries in a fire. ~Do not plug multiple electric devices into the same wall

socket. Overloading a socket can cause it to overheat, resulting in a fire.

~There is danger of an explosion if you replace the

batteries used in the remote with the wrong type of battery. Replace only with the same or equivalent type.

Safety Information

WARNING :

~TO PREVENT THE SPREAD OF FIRE,

KEEP CANDLES AND OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

~To reduce the risk of fire or electric

shock, do not expose this appliance to rain or moisture.

CLASS 1 LASER PRODUCT

This product is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION :

~INVISIBLE LASER RADIATION WHEN OPEN AND

INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

3 - English

Contents

GETTING STARTED

5 Accessories

5 Speaker Components

6 Front Panel

6 Rear Panel

7 Remote Control

CONNECTIONS

8 Connecting the Speakers

11 Connecting to a TV and External Devices

SETTINGS

12 The Initial Settings Procedure

12 The Home Screen at a Glance

13 Accessing the Settings Screen

13 Settings Menu Functions

16 Radio Setup

17 Upgrading Software

PLAYING CONTENT

APPENDIX

26 Additional Information

27 Disk and Format Compatibility

32 Troubleshooting

35 Specifications

37 Licences

Figures and illustrations in this User Manual

are provided for reference only and may differ from actual product appearance.

18 Switching the Source Device

18 Playing Commercial Discs

18 Playing a Disc with User Recorded Content

19 Playing Files on a USB Device

20 Controlling Video Playback

22 Playing a Pre-Recorded Commercial Audio Disc

22 Controlling Music Playback

24 Playing Photo Content

24 Using Karaoke

25 Using the Special Effects Remote Control

Buttons

4 - English

Getting Started

Check the box for the accessories and speaker components listed or shown below.

Accessories

~ Remote Control ~ Batteries (AAA size)

Power Cable FM Antenna HDMI Cable

Speaker Components

HT-J5100K

~ User Manual

Getting Started

Front x 2 Surround x 2 Centre Subwoofer

HT-J5150HK

Stand Driver

Front x 4 Stand Base x 4 Stand Nut x 4 Centre Subwoofer

5 - English

Getting Started

5V 0.5A

MIC 2MIC 1

SURROUND

Front Panel

DISPLAY ICONS

FUNCTION

OPEN/ CLOSE

DISC TRAY

✎

When the product is on, do not let children touch the product's surface. It will be hot.

✎

To upgrade the product's software through the USB jack, you must use a USB flash drive.

✎

When the product displays a Blu-ray Disc menu, you cannot start the movie by pressing the /6 button on the product or the remote. To play the movie, you must select Play Movie or Start in the disc menu, and

then press the E button.

✎

If you are playing content from a USB device on your TV through the home cinema, you cannot select the BD/DVD mode with the FUNCTION button. To select the BD/DVD mode, stop the content you are playing on the TV, and then select the BD/DVD mode.

✎

Plug the microphone jack before using Karaoke function.

STOP

VOLUME CONTROL

DISPLAY

MIC JACK

PLAY/PAUSE

POWER

USB REMOTE CONTROL SENSOR

Rear Panel

COOLING FAN

POWER CORD EXTERNAL DIGITAL

* Connecting the FM Antenna

1. Connect the supplied FM antenna to the FM ANT Jack.

2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a

wall or other rigid surface.

✎

Maintain a minimum of 10 cm of clear space on all sides of the home cinema to ensure adequate ventilation. Do not obstruct the cooling fan or ventilation holes.

✎

This product does not receive AM broadcasts.

SPEAKER OUTPUT

CONNECTORS

AUX IN

* FM ANTENNA

6 - English

HDMI OUT

AUDIO IN (OPTICAL)

Remote Control

Tour of the Remote Control

Turn the product on and off.

Adjust the volume.

Press numeric buttons to operate

options.

Press to view the disc menu.

Press to skip backwards or forwards.

Press to play a disc or files.

Press to stop a disc or files.

Press to use the karaoke function

(Mic. vol., Echo, Key Cotrol).

Press to move to the Home screen.

Press to use the Tools menu.

Select on-screen menu items

and change menu values.

Return to the previous menu.

These buttons are used both for

menus on the product and also

several Blu-ray Disc functions.

Press to record FM radio

broadcasts.

FUNCTION

VOLUME

DISC MENU TITLE MENU

KARAOKE HOME

TOOLS

RETURN

ABCD

DSP/EQTV SOUND

MUTE

POPUP

REPEAT

INFO

EXIT

TUNER

MO/ST

MEMORY

TUNING

DOWN

Press to select Home Cinema's mode. (BD/DVD, D. IN, AUX, etc.).

To open and close the disc tray.

Cut off the sound temporarily.

Use to enter the Popup menu/ Title menu.

Press to search backwards or forwards.

Press to pause playing.

Allows you to repeat a title, chapter, track or disc.

Use to display the playback information when playing a Blu-ray/DVD disc or files.

Press to exit the menu.

Use to set a preset radio frequency.

Select MONO or STEREO for radio broadcasts.

Getting Started

Press to direct the audio signal to the

home cinema speakers or TV speaker.

(See page 25)

Select the desired DSP/EQ audio

Installing batteries in the Remote Control

✎

Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment.

✎

Assuming typical usage, the batteries last for about one year.

✎

The remote control can be used up to approximately 7 meters from the product in a straight line.

Search for active FM stations and to change channels.

mode.

Battery size: AAA

7 - English

Connections

This section describes various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Connecting the Speakers

Position of the product

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the TV's screen size away from the TV. For example, if you have a 46 inch screen, locate the listening position 2.92 to 3.50 meters from the screen.

Subwoofer

Front (L)

Surround (L)

Centre

Front (R)

Surround (R)

Product

Place these speakers in front of your listening position, facing inwards (about

Front Speakers

Centre Speaker

Surround Speakers

Subwoofer

* The appearance of your speakers may differ from the illustrations in this manual.

* Each speaker has a coloured label on its back or underside. Each cable has a single coloured band

near its end. Match the band on each cable to the speaker label by colour, and then connect the cable to the speaker. See page 10 for exact instructions.

45°) toward you. Place the front speakers so that their tweeters will be at the same height as your ear. Align the front face of the front speakers with the front face of the centre speaker or place them slightly in front of the centre speakers.

It is best to install the centre speaker at the same height as the front speakers. You can also install it directly over or under the TV.

Place these speakers to the side of your listening position. If there isn't enough room, place these speakers so they face each other. Position them about 60 to 90cm above your ear, facing slightly downward.

* Unlike the front and centre speakers, the surround speakers are used mainly

for sound effects. Sound will not come from them all the time.

The position of the subwoofer is not so critical. Place it anywhere you like.

8 - English

Installing the Speakers on the Half Tallboy Stand

* HT-J5150HK only - Front/Surround Speakers

1. Stretch out the speaker cables as shown and arrange it

through the hole of the stand base .

2. When done, use the stand driver to tighten the stand nut as shown.

3. This is the appearance after the speaker is installed. Follow these steps to install another speaker.

4. If you want to adjust the height of the speaker, loosen two screws on the rear of the speaker.

5. Pull up the speaker in the arrow direction. Fit the speaker in a height adjusting hole of your choice.

| CAUTION |

Be careful as an excessive force may result in a physical



damage.

Connections

5 6

6. Insert two screws clockwise into the hole on the rear of

the speaker using a screwdriver as shown and tighten back 2 screws.

7. This is after the height of the speaker is adjusted. You can repeat these steps above at any time if you want to readjust the height.

9 - English

Connections

SURROUND

Speaker Cable Connections

In case of HT-J5100K

Front Speaker (L)

Centre Speaker

Surround Speaker (L)

Surround Speaker (R)

Subwoofer

* Refer to page 5 for the speakers of HT-J5150HK.

✎

If you place a speaker near your TV set, the screen colour may be distorted because of the magnetic field.

| CAUTION |

If you want to install the speakers on the wall, fasten screws or nails (not provided) firmly to the wall wherever



you want to hang a speaker, and then, using the hole in the rear of each speaker, carefully hang each speaker on a screw or nail.

Do not let children play with or near the speakers. They could get hurt if a speaker falls.



When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.



Keep the subwoofer speaker out of reach of children to prevent children from inserting their hands or alien



substances into the duct (hole) of the subwoofer speaker. Do not hang the subwoofer on the wall by the duct (hole).



Front Speaker (R)

10 - English

Connecting to a TV and External Devices

OPTICAL OUT

AUDIO OUT

HDMI IN (ARC)

SURROUND

Red

White

Method 1 Method 2

External Devices

Connecting to a TV

Connect an HDMI cable from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV. If the TV supports ARC, you can hear the audio from your TV through the home cinema with only this cable connected. See page 14 in this manual and the section on ARC in your TV's user's manual for details.

Connections

Connecting to External Devices

Two methods of connecting external devices to your home cinema are explained below.

Method 1 AUX IN : Connecting an External Analogue Component

Using an RCA audio cable (not supplied), connect the AUDIO In jack on the product to the AUDIO Out jack on the external analogue component.  Select the AUX mode.

~ Be sure to match the colours on the cable plugs to the colours on the input and output jacks.

Method 2 OPTICAL : Connecting an External Digital Audio Component

Use to connect the digital audio output of digital signal components such as Cable Boxes and Satellite Receivers (Set-Top-Boxes) to the home cinema. Using a digital optical cable (not supplied), connect the Optical Digital Audio In jack on the product to the Digital Optical Out jack of the external digital device using a digital optical cable.  Select the D. IN mode.

✎

To see video from your Cable Box/Satellite receiver, you must connect its video output directly to your TV.

✎

This system supports Digital sampling frequencies of 32 kHz or higher from external digital components.

✎

This system supports only DTS and Dolby Digital audio. MPEG audio, a bitstream format, is not supported.

Selecting an External Device to Use

To select an external device after you have connected it, press the FUNCTION button. Each time you press the button, the mode changes in this order : BD/DVD  D. IN  AUX  FM

11 - English

Settings

The Initial Settings Procedure

~The Home menu will not appear if you do not

configure the initial settings.

~The OSD (On Screen Display) may change in

this product after you upgrade the software version.

~The access steps may differ depending on the

menu you selected.

✎

If you use an HDMI cable to connect the product to an Anynet+ (HDMI-CEC)-compliant Samsung

TV and 1.) You have set the Anynet+ (HDMI-CEC) feature to On in both the TV and the product and

2.) You have set the TV to a language supported by the product, the product will select that language as the preferred language automatically.

The Home Screen at a Glance

1. Turn on your TV after connecting the product,

and then turn on the product. When you turn on the product for the first time, the product automatically displays the Setup Language screen.

2. Press the ▲▼ buttons to select the desired language, and then press the E button.

3. The TV Aspect Ratio screen appears. Press the ▲▼ buttons to select a TV aspect ratio, and then press the E button. You have four choices: 16:9 Original - For widescreen TVs. Displays widescreen pictures in their original 16:9 format and 4:3 pictures (the old, standard format) in 4:3 pillar box format with black bars on the left and right. 16:9 Full - For widescreen TVs. Displays widescreen pictures in their original 16:9 format and expands 4:3 pictures to fill the 16:9 screen. 4:3 Letter Box - For older, standard screen, analogue TVs. Displays 4:3 pictures in full screen and 16:9 pictures in letter box format that retains the 16:9 aspect ratio but puts black bars above and below the picture. 4:3 Pan-Scan - For older, standard screen, analogue TVs. Displays 4:3 pictures in full screen and 16:9 pictures in Pan-Scan format that fills the screen, but cuts off the left and right sides of the picture and enlarges the middle vertically.

4. The "Initial settings completed." screen appears, and then the Home screen appears.

✎

If you want to display the Setup screen again and make changes, select the Reset option. (See page 16)

PLAY DISC

No Disc

Change

Function

Device

PHOTOS VIDEOS MUSIC

Settings

345

PLAY DISC

The disc currently in the tray is displayed. Press E to start playing the disc.

PHOTOS/VIDEOS/MUSIC

Play photos, videos, or music content from a Disc or a USB device.

Change Device

Displays a list of external devices connected to the main unit. Switch to the desired device.

Function

Use for switching to an external device or to the radio. You can use the remote control’s

FUNCTION button and the main unit’s button

for mode switching.

12 - English

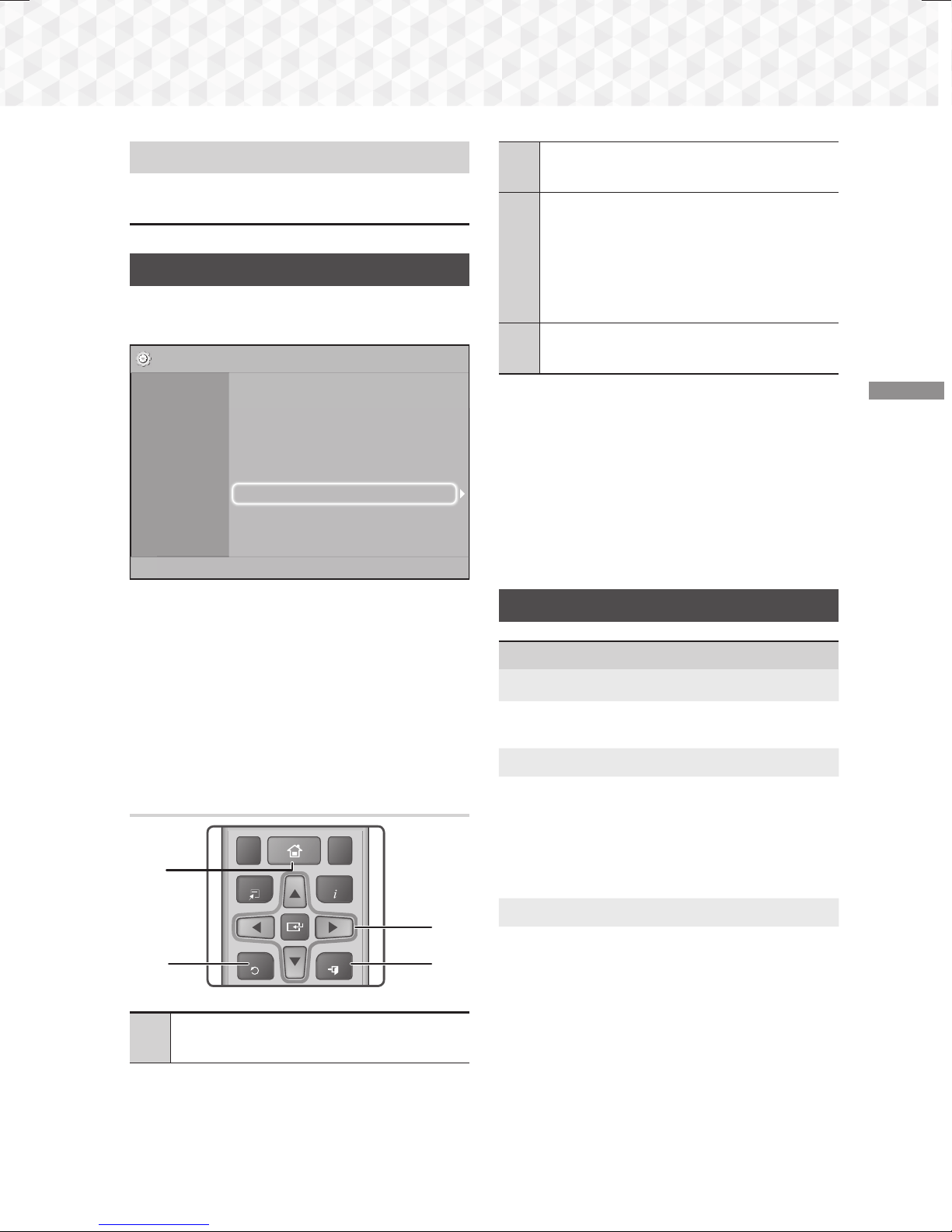

Settings

TOOLS

RETURN

EXIT

INFO

KARAOKE HOME

REPEAT

Set various functions to suit your personal preferences.

Accessing the Settings Screen

1. Select Settings on the Home screen, and then press E. The Settings screen appears.

Settings


Sound

System

Language

Security

Support

TV Aspect Ratio : 16:9 Original

BD Wise : Off

Resolution : Auto

Movie Frame (24 fps) : Off

HDMI Colour Format : Auto

HDMI Deep Colour : Off

Progressive Mode : Auto

RETURN Button : Press to return to the

previous menu.

ENTER) / DIRECTION Button :

(

~Press ▲▼◄► to move the cursor or

select an item.

~Press the E button to activate the

currently selected item or confirm a setting.

EXIT Button : Press to exit the current

menu.

Detailed Function Information

Each Settings function, menu item, and individual option is explained in detail on-screen. To view an explanation, use the ▲▼◄► buttons to select the function, menu item, or option. The explanation will usually appear on the bottom of the screen.

A short description of each Settings function starts on this page. Additional information on some of the functions is also in the Appendix of this manual.

Settings

2. To access the menus, sub-menus, and options

Settings Menu Functions

on the Settings screen, please refer to the remote control illustration. (See below)


✎

If you leave the product in the stop mode for more than 5 minutes without using it, a screen saver appears on your TV. If the product is left in the

screen saver mode for more than 20 minutes, the power automatically turns off.

TV Aspect Ratio

Lets you adjust the output of the product to the screen size of your TV. (See page 26)

BD Wise

Buttons on the Remote Control Used for the Settings Menu

HOME Button : Press to move to the Home

screen.

BD Wise is Samsung’s latest inter-connectivity feature. When you connect a Samsung product and a Samsung TV with BD Wise to each other via HDMI, and BD Wise is on in both the product and TV, the product outputs video at the video resolution and frame rate of the Blu-ray/DVD Disc.

Resolution

Lets you set the output resolution of the HDMI video signal to BD Wise, Auto, 1080p, 1080i, 720p, 576p/480p. The number indicates the number of lines of video per frame. The i and p indicate interlaced and progressive scan, respectively. The more lines, the higher quality.

13 - English

Settings

Movie Frame (24 fps)

Setting the Movie Frame (24 fps) feature to Auto lets the product adjust its HDMI output to 24 frames per second automatically for improved picture quality if attached to a 24 fps compatible TV.

~You can enjoy the Movie Frame (24 fps) feature

only on a TV supporting this frame rate.

~Movie Frame is only available when the product

is in the HDMI 1080p output resolution modes.

HDMI Colour Format

Lets you set the colour space format for the HDMI output to match the capabilities of the connected device (TV, monitor, etc).

HDMI Deep Colour

Lets you set the product to output video from the HDMI OUT jack with Deep Colour. Deep Colour provides more accurate colour reproduction with greater colour depth.

Progressive Mode

Lets you improve picture quality when viewing DVDs.

Sound

Karaoke scoring

This feature rates your singing ability and gives you a score for each song you sing.

My karaoke

Set the volume of the vocals when using the karaoke feature.

 Original Vocals: Volume is set to the level of the

original sound.

 Reduce Vocals: Volume is set to a level lower than

that of the original sound.

Speaker Settings

Distance

of each speaker from the listening position up to 9 meters. The farther the distance, the louder the speaker will be.

Speaker Test: Lets you run the Speaker Test

function so you can test your adjustments. Setting Speaker Test to On turns the Speaker Test on. Setting it to Off turns it off.

Speaker Selection

Lets you select which speakers you want active, either the TV's speakers or the home cinema's speakers.

Equaliser Mode

Set Equaliser Mode on to use the equaliser.

Equaliser Settings

Lets you set the equaliser.

✎

Equaliser Settings only appears when Equaliser Mode is On.

Audio Return Channel

Lets you direct the sound from the TV to the Home Cinema speakers. Requires an HDMI connection and an Audio Return Channel (ARC) compatible TV.

~If Audio Return Channel is set to on and you

are using an HDMI cable to connect the product to the TV, digital optical input will not work.

~If Audio Return Channel is set to Auto and you

are using an HDMI cable to connect the product to the TV, ARC or digital optical input is selected automatically.

Digital Output

Lets you set the Digital Output to match the capabilities of the AV receiver you’ve connected to the product. For more details, please refer to the digital output selection table. (See page 31)

: Lets you adjust the relative distance

Lets you adjust the following speaker settings and turn the speaker test on and off so you can test the speakers.

Level

: Lets you adjust the relative loudness of each speaker from 6dB to -6dB. For example, if you like deep bass, you can increase the loudness of the subwoofer by 6dB.

14 - English

Dynamic Range Control

BD Data Management

Lets you apply dynamic range control to Dolby Digital, Dolby Digital Plus, and Dolby TrueHD audio.

Auto:

Automatically controls the dynamic range of Dolby TrueHD audio, based on information in the Dolby TrueHD soundtrack. Also turns dynamic range control off for Dolby Digital and Dolby Digital Plus.

Off: Leaves the dynamic range uncompressed,

letting you hear the original sound.

On: Turns dynamic range control on for all three

Dolby formats. Quieter sounds are made louder and the volume of loud sounds is reduced.

Downmixing Mode

Lets you select the multi-channel downmix method that is compatible with your stereo system. You can choose to have the product downmix to Normal

Stereo or to Surround Compatible.

Audio Sync

When the product is attached to a digital TV, lets you adjust the audio delay so that the audio syncs with the video. You can set the delay between 0 and 300 milliseconds.

Enables you to manage the downloaded contents you accessed through a Blu-ray disc and stored on a flash drive.

You can check the device's information including the available storage size, delete the BD data, or change the Flash memory device.

DivX® Video On Demand

View DivX® VOD Registration Codes to purchase and play DivX® VOD contents.

Language

Lets you select the language you prefer for the OnScreen Menu, Disc Menu, etc.

~The selected language will only appear if it is

supported on the disc.

Security

The default PIN is 0000. Enter the default PIN to access the security function if you haven't created your own PIN.

Settings

System

Setup

Lets you re-run the Setup procedure. (See page

12)

Quick start

You can turn on the power quickly by decreasing the boot time.

✎

If this function is set to On, Standby power consumption will be increased. (About 12W ~

20W)

Anynet+ (HDMI-CEC)

Anynet+ is a convenient function that offers linked operations with other Samsung products that have the Anynet+ feature and lets you control those products with one Samsung TV remote. To operate this function, you must connect this product to an Anynet+ Samsung TV using an HDMI cable.

BD Parental Rating

Prevents playback of Blu-ray Discs with a rating equal to or above a specific age rating unless you enter the PIN.

DVD Parental Rating

Prevents playback of DVDs with a rating above a specific numerical rating unless you enter the PIN.

Change PIN

Changes the 4-digit PIN used to access security functions.

Support

Software Upgrade

For more information about this function, see page

17.

Contact Samsung

Provides contact information for assistance with your product.

15 - English

Settings

Reset

Reverts all settings to their defaults. Requires that you enter your security PIN. The default security PIN is 0000.

Radio Setup

~To listen to the radio, you must connect the

supplied FM antenna.

Operating the Radio with the Remote Control

1. Press the FUNCTION button to select FM.

2. Tune to the desired station. ~Preset Tuning 1 : Press the 5 button to

select PRESET, and then press the

UP, DOWN button to select a preset station.

- Before you can tune to preset stations, you must add preset stations to the product's memory.

~Manual Tuning : Press the 5 button to

select MANUAL, and then press the

UP, DOWN button to tune in to a lower or

higher frequency.

~Automatic Tuning : Press the 5 button to

select MANUAL, and then press and hold

TUNING UP, DOWN button for a few

the seconds to automatically search the band.

TUNING

Selecting Mono or Stereo

Press the MO/ST button.

~Each time you press the button, the sound

switches between STEREO and MONO.

~In a poor reception area, select MONO for a clear,

interference-free broadcast.

Presetting Stations

Example : Presetting FM 89.10 into memory.

1. Press the

2. Press the TUNING UP, DOWN button to scroll

the FM frequencies, and then select <89.10>.

3. Press the TUNER MEMORY button (the yellow

C button at the bottom of the remote).

FUNCTION button to select FM.

4. Press the TUNER MEMORY button again

within about 5 seconds. The station is stored in memory.

✎

If you press the repeatedly without changing the station, the inputted station may be overwritten.

5. To preset another station, repeat steps 2 to 4. ~To tune in to a preset station, press the

TUNING UP, DOWN button.

✎

To delete all Preset FM stations at once, press the

TITLE MENU button for about 5 seconds in FM

Manual mode until DEFAULT PRESET appears on the display.

TUNER MEMORY

button

Recording FM Radio

You can record your favourite radio broadcast on a USB storage device.

1. Insert a USB device into the USB jack on the

front of the product.

2. Press the

then press the TUNING UP, DOWN button to select the station you want to record.

3. Press the RED (A) button to start recording. The

recording process begins.

~The recorded time is displayed on the left and

the recording time still available, based on the amount of free space in the USB storage device, is displayed on the right.

4. Press the

The recording is stopped and saved as an .mp3 file at the same time. To play the recorded file, refer to "Playing Files on a USB Device".

✎

The recorded file is saved in the Tuner folder which is created automatically.

✎

Only the ( OPEN/CLOSE), ( POWER), EXIT,

MUTE, and VOLUME +/-, buttons are operable

while FM radio is being recorded.

✎

If you don't press any buttons while recording, the screen saver will be enabled.

✎

Sound effects, such as DSP, EQ, etc., are not recorded during FM radio recording.

✎

The radio is recorded at a set, default volume even if you change the volume or press the button during the recording process.

FUNCTION button to select FM, and

EXIT button to finish your recording.

MUTE

16 - English

✎

If you remove the USB device or Power Cable during the recording process, the portion of the

file which has already been recorded may not play back.

✎

Recording will not start if the remaining free space in the USB storage device is less than 2MB.

✎

If the USB device is removed or has insufficient space (under 2MB), the appropriate message is

displayed and the recording stops.

Upgrading Software

The Software Upgrade menu allows you to upgrade the product’s software for performance improvements or additional services.

~Never turn the product off or back on manually

during the update process.

~The update is complete when the product turns

off after restarting. Press the turn on the updated product for your use.

1. Visit Samsung's website on a computer and download the update package to a USB device.

✎

Save the update package in the USB device's top-level folder. Otherwise, the product will not be able to locate the update package.

2. Connect the USB device with the update package to the product.

3. Select Support > Software Upgrade > By USB. The software is updated using the

update package on the USB device.

✎

There should be no disc in the product when you upgrade the software using the USB Host jack.

✎

When the software upgrade is done, check the software details in the Software Upgrade menu.

POWER button to

Settings

17 - English

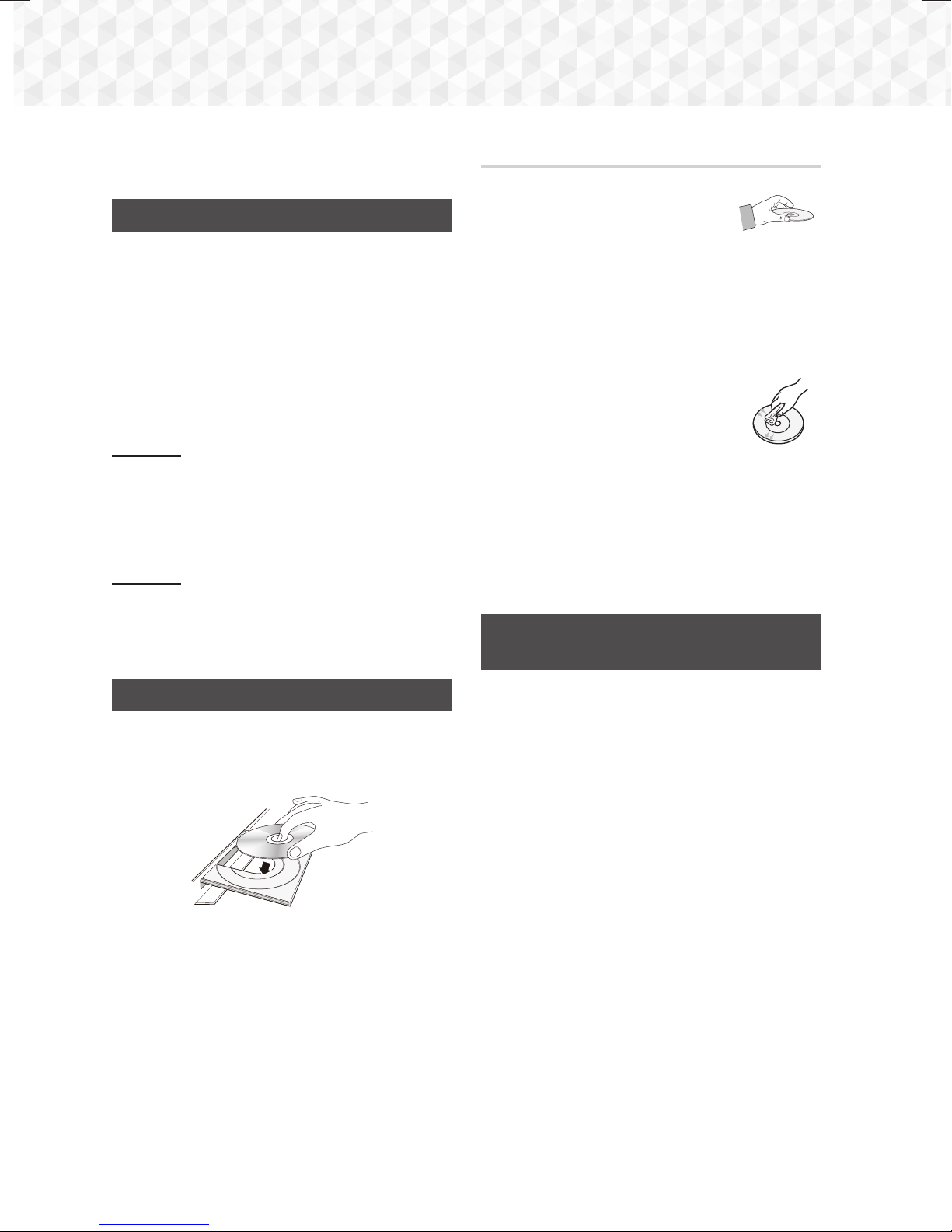

Playing Content

Your home cinema can play content located on Blu-ray/DVD/CD discs and USB devices.

Switching the Source Device

If two or more external devices are connected to the main unit, you can use any of the three methods described below to change the source device.

Method 1

From the Home screen, use the ▲▼◄► buttons to move to Change Device, and then press E.

The Change Device popup window will appear. Use the ▲▼ buttons to move to the desired device, and then press E.

Method 2

If you move to PHOTOS, VIDEOS, MUSIC or other file-based contents, a list of folders and files will appear. Press the RED (A) button to display the Change Device popup window, use the ▲▼ buttons to move to the desired device, and then press E.

Method 3

When a device is connected for the first time, a popup window appears. In the popup, you can change the source device by using the ◄► buttons, and then pressing E.

Disc Storage & Management

~Holding Discs

- Fingerprints or scratches on a disc may reduce sound and picture quality or cause skipping.

- Avoid touching the surface of a disc where data has been recorded.

- Hold the disc by the edges so that fingerprints will not get on the surface.

- Do not stick paper or tape on the disc.

~Cleaning Discs

- If you get fingerprints or dirt on a disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

- When cleaning, wipe gently from the inside to the outside of the disc.

- Disc Storage

Do not keep in direct sunlight. Keep in a cool ventilated area. Keep in a clean protective jacket and store

vertically.

Playing a Disc with User Recorded Content

Playing Commercial Discs

1. Press the  button to open the disc tray.

2. Place a disc gently into the disc tray with the

disc’s label facing up.

3. Press the  button to close the disc tray. Playback starts automatically.

4. If playback does not start automatically, press the 6 button on the remote.

You can play multimedia files you have recorded on Blu-ray, DVD, or CD discs.

1. Place a user recorded disc into the disc tray with the disc’s label facing up, and then close the tray.

2. Use the ◄► buttons to select the type of content you want to view or play - PHOTOS, VIDEOS, or MUSIC - and then press the E button.

-1

. Select PLAY DISC from the Home screen.

The PLAY DISC screen appears. Use the ▲▼ buttons to select the desired content type,

Photos, Videos, or Music.

18 - English

3. A screen appears listing the contents of the disc.

Device

Functio

PHOTOS

Depending on how the contents are arranged, you will see either folders, individual files, or both.

4. If necessary, use the ▲▼◄► buttons to select a folder, and then press the E button.

5. Use the ▲▼◄► buttons to select a file to view or play, and then press the E button.

6. Press the

RETURN button one or more times to

exit a current screen, exit a folder, or to return to the Home screen. Press the EXIT button to return directly to the Home Screen.

7. Go to pages 20~24 for instructions that explain how to control playback of videos, music, and pictures on a disc.

Playing Files on a USB Device

There are two methods you can use to play or view multimedia files located on a USB device through your product.

Method 1 : If you connect a USB device while the product is turned on

1. The "New device connected." pop-up appears.

PLAY DISC

PHOTOS VIDEOS MUSICPLAY DI

VIDE

MUSI

3. If necessary, use the ▲▼◄► buttons to select

a folder, and then press the E button.

4. Select a file to view or play, and then press the button.

5. Press the

RETURN button to exit a folder or the

EXIT button to return to the Home screen.

6. Go to pages 20~24 for instructions that

explain how to control playback of videos, music, and pictures on a USB device.

Method 2 : If the product is turned on after you connect a USB device

1. Turn the product on.

2. Press Change Device and select a USB device.

3. Use the ◄► buttons to select PHOTOS,

VIDEOS, or MUSIC on the Home screen, and

then press the E button.

4. If necessary, use the ▲▼◄► buttons to select

a folder, and then press the E button.

5. Select a file to view or play, and then press the button.

6. Press the

RETURN button to exit a folder or the

EXIT button to return to the Home screen.

7. Go to pages 20~24 for instructions that

explain how to control playback of videos, music, and pictures on a USB device.

✎

If you insert a disc while playing a USB device, the device mode changes to "Disc" automatically.

Playing Content

New device connected.

STORAGE DEVICE

Photos

Videos

No Disc

No Dis

Change

Function

hange

Device

✎

If the pop-up does not appear, go to Method 2.

Settings

Music

> Move " Enter ' Return

etting

2. Use the ▲▼ buttons to select Photos, Videos,

or Music and then press the E button. Depending on how the contents are arranged, you will see either folders, individual files, or both.

19 - English

Playing Content

KARAOKE HOME

REPEAT

DISC MENU TITLE MENU

POPUP

Controlling Video Playback

You can control the playback of video content located on a Blu-ray/DVD disc or USB device. Depending on the disc or contents, some of the functions described in this manual may not be available.

Buttons on the Remote Control used for Video Playback

Playback related buttons

The product does not play sound in Search, Slow, or Step mode.

~To return to normal speed playback, press the

button.

Using the disc menu, title menu, popup

menu, and title list

DISC MENU

During playback, press this button to display the Disc menu.

TITLE MENU

During playback, press this button to display the Title menu.

~If your disc has a playlist, press the

button to go to the playlist.

POPUP MENU

During playback, press this button to display the Popup menu.

Repeat Playback

1. During playback, press the REPEAT button on the remote control.

2. Press the ▲▼ buttons to select Off, Title, Chapter, All or Repeat A-B, and then press

the E button.

GREEN (B)

Fast

Motion

Play

Slow

Motion

Play

Step

Motion

Play

Skip

Motion

Play

Starts playback.

Stops playback.

Pauses playback.

During playback, press the 3 or

button.



Each time you press the 3 or  button, the playback speed will change.

In pause mode, press the  button. Each time you press the  button, the playback speed will change.

In pause mode, press the 7 button. Each time you press the 7 button, a new frame appears.

During playback, press the 1 or

button.

Each time you press the 1 or

button, the disc moves to the

previous or next chapter or file.



Repeat A-B

1. Press the E button at the point where you

want repeat play to start (A).

2. Press the E button at the point where you want repeat play to stop (B).

3. To return to normal play, press the REPEAT button again.

4. Press the E button.

✎

Depending on the disc, the screen may not display all repeat options.

✎

The screen may not display Chapter or Title immediately. Continue to press the ▲▼ buttons

until your choice is inside the applicable field.

✎

To return to normal play, press the REPEAT button again, press the ▲▼ buttons to select

Off, and then press the E button.

✎

The screen may not display Repeat A-B immediately. Continue to press the ▲▼ buttons

until Repeat A-B is inside the applicable field.

✎

You must set point (B) at least 5 seconds of playing time after point (A).

20 - English

Using the TOOLS Menu

During playback, press the TOOLS button.

Menu selections that appear only when a BD/DVD disc plays

Title

If there is more than one title on a disk or device, lets you move to or select a desired title.

✎

When searching DVD title, in stop mode, enter the

TOOLS button and title number (01,02,...)

you want.

Playing Time

Lets you go to a specific playback point. Use the numeric buttons to input the playback point.

Repeat Mode

Lets you repeat a specific title, chapter, or marked section.

Audio Sync

Lets you adjust the audio delay so that the audio syncs with the video. You can set the delay from 0 to 300 milliseconds.

Equaliser Mode

Set Equaliser Mode on to use the equaliser.

Equaliser Settings

Lets you set the equaliser.

✎

Equaliser Settings only appears when Equaliser Mode is On.

Chapter

Lets you move to a chapter that you want to watch.

Audio

Lets you set the desired audio language.

Subtitle

Lets you set the desired subtitle language.

Angle

To view a scene from another angle. The Angle option displays the number of angles available to view (1/1, 1/2, 1/3, etc.).

BONUSVIEW Video BONUSVIEW Audio

Lets you set the desired Bonusview option.

Menu selections that appear only while a file plays

Full Screen

Lets you set the desired full screen size. You can select Original, Mode1 (larger), and Mode2 (largest).

Information

Playing Content

Picture Settings

Lets you set the picture mode.

Mode

- User : Go to Advanced Settings, and then press the E button. Lets you adjust the Brightness, Contrast, Colour, and Sharpness functions manually.

- Dynamic : Choose this setting to increase sharpness.

- Normal : Choose this setting for most viewing applications.

- Movie : This is the best setting for watching movies.

Select to view video file information.

✎

Depending on the disc or storage device, the Tools menu may differ. All options may not be

displayed.

21 - English

Playing Content

DISC MENU TITLE MENU

POPUP

Creating a Video Playlist

You can create a playlist of video files in nearly the same way you create a playlist of music files. See page 23 for instructions. Select video files instead of music files.

Playing a Pre-Recorded Commercial Audio Disc

1. Insert an Audio CD (CD-DA) or an MP3 Disc into

the disc tray.

~For an Audio CD (CD-DA), the first track will

be played automatically. Tracks on a disc are played in the order in which they were recorded on the disc.

~For an MP3 disc, press the ◄► buttons to

select MUSIC, then press the E button.

TRACK 001

00:00/00:00

Tools

Repeat Mode Track

Equaliser Mode Off

Rip

Karaoke Recording

Move < Adjust ' Return

TRACK 004 04:02

TRACK 005 03:43

TRACK 006 03:40

Pause  Select

Tools ' Return

Playlist

0/16

Buttons on the Remote Control used for Music Playback

Number buttons : During Playlist playback, press the desired track number. The

selected track is played.

Skip : During playback, press the 1 or

button to move to the previous or next

music track.

button : Stops a track.

Fast Play (Audio CD [CD-DA] only) :

During playback, press the 3 or  button. Each time you press the 3 or  button, the playback speed will change.

button : Pauses a track.

2. To play a particular track, use the ▲▼ buttons on the remote to select the track, and then press the E button.

✎

For more information about playing music, see Controlling Music Playback below.

Controlling Music Playback

You can control the playback of music content located on a DVD, CD, or USB. Depending on the disc or contents, some of the functions described in this manual may not be available.

Repeating Tracks

You can set the product to repeat tracks.

1. During music playback, press the TOOLS

2. Select Repeat Mode, then use the ◄► buttons

22 - English

button : Plays the currently selected

track.

button.

to select Off, Track or One, All or Shuffle, and then press the E button.

Creating a Music Playlist

Ripping

1. If you are playing music from a commercial CD

or DVD, press the 5 or RETURN button. The Music List Screen appears. If you are creating a playlist from music on a user created disk or USB device, access the Music list as described on page 18 or 19.

2. Press the ▲▼◄► buttons to move to a desired file, and then press the

YELLOW (C) button

to select it. Repeat this procedure to select additional files.

3. If you want to select all files, press the

TOOLS

button, use the ▲▼ buttons to select Select All, and then press E. If you want to deselect all files, press the TOOLS button, select Deselect

All, and then press E.

MUSIC TRACK 001 1 file selected 1/2 Page

㾎

TRACK 001
