HT-D5330

5.1CH Blu-ray™

Home Entertainment System

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/register

HT-D5330_XAC_0215.indd 1HT-D5330_XAC_0215.indd 1 2011-02-15 ¿ÀÈÄ 7:38:082011-02-15 ¿ÀÈÄ 7:38:08

Safety Information

Safety Warnings

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lighting ﬂ ash and Arrowhead within Triangle Is awarning sign alerting you of dangerous voltage Inside the product.

CAUTION :

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

TO REDUCE THE RISK OF ELECTRIC

The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product.

WARNING

To reduce the risk of ﬁ re or electric shock, do not

•

expose this appliance to rain or moisture.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

CAUTION

Apparatus shall not be exposed to dripping or splashing and

•

no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus.

DANGER

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR)

CAUTION

CLASS 1 LASER PRODUCT

This product is classiﬁ ed as a CLASS 1 LASER

•

product. Use of controls, adjustments or performance of procedures other than those speciﬁ ed herein may result in hazardous radiation exposure.

CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION

•

WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC 60825-1)

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS

•

OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

Note to CATV system installer

This reminder is provided to call the CATV system installer’s attention to Section 820~40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

2 English

HT-D5330_XAC_0215.indd 2HT-D5330_XAC_0215.indd 2 2011-02-15 ¿ÀÈÄ 7:38:232011-02-15 ¿ÀÈÄ 7:38:23

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these Instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachment/accessories speciﬁ ed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

English 3

HT-D5330_XAC_0215.indd 3HT-D5330_XAC_0215.indd 3 2011-02-15 ¿ÀÈÄ 7:38:232011-02-15 ¿ÀÈÄ 7:38:23

Safety Information

Precautions

Ensure that the AC power supply in your house complies with the identiﬁ cation sticker located on the back of

•

your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation

•

(7.5~10cm). Do not place the product on ampliﬁ ers or other equipment which may become hot.

•

Make sure the ventilation slots are not covered. Do not stack anything on top of the product.

•

Before moving the product, ensure the Disc Insert Hole is empty.

•

To disconnect the product completely from the power supply, remove the mains plug from the wall outlet.

•

- If you leave the product unused for a long period of time, disconnect the plug from the wall outlet. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage

•

the product. Do not expose the product to direct sunlight or other heat sources. This could lead to overheating and

•

malfunction of the product. Protect the product from moisture, excess heat, and equipment creating strong magnetic or electric ﬁ elds (i.e.

•

speakers.). Disconnect the power cable from the AC supply if the product malfunctions.

•

Your product is not intended for industrial use. Use of this product is for personal use only.

•

Condensation may occur if you store your product or a disc in cold temperatures. If transporting the product

•

during the winter, wait approximately 2 hours until the product has reached room temperature before using. The batteries used with this product contain chemicals that are harmful to the environment.

•

Do not dispose of batteries in the general household trash.

Viewing TV using the 3D function

IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES. Read and understand the following safety information before using the TV’s 3D function.

WARNING

Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea and headaches. If you

•

experience any such symptom, stop viewing 3D TV, remove the 3D Active Glasses, and rest. Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D

•

TV, remove your 3D Active Glasses, and rest. A responsible adult should frequently check on children who are using the 3D function. If there are any reports of

•

tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest. Do not use the 3D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective

•

goggles, etc.) Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D

•

Active Glasses while moving around may result in injuries caused by running into objects, tripping, and/or falling.

4 English

HT-D5330_XAC_0215.indd 4HT-D5330_XAC_0215.indd 4 2011-02-15 ¿ÀÈÄ 7:38:232011-02-15 ¿ÀÈÄ 7:38:23

Cautions on Handling and Storing Discs

Small scratches on the disc may reduce sound and picture quality or cause skipping.

Be especially careful not to scratch discs when handling them.

Holding discs

Do not touch the playback side of the disc.

•

Hold the disc by the edges so that

•

ﬁ ngerprints will not get on the surface. Do not stick paper or tape on the disc.

•

Disc Storage

Do not keep in direct sunlight

•

Keep in a cool ventilated area

•

Keep in a clean Protection jacket.

•

Store vertically.

NOTE

✎

Do not allow the discs to become contaminated with



dirt. Do not load cracked or scratched discs.



Handling and Storing Discs

If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

When cleaning, wipe gently from the inside to

•

the outside of the disc

NOTE

✎

Condensation may form if warm air comes into



contact with cold parts inside the product. When condensation forms inside the product, it may not operate correctly. If this occurs, remove the disc and let the product stand for 1 or 2 hours with the power on.

Dolby and the double-D symbol are registered trademarks of Dolby

•

Laboratories. "ABOUT DIVX VIDEO: DivX® is a digital video format

•

created by DivX, Inc. This is an ofﬁ cial DivX Certiﬁ ed® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your ﬁ les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certiﬁ ed® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX Certiﬁ ed® to play DivX® video up to HD 1080p, including premium content. DivX®, DivX Certiﬁ ed® and associated logos are trademarks of DivX, Inc. and are used under license."

•

HDMI, the HDMI Logo, and High-Deﬁ nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

•

Oracle and Java are registered trademarks of Oracle and/or its afﬁ liates. Other names may be trademarks of their respective owners.

•

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

•

Blu-ray Disc™, Blu-ray™, and the logos are trademarks of Blu-ray Disc Association.

•

iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc.

< Open Source License Notice >

•

In the case of using open source software, Open Source Licenses are available on the product menu.

License

English 5

HT-D5330_XAC_0215.indd 5HT-D5330_XAC_0215.indd 5 2011-02-15 ¿ÀÈÄ 7:38:232011-02-15 ¿ÀÈÄ 7:38:23

Contents

SAFETY INFORMATION

GETTING STARTED

CONNECTIONS

SETUP

2 Safety Warnings 3 Important Safety Instructions 4 Precautions 5 Cautions on Handling and Storing Discs 5 License 5 Copyright

8 Key features of your new Blu-ray Home Theater 9 Icons that will be used in manual 10 Disc Types and Characteristics 14 Accessories 15 Description 15 Front Panel 16 Rear Panel 17 Remote Control

19 Connecting the Speakers 22 Connecting the Optional Wireless Receiver Module 24 Connecting the Video Out to your TV 26

Connecting Audio from External Components 27 Connecting to the Network 28 Connecting the FM Antenna

29 Initial Settings 30 Accessing the Settings Menu 31 Display 31 3D Settings 32 TV Aspect 32 Smart Hub Screen Size 32 BD Wise (Samsung Products only) 32 Resolution 34 HDMI Color Format 34 Movie Frame (24 Fs) 34 HDMI Deep Color 34 Still Mode 34 Progressive Mode 35 Audio 35 Speaker Settings 36 Musical Room Calibration 36 User EQ 37 HDMI Audio 37 Audio Return Channel 37 Digital Output 38 Dynamic Range Control 39 Audio Sync 39 Network 39 Network Settings 42 Network Status 42 BD-LIVE Internet Connection 43 System 43 Initial Settings 43 Anynet+ (HDMI-CEC) 43 BD Data Management 43 Time Zone 43 DivX® Video On Demand 43 Reset 44 Language

6 English

HT-D5330_XAC_0215.indd 6HT-D5330_XAC_0215.indd 6 2011-02-15 ¿ÀÈÄ 7:38:232011-02-15 ¿ÀÈÄ 7:38:23

SETUP

44 Security 44 BD Parental Rating 44 DVD Parental Rating 44 Change Password 44 General 44 Front Display 44 Network Remote Control 45 Support 45 Software Upgrade 46 Contact Samsung

BASIC FUNCTIONS

NETWORK SERVICES

47 Playing a Disc 47 Using the Disc menu / Title menu / Popup menu 48 Using the Search and Skip Functions 49 Slow Motion Play/Step Motion Play 49 Repeat Playback 50 Using the TOOLS button 52 Listening to Music 54 Sound Mode 55 Playing back a Picture 56 Playing back a USB Storage Device 57 Listening to Radio 57 Connecting iPod/iPhone Using the USB Cable 57 Connecting iPod/iPhone Using the Dock 58 Use iPod/iPhone with a Wireless Dock Cradle (sold

separately) for iPod/iPhone 59 iPod/iPhone Models You Can Use with This Product 60 How to Link the Wireless Transmitter with the Main Unit

61 Using Smart Hub 68 Samsung Apps 70 BD-LIVE™ 70 Using the AllShare Function

OTHER INFORMATION

71 Troubleshooting 74 Index 75 Speciﬁ cations

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product

• appearance.

An administration fee may be charged if either

•

an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual) you bring the unit to a repair center and there is no defect in the product

(i.e. where you have failed to read this user manual).

The amount of such administration charge will be advised to you before any work or home visit is carried out.

•

ENGLISH

English 7

HT-D5330_XAC_0215.indd 7HT-D5330_XAC_0215.indd 7 2011-02-15 ¿ÀÈÄ 7:38:242011-02-15 ¿ÀÈÄ 7:38:24

Getting Started

Key features of your new Blu-ray Home Theater

Product Features

This product can play 3D contents through an HDMI cable. To implement the 3D effect, connect a 3D device (3D-compliant AV receiver, 3D-compliant TV) to the product using an HDMI cable, and play the 3D content while wearing 3D vision glasses.

Smart Hub

You can download various chargeable or free-of charge applications through network connection. Various internet service and contents will be provided, which include news, weather forecast, stock market, games, movies and music.

AllShare

You can play videos, music and photos saved on your devices (such as your PC, mobile phones or NAS) through a network connection.

Audio Sync function

Video may lag behind the audio if the product is connected to a digital TV. To compensate for this, you can adjust the audio delay time to sync up with the video.

iPod Sync function

If the video signal in iPod player lags behind the audio signal during playback, set the audio delay time as required to match both.

iPod & iPhone support

If the system is connected to iPod player using the iPod/iPhone specific USB cable, you can play the music files in iPod/iPhone through the connected speakers. You can play video files as well as music using the iPod-specific dock, and also enjoy iPod music using the wireless transmitter (sold separately).

BD Wise

BD Wise automatically adjusts BD Wise-compliant Samsung products to the optimal settings between them. This feature is enabled only if BD Wise-compliant Samsung products are connected to each other using an HDMI cable.

ARC (Audio Return Channel)

You can enjoy TV sound from the Home Theater speakers by using just one HDMI cable.

8 English

HT-D5330_XAC_0215.indd 8HT-D5330_XAC_0215.indd 8 2011-02-15 ¿ÀÈÄ 7:38:242011-02-15 ¿ÀÈÄ 7:38:24

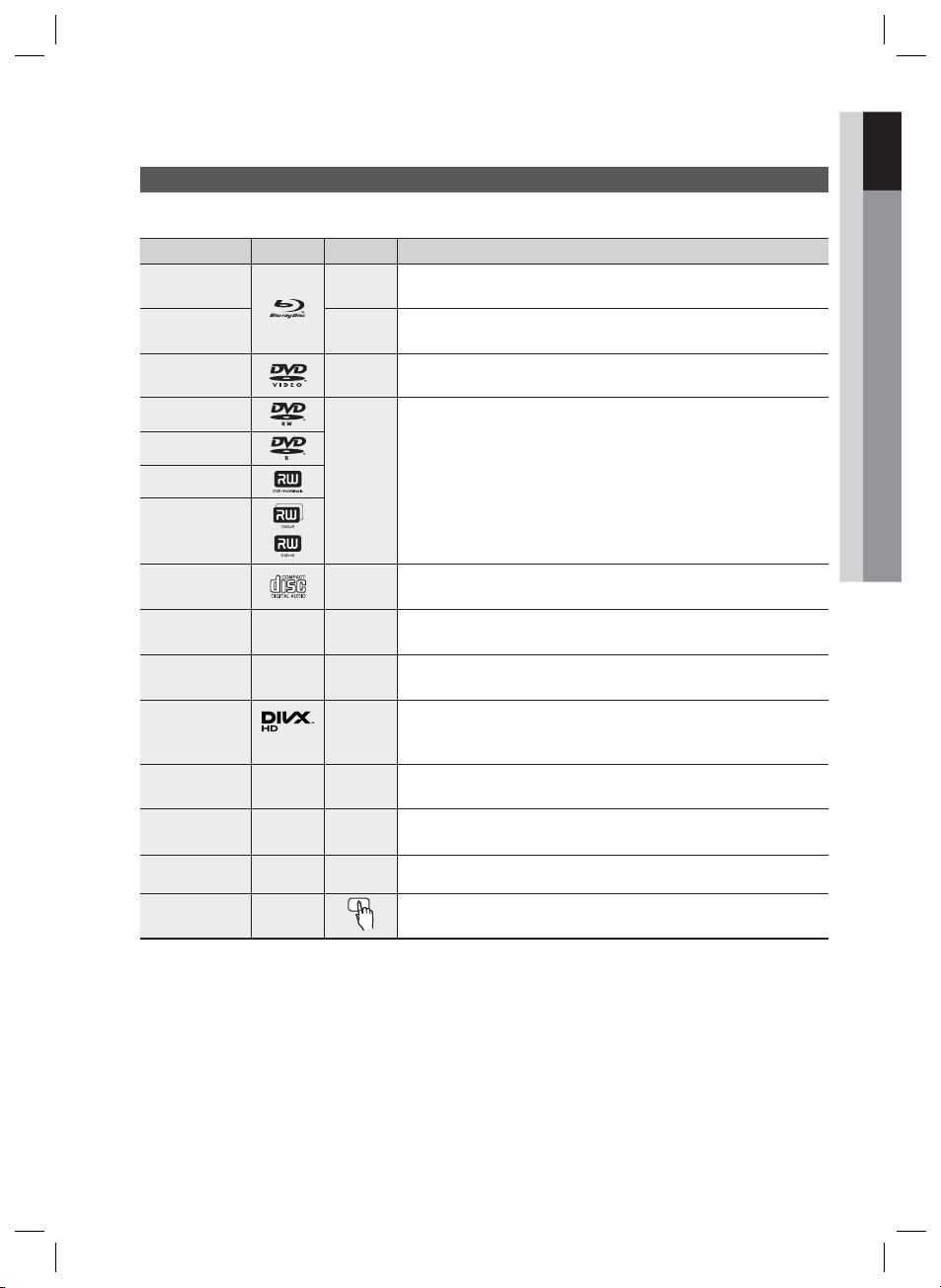

Icons that will be used in manual

Make sure to check the following terms before reading the user manual.

Term Logo Icon Definition

01 Getting Started

BD-ROM

BD-RE/-R

DVD-VIDEO

DVD-RW(V)

DVD-R

DVD+RW

DVD+R

Audio CD

MP3

WMA

JPEG

DivX MKV MP4

USB storage

device

CAUTION

NOTE

Shortcut Key

DivX

h z Z

o w G

This involves a function available on a BD-ROM.

This involves a function available on a BD-RE/-R disc recorded in the BD-RE format.

This involves a function available on a DVD-VIDEO.

This involves a function available on recorded DVD+RW or DVD-RW(V)/ DVD-R/+R discs that have been recorded and ﬁ nalized.

This involves a function available on an audio CD-RW/-R (CD-DA format).

This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing MP3 or WMA contents.

This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing JPEG contents.

This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing DivX contents.

This involves a function available on a USB storage device.

This involves a situation where a function does not operate or settings may

be cancelled.

This involves tips or instructions on the page that help each function

✎

operate.

This function provides direct and easy access pressing the button on the remote control.

This product is compatible with the NTSC color system only.

•

PAL discs will not play.

•

English 9

HT-D5330_XAC_0215.indd 9HT-D5330_XAC_0215.indd 9 2011-02-15 ¿ÀÈÄ 7:38:242011-02-15 ¿ÀÈÄ 7:38:24

Getting Started

Disc Types and Characteristics

Blu-ray Disc Compatibility

Blu-ray is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Disc Types and Characteristics section of this Manual.

NOTE

✎

Playback may not work for some types of discs, or



when speciﬁ c operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary. Do not allow the disc to become dirty or scratched.



Fingerprints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for playback. When a BD-Java title is played, loading may take



longer than a normal title, or some functions may perform slowly.

Discs that cannot be played

HD DVD Disc

•

DVD-RAM

•

3.9 GB DVD-R Disc for Authoring.

•

DVD-RW(VR mode)

•

Super Audio CD(except CD layer)

•

DVD-ROM/PD/MV-Disc, etc CVD/CD-ROM/

•

CDV/CD-G/CD-I/LD CDGs play audio only, not graphics.

•

Logos of Discs that can be played

Blu-ray Disc 3D Blu-ray Disc

NTSC broadcast system in

Dolby Digital Plus

Dolby TrueHD

Java

U.S.A, Canada, Korea,

Japan

DTS-HD High Resolution

Audio

DTS-HD Master Audio |

Essential

NOTE

✎

Some commercial discs and DVD discs purchased



outside your region may not be playable with this product. If a DVD-R/-RW disc has not been recorded properly



in DVD video format, it will not be playable.

BD-LIVE

10 English

HT-D5330_XAC_0215.indd 10HT-D5330_XAC_0215.indd 10 2011-02-15 ¿ÀÈÄ 7:38:252011-02-15 ¿ÀÈÄ 7:38:25

01 Getting Started

Region Code

Both the product and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play.

Disc Type

Blu-ray

DVD-VIDEO

Region

Code

North America, Central America, South America, Korea, Japan,

Taiwan, Hong Kong and South East Asia.

Europe, Greenland, French territories, Middle East, Africa,

Australia and New Zealand.

India, China, Russia, Central and

South Asia.

The U.S., U.S. territories and

Canada

Europe, Japan, the Middle East,

Egypt, South Africa, Greenland

Taiwan, Korea, the Philippines,

Indonesia, Hong Kong

Mexico, South America, Central America, Australia, New Zealand,

Paciﬁ c Islands, Caribbean

Russia, Eastern Europe, India, most of Africa, North Korea,

Mongolia

China

Area

Disc Types

BD-ROM

This Blu-ray disc can only be played back. This product can play back pre-recorded commercial BD-ROM discs.

BD-RE/-R

This Blu-ray disc can be recorded and played back. This product can play back a BD-RE/-R disc recorded by other compatible Blu-ray disc recorders.

DVD-VIDEO

This product can play back pre-recorded commercial

•

DVD discs (DVD-VIDEO discs) with movies. When switching from the ﬁ rst layer to the second

•

layer of a dual-layered DVD-VIDEO disc, there may be momentary distortion in the image and

product

sound. This is not a malfunction of the

DVD-RW/-R/+R

This

product recorded and ﬁ nalized with a DVD video recorder. Ability to play back may depend on recording conditions.

DVD+RW

•

This product can play back a DVD+RW disc recorded with a DVD Video recorder. Ability to play back may depend on recording conditions.

Audio CD (CD-DA)

•

This CD-RW/-R discs.

•

The product may not be able to play some CDRW/-R discs due to the condition of the recording.

CD-RW/-R

•

Use a 700MB(80 minutes) CD-RW/-R disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.

If the CD-RW/-R disc was not recorded as a

•

closed session, you may experience delays when playing back the beginning of the disc or all recorded ﬁ les may not play.

•

Some CD-RW/-R discs may not be playable with this product, depending on the device which was used to burn them. For contents recorded on CDRW/-R media from CDs for your personal use, playability may vary depending on contents and discs.

can play back a DVD-RW/-R/+R disc

product

can play back CD-DA format audio

English 11

HT-D5330_XAC_0215.indd 11HT-D5330_XAC_0215.indd 11 2011-02-15 ¿ÀÈÄ 7:38:262011-02-15 ¿ÀÈÄ 7:38:26

Getting Started

Disc Format

Using JPEG disc

CD-R/-RW, DVD-RW/-R recorded with UDF or JOLIET format can be played back.

•

Only JPEG ﬁ les with the ".jpg", ".JPG", ".jpeg" or "JPEG" extension can be displayed.

•

Progressive JPEG is supported.

•

DVD-RW/-R (V)

•

This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by this product once it has been ﬁ nalized.

•

If a disc that has been recorded in Video Mode by a different maker’s recorder but has not been ﬁ nalized, it cannot be played by this product.

Supported File Formats

Video File Support

File Extension Container Video Codec Audio Codec Resolution

1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080

1920x1080 1920x1080 1920x1080

1920x1080

*.avi

*.mkv

*.asf

*.wmv

*.mp4

*.3gp

DivX 3.11/4.x/5.1/6.0

XviD

AVI

MKV

ASF

ASF Window Media Video v9

MP4

3GPP

H.264 BP/MP/HP

MPEG4 SP/ASP

Motion JPEG

DivX 3.11/4.x/5.1/6.0

XviD

H.264 BP/MP/HP

MPEG4 SP/ASP

Motion JPEG

DivX 3.11/4.x/5.1/6.0

XviD

H.264 BP/MP/HP

MPEG4 SP/ASP

Motion JPEG

H.264 BP/MP/HP

MPEG4 SP/ASP

XVID

H.264 BP/MP/HP

MPEG4 SP/ASP

MP3 AC3

LPCM

ADPCM

DTS Core

MP3 AC3

LPCM

ADPCM

DTS Core

MP3 AC3

LPCM

ADPCM

WMA

WMA 1920x1080

MP3

ADPCM

AAC

ADPCM

AAC

HE-AAC

12 English

HT-D5330_XAC_0215.indd 12HT-D5330_XAC_0215.indd 12 2011-02-15 ¿ÀÈÄ 7:38:272011-02-15 ¿ÀÈÄ 7:38:27

File Extension Container Video Codec Audio Codec Resolution

*.vro

*.mpg

*.mpeg

*.ts *.tp

*.trp

VRO VOB

MPEG2

MPEG1

MPEG1 MPEG2

H.264

MPEG2

H.264

VC1

AC3 MPEG LPCM

AAC

AC3

AAC

MP3

DD+

HE-AAC

1920x1080

352x288

1920x1080

1920x1080 1920x1080

1920x1080

Restrictions

Some of the Codecs above listed are not supported if having a problem with the contents.

• Video source with incorrect container information or if corrupt will not be played properly.

• AV source with more than the standard bit rate or frame rate may not be played properly.

• If the index table is corrupt, the Seek (Jump) function will not be supported.

• If you play a video via the network, it may not be played properly depending on the network status.

•

Video decoder

Up to H.264 Level 4.1 supported.

• H.264 FMO/ASO/RS, VC1 SP/MP/AP L4, AVCHD not supported.

• XVID, MPEG4 SP, ASP :

•

- Below 1280 x 720: 60 frame max

- Above 1280 x 720: 30 frame max GMC 2 or higher not supported.

•

01 Getting Started

Audio decoder

Up to WMA 7,8,9 supported.

• WMA 9 PRO with more than two channels (multi-channel) not supported.

• WMA 9 Lossless, Voice not supported.

• WMA sampling rate at 22050Hz mono not supported.

•

Music File Support

File Extension Container Audio Codec Support Range

*.mp3

*.wma

MP3

WMA

MP3 -

Compliant with WMA version 10

WMA

* Sampling rates (in kHz) - 8, 11, 16, 22, 32,

44.1, 48

* Bit rates - All bit-rates in the range 5kbps to

384kbps

English 13

HT-D5330_XAC_0215.indd 13HT-D5330_XAC_0215.indd 13 2011-02-15 ¿ÀÈÄ 7:38:272011-02-15 ¿ÀÈÄ 7:38:27

Getting Started

Notes on USB connection

Supported devices:

USB storage media, MP3 player, digital camera, USB card reader

Does not support if a folder or ﬁ le name is longer than 125 characters.

A subtitle ﬁ le bigger than 300 KB may not be properly displayed.

A certain USB/digital camera device may not be compatible with the product.

FAT16 and FAT32 ﬁ le systems are supported.

Photo (JPEG), music (MP3) and video ﬁ le should have their names in Korean or English. Otherwise, the ﬁ le may not played.

Accessories

Check for the supplied accessories below.

Connect directly to the product's USB port.

6) Connecting through another cable may raise problems with USB compatibility.

Inserting more than one memory device to a

7) multi-card reader may not operate properly.

PTP protocol for digital camera is not

8) supported.

Do not disconnect USB device during a "loading" process.

10)

Bigger the image resolution, the longer the

delay to displaying.

11)

DRM applied MP3 ﬁ les downloaded from a

commercial site are not played back.

FUNCTION

POWER

TV SOURCE

RECEIVER SLEEP

BD TV

123 456 7809

REPEATFULL SCREEN

MUTE

TUNING

VOL

/CH

SFE MODE

DISC MENU MENU TITLE MENU

POPUP

TOOLS

INFO

RETURN

EXIT

TUNER

iPod SYNC

MEMORY

DSP

SMART SEARCH

NETFLIX

HUB

MO/ST

Video Cable FM Antenna User's Manual

Remote Control/ Batteries (AAA size)

ASC Microphone iPod Dock Soft Cloth

Wireless Dock Cradle for iPod/iPhone : HT-WDC10 (sold separately)

L IN

STANDB

CHARGE

Wireless Transmitter Charging Cradle DC Power Cord DC Power Adaptor

14 English

HT-D5330_XAC_0215.indd 14HT-D5330_XAC_0215.indd 14 2011-02-15 ¿ÀÈÄ 8:04:132011-02-15 ¿ÀÈÄ 8:04:13

Front Panel

01 Getting Started

Description

1 3 4 5 6 7

REMOTE CONTROL SENSOR

DISC TRAY

2 3

POWER BUTTON ( )

FUNCTION BUTTON

DISPLAY

STOP BUTTON

PLAY/PAUSE BUTTON

ENTER BUTTON

OPEN/CLOSE BUTTON

ASC IN JACK

VOLUME CONTROL

USB PORT

Detects signals from the remote control.

Opens to accept a disc.

Turns the product on and off. The mode switches as follows :

BD/DVD  D. IN  AUX  R. IPOD  W. IPOD  FM Displays the playing status, time, etc.

Stops disc playback.

Plays a disc or pauses playback.

Selects menu items or starts a Blu-ray disc. (It will not start a DVD disc.)

Opens and closes the disc tray.

Used to connect the ASC Microphone for setting up MRC (Musical Room Calibration).

Volume adjustment. You can connect a USB memory ﬂ ash stick here and use it as storage when the product is.

connected to BD-LIVE. You can also use the USB Host for software upgrades and MP3/JPEG/ DivX/MKV/MP4 playback. And also it is possible to use R. IPOD when iPod is connected.

10911

ASC IN

5V 500mA

NOTE

✎

You can perform software upgrades using the USB Host jack with a USB memory ﬂ ash stick only.



When the product displays the Blu-ray disc menu, you cannot start the movie by pressing the PLAY button on the



product or the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the ENTER button.

English 15

HT-D5330_XAC_0215.indd 15HT-D5330_XAC_0215.indd 15 2011-02-15 ¿ÀÈÄ 7:38:282011-02-15 ¿ÀÈÄ 7:38:28

Getting Started

Rear Panel

4 5

2 6 873

LAN

WIRELESS LAN

LAN TERMINAL

WIRELESS LAN JACK

iPod JACK

EXTERNAL DIGITAL AUDIO IN JACK

(OPTICAL)

HDMI OUT JACK

FM ANTENNA JACK

TX CARD CONNECTION (WIRELESS)

AUX IN JACKS

COMPONENT VIDEO OUT JACKS

VIDEO OUT JACK

5.1 CHANNEL SPEAKER OUTPUT

CONNECTORS

COOLING FAN

DIGITAL AUDIO IN

OPTICAL

HDMI OUT

iPod

FM ANT

WIRELESS

COMPONENT OUT

AUX IN

VIDEO OUT

SPEAKERS OUT

CENTER SURROUNDFRONT

SUBWOOFER SURROUND

FRONT

SPEAKER IMPEDANCE : 3

Can be used for network based services (see pages 61~68), BD-LIVE and software upgrade under the network connection.

Can be used for network based services (see pages 61~68), BD-LIVE and software upgrade with a wireless LAN adapter.

Connect the iPod dock connector here.

Use this to connect external equipment capable of digital output.

Use an HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture.

Connect the FM antenna.

The TX card enables communication between the product and the optional wireless receiver module.

Connect to the 2CH analog output of an external device (such as a VCR)

Connect a TV with Component video inputs to these jacks.

Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT Jack on this product.

Connect the front, center, surround, subwoofer speakers.

The cooling fan supplies cool air to the product to prevent overheating and always revolves when the power is on.

CAUTION

Ensure a minimum of 4 inches of clear space on all sides of the cooling fan when installing the product.



Do not obstruct the cooling fan or ventilation holes.



16 English

HT-D5330_XAC_0215.indd 16HT-D5330_XAC_0215.indd 16 2011-02-15 ¿ÀÈÄ 7:38:292011-02-15 ¿ÀÈÄ 7:38:29

Tour of the Remote Control

01 Getting Started

Remote Control

Turn the product on and off.

If you want to change to TV mode,

press the TV button.

If you want to change to Home Theater,

press the BD button.

Press numeric buttons to operate options.

Press this to see the full screen on a TV.

Press to skip backwards or forwards.

Press to stop/play a disc.

Cut off the sound temporarily.

Adjust the volume.

Press this to move to the home menu.

Press to view the disc menu.

Press this to use the Tools menu.

Select on-screen menu items and

change menu value.

Return to the previous menu.

These buttons are used both for menus

on the product and also several

Blu-ray Disc functions.

Press this to use the Netflix.

Press this to use the Smart Hub.

This button is not available to use.

Select the desired Dolby Pro

Logic II audio mode.

POWER

RECEIVER SLEEP

BD TV

FUNCTION

TV SOURCE

123

456

7809

REPEATFULL SCREEN

MUTE

VOL

DISC MENU MENU TITLE MENU

TOOLS

RETURN

SMART SEARCH

NETFLIX

HUB

TUNING

SFE MODE

/CH

POPUP

INFO

EXIT

TUNER

MEMORY

MO/ST

DSP

This is mode selection button. or Press to select TV's video mode.

Set a Sleep time to shut off the procuct.

To open and close the disc tray.

Allows you to repeat a title, chapter, track or disc.

Press to search backwards or forwards.

Press to pause a disc.

Search for active FM stations and change channels.

You can set the SFE(Sound Field Effect) mode best suited for the type of music you are listening to.

Use this to enter the popup menu/title menu.

Use this to display the playback information when playing a Blu-ray/DVD disc.

Press this to exit the menu.

Used to set a preset radio frequency.

Regulate and stabilize the volume level. (Digital Signal Processor)

Press this to search a contents.

This button is not available to use.

Select MONO or STEREO for radio broadcasting.

English 17

HT-D5330_XAC_0215.indd 17HT-D5330_XAC_0215.indd 17 2011-02-15 ¿ÀÈÄ 7:38:292011-02-15 ¿ÀÈÄ 7:38:29

Getting Started

Installing batteries in the Remote Control

* Battery size: AAA

NOTE

✎

Make sure to match the “+” and “–” ends of



the batteries with the diagram inside the compartment.



Assuming typical TV usage, the batteries last for about one year. The remote control can be used up to



approximately 23 feet (7 meters) in a straight line.

Setting the Remote Control

You can control certain functions of your TV with this remote control.

When operating a TV with the remote control

Press the TV button to set the remote control

to TV mode.

Press the POWER button to turn on the TV.

While holding down the POWER button, enter the code corresponding to your brand of TV.

•

If there is more than one code listed for your TV in the table, enter one at a time to determine which code works.

•

Example : For a Samsung TV

While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40.

If the TV turns off, the setting is complete.

You can use the TV POWER, VOLUME,

•

CHANNEL, and Numeric buttons (0~9).

NOTE

✎

The remote control may not work on some



brands of TV's. Also, some operations may not be possible, depending on your brand of TV.



The remote control will work with Samsung TVs by default.

TV Brand Code List

Brand Code

Admiral

(M.Wards)

A Mark

Anam

AOC

Bell &

Howell

(M.Wards)

Brocsonic

Candle

Cetronic

Citizen Cinema Classic

Concerto

Contec

Coronado

Craig

Croslex

Crown Curtis

Mates

CXC

Daewoo

Daytron Dynasty

Emerson

Fisher

Funai

Futuretech

General

Electric (GE)

Hall Mark

Hitachi

Inkel

JC Penny

JVC KTV KEC

KMC

(Goldstar)

Luxman

LXI

(Sears)

Magnavox

Marantz

Matsui

MGA

56, 57, 58

01, 15

01, 02, 03, 04, 05, 06, 07, 08, 09, 10,

11, 12, 13, 14

01, 18, 40, 48

57, 58, 81

59, 60

18 03

03, 18, 25

97 03 18 46 15

03, 05, 61, 82, 83, 84

62 03

59, 61, 63

02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32,

34, 35, 36, 48, 59, 90

40 03

03, 15, 40, 46, 59, 61,

64, 82, 83, 84, 85

19, 65

03 03

06, 40, 56, 59,

66, 67, 68

15, 18, 50, 59, 69

56, 59, 67, 86

59, 61, 87, 88

03, 15, 40

01, 15, 16, 17, 37, 38,

39, 40, 41, 42, 43, 44

19, 54, 56, 59,

60, 62, 63, 65, 71

15, 17, 18, 48, 54,

59, 60, 62, 72, 89

40, 54

18, 40

Brand Code

Mitsubishi/

MGA MTC NEC Nikei

Onking

Onwa

Panasonic

Penney

Philco

Philips

Pioneer

Portland

Proton Quasar

Radio

Shack

RCA/

Proscan

Realistic

Sampo

Samsung

Sanyo

Scott Sears Sharp

Signature

2000

(M.Wards)

Sony Soundesign Spectricon

SSS

Sylvania

Symphonic

Tatung

Techwood

Teknika

TMK Toshiba Vidtech

Videch

Wards

Yamaha

York

Yupiteru

Zenith Zonda

Dongyang

18, 40, 59, 60, 75

18, 19, 20, 40, 59, 60

06, 07, 08, 09, 54,

66, 67, 73, 74

03, 15, 17, 18, 48, 54, 59, 62, 69, 90

15, 17, 18, 40,

48, 54, 62, 72 63, 66, 80, 91

15, 18, 59

06, 66, 67

17, 48, 56, 60,

61, 75

18, 59, 67, 76, 77,

78, 92, 93, 94

03, 19

00, 15, 16, 17, 40, 43, 46, 47, 48, 49,

59, 60, 98

19, 61, 65

03, 40, 60, 61

15, 18, 19 15, 57, 64

57, 58

50, 51, 52, 53, 55

03, 40

18, 40, 48, 54,

59, 60, 62 61, 95, 96

03, 15, 18, 25

18, 40

19, 57, 63, 71

59, 60, 69

15, 17, 18, 40,

48, 54, 60, 64

58, 79

03, 54

03 03 03

01 18

06 18

18 40 03

18 English

HT-D5330_XAC_0215.indd 18HT-D5330_XAC_0215.indd 18 2011-02-15 ¿ÀÈÄ 7:38:302011-02-15 ¿ÀÈÄ 7:38:30

02 Connections

Connections

This section involves various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Connecting the Speakers

Position of the product

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example : For 32" TV's 6.56 ~ 7.87 feet(2~2.4m)

For 55" TV's 11.5 ~ 13.1 feet(3.5~4m)

Front Speakers

Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the speakers so that their tweeters will be at the same height as your ear. Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.

Center Speaker

Surround Speakershj

Subwoofer

CAUTION

Do not let children play with or near the speakers. They could get hurt if a speaker falls.



When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.



Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or alien substances



into the duct (hole) of the subwoofer speaker. Do not hang the subwoofer on the wall through the duct (hole).



NOTE

✎

If you place a speaker near your TV set, screen color may be distorted because of the magnetic ﬁ eld generated by the



speaker. If this occurs, place the speaker away from your TV set.

It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.

Place these speakers to the side of your listening position. If there isn't enough room, place these speakers so they face each other. Place them about 2 to 3 feet (60 to 90cm) above your ear, facing slightly downward.

Unlike the front and center speakers, the surround speakers are used to

handle mainly sound effects and sound will not come from them all the time.

The position of the subwoofer is not so critical. Place it anywhere you like.

English 19

HT-D5330_XAC_0215.indd 19HT-D5330_XAC_0215.indd 19 2011-02-15 ¿ÀÈÄ 7:38:312011-02-15 ¿ÀÈÄ 7:38:31

Connections

Speaker Components Assembled Speakers

(L) (R)

FRONT

(L) (R)

SURROUND

STAND

SUBWOOFER

SCREW (5X15): 2EA

SCREW (4X20): 8EA

SPEAKER CABLE

CENTER

STAND BASE

Installing the Speakers on the Tallboy Stand

Turn the Stand Base upside-down and connect it

to the Stand. Insert small screws (4x20, For connecting Stand &

Stand Base) clockwise into the four holes marked using a screwdriver as shown in the illustration.

CAUTION

When you use a torque screwdriver, be careful not



to put excessive force. Otherwise, it runs idle or can be damaged. (torque screwdriver- below 15 kg.f.cm)

Connect the upper Speaker to the assembled Stand.

Insert another large screw (5x15, For connecting Speaker & Stand) clockwise into the hole on the rear of the speaker using a screwdriver.

This is the appearance after the speaker is installed. Follow this steps to install other speaker.

Stand Base

Stand

Speaker

CENTER SPEAKER

SURROUND

SPEAKER

SUBWOOFER FRONT SPEAKER

20 English

HT-D5330_XAC_0215.indd 20HT-D5330_XAC_0215.indd 20 2011-02-15 ¿ÀÈÄ 7:38:312011-02-15 ¿ÀÈÄ 7:38:31

SPEAKERS OUT

SPEAKER IMPEDANCE : 3

NENT OUT

VIDEO OUT

SUBWOOFER SURROUND

CENTER SURROUNDFRONT

FRONT

OUT

VIDEO OUT

SPEAKERS OUT

SPEAKER IMPEDANCE : 3

SUBWOOFER SURROUND

CENTER SURROUNDFRONT

FRONT

Connecting The Speakers

Press down the terminal tab on the back of the speaker.

Insert the black wire into the black terminal (–) and the red wire into the

red terminal (+), and then release the tab.

Connect the connecting plugs to the back of the product by matching the colors of the speaker plugs to the speaker jacks.

Front Speaker (L)

Surround Speaker (L)

Center Speaker

Black

Red

Front Speaker (R)

02 Connections

HT-D5330_XAC_0215.indd 21HT-D5330_XAC_0215.indd 21 2011-02-15 ¿ÀÈÄ 7:38:412011-02-15 ¿ÀÈÄ 7:38:41

Subwoofer

Surround Speaker (R)

English 21

Connections

AUX IN

SPEAKERS OUT

SPEAKER IMPEDANCE : 3

COMPONENT OUT

VIDEO OUT

AUX IN

SUBWOOFER SURROUND

CENTER SURROUNDFRONT

FRONT

COMPONENT OUT

VIDEO OUT

AUX IN

SPEAKERS OUT

SPEAKER IMPEDANCE : 3

SUBWOOFER SURROUND

CENTER SURROUNDFRONT

FRONT

Connecting the Optional Wireless Receiver Module

To connect the surround speakers wirelessly, you have to purchase the wireless receiver module and TX card from your Samsung retailer.

This product should be connected with the SWA-5000 only.

•

Center Speaker

Subwoofer

Surround Speaker (L)

Surround Speaker (R)

Wireless Receiver Module

Wireless Receiver Module (SWA-5000)

Press down the terminal tab on the back of the speaker.

Insert the black wire into the black terminal (–) and the red wire into the red terminal (+), and then release the tab.

Connect the connecting plugs to the back of the product by matching the colors of the speaker plugs to the speaker jacks.

With the product turned off, insert the TX card into the TX Card Connection (WIRELESS) on the back of the product.

•

Hold the TX card so that the label "WIRELESS" faces upward and insert the card into the port.

•

The TX card enables communication between the product and the wireless receiver module.

Connect the left and right surround speakers to the wireless Receiver module.

Plug the power cord of the wireless Receiver module in the wall outlet .

FM ANT

Front Speaker (L)

Front Speaker (R)

Black

WIRELESS

Red

COMPONENT OUT

AUX IN

TX card

VIDE

22 English

HT-D5330_XAC_0215.indd 22HT-D5330_XAC_0215.indd 22 2011-02-15 ¿ÀÈÄ 7:38:432011-02-15 ¿ÀÈÄ 7:38:43

CAUTION

Do not insert any other card except the TX card dedicated to the product.



If a different TX card is used, the product may be damaged or the card may not be removed easily.



Do not insert the TX card upside down or in the reverse direction.



Insert the TX card when the product is turned off. Inserting the card when it is turned on may cause a problem.



The wireless receiving antenna is built into the wireless receiver module. Keep it away from water and moisture.



For optimal listening performance, make sure that the area around the wireless receiver module location is clear of any obstructions.



If no sound is heard from the wireless surround speakers, switch the mode to Dolby Pro Logic II.



In 2-CH mode, no sound will be heard from the wireless surround speakers.

NOTE

✎

Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is



too close to the product, some sound interruption may be heard due to interference.



If you use a device such as a microwave oven, wireless LAN Card or any other device that uses the same frequency (2.4/5.8GHz) near the product, some sound interruption may be heard due to interference.



The transmission distance from the product to the wireless receiver module is about 33 feet (10m), but may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the product and the wireless receiver module, the system may not operate at all, because the radio wave cannot penetrate metal.



If the product doesn't make wireless connection, the system needs ID Setting between the product and wireless receiver module. "0"J"1"J"3"J"5" number buttons and then turn on the unit. turned on, press "ID SET" button on the back of the wireless receiver module for 5 seconds. And then power on the product (HT-D5330).

With the main unit turned off, press the remote control's

With the wireless receiver module

02 Connections

English 23

HT-D5330_XAC_0215.indd 23HT-D5330_XAC_0215.indd 23 2011-02-15 ¿ÀÈÄ 7:38:452011-02-15 ¿ÀÈÄ 7:38:45

Connections

DIG

iPod

Connecting the Video Out to your TV

Choose one of the three methods for connecting to a TV.

METHOD 1

LAN

WIRELESS LAN

ITA

DIGITAL

AUDIO IN

UDIO IN

OPTICAL

HDMI OUT

iPod

FM ANT

WIRELESS

HDMI OUT

HDMI IN

METHOD 1 : HDMI

Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.

NOTE

✎

Certain HDMI output resolutions may not work, depending on your TV.

 

After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your product. See your TV owner's manual for more information on how to select the TV's Video Input source.



If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote control and select HDMI as the external source of the TV.

HDMI Auto Detection Function

Using an HDMI cable, connect the HDMI OUT terminal on the rear of the product to the HDMI IN

terminal of your TV.

Turn on the product and TV.

For possible HDMI resolutions, see page 33.

This function is not available if the HDMI cable does not support CEC.

•

HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.

•

Using HDMI, the product transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.

HDMI connection description

•

- HDMI outputs only a pure digital signal to the TV.

- If your TV does not support HDCP, random noise appears on the screen.

What is the HDCP?

•

HDCP (High-band width Digital Content Protection) is a system for protecting BD/DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

(BEST QUALITY)

24 English

HT-D5330_XAC_0215.indd 24HT-D5330_XAC_0215.indd 24 2011-02-15 ¿ÀÈÄ 7:38:462011-02-15 ¿ÀÈÄ 7:38:46

AUX IN

Red

Blue

02 Connections

Green

METHOD 2

COMPONENT OUT

AUX IN

VIDEO OUT

SPEAKERS OUT

PEAKERS OU

CENTER SURROUNDFRONT

Yellow

SUBWOOFER SURROUND

FRONT

SPEAKER IMPEDANCE : 3

PEAKER IMPEDANCE : 3

METHOD 3

METHOD 2 : Component Video (BETTER QUALITY)

If your television is equipped with Component Video inputs, connect a Component video cable (not supplied) from the Component Video Output (Pr, Pb and Y) Jacks on the back of the product to the Component Video Input Jacks on your TV.

NOTE

✎

You can select from a variety of resolution settings such as 1080i, 720p, 480p and 480i, depending on the



disc type. (See page 33)



The actual resolution may differ from the setting in the Setup menu if both Component and HDMI cables are connected. The resolution may also be different depending on the disc. (See page 33)



If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote control and select COMPONENT as the external source of the TV.



In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i, 720p or 480p mode, the Display Setup menu will show the output resolution as 1080p, 1080i, 720p or 480p in the menu. The resolution is actually 480i.

METHOD 3 : Composite Video

(GOOD QUALITY)

Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack on your TV.

NOTE

✎

The VIDEO source is always output in 480i resolution regardless of the resolution set in the Setup



menu. (See page 33)



TV SOURCE

button on

the remote control and select VIDEO as the external source of the TV.

CAUTION

Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by



English 25

HT-D5330_XAC_0215.indd 25HT-D5330_XAC_0215.indd 25 2011-02-15 ¿ÀÈÄ 7:38:472011-02-15 ¿ÀÈÄ 7:38:47

Connections

This system supports Digital sampling frequencies of 32 kHz of higher from external digital components.

Connecting Audio from External Components

DIGITAL

HDMI OUT

AUDIO IN OPTICAL

HDMI OUT

FM ANT

WIRELESS

WIRELE

COMPONENT OUT

COMPONENT OU

AUX IN

VIDEO OUT

IDEO OUT

Optical Cable

Red

White

(not supplied)

Audio Cable

(not supplied)

If the external analog

component has only one

Set-Top Box

OPTICAL

Audio Out, connect either

left or right.

VCR

AUX

OPTICAL : Connecting an External Digital Component

Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).

Connect the Digital Input (OPTICAL) on the product to the Digital Output of the external digital

component. Press the FUNCTION button to select D.IN input.

The mode switches as follows : BD/DVD  D. IN  AUX  R. IPOD  W. IPOD  FM

•

NOTE

✎

To see video from your Cable Box/Satellite receiver, you must connect it's video output to a TV.



This system supports Digital sampling frequencies of 32 kHz of higher from external digital components.



This system supports only DTS and Dolby Digital audio, MPEG audio which is bitstream cannot be supported.



AUX : Connecting an External Analog Component

Analog signal components such as a VCR.

Connect AUX IN (Audio) on the product to the Audio Out of the external analog component.

Be sure to match connector colors.

•

Press the FUNCTION button to select AUX input.

The mode switches as follows : BD/DVD  D. IN  AUX  R. IPOD  W. IPOD  FM

•

NOTE

✎

You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of



the VCR to this product.

26 English

HT-D5330_XAC_0215.indd 26HT-D5330_XAC_0215.indd 26 2011-02-15 ¿ÀÈÄ 7:38:482011-02-15 ¿ÀÈÄ 7:38:48

Connecting to the Network

This product enables you to view network based services (See pages 61~68) such as Smart Hub and BD-LIVE, as well as receive software upgrades when a network connection is made. We recommend using an Wireless router or IP router for the connection. For more information on router connection, refer to the user manual of the router or contact the router manufacturer for technical assistance.

Cable Network

Using the Direct LAN Cable (UTP cable), connect the LAN terminal of the product to the LAN

1. terminal of your modem.

Set the network options. (See page 39)

02 Connections

LAN

WIRELESS LAN

iPod

Pod

DIGITA

DIGITAL

AUDIO IN

UDIO I

OPTICAL

HDMI OUT

Router

Broadband modem

(with integrated router)

Broadband

service

Broadband modem

Broadband

service

Networking with PC for

AllShare function

(See page 70)

NOTE

✎

Internet access to Samsung’s software update server may not be allowed, depending on the router you use or the



ISP’s policy. For more information, contact your ISP (Internet Service Provider). For DSL users, please use a router to make a network connection.



For the AllShare function, a PC must be connected in the network as shown in the ﬁ gure.



English 27

HT-D5330_XAC_0215.indd 27HT-D5330_XAC_0215.indd 27 2011-02-15 ¿ÀÈÄ 7:38:492011-02-15 ¿ÀÈÄ 7:38:49

Connections

iPod

Wireless Network

You can connect to the network with a Wireless IP sharer.

A wireless AP/IP router is required to make a wireless network connection. Connect the wireless

LAN adapter to the Wireless LAN Adapter on the rear panel of the product. Set the network options. (See page 39)

Broadband

service

LAN

iPod

DIGITAL

AUDIO IN

UDIO IN

OPTICAL

Wireless IP sharer

WIRELESS LAN

Wireless LAN Adapter (not supplied)

Networking with PC for AllShare function

(See page 70)

NOTE

✎

This product is compatible with only Samsung's Wireless LAN Adapter. (not supplied) (Model name: WIS09ABGN).



- The Samsung Wireless LAN Adapter is sold separately. Contact a Samsung Electronics retailer for purchasing. You must use a wireless IP sharer that supports IEEE 802.11 a/b/g/n. (n is recommended for stable operation of the



wireless network.) Wireless LAN, by its nature, may cause interference, depending on the use condition (AP performance, distance, obstacles,



interference by other radio devices, etc). Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.



When applying the security key for the AP (wireless IP sharer), only the following is supported.



Authentication Mode : WEP, WPAPSK, WPA2PSK

1) Encryption Type : WEP, AES

For the AllShare function, a PC must be connected in the network as shown in the ﬁ gure.



Connecting the FM Antenna

Connect the FM antenna supplied to the FM

FM Antenna (supplied)

ANTENNA Jack. Slowly move the antenna wire around until you

ﬁ nd a location where reception is good, then

FM ANT

fasten it to a wall or other rigid surface.

NOTE

✎

This product does not receive AM broadcasts.



WIRELESS

IRELES

28 English

HT-D5330_XAC_0215.indd 28HT-D5330_XAC_0215.indd 28 2011-02-15 ¿ÀÈÄ 7:38:512011-02-15 ¿ÀÈÄ 7:38:51

Setup

Initial Settings

Turn on your TV after connecting the product.

When you connect and turn on the product to a TV for the ﬁ rst time, the Initial Settings screen appears.

Initial Settings | On-Screen Language

Select a language for the on-screen displays.

Български Hrvatski Čeština Dansk Nederlands English Eesti Suomi Français Deutsch Indonesia Italiano

Press the ▲▼◄► buttons to select the desired language, and then press the ENTER button.

Press the ENTER button to select Start.

Press the ▲▼ buttons to select the desired TV Aspect Ratio, and then press the ENTER button. (See page 32) Musical Room Calibration screen will be displayed.

Plug the ASC microphone into the ASC IN jack on the product. (See page 36)

Press the ENTER button to select Start button. Setting the Musical Room Calibration function takes about 3 minutes.

Press the ▲▼ buttons to select the desired Network Settings : Wired, Wireless

(General), WPS(PBC) or One Foot Connection, and then press the ENTER

button. If you do not know the details of your Network Settings, press the BLUE (D) button on your remote instead to skip Network Settings here, ﬁ nish the Initial Settings, and go to the Home menu. If you selected a Network Settings, go to pages 39~42 for more information about the Network settings. When done, go to Step 8.

The Home menu appears. (For more information about the Home menu, please see page 30.)

Ελληνικά Magyar

한국어

Move " Enter

•

Home Menu

My Contents

Videos

Photos

Music

My Devices Internet Settings

Function

d PBC(WPS)

NOTE

✎

The Home menu will not appear if you do not



conﬁ gure the initial settings except as noted below.



If you press the BLUE (D) button during the Musical Room Calibration/network setup, you can access the Home menu even if the network setup is not completed yet.



If you want to display the Initial Setting screen again to make changes, select the Reset option. (See page 43)



If you use an HDMI cable to connect the product to an Anynet+(HDMI-CEC)compliant Samsung TV and 1.) You have set the Anynet+(HDMI-CEC) feature to On in both the TV and the product and 2.) You have set the TV to a language supported by the product, the product will select that language as the preferred language automatically.

If you leave the product in the stop mode for



more than 5 minutes without using it, a screen saver will appear on your TV. If the product is left in the screen saver mode for more than 20 minutes, the power will automatically turn off.

03 Setup

English 29

HT-D5330_XAC_0215.indd 29HT-D5330_XAC_0215.indd 29 2011-02-15 ¿ÀÈÄ 7:38:532011-02-15 ¿ÀÈÄ 7:38:53

Setup

INFO

POPU

Accessing the Settings Menu

DISC MENU MENU TITLE MENU

DISC MEN

TOOLS

OOL

RETURN

MENU Button : Press to move to the Home menu.

RETURN Button : Return to the previous menu.

ENTER / DIRECTION Button :

Move the cursor or select an item. Activate the currently selected item. Conﬁ rm a setting.

EXIT Button : Press to exit the current menu.

To access the Settings menu and sub-menus, follow these steps:

Press the POWER button. The Home Menu appears.

Home Menu

•

TITLE MEN

POPUP

INFO

EXIT

Press the ◄► buttons to select Settings,

and then press the ENTER button. Press the ▲▼ buttons to select the desired

submenu, and then press the ENTER button.

Press the ▲▼ buttons to select the desired

item, and then press the ENTER button. Press the EXIT button to exit the menu.

NOTE

✎

When the product is connected to a network,



select Internet from the Home menu. Download the desired content from Samsung Apps. (See pages 68~70)



The access steps may differ depending on the menu you selected.

The OSD (On Screen Display) may change in



this product after you upgrade the software version.

My Contents

Videos

Function

My Devices Internet Settings

Selects My Devices.

Selects Function.

Selects My Contents.

Selects Internet.

Selects Settings.

Displays the buttons available.

Photos

Music

PBC(WPS)

3 4

30 English

HT-D5330_XAC_0215.indd 30HT-D5330_XAC_0215.indd 30 2011-02-15 ¿ÀÈÄ 7:38:552011-02-15 ¿ÀÈÄ 7:38:55

Display

You can conﬁ gure various display options such as the TV Aspect Ratio, Resolution, etc.

3D Settings

Select whether to play a Blu-ray Disc with 3D contents in 3D Mode.

Settings

Display

Audio Network System Language Security General Support

3D Blu-ray Playback Mode

3D Blu-ray Discs are available in two formats: Blu-ray 3D and 3D only. You can choose to watch a Blu-ray 3D disc in 3D or 2D mode before playing the disc.

Auto : Automatically detect if a connected TV has

•

3D capability and play a Blu-ray 3D disc in 3D or 2D accordingly or a 3D only disc in 3D if the TV supports 3D.3D only discs will not be played if your TV does not support 3D.

3D  3D : Play 3D only and Blu-ray 3D discs in

•

3D mode at all times. 3D  2D : Play Blu-ray 3D discs in 2D mode at all

•

times. 3D only discs will not be played.

NOTE

✎

To stop a movie during 3D playback, press the



STOP

3D mode option is de-activated. To change a 3D option selection when you are playing a 3D movie, press the STOP once. The Blu-ray menu appears. Press the

STOP

Settings in the Blu-ray menu.

3D Settings

3D Blu-ray Playback Mode : Auto Screen Size :

HDMI Deep Color : Auto

()

button once. The movie stops and the

inch

Move " Enter ' Return

()

button

() button again, then select 3D

Depending on the content and the position of



the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides.

Screen Size

Lets you enter the actual screen size of your TV so that the product can adjust the image according to the screen size and display an optimal 3D image. (The maximum allowed screen size is 116 inches for this product.)

CAUTION

If you want to enjoy 3D content, connect a



3D device (3D compliant AV receiver or TV) to the product’s HDMI OUT port using a high-speed HDMI cable. Put on 3D glasses before playing the 3D content.



The product outputs 3D signals only through HDMI cable connected to the HDMI OUT port.



As the video resolution in 3D play mode is ﬁ xed according to the resolution of the original 3D video, you can not change the resolution to your preference.



Some functions such as BD Wise, screen size adjustment, and resolution adjustment may not operate properly in 3D play mode.



Stay at least three times the width of the screen from the TV when watching 3D images. For example, if you have a 46 inch screen, stay 138 inches (11.5 feet) from the screen.

- Place the 3D video screen at eye level for the best 3D picture.



When the product is connected to some 3D devices, the 3D effect may not function properly.

03 Setup

English 31

HT-D5330_XAC_0215.indd 31HT-D5330_XAC_0215.indd 31 2011-02-15 ¿ÀÈÄ 7:38:572011-02-15 ¿ÀÈÄ 7:38:57

Setup

TV Aspect

Depending on the type of television you have, you may want to adjust the screen size setting.

16:9 Original : Select when you connect the

•

product to a 16:9 TV screen. The product will display all content in its original aspect ratio. Content formatted in 4:3 will be displayed with black bars on the left and right.

16:9 Full : Select when you connect the product

•

to a 16:9 TV screen. All content will ﬁ ll the full screen. Content formatted in 4:3 will be stretched.

4:3 Letter Box : Select when you connect the

•

product to a 4:3 TV screen. The product will display all content in its original aspect ratio. Content formatted in 16:9 will be displayed with black bars on the top and bottom.

4:3 Pan-Scan : Select when you connect the

•

product to a 4:3 TV screen. 16:9 content will have the extreme left and right portions cut off.

NOTE

✎

Depending on the disc type, some aspect ratios



may not be available.



If you select an aspect ratio and option which is different than the aspect ratio of your TV screen, then the picture might appear to be distorted.



If you select the 16:9 Original, your TV may display 4:3 Pillarbox (black bars on sides of picture).

Smart Hub Screen Size

Set the Smart Hub Screen to the optimal size.

Size 1 : Smart Hub screen size will be smaller than

•

default. You may see some black on sides of screen.

Size 2 : This is the default setting for Smart Hub.

•

The product displays the normal Smart Hub screen size.

Size 3 : This will display a larger Smart Hub screen

•

size. The image may be too large for your TV screen.

BD Wise (Samsung Products only)

BD Wise is Samsung’s latest inter-connectivity feature.

When you connect a Samsung product and a Samsung TV with BD Wise to each other via HDMI, and BD Wise is on in both the product and TV, the product outputs video at the video resolution and frame rate of the BD/DVD disc.

Off : The output resolution stays ﬁ xed at the

•

resolution you set previously in the Resolution menu, regardless of the resolution of the disc. See Resolution below.

On : The product outputs video at the original

•

resolution and frame rate of the BD/DVD disc.

NOTE

✎

When BD Wise is on, the Resolution setting



automatically defaults to BD Wise and BD Wise appears in the Resolution menu. If the product is connected to a device that



does not support BD Wise, you can not use the BD Wise function.

For proper operation of BD Wise, set the BD



Wise menu of both the product and the TV to On.

Resolution

Lets you set the output resolution of the Component and HDMI video signal to Auto, 1080p, 1080i, 720p, 480p, or 480i. The number indicates the number of lines of video per frame. The i and p indicate interlaced and progressive scan, respectively. The more lines, the higher the quality.

Auto : Automatically sets the output resolution to

•

the connected TV’s maximum resolution. BD Wise :

•

resolution of the BD/DVD disc if you have connected the product via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On. See BD Wise above.)

1080p : Outputs 1080 lines of progressive

•

1080i : Outputs 1080 lines of interlaced video.

•

720p : Outputs 720 lines of progressive video.

•

480p : Outputs 480 lines of progressive video.

•

480i : Outputs 480lines of interlaced video.

•

Automatically sets the resolution to the

video. (HDMI only)

(VIDEO only)

32 English

HT-D5330_XAC_0215.indd 32HT-D5330_XAC_0215.indd 32 2011-02-15 ¿ÀÈÄ 7:38:582011-02-15 ¿ÀÈÄ 7:38:58

Resolution according to the output mode

Blu-ray Disc/E-contents/Digital Contents playback

•

HDMI / connected HDMI / not connected

Output

Setup

BD Wise

Auto

1080p@60F 1080p@60F 1080p@60F 480i - - -

Movie Frame :

Auto (24Fs)

1080i 1080i 1080i 480i 480i 1080i 480i 720p 720p 720p 480i 480i 720p 480i 480p 480p 480p 480i 480i 480p 480i

480i - - - 480i 480i 480i

HDMI Mode

Blu-ray Disc

Resolution of

Blu-ray Disc

Max.

Resolution of

TV input

1080p@24F 1080p@24F 480i - - -

E-contents/

Digital

contents

1080p@60F 480i - - -

Max.

Resolution of

TV input

Component/ VIDEO Mode

480i - - -

Component Mode

Blu-ray Disc

E-contents/

Digital

contents

03 Setup

VIDEO Mode

•

DVD playback

Setup

BD Wise 480i 480i - -

1080p@60F 1080p@60F 480i - -

Output

Auto

1080i 1080i 480i 480p 480i

720p 720p 480i 480p 480i 480p 480p 480i 480p 480i

480i - - 480i 480i

Max. Resolution of

HDMI / connected HDMI / not connected

HDMI Mode

TV input

Component/VIDEO

Mode

480i - -

Component Mode VIDEO Mode

English 33

HT-D5330_XAC_0215.indd 33HT-D5330_XAC_0215.indd 33 2011-02-15 ¿ÀÈÄ 7:38:582011-02-15 ¿ÀÈÄ 7:38:58

Setup

NOTE

✎

If the TV you connected to the product does



not support Movie Frame or the resolution you selected, the message “If no pictures are shown after the selection, please wait for 15 seconds. And then, the resolution will be reverted to the previous value automatically. Would you like to make a selection?” appears. If you select Yes, the TV’s screen will go blank for 15 seconds, and then the resolution will revert to the previous resolution automatically.



If the screen stays blank after you have changed the resolution, remove all discs, and then press and hold the STOP () button on the front of the product for more than 5 seconds. All settings are restored to the factory default. Follow the steps on the previous page to access each mode and select the Display Setup that your TV will support.

When the factory default settings are restored,



all stored user BD data is deleted. The Blu-ray Disc must have the 24 frame



feature for the product to use the Movie Frame (24Fs) mode.



If both HDMI and Component jacks are connected and you are currently viewing Component output, the resolution is ﬁ xed to 480i.

HDMI Color Format

Lets you set the color space format for HDMI output to match the capabilities of the connected device (TV, monitor, etc).

•

Auto : Automatically sets the product to the optimum format supported by your device.

•

YCbCr (4:4:4) : If your TV supports the YCbCr color space via HDMI, select this to output the normal YCbCr color gamut.

•

RGB (Standard) : Select this to output the normal RGB color gamut.

•

RGB (Enhanced) : If you have connected the product to a DVI display device such as a monitor, select this to output the enhanced RGB color gamut.

Movie Frame (24 Fs)

Setting the Movie Frame (24Fs) feature to Auto allows you to adjust the product’s HDMI output to 24 frames per second for improved picture quality. You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate. You can select Movie Frame only when the product is in the HDMI 1080i or 1080p output resolution modes.

Auto : Movie Frame (24Fs) functions work.

•

Off :

•

Movie Frame (24Fs) functions are off.

HDMI Deep Color

Lets you output video from the HDMI OUT jack with Deep Color. Deep Color provides more accurate color reproduction with greater color depth.

•

Auto: The product outputs video with Deep Color to a connected TV which supports HDMI Deep Color.

•

Off : The picture is output without Deep Color.

Still Mode

Lets you set the type of picture the product displays when you pause DVD playback.

•

Auto: Automatically shows the best still picture depending on the content.

•

Frame : Select when pausing a scene with a little action.

•

Field : Select when pausing a scene with a lot of action.

Progressive Mode

Lets you improve picture quality when viewing DVDs.

•

Auto : Select to have the product automatically select the best picture quality for the DVD you’re watching.

•

Video : Select for the best picture quality from concert or TV show DVDs.

34 English

HT-D5330_XAC_0215.indd 34HT-D5330_XAC_0215.indd 34 2011-02-15 ¿ÀÈÄ 7:38:582011-02-15 ¿ÀÈÄ 7:38:58

03 Setup

Audio

Speaker Settings

Settings

Display

Audio

Network System Language Security General Support

Level

You can adjust the balance and level for each speaker.

Adjusting Front /Center/Surround/Subwoofer Speaker Level

• The volume level can be adjusted in steps from +6dB to -6dB.

• The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

Settings

Display

Audio

Network System Language Security General Support

Speaker Settings

Level |

Distance

Test Tone : Off

Front L

◄

Front R : Center : Surround L : 0 dB Surround R : Subwoofer : Test Tone :

0 dB | 0 dB 0 dB

0 dB 0 dB

Off

Move < Change ' Return

Move " Enter ' Return

Level

Distance

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the front, center, surround and subwoofer speakers.

You can set the Speaker Distance between

•

1ft(0.3m) and 30ft(9.2m).

Settings

Display

Audio

Network System Language Security General Support

Front L Front R : 10(ft) 3.0(m) Center : 10(ft) 3.0(m) Surround L : 10(ft) 3.0(m) Surround R : 10(ft) 3.0(m) Subwoofer : 10(ft) 3.0(m) Test Tone : Off

Distance

◄

10(ft) 3.0(m) |

Move < Change ' Return

Test Tone

Use the Test Tone feature to check the speaker connections.

Press the ◄, ► buttons to select ON.

•

A test tone will be sent to Front L  Center  Front R  Surround R  Surround L  Subwoofer in order so you can make sure the

speakers are set up correctly.

To stop the test tone, press the ◄, ► buttons to select Off.

Settings

Display

Audio

Network System Language Security General Support

Speaker Settings

Level

Distance

Test Tone ◄ On

Move " Enter ' Return

NOTE

✎

When HDMI Audio is ON (audio is produced



through TV speakers), the Test Tone function is not available.

English 35

HT-D5330_XAC_0215.indd 35HT-D5330_XAC_0215.indd 35 2011-02-15 ¿ÀÈÄ 7:38:592011-02-15 ¿ÀÈÄ 7:38:59

Setup

500mA

ASC IN

500

ASC

Musical Room Calibration

By setting the Musical Room Calibration (MRC) function just once when you relocate or install the product, you can have the product automatically recognize the distance between speakers, levels between channels, and frequency characteristics to create a 5.1-channel sound ﬁ eld optimized for your environment.

ASC

microphone

Musical Room Calibration Mode

You will hear either the Musical Room Calibration mode or the User Speaker Settings.

•

Off : You will hear sound in the the Speaker Setting value.

•

On : You will hear sound in the Musical Room Calibration mode.

Measurement

Plug the ASC microphone into the ASC IN jack.

Place the ASC microphone at the listening position.

Musical Room Calibration will be automatically

•

set up in the following sequence:

Front L  Center  Front R  Surround R  Surround L  Subwoofer

Press the RETURN button to cancel the

•

Musical Room Calibration Setting.

NOTE

✎

Setting the Musical Room Calibration



function takes about 3 minutes. The Musical Room Calibration setup can be made



when there is no disc in the product. If the ASC microphone is disconnected during the



Musical Room Calibration setup, the setup will be canceled.

When the Musical Room Calibration function is



activated, the DSP, Dolby Pro Logic ll and SFE Mode will not work.

If the product is connected to external devices or



other components (such as an iPod, AUX, D.IN), the Musical Room Calibration Setup may not work properly.



Noise may result in wrong measurement. So please proceed with the measurement in a quiet room to obtain proper calibration.



Place the microphone on the main listening position.

Nothing should get in the way between speakers



and microphone.



Note that the test tone of the speaker may be loud when conducting the test.



Do not place the microphone behind the furniture or too close to the wall. Otherwise, it can produce an incorrect test result.

User EQ

You can conﬁ gure the equalizer settings manually to your preference.

Settings

Display

Audio

Network System Language Security General Support

· 0

-6

User EQ

250Hz0600Hz01kHz03kHz06kHz010kHz015kHz

Reset > Adjust < Move ' Return

36 English

HT-D5330_XAC_0215.indd 36HT-D5330_XAC_0215.indd 36 2011-02-15 ¿ÀÈÄ 7:39:012011-02-15 ¿ÀÈÄ 7:39:01

HDMI Audio

The audio signals transmitted over the HDMI Cable can be toggled On/Off.

•

Off : Video is transmitted over the HDMI connection cable only, and audio is output through your product speakers only.

Both video and audio signals are transmitted

•

On :

over the HDMI connection cable, and audio is output through your TV speakers only.

NOTE

✎

HDMI Audio is automatically down-mixed to



2ch for TV speakers.

Audio Return Channel

You can enjoy TV sound from the Home Theater speakers by using just one HDMI cable.

Auto : Listen to TV sound from the Home

•

Theater speakers if your TV is compatible with the Audio Return Channel function.

Off : Turn the Audio Return Channel function

•

off.

NOTE

✎

When Anynet+(HDMI-CEC) is Off, the Audio



Return Channel function is not available. Using an ARC (Audio Return Channel)-



uncertiﬁ ed HDMI cable may cause a problem in compatibility.



ARC function is only available if an ARCcompliant TV is connected.

Digital Output

You set the Digital Output to match the capabilities of the AV receiver you’ve connected to the product :

•

PCM : Choose if you have connected an HDMI supported AV receiver.

•

Bitstream (Unprocessed) : Select if you have connected an HDMI supported AV receiver with Dolby TrueHD and DTS-HD Master Audio decoding capabilities.

•

Bitstream (Re-encoded DTS) : Choose if you have connected an AV receiver using a Digital Optical input that can decode DTS.

Bitstream (Re-encoded Dolby D) : Select if

•

you don’t have an HDMI supported AV receiver, but have an AV receiver with Dolby Digital decoding capabilities.

For more details, please refer to the digital output selection table. (See page 38)

Blu-ray Discs may include three audio streams :

- Main Feature Audio : The audio soundtrack of the main feature.

BONUSVIEW audio : An additional

soundtrack such as the director or actor’s commentary.

- Navigation Sound Effects : When you choose some menu navigation, Navigation Sound Effects may sound. Navigation Sound Effects are different on each Blu-ray Disc.

NOTE

✎

It can be activated when HDMI Audio is ON.



Be sure to select the correct Digital Output or



you will hear no sound or just loud noise. If the HDMI device (AV receiver, TV) is not



compatible with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM.

Regular DVDs do not have BONUSVIEW audio



and Navigation Sound Effects. Some Blu-ray Discs do not have BONUSVIEW



audio and Navigation Sound Effects. This Digital Output setup does not effect the



analog (L/R) audio or HDMI audio output to your TV. It effects the optical and HDMI audio output when your product is connected to an AV receiver.

If you play MPEG audio soundtracks, the audio



signal outputs as PCM regardless of your Digital Output selections (PCM or Bitstream).

03 Setup

English 37

HT-D5330_XAC_0215.indd 37HT-D5330_XAC_0215.indd 37 2011-02-15 ¿ÀÈÄ 7:39:032011-02-15 ¿ÀÈÄ 7:39:03

Setup

Digital Output Selection

Setup PCM

Connection

Audio Stream on

Blu-ray Disc

Audio Stream

on DVD

Deﬁ nition for

Blu-ray Disc

Bitstream

(Unprocessed)

HDMI supported

AV receiver

PCM Up to 7.1ch PCM DTS re-encoded

Dolby Digital Up to 7.1ch Dolby Digital DTS re-encoded

Dolby Digital Plus Up to 7.1ch Dolby Digital Plus DTS re-encoded

Dolby TrueHD Up to 7.1ch Dolby TrueHD DTS re-encoded

DTS Up to 6.1ch DTS DTS re-encoded

DTS-HD HRA Up to 7.1ch DTS-HD HRA DTS re-encoded

DTS-HD MA Up to 7.1ch DTS-HD MA DTS re-encoded

PCM PCM 2ch PCM 2ch PCM 2ch PCM 2ch

Dolby Digital Up to 5.1ch Dolby Digital Dolby Digital Dolby Digital

DTS Up to 6.1ch DTS DTS DTS

Decodes the main

feature audio and

Any

BONUSVIEW audio

stream together

into PCM audio and

adds Navigation

Sound Effects.

HDMI supported

AV receiver

Outputs only the

main feature audio

stream so that your

AV receiver can

decode the audio

bitstream.

You will not hear

BONUSVIEW

audio or Navigation

Sound Effects.

Bitstream

(Re-encoded

DTS)

HDMI supported

AV receiver

Decodes the main

feature audio and

BONUSVIEW audio

stream together

into PCM audio and

adds Navigation

Sound Effects, then

re-encodes the

PCM audio into DTS

bitstream.

Bitstream

(Re-encoded

Dolby D)

HDMI supported

AV receiver

Re-encoded

Dolby Digital *

Re-encoded

Dolby Digital *

Re-encoded

Dolby Digital *

Re-encoded

Dolby Digital *

Re-encoded

Dolby Digital *

Re-encoded

Dolby Digital *

Re-encoded

Dolby Digital *

Decodes the main

feature audio and

BONUSVIEW audio

stream together into

PCM audio and adds

Navigation Sound

Effects, then re-

encodes the PCM

audio into Dolby digital

bitstream or PCM.

* If the Source Stream is 2ch, “Re-encoded Dolby D” Setting are not applied. Ouput will be LPCM 2ch.

Off : You can enjoy the movie with the

Dynamic Range Control

•

standard Dynamic Range.

You can listen at low volumes, but still hear dialog clearly. This is only active if your product detects a Dolby Digital signal.

•

Auto : The Dynamic Range Control will be set automatically based on the information provided by the Dolby TrueHD Soundtrack.

On : When Movie soundtracks are played at

•

low volume or through smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.

38 English

HT-D5330_XAC_0215.indd 38HT-D5330_XAC_0215.indd 38 2011-02-15 ¿ÀÈÄ 7:39:042011-02-15 ¿ÀÈÄ 7:39:04

03 Setup

Audio Sync

Video may look slower than the audio when the product is connected to a digital TV. If this occurs, adjust the audio delay time to match the video.

•

You can set the audio delay time between 0 msec and 300 msec. Set it to the optimal status.

Network

Before you begin, contact your ISP to ﬁ nd out if your IP address is static or dynamic. If it is dynamic, and you are using a wired or wireless connection, we recommend using the Auto procedures. If you are using a wireless connection and your router has the capability, you can use WPS(PBC) or One Foot Connection.

If your IP address is static, you must use the manual set up procedure for both wired and wireless connections.

Network Settings

To begin setting up the network connection for your product, follow these steps:

In the Home menu, press the ◄► buttons to

select Settings, and then press the ENTER button.

Press the ▲▼ buttons to select Network, and then press the ENTER button.

Press the ▲▼ buttons to select Network Settings, and then press the ENTER button.

Press the ▲▼ buttons to select Wired, Wireless (General), WPS(PBC) or One Foot Connection, and then press the ENTER button.

If you have a wired network, go to Wired Network below. If you have a wireless network, go to Wireless Network on pages 40~42.

Wired Network

Setting Up a Wired Connection - Auto

Press the ▲▼ buttons to select Wired.

Settings

Display Audio

Network

System Language Security General Support

Press the ENTER button.

Network Settings

Select a network connection type.

Wired

Wireless (general)

Connect to the network using LAN cable. Please make

WPS(PBC)

sure that the LAN cable is connected.

One Foot

Connection

Move " Enter ' Return

The Network Status screen appears. The product connects to the network after the network connection is veriﬁ ed.

Setting Up a Wired Connection - Manual

If you have a static IP address or the Auto Setting does not work, you’ll need to set the Network Settings values manually.

To view your Network Settings values on most Windows computers, follow these steps:

Right click the Network icon on the bottom

right of the Windows desktop. In the pop-up menu, click Status.

On the dialog that appears, click the Support

tab. On the Support tab, click the Details button.

The Network settings are displayed.

English 39

HT-D5330_XAC_0215.indd 39HT-D5330_XAC_0215.indd 39 2011-02-15 ¿ÀÈÄ 7:39:042011-02-15 ¿ÀÈÄ 7:39:04

Setup

To enter the Network settings into your product, follow these steps:

Press the ▲▼ buttons to select Wired, and then press the ENTER button.

Press the ◄► buttons to select IP Settings, and then press the ENTER button.

Settings

Display Audio

IP Mode Manual

Network

System Language

DNS Mode Manual

Security General Support

Press the ENTER button to select IP Mode.

Press the ▲▼ buttons to select Manual,

IP Settings

IP Address Subnet Mask Gateway

DNS Server

Move Number " Enter ' Return

0.0.0.0

and then press the ENTER button.

Press the ▼ button to go to the ﬁ rst entry ﬁ eld (IP Address).

Use the number buttons on your remote to enter numbers.

When done with each ﬁ eld, press the ► button to move successively to the next ﬁ eld. You can also use the other arrow buttons to move up, down, and back.

Enter the IP Address, Subnet Mask, and Gateway values.

Press the ▼ button to go to DNS Mode.

10.

Press the ▼ button to go to the ﬁ rst DNS entry ﬁ eld. Enter the numbers as above.

11.

Press the ENTER button to select OK. The Network Status screen appears. The product connects to the network after the network connection is veriﬁ ed.

Wireless Network

You can setup a wireless network three ways:

Wireless (General)

• Using WPS(PBC).

• One Foot Connection

•

Wireless (General) includes both Automatic and Manual setup procedures.

Setting Up the Wireless Network Connection

- Auto

Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a speciﬁ ed length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the Auto setup process.

Press the ▲▼ buttons to select Wireless

(General).

Settings

Display

Select a network connection type.

Audio

Network

Wired

System

Wireless

Language

(general)

Security

WPS(PBC)

General

One Foot

Connection

Support

Press the ENTER button.

Network Settings

Set up wireless network by selecting your Wireless Router. You may need to enter security key depending on the setting of the Wireless Router.

Move " Enter ' Return

When done, it displays a list of the available networks.

Press the ▲▼ buttons to select the desired network, and then press the ENTER button. The Security screen appears.

40 English

HT-D5330_XAC_0215.indd 40HT-D5330_XAC_0215.indd 40 2011-02-15 ¿ÀÈÄ 7:39:052011-02-15 ¿ÀÈÄ 7:39:05

On the Security screen, enter your network’s

Pass Phrase. Enter numbers directly using your remote control. To select a letter, press the ▲▼◄► buttons to move the cursor, then press the ENTER button.

Settings

Display Audio

Network

System Language Security General Support

NOTE

✎

You should be able to ﬁ nd the Pass Phrase on



Network Settings

Enter security key. 0 entered

b c d e f 1 2 3

h i j k l 4 5 6

n o p q r 7 8 9

t u v w x y z 0

a/A * Delete Space Done

Previous m Move " Enter ' Return

one of the set up screens you used to set up your router or modem.

When done, press the ▲▼◄► buttons to

move the cursor to Done, and then press the ENTER button.

The Network Status screen appears. The product connects to the network after the network connection is veriﬁ ed.

Setting Up the Wireless Network Connection

- Manual

If the Auto Setting does not work, you need to enter the Network settings values manually.

To view the Network settings values on most Windows computers, follow these steps:

Right click the Network icon on the bottom

right of the screen. In the pop-up menu, click Status.

On the dialog that appears, click the Support

tab. On the Support tab, click the Details button.

The Network settings are displayed.

To enter the Network settings into your product, follow these steps:

Follow Steps 1 through 5 in the ‘Setting Up the Wireless Network Connection - Auto’ procedure.

When done, press the ▲▼◄► buttons to

move the cursor to Done, and then press the ENTER button. The Network Status screen

appears.

Settings

Display Audio

IP Mode Manual

Network

System Language

DNS Mode Manual

Security General Support

On the Network Status screen, select

IP Address Subnet Mask Gateway

DNS Server

IP Settings

0.0.0.0

Move " Enter ' Return

Cancel, and then press Enter. Press the ◄► buttons to select IP Settings,

and then press the ENTER button. Press the ENTER button to select IP Mode.

Press the ▲▼ buttons to select Manual,

and then press the ENTER button. Press the ▼ button to go to the ﬁ rst entry

ﬁ eld (IP Address). Use the number buttons to enter numbers.

When done with each ﬁ eld, press the ►

button to move successively to the next ﬁ eld. You can also use the other arrow buttons to move up, down, and back.

10.

Enter the IP Address, Subnet Mask, and Gateway values.

11.

Press the ▼ to go to DNS Mode.

12.

Press the ▼ button to go to the ﬁ rst DNS entry ﬁ eld. Enter the numbers as above.

13.

The Network Status screen appears. The product connects to the network after the network connection is veriﬁ ed.

03 Setup

English 41

HT-D5330_XAC_0215.indd 41HT-D5330_XAC_0215.indd 41 2011-02-15 ¿ÀÈÄ 7:39:062011-02-15 ¿ÀÈÄ 7:39:06

Setup

WPS(PBC)

The easiest way to set up the wireless network connection is using the WPS(PBC) function or the One Foot Connection function.

If your wireless router has a WPS(PBC) button, follow these steps:

Press the ▲▼ buttons to select WPS(PBC).

Settings

Display

Select a network connection type.

Audio

Network

Wired

System

Wireless

Language

(general)

Security

WPS(PBC)

General

One Foot

Connection

Support

Press the ENTER button.

Press the WPS(PBC) button on your router

within two minutes. Your product displays the Network Selection Screen, and automatically acquires all the network settings values it needs and connects to your network. When it is done, it displays an OK button. Press the ENTER button on your remote.

One Foot Connection

You can set up the wireless connection automatically if you have a Samsung Wireless Router which supports One Foot Connection. To connect using the One Foot Connection function, follow these steps:

Press the ▲▼ buttons to select One Foot

Connection.

Settings

Display

Select a network connection type.

Audio

Network

Wired

System

Wireless

Language

(general)

Security

WPS(PBC)

General

One Foot

Connection

Support

Network Settings

Connect to the Wireless Router easily by pressing the WPS(PBC) button. Choose this if your Wireless Router supports Push Button Conﬁ guration(PBC).

Move " Enter ' Return

Network Settings

Connect to your wireless network automatically if your Wireless Router supports One Foot Connection. Select this connection type after placing the Wireless Router within 10 inches(25cm) of product.

Move " Enter ' Return

Press the ENTER button.

Place the Samsung Wireless Router within

25 cm (10 inches) of your product to connect.

Wait until the connection is automatically

established.

Network Status

Check whether a connection to the network and the Internet have been established.

Settings

Display Audio

Network

System

Cannot connect to the Wireless Router. Try the following.

Language

- Ensure the Wireless Router is powered on and try re-setting the power of the Wireless Router.

Security

- Check the security key if the Wireless Router has a security key.

General Support

KT_WLAN

Network Status

MAC Address XX:XX:XX:XX:XX:XX IP Address 0.0.0.0 Subnet Mask 0.0.0.0 Gateway 0.0.0.0 DNS Server 0.0.0.0

IP Settings Retry OKNetwork Settings

< Move " Enter ' Return

BD-LIVE Internet Connection

Set to allow or prohibit an Internet connection when you use the BD-LIVE service.

Allow (All) : The Internet connection is allowed

•

for all BD-LIVE contents. Allow (Valid Only) : The Internet connection is

•

allowed only for BD-LIVE contents containing a valid certiﬁ cate.

Prohibit : No Internet connection is allowed for

•

any BD-LIVE content.

NOTE

✎

What is a valid certiﬁ cate?



When the product uses BD-LIVE to send the disc data and a request to the server to certify the disc, the server uses the transmitted data to check if the disc is valid and sends the certiﬁ cate back to the product.



The Internet connection may be restricted while you are using BD-LIVE contents.

42 English

HT-D5330_XAC_0215.indd 42HT-D5330_XAC_0215.indd 42 2011-02-15 ¿ÀÈÄ 7:39:082011-02-15 ¿ÀÈÄ 7:39:08

03 Setup

System

Initial Settings

By using the Initial Settings function, you can set the language, Musical Room Calibration, Network Settings, etc. For more information about the Initial Settings function, refer to the Initial Settings section of this user manual. (See pages 29~46)

Anynet+(HDMI-CEC)

Anynet+ is a convenient function that offers linked operations with other Samsung products that have the Anynet+ feature. To operate this function, connect this product to a Samsung TV with an HDMI cable. With Anynet+ on, you can operate this product using a Samsung TV remote control and start disc playback simply by pressing the PLAY (►) button on the TV’s remote control. For more information, please see the TV user manual.

•

Off : Anynet+ functions will not work.

•

On : Anynet+ functions will work.

NOTE

✎

This function is not available if the HDMI cable



does not support CEC. If your Samsung TV has an Anynet+ logo, then



it supports the Anynet+ function. Depending on your TV, certain HDMI output



resolutions may not work. Please refer to the user manual of your TV.

BD Data Management

BD Data Management Screen Information :

Total Size : Total memory size of the device.

•

Available Size : Available memory in the

•

device.

•

Delete BD Data : Delete all BD data in the storage.

•

Select Device : Change location of desired memory to store BD data.

NOTE

✎

In the external memory mode, disc playback



may be stopped if you disconnect the USB device in the middle of playback. Only those USB devices formatted in FAT ﬁ le



system (DOS 8.3 volume label) are supported. We recommend you use USB devices that support USB 2.0 protocol with 4 MB/sec or faster read/write speed. The Resume Play function may not work after



you format the storage device. The total memory available to BD Data



Management may differ, depending on the conditions.

Time Zone

You can specify the time zone that is applicable to your area.

Settings

Display Audio Network

System

Language Security General Support

Time Zone

GMT + 00:00

London, Lisbon, Casablanca

Change " Save ' Return

Lets you manage the downloaded contents you accessed through a Blu-ray Disc that supports the BD-LIVE service and stored on an attached Flash memory device.

You can check the device’s information including the storage size, delete the BD data, or change the Flash memory device.

DivX® Video On Demand

View DivX® VOD Registration Codes to purchase and play DivX® VOD contents or view the deregistratiion code to degregister this product.

Reset

All settings will revert to the default except for the network and Smart Hub settings.

English 43

HT-D5330_XAC_0215.indd 43HT-D5330_XAC_0215.indd 43 2011-02-15 ¿ÀÈÄ 7:39:112011-02-15 ¿ÀÈÄ 7:39:11

Setup

Language

You can select the language you prefer for the Home menu, disc menu, etc.

•

On-Screen Menu : Select the language for the on-screen displays.

•

Disc Menu : Select the language for the disc menu displays.

•

Audio : Select the language for disc audio.

•

Subtitle : Select the language for disc subtitles.

NOTE

✎



The selected language will only appear if it is supported on the disc.

Security

This function works in conjunction with Blu-ray and DVD discs that have been assigned an age rating or numeric rating that indicates the maturity level of the content. These numbers help you control the types of Blu-ray and/DVD discs that your family can watch.

When you access this function for the ﬁ rst time, the password setup screen appears. Enter a desired 4-digit password using the number buttons. (The default password is 0000.)

After you have set your password, select an age rating you want to set for the BD Parental Rating and a rating level you want to set for the DVD Parental Rating. The product will only play Blu-ray discs rated at or below the age rating and DVD discs rated below the numeric rating unless the password is entered.

Larger numbers indicate more mature content.

BD Parental Rating

This will prohibit playback of Blu-ray disc rated above Parental Rating.

DVD Parental Rating

Prevent playback of DVD discs with speciﬁ c numerical ratings unless a password is entered.

Change Password

Change the 4-digit password used to access security functions.

If you forgot your password

Remove the disc.

Press and hold the STOP () button on the

front panel for 5 seconds or more. All settings will revert to the factory settings.

NOTE

✎

When the factory default settings are restored,



all the user stored BD data will be deleted.

General

Front Display

Change the brightness of the front panel.

•

Auto : Dim during playback.

•

Dim : Dim the display window.

•

Bright : Brighten the display window.

NOTE

✎

The Power button and the Function button are



not possible to change the Brightness.

Network Remote Control

The Network Remote Control function lets you control your Blu-ray Home Theater from a remote device such as a smart phone through a wireless connection to your local area network.

To use the Network Remote Control function, follow these steps:

Select On in the Network Remote Control

menu. Install the Samsung network remote control

application to control your product on your compatible portable device.

Make sure your portable device and your product are connected to the same wireless router.

Start the application on your portable device. The application should ﬁ nd your product and display it on a list.

Select the product.

44 English

HT-D5330_XAC_0215.indd 44HT-D5330_XAC_0215.indd 44 2011-02-15 ¿ÀÈÄ 7:39:122011-02-15 ¿ÀÈÄ 7:39:12

03 Setup

If this is the ﬁ rst time you are using the

function, it will ask you to allow or deny remote control of the product. Select Allow.

Follow the instructions that came with the

application to control the product.

Support

Software Upgrade

The Software Upgrade menu allows you to upgrade the product’s software for performance improvements or additional services. You can upgrade in four ways:

•

By Internet

•

By USB

•

By Disc

•

By Downloaded (File)

The four methods are explained below.

By Internet

To upgrade by Internet, follow these steps:

Select By Internet, and then press the ENTER button. The Connecting to Server

message appears.

If there is a download available, the Download pop-up appears with a progress bar and the download starts.

When the download is complete, the Upgrade Query window appears with three choices: Upgrade Now, Upgrade Later, or Don’t Upgrade.

If you select Upgrade Now, the product upgrades the software, turns off, and then turns on automatically.

If you do not make a selection in one minute or select Upgrade Later, the product stores the new upgrade software. You can upgrade the software later using the By Downloaded function.

If you select Don’t Upgrade, the product cancels the upgrade.

NOTE

✎

Your product must be connected to the



Internet to use the By Internet function. The upgrade is complete when the product



turns off, and then turns on again by itself. Never turn the product off or back on



manually during the update process. Samsung Electronics shall take no legal



responsibility for product malfunction caused by an unstable Internet connection or consumer negligence during a software upgrade.

If you want to cancel the upgrade while the



upgrade software is downloading, press the

ENTER button.

By USB

To upgrade by USB, follow these steps:

Visit www.samsung.com/bluraysupport

Download the latest USB software upgrade

zip archive to your computer. Unzip the zip archive to your computer. You

should have a single folder with the same name as the zip ﬁ le.

Copy the folder to a USB ﬂ ash drive.

Make sure the disc tray is empty, and then

insert the USB ﬂ ash drive into the USB port of the product.

In the product’s menu, go to Settings >

Support > Software Upgrade. Select By USB.

NOTE

✎

The disc tray must be empty when you



upgrade the software using the USB Host jack.

When the software upgrade is done, check



the software details in the software Upgrade menu.

Do not turn off the product during the



software upgrade. It may cause the product to malfunction.

Software upgrades using the USB Host jack



must be performed with a USB memory ﬂ ash stick only.

English 45

HT-D5330_XAC_0215.indd 45HT-D5330_XAC_0215.indd 45 2011-02-15 ¿ÀÈÄ 7:39:122011-02-15 ¿ÀÈÄ 7:39:12

Setup

By Disc

To upgrade by Disc, follow these steps:

Visit www.samsung.com/bluraysupport.

Download the latest disc software upgrade

zip archive to your computer. Unzip the zip archive to your computer. You

should have a single folder with the same name as the zip ﬁ le.

Write the folder onto a disc. We recommend

a CD-R or DVD-R. Finalize the disc before you remove it from

your computer. Insert the disc into product.

In the product’s menu, go to Settings >

Support > Software upgrade. Select By Disc.

NOTE

✎

When the system upgrade is done, check the



software details in the software Upgrade menu. Do not turn off the product during the Software



Upgrade. It may cause the product malfunction.

By Downloaded

The By Downloaded option lets you upgrade using a ﬁ le the product downloaded earlier but you decided not to install immediately or a ﬁ le downloaded by the product in Standby Mode (See Download in Standby Mode below).

To upgrade By Downloaded, follow these steps:

If upgrade software has been downloaded,

you will see the software version number to the right of By Downloaded.

Select By Downloaded, and then press the

ENTER button. The product displays a message asking if

you want to upgrade. Select Yes. The product begins the upgrade.

When the update is complete, the product

turns off automatically, and then turns on.

NOTE

✎

When the system upgrade is done, check the



software details in the software Upgrade menu.

Do not turn off the product during the software



Upgrade. It may cause the product to malfunction.

To use the By Downloaded function, your



product must be connected to the Internet.

Download in Standby Mode

You can set the Download in Standby Mode function so that the product downloads new upgrade software when it is in Standby mode. In Standby mode, the product is off, but its Internet connection is active. This allows the product to download upgrade software automatically, when you are not using it.

To set Download in Standby Mode, follow these steps:

Press the ▲▼ buttons to select Download

in Standby Mode, and then press the ENTER button.

Select On or Off.

Off : If you select Off, the product will notify

•

you with a pop up message when new upgrade software is available.

On : If you select On, the product will

•

automatically download new upgrade software when it is in Standby mode with the power off. If it downloads new upgrade software, the product will ask you if you want to install it when you turn the product on.

NOTE

✎

To use the Download in Standby Mode



function, your product must be connected to the Internet.

Contact Samsung

Provides contact information for assistance with your product.

46 English

HT-D5330_XAC_0215.indd 46HT-D5330_XAC_0215.indd 46 2011-02-15 ¿ÀÈÄ 7:39:122011-02-15 ¿ÀÈÄ 7:39:12

Basic Functions

04 Basic Functions

Playing a Disc

Playback

Press the OPEN/CLOSE ( ) button to open

the disc tray. Place a disc gently into the tray with the

disc’s label facing up.

Press the OPEN/CLOSE ( ) button to close

the disc tray. Press the PLAY (►) button.

Playback related buttons

PLAY ( ►)

STOP (  )

PAUSE (  )

NOTE

✎

For some discs, pressing the STOP (  )



button once may not memorize the stop position. Video ﬁ les with high bit rates of 20Mbps or



more strain the product’s capabilities and may stop playing during play back.

Starts playback.

Stops playback.

•

If you press the button once : The stop position is memorized.

•

If you press the button twice : The stop position is not memorized.

Pauses playback.

Disc Structure

The content of discs are usually divided as shown below.

Blu-ray Disc, DVD-VIDEO

•

title 1 title 2

chapter 1 chapter 2 chapter 1 chapter 2 chapter 3

•

Audio CD (CD-DA)

track 1 track 2 track 3 track 4 track 5

MP3, WMA, DivX, MKV and MP4

•

folder (group) 1 folder (group) 2

ﬁ le 1 ﬁ le 2 ﬁ le 1 ﬁ le 2 ﬁ le 3

Using the Disc menu/Title menu/

Popup menu

Using the Disc Menu

During playback, press the DISC MENU button on the remote

control.

Press the a selection, and then press the ENTER button.

NOTE

✎

Depending on the disc, the menu items may



differ and this menu may not be available.

◄ ►

buttons to make

DISC MENU

English 47

HT-D5330_XAC_0215.indd 47HT-D5330_XAC_0215.indd 47 2011-02-15 ¿ÀÈÄ 7:39:122011-02-15 ¿ÀÈÄ 7:39:12

Basic Functions

Using the Title Menu

During playback, press the TITLE

1. MENU button on the remote

control. Press the

make the desired selection, then press the ENTER button.

NOTE

✎

Depending on the disc, the menu items may



differ and this menu may not be available. The Title Menu will only be displayed if there



are at least two titles on the disc.

◄ ►

Playing the Title List

During playback, press the DISC

MENU or TITLE MENU button. Press the

an entry you want to play from Title List, then press the ENTER button.



Using the Popup Menu

During playback, press the POPUP button on the remote control.

Press the ENTER button to select the desired menu.

NOTE

✎

Depending on the disc, the menu items may



differ and this menu may not be available.

◄ ►

buttons to

buttons to select

buttons or

TITLE MENU

POPUP

DISC MENU

TITLE MENU

POPUP

TITLE MENU

POPUP

Using the Search and Skip Functions

During playback, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching for a Desired Scene

hzZyx

During playback, press the SEARCH ()

•

button. Each time you press the button, the playback speed will change as follows.

BD-ROM,

BD-RE/-R,

DVD-RW/-R,

DVD+RW/+R,

DVD-VIDEO

DivX, MKV, MP4

•

To return to normal speed playback, press the

PLAY (►) button.

NOTE

✎

No sound is heard during search mode.



If you press the  or  button too quickly



this product might think you are just holding the button down. This will lead to improper operation, be sure to not press these buttons too rapidly.

) )

( (

)

(

SEARCH (

)



2  ) 3 

)



5  ) 6  ) 7

(



2  ( 3 

(



5  ( 6  ( 7

)



2  ) 3

(



2  ( 3

)

Skipping Chapters

hzZyx

During playback, press the SKIP (#$)

•

button. If you press the SKIP ($) button, it moves to the next chapter. If you press the SKIP (#) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.

48 English

HT-D5330_XAC_0215.indd 48HT-D5330_XAC_0215.indd 48 2011-02-15 ¿ÀÈÄ 7:39:142011-02-15 ¿ÀÈÄ 7:39:14

04 Basic Functions

Slow Motion Play/Step Motion Play

Slow Motion Play

hzZyx

In pause (  ) mode, press the SEARCH ()

•

button. If you press the SEARCH () button, the playback speed is reduced to * 1/8 * 1/4 * 1/2

To return to normal speed playback, press the

•

PLAY (► ) button.

NOTE

✎

No sound is heard during slow mode.



Slow motion operates only in the forward



direction.

Step Motion Play

hzZyx

In pause mode, press the PAUSE (  ) button.

•

Each time the PAUSE (  ) button is pressed, a new frame will be appear.

To return to normal speed playback, press the

•

PLAY ( ► ) button.

NOTE

✎

No sound is heard during step mode.



Step motion operates only in the forward



direction.

Repeat Playback

Repeat the Title or Chapter

hzZy

Repeat the disc title or chapter.

During playback, press the REPEAT

button on the remote control. Press the ▲▼ buttons to select

Chapter or Title, then press the ENTER button.

REPEAT

Repeat > Off

To return to normal play, press the REPEAT

button again. Press the ▲▼ buttons to select Off, the

press the ENTER button.

NOTE

✎

Depending on the disc, the Repeat function



may not be available.

Repeat the Section

hzZy

During playback, press the REPEAT

button on the remote control.

Press the ▲▼ buttons to select REPEAT A-B.

Repeat > Repeat A-B : Off " Mark A

Press the ENTER button at the point where you want repeat play to start (A).

Press the ENTER button at the point where you want repeat play to stop (B).

To return to normal play, press the REPEAT button again.

Press the ENTER button.

NOTE

✎

If you set point (B) before 5 seconds has



lapsed, the prohibition message will appear.

REPEAT

English 49

HT-D5330_XAC_0215.indd 49HT-D5330_XAC_0215.indd 49 2011-02-15 ¿ÀÈÄ 7:39:162011-02-15 ¿ÀÈÄ 7:39:16

Basic Functions

Using the TOOLS button

During playback, you can operate disc menu by pressing the

TOOLS Menu Screen

•

NOTE

✎

Depending on the disc, the TOOLS menu

▪

may differ.

TOOLS

button.

Tools

Title Search 1/2 Chapter Search : 1/20 Time Search : 00:00:13/01:34:37 Picture Settings : Normal Audio : 1/4 ENG Multi CH User EQ Subtitle : 0/7 Off Angle : 1/1

Change "

Moving to a Desired Scene Directly

hzZy

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Title,

Chapter or Playing Time. Enter the desired Title, Chapter or Playing

Time using the number buttons, then press the ENTER button.

Selecting the Audio Language

hzZx

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Audio.

Press the ENTER button.

Press the ▲▼ buttons to select the audio language you want.

TOOLS

Enter ' Return

Information about the primary / secondary



mode will be also displayed if the Blu-ray Disc has a BONUSVIEW section. Use the ◄► button to switch between primary and secondary audio modes. This function depends on what audio



languages are encoded on the disc and may not be available. Some Blu-ray Discs may allow you to select



either the multi-channel LPCM or Dolby digital audio soundtrack in English.

Selecting the Subtitle Language

hZx

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Subtitle.

Press the ◄► buttons to select the desired

subtitle language.

NOTE

✎

Depending on the Blu-ray Disc / DVD, you may



be able to change the desired subtitle in the Disc Menu. Press the DISC MENU button. This function depends on what subtitles are



encoded on the disc and may not be available on all Blu-ray Discs/DVDs. Information about the primary / secondary



mode will also be displayed if the Blu-ray Disc has a BONUSVIEW section. This function changes both the primary and



secondary subtitles at the same time. The total number of subtitles is the sum of the



primary and secondary ones.

NOTE

✎

The ◄► indicator will not be displayed on the



screen if the BONUSVIEW section does not contain any BONUSVIEW audio settings.

50 English

HT-D5330_XAC_0215.indd 50HT-D5330_XAC_0215.indd 50 2011-02-15 ¿ÀÈÄ 7:39:212011-02-15 ¿ÀÈÄ 7:39:21

Caption Function

You must have some experience with video

•

extraction and editing in order to use this feature properly.

To use the caption function, save the caption

•

ﬁ le (*.smi) in the same ﬁ le name as that of the DivX media f le (*.avi) within the same folder. Example. Root Samsung_007CD1.avi Samsung_007CD1.smi

Up to 60 alphanumeric characters or 30 East Asian

•

characters (2 byte characters such as Korean and Chinese) for the ﬁ le name.

Changing the Camera Angle

When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Angle.

Press the ◄► buttons to select the desired

Angle.

User : The user can adjust the sharpness,

•

noise reduction, Contrast, Brightness, Color, Tint(G/R) function.

NOTE

✎

If the system is connected to a BD Wise-



compliant TV that has set BD Wise to On, the picture setting menu will not appear.

Setting the BONUSVIEW

The BONUSVIEW feature allows you to view additional content (such as commentaries) in a small screen window while the movie is playing. This function is only available if the disc has the bonusview feature.

04 Basic Functions

Selecting the Picture Settings

hzZy

This function enables you to adjust video quality.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Picture Settings, then press the ENTER button.

Press the ◄► buttons to select the desired Mode.

•

Dynamic : Choose this setting to increase Sharpness.

•

Normal : Choose this setting for most viewing applications.

•

Movie : This is the best setting for watching movies.

Primary a audio/video

During playback, press the TOOLS button.

Press the ▲▼ buttons to select BONUSVIEW Video or BONUSVIEW Audio.

Press the ◄► buttons to select the desired bonusview.

NOTE

✎

If you switch from BONUSVIEW Video,



BONUSVIEW Audio will change automatically in accordance with BONUSVIEW Video.

Tools

BONUSVIEW Video Off BONUSVIEW Audio : 0/1 Off Picture Settings

< Change "

Secondary a audio/video

Enter

English 51

HT-D5330_XAC_0215.indd 51HT-D5330_XAC_0215.indd 51 2011-02-15 ¿ÀÈÄ 7:39:222011-02-15 ¿ÀÈÄ 7:39:22

Basic Functions

FULL SCREEN

RETURN

EXIT

HUB

MO/S

Listening to Music

Buttons on the Remote Control used for Music Playback

123

456

7809

TOOLS

OOL

RETURN

TUNER

UNER

MEMORY

iPod SYN

iPod SYNC

NETFLIX

NETFLI

MAR

SMART SEARCH

HUB

REPEATFULL SCREEN

INFO

INF

EXIT

MO/ST

D3D

2D→3D

1 2

ENTER button : Plays the selected track.

► button : During playback, moves to the next page in the Music List or moves to the next track in the Playlist.

◄

button : During playback, moves to the previous page in the Music List or moves to the previous track in the Playlist.

STOP button :

button : Plays the

button : Plays the previous track.

Stops a

next track.

track

If you press this button after three seconds of playback in the Playlist, the current track will be

replayed from the beginning. But, if you press this button within three seconds after playback starts in the Playlist, the previous track will be played.

NUMBER button : During the Playlist playback, press the desired track number. The selected

track will be played. (only Audio CD(CD-DA)

REPEAT button : Selects the play mode in the

Playlist. SEARCH buttons :

Audio CD (CD-DA) - Fast Play.

MP3 - Jump Play. (10 seconds)

PAUSE button : Pauses playback.

PLAY button : Plays the currently selected track.

▲▼ buttons : Selects a track in the Music List

or Playlist.

YELLOW(C) button : Select Edit Mode or Play

Mode.

52 English

HT-D5330_XAC_0215.indd 52HT-D5330_XAC_0215.indd 52 2011-02-15 ¿ÀÈÄ 7:39:232011-02-15 ¿ÀÈÄ 7:39:23

04 Basic Functions

Playing an Audio CD (CD-DA)/MP3

Insert an Audio CD (CD-DA) or an MP3 Disc

into the disc tray.

For an Audio CD (CD-DA), the ﬁ rst track will

•

be played automatically. For an MP3 disc, press the ◄► buttons to

•

select Music, then press the ENTER button.

Audio CD (CD-DA)/MP3 Screen Elements

Music

TRACK 001

00:13 / 00:43

Audio CD

Displays the music information.

Displays the playlist.

Shows the current track/total tracks.

Displays buttons available.

Shows the current play time/total play time.

Displays the current playback status.

Displays the repeated playback status.

Press the ▲▼ buttons to select the track

you want to play, and then press the ENTER button.

TRACK 001

00:43

TRACK 002

03:56

TRACK 003

04:41

TRACK 004

04:02

Enter < Pages Tools ' Return

1/13

Repeat an Audio CD (CD-DA)/MP3

During the Playlist playback, press

the REPEAT button.

Select the desired play mode by pressing the REPEAT button repeatedly.

Audio CD

Off

(CD-DA)/MP3

) One

( Song

(

NOTE

✎



Audio CD (CD-DA)/MP3

Audio CD

) All

(CD-DA)/MP3

During playback, press the TOOLS button and

Tracks on a disc are played in the order in which they were recorded on the disc.

Current track is repeated.

All tracks are repeated.

set Shufﬂ e Mode to On. You can play the tracks in the random order.

REPEAT

Playlist

Insert an Audio CD (CD-DA) or an MP3 Disc

into the disc tray.

For an Audio CD (CD-DA), the ﬁ rst track will

•

be played automatically. For an MP3 disc, press the ◄► buttons to

•

select Music, then press the ENTER button.

To move to the Music List, press the STOP () or RETURN button. The Music List screen is displayed.

Press the YELLOW(C) button to switch to Edit Mode.

Press

▲▼◄►

to select a desired track.

Then, press ENTER. Repeat this procedure to select additional tracks.

•

The selected ﬁ le will be checked.

•

To cancel your selection, press ENTER again to uncheck the track.

English 53

HT-D5330_XAC_0215.indd 53HT-D5330_XAC_0215.indd 53 2011-02-15 ¿ÀÈÄ 7:39:242011-02-15 ¿ÀÈÄ 7:39:24

Basic Functions

Audio CD | Music

TRACK 001

00:43

TRACK 003

04:41

TRACK 005

03:43

TRACK 007

04:06



Close Edit Mode

Selected Items : 3

TRACK 002

03:56

TRACK 004

04:02

TRACK 006

03:40

TRACK 008

03:52

( )

Page Tools " Select ' Return

1/2 Page

• SMART SOUND : This will regulate and

stabilize the volume level against a drastic volume change when changing channels or during a scene transition.

• MP3 ENHANCER : This also helps enhance

your sound experience (ex. mp3 music). You can upscale your MP3 level sound(24 kHz, 8bit) to CD level sound(44.1 kHz, 16bit).

• POWER BASS : This function stresses low

tones providing thudding sound effects.

Select a desired track and press the TOOLS

button. To play the selected track(s), select Play

Selected in the Tools menu and press

• VIRTUAL 7.1 : Applies the 7.1 CH sound

effect using the 5.1 CH speaker system.

• USER EQ : You can conﬁ gure the equalizer

settings manually to your preference.

ENTER.

SFE(Sound Field Effect) MODE

Music

TRACK 001

00:13 / 00:43

Audio CD

To return to the Edit Mode, press STOP or

TRACK 001

00:43

TRACK 002

03:56

TRACK 003

04:41

Enter Tools ' Return

RETURN.

To exit Edit Mode, press the YELLOW (C) button.

NOTE

✎

You can create a playlist with up to 99 tracks



on Audio CD (CD-DA).

Sound Mode

1/3

You can set the SFE mode best suited for the type of music you are listening to.

Press the SFE MODE button.

Hall in Boston

Phillharmonic

Jazz Club in

Amphitheater

DSP(Digital Signal Processor) Function

Symphony

(Hall 1)

Hall in

Bratislava

(Hall 2)

Seoul B

Church in

Seoul

(Rock)

Off

SFE MODE

Provides a clear vocal as if listening in a concert hall.

Provides also a clear vocal as if listening in a concert hall but, less powerful than HALL1.

Recommended setting for Jazz.

Gives the feel of being in a grand church.

Recommended setting for Rock.

Select this for normal listening.

You can select mode to optimize the sound for sound based on your tastes.

Press the DSP button.

DSP

SMART SOUND  MP3 ENHANCER  POWER BASS  VIRTUAL 7.1  USER EQ  DSPOFF

54 English

HT-D5330_XAC_0215.indd 54HT-D5330_XAC_0215.indd 54 2011-02-15 ¿ÀÈÄ 7:39:252011-02-15 ¿ÀÈÄ 7:39:25

Dolby Pro Logic II Mode

You can select the desired Dolby Pro Logic II audio mode.

Press the

PL II button.

Models below support lip sync settings.



Press GREEN (B) on the remote control to

change audio delay.

Supported Models : classic/3G nano/4G



nano/120GB classic/160GB Classic/5G nano

04 Basic Functions

When listening to music, you can

Music

Movie

Prologic

Matrix

Stereo

NOTE

✎

When selecting Dolby Pro Logic II mode,



connect your external device to the AUDIO INPUT jacks (L and R) on the product. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.

experience sound effects as if you are listening to the actual performance.

Adds realism to the movie soundtrack.

You can listen to a 2CH sound source in 5.1CH surround sound with all speakers active.

- A speciﬁ c speaker(s) may not be output depending on the input signal.

You will hear multi channel surround sound.

Select this to listen to sound from the front left and right speakers and the subwoofer only.

iPod SYNC

Playing back a Picture

Viewing Photo Files

Connect a USB memory that contains JPEG

ﬁ les or insert a disc that contains JPEG ﬁ les. Press the ◄► buttons to select the My

Contents, and then press the ENTER button after press the ▲▼ buttons to select the Photos.

Press the ▲▼◄► buttons to select the

folder you want to play, and then press the ENTER button.

Press the ▲▼◄► buttons to select the

photo you want to play, and then press the

ENTER button.

NOTE

✎

You can't enlarge the subtitle and PG graphic



in the full screen mode.

If you insert your iPod player in the iPod Dock that has already been connected to the system, the video ﬁ les in your iPod player can be played through the connected TV.

If the video signal does not synchronize properly with the audio signal, press GREEN (B) on the remote control to correct the synchronization.

NOTE

✎

Before you can play the video ﬁ les in iPod player,



the Audio/Video terminals of the TV should be connected using the Composite cable.

English 55

HT-D5330_XAC_0215.indd 55HT-D5330_XAC_0215.indd 55 2011-02-15 ¿ÀÈÄ 7:39:282011-02-15 ¿ÀÈÄ 7:39:28

Basic Functions

Using the TOOLS button

During the slide show playback, you can use various function by pressing the TOOLS button.

Tools

Pause Slide Show Slide Show Speed : Normal Slide Show Effect : Blind Background Music : Off Background Music Setting Zoom Rotate Picture Setting Information

Enter ' Return

Pause Slide Show : Select this if you want to

•

pause the slide show. Slide Show Speed : Select to adjust the slide

•

show speed. Slide Show Effect : Select set the slide show

•

effect. Background Music : Select this if you want to

•

listen to music while viewing a picture. Background Music Setting : Select this if you

•

want to set the background music setting. Zoom : Select this if you want to enlarge the

•

current picture. (Enlarged up to 4 times) Rotate : Select this if you to rotate the picture.

•

(This will rotate the picture either clockwise or counter clockwise.)

Picture Setting : Select this if you want to

•

adjust the picture quality. Information : Shows the picture information

•

including the name and size, etc.

NOTE

✎

Before you can enable the background music



function, the photo ﬁ le should exist in the same storage media with the music ﬁ le. However, the sound quality can be affected by the bit rate of the MP3 ﬁ le, the size of the photo and the encoding method.

High bit rate of 20Mbps or more video ﬁ les can



be stopped during the playback.

TOOLS

56 English

Playing back a USB Storage Device

You can use the USB connection to play multimedia ﬁ les (MP3, JPEG, DivX, etc) downloaded from the USB storage device.

Move to the home menu.

My Contents

Videos

Photos

Music

My Devices Internet Settings

Function



Safely Remove USB d PBC(WPS)

In Stop mode, connect the USB storage

device to the USB port on the front panel of the product.

My Contents

Videos

Connected Device

Photos

USB

Music

My Devices Internet Settings

Function

Press the ENTER button.

Press the ▲▼◄► buttons to select the desired Videos, Music or Photos, then press the ENTER button.

For playing back Video, Music or Photo ﬁ les,

refer to pages 47~56.

NOTE

✎

You must remove the USB storage device safely



(by performing the “Safely Remove USB” function) in order to prevent a possible damage to the USB memory. Press the MENU button to move to the home menu, and select the YELLOW(C) button and press the ENTER button.



If you open the tray when playing USB storage device, the device mode is changed to “BD/DVD” automatically.

Enter ' Return

Safely Remove USB d PBC(WPS)

HT-D5330_XAC_0215.indd 56HT-D5330_XAC_0215.indd 56 2011-02-15 ¿ÀÈÄ 7:39:292011-02-15 ¿ÀÈÄ 7:39:29

04 Basic Functions

Listening to Radio

Using buttons on the Remote Control

Press the FUNCTION button to select FM.

Tune in to the desired station.

•

Preset Tuning 1 : You must ﬁ rst add a desired frequency as a preset. Press the STOP () button to select PRESET and then press the TUNING/CH (

) button to select the preset

station.

•

Manual Tuning : Press the STOP () button to select MANUAL and then press the TUNING/

) button to tune in to a lower or higher

CH ( frequency.

•

Automatic Tuning : Press the STOP () button to select MANUAL and then press and hold the TUNING/CH (

) button to automatically

search the band.

Setting Mono/Stereo

Press the MO/ST button.

Each time the button is pressed, the

•

sound switches between STEREO and MONO.

In a poor reception area, select MONO

•

for a clear, interference-free broadcast.

Presetting Stations

Example : Presetting FM 89.10 into memory

Press the FUNCTION button to select FM.

Press the

<89.10>. Press the TUNER MEMORY button.

•

Press the TUNER MEMORY button

again.

•

To preset another station, repeat steps 2 to 4.

•

TUNING/CH

) button to select

(

NUMBER ﬂ ashes on the display.

Press the TUNER MEMORY button before NUMBER

NUMBER

disappears from the display. disappears from the display and

the station is stored in memory.

To tune in to a preset station, press the TUNING/CH ( )

button to select a

channel.

TUNER

MEMORY

Connecting iPod/iPhone Using the USB Cable

If the system is connected to iPod/iPhone using the provided USB cable, you can play music in iPod/iPhone using the system.

5V 500mA

ASC INASC I

Connect iPod/iPhone using the USB cable to

the front USB port.

Your iPod is automatically turned on.

•

“iPod” message appears on the TV

•

screen.

Press the ENTER button.

Select the music ﬁ le to play.

You can use the remote control or the product to control simple playback functions

such as the PLAY, PAUSE, STOP,

and /buttons. (See page 17.)

NOTE

✎

Playing a video is possible only when the iPod



Dock is used.



If you want to return to the iPod menus with iPod player connected using the USB cable, press FUNCTION on the remote control or

on the front panel of the system and

press select R. IPOD. The FUNCTION mode



switches as follows: BD/DVD



R. IPOD  W. IPOD  FM

D. IN  AUX

Connecting iPod/iPhone Using the Dock

If the system is connected to the iPod/iPhone speciﬁ c dock, you can play videos or music in iPod/iPhone using the system.

FM ANT

LAN

WIRELESS LAN

DIGITAL

IGITAL

iPod HDMI OUT

HDMI OUT

AUDIO IN

AUDIO I

OPTICAL

iPod

M AN

WIRELESS

IRELE

English 57

HT-D5330_XAC_0215.indd 57HT-D5330_XAC_0215.indd 57 2011-02-15 ¿ÀÈÄ 7:39:332011-02-15 ¿ÀÈÄ 7:39:33

Basic Functions

My Contents

Videos

Connected Device

Photos

iPod

Music

My Devices Internet Settings

Function

Connect the iPod dock connector to the iPod

Jack on the rear panel of the product. Place the iPod in the supplied iPod Dock.

Your iPod is automatically turned on.

•

“iPod” message appears on the TV

•

screen.

Press the ENTER button.

Press the ◄▲▼ buttons to select Music,

then press the ENTER button. Select the music ﬁ le to play.

- You can use the remote control or product to control simple playback functions such as the PLAY, PAUSE, STOP, #/ $, /

 and REPEAT buttons. See page 17.

NOTE

✎

Adjust the volume to a moderate level before



you connect your iPod and product.



When the product is powered on and you connect an iPod, the product will charge your iPod's battery.



Make sure to connect the dock connector so that the label “S” faces upward.

Watching a Movie

You can play video ﬁ les stored in the iPod player by connecting it to the product.

Connect the iPod dock connector to the iPod

Jack on the rear panel of the product. In the iPod screen, move to Videos >

Settings, then set the TV Out option and the TV signal.

Place the iPod in the supplied iPod Dock.

“iPod” message appears on the TV

•

screen.

Press the ENTER button.

Press the ◄▲▼ buttons to select Video, then press the ENTER button.

Enter ' Return

PBC(WPS)

Select the video ﬁ le to play.

You can use the remote control or the product to control simple playback functions such as the PLAY, PAUSE, STOP,

and /buttons. (See page 17.)

NOTE

✎



You must have the VIDEO output (Composite) connected to your TV to view iPod video (See page 25).



If you want to iPod video via VIDEO output, set Anynet+(HDMI-CEC) to off.



No other screen than the playback one will appear on the TV screen. Check other screens on the iPod player.



If the connected iPod does not support video playback, the "Playing video ﬁ les is not supported on this iPod model." message appears when you select the Video menu.



If you want to return to the iPod menus with iPod player connected using the dock, press FUNCTION on the remote control or press

on the front panel of the system and

select R.iPOD. The FUNCTION mode switches as follows :

BD/DVD  D. IN  AUX

 R. IPOD  W. IPOD  FM

Use iPod/iPhone with a Wireless Dock

Cradle (sold separately) for iPod/iPhone

You can enjoy ﬁ ner quality music through the speakers by transmitting an iPod/iPhone’s audio signal using a Wireless Transmitter.

To connect the main unit when the product is used for the ﬁ rst time, you have to set the Linking ID manually. (see page 60) After ﬁ rst setting of the main unit, it will be connected to Wireless Transmitter automtically when turn on.

Turn on the main unit and connect the iPod/ iPhone to the Wireless transmitter. Then, press the

button on the product to

select "W. IPOD" mode. The FUNCTION mode of the main unit switches as follows :

W. IPOD  FM

BD/DVD  D. IN  AUX  R. IPOD 

( See page 15)

58 English

HT-D5330_XAC_0215.indd 58HT-D5330_XAC_0215.indd 58 2011-02-15 ¿ÀÈÄ 7:39:372011-02-15 ¿ÀÈÄ 7:39:37

CHARGE

STANDBY

iPod with dock connector

How to charge the Wireless Transmitter

󱳝

󱳛

LINK

STANDB

CHARGE

Connect the Wireless Transmitter to the

Charging Cradle.

Connect the DC power adapter to a wall socket.

The charging indicator lights and charging

•



iPod with Click Wheel



iPod nano (5th generation)



iPod nano (4th generation)



iPod nano (3rd generation)



iPod nano (2nd generation)



iPod nano (1st generation)



iPhone 4



iPhone 3GS



iPhone 3G



iPhone



✎



starts. After the battery is fully charged, the charging indicator turns Green.

Operation status of the charging cradle's LED



Display Function

GREEN LED ON

RED LED ON

NOTE

✎

The LED indicates the charging state of the



Power on /Charging

completed

Charging.



built-in battery in the wireless iPod transmitter. Check the charging state of iPod/iPhone by checking the charging indication of its battery.

CAUTION

It links to Wireless Dock Cradle when



SWA-5000 is used.



Only Samsung wireless transmitter that is



compliant with the system can be recharged.

iPod/iPhone Models You Can Use with



This Product

iPod touch (3rd generation)



iPod touch (2nd generation)



iPod touch (1st generation)



iPod classic



iPod with video



04 Basic Functions

NOTE

“Made for iPod” means that an electronic accessory has been designed to connect speciﬁ cally to iPod and has been certiﬁ ed by the developer to meet Apple performance standards. “Made for iPhone” means that an electronic accessory has been designed to connect speciﬁ cally to iPhone and has been certiﬁ ed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. The volume control may not operated normally with iPod and iPhone models not listed above. If you have a problem with any of the models listed above, please update the software of the iPod/iPhone to the lastest version. Depending on the software version of the iPod, control problems may occur. This is not a malfunction of the Home Theater. Depending on the software version or the type of the iPod, some operations may differ. Install the latest iPod software. (recommended)

Some actions like iPod SYNC may depend on video sources or the iPod model you have.

You can enjoy music or videos through the BD/DVD function and enjoy music, videos or photos through the Remote iPod function. You need to use iPod Dock to enjoy videos or photos.

English 59

HT-D5330_XAC_0215.indd 59HT-D5330_XAC_0215.indd 59 2011-02-15 ¿ÀÈÄ 7:39:402011-02-15 ¿ÀÈÄ 7:39:40

Basic Functions

STANDBY

LINK

Playback of applications' contents through



the product may not be guaranteed. We recommend playing contents downloaded on the iPod.

If you have a problem using iPod, please



visit www.apple.com/support/ipod

Operation status of the wireless transmitter's LED

How to Link the Wireless Transmitter

with the Main Unit

Turn off your Home Theater.

Press the 4, 7, 6, 3 buttons on the remote

control in order.

The Power LED blinks once.

•

Connect the iPod/iPhone to the Wireless

transmitter.

LINK

STANDB

CHARGE

Turn on the iPod/iPhone. Press the "ID SET"

button on the back of the Wireless transmitter for 5 seconds. The link light on the wireless transmitter blinks rapidly.

Turn on your product.

To listen to music from iPod/iPhone over the

•

product, press the button to select "W. IPOD" mode.

After you select "W. IPOD" mode, turn the

•

volume of the product down to avoid hearing damage.

You can control the speaker volume of iPod/

•

iPhone with a volume wheel or a volume bar. When iPod/iPhone is stopped or in a power

•

saving mode, the Wireless transmitter enters Sleep Mode. When iPod/iPhone is set to Deep Sleep Mode, the Wireless transmitter turns off.

LIN

STANDBY

CHARGE

Function

Display

LED ON

LED BLINK

(Long blink)

LED BLINK

(Short blink)

CAUTION

If you use the main unit near a wireless device



LINK

(Blue LED)

Pairing

successfully

completed

Processing iPod/

iPhone

Processing

pairing

STANDBY

(Red LED)

STANDBY

LOW BATTERY

Pairing failed

such as a laptop computer, an AP, or Wiﬁ , an unstable operation error can occur.

Do not pair the SWA-5000 and iPod/iPhone at



the same time. If you pair them at the same time, the iPod/iPhone and SWA-5000 may not connect to the product.

The transmission distance from the product to



the wireless transmitter is about 16.4 feet, but may vary depending on your operation environment.

The audio signal may be weakened or even



lost where there is an obstacle such as a wall or partition between the product and wireless transmitter. You can also weaken or lose signal if you move the wireless transmitter around.

60 English

HT-D5330_XAC_0215.indd 60HT-D5330_XAC_0215.indd 60 2011-02-15 ¿ÀÈÄ 7:39:402011-02-15 ¿ÀÈÄ 7:39:40

Network Services

05 Network Services

You can enjoy various network services such as Smart Hub or BD-LIVE by connecting the product to your network.

Read the following instructions before using any network service.

Connect the product to the network.

(see pages 27~28) Conﬁ gure the network settings.

(see pages 39~42)

Using Smart Hub

Using Smart Hub, you can stream movies, videos, and music from the Internet, access various for pay or free-of-charge applications and view them on your TV. Application content includes news, sports, weather forecasts, stock market quotes, maps, photos, and games.

You can also start this function by pressing the SMART HUB button on the remote control.

Starting Smart Hub the First Time

To start Smart Hub for the ﬁ rst time, follow these steps :

The Smart Hub screen appears.

NOTE

✎

Certain applications are available only in certain



countries.

The Terms of Service Agreement screen

appears. If you want to agree, press the ◄► buttons to select Agree, then press the ENTER button.

NOTE

✎

Screens can take a few seconds to appear.



The Service Update screen appears and

installs a number of services and applications. When done, it closes. The applications and services downloaded are displayed on the Smart Hub screen. This may take some time.

NOTE

✎

Smart Hub may close momentarily during the



installation process. A number of screens may appear after



installation. You can press the ENTER button to close them or let them close on their own.

To start an application, press the ▲▼◄►

buttons to highlight a widget, then press the ENTER button.

Go to the Home menu.

My Contents

Videos

Photos

Music

My Devices Internet Settings

Function



Safely Remove USB d PBC(WPS)

Press the ◄► buttons to select Internet, and press the ENTER button.

English 61

HT-D5330_XAC_0215.indd 61HT-D5330_XAC_0215.indd 61 2011-02-15 ¿ÀÈÄ 7:39:452011-02-15 ¿ÀÈÄ 7:39:45

Network Services

Smart Hub at a Glance

1 2 3 5

Your Video

Recommended

Contents 1

Contents 2

Contents 3

xxxxxxxx

Contents 1

xxxxxxxx

Contents 7

xxxxxxxx

Contents 8

xxxxxxxx

Contents 2

xxxxxxxx

Contents 9

xxxxxxxx

Contents 4

Contents 3

xxxxxxxx

Contents 10

xxxxxxxx

7 6

Commercial : Displays the Smart Hub Guide, an introduction to the product, and new

application introductions.

Your Video : Provides recommendations for videos based on your tastes.

Lets you see movie recommendations

•

based on your previous preferences. Lets you select a movie, displays a list of

•

VOD (Video on Demand) providers that

have the movie, and then lets you choose a provider for streaming. (Streaming is unavailable in some areas.)

For instructions to use Your Video, please

•

visit www.samsung.com.

•

This feature is limited to certain regions.

Search : Provides an integrated search of your video providers and connected AllShare devices.

Usable while using Smart Hub (except

•

when you are watching a Blu-ray Disc).

For easy access, use the SEARCH button

•

on the remote control. For instructions to use search function,

•

please visit www.samsung.com.

Samsung Apps : You can download various for

pay or free-of-charge application services.

Recommended : Displays recommended

contents managed by Samsung.

Samsung Apps

Contents 1 Contents 2 Contents 3 Contents 4

Contents 4

xxxxxxxx

Contents 5

xxxxxxxx

Contents 11

xxxxxxxx

Contents 5

xxxxxxxx

Contents 12

xxxxxxxx

Contents 6

xxxxxxxx

Contents 6

xxxxxxxx

Contents 13

xxxxxxxx

Navigation Help : Displays the remote control buttons you can use to navigate in Smart Hub.

•

RED (A) : To log in to Smart Hub.

•

GREEN (B) : To sort the applications.

•

YELLOW (C) : To edit the applications.

•

BLUE (D) : To change the settings of Smart Hub.

My Applications : Displays your personal gallery of applications which you can add to, modify, and

delete.

NOTE

✎

Samsung Electronics takes no legal



responsibility for any interruption of the Smart Hub service caused by the service provider for any reason.



The Smart Hub service downloads and processes data via the Internet so that you can enjoy the Internet contents on your TV screen. If the Internet connection is unstable, the service may be delayed or interrupted. Furthermore, the product may turn off automatically in response to conditions on the Internet. If this occurs, check the Internet connection and try again.



Application services may be provided in English only and the contents available may vary, depending on your area.



For more information about a Smart Hub service, visit the web site of the applicable service provider.

The services provided are subject to change



by the Smart Hub service provider without notice.

The Smart Hub service contents may differ



depending on the product’s ﬁ rmware version. For pay DivX contents with copy protection



can only be played through a composite, a component or an HDMI cable.

62 English

HT-D5330_XAC_0215.indd 62HT-D5330_XAC_0215.indd 62 2011-02-15 ¿ÀÈÄ 7:39:462011-02-15 ¿ÀÈÄ 7:39:46

05 Network Services

Using the Keypad

Through your remote, you can use the OnScreen Keypad to enter letters, numbers, and symbols.

123

. , –

abc def

456

ghi jkl mno

789

pqrs tuv wxyz

Shift Delete

ab Ab AB 1 

Input Method Language: English

4 5

The current keypad.

Use to enter letters, numbers, and symbols.

Press the FULL SCREEN button on the remote control to shift the input mode.

: ab, Ab, AB, numbers or icons.

Displays the current input mode.

Press the GREEN (B) button on the remote

control to change the input method. (T9 or ABC)

Press the TOOLS button on the remote control

to change the language.

Press the REPEAT button on the remote control

to delete a character.

Entering Text, Numbers and Symbols

To enter text, press the number button on the remote that corresponds to the letter you want to enter. Press the button rapidly to enter a letter that is not the ﬁ rst letter listed on the On-Screen keypad button. For example, if you want to enter the letter b, press the 2 button on your remote rapidly twice. To enter the ﬁ rst letter listed on a button, press, release, and then wait.

To move within the text, use the Arrow buttons. To delete text, move the cursor to the right of the character you want to delete, and then press the REPEAT button. To change case or enter numbers or punctuation, press the FULL

SCREEN button.

Creating an Account

To establish your own, exclusive, conﬁ guration of Smart Hub, create your own Smart TV Account.

To create an account, follow these steps:

Press the RED (A) button on your remote

control. The Login screen appears.

Your Video

Recommended

Smart TV ID

Password

Contents 1

xxxxxxxx

Contents 7

Contents 8

xxxxxxxx

Press the ▲▼◄► buttons to select Create

Press [ENTER]

Contents 1

Contents 2

Press [ENTER]

xxxxxxxx

Remember Smart TV Account Password



Contents 3

Contents 2

xxxxxxxx

Create Account Find Password

Contents 9

xxxxxxxx

Contents 3

xxxxxxxx

Contents 4

xxxxxxxx

Contents 10

xxxxxxxx

Samsung Apps

Contents 1 Contents 2 Contents 3 Contents 4

Contents 4

Contents 5

xxxxxxxx

Contents 6

Contents 5

xxxxxxxx

Contents 11

Contents 12

xxxxxxxx

Account, and then press the ENTER button.

On the next screen, select Smart TV ID, and

then press the ENTER button. An entry screen and keypad appear.

Use the keypad to enter your e-mail

address. This will serve as your ID.

NOTE

✎

The keypad works like the keypad on a cell



phone.

When done, press the ENTER button to

select OK, and then press the ENTER button again. The Create Account screen reappears.

Select Password, and then press the

ENTER button. The Password screen and a keypad appear.

Use the keypad to enter a password.

The password can be any combination of letters, numbers, and symbols.

NOTE

✎

Press the RED (A) button on your remote to



show or hide the password as you enter it.

English 63

HT-D5330_XAC_0215.indd 63HT-D5330_XAC_0215.indd 63 2011-02-15 ¿ÀÈÄ 7:39:482011-02-15 ¿ÀÈÄ 7:39:48

Network Services

When done, press the ENTER button to

select OK, and then press the ENTER button again. The Create Account screen re-appears.

Select Conﬁ rm password, and then press

the ENTER button. Repeat Steps 7 and 8.

10.

When the Create Account screen re-

11.

appears, select Create Account, and then press the ENTER button. The Conﬁ rmation window appears.

Select OK, and then press the ENTER

12.

button. The Continue to Register Service window appears.

Select Connect Service, and then press the

13.

ENTER button. The Register Service Account Window

14.

appears.

If you have existing accounts with any of

•

the listed providers, you can associate the provider account and the provider account password with your Smart TV Account. Registration makes it easier to access the providers web site. For registration instructions, go to Step 2 in Account Management under the Settings Menu.

If you don’t have existing provider accounts

•

or do not want to register existing accounts at this time, select OK, and then press the ENTER button. You can also let the window close on its own in about a minute.

NOTE

✎

You must use an e-mail address as an ID.



You can register up to 10 User Accounts.



You do not need an account to use Smart



Hub.

Account Log In

To log in to your Smart TV Account, follow these steps:

With the Smart Hub main screen displayed on your TV, press the RED (A) button on your remote. The Login screen appears.

Select the Down Arrow next to the Smart

Hub ID ﬁ eld, and then press the ENTER button.

Select your ID from the list that appears, and

then press the ENTER button. The Login screen re-appears.

Select Password, and then press the

ENTER button. The Password window and a keypad appears.

Using the keypad and your remote, enter

your password. When done, press the ENTER button, select OK, and then press the ENTER button again.

NOTE

✎

If you want Smart Hub to enter your password



automatically, select Remember my Smart TV ID and password after you have entered your password, and then press the ENTER button. A check appears. Smart Hub will now enter your password automatically when you select or enter your ID.

The Settings Menu - BLUE (D)

The Settings Menu Screen gives you access to account management, account reset, and account properties functions.

To access the Settings Menu, and then select a menu item, follow these steps:

Press the BLUE (D) button on your remote.

Press the ▲▼ to select a menu item, and

then press the ENTER button.

The functions on the Settings Menu screen are described below.

NOTE

✎

The Service Manager item listed in the Settings



Menu is not available for Blu-ray Home Theaters.

Account Management

The Account Management Menu contains functions that let you register your service provider accounts, change your Smart Hub password, and delete or deactivate your Smart TV Account.

64 English

HT-D5330_XAC_0215.indd 64HT-D5330_XAC_0215.indd 64 2011-02-15 ¿ÀÈÄ 7:39:502011-02-15 ¿ÀÈÄ 7:39:50

05 Network Services

If you have existing accounts with any of the providers listed by the Register Service Account function, you can associate the provider account and the provider account password with your Smart TV Account. If you associate the account, you will be able to log onto the account through Smart Hub easily, without entering your account name or password.

To use the Account Management function, follow these steps:

In the Account Management menu, select

Press the ▲▼ arrow buttons to select a

Service Provider you want to associate with your Smart TV Account, and then press the

ENTER button.

NOTE

✎

If you have a Samsung account and you want



to use the Samsung Apps function in Smart Hub, you must register your Samsung Apps account here. See page 68 for more information.

Using your remote and the on-screen

Keypad, enter your site ID and password. When done, press the ENTER button.

NOTE

✎

This is the ID and password you normally use



to access your account on this site.

If you have entered the ID and password

correctly, the Registered Successfully message appears.

If you pressed OK, repeat Steps 2 through 4

to associate another Service Provider. When you are done, press the RETURN

button.

Change Password

The Change Password function lets you change your Smart Hub password. To change the password, follow these steps:

Select Change Password, and then press

the ENTER button. Enter your current password. The next

screen appears. On the next screen, enter a new password

on the ﬁ rst line. Enter it again on the second line to conﬁ rm.

The Changing Password Complete message

screen appears. Press the ENTER button or wait for the screen to close - about 5 seconds.

Remove Service Accounts

The Remove Service Accounts function cancels all your current registered Service Accounts that you registered on the Register Service Account screen.

Deactivate Account

The Deactivate Account function deactivates your Smart TV Account and deletes it and all your account settings entirely from Smart Hub.

Reset

The Reset function initializes all downloaded widgets, erases all user accounts and settings from the product, and resets all Smart Hub settings to the factory default settings. It then restarts Smart Hub as if it were starting for the ﬁ rst time. Your account, however, remains on the Smart Hub server. To log into your account, enter your ID and password on the Create Account screen.

To use the Reset function, follow these steps:

In the Account Management menu, select Reset, and then press the ENTER button. The Reset screen appears.

Enter the your Security password. This is the password you entered if you set up a BD or DVD Parental rating (See page 44). If you did not, enter 0000.

English 65

HT-D5330_XAC_0215.indd 65HT-D5330_XAC_0215.indd 65 2011-02-15 ¿ÀÈÄ 7:39:512011-02-15 ¿ÀÈÄ 7:39:51

Network Services

After a few moments, Smart Hub

automatically resets. The screen may go black, then Smart Hub re-appears. In a few moments, it starts the re-initialization procedure.

To complete the re-initialization, go to Step 4

in Starting Smart Hub for the First Time. (See page 61)

NOTE

✎

If you forgot your password, press the STOP



(  ) button on the front panel of the product for more than 5 seconds with no disc inserted.

Press the ▲▼◄► to select a menu item,

and then press the ENTER button.

The functions in the Edit Mode Menu bar are described below.

NOTE

✎

Some menu items may not appear on the



screen. To see these items, press the ◄► to move to the screen edge, and then press one more time to reveal the items.



You can close the bar by highlighting the X on the bottom right side, and then pressing the

ENTER button.

Properties

The Properties menu item lists three functions that display information about Smart Hub :

Lists information about Smart Hub including version number, the number of services installed, memory usage, and the unique product ID.

Check the speed of your internet connection

Runs a test which shows how fast your connection to the Samsung's server is in Mbps (Megabits per second). Speeds lower than 1.5 Mbps can limit your enjoyment of Smart Hub.

Displays the Terms of Service Agreement.

The Edit Mode Menu - YELLOW (C)

The functions in the Edit Mode menu let you manipulate the widgets in the My Applications section of the Smart Hub screen. Using these functions, you can lock and unlock access to some widgets, New Folder and move widgets to them, rename folders, delete widgets, and change the position of widgets on the screen.

To access the Edit Mode Menu, and then select a menu item, follow these steps:

Press the YELLOW (C) button on your

remote. The Edit Mode menu bar appears on the bottom of the screen.

Move

The Move function lets you change the screen position of a widget. To use the Move function, follow these steps:

Press the YELLOW (C) button on your

remote. Select a widget, and then press the ENTER

button. A check appears above the widget. Press the ▲▼◄► to select Move, and

then press the ENTER button. The Move window opens.

Press the ▲▼◄► to move the icon. Press

the ENTER button when the icon is in the position of your choice. The widget moves to its new location.

New Folder

The New Folder function lets you create and name new folders. Once you have created a folder, you can move widgets into it. To use the New Folder function, follow these steps:

Press the YELLOW (C) button on your remote.

Press the ▲▼◄► to move the cursor to New Folder, and then press the ENTER button. The New Folder window and a keypad appear.

Use the keypad to enter the name of the folder, and then press the ENTER button. The New Folder screen closes and the New Folder appears on the Smart Hub screen.

66 English

HT-D5330_XAC_0215.indd 66HT-D5330_XAC_0215.indd 66 2011-02-15 ¿ÀÈÄ 7:39:512011-02-15 ¿ÀÈÄ 7:39:51

05 Network Services

Move to Folder

The Move to Folder function lets you move a widget to a folder. To use the Move to Folder function, follow these steps:

Press the YELLOW (C) button on your

remote. Select a widget, and then press the ENTER

button. Press the ▲▼◄► to select Move to Folder,

and then press the ENTER button. The Move to Folder window opens.

Press the ▲▼◄► to select a folder, and

then press the ENTER button. The Moved to Folder message appears, and then closes. The widget has been moved to the folder.

To Access Widgets in a Folder

Close the Edit Mode menu.

In My Applications, press the ▲▼◄► to

select a folder, and then press the ENTER button. The folder opens.

Select a widget, and then press the ENTER

button. The widget’s application or service starts.

To Edit Items in a Folder

Select a folder, and then press the ENTER button. The folder opens.

Press the YELLOW (C) button on your remote. The Edit buttons appear at the bottom of the screen.

These buttons work the same as the Edit Mode menu buttons on the main screen. For example, to move a widget back to the My Applications main screen:

Select the widget.

Select Move to Folder, and then press the

ENTER button. The Move to Folder window appears.

Select My Applications, and then press the

ENTER button. The Move to Folder window closes and the widget returns to the main My Applications screen.

Rename Folder

The Rename Folder function lets you rename folders. To use the Rename Folder function, follow these steps:

Press the YELLOW (C) button on your

remote. Press the ▲▼◄► to select a folder, and

then press the ENTER button. Press the ▲▼◄► to select Rename a

Folder, and then press the ENTER button. The Folder Rename window and a keyboard appears.

Use the key board to enter a new name, and

then press the ENTER button. The Rename window closes and the new name appears below the folder.

Lock

The Lock function lets you lock some widgets in My Applications so they can not be opened without entering the Parental Security Code.

To use the Lock function, follow these steps:

Press the YELLOW (C) button on your

remote. Press the ▲▼◄► to select a widget, and

then press the ENTER button. If the widget can be locked, the Lock menu item is enabled.

Press the ▲▼◄► to select Lock, and then

press the ENTER button. The Security window appears.

Enter your Parental Security Code (See page

44). If you have not created a Parental Security Code, enter 0000.

Press the ENTER button. The Lock Service

window appears conﬁ rming the lock, and then closes. A lock symbol appears next to the widget.

English 67

HT-D5330_XAC_0215.indd 67HT-D5330_XAC_0215.indd 67 2011-02-15 ¿ÀÈÄ 7:39:512011-02-15 ¿ÀÈÄ 7:39:51

Network Services

Unlock

Press the YELLOW (C) button on your

remote. Press the ▲▼◄► to select a locked

widget, and then press the ENTER button. Press the ▲▼◄► to select Unlock, and

then press the ENTER button. The Security window appears.

Enter the Parental Security Code (See page

44). If you have not created a Parental Security Code, enter 0000.

Press the ENTER button. The Lock Service

Released window appears conﬁ rming the lock has been release, and then closes.

Delete

The Delete function lets you delete widgets from My Applications. To use the Delete function, follow these steps:

Press the YELLOW (C) button on your

remote. Press the ▲▼◄► to select a widget, and

then press the ENTER button. Press the ▲▼◄► to select Delete, and

then press the ENTER button. The message, "Do you want to delete the selected item(s)?" appears.

Select Yes, and then press the ENTER

button. The widget is deleted.

The Sort Menu - GREEN (B)

The functions in the Sort Menu let you sort the widgets in My Applications by Name, Date, Frequency (of use), and Category. If you manually change the position of a widget, the Sort Menu automatically highlights User Deﬁ ned when you start it.

To sort the widgets in My Applications, follow these steps:

Press the GREEN (B) button on your remote.

Press the ◄► to select a sorting method, and then press the ENTER button. Smart Hub sorts the widgets by the method you have chosen.

Samsung Apps

Samsung Apps lets you download for pay or free-of-charge applications and services to your Blu-ray Home Theater and view or use them on your TV.

These applications and services include videos, music, photos, games, news, sports, etc. Widgets for the new apps appear in My Applications.

Additional applications and services are added regularly.

For Pay Apps

To download for pay apps, you need to create a Samsung Account and add a credit card to the account.

To create a Samsung account, please visit www. samsung.com

NOTE

✎

This service may not provided in some

countries. Submit.

Accessing the Samsung Apps Screen

To access Samsung Apps, press the ▲▼◄► buttons to navigate to the Samsung Apps area on the Smart Hub main screen, and then press the ENTER button. The Samsung Apps screen appears.

NOTE

✎



rmation form, and then click

If this is the ﬁ rst time you are accessing this screen, the terms of service window appears. Select Agree, and then press the ENTER button.

68 English

HT-D5330_XAC_0215.indd 68HT-D5330_XAC_0215.indd 68 2011-02-15 ¿ÀÈÄ 7:39:512011-02-15 ¿ÀÈÄ 7:39:51

05 Network Services

Using the Samsung Apps Screen

To use the Samsung Apps screen, follow these steps:

Press the ◄► buttons to move to the

category list on the left. Press the ▲▼ to highlight a category. In a

few seconds, the Samsung Apps screen displays the applications in that category. The Sort tabs appear across the top.

Press the ► button to move to the displayed

applications or services. Press the ▲▼◄► buttons to select an

application or service, and then press the ENTER button. The Application Details screen appears describing the service or application.

Select Download Now, and then press the

ENTER button. If the application or service is free, it downloads and runs. If not, and there is a fee, follow the directions on the screen to complete the download.

NOTE

✎

Some apps are free to download, but require



registration with the provider or a paid account with the provider to use. Widgets for applications and services you have



downloaded from Samsung Apps appear in My Applications.

Sort By Tabs

You can access the Sort By tabs on the top of the screen using the ▲▼◄► buttons. Each tab displays the services or applications in the category you chose, sorted by the criteria on the tab (Recommended, Most Downloaded, Most Recent, Name).

You can also use the BLUE (D) button on your remote to access the Sort By tabs. Each time you press the BLUE (D) button, you change the display from one sort tab to the next.

Samsung Apps by category

The following categories are available:

What’s New? : Displays newly registered

•

applications. Video : Displays various video media such as

•

movies, TV shows, and short length videos. Game : Displays various games such as sudoku

•

and chess. Sports : Displays various sports media services

•

such as match information, images, and short length videos.

Lifestyle : Includes various lifestyle media services

•

such as music, personal photo management tools, and social networking such as Facebook and Twitter.

Information : Includes various information services

•

such as news, stocks, and weather. Other : Includes other miscellaneous services.

•

My Account

My Account gives you access to your Samsung Apps order and download history, and to the My Apps Cash screen. You must have a Samsung account to access this information.

Help

If you have questions about Samsung Apps, check Help ﬁ rst. If none of the tips apply, please visit www.samsung.com.

To use the Help function, follow these steps:

Press the ▲▼◄► buttons to select Help,

and then press the ENTER button. Press the ◄► to enter Help after it appears.

Press the ▲▼ to scroll the Help text.

Press the ◄ to exit Help.

English 69

HT-D5330_XAC_0215.indd 69HT-D5330_XAC_0215.indd 69 2011-02-15 ¿ÀÈÄ 7:39:512011-02-15 ¿ÀÈÄ 7:39:51

Network Services

Using the colored buttons on your remote with Samsung Apps

RED (A) (Login) : To log into your Smart TV

•

Account. GREEN (B) (Thumbnail/List View) : To toggle

•

applications between Thumbnail and List view. BLUE (D) (Sort By) : To sort the applications in a

•

category by Recommended, Most Downloaded, Most Recent, or Name.

Return : To return to the previous menu.

•

NOTE

✎

The Internet contents services may be added



or deleted by providers without notice.

For instructions to use Your Video or Search Function, please visit www.samsung.com

BD-LIVE™

Once the product is connected to the network, you can enjoy various movie-related service contents using a BD-LIVE compliant disc.

Attach a USB memory stick to the USB jack

on the front of the product, and then check its remaining memory. The memory device must have at least 1GB of free space to accommodate the BD-LIVE services.

Insert a Blu-ray disc that supports BD-LIVE.

Select an item from various BD-LIVE service

contents provided by the disc manufacturer.

Using the AllShare Function

AllShare lets you play music, video, and photo ﬁ les located in your PC or your DLNA compatible mobile phone or NAS on the product.

To use AllShare with your product, you must connect the product to your network (See pages 27~28). To use AllShare with your PC, you must install AllShare software on your PC.

If you have a DLNA compatible mobile phone or NAS, you can use AllShare without any additional software.

You can download the PC software and get detailed instructions for using AllShare from the Samsung. com web site.

NOTE

✎

The way you use BD-LIVE and the provided



contents may differ, depending on the disc manufacturer.

70 English

HT-D5330_XAC_0215.indd 70HT-D5330_XAC_0215.indd 70 2011-02-15 ¿ÀÈÄ 7:39:512011-02-15 ¿ÀÈÄ 7:39:51

Other Information

Troubleshooting

Refer to the chart below when this product does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the product, disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG.

Symptom Check/Remedy

06 Other information

I cannot eject the disc.

The iPod fails to connect.

Playback does not start.

Playback does not start immediately when the Play/Pause button is pressed.

Sound is not produced.

Sound can be heard only from a few speakers and not all 6.

Dolby Digital 5.1 CH Surround Sound is not produced.

The remote control does not work.

• Disc is rotating but no

picture is produced.

• Picture quality is poor and

picture is shaking.

Audio language and subtitles do not work.

Menu screen does not appear even when the menu function is selected.

• Is the power cord plugged securely into the outlet?

• Turn off the power and then turn it back on.

• Check the condition of the iPod connector and Dock.

• Keep the iPod S/W version up to date.

• Check the region number of the BD/DVD. BD/DVD discs purchased from abroad may not be playable.

• CD-ROMs and DVD-ROMs cannot be played on this Product.

• Make sure that the rating level is correct.

• Are you using a deformed disc or a disc with scratches on the surface?

• Wipe the disc clean.

No sound is heard during fast playback, slow playback, and step motion playback.

•

Are the speakers connected properly? Is the speaker setup correctly customized?

• Is the disc severely damaged?

• On certain BD/DVD discs, sound is output from the front speakers only.

• Check if the speakers are connected properly.

• Adjust the volume.

• When listening to a CD, radio or TV, sound is output to the front speakers only. Select "PRO LOGIC control to use all six speakers.

Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is

• produced only if the disc is recorded with 5.1 channel sound.

• Is the audio language correctly set to Dolby Digital 5.1-CH in the information display?

•

Is the remote control being operated within its operation range of angle and distance?

• Are the batteries drained?

•

Have you selected the mode(TV/BD) functions of the remote control (TV or BD) correctly?

• Is the TV power on?

• Are the video cables connected properly?

• Is the disc dirty or damaged?

• A poorly manufactured disc may not be playable.

•

Audio language and subtitles will not work if the disc does not contain them.

• Are you using a disc that does not contain menus?

" by pressing PL II (Dolby Pro Logic II) on the remote

English 71

HT-D5330_XAC_0215.indd 71HT-D5330_XAC_0215.indd 71 2011-02-15 ¿ÀÈÄ 7:39:512011-02-15 ¿ÀÈÄ 7:39:51

Other information

Symptom Check/Remedy

Aspect ratio cannot be changed.

• The product is not working. (Example: The power goes out or a strange noise is heard.)

•

The Product is not working

normally.

The rating level password has been forgotten.

Can't receive radio broadcasts.

While listening to TV audio through the Product, no sound is heard.

"Not Available" appears on screen.

If the HDMI output is set to a resolution your TV cannot support (for example, 1080p), you may not see a picture on your TV.

No HDMI output.

• You can play 16:9 BD/DVDs in 16:9 Wide mode, 4:3 Letter Box mode, or 4:3 Pan - Scan mode, but 4:3 BD/DVDs can be seen in 4:3 ratio only. Refer to the Blu-ray Disc jacket and then select the appropriate function.

• Press and hold the romote control's STOP (  ) button for 5 seconds in STANDBY mode.

- Using the RESET function will erase all stored settings.

Do not use this unless necessary.

• With no disc in the product, press and hold the product's STOP (  ) button for longer than 5 seconds. INIT appears on the display and all settings will return to the default values. And then press the POWER button.

- Using the RESET function will erase all stored settings.

Do not use this unless necessary.

• Is the antenna connected properly?

• If the antenna's input signal is weak, install an external FM antenna in an area with good reception.

If the OPEN/CLOSE ( ) button is pressed while listening to TV audio using the

• D.IN or AUX functions, the BD/DVD functions are turned on and the TV audio is muted.

• The features or action cannot be completed at this time because:

1. The BD/DVD’s software restricts it.

2. The BD/DVD’s software doesn’t support the feature (e.g., angles)

3. The feature is not available at the moment.

You’ve requested a title or chapter number or search time that is out of range.

• Press and hold the STOP (  ) button on front panel for more than 5 seconds with no disc inserted. All settings will revert to the factory settings.

• Check the connection between the TV and the HDMI jack of the Product.

• Check if your TV supports 480p/720p/1080i/1080p HDMI input resolution.

Abnormal HDMI output screen.

• If random noise appears on the screen, it means that TV does not support HDCP (High-bandwidth Digital Content Protection).

72 English

HT-D5330_XAC_0215.indd 72HT-D5330_XAC_0215.indd 72 2011-02-15 ¿ÀÈÄ 7:39:522011-02-15 ¿ÀÈÄ 7:39:52

Symptom Check/Remedy

PC Share Manager function

06 Other information

I can see folders shared through the PC Share Manager, but I cannot see the ﬁ les.

AllShare function

Video is played intermittently.

AllShare connection between TV and PC is unstable.

BD-LIVE

I cannot connect to the BD-LIVE server.

When using the BD-LIVE service, an error occurs.

• Since it shows only ﬁ les corresponding to the Image, Music, and Movie categories, ﬁ les that do not correspond to these categories may not be displayed.

• Check if the network is stable.

• Check if the network cable is properly connected and if the network is not overloaded.

• Wireless connection between the server and the product is unstable. Check the connection.

•

IP address under the same subnetwork should be unique, otherwise IP collision can results in such a phenomenon.

•

Check if you have a ﬁ rewall enabled. If so, disable the ﬁ rewall function.

• Check whether the network connection is successful or not by using Network Test menu.

• Check whether the USB memory device is connected with product or not.

• The memory device must have at least 1GB of free space to accommodate the BD-LIVE service. You can check the available size in BD Data Management. (See page 43)

• Please check whether the BD-LIVE Internet Connection menu is set to Allow(All).

• If all above fails, contact the contents provider or update the latest ﬁ rmware.

The memory device must have at least 1GB of free space to accommodate the

• BD-LIVE service. You can check the available size in BD Data Management. (See page 43)

NOTE

✎

When the factory default settings are restored, all the user data stored in the BD data will be deleted.



English 73

HT-D5330_XAC_0215.indd 73HT-D5330_XAC_0215.indd 73 2011-02-15 ¿ÀÈÄ 7:39:522011-02-15 ¿ÀÈÄ 7:39:52

Other information

Index

0~9

3D Settings 31

Accessories 14 Ad-hoc 28 AllShare 70 Anynet+(HDMI-CEC) 43 Audio 35 Audio Language 50 Audio Return Channel 37 Audio Sync 39

Background Music 56 BD-LIVE 70 BD Data Management 43 BD Parental Rating 44 BD Wise 32 BONUSVIEW 51

Camera Angle 51 Change Password 44 Connections 19

Speaker 19 Wireless receiver module TV 24 HDMI 24 Component 25 Composite 25 Set-Top Box 26 OPTICAL 26 AUX 26 Network 27 LAN Cable 27 Wireless Network 28 Wireless LAN Adapter 28 FM Antenna 28

Contact Samsung 46

Digital Output 37 Disc menu 47 Disc Structure 47 Display 31 DivX® Video On Demand 43 Dolby Pro Logic ll Mode 55 DSP 54 DVD Parental Rating 44 Dynamic Range Control 38

Front Display 44

General 44

HDMI Audio 37 HDMI Color Format 34 HDMI Deep Color 34

Initial Settings 29, 43 iPod 57 iPod Sync 55

Language 44

Mono/Stereo 57 Movie Frame (24 Fs) 34 Musical Room Calibration 36

Network Remote Control 44 Network Setup 39 Network Status 42

Picture Setting 51 Playlist 53 Popup menu 47 Progressive Mode 34

Region Code 11 Remote Control 17 Remote Control Sensor 15 Repeat 49, 53 Reset 43 Resolution 32

Search and Skip 48 Security 44 Setting the Menu 30 Setup 29 SFE 53 Slow and Step 49 Smart Hub 61 Smart Hub Screen Size 32 Software Upgrade 45 Speaker Setting 35 Still Mode 34 Subtitle Language 50 Support 45 System 42

Time Zone 43 Title menu 48 Title list 48 TV Aspect 32 TV Screen Saver 29

USB Storage Device 56 User EQ 36

Zoom 56

74 English

HT-D5330_XAC_0215.indd 74HT-D5330_XAC_0215.indd 74 2011-02-15 ¿ÀÈÄ 7:39:522011-02-15 ¿ÀÈÄ 7:39:52

General

FM Tuner

Disc

Video Output

Video/Audio

Amplifier

Speciﬁ cations

Weight 7.7 Ibs Dimensions 16.9 (W) x 2.3 (H) x 12.8 (D) inches Operating Temperature Range +41°F to +95°F Operating Humidity Range 10 % to 75 %

Signal/noise ratio Usable sensitivity 12 dB

Total harmonic distortion

BD (Blu-ray Disc) Reading Speed : 9.834 m/sec

DVD (Digital Versatile Disc)

CD : 5 inches (COMPACT DISC)

CD : 3 1/2 inches (COMPACT DISC)

Composite Video

Component Video

HDMI

Front speaker output 165W x 2(3Ω) Center speaker output 170W(3 Surround speaker output 165W x 2(3 Subwoofer speaker output 170W(3

Frequency response

S/N Ratio 70dB Channel separation 60dB Input sensitivity (AUX)500mV

55 dB

0.5 %

Reading Speed : 6.98 ~ 7.68 m/sec. Approx. Play Time (Single Sided, Single Layer Disc) : 135 min. Reading Speed : 4.8 ~ 5.6 m/sec. Maximum Play Time : 74 min. Reading Speed : 4.8 ~ 5.6 m/sec. Maximum Play Time : 20 min. 1 channel : 1.0 Vp-p (75 Ω load) Blu-ray Disc : 480i DVD : 480i Y : 1.0 Vp-p (75 Ω load) Pr : 0.70 Vp-p (75 Ω load) Pb : 0.70 Vp-p (75 Ω load) BD : 480i DVD : 480p, 480i 1080p, 1080i, 720p, 480p

PCM multichannel audio, Bitstream audio, PCM audio

)

) Analog input 20Hz~20kHz (±3dB) Digital input 20Hz~40kHz (±-4dB)

06 Other information

English 75

HT-D5330_XAC_0215.indd 75HT-D5330_XAC_0215.indd 75 2011-02-15 ¿ÀÈÄ 7:39:522011-02-15 ¿ÀÈÄ 7:39:52

Other information

Speaker system

Impedance 3 Ω 3 Ω 3 Ω 3 Ω Frequency range 140Hz~20kHz 140Hz~20kHz 140Hz~20kHz 40Hz ~ 160Hz Output sound pressure level 86dB/W/M 86dB/W/M 86dB/W/M 88dB/W/M

Speaker

- Samsung Electronics Co., Ltd reserves the right to change the speciﬁ cations without notice.

- Weight and dimensions are approximate.

- Design and speciﬁ cations are subject to change without prior notice.

- For the power supply and Power Consumption, refer to the label attached to the product.

Rated input 165W 165W 170W 170W Maximum input 330W 330W 340W 340W

Dimensions (W x H x D)

Weights

Front Surround Center Subwoofer

Front : 3.54 x 47.2 x 2.7 inches (Stand base : 9.84 x 9.84 inches) Surround : 3.54 x 5.57 x 2.7 inches Center : 14.17 x 2.93 x 2.7 inches Subwoofer : 6.61 x 13.78 x 11.22 inches

Front : 7.42 Ibs, Surround : 1.28 Ibs Center : 1.26 Ibs, Subwoofer : 8.38 Ibs

5.1ch speaker system

*: Nominal speciﬁ cation

76 English

HT-D5330_XAC_0215.indd 76HT-D5330_XAC_0215.indd 76 2011-02-15 ¿ÀÈÄ 7:39:522011-02-15 ¿ÀÈÄ 7:39:52

LIMITED WARRANTY TO ORIGINAL PURCHASER

Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective material and workmanship.

SECA further warrants that if this product falls to operate properly within the specified warranty period and the failure is due to improper workmanship or defective materials, SECA will repair or replace the product at its option.

All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG)

LABOR

One year (Carry- in)

On carry-in models, transportation to and from the service center is the customer’s responsibility.

The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized service center at the time service is requested.

PARTS

One year

EXCLUSIONS (WHAT IS NOT COVERED)

This warranty does not cover damage due to accident, fire, flood and/ or other acts of God; misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use or damage that occurs in shipping. Exterior and interior finish, lamps, glass are not covered under this warranty. Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

HEADQUARTERS

SAMSUNG ELECTRONICS CANADA INC.,

CUSTOMER SERVICE

55 STANDISH COURT MISSISSAUGA, ONTARIO L5R 4B2 CANADA

FABRIQUE EN CORÉE

1-800-SAMSUNG (1-800-7267864)

WWW.SAMSUNG.COM/CA

HT-D5330_XAC_0215.indd 77HT-D5330_XAC_0215.indd 77 2011-02-15 ¿ÀÈÄ 7:39:522011-02-15 ¿ÀÈÄ 7:39:52

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Area Contact Center

North America

Canada 1-800-SAMSUNG (726-7864) www.samsung.com Mexico 01-800-SAMSUNG (726-7864) www.samsung.com U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com

Latin America

Argentine 0800-333-3733 www.samsung.com Brazil 0800-124-421 / 4004-0000 www.samsung.com Chile 800-SAMSUNG (726-7864) www.samsung.com Colombia 01-8000112112 www.samsung.com Costa Rica 0-800-507-7267 www.samsung.com Dominica 1-800-751-2676 www.samsung.com Ecuador 1-800-10-7267 www.samsung.com El Salvador 800-6225 www.samsung.com Guatemala 1-800-299-0013 www.samsung.com Honduras 800-7919267 www.samsung.com Jamaica 1-800-234-7267 www.samsung.com Nicaragua 00-1800-5077267 www.samsung.com Panama 800-7267 www.samsung.com Peru 0-800-777-08 www.samsung.com Puerto Rico 1-800-682-3180 www.samsung.com Trinidad &

Tobago Venezuela 0-800-100-5303 www.samsung.com

Europe

Albania 42 27 5755 -

Austria

Belgium 02-201-24-18

Bosnia 05 133 1999 Bulgaria 07001 33 11 www.samsung.com Croatia 062 SAMSUNG (062 726 7864) www.samsung.com

Czech

Denmark 70 70 19 70 www.samsung.com Finland 030 - 6227 515 www.samsung.com France 01 48 63 00 00 www.samsung.com

Germany

Hungary 06-80-SAMSUNG (726-7864) www.samsung.com Italia 800-SAMSUNG (726-7864) www.samsung.com Kosovo +381 0113216899 Luxemburg 261 03 710 www.samsung.com Macedonia 023 207 777 Montenegro 020 405 888 -

Netherlands

Norway 815-56 480 www.samsung.com

Poland

Portugal 80820-SAMSUNG (726-7864) www.samsung.com

Rumania

1-800-SAMSUNG (726-7864) www.samsung.com

0810 - SAMSUNG (7267864, € 0.07/min)

800-SAMSUNG (800-726786) Samsung Zrt., česká organizační

složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8

01805 - SAMSUNG (726-7864 € 0,14/Min)

0900-SAMSUNG (0900-7267864) (€ 0,10/Min)

0 801 1SAMSUNG (172678) / 022-607-93-33

1. 08010 SAMSUNG (72678) doar din reţeaua Romtelecom, tarif local

2. 021.206.01.10 - din orice reţea, tarif normal



Web Site

www.samsung.com

www.samsung.com/ be (Dutch) www.samsung.com/ be_fr (French)

www.samsung.com

Area Contact Center

Serbia

Slovakia 0800-SAMSUNG (726-7864) www.samsung.com Spain 902-1-SAMSUNG (902 172 678) www.samsung.com Sweden 0771 726 7864 (SAMSUNG) www.samsung.com

Switzerland

U.K 0330 SAMSUNG (7267864) www.samsung.com Eire 0818 717100 www.samsung.com Lithuania 8-800-77777 www.samsung.com Latvia 8000-7267 www.samsung.com Estonia 800-7267 www.samsung.com

CIS

Russia 8-800-555-55-55 www.samsung.com Georgia 8-800-555-555 Armenia 0-800-05-555 Azerbaijan 088-55-55-555 -

Kazakhstan

Uzbekistan 8-10-800-500-55-500 www.samsung.com Kyrgyzstan 00-800-500-55-500 www.samsung.com Tadjikistan 8-10-800-500-55-500 www.samsung.com

Ukraine 0-800-502-000

Belarus 810-800-500-55-500 Moldova 00-800-500-55-500 -

Asia Paciﬁ c

Australia 1300 362 603 www.samsung.com New Zealand China

Hong Kong (852) 3698 4698

India

Indonesia

Japan 0120-327-527 www.samsung.com Malaysia 1800-88-9999 www.samsung.com

Philippines

Singapore 1800-SAMSUNG (726-7864) www.samsung.com Thailand 1800-29-3232 / 02-689-3232 www.samsung.com Taiwan 0800-329-999 www.samsung.com Vietnam 1 800 588 889 www.samsung.com

Middle East

Bahrain 8000-4726 www.samsung.com Egypt 08000-726786 www.samsung.com Jordan 800-22273 www.samsung.com Morocco 080 100 2255 www.samsung.com Oman 800-SAMSUNG (726-7864) www.samsung.com Saudi Arabia 9200-21230 www.samsung.com Turkey 444 77 11 www.samsung.com U.A.E 800-SAMSUNG (726-7864) www.samsung.com

Africa

Nigeria 0800-SAMSUNG (726-7864) www.samsung.com South Africa 0860-SAMSUNG (726-7864 ) www.samsung.com

0700 Samsung (0700 726

7864)

0848-SAMSUNG (7267864, CHF 0.08/min)

8-10-800-500-55-500 (GSM: 7799)

0800 SAMSUNG (0800 726 786) 400-810-5858 / 010-6475 1880

3030 8282 / 1800 110011 / 1800 3000 8282 / 1800 266 8282

0800-112-8888 / 021-5699-7777

1-800-10-SAMSUNG(726-7864) / 1-800-3-SAMSUNG(726-7864) / 1-800-8-SAMSUNG(726-7864) / 02-5805777



Web Site

www.samsung.com

www.samsung.com/ch www.samsung.com/ ch_fr/(French)

www.samsung.com

www.samsung.ua www.samsung.com/ ua_ru

www.samsung.com www.samsung.com www.samsung.com/hk

www.samsung.com/ hk_en/

www.samsung.com

HT-D5330_XAC_0215.indd 78HT-D5330_XAC_0215.indd 78 2011-02-15 ¿ÀÈÄ 7:39:532011-02-15 ¿ÀÈÄ 7:39:53

HT-D5330_XAC_0215.indd 79HT-D5330_XAC_0215.indd 79 2011-02-15 ¿ÀÈÄ 7:39:532011-02-15 ¿ÀÈÄ 7:39:53

HT-D5330

Technoloisir

Blu-ray™ 5,1 canaux

Guide d’utilisation

imaginez les possibilités

Merci d'avoir acheté ce produit Samsung.

Pour obtenir notre service complet, veuillez

enregistrer votre produit sur

www.samsung.com/register

HT-D5330_FRC_0215.indd 1HT-D5330_FRC_0215.indd 1 2011-02-15 ¿ÀÈÄ 7:34:442011-02-15 ¿ÀÈÄ 7:34:44

Consignes de sécurité

Avertissements de sécurité

POUR RÉDUIRE LES RISQUES D’ÉLECTROCUTION, NE RETIREZ JAMAIS LE CAPOT (NI L’ARRIÈRE). LES PIÈCES DE CE PRODUIT NE SONT PAS RÉPARABLES PAR L’UTILISATEUR. VEUILLEZ CONTACTER UN TECHNICIEN QUALIFIÉ POUR

TOUTE RÉPARATION.

ATTENTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

L’éclair et la ﬂ èche inclus dans le triangle représentent un avertissement à l’égard de tensions dangereuses se trouvant à l’intérieur du produit.

ATTENTION :

D’ÉLECTROCUTION, NE RETIREZ JAMAIS LE CAPOT (NI L’ARRIÈRE). LES PIÈCES DE CE PRODUIT NE SONT PAS RÉPARABLES PAR L’UTILISATEUR. VEUILLEZ CONTACTER UN TECHNICIEN QUALIFIÉ POUR TOUTE RÉPARATION.

POUR RÉDUIRE LES RISQUES

Un triangle contenant un point d’exclamation signiﬁ e un avertissement vous demandant de consulter les instructions importantes qui accompagnent le produit.

AVERTISSEMENT

Aﬁ n de réduire tout risque d’incendie ou

•

d’électrocution, n’exposez jamais cet appareil à la pluie ou à l’humidité.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

PRODUIT LASER DE CLASSE 1

Cet appareil est homologué comme produit LASER DE

•

CLASSE 1. L'utilisation des commandes, les réglages ou l'exécution de procédures autres que celles spéciﬁ ées ci-dessus peuvent conduire à une exposition à des radiations dangereuses.

ATTENTION

Évitez toute projection d’eau sur l’appareil et ne posez jamais

•

d’objet contenant un liquide (ex : un vase) dessus.

DANGER

PEUT ÉMETTRE UN RAYONNEMENT LASER VISIBLE OU INVISIBLE SI LE COUVERCLE EST OUVERT. ÉVITEZ UNE EXPOSITION DIRECTE AUX RAYONS. (FDA 21 CFR)

ATTENTION

PEUT ÉMETTRE UN RAYONNEMENT LASER VISIBLE OU

•

INVISIBLE DE CLASSE B SI LE COUVERCLE EST OUVERT. ÉVITEZ UNE EXPOSITION AUX RAYONS (IEC 60825-1)

CET APPAREIL UTILISE UN LASER. EFFECTUER DES

•

CONTROLES OU DES REGLAGES OU BIEN EXECUTER DES PROCEDURES AUTRES QUE CELLES SPECIFIEES DANS CE MANUEL PEUT PROVOQUER UNE EXPOSITION A UN RAYONNEMENT DANGEREUX. N'OUVREZ PAS LE CAPOT ET N'EFFECTUEZ PAS DE REPARATION VOUSMEME. VEUILLEZ CONTACTER UN TECHNICIEN QUALIFIÉ POUR TOUTE RÉPARATION.

Note à l’installateur du système de câblodistribution

Le présent rappel a pour but d’inviter l'installateur du système de câblodistribution à consulter la section 820~40 du Code national du bâtiment (NEC) qui renferme des directives sur la mise à la terre et qui stipule que la mise à la terre du câble doit être reliée au système de mise à la terre du bâtiment, et ce, le plus près possible du point d'entrée du câble dans le bâtiment.

2 Français

HT-D5330_FRC_0215.indd 2HT-D5330_FRC_0215.indd 2 2011-02-15 ¿ÀÈÄ 7:35:072011-02-15 ¿ÀÈÄ 7:35:07

Consignes de sécurité importantes

Lisez attentivement ces directives de fonctionnement avant d’utiliser l’appareil. Observez toutes les consignes de sécurité énumérées plus bas. Conservez ces directives d’opération en vue d’une consultation ultérieure.

1) Lisez ces directives.

2) Conservez ces directives.

3) Tenez compte de tous les avertissements.

4) Suivez toutes les directives.

5) N’utilisez jamais le lecteur à proximité de l’eau.

6) Nettoyez uniquement avec un chiffon sec.

7) N’obstruez aucun oriﬁ ce de ventilation, installez l’appareil conformément aux directives du fabricant.

8) Ne l’installez jamais à proximité de sources de chaleur telles que les radiateurs, les registres de chaleur, ou autres appareils (incluant les ampliﬁ cateurs) qui dégagent de la chaleur.

9) La ﬁ che polarisée ou à mise à la terre est d’une grande importance du point de vue de la sécurité. Les ﬁ ches polarisées disposent de deux broches, dont l’une est plus large que l’autre. Par contre, les prises de mise à la terre comportent deux broches plus une troisième broche de mise à la terre. La broche large ou la troisième broche garantissent votre sécurité. Si la ﬁ che fournie ne s'adapte pas sur votre prise murale, renseignez-vous auprès d’un électricien pour le remplacement de la prise obsolète.

10) Protégez le cordon contre le piétinement ou les pincements en particulier près des ﬁ ches, des prises murales et à leur point de sortie de l’appareil.

11) Utilisez uniquement des accessoires spéciﬁ és par le fabricant.

12) Utilisez uniquement un chariot, un socle, un trépied, une console ou une table recommandée par le manufacturier ou vendue avec l’appareil. Si vous utilisez un chariot, déplacez la combinaison chariot/appareil avec soin pour éviter les lésions corporelles provoquées par un renversement.

13) Débranchez le lecteur en cas d'orage ou de rangement prolongé.

14) Conﬁ ez toute réparation à un technicien expérimenté. Une réparation est nécessaire en cas de dommage subi par l’appareil, quel qu’il soit: cordon d’alimentation ou ﬁ che endommagée, projection de liquide ou chute d’objets sur l’appareil, exposition à la pluie ou à l’humidité, défaillance ou anomalie, chute, etc.

Français 3

HT-D5330_FRC_0215.indd 3HT-D5330_FRC_0215.indd 3 2011-02-15 ¿ÀÈÄ 7:35:072011-02-15 ¿ÀÈÄ 7:35:07

Consignes de sécurité

Précautions

Assurez-vous que l'alimentation c.a. de votre maison correspond bien à celle indiquée sur l’étiquette

•

d’identiﬁ cation collée au dos de l’appareil. Posez votre produit à plat sur un meuble stable en veillant à laisser un espace de 7,5 à 10 cm (3 à 4 po) autour

•

de l'appareil aﬁ n d’assurer une ventilation adéquate. Ne posez pas l'appareil sur des ampliﬁ cateurs ou autres dispositifs qui risquent de chauffer.

•

Veillez à ne pas obstruer les oriﬁ ces de ventilation. Ne posez rien sur l’appareil.

•

Avant de déplacer l’appareil, assurez-vous que le compartiment à disque est vide.

•

Pour débrancher complètement le produit de l’alimentation, retirez la ﬁ che principale de la prise murale.

•

- Si vous n’utilisez pas le produit pendant une période prolongée, débranchez la ﬁ che de la prise murale. En cas d’orage, débranchez l’appareil de sa prise de courant. Les surtensions causées par les éclairs pourraient

•

endommager l’appareil. N’exposez pas l’appareil à la lumière directe du soleil ni à d’autres sources de chaleur. L’appareil pourrait

•

surchauffer et mal fonctionner. N’exposez pas l’appareil à l’humidité ni à aucune source de chaleur excessive et éloignez-le des appareils

•

générant des ondes magnétiques ou des champs électriques intenses (ex. : haut-parleurs). Débranchez le câble d’alimentation de l’alimentation c.a. en cas de dysfonctionnement.

•

Votre produit n’est pas conçu pour un usage industriel. Il est uniquement réservé à un usage privé.

•

De la condensation pourrait se former si votre produit ou votre disque a été entreposé dans un endroit exposé à

•

de basses températures. Si l’a ppareil doit être transporté pendant l’hiver, attendez environ 2 heures pour qu’il s’adapte à la température de la pièce avant de l’utiliser.

Les piles utilisées dans cet appareil contiennent des produits chimiques néfastes pour l’environnement.

•

Ne jetez pas les piles avec les déchets domestiques.

Pour regarder la télévision en utilisant la fonction 3D

INFORMATION IMPORTANTE SUR LA SANTÉ ET LA SÉCURITÉ CONCERNANT LES FILMS EN 3D. Vous devez lire et comprendre les consignes de sécurité suivantes avant d'utiliser la fonction 3D du téléviseur.

AVERTISSEMENT

•

Lorsqu'ils regardent la télévision 3D, certains spectateurs pourraient ressentir certains troubles, tels que des vertiges, des nausées ou des maux de tête. Si vous démontrez certains de ces symptômes, arrêtez de regarder la télévision 3D, retirez les lunettes 3D actives et reposez-vous.

•

Le fait de regarder des images 3D pendant une période prolongée peut fatiguer les yeux. Si vos yeux se fatiguent, arrêtez de regarder la télévision 3D, retirez les lunettes 3D actives et reposez-vous.

•

Un adulte responsable devrait surveiller régulièrement les enfants qui utilisent la fonction 3D. En cas de fatigue des yeux, de maux de tête, de vertiges ou de nausées, l'enfant doit arrêter de regarder la télévision en 3D et se reposer.

•

N’utilisez pas les lunettes 3D actives à d’autres ﬁ ns (p. ex., comme lunettes de vue, de soleil, de protection, etc.)

•

N’utilisez pas la fonction 3D ou les lunettes 3D actives lorsque vous marchez ou lorsque vous vous déplacez. Utilisation de la fonction 3D ou 3D. Le port des lunettes actives lorsque vous vous déplacez peut entraîner des blessures car vous pouvez vous heurter à des objets, trébucher et/ou tomber.

4 Français

HT-D5330_FRC_0215.indd 4HT-D5330_FRC_0215.indd 4 2011-02-15 ¿ÀÈÄ 7:35:082011-02-15 ¿ÀÈÄ 7:35:08

Manipulation et rangement des disques - Précautions

Licence

De petites éraﬂ ures sur un disque risquent de réduire la qualité du son et de l’image ou de les faire sauter.

Prenez garde à ne pas rayer les disques lorsque vous les manipulez.

Manipulation des disques

Ne touchez pas la face de lecture du disque.

•

Tenez le disque par les tranches

•

aﬁ n de ne pas laisser de traces de doigts sur la surface.

Ne collez pas de papier ou de ruban adhésif sur

•

le disque.

Rangement des disques

N’exposez pas les disques à la lumière directe

•

du soleil. Rangez-les dans un endroit frais et aéré.

•

Rangez-les dans des pochettes propres.

•

Positionnez-les verticalement.

•

REMARQUE

✎

Évitez les salissures sur les disques.



N’insérez jamais de disques fendus ou rayés.



Manipulation et rangement des disques

Si un disque présente des traces de doigts, nettoyez-le à l’aide d’un peu de nettoyant doux dilué dans de l’eau et essuyez avec un chiffon doux.

Lors du nettoyage, essuyez doucement de

•

l’intérieur vers l’extérieur du disque.

REMARQUE

✎

De la condensation peut de former lorsque de l’air



chaud entre en contact avec des parties froides situées à l’intérieur de l’appareil. En cas de condensation à l’intérieur de l’appareil, celui-ci risque de ne pas fonctionner correctement. Si cela se produit, retirez le disque et attendez une à deux heures en laissant l’appareil sous tension.

Dolby et le symbole du double « D » sont des marques déposées de

•

Dolby Laboratories. « À PROPOS DE VIDÉO DIVX : DivX® est un format

•

vidéo numérique créé par DivX, Inc. Ceci est un périphérique ofﬁ ciellement certiﬁ é DivX® qui lit les vidéos au format DivX. Reportez-vous au site Web à l'adresse www.divx.com pour obtenir plus d’informations et consulter les outils logiciels permettant de convertir les ﬁ chiers au format de vidéo DivX.

À PROPOS DE LA VIDÉO À LA DEMANDE DIVX : Ce périphérique DivX Certiﬁ ed® doit être enregistré pour lire les ﬁ lms vidéo à la demande (VOD) DivX. Pour obtenir le code d’enregistrement, il faut accéder à la section DivX VOD dans le menu conﬁ guration de votre appareil. Allez sur le site Web vod.divx.com aﬁ n d’obtenir des informations sur la procédure à suivre pour effectuer votre inscription.

Le format DivX Certiﬁ ed® permet de lire des vidéos DivX® dans une résolution HD allant jusqu'à 1080p, y compris en ce qui concerne les programmes d'appel. DivX®, DivX Certiﬁ ed® et les logos qui y sont associés sont des marques commerciales de DivX, Inc. exploitées sous licence. »

•

HDMI, le logo HDMI Logo et High-Deﬁ nition Multimedia Interface sont des marques commerciales ou déposées de HDMI Licensing LLC aux États-Unis et dans d'autres pays.

•

Oracle et Java sont des marques déposées d'Oracle et/ou de ses sociétés afﬁ liées. D'autres noms cités peuvent être des marques commerciales de leurs propriétaires respectifs.

•

« Ce produit intègre la technologie de protection des droits d’auteur, protégée par des brevets américains et d’autres droits de propriété intellectuels relatifs à Rovi Corporation. Il est interdit de tenter de démonter l’appareil et d’en étudier le fonctionnement en vue de le reproduire ».

•

Blu-ray Disc™, Blu-ray™ et les logos qui y sont associés sont des marques commerciales de Blu-ray Disc Association.

•

iPod est une marque de commerce d’Apple Inc., déposée aux ÉtatsUnis et dans d’autres pays. iPhone est une marque de commerce d’Apple Inc.

< Avis de licence libre >

•

En cas d'utilisation de logiciels libres, les licences libres sont disponibles dans le menu du produit.

Droit d’auteur

Français 5

HT-D5330_FRC_0215.indd 5HT-D5330_FRC_0215.indd 5 2011-02-15 ¿ÀÈÄ 7:35:082011-02-15 ¿ÀÈÄ 7:35:08

Table des matières

CONSIGNES DE SÉCURITÉ

POUR COMMENCER

CONNEXIONS

CONFIGURATION

2 Avertissements de sécurité 3 Consignes de sécurité importantes 4 Précautions 5 Manipulation et rangement des disques - Précautions 5 Licence 5 Droit d’auteur

8 Caractéristiques principales de votre nouveau cinéma

maison Blu-ray 9 Icônes utilisées dans ce guide 10 Types et caractéristiques des disques 14 Accessoires 15 Description 15 Panneau avant 16 Panneau arrière 17 Télécommande

19 Connexion des enceintes 22 Connexion du module récepteur sans ﬁ l optionnel 24 Connexion de la sortie Video Out à votre téléviseur 26

Connexion audio d’appareils numériques externes 27 Connexion au réseau 28 Connexion de l'antenne FM

29 Paramètres initiaux 30 Accès au menu des paramètres 31 Afﬁ chage 31 Réglages 3D 32 Format image 32 Taille écran Smart Hub 32 BD Wise (Produits Samsung uniquement) 32 Déﬁ nition 34 Format couleurs HDMI 34 Fréquence cinéma (24 ips) 34 Couleure profondes HDMI 34 Mode image ﬁ xe 34 Mode progressif 35 Audio 35 Régl. haut-parleurs 36 Étalonnage pour la salle d’écoute 36 Égal util 37 Audio HDMI 37 Canal retour audio 37 Sortie numérique 38 Réglage de la plage dynamique 39 Sync. audio 39 Réseau 39 Paramètres réseau 42 État du réseau 42 Connexion Internet BD-Live 43 Système 43 Paramètres initiaux 43 Anynet+(HDMI-CEC) 43 Gestion données Blu-ray 43 Fuseau hor. 43 Vidéo sur demande DivX® 43 Réinit. 44 Langue

6 Français

HT-D5330_FRC_0215.indd 6HT-D5330_FRC_0215.indd 6 2011-02-15 ¿ÀÈÄ 7:35:082011-02-15 ¿ÀÈÄ 7:35:08

CONFIGURATION

44 Sécurité 44 Classement BD 44 Classem. parental DVD 44 Modif. mot de p. 44 Général 44 Afﬁ chage avant 44 Télécommande réseau 45 Assistance 45 Mise à niveau du logiciel 46 Communiquer avec Samsung

FONCTIONS DE BASE

SERVICES RÉSEAU

AUTRES INFORMATIONS

47 Lecture d'une vidéo 47 Utilisation du menu du disque, du menu des titres et du

menu contextuel 48 Utilisation des fonctions Rechercher et Saut 49 Lecture en vitesse lente/Lecture en mode image par

image 49 Répétition Playback 50 Utilisation de la touche TOOLS 52 Écouter de la musique 54 Mode sonore 55 Lecture d’un disque image 56 Lecture d’un enregistrement USB 57 Écoute de la radio 57 Connexion d’un iPod/iPhone à l’aide d’un câble USB 57 Connexion d'un iPod/iPhone à l’aide du socle 58 Utilisation de l’iPod/iPhone avec une station d’accueil

dock sans ﬁ l (vendue séparément) pour iPod/iPhone 59 Modèles iPod/iPhone susceptibles d’être utilisés avec ce

produit 60 Liaison de l’émetteur sans ﬁ l avec l’unité principale

61 Utilisation de la fonction Smart Hub 68 Apps Samsung 70 BD-LIVE™ 70 Utilisation de la fonction AllShare

71 Dépannage 74 Index 75 Caractéristiques

FRANÇAIS

Les figures et illustrations de ce manuel d’utilisation sont fournies à titre de référence et peuvent différer de l’

• apparence réelle de l’appareil.

Des frais supplémentaires pourront vous être facturés dans les cas suivants :

•

Lorsqu’un ingénieur est amené à intervenir, à votre demande, alors que le produit ne présente aucune anomalie

(par ex., dans le cas où vous auriez omis de consulter le présent Guide d'utilisation)

Lorsque vous portez l'unité au centre de réparation alors qu’il s'avère que celle-ci ne présente aucune défaillance (par ex., dans le cas où vous auriez omis de consulter le présent Guide d'utilisation).

•

Le montant de ces frais vous sera communiqué avant l'exécution d'éventuels travaux ou la conduite d'une intervention à domicile.

Français 7

HT-D5330_FRC_0215.indd 7HT-D5330_FRC_0215.indd 7 2011-02-15 ¿ÀÈÄ 7:35:082011-02-15 ¿ÀÈÄ 7:35:08

Pour commencer

Caractéristiques principales de votre nouveau cinéma maison Blu-ray

Fonctions du produit

Ce produit peut lire du contenu 3D au moyen d’un câble HDMI. Pour obtenir l’effet 3D, connectez un appareil 3D (récepteur A/V ou téléviseur compatible 3D) au produit à l’aide d’un câble HDMI et visionnez le contenu 3D en utilisant des lunettes à vision X.

Smart Hub

Vous pouvez télécharger différentes applications facturables ou gratuites au moyen d’une connexion réseau. Ces applications offrent toute une gamme de services Internet et du contenu, notamment des nouvelles, des prévisions météorologiques, des données sur le marché boursier, des jeux, des films et des fichiers musicaux.

AllShare

Vous pouvez lire des vidéos, de la musique ou des photos enregistrées sur vos périphériques (ordinateur, téléphone mobile ou NAS) via une connexion réseau.

Fonction Audio Sync

La vidéo peut sembler décalée par rapport à l'audio si l'appareil est raccordé à un téléviseur numérique. Pour compenser ce décalage, vous pouvez ajuster le temps de retard audio pour le synchroniser avec la vidéo.

Fonction iPod Sync

Si, pendant la lecture, le signal vidéo du lecteur iPod est décalé par rapport au signal audio, réglez le décalage de l’audio au besoin pour que les signaux correspondent.

Prise en charge d’appareils iPod et iPhone

Si le système est connecté à un lecteur iPod à l’aide du câble USB spécifique à l’iPod/iPhone ou de l’émetteur sans fil (vendu séparément), vous pourrez lire les fichiers de musique de l’iPod/iPhone via les enceintes connectées.

BD Wise

BD Wise ajuste automatiquement les réglages entre les produits Samsung compatibles avec BD-Wise. Cette fonction est uniquement disponible si les produits Samsung compatibles avec BD Wise sont raccordés à l’aide d’un câble HDMI.

ARC (Audio Return Channel)

Vous pouvez écouter le son du téléviseur via les enceintes du cinéma maison en utilisant un seul câble HDMI.

8 Français

HT-D5330_FRC_0215.indd 8HT-D5330_FRC_0215.indd 8 2011-02-15 ¿ÀÈÄ 7:35:082011-02-15 ¿ÀÈÄ 7:35:08

Icônes utilisées dans ce guide

Assurez-vous de consulter les déﬁ nitions des termes suivants avant de lire le guide d’utilisation.

Terme Logo Icône Définition

01 Pour commencer

BD-ROM

BD-RE/-R

DVD-VIDEO

DVD-RW(V)

DVD-R

DVD+RW

DVD+R

CD audio

MP3

WMA

JPEG

DivX MKV MP4

Périphérique de

stockage USB

ATTENTION

REMARQUE

Touche de

raccourci

DivX

h z Z

o w G

Ceci indique une fonction disponible sur un BD-ROM.

Ceci indique une fonction disponible sur un disque BD-RE/-R enregistré au format BD-RE.

Ceci indique une fonction disponible sur un DVD-VIDEO.

Ceci indique une fonction disponible sur les disques DVD+RW ou DVD-RW(V)/DVD-R/+R qui ont été enregistrés et ﬁ nalisés.

Ceci indique une fonction disponible sur un disque audio CD-RW/-R (au format CD-DA).

Ceci indique une fonction disponible sur un disque CD-RW/-R, DVD-RW/-R ou un support de stockage USB avec un contenu MP3 or WMA.

Ceci indique une fonction disponible sur un disque CD-RW/-R, DVD-RW/-R ou un support de stockage USB avec un contenu JPEG.

Ceci indique une fonction disponible sur un disque CD-RW/-R, DVD-RW/-R ou un support de stockage USB avec un contenu DivX.

Ceci indique une fonction disponible sur un périphérique de stockage USB.

Ceci indique une situation où une fonction ne peut pas être exécutée ou

des réglages pourraient être annulés.

Conseils ou instructions fournis pour vous aider à exécuter chaque fonction.

✎

Permet d’accéder directement et facilement à une fonction via la simple pression de la touche de la télécommande spéciﬁ ée.

Cet appareil est compatible uniquement avec le système de couleurs NTSC.

•

Les disques PAL ne sont pas lus.

•

Français 9

HT-D5330_FRC_0215.indd 9HT-D5330_FRC_0215.indd 9 2011-02-15 ¿ÀÈÄ 7:35:082011-02-15 ¿ÀÈÄ 7:35:08

Pour commencer

Types et caractéristiques des disques

Logos des disques pouvant être lus

Compatibilité des disques Blu-ray

Le disque Blu-ray est un nouveau format toujours en évolution. En conséquence, il peut exister certains problèmes de compatibilité. Tous les disques ne sont pas compatibles, donc tous les disques ne pourront pas être lus. Pour de plus amples renseignements, reportez-vous à la section Types et caractéristiques des disques du présent manuel.

REMARQUE

✎

La lecture peut s'avérer impossible avec



certains types de disque ou lors de l'utilisation de fonctions particulières, telles que le changement d'angle et le réglage du format de l'image. Les informations concernant les disques sont mentionnées sur l’emballage. Veuillez vous y référer au besoin.



Évitez que les disques ne se salissent ou s’égratignent. Les empreintes digitales, la saleté, la poussière, les égratignures ou les dépôts de fumée de tabac sur la surface d'enregistrement peuvent rendre la lecture du disque impossible.



Lors de la lecture de titres en format BDJava, il est possible que certaines fonctions soient plus lentes ou que le chargement soit plus long que pour un titre normal.

Système Dolby Digital Plus

Système Dolby TrueHD

Les disques qui ne peuvent pas être lus

Disque DVD HD

•

DVD-RAM

•

Disque DVD-R 3,9 Go pour Système auteur.

•

DVD-RW (mode VR)

•

CD super audio (à l’exception de la couche CD)

•

Disques DVD-ROM/PD/MV, etc. CVD/CDROM/CDV/CD-G/CD-I/LD

•

Disques CDG audio uniquement, non graphiques.

REMARQUE

✎

Il est possible que l'appareil ne puisse pas



lire certains disques disponibles dans le commerce ou des DVD achetés à l'extérieur de votre région.



Si un disque DVD-R/-RW n’a pas été enregistré correctement au format DVD Vidéo, il ne pourra pas être lu.

Disque Blu-ray Disque Blu-ray 3D

Système d'émission NTSC

aux États-Unis, au Canada,

en Corée, au Japon

Disque DTS-HD haute

résolution audio

Java

BD-LIVE

DTS-HD Master Audio |

Essential

10 Français

HT-D5330_FRC_0215.indd 10HT-D5330_FRC_0215.indd 10 2011-02-15 ¿ÀÈÄ 7:35:102011-02-15 ¿ÀÈÄ 7:35:10

01 Pour commencer

Code de région

Cet appareil ainsi que les disques sont codés par région. Ces codes régionaux doivent être les mêmes pour permettre la lecture des disques. Si les codes ne sont pas semblables, il sera impossible de lire le disque.

Type de

disque

Blu-Ray

DVD-VIDEO

Code de

région

Région

Amérique du nord, Amérique centrale, Amérique du sud, Corée, Japon, Taiwan, Hong Kong et Asie du sud est.

Europe, Groenland, Territoires français, Moyen orient, Afrique, Australie et Nouvelle-Zélande.

Inde, Chine, Russie, Asie du sud et centrale.

États-Unis, territoires des ÉtatsUnis et Canada

Europe, Japon, MoyenOrient, Égypte, Afrique du Sud, Groenland

Taiwan, Corée, Philippines, Indonésie, Hong Kong

Mexique, Amérique du Sud, Amérique centrale, Australie, Nouvelle-Zélande, Îles du Paciﬁ que, Caraïbes

Russie, Europe de l’Est, Inde, la plupart des pays d’Afrique, Corée du Nord, Mongolie

Chine

Types de disque

BD-ROM

Les disques Blu-ray ROM ne peuvent être que lus. Ce lecteur peut lire les disques BD-ROM préenregistrés de type commercial.

BD-RE/-R

Les disques Blu-ray RE/-R peuvent être enregistrés et lus.Ce lecteur peut lire un disque BD-RE/-R enregistré avec d'autres lecteurs compatibles compatibles Blu-ray.

DVD-VIDEO

Ce lecteur peut lire les disques DVD (DVD-VIDÉO) de

•

type commercial préenregistrés contenant des ﬁ lms. Durant le passage de la première couche à la

•

deuxième couche d'un DVD-VIDÉO bicouche, une déformation momentanée de l'image ou une distorsion du son peuvent se produire. Il ne s'agit pas d'un mauvais fonctionnement du lecteur.

DVD-RW/-R/+R

Ce lecteur peut lire des disques DVD-RW-R/R enregistrés et ﬁ nalisés à l’aide d’un graveur vidéo DVD. La capacité de lecture du lecteur peut dépendre des conditions d'enregistrement.

DVD+RW

Ce lecteur peut lire des disques DVD+RW

•

enregistrés à l’aide d’un graveur de DVD vidéo. La capacité de lecture du lecteur peut dépendre des conditions d'enregistrement.

CD audio (CD-DA)

Ce lecteur peut lire des disques audio de format CD-

•

DA, CD-RW et CD-R. Le lecteur ne peut pas lire certains disques CD-

•

RW/-R du fait des conditions d'enregistrement.

CD-RW et CD-R

Utilisez un disque CD-RW/-R de 700 Mo (80

•

minutes). Si possible, n'utilisez pas de disque de 800 Mo (90 minutes) ou un disque de plus grande capacité.

•

Si le disque CD-RW/-R n'a pas été enregistré en session fermée, des délais pourraient se produire lors de la lecture du début du disque ou les ﬁ chiers enregistrés pourraient ne pas pouvoir être tous lus.

•

Il se pourrait que certains disques CD-RW/-R ne puissent pas être lus sur ce lecteur, selon le graveur qui a été utilisé pour les créer. La capacité de lecture du contenu enregistré sur un support CD-RW/-R depuis des CD pour votre usage personnel peut varier selon le contenu et le type de disque.

Français 11

HT-D5330_FRC_0215.indd 11HT-D5330_FRC_0215.indd 11 2011-02-15 ¿ÀÈÄ 7:35:122011-02-15 ¿ÀÈÄ 7:35:12

Pour commencer

Format du disque

Utilisation d'un disque JPEG

Les CD-R/-RW, DVD-RW/-R enregistrés au format UDF ou JOLIET peuvent être lus.

•

Seuls les ﬁ chiers ayant les extensions « .jpg », « .JPG », « .jpeg » ou « JPEG » peuvent être afﬁ chés.

•

Le JPEG progressif est pris en charge.

DVD-RW/-R (V)

•

Il s’agit d’un format utilisé pour l’enregistrement de données sur un disque DVD-RW ou DVD-R ; une fois ﬁ nalisé, le disque peut être lu par l'appareil.

•

Si un disque a été enregistré en mode Video (Vidéo) par un enregistreur d’un autre fabricant mais n’a pas été ﬁ nalisé, il ne pourra pas être lu par cet appareil.

Formats de ﬁ chiers pris en charge

Fichiers vidéo pris en charge

Extension de

fichier

*.avi

*.mkv

*.asf

*.wmv

*.mp4

*.3gp

Conteneur Codec Vidéo Codec audio Résolution

DivX 3.11/4.x/5.1/6.0

XviD

AVI

MKV

ASF

ASF Window Media Video v9

MP4

3GPP

H.264 BP/MP/HP

MPEG4 SP/ASP

Motion JPEG

DivX 3.11/4.x/5.1/6.0

XviD

H.264 BP/MP/HP

MPEG4 SP/ASP

Motion JPEG

DivX 3.11/4.x/5.1/6.0

XviD

H.264 BP/MP/HP

MPEG4 SP/ASP

Motion JPEG

H.264 BP/MP/HP

MPEG4 SP/ASP

XVID

H.264 BP/MP/HP

MPEG4 SP/ASP

MP3 AC3

LPCM

ADPCM

DTS Core

MP3 AC3

LPCM

ADPCM

DTS Core

MP3 AC3

LPCM

ADPCM

WMA

WMA 1920x1080

MP3

ADPCM

AAC

ADPCM

AAC

HE-AAC

1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080

1920x1080 1920x1080 1920x1080

1920x1080

12 Français

HT-D5330_FRC_0215.indd 12HT-D5330_FRC_0215.indd 12 2011-02-15 ¿ÀÈÄ 7:35:122011-02-15 ¿ÀÈÄ 7:35:12

01 Pour commencer

Extension de

fichier

*.vro

*.mpg

*.mpeg

*.ts *.tp

*.trp

Conteneur Codec Vidéo Codec audio Résolution

VRO VOB

MPEG2

MPEG1

MPEG1 MPEG2

H.264

MPEG2

H.264

VC1

AC3 MPEG LPCM

AAC

AC3

AAC MP3 DD+

HE-AAC

1920x1080

352x288

1920x1080

1920x1080 1920x1080

1920x1080

Restrictions

Certains codecs répertoriés ci-dessus ne sont pas pris en charge en cas de problème sur certains contenus.

• Les sources vidéo contenant des informations incorrectes ou corrompues ne sont pas lues correctement.

• Les sources AV dotées d’un débit binaire ou d’une vitesse d’enregistrement d’image supérieur(e) à la normale

• peuvent ne pas être lues correctement.

•

Si la table d’indexation est corrompue, la fonction Positionner (Saut) ne sera pas prise en charge.

•

Si vous lisez une vidéo via le réseau, celle-ci risque de ne pas s’exécuter correctement, selon l’état du réseau.

Décodeur vidéo

Norme H.264 Level 4.1 prise en charge.

• Formats H.264 FMO/ASO/RS, VC1 SP/MP/AP L4, AVCHD non pris en charge.

• XVID, MPEG4 SP, ASP :

•

- Résolution inférieure à 1280 x 720 : 60 images maxi

- Résolution supérieure à 1280 x 720 : 30 images maxi Format GMC 2 ou supérieur non pris en charge.

•

Décodeur audio

Formats WMA 7, 8, 9 pris en charge.

• Format WMA 9 PRO avec plus de deux canaux (multicanaux) non pris en charge.

• Format WMA 9 Lossless et voix non pris en charge.

• Taux d’échantillonnage WMA 22050 Hz mono non pris en charge.

•

Fichiers musicaux pris en charge

Extension de fichier Conteneur Codec audio Plage prise en charge

*.mp3

*.wma

MP3

WMA

MP3 -

Compatible avec WMA version 10

WMA

* Fréquences d’échantillonnage (en kHz) - 8,

11, 16, 22, 32, 44.1, 48

* Débits binaires - Tous les débits dans la

plage de 5 Kbits/s à 384 Kbits/s

Français 13

HT-D5330_FRC_0215.indd 13HT-D5330_FRC_0215.indd 13 2011-02-15 ¿ÀÈÄ 7:35:132011-02-15 ¿ÀÈÄ 7:35:13

Pour commencer

Effectuez la connexion directement au port

Notes sur la connexion USB

Périphériques pris en charge :

Support de stockage USB, lecteur MP3, caméra numérique, lecteur de carte USB

Prise en charge non assurée pour les dossiers

1) ou ﬁ chiers dont le nom excède 125 caractères.

Un ﬁ chier de sous-titre supérieur à 300 Ko ne

2) peut pas s’afﬁ cher correctement.

Le produit n’est pas compatible avec tous les

3) périphériques de caméra numérique / USB.

Les systèmes de ﬁ chiers FAT16 et FAT32 ne

4) sont pas pris en charge.

Le système de ﬁ chiers NTFS n’est pas pris

•

en charge.

Les ﬁ chiers photo (JPEG), musique (MP3) et

5) vidéo doivent porter des noms en coréen ou en anglais. Autrement, le ﬁ chier risque de ne pas être lu.

Vériﬁ ez que vous disposez bien des accessoires suivants.

6) USB du produit. La connexion via un autre câble peut provoquer des problèmes de compatibilité USB.

L’insertion de plusieurs périphériques de mémoire dans un lecteur multicarte peut entraîner un dysfonctionnement.

Le protocole PTP pour caméras numériques n’est pas pris en charge.

Ne déconnectez pas le périphérique USB durant un processus de « chargement ».

10)

Plus la résolution de l’image est élevée, plus

lent le délai d'afﬁ chage de l'image.

11)

Les ﬁ chiers MP3 de type DRM téléchargés

depuis un site commercial ne sont pas lus par l’appareil.

Accessoires

FUNCTION

POWER

TV SOURCE

RECEIVER SLEEP

BD TV

123

456

7809

REPEATFULL SCREEN

MUTE

TUNING

VOL

/CH

SFE MODE

DISC MENU MENU TITLE MENU

POPUP

TOOLS

INFO

RETURN

EXIT

TUNER

iPod SYNC

MEMORY

DSP

SMART SEARCH

NETFLIX

HUB

MO/ST

Câble vidéo Antenne FM Antenne FM Télécommande/ Piles (AAA)

Microphone ASC Socle d’iPod Chiffon doux

Station d'accueil dock sans fil pour iPod/iPhone : HT-WDC10 (vendu séparément)

L IN

STANDB

CHARGE

Émetteur sans ﬁ l Socle de chargement Cordon d’alimentation CC Adaptateur alimentation CC

14 Français

HT-D5330_FRC_0215.indd 14HT-D5330_FRC_0215.indd 14 2011-02-15 ¿ÀÈÄ 7:35:132011-02-15 ¿ÀÈÄ 7:35:13

Panneau avant

01 Pour commencer

Description

1 3 4 5 6 7

CAPTEUR DE LA

TÉLÉCOMMANDE TIROIR DISQUE

TOUCHE DE MISE EN

MARCHE ( ) TOUCHE DE FONCTION

AFFICHAGE

TOUCHE ARRET

TOUCHE SYNTONISATION

BAS & SAUT

TOUCHE ENTRER

TOUCHE OUVRIR/FERMER

PRISE ENTREE ASC

CONTRÔLE DU VOLUME

PORT USB

Détecte les signaux provenant de la télécommande.

Insérez le disque ici.

Permet de mettre l’appareil en marche ou en arrêt.

Le mode change dans l’ordre suivant : BD/DVD  D. IN  AUX  R. IPOD  W. IPOD  FM

Afﬁ che le statut de lecture, l’heure, etc.

Interrompt la lecture du disque.

Retour au titre, au chapitre ou à la piste précédent(e). Syntonisation vers le bas de la bande FM.

Pour sélectionner les éléments du menu ou lancer la lecture d'un disque Blu-ray (ne lancera pas la lecture d'un disque DVD).

Permet d’ouvrir et de fermer le tiroir disque.

Permet de connecter le microphone MRC (Etalonnage salle musique) aﬁ n de conﬁ gurer l’ASC.

Réglage du volume. Vous pouvez connecter ici un périphérique de stockage USB et l’utiliser lors d’une connexion à

BDLIVE. Ceci peut aussi être utilisé pour les mises à niveau des logiciels et la lecture des ﬁ chiers MP3/JPEG/DivX/MKV/MP4.

10911

ASC IN

5V 500mA

REMARQUE

✎

Vous pouvez exécuter les mises à niveau de logiciel en utilisant la prise Hôte USB et une clé USB uniquement.



Lorsque le lecteur afﬁ che le menu du disque Blu-ray, vous ne pouvez pas commencer à visionner le ﬁ l en appuyant



sur la touche Lecture du lecteur ou de la télécommande. Pour lancer la lecture du ﬁ lm, vous devez sélectionner Lire le ﬁ lm ou Commencer dans le menu du disque, puis appuyer sur la touche ENTRER.

Français 15

HT-D5330_FRC_0215.indd 15HT-D5330_FRC_0215.indd 15 2011-02-15 ¿ÀÈÄ 7:35:152011-02-15 ¿ÀÈÄ 7:35:15

Pour commencer

Panneau arrière

4 5

2 6 873

LAN

WIRELESS LAN

BORNE LAN

PRISE SANS FIL LAN

Prise pour iPod

PRISE D’ENTRÉE AUDIO NUMÉRIQUE

EXTERNE (OPTIQUE)

PRISE DE SORTIE HDMI (HDMI OUT)

PRISE D’ANTENNE FM

CONNEXION DE CARTE TX (SANS FIL)

PRISES D'ENTRÉE AUXILIAIRES

(AUX IN) PRISES DE SORTIE COMPOSANT VIDÉO

OUT (COMPONENT OUT)

PRISE DE SORTIE VIDÉO (VIDEO OUT)

CONNECTEURS DE SORTIE DES

ENCEINTES 5,1 CANAUX

VENTILATEUR

DIGITAL AUDIO IN

OPTICAL

HDMI OUT

iPod

FM ANT

WIRELESS

COMPONENT OUT

AUX IN

VIDEO OUT

SPEAKERS OUT

CENTER SURROUNDFRONT

SUBWOOFER SURROUND

FRONT

SPEAKER IMPEDANCE : 3

Peut être utilisée pour des services réseau (voir pages 61~68), BD-LIVE et les mises à niveau des logiciels au moyen d’une connexion réseau.

Peut être utilisée pour des services réseau (voir pages 61~68), BD-LIVE et les mises à niveau des logiciels avec un adaptateur LAN sans ﬁ l.

Connectez le connecteur de socle d’iPod ici.

Insérez ici le connecteur du socle de votre iPod.

À l’aide d’un câble HDMI ; raccordez cette sortie HDMI à la borne d'entrée HDMI de votre téléviseur pour une image optimale.

Permet de brancher l'antenne FM.

La carte TX établit la communication entre l’appareil et le module récepteur sans ﬁ l optionnel.

Permet de raccorder la sortie analogique à 2 canaux d'un périphérique (un magnétoscope par exemple)

Permet de raccorder l’appareil aux prises d'entrée vidéo composantes d'un téléviseur.

Permet de raccorder la prise de sortie VIDEO OUT de cet appareil à la prise d'entrée VIDEO IN de votre téléviseur.

Connectez les enceintes avant, centrale et ambiophonique et le caisson de basses.

Le ventilateur débite de l'air frais dans l'appareil pour éviter une surchauffe et fonctionne en continu lorsque l'appareil est sous tension.

ATTENTION

Veillez à prévoir un minimum d'espace libre de 4 po sur tous les côtés du ventilateur lors de l'installation



de l'appareil. N'obstruez pas le ventilateur ou les oriﬁ ces de ventilation.



16 Français

HT-D5330_FRC_0215.indd 16HT-D5330_FRC_0215.indd 16 2011-02-15 ¿ÀÈÄ 7:35:152011-02-15 ¿ÀÈÄ 7:35:15

Télécommande

Fonctions de la télécommande

01 Pour commencer

Permet de mettre l’appareil sous et

POWER

hors tension.

Si vous voulez basculer en mode

Téléviseur, appuyez sur la touche TV.

Si vous voulez basculer en mode Cinéma

RECEIVER SLEEP

BD TV

maison, appuyez sur la touche BD.

123

Permet d’activer les options par pression

sur les touches numériques.

456

7809

Permet d’obtenir un affichage plein écran

Permet de revenir à la piste précédente

Permet d'arrêter/de démarrer la

Permet de couper momentanément le son.

Permet de régler le volume.

Permet d’accéder à l'écran de

Permet de consulter le menu du disque.

Permet d’utiliser le menu Outils

Permet de sélectionner les options de menu affichées

à l’écran et de changer les valeurs de menu.

Permet de revenir au menu précédent.

Ces touches permettent l’accès aux

menus de l'appareil ainsi qu’à plusieurs

fonctions des disques Blu-ray.

Appuyez ici pour utiliser Netflix.

Appuyez ici pour utiliser le service

Permet de sélectionner le mode audio

Dolby Pro Logic II souhaité.

sur le téléviseur.

ou de passer à la suivante.

lecture d'un disque.

menu d'accueil.

Smart Hub.

VOL

DISC MENU MENU TITLE MENU

TOOLS

RETURN

NETFLIX

MUTE

SFE MODE

TUNER

MEMORY

SMART SEARCH

HUB

MO/ST

FUNCTION

TV SOURCE

REPEATFULL SCREEN

TUNING

/CH

POPUP

INFO

EXIT

DSP

Il s’agit d’une touche de sélection de mode. ou Appuyez pour sélectionner le mode vidéo du téléviseur.

Permet de régler l'heure de mise en veille de l'appareil.

Permet d’ouvrir et de fermer le tiroir disque.

Permet de répéter la lecture d’un titre, d’un chapitre, d’une plage ou d’un disque.

Permet de revenir en arrière ou d’avancer.

Permet d’interrompre momentanément la lecture d'un disque.

Permet de rechercher les stations FM actives et de changer de canaux.

Vous pouvez régler l'effet du champ acoustique (SFE) le plus approprié au genre de musique que vous écoutez.

Permet d’accéder au menu incrusté ou au menu de titre.

Permet d’afficher les informations de lecture lors de la lecture d'un disque Blu-ray/DVD.

Permet de quitter le menu.

Permet de définir une fréquence radio prédéfinie.

Permet de réguler et stabiliser le niveau du volume. (Traitement du signal numérique)

Appuyez ici pour rechercher du contenu.

Permet de sélectionner MONO ou STEREO pour la diffusion de la radio.

Français 17

HT-D5330_FRC_0215.indd 17HT-D5330_FRC_0215.indd 17 2011-02-15 ¿ÀÈÄ 7:35:162011-02-15 ¿ÀÈÄ 7:35:16

Pour commencer

Insertion des piles dans la télécommande

* Type de piles : AAA

REMARQUE

✎

Assurez-vous que la position des extrémités «



+ » et « – » des piles correspond à la position illustrée dans le compartiment.



Selon un usage normal du téléviseur, les piles devraient durer environ un an. Le champ d'action de la télécommande est



d'environ 7 mètres (23 pi) en ligne droite.

Réglage de la télécommande

Vous pouvez contrôler certaines fonctions de votre téléviseur à l’aide de cette télécommande.

Pour contrôler un téléviseur à l’aide de la télécommande

Appuyez sur la touche TV pour régler la

télécommande sur le mode TV.

Appuyez sur la touche POWER pour allumer le téléviseur.

Tout en maintenant la touche POWER enfoncée, saisissez le code correspondant à la marque de votre téléviseur.

•

Si plusieurs codes correspondant à votre téléviseur ﬁ gurent dans le tableau, saisissez-les les uns après les autres aﬁ n de déterminer quel code fonctionne.

•

Exemple : Pour un téléviseur Samsung

Tout en maintenant la touche POWER enfoncée, utilisez les touches numériques pour entrer 00, 15, 16, 17 et 40.

Si le téléviseur s’éteint, cela signiﬁ e que le réglage est terminé.

•

Vous pouvez utiliser les touches TV POWER, VOLUME, CHANNEL, ainsi que les touches numériques (0 à 9).

REMARQUE

✎

Il est possible que la télécommande ne



fonctionne pas avec certaines marques de téléviseur. Il se peut également que certaines fonctions ne soient pas disponibles en fonction de la marque de votre téléviseur.



La télécommande fonctionne par défaut avec les téléviseurs Samsung.

Liste des codes par marque de téléviseur

Marque Code

Admiral

(M.Wards)

A Mark

Anam

AOC Bell &

Howell

(M.Wards)

Brocsonic

Candle

Cetronic

Citizen

Cinema

Classic

Concerto

Contec

Coronado

Craig

Croslex

Crown

Curtis Mates

CXC

Daewoo

Daytron Dynasty

Emerson

Fisher

Funai

Futuretech

General

Electric (GE)

Hall Mark

Hitachi

Inkel

JC Penny

JVC KTV KEC

KMC

(Goldstar)

Luxman

LXI

(Sears)

Magnavox

Marantz

Matsui

MGA

18 Français

Marque Code

56, 57, 58

01, 15

01, 02, 03, 04, 05, 06, 07, 08, 09, 10,

11, 12, 13, 14

01, 18, 40, 48

57, 58, 81

59, 60

18 03

03, 18, 25

97 03 18 46 15

03, 05, 61, 82, 83, 84

62 03

59, 61, 63

02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32,

34, 35, 36, 48, 59, 90

40 03

03, 15, 40, 46, 59, 61,

64, 82, 83, 84, 85

19, 65

03 03

06, 40, 56, 59,

66, 67, 68

15, 18, 50, 59, 69

56, 59, 67, 86

59, 61, 87, 88

03, 15, 40

01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44

19, 54, 56, 59,

60, 62, 63, 65, 71

15, 17, 18, 48, 54,

59, 60, 62, 72, 89

40, 54

18, 40

(M.Wards)

Soundesign

Symphonic

Dongyang

Mitsubishi/

MGA MTC NEC

Nikei

Onking

Onwa

Panasonic

Penney

Philco

Philips

Pioneer

Portland

Proton Quasar

Radio

Shack

RCA/

Proscan

Realistic

Sampo

Samsung

Sanyo

Scott Sears Sharp

Signature

2000

Sony

Spectricon

SSS

Sylvania

Tatung

Techwood

Teknika

TMK Toshiba Vidtech

Videch

Wards

Yamaha

York

Yupiteru

Zenith Zonda

18, 40, 59, 60, 75

18, 19, 20, 40, 59, 60

03 03 03

06, 07, 08, 09, 54,

66, 67, 73, 74

03, 15, 17, 18, 48,

54, 59, 62, 69, 90

15, 17, 18, 40, 48, 54, 62, 72

63, 66, 80, 91

15, 18, 59

06, 66, 67

17, 48, 56, 60,

61, 75

18, 59, 67, 76, 77,

78, 92, 93, 94

03, 19

00, 15, 16, 17, 40, 43, 46, 47, 48, 49,

59, 60, 98

19, 61, 65

03, 40, 60, 61

15, 18, 19 15, 57, 64

57, 58

50, 51, 52, 53, 55

03, 40

01 18

18, 40, 48, 54,

59, 60, 62 61, 95, 96

06 18

03, 15, 18, 25

18, 40

19, 57, 63, 71

59, 60, 69

15, 17, 18, 40, 48, 54, 60, 64

18 40 03

58, 79

03, 54

HT-D5330_FRC_0215.indd 18HT-D5330_FRC_0215.indd 18 2011-02-15 ¿ÀÈÄ 7:35:162011-02-15 ¿ÀÈÄ 7:35:16

Connexions

Cette section décrit différentes méthodes de connexion du produit aux autres appareils externes. Avant de déplacer ou d'installer l'appareil, assurez-vous de le mettre hors tension et de débrancher le cordon d'alimentation.

Connexion des enceintes

Position de l’appareil

Placez-le sur un pied, sur la tablette d'un meuble, ou sous le support du téléviseur.

Choix de la position d'écoute

La position d'écoute (distance entre l'utilisateur et le téléviseur) doit être située à environ 2,5 à 3 fois la taille de l'écran du téléviseur. Exemple : Pour les téléviseurs 32" : 6,56 à 7,87 pi

Pour les téléviseurs 55" : 11,5 à 13,1 pi

Enceinte avant

2,5 à 3 fois la taille de l’écran du téléviseur

Placez ces enceintes devant votre position d'écoute, face vers l'intérieur (environ 45

degrés) et dans votre direction. Placez-les de façon à ce que les haut-parleurs d'aigus soient à la hauteur de vos oreilles. Alignez le devant des enceintes avant avec le devant de l'enceinte centrale ou placez-les légèrement en avant de l’enceinte centrale.

02 Connexions

Enceinte centrale

Enceintes ambiophoniques

Caisson de basses

ATTENTION

Ne laissez pas les enfants jouer avec les enceintes ou à proximité. Ils pourraient se blesser si une



enceinte tombait. Lorsque vous connectez les câbles aux enceintes, assurez-vous de respecter le sens de la polarité (+/-).



Conservez le caisson de basses hors de portée des enfants aﬁ n d'éviter qu'ils ne mettent leurs mains



ou des objets dans l’évent (ouverture) du caisson.



Ne suspendez pas le caisson de basses au mur par l’évent (ouverture).

REMARQUE

✎

Si vous placez une enceinte près de votre téléviseur, la couleur de l’écran pourrait s’altérer en raison du



champ magnétique généré par l’enceinte. Dans ce cas, éloignez l’enceinte.

Il est préférable de l'installer à la même hauteur que les enceintes avant. Vous pouvez aussi l'installer directement sur ou sous le téléviseur.

Placez ces enceintes de chaque côté de votre position d'écoute. Si l’endroit est restreint, placez-les l’une en face de l’autre. Installez-les à environ 60 à 90 cm (2 à 3 pi) au-dessus de vos oreilles, et inclinez-les légèrement vers le bas.

* Contrairement aux enceintes avant et centrale, les enceintes ambiophoniques sont

utilisées essentiellement pour les effets sonores; elles ne reproduisent pas de son en permanence.

La position du caisson de basses importe peu. Vous pouvez le placer là où vous le souhaitez.

Français 19

HT-D5330_FRC_0215.indd 19HT-D5330_FRC_0215.indd 19 2011-02-15 ¿ÀÈÄ 7:35:182011-02-15 ¿ÀÈÄ 7:35:18

Connexions

Composants des enceintes Enceintes assemblées

(G) (D)

AVANT

(G) (D)

AMBIOPHONIQUE

PIED

CAISSON DE

BASSES

VIS (5X15) : 2 unités

VIS (4X20) : 8 unités

CÂBLE D’ENCEINTE

CENTRALE

SOCLE

ENCEINTE AVANT

Installation des enceintes sur le socle Tallboy

Retournez le socle et ﬁ xez-le au pied.

À l’aide d’un tournevis, insérez quatre petites vis

(4x20, pour la connexion du pied et du socle) dans les quatre trous marqués et vissez-les dans le sens des aiguilles d’une montre, tel qu’illustré.

ATTENTION

Lors de l'utilisation d'un tournevis



dynamométrique, évitez d'appliquer une force excessive. Autrement, le tournevis pourrait tourner à vide ou être endommagé. (tournevis dynamométrique – inférieur à 15 kg.p.cm)

Connectez la partie supérieure de l'enceinte au pied assemblé.

À l’aide d’un tournevis, insérez une autre grosse vis (5x15, pour la connexion de l’enceinte et du pied) dans le trou situé à l’arrière de l’enceinte et vissezla dans le sens des aiguilles d’une montre.

Voici l'apparence du dispositif une fois que l'enceinte a été installée. Suivez ces étapes pour installer les autres enceintes.

AMBIOPHONIQUE

Socle

Pied

Enceinte

Pied

CENTRALE

ENCEINTE

CAISSON DE

BASSES

20 Français

HT-D5330_FRC_0215.indd 20HT-D5330_FRC_0215.indd 20 2011-02-15 ¿ÀÈÄ 7:35:182011-02-15 ¿ÀÈÄ 7:35:18

SPEAKERS OUT

SPEAKER IMPEDANCE : 3

VIDEO OUT

SUBWOOFER SURROUND

CENTER SURROUNDFRONT

FRONT

OUT

VIDEO OUT

SPEAKERS OUT

SPEAKER IMPEDANCE : 3

SUBWOOFER SURROUND

CENTER SURROUNDFRONT

FRONT

Connexion des enceintes

Appuyez sur la languette de retenue située à l’arrière de l'enceinte.

Insérez le câble noir dans la prise noire (-) et le câble rouge dans la prise

rouge (+), puis relâchez la languette de retenue.

Branchez les ﬁ ches de contact situées à l’arrière de l’appareil en faisant concorder les couleurs des ﬁ ches et des prises des enceintes.

Enceinte avant (G)

Noir

02 Connexions

Rouge

Enceinte centrale

Caisson de basses

Enceinte ambiophonique (G)

Enceinte ambiophonique (D)

Enceinte avant (D)

HT-D5330_FRC_0215.indd 21HT-D5330_FRC_0215.indd 21 2011-02-15 ¿ÀÈÄ 7:35:292011-02-15 ¿ÀÈÄ 7:35:29

Français 21

Samsung HT-D5330 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
