Samsung HT-D450, HT-D550 Schematic
6.SchematicDiagram
Flash
W25Q 16B
Motor
Driver
AM5766
Pick -up / Loa der
SD RAM
K4S2816
THS 73 74
Coreriver
3.2 N
HDMI
Pow er AMP
A- VIDEO
USB
AUX2
MIC
TUNER
i-Pod
AUX1
LC87F5W
SP I
I2C
D+/D -
SP DIF
EEP ROM
24SC08A
I2C
WIRELESS
I2S
4560
SA20 11
To uch ke y
VFD
4WIRE
EEP ROM
24SC08A
I2C
ES8 398
VIDE O
P WM
(DAC)
SER VO
ADC
DIR/
USB
TUENR
I2C
I2S
DIGITAL VIDEO
ANALOG VIDEO
PWM 6CH
I2C
DSP
TAS 5 614
F
L
F
R
TAS 5 614
C
T
S
W
TAS 5 614
R
L
R
R
Ipod over USB
SPD IF
(ARC)
AUDIO

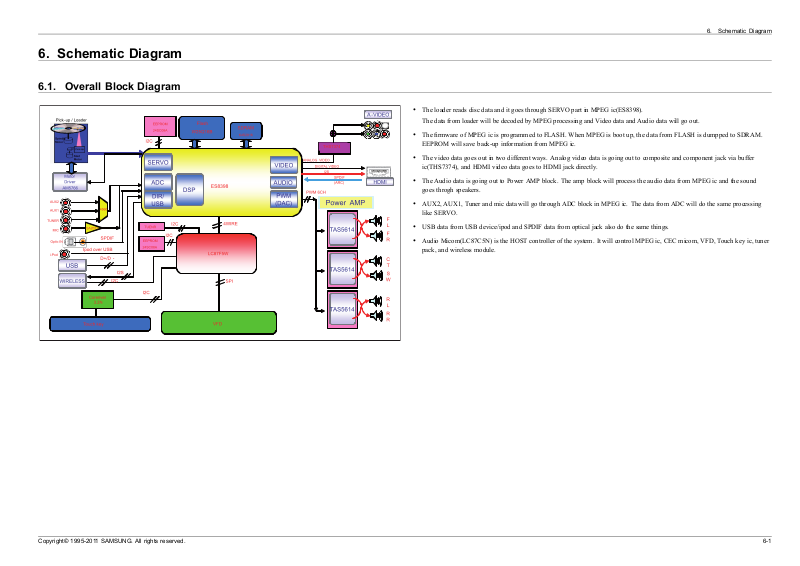

6.1.OverallBlockDiagram
6.SchematicDiagram
•TheloaderreadsdiscdataanditgoesthroughSERVOpartinMPEGic(ES8398).
ThedatafromloaderwillbedecodedbyMPEGprocessingandVideodataandAudiodatawillgoout.
•ThermwareofMPEGicisprogrammedtoFLASH.WhenMPEGisbootup,thedatafromFLASHisdumppedtoSDRAM.
EEPROMwillsaveback-upinformationfromMPEGic.
•Thevideodatagoesoutintwodifferentways.Analogvideodataisgoingouttocompositeandcomponentjackviabuffer
ic(THS7374),andHDMIvideodatagoestoHDMIjackdirectly.
•TheAudiodataisgoingouttoPowerAMPblock.TheampblockwillprocesstheaudiodatafromMPEGicandthesound
goesthroghspeakers.
•AUX2,AUX1,TunerandmicdatawillgothroughADCblockinMPEGic.ThedatafromADCwilldothesameprocessing
likeSER VO.
•USBdatafromUSBdevice/ipodandSPDIFdatafromopticaljackalsodothesamethings.
•AudioMicom(LC87C5N)istheHOSTcontrollerofthesystem.ItwillcontrolMPEGic,CECmicom,VFD,T ouchkeyic,tuner
pack,andwirelessmodule.
Copyright©1995-201 1SAMSUNG.Allrightsreserved.6-1
