HL-S5686C

DLP TV

BP68-00620A-00

Owner’s Instructions

A Guide to Digital TV

• What is Digital Television?

Digital television (DTV) is a new way of transmitting high quality video and audio to your TV set. Using DTV, broadcasters can transmit high definition TV (HDTV) images, Dolby digital surround audio, and new services such as multicasting (transmitting more than one program on the same TV channel) and datacasting. Several of these services can be combined into a single digital broadcast.

Digital Television Services

• Digital Picture Quality

DTV programs are transmitted in two different formats. The first is Standard Definition Television (SDTV) and the second is High Definition Television (HDTV).

• SDTV program formats include 480-line interlaced (480i) and 480-line progressive (480p) video. 480i

programs are essentially a digital version of our current analog TV programs, while the 480p format offers improved image detail over 480i. Some 480p programs are broadcast in widescreen and are comparable to progressive-scan DVD movies in image quality.

• HDTV program formats include 1080-line interlaced (1080i) and 720-line progressive (720p).

Both HDTV formats are always broadcast in widescreen, and offer much higher picture quality than SDTV.

• Dolby Surround Sound

With DTV, you can listen to a variety of Dolby digital audio formats from Dolby Surround 2.0 to Dolby Digital 5.1 surround, using your home audio system. Many HDTV programs are now broadcast with DD 5.1 soundtracks.

English-2

CableCARD and Digital Cable Ready TVs

CableCARD and Digital Cable Ready TVs are the products of a new digital cable standard. This new standard is called OpenCable and it is a concerted effort to standardize the digital cable service network interface in North America. For more information, please refer to www.cablelabs.com.

Digital Cable Ready TVs are equipped with a proper digital cable tuner to receive digital cable signals from your local cable service provider. They are also designed to work with digital cable card modules (PCMCIA card modules called CableCARDs). These PCMCIA card modules or CableCARDs will be provided by your local cable service provider after a proper subscription process.

The provided CableCARD from your local cable service provider needs to be inserted into the CableCARD slot of a Digital Cable Ready TV. Please refer to page 78 for how to insert the CableCARD. A digital set-top box which used to be provided by the cable service provider is no longer needed with Digital Cable Ready TVs and CableCARDs.

When CableCARD is inserted into the slot, the TV screen will show the message that CableCARD is inserted and tries to download necessary data such as channel information or subscription information from your digital cable service provider. When you insert CableCARD for the first time, this process may take a few minutes depending on the amount of data your cable provider needs to send. During this process the digital cable service provider or CableCARD may display messages on the TV screen to help or give you further information.

Please contact your local cable provider for more information on service availability and how to acquire a CableCARD.

➢

This television receiver supports the copy protection system regulated by DTLA (Digital Transmission Licensing Administrator). It should be noted that copy protected content may not be viewable depending on your particular connections.

English-3

Q&A

1. Is the antenna I use for existing TV reception good enough for DTV?

Over-the-air (OTA) digital TV broadcasting uses the same channels as analog TV and works well with many existing TV antennas. However, DTV broadcast channel assignments are different than analog channels. You should find out whether your local DTV broadcasts are on VHF (channels 2-13) or UHF (channels 14-

69) to see if you need a different antenna.

If your DTV channels are on UHF and you already get good UHF reception, your present antenna may work fine. The same holds true for VHF DTV reception. Note that in some markets, both VHF and UHF channels are used for DTV broadcasts.

You can find out the latest DTV channel assignments for your area by browsing selected Internet web sites such as www.titantv.com, www.10000watts.com, and www.fcc.gov.

2. How difficult is it to receive DTV signals indoors?

This depends on whether your local DTV stations are running full power or not and how close your location is to the transmission tower. DTV receivers do not require as much signal as analog TV receivers to produce high-quality images and sound.

Once the DTV signal level exceeds a certain threshold at the receiver, the digital video and audio data is decoded at the same quality it was originally encoded for broadcast. This is a big advantage for DTV over analog TV - there is no noise, ghosting, static, or scratchy audio.

3. How can I connect an antenna in my townhouse, cooperative apartment, condominium, or apartment?

The Federal Communications Commission’s OTARD Rule (part of the Telecommunications Act of 1996) allows residents of condominiums, townhouse, or members of neighborhood associations to put up outside antennas for reception of broadcast TV signals as long as those antennas are not located in common areas and are no more than 12’ in height.

Residents of rental units (apartments, etc.) are not covered by the OTARD rules and will have to use indoor antennas to receive DTV broadcasts. It is possible that the landlord of an apartment complex can provide broadcast DTV signals via a master TV antenna system to each apartment.

4. Can I connect my DTV set top receiver to my cable TV service?

Cable TV systems use a different method for transmitting digital TV programs that is currently incompatible with broadcast DTV set-top receivers. So you will still need to use an outdoor or indoor antenna to receive OTA broadcast DTV programs.

The good news is that you won’t have to pay a monthly or per-program charge to watch OTA DTV and HDTV programs. They’re free, unlike subscription satellite TV or premium cable TV. All you need is an antenna and a DTV set-top receiver to enjoy clear, sharp widescreen images and high-quality audio.

English-4

Contents

GENERAL INFORMATION

Viewing Position............................................................... 7

List of Features ................................................................ 8

Accessories...................................................................... 8

Viewing the Control Panel ............................................... 9

Viewing the Connection Panel......................................... 10

Remote Control................................................................ 11

Installing Batteries in the Remote Control ....................... 12

CONNECTIONS

Connecting VHF and UHF Antennas............................... 12

Connecting Cable TV....................................................... 13

Connecting a VCR ........................................................... 14

Connecting an S-VHS VCR............................................. 14

Connecting a Camcorder................................................. 15

Connecting a DVD Player/Set-Top Box ........................... 15

Connecting a DVD Player/Set-Top Box via DVI .............. 16

Connecting a DVD Player/Set-Top Box via HDMI ........... 16

Connecting a Digital Audio System ................................. 17

Connecting an Amplifier/DVD Home Theater.................. 17

OPERATION

Turning the TV On and Off .............................................. 18

Plug & Play Feature......................................................... 18

Dynamic Menus and On-Screen Displays....................... 20

Navigating Menus by Using the Menu Map..................... 21

Selecting a Menu Language............................................ 22

Memorizing Channels ...................................................... 23

Changing Channels ......................................................... 25

Setting Up Your Remote Control .................................... 26

Remote Control Codes .................................................... 28

Setting the Clock.............................................................. 31

Setting the On/Off Timer.................................................. 33

Setting the Sleep Timer ................................................... 34

Viewing an External Signal Source ................................. 35

Assigning Names to External Input Mode ....................... 36

CHANNEL CONTROL

Selecting Your Favorite Channels ............................... 37

Viewing the Channel Lists........................................... 38

Adding and Erasing Channels..................................... 39

Labeling the Channels................................................. 40

Fine Tuning Analog Channels Analog ....................... 41

Checking the Digital-Signal Strength Digital ............. 42

LNA (Low Noise Amplifier) .......................................... 42

PICTURE CONTROL

Picture Control............................................................. 43

Customizing the Picture Settings ............................... 44

Changing the Picture Size........................................... 46

Setting the My Color Control Mode............................. 47

Using the Color Weakness Enhancement Feature .... 49

Digital Noise Reduction............................................... 50

DNIe (Digital Natural Image engine) ........................... 51

Setting the Film Mode ................................................. 52

Freezing the Picture .................................................... 53

Setting the Blue Screen Mode .................................... 53

SOUND CONTROL

Sound Control ............................................................. 54

Customizing the Sound ............................................... 55

Setting up DNSe (Digital Natural Sound engine)........ 56

Auto Volume................................................................ 57

Choosing a Multi-Channel Sound

(MTS) track Digital .................................................... 58

Choosing a Multi-Channel Sound

(MTS) track Analog ................................................... 59

Selecting the Internal Mute ......................................... 60

Setting the On/Off Melody........................................... 61

SPECIAL FEATURES

Setting the Function Help............................................ 62

Setting the Data Service ............................................. 63

Menu Transparency Level........................................... 64

Using Game Mode........................................................... 65

Using the V-Chip ......................................................... 66

How to Enable/Disable the Rating Controls................ 67

How to Set up Restrictions Using

“TV Parental Guidelines” ............................................. 68

How to Set up Restrictions Using “MPAA Rating”....... 69

Important Notes About Parental Locks........................ 70

How to Set up Restrictions Using Canadian English .. 71 How to Set up Restrictions Using Canadian French... 72

Using the V-Chip for Digital channels ......................... 73

Viewing Closed Captions

(On-Screen Text Messages) Analog .......................... 74

Viewing Closed Captions

(On-Screen Text Messages) Digital .......................... 75

License Information ..................................................... 77

Symbol Press Note

English-5

Contents

USING THE OCAP (OPENCABLE APPLICATION PLATFORM) DATA SERVIE

Connecting CableCARD............................................. 78

Using the CableCARD................................................. 79

Using the CableCARD Setup Function ....................... 79

Channel List Reorganization ....................................... 80

Using the Data Service ............................................... 81

USING D-NET

What’s D-Net?.................................................................. 82

When Connecting D-Net (IEEE1394) Compatible devices

Connection Options ......................................................... 84

4-Pin and 6-Pin Connectors ............................................ 85

Selecting a D-Net device ................................................. 86

The Direct Device-To-Device Option ............................... 87

The D-Net control panel .................................................. 88

Control Panel Images for Each Device

Operating Tips ................................................................. 91

Recording Tips................................................................. 93

Tips on stopping recording .............................................. 94

File List ............................................................................ 95

Troubleshooting (D-Net) .................................................. 97

APPENDIX

Replacing the Lamp ...................................................101

Identifying Problems ...................................................103

Cleaning and Maintaining Your TV ..............................104

Using Your TV in Another Country ..............................104

Specifications .............................................................105

....................... 90

.. 83

Symbol Press Note

English-6

General Information

Viewing Position

To optimize your viewing comfort, please follow the guidelines below for viewing distance. If viewing for an extended period of time, sit as far back from the screen as possible.

When installing the product, make sure to keep it away from the wall (more than 10 cm/4 inches) for ventilation purposes.

• Poor ventilation may cause an increase in the internal

temperature of the product, resulting in a shortened component life and degraded performance.

English-7

List of Features

 Easy-to-operate remote control  Dynamic, easy to navigate menus  Easy-to-use on-screen menu system you can access from the front/right side panel, or remote control  Automatic timer to turn the TV on and off at any time you choose  Adjustable picture and sound settings and the ability to memorize your favorite settings  Automatic channel tuning for up to 181 channels  A special filter to reduce or eliminate reception problems  Fine tuning control for the sharpest picture possible  A built-in multi-channel sound decoder for stereo and bilingual listening  Built-in, dual channel speakers  Aspecial sleep timer  Widescreen TV with adjustable image size  Life-like clear images provided by DNIe technology  My Color Control mode to correspond with your color preference  Color Weakness Enhancement Feature  Digital Input jack  Digital Audio Output (OPTICAL) jack  CableCARD slot  D-Net (IEEE1394)  Game mode  Easy-to-use channel manager menu.

Accessories

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

Remote Control &

Batteries (AAA x 2)

(BP59-00121A)

Power Cord

(3903-000144)

Cleaning Cloth

English-8

Owner’s Instructions Warranty Card /

Registration Card /

Safety Guide Manual /

Quick Guide Manual

Viewing the Control Panel

Buttons on the Lower-Right Par

The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control.

t of the Panel

SPEAKERS

(POWER)

Press to turn the TV on and off.

REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV.

INDICATOR LIGHTS

SOURCE

Toggles between all the available input sources (TV, AV1, AV2, AV3, S-Video1, S-Video2, S-Video3, Component1, Component2, HDMI1, HDMI2).

Press to see an on-screen menu of your TV’s features.

: Light is On / : Light is Blinking / : Light is Off

TIMER

LAMPSTAND BY/TEMP

Standby state.

The picture will automatically appear in about 15 seconds.

Auto Timer ON/OFF has been set and the set will automatically be turned on in about 15 seconds.

A cooling fan inside the set is not operating normally.

Lamp cover on the rear of the set is not properly shut.

Check if the ventilation hole on the rear of the set is blocked, because if the inner temperature is too high, the power will shut off.

Lamp may be defective. Please contact a certified technician.

• It takes about 30 seconds for the TV to warm up, so normal brightness may not appear immediately.

• The TV has a fan to keep the inside lamp from overheating. You’ll occasionally hear it working.

English-9

– VOL +

Press to increase or decrease the volume. In the on-screen menu, use the would use the andbuttons on the remote control.

Press to change channels. In the on-screen menu, use the you would use the andbuttons on the remote control.

(ENTER)

Press to confirm a selection.

– VOL +

Indication

buttons as you

buttons as

Viewing the Connection Panel

Rear Panel Jacks

Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players. For more information on connecting equipment, see pages 12-17. The product color and shape may vary depending on the model.

DVI IN 1, 2 (AUDIO-R/L)

Connect to the DVI audio output jack of an external device.

SERVICE 1, SERVICE 2

Connectors for service only.

AUDIO-R/L / VIDEO (AV IN 1, 2)

Video and audio inputs for external devices, such as a camcorder or VCR.

S-VIDEO (AV IN 1, 2)

Video input for external devices with an S-Video output, such as a camcorder or VCR.

AV OUT

Connect to the audio input jacks on your Amplifier/ Home theater.

COMPONENT IN 1,2

Connect Component video/audio.

POWER INPUT

Connect the supplied power cord.

Side Panel Jacks

Use the right side panel jacks to connect a component that is used only occasionally, such as a camcorder or video game. (See page 15) The product color and shape may vary depending on the model.

S-VIDEO (AV IN 3)

S-Video input for external devices with an S-Video output.

AUDIO-R/L / VIDEO (AV IN 3)

Video and audio inputs for external devices.

DIGITAL AUDIO OUT (OPTICAL)

Connect to a Digital Audio component.

HDMI/DVI IN 1, 2

Connect to the HDMI jack of a device with HDMI output. This input can also be used as a DVI connection with separate analog audio inputs. An optional HDMI/DVI cable will be necessary to make this connection. When using an optional HDMI/DVI adapter, the DVI analog audio inputs on your TV allow you to receive left and right audio from your DVI device.

D-NET (IEEE1394) S400MPEG

Connect to external IEEE1394 digital products such as digital VCRs and camcorders. Two jacks are provided for this purpose, which allow for a high degree of flexibility for connecting your D-Net controlled system. (Refer to pages 82~100)

CableCARD

Insert a CableCARD into the slot. (Refer to page 78)

ANT 2 IN (AIR)/ANT 1 IN (CABLE)

Connect to an antenna or cable TV system.

English-10

Remote Control

You can use the remote control up to a distance of about 23 feet from the TV. When using the remote, always point it directly at the TV. You can also use your remote control to operate your VCR, Cable box, DVD player, or Set-Top Box.

The Color buttons are used for the channel list function. (Refer to pages 37~40)

This is a special remote control for the visually impaired, and has Braille points on the POWER, VOL +/-, CH / , STOP, and PLAY/PAUSE buttons. The performance of the remote control may be affected by bright light.

POWER

Turns the TV on and off.

NUMERIC BUTTONS

Press to directly select a channel.

–

Press to select additional channels being broadcast by the same station. For example, to select channel “54-3”, press “54”, then press “

–

” and “3”.

ANT/ENG/NUM

Press to select “AIR” or “CABLE”.

While executing a Data Application downloaded, press to change the character mode. In other cases, it operates to change the current antenna.

CH MGR

Used to display Channel Lists on the screen.

VCR/DVD Controls

- Rewind

- Stop

- Play

- Fast/Forward

+ VOL –

Press to increase or decrease the volume.

MUTE

Press to temporarily cut off the sound.

Displays the main on-screen menu.

UP / DOWN / LEFT / RIGHT / ENTER

Use to select on-screen menu items and change menu values.

INFO

Press to display information on the TV screen.

GUIDE

Press to display the TV Guide menu when the guide is provided from the downloaded application. When no TV Guide is available in the downloaded application, the EPG is not displayed with the sign “No Available Banner”.

Color buttons

Press to perform wanted operations by selecting the color or shape as displayed on the downloaded application.

ON-DEMAND

Press to display the MOD menu when the downloaded application provides the Movie on Demand (MOD) function.

P.SIZE

Picture size selection.

FAV.CH

Press to switch to your favorite channels.

CAPTION

Controls the caption decoder.

TV, DVD, STB, CABLE, VCR

Press to operate your TV, DVD, STB, CABLE (box), or VCR.

SOURCE

Press to display all of the available video sources.

While executing a Data Application downloaded, press to use the special character set on your remote control in the event that an IME opens after entering the character input mode. In other cases, it operates to switch the source.

DEL/PRE-CH

Tunes to the previous channel.

While executing a Data Application downloaded, press to delete characters in the data input menu in the event that an IME opens after entering the character input mode. In other cases, it switches to the previous channel.

DATA-SERVICE

Press to display the executable Data Application list. You can execute an application by selecting from the list.

STILL

Press to stop the action during a particular scene. Press again to resume normal video.

Press to pause the screen when watching the movie on demand (MOD) or pay per view (PPV) programs using the downloaded application.

Press to change channels.

EXIT

Press to exit the menu.

D-Net

Runs the D-Net view function. (Refer to pages 82~100)

SLEEP

Press to select a preset time interval for automatic shut off.

PAGE

Use to scroll the screen or text in the Data Application downloaded.

MTS

Press to choose stereo, mono or Separate Audio Program (SAP broadcast).

RESET

When your remote does not work, change the batteries and press the RESET button for 2-3 seconds before use.

SET

Sets the remote to control your TV, VCR, Cable, DVD, or Set-Top Box.

English-11

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.

2. Install two AAA size batteries.

Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment.

3. Replace the cover. Remove the batteries and store them in a cool and dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

Connections

Connecting VHF and UHF Antennas

If your antenna has a set of leads that look like this, see “Antennas with 300 ΩFlat Twin Leads” below.

If your antenna has one lead that looks like this, see “Antennas with 75 If you have two antennas, see “Separate VHF and UHF Antennas”.

Ω

Round Leads”.

Antennas with 300 Ω Flat

Twin Leads

If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300 Ωtwin flat leads, follow the directions below.

1. Place the wires from the twin leads under the screws on a 300-75Ωadapter (not supplied). Use a screwdriver to tighten the screws.

ANT 1 IN (CABLE)

2. Plug the adaptor into the ANT 2 IN(AIR) or ANT 1 IN(CABLE) terminal on the back of the TV.

Antennas with 75 Ω Round Leads

ANT 2 IN

(AIR)

1. Plug the antenna lead into the ANT 2 IN(AIR) or ANT 1 IN(CABLE) terminal on the back of the TV.

Separate VHF and UHF Antennas

If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).

1. Connect both antenna leads to the combiner.

UHF VHF

2. Plug the combiner into the ANT 2 IN(AIR) or ANT 1 IN(CABLE) terminal on the bottom

ANT 2 IN

(AIR)

UHF

VHF

of the back panel.

English-12

Connecting Cable TV

To connect to a cable TV system, follow the instructions below.

Cable without a Cable Box

ANT 1 IN (CABLE)

Connecting to a Cable Box that Descrambles All Channels

ANT IN

ANT OUT

1. Plug the incoming cable into the ANT 1 IN (CABLE) terminal on the back of the TV.

Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels.

1. Find the cable that is connected to the ANT OUT terminal on your cable box.

This terminal might be labeled “ANT OUT”, “VHF OUT” or simply, “OUT”.

ANT 1 IN (CABLE)

Connect the other end of this cable to the ANT 1 IN (CABLE) terminal on the back of the TV.

Connecting to a Cable Box that Descrambles Some Channels

If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of RF cable. (These items are available at most electronics stores.)

1. Find and disconnect the cable that is

ANT IN

Incoming

cable

Incoming

cable

Splitter

cable

Splitter

Cable Box

Splitter

RF (A/B)

Switch

Cable Box

RF (A/B)

Switch

RF (A/B)

Switch

ANT 1 IN

(CABLE)

TV Rear

After you have made this connection, set the A/B Switch to the “A” position for normal viewing. Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/B Switch to “B”, you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.)

connected to the ANT IN terminal on your cable box.

This terminal might be labeled “ANT IN”, “VHF IN” or simply, “IN”.

2. Connect this cable to a two-way splitter.

3. Connect an Antenna cable between an

OUTPUT terminal on the splitter and the IN terminal on the cable box.

4. Connect an RF cable between the ANT OUT terminal on the cable box and the B–IN terminal on the RF(A/B) Switch.

5. Connect another cable between the other OUT terminal on the splitter and the A–IN terminal on the RF (A/B) Switch.

6. Connect the last RF cable between the OUT terminal on the RF (A/B) switch and the ANT 1 IN (CABLE) terminal on the rear of the TV.

English-13

Connecting a VCR

These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 12-13). Skip step 1 if you have not yet connected to an antenna or a cable system.

ANT 2 IN (AIR)

ANT 1 IN (CABLE)

TV Rear Panel

RF cable (Not supplied)

VCR Rear Panel

Audio cable (Not supplied)

Video cable (Not supplied)

Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable. Also, you can connect to “AV IN 3” on the side panel of TV.

1. Unplug the cable or antenna from the back of the TV.

2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.

3. Connect an RF cable between the ANT OUT terminal on the VCR and the ANT 2 IN (AIR) or ANT 1 IN (CABLE) terminal on the TV.

4. Connect a Video cable between the VIDEO OUT jack on the VCR and the AV IN 1 (or AV IN 2) [VIDEO] jack on the TV.

5. Connect Audio cables between the AUDIO OUT jacks on the VCR and the AV IN 1 (or AV IN 2) [R-AUDIO-L] jacks on the TV.

If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCR is stereo, you must connect two cables.

Connecting an S-VHS VCR

Your Samsung TV can be connected to an S-Video signal from an S-VHS VCR. (This connection delivers a better picture as compared to a standard VHS VCR.)

TV Rear Panel

RF cable (Not supplied)

VCR Rear Panel

Audio cable (Not supplied)

S-Video cable (Not supplied)

An S-video cable is usually included with an S-VHS VCR. (If not, check your local electronics store.)

Each S-VHS VCR has a different back panel configuration. When connecting an S-VHS VCR, match the color of the connection terminal to the cable.

English-14

1. To begin, follow steps 1–3 in the previous section to connect the antenna or cable to your VCR and your TV.

2. Connect an S-video cable between the S-VIDEO OUT jack on the VCR and the AV IN 1 (or AV IN 2) [S-VIDEO] jack on the TV.

3. Connect Audio cables between the AUDIO OUT jacks on the VCR and the AV IN 1 (or AV IN 2) [R-AUDIO-L] jacks on the TV.

Connecting a Camcorder

The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR.

TV Side Panel

S-video cable (Not supplied)

Camcorder

Each Camcorder has a different back panel configuration. When connecting a Camcorder, match the color of the connection terminal to the cable.

Video cable (Not supplied)

Audio cable (Not supplied)

Connecting a DVD Player/Set-Top Box

1. Connect a Video Cable (or S-video cable) between the AV IN 3 [VIDEO] (or S-VIDEO) jack on the TV and the VIDEO OUT jack on the camcorder.

2. Connect Audio cables between the AV IN 3 [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the camcorder.

The rear panel jacks on your TV make it easy to connect a DVD player to your TV.

TV Rear Panel

DVD Player/Set-Top Box

Audio cable (Not supplied)

Component cable (Not supplied)

Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality. Be sure to match the component video and audio connections. For example, if connecting the video cable to COMPONENT IN 1, connect the audio cable to COMPONENT IN 1 also. Each DVD player/STB has a different back panel configuration. When connecting a DVD player/STB, match the color of the connection terminal to the cable.

1. Connect a Component cables between the COMPONENT IN 1 or 2 [Y, PB, PR] jacks on the TV and the COMPONENT [Y, PB, PR] jacks on the DVD player.

2. Connect Audio cables between the COMPONENT IN 1 or 2 [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD player.

English-15

Connecting a DVD Player/Set-Top Box via DVI

This connection can only be made if there is a DVI Output connector on the external device.

TV Rear Panel

DVD Player/Set-Top Box

Audio cable (Not supplied)

DVI to HDMI cable (Not supplied)

Each DVD player/STB has a different back panel configuration. When connecting a DVD player/STB, match the color of the connection terminal to the cable.

Connecting a DVD Player/Set-Top Box via HDMI

This connection can only be made if there is an HDMI Output connector on the external device.

TV Rear Panel

DVD Player/Set-Top Box

1. Connect a DVI to HDMI cable or DVI-HDMI Adapter between the HDMI/DVI IN 1 or HDMI/DVI IN 2 connector on the TV and the DVI connector on the DVD player/Set-Top Box.

2. Connect Audio cables between the DVI IN 1 (or DVI IN 2) [R-AUDIO-L] jack on the TV and the AUDIO OUT jacks on the DVD player/Set-Top Box.

Connect an HDMI cable between the HDMI/DVI IN 1 or HDMI/DVI IN 2 connector on the TV and the HDMI connector on the DVD player/Set-Top Box.

HDMI cable (Not supplied)

What is HDMI?

• HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of the digital audio and video signals using a single cable without compression.

• “Multimedia interface” is a more accurate name for it especially because it allows multiple channels of digital audio (5.1 channels). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio.

➢

Each

➢

DVD player/Set-top box

When connecting a

DVD player/Set-top box

has a different back panel configuration.

, match the color of the connection terminal to the cable.

English-16

Connecting a Digital Audio System

The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV.

TV Rear Panel

Digital Audio System

Optical cable (Not supplied)

What is OPTICAL?

• Converts the electric signal into an optical light signal, and transmits it through glass fibers. S/PDIF is a transmission system of digital audio in the form of a light wave that uses a glass conductor.

5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH.

Connecting an Amplifier/DVD Home Theater

1. Connect an Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jacks on the TV and the Digital Audio Input jacks on the Digital Audio System.

When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) terminal: Decrease the gain (volume) of the TV, and adjust the volume level with the system’s volume control.

TV Rear Panel

Amplifier/DVD Home Theater

Audio cable (Not supplied)

Each external input source device has a different back panel configuration. When connecting an external device, match the color of the connection terminal to the cable.

Internal Speakers

AV,

Out

Component,

HDMI

Speaker Out

Mute

Internal Mute

Off

Internal Mute

When “Internal mute” is set to “On”, Sound menus except “Multi-Track Options” cannot be adjusted.

Speaker

Out

Mute

S-Video

Speaker

Mute

Audio Out (Optical L/R)

Sound Output

AV,

S-Video

Sound Output

Component,

HDMI

Sound Output

1. Connect Audio cables between the AV OUT [R-AUDIO-L] on the TV and AUDIO IN [R-AUDIO-L] on the Amplifier/DVD Home Theater.

When an audio amplifier is connected to the AV OUT [R-AUDIO-L] terminals: Decrease the gain (volume) of the TV, and adjust the volume level with the Amplifier’s volume control.

Video Out

AV,

S-Video

Video Out

Component,

HDMI

Video Out

English-17

Operation

Turning the TV On and Off

Press the POWER button on the remote control. You can also use the (Power) button on the front of the panel.

Plug & Play Feature

When the TV is initially powered on, two basic settings proceed automatically and subsequently:

Press the

The message “Menu language, Channels and Time will be set.” is displayed. Press the ENTER button, then “Select the language of the OSD” menu is automatically displayed.

Press the or buttons to select “Shop” or “Home”,

then the ENTER button.

We recommend setting the TV to Home mode for the best picture in your home environment. Shop mode is only intended for use in retail environments. If the unit is accidentally set to Shop Mode, press and hold the

button on the side panel of the TV for five seconds to return to Dynamic (Home) mode.

Press the ENTER button to enter the language.

Press the or button to select language, then the ENTER button. “Select the antennas to memorize” menu is automatically displayed.

Press the or button to memorize the channels of

the selected connection. Press the ENTER button to select “Start”.

POWER

button on the remote control.

If the antenna is connected to ANT 2 IN (AIR), select “Air” and if it is connected to ANT 1 IN (CABLE), select “Cable”. If both ANT 2 IN (AIR) and ANT 1 IN (CABLE) are connected, select “Air + Cable”. In Cable mode, you can select the correct signal source among STD, HRC, and IRC by pressing the or button, then press the Contact your local cable company to identify the type of cable system that exists in your particular area.

English-18

ENTER button.

continued...

The TV will begin memorizing all of the available channels.

After all the available channels are stored, the Auto program menu reappears. Press the ENTER button when channel

memorization is completed.

To stop the search before it has finished, press the ENTER button with stop selected.

Press the ENTER button.

Press the or buttons to select “Auto” or “Manual”, then the ENTER button. Switches the Daylight Saving Time function on or off.

Press the ENTER button.

Press the or buttons to select “On” or “Off”, then the ENTER button. “Select the time zone where you are located.” menu is automatically displayed.

Press the or buttons to highlight

local area (and to move the highlight to the appropriate time zone on the map of the United States). Press the ENTER

button. If you have received a digital signal, the time will be set automatically. If not, see page 32 to set the clock.

The message “Enjoy your watching.” is displayed.

When you have finished, press the ENTER button.

The basic Plug & Play setting is available only once when the TV is initially powered on. If the Plug and Play is stopped while it is in progress, you must set the functions manually by using the OSD menu. For the Language setting, see page 22. For the Auto Program setting, see page 23~24. For the Time setting, see page 31.

English-19

the time zone for your

Dynamic Menus and On-Screen Displays

The on-screen menu system allows you to control the settings of your TV. Access the on-screen menu system by pressing the MENU button on the remote control. Once the on-screen menu appears, use the //// ENTER buttons on your remote control to select menu items and make adjustments. You can also view the on-screen menu system and make some adjustments using the TV’s front panel buttons.

Viewing the Menus

Press the MENU button.

The main menu will appear at the bottom of the screen. There are Seven menu groups: “Input”, “Picture”, “Sound”, “Channel”, “Setup”, “Application” and “Menu Map”.


Return

Mode Size Digital NR DNle My Color Control Film Mode


16:9

On On

Off

Enter

Press the or button, then press the ENTER button to select an

item you want in the menu. Press the selected items. Select “Return” by pressing the press the ENTER button to return to the previous menu. Press the EXIT button to exit.

////

ENTER buttons to display, change, or use the

button, then

Viewing the Display

Press the INFO button on the remote control. ````````

The TV displays the current channel, the status of certain picture, sound settings and the current time. The information displayed varies according to the selected source.

English-20

Navigating Menus by Using the Menu Map

Using the Menu Map of the main menu enables you to select a function quickly.

Press the MENU button. The main menu will appear at the bottom of the screen.

Press the or button to select “Menu Map”, then press the ENTER button.

The menu map will appear.

Press the ///buttons to select a menu, then press the ENTER button.

The selected menu will appear.

Press the //// ENTER buttons to display, change, or use the selected items.

Red button: Displays menus in alphabetical order. Yellow button: Moves to the next page. Green button: Moves to the previous page. ENTER button: Moves to the selected menu.

Press the EXIT button to exit.

English-21

Selecting a Menu Language

When you start using your television for the first time, you must select the language which will be used for displaying menus and indications.

Setup

Return

Language

Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

Setup

Return

Language

Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

English

Medium

Setup

English

Español Français

Medium

Setup

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the

Press the or to select “Language”, then press the

ENTER

button.

ENTER

Press the or button to select “English”, “Español” or “Français”, then

press the ENTER button.

Select “Return” by pressing the or button, then press the button to return to the previous menu. Press the EXIT button to exit.

button.

ENTER

English-22

Memorizing Channels

Your TV can memorize and store all of the available channels for both “off-air” (antenna) and cable channels. After the available channels are memorized, use the CH and CH buttons to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels (automatic) and adding and deleting channels (channel manager).

Selecting the Video Signal Source

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e., an air or cable system).

Channel

Return

Antenna

Auto Program Channel Manager Fine Tune Signal Strength LNA

Channel

Return

Antenna

Auto Program

Channel Manager Fine Tune Signal Strength LNA

Air

Cable

Channel

Press the MENU button. Press the or button to select “Channel”,

then press the ENTER button.

Enter

Air

√

Enter

Press the or button to select “Antenna”, then press the ENTER button.

Press the or button to select “Air” or “Cable”, then press the button.

Press the or button to select “Auto Program”, then press the ENTER

button.

ENTER

continued...

English-23

Press the or button to select the Antenna connection,

then press the

• Air : “Air” antenna signal

Cable : “Cable” antenna signal

Air+Cable : “Air” and “Cable” antenna signals

When selecting Cable TV system: Press the

By default, the cable TV system is set to “STD”. If you want to select another type of cable system, press the

• If you have Digital cable, select the signal source for both Analog

and Digital.

• STD, HRC and IRC identify various types of cable TV systems.

Contact your local cable company to identify the type of cable system

that exists in your particular area.

At this point the signal source has been selected.

ENTER

button.

ENTER

button to start the auto program.

button to select “STD”, “HRC” or “IRC”.

Press the

The TV begins memorizing all available stations. Press the memorization process.

Select “Return” by pressing the or button, then press the Press the EXIT button to exit.

• The TV must be connected to air/cable in order to receive digital

• When connecting Digital Cable to a Set-Top Box, Channel Memorization is

All available DTV and analog channels are automatically stored in memory.

ENTER

button to start the auto program.

ENTER

button at any time to interrupt the

ENTER

button to return to the previous menu.

TV signals. Even if a particular channel is deleted from the memory,

you can always tune to that channel directly by using the number buttons

on the remote control.

done on the STB.

To view the STB on your TV, select the Input jack the STB is connected to

with the

SOURCE button on the remote control. (see page 35)

English-24

Changing Channels

Using the Channel Buttons

Press the CH or CH button to change channels.

When you press the CH or CH button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels.) You will not see channels that were either erased or not memorized.

Using the Number Buttons

Use the number buttons to quickly switch to any channel.

Press the number buttons to go directly to a channel. For example, to select channel 27, press “2,” then “7.” The TV will change channels when you press the second number.

Using the “-” Button

The “-” button is used to select stations that broadcast a digital signal.

For example, for channel 7-1, press “7”, then “-”, then “1”.

HD indicates the TV is receiving a Digital High Definition signal. SD indicates the TV is receiving a Analog standard definition signal.

Using the Previous Channel

Press the DEL/PRE-CH button.

The TV changes to the last channel you were watching.

English-25

Setting Up Your Remote Control

After it has been set up properly, your remote control can operate in five different modes: TV, VCR, Cable, DVD, or Set-Top Box. Pressing the corresponding button on the remote control allows you to switch between these modes, and control whichever piece of equipment you choose.

The remote control might not be compatible with all DVD Players, VCRs, Cable boxes, and Set-Top Boxes.

Setting Up the Remote to Operate Your VCR

Turn off your VCR.

Press the VCR button on your TV’s remote control.

Press the SET button on your TV’s remote control.

Using the number buttons on your remote control, enter three digits of the VCR code listed on page 28 of this manual for your brand of VCR. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.)

Press the POWER button on the remote control. Your VCR should turn on if your remote is set up correctly.

If your VCR does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of VCR. If no other codes are listed, try each VCR code, 000 through 080.

Note on Using Remote Control Modes: VCR When your remote control is in “VCR” mode, the volume buttons still control your TV’s volume.

Setting Up the Remote to Operate Your Cable Box

Turn off your cable box.

Press the CABLE button on your TV’s remote control.

Press the SET button on your TV’s remote control.

Using the number buttons on your remote control, enter three digits of the cable box code listed on page 29 of this manual for your brand of cable box. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.)

Press the POWER button on the remote control. Your cable box should turn on if your remote is set up correctly.

If your cable box does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of cable box. If no other codes are listed, try each code, 000 through 046.

Note on Using Remote Control Modes: Cable Box When your remote control is in “CABLE” mode, the volume buttons still control your TV’s volume.

English-26

Setting Up the Remote to Operate Your DVD

Turn off your DVD.

Press the DVD button on your TV’s remote control.

Press the SET button on your TV’s remote control.

Using the number buttons on your remote control, enter three digits of the DVD code listed on pages 29~30 of this manual for your brand of DVD. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.)

Press the POWER button on the remote control. Your DVD should turn on if your remote is set up correctly.

If your DVD does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of DVD. If no other codes are listed, try each code, 000 through 141.

Note on Using Remote Control Modes: DVD When your remote control is in “DVD” mode, the volume buttons still control your TV’s volume.

Setting Up the Remote to Operate Your Set Top Box

Turn off your STB.

Press the STB button on your TV’s remote control.

Press the SET button on your TV’s remote control.

Using the number buttons on your remote control, enter three digits of the STB code listed on page 30 of this manual for your brand of STB. Make sure you enter three digits of the code, even if the first digit is a “0”. (If more than one code is listed, try the first one.)

Press the POWER button on the remote control. Your STB should turn on if your remote is set up correctly.

If your STB does not turn on after set-up, repeat steps 2, 3 and 4, but try one of the other codes listed for your brand of STB. If no other codes are listed, try each code, 000 through 074.

Note on Using Remote Control Modes: STB When your remote control is in “STB” mode, the volume buttons still control your TV’s volume.

English-27

Remote Control Codes

VCR

Brand

SAMSUNG

ADMIRAL

AIWA

AKAI

AUDIO DYNAMICS

BELL&HOWELL

BROKSONIC

CANDLE

CANON

CITIZEN

COLORTYME

CRAIG

CURTIS MATHES

DAEWOO

DIMENSIA

DYNATECH

ELECTROHOME

EMERSON

FISHER

FUNAI

GENERAL ELECTRIC

GO VIDEO

HARMAN KARDON

HITACHI

INSTANT REPLAY

JC PENNEY

JCL

JVC

KENWOOD

KLH

KONIA

LG(Goldstar)

LIOYD

LOGIK

LXI

MAGNAVOX

MARANTZ

MARTA

MEI

MEMOREX

MGA

MIDLAND

MINOLTA

MITSUBISHI

Code

000 001 002 003 004 005 077 078 079

020

025

004 027 032

007 026

018

022

002 003 006 008 015 055

021 056

002 003 006 008 015 055

007

002 024

002 007 008 017 021 025 056 064 066

003 010 011 012 013 014 015 016

007 026

017

025

034

001 003 006 021 022 025 030 032 034 040

047 050 052 060 063 065 066 067 069 073

018 024 028 029 048 051 061

025

002 005 017 021 056

002

007

019 025 041 042 074

021

002 007 018 019 021 026 037 041 054 056

007 008 018 021 026 037

081 082 083

007 008 018 021 026 037

070

036

006 007 008 009 010

025

038

025

021 056 059

007 008 018 021 026 037 062

006

021

006 021 024 025

034

005

019 041 075

019 034 041 046

Brand

MONTGOMERY WARD

MTC

MULTITECH

NEC

OPTIMUS

ORION

PANASONIC

PENTAX

PENTEX RESEARCH+

PHILCO

PHILIPS

PIONEER

PORTLAND

PROSCAN

QUARTZ

QUASAR

RADIO SHACK/REALISTIC

RCA

SANSUI

SANYO

SCOTT

SEARS

SHARP

SHIMTOM

SIGNATURE

SONY

SYLVANIA

SYMPHONIC

TANDY

TASHIKA

TATUNG

TEAC

TECHNICS

TEKNIKA

TMK

TOSHIBA

TOTEVISION

UNITECH

VECTOR RESEARCH

VICTOR

VIDEO CONCEPTS

VIDEOSONIC

WARDS

YAMAHA

ZENITH

Code

020

002 025

002 005 025 038

007 008 018 026 037 062 064

020

073 074 075 076

021 056 071 072

019 041 075

008

021 056 059

021 080

019 026 039 053

015 049 055

017

018

021 056

006 018 020 021 024 025 029 034 048 056

002 017 019 021 035 041 043 057 068 076

026

018 024

003 047 052 067

006 018 019 024 028 029 041 048 051

020 034 045 015

027 033 038 058

025

027 033 044

021 025 056 059

025

018 025

006

037

025 037 068

021

006 021 025 031

066

003 019 029 051 052

002 006

002

007 026

026

007 026

002

002 003 006 019 020 021 024 025 034 038 041

007 008 018 026 037

023 027 033

English-28

CABLE BOX

Brand

SAMSUNG

HAMLIN

HITACHI

JERROLD

MACOM

MAGNAVOX

OAK

PANASONIC

PHILIPS

PIONEER

RCA

REGAL

SAMSUNG DVD

Product

DVD

DVDR

BD Record

VCR COMBO

VCR Record

DHR COMBO

Code

000 001 002 003 004 005 006 007

041

003 024 031

025 030

038 039

025 030

019 023 028

026

003 022 027 037 044

019 021 023 028

004 018 020 044

014 022 040

003

Code

000 001 002

003 004

005 006

007 008 009 010 011

012

013

Brand

REGENCY

SCIENTIFIC ATLAN

SPRUCER

STARGATE 2000

SYLVANIA

TEXSCAN

TOCOM

UNIVERSAL

VIEWSTAR

WARNER AMEX

ZENITH

Product

Home Theater VCR COMBO

HDD Recorder COMBO

TWIN TRAY COMBO

STB DVD COMBO

DVD Receiver

AV Receiver

Code

015 023

042 043

022

036

016

032

033 034

019 021 023 028

046

017 029 035 037 045

Code

014 015 016

017

018

019

020

021

DVD

Brand

ANAM

AUDIOVOX

AUDIOLOGIC

ANABA

APEX DIGITAL

AIWA

BROKSONIC

BLAUPUNKT

B&K

CURTIS MATHES

CYBER HOME

CLARION

CIRRUS

CYBER HOME

CINEVISION

DAEWOO

DENON

FARENHEIT

FISHER

GPX

GO VIDEO

GREENHILL

HITACHI

HITEKER

HOYO

HARMAN / KARDON

IRT

Code

030

075

085

072

070 071 074 086 083 084 088 111 112

114

062

074

122 123

027

077 078 079 082

080 125

081

065

095

066

146

067 068

090

060

061 089 133 135

069 074

074

064 113

071

073

091 110

089

Brand

INTEGRA

JBL

JVC

JATON

KENWOOD

KISS

KONKA

KLH

LG(Goldstar)

LOEWE

LASONIC

MOBILE AUTHORITY

MEMOREX

MALATA

MAGNAVOX

MINTEK

MONYKA

NORCENT

NEXT BASE

NEC

NANTAUS

NESA

OPTOMEDIA ELECTRONICS

OPTIVIEW

ONKYO

PHILCO

PRINCETON

PROSCAN

English-29

Code

092

091

022 033 115 116

073

051 108 109

073

059 100 106 107

074 075

025 031

057

058

054

055

056

076 093

074 094

073

048 049 050

052

053

144

074

105

072

076 092 119

044 045

046 047

023

DVD

Brand

PANASONIC

PHILIPS

ROTEL

RIO

RCA

RAITE

ROWA

SAMPO

SONY

SHERWOOD

SVA

SYLVANIA

SHARP

SANSUI

SANYO

SHINSONIC

Code

024 034 124 134 136 137 138

036 076

117 118

120

023 035 074 075 131 132

073

038

104

026 029 126 127 128 129 130 141

039 041

042

043 093

140

062

062 090

094

SAMSUNG SET-TOP BOX

Product

Ground wave STB

Satellite STB

CABLE STB

STB DVD COMBO

Satellite STB HDD COMBO Standard

Code

001 002

003

004

008

009

Brand

THOMSON

TOSHIBA

TECHNICS

TVIEW

TOKAI

TEAC

TECHWOOD

TREDEX

URBAN CONCEPTS

VENTURER

VOCOPRO

YAMAHA

YAMAKAWA

XWAVE

ZENITH

Product

Satellite STB HDD COMBO Premium

CABLE STB HDD COMBO Standard

CABLE STB HDD COMBO Premium

Ground wave STB HDD COMBO Standard

Ground wave STB HDD COMBO Premium

Code

145

028 062 076

139

072

073

096

097

098 099 101

076

075

102

032 063

040 073

103

076 121

Code

010

011

012

013

014

SET-TOP BOX

Brand

ALPHASTAR

ANAM

CHANNEL MASTER

CROSSDIGITAL

CHAPARRAL

DIRECT TV

DAEWOO

DISH NETWORK SYSTEM

DISHPRO

DRAKE

DX ANTENNA

ECHOSTAR

EXPRESSVU

GOI

GENERAL INSTRUMENT

HTS

HOME CABLE

HITACHI

HUGHES NETWORK

IQ PRISM

JANEIL

JERROID

JVC

LG(Goldstar)

Code

023

043

018 034

019

035

015 016 017 019 022 045 060 061 062 065 066 067 068

074

069 070

069

018 024 032

027

025 069 070 071

069

065

046 047 048 063 064

069

056

022

015 017

020

059

063

069 070

044 073

English-30

Brand

MAGNAVOX

MEMOREX

MOTOROLA

MACOM

MITSUBISHI

NEXT LEVEL

PHILIPS

PRIMESTAR

PANASONIC

PAYSAT

PROSCAN

RCA

RADIOSHACK

REALISTIC

STAR TRAK

STS

SKY

SKY LIFE

SHACK

STAR CHOICE

SONY

TOSHIBA

ULTIMATE TV

UNIDEN

ZENITH

Code

016 021 036 038 039 040 041 042

016

064

018

015

047 048 064

015 016 017 021 033 036 038 039 040 041 042 067

046 049 050 063

058 059 061 062

016

065 066

051 052 053 065 066

064

057

026

020 027

031

005 006 007

064

054 060

015 017 028 029 030 072

060 066

016 021 037 055 056 057

024 031 068

Setting the Clock

Setting the clock is necessary in order to use the various timer features of the TV.

Also, you can check the time while watching the TV. (Just press the INFO button.)

Option 1: Setting the Clock Manually

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

English

Medium

Setup

Off

Enter

Press the MENU button. Press the or button to select “Setup”, then

press the

ENTER

button.

Press the or button to select “Clock”, then press the

ENTER

button.

Clock

Return

Clock Mode

Clock Set

Month / Day / Year

-- . -- . ----

Time Zone DST

Clock

Return Clock Mode

Clock Set

Month / Day / Year

-- . -- . ----

Time Zone DST

Clock

Return Clock Mode

Clock Set

Month / Day / Year

…

01.01.2006

†

Time Zone DST

Auto

Manual

--: -- --

Hour / Min

-- : -- --

Off

Setup

Manual

--: -- --

Hour / Minute

-- : -- --

Off

Setup

Manual

Hour / Min

12:00 am

Off

Setup

Enter

Press the or button to select “Clock Mode”, then press the

ENTER

button. Press the or button to select “Manual”, then press

the

ENTER

button.

Press the or button to select “Clock Set”, then press the ENTER button.

Press the or button to move to “Month”, “Day”, “Year”, “Hour”, “Min”, or

“am/pm”. Set the time you want by pressing the or button, then press the ENTER button. The time set in the Clock Set will appear.

•You can set the month, day, year, hour and minute directly by pressing the number buttons on the remote control.

Select “Return” by pressing the or button, then press the button to return to the previous menu. Press the EXIT button to exit.

ENTER

The current time will appear every time you press the INFO button.

English-31

Option 2: Setting the Clock Automatically

The Clock can be set automatically if you are receiving a digital signal.

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

English

Medium

Setup

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

Press the or button to select “Clock”, then press the

ENTER button.

Clock

Return

Clock Mode

Clock Set

Month / Day / Year

-- . -- . ----

Time Zone DST

Time Zone

Select the time zone where you are located.

Newfoundland

Atlantic Eastern Central Mountain Pacific Alaska Hawaii

Clock

Return Clock Mode

Clock Set

Month / Day / Year

-- . -- . ----

Time Zone

DST

Auto

Manual

--: -- --

Hour / Min

-- : -- --

Off

Setup

Enter

Move Enter Return

Auto

--: -- --

Hour / Min

-- : -- --

Off

Setup

Enter

Press the or button to select “Clock Mode”, then press the

ENTER

button. Press the or button to select “Auto”,

then press the

ENTER

button.

Press the or button to select “Time Zone”, then press the

ENTER button. Press the or button to highlight the time zone for your local area (and to move the highlight to the appropriate time zone on the map of the United States), then press the ENTER button.

•

When you set up Auto Time, the set time may not be correct depending on the broadcasting station and signal. If there is a difference between the real time and set time, please set the time manually.

Press the

press the

Press the

ENTER

Select “Return” by pressing the

ENTER

button to select “DST”(Daylight Saving Time), then

ENTER

button.

button to select “On” or “Off”, then press the

button.

button, then press the

button to return to the previous menu.

Press the EXIT button to exit.

English-32

Setting the On/Off Timer

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

Timer

Return

On Timer

Hour / Min

…

12 : 00 am

†

Vol ume

Off Timer

Hour / Min

12 : 00 am

Timer

Return

On Timer

Hour / Min

12 : 00 am

Vol ume

Off Timer

Hour / Min

…

12 : 00 am

†

English

Off

Medium

Off

Setup

Channel

Air 3

Activation

Off

Inactivated

Activation

Off

OffSleep Timer

Setup

12 : 00 am

Channel

Air 3

Options

Once

Activation

Off

OffSleep Timer

Setup

Enter

Press the MENU button. Press the or button to select “Setup”, then

press the ENTER button.

Press the or button to select “Timer”, then press the ENTER button.

Press the or button to select “On Timer”, then press the ENTER button. Press the or button to adjust “Hour/Min”, then press the

button to move to the next step. Set other items using the same method as above. To activate On Timer with the setting entered, set Activation to “Off”, “Mon~Fri”, “Daily”, or “Once” by pressing or button. Press the ENTER button.

•You can set the hour, minute, and channel directly by pressing the number buttons on the remote control.

Press the or button to select “Off Timer”, then press the ENTER

button. Press the or button to adjust “Hour/Min”, then press the

button to move to the next step. Set other items using the same method

as above.

To activate Off Timer with the setting entered, set Activation to “Off”, “Mon~Sat”, “Mon~Fri”, “Daily”, or “Once” by pressing or button. Press the ENTER buton.

When finished, select “Return” by pressing or button and

ENTER button to return to the previous menu. Press the EXIT button to exit.

•You can set the hour, minute, and channel directly by pressing the number buttons on the remote control.

Auto Power Off

When you set the timer “On”, the television will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by the timer. This function is only available in timer “On” mode and prevents overheating, which may occur if a TV is on for too long time.

English-33

Setting the Sleep Timer

The sleep timer automatically shuts off the TV after a preset time (from 30 to 180 minutes).

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

English

Medium

Setup

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

Press the or button to select “Timer”, then press the

ENTER button. Press the or button to select “Sleep Timer”, then press the ENTER button.

Timer

Return

On Timer

Hour / Min

12 : 00 am

Vol ume

Off Timer

Hour / Min

12 : 00 am

Sleep Timer : 90 min.

Inactivated

Channel

Air 3

Activation

Once

Inactivated

Activation

Daily

…

30 min.Sleep Timer

†

Setup

Enter

Press the or button to set sleep timer to “30 min.”, “60 min.”, “90 min.”,

“120 min.”, “150 min.”, “180 min.”, or “Off”, then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

Alternate method

Press the SLEEP button on the remote control repeatedly until the appropriate interval appears (any of the preset values from “Off” to “180 min.”).

English-34

Viewing an External Signal Source

Use the remote control to switch between viewing signals from connected equipment, such as a VCR, DVD, Set-Top Box or the TV source (air or cable).

Setting the Signal Source

Input

Return

Source List Edit Name

Source List

Return

AV1 AV2 AV3 S-Video1 S-Video2 S-Video3 Component1

†

Component2

Input

----

Enter

√

Enter

Press the MENU button.

Press the ENTER button to select “Input”.

Press the or button to select “Source List”, then press the

ENTER button.

Press the or button to select a signal source, then press the ENTER button.

•

When you connect equipment to the TV, you can choose between the following sets of jacks: “AV1”, “AV2”, “S-Video1”, “S-Video2”, “Component1”, “Component2”, “HDMI1”, or “HDMI2” on the TV’s rear panel, and "AV3", or “S-Video3” on the TV's side panel.

AV1

Alternate method

Press the SOURCE button on the remote control repeatedly to select an external signal source.

Only connected devices can be selected.

Before selecting an input source, make sure the corresponding external device is connected first.

HDMI input can be selected only when the external device is turned on and connected to the TV.

English-35

Assigning Names to External Input Mode

This feature enables you to name the input source you have connected.

Input

Return Source List

Edit Name

Return

AV1

AV2 AV3 S-Video1 S-Video2 S-Video3 Component1 Component2

†

HDMI1

Edit Name

Return

AV1

AV2 AV3 S-Video1 S-Video2 S-Video3 Component1 Component2

†

HDMI1

Input

----

Input

----

VCR

DVD

D-VHS

Cable STB

HD STB

Satellite STB

†

PVR STB

Input

√

Enter

Press the or button to select “Edit Name”, then press the

ENTER button.

Press the or button to select a signal source to edit, then press

Press the MENU button. Press the ENTER button to select “Input”.

the ENTER button.

Enter

Press the or button to select the external device : VCR, DVD,

D-VHS, Cable STB, HD STB, Satellite STB, PVR STB, AV Receiver, DVD Receiver, Game, Camcorder, DVD Combo, DVD HDD Recorder, Internet TV Recv., Interactive TV Recv., VOD (Video On Demand) STB, TV.

Press the ENTER button.

Set other signal sources (AV1, AV2, AV3, S-Video1, S-Video2, S-Video3, Component1, Component2, HDMI1, HDMI2) using the same method as listed above.

Enter

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

English-36

Channel Control

Selecting Your Favorite Channels

You can store your favorite channels for each available input source (such as TV and CATV).

Preset : To use the Channel Manager function, first run Auto Program (see pages 23~24).

To Store Your Favorite Channels:

Channel

Return

Antenna Auto Program Channel Manager Fine Tune

Signal Strength

LNA

Channel

Channel Manager

Return

All Added Favorite Default List Mode

Channel

Press the MENU button. Press the or button to select “Channel”,

Air

Enter

All

Enter

then press the

Press the or button to select “Channel Manager”, then press the

ENTER button. Press the or button to select “All”, then press the

ENTER

button.

ENTER

button.

Press the / / / buttons to select a channel,

then press the ENTER button and option window

will appear.

Press the or button to select “Favorite”, the press the ENTER button and a mark, designating the channel as a Favorite Channel will appear. Press the ENTER button again to deselect the selected channel and the

mark will disappear.

• Red button (List Mode) : If you press the Red button repeatedly, the All Channel List, the Added Channel List or the Favorite Channel List is selected sequentially.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous

menu. Press the EXIT button to exit.

Only memorized channels can be set as Favorite channels.

Alternate method

Select Channel menu ➔Channel Manager ➔Favorite Press the FAV.CH button repeatedly to jump from one favorite channel to another.

English-37

Viewing the Channel Lists

You can display a list of all channels, added channels, or your favorite channels.

Preset : To use the Channel Manager function, first run Auto Program (see pages 23~24).

Channel

Return

Antenna Auto Program Channel Manager Fine Tune

Signal Strength

LNA

Channel

Channel Manager

Return

All Added Favorite Default List Mode

Channel

Press the MENU button. Press the or button to select “Channel”,

Air

Enter

All

Enter

then press the ENTER button.

Press the or button to select “Channel Manager”, then press the

ENTER button. Press the or button to select “All”, then press the ENTER button.

If you want to watch the channel, press the / / /

buttons to select a channel, then press the ENTER

button and the option window will appear.

Press the ENTER button to select “Watch”, then press the

ENTER button again. The selected channel broadcasting window will appear.

Alternate method

Press the CH MGR button on the remote control to display a list of channels.

English-38

Adding and Erasing Channels

Preset : To use the Channel Manager function, first run Auto Program (See pages 23~24).

Channel

Return

Antenna Auto Program Channel Manager Fine Tune

Signal Strength

LNA

Channel

Channel Manager

Return

All Added Favorite Default List Mode

Channel

Air

Enter

All

Enter

Press the MENU button. Press the or button to select “Channel”,

then press the ENTER button.

Press the or button to select “Channel Manager”, then press the

ENTER button. Press the or button to select “Added” then press the ENTER button.

Press the / / / buttons to select a channel, then

press the ENTER button and option window will appear.

Press the or button to select “Add”, then press the ENTER button; the mark will appear and the channel will be added. To deselect the selected channel, press the or button to select “Delete”, then press the ENTER button. The mark will disappear.

• Red button (List Mode) : If you press the Red button repeatedly, the All Channel List, the Added Channel List or the Favorite Channel List is selected sequentially.

• Green button (Add All) : Press to add all channels of the channel list.

•Yellow button (Delete All) : Press to delete all channels of the channel list.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the

English-39

EXIT button to exit.

Labeling the Channels

Use this feature to assign an easy-to-remember label to analog channels (i.e., “CBS”, “ESPN”, “PBS2”, CNN02”, and etc.) A label consists of five fields, where each field is a letter, a number or a blank. When the INFO button is pressed, the channel label will appear.

Channel

Return

Antenna Auto Program Channel Manager Fine Tune

Signal Strength

LNA

Channel

Channel Manager

Return

All Added Favorite Default List Mode

Channel

Press the MENU button. Press the or button to select “Channel”,

Air

Enter

All

Enter

then press the ENTER button.

Press the or button to select “Channel Manager”, then press the

ENTER button. Press the or button to select “All”, then press the ENTER button.

Press the / / / button to select a channel, then

press the ENTER button and option

window will appear. Press the or button to select “Name”, then press the ENTER button.

Press the or button to select a letter, a number or

a blank. (Results in this sequence: A...Z, 0...9, +, -, *, /, blank).

Press the or button to switch to the next field, which

will be selected. Select a second letter or digit by pressing

or button, as above.

Repeat the process to select the last three digits. To erase the assigned new name, press and hold the or button until a blank appears.

When you have finished, press the MENU button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

If you add or delete a TV channel, the labeled channels will also be added or deleted.

English-40

Fine Tuning Analog Channels

Use fine tuning to manually adjust a particular channel for optimal reception.

Analog

Channel

Return

Antenna Auto Program Channel Manager Fine Tune

Signal Strength

LNA

Fine Tune

Return

Air 7 *

Reset

Fine Tune

Return

Air 7 0

Reset

Channel

Cancel

Channel

Air

Enter

Save

Enter

Press the MENU button. Press the or button to select “Channel”,

then press the ENTER button.

Press the or button to select “Fine Tune”, then press the ENTER button.

Press the button. Press the or button to adjust the fine tuning.

To store the fine tuning setting in the TV’s memory, press the ENTER button.

Press the or button to select “OK” or “Cancel”.

To reset the fine tuning setting, press the or button to select “OK”, then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button return to the previous menu. Press the EXIT button to exit.

Only analog TV channels can be fine tuned.

" *" will appear next to the name of fine-tuned channels.

English-41

Checking the Digital-Signal Strength

Unlike analog channels, which can vary in reception quality from “snowy” to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels.

Digital

Channel

Return

Antenna Auto Program Channel Manager

Fine Tune

Signal Strength LNA

Signal Strength

Return

Air

Channel

Enter

Channel

Enter

Press the MENU button. Press the or button to select “Channel”,

then press the ENTER button.

Press the or button to select “Signal Strength”, then press the

ENTER button.

If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength. Continue to adjust the antenna until you find the best position with the strongest signal.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

LNA (Low Noise Amplifier)

If the TV is operating in a weak-signal area, sometimes the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal).

Channel

Return

Antenna Auto Program Channel Manager Fine Tune

Signal Strength

LNA

Air

Channel

Enter

Press the MENU button. Press the or button to select “Channel”,

then press the ENTER button.

Press the or button to select “LNA”, then press the ENTER button.

Channel

Return Antenna Auto Program Channel Manager Fine Tune

Signal Strength

LNA

Off

Channel

Air

Enter

Press the or button to select “Off” or “On”, then press the

ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

The LNA setting must be made separately for each channel.

If the picture is noisy with the LNA set to On, select Off.

English-42

Picture Control

Yo u can select the type of picture which best corresponds to your viewing requirements.


Return

Mode Size Digital NR DNIe My Color Control Film Mode

Mode

Return

Mode

Contrast Brightness Sharpness Color Tint (G/R) Color Tone Reset

16:9

On On

Off


Standard

Dynamic

Standard Movie Custom

G50 R50

Cool1


Enter

Changing the Picture Standard

Press the MENU button. Press the or button to select “Picture”,

then press the ENTER button.

Press the or button to select “Mode”, then press the ENTER button.

Press the or button again to select “Mode”, then press the ENTER button.

Press the or button to select the desired picture mode (Dynamic,

Standard, Movie, or Custom), then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

• Choose “Dynamic” for viewing the TV during the day or when there is a bright light in the room.

• Choose “Standard” for the standard factory settings.

• Choose “Movie” when viewing the movie.

• Choose “Custom” if you want to adjust the settings according to personal preference (see “Customizing the Picture Settings”, page 44).

English-43

Customizing the Picture Settings

You can use the on-screen menus to change the “Contrast”, “Brightness”, “Sharpness”, “Color”, “Tint”, and “Color Tone” according to personal preference. You can select “Standard” which automatically recalls your personalized picture settings.


Return

Mode Size Digital NR DNIe My Color Control Film Mode

Mode

Return

Mode

Contrast Brightness Sharpness Color Tint (G/R) Color Tone Reset

Mode

Return

Mode

Contrast

Brightness Sharpness Color Tint (G/R) Color Tone Reset

16:9

On On

Off


Standard

Dynamic

Standard

Movie Custom

G50 R50

Cool1


Standard

G50 R50

Cool1


Enter

Press the MENU button. Press the or button to select “Picture”,

then press the ENTER button.

Press the or button to select “Mode”, then press the ENTER button.

Press the or button again to select “Mode”, then press the ENTER button.

Press the or button to select the desired picture mode (Dynamic,

Standard, Movie, or Custom), then press the ENTER button.

Press the or button to select a particular option (Contrast, Brightness,

√

Sharpness, Color, or Tint (G/R)), then press the ENTER button.

Press the or button to decrease or increase the value of a particular item.

Mode

▲

Contrast

▼

100

•

While adjusting a picture option, you can also select another option (Contrast, Brightness, Sharpness, Color, or Tint (G/R)) by pressing the

or button.

English-44

continued...

Mode

Return

Mode Contrast Brightness Sharpness Color Tint (G/R)

Color Tone

Reset

Mode

Return

Mode Contrast Brightness Sharpness Color Tint (G/R)

Color Tone

Reset

Standard

Cool1


Standard

Cool1


G50 R50

Cool2

Cool1

Normal

G50 R50

Warm1 Warm2

Enter

Press the ENTER button to return to “Mode”.

Press the or button to select “Color Tone”, then press the ENTER button.

Press the or button to select a particular option (Cool2, Cool1, Normal,

Warm1, or Warm2), then press the ENTER button.

Mode

Return

Mode Contrast Brightness Sharpness Color Tint (G/R) Color Tone

Reset

Standard

Cool1

Cancel


G50 R50

Enter

Resetting the Picture Settings to the Factory Defaults

To return the factory defaults, select “Reset” by pressing the or button.

Press the ENTER button.

Press the or button to select “OK” or “Cancel”, then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

•

If you set “Reset” to “OK”, the previously adjusted settings will be reset to the factory defaults.

The reset function must be set separately for each mode (Dynamic, Standard, Movie, or Custom).

English-45

Changing the Picture Size

Yo u can select the picture size which best corresponds to your viewing requirements.


Return

Mode Size Digital NR DNIe My Color Control Film Mode


Return Mode

Size

Digital NR DNIe My Color Control Film Mode

16:9


16:9

Zoom1 Zoom2

Wide Fit

4:3


On On

Off

4:3

On Off

Off

Enter

Press the MENU button. Press the or button to select “Picture”,

then press the ENTER button. Press the or button to select “Size”, then press the ENTER button.

Press the or buttons to select the screen format you want, then

press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

• 16:9 : Sets the picture to 16:9 wide mode.

• Zoom1 : Magnifies the size of the picture on screen.

• Zoom2 : Magnifies the size of the picture more than “Zoom1”.

• Wide Fit : Enlarges the aspect ratio of the picture to fit the entire screen.

• 4:3 : Sets the picture to 4:3 normal mode.

Alternate method

Press the P.SIZE button on the remote control repeatedly to select one of the picture size settings.

▲

Zoom1 Move

▼

You can select only the 16:9, 4:3 and Wide Fit screen sizes in the DTV Component (720p, 1080i) or HDMI (720p, 1080i) mode.

For Zoom1, Zoom2, and Wide Fit (DTV’s HD signal only), you can adjust the vertical position using the P.SIZE button on the remote control.

When watching a DTV’s HD signal, you can use Wide Fit. Horizontal zoom (Wide Fit) sets the optical picture format by expanding it both horizontally and vertically. For example, you can reset the picture in 4:3 format to 16:9. Wide Fit does not support all external devices.

To maintain scale in the Wide Fit mode, portions of the picture on the top and bottom will be cropped.

4 : 3

button after pressing the

Wide Fit

English-46

Setting the My Color Control Mode

My Color Control allows you to adjust colors according to your preference, by adjusting skin, sky, and grass tones using the predefined settings (Blue, Green, Pink, Standard, and Custom) without affecting other colors on the screen.


Return

Mode Size Digital NR DNIe My Color Control

Film Mode

My Color Control

Return

Easy Control

Detail Control

Original Custom

Easy Control

Blue Green Pink Standard Custom

16:9


On On

Off

Enter

Using the My Color Control Function in the Easy Control Menu

Skin, sky and grass tones are easily adjustable to suit your preferences.

Press the MENU button. Press the or button to select “Picture”,

then press the ENTER button.

Press the or button to select “My Color Control”, then press the

ENTER button.

√

ReturnEnter

Press the or button to select “Easy Control”, then press the

ENTER button.

Press the or button to select from the various picture settings.

The original picture (before adjustment) is shown on the left side, while the selected mode is shown on the right side.

•

There are seven My Color Control modes: Blue, Green, Pink, Standard, and Custom.

Select “Return” by pressing the or button, then press the

ENTER button to return to the previous menu. Press the EXIT button to exit.

Changing the settings in the “Detail Control” menu (see page 48) will automatically set the My Color Control mode to “Custom”.

Pressing the ENTER button on the remote control for 3 seconds when there is no OSD on the screen will display the My Color Control menu.

English-47


Return

Mode Size Digital NR DNIe My Color Control

Film Mode

My Color Control

Return Easy Control

Detail Control

Return

Blue

Green Pink Reset


16:9

On On

Off

Enter

Using the My Color Control Function in the Easy Control Menu

Users can adjust the 3 My Color Control colors (Blue, Green, and Pink).

Press the MENU button. Press the or button to select “Picture”,

then press the ENTER button.

Press the or button to select “My Color Control”, then press the

ENTER button.

Press the or button to select “Detail Control”, then press the

√

ENTER button.

Press the or button to select the desired color and then press

the ENTER or button.

•

The original picture (before adjustment) is shown on the left side, while the picture after adjustment is shown on the right side, and an adjustment bar is shown on the bottom of the screen.

Original Adjusted

Detail Control

Return Blue Green Pink

Reset

Blue

▲

▼

Cancel


Enter

Press the or button to adjust the settings.

Press the or button to choose other colors.

ReturnEnterAdjust

Press the ENTER or MENU button to confirm the changes and return

to the previous menu.

Resetting the My Color Control Colors to the Factory Defaults

You can return to the factory default settings for My Color Control colors.

Press the or button to select “Reset”, then press the ENTER button.

Press the or button to select “OK” or “Cancel”, then press the ENTER button. The previously adjusted My Color Control colors will be reset to the factory defaults.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

English-48

Using the Color Weakness Enhancement Feature

This feature adjusts the Red, Green or Blue color to compensate for the user’s particular color weakness.

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

Return

Color Weakness Off

Red Green Blue

Color Weakness

Return Color Weakness Off

Red

Green Blue

Setup

Off

Setup

English

Off

Medium

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

Press the or button to select “Color Weakness”, then press the

ENTER button.

Press the or button to select “Color Weakness”, then press the

ENTER button. Press the or button to select “On”, then press the ENTER button.

Press the or button to select a color to be adjusted, then press the

ENTER button.

Press the or button to adjust the value of a color selected.

Color Weakness

▲

Red

▼

•You can also select these options (Red, Green, or Blue) by pressing the or

button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

English-49

Digital Noise Reduction

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.


Return

Mode Size Digital NR DNIe My Color Control Film Mode


Return Mode Size

Digital NR

DNIe My Color Control Film Mode


Off


16:9

On On

Off

16:9

Off

Enter

Press the MENU button. Press the or button to select “Picture”,

then press the ENTER button.

Press the or button to select “Digital NR”, then press the ENTER button.

Press the or button to select “Off” or “On”, then press the

ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

English-50

DNIe (Digital Natural Image engine)

This TV includes the DNIe function to provide high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.


Return

Mode Size Digital NR DNIe My Color Control Film Mode


Return Mode Size Digital NR

DNIe

My Color Control Film Mode

16:9


16:9

Off Demo


On On

Off

On Off

Off

Enter

Press the MENU button. Press the or button to select “Picture”,

then press the ENTER button.

Press the or button to select “DNIe”, then press the ENTER button.

Press the or button to select “Off”, “Demo”, or “On” then press the

ENTER button.

•Off : Switches off the DNIe mode.

• Demo : The screen before applying DNIe appears on the left and the screen after applying DNIe appears on the right.

• On : Switches on the DNIe mode.

Select “Return” by pressing the or button,then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

DNIeTM(Digital Natural Image engine)

This feature brings you a more detailed image with 3D noise reduction and detail, contrast and white enhancement.

The DNle function is not supported in the Movie mode. (It is inactivated.)

English-51

Setting the Film Mode

You can automatically sense and process film signals from all sources and adjust the picture for optimum quality.


Return

Mode Size Digital NR DNIe My Color Control Film Mode


Return Mode Size Digital NR DNIe My Color Control

Film Mode


Off


16:9

On On

Off

16:9

On Off

Off

Enter

Press the MENU button. Press the or button to select “Picture”,

then press the ENTER button.

Press the or button to select “Film Mode”, then press the

ENTER button.

Press the or button to select “Off” or “On”, then press the

ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

The Film Mode can only be set when viewing an analog signal in AV modes (AV or S-Video) that support SD (Standard Definition) signals (480i).

English-52

Freezing the Picture

Press the STILL button to freeze a moving picture. (Normal sound will still be heard.)

To cancel this function, press the STILL button again or press any button on the remote control.

Setting the Blue Screen Mode

If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the “Blue Screen” mode to “Off”.

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

English

Medium

Setup

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

Press the or button to select “Blue Screen”, then press the

ENTER button.

Setup

Return Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency

Blue Screen

†

Color Weakness

English

Medium

Off

Setup

Off

Enter

Press the or button to select “Off” or “On”, then press the

ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

English-53

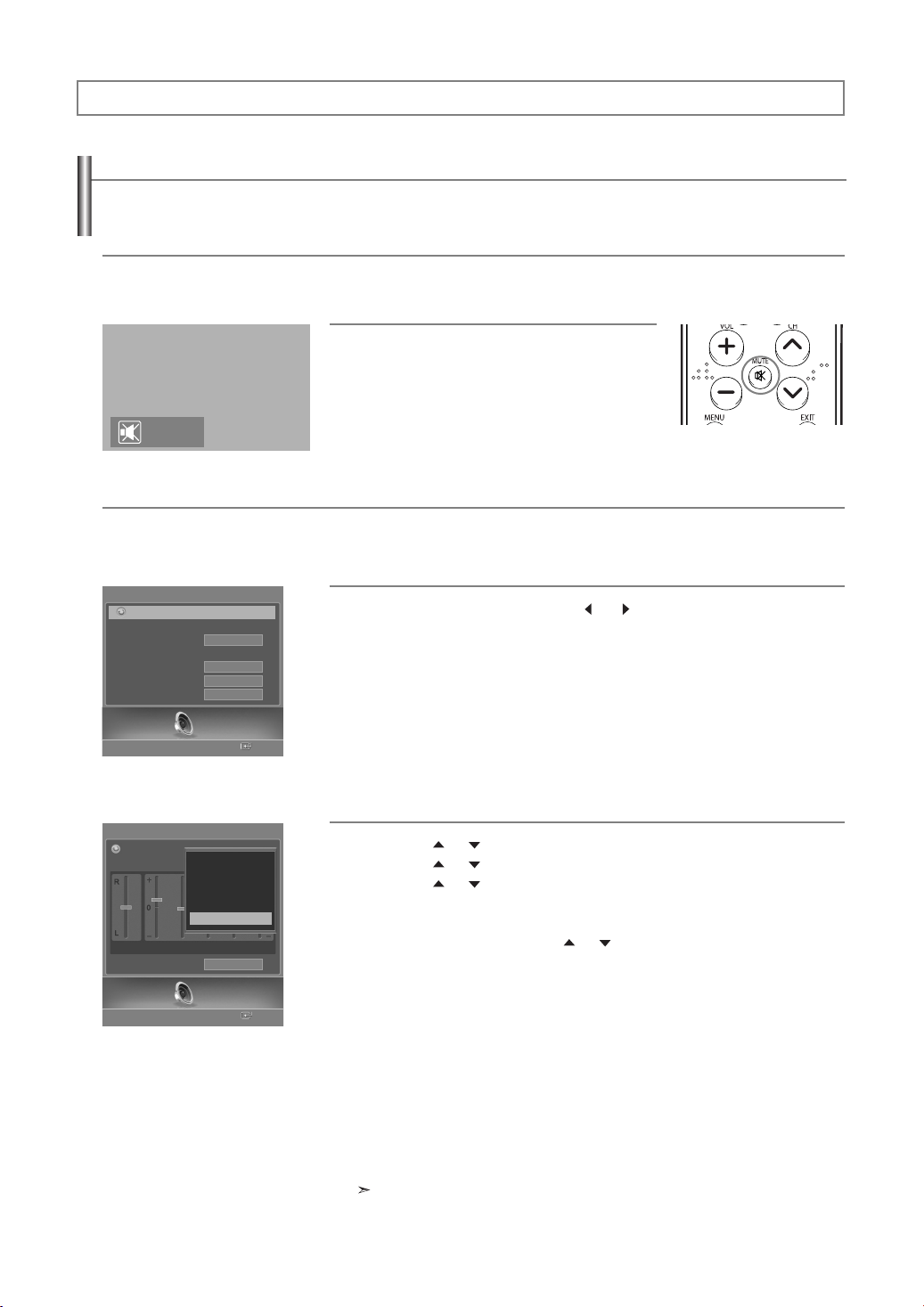

Sound Control

You can control and customize the sound levels and settings of the TV with the remote control.

Adjusting the Volume

Press the VOL+ or VOL–button to increase or decrease the volume.

Using the MUTE Button

At any time, you can temporarily cut off the sound. Press the MUTE button on the remote control. The message “Mute” is displayed and the sound cuts off. To turn mute off, press the MUTE button

Mute

Using Automatic Sound Settings

Your TV has automatic sound settings (“Standard”, “Music”, “Movie”, and “Speech”) that are preset at the factory. You can select “Custom”, which automatically recalls your personalized sound settings.

again or press either the VOL+ or VOL–button.

Sound

Return

Mode DNSe Multi-Track Options Auto Volume Internal Mute Melody

Mode

Return

Mode

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

Reset

Low

Sound

Standard Music Movie Speech

Custom

Sound

Off

Off Off

Enter

Press the MENU button. Press the or button to select “Sound”,

then press the ENTER button.

Press the or button to select “Mode”, then press the ENTER button.

Press the or button again to select “Mode”, then press the ENTER button. Press the or button to select a particular item (Standard, Music, Movie, Speech, or Custom), then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

• Choose “Standard” for the standard factory settings.

• Choose “Music” when watching music videos or concerts.

• Choose “Movie” when watching movies.

• Choose “Speech” when watching a show that is mostly dialog (i.e., news).

• Choose “Custom” to recall your personalized settings (see “Customizing the Sound”, page 55).

The VOL+, VOL–and MUTE buttons do not operate when the Internal Mute is set to on.

English-54

Customizing the Sound

The sound settings can be adjusted to suit your personal preference. (Alternatively, you can use one of the “automatic” settings.)

Sound

Return

Mode DNSe Multi-Track Options Auto Volume Internal Mute Melody

Sound

Off

Off Off

Low

Enter

Press the MENU button. Press the or button to select “Sound”,

then press the ENTER button.

Mode

Return

Mode

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

Reset

Mode

Return

Mode

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

Reset

Mode

Return

Mode

Standard Music Movie Speech

Custom

Sound

Custom

Sound

Custom

Enter

Press the or button to select “Mode”, then press the ENTER button.

Press the or button again to select “Mode”, then press the ENTER button. Press the or button to select a particular item (Standard, Music, Movie, Speech, or Custom), then press the ENTER button.

Press the button. Press the or button to select a particular item

(Balance, 100Hz, 300Hz, 1kHz, 3kHz, 10kHz) to be changed, then press the ENTER button.

Press the or button to increase or decrease the selected frequency. Press the ENTER button.

•

The equalizer function is set for each mode (Standard, Music, Movie, Speech, or Custom).

To return the factory defaults, select “Reset” by pressing the or button.

Press the ENTER button.

Press the or button to select “OK” or “Cancel”, then press the ENTER button.

Balance 100Hz 300Hz 1kHz 3kHz 10kHz

Reset

Cancel

Sound

Enter

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

L/R Sound Balance Adjustment

To adjust the sound balance of the L/R speakers.

Bandwidth Adjustment (100Hz, 300Hz, 1kHz, 3kHz, 10kHz)

To adjust the level of different bandwidth frequencies.

English-55

Setting up DNSe (Digital Natural Sound engine)

DNSe enhances the sound quality, automatically controls output, and prevents sound distortion.

Sound

Return

Mode DNSe Multi-Track Options Auto Volume Internal Mute Melody

Sound

Return Mode

DNSe

Multi-Track Options Auto Volume Internal Mute Melody

Sound

Off

Sound

Off

Off Off

Low

Off

Off Off

Low

Enter

Press the MENU button. Press the or button to select “Sound”,

then press the ENTER button.

Press the or button to select “DNSe”, then press the ENTER button.

Press the or button to select “Off” or “On”, then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

English-56

Auto Volume

Each broadcasting station has its own signal conditions, and it is inconvenient to adjust the volume every time the channel is changed. “Auto Volume” automatically adjusts the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

Sound

Return

Mode DNSe Multi-Track Options Auto Volume Internal Mute Melody

Sound

Return Mode DNSe Multi-Track Options

Auto Volume

Internal Mute Melody

Sound

Off

Sound

Off

Off Off

Low

Off

Off Off

Low

Enter

Press the MENU button. Press the or button to select “Sound”,

then press the ENTER button.

Press the or button to select “Auto Volume”, then press the

ENTER button.

Press the or button to select “Off” or “On”, then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

English-57

Choosing a Multi-Channel Sound (MTS) track

The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). The availability of these additional “multitracks” depends upon the program.

Digital

Sound

Return

Mode DNSe Multi-Track Options Auto Volume Internal Mute Melody

Sound

Multi-Track Options

Return

Preferred Language

Multi-Track SoundTVTV

English

Spanish French

Sound

1. English

Off

Off Off

Low

Enter

Press the MENU button. Press the or button to select “Sound”,

then press the ENTER button.

Press the or button to select “Multi-Track Options”, then press the

ENTER button.

Press the or button to select “Preferred Language”, then press the

ENTER button. Press the or button to choose the language (English, Spanish, or French) you want, then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

Alternate method

Press the MTS button on the remote control. You can listen in a language other than the favorite language by pressing the MTS button.

English-58

Choosing a Multi-Channel Sound (MTS) track

Depending on the particular program being broadcast, you can listen to Stereo, SAP, or Mono.

Sound

Return

Mode DNSe Multi-Track Options Auto Volume Internal Mute Melody

Sound

Off

Off Off

Low

Enter

Press the MENU button. Press the or button to select “Sound”,

then press the ENTER button.

Press the or button to select “Multi-Track Options”, then press the

ENTER button.

Analog

Multi-Track Options

Return

Preferred Language

Multi-Track SoundTVTV

Mono

Stereo

†

Sound

Stereo

Enter

Press the or button to select “Multi-Track Sound”, then press the

ENTER button. Press the or button to select a setting you want, then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

Choose “Stereo” for channels that are broadcasting in stereo.

Choose “SAP” to listen to the Separate Audio Program, which is usually a foreign-language translation.

Choose “Mono” for channels that are broadcasting in mono, or if you are having difficulty receivind a stereo signal.

Alternate method

Press the MTS button on the remote control repeatedly to select “Mono”, “Stereo”, or “SAP”.

English-59

Selecting the Internal Mute

When using a device such as a Home Theater or Amplifier with external speakers, you can set Internal Mute to On to cut off sound from the TV's internal speakers.

Sound

Return

Mode DNSe Multi-Track Options Auto Volume Internal Mute Melody

Sound

Return Mode DNSe Multi-Track Options Auto Volume

Internal Mute

Melody

Sound

Off

Sound

Off

Off Off

Low

Off

Off Off On

Enter

Press the MENU button. Press the or button to select “Sound”,

then press the ENTER button.

Press the or button to select “Internal Mute”, then press the

ENTER button.

Press the or button to select “On”, then press the ENTER button.

Pressing the or button will alternate between “Off” and “On”.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

The VOL +, VOL–and MUTE buttons do not operate when the Internal Mute is set to On.

When Internal Mute is on, only the “Multi-Track Options” menu is available in the Sound menu.

To watch TV with an external speaker system such as a home theater system, set Internal Mute to On. To watch TV with the internal speaker or to record video with a VCR through AV OUT of the TV, set Internal Mute to Off.

English-60

Setting the On/Off Melody

A melody sound can be set to come on when the TV is powered On or Off.

Sound

Return

Mode DNSe Multi-Track Options Auto Volume Internal Mute Melody

Sound

Return Mode DNSe Multi-Track Options Auto Volume Internal Mute

Melody

Sound

Off

Low

Medium High

Sound

Off

Off Off

Low

Off

Off Off On

Enter

Press the MENU button. Press the or button to select “Sound”,

then press the ENTER button.

Press the or button to select “Melody”, then press the ENTER button.

Press the or button to select a value you want, then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

English-61

Special Features

Setting the Function Help

Displays Help on the menu functions. The Help appears at the top of the screen.

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

Setup

…

Game Mode

V-Chip Caption Menu Transparency Blue Screen Color Weakness

Function Help

CableCARD CableCARD Setup

†

SW Upgrade

Setup

Switches the Function Help on.

Setup

…

Game Mode

V-Chip Caption Menu Transparency Blue Screen Color Weakness

Function Help

CableCARD CableCARD Setup

†

SW Upgrade

Off

Setup

English

Off

Medium

Off

Medium

Off

2006-08-18

Off

Medium

Off

2006-08-18

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

Press the or button to select “Function Help”, then press the

ENTER button.

Press the or button to select “Off” or “On”, then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the

The Function Help default setting is On.

EXIT button to exit.

English-62

Setting the Data Service

It is used to decide whether or not to use the Data Service. When it is set to “Off”, all the functions relating to Data Application are disabled.

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

Setup

…

V-Chip Caption Menu Transparency Blue Screen Color Weakness Function Help

CableCARD CableCARD Setup SW Upgrade

Data Service

Setup

…

V-Chip Caption Menu Transparency Blue Screen Color Weakness Function Help

CableCARD CableCARD Setup SW Upgrade

Data Service

English

Off

Medium

Off

Setup

Medium

Off

2006-08-18

Off

Setup

Medium

Off

2006-08-18

Off

Setup

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

Press the or button to select “Data Service”, then press the

ENTER button.

•

When the current antenna setting is “AIR”, you cannot select “Data Service” because it is disabled.

Press the or button to select “Off” or “On”, then press the ENTER button.

•

When the data service setting is changed from “On” to “Off”, all the running Data Applications are closed so you cannot perform any operation relating to data services.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the

EXIT button to exit.

When the current antenna mode is “AIR”, the data service is set to “Off”. When the mode is changed to “CABLE”, the data service is activated.

When the current antenna mode is “CABLE”, the data service is set to “On”.

English-63

Menu Transparency Level

Adjusts the transparency of the menu screen.

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

Setup

Return Language Clock Timer

Game Mode

V-Chip Caption

Menu Transparency

Blue Screen

†

Color Weakness

English

Medium

Setup

English

High

Medium

Low Opaque

Setup

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

Press the or button to select “Menu Transparency”, then press the

ENTER button. Press the or button to select level, then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

English-64

Using Game Mode

When connecting to a game console such as PlayStationTMor XboxTM, you can enjoy a more realistic gaming experience by setting the Game Mode to on.

Setup

Return

Language Clock Timer Game Mode V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

Setup

Return Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

Component1

Setup

Off

Setup

Game Mode

English

Off

Medium

Off

English

Off

Medium

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

Press the or button to select “Game Mode”, then press the ENTER

button.

Press the or button to select “Off” or “On”, then press the ENTER

button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

Restrictions on Game Mode (Caution)

•To disconnect the game console and connect another external device, set Game to Off in the setup menu.

• If you display the TV menu in Game Mode, the screen shakes slightly.

• The mark ( ) appears6 on the screen which means that Game Mode is on with the selected source.

Game Mode is not available in TV mode.

If the picture is poor when an external device (DVD, VCR etc.) is connected to the TV, check if the Game Mode is On. The Game Mode should be set to Off.

If Game Mode is On

• Picture and Sound Modes are automatically changed to Custom. You cannot select other modes.

• Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer.

• The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets it to the factory defaults.

• If the picture is poor when external device is connected to TV, check if Game Mode is On. Set Game Mode to Off and connect exernal devices.

English-65

Using the V-Chip

Access to channels and programs is controlled by a password (i.e., a 4-digit secret code that is defined by the user). The on-screen menu will instruct you to assign a password (you can change it later, if necessary).

How to Change Your Password

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

English

Medium

Setup

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button. Press the or button to select “V-Chip”, then press the ENTER button.

Press the button. Press the number buttons to enter your current

4-digit PIN. (The default PIN for a new TV set is “0000”.) The “V-Chip” menu is displayed.

V-Chip

Return

V-Chip Lock

TV Parental Guidelines MPAA Rating Canadian English Canadian French Downloadable U.S.Rating

Change PIN

Setup

Change PIN

Return

Enter Current PIN

Enter New PIN.

Confirm New PIN.

Setup

Off

Enter

Press the or button to select “Change PIN”, then press the ENTER button.

Press the button. Press the number buttons to enter your new

4-digit PIN. Re-enter your new PIN to confirm.

The message will automatically disappear, and return to the previous menu after a few seconds, even if the ENTER button is not pressed.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

The PIP doesn’t function when the V-Chip is active.

If you forget the pin, press the remote control buttons in the following sequence, which resets the pin to 0-0-0-0: POWER (Off)

The V-Chip function only works in TV, AV mode and S-Video mode.

→

MUTE → 8 → 2 → 4 → POWER (On).

English-66

How to Enable/Disable the Rating Controls

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

Setup

V-Chip

Return

V-Chip Lock

TV Parental Guidelines MPAA Rating Canadian English Canadian French

Downloadable U.S.Rating

Change PIN

Off

Setup

English

Off

Medium

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button. Press the or button to select “V-Chip”, then press the ENTER button.

Press the button. Press the number buttons to enter your current

4-digit PIN. (The default PIN for a new TV set is “0000”.) The “V-Chip” menu is displayed.

The “V-Chip” screen will appear. Press the or button to select

“V-Chip Lock”. To enable the V-Chip feature, press the ENTER button so that the

“V-Chip Lock” field is “On”. (Pressing the or button will alternate between “On” and “Off”.) Press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

English-67

How to Set up Restrictions Using “TV Parental Guidelines”

The parental restrictions can be set up using either of two methods: The “TV Parental Guidelines” or “MPAA Rating”.

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

V-Chip

Return V-Chip Lock

TV Parental Guidelines

MPAA Rating Canadian English Canadian French

Downloadable U.S.Rating

Change PIN

TV Parental Guidelines

Return

Medium

Setup

English

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button. Press the or button to select “V-Chip”, then press the ENTER button.

Press the button. Press the number buttons to enter your current

4-digit PIN. (The default PIN for a new TV set is “0000”.) The “V-Chip” menu is displayed.

Press the or button to select “TV Parental Guidelines”, then

√

press the ENTER button.

You can independently lock the TV ratings.

The locked TV (FCC) ratings are indicated by the symbol “ ”. Press the / / / buttons and the ENTER button to activate the

appropriate restrictions for TV (FCC) rating system. To unlock items that are locked, press the ENTER button again.

Setup

Enter

Allow All : Press to unlock all TV ratings.

Block All : Press to lock all TV ratings.

TV-Y : Young children TV-Y7 : Children 7 and over TV-G : General audience TV-PG : Parent guidance TV-14 : Viewers 14 and over TV-MA : Mature audience

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

These categories consist of two separate groups: “TV-Y” and “TV-Y7” (young children through age 7), and “TV-G” through “TV-MA” (everybody else).

The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV parental guidelines must be set up separately for each age group. (See page 70)

English-68

How to Set up Restrictions Using “MPAA Rating”

The Movie rating system uses the “MPAA” (Motion Picture Association of America) system, and its main application is for movies. When the rating control is on, the TV will automatically block any programs that are coded with objectionable ratings (either “MPAA Rating” or “TV Parental Guidelines”).

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

English

Medium

Setup

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button. Press the or button to select “V-Chip”, then press the ENTER button.

Press the button. Press the number buttons to enter your current

4-digit PIN. (The default PIN for a new TV set is “0000”.) The “V-Chip” menu is displayed.

V-Chip

Return V-Chip Lock TV Parental Guidelines

MPAA Rating

Canadian English Canadian French

Downloadable U.S.Rating

Change PIN

MPAA Rating

Return

Allow All : Press to unlock all TV ratings.

Block All : Press to lock all TV ratings.

√

Setup

Enter

Setup

Enter

Press the or button to select “MPAA Rating”, then press the

ENTER button.

Press the or button to select a appropriate restriction.

Press the ENTER button to activate the restriction selected.

The “ ” symbol is indicated. To unlock items that are locked, press the ENTER button again.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the

EXIT button to exit.

English-69

Important Notes About Parental Locks

Explanation of the MPAA and TV (FCC) Rating Systems:

TV (FCC) Age-Based Ratings

TV-Y

All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages two to six.

TV-Y7

Directed to older children. The Themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of seven.

TV-G

General audience. It contains little or no violence, no strong language, and little or no sexual dialog or situations.

TV (FCC) Content Category

FV Fantasy violence. D Sexually suggestive dialog. L Adult language. S Sexual situation. V Violence.

MPAA Rating System (Movies)

G General audience (no restriction).

PG Parental guidance suggested.

PG-13 Parents strongly cautioned.

R Restricted. Children under 17 should be

NC-17 No children under age 17.

X Adults only.

NR Not rated.

TV-PG

Parental guidance suggested. This program may contain infrequent coarse language, limited violence, some suggestive sexual dialog and situations.

TV-14

Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence.

TV-MA

Mature audiences only. This program may contain mature themes, profane language, graphic violence and explicit sexual content.

accompanied by an adult.

•

TV (FCC) ratings : The particular rating that you have selected will be locked (and indicated as a red “L” on a blue background). Also, all of the age-based ratings will be locked within the particular group (i.e., “group 1” or “group 2”). Suppose that the TV-G rating and all of its contents (V, S, L, and D) are locked. In that case, more restrictive ratings (TV-PG, TV-14, and TV-MA) and all of their contents (V, S, L, and D) are automatically locked as well.

•MPAA ratings : The particular rating that you have selected will be locked. In addition, more restrictive ratings will be locked as well.

• Neither TV (FCC) ratings nor MPAA ratings apply to news programs.

English-70

How to Set up Restrictions Using Canadian English

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

English

Medium

Setup

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button. Press the or button to select “V-Chip”, then press the ENTER button.

Press the button. Press the number buttons to enter your current

4-digit PIN. (The default PIN for a new TV set is “0000”.) The “V-Chip” menu is displayed.

V-Chip

Return V-Chip Lock TV Parental Guidelines MPAA Rating

Canadian English

Canadian French

Downloadable U.S.Rating

Change PIN

Canadian English

Return

Allow All : Press to unlock all

Block All : Press to lock all

Setup

TV ratings.

Enter

Press the or button to select “Canadian English”, then press the

ENTER button.

√

Press the or button to select a appropriate restriction.

Press the ENTER button to activate the restriction selected.

The “ ” symbol is indicated. To unlock items that are locked, press the ENTER button again.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

E Exempt programming includes...news, sports, documentaries and other

information programming, talk shows, music videos, and variety programming.

C Programming intended for children under age 8.

C8+ Programming generally considered acceptable for children 8 years and over

to watch on their own.

G General programming, suitable for all audiences.

PG Parental guidance.

14+ Programming contains themes or content which may not be suitable for

viewers under the age of 14.

18+ Adult programming.

English-71

How to Set up Restrictions Using Canadian French

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

Setup

V-Chip

Return V-Chip Lock TV Parental Guidelines MPAA Rating Canadian English

Canadian French

Downloadable U.S.Rating

Change PIN

Setup

Canadian French

Return

English

Off

Medium

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button. Press the or button to select “V-Chip”, then press the ENTER button.

Press the button. Press the number buttons to enter your current

4-digit PIN. (The default PIN for a new TV set is “0000”.) The “V-Chip” menu is displayed.

Press the or button to select “Canadian French”, then press the

ENTER button.

√

Press the or button to select a appropriate restriction.

Press the ENTER button to activate the restriction selected.

The “ ” symbol is indicated. To unlock items that are locked, press the ENTER button again.

Setup

Enter

Allow All : Press to unlock

all TV ratings.

Block All : Press to lock

all TV ratings.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the

EXIT button to exit.

E Exempt programming includes...news, sports, documentaries and

other information programming, talk shows, music videos, and variety programming.

G General.

8 ans+ Not recommended for young children.

13 ans+ Programming may not be suitable for children under the age of 13.

16 ans+ Programming is not suitable for children under the age of 16.

18 ans+ Programming restricted to adults.

English-72

Using the V-Chip for Digital channels

Parental restriction information can be used while watching DTV channels.

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

V-Chip

Return V-Chip Lock TV Parental Guidelines MPAA Rating Canadian English Canadian French

Downloadable U.S.Rating

Change PIN

Downloadable U.S. Rating

Return

Humor Level √ 1 / 2

DH MH H VH EH

English

Medium

Setup

Rating title

Setup

Off

Enter

√

The number of current rating title

The number of all rating title

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button. Press the or button to select “V-Chip”, then press the ENTER button.

Press the button. Press the number buttons to enter your current 4-digit PIN. (The default PIN for a new TV set is “0000”.) The “V-Chip” menu is displayed.

Press the or button to select “Downloadable U.S. Rating”, then press the ENTER button.

If information is not downloaded from the broadcasting station, the “Downloadable U.S.

Rating” menu is deactivated.

Parental restriction information is automatically downloaded while watching DTV channels.

It may take several seconds.

The “Downloadable U.S. Rating” menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use.

You can independently lock the TV ratings. The locked TV

ratings are indicated by the symbol “ ”. To unlock a locked channel, press the ENTER button again.

Press the / /

buttons and the ENTER button to

activate the appropriate restrictions for TV rating system.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

Allow all: Press to unlock all TV ratings. / Block all: Press to lock all TV ratings.

Parental restriction levels differ depending on the broadcasting station.

The default menu name and downloadable US rating changes depending on the downloaded information.

Even if you set the on-screen display to your desired language, the "Downloadable U.S. Rating" menu will appear in English only.

The rating will automatically block certain categories that are more restrictive.

The rating titles (for example : Violence Level..etc) and TV ratings (for example : NV, MV, V..etc) may differ depending on the broadcasting station.

English-73

Viewing Closed Captions (On-Screen Text Messages)

Analog

The Analog Caption function operates in either analog TV channel mode or external source mode. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.)

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

Caption

Return

Caption

Caption Mode

Digital Caption Options

Caption

Return Caption

Caption Mode

Digital Caption Options

Off

†

English

Medium

Setup

Default

CC1 CC2

Setup

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

Press the or button to select “Caption”, then press the ENTER button.

Press the or button to select “On”, then press the ENTER button.

Press the or button to select “Caption Mode”, then press the

ENTER button. Press the or button to select submenu (Default, CC1~CC4, or Text1~Text4) you want, then press the ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

The default is “Default”.

CC1 : The Primary Synchronous Caption Service. These are captions in the primary language that must be in sync with the sound,

preferably matched to a specific frame.

CC2 : The Special NonSynchronous Use Captions. This channel carries data that is intended to augment information carried in the program.

CC3 : Secondary Synchronous Caption Service. Alternate program-related caption data, typically second language captions.

CC4 : Special Non-Synchronous Use Captions. Similar to CC2.

Text1 : First Text Service. This may be various non-program related data.

Text2 : Second Text Service. Additional data, usually not program related.

Text3/Text4 : Third and Fourth Text Services. These data channels are used only if Text1 and Text2 data bandwidth is not sufficient.

The Caption feature only works in TV, AV and S-Video mode.

The availability of captions depends on the program being broadcast.

English-74

Viewing Closed Captions (On-Screen Text Messages)

The Digital Captions function operates on digital channels.

Digital

Setup

Return

Language Clock Timer

Game Mode

V-Chip Caption Menu Transparency Blue Screen

†

Color Weakness

Caption

Return

Caption

Caption Mode

Digital Caption Options

Caption

Return Caption

Caption Mode

Digital Caption Options

Off

…

†

English

Medium

Setup

CC1

CC2 CC3

Setup

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

Press the or button to select “Caption”, then press the ENTER button.

Press the or button to select “Caption”, then press the

ENTER button.

Press the or button to select “On”, then press the ENTER button.

Press the or button to select “Caption Mode”, then press the

ENTER button. Press the or button to select submenu (Default, Service1~Service6, CC1 ~ CC4, or Text1 ~ Text4) you want, then press the ENTER button.

Caption

Return Caption Caption Mode

Digital Caption Options

Default

Setup

Press the or button to select “Digital Caption Options”, then press the

√

Enter

ENTER button.

continued...

English-75

Digital Caption Options

Return

Size

Font Style Foreground Color Background Color Foreground Opacity Background Opacity Return to Default

The availability of captions depends on the program being broadcast.

“Default” means to return to the original caption options set by the broadcaster.

Default

Default Default Default Default Default

Setup

Enter

Press the or button to select “Size”, then press the ENTER button.

Press the or button to select the desired item in the Size menu, then press the ENTER button. Set other listed options below using the same method as above. Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

Size

This option consists of “Default”, “Small”, “Standard”, and “Large”. The default is “Default”.

Font Style

This option consists of “Default”, “Style0 ~ Style 7”. You can change the font you want. The default is “Default”.

Foreground Color

This option consists of “Default”, “White”, “Black”, “Red”, “Green”, “Blue”, “Yellow”, “Magenta”, and “Cyan”. You can change the color of the letter. The default is “Default”.

Background Color

This option consists of “Default”, “White”, “Black”, “Red”, “Green”, “Blue”, “Yellow”, “Magenta”, and “Cyan”. You can change the background color of the caption. The default is “Default”.

Foreground Opacity

This option consists of “Default”, “Solid”, “Flashing”, “Translucent”, and “Transparent”. You can change the opacity of the letter. The default is “Default”.

Background Opacity

This option consists of “Default”, “Solid”, “Flashing”, “Translucent”, and “Transparent”. You can change the background opacity of the caption. The default is “Default”.

Return to Default

This option sets each of “Size”, “Font Style”, “Foreground Color”, “Background Color”, “Foreground Opacity”, and “Background Opacity” Color to its default.

Alternate method

Press the CAPTION button on the remote control repeatedly to select “On” or “Off”.

English-76

License Information

Application

Return

D-Net Data Service License

License

Application

Enter

Exit

Press the MENU button.

Press the or button to select “Application”, then press the ENTER button.

Press the or button to select “License”, then press the

ENTER button.

• It displays the information about the Software Platform License of the TV.

Press the EXIT button to close the License application.

English-77

Using the OCAP (OpenCable Application Platform) Data Service

Connecting CableCARD

You must obtain a CableCARD from a local cable service provider.

ANT 1 IN

(CABLE)

TV Rear Panel

Please insert the card as shown.

In order to start service for this device, please contact

customer sevice at PH# 888 705-7171

CableCARD(tm): 0-010-405-737-577

Host ID: 0-020-174-928

MAC ID Number

Serial Number

1. Plug the incoming cable into the ANT 1 IN (CABLE) terminal on the back of the TV.

The CableCARD recognizes input signals from ANT 1 IN (CABLE).

2. Insert the CableCARD into the “CableCARD” slot and the message “CableCARDTM‚ Inserted” is displayed.

3. Within a few minutes after step 2, the message is displayed with a phone number to call for activating the CableCARD. This message contains the CableCARD ID and Host ID numbers of your TV, which records these numbers in preparation for activation.

Weak or no signals.

Updating Channel List

TIME WARNER

C ABLE

Initializing, please wait...

4. After activation, the cable provider will send activation messages to the CableCARD. During this operation, the message “Updating Channel List” is displayed. When the “Updating Channel List” process is completed, the message “Updating Completed” is displayed and your TV will switch to an active channel.

5. Within a few minutes after step 4, the message “Receiving Data Service Signal” is displayed and disappears.

6. The TWC ODN loading screen is displayed. (Loading screen number start from 14 to 1.)

English-78

Using the CableCARD

This menu works with a CableCARD provided by a local cable service provider.

Prior to accessing this menu, a CableCARD should be connected to the rear panel of the TV.

For detailed connection instructions, refer to the “Connecting a CableCARD” section on page 78 of this manual.

Displaying CableCARD related information

To access information on Status, Pairing, Network Setup of the CableCARD provided by the service provider in CableCARD menu.

Setup

…

Game Mode

V-Chip Caption Menu Transparency Blue Screen Color Weakness Function Help

CableCARD

CableCARD Setup

†

SW Upgrade

Off

Medium

Off

2006-08-18

Setup

√

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

Press the or button to select “CableCARDTM”, then press the

ENTER button.

Select “Return” by pressing the or button, then press the ENTER button to return to the previous menu. Press the EXIT button to exit.

Using the CableCARD Setup Function

Sets up relevant CableCARD options.

CableCARD Reset

Resets CableCARD when the channels provided by CableCARD are not available.

Setup

…

Game Mode

V-Chip Caption Menu Transparency Blue Screen Color Weakness Function Help CableCARD

CableCARD Setup

†

SW Upgrade

CableCARD Setup

Return

CableCARD™ Reset

Channel List Reorganization

Medium

2006-08-18

Setup

Off

√

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

Press the or button to select “CableCARD Setup”, then press the

ENTER button.

Press the or button to select “CableCARDTMReset”, then

press the ENTER button.

English-79

Channel List Reorganization

Deletes and reorganizes the channel list provided by CableCARD.

This feature should be used if you change or upgrade your CableCARD service.

Setup

…

Game Mode

V-Chip Caption Menu Transparency Blue Screen Color Weakness Function Help CableCARD

CableCARD Setup

†

SW Upgrade

CableCARD Setup

Return CableCARD™ Reset

Channel List Reorganization

Medium

2006-08-18

Setup

Off

Enter

Press the MENU button. Press the or button to select “Setup”,

then press the ENTER button.

√

Press the or button to select “CableCARD Setup”, then press the

ENTER button.

Press the or button to select “Channel List Reorganization”, then

press the ENTER button.

English-80

Using the Data Service

Application

Return

D-Net Data Service License

Application

Return D-Net

Data Service

License

Application

Enter

√

Application

Enter

Receiving Data Service Signal

Press the MENU button.

Press the or button to select “Application”, then press the ENTER button.

Press the or button to select “Data Service”, then press the

ENTER button.

• Executable Data Applications display in the Application List program.

• The DATA-SERVICE button on your remote control performs the same

function as shown above.

• When the data service is set to “Off” in the Setup menu, the item cannot be selected because it is disabled.

Press the or button to select a Data Application to run.

Preparing Data Service

English-81

Using D-Net

What’s D-Net?

D-Net refers to a home network consisting of devices supporting D-Net (IEEE1394) connection (such as digital VCRs and Set-Top Boxes).

D-Net (IEEE1394) interface is capable of supporting various high-end digital A/V applications, such as A/V device control and signal routing, Digital Video (DV) editing, home networking.

How to connect compatible IEEE1394 Devices

Connecting compatible IEEE1394 devices is simple using this TV. A secure digital interface is provided to other digital home entertainment units, such as a DTV, a Set-Top Box, an AV-HDD, a digital VCR, a MPEG Camcorder.

TV Rear Panel

IEEE 1394 Cable

Digital VCR (D-VHS)

To access D-Net (IEEE1394) in the menu, see page 87.

The IEEE1394 interface is equipped with a copy protection standard called Digital Transmission Content Protection (DTCP).

The name of 1394 Jack on the external device may be different according to the manufacturer (i.e., DTV LINK or i.LINK).

The supported video format is MPEG-2 Digital video. Other digital video formats (e.g. DV format...) are not supported. For audio, Dolby Digital and MPEG Digital Audio are supported, other digital audio formats (e.g. MP3, DTS) are not supported.

Because IEEE1394 is an evolving technology, it is possible that some or all of the features of a device you connect to the TV through the IEEE1394 port may not operate.

There may be a single IEEE1394 jack depending on the specifications of the external device.

Connect the IEEE1394 Cable from the jack

of the component with IEEE1394 capability, such as a Set-Top Box or a Digital VCR to the D-NET (IEEE1394) S400MPEG jack on the TV.

Press the D-Net button on the Remote

Control.

Select the D-Net (IEEE1394) Compatible

device.

English-82

When Connecting D-Net (IEEE1394) Compatible devices

The last device in the chain should not be looped back to the TV as the TV may not be able to work with the other devices.

To connect two or more D-Net (IEEE1394) Compatible devices, follow the diagram below.

A maximum 10 D-Net (IEEE1394) Compatible devices can be connected.

Do not connect D-Net (IEEE1394) Compatible devices in a way that creates a loop.

IEEE1394

cable

IEEE1394

cable

IEEE1394

cable

IEEE1394

cable

IEEE1394

cable

IEEE1394

cable

IEEE1394

cable

IEEE1394

cable

IEEE1394

cable

IEEE1394

cable

IEEE1394

cable

IEEE1394

cable

IEEE1394

cable

IEEE1394 cables longer than 14.76 feet (177.16 inches) should not be used between devices.

English-83

IEEE1394

cable

Connection Options

There are two different connection options for connecting D -Net (IEEE1394) compatible devices. Select the most suitable option according to your network of audio/video products.

The Direct Device-To-Device Option

D-Net (IEEE1394) permits the chaining of devices, unlike analog audio and video connections where each device needs to be individually connected to the TV. This allows you to connect your D-VHS to your 1394 Set-Top Box only, then connect the Set-Top Box to the TV. More IEEE1394 devices can be added to the chain as needed. Each video device can be viewed on the TV’s D-Net and information can be sent from any IEEE1394 device to other compatible devices.

DTV STB

Digital VCR

The Hub Connection Option

D-Net (IEEE1394) also permits connecting devices using the TV as a hub. Each device is capable of sending information, which may include audio and video, to any other device on the network.

Other 1394 Device

1394 Monitor

Digital VCR

English-84

DTV STB Digital VCR

4-Pin and 6-Pin Connectors

Two different types of connectors are used for IEEE1394 terminals and cables, a 4-pin and a 6-pin.

The 4-pin connector sends digital audio, digital video and digital control signals to and from devices. The TV has two available 4-pin connection jacks, of which two are at the back.

The 6-pin connector also sends digital audio, video and control signals, but in addition, sends low voltage electrical power. There are no 6 pin connectors on this TV.

It is not possible to directly connect a 6-pin connector to a 4-pin jack, and vice versa. In order to connect a 6-pin device to a 4-pin device, an adaptor or adaptor cable is required, easily purchased from an electronics or computer store.

Connecting a 6-pin device (such as a camcorder) via an adapter to the TV, (if it is designed to receive electrical power from another 6-pin device) will require that the camcorder be directly connected to the AC supply, or that the camcorder’s battery power be used.

English-85

Selecting a D-Net device

Prior to viewing an IEEE1394 device, it first needs to be selected in the D-Net Device List.

Connect the relevant D-Net (IEEE1394) Compatible device in the list.

(See “How to connect compatible IEEE1394 Devices” on page 82)

Press the D-Net button on the remote control.

• The TV and all other devices connected on the D-Net (IEEE1394) chain appear in the D-Net device list.

• If “UNKNOWN” is listed in the device list, the device is not supported by the TV, and cannot be controlled with the TV remote control or the D-Net control panel on the screen.

• The device list is in the order of DTV, STB, AV-HDD, D-VHS, Camcorder and UNKNOWN. If there are multiple devices of the same type, the devices will be listed in ascending order of the manufacturer name with Samsung first as the exception. If there are multiple devices of the same type and they are manufactured by the same company, they will be listed in the order of their serial number.

Select a connected D-Net device by pressing the

or button.

• It is possible to connect a D-Net device to another device and to the TV while the TV is ON. The D-Net device list automatically adds the newly-connected device to the list. See “How to connect compatible IEEE1394 Devices”, page 82 for connecting D-Net (IEEE1394) Compatible devices.

To select a device, press the

Then display the D-Net device control panel and operate the selected device.

• At this time, the screen changes to the picture from the selected device.

English-86

ENTER

or button.

The Direct Device-To-Device Option

Application

Return

D-Net

Data Service

License

Application

Enter

Press the MENU button.

Press the or button to select “Application”, then press the ENTER button.

Press the or button to select “D-Net”, then press the

ENTER button.

• The TV and all other devices, connected on the D-Net (IEEE1394) chain, appear in the D-Net device list.

• This is also available using the

Press the or button to select a D-Net (IEEE1394) connected device.

D-NET button on the remote control.

English-87

The D-Net control panel

Select an IEEE1394 device from the D-Net device list. The TV will then display the D-Net control panel. This panel allows you to use the TV remote control to control the selected IEEE1394 device.

Press the D-Net button on the remote control.

Press the

connected device. Press the

• The D-Net control panel appears on the bottom of the screen.

Use the

through the options (see next page) available in the D-Net control panel.

Press the

button to select a D-Net (IEEE1394)

or button.

ENTER

button on the remote control to move

to select an option.

ENTER

To view the IEEE1394 device in FULL SCREEN, press

the EXIT button or D-Net button on the remote control.

Press the D-Net button once to display the D-Net menu.

Press the D-Net button again to hide the menu.

For information about how to use the icons, refer to the following page.

What is D-Net Mode?

D-Net Mode refers to selecting a device from the D-Net device list except for DTV itself (it also refers to selecting another DTV connected with an IEEE 1394 cable.) In this mode, the DTV displays video from the connected device. Although the D-Net OSD has disappeared, and video is playing from another device and not from the DTV, the DTV is in D-Net Mode.

English-88

Control Panel ( )

Button Name To do this

Return

Target

File List

Play

Stop

Rewind

Forward

Device menu

Power

Go to recording position

Recording

Move to the D-Net device list.

Shows a list of recording devices.

Display the AV-HDD file list.

Play the digital stream from the selected digital device.

Stop the digital stream from the selected digital device.

Fast rewind a digital stream from the selected digital device.

Fast forward a digital stream from the selected digital device.

Display the EIA-775 OSD received from the EIA-775 standard support among 1394 devices connected. Display only in the control panel of the devices which support EIA-775 menu,

Turn the Power of the selected device ON/OFF.

When in time shift mode on AV-HDD, this moves to the recording position.

Run the camcorder’s Record function. Record video by capturing pictures displayed through the camcorder viewfinder and saving them to the built-in storage of the camcorder.

Pause

Recording stop

Press the

the remote control.

Depending on the device being controlled, not all options on the D-Net control panel may be available.

Not all functions are supported for all IEEE1394 devices.

It is possible to use direct buttons on the remote control (rewind, stop, play/pause, fast forward) to control external devices.

button on the remote control to select a control panel button and press the

Pause Play.

Stop a recording. This only appears when it is in AV-HDD Time-Shift Mode.

ENTER

button on

* What is EIA-775? : EIA-775 is an OSD standard that enables the control of external 1394 devices using

functions such as Play, Stop, etc.

What is CEA-931? : This is a standard for controlling external IEEE1394 devices with the TV remote control and

not the remote control of the external device.

For example, to play D-VHS, you press the Play button of the TV instead of the Play button of the D-VHS, the Play command is transmitted to the DVHA through the IEEE1394 connection.

What is Time-Shift Mode? : This refers to a function that plays the file currently being recorded on the

selected AV-HDD. At this time, the recording time appears at the top right of the screen and the playing time is displayed at the bottom left of the screen. For example: If you are currently 45 minutes into a one hour recording, you can backtrack and view the first 45 minutes without affecting the recording. In the Time-Shift Control Panel, the Move to Recording Position and Recording stop buttons are added to the basic AV-HDD Control Panel.

English-89

Control Panel Images for Each Device

The Control Panel is different depending on the device. For example, for an AV-HDD, the Control Panel buttons for Play and Recording are different.

DTV Control Panel Image

Cable STB Control Panel Image

AV-HDD Control Panel Image

When the Power is off.

AV-HDD Control Panel Image

When the Power changes.

AV-HDD Control Panel Image

When Playing.

AV-HDD Control Panel Image

When Recording.

Camcorder Control Panel Image

When in CAMERA Mode.

Camcorder Control Panel Image

When recording in CAMERA Mode.

Camcorder Control Panel Image

When in VCR Mode.

Camcorder Control Panel Image

When playing in VCR Mode.

English-90

Operating Tips

1) When the screen is switched to the TV program.

- When you select the first button, the DTV button, in the Device List, it switches to the TV program.

- Although you have selected another device from the Device List, if detecting a video signal from the device fails, the “Connection failed” message appears and the screen automatically switches to the TV program.

- When the 1394 connection to the selected device is disconnected, the screen automatically switches to the TV program. If you reconnect the device, the reconnected device is automatically selected.

2) When connected to a AV-HDD

- When a AV-HDD disc is rotating, there may be a time delay.

- Some AV-HDDs may provide two playbacks or recordings simultaneously. In this case, there may be two Play icons in the File List and 2 AV-HDD buttons in the Target List.

- If you copy a file from the File List, the selected AV-HDD file is played on the TV screen and recorded using the device selected from the Target List. If the file reaches its end, the recording device will stop automatically.

- Some AV-HDDs may display the wrong file information after recording, depending on the situation.

- If AV-HDD is recording, the file is automatically played which is currently being recorded, when it is selected from the Device List.

- For the “Go to recording position” button operation, the recording and playing time are displayed and the difference between them must be longer than 30 seconds.

3) When connected to D-VHS

- Some devices support an automatic connect function (I-mode). These devices may cause a malfunction when multiple devices are connected.

- Some D-VHS devices may not record properly when multiple devices are connected and the mode is I-mode.

- When selecting a D-VHS being used for a recording from the device list, you can only switch to D-VHS screen mode after the recording is stopped.

(PVR function - Refer to What is Time-Shift Mode? on page 89)

4) When connected to a camcorder

- Depending on if the camcorder is in Tape or Camera Mode, the control panel changes. If the camcorder turns off the power (power saving mode), the camcorder may disappear from the Device List.

5) AV-HDD, D-VHS and camcorders automatically stop when you select another device.

6) Some devices may be displayed in the Device List as ‘UNKNOWN’. This may happen when the device does not contain the proper information or it cannot be read.

7) Some devices may not be recognized and may be disconnected from the 1394 connection when they are turned off.

8) Through D-Net, you can connect another IEEE1394 compatible TV. If the TV is connected, the TV is listed in the D-Net Devices. At this point, the screen that appears when the TV is selected is determined by the specifications of the connected TV. That is, the screen of the connected TV or another connected IEEE1394 device may be displayed.

What is Digital TS ? : DTV packages digital data (video, audio and data) into 188 byte units using the MPEG-2 algorithm and transmits the data unit. It is called Digital Transport Stream or Digital TS.

When a SAMSUNG DTV which supports D-Net is connected to each other, it only transmits Radio Frequency (RF) of the selected DTV.

9) When connecting more than one STB, some STBs may not be displayed in the Device List due to STB specifications or defects when multiple devices are connected. Even if the device is displayed in the Device List, the connection may fail. STB problems may also stop the video stream while recording, or the recording may fail. In this case, you have to discover which device is defective by removing them one by one.

English-91

10) When multiple devices are connected, some devices may appear and then disappear periodically in the Device List. Because some devices malfunction when multiple devices are connected.

If this occurs, you have to discover and remove the defective device from the connection by removing the devices one by one.

11) When multiple devices are connected, the response time may be relatively long when selecting a device. This may happen when there is a device that malfunctions and degrades the 1394 connection speed. At this time, some of the functions of AV-HDD or D-VHS may not work, and the stream connection may fail. If this occurs, you have to discover and remove the defective device from the connection by removing the devices one by one.

12) When AV-HDD or D-VHS is being played, and you press the Pause button, some products may show the

“ Weak or no signals” message on the TV screen instead of a still picture as there is no video stream from the product.

13) If the number of connected IEEE 1394 devices exceeds 10, it may cause abnormal operation.

-Yes and Play may not operate smoothly, if you play after recording.

-Yes and the Play, Record and Copy functions do not work properly.

-Disconnect the malfunctioning device and then try again.

14) Copy Protection

-You can record a Copy-free, or Copy-one-generation screen.

- Although you cannot record a No-more-copies, or Copy-never screen, you can view it through another device.

- If you change the channel to a ‘Copy-never’ channel while recording a ‘Copy-free’ channel, the recording is

automatically stopped in some devices. Even if the program was recorded, you will not be able to view the recorded ‘Copy-never’ channel. At this time, therefore, the user has to manually stop the recording.

Copy information

Message

Copy-free

No-more-copies

Copy-one-generation

Copy-never

15) When multiple devices are connected, and a device malfunctions while playing D-VHS or AV-HDD, the user

may experience interrupted screen play.

16) When playing and recording a file simultaneously using AV-HDD and the file is copy protected,

the file may not play depending on whether the AV-HDD device supports simultaneous copy protection.

Descriptions

Able to copy.

Unable to copy anymore.

Able to copy once.

Unable to copy.

English-92

Recording Tips

Recording using the Target List while also watching the screen being recorded.

- Check that the AV-HDD and D-VHS devices are connected.

- Select a source device to be recorded and press the Target button in the menu. (Target button : The Target button is used for making a recording. When pressing this button, a menu appears where you can select a device that will be used to make a recording of the current screen of the current device. At this point, the menu shows only D-VHS and AV-HDD which are recordable among D-Net devices.)

- Select a device to be recorded from the Target List.

Recording a file in the File List of AV-HDD using another device.

- Select an AV-HDD file to be recorded from the File List and press Target.

- A source device appears on the left, and the recording device list appears on the right.

In this case, the selected file is automatically played and displayed on the TV screen and the target device

automatically starts recording.

Controlling a device with another device's remote control or through manual operation, may cause a malfunction when controlling a device through the TV. When copying a file, the recording will stop automatically when the

file reaches its end.

Although you can make a recording to connected devices regardless of copy protection, you may not be able to watch the copy-protected recording as the playback picture may be distorted.

When recording an HD program on cable TV or from satellite, programs on some channels may not be recorded if the program exceeds the limit of the allowable range of recording devices such as D-VHS.

If a recording is in process and another command is issued while the ”Recording...” D-Net Notice is displayed on the screen, the recording may fail.

Press the or

- When selecting a stopped device, a recording is started. When selecting a recording or playing device, you will be prompted to stop that device.

Press the

recording device list and to return to the Control Panel.

button to move to a recording device and press the

button or move to "Previous Menu" at the top and press the

ENTER

button to start recording.

button to hide the

English-93

Tips on stopping recording

In general, you can instantly evaluate the current

recording device through the Target List. If you select a device that you wish to stop, a message appears asking if you really want to stop recording.

For D-VHS. If you select a recording D-VHS from the Device

List, a message appears asking if you really want to stop recording. When the “OK” button is selected, the recording is stopped and the D-VHS screen appears. When the “Cancel” button is selected, the recording continues and the D-Net device list appears.

For AV-HDD, if the file currently being recorded is

selected, you can stop the recording using the Recording stop button. After the recording is stopped, the Control panel for Normal Mode appears.

English-94

File List

Press the D-Net button on the remote control.

From the device list, move to AV-HDD by pressing the

button and then press the

ENTER

button.

Press the or

and then press the

The Control Panel disappears and the file list appears which allows you to identify a current recording or playing device. However, when playing a file that is currently being recorded in Time-Shift Mode, only the Record icon appears.

Press the or

the

ENTER

The sub-menu appears allowing you to play, copy or delete as shown in the figure. Press the press the

When selecting Play, and the file is played, the file list

disappears and the Control Panel appears. When selecting Copy, the file list disappears and the recording device list appears allowing you to record. When selecting Delete, a deletion confirmation message appears. When selecting OK, the selected file is deleted. However, you cannot delete a file currently being played or recorded.

button to move to the File List button

button.

ENTER

button to move to a file and then press

button.

button to move to a menu and then

button.

English-95

To move to the list on the next page, move the cursor to the file at the bottom and press the button; to move to

the previous page, move the cursor to the Previous Menu and press the button. When pressing the button while the first file on the first page is selected, the cursor moves to the last file on the last page. When pressing the

button while the last file on the last page is selected, the cursor moves to the first file on the first page.

To move to the previous page, press the CH button. To move to the next page, press the CH button.

To return to the file list from the sub-menu, press the button or press the ENTER or button in "Previous Menu".

To return to the Control Panel from the file list, press the button or press the ENTER or button in "Previous Menu".

However, if no sub-menu appears when selecting a file that is currently being played from the list, delete the

file list and move to the Control Panel. (At this time, a file that is currently being played cannot be deleted. To record, use the recording device list button of the Control Panel.) When selecting a file that is currently being recorded from the list, only the Play sub-menu is activated. (You cannot copy or delete a file being recorded.)

English-96

Troubleshooting (D-Net)

Problem

The device is displayed as

being “UNKNOWN”.

A connected device is not

displayed in the device list.

“Check the connection with IEEE 1394

cable.” message appears.

Possible Solution

Only DTVs, STBs, AV-HDDs, D-VHSs and MPEG camcorder

IEEE 1394 devices are controllable.

Other devices will display “UNKNOWN” in the device list.

Some supported devices may display as “UNKNOWN”

due to an initialization error.

➔

If a device is supported but is displayed as

“UNKNOWN”, reconnect the 1394 cable.

If this does not work, because the information about the

device is unreadable due to an internal error.

A device, which has experienced an error during initialization,

may malfunction and affect the operation of other connected

devices. Other devices may not be displayed in the list.

➔

Disconnect and reconnect the1394 cable.

➔

Remove a device which does not guarantee compatibility

when multiple devices are connected.

➔

The repeater and hub are not displayed in the device list.

This message appears when there is a problem with the

connected device or the 1394 cable.

Initialization might fail when multiple devices are connected

due to limitations of some connected devices.

➔

Check that the 1394 cable is making a loop and reconnect

the 1394 cable.

Check that cables are correctly connected to all connected

devices.

This message may appear due to an operating error

of the 1394 port of a particular device.

“Connection is failed.

Exceeds the limit of 1394 network

connection.” message appears.

IEEE 1394 supports a limited number of screen connections.

This message appears when the limit has been exceeded.

➔

Stop unnecessary operations such as playing, recording,

etc. and try it again.

Turn the auto screen connection function (I-mode) of

D-VHS devices OFF, and retry.

If a camcorder is connected and it is not currently being

used, turn it off or disconnect it from the 1394 network.

English-97

Problem

Possible Solution

“Connection is failed.

1394 network speed is not compatible.”

message appears.

This message appears when the connection speed of the

connected device and the device selected from the Target

List are different when copying data.

➔

Connect a low speed device between the two devices.

(See figure)

D-Net DTV

DEVICE

IEEE1394

cable

D-Net DTV

S400

S200

S400

IEEE1394

cable

IEEE1394

cable

S400 GROUP DEVICE

S400

DEVICE

IEEE1394

cable

S200 GROUP DEVICE

IEEE1394

cable

DEVICE

IEEE1394

cable

D-Net DTV

S200

S400

S100 GROUP DEVICE

IEEE1394

cable

S400

DEVICE

* A 1394 device has a maximum connection speed which will

be marked near the IEEE 1394 connector with an “S” number

(i.e., S100,S200,S400). The higher the number, the faster the

maximum connection speed.

“This device is occupied by another

device.” message appears.

“Authentication is failed” message

appears.

“Recording is prohibited.” message

appears.

Although DV Camcorder is in the

device list, no picture is displayed

on the screen when the DV camcorder

is selected.

This TV has a maximum connection speed of S400.

This message appears when you try to record a device, which

is currently being recorded manually or by another device,

through the TV.

➔

Stop the recording device and retry.

Check that the connected device supports DTCP.

This message appears when trying to copy protected content.

This message appears when trying to copy No-more-copies or

Copy-never content.

Although a camcorder which supports the DV format appears

in the device list, you cannot watch video from the camcorder

even if you select the camcorder as an input source,

because the TV supports the MPEG format only.

English-98

Problem

Possible Solution

No picture on the screen after

selecting a device

“Initializing D-Net” message appears.

“Exceeds the limit of device numbers.”

message appears.

“Recordable device is not

connected” message appears.

“Not available while recording” message

appears

“The connected device is unavailable to

perform this function for temporary

problems.” message appears.

Check if the current mode for DTV and STB is set to analog

by mistake. For AV-HDD, check if the played content has

reached the end. (Select the item from the content list again.)

For D-VHS, check if a D-VHS tape is being used. If the

camcorder supports the DV format, no picture will be

displayed on the screen.

This message appears when the D-Net function is being

initialized.

Retry after a short wait to use the D-Net function.

This message appears when the number of currently

connected D-Net devices exceeds 10.

Retry after disconnecting unnecessary devices.

This message appears when the recordable device is not on the

network when you try to make a recording using a D-Net device.

Retry after connecting a recordable device (D-VHS, AV-HDD).

The message appears informing you that you cannot change

the channels or change the input source using the remote

control because a recording is in progress through D-Net.

Retry after stopping the current recording through D-Net.

This message appears when the selected function is not

supported by the relevant device or the relevant device cannot

execute the selected function. Most STBs, DTVs and camcorders

do not support the power on/off command. This message may

appear when you issue the power command for these devices.

This message also appears when the command is supported but

the relevant device cannot follow the command.

Retry after checking the current mode of the relevant device.

D-Net cannot record video from analog

channels from connected external

equipment.

“Not available format is selected.”

message appears.

“D-Net cannot record the picture of analog

channels or peripheral equipments for the

input source, except TV.” message appears.

“The Disc is Empty.” message appears.

This message appears when the user presses the

RECORD button in analog mode.

D-Net only supports recording for digital.

This message appears when the selected device does not

support the MPEG format.

At present, D-Net supports MPEG TS only.

This message appears when trying to record analog video or video

from a device connected to the External IN port.

D-Net transmits Digital TS only.

This message appears when trying to record the contents of

AV-HDD using another device when there is no content saved on

the AV-HDD. Before make a recording from an AV-HDD to another

device, first check if there is any saved content on the AV-HDD.

English-99

Problem

Possible Solution

This device is unavailable for D-Net.

Connection failed. Check if the 1394

cable is connected.

Initializing…

Please wait. A recordable device

is on standby.

Connection failed. The device is

not responding.

No space left on disc.

The D-NET ERROR message

appears on the screen.

This message appears if you have connected a 1394 device

or equipment other than a supported device (D-VHS, DTV,

STB, AV-HDD, Camcorder), or if the connected device does

not support the AVC defined in the 1394 specifications, even

if the device is a supported device, when you have selected

the device to use it.

This message appears if there is a connection problem

when trying to use a D-Net device.

This message appears if the AV-HDD is booting when trying

to use the AV-HDD.

This message appears if the recording device is turned off

when trying to record using the D-Net device. Please wait a

moment until it is turned on.

This message appears if there is a connection problem when

trying to use a D-Net device. This message appears when the

response of the component device malfunctions or is incorrect.

This message appears if the AV-HDD has no space to record.

Although you have connected external devices according to

the procedures described in the manual to use the D-Net

function, the D-NET ERROR message may appear on the

screen. In this case, check to see if the jacks are damaged.

English-100

Samsung HLS5686CX-XAA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

General Information

Viewing Position

List of Features

Accessories

Viewing the Control Panel

Viewing the Connection Panel

Remote Control

Installing Batteries in the Remote Control

Connections

Connecting VHF and UHF Antennas

Connecting Cable TV

Connecting a VCR

Connecting an S-VHS VCR

Connecting a Camcorder

Connecting a DVD Player/Set-Top Box

Connecting a DVD Player/Set-Top Box via DVI

Connecting a DVD Player/Set-Top Box via HDMI

Connecting a Digital Audio System

Connecting an Amplifier/DVD Home Theater

Operation

Turning the TV On and Off

Plug & Play Feature

Dynamic Menus and On-Screen Displays

Navigating Menus by Using the Menu Map

Selecting a Menu Language

Memorizing Channels

Changing Channels

Setting Up Your Remote Control

Remote Control Codes

Setting the Clock

Setting the On/Off Timer

Setting the Sleep Timer

Viewing an External Signal Source

Assigning Names to External Input Mode

Channel Control

Selecting Your Favorite Channels

Viewing the Channel Lists

Adding and Erasing Channels

Labeling the Channels

LNA (Low Noise Amplifier)

Picture Control

Picture Control

Customizing the Picture Settings

Changing the Picture Size

Setting the My Color Control Mode

Using the Color Weakness Enhancement Feature

Digital Noise Reduction

DNIe (Digital Natural Image engine)

Setting the Film Mode

Freezing the Picture

Setting the Blue Screen Mode

Sound Control

Sound Control

Customizing the Sound

Setting up DNSe (Digital Natural Sound engine)

Auto Volume

Selecting the Internal Mute

Setting the On/Off Melody

Special Features

Setting the Function Help

Setting the Data Service

Menu Transparency Level

Using Game Mode

Using the V-Chip

How to Enable/Disable the Rating Controls

How to Set up Restrictions Using “TV Parental Guidelines”

How to Set up Restrictions Using “MPAA Rating”

Important Notes About Parental Locks

How to Set up Restrictions Using Canadian English

How to Set up Restrictions Using Canadian French

Using the V-Chip for Digital channels

License Information

Using the OCAP (OpenCable Application Platform) Data Service

Connecting CableCARD

Using the CableCARD

Using the CableCARD Setup Function
