Samsung Galaxy Tab S8, Galaxy Tab S8 Ultra User guide

Download

Page 1

User manual

Page 2

Features

S Pen| Biometric security| Dark mode

Getting started

Device layout: Galaxy Tab S8 Ultra | Galaxy Tab S8+ | S8+ 5G | Galaxy Tab S8

Set up your device: Charge the battery| Accessories

Camera and Gallery

Samsung apps

SAM_X700_X800_X808_X900_EN_UM_TN_ULA_012422_FINAL

Page 3

Contents

Google apps

Microsoft apps

Outlook| Office | OneDrive

Settings

Customization: Display| Notifications| Sounds and vibration

Security: Lock screen and security| Face recognition| Fingerprint scanner

Accounts: Add an account| Account settings| Remove an account| Users| Backup and

restore| Google settings

Backup: Samsung account| Google Account| External storage transfer

Accessibility: Recommended for you | TalkBack| Visibility enhancements | Hearing

Quick Share | Labs | About tablet

Learn more

Legal information

Page 4

Getting started

Galaxy Tab S8 Ultra

Galaxy Tab S8+ | S8+ 5G

Galaxy Tab S8

Set up your device

Start using your device

Page 5

Side key

Volume keys

USB charger/

Audio port

Rear cameras

Microphone

Accessory dock port

Flash

Magnetic S Pen

charging strip

Front cameras

Getting started

Galaxy Tab S8 Ultra

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 6

Side key

Volume keys

USB charger/

Audio port

Rear cameras

Microphone

Accessory dock port

Flash

Magnetic S Pen

charging strip

Front camera

Getting started

Galaxy Tab S8+ | S8+ 5G

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 7

Side key

Volume keys

USB charger/

Audio port

Rear cameras

Microphone

Accessory dock port

Flash

Magnetic S Pen

charging strip

Front camera

Getting started

Galaxy Tab S8

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 8

Charge your device

Before turning on your device, charge it fully.

Install SIM/microSD card

Gently press the microSD card into the front of the tray. Flip the tray over and press the SIM card (if applicable) into the back of the tray.

Getting started

Set up your device

Charge the battery| Accessories

Your device uses a nano-SIM card (unless it is the Wi-Fi model). A SIM card may be preinstalled, or you may be able to use your previous SIM card. Network indicators for 5G service are based on your carrier’s specifications and network availability. Contact your carrier for more details.

NOTEUse only Samsung-approved chargers and cables. To avoid injury or damage to your device, do not use incompatible, worn or damaged batteries, chargers or cables. Using other charging devices and batteries may void your warranty and may cause damage. For more information on your device, including charging compatibility, please visit samsung.com.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 9

Getting started

Charge the battery

Your device is powered by a rechargeable battery. A compatible, reversible USBType-C cable is included with the device. The USB Type-C cable can use a USB Type-C travel adapter, portable charging devices, smartphones, laptops, wireless charging and other devices that offer USB-C ports, both for charging and data transfer.

TIPWhilecharging, the device andthe chargermay become hot and stop charging. Thisusually does not affectthe device’slifespan or performance andis in the device’s normal rangeof operation.Disconnect the charger fromthe device and wait for the deviceto cooldown. Formore information, visit samsung.com/us/support/answer/ANS00076952.

Accessories

Supported accessories (sold separately) can be configured through Settings. This option may only appear after you have connected an accessory to your device.

Visit samsung.com/us/mobile/mobile-accessories to learn more.

From Settings, tap Advanced features > Accessories.

◌

Page 10

Getting started

Start using your device

Turn on your device

Use the Side key to turn your device on. Do not use the device if the body is cracked or broken. Use the device only after it has been repaired.

Press and hold the Side key to turn the device on.

◌

•

To turn the device off, press and hold the Side and Volume down keys at the same time, and tap Power off. Confirm when prompted.

•

To restart your device, press and hold the Side and Volume down keys at the same time, and tap Restart. Confirm when prompted.

TIP To learn more about powering off your device from Settings, tap

Advanced features > Side key > How to power off your tablet.

NOTEBest 5G performance requires optimal 5G connection and unobstructed antennas (rear of device); see carrier for network availability; 5G performance may be impacted by a case or cover.

Use the Setup Wizard

The first time you turn your device on, the Setup Wizard guides you through the basics of setting up your device.

Follow the prompts to choose a default language, connect to a Wi-Fi®network, set up accounts, choose location services, learn about your device’s features, and more.

Page 11

Getting started

Bring data from an old device

Download Smart Switch™to transfer contacts, photos, music, videos, messages, notes, calendars, and more from your old device. Smart Switch can transfer your data via USBcable, Wi-Fi, or computer.

Visit samsung.com/smartswitch for more information.

From Settings, tap Accounts and backup > Bring data from old device.

2. Follow the prompts and select the content to transfer.

Page 12

Side key

Press to lock. Press to turn on the screen, and then swipe the screen to unlock it.

Getting started

Lock or unlock your device

Use your device’s screen lock features to secure your device. By default, the device locks automatically when the screen times out. For more information about screen locks, see Lock screen and security.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 13

Getting started

Side key settings

You can customize the shortcuts assigned to the Side key.

Double press

Choose which feature is launched when the Side key is pressed twice.

From Settings, tap Advanced features > Side key.

2. Tap Double press to enable this feature, and tap an option:

Quick launch camera (default)

Open app

Press and hold

Choose which feature is launched when you press and hold the Sidekey.

From Settings, tap Advanced features > Side key.

2. Under the Press and hold heading, tap an option:

Wake Bixby (default)

Power off menu

Accounts

Set up and manage your accounts.

TIPAccounts may support email, calendars, contacts, and other features. Contact your carrier for more information.

Page 14

Getting started

Add a Google Account

Sign in to your Google Account to access your Google Cloud Storage, apps installed from your account, and make full use of your device’s Android™features.

When you sign in to a Google Account and set a Lock screen, Google Device Protection is activated. This service requires your Google Account information when resetting to factory settings. For more information, see Google Play Protect.

From Settings, tap Accounts and backup > Manage accounts.

Tap Add account > Google.

Add a Samsung account

From Settings, tap Samsung account.

◌

Add an Outlook account

From Settings, tap Accounts and backup > Manage accounts.

Tap Add account > Outlook.

Page 15

Getting started

Navigation

A touch screen responds best to a light touch from the pad of your finger or a capacitive stylus. Using excessive force or a metallic object on the touch screen may damage the surface of the screen and the damage will not be covered by the warranty.

Tap

Lightly touch items to select or launch them.

Tap an item to select it.

Double-tap an image to zoom in or out.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 16

Getting started

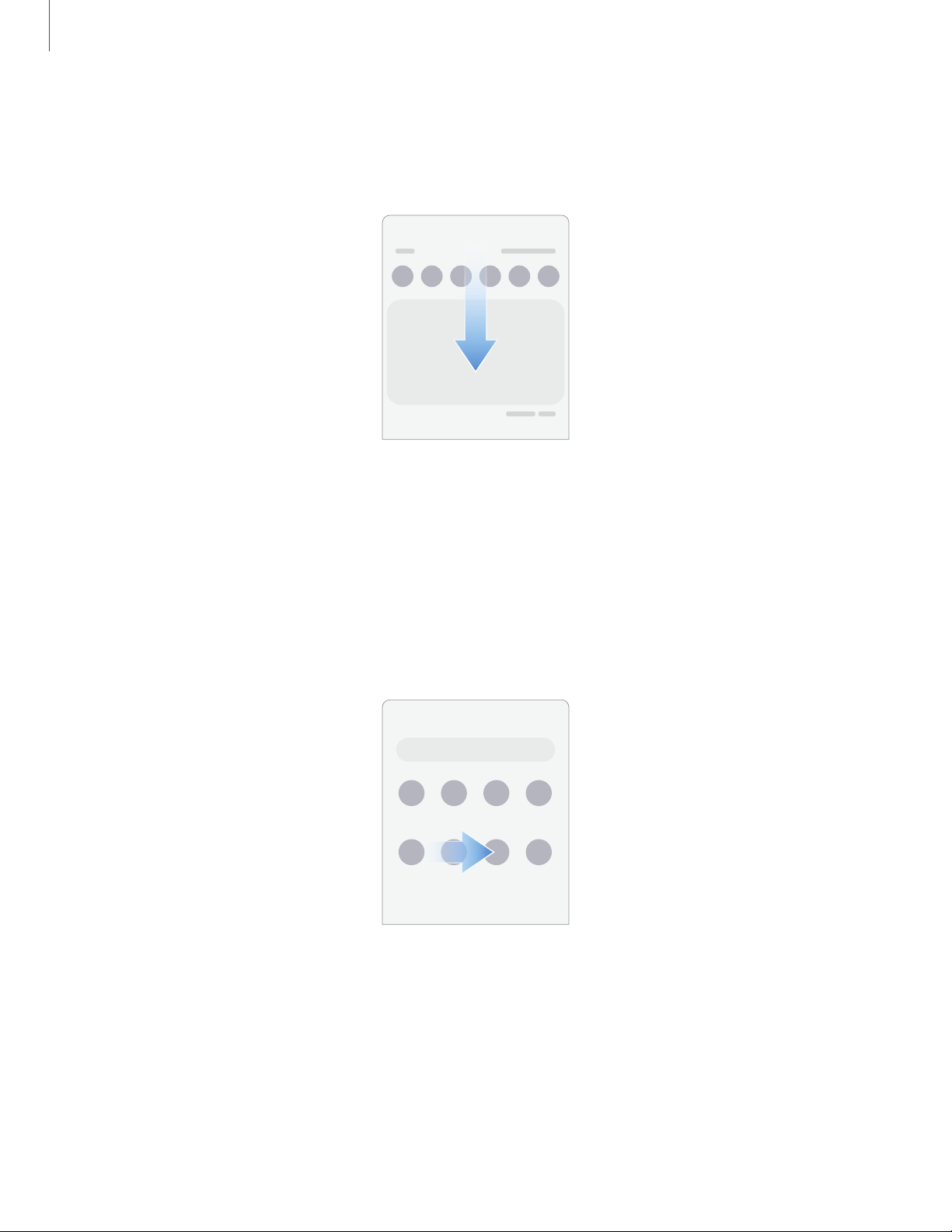

Swipe

Lightly drag your finger across the screen.

Swipe the screen to unlock the device.

Swipe the screen to scroll through the Home screens or menu options.

Drag and drop

Touch and hold an item, and then move it to a new location.

Drag an app shortcut to add it to a Home screen.

Drag a widget to place it in a new location.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 17

Getting started

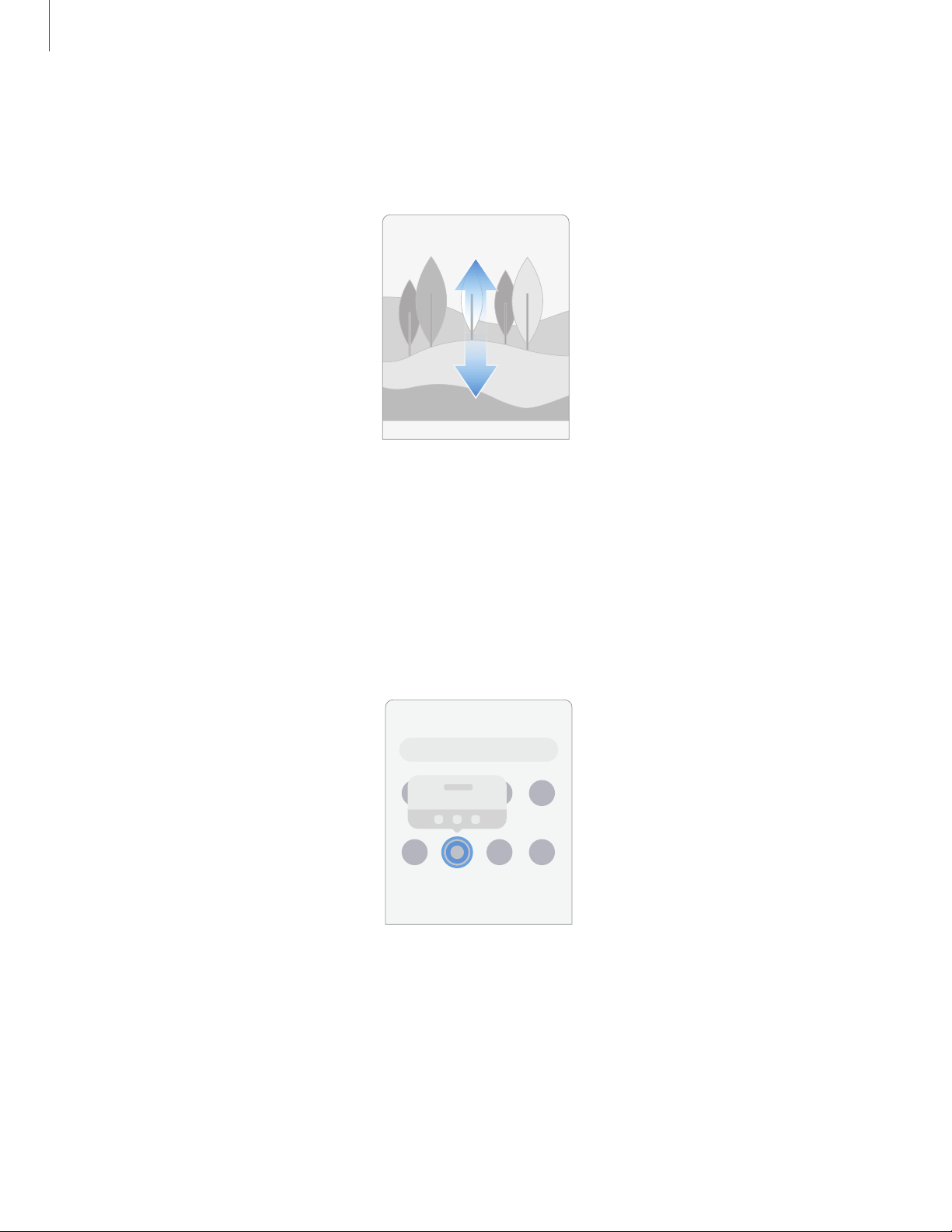

Zoom in and out

Bring your thumb and forefinger together or apart on the screen to zoom in and out.

Move your thumb and forefinger apart on the screen to zoom in.

Move your thumb and forefinger together on the screen to zoom out.

Touch and hold

Touch and hold items to activate them.

Touch and hold a field to display a pop-up menu of options.

Touch and hold a Home screen to customize the Home screen.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 18

Recent apps

ome

Back

Getting started

Navigation bar

You may navigate your device by using either the navigation buttons or full screen gestures.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 19

Getting started

Navigation buttons

Use buttons along the bottom of the screen for quick navigation.

From Settings, tap Display > Navigation bar > Buttons.

2. Tap an option under Button order to choose which side of the screen the Back and Recent apps icons display.

3. Tap Button position to choose the position of the buttons on the Navigation bar.

Navigation gestures

Hide the navigation buttons at the bottom of the screen for an unobstructed screen experience. Instead swipe to navigate your device.

From Settings, tap Display > Navigation bar > Swipe gestures to enable the

1. feature.

2. Tap an option to customize:

More options: Choose a gesture type and sensitivity.

Gesture hint: Display lines at the bottom of the screen where each screen gesture is located.

Show button to hide keyboard: Show an icon on the bottom right corner of the screen to hide the keyboard when the device is in portrait mode.

Block gestures with S Pen: Prevent the S Pen from making navigation gestures.

Page 20

Getting started

Customize your home screen

The Home screen is the starting point for navigating your device. You can place your favorite apps and widgets here, in addition to setting up additional Home screens, removing screens, changing the order of screens, and choosing a main Home screen.

App icons

Use app icons to launch an app from any Home screen.

From Apps, touch and hold an app icon, and tap Add to Home.

◌

To remove an icon:

From a Home screen, touch and hold an app icon, and then tap Remove.

◌

NOTERemoving an icon does not delete the app, it just removes the icon from a Home screen.

Wallpaper

Change the look of the Home and Lock screens by choosing a favorite picture, video, or preloaded wallpaper.

From a Home screen, touch and hold the screen, and then tap Wallpaper and

1. style.

2. Tap one of the following menus for available wallpapers:

•

My wallpapers: Choose from featured and downloaded wallpapers.

•

Gallery: Choose pictures and videos saved in the Gallery app.

•

Lock screen wallpaper services: Enable additional features including guide page and Dynamic Lock screen.

•

Color palette: Choose a palette based on colors from your wallpaper.

•

Apply Dark mode to Wallpaper: Enable to apply Dark mode to your wallpaper.

Page 21

Getting started

3. Tap a picture or video to choose it.

•

If choosing a single picture, choose which screen or screens you want to apply the wallpaper to.

•

Videos and multiple pictures can only be applied to the Lock screen.

•

If choosing videos or pictures from the Gallery, tap on one or more items, and then tap Done.

4. Tap Set on Home screen, Set on Lock screen, or Set on Lock and Home screens (depending on which screens are applicable).

•

If applying a picture from the Gallery to both the Home and Lock screens, enable Sync my edits if you want any edits made to that wallpaper to be applied to both screens.

Widgets

Add widgets to your home screens for quick access to info or apps.

1. From a Home screen, touch and hold the screen.

Tap Widgets, and then tap a widget set to open it.

3. Swipe to the widget you want to add to the Home screen, and tap Add.

Customize Widgets

Once you have added a widget, you can customize where it's located and how it functions.

From a Home screen, touch and hold a widget, and tap an option:

◌

•

Remove: Delete a widget from your screen.

Settings: Customize the function or appearance of the widget.

App info: Review the widget usage, permissions, and more.

Page 22

Getting started

Home screen settings

Customize your Home and Apps screens.

1. From a Home screen, touch and hold the screen.

Tap Settings to customize:

•

Home screen layout: Set your device to have separate Home and Apps screens, or only a Home screen where all apps are located.

•

Home screen grid: Choose a layout to determine how icons are arranged on the Home screen.

•

Apps screen grid: Choose a layout to determine how icons are arranged on the Apps screen.

•

Add media page to Home screen: When enabled swipe right from the Home screen to show a media page. Tap to view available media services.

•

Show Apps screen button on Home screen: Add a button to the Home screen for easy access to the Apps screen.

•

Lock Home screen layout: Prevent items on the Home screen from being removed or repositioned.

•

Add new apps to Home screen: Automatically add newly-downloaded apps to the Home screen.

•

Hide apps: Choose apps to hide from the Home and App screens. Return to this screen to restore hidden apps. Hidden apps are still installed and can appear as results in Finder searches.

•

App icon badges:Enable to show badges on apps with active notifications. You can also choose the badge style.

•

Swipe down for notification panel: Enable this feature to open the Notification panel by swiping down anywhere on the Home screen.

•

About Home screen: View version information.

Page 23

Getting started

Status bar

The Status bar provides device information on the right side and notification alerts on the left.

Status icons

Battery full Charging Mute Vibrate

Airplane mode Bluetooth active Location active Alarm

Notification icons

New email Download Upload App update

Configure display options for the Status bar.

TIPFrom Quick settings, tap More options > Status bar to configure settings for

Status bar notifications.

Page 24

Device settings

Quick settings

Notification cards

Getting started

Notification panel

For quick access to notifications, settings, and more, simply open the Notification panel.

View the Notification panel

You can access the Notification panel from any screen.

1. Swipe down on the screen to display the Notification panel.

•

To open an item, tap it.

•

To clear a single notification, drag the notification left or right.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 25

Getting started

•

To clear all notifications, tap Clear.

•

To customize notifications, tap Notification settings.

Drag upward from the bottom of the screen or tap Back to close the

2. Notification panel.

Quick settings

The Notification panel provides quick access to device functions using Quick settings. The icons below show the most common settings available in Quick settings. Icon colors change when enabled and disabled. Other settings may be available on your device.

1. Drag the Status bar down to display the Notification panel.

2. Swipe down again from the top of the screen to display Quick settings.

•

Tap a quick setting icon to turn it on or off.

•

Touch and hold a quick setting icon to open the setting.

Wi-Fi Sound Bluetooth Auto rotate Airplane mode

Do not disturb Power saving Location

Quick settings options

The following options are available in Quick settings.

Eye comfort

Dark mode

shield

•

Finder search: search the device.

Power off: Power off and Restart options.

Open settings: Quickly access the device's settings menu.

More options: Reorder Quick settings or change the button layout.

Device control: Control other devices when supported apps like SmartThings or Google Home are installed.

Page 26

S Pen button

Getting started

•

Media output: Access the Media panel and control playback of connected audio and video devices.

•

Brightness slider: Drag to adjust the screen brightness.

S Pen

The S Pen provides a variety of helpful functions. Use your S Pen to launch apps, take notes, or draw a picture. Some S Pen functions, such as tapping the touchscreen, may not work if the device is near a magnet.

Air Actions

The S Pen can be used to perform remote functions using the button and movements or gestures. You can set up shortcuts to your favorite apps, navigate screens on your devices, complete actions, and more.

The S Pen remote feature is only supported by Samsung-approved SPens with Bluetooth Low Energy (BLE). If the S Pen is too far from the device, or if there is interference, the SPen disconnects from the device. The S Pen must be connected for Air actions to work.

Page 27

Getting started

Hold the S Pen button shortcut

Set a shortcut when you press and hold the S Pen button. By default, this option is set to launch the Camera app.

From Settings, tap Advanced features > SPen > Air actions.

Tap Hold down Pen button to, and tap to enable the feature.

3. Tap an option to set the shortcut.

Anywhere actions

Anywhere actions are configurable shortcuts that are accessed by holding the S Pen button while making one of the following gestures: up, down, left, right, or shake. These can be accessed from any screen and can include navigation, S Pen features, or apps.

Action Gesture

Back Left to right

Recents Right to left

Home Up and down

Smart select Down and up

Screen write Zigzag

From Settings, tap Advanced features > SPen > Air actions.

2. Tap a Gesture icon under Anywhere actions to customize the shortcut.

Page 28

Getting started

App actions

You can use your S Pen to do specific actions in certain apps.

From Settings, tap Advanced features > SPen > Air actions.

2. Tap an app to view the available shortcuts.

Tap to enable the shortcuts while using that app.

General app actions

You can customize some general actions while using camera and media apps not specified in the app action list.

From Settings, tap Advanced features > SPen > Air actions.

2. Under General app actions, tap an action to change it.

Air view

Hover the S Pen over the screen to preview content or view information about an item on the screen. The following Air view features are available:

•

Preview an email message before opening it.

•

Preview the contents of a photo album or enlarge a picture.

•

Preview a video and navigate to a specific scene by hovering over the timeline.

•

View the name or description of an icon or a button.

NOTEThe preview function is only available when the S Pen’s on-screen pointer is a solid color.

Page 29

Settings

Connectivity status

Getting started

Air command

Access signature S Pen features from any screen, including Smart select, Screen write, and Samsung Notes.

Tap Air command or hold the S Pen near the screen so that the pointer

1. appears, and then press the S Pen button once.

2. Tap an option:

•

Create note: Launch a new note in the Samsung Notes app.

View all notes: Launch the Samsung Notes app and view a listing of the

notes you have created.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 30

Getting started

•

Smart select: Draw around an area of the screen to collect it in the Gallery

app.

Screen write: Capture screenshots and write or draw on them.

Live messages: Create a short animated message by drawing or writing

with the S Pen.

AR Doodle: Draw interactive doodles using the AR camera feature.

Translate: Hover the S Pen over a word to see it translated into another

language and listen to its pronunciation.

PENUP:Use the S Pen to draw, color, edit, and share live drawings.

Add: Add more apps or functions to the Air command menu.

Settings: Customize Air command by configuring apps and functions, and

by changing how the Air command menu appears.

Create note

Launch a new note directly in the Samsung Notes app. For more information, see

Samsung Notes.

Tap Air command > Create note.

◌

View all notes

Launch the Samsung Notes app and view a listing of the notes you have created.

Tap Air command > View all notes.

◌

Smart select

The Smart select feature allows you to copy content from any screen. You can then add it to your Gallery app or share it with your contacts.

Tap Air command > Smart select.

2. Tap a shape in the menu, and then drag the S Pen to select content. The following options appear:

•

Pin/Insert: Place a shortcut to the collected content on a Home screen or

insert it into an app.

Auto select: Allow Smart select to automatically select content to extract.

Page 31

Getting started

•

Tap Save.

TIPYou can tap Animation to record an animation or Pin to screen to pin

the content to your screen using Smart select.

Draw: Draw on the captured content.

Extract text: Identify and extract text from the selected content.

Share: Choose a sharing method to share your content.

Screen write

Screen write allows you to capture screenshots and write or draw on them.

Tap Air command > Screen write.

2. The current screen is captured, and a pen tool appears. The following editing tools are provided:

•

Crop: Drag the edges of the screen to crop the captured content.

•

Pen type: Draw on the screenshot. Tap the Pen icon a second time to

change the pen tip, size, and color.

•

Tap Save. The content is saved to the Galleryapp.

TIPHold the S Pen button to erase your drawings on the screen memo.

Eraser: Erase the writing or drawings on the screenshot.

Undo: Reverse the last action

Redo: Repeat the last action that was undone.

Share: Choose a sharing method to share your content.

Scroll capture: Capture any scrollable areas of the screen that may be

hidden.

Page 32

Undo

ormat

Start over

Preview

Drawing progress

Thickness

Back

Pen effects

Color

Getting started

Live messages

Record an animated drawing or written message.

Tap Air command > Live messages.

2. Select one of the following background options:

Collection: See all live messages you have created.

Gallery: Pick an image or video for the background.

Camera: Capture an image to use for the background.

Color: Pick a color for the background.

3. Follow the prompts to begin creating your live message.

4. Tap Done to save.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 33

Gallery

ettings

Record

Text

GIFs

Pens

Switch cameras

Trash

Getting started

AR Doodle

Draw interactive doodles on faces or other objects seen through the camera using augmented reality.

Tap Air command > AR Doodle.

Select either the front or rear cameras by tapping Switch cameras.

3. Position the camera so that your target is in the center of the screen.

4. Use the S Pen to draw a doodle.

•

The doodle follows the movements of the face in real-time.

Tap Record to save a video of your ARDoodle.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 34

Getting started

Translate

Hover over words with the S Pen to translate them and listen to their pronunciation.

Tap Air command > Translate.

2. Tap the icon to change between translating a word and translating a phrase:

•

3. Tap the source and target languages to change them to the desired languages.

4. Hover the S Pen over a word.

•

Tap Close to close Translate.

Phrases: Translate an entire phrase.

Words: Translate a word.

Tap Sound to hear the word pronounced in the source language.

Tap Copy to save the selected text and the translation to your clipboard.

PENUP

Use the S Pen to draw, color, edit, and share live drawings. For more information, see

PENUP.

Tap Air command > PENUP.

◌

Add shortcuts

You can customize the Air command menu by adding shortcuts to apps and functions.

Tap Air command > Add.

2. Tap the apps or functions you would like to add to the Air command menu.

•

To remove an app shortcut, tap Remove.

Tap Navigate up to save your selection.

Page 35

Getting started

Screen off memo

You can write memos without turning on the screen.

1. While the screen is off, press the S Pen button and tap the screen.

2. Tap an option to customize your memo:

•

Color: Change the pen color.

Pen settings: Tap to use the pen tool. Tap again to adjust the line thickness.

Eraser: Tap to use the eraser tool. Tap again to erase all.

3. Tap Save to save your memo to the Samsung Notes app.

NOTEThe screen off memo setting must be enabled. For more information, see

Configure S Pen settings.

Configure S Pen settings

To configure S Pen settings:

From Settings, tap Advanced features > SPen to configure the following

◌

settings:

Air actions: Configure how the remote control functions while using apps.

S Pen unlock: Use the S Pen button to unlock the device. Asecure screen lock must be set to use this feature.

Screen off memo: Create memos without turning on the screen. Screen off memos are saved in Samsung Notes.

Quick create notes: Press and hold the S Pen button, then tap the screen twice with your S Pen to start a new note.

S Pen to text: Use the S Pen to write in search fields, address bars, and other text areas. Your handwriting is converted to text, and you can edit the converted text with the S Pen.

Air view: Turn Air view on or off.

Show pointer when hovering: Turn the pointer on or off. The pointer appears on the screen when the tip of the SPen is near the screen, showing available actions.

Allow multiple S Pens: Let other S Pens write on the screen.

Page 36

Getting started

Air Command

Menu style: Configure the appearance of the Air command menu.

Shortcuts: Configure the Air command menu with S Pen features, apps, and functions.

Show Air command icon: Show an Air command icon that you can move around the screen.

Open Air command with Pen button: Open the Air command menu when you hover your S Pen over the screen and press the Pen button.

Removal

When S Pen is removed: Choose what happens when you detach the S Pen. Choose Open Air command, Create note, or Do nothing.

Warn if S Pen is left behind: Set your device to show a warning if you leave your S Pen and walk away while the screen is off.

Feedback

Sounds: Set your device to make sounds when writing on the screen.

General

Tips for using your S Pen: Find out how to use S Pen features.

About S Pen: View version information for the S Pen features.

Bixby

Bixby is a virtual assistant that learns, evolves, and adapts to you. It learns your routines, helps you set up reminders based on time and location, and is built in to your favorite apps. Visit samsung.com/us/support/owners/app/Bixby for more information.

From a Home screen, press and hold the Side key.

◌

TIP You can also access Bixby from the Apps list.

Page 37

Getting started

Bixby Routines

You can use Bixby to show you information or change device settings based on where you are and what you are doing.

From Settings, tap Advanced features > Bixby Routines.

2. Tap Add routine and follow the prompts to create a new routine.

Bixby Vision

Bixby is integrated with your Camera, Gallery, and Internet apps to give you a deeper understanding of what you see. It provides contextual icons for translation, QR code detection, landmark recognition, or shopping.

Camera

Bixby Vision is available on the Camera viewfinder to help understand what you see.

From Camera, tap More > Bixby Vision and follow the prompts.

◌

Gallery

Bixby Vision can be used on pictures and images saved in the Gallery app.

From Gallery, tap a picture to view it.

Tap Bixby Vision and follow the prompts.

Internet

Bixby Vision can help you find out more about an image you find in the Internet app.

From Internet, touch and hold an image until a pop-up menu is displayed.

2. Tap Search with Bixby Vision and follow the prompts.

Page 38

Getting started

Digital wellbeing and parental controls

You can monitor and manage your digital habits by getting a daily view of how frequently you use apps, how many notifications you receive, and how often you check your device. You can also set your device to help you wind down before going to bed.

From Settings, tap Digital Wellbeing and parental controls for the following

◌

features:

•

Tap the Dashboard to view the following:

–

Screen time: View how long an app has been opened and used each day.

–

Notifications received: View how many notifications have been received from an app each day.

–

Unlocks: View how many times an app has been opened each day.

Your goals

•

Screen time: Set a screen time goal and view your daily average.

•

App timers: Set a daily limit for how long you use each app.

Ways to disconnect

•

Focus mode:Limit app usage for set periods of time to avoid distractions from your device.

•

Bedtime mode: Schedule when to change the screen to grayscale and mute calls, alerts, and other sounds.

•

Driving monitor: Monitor your screen time while connected to your car's bluetooth and see which apps you use the most.

Check on your kids

•

Parental controls:Supervise your children’s digital life with Google’s Family Link app. You can choose apps, set content filters, keep an eye on screen time, and set screen time limits.

Page 39

Getting started

Biometric security

Use biometrics to securely unlock your device and log in to accounts.

Face recognition

You can enable Face Recognition to unlock your screen. To use your face to unlock your device, you must set a pattern, PIN, or password.

•

Face recognition is less secure than Pattern, PIN, or Password. Your device could be unlocked by someone or something that looks like your image.

•

Some conditions may affect face recognition, including wearing glasses, hats, beards, or heavy make-up.

•

When registering your face, ensure that you are in a well-lit area and the camera lens is clean.

From Settings, tap Biometrics and security > Facerecognition.

2. Follow the prompts to register your face.

Face recognition management

Customize how face recognition works.

From Settings, tap Biometrics and security > Facerecognition.

◌

•

Remove face data: Delete existing faces.

•

Add alternative appearance to enhance recognition: Enhance face recognition by adding an alternative appearance.

•

Face unlock: Enable or disable face recognition security.

•

Stay on Lock screen until swipe: When you unlock your device with face recognition, stay on the Lock screen until you swipe the screen.

•

Faster recognition: Turn on for faster face recognition. Turn off to increase security and make it harder to unlock using an image or video of your likeness.

•

Require open eyes: Facial recognition will only recognize your face when your eyes are open.

Page 40

Getting started

•

Brighten screen:Increase the screen brightness temporarily so that your face can be recognized in dark conditions.

•

About unlocking with biometrics: Learn additional information about securing your device with biometrics.

•

About face recognition: Learn additional information about securing your device with face recognition.

Fingerprint scanner

Use fingerprint recognition as an alternative to entering passwords in certain apps. You can also use your fingerprint to verify your identity when logging in to your Samsung account. To use your fingerprint to unlock your device, you must set a pattern, PIN, or password.

From Settings, tap Biometrics and security > Fingerprints.

2. Follow the prompts to register your fingerprint.

Fingerprint management

Add, delete, and rename fingerprints.

From Settings, tap Biometrics and security > Fingerprints for the following

◌

options:

•

The list of registered fingerprints is at the top of this list. You can tap a fingerprint to remove or rename it.

•

Add fingerprint: Simply follow the prompts to register another fingerprint.

•

Check added fingerprints: Scan your fingerprint to see if it has been registered.

Page 41

Getting started

Fingerprint verification settings

Use fingerprint recognition to verify your identity in supported apps and actions.

From Settings, tap Biometrics and security > Fingerprints.

◌

•

Fingerprint unlock: Use your fingerprint for identification when unlocking your device.

•

Fingerprint always on: Scan your fingerprint even when the screen is off.

•

Tap to show icon when screen off: Show the fingerprint icon when the screen isoff.

•

Show animation when unlocking: Show an animation when you use fingerprint verification.

•

About unlocking with biometrics: Read details on the requirements each biometric security feature has for using your pattern, PIN, or password as a backup.

•

About fingerprints: Learn additional information about securing your device with fingerprints.

Biometrics settings

Configure your preferences for biometric security options.

From Settings, tap Biometrics and security > More biometrics settings for the

◌

following:

•

Show unlock transition effect:Show a transition effect when you use biometrics to unlock your device.

•

Biometrics security patch: View the software version of the biometric security features.

Page 42

Getting started

Mobile continuity

Access storage and other functions of your device across compatible mobile devices and computers.

Samsung DeX

Connect your device to a PC or TV for an enhanced multitasking experience.

•

Send DeX to your TV and keep using your device, or turn your device into a trackpad.

•

Connect to a TVor monitor either wirelessly or with an HDMI cable.

•

Get DeX on your PC for quick and easy file transfers.

Visit samsung.com/us/explore/dex for more information.

Enable DeX

From Settings, tap Advanced features > Samsung DeX.

Tap to turn on the feature.

3. Follow the instructions on your device to connect to your monitor, TV,or PC.

•

If connecting to a PC, download the DeX app on to your computer at samsungdex.com.

Continue apps on other devices

This feature allows you to make and answer calls and text messages from your Galaxy devices that are signed in to your Samsung account.

From Settings, tap Advanced features > Continue apps on other devices.

Tap to turn on the feature. Connection occurs automatically.

3. Sign in to your Samsung account on your Galaxy devices.

TIPMove your contacts from your device to your Samsung account so you can access them on all registered devices.

Page 43

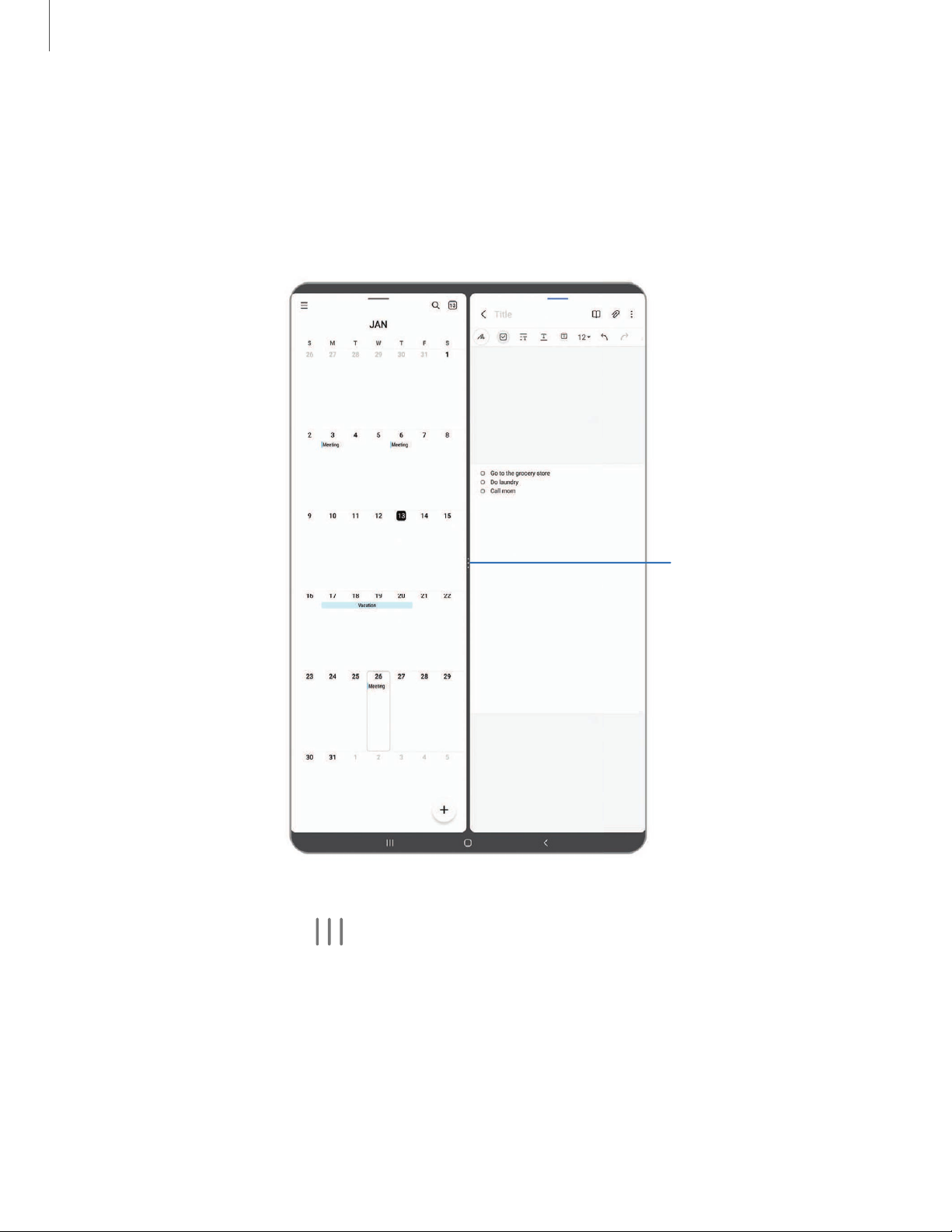

Split screen control

Getting started

Multi window

Multitask by using multiple apps at the same time. Apps that support Multi window can be displayed together on a split screen. You can switch between the apps and adjust the size of their windows.

™

From any screen, tap Recent apps.

2. Tap the app icon, and then tap Open in split screen view.

3. Tap an app in the other window to add it to the split screen view.

•

Drag the middle of the window border to adjust the window size.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 44

Getting started

Window controls

The Window controls modify the way app windows are displayed in split screen view.

1. Drag the middle of the window border to resize the windows.

2. Tap the middle of the window border for the following options:

•

Rotate clockwise: Rotate the screens clockwise to change the orientation

of the split.

Switch window: Swap the two windows.

Add app pair to Edge panel: Create and add an app pair shortcut to the

Apps panel on the Edge screen.

Page 45

Edge handle

Swipe to the center of the screen to open the Edge panels.

Getting started

Edge panels

The Edge panels feature a variety of customizable panels that can be accessed from the edge of the screen. Edge panels can be used to access apps, tasks, and contacts, as well as view news, sports, and other information.

Apps panel | Configure Edge panels | Edge panel position and style| About Edge panels

From Settings, tap Display > Edge panels, tap to enable this feature.

◌

Apps panel

You can add apps in two columns to the Appspanel.

1. From any screen, drag the Edge handle to the center of the screen. Swipe until the Apps panel is displayed.

Tap an app or app pair shortcut to open it. You can also tap Options button >

2. All apps for the complete app list.

To open additional windows in pop-up view, drag the app icon from the Apps panel to the open screen.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 46

Getting started

To configure Apps panel:

1. From any screen, drag the Edge handle tothe center of the screen. Swipe until the Appspanel is displayed.

Tap Options button > Edit to add other apps to the Appspanel.

•

To add an app to the Apps panel, find it on the left side of the screen and tap it to add it to an available space on the right column.

•

To create a folder shortcut, drag an app from the left side of the screen on top of an app in the columns on the right.

•

To change the order of the apps on the panel, drag each app to the desired location.

•

To remove an app, tap Remove.

Tap Back to save changes.

Configure Edge panels

You can customize the Edge panels.

From Settings, tap Display > Edge panels > Panels.

2. The following options are available:

•

Tap Back to save changes.

Checkbox: Enable or disable each panel.

Edit (if available): Configure individual panels.

More options:

–

Reorder: Change the order of the panels by dragging them to the left or right.

–

Hide on Lock screen: Choose panels to hide on the Lock screen when a secure screen lock is set.

Page 47

Getting started

Edge panel position and style

You can change the position of the Edge handle.

From Settings, tap Display > Edge panels >Handle for the following options:

◌

•

Edge handle: Drag to change the position of the Edge handle along the

edge of the screen.

Position: Choose either Right or Left to set which side the Edge screen displayson.

Lock handle position:Enable to prevent the handle position from being moved when touched and held.

Style: Choose a color for the Edge handle.

Transparency: Drag the slider to adjust the transparency of the Edge handle.

Size: Drag the slider to adjust the size of the Edge handle.

Width: Drag the slider to adjust the width of the Edge handle.

About Edge panels

You can view the current software version and license information for the Edge panels feature.

From Settings, tap Display > Edge panels > AboutEdge panels.

◌

Page 48

Expand toolbar

Getting started

Enter text

Text can be entered using a keyboard or your voice.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 49

Getting started

Toolbar

The toolbar provides quick access to features of the keyboard. Options may vary by carrier.

From the Samsung keyboard, tap Expand toolbar for the following options:

◌

•

Expression: Explore different types of emojis, GIFs, create custom

combined emojis, and more.

Clipboard: Access the clipboard.

Modes: Select a keyboard layout.

Voice input:Use Samsung voice input.

Settings: Access keyboard settings.

Handwriting: Use your handwriting to enter text.

Search: Locate specific words or phrases in your conversations.

Translate: Type words or sentences in the keyboard to translate them

into another language.

Samsung Pass: Use biometrics for quick, secure access to your personal

data and online accounts.

Spotify: Add music from Spotify™.

YouTube: Add videos from YouTube.

•

Emojis: Insert an emoji.

GIFs: Add animated GIFs.

Bitmoji: Create your own personal emoji and use it in stickers.

Mojitok: Create your own stickers or insert automatically suggested ones.

AR Emoji: Create your own personal emoji and use it in stickers you can

share.

Keyboard size: Adjust the height and width of the keyboard.

Text editing:Use an editing panel to help pinpoint text that you want to

cut, copy, and paste.

Page 50

Getting started

Configure the Samsung keyboard

Set customized options for the Samsung keyboard.

From the Samsung keyboard, tap Settings for the following options:

◌

•

Languages and types: Set the keyboard type and choose which languages are available on the keyboard.

–

To switch between languages, swipe the Space bar left or right.

Smart typing

•

Predictive text: As you type see suggested words and phrases.

•

Suggest emojis: Include emojis when using predictive text.

•

Suggest stickers while typing: View recommended stickers while you are typing.

•

Auto replace: Automatically replace what you type with predictive text recommendations.

•

Suggest text corrections: Underline misspelled words in red and suggest corrections.

•

Text shortcuts: Create shortcuts for frequently used phrases.

•

More typing options: Customize additional typing options.

Style and layout

•

Keyboard toolbar: View or hide the keyboard toolbar.

•

High contrast keyboard: Adjust the size of the Samsung keyboard and change its colors to increase the contrast between the keys and the background.

•

Theme: Choose a theme for your keyboard.

•

Mode: Choose between portrait and landscape mode.

•

Size and transparency: Adjust the size and transparency of the keyboard.

•

Layout: Display numbers and special characters on the keyboard.

•

Font size: Drag the slider to adjust the font size.

Page 51

Getting started

Other settings

Swipe, touch, and feedback: Customize gestures and feedback.

Handwriting: Customize handwriting options.

S Pen to text: Use the S Pen to write in search fields, address bars, and other text areas. Your handwriting is converted to text, and you can edit the converted text with the S Pen.

Select third-party content to use: Enable third-party keyboard features.

Reset to default settings: Return keyboard to original settings and clear personalized data.

About Samsung keyboard: View version and legal information for the Samsung keyboard.

Page 52

Return to keyboard

Open settings

Getting started

Use Samsung voice input

Instead of typing, enter text by speaking.

From the Samsung keyboard, tap Voice input and speak your text.

◌

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 53

Getting started

Configure Samsung voice input

Set customized options for Samsung voice input.

From the Samsung keyboard, tap Voice input.

Tap Settings for options.

•

Keyboard language: Choose the language for the keyboard.

•

Voice input language: Select the language for Samsung voice input.

•

Hide offensive words: Hide potentially offensive words with asterisks.

•

About Samsung voice input: View version and legal information for Samsung voice input.

Page 54

Camera and Gallery

You can capture high-quality pictures and videos using the Camera app. Images and videos are stored in the Gallery, where you can view and edit them.

Camera

Gallery

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 55

Shooting modes

allery

Switch cameras

Capture

Zoom

Settings

Camera and Gallery

Camera

You can capture high-quality pictures and videos using the Camera app.

From Apps, tap Camera.

◌

TIPQuickly press the Side key twice to open the Camera app.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 56

Camera and Gallery

Navigate the camera screen

Take stunning pictures with your device’s front and rear cameras.

From Camera, set up your shot with the following features:

•

Tap the screen where you want the camera to focus.

–

When you tap the screen, a brightness scale appears. Drag the slider to adjust the brightness.

•

To quickly switch between the front and rear cameras, swipe the screen up or down.

•

To zoom at a precise level, tap 1x and tap an option at the bottom of the screen. (Only available when using the rear camera.)

•

To change to a different shooting mode, swipe the screen right or left.

•

To change camera settings, tap Settings.

Tap Capture.

Configure shooting mode

Allow the camera to determine the ideal mode for your pictures or choose from several shooting modes.

From Camera, swipe the screen right and left to change shooting modes.

◌

•

Portrait: Adjust the background of your shots for portrait photos.

•

Photo: Allow the camera to determine the ideal settings for pictures.

•

Video: Allow the camera to determine the ideal settings for videos.

•

More: Choose other available shooting modes. Tap Add to drag modes

into or out of the shooting modes tray at the bottom of the Camera screen.

–

Pro: Manually adjust the ISO sensitivity, exposure value, white balance, and color tone while taking pictures.

–

Pro video: Manually adjust the ISO sensitivity, exposure value, white balance, and color tone while recording videos.

–

Single take: Capture multiple pictures and video clips from different angles.

–

Panorama: Create a linear image by taking pictures in either a horizontal or vertical direction.

Page 57

Camera and Gallery

–

Night: Use this to take photos in low-light conditions, without using the flash.

–

Food: Take pictures that emphasize the vivid colors of food.

–

Hyperlapse: Create a time lapse video by recording at various frame rates. The frame rate is adjusted depending on the scene being recorded and the movement of the device.

–

Portrait video: Adjust the background of your shots for portrait videos.

AR Zone

Access all of your Augmented Reality (AR) features in one place.

From Camera, swipe to More, and then tap AR Zone. The following features

◌

are available:

•

AR Emoji Studio: Use AR tools to create and customize your My Emoji avatar.

•

AR Emoji Camera: Use the camera to create your My Emoji avatar.

•

AR Emoji Stickers: Add ARstickers to your My Emoji avatar.

•

Deco Pic: Decorate photos or videos in real time with the camera.

Single take

Capture more in each shot by taking both photos and videos at the same time. This shooting mode uses AI to create high-quality images and videos from multiple angles. The number of images and videos may vary.

From Camera, swipe to More > Single take.

Tap Record and pan around the scene to capture multiple angles and views.

2. The videos and images will be saved as a single entry in the Gallery.

Page 58

Camera and Gallery

Record videos

Record smooth lifelike videos using your device.

From Camera, swipe right or left to change the shooting mode to Video.

Tap Record to begin recording a video.

•

To take a picture while recording, tap Capture.

•

To temporarily stop recording, tap Pause. To continue recording, tap

Resume.

Tap Stop when you are finished recording.

Camera settings

Use the icons on the main camera screen and the settings menu to configure your camera’s settings.

From Camera, tap Settings for the following options:

◌

Intelligent features

•

Scene optimizer: Automatically adjust the color settings of your pictures to match the subject matter.

•

Shot suggestions: Get on-screen guides to help you line up great shots.

•

Scan QR codes: Automatically detect QR codes when using the camera.

Pictures

•

Swipe Shutter button to: Choose to either take a burst shot or create a GIF when you swipe the shutter to the nearest edge.

•

Picture formats: Choose file formats and other saving options.

–

High efficiency pictures: Save pictures as high efficiency images to save space. Some sharing sites may not support this format.

Selfies

•

Save selfies as previewed: Save selfies as they appear in the preview without flipping them.

•

Selfie color tone: Set the color tone for your selfies to Natural or Bright.

Page 59

Camera and Gallery

Videos

•

Video stabilization: Activate anti-shake to keep the focus steady when the camera is moving.

•

Reduce file size: Record videos in HEVC format to save space. Other devices or sharing sites may not support playback of this format.

General

•

Auto HDR: Capture more detail in the bright and dark areas of your shots.

•

Grid lines: Display viewfinder grid lines to help compose a picture or video.

•

Location tags: Attach a GPS location tag to your pictures and videos.

•

Shooting methods:

–

Press Volume keys to: Use the Volume keys to take pictures, record video, zoom, or control system volume.

–

Floating shutter button: Add an extra shutter button that you can move anywhere on the screen.

–

Show palm: Hold your hand out with your palm facing the camera to have your picture taken in a few seconds.

•

Settings to keep: Choose whether to launch Camera with the same shooting mode, selfie angle, and filters as the last time.

•

Storage location: Select a memory location.

–

A memory card (not included) must be installed to view Storage location.

•

Watermark: Add a watermark to the bottom left corner of your pictures.

•

Shutter sound: Play a tone when taking a picture.

•

Privacy Notice: View Samsung's privacy information.

•

Permissions: View required and optional permissions for the Camera app.

•

Reset settings: Reset the Camera settings.

•

About Camera:View app and software information.

Page 60

Group similar images

Sort images into

custom albums

Camera and Gallery

Gallery

Go to the Gallery to look at the all the visual media stored on your device. You can view, edit, and manage pictures and videos.

From Apps, tap Gallery.

◌

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 61

Camera and Gallery

View pictures

Pictures stored on your device are viewable in the Gallery app.

From Gallery, tap Pictures.

2. Tap a picture to view it. Swipe left or right to view other pictures or videos.

•

To use Bixby Vision on the current picture, tap Bixby Vision. For more

information, see Bixby.

•

To mark the picture as a favorite, tap Add to Favorites.

•

To access the following features, tap More:

–

Details: View and edit information about the picture.

–

Remaster picture: Refine a picture with automatic image improvements.

–

Add portrait effect: Enhance or reduce the visibility of the background in your portrait photos by dragging the slider.

–

Copy to clipboard: Copy the image to paste in another app.

–

Set as wallpaper: Set the picture as wallpaper.

–

Move to Secure Folder: Move the picture to a Secure Folder.

–

Print: Send the picture to a connected printer.

Edit pictures

Enhance your pictures using the Gallery's editing tools.

From Gallery, tap Pictures.

Tap a picture to view it, and then tap Edit for the following options:

•

Auto adjust:Apply automatic adjustments to improve the picture.

Transform: Rotate, flip, crop, or make other changes to the overall

appearance of the picture.

•

Filters: Add color effects.

Tone: Adjust the brightness, exposure, contrast, and more.

Decorations: Add text, stickers, or hand drawn content.

Page 62

Camera and Gallery

•

More options: Tap to access additional editing features.

•

Revert:Undo the changes applied to restore the original picture.

3. Tap Save when finished.

Play video

View the videos stored on your device. You can save videos as favorites, and view video details.

From Gallery, tap Pictures.

2. Tap a video to view it. Swipe left or right to view other pictures or videos.

•

To mark the video as a favorite, tap Add to Favorites. The video is added to

Favorites under the Albumstab.

•

To access the following features, tap More:

–

Details: View and edit information about the video.

–

Open in Video player: View this video in the default video player.

–

Move to Secure Folder: Add this video to your Secure Folder.

Tap Play video to play the video.

Video brightness

Enhance the image quality of your videos to enjoy brighter and more vivid colors.

From Settings, tap Advanced features > Video brightness and choose an

◌

option.

Edit video

Edit videos stored on your device.

From Gallery, tap Pictures.

2. Tap a video to view it.

Tap Edit to use the following tools:

•

Audio: Adjust the volume levels and add background music to the video.

Play: Preview the edited video.

Trim: Cut segments of the video.

Page 63

Camera and Gallery

•

4. Tap Save, and then confirm when prompted.

Transform: Rotate, flip, crop, or make other changes to the overall

appearance of the video.

Filters: Add visual effects to the video.

Tone: Adjust the brightness, exposure, contrast, and more

Decorations: Add text, stickers, or hand drawn content.

More options: Tap to access additional editing features.

Revert:Undo the changes applied to restore the original video.

Share pictures and videos

Share pictures and videos from the Gallery app.

From Gallery, tap Pictures.

Tap More options > Edit and select the pictures or videos you want to share.

Tap Share, and then choose an app or connection to use for sharing your

3. selection. Follow the prompts.

Delete pictures and videos

Delete pictures and videos stored on your device.

From Gallery, tap More options > Edit.

2. Tap pictures and videos to select them.

Tap Delete, and confirm when prompted.

Group similar images

Organize pictures and videos in the Gallery by similarity.

From Gallery, tap Group similar images.

Tap Ungroup similar images to return to the default Gallery view.

Page 64

Camera and Gallery

Take a screenshot

Capture an image of your screen. Your device will automatically create a Screenshots album in the Gallery app.

From any screen, press and release the Side and Volume down keys.

◌

Palm swipe to capture a screenshot

Capture an image of the screen by swiping the edge of your hand across it, from side to side, keeping in contact with the screen.

From Settings, tap Advanced features > Motions and gestures > Palm swipe to

1. capture.

Tap to enable this feature.

Screenshot settings

Modify screenshot settings.

From Settings, tap Advanced features > Screenshots and screen recorder.

◌

Screenshot toolbar: Show additional options after you take a screenshot.

Hide status and navigation bars: Do not display the status bar or navigation bars on screenshots.

Delete shared screenshots: Automatically delete screenshots after they are shared through the screenshot toolbar.

Screenshot format: Choose if you would like your screenshots to be saved as JPG or PNG files.

Page 65

Camera and Gallery

Screen recorder

Record activities on your device, write notes, and use the camera to record a video overlay of yourself to share with friends or family.

From Quick Settings, tap Screen recorder.

2. Choose a sound setting, and tap Start recording.

3. A three-second countdown runs before it starts recording. You can tap Skip countdown to begin recording immediately.

•

Tap Draw to draw on the screen.

•

Tap Pointer to show an icon on the screen when using your S Pen.

•

Tap Selfie video to include a recording from your front camera.

Tap Stop to finish recording. These are automatically saved to the Screen

4. recordings album in the Gallery.

Screen recorder settings

Control the sound and quality settings for the screen recorder.

From Settings, tap Advanced features > Screenshots and screen recorder.

◌

Sound: Choose what sounds to record while using the screen recorder.

Video quality: Select a resolution. Selecting a higher resolution for higher quality requires more memory.

Selfie video size: Drag the slider to set the size of the video overlay.

Show taps and touches: Enable to indicate screen taps and touches in a recording.

Page 66

Apps

Using apps

Samsung apps

Google apps

Microsoft apps

Page 67

Apps

Using apps

The Apps list displays all preloaded and downloaded apps. Apps can be downloaded from Galaxy Store and the Google Play™store.

From a Home screen, swipe the screen upward to access the Apps list.

◌

Uninstall or disable apps

Installed apps can be removed from your device. Some apps that are preloaded (available on your device by default) can only be disabled. Disabled apps are turned off and hidden from the Apps list.

From Apps, touch and hold an app, and tap Uninstall/Disable.

◌

Search for apps

If you are not sure where to find an app or a setting, you can use the Search feature.

1. From Apps, tap Search, and enter a word or words. As you type, matching apps and settings appear as results on the screen.

2. Tap a result to go to that app.

TIPYou can customize the search settings by tapping More options > Settings.

Sort apps

App shortcuts can be listed alphabetically or in your own custom order.

From Apps, tap More options > Sort for the following sorting options:

◌

•

Custom order: Arrange apps manually.

•

Alphabetical order: Sort apps alphabetically.

TIPWhen apps are arranged manually (Custom order), empty icon spaces can be removed by tapping More options > Clean up pages.

Page 68

Apps

Create and use folders

You can make folders to organize App shortcuts on the Appslist.

1. From Apps, touch and hold an app shortcut, and then drag it on top of another app shortcut until it is highlighted.

2. Release the app shortcut to create the folder.

•

Folder name: Name the folder.

•

Tap Back to close the folder.

Palette: Change the folder color.

Add apps: Place more apps in the folder. Tap apps to select them, and

then tap Done.

Copy a folder to a Home screen

You can copy a folder to a Home screen.

From Apps, touch and hold a folder, and tap Add to Home.

◌

Delete a folder

When you delete a folder, the app shortcuts return to the Apps list.

1. From Apps, touch and hold a folder to delete.

Tap Delete folder, and confirm when prompted.

Game Booster

Get optimized performance while playing games based on your usage. Block notifications and enable features to improve your gaming experience.

While playing a game, swipe up from the bottom of the screen to view the

◌

navigation bar. The following options are seen on the far right and left sides:

•

Touch protection: Lock the screen to prevent accidental taps. This is

the default option.

Game Booster: Configure other options, including performance

monitoring and blocking the navigation bar, screen touches, and screenshots.

Page 69

Apps

App settings

Manage your downloaded and preloaded apps.

From Settings, tap Apps. Tap an option to customize:

◌

•

Choose default apps: Choose which apps to use for making calls, sending messages, going to websites, and more.

•

Samsung app settings: View a list of Samsung apps and customize their settings.

•

Your apps: Tap an app to view and update information about its privacy and usage settings. Options vary by app.

TIP To reset app options that have been changed, tap More options > Reset app

preferences.

Samsung apps

The following apps may be preloaded or downloaded over-the-air to your device during setup. Apps can be downloaded from Galaxy Store and the Google Play™store. Options may vary by carrier.

ARZone

Access all of your Augmented Reality (AR) features in one place.

For more information, see AR Zone.

Bixby

Bixby displays customized content based on your interactions. Bixby learns from your usage patterns and suggests content you may like.

For more information, see Bixby.

Page 70

Apps

Galaxy Store

Find and download premium apps that are exclusive to Galaxy devices. A Samsung account is required to download from Galaxy Store.

Game Launcher

Automatically arrange all your games in one place. Formore information on Game Launcher, visit samsung.com/us/support/owners/app/game-launcher.

TIPIf Game Launcher is not seen in the Apps list, then from Settings, tap

Advanced features > Game Launcher, and then tap .

PENUP

Share photos, comment on other creations, or just browse through the pages for something to add to your personal collection. This community brings together anyone that uses the S Pen to draw, sketch, scribble or paint.

Samsung Flow

Connect your phone and tablet with Samsung Flow. You can then view notifications and reply to messages from your phone on your connected tablet. You can also use Mobile hotspot to access the Internet on your tablet through your phone’s network connection when other networks are not available.

For more information, visit samsung.com/us/support/owners/app/samsung-flow.

Samsung Free

Access live TV shows, news and articles from numerous sources, and interactive games entirely free of charge.

Page 71

Apps

Samsung Global Goals

Learn more about the Global Goals initiative and contribute towards donations that support these causes with ads from this app.

Samsung TV Plus

Enjoy free news, entertainment, and more on your Samsung TV and mobile devices.

SmartThings

SmartThings allows you to control, automate, and monitor your home environment through a mobile device to fit your specific needs. You can use the app to connect multiple devices at once or one device at a time. Check the status of your devices by looking at the dashboard.

NOTENon-Samsung connected device errors or defects are not covered by the Samsung warranty; contact the non-Samsung device manufacturer for support.

Tips

View tips and techniques as well as the user manual for your device.

VoiceRecorder

Make audio recordings or speech-to-text memos with the Voice recorder app.

Page 72

History

View past calculations.

Unit converter

Convert between measurements.

Apps

Calculator

The Calculator app features both basic and scientific math functions, as well as a unit converter.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 73

Tap to view event

Navigation drawer

Add event

Go to today’s date

Stickers

Write

Apps

Calendar

The Calendar app can be connected to your various online accounts to consolidate all your calendars in one place.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 74

Apps

Add calendars

Add your accounts to the Calendar app.

From Calendar, tap Navigation drawer.

Tap Manage calendars > Add account and select an account type.

3. Enter your account information and follow the prompts.

TIPAccounts may also support email, contacts, and other features.

Calendar alert style

Alerts from the Calendar app can be set to different styles.

From Calendar, tap Navigation drawer > Calendar settings > Alert style.

1. Thefollowing options are available:

•

Light: Receive a notification and hear a short sound.

•

Medium:Get a full screen alert and hear a short sound.

•

Strong:Get a full-screen alert and ring sound that persist until dismissed.

2. Depending on the alert style selected above, the following sound options are available:

•

Short sound:Choose the alert sound for Light or Medium alert styles.

•

Long sound:Choose the alert sound for the Strong alert style.

Create an event

Use your Calendar to create events.

From Calendar, tap Add event to add an event.

2. Enter details for the event, and then tap Save.

Delete an event

Delete events from your Calendar.

From Calendar, tap an event, and tap again to editit.

Tap Delete, and confirm when prompted.

Page 75

Turn alarm on or off

Add alarm

Apps

Clock

The Clock app offers features for keeping track of time and setting alarms.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 76

Apps

Alarm

Use the Alarm tab to set one-time or recurring alarms and choose options for how to be notified.

From Clock, tap Add alarm.

2. Tap the following items to configure an alarm:

•

Time: Set a time for the alarm.

•

Day: Choose the days for this alarm.

•

Alarm name: Enter a name for the alarm.

•

Alarm sound: Choose a sound to play for the alarm and drag the slider to set the volume of the alarm.

•

Vibration: Choose whether the alarm uses vibration alert.

•

Snooze: Allow snoozing. Set interval and repeat values for the alarm while snoozing.

3. Tap Save to save the alarm.

TIP To add your sleep schedule, create a bedtime reminder, and automatically put your device in Bedtime mode, tap More options > Set bedtime and wake-up

time.

Delete an alarm

You can delete an alarm that you created.

From Clock, touch and hold an alarm.

Tap Delete.

Alert settings

You can set the device to vibrate for alarms and timers whether the Sound mode is set to Mute or Vibrate.

From Clock, tap More options > Settings.

2. Tap Vibrate for alarms and timers to enable the feature.

Page 77

Location

enter the globe on

your current location.

City

View the current time and add to your list of cities.

Find a particular place.

Globe

Drag to spin and

see times around

the world.

Apps

World clock

The World clock lets you keep track of the current time in multiple cities around the globe.

From Clock, tap World clock.

Tap Add city.

3. Drag the globe to spin it, tap the city you want, and then tap Add.

•

To remove a city, touch and hold it, and tap Delete.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 78

Apps

Time zone converter

Set a time in a city on your World clock list to see what the local times would be in the other listed cities.

From Clock, tap World clock.

Tap More options > Time zone converter.

Tap Menu to choose a different city.

•

To add a city to the list, tap Add city.

4. Swipe the hours, minutes, and period (AM or PM) on the clock to set a time. Local times for the other cities listed are automatically updated.

•

To return the clock to the current time, tapReset.

Weather settings

Show weather information on your World clock.

From Clock, tap World clock.

Tap More options > Settings >Show weather to enable or disable weather

2. information.

3. Tap Temperature to change from Fahrenheit to Celsius.

Stopwatch

The Stopwatch lets you time events down to a hundredth of a second.

From Clock, tap Stopwatch.

2. Tap Start to begin timing.

•

To keep track of lap times, tap Lap.

3. Tap Stop to end timing.

•

To continue timing after stopping the clock, tap Resume.

•

To reset the Stopwatch to zero, tap Reset.

Page 79

Apps

Timer

Set a countdown timer for up to 99hours, 59minutes, and 59 seconds.

From Clock, tap Timer.

2. Use the keypad and tap Hours, Minutes, and Seconds to set the Timer.

3. Tap Start to begin the Timer.

•

To temporarily stop the Timer, tap Pause. To continue, tap Resume.

•

To stop and reset the Timer, tap Cancel.

Preset timer

Name and save preset timers.

From Clock, tap Timer > Add preset timer.

2. Configure the countdown time and timer name.

3. Tap Add to save the timer.

•

To edit a saved preset timer, tap More options > Edit preset timers.

Timer options

You can customize the Timer options.

From Clock, tap Timer.

Tap More options > Settings.

•

Sound: Choose a preloaded timer sound or add your own.

•

Vibration: Enable vibration for the timer.

•

Show mini timer:Show a pop-up window of the timer when the Clock app is minimized.

General settings

View and configure settings for all Clock tools.

From Clock, tap More options > Settings.

◌

•

Customization Service: Sign in to your Samsung account to customize personal content in supported apps.

•

About Clock:View the current software version and check for updates.

Page 80

Add profile picture

Add, delete, and expand fields

Apps

Contacts

Store and manage your contacts. You can synchronize with personal accounts added to your device. Accounts may also support email, calendars, and other features.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 81

Apps

Create a contact

From Contacts, tap Create contact.

2. Enter details for the contact, and then tap Save.

Edit a contact

When editing a contact, you can tap a field and change or delete information, or you can add more fields to the contact’s list of information.

From Contacts, tap a contact.

Tap Edit.

3. Tap any of the fields to add, change, or delete information.

4. Tap Save.

Favorites

When you mark contacts as favorites, they are grouped at the top of your contact list and easily accessible from other apps.

From Contacts, tap a contact.

Tap Favorites to mark the contact as a favorite.

•

To remove the contact from Favorites, tap Favorites.

Share a contact

Share a contact with others by using various sharing methods and services.

From Contacts, tap a contact.

Tap Share.

3. Tap either Share as file or Share as text.

4. Choose a sharing method and follow the prompts.

TIPWhen viewing a contact, tap More > QR code to quickly share the

information with friends or family. The QR code automatically updates when you change the contact information fields.

Page 82

Apps

Show contacts when sharing content

Share content directly with your contacts from within any app. Once enabled, your frequent contacts are displayed in the Share window.

From Settings, tap Advanced features > Show contacts when sharing content,

◌

and tap to enable the feature.

Groups

You can use groups to organize your contacts.

Create a group

Create your own contact groups.

From Contacts, tap Show navigation menu > Groups.

2. Tap Create group, and then tap fields to enter information about the group:

•

Group name: Enter a name for the new group.

•

Add member: Select contacts to add to the new group, and then tap Done.

3. Tap Save.

Add or remove group contacts

Add more contacts to a group, or remove contacts.

From Contacts, tap Show navigation menu > Groups, and then tap a group.

◌

•

To remove a contact, touch and hold a contact to select it, and then tap

Remove.

•

To add a contact, tap Edit > Add member, and then tap the contacts you

want to add. When finished, tap Done > Save.

Page 83

Apps

Send an email to a group

Send an email to members of a group.

From Contacts, tap Show navigation menu > Groups, and then tap a group.

Tap More options > Send email.

3. Tap contacts to select them, or tap the All checkbox at the top of the screen to select all, and then tap Done.

•

Only group members that have an email address in their records are displayed.

4. Choose an email account and follow the prompts.

Delete a group

Delete a group you have created.

From Contacts, tap Show navigation menu > Groups, and then tap a group.

Tap More options > Delete.

•

To only delete the group, tap Delete group only.

•

To delete the group and the contacts in the group, tap Delete group and move members to the trash.

Manage contacts

You can import or export contacts, as well as link multiple contacts into one contact entry.

Import contacts

Import contacts to your device as vCard files (VCF).

From Contacts, tap Show navigation menu > Manage contacts.

2. Tap Import or export contacts.

3. Tap Import and follow the prompts.

Page 84

Apps

Export contacts

Export contacts from your device as vCard files (VCF).

From Contacts tap Show navigation menu > Managecontacts.

2. Tap Import or export contacts.

3. Tap Export and follow the prompts.

Merge contacts

Consolidate contact information from multiple sources into one contact by linking entries into a single contact.

From Contacts, tap Show navigation menu > Manage contacts.

2. Tap Merge contacts. Contacts with duplicate phone numbers, email addresses, and names will be listed together.

3. Tap the contacts to select them, and tap Merge.

Delete contacts

Delete a single contact or multiple contacts.

From Contacts, touch and hold a contact to selectit.

•

You can also tap other contacts to select them for deletion.

Tap Delete, and confirm when prompted.

Page 85

Access Bookmarks

Reload webpage

Add to Bookmarks

Navigate

Access Tabs

Apps

Internet

Samsung Internet is a simple, fast, and reliable web browser for your device. Experience more secure Web browsing features with Secret Mode, Biometric Web Login, and Contents Blocker.

TIPVisit samsung.com/us/support/owners/app/samsung-internet for more information.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 86

Apps

Browser tabs

Use tabs to view multiple web pages at the same time.

From Internet, tap New tab.

◌

•

To close a tab, tap Close tab.

Create a Bookmark

Bookmark your favorite webpages to quickly access them.

From Internet, tap Add to bookmarks to save the open webpage.

◌

Open a Bookmark

Quickly launch a web page from the Bookmarks page.

From Internet, tap Bookmarks.

2. Tap a bookmark entry.

Save a web page

There are several options to save a webpage in the Samsung Internet app.

From Internet, tap Tools > Add page to for the following options:

◌

•

Bookmarks: Add the webpage to your Bookmark list.

•

Quick access: View a list of commonly accessed or saved webpages.

•

Home screen: Create a shortcut to the webpage on your Home screen.

•

Saved pages: Save the webpage content on your device so that you can access it offline.

View history

To view a list of recently visited web pages:

From Internet, tap Tools > History.

◌

TIPTo clear your browsing history, tap More options > Clear history.

Page 87

Apps

Web pages can be shared with your contacts.

From Internet, tap Tools > Share, and follow the prompts.

◌

Secret mode

Pages viewed in secret mode are not listed in your browser history or search history, and leave no traces (such as cookies) on your device. Secret tabs are a darker shade than the normal tab windows.

Any downloaded files remain on your device after you close the secret tab.

From Internet, tap Tabs > Turn on secret mode. Tap Start to begin

◌

browsing in secret mode.

Secret mode settings

Require a password or biometric lock to use secret mode.

From Internet, tap Tabs.

Tap More options > Secret mode settings for the following options:

•

Use password: Create a password to enable secret mode.

•

Face: Use Face recognition to keep Secret mode private.

•

Fingerprints:Use Fingerprint scanner to keep Secret mode private.

•

Reset Secret mode: Erase your secret mode data and restore defaults.

Turn off secret mode

Disable secret mode and return to normal browsing.

From Internet, tap Tabs > Turn off secret mode.

◌

Internet settings

Modify settings associated with using the Internetapp.

From Internet, tap Tools > Settings.

◌

Page 88

Storage locations

Additional

locations, such as

cloud accounts,

are displayed here

if supported.

Apps

MyFiles

View and manage files stored on your device, including images, videos, music, and sound clips. You can also access and manage files saved to your cloud accounts and SD card, if supported.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 89

Apps

File groups

Files stored in the device are organized into the following groups:

•

Recent files: View recently accessed files.

•

Categories: View your files based on the file type.

•

Storage: View files saved on your device, optional SDcard, and cloud accounts.

–

Cloud accounts vary depending on the services you sign into.

•

Analyze storage:See what’s taking up space in your storage.

•

Edit drawer: Enable, disable, or reorder items for My Files.

My Files settings

Use My Files settings to customize your file management options and more. Options may vary by carrier.

From My Files > Settings thefollowing options are available:

◌

•

Cloud accounts: Connect to and manage your cloud services.

•

File management: Customize how files are displayed, deleted, and access mobile data.

•

Analyze storage: Choose a file size to flag when analyzing storage.

•

Privacy: View the permissions for My Files.

Samsung Health

Use Samsung Health™to plan, track various aspects of daily life contributing to well-being such as physical activity, diet, and sleep. For more information, visit samsung.com/us/support/owners/app/samsung-health.

NOTEThe information gathered from this device, Samsung Health, or related software is not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation, treatment or prevention of disease.

The accuracy of the information and data provided by this device and its related software, may be affected by factors such as environmental conditions, specific activity performed while using/wearing the device, settings of the device, user configuration/user-provided information, and other end-user interactions.

Page 90

Apps

Before you start exercising

Although the Samsung Health application is a great companion to your exercise routine, it is always best to make sure you consult with your physician before beginning any exercise regimen. While moderate physical activity, such as brisk walking, is safe for most people, health experts suggest that you talk with your doctor before you start an exercise program, particularly if you have any of the following conditions:

•

Heart disease; Asthma or lung disease; Diabetes, or liver or kidney disease; and Arthritis.

Before beginning your exercise regimen check with your doctor if you have symptoms suggestive of heart, lung, or other serious disease, such as:

•

Pain or discomfort in your chest, neck, jaw, or arms during physical activity;

•

Dizziness or loss of consciousness;

•

Shortness of breath with mild exertion or at rest, or when lying down or going to bed;

•

Ankle swelling, especially at night;

•

A heart murmur or a rapid or pronounced heartbeat;

•

Muscle pain when walking upstairs or up a hill that goes away when you rest.

It is recommended that before engaging in an exercise routine, you consult with your doctor or medical practitioner. If you are unsure of your health status, have several health problems, or are pregnant, you should speak with your doctor before starting a new exercise program.

Page 91

Set text options

Insert

Assign a title

Navigate up

Apps

Samsung Notes

Use Samsung Notes to create notes containing text, images with footnotes, voice recordings, and music. You can share your notes easily using social networking services.

Visit samsung.com/us/support/owners/app/samsung-notes to learn more.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 92

Apps

Create notes

Add text, images, voice recordings and more.

From Samsung Notes, tap Add.

2. Use the text options to create content.

Voice recordings

Create annotated voice recordings perfect for lectures or meetings. Take notes while recording audio. Playback is synced to scroll to the corresponding text.

From Samsung Notes, tap Add.

Tap Insert > Voice recording.

3. Use the text options to create content while audio is being recorded.

Edit notes

Make edits to notes you create.

From Samsung Notes, tap a note to view it.

Tap Edit and make changes.

When you are finished, tap Navigate up.

Notes options

You can edit, sort, or manage notes.

From Samsung Notes, the following options are available:

◌

•

Import PDFs: Open a PDF in Samsung Notes.

Search: Search for a keyword.

More options:

–

Edit: Select notes to share, delete, save as file, lock, or move.

–

View: Switch between Grid, List, or Simple list.

–

Pin favorites to top: Keep notes marked as your favorites at the top of the main page.

Page 93

Apps

Notes menu

You can view your notes by category.

From Samsung Notes, tap Show navigation menu for the following options:

◌

•

Samsung Notes settings: View settings for the Samsung Notes app.

All notes: View all notes.

Shared notebooks:View notebooks shared with your contacts through your Samsung account.

Trash: View deleted notes for up to 15 days.

Folders: View notes by groups.

Manage folders:Add, remove, and organize groups.

Page 94

Apps

Google apps

The following Google apps may be preloaded on your device. Apps can be downloaded from the Google Play™store.

Chrome

Browse the Internet with Chrome™and bring your open tabs, bookmarks, and address bar data from your computer to your mobile device.

Visit support.google.com/chrome to learn more.

Drive

Open, view, rename, and share files saved to your Google Drive™cloudaccount.

Visit support.google.com/drive to learn more.

Duo

Make cross-platform video calls on phones and tablets, smart devices, and on the web.

Visit support.google.com/duo to learn more.

Gmail

Send and receive email with Google’s web-based email service.

Visit support.google.com/mail to learn more.

Page 95

Apps

Google

Find online content with tools that learn what interests you. Turn on your personalized feed to receive customized content.

Visit support.google.com/websearch to learn more.

Maps

Get directions and other location-based information. You must enable location services to use Google Maps. For more information, see Location.

Visit support.google.com/maps to learn more.

Messages

Send a receive messages over Wi-Fi or data with Google's official app for texting and chat.

Visit support.google.com/messages to learn more.

Photos

Store and back up your photos and videos automatically to your Google Account with Google Photos™.

Visit support.google.com/photos to learn more.

Google Play Movies & TV

Watch movies and TV shows purchased from Google Play. You can also view videos saved on your device.

Visit play.google.com/store/movies to learn more.

Page 96

Apps

Play Store

Find new apps, movies and TV shows, music, books, magazines, and games in the Google Play store.

Visit support.google.com/play to learn more.

YouTube

Watch and upload YouTube™videos right from your device.

Visit support.google.com/youtube to learn more.

YT Music

Stream and browse playlists, albums, and artists from YouTube Music.

Page 97

Add

attachment

Send message

Show

formatting

options

Apps

Microsoft apps

The following Microsoft apps may be preloaded on your device. Apps can be downloaded from Galaxy Store and the Google Play store.

Outlook| Office | OneDrive

Outlook

Access email, calendar, contacts, tasks, and more in Outlook. See Add an Outlook

account. Visit support.office.com/en-us/article/outlook-for-ios-and-android-help-

cd84214e-a5ac-4e95-9ea3-e07f78d0cde6 to learn more.

Devices and software are constantly evolving — the illustrations you see here are for reference only.

Page 98

Apps

Office

Enjoy the Word, Excel, and PowerPoint apps on your mobile device with the Microsoft Office mobile app.

OneDrive

Store and share photos, videos, documents, and more in your free online OneDrive account—accessible from your personal computer, tablet, or phone.

Page 99

Settings

Access Settings

Connections

Sounds and vibration

Notifications

Display

Device maintenance

Lock screen and security

Accounts

Accessibility

Other settings

Page 100

Settings

Access Settings

There are a couple of ways to access your device settings.

 From a Home screen, swipe down and tap Settings.

 From Apps, tap Settings.

Search for Settings

If you are not sure exactly where to find a certain setting, you can search for it.

From Settings, tap Search, and enter keywords.

2. Tap an entry to go to that setting.

Connections

Manage connections between your device and a variety of networks and other devices.

Wi-Fi

You can connect your device to a Wi-Fi network to access the Internet without using your mobile data.

From Settings, tap Connections > Wi-Fi, and then tap to turn on Wi-Fi and

1. scan for available networks.

2. Tap a network, and enter a password if required.

3. Tap Connect.

100
