Page 1
SM-C7100 Common
Mobile Device
CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1 Repair
7. Level 2 Repair
8. Level 3 Repair
9. Reference data
Notice: All functionality, features, specifications,
and other product information provided in this
document, including but not limited to, benefits,
design, pricing, components, performance,
availability, and capabiliti-es of the product are
subject to change without notice. Samsung
reserves the right to alter this doc-ument or the
product described herein at anytime, without
obligation to provide notification of such
changes.
Page 2
1. Safety Precautions
1-1. Repair Precaution
Before attempting any repair or detailed tuning, shield the device from RF noise or static
electricity discharges.
Use only demagnetized tools that are specifically designed for small electronic repairs,
as most electronic parts are sensitive to electromagnetic forces.
Use only high quality screwdrivers when servicing products. Low quality screwdrivers can
easily damage the heads of screws.
Use only conductor wire of the properly gauge and insulation for low resistance, because of the low margin
of error of most testing equipment.
We recommend 22-gauge twisted copper wire.
Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily
damaged, even with relatively low heat. Never use a soldering iron with a power rating of
more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).
Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.
Always use the replacement parts that are registered in the SEC system. Third-party replacement parts
may not function properly.
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 3
1. Safety Precautions
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Many semiconductors and ESDs in electronic devices are particularly sensitive to static discharge and can
be easily damaged by it. We recommend protecting these components with conductive anti-static bags
when you store or transport them.
Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate
static electricity from your body before repairing ESDs.
Ensure that soldering irons have AC adapter with ground wires and that the ground wires are properly
connected.
Use only desoldering tools with plastic tips to prevent static discharge.
Properly shield the work environment from accidental electrostatic discharge before opening
packages containing ESDs.
The potential for static electricity discharge may be increased in low humidity environments,
such as air-conditioned rooms. Increase the airflow to the working area to decrease the
chance of accidental static electricity discharges.
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 4
2. Specification
2-1. CDMA & GPS General Specification
ITEM CDMA GPS
Tx Freq. range
Rx Freq. range 869.025~893.985MHz 1575.42MHz
Channel Bandwidth 1.23MHz 2MHz
Channel Spacing 30KHz Not Used
Number of Channel 832 1
Duplex Separation 45MHz -
In/Output Impedance
Tx Local Frequency
Rx Local Frequency
TCXO Frequency 26MHz 26MHz
824.025~848.985MHz -
50Ohm 50Ohm
FTx * 1.6666
FRx * 2
FRx * 2
-
Freq. Stability
Operating Temperature
(FRX-45MHz)±300Hz
-30℃ ~ +60℃ -30℃ ~ +60℃
-
Confidential and pr oprietary-the content s in this service guide subjec t to change without pri or notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohi bited.
Page 5
2. Specification
Freq. Band[MHz]
824~849
880~915
1710~1785
1850~1910
0~124 &
576.9us
576.9us
GSM/
33dBm
33dBm
Item GSM 850 EGSM 900 DCS1800 PCS1900
Uplink/Downlink
ARFCN range 128~251
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period
Time Slot Period/
Frame Period
Modulation
MS Power
Power Class 5pcl ~ 19pcl 5pcl ~ 19pcl 0pcl ~ 15pcl 0pcl ~ 15pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
GPRS
869~894
270.833kbps
3.692us
4.615ms
0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
~5dBm
925~960
975~1023
270.833kbps
3.692us
4.615ms
~5dBm
1805~1880
512~885 512~810
270.833kbps
3.692us
576.9us
4.615ms
30dBm
~0dBm
1930~1990
270.833kbps
3.692us
576.9us
4.615ms
30dBm
~0dBm
Cell Radius 35Km 35Km 2Km 2Km
Confidential and pr oprietary-the content s in this service guide subjec t to change without pri or notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohi bited.
Page 6
2. Specification
TX Power
TX Power
TX Power
TX Power
2-2. GSM Tx Power Class
control level
5 33±2 dBm 5 33±2 dBm 0 30±3 dBm 0 30±3 dBm
6 31±2 dBm 6 31±2 dBm 1 28±3 dBm 1 28±3 dBm
7 29±2 dBm 7 29±2 dBm 2 26±3 dBm 2 26±3 dBm
8 27±2 dBm 8 27±2 dBm 3 24±3 dBm 3 24±3 dBm
9 25±2 dBm 9 25±2 dBm 4 22±3 dBm 4 22±3 dBm
10 23±2 dBm 10 23±2 dBm 5 20±3 dBm 5 20±3 dBm
11 21±2 dBm 11 21±2 dBm 6 18±3 dBm 6 18±3 dBm
GSM850
control level
EGSM900
control level
DCS1800
control level
PCS1900
12 19±2 dBm 12 19±2 dBm 7 16±3 dBm 7 16±3 dBm
13 17±2 dBm 13 17±2 dBm 8 14±3 dBm 8 14±3 dBm
14 15±2 dBm 14 15±2 dBm 9 12±4 dBm 9 12±4 dBm
15 13±2 dBm 15 13±2 dBm 10 10±4 dBm 10 10±4 dBm
16 11±3 dBm 16 11±3 dBm 11 8±4 dBm 11 8±4 dBm
17 9±3 dBm 17 9±3 dBm 12 6±4 dBm 12 6±4 dBm
18 7±3 dBm 18 7±3 dBm 13 4±4 dBm 13 4±4 dBm
19 5±3 dBm 19 5±3 dBm 14 2±5 dBm 14 2±5 dBm
- - - - 15 0±5 dBm 15 0±5 dBm
Confidential and pr oprietary-the content s in this service guide subjec t to change without pri or notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohi bited.
Page 7
2. Specification
UL：9612~9888
UL：9262~9538
UL：4132~4233
UL：2712~2863
2-3. WCDMA General Specification
Freq. Band[MHz]
Uplink/Downlink
ARFCN range
Tx/Rx spacing 190MHz 80MHz 45MHz 45MHz
Mod. Bit rate/
Bit Period
Time Slot Period/Frame
Period
Modulation QPSK/HQPSK QPSK/HQPSK QPSK/HQPSK QPSK/HQPSK
MS Power 24dBm~-50dBm 21dBm~-50dBm 24dBm~-50dBm 24dBm~-50dBm
Power Class 3(max+24dBm) 4(max+21dBm) 3(max+24dBm) 3(max+24dBm)
Sensitivity -106.7dBm -106.7dBm -106.7dBm -106.7dBm
WCDMA2100 WCDMA1900 WCDMA850 WCDMA900
1922~1977
2112~2167
DL：10562~10838
3.84 Mcps 3.84 Mcps 3.84 Mcps 3.84 Mcps
FrameLength:10ms
Slotlength:0.667ms
1852~1907
1932~1987
DL：9662~9938
FrameLength:10ms
Slotlength:0.667ms
824~849
869~894
DL：4357~4458
FrameLength:10ms
Slotlength:0.667ms
DL：2937~3088
FrameLength:10ms
Slotlength:0.667ms
880~915
925~960
TDMA Mux 8 8 8 8
Cell Radius 2Km 2Km 2Km 2Km
Confidential and pr oprietary-the content s in this service guide subjec t to change without pri or notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohi bited.
Page 8
2. Specification
Uplink/Downlink
2-4. TD-SCDMA General Specification
Freq. Band[MHz]
ARFCN range 10054~10121 9404~9596
Tx/Rx spacing / /
TCXO Frequency 26MHz 26MHz
Modulation QPSK/16-QAM QPSK/16-QAM
MS Power -49dBm~ 25dBm -49dBm~ 25dBm
Power Class 2 (max: 24 +1/-3dBm) 2 (max: 24 +1/-3dBm)
Sensitivity -108dBm/1.28MHz -108dBm/1.28MHz
Band34 Band39
2010~2025 1880~1920
Cell Radius >10Km >10Km
In/Output Impedance 50Ω 50Ω
Operating Temperature
-30℃ ~ +60℃ -30℃ ~ +60℃
Confidential and pr oprietary-the content s in this service guide subjec t to change without pri or notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohi bited.
Page 9
2. Specification
UL/DL
2110~2170
1805~1880
869~894
2620~2690
925~960
UL/DL
0~599
1200~1949
2400~2649
2750~3449
3450~3799
QAM
QAM
QAM
QAM
QAM
-90.3（BW：20MHz）
2-5. LTE General Specification (FDD)
Freq. Band[MHz]
ARFCN range
Tx/Rx spacing 190MHz 95MHz 45MHz 120MHz 45MHz
TCXO Frequency 26MHz 26MHz 26MHz 26MHz 26MHz
Modulation
MS Power -40dBm~ 25dBm -40dBm~ 25dBm -40dBm~ 25dBm -40dBm~ 25dBm -40dBm~ 25dBm
Power Class 3 (max: 23 ±2dBm) 3 (max: 23 ±2dBm) 3 (max: 23 ±2dBm) 3 (max: 23 ±2dBm) 3 (max: 23 ±2dBm)
Band1 （FDD） Band3 （FDD） Band5（FDD） Band7 （FDD）
1920~1980
18000~18599
QPSK/16-QAM/64-
1710~1785
19200~19949
QPSK/16-QAM/64-
824~849
20400~20649
QPSK/16-QAM/64-
2500~2570
20750~20449
QPSK/16-QAM/64-
Band8 (FDD)
880~915
21450~21799
QPSK/16-QAM/64-
-101（BW：1.4MHz）
-99.3（BW：5 MHz）
-96.3（BW：1 0 MHz）
Sensitivity
Cell Radius >5Km >5Km >5Km >5Km >5Km
In/Output
Impedance
Operating
Temperature
-94.5（BW：15MHz）
-93.3（BW：20MHz）
50Ω 50Ω 50Ω 50Ω 50Ω
-30℃ ~ +60℃
-98(BW：3MHz)
-96.3（BW：5 MHz）
-93.3（BW：1 0 MHz）
-91.5（BW：15MHz）
-30℃ ~ +60℃
-102.5(BW:1.4MHz）
-99.5(BW：3MHz)
-97.3（BW：5 MHz）
-94.3（BW：10 MHz）
-30℃ ~ +60℃ -30℃ ~ +60℃ -30℃ ~ +60℃
-97.3（BW：5 MHz）
101.5（BW：1.4MHz）
-94.3（BW：1 0 MHz）
-98.5(BW：3MHz)
-92.5(BW：15MHz）
-96.3 （BW：5 MHz）
-91.3（BW：20MHz）
-93.3（BW：10 MHz）
-
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohi bited.
Confidential and pr oprietary-the content s in this service guide subjec t to change without pri or notice
Page 10
2. Specification
Uplink/Downlink
/64-QAM
/64-QAM
/64-QAM
/64-QAM
-93.3（BW：20MHz）
-93.3（BW：20MHz）
-93.3（BW：20MHz）
-91.3（BW：20MHz
Freq. Band[MHz]
ARFCN range 37750~38249 38250~38649 38650~39649 40240~41240
Tx/Rx spacing / / / /
TCXO Frequency 26MHz 26MHz 26MHz 26MHz
Modulation
MS Power -40dBm~ 25dBm -40dBm~ 25dBm -40dBm~ 25dBm -40dBm~ 25dBm
Power Class 3 (max: 23 ±2dBm) 3 (max: 23 ±2dBm) 3 (max: 23 ±2dBm) 3 (max: 23 ±2dBm)
Band38 （TDD） Band39 （TDD） Band40 （TDD） Band41 （TDD）
2570~2620 1880~1920 2300~2400 2555~2655
QPSK/16-QAM
-99.3（BW：5 MHz）
QPSK/16-QAM
-99.3（BW：5 MHz）
QPSK/16-QAM
-99.3（BW：5 MHz）
QPSK/16-QAM
-97.3（BW：5 MHz）
-96.3（BW：1 0 MHz）
Sensitivity
Cell Radius >5Km >5Km >5Km >5Km
In/Output Impedance 50Ω 50Ω 50Ω 50Ω
Operating Temperature
-94.5（BW：15MHz）
-30℃ ~ +60℃
-96.3（BW：1 0 MHz）
-94.5（BW：15MHz）
-30℃ ~ +60℃
-96.3（BW：1 0 MHz）
-94.5（BW：15MHz）
-30℃ ~ +60℃
-94.3（BW：1 0 MHz）
-92.5（BW：15MHz）
-30℃ ~ +60℃
Confidential and pr oprietary-the content s in this service guide subjec t to change without pri or notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohi bited.
Page 11
3. Operation Instruction and Installa ti on
Item
Description
OS
Android V7.1
LTE: B1/ B3/ B5/B7/ B8/ B34/B38/ B39/ B40/ B41
Battery
3000mAh
Base Band
Octa-Core 2.39Ghz+1.69GHz
Other RF
GPS, Glonass, BT4.2, USB2.0, WIFI 802.11 b/g/n, FM
Camera
13MP+5MP Main CAM; 16MP Sub CAM
LCD
5.5." AMOLED, 1920*1080(FHD)
RAM
4GB
Sensor
Accelerometer, Proximity, RGB light sensor, Fingerprint sensor, Geomagnetic sensor,Gyro Sensor
Accessory
Charger: 5V/2A
Main Function
RF
GSM850 /GSM900/ DCS1800/ PCS1900
CDMA:BC0
WCDMA: B1/ B2/ B5/ B8
TDSCDMA: B34/B39
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohi bited.
Page 12
4. Exploded View and Parts List
4-1. Cellular phone Exploded View
QFR01
QIF01
QCR131
QFR02
QKP01
QRF04
QAR01
QCA02
QMP01
QCA01
QCB01
QME01
QMO01
QCR12
QBA01
QSP01
QVK02
QCK01
QRE01
QSM01
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

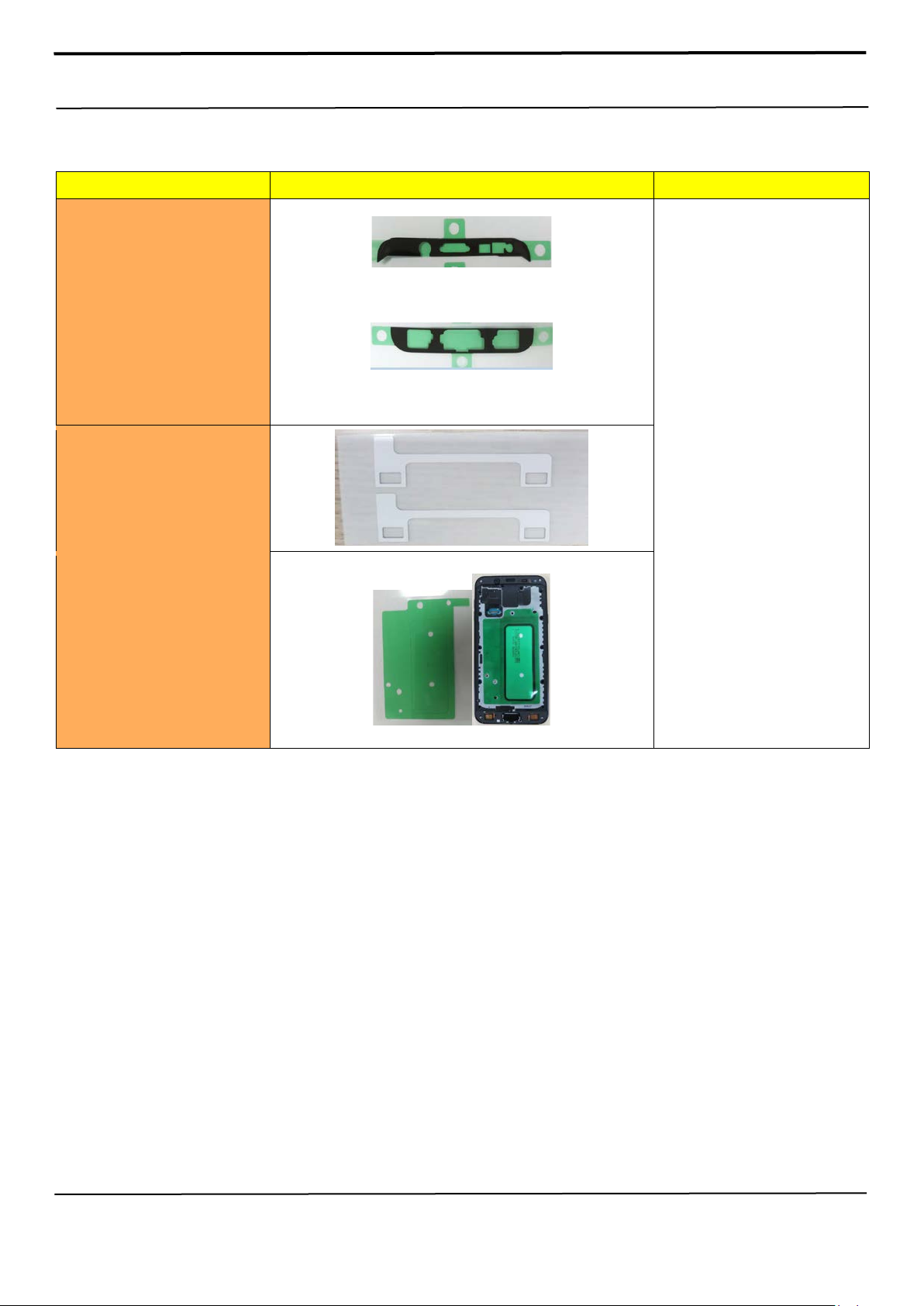

※ SVC REPAIR TAPE
QRT01, QRT02, QRT03, QRT04
Page 13
5. MAIN Electrical Parts List
Parts Code Design Loc Description
0401-001110 D5002 SDS511Q
0404-001250 D5000,D5001 RB520G-30
0406-001459 ZD6000,ZD6001,ZD6006 RD1301B
0406-001459 ZD6007 RD1301B
0406-001506 ZD5004,ZD5005,ZD5006 UCLAMP0541Z
0406-001506 ZD5007,ZD7000,ZD7001 UCLAMP0541Z
0406-001506 ZD7002,ZD7003,ZD7004 UCLAMP0541Z
0406-001506 ZD7005,ZD7006,ZD7008 UCLAMP0541Z
0406-001506 ZD7009,ZD7010,ZD7011 UCLAMP0541Z
0406-001592 ZD6009,ZD6010,ZD6011 PESD5V0V1BDSF
0406-001592 ZD6012,ZD6013,ZD6014 PESD5V0V1BDSF
0406-001592 ZD6016,ZD7007 PESD5V0V1BDSF
0406-001633 D5004 RDL3081
0406-001640 ZD5002,ZD5003 RCLAMP3521P.TCT
0406-001682 ZD6020 PS05TBUL2
0406-001709 ZD5010,ZD6017,ZD6021 RDL1151B
0406-001709 ZD6022 RDL1151B
0406-001728 ZD5000,ZD5001,ZD5009 ES45D3HP
0406-001740 ZD6002,ZD6005 UCLAMP1211P
0406-001743 D6000,D6001,D6006 RCLAMP3331ZA
0406-001743 D6007,ZD6003,ZD6004 RCLAMP3331ZA
0406-001763 D6008,D6009,D6010 VS3V3BC1HS
0406-001763 D6011,D6012,D6013 VS3V3BC1HS
0406-001763 D6014 VS3V3BC1HS
0406-001781 ZD6018,ZD6019,ZD6023 D3V3H1B2LP
0406-001781 ZD6024 D3V3H1B2LP
0505-002088 Q5000,Q5002 2SK3541
0505-002341 Q5001 SI1013X-T1-GE3
0505-002388 Q6001 RUE003N02
0601-003338 LED5002 SCF0165G
0601-003569 LED5001 SPFCW02201AR
0601-003611 LED5000 SPFCW13331CRS1D4T0
1001-001650 U5001,U6004 DG2750DN-T1-E4
1001-001844 U1000 BGS12PL6
1001-001911 U1004,U1007 BGSA14GN10-1
1001-001956 U2010,U2017 BGS15MA12
1001-001969 U2006,U2008,U2009 MXD8631
1001-001970 U2014,U2015 MXD8621
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 14
5. MAIN Electrical Parts List
1001-001992 U1002,U1003,U1006 RF1646
1001-001999 U2002 MXD8643
1001-002030 U1001 MXD8631SF
1108-000624 UME5000 KMRC10014M-B809
1201-003786 U2003 BGU6009
1201-003915 PAM1000 SKY77621-31
1201-003975 U1011 SFMLB7RB002
1201-003985 U2011 BGS8L2
1201-004100 PAM1001 WIPS33232-01
1201-004122 U1008,U1009,U1012 MXD8011HU
1201-004122 U1013,U2000,U2001 MXD8011HU
1201-004122 U2012,U2013 MXD8011HU
1201-004148 U6000 RT5509WSC
1202-001120 U6006 NCX2200GM
1203-008249 U7009 AP7341D-33FS4-7
1203-008250 U6002,U7012 AP7340D-18FS4-7
1203-008326 U7001,U7003 AP7340D-30FS4-7-71
1203-008603 U6001 AP7346
1203-008711 U5009 ET9530L
1203-008751 U7002 SM3004B
1203-008859 U7007 AP7341D-12FS4-7R
1203-008865 U5005,U7004,U7005 ET51528YB
1203-008867 U7006 ET51518YB
1203-008985 U5003 MT6355W
1203-008995 U5008 S2MU005X03-6030
1205-005217 U7008 FSA644BUCX
1205-005711 U2004 MT6625L
1205-005712 U5004 A96T316AU
1205-005813 U1010 MT6176V
1205-005820 UCP3000 MT6757V/CD
1209-002413 U7010 YAS539
1209-002450 U7013 LSM6DSL
1404-001664 TH3000,TH3001 NCP15WF104F03RC
1404-001724 TH1000,TH5000 NCP03WF104F05RL
1405-001395 U7016,V1000,V1001 ESPC02039ES1
1405-001395 V1003,V1008,V1009 ESPC02039ES1
1405-001395 V2001,V2005,V2006 ESPC02039ES1
1405-001395 V2007,V2008,V2009 ESPC02039ES1
1405-001395 V2010,V2011,V2012 ESPC02039ES1
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 15
5. MAIN Electrical Parts List
1405-001395 V6000,V6001,V6002 ESPC02039ES1
1405-001395 VR2000,VR2004,VR2005 ESPC02039ES1
1405-001415 C2110,V1005,V2003 IMG0330C101JFR
1405-001415 V2004 IMG0330C101JFR
1405-001423 V6003 ESPC014R7JS1
2007-003015 R5035,R5036 MCR01MZP5J2R2
2007-007142 R6032,R7013 RC1005F103CS
2007-007199 R6033,R6046 TSR16GJ2R7V
2007-007528 R3020,R3021 RK73H1ETP1501F
2007-007698 R5012 RK73H1ETP5101F
2007-007741 R1009,R3042,R3043 M5534204B10E0R
2007-007741 R5007,R5013,R5029 M5534204B10E0R
2007-007741 R5042,R5044,R5049 M5534204B10E0R
2007-007741 R5054,R6013,R7015 M5534204B10E0R
2007-007766 R1011 RK73H1ETP2001F
2007-007946 R6096 470K,1%
2007-007981 R6094 ERJ2RKF1803X
2007-008045 R3051,R5075,R5076 ERJ1GEJ101C
2007-008137 R1010 RC1005F243CS
2007-008167 R3023 RC0402FR-07120K
2007-008210 R1000,R6004 RMC1/20-180JTP
2007-008294 R3028 RC1005F330CS
2007-008304 R5027 RC1005F304CS
2007-008312 R1008,R3030,R3031 RC1005F394CS
2007-008403 R3026 RC1005F364CS
2007-008531 R5037,R7001,R7008 MCR006MZPJ0100
2007-008531 R7022 MCR006MZPJ0100
2007-008582 R1002,R1003 RC0603J301CS
2007-008587 R5045,R5047 ERJ1GEJ561C
2007-008588 R7000 MCR006YZPJ222
2007-008788 R3006 RC0603J270CS
2007-008816 R6038 MCR006MZPJ822
2007-009111 R7014 RC0603J220CS
2007-009157 R5003,R5017,R5019 MCR006YZPF1003
2007-009157 R5020,R5024,R5080 MCR006YZPF1003
2007-009157 R6034,R6048 MCR006YZPF1003
2007-009158 R5004 MCR006MZPF1503
2007-009168 R5022,R6036 MCR006MZPJ563
2007-009171 R5023 MCR006YZPJ513
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 16
5. MAIN Electrical Parts List
2007-009212 R5009,R5071,R6017 MCR006YZPF1001
2007-009315 R5000,R6001,R6002 RC0603J4R7CS
2007-009315 R6003,R6005,R6006 RC0603J4R7CS
2007-009315 R6007,R6008,R6009 RC0603J4R7CS
2007-009315 R6010,R6011,R6012 RC0603J4R7CS
2007-009352 R3022,R3027 MCR006YZPF4701
2007-009354 R6039 ERJ1GEF3301C
2007-009408 R3000,R3001,R3007 ERJ1GEF222C
2007-009408 R3008,R3009,R3010 ERJ1GEF222C
2007-009408 R3011,R3012,R3013 ERJ1GEF222C
2007-009408 R3014,R3015,R3016 ERJ1GEF222C
2007-009408 R5034 ERJ1GEF222C
2007-009801 R5016,R5018,R5056 MCR006YZPF1000
2007-009801 R6031 MCR006YZPF1000
2007-009805 R1001 RC0603F510CS
2007-009866 R5021 MCR006YZPF2003
2007-009879 R3047 ERJ1GEF1101C
2007-009920 R5058,R5060 RC0603F241CS
2007-009954 R5028 MCR006YZPF6802
2007-009969 R6024 MCR006YZPF1201
2007-010029 R5032 MCR006YZP5F5104
2007-010202 R5063,R5064,R6028 RC0603F473CS
2007-010685 R6000 RC0201FR-071ML
2007-011377 R6037 RC0603F433CS
2007-011532 R6091 RC0603F121CS
2007-011648 R5025,R5026,R5031 RC0603F1R0CS
2007-012038 R5005 ESR03EZPF10R0
2007-012068 R5033 RES
2203-000995 C5104 GRP1555C1H470J
2203-001153 C5110 GRP1555C1H680J
2203-005682 C2001,C2046,C2067 GRP0335C1E330JD01E
2203-005682 C2081,C5074,C5111 GRP0335C1E330JD01E
2203-005682 C5146,C5921,C6000 GRP0335C1E330JD01E
2203-005682 C6001,C6006,C6013 GRP0335C1E330JD01E
2203-005682 C6017,C7012,C7020 GRP0335C1E330JD01E
2203-005682 C7053,C7054 GRP0335C1E330JD01E
2203-005717 C1027,C1038,C1045 GRP0335C1E270JD01E
2203-005719 C1039,C1055,C6034 GRM0335C1E390JD01E
2203-005725 C5075 GRP0335C1E220JD01E
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 17
5. MAIN Electrical Parts List
2203-005726 C1060,C5151 GRM0335C1E560J
2203-005727 C1135,C5136 CL03C120JA3GNNC
2203-005729 C5044,C6023,C6024 CL03C150JAGC
2203-005729 C6030,C7014 CL03C150JAGC
2203-005731 C1044,C6041,C6046 GRM0335C1E180J
2203-005732 C5105,C5900,C6018 GRP0335C1E680JD01E
2203-005732 C6020,C6029 GRP0335C1E680JD01E
2203-005734 C2047,C2095,C2107 GRM0335C1E820JD01D
2203-005736 C1002,C1003,C1008 GRP0335C1E101JD01E
2203-005736 C1009,C1011,C1013 GRP0335C1E101JD01E
2203-005736 C1015,C1021,C1022 GRP0335C1E101JD01E
2203-005736 C1023,C1026,C1029 GRP0335C1E101JD01E
2203-005736 C1033,C1040,C1053 GRP0335C1E101JD01E
2203-005736 C1057,C1061,C1064 GRP0335C1E101JD01E
2203-005736 C1065,C1066,C1070 GRP0335C1E101JD01E
2203-005736 C1072,C1076,C1092 GRP0335C1E101JD01E
2203-005736 C1110,C1113,C1125 GRP0335C1E101JD01E
2203-005736 C1126,C1127,C1128 GRP0335C1E101JD01E
2203-005736 C1129,C1130,C1131 GRP0335C1E101JD01E
2203-005736 C1134,C1136,C1137 GRP0335C1E101JD01E
2203-005736 C1139,C1141,C1142 GRP0335C1E101JD01E
2203-005736 C1149,C1151,C1153 GRP0335C1E101JD01E
2203-005736 C1154,C1155,C1157 GRP0335C1E101JD01E
2203-005736 C1158,C1159,C1163 GRP0335C1E101JD01E
2203-005736 C1165,C1166,C1167 GRP0335C1E101JD01E
2203-005736 C1168,C1169,C1170 GRP0335C1E101JD01E
2203-005736 C1186,C1190,C1198 GRP0335C1E101JD01E
2203-005736 C1203,C1207,C1210 GRP0335C1E101JD01E
2203-005736 C1213,C1214,C1216 GRP0335C1E101JD01E
2203-005736 C1218,C1219,C1220 GRP0335C1E101JD01E
2203-005736 C1229,C2002,C2003 GRP0335C1E101JD01E
2203-005736 C2004,C2006,C2007 GRP0335C1E101JD01E
2203-005736 C2010,C2013,C2014 GRP0335C1E101JD01E
2203-005736 C2015,C2018,C2020 GRP0335C1E101JD01E
2203-005736 C2021,C2023,C2030 GRP0335C1E101JD01E
2203-005736 C2039,C2050,C2052 GRP0335C1E101JD01E
2203-005736 C2069,C2080,C2091 GRP0335C1E101JD01E
2203-005736 C2094,C2098,C2099 GRP0335C1E101JD01E
2203-005736 C2103,C2104,C6033 GRP0335C1E101JD01E
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 18
5. MAIN Electrical Parts List
2203-005736 C6039,C7026,C7031 GRP0335C1E101JD01E
2203-005736 C7034 GRP0335C1E101JD01E
2203-005739 C1095 GRM0335C1E4ROCD01D
2203-005777 C1006,C1083,C1114 CL03C010CA3GNNC
2203-005777 C2008,L1050 CL03C010CA3GNNC
2203-005789 C1012,C1042,C1046 GRM0335C1ER50B
2203-005789 C1090,C1176,C1212 GRM0335C1ER50B
2203-005789 C2025 GRM0335C1ER50B
2203-005792 C1050,C1161,C1208 CL03C1R5CA3GNNC
2203-005806 C1140,C1147,C1164 GRP033R71C102KD01E
2203-005806 C2019,C2071 GRP033R71C102KD01E
2203-006120 C5039,C5041 GRP033R71C221KD01E
2203-006123 C1025,C1051 GRM0335C1E5R6CD01D
2203-006194 C1175,C2017,C6027 GRP033R70J103KA01E
2203-006305 C1047,R6052 CM03CG100J25AH
2203-006318 C1007 GRP0335C1E1R2CD01
2203-006379 C2024 GRP033R70J472KA01
2203-006399 C5071 GRM155R60J105KE19D
2203-006400 C1063,C1152,C1173 GRM033R71E102K
2203-006400 C2033,C2049,C2059 GRM033R71E102K
2203-006400 C5000,C5030,C5149 GRM033R71E102K
2203-006400 C6037 GRM033R71E102K
2203-006410 C2012,C6016 CL03C1R8CA3GNNC
2203-006556 C1014,C1049,C1056 GRM0335C1E470JD01D
2203-006556 C1084,C1086,C1132 GRM0335C1E470JD01D
2203-006556 C1150,C5139,C5904 GRM0335C1E470JD01D
2203-006556 C5906 GRM0335C1E470JD01D
2203-006562 C1143,C2117,C5027 CV05X5R105K10AH
2203-006562 C5052,C5073,C5080 CV05X5R105K10AH
2203-006562 C5081,C5098,C5108 CV05X5R105K10AH
2203-006562 C5142,C5144,C5911 CV05X5R105K10AH
2203-006562 C5912,C5914,C6051 CV05X5R105K10AH
2203-006562 C7001,C7008,C7023 CV05X5R105K10AH
2203-006562 C7035,C7037,C7039 CV05X5R105K10AH
2203-006562 C7041,C7043,C7046 CV05X5R105K10AH
2203-006562 C7050 CV05X5R105K10AH
2203-006604 C6015 GRM0335C1E2R4BD01D
2203-006611 C1124,C2115 GRM0335C1E2R7CD01D
2203-006647 C5132 GRM033R60J473KE19D
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 19
5. MAIN Electrical Parts List
2203-006665 C1019,C1034 GRM0335C1E2R2CD01D
2203-006707 C1099,C1100,C5006 GRM0335C1E4R7C
2203-006707 C5008,C5011 GRM0335C1E4R7C
2203-006841 C1079,C5002,C5072 CV05X5R105K16AH
2203-006841 C5097,C5913 CV05X5R105K16AH
2203-006846 C1111 ECJZEC1E2R0B
2203-006872 C4066,C5042,C5048 GRM155R60J225ME15D
2203-006872 C5920,C7045 GRM155R60J225ME15D
2203-006978 C5109 GMK107BJ105KA-T
2203-007165 C1101,C5009,C5019 CL05A475KQ5NRNC
2203-007165 C5083,C5117,C5129 CL05A475KQ5NRNC
2203-007165 C6010,C6045,C7047 CL05A475KQ5NRNC
2203-007194 C1191,C7061 CL03C6R8BA3GNNC
2203-007210 C5116,C5128 CV03X5R224K06AH
2203-007240 C5026,C5915 CL10A226MQ8NRNE
2203-007269 C7025,C7028,C7029 CL21A226MPCLRNC
2203-007269 C7032,C7033 CL21A226MPCLRNC
2203-007270 C5102,C5103 CL10A106KP8NNNC
2203-007271 C1080,C1091,C1146 CL05A225KP5NSNC
2203-007271 C5022,C5051,C5077 CL05A225KP5NSNC
2203-007271 C5084,C5085,C5086 CL05A225KP5NSNC
2203-007271 C5087,C5091,C5092 CL05A225KP5NSNC
2203-007271 C5101,C5106,C5107 CL05A225KP5NSNC
2203-007271 C5134,C5138,C5908 CL05A225KP5NSNC
2203-007317 C1093,C4006,C4007 CV05X5R475M06AH
2203-007317 C4028,C4033,C4041 CV05X5R475M06AH
2203-007317 C4055,C4092,C5018 CV05X5R475M06AH
2203-007317 C5053,C5070,C7015 CV05X5R475M06AH
2203-007391 C2048,C2056,C2064 CL03A474KQ3NNNH
2203-007391 C4001,C4002,C4003 CL03A474KQ3NNNH
2203-007391 C4004,C4030,C4031 CL03A474KQ3NNNH
2203-007391 C4034,C4035,C4036 CL03A474KQ3NNNH
2203-007391 C4067,C4068,C4069 CL03A474KQ3NNNH
2203-007391 C4070,C5121 CL03A474KQ3NNNH
2203-007393 C2016,C5082,C5088 CL05A475KP5NRNC
2203-007393 C5089,C5090,C5093 CL05A475KP5NRNC
2203-007393 C5901,C5916 CL05A475KP5NRNC
2203-007393 C7000,C7022 CL05A475KP5NRNC
2203-007474 C7059 CL05A106MQ5NUNC
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 20
5. MAIN Electrical Parts List
2203-007775 C5094 CV05X5R475M10AH
2203-007781 C5023,C5024,C5079 CL10A226MP8NUNE
2203-007796 C1088,C2031,C2032 CL03A105MP3NSNC
2203-007796 C2034,C3006,C4005 CL03A105MP3NSNC
2203-007796 C4009,C4010,C4011 CL03A105MP3NSNC
2203-007796 C4012,C4013,C4014 CL03A105MP3NSNC
2203-007796 C4015,C4016,C4017 CL03A105MP3NSNC
2203-007796 C4018,C4019,C4020 CL03A105MP3NSNC
2203-007796 C4022,C4023,C4024 CL03A105MP3NSNC
2203-007796 C4025,C4026,C4027 CL03A105MP3NSNC
2203-007796 C4038,C4042,C4043 CL03A105MP3NSNC
2203-007796 C4044,C4045,C4046 CL03A105MP3NSNC
2203-007796 C4047,C4052,C4057 CL03A105MP3NSNC
2203-007796 C4059,C4060,C4061 CL03A105MP3NSNC
2203-007796 C4065,C4086,C4097 CL03A105MP3NSNC
2203-007796 C5004,C5007,C5010 CL03A105MP3NSNC
2203-007796 C5012,C5013,C5014 CL03A105MP3NSNC
2203-007796 C5015,C5016,C5017 CL03A105MP3NSNC
2203-007796 C5025,C5034,C5035 CL03A105MP3NSNC
2203-007796 C5036,C5038,C5045 CL03A105MP3NSNC
2203-007796 C5046,C5047,C5054 CL03A105MP3NSNC
2203-007796 C5055,C5056,C5057 CL03A105MP3NSNC
2203-007796 C5058,C5059,C5060 CL03A105MP3NSNC
2203-007796 C5061,C5062,C5063 CL03A105MP3NSNC
2203-007796 C5065,C5066,C5067 CL03A105MP3NSNC
2203-007796 C5078,C5112,C5113 CL03A105MP3NSNC
2203-007796 C5114,C5118,C5119 CL03A105MP3NSNC
2203-007796 C5123,C5145,C5148 CL03A105MP3NSNC
2203-007796 C5155,C5156,C6012 CL03A105MP3NSNC
2203-007796 C6014,C6021,C6022 CL03A105MP3NSNC
2203-007796 C6032,C6035,C6038 CL03A105MP3NSNC
2203-007796 C6050,C6052,C7004 CL03A105MP3NSNC
2203-007796 C7006,C7007,C7009 CL03A105MP3NSNC
2203-007796 C7013,C7016,C7017 CL03A105MP3NSNC
2203-007796 C7024,C7036,C7038 CL03A105MP3NSNC
2203-007796 C7040,C7042,C7044 CL03A105MP3NSNC
2203-007796 C7049,C7051,C7058 CL03A105MP3NSNC
2203-008097 C1078,C1081,C1085 CL03A104KA3NNNC
2203-008097 C1096,C1098,C1102 CL03A104KA3NNNC
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 21
5. MAIN Electrical Parts List
2203-008097 C1106,C1109,C1112 CL03A104KA3NNNC
2203-008097 C1119,C1120,C1156 CL03A104KA3NNNC
2203-008097 C2005,C3000,C3002 CL03A104KA3NNNC
2203-008097 C3003,C3004,C3005 CL03A104KA3NNNC
2203-008097 C4049,C4050,C4051 CL03A104KA3NNNC
2203-008097 C4053,C4054,C4056 CL03A104KA3NNNC
2203-008097 C4058,C4062,C4063 CL03A104KA3NNNC
2203-008097 C4064,C4071,C4073 CL03A104KA3NNNC
2203-008097 C4074,C4075,C4076 CL03A104KA3NNNC
2203-008097 C4077,C4078,C4082 CL03A104KA3NNNC
2203-008097 C4083,C4084,C4085 CL03A104KA3NNNC
2203-008097 C5005,C5020,C5122 CL03A104KA3NNNC
2203-008097 C5127,C5130,C5131 CL03A104KA3NNNC
2203-008097 C5133,C5157,C5158 CL03A104KA3NNNC
2203-008097 C5903,C5926,C5927 CL03A104KA3NNNC
2203-008097 C5928,C6002,C6003 CL03A104KA3NNNC
2203-008097 C6011,C6028,C6049 CL03A104KA3NNNC
2203-008097 C7018,C7019,C7052 CL03A104KA3NNNC
2203-008097 C7055 CL03A104KA3NNNC
2203-008242 C4029,C4048 CL03A225MQ3CRNC
2203-008860 C5068,C5069,C5096 CL03A105MO3NRNC
2203-008860 C6019 CL03A105MO3NRNC
2203-009223 C2043,C2119,C2120 CAP
2203-009328 C5115 CL05A226MQ5N6J8
2203-009537 C4000,C4008,C4021 GRM155R60J156ME47D
2203-009537 C4032,C4037,C4039 GRM155R60J156ME47D
2203-009537 C4040,C4079,C4080 GRM155R60J156ME47D
2203-009537 C4081,C4087,C4088 GRM155R60J156ME47D
2203-009537 C4089,C4090,C4091 GRM155R60J156ME47D
2203-009537 C4093,C4094,C4095 GRM155R60J156ME47D
2203-009537 C4096 GRM155R60J156ME47D
2203-009617 C2121 CAP
2203-009618 C5001,C5003,C6004 CAP
2203-009618 C6005 CAP
2203-009665 C6008,C6009,C6042 CAP
2203-009733 C5037,C5099,C5100 CL05A106MP6NUN8
2203-009733 C5902,C5905,C6007 CL05A106MP6NUN8
2203-009733 C7010,C7011,C7030 CL05A106MP6NUN8
2203-009733 C7056,C7057 CL05A106MP6NUN8
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 22
5. MAIN Electrical Parts List
2203-009858 C1087,C7027 CL05A106MP9NUB8
2703-002313 L6000,L6001 CIH05TR10JNC
2703-002649 C1178,L1046,L1106 LLV0603-F6N8J
2703-002858 L1062,L1112 HK0603-4N7S-T
2703-002901 L1019,L1029,L2037 LLV0603-F15NJ
2703-002907 L1057,L1095,L2021 LLV0603-F8N2J
2703-002951 L1013,L1048,L1111 CIH03T12NJNC
2703-002951 L2002,L2045 CIH03T12NJNC
2703-002953 C1115 CIH03T18NJNC
2703-002958 L1011,L1012,L6037 CIH03T56NJNC
2703-002958 L6038 CIH03T56NJNC
2703-002959 L6015 MLG0603S68NJT
2703-002960 L1023,L1051,L2003 MLG0603S82NJT
2703-002960 L2008,L2060,L6026 MLG0603S82NJT
2703-002960 L6029,L6031 MLG0603S82NJT
2703-002961 L2056 MLG0603SR10JT
2703-002999 C1031 CIH03T22NJNC
2703-003004 L1037 LLV0603-F47NJ
2703-003878 L6022 CIG10WR27MNC
2703-003904 L1002,L1004,L1027 CML03061N0BNH
2703-003904 L1038,L2018,L2022 CML03061N0BNH
2703-003921 L1052,L1107,L2031 CML0306-1N2-BNH
2703-004001 L1021,L1054,L6006 LQP03TN39NJ02D
2703-004012 L1001,L1033,L1047 LQP03TN2N2B02D
2703-004012 L1053,L1071,L1074 LQP03TN2N2B02D
2703-004012 L1089,L1094,L1096 LQP03TN2N2B02D
2703-004012 L1108,L2020,L2047 LQP03TN2N2B02D
2703-004013 L1070,L1080,L1092 LQP03TN1N8B02D
2703-004013 L1093,L2029,L2046 LQP03TN1N8B02D
2703-004013 L2052 LQP03TN1N8B02D
2703-004014 L1040 LQP03TN1N2B02D
2703-004018 C1018,L1028,L1066 LQP03TN5N6J02D
2703-004018 L1084,L2011,L2034 LQP03TN5N6J02D
2703-004018 L2035,L2036,L2054 LQP03TN5N6J02D
2703-004018 L2057 LQP03TN5N6J02D
2703-004033 C1068,L1006,L1091 LQP03TN2N4B02D
2703-004033 L2053 LQP03TN2N4B02D
2703-004034 L1035,L2000,L2004 LQP03TN1N0B02D
2703-004034 L2016,L2017,L2023 LQP03TN1N0B02D
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 23
5. MAIN Electrical Parts List
2703-004034 L2041,L2049,L2050 LQP03TN1N0B02D
2703-004035 L1015,L1017,L1065 LQP03TN3N3B02D
2703-004036 L1032,L1056,L1099 LQP03TN12NJ02D
2703-004036 L1100 LQP03TN12NJ02D
2703-004037 L1034,L1079,L1087 LQP03TN2N7B02D
2703-004037 L1090,L2007,L2012 LQP03TN2N7B02D
2703-004037 L2028,L2030 LQP03TN2N7B02D
2703-004038 L1007,L1044 LQP03TN1N5B02D
2703-004230 L6018 LQG15HS68NJ02D
2703-004259 L1043 AML0603E9N1-T
2703-004286 L1058,L1064,L1102 CIH03S3N3BNC
2703-004328 L1042,L2040 LQP03TN4N7H02D
2703-004363 L1024 LQP03TG18NJ02D
2703-004366 L1030,L1055,L1101 LQP03TG6N8J02D
2703-004408 L1061 LQP03TN15NJ02
2703-004763 L1049,L1076,L2001 LQP03TN4N3J02D
2703-004763 L2032 LQP03TN4N3J02D
2703-004764 L1010,L1082 LQP03TN10NH02D
2703-004853 L1031,L1036,L2058 LQP03TNR12J02D
2703-004853 L2059 LQP03TNR12J02D
2703-004862 L1072,L1083,L2025 LQP03TN3N6B02D
2703-004911 L1113 LQP03TN5N1J02D
2703-005058 L1022 LQP03TN5N6J02D
2703-005085 L1003,L1069,L1075 LQP03HQ2N7B02D
2703-005085 L1081,L1103,L1109 LQP03HQ2N7B02D
2703-005085 L1110,L2026,L2038 LQP03HQ2N7B02D
2703-005086 L2015,L2051 LQP03HQ3N3B02D
2703-005087 L1063,L2044 LQP03HQ3N9B02D
2703-005089 L1000,L1039 LQP03HQ15NJ02D
2703-005109 L5025 CIGT252010LM1R0SNE
2703-005117 L7004,L7006 SDEM25201T-4R7MD
2703-005118 L7003 SDEM25201T-100MD
2703-005136 L5012,L5013,L5016 CIGT252010LMR47SNE
2703-005136 L5017 CIGT252010LMR47SNE
2703-005296 L6005 IND
2703-005438 L5018,L5019,L5029 CIH03T68NJNC
2703-005505 L5003,L5004,L5011 CIGT201610EH1R0SNE
2703-005505 L5014,L5015,L6002 CIGT201610EH1R0SNE
2801-005393 OSC5000 TFX-04
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 24
5. MAIN Electrical Parts List
2809-001434 OSC1000 KT2016K26000ZAW23ZMS
2901-001673 F7006 ACFE1A2G900E
2901-001674 F7002,F7004 ACFE2B4G101E
2904-002134 F1004 SAFFB2G14AA0F0A
2904-002143 F2007 SAFFB2G65AA0F0A
2904-002253 F1012,F2005 SFWG00DB002
2904-002257 F2010 SFHG52AA002
2904-002262 F2014 SFH881AA002
2904-002263 F2006 SFH942AA002
2904-002344 F2011 SFWG42CBB02
2904-002349 F2013 SFHG93AQ102
2904-002356 F2001 SFHG89XA402
2904-002365 F1007 SAFRH2G59MA0F3K
2904-002367 F1006 SFDG35AQ102
2910-000390 F1005 SAYEY2G53BD0F3K
2911-000448 F1002 LMSWKQGR-J80
3003-001236 MIC6000,MIC6001 SM0103B-DA381-S01
3301-001812 L6033,L6036 BLM15HD102SN1
3301-001885 L6007,L6008,L6010 BLM15HD182SN1D
3301-001885 L6012,L6014,L6016 BLM15HD182SN1D
3301-001885 L6019,L6020,L6025 BLM15HD182SN1D
3301-002223 L7000 BLM15PX601SN1D
3301-002228 L1041 BLM15PX330SN1
3301-002236 L5020,L5022 BLM03AX102SN1D
3301-002237 C6043,L1020,L1025 BLM03AX601SN1D
3301-002237 L2005,L2006,L2013 BLM03AX601SN1D
3301-002240 L5000,L5005,L5006 BLM03AX100SN1D
3301-002240 L5007,L5008,L5009 BLM03AX100SN1D
3301-002240 L5010,L6013 BLM03AX100SN1D
3301-002244 L6003,L6004,L6034 BLM15PX330SN1D
3301-002244 L6035 BLM15PX330SN1D
3301-002254 L5024 BLM18KG260TN1D09
3301-002279 L7001,L7008 BLM15PX331SN1
3301-002286 L6021 BKH0603LM102-T
3301-002305 L6017,L6023 NFZ15SG462SN10D
3301-002312 L5023,L7002,L7005 BLM15EX121SN1D
3301-002312 L7007 BLM15EX121SN1D
3301-002331 L5001 BLM18FD220SN1
3705-001708 RFS1002,RFS1004 MS-156C
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 25
5. MAIN Electrical Parts List
3705-001937 RFS1000,RFS1001 20449-001E
3705-001937 RFS2000 20449-001E
3709-001891 SIM6000 DS254-C22B-C14
3711-007107 HDC7001 AXE630124AW1
3711-008182 HDC7000 503776-4051
3711-008847 HDC5000 505006-0811
3711-008969 HDC7002 BM30B-54DP-0.35V(46)
3711-009058 HDC6000 GB355-16P-H06-E15000
3712-001634 ANT2006,ANT2007 CS-074A
3712-001634 ANT2023,ANT5004 CS-074A
3712-001634 ANT5006 CS-074A
3712-001666 ANT6000,ANT6001 CS-090A
3712-001694 ANT2003,ANT2004 CS-070B
3712-001694 ANT2005,ANT2016 CS-070B
3712-001694 ANT5001,ANT5002 CS-070B
3712-001694 ANT5005,ANT5007 CS-070B
3712-001694 ANT5008,ANT6002 CS-070B
3712-001694 ANT6003 CS-070B
3712-001749 ANT1000,ANT1001 CS-111A
3712-001749 ANT1002,ANT1003 CS-111A
3712-001749 ANT1005,ANT2000 CS-111A
3712-001749 ANT2001,ANT2008 CS-111A
3712-001749 ANT2010,ANT2011 CS-111A
3712-001749 ANT2012,ANT2018 CS-111A
3712-001749 ANT2019,ANT2020 CS-111A
3712-001749 ANT2024,ANT2025 CS-111A
3712-001749 ANT2026,ANT2027 CS-111A
3712-001750 ANT5000,ANT5003 CS-112A
3722-003954 IFC5000 HY07-AB1790
3722-004081 EAR6000 7234-383000
4709-002196 F1008 DPX202700DT-4162A1
4709-002226 F1001 DPX202700DT-4062A1
4709-002412 F1000,F1010,F1011 HHM22137A3K
4709-002464 F1009 DPX252690DT-5225A1K
4709-002566 F2002 SFTG45AU002
GH60-00009A FPC2001,FPC2002 PCC1011
GH60-00009A FPC2003 PCC1011
GH60-00010A FPC2004 PCC1007AW
GH61-07836A FPC2005,FPC2006 PCC1006A
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 26
5. MAIN Electrical Parts List
GH63-11154A SC6000 SC-SMG928V-SUBPBA
GH63-14647A SC6005 SC-SMC7100-BTWIFI
GH63-14648A SC6001 SC-SMC7100-PMIC
GH63-14649A SC6002 SC-SMC7100-TRV
GH63-14650A SC6003 SC-SMC7100-AP
GH63-14659A SC6006 SC-SMC7100-SPK
GH63-14674A SC6004 SC-SMC7100-RF
GH63-14675A SC6008 SC-SMC7100-FILTER
GH63-14676A SC6007 SC-SMC7100-CHARGER
1209-002510 U7011 CM36657VM3OH-A3
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strict ly prohibit ed.
Page 27
6. Level 1 Repair
PC
Mobile Phone(with Battery)
Data Cable
6-1. S/W Download

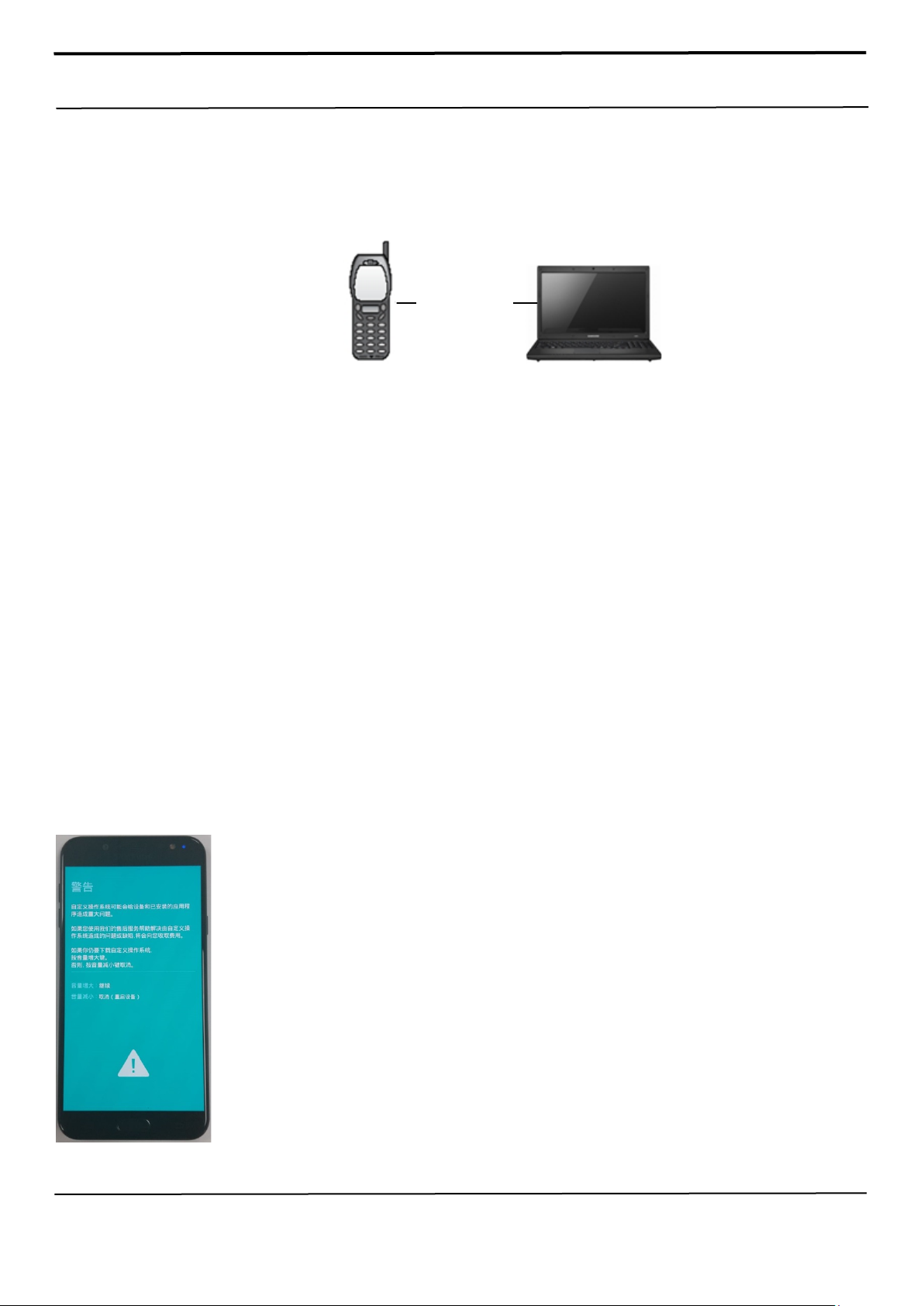

6-1-1. Prepare for S/W Downloading

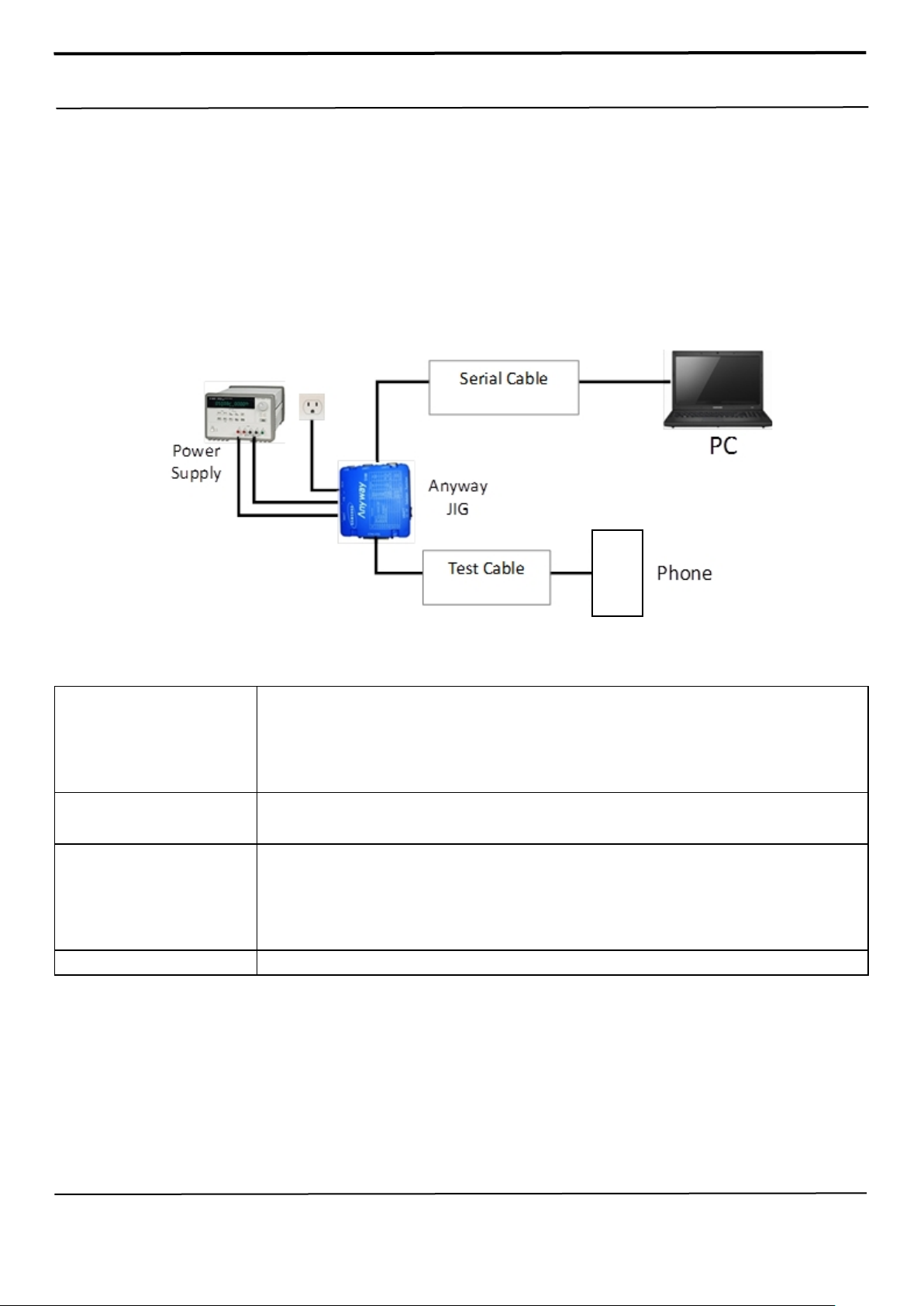

- Diagram of connection
6-1-2. How to download S/W
1) Downloading Binary Files
• Binary file for downloading SM-C7100
– xxx.pit
– BL_XXXX.tar.md5
– AP_XXXX.tar.md5
– CP_XXXX.tar.md5
– CSC_xxxx.tar.md5
(file size is about 3.8GB )
2) Prepare for Downloading
• Downloader Program (Odin3 v3.12.3.exe)
• SM-C7100 Mobile Phone
• Data Cable
• Binary file
3) Boot the mobile phone by pressing ‘Home + Vol Down + Power key at the same time, If you do properly,
you can see the following message on the main LCD as the following.
6-1
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 28
6. Level 1 Repair

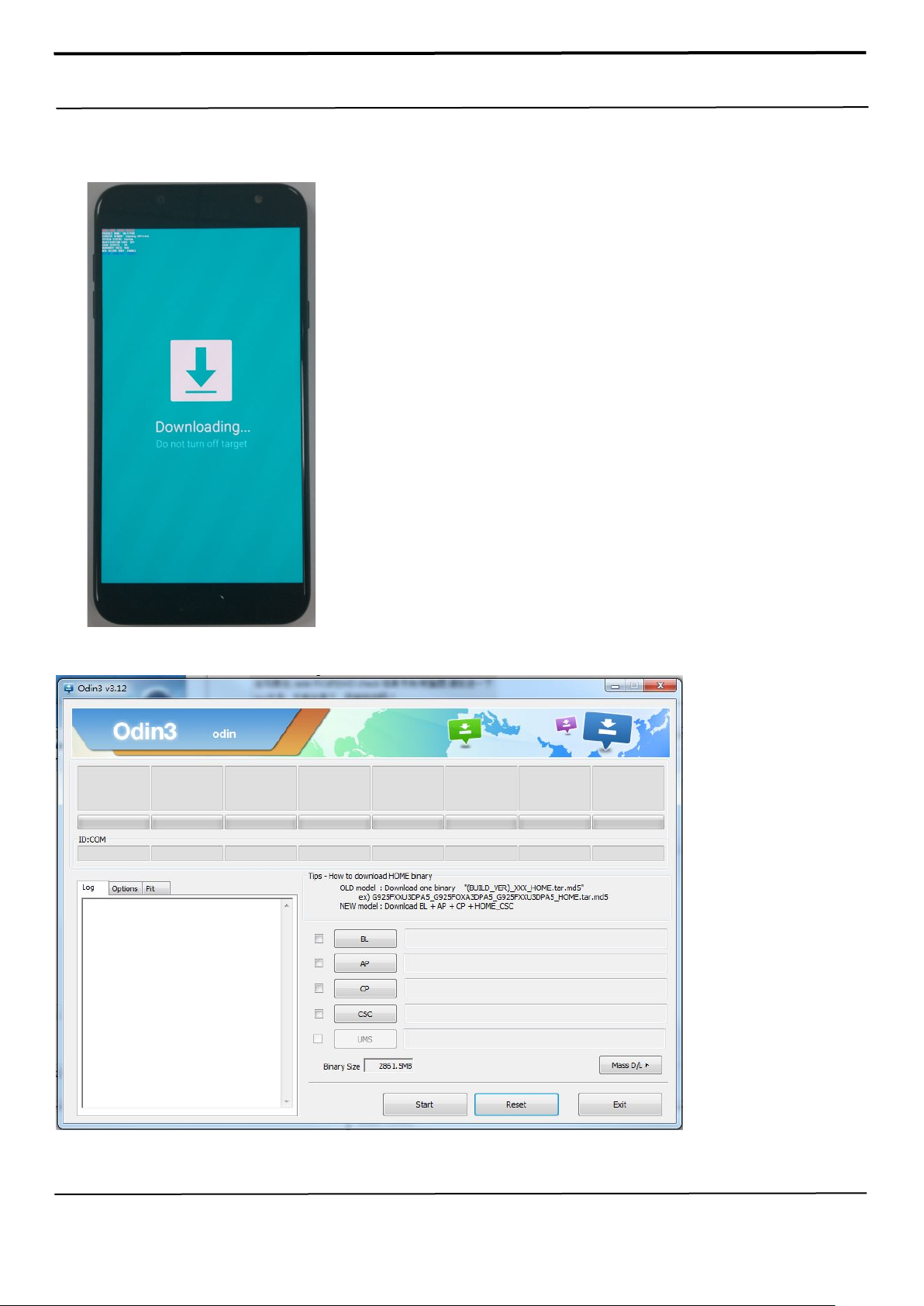

4）Press the Vol Up Key again, and you will see below messageon Main LCD.
“ Downloading... ”
5) Load the binary download program.
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-2
Page 29
6. Level 1 Repair
※

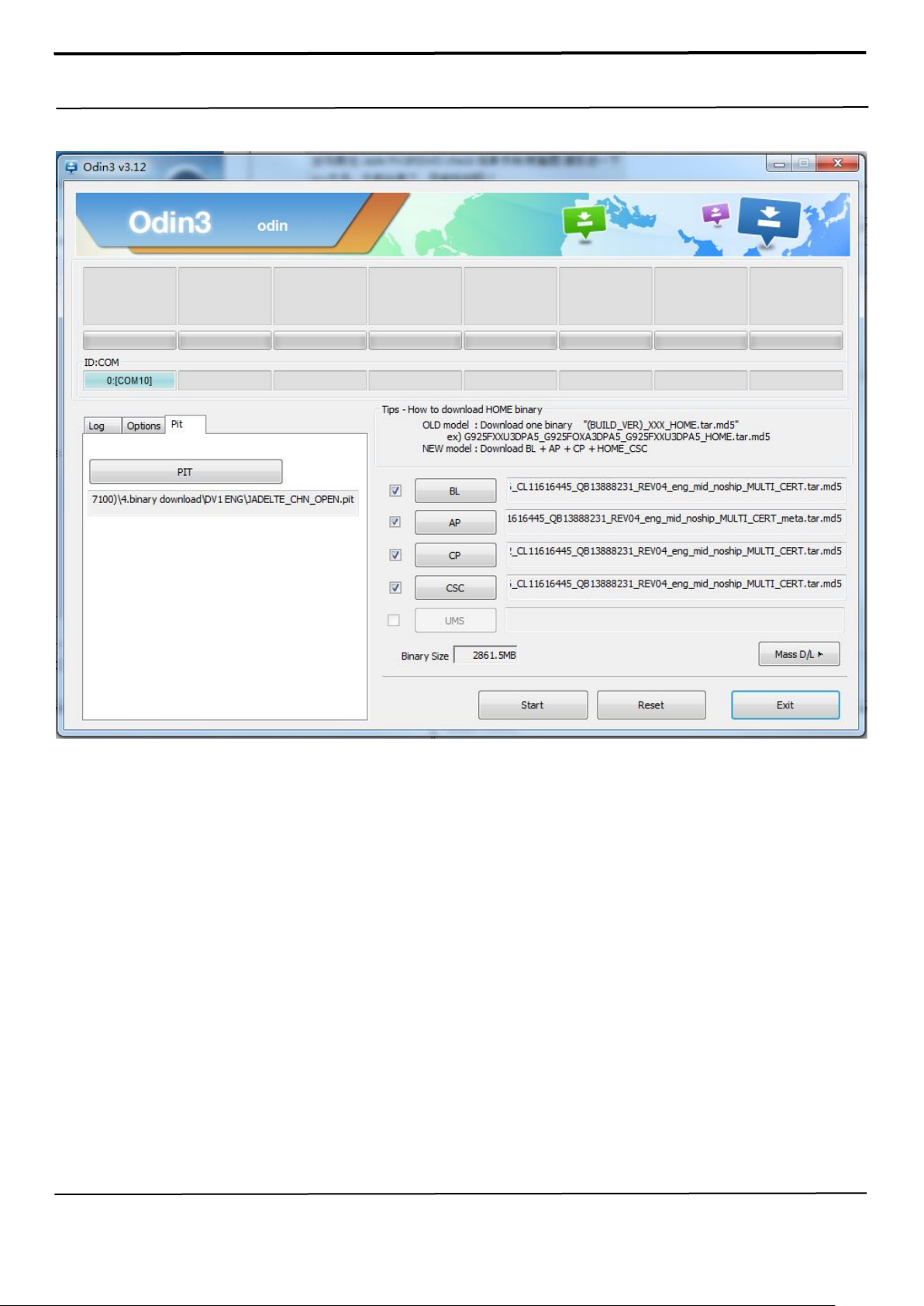

6) Connect mobile and computer. The program show as follow.
Select the file as above:
– BL_XXXX.tar.md5
– AP_XXXX.tar.md5
– CP_XXXX.tar.md5
– CSC_xxxx.tar.md5
7) Now press the button "Start".
8) Now it's time to take a rest and finish the downloading.
9) After finished downloading of phone binary, the mobile phone will restart automatically.
Caution. Never disconnect during the S/W downloading.
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-3
Page 30
6. Level 1 Repair
Library Install
To use Daseul, library files should be installed.
Launcher
DASEUL_SVC_Launcher_v3_0_25 or higher
Runtime File
1. DASEUL_Runtime_Ver_3.1.139.0.CAB or higher
Model File
Copy Model File under the ‘Model Name’ folder
6-2. IMEI writing
6-2-1. Preparation
- New IMEI writing Program has been released.
- Supported Model: Models which CAB files are uploaded on HHP svc INI File category, instead of ini file.
- Refer to below IMEI writing procedure.
- H/W
- S/W
①
Refer to SVC Bulletin
“(11-82) Daseul (New IMEI writing Program) Library Install guide_rev1.0”
②
-Uploaded on HHPsvc Notice
③
-Uploaded on HHPsvc Notice
2. Make ‘ModelName’ folder at the same position with
launcher & Runtime file.
④
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
6-4
Page 31
6. Level 1 Repair
1. 1. Run DASEUL_Launcher_v4.0.0
2. Select Service Mode
6-2-2. IMEI writingProcess
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-5
Page 32
6. Level 1 Repair

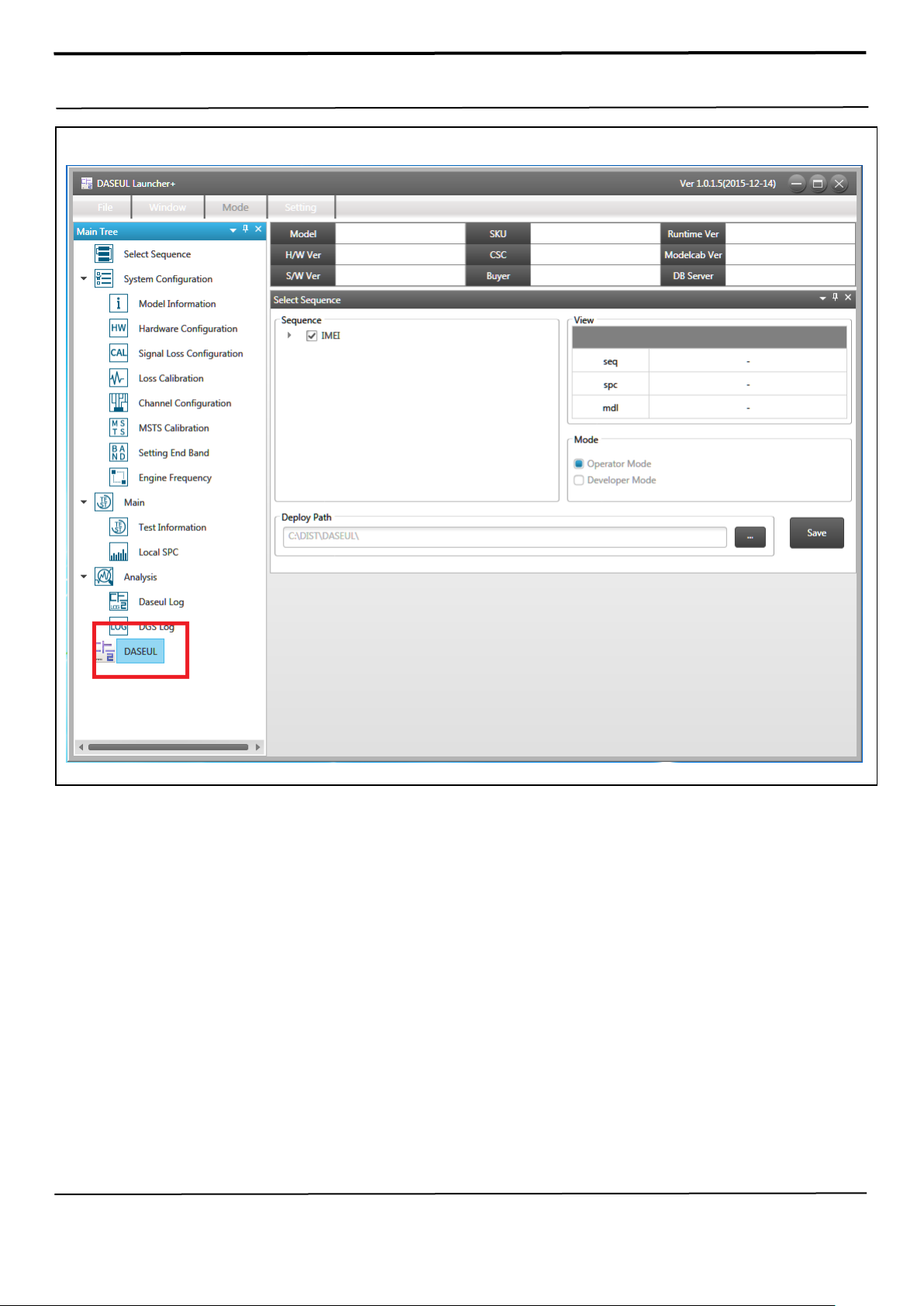

3. Click DASEUL Select folder where the Launcher exists
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-6
Page 33
6. Level 1 Repair

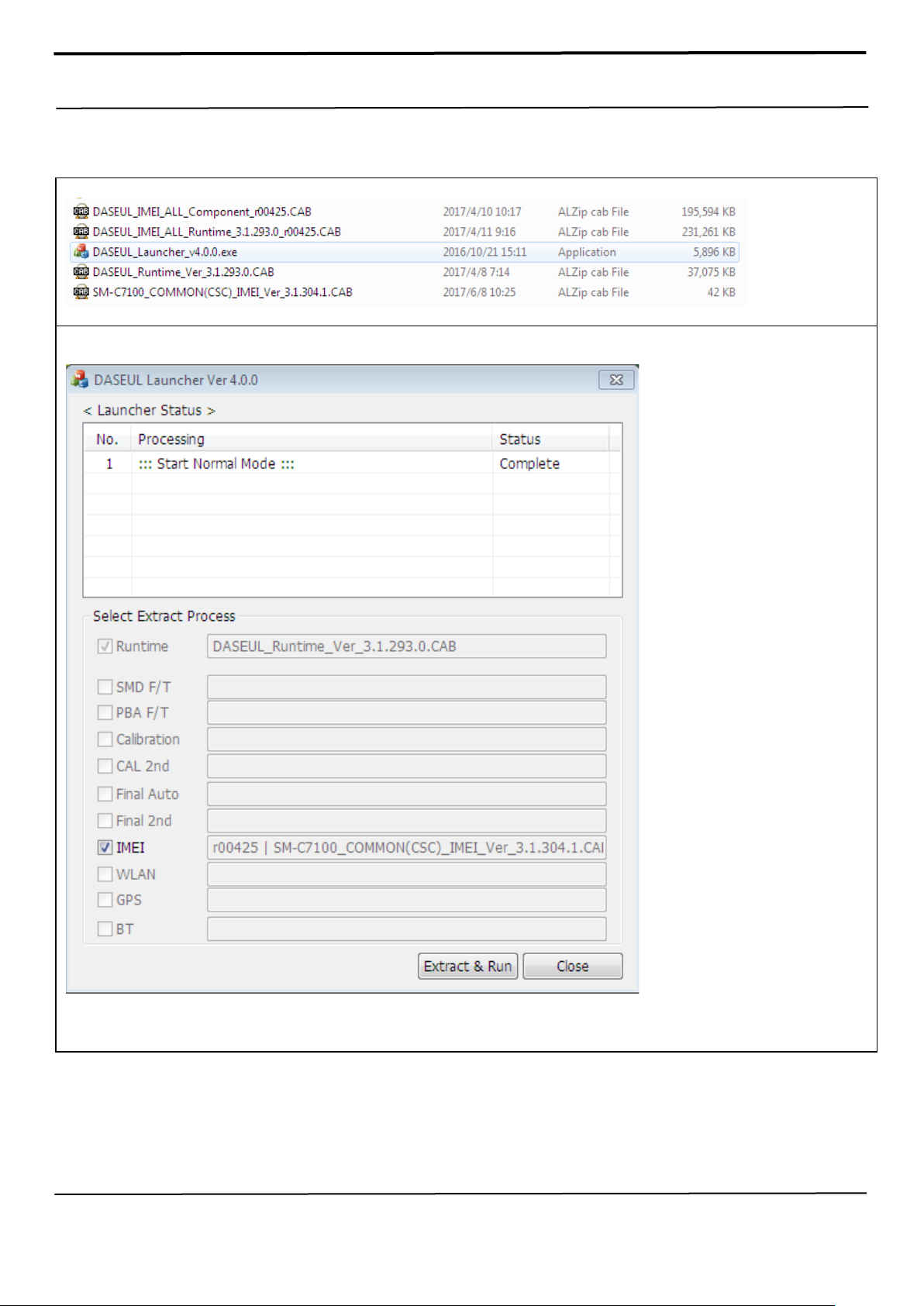

4. Select folder where the Launcher exists
5. Select Mode
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-7
Page 34
6. Level 1 Repair

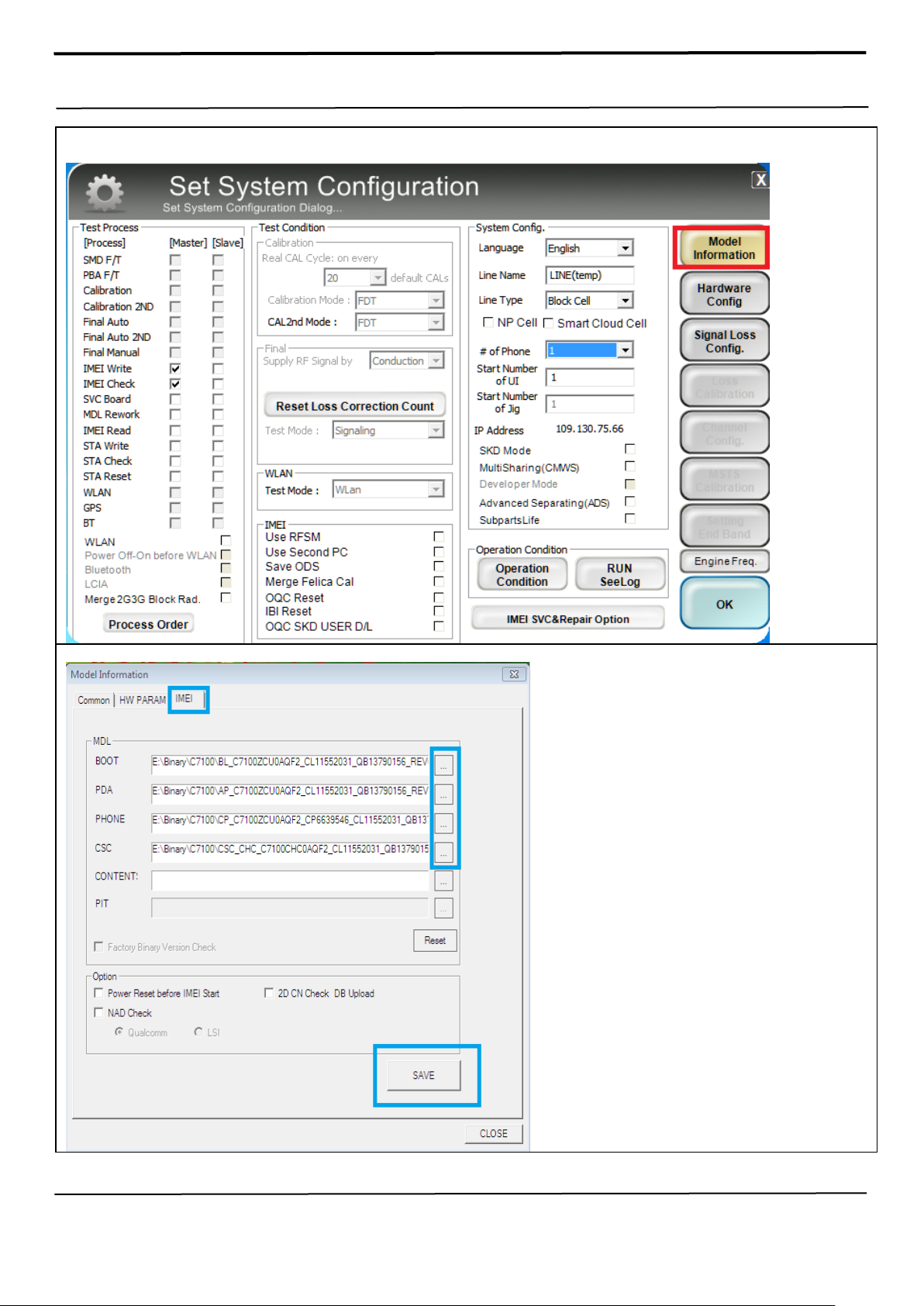

6. Check ‘Model information
7. choose download binary
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-8
Page 35
6. Level 1 Repair

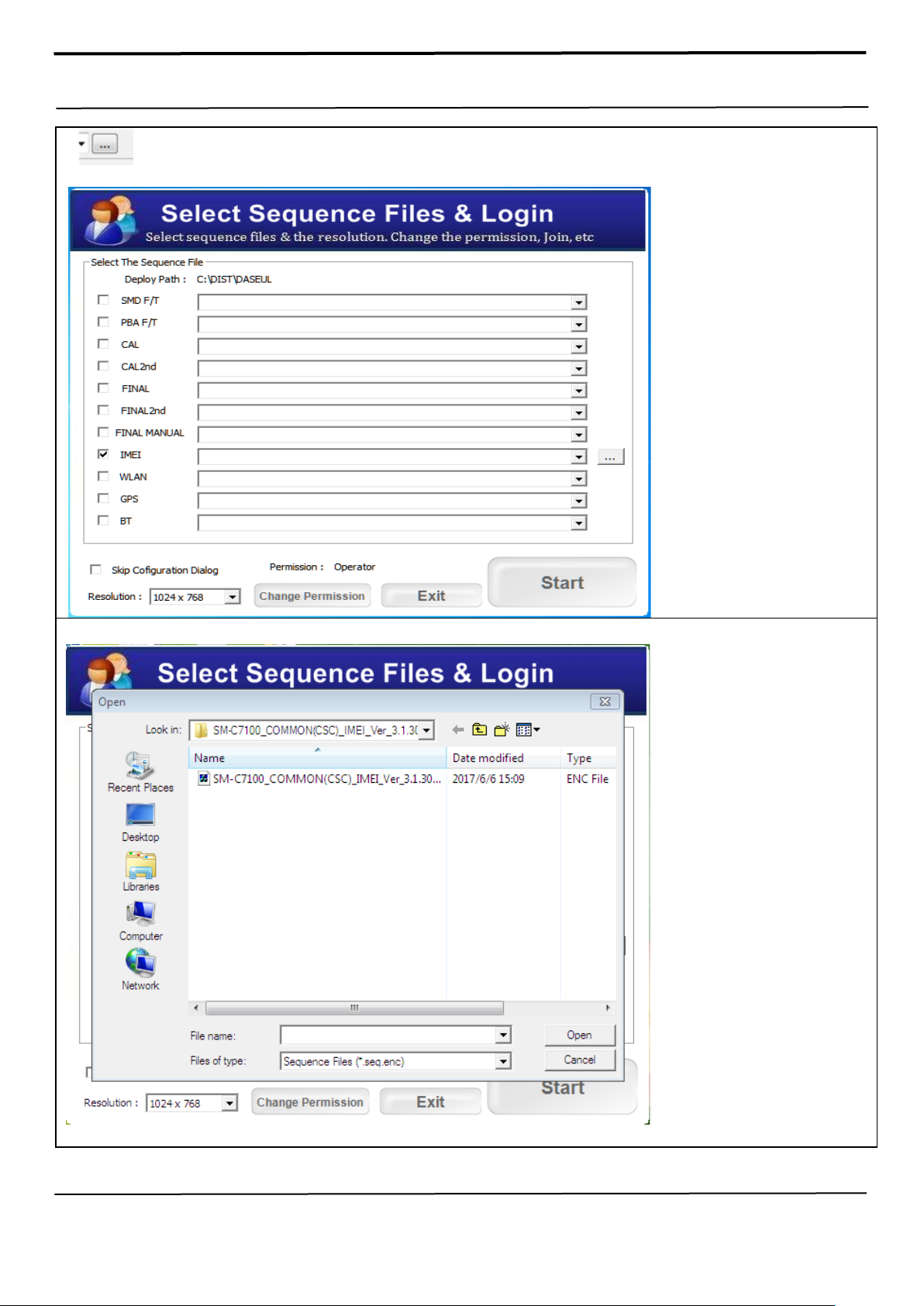

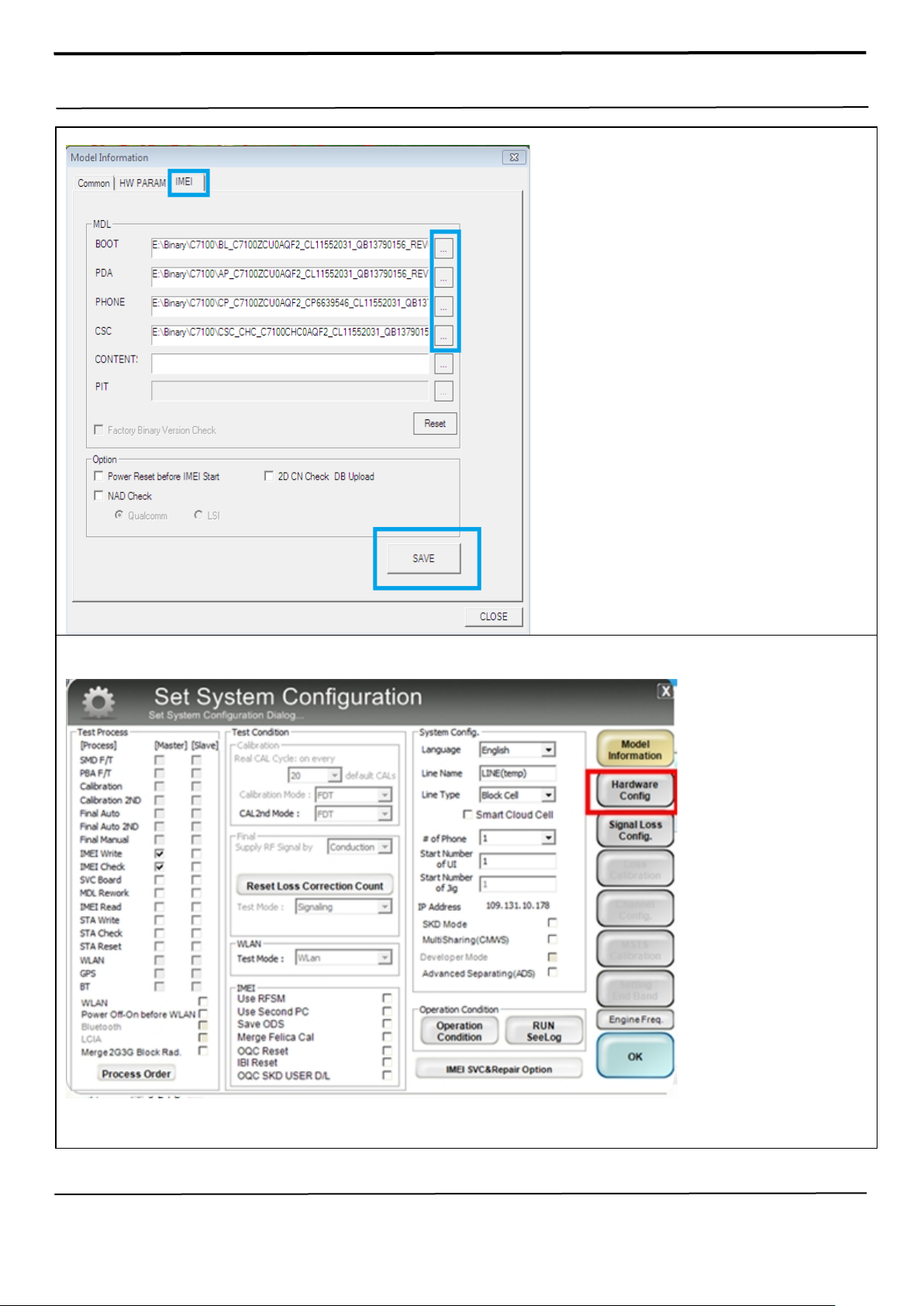

8. Click IMEI, Then choose binary, click SAVE.
9. Click ‘Hardware Config’
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-9
Page 36
6. Level 1 Repair

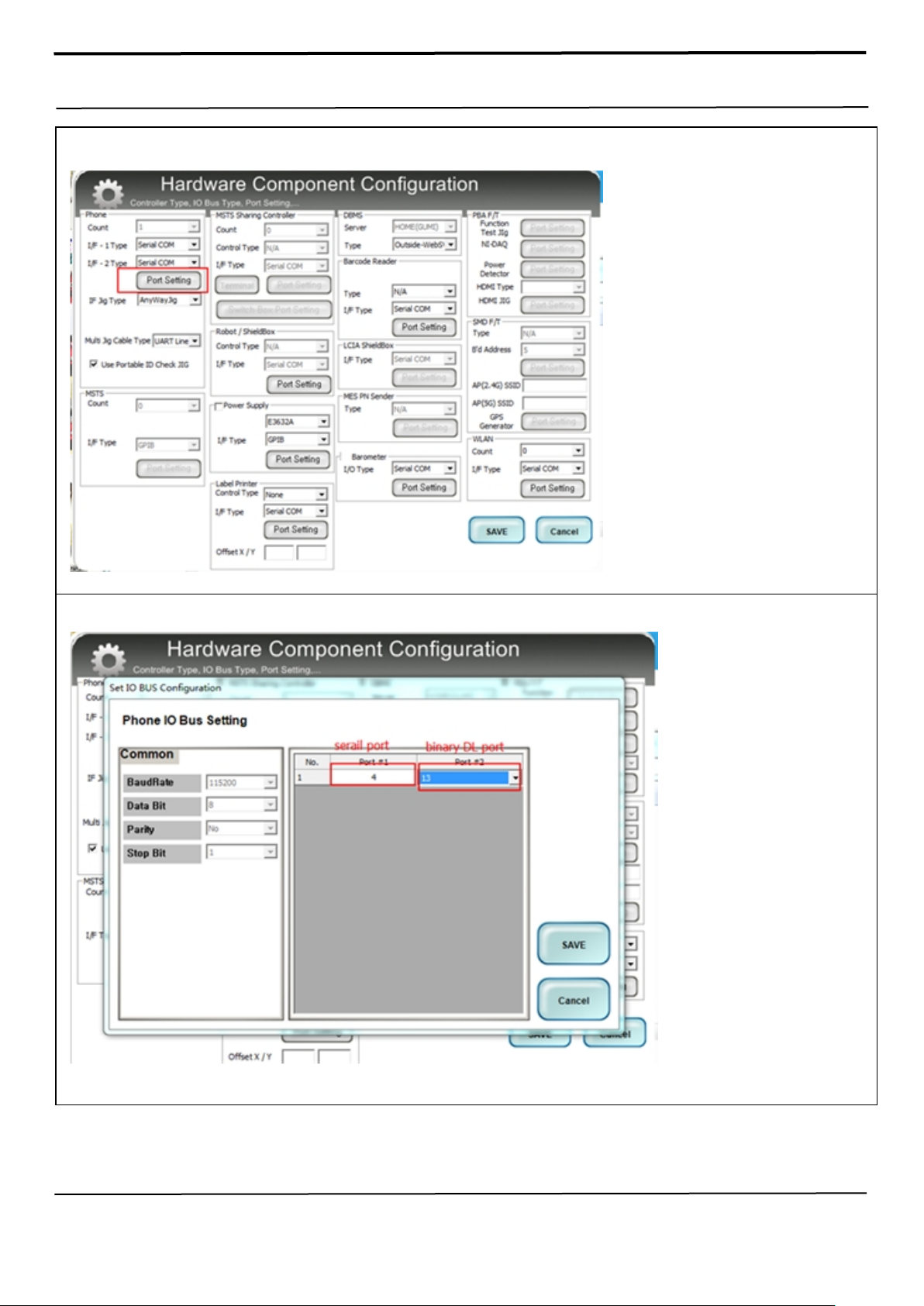

11. Select Port Number and SAVE
10. Click ‘Port Setting’
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-10
Page 37
6. Level 1 Repair

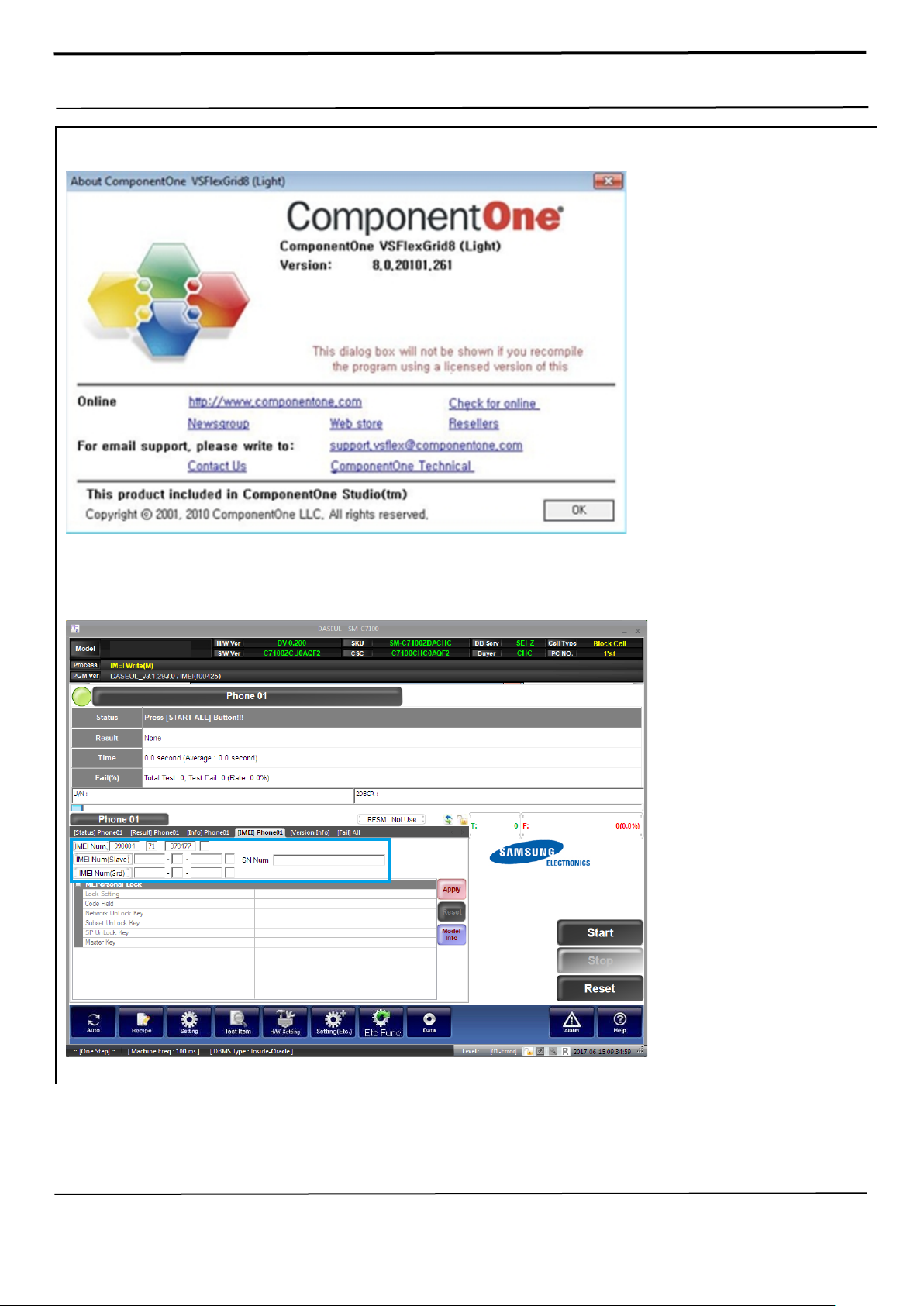

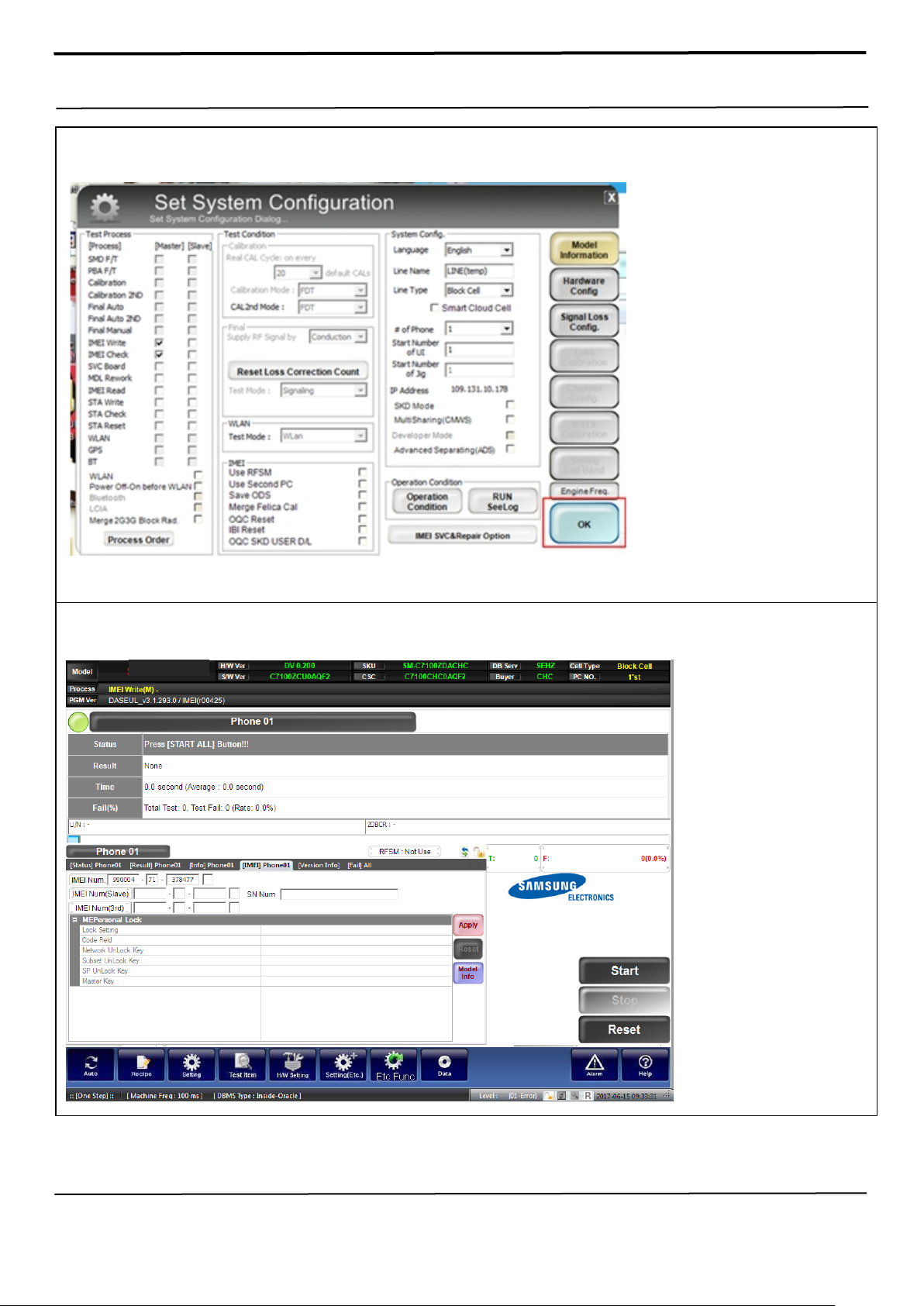

Model name
12.Click OK to proceed
13. Click Model Info and OK when pop-up shows
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-11
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Page 38
6. Level 1 Repair
14. Click OK
Model name
15. Input IMEI Number and click apply.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-12
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Page 39
6. Level 1 Repair

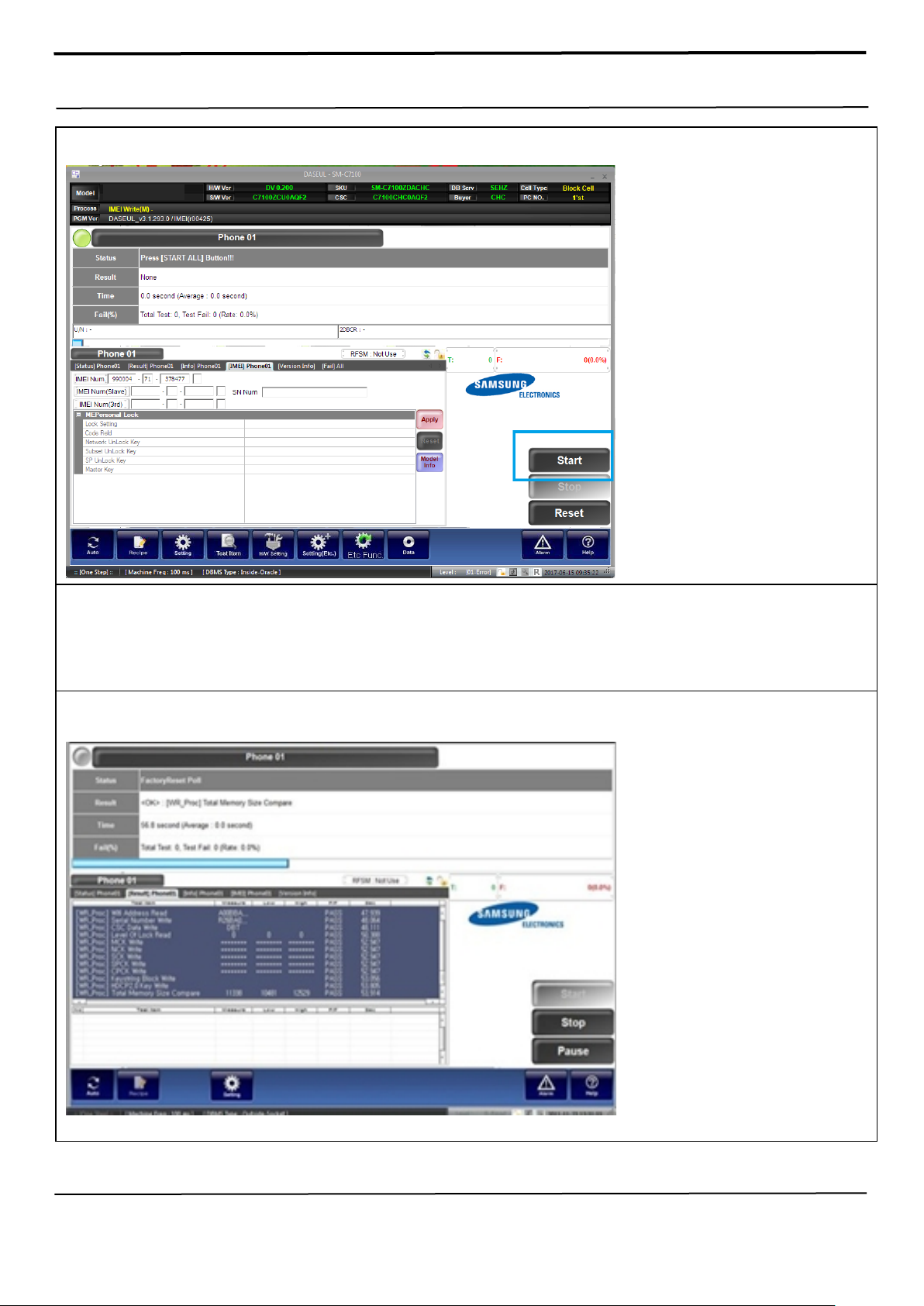

16 Click Start
Model name
17. Connect the phone to Anyway JIG
※ When you connect the phone, the phone s hou ld be turned off.
After connecting the phone, the phone will be booted automatically.
18. IMEI Writing Proceeding
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-13
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Page 40
6. Level 1 Repair

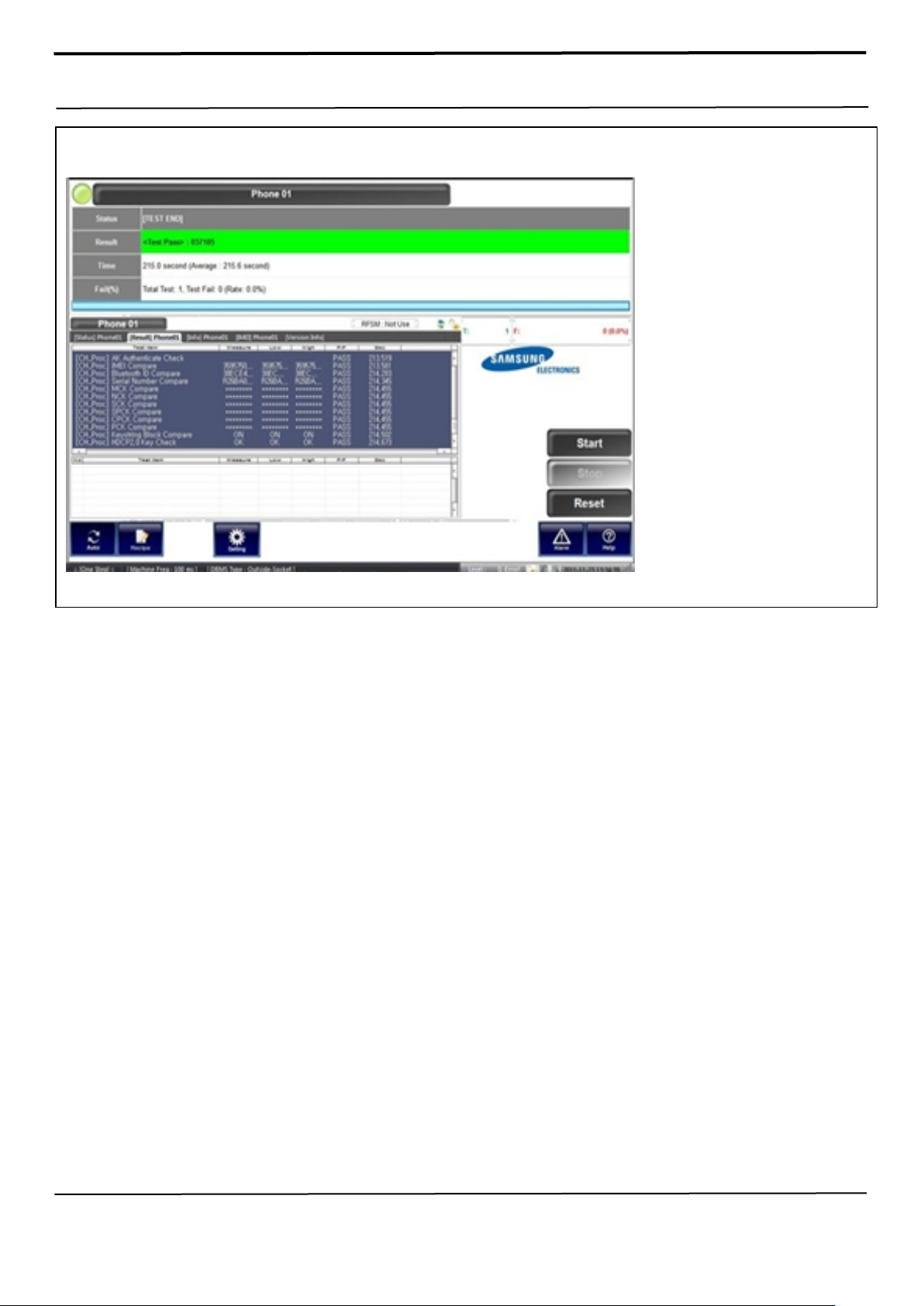

19. IMEI Writing Succes s
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-14
Page 41
6. Level 1 Repair
GH81-10952A
USB 2.0, Type-7Pin
GH81-11962M
GH81-11962U
GH81-11962A
GH81-11962B
GH81-11962E
Divider
6-3. RF Calibration
6-3-1. Required items in order to calibrate RF
Installation progr am :RF Calibration Program
- Daseul_Launcher_vx.x.xx.exe
- Daseul_CAL_ALL_Runtime_x.x.xxx.x.CAB
- Model File (SM-C7100_OPEN_CALIBRATION_Ver_3.1.300.1.CAB)
※ Itis required to use the latest program.
Mobile Phone
R&S CMW500
E3632A Power Supply
GPIB Cable(2ea)
JIG BOX(Anyway S103)
Type-7Pin IF Cable(GH81-10952A)
Adapter (GH81-11888K)
UART Serial Cable
RF Cable(GH81-11962U) 3EA
1.2T RF Cable (GH81-11962M) 3EA
50Ω terminator(GH81-11962E 1EA)
4Port Divider(GH81-11962A 1EA)
Divider Cable(GH81-11962B 1EA)

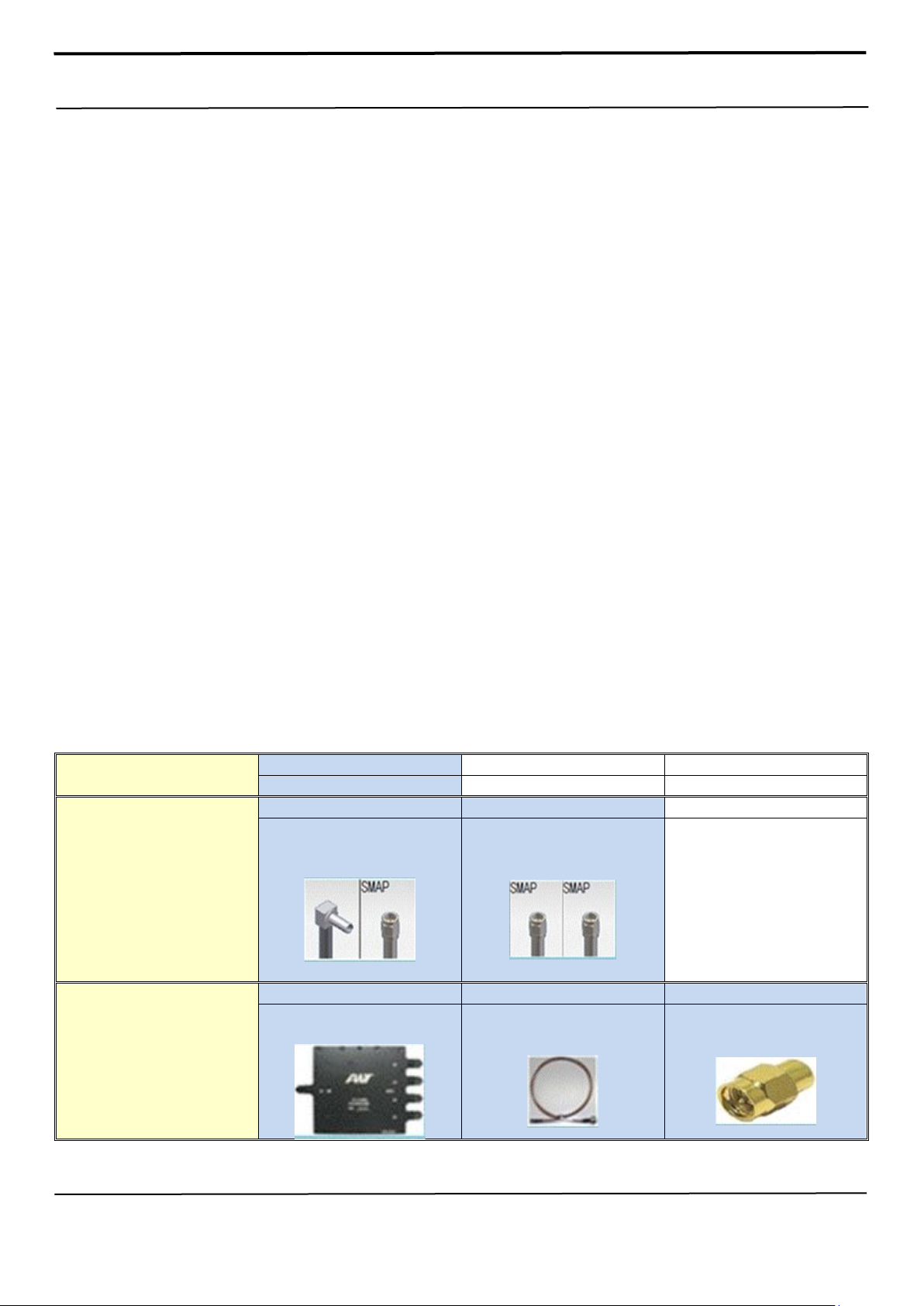

Table of test cables
IF Cable
RF Cable
(Manual)
4 Port Divider
1.2T ,102mm
3EA
1EA
SMAP, 300mm,
3EA
Divider Cable
1EA
50Ω terminator
1EA
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-15
Page 42
6. Level 1 Repair

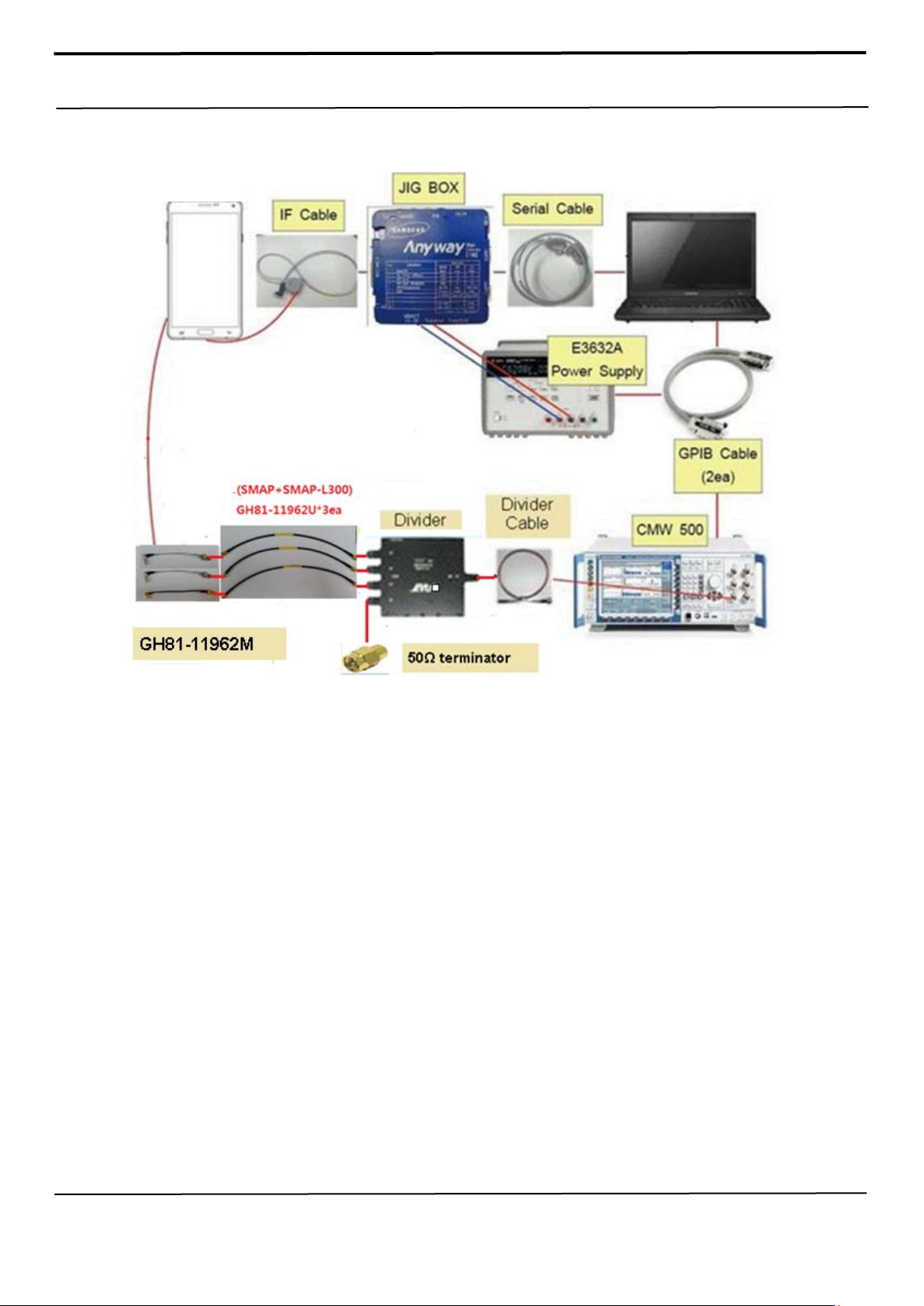

Setting
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-16
Page 43
6. Level 1 Repair

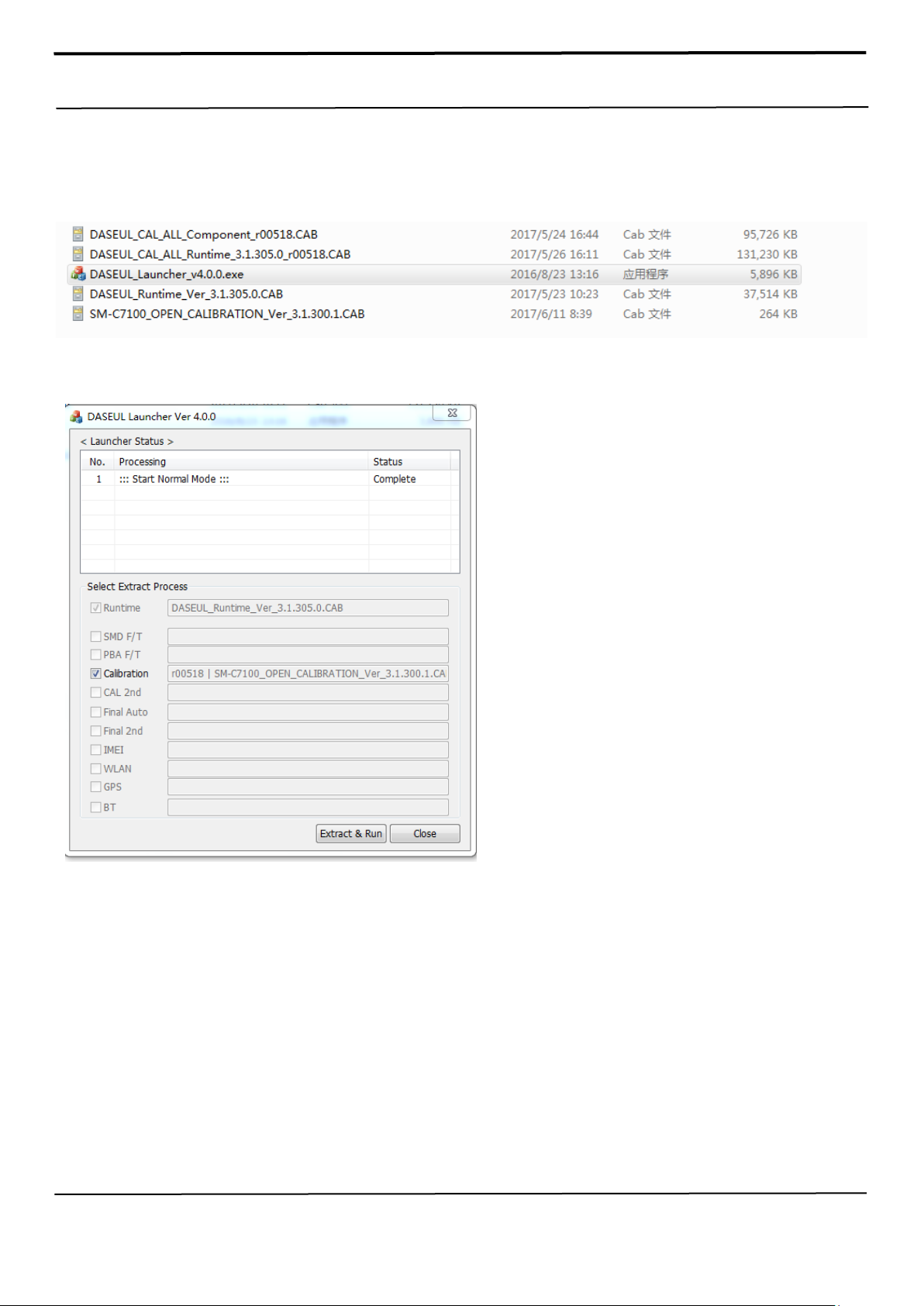

6-3-2. RF Calibration Program
1. Run the RF Calibration Program Launcher, 'DASEUL_Launcher_vx.x.xx.exe'.
2. Check the 'Calibration' menu, and select 'Extract & Run'.
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-17
Page 44
6. Level 1 Repair

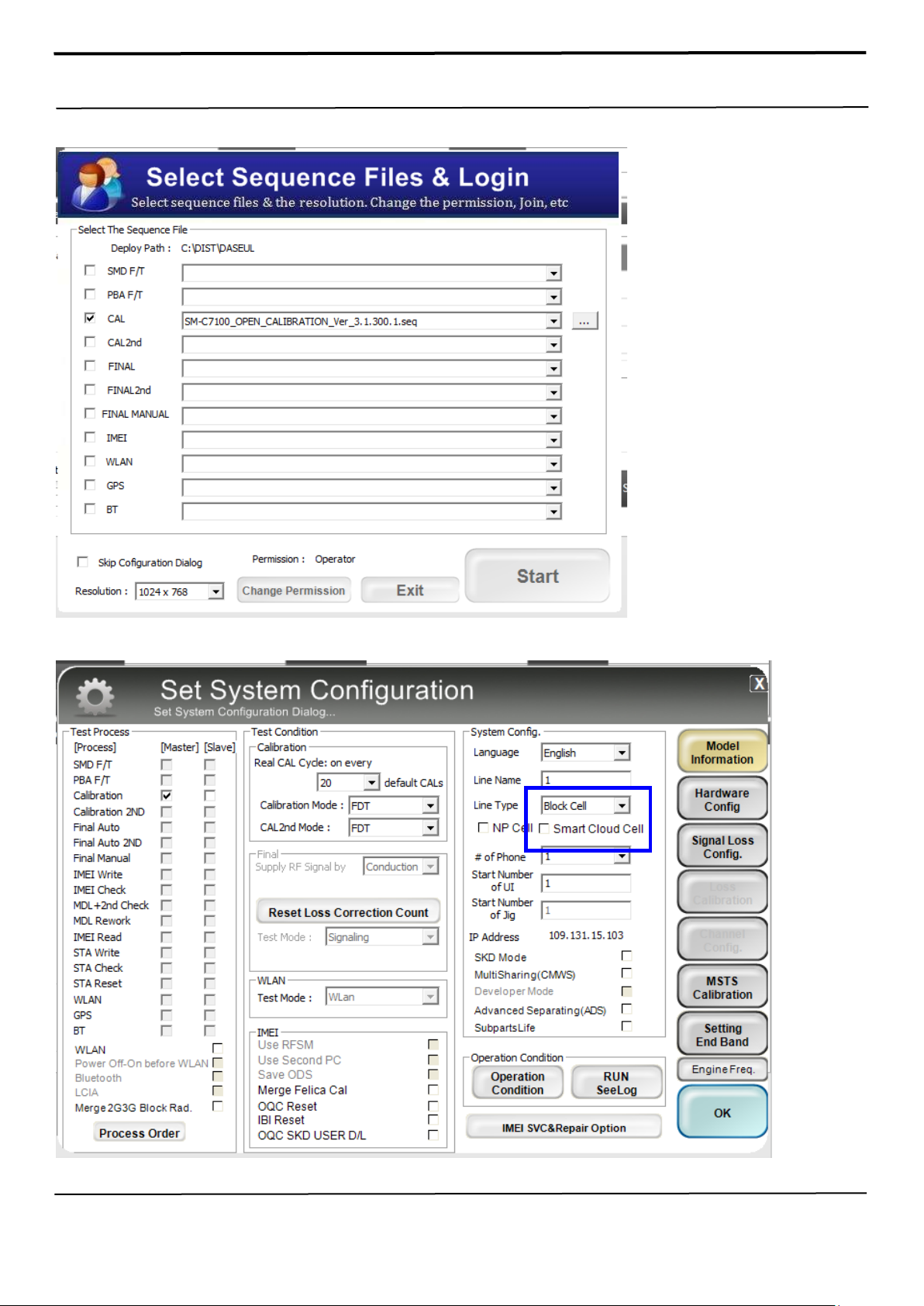

3. Check the 'CAL' and open the model file, then select 'Start' button.
4. Change the Line Type to 'Block Cell' and disable 'Smart Cloud Cell'.
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-18
Page 45
6. Level 1 Repair

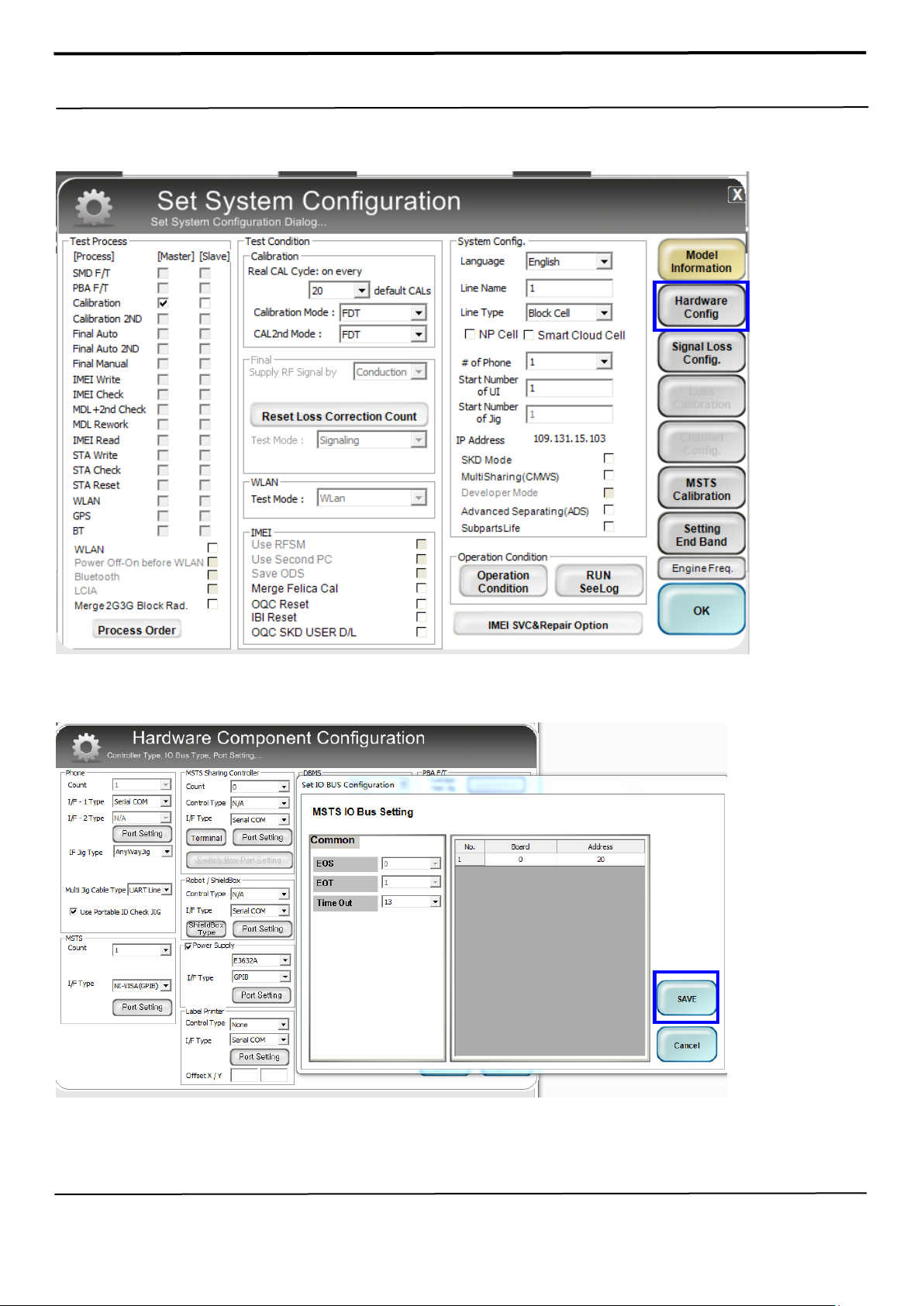

5. Set the GPIB address of MSTS(CMW500) and Power Supply(E3632A) to enter
'Hardware Config' and 'Save'. (Check the GPIB address of equipments in advance)
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-19
Page 46
6. Level 1 Repair
Model name

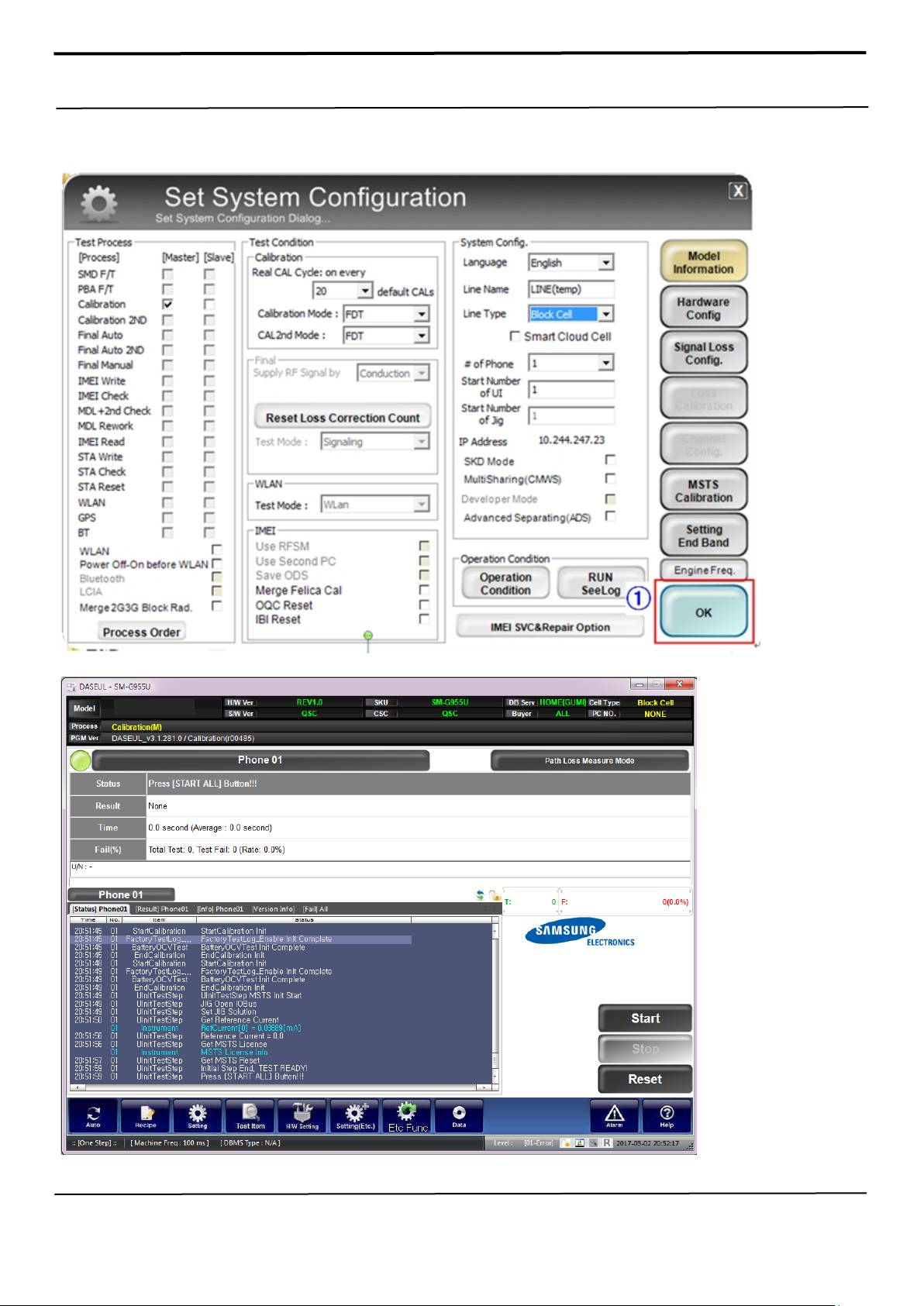

6. Press 'OK' to start RF Calibration after completing all settings.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-20
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Page 47
7. Level 2 Repair

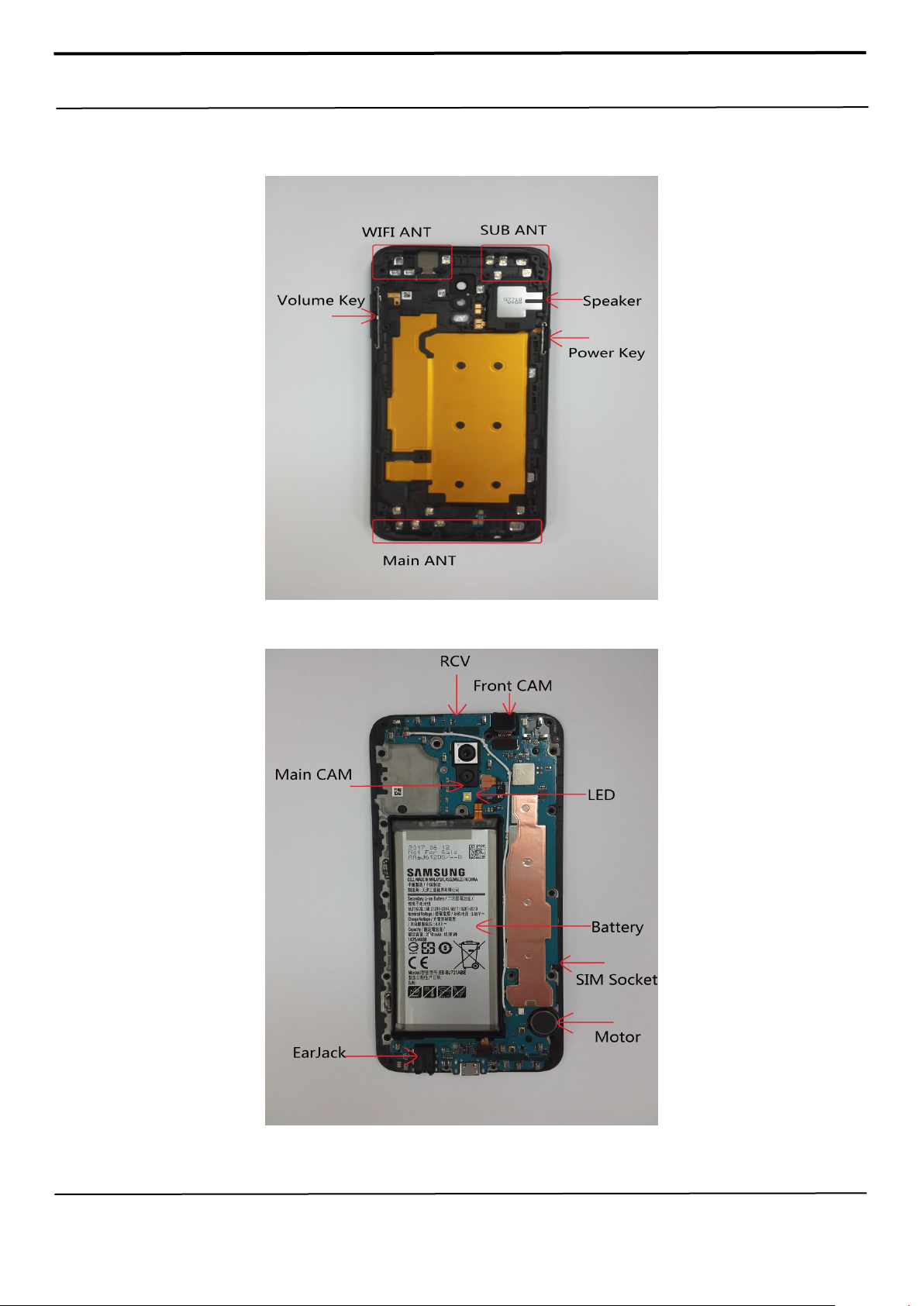

7-1. Components on the Rear Case
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, t ransmissio n, or infrin gement of an y c ontent or data from this d ocument without Samsung’s written authorization is strict ly prohibited.
Page 48
7. Level 2 Repair
Hot Plate
OCTA Disassembly Upper

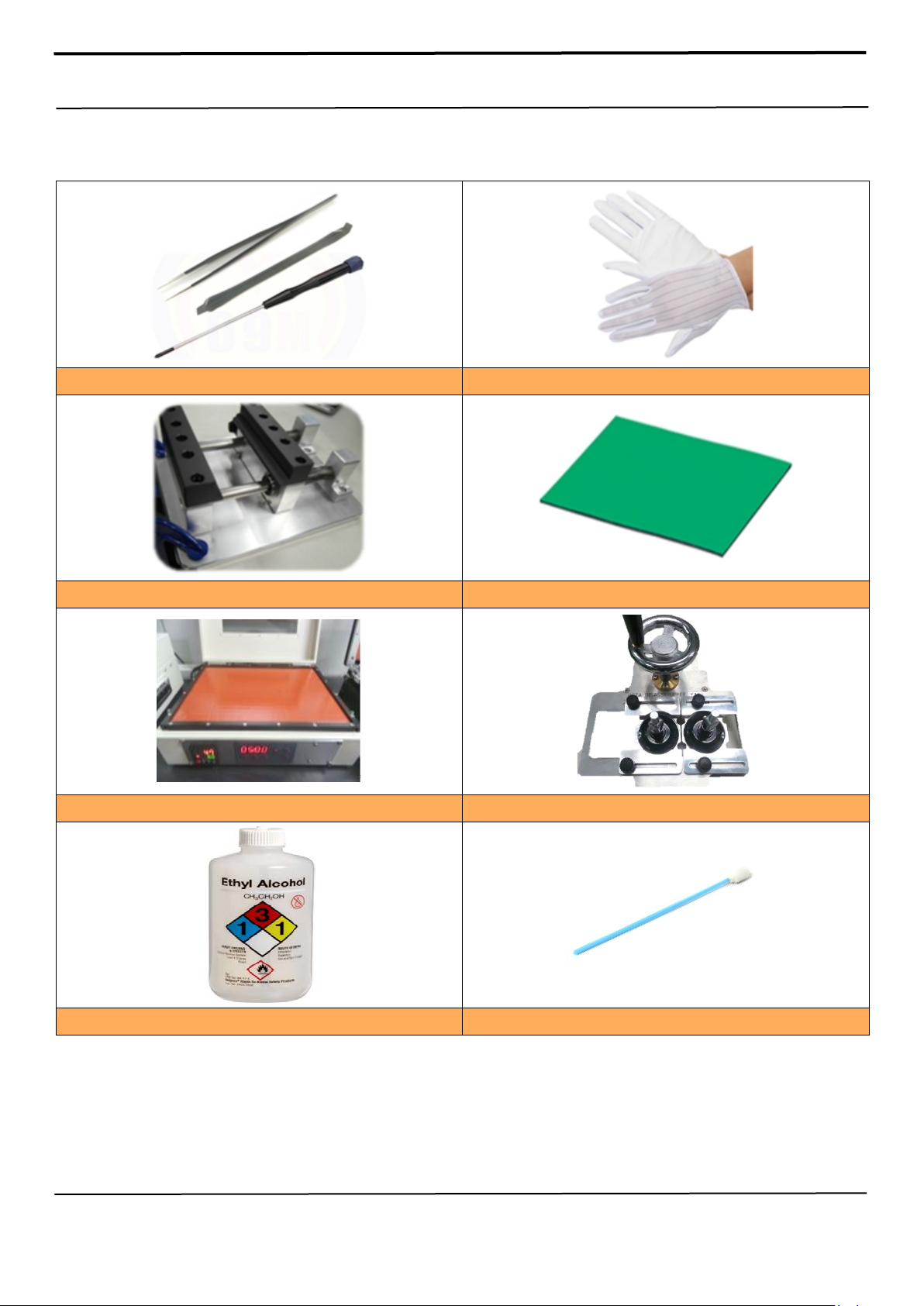

7-2. Pre-requisite
Tweezers / Disass'y Stick / Screw Driver Anti-static Gloves
OCTA Disassembly Holder Anti-static Mat
Ethyl Alcohol Cotton Swab
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, t ransmissio n, or infrin gement of an y c ontent or data from this d ocument without Samsung’s written authorization is strict ly prohibited.
Page 49
7. Level 2 Repair
7-3. Parts which must be changed after repair
BOM Description Picture Remarks
A/S-TAPE_
MAIN_WINDOW_SVC
[GH02-14924A]
[GH02-14923A]
Touch Key Top Tape
GH81-14737A
A/S-TAPE HOTMELT-HR
SVC
[GH02-15149A]
[TOP_
[BOT_
GH02-14924A]
GH02-14923A]
Replace when
repair Front part
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, t ransmissio n, or infrin gement of an y c ontent or data from this d ocument without Samsung’s written authorization is strict ly prohibited.
Page 50
7. Level 2 Repair
※
released lastly, and follow it.
7-4. Disassembly
Be careful to put on antistatic wrist strap!

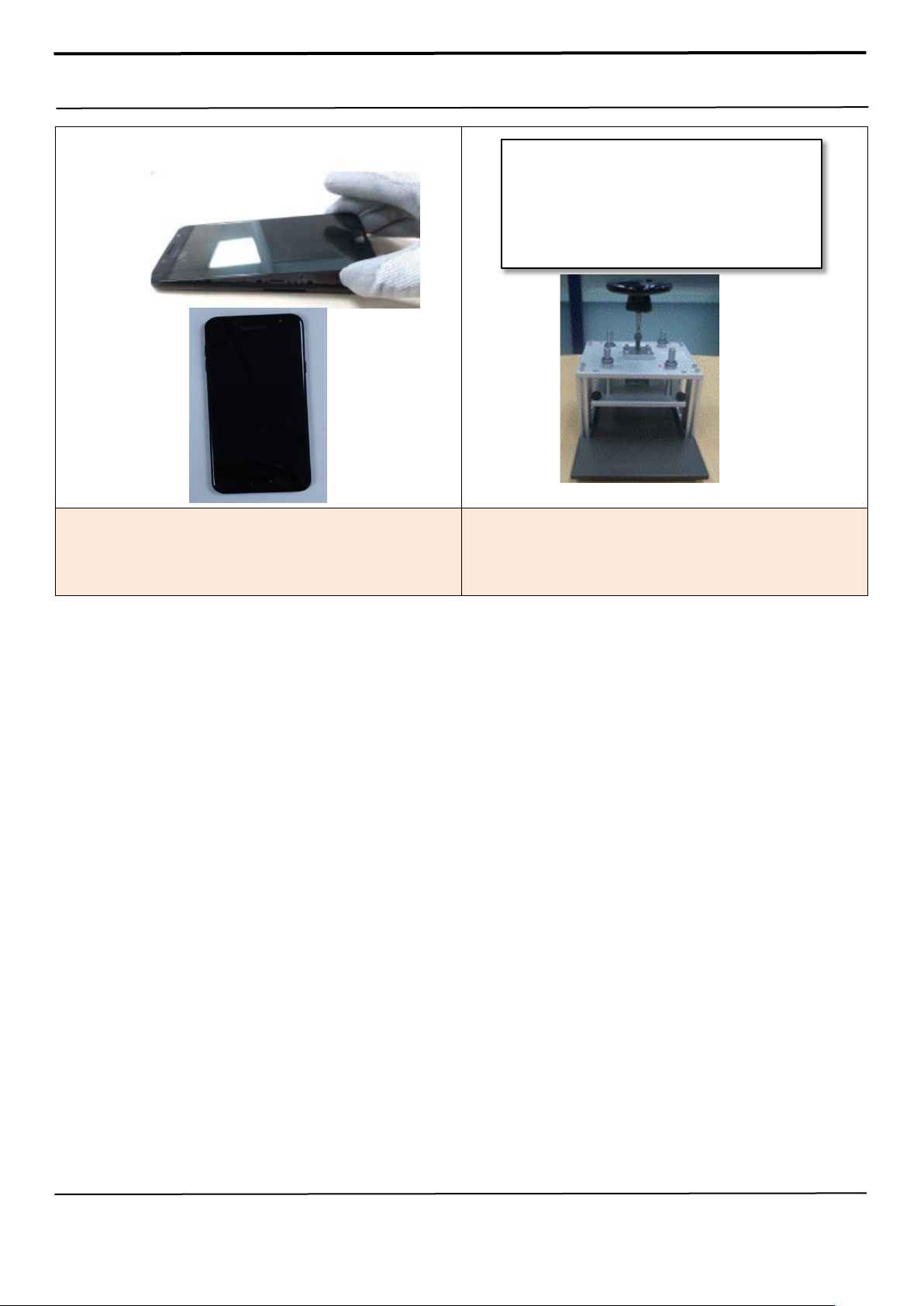

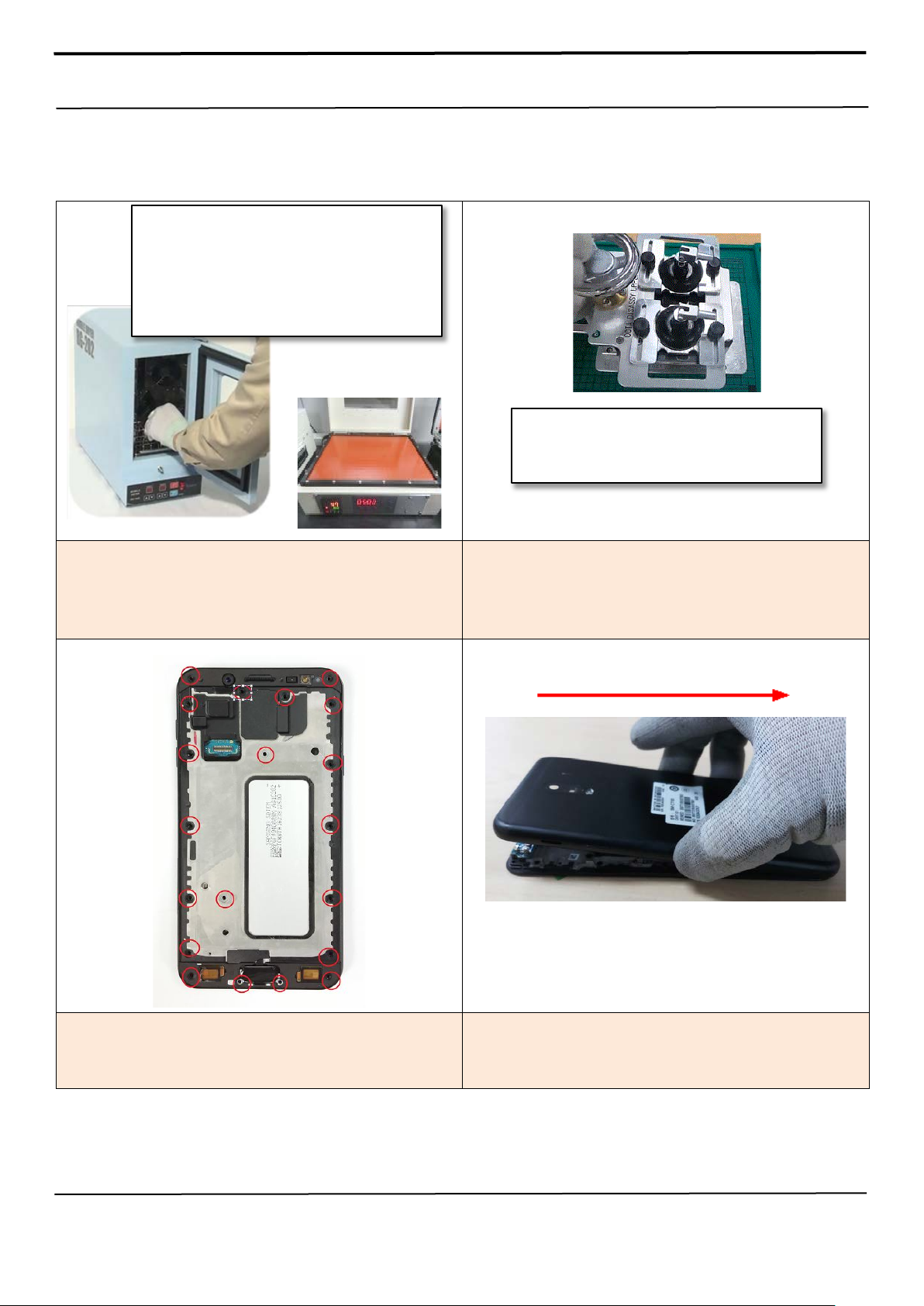

[1] After heatingfor 15~30 minutes at 70~80℃,take out the
device from Mobile dryer.
1. Put the device in the chamber or hot plate
as following below heating condition
2. Temp：70°±5， Time：15 Minutes
※ Please confirm the heating condition
Take out SET, when OCTA and Front ASS'Y
Detach
[2] Detach the Back Cover from SET using Back
Cover Disassembly Holder.
[3] Loosen 20 screws.
※ Caution
Take care of scratch and damage.
[4] Disassemble rear from bracket assy.(from top to bott
om)
※ Caution
Be careful not to Damage
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, t ransmissio n, or infrin gement of an y c ontent or data from this d ocument without Samsung’s written authorization is strict ly prohibited.
Page 51

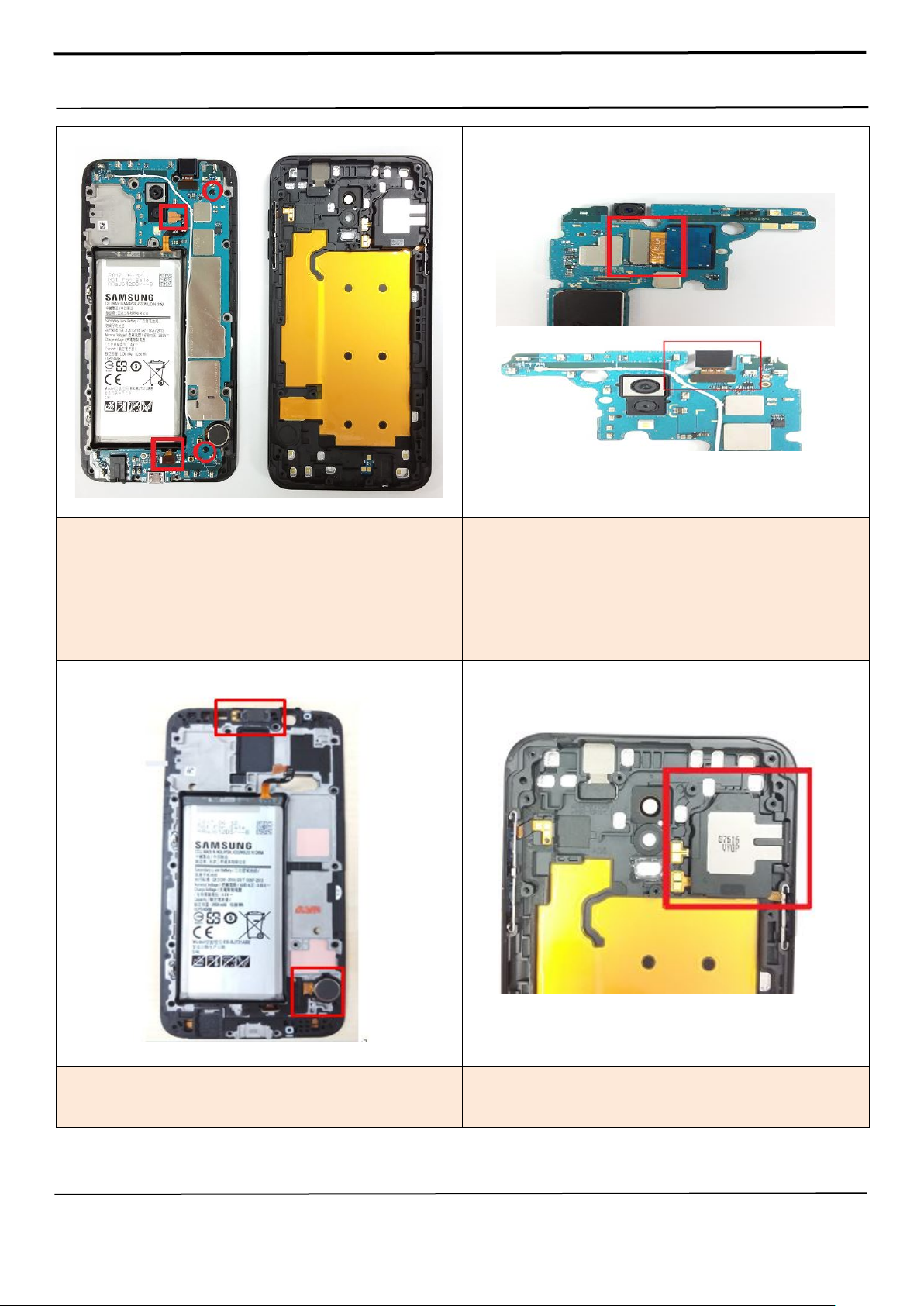

7. Level 2 Repair

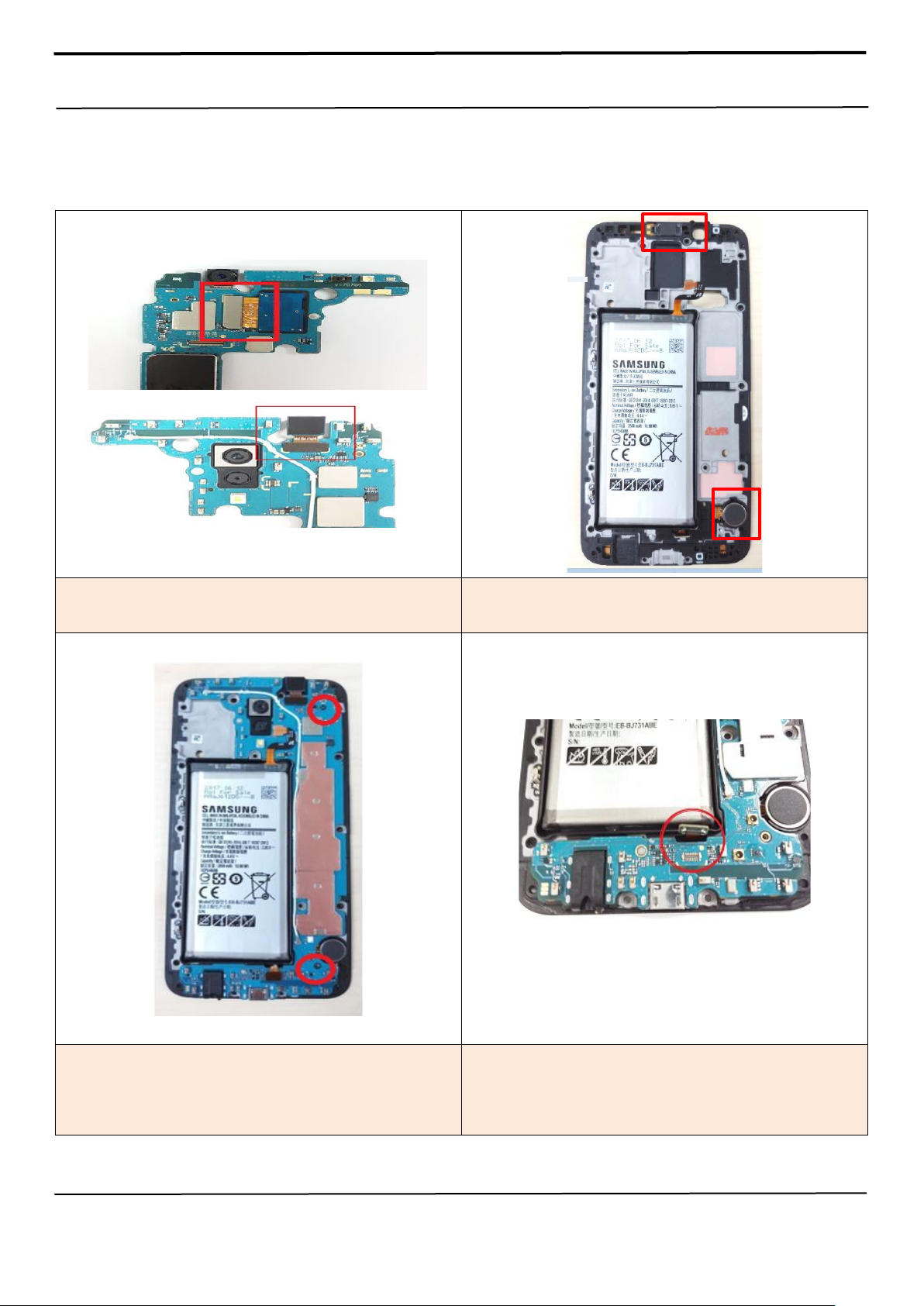

2
[5]
1) Disassemble Home Key Connector/Battery Connector
) Separate PBA from Brocket. Detach 2 screws point
※ Caution
1) Be careful not to damage.
2) Separate PBA after detac h the PBA Conn.
[6] Disassemble Mega Cam and Front Cam on PBA
※ Caution
Be careful not to Damage
.
[7]Disassemble RCV, Motor
Distribution, t ransmissio n, or infrin gement of an y c ontent or data from this d ocument without Samsung’s written authorization is strict ly prohibited.
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
[8]Disassemble SPK from the REAR
Page 52
7. Level 2 Repair
※
7-5. Assembly
Be careful to put on antistatic wrist strap!
[1]Assemble the Main CAM and VT CAM to the PBA
[2] Assemble Motor, RCV
[3]Assemble PBA to Bracket with 2 point screws
※ Caution
Be careful not to Damage
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, t ransmissio n, or infrin gement of an y c ontent or data from this d ocument without Samsung’s written authorization is strict ly prohibited.
[4]Assemble Homekey connector to the PBA
Page 53
7. Level 2 Repair
[5] Assemble Rear to Bracket assy ( from bottom to Top)
※ Caution
Be careful not to Damage
[7] Assemble HR tape Touch key TOP tape
to the Bracket and window tape to OCTA
[6]Assemble Screw 20 points
[8]Assemble OCTA connector & OCTA Conn CAP
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, t ransmissio n, or infrin gement of an y c ontent or data from this d ocument without Samsung’s written authorization is strict ly prohibited.
Page 54
7. Level 2 Repair
[9]Assemble OCTA to Bracket
※ Caution
Be careful not to Damage the home key
1. Press the device using pressing jig
- Force : 1N
- Time : 1minute
※ Please confirm the pressing condition
released lastly, and follow it.
[10]Press SET using OCTA PRESS Jig (1N for 1 minute)
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, t ransmissio n, or infrin gement of an y c ontent or data from this d ocument without Samsung’s written authorization is strict ly prohibited.
Page 55

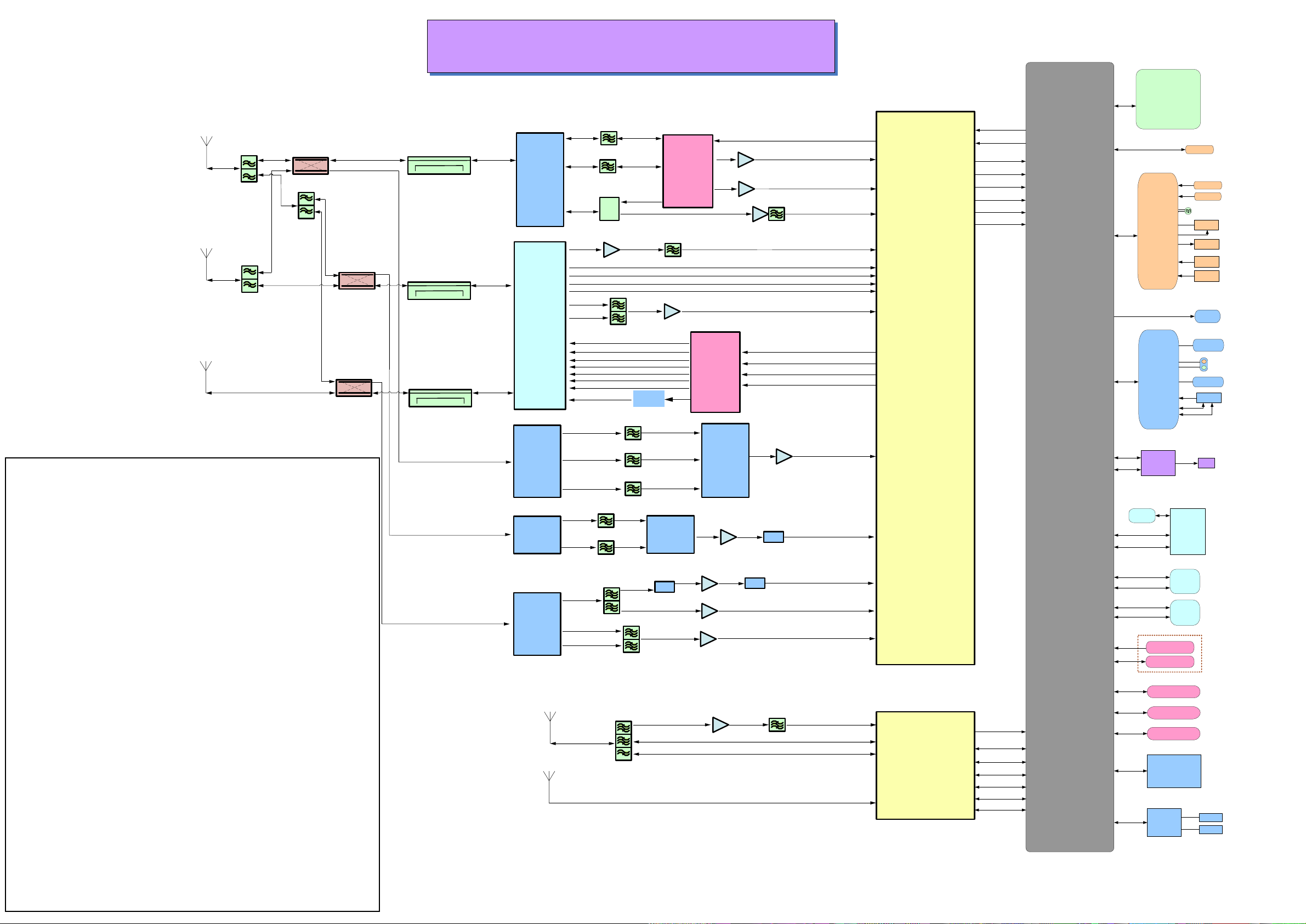

SM-C7100 SVC Manual Block Diagram
Main HB ANT
Sub LMB ANT
DPDT
RF1646
Diplexer
DPX202700DT
DPDT
RF1646
DPDT
RF1646
Main LB ANT
Sub HB ANT
Main MB ANT
Diplexer
DPX252690DT
Diplexer
DPX202700DT
Information of RF Bands supported on
SM-C7100 Model
GSM850 : Rx : 869.2 ~ 893.8 MHz / Tx : 824.2 ~ 848.8 MHz
GSM1900 : Rx :1930.2 ~ 1989.8 MHz / Tx : 1850 .2 ~ 1909 .8 MHz
GSM900 : Rx : 925.2 ~ 959.8 MHz / Tx : 880.2 ~ 914.8 MHz
GSM1800 : Rx : 1805.2 ~ 1879.8 MHz / Tx : 1710 .2 ~ 1784 .8 MH
WCDMA Band 1 : Rx : 2112.4 ~ 2167 .6 MHz / Tx : 1922.4 ~1977.6 MHz
WCDMA Band 2 : Rx : 1930 ~ 1990 MHz / Tx : 1850 ~ 1910 MHz
WCDMA Band 5 : Rx : 871.4 ~ 891.6 MHz / Tx : 826.4 ~ 846.6 MHz
WCDMA Band 8 : Rx : 927.4 ~ 957.6 MHz / Tx : 882.4 ~ 912.6 MHz
CDMA BC0: RX: 869~894MHz / TX: 824~894MHz
LTE Band 1 : Rx : 2110 ~ 2170 MHz / Tx : 1920 ~ 1980 MHz
LTE Band 3 : Rx : 1805 ~ 1880 MHz / Tx : 1710 ~ 1785 MHz
LTE Band 5 : Rx : 869 ~ 894 MHz / Tx : 824 ~ 849 MHz
LTE Band 7 : Rx : 2620 ~ 2690 MHz / Tx : 2500 ~ 2570 MHz
LTE Band 8 : Rx : 925 ~ 960 MHz / Tx : 880 ~ 915 MHz
LTE Band 38: 2570~2620 MHz
LTE Band 39: 1880~1920 MHz
LTE Band 40: 2300~2400 MHz
LTE Band 41 : 2555MHz~2655MHz
LTE Band 34 : 2010MHz~2025MHz
TDSCDMA B34: 2010 ~ 2025 MHz
TDSCDMA B39: 1880 ~ 1920 MHz
BT/BLE/ANT+ : 2402 ~ 2480 MHz
WLAN :
2402 ~ 2480 MHz
5180 ~ 5240 MHz / 5260 ~ 5320 MHz / 5500 ~ 5700 MHz
5745 ~ 5825 MHz
DTS : 2412 ~ 2472 MHz
UNII : Ch144,142,138 not support
Coupler
HHM22137A3K
Coupler
HHM22137A3K
Coupler
HHM22137A3K
DRX_ANT_HB
DRX_ANT_LB
DRX_ANT_MB
TRX_HB_DPDT
TRX_ANT_LB
TRX_ANT_MB
SP3T
MXD8631SF
FEM
LMSWKQGR-J80
SP3T
MXD8631
SP4T
BGS15MA12
SP3T
MXD8631
GPS_WLAN_BT ANT
FM ANT
TRX_B38_41
SAFRH2G59MA 0F3K
TRX_B40
SFDG35A Q102
TRX_B7
SAYEY2G53BD0F3K
MXD8011HU
TX_PA_OUT_B1
TX_PA_OUT_B3
TX_PA_OUT_B5_BC0
TX_PA_OUT_B2
TX_PA_OUT_B8
TX_PA_OUT_GSMLB
TX_PA_OUT_GSMHB
TX_PA_OUT_B34_39
DRX_B40
DRX_B7
DRX_B38_41
DRX_B5
SFH881AA002
DRX_B8
SFH942AA002
SFWG42CBB02
SAW
SAW
Duplexer
TX_B7
RX_B7
LNA
Dual SAW
SFWG00DB002
SAW
SFHG52AA002
SAW
SAFFB2G65A A0F0A
SAW
SFHG93A Q102
SAW
SAW
Dual SAW
Dual SAW
SFWG00DB002
Triplexer
SFTG45A U0
SAW
SAFFB2G14AA 0F0A
LNA
MXD8011HU
SP2T
BGS12PL6
SP4T
BGS15MA12
SP3T
MXD8631
GPS_RX
PA
WIPS33232-01
LNA
MXD8011HU
LNA
MXD8011HU
MXD8011HU
SKY77621
LNA
BGU6009
PA
SP3T
MXD8631
LNA
BGS8L2
LNA
LNA
MXD8011HU
LNA
MXD8011HU
MXD8621
LNA+SAW
SFDG35A Q102
MXD8011HU
SP2T
MXD8621
SP2T
SAW
SFHG89X A402
TX_TR_OUT_B7_38_40_41
PRX_TR_IN_B38_41
PRX_TR_IN_B40
PRX_TR_IN_B7
PRX_TR_IN_B1
PRX_TR_IN_B3_DCS
PRX_TR_IN_BC0_G850_B5
PRX_TR_IN_EGSM_B8
PRX_TR_IN_B2_PCS
PRX_TR_IN_B34_39
TX_TR_OUT_GSMHB
TX_TR_OUT_GSMLB
TX_TR_OUT_B1_2_3_34_39
TX_TR_OUT_B5_8_BC0
LNA
DRX_TR_I N_B7_38_40_41
DRX_TR_I N_B5_8_BC0
DRX_TR_I N_B3
DRX_TR_I N_B1
DRX_TR_I N_B34_39
GPS_RF_I N
WB_RF_2G
WLAN_RF_5G
FM_RX
TX_HB2
PRX11
PRX13
PRX14
PRX5
PRX8
PRX1
PRX2
PRX10
PRX6
TX_MB3
TX_LB3
TX_MB2
TX_LB4
MT6176V
DRX8
DRX3
DRX13
DRX6
DRX4
DRX_LB1
DRX_LB1
DRX_LB1
MT6625L
DRX_LB1
X_I_N/P
T
TX_Q_N/P
PRX_BB1_I/Q
PRX_BB2_I/Q
DRX_BB1_I/Q
DRX_BB2_I/Q
LTE_DET_I/Q
RFIC0_BSI
GPS_I/Q
WLAN_TX_I/Q
WLAN_RX_I/Q
BT_TX_I/Q
BT_RX_I/Q
FM_CLK
FM_DATA
MT6757V/CD
eMMC
SPMI
I2C
I2S
I2C
Dual CAM MIPI
VT CAM MIPI
SPI
I2C
I2C
I2C
CLK/DATA
I2C
Memory
eMMC 64GB
PMIC
MT6355W
IFPMIC
S2MU005X03
SPK AMP
RT5509WSC
OCTA
DCDC
TSP I2C
MIPI DSI
I2C
I2C
Finger Print Sensor
ACC&GYRO Sensor
Proxy&Light sensor
MAGNETIC Sensor
SIM/SD SOCKET
Touch IC
A96T316AU
FHD OCTA
Dual Cam
13M+5M
HOME KEY
Ear Mic
Ear L/R
VBUS
VT CAM
16M FF
VOL UP KEY
VOL DN K EY
PWR KEY
X-TAL
32MHz
Earjack
Main MIC
SUB MIC
SVC LED
VT Camera Flash
IF CON
D+
D-
RCV
Motor
Dual
Flash
SPK
Back Key
Menu Key
Page 56

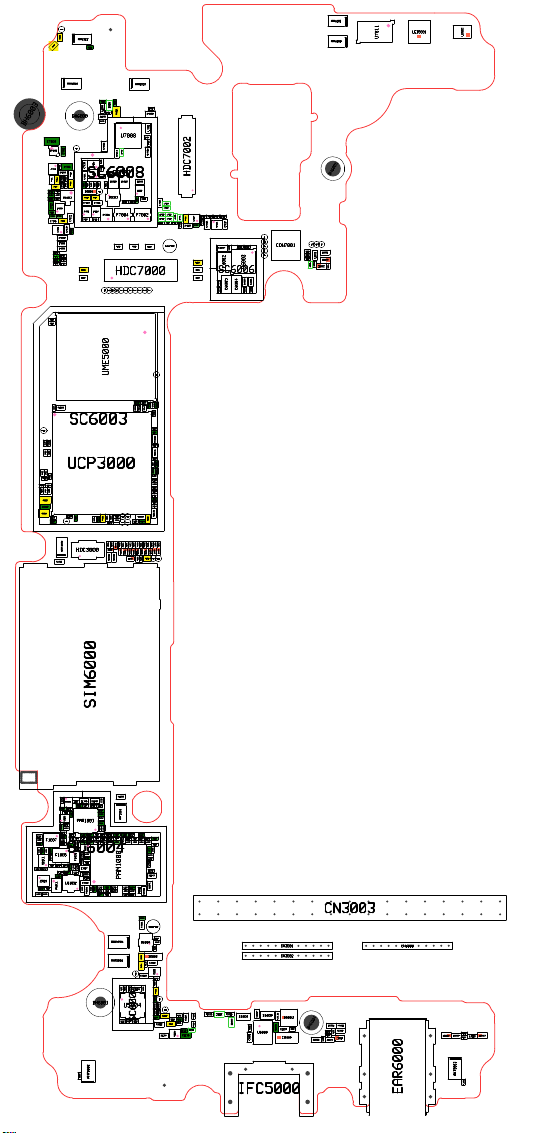

ANT2003
ANT2004
ANT2005
ANT2016
ANT2022
ANT5000
ANT5003
ANT5004
ANT5006
ANT6000
ANT6001
BH6000
BH6001
BH6003
BH6004
BH6005
C1000
C1008
C1009
C1011
C1012
C1014
C1018
C1019
C1023
C1025
C1031
C1042
C1046
C1049
C1067
C1075
C1076
C1077
C1078
C1079
C1080
C1081
C1082
C1083
C1084
C1085
C1086
C1087
C1090
C1091
C1092
C1094
C1095
C1097
C1099
C1100
C1118
C1121
C1122
C1123
C1124
C1130
C1135
C1138
C1140
C1143
C1146
C1147
C1150
C1161
C1164
C1176
C1177
C1186
C1198
C1207
C1209
C1227
C1228
C2093
C2116
C2117
C2118
C3000
C3001
C3002
C3003
C3004
C3005
C3006
C3007
C4051
C4052
C4053
C4054
C4057
C4058
C4059
C4060
C4061
C4064
C4071
C4073
C4082
C4083
C4084
C4085
C4086
C4097
C5006
C5008
C5011
C5076
C5077
C5094
C5095
C5096
C5097
C5098
C5101
C5109
C5110
C5111
C5123
C5132
C5133
C5134
C5135
C5136
C5137
C5138
C5139
C5140
C5144
C5145
C6002
C6003
C6006
C6007
C6008
C6018
C6023
C6025
C6028
C6032
C6037
C6038
C6039
C6045
C6050
C6051
C6052
C7000
C7001
C7002
C7003
C7004
C7005
C7006
C7007
C7008
C7009
C7010
C7013
C7016
C7017
C7018
C7019
C7020
C7023
C7024
C7030
C7035
C7036
C7038
C7039
C7042
C7043
C7044
C7046
C7050
C7051
C7062
C7064
C7065
C7066
C7501
CN3000
CN3001
CN3002
CN3003
CON7001
D5001
D5002
D5004
D6009
D6010
D6011
D6012
D6013
D6014
E_shock_TP2001
E_shock_TP2002
EAR6000
F1005
F1007
F1011
F7002
F7004
F7006
HDC3000
HDC7000
HDC7002
IFC5000
L1005
L1026
L1028
L1038
L1039
L1040
L1041
L1042
L1043
L1044
L1045
L1046
L1048
L1049
L1050
L1052
L1053
L1054
L1055
L1056
L1058
L1060
L1061
L1063
L1064
L1065
L1066
L1068
L1069
L1070
L1071
L1072
L1075
L1076
L1077
L1079
L1080
L1081
L1082
L1083
L1084
L1085
L1086
L1087
L1088
L1090
L1095
L1097
L1098
L1108
L1113
L5001
L5018
L5019
L5020
L5022
L6002
L6003
L6004
L6008
L6012
L6016
L6019
L6020
L6025
L6035
L7001
LED5001
LED5002
PAM1000
PAM1001
Q5000
Q5001
Q5002
R1008
R1009
R1010
R2007
R2008
R3000
R3001
R3009
R3010
R3011
R3012
R3017
R3018
R3020
R3021
R3022
R3023
R3024
R3025
R3026
R3027
R3028
R3029
R3031
R3032
R3033
R3034
R3035
R3038
R3039
R3040
R3041
R3042
R3043
R3045
R3046
R3047
R3048
R3049
R3050
R3051
R3500
R3501
R3502
R5016
R5018
R5019
R5020
R5022
R5023
R5024
R5031
R5032
R5034
R5035
R5036
R5037
R5043
R5045
R5046
R5047
R5048
R5049
R5058
R5060
R5063
R5064
R5071
R5075
R5076
R6000
R6013
R6015
R6017
R6021
R6025
R6028
R6030
R6031
R6032
R6036
R6037
R6038
R6044
R6053
R6091
R7000
R7002
R7003
R7004
R7005
R7007
R7008
R7010
R7011
R7013
R7014
R7016
R7017
R7018
R7021
R7022
SC6003
SC6004
SC6006
SC6008
SIM6000
TH1000
TH3000
TH3001
TP_AMP_BCK
TP_AMP_DATA6000
TP_AMP_DATA6001
TP_AMP_WS
TP_BLED
TP_DATA5000
TP_DSCL
TP_RFEE3000
TP_RFFE3000
TP_RFFE3001
TP_RFFE3002
TP_RLED
TP_TSP_TA
TP_UART_RXD
TP_UART_TXD
TP_UB0
TP_WATCHDOG
TP2009
TP2010
TP2011
TP3000
TP3001
TP3100
TP3101
TP6000
TP7000
TP7001
TP7002
TP7003
TP7004
TP7006
U1000
U1001
U1002
U1011
U1013
U2016
U5001
U5004
U5005
U5009
U6002
U6004
U7000
U7001
U7003
U7006
U7007
U7008
U7011
U7012
U7014
UCP3000
V6000
V6001
V6002
ZD5002
ZD5003
ZD5004
ZD5009
ZD6002
ZD6003
ZD6004
ZD6005
ZD6017
ZD6021
ZD6022
ZD7000
ZD7002
ZD7004
ZD7005
ZD7006
ZD7010
ZD7011
Setup(2015-05-20)_HHP
Page 57

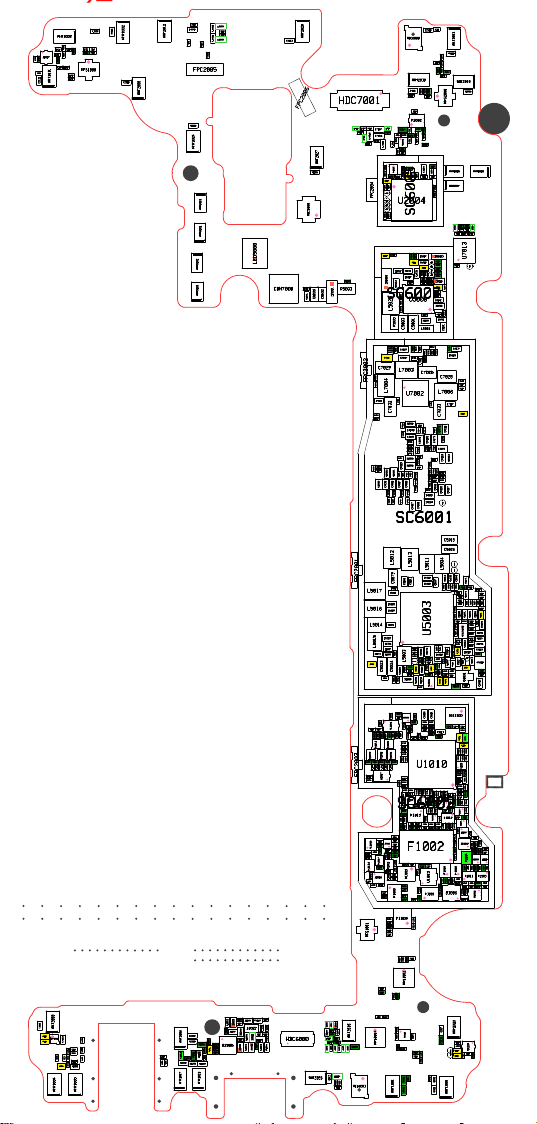

ANT1000
ANT1001
ANT1002
ANT1003
ANT1004
ANT1005
ANT2000
ANT2001
ANT2006
ANT2007
ANT2008
ANT2010
ANT2011
ANT2012
ANT2018
ANT2019
ANT2020
ANT2023
ANT2024
ANT2025
ANT2026
ANT2027
ANT5001
ANT5002
ANT5005
ANT5007
ANT5008
ANT6002
ANT6003
C1001
C1005
C1006
C1007
C1010
C1013
C1015
C1016
C1017
C1020
C1021
C1022
C1026
C1027
C1028
C1030
C1032
C1033
C1034
C1035
C1036
C1037
C1039
C1043
C1044
C1045
C1047
C1050
C1051
C1052
C1053
C1055
C1059
C1060
C1061
C1062
C1063
C1065
C1066
C1070
C1071
C1072
C1073
C1088
C1096
C1102
C1103
C1106
C1109
C1110
C1111
C1112
C1113
C1114
C1115
C1116
C1119
C1120
C1125
C1126
C1127
C1129
C1131
C1133
C1134
C1136
C1137
C1139
C1141
C1142
C1144
C1149
C1151
C1153
C1155
C1156
C1157
C1167
C1168
C1169
C1170
C1171
C1173
C1175
C1190
C1191
C1196
C1202
C1203
C1208
C1213
C1214
C1215
C1216
C1218
C1219
C1229
C1231
C2000
C2001
C2003
C2004
C2005
C2006
C2007
C2008
C2010
C2011
C2012
C2014
C2015
C2018
C2019
C2022
C2025
C2026
C2027
C2028
C2029
C2031
C2032
C2033
C2034
C2035
C2036
C2037
C2038
C2039
C2040
C2041
C2043
C2047
C2049
C2050
C2052
C2055
C2056
C2059
C2066
C2067
C2069
C2070
C2071
C2072
C2073
C2074
C2078
C2080
C2081
C2091
C2092
C2094
C2095
C2096
C2097
C2098
C2099
C2100
C2102
C2103
C2104
C2105
C2107
C2108
C2109
C2110
C2111
C2112
C2114
C2115
C2119
C2120
C2121
C4000
C4001
C4002
C4003
C4004
C4006
C4009
C4014
C4015
C4020
C4021
C4022
C4023
C4024
C4025
C4026
C4027
C4029
C4031
C4034
C4035
C4036
C4037
C4038
C4039
C4040
C4041
C4043
C4044
C4045
C4046
C4047
C4048
C4055
C4062
C4067
C4068
C4069
C4070
C4075
C4076
C4077
C4091
C4093
C4094
C4095
C4096
C5000
C5002
C5003
C5004
C5005
C5007
C5009
C5010
C5013
C5014
C5015
C5016
C5017
C5020
C5022
C5023
C5024
C5025
C5026
C5030
C5034
C5035
C5036
C5037
C5038
C5039
C5041
C5042
C5044
C5045
C5046
C5047
C5048
C5051
C5052
C5054
C5055
C5056
C5057
C5059
C5060
C5061
C5062
C5063
C5067
C5068
C5069
C5070
C5072
C5075
C5078
C5079
C5080
C5081
C5083
C5084
C5085
C5086
C5087
C5089
C5090
C5092
C5093
C5099
C5100
C5102
C5103
C5105
C5106
C5107
C5108
C5113
C5114
C5115
C5117
C5118
C5119
C5120
C5121
C5122
C5125
C5126
C5127
C5128
C5129
C5130
C5131
C5142
C5146
C5149
C5154
C5155
C5156
C5157
C5158
C5900
C5902
C5903
C5904
C5905
C5906
C5907
C5908
C5910
C5911
C5912
C5915
C5916
C5920
C5921
C5928
C6000
C6001
C6011
C6012
C6013
C6014
C6015
C6019
C6020
C6021
C6022
C6024
C6026
C6029
C6030
C6031
C6033
C6034
C6035
C6036
C6040
C6041
C6042
C6043
C6044
C6046
C6049
C7025
C7026
C7027
C7028
C7029
C7031
C7033
C7034
C7045
C7048
C7049
C7052
C7053
C7054
C7055
C7056
C7057
C7058
C7060
CON7000
D5000
F1000
F1001
F1002
F1003
F1004
F1008
F1009
F1010
F1012
F1013
F2002
F2004
F2005
F2007
F2011
FPC2002
FPC2003
FPC2005
FPC2006
HDC5000
HDC6000
HDC7001
L1000
L1001
L1002
L1004
L1006
L1011
L1012
L1015
L1016
L1017
L1019
L1020
L1021
L1022
L1023
L1024
L1025
L1027
L1030
L1031
L1034
L1036
L1051
L1057
L1059
L1062
L1089
L1092
L1094
L1096
L1099
L1101
L1102
L1104
L1106
L1107
L1109
L1110
L1112
L2000
L2001
L2002
L2003
L2004
L2006
L2007
L2008
L2009
L2010
L2012
L2014
L2015
L2016
L2017
L2018
L2020
L2021
L2022
L2024
L2025
L2026
L2027
L2028
L2029
L2030
L2031
L2032
L2033
L2034
L2035
L2036
L2037
L2038
L2043
L2044
L2045
L2049
L2053
L2054
L2056
L2057
L2058
L2059
L2060
L5000
L5003
L5005
L5006
L5009
L5010
L5011
L5012
L5013
L5014
L5015
L5016
L5017
L5024
L5025
L5027
L5028
L5029
L6000
L6010
L6013
L6014
L6015
L6017
L6018
L6021
L6022
L6023
L6026
L6029
L6031
L6033
L6036
L6037
L6038
L7002
L7003
L7004
L7005
L7006
L7007
MIC6000
MIC6001
OSC1000
OSC5000
Q6001
R1000
R1002
R1003
R1006
R1007
R1011
R1012
R1013
R1014
R1015
R1016
R2000
R2001
R2002
R2003
R2004
R2005
R2006
R3002
R3003
R3004
R3005
R3013
R3014
R3015
R3016
R4000
R5000
R5003
R5004
R5006
R5009
R5012
R5013
R5015
R5017
R5025
R5026
R5027
R5028
R5029
R5030
R5033
R5039
R5050
R5051
R5052
R5053
R5054
R5055
R5056
R5062
R5066
R5068
R5072
R5077
R5080
R5081
R6004
R6019
R6024
R6027
R6033
R6034
R6035
R6039
R6042
R6046
R6048
R6051
R6052
R6094
R6096
R7006
R7009
R7012
R7019
RFS1000
RFS1001
RFS1002
RFS1004
RFS2000
SC6001
SC6002
SC6007
TH5000
TP_EXT_PMIC_EN
TP_RTC5000
TP_RTC5001
TP_VDRAM5000
TP1002
TP1003
TP2000
TP2001
TP2002
TP2003
TP5000
TP5003
TP5005
TP7005
TR5000
U1003
U1004
U1006
U1007
U1010
U2000
U2001
U2004
U2005
U2006
U2007
U2009
U2011
U2012
U2013
U2015
U5008
U6006
U7002
U7010
U7016
V1000
V1001
V1002
V1003
V1004
V1005
V1008
V1009
V2001
V2003
V2004
V2005
V2006
V2007
V2008
V2009
V2010
V2011
V2012
V6003
VR2000
VR2002
VR2003
VR2004
VR2005
ZD5000
ZD5001
ZD5006
ZD5007
ZD5010
ZD6000
ZD6001
ZD6007
ZD6008
ZD6009
ZD6010
ZD6011
ZD6012
ZD6013
ZD6014
ZD6015
ZD6016
ZD6018
ZD6019
ZD6020
ZD6023
ZD6024
ZD7007
ZD7009
Page 58
8. Level 3 Repair

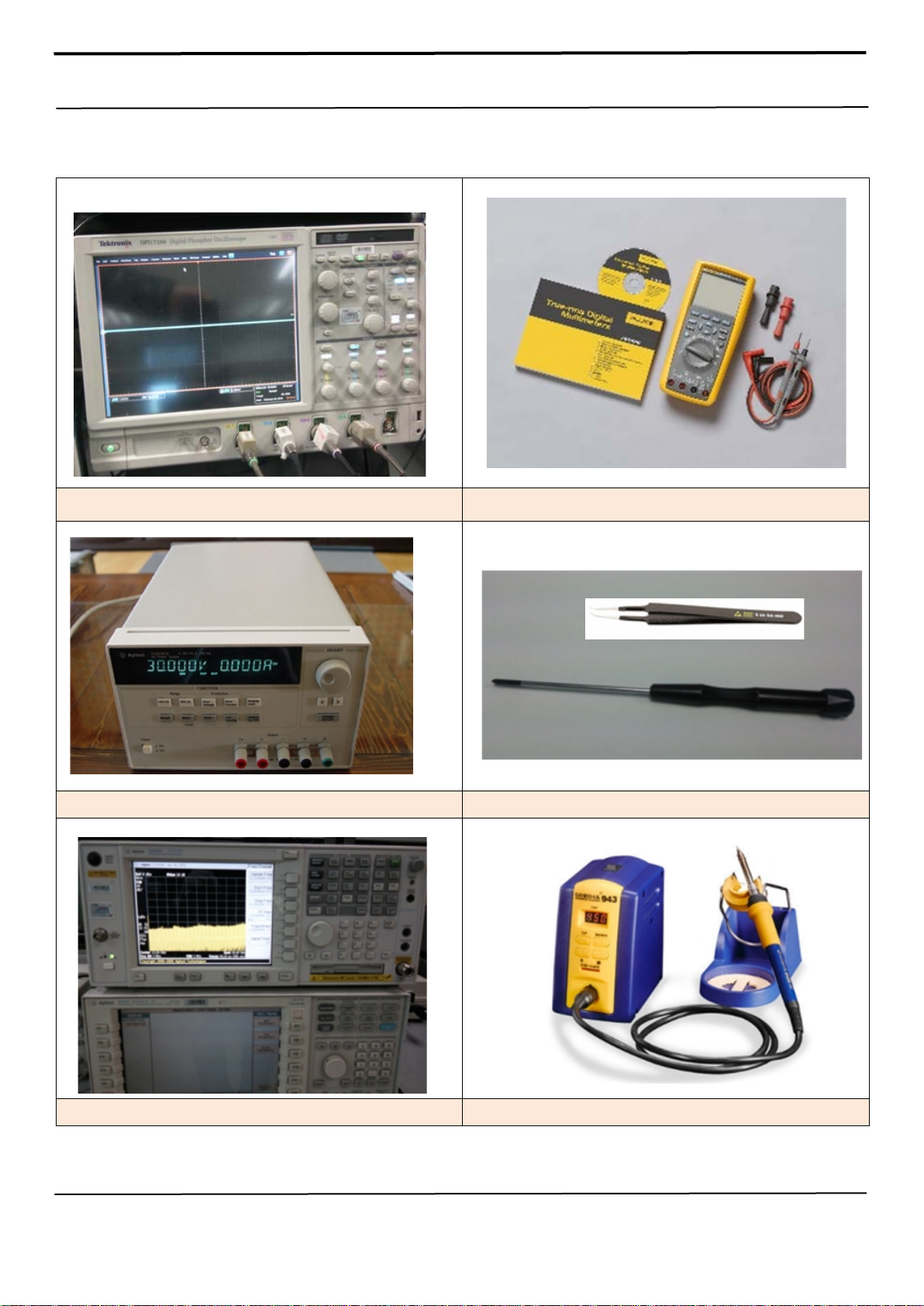

Power Supply
+ driver, ESD Safe Tweezer
8960 & Spectrum Analyzer
Soldering iron
8-3. Flow Chart of Troubleshooting
Oscilloscope
Digital Multimeter
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 59
8. Level 3 Repair

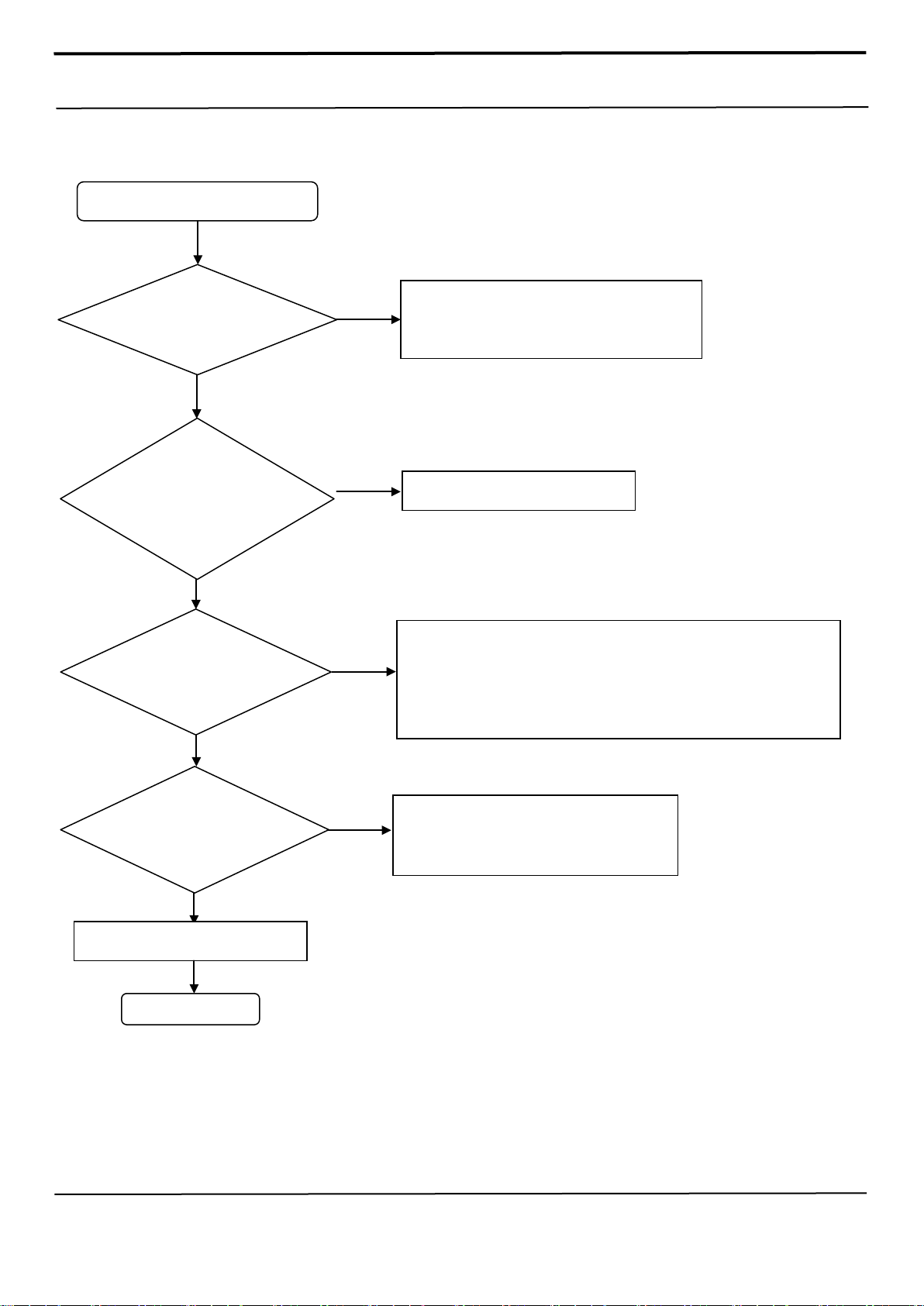

Mobile phone does not power on.
Check the Battery
Change the battery.
Power-on the phone,
Check the
26Mhz?
END
YES
YES
NO
NO
NO
YES
NO
YES
YES
YES
8-4-1. Power On
Voltage.
Is it more than 3.65V?
check the power-on
sound
or Motor Vibration.
is ok?
Check the signal of
SYSRSTB = 1.8V
Charging the battery by TA.
If its voltage level is extremely low(under 3.0V),
Change the FRONT-LCD ASSY
Check the output voltage of PM8953
(C4021 = 0.8V, TP_EXT_PMIC_EN = Battery Voltage, VIO_1P8 =1.8V,)
If the output voltage is abnormal, Change the MT6355
※ Each voltage level has ±10% margin.
Clock OSC5000
Is the frequency
check the initial operation
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Replace the OSC5000.
※ Test condition (Oscilloscope setting)
: 20.0us.div (time division)
Page 60
8. Level 3 Repair

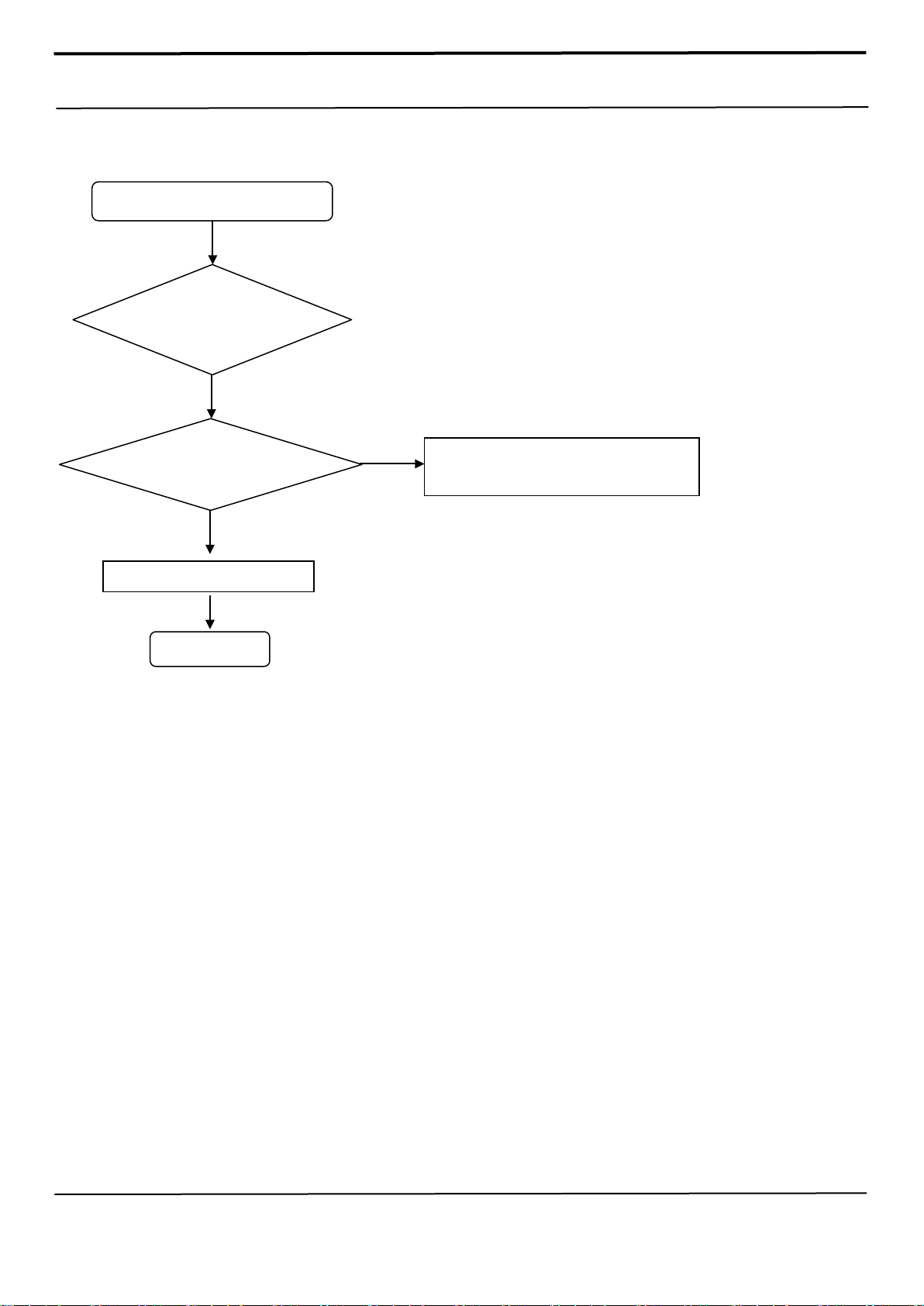

Initial Failure.
Re-download latest
Re Check "8-3-1 Power
Change the Main PBA
Abnormal
NO
END
YES
YES
YES
8-4-2. Initial
SW on the mobile
phone.
on"
Check the OSC5000 (Crack, open etc.)
and Check voltage at C5054=1.225V.
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 61
8. Level 3 Repair
CP : unknown
Check the Main Antenna exists or not.
YES
Resolder the components
END
Check menu setting
Re-download latest
Change the Main PBA
NO
YES
YES
8-4-3. No Service
No service
Menu → applications → setting → network connections →
more networks → mobile networks → network mode → setting is auto connect ?
Home screen → Phone → Keypad
→ *#1234# → check Phone version
→ CP : C7100XXXX or unknown
CP : C7100XXXX
Check the components of
Antenna Path. Is it ok?
SW on the mobile
YES
phone.
Abnormal
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 62
8. Level 3 Repair
YES
YES
NO
END
Is SIM/SD assy
Check the SIM Voltage.
NO
YES
YES
8-4-4. Sim Part
Insert SIM card
Is SIM socket ok?
well connected to
main board?
C5012 >= 1.8V or 3.0V
C5013 >= 1.8V or 3.0V
Reassemble SIM/SD assy and still SIM does not work,
replace SIM/SD assy
Change to the new SIM card.
If it doesn`t still work SIM card after changing
the SIM card, Check the SIM6000(Crack etc)
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 63
8. Level 3 Repair
Checking Voltage at
YES
END
Checking Voltage at
Resolder or Replace
YES
Reconnect TA or USB
Change the Main PBA
YES
8-4-5. Charging Part
- First of all, Please check the battery status.
TA / USB Insert
C5109 ≥ 5V
YES
C5052 > Battery
Voltage.
NO
NO
or
Replace IFC5000
Resolder or Replace U5008
YES
HDC5000
Or
Battery
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 64
8. Level 3 Repair
Something Wrong
NO
YES
END
Check the signals
YES
8-4-6. Microphone Part
Check microphone function in voice call
receiver mode or in Voice Recording mode
Check the
connection of
MAIN MIC
on L6012 OK?
Resolder or replace MIC6001
NO
Resolder or replace L6012
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 65
8. Level 3 Repair
Check the contact
Something Wrong
Y
NO
END
NO
YES
Replace SPK
YES
8-4-7. Speaker Part
Check speaker function.
Play MP3 with maximum volume level.
of
Speaker module
Check the signals on L6003,
L6004, L6034,
L6035 ,U6000
module
Resolder or replace ANT6002, ANT6003
Resolder or replace L6003, L6004, L6034, L6035 ,U6000
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 66
8. Level 3 Repair
Check the
Something Wrong
NO
YES
END
NO
YES
8-4-8. Receiver Part
Check Receiver function
in voice call receiver mode
Receiver module
for any damage
(tear in FPCB,
crack, etc)
Reconnect or Replace receiver module
Check the signals
on
ANT6000, ANT6001
OK?
Resolder or replace U5003
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 67
8. Level 3 Repair
Check the OCTA
YES
YES
END
YES
YES
NO
8-4-9. OCTA
LCD is still off after PWR ON
Check the voltage of
C7000=7.3V,C7008=4.6V
C7001=-4.4V,C7004=3.0V
C7007=-1.8V
connector
Reconnect FRONT assy
NO
Replace the HDC7000
Replace Front Assy
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 68
8. Level 3 Repair
Check the front
on Main PBA
YES
END
NO
Change the U7008
YES
8-4-10. MAIN CAMERA
Main Camera function does not work
Camera Connector
YES
Check the voltage
C7009 = 1.2V,C7013 = 1.8V
C7011 = 2.8V,C7015 = 1.2V
C7016 = 2.8V,C7017= 1.8V
YES
NO
NO
Reconnect the MAIN Cam module on HDC7002
Replace the HEA7002
Replace the MAIN
camera module
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 69
8. Level 3 Repair
Check the front
on Main PBA
YES
END
Check the voltage
NO
Change the U7008
YES
8-4-11. VT CAMERA
Front Camera function does not work
Camera Connector
YES
C7057 = 2.8V
C7058 = 1.8V
C7059 = 1.05V
YES
NO
NO
Reconnect the VT Cam module on HEA7001
Replace the HEA7001
Replace the VT
camera module
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 70
8. Level 3 Repair
NO
NO
NO
NO
RX Path component resolder or
change
TX Path component resolder of
change
ENDEND
NO
8-4-12. RF Section(LTE,WCDMA,TDSCDMA,CDMA,GSM)
SVC & Roam OK?Check
the front Camera
Connector on Main PBA
Check RX PathReconnect the 8M
Call connection is
OK?
FER ← 104 dBM
RX is OK ?
Call connection is
OK?
Check the PSSI
Check the RX Path
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
TX is OK?
END
Page 71
8. Level 3 Repair
WLAN mode
YES
YES
NO
WLAN mode
YES
YES
8-4-13. RF Section(WLAN / BT)
- WLAN RX
START
WLAN searching
OK?
- WLAN TX
WLAN TX OK?
START
END
NO
Check WLAN RX Part
(Damage, Crack, Open, etc)
Check WLAN TX Part
(Damage, Crack, Open, etc)
END
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 72
8. Level 3 Repair
GPS mode
YES
YES
NO
BT mode
YES
YES
NO
- BT
START
- GPS
BT OK?
END
START
GPS signal
searching OK?
Check BT TX/RX Part
(Damage, Crack, Open, etc)
Check GPS RX Part
(Damage, Crack, Open, etc)
END
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 73
8. Level 3 Repair
NO
NO
YES
NO
YES
YES
8-4-14. FM RADIO
FM RADIO does not work
Check the volume of
handset.
Check the earphone.
Is it abnormal?
Check RF path
EAR6000 ,L6018,C6042
Is it ok?
YES
Change the speaker or earphone
Resolder or change
RF path components
Check U2004
any damage
(Crack, open, etc)
Change the board
END
YES
Resolder or change
U2004 components
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 74
8. Level 3 Repair
8-4. Service Schematics

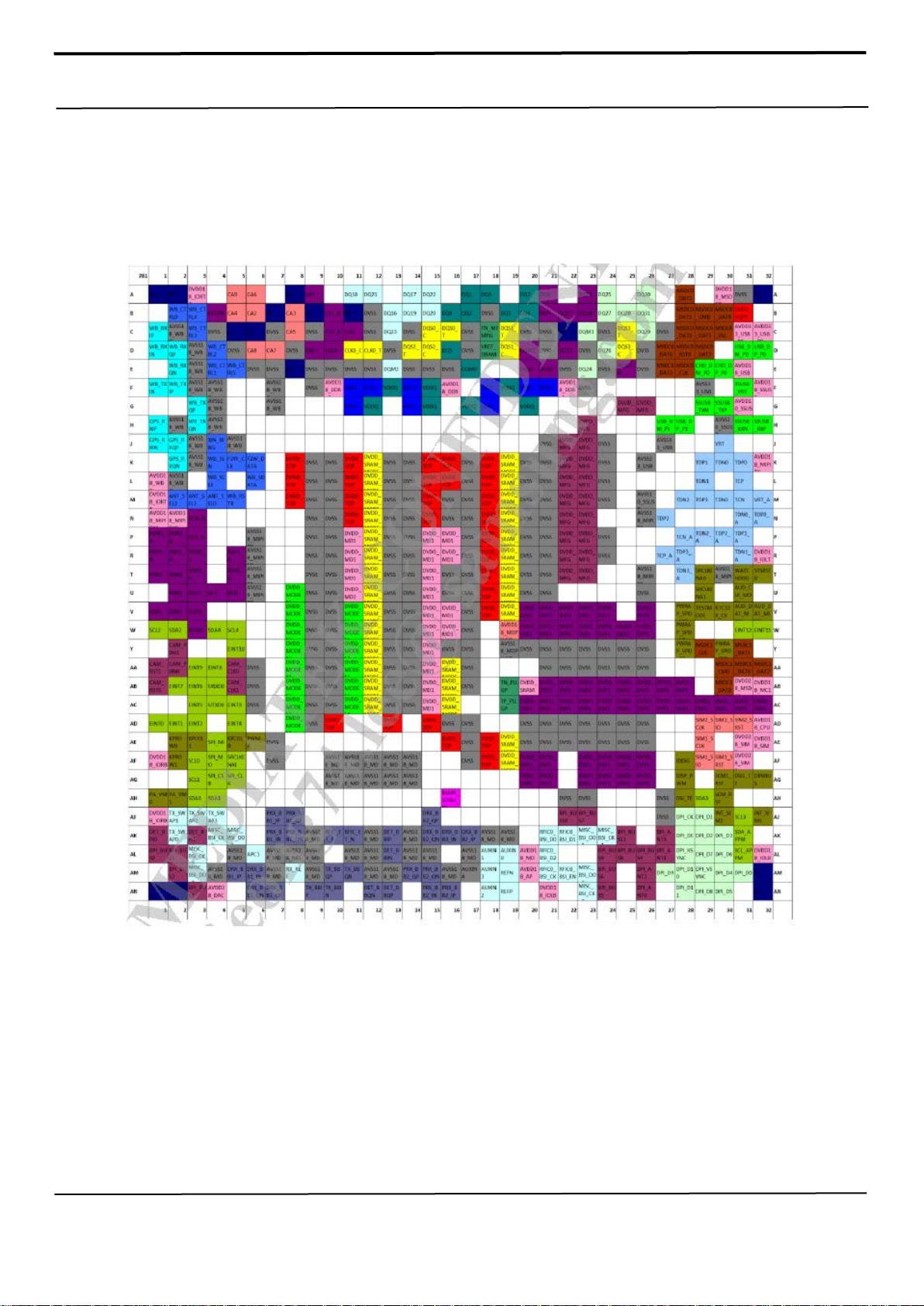

- NC Point(Top View)
UCP3000(AP)
Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 75
9. Reference Abbreviate
Reference Abbreviate
― AAC: Advanced Audio Coding.
― AVC : Advanced Video Coding.
― BER : Bit Error Rate
― BPSK: Binary Phase Shift Keying
― CA : Conditional Access
― CDM : Code Division Multiplexing
― C/I : Carrier to Interference
― DMB : Digital Multimedia Broadcasting
― EN : European Standard
― ES : Elementary Stream
― ETSI: European Telecommunications Standards Institute
― MPEG: Moving Picture Experts Group
― PN : Pseudo-random Noise
― PS : Pilot Symbol
― QPSK: Quadrature Phase Shift Keying
― RS : Reed-Solomon
― SI : Service Information
― TDM : Time Division Multiplexing
― TS : Transport Stream
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 76
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd
ⓒ
2017. 08. Rev 1.0
Loading...
