Page 1
User Manual
ED65D ED75D
The color and the appearance may differ depending on the product,
and the specifications are subject to change without prior notice to
improve the performance.
Recommended hours of use per day of this product is under 16 hours.
If the product is used for longer than 16 hours a day, the warranty
may be void.
Page 2
Table of contents
Before Using the Product
Copyright 5
Safety Precautions 6
Symbols 6
Cleaning 6
Storage 7
Electricity and Safety 7
Installation 8
Operation 10
Preparations
Checking the Components 13
Components 13
Parts 15
Panel Key 15
Reverse Side 16
External sensor KIT 17
Assembling the Holder-Wire stand 19
Anti-theft Lock 19
Remote Control 20
Before Installing the Product
(Installation Guide) 22
Switching between portrait and landscape 22
Ventilation 22
Dimensions 23
Installing the Wall Mount 24
Installing the Wall Mount Kit 24
Wall Mount Kit Specifications (VESA) 25
Remote Control (RS232C) 26
Cable Connection 26
Connection 27
Control Codes 28
Connecting and Using a Source
Device
Before Connecting 37
Pre-connection Checkpoints 37

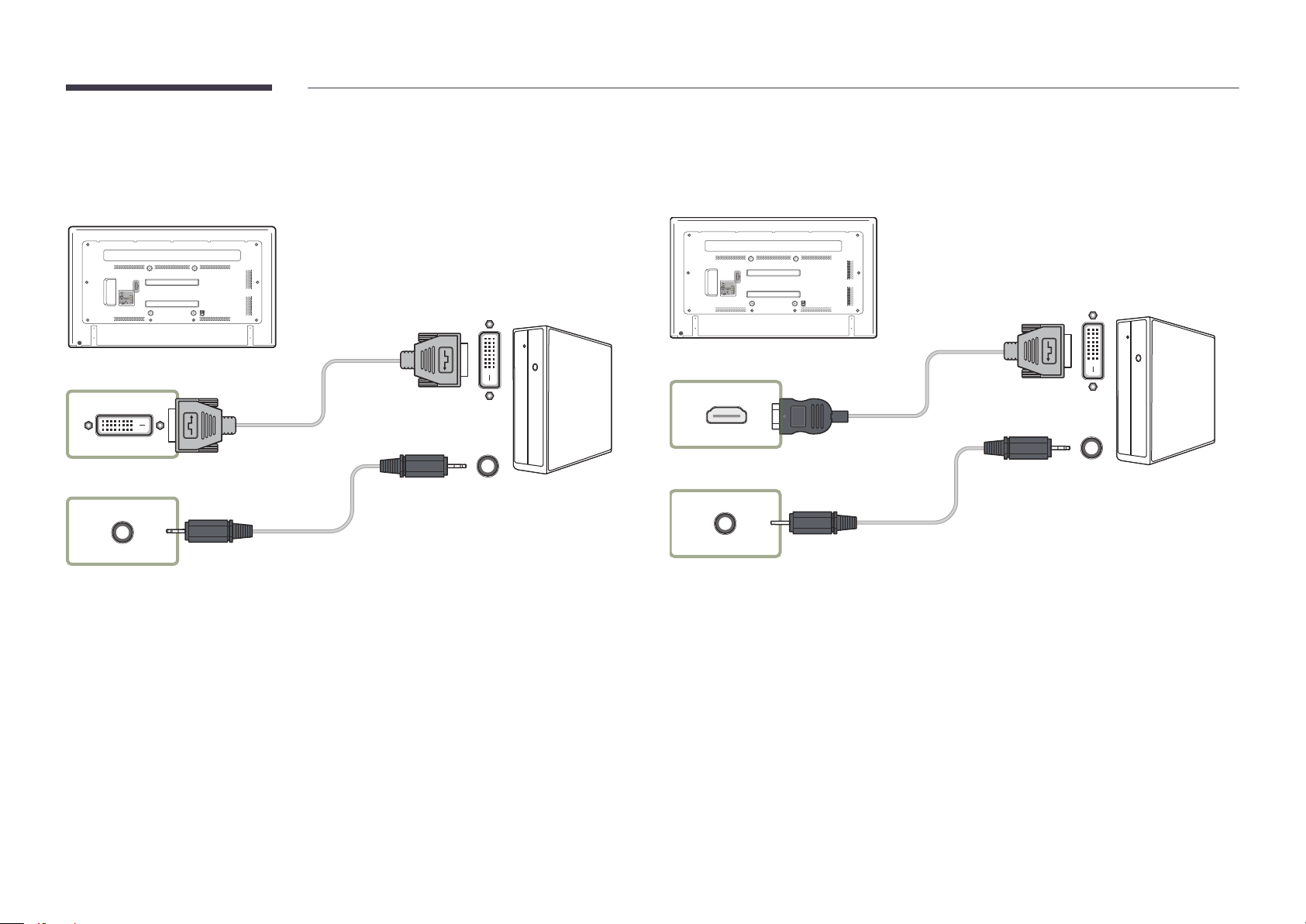

Connecting to a PC 37

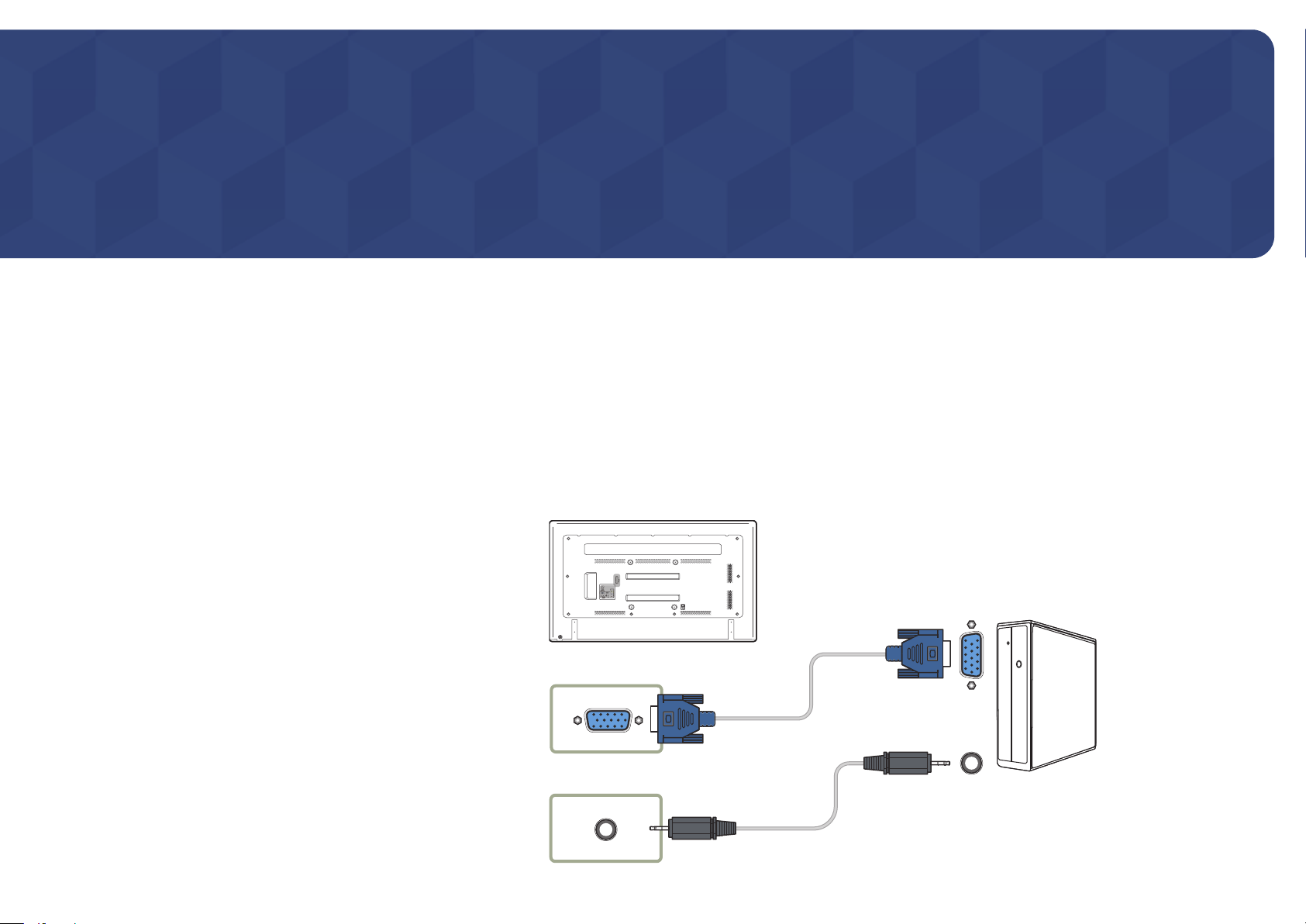

Connection using the D-SUB cable
(Analog type) 37
Connection using a DVI cable (Digital type) 38
Connection Using an HDMI-DVI Cable 38
Connection Using an HDMI Cable 39

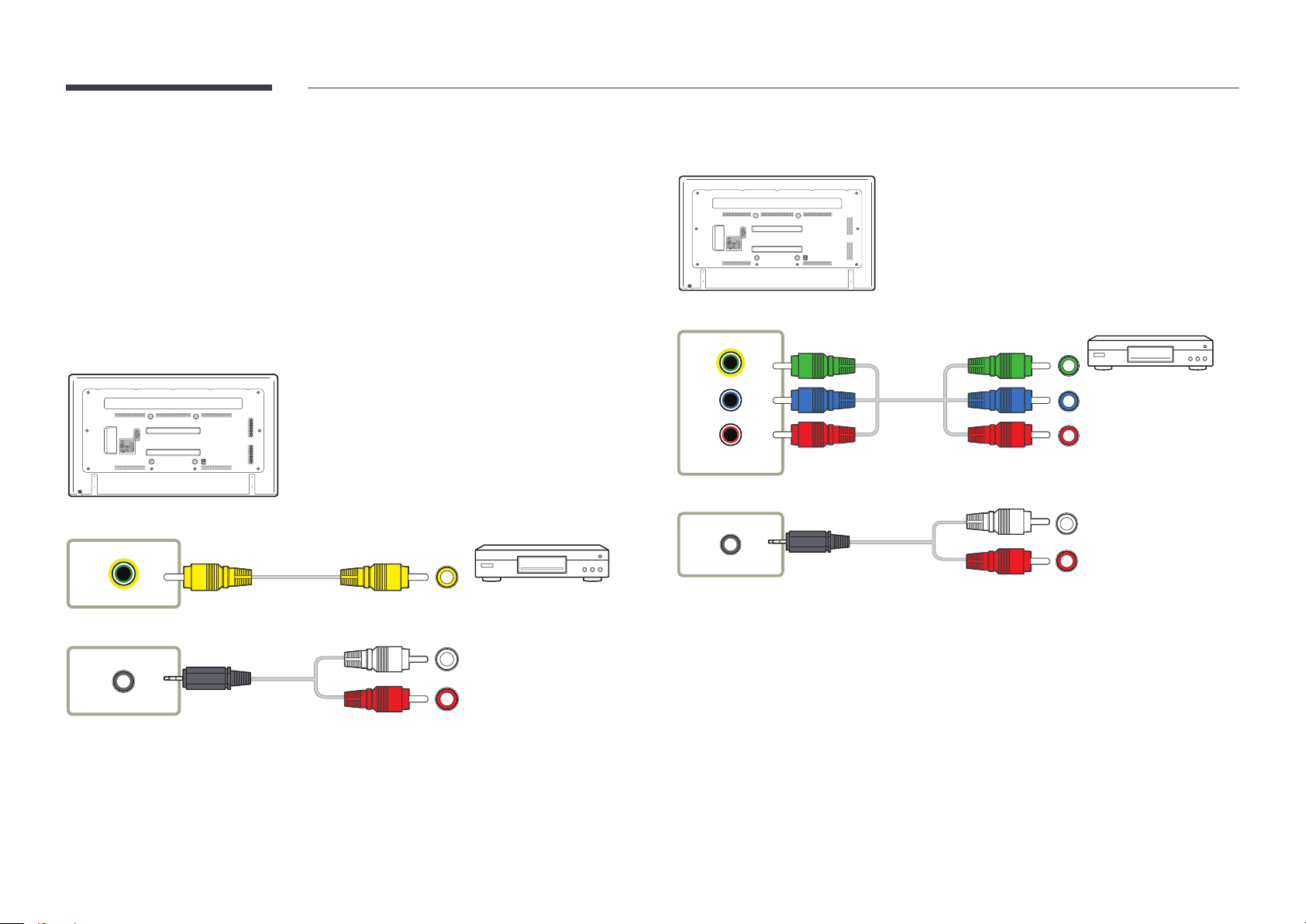

Connecting to a Video Device 40
Connection Using an AV Cable 40
Connection Using the component Cable 40
Connection Using an HDMI-DVI Cable 41
Connection Using an HDMI Cable 41

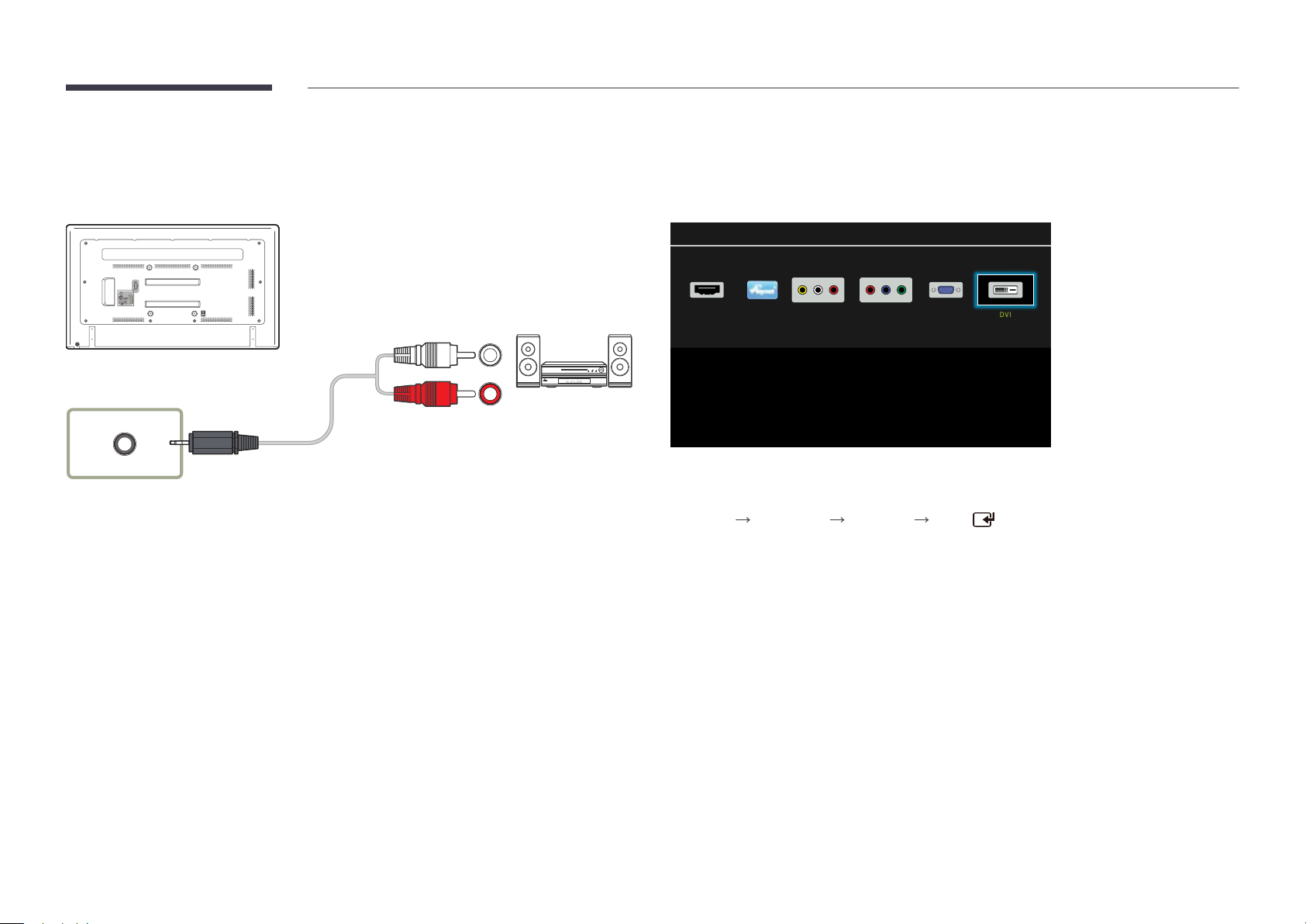

Connecting to an Audio System 42
Changing the Input source 42
Source 42
Using MDC
Configuring Settings for Multi Control 43
Configuring settings for Multi Control 43
MDC Program Installation/Uninstallation 44
Installation 44
Uninstallation 44
Connecting to MDC 45
Using MDC via RS-232C
(serial data communications standards) 45
Screen Adjustment
Picture Mode 46
If the input source is PC, DVI, HDMI(PC) 46
If the input source is AV, Component, HDMI(AV) 46
Backlight / Contrast / Brightness / Sharpness /
Color / Tint (G/R)
Picture Size 48
Picture Size 48
Position 50
Zoom/Position 50
Resolution Select 51
Auto Adjustment 51
PC Screen Adjustment 52
PIP 53
Advanced Settings 54
47
2
Page 3
Table of contents
Dynamic Contrast 54
Black Tone 54
Flesh Tone 54
RGB Only Mode 54
Color Space 55
White Balance 55
Gamma 55
Motion Lighting 55
Picture Options 56
Color Tone 57
Color Temp. 57
Digital Clean View 57
MPEG Noise Filter 57
HDMI Black Level 57
Film Mode 58
Auto Motion Plus (for ED75D models only) 58
Dynamic Backlight 58
Picture Off 59
Reset Picture 59
Sound Adjustment
Sound Mode 60
Sound Effect 61
Speaker Settings 62
Reset Sound 62
Applications
Source List 63
Refresh 63
Edit Name 63
Information 63
System
Menu Language 64
Multi Control 65
Configuring settings for Multi Control 65
Time 66
Clock Set 66
Sleep Timer 66
On Timer 67
Off Timer 68
Holiday Management 68
Eco Solution 69
Energy Saving 69
Eco Sensor 69
Auto Power Off 69
Screen Burn Protection 70
Pixel Shift 70
Timer 71
Immediate Display 72
Side Gray 72
Ticker 73
Video Wall 74
Video Wall 74
Format 74
Horizontal 74
Vertical 75
Screen Position 75
Source AutoSwitch Settings 76
Source AutoSwitch 76
Primary Source Recovery 76
Primary Source 76
Secondary Source 76
Change PIN 77
Caption 78
Caption 78
Caption Mode 78
Digital Caption Options 79
General 80
Max. Power Saving 80
Game Mode 80
Auto Power 80
Safety Lock 80
Button Lock 81
Standby Control 81
Lamp Schedule 81
OSD Display 82
Power On Adjustment 82
Temperature Control 82
Anynet+ (HDMI-CEC) 83
Anynet+ (HDMI-CEC) 83
Auto Turn Off 84
3
Page 4
Table of contents
Troubleshooting for Anynet+ 85
Magic Clone 87
Reset System 87
Reset All 88
Support
Software Update 89
By USB 89
Contact Samsung 89
Troubleshooting Guide
Requirements Before Contacting Samsung
Customer Service Center 90
Testing the Product 90
Checking the Resolution and Frequency 90
Check the followings. 91
Q & A 98
Specifications
General 100
PowerSaver 102
Preset Timing Modes 103
Appendix
Contact SAMSUNG WORLD WIDE 105
Responsibility for the Pay Service
(Cost to Customers) 114
Not a product defect 114
A Product damage caused by customer's fault 114
Others 114
Optimum Picture Quality and Afterimage Burnin Prevention 115
Optimum Picture Quality 115
Prevention of Afterimage Burn-in 115
License 117
Terminology 118
4
Page 5
Chapter 01
Before Using the Product
Copyright
The contents of this manual are subject to change without notice to improve quality.
© 2014 Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.
Microsoft, Windows are registered trademarks of Microsoft Corporation.
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Ownership of all other trademarks is attributed to their due owner.
5
Page 6
Safety Precautions
!
Caution
RISK OF ELECTRIC SHOCK DO NOT OPEN
Caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. (OR BACK)
THERE ARE NO USER SERVICEABLE PARTS INSIDE.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high voltage is present inside.
It is dangerous to make any kind of contact with any internal part of this product.
This symbol alerts you that important literature concerning operation and maintenance has been
included with this product.
Symbols
Cleaning
―
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
―
Take the following steps when cleaning.
―
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Power off the product and computer.
1
Disconnect the power cord from the product.
2
―
Hold the power cable by the plug and do not touch the cable with wet
hands. Otherwise, an electric shock may result.
Wipe the product with a clean, soft and dry cloth.
3
•
Do not use detergents that contain alcohol, solvent or
surface-active agents.
•
Do not spray water or detergent directly on the product.
Warning
Wet a soft and dry cloth in water and wring thoroughly to clean the
A serious or fatal injury may result if instructions are not followed.
4
exterior of the product.
Caution
Personal injury or damage to properties may result if instructions are not followed.
Connect the power cord to the product when cleaning is finished.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
5
Power on the product and computer.
6
6
Page 7
Storage
High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used
nearby.
―
Contact Customer Service Center if the inside of the product needs cleaning (service fee will be
charged).
Electricity and Safety
―
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning
Do not use a damaged power cord or plug, or a loose power socket.
•
An electric shock or fire may result.
Do not use multiple products with a single power socket.
•
Overheated power sockets may cause a fire.
Connect the power plug to a grounded power socket (type 1 insulated
devices only).
•
An electric shock or injury may result.
!
Do not bend or pull the power cord with force. Be careful not to leave the
power cord under a heavy object.
•
Damage to the cord may result in a fire or electric shock.
Do not place the power cord or product near heat sources.
•
A fire or electric shock may result.
Clean any dust around the pins of the power plug or the power socket with
a dry cloth.
•
A fire may result.
!
Do not touch the power plug with wet hands. Otherwise, an electric shock
may result.
Insert the power plug all the way in so it is not loose.
•
An unsecure connection may cause a fire.
!
7
Page 8
Caution
!
!
!
Do not disconnect the power cord while the product is being used.
•
The product may become damaged by an electric shock.
Only use the power cord provided with your product by Samsung. Do not
use the power cord with other products.
•
A fire or electric shock may result.
Keep the power socket where the power cord is connected unobstructed.
•
The power cord must be disconnected to cut off power to the product
when an issue occurs.
•
Note that the product is not completely powered down by using only
the power button on the remote.
Hold the plug when disconnecting the power cord from the power socket.
•
An electric shock or fire may result.
Installation
Warning
!
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF
THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
•
A fire may result.
Have a technician install the wall-mount hanger.
•
Installation by an unqualified person can result in an injury.
•
Only use approved cabinets.
Do not install the product in poorly ventilated spaces such as a bookcase or
closet.
•
An increased internal temperature may cause a fire.
Install the product at least 10cm away from the wall to allow ventilation.
•
An increased internal temperature may cause a fire.
!
Keep the plastic packaging out of the reach of children.
•
Children may suffocate.
!
8
Page 9
Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.)
•
The product may fall and become damaged and/or cause an injury.
•
Using the product in an area with excess vibration may damage the
product or cause a fire.
Caution
Do not drop the product while moving.
•
Product failure or personal injury may result.
Do not install the product in a vehicle or a place exposed to dust, moisture
!
(water drips, etc.), oil, or smoke.
•
A fire or electric shock may result.
!
Do not set down the product on its front.
•
The screen may become damaged.
Do not expose the product to direct sunlight, heat, or a hot object such as a
stove.
•
The product lifespan may be reduced or a fire may result.
Do not install the product within the reach of young children.
•
The product may fall and injure children.
•
As the front is heavy, install the product on a flat and stable surface.
Edible oil, such as soybean oil, can damage or deform the product. Do not
!
When installing the product on a cabinet or shelf, make sure that the
bottom edge of the front of the product is not protruding.
•
The product may fall and become damaged and/or cause an injury.
•
Install the product only on cabinets or shelves of the right size.
Set down the product gently.
•
Product failure or personal injury may result.
install the product in a kitchen or near a kitchen counter.
Installing the product in an unusual place (a place exposed to a lot of fine
dust, chemical substances, extreme temperatures or a significant presence
of moisture, or a place where the product will operate continuously for an
SAMSUNG
!
extended period of time) may seriously affect its performance.
•
Be sure to consult Samsung Customer Service Center if you want to
install the product at such a place.
9
Page 10
Operation
Warning
Do not leave heavy objects or items that children like (toys, sweets, etc.) on
top of the product.
•
The product or heavy objects may fall as children try to reach for the
toys or sweets resulting in a serious injury.
There is a high voltage inside the product. Never disassemble, repair or
modify the product yourself.
•
A fire or electric shock may result.
•
Contact Samsung Customer Service Center for repairs.
!
Before moving the product, turn off the power switch and disconnect the
power cable and all other connected cables.
•
Damage to the cord may result in a fire or electric shock.
!
If the product generates abnormal sounds, a burning smell or smoke,
disconnect the power cord immediately and contact Samsung Customer
Service Center.
•
An electric shock or fire may result.
!
Do not let children hang from the product or climb on top of it.
•
Children may become injured or seriously harmed.
If the product is dropped or the outer case is damaged, turn off the power
switch and disconnect the power cord. Then contact Samsung Customer
Service Center.
•
Continued use can result in a fire or electric shock.
!
!
GAS
During a lightning or thunderstorm, power off the product and remove the
power cable.
•
A fire or electric shock may result.
Do not drop objects on the product or apply impact.
•
A fire or electric shock may result.
Do not move the product by pulling the power cord or any cable.
•
Product failure, an electric shock or fire may result from a damaged
cable.
If a gas leakage is found, do not touch the product or power plug. Also,
ventilate the area immediately.
•
Sparks can cause an explosion or fire.
Do not lift or move the product by pulling the power cord or any cable.
•
Product failure, an electric shock or fire may result from a damaged
cable.
10
Page 11
Do not use or keep combustible spray or an inflammable substance near
the product.
•
An explosion or fire may result.
!
Ensure the vents are not blocked by tablecloths or curtains.
•
An increased internal temperature may cause a fire.
100
Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects
that burn easily (paper, matches, etc) into the product (via the vent or input/
output ports, etc).
•
Be sure to power off the product and disconnect the power cord
when water or other foreign substances have entered the product.
Then contact Samsung Customer Service Center.
•
Product failure, an electric shock or fire may result.
Caution
!
-_-
!
!
Leaving the screen fixed on a stationary image for an extended period of
time may cause afterimage burn-in or defective pixels.
•
Activate power-saving mode or a moving-picture screen saver if you
will not be using the product for an extended period of time.
Disconnect the power cord from the power socket if you do not plan on
using the product for an extended period of time (vacation, etc).
•
Dust accumulation combined with heat can cause a fire, electric shock
or electric leakage.
Use the product at the recommended resolution and frequency.
•
Your eyesight may deteriorate.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
•
Be sure to power off the product and disconnect the power cord
when water or other foreign substances have entered the product.
Then contact Samsung Customer Service Center.
•
Product failure, an electric shock or fire may result.
Do not hold the product upside-down or move it by holding the stand.
•
The product may fall and become damaged or cause an injury.
Looking at the screen too close for an extended period of time can
deteriorate your eyesight.
!
Do not use humidifiers or stoves around the product.
•
A fire or electric shock may result.
11
Page 12
Rest your eyes for more than 5 minutes for every 1 hour of product use.
•
Eye fatigue will be relieved.
!
Be careful that children do not place the battery in their mouths when
removed from the remote control. Place the battery in a location that
children or infants cannot reach.
•
If children have had the battery in their mouths, consult your doctor
immediately.
Do not touch the screen when the product has been turned on for an
extended period of time as it will become hot.
Store small accessories out of the reach of children.
!
Exercise caution when adjusting the product angle or stand height.
•
Your hand or finger may get stuck and injured.
•
Tilting the product at an excessive angle may cause the product to fall
!
and an injury may result.
Do not place heavy objects on the product.
•
Product failure or personal injury may result.
When using headphones or earphones, do not turn the volume too high.
•
Having the sound too loud may damage your hearing.
!
!
When replacing the battery, insert it with the right polarity (+, -).
•
Otherwise, the battery may become damaged or it may cause fire,
personal injury or damage due to leakage of the internal liquid.
Use only the specified standardized batteries, and do not use a new battery
and a used battery at the same time.
•
Otherwise, the batteries may be damaged or cause fire, personal injury
or damage due to a leakage of the internal liquid.
The batteries (and rechargeable batteries) are not ordinary refuse and must
be returned for recycling purposes. The customer is responsible for returning
the used or rechargeable batteries for recycling.
•
The customer can return used or rechargeable batteries to a nearby
public recycling center or to a store selling the same type of the
battery or rechargeable battery.
12
Page 13
Chapter 02
Preparations
Checking the Components
-
Contact the vendor where you
purchased the product if any
components are missing.
-
The appearance of the components and
items sold separately may differ from the
image shown.
-
A stand is not provided with the product.
To install a stand, you can purchase one
separately.
-
Components may differ in different
locations.
Components
Quick Setup Guide Warranty card
(Not available in some
locations)
-
-
Remote Control (P.20) Batteries (P.21)
(Not available in some
locations)
D-SUB cable (P. 37) Power cord
+
+
Holder-Wire stand Holder-Ring (4EA)
RS232C(IN) adapter
13
Page 14
Items sold separately
Wall-mount Kit HDMI cable (P. 39) HDMI-DVI cable (P.38) PIM
RS232C-Stereo cable RS232C(OUT) adapter Component cable (P. 40) DVI cable (P. 38)
14
Page 15
Parts
Panel Key
Buttons Description
Power on the product.
If you press the [ ] button when the product is turned on, the control menu will
be displayed.
To exit the OSD menu, press and hold the panel key for at least one second.
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
Move to the upper or lower menu. You can also adjust the value of an option.
Move to the left or right menu.
You can adjust the volume by moving the panel key left or right when
the
control menu is not displayed.
15
Page 16
Reverse Side
Port Description
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
DVI IN
PIM
HDMI IN
SERVICE (5V 0.5A)
EXTERNAL IR / AMBIENT SENSOR IN
RGB IN
DVI IN
AUDIO OUT
RGB / DVI / HDMI / AV / COMPONENT
AUDIO IN
RS232C IN
RS232C OUT
PIM
COMPONENT / AV IN

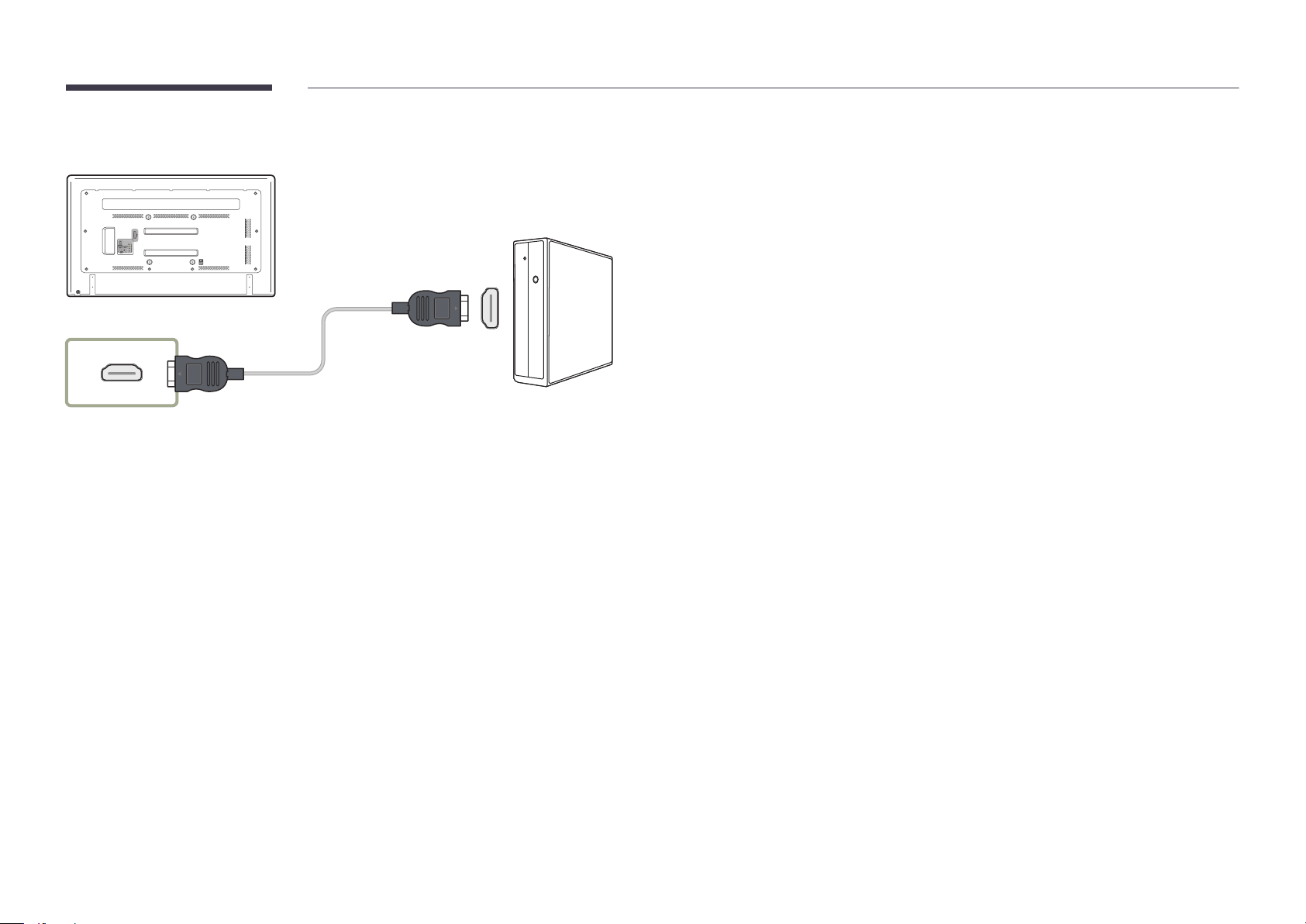

Connects to a source device using an HDMI cable.
This port is used to upgrade the software.
Supplies power to the External ambient sensor board or receives the light
sensor signal.
External ambient sensor: Sold separately
Connects to a source device using a D-SUB cable.

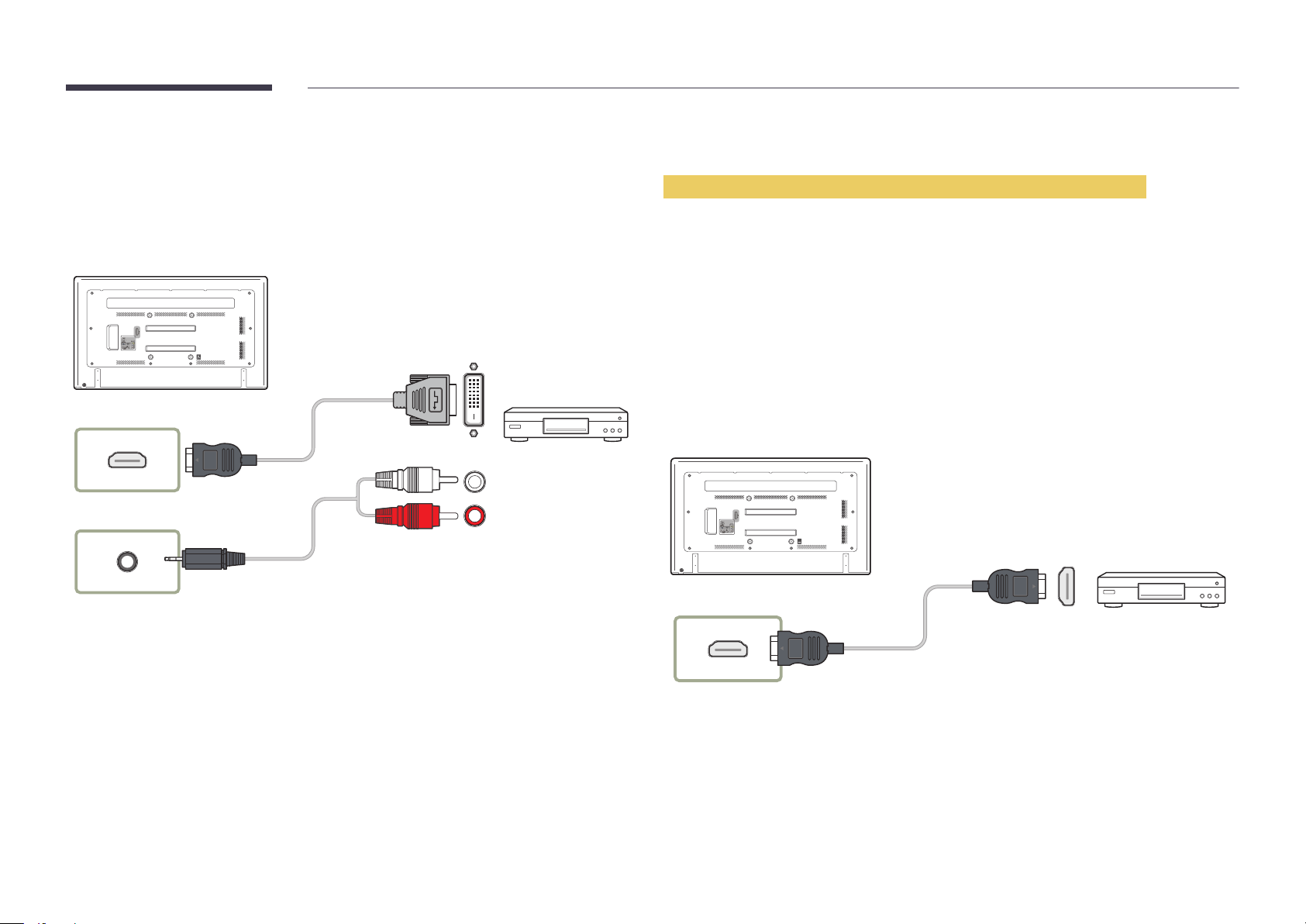

Connects to a source device using a DVI cable or HDMI-DVI cable.
Connects to the audio of a source device.
Connect to audio input using an audio cable.

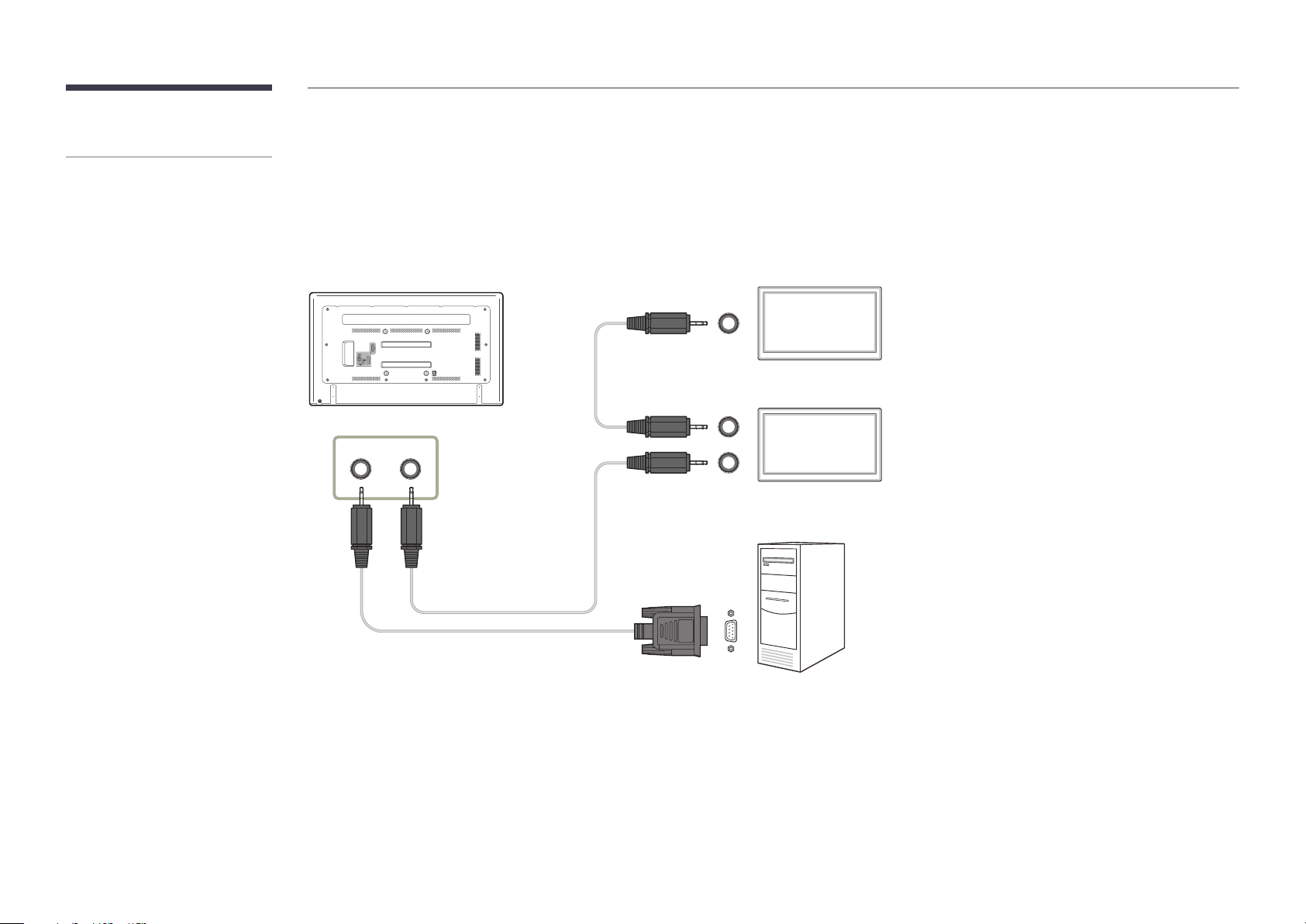

Connects to MDC using an RS232C-stereo adapter.
Connects to a PIM. (Refer to the PIM user manual for details.)
Connects to a source device using the Component/AV cable.
16
Page 17
External sensor KIT
Buttons Description
―
The External sensor KIT has a remote-control sensor, a brightness sensor and
function keys. If mounting the display onto a wall, you can move the External
sensor KIT to the side of the display.
―
The color and shape of parts may differ from what is shown. Specifications are
subject to change without notice to improve quality.
SOURCE POWER
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
Remote Control
Sensor
Light sensor
Power indicator
SOURCE button
POWER button
Aim the remote control towards this spot on the LCD Display.
―
Keep the area between the remote sensor and remote control obstacle-free.
Use the remote control within 7m to 10m from the sensor on the product at an
angle of 30
―
Store used batteries out of reach of children and recycle.
―
Do not use a new and used battery together. Replace both batteries at the same
from the left and right.
time.
―
Remove batteries when the remote control is not to be used for an extended
period of time.
Automatically detects the intensity of ambient light around a selected display and
adjusts the screen brightness.
Turns off in power-on mode and blinks green in power-saving mode.
Switches from PC mode to Video mode.
Selects the input source that an external device is connected to.
Use this button for turning the LCD Display on and off.
17
Page 18
Attaching the External sensor KIT to the side
―
This External sensor KIT can be attached to any part of the display using the double-sided tape provided with the sensor.
―
The External sensor KIT can also be attached to a wall near the display.
―
Do not attach the External sensor KIT to the display if the display does not have plastic or metal sides. The display can be damaged.
18
Page 19
Assembling the Holder-Wire stand Anti-theft Lock
―
An anti-theft lock allows you to use the product securely even in public places.
―
The locking device shape and locking method depend on the manufacturer. Refer to the user guide
provided with your anti-theft locking device for details.
To lock an anti-theft locking device:
―
Stand: Sold separately
Fix the cable of your anti-theft locking device to a heavy object such as a desk.
1
Put one end of the cable through the loop on the other end.
2
Insert the locking device into the anti-theft lock slot at the back of the product.
3
Lock the locking device.
4
-
An anti-theft locking device can be purchased separately.
-
Refer to the user guide provided with your anti-theft locking device for details.
-
Anti-theft locking devices can be purchased at electronics retailers or online.
19
Page 20
Remote Control
MENU
OFF
VOL
CH
SOURCE
CONTENT
(HOME)
MagicInfo
Lite/S
BLANK
.QZ
1
ABC
2
DEF
3
GHI
4
JKL
5
MNO
6
DEL-/--
MUTESYMBOL
0
PRS
7
TUV
8
WXY
9
―
Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled.
―
A button without a description in the image below is not supported on the product.
Power on the product. Power off the product.
Enter the password in the OSD menu.
-
Remote control button functions may
differ for different products.
Adjust the volume.
Mute the sound.
Unmuting the sound: Press MUTE again or press
the volume control (+ VOL -) button.
Select a connected source device.
Display or hide the onscreen display menu, or
return to the previous menu.
20
Page 21
MAGICINFO
3D
DVI
B
DP
D
Quickly select frequently used functions.
TOOLS INFO
Display information on the screen.
Move to the upper, lower, left or right menu, or
adjust an option's setting.
Confirm a menu selection.
Return to the previous menu.
To place batteries in the remote control
EXITRETURN
PC
A
HDMI
C
Exit the current menu.
Manually select a connected input source from
PC, DVI, HDMI.
It sets safe lock function.
LOCK
-
Remote control button functions may
differ for different products.
21
Page 22
Before Installing the Product (Installation Guide)
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
•
Ensure that an authorized installation company installs the wall mount.
•
Otherwise, it may fall and cause personal injury.
•
Make sure to install the specified wall mount.
Switching between portrait and landscape
―
Contact Samsung Customer Service Center for further details.
•
To use the product vertically (portrait), turn it clockwise so that the LED is pointing down.
Ventilation
Installation on a Perpendicular Wall
A
B
Figure 1.1 Side view
A Minimum 40 mm
B Ambient temperature: Under 35
•
When installing the product on a perpendicular wall, allow at least 40 mm of space between the product and wall surface
for ventilation and ensure that the ambient A temperature is kept below 35
C
C.
22
Page 23
Figure 1.3 Side view
B
Installation on an Indented Wall
―
Contact Samsung Customer Service Center for further details.
A
C
E
Figure 1.2 Side view
Dimensions
1
2
D D
4
5
Plane view
A Minimum 40 mm
B Minimum 70 mm
C Minimum 50 mm
D Minimum 50 mm
E Ambient temperature: Under 35
―
When installing the product on an indented wall, allow at least the space specified above between the product and wall for
ventilation and ensure that the ambient temperature is kept below 35
Model name
ED65D 1467.5 (57.8) 1431.4 (56.4) 806.5 (31.8) 848.0 (33.4) 65.0 (2.6)
ED75D 1675.0 (65.9) 1653.3 (65.1) 931.3 (36.7) 958.5 (37.7) 65.0 (2.6)
―
All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice.
Refer to the dimensions prior to performing installation of your product. Not responsible for typographical or printed errors.
1
C
C.
Unit: mm (inches)
2
3 4
5
3
23
Page 24
Installing the Wall Mount
Installing the Wall Mount Kit
The wall mount kit (sold separately) allows you to mount the product on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount.
We recommend you contact a technician for assistance when installing the wall mount bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the
wall mount on your own.
24
Page 25
Wall Mount Kit Specications (VESA)
―
Install your wall mount on a solid wall perpendicular to the floor. Before
attaching the wall mount to surfaces other than plaster board, please contact
your nearest dealer for additional information.
If you install the product on a slanted wall, it may fall and result in severe
personal injury.
•
Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are provided.
•
Do not use screws that are longer than the standard length or do not comply with the VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the product.
•
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ
depending on the wall mount specifications.
•
Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
•
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the
consumer fails to follow the product installation instructions.
•
Always have two people mount the product on a wall.
•
Standard dimensions for wall mount kits are shown in the table below.
Unit: mm (inches)
Model name VESA screw hole
Standard Screw Quantity
specs (A * B) in
millimeters
ED65D
ED75D
―
Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric shock.
400 x 400 (15.7 × 15.7) M8, L32 4 EA
25
Page 26
Remote Control (RS232C)
Cable Connection
RS232C Cable
•
Pin assignment
1 2 3 4 5
Interface
Pin
Bit rate
Data bits
Parity
Stop bit
Flow control
Maximum length
RS232C (9 pins)
TxD (No.2), RxD (No.3), GND (No.5)
9600 bps
8 bit
None
1 bit
None
15 m (only shielded type)
6 7 8 9
Pin Signal
1
2
3
4
5
6
7
8
9
Detect data carrier
Received data
Transmitted data
Prepare data terminal
Signal ground
Prepare data set
Send request
Clear to send
Ring indicator
26
Page 27
•
RS232C cable
Connector: 9-Pin D-Sub to Stereo Cable
59
1
6
-P1-
-P1- -P1- -P2- -P2-
3
2
1
-P2-
Connection
•
Connection 1
RS232C
IN OUT
RS232C
IN OUT
RS232C
IN OUT
RS232C
IN OUT
Female Rx
Tx
Gnd
2
3
5
-------->
<--------
----------
3
2
5
Tx
Rx
Gnd
STEREO
PLUG
(3.5ø)
27
Page 28
Control Codes
No. Command type Command Value range
Viewing control state (Get control command)
Header Command ID Data length Checksum
0xAA Command type 0
Controlling (Set control command)
Header Command ID Data length Data Checksum
0xAA Command type 1 Value
Command
No. Command type Command Value range
1
2
3
4
Power control 0x11 0~1
Volume control 0x12 0~100
Input source control 0x14 -
Screen mode control 0x18 -
10
11
•
All communications take place in hexadecimals. The checksum is calculated by adding up all
values except the header. If a checksum adds up to be more than 2 digits as shown below
(11+FF+01+01=112), the first digit is removed.
E.g. Power On & ID=0
Header Command ID Data length Data 1 Checksum
0xAA 0x11 1 "Power"
Header Command ID Data length Data 1 12
0xAA 0x11 1 1
•
To control all devices connected by a serial cable simultaneously irrespective of IDs, set the ID as
"0xFE" and transmit commands. Commands will be executed by each device but ACK will not
respond.
Video Wall On 0x84 0~1
Video Wall User Control 0x89 -
5
6
7
8
9
Screen size control 0x19 0~255
PIP on/off control 0x3C 0~1
Auto adjustment control (PC and
BNC only)
Video wall mode control 0x5C 0~1
Safety Lock 0x5D 0~1
0x3D 0
28
Page 29
Power control
Volume control
•
Function
A product can be powered on and off using a PC.
•
Viewing power state (Get Power ON / OFF Status)
Header Command ID Data length Checksum
0xAA 0x11 0
•
Setting power ON/Off (Set Power ON / OFF)
Header Command ID Data length Data Checksum
0xAA 0x11 1 "Power"
"Power": Power code to be set on a product.
1: Power ON
0: Power OFF
•
Ack
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x11 "Power"
"Power": Power code to be set on a product.
•
Nak
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
•
Function
The volume of a product can be adjusted using a PC.
•
Viewing volume state (Get Volume Status)
Header Command ID Data length Checksum
0xAA 0x12 0
•
Setting the volume (Set Volume)
Header Command ID Data length Data Checksum
0xAA 0x12 1 "Volume"
"Volume": Volume value code to be set on a product. (0-100)
•
Ack
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x12 "Volume"
"Volume": Volume value code to be set on a product. (0-100)
•
Nak
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x12 "ERR"
0xAA 0xFF 3 'N' 0x11 "ERR"
"ERR" : A code showing what error has occurred.
"ERR" : A code showing what error has occurred.
29
Page 30
Input source control
•
Function
The input source of a product can be changed using a PC.
•
Viewing input source state (Get Input Source Status)
―
MagicInfo is only available with models that contain the MagicInfo function.
―
RF(TV), DTV are only available with models that include a TV.
•
Ack
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
Header Command ID Data length Checksum
0xAA 0x14 0
•
Setting the input source (Set Input Source)
Header Command ID Data length Data Checksum
0xAA 0x14 1 "Input Source"
"Input Source": An input source code to be set on a product.
0x14 PC
0x18 DVI
0x0C Input source
0x08 Component
0x20 MagicInfo
0x1F DVI_video
0x30 RF(TV)
0xAA 0xFF 3 'A' 0x14 "Input
Source"
"Input Source": An input source code to be set on a product.
•
Nak
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x14 "ERR"
"ERR" : A code showing what error has occurred.
0x40 DTV
0x21 HDMI
0x22 HDMI_PC
―
DVI_video, HDMI_PC cannot be used with the Set command. They only respond to "Get" commands.
―
This model does not support HDMI, HDMI_PC ports.
30
Page 31
Screen mode control
•
Function
The screen mode of a product can be changed using a PC.
Screen mode cannot be controlled when the Video Wall function is enabled.
―
This control can only be used on models that include a TV.
•
Viewing screen status (Get Screen Mode Status)
Header Command ID Data length Checksum
0xAA 0x18 0
•
Setting the picture size (Set Picture Size)
Header Command ID Data
length
0xAA 0x18 1 "Screen Mode"
"Screen Mode": A code that sets the product status
0x01 16 : 9
Data Checksum
•
Nak
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x18 "ERR"
"ERR": A code showing what error has occurred
Screen size control
•
Function
The screen size of a product can be changed using a PC.
•
Viewing the screen size (Get Screen Size Status)
Header Command ID Data length Checksum
0xAA 0x19 0
•
Ack
Header Command ID Data
length
Ack/Nak r-CMD Val1 Checksum
0x04 Zoom
0x31 Wide Zoom
0x0B 4 : 3
•
Ack
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x18 "Screen
Mode"
"Screen Mode": A code that sets the product status
0xAA 0xFF 3 'A' 0x19 "Screen Size"
"Screen Size": product screen size (range: 0 – 255, unit: inch)
•
Nak
Header Command ID Data
length
0xAA 0xFF 3 'N' 0x19 "ERR"
"ERR": A code showing what error has occurred
Ack/Nak r-CMD Val1 Checksum
31
Page 32
PIP On/Off control
Auto adjustment control (PC and BNC only)
•
Function
The PIP mode of a product can be turned on or off using a PC.
―
Only available on models that have the PIP function.
―
The mode cannot be controlled if Video Wall is set to On.
―
This function is not available in MagicInfo.
•
Viewing PIP on/off state (Get the PIP ON / OFF Status)
Header Command ID Data length Checksum
0xAA 0x3C 0
•
Setting PIP on/off (Set the PIP ON / OFF)
Header Command ID Data length Data Checksum
0xAA 0x3C 1 "PIP"
"PIP": A code used to turn the PIP mode of a product on or off
1: PIP ON
0: PIP OFF
•
Ack
Header Command ID Data
length
0xAA 0xFF 3 'A' 0x3C "PIP"
Ack/Nak r-CMD Val1 Checksum
•
Function
Automatically adjust the PC system screen using a PC.
•
Viewing auto adjustment state (Get Auto Adjustment Status)
None
•
Setting auto adjustment (Set Auto Adjustment)
Header Command ID Data length Data Checksum
0xAA 0x3D 1 "Auto
Adjustment"
"Auto Adjustment" : 0x00 (at all times)
•
Ack
Header Command ID Data
length
0xAA 0xFF 3 'A' 0x3D "Auto
•
Nak
Header Command ID Data
length
0xAA 0xFF 3 'A' 0x3D "ERR"
Ack/Nak r-CMD Val1 Checksum
Adjustment"
Ack/Nak r-CMD Val1 Checksum
"PIP": A code used to turn the PIP mode of a product on or off
•
Nak
Header Command ID Data
length
0xAA 0xFF 3 'A' 0x3C "PIP"
"ERR": A code showing what error has occurred
Ack/Nak r-CMD Val1 Checksum
"ERR": A code showing what error has occurred
32
Page 33
Video Wall Mode Control
Safety Lock
•
Function
Video Wall mode can be activated on a product using a PC.
This control is only available on a product whose Video Wall is enabled.
•
Viewing video wall mode (Get Video Wall Mode)
Header Command ID Data length Checksum
0xAA 0x5C 0
•
Setting the video wall (Set Video Wall Mode)
Header Command ID Data length Data Checksum
0xAA 0x5C 1 "Video Wall Mode"
"Video Wall Mode": A code used to activate Video Wall mode on a product
1: Full
0: Natural
•
Ack
Header Command ID Data
length
0xAA 0xFF 3 'A' 0x5C "Video Wall
"Video Wall Mode": A code used to activate Video Wall mode on a product
•
Nak
Header Command ID Data
length
0xAA 0xFF 3 'A' 0x5C "ERR"
"ERR": A code showing what error has occurred
Ack/Nak r-CMD Val1 Checksum
Mode"
Ack/Nak r-CMD Val1 Checksum
•
Function
PC can be used to turn the Safety Lock function on or off on a product.
This control is available regardless of whether or not the power is turned on.
•
Viewing the safety lock state (Get Safety Lock Status)
Header Command ID Data length Checksum
0xAA 0x5D 0
•
Enabling or disabling safety lock (Set Safety Lock Enable / Disable)
Header Command ID Data length Data Checksum
0xAA 0x5D 1 "Safety Lock"
"Safety Lock": Safety lock code to be set on a product
1: ON
0: OFF
•
Ack
Header Command ID Data
length
0xAA 0xFF 3 'A' 0x5D "Safety Lock"
"Safety Lock": Safety lock code to be set on a product
•
Nak
Header Command ID Data
length
0xAA 0xFF 3 'N' 0x5D "ERR"
"ERR": A code showing what error has occurred
Ack/Nak r-CMD Val1 Checksum
Ack/Nak r-CMD Val1 Checksum
33
Page 34
Video Wall On
•
Function
Turn Video Wall on or off on the product from your computer.
•
Get Video Wall On/Off Status
Header Command ID Data length Checksum
•
Nak
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x84 ERR
"ERR": A code showing what error has occurred
0xAA 0x84 0
•
Set Video Wall On/Off
Header Command ID Data length Data Checksum
0xAA 0x84 1 V.Wall_On
•
V.Wall_On: Video Wall code to be assigned to the product
1: Video Wall ON
0: Video Wall OFF
•
Ack
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x84 V.Wall_
On
V.Wall_On : Same as above
Video Wall User Control
•
Function
Turn the Video Wall function on or off on the product from your computer.
•
Get Video Wall Status
Header Command ID Data length Checksum
0xAA 0x89 0
•
Set Video Wall
Header Command ID Data length Val1 Val2 Checksum
0xAA 0x89 2 Wall_Div Wall_SNo
Wall_Div: Video Wall Divider code assigned to the product
34
Page 35
10x10 Video Wall Model
O
1
2
3
4
5
6
7
8
9
10
11
1 2 3 4 5 6 7 8 9 10 11 12 13 14
0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x11 0x12 0x13 0x14 0x15 0x16 0x17 0x18 0x19 0x1A 0x1B 0x1C 0x1D 0x1E
0x21 0x22 0x23 0x24 0x25 0x26 0x27 0x28 0x29 0x2A 0x2B 0x2C 0x2D 0x2E
0x31 0x32 0x33 0x34 0x35 0x36 0x37 0x38 0x39 0x3A 0x3B 0x3C 0x3D 0x3E
0x41 0x42 0x43 0x44 0x45 0x46 0x47 0x48 0x49 0x4A 0x4B 0x4C 0x4D 0x4E
0x51 0x52 0x53 0x54 0x55 0x56 0x57 0x58 0x59 0x5A 0x5B 0x5C 0x5D 0x5E
0x61 0x62 0x63 0x64 0x65 0x66 0x67 0x68 0x69 0x6A 0x6B 0x6C 0x6D 0x6E
0x71 0x72 0x73 0x74 0x75 0x76 0x77 0x78 0x79 0x7A 0x7B 0x7C 0x7D 0x7E
0x81 0x82 0x83 0x84 0x85 0x86 0x87 0x88 0x89 0x8A 0x8B 0x8C N/A N/A
0x91 0x92 0x93 0x94 0x95 0x96 0x97 0x98 0x99 0x9A 0x9B N/A N/A N/A
0xA1 0xA2 0xA3 0xA4 0xA5 0xA6 0xA7 0xA8 0xA9 0xAA N/A N/A N/A N/A
0xB1 0xB2 0xB3 0xB4 0xB5 0xB6 0xB7 0xB8 0xB9 N/A N/A N/A N/A N/A
15
0x00
0x1F
0x2F
0x3F
0x4F
0x5F
0x6F
N/A
N/A
N/A
N/A
N/A
12
13
14
15
0xC1 0xC2 0xC3 0xC4 0xC5 0xC6 0xC7 0xC8 N/A N/A N/A N/A N/A N/A
0xD1 0xD2 0xD3 0xD4 0xD5 0xD6 0xD7 N/A N/A N/A N/A N/A N/A N/A
0xE1 0xE2 0xE3 0xE4 0xE5 0xE6 0xE7 N/A N/A N/A N/A N/A N/A N/A
0xF1 0xF2 0xF3 0xF4 0xF5 0xF6 N/A N/A N/A N/A N/A N/A N/A N/A
N/A
N/A
N/A
N/A
35
Page 36
Wall_SNo: Product Number code assigned to the product
10x10 Video Wall Model : ( 1 ~ 100)
Set Number
1 0x01
2 0x02
... ...
99 0x63
100 0x64
•
Ack
Header Command ID Data length Ack/Nak r-CMD Val1 Val2 Checksum
0xAA 0xFF 4 'A' 0x89 Wall_Div Wall_SNo
•
Nak
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x89 ERR
"ERR": A code showing what error has occurred
Data
36
Page 37
Chapter 03
Connecting and Using a Source Device
Before Connecting
Check the following before you connect this product with other devices. Devices
that can be connected to this product include PCs, camcorders, speakers, set top
boxes and DVD/Blu-ray Disc players.
Pre-connection Checkpoints
―
Before connecting a source device, read the user manual provided with it.
The number and locations of ports on source devices may differ from device to
device.
―
Do not connect the power cable until all connections are completed.
Connecting the power cable during connection may damage the product.
―
Check the types of ports at the back of the product you want to connect.
Connecting to a PC
•
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
•
A PC can be connected to the product in a variety of ways.
Select a connection method suitable for your PC.
―
Connecting parts may differ in different products.
Connection using the D-SUB cable (Analog type)
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
RGB IN
RGB / DVI / HDMI / AV / COMPONENT
AUDIO IN
37
Page 38
Connection using a DVI cable (Digital type)
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
Connection Using an HDMI-DVI Cable
―
When you connect a PC to the product using an HDMI-DVI cable, set Edit Name to DVI PC to access
video and audio content stored on the PC.
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
DVI IN
RGB / DVI / HDMI / AV / COMPONENT
AUDIO IN
HDMI IN
RGB / DVI / HDMI / AV / COMPONENT
AUDIO IN
38
Page 39
Connection Using an HDMI Cable
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
HDMI IN
39
Page 40
Connecting to a Video Device
•
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
•
You can connect a video device to the product using a cable.
―
Connecting parts may differ in different products.
―
Press the SOURCE button on the remote control to change the source.
Connection Using an AV Cable
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
COMPONENT / AV IN
Connection Using the component Cable
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
COMPONENT / AV IN
RGB / DVI / HDMI / AV / COMPONENT
AUDIO IN
RGB / DVI / HDMI / AV / COMPONENT
AUDIO IN
40
Page 41
Connection Using an HDMI-DVI Cable
―
Audio will not be enabled if the product is connected to a video device using an HDMI-DVI cable. To
resolve this, additionally connect an audio cable to the audio ports on the product and video device.
When you connect a video device to the product using an HDMI-DVI cable, set Edit Name to DVI
Devices to access video and audio content stored on the video device.
―
Supported resolutions include 1080p (50/60Hz), 720p (50/60Hz), 480p, and 576p.
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
HDMI IN
RGB / DVI / HDMI / AV / COMPONENT
AUDIO IN
Connection Using an HDMI Cable
Using an HDMI cable or HDMI to DVI Cable (up to 1080p)
•
For better picture and audio quality, connect to a digital device using an HDMI cable.
•
An HDMI cable supports digital video and audio signals, and does not require an audio cable.
-
To connect the product to a digital device that does not support HDMI output, use an HDMI-DVI
and audio cables.
•
The picture may not display normally (if at all) or the audio may not work if an external device that
uses an older version of HDMI mode is connected to the product. If such a problem occurs, ask the
manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.
•
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection
error may occur.
•
A basic high-speed HDMI cable or one with ethernet is recommended.
This product does not support the ethernet function via HDMI.
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
HDMI IN
41
Page 42
Connecting to an Audio System
Changing the Input source
―
Connecting parts may differ in different products.
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
AUDIO OUT
―
The displayed image may differ depending on the model.
Source
HDMIPCHDMI-CEC
BD Player
AV Component PC DVI
----
Source
MENU
Source allows you to select a variety of sources and change source device names.
You can display the screen of a source device connected to the product. Select a source from source list
to display the screen of the selected source.
―
The input source can also be changed by using the SOURCE button on the remote control.
―
The screen may not display correctly if an incorrect source is selected for the source device you want
Applications Source List ENTER
to convert to.
42
Page 43
Chapter 04
Using MDC
MDC (Multiple Display Control) is an application that allows you to easily control multiple display devices simultaneously using a PC.
Conguring Settings for Multi Control
MENU
Assign an individual ID to your product.
System Multi Control ENTER
Conguring settings for Multi Control
•
ID Setup
Assign an ID to a set. (Range: 0~99)
Press
•
ID Input
Enter the ID number of the product connected to the input cable for input signal reception.
Enter the number you want using the number buttons on the remote control.
to select a number, and press .
43
Page 44
For details on how to use the MDC
program, refer to Help after installing the
program. The MDC program is available on
the website.
MDC installation can be affected by the
graphics card, mother board and network
conditions.
If the directory path is not specified, the
program will be installed in the default
directory path.
MDC Program Installation/Uninstallation
Installation
Click the MDC Unified installation program.
1
Select a language for installation. Next, click "OK".
2
When the "Welcome to the InstallShield Wizard for MDC_Unified" screen appears, click "Next".
3
In the "License Agreement" window displayed, select "I accept the terms in the license agreement" and click "Next".
4
In the displayed "Customer Information" window, fill out all the information fields and click "Next".
5
In the displayed "Destination Folder" window, select the directory path you want to install the program in and click "Next".
6
In the displayed "Ready to Install the Program" window, check the directory path to install the program in and click "Install".
7
Installation progress will be displayed.
8
Select "Launch MDC Unified" and
click "Finish" to run the MDC program
immediately.
-
The MDC execution icon may not be
displayed depending on the PC system
or product specifications.
-
Press F5 if the execution icon is not
displayed.
Click "Finish" in the displayed "InstallShield Wizard Complete" window.
9
The MDC Unified shortcut icon will be created on the desktop after installation.
10
Uninstallation
Select Settings > Control Panel on the Start menu and double-click Add/Delete Program.
1
Select MDC Unified from the list and click Change/Remove.
2
44
Page 45
Multiple display control "MDC" is an
application that allows you to easily
control multiple display devices
simultaneously using a PC.
Connecting to MDC
Using MDC via RS-232C (serial data communications standards)
An RS-232C serial cable must be connected to the serial ports on the PC and monitor.
RS232C IN
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
RS232C OUT
RS232C IN / OUT
Monitor 1
RS232C IN
RS232C
OUT
Monitor 2
Computer
45
Page 46
Chapter 05
Screen Adjustment

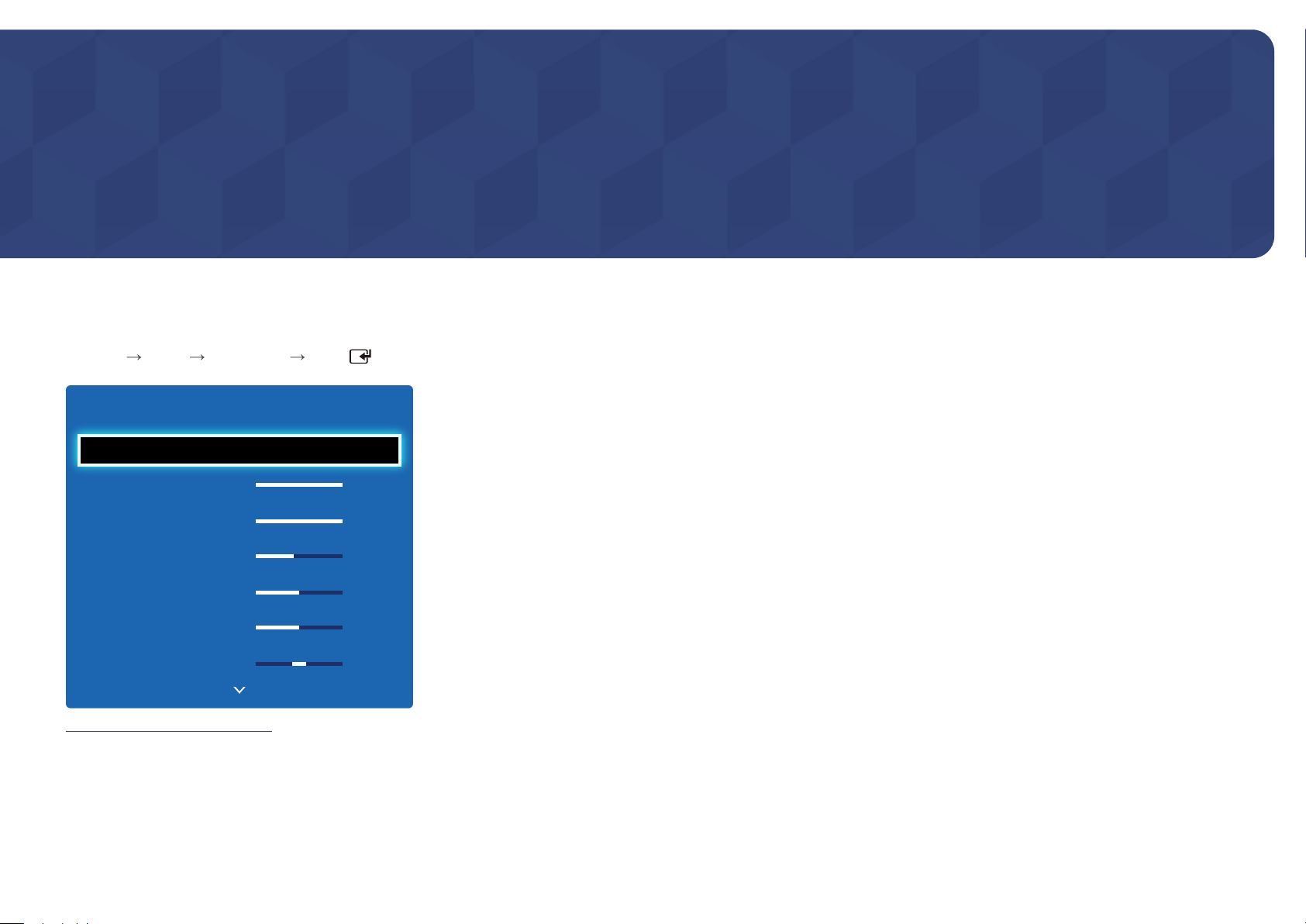

Configure the Picture settings (Backlight, Color Tone, etc.).
-
The layout of the
menu options may vary depending on the product.
Picture Mode
MENU
Picture Picture Mode ENTER
Picture Mode Information
·
Backlight
·
Contrast
·
Brightness
·
Sharpness
·
Color
·
Tint (G/R)
G50 R
50 50
100
100
100
100
45
45
50
50
50
50
50
Select a picture mode (Picture Mode) suitable for the environment where the product will be used.
Different Picture Mode options are displayed depending on the current input source.
If the input source is PC, DVI, HDMI(PC)
•
Information: This mode reduces eye fatigue and is suitable for displaying information to the public.
•
Advertisement: This mode is suitable for displaying video content and indoor/outdoor advertisements.
If the input source is AV, Component, HDMI(AV )
•
Dynamic: This mode is suitable when the ambient light is bright.
•
Standard: This mode is generally suitable for any environment.
•
Natural: Suitable for reducing eye strain.
•
Movie: This mode reduces eye fatigue.
-
The displayed image may differ depending on the model.
46
Page 47
Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R)
MENU
Picture ENTER
Your product has several options for adjusting picture quality.
Input source Picture Mode Adjustable options
PC, HDMI, DVI (when a PC is
connected)
Information / Advertisement Backlight / Contrast / Brightness /
Sharpness
Picture Mode Information
·
Backlight
·
Contrast
·
Brightness
·
Sharpness
·
Color
·
Tint (G/R)
-
The displayed image may differ depending on the model.
G50 R
50 50
100
100
100
100
45
45
50
50
50
50
50
AV, Component, HDMI (720p, 1080i,
1080p)
―
When you make changes to
accordingly.
―
You can adjust and store settings for each external device you have connected to an input on the product.
―
Lowering picture brightness reduces power consumption.
Dynamic / Standard / Natural / Movie Backlight / Contrast / Brightness /
Sharpness / Color / Tint (G/R)
Backlight, Contrast, Brightness, Sharpness, Color or Tint (G/R), the OSD will be adjusted
47
Page 48
Picture Size
MENU
-
Picture Picture Size ENTER
Picture Size
Picture Size
·
Position
Resolution Select
The displayed image may differ depending on the model.
16:9
O
Picture Size
If you have a cable box or satellite receiver, it may have its own set of screen sizes as well. However, we highly recommend you
use your product’s 16:9 mode most of the time.
•
16:9: Sets the picture to 16:9 wide mode.
•
Zoom1: Use for moderate magnification. Cuts off the top and sides.
•
Zoom2: Use for a stronger magnification.
•
Smart View 1: Reduces the 16:9 picture by 50%.
―
Smart View 1 is enabled only in HDMI mode.
•
Smart View 2: Reduces the 16:9 picture by 25%.
―
Smart View 2 is enabled only in HDMI mode.
•
Wide Fit: Enlarges the aspect ratio of the picture to fit the entire screen.
•
4:3: Sets the picture to basic (4:3) mode.
―
Do not set your product to 4:3 format for a long time.
The borders displayed on the left and right, or top and bottom of the screen may cause image retention (screen burn)
which is not covered by the warranty.
•
Screen Fit: Displays the full image without any cut-off when HDMI(720p / 1080i / 1080p)or Component (1080i / 1080p)
signals are inputted.
•
Custom: Changes the resolution to suit the user's preferences.
•
Original Ratio: If the input source is PC, DVI, HDMI(PC connection) the video will display in the original aspect ratio.
―
Available ports may differ depending on the model.
―
You can adjust and store settings for each external device you have connected to an input on the product.
48
Page 49
Picture Sizes available by Input Source.
Input Source Picture Size
AV, Component (480i, 480p)
Component (1080i, 1080p)
HDMI (720p, 1080i, 1080p) 16:9 / 4:3 / Smart View 1 / Smart View 2 / Custom /
HDMI (480i, 480p)
PC, DVI, HDMI (when a PC is connected)
16:9 / 4:3 /
16:9 / 4:3 /
Wide Fit / Screen Fit
16:9 / 4:3 /
Smart View 2 / Custom
16:9 / 4:3 /
Zoom1 / Zoom2 / Custom
Wide Fit / Screen Fit / Custom
Zoom1 / Zoom2 / Smart View 1 /
Original Ratio
49
Page 50
Position
Picture Size
Picture Size
·
Position
16:9
Adjusts the picture position. Position is only available if Picture Size is set to Zoom1, Zoom2, Wide Fit, Screen Fit.
―
To use the Position function after selecting Zoom1, Zoom2, Wide Fit, Screen Fit or Original Ratio, follow these steps.
Press the button to select Position. Press the button.
1
Press the or button to move the picture up or down.
2
Press the button.
3
Resolution Select
-
The displayed image may differ depending on the model.
Zoom/Position
Picture Size
Picture Size
·
Zoom/Position
Resolution Select
O
Custom
O
―
To use the Zoom/Position function after selecting Custom in HDMI (1080i/1080p) or Component (1080i/1080p) or
Custom, follow these steps.
Press the button to select Zoom/Position. Press the button.
1
Select the Zoom or Position. Press the button.
2
Press the / / / button to move the picture up or down.
3
Press the button.
4
―
If you want to reset the picture to its original position, select Reset in the Zoom/Position screen.
The picture will be set to its default position.
-
The displayed image may differ depending on the model.
50
Page 51

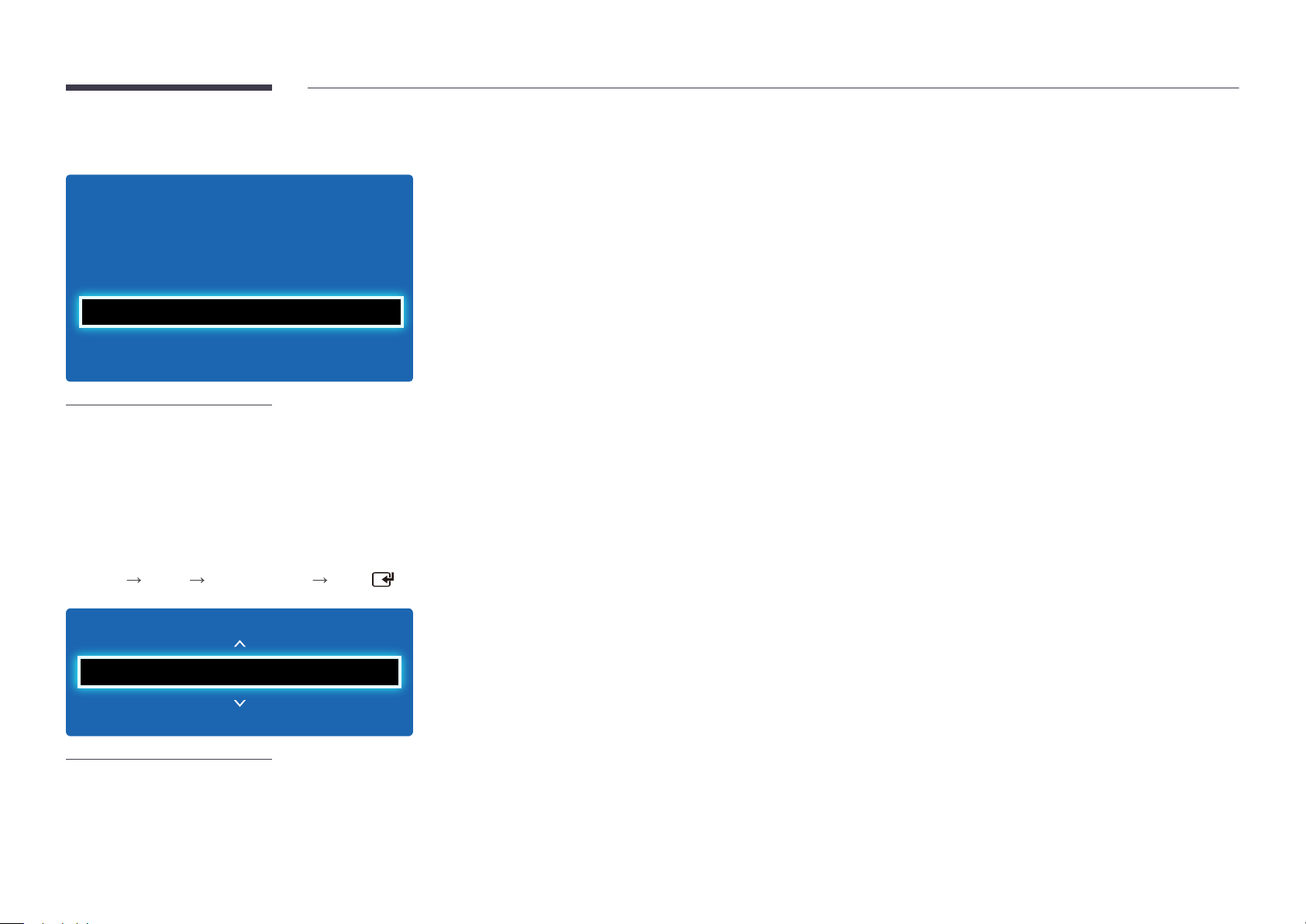

Resolution Select
Picture Size
If the picture is not normal even when the resolution of the graphics card is one of the following, you can optimize the picture
quality by selecting the same resolution for the product as the PC using this menu.
Available resolutions: Off / 1024x768 / 1280x768 / 1360x768 / 1366x768
Picture Size
·
Position
Resolution Select
-
Available in PC mode only.
-
The displayed image may differ depending on the model.
Auto Adjustment
MENU
Picture Auto Adjustment ENTER
Auto Adjustment
16:9
O
Adjust frequency values/positions and fine tune the settings automatically.
-
Available in PC mode only.
-
The displayed image may differ depending on the model.
51
Page 52
PC Screen Adjustment
PC Screen Adjustment
Coarse
Fine
Position
Image Reset
-
The displayed image may differ depending on the model.
50
•
Coarse / Fine
Removes or reduces picture noise.
If the noise is not removed by Fine-tuning alone, use the Coarse function to adjust the frequency as best as possible
(Coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned with the center
of screen.
•
Position
To adjust the PC’s screen position if it is not centered or does not fit the product screen.
Press the
0
•
Image Reset
Resets the image to the default settings.
or button to adjust the Vertical Position. Press the or button to adjust the Horizontal Position.
52
Page 53

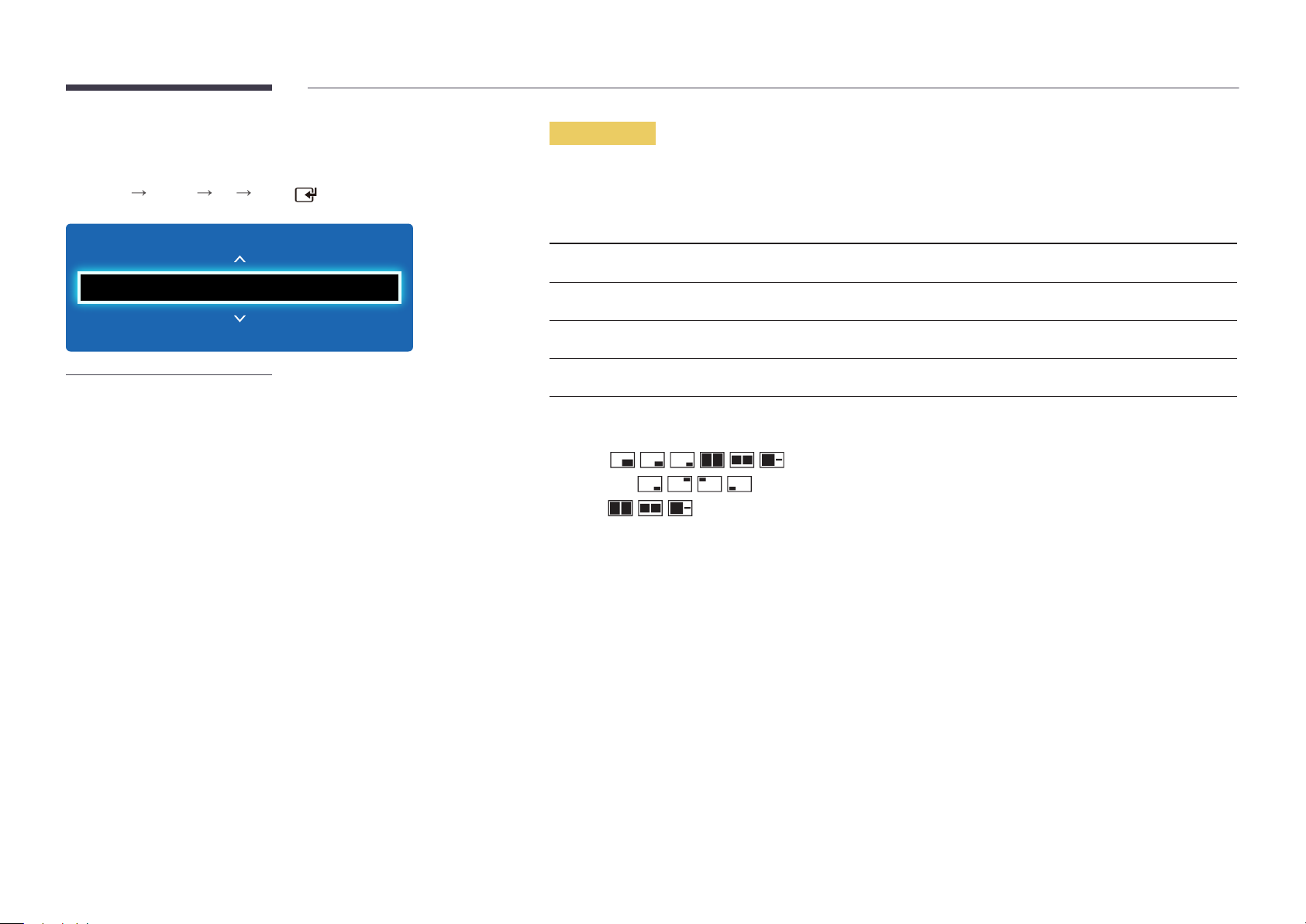

PIP
MENU
System PIP ENTER
PIP Settings
The picture from the external video source will be in the main screen and the picture from the product will be in the PIP subpicture screen.
Main picture Sub picture
PIP
-
The displayed image may differ depending on the model.
-
For PIP sound, refer to the Sound Select instructions.
-
If you turn the product off while watching in the PIP mode, the PIP function is reset to off.
When you turn your product on, you must turn PIP on again to watch in the PIP mode.
-
You may notice that the picture in the PIP screen becomes slightly unnatural when you use
the main screen to view a game or karaoke.
AV PC, DVI, HDMI
Component DVI, HDMI
PC AV, DVI, HDMI
DVI, HDMI AV, PC, Component
•
PIP (Off / On): Activate or deactivate the PIP function.
•
Source: You can select a source of the sub picture.
•
Size (
•
Position
―
•
Sound Select (Main / Sub): You can choose to listen to the sound from the Main picture or the Sub picture.
, , , , , ): Select a size for the subpicture.
(
, , , ): Select a position for the sub-picture.
In ( , , ) mode, you cannot select Position.
53
Page 54
Advanced Settings
MENU
Picture Advanced Settings ENTER
Input Source Picture Mode Advanced Settings
PC, DVI, HDMI (when a PC is
connected)
Information White Balance / Gamma
Advertisement White Balance / Gamma
Advanced Settings
Dynamic Contrast
Black Tone
Flesh Tone
RGB Only Mode
Color Space
-
The displayed image may differ depending on the model.
Medium
O
O
Native
AV, Component, HDMI
AV, Component, HDMI
0
Natural / Dynamic Not available
Standard Dynamic Contrast / Black Tone / Flesh Tone / RGB Only
Mode / Color Space / White Balance / Gamma / Motion
Lighting
Movie Dynamic Contrast / Black Tone / Flesh Tone / RGB Only
Mode / Color Space / White Balance / Gamma
Dynamic Contrast
Adjust the screen contrast.
•
Off / Low / Medium / High
Black Tone
Select the black level to adjust the screen depth.
•
Off / Dark / Darker / Darkest
Flesh Tone
Emphasize pink Flesh Tone.
RGB Only Mode
Displays the Red, Green and Blue color for making fine adjustments to the hue and saturation.
•
Off / Red / Green / Blue
54
Page 55
Advanced Settings
Color Space
Native
Color Space
Adjusts the range and variety of colors (the color space) available to create images.
•
Auto / Native
White Balance
Gamma
Motion Lighting
-
The displayed image may differ depending on the model.
O
White Balance
0
Adjust the color temperature for a more natural picture.
•
R-Offset / G-Offset / B-Offset: Adjust each color’s (red, green, blue) darkness.
•
R-Gain / G-Gain / B-Gain: Adjust each color’s (red, green, blue) brightness.
•
Reset: Resets the White Balance to its default settings.
Gamma
Adjust the primary color intensity.
Motion Lighting
Reduces power consumption by reducing screen brightness when the picture on the screen is in motion.
•
Off / On
55
Page 56

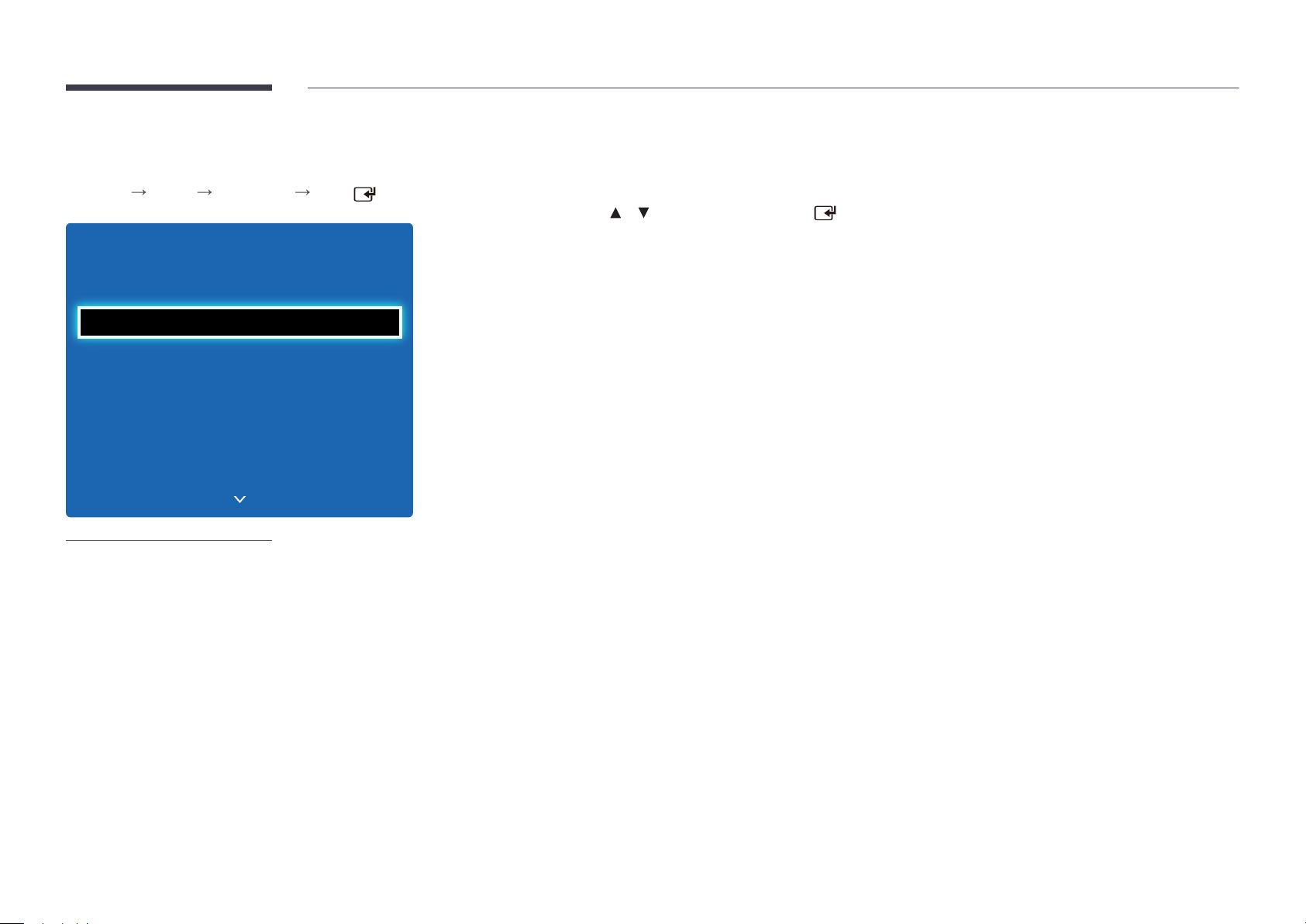

Picture Options
Select an option using the
Use the arrow keys to change the setting, and then press .
and
arrow keys, and the press .
MENU
Picture Picture Options ENTER
Picture Options
Color Tone
Color Temp.
Digital Clean View
MPEG Noise Filter
HDMI Black Level
Film Mode
Auto Motion Plus
Dynamic Backlight
-
The displayed image may differ depending on the model.
Standard
10000K
O
O
Normal
O
O
O
Input source Picture Mode Picture Options
PC Information Color Tone / Color Temp. / Dynamic Backlight
Advertisement Color Tone / Color Temp. / Dynamic Backlight
DVI, HDMI(when a PC is
connected)
AV, Component, HDMI Dynamic / Standard /
Information Color Tone / Color Temp. / HDMI Black Level / Dynamic
Backlight
Advertisement Color Tone / Color Temp. / HDMI Black Level / Dynamic
Backlight
Color Tone / Color Temp. / Digital Clean View / MPEG
Natural / Movie
Noise Filter / Film Mode / Dynamic Backlight
56
Page 57
Picture Options
Color Tone
Color Temp.
Digital Clean View
MPEG Noise Filter
Standard
10000K
O
O
Color Tone
If the input source is PC, DVI, HDMI(PC connection).
•
Off / Cool / Standard / Warm
If the input source is AV, Component, HDMI.
•
Off / Cool / Standard / Warm1 / Warm2
―
Warm1 or Warm2 will be deactivated when the Picture Mode is Dynamic.
―
Settings can be adjusted and stored for each external device connected to an input on the product.
HDMI Black Level
Film Mode
Auto Motion Plus
Dynamic Backlight
-
The displayed image may differ depending on the model.
Normal
O
O
O
Color Temp.
Adjust the color temperature (Red/Green/Blue). (Range: 3000K–15000K)
―
This option is available when Color Tone is set to Off.
Digital Clean View
If the broadcast signal received by your product is weak, you can activate the Digital Clean View feature to reduce any static
and ghosting that may appear on the screen.
•
Off / Low / Medium / High / Auto
―
When the signal is weak, try all the options until the the product displays the best picture.
MPEG Noise Filter
Reduces MPEG noise to provide improved picture quality.
•
Off / Low / Medium / High / Auto
HDMI Black Level
Selects the black level on the screen to adjust the screen depth.
•
Normal / Low
―
Available only in HDMI mode (AV Timing : 480p, 576p, 720p, 1080i, 1080p).
57
Page 58
Picture Options
Film Mode
Auto Motion Plus
Dynamic Backlight
-
The displayed image may differ depending on the model.
O
O
O
Film Mode
This mode is suitable to view movies.
Sets the product to automatically sense and process film signals from all sources and adjust the picture for optimum quality.
•
Off / Auto1 / Auto2
―
Available in HDMI(1080i).
Auto Motion Plus (for ED75D models only)
Removes blur and judder from scenes with larger amounts of rapid movement to provide a clearer picture.
The menu names may vary depending on the country.
Off : Switches Auto Motion Plus off.
Clear : Sets Auto Motion Plus to Clear (suitable for viewing moving images clearly) mode.
Standard : Sets Auto Motion Plus to Standard mode.
Smooth : Sets Auto Motion Plus to Smooth (suitable for viewing moving images naturally) mode.
Custom : Use to reduce the afterimage and judder as much as you want.
•
Blur Reduction : Use to reduce the afterimage as much as you want.
-
This is only supported if the Auto Motion Plus is set to Custom.
•
Judder Reduction : Use to reduce the judder as much as you want.
-
This is only supported if the Auto Motion Plus is set to Custom.
•
LED Clear Motion : Make moving images look more clear.
-
This is only supported if the Auto Motion Plus is set to Custom.
•
Reset: Restore Auto Motion Plus settings to default values.
-
The color on screen may vary with this option unintentionally.
-
Disabled when PIP is set to On.
―
This function may differ depending on the model.
Dynamic Backlight
Automatically adjust the backlight to provide the best possible screen contrast under the current conditions.
•
Off / On
―
The Dynamic Backlight is not available when the input source is set to PC while Video Wall is On.
58
Page 59
Picture O
Picture O
Reset Picture
-
The displayed image may differ depending on the model.
The product screen is turned off but the audio will continue. Press any key on your remote to turn the screen back on.
Reset Picture
Picture O
Reset Picture
-
The displayed image may differ depending on the model.
Resets your current picture mode to its default settings.
59
Page 60
Chapter 06
Sound Adjustment
Configure the sound (Sound) settings for the product.
Sound Mode
MENU
-
Sound Sound Mode ENTER
Sound
Sound Mode Standard
Sound Eect
Speaker Settings
Reset Sound
The displayed image may differ depending on the model.
You can select a sound mode to suit your personal preferences.
•
Standard: Selects the normal sound mode.
•
Music: Emphasizes music over voices.
•
Movie: Provides the best sound for movies.
•
Clear Voice: Emphasizes voices over other sounds.
•
Amplify: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired.
―
If Speaker Select is set to External, Sound Mode is disabled.
60
Page 61
Sound Eect
MENU
-
Sound Sound Effect ENTER
Sound
Sound Mode Standard
Sound Eect
Speaker Settings
Reset Sound
The displayed image may differ depending on the model.
Configure your preferred sound effect for output sound.
―
If Speaker Select is set to External, Sound Effect is disabled.
―
Available only when Sound Mode is set to Standard.
•
DTS TruSurround (Off / On)
This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF(Head
Related Transfer Function) technology.
•
DTS TruDialog (Off / On)
This function allows you to increase the intensity of a voice over background music or sound effects so that dialog can be
heard more clearly.
•
Equalizer
Use Equalizer to customize sound setting for each speaker.
-
Balance(L/R): Adjusts the balance between the right and left speaker.
-
100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of specific bandwidth frequencies.
-
Reset: Resets the equalizer to its default settings.
61
Page 62
Speaker Settings
MENU
-
Sound Speaker Settings ENTER
Sound
Sound Mode Standard
Sound Eect
Speaker Settings
Reset Sound
The displayed image may differ depending on the model.
•
Speaker Select (External / Internal / Receiver)
If you are listening to the sound track of a broadcast or movie through an external receiver, you may hear a sound echo
caused by the difference in decoding speed between the products speakers and the speakers attached to your audio
receiver. If this occurs, set the product to External.
―
When you set Speaker Select to External, the products speakers are turned off.
You will hear sound through the external speakers only. When the Speaker Select is set to Internal, both the product
speakers and the external speakers are on. You will hear sound through both.
―
If there is no video signal, both the products speakers and the external speakers will be mute.
Reset Sound
MENU
-
Sound Reset Sound ENTER
Sound
Sound Mode Standard
Sound Eect
Speaker Settings
Reset Sound
The displayed image may differ depending on the model.
Reset all sound settings to the factory defaults.
62
Page 63
Chapter 07
Applications
Source List
Source allows you to select a variety of sources and change source device names.
You can display the screen of a source device connected to the product. Select a
source from Source List to display the screen of the selected source.
―
The input source can also be changed by using the SOURCE button on the
remote control.
―
The screen may not display correctly if an incorrect source is selected for the
source device you want to convert to.
MENU
Applications Source List ENTER
Applications
Source List
Refresh
MENU
If you cannot find a device you want, select Refresh to refresh the list.
Applications Source List TOOLS Refresh ENTER
Edit Name
MENU
Sometimes the screen will not display properly unless the name of a source device is specified in Edit Name.
In addition, it is best to rename the source device in Edit Name to obtain optimal picture quality.
―
The list can include the following source devices. Source devices on the list differ depending on the selected source.
―
Available settings in the Picture menu depend on the current source and settings made in Edit Name.
•
•
•
Applications Source List TOOLS Edit Name ENTER
VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC/ DVI Devices / TV /
IPTV / Blu-ray / HD DVD / DMA
When connecting a PC to the HDMI IN port with HDMI cable, you should set the product to PC mode under Edit Name.
When connecting a PC to the HDMI IN port with HDMI to DVI cable, you should set the product to DVI PC mode under
Edit Name.
When connecting an AV devices to the HDMI IN port with HDMI to DVI cable, you should set the product to DVI Devices
mode under Edit Name.
Information
-
The displayed image may differ depending on the model.
MENU
You can see detailed information about the selected external device.
Applications Source List TOOLS Information ENTER
63
Page 64
Chapter 08
System
Menu Language
MENU
-
The displayed image may differ depending on the model.
System Menu Language ENTER
System
Menu Language English
Multi Control
Time
Eco Solution
Screen Burn Protection
Ticker
O
Set the menu language.
―
A change to the language setting will only be applied to the onscreen menu display. It will not be applied to other functions
on your PC.
64
Page 65
Multi Control
MENU
System Multi Control ENTER
System
Menu Language English
Multi Control
Time
Eco Solution
Screen Burn Protection
Conguring settings for Multi Control
•
ID Setup
Assign an ID to a set. (Range: 0~99)
Press
or to select a number, and press .
•
ID Input
Enter the ID number of the product connected to the input cable for input signal reception.
Enter the number you want using the number buttons on the remote control.
Ticker
-
The displayed image may differ depending on the model.
O
65
Page 66
Time
You can configure Clock Set or Sleep Timer. You can also set the product to automatically turn on or off at a specified time
using the Timer function.
MENU
System Time ENTER
Time
Clock Set
Sleep Timer
-
The displayed image may differ depending on the model.
Clock Set
Set the clock to use the various various timer features of the product.
•
Clock Set
Set the Date and Time.
Select Clock Set. Select Date or Time, and then press
Use the number buttons to enter numbers or press the up and down arrow buttons. Use the left and right arrow buttons
to move from one entry field to the next. Press
―
You can set the Date and Time directly by pressing the number buttons on the remote control.
.
when done.
Sleep Timer
Automatically shuts off the product after a preset period of time.
(Off / 30 min. / 60 min. / 90 min. / 120 min. / 150 min. / 180 min.)
―
Use the up and down arrows to select a period of time, and then press
. To cancel Sleep Timer, select Off.
66
Page 67
Time
On Timer
O Timer
Holiday Management
-
The displayed image may differ depending on the model.
On Timer
Set On Timer so that your product turns on automatically at a time and on a day of your choosing.
The power is turned on with the specified volume or input source.
On Timer: Set the on timer by making a selection from one of the seven options. Ensure you set the current time first.
(On Timer1 ~ On Timer7 )
―
You must set the clock before you can use On Timer.
•
Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual. If you select Manual, you can choose the
days you want On Timer to turn on your product.
―
The check mark indicates days you’ve selected.
•
Time: Set the hour and minute. Use the number buttons or the up and down arrow keys to enter numbers. Use the left
and right arrow buttons to change entry fields.
•
Volume: Set the desired volume level. Use the left and right arrow buttons to change the volume level.
•
Source: Select the input source of your choice.
67
Page 68
Time
On Timer
O Timer
Holiday Management
-
The displayed image may differ depending on the model.
O Timer
Set the off timer (Off Timer) by making a selection from one of the seven options. (Off Timer1 ~ Off Timer7)
―
You must set the clock before you can use Off Timer.
•
Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual. If you select Manual, you can choose the
days you want Off Timer to turn off your product.
―
The check mark indicates days you’ve selected.
•
Time: Set the hour and minute. Use the number buttons or the up and down arrow keys to enter numbers. Use the left
and right arrow buttons to change entry fields.
Holiday Management
Timer will be disabled during a period specified as a holiday.
•
Add: Specify the period you want to add as a holiday.
Select the start and end dates of the holiday you want to add using the
The period will be added to the list of holidays.
-
Start: Set the start date of the holiday.
-
End: Set the end date of the holiday.
-
Delete: Delete all items from the list of holidays.
Select Delete. The message "Delete all holidays?" will appear.
Select Yes. All holidays will be deleted.
•
Apply: Set the On Timer and Off Timer to not activate on public holidays.
-
Press
-
The selected On Timer and Off Timer will not activate.
to select the
On Timer
and
Off Timer
settings you do not want to activate.
/ buttons, and click the Save button.
68
Page 69
Eco Solution
MENU
System Eco Solution ENTER
Energy Saving
Reduce the power consumption by adjusting the screen brightness.
•
Off / Low / Medium / High
Eco Solution
Energy Saving O
Eco Sensor
Auto Power O
-
The displayed image may differ depending on the model.
O
O
Eco Sensor
To enhance your power savings, the picture settings will automatically adapt to the light in the room.
Off / On
•
―
Adjusting the Backlight setting under Picture while Eco Sensor is on will disable the Off.
Min. Backlight: When Eco Sensor is On, you can manually adjust the minimum screen brightness.
•
―
If Eco Sensor is On, the display brightness may change (become slightly darker or brighter) depending on the
surrounding light intensity. You can control the screen’s minimum brightness with the Min. Backlight function.
Auto Power O
The product will automatically turn off if you don’t press a button on the remote or touch a button on product front panel
within 4 hours to prevent overheating.
Off / On
•
69
Page 70
Screen Burn Protection
MENU
System Screen Burn Protection ENTER
Screen Burn Protection
Pixel Shift O
Timer
Immediate Display
Side Gray
O
O
O
To reduce the possibility of screen burn, this unit is equipped with Pixel Shift screen burn prevention technology.
Pixel Shift moves the picture slightly on the screen.
The Pixel Shift Time setting allows you to program the time between movements of the picture in minutes.
Pixel Shift
Minimize image retention by finely moving pixels horizontally or vertically.
•
Horizontal: Sets how many pixels the screen moves horizontally.
•
Vertcal: Sets how many pixels the screen moves vertically.
•
Time: Set the time interval for performing the horizontal or vertical movement, respectively.
Available Pixel Shift Settings and Optimum Settings.
Available Settings Optimum Settings
-
The displayed image may differ depending on the model.
Horizontal
Vertcal
Time
―
The Pixel Shift value may differ depending on the product size (inches) and mode.
―
Displaying a still image or a 4:3 output for an extended period of time may cause image retention. This is not a defect in the
―
This function is not available in the Screen Fit mode.
(pixels)
(minute)
product.
(pixels)
0~4 4
0~4 4
1 min.~4 min. 4 min.
70
Page 71
Screen Burn Protection
Pixel Shift O
Timer
Immediate Display
Side Gray
-
The displayed image may differ depending on the model.
O
O
O
Timer
You can set the timer for Screen Burn Protection.
The Pixel Shift feature stops automatically after a specified period of time.
•
Off
•
Repeat: Display the image retention-preventive pattern set in Mode at specified time intervals(Period).
―
Period and Time can be configured when Repeat is selected.
•
Interval: Display the image retention-preventive pattern set in Mode for a specified period of time (from Start Time to
End Time).
―
The option is enabled only when Clock Set is configured.
•
Mode: Select a screen protective pattern to display.
-
Pixel: Pixels on the screen alternate black continuously.
-
Rolling Bar: A vertical bar moves left to right.
-
Fading Screen: The entire screen becomes brighter, then darker.
―
The Rolling Bar and Fading Screen patterns appear only once regardless of the specified repeat period or time.
•
Period: Specify the time interval to activate the Screen Burn Protection function.
-
Hour 1 ~ Hour 10
―
The option is enabled when Repeat is selected for Timer.
•
Time: Specify the duration to keep the Screen Burn Protection function on.
-
10 sec ~ 50 sec
―
The option is enabled when Pixel is selected for Mode.
•
Start Time: Set the start time to activate the screen protection function.
―
The option is enabled when Interval is selected for Timer.
•
End Time: Set the end time to deactivate the screen protection function.
―
The option is enabled when Interval is selected for Timer.
71
Page 72
Screen Burn Protection
Pixel Shift O
Immediate Display
Select the screen saver you want to display immediately.
•
Off / Pixel / Rolling Bar / Fading Screen
Timer
Immediate Display
Side Gray
-
The displayed image may differ depending on the model.
O
O
O
Side Gray
When the screen is set to 4:3 aspect ratio, adjust the brightness of white margins on sides to protect the screen.
•
Off / Light / Dark
72
Page 73
Ticker
MENU
-
The displayed image may differ depending on the model.
-
The Ticker function is only available when Menu Language is set to English.
System Ticker ENTER
System
Screen Burn Protection
Ticker
Video Wall
Source AutoSwitch Settings
Input text while a video or image is displayed and display the text on the screen.
•
Off / On
―
Message, Time, Position, Motion, and Font Style are enabled only when Ticker is set to On.
•
Message: Enter a message to display on the screen.
•
Time: Set the Start Time and End Time to display a Message.
Position: Select an orientation to display a Message from Horizontal and Vertical.
•
-
Horizontal (Left / Center / Right)
-
Vertical (Up / Middle / Down)
•
Motion: Specify the Direction and Speed to display a Message.
-
Motion (Off / On)
-
Direction (Left / Right / Up / Down)
-
Speed (Slow / Normal / Fast)
―
Direction and Speed are enabled only when Motion is set to On.
Font Style: Specify the message Size and Font Color.
•
73
Page 74
Video Wall
Customize the layout of multiple displays that are connected to form a video wall.
In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays.
MENU
System Video Wall ENTER
Video Wall
Video Wall On
·
Format
·
Horizontal
·
Vertical
·
Screen Position
-
The displayed image may differ depending on the model.
-
Some models may not support the MagicInfo function.
-
The Video Wall option is only enabled when PIP is set to O.
-
If more than four displays are connected horizontally and vertically, it is recommended that
you use an input resolution of XGA (1024 x 768) level or higher to prevent a dark picture due
to degradation in the contrast or color intensity.
Full
1
1
Video Wall
You can activate or deactivate Video Wall.
To organize a video wall, select On.
Format
Select a format to display images on multiple displays.
•
Full: Display images in full screen.
•
Natural: Display images at the original resolution without enlarging or reducing.
―
The Format option is only enabled when Video Wall is set to On.
Horizontal
This function automatically divides the screen according to the specified number of horizontal displays.
Enter the number of horizontally arranged displays.
The horizontal screen will automatically be divided according to the number entered.
A maximum of 15 displays can be assigned to the horizontal arrangement.
―
The screen can be divided into a maximum of 100 screens (horizontal and vertical screens multiplied). For example, if the
horizontal arrangement is set to 15, a maximum of 6 displays can be assigned to the vertical arrangement. Conversely, if the
vertical arrangement is set to 15, a maximum of 6 displays can be assigned to the horizontal arrangement.
―
The Horizontal option is only enabled when Video Wall is set to On.
74
Page 75
Video Wall
Video Wall On
·
Format
Horizontal
·
Vertical
·
Screen Position
·
-
The displayed image may differ depending on the model.
Full
Vertical
This function automatically divides the screen according to the specified number of vertical displays.
Enter the number of vertically arranged displays.
The vertical screen will automatically be divided according to the number entered.
A maximum of 15 displays can be assigned to the vertical arrangement.
1
1
―
The screen can be divided into a maximum of 100 screens (horizontal and vertical screens multiplied). For example, if the
horizontal arrangement is set to 15, a maximum of 6 displays can be assigned to the vertical arrangement. Conversely, if the
vertical arrangement is set to 15, a maximum of 6 displays can be assigned to the horizontal arrangement.
―
The Vertical option is only enabled when Video Wall is set to On.
Screen Position
You can customize the arrangement of split screens by moving displays identified with a number using the Screen Position
function.
Select Screen Position to display the arrangement of displays (identified with a number) specified according to the
Horizontal or Vertical settings. To customize the arrangement, move a number (display) using the direction buttons on the
remote control and press
―
A maximum of 100 displays can be arranged in Screen Position.
―
The Screen Position option is only enabled when Video Wall is set to On.
―
The Screen Position window is only displayed when Horizontal and Vertical are configured.
.
75
Page 76
Source AutoSwitch Settings
Turning on the display with Source AutoSwitch On, and the previous video source selection is not active, the display will
automatically search the different video input sources for active video.
MENU
System Source AutoSwitch Settings ENTER
Source AutoSwitch Settings
Source AutoSwitch On
·
Primary Source Recovery
·
Primary Source
·
Secondary Source
-
The displayed image may differ depending on the model.
O
All
PC
Source AutoSwitch
When the Source AutoSwitch is On, the display video source will automatically be searched for active video.
The Primary Source selection will be activated, if the current video source is not recognized.
Secondary Source selection will become active, if no primary video source is available.
If both the primary and secondary input sources are not recognized, the display will perform two searches for an active source,
each search checking the primary and then secondary source. If both searches fail, the display will return to the first video
source and display a message indicating that there is no signal.
When the Primary Source selection is set to All, the display will search all the video source inputs twice in sequence looking
for an active video source, returning back to the first video source in the sequence if no video is found.
Primary Source Recovery
Select whether to restore the selected primary input source when a primary input source is connected.
―
The Primary Source Recovery function is disabled if Primary Source is set to All.
Primary Source
Specify Primary Source for the automatic input source.
Secondary Source
Specify Secondary Source for the automatic input source.
76
Page 77
Change PIN
MENU
-
The displayed image may differ depending on the model.
System Change PIN ENTER
System
Change PIN
The Change PIN screen will appear.
Choose any 4 digits for your PIN and enter it in Enter New PIN. Reenter the same 4 digits in Confirm New PIN.
When the Confirm screen disappears, press the Close button. The product has memorized your new PIN.
77
Page 78
Caption
MENU
-
The displayed image may differ depending on the model.
System Caption ENTER
Caption
Caption On
·
Caption Mode
·
Digital Caption Options
Default
Caption
You can switch the caption function on or off.
If captions are not available, they will not be displayed on the screen.
•
Off / On
―
The Caption feature does not work with devices connected to the product through the Component, HDMI, DVI or PC
input jacks.
Caption Mode
You can select the desired caption mode.
―
The availability of captions depends on the program being Broadcasted.
•
Default / CC1 ~ CC4 / Tex t1 ~ Tex t4: The analog Caption function operates in either analog product channel mode or
when a signal is supplied from an external device to the product.
(Depending on the Broadcasting signal, the analog Caption function may or may not work with digital channels.)
78
Page 79
Caption
Caption On
·
Caption Mode
·
Digital Caption Options
-
The displayed image may differ depending on the model.
Default
Digital Caption Options
(digital channels only)
Configure the subtitle settings such as size and color.
Adjusts the each option. When done, select Close.
•
Size: Options include Default, Small, Standard and Large. The default is Standard.
•
Font Color: You can change the color of the letters. Options include Default, White, Black, Red, Green, Blue, Yellow,
Magenta and Cyan. The default is White.
•
Background Color: You can change the background color of the caption. Options include Default, White, Black, Red,
Green, Blue, Yellow, Magenta and Cyan. The default is Black.
•
Font Opacity: This adjusts the opacity of text. Options include Default, Transparent, Translucent, Solid and Flashing.
•
Background Opacity: This adjusts the opacity of the caption background. Options include Default, Transparent,
Translucent, Solid and Flashing.
―
You cannot set both the Font Color and the Background Color to the same color.
79
Page 80
General
MENU
System General ENTER
General
Max. Power Saving On
Game Mode
Auto Power
Safety Lock
Button Lock
O
O
O
O
Max. Power Saving
Turns off the product to reduce power consumption after the PC has been left idle for a specified period of time.
•
Off / On
―
Available only PC, DVI, HDMI mode.
Game Mode
When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by
selecting game mode.
•
Off / On
―
Precautions and limitations for Game Mode
To disconnect the game console and connect another external device, set Game Mode to Off in the setup menu.
―
Game Mode is not available when the input source is set to PC.
―
If Game Mode is On. Picture Mode is set to Standard and Sound Mode is set to Movie.
Standby Control
Lamp Schedule
-
The displayed image may differ depending on the model.
O
O
Auto Power
Enabling this option will automatically power on the product if the power cable is connected.
•
Off / On
Safety Lock
It sets safe lock function.
•
Off / On
All the menus and buttons of the product and remote control, except for the LOCK button on the remote control, will be
locked by the Safety Lock function.
To unlock the menus and buttons, press the LOCK button and then enter the password (default password: 0 - 0 - 0 - 0).
80
Page 81
General
Max. Power Saving
Game Mode
On
O
Button Lock
This menu can be used to lock the buttons on the product.
Only the remote control can control the product if Button Lock is set to On.
•
Off / On
Auto Power
Safety Lock
Button Lock
Standby Control
Lamp Schedule
-
The displayed image may differ depending on the model.
O
O
O
O
O
Standby Control
You can set the screen standby mode to be applied when an input signal is received.
•
Auto
Power-saving mode will activate if no input signals are detected even though a source device is connected to the display.
The message No Signal will appear if no source device is connected.
•
On
Power-saving mode will activate if no input signals are detected.
•
Off
The message No Signal will appear if no input signals are detected.
―
The Standby Control option is only enabled when Source List is set to PC, DVI, HDMI.
―
If No Signal is displayed although a source device is connected, check the cable connection.
Lamp Schedule
Adjusts the luminance to a user-specified value at a specified time.
•
Off / On
81
Page 82
General
OSD Display
OSD Display
Displays or hides a menu item on the screen.
―
Source OSD / No Signal OSD / MDC OSD
Power On Adjustment
Temperature Control
-
The displayed image may differ depending on the model.
0 sec
77
Power On Adjustment
You can set the warm-up time for the screen to turn on after the power button is pressed. (Range: 0 – 50 seconds)
―
A warm-up time that is too short may damage the product due to overvoltage.
Temperature Control
This function detects the internal temperature of the product. You can specify the temperature range that is acceptable.
The default temperature is set to 77 C.
The recommended operating temperature for this product is 75 to 80 C (based on an ambient temperature of 40 C).
―
The screen will become darker if the current temperature exceeds the specified temperature limit. If the temperature
continues to rise, the product will power off to prevent overheating.
82
Page 83
Anynet+ (HDMI-CEC)
MENU
-
The displayed image may differ depending on the model.
-
The Anynet+ (HDMI-CEC) functions do not operate with other manufacturers’ products.
-
For instructions explaining how to connect Anynet+ external devices, refer to the device’s user
manual.
-
You can connect only one receiver (home theater).
System Anynet+ (HDMI-CEC) ENTER
Anynet+ (HDMI-CEC)
Anynet+ (HDMI-CEC)
Auto Turn O
On
Yes
Anynet+ (HDMI-CEC)
Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung
product remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your
Samsung device has this feature, check if there is an Anynet+ logo on it.
―
You can only control Anynet+ devices using the product remote control, not the buttons on the product.
―
The product remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device.
―
Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.
―
While in PIP mode, Anynet+ functions only when an AV device is connected as the primary display. It does not work if the
AV device is connected as a secondary display.
―
Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.
Anynet+ Menu
The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the product.
Anynet+ Menu Description
View PC
Device List
Changes Anynet+ mode to PC mode.
Shows the Anynet+ device list.
(device_name) MENU
(device_name) Tools
(device_name) Title Menu
Shows the menu of the connected device menus. E.g. if a DVD player is connected,
the disc menu of the DVD player will appear.
Shows the tools menu of the connected device. E.g. if a DVD player is connected, the
tools menu of the DVD player will appear.
―
Depending on the device, this menu may not be available.
Shows the title menu of the disc in the connected device. E.g. If a DVD player is
connected, the title menu of the movie in the DVD player will appear.
―
Depending on the device, this menu may not be available.
83
Page 84
Anynet+ (HDMI-CEC)
Anynet+ (HDMI-CEC)
Auto Turn O
-
The displayed image may differ depending on the model.
On
Yes
Auto Turn O
Setting an Anynet+ Device to turn Off automatically when the product is turned off.
•
No / Yes
―
If Auto Turn Off is set to Yes, running external devices will turn off at the same time as the product powers off.
―
May not be enabled depending on the device.
Switching between Anynet+ Devices
Press the TOOLS button, select Anynet+ (HDMI-CEC), and then press .
1
Select Device List, and then press the button.
2
If you cannot find a device you want, select Refresh to refresh the list.
Select a device, and then press the button. You can switch to the selected device.
3
―
The Device List menu appears only when you set Anynet+ (HDMI-CEC) to On in the System menu.
―
Switching to the selected device may take up to 2 minutes. You cannot cancel the switching operation while switching is in
progress.
―
If you have selected an Anynet+ device by pressing the SOURCE button and then selecting its input source, you cannot use
the Anynet+ function.
―
Make sure to switch to an Anynet+ device by using the Device List.
84
Page 85
Troubleshooting for Anynet+
Problem Possible Solution
•
Anynet+ does not work.
Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.
•
You can connect only one receiver (home theater).
•
Check if the Anynet+ device power cord is properly connected.
•
Check the Anynet+ device’s Video/Audio/HDMI cable connections.
•
Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+setup menu.
•
Check whether the remote control is Anynet+ compatible.
•
Anynet+ doesn’t work in certain situations. (initial setup)
•
If you have removed and then reconnected the HDMI cable, please make sure to search devices again or turn your product
off and on again.
•
Check if the Anynet+ function of the Anynet device is set on.
I want to start Anynet+.
I want to exit Anynet+.
The message “Connecting to
Anynet+ device ...” appears on the
screen.
The Anynet+ device does not
play.
•
Check if the Anynet+ device is properly connected to the product and check if the Anynet+ (HDMI-CEC) is set to On in the
Anynet+ System menu.
•
Press the TOOLS button to display the Anynet+ menu and select a menu you want.
•
Select View PC in the Anynet+ menu.
•
Press the SOURCE button on the product remote control and select a non- Anynet+ device.
•
You cannot use the remote control when you are configuring Anynet+ or switching to a view mode.
•
Use the remote control after the product has completed Anynet+ configuration or has finished switching to Anynet+.
•
You cannot use the play function when initial setup is in progress.
85
Page 86
Problem Possible Solution
•
The connected device is not
displayed.
Check whether or not the device supports Anynet+ functions.
•
Check whether or not the HDMI cable is properly connected.
•
Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ System menu.
•
Search Anynet+ devices again.
•
Anynet+ requires an HDMI connection. Make sure the device is connected to your product with an HDMI cable.
•
Some HDMI cables may not support Anynet+ functions.
•
If the connection is terminated because there has been a power failure or the HDMI cable has been disconnected, please
repeat the device scan.
86
Page 87
Magic Clone
MENU
-
The displayed image may differ depending on the model.
System Magic Clone ENTER
Magic Clone
Clone to USB
Clone From USB
Export the product settings to a USB device or load the settings via a USB device.
This option is useful when assigning the same settings to several products.
•
Clone to USB: Copy the product settings to a USB device.
•
Clone From USB: Assign the settings saved in a USB device to the product.
-
After configuration is complete, the product is rebooted automatically.
―
The option may not work properly if the USB device contains a file other than a settings file.
―
Confirm that the USB device functions properly before running the option.
―
The option is available for products with the same Model Code and Software Version.
Go to Support
Contact Samsung and find the product Model Code and Software Version.
Reset System
MENU
-
The displayed image may differ depending on the model.
System Reset System ENTER
System
Reset System
This option returns the current settings under system to the default factory settings.
87
Page 88
Reset All
This option returns all the current settings for a display to the default factory settings.
MENU
System Reset All ENTER
System
Reset All
-
The displayed image may differ depending on the model.
88
Page 89
Chapter 09
Support
Software Update
MENU
The Software Update menu lets you upgrade your product software to the latest version.
―
―
Support Software Update ENTER
Be careful not to turn off the power until the upgrade is complete. The product will turn off and on automatically after completing the software upgrade.
When you upgrade software, all video and audio settings you have made will return to their default settings. We advise you to write down your settings so that you can
easily reset them after the upgrade.
By USB
To perform a software update from a USB device, contact the customer service center.
Contact Samsung
MENU
View this information when your product does not work properly or when you want to upgrade the software.
You can find information regarding our call centers and how to download products and software.
―
Support Contact Samsung ENTER
Contact Samsung and find the product Model Code and Software Version.
89
Page 90
Chapter 10
Troubleshooting Guide
Requirements Before Contacting Samsung Customer Service Center
Before calling Samsung Customer Service
Center, test your product as follows. If
the problem persists, contact Samsung
Customer Service Center.
If the screen remains blank, check the PC
system, video controller and cable.
Testing the Product
Check if your product is operating normally by using the product test function.
If the screen remains blank while the power LED blinks even when the product is correctly connected to a PC, perform product testing.
Power off both the PC and product.
1
Disconnect all the cables from the product.
2
Power on the product.
3
If No Signal is displayed, the product is operating normally.
4
Checking the Resolution and Frequency
Not Optimum Mode will briefly be displayed if a mode that exceeds a supported resolution is selected
(refer to Supported Resolutions).
90
Page 91
Check the followings.
Installation issue (PC mode)
The screen keeps switching on and o.
Blank spaces are found on all four sides of the screen when
an HDMI or HDMI-DVI cable is connected to the product and
PC.
PC is shown in Source when a PC is not connected. PC
Check the cable connection between the product and PC, and ensure the connection is secure.
The blank spaces found on the screen have nothing to do with the product.
Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the
screen size in the HDMI or DVI settings for the graphics card.
If the graphics card settings menu does not have an option to adjust the screen size, update the
graphics card driver to the latest version.
(Please contact the graphics card or computer manufacturer for further details about how to adjust
the screen settings.)
Screen issue
The power LED is o. The screen will not switch on.
No Signal
a PC").
Not Optimum Mode
is displayed on the screen (refer to "Connecting to
is displayed.
Make sure that the power cord is connected.
Check that the product is connected correctly with a cable.
Check that the device connected to the product is powered on.
This message is displayed when a signal from the graphics card exceeds the product's maximum
resolution and frequency.
is always shown in
Source
irrespective of whether or not a PC is connected.
The images on the screen look distorted.
Refer to the Standard Signal Mode Table and set the maximum resolution and frequency according to
the product specifications.
Check the cable connection to the product.
91
Page 92
Screen issue
The screen is not clear. The screen is blurry.
The screen appears unstable and shaky.
There are shadows or ghost images left on the screen.
The screen is too bright. The screen is too dark.
Screen color is inconsistent.
White does not really look white.
There is no image on the screen and the power LED blinks
every 0.5 to 1 second.
The product will turn o automatically.
Adjust Coarse and Fine.
Remove any accessories (video extension cable, etc) and try again.
Set the resolution and frequency to the recommended level.
Check that the resolution and frequency of the PC and graphics card are set within a range compatible
with the product. Then, change the screen settings if required by referring to the Additional
Information on the product menu and the Standard Signal Mode Table.
Adjust Brightness and Contrast.
Go to Picture and adjust the Color Space settings.
Go to Picture and adjust the White Balance settings.
The product is in power-saving mode.
Press any key on the keyboard or move the mouse to return to the previous screen.
Go to System and make sure Sleep Timer is set to Off.
If a PC is connected to the product, check the power status of the PC.
Make sure the power cable is connected properly to the product and power outlet.
Picture quality of the product is dierent from the dealer
shop where it was purchased.
If the signal from a connected device is not detected, the product automatically turns off after 10 to 15
minutes.
Use an HDMI cable to obtain high-definition (HD) picture quality.
92
Page 93
Screen issue
The screen display does not look normal.
The brightness and color do not look normal.
Broken lines are displayed on the edges of the screen.
Lines (red, green or blue) are displayed on the screen.
The display looks unstable and then freezes.
Encoded video content may cause the display to appear corrupted in scenes featuring fast moving
objects such as in a sports event or action video.
Low signal level or low picture quality may cause the display to appear corrupted. This does not mean
the product is defective.
A cell phone within a distance of one-meter radius may cause static on analog and digital products.
Go to Picture and adjust the screen settings such as Picture Mode, Color, Brightness and
Sharpness.
―
Refer to page 46 for details about the Picture menu.
Go to System and adjust the Energy Saving settings.
―
Refer to page 69 for details about the System menu.
Reset the screen settings to the default settings.
―
Refer to page 59 for details about the Reset Picture menu.
If Picture Size is set to Screen Fit, change the setting to 16:9.
These lines are displayed when there is a defect in DATA SOURCE DRIVER IC on the monitor. Contact a
Samsung Service Center to resolve the issue.
The screen may freeze when a resolution other than the recommended resolution is used or if the
signal is not stable. To resolve the issue, change the PC resolution to the recommended resolution.
The screen cannot be displayed in full screen.
A scaled SD (4:3) content file can cause black bars on both sides of an HD channel screen.
A video with an aspect ratio different from the product can cause black bars at the top and bottom of
the screen.
Change the screen size setting to full screen on the product or source device.
93
Page 94
Sound issue
There is no sound.
The volume is too low.
Video is available but there is no sound.
Check the connection of the audio cable or adjust the volume.
Check the volume.
Adjust the volume.
If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound
card or software program.
If an HDMI cable is connected, check the audio output settings on the PC.
Go to Sound and change Speaker Select to Internal.
If a source device is used
•
Make sure the audio cable is properly connected to the audio input port on the product.
•
Check the audio output settings for the source device.
(For example, if an HDMI cable is connected to the monitor, the audio setting for the cable box
may need to be changed to HDMI.)
If a DVI-HDMI cable is used, a separate audio cable is required.
If the product has a headphone port, make sure nothing is connected to it.
Reconnect the power cable to the device and then reboot the device.
There is static coming from the speakers.
Check the cable connection. Make sure a video cable is not connected to an audio input port.
Check the signal strength after connecting a cable.
Low signal level can cause corrupted sound.
94
Page 95
Sound issue
There is audible sound when the volume is muted.
Sound from the monitor does not change after Sound Mode
is changed.
There is an echo sound coming from the speakers.
Remote control issue
The remote control does not work.
When Speaker Select is set to External, the volume button and mute function are disabled.
Adjust the volume for the external speakers.
Audio settings for main speakers are separate from the internal speakers on the product.
Changing or muting the volume on the product does not affect an external amplifier(decoder).
Audio settings for main speakers are separate from the internal speakers on the product.
Audio settings on a source device do not affect the internal speaker settings on the product.
Different decoding speeds between the product speakers and external speakers can cause an echo.
In this case, set Speaker Select to External.
Make sure that the batteries are correctly in place (+/-).
Check if the batteries are flat.
Check for power failure.
Make sure that the power cord is connected.
Source device issue
A beeping sound is heard when my PC is booting.
Check for any special lighting or neon signs switched on in the vicinity.
If a beeping sound is heard when your PC is booting, have your PC serviced.
95
Page 96
Other issue
Caption is grayed out and not selectable.
Small particles are found on the edges of the product.
The PIP menu is not available.
When I try to change the PC resolution, a message "The
dened resolution is not currently supported." appears.
There is no sound from the speakers in HDMI mode when a
DVI-HDMI cable is connected.
HDMI Black Level is not functioning properly on an HDMI
device with YCbCr output.
There is no sound in HDMI mode.
Caption can be enabled from a source device.
―
Refer to page 78 for details about the Caption menu.
The particles are part of the product design. The product is not defective.
The menu is enabled or disabled depending on the Source mode.
―
Refer to page 53 for details about the
The message "
resolution exceeds the maximum resolution of the display.
To resolve the issue, change the PC resolution to a resolution supported on the display.
DVI cables do not transmit sound data.
Make sure to connect the audio cable to the correct input jack to enable audio.
This function is available only when a source device, such as a DVD player and STB, is connected to the
product via an HDMI (RGB signal) cable.
Displayed picture colors may not look normal. Video or sound may not be available. This can occur if a
source device that only supports an older version of the HDMI standard is connected to the product.
If these issues occur, connect an audio cable along with the HDMI cable.
Some PC graphics cards may not automatically recognize HDMI signals that do not include sound. In
this case, manually select a sound input.
The dened resolution is not currently supported.
PIP
menu.
" appears if the input source
Sound input Screen mode
PC Auto PC settings
DVI PC Audio In(Stereo
ports) PC settings
96
Page 97
Other issue
The IR sensor is not functioning.
Make sure the sensor light turns on when a button is pressed on the remote control.
•
If the sensor light does not turn on, turn the power switch off and then on again on the back of
the product.
(The power LED lights up red when the screen is switched off.)
If the sensor light still does not turn on after the power switch is turned off and then on again, an
internal jack may be disconnected.
Contact your nearest service center to have the product serviced.
•
If the sensor light that is on does not flash red when a button is pressed on the remote control,
the IR sensor may be defective.
Contact your nearest service center to have the product serviced.
•
If there is no change on the screen when a button is pressed on the remote control although the
sensor light flashes red, the mainboard may be defective.
Contact your nearest service center to have the product serviced.
97
Page 98
Q & A
Question Answer
Refer to the user manual for your PC or
graphics card for further instructions on
adjustment.
How can I change the frequency?
How can I change the resolution?
Set the frequency on your graphics card.
•
Windows XP: Go to Control Panel → Appearance and Themes → Display → Settings →
Advanced → Monitor and adjust the frequency in Monitor Settings.
•
Windows ME/2000: Go to Control Panel → Display → Settings → Advanced → Monitor and
adjust the frequency in Monitor Settings.
•
Windows Vista: Go to Control Panel → Appearance and Personalization → Personalize →
Display Settings → Advanced Settings → Monitor and adjust the frequency in Monitor
Settings.
•
Windows 7: Go to Control Panel → Appearance and Personalization → Display → Adjust
resolution → Advanced Settings → Monitor and adjust the frequency in Monitor Settings.
•
Windows 8: Go to Settings → Control Panel → Appearance and Personalization → Display
Adjust resolution → Advanced Settings → Monitor and adjust the frequency in Monitor
→
Settings.
•
Windows XP: Go to Control Panel → Appearance and Themes → Display → Settings and
adjust the resolution.
•
Windows ME/2000: Go to Control Panel → Display → Settings and adjust the resolution.
•
Windows Vista: Go to Control Panel → Appearance and Personalization → Personalize →
Display Settings and adjust the resolution.
•
Windows 7: Go to Control Panel → Appearance and Personalization → Display → Adjust
Resolution and adjust the resolution.
•
Windows 8: Go to Settings → Control Panel → Appearance and Personalization → Display
Adjust Resolution and adjust the resolution.
→
98
Page 99
Question Answer
•
How do I set powersaving mode?
Windows XP: Set power-saving mode in Control Panel → Appearance and Themes → Display
→
•
Windows ME/2000: Set power-saving mode in Control Panel → Display → Screen Saver
Settings or BIOS SETUP on the PC.
•
Windows Vista: Set power-saving mode in Control Panel → Appearance and Personalization
→
•
Windows 7: Set power-saving mode in Control Panel → Appearance and Personalization →
Personalize → Screen Saver Settings or BIOS SETUP on the PC.
•
Windows 8: Set power-saving mode in Settings → Control Panel → Appearance and
Personalization → Personalize → Screen Saver Settings or BIOS SETUP on the PC.
Screen Saver Settings or BIOS SETUP on the PC.
Personalize → Screen Saver Settings or BIOS SETUP on the PC.
99
Page 100

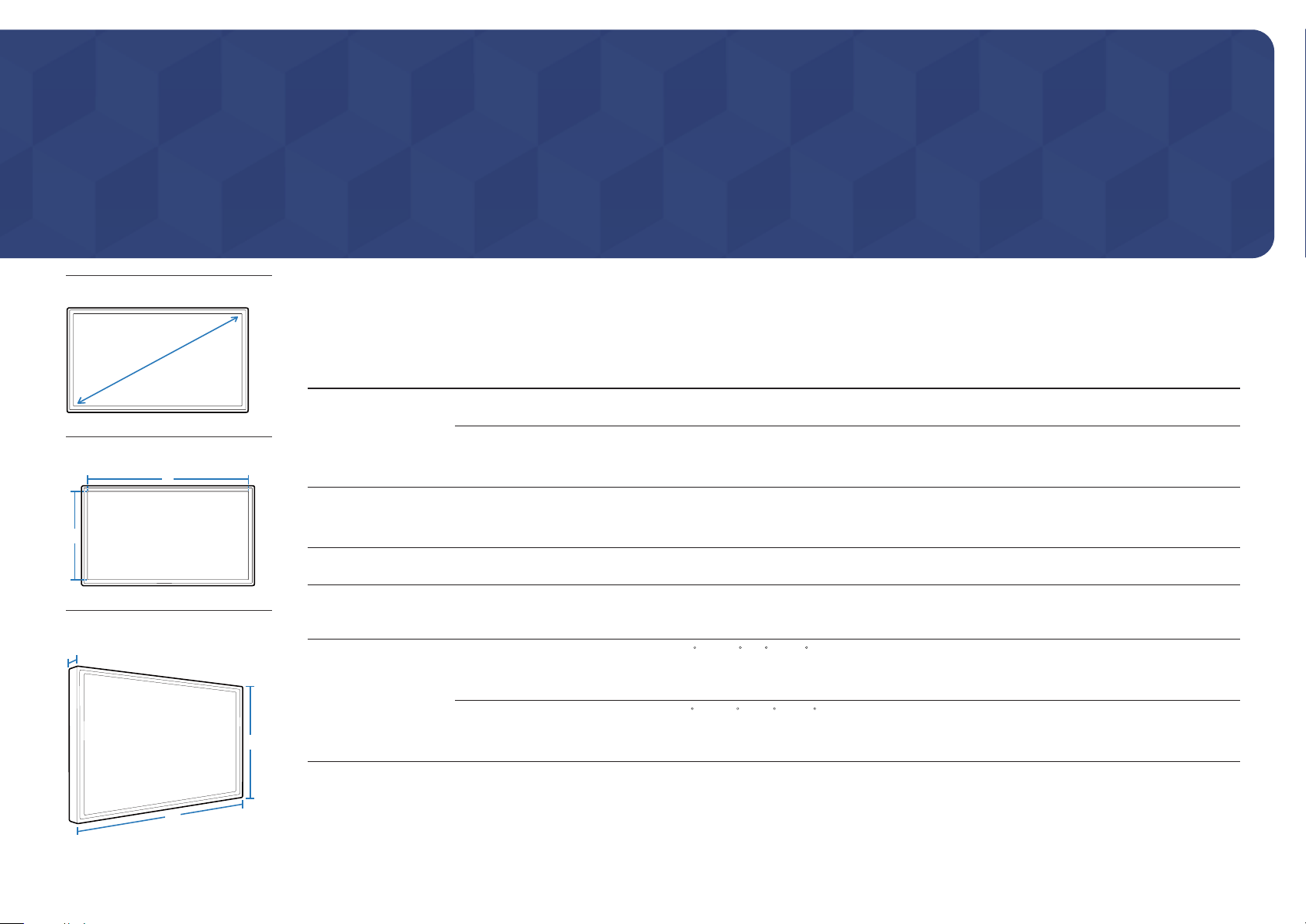

Chapter 11
Specications
-
Size
General
Model Name ED65D ED75D
-
Display area
V
-
Dimensions (W x H x D)
D
Panel Size
Display area
H
Dimensions (W x H x D)
Weight (without stand)
Power Supply
Environmental
considerations
H
W
Operating
Storage
65 Class (64.5 inches / 163 cm) 75 Class (74.5 inches / 189 cm)
1428.48 (H) x 803.52 (V ) mm
56.24 (H) x 31.63 (V ) inches
1467.4 x 848.0 x 64.9 mm
57.8 x 33.4 x 2.6 inches
26.8 kg / 59.1 lbs 28.8 kg / 63.5 lbs
This product uses 100 to 240V. Refer to the label at the back of the product as the standard voltage can vary in
different countries.
Temperature : 32 F – 104 F (0 C – 40 C)
Humidity : 10 % – 80 %, non-condensing
Temperature : -4 F – 113 F (-20 C – 45 C)
Humidity : 5 % – 95 %, non-condensing
1650.24 (H) x 928.26 (V ) mm
64.97 (H) x 36.55 (V ) inches
1675.0 x 959.1 x 64.8 mm
65.9 x 37.8 x 2.6 inches
100
