Samsung EC-SL30ZBBA-US User Manual

Instructions

Getting to Know your camera

Use this camera in the following order.

Setting up the application software

Take a picture

Insert the USB cable

Check the camera's power

Check [Removable Disk]

To use this camera with a PC, install the application software ﬁ rst. After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program. (p.84)

Take a picture. (p.19)

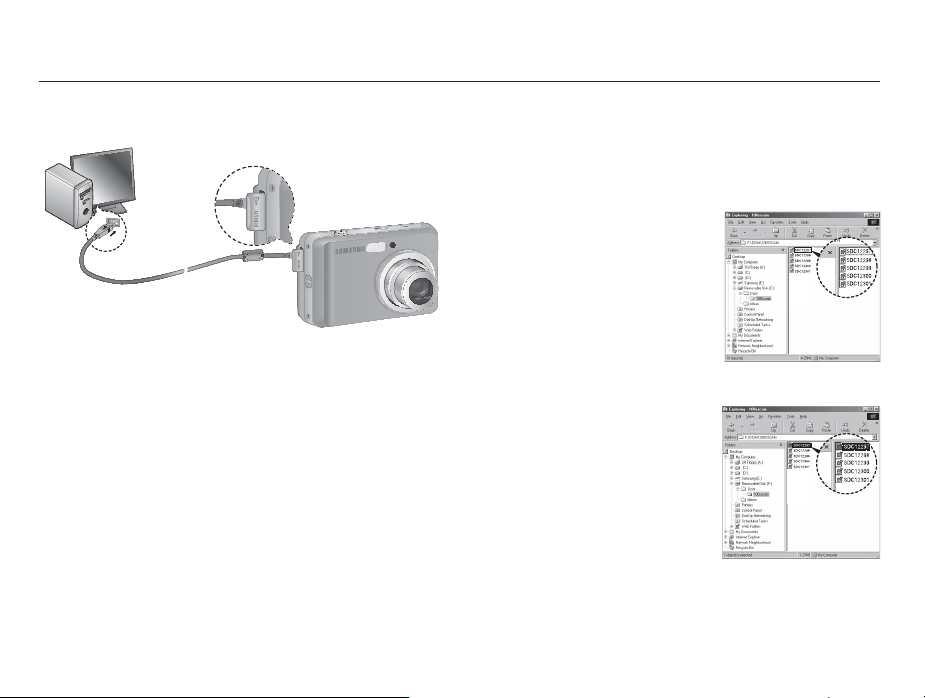

Insert the supplied USB cable into the PC’s USB port and the camera’s USB connection terminal. (p.86)

Check the camera’s power. If the power is turned off, preset the camera button to turn it on.

Open Windows’s EXPLORER and search for [Removable Disk]. (p.87)

Thank you for buying a Samsung Digital Camera.



Prior to using this camera, please read the user manual thoroughly.



If you require After Sales service, please bring the camera and the cause of the camera malfunction (such as battery, Memory card etc.) to the A/S centre.



Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung takes no responsibility for any loss or damage that may result from camera malfunction.



Keep this manual in a safe place.



If you use a card reader to copy the images on the memory card to your PC, the images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer holds no responsibility for loss or damage of images on the memory card due to the use of a card reader.



The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions.

Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries.

Adobe and Reader are either trademarks or registered trademarks in the United States and/or other countries.

All brand and product names appearing in this manual are registered trademarks of their respective companies.

Danger

Warning

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.



Do not attempt to modify this camera in any way. To do so may

result in ﬁ re, injury, electric shock or severe damage to you or your camera. internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre.



Please do not use this product in close proximity to ﬂ ammable or

explosive gases, as this could increase the risk of explosion.



Should any form of liquid or a foreign object enter the camera,

do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a ﬁ re or electric shock.



Do not insert or drop metallic or inﬂ ammable foreign objects into

the camera through access points e.g. the memory card slot and battery chamber. This may cause a ﬁ re or electric shock.



Do not operate this camera with wet hands. This could pose a

risk of electric shock.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.



Do not use the ﬂ ash in close proximity to people or animals.

Positioning the ﬂ ash too close to your subject’s eyes may cause eyesight damage.



For safety reasons keep this product and accessories out of

reach of children or animals to prevent accidents e.g.:

- Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately.

- There is the possibility of injury from the camera’s moving parts.



Battery and camera may become hot during prolonged use and it

may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.



Do not leave this camera in places subject to extremely high

temperatures, such as a sealed vehicle, direct sunlight or other places of extremes in temperature. Exposure to extreme temperatures may adversely affect the camera’s internal components and could cause a ﬁ re.



When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a ﬁ re. Always use the camera and its accessories in a well-ventilated area.

Caution

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.



Leaking, overheating, or damaged battery could result in ﬁ re or

injury.

- Use battery with the correct speciﬁ cation for the camera.

- Do not short circuit, heat or dispose of battery in ﬁ re.

- Do not insert the battery with the polarities reversed.



Remove the battery when not planning to use the camera for a

long period of time. Otherwise the battery may leak corrosive electrolyte and permanently damage the camera’s components.



Do not ﬁ re the ﬂ ash while it is in contact with hands or objects. Do

not touch the ﬂ ash after using it continuously. It may cause burns.



Do not move the camera while it is switched on, if you are using

the AC adapter. After use, always switch off the camera before unplugging the cable from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a ﬁ re or electric shock.



Take care not to touch the lens or lens cover to avoid taking an

unclear image and possibly causing camera malfunction.



Avoid obstructing the lens or the ﬂ ash when you capture an image.



When using this camera in low temperatures, you may experience

the following. These are not camera malfunctions and usually recover at normal temperature.

- It takes longer to turn on the LCD monitor and the colour may differ from the subject.

- When changing the composition, there may be an after image on the LCD monitor.



Credit cards may be demagnetized if left near case. Avoid leaving

magnetic strip cards near the case.



Using an AC adapter that doesn’t match with the camera speciﬁ - cation may cause camera malfunction. We recommend supplied battery or exclusive rechargeable battery.

Available AC adapter :



After turning on the camera, Check whether the battery type and the camera setting set on the [Settings] > [Battery Type] menu (p. 52) are same.

Voltage: 3.3V, Ampere: 2.0A, Diameter: 2.35

Contents

READY

RECORDING

007 System chart

007 Package Contents

007 Sold Separately

008 Identiﬁ cation of features

008 Front & Top

009 Back

010 Bottom

010 5 Function button

011 Self-timer lamp

011 Camera Status Lamp

011 Mode icon

012 Connecting to a Power Source

013 Inserting the memory card

014

Instructions on how to use the memory card

016

When using the camera for the ﬁ rst time

017 LCD monitor indicator

018 How to use the menu

019 Starting the recording mode

019 Selecting modes

019 How to use the Auto mode

020 How to use the Program mode

020 How to use the DIS mode

021 Using the Photo Help Guide mode

022 How to use the Scene modes

023 How to use the Movie clip mode

Recording the movie clip without sound

023

023 Pausing while recording a movie clip

(Successive Recording)

024 Things to Watch Out for When Taking

Pictures

Using the camera buttons to set the camera

025

025 POWER button

025 SHUTTER button

025 ZOOM button

027 Info (DISP) / Up button

027 Macro / Down button

029 Focus lock

029 Flash / Left button

031 Self-timer / Right button

033 MENU button

033 OK button

033 Functions

How to Enable Functions Using the

034

MENU Button

034 Exposure compensation

035 White balance

036 ISO

036 Face Detection

038 Face Tone

Contents

SETUP

038 Face Retouch

038 Image Size

039 Quality / Frame rate

039 Metering

040 Drive mode

040 Auto Focus type

041 Photo Style Selector

042 Image Adjust

043 Voice Memo

043 Voice Recording

Recording the movie clip without voice

044

045 Sound menu

045 Sound

045 Volume

045 Start up sound

045 Shutter sound

045 Beep Sound

046 AF sound

046 Self Portrait

046 Setup menu

046 Display

046 Language

046 Function Description

047 Start up image

047 Display Bright

047 Quick view

047 Display SAVE

048 Settings

048 Formatting a memory

048 Initialisation

049 Setting up the Date / Time / Date type

049 Time Zone

049 File name

050 Imprinting the recording date

050 Auto power off

051 Selecting Video out type

052 Auto Focus lamp

Setting the USB

052

052 Selecting a battery type

053 Starting play mode

PLAY

053 Playing back a still image

053 Playing back a movie clip

054 Movie clip capture function

054 Playing back a recorded voice

055 Playing back a voice memo

055 LCD monitor Indicator

Using the camera buttons to set the camera

056

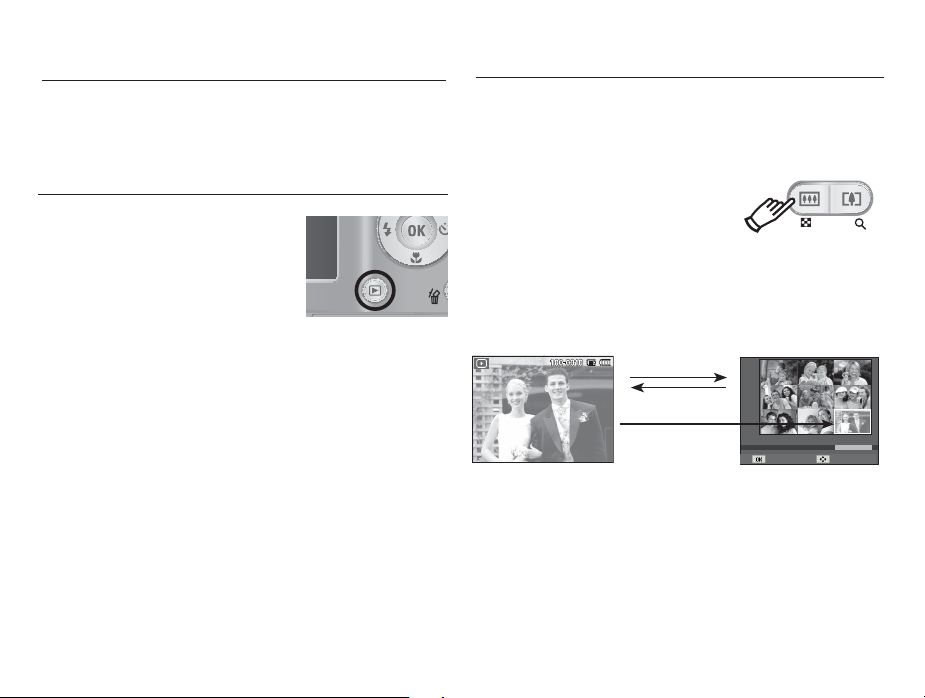

Play mode button

Contents

056 Thumbnail / Enlargement button

058 Info (DISP) / Up button

058 Play & Pause / OK button

059 Left / Right / Down / MENU button

059 Delete button

060 Setting up the play back function using

the LCD monitor

062 Edit

062 Resize

063 Rotating an image

063 Photo Style Selector

064 Image Adjust

065 Starting the Multi Slide Show

065 Start the Multi Slide Show

066 Selecting Images 066 Conﬁ gure Multi Slide Show effects

067 Setting play interval

067 Setting Background Music

067 File Options

067 Deleting images

068 Protecting images

068 Voice memo

069 DPOF

071 Copy To Card

072 PictBridge

SOFTWARE

073 PictBridge : Picture Selection

073 PictBridge : Print Setting

074 PictBridge : Reset

074 Important notes

076 Warning indicator

077 Before contacting a service centre

079 Speciﬁ cations

082 Software Notes

082 System Requirements

083 About the software

084 Setting up the application software

086 Starting PC mode

089 Removing the removable disk

090 Samsung Master

093 Setting up the USB Driver for MAC

093 Using the USB Driver for MAC

094 FAQ

System chart

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre. Parts and accessories illustrated below may differ from exact appearance.

Package Contents

Camera

Sold Separately

SD/SDHC memory

card / MMC

(see p.15)

AA Alkaline Batteries

AD81-00867A

Rechargeable battery

AD81-00879A

USB cable

3802-001205

Charger

AD81-00898A

Camera strap

AD63-02596A

AV cable

AD81-00750A

Software CD

(see p.83)

AD46-00245A

AC cord

AD81-00696A

User manual,

Product warranty

AD68-03903A

Camera case

Identiﬁ cation of features

Front & Top

Shutter button

Flash

Power button

Microphone

Self-timer lamp / AF sensor

Speaker

Lens/ Lens cover

Identiﬁ cation of features

Back

Camera status lamp

Zoom Wide(W) button (Thumbnail)

Zoom Tele(T) button (Digital zoom)

LCD monitor

MENU button

Play mode button

Strap eyelet

USB / AV / DC terminal

Fn / Delete button

5 function button

Identiﬁ cation of features

Bottom

Memory card slot

Battery chamber cover

Tripod socket

To open the battery chamber cover, slide it in the direction shown above.

Battery chamber

5 Function button

Flash /

Left button

Information / Up button

OK / Play & Pause button

Self-timer / Right button

Macro / Down button

Identiﬁ cation of features

Self-timer lamp

Icon Status Description

- For the ﬁ rst 8 seconds, the lamp blinks at 1 second

Blinking

intervals.

- For the ﬁ nal 2 seconds, the lamp blinks quickly at

0.25-second intervals.

For the 2 seconds, the lamp blinks quickly at

0.25-second intervals.

A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken.

After pressing the Shutter button, the image is taken in accordance with the subject’s movement.

Camera Status Lamp

Status Description

Power on

After taking a picture

When ﬂ ash battery is charging

When the USB cable is inserted to a PC

Transmitting Data with a PC

When the USB cable is inserted into a printer

When the printer is printing

When the AF activates

The lamp turns on and off when the camera is ready to take a picture The lamp blinks while saving the image data and turns off when the camera is ready to take a picture

The lamp blinks

The lamp lights up (LCD monitor turns off after initializing the device)

The lamp blinks (LCD monitor turns off)

The lamp is off

The lamp turns on (The camera focus on the subject)

The lamp blinks (The camera doesn’t focus on the subject)

Mode icon

Refer to page 19 for more information about the camera mode setting.

MODE Auto Program DIS

ICON

MODE Scene Movie -

ICON

MODE

ICON

MODE Landscape Close up Text Sunset

ICON

MODE Dawn Backlight Firework

ICON

Beauty Shot Night Portrait Children

SCENE

Photo Help

Guide

Beach&Snow

Connecting to a Power Source

We recommend batteries for a digital camera (Within a year from the date of manufacture). The batteries are listed below.

Non rechargeable batteries : 2 X AA Alkaline (High Capacity)

- Rechargeable batteries (Optional) : SNB-2512 (Ni-MH)



SNB-2512 rechargeable battery Speciﬁ cation

Model SNB-2512

Type Ni-MH

Capacity

Voltage 1.2V x 2

harging time

Included battery may vary depending on sales region.

00mAh

Approximately 300 Minutes (Use for SBC-N2)

Important information about battery usage.



When camera is not in use, turn off the power.



Please remove the battery if the camera will not be used for long periods. Batteries can lose power over time and are prone to leaking if kept inside the camera.



Low temperatures (below 0°C) can affect the performance of the battery and you may experience reduced battery life.



Batteries will usually recover at normal temperatures.



During extended use of the camera, the camera body may become warm. This is perfectly normal.



It is easy to buy alkaline batteries. However, the duration for using batteries varies in accordance with the battery manufacturer or the photographic conditions



Do not use manganese batteries as manganese batteries cannot deliver sufﬁ cient power.

For this camera, it recommended that a high-capacity battery



(alkaline, nickel-hydride) is used. If another battery is used, the camera’s usage time may be lowered.

Connecting to a Power Source



Insert the battery as shown

- If the camera does not turn on after you have inserted battery, please check whether the battery (+ / -).

- When the battery chamber cover is opened, do not force the battery chamber cover, this may damage it.



There are 4 indicators for battery condition that are displayed on the LCD monitor.

Battery

indicator

The battery is

Battery

fully charged

status

When using the camera and the battery in a place that is excessively cold or hot, the battery status on the LCD may be different from the actual battery status.

Low battery

capacity

(Prepare to

recharge or use

spare battery)

Low battery

capacity

(Prepare to

recharge or use

spare battery)

Battery empty.

(Recharge

or use spare

battery)

Inserting the memory card



Insert the memory card as shown.

- Turn off the camera’s power before inserting the memory card.

- Have the front of the memory card facing toward the front of the camera (lens) and the card pins toward the back of the camera (LCD monitor).

- Do not insert the memory card the wrong way round. Doing so may damage the memory card slot.

Instructions on how to use the memory card



Be sure to format the memory card (see p.48) if you are using a newly purchased memory card for the ﬁ rst time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.



Turn off the camera power whenever the memory card is being inserted or removed.



Repeated use of the memory card will eventually reduce the memory card’s performance. Should this be the case, you will need to purchase a new memory card. Wear and tear on the memory card is not covered by the Samsung warranty.



The memory card is an electronic precision device. Do not bend, drop or subject the memory card to any heavy impact.



Do not store the memory card in an environment with strong electronic or magnetic ﬁ elds, e.g. near loud speakers or TV receivers.



Please do not use or store in an environment where there are extremes in temperature.



Do not allow the memory card to become dirty or to come into contact with any liquid. Should this happen, clean the memory card with a soft cloth.



Please keep the memory card in its case when not in use.



During and after periods of extended use, you may notice that the memory card is warm. This is perfectly normal.



Do not use a memory card that is used in another digital camera. To use the memory card in this camera, format the memory card using this camera.



Do not use a memory card formatted by another digital camera or memory card reader.

If the memory card is subjected to any of the following, the recorded data may become corrupted :

- When the memory card is used incorrectly.

- If the power is switched off or the memory card is removed while recording, deleting (formatting) or reading.



Samsung cannot be held responsible for lost data.



It is advisable to copy important data onto other media as back-up e.g. ﬂ oppy disks, hard disks, CD etc.



If there is insufﬁ cient memory available : A [Memory Full] message will appear and the camera will not operate. To optimise the amount of memory in the camera, replace the memory card or delete unnecessary images stored on the memory card.



Don't remove the memory card when the camera status lamp is blinking as this may cause damage to data in the memory card.

Instructions on how to use the memory card

The camera can use SD/SDHC Memory Cards and MMC (Multi Media Cards).

Card pins

Write protect switch

Label

[SD (Secure Digital) memory card]



The SD/SDHC memory card has a write protect switch that prevents image ﬁ les from being deleted or formatted. By sliding the switch to the bottom of the SD/SDHC memory card, the data will be protected. By sliding the switch to the top of the SD/SDHC memory card, the data protection will be cancelled.



Slide the switch to the top of the SD/SDHC memory card before taking a picture.

When using a 1GB SD memory, the speciﬁ ed shooting capacity will be as follows. These ﬁ gures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

Recorded image

size

Still


*Movie

clip

The zoom button doesn’t function during the movie recording.



The recording times can be changed by the zoom operation.



You can record videos of up to 4GB or 2hours each.



Super

Fine

About 183 About 334 About 472 - -

About 200 About 362 About 511 - -

About 252 About 442 About 613 - -

About 252 About 445 About 619 - -

About 334 About 578 About 793 - -

About 495 About 814

About 1238 About 1673 About 1876

Fine

Normal

About 1067

- - - About 7'5"

---

30 FPS 15 FPS

About 26'24" About 49'22"

About 13'54"

When using the camera for the ﬁ rst time



When the camera is turned on for the ﬁ rst time, a menu will be displayed in the LCD monitor to set date, time, language and battery type. This menu will not be displayed again after setting up the date, time, language and battery type. Set up the date, time, language and battery type before using this camera.



Setting up the language

1. Select the [Language] menu by pressing the Up/Down button and press the Right button.

2. Select the desired sub menu by pressing the Up/Down button and press the OK button.

Language :English

Date & Time :08/12/01

Battery Type :alkaline

Back Set

English

䚐ạ㛨

Français

Deutsch

Español

Italiano



Setting up the date, time and date type

1. Select the [Date&Time] menu by pressing the Up/Down button and press the Right button.

Language :English

Date & Time :09/01/01

yyyy mm dd

Battery Type :alkaline

2009 / 01 / 01 13:00 yyyy/mm/dd

2. Select the desired sub menu by pressing the Up/Down/Left/Right button and press the OK button.

Exit Back

Left/Right button : Selects world time/year/ month/ day/hour/

minute/ date type

Up/Down button : Changes the value of each item.

For more information about the World Time, refer to the page 49.



Setting up the battery type

1. Select the [Battery Type] menu by pressing the Up/Down button and press the Right button.

2. Select the desired sub menu by

Language :English

Date & Time :09/01/01

Battery Type :alkaline

Alkaline

Ni-MH

pressing the Up/Down button and press the OK button.

Back Set

- If a battery type is selected, the camera will be optimized according to the selected battery type.

[Battery Type] sub Menu : [Alkaline] / [Ni-MH]

For more information about the battery type, refer to the page 52.

LCD monitor indicator



The LCD monitor displays information about the shooting functions and selections.

[Image & Full Status]

No. Description Icons Page

1 Recording mode

Optical / Digital Zoom bar /

Digital Zoom rate

Voice Memo

Number of available shots

remaining

Remaining time 00:00:00 p.15

00001 p.15

p.19

p.25

p.43

No. Description Icons Page

Memory card icon /

Internal memory icon

6 Battery

7 Flash

8 Self-timer

9 Macro

10 Photo Style Selector

11 Face Detection

12 Face Tone

Face Retouch / Image Adjust

/ Without Sound

14 Date / Time 2009/01/01 01:00 PM p.49

15 Camera shake Warning

Auto Focus Frame

17 Drive mode

18 Metering

Image Quality /

Frame Rate

20 Image Size

21 ISO

White Balance

Exposure compensation

p.13

p.29

p.31

p.27

p.41

p.36

p.38

p.38/

42/44

p.24

p.40

p.39

p.38

p.36

p.35

p.34

How to use the menu

Turn on the camera and press the MENU button. A menu for each camera mode appears.

Mode

Functions

Sound

Display

Settings

Exit Change

Auto

Program

DIS

Photo Help Guide

Scene

Movie

2. Use the up or down buttons to navigate through the menus.

Mode

Functions

Sound

Display

Settings

Exit Change

Auto

Program

DIS

Photo Help Guide

Scene

Movie

Press the

UP or DOWN

button.

Mode

Functions

Sound

Display

Settings

Exit Change Exit Change

Face Detection

Photo Size

Quality

Focus Area

Photo Style Selector

Voice

Press the

UP or DOWN

button.

3. Use the left or right buttons to select a sub menu.

Mode

Settings

Volum e

Start Sound

Functions

Shutter Sound

Sound

Beep Sound

AF Sound

Display

Self-Portrait

Exit Change

Press the

LEFT or

RIGHT button.

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Self-Portrait :On

Exit Back

Press the

LEFT or

RIGHT button.

4. Select a submenu and click the OK button to save settings and return to the previous window.

Volume

Mode

Start Sound

Functions

Shutter Sound

Sound

Beep Sound

AF Sound

Display

Settings

Self-Portrait

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Self-Portrait :On

Back Set

Off

Low

Medium

High

Starting the recording mode

Selecting modes

You can select the desired working mode using the MENU button located on the back of the camera.



How to use the MENU button

1. Press the MENU button and a menu will be displayed.

Press the Up / Down button to select the [Mode] menu and press the Right

button.

3. Select a desired mode by pressing the Up / Down button and then press the OK button.

Mode

Functions

Sound

Display

Settings

Exit Change

Auto

Program

DIS

Photo Help Guide

Scene

Movie

Auto

Program

DIS

Photo Help Guide

Scene

Movie

Exit Back

Auto

Program

DIS

Photo Help Guide

Scene

Movie

Exit Back

Auto

Program

DIS

Photo Help Guide

Scene

Movie

Exit Back

Mode

Functions

Sound

Display

Settings

Exit Change

Auto

Program

DIS

Photo Help Guide

Scene

Movie

How to use the Auto mode ( )

Select this mode for quick and easy picture taking with minimal user interaction.

Insert the batteries (p.13). Insert the

batteries taking note of the polarity (+ / -).

2. Insert the memory card (p.13). As this camera has a 11MB internal memory, you do not need to insert the memory card. If the memory card is not inserted, an image will be stored in the internal memory. If the memory card is inserted, an image will be stored on the memory card.

3. Close the battery chamber cover.

4. Press the power button to turn on the camera.

5. Select the Auto mode by pressing the MENU button.

6. Point the camera towards the subject and compose the image by using the LCD monitor.

7. Press the shutter button to capture an image.

If the auto focus frame turns to red when you press the shutter



button down half way, it means that the camera cannot focus on the subject. Should this be the case, the camera is unable to capture an image clearly.

Avoid obstructing the lens or the ﬂ ash when you capture an image.



Starting the recording mode

How to use the Program mode ( )

Selecting the automatic mode will conﬁ gure the camera with optimal settings. You can still manually conﬁ gure all functions except the aperture value and shutter speed.

1. Select the Program mode by pressing the MENU button (p.19).

Press the Menu button to conﬁ gure

2. advanced functions.

The submenus for the functions are as follows:

Description Page Description Page

EV p.34 Metering p.39

White Balance p.35 Drive p.40

ISO p.36 Focus Area p.40

Face Detection p.36 Photo Style Selector p.41

Photo Size / Movie Size p.38 Image Adjust p.42

Quality / Frame Rate p.39 Voice p.43

How to use the DIS mode ( )

Digital Image Stabilisation (DIS) mode. This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions.

1. Select the DIS mode by pressing the MENU button. (p.19)

2. Point the camera towards the subject and compose the image by using the LCD monitor.

3. Press the Shutter button to capture an image.



Things to watch out for using the DIS mode

1. The digital zoom will not operate in the DIS mode.

2. If the lighting condition is brighter than ﬂ uorescent lighting

conditions, the DIS will not activate.

3. If the lighting condition is darker than in ﬂ uorescent lighting

conditions, camera shake warning indicator ( Ã ) will display. For best results only take pictures in situations where the camera shake warning indicator ( Ã ) is not displayed.

4. If the subject is moving, the captured image may be blurred.

5. As the DIS uses the camera's digital signal processor, it may take a little longer for the camera to process and save the images.

Starting the recording mode

Using the Photo Help guide mode ( )

Helps the user learn the correct picture taking method and includes solutions for potential problems that may occur. This also enables the user to practice the best way to take the pictures.

Photo Help Guide

Features to use when the image is out of focus

Features to reduce camera shake Features to use in low light conditions Features to use when adjusting brightness Features to use when adjusting colours

Guide list

Pressing the

Left/Right button

Pressing the OK button

[Function that can be used when focusing is difﬁ cult]

Photo Help Guide

Features to use when the image is out of focus

Half-press the shutter button to focus

To focus on a subject 80 cm or farther To focus on a subject less than 80 cm away To focus on people’s faces

Back ChangeChange

Pressing the Up button

Press the shutter button to practice using this feature.

Guide list

Available functions of the photo help guide

Function that can be used when focusing is difﬁ cult



Functions that can be used when the image is blurred



Function that can be used when ﬁ lming in the dark



Function that can be used when adjusting the picture brightness



Function that can be used when adjusting the picture colour



Pressing the

Left/Right button

Photo Help Guide

To focus on your subject, halfpress the shutter button:

- Green frame: subject is in focus

- Red frame: subject is out of focus

1/2

Pressing the OK button

Back Practice

Pressing the

Up/Down button

Photo Help Guide

When the subject is in focus, press the shutter button completely to capture the image

Pressing the OK buttonPressing the shutter button

or video. If the subject is out of focus, try half-pressing the shutter button again.

Back Practice

2/2

Starting the recording mode

How to use the Scene modes ( )

Use the menu to easily conﬁ gure optimal settings for a variety of shooting situations.

1. Select the Scene mode by pressing the MENU button (p.19).

2. Point the camera towards the subject and compose the image by using the LCD monitor.

3. Press the shutter button to capture an image.

The scene modes are listed below.

[Beauty Shot] (

[Night] (

[Portrait] ( ) : To take a picture of a person.

[Children] (

[Landscape] (

[Close Up] (

[Text] ( ) : Use this mode to shoot a document.

[Sunset] (

[Dawn] (

[Backlight] (

[Firework] (

[Beach&Snow] (

) : Take a photo of a person with options to

hide facial imperfections.

) : Use this for shooting still images at night

or in other dark conditions.

) : To take a picture of fast moving

objects, for example, children.

) : To take pictures of distant scenery.

) : Close-up shooting for small objects such

as plants and insects.

) : For taking pictures of sunsets.

) : Daybreak scenes.

) : Portrait without shadows caused by

backlight.

) : Firework scenes.

) : For ocean, lake, beach and snowscape

scenes.

Starting the recording mode

How to use the Movie clip mode ( )

A movie clip can be recorded for as long as the available recording time of the memory capacity allows.

1. Select the Movie clip mode by pressing

the MENU button. (The Movie clip mode icon and available recording time will display on the LCD monitor.).

2. Point the camera towards the subject

and compose the image by using the LCD monitor.

3. Press the shutter button once and movie clips are recorded for

as long as the available recording time allows. Movie clips will still be recorded if the shutter button is released. If you wish to stop recording, press the shutter button again.

Image size and type are listed below.

- Image size : 640x480, 320x240 (Selectable)

- Movie clip ﬁ le type : AVI (MJPEG)

- Frame Rate : 30 FPS, 15 FPS (Selectable)

Recording the movie clip without sound

You can record the movie clip without sound.

Steps from 1 -3 are the same as those for MOVIE mode.

4. Press the Menu button.

5. Press the Up / Down button to select the [Functions] menu and press the Right button.

6. Select the [Voice] menu by pressing the Up / Down button and press the OK button.

7. Select the [Off] menu by pressing the Left / Right button.

8. Press the OK button. You can record a movie without sound.

See p.44 for further details.

Pausing while recording a movie clip (Successive Recording)

This camera allows you to temporarily stop during unwanted scenes, while recording a movie clip. Using this function, you can record your favourite scenes into a movie clip without having to create multiple movie clips.



Using Successive Recording

Steps from 1-2 are the same as those for

MOVIE CLIP mode.

3. Press the shutter button and movie clips are recorded for as long as the available recording time. Movie clips will still be recorded if the shutter button is released.

4. Press the OK button to pause recording.

5. Press the OK button again to resume the recording.

6. If you wish to stop recording, press the shutter button again.

Stop Record

Things to Watch Out for When Taking Pictures



Pressing the shutter button down half way.

Lightly press the shutter button to conﬁ rm focus and ﬂ ash battery charge. Press the shutter button all way down to take the picture.

[Lightly press the shutter button]



The available memory capacity may vary depending on shooting conditions and camera settings.



When the Flash Off, Slow synchro mode or DIS mode is selected in a low lighting condition, the camera shake warning indicator (Ã ) may appear on the LCD monitor. In this case, use a tripod, support the camera on a solid surface or change to ﬂ ash shot mode.



Shooting against the light



Avoid obstructing the lens or the ﬂ ash when you capture an image.



Compose the image by using the LCD monitor.

: Please do not take pictures against the

sun. Doing so may make the picture dark. Doing so may make the picture dark. To take a picture against the light, please use the [Backlight] in scene shooting mode (see page 22), ﬁ ll-in ﬂ ash (see page 30), spot metering (see page 39) or exposure compensation (see page 34).

[Press the shutter button]



Under certain conditions the auto focus system may not perform as expected.

- When photographing a subject that has little contrast.

- If the subject is highly reﬂ ective or shiny.

- If the subject is moving at high speed.

- When there is strong reﬂ ected light, or when the background is

very bright.

- When the subject matter has only horizontal lines or the subject

is very narrow (such as a stick or ﬂ agpole).

- When the surroundings are dark.

Using the camera buttons to set the camera

ZOOM button

The recording mode function can be set up by using the camera buttons.

POWER button

Used for turning the camera’s power on / off. If there is no operation during the speciﬁ ed time, the camera's power will be turned off automatically to save battery life. Refer to page 50 for more information about the auto power off function.

If the menu is not displayed, this button works as the OPTICAL ZOOM or DIGITAL ZOOM button. This camera has a 3X optical zoom and a 3X digital zoom function. Using both will offer a total zoom ratio of 9X.



TELE Zoom

Optical zoom TELE : Pressing the ZOOM T button. This will

Digital zoom TELE : When the maximum (3X) optical zoom

SHUTTER button

Used for taking an image or recording voice in the RECORDING mode.



In MOVIE CLIP mode Pressing the shutter button down fully starts the process for recording a movie clip. Press the shutter button once and the movie clip is recorded for as long as the available recording time in the memory allows. If you wish to stop recording, press the shutter button again.



In STILL IMAGE mode

Pressing the shutter button down halfway activates the autofocus and checks the condition of the ﬂ ash. Pressing the shutter button down fully takes and stores the image. If you select voice memo recording, the recording will start after the camera has ﬁ nished storing the image data.

[WIDE zoom]

zoom into the subject i.e. the subject will appear nearer.

is selected, pressing the ZOOM T button activates the digital zoom software. Releasing ZOOM T button stops the digital zooming at the required setting. Once the maximum digital zoom (3X) is achieved, pressing the ZOOM T button will have no effect.

Pressing

the ZOOM

T button

[TELE zoom] [Digital zoom 3.0X]

Pressing

the ZOOM

T button

ZOOM button



WIDE Zoom

Optical zoom WIDE : Pressing the ZOOM W button. This will

zoom out from the subject i.e. the subject will appear further away. Pressing the ZOOM W button continuously will set the camera to its minimum zoom setting i.e. the subject appears at its furthest from the camera.

Pressing

the ZOOM

W button

[TELE zoom] [Optical zoom 2X] [WIDE zoom]

Pressing

the ZOOM

W button

Digital zoom WIDE : When the digital zoom is in operation,

Optical zoom

pressing the ZOOM W button will reduce the digital zooming in steps. Releasing ZOOM W button stops digital zooming.

Digital zoom

Pressing the ZOOM W button will reduce the digital zoom and then it will continue to reduce the optical zoom until the minimum setting is reached.

Pressing

the ZOOM

W button

[Digital zoom 3.0X] [TELE zoom] [WIDE zoom]

Pressing

the ZOOM

W button

Images taken using the digital zoom may take a little longer for



the camera to process. Allow time for this to take place. If the Zoom buttons are being pressed during the Movie shots,



the voice will not be recorded. You may notice a decrease in image quality when using the



digital zoom. To view a clearer digital zoom image, press the shutter button



halfway at the maximum optical zoom position and press the zoom T button again. The digital zoom can’t be activated in some Scene modes



(Night, Children, Text, Close up, Firework), DIS modes, movie mode and Face Detection. Take care not to touch the lens to avoid taking an unclear image



and possibly causing camera malfunction. If the image is dim, turn the camera power off and on again to modify the lens position. Take care not to press the lens as this may cause a camera



malfunction. When the camera is turned on, take care not to touch the camera’s



moving lens parts as this may cause the resulting image to be dim and unclear. Take care not to touch the lens when operating the zoom button.



Info (DISP) / Up button

While the menu is showing, the Up button operates as a direction button. In the recording modes or playback mode, pressing this button will display the image information.

Macro

While the menu is showing, the Down button operates as a direction button. When the menu is not showing, you can use the MACRO ( ) / DOWN button to take macro pictures. The distance ranges are shown below. Press the Macro button until the desired macro mode indicator appears on the LCD monitor.

( )

/ Down button

Show all photographic information.

Show only basic information.

[Information screen][Filming screen]

[Auto Focus]

[Auto Macro ( )]

[Macro ( )]

Macro



Focus Type Auto macro (

Focus range

Focus Type macro (

Focus range

Focus Type Auto macro (

Focus range

( )

/ Down button

Types of focus mode and focus range (W : Wide, T : Tele)

Mode Auto ( )

) Normal

W : 10 ~ Inﬁ nity T : 50 ~ Inﬁ nity

Mode Program ( )

) Normal

W : 10 ~ 80 T : 50 ~ 80

Mode DIS Mode ( )

) Normal

W : 10 ~ Inﬁ nity T : 50 ~ Inﬁ nity

When the macro mode is selected, be particularly careful to avoid



camera shake. When you take a picture within 40cm (Wide zoom) or 50cm



(Tele zoom) in the Macro mode, select the FLASH OFF mode.

W : 80 ~ Inﬁ nity T : 80 ~ Inﬁ nity

(Unit: cm)



Available focusing method, by recording mode

( o : Selectable, : Inﬁ nity focus range)

Mode Auto macro Macro Normal

Mode

Auto macro Macro Normal

SCENE



Focus lock

To focus on a subject not positioned in the centre of the picture, use the focus lock function.



Using the Focus Lock

1. Ensure the subject is in the centre of the autofocus frame.

2. Press the SHUTTER button halfway. When the green auto focus frame lights up, it means the camera is focused on the subject. Be careful not to press the SHUTTER button all the way down to avoid taking an unwanted picture.

3. With the SHUTTER button still pressed down only halfway, move the camera to recompose your picture as desired, and then press the SHUTTER button completely to take the picture. If you release your ﬁ nger from the SHUTTER button, the focus lock function will be cancelled.

( )

Flash

When the menu is displayed on the LCD monitor, pressing the LEFT button makes the cursor shift to the left tab. When the menu is not displayed on the LCD monitor, the LEFT button operates as the FLASH ( ) button.



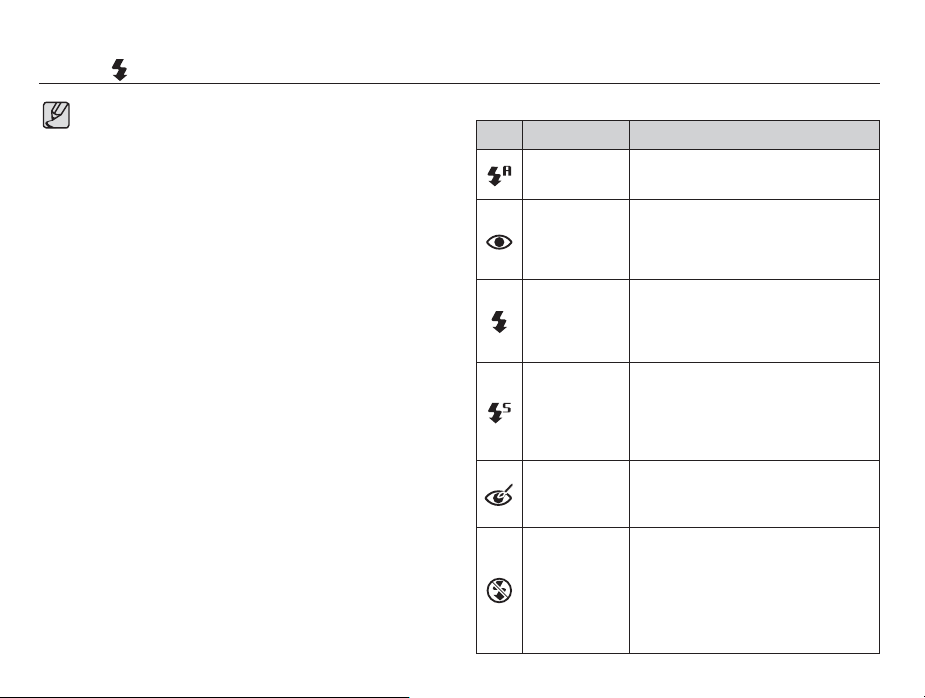

Selecting the ﬂ ash mode

1. Press the MENU button to select a RECORDING mode with the exception of the Movie clip mode or the DIS mode.(p.19)

2. Press the Flash button until the desired ﬂ ash mode indicator is displayed on the LCD monitor.

3. A ﬂ ash mode indicator will be displayed on the LCD monitor. Use the correct ﬂ ash to suit the environment.

/ Left button

[Selecting the Auto ﬂ ash]

1. The image to be captured.

Press the SHUTTER button halfway and focus on the subject.

3. Recompose the picture and fully depress the SHUTTER button.



Flash range

ISO

AUTO 0.8~3.8 0.8~2.1 0.4~0.8 0.5~0.8 0.4~3.8 0.5~2.1

Normal Macro Auto macro

WIDE TELE WIDE TELE WIDE TELE

(Unit: m)

+ 68 hidden pages
