Samsung EC-PL80ZZBPSCA User Manual

Download

Instructions

Getting to Know your camera

Use this camera in the following order.

Setting up the application software

Take a picture

Insert the USB cable

Check the camera's power

Check [Removable Disk]

To use this camera with a PC, install the application software ﬁ rst. After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program.

Take a picture. (p.20)

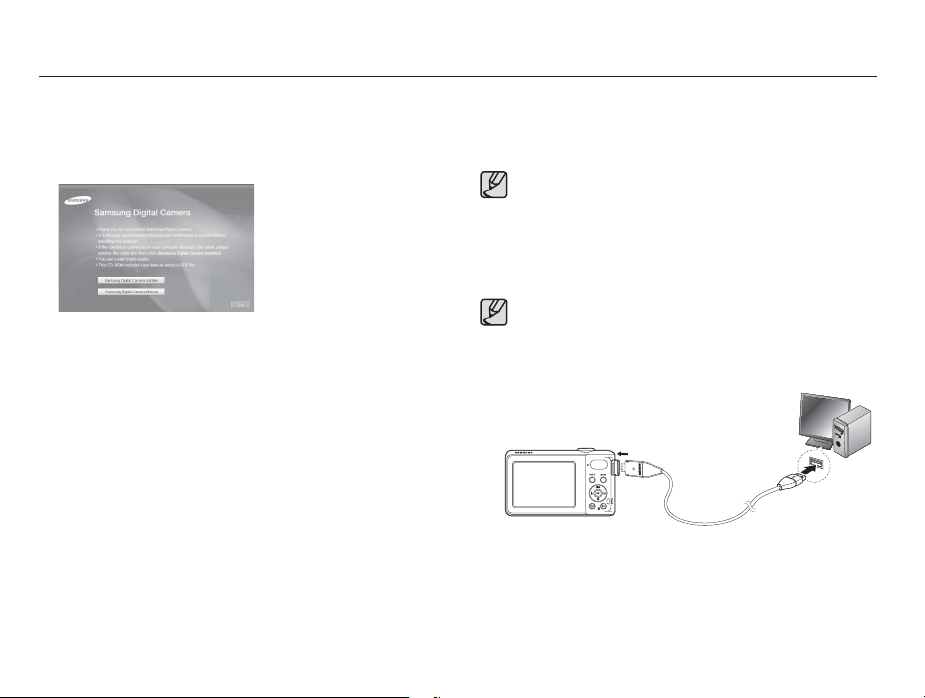

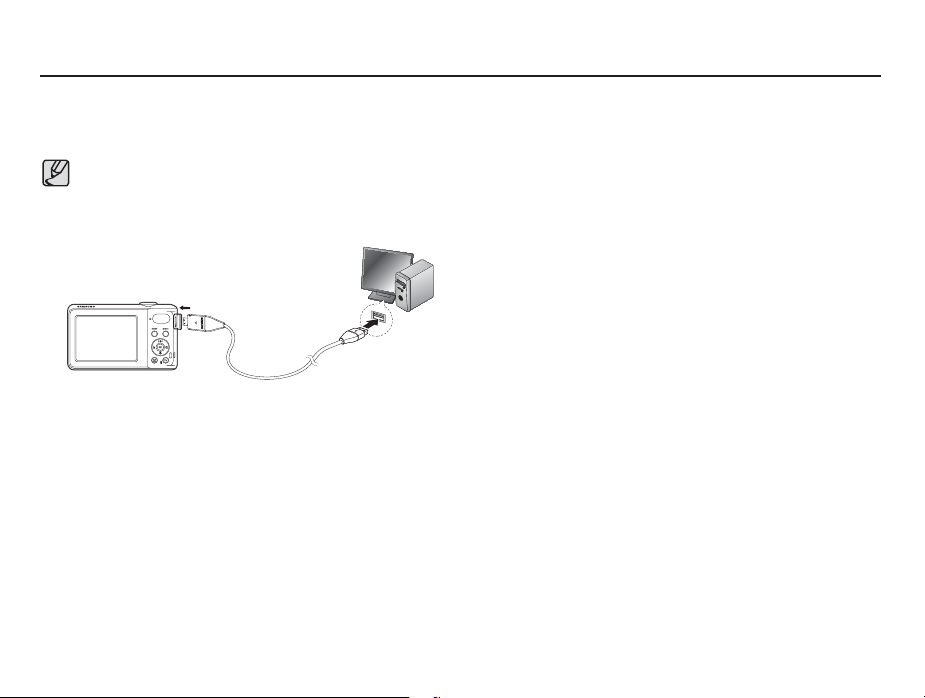

Insert the supplied USB cable into the PC’s USB port and the camera’s USB connection terminal. (p.94)

Check the camera’s power. If the power is turned off, preset the camera button to turn it on.

Open Windows’s EXPLORER and search for [Removable Disk]. (p.95)

Thank you for buying a Samsung Digital Camera.



Prior to using this camera, please read the user manual thoroughly.



If you require After Sales service, please bring the camera and the cause of the camera malfunction (such as battery, Memory card etc.) to the A/S center.



Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung takes no responsibility for any loss or damage that may result from camera malfunction.



Keep this manual in a safe place.



If you use a card reader to copy the images on the memory card to your PC, the images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer holds no responsibility for loss or damage of images on the memory card due to the use of a card reader.



The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions.

Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries.

Adobe and Reader are either trademarks or registered trademarks in the United States and/or other countries.

All brand and product names appearing in this manual are registered trademarks of their respective companies.

For Open Source License information, refer to the “OpenSourceInfo.pdf” in the provided CD-ROM.

Danger

Warning

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.



Do not attempt to modify this camera in any way. To do so may

result in ﬁ re, injury, electric shock or severe damage to you or your camera. internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service center.



Please do not use this product in close proximity to ﬂ ammable or

explosive gases, as this could increase the risk of explosion.



Should any form of liquid or a foreign object enter the camera,

do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service center. Do not continue to use the camera as this may cause a ﬁ re or electric shock.



Do not insert or drop metallic or inﬂ ammable foreign objects into

the camera through access points e.g. the memory card slot and battery chamber. This may cause a ﬁ re or electric shock.



Do not operate this camera with wet hands. This could pose a

risk of electric shock.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.



Do not use the ﬂ ash in close proximity to people or animals.

Positioning the ﬂ ash too close to your subject’s eyes may cause eyesight damage.



For safety reasons keep this product and accessories out of

reach of children or animals to prevent accidents e.g.:

- Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately.

- There is the possibility of injury from the camera’s moving parts.



Battery and camera may become hot during prolonged use and it

may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.



Do not leave this camera in places subject to extremely high

temperatures, such as a sealed vehicle, direct sunlight or other places of extremes in temperature. Exposure to extreme temperatures may adversely affect the camera’s internal components and could cause a ﬁ re.



When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a ﬁ re. Always use the camera and its accessories in a well-ventilated area.

Caution

Contents

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.



Leaking, overheating, or damaged battery could result in ﬁ re or injury.

- Use battery with the correct speciﬁ cation for the camera.

- Do not short circuit, heat or dispose of battery in ﬁ re.

- Do not insert the battery with the polarities reversed.



Remove the battery when not planning to use the camera for a

long period of time. Otherwise the battery may leak corrosive electrolyte and permanently damage the camera’s components.



Do not ﬁ re the ﬂ ash while it is in contact with hands or objects. Do

not touch the ﬂ ash after using it continuously. It may cause burns.



Do not move the camera while it is switched on, if you are using

the AC adapter. After use, always switch off the camera before unplugging the cable from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a ﬁ re or electric shock.



Take care not to touch the lens or lens cover to avoid taking an

unclear image and possibly causing camera malfunction.



Avoid obstructing the lens or the ﬂ ash when you capture an image.



When using this camera in low temperatures, you may experience

the following. These are not camera malfunctions and usually recover at normal temperature.

- It takes longer to turn on the LCD monitor and the color may differ from the subject.

- When changing the composition, there may be an after image on the LCD monitor.



Credit cards may be demagnetized if left near case. Avoid leaving

magnetic strip cards near the case.



Never connect the 20 pin connector to the USB port of a PC. This carries a high risk of computer malfunction.

READY

RECORDING

007 System chart

007 Package Contents

007 Sold Separately

008 Identiﬁ cation of features

008 Front & Top

009 Back

010 Bottom

010 5 Function button

011 Self-timer lamp

011 Camera Status Lamp

011 Mode icon

012 Connecting to a Power Source

015 Inserting the memory card

Instructions on how to use the memory card

016

018 LCD monitor indicator

019 How to use the menu

020 Starting the recording mode

020 Selecting modes

020 How to use the Smart Auto mode

022 How to use the Program mode

022 How to use the DUAL IS (Dual Image

Stabilization) mode

023 How to use the Scene modes

025 How to use the Movie clip mode

Contents

Recording the movie clip without sound

025

026 Pausing while recording a movie clip

(Successive Recording)

026 Things to Watch Out for When Taking

Pictures

027

Using the camera buttons to set the camera

027 POWER button

028 SHUTTER button

028 Smart button

029 Zoom W/T Lever

030 Info (DISP) / Up button

031 Macro / Down button

032 Focus lock

033 Flash / Left button

035 Self-timer / Right button

037 MENU button

037 OK button

037 Shooting

038 How to Enable Functions Using the

MENU Button

039 Photo Size / Movie Size

039 Quality / Frame rate

040 Exposure compensation

040 ISO

041 White balance

SMART MODE

SETUP

042 Face Detection

044 Face Tone

044 Face Retouch

044 Auto Focus type

045 Metering

045 ACB

046 Drive mode

046 Photo Style Selector

047 Image Adjust

048 OIS (Optical image Stabilization)

049 Voice Memo

049 Voice Recording

Recording the movie clip without voice

050

Setting movie recording

051 Smart mode

051 Smart mode display

052 Starting Smart mode

052 Selecting modes

053 How to use Smart Auto mode

053 How to use Smart Movie Clip mode

054 Sound menu

054 Sound

054 Volume

Contents

054 Start up sound

054 Shutter sound

054 Beep sound

055 AF sound

055 Setup menu

055 Display

055 Language

055 Function Description

056 Start up image

056 Display Brightness

056 Quick view

056 Display Save

057 Settings

057 Formatting a memory

057 Initialization

058 Setting up the Date / Time / Date type

058 Time Zone

058 File name

059 Imprinting the recording date

059 Auto power off

060 Auto Focus lamp

060 Selecting Video out type

061 Setting the USB

062 Starting play mode

PLAY

062 Playing back a still image

062 Playing back a movie clip

063 Movie clip capture function

063 Playing back a recorded voice

064 Playing back a voice memo

064 LCD monitor Indicator

Using the camera buttons to set the camera

065

065 Play mode button

065 Thumbnail / Enlargement Lever

065 Smart Album

068 Info (DISP) / Up button

068 Play & Pause / OK button

069 Left / Right / Down / MENU button

069 Delete button

070 Setting up the play back function using

the LCD monitor

072 Edit

072 Resize

073 Rotating an image

073 Photo Style Selector

074 Image Adjust

076 Starting the Multi Slide Show

076 Start the Multi Slide Show

076 Selecting Images

077 Setting play interval

Contents

077 Setting Background Music 077 Conﬁ gure Multi Slide Show effects

078 File Options

078 Deleting images

078 Protecting images

079 Voice memo

080 DPOF

082 Copy to Card

PICTBRIDGE

APPENDIX

SOFTWARE

083 PictBridge

084 PictBridge : Picture Selection

084 PictBridge : Print Setting

085 PictBridge : Reset

085 Important notes

087 Warning indicator

088 Before contacting a service center

090 Speciﬁ cations

093 Transferring ﬁ les to your computer

(for Windows)

093 For Windows users

Transferring ﬁ les to your computer (for Mac)

097

097 For Mac users

099 FAQ

System chart

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service center. Parts and accessories illustrated below may differ from exact appearance.

Package Contents

Camera Rechargeable battery AC adapter / USB cable Camera strap

Quick Start Manual

Sold Separately

SD/SDHC memory card

(see p.17)

Camera case AV cable Battery charger

Software CD

(User manual included)

Identiﬁ cation of features

Front & Top

Zoom T Lever (Digital zoom)

USB / AV / DC terminal

Zoom W Lever (Thumbnail)

Shutter button

Flash

Microphone

POWER button

Smart button

Self-timer lamp / AF Lamp

Speaker

Lens / Lens cover

Identiﬁ cation of features

Back

LCD monitor

MENU button

5 function button

Camera status lamp

Play mode button

MODE button

Strap eyelet

Fn/Delete button

Identiﬁ cation of features

Bottom

Memory card slot

Battery holder

Battery chamber cover

Tripod socket

To open the battery chamber cover, slide it in the direction shown above.

Battery chamber

5 Function button

Flash /

Left button

Information / Up button

OK / Play & Pause button

Self-timer / Right button

Macro / Down button

Identiﬁ cation of features

Self-timer lamp

Icon Status Description

- For the ﬁ rst 7 seconds, the lamp blinks at 1 second

Blinking

intervals.

- For the ﬁ nal 3 seconds, the lamp blinks quickly at

0.25-second intervals.

For the 2 seconds, the lamp blinks quickly at

0.25-second intervals.

A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken.

After pressing the Shutter button, the image is taken in accordance with the subject’s movement.

Camera Status Lamp

Status Description

Power on

After taking a picture

When ﬂ ash battery is charging

When the USB cable is inserted to a PC

Transmitting Data with a PC

When the USB cable is inserted into a printer

When the printer is printing

When the AF activates

The lamp turns on and off when the camera is ready to take a picture The lamp blinks while saving the image data and turns off when the camera is ready to take a picture

The lamp blinks

The lamp lights up (LCD monitor turns off after initializing the device)

The lamp blinks (LCD monitor turns off)

The lamp blinks

The lamp turns on (The camera focus on the subject)

The lamp blinks (The camera doesn’t focus on the subject)

Mode icon

Refer to page 20/52 for more information about the camera mode setting.

MODE Smart Auto Program DUAL IS

ICON

MODE Scene Movie Smart Movie

ICON

MODE

ICON

MODE Portrait Children Landscape

ICON

MODE Close Up Text Sunset

ICON

MODE Dawn Backlight Fireworks

ICON

MODE Beach & Snow - -

ICON

Beauty Shot Frame Guide Night

SCENE

Connecting to a Power Source

You should use the rechargeable battery BP70A supplied with the camera. Be sure to charge the battery before using the camera.



BP70A rechargeable battery Speciﬁ cation

Model BP70A

Type Lithium lon

Capacity 740mAh

Voltage 3.7V

harging time



Number of images and battery life: Using the BP70A

Battery life /

Number of images

Still image

These ﬁ gures are measured under Samsung’s standard conditions

Approx. 100 MIN / Approx. 200 shots

Movie Approx. 80 MIN

Approximately 150 Minutes

Conditions

Using the fully charged battery, Default settings, Program mode, Shot to shot interval: 30Sec. Changing the zoom position between the Wide and the Tele after every shot. Using the ﬂ ash on every second shot. Using the camera for 5 minutes and then powering it off for 1 minute.

Using the fully charged battery 640x480 image size 30 fps frame rate

and shooting conditions and may vary depending on the user’s methods.

Important information about battery usage.



When camera is not in use, turn off the power.



Please remove the battery if the camera will not be used for long periods. Batteries can lose power over time and are prone to leaking if kept inside the camera.



Low temperatures (below 0°C) can affect the performance of the battery and you may experience reduced battery life.



Batteries will usually recover at normal temperatures.



During extended use of the camera, the camera body may become warm. This is perfectly normal.



If you connect the AC adapter to the USB cable, you can use it as an AC cable and recharge the spare battery with it.

- Using an AC cable : Connect the AC adapter to the

USB cable. It can be used as a power cable.

- Using a USB cable : Remove the AC adapter.You can

download stored images to your PC (p.94) or supply the power to your camera through the USB cable.

Connecting to a Power Source

Important information about USB cable usage.



Use a USB cable with the correct speciﬁ cation.



If the camera is connected to the PC through a USB hub : connect the camera directly to the PC.



If the camera and other devices are connected to the PC at the same time : remove other device.



Camera can not be detected using the front side USB port of computer. In this case, use the back side USB port of computer.



If the USB port of the PC doesn’t meet the Power output standard (5V, 500mA), the battery may not be charged.



How to charge the rechargeable battery



Before inserting any cables or AC adapter, check the directions and do not insert by force. It may cause breakage of cable or camera.



If the charging LED of the AC Charger does not turn on or blink after inserting the rechargeable battery, please check whether the battery is inserted correctly.



If you charge the battery with the camera power on, the battery won’t be fully charged. Turn the camera off while charging the battery.



Charging LED of the AC charger

Charging LED

Being Charged Red LED is on

Charging is complete Green LED is on

Charging error Orange colored LED is off or blinking



If you insert the fully discharged battery to charge it, do not turn on the camera at the same time. The camera may not be turned on because of the low battery capacity. Charge the battery for more than 10 minutes before using the camera.



Do not use the ﬂ ash frequently or take a movie clip with the fully discharged battery charged for a short time. Even if the charger is inserted, the camera power may be turned off because the rechargeable battery is discharged again.

Connecting to a Power Source

When using the battery, please keep the following guidelines. Failure to do so may cause the generation of heat, fire, or explosion.

Ɣ If you ﬁ nd the battery shape distorted in size, try to contact a

service center. It may present physical dangers.

Ɣ Use only the recommended battery charger. Ɣ Do not place the product close to the ﬁ re device. Ɣ Do not insert the product into the microwave oven. Ɣ Do not place the product inside a car during the summer. Ɣ Do not place the product in a space with hot temperature and

high humidity range.

Ɣ Do not use the product for long time in the carpet, comforter, or

electronic mattress.

Ɣ Do not leave the product turned on where the air cannot be circu-

lated.

Ɣ Be careful about the battery slot not to be connected with

accessories like necklace, coin, key, watch, and so on.

Ɣ Use the 2nd Advanced Lithium Batteries with the guarantee

under the manufacturing company.

Ɣ Do not try to disassemble or perforate the product by using the

sharp pin.

Ɣ Do not give a hard pressure on the product. Ɣ Do not let the product fall down from the height, or do not give a

shock to the product.

Ɣ Do not exposure the product to the high temperature over 60°C

(140°F) degree.

Ɣ Do not exposure the product to the water or humidity.

Guidelines of disposal

Ɣ Do not throw away the over used battery. Ɣ Destruction by ﬁ re is not allowed for disposal of battery. Ɣ The disposal instruction may differ depending on the nation or

the speciﬁ c region. Please follow the given method of disposal.

Guideline of recharging the battery

Ɣ Do not recharge the battery by using the different method other

than the user manual indicates. Failure to following the right instruction may cause the ﬁ re or the explosion.

Connecting to a Power Source Inserting the memory card



Insert the battery as shown

- If the camera does not turn on after you have inserted battery, please check whether the battery (+ / -) direction is right.

- When the battery chamber cover is opened, do not force the battery chamber cover, this may damage it.



There are 4 indicators for battery condition that are displayed on the LCD monitor.

Battery

indicator

Battery

The battery is

status

fully charged

When using the camera and the battery in a place that is excessively cold or hot, the battery status on the LCD may be different from the actual battery status.

Low battery

capacity (Prepare to recharge or

use spare

battery)

Low battery

capacity (Prepare to recharge or

use spare

battery)

Battery empty.

(Recharge

or use spare

battery)



Insert the memory card as shown.

- Turn off the camera’s power before inserting the memory card.

- Have the front label of the memory card facing toward the front of the camera (Lens) and the card pins toward the back of the camera (LCD monitor).

- Do not insert the memory card the wrong way round. Doing so may damage the memory card slot.

Instructions on how to use the memory card



Be sure to format the memory card (see p.57) if you are using a newly purchased memory card for the ﬁ rst time, if it contains data that the camera cannot recognize, or if it contains images captured with a different camera.



Turn off the camera power whenever the memory card is being inserted or removed.



Repeated use of the memory card will eventually reduce the memory card’s performance. Should this be the case, you will need to purchase a new memory card. Wear and tear on the memory card is not covered by the Samsung warranty.



The memory card is an electronic precision device. Do not bend, drop or subject the memory card to any heavy impact.



Do not store the memory card in an environment with strong electronic or magnetic ﬁ elds, e.g. near loud speakers or TV receivers.



Please do not use or store in an environment where there are extremes in temperature.



Do not allow the memory card to become dirty or to come into contact with any liquid. Should this happen, clean the memory card with a soft cloth.



Please keep the memory card in its case when not in use.



During and after periods of extended use, you may notice that the memory card is warm. This is perfectly normal.



Do not use a memory card that is used in another digital camera. To use the memory card in this camera, format the memory card using this camera.



Do not use a memory card formatted by another digital camera or memory card reader.



If the memory card is subjected to any of the following, the recorded data may become corrupted :

- When the memory card is used incorrectly.

- If the power is switched off or the memory card is removed

while recording, deleting (formatting) or reading.



Samsung cannot be held responsible for lost data.



It is advisable to copy important data onto other media as back-up e.g. ﬂ oppy disks, hard disks, CD etc.



If there is insufﬁ cient memory available : A [Memory Full] message will appear and the camera will not operate. To optimize the amount of memory in the camera, replace the memory card or delete unnecessary images stored on the memory card.

Don't remove the memory card when the camera status lamp is



blinking as this may cause damage to data in the memory card.

Instructions on how to use the memory card

The camera can use SD/SDHC Memory Cards.

Card pins

Write protect switch

Label

[SD (Secure Digital) memory card]



The SD/SDHC memory card has a write protect switch that prevents image ﬁ les from being deleted or formatted. By sliding the switch to the bottom of the SD/SDHC memory card, the data will be protected. By sliding the switch to the top of the SD/SDHC memory card, the data protection will be cancelled.



Slide the switch to the top of the SD/SDHC memory card before taking a picture.

When using a 1GB SD memory, the speciﬁ ed shooting capacity will be as follows. These ﬁ gures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

Recorded

image size

Still


*Movie

clip

The Zoom W/T lever doesn’t function during the movie recording.



The recording times can be changed by the zoom operation.



Several videos were recorded in succession to determine the total



recording time.

Super

Fine

About 168 About 238 About 362 - -

About 195 About 267 About 407 - -

About 229 About 305 About 477 - -

About 244 About 326 About 514 - -

About 362 About 489 About 699 - -

About 543 About 674 About 752 - -

About 978

Fine Normal 30 FPS 15 FPS

About 1086 About 1222

---

About

00:13'36"

About

00:32'58"

About

00:26'50"

About

01:05'16"

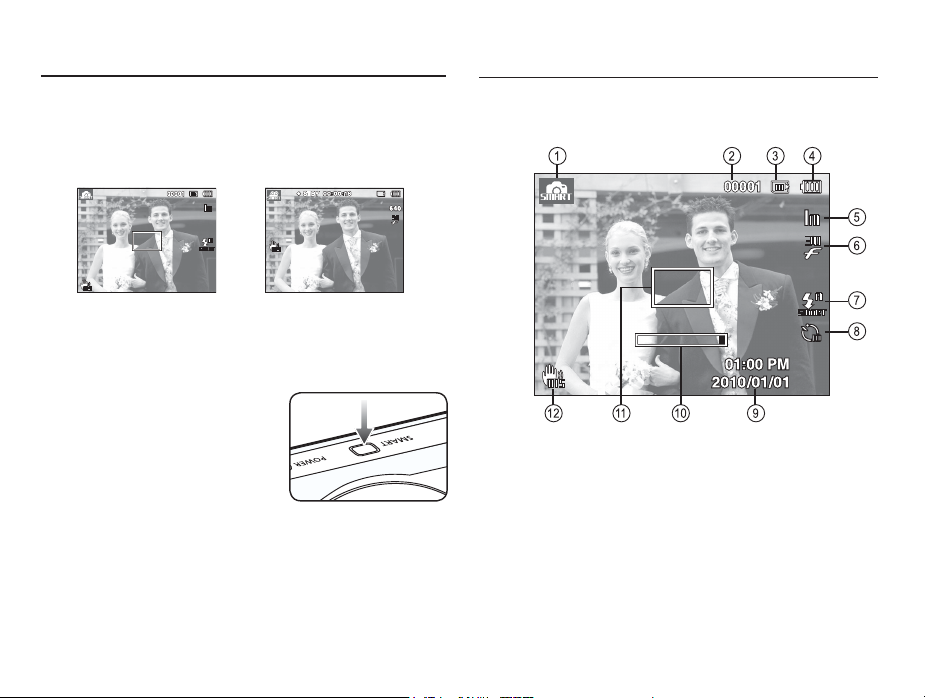

LCD monitor indicator



The LCD monitor displays information about the shooting functions and selections.

[Image & Full Status]

No. Description Icons Page

1 Recording mode

Voice Memo

Number of available shots

remaining

Remaining time 00:00:00 p.17

Memory card icon /

Internal memory icon

00001 p.17

p.20

p.49

No. Description Icons Page

5 Battery

Photo Size / Movie Size

Image Quality / Frame Rate

8 Metering

9 Flash

10 Self-timer

11 Macro

12 Face Detection

13 Date / Time 2010/01/01 01:00 PM p.58

Optical / Digital Zoom bar /

Digital Zoom rate

15 Camera shake Warning p.26

Auto Focus Frame

17 OIS

18 Drive mode

Photo Style Selector /

Image Adjust / Voice

20 ISO p.40

White Balance

Exposure compensation

Aperture Value / Shutter Speed

F3.4, 1/30 p.24

p.15

p.39

p.45

p.33

p.35

p.31

p.42

p.29

p.44

p.48

p.46

p.46/47

/50

p.41

p.40

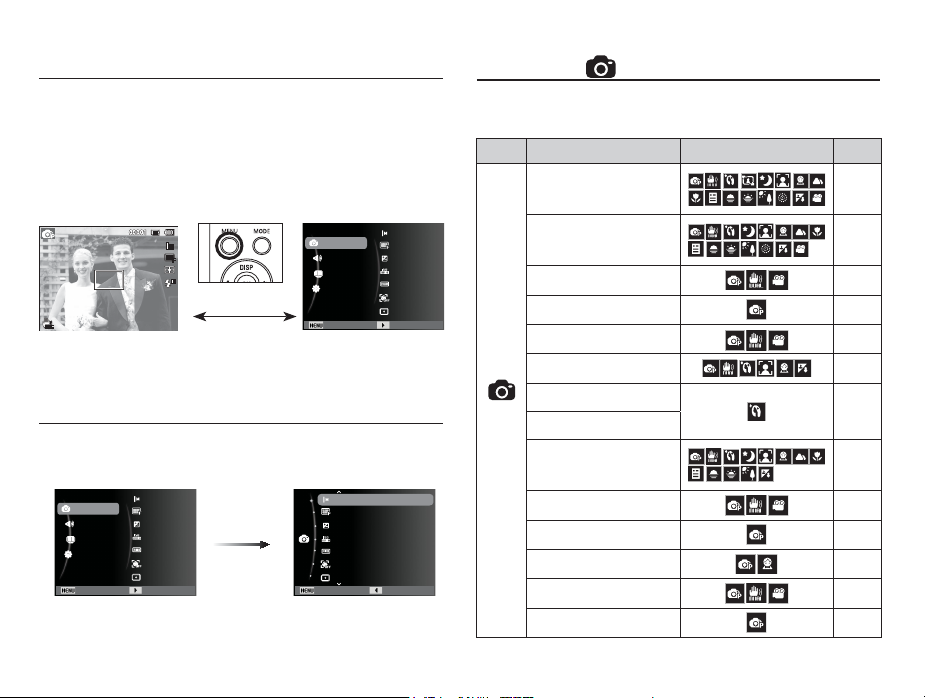

How to use the menu

Turn on the camera and press the MENU button. A menu for each camera mode appears.

Shooting

Sound

Display

Settings

Exit Change

2. Use the up or down button to navigate through the menus.

Shooting

Sound

Display

Settings

Exit Change

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

3. Use the left or right button to select a sub menu.

Shooting

Sound

Display

Settings

Volum e

Start Sound

Shutter Sound

Beep Sound

AF Sound

Press the

Left or Right

button.

Press the

Up or Down

button.

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Shooting

Sound

Display

Settings

Exit Change

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

Volume

Start Sound

Shutter Sound

Beep Sound

AF Sound

Press the

Left or Right

button.

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Off

Low

Medium

High

Exit Change

Exit Back

4. Select a submenu and click the OK button to save settings and return to the previous window.

Back Set

Starting the recording mode

Selecting modes

You can select the shooting modes by using the MODE button on the back of your camera.



How to use the MODE button

1. Press the MODE button and a menu will be displayed.

2. Select a desired mode by pressing the Up / Down button and then press the OK button.

Smart Auto

Program

DUAL IS

Scene

Movie

This mode recognizes the scene automatically.

How to use Smart Auto mode ( )

Selecting the automatic mode will conﬁ gure the camera with optimal settings. You can still manually conﬁ gure all functions except the aperture value and shutter speed.

1. Insert the battery (p.15). Insert the battery taking note of the polarity (+ / -).

Insert the memory card (p.15).

2. As this camera has a 86MB internal memory, you do not need to insert the memory card. If the memory card is not inserted, an image will be stored on the internal memory. If the memory card is inserted, an image will be stored on the memory card.

3. Close the battery chamber cover.

4. Press the POWER button to turn on the camera.

Select Smart Auto mode by pressing the MODE or Smart button.

6. The camera selects a scene automatically. An appropriate

mode icon will appear at the top left of the screen.

7. Press the Shutter button to capture an image.



If the auto focus frame turns to red when you press the shutter button down half way, it means that the camera cannot focus on the subject. Should this be the case, the camera is unable to capture an image clearly.



Avoid obstructing the lens or the ﬂ ash when you capture an image.

Starting the recording mode



If the camera does not recognize a proper scene mode, the default settings will be used.



Even if there is a face detected, the camera may not select a portrait mode depending on the subject’s position or lighting.



The camera may not select the correct scene depending on shooting environments, such as camera shake, lighting, and distance to the subject.



The [Night] mode recognizes scenes only when the ﬂ ash is set to off. The camera operates the [Tripod] mode after checking the shooting condition on the tripod for a certain time.



Despite using a tripod, the camera may not select a tripod mode depending on the subject’s movement.

Each scene is recognized in the following conditions;

[Landscape] (

[White] ( ) : When shooting a white background

[Nights] ( ) : When shooting the nighttime scenes

[Night Portrait] (

[Backlight] (

[Backlight Portrait] (

[Portrait] ( ) : When shooting a portrait

) : When shooting outdoor scenes

) : When shooting people in a dark outdoor

place

) : When shooting a backlit scenery without

a portrait

) : When shooting a backlit portrait

[Macro] ( ) : When shooting close-ups

[Macro Text] (

[Tripod] ( ) :

[Action] ( ) : When shooting a subject making

[Sunset Sky] ( ) : When shooting sunset

[Blue Sky] (

[Natural Green] ( ) : When shooting nature such as forest

[Macro Color] (

[Macro Portrait] (

) : When shooting texts in a close focus

When shooting a subject that doesn’t move for a certain time after the camera is

mounted on the tripod (available only when the camera recognizes it as nighttime)

frequent movements

) : When shooting blue sky

and leaves

) : When shooting close-up shot for the

subject with various colors

) : When shooting close-up portrait shot

Starting the recording mode

How to use the Program mode ( )

Selecting the automatic mode will conﬁ gure the camera with optimal settings. You can still manually conﬁ gure all functions except the aperture value and shutter speed.

1. Select the Program mode by using the MODE button. (p.20)

2. Press the Menu button to conﬁ gure advanced functions.

See p.37 for further details.

How to use the DUAL IS (Dual Image Stabilization) mode ( )

This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions.

1. Select the DUAL IS mode by using the MODE button. (p.20)

2. Point the camera towards the subject and compose the image by using the LCD monitor.

3. Press the Shutter button to capture an image.



Things to watch out for using the DUAL IS mode

1. The digital zoom will not operate in the DUAL IS mode.

2. If the lighting conditions are brighter than ﬂ uorescent lighting

conditions, the DUAL IS will not activate.

3. If the lighting condition is darker than in ﬂ uorescent lighting

conditions, camera shake warning indicator ( Ã ) will display. For best results only take pictures in situations where the camera shake warning indicator ( Ã ) is not displayed.

4. If the subject is moving, the captured image may be blurred.

5. As the DUAL IS uses the camera’s digital signal processor, it may take a little longer for the camera to process and save the images.

Starting the recording mode

How to use the Scene modes ( )

Use the menu to easily conﬁ gure optimal settings for a variety of shooting situations.

1. Select the Scene mode by using the MODE button. (p.20)

2. Point the camera towards the subject and compose the image by using the LCD monitor.

3. Press the shutter button to capture an image.

The scene modes are listed below.

[Beauty Shot] (

[Frame Guide] (

[Night] (

[Portrait] (

[Children] (

[Landscape] (

[Close Up] (

[Text] (

[Sunset] (

[Dawn] (

[Backlight] (

[Firework] (

[Beach&Snow] (

) : Take a photo of a person with options to

hide facial imperfections

) : Use this mode when you want someone

else to take a picture for you from the

angle you choose.

) : Use this for shooting still images at

night or in other dark conditions.

) : To take a picture of a person.

) : To take a picture of fast moving

objects, for example, children.

) : To take pictures of distant scenery.

) : Close-up shooting for small objects

such as plants and insects.

) : Use this mode to shoot a document.

) : For taking pictures of sunsets.

) : Daybreak scenes.

) : Portrait without shadows caused by

backlight.

) : Firework scenes.

) : For ocean, lake, beach and snowscape

scenes.

Starting the recording mode

Ŷ How to use the [Frame Guide] mode

Set [Frame Guide] mode when you want someone else to take a picture for you from the angle you choose.

1. Take a picture from the angle you choose.

- A guide appears round the sides of

the picture.

Guide

Cancel Frame: OK

2. Then another person can take the picture by aligning the edge of the picture to be taken with the guide framing the sides of the window.

Cancel Frame: OK

Ŷ How to use the [Long Time Shutter] mode

This camera automatically adjusts the shutter speed and aperture values to the shooting environment. However, in Night scene mode, you can set the shutter speed and aperture values to your preference.

Changing the Shutter speed and Aperture value

1. Select the [Night] mode. (p.20)

2. Press the Fn button and Long Time shutter menu will be displayed.

Long Time Shutter

AUTO AUTO

3. Configure the Long Time shutter value with the 5 function button.

4. Press the Fn button again. The value you set will be saved and the mode

Exit Move

will switch to Night scene mode.

Starting the recording mode

How to use the Movie clip mode ( )

A movie clip can be recorded for as long as the available recording time of the memory capacity allows.

1. Select the Movie mode by using the MODE button. (The Movie clip mode icon and available recording time will display on the LCD monitor.)

2. Point the camera towards the subject and compose the image by using the LCD monitor.

Press the shutter button once and movie clips are recorded for as long as the available recording time allows. Movie clips will still be recorded if the shutter button is released. If you wish to stop recording, press the shutter button again.

Movie clip size and type are listed below.

- Movie clip size :

- Movie clip ﬁ le type : AVI (MJPEG)

- Frame Rate : 30 FPS, 15 FPS (Selectable)

- The frame rate can be selected when the following image size is selected. 640x480, 320x240: 30 FPS, 15 FPS selectable

- Recording a movie clip will stop automatically if the recording time exceeds the maximum recording time.

640x480, 320x240 (Selectable)

Recording the movie clip without sound

You can record the movie clip without sound.

Steps from 1 -3 are the same as those for MOVIE mode.

4. Press the Menu button.

5. Press the Up / Down button to select the [Movie] menu and press the Right button.

6. Select the [Voice] menu by pressing the Up / Down button and press the OK button.

7. Select the [Off] menu by pressing the Left / Right button.

8. Press the OK button. You can record a movie without sound.

See p.50 for further details.

Starting the recording mode

Pausing while recording a movie clip (Successive Recording)

This camera allows you to temporarily stop during unwanted scenes, while recording a movie clip. Using this function, you can record your favorite scenes into a movie clip without having to create multiple movie clips.



Using Successive Recording

Steps from 1-2 are the same as those

for MOVIE CLIP mode.

3. Press the shutter button and movie clips are recorded for as long as the available recording time. Movie clips will still be recorded if the shutter button is released.

4. Press the OK button to pause recording.

5. Press the OK button again to resume the recording.

6. If you wish to stop recording, press the shutter button again.

Stop Pause

Things to Watch Out for When Taking Pictures



Pressing the shutter button down half way. Lightly press the shutter button to conﬁ rm focus and ﬂ ash battery charge. Press the shutter button all way down to take the picture.



The available memory capacity may vary depending on shooting conditions and camera settings.



When the Flash Off, Slow synchro mode or DUAL IS mode is selected in a low lighting condition, the camera shake warning indicator ( Ã ) may appear on the LCD monitor. In this case, use a tripod, support the camera on a solid surface or change to ﬂ ash shot mode.



Shooting against the light



Avoid obstructing the lens or the ﬂ ash when you capture an image.



Compose the image by using the LCD monitor.

[Lightly press the shutter button]

: Please do not take pictures against the

sun. Doing so may make the picture dark. To take a picture against the light, please use the [Backlight] in scene shooting mode (see page 23), ﬁ ll-in ﬂ ash (see page 34), spot metering (see page 45), exposure compensation (see page 40) or ACB (see page 45) function.

[Press the shutter button]

Things to Watch Out for When Taking Pictures



Under certain conditions the auto focus system may not perform as expected.

- When photographing a subject that has little contrast.

- If the subject is highly reﬂ ective or shiny.

- If the subject is moving at high speed.

- When there is strong reﬂ ected light, or when the background is

very bright.

- When the subject matter has only horizontal lines or the subject

is very narrow (such as a stick or ﬂ agpole).

- When the surroundings are dark.

Using the camera buttons to set the camera

The recording mode function can be set up by using the camera buttons.

POWER button

Used for turning the camera’s power on / off. If there is no operation during the speciﬁ ed time, the camera's power will be turned off automatically to save battery life. Refer to page 59 for more information about the auto power off function.

SHUTTER button

Smart button

Used for taking an image or recording voice in the Recording mode.



In MOVIE CLIP mode Pressing the shutter button down fully starts the process for recording a movie clip. Press the shutter button once and the movie clip is recorded for as long as the available recording time in the memory allows. If you wish to stop recording, press the shutter button again.



In Still image mode

Pressing the shutter button down halfway activates the autofocus and checks the condition of the ﬂ ash. Pressing the shutter button down fully takes and stores the image. If you select voice memo recording, the recording will start after the camera has ﬁ nished storing the image data.

You can use the Smart button at the top of your camera to select the correct smart mode.

See p.51 for further details.

Zoom W/T Lever

When the menu window is not displayed, this lever is used to control the optical or digital zoom. This camera has a 5X optical zoom and a 5X digital zoom function. Using both will offer a total zoom ratio of 25X.



TELE Zoom

Optical zoom TELE : Move the Zoom W/T lever to the right to

see the subject closer.

Digital zoom TELE : Move the Zoom W/T lever to the right once

again in optical 5x zoom mode to enable digital zoom (software tele). Stop moving the Zoom W/T lever to stop the operation of digital zoom (tele). In digital 5x zoom mode, digital zoom is disabled even if you operate the Zoom W/T lever.

[WIDE zoom]

[TELE zoom] [Digital zoom 5.0X]



WIDE Zoom

Optical zoom WIDE : Move the Zoom W/T lever to the left in

optical zoom mode to see subjects in the distance. Continue to move the Zoom W/T lever to the left to disable optical zoom.

[TELE zoom] [Optical zoom 2X] [WIDE zoom]

Digital zoom WIDE : Move the Zoom W/T lever to the left

Optical zoom

in digital zoom mode to enable digital zoom (software wide). Stop moving the Zoom W/T lever to stop the operation of

Digital zoom

digital zoom. Continue to move the Zoom W/T lever to the left when digital zoom is disabled to disable optical zoom (optical tele).

[Digital zoom 5.0X] [TELE zoom] [WIDE zoom]

Zoom W/T Lever



Images taken using the digital zoom may take a little longer for the camera to process. Allow time for this to take place.



You may notice a decrease in image quality when using the digital zoom.



To view a clearer digital zoom image, press the shutter button halfway at the maximum optical zoom position and move the ZOOM W/T lever to the right again.



The digital zoom can’t be activated in some Scene modes (Beauty Shot, Night, Portrait, Children, Close Up, Text, Fireworks), movie mode, Smart Auto mode and Smart Movie mode.



Take care not to touch the lens to avoid taking an unclear image and possibly causing camera malfunction. If the image is dim, turn the camera power off and on again to modify the lens position.



Take care not to press the lens as this may cause a camera malfunction.



When the camera is turned on, take care not to touch the camera’s moving lens parts as this may cause the resulting image to be dim and unclear.



Take care not to touch the lens while operating the Zoom W/T lever.

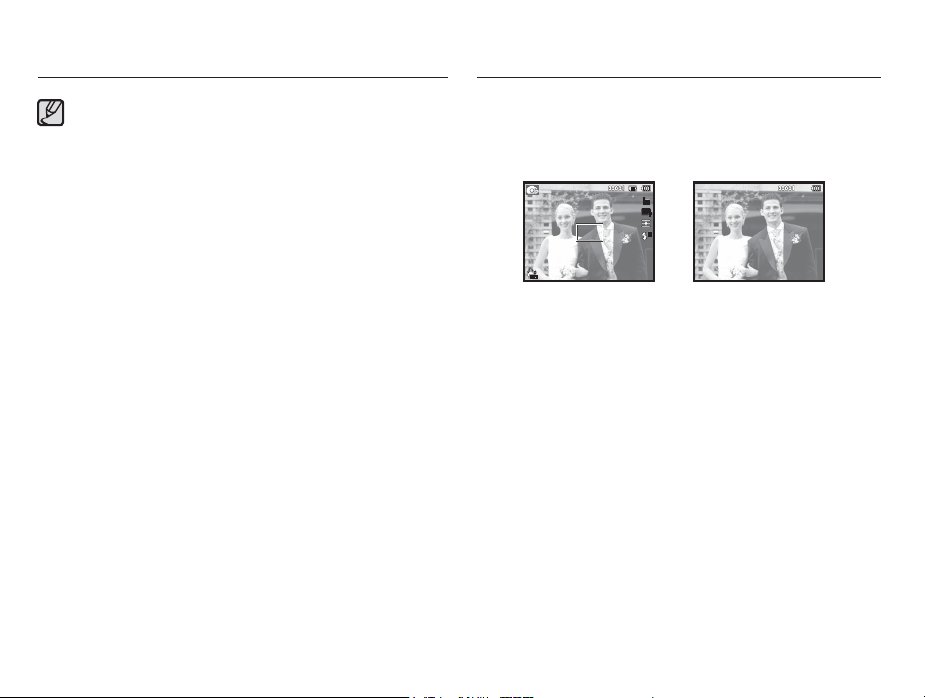

Info (DISP) / Up button

While the menu is showing, the Up button operates as a direction button. In the recording modes or playback mode, pressing this button will display the image information.

[Information screen][Filming screen]

Macro

( )

/ Down button

While the menu is showing, the Down button operates as a direction button. When the menu is not showing, you can use the Macro ( ) / Down button to take macro pictures. The distance ranges are shown below. Press the Macro button until the desired macro mode indicator appears on the LCD monitor.

[Auto Focus]

[Auto Macro ( )]

[Macro ( )]



Types of focus mode and focus range (W : Wide, T : Tele)

Mode Program ( )

Focus Type Macro (

Focus range

Mode DUAL IS ( )

Focus Type Auto Macro ( ) Normal

Focus range

When the macro mode is selected, be particularly careful to avoid



camera shake. When you take a picture within 40cm (Wide zoom) or 50cm



(Tele zoom) in the Macro mode, select the Flash off mode.

W : 10 ~ Inﬁ nity

T : 100 ~ Inﬁ nity

) Normal

W : 10 ~ 80 (Wide only)

W : 80 ~ Inﬁ nity

T : 80 ~ Inﬁ nity

W : 80 ~ Inﬁ nity

T : 80 ~ Inﬁ nity

(Unit: cm)

)

(

Macro



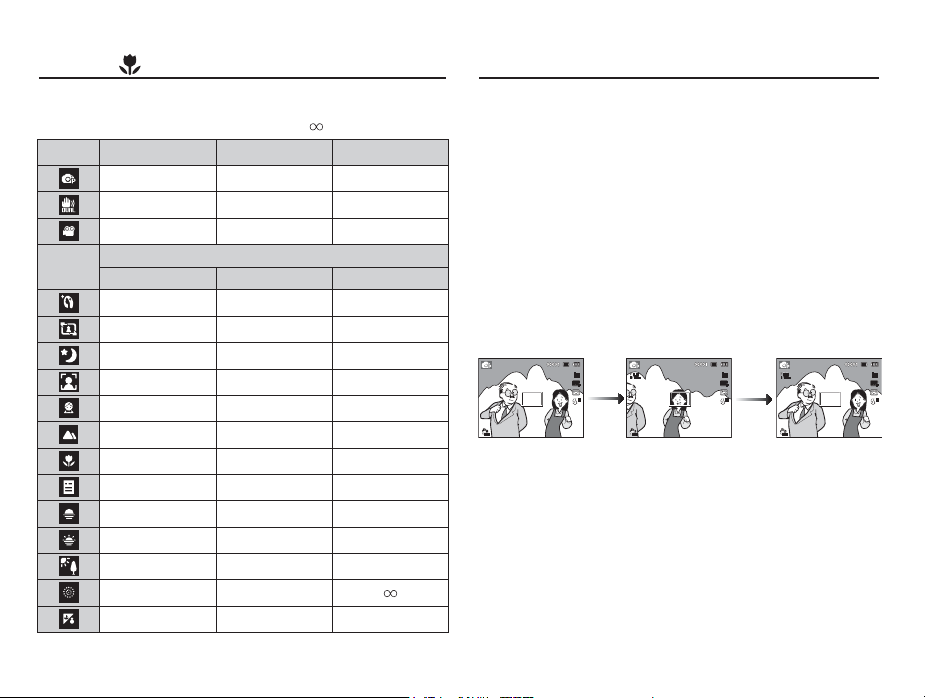

Available focusing method, by recording mode

Mode Auto Macro Macro Normal

Mode

/ Down button

( o : Selectable,

SCENE

Auto Macro Macro Normal

: Inﬁ nity focus range)

Focus lock

To focus on a subject not positioned in the center of the picture, use the focus lock function.



Using the Focus Lock

1. Ensure the subject is in the center of the autofocus frame.

2. Press the shutter button halfway. When the green auto focus frame lights up, it means the camera is focused on the subject. Be careful not to press the shutter button all the way down to avoid taking an unwanted picture.

With the shutter button still pressed down only halfway, move the camera to recompose your picture as desired, and then press the shutter button completely to take the picture. If you release your ﬁ nger from the shutter button, the focus lock function will be

cancelled.

1. The image to be captured.

2. Press the shutter button halfway and focus on the subject.

3. Recompose the picture and fully depress the shutter button.

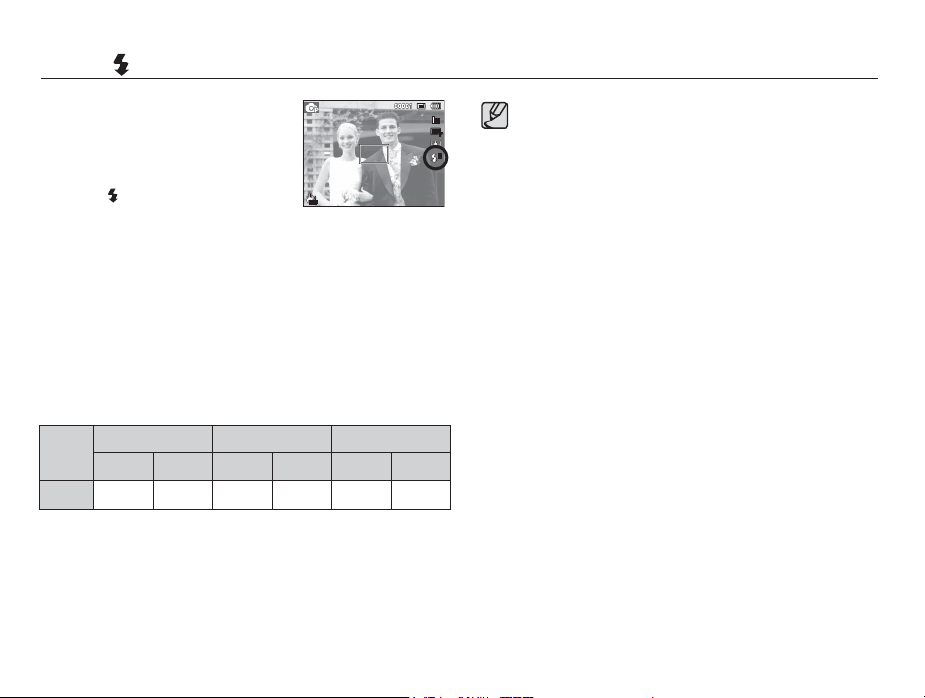

Flash

( )

/ Left button

When the menu is displayed on the LCD monitor, pressing the Left button makes the cursor shift to the left tab. When the menu is not displayed on the LCD monitor, the Left button operates as the Flash ( ) button.

[Selecting the Auto ﬂ ash]



Selecting the ﬂ ash mode

1. Select the desired Recording mode, except for the [Movie] mode. (p.20)

2. Press the Flash button until the desired ﬂ ash mode indicator is displayed on the LCD monitor.

3. A ﬂ ash mode indicator will be displayed on the LCD monitor.

Use the correct ﬂ ash to suit the environment.



Flash range

ISO

AUTO 0.8~3.0 0.8~2.0 0.4~0.8 - 0.4~3.0 1.0~2.0

Normal Macro Auto macro

WIDE TELE WIDE TELE WIDE TELE

(Unit: m)

If you press the shutter button after selecting the ﬂ ash, the ﬁ rst



ﬂ ash ﬁ res to check the shooting condition (Flash range and Power ratio of ﬂ ash). Do not move the camera until the second ﬂ ash ﬁ res. Using the ﬂ ash frequently will reduce the life of the battery.



Under normal operating conditions the re-charging time for



the ﬂ ash is usually within 4 seconds. If the battery is weak, the charging time will be longer. The camera ﬂ ash does not operate in the [Movie] and some



Scene modes. Take photographs within the ﬂ ash range.



The image quality is not guaranteed if the subject is too close



or highly reﬂ ective. When taking an image in poorly lit conditions with the ﬂ ash,



there may be a white speck in the captured image. The speck is caused by the ﬂ ash light reﬂ ecting off atmospheric dust.

Flash



( )

/ Left button

Flash mode indicator

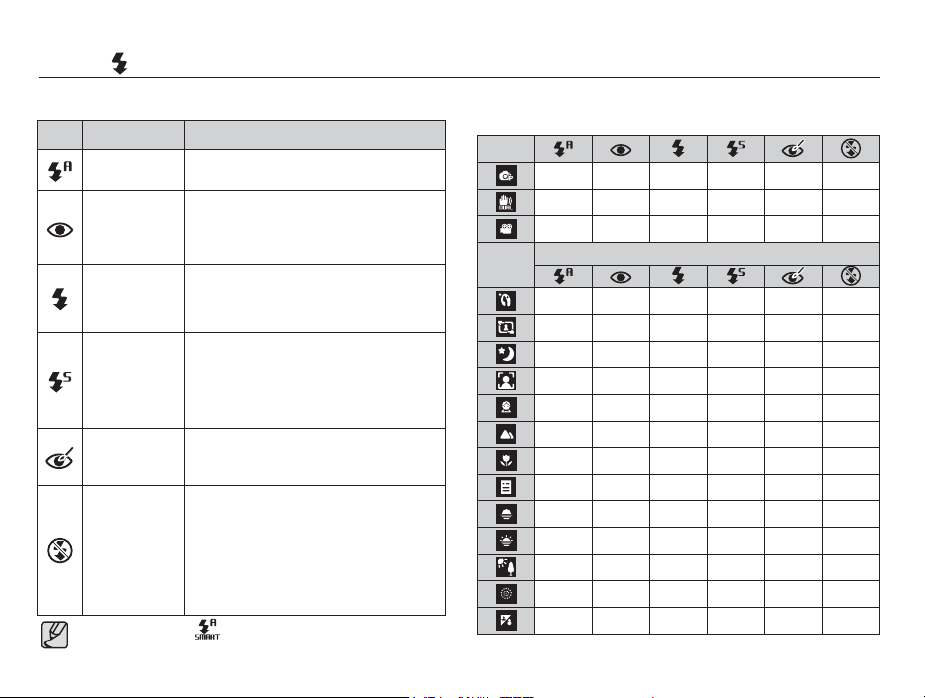

Icon Flash mode Description

Auto ﬂ ash

Auto & Red eye

reduction

Fill in ﬂ ash

Slow synchro

Red-eye reduction

Flash off



Smart Auto ﬂ ash ( ) icon will appear in [Smart Auto]

If the subject or background is dark, the camera ﬂ ash will operate automatically.

If a subject or background is dark, the camera ﬂ ash will work automatically and will reduce the red-eye effect by using the redeye reduction function.

The ﬂ ash ﬁ res regardless of the available light. The intensity of the ﬂ ash will be automatically controlled to suit the prevailing conditions.

The ﬂ ash operates with a slow shutter speed to obtain a balanced correct exposure. In poor lighting conditions the camera shake warning indicator ( LCD monitor.

When a shot with "red eye" is detected, this mode will reduce the red-eye effect automatically.

The ﬂ ash does not ﬁ re. Select this mode when capturing images in a place or situation where ﬂ ash photography is prohibited. When you capture an image in poorly lit conditions, the camera shake warning indicator ( LCD monitor.

mode.

) will display on the

) will appear on the



Available ﬂ ash mode, by recording mode

Mode

oooooo

Mode

SCENE

ooo

( o : Selectable)

ooo

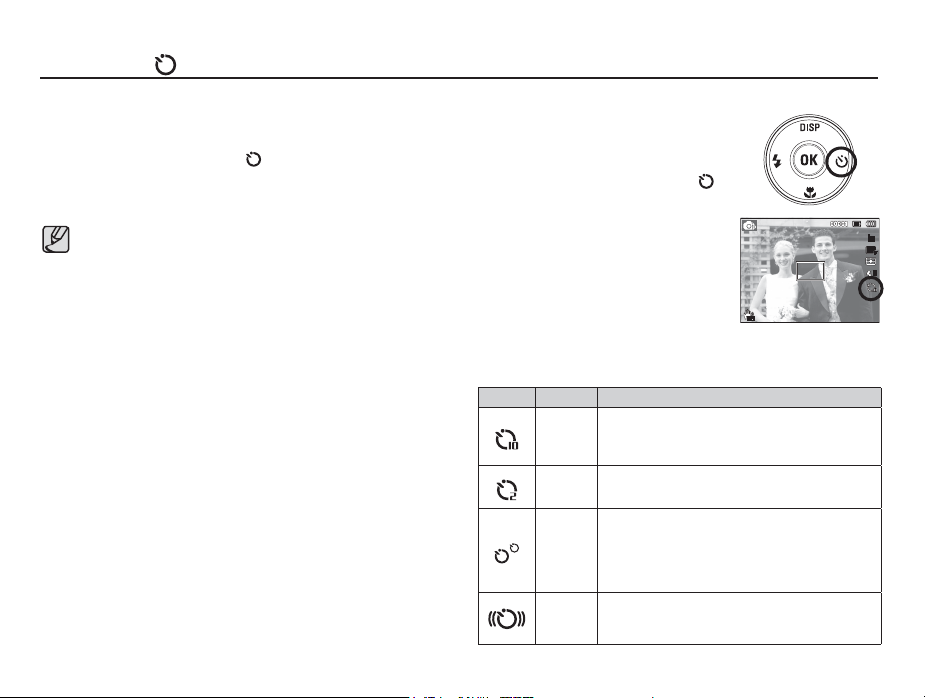

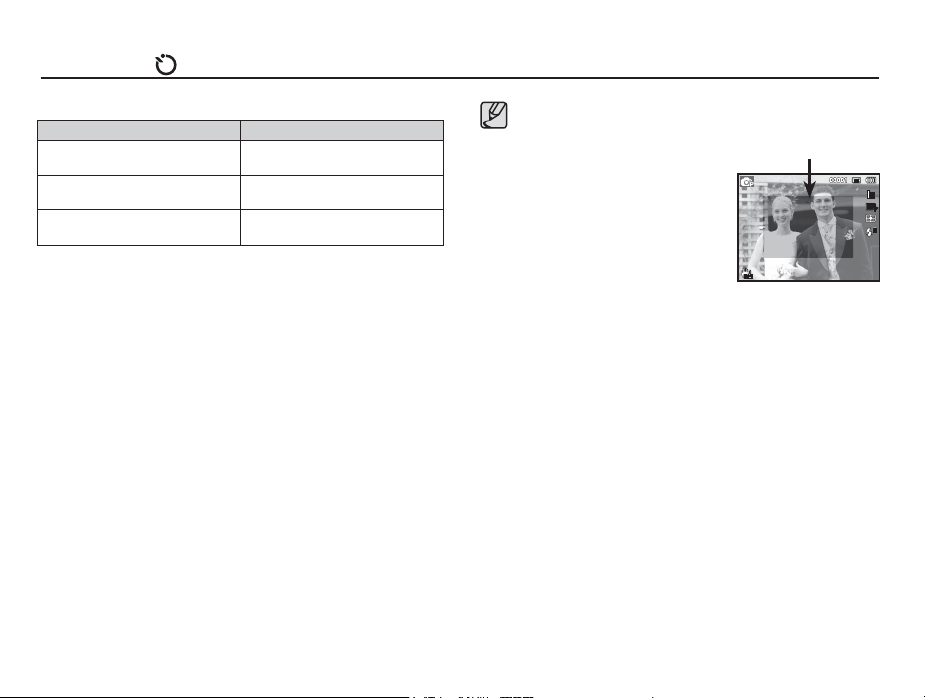

Self-timer

( )

/ Right button

When the menu is displayed on the LCD monitor, pressing the Right button makes the cursor shift to the right tab. When the menu is not displayed on the LCD monitor, the Right button operates as the Self-timer ( ) button. This function is used when the photographer would also like to be in the image.



If you operate the Self-timer button during the self-timer operation, the self-timer function is cancelled.



Use a tripod to prevent the camera from shaking.



In Movie Clip mode, only the 10SEC self-timer will work.



Selecting the self-timer

1. Select a Recording mode with the exception of Voice recording mode. (p.20)

2. Press the SELF-TIMER / RIGHT ( ) button until the desired mode indicator displays on the LCD monitor. A 10 second, 2 second, Double self-timer or Motion timer icon appears on the LCD monitor.

3. When you press the shutter button, the picture will be taken after the speciﬁ ed time has elapsed.



Self-timer mode indicator

Icon Mode Description

10SEC

self-timer

Pressing the shutter button will allow an interval of 10 seconds before the image is taken.

2SEC

Pressing the shutter button will allow an interval of 2 seconds before the image is taken.

A picture will be taken after about 10 seconds and 2 seconds later a second picture will be

Double

taken. When using the ﬂ ash, the 2-second self-timer may be delayed for longer than 2 seconds depending on the ﬂ ash charging time.

The camera detects the subject's movement 6

Motion

seconds after pressing the Shutter button, and the

Timer

picture is taken when the movement is stopped.

[Selecting the 10 SEC

self-timer]

Self-timer

( )

/ Right button



Motion Timer

Pressing the Shuter button after setting the Motion Timer

Detecting the subject's movement Blink (0.25 second interval)

No movement is detected



The Motion Timer ﬂ ows are as followings. (Movie Clip mode excluded)

Selecting the Motion Timer  Pressing the Shutter button Conﬁ rming the composition (Within 6 sec.) detection (Swing your hands fully)

Motion Icon & Self-timer lamp

Blink (1 second interval)

Turn on and the image is taken after 2 seconds



Starting the

Stopping the detection



(Do not move)  Taking an image (after 2 sec.)

*1: The camera detects the subject's movement 6 seconds after pressing the

Shtter button, so conﬁ rm the composition within 6 seconds.

*2: Move your body or hands fully.

In the following cases, the Motion Timer may not operate.

The focus distance is over 3m.



The exposure is too bright or dark



In backlight conditions.



The movement is insigniﬁ cant



The movement is detected beyond



the center part (50%) of the sensor where the movement is recognized. If the camera doesn`t sense any



movement for 30 seconds, or the camera doesn’t sense stillness after sensing movement

The detection range of

Motion Timer

MENU button

- When you press the MENU button, a menu related to each camera mode will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

- The menu screen is available in the [Smart Auto], [Program], [DUAL IS], [Scene], [Movie] and [Smart Movie] modes, but it is not available in the voice recording function.

Shooting ( )

Use the menu that enables the functions, or the Fn button, to bring up the menus below:

Mode Menu

Photo Size / Movie Size

Available mode Page

p.39

[Menu off]

[Pressing the MENU button]

Shooting

Sound

Display

Settings

Exit Change

[Menu on]

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

OK button

- When the menu is displayed on the LCD monitor, this button is

used for shifting the cursor to the sub menu or for conﬁ rming data.

Shooting

Sound

Display

Settings

Exit Change

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

[Pressing the

OK button]

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

Exit Back

(

Shooting

Quality / Frame Rate

EV p.40

ISO

White Balance

Face Detection

Face Tone

)

Face Retouch

Focus Area p.44

Metering

ACB

Drive

Photo Style Selector

Image Adjust

p.39

p.40

p.41

p.42

p.44

p.45

p.46

p.47

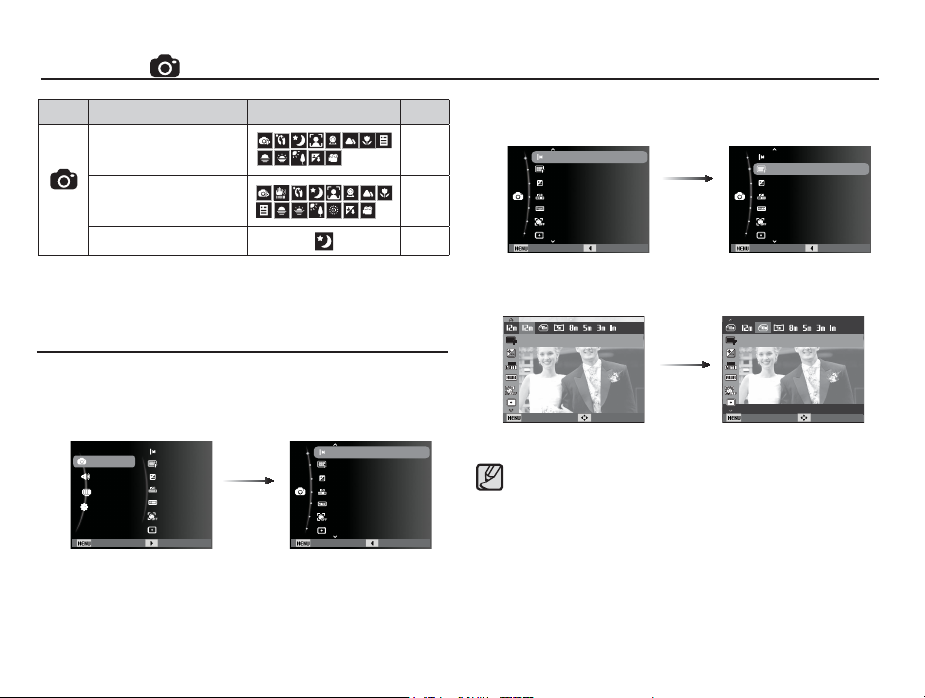

Shooting ( )

Mode Menu

OIS

(

Shooting

)

Voice

Long Time Shutter

Available mode Page

p.48

p.49

p.24

How to Enable Functions Using the MENU Button

1. Press the MENU button in an available mode.

2. Press the Up / Down button to select the [Shooting] menu and press the Right/OK button.

Shooting

Sound

Display

Settings

Exit Change

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

Right/OK

button

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

Exit Back

3. Select a desired menu by pressing the Up / Down button and then press the OK button.

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

Exit Back

Up / Down

button

Photo Size

Quality

ISO

White Balance

Face Detection

Focus Area

Exit Back

4. Select a desired menu by pressing the Left / Right button and then press the OK button.

Photo Size

Back Move

Left / Right

button

3984 X 2656

Back Move

Use the Fn button on the rear of the camera to bring up the menus that enable frequently used functions faster.

Shooting ( )

Photo Size / Movie Size

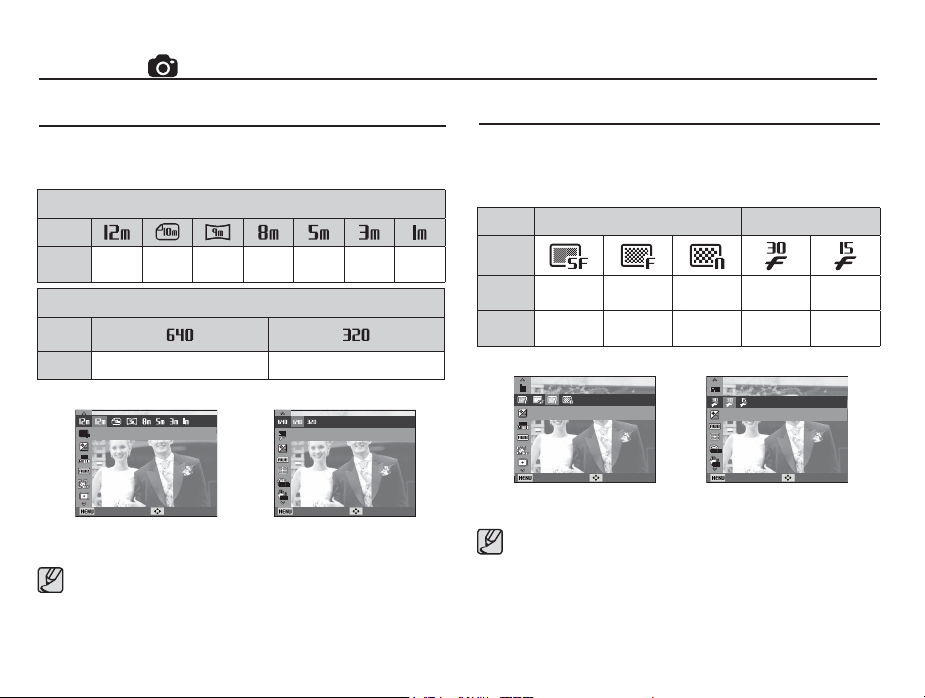

You can select the photo size / movie size appropriate for your application.

(Unit: pixel)

Quality / Frame rate

You can select the compression ratio appropriate for your application of the captured images. The higher the compression ratio, the lower the picture quality.

Still image mode

Icon

Size

Icon

4000X

3000

3984X

2656

3968X

3264X

2232

2448

Movie clip mode

2592X

1944

2048X

1536

1024X

768

Mode Still image mode Movie clip mode

Icon

Sub

File

Format

Size 640X480 320X240

Photo Size

Back Move

[ Still image mode ]

The higher the resolution, the lower the number of shots



Movie Size

Back Move

[ Movie clip mode ]



available because high resolution images require more memory.

Super Fine Fine Normal 30 FPS 15 FPS

jpeg jpeg jpeg avi avi

Quality

Back Move

[ Still image mode ]

Frame Rate

Back Move

[ Movie clip mode ]

This ﬁ le format complies with the DCF (Design rule for Camera File system). JPEG (Joint Photographic Experts Group) : JPEG is the image compression standard developed by the Joint Photographic Experts Group. This type of compression is most commonly used for compressing photos and graphics because it can compress the ﬁ les efﬁ ciently.

Shooting ( )

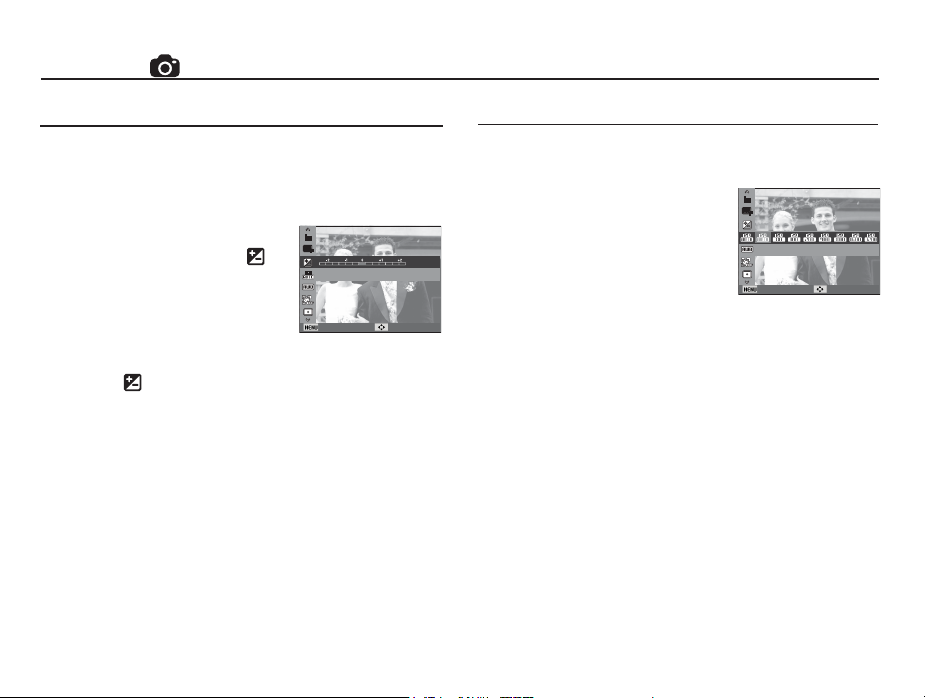

Exposure compensation

This camera automatically adjusts the exposure according to the ambient lighting conditions. by using the [EV] menu.



Compensating Exposure

1. Click the Up/Down button from the Shooting menu to select [EV] (

2. Use the Left and Right buttons to set the desired exposure compensation factor.

3. Press the OK button. The value you set will be saved and the Exposure Compensation setup mode will be closed. If you change the exposure value, the exposure indicator ( ) will be displayed on the Left of the LCD monitor.

A negative exposure compensation value reduces the exposure.

Note that a positive exposure compensation value increases the exposure and the LCD monitor will appear white or you may not get good pictures.

You can also select the exposure value

Back Move

ISO

You can select the ISO sensitivity when taking pictures.The speed or speciﬁ c light-sensitivity of a camera is rated by ISO numbers.

[Auto] : The camera's sensitivity is

automatically changed by variables such as lighting value or subject brightness.

[ISO 80, 100, 200, 400, 800, 1600, 3200] : You can increase the shutter speed while the same amount of light is present, by increasing the ISO sensitivity. However, the image may be saturated in high luminance. The higher the ISO value, the higher the camera’s sensitivity to light and therefore the greater its capacity to take pictures in dark conditions. However, the noise level in the image will increase as the ISO value increases, making the image appear coarse.

When [Motion Capture] is set, ISO speed will be set to Auto.

[ISO] is enabled only in [Program] mode.

When the ISO 3200 menu is selected, the image size is ﬁ xed to under 3M.

ISO

Back Move

Shooting ( )

White balance

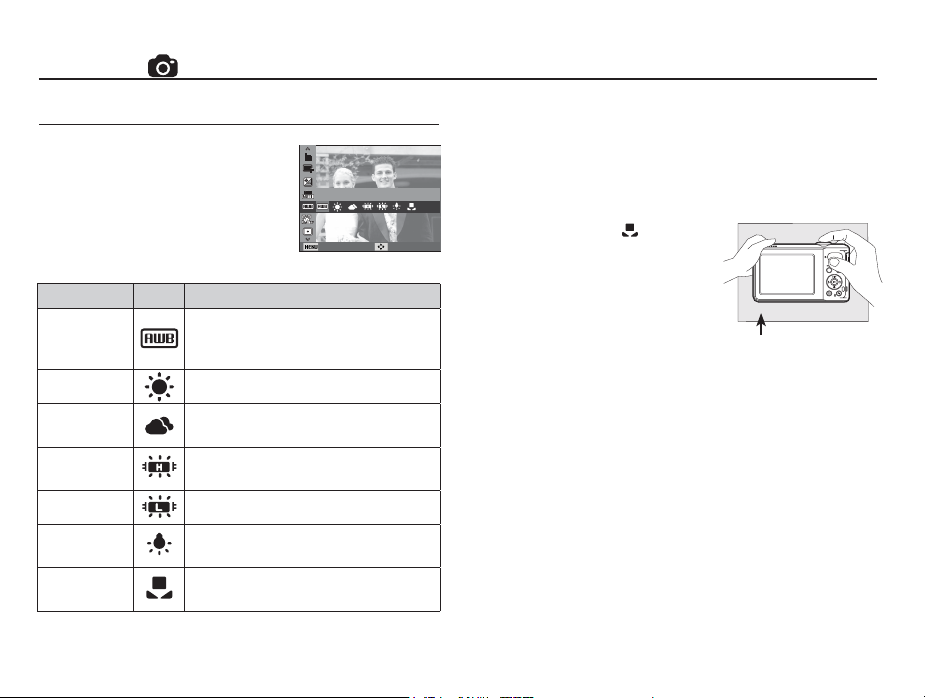

The white balance control allows you to adjust the colors to appear more natural.

White Balance



Using the Custom White Balance

White balance settings may vary slightly depending on the shooting environment. You can select the most appropriate white balance setting for a given shooting environment by setting up the custom white balance.

Back Move

Mode Icon Description

The camera automatically selects the

Auto WB

Daylight For taking images outside.

Cloudy

Fluorescent_H

Fluorescent_L

Tungsten

Custom Set

Different lighting conditions may cause a color cast on your images.

appropriate white balance settings, depending on the prevailing lighting conditions.

For taking images under a cloudy and overcast sky.

For shooting under daylight ﬂ uorescent types of three-way ﬂ uorescent lighting.

Shooting under white ﬂ uorescent lighting.

For shooting under tungsten (standard light bulb) lighting.

Allows the user to set the white balance according to the shooting condition.

1. Select the Custom ( ) menu of the White Balance and place a sheet of white paper in front of the camera so that the LCD monitor shows only white.

2. OK button : selects previous

White paper

custom white balance.

Shutter button : saves new custom white balance.

- The custom white balance value will be applied, starting with the next picture you take.

- The user conﬁ gured white balance will be remain effective until it is overwritten.

Shooting ( )

Face Detection

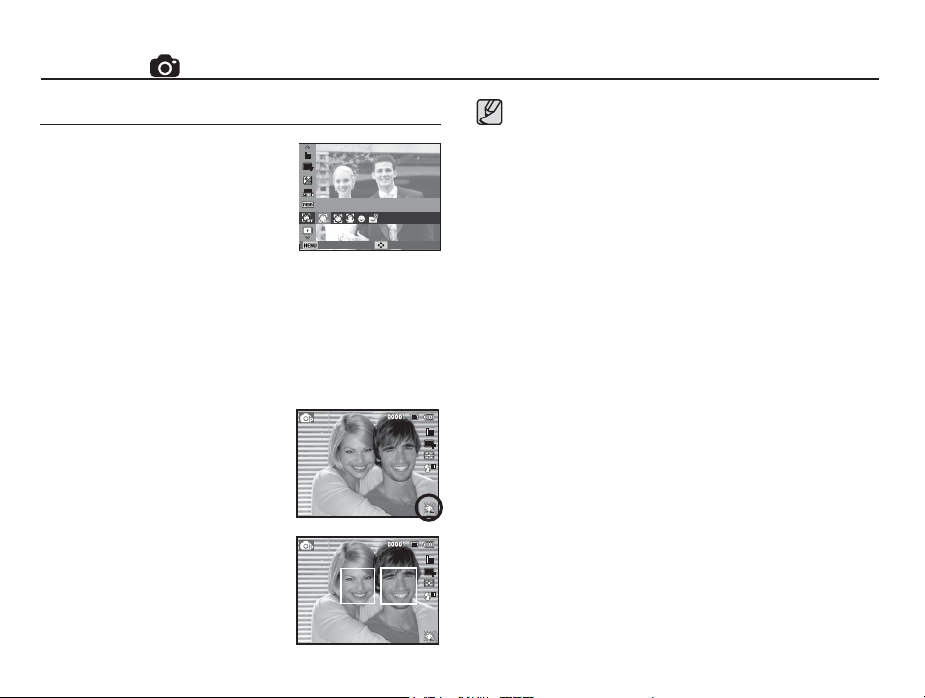

If you use face detection options, your camera can detect a human face. When focusing on a human face, the brightness of the face is also adjusted. You can also capture natural facial expressions by using self portrait, smile shot or blink detection.



Normal

This mode detects the face position of the subject automatically and then sets the focus and exposure. Select this mode for quick and easy face picture.

Selectable modes: Program, DUAL IS, Beauty Shot, Portrait,

Children, Beach & Snow

1. The size and position of the auto focus frame is set at the face of the subject automatically.

2. Press the shutter button halfway. The focus frame turns to green when the focus is activated.

3. Press the shutter button fully to take a picture.

Face Detection

Back Move



This function can detect up to 10 persons.



When the camera recognizes many people at the same time, it will focus on the nearest person.



The Digital zoom is not activated in this mode.



When the camera detects a target face, the white color focus frame will be displayed over the target face and the grey color focus frame appears over the remaining faces. Press the shutter button halfway down to focus on the face and the white focus frame turns green.



In some conditions this function cannot work properly.

- When a person wears dark glasses or some part of the face is hidden.

- When the person being taken does not look at the camera.

- Camera doesn't detect a face as the brightness is too dark or too bright.

- The distance between the camera and object is far.



The maximum available Face Detection range is 2.5m (Wide).



The nearer the subject, the faster the camera can recognize the subject.



In [Beauty Shot], [Portrait], and [Children] mode, the [Face Detection] function setting is set to its default value.

Shooting ( )



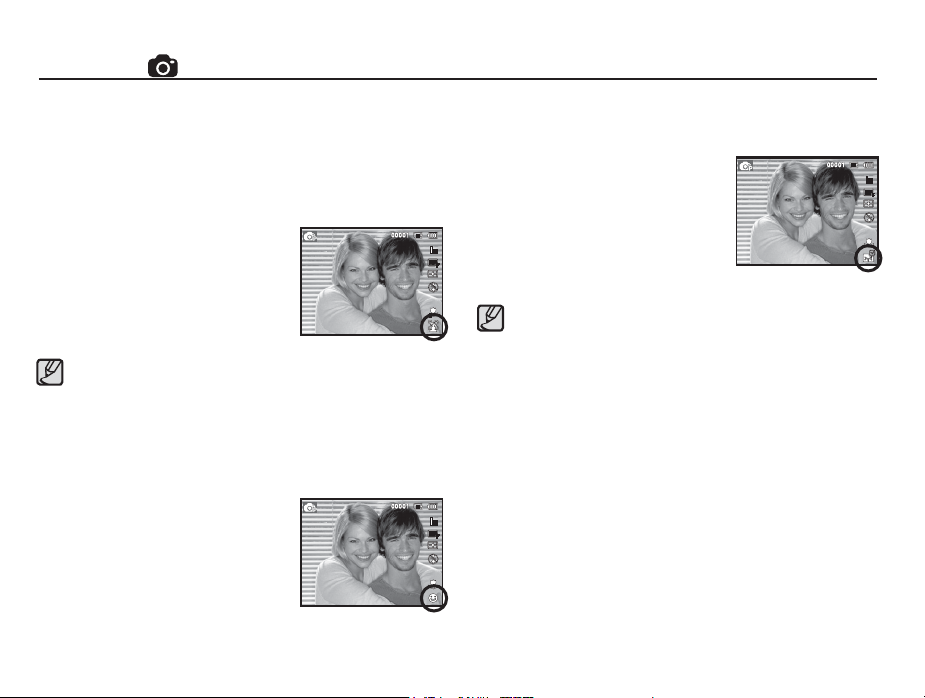

Self Portrait

When taking pictures of yourself, the area of your face is automatically detected so that you can take self pictures more easily and quickly.

Selectable modes: Program, DUAL IS, Beauty Shot, Portrait,

1. For self-ﬁ lming, set the camera lens

towards the face of the object. It automatically detects the face of the object, and emits a guiding sound.

2. Start ﬁ lming by pressing the shutter

button.



When locating the face in the center of the screen, it repeatedly emits a faster sound unlike the sounds that are emitted when the face is not in the center.



Smile Shot

Selectable modes: Program, DUAL IS, Beauty Shot, Portrait,

The camera automatically takes a picture by detecting the face of the subject although you don’t press the shutter button. If you press the Shutter button, the picture is taken in the normal way. When taking a picture of smile shot, showing teeth or keeping the smiley face of your subject helps detecting the smile face of the subject.

Beach & Snow

Children, Beach & Snow



Blink Detection

Selectable modes: Program, Portrait, Children, Beach & Snow

If the eyes of the subject are closed when the shutter button is pressed, the camera takes 2 continuous shots and then the images are saved. The camera takes only one picture if the eyes of the subject are open when the Shutter button is pressed.



Detecting the smiling face or the blinking eyes may not be available if any of the following situations occurs:

- If the subject is wearing sunglasses.

- When the subject is not facing directly to the camera.

- If the environmental light is too bright or too dark to detect the face of the subject.

- When the camera is far from the subject. (Orange colored focusing mark)

If there is reﬂ ection of the light or the back light that are too bright.

Shooting ( )

Face Tone

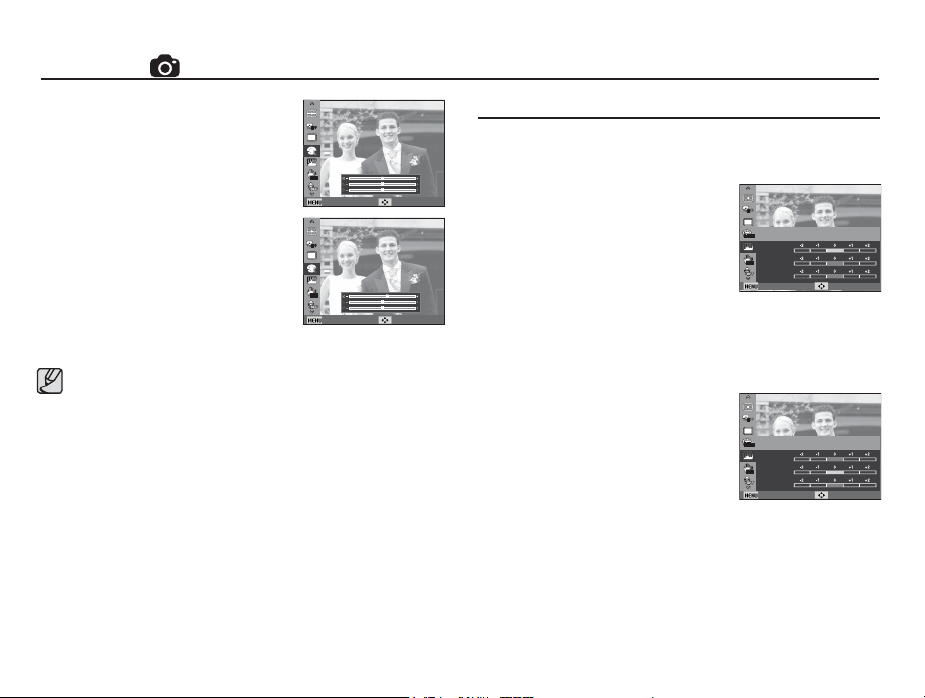

This menu allows you to control the skin tone in images in beauty shot mode. The higher the level you select, the brighter the skin tone.

1. Select [Face Tone] by pressing the Up/Down button.

Face Tone

2. Select a desired face tone by pressing the Left / Right button and then press the OK button.

3. Press the Shutter button to take an image.

Back Move

Face Retouch

This menu allows you to make skin appear clear and beautiful before recording in beauty shot mode. The higher the level selected, the more effective the control.

1. Select [Face Retouch] by pressing the Up/Down button.

2. Select a desired face retouch by pressing the Left / Right button and then press the OK button.

3. Press the Shutter button to take an image.

Face Retouch

Back Move

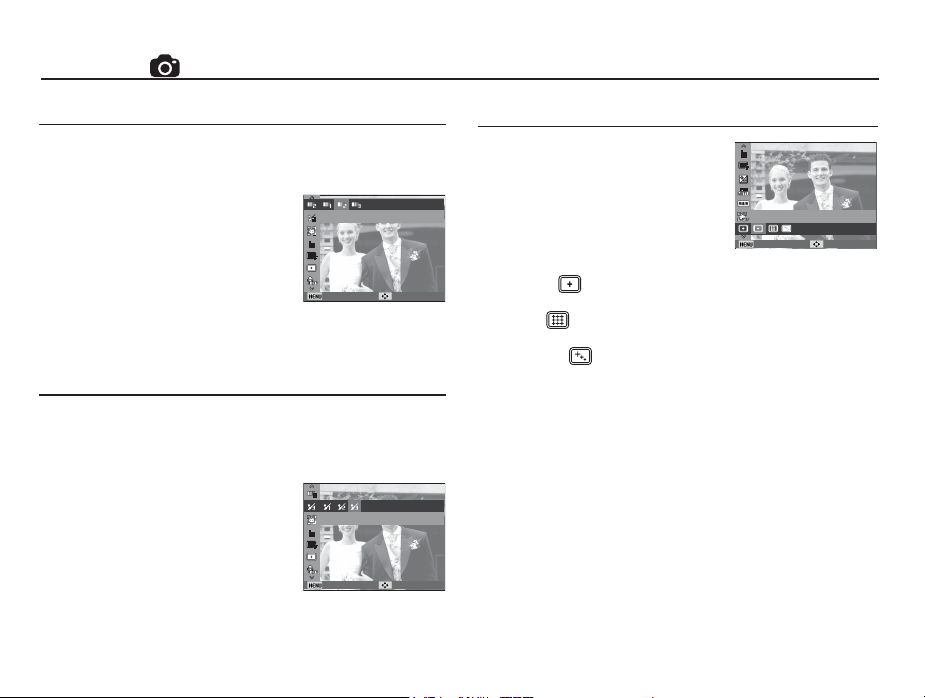

Auto Focus type

You can select your preferred Focus Area according to the shooting conditions.

Focus Area

Back Move

[Center AF] (

[Multi AF] ( ) : This camera selects all of available AF point

[Tracking AF] ( ) : The focus moves along with the movements

When the camera focuses on the subject, the auto focus frame turns to green. When the camera doesn't focus on the subject, the auto focus frame turns to red.

) : The rectangular area in the center of the LCD

monitor will be focused

from the 9 AF points.

of a subject.

Shooting ( )

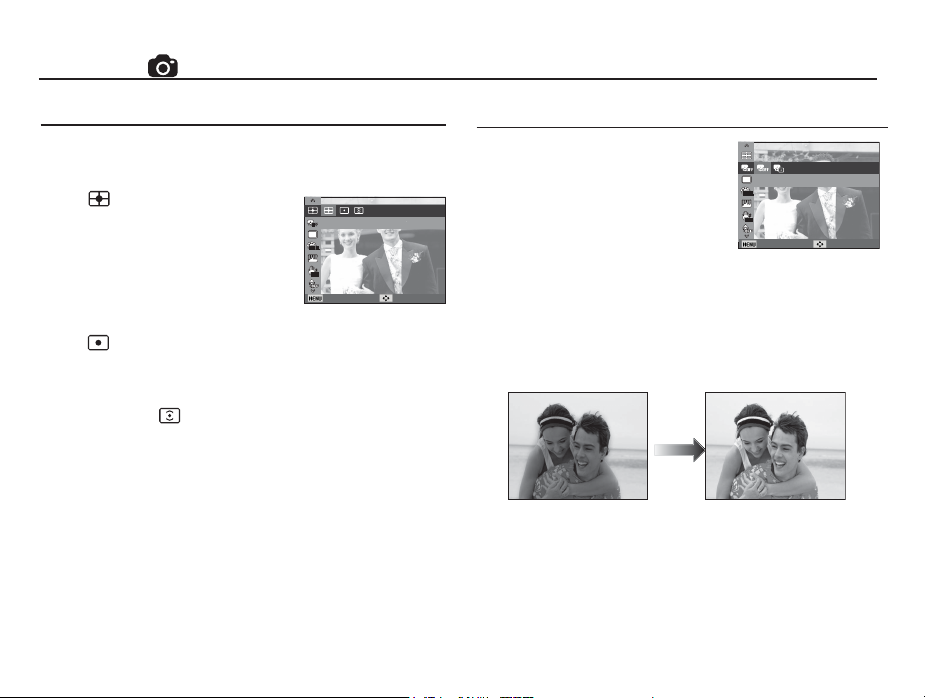

Metering

If you cannot obtain suitable exposure conditions, you can change the metering method to take brighter pictures.

[Multi] ( ) : Exposure will be calculated

[Spot] ( ) : Only the rectangular area in the center of the LCD

[Center-wei ghted] (

If the subject is not the center of the focus area, do not use the

spot metering as this may result in an exposure error. In this circumstance, it is better to use exposure compensation.

based on an average of the available light in the

Metering

image area. However, the calculation will be biased towards the center of the image area. This is suitable

Back Move

for general use.

monitor will be metered for light. This is suitable when the subject in the center is exposed correctly, regardless of the back lighting.

)

: Exposure will be calculated based on an average of

the available light in the image area. However, the calculation will be biased towards the center of the image area. This is suitable for taking a picture of small object like a ﬂ ower or insects.

ACB

This function is to adjust the contrast automatically when taking photos in an environment with big exposure difference i.e. backlight or contrast. This function adjusts the brightness automatically and allows the subject to be photographed clearly.

- [ACB] Sub menus: [Off], [On].

When using the [Program] mode, the ACB function will operate.

ACB

Back Move

Shooting ( )

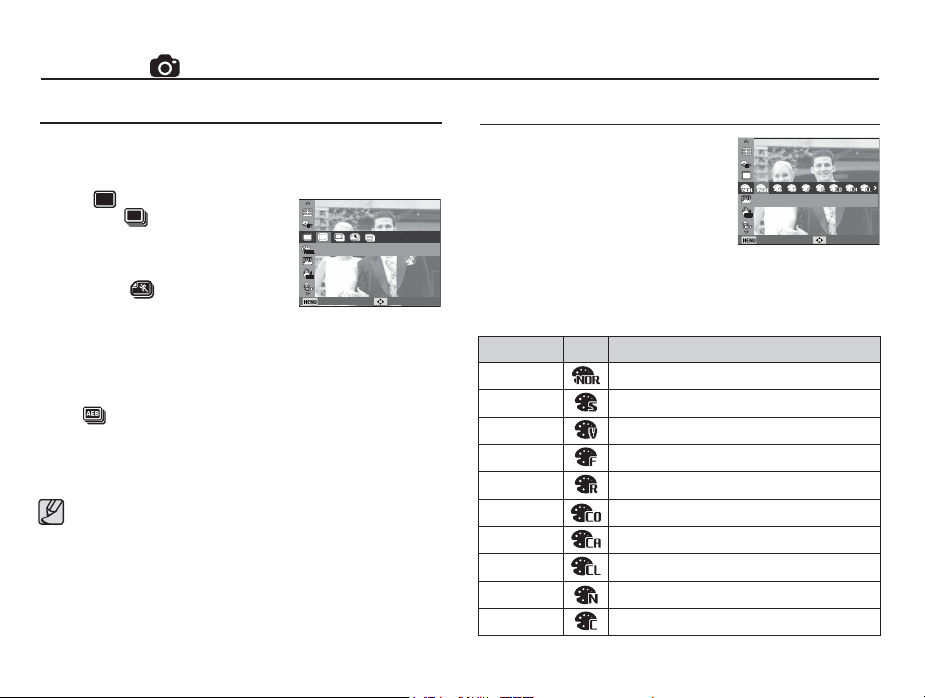

Drive mode

You can select single, continuous, motion capture, and AEB (Auto Exposure Bracketing).

[Single] ( ) : [Continuous] ( ) : Images will be

[Motion Capture] ( )

[AEB] ( ) :



High resolution and picture quality increases ﬁ le saving time, which increases stand-by time.



If the [Continuous], [Motion Capture], [AEB] sub menu is selected, the ﬂ ash will be off automatically.



If less than 3 pictures are available on the memory, the AEB shooting is not available.



It is best to use a tripod for the AEB shooting as the time to save each image ﬁ le is longer and blurring caused by camera shake may occur.

Take one picture only.

taken continuously until the shutter

Drive

button is released.

: This takes 5 shots

per second, when

Back Move

the shutter is pressed and held down. After completing the continuous shooting, images are saved and the images play back on the Rear LCD. The maximum number of shots is 30 and the image size is ﬁ xed as VGA. Take three pictures in a series in different exposures: standard exposure (0.0EV), short exposure (-1/2EV) and over exposure (+1/2EV).

Photo Style Selector

You can add various effects to the image without using image editing software.

Photo Style Selector

Back Move

1. Select the desired Photo style selector by pressing the Left/Right button and press the OK button.

2. Press the Shutter button to take an image.

Style mode Icon Description

Normal

Soft

Vivid

Forest

Retro

Cool

Calm

Classic

Negative

Custom RGB

No style effect is applied.

Soft style is applied.

Vivid style is applied.

Forest style is applied.

Sepia style is applied.

Cool style is applied.

Calm style is applied.

Black & white effect is applied.

Negative effect is applied.

Deﬁ ne an RGB tone to create your own photo style.

Shooting ( )



Custom RGB : You can change the R

- Up/Down button : Selects R, G, B

- Left/Right button : Changes the values

 

(Red), G (Green) and B (Blue) values of the image.

Back Move

When picture style is set, face detection is not available. When Photo Style Selector is set, Image Adjust function is not available.

Image Adjust



Contrast You can change the contrast of the image.

1. Select [Contrast] by pressing the

Up/Down button.

2. Change the contrast by pressing the

Left/Right button.

3. Press the Shutter button to take an

image.



Sharpness You can adjust the sharpness of the picture you are about to take. You cannot check the sharpness effect on the LCD monitor before you take a picture, because this function is applied only when the captured image is stored on the memory.

1. Select [Sharpness] by pressing the Up/Down button.

2. Change the Sharpness by pressing the Left/Right button.

3. Press the Shutter button to take an image.

Image Adjust

Contrast

Sharpness

Saturation

Back Move

Image Adjust

Contrast

Sharpness

Saturation

Back Move

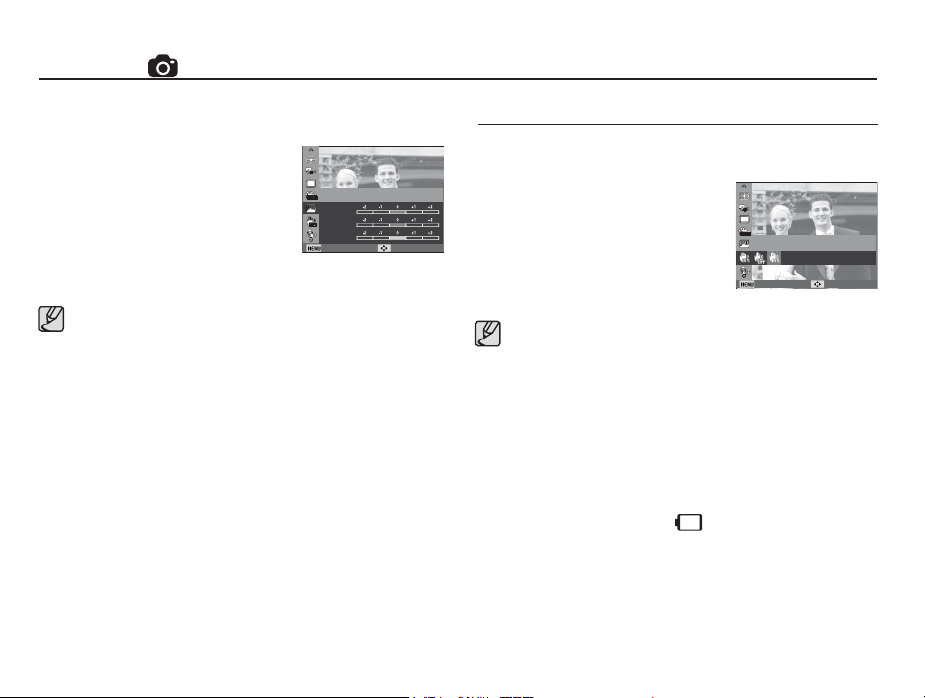

Shooting ( )



Saturation You can change the saturation of the image.

1. Select [Saturation] by pressing the Up/Down button.

2. Change the saturation by pressing the Left/Right button.

Press the Shutter button to take an

3. image.



When Photo Style Selector is set, image adjust is not available.



When Image Adjust is set, Face Detection mode is not available.

Image Adjust

Contrast

Sharpness

Saturation

Back Move

OIS (Optical image Stabilization)

This feature allows you to minimize camera shake while taking a

picture.

- [OIS] Sub menus: [Off], [On]

OIS

Back Move



OIS function may not work sufﬁ ciently in the following cases.

- To take pictures of a moving subject.

- To take pictures with higher digital zoom values.

- When camera shake is beyond the camera-shake correction range.

- When the shutter speed is slow.

Ɣ When you use the OIS function after mounting your camera on a

tripod, the vibration of the OIS sensor may cause image shake. In this case, it is recommended to turn the OIS function off.

Ɣ When you capture an image after shock is given to the camera, the

LCD screen may shake. In this case, turn the camera off and then on for proper operation.

Ɣ When the battery is too low ( ), the OIS function will not work.

Ɣ When the shooting speed exceeds 1 second, the timer function is

selected or the battery is low, the OIS icon will turn gray and the OIS function will not work.

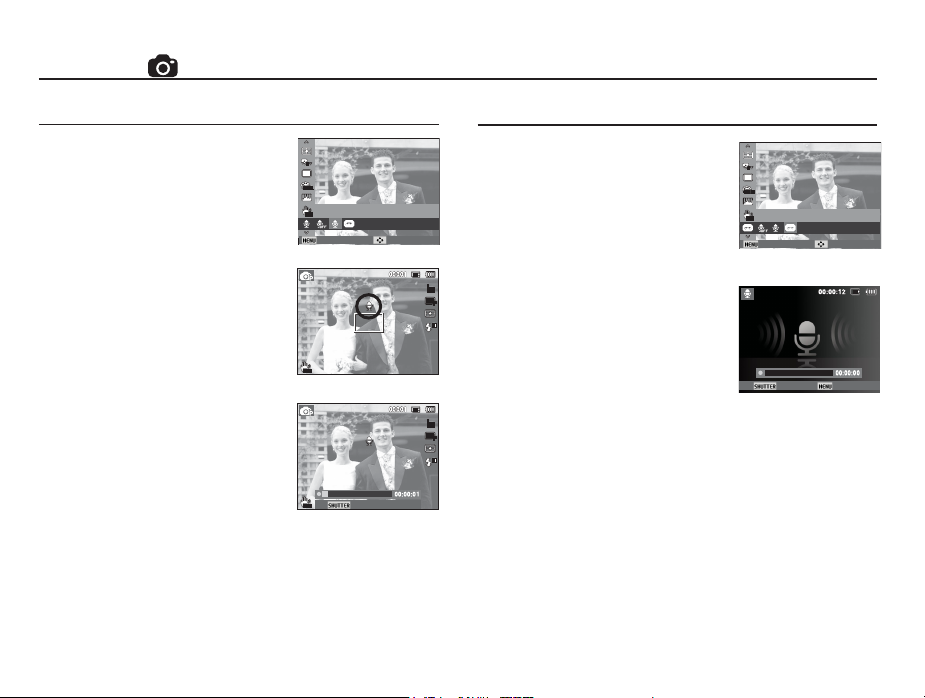

Shooting ( )

Voice Memo

You can add your voice-over to a stored still image. (Max. 10 sec.)

If the voice memo indicator is displayed on the LCD monitor, the setting is completed.

- Press the shutter button and take a picture. The picture is stored on the memory card.

- Voice memo will be recorded for ten seconds from the moment the picture is stored. In the middle of the sound recording, pressing the shutter button will stop the voice memo.

Memo

Back Move

Stop

Voice Recording

A voice can be recorded for as long as the available recording time (Max.10 hours) allows.

Press the shutter button to record a voice.

- Press the shutter button once and voice is recorded for as long as the available recording time (Max.10 hours) allows. The recording time will be displayed on the LCD monitor. Voice will still be recorded if the shutter button is released.

- If you wish to stop recording, press the shutter button again.

- File type : *.wav

Record

Back Move

Record Exit

[Voice recording mode]

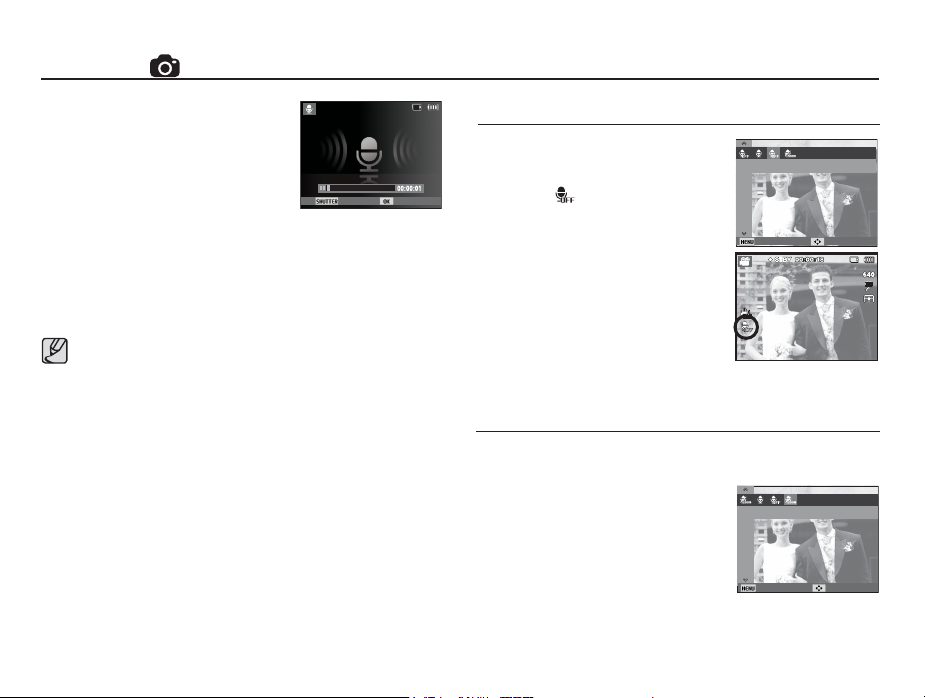

Shooting ( )



Pausing while recording a voice

Using this function, you can record your favorite voice clips into a voice recording ﬁ le without having to create multiple voice recording ﬁ les.

Press the OK button to pause recording.

2. Press the OK button again to resume the recording.

3. If you wish to stop recording, press the shutter button again.

A distance of 25cm between you and the camera (microphone)



is the best distance to record sound.

If the camera power is turned off while the voice recording is



paused, the voice recording is cancelled.

The zoom sound may be recorded if you use the zoom while



recording a video.

Stop Record

[Voice recording mode]

Recording the movie clip without voice

You can record the movie without voice.

Select [Off] of [Voice] menu in the Movie clip mode. (

) icon will appear on the LCD monitor. Press the Shutter button and a movie will record for as long as the memory capacity allows without voice.

Off

Back Move

Setting movie recording

You can set the desired voice recording mode in Movie mode.

- [Voice] sub menus [On] : Record a video with

sound.

[Off] : Record a video without

sound.

[Zoom Mute] : Record a video without

sound while zooming.

Zoom Mute

Back Move

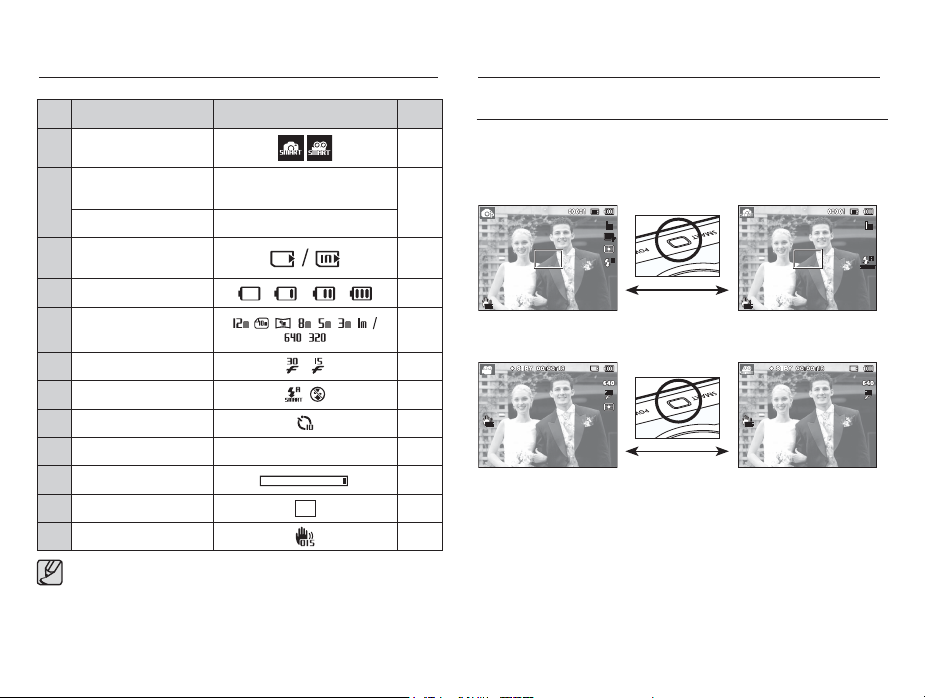

Smart mode

Smart mode display

Ŷ Smart mode

Smart mode allows users to take a photo simply, without setting any of the more complex functions available. Even beginners can easily learn how to operate it.

[Smart Auto mode]

Ŷ You can use the Smart button at the

top of the camera to start Smart mode.

[Smart Movie Clip mode]

Ŷ The LCD monitor displays information about the current Smart mode

setting.

[Image & Full Status]

Smart mode display

Starting Smart mode

No. Description Icons Page

1 Recording mode

Number of available

shots remaining

Remaining time 00:00:00

Memory card icon /

Internal memory icon

4 Battery

5 Photo Size / Movie Size

6 Frame rate

7 Flash

8 Self-timer

9 Date / Time 2010/01/01 01:00 PM p.58

10 Optical Zoom bar

Auto Focus Frame

OIS



[Frame Rate] is enabled only in [Smart Movie] mode.

00001

p.51

p.17

p.15

p.39

p.34

p.35

p.29

p.44

p.48

Selecting modes



Mode selection using the Smart button

You can use the Smart button at the top of your camera to select the correct smart mode.

[Program mode]

[Movie Clip mode] [Smart Movie Clip mode]

[Smart Auto mode]

Starting Smart mode

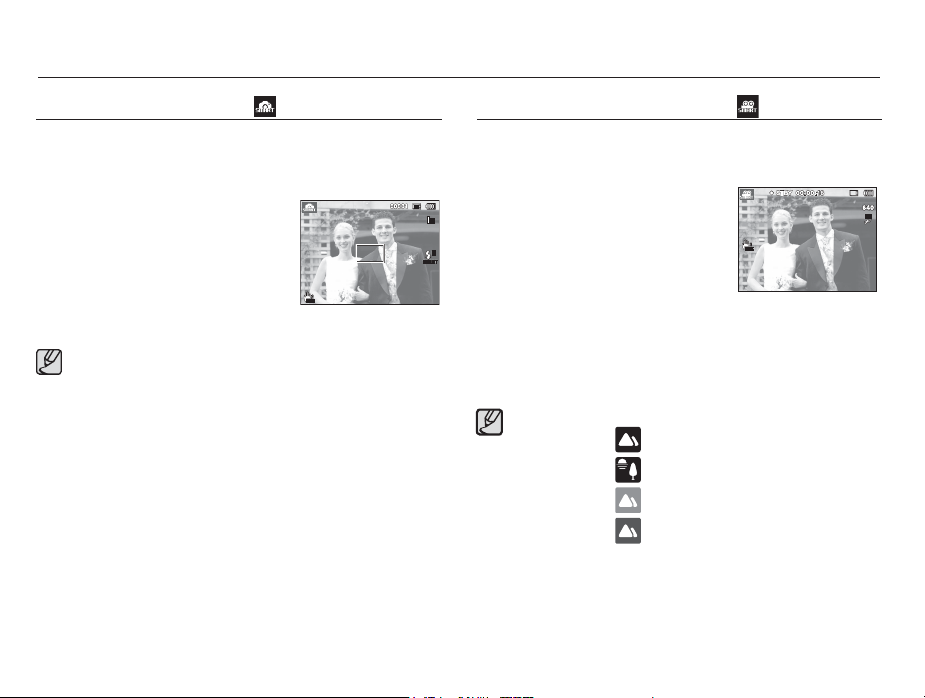

How to use Smart Auto mode ( )



The camera automatically chooses the appropriate camera settings based on a detected type of scene. It will be helpful if you are not familiar with the camera settings for various scenes.

1. Select Smart Auto mode by pressing the MODE or Smart button The camera selects a scene automatically.

2. An appropriate mode icon will appear at the top left of the screen.

3. Press the Shutter button to capture an image.

See p.20 for further details.



How to use Smart Movie Clip mode ( )



This mode allows users to record a movie clip simply, without setting any of the more complex functions available.

Use the Smart button to select Smart

1. Movie Clip mode.

2. Point the camera towards the subject and compose the image by using the LCD monitor.

3. Press the shutter button once and movie clips are recorded for as long as the available recording time allows. Movie clips will still be recorded if the shutter button is released. If you wish to stop recording, press the shutter button again.

Each scene is recognized in the following conditions;

[Landscape] (

[Sunset Sky] ( ) : When shooting sunset

[Blue Sky] (

[Natural Green] ( ) : When shooting nature such as forest

) : When shooting outdoor scenes

) : When shooting blue sky

and leaves

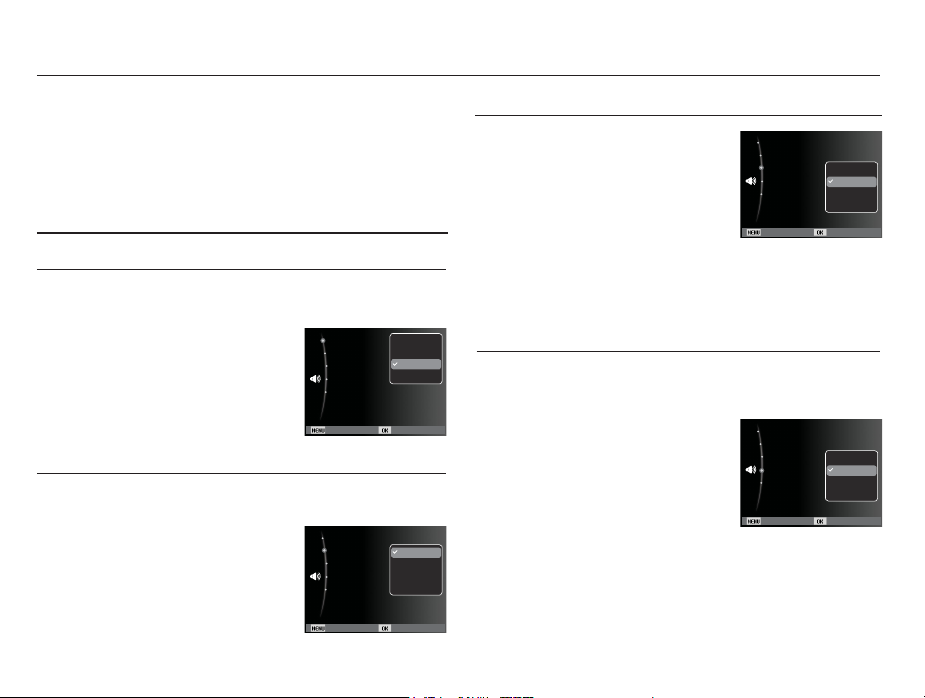

Sound menu

In this mode, you can set up sound settings. You can use the setup menu in all camera modes, except Voice Recording mode.



The items indicated by * are default settings.

Menus are subject to change without prior notice.

)

(

Sound



Volume

You can select a volume of start up sound, shutter sound, beep sound and AF sound.

[Volume] sub menus : [Off], [Low],

[Medium]*, [High]

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Back Set

Off

Low

Medium

High

Start up sound

You can select the sound that is activated whenever the camera is turned on.

- Start up sound : [Off]*, [1], [2], [3]

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Back Set

Off

Shutter sound

You can select the shutter sound.

- Shutter sound : [Off], [1]*, [2], [3]

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Back Set

Off

Beep sound

If you set sound to ON, a beep will sound when buttons are pressed, letting you know the camera operation status.

- [Beep Sound] sub menus : [Off], [1]*, [2], [3]

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Back Set

Off

Sound

( )

Setup menu

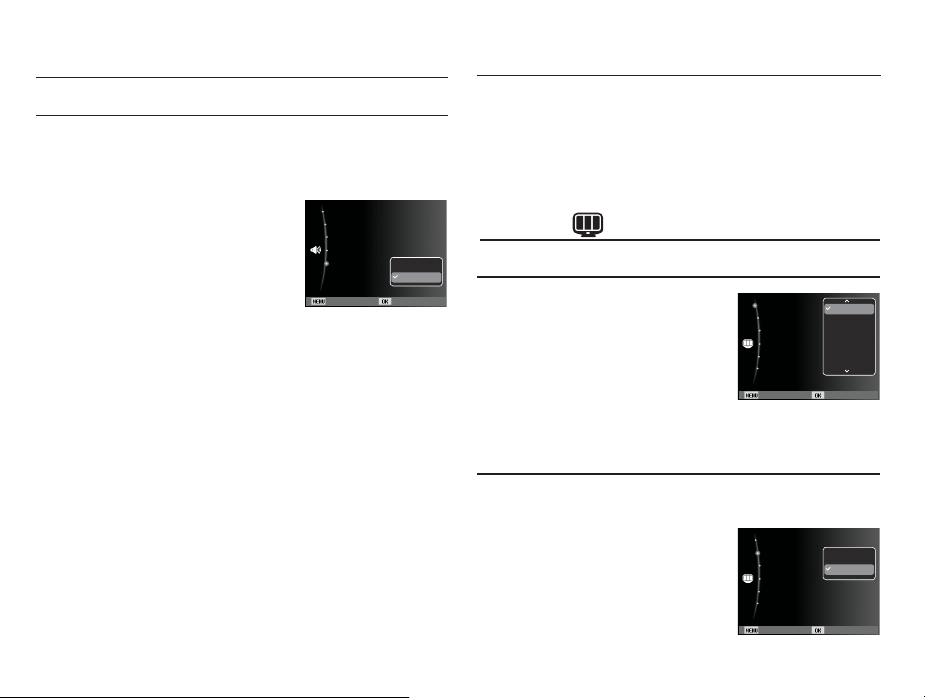

AF sound

If you set AF sound to on, AF sound will be activated when the Shutter button is pressed down half way so that you can be aware of the camera operation status.

- [AF sound] sub menus : [Off], [On]*

Volume :Medium

Start Sound :Off

Shutter Sound :1

Beep Sound :1

AF Sound :On

Back Set

Off

In this mode, you can set up basic settings. You can use the setup menu in all camera modes, except Voice Recording mode.



The items indicated by * are default settings.

Menus are subject to change without prior notice.

Display ( )

Language

There is a choice of language that can be displayed on the LCD monitor. Even if the battery is removed and inserted again, the language setting will be preserved.

Function Description

You can select whether the function description can be displayed on the window in recording mode.

- Function Description sub menus [Off] : The function description

function can’t be activated.

[On]* : The name and description of the

option is displayed.

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

English

䚐ạ㛨

Français

Deutsch

Español

Italiano

Off

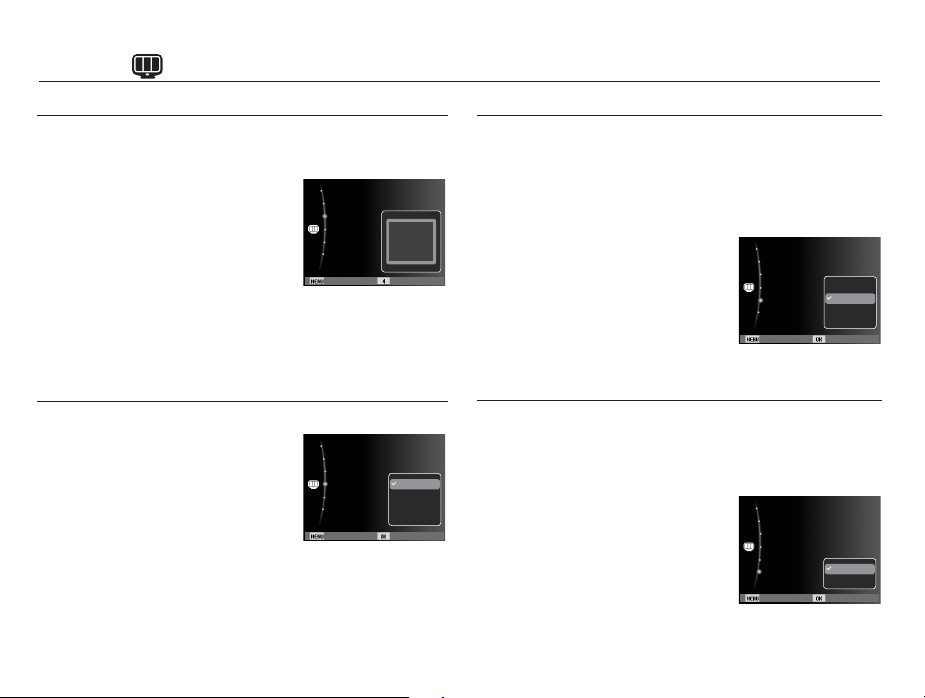

Display ( )

Start up image

You can select the image that is ﬁ rst displayed on the LCD monitor whenever the camera is turned on.

- Sub menus : [Off]*, [Logo], [User Image]

- Use a saved image for the start-up image with the [Start Image] in the [Resize] menu in the play mode.

- The start-up image will not be deleted by [Delete] or [Format] menu.

- The User images will be deleted by

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Exit Back



OFF



[Reset] menu.

Display Brightness

You can adjust the LCD brightness.

- Sub menus : [Auto]*, [Dark],

[Normal], [Bright]

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

Auto

Dark

Normal

Bright

Quick view

If you enable Quick View before capturing an image, you can view the image you just captured on the LCD monitor for the duration set in the [Quick View] setup. Quick view is possible only with still images.

- Sub menus [Off] : The quick view function can’

t be activated.

[0.5 sec]*, [1 sec], [3 sec]

: The captured image is

brieﬂ y displayed during the selected time.

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

Off

0.5 sec

1 sec

3 sec

Display Save

If you set the [Power Save] to On and the camera isn't operated during the speciﬁ ed time, the LCD monitor will be turned off automatically.

- Sub menus [Off]* :

The LCD monitor will not be turned off.

[On] :

If the camera isn't operated during the speciﬁ ed time (about 30 SEC.), the camera power will be idle (Camera status lamp: Blinking) automatically.

You can’t set the [Power Save] menu of Playback Mode.

Language :English

Function Description :On

Start Image :Off

Display Brightness :Auto

Quick View :0.5sec

Power Save :Off

Back Set

Off

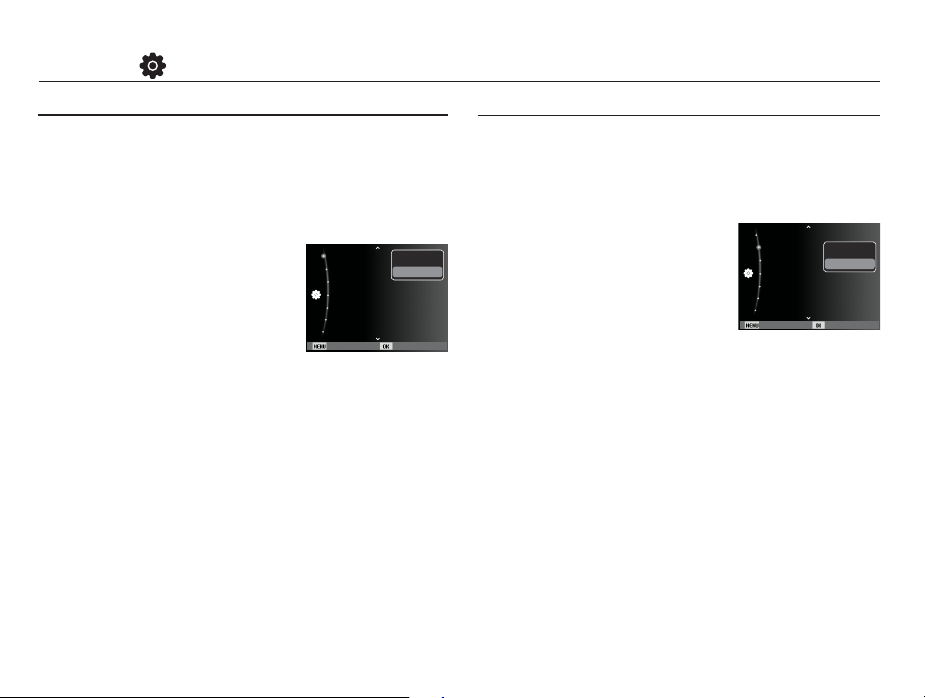

Settings

( )

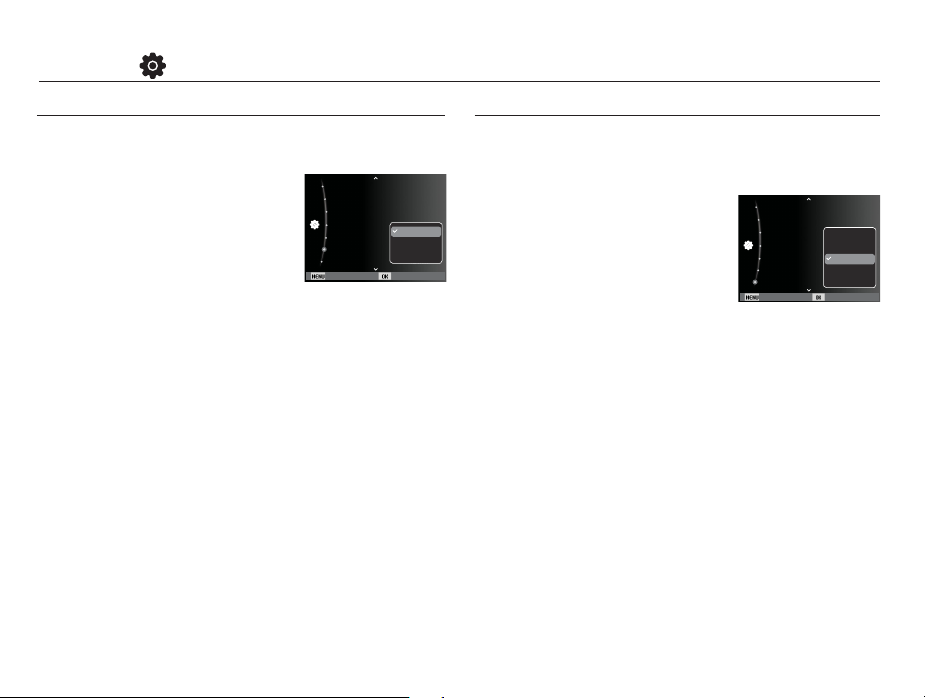

Formatting a memory

This is used for formatting the memory. If you run [Format] on the memory, all images, including the protected images, will be deleted. Be sure to download important images to your PC before formatting the memory.

- Sub menus [Yes] :

A window for conﬁ rming the selection displays. Select the [Yes] menu. A [Formatting] message appears and the memory will be formatted. A [Format is completed] message appears and formatting is ﬁ nished.

[No]* : The memory will not be formatted.



Be sure to run [Format] on the following types of memory card.

- A new memory card, or an unformatted memory card.

- A memory card that has a ﬁ le this camera can't recognize or one

that has been taken from another camera.

- Always format the memory card using this camera. If you insert a memory card that has been formatted using other cameras, memory card readers, or PCs, you will get a [Card Error] message.

Format

Reset

Date & Time :

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Yes

Off

Initialization

All camera menu and function settings will be restored to their default values. However, values for Date & Time, Language and, Video Out will not be changed.

- Sub menus

[Yes] : A window to conﬁ rm the

selection will be displayed. Select the [Yes] menu and all settings will be restored to their defaults.

[No]* : Settings will not be restored to

their defaults.

Format

Reset

Date & Time :Off

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Yes

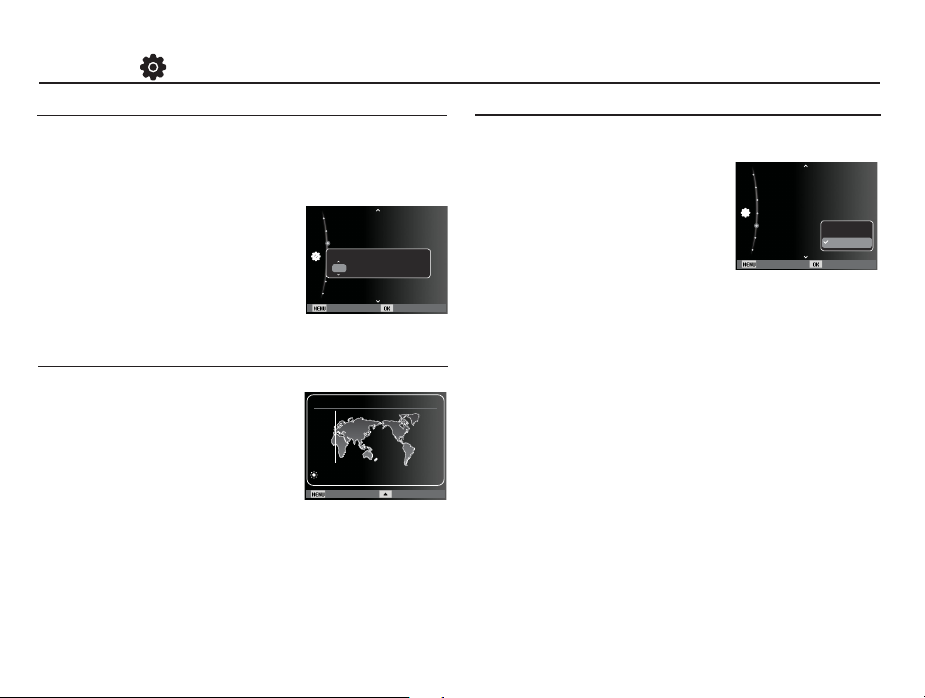

Settings

( )

Setting up the Date / Time / Date type

You can change the date and time that will be displayed on the captured images and set up the date type. Setting [Time Zone] enables you to display the local date and time on the LCD monitor when travelling overseas.

Date type : [yyyy/mm/dd], [mm/dd/yyyy],

[dd/mm/yyyy], [Off]*

Format

Reset

Date & Time :

yyyy mm dd

Time Zone :London

2010 / 01 / 01 13:00 Off

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Off

Time Zone



Available cities: London, Cape Verde, Mid-Atlantic, Buenos Aires, Sao Paulo, Newfoundland, Caracas, La Paz, NewYork, Miami, Chicago, Dallas, Denver, Phoenix, LA, San Francisco, Alaska, Honolulu, Hawaii, Samoa, Midway, Wellington, Auckland, Okhotsk, Guam, Sydney, Darwin, Adelaide, Seoul, Tokyo, Beijing, Hong Kong, Bankok, Jakarta, Yangon, Almaty, Kathmandu, Mumbai, New Delhi, Tashkent, Kabul, Abu Dhabi, Teheran, Moscow, Athens, Helsinki, Rome, Paris, Berlin

DST : Daylight Saving Time

Time Zone

London [GMT +00:00] 2010/01/01 01:00 PM

Back DST

File name

This function allows the user to select the ﬁ le naming format.

[Reset] : After using the reset function,

the next ﬁ le name will be set from 0001 even after formatting, deleting all or inserting a new memory card.

[Series]*

: New ﬁ les are named using

numbers that follow the previous sequence, even when a new memory card is used, or after formatting, or after deleting all pictures.

- The ﬁ rst stored folder name is 100PHOTO, and the ﬁ rst ﬁ le

name is SAM_0001.

- File names are assigned sequentially from SAM_0001 SAM_0002 ~  SAM_9999.

- The folder number is assigned sequentially from 100 to 999 as follows: 100PHOTO  101PHOTO  ~  999PHOTO.

- Maximum numbers of ﬁ les in a folder are 9999.

- The ﬁ les used with the memory card conform to the DCF (Design rule for Camera File systems) format. If you change the image ﬁ le name, the image may not play back.

Format

Reset

Date & Time :

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Reset

Series

Off



Settings

( )

Imprinting the recording date

There is an option to include Date & Time on still images.

- Sub menus [Off]* : The Date & Time will not be

imprinted on the image ﬁ le.

[Date] : Only the Date will be

imprinted on the image ﬁ le.

[Date & Time] : The Date & Time will be

imprinted on the image ﬁ le.

The Date & Time are imprinted at the bottom right side of the still image.

The imprint function is applied only to still images.

Depending on the manufacturer and print mode, the date printed on an image may not be printed correctly.

Format

Reset

Date & Time :

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Off

Date

Date & Time

Auto power off

This function switches the camera off after a set amount of time in order to prevent unnecessary battery drainage.

- Sub menus [Off] : The power off function will not

operate.

[1 min], [3 min]*, [5 min], [10 min]

: The power will turn off

automatically if not used for the period of time speciﬁ ed.

After replacing the battery, the power off setting will be preserved.

- Note that the automatic power off function will not operate if the

camera is in the PC / Printer mode, slide show, playing back a voice recording and playing back a movie clip.

Format

Reset

Date & Time :Off

Time Zone :London

File No. :Series

Imprint :Off

Auto Power Off :3 min

Back Set

Off

1 min

3 min

5 min

10 min

Settings

( )

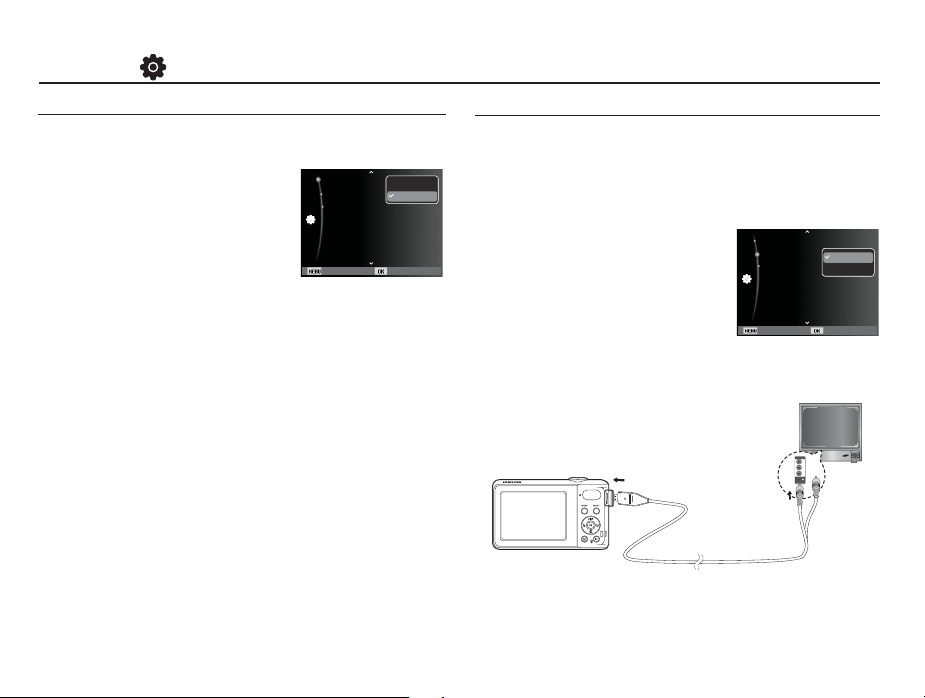

Auto Focus lamp

You can turn on and off the Auto Focus lamp.

- Sub menus [Off] : The AF lamp will not light up in

low light conditions.

[On]*

: The AF lamp will light up in low

light conditions.

AF Lamp :On

Video Out :NTSC

USB :Auto

Back Set

Off

Selecting Video out type

The Video output signal from the camera can be NTSC or PAL. Your choice of output will be governed by the type of device (monitor or TV, etc.) to which the camera is connected. PAL mode can support only BDGHI.



Connecting to an external monitor When the camera is connected to an

external monitor, the image and menus on the LCD monitor will be visible on the external monitor.

Yellow - Video White - Sound

AF Lamp :On

Video Out :NTSC

USB :Auto

Back Set

NTSC

PAL

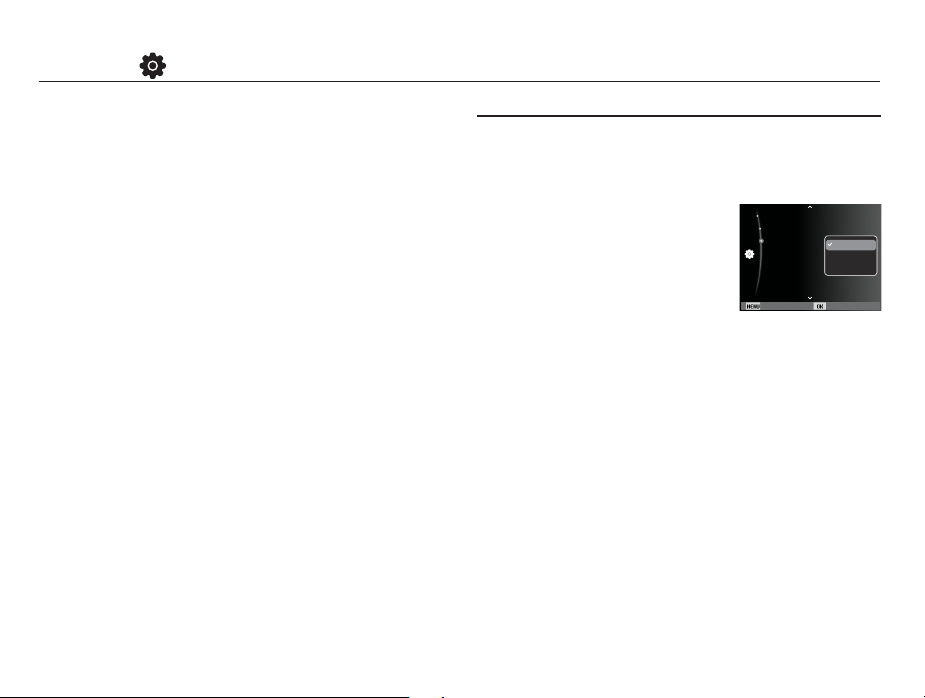

Settings

( )

- NTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico etc.

- PAL : Australia, Austria, Belgium, China, Denmark, Finland, Germany, U.K., Holland, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thailand, Norway etc.

- When using a TV as an external monitor, you will need to select

the external or AV channel of the TV.

- There will be a digital noise on the external monitor, but it is not a

malfunction.

- If the image is not in the center of the screen, use the TV controls

to center it.

- When the camera is connected to an external monitor, some parts

of the image may not be displayed.

- When the camera is connected to an external monitor, the menu

will be visible on the external monitor and the menu functions are the same as those indicated on the LCD monitor.

Setting the USB

If the camera is set to connect automatically to a PC or a printer using a USB cable, you can manually set [Computer] or [Printer].

-[USB] sub menus: [Auto]* : Automatically enables an

external device connected with a USB cable.

[Computer] :

Sets computer connection mode if the connected external device cannot be recognized automatically.

[Printer] :

Sets printer connection mode if the connected external device cannot be recognized automatically.

AF Lamp :On

Video Out :NTSC

USB :Auto

Back Set

Auto

Computer

Printer

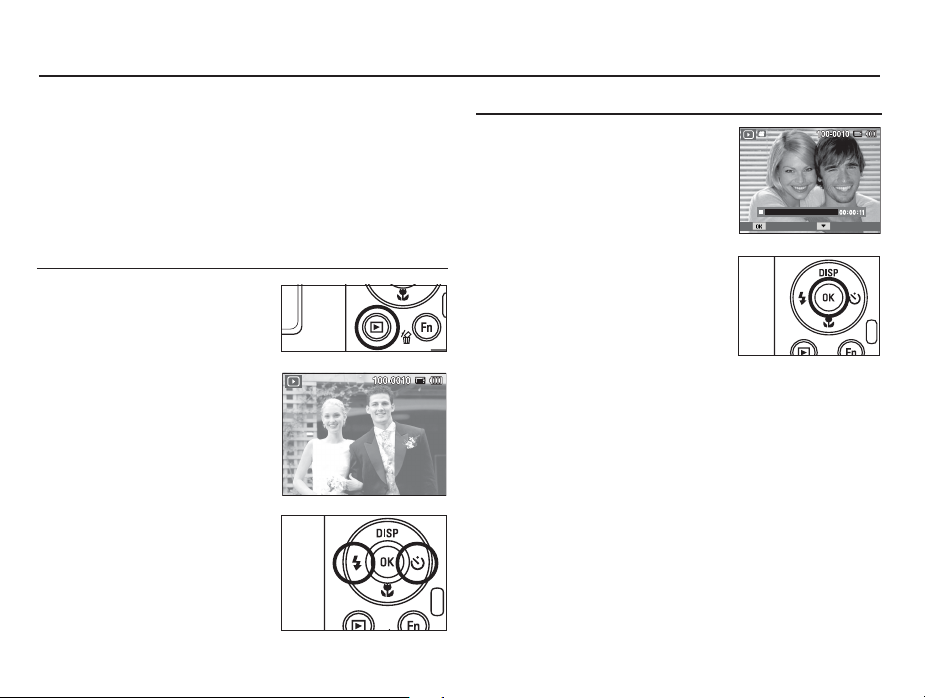

Starting play mode

Turn the camera on and select Play mode by pressing the play mode button ( Î ). The camera can now play back the images stored on the memory. If the memory card is inserted in the camera, all the camera functions apply only to the memory card. If the memory card is not inserted in the camera, all the camera functions apply only to the internal memory.

Playing back a still image

1. Select the Play mode by pressing the play mode button ( Î ).

2. The last image stored on the

memory is displayed on the LCD monitor.

3. Select an image that you want to

view by pressing the Left/ Right button.

Press and hold the Left or Right button to play back the images quickly.

Playing back a movie clip

1. Select the recorded movie clip that you want to play back by using the Left/Right button.

2. Press the OK button to play back a movie clip file.

- To pause a movie clip file while playing it back, press the OK button again.

- Pressing the OK button again will cause the movie clip file to restart.

To rewind the movie clip while it is

playing, press the Left button. To fast forward the movie clip, press the Right button.

- To stop playback of the movie clip, press the OK button, and then press the Left or Right button.

Play Capture

Starting play mode

Movie clip capture function

You can capture still images from the movie clip.



How to capture the movie clip

1. Press the OK button while playing the movie clip. Then press the Down button.

2. The paused movie clip is saved as a

new file name.

The captured movie clip file is the same size as the original movie clip (640x480, 320x240).

When you press the down button at the beginning of the movie clip, the first frame of the movie clip will be saved as a still image.

Play Capture

[Press the down button]

[Paused]

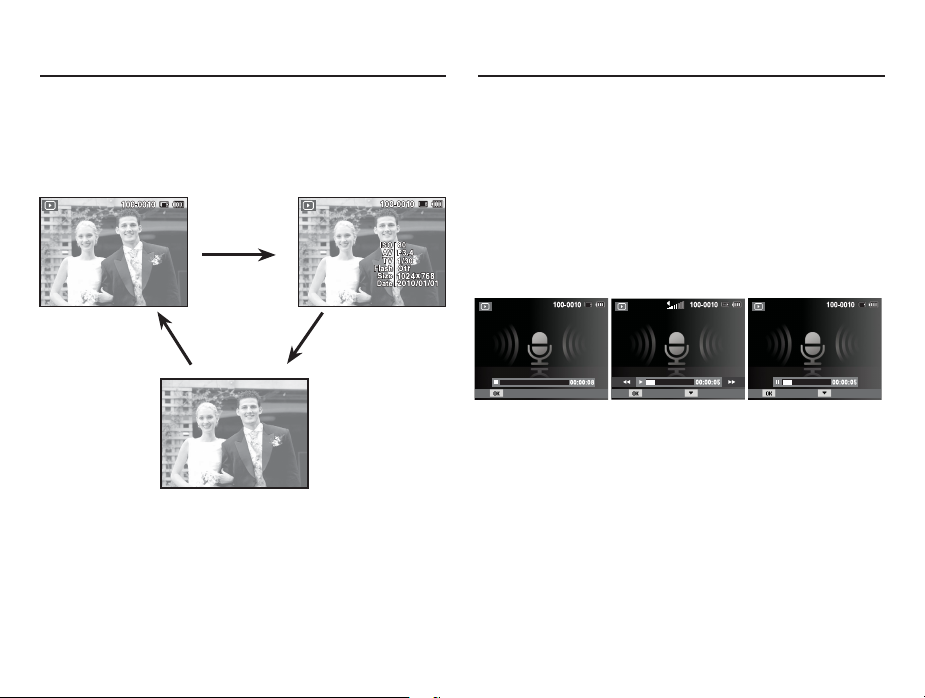

Playing back a recorded voice

1. Select the recorded voice that you want to play back by using the Left/ Right button.

2. Press the OK button to play back a recorded voice file.

- To pause a recorded voice file, while playing it back, press the OK button again.

- To resume playback of the voice file, press the OK button.

- To rewind the voice file while it is playing, press the Left button. To fast forward the voice file, press the Right button.

- To stop playback of the voice memo, press the Down button.

Play

Starting play mode

LCD monitor Indicator

Playing back a voice memo

1. Select a still image that has the voice memo.

2. Press the OK button to play back the voice memo.

- To pause the voice memo, while playing it back, press the OK button again.

- To resume playback of the voice memo, press the OK button.

Play

Pause

The LCD monitor displays shooting information about the displayed image.

No. Description Icon Page

1 Playback mode

2 Voice Memo p.79

3 DPOF

4 Protect p.78

5 Folder name & File name 100-0010 p.58

6 Memory indicator

7 Battery

8 ISO 80~3200 p.40

9 Aperture value F3.4 ~ F5.9

10 Shutter speed 8 ~ 1/2,000

11 Flash On/Off p.33

12 Image size 4000X3000 ~ 320X240 p.39

13 Recording date 2010/01/01 p.58

p.62

p.80

p.15

p.24

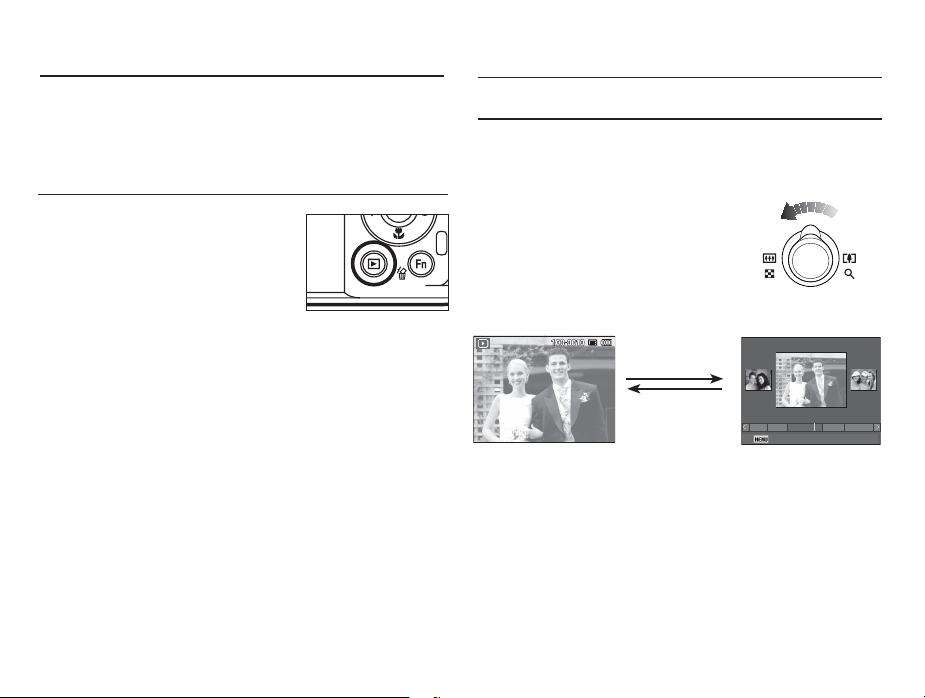

Using the camera buttons to set the camera

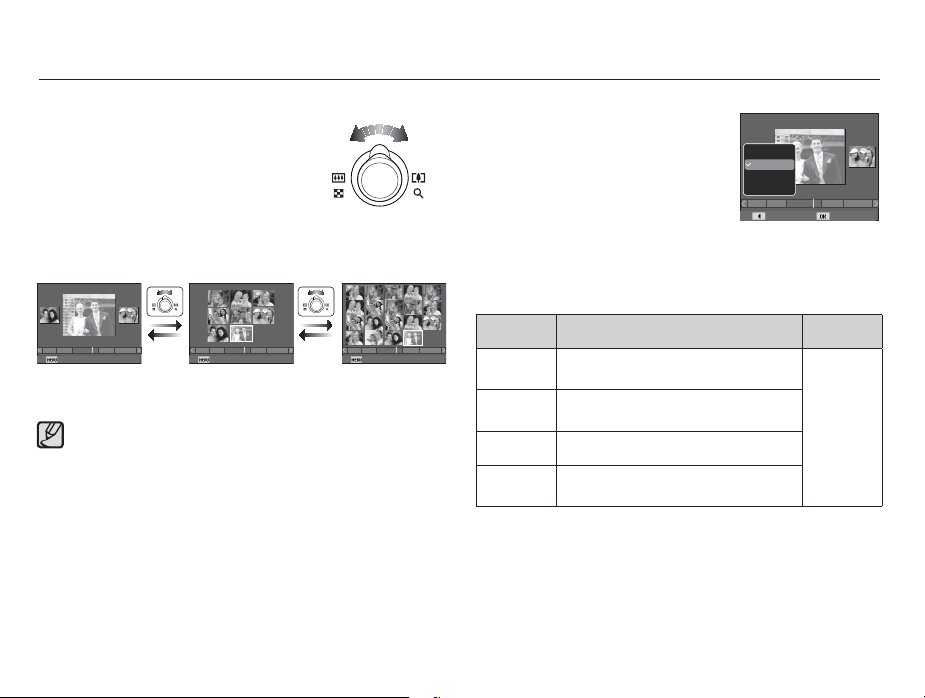

Thumbnail ( º ) / Enlargement ( í ) Lever

In Play mode, you can use the buttons on the camera to conveniently set up the Play mode functions.

Smart Album

You can view multiple pictures, enlarge a selected picture, and crop and save a selected area of an image.

Play mode button



If you have turned on the camera by pressing the POWER button, you can press the Play mode button once to switch to Play mode and press it again to switch to Recording mode.



You can turn the power on with the Play mode button. The camera is turned on in play mode. Press the Play mode button again to turn off the camera.



Manner mode: To select the Manner mode, press the Play mode

button for more than 3 seconds. In the Manner mode, Operating sound, Effect sound, Start-up sound and Shutter sound will not be generated. To cancel the Manner mode, turn on the camera by pressing the POWER button.

1. Turn the Thumbnail lever to the left when one picture is displayed to enter the Smart Album screen.

2. Press the Left/Right button to move to a desired image.

3. Turn the Digital Zoom lever to the right to move to the normal display screen.

Turn the Thumbnail

(º) lever to the left.

Turn the Digital Zoom (í) lever to the right.

[Highlighted image]

[Smart Album 3-Thumbnail Window]

1 31 31211 5

Filter 2010.01.01

Thumbnail ( º ) / Enlargement ( í ) Lever

Ŷ Searching or Deleting Files

1. Turn the Thumbnail lever to the left on the Smart Album screen.

2. Each time you turn the Thumbnail lever to the left, ﬁ les in the relevant category are displayed on the Smart Album screen.

3. Select the ﬁ le by pressing the Up/Down/ Left/Right buttons.

4. Press the Delete ( Õ ) button to delete the selected ﬁ le.

1 31 31211 5

Filter 2010.01.01

[3-Thumbnail Window]

1 31 31211 5

Filter 2010.01.01

[9-Thumbnail Window] [20-Thumbnail Window]

1 31 31211 5

Filter 2010.01.01

Ɣ When Smart Album feature runs or a category is selected, it

may take few seconds depends on recorded data volume. However, it is not a malfunction please wait until Smart Album screen appears.

Ŷ Smart Album Filter

1. Press the MENU button in Smart Album mode.

2. Selecting the desired category enables to categorize and search the ﬁ les by using the Up/Down button.

Type

Date

Color

Week

Back Set

1 31 31211 5

Ŷ Details of Each Category

Category Description File Format

Type

Date

Color Categorized depending on the main color.

Week

Categorized depending on the ﬁ le type (e.g., picture, video, or voice)

Categorized depending on the sequence of recorded dates.

Categorized depending on the sequence of recorded weeks.

Pictures,

Videos,

Voice

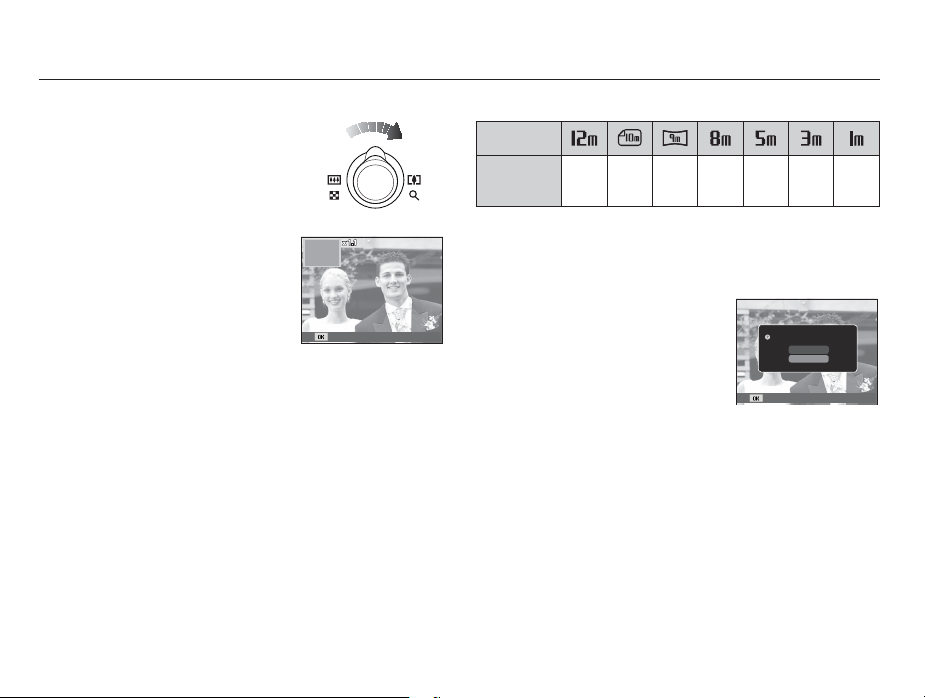

Thumbnail ( º ) / Enlargement ( í ) Lever



Image enlargement

1. Select the picture you want to enlarge and move the Digital Zoom lever to the right. Then the selected picture will be digitally enlarged.

2. Different parts of the image can be viewed by pressing the 5 function button.

3. Move the Thumbnail lever to the left to return the enlarged picture to its original size.

- You can tell whether the image displayed is an enlarged view by checking the image enlargement indicator shown at the top left of the LCD monitor. (If the image is not an enlarged view, the indicator will not be displayed.) You can also check the area of enlargement.

- Movie clips and WAV files can’t be enlarged.

- If an image is enlarged, a loss of quality may occur.

Trim



The maximum enlargement rate in proportion to the image size

Image size

Maximum

enlargement



Trimming : You can extract part of the image that you want and

X12.5 X10.3 X8.8 X10.2 X8.1 X6.4 X3.2

rate

save it separately.

Select an image that you want to

enlarge and press the enlargement button. Press the OK button and a message will be displayed.

2. Select a desired sub menu by pressing the Up / Down button and press the OK button.

Trimming?

Confirm

Yes

- [Yes] : The trimmed image will be saved as a new file name, and appear on the LCD monitor.

- [No] : The trimming menu will disappear.

If there is not enough memory space to save the trimmed

image, the image can’t be trimmed.

Info (DISP) / Up button

Play & Pause / OK button

When the menu is displayed on the LCD monitor, the Up button operates as a direction button. When the menu is not displayed on the LCD monitor, pressing the Info button will display image information on the LCD monitor.

Info (DISP) button

Info (DISP) buttonInfo (DISP) button

In Play mode, the play & pause/ OK button works as follows:

When the menu is displayed on the LCD monitor, the OK button

- is used for confirming data that is changed by using the 5 function button.

- If a still image with a voice memo, a voice file, or a movie clip is playing

·In Stop mode : Plays a still image with a voice memo, a

·During playback : Temporarily stops playback.

·In Pause mode : Resumes playback

Play Pause Stop Play Stop

[ Voice recording is stopped ]

voice file, or a movie clip.

[ Voice recording is playing ] [ Voice recording is paused ]

Left / Right / Down / MENU button

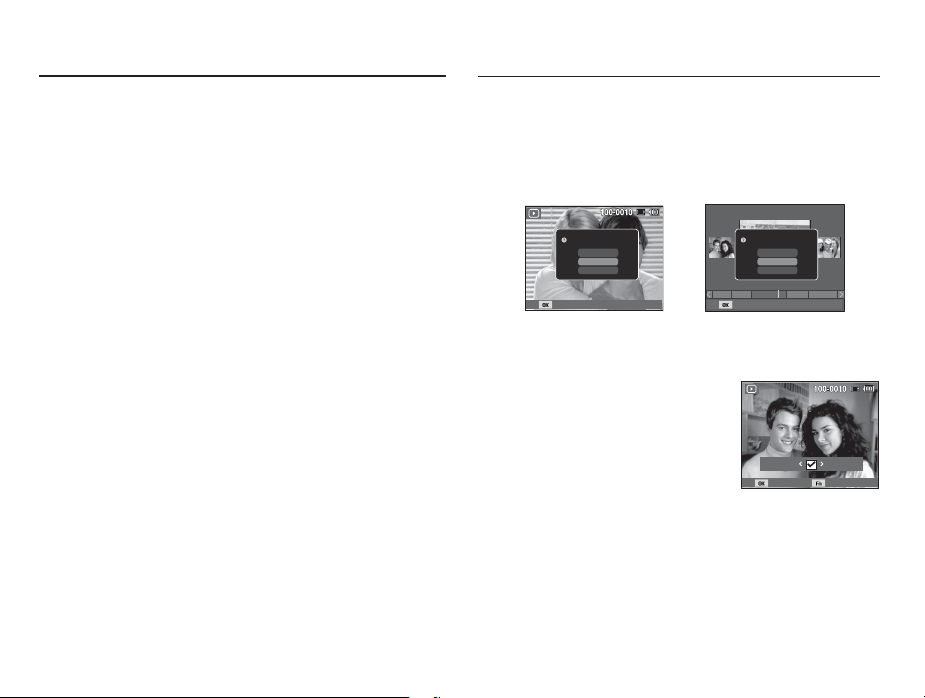

Delete

(Õ )

button

Left / Right / Down / MENU buttons activate the following.

- Left button : While the menu is showing, the Left button operates as a direction button. While the menu is not showing, press the Left button to select the previous image.

- Right button : While the menu is showing, the Right button operates as a direction button. While the menu is not showing, press the Right button to select the next image.

- Down button : While the menu is showing, the Down button operates as a direction button.

- MENU button :

When you press the MENU button, the play mode menu will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

This deletes images stored on the memory.

1. Select an image that you want to delete by pressing the Left / Right button and press the Delete ( Õ ) button.

Delete File?

Yes

Multiple Delete

Set

[Single Image] [Thumbnail Image]

Delete File?

Set

Yes

Multiple Delete

1 31 31211 5

2. To add images to delete, select the [Multiple Delete] menu.

- Left/Right button : selects images

- OK button :

Fn button

checks for deletion

deletes the selected images.

Prev Next

Select Delete

3. Select the submenu values by pressing the Up / Down button and then press the OK button.

- If [Yes] is selected : deletes the selected images.

- If [No] is selected : cancels "Delete Image".

Setting up the play back function using the LCD monitor

Play mode functions can be changed by using the LCD monitor. In the Play mode, pressing the MENU button displays the menu on the LCD monitor.

Menu Tab Main Menu Sub Menu

The menus you can set up in Play mode are as follows. To capture an image after setting up the play menu, press the Play mode button or shutter button.

Menu Tab Main Menu Sub Menu Page

Edit

(

)

Multi Slide

Show

( )

2592X1944 2048X1536

Resize

Rotate

Photo Style

Selector

Image Adjust

Start Play / Repeat - p.76

Images

1024X768 2592X1728

1800X1200 2592X1458

1920X1080 Start Image

Right 90˚ Left 90˚

Vertical -

Normal Soft

Vivid Forest

Retro Cool

Calm Classic

Negative Custom RGB

Off ACB

Red-eye Fix Face Retouch

Brightness Contrast

Saturation Add Noise

All Date

Select -

p.72

p.73180˚ Horizontal

p.73

p.74

p.76

Multi Slide

Show

(

File

Options

( )

Secondary

Interval 1, 3, 5, 10 sec - p.77

Off Mist -

Music

)

Effect

Delete

Protect

Voice memo

DPOF

Copy to Card

Muse Fall -

Dawn Party -

Drops Trip -

Off Calm -

Sweet Rural -

Vivid Lively -

Shine Relax -

Select -

All Yes / No

Select -

All Unlock / Lock

Off -

On -

Standard

Index Yes / No

Size

Yes

Select / All /

Reset

Page

p.77

p.78

p.79

p.80

p.81

p.82

Setting up the play back function using the LCD monitor

This menu is available while the camera is connected to a PictBridge supporting printer (direct connection to the camera, sold separately) with a USB cable.

Menu Tab Main Menu Sub Menu Secondary Menu Page

Images

Size

❹

Layout

One Photo -

All Photos -

Auto -

Postcard -

Card -

4X6 -

L-

2L -

Letter -

A4 -

A3 -

Auto -

Full -

16 -

Index -

p.84

Menu Tab Main Menu Sub Menu Secondary Menu Page

Auto -

Type

Quality

❹

Date

File Name

Reset

Menus are subject to change without prior notice.

Plain -

Photo -

Fast Photo -

Auto -

Draft -

Normal -

Fine -

Auto -

Off -

On -

Auto -

Off -

On -

Yes -

No -

p.84

p.85

Edit ( )

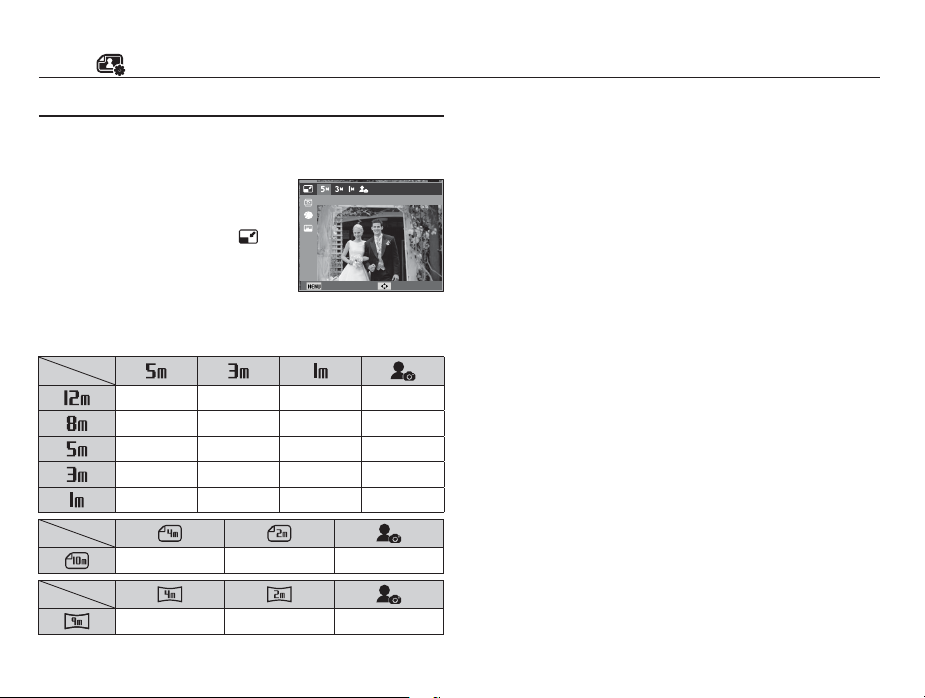

Resize

Change the resolution (size) of pictures taken. Select [Start image] to save an image to be the start-up image.

1. Press the play mode button and press the MENU button.

2. Click the Up/Down button from the Edit menu to select [Resize] ( ) menu tab and press the OK button.

3. Select a desired sub menu by pressing the Left / Right button and press the OK button.



Image Resize Types ( o : Selectable)

oooo

ooo

Resize

Back Move

- A large sized image can be resized to a smaller sized image, but not vice versa.

- Only JPEG images can be resized. Movie clip (AVI), Voice

recording (WAV) files can’t be resized.

- You can change the resolution of only those files compressed in

the JPEG 4:2:2 format.

The resized image will have a new file name. The [Start Image] image is stored not on the memory card but on the internal memory.

- If a new user image is saved, the original user image will be

deleted.

- If the memory capacity is insufficient to store the resized image,

a [Memory Full] message will appear on the LCD monitor and the resized image can't be stored.

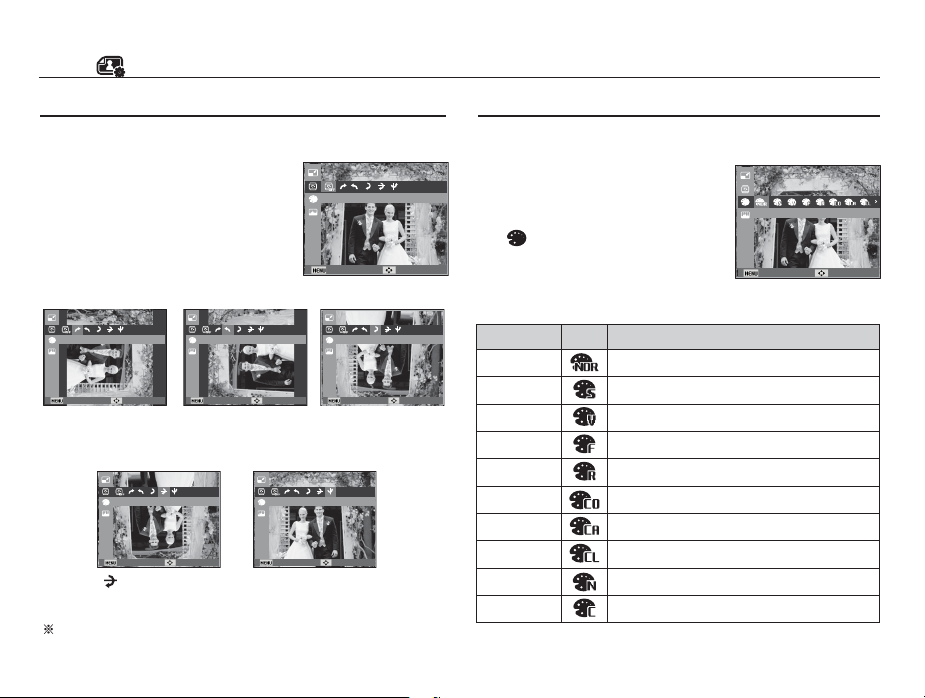

Edit ( )

Rotating an image

You can rotate the stored images by various degrees.

1. Press the play mode button and press the MENU button.

Click the Up/Down button from the Edit menu to select [Rotate] ( ò ) menu tab and press the OK button.

3. Select a desired sub menu by pressing the Left / Right button and press the OK button.

[

: Right 90˚]

: Rotate picture in a

clock-wise direction

[ : Horizontal] : Rotate picture horizontally

[ó : Left 90˚] : Rotate picture in a

counter-clock-wise direction

[

: Rotate picture vertically

If you display the rotated image on the LCD monitor, empty

spaces may appear to the left and right of the image.

VerticalHorizontal

Back MoveBack Move

: Vertical]

Rotate

Back Move

180˚Left 90˚Right 90˚

Back MoveBack MoveBack Move

[õ : 180˚] : Rotate picture 180

degrees

Photo Style Selector

It is possible to add various effects to your images by using this function.

1. Press the play mode button and press the MENU button.

Click the Up/Down button from the Edit

menu to select [Photo Style Selector] ( ) menu tab and press the OK button.

Select a desired sub menu by pressing

the Left / Right button and press the OK button.

Style mode Icon Description

Normal

Soft

Vivid

Forest

Retro

Cool

Calm

Classic

Negative

Custom RGB

No style effect is applied.

Soft style is applied.

Vivid style is applied.

Forest style is applied.

Sepia style is applied.

Cool style is applied.

Calm style is applied.

Black & white effect is applied.

Negative effect is applied.

Deﬁ ne an RGB tone to create your own photo style.

4. The changed image is saved as a new file name.

Photo Style Selector

Back Move

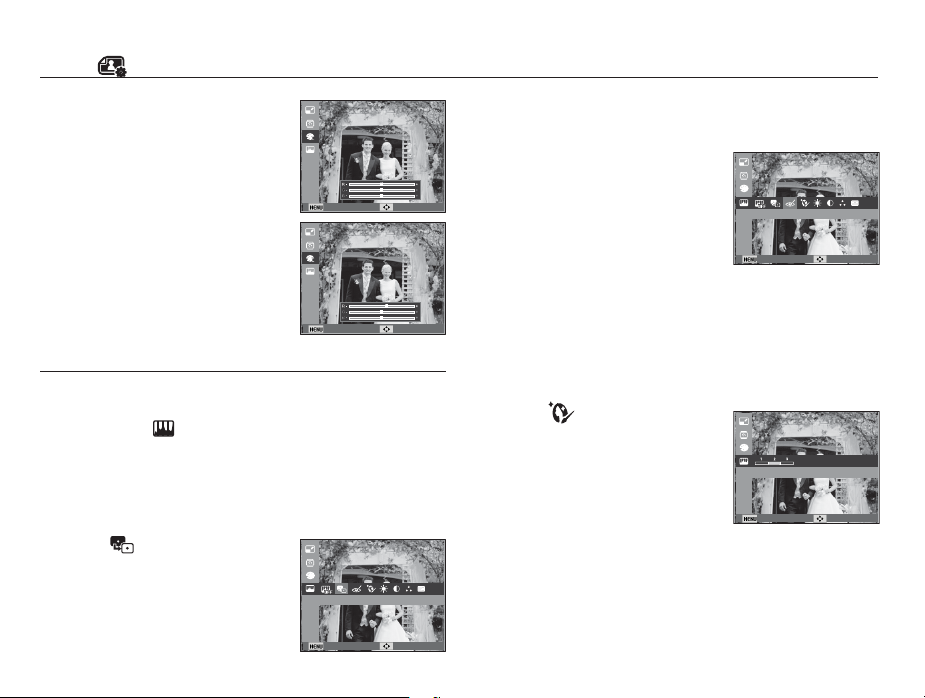

Edit ( )



Custom RGB You can change the R (Red), G (Green) and B (Blue) values of the image.

Back Move

- OK button : Select / setup the Custom

- Up / Down button : Selects R, G, B

- Left / Right button : Change the values

Image Adjust

1. Press the play back button and press the MENU button.

Click the Up/Down button from the Edit menu to select [Image Adjust] ( ) menu tab and press the OK button.



ACB

You can automatically adjust the brightness of the dark area, caused by under exposure to the light source.

1. Select ( ) by pressing the Left/ Right button and press the OK button.

2. The [Making New Image] message is displayed and the image is saved as a new file name.

Color

Back Move

ACB

Back Move



Red eye Removal

Red eye effect can be removed from the captured image.

1. Select (  ) by pressing the Left/ Right button and press the OK button.

2. The [Making New Image] message is displayed and the image is saved as

Red-eye Fix

a new file name.

Back Move



Face Retouch

You can make the skin in an image appear clear and beautiful.

1. Select ( ) by pressing the Left/Right button and press the OK button. Then a bar for selecting the face retouch will be displayed.

2. Change the face retouch by pressing the Left/Right button.

3. Press the OK button and the image

Face Retouch

Back Move

will be saved as a new file name.

Edit ( )



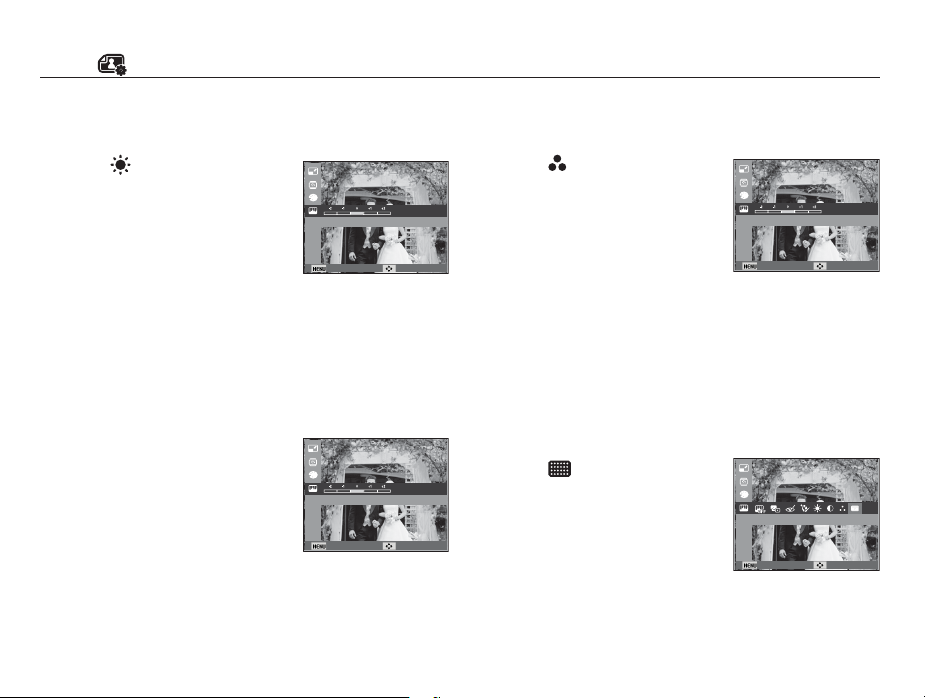

Brightness control

You can change the brightness of the image.

1. Select ( ) by pressing the Left/Right button and press the OK button. Then a bar for selecting the brightness will be displayed.

2. Change the brightness by pressing the Left/Right button.

3. Press the OK button and the image will be saved as a new file name.



Contrast control

You can change the contrast of the image.

1. Select (  ) by pressing the Left/Right button and press the OK button. Then a bar for selecting the contrast will be displayed.

2. Change the contrast by pressing the Left/Right button.

3. Press the OK button and the image will be saved as a new file name.

Brightness

Back Move

Contrast

Back Move



Saturation control

You can change the saturation of the image.

1. Select ( ) by pressing the Left/Right button and press the OK button. Then a bar for selecting the saturation will be displayed.

Saturation

2. Change the saturation by pressing the Left/Right button.

3. Press the OK button and the image

Back Move

will be saved as a new file name.



Noise effect

You can add noise to an image to add a more classic feel to your photo.

1. Select ( ) by pressing the Left/Right button and press the OK button.

2. The [Making New Image] message is

Add Noise

displayed and the image is saved as a new file name.

Back Move

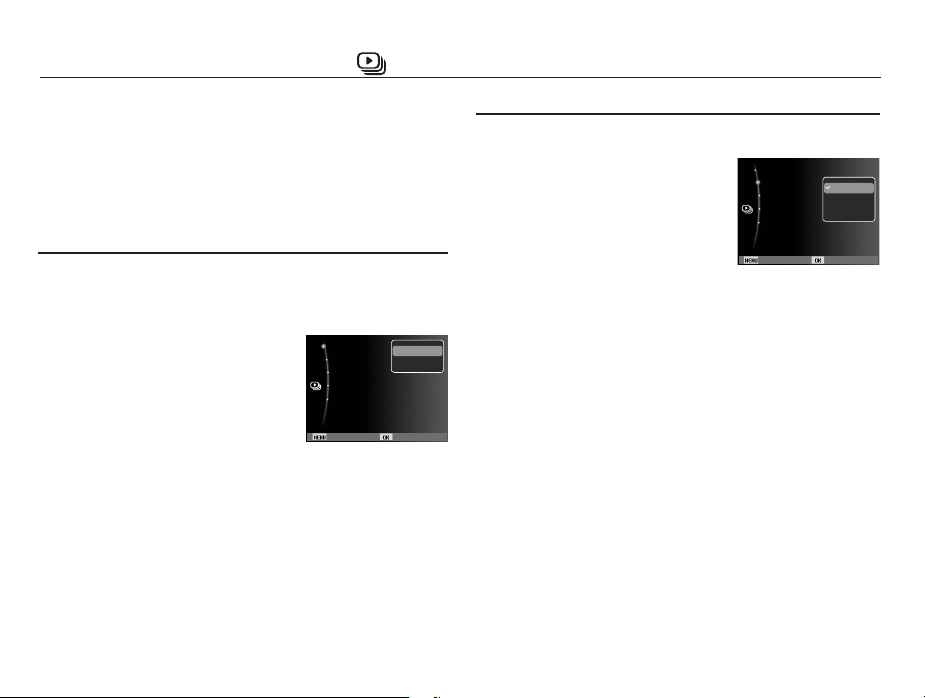

Starting the Multi Slide Show

( )

Images can be displayed continuously at pre-set intervals. You can view the Multi Slide Show by connecting the camera to an external monitor.

1. Press the play mode button and press the MENU button.

2. Press the Up / Down button and select the [Multi Slide Show] menu tab and press the OK button.

Start the Multi Slide Show

The Multi Slide Show can start only in the [Start] menu.

1. Use the Up / Down button to select the [Start] menu and press the Right button.

2. Select a desired sub menu by pressing the Up / Down button.

[Play] : The Multi Slide Show is

closed after one cycle.

[Repeat] : The Slide show is repeated

until cancelled.

3. Press the OK button and the slide show will be started.

- To pause the slide show while playing it back, press the OK button again.

- Pressing the OK button again will cause the Multi Slide Show restart.

- To stop playback of the Multi Slide Show, press the OK button, and then press the Left or Right button.

Start

Images :All

Interval :1 sec

Music :Off

Effect :Off

Back Set

Play

Repeat

Selecting Images

You can select image to view

1. Use the Up / Down button to select the [Images] menu and press the Right button.

Select a desired sub menu by pressing

the Up / Down button.

[All] : All images saved on the

Memory are played back. Press the OK button to save the configuration.

[Date] : Images taken in a specified date are played back.

Press the OK button to save the configuration.

[Select] :

Play only the selected images. The selected image can be saved as [Select1], [Select2] and [Select3]. If you save the selected image with the [New Select] command, it will be saved as [Select1]. But when a new image is saved again using [New Select], the former image which had been saved as [Select1] will be saved as [Select2] automatically.You can change and cancel the images which were saved as [Select1], [Select2] and [Select3]. Press the Fn button to save the configuration.

3. Select [Play] or [Repeat] in the [Start] menu to start the multi slide show.

Start

Images :All

Interval :1 sec

Music :Off

Effect :Off

Back Set

All

Date

Select

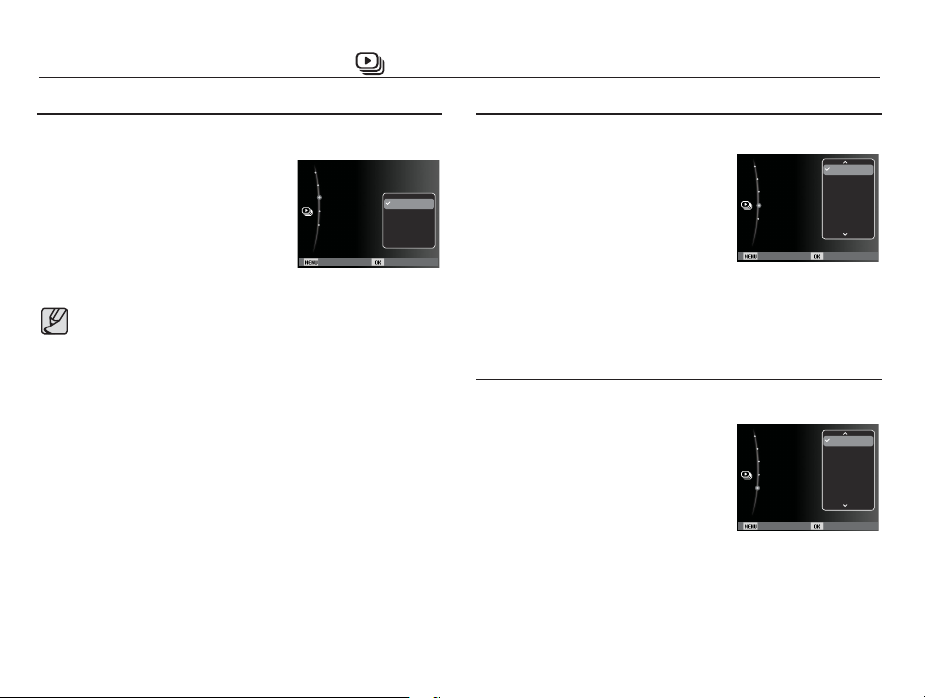

Starting the Multi Slide Show

( )

Setting play interval

Set the Multi Slide Show play interval.

1. Select the [Interval] sub menu by pressing the Up / Down button and press the Right button.

2. Use the Up / Down button to select the desired interval.

3. Press the OK button to save the configuration.

The loading time depends on the image size and quality.



While the Multi Slide Show is playing, the voice recording file



will not display. The interval menu functions in the [Off] menu only.



Start

Images :All

Interval :1 sec

Music :Off

Effect :Off

Back Set

1 sec

3 sec

10 sec

Setting Background Music

Set the Multi Slide Show music.

1. Select the [Music] sub menu by pressing the Up / Down button and press the Right button.

sec

2. Use the Up / Down button to select the desired Music.

3. Press the OK button to save the configuration.

Start

Images :All

Interval :1 sec

Music :Off

Effect :Off

Back Set

Mist

Muse

Fall

Dawn

Party

Off

Configure Multi Slide show effects

Unique screen effects can be used for the Multi Slide Show.

1. Select the [Effect] sub menu by pressing the Up / Down button and press the Right button.

2. Use the Up / Down button to select the type of effect.

3. Press the OK button to confirm the setting.

Start

Images :All

Interval :1 sec

Music :Off

Effect :Off

Back Set

Off

Calm

Sweet

Rural

Vivid

Lively

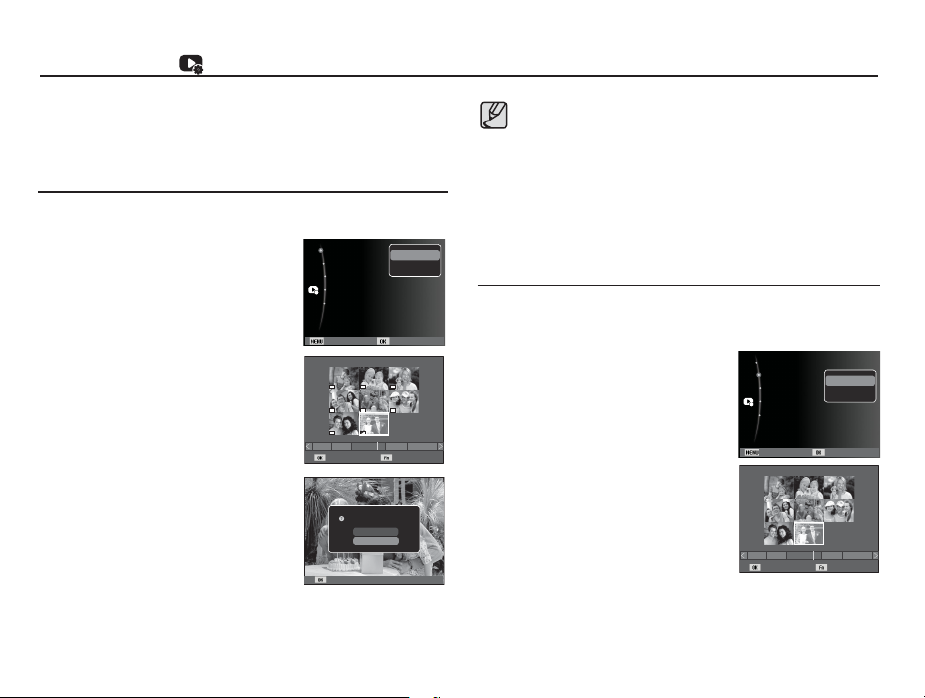

File Options

( )

1. Press the play mode button and press the menu button.

2. Press the Up / Down button and select the [File Options] menu tab and press the OK button.

Deleting images

This deletes images stored on the memory.

1. Press the Up / Down button and select the [Delete] menu tab. And then press the Right button.

2. Select a desired sub menu by pressing the

Up / Down button and press the OK button.

[Select] : Selection window for an image

to delete is displayed.

- Up/ Down/ Left/ Right : Select an image

- OK button : Select the image for deletion. ( Ë mark)

- Fn button : Press the Fn button to display

the confirmation message. Select the [Yes] menu and press the OK button to delete marked images.

[All] :

Displays confirmation window.

Select the [Yes] menu and press the OK button to delete all unprotected images. If there aren’t protected images, all the images are deleted and a [No Image File] message will appear.

3. After deletion, the screen will be changed to the play mode screen.

Delete

Protect

Voice memo :Off

DPOF

Copy To Card

Back Set

Select Delete

Delete All File(s)?

Set

Select

All

1 31 31211 5

Yes No



Of all the files stored on the memory, the unprotected files in the DCIM subfolder will be deleted. Remember that this will permanently delete unprotected images. Important shots should be stored on a computer before deletion takes place. The startup image is stored on the camera's internal memory (i.e., not on the memory card) and it will not be deleted even if you delete all files on the memory.

Protecting images

This is used to protect specific shots from being accidentally erased (Lock). It also unprotects images that have been previously protected (Unlock).

1. Press the Up / Down button and select the [Protect] menu tab. And then press the Right button.

2. Select a desired sub menu by pressing the Up / Down button and press the OK button.

[Select] : Selection window for an

image to be protected / released is displayed.

- Up / Down / Left / Right : Select an image

- OK button : Protect / release the


- Fn button : Your changes will be

saved and the menu will disappear.

Delete

Protect

Voice memo :Off

DPOF

Copy To Card

Back Set

Select Set

Select

All

1 31 31211 5

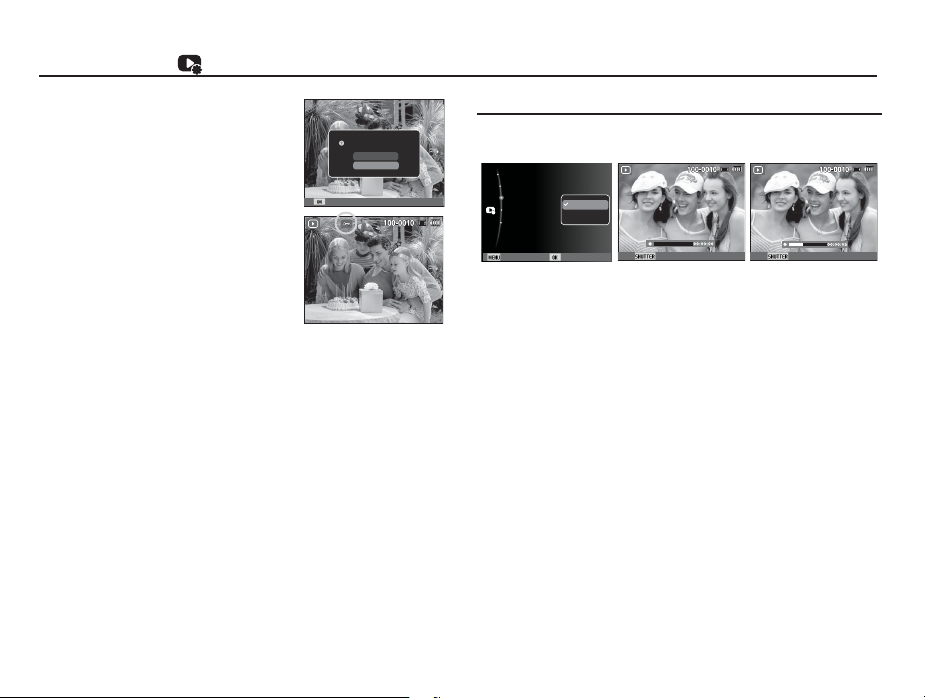

File Options

( )

[All] : Protect / release all saved images

- If you protect an image, the protect icon will be displayed on the LCD monitor. (An unprotected image has no indicator)

- An image in LOCK mode will be protected from the delete function or [Delete] function, but will NOT be protected from the [Format] function.

Set

Protect All?

Lock

Unlock

Voice memo

You can add your voice to a stored still image.

Delete

Protect

Voice memo :Off

DPOF

Copy To Card

Back Set

- Press the shutter button to record up to 10 seconds of voice into a stored still image.

- To stop the recording, press the shutter button.

Off

Start Stop

[Ready for recording] [Voice is recording][Voice memo menu]

File Options

( )

DPOF



DPOF(Digital Print Order Format) allows you to embed printing information on your memory card’s MISC folder. Select the pictures to be printed and how many prints to make.



The DPOF indicator will display on the LCD monitor when an image that has DPOF information plays back. Images can then be printed on DPOF printers, or at an increasing number of photo labs.



This function is not available for Movie clips and Voice recording files.



When the wide angle image is printed as a wide angle print, 8% of the left and right side of the image may not be printed. Check that your printer can support the wide angle image when you print the image. When you print the image at a photo lab, request that the image is printed as a wide angle image. (Some photo labs may not support the wide angle size print.)



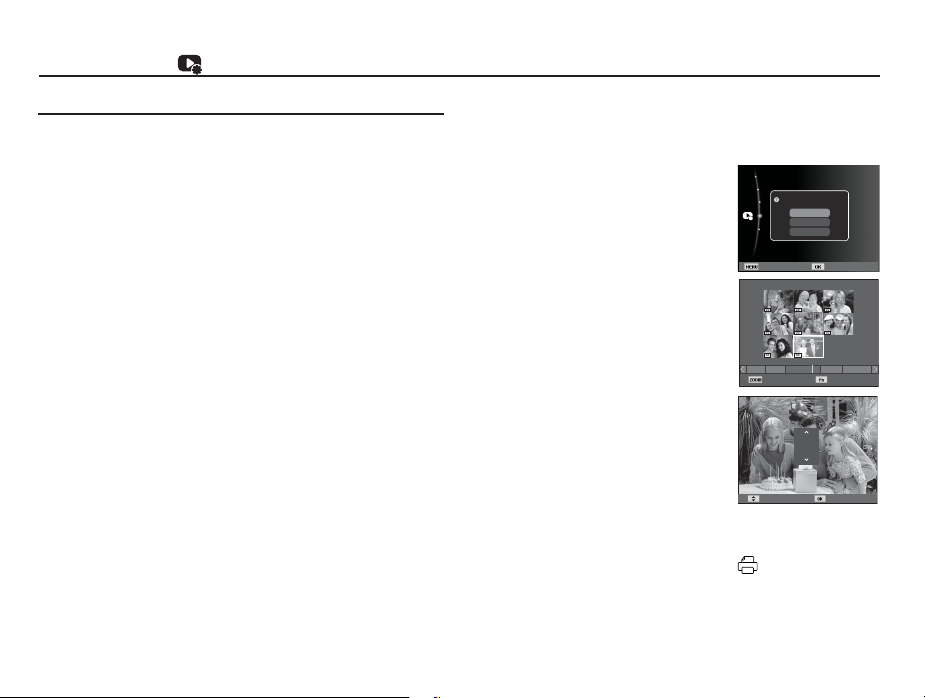

Standard

This function allows you to embed printing quantity information on a stored image.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

2. Press the Right button again and

Delete

Protect

Select Image

Voice memo :Off

Select

DPOF

All

Copy To Card

Reset

[Standard] sub menu will display.

3. Select a desired sub menu by pressing

Back Set

the Up / Down button and press the OK button.

[Select] : Selection window for an

image to print is displayed.

- Up / Down / Left / Right : Select an image to print.

1 31 31211 5

Quantity Set

- Zoom W/T Lever : Select the number of

prints.

[All] : Configure number of prints for all

pictures except movie and voice

files.

- Up / Down button : Select a number of

prints

Quantity Set

[Reset] : Cancel the print setup.

4. Press the OK button to confirm the setting. If an image carries DPOF instruction, the DPOF indicator (

) will show.

File Options

( )



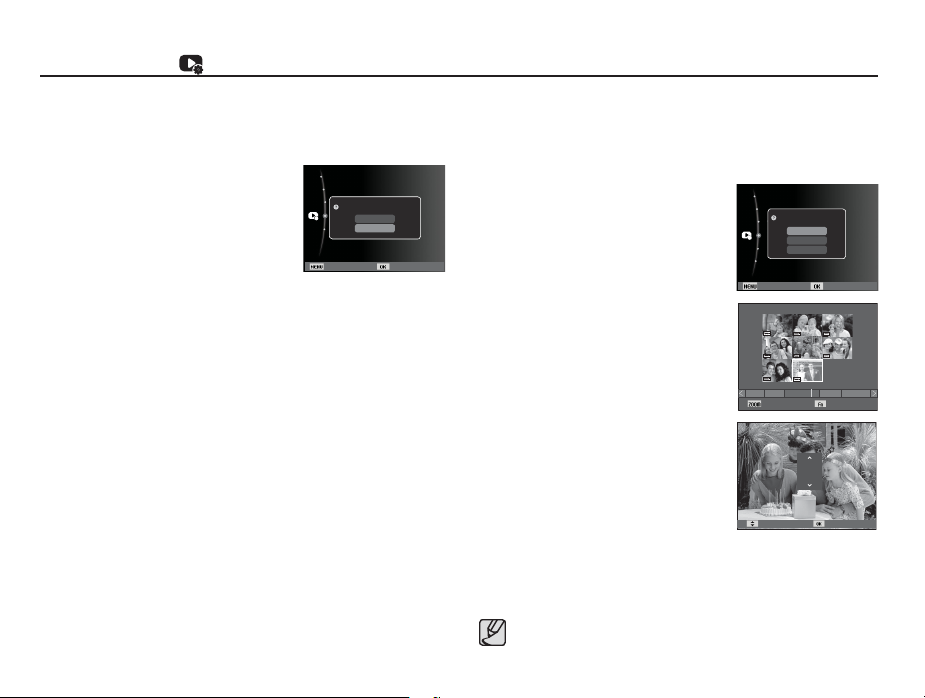

Index

Images (except for movie clips and voice files) are printed as

index type.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

2. Select the [Index] menu and press the Right button again. Sub menu will display.

Delete

Protect

Voice memo :Off

Setting Index?

DPOF

Yes No

Copy To Card

Back Set

3. Select a desired sub menu by pressing the Up / Down button.

If [Yes] is selected : The image will be printed in index format. If [No] is selected : Cancel the index print setting.

4. Press the OK button to confirm the setting.



Print size You can specify the print size when printing images stored on the memory card. The [Size] menu is available only for DPOF 1.1 compatible printers.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

2. Select the [Size] menu and press the

Delete

Protect

Select Image

Voice memo :Off

Select

DPOF

All

Copy To Card

Reset

Right button again. Sub menu will display.

Back Set

3. Select a desired sub menu by pressing the Up / Down button and press the OK button.

[Select] : Selection window to change

the printed size of the image is displayed.

- Up / Down / Left / Right : Select an image.

1 31 31211 5

Size Set

- Zoom W/T Lever : Change the print size.

- Fn button : Your changes will be saved and the menu will

3X5

disappear.

[All] : Change print size of all saved

images.

Size Set

- Up / Down button : Select a print size

- OK button : Confirm the changed setting.

[Reset] : Cancel all of the print size settings.

DPOF [Size] secondary menu : Cancel, 3X5, 4X6, 5X7, 8X10

Depending on the manufacturer and print model, cancelling the



printing may take a little longer for the printer to process.

File Options

( )

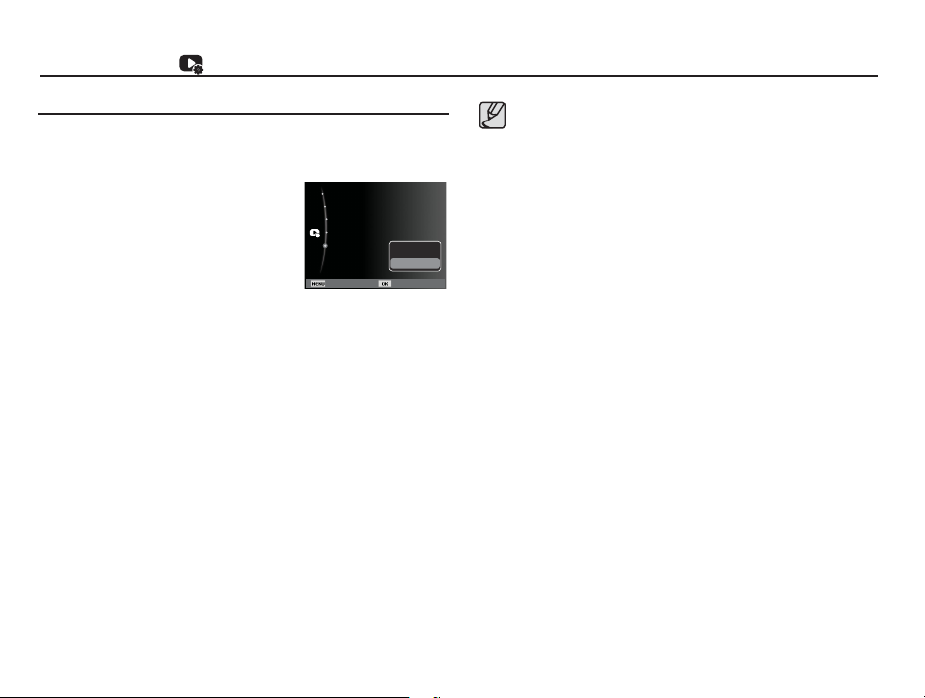

Copy to Card

This enables you to copy image files, movie clips and voice recording files to the memory card.

1. Select the [Copy to Card] menu tab by pressing the Up / Down button. And then press the Right button.

2. Select a desired sub menu by pressing the Up / Down button and press the OK button.

- [Yes] :

All images, movie clips and voice recording files saved in the internal memory are copied to the memory card after the [Copying] message is displayed. After copying has been completed, the screen will return to play mode.

- [No] : Cancels "Copy to Card".

Delete

Protect

Voice memo :Off

DPOF

Copy To Card

Yes

Back Set

If there is not enough space available on the memory card to



copy saved images on the internal memory (About 86MB), the [Copy to Card] command will copy only some of the images and display [Memory Full] message. Then the system will return to the playback mode. Please be sure to delete any unnecessary files to free up space before inserting the memory card into the camera. When you move the images that are stored on the internal



memory by doing [Copy to Card] to the card, the next number of file names will be created on the card to avoid duplication of the file name.

- When the [Reset] of the [File No.] setup menu is set : The copied file names start from after the last stored file name.

- When the [Series] of the [File No.] setup menu is set : The copied file names start from after the last captured file name. After completing [Copy to Card], the last stored image of the last copied folder is displayed on the LCD monitor.

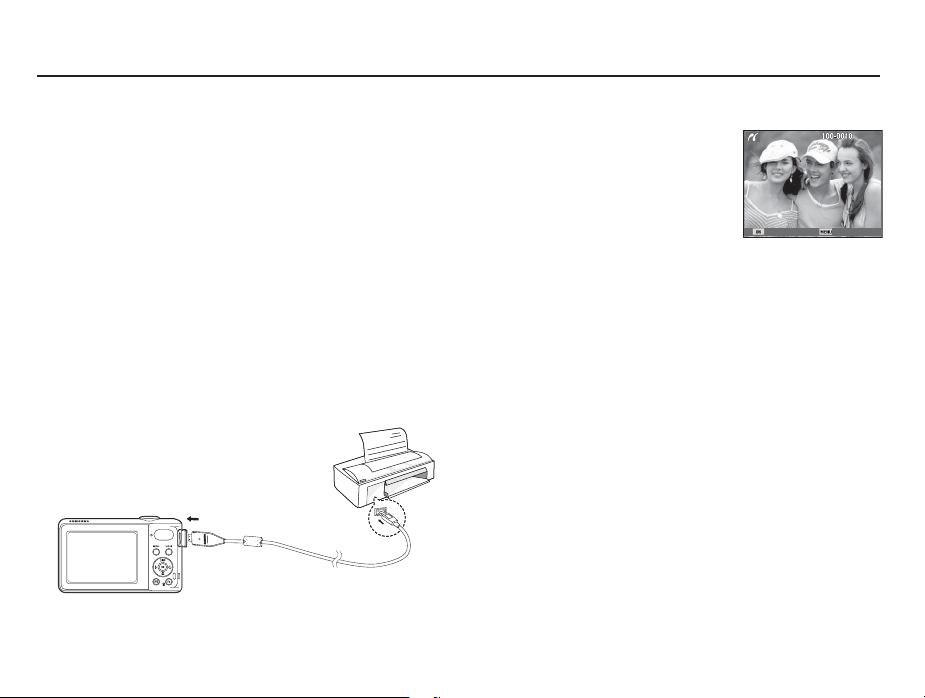

PictBridge

You can use the USB cable to connect this camera to a printer that supports PictBridge (sold separately) and print the stored images directly. Movie clips and voice files cannot be printed.



Setting up the camera for connection to the printer

1. Connect the camera and printer with USB cable.

Once the camera is turned on, the camera automatically recognizes the printer and is connected to it.

If automatic connection fails, set the [USB] menu to [Printer]. (p.61)

For a printer that can enable removable disk, set the [USB] menu to [Printer].



Connecting the Camera to a Printer



Easy printing

When you connect the camera to printer

in the Play back mode, you can print a picture easily.

- Pressing the Left / Right button : Selects a previous / next image.

- Pressing the OK button : Currently displayed image will be

printed with the printer’s default settings.

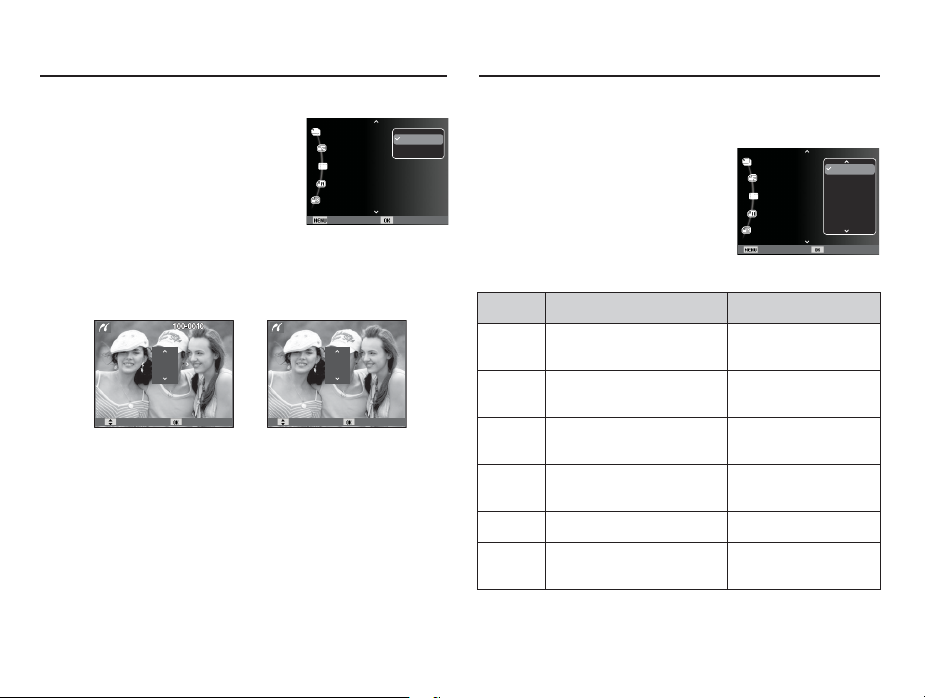

Print Menu

PictBridge : Picture Selection

PictBridge : Print Setting

You can select images you want to print.



Setting the Number of Copies to Print

1. Press the MENU button and the PictBridge menu will display.

2. Use the Up / Down button to select the [Images] menu and press the Right button.

Images :One Photo

Size :Auto

Layout :Auto

Type :Auto

Quality :Auto

Back Set

One Photo

All Photos

3. Use the Up / Down button to select a desired sub menu and press the OK button.

- Select [One Photo] or [All Photos]. A screen where you can set the number of copies to print will appear as shown below.

Quantity Set

[When [One Photo] is selected]

[When [All Photos] is selected]

Quantity Set

- Press the Up / Down button to select the number of prints.

- When [One Photo] is selected : Use the Left / Right button to select another picture. After selecting another picture, select the number of prints for another picture.

- After setting the number of prints, press the OK button to save.

- Press the Shutter button to return to the menu without setting

the number of prints.

4. Press the play mode button (

) and images will be printed.

You can select the Paper Size, Print Format, Paper Type, Print Quality, Date Print, and File Name Print menus for printed pictures.

1. Press the MENU button and the PictBridge menu will display.

2. Use the Up / Down button to select the desired menu, and then press the Right button.

3. Use the Up / Down button to select the desired sub menu value, and then

Images :One Photo

Size :Auto

Layout :Auto

Type :Auto

Quality :Auto

Back Set

Auto

Postcard

Card

4x6

press the OK button.

Menu Function Sub menu

Size

Layout

Type

Quality

Set the size of the printing paper

Set the number of pictures to be printed on a sheet of paper

Set the quality of the printing paper

Set the quality of the picture to be printed

Auto, Postcard, Card, 4X6, L, 2L, Letter, A4, A3

Auto, Full, 1, 2, 4, 8, 9, 16, Index

Auto, Plain, Photo, Fast Photo

Auto, Draft, Normal, Fine

Date Set whether to print the date Auto, Off, On

File Name

Some menu options are not supported on all printers.

Set whether to print the file name

Auto, Off, On

If not supported, the menus are still displayed on the LCD, but are not selectable.

PictBridge : Reset

Important notes

Initializes user-changed configurations.

1. Use the Up / Down button to select the [Reset] menu tab. And then press the Right button.

Date :Auto

File Name :Auto

Reset No

2. Use the Up / Down button to select the desired sub menu, and then press the OK button.

Back Set

If [Yes] is selected : All print and image settings will be reset. If [No] is selected : Settings will not be reset.

Default print setting varies depending on the printer manufacturer.

For your printer’s default setting, refer to the user’s guide that came with your printer.

Be sure to observe the following precautions!



This unit contains precision electronic components. Do not use or store this unit in the following locations.

Yes

- Areas exposed to severe changes in temperature and humidity.

- Areas exposed to dust and dirt.

- Areas exposed to direct sunlight or the inside of a vehicle in hot weather.

- Environments where there is high magnetism or excessive vibration.

- Areas with high explosives or highly flammable materials.



Do not leave this camera in places subject to dust, chemicals (like naphthalene and mothballs), high temperature and high humidity.

Keep this camera with silica gel in a hermetically sealed box when not planning to use the camera for a long period of time



Sand can be particularly troublesome to cameras.

- Do not let sand get inside the camera when using it on beaches,

coastal dunes, or other areas where there is lots of sand.

- Doing so may result in failure or may permanently render the

camera unusable.



Handling the camera

- Never drop the camera or subject it to severe shocks or vibrations.

- Protect the large size LCD monitor from an impact. When this

camera is not used, keep it in the camera case.

- Avoid obstructing the lens or the flash when you capture an image.

- This camera is not waterproof.

To avoid dangerous electrical shocks, never hold or operate the camera with wet hands.

Important notes

- If you use this camera in wet places, such as beach or pool, do not let water or sand get inside the camera. Doing so may result in failure or may permanently damage the unit.



Extremes in temperature may cause problems.

- If the camera is transferred from a cold to a warm and humid environment, condensation can form on the delicate electronic circuitry. If this occurs, turn the camera off and wait for at least 1 hour until all moisture is dispersed. Moisture built up can also occur on the memory card. If this happens, turn off the camera and remove the memory card. Wait until the moisture has dispersed.



Caution on Using the Lens

- If the lens is subjected to direct sunlight, it could result in the discoloration and deterioration of the image sensor.

- Take care not to get fingerprints or foreign substances on the surface of the lens.



If the digital camera is not used for a long period, an electric discharge can occur. It is a good idea to remove the battery and

the memory card if you do not intend using the camera for an extended period of time.



If the camera is exposed to an electronic interference, it will turn itself off to protect the memory card.



Camera Maintenance

- Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies. If this does not work, lens-cleaning paper with lens cleaning fluid can be used. Clean the camera body with a soft cloth. Do not allow this camera to come into contact with solvent materials such as benzol, insecticide, thinners etc. This may damage the body shell of the camera and also affect its performance. Rough handling can damage the LCD monitor. Take care to avoid damage and keep the camera in its protective carry case at all times when not in use.



Do not attempt to disassemble or modify the camera.



Under certain conditions, static electricity can cause the flash unit to fire. This is not harmful to the camera and is not a malfunction.



When images are uploaded or downloaded, the data transfer may be affected by static electricity. In this case, disconnect and re-

connect the USB cable before trying the transfer again.



Before an important event or going on a trip, you should check the camera condition.

- Take a picture for testing the camera condition and prepare extra battery.

- Samsung cannot be held responsible for camera malfunctions.



If the digital camera is not used for a long period, the date and time may adopt the default settings by automatical battery discharged. In

this case, reset the date and time correctly before the recording.

Warning indicator

There are several warnings that may appear on the LCD display.

[Card Error]



Memory card error



Turn off the camera power and turn it on again



Insert the memory card again



Insert and format the memory card (p.57)

[Card Locked]



The memory card is locked



SD/SDHC memory card : Slide the write protect switch to the

[Memory Full]



The memory card or internal memory is full



Insert new memory card



Delete the unnecessary image files

[No Image File]



There are no images stored on the memory



Take images



Insert a memory card that is holding some images

top of the memory card

[File Error]



File error



Delete the file



Memory card error



Contact a camera service center

[Low Battery]



There is low battery capacity



Insert a charged battery or recharge the battery

Before contacting a service center

Please check the following Camera does not take images when pressing the Shutter button

The camera doesn’t switch on



There is low battery capacity



Insert a charged battery or recharge the battery (p.15)



Battery is inserted incorrectly with the polarities reversed



Insert the battery according to the polarity marks (+, -)

The camera power ceases while in use



The battery is exhausted



Insert a charged battery or recharge the battery (p.15)



The Camera is turned off automatically



Turn on the camera power again



Operation has ceased in a low temperature outside of the camera usage temperature range



Make the camera and battery warm by placing them in your pocket, etc. and then immediately before shooting, place the battery in the camera and then shoot



There is insufficient memory capacity



Delete unnecessary image files



The memory card has not been formatted



Format the memory card (p.57)



The memory card is exhausted



Insert a new memory card



The memory card is locked



Refer to [Card Locked] error message (p.87)



The camera's power is off



Turn the camera power on



The battery is exhausted



Insert fresh battery (p.15)



Battery is inserted incorrectly with the polarities reversed



Insert the battery according to the polarity marks (+, -)

The camera suddenly stops working while in use



The camera stopped due to a malfunction



Remove /re-insert battery and switch the camera on

The images are unclear



A picture was taken of the subject without setting an appropriate macro mode



Select an appropriate macro mode to take a clear image



Taking a picture beyond the flash range



Take a picture within the flash range



The lens is smudged or dirty



Clean the lens

Before contacting a service center

The flash does not fire



Flash off mode has been selected



Dis-engage flash off mode



The camera mode can't use the flash



Refer to the FLASH instruction (p.33)

Incorrect date and time is displayed



The date and time have been set incorrectly or the camera has adopted the default settings



Reset the date and time correctly

The camera buttons do not operate



Camera malfunction



Remove/re-insert battery and switch the camera on

A card error has occurred while the memory card is in the camera.



Incorrect memory card format



Re-format the memory card (p.57)

The images don't play back



Incorrect file name (Violation of DCF format)



Do not change the image file name

Color of image is different to the original scene



White balance or effect setting is incorrect



Select appropriate White balance and effect

Images are too bright



Exposure is excessive



Reset exposure compensation

No image on external monitor



The external monitor has not been connected properly with the camera



Check the connection cables



There are incorrect files on the memory card



Insert a memory card that has correct files

When using the PC’s explorer, the [Removable Disk] file does not show



Cable connection is incorrect



Check the connection



The camera is off



Turn the camera on



The operating system is not Windows XP, Vista, 7 / Mac OS 10.4. Alternatively the PC does not support USB



Install Windows XP, Vista, 7 / Mac OS 10.4 to PC that supports USB

A part of the LCD screen does not occasionally turn on or a spot appears



Although the LCD screen is manufactured with high precision technology, the precision pixels are not occasionally lighted or the red, white and blue spots appear

This phenomenon does not affect the quality of the recorded image and it is not a malfunction

A vertical line appears on the LCD screen when taking a picture of a bright object



If a subject is exposing bright lights, a gray, black, red or purple vertical line may appear

This is a phenomenon called smear and it does not affect the quality of the recorded image. This is not a malfunction

Specifications

Image Sensor - Type : 1/2.3" CCD

- Effective Pixel : Approx. 12.2 Mega-pixel

- Total Pixel : Approx. 12.4 Mega-pixel

Lens - Focal Length : SAMSUNG Lens f = 5.1 ~ 25.5mm

(35mm film equivalent : 28.2 ~ 141mm)

- F No. : F3.4(W) ~ F5.9(T)

- Digital Zoom : ·Still Image mode :1.0X ~ 5.0X

·Play mode : 1.0X ~ 12.5X (depends on image size)

LCD Monitor - 2.7" color TFT LCD (230,000 dots)

Focusing

Type : TTL auto focus

(Multi AF, Center AF, Tracking AF)

- Range

Normal Macro Auto Macro

Wide

Tele - 100cm ~ Infinity

80cm ~ Infinity

10cm ~ 80cm 10cm ~ Infinity

Shutter - Smart Auto : 1/8 ~ 1/2,000 sec.,

Program : 1 ~ 1/2,000 sec., Night : 8 ~ 1/2,000 sec., Fireworks : 2 sec.

Exposure - Control : Program AE

- Metering : Multi, Spot, Center-weighted

- Compensation : ±2EV (1/3EV steps)

- ISO : Auto, 80, 100, 200, 400, 800, 1600, 3200 (Up to 3M Size)

Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in

flash, Slow sync, Flash off, Red Eye Fix

- Range : Wide : 0.4m ~ 3.0m, Tele : 0.8m ~ 2.0m

- Recharging Time : Approx. 4 sec

Sharpness - Soft+, Soft, Normal, Vivid, Vivid+

White Balance - Auto, Daylight, Cloudy, Fluorescent_H,

Fluorescent_L, Tungsten, Custom

Voice Recording - Voice Recording (max. 10 hours)

- Voice Memo in Still Image (max. 10 sec.)

Date Imprinting - Date, Date & Time, Off (user selectable)

Shooting - Still Image

·Mode :

Smart Auto, Program, DUAL IS, Scene (Beauty Shot, Frame Guide, Night, Portrait, Children, Landscape, Close Up, Text, Sunset, Dawn, Backlight, Fireworks, Beach & Snow)

· Smart Auto : Portrait, Night Portrait, Night,

Backlight Portrait, Backlight, Landscape, White, Macro, Macro Text, Tripod, Action, Sunset Sky, Blue Sky, Natural Green, Macro Color, Macro Portrait

·Shooting : Single, Continuous, Motion Capture, AEB

·Self-timer : 10 sec., 2 sec., Double, Motion Timer

Specifications

- Movie Clip

With Audio or without Audio (user selectable)

Size : 640x480, 320x240

Frame rate : 30 fps, 15 fps

· 5X Optical Zoom and Mute in Zooming, sound recording on/ off selectable

· Smart Movie : Landscape, Blue Sky,

Natual Green, Sunset Sky

· Movie Editing (Embedded): Pause during recording, Still Image Capture, Time Trimming

Storage - Media

·Internal memory : About 86MB flash memory

· External Memory (Optional) : SD card (Up to 4GB guaranteed) SDHC card (Up to 8GB guaranteed)

- File Format

·Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0

·Movie Clip : AVI (MJPEG)

·Audio : WAV

- Image Size

4000X

3984X

3968X

3264X

2592X

2048X

3000

2656

2232

2448

1944

1536

1024X

768

- Capacity (1GB Size)

Super

About

Fine

168

195

229

244

362

About

Fine

238

267

305

About

Normal

362

These figures are measured under Samsung standard conditions and

407

About

477

326

About

514

About

489

About

699

543

About

674

About

752

About

978

About

1086

About

1222

may vary depending on shooting conditions and camera settings.

Effect

- Effect : Photo Style Selector, Image Adjust (Sharpness, Contrast, Saturation)

Editing :

Resize, Rotate, Photo Style Selector, Image Adjust (ACB, Face Retouch, Red Eye Fix, Brightness, Contrast, Saturation, Add Noise)

Image Play - Type :

Single image, Thumbnails, Multi slide show, Movie Clip, Smart Album

Multi slide show : Slide show with Effect & Music

Interface - Digital output connector : USB 2.0

- Audio : Mono

- Video output : NTSC, PAL (user selectable)

- DC power input connector : 4.2 V

Specifications

Power Source - Rechargeable battery : BP70A

Dimensions (WxHxD) - 96.8 × 57.5 × 20.2(18.9) mm

Weight -

Operating Temperature - 0 ~ 40°C

Operating Humidity - 5 ~ 85%

Software - Intelli-studio, Adobe Reader

Specifications are subject to change without prior notice.

All trademarks are the property of their respective owners.

Included battery may vary depending on sales region.

(excluding protrusions)

Approx. 120.3 g (without battery and card)

Transferring files to your computer (for Windows)

For Windows users

Transfer files by connecting your camera to your PC.



Installing programs Hardware and software requirements

Item Requirements

CPU

RAM 512 MB or more (1 GB or more recommended)

OS Windows XP/Vista/7

Others

Intel® Pentium®4 3.0 GHz or higher AMD Athlon™ FX 2.2 GHz or higher

- USB port

- CD-ROM drive

- nVIDIA Geforce 7600GT or higher Ati X1600 series or higher

- 1024 X 768 pixels, 16-bit color display compatible monitor (1280 X 1024 pixels, 32-bit color display recommended)

- Microsoft DirectX 9.0c or later



Using a self-assembled PC or a PC and OS that are not supported may void your warranty.

The programs may not work properly on 64-bit Edition of Windows XP, Vista and 7.

Intelli-studio may not perform correctly on some computers, even when the computer meets the requirements.

If your computer does not meet the requirements, videos may not play correctly or it may take longer to edit videos.

Install DirectX 9.0c or above before you use the program.

Transferring files to your computer (for Windows)

1. Insert the installation CD in a compatible CD-ROM drive.

When the setup screen is displayed, click Samsung Digital Camera Installer to start installation.

3. Select programs to install and follow the onscreen instructions.

4. Click Exit to complete the installation and restart your computer.



Transferring files to your PC Once you connect the camera to your PC, the camera will be recognized as a removable drive.



The battery will be charged while the camera is connected to a PC with the USB cable.

1. Connect your camera to your PC with the USB cable.



You must plug the end of the cable with the indicator light (Ÿ) into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data.

Transferring files to your computer (for Windows)

2. Turn on the camera.

- The computer recognizes the camera automatically.



If the camera fails to connect, a pop-up window will appear. Select Computer.

3. On your PC, select [My Computer ĺ Removable Disk ĺ DCIM ĺ 100PHOTO].

4. Select the files you want and drag or save them to your PC.



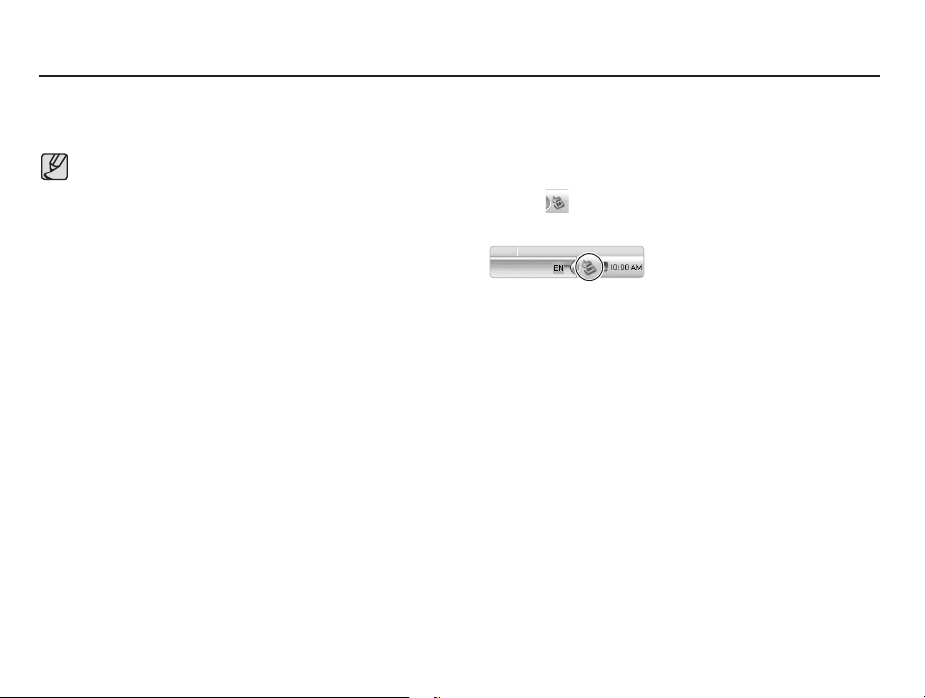

Disconnecting the camera (for Windows XP) The way to disconnect the USB cable for Windows Vista / 7 is similar.

1. If the status lamp on your camera is blinking, wait until it stops.

2. Click ( screen.

3. Click the pop-up message.

4. Remove the USB cable.

) on the tool bar at the bottom right of your PC

Transferring files to your computer (for Windows)



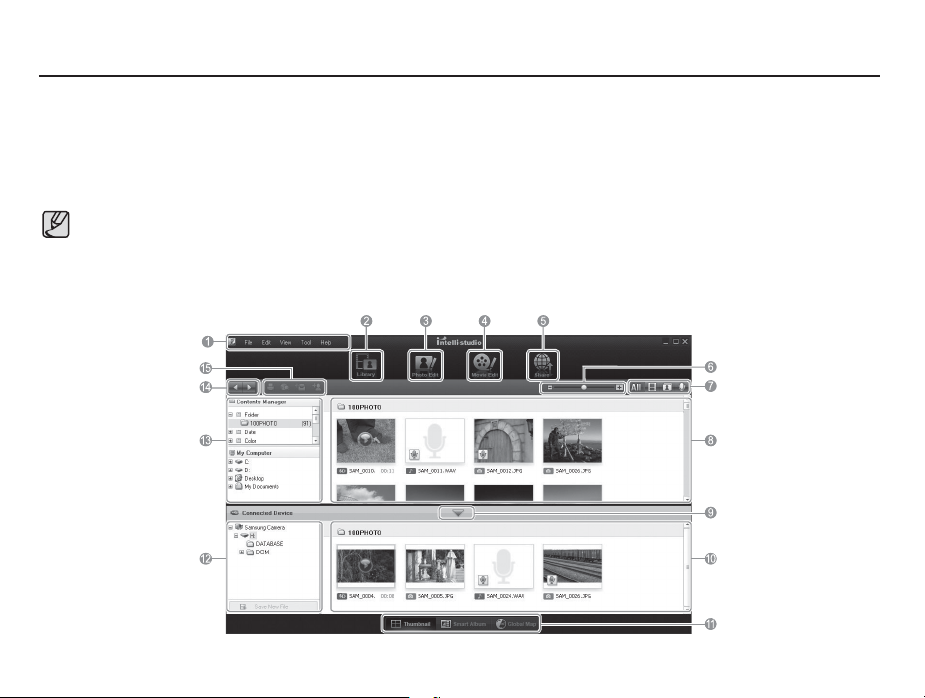

Using Intelli-studio

Once you have installed the Intelli-studio on your PC, the Intelli-studio starts automatically when a camera is connected with your PC. If the Intelli-studio does not start after you have connected the camera to your PC, double-click the Intelli-studio icon on your Windows desktop. The Intelli-studio allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube. For details, select [Menu ĺ Help] in the program.



You cannot edit files directly on the camera. Transfer files to a folder on your computer before editing.



You cannot copy files in your computer to the camera.



Intelli-studio supports the following formats

- Videos: AVI (MJPEG), MP4 (Video: H.264, Audio: AAC), WMV (WMV 7/8/9)

- Photos: JPG, GIF, BMP, PNG, TIFF

Transferring files to your computer (for Windows)

Transferring files to your computer (for Mac)

Icon Description

1 Open menus

2 Display files in the selected folder

3 Change to the Photo edit mode

4 Change to the Video edit mode

Change to the Sharing mode (You can send files by email or

upload files to websites, such as Flickr or YouTube.)

6 Enlarge or reduce the thumbnails in the list

7 Select a file type

8 View files of the selected folder on your computer

9 Show or hide files of the connected camera

10 View files of the selected folder on the camera

11 View files as thumbnails, in Smart Album, or on a map

12 Browse folders in the connected device

13 Browse folders in your computer

14 Move to the previous or next folder

Print files, view files on a map, store files in My Folder, or

For Mac users

When you connect the camera to a Macintosh computer, the computer will recognize the device automatically. You can transfer files directly from the camera to the computer without installing any programs.



Installing programs Hardware and software requirements

Item Requirements

CPU Power Mac G3 or later

RAM Minimum 256MB RAM

OS Mac OS 10.4 or higher

Others

- USB port

- CD-ROM drive

Transferring files to your computer (for Mac)

1. Connect your camera to a Macintosh computer with the USB cable.



You must plug the end of the cable with the indicator light (Ÿ) into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data.

2. Turn on the camera.

- The computer recognizes the camera automatically and a

removable disk icon will be displayed.

3. Double-click the removable disk icon.

4. Transfer photos or videos to the computer.

FAQ

Please check the following if the USB connection malfunctions.

Case 1 USB cable is not connected or it is not the supplied

Case 2 The camera is not recognized by your PC.

Case 3 There is an unexpected error during file transfer.

Case 4 When using the USB hub.

Case 5 Are other USB cables connected to the PC?

USB cable.



Connect the supplied USB cable.

Sometimes, the camera may appear under [Unknown Devices] in Device Manager.



Turn off the camera, remove the USB cable, plug in the USB cable again, and then turn on the camera.



Turn the camera power off and on again. Transfer the file again.



There may be a problem in connecting the camera to the PC through the USB hub if the PC and the hub are not compatible. Wherever possible, connect the camera to the PC directly.



The camera may malfunction when it is connected to the PC at the same time as another USB cable. In this case, disconnect the other USB cable, and connect only one USB cable to the camera.

Case 6 When I open the Device Manager (by clicking Start

Case 7 In some security programs (Norton Anti Virus, V3,

Case 8 The camera is connected to the USB port located on

(Settings) Control Panel (Performance and Maintenance) System (Hardware) Device Manager), there are Unknown Devices or Other Devices entries with a yellow question mark(?) beside them or devices with an exclamation mark(!) beside them.



Right-click on the entry with the question (?) or exclamation (!) mark and select "Remove". Restart the PC and connect the camera again.

etc.), the computer may not recognize the camera as a removable disk.



Stop the security programs and connect the camera to the computer. Refer to the security program instructions about how to temporarily disable the program.

the front of the computer.



When the camera is connected to the USB port located on the front of the computer, the computer may not recognize the camera. Connect the camera to the USB port located on the back of the computer.

Samsung EC-PL80ZZBPSCA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
