Getting to Know your camera

Use this camera in the following order.

Setting up the application software

Take a picture

Insert the USB cable

Check the camera's power

Check [Removable Disk]

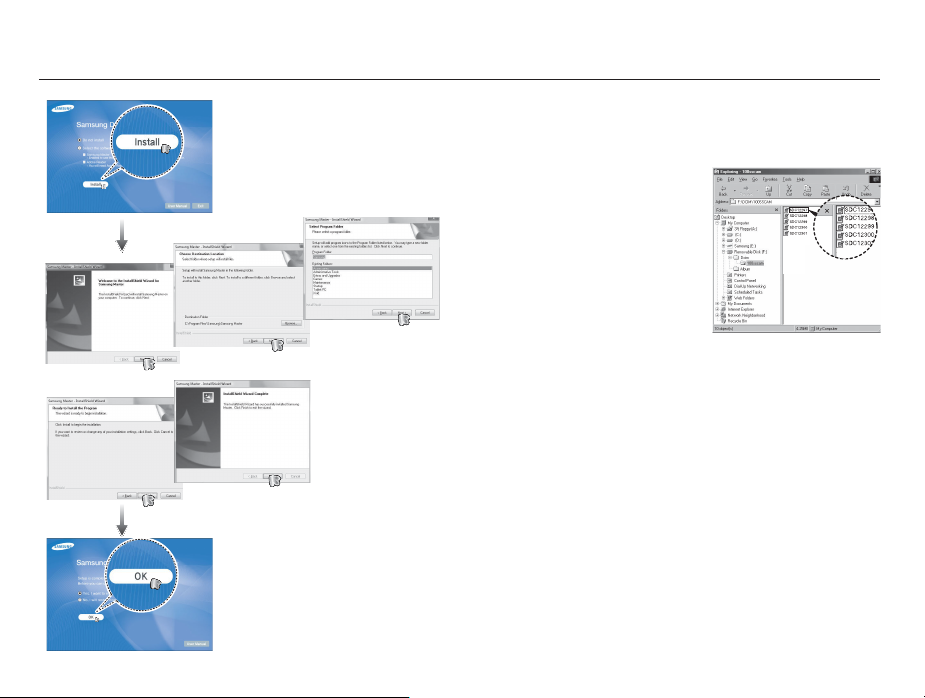

To use this camera with a PC, install the application software ﬁ rst. After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program. (p.82)

Take a picture. (p.17)

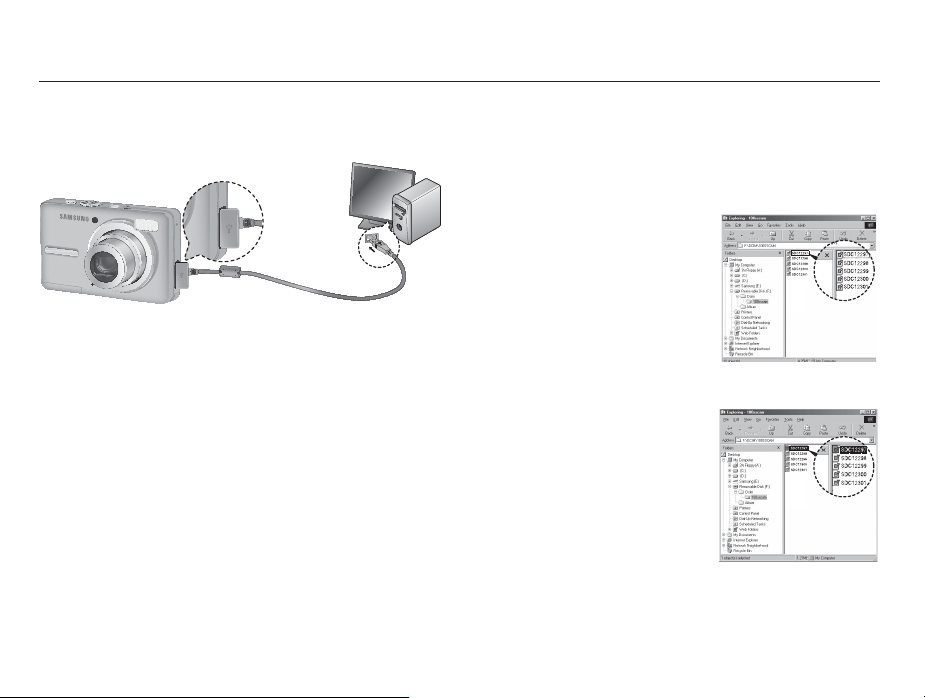

Insert the supplied USB cable into the PC’s USB port and the camera’s USB connection terminal. (p.84)

Check the camera’s power. If the power is turned off, preset the camera button to turn it on.

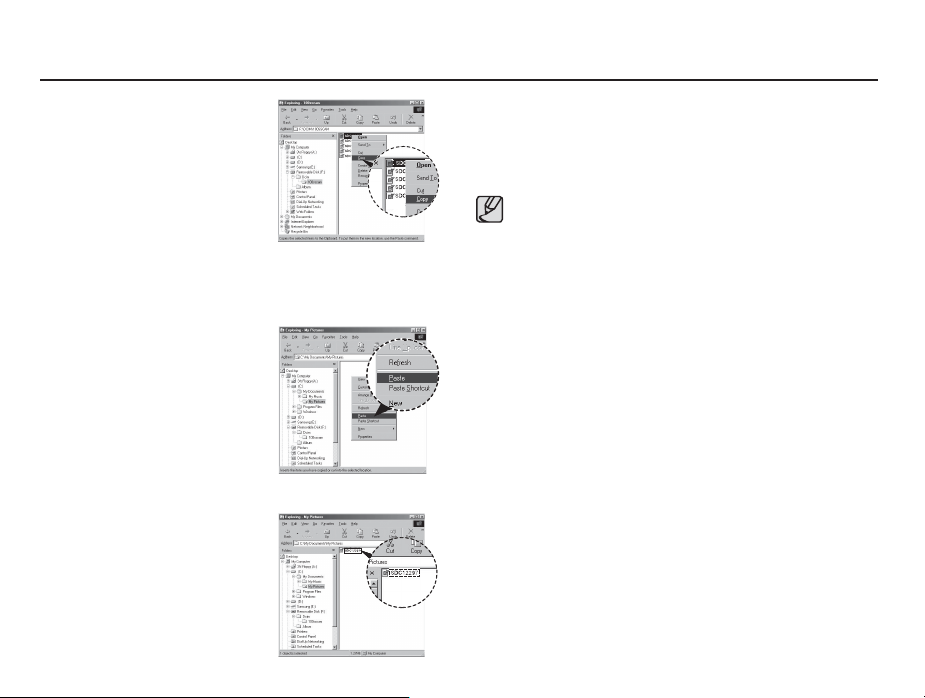

Open Windows’s EXPLORER and search for [Removable Disk]. (p.85)

Thank you for buying a Samsung Digital Camera.



Prior to using this camera, please read the user manual thoroughly.



If you require After Sales service, please bring the camera and the cause of the camera malfunction (such as battery, Memory card etc.) to the A/S centre.



Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung takes no responsibility for any loss or damage that may result from camera malfunction.



Keep this manual in a safe place.



If you use a card reader to copy the images on the memory card to your PC, the images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer holds no responsibility for loss or damage of images on the memory card due to the use of a card reader.



The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions.

Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries.

All brand and product names appearing in this manual are registered trademarks of their respective companies.

Danger

Warning

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.



Do not attempt to modify this camera in any way. To do so may

result in ﬁ re, injury, electric shock or severe damage to you or your camera. internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre.



Please do not use this product in close proximity to ﬂ ammable or

explosive gases, as this could increase the risk of explosion.



Should any form of liquid or a foreign object enter the camera,

do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a ﬁ re or electric shock.



Do not insert or drop metallic or inﬂ ammable foreign objects into

the camera through access points e.g. the memory card slot and battery chamber. This may cause a ﬁ re or electric shock.



Do not operate this camera with wet hands. This could pose a

risk of electric shock.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.



Do not use the ﬂ ash in close proximity to people or animals.

Positioning the ﬂ ash too close to your subject’s eyes may cause eyesight damage.



For safety reasons keep this product and accessories out of

reach of children or animals to prevent accidents e.g.:

- Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately.

- There is the possibility of injury from the camera’s moving parts.



Battery and camera may become hot during prolonged use and it

may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.



Do not leave this camera in places subject to extremely high

temperatures, such as a sealed vehicle, direct sunlight or other places of extremes in temperature. Exposure to extreme temperatures may adversely affect the camera’s internal components and could cause a ﬁ re.



When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a ﬁ re. Always use the camera and its accessories in a well-ventilated area.

Caution

Contents

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.



Leaking, overheating, or damaged battery could result in ﬁ re or injury.

- Use battery with the correct speciﬁ cation for the camera.

- Do not short circuit, heat or dispose of battery in ﬁ re.

- Do not insert the battery with the polarities reversed.



Remove the battery when not planning to use the camera for a

long period of time. Otherwise the battery may leak corrosive electrolyte and permanently damage the camera’s components.



Do not ﬁ re the ﬂ ash while it is in contact with hands or objects. Do

not touch the ﬂ ash after using it continuously. It may cause burns.



Make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a ﬁ re or electric shock.



Take care not to touch the lens or lens cover to avoid taking an

unclear image and possibly causing camera malfunction.



Avoid obstructing the lens or the ﬂ ash when you capture an image.



Credit cards may be demagnetized if left near case. Avoid leaving

magnetic strip cards near the case.



Never connect the 20 pin connector to the USB port of a PC. This carries a high risk of computer malfunction.



After turning on the camera, Check whether the battery type and the camera setting set on the [Settings] > [Battery Type] menu (p. 52) are same.

READY

RECORDING

007 System chart 008 Identiﬁ cation of features 008 Front & Top 009 Back 010 Bottom 010 5 Function button 011 Self-timer lamp 011 Camera Status Lamp 011 Mode icon 012 Connecting to a Power Source 013 Inserting the memory card

Instructions on how to use the memory card

014

016 LCD monitor indicator 017 Starting the recording mode 017 How to use the Auto mode 017 How to use the Program mode 018 How to use the Manual mode 018 How to use the DIS mode 019 Using the Photo Help Guide mode 020 How to use the Portrait mode 020 How to use the Scene modes 021 How to use the Movie clip mode

Recording the movie clip without sound

021

Contents

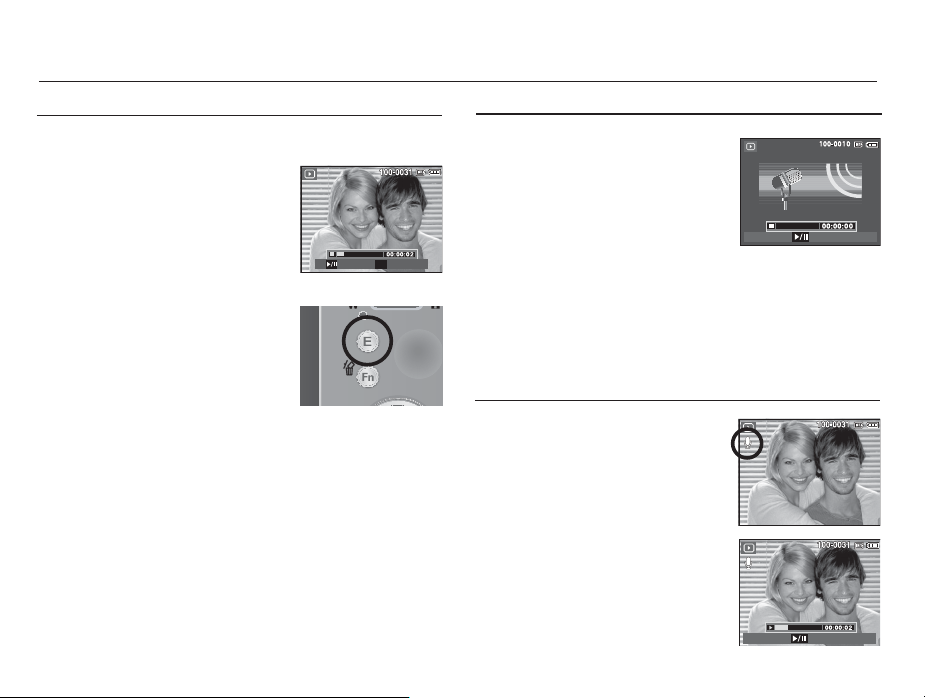

021 Pausing while recording a movie clip

(Successive Recording) 022 Things to Watch Out for When Taking Pictures 023 Using the camera buttons to set the camera 023 POWER button 023 SHUTTER button 023 ZOOM W/T button 025 Face Detection(FD) button 026 Function Description / Info / Up button 027 Macro / Down button 028 Focus lock 029 Flash / Left button 031 Self-timer / Right button 032 MENU / OK button 033 E (Effect) button 033 E (Effect) button : Colour 034 E (Effect) button : Sharpness 034 E (Effect) button : Contrast 034 E (Effect) button : Saturation 035 Fn button 035 How to use the Fn menu 036 Size 036 Quality / Frame rate 037 Metering

SETUP

037 Drive mode 038 ISO 038 White balance 039 Exposure compensation

040 Using the LCD monitor to adjust the

camera settings 040 Recording 040 How to use the menu 041 Auto Focus type 041 Voice Memo 042 Voice Recording 043 Recording the movie clip without voice 043 SCENE mode 044 Sound menu 044 Sound 044 Volume 044 Start up sound 044 Shutter sound 045 Beep Sound 045 AF sound 045 Self Portrait 045 Setup menu 046 Display 046 Language

Contents

047 Setting up the Date / Time / Date type 047 Start up image 047 Display Bright 048 Quick view 048 Display SAVE 048 Settings 048 Formatting a memory 049 Initialisation 049 File name 050 Imprinting the recording date 050 Auto power off 051 Selecting Video out type 052 Auto Focus lamp 052 Selecting a battery type

053 Starting play mode

PLAY

053 Playing back a still image

053 Playing back a movie clip 054 Movie clip capture function 054 Playing back a recorded voice 054 Playing back a voice memo 055 LCD monitor Indicator 055 Using the camera buttons to set the camera 055 Thumbnail / Enlargement button 057 Info / Up button

057 Play & Pause / Down button 058 Left / Right / Menu / OK button 058 Printer button 058 Delete button 059 E (Effect) button : Resize 060 E (Effect) button : Rotating an image 060 E (Effect) button : Colour 061 Setting up the play back function using the

LCD monitor 063 Starting the Multi Slide Show 063 Start the Multi Slide Show 063 Selecting Images 064 Conﬁ gure Multi Slide Show effects 064 Setting play interval 065 Setting Background Music 065 Playback 065 Voice memo 066 Deleting images 066 Protecting images 067 DPOF 069 Copy To Card 070 PictBridge 071 PictBridge : Picture Selection 071 PictBridge : Print Setting 072 PictBridge : Reset

Contents

072 Important notes 074 Warning indicator 075 Before contacting a service centre 077 Speciﬁ cations

SOFTWARE

080 Software Notes 080 System Requirements 081 About the software 082 Setting up the application software 084 Starting PC mode 087 Removing the removable disk 088 Samsung Master 091 Setting up the USB Driver for MAC 091 Using the USB Driver for MAC 092 FAQ

System chart

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Included items

Camera

Optional items

SD/SDHC memory

card / MMC

(see p.13)

AA Alkaline

Batteries

AD81-00867A

Rechargeable battery

(SNB-2512)

AD81-00879A

USB cable

AD81-00734A

Charger

(SBC-N2)

AD81-00898A

Camera strap

AD63-02596A /

AD63-02604A

AC cord

AD81-00696A

Software CD

(see p.81)

AD46-00199A

Camera case

AD69-01817A

User manual,

Product warranty

AD68-03165A

AV cable

AD81-00735A

Identiﬁ cation of features

Front & Top

Mode dial

Shutter button

Self-timer lamp /

AF sensor

Microphone

Power button

Speaker

Flash

Lens/ Lens cover

USB / AV connection terminal

Identiﬁ cation of features

Back

LCD monitor

Camera status lamp

Zoom T button (Digital zoom)

Zoom W button (Thumbnail)

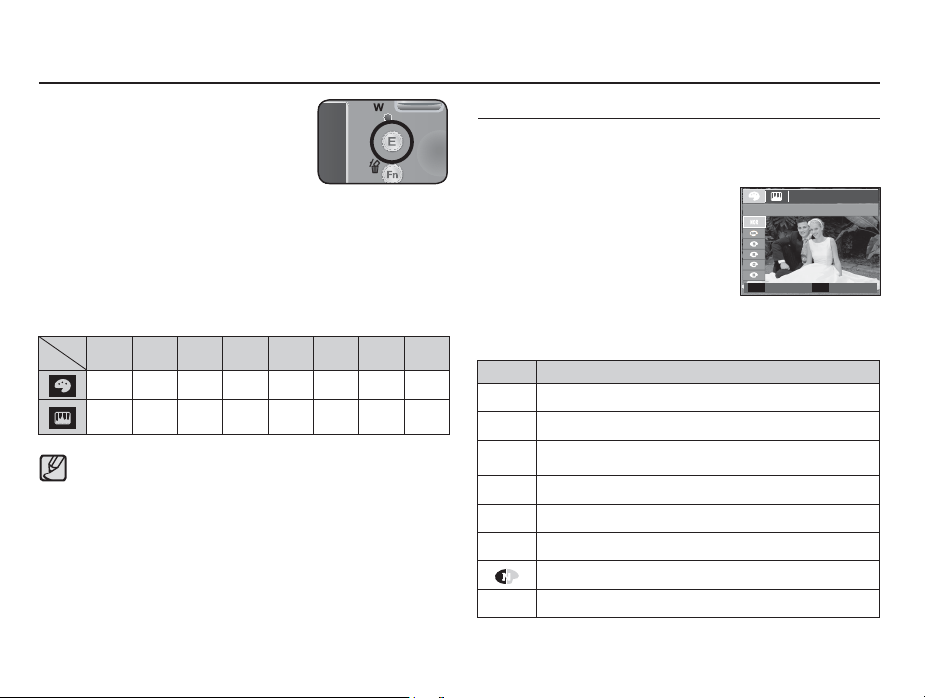

E (Effects) button

Strap eyelet

Fn / Delete button

Play mode / Printer button

Face Detection(FD) button

5 function button

Identiﬁ cation of features

Bottom

Battery chamberMemory card slot

Battery chamber cover

Memory card cover

Tripod socket

To open the battery chamber cover, slide it in the direction shown above.

5 Function button

Flash /

Left button

Function Description /

Information / Up button

MENU / OK button

Self-timer / Right button

Macro / Down button /

Play & Pause button

Identiﬁ cation of features

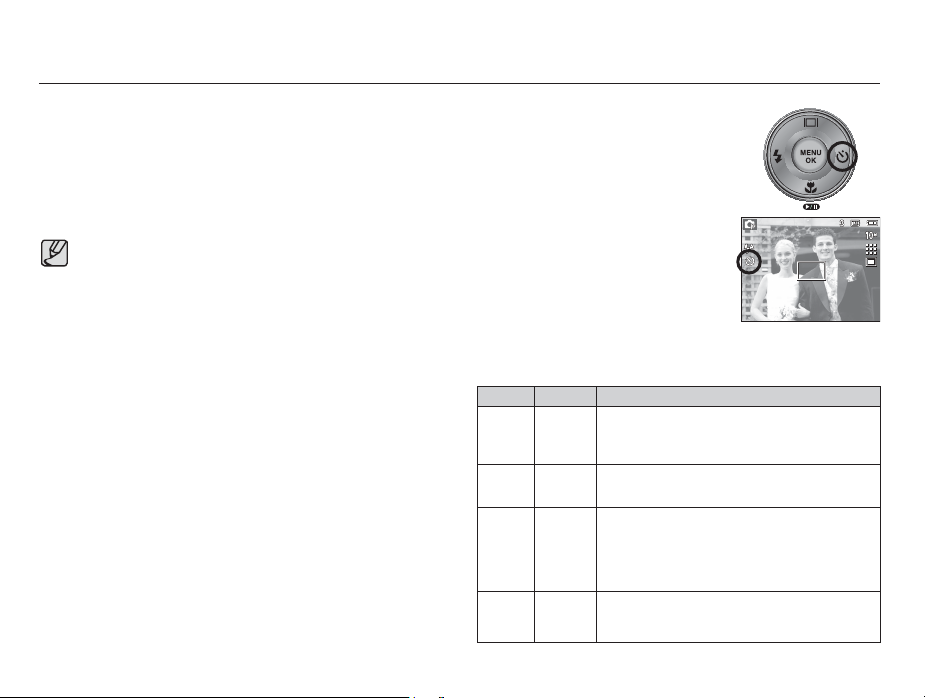

Self-timer lamp

Icon Status Description









- For the ﬁ rst 7 seconds, the lamp blinks at 1 second

Blinking

intervals.

- For the ﬁ nal 3 seconds, the lamp blinks quickly at

0.25-second intervals.

For the 2 seconds, the lamp blinks quickly at

0.25-second intervals.

A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken.

After pressing the Shutter button, the image is taken in accordance with the subject’s movement.

Camera Status Lamp

Status Description

Power on

After taking a picture

When ﬂ ash battery is charging When the USB cable is

inserted to a PC Transmitting Data with a PC When the USB cable is

inserted into a printer When the printer is printing

When the AF activates

The lamp turns on and off when the camera is ready to take a picture The lamp blinks while saving the image data and turns off when the camera is ready to take a picture

The lamp blinks The lamp lights up

(LCD monitor turns off after initializing the device) The lamp blinks (LCD monitor turns off)

The lamp is off

The lamp blinks The lamp turns on

(The camera focus on the subject) The lamp blinks

(The camera doesn’t focus on the subject)

Mode icon

Refer to page 17 for more information about the camera mode setting.

MODE Auto Program Manual DIS

ICON

MODE

ICON

MODE

ICON

MODE Text Sunset Dawn Backlight

ICON

MODE Firework

ICON

Š‰ÿ

Photo Help

Guide

_

Nightscene Children Landscape Close up

Portrait Scene Movie



SCENE

†





Beach&Snow



Connecting to a Power Source

We recommend batteries for a digital camera (Within a year from the date of manufacture). The batteries are listed below.

Non rechargeable batteries : 2 X AA Alkaline (High Capacity)

- Rechargeable batteries (Optional) : SNB-2512 (Ni-MH)



SNB-2512 rechargeable battery Speciﬁ cation

Model SNB-2512 Type Ni-MH

Capacity Voltage 1.2V x 2 C

harging time

Included battery may vary depending on sales region.

00mAh

Approximately 300 Minutes (Use for SBC-N2)

Important information about battery usage.



When camera is not in use, turn off the power.



Please remove the battery if the camera will not be used for long periods. Batteries can lose power over time and are prone to leaking if kept inside the camera.



Low temperatures (below 0°C) can affect the performance of the battery and you may experience reduced battery life.



Batteries will usually recover at normal temperatures.



During extended use of the camera, the camera body may become warm. This is perfectly normal.



It is easy to buy alkaline batteries. However, the duration for using batteries varies in accordance with the battery manufacturer or the photographic conditions



Do not use manganese batteries as manganese batteries cannot deliver sufﬁ cient power.

For this camera, it recommended that a high-capacity battery



(alkaline, nickel-hydride) is used. If another battery is used, the camera’s usage time may be lowered.

Connecting to a Power Source



Insert the battery as shown

- If the camera does not turn on after you have inserted battery, please check whether the battery (+ / -).

- When the battery chamber cover is opened, do not force the battery chamber cover, this may damage it.



There are 4 indicators for battery condition that are displayed on the LCD monitor.

Battery

indicator

Battery

status

When using the camera and the battery in a place that is excessively cold or hot,

the battery status on the LCD may be different from the actual battery status.

ihg

The battery is

fully charged

Low battery

capacity

(Prepare to

recharge or use

spare battery)

Low battery

capacity

(Prepare to

recharge or use

spare battery)

Battery empty.

(Recharge

or use spare

battery)

Inserting the memory card



Insert the memory card as shown.

- Turn off the camera’s power before inserting the memory card.

- Have the front of the memory card facing toward the front of the camera (lens) and the card pins toward the back of the camera (LCD monitor).

- Do not insert the memory card the wrong way round. Doing so may damage the memory card slot.

Instructions on how to use the memory card



Be sure to format the memory card (see p.48) if you are using a newly purchased memory card for the ﬁ rst time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.



Turn off the camera power whenever the memory card is being inserted or removed.



Repeated use of the memory card will eventually reduce the memory card’s performance. Should this be the case, you will need to purchase a new memory card. Wear and tear on the memory card is not covered by the Samsung warranty.



The memory card is an electronic precision device. Do not bend, drop or subject the memory card to any heavy impact.



Do not store the memory card in an environment with strong electronic or magnetic ﬁ elds, e.g. near loud speakers or TV receivers.



Please do not use or store in an environment where there are extremes in temperature.



Do not allow the memory card to become dirty or to come into contact with any liquid. Should this happen, clean the memory card with a soft cloth.



Please keep the memory card in its case when not in use.



During and after periods of extended use, you may notice that the memory card is warm. This is perfectly normal.



Do not use a memory card that is used in another digital camera. To use the memory card in this camera, format the memory card using this camera.



Do not use a memory card formatted by another digital camera or memory card reader.

If the memory card is subjected to any of the following, the recorded data may become corrupted :

- When the memory card is used incorrectly.

- If the power is switched off or the memory card is removed while recording, deleting (formatting) or reading.



Samsung cannot be held responsible for lost data.



It is advisable to copy important data onto other media as back-up e.g. ﬂ oppy disks, hard disks, CD etc.



If there is insufﬁ cient memory available : A [Memory Full!] message will appear and the camera will not operate. To optimise the amount of memory in the camera, replace the memory card or delete unnecessary images stored on the memory card.



Don't remove the memory card when the camera status lamp is blinking as this may cause damage to data in the memory card.

Instructions on how to use the memory card

The camera can use SD/SDHC Memory Cards and MMC (Multi Media Cards).

Card pins

Write protect switch

Label

[SD (Secure Digital) memory card]



The SD/SDHC memory card has a write protect switch that prevents image ﬁ les from being deleted or formatted. By sliding the switch to the bottom of the SD/SDHC memory card, the data will be protected. By sliding the switch to the top of the SD/SDHC memory card, the data protection will be cancelled.



Slide the switch to the top of the SD/SDHC memory card before taking a picture.

When using a 1GB SD memory, the speciﬁ ed shooting capacity will be as follows. These ﬁ gures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

Recorded

image size

Still


*Movie

clip

The zoom button doesn’t function during the movie recording.



The recording times can be changed by the zoom operation.



You can record videos of up to 4GB or 2hours each.



Super

About

;

About 282 About

About



About About

 ì 

Fine

219

About

304

241

About

341 395

290

About

412

366

About

507

1089

About

1458

1907

About

2204

---

Normal

About About About About

About About About

30 FPS 15 FPS

507 - 550 - 619 - 660 - -

825 - 2204 - 2419 - -

About 14'15" About 28'02" About 51'32"

About 01:41'47"

LCD monitor indicator



The LCD monitor displays information about the shooting functions and selections.

[Image & Full Status]

No. Description Icons Page

1 Recording mode

Optical / Digital Zoom bar /

Digital Zoom rate

Voice Memo / Without Sound

Number of available shots

remaining

Remaining time 00:00:00 p.15

3p.15

p.42/43

p.17

p.23

No. Description Icons Page

Memory card icon /

Internal memory icon 6 Battery 7 Image Size

Image Quality / Frame Rate

9 Metering

10 Drive mode

16 Saturation / Color

17 Sharpness

18 Contrast

19 Macro p.27 20 Self-timer

21 Flash p.29

ISO

White Balance

Exposure compensation

Camera shake Warning

Auto Focus Frame

Aperture Value / Shutter Speed

Face Detection /

Self Portrait

F3.0, 1/30 p.18



p.13 p.36

p.36

p.37

p.38

p.39

p.22

p.41

p.34

p.31

p.25/26

Starting the recording mode

How to use the Auto mode (

Select this mode for quick and easy picture taking with minimal user interaction.

Insert the batteries (p.13). Insert the

batteries taking note of the polarity (+ / -).

2. Insert the memory card (p.13). As this camera has a 16MB internal memory, you do not need to insert the memory card. If the memory card is not inserted, an image will be stored in the internal memory. If the memory card is inserted, an image will be stored on the memory card.

3. Close the battery chamber cover.

4. Press the power button to turn on the camera.

5. Select the AUTO mode by rotating the mode dial.

6. Point the camera towards the subject and compose the image by using the LCD monitor.

7. Press the shutter button to capture an image.

If the auto focus frame turns to red when you press the shutter



button down half way, it means that the camera cannot focus on the subject. Should this be the case, the camera is unable to capture an image clearly. Avoid obstructing the lens or the ﬂ ash when you capture an image.



)

How to use the Program mode (  )

Selecting the automatic mode will conﬁ gure the camera with optimal settings. You can still manually conﬁ gure all functions except the aperture value and shutter speed.

1. Select the PROGRAM mode by rotating the mode dial.

2. Press the Fn button to conﬁ gure advanced functions such as Image Size (p.36), Quality (p.36), Metering (p.37), Drive mode (p.37), ISO (p.38), White Balance (p.38) and Exposure Value(p.39).

Starting the recording mode

How to use the Manual mode ( ¸ )

You can manually conﬁ gure all functions aperture value and shutter speed.

1. Select the MANUAL mode by rotating the mode dial.

2. Press the Fn button and menu for the shutter speed and aperture value will display. Up / Down button : changes aperture

Left / Right button : changes shutter

3. Press the Fn button twice and take an image.

Smaller Aperture values make the object sharp but blur the



background. Larger Aperture values make both the object and background sharp. High Shutter speeds can capture a moving object in a still image



as if the object is not moving. Low Shutter speeds can capture a moving object with an ‘active’ effect.

value

speed.

How to use the DIS mode (

Digital Image Stabilisation (DIS) mode. This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions.

Select the DIS mode by rotating the mode dial.

2. Point the camera towards the subject and compose the image by using the LCD monitor.

Press the Shutter button to capture an image.



Things to watch out for using the DIS mode

1. The digital zoom will not operate in the DIS mode.

2. If the lighting condition is brighter than ﬂ uorescent lighting conditions, the DIS will not activate.

3. If the lighting condition is darker than in ﬂ uorescent lighting conditions, camera shake warning indicator ( Ã ) will display. For best results only take pictures in situations where the camera shake warning indicator ( Ã ) is not displayed.

4. If the subject is moving, the captured image may be blurred.

5. Avoid moving the camera while the [Capturing!] message is displayed to achieve a better result.

6. As the DIS uses the camera's digital signal processor, it may take a little longer for the camera to process and save the images.

If the image size is

(;)



)

or (.) ,the DIS mode can’t be selected.

Starting the recording mode

Using the Photo Help guide mode ( ` )

Helps the user learn the correct picture taking method and includes solutions for potential problems that may occur. This also enables the user to practice the best way to take the pictures.

PHOTO HELP GUIDE

Features to use when the image is out of focus Features to counter camera shake Features to use in low light conditions Features to use when adjusting brightness Features to use when adjusting colours



Move Next



Guide list



Pressing the



Left/Right button





Pressing the shutter button

[Function that can be used when focusing is difﬁ cult]

Available functions of the photo help guide

Function that can be used when focusing is difﬁ cult



Functions that can be used when the image is blurred



Function that can be used when ﬁ lming in the dark



Function that can be used when adjusting the picture brightness



Function that can be used when adjusting the picture colour



Features to use when the image is out of focus Half press shutter button to focus To focus on a subject 80cm or more away To focus on a subject less than 80 cm away To focus on people’s faces

Back Next



±

Pressing the MENU button

Practice begins when you press the shutter.

Guide list

Pressing the

Left/Right button

Pressing the Right button

Half press shutter button to focus

Focusing status can be checked by half-pressing shutter button

- Green: Focusing successful

- Red: Focusing failed

±

Back Practice

Pressing the Up/

Down button

Half press shutter button to focus

When focusing is successful, fully press the shutter button to shoot. If focusing fails, half press the button again.

±

Back Practice



1/2





2/2



Starting the recording mode

How to use the Portrait mode (  )

Please select this mode for quick and easy portraits.

1. Select Portrait mode using mode dial.

2. Press the shutter button to capture an image.

How to use the Scene modes (  )

Use the menu to easily conﬁ gure optimal settings for a variety of shooting situations.

1. Select the Scene mode by rotating the

Mode dial. (p.43)

2. Point the camera towards the subject

and compose the image by using the LCD monitor.

3. Press the shutter button to capture an

image.

The scene modes are listed below.

[Nightscene] (

[Children] (

[Landscape] (  ) : To take pictures of distant scenery.

[Close Up] (

[Text] (

[Sunset] (

[Dawn] (

[Backlight] (

[Firework] (  ) : Firework scenes.

[Beach&Snow] (

) : Use this for shooting still images at night



or in other dark conditions.

) : To take a picture of fast moving



objects, for example, children.

) : Close-up shooting for small objects such



as plants and insects.

) : Use this mode to shoot a document.



) : For taking pictures of sunsets.



) : Daybreak scenes.



) : Portrait without shadows caused by



backlight.

) :

For ocean, lake, beach and snowscape



scenes.

Starting the recording mode

How to use the Movie clip mode ( ´ )

A movie clip can be recorded for as long as the available recording time of the memory capacity allows.

1. Select the Movie clip mode by rotating

the Mode dial. ( The Movie clip mode icon and available recording time will display on the LCD monitor.).

2. Point the camera towards the subject

and compose the image by using the LCD monitor.

3. Press the shutter button once and

movie clips are recorded for as long as the available recording time allows. Movie clips will still be recorded if the shutter button is released. If you wish to stop recording, press the shutter button again.

Image size and type are listed below.

- Image size : 640x480, 320x240 (Selectable)

- Movie clip ﬁ le type : AVI (MJPEG)

- Frame Rate : 30 FPS, 15 FPS (Selectable)

Recording the movie clip without sound

You can record the movie clip without sound. Steps from 1 -3 are the same as those for

MOVIE mode.

4. Press the Menu button. Select the [RECORDING] menu by

5. pressing the Left / Right button.

6. Press the Down button to select the [Voice Mute] menu and press the Right button.

7. Select the [On] menu by pressing the Up / Down button.

8. Press the OK button. You can record a movie without sound.

See p.43 for further details.

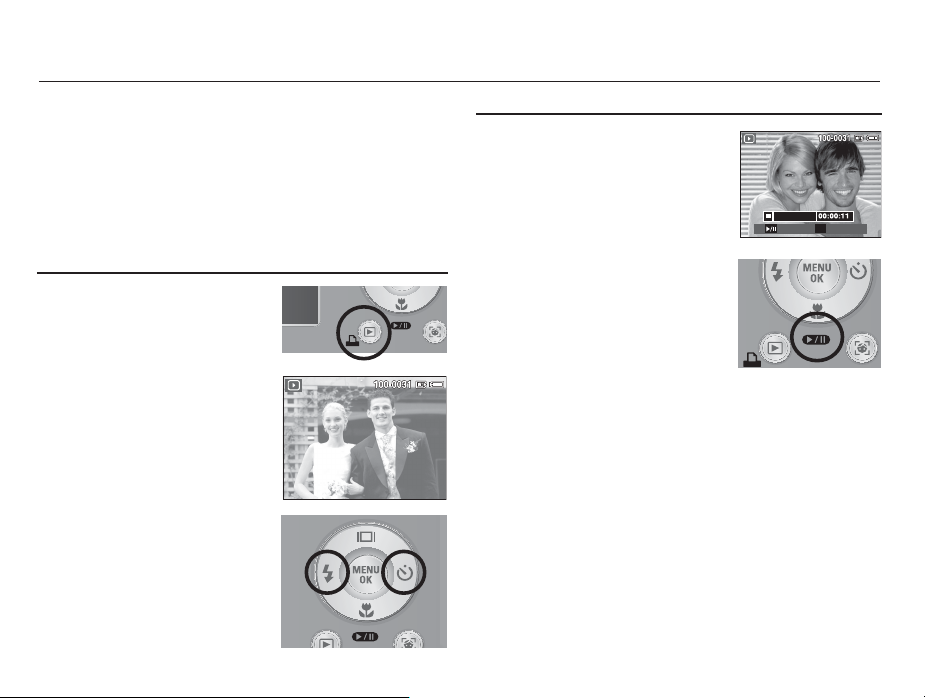

Pausing while recording a movie clip (Successive Recording)

This camera allows you to temporarily stop during unwanted scenes, while recording a movie clip. Using this function, you can record your favourite scenes into a movie clip without having to create multiple movie clips.



Using Successive Recording

Steps from 1-2 are the same as those for MOVIE CLIP mode.

3. Press the shutter button and movie

clips are recorded for as long as the available recording time. Movie clips will still be recorded if the shutter button is released.

4. Press the Pause button ( Ø ) to pause recording.

5. Press the Pause button ( Ø ) again to resume the recording.

6. If you wish to stop recording, press the shutter button again.

Stop REC

Things to Watch Out for When Taking Pictures



Pressing the shutter button down half way. Lightly press the shutter button to conﬁ rm focus and ﬂ ash battery charge. Press the shutter button all way down to take the picture.

[Lightly press the shutter button]



The available memory capacity may vary depending on shooting

conditions and camera settings.



When the Flash Off, Slow synchro mode or DIS mode is selected

in a low lighting condition, the camera shake warning indicator

(Ã ) may appear on the LCD monitor. In this case, use a tripod,

support the camera on a solid surface or change to ﬂ ash shot

mode.



Shooting against the light



Avoid obstructing the lens or the ﬂ ash when you capture an image.



Compose the image by using the LCD monitor.

: Please do not take pictures against the

sun. Doing so may make the picture dark. Doing so may make the picture dark. To take a picture against the light, please use the [Backlight] in scene shooting mode (see page 20), ﬁ ll-in ﬂ ash (see page 30), spot metering (see page 37) or exposure compensation (see page 39).

[Press the shutter button]



Under certain conditions the auto focus system may not perform as expected.

- When photographing a subject that has little contrast.

- If the subject is highly reﬂ ective or shiny.

- If the subject is moving at high speed.

- When there is strong reﬂ ected light, or when the background is

- When the subject matter has only horizontal lines or the subject

- When the surroundings are dark.

very bright.

is very narrow (such as a stick or ﬂ agpole).

Using the camera buttons to set the camera

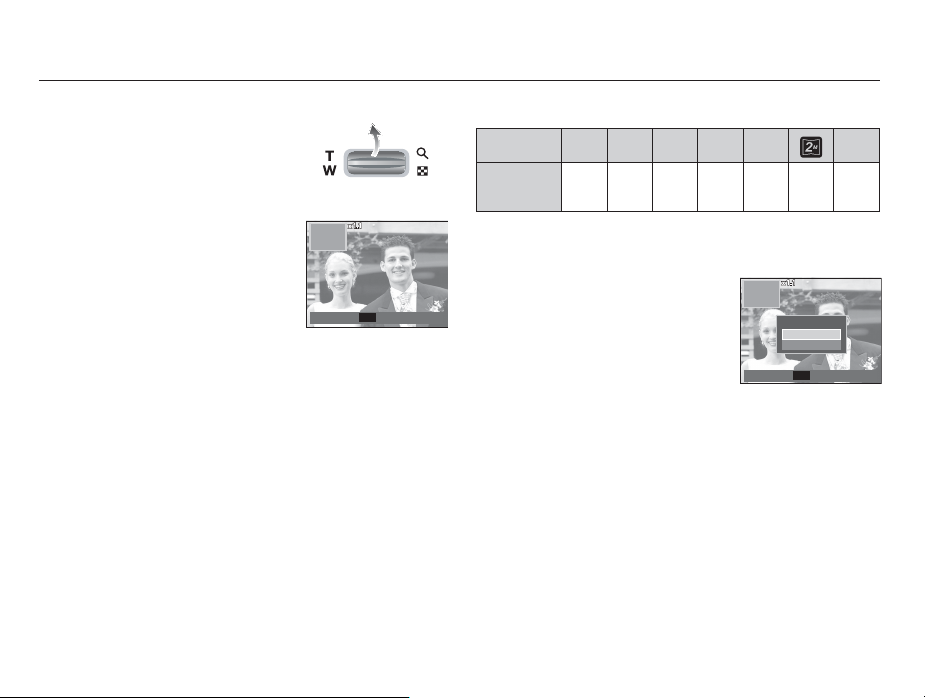

ZOOM W/T button

The recording mode function can be set up by using the camera buttons.

POWER button

Used for turning the camera’s power on / off. If there is no operation during the speciﬁ ed time, the camera's power will be turned off automatically to save battery life. Refer to page 50 for more information about the auto power off function.

If the menu is not displayed, this button works as the OPTICAL ZOOM or DIGITAL ZOOM button. This camera has a 3X optical zoom and a 5X digital zoom function. Using both will offer a total zoom ratio of 15X.



TELE Zoom

Optical zoom TELE : Pressing the ZOOM T button. This will

Digital zoom TELE : When the maximum (3X) optical zoom

SHUTTER button

Used for taking an image or recording voice in the RECORDING mode.



In MOVIE CLIP mode Pressing the shutter button down fully starts the process for recording a movie clip. Press the shutter button once and the movie clip is recorded for as long as the available recording time in the memory allows. If you wish to stop recording, press the shutter button again.



In STILL IMAGE mode

Pressing the shutter button down halfway activates the autofocus and checks the condition of the ﬂ ash. Pressing the shutter button down fully takes and stores the image. If you select voice memo recording, the recording will start after the camera has ﬁ nished storing the image data.

[WIDE zoom]

zoom into the subject i.e. the subject will appear nearer.

is selected, pressing the ZOOM T button activates the digital zoom software. Releasing ZOOM T button stops the digital zooming at the required setting. Once the maximum digital zoom (5X) is achieved, pressing the ZOOM T button will have no effect.

Pressing

the ZOOM

T button

[TELE zoom] [Digital zoom 5.0X]

Pressing

the ZOOM

T button

ZOOM W/T button



WIDE Zoom

Optical zoom WIDE : Pressing the ZOOM W button. This will

zoom out from the subject i.e. the subject will appear further away. Pressing the ZOOM W button continuously will set the camera to its minimum zoom setting i.e. the subject appears at its furthest from the camera.

Pressing

the ZOOM

W button

[TELE zoom] [Optical zoom 2X] [WIDE zoom]

Pressing

the ZOOM

W button

Digital zoom WIDE : When the digital zoom is in operation,

Optical zoom

pressing the ZOOM W button will reduce the digital zooming in steps. Releasing ZOOM W button stops digital zooming.

Digital zoom

Pressing the ZOOM W button will reduce the digital zoom and then it will continue to reduce the optical zoom until the minimum setting is reached.

Pressing

the ZOOM

W button

[Digital zoom 5.0X] [TELE zoom] [WIDE zoom]

Pressing

the ZOOM

W button

Images taken using the digital zoom may take a little longer for



the camera to process. Allow time for this to take place. If the Zoom buttons are being pressed during the Movie shots,



the voice will not be recorded. You may notice a decrease in image quality when using the



digital zoom. To view a clearer digital zoom image, press the shutter button



halfway at the maximum optical zoom position and press the zoom T button again. The digital zoom can’t be activated in some Scene modes



(Nightscene, Children, Text, Close up, Firework, Beach&Snow), DIS modes, movie mode and Face Detection. Take care not to touch the lens to avoid taking an unclear image



and possibly causing camera malfunction. If the image is dim, turn the camera power off and on again to modify the lens position. Take care not to press the lens as this may cause a camera



malfunction. When the camera is turned on, take care not to touch the camera’



s moving lens parts as this may cause the resulting image to be dim and unclear. Take care not to touch the lens when operating the zoom button.



Face Detection(FD) button



Face Detection(FD) This mode detects the face position of the subject automatically and then sets the focus and exposure. Select this mode for quick and easy face picture.

Selectable modes: Auto, Program, Manual, DIS, Photo Help Guide,

1. Press the FD(Face Detection) button ( ) in the selectable modes. The FD icon will be displayed on the screen left side.

2. The size and position of the auto focus frame is set at the face of the subject automatically.

3. Press the shutter button halfway. The focus frame turns to green when the focus is activated.

4. Press the shutter button fully to take a picture.

Portrait, Children, Beach & Snow



This function can detect up to 9 persons.



When the camera recognises many people at the same time, it will focus on the nearest person.



The Digital zoom is not activated in this mode.



The face detection does not work when setting the effect mode.



When the camera detects a target face, the white colour focus frame will be displayed over the target face and the grey colour focus frame appear over the remaining faces (up to 8). Press the shutter button halfway down to focus on the face and the white focus frame turns green.(Total 9)



Return to previous AF mode if face detection was failure.



In some conditions this function cannot work properly.

- When a person wears dark glasses or some part of the face is hidden.

- When the person being taken does not look at the camera.

- Camera doesn't detect a face as the brightness is too dark or too bright.

- The distance between the camera and object are far.



The maximum available Face Detection range is 3m (Wide).



The nearer the subject, the faster the camera can recognize the subject.

Face Detection(FD) button



Self Portrait

When taking pictures of yourself, the area of your face is automatically detected so that you can take self pictures more easily and quickly.

Selectable modes: Auto, Program, Manual, DIS, Photo Help Guide,

1. When pressing the Face Detection button again on the face location screen, the Self Portrait icon appears (  ).

Portrait, Beach & Snow

)

(

Function Description / Info

/ Up button

While the menu is showing, the Up button operates as a direction button. If the menu screen does not appear, information or function descriptions for the current shooting mode can be accessed through the LCD monitor by pressing the Function description/ Information ( ) button.

Display every piece of information

about shooting.

Display the basic information.

Display description for each feature.

Pressing the

FD button

2. For self-ﬁ lming, set the camera lens towards the face of the object. It automatically detects the face of the object, and emits a guiding sound.

3. Start ﬁ lming by pressing the shutter button.



When locating the face in the center of the screen, it repeatedly emits a faster sound unlike the sounds that are emitted when the face is not in the center.



The guiding sound can be set using the sound setting menu. (See p.45)

[Filming screen] [Information screen]



Function description : When pressing the Function description

[Function description screen]

button on the information screen mode, detailed descriptions of the functions can be viewed. The function description can be cancelled by pressing the Function description button again.

Pressing the

Function

description

Display description for each feature.

button

[Examples of Function descriptions ]

Pressing the

Fn button

Set the photo size.

3648X2736

Size

)

(

Macro

/ Down button

While the menu is showing, press the DOWN button to move from the main menu to a sub menu, or to move down the sub menu. When the menu is not showing, you can use the MACRO (e) / DOWN button to take macro pictures. The distance ranges are shown below. Press the Macro button until the desired macro mode indicator appears on the LCD monitor.

[Auto Focus]

[Macro (

)]



Types of focus mode and focus range (W : Wide, T : Tele)

Mode Auto ( Š )

Focus Type Auto macro (

Focus range

Mode Program ( ‰ )

Focus Type macro (

Focus range

Mode DIS Mode ( ÿ )

Focus Type Auto macro (

Focus range

W : 10 ~ Inﬁ nity T : 50 ~ Inﬁ nity

W : 10 ~ 80 T : 50 ~ 80

W : 10 ~ Inﬁ nity T : 50 ~ Inﬁ nity

) Normal

W : 80 ~ Inﬁ nity T : 80 ~ Inﬁ nity

) Normal

W : 80 ~ Inﬁ nity T : 80 ~ Inﬁ nity

) Normal

W : 80 ~ Inﬁ nity T : 80 ~ Inﬁ nity

(Unit: cm)

[Auto Macro ( d )]

When the macro mode is selected, be particularly careful to avoid



camera shake. When you take a picture within 40cm (Wide zoom) or 50cm



(Tele zoom) in the Macro mode, select the FLASH OFF mode. When you take a picture within the 10cm macro range, the



autofocus on the camera will take longer to set the correct focus distance.

Macro

)

(

/ Down button

Focus lock



Available focusing method, by recording mode

Mode Auto macro Macro Normal

Š ‰  ÿ _

( o : Selectable, : Inﬁ nity focus range)

 †

Mode

Auto macro Macro Normal

SCENE

    

    

To focus on a subject not positioned in the centre of the picture, use the focus lock function.



Using the Focus Lock

1. Ensure the subject is in the centre of the autofocus frame.

2. Press the SHUTTER button halfway. When the green auto focus frame lights up, it means the camera is focused on the subject. Be careful not to press the SHUTTER button all the way down to avoid taking an unwanted picture.

3. With the SHUTTER button still pressed down only halfway, move the camera to recompose your picture as desired, and



then press the SHUTTER button completely to take the picture. If you release your ﬁ nger from the SHUTTER button, the focus lock function will be cancelled.

1. The image to be captured.

Press the SHUTTER button halfway and focus on the subject.

3. Recompose the picture and fully depress the SHUTTER button.



)

(

Flash

When the menu is displayed on the LCD monitor, pressing the LEFT button makes the cursor shift to the left tab. When the menu is not displayed on the LCD monitor, the LEFT button operates as the FLASH (  ) button.



Selecting the ﬂ ash mode

1. Press the Mode button to select a RECORDING mode with the exception of the Movie clip mode or the DIS mode.(p.18)

2. Press the Flash button until the desired ﬂ ash mode indicator is displayed on the LCD monitor.

3. A ﬂ ash mode indicator will be displayed on the LCD monitor.

Use the correct ﬂ ash to suit the environment.



Flash range

ISO

AUTO 0.8 ~ 3.0 0.8 ~ 2.5 0.4 ~ 0.8 0.5 ~ 0.8 0.4 ~ 3.0 0.5 ~ 2.5

/ Left button

[Selecting the Auto ﬂ ash]

(Unit: m)

Normal Macro Auto macro

WIDE TELE WIDE TELE WIDE TELE

If you press the shutter button after selecting the ﬂ ash, the ﬁ rst



ﬂ ash ﬁ res to check the shooting condition (Flash range and Power ratio of ﬂ ash). Do not move the camera until the second ﬂ ash ﬁ res. Using the ﬂ ash frequently will reduce the life of the battery.



Under normal operating conditions the re-charging time for



the ﬂ ash is usually within 4 seconds. If the battery is weak, the charging time will be longer. In the DIS mode, [Landscape], [Close up], [Text], [Sunset],



[Dawn], [Firework] scene modes and the Movie clip mode, the ﬂ ash function will not operate. Take photographs within the ﬂ ash range.



The image quality is not guaranteed if the subject is too close



or highly reﬂ ective. When taking an image in poorly lit conditions with the ﬂ ash,



there may be a white speck in the captured image. The speck is caused by the ﬂ ash light reﬂ ecting off atmospheric dust.



)

(

Flash



Flash mode indicator

Icon Flash mode Description

]



/ Left button

Auto ﬂ ash

Auto & Red eye

reduction

Fill in ﬂ ash

Slow synchro

Flash off

If the subject or background is dark, the camera ﬂ ash will operate automatically.

If a subject or background is dark, the camera ﬂ ash will work automatically and will reduce the red-eye effect by using the red-eye reduction function.

The ﬂ ash ﬁ res regardless of the available light. The intensity of the ﬂ ash will be automatically controlled to suit the prevailing conditions.

The ﬂ ash operates with a slow shutter speed to obtain a balanced correct exposure. In poor lighting conditions the camera shake warning indicator ( LCD monitor.

The ﬂ ash does not ﬁ re. Select this mode when capturing images in a place or situation where ﬂ ash photography is prohibited. When you capture an image in poorly lit conditions, the camera shake warning indicator ( LCD monitor.

) will display on the

) will appear on the



Available ﬂ ash mode, by recording mode

Mode

Š ‰ 

^]  ª Œ

oo o

ooooo

‚ _ 

ooooo

†

Mode

^]  ª Œ

SCENE

 

     

 

( o : Selectable)

Self-timer

When the menu is displayed on the LCD monitor, pressing the Right button makes the cursor shift to the right tab. When the menu is not displayed on the LCD monitor, the RIGHT button operates as the Self-timer (  ) button. This function is used when the photographer would also like to be in the image.



 

( )

/ Right button

If you operate the Self-timer button during the self-timer operation, the self-timer function is cancelled. Use a tripod to prevent the camera from shaking. In Movie Clip mode, only the 10SEC self-timer will work.



Selecting the self-timer

1. Rotate the Mode dial to select a desired RECORDING mode.

Press the SELF-TIMER / RIGHT (  )

2. button until the desired mode indicator displays on the LCD monitor. A 10 second, 2 second, Double self-timer or Motion timer icon appears on the LCD monitor.

3. When you press the SHUTTER button, the picture will be taken after the speciﬁ ed time has elapsed.



Self-timer mode indecator

Icon Mode Description









10SEC

self-timer

Double

self-timer

Pressing the shutter button will allow an interval of 10 seconds before the image is taken.

2SEC

Pressing the shutter button will allow an interval of 2 seconds before the image is taken.

A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken. When using the ﬂ ash, the 2-second self-timer may be delayed for longer than 2 seconds depending on the ﬂ ash charging time.

The camera detects the subject's movement 6

Motion

seconds after pressing the Shutter button, and the

Timer

picture is taken when the movement is stopped.

[Selecting the 10 SEC

self-timer]

Self-timer



Motion Timer

( )

/ Right button

Motion Icon & Self-timer lamp

Pressing the Shuter button after setting the Motion Timer

Blink (1 second interval)

Detecting the subject's movement Blink (0.25 second interval)

No movement is detected



The Motion Timer ﬂ ows are as followings. (Movie Clip mode excluded) Selecting the Motion Timer  Pressing the Shutter button

Conﬁ rming the composition (Within 6 sec.) detection (Swing your hands fully)

Turn on and the image is taken after 2 seconds



Starting the

Stopping the detection



(Do not move)  Taking an image (after 2 sec.)

*1: The camera detects the subject's movement 6 seconds after pressing the

Shtter button, so conﬁ rm the composition within 6 seconds.

*2: Move your body or hands fully.

In the following cases, the Motion Timer may not operate.

The focus distance is over 3m.



The exposure is too bright or dark



In backlight conditions.



The movement is insigniﬁ cant



The movement is detected beyond



The detection range of

Motion Timer

the center part (50%) of the sensor where the movement is recognized. If the camera doesn`t sense any



movement for 30 seconds, or the camera doesn’t sense stillness after sensing movement

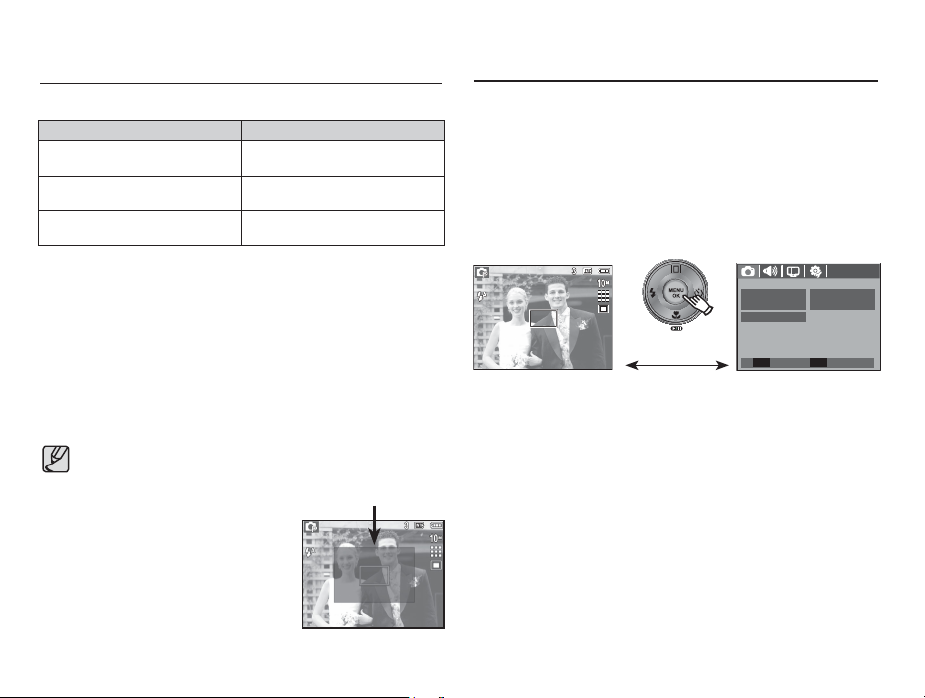

MENU / OK button



MENU button

- When you press the MENU button, a menu related to each

camera mode will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

- A menu option can be displayed when the following are selected :

MOVIE CLIP and STILL IMAGE mode. There is no menu available when the voice recording function is selected.

RECORDING

Voice Record



OK button

[Pressing the MENU button]

[Menu off]

- When the menu is displayed on the LCD monitor, this button is

used for shifting the cursor to the sub menu or for conﬁ rming data.



Exit

[Menu on]

Center AFFocus Area OffVoice Memo



Move



E (Effect) button

It is possible to add special effects to your images by using this button.

- Still image mode : You can select the colour and image adjust

- Movie clip mode : You can select the colour menu.



Available Effects, by recording mode ( o : Selectable)

This button will not operate in DIS, Voice recording mode and



some scene modes (Nightscene, Text, Sunset, Dawn, Backlight, Firework, Beach&Snow). Even if the camera is turned off, the effect setting will be



preserved. To cancel the special effect, select ( ä ) sub menu in the Colour



menu and select the (

menu. In the Auto, Portrait mode, you can select the [COLOR] menu only.

†Š‰

oooooooo

) sub menu in the Image Adjust menu.

E (Effect) button : Colour

By using the camera’s digital processor, it is possible to add special effects to your images



Press the E button in an available recording mode.

1. Select a desired sub menu by pressing the Up/Down button and press the OK button.

Icon Description

No effect is added to the image.

Captured images will be stored in black and white.

Captured images will be stored in a sepia tone

(a gradient of yellowish brown colours). Captured images will be stored in a red tone.

Captured images will be stored in a green tone.

Captured images will be stored in a blue tone.

Save the image in negative mode.

Captured image will be saved in set RGB tone.

2. Press the shutter button to capture an image.

COLOR



Move Exit



E (Effect) button



Custom colour : You can change the

- Up/Down button : Selects R, G, B

- Left/Right button : Changes the values

R (Red), G (Green) and B (Blue) values of the image.

Custom Color

Move Set



Custom Color

Move Set



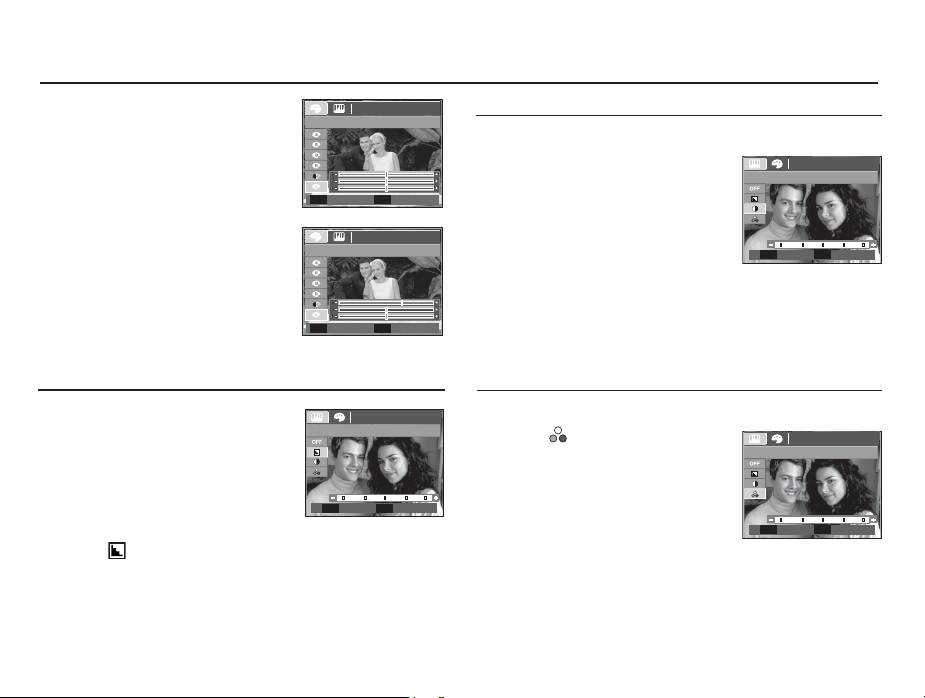

E (Effect) button : Contrast



You can change the contrast of the image.

1. Select (  ) by pressing the Up/Down

button and a bar for selecting the contrast will be displayed.

2. Change the contrast by pressing the Left/Right button.

3. Press the Shutter button to take an image.

Contrast

Move Set



E (Effect) button : Sharpness



You can adjust the sharpness of the picture you are about to take. You cannot check the sharpness effect on the LCD monitor before you take a picture, because this function is applied only when the captured image is stored on the memory.

1. Select ( ) by pressing the Up/Down button and a bar for selecting the sharpness will be displayed.

2. Change the Sharpness by pressing the Left/Right button.

3. Press the Shutter button to take an image.

Sharpness

Move Set



E (Effect) button : Saturation



You can change the saturation of the image.

1. Select ( Down button and a bar for selecting the saturation will be displayed.

2. Change the saturation by pressing the Left/Right button.

Press the Shutter button to take an

image.

) by pressing the Up/

Saturation

Move Set



Fn button

You can use the Fn button to set the following menus.

Š‰ÿ_†

SIZE oooo oo op.36

QUALITY/

FRAME RATE

METERING

DRIVE o o

ISO o o o p.38

WHITE

BALANCE

*1: This menu is only available in the Children scene mode. (  )

oooo o o op.36

oooo op.37

oooo op.38

EV o o o o p.39

: Selectable)

(

Page

op.37

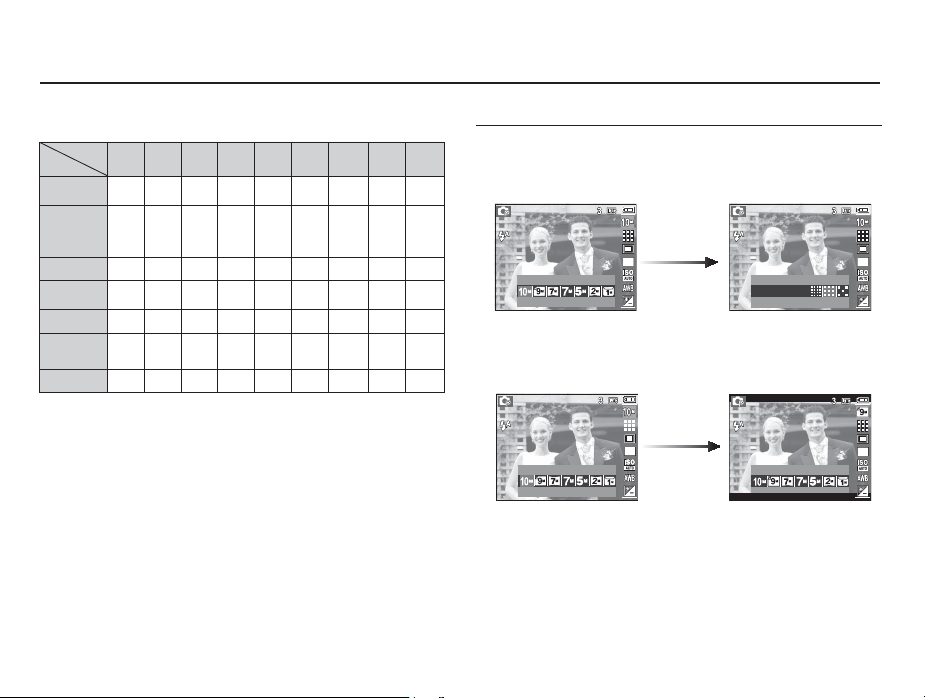

How to use the Fn menu

1. Press the Fn button in an available mode.

2. Select a desired menu by pressing the Up / Down button. And then a sub menu will be displayed at the bottom right of the LCD monitor.

SIZE

Up / Down

3648X2736

button

3. Select a desired menu by pressing the Left / Right button and

then press the OK button.

QUALITY

Fine

SIZE

3648X2736

Left / Right

button

SIZE

3648X2432

Fn button

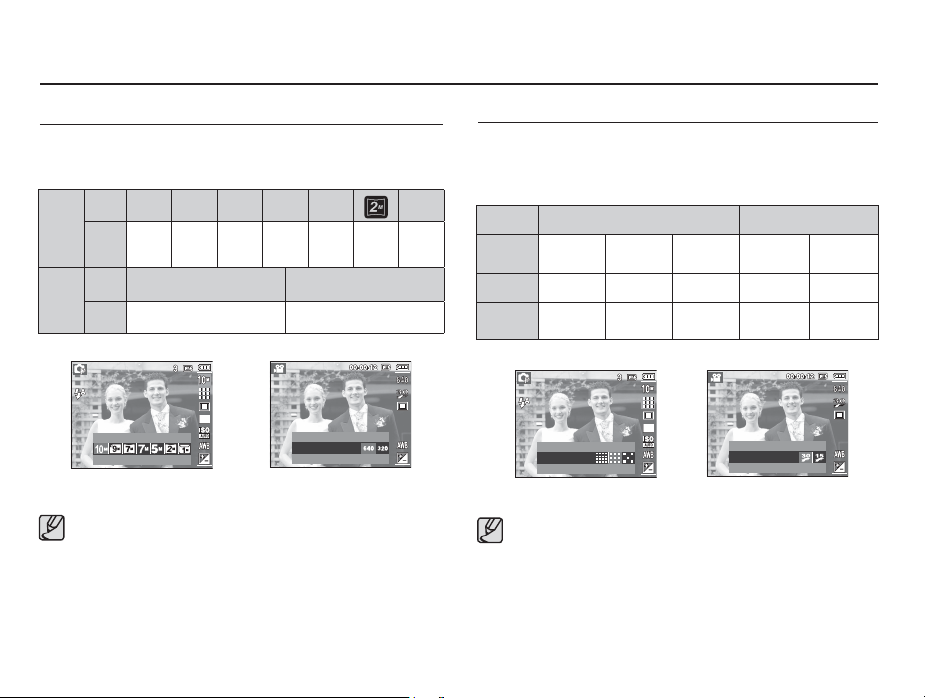

Size

You can select the image size appropriate for your application.

(Unit: pixel)

Icon

Still


mode

Movie

clip

mode



,;.+ 

3648 x

3072 x

2592 x

1920 x

Size

2736

2432

2056

2304

1944

Icon

Size

[ STILL IMAGE mode ]

ì

640 x 480 320 x 240

SIZE

3648X2736

[ MOVIE CLIP mode ]

The higher the resolution, the lower the number of shots available because high resolution images require more memory.

1080

SIZE

640X480

1024 x

768

Quality / Frame rate

You can select the compression ratio appropriate for your application of the captured images. The higher the compression ratio, the lower the picture quality.

Mode STILL IMAGE mode MOVIE CLIPO mode

Icon

Sub menu Super Fine Fine Normal 30 FPS 15 FPS

File

Format

VWX¥

jpeg jpeg jpeg avi avi

QUALITY

Fine

[ STILL IMAGE mode ]

This ﬁ le format complies with the DCF (Design rule for Camera



[ MOVIE CLIP mode ]

File system). JPEG (Joint Photographic Experts Group) :



JPEG is the image compression standard developed by the Joint Photographic Experts Group. This type of compression is most commonly used for compressing photos and graphics because it can compress the ﬁ les efﬁ ciently.

FRAME RATE

30FPS

Fn button

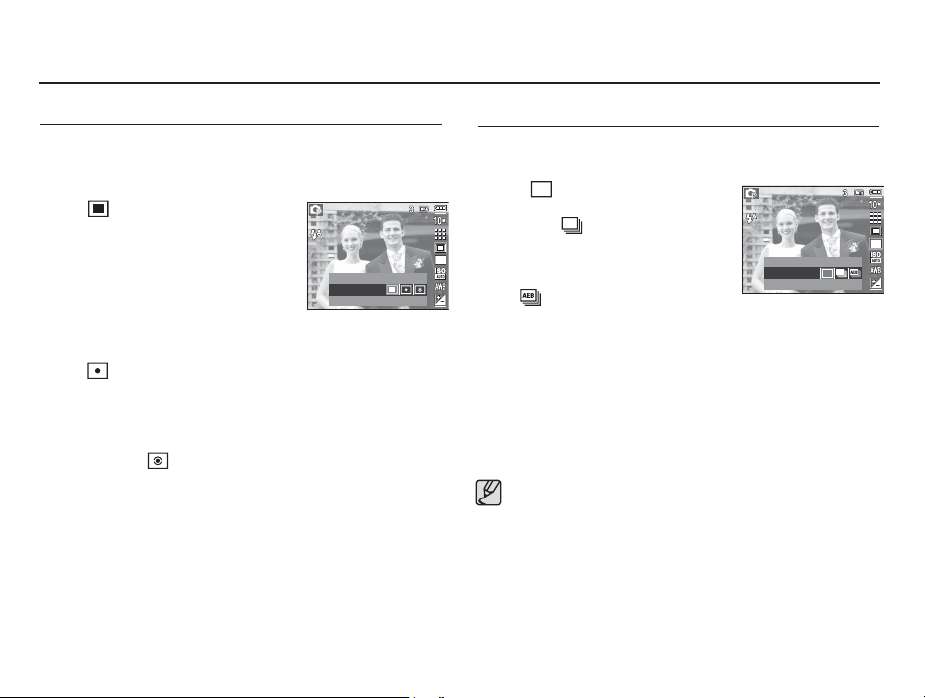

Metering

If you cannot obtain suitable exposure conditions, you can change

Drive mode

You can select continuous shot, and AEB (Auto Exposure Bracketing).

the metering method to take brighter pictures.

[Single] ( ) : Take one picture

[Multi] ( ) : Exposure will be

calculated based

[Continuous] ( on an average of the available light in the image area. However, the calcu-

METERING

Multi

[AEB] ( ) : Take three pictures in lation will be biased towards the centre of the image area. This is suitable for general use.

[Spot] ( ) :

Only the rectangular area in the centre of the LCD monitor will be metered for light. This is suitable when the subject in the centre is exposed correctly, regardless of the back lighting.

[Center We ighted] ( ): Exposure will be calculated based on an average

of the available light in the image area. However, the calculation will be biased towards the centre of the image area. This is suitable for taking a picture of small object like a ﬂ ower or insects.

If the subject is not the centre of the focus area, do not use the

spot metering as this may result in an exposure error. In this circumstance, it is better to use exposure compensation.

only.

) : Images will be taken

continuously until the shutter button is released.

DRIVE

Single

a series in different exposures: short exposure (-1/3EV), standard exposure (0.0EV), and over exposure (+1/3EV).

High resolution and picture quality increases ﬁ le saving time,



which increases stand-by time. If the [Continuous], [AEB] sub menu is selected, the ﬂ ash will be



off automatically. If less than 3 pictures are available in the memory, the AEB



shooting is not available. It is best to use a tripod for the AEB shooting as the time to save



each image ﬁ le is longer and blurring caused by camera shake may occur.

Fn button

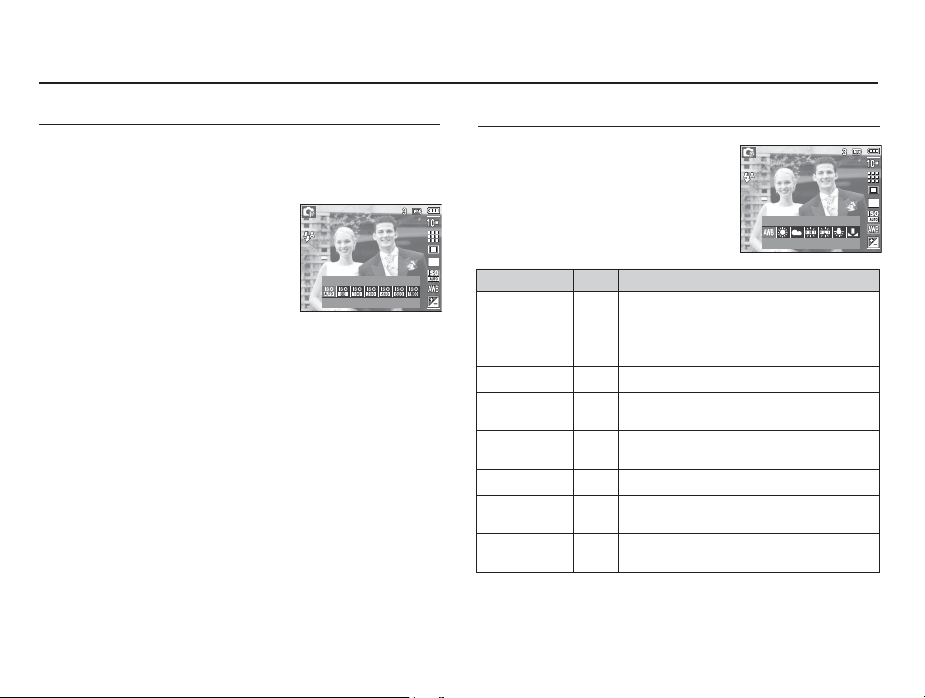

ISO

You can select the ISO sensitivity when taking pictures. The speed or speciﬁ c light-sensitivity of a camera is rated by ISO numbers.

[Auto] : The camera's sensitivity is

automatically changed by variables such as lighting value or subject brightness.

[ISO 80, 100, 200, 400, 800, 1600 ] :

You can increase the shutter speed while the same amount of light is present, by increasing the ISO sensitivity. However, the image may be saturated in high luminance. The higher the ISO value, the higher the camera’s sensitivity to light and therefore the greater its capacity to take pictures in dark conditions. However, the noise level in the image will increase as the ISO value increases, making the image appear coarse.

ISO

Auto

White balance

The white balance control allows you to

adjust the colours to appear more natural.

WHITE BALANCE

Auto WB

Mode Icon Description

The camera automatically selects the

Auto WB

Daylight

Cloudy

Fluorescent_H

Fluorescent_L

Tungsten

Custom Set

Different lighting conditions may cause a colour cast on your images.

appropriate white balance settings, de-

pending on the prevailing lighting conditions.

For taking images outside.

For taking images under a cloudy and



overcast sky. For shooting under daylight ﬂ uorescent



types of three-way ﬂ uorescent lighting. Shooting under white ﬂ uorescent lighting.



For shooting under tungsten (standard light bulb) lighting.

Allows the user to set the white balance

according to the shooting condition.

Fn button

White balance



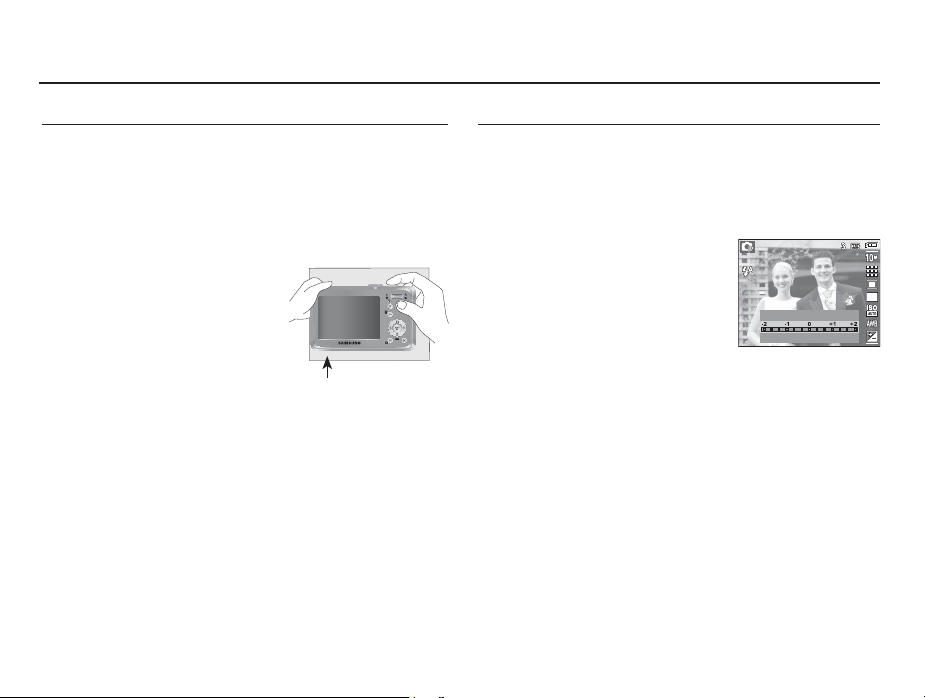

Using the Custom White Balance White balance settings may vary slightly depending on the

shooting environment. You can select the most appropriate white balance setting for a given shooting environment by setting up the custom white balance.

1. Select the CUSTOM ( Å ) menu of the White Balance and place a sheet of white paper in front of the camera so that the LCD monitor shows only white.

2. MENU/OK button : selects previous

custom white balance.

Shutter button : saves new custom white balance.

- The custom white balance value will be applied, starting with the next picture you take.

- The user conﬁ gured white balance will be remain effective until it is overwritten.

White paper

Exposure compensation

This camera automatically adjusts the exposure according to the ambient lighting conditions. You can also select the exposure value by using the Fn button.



Compensating Exposure

1. Press the Fn button, and then use the UP and DOWN buttons to select the exposure compensation icon ( Â ).

2. Use the LEFT and RIGHT buttons to set the desired exposure compensation factor.

3. Press the OK or Fn button. The value you set will be saved and the Exposure Compensation setup mode will be closed. If you change the exposure value, the exposure indicator ( Â ) will be displayed on the bottom of the LCD monitor.

A negative exposure compensation value reduces the exposure.

Note that a positive exposure compensation value increases the exposure and the LCD monitor will appear white or you may not get good pictures.

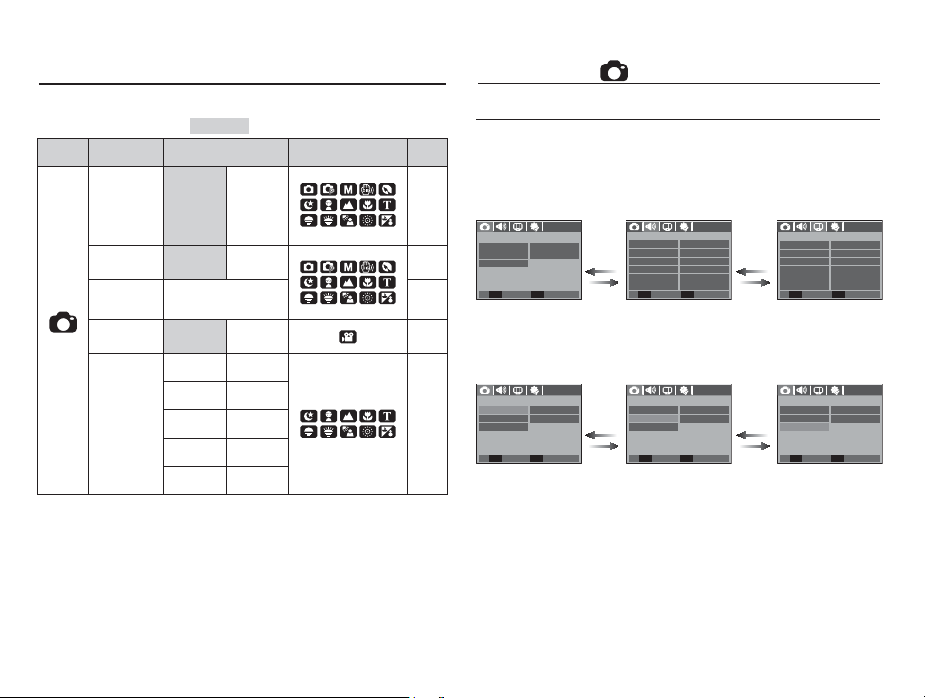

Using the LCD monitor to adjust the camera settings

You can use the menu on the LCD monitor to set up recording functions.



The items indicated by

Mode Menu Sub menu Available mode Page

Foucs Area

Center AF Multi AF

Voice Memo Off On

Voice Record

are default settings.

p.41

-p.42

Recording ( )

How to use the menu

1. Turn on the camera and press the MENU button. A menu for each camera mode appears.

2. Use the LEFT and RIGHT buttons to navigate through the menus.

Press the

RECORDING

Voice Record

Exit Move



LEFT or

RIGHT

Center AFFocus Area OffVoice Memo

button.

 

SOUND



Medium

Volume



OffStart Sound



Shutter Sound

Sound 1

Beep SoundSound 1



AF Sound



Self Portrait



Exit Move



Press the

LEFT or

RIGHT button.

DISPLAY Language Date&Time Start Image Display Bright Quick View Display SAVE

Exit Move



ENGLISH



Off



Off



Auto



0.5sec



Off

 

Voice Mute Off On

( Recording )

Nightscene

Landscape

Scene

Children

Close up

Text Sunset

Dawn Backlight

Beach&Snow

Firework

Menus are subject to change without prior notice.

p.43

3. Use the UP and DOWN buttons to select a sub menu.

p.43

RECORDING Focus Area

Voice Memo Voice Record



Move Change



Press

the UP or



Center AF



Off



DOWN button.

RECORDING Focus AreaCenter AF



Voice Memo

Off

Voice Record





Move Change



Press

the UP or

DOWN

button.

4. Select a sub menu, and then the value you set will be saved. Press the MENU button and the menu will disappear.

RECORDING Focus AreaCenter AF



Voice Memo

Off

Voice Record



Move Set



Recording ( )

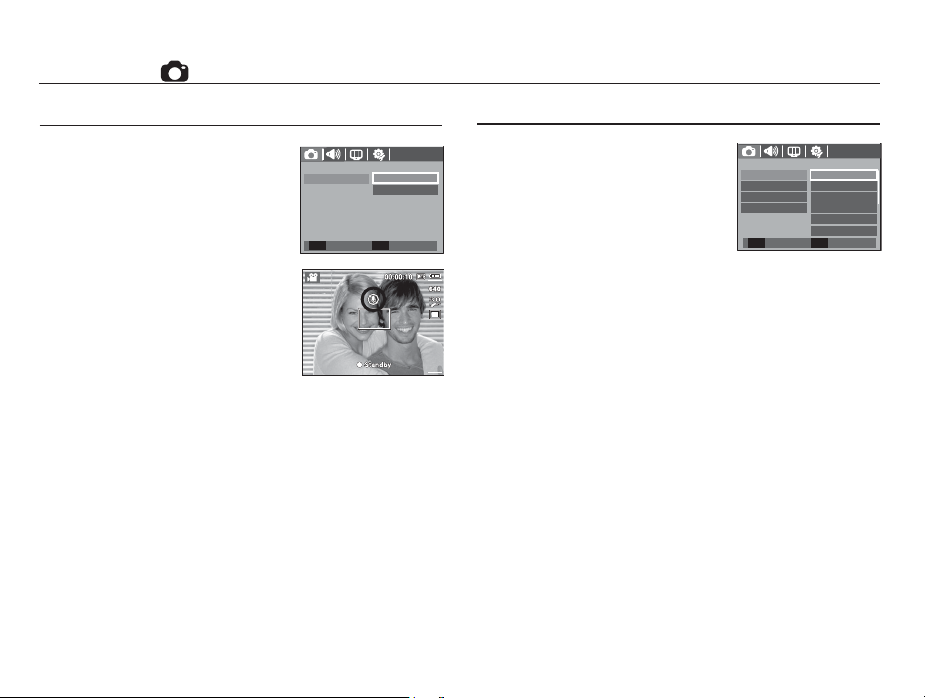

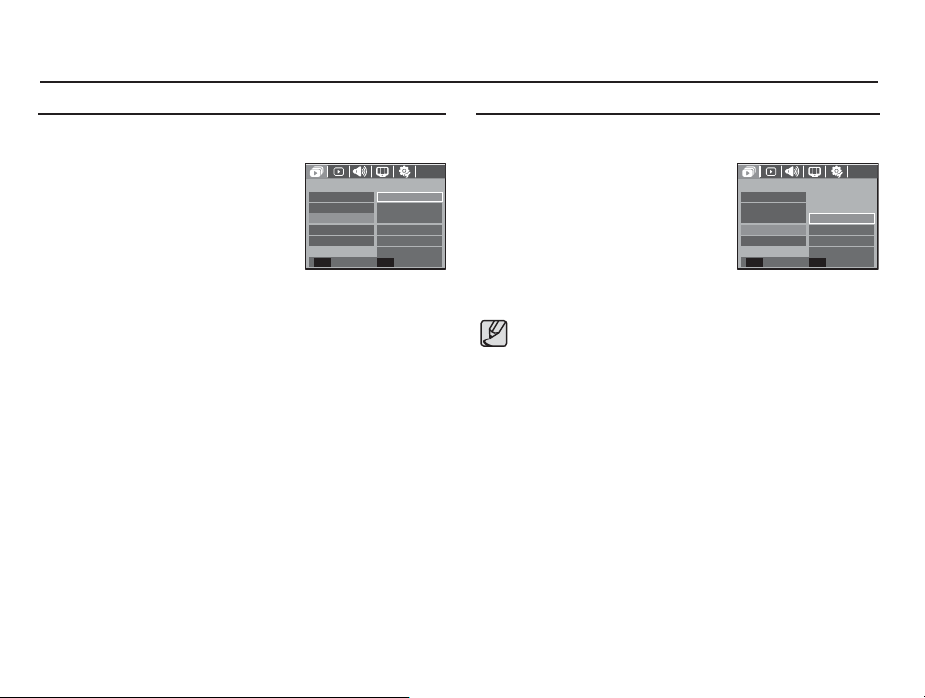

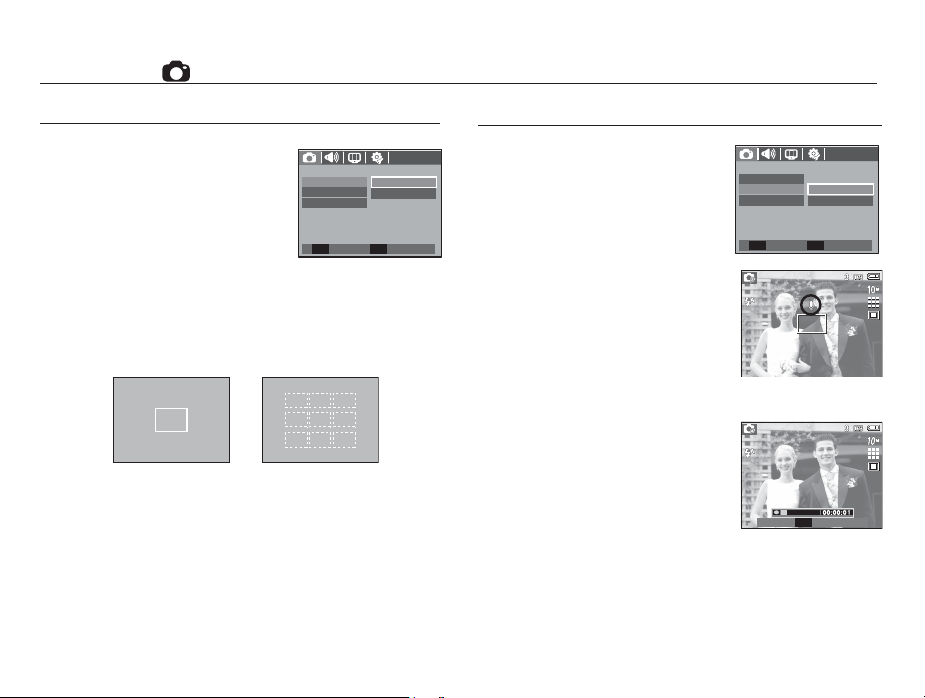

Auto Focus type

You can select your preferred Focus Area according to the shooting conditions.

[Center AF] : The rectangular area in the center of the LCD

monitor will be focused

[Multi AF] : This camera selects all of available AF point from

the 9 AF points.

[Center AF] [Multi AF]

When the camera focuses on the subject, the auto focus frame turns to green. When the camera doesn't focus on the subject, the auto focus frame turns to red.

RECORDING Focus Area Voice Memo Voice Record





Center AF



Multi AF

Back Set

Voice Memo

You can add your voice-over to a stored still image. (Max. 10 sec.)

If the voice memo indicator is displayed

on the LCD monitor, the setting is completed.

- Press the shutter button and take a picture. The picture is stored on the memory card.

- Voice memo will be recorded for ten seconds from the moment the picture is stored. In the middle of the sound recording, pressing the shutter button will stop the voice memo.

RECORDING

Focus Area Voice Memo Voice Record

Back Set





Off On

Stop

Recording ( )

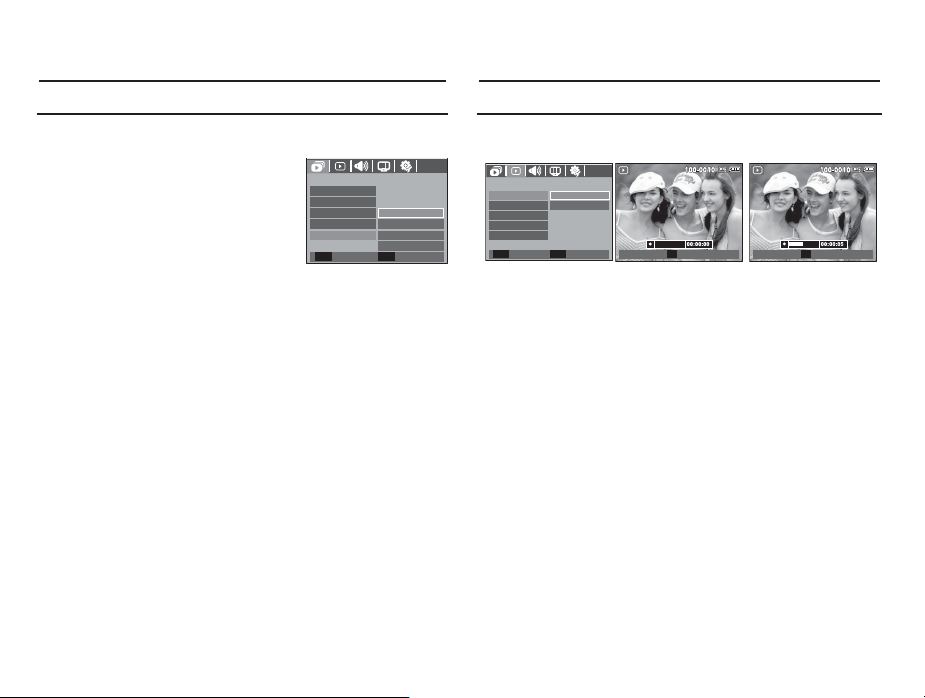

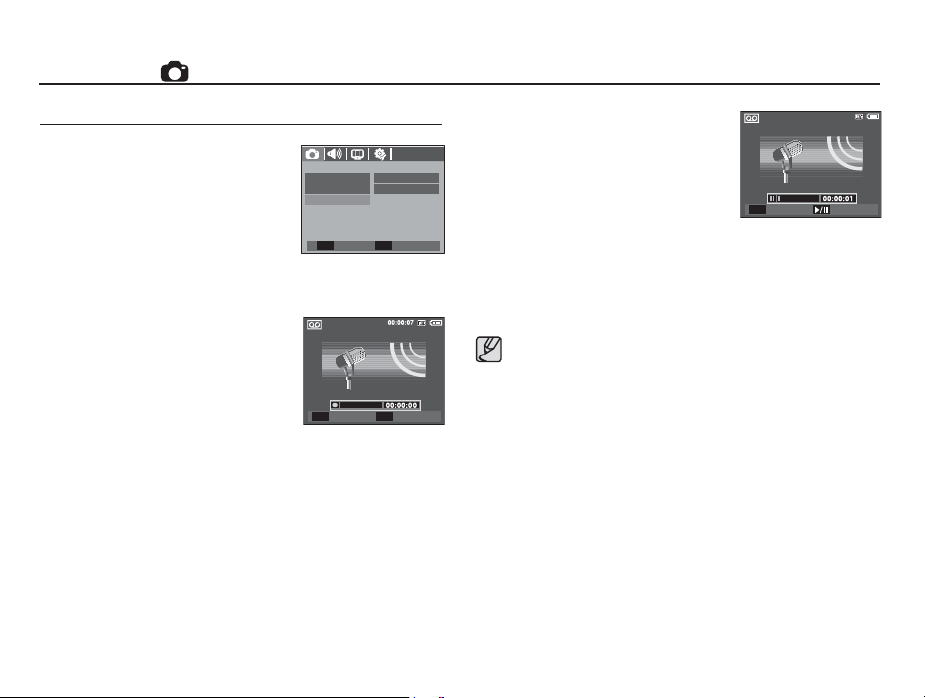

Voice Recording

A voice can be recorded for as long as the available recording time (Max. 10 hour) allows.

Press the shutter button to record a voice.

- Press the shutter button once and voice is recorded for as long as the available recording time (max:10 hour) allows. The recording time will be displayed on the LCD monitor. Voice will still be recorded if the shutter button is released.

- If you wish to stop recording, press the shutter button again.

- File type : *.wav

RECORDING

Focus Area Voice Memo Voice Record

Center AF



Off



Move Set



REC Exit

[Voice recording mode]



Pausing while recording a voice

Using this function, you can record your favourite voice clips into a voice recording ﬁ le without having to create multiple voice recording ﬁ les.

1. Press the Pause button ( Ø ) to pause recording.

Stop REC

[Voice recording mode]

2. Press the Pause button ( Ø ) again to resume the recording.

3. If you wish to stop recording, press the shutter button again.

A distance of 40cm between you and the camera (microphone)



is the best distance to record sound.

If the camera power is turned off while the voice recording is



paused, the voice recording is cancelled.

Recording ( )

Recording the movie clip without voice

You can record the movie without voice.

Select [On] of [Voice Mute] menu in the Movie clip mode. ( Ç ) icon will appear on the LCD monitor. Press the Shutter button and a movie will record for as long as the memory capacity allows without voice.

RECORDING Voice Mute





Off

Back Set

SCENE mode

Use the menu to easily conﬁ gure optimal settings for a variety of shooting situations.

Press the MENU button and select a

desired sub menu.

Refer to page 20 for more information.

RECORDING

Scene Foucs Area Voice Memo Voice Record

Back Set





Nightscene Children Landscape Close up Tex t Sunset

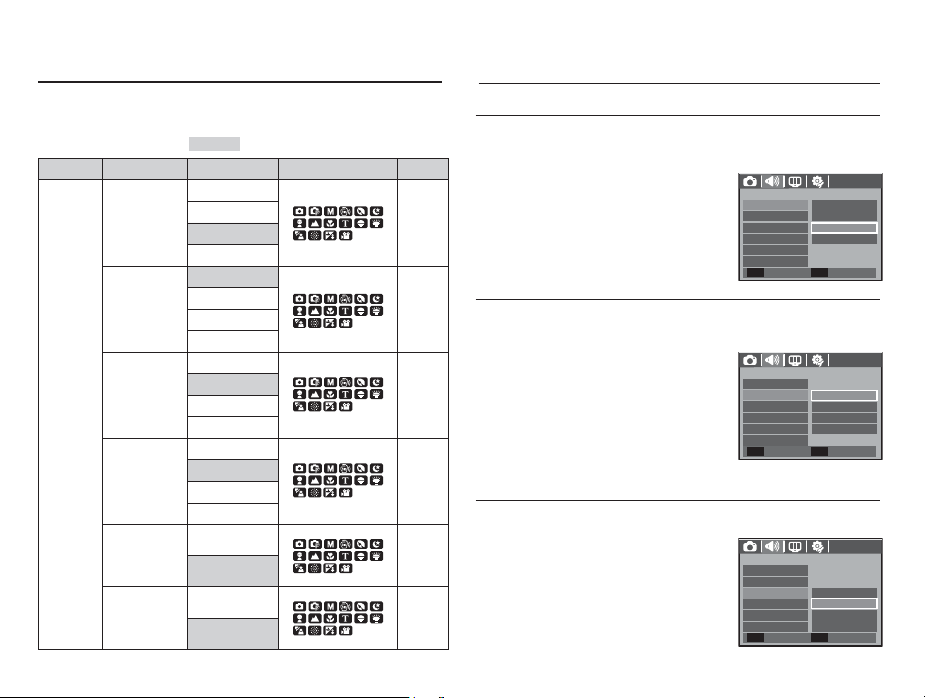

Sound menu

In this mode, you can set up sound settings. You can use the setup menu in all camera modes, except Voice Recording mode.



The items indicated by

Mode Menu Sub Menu

Volume

Start Sound

Shutter



Sound

( Sound )

Beep Sound

AF Sound

Self Portrait

are default settings.

Available mode Page

Off

Low

Medium

High

Off Sound 1 Sound 2 Sound 3

Off

p.44

p.45

)

(

Sound



Volume

You can select a volume of start up sound, shutter sound, beep sound and AF sound.

- [Volume] sub menu : [Off], [Low], [Medium], [High]

SOUND Volume Start Sound Shutter Sound Beep Sound AF Sound Self Portrait

Back Set





Off Low



Medium



High



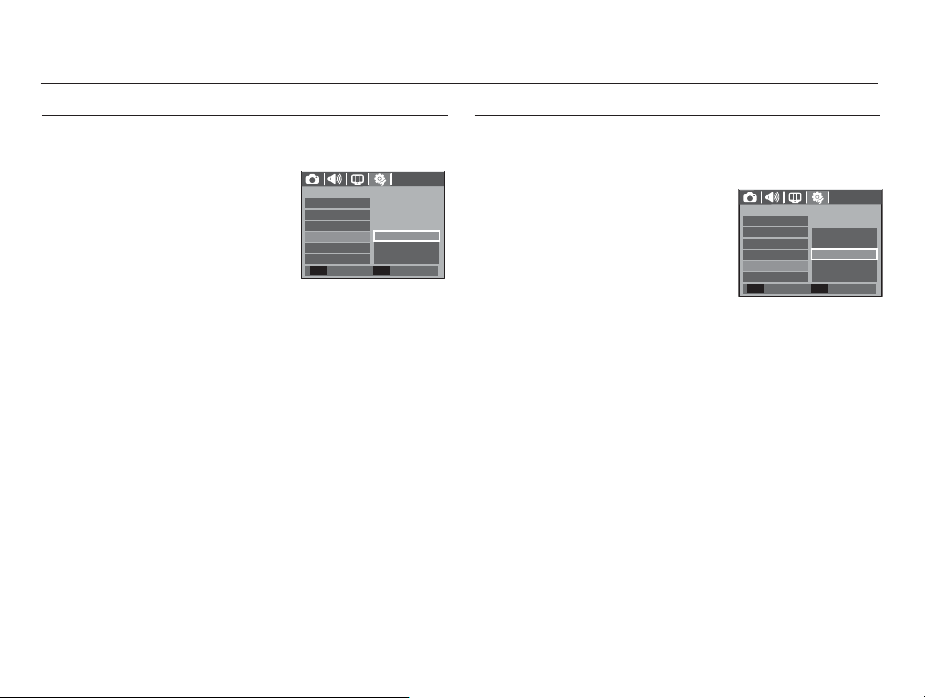

Start up sound

You can select the sound that is activated whenever the camera is turned on.

- Start up sound : [Off], [Sound 1, 2, 3]

SOUND Volume Start Sound Shutter Sound Beep Sound AF Sound Self Portrait

Back Set





Off

Sound 1



Sound 2



Sound 3



Shutter sound

You can select the shutter sound.

- Shutter sound : [Off], [Sound 1, 2, 3]

SOUND Volume Start Sound Shutter Sound Beep Sound AF Sound Self Portrait

Back Set





Off

Sound 1



Sound 2 Sound 3



)

(

Sound



Beep Sound

If you set sound to ON, a beep will sound when buttons are pressed, letting you know the camera operation status.

- [Beep Sound] sub menu : [Off], [Sound 1, 2, 3]

AF sound

If you set AF sound to on, AF sound will be activated when the Shutter button is pressed down half way so that you can be aware of the camera operation status.

- [AF sound] sub menu : [Off], [On]

Self Portrait

This occurs when it automatically detects the location of the subject’s face when taking a self-portrait.

- This feature can be set byusing the

[OFF] and [ON] buttons.

SOUND Volume Start Sound Shutter Sound Beep Sound AF Sound Self Portrait

Back Set



SOUND Volume Start Sound Shutter Sound Beep Sound AF Sound Self Portrait

Back Set



SOUND Volume Start Sound Shutter Sound Beep Sound AF Sound Self Portrait

Back Set





Off



Sound 1



Sound 2 Sound 3



Off On



Off



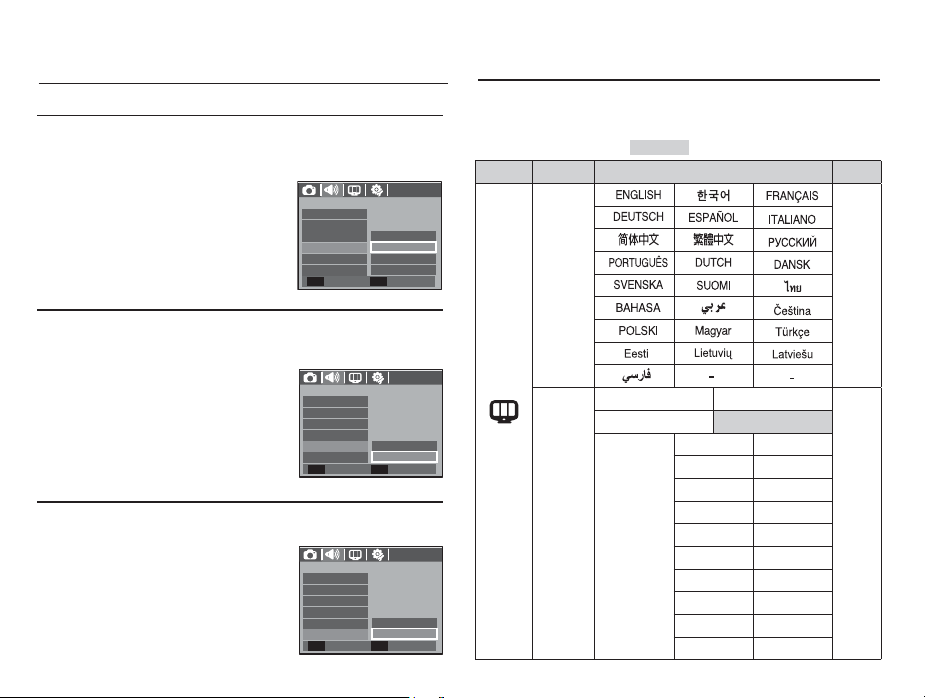

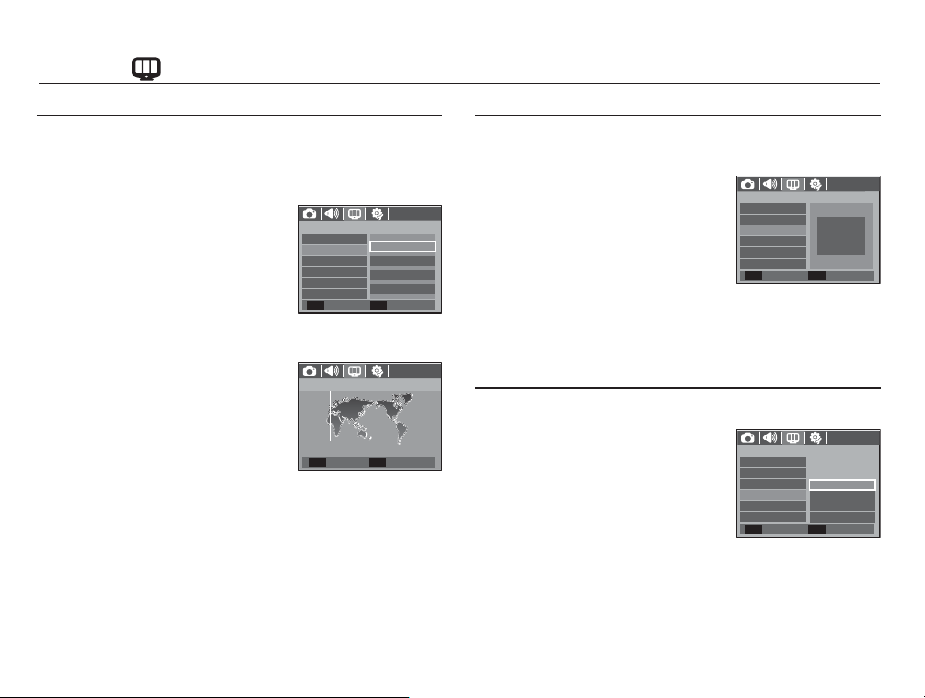

Setup menu

In this mode, you can set up basic settings. You can use the setup menu in all camera modes, except Voice Recording mode.



The items indicated by

Mode

Language p.46

yyyy/mm/dd mm/dd/yyyy

(

Display

)

dd/mm/yyyy Off

Date &

Time

World Time

are default settings.

Sub menu

London Rome,Paris,Berlin

Athens, Helsinki Moscow

Teheran Abu Dhabi

Kabul Tashkent

Mumbai, New Delhi Kathmandu

Almaty Yangon

Bankok, Jakarta Beijing, Hong Kong

Seoul, Tokyo Darwin, Adelaide

Guam, Sydney Okhotsk

Wellington, Auckland Samoa, Midway

Page

p.47

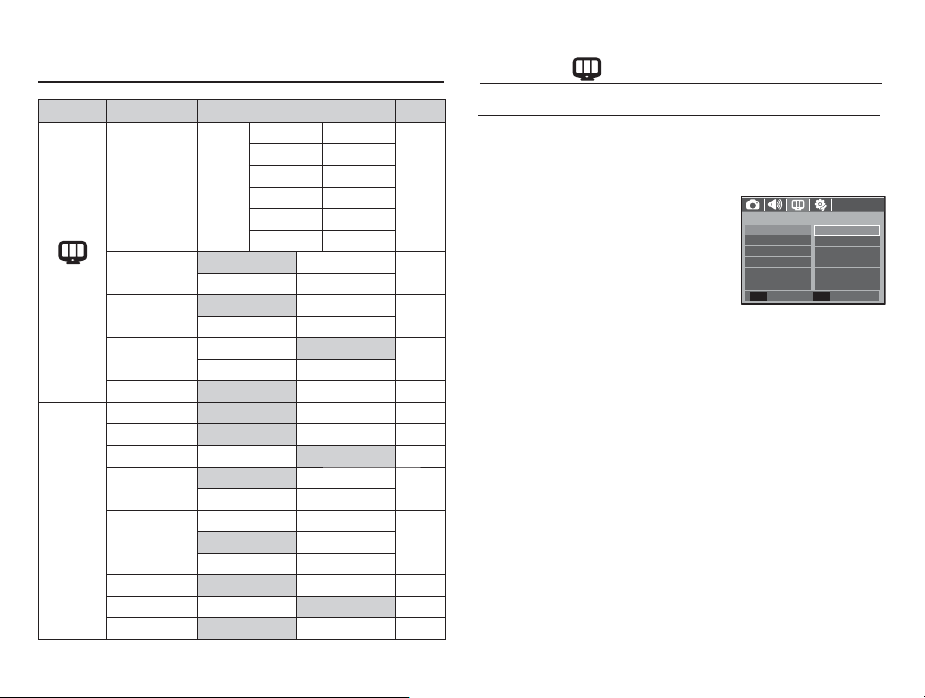

Setup menu

Display ( )

Mode

Menu Sub menu Page

Honolulu, Hawaii Alaska

LA, San Francisco Denver, Phoenix

Chicago, Dallas New York, Miami

Date & Time

World

Time

Caracas, La Paz Newfoundland

Buenos Aires Mid-Atlantic

Cape Verde -

(

Display

Start Image

)

Display Bright

Quick View

Off Logo

User Image -

Auto Dark

Normal Bright

Off 0.5 sec

1 sec 3 sec

Display SAVE Off On p.48

Format No Yes p.48

Reset No Yes p.49

Reset Series p.49

Off Date

Date&Time -

Off 1 min

”

(

Settings

)

File

Imprint

Power Off

10 min Video Out NTSC PAL p.51 AF Lamp Off On p.52

Battery Type Alkaline Ni-MH p.52

Menus are subject to change without prior notice.

p.47

p.48

p.50

p.503 min 5 min

Language

There is a choice of language that can be displayed on the LCD monitor. Even if the battery is removed and inserted again, the language setting will be preserved.

- Language sub menu English, Korean, French, German,

Spanish, Italian, S.Chinese, T.Chinese, Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Thai, Bahasa (Malay / Indonesian), Arabic, Czech, Polish, Hungarian, Turkish, Estonian, Lithuanian, Latvian and Persian .

DISPLAY

Language Date&Time Start Image Display Bright

Quick View Display SAVE

Back Set





ENGLISH

䚐ạ㛨

FRANÇAIS DEUTSCH ESPAÑOL ITALIANO

Display ( )

Setting up the Date / Time / Date type

You can change the date and time that will be displayed on the captured images and set up the date type. Setting [World Time] enables you to display the local date and time on the LCD monitor when travelling overseas.

Date type : [yyyy/mm/dd], [mm/dd/yyyy],

[dd/mm/yyyy], [Off]



World Time

- Available cities: London, Cape Verde, Mid-Atlantic, Buenos Aires, Newfoundland, Caracas, La Paz, NewYork, Miami, Chicago, Dallas, Denver, Phoenix, LA, San Francisco, Alaska, Honolulu, Hawaii, Samoa, Midway, Wellington, Auckland, Okhotsk, Guam, Sydney, Darwin Adelaide, Seoul, Tokyo, Beijing, Hong Kong, Bankok, Jakarta, Yangon, Almaty, Kathmandu, Mumbai, New Delhi, Tashkent, Kabul, Abu Dhabi, Teheran, Moscow, Athens, Helsinki, Rome, Paris, Berlin

DST : Daylight Saving Time

DISPLAY

Language Date&Time Start Image Display Bright Quick View Display SAVE

Back Set



DISPLAY

London [ GMT ] 2008 /07 /01 13:00

Set





London



2008/07/01



13:00



Off



DST



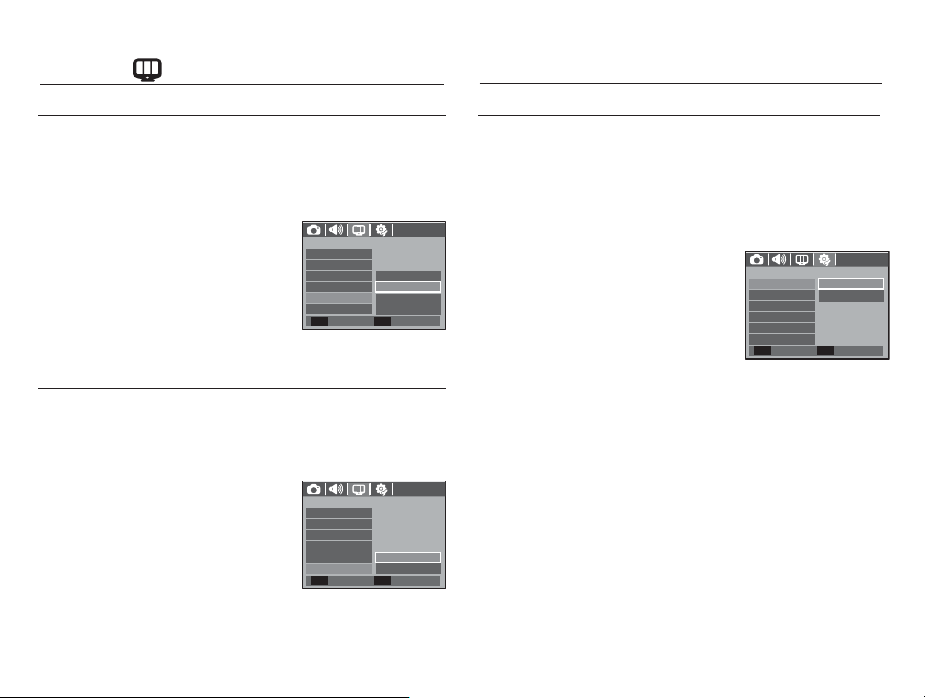

Start up image

You can select the image that is ﬁ rst displayed on the LCD monitor whenever the camera is turned on.

Sub menus : [Off], [LOGO], [User Image]

- Use a saved image for the start-up image with the [Start Image] in the [RESIZE] menu in the play mode.

- The start-up image will not be deleted by [Delete] or [Format] menu.

- The User images will be deleted by

DISPLAY Language Date&Time Start Image Display Bright Quick View Display SAVE

Back Set









Off







[Reset] menu.

Display Bright

You can adjust the LCD brightness.

- Sub menus : [Auto], [Dark],

[Normal], [Bright]

DISPLAY Language Date&Time Start Image Display Bright Quick View Display SAVE

Back Set





Auto



Dark Normal



Bright



Display ( )

Quick view

If you enable Quick View before capturing an image, you can view the image you just captured on the LCD monitor for the duration set in the [Quick View] setup. Quick view is possible only with still images.

Settings

(” )

Formatting a memory

This is used for formatting the memory. If you run [Format] on the memory, all images, including the protected images, will be deleted. Be sure to download important images to your PC before formatting the memory.

- Sub menus [Off] : The quick view function

can’t be activated.

[0.5, 1, 3 sec] : The captured image is

brieﬂ y displayed during the selected time.

DISPLAY Language Date&Time Start Image Display Bright Quick View Display SAVE

Back Set





Off



0.5 sec



1 sec 3 sec



Display SAVE

If you set the [Display SAVE] to On and the camera isn't operated during the speciﬁ ed time, the LCD monitor will be turned off automatically.

- Sub menus [Off] : The LCD monitor will not be turned off. [On] : If the camera isn't operated

during the speciﬁ ed time (about 30 SEC.), the camera power will be idle (Camera status lamp:Blinking) automatically.

You can’t set the [Display SAVE] menu of Playback Mode.

DISPLAY Language Date&Time Start Image Display Bright Quick View Display SAVE

Back Set





Off



- Sub menus [No] : The memory will not be formatted. [Yes] : A window for conﬁ rming the se-

lection displays. Select the [Yes] menu. A [Processing!] message appears and the memory will be formatted. If you run FORMAT in Play mode, a [No Image!] mes-

SETTINGS Format Reset File Imprint Power Off Video Out

Back Set





Yes



sage will appear.



Be sure to run [Format] on the following types of memory card.

- A new memory card, or an unformatted memory card

- A memory card that has a ﬁ le this camera can't recognise or one that has been taken from another camera.

- Always format the memory card using this camera. If you insert a memory card that has been formatted using other cameras, memory card readers, or PCs, you will get a [Card Error!] message.

Settings

(” )

Initialisation

All camera menu and function settings will be restored to their default values. However, values for DATE / TIME, LANGUAGE, and VIDEO OUT will not be changed.

- Sub menus [No] : Settings will not be restored to

their defaults.

[Yes] : A window to conﬁ rm the

selection will be displayed. Select the [Yes] menu and all settings will be restored to their defaults.

SETTINGS Format Reset File Imprint Power Off Video Out

Back Set





Yes



File name

This function allows the user to select the ﬁ le naming format.

[Reset] : After using the reset function,

the next ﬁ le name will be set from 0001 even after formatting, deleting all or inserting a new memory card.

[Series] : New ﬁ les are named using

numbers that follow the previous sequence, even when a new memory card is used, or after formatting, or after deleting all pictures.

- The ﬁ rst stored folder name is 100SSCAM, and the ﬁ rst ﬁ le name is SDC10001.

- File names are assigned sequentially from SDC10001 SDC10002 ~  SDC19999.

- The folder number is assigned sequentially from 100 to 999 as follows: 100SSCAM  101SSCAM  ~  999SSCAM.

- Maximum numbers of ﬁ les in a folder are 9999.

- The ﬁ les used with the memory card conform to the DCF (Design rule for Camera File systems) format. If you change the image ﬁ le name, the image may not play back.

SETTINGS Format Reset File Imprint Power Off Video Out

Back Set





Reset

Series





Settings

(” )

Imprinting the recording date

There is an option to include DATE / TIME on still images.

- Sub menus [Off] : The DATE & TIME will not be

imprinted on the image ﬁ le.

[Date] : Only the DATE will be

imprinted on the image ﬁ le.

[Date&Time] : The DATE & TIME will be

imprinted on the image ﬁ le.

The Date & Time are imprinted at the bottom right side of the still image.

The imprint function is applied only to still images.

Depending on the manufacturer and print mode, the date printed on an image may not be printed correctly.

SETTINGS Format Reset File Imprint Power Off Video Out

Back Set





Off Date Date&Time

Auto power off

This function switches the camera off after a set amount of time in order to prevent unnecessary battery drainage.

- Sub menus [Off] : The power off function

will not operate.

[1, 3, 5, 10 min] : The power will turn

off automatically if not used for the period of time speciﬁ ed.

- After replacing the battery, the power off setting will be

preserved.

- Note that the automatic power off function will not operate if the

camera is in the PC / Printer mode, slide show, playing back a voice recording and playing back a movie clip.

SETTINGS Format Reset File Imprint Power Off Video Out

Back Set





Off 1 min



3 min



5 min 10 min



Settings

(” )

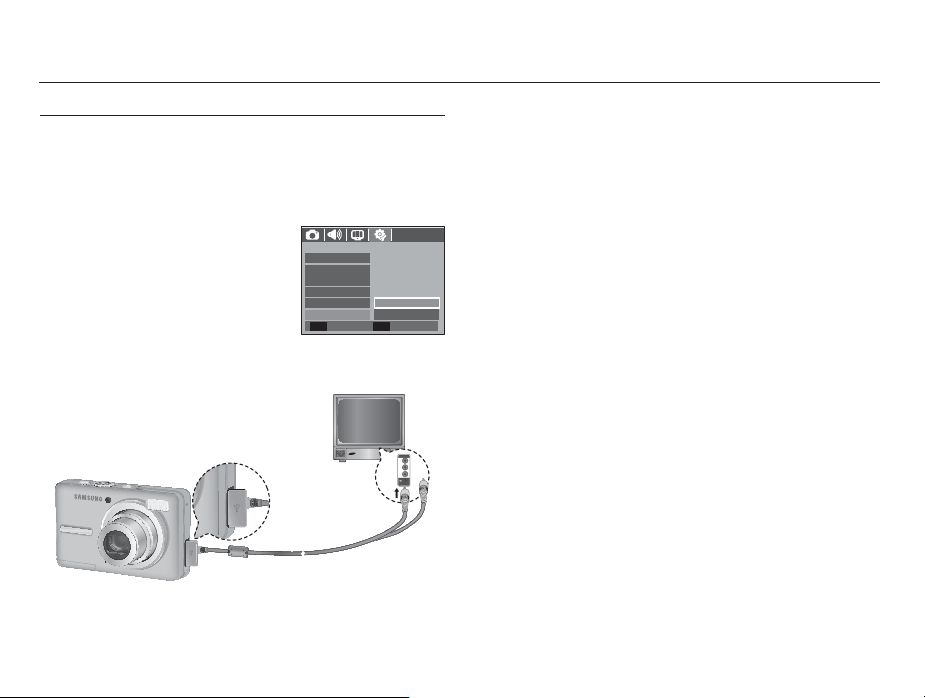

Selecting Video out type

The Movie output signal from the camera can be NTSC or PAL. Your choice of output will be governed by the type of device (monitor or TV, etc.) to which the camera is connected. PAL mode can support only BDGHI.



Connecting to an external monitor

When the camera is connected to an

external monitor, the image and menus on the LCD monitor will be visible on the external monitor and the LCD monitor of the camera.

SETTINGS Format Reset File Imprint Power Off Video Out

Back Set



Yellow - Video White - sound



NTSC



PAL

- NTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico.

- PAL : Australia, Austria, Belgium, China, Denmark, Finland,

Germany, U.K., Holland, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thailand, Norway.

- When using a TV as an external monitor, you will need to select

the external or AV channel of the TV.

- There will be a digital noise on the external monitor, but it is not a

malfunction.

- If the image is not in the centre of the screen, use the TV controls

to centre it.

- When the camera is connected to an external monitor, some parts

of the image may not be displayed.

- When the camera is connected to an external monitor, the menu

will be visible on the external monitor and the menu functions are the same as those indicated on the LCD monitor.

Settings

(” )

Auto Focus lamp

You can turn on and off the Auto Focus lamp.

- Sub menus [Off] : The AF lamp will not light up in

low light conditions.

[On] : The AF lamp will light up in low

light conditions.

SETTINGS Reset File Imprint Power Off Video Out AF Lamp

Back Set



Selecting a battery type

If a battery type is selected, the camera will be optimized according to the selected battery type.



Off



[Battery Type] sub Menu : Alkaline / Ni-MH

SETTINGS File Imprint Power Off Video Out AF Lamp Battery Type

Back Set





Alkaline



Ni-MH

Starting play mode

Turn the camera on and select Play mode by pressing the play mode button ( Î ). The camera can now play back the images stored in the memory. If the memory card is inserted in the camera, all the camera functions apply only to the memory card. If the memory card is not inserted in the camera, all the camera functions apply only to the internal memory.

Playing back a still image

1. Select the PLAY mode by pressing the play mode button ( Î ).

2. The last image stored on the

memory is displayed on the LCD monitor.

3. Select an image that you want to

view by pressing the Left/ Right button.

Press and hold the Left or Right button to play back the images quickly.

Playing back a movie clip

1. Select the recorded movie clip that you want to play back by using the Left/Right button.

2. Press the play & pause button ( Ø ) to play back a movie clip file.

- To pause a movie clip file while playing it back, press the play & pause button ( Ø ) again.

- Pressing the play & pause button (Ø) again will cause the movie clip file to restart.

To rewind the movie clip while it is

playing, press the Left button. To fast forward the movie clip, press the Right button.

- To stop playback of the movie clip, press the play & pause button (Ø), and then press the Left or Right button.

Play Capture

Starting play mode

Movie clip capture function

You can capture still images from the movie clip.



How to capture the movie clip

Press the Play / Pause button( Ø )

1. while playing the movie clip. Then press the E button.

2. The paused movie clip is saved in a new file name.

The captured movie clip file is the

same size as the original movie clip (640x480, 320x240).

When you press the E button at the beginning of the movie clip, the first frame of the movie clip will be saved as a still image.

[Press the E button]

Play Capture

[Paused]

Playing back a recorded voice

Select the recorded voice that you want to play back by using the Left/Right button.

2. Press the play & pause button ( Ø ) to play back a recorded voice file.

- To pause a recorded voice file, while playing it back, press the play & pause button again.

To resume playback of the voice file, press the play & pause button

Play

- To rewind the voice file while it is playing, press the Left button. To fast forward the voice file, press the Right button.

- To stop playback of the voice memo, press the play & pause button and then press the MENU/OK button.

Playing back a voice memo

1. Select a still image that has the voice memo.

2. Press the play & pause button ( Ø ) to play back the voice memo.

- To pause the voice memo, while playing it back, press the play & pause button ( Ø ) again.

- To resume playback of the voice memo, press the play & pause button ( Ø ).

Pause

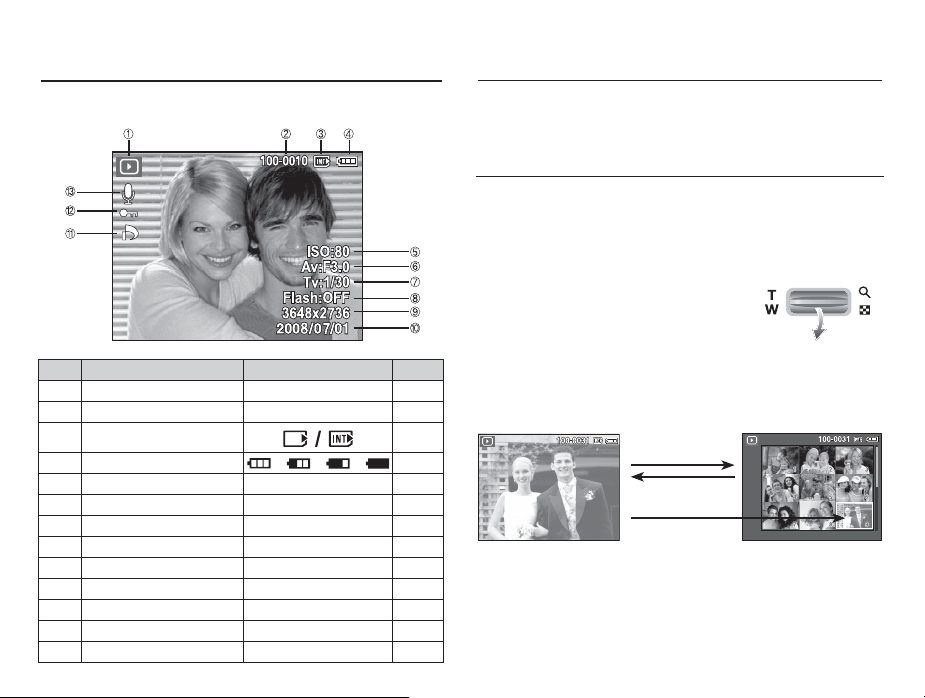

LCD monitor Indicator

The LCD monitor displays shooting information about the displayed image.

Using the camera buttons to set the camera

In Play mode, you can use the buttons on the camera to conveniently set up the Play mode functions.

Thumbnail ( º ) / Enlargement ( í ) button

You can view multiple pictures, enlarge a selected picture, and crop and save a selected area of an image.



Thumbnail display

1. While an image is displayed on full screen, press the thumbnail button.

2. The thumbnail display will highlight the

image that had been showing at the time the thumbnail mode was selected.

No. Description Icon Page

1 Playback mode 2 Folder name & File name 100-0010 p.49

3 Memory card indicator -

4 Battery 5 ISO 80 ~ 1600 p.38 6 Aperture value F3.0 ~ F14.2 p.18 7 Shutter speed 8 ~ 1/1,500 p.18 8 Flash ON / OFF p.29

9 Image size 3648x2736 ~ 320x240 p.36 10 Recording date 2008/07/01 p.47 11 DPO F 12 Protect 13 Voice Memo

p.53

p.13

p.67 p.66 p.65

3. Press the 5 function button to move to a desired image.

4. To view an image separately, press the enlargement button.

[Highlighted image]

Pressing the thumbnail

button ( º )

Pressing the enlargement

button ( í )

Highlighted image

[ Thumbnail display mode ]

)

(

Thumbnail



Image enlargement

1. Select an image that you want to enlarge and press the enlargement button.

2. Different parts of the image can be viewed by pressing the 5 function button.

3. Pressing the thumbnail button will zoom back to the original full sized image.

- You can tell whether the image displayed is an enlarged view by checking the image enlargement indicator shown at the top left of the LCD monitor. (If the image is not an enlarged view, the indicator will not be displayed.) You can also check the area of enlargement.

- Movie clips and WAV files can’t be enlarged.

- If an image is enlarged, a loss of quality may occur.

/ Enlargement

(í )

button



The maximum enlargement rate in proportion to the image size

Image size

Maximum

enlargement

rate



Trimming : You can extract part of the image that you want and

Select an image that you want to

enlarge and press the enlargement

Trim

button. Press the MENU/OK button and a message will be displayed.

2. Select a desired sub menu by pressing the Up / Down button and press the OK button.

- [No] : The trimming menu will disappear.

- [Yes] : The trimmed image will be saved as a new file name,

If there is not enough memory space to save the trimmed

image, the image can’t be trimmed.

,;.+ 

X11.4 X9.2 X7.7 X9.6 X7.3 X4.0 X3.2

save it separately.

Trimming?

No Yes

Confirm

and appear on the LCD monitor.

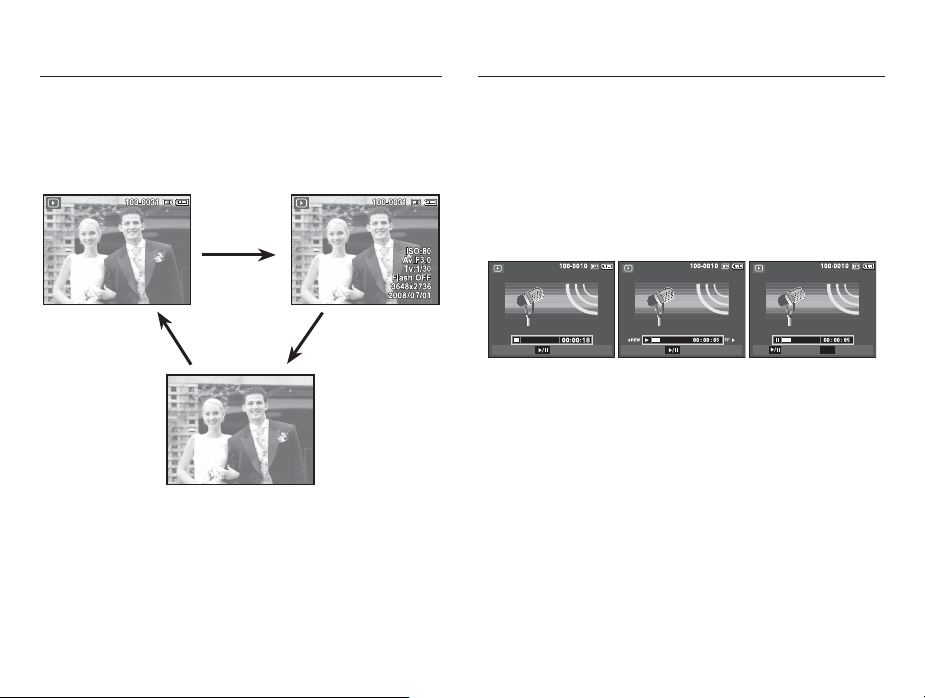

Info

(î )

/ Up button

Play & Pause

(

)

/ Down button

When the menu is displayed on the LCD monitor, the UP button operates as a direction button. When the menu is not displayed on the LCD monitor, pressing the Info button will display image information on the LCD monitor.

Info ( î ) button

Info ( î ) buttonInfo ( î ) button

In Play mode, the play & pause/ down button works as follows:

- If the menu is displayed Press the DOWN button to move from the main menu to a sub menu, or to move down the sub menu cursor.

- If a still image with a voice memo, a voice file, or a movie clip is playing

·In Stop mode : Plays a still image with a voice memo, a voice

·During playback : Temporarily stops playback.

·In Pause mode : Resumes playback

Play Pause

[ Voice recording is stopped ]

file, or a movie clip.

Stop

Play

[ Voice recording is playing ] [ Voice recording is paused ]

Left / Right / Menu / OK button

Delete

(Õ )

button

LEFT / RIGHT / MENU / OK buttons activate the following.

- LEFT button : While the menu is showing, the LEFT button operates as a direction button. While the menu is not showing, press the LEFT button to select the previous image.

- RIGHT button : While the menu is showing, the RIGHT button operates as a direction button. While the menu is not showing, press the RIGHT button to select the next image.

- MENU button :

When you press the MENU button, the play mode menu will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

- OK button :

When the menu is displayed on the LCD monitor, the OK button is used for confirming data that is changed by using the 5 function button.

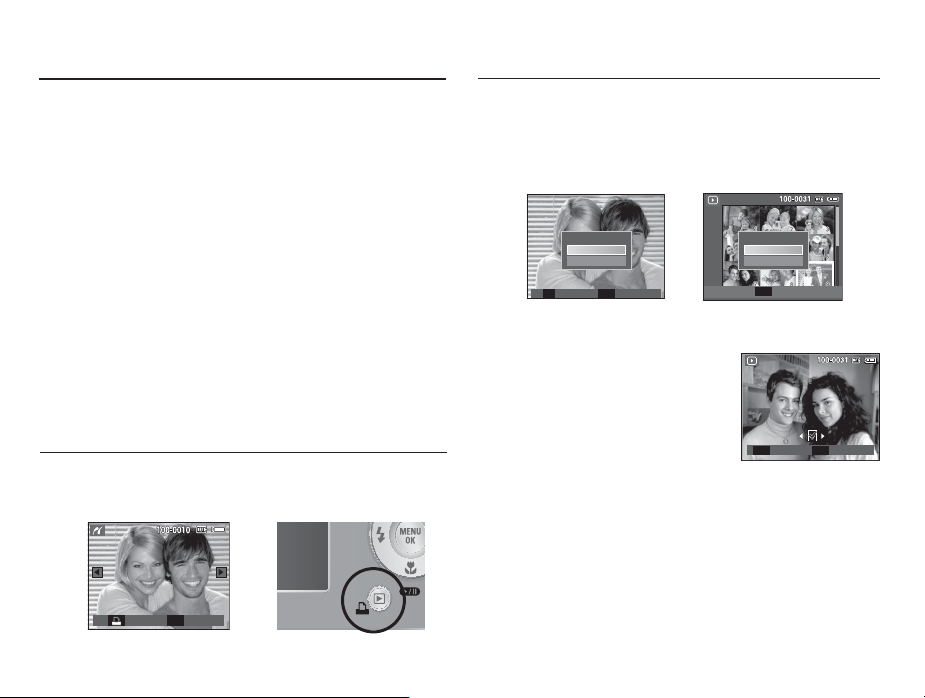

Printer ( » ) button

When the camera is connected to a PictBridge printer, you can print images by pressing the Printer button.

Print Menu

This deletes images stored on the memory card.

1. Select an image that you want to delete by pressing the Left / Right button and press the DELETE ( Õ ) button.

Delete ?

Yes

T OK

Select Confirm

[Single Image] [Thumbnail Image]

Delete ?

Yes

Confirm

2. To delete images, press the T button.

- Left/Right button : Selects images

- T button :

checks for deletion

- OK button : deletes the selected images.

Select Delete

3. Select the submenu values by pressing the Up / Down button and then press the OK button.

- If [No] is selected : cancels "Delete Image".

- If [Yes] is selected : deletes the selected images.

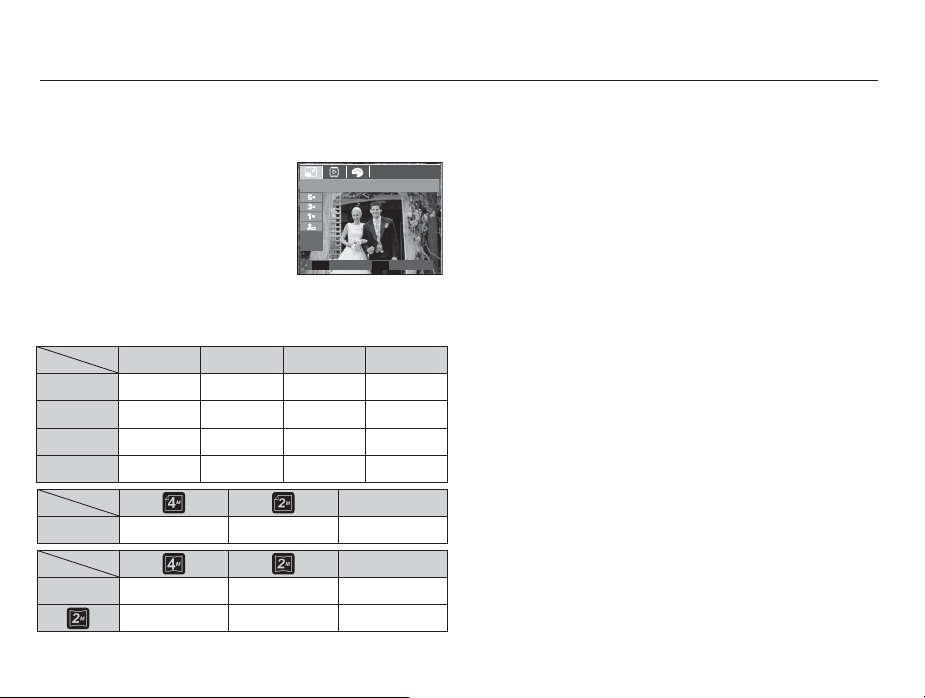

E(Effect) button : Resize

Change the resolution (size) of pictures taken. Select [Start image] to save an image to be the start-up image.

1. Press the play mode button and press the E button.

2. Press the Left / Right button and select the [RESIZE] (  ) menu tab.

3. Select a desired sub menu by pressing the Up / Down button and press the OK button.



Image Resize Types

RESIZE







Move Exit

( o : Selectable)

ð , +  

oooo

ooo

;

ooo

- A large sized image can be resized to a smaller sized image, but not vice versa.

- Only JPEG images can be resized. Movie clip (AVI), Voice recording (WAV) files can’t be resized.

- You can change the resolution of only those files compressed in the JPEG 4:2:2 format.

- The resized image will have a new file name. The [Start

Image] image is stored not on the memory card but on the internal memory.

- If a new user image is saved, one of the two user images will be deleted in order.

- If the memory capacity is insufficient to store the resized image, a [Memory Full!] message will appear on the LCD monitor and the resized image can't be stored.

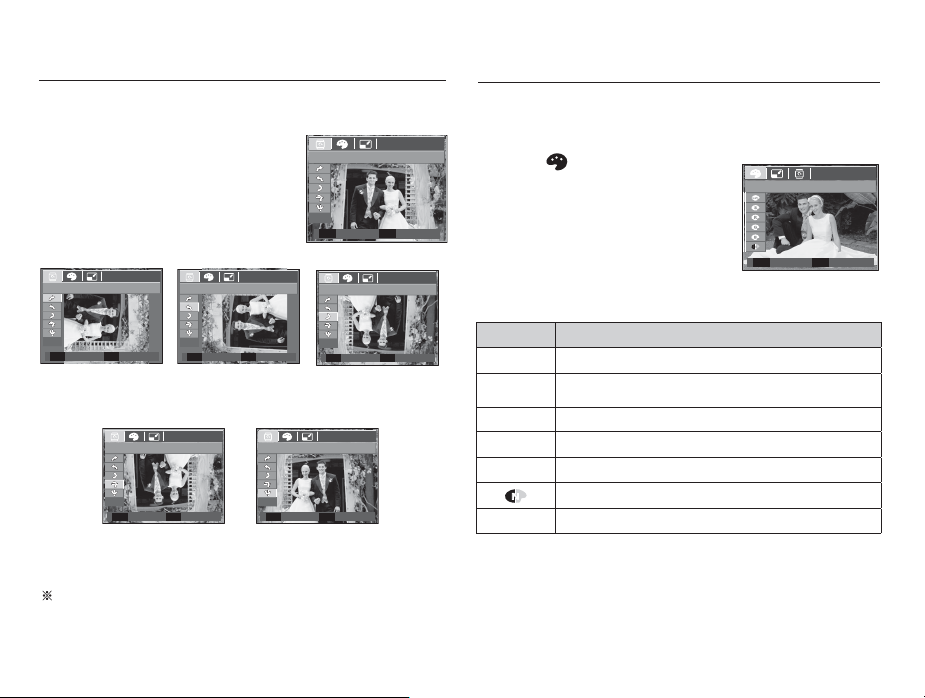

E(Effect) button : Rotating an image

You can rotate the stored images by various degrees.

1. Press the play mode button and press the E button.

2. Press the LEFT / RIGHT button and select the [ROTATE] (  ) menu tab.

3. Select a desired sub menu by pressing the Up / Down button and press the OK button.

Right 90°

Set Back

OK E

[ô : Right 90˚] : Rotate picture in a

clock-wise direction

Horizontal

OK E

[ö : Horizontal] : Rotate picture horizontally

Left 90°

Set Back

OK E

[ó : Left 90˚] : Rotate picture in a counter-

clock-wise direction

Set Back

If you display the rotated image on the LCD monitor, empty

spaces may appear to the left and right of the image.

ROTATE



Move Exit





180°

Set Back

OK E

[õ : 180˚] : Rotate picture 180 degrees

Vertical

Set Back

OK E

[ : Vertical] : Rotate picture vertically

E(Effect) button : Colour

It is possible to add colour effects to your images by using this button.

1. Press the play mode button and press the E button.

2. Select ( the Left / Right button.

3. Select a desired sub menu by pressing the Up / Down button and press the OK button.

Icon Descroption

Þ ß Ý

4. The changed image is saved as a new file name.

) menu tab by pressing

COLOR



Move Exit





Captured images will be stored in black and white. Captured images will be stored in a sepia tone

(a gradient of yellowish brown colours). Captured images will be stored in a red tone.

Captured images will be stored in a green tone.

Captured images will be stored in a blue tone.

Save the image in negative mode.

Captured images will be stored in set RGB tone.

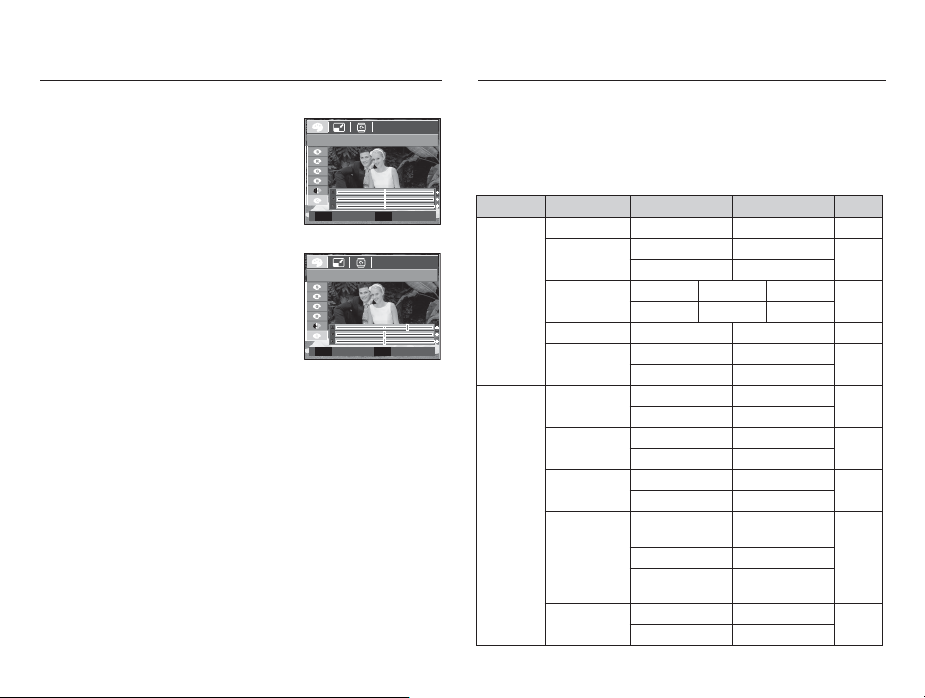

E(Effect) button : Colour

Setting up the play back function using the LCD monitor



Custom colour

You can change the R (Red), G (Green) and B (Blue) values of the image.

- OK button : Select / setup the Custom Colour

- Up / Down button : Selects R, G, B

- Left / Right button : Change the values

Custom Color

Move Set



Custom Color

Move Set



PLAY mode functions can be changed by using the LCD monitor. In the PLAY mode, pressing the MENU button displays the menu on the LCD monitor. The menus you can set up in Play mode are as follows. To capture an image after setting up the play menu, press the PLAY mode button or shutter button.

Menu Tab Main Menu Sub Menu Secondary Menu Page

MULTI SLIDE

SHOW

)

(



PLAYBACK

(à )

Show Start

Images

Effect

Interval 1, 3, 5, 10 sec - p.64

Music

Voice Memo

Delete

Protect

DPOF

Copy To Card

Play / Repeat Play

-p.63

All Date

Select -

Off Basic Classic

Memories Rhythmic Delight

Off Panorama

First Smile

Remembrance Off On -

Select -

All No / Yes

Select -

All Unlock / Lock

Standard

Select / All Pics /

Cancel

Index No / Yes

Size

Yes

Select / All Pics /

Cancel

p.63

p.64

p.65

p.66

p.67

p.68

p.69

Setting up the play back function using the LCD monitor

This menu is available while the camera is connected to a PictBridge supporting printer (direct connection to the camera, sold separately) with a USB cable.

Menu Tab Main Menu Sub Menu Secondary Menu Page

Images

Size



Layout

One Pic -

All Pics -

Auto -

PostCard -

Card -

4X6 -

L2L -

Letter -

A4 A3 -

Auto -

Full -

12489-

16 -

Index -

p.71

Menu Tab Main Menu Sub Menu Secondary Menu Page

Type

Quality



Date

File Name

Reset

Menus are subject to change without prior notice.

Auto -

Plain -

Photo -

FastPhoto -

Auto -

Draft -

Normal -

Fine Auto -

Off On -

Auto -

Off On No -

Yes -

p.71

p.72

Starting the Multi Slide Show

( )

Images can be displayed continuously at pre-set intervals. You can view the Multi Slide Show by connecting the camera to an external monitor.

1. Press the play mode button and press the menu button.

Press the LEFT / RIGHT button and select the [MULTI SLIDE SHOW] menu tab.

Start the Multi Slide Show

The Multi Slide Show can start only in the [Show Start] menu.

1. Use the Up / Down buttons to select the [Show Start] menu and press the Right button.

2. Select a desired sub menu by pressing the Up / Down button.

[Play] : The Multi Slide Show is

closed after one cycle.

[Repeat Play] : The Slide show is

repeated until cancelled.

3. Press the OK button and the slideshow will be started.

- To pause the slide shown while playing it back, press the play & pause( Ø ) button again.

- Pressing the play & pause( Ø ) button again will cause the Multi Slide Show restart.

- To stop playback of the Multi Slide Show, press the play & pause ( Ø ) button, and then press the OK / Menu button.

MULTI SLIDE SHOW

Images Effect Interval 

Music

Back Set





 





PlayShow Start Repeat Play

Selecting Images

You can select image to view

1. Use the Up / Down buttons to select the [Images] menu and press the Right button.

2. Select a desired sub menu by pressing the Up / Down button.

[All] : All images saved in the

Memory are played back.

[Date] : Images taken in a specified

date are played back.

[Select] :

Play only the selected images. If you press the Right button, you can select the desired images to play back. The selected image can be saved as [Select1], [Select2] and [Select3]. If you save the selected image with the [New Select] command, it will be saved as [Select1]. But when a new image is saved again using [New Select], the former image which had been saved as [Select1] will be saved as [Select2] automatically. You can change and cancel the images which were saved as [Select1], [Select2] and [Select3].

3. Press the OK button and the settings are saved.

4. Select [Play] or [Repeat Play] in the [Show] menu to start the multi slide show.

MULTI SLIDE SHOW Show Start

Effect Interval 

Music

Back Set









AllImages Date



Select



Starting the Multi Slide Show

( )

Configure Multi Slide show effects

Unique screen effects can be used for the Multi Slide Show.

Select the [Effect] sub menu by pressing

the UP / DOWN button and press the RIGHT button.

2. Use the Up / Down button to select the type of effect.

[Off] : No effect. [Basic] :

Fade In/Out effect is added and the Images are displayed at set interval.

[Classic] :

You can add noise to the image to give a classic feel. [Memories] : Scratches are added to give an old movie effect. [Rhythmic] : Images are displayed with a special effect. [Delight] : Images are displayed with a special effect.

3. Press the OK button to confirm the setting.

MULTI SLIDE SHOW Show Start Images Effect Interval 

Music

Back Set





 

 





Off Basic Classic Memories Rhythmic Delight

Setting play interval

Set the Multi Slide Show play interval.

1. Select the [Interval] sub menu by pressing the UP / DOWN button and press the RIGHT button.

2. Use the Up / Down buttons to select the desired interval.

3. Press the OK button to save the configuration.

The loading time depends on the image size and quality.



While the Multi Slide Show is playing, only the first frame



of a MOVIE file is displayed. While the Multi Slide Show is playing, the voice recording file



will not display.

The interval menu functions in the [Off], [Basic] menu only.



MULTI SLIDE SHOW Show Start Images Effect Interval 

Music

Back Set







1 sec





3 sec



5 sec



10 sec

Starting the Multi Slide Show

( )

Setting Background Music

Set the Multi Slide Show music.

1. Select the [Music] sub menu by pressing the UP / DOWN button and press the RIGHT button.

2. Use the Up / Down buttons to select the desired Music.

3. Press the OK button to save the

configuration.

MULTI SLIDE SHOW Show Start Images Effect Interval 

Music

Back Set







Off



Panorama

 



First Smile Remembrance

Playback

(à )

Voice memo

You can add your voice to a stored still image.

PLAYBACK





OffVoice Memo



Delete Protect DPOF 

Copy to Card

- Press the shutter button to take a picture. The images are saved on the memory. After saving the image, the voice will record for 10 seconds.

- To stop the recording, press the shutter button.

Back Set





Start

Stop

[Ready for recording] [Voice is recording][Voice memo menu]

Playback

(à )

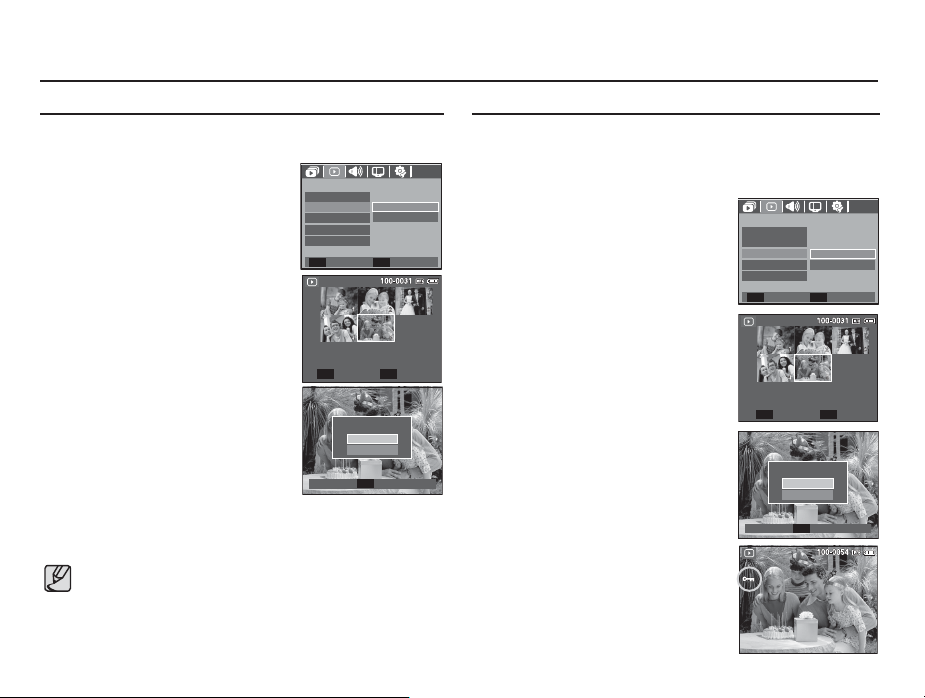

Deleting images

This deletes images stored on the memory.

1. Press the Up / Down button and select the [Delete] menu tab. And then press the Right button.

2. Select a desired sub menu by pressing the

UP / DOWN button and press the OK button.

[Select] : Selection window for an image

to delete is displayed.

- Up/ Down/ Left/ Right : Select an image

- Zoom T Button : Select the image for deletion. ( Ë mark)

- OK Button : Press the OK button to display

the confirmation message. Select the [Yes] menu and press the OK button to delete marked images.

[All] :

Displays confirmation window.

Select the [Yes] menu and press the OK button to delete all unprotected images. If there aren’t protected images, all the images are deleted and a [No Image!] message will appear.

3. After deletion, the screen will be changed to the play mode screen.



Of all the files stored in the memory card, the unprotected files in the DCIM subfolder will be deleted. Remember that this will permanently delete unprotected images.

Important shots should be stored on a computer before deletion takes place. The startup image is stored in the camera's internal memory (i.e., not on the memory card) and it will not be deleted even if you delete all files on the memory card.

PLAYBACK Voice Memo

 

Delete Protect DPOF Copy to Card



Confirm

Select All



Back Set

Select Delete

T OK

Delete All?

Yes

Protecting images

This is used to protect specific shots from being accidentally erased (Lock). It also unprotects images that have been previously protected (Unlock).

1. Press the Up / Down button and select the [Protect] menu tab. And then press the Right button.

2. Select a desired sub menu by pressing the UP / DOWN button and press the OK button.

[Select ] : Selection window for an

image to be protected / released is displayed.

- Up / Down / Left / Right : Select an image

- Zoom W/T Button : Protect / release the image

- OK button : Your changes will be

saved and the menu will disappear.

[All] : Protect / release all saved images

- If you protect an image, the protect

icon will be displayed on the LCD monitor. (An unprotected image has no indicator)

- An image in LOCK mode will be

protected from the delete function or [Delete] functions, but will NOT be protected from the [Format] function.

PLAYBACK Voice Memo Delete Protect DPOF Copy to Card

Back Set



TW OK

Confirm

 





Protect All?

Unlock

Lock

Select All

SetUnlock

Playback

(à )

DPOF



DPOF(Digital Print Order Format) allows you to embed printing information on your memory card’s MISC folder. Select the pictures to be printed and how many prints to make.



The DPOF indicator will display on the LCD monitor when an image that has DPOF information plays back. Images can then be printed on DPOF printers, or at an increasing number of photo labs.



This function is not available for Movie clips and Voice recording files.



When the wide angle image is printed as a wide angle print, 8% of the left and right side of the image may not be printed. Check that your printer can support the wide angle image when you print the image. When you print the image at a photo lab, request that the image is printed as a wide angle image. (Some photo labs may not support the wide angle size print.)



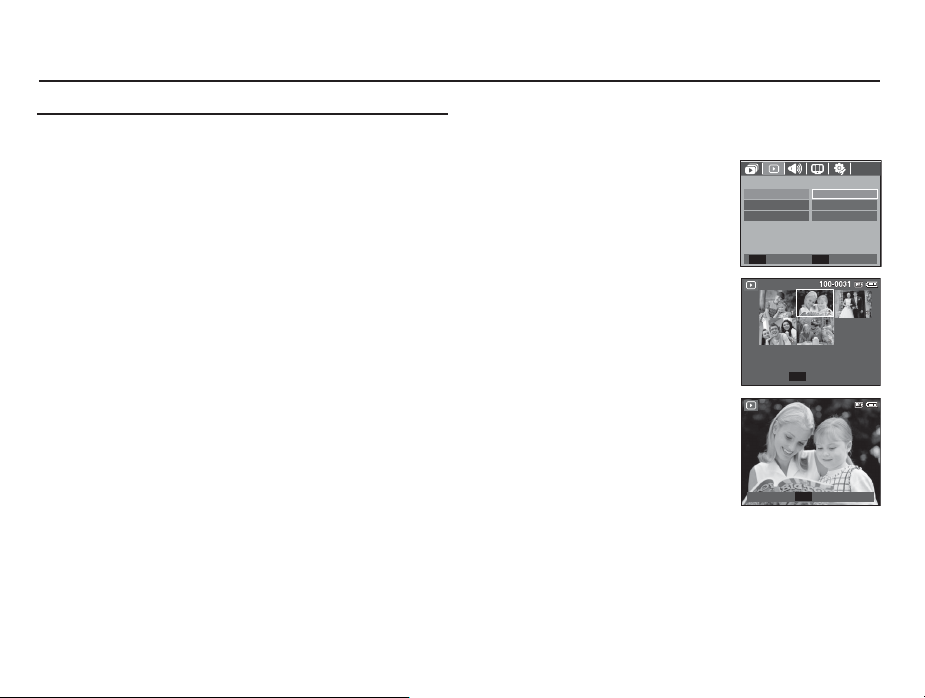

Standard

This function allows you to embed printing quantity information on a stored image.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

2. Press the Right button again and [Standard] sub menu will display.

3. Select a desired sub menu by pressing

PLAYBACK

Index Size



Back Set







SelectStandard All Pics



Cancel



the Up / Down button and press the OK button.

[Select] : Selection window for an

image to print is displayed.

- Up / Down / Left / Right : Select an image to print.

0 Images





Set

- Zoom W/T Button : Select the number

of prints.

[All Pics] : Configure number of prints

for all pictures except movie

0 Images





and voice files.

- W/T button : Select a number of prints

[Cancel] : Cancel the print setup.

Set

4. Press the OK button to confirm the setting. If an image carries DPOF instructions, the DPOF indicator (Ñ ) will show.

Playback



Index

(à )

Images (except for movie clips and voice file) are printed as index

type.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

Select the [Index] menu and press the

Right button again. Sub menu will display.

3. Select a desired sub menu by pressing

PLAYBACK Standard

Size



Back Set







NoIndex Yes



the UP / DOWN button.

If [No] is selected : Cancel the index print setting. If [Yes] is selected : The image will be printed in index format.

4. Press the OK button to confirm the setting.



Print size You can specify the print size when printing images stored on the memory card. The [Size] menu is available only for DPOF 1.1 compatible printers.

1. Press the Up / Down button and select the [DPOF] menu tab. And then press the Right button.

2. Select the [Size] menu and press the Right button again. Sub menu will display.

PLAYBACK Standard Index Size



Back Set





Select



All Pics



Cancel



3. Select a desired sub menu by pressing the UP / DOWN button and press the OK button.

[Select] : Selection window to change

the printed size of the image is displayed.

W Cancel T

Set

- Up / Down / Left / Right : Select an image.

- Zoom W/T Button : Change the print size.

OK button : Your changes will be saved

and the menu will disappear.

[All Pics] : Change print size of all

saved images.

W Cancel T

Set

- W/T button : Select a print size

- OK button : Confirm the changed setting. [Cancel] : Cancel all of the print size settings.

DPOF [Size] secondary menu : Cancel, 3X5, 4X6, 5X7, 8X10

Depending on the manufacturer and print model, cancelling the



printing may take a little longer for the printer to process.

Playback

(à )

Copy To Card

This enables you to copy image files, movie clips and voice recording files to the memory card.

1. Select the [Copy To Card] menu tab by pressing the Up / Down button. And then press the Right button.

2. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button.

- [No] : Cancels "Copy to Card".

- [Yes] : All images, movie clips and voice recording files saved in the internal memory are copied to the memory card after the [Processing!] message is displayed. After copying has been completed, the screen will return to play mode.

PLAYBACK Voice Memo Delete Protect DPOF Copy to Card

Back Set





 

No Yes

When this menu is selected without inserting a memory card,



the [No Card] message will be displayed. If there is not enough space available in the memory card to



copy saved images in the internal memory (About 16MB), the [Copy To Card] command will copy only some of the images and display [Memory Full!] message. Then the system will return to the playback mode. Please be sure to delete any unnecessary files to free up space before inserting the memory card into the camera. When you move the images that are stored in the internal



memory by doing [Copy To Card] to the card, the next number of file names will be created in the card to avoid duplication of the file name.

- When the [Reset] of the [File] setup menu is set : The copied file names start from after the last stored file name.

- When the [Series] of the [File] setup menu is set : The copied

file names start from after the last captured file name. After completing [Copy To Card], the last stored image of the last copied folder is displayed on the LCD monitor.

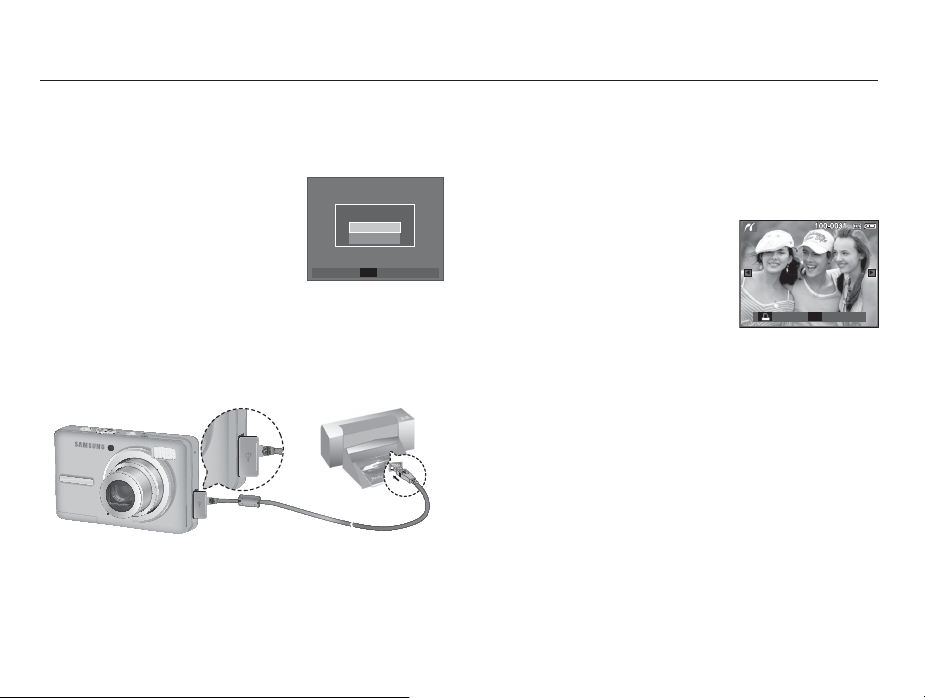

PictBridge

You can use the USB cable to connect this camera to a printer that supports PictBridge (sold separately) and print the stored images directly. Movie clips and voice files cannot be printed.



Setting up the camera for connection to the printer

1. Connect the camera and printer with USB cable.

2. Select the [Printer] menu by pressing Up / Down button and press the OK button.



Connecting the Camera to a Printer

Select USB

Computer

Printer

Confirm

If the [USB] menu is set to the [Computer], you cannot connect a Pictbridge compatible printer to the camera through USB cable with [Connecting Computer] message. In this case, remove the cable and do the step 1 and 2 again.



Easy printing

When you connect the camera to printer

in the Play back mode, you can print a picture easily.

- Pressing the Left / Right button : Selects a previous / next image.

- Pressing the printer ( » ) button :

Print Menu



Currently displayed image will be printed with the printer’s default setting.

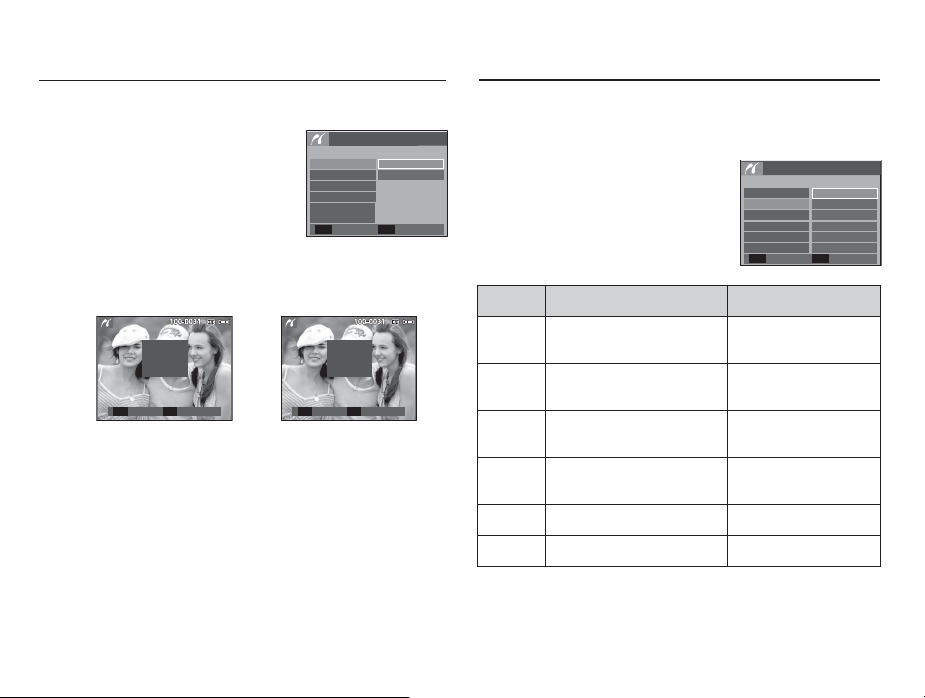

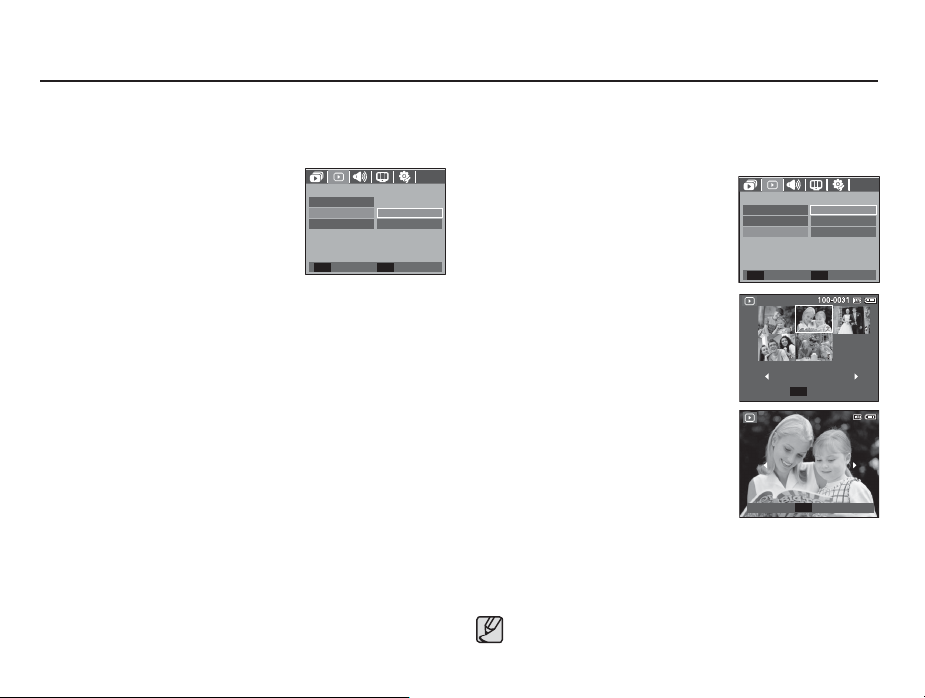

PictBridge : Picture Selection

PictBridge : Print Setting

You can select images you want to print.



Setting the Number of Copies to Print

1. Press the Menu button and the PictBridge menu will display.

2. Use the Up / Down buttons to select the [Images] menu and press the Right button.

3. Use the Up / Down buttons to select a

PICTBRIDGE

Size Layout Type 

Quality Date

Back Set





One PicImages All Pics



  

 

desired sub menu and press the OK button.

- Select [One Pic] or [All Pics]. A screen where you can set the number of copies to print will appear as shown below.





PrevNext

SH OK

Exit Set

[When [One Pic] is selected]

[When [All Pics] is selected]

SH OK

Exit Set





- Press the Up / Down button to select the number of prints.

- When [One Pic] is selected : Use the Left / Right button to select another picture. After selecting another picture, select the number of prints for another picture.

- After setting the number of prints, press the OK button to save.

- Press the Shutter button to return to the menu without setting

the number of prints.

4. Press the Print button ( » ) and images will be printed.

You can select the Paper Size, Print Format, Paper Type, Print Quality, Date Print, and File Name Print menus for printed pictures.

1. Press the Menu button and the PictBridge menu will display.

2. Use the Up / Down buttons to select the

desired menu, and then press the Right button.

3. Use the Up / Down buttons to select the desired sub menu value, and then press

the OK button.

PICTBRIDGE Images Size Layout Type Quality Date

Back Set



 



 



Auto PostCard Card 4 x 6 L 2L

Menu Function Sub menu

Size

Layout

Type

Quality

Set the size of the printing paper

Set the number of pictures to be printed on a sheet of paper

Set the quality of the printing paper

Set the quality of the picture to be printed

Auto, PostCard, Card, 4X6, L, 2L, Letter, A4, A3

Auto, Full, 1, 2, 4, 8, 9, 16, Index

Auto, Plain, Photo, FastPhoto

Auto, Draft, Normal, Fine

Date Set whether to print the date Auto, Off, On

File Name

Set whether to print the file name

Some menu options are not supported on all printers.

Auto, Off, On

If not supported, the menus are still displayed in the LCD, but are not selectable.

PictBridge : Reset

Initialises user-changed configurations.

1. Use the Up / Down buttons to select the [Reset] menu tab. And then press the Right button.

2. Use the Up / Down buttons to select the desired sub menu value, and then press the OK button.

If [No] is selected : Settings will not be reset. If [Yes] is selected

Default print setting varies depending on the printer manufacturer.

: All print and image settings will be reset.

For your printer’s default setting, refer to the user’s guide that came with your printer.

PICTBRIDGE Layout Type Quality Date File Name Reset

Back Set





 

Important notes

Be sure to observe the following precautions!



This unit contains precision electronic components. Do not use or



No Yes

store this unit in the following locations.

- Areas exposed to severe changes in temperature and humidity.

- Areas exposed to dust and dirt.

- Areas exposed to direct sunlight or the inside of a vehicle in hot weather.

- Environments where there is high magnetism or excessive vibration.

- Areas with high explosives or highly flammable materials.



Do not leave this camera in places subject to dust, chemicals (like naphthalene and mothballs), high temperature and high humidity.

Keep this camera with silica gel in a hermetically sealed box when not planning to use the camera for a long period of time



Sand can be particularly troublesome to cameras.

- Do not let sand get inside the camera when using it on beaches,

coastal dunes, or other areas where there is lots of sand.

- Doing so may result in failure or may permanently render the

camera unusable.



Handling the camera

- Never drop the camera or subject it to severe shocks or vibrations.

- Protect the large size LCD monitor from an impact. When this

camera is not used, keep it in the camera case.

- Avoid obstructing the lens or the flash when you capture an image.

- This camera is not waterproof.

To avoid dangerous electrical shocks, never hold or operate the camera with wet hands.

- If you use this camera in wet places, such as beach or pool,

do not let water or sand get inside the camera. Doing so may result in failure or may permanently damage the unit.

Important notes



Extremes in temperature may cause problems.

- If the camera is transferred from a cold to a warm and humid environment, condensation can form on the delicate electronic circuitry. If this occurs, turn the camera off and wait for at least 1 hour until all moisture is dispersed. Moisture built up can also occur on the memory card. If this happens, turn off the camera and remove the memory card. Wait until the moisture has dispersed.



Caution on Using the Lens

- If the lens is subjected to direct sunlight, it could result in the discoloration and deterioration of the image sensor.

- Take care not to get fingerprints or foreign substances on the surface of the lens.



If the digital camera is not used for a long period, an electric discharge can occur. It is a good idea to remove the battery and

the memory card if you do not intend using the camera for an extended period of time.



If the camera is exposed to an electronic interference, it will turn itself off to protect the memory card.



Camera Maintenance

- Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies. If this does not work, lens-cleaning paper with lens cleaning fluid can be used. Clean the camera body with a soft cloth. Do not allow this camera to come into contact with solvent materials such as benzol, insecticide, thinners etc. This may damage the body shell of the camera and also affect its performance. Rough handling can damage the LCD monitor. Take care to avoid damage and keep the camera in its protective carry case at all times when not in use.



Do not attempt to disassemble or modify the camera.



Under certain conditions, static electricity can cause the flash unit to fire. This is not harmful to the camera and is not a malfunction.



When images are uploaded or downloaded, the data transfer may be affected by static electricity. In this case, disconnect and re-

connect the USB cable before trying the transfer again.



Before an important event or going on a trip, you should check the camera condition.

- Take a picture for testing the camera condition and prepare extra battery.

- Samsung cannot be held responsible for camera malfunctions.

Warning indicator

There are several warnings that may appear on the LCD display.

[ Card Error!]



Memory card error



Turn off the camera power and turn it on again



Insert the memory card again



Insert and format the memory card (p.48)

[ Card Locked! ]



The memory card is locked



SD/SDHC memory card : Slide the write protect switch to the

[ Memory Full! ]



The memory card or internal memory is full.



Insert new memory card.



Delete the unnecessary image files

[ No Image! ]



There are no images stored on the memory



Take images



Insert a memory card that is holding some images

top of the memory card

[ File Error! ]



File error



Delete the file.



Memory card error



Contact a camera service centre.

[ Low Battery! ]



There is low battery capacity



Insert fresh batteries.

[ Low Light! ]



When taking pictures in dark places



Take pictures in Flash Photography mode.

Before contacting a service centre

Please check the following Camera does not take images when pressing the Shutter button

The camera doesn’t switch on



There is low battery capacity



Insert fresh batteries. (p.13)



Battery is inserted incorrectly with the polarities reversed.



Insert the battery according to the polarity marks (+, -).

The camera power ceases while in use



The battery is exhausted



Insert fresh batteries.



The Camera is turned off automatically



Turn on the camera power again.



Operation has ceased in a low temperature outside of the camera usage temperature range.



Make the camera and battery warm by placing them in your pocket, etc. and then immediately before shooting, place the battery in the camera and then shoot.



There is insufficient memory capacity



Delete unnecessary image files



The memory card has not been formatted



Format the memory card (p.48)



The memory card is exhausted



Insert a new memory card



The memory card is locked



Refer to [Card Locked!] error message



The camera's power is off



Turn the camera power on



The battery is exhausted



Insert fresh batteries (p.13)



Battery is inserted incorrectly with the polarities reversed.



Insert the battery according to the polarity marks (+, -)

The camera suddenly stops working while in use



The camera stopped due to a malfunction



Remove /re-insert battery and switch the camera on

The images are unclear



A picture was taken of the subject without setting an appropriate macro mode



Select an appropriate macro mode to take a clear image.



Taking a picture beyond the flash range



Take a picture within the flash range



The lens is smudged or dirty



Clean the lens

Before contacting a service centre

The flash does not fire



Flash off mode has been selected



Dis-engage flash off mode



The camera mode can't use the flash



Refer to the FLASH instruction (p.29)

Incorrect date and time is displayed



The date and time have been set incorrectly or the camera has adopted the default settings



Reset the date and time correctly

The camera buttons do not operate



Camera malfunction



Remove/re-insert battery and switch the camera on

A card error has occurred while the memory card is in the camera.



Incorrect memory card format



Re-format the memory card

The images don't play back



Incorrect file name (Violation of DCF format)



Do not change the image file name

Colour of image is different to the original scene



White balance or effect setting is incorrect



Select appropriate White balance and effect

Images are too bright



Exposure is excessive



Reset exposure compensation

No image on external monitor



The external monitor has not been connected properly with the camera



Check the connection cables



There are incorrect files in the memory card



Insert a memory card that has correct files

When using the PC’s explorer, the [Removable Disk] file does not show



Cable connection is incorrect



Check the connection



The camera is off



Turn the camera on



The operating system is not Windows 2000, XP, Vista / Mac OS

10.3. Alternatively the PC does not support USB



Install Windows 2000, XP, Vista / Mac OS 10.3 to PC that supports USB

Specifications

Image Sensor - Type : 1/2.33" CCD

- Effective Pixel : Approx. 10.2 Mega-pixel

- Total Pixel : Approx. 10.3 Mega-pixel

Lens - Focal Length : SAMSUNG Lens f = 6.3 ~ 18.9mm

- F No. : F3.0(W) ~ F5.6(T)

- Digital Zoom : ·Still Image mode :1.0X ~ 5.0X

·Play mode : 1.0X ~ 11.4X (depends on image size)

LCD Monitor - 2.7" color TFT LCD (230,000 dots)

Focusing

- Type : TTL auto focus (Multi AF, Center AF, Face Detection AF)

- Range

Normal Macro Auto Macro

Wide

Tele 50cm ~ 80cm 50cm ~ Infinity

80cm ~ Infinity

Shutter - Speed 1 ~ 1/1,500 sec.

(Manual : 8 ~ 1/1,500 sec.)

Exposure - Control : Program AE, Manual Exposure,

- Metering : Multi, Spot, Center-Weighted

- Compensation : ±2EV (1/3EV steps)

- ISO : Auto, 80, 100, 200, 400, 800, 1600

(35mm film equivalent : 35 ~ 105mm)

10cm ~ 80cm 10cm ~ Infinity

Face Detection AE

Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in

flash, Slow sync, Flash off

- Range : Wide : 0.4m ~ 3.0m, Tele : 0.5m ~ 2.5m

- Recharging Time : Approx. 4 sec

Sharpness - Soft+, Soft, Normal, Vivid, Vivid+

Color Effect -

Normal, B&W, Sepia, Red, Green, Blue, Negative, Custom Color

White Balance - Auto, Daylight, Cloudy, Fluorescent_H,

Fluorescent_L, Tungsten, Custom

Voice Recording - Voice Recording (max. 10 hours)

- Voice Memo in Still Image (max. 10 sec.)

Date Imprinting - Date, Date & Time, Off (user selectable)

Shooting - Still Image

·Mode : Auto, Program, Manual, DIS, Photo Help Guide , Portrait, Scene

·Scene :

Nightscene, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Firework, Beach & Snow

·Shooting : Single, Continuous, AEB

·Self-timer : 10 sec., 2 sec., Double, Motion Timer

Specifications

- Movie Clip

·Size : 640x480, 320x240

· Frame rate : 30 fps, 15 fps

· 3X Optical Zoom and Mute in Zooming

· Movie Editing (Embedded): Pause during

Storage - Media

·Internal memory : About 16MB flash memory

· External Memory (Optional) :

- File Format

·Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1,

·Movie Clip : AVI (MJPEG)

·Audio : WAV

- Image Size

,;.+ 

3648X

2736

With Audio or without Audio (user selectable, recording time : max 2 hours)

recording, Still Image Capture

MMC card (Up to 1GB guaranteed) SD card (Up to 2GB guaranteed) SDHC card (Up to 8GB guaranteed)

PictBridge 1.0

3648X

3072X

2592X

2432

2056

2304

1944

1920X

1080

1024X

768

- Capacity (1GB Size)

,;.+ 

Super Fine

About 219 About 241 About 282 About 290 About 366

Fine

About 304 About 341 About 395 About 412 About 507

Normal

About 507 About 550 About 619 About 660 About 825

These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings.

“E” Button

Image Play - Type : Single image, Thumbnails, Multi slide show,

Interface - Digital output connector : USB 2.0

- Audio : Mono

- Video output : NTSC, PAL (user selectable)

Power Source - Primary Battery : 2x AA Alkaline

- Rechargeable battery : SNB-2512 KIT (Optional)

- Effect : Color, Image Adjust (Sharpness, Contrast, Saturation)

Editing : Resize, Rotate, Color

Movie Clip

Included battery may vary depending on sales region.

(2xAA Ni-MH Battery & Charger)

About 1089 About 1907

About 1458 About 2204

About 2204 About 2419

Specifications

Dimensions (WxHxD) - 93.1 X 61.5 X 24mm

Weight - Approx. 120g (without batteries and card)

Operating Temperature - 0 ~ 40°C

Operating Humidity - 5 ~ 85%

Software - Samsung Master, Adobe Reader

Specifications are subject to change without prior notice. All trademarks are the property of their respective owners.

(excluding protrusions)

Software Notes

System Requirements

Please ensure that you read the instruction manual carefully before use.

-Under no circumstances should all or part of either the software or the user manual be reproduced.

-Copyrights for software are licensed only for use with a camera.

-In the unlikely event of a manufacturing fault, we will repair or exchange your camera. We cannot, however, be held responsible in any way for damage

Connection

Speciﬁ cations

caused by inappropriate use.

-Using a Hand-made PC or a PC and OS that has not been guaranteed by the manufacturer is not covered by the Samsung warranty.

-Before reading this manual, you should have a basic knowledge of computers and O/S (Operating Systems).

Speciﬁ cations

For Windows For Macintosh

PC with processor better than Pentium III 500MHz

USB

(Pentium III 800MHz recommended) Windows 2000 / XP / Vista Minimum 256MB RAM (Over 512MB recommended) 250MB of available hard disk space (Over 1GB recommend)

Software

1024x768 pixels, 16bit color

Support

display compatible monitor (24bit color display recommended) Microsoft DirectX 9.0C

Power Mac G3 or later Mac OS 10.3 or later

Minimum 256MB RAM (Over 512MB recommended)

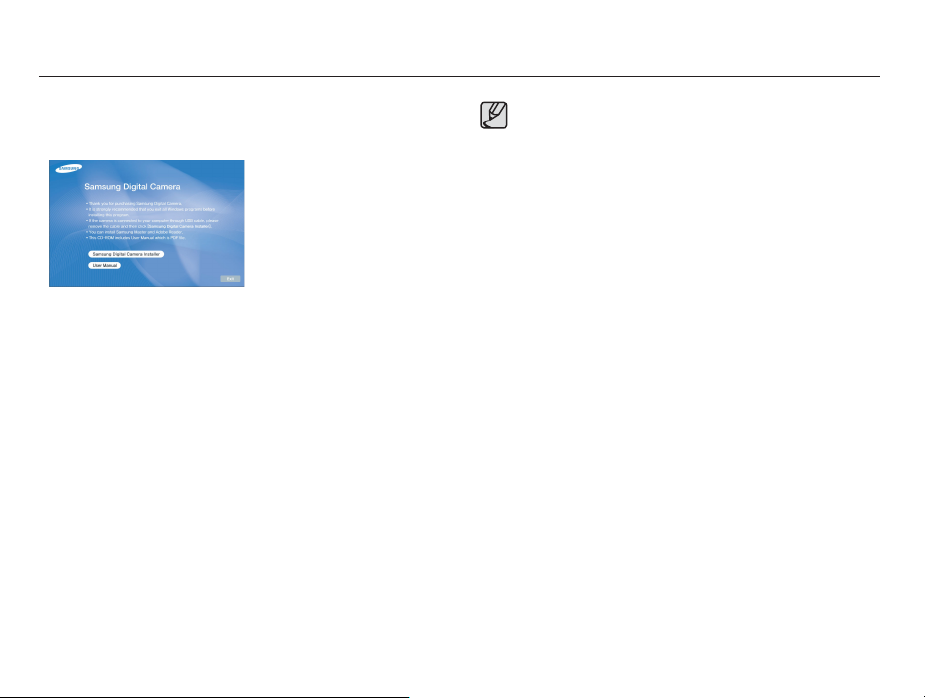

About the software

After inserting the CD-ROM provided with this camera into the CD-ROM drive, the following window should automatically run.



Samsung Master : This is the all-in-one multi media software

You can download, view, edit and save your digital images and movie clips with this software. This software is only compatible with Windows.

solution.

You should allow 5 ~ 10 seconds for running the automatic



setup program according to the capability of your computer. If the frame does not appear, run the [Windows Explorer] and select [Installer.exe] in the CD-ROM Drive root directory.

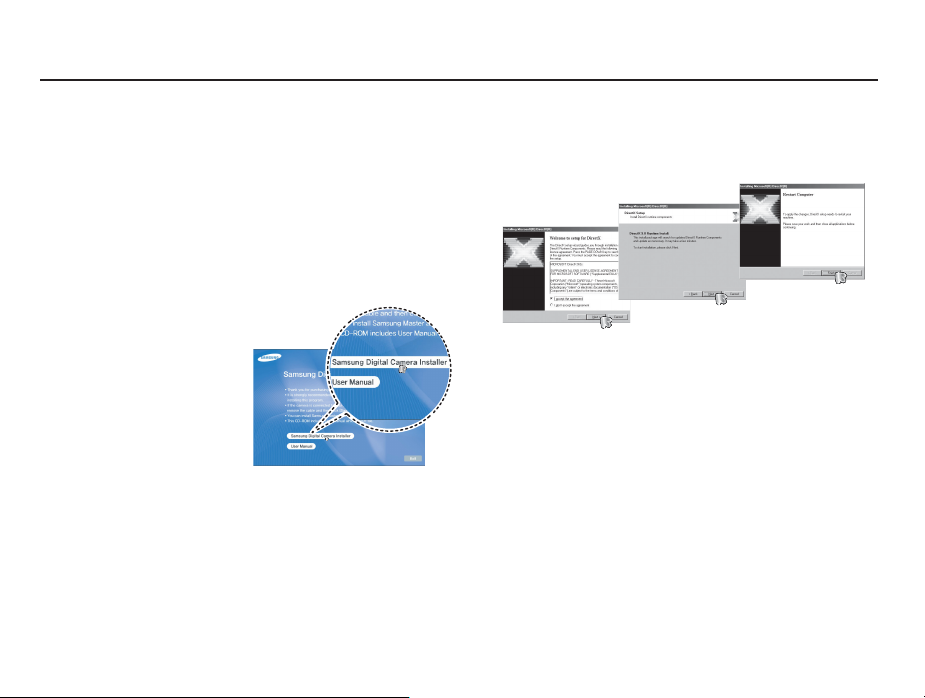

Setting up the application software

To use this camera with a PC, install the application software first. After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program.



You can visit the Samsung web-site through the internet.

http://www.samsung.com

1. The auto run frame will display.

Click the [Samsung Digital Camera Installer] menu in the Auto run frame.

2. Install DirectX, Samsung Master and Adobe Reader by selecting a button shown on the monitor. If a recent version of DirectX has been installed on your computer, DirectX may not be installed.

Setting up the application software

3. After restarting the computer, connect the PC to the camera with the USB cable.

4. Turn the camera power on. The [Found New Hardware Wizard] will open and the computer will recognise the camera.

If your OS is Windows XP/ Vista, an image viewer program will open.

Setting up the application software

PDF documents of user manual are included in the Software



CD-ROM supplied with this camera. Search the PDF files with Windows explorer. Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM. To install the Adobe Reader 6.0.1 correctly, Internet Explorer 5.0



or later has to be installed. Visit "www.microsoft.com" and upgrade the Internet Explorer.

Starting PC mode

If you connect the USB cable to a USB port on your PC and then turn on the power, the camera will automatically switch to "computer connection mode". In this mode, you can download stored images to your PC through the USB cable.



Camera settings for connection

1. Turn on the camera

2. Connect the camera and computer with the supplied USB cable.

3. Turn on the computer. The camera and computer are connected.

4. External device selection menu will be displayed on the LCD monitor.

5. Select the [Computer] by pressing the Up / Down button and press the OK button.

Select USB

Computer

Printer

Confirm

Starting PC mode



Connecting the camera to a PC

If you selected [Printer] in Step 5, when you connect the camera to your computer, the [Connecting Printer] message will display and the connection will not be established. In this case, disconnect the USB cable, and then follow the procedure from Step 2 and onward.



Disconnecting the camera and PC

Refer to page 87 (Removing the removable disk).



Downloading stored images

You can download the still images stored on the camera to your PC's

hard disk and print them or use a photo editing software to edit them.

1. Connect the camera to your PC with the USB cable.

2. On your computer's desktop display, select [My computer] and double click [Removable Disk  DCIM 100SSCAM].The image files will then be displayed.

3. Select an image and press the right mouse button.



Starting PC mode

4. A pop-up menu will open. Click the [Cut] or [Copy] menu.

- [Cut] : cuts a selected file.

- [Copy] : copies files.

5. Click a folder where you want to paste the file.

6. Press the right mouse button and a pop-up menu will open. Click [Paste].

7. An image file is transferred from the camera to your PC.

- By using [Samsung Master], you can see the stored images in the memory directly on the PC monitor and you can copy or move the image files.

We recommend that you should copy the images to the PC to



view them. Opening images directly from the removable disk may be subject to unexpected disconnection. When you upload a file that is not taken by this camera to the



Removable Disk, the [File Error!] message will be displayed on the LCD monitor in the PLAY mode, and nothing is displayed in THUMBNAIL mode.

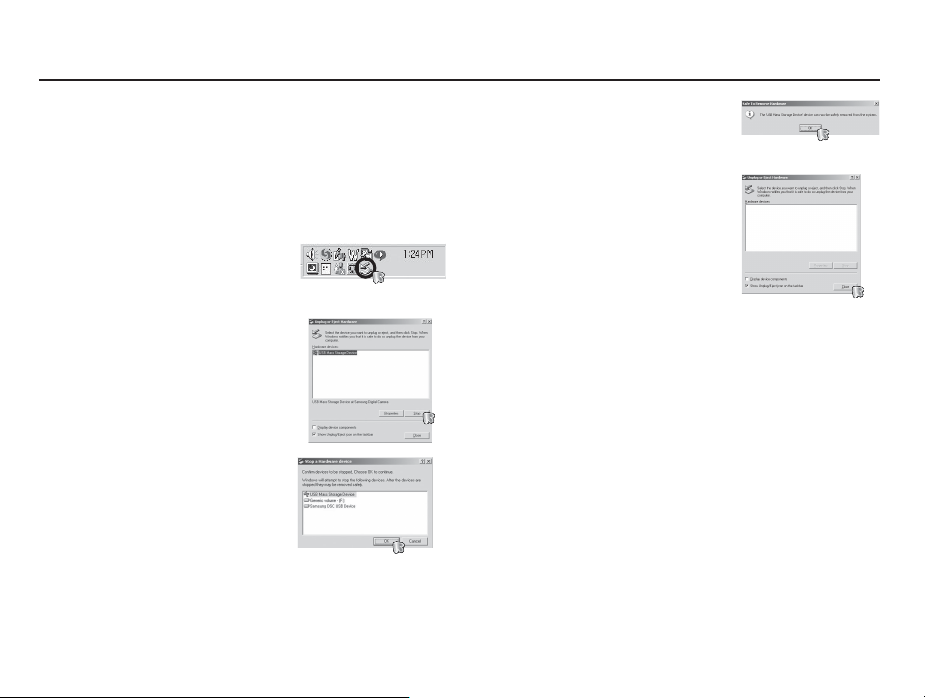

Removing the removable disk



Windows 2000/XP/Vista (The illustrations may differ from those shown depending on the Windows O/S.)

1. Check whether the camera and PC are transferring a file. If the camera status lamp blinks, please wait until the lamp has finished blinking and is constantly on.

2. Double-click the [Unplug or Eject Hardware] icon on the task bar.

[Double-click!]

3. The [Unplug or Eject Hardware] window will open. Select the [USB Mass Storage Device] and click the [Stop] button.

4. The [Stop a Hardware device] window will open. Select the [USB Mass Storage Device] and click the [OK] button.

5. A [Safe to Remove Hardware] window will open. Click the [OK] button.

6. A [Unplug or Eject Hardware] window will open. Click the [Close] button and the removable disk will be removed safely.

7. Unplug the USB cable.

Samsung Master

You can download, view, edit and save your images and movies with this software. This software is only compatible with Windows. To start the program, click [Start  Programs Samsung Samsung Master].



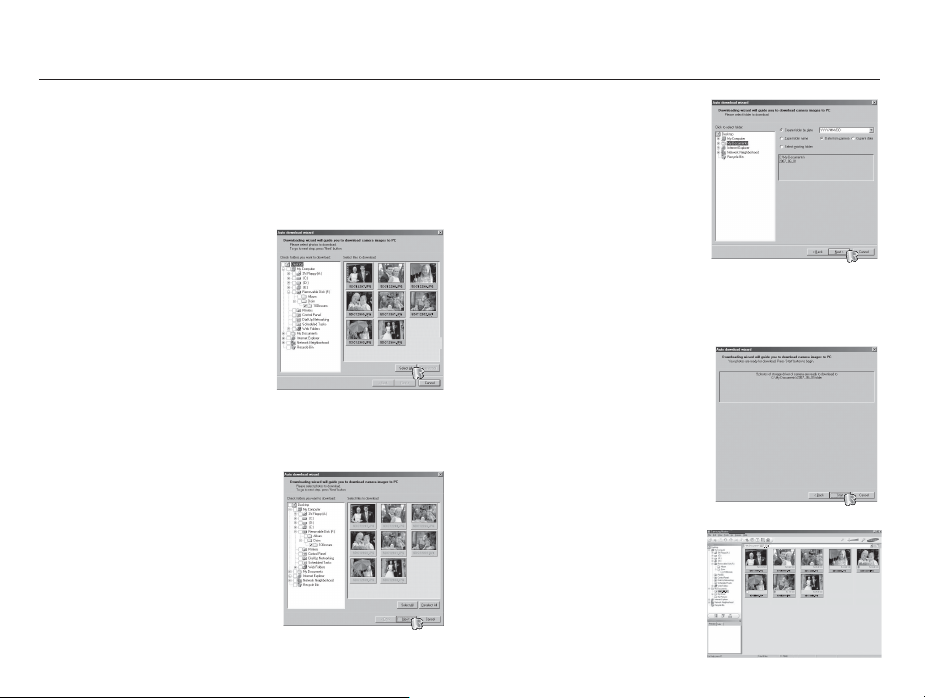

Downloading images

1. Connect the camera to your PC.

2. A window for downloading images will be displayed after connecting the camera to your PC.

- To download the captured images, select the [Select All] button.

- Select desired folder in the window and click the [Select All] button. You can save captured images and selected folder.

- If you click the [Cancel] button, downloading will be cancelled.

3. Click [Next >] button.



4. Select a destination and make a folder to save downloaded images and folders.

- Folder names can be made in order of date and images will be downloaded.

- Folder name will be made as you want and images will be downloaded.

- After selecting a folder that was made before, images will be downloaded.

5. Click [Next >] button.

6. A window will open as shown alongside. The destination of the selected folder will be displayed on the upper side of the window. Click the [Start] button to download the images.

7. Downloaded images will be displayed.

Samsung Master



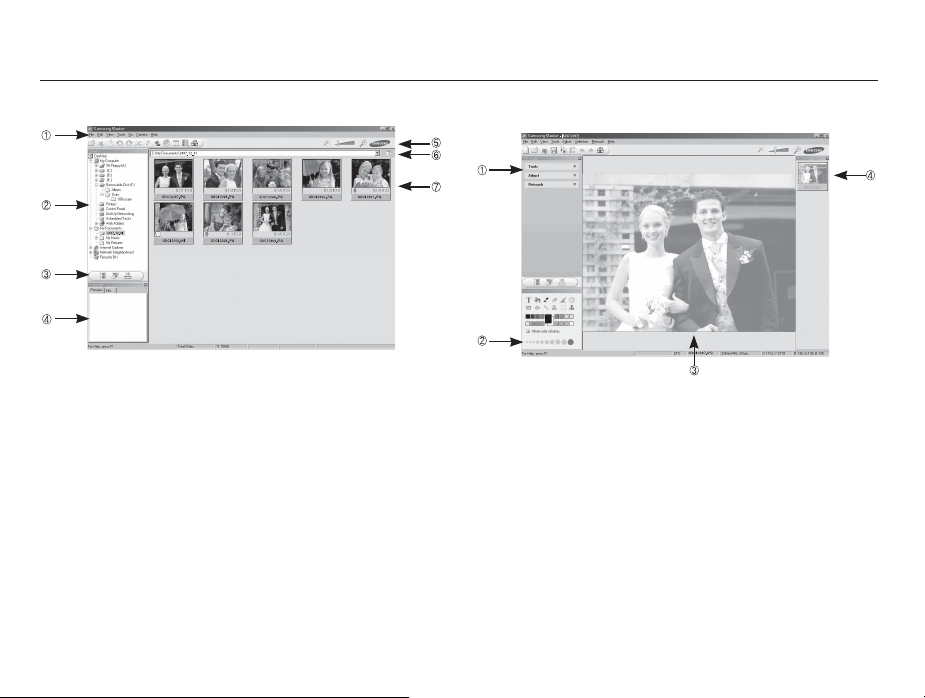

Image viewer : You can view the stored images.

- Image viewer functions are listed below.

Menu bar : You can select menus. File, Edit, View, Tools,

Image selection window : You can select the desired images



Media type selection menu : You can select image viewer, image edit



Preview window : You can preview an image or a movie clip and



Zoom bar : You can change preview size.



Folder display window : You can see the folder location of the



Image display window : Images of the selected folder are displayed.

Refer to the [Help] menu in Samsung Master for further information.

Change functions, Auto download, help, etc.

in this window.

and movie edit functions in this menu.

check the multi media information.

selected image.



Image edit : You can edit the still image.

- Image edit functions are listed below.

Edit menu : You can select the following menus.

[Tools] : You can resize or crop the selected image. See the

[Adjust] : You can modify image quality. See the [Help] menu. [Retouch] : You can change image or insert effects on the image.

Drawing tools : Tools for editing an image.



Image display window : A selected image displays in this window.



Preview window : You can preview the changed image.

A still image edited with Samsung Master can’t be played back on the camera.

Refer to the [Help] menu in Samsung Master for further information.

[Help] menu.

See the [Help] menu.

Samsung Master



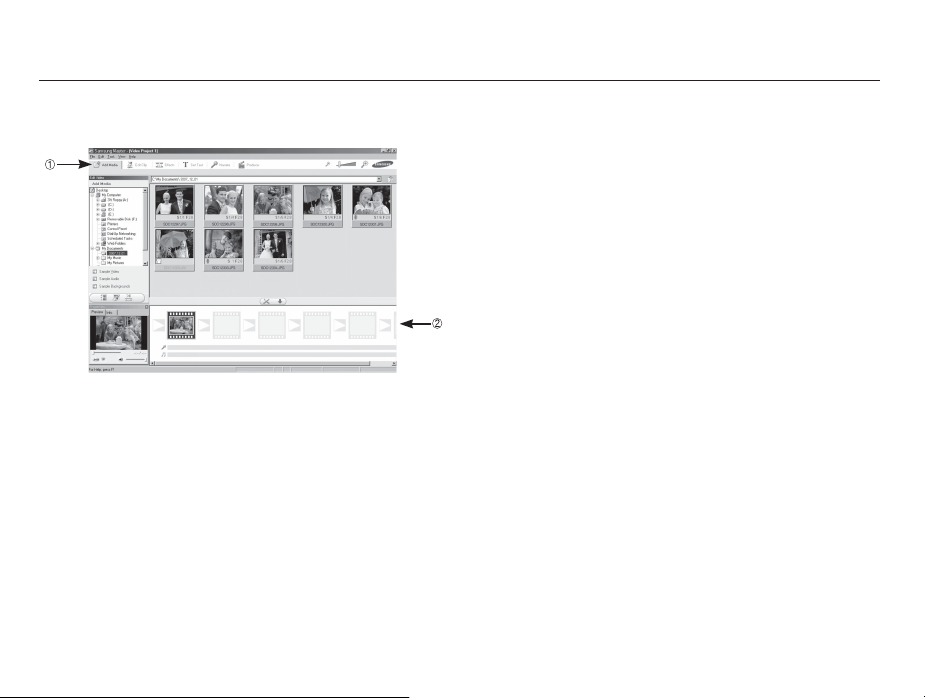

Movie edit : You can get the still image, movie clip, narration,

- Movie clip edit functions are listed below.

Edit menu : You can select the following menus. [Add Media] : You can add other media elements to a movie. [Edit Clip] : You can change the brightness, contrast, colour

[Effects] : You can insert an effect. [Set Text] : You can insert texts. [Narrate] : You can insert a narration. [Produce] : You can save the edited multi media as a new file

Frame display window : You can insert multi media in this window.

music files together in a movie clip.

and saturation.

name. You can select AVI, Windows media (wmv) and Windows media (asf) file types.

Some movie clips that were compressed with a codec that is not compatible with the Samsung Master can’t play back in the Samsung Master.

Refer to the [Help] menu in Samsung Master for further information.

Setting up the USB Driver for MAC

1. A USB Driver for MAC is not included with the software CD as MAC OS supports the camera driver.

2. Check the MAC OS version during start-up. This camera is com-

patible with MAC OS 10.3.

3. Connect the camera to the Macintosh and turn the camera power

on.

4. A new icon will be displayed on the desktop after connecting the camera to the MAC.

1. Double click a new icon on the desktop and the folder in the

2. Select an image file and copy or move it to MAC.

Using the USB Driver for MAC

memory will be displayed.

First complete uploading from computer to camera and then



remove the removable disk with the Extract command.

FAQ

Please check the following if the USB connection malfunctions.

Case 1 USB cable is not connected or it is not the supplied

Case 2 The camera is not recognised by your PC.

Case 3 There is an unexpected error during file transfer.

Case 4 When using the USB hub.

Case 5 Are other USB cables connected to the PC?

USB cable.



Connect the supplied USB cable.

Sometimes, the camera may appear under [Unknown Devices] in Device Manager.



Turn off the camera, remove the USB cable, plug in the USB cable again, and then turn on the camera.



Turn the camera power off and on again. Transfer the file again.



There may be a problem in connecting the camera to the PC through the USB hub if the PC and the hub are not compatible. Wherever possible, connect the camera to the PC directly.



The camera may malfunction when it is connected to the PC at the same time as another USB cable. In this case, disconnect the other USB cable, and connect only one USB cable to the camera.

Case 6 When I open the Device Manager (by clicking Start

Case 7 In some security programs (Norton Anti Virus, V3,

Case 8 The camera is connected to the USB port located on

(Settings) Control Panel (Performance and Maintenance) System (Hardware) Device Manager), there are Unknown Devices or Other Devices entries with a yellow question mark(?) beside them or devices with an exclamation mark(!) beside them.



Right-click on the entry with the question (?) or exclamation (!) mark and select "Remove". Restart the PC and connect the camera again.

etc.), the computer may not recognise the camera as a removable disk.



Stop the security programs and connect the camera to the computer. Refer to the security program instructions about how to temporarily disable the program.

the front of the computer.



When the camera is connected to the USB port located on the front of the computer, the computer may not recognise the camera. Connect the camera to the USB port located on the back of the computer.

FAQ



When the DirectX 9.0 or later is not installed



Install the DirectX 9.0 or later

1) Insert the CD provided with the camera

2) Run the windows explorer and select the [CD-ROM drive:\ DirectX] folder and click the DXSETUP.exe file. The DirectX will be installed. Visit the following site for downloading the DirectX.http://www.microsoft.com/directx



If a PC connected with the camera stops responding while Windows is starting.



In this case, disconnect the PC and the camera and Windows will start. If the problem happens continuously, set the Legacy USB Support to disable and re-start the PC. The Legacy USB Support is in the BIOS setup menu. (The BIOS setup menu differs from the PC manufacturers and some BIOS menus don’ t have Legacy USB Support) If you can’t change the menu by yourself, contact to the PC manufacturer or BIOS manufacturer.



If the movie clip can’t be deleted, or the removable disk can’t be extracted or an error message displays during the file transfer.



If you install only the Samsung Master, the problems mentioned above occasionally happen.

- Close the Samsung Master program by clicking the Samsung Master icon on the Taskbar.

- Install all the application programs included in the software CD.

Samsung Eco-mark It is Samsung’s own symbol mark is used to effectively communicate Samsung’s environmental friendly product activities to the consumers. The mark represents Samsung’s continuous effort on development of environmental conscious products.

FCC notice

NOTE :



This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the distance between the equipment and receiver.

- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTION :



Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.



Declaration of Conformity

Trade Name : SAMSUNG ELECTRONICS AMERICA, INC. Model No. : SAMSUNG BL103 Responsible Party Address : 105 Challenger Road Ridgeﬁ eld Park NJ Telephone No. : 1-800-SAMSUNG(726-7864)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

: SAMSUNG ELECTRONICS AMERICA, INC.

MEMO

Samsung EC-BL103RBC-US User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
