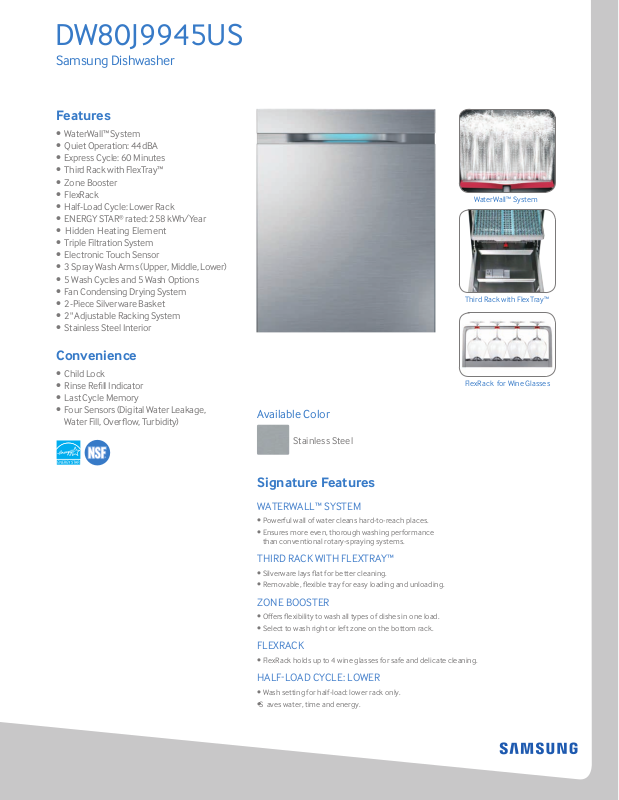

Samsung DW80J9945US Specification Sheet
DW80J9945US
Samsung Dishwasher
Features
• WaterWall™ System
• Quiet Operation: 44dBA
• Express Cycle: 60 Minutes
• Third Rack with FlexTray™
• Zone Booster
• FlexRack
• Half-Load Cycle: Lower Rack
• ENERGY STAR® rated: 258 kWh/Year
• Hidden Heating Element
• Triple Filtration System
• Electronic Touch Sensor
• 3 Spray Wash Arms (Upper, Middle, Lower)
• 5 Wash Cycles and 5 Wash Options
• Fan Condensing Drying System
• 2-Piece Silverware Basket
• 2" Adjustable Racking System
• Stainless Steel Interior
WaterWall™ System
Third Rack with FlexTray™
Convenience
• Child Lock
• Rinse Rell Indicator
• Last Cycle Memory
• Four Sensors (Digital Water Leakage,
Water Fill, Overow, Turbidity)
FlexRack for Wine Glasses
Available Color
Stainless Steel
Signature Features
WATERWALL™ SYSTEM
• Powerful wall of water cleans hard-to-reach places.
• Ensures more even, thorough washing performance
than conventional rotary-spraying systems.
THIRD RACK WITH FLEXTRAY™
• Silverware lays at for better cleaning.
• Removable, exible tray for easy loading and unloading.
ZONE BOOSTER
• Oers exibility to wash all types of dishes in one load.
• Select to wash right or left zone on the bottom rack.
FLEXRACK
• FlexRack holds up to 4 wine glasses for safe and delicate cleaning.
HALF-LOAD CYCLE: LOWER
• Wash setting for half-load: lower rack only.
• S aves water, time and energy.
DW80J9945US
Performance
• 4 Wash Cycles: Heavy, Normal, Quick
Plus, Smart Auto Wash
• 1 Option: Sanitize (Anti-Bacterial-NSF)
• 4 Control Buttons: Cancel and Drain (2 Buttons),
Child Lock (1 Button), Start & Pause (1 Button)
• 2-Stage Filtration
• Hidden Heat Element
• Stainless Steel Interior Tub
Convenience Features
• Child Lock
• Digital Water Leakage Sensor Detects Water Leaks
Before They Happen and Shuts Off the Dishwasher
to Prevent Water Damage.
• Nylon Racking
• 2 Piece Silverware Basket
• Upper Rack: 2 Cup Shelves, 3 Adjustable Tines
• Upper Rack: 2 Fold Down Tine
• Lower Rack: 1 Removable Tine
• Cutlery Sleeves
Warranty
One (1) Year All Parts and Labor
Five (5) Year Limited on Printed Circuit Board
and Interior Nylon Racks
Lifetime Limited Warranty on Stainless Steel
Door Liner and Tub for Leakage
Product Dimensions & Weight (WxHxD)
Dimensions (height is adjustable):
237/8" x 337/8" – 357/8" x 241/2"
Weight: 103.6 lbs.
Shipping Dimensions & Weight (WxHxD)
Dimensions: 271/4" x 373/4" x 287/8"
Weight: 123.5 lbs.
Color Model # UPC Code
Stainless Steel DW7933LRASR 036725590380
White DW7933LRAWW 036725590373
Black DW7933LRABB 036725590366
Performance
4 Wash Cycles: Heavy, Normal, Quick Plus,
Smart Auto Wash
1 Option: Sanitize (Anti-bacterial-NSF)
4 Control Buttons : Cancel and Drain (2 Buttons),
Child Lock (1 Button), Start & Pause (1 Button )
∙ 2-Stage Filtration: Eliminates the need for pre-
rinsing.
∙ Hidden Heat Element reduces the risk of melting
plastic.
∙ Stainless Steel interior tub resists staining and
retains heat for better drying performance.
Convenience Features
∙ Child Lock
∙ Audible End of Cycle Signal
∙ Digital Water Leakage Sensor detects water leaks
before they happen and shuts off the dishwasher
to prevent water damage.
∙ Nylon Racking
∙ 2 Piece Silverware Basket
∙ Upper Rack: 2 Cup Shelves, 3 Adjustable Tines
∙ Upper Rack: 2 Fold Down Tine
∙ Lower Rack: 1 Removable Tine
∙ Cutlery Sleeves
Warranty
One (1) Year All Parts and Labor
Five (5) Year limited on printed circuit board and
interior nylon racks
Lifetime limited warranty on stainless steel door
liner and tub for leakage
Product Dimensions + Weight
Dimensions: (height is adjustable)
(WxHxD) 23
7
⁄8" x 33 7⁄8" – 35 7⁄8" x 24 1⁄2"
Weight: 103.6 lbs / 47 kg
Shipping Dimensions + Weight
Dimensions: (WxHxD) 27
1
⁄4" x 37 3⁄4" x 28 7⁄8"
Weight: 123.5 lbs / 56 kg
Color Model # UPC Code
Stainless Steel DW7933LRASR 036725590380
White DW7933LRAWW 036725590373
Black DW7933LRABB 036725590366
Installing your Dishwasher
DW7933LRASR
Samsung Dishwasher
Installing Your Dishwasher
DW7933LRASR
Samsung Dishwasher
Samsung Dishwasher
Installing Your Dishwasher
24" minimum
Dimensions
Side View Rear View
25"
20 1/2"
24 1/2"
34"
minimum
1 3/4"
24"
minimum
2 1/2"
23 7/8"
The water supply
line, power cable
and drain hose
should go through
this space.
Performance
• 5 Wash Cycles: Auto, Normal, Heavy, Delicate,
Express 60
• 5 Options: Half-Load Wash, Targeted Wash,
Sanitize (Anti-Bacterial-NSF), Dry+, Delay Start
• 4 Control Buttons: Sound off, Child Lock,
Start & Pause, Cancel and Drain
• 3 Filter System
• Hidden Heat Element
• Stainless Steel Interior Tub
Convenience Features
• Child Lock
• Digital Water Leakage Sensor.
• Third Rack with FlexTray™
• FlexRack for Wine Glasses
• Nylon Racking
• 2 Piece Silverware Basket
• Upper Rack: 2 Cup Shelves, 3 Adjustable Tines
• Upper Rack: 2 Fold Down Tine
• Lower Rack: 6 Fold Down Tine
• S ilverware basket
Warranty
Five (5) Years Limited on Linear Motion Parts,
Printed Circuit Board and Interior Nylon Racks.
33 7/8" –
35
Adjustable
Height
Lifetime Limited Warranty on Stainless Steel
7
/8"
Door Liner and Tub for Leakage.
Product Dimensions & Weight (WxHxD)
Dimensions:
24" x 337/8" x 242/3" (27" with handle)
Weight: 101 lbs.
Shipping Dimensions & Weight (WxHxD)
Dimensions:
261/16" x 3427/32" x 291/8"
Weight: 108 lbs.
Color Model # UPC Code
Stainless Steel DW80J9945US 887276067728
Actual color may vary. Design, specications, and color availability are subject to change without notice.
Non-metric weights and measurements are approximate.
©2014 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com.
Samsung is a registered trademark of Samsung Electronics Co. Ltd.
