Samsung DVD-VR320/XEE, DVD-VR320/XEU, DVD-VR320/SED, DVD-VR320/XEG, DVD-VR320/XET User Manual

DVD-VCR Recorder COMBO

Chassis: K2
DVD-VR320/XEU, XEF, XEB, SED, XEN,

XEE, XEG, XET, COM, EUR,
XEV, XEH, XEC, XEO

SERVICE

 Multi format recording

DVD-RAM / DVD-RW / DVD-R

 Multi format playback

DVD / DVD-RAM / DVD-RW / DVD-R
CD / CD-R / CD-RW / MP3 / JPEG

 Rcording mode

XP(1Hour) / SP(2Hour) / LP(4Hour) / EP(6~8Hour)

 Progressive scan

Both DVD & VCR

 Automatic Chapter Product ON

Manual

DVD-VCR RECORDER COMBINATION

Merit & Character regarding Product

SERVICE MANUAL

DVD-VR320

ELECTRONICS

© Samsung Electronics Co., Ltd. MAR. 2005

Printed in Korea

AK82-00795A

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

international and/or domestic law.

CONTENTS

1. Precautions (1-1 ~ 1-6)

1-1 Safety Precaution (1-1)
1-2 Servicing Precautions (1-3)
1-3 ESD Precautions (1-4)
1-4 Handling the optical pick-up (1-5)

2. Product Specification (2-1 ~ 2-6)

2-1 Product Specification (2-1)
2-2 Chassis Product Specification (2-2)
2-3 Option Product Specification (2-6)

3. Software Update (3-1 ~ 3-4)

3-1 Drive Firmware Update (3-1)
3-2 Flash Update (3-3)

4. Alignment and Adjustments (4-1 ~ 4-12)

4-1 VCR Adjustment (4-1)
4-2 VCR Mechanical Adjustment (4-4)

5. Disassembly and Reassembly (5-1~5-22)

5-1 Cabinet and PCB (5-1)
5-2 Circuit Board Locations (5-3)
5-3 VCR Deck Parts Locations (5-4)
5-4 VCR Deck (5-7)
5-5 The table of cleaning, Lubrication and replacement time about principal parts

(5-21)

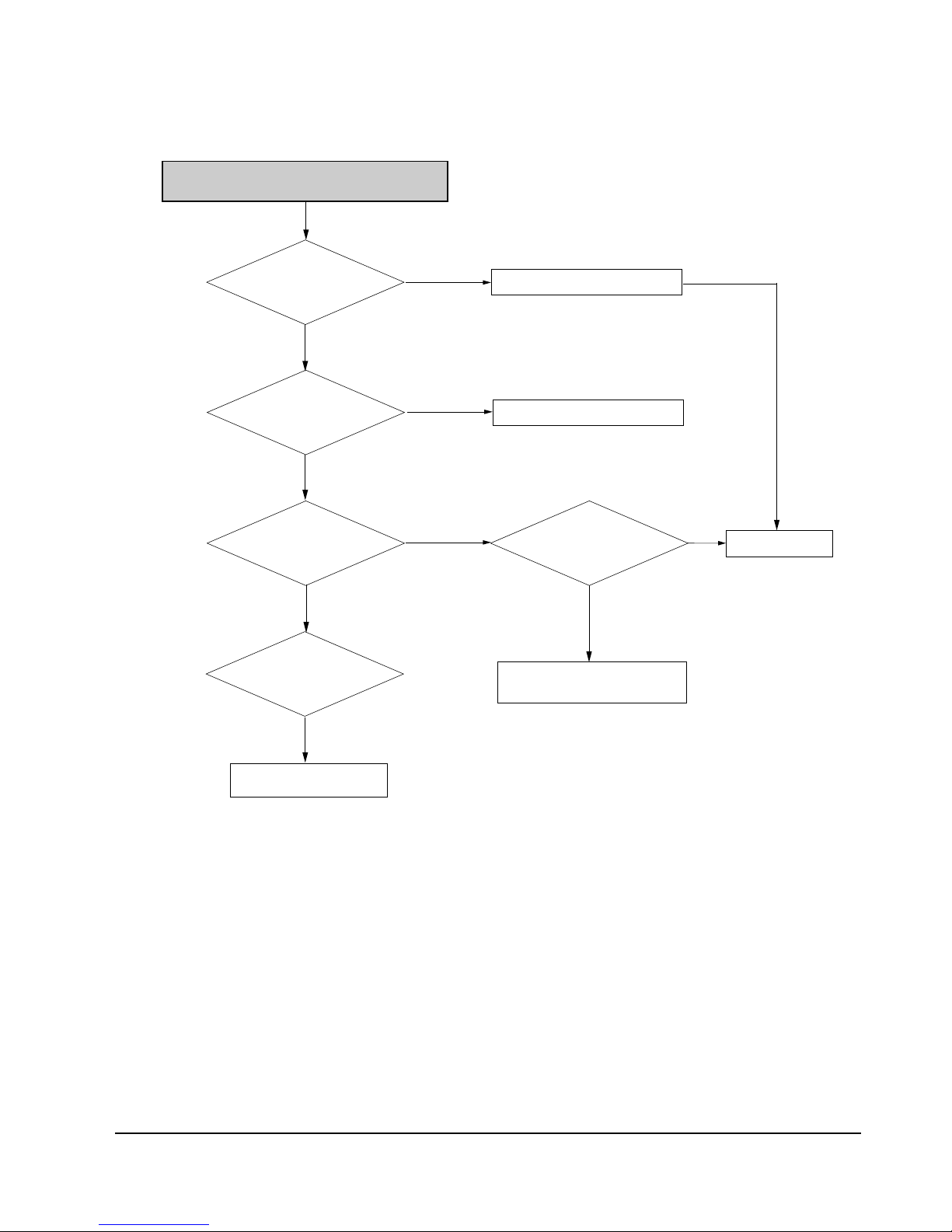

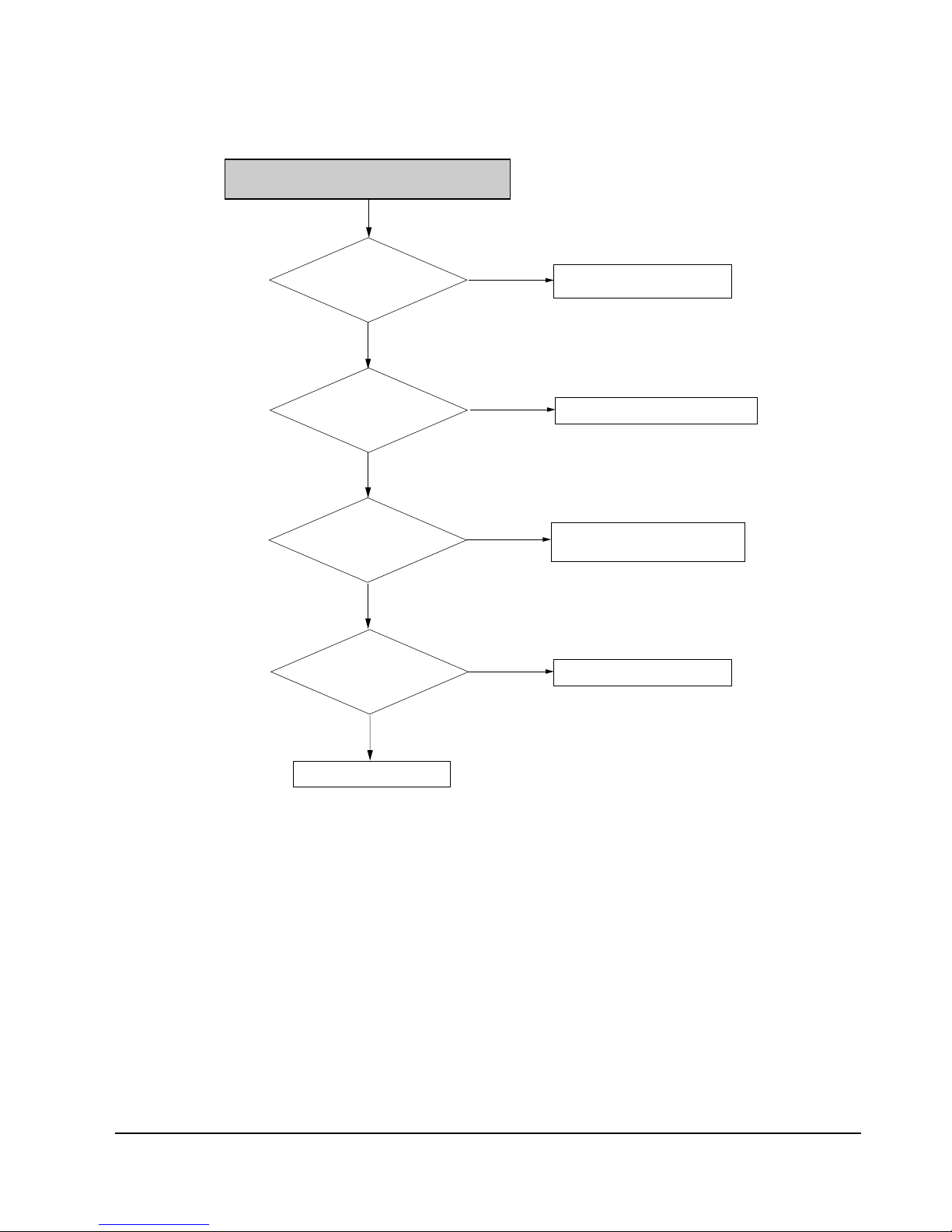

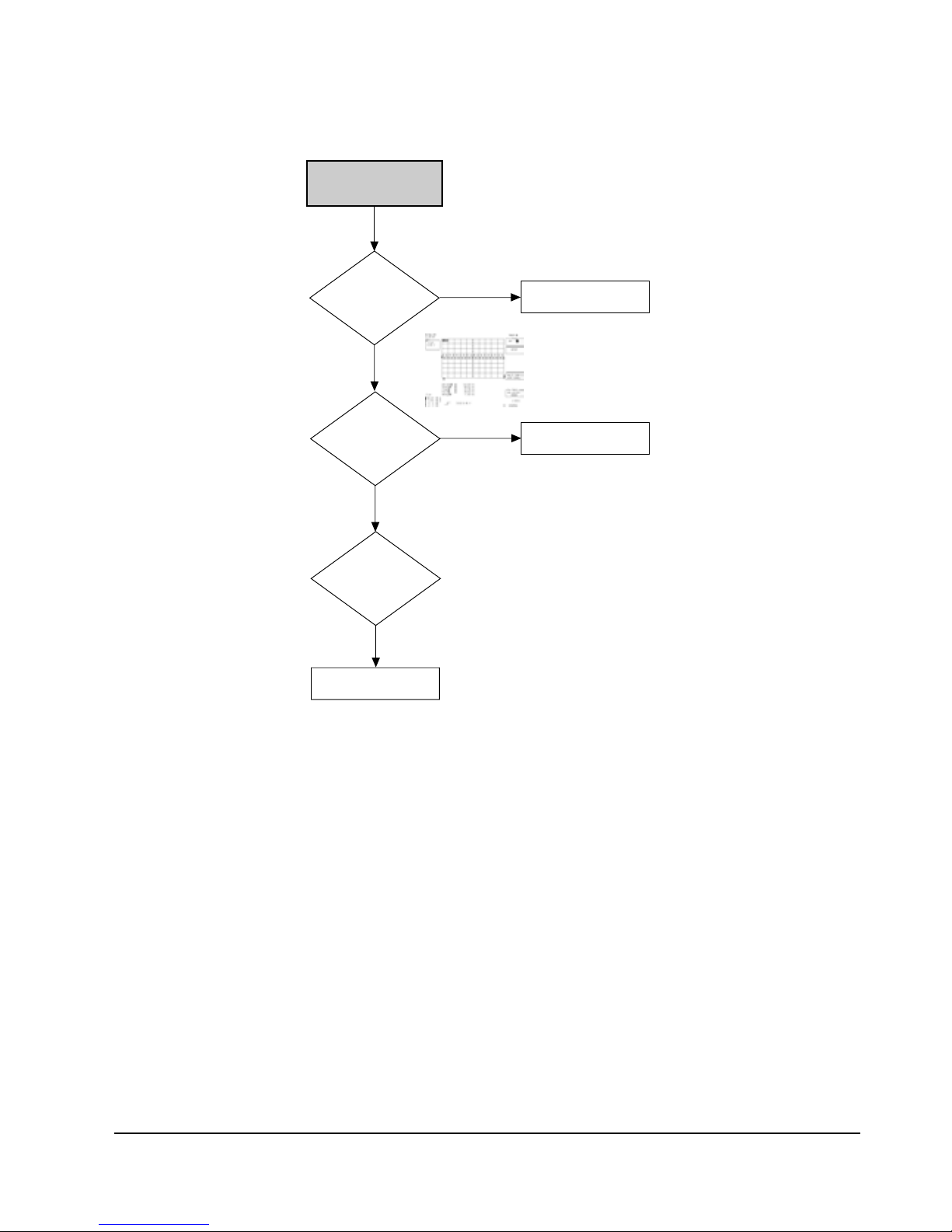

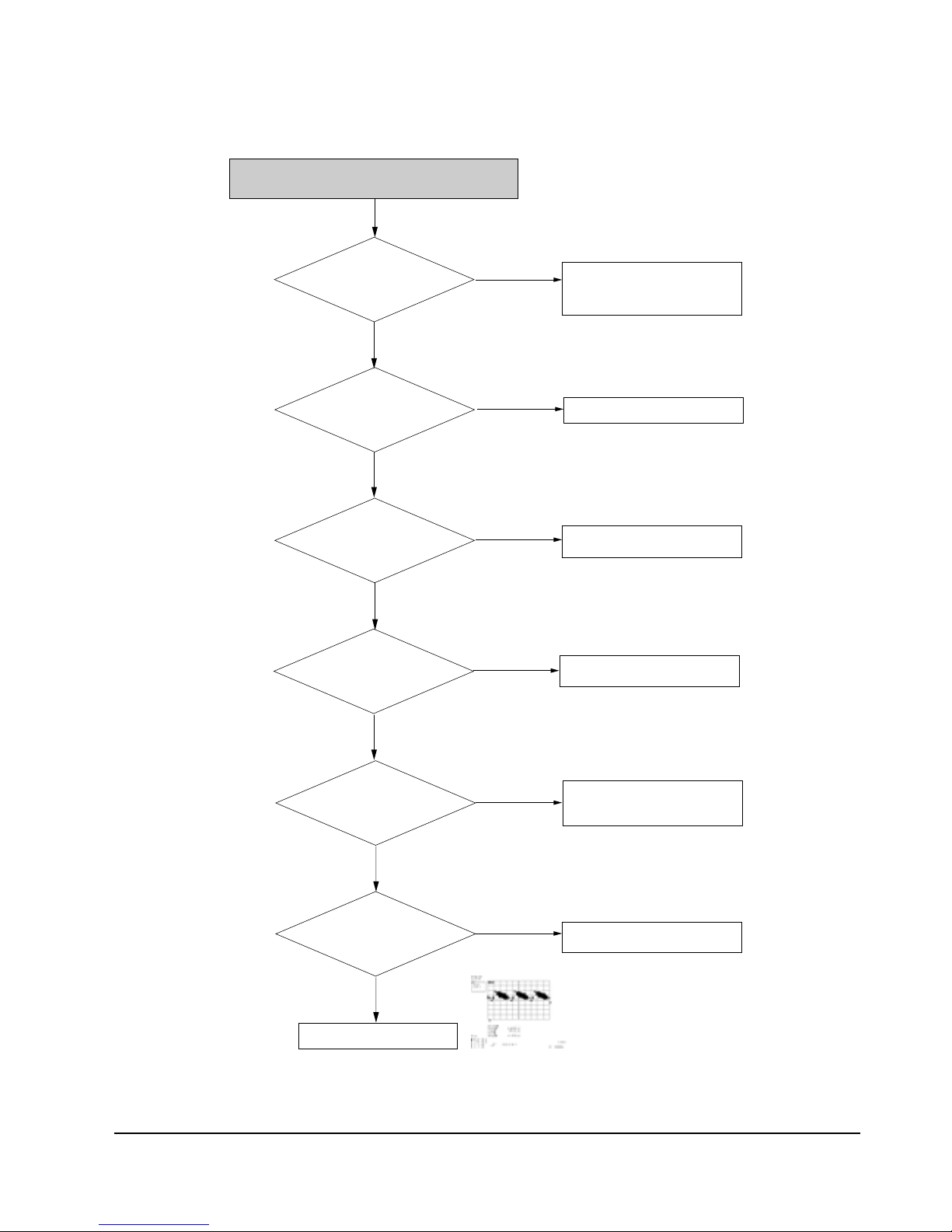

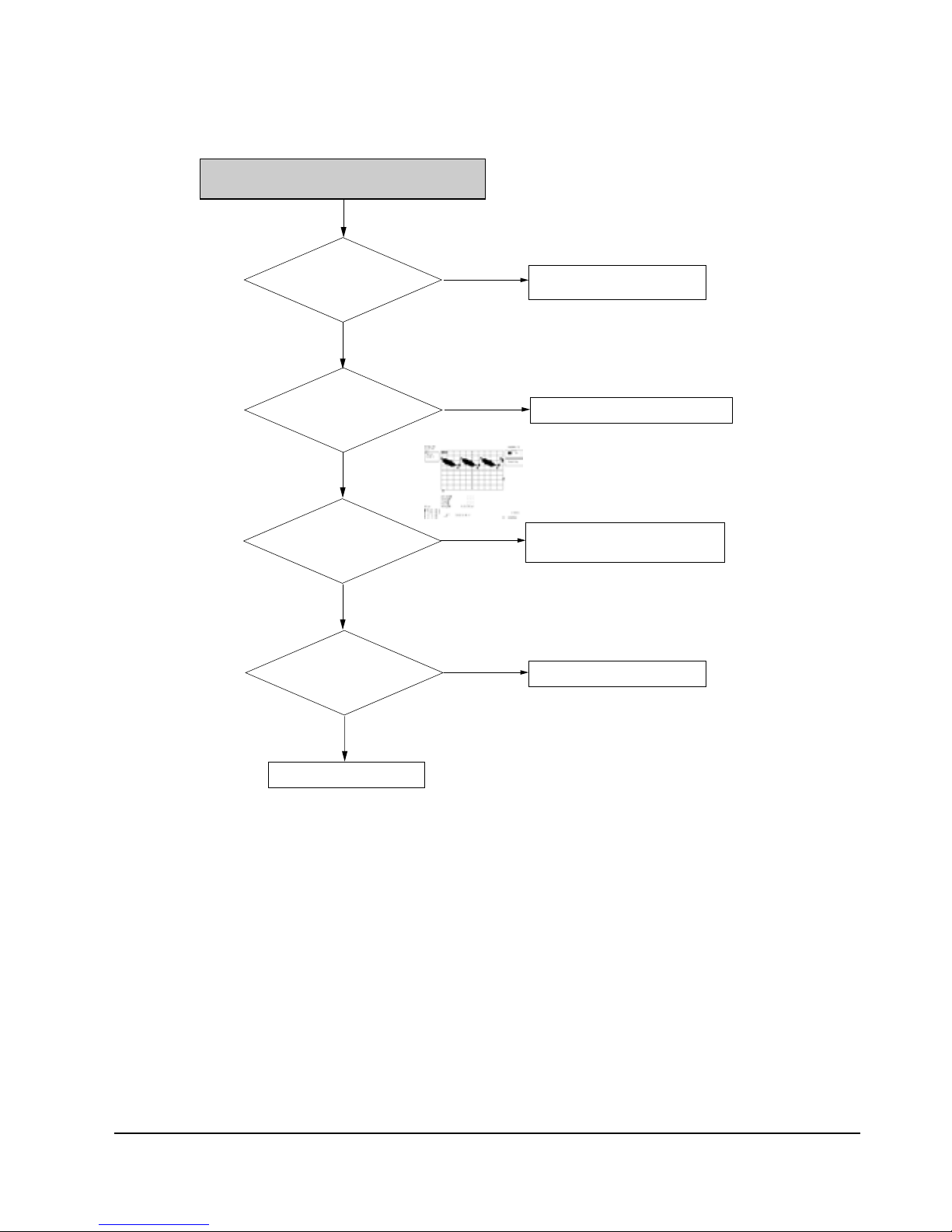

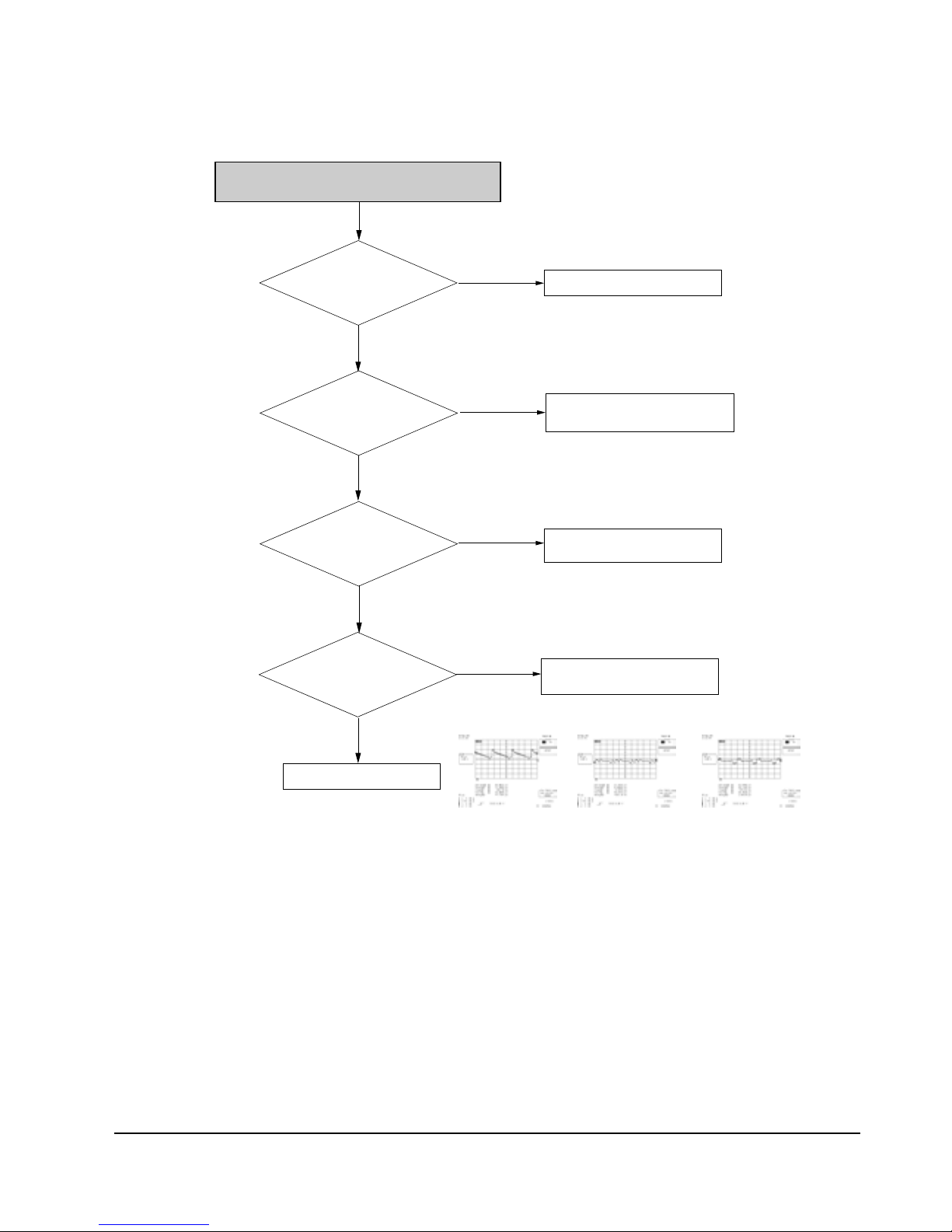

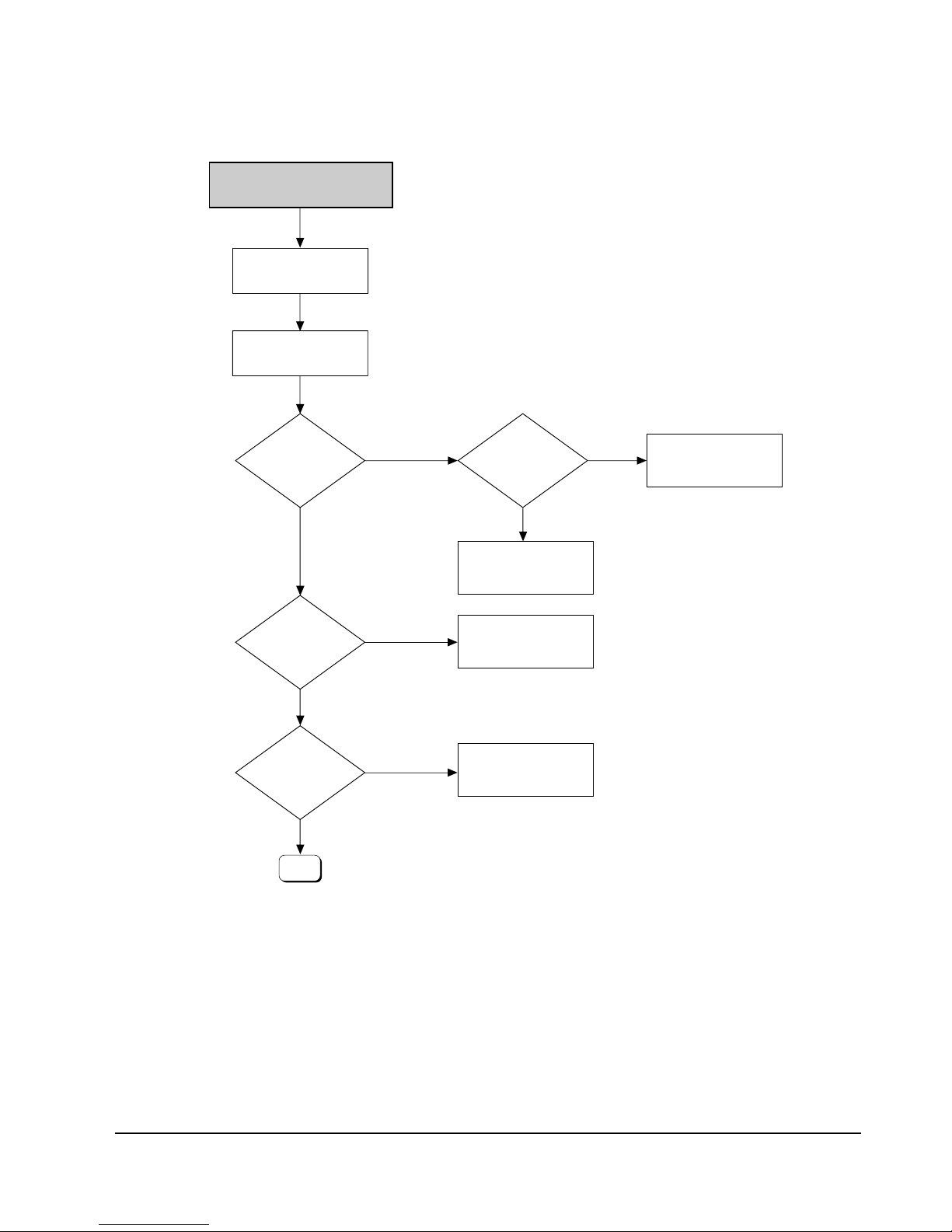

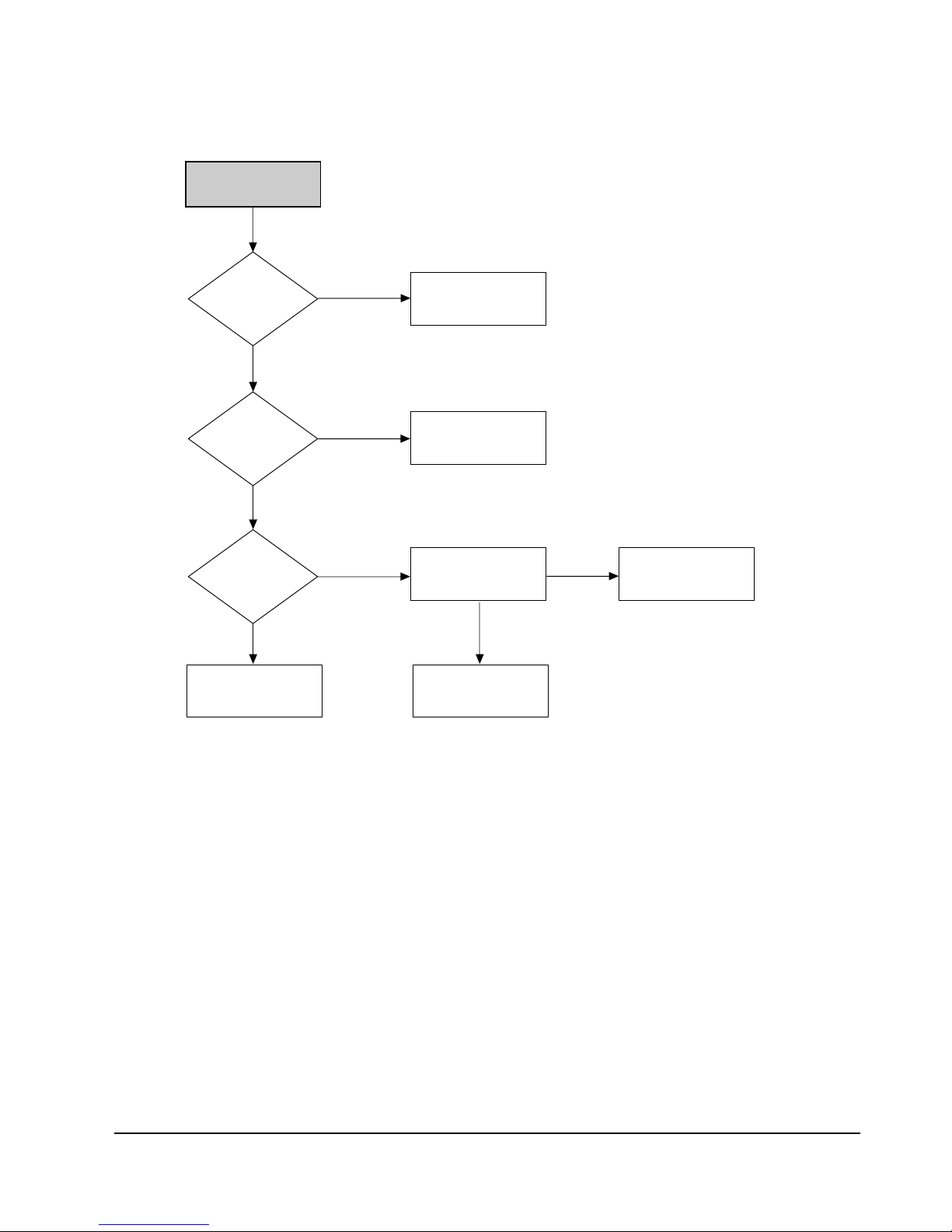

6. Trouble Shooting (6-1 ~ 6-36)

7. Exploded View and Parts List (7-1 ~ 7-8)

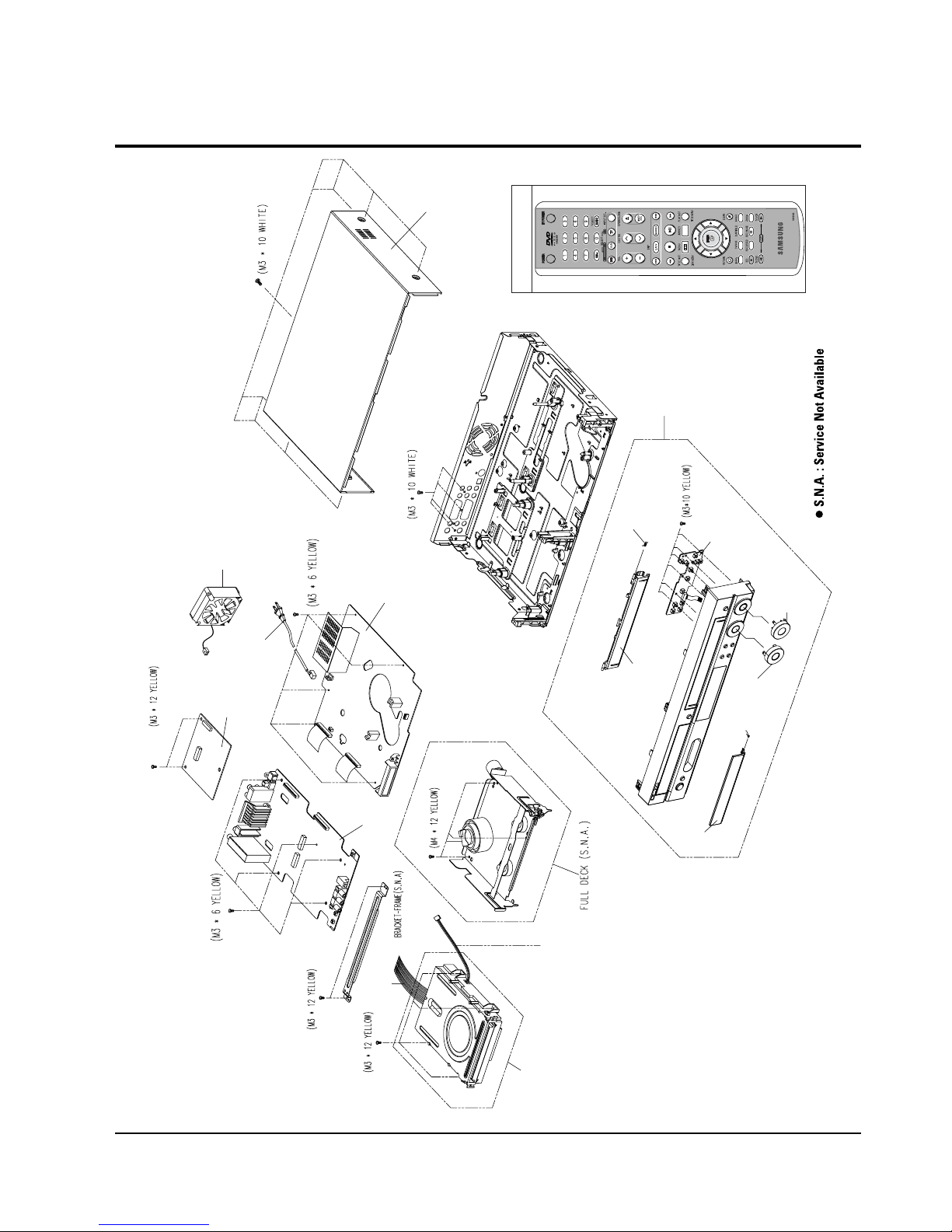

7-1 Cabinet Assembly (7-2)

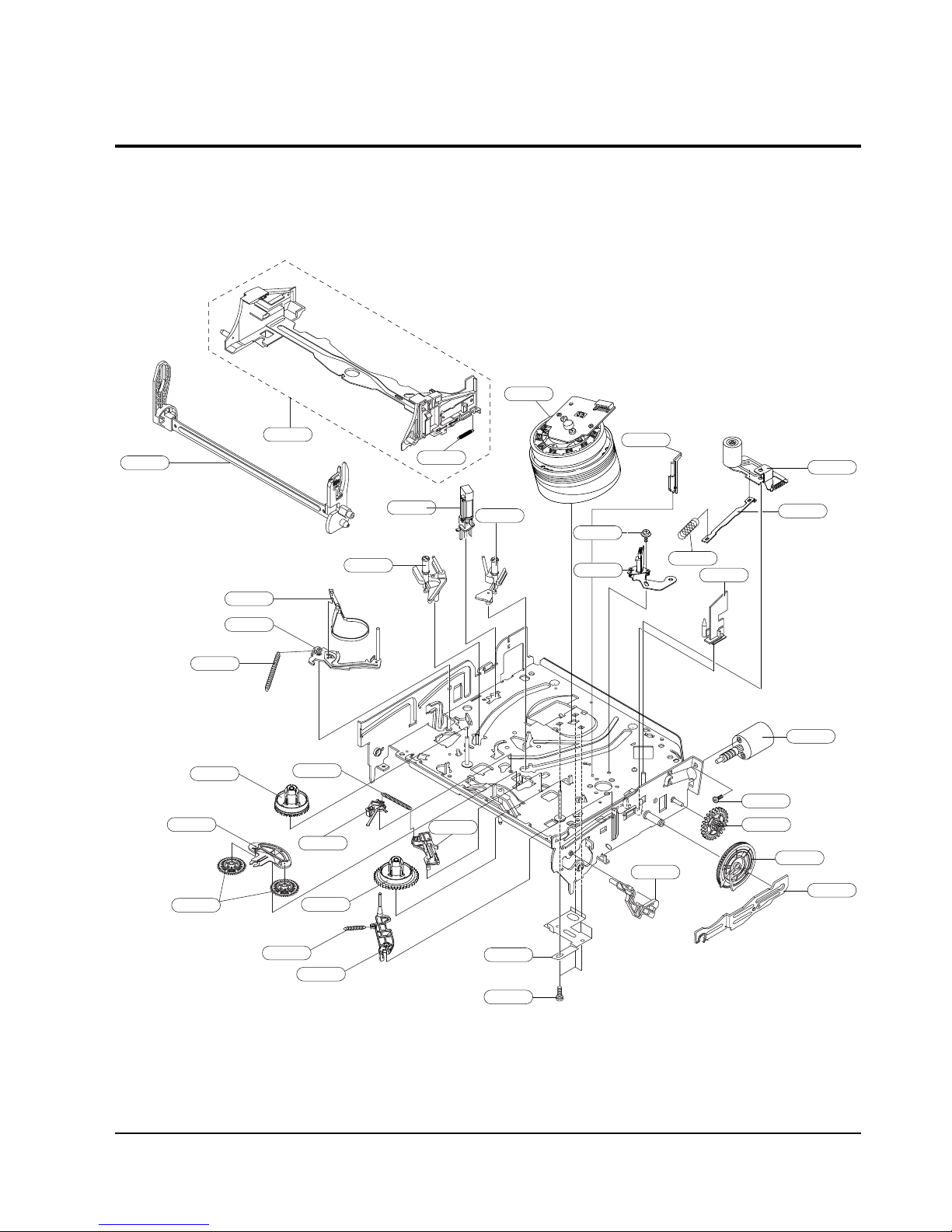

7-2 VCR Mechanical Parts (Top Side) (7-4)

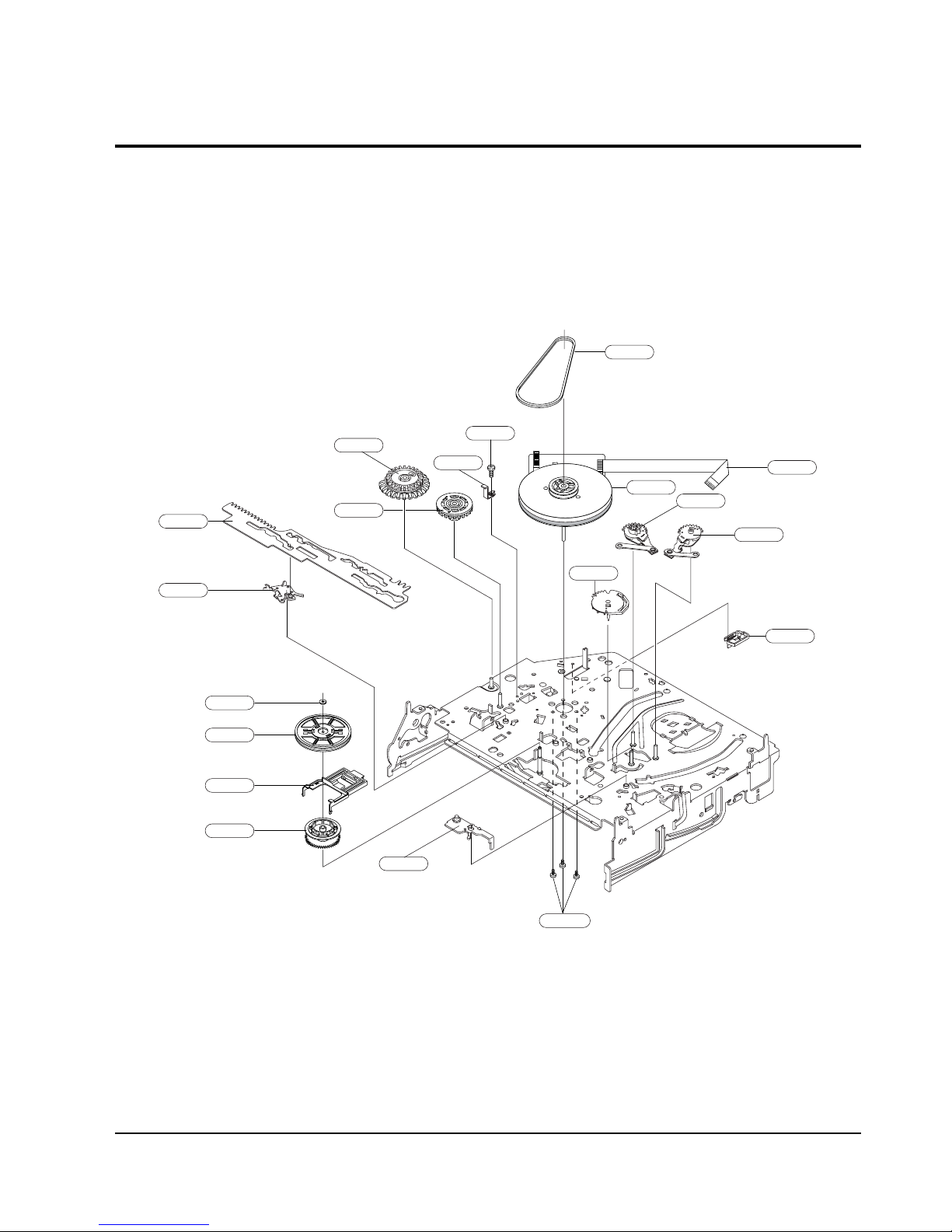

7-3 VCR Mechanical Parts (Bottom Side) (7-6)

8. Electrical Parts List (8-1 ~ 8-18)

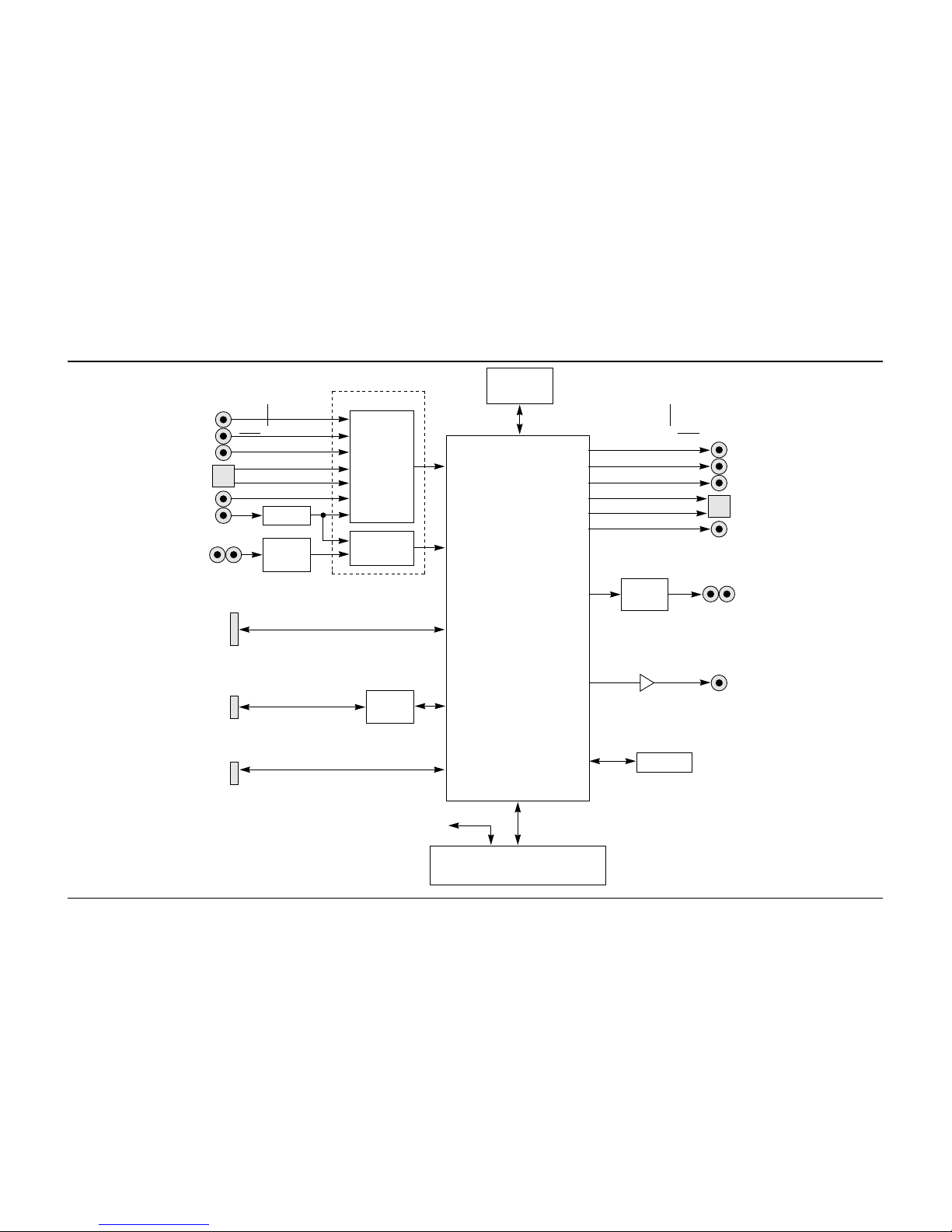

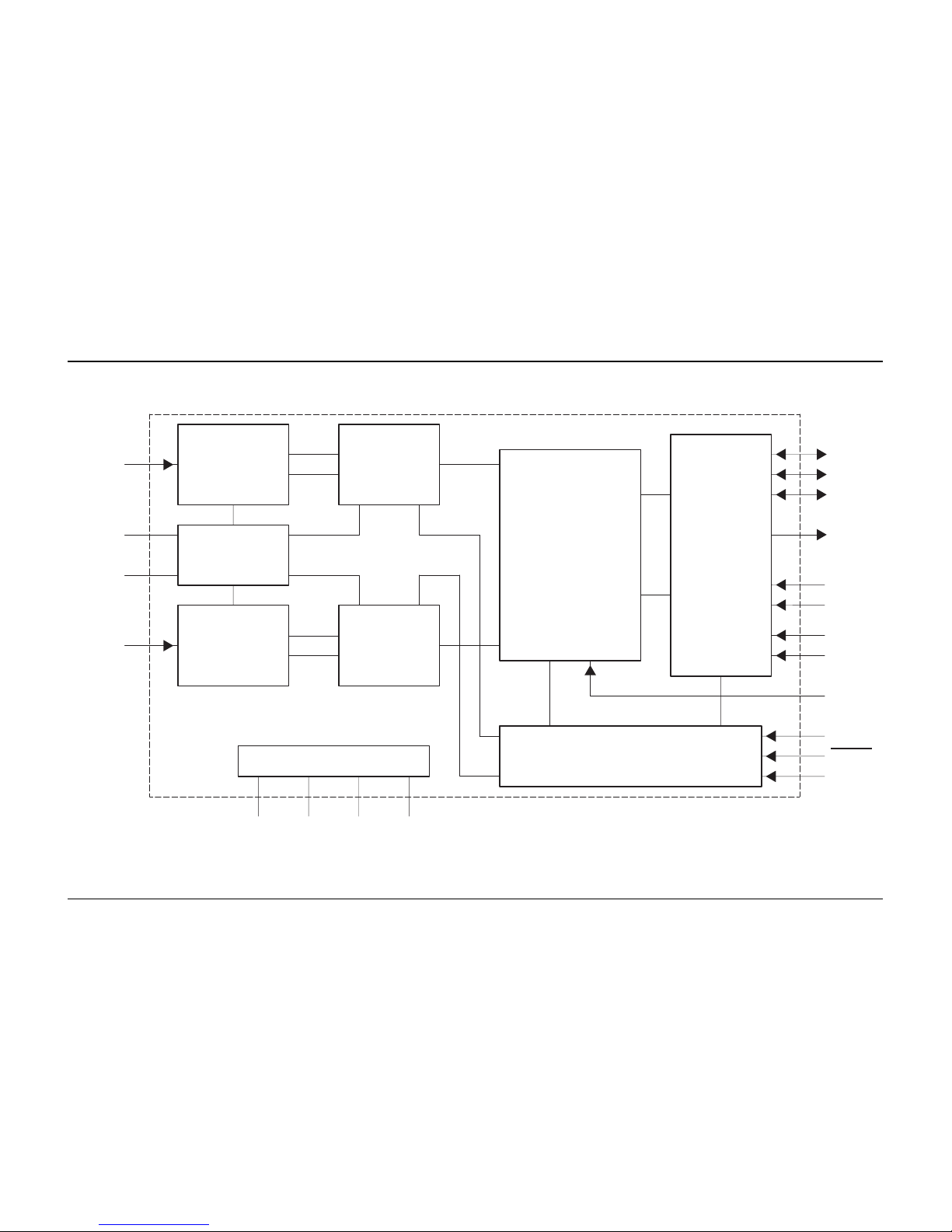

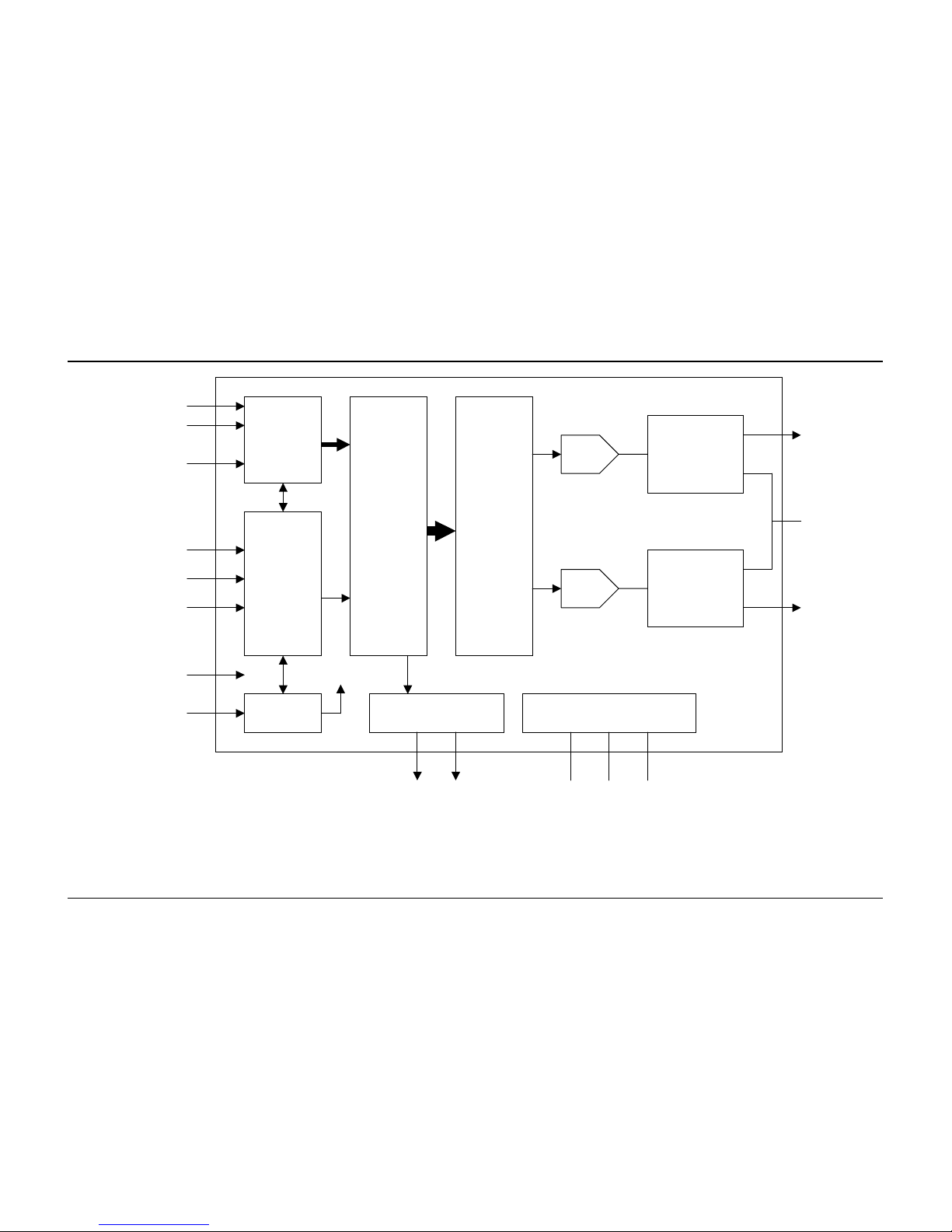

9. Block Diagrams (9-1 ~ 9-10)

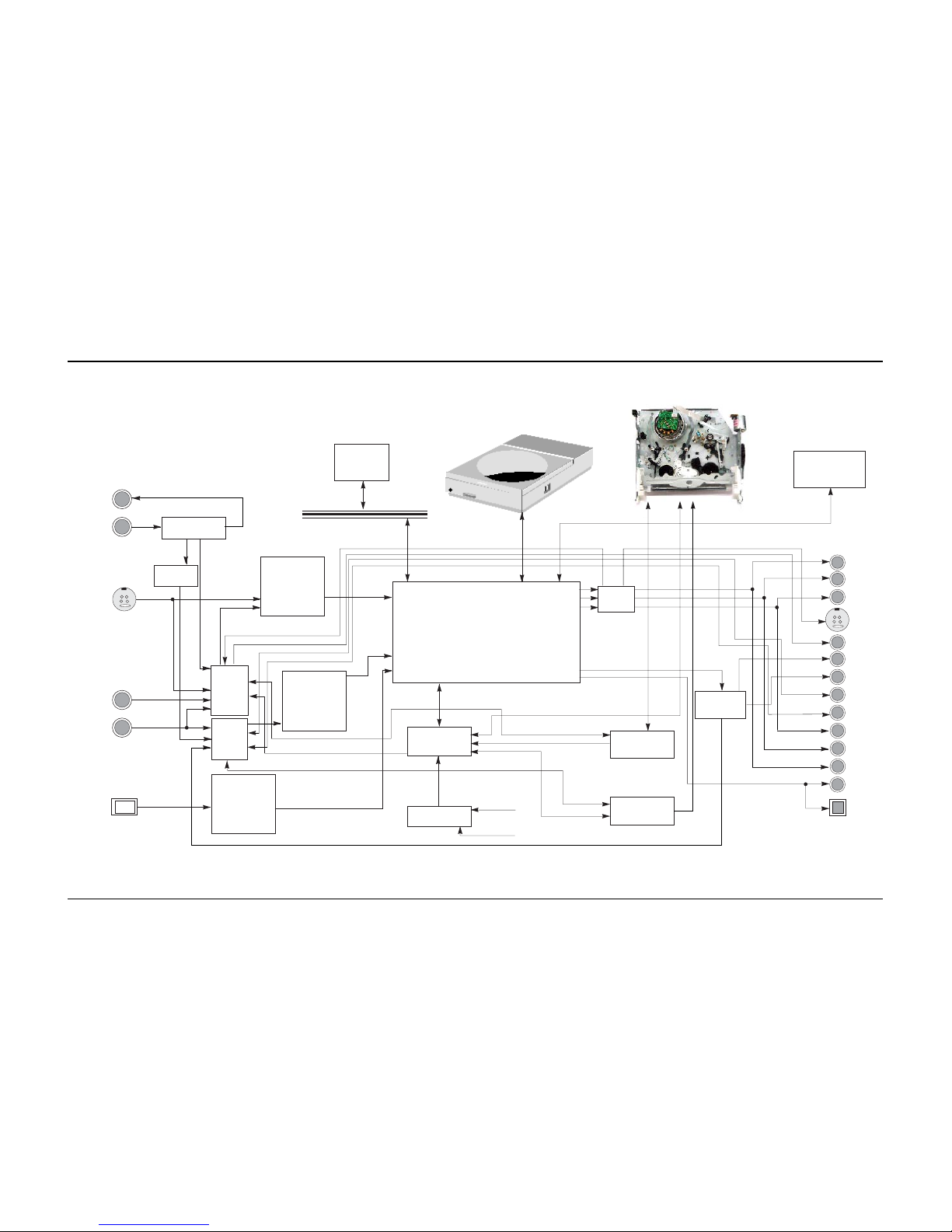

9-1 All Block Diagram (9-2)

9-2 AIC1(PCM1753) Audio DA Block Diagram (9-3)
9-3 AIC9(PCM1802) Audio AD Block Diagram (9-4)
9-4 DIC1(DMN8602) A/V Codec Block Diagram (9-5)
9-5 DIC3(29DL323) Flash memory Block Diagram (9-6)
9-6 IC801(TEA6425)Typical Application Block Diagram (9-7)
9-7 TIC1(TW9909) Video Decoder Block Diagram (9-8)
9-8 U23(M13S128168A) DRAM Block Diagram (9-9)

10. Wiring Diagram (10-1 ~ 10-2)

11. PCB Diagrams (11-1 ~ 11-8)

11-1 VCR Main PCB (11-2)
11-2 DVD Main PCB (11-4)
11-3 Jack PCB (11-6)
11-4 Function PCB (11-8)

12. Schematic Diagrams (12-1 ~ 12-20)

◆Block Identification of Main PCB (12-2)
12-1 S.M.P.S (VCR Main PCB) (12-3)
12-2 Power (VCR Main PCB) (12-4)
12-3 Secam (VCR Main PCB) (12-5)
12-4 A/V (VCR Main PCB) (12-6)
12-5 Hi-Fi (VCR Main PCB) (12-7)
12-6 F-Timer (VCR Main PCB) (12-8)
12-7 OSD (VCR Main PCB) (12-9)
12-8 System Control / Servo (VCR Main PCB) (12-10)
12-9 A/V Switching (Main PCB) (12-11)
12-10 A2/NICAM (Main PCB) (12-12)
12-11 I/O (Main PCB) (12-13)
12-12 Audio (Jack PCB) (12-14)
12-13 Video (Jack PCB) (12-15)
12-14 OSD/VPS/PDC (Jack PCB) (12-16)
12-15 Front (Jack PCB) (12-17)
12-16 Connection (Jack PCB) (12-18)
12-17 TM (Jack PCB) (12-19)

CONTENTS

13. Operating Instructions and Installation (13-1 ~ 13-74)

14. Circuit Operating Descriptions (14-1 ~ 14-50)

14-1 Power (14-1)
14-2 AV Codec (14-4)
14-3 SERVO (DVP Multi Drive) (14-7)
14-4 Video Input (14-9)
14-5 Video Output (14-11)
14-6 Audio (14-13)
14-7 Tuner (14-14)
14-8 IF (14-15)
14-9 VCR System Control (14-16)
14-10 VCR Servo (14-26)
14-11 VCR Video (14-30)
14-12 Hi-Fi Audio (14-38)
14-13 Linear Audio (14-43)
14-14 TM (14-46)
14-15 OSD (14-49)

15. Reference Information (15-1 ~ 15-38)

15-1 VCR Deck Operating Description (15-1)
15-2 Basic Configuration of Mechanism (15-1)
15-3 Main Mechanism and Functions (15-2)
15-4 Basis of the Mechanism (15-4)
15-5 System Control (15-9)
15-6 System Control and Mechanical Operations (15-10)
15-7 Introduction to DVD (15-26)
15-8 DVD-Video Fromat (15-28)
15-9 About IEEE-1394 (15-34)

CONTENTS

Product Specification

Samsung Electronics 2-1

Power requirements AC 220-240V, 50Hz
Power consumption 45Watts

General

Weight 5.3Kg
Dimensions 430(W) x 321(D) x 84in(H)
Operating temp +5°C to + 35°C
Other conditions Keep level when operating. Less than 75% operating humidity
Video input(Rear) Euro Scart socket : 1.0 V p-p (unbalanced) 75ohm

Input Audio input(Rear) Euro Scart socket : -8dBm, 47Kohm unbalanced

Front input RAC jack, DV, S-Video
Audio (DVD, VCR) RAC jack, Euro Scart socket, Audio L/R

Output

Audio (DVD, Only) Digital audio out OPTICAL COAXIAL
Video (DVD, VCR) RCA jack, Euro Scart socket(Composite, RGB), S-Video Out, COMPONENT
Tape format VHS type video tape
Colour system PAL
Tuning System SECAM-L, B/G

VCR Video S/N Above 43dB (standard recording)

Resolution Above 240 lines (standard recording)
Audio S/N Above 68dB (Hi-Fi), 39dB(Mono)
Audio frequency characteristics 20Hz-20KHz(Hi-Fi)
Picture compression format MPEG-II
Audio compression format Dolby AC-3 256kbps

DVD Recording Qallity XP(8Mbps), SP(4Mbps), LP(2Mbps), EP(1.2/0.8Mbps)

Video S/N Ratio Min. 50dB at standatd tecording
Audio S/N Ratio Min. 75dB
Audio frequency characteristics 20Hz ~ 20KHz

2. Product Specification

2-1 Product Specification

Product Specification

2-2 Samsung Electronics

2-2 Chassis Product Specification

Basic Basic

Samsung Samsung

DVD-VR300E/XEU DVD-VR320/XEU

UK UK

SEUK SEUK

English English

GB/FR/IT/ES/DE/NL GB/FR/IT/ES/DE/NL

SUWON SESK

CE , SEMKO CE , SEMKO

22

No/Quasi-PAL No/Quasi-PAL

No/No No/No

Yes/Yes Yes/Yes

No/No No/No
No/No No/No

PAL Recording & Playback PAL Recording & Playback

No/No No/No

PLAYBACK

Yes Yes
Yes Yes
Yes Yes
Yes Yes

-

­Yes Yes
Yes Yes
Yes Yes

-

­Yes Yes
NO yes
NO yes
Yes Yes

Yes(1000Folder) Yes(1000Folder)

NO yes
NO DIVX

-

-

RECORDING

DVD-RAM Yes Yes

DVD-R Yes Yes

DVD-RW Yes Yes

DVD+R - -

DVD+RW - -

CD-R/RW - -

HDD - ­Video MPEG-2 MPEG-2
Audio 2ch 2ch

DVD-RAM/-R(4.7GB)

X

P:1Hr,SP:2Hr,LP:4Hr,(EP:6Hr

X

P:1Hr,SP:2Hr,LP:4Hr,(EP:6Hr

)

DVD-RAM/-R(9.4GB)

X

P:2Hr,SP:4Hr,LP:6Hr,(EP:8Hr

X

P:2Hr,SP:4Hr,LP:6Hr,(EP:8Hr

)

HDD - -

Flexible Recording Yes Yes

Time Slip YES NO

RGB Recording NO YES

Recording Speed XP/SP/LP/EP XP/SP/LP/EP

Quick Dubbing - -

EZ Editing Yes Yes

Play List Yes Yes

YesDVD

TM

JPEG Photo Album Yes Yes

Recording Type

Recording Time

Recording Feature

MPEG4 (DivX 4/DivX 5)

DISC TEXT

Multi Memory Card

Recording Media

SVCD

MP3

JPEG (CD-R/RW, Kodac)

WMA

Super Audio CD

DVD-Audio

Copy Controled CD

VCD

DVD

GENERAL SYSTEM

Region Code

VIDEO (NTSC3.58) REC/PB

(NTSC4.43) REC/PB

(PAL) REC/PB
(PAL-M) REC/PB
(PAL-N) REC/PB

(SECAM) REC/PB

(MESECAM) REC/PB

General

GRADE

Brand

MODEL Code

Sales Area

Sales Company

Instruction Manual ( Language )

OSD/OSP - Language

Applied Regulation

Production

DVD-RAM

DVD-R

DVD-RW(VIDEO)

DVD-RW(VR)

DVD+R

DVD+RW

DVD-VIDEO

CD

CD-R/RW

--

-

-

-

-

-

-

Product Specification

Samsung Electronics 2-3

TIMER RECORDING

12 Events / 1 Month 12 Events / 1 Month

Yes Yes

NO NO

Quartz Quartz

Yes Yes

VideoPlus+ VideoPlus+

-

-

VPS/PDC VPS/PDC

VIDEO

10bit / 54MHz 10bit / 54MHz

Yes Yes

-

-

AUDIO

96kHz / 24bit 96kHz / 24bit

Yes Yes

-

-

-

-

TUNER

Intelligent Auto Set-up Intelligent Auto Set-up

PAL - I PAL - I

VHF / UHF / CATV VHF / UHF / CATV

E21~E69 E21~E69

60CH 60CH

-

A2 / Nicam A2 / Nicam

99 99

YES YES

FEATURES

Yes Yes

-

-

Yes(BLACK) Yes(BLACK)

-

-

-

-

Yes(x128) Yes(x128)

-

-

Yes(10Disc) Yes(10Disc)

Yes(x2,x4) Yes(x2,x4)

1Disc 1Disc

Yes Yes

-

-

Custom Parental Control

Child Door lock for DVD Tray

EZ View

Instant Replay

Bookmark

Zoom

Resume

Layer Indicator

1.5x Audio during Scan Forward
High Speed Scan Search

Instant Advance

Stereo System ( A2 / Nicam )

Station Capacity (Nber of Preset)

Auto Channel Sort & Mapping GŸ Intelligent Auto

Set-up

DVD

Control OSD Menu

Quick Set Up

Start Up Screen

Back Ground Graphic

Screen Saver

Audio/Video Bit Rate Indicator

CH Coverage

RF-out CH & System

Default RF Channel

RF-out channel Auto seeking

Super Audio CD Multi ch Output

Virtual Surround Mode

Tuning System

Broadcast System

Audio DAC

DTS Digital Output

Dolby Digital 5.1ch Decode

DTS 5.1ch Decode

Video DAC

Progressive

Upscaling(720P/1080i)

Custom AV Mode

G-Code/Video+/ShowView

EPG (Gemstar)

Auto speed Timer Recording

VPS or PDC Function

OTR

Backup Time

Clock Type

Auto Clock Set

No. of Events

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Basic Basic

Samsung Samsung

DVD-VR300E/XEU DVD-VR320/XEU

UK UK

SEUK SEUK

English English

GB/FR/IT/ES/DE/NL GB/FR/IT/ES/DE/NL

SUWON SESK

CE , SEMKO CE , SEMKO

General

GRADE

Brand

MODEL Code

Sales Area

Sales Company

Instruction Manual ( Language )

OSD/OSP - Language

Applied Regulation

Production

Product Specification

2-4 Samsung Electronics

DESIGN

DVD-VR300 DVD-VR320

Silver Silver

LED LED

REMOTE

VR6353-53KEY VR6353-53KEY

AAA AAA

Silver Silver

English English

Yes Yes
Yes Yes

-

Yes (SCART)x1 Yes (SCART)x1
Yes (SCART)x1 Yes (SCART)x1

Yes x1 Yes x1

­Yes x1 Yes x1
Yes x1 Yes x1

Yes Yes

Yes(SCART1) Yes(SCART1)

Yes Yes
Yes Yes
Yes Yes

YES NO

-

Yes Yes

NO YES

-

-

-

-

-

-

HDMI Output

USB

PC-Card Slot

Component Video Output

D Terminal (for DVD)

Control-S In

10in2 Memory Slot

S-Video Output(on the Rear)

S-Video Input(on the Front)
S-Video Input(on the Rear)

DV Input (on the Front)

Aerial In / Ant.-Out (on the Rear)

RGB Output 21 Pin

Coaxial Digital Audio Output

Optical Digital Audio Output

Video/Audio In RCA Jack (on the Front)

Video/Audio In RCA Jack (on the Rear)

Video/Audio Out RCA Jack (on the Rear)

Additional Rear Audio Output

Ilumi. Remote

TERMINALS ( IN / OUT )

Video / Audio 21 Pin (on the Rear)

Sat. 21 Pin (on the Rear) with LINE Through (STB

Through)

Language

Gemstar Button / Logo

10key (for Ch Select)

Multi-Brand TV Control

Common

Front Panel
Body Color

Display of Panel Front

Type Name

Battery Type

Color

-

-

-

-

-

-

-

-

-

-

-

Basic Basic

Samsung Samsung

DVD-VR300E/XEU DVD-VR320/XEU

UK UK

SEUK SEUK

English English

GB/FR/IT/ES/DE/NL GB/FR/IT/ES/DE/NL

SUWON SESK

CE , SEMKO CE , SEMKO

General

GRADE

Brand

MODEL Code

Sales Area

Sales Company

Instruction Manual ( Language )

OSD/OSP - Language

Applied Regulation

Production

Product Specification

Samsung Electronics 2-5

ACCESSORIES

UK AP-3 UK AP-3

Yes Yes
Yes Yes

-

Yes Yes

-

-

Yes Yes
Yes Yes
Yes Yes

-

-

-

CARTON BOX

534*190*434 534*190*434

DIMENSION ETC.

430x85x333 430*84*321

5.3 kg 4.8 kg

6.9KG

7.4 kg

45W 45W

220-240V~50 Hz 220-240V~50 Hz

OTHERS

YES YES

-

-

-

-

-

(E-180)SP:3Hr/LP:9Hr (E-180)SP:3Hr/LP:9Hr

SP/LP SP/LP

Yes Yes

YES YES

ENDLESS ENDLESS

Country Origin (Body)

Country Origin (Carton)

NT3.58 PB

VCR COMMON (VHS)

Country Origin (Remote)

POP on the TOP Cover

Copy

Weight ( kg ) <Net>

Weight ( kg ) <Gross>

Power Consumption ON/STANDBY

Power Requirement

HDMI Cable
Bundle Disc

Packing Box (Offset Carton)

Dimension (W*H*D mm) tentative Depth/Height

<Net>

RCA Audio/Video Cable

Instruction Manual

Warranty Card

Customer Inquiry Card

RCA Video Cable

Plug Shap

Remote Controller

Batteries

Euro Scart Cable(21pin)

RF Cable

RCA Audio Cable

Common

COMBO

ONLY

SQPB

NT4.43 PB

Recoding Speed

IPC (VCR)

SECAM PB

MESECAM PB

Auto speed Timer Recording

AUDIO DUBBING

Recoding Time

BACKUP TIME

-

-

-

-

-

-

-

-

-

-

-

-

-

Basic Basic

Samsung Samsung

DVD-VR300E/XEU DVD-VR320/XEU

UK UK

SEUK SEUK

English English

GB/FR/IT/ES/DE/NL GB/FR/IT/ES/DE/NL

SUWON SESK

CE , SEMKO CE , SEMKO

General

GRADE

Brand

MODEL Code

Sales Area

Sales Company

Instruction Manual ( Language )

OSD/OSP - Language

Applied Regulation

Production

Product Specification

2-6 Samsung Electronics

2-3 Option Product Specification

Remote

Control

Batteries for

Remote

Control

Audio & Video

Cable

Owner



s

Instructions

RF Cable

Remark

Parts No

Description

Description Fig

AK59-00034N

AC43-12002H

AC39-22017Z
AC39-42001U

AC39-00017A

S.N.A

AK68-00671B

Model Standard

of DVD-VR320/XEU

Model Standard

of DVD-VR320/XEU

Model Standard

of DVD-VR320/XEU

Model Standard

of DVD-VR320/XEU

Model Standard

of DVD-VR320/XEU

Samsung Electronics 5-1

5. Disassembly and Reassembly

5-1 Cabinet and PCB

5-1-1 Cabinet Top Removal

REMOVE 7 SCREWS

Œ

Fig. 5-1 Cabinet Top Removal

5-1-2 Ass’y Bottom Cover Removal

ΠRELEASE 3 HOOKS

´ REMOVE 9 SCREWS

(Bottom View)

Fig. 5-2 Ass’y Bottom Cover Removal

´ RELEASE 3 HOOKS

(Bottom View)

ΠRELEASE 3 HOOKS

(Top View)

Fig. 5-3 Ass’y Front Panel Removal(Top View)

5-1-3 Ass’y Front Panel Removal

Fig. 5-4 Ass’y Front Panel Removal(Bottom View)

5-2

Disassembly and Reassembly

Samsung Electronics

5-1-4 Chassis Removal

VCR MAIN PCB

VCR DECK

DVD DECK

DVD MAIN PCB

JACK PCB

ΠREMOVE 2 SCREWS

´ REMOVE 4 SCREWS

∏ REMOVE 5 SCREWS

ˇ REMOVE 4 SCREWS

¨ REMOVE 2 SCREWS

ˆ REMOVE 5 SCREWS

Ø REMOVE 3 SCREWS

Fig. 5-5 Chassis Removal

5-1-5 VCR Main PCB Removal

ΠREMOVE 4 SCREWS

MODE SWITCH

When installing the ass'y full deck on the Main PCB,
be sure to align the assembly point of mode switch.

ASSEMBLY POINT

Fig. 5-6 VCR Main PCB Removal

Disassembly and Reassembly

5-3Samsung Electronics

5-2 Circuit Board Locations

JACK PCB

VHS MAIN PCB

DVD MAIN PCB

Fig. 5-7 Circuit Board Locations

5-4

Disassembly and Reassembly

Samsung Electronics

5-3 VCR Deck Parts Locations

5-3-1 Top View

ˆ

Ø

ˇ

¨

Œ

´

Fig. 5-8 Top parts Location-1

ΠGEAR FL CAM
´ MOTOR LOADING ASS’Y
ˇ LEVER FL ARM ASS’Y
¨ HOLDER FL CASSETTE ASS’Y
ˆ LEVER FL DOOR
Ø SLIDER FL DRIVE

Disassembly and Reassembly

5-5Samsung Electronics

Œ

´

Ø

∏”’ Ô˝

Ò

˝

ˇ¨

ˆ

Fig. 5-9 Top Parts Location-2

ΠFE HEAD
´ CYLINDER ASS’Y
ˇ ACE HEAD ASS’Y
¨ LEVER UNIT PINCH ASS’Y
ˆ LEVER #9 GUIDE ASS’Y
Ø LEVER TENSION ASS’Y
∏ BAND BRAKE ASS’Y

” DISK S REEL
’ LEVER S BRAKE ASS’Y
˝ GEAR IDLE
Ô LEVER IDLE
 LEVER T BRAKE ASS’Y
Ò DISK T REEL

5-6

Disassembly and Reassembly

Samsung Electronics

5-3-2 Bottom View

Œ

´ˇ

¨

ˆ

Ø

∏

”

’

˝

Fig. 5-10 Bottom Parts Location

ΠGEAR JOINT 1
´ GEAR JOINT 2
ˇ BRAKET GEAR
¨ MOTOR CAPSTAN ASS’Y
ˆ LEVER T LOAD ASS’Y
Ø GEAR LOADING DRIVE
∏ LEVER S LOAD ASS’Y
” HOLDER CLUTCH ASS’Y
’ BELT PULLEY
˝ SLIDER CAM

Disassembly and Reassembly

5-7Samsung Electronics

5-4 VCR Deck

PIN

HOLE "A"

ΠLEVER FL ARM ASS'Y

"C"

"B"

5-4-1 Holder FL Cassette Ass’y Removal

1) Pull the Holder FL Cassette Ass'y Πto the eject

position.

2) Pull the Holder FL Cassette Ass'y Πas grasping
the Holder FL Cassette Ass'y Πand Lever FL
Cassette-R ´ in the same time to release hooking

from Main Base until the Boss [A] of Holder FL
Cassette Ass'y Πis taken out from the Rail [B].

3) Lift the Holder FL Cassette Ass'y Œ, in this time,
you have to grasp the Lever FL Cassette-R ´

Continuously until the Holder FL Cassette Ass'y
Πis taken out completely.

Note : Be sure to insert Lever FL Cassette-R ´ in the
direction of “A” to prevent separation and breakage

of the Lever FL Cassette-R ´ at disassembling and
reassembling.

RAIL [B]

BOSS [A]

´ LEVER FL CASSETTEE -R

"A"

ΠHOLDER FL
CASSETTEE ASS'Y

Fig. 5-11 Holder FL Cassette Ass’y Removal

5-4-2 Lever FL Arm Ass’y Removal

1) Push the hole “A” in the direction of arrow “B”
use the pin.(about Dia. 2.5)

2) Pull out the Lever FL Arm Ass'y Πfrom the Boss
of Main Base.

3) Remove the Lever FL Arm Ass'y Πin the direction
of arrow “C”.

Fig. 5-12 Lever FL Arm Ass’y Removal

5-8

Disassembly and Reassembly

Samsung Electronics

ΠGEAR FL CAM

GEAR WORM WHEEL

POST

TIMING POINT

Fig. 5-15 Gear FL Cam, Gear Worm

5-4-4 Slider FL Drive, Gear FL Cam Removal

1) Pull the Slider FL Drive Πto the front direction.

2) Remove the Slider FL Drive Πin the direction of

arrow. (Refer to Fig. 5-13)

3) Remove the Gear FL cam ´.

Note : When reinstalling be sure to reassemble Slider
FL drive Πafter you insert the Boss of Lever FL
ARM-R in Groove of Slider Fl drive Œ.

Assembly : Align the Gear FL Cam Πwith the Gear
worm wheel Post as shown drawing.
(Refer to Timing point)

ΠSLIDER FL DRIVE

´ GEAR FL CAM

Fig. 5-14 Slider FL Drive Removal

5-4-3 Lever FL Door Removal

1) Release the Hook ´ and Remove the Lever FL
Door Œ in the direction of arrow “A”.

Fig. 5-13 Lever FL Door Removal

"B"

"C"

"A"

´ LEVER FL DOOR

ΠSLIDER FL DRIVE

Disassembly and Reassembly

5-9Samsung Electronics

5-4-5 Gear Worm Wheel Removal

1) Remove the Gear Worm wheel Œ.

ΠGEAR WORM WHEEL

Fig. 5-16 Gear Worm Wheel Removal

5-4-6 Cable Flat Removal

1) Remove the Drum connecting part of Cable Flat Œ
from Connector Waffer ´.

2) Remove the Loading Motor connecting part of
Cable Flat Œ from Connector Waffer ˇ.

ˇ CONNECTOR
WAFER

´ CONNECTOR WAFER

ΠCABLE FLAT

Fig. 5-17 Cable Flat Removal

5-10

Disassembly and Reassembly

Samsung Electronics

5-4-8 Bracket Gear, Gear Joint 2, 1 Removal

1) Remove the SCREW Œ.

2) Remove the Bracket Gear ´.

3) Remove the Gear Joint 2 ˇ.

4) Remove the Gear Joint 1 ¨.

Assembly :

1) Be sure to align dot mark of Gear Joint 1 Œwith

dot mark of Gear Joint 2 ´ as shown Fig 5-20.
(Refer to Timing point1)

2) Confirm the Timing Point 2 of the Gear Joint 2 ´
and Slider Cam ˇ.

ΠSCREW
´ BRAKET GEAR

¨ GEAR JOINT 1

ˇ GEAR JOINT 2

Fig. 5-19 Bracket Gear, Gear Joint 1,2 Removal

ΠGEAR JOINT1

´ GEAR JOINT2

ˇ SLIDER CAM

TIMING POINT 1

TIMING POINT 2

Fig. 5-20 Gear Joint 1,2 Assembly

5-4-7 Motor Loading Ass’y Removal

1) Remove the screw Œ.

2) Remove the Motor Loading Ass’y ´.

´ MOTOR LOADING ASS`Y

ΠSCREW

Fig. 5-18 Motor Loading Ass’y Removal

Disassembly and Reassembly

5-11Samsung Electronics

5-4-10 Gear Loading Drive, Slider Cam,

Lever Load S, T Ass’y Assembly

1) When reinstalling, be sure to align dot of Lever
Load T Ass'y Œwith dot of Lever Load S Ass'y ´

as shown in drawing, (Refer to Timing Point 1).

2) Insert the Pin A,B,C,D into the Slider Cam ˇhole,

3) Be sure to align dot of Lever Load T Πand dot of
Gear Loading Drive ¨, (Refer to Timing Point 2).

4) Aline dot of Gear Loading drive ¨ with mark of
Slider Cam ˇ as shown in drawing(Refer to

Timing Point 3).

´ LEVER LOAD S

Œ

LEVER LOAD T

PIN A

PIN C

PIN B

PIN D

ˇ SLIDER CAM

TIMING POINT 2

TIMING POINT 1

TIMING POINT 3

Fig. 5-22 Gear Loading Drive, Slider Cam,

Lever Load S, T Ass’y Assembly

5-4-9 Gear Loading Drive, Slider Cam,

Lever Load S, T Ass’y Removal

1) Remove the Belt Pulley. (Refer to Fig. 5-38)

2) Remove the Gear Loading Drive Πafter releasing

Hook [A] in the direction arrow as shown in detail
drawing.

3) Remove the Slider Cam ´.

4) Remove the Lever Load S Ass’y ˇ & Lever Load T
Ass’y ¨.

HOOK(A)

ΠGEAR LOADING DRIVE

ˇ LEVER LOAD S ASS'Y

¨ LEVER LOAD T ASS'Y

´ SLIDE CAM

Fig. 5-21 Gear Loading Drive, Slider Cam,

Lever T, S Load Ass’y Removal

5-12

Disassembly and Reassembly

Samsung Electronics

5-4-12 Lever Tension Ass’y,

Band Brake Ass’y Removal

1) Remove the Lever Brake S Ass'y (Refer to Fig 5-25).

2) Remove the Spring Tension Lever Œ.

3) Rotate stopper of Main Base in the direction of
arrow “A”.

4) Lift the Lever Tension Ass'y ´ & Band brake
Ass'y ˇ.

Note :

1) When replacing the Lever Tension Ass'y ´, be sure
to apply Grease on the post,

2) Take care not to touch stain on the felt side, and not
to be folder and broken Band brake Ass'y

3) After Lever Tension Ass'y seated, Rotate stopper of
Main Base to the Mark[B].

STOPPER

MARK[B]

"A"

ΠSPRING TENTION LEVER

´ LEVER TENTION ASS`Y

ˇ BAND BRAKE ASS`Y

Fig. 5-24 Lever Tension Ass’y,

Band Brake Ass’y Removal

5-4-11 Lever Pinch Drive,

Lever Tension Drive Removal

1) Remove the Lever Pinch Drive Œ, Lever Tension

Drive ´.

ΠLEVER PINCH DRIVE

´ LEVER TENSION DRIVE

Fig. 5-23 Lever Pinch Drive,

Lever Tension Drive Removal

Disassembly and Reassembly

5-13Samsung Electronics

5-4-14 Gear Idle Ass’y Removal

1) Push the Lever Idle Πin the direction of arrow
“A”, “B”.

2) Lift the Lever Idle Œ.

Assembly :

1) Apply oil in two Bosses of Lever Idle Œ.

2) Assemble the Gear Idle ´ with the Lever Idle Œ.

Note : When replacing the Gear Idle ´, be sure to
add oil in the boss of Lever Idle Œ.

´ GEAR IDLE

´ GEAR IDLE

ΠLEVER IDLE

"A"

HOOK "C"

"B"

Fig. 5-26 Gear Idle Ass’y Removal

5-4

-13 Lever Brake S, T Ass’y

Removal

1) Release the Hook [A] and the Hook [B], [C] in the
direction of arrow as shown in Fig 5-25.

2) Lift the Lever S, T Brake Ass'y Œ, ´ with spring
brake ˇ.

Assembly :

1)Assembly the Lever S Brake Ass'y Πon the Main

Base.

2)Assembly the Lever T Brake Ass'y ´ with spring

brake ˇ.

Note : Take extreme care not to be folded and
transformed Spring Brake at removing or reinstalling.

HOOK(A)

ΠLEVER S BRAKE ASS'Y

´ LEVER T BRAKE ASS`Y

ˇ SPRING BRAKE

HOOK(B)

HOOK(C)

Fig. 5-25 Lever Brake S, T Ass’y Removal

5-14

Disassembly and Reassembly

Samsung Electronics

5-4-16 Holder Clutch Ass’y Removal

1) Remove the Washer Slit Œ.

2) Lift the Holder Clutch Ass’y ´.

Note : When you reinstall Holder Clutch Ass'y

1) Check the condition of spring as shown in detail A.

2) Don't push Holder Clutch Ass'y down with exces­sive force Just insert Holder Clutch Ass'y into post
center with dead force and Rotate it smoothly.
Be sure to confirm that spring is in the slit of Gear
Center Ass'y as shown in detail B.

ΠDISK S REEL

´ DISK T REEL

ΠWASHER SLIT

´ HOLDER CLUTCH ASS`Y

DETAIL A

<BAD> SPRING <GOOD>

<BAD>

SPRING

<GOOD>

DETAIL B

Fig. 5-27 Disk S, T Reel Removal

Fig. 5-28 Holder Clutch Ass’y Removal

5-4-15 Disk S, T Reel Removal

1) Lift the Disk S, T Reel Œ, ´.

Disassembly and Reassembly

5-15Samsung Electronics

ΠGUIDE CASSETTE DOOR

HOOK [A]

Fig. 5-31 Guide Cassette Door Removal

4-4-18 Guide Cassette Door Removal

1) Lift the Hook [A].

2) Rotate the Guide Cassette Door Πin the direction

of arrow.

Note : After reinstalling the Guide Cassette Door Œ
sure the Hook [A].

5-4-17 Lever Up Down Ass’y, Gear Center

Ass’y Removal

1)

Remove the 2 hooks in the direction of arrow as
shown Fig. 5-28 and lift the Lever Up Down Ass’y

Œ.

2) Lift the Gear Center Ass’y ´.

Assembly :

1) Insert the Lever Up Down Ass'y Πin the rectan-

gular holes on Main Base as shown in Fig 5-30.

2) Lift the Lever Up Down Ass'y Œ about 35°.

(Refer to Fig 5-30)

3) Insert Ring of the Gear Center Ass'y ´ in the
Guide of the Lever Up Down Ass'y Œ.

4) Insert the Gear Center Ass'y ´ in the post on
Main Base.

5) Push down the Lever Up Down Ass'y Πfor
locking of the Hook.

Note :

1) Take care not to separate and sentence does not
mark sense.

2) Be sure to confirm that Ring of the Gear Center
Ass'y ´ is in the Guide of the Lever Up Down
Ass'y Πafter finishing assembly of Lever Up
Down Ass'y Œ and Gear Center Ass'y ´.

ΠLEVER UP DOWN ASS`Y

´ GEAR CENTER ASS`Y

MAIN BASE

LEVER UP DOWN ASS'Y

GUIDE

GEAR CENTER ASS'Y

RING
GEAR

POST

HOOK

35

Fig. 5-29 Lever Up Down Ass’y Removal

Fig. 5-30 Lever Up Down Ass’y Removal

5-16

Disassembly and Reassembly

Samsung Electronics

5-4-19 Lever Unit Pinch Ass’y, Plate Joint,

Spring Pinch Drive Removal

1) Lift the Unit Pinch Ass’y Œ.

2) Remove the Plate Joint ´ from Lever Pinch Drive.

3) Remove the Spring Pinch Drive ˇ.

Note :

1) Take extreme care not to touch the grease on the
Roller Pinch.

2) When reinstalling, be sure to apply grease on the
post pinch roller.

ˇ SPRING PINCH DRIVE

ΠLEVER UNIT PINCH ASS`Y

´ PLATE JOINT

Fig. 5-32 Lever Unit Pinch Ass’y, Plate Joint,

Spring Pinch Drive Removal

5-4-20 Lever #9 Guide Ass’y Removal

1) Remove the Spring #9 Guide Œ.

2) Lift the Spring #9 Guide Ass’y ´ in the direction

of arrow “A”.

Note :

1) Take extreme care not to get grease on the tape
Guide Post.

2) After reinstalling, check the bottom side of the Post
#9 Guide to the top side of Main Base.

ΠSPRING #9 GUIDE

A

´ LEVER #9 GUIDE ASS`Y

"B"

Fig. 5-33 Lever #9 Guide Ass’y Removal

Disassembly and Reassembly

5-17Samsung Electronics

5-4-22 ACE Head Removal

1) Pull out the FPC from connector of ACE Head

Ass’y ´.

2) Remove the screw Œ.

3) Lift the ACE Head Ass’y ´.

ΠSCREW

´ HEAD ACE ASS`Y

Fig. 5-35 ACE Head Removal

5-4-21 FE Head Removal

1) Remove the screw Œ.

2) Lift the FE Head ´.

ΠFE HEAD

Fig. 5-34 FE Head Removal

5-18

Disassembly and Reassembly

Samsung Electronics

5-4-23 Slider S, T Ass’y Removal

1) Move the Slider S, T Ass’y Œ, ´ to slot, and then

lift it to remove. (Refer to arrow)

ΠSLIDER S ASS`Y

´ SLIDER T ASS`Y

Fig. 5-36 Slider S, T Ass’y Removal

5-4-24

Plate Ground Deck, Cylinder Ass’y Removal

1) Remove the 3 Screws Œ.

2) Lift the Plate Ground Deck ´.

3) Lift the Cylinder Ass’y ˇ.

Assembly :

1) Match the 3 holes in the bottom of Cylinder ass'y
ˇ to the 3 holes of Main Base as attending not to
drop or knock the Cylinder ass'y ˇ.

2) Tighten the 1 Screw Œ.

3) Match the Plate Ground Deck ´ to the Hole of
Base Main.

4) Tighten the other 2 Screws Œ.

Note :

1) Take care not to touch the Cylinder Ass'y ˇ and
the tape guide post at reinstalling.

2) When reinstalling, Don't push down too much on
Screw Driver.

Π3 SCREWS

´ PLATE GROUND DECK

ˇ CYLINDER ASS'Y

Fig. 5-37 Plate Ground Deck, Cylinder Ass’y Removal

Disassembly and Reassembly

5-19Samsung Electronics

5-4-26 Motor Capstan Ass’y Removal

1) Remove the Damper Capstan Πin the direction

of arrow.

2) Remove the 3 Screws ´.

3) Remove the Motor Capstan Ass’y ˇ.

Assembly :

1) Match the 3 holes of Motor Capstan Ass’y ˇ to the

3 holes of Main Base. Be careful not to drop or
knock the Motor Capstan Ass'y ˇ.

2) Tighten the 3 Screws ´ in the direction of arrow

as shown detail drawing.

3) Assemble the Damper Capstan Œ.

Note : After tightening screws, check if there is gap
between the head of screws and the top side of Main
Base. There should have no gap between the head of
screws and the top side of Main Base.
After reinstalling, adjusting the tape transport
system again.

A

B

C

´ MOTOR CAPSTAN ASS'Y

Π3 SCREWS

Fig. 5-39 Motor Capstan Ass’y Removal

5-4-25 Hook Capstan, Belt Pulley Removal

1) Remove the Hook Capstan Πafter realeasing

Hook in the direction arrow as shown in detail
drawing.

2) Remove the Belt Pulley ´.

Note : Take extreme care not to get grease on Belt
Pulley ´ at assembling or reassembling.

´ BELT PULLEY

ΠHOOK CAPSTAN

HOOK

Fig. 5-38 Hook Capstan, Belt Pulley Removal

5-20

Disassembly and Reassembly

Samsung Electronics

5-4-29 How to Eject the Cassette Tape
(If the unit does not operate on condition that is
inserted into housing ass’y)

1) Turn the Gear worm Πclockwise with screw
driver.(Refer to arrow)
(Other method : Remove the Screw of Motor Load
Ass'y, Separate the Motor Load Ass'y)

ΠGEAR WORM

Fig. 5-42

Fig. 5-43

2) When Slider S,T are approched in the position of
unloading, rotate holder Clutch counterclockwise
after inserting screw driver in the hole of frame's
bottom in order to wind the unwinded tape.
(Refer to Fig.5-43)

(If you rotate Gear Worm Πcontinuously when
tape is in state of unwinding, you may cause a
tape contamination by grease and tape damage.
Be sure to wind the unwinded tape in the state of
set horizently.)

3) Rotate Gear Worm Πclockwise using screw driver
again up to the state of eject mode and then pick
out the tape.(Refer to Fig.5-42)

FRAME

5-4-27 Post #8 Guide Ass’y Removal

1) Rotate the Post #8 Guide Ass’y Œ in the direction

of arrow to lift up.

ΠPOST #8 GUIDE ASS'Y

Fig. 5-40 Post #8 Guide Ass’y Removal

5-4-28 Level Head Cleaner Ass’y Removal

(Optional)

1) Release the Hook Œ.

2) Lift the Lever Head Cleaner Ass’y

´.

ΠHOOK

´ LEVER HEAD CLEANER ASS'Y

SLEEVE-HEAD CLEANER

Fig. 5-41 Lever Head Cleaner Ass’y Removal

5-5 The table of cleaning, Lubrication and replacement time about principal parts

1) The replacement time of parts is not life of parts.

2) The table 5-1 is that the VCR Set is in normal condition (normal temperature, normal humidity).
The checking period may be changed owing to the condition of use, runtime and environmental conditions.

3) Life of the Cylinder Ass’y is depend on the condition of use.

4) See exploded view for location of each parts.

<Table 5-1>

Disassembly and Reassembly

5-21Samsung Electronics

∆ : Cleaning O : Check and replacement in necessary ◆ : Add Oil

T
A

PE

P
A
T
H

S
Y
S
T
E

M

D
R

I

V

I

N

G

* Parts Name

Checking Period

Remark

500 1000 1500 2000 2500 3000 3500 4000 4500 5000

POST TENSION ∆∆∆ ∆∆∆∆∆∆∆

SLANT POST S, T ∆∆∆∆∆∆∆∆∆∆

#8 GUIDE SHAFT ∆∆∆ ∆∆∆∆∆∆∆

CAPSTAN SHAFT ∆∆∆∆∆∆∆∆∆∆

#9 GUIDE POST ∆∆∆∆∆∆∆∆∆∆
#3 GUIDE POST ∆∆∆∆∆∆∆∆∆∆

GUIDE ROLLER S, T ∆∆∆OOOOOOO

CYLINDER ASS’Y ∆ OOOOOOOOO

FE HEAD ∆∆∆ OOOOOOO

ACE HEAD ∆ OOOOOOOOO

PINCH ROLLER ∆ OOOOOOOOO

POST REEL S, T ◆◆◆◆◆

SLEEVE TENSION ◆◆◆◆◆

POST CENTER ◆◆◆◆◆

LEVER IDLE BOSS (2Point)

◆◆◆◆◆

CAPSTAN MOTOR PULLEY

∆∆∆ ∆∆ OOOOO

BELT PULLEY O O O O O O O

HOLDER CLUTCH ASS’Y

∆ OOOOOOOOO

GEAR CENTER ASS’Y O O O O O O O O O

GEAR IDLE (2Point) O O O O O O O O O

LOADING MOTOR O O O O O O O O O

BAND BRAKE ASS’Y O O O O O O O O O

BRAKE T ASS’Y O O O O O O O O O

S
Y
S
T
E

M

- Periodic time of applying oil (Apply
oil after cleaning)

- The excessive applying oil may be
the cause of
malfunction.

-To clean the parts, use patch and
alcohol (solvent).

- After cleaning, use the video tape
after alcohol is gone away com­pletely.

-We recommend to use oil [EP-50]
or solvent.

-One or two drops of oil should be
applied after
cleaning with alcohol.

B
R
A
K
E

S
Y
S

T
E

M

5-22

Disassembly and Reassembly

Samsung Electronics

MEMO

No Power Detected

(stand by LED OFF)

F1S01 is normal?

D1S05~07, ZD1S01~2

SHORT and OPEN

are normal?

Check feedback IC1S02

Change short circuited or

opened parts

Change fuse

Check 2'st Voltage

Replace Q1S01

NO

NO

Is there voltage at

Collector of

Q1S01

NO

YES

YES

YES

Operation of

Q1S01 is

normal?

NO

YES

Samsung Electronics 6-1

6. Troubleshooting

Troubleshooting

6-2 Samsung Electronics

Key Operation or

Remote Control Error

Is the measurement of

power with in normal value?

End repairs

Check power and front connector

Check the circuity around the clock

Check the circuity around
IC601 reset

Check the soldering around the
IC601

Change IC701

NO

NO

Key operatious such

as STOP,PLAY,OPEN

are normal?

Check the circuity around the swith.
check the condition of commmunication
with Main Micom
(IC601,52,66,11,42,44,RRQ,SRQ,SCLK,
DATA-IN,DATA-OUT)

NO

YES

YES

Check the circuity

around IC601 reset?

Check the soldering
around IC601 good?

NO

YES

XT602 8MHz

oscillation is normal?

NO

YES

YES

STOP,PLAY,OPEN

Key operatious are

normal?

YES

Troubleshooting

Samsung Electronics 6-3

PLAY MODE

INOPERATIVE

EE-VIDEO

INSERT THE CASETTE
TAPE RECORDED BY
ANOTHER VCR AND
PRESS PLAY BUTTON

PLAY

INDICATOR

IN THE DISPLAY

PRESS PLAY KEY

IN REMOTE

CONTROL

MECHANISM

OPERATION

SEE (PB VIDEO) AUDIO MISSING
IN PLAY MODE

SEE
(MECHANISM DOES NOT
OPERATE IN PLAY MODE)

CHECK PLAY Button

and Pattern

CHECK
IC601, XT602

SEE
(VIDEO MISSING IN EE MODE)

NO

NO NO

YES

NO

PB-VIDEO

SEE
VIDEO MISSING
IN PLAY MODE

NO

YES

YES

YES DOES NOT OPERATE

OR OPERATES
BUT STOP SOON

YES

(VCR Section)

Troubleshooting

6-4 Samsung Electronics

LOAD A TAPE AND

PRESS PLAY BUTTON

TURN VCR POWER ON

MECHANISM DOESN'T

OPERATE IN PLAY MODE

TAPE LOADING

OPERATION

(LOAD)

IC601 3 HIGH

IC601 25 LOW

CYLINDER
ROTATION

SW 25Hz
IC601-24

CYL FG.PG
IC601-97

CHECK CYLINDER

CHECK
START (S602)
IC601

NO NO

NO

NO

YES

YES

YES

YES

CHECK CN604

8pin 12V

(VCR Section)

A

Troubleshooting

Samsung Electronics 6-5

CAPSTAN

ROTATION

(S.T REEL)

IC601-99,98

PROG.SW STATE

IC601-76,77,78

CHANGE IC601

CHECK

LOADING MOTOR

MECHANISM OR SW603

TAKE UP REEL SENSOR

SUPPLY REEL SENSOR

(PT601.PT602)

SEE

(CAPSTAN DOES NOT

ROTATE)

NO

DC

STOP MODE

YES

PULSE

YES

A

Troubleshooting

6-6 Samsung Electronics

RECORD MODE
DOESN'T OPERATE

PLAY

OPERATION

LOAD VCR WITH A
BLANK TAPE AND

PRESS RECORD BUTTON

REC MODE

SAFETY TAB

D-REC A (H)

IC601-73

SEE

(AUDIO MISSING IN

RECORD MODE)

CHANGE SW602

CHECK IC601

CHANGE TAPE

SEE

(PLAY MODE

DOESN'T OPERATE)

EJECT

NO

NO

YES

NO

REC-VIDEO

SEE

(VIDEO MISSING IN

RECORD MODE)

NO

YES

YES

YES

YES

(VCR Section)

Troubleshooting

Samsung Electronics 6-7

LOAD TAPE AND

PRESS F.FWD BUTTON

FAST FORWARD
DOESN'T OPERATE

F.FWD

INDICATOR IN

THE DISPLAY

PRESS FF

KEY IN REMOTE

CONTROL

CHECK CN604

2Pin 15V?

4Pin 5V?

5,9Pin 3.2V?

CHECK TIMER

CHANGE IC601, XT602

NO NO

YES

CHECK POWER BLOCK

YES

CHECK

MECHANISM

NO

IC601 68Pin

FG Pulse

SEE CAPSTAN DOESNOT

ROTATE

ROTATE

(VCR Section)

NO

YES

GF

Troubleshooting

6-8 Samsung Electronics

FWD SEARCH DOESN'T

OPERATE

PLAY

OPERATION

PRESS F.FWD FOR
FORWARD SEARCH

CHECK IC601

CHECK CAPSTAN

MOTOR

IS CAPSTAN

SPEED CHANGED?

SEARCH

OPERATION

NOISE BAR

LOCKING

END

ADJUST
A/CE HEAD

CHANGE DECK

CHANGE IC601

SEE
(PLAY DOESN'T OPERATE)

NO

NO

NO

YES

NO

(CONTROL PULSE)

IC601-89

NO

YES

YES

YES

YES

(VCR Section)

Control

Troubleshooting

Samsung Electronics 6-9

TURN THE VCR
POWER ON AND
INSERT A TAPE

PRESS EJECT BUTTON

CASSETTE LOADING

MECHANISM

DOES NOT OPERATE

TAPE DETECTED

CST IN MODE

IC601-75:HIGH(5V)

CHANGE IC601

CHECK
START SENSOR (S602)
IC601

CHECK
DM B+ LINE

CHANGE IC601

NO NO

NO

YES

IC601-3:LOW(0V)

IC601-25:HIGH(5V)

IC601-38:HIGH(5V)
IC601-39:LOW(0V)

CHECK
CASSETT LOADING
MECHANISM

YES

YES

NO

CN604 8pin 12V?

YES

NO

YES

(VCR Section)

Troubleshooting

6-10 Samsung Electronics

PLACE VCR IN STOP MODE

CHANGE IC801

TUNER MODE OPERATION

VIDEO MISSING IN

EE MODE

IC801-1

VIDEO IN

NO

NO

NO

IC301-50
VIDEO IN

YES

YES

IC301-65

VIDEO OUT

YES

CHECK

IC601

NO

IC801-2,3

VIDEO DATA/

CLOCK

YES

CHECK IC301

CHECK IC301

CHANGE IC801

CHANGE IC801

NO

IC801-4

VIDEO OUT

YES

(VCR Section)

NO

CHECK

IC801-22

C808, C902, R301, R806, R900

YES

Troubleshooting

Samsung Electronics 6-11

VIDEO MISSING IN

RECORD MODE

IC301-50

VIDEO signal out?

NO DEFECT RECORD MODE

E-E mode and IC801
CHECK VIDEO signal out

NO

YES

IC301-78

CHECK REC FM signal?

CHECK C392

NO

YES

IC301-94 (SP)

IC301-88 (SLP)

CHECK REC FM signal?

CHECK CN301

NO

YES

(VCR Section)

Troubleshooting

6-12 Samsung Electronics

VIDEO MISSING IN

PLAY MODE

VIDEO EE MODE

OPERATION

PLACE THE VCR PLAY MODE

CHANGE IC301 CHECK IC801

CHECK

VIDEO HEAD

CHECK
C392

CHECK

IC601-24

SEE PAGE 9-5

(VIDEO MISSING IN EE MODE)

NO

YES

YES

NO

YESYES

VIDEO FM

IC301-21

VIDEO

IC301-78

VIDEO

IC301-65

VIDEO IN
IC801-10

VIDEO OUT

IC801-18

NO

H'D SW

IC301-70

NO

YES

YES

NO NO NO

CHECK Q810, R900, L901

(VCR Section)

Troubleshooting

Samsung Electronics 6-13

COLOR MISSING IN

RECORD MODE

(VIDEO IN)

RECORD MODE

(VCR Section)

NOTE: XT301 - Always (3.579545MHz)

COLOR signal

IC301-58

COLOR KILLER

IC301-33 (2V)

CHANGE

IC301

CHECK THE REC LINE

SEE PAGE 9-6
(VIDEO MISSING IN RECORD
MODE)

NO

NO

NO

YES

NO

YES

CHECK XT301

CHANGE XT301

NO

NO

CHANGE IC301

Troubleshooting

6-14 Samsung Electronics

COLOR MISSING IN

PLAY MODE

FM-ENV

IC301-25

COLOR-MONITOR

IC301-58

COLOR-KILLER

IC301-33(2V)

COLOR ROTERY

IC301-57

CHANGE

IC301

CHECK IC301-27, 34,

XT301

CHECK IC601-29

SEE PAGE 9-7

(VIDEO MISSING IN PLAY MODE)

NO

NO

NO

NO

YES

YES

YES

YES

YES

NOTE: XT301 - Always (3.579545MHz)

(VCR Section)

CHECK

IC801-10

CHANGE

IC801

Troubleshooting

Samsung Electronics 6-15

OSD PICTURE

MISSING

2FSC-IN

IC6P01-2

STB, CLK, DATA
IC6P01-9, 10, 11

CHANGE IC6P01

CHECK IC6P01

CHECK L6P05, C6P04, C6P05

NO

NO

YES

NO

(VCR Section)

OSC IN

IC6P01-6

YES

2FSC

Troubleshooting

6-16 Samsung Electronics

SELECT LINE MODE
WITHOUT INPUT SIGNAL

BLUE MISSING IN

STOP MODE

CHANGE IC601

IC301-66 "H"

CHECK IC301-66 TO IC601-59

CHECK IC301

NO

NO

YES

YES

IC6P01-9, 10, 11

(STB, CLK, DATA)

CHECK IC601 - 6, 7, 8

NO

YES

(VCR Section)

IC601-59 "H"

Troubleshooting

Samsung Electronics 6-17

(VCR Section)

VCR STOP MODE

AUDIO MISSING IN

EE MODE

IC801-5,6,13,14,17,

18Pin Audio
Signal Input

INPUT CHOICE

MODE

CHECK Tuner

AND C4N25

CHECK

IC601

CHECK

L808, L807

R814, R813

CHECK C820B, C826, C819B

C825A, C825B, C826B

AV1/AV2/AVX

NO

NO

TUNER

YES

YES

YES

YES

IC801-27, 28

AUDIO SIGNAL

CHECK CLK,

DATA IC4N01-12,

13Pin

IC4N01-43

Audio Signal

Input

NO

(VCR Section)

CHECK

IC801

NO

IC4N01-31, 30

Audio Signal

CHECK IC4N01, XT4N01

NO

YES

Troubleshooting

6-18 Samsung Electronics

MISSING AUDIO

IC501-26

AUDIO FM

CHECK CYLINDER

CHANGE
IC501, R503, C513

CHECK
AUDIO MISSING
IN EE MODE

AUDIO MISSING IN

REC MODE

MONO

HIFI

MONO

NO

IC501-7, 69

AUDIO SIGNAL

CHECK
R510, R509, R518, R517

NO

YES

YES

(VCR Section)

IC501-38, 39

CLK, DATA

CHECK
IC601, R570, R571

NO

YES

IC501-24, 27
Audio Signal

CHANGE
IC501

NO

YES

Troubleshooting

Samsung Electronics 6-19

CHECK

Q3A02, Q3A03, Q3A06

CHECK
R3A04

CHANGE

IC301

IC301-15

AUDIO SIGNAL

IC501-6

AUDIO SIGNAL

NO

NO

NO

IC301-68, 69

CHECK (CLOCK, DATA)

CHECK

R3A28, R3A60, C3A24

YES

NO

NO

NO

YES

YES

YES

YES

YES

YES

CHECK

IC301-58 AND CHANGE IC301

CHANGE IC501

IC301-11

AUDIO SIGNAL

IC301-100

AUDIO FM SIGNAL

IC301-5

MIX SIGNAL

(AUDIO+70KHz)

CN3A01-4

OSCILLATION

NO

CHECK AUDIO MISSING

IN PB MODE

CHECK

PB MODE

CHECK

A/CE HEAD

MONO

NO

Troubleshooting

6-20 Samsung Electronics

CHECK "AUDIO
MISSING IN EE MODE"

PLACE THE VCR IN PB MODE

CHANGE

IC501

AUDIO MISSING

IN PB MODE

CHECK L3A01, R3A25
CHANG IC301

CHECK ACE HEAD
C3A16 AND CHANGE IC301

AUDIO SELECT

IC501-78, 80

AUDIO FM(MIXED)

CHECK
IC501-40(A.H D SW)
CHANGE CYLINDER OR
IC501

NO

HIFI

MONO

YES

IC301-5

AUDIO SIGNAL

NO

YES

(VCR Section)

Troubleshooting

Samsung Electronics 6-21

PLAY

NO SERVO LOCK

IC601-93

C-FG

IC601-87

CTL PULSE

CHECK
CTL PULSE AC
LEVEL (SP. SLP:

OVER 1Vp-p)

CHANGE

IC601

CHECK
A/CE HEAD

CHECK
CN604-1

NO

NO

NO

YES

YES

YES

(VCR Section)

Troubleshooting

6-22 Samsung Electronics

CAPSTAN DOES

NOT ROTATE

PLACE THE VCR

IN PLAY MODE

CN604-2

15V

CN604-3

AL 5V

CN604-9

3.2V

CN604-5

2.6V

IC601-3

OUTPUT(PWM)

IC601-10

OUTPUT(PWM)

CHECK

CAPSTAN MOTOR

CHECK R660

CHECK R609

CHANGE
IC601

CHECK
IC601

CHECK
B+ IN THE POWER BLOCK

CHECK
5V AT AL5V LINE
IN THE POWER BLOCK

NO

NO NO

NO

YES

NO

YES

NO

YES

YES

YES YES

(VCR Section)

Troubleshooting

Samsung Electronics 6-23

DRUM DOES
NOT ROTATE

CN604-6

12V

CN604-3

5V

CN604-12

2.5V

CHECK

CYLINDER MOTOR

IC601-5,9 DRUM_CTL_L

CHECK 5V LINE

CHECK
12V AT AL12V LINE
IN THE POWER BLOCK

NO

NO

NO

YES

YES

YES

CHANGE IC601

NO

CHECK

R608, R617, C661

(VCR Section)

Troubleshooting

6-24 Samsung Electronics

Is (key PCB) mounted

correctly?

Check the short between KEY1

and SEG7

Check the soldering of Key PCB

No

Yes

Tray repeating open/close operation

Is the connection right

between MCON1 and CN02

(VCR MAIN PCB)?

No

Check the connection

Yes

between MCON1 and CN02

Troubleshooting

Samsung Electronics 6-25

Are main and deck

power OK?

Is the 40pin

FFC cable (between main & deck)

inserted correctly?

Change the main board

Check the power

No

No

Reinsert FFC cable correctly

Is the wavefrom

of DIC3 pin26 normal?

(main PCB)

No

Change the deck

Yes

Yes

Yes

Disc loading error

DIC3-Pin26

Troubleshooting

6-26 Samsung Electronics

Voltage of AR17

and AR31 is lower than 0.6V

(jack PCB)

Proper vcc and vdd

of AIC1 (main PCB) and

AIC4 (jack PCB)

Check the passive components

ardund jack pin

Check mute block

No

No

Check SMPS board

Output from pin7 and pin8

of AIC1 of main PCB

No No

Proper output on pin1

and pin7 of AIC4

Check the board to board connector

between jack PCB and main PCB

Yes

Yes

Yes

Yes

No Analog Audio Output

Proper data between AIC1

and DIC1 (main PCB)

Replace main board

Yes

Troubleshooting

Samsung Electronics 6-27

Check the digital audio

setting

5V vcc of DOIC2-2Pin (jack PCB)

Check optical and coaxial output terminal

and passive components aroud them

Refer to user manual

No

Checking

Check DOL3 or Vcc Line

Proper signal input on pin1

of DOIC2

No

No

Proper signal output on

DOL2

Check the signal on pin 10 of

CN4 of jack PCB

Replace JACK1

Yes

Yes

Yes

Skip setting check (hardware problem)

No digital audio out

Proper signal on pin 10 of CN1

of main PCB

Yes

No

Replace main PCB

Troubleshooting

6-28 Samsung Electronics

Check select signal of

pin26, 27, 28, 29 in IC802

(jack board)

Check pin19 of IC802,pin18

of MCON2,and pin16 of MCON2

in jack board

Check passive components

around jack-pin and IC802

check pin13, 14 (input select)of IC802

No

No

Check SMPS board

Check all the vcc of

AIC9,AIC81,AIC82

(main board)

No

No

Replace main PCB

Check digital clock of

pin10,11,12,15

Yes

Yes

Yes

Yes

No audio on line input mode or

recorded disc playback

Troubleshooting

Samsung Electronics 6-29

Is there

NO 'PSO' Mark on FLT?

12pin in CN3 of jack PCB or

CN2 of main PCB has

normal level?

Check the RCA cable

After DVDR is stop state,

push the progressive scan Key

on the Front panel.

No

No

Check main PCB

Analog signals are

inputed normally

VIC1

No

No

No

Check the connection between

12pin in CN2 OF main PCB and VIC1

Power is

normal at VIC1-1,24, 34?

(jack PCB)

Pin5 in VIC1 is
in LOW state?

Check the connection between

VIC1-1 and power

Check the connection between

VIC1-13 and VCR Micom.

check VIC1 peripheral circuit

Yes

Yes

Yes

Yes

Yes

No

Video signal of

about 1V appears at

output jack?

Check the connection between

VIC1 and output jack

Yes

CVBS output error

CVBS

Troubleshooting

6-30 Samsung Electronics

10pin and 8pin in CN3 of

jack PCB or CN2 of main PCB

has normal level?

Check the RCA cable

No

No

Check main PCB.

Analong signals are

inputted nirmally

VIC1 (Jack PCB)

No

No

No

Check the connection between 10pin

and 8 pin in CN2 of main PCB and VIC1

Power is normal at VIC1-1,24, 34?

Pin5 in VIC1 is
in LOW state?

Check the connection between

VIC1-1 and power

Check the connection betweenVIC1-13

and VCR Micom. check VIC1 peripheral circuit

Yes

Yes

Yes

Yes

Yes

No

Video signals of

about 1V appears at

output jack?

Check the connection between

VIC1 and output jack.

Yes

S-Video output error

Is there

NO 'P480' Mark on FLT?

After DVDR is stop state,

push the progressive scan Key

on the Front panel.

Y(Color-bar)

C(Color-bar)

Troubleshooting

Samsung Electronics 6-31

2,4 and 6pin in CN3 of

jack PCB or CN2 of main

PCB has normal level?

Analog signals are

inputted normally

VIC1

Check the RCA cable

Check main PCB

No

No

Check the connection between2,4 and

6pin in CN2 of main PCB and VIC1

Power is normal

at VIC1-1,24, 34?

No

No

Check the connection between

VIC1-1 and power

Video signals of

about 1V appears at

output jack?

Check the connection between

VIC1 and output jack

Yes

Yes

Yes

Yes

Component output error

Y(Color-bar)

Pb(Color-bar)

Pr(Color-bar)

Troubleshooting

6-32 Samsung Electronics

Check the RCA cable

No

Yes

Progressive output error

Is there

'PSO' Mark on FLT?

After DVDR is stop state,

push the progressive scan Key

on the Front panel.

Troubleshooting

Samsung Electronics 6-33

Pin6 in IC801

has nomal level?

(jack PCB)

Pin16 in IC801

has nomal level?

Check feed back

Check the connection between

pin4 in IC801 and AV1 pin-jack

No

No

Check pin 9, 20 in IC801 of input power

No

No

Pin80 in TIC1 of main PCB

has nomal level?

Pin40 and pin 54~43 in

TIC1 of main PCB has clock and

digital video signal

nomal level?

Check the connection between pin80

in TIC1 of main PCB and pin 13 in IC201

Check TIC1 peripheral circuit

Yes

Yes

Yes

Yes

AV1 CVBS Video Input Error

CVBS(Color-bar)

Troubleshooting

6-34 Samsung Electronics

Pin 5 in IC801

has nomal level?

(jack PCB)

Pin 16 in IC801

has nomal level?

Change main PCB

Check the connection between

pin 5 in IC801 and AV2 pin-jack

No

No

Check pin 9, 20 in IC801 of input power

No

No

Pin80 in TIC1 of main PCB

has nomal level?

Pin 40 and pin54~43 in

TIC1of main PCB has clock and

digital video signal nomal

level?

Check the connection between pin80

in TIC1 of main PCB and pin13 in IC201

Check TIC1 peripheral circuit

Yes

Yes

Yes

Yes

AV2 CVBS Video Input Error

Troubleshooting

Samsung Electronics 6-35

Pin 15, 17 in CN3

has nomal level?

(jack PCB)

Change main PCB

Check the connection between pin 15

and 17 in CN3 and L2 S- videojack

No

No

No

Pin9 and 18 in TIC1

of main PCB has

nomal level?

Pin 40 and pin54~43

in TIC1 of main PCB has clock and

digital video signal

nomal level?

Check the connection between pin9 and

18 in TIC1 of main PCB and pin13 in IC202

Check TIC1 peripheral circuit

Yes

Yes

Yes

Line2 S-Video Video Input Error

Troubleshooting

6-36 Samsung Electronics

MEMO

Samsung Electronics 7-1

7. Exploded View and Parts List

7-1 Cabinet Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-2

7-2 VCR Mechanical Parts (Top Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-4

7-3 VCR Mechanical Parts (Bottom Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-6

Exploded View and Parts List

7-2 Samsung Electronics

7-1 Cabinet Assembly

A001

W009

C001

C024

C444

C002

C003

C011

C012

P005

C015

W272

W272

P030

P001A

P025

P022

P001

W275

W275

W202

W202

W202

H001

C452

FL593

W252

Exploded View and Parts List

7-3Samsung Electronics

Loc. No Parts No. Description ; Specification Q”ty S.N.A Remark

A001 AK59-00034N REMOCON-ASSY;DVD-VR320/XEG,SEC,210*55,- 1 SA
C001 AK97-01200D ASSY-PANEL FRONT;HIPS94HB GRAY,DVD-VR32 1 SA U.K Only

AK97-01200C ASSY-PANEL FRONT;HIPS94HB GRAY,DVD-VR32 1 SA CIS Only
AK97-01200B ASSY-PANEL FRONT;HIPS94HB GRAY,DVD-VR32 1 SA XEF/XEB/SED Only

AK97-01200H ASSY-PANEL FRONT;HIPS94HB GRAY,DVD-VR32 1 SA Other Only
C002 AK64-01078A DOOR-TRAY;DVD-VR320,ABS94HB,T2.0,H26.5, 1 SA
C003 AK64-01077D DOOR-CASSETTE;DVD-VR320/XEU,ABS94HB,T2. 1 SA U.K Only

AK64-01077C DOOR-CASSETTE;DVD-VR320/XEV,ABS94HB,T2. 1 SA CIS Only

AK64-01077B DOOR-CASSETTE;DVD-VR320/XEF,ABS94HB,T2. 1 SA XEF/XEB/SED Only

AK64-01077H DOOR-CASSETTE;DVD-VR320/XEG,ABS94HB,T2. 1 SA Other Only
C011 AK64-00334A DOOR-SPRING;DVD-V3500,SWPB,,,,-,, 1 SA
C012 AC61-62032A SPRING ETC-MASK;SV-C130,SUS,4.4,-,-,-,- 1 SA
C015 AK64-01073A CABINET-TOP;DVD-VR320,TEXTURE,T0.525,W5 1 SA
C024 AK64-01088A BUTTON-FUNCTION;DVD-VR320,ABS94,40*40,M 1 SA
C444 AK64-01085A BUTTON-SELECT;DVD-VR320,ABS 94,50*40,HB 1 SA
C452 AK39-00049A LEAD CONNECTOR;-,-,-,4,150,WHT,-,SMH200 1 SA
FL593 3809-001702 FFC CABLE-FLAT;30V,80C,290mm,40P,0.5mm, 1 SA
H001 AK97-01211A ASSY-ASSY LOADER DRIVE;-,SV-R250,ASSY L 1 SA
P001 AK92-00683A ASSY PCB-MAIN;DVD-VR320/XEF,DVD Recorde 1 SA
P001A AK92-00666C ASSY PCB-VCR;DVD-VR320E/XEV,DVD Recorde 1 SA CIS Only

AK92-00666A ASSY PCB-VCR;DVD-VR320E/XEF,DVD Recorde 1 SA XEF/XEB/SED Only

AK92-00666E ASSY PCB-VCR;DVD-VR320/XER,DVD Recorder 1 SA Eastern Europe Only

AK92-00666D ASSY PCB-VCR;DVD-VR320/XEU,DVD Recorder 1 SA Other Only
P005 AK94-00054A ASSY SORT-FUNCTION;DVD-VR320/XAA,K2 R-C 1 SA
P022 AK92-00667A ASSY PCB-JACK;DVD-VR320E/XEF,DVD Record 1 SA XEF/XEB/SED Only

AK92-00667C ASSY PCB-JACK;DVD-VR320E/XEV,DVD Record 1 SA Eastern Europe/CIS Only

AK92-00667D ASSY PCB-JACK;DVD-VR320/XEU,DVD Recorde 1 SA Other Only
P025 3903-000175 CBF-POWER CORD;AT,GB,GP2,HOUSING(2P),25 1 SA U.K Only

3903-000176 CBF-POWER CORD;AT,EU,CP2,HOUSING(2P),25 1 SA Other Only
P030 3103-001152 FAN-DC;DC 12.0V,110mA,1700rpm,0.581m^ 1 SA
W009 6003-000276 SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(YEL),SW 6 SA
W202 6003-000277 SCREW-TAPTITE;BH,+,B,M3,L12,ZPC(YEL),SW 8 SA
W252 AC60-12126A SCREW-MACHINE;-,-,FE,FZY,BH,-,-,4*12,-, 4 SA
W272 6003-001464 SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(WHT) 10 SA
W275 6003-001561 SCREW-TAPTITE;BH,+,WT,B,M3,L6,ZPC(YEL), 10 SA

Exploded View and Parts List

7-4 Samsung Electronics

7-2 VCR Mechanical Parts (Top Side)

T001

T015

W016

T010

T033

T003

W201

T004

T005

T014

W015

T011

T012

T022

T021

T019

T023

T024

T028

T026

T020

T027

T002

T029

T007

T016

T006

T025

T032

T030

T013

T008

T009

T031

Exploded View and Parts List

7-5Samsung Electronics

Loc. No Parts No. Description ; Specification Q”ty S.N.A Remark

T001 AC97-02537A ASSY-CYLINDER;6SA,CX11A-DS,SECAM 6HD 1 SA
T002 AC70-00002A PLATE-GND DECK;X-11,SPTE,T0.3,-,-,-,- 1 SA
T003 AC31-00018A MOTOR-LOADING ASSY;-,SCORPIO2(TS-10A),-, 1 SA
T004 AC66-00008A GEAR-WORM WHEEL;TS-10,POM,0.8,40,-,NAT,3 1 SA
T005 AC66-00011A GEAR-FL CAM;TS-10,POM,0.8,59,-,BLK,48.48 1 SA
T006 AC61-00105A SPRING ETC-PINCH DRIVE;TS-10,SUS304-WPB, 1 SA
T007 AC61-30180A PLATE-JOINT;X-9,SECC20/20,T0.8,-,-,-,- 1 SA
T008 AC66-80142A SLIDER-SUPPLY ASSY;X-9,SUS,-,-,-,SIL,- 1 SA
T009 AC66-80141A SLIDER-TAKE UP ASSY;X-9,SUS,-,-,-,SIL,- 1 SA
T010 AC97-02517A ASSY-HEAD ACE;ASSY-HEAD ACE,DX11A,DX11A 1 SA
T011 AC66-00074A LEVER-GUIDE(#9);TS-9,PPS,-,-,-,-,BLK,KHA 1 SA
T012 AC61-60553A SPRING ETC-GUIDE 9;X-9,SUS304-WPB,0.25,- 1 SA
T013 AC33-00015A HEAD-FE;HVFHP0050A,PBT3300,2PIN,NATURA 1 SA
T014 AC66-00083A LEVER-FL DOOR;X-11,POM(K300),-,-,-,-,BLU 1 SA
T015 AC97-02293A ASSY-UNIT PINCH;SECC+SUS304,TS-10,FOR X- 1 SA
T016 AC97-02215A ASSY-POST #8 GUIDE;SUS303+POM(M90-44)EQ, 1 SA
T019 AC66-10267A REEL-DISK S;X-9,POM,-,-,-,-,-,- 1 SA
T020 AC66-10268A REEL-DISK T;X-9,POM,-,-,-,-,-,- 1 SA
T021 AC66-30524A LEVER-IDLER;-,POM,-,-,-,-,BLK,- 1 SA
T022 AC66-00039A GEAR-IDLE;TS-10,PET K3372,0.5,-,-,NTR,28 2 SA
T023 AC66-00035A LEVER-TENSION ASS'Y;TS-10,SECC E20/20+SU 1 SA
T024 AC61-00107A SPRING ETC-TENSION LEVER;TS-10,SUS304-WP 1 SA
T025 AC69-00104A BAND-BRAKE ASS'Y;TS-10,-,-,-,-,-,- 1 SA
T026 AC66-30550A LEVER-S.BRAKE ASSY;-,POM+SUS,-,-,-,X-9 1 SA
T027 AC66-30549A LEVER-T.BRAKE ASSY;-,POM+SUS,-,-,-,X-9 1 SA
T028 AC61-00106A SPRING ETC-BRAKE;TS-10,SUS304-WPB,-,-,-, 1 SA
T029 AC66-00020A SLIDER-FL DRIVE;TS-10,SECC ,T1.0,-,-,SIL 1 SA
T030 AC97-02323A ASSY-HOLDER FL CASSETTE;SECC+POM,X-11,Fo 1 SA
T031 AC61-60561A SPRING ETC-FL.LEVER-LR;X-9,SUS304 WPB,OD 1 SA
T032 AC97-02324A ASSY-LEVER FL ARM;SECC+POM,X-11,For X-11 1 SA
T033 AC61-50658A GUIDE-CASS. DOOR;X-9,POM,-,-,-,NTR 1 SA
W015 6006-001092 SCREW-MACHINE;WS,PH,+,M3.0,L6.0,ZPC(YEL) 3 SA
W016 6006-001154 SCREW-TAPTITE;WSP,PH,+,M2.6,L5.6,ZPC(YEL 1 SA
W201 6001-001711 SCREW-MACHINE;PH,+,M3,L3.3,ZPC(YEL) 1 SA

Exploded View and Parts List

7-6 Samsung Electronics

7-3 VCR Mechanical Parts (Bottom Side)

T046

W018

T044

T041

T042

T045

T039

T043

T034

T035

T037

T038

T049
T047

T050

T048

T040

W019

T036

Exploded View and Parts List

7-7Samsung Electronics

Loc. No Parts No. Description ; Specification Q”ty S.N.A Remark

T034 AC66-00076A GEAR-JOINT 1;X-11,POM(K300),-,-,-,BLUE,- 1 SA
T035 AC66-00077A GEAR-JOINT 2;X-11,POM(K300),-,-,-,BLUE,- 1 SA
T036 AC61-00338A BRACKET-GEAR;X-11,SECC,T0.8,W20,L20,NTR, 1 SA
T037 AC66-00075A SLIDER-CAM;X-11,SECC ,T1.2,-,-,SIL,- 1 SA
T038 AC66-00017A LEVER-PINCH DRIVE;TS-10,SECC E20/20,1.0 1 SA
T039 AC70-00003A HOOK-CAPSTAN;-,-,L10,W10,H10,POM(M90-44) 1 SA
T040 AC66-00016A LEVER-TENSION DRIVE;TS-10,SECC E20/20,1 1 SA
T041 AC66-00078A GEAR-LOADING DRIVE;X-11,POM(K300),-,-,-, 1 SA
T042 AC97-02195A ASSY-LEVER LOADING S;SECC+POM+SUS,X-11,F 1 SA
T043 AC97-02196A ASSY-LEVER LOADING T;SECC+POM+SUS,X-11,F 1 SA
T044 3101-001419 MOTOR-CAPSTAN;-,-,12V,90mA 1 SA
T045 3809-001270 CABLE-FLAT;30V,80C,140MM,10P,1.25MM,UL28 1 SA
T046 AC66-60051A BELT-PULLEY;-,5CM-70,2 * 2,-,71.3,-,X-9 1 SA
T047 AC61-21012A HOLDER-CLUTCH ASSY;X-9,ABS,-,-,-,BLK,- 1 SA
T048 AC66-20581A GEAR-CENTER ASSY;X-9,POM,M=O.5,-,-,GRY,- 1 SA
T049 AC60-30306A FASTENER-WASHER SLIT;-,-,ID2.1,OD5.0,T0. 1 SA
T050 AC66-00006A LEVER-UP DOWN;TS-10,POM,-,-,-,-,NAT,- 1 SA
W018 6003-001450 SCREW-TAPTITE;PH,+,S,M2.6,L5,ZPC(YEL) 1 SA
W019 6003-000108 SCREW-TAPTITE;BH,+,B,M2.6,L6,ZPC(YEL),SW 3 SA

Exploded View and Parts List

7-8 Samsung Electronics

MEMO

This Document can not be used without Samsung’s authorization

Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark

Samsung Electronics

8-1

P001A AK92-00666C ASSY PCB-VCR;DVD-VR320E/XEV,DV 1 SA CIS Only

AK92-00666A ASSY PCB-VCR;DVD-VR320E/XEF,DV 1 SA

XEF/XEB/SED Only
AK92-00666E ASSY PCB-VCR;DVD-VR320/XER,DVD 1 SA E.Europe Only
AK92-00666D ASSY PCB-VCR;DVD-VR320/XEU,DVD 1 SA Other Only

BD1S01 AC27-92001M COIL-INDUCTOR;RH3.5X6.5RS,BEAD 1 SA

C1P103 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA
C1P104 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA
C1P105 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA
C1P107 2401-003221 C-AL;100uF,20%,16V,GP,TP,8X5,2 1 SA
C1P108 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA

C1P109 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA
C1P110 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA
C1P111 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA
C1P120 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA
C1P121 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA

C1P122 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
C1P123 2401-001730 C-AL;10UF,20%,50V,GP,TP,5X11,5 1 SA
C1P124 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
C1P125 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 1 SA
C1P126 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 1 SA

C1P127 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
C1P128 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA
C1P129 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA
C1P130 2401-000118 C-AL;1000uF,20%,10V,GP,TP,10x1 1 SA
C1S01 2401-000342 C-AL;100uF,20%,400V,WT,-,20x30 1 SA

C1S02 2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5 1 SA
C1S03 2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5 1 SA
C1S04 2301-001711 C-FILM,LEAD;220nF,°æ20%,275V,B 1 SA
C1S05 2301-001711 C-FILM,LEAD;220nF,°æ20%,275V,B 1 SA
C1S06 2201-000987 C-CERAMIC,DISC;2.2NF,20%,400V, 1 SA

C1S07 2201-000012 C-CERAMIC,DISC;0.22nF,10%,1000 1 SA
C1S08 2305-001029 C-FILM,LEAD-PEF;10nF,10%,630V, 1 SA
C1S09 2401-001186 C-AL;33uF,20%,35V,GP,TP,6.3x7, 1 SA
C1S10 2401-001186 C-AL;33uF,20%,35V,GP,TP,6.3x7, 1 SA
C1S11 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA

C1S12 2301-000481 C-FILM,LEAD-PEF;10nF,5%,100V,T 1 SA
C1S30 2401-003390 C-AL;2200uF,20%,16V,LZ,TP,13x3 1 SA
C1S31 2401-003390 C-AL;2200uF,20%,16V,LZ,TP,13x3 1 SA
C1S32 2401-000385 C-AL;10uF,20%,100V,GP,TP,6.3x1 1 SA
C1S33 2401-000717 C-AL;2200uF,20%,25V,WT,TP,12.5 1 SA

C1S34 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12 1 SA
C1S37 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
C1S38 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
C1S39 2301-000129 C-FILM,LEAD-PEF;100nF,5%,50V,T 1 SA
C1S41 2401-003059 C-AL;1000UF,20%,16V,WT,TP,10X1 1 SA

C315 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP 1 SA
C317 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA
C318 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA
C319 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,TP 1 SA
C320 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP 1 SA

C321 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP 1 SA
C322 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA
C324 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C325 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA
C326 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA

C327 2203-001211 C-CER,CHIP;8.2nF,10%,50V,X7R,T 1 SA
C328 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C329 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C330 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP 1 SA
C331 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C332 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP 1 SA
C333 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C335 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y 1 SA
C337 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y 1 SA
C338 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP 1 SA

C339 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C340 2401-004014 C-AL;4.7uF,20%,16V,-,TP,4x5,2. 1 SA
C341 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA
C342 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-2 1 SA
C343 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V, 1 SA

C344 2203-000315 C-CER,CHIP;0.12NF,5%,50V,C0G,T 1 SA
C345 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,- 1 SA
C347 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V, 1 SA
C348 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C349 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V, 1 SA

C350 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C351 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA
C352 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA
C353 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA
C354 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA

C392 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C3A01 2401-003122 C-AL;4.7uF,20%,50V,LL,TP,5X7,5 1 SA
C3A02 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 1 SA
C3A08 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C3A09 2203-001103 C-CER,CHIP;6.8nF,10%,50V,X7R,T 1 SA

C3A10 2203-001211 C-CER,CHIP;8.2nF,10%,50V,X7R,T 1 SA
C3A11 2301-000174 C-FILM,LEAD-PEF;15nF,5%,100V,T 1 SA
C3A12 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 1 SA
C3A14 2202-000263 C-CERAMIC,MLC-AXIAL;470pF,10%, 1 SA
C3A15 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA

C3A16 2401-003122 C-AL;4.7uF,20%,50V,LL,TP,5X7,5 1 SA
C3A17 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 1 SA
C3A18 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R, 1 SA
C3A21A 2203-001554 C-CER,CHIP;1.8nF,10%,50V,X7R,T 1 SA
C3A23 2401-002069 C-AL;33uF,20%,16V,GP,TP,6.3x5, 1 SA

C3A24 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C3A29 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C3A30 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA
C3A40 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 1 SA
C3A41 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA

C3A70 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R, 1 SA

8. Electrical Parts List

This Document can not be used without Samsung’s authorization

Loc.No Part No Description ; Specification Q’ty S.N.A RemarkLoc.No Part No Description ; Specification Q’ty S.N.A Remark

8-2

Samsung Electronics

Electrical Parts List

C3S01 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,1 1 SA SECAM Only
C3S02 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA SECAM Only
C3S03 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,16 1 SA SECAM Only
C3S04 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA SECAM Only

C3S05 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA SECAM Only
C3S06 2401-001324 C-AL;0.47UF,20%,50V,GP,BK,3X5, 1 SA SECAM Only
C3S07 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA SECAM Only
C3S08 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA SECAM Only
C3S09 2401-001324 C-AL;0.47UF,20%,50V,GP,BK,3X5, 1 SA SECAM Only

C3S10 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA SECAM Only
C3S11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA SECAM Only
C3S12A 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA SECAM Only
C3S14 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5 1 SA SECAM Only
C3S14A 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA SECAM Only

C3S15 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,160 1 SA SECAM Only
C501 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C502 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C503 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2. 1 SA
C504 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA

C505 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA
C506 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C507 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2. 1 SA
C508 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,T 1 SA
C510 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA

C511 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C513 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C517 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,T 1 SA
C518 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2. 1 SA
C519 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA

C520 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA
C521 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C522 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C523 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C524 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA

C525 2401-001249 C-AL;4.7uF,20%,35V,GP,TP,4x5,2 1 SA
C526 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA
C527 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,1 1 SA
C529 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA
C530 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C537 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5 1 SA
C538 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2. 1 SA
C541 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA
C603 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11. 1 SA
C604 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA

C605 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C606 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C607 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C607A 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA
C608 2401-002259 C-AL;100000uF,+80-20%,5.5V,-,T 1 SA E.Europe/CIS Only

C609 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA
C610 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-2 1 SA
C613 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 1 SA
C614 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C623 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA

C624 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA E.Europe/CIS Only

C625 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA E.Europe/CIS Only
C626 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA
C627 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA
C628 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G, 1 SA

C633 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C635 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
C636 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
C637 2203-002041 C-CER,CHIP;0.47nF,10%,50V,X7R, 1 SA
C638 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5 1 SA

C639 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
C640 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C641 2401-003221 C-AL;100uF,20%,16V,GP,TP,8X5,2 1 SA
C642 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA
C645 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,T 1 SA

C646 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C657 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C658 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C659A 2203-001140 C-CER,CHIP;68nF,10%,16V,X7R,TP 1 SA
C661 2202-002055 C-CERAMIC,MLC-AXIAL;47nF,+80-2 1 SA

C662 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5, 1 SA
C663 2401-000118 C-AL;1000uF,20%,10V,GP,TP,10x1 1 SA
C688 2401-001507 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA
C691 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C695 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,T 1 SA

C696 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
C6P01 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,1 1 SA
C6P02 2203-000315 C-CER,CHIP;0.12NF,5%,50V,C0G,T 1 SA
C6P04 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G, 1 SA
C6P05 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G, 1 SA

C6P08 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G, 1 SA
C6P10 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V, 1 SA
C6P11 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA
C6P12 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5, 1 SA
C6P13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C6P15 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,1 1 SA
C702 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C703 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA
C704 2401-000118 C-AL;1000uF,20%,10V,GP,TP,10x1 1 SA
C706 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA

C708A 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,1 1 SA
C822A 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
CN01 3708-000270 CONNECTOR-FPC/FFC/PIC;33P,1.25 1 SA
CN02 3708-000270 CONNECTOR-FPC/FFC/PIC;33P,1.25 1 SA
CN03 3711-004379 CONNECTOR-HEADER;BOX,4P,1R,2MM 1 SA

CN04 3711-000827 CONNECTOR-HEADER;BOX,2P,1R,2mm 1 SA
CN1S01 3711-000203 CONNECTOR-HEADER;1WALL,2P,1R,7 1 SA
CN301 3708-000391 CONNECTOR-FPC/FFC/PIC;10P,1.25 1 SA
CN303 3708-001165 CONNECTOR-FPC/FFC/PIC;6P,1.25M 1 SA
CN3A02 AC37-00028A CONNECTOR-SOCKET;-,X-11,T9.0,W 1 SA

CN604 AC37-00027A CONNECTOR-HEADER;20045WS,X-11, 1 SA
CN701 3708-001963 CONNECTOR-FPC/FFC/PIC;8P,1.25M 1 SA
D1 0402-001111 DIODE-RECTIFIER;1N5397GP,600V, 1 SA
D1P101 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
D1P102 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA

D1P103 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA

This Document can not be used without Samsung’s authorization

Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark

Electrical Parts List

Samsung Electronics

8-3

D1P106 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A 1 SA
D1P107 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A 1 SA
D1P108 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
D1P111 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A 1 SA

D1P112 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
D1P130 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
D1S05 0402-000012 DIODE-RECTIFIER;UF4007,1KV,1A, 1 SA
D1S06 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
D1S07 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,D 1 SA

D1S30 0404-001225 DIODE-SCHOTTKY;SRAF560,60V,500 1 SA
D1S31 0404-001225 DIODE-SCHOTTKY;SRAF560,60V,500 1 SA
D1S32 0402-001643 DIODE-RECTIFIER;MBRF10A0,100V, 1 SA
D1S33 0402-001643 DIODE-RECTIFIER;MBRF10A0,100V, 1 SA
D1S34 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,D 1 SA

D1S35 0402-001194 DIODE-RECTIFIER;SHG2D,200V,2A, 1 SA
D1S37 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,D 1 SA
D1S39 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A 1 SA
D2 0402-001111 DIODE-RECTIFIER;1N5397GP,600V, 1 SA
D3 0402-001111 DIODE-RECTIFIER;1N5397GP,600V, 1 SA

D301 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
D302 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
D4 0402-001111 DIODE-RECTIFIER;1N5397GP,600V, 1 SA
D502 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
D603 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA

D604 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
D620 0402-000165 DIODE-RECTIFIER;1N5819,40V,1A, 1 SA
D688 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
D701 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
D702 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA

D703 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
D704 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
D706 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
D707 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
D708 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA

D709 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
DT701 AK07-00031A LED DISPLAY;BCD-9033A,DVD-VR32 1 SA
F1S01 3601-000237 FUSE-CARTRIDGE;250V,2A,SLOW-BL 1 SA
FL042 3809-001206 CABLE-FLAT;30V,-20to+80C,140mm 1 SA
FL282 3809-001581 FFC CABLE-FLAT;30V,80C,60mm,33 1 SA

FL282 3809-001581 FFC CABLE-FLAT;30V,80C,60mm,33 1 SA
FL3A01 2702-000166 INDUCTOR-RADIAL;47uH,5%,6.0x6. 1 SA
IC1P01 AC14-12006N IC-VOLT REGU;KA78R12,SIP,STICK 1 SA
IC1P02 AC14-12006N IC-VOLT REGU;KA78R12,SIP,STICK 1 SA
IC1P03 1203-003216 IC-POSI.FIXED REG.;G9133,TO-22 1 SA

IC1S01 1203-002805 IC-PWM CONTROLLER;ICE2BS01,PDI 1 SA
IC1S02 0604-001028 PHOTO-COUPLER;TR,50-600%,250mW 1 SA
IC1S03 AC14-12006D IC;KA431Z,TO-92,TAPING 1 SA
IC301 1204-002140 IC-VIDEO PROCESS;LA71750EM-MPB 1 SA
IC3S01 1204-001921 IC-CHROMA;LA70100M,SOP,30P,375 1 SA SECAM Only

IC501 1204-001920 IC-AUDIO PROCESSOR;LA72646M,QF 1 SA
IC604 AC14-12006C IC;KA7533,DIP,- 1 SA
IC605 1103-001331 IC-EEPROM;S524A60X51,2Kx8Bit,D 1 SA
IC608 1203-000515 IC-VOL. DETECTOR;7042,TO-92,3P 1 SA E.Europe/CIS Only
IC6P01 1204-001796 IC-OSD PROCESSOR;LC74759JM-982 1 SA

IC701 1003-001561 IC-LED DRIVER;PT6961,SOP,32P,3 1 SA

J330 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
J905 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
J910 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
J911 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA

J913 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
J914 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
L1P02 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L1P101 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L1P102 2702-000108 INDUCTOR-RADIAL;100uH,5%,6.0x6 1 SA

L1S01 AC29-30050B FILTER LINE NOISE;-,400uH,-,AC 1 SA
L1S02 AK29-00002A FILTER EMI;RECORDER,SQ2222,0.4 1 SA
L1S30 AH27-00039A COIL CHOKE;DR CHOKE(8*6),DVD-R 1 SA
L1S31 AH27-00039A COIL CHOKE;DR CHOKE(8*6),DVD-R 1 SA
L1S32 AC27-12001N COIL CHOKE;10UH-15%,RA,K-30,Q8 1 SA

L301 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L301A 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L302 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L304 3301-000297 BEAD-AXIAL;25ohm,3.6x1.2x5.7mm 1 SA
L370 2701-000113 INDUCTOR-AXIAL;100UH,5%,2534 1 SA

L3A01 2702-000120 INDUCTOR-RADIAL;15000uH,5%,6.2 1 SA
L3A02 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L3A03 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L3A70 2702-000120 INDUCTOR-RADIAL;15000uH,5%,6.2 1 SA
L3S01 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA

L501 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L502 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L602 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L603 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L605 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA

L6P01 2702-000108 INDUCTOR-RADIAL;100uH,5%,6.0x6 1 SA
L6P03 2701-000160 INDUCTOR-AXIAL;22uH,5%,2434 1 SA
L6P05 2701-000165 INDUCTOR-AXIAL;27uH,5%,2434 1 SA
L702 2702-000108 INDUCTOR-RADIAL;100uH,5%,6.0x6 1 SA
PT1SD1 AC26-00014C TRANS SWITCHING;EER-3534,RAM C 1 SA

PT601 0604-001275 PHOTO-INTERRUPTER;-,-,0MW,SNAP 1 SA
PT602 0604-001275 PHOTO-INTERRUPTER;-,-,0MW,SNAP 1 SA
Q1P101 0501-000362 TR-SMALL SIGNAL;KSC2328A-Y,NPN 1 SA
Q1P102 0501-000362 TR-SMALL SIGNAL;KSC2328A-Y,NPN 1 SA
Q1P103 0501-000362 TR-SMALL SIGNAL;KSC2328A-Y,NPN 1 SA

Q1P104 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250 1 SA
Q1P105 0501-000362 TR-SMALL SIGNAL;KSC2328A-Y,NPN 1 SA
Q1P106 0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4 1 SA
Q1P107 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250 1 SA
Q1P108 0501-000362 TR-SMALL SIGNAL;KSC2328A-Y,NPN 1 SA

Q1P109 0501-000362 TR-SMALL SIGNAL;KSC2328A-Y,NPN 1 SA
Q1P110 0501-000362 TR-SMALL SIGNAL;KSC2328A-Y,NPN 1 SA
Q1P111 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP, 1 SA
Q1P112 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP, 1 SA
Q1P113 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP, 1 SA

Q1S01 0505-001729 FET-SILICON;SPA04N60C3,N,600V, 1 SA
Q302 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA SECAM Only
Q3A01 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250 1 SA
Q3A02 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250 1 SA
Q3A03 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN, 1 SA

Q3A04 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN, 1 SA

Q3A05 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN, 1 SA
Q3A06 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250 1 SA
Q601 0504-000129 TR-DIGITAL;KSR1104,NPN,200mW,4 1 SA
Q6P01 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250 1 SA

Q6P02 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250 1 SA
R1P102 2001-000008 R-CARBON;15KOHM,5%,1/8W,AA,TP, 1 SA
R1P104 2001-000027 R-CARBON;100OHM,5%,1/4W,AA,TP, 1 SA
R1P105 2001-000605 R-CARBON;3.6KOHM,5%,1/8W,AA,TP 1 SA
R1P107 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP 1 SA

R1P108 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP 1 SA
R1P109 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP 1 SA
R1P110 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP 1 SA
R1P121 2001-000062 R-CARBON;470OHM,5%,1/4W,AA,TP, 1 SA
R1P122 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP 1 SA

R1P123 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP 1 SA
R1P124 2001-000062 R-CARBON;470OHM,5%,1/4W,AA,TP, 1 SA
R1P125 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP 1 SA
R1P131 2001-000855 R-CARBON;560OHM,5%,1/4W,AA,TP, 1 SA
R1S02 2006-000273 R-CEMENT;27KOHM,5%,2W,CA,BK,6. 1 SA

R1S03 2006-000273 R-CEMENT;27KOHM,5%,2W,CA,BK,6. 1 SA
R1S04 2006-000262 R-CEMENT;2.7ohm,10%,2W,CB,TP,7 1 SA
R1S05 2001-000546 R-CARBON;270KOHM,5%,1/4W,AA,TP 1 SA
R1S06 2001-000869 R-CARBON;56OHM,5%,1/8W,AA,TP,1 1 SA
R1S07 2001-000546 R-CARBON;270KOHM,5%,1/4W,AA,TP 1 SA

R1S08 2001-000546 R-CARBON;270KOHM,5%,1/4W,AA,TP 1 SA
R1S09 2001-000598 R-CARBON;3.3OHM,5%,1/8W,AA,TP, 1 SA
R1S10 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R1S11 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP 1 SA
R1S12 2001-000527 R-CARBON;22OHM,5%,1/8W,AA,TP,1 1 SA

R1S13 2005-001198 R-WIRE WOUND,NON;0.18ohm,1%,1W 1 SA
R1S14 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP, 1 SA
R1S15 2001-000096 R-CARBON(S);1MOHM,5%,1/2W,AA,T 1 SA
R1S31 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP, 1 SA
R1S32 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP 1 SA

R1S33 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
R1S35 2004-000500 R-METAL;2.7Kohm,1%,1/8W,AA,TP, 1 SA
R1S36 2007-000490 R-CHIP;2.2Kohm,1%,1/8W,TP,2012 1 SA
R1S37 2003-000148 R-METAL OXIDE;100ohm,5%,2W,AE, 1 SA
R315 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,160 1 SA

R316 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,160 1 SA
R320 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 SA
R321 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R322 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 SA
R323 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,160 1 SA

R324 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,160 1 SA SECAM Only
R325 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R326 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R327 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
R328 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,160 1 SA

R329 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 SA
R330 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,160 1 SA
R331 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,160 1 SA
R333 2007-001039 R-CHIP;56Kohm,5%,1/8W,TP,2012 1 SA
R334 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,160 1 SA

R335 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA

R336 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R350 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,160 1 SA SECAM Only
R360 2007-001196 R-CHIP;820Kohm,5%,1/10W,TP,160 1 SA
R372 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

R373 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 SA
R374 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP, 1 SA
R380 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA
R3A04 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP 1 SA
R3A05 2007-000616 R-CHIP;24Kohm,5%,1/10W,TP,1608 1 SA

R3A06 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 SA
R3A07 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,160 1 SA
R3A08 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 SA
R3A09 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R3A11 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA

R3A12 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R3A13 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
R3A14 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
R3A16 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R3A17 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA

R3A18 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA
R3A23 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 SA
R3A24 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
R3A25 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP 1 SA
R3A26 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R3A28 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA
R3A50 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP 1 SA
R3A51 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R3A60 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,160 1 SA
R3A70 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

R3S01 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA SECAM Only
R3S02 2001-000435 R-CARBON;1MOHM,5%,1/8W,AA,TP,1 1 SA SECAM Only
R501 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP, 1 SA
R503 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP, 1 SA
R509 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,160 1 SA

R510 2007-000913 R-CHIP;43Kohm,5%,1/10W,TP,1608 1 SA
R511 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R512 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP, 1 SA
R517 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,160 1 SA
R518 2007-000913 R-CHIP;43Kohm,5%,1/10W,TP,1608 1 SA

R545 2007-000512 R-CHIP;2.4Kohm,5%,1/10W,TP,160 1 SA
R546 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R547 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R570 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R571 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA

R608 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP, 1 SA
R609 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP, 1 SA
R610 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R611 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R613 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA E.Europe/CIS Only

R614 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R615 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R617 2007-001038 R-CHIP;56Kohm,1%,1/10W,TP,1608 1 SA
R620 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R622 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R630 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

8-4

Samsung Electronics

Electrical Parts List

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

R631 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R632 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
R633 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
R634 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

R635 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
R636 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R637 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP, 1 SA
R640 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R641 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP, 1 SA

R642 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP, 1 SA
R643 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
R644 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
R647 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
R651 2001-000010 R-CARBON;68KOHM,5%,1/8W,AA,TP, 1 SA

R652 2001-000568 R-CARBON;27OHM,5%,1/8W,AA,TP,1 1 SA E.Europe/CIS Only
R657 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 SA E.Europe/CIS Only

2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA Other Only

R658 2001-000633 R-CARBON;30KOHM,5%,1/8W,AA,TP, 1 SA
R660 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP, 1 SA

R661 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
R663 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R664 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R666 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
R667 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

R668 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP, 1 SA
R669 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP, 1 SA
R670 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
R671 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
R672 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

R673 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
R674 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP, 1 SA
R676 2001-000633 R-CARBON;30KOHM,5%,1/8W,AA,TP, 1 SA
R678 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
R679 2007-000572 R-CHIP;220ohm,5%,1/8W,TP,2012 1 SA

R682 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
R685 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,160 1 SA
R688 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 SA
R691 2007-000572 R-CHIP;220ohm,5%,1/8W,TP,2012 1 SA
R698 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R6P05 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
R6P07 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 SA
R6P08 2007-000118 R-CHIP;390ohm,5%,1/10W,TP,1608 1 SA
R6P09 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA
R6P10 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

R701 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
R702 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
R703 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R704 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608 1 SA
R711 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

RM701 AC32-00006A MODULE REMOCON;TSOP2238WE1,38K 1 SA
SW602 AC34-00006A SWITCH-REC;-,-,-,-,-,-,-,-,-,- 1 SA
SW603 AC34-00005A SWITCH MODE;-,-,-,-,-,-,-,-,-, 1 SA
SW604 3409-001165 SWITCH-DETECTOR;5V,1mA,-,50gf, 1 SA
U731 AC09-00274A IC MICOM;UPD78F4928GF-3BA,FRES 1 SA

VA1S01 1405-001026 VARISTOR;470V,600A,9x7mm,TP 1 SA

W002 3301-000297 BEAD-AXIAL;25ohm,3.6x1.2x5.7mm 1 SA
W022 3301-000297 BEAD-AXIAL;25ohm,3.6x1.2x5.7mm 1 SA
W074 3301-000297 BEAD-AXIAL;25ohm,3.6x1.2x5.7mm 1 SA
W165 3301-000297 BEAD-AXIAL;25ohm,3.6x1.2x5.7mm 1 SA

W234 0402-001533 DIODE-RECTIFIER;1N5408,1000V,3 1 SA
W237 3301-000297 BEAD-AXIAL;25ohm,3.6x1.2x5.7mm 1 SA
W688 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA Not used SECAM
XT301 2801-001397 CRYSTAL-UNIT;4.433619MHz,20ppm 1 SA
XT601 2801-004263 CRYSTAL-UNIT;0.032768MHz,5ppm, 1 SA E.Europe/CIS Only

XT602 2801-003139 CRYSTAL-UNIT;8MHz,50ppm,28-AAA 1 SA
ZD1P02 0403-001211 DIODE-ZENER;MTZJ12B,11.8-12.3V 1 SA
ZD1P03 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01 1 SA
ZD1P04 0403-000717 DIODE-ZENER;MTZJ5.1B,4.94-5.2V 1 SA
ZD1S01 0403-001318 DIODE-ZENER;MTZJ4.3B,4.17-4.43 1 SA

ZD1S02 0403-000713 DIODE-ZENER;MTZJ20B,18.63-17.7 1 SA

P001 AK92-00683A ASSY PCB-MAIN;DVD-VR320/XEF,DV 1 SA

AC101 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
AC104 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6 1 SA
AC105 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
AC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

AC5 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
AC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
AC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
AC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
AC816 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA

AC818 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
AC820 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,T 1 SA
AC821 2203-001554 C-CER,CHIP;1.8nF,10%,50V,X7R,T 1 SA
AC822 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4. 1 SA
AC823 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,T 1 SA
AC824 2203-001554 C-CER,CHIP;1.8nF,10%,50V,X7R,T 1 SA

AC831 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4. 1 SA
AC891 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
AC892 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
AC908 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
AC911 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4. 1 SA

AC912 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
AC913 2402-000007 C-AL,SMD;22uF,20%,6.3V,GP,TP,4 1 SA
AC914 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
AC915 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4. 1 SA
AC917 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4. 1 SA

AC918 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
AC919 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6 1 SA
AE2 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6 1 SA
AE3 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6. 1 SA
AIC3 1203-002178 IC-POSI.FIXED REG.;1563,SOP,7P 1 SA

AIC81 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,D 1 SA
AIC82 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,D 1 SA
AL1 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
AL2 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
AL3 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA

AL4 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
AR10 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

Electrical Parts List

Samsung Electronics

8-5

Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

AR11 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
AR12 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
AR13 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

AR14 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
AR15 2007-000120 R-CHIP;680ohm,5%,1/10W,TP,1608 1 SA
AR16 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
AR2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
AR20 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA

AR3 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA
AR4 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
AR5 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
AR51 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
AR52 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR6 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
AR7 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA
AR8 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
AR801 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
AR802 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

AR803 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
AR804 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,160 1 SA
AR805 2007-000126 R-CHIP;4.3Kohm,5%,1/10W,TP,160 1 SA
AR806 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
AR807 2007-000126 R-CHIP;4.3Kohm,5%,1/10W,TP,160 1 SA

AR808 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,160 1 SA
AR809 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 SA
AR811 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 SA
AR812 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 SA
AR813 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

AR814 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
AR881 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
AR882 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
AR894 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
AR895 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

AR9 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA
ATAR1 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P 1 SA
ATAR2 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P 1 SA
ATAR3 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P 1 SA
ATAR4 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P 1 SA

ATCN1 3708-001935 CONNECTOR-FPC/FFC/PIC;40P,0.5m 1 SA
C110 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C111 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C112 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C115 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C117 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C119 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C123 2402-001237 C-AL,SMD;330uF,°æ20%,6.3V,-,RE 1 SA
C124 2402-001237 C-AL,SMD;330uF,°æ20%,6.3V,-,RE 1 SA
C125 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C126 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C127 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C128 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C129 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C130 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C140 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C141 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C142 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C143 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C144 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C145 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C146 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C147 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C150 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C166 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA

C167 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C168 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C169 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C171 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C173 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4. 1 SA

C174 2402-001096 C-AL,SMD;220UF,20%,16V,GP,TP,6 1 SA
C177 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C178 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA
C179 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C183 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C184 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C185 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C210 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C214 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA
C215 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C217 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C218 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C219 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA
C220 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C222 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C223 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C224 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C225 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C226 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C227 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C228 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C230 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C231 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C232 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C78 2203-000746 C-CER,CHIP;0.03NF,5%,50V,C0G,T 1 SA

C79 2203-000746 C-CER,CHIP;0.03NF,5%,50V,C0G,T 1 SA
CA1 2402-001096 C-AL,SMD;220UF,20%,16V,GP,TP,6 1 SA
CA2 2402-001237 C-AL,SMD;330uF,°æ20%,6.3V,-,RE 1 SA
CC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
CL1 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA

CL2 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
CL3 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
CN1 3710-002075 CONNECTOR-SOCKET;30P,2R,2MM,SM 1 SA
CN2 3710-002075 CONNECTOR-SOCKET;30P,2R,2MM,SM 1 SA
CN3 3711-005595 CONNECTOR-SOCKET;12P,2R,2MM,SM 1 SA

CR1 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
CR2 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
CR3 2007-000083 R-CHIP;3Kohm,5%,1/10W,TP,1608 1 SA
DC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

DC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

8-6

Samsung Electronics

Electrical Parts List

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

DC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

DC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC17 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC18 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
DC19 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
DC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

DC20 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
DC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC23 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
DC24 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC25 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA

DC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC5 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC66 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

DC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DE1 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4. 1 SA
DE2 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4. 1 SA

DE3 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6 1 SA
DE4 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6 1 SA
DE6 2402-001237 C-AL,SMD;330uF,°æ20%,6.3V,-,RE 1 SA
DIC1 1205-002442 IC-CODEC;DMN-8602,BGA,308P,27x 1 SA
DIC2 0801-002522 IC-CMOS LOGIC;74VHC541,BUFFER/ 1 SA

DIC3 1107-001273 IC-FLASH MEMORY;29DL323,4Mx8/2 1 SA
DIC6 0802-001115 IC-CMOS LOGIC;74ALVCH16373,D L 1 SA
DIC7 0801-002587 IC-CMOS LOGIC;74LVX541,8BIT BU 1 SA
DIC8 1103-001134 IC-EEPROM;24C040,512x8,SOP,8P, 1 SA
DL1 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA

DR1 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR10 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR2 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR21 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR28 2007-007332 R-CHIP;1.18Kohm,1%,1/8W,TP,201 1 SA

DR29 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR3 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR30 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR31 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR32 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

DR33 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR34 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR35 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR36 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR37 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

DR38 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
DR39 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
DR4 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR40 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
DR41 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

DR42 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
DR43 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

DR44 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR45 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR46 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

DR47 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR48 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR49 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR5 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR50 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

DR51 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR52 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR53 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR54 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR55 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

DR56 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR57 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR58 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR59 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR6 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

DR60 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR61 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR62 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
DR63 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
DR64 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

DR65 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR66 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
DR67 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR68 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR69 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

DR7 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR71 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
DR72 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
DR74 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
DR8 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

DR84 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR85 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR86 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR87 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR88 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

DR89 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR9 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR90 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR91 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
DR92 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

DR95 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR96 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR97 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DR98 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
DU503 1002-001294 IC-D/A CONVERTER;PCM1742KE,24B 1 SA

FB23 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
IC100 1002-001387 IC-A/D CONVERTER;PCM1802,24BIT 1 SA
PC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC11 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA

PC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

Electrical Parts List

Samsung Electronics

8-7

Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

PC14 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA
PC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC16 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA

PC17 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC18 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,- 1 SA
PC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC20 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

PC3 2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G, 1 SA
PC4 2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G, 1 SA
PC5 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA
PC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC7 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA

PC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC9 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA
PE1 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6 1 SA
PE2 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6 1 SA
PE3 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4. 1 SA

PE4 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4. 1 SA
PE5 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3 1 SA
PIC1 1205-001988 IC-DATA COMM./GEN.;TSB41AB1-PA 1 SA
PL1 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
PL2 3301-000353 BEAD-SMD;120ohm,2x1.25x0.9mm,- 1 SA

PL3 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
PR1 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
PR10 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
PR12 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
PR13 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

PR14 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
PR15 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
PR16 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
PR17 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
PR18 2007-000965 R-CHIP;5.1Kohm,5%,1/10W,TP,160 1 SA

PR19 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
PR2 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
PR20 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
PR21 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
PR22 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA

PR23 2007-001056 R-CHIP;6.2Kohm,5%,1/10W,TP,160 1 SA
PR24 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PR4 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
PR5 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PR60 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

PR9 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
PRA1 2011-000002 R-NET;22OHM,5%,1/16W,L,CHIP,8P 1 SA
PRA2 2011-000002 R-NET;22OHM,5%,1/16W,L,CHIP,8P 1 SA
PY1 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28 1 SA
R1 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 SA

R213 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R214 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R215 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R216 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R217 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA

R218 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R219 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA

R220 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R221 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
R222 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 SA

R223 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
R224 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
R225 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
R226 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 SA
R227 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

R228 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 SA
R229 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R230 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R232 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R234 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA

R237 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R238 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R239 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R240 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R241 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

R242 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
R243 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
R246 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
R247 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
R248 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

R257 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R67 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 SA
R68 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 SA
R69 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 SA
R70 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 SA

RC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC5 2203-001683 C-CER,CHIP;0.068nF,5%,50V,NP0, 1 SA

RE1 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6 1 SA
RE2 2402-001237 C-AL,SMD;330uF,°æ20%,6.3V,-,RE 1 SA
RE3 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6 1 SA
RE4 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6 1 SA
RIC1 1203-003182 IC-POSI.FIXED REG.;LP3965,TO-2 1 SA

RIC2 1203-002612 IC-POSI.ADJUST REG.;3966,TO-26 1 SA
RL1 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 SA
RL2 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
RL3 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
RL5 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA

RL6 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
RL7 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
RP1 2011-000686 R-NET;56OHM,5%,1/16W,L,CHIP,8P 1 SA
RP10 2011-000686 R-NET;56OHM,5%,1/16W,L,CHIP,8P 1 SA
RP12 2011-000686 R-NET;56OHM,5%,1/16W,L,CHIP,8P 1 SA

RP14 2011-000686 R-NET;56OHM,5%,1/16W,L,CHIP,8P 1 SA
RP15 2011-000686 R-NET;56OHM,5%,1/16W,L,CHIP,8P 1 SA
RP17 2011-000686 R-NET;56OHM,5%,1/16W,L,CHIP,8P 1 SA
RP18 2011-000686 R-NET;56OHM,5%,1/16W,L,CHIP,8P 1 SA
RP19 2011-000686 R-NET;56OHM,5%,1/16W,L,CHIP,8P 1 SA

RP20 2011-000686 R-NET;56OHM,5%,1/16W,L,CHIP,8P 1 SA
RP21 2011-000002 R-NET;22OHM,5%,1/16W,L,CHIP,8P 1 SA

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

8-8

Samsung Electronics

Electrical Parts List

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

RP22 2011-000002 R-NET;22OHM,5%,1/16W,L,CHIP,8P 1 SA
RP23 2011-000002 R-NET;22OHM,5%,1/16W,L,CHIP,8P 1 SA
RP24 2011-000002 R-NET;22OHM,5%,1/16W,L,CHIP,8P 1 SA

RP25 2011-001194 R-NET;51ohm,5%,1/16W,L,CHIP,8P 1 SA
RP26 2011-001194 R-NET;51ohm,5%,1/16W,L,CHIP,8P 1 SA
RP27 2011-001194 R-NET;51ohm,5%,1/16W,L,CHIP,8P 1 SA
RP28 2011-001194 R-NET;51ohm,5%,1/16W,L,CHIP,8P 1 SA
RP29 2011-001194 R-NET;51ohm,5%,1/16W,L,CHIP,8P 1 SA

RP3 2011-000686 R-NET;56OHM,5%,1/16W,L,CHIP,8P 1 SA
RP30 2011-001194 R-NET;51ohm,5%,1/16W,L,CHIP,8P 1 SA
RP31 2011-001194 R-NET;51ohm,5%,1/16W,L,CHIP,8P 1 SA
RP34 2011-001194 R-NET;51ohm,5%,1/16W,L,CHIP,8P 1 SA
RP5 2011-000686 R-NET;56OHM,5%,1/16W,L,CHIP,8P 1 SA

RP7 2011-000686 R-NET;56OHM,5%,1/16W,L,CHIP,8P 1 SA
RR3 2007-000962 R-CHIP;5.1Kohm,1%,1/10W,TP,160 1 SA
RR4 2007-000300 R-CHIP;10Kohm,5%,1/8W,TP,2012 1 SA
TC10 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,2 1 SA
TC11 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,2 1 SA

TC12 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,2 1 SA
TC13 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,2 1 SA
TC14 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,2 1 SA
TC15 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,2 1 SA
TC16 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA

TC17 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA
TC18 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC20 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC21 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

TC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC23 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC24 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V, 1 SA
TC25 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC26 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

TC27 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC28 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC29 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC30 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC31 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

TC32 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC33 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC34 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC35 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TC51 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

TC52 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
TD1 0402-000309 DIODE-RECTIFIER;1SR154-400,400 1 SA
TE1 2402-000007 C-AL,SMD;22uF,20%,6.3V,GP,TP,4 1 SA
TE2 2402-000007 C-AL,SMD;22uF,20%,6.3V,GP,TP,4 1 SA
TE3 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6 1 SA

TE4 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6 1 SA
TIC1 1204-002436 IC-VIDEO DECODER;TW9909,TQFP,8 1 SA
TL1 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
TL2 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
TL3 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA

TL4 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
TNR10 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P 1 SA

TNR11 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P 1 SA
TR10 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
TR11 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

TR12 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
TR13 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
TR14 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
TR15 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
TR16 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

TR17 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
TR19 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
TR20 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
TR21 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
TR22 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

TR75 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
TX1 2801-004095 CRYSTAL-SMD;27MHz,20ppm,28-ABY 1 SA
U23 1105-001581 IC-DRAM;M13S128168A,4x2Mx16Bit 1 SA
U24 1105-001581 IC-DRAM;M13S128168A,4x2Mx16Bit 1 SA
U25 1203-003038 IC-POSI.ADJUST REG.;LP2995,SO, 1 SA

U34 0401-000008 DIODE-SWITCHING;DAN217,80V,100 1 SA
Y3 2801-004182 CRYSTAL-SMD;13.5MHZ,10PPM,28-A 1 SA

P022 AK92-00667A ASSY PCB-JACK;DVD-VR320E/XEF,D 1 SA

XEF/XEB/SED Only

AK92-00667C ASSY PCB-JACK;DVD-VR320E/XEV,D 1 SA

E.Europe/CIS Only

AK92-00667D ASSY PCB-JACK;DVD-VR320/XEU,DV 1 SA Other Only

AC14 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
AC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

AC18 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
AC19 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
AC21 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,T 1 SA
AC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
AC23 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,T 1 SA

AC24 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
AC25 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,T 1 SA
AC26 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,T 1 SA
AC27 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
AC9 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA

AD1 0407-000114 DIODE-ARRAY;DAN202K,80V,100mA, 1 SA
AD2 0407-000114 DIODE-ARRAY;DAN202K,80V,100mA, 1 SA
AD3 0407-000114 DIODE-ARRAY;DAN202K,80V,100mA, 1 SA
AD4 0401-000008 DIODE-SWITCHING;DAN217,80V,100 1 SA
AD5 0407-000114 DIODE-ARRAY;DAN202K,80V,100mA, 1 SA

AE11 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2. 1 SA
AE12 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA
AE13 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2. 1 SA
AE14 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA
AE15 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA

AE16 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA
AE3 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2. 1 SA
AE5 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2. 1 SA
AE6 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2. 1 SA
AE7 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2. 1 SA

AIC4 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,D 1 SA

Electrical Parts List

Samsung Electronics

8-9

Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

AIC5 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,D 1 SA
AL3 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
AL4 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
AQ1 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K 1 SA

AQ2 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,2 1 SA
AQ3 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA
AQ4 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K 1 SA
AQ5 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,2 1 SA
AQ6 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA

AQ7 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K 1 SA
AQ8 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,2 1 SA
AQ9 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150 1 SA
AR10 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
AR11 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA

AR12 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA
AR13 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA
AR14 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
AR15 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
AR16 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

AR17 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
AR18 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
AR28 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
AR29 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
AR30 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

AR31 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
AR32 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
AR33 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,160 1 SA
AR35 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,160 1 SA
AR36 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP, 1 SA

AR37 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP 1 SA
AR39 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,160 1 SA
AR40 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP, 1 SA
AR41 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,160 1 SA
AR42 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

AR43 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
AR44 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608 1 SA
AR45 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608 1 SA
AR46 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,160 1 SA
AR47 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

AR48 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
AR49 2001-000837 R-CARBON;51KOHM,5%,1/8W,AA,TP, 1 SA
AR50 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608 1 SA
AR52 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
AR54 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,160 1 SA

AR55 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 SA
AZ1 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
AZ2 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
AZ3 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
AZ4 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA

AZ5 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
AZ6 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
AZ7 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
AZ8 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
C401 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA

C402 2203-000604 C-CER,CHIP;22nF,10%,25V,X7R,TP 1 SA

C403 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA
C404 2401-001324 C-AL;0.47UF,20%,50V,GP,BK,3X5, 1 SA
C404A 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C405 2401-001573 C-AL;47uF,20%,50V,GP,TP,6.3x11 1 SA

C406 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C407 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA

Not used XEF/XEB/SED
C410 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C4N01 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,T 1 SA
C4N02 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA

C4N03 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,- 1 SA
C4N04 2401-002569 C-AL;2.2uF,20%,50V,GP,TP,4x5,2 1 SA
C4N05 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C4N06 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C4N07 2203-002041 C-CER,CHIP;0.47nF,10%,50V,X7R, 1 SA

C4N08 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,T 1 SA
C4N09 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C4N10 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C4N11 2401-002186 C-AL;3.3uF,20%,50V,GP,BK,4x5,2 1 SA
C4N12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C4N13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C4N14 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C4N15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C4N16 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5, 1 SA
C4N17 2203-002041 C-CER,CHIP;0.47nF,10%,50V,X7R, 1 SA

C4N18 2203-002041 C-CER,CHIP;0.47nF,10%,50V,X7R, 1 SA
C4N19 2202-000279 C-CERAMIC,MLC-AXIAL;47pF,5%,50 1 SA
C4N21 2203-000160 C-CER,CHIP;0.0015NF,0.25PF,50V 1 SA
C4N22 2203-000160 C-CER,CHIP;0.0015NF,0.25PF,50V 1 SA
C4N23 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA

C4N24 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA
C4N25 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-2 1 SA
C4N30 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C6C01 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA E.Europe/CIS Only
C6C02 2401-002186 C-AL;3.3uF,20%,50V,GP,BK,4x5,2 1 SA E.Europe/CIS Only

C6C03 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA E.Europe/CIS Only
C6C04 2203-001052 C-CER,CHIP;0.56nF,10%,50V,X7R, 1 SA E.Europe/CIS Only
C6C05 2203-001052 C-CER,CHIP;0.56nF,10%,50V,X7R, 1 SA E.Europe/CIS Only
C6C06 2203-000726 C-CER,CHIP;3.9nF,10%,50V,X7R,1 1 SA E.Europe/CIS Only
C6P01 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,1 1 SA

Not used E.Europe/CIS

C6P04 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G, 1 SA

Not used E.Europe/CIS
C6P05 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G, 1 SA

Not used E.Europe/CIS
C6P06 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA
C6P07 2401-003336 C-AL;4.7UF,20%,50V,GP,TP,5X5,2 1 SA

Not used E.Europe/CIS
C6P08 2203-001140 C-CER,CHIP;68nF,10%,16V,X7R,TP 1 SA

Not used E.Europe/CIS

C6P10 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA

Not used E.Europe/CIS
C6P11 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA

Not used E.Europe/CIS
C6P12 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA

Not used E.Europe/CIS
C6P13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

8-10

Samsung Electronics

Electrical Parts List

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

Not used E.Europe/CIS
C6P15 2203-001140 C-CER,CHIP;68nF,10%,16V,X7R,TP 1 SA
C701 2301-001679 C-FILM,PEF;2.2nF,5%,50V,TP,5.8 1 SA
C702 2301-001679 C-FILM,PEF;2.2nF,5%,50V,TP,5.8 1 SA
C800 2203-005918 C-CER,CHIP;1000NF,10%,6.3V,X7R 1 SA
C801 2401-001543 C-AL;47uF,20%,25V,GP,TP,6.3x5m 1 SA
C802 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

C803 2401-001543 C-AL;47uF,20%,25V,GP,TP,6.3x5m 1 SA
C805 2203-005918 C-CER,CHIP;1000NF,10%,6.3V,X7R 1 SA
C805B 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C806 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C806B 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA

C807 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C808 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C810 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C813 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C817 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA

C818 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G, 1 SA
C819 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G, 1 SA
C819B 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C820 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G, 1 SA
C820B 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA

C821 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G, 1 SA
C822 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
C824 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C824B 2203-001697 C-CER,CHIP;0.082nF,5%,50V,NP0, 1 SA
C825 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G, 1 SA

C825A 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C825B 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C826 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C826A 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G, 1 SA
C826B 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA

C827 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
C828A 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
C829 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
C830 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
C831 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA

C832 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C833 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
C833A 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G, 1 SA
C835 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
C835A 2401-003336 C-AL;4.7UF,20%,50V,GP,TP,5X5,2 1 SA

C835J 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
C836 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C836A 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C836J 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
C837 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA

C838 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C839 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C841 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
C842 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
C843 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,T 1 SA

C844 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,T 1 SA
C845 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,T 1 SA
C846 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,T 1 SA
C847 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,T 1 SA

C848 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,T 1 SA

C853 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
C854 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
C891A 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

Not used XEF/XEB/SED

C891B 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

Not used XEF/XEB/SED

C901 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA

C902 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5, 1 SA
CE76 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X1 1 SA
CN3 3711-005563 CONNECTOR-HEADER;BOX,30P,2R,2M 1 SA
CN4 3711-005563 CONNECTOR-HEADER;BOX,30P,2R,2M 1 SA
CN5 AC37-00027A CONNECTOR-HEADER;20045WS,X-11, 1 SA

CN7 3722-002118 JACK-IEEE1394;4P,NI,BLK,ANGLE, 1 SA
CNC1 2203-001697 C-CER,CHIP;0.082nF,5%,50V,NP0, 1 SA
CNL1 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
CNL2 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
CNR37 3301-000297 BEAD-AXIAL;25ohm,3.6x1.2x5.7mm 1 SA

CNR37A 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
CNR38 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
CVL1 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
CVL2 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
CVL3 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA

D1P110 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A 1 SA
D4N01 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
D4N02 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
D501 0407-000114 DIODE-ARRAY;DAN202K,80V,100mA, 1 SA
D6P01 0407-000114 DIODE-ARRAY;DAN202K,80V,100mA, 1 SA Not used E.Europe/CIS

D801 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A 1 SA
D805 0401-000101 DIODE-SWITCHING;1N4148,75V,150 1 SA
DOC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DOC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
DOE1 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5 1 SA

DOIC2 3707-001060 CONNECTOR-OPTICAL;PLUG,GP1FA55 1 SA
DOL1 2901-001273 FILTER-EMI SMD;50V,2A,-,220pF, 1 SA
DOL2 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
DOL3 3301-000297 BEAD-AXIAL;25ohm,3.6x1.2x5.7mm 1 SA
DOL4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

DOR1 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP, 1 SA
DOR2 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 SA
DOR3 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
DOR4 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
DOZ1 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA

DOZ2 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
DVR1 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm, 1 SA
DVR2 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm, 1 SA
DVR3 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm, 1 SA
DVR4 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm, 1 SA

FVR5 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
FVR6 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
FVR7 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
FZD1 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
FZD2 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA

FZD3 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
FZD4 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA

Electrical Parts List

Samsung Electronics

8-11

Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

FZD5 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
IC4N01 1204-001765 IC-AUDIO PROCESSOR;MSP3417D(PQ 1 SA
IC6C01 1204-001341 IC-SEPARATOR;MM1108XF,SOP,8P,- 1 SA E.Europe/CIS Only

IC6P01 1204-001794 IC-AUDIO PROCESSOR;LC74775NM-9 1 SA
IC801 1001-001177 IC-VIDEO SWITCH;TEA6425D,VIDEO 1 SA
IC802 1204-002418 IC-CHANNEL SELECTOR;AN15860A,S 1 SA
J401 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SAXEF/XEB/SED Only
J881 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

JACK1 3722-002314 JACK-PIN;6P,SN/NI,WH/RD/BL,YE/ 1 SA
JACK2 3722-002022 JACK-PIN;3P,NI,GRN/BLU/RED,ANG 1 SA
JACK3 3722-001943 JACK-PIN;3P,8.3PI,NI,BLK,- 1 SA
JL1 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
JL2 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA

L401 AC27-12001N COIL CHOKE;10UH-15%,RA,K-30,Q8 1 SA
L4N01 2701-000188 INDUCTOR-AXIAL;4.7uH,5%,2434 1 SA
L4N02 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L4N03 2701-000188 INDUCTOR-AXIAL;4.7uH,5%,2434 1 SA
L4N04 2701-000119 INDUCTOR-AXIAL;120uH,5%,2434 1 SA

L6P01 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L6P03 2701-000160 INDUCTOR-AXIAL;22uH,5%,2434 1 SA

Not used E.Europe/CIS

L6P05 2701-000165 INDUCTOR-AXIAL;27uH,5%,2434 1 SA

Not used E.Europe/CIS

L701 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
L702 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA

L801 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L802 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
L803 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
L804 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
L805 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA

L806 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
L809 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
L810 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
L811 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA
L812 2701-000181 INDUCTOR-AXIAL;33uH,5%,2434 1 SA

L814 AC27-92001M COIL-INDUCTOR;RH3.5X6.5RS,BEAD 1 SA
MCON1 3708-000270 CONNECTOR-FPC/FFC/PIC;33P,1.25 1 SA
MCON2 3708-000270 CONNECTOR-FPC/FFC/PIC;33P,1.25 1 SA
PC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

PC5 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PE3 2401-003221 C-AL;100uF,20%,16V,GP,TP,8X5,2 1 SA
PE4 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA

PE5 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA
PE6 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA
PE7 2401-003221 C-AL;100uF,20%,16V,GP,TP,8X5,2 1 SA
PL3 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
PL6 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA

PL7 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA
Q401 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150 1 SA

Not used XEF/XEB/SED

Q6P02 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150 1 SA

Not used E.Europe/CIS

Q6P04 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA

Not used E.Europe/CIS
Q802 0504-000129 TR-DIGITAL;KSR1104,NPN,200mW,4 1 SA
Q803 0504-000129 TR-DIGITAL;KSR1104,NPN,200mW,4 1 SA
Q804 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,2 1 SA
Q806 0504-000152 TR-DIGITAL;KSR2101,PNP,200mW,4 1 SA
Q809 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA
Q810 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA

Q810J 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA
Q891A 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA

Not used XEF/XEB/SED
Q891B 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA

Not used XEF/XEB/SED
QS01 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150 1 SA
QS02 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA

QS03 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA
R201 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP 1 SA
R202 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP 1 SA
R301 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R302 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

R401 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA

Not used XEF/XEB/SED
R401A 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R402 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

Not used XEF/XEB/SED
R402A 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R403 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

R404 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
R406 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608 1 SA

Not used XEF/XEB/SED
R408 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA

Not used XEF/XEB/SED
R440 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP, 1 SA

Not used XEF/XEB/SED
R441 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 SA

Not used XEF/XEB/SED

R4N01 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1 1 SA
R4N02 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R4N03 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R4N04 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 SA
R4N05 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA

R4N06 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R6C01 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA E.Europe/CIS Only
R6C02 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA E.Europe/CIS Only
R6C04 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA E.Europe/CIS Only
R6C05 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,160 1 SA E.Europe/CIS Only
R6C06 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP, 1 SA E.Europe/CIS Only

R6C07 2007-000101 R-CHIP;82Kohm,5%,1/10W,TP,1608 1 SA E.Europe/CIS Only
R6C08 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,160 1 SA E.Europe/CIS Only
R6C09 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA E.Europe/CIS Only
R6P01 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA

Not used E.Europe/CIS
R6P02 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA

Not used E.Europe/CIS
R6P03 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,160 1 SA

Not used E.Europe/CIS
R6P04 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

Not used E.Europe/CIS
R6P05 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

Not used E.Europe/CIS

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

8-12

Samsung Electronics

Electrical Parts List

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

R6P06 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,160 1 SA

Not used E.Europe/CIS

R6P08 2007-000118 R-CHIP;390ohm,5%,1/10W,TP,1608 1 SA

Not used E.Europe/CIS

R6P12 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

Not used E.Europe/CIS

R6P13 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA

Not used E.Europe/CIS

R6P14 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,160 1 SA

Not used E.Europe/CIS

R701 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R801 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R801A 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA
R802A 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R802B 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
R803 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,160 1 SA

R805 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA
R805B 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R805G 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R805R 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R806 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA

R807 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R807A 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R807J 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R808 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R808A 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA

R809 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R810 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA
R811 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA
R812 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
R813 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA

R813A 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
R814 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA
R814B 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
R815 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA
R816 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA

R817 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP, 1 SA
R818 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R818A 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA
R819 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R819A 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA

R820 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA
R821 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA
R821A 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP, 1 SA
R822 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
R822A 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA

R822B 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA
R830 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA
R831 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA
R832 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,160 1 SA
R833 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,160 1 SA

R839 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R841 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 SA
R842 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R842J 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
R843 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

R843A 2007-000965 R-CHIP;5.1Kohm,5%,1/10W,TP,160 1 SA
R844 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
R845 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
R846 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
R847 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

R853 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
R854 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA
R855 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA
R891A 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 SA

Not used XEF/XEB/SED

R891B 2007-000100 R-CHIP;68Kohm,5%,1/10W,TP,1608 1 SA

Not used XEF/XEB/SED

R892A 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,160 1 SA

Not used XEF/XEB/SED

R892B 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,160 1 SA

Not used XEF/XEB/SED

R893A 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,160 1 SA

Not used XEF/XEB/SED

R893B 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,160 1 SA

Not used XEF/XEB/SED

R894A 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 SA

Not used XEF/XEB/SED

R894B 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 SA

Not used XEF/XEB/SED
R900 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
R901 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
SCART 3722-001372 JACK-SCART;42P/2R,-,SN,BLK,- 1 SA
SJACK 3722-001375 JACK-DIN;4P,-,NI,BLK,- 1 SA

SVL1 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
SVL2 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA

TM401 AC40-00038A TM BLOCK-SECAM-L/L',PAL-B/G;TC 1 SA XEF/XEB/SED Only

AC40-00029A TM BLOCK;TCMK0601PD20A,PAL B/G 1 SA Other Only
VC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
VC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
VC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

VC13 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
VC14 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
VC15 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
VC16 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
VC17 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-2 1 SA

VC18 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
VC19 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
VC50 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
VC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
VC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

VC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
VC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
VDR1 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 SA
VDR2 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 SA
VDR3 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 SA

VDR4 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 SA
VDR5 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 SA
VDR6 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 SA
VE1 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7 1 SA

Electrical Parts List

Samsung Electronics

8-13

Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

VE2 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2. 1 SA

VE4 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
VE5 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
VE6 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
VE7 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*1 1 SA
VIC1 1204-001978 IC-VIDEO PROCESS;LA73054,-,36P 1 SA

VIC2 1204-001748 IC-SELECTOR;MM1503XN,SOP,6P,63 1 SA
VL1 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm, 1 SA
VL2 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm, 1 SA
VL3 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm, 1 SA
VL6 2701-000002 INDUCTOR-AXIAL;100UH,10%,4298 1 SA

VQ1 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN, 1 SA
VR10 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 SA
VR11 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1 1 SA
VR12 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
VR13 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

VR14 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, 1 SA
VR30 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
VR31 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
VR33 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
VR34 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA

VR49 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
VR51 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
VR53 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1 1 SA
VR54 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1 1 SA
VR55 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1 1 SA

VSEL1 1204-001748 IC-SELECTOR;MM1503XN,SOP,6P,63 1 SA
VZ1 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
VZ10 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
VZ11 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
VZ12 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA

VZ2 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
VZ3 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
VZ4 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
VZ5 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
VZ6 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA

VZ7 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
VZ8 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
VZ9 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
W205 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
W206 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

XT4N01 2801-004096 CRYSTAL-UNIT;18.432MHZ,20PPM,2 1 SA
ZD401 0403-000390 DIODE-ZENER;UZP33B,31.4-34.6V, 1 SA
ZD801 0403-000297 DIODE-ZENER;MTZ6.2B,5.96-6.27V 1 SA
ZD805 0403-001211 DIODE-ZENER;MTZJ12B,11.8-12.3V 1 SA
ZD807 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA

ZD809 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
ZD811 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
ZD851 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
ZD852 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
ZD853 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA

ZD854 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
ZD863 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
ZDS806 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA
ZDS810 0403-001083 DIODE-ZENER;UDZ9.1B,8.85-9.23V 1 SA

P005 AK94-00054A ASSY SORT-FUNCTION;DVD-VR320/X 1 SA

CN702 3708-001372 CONNECTOR-FPC/FFC/PIC;8P,1.25m 1 SA
FL258 3809-001679 FFC CABLE-FLAT;30V,80,90mm,8P, 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA

SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA

SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA
SW10 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6 1 SA

AK92-00595A ASSY PCB-FRONT END;SV-R250,FRO 1 SNA

AR1 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
AR2 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
AR3 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
CC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

CC2 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA
CC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
CIC1 1203-003177 IC-VOL. DETECTOR;BD5326G,SSOP, 1 SA
CON1 3708-002092 CONNECTOR-FPC/FFC/PIC;54P,0.5m 1 SA
CON2 3708-002018 CONNECTOR-FPC/FFC/PIC;4P,1MM,S 1 SA

CON3 3708-001878 CONNECTOR-FPC/FFC/PIC;6P,1MM,S 1 SA
CON4 3708-002067 CONNECTOR-FPC/FFC/PIC;12P,1mm, 1 SA
CR1 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
CR13 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
CR2 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

CR3 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
CR4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
CR5 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
CR6 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
CR7 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

JP9 3708-001331 CONNECTOR-FPC/FFC/PIC;40P,0.5M 1 SA
PC12 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA
PC13 2404-000256 C-TA,CHIP;47UF,20%,16V,GP,TP,7 1 SA
PC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

PC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC17 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA
PC18 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA
PC19 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA
PC20 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

PC21 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA
PC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PC8 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA
PC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
PCN 3711-005477 CONNECTOR-HEADER;BOX,4P,1R,2mm 1 SA

PIC1 1203-003175 IC-MULTI REG.;BA33C25HFP,HRP,5 1 SA
PIC2 1203-003176 IC-MULTI REG.;BA33C18HFP,HRP,5 1 SA

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

8-14

Samsung Electronics

Electrical Parts List

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

PL1 2901-001281 FILTER-EMI SMD;16V,2A,-,220000 1 SA
PL2 2901-001281 FILTER-EMI SMD;16V,2A,-,220000 1 SA
PL3 2901-001281 FILTER-EMI SMD;16V,2A,-,220000 1 SA

PL4 2901-001281 FILTER-EMI SMD;16V,2A,-,220000 1 SA
PL5 2901-001281 FILTER-EMI SMD;16V,2A,-,220000 1 SA
R118 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R119 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
R51 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

RC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC10 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC11 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

RC14 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
RC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC17 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
RC18 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA

RC19 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
RC2 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
RC20 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC21 2203-001697 C-CER,CHIP;0.082nF,5%,50V,NP0, 1 SA
RC22 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA

RC23 2203-001697 C-CER,CHIP;0.082nF,5%,50V,NP0, 1 SA
RC24 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC25 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC26 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC27 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA

RC28 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC29 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
RC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC30 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC31 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

RC32 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
RC33 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
RC34 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
RC35 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
RC36 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

RC37 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC38 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC39 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC4 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC40 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

RC41 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC42 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC43 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC44 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC45 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

RC46 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA
RC47 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC48 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC5 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC50 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA

RC51 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC52 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

RC53 2203-000560 C-CER,CHIP;220nF,+80-20%,25V,Y 1 SA
RC54 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC55 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA

RC56 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC57 2203-000560 C-CER,CHIP;220nF,+80-20%,25V,Y 1 SA
RC58 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC59 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC6 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA

RC60 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
RC61 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RC62 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
RC63 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
RC64 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

RC65 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
RC67 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
RC7 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA
RC74 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA
RC8 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA

RC9 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
RD32 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
RIC2 AK13-00018A IC ASIC;S1L1491X,-,128 PIN,7V, 1 SNA
RR1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR10 2007-001161 R-CHIP;75Kohm,5%,1/10W,TP,1608 1 SA

RR11 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR12 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR13 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR14 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR15 2007-000591 R-CHIP;22ohm,1%,1/10W,TP,1608 1 SA

RR16 2007-000591 R-CHIP;22ohm,1%,1/10W,TP,1608 1 SA
RR17 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR18 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR19 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
RR2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

RR20 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
RR21 2007-000431 R-CHIP;16Kohm,5%,1/10W,TP,1608 1 SA
RR22 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
RR25 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
RR26 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

RR27 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR28 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR29 2007-001056 R-CHIP;6.2Kohm,5%,1/10W,TP,160 1 SA
RR3 2007-000591 R-CHIP;22ohm,1%,1/10W,TP,1608 1 SA
RR30 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA

RR31 2007-000616 R-CHIP;24Kohm,5%,1/10W,TP,1608 1 SA
RR32 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR33 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA
RR34 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
RR35 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

RR36 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
RR37 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
RR38 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR39 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR4 2007-000591 R-CHIP;22ohm,1%,1/10W,TP,1608 1 SA

RR40 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR400 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

Electrical Parts List

Samsung Electronics

8-15

Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

RR41 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
RR42 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
RR5 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,160 1 SA

RR6 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,160 1 SA
RR7 2007-000616 R-CHIP;24Kohm,5%,1/10W,TP,1608 1 SA
RR8 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,160 1 SA
RR9 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
U1 1107-001546 IC-FLASH MEMORY;29LV400B,512Kx 1 SA

U8 AK13-00017A IC ASIC;S5L1482A01,BD-R1000,25 1 SNA
U9 1107-001369 IC-FLASH MEMORY;29LV800,1Mx8/5 1 SA
UB1 1105-001305 IC-DRAM;4S641632,1MX16X4BIT,TS 1 SA
UC1 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G, 1 SA
UC10 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA

UC11 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
UC12 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
UC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

UC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC17 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC18 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC2 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G, 1 SA

UC20 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC21 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC23 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC24 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

UC25 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC26 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC27 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP, 1 SA
UC28 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
UC29 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

UC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC30 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC31 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC32 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC33 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

UC34 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC35 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC36 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC37 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC38 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

UC39 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC40 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC41 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC42 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

UC43 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC44 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC45 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC46 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC48 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

UC49 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC5 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

UC50 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC51 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC52 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

UC53 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
UC54 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC55 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
UC56 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC57 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA

UC58 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC59 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
UC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC60 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC61 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA

UC62 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G, 1 SA
UC63 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC64 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC65 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC66 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA

UC67 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC68 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC69 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UC70 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA

UC71 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC72 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC73 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC74 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC75 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA

UC76 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC77 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC78 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC79 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP 1 SA
UC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

UC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
UR1 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P 1 SA
UR10 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA
UR11 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA
UR12 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

UR13 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA
UR14 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA
UR15 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
UR16 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
UR18 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,160 1 SA

UR2 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P 1 SA
UR20 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR21 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR22 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR23 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR24 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR25 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR26 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR27 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR28 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR29 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
UR3 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P 1 SA

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

8-16

Samsung Electronics

Electrical Parts List

Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

UR30 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,160 1 SA
UR31 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR32 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA

UR34 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR36 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
UR37 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR38 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR39 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,160 1 SA

UR4 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P 1 SA
UR40 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR42 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR44 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR45 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA

UR48 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
UR49 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
UR5 2011-001085 R-NET;82OHM,5%,1/16W,L,CHIP,8P 1 SA
UR50 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 SA
UR51 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA

UR52 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR54 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
UR55 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
UR58 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA
UR59 2007-000121 R-CHIP;820ohm,5%,1/10W,TP,1608 1 SA

UR6 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA
UR60 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR61 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR62 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR63 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR65 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR66 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR68 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR69 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR7 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

UR71 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR72 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR73 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
UR74 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR75 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA

UR76 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
UR77 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 1 SA
UR78 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
UR8 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA
UR9 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

VC1 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,TP 1 SA
VC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
VC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
VC12 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,35 1 SA
VC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

VC14 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP 1 SA
VC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
VC16 2404-000212 C-TA,CHIP;3.3uF,20%,25V,-,TP,3 1 SA
VC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
VC2 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,TP 1 SA

VC20 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
VC21 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA

VC23 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,T 1 SA
VC3 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,TP 1 SA
VC4 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,TP 1 SA

VC5 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,TP 1 SA
VC6 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,TP 1 SA
VC7 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
VC8 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA
VC9 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,T 1 SA

VIC1 1003-001780 IC-MOTOR DRIVER;BD7954FS,SSOP, 1 SA
VR1 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
VR10 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA
VR11 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA
VR12 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA

VR13 2007-000502 R-CHIP;2.2ohm,5%,1/8W,TP,2012 1 SA
VR14 2007-000502 R-CHIP;2.2ohm,5%,1/8W,TP,2012 1 SA
VR15 2007-000502 R-CHIP;2.2ohm,5%,1/8W,TP,2012 1 SA
VR16 2007-000502 R-CHIP;2.2ohm,5%,1/8W,TP,2012 1 SA
VR17 2007-000965 R-CHIP;5.1Kohm,5%,1/10W,TP,160 1 SA

VR18 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
VR19 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 SA
VR2 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
VR20 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 SA
VR21 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

VR22 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
VR23 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
VR24 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
VR27 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
VR28 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

VR3 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
VR4 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
VR5 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
VR6 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
VR7 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,160 1 SA

VR8 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,160 1 SA
VR9 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA
Y1 2801-004180 CRYSTAL-SMD;33.8688MHZ,50PPM,2 1 SA

AC39-00017A CABLE-ETC-RF(PAL);-,MALE/FEMAL 1 SA

AC39-22017Z CABLE-RCA PHONE CORD;-,-,1500M 1 SA

AC39-42001U CABLE-RCA PHONE CORD;DOUBLE,-, 1 SA
I/B AK68-00671B MANUAL USERS;DVD-VR320,XEU,ENG 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,B,M3,L8,ZPC 1 SA

W004 6003-000283 SCREW-TAPTITE;BH,+,B,M3,L8,ZPC 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,B,M3,L8,ZPC 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,B,M3,L8,ZPC 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,B,M3,L8,ZPC 1 SA
W004 6003-000283 SCREW-TAPTITE;BH,+,B,M3,L8,ZPC 1 SA

W004 6003-000283 SCREW-TAPTITE;BH,+,B,M3,L8,ZPC 1 SA
W202 6003-000277 SCREW-TAPTITE;BH,+,B,M3,L12,ZP 8 SA
W272 6003-001464 SCREW-TAPTITE;BH,+,B,M3,L10,ZP 9 SA
W275 6003-001561 SCREW-TAPTITE;BH,+,WT,B,M3,L6, 10 SA
W252 AC60-12126A SCREW-MACHINE;-,-,FE,FZY,BH,-, 4 SA

W001 6003-000275 SCREW-TAPTITE;BH,+,B,M3,L10,BL 9 SA
W271 6009-001411 SCREW-SPECIAL;TH,+,-,M5,L14,NI 2 SA

Electrical Parts List

Samsung Electronics

8-17

Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

8-18

Samsung Electronics

Electrical Parts List

This Document can not be used without Samsung’s authorization

MEMO

W009 6003-000276 SCREW-TAPTITE;BH,+,B,M3,L10,ZP 6 SA

Electrical Parts List

Samsung Electronics

8-19

Loc.No Part No Description ; Specification Q’ty S.N.A Remark Loc.No Part No Description ; Specification Q’ty S.N.A Remark

This Document can not be used without Samsung’s authorization

This Document can not be used without Samsung’s authorization

Samsung Electronics 9-1

9. Block Diagrams

9-1 All Block Diagram- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

9-2 AIC1(PCM1753) Audio DA Block Diagram - - - - - - - - - - - - - - - - - - - - - - - -

9-3 AIC9(PCM1802) Audio AD Block Diagram - - - - - - - - - - - - - - - - - - - - - - - -

9-4 DIC1(DMN8602) A/V Codec Block Diagram- - - - - - - - - - - - - - - - - - - - - - -

9-5 DIC3(29DL323) Flash Memory Block Diagram - - - - - - - - - - - - - - - - - - - - -

9-6 IC801(TEA6425)Typical Application Block Diagram - - - - - - - - - - - - - - - - -

9-7 TIC1(TW9909) Video Decoder Block Diagram - - - - - - - - - - - - - - - - - - - - -

9-8 U23(M13S128168A) DRAM Block Diagram- - - - - - - - - - - - - - - - - - - - - - - -

9-2

9-3

9-4

9-5

9-6

9-7

9-8

9-9

Block Diagram

9-2 Samsung Electronics

This Document can not be used without Samsung’s authorization

9-1 All Block Diagram

MPEG-2
A/V CODEC
(DMN-8602)

4MB FLASH
AM29LV1DL

(2Mx16bit)

Video

Decoder

(TW9909)

Audio A/D

(PCM1802)

VCR Micom

(MN101D06F)

Front Panel

A/V 1-Chip

(LA71750)

HI-FI

(LA72646)

Audio D/A
(PCM1742)

IEEE1394PHY

(TSB41AB1)

TM BLOCK

ATAPI

DVD-RAM Drive (4.7GB)

VCR DECK (X-11)

RF

RF Out

VHF/UHF

S-VIDEO

LINE1

LINE2

1394 Jack

CVBS from TunerL/R from Tuner

32MB DDR-SDRAM

M13S128168A

(8M x 16bit x 2ea)

Y
Pb
Pr

S-VIDEO

VIDEO

L

R

L

R

COAXIAL

OPTICAL

DIGITAL AUDIO OUT

IEC-958

Key Input

Remocon

A2/NICAM

(MSP34170)

6CH AMP

LA73054

VIDEO

MUX

TEA6425

AUDIO

MUX

AN15860

Y
Pb
pr

Comóonent Out

Block Diagram

Samsung Electronics 9-3

This Document can not be used without Samsung’s authorization

9-2 AIC1(PCM1753) Audio DA Block Diagram

System Clock

Manager

4 / 8

Oversampling

Digital Filter

with

Function

Controller

Enhanced
Multi-level

Delta-Sigma

Modulator

Audio
Serial

Port

Serial

Control

Port

System Clock

BCK

LRC

K

DAT

A

Zero Detect Power Supply

(FMT) ML

(MUTE) MC

(DEMP) MD

SC

K

V

OUT

L

V

COM

V

OUT

R

ZEROL/NA



(

NA

)

ZEROR/ZEROA



(

ZEROA

)

DGND

V

CC

AGND

Output Amp and

Low-pass Filter

Output Amp and

Low-pass Filter

DAC

DAC

(TEST)

Block Diagram

9-4 Samsung Electronics

This Document can not be used without Samsung’s authorization

9-3 AIC9(PCM1802) Audio AD Block Diagram

Single-End

/Differential

Converter

BCK

VINL

Reference

Single-End

/Differential

Converter

V

REF1

V

REF

2

VINR

5th Order

Delta-Sigma

Modulator

5th Order

Delta-Sigma

Modulator

1/64 (1/128)

Decimation

Filter

with

DC Cut Filter

Power Supply

AGNDV

CC

V

DD

DGND

Clock and Timing Control

Serial

Interface

Mode/

Format

Control

LRCK
FSYNC

DOUT

FMT0
FMT1

MODE0
MODE1

BYPAS

OSR
PDWN
SCKI

Block Diagram

Samsung Electronics 9-5

This Document can not be used without Samsung’s authorization

9-4 DIC1(DMN8602) A/V Codec Block Diagram

IEEE
1394

1394
PHY

32/64

Audio

DAC

L/R

S/PDIF

DVD R

USB 1.1

DMN-8602

ATAPI #1

Audio #1

IEC 958/1937

SPI/IDC

IEEE 1394

Audio

ADC

L/R

Front Panel

(VFD + Keypad + IR Receive)

GPIO

GPIO

SDRAM

Analog

Y/G

Y/C

Cb/B
Cr/R

CVBS

Flash

USB

Video #1

Video

Decoder

CVBS

Y/C

Tuner

RF

Audio #1

Y/G

Cb/B

Cr/R

Audio

Decoder

Host Bus

L2170

Mbyte

Video
