Page 1

Instruction Manual

DVD-R135

English

www.samsung.com

AK68-01094A-00

Page 2

Warning

IMPORTANT NOTE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug. If it requires replacing, a fuse approved to BS1362 of the same rating must be used.

Getting Started

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING : To prevent damage which may result in

CAUTION : DVD RECORDER USES AN INVISIBLE

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

fire or electric shock hazard, do not expose this appliance to rain or moisture.

LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE RECORDER CORRECTLY AS INSTRUCTED.

Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains jack, as there is a risk of shock hazard from the bared flexible cord.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private noncommercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

- English

Page 3

Precaution

Important Safety Instructions

Read these operating instructions carefully before using the DVD Recorder. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

● Exterior interference such as lightning and static

electricity can affect normal operation of this DVD Recorder. If this occurs, turn the DVD Recorder off and on again with the STANDBY/ON button, or disconnect and then reconnect the AC power cord to the AC power outlet. The DVD Recorder will operate normally.

● Be sure to remove the disc and turn off the DVD

Recorder after use.

● Disconnect the AC power cord from the AC outlet

when you don’t intend to use the DVD Recorder for long periods of time.

● Clean the disc by wiping in a straight line from the

inside to the outside of the disc.

Getting Started

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. if the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

● Do not use benzene, thinner, or other solvents for

cleaning.

● Wipe the cabinet with a soft cloth.

Disc Handling

● Use discs with regular

shapes. If an irregular disc (a disc with a special shape) is used, this DVD recorder may be damaged.

Holding discs

● Avoid touching the surface of a

disc where recording is performed.

DVD-RW and DVD-R

● Clean with an optional DVD-

RAM/PD disc cleaner (LFK200DCA1 where available). Do not use cleaners or cloths for CDs to clean DVD-RW/ DVD-R discs.

DVD-Video, Audio CD

● Wipe off dirt or contamination on the disc with a soft

cloth.

Cautions on handling discs

Handling Cautions

● Before connecting other components to this DVD

Recorder, be sure to turn them all off.

● Do not move the DVD Recorder while a disc is being

played, or the disc may be scratched or broken, the DVD Recorder’s internal parts may be damaged.

● Do not put a flower vase filled with water or any small

metal objects on the DVD Recorder.

● Be careful not to put your hand into the disc tray.

● Do not place anything other than the disc in the disc

tray.

● Do not write on the printed side with a ball-point pen

or pencil.

● Do not use record cleaning sprays or antistatic.

Also, do not use volatile chemicals, such as benzene or thinner.

● Do not apply labels or stickers to discs. (Do not use

discs fixed with exposed tape adhesive or leftover peeled-off stickers.)

● Do not use scratch-proof protectors or covers.

● Do not use discs printed with label printers available

on the market.

● Do not load warped or cracked discs.

English -

Page 4

Disc Storage

Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.

● Do not keep under direct sunlight.

● Keep in a cool ventilated area.

● Store vertically.

Getting Started

● Keep in a clean protection jacket.

● If you move your DVD recorder suddenly from a cold

place to a warm place, condensation may generate on the operating parts and lens and cause abnormal disc playback. If this occurs, do not connect the plug to the power outlet and wait for two hours. Then insert the disc and try to play back again.

Disc Specifications

DVD-Video

● A digital versatile disc (DVD) can contain up to

135-minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby digital surrounding, allowing you to enjoy vivid and clear theatre quality images in the comfort of your own home.

● When switching from the first layer to the second

layer of a dual-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the DVD Recorder.

● Once a DVD-R/-RW recorded in Video Mode is

finalised, it becomes DVD-Video.

Audio CD

● An audio disc on which 44.1kHz PCM Audio is

recorded

● Plays CD-DA format audio CD-R and CD-RW discs.

The DVD Recorder may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

CD-R/-RW

MP3 CD-R/-RW

● Only CD-R discs with MP3 files recorded with

ISO9660 or JOLIET format can be played back

● Only MP3 files with the ".mp3", ".MP3" extension can

be used.

● For MP3 files recorded with a VBR(Variable Bit

Rates), from 32 Kbps to 320 Kbps, the sound may cut in out.

● Playable bitrate range is from 56Kbps to 320Kbps.

● This DVD Recorder can handle a maximum of 500

files and 100 folders.

JPEG CD-R/RW

● Only JPEG files with the ".jpg", ".JPG" extension can

be used.

● This DVD Recorder can handle a maximum of 500

files and 100 folders.

● Maximum size of progressive JPEG is 3M pixels.

● MOTION JPEG is not supported.

Using CD-R/-RW

● Use a 700MB(80 minutes) CD-R/-RW disc.

If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.

● If the CD-R/-RW disc was not recorded as a closed

session, you may experience a delay in the early playback time, all recorded files may not play.

● Some CD-R/-RW discs may not be playable with this

DVD Recorder, depending on the device which was used to burn them. For contents recorded on CD-R/RW media from CDs for your personal use, playability may vary depending on contents and discs.

Using MPEG4 disc

● Disc : CD-R/-RW, DVD-R/-RW

● MPEG4 File with following extensions can be played.

: .avi, .divx, .AVI, .DIVX

● MPEG4 Codec format : DivX 3.11 DivX 4.x DivX 5.x

DivX-Pro Xvid

● Motion Compensation : QPEL, GMC

● four CC : MPG4, mpg4, DIV3, divX3, DIVX, divX,

DX50, MP43, mp43, XVID, xvid

● Available Audio Format : “MP3”, “MPEG1 Audio

Layer2”, “LPCM”, “AC3”, “DTS”, “MS ADPCM”

●

Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt, .ass

DVD-R Disc Playback and Recording

● Once a DVD-R recorded in Video Mode is finalised, it

becomes DVD-Video.

● You can record onto the available space on the disc

and perform editing functions such as giving titles to discs and programmes and erasing programmes before finalising.

● When programming is erased from a DVD-R, that

space does not become available. Once an area on a DVD-R is recorded on, that area is no longer available for recording, whether the recording is erased or not.

● It takes about 30 seconds for the DVD Recorder to

complete recording management information after recording finishes.

● This DVD Recorder optimizes the DVD-R for each

recording. Optimizing is carried out when you start recording after inserting the disc or turning on the DVD Recorder. Recording onto the disc may become impossible if optimizing is carried out too many times.

● Playback may be impossible in some cases due to

the condition of recording.

● This DVD Recorder can play back DVD-R discs

recorded and finalised with a Samsung DVD video recorder. It may not be able to play some DVD-R discs depending on the disc and the condition of the recording.

DVD-RW Disc Playback and Recording

● Recording and playback can be performed on DVD-

RW discs in both the Video and VR Modes.

● Once a DVD-RW recorded in both the Video and VR

Modes is finalised, you cannot perform addtional recording.

● Once a DVD-RW recorded in Video Mode is finalised,

it becomes DVD-Video.

● In both modes, playback can be performed before

and after finalisation, but additional recording, deleting and editing can not be performed after finalisation.

- English

Page 5

● If you want to record the disc in VR Mode and then

record in V Mode, be sure to execute Format. Be careful when executing Format because all the recorded data may be lost.

● A DVD-RW blank disc is initialized to VR Mode when

first initialized.

● DVD-RW (VR mode)

- This is a format that is used for recording data on a

DVD-RW disc. You can record multiple titles, edit, delete, partial delete, create a playlist, etc.

- A disc that is recorded in this mode may not be

played by existing DVD Recorder.

● DVD-RW (Video mode)

- This is a format that is used for recording data on a

DVD-RW or DVD-R disc. The disc can be played by existing DVD Recorder once it has been finalised.

- If a disc that has been recorded in Video Mode by a

different maker’s recorder but has not been finalised, it cannot be played or additionally be recorded by this DVD Recorder.

COPY PROTECTION

● Many DVD discs are encoded with copy protection.

Because of this, you should only connect your DVD recorder directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

● This DVD Recorder incorporates copyright

protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by Macrovision Corporation, is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Do not use the following discs!

● LD, CD-G, CD-I, Video-CD, CD-ROM and DVD-ROM

discs should not be used in this DVD Recorder. [Note] Disc types that can be played : CD/CD-R/CD-RW/ MP3/JPEG/MPEG4/DVD-Video/DVD-RW/DVD-R. For a DVD-R/DVD-RW disc, which has been recorded in Video Mode on another component, it can play only when finalised.

●

Some commercial discs and DVD discs purchased outside your region may not be playable with this DVD Recorder. When these discs are played, either “No Disc” or "The disc cannot be played. Please check the regional code of the disc." will be displayed.

● If your DVD-RW disc is an illegal copy or is not in

DVD video format, it may also not be playable.

Disc Compatibility

●

High Speed Recording discs can be used in this DVD Recorder.

●

Not all brands of discs will be compatible with this DVD Recorder.

Getting Started

Protection

This DVD Recorder can allow you to protect the contents of your discs, as described below.

● Programme-protected: See page 68

“Locking(Protecting) a Title”

● Disc-protected: See page 80 “Disc Protection”

DVD-RW/DVD-R discs that are incompatible with the

✻

DVD-VIDEO format cannot be played with this DVD Recorder.

✻ For more information on DVD recording compatibility,

consult your DVD-RW/DVD-R manufacturer.

✻ Use of poor quality DVD-RW/DVD-R discs may

cause following unexpected problems including, without limitation, recording failure, loss of recorded or edited materials or damage to the DVD Recorder.

English -

Page 6

Contents

Getting Started

Warning........................................................................2

Precaution...................................................................3

Important Safety Instructions.............................................3

Handling Cautions..............................................................3

Maintenance of Cabinet.....................................................3

Disc Handling .....................................................................3

Disc Storage .......................................................................4

Disc Specifications .............................................................4

Other type of connecting the Audio output cable

Case 1 : Connecting to your TV......................................19

Case 2 : Connecting to a stereo amplifier

with AV output jacks..........................................20

Case 3: Connecting to an AV amplifier with a digital

output jack ..........................................................20

..19

Connecting HDMI/DVI to a TV ...............................21

Case 1 : Connecting to a TV with HDMI Jack................21

Case 2 : Connecting to a TV with DVI Jack...................21

Connecting to AV 2 IN, DV input jack...................22

Case 1 : Connecting a VCR, Set-Top Box(STB), DVD

player or Camcorder to the AV 2 IN jacks.......22

Case 2 : Connecting a Camcorder to the DV IN jack ...22

System Setup

General Features........................................................8

Before reading the user’s manual...........................9

How to use the DVD Recorder.................................9

Unpacking .................................................................11

Accessories.......................................................................11

Preparing the Remote Control.........................................11

Setting the Remote Control .............................................11

Description................................................................13

Front Panel .......................................................................13

Front Panel Display..........................................................13

Rear Panel........................................................................14

Tour of the Remote Control .............................................15

Connecting & Setting Up

Quick Overview........................................................16

Connecting the DVD Recorder .................................17

Other type of connecting the Video output cable

Case 1 : Connecting to a Video (Composite)

output jack .........................................................18

Case 2 : Connecting to an S-Video output jack.............18

Case 3 : Component Video output jacks........................19

...17

On-Screen Menu Navigation..................................23

Plug & Auto Set up..................................................24

Setting the Clock......................................................25

Presetting Channels with

the Auto Setup function..........................................25

Presetting Channels with

the Manual Setup function.....................................26

Setting up the Language Options.........................27

EP Mode Time Setting.............................................28

Automatic Chapter Creation..................................29

Setting up the Audio Options................................30

Audio Options...................................................................30

Setting up the Progressive scan...........................31

Canceling the Progressive scan...........................32

Setting up the Display(Video) Options.................32

Display(Video) Options ....................................................33

Output selection ...............................................................33

DivX(R) Registration................................................34

Setting up the Parental Control.............................34

If you forgot your password.............................................34

About the Rating Level ....................................................35

- English

About the Change Password ..........................................35

Page 7

Recording

Before Recording.....................................................36

Recordable discs..............................................................36

Recording Formats ..........................................................37

Recording Mode...............................................................37

Unrecordable video..........................................................37

About INFO Button...........................................................38

Using Bookmarks.............................................................55

Using Markers ..................................................................56

Playing an Audio CD/MP3 .....................................57

Playing an Audio CD (CD-DA)/MP3...............................57

Playing a Picture......................................................61

Playing a MPEG4 .....................................................62

Playing the Title List................................................63

Getting Started

Checking the available disc space (Disc Information)...38

Recording the current TV programme you are

watching....................................................................38

Recording from external equipment you are

watching....................................................................40

Copying from a Camcorder ...................................41

Making a One Touch Recording (OTR)................42

Making a Timer Recording.....................................43

Flexible Recording (for Timer recording only) ...44

Editing the Scheduled Record List.......................44

Deleting the Scheduled Record List.....................45

Recording the Standard Timer List ......................46

Playback

Before Playing..........................................................47

Region code (DVD-Video only).......................................47

Disc types that can be played .........................................47

Discs that cannot be played ............................................47

Playing a Disc...........................................................48

Using the Disc & Title Menu............................................49

Using the Search Functions ............................................49

Editing

Basic Editing (Title List)...................................................67

Renaming(Labeling) a Title..............................................67

Locking(Protecting) a Title...............................................68

Deleting a Title .................................................................68

Deleting a Section of a Title ............................................69

Advanced Editing (Playlist) .............................................

Creating a Playlist ...........................................................71

Playing Entries in the Playlist .........................................72

Renaming a Playlist Entry ...............................................73

Editing a Scene for the Playlist .......................................74

Copying a Playlist Entry to the Playlist ...........................77

Deleting a Playlist Entry from the Playlist.......................78

Disc Manager

Editing the Disc Name .....................................................79

Disc Protection .................................................................80

Formatting a Disc.............................................................80

Delete All Title Lists ..........................................................81

Finalising a disc................................................................82

Unfinalising a disc (V/VR mode) .....................................83

..............................................................79

Slow Motion Play..............................................................50

Step Motion Play..............................................................50

About ANYKEY ................................................................50

Using the Repeat Function..............................................51

Selecting the Subtitle .......................................................53

Selecting the Audio language..........................................53

Changing the Camera Angle...........................................54

Zooming-In........................................................................54

Additional Information

Troubleshooting.......................................................84

Specifications...........................................................88

English -

Page 8

General Features

High quality progressive scan

Progressive scanning provides high resolution and flicker free video. The 10-bit 54-MHz DAC and 2D Y/C Separating Circuitry provides the highest image playback and recording quality. (See pages 19, 31~32)

Getting Started

The DVD Recorder allows you to record and play high quality digital video on DVD-RW/DVD-R discs. You can record and edit digital images on DVD-RW/DVD-R discs as if they were VCR tapes.

High quality digital audio and video recording and playback

Record up to 8-hours of images with a 4.7 GB DVD-RW/DVD-R disc, depending on the recording mode.

Selectable Recording Mode

You can set your recorder to one of four different recording speeds, each varying in recording quality and length. EP(6Hr or 8Hr) mode yields the most recording time, LP & SP modes provide less recording time with higher quality recording, XP mode gives you the highest quality recording.

Automated Quality Adjustment for Timer Recording

If FR mode is selected, the video quality is adjusted automatically so that all video for the scheduled time can be recorded onto the free disc space. (See page 44.)

A variety of functions with an easy-to-use user interface

The integrated menu system and the messaging function allow you to perform desired operations both easily and conveniently. With a DVD-RW disc, you can edit recorded video, create a playlist, edit video in a specific sequence according to your requirements.

MPEG4 playback

This DVD Recorder can play MPEG4 formats within an avi file.

DivX Certification

DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under licence.

HDMI (High Definition Multimedia Interface)

HDMI reduces picture noise by allowing a pure digitalvideo/audio signal path from the DVD recorder to your TV.

Creating a DVD video title using DVD-RW/DVD-R disc

With the DVD Recorder, you can create your own DVD Video titles on 4.7 GB DVD-RW/DVD-R discs.

Copying data from a digital camcorder using a DV input jack

Record DV Device video onto DVD-RW, DVD-R discs using the DV input jack (IEEE 1394-4pin/4pin). (See page 41.)

- English

Page 9

Before reading the user’s

How to use the DVD

Getting Started

manual

Make sure to check the following terms before reading the user’s manual.

Icons that will be used in manual

Icon Term Definition

This involves a function available

DVD

JPEG in a data picture CD-R/-RW,

MP3

MPEG4

Caution function does not operate or

NOTE on the page that help each

One-Touch

button by using only one button.

ANYKEY A function that can be operated

button by using ANYKEY button.

About the use of this user’s manual

1) Be sure to be familiar with Safety Instructions before using this DVD Recorder. (See pages 2~5)

2) If a problem occurs, check for Troubleshooting. (See pages 84~87)

in DVD or DVD-R/DVD-RW discs that have been recorded and finalised in Video Mode.

This involves a function available

in DVD-RW.

This involves a function available

in DVD-R.

This involves a function available

in a data CD (CD-R or CD-RW).

This involves a function available

DVD-R/-RW.

This involves a function available in a data CD-R/-RW,DVD-R/-RW.

This involves a case where a

settings may be cancelled.

This involves tips or instructions

function operate.

A function that can be operated

Recorder

Step 1

This DVD Recorder can record on the following types of discs. If you want to repeatedly record on the same disc or you want to edit the disc after recording, select a rewritable DVD-RW type disc. If you want to save recording without any change, choose a non-rewritable DVD-R.

Step 2

Unlike a VCR, the DVD Recorder automatically starts formatting when an unused disc is inserted. This is required for the preparation of recording on a disc.

Using a DVD-RW

This type of disc can be formatted in either DVD-Video format (Video mode) or DVD-Video Recording format (VR mode). For an unused disc, a message that asks whether to format in VR Mode or not is displayed. You can play a Video mode disc on various DVD components. A VR mode disc allows more varied editing.

Using a DVD-R

Formatting a disc is unnecessary and only Video Mode Recording is supported. You can play this type of discs on various DVD components only when they have been finalised.

NOTE

Select the disc type

Format the disc to start recording

■

You can only use either the VR or Video mode on a DVD-RW, but not both at the same time.

■

You can change the DVD-RW format to another format by reinitializing. It should be noted that the disc's data will be lost when changing formats.

English -

Page 10

Step 3

Recording

Step 6

Finalising & Playing on other DVD components

There are two different recording methods, Direct Recording and Timer Recording. Timer recording is classified as a Date : Once, Daily, MO-SA, MO-FR, W-SA, etc.

Getting Started

Recording mode : XP (high quality mode), SP (standard quality mode), LP (long recording mode), and EP (extended mode) according to the recording mode. When recording is set in the FR mode, the best quality picture is recorded with regards to the remaining time on the disc.

Step 4

You can select the title you want to play in a displayed menu and then immediately start playback. A DVD consists of sections called titles, and sub sections called chapters. During recording, a title is created between two points where you start and stop recording. Chapters will be created automatically when you finalise recording on DVD-R / DVD-RW discs in Video mode. The chapter’s length (interval between chapters) varies according to the recording mode.

Playing

To play your DVD on other DVD components, finalising may be necessary. First, finish all editing and recording operations, then finalise the disc.

When using a DVD-RW disc in VR Mode

Although finalising is generally unnecessary when playing the disc on a VR Mode compatible component, a finalised disc should be used for playback.

When using a DVD-RW disc in Video Mode

The disc should be finalised first to enable playback on anything other than this DVD Recorder. No more editing or recording can be made on the disc once it has been finalised.

When using a DVD-R disc

You should finalise the disc to play it on a component other than this DVD Recorder. You cannot edit or record on the disc once it has been finalised.

Step 5

Editing on discs is easier than conventional video tapes. The DVD Recorder supports many different edit functions, possible only with DVDs.

With a simple and easy edit menu, you can operate various edit functions, such as delete, copy, rename, lock, etc., on a recorded title.

Creating a playlist (DVD-RW in VR mode)

With this DVD Recorder, you can create a new playlist on the same disc and edit it without the change of the original recording.

- English

Editing a recorded disc

Page 11

Unpacking

Getting Started

Accessories

Check for the supplied accessories below.

Video/Audio Cable

HDMI Cable

Remote Control

Instruction Manual

RF Cable for TV

DVI Adapter Cable

Batteries for Remote

Control (AAA Size)

Quick Guide

Setting the Remote Control

You can control certain functions of another manufacturer’s TV with this remote control. Control function buttons involve:

PROG TV MUTE, INPUT SEL. button.

, VOL +/-, Direct Number buttons,

STANDBY/ON,

Preparing the Remote Control

Install Batteries in the Remote Control

●

Open the battery cover on the back of the remote control.

● Insert two AAA batteries. Make sure that the polarities

(+ and -) are aligned correctly.

● Replace the battery cover.

If the remote does not operate properly:

● Check the polarity + - of the batteries (Dry-Cell)

● Check if the batteries are drained.

● Check if remote sensor is blocked by obstacles.

● Check if there is any fluorescent lighting nearby.

Dispose of batteries according to local environmental regulations. Do not put them in the household trash.

English -

Page 12

To determine whether your television is compatible, follow the instructions below.

1. Switch your television on.

2. Point the remote control towards the television.

3. Press and hold the STANDBY/ON button and enter

the two-figure code corresponding to the brand of your television, by pressing the appropriate number

Getting Started

buttons.

Controllable TV Codes

BRAND BUTTON SAMSUNG 01, 02, 03, 04, 05, 06, 07, 08, 09 AIWA 82 ANAM 10, 11, 12, 13, 14, 15, 16, 17, 18 BANG & OLUFSEN 57 BLAUPUNKT 71 BRANDT 73 BRIONVEGA 57 CGE 52 CONTINENTAL EDISON 75 DAEWOO EMERSON 64 FERGUSON 73 FINLUX 06, 49, 57 FORMENTI 57 FUJITSU 84 GRADIENTE 70 GRUNDIG 49, 52, 71 HITACHI 60, 72, 73, 75 IMPERIAL 52 JVC 61, 79 LG 06, 19, 20, 21, 22, 78 LOEWE 06, 69 LOEWE OPTA 06, 57 MAGNAVOX 40 METZ 57 MITSUBISHI 06, 48, 62, 65 MIVAR 52, 77 NEC 83 NEWSAN 68 NOBLEX 66 NOKIA 74 NORDMENDE 72, 73, 75 PANASONIC 53, 54, 74, 75 PHILIPS 06, 55, 56, 57 PHONOLA 06, 56, 57 PIONEER 58, 59, 73, 74 RADIOLA 06, 56 RADIOMARELLI 57 RCA 45, 46 REX 74 SABA 57, 72, 73, 74, 75 SALORA 74 SANYO 41, 42, 43, 44, 48 SCHNEIDER 06

BRAND BUTTON SELECO 74 SHARP 36, 37, 38, 39, 48 SIEMENS 71 SINGER 57 SINUDYNE 57 SONY 35, 48 TELEAVA 73 TELEFUNKEN 67, 73, 75, 76 THOMSON 72, 73, 75 THOMSON ASIA 80, 81 TOSHIBA 47, 48, 49, 50, 51, 52 WEGA 57 YOKO 06 ZENITH 63

Result: If your television is compatible with the remote

control, it will switch off. It is now programmed to operate with the

19, 20, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34

remote control.

■

NOTE

■

Then you can control the television using the following buttons after the TV button.

Button Function

STANDBY/ON Used to switch the television on and off.

INPUT SEL. Used to select an external source.

VOL (+ or -) Used to adjust the volume of the television.

PROG ( or ) Used to select the desired channel.

TV MUTE Used to toggle the sound on and off.

0~9 Used to input number directly.

■

NOTE

If several codes are indicated for your television brand, try each one in turn until you find one that works.

If you replace the remote control's batteries, you must set the brand code again.

The various functions will not necessarily work on all televisions. If you encounter problems, operate the television directly.

- English

Page 13

Description

Front Panel

Getting Started

1. STANDBY/ON

Turns the DVD Recorder on and off.

2. AV 2 IN

Connect external equipment.

3. DV IN

Connects external digital equipment with a DV jack. (such as a camcorder)

4. DISC TRAY

Opens to accept a disc.

5. P.SCAN

Selects the progressive scan mode.

6. OPEN/CLOSE

Opens and closes the disc tray.

Front Panel Display

7. DISPLAY

Displays the playing status, title/chapter/time, etc.

8. PROG ( )

Select TV preset Channels. Same as PROG button on the remote control.

9. REC

Starts recording.

10.STOP

Stops disc playback.

11. PLAY/PAUSE

Plays a disc or pauses playback/recording.

12.SEARCH/SKIP

Go to the next title/chapter/track or go back to the previous title/chapter/track.

1. Lights when a disc is loaded.

2. Lights in the record mode.

3. Lights to indicate the timer record mode.

4. Lights when a DVD-R/-RW disc is loaded.

5. Playing time/clock/current status indicator.

6. Lights in the progressive scan mode.

English -

Page 14

Rear Panel

Getting Started

1. RF IN / RF OUT

Connects antenna cables.

HDMI OUT

Connects the input of external equipment using a HDMI-HDMI cable or HDMI-DVI cable.

3. DIGITALAUDIO OUT(OPTICAL)

Connects to an amplifier having a digital optical audio input jack.

4. DIGITALAUDIO OUT(COAXIAL)

Connects to an amplifier having a digital coaxial audio input jack.

5. AUDIO OUT

Connects to the audio input of external equipment using audio cables.

6. VIDEO OUT(good video quality)

Connects the input of external equipment using a Video cable.

7. S-VIDEO OUT(better video quality)

Connects the input of external equipment using an S-Video cable.

8. COMPONENT VIDEO OUT(best video quality)

Connects to equipment having Component video input jacks.

9. AV 1 AUDIO IN

Connect the output of external equipment using audio cables

10. AV 1 VIDEO IN

Connects the output of external equipment using a video cable.

11. AV 1 S-VIDEO IN

Connects the output of external equipment using a S-Video cable.

■

The Antenna connection does not pass

NOTE

output signal of DVD. To watch a DVD on your TV, you must connect audio/video cables.

- English

Page 15

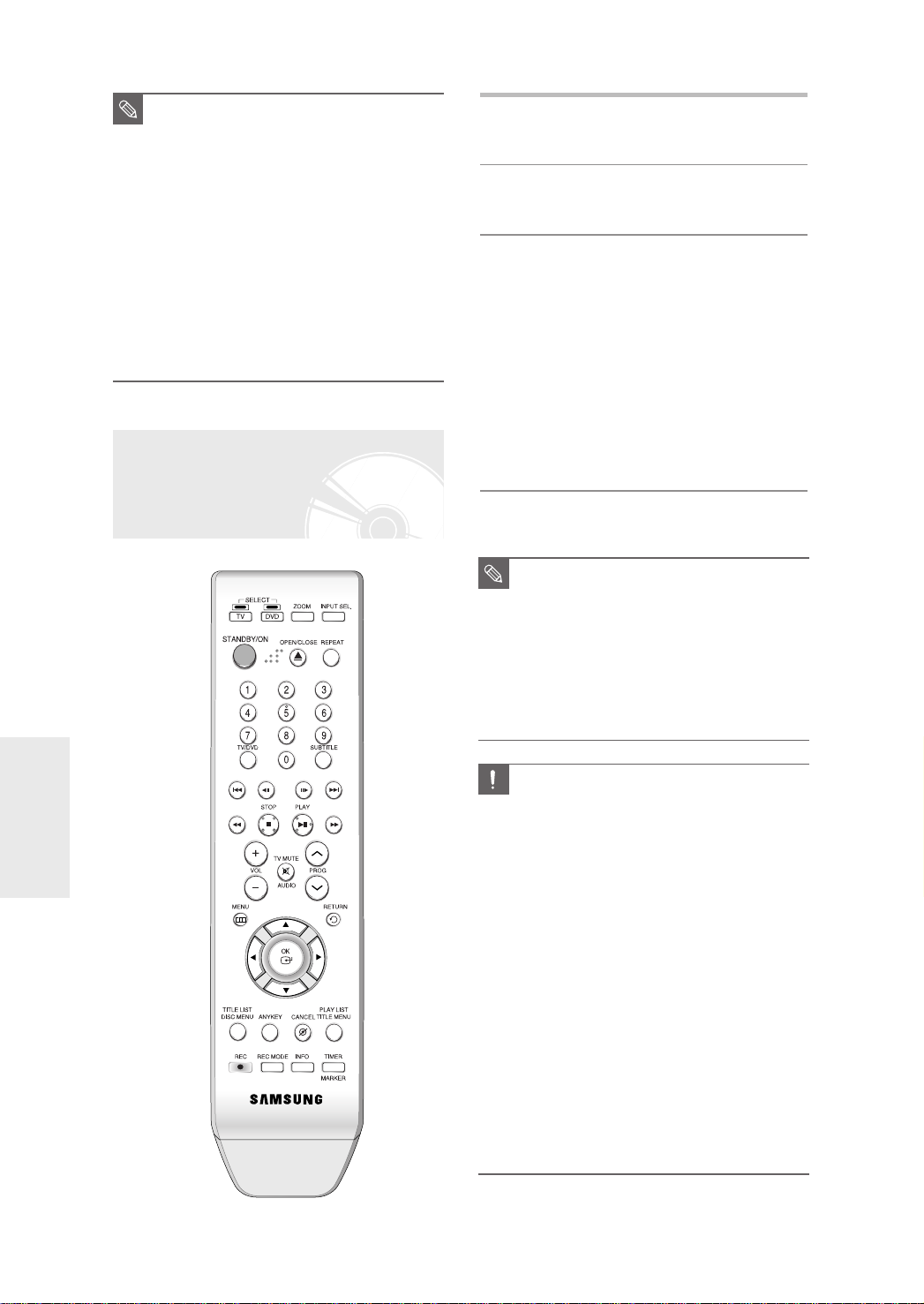

Tour of the Remote Control

26 27

4 5 6 7

12 13

28 29

16 17

22 23

24 25

13. ANYKEY Button

Use this to view the status of the disc that is being played.

14. REC Button

Use to make a recording on DVD-RW/-R discs.

15. REC MODE Button

This will display the recording status.(XP/SP/LP/EP)

16. REPEAT Button

Allows you to repeat a title, chapter, track or disc.

17. OPEN/CLOSE Button

To open and close the disc tray.

18. SUBTITLE Button

Press this to switch the DVD’s subtitle language.

19. PLAY/PAUSE Button

Press to play a disc or pause playback/recording.

20. PROG Buttons

Select preset channels in a specific order. Same as PROG buttons in front panel.

21. RETURN Button

Returns to a previous menu.

22. PLAY LIST/TITLE MENU Button

Use this to return to the Title menu, or to view the recorded files list.

23. CANCEL Button

24. MARKER/TIMER Button

Use this to bookmark a position while playing a disc. Press to directly enter the Timer Recording Mode menu while stopping a disc.

25. INFO Button

This will display current settings or disc status.

26. TV Button

Press this to operate TV.

27. DVD Button

Press this when you use a DVD recorder.

28. INPUT SEL. Button

Select line input signal in external input mode (PROG, AV input or DV INPUT)

29. ZOOM Button

Press this to enlarge the screen.

Getting Started

1. STANDBY/ON Button

2. 0~9(Number) Buttons

3. TV/DVD Button

You can not use this button.

4. Reverse/Forward Skip Buttons

Press to skip a disc backwards or forwards.

5. Reverse/Forward Step Buttons

Press to play frame by frame.

6. Reverse/Forward Search Buttons

Press to search a disc backwards or forwards.

7. STOP Button

Press to stop a disc.

8. VOL Buttons

Volume adjustments.

9. AUDIO/TV MUTE Button

Use this to access various audio functions on a disc.(DVD mode) This operates as Sound Mute. (TV mode)

10. MENU Button

Brings up the DVD recorder’s setup menu.

¥ 

11. OK/DIRECTION(

) Buttons

12. TITLE LIST/DISC MENU Button

Use this to enter the View Recording list/Disc menu.

English -

Page 16

Quick Overview

Connecting

& Setting Up

This section involves various methods of connecting the DVD Recorder to other external components and required initial setting modes.

Connecting & Setting Up

A Quick Overview presented in this guide will give you enough information to start using the DVD Recorder.

Connecting the DVD Recorder

†

Other type of connecting the Video output cable

†

Other type of connecting the Audio output cable

†

Connecting HDMI/DVI to a TV

†

Connecting to AV 2 IN, DV input jack

Quick Overview.................................................16

Connecting the DVD Recorder

Other type of connecting the

Video output cable............................................17

Other type of connecting the Audio output cable

Connecting HDMI/DVI to a TV ........................21

Connecting to AV 2 IN, DV input jack .............22

- English

..........................17

....19

Page 17

Connecting the DVD

Other type of connecting

Recorder

1. Disconnect the aerial cable from your TV and connect it to on the rear panel of the DVD

Recorder.

2. Connect of the DVD Recorder and the aerial input of your TV using the supplied aerial cable.

3. Use the Video/Audio Cable to connect ANALOG AUDIO OUT(R/L)/VIDEO OUT jacks on the DVD Recorder to the Audio &Video jacks on the TV.

4. Plug in the DVD Recorder and TV.

5. Turn on the DVD Recorder and TV.

6. Press the INPUT SEL. button on your TV remote control until the Video signal from the DVD Recorder appears on the TV screen.

Wall

DVD Recorder

the Video output cable

There are several ways to output video signal. Select one of the following video connecting that best suits you below.

● Case 1 : Connecting to a Video (Composite) output

jack

● Case 2 : Connecting to an S-Video output jack

● Case 3 : Component Video output jacks

S-Video, Component video and Progressive Output Modes

● S-Video and Component video output are available

only if your TV supports S-Video input or Component video input, respectively. If S-Video or Component video output does not work, check the TV connections and the TV input selection settings.

● Compared to standard interlaced video, progressive

scan doubles the amount of video lines fed to your TV, resulting in a more stable, flicker-free, clear image than interlaced video. This is only available with TVs that support progressive scan.

● Progressive Scan Output (576p)

Consumers should note that not all high definition television sets are fully compatible with this DVD Recorder and may cause artifacts to be displayed in the picture, in case of 576 progressive scan picture problems, It is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding our TV set compatibility with this model 576p DVD Recorder, please contact our customer service centre.

Connecting & Setting Up

NOTE

■

The RF cable connection of this DVD Recorder sends only signals of TV. You must connect Audio/Video cables to watch a signal from your DVD Recorder.

■

To watch TV programmes, power off the DVD Recorder.

English -

Page 18

Case 1 : Connecting to a Video (Composite) output jack

1. Connect a video(yellow) cable between the VIDEO

(yellow) OUT jack on DVD Recorder and VIDEO (yellow) INPUT jack on your TV (or AV amplifier).

● You will enjoy regular quality images.

2. Connect audio cables (white and red) between the

AUDIO OUT jacks on the DVD Recorder and AUDIO IN jacks on TV (or AV amplifier).

(See page 19 to 20)

Connecting & Setting Up

Video/Audio Cable

Case 2 : Connecting to an S-Video output jack

1. Connect an S-Video cable (not included) between the S-VIDEO OUT jack on DVD Recorder and S-VIDEO INPUT jack on your TV (or AV amplifier).

2. Connect audio cables (white and red) between the AV AUDIO OUT jacks on DVD Recorder and AUDIO IN jacks on TV (or AV amplifier).

● You will enjoy high quality images.

yellow

- English

Page 19

Case 3 : Component Video

COMPONENT

output jacks

1. Connect Component video cables(not supplied) between the COMPONENT OUT(Y,P

DVD Recorder and COMPONENT IN(Y,P

on your TV.

2. Connect audio cables (white and red) between the AUDIO OUT jacks on the DVD Recorder and AUDIO IN jacks on TV (or AV amplifier). (See page 19 to 20).

3. After connecting, refer to the page 31.

● You will enjoy high quality and accurate colour

reproduction images.

green

blue

red

B,PR

red

) jacks on

B,PR

) jacks

green

blue

Other type of connecting the Audio output cable

There are several ways to output audio signal. Select the audio connection that best suits you below.

● Case 1 : Connecting to your TV

● Case 2 : Connecting to a stereo amplifier with AV

output jacks

● Case 3 : Connecting to an AV amplifier with a

digital output jack

Manufactured under licence from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of DTS, Inc.

Case 1 : Connecting to your TV

If your TV has audio input jacks, use this connection.

Connecting & Setting Up

NOTE

■

The Component jacks will not output video resolutions above 576p. To view 720p and 1080i, connect the DVD Recorder to your TV with the supplied HDMI cable. With HDMI connected, press the P.SCAN button to alternate between all available resolutions. (See pages 21, 33)

■

Make sure that the colour coded connections match. The Y, P

component output jacks of your DVD

, P

Recorder must be connected to the exact corresponding component input jacks on your TV.

■

Progressive setting is only available when the DVD Recorder is connected to your TV using component cables.

yellow

white

red

yellow

white

red

English -

Page 20

Case 2 : Connecting to a stereo amplifier with AV output jacks

If your stereo amplifier only has AUDIO INPUT jacks(L and R), use the AUDIO OUT jacks.

Case 3: Connecting to an AV amplifier with a digital output jack

If your AV amplifier has a Dolby Digital, MPEG2 or DTS decoder and a digital input jack, use this connection. To enjoy Dolby Digital, MPEG2 or DTS sound, you will need to set up the audio settings. (See pages 30~31)

Connecting & Setting Up

Front(L) speaker

whitered

Front(R) speaker

Rear(L)

Front(L)

Rear(R)

Front(R)

Subwoofer Centre

- English

Page 21

Connecting HDMI/DVI to a TV

If your TV has a HDMI/DVI input, connect the HDMI/DVI cable to the TV. You will enjoy the best quality images and sounds.

●

Case 1 : Connecting to a TV with HDMI Jack

●

Case 2 : Connecting to a TV with DVI Jack

Case 1 : Connecting to a TV with HDMI Jack

●

Using the HDMI cable, connect the HDMI OUT jack on the rear of the DVD Recorder to the HDMI IN jack of your TV.

●

Press the input selector on your TV remote control until the HDMI signal from the DVD Recorder appears on your TV screen.

Case 2 : Connecting to a TV with DVI Jack

●

Using the DVI Adapter Cable (not included), connect the HDMI OUT jack on the rear of the DVD Recorder to the DVI IN jack of your TV.

●

Using the audio cables, connect the AUDIO (red and white) OUT jacks on the rear of the DVD Recorder to

the AUDIO (red and white) IN jacks of your TV. Turn on the DVD Recorder and TV.

●

Press the input selector on your TV remote control until the DVI signal from the DVD Recorder appears on your TV screen.

■

To watch through the HDMI output, set the

CAUTION

digital audio output to PCM. (See page 30)

■

Depending on the HDMI device (TV/HDMI Receiver) you use, audio may not be supported. If TV does not support Dolby digital/DTS, Audio output is not available when you set Digital output as Bitstream or select DTS On in Audio setup menu. In this case, set the digital audio output to PCM or DTS Off.

NOTE

■

To change HDMI output resolution, see page 33.

■

HDMI (High Definition Multimedia Interface)

HDMI is an interface to enable the digital transmission of video and audio data with just a single connector. Since HDMI is based on DVI, it is completely compatible with DVI. The only difference between HDMI and DVI is that HDMI supports multi-channel audio. Using HDMI, the DVD Recorder transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.

■

HDMI connection description

HDMI connector - Both uncompressed video data and digital audio data (LPCM or Bit Stream data).

- Though the DVD Recorder uses a HDMI cable, the DVD Recorder outputs only a pure digital signal to the TV.

- If TV does not support HDCP (High-bandwidth

Digital Content Protection), snow noise appears on the screen.

■

Why does Samsung use HDMI?

Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Recorder) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the DVD Recorder to your TV.

■

What is the HDCP?

HDCP (High-bandwidth Digital Content Protection) is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD, etc) and a display device (TV, projector, etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

Connecting & Setting Up

English -

Page 22

Connecting to AV 2 IN, DV input jack

This allows you to connect your DVD Recorder to other external devices and view or record their outputs.

Case 2 : Connecting a Camcorder to the DV IN jack

If your digital camcorder has a DV output jack, connect it to the DV input jack of your DVD Recorder.

● Case 1 : Connecting a VCR, Set-Top Box(STB), DVD

player or Camcorder to the AV 2 IN jacks

● Case 2 : Connecting a Camcorder to the DV IN jack

Case 1 : Connecting a VCR, Set-Top Box(STB), DVD player

Connecting & Setting Up

or Camcorder to the AV 2 IN jacks

Connecting a VCR or external device to AV 2 IN jacks of the DVD Recorder. You can record from connected equipment (VCR, STB, DVD player or Camcorder).

Camcorder

VCR

STB

DVD

yellow

white

red

NOTE

Camcorder

■

If the input is not selected automatically, use INPUT SEL. button to select proper input.

NOTE

- English

yellow

white

red

■

AV 2 IN selection will be automatically done. If the input is not selected automatically, use INPUT SEL. button to select proper input.

■

Copy protected content cannot be recorded.

Page 23

System

Setup

On-Screen Menu Navigation

The on-screen menus allow you to enable or disable various functions on your DVD Recorder. Use the following buttons to open and navigate through the on-screen menus.

On-Screen Menu Navigation......................23

Plug & Auto Set up.....................................24

Setting the Clock ........................................25

Presetting Channels with the

Auto Setup function....................................25

Presetting Channels with

the Manual Setup function .........................26

Setting Up the Language Options..............27

EP Mode Time Setting ...............................28

Automatic Chapter Creation.......................29

Setting Up the Audio Options.....................30

Setting up the Progressive scan ................31

Canceling the Progressive scan.................32

Setting up the Display(Video) Options .......32

DivX(R) Registration...................................34

Setting up the Parental Control..................34

DVD-Recorder

No Disc

Programme Setup

Scheduled Record List

Programme

RETURNOKMOVE EXIT

√√

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Title List

MENU Button

Press this button on the remote control to open the on-screen MENU. Press again to exit the on-screen MENU.

…… / †† , œœ / √√

Press these buttons on remote control to move the selection bar … / † , œ / √ to cycle through the menu options.

Buttons

OK Button

Press this button on the remote control to confirm any new settings.

RETURN Button

Press this button on the remote control to return to the Previous MENU screen displayed or to exit the on-screen MENU.

Title List

RETURNOKMOVE EXIT

√√

System Setup

English -

Page 24

Plug & Auto Set up

Your DVD Recorder will automatically set itself up when it is plugged in for the first time. TV stations and clock will be stored in memory. The process takes a few minutes. Your DVD Recorder will then be ready for use.

System Setup

Connect the RF cable as indicated on page 17.

(Connecting Your DVD Recorder to the TV Using the RF Cable and Video/Audio cable.)

Plug the DVD Recorder into the mains.

“Auto” in the front panel display flickers.

Select the language using the …† buttons, then press the OK button.

Français Deutsch Español Italiano Nederlands

RETURNOKMOVE

Auto Setup

DVD-Recorder

No Disc

Language Set English

Check the date and time.

DVD-Recorder

No Disc

Date Time

JAN 01 2006 12 00

SUN

• if it is : Correct, press the OK button then the date and time will be saved. If you don't press the OK button, the date and time will be saved automatically after 5 seconds.

• if it is :

Incorrect, input correct Time, Date, Year using …†œ √ buttons or number buttons. Press the OK button then the date and time will be saved. When you need to change clock setting, you can set up it manually. (see page 25)

■

Now, DVD Recorder is ready for use. Function for

NOTE

“Plug & Auto Set Up” is fixed already. So if you want to change this fixed one, you can change it by Presetting the Stations in OSD “Presetting Channels with the Manual set up function” menu. (see page 26~27)

■

Auto Setup function can be performed by pressing and holding down the PROG ( ) buttons on the front panel of the DVD Recorder simultaneously for more than 5 seconds with no disc in the DVD Recorder.

Auto Setup

RETURNOKMOVE

Press the OK button or wait for a few

seconds to start the auto setup.

DVD-Recorder

No Disc

Auto setup will be started.

Check antenna and TV cable connection.

Auto Setup

RETURNOK

Auto Channel scan will be started.

Auto channel memory

Stop

•

The number of stations automatically stored by the DVD Recorder depends on the number of stations that it has found.

- English

17%

Page 25

Setting the Clock

Presetting Channels with the Auto Setup function

This menu is used to set the current time. You need to set the time to use timer recording.

With the DVD Recorder in Stop mode/No

Disc mode, press the MENU button.

DVD-Recorder

No Disc

Programme Setup

Scheduled Record List

Programme

√√

RETURNOKMOVE EXIT

Press the …† buttons to select Setup, then press the OK or √ button.

RETURNOKMOVE EXIT

Setup

√√

DVD-Recorder

No Disc

Programme Setup

System Clock Set Language Audio Video Parental Control Install

Press the …† buttons to select Clock Set, then press the OK or √ button.

Use the …†œ √ buttons to input Time, Date or Year. Use number buttons to input clock data directly. The day of the week is displayed automatically.

DVD-Recorder

No Disc

Programme Setup

Date Time

JAN 01 2006 12 00

SUN

Clock Set

This feature allows you to manually set the DVD Recorder tuner band to Antenna or Cable, whichever you connected to the Antenna In jack during initial setup.

With the DVD Recorder in Stop mode/No

Disc mode, press the MENU button.

DVD-Recorder

No Disc

Programme Setup

Scheduled Record List

Programme

√√

RETURNOKMOVE EXIT

Press the …† buttons to select Setup, then

press the OK or √ button.

RETURNOKMOVE EXIT

Setup

√√

DVD-Recorder

No Disc

Programme Setup

System Clock Set Language Audio Video Parental Control Install

Press the …† buttons to select Install, then

press the OK or √ button.

DVD-Recorder

No Disc

Programme Setup

Auto Setup Manual Setup

Install

√√

System Setup

RETURNOKMOVE EXIT

Press the OK button, then the date and

time will be saved.

If you don’t press the OK button, it will not be saved.

RETURNOKMOVE EXIT

English -

Page 26

Press the …† buttons to select Auto

Setup, then press the OK or √ button.

The message “Your data will be lost. Press [OK] to continue, [MENU] to exit.” is displayed.

Presetting Channels with the Manual Setup function

System Setup

RETURNOKMOVE EXIT

Install

√√

DVD-Recorder

No Disc

Programme

Auto Setup Manual Setup

Setup

Your data will be lost.

Press [OK] to continue, [MENU] to exit.

Press the OK button to continue.

If you want to exit, press the MENU button.

Auto channel memory

Stop

17%

Channel scan will be started.

Press the OK button to stop the Auto Setup.

You can add preset channel that Auto Channel Search missed. And you can delete a channel you wish to remove. You can programme the order of channels.

With the DVD Recorder in Stop mode/No

Disc mode, press the MENU button.

DVD-Recorder

No Disc

Programme Setup

Scheduled Record List

Programme

√√

RETURNOKMOVE EXIT

Press the …† buttons to select Setup, then

press the OK or √ button.

RETURNOKMOVE EXIT

Setup

√√

DVD-Recorder

No Disc

Programme Setup

System Clock Set Language Audio Video Parental Control Install

- English

Press the …† buttons to select Install, then

press the OK or √ button.

RETURNOKMOVE EXIT

Install

√√

DVD-Recorder

No Disc

Programme Setup

Auto Setup Manual Setup

Page 27

Press the …† buttons to select Manual

Setup, then press the OK or √ button.

Manual Setup

PR CH Name Edit

01 --- ---02 --- ---03 --- ---04 --- ---05 --- ---06 --- ---07 --- ----

RETURNOKMOVE EXIT

√√ √√ √√ √√ √√ √√ √√

Press the …† buttons to select a PR

(programme) you wish to edit, delete, or

swap, then press the OK or √ button. Select Edit, Delete or Swap using the …† buttons, then press the OK or √ button.

Manual Setup

PR CH Name Edit

01 --- ---02 --- ---03 --- ---04 --- ---05 --- ---06 --- ---07 --- ----

Edit Delete Swap

RETURNOKMOVE EXIT

√√ √√ √√ √√ √√ √√ √√

Setting up the Language Options

If you set the audio, subtitle, disc menu, on-screen menu and DivX subtitle language in advance, they will come up automatically every time you watch a movie. If the selected language is not recorded on the disc, the original pre-recorded language is selected.

With the DVD Recorder in Stop mode/No

Disc mode, press the MENU button.

DVD-Recorder

No Disc

Programme Setup

Scheduled Record List

Programme

√√

RETURNOKMOVE EXIT

System Setup

• Edit : You can add or edit PR(programme).

After changing PR informations(CH, Name, MFT), select Done, then press the OK button.

Manual Setup

√√

- - - -

Name

--- ---

MFT

Done

OKMOVE

- CH : Tune the channel using œ √ buttons.

- Name : Display station name automatically detected

in broadcasting signal. If not detected, you can edit name by using …†œ √ buttons.

- MFT : You can tune up the channel frequency better

using œ √ buttons.

• Delete : The channel information of selected

PR(programme) will be removed.

• Swap : You can swap the channel information of two

PR(programme). For example, if you wish to swap PR2 and PR5, select swap at PR2, then press the OK button at PR5.

Press the …† buttons to select Setup, then

press the OK or √ button.

RETURNOKMOVE EXIT

Setup

√√

DVD-Recorder

No Disc

Programme Setup

System Clock Set Language Audio Video Parental Control Install

Press the …† buttons to select Language,

then press the OK or √ button.

Language setup menu will be displayed.

DVD-Recorder

No Disc

Programme Setup

Audio : Original Subtitle : Automatic Disc Menu : English On-Screen Menu : English DivX Subtitle : Western

Language

RETURNOKMOVE EXIT

√√

English -

Page 28

Press the …† buttons to select the desired

language option, then press the OK or √

button.

● Audio : For the speaker sound.

● Subtitle : For the disc subtitles.

● Disc Menu : For the disc menu

contained on the disc

● On-Screen Menu : For the screen of your DVD

Recorder

● DivX Subtitle : Selecting a supported DivX subtitle

language by region.

EP Mode Time Setting

You can select one of four recording modes by pressing the REC MODE button repeatedly. EP mode is one of four REC Mode (XP,SP,LP,EP). In EP(Extended Play) mode, you can set recording time to 6 or 8 hours by this setting.

System Setup

NOTE

Afrikaans, Basque, Catalan, Danish, Dutch,

Western

English, Faeroese, Finnish, French, German, Icelandic, Indonesian, Italian, Malay, Norwegian, Portuguese, Spanish, Swahili and Swedish

English, Albanian, Croatian, Czech, Hungarian,

Central

Polish, Romanian, Serbian(Latin), Slovak and Slovenian

Greek

Cyrillic

English and Greek

English, Azeri, Belarusian, Bulgarian, Kazakh, Macedonian, Russian, Serbian, Tatar, Ukrainian and Uzbek

Press the …† buttons to select the desired language, then press the OK or √ button.

DVD-Recorder

No Disc

Programme

Audio : Original

Setup

Subtitle : Automatic Disc Menu : English On-Screen Menu : English DivX Subtitle Western

■

Press the RETURN or œ button to return to the previous menu. Press the MENU button to exit the menu.

■

The selected language will only appear if it is supported on the disc.

■

If the subtitle language is displayed in broken fonts, change DivX Subtitle to the appropriate region. If it still does not work, the format is not supported.

Language

Original English Français Deutsch Español Italiano Nederlands Korean

RETURNOKMOVE EXIT

……

√√

††

With the DVD Recorder in Stop mode/No

Disc mode, press the MENU button.

DVD-Recorder

No Disc

Programme Setup

Scheduled Record List

Programme

√√

RETURNOKMOVE EXIT

Press the …† buttons to select Setup, then

press the OK or √ button.

RETURNOKMOVE EXIT

Setup

√√

DVD-Recorder

No Disc

Programme Setup

System Clock Set Language Audio Video Parental Control Install

Press the …† buttons to select System,

then press the OK or √ button.

System menu will be displayed.

DVD-Recorder

No Disc

Programme Setup

EP Mode Time : 6 Hours Chapter Creator : Off

System

RETURNOKMOVE EXIT

√√

Press the …† buttons to select EP Mode

Time, then press the OK or √ button.

6 Hours 8 Hours

System

√√

DVD-Recorder

No Disc

Programme Setup

EP Mode Time : 6 Hours Chapter Creator Off

- English

RETURNOKMOVE EXIT

Press the …† buttons to select the desired

time, then press the OK or √ button.

Page 29

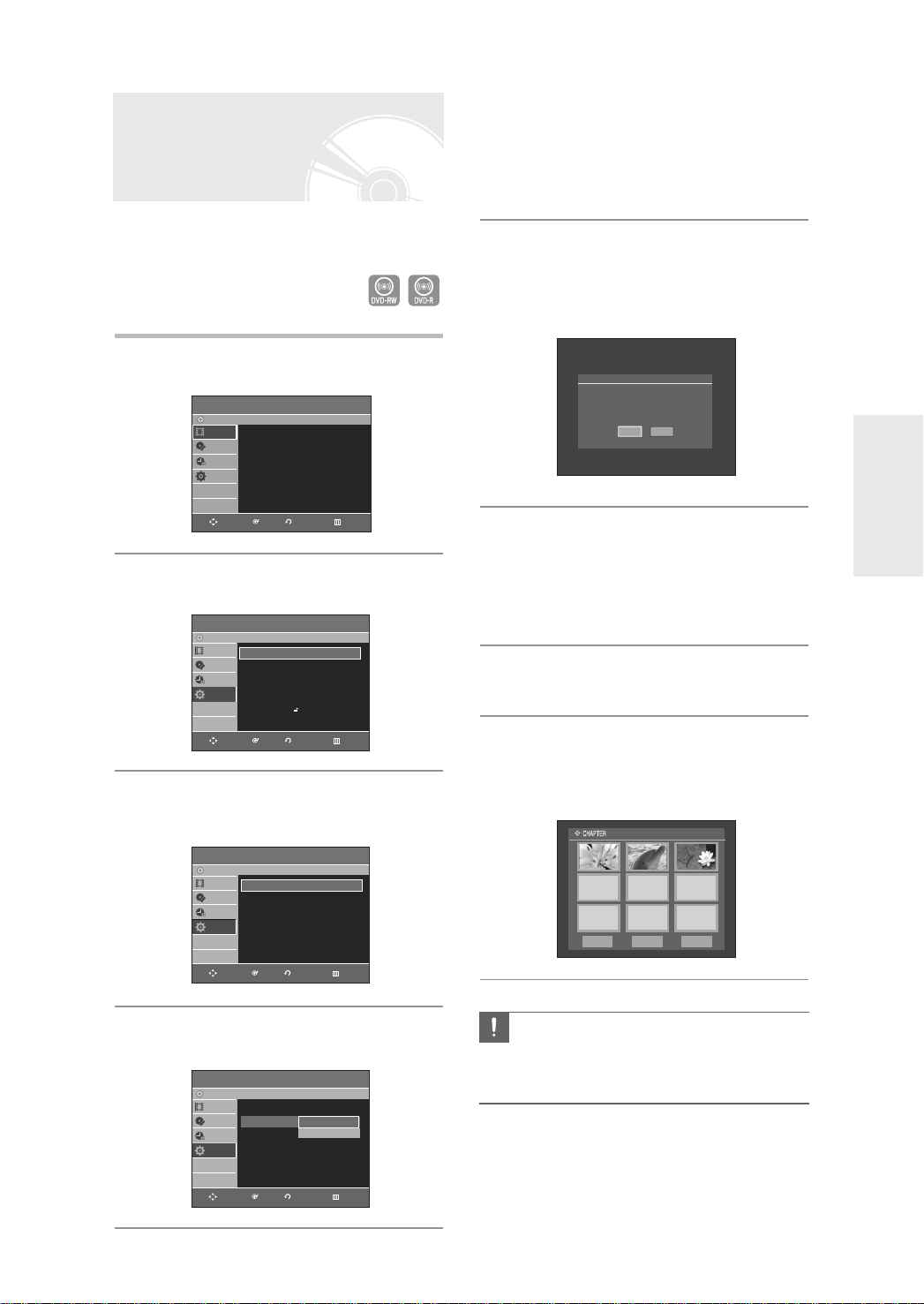

Automatic Chapter Creation

A DVD-Video consists of ‘Titles’ and ‘Chapters’. When you record one programme, it makes one Title. If you use this function, the title will be divided into chapers.

(V mode)

With the DVD Recorder in Stop mode,

press the MENU button.

DVD-Recorder

DVD-RW(V)

Title List Disc Manager Programme Setup

Title List

√√

Press the …† buttons to select On or Off,

then press the OK or √ button.

• Off : Select this option when you do not want

(Automatic Chapter Creation).

• On : Select this option when you want (Automatic

Chapter Creation).

Press the REC button to start recording.

(See page 37 about how to set recording mode) The message “Do you want to create the chapter menu after this recording?” is displayed.

Do you want to create the chapter menu

after this recording?

Yes

System Setup

RETURNOKMOVE EXIT

Press the …† buttons to select Setup, then

press the OK or √ button.

RETURNOKMOVE EXIT

Setup

√√

DVD-Recorder

DVD-RW(V)

Title List Disc Manager Programme

Setup

System Clock Set Language Audio Video Parental Control Install

Press the …† buttons to select System,

then press the OK or √ button.

System menu will be displayed.

DVD-Recorder

DVD-RW(V)

Title List Disc Manager Programme Setup

EP Mode Time : 6 Hours Chapter Creator : Off

System

RETURNOKMOVE EXIT

√√

Press the …† buttons to select Chapter

Creator, then press the OK or √ button.

DVD-Recorder

DVD-RW(V)

Title List Disc Manager Programme Setup

EP Mode Time : 6 Hours Chapter Creator : Off

System

√√

Off On

√√

Press the œ √ buttons to select Yes and press the OK button.

• A new chapter is created according to the selected recording mode. A chapter will be about 5 minutes long in XP and SP, and about 15 minutes long in LP and EP mode.

Press the STOP button to stop recording.

To display the created chapters, finalise the disc (see page 82) and then press the

DISC MENU button. The chapter menu will

be displayed.

1/1

123

NextTop

CAUTION

■

The Automatic Chapter Creation function does not work during Timer Recording or when you turn the power off.

■

DVD-R discs cannot be unfinalised.

RETURNOKMOVE EXIT

English -

Page 30

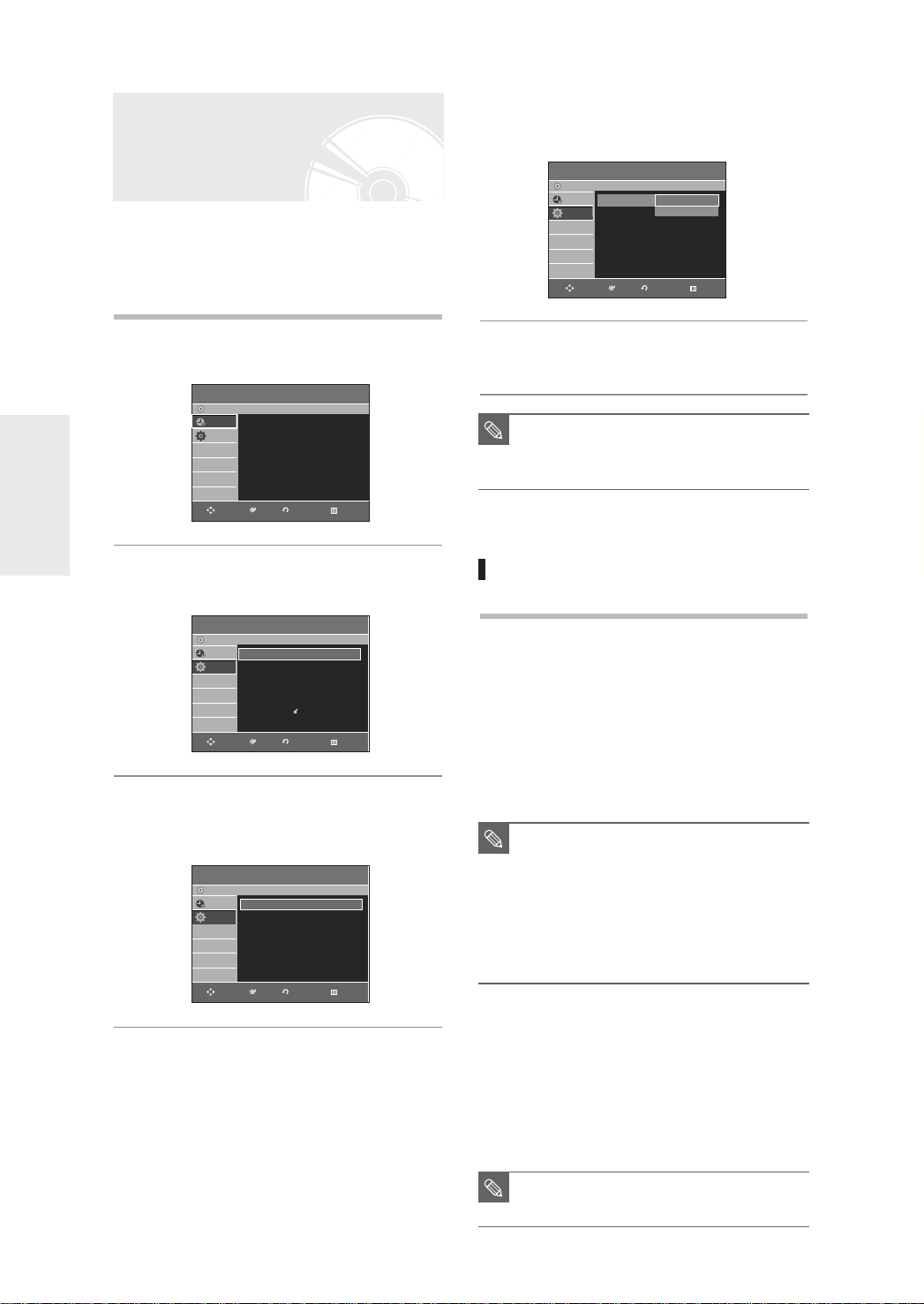

Setting up the Audio Options

You can connect the DVD Recorder to an external amp or Home Theatre. Allow you to setup the Audio device and sound status depending on the audio system in use.

Press the …† buttons to select the desired

audio option, then press the OK or √

button.

PCM Bitstream

: On

RETURNOKMOVE EXIT

Audio

√√

DVD-Recorder

No Disc

Programme Setup

Digital Output : PCM DTS : Off Dynamic Compression NICAM : On

System Setup

With the DVD Recorder in Stop mode/No

Disc mode, press the MENU button.

DVD-Recorder

No Disc

Programme Setup

Scheduled Record List

Programme

√√

RETURNOKMOVE EXIT

Press the …† buttons to select Setup, then press the OK or √ button.

DVD-Recorder

No Disc

Programme Setup

System Clock Set Language Audio Video Parental Control Install

RETURNOKMOVE EXIT

Setup

√√

Press the …† buttons to select Audio, then press the OK or √ button.

Audio setup menu will be displayed.

DVD-Recorder

No Disc

Programme Setup

Digital Output : PCM DTS : Off Dynamic Compression NICAM : On

RETURNOKMOVE EXIT

Audio

√√

: On

√√

Press the …† buttons to select the desired

item, then press the OK or √ button.

■

Press the RETURN or œ button to return

NOTE

to the previous menu. Press the MENU button to exit the menu.

Audio Options

Digital Output

1. PCM : Select this when you have no equipment that

2. Bitstream : Output Dolby Digital (or MPEG-2) audio as

NOTE

DTS

can decode Dolby Digital (or MPEG-2) signal. When you play Dolby Digital (or MPEG-2) sound track, the digital output are converted to PCM Stereo.

bitstream. Select this when your AV receiver or AV amplifier have Dolby Digital (or MPEG-2) Decoder.

■

Digital output setting is equally applied to both Dolby Digital and MPEG-2 audio. LPCM sound track is always outputted as PCM. It has no relation with Digital Output setting.

■

Be sure to select the correct Digital Output or you will hear no sound or loud noise.

- English

1. Off : Doesn’t output DTS signal.

Select this when your AV receiver or AV amplifier does not have DTS decoder.

2. On : Outputs DTS Bitstream via digital output when you

play DTS track. Select this only when your AV receiver (or AV amplifier) have DTS decoder.

■

When DTS soundtrack is played, sound

NOTE

does not output from AV Audio Output.

Page 31

Dynamic Compression

This is only active when a Dolby Digital signal is detected.

1. On : When Movie soundtracks are played at low

volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.

2. Off : You can enjoy the movie with the standard

Dynamic Range.

Setting up the Progressive scan

If the TV supports Progressive Scan, press the P.SCAN button on the front of the DVD Recorder to enjoy.

NICAM

NICAM programmes are divided into 3 types. NICAM Stereo, NICAM Mono and Bilingual (transmission in another language). NICAM programmes are always accompanied by a standard mono sound broadcast and you can select the desired sound by setting NICAM on or off.

1. On : NICAM mode

2. Off : Only set at this position to record the standard

mono sound during a NICAM broadcast if the stereo sound is distorted due to inferior reception conditions.

With the DVD Recorder in Stop mode,

press the P.SCAN button on the front of the

DVD Recorder.

The message “Press [Yes] to confirm Progressive scan mode. Otherwise press [No]” will appear.

Press [Yes] to confirm Progressive scan mode.

Otherwise press [No]

Yes

Press the œ √ buttons to select Yes, and

then press the OK button.

Set your TV to Progressive input (using the

TV remote control.)

■

When the HDMI cable is connected, this

NOTE

screen is not displayed.

■

Do not press the P.SCAN button if you are using a TV that does not support Progressive mode. Nothing will be displayed on the screen if pressed.

■

Progressive setting is only available when the DVD Recorder is connected to your TV using component cables.

■

If the P.SCAN button on the DVD recorder’s front panel is pressed during playback, the prohibition mark( ) appears on the screen.

■

Progressive setting is only available when the DVD recorder is in stop mode.

System Setup

English -

Page 32

Canceling the Progressive

Setting up the

scan

System Setup

2 3

With the DVD Recorder in Stop mode,

press the P.SCAN button on the front of the

DVD Recorder.

The message “Press [Yes] to confirm Interlace scan mode. Otherwise press [No]” will appear.

Press [Yes] to confirm Interlace scan mode.

Otherwise press [No]

Yes

Press the œ √ buttons to select Yes, and then press the OK button.

Set your TV to Interlace input (using the TV remote control.)

Display(Video) Options

This function allows you to setup the TV screen settings.

With the DVD Recorder in Stop mode/No

Disc mode, press the MENU button.

DVD-Recorder

No Disc

Programme

Scheduled Record List

Setup

Press the …† buttons to select Setup, then

press the OK or √ button.

DVD-Recorder

No Disc

Programme

System Clock Set

Setup

Language Audio Video Parental Control Install

Programme

RETURNOKMOVE EXIT

Setup

√√

NOTE

■

If you press the P.SCAN button by mistake when your TV does not support Progressive mode, you need to release the Progressive mode. To release the Progressive mode, press the P.SCAN button on the front panel 2 times. The screen will recover after the PS LED on the front panel display turns off.

Press the …† buttons to select Video, then

press the OK or √ button.

Video setup menu will be displayed.

: Off : 576p

RETURNOKMOVE EXIT

Video

√√

DVD-Recorder

No Disc

Programme Setup

TV Aspect : 16:9 Wide 3D Noise Reduction HDMI/DVI Resolution DivX(R) Registration

Press the …† buttons to select the desired

video option, then press the OK or √ button.

4:3 LetterBox

: Off

4:3 Pan-Scan 16:9 Wide

RETURNOKMOVE EXIT

Video

√√

DVD-Recorder

No Disc

Programme

TV Aspect : 4:3 Letter Box

Setup

3D Noise Reduction HDMI/DVI Resolution DivX(R) Registration

Press the …† buttons to select the desired

item, then press the OK or √ button.

- English

Page 33

■

Press the RETURN or œ button to return

NOTE

to the previous menu. Press the MENU button to exit the menu.

Display(Video) Options

This function depends on disc type. It may not work for some disc types.

HDMI/DVI Resolution

This setting is used when the DVD Recorder is connected by HDMI or DVI with Display devices (TV, projector, etc).

: Off

576p 720p 1080i

Video

√√

DVD-Recorder

No Disc

Programme Setup

TV Aspect : 16:9 Wide 3D Noise Reduction HDMI/DVI Resolution DivX(R) Registration

TV Aspect

Depending on the type of television you have, you may want to adjust the screen setting. (aspect ratio)

4:3 LetterBox

: Off

4:3 Pan-Scan 16:9 Wide

RETURNOKMOVE EXIT

Video

√√

DVD-Recorder

• 4:3 LetterBox :

No Disc

Programme

TV Aspect : 4:3 Letter Box

Setup

3D Noise Reduction HDMI/DVI Resolution DivX(R) Registration

Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

• 4:3 Pan-Scan : Select this for conventional size TV when

you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

• 16:9 Wide : You can view the full 16:9 picture on your

widescreen TV.

3D Noise Reduction (motion adaptive noise reduction)

: Off

Off On

RETURNOKMOVE EXIT

Video

√√

DVD-Recorder

No Disc

Programme

TV Aspect : 16:9 Wide

Setup

3D Noise Reduction HDMI/DVI Resolution DivX(R) Registration

● On : Provides a cleaner picture through noise

reduction (for recording).

● Off : Normal

RETURNOKMOVE EXIT

• 576p : 720 x 576

• 720p : 1280 x 720

• 1080i : 1920 x 1080

■

Menu screen will zoom out to 2/3 at

NOTE

1080i.

Output selection

• Connect the DVD Recorder to your TV via a HDMI or DVI cable. And set your TV's input to HDMI.

• Press the P.SCAN button while the DVD Recorder is in Stop mode to select the HDMI output resolution as follows:

➞

576p➞720p ➞ 1080i

■

Progressive scan automatically activates

NOTE

when HDMI is connected.

■

There will be no HDMI video and audio outputs unless progressive scan function is activated.

■

Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s menu system.

■

The resolutions available for HDMI/DVI output depend on the connected TV or projector. For details, see the user’s manual of your TV or projector.

■

When the resolution is changed it may take a few seconds for a normal image to appear.

■

If you set the HDMI output resolution 720p or 1080i, HDMI output provides better picture quality.

■

DivX playback screen output can only be done in 576p.

System Setup

English -

Page 34

DivX(R) Registration

Enter the 4-digit password using the 0 to 9

buttons on the remote control.

The ‘Confirm the password’ message will be displayed. Enter your password again.

Please use the Registration code to register this DVD Recorder with the DivX(R) Video On Demand format. For more information, visit www.divx.com/vod

Setting up the Parental Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

System Setup

With the DVD Recorder in Stop mode/No

Disc mode, press the MENU button.

DVD-Recorder

No Disc

Programme Setup

Scheduled Record List

Programme

√√

RETURNOKMOVE EXIT

DVD-Recorder

No Disc

Programme Setup

0~9

Parental Control

Confirm the password

RETURNOKNUMBER EXIT

Press the OK or √ button to select

Password.

DVD-Recorder

No Disc

Programme Setup

Password ff

Parental Control

Off On

RETURNOKMOVE EXIT

Press the …† buttons to select On or Off,

then press the OK or √ button.

■

Press the RETURN or œ button to return

NOTE

to the previous menu. Press the MENU button to exit the menu.

√√

- English

Press the …† buttons to select Setup, then press the OK or √ button.

RETURNOKMOVE EXIT

Setup

√√

DVD-Recorder

No Disc

Programme Setup

System Clock Set Language Audio Video Parental Control Install

Press the …† buttons to select Parental Control, then press the OK or √ button.

The ‘Create the password’ message will be displayed.

DVD-Recorder

No Disc

Programme Setup

0~9

Parental Control

Create the password

RETURNOKNUMBER EXIT

If you forgot your password

Remove the disc.

Press and hold down the PROG ()

buttons on the front panel of the DVD Recorder simultaneously for more than 5 seconds with no disc in the DVD Recorder.

All setting including the password will revert to the factory setting.

Page 35

About the Rating Level

About the Change Password

Press the …† buttons to select Rating

Level.

DVD-Recorder

No Disc

Programme Setup

Password : On Rating Level : Level 1 Kids Change Password

Parental Control

RETURNOKMOVE EXIT

√√

Press the OK or √ button.

The rating level will be displayed.

DVD-Recorder

No Disc

Programme Setup

Password :On Rating Level : Level 1 Kids Change Password

Parental Control

Level 8 Adults Level 7 Level 6 Level 5 Level 4 Level 3 Level 2 Level 1 Kids

RETURNOKMOVE EXIT

√√

Press the …† buttons to select Rating

Level you want, then press the OK or √

button.

For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A larger number indicates that the programme is intended for adult use only.

Press the …† buttons to select Change

Password.

DVD-Recorder

No Disc

Programme Setup

Password : On Rating Level : Level 1 Kids Change Password

Parental Control

RETURNOKMOVE EXIT

√√

Press the OK or √ button.

The 'Enter the password' message will be displayed.

DVD-Recorder

No Disc

Programme Setup

0~9

Change Password

Enter the password

RETURNOKNUMBER EXIT

Enter the 4-digit password using the 0 to 9

buttons on the remote control.

The ‘Confirm the password’ message will be displayed. Enter your password again.

DVD-Recorder

No Disc

Programme Setup

Change Password

Confirm the password

System Setup

NOTE

0~9

■

See page 34 if you forgot your password.

RETURNOKNUMBER EXIT

English -

Page 36

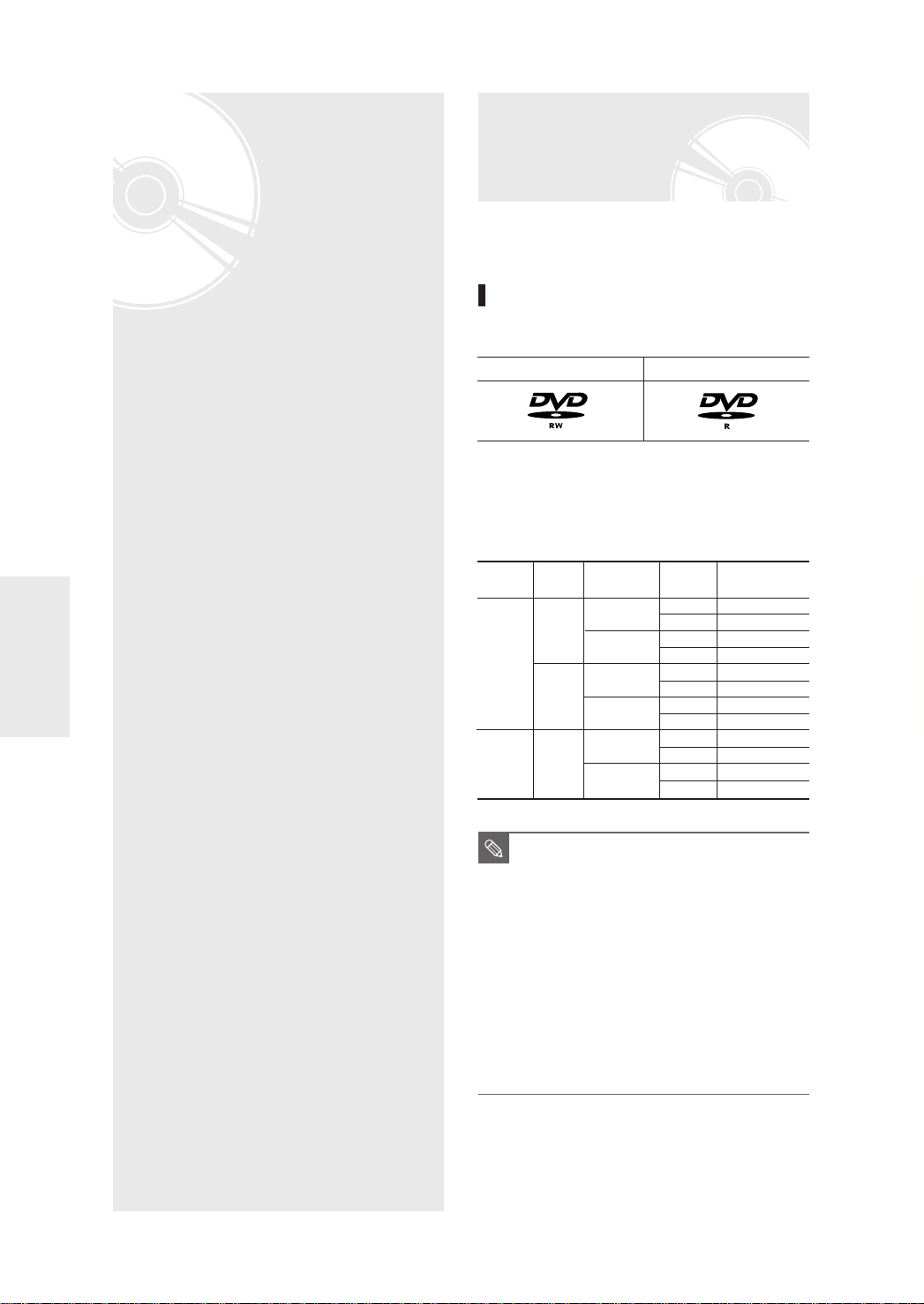

Recording

This section shows various DVD recording methods.

Before Recording

This DVD Recorder can record on various types of discs. Before recording, read the following instructions and select the disc type according to your preference.

Recordable discs

This DVD Recorder can record on the following discs.

DVD-RW DVD-R

● DVD-RWs are rewritable.

● DVD-Rs are non-rewritable

Compatibility between Samsung and Other Company’s Recorder

Recording

Before Recording ...........................................36

Recording the current TV programme

you are watching ............................................38

Recording from external equipment

you are watching ............................................40

Copying from a Camcorder ...........................41

Making a One Touch Recording (OTR)..........42

Making a Timer Recording .............................43

Flexible Recording (for Timer recording only) ..

Editing the Scheduled Record List.................44

Deleting the Scheduled Record List...............45

Recording the Standard Timer List ................46

Disc Types Recording Recording Finalising Additional Recording in

DVD-RW

DVD-R V Mode

NOTE

format Device Samsung Recorder

VR Mode

V Mode

■

Samsung

Other Company

Samsung

Other Company

Samsung

Other Company

Finalise

- This closes the DVD-R/-RW so no additional recording can be done.

Unfinalise

- This allows additional recording on a DVD-RW disc originally recorded on the DVD Recorder.

- A DVD-RW disc that has been recorded by DAO (Disc At Once) in a PC cannot be unfinalised.

- A DVD-RW disc that has been recorded in Video Mode of a different maker’s recorder cannot be unfinalised.

- A DVD-R disc cannot be unfinalised.

finalised Not recordable

not finalised Recordable

finalised Not recordable

not finalised Recordable

finalised Not recordable

not finalised Recordable

finalised Not recordable

not finalised Not recordable

finalised Not recordable

not finalised Recordable

finalised Not recordable

not finalised Not recordable

- English

Page 37

Recording Formats

Since available functions differ depending on the disc type, select a disc that best fits your preferences. When you insert an unused disc, the following message appears.

DVD-RW: When a blank disc is first inserted, the

message “Uninitialized Disc Do you want to initialize this disc?” will appear. When YES is selected, the disc will be formatted in VR Mode.

Uninitialized Disc

Do you want to initialize this disc?

Yes

If you want to format in either VR Mode or Video Mode, refer to Formatting a Disc on pages 80~81.

DVD-Recorder

DVD-RW(VR)

Disc Name :

Title List

Clock Set

Playlist

Channal

Disc Manager

Choose the recording format for DVD-RW

Langguage

Programme

DVD-VR DVD-V

Setup

Disc Manager

RETURNOKMOVE EXIT

√√

Mode Characteristic

XP Select when the

(high quality mode)

video quality is important.

Recording Times

Data Rates

Approx. 1 hour

about 8 Mbps

SP Select to record in Approx. 2 hours

(standard quality mode)

(long recording mode)

(extended mode)

standard quality.

Select when a long recording time is required.

about 4 Mbps

Approx. 4 hours

about 2 Mbps

Select when a longer Approx. 6 hours/ recording time is required. Approx. 8 hours

about 1.2 Mbps

about 0.8 Mbps

FR for timer recording only

(Flexible Recording) see page 44.

Approx 60 to 480 Min

Approx 0.8 to 8Mbps

Unrecordable video

Video with copy protection cannot be recorded on this DVD Recorder. When the DVD Recorder receives a copy guard signal while recording, recording stops and the following message appears on the screen.

You cannot record copy protected movie.

Recording

DVD-R: Formatting DVD is unnecessary and only

Video Mode Recording is supported

DVD-RW(Video mode)/-R

● Chapters will be created automatically when you

finalise recording on DVD-R / DVD-RW discs in Video mode with the Chapter Creator has been set to On. The chapter’s length (interval between chapters) varies according to the recording mode.

● Simple editing (erasing titles/changing title name)

DVD-RW(VR mode)

●

This mode allows multiple editing functions (such as deletion of the whole title, partial deletion of a title, etc.)

● Various editing options using a created Playlist

Recording Mode

Select one of four recording modes by pressing the REC MODE button repeatedly while the DVD Recorder is in Stop mode for the desired recording time and picture quality. In general, picture quality improves as the recording time decreases. In FR mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. This function is selected only one mode in XP, SP, LP and EP modes. And you can use this mode for timer recording.

Concerning Copy Control Signals

TV broadcasts that contain copy control signals may have one of the following three signal types, Copy-Free, Copy-Once and Copy-Never. If you want to record a copy-once type programme, use DVD-RW with CPRM in VR Mode.

Media

Signal type

DVD-RW

with CPRM

VR mode

Video mode

DVD-R

Once “Copy Once” has been recorded, recording cannot be done anymore.

- Content Protection for Recordable Media (CPRM)

CPRM is a mechanism that ties a recording to the media on which it is recorded. It is supported by some DVD recorders, but not by many DVD players. Each blank recordable DVD has a unique 64-bit media ID etched in the BCA. When protected content is recorded onto the disc, it can be encrypted with a 56-bit C2 (Cryptomeria) cipher derived from the media ID. During playback, the ID is read from the BCA and used to generate a key to decrypt the contents of the disc. If the contents of the disc are copied to other media, the ID will be absent or wrong and the data will not be decryptable.

Copy-Free Copy-Once Copy-Never

- -

* -

English -

Page 38

About INFO Button

Recording the current TV programme you are watching

Recording

The INFO function allows you to view the current status and progress of playback and recording. Depending on the disc type and status, the displayed screen may be different.

Checking the available disc space (Disc Information)

When recording on an used disc, make sure that there is enough disc space for recording. With DVD-RWs, you can free up disc space by erasing titles.

● Press the INFO button.

The display window of disc information appears. Items in the display differ depending on the disc type or recording format.

DVD-RW(VR) Disc Info

! #

Disc Name Disc

Total Title 15

Total Playlist

Recordable Time 02:12 SP Protection Not Protected Screen PR 11

JAN 01 2006 SUN 12:00

Disc Type

Current information display status

Disc Name To tal Titles : Total number of titles

Total Playlist : Total number of Playlists

Recordable Time : The longest continuous

recording time in each of the recording modes(approximate)

Date : Current date and time

[DUAL L ]

Before you start

Check that the disc has enough available space for the recording. Adjust the recording mode.

Press the OPEN/CLOSE button and place

a recordable disc on the disc tray.

Press the OPEN/CLOSE button to close

the disc tray.

Wait until “LOAD” disappears from the front panel display.

If an unused DVD-RW disc is used, whether to initialize or not will be asked first. Make your selection, then press the OK button. (See page 37.)

Uninitialized Disc

Do you want to initialize this disc?

Yes

Press the PROG ( / ) or number (~)buttons to select the current

programme you want to record.

Press the REC MODE button repeatedly,

(or press the REC MODE button, then press the …† button) to select the

recording speed(quality).

➞

SP ➞ LP ➞ EP ➞ XP

- English

Record Mode SP (02:12)

Page 39

Press the REC button.

Information concerning the channel is displayed on the screen, then recording begins. REC icon( ) is displayed on the front panel.

Recording : PR 1 NICAM DUAL L

To view the current status of the disc and progress of recording : Press the INFO button, the information about the disc will appear.

DVD-RW(VR) Disc Info Disc Name

Total Title 16 Total Playlist 1 Recordable Time Protection Not Protected Screen PR 1 JAN 01 2006 SUN 12:00

02:12 SP

[

DUAL L

]

NOTE

■

You can not change the recording mode and the PROG while recording.

■

Recording will stop automatically if there is no free space left for recording.

■

Up to 99 titles can be recorded onto a disc.

■

Recording will stop automatically if a copy protected image is selected.

■

DVD-RW discs must be formatted before starting to record. Most new discs are sold unformatted.

■

Do not use DVD-R authoring discs with this DVD Recorder.

Press the INFO button once again to view information about the recording.

DVD-RW(VR) Recording Info Name JAN/01/2006 12:00 PR1

Recording Title 16 Created Time JAN/01/2006 12:00 Recording Time 00:00:07 JAN 01 2006 SUN 12:00

To stop recording

Press the STOP button to stop a recording in progress.

● When using DVD-RW/DVD-R discs, the message

‘Updating the disc information. Please wait for a moment.’ is displayed.

Recording

English -

Page 40

Recording from external equipment you are

Press the REC button.

Recording

watching

Before you start

Check that the disc has enough available space for the recording. Adjust the recording mode.

Press the OPEN/CLOSE button, place a

recordable disc on the disc tray.

Press the OPEN/CLOSE button to close

the disc tray.

Wait until “LOAD” disappears from the front panel display. If an unused DVD-RW disc is used, whether to initialize or not will be asked first. (See page 37)

Press the INPUT SEL. button to select the

input source according to the connection you made.

The front panel display changes in the following sequence:

➞ PR Number ➞ AV1 ➞ AV2 ➞ DV

To pause recording

Press the PLAY/PAUSE( ) button to pause a recording in progress.

● Press the PLAY/PAUSE( ) button again to resume

recording.

●

You can switch channels by pressing the PROG

buttons while recording pauses.

(/)

To stop recording

Press the STOP button to stop a recording in progress.

● When using DVD-RW/DVD-R discs, the message

‘Updating the disc information. Please wait for a moment.’ is displayed.

■

You can not change the recording mode

NOTE

while recording or Pause.

■

Recording will stop automatically if there is no free space left for recording.

■

Up to 99 titles can be recorded onto a disc.

■

Recording will stop automatically if a copy protected image is selected.

■

DVD-RW discs must be formatted before starting to record. Most new discs are sold unformatted.

■

Do not use DVD-R authoring discs with this DVD Recorder.

- English

If you connect a digital camcorder, press the

INPUT SEL. button to select DV.

(See page 41)

Press the REC MODE button repeatedly, (or press the REC MODE button, then press the …† button) to select the

recording speed(quality).

➞ SP ➞ LP ➞ EP ➞ XP

Record Mode SP (02:12)

Page 41

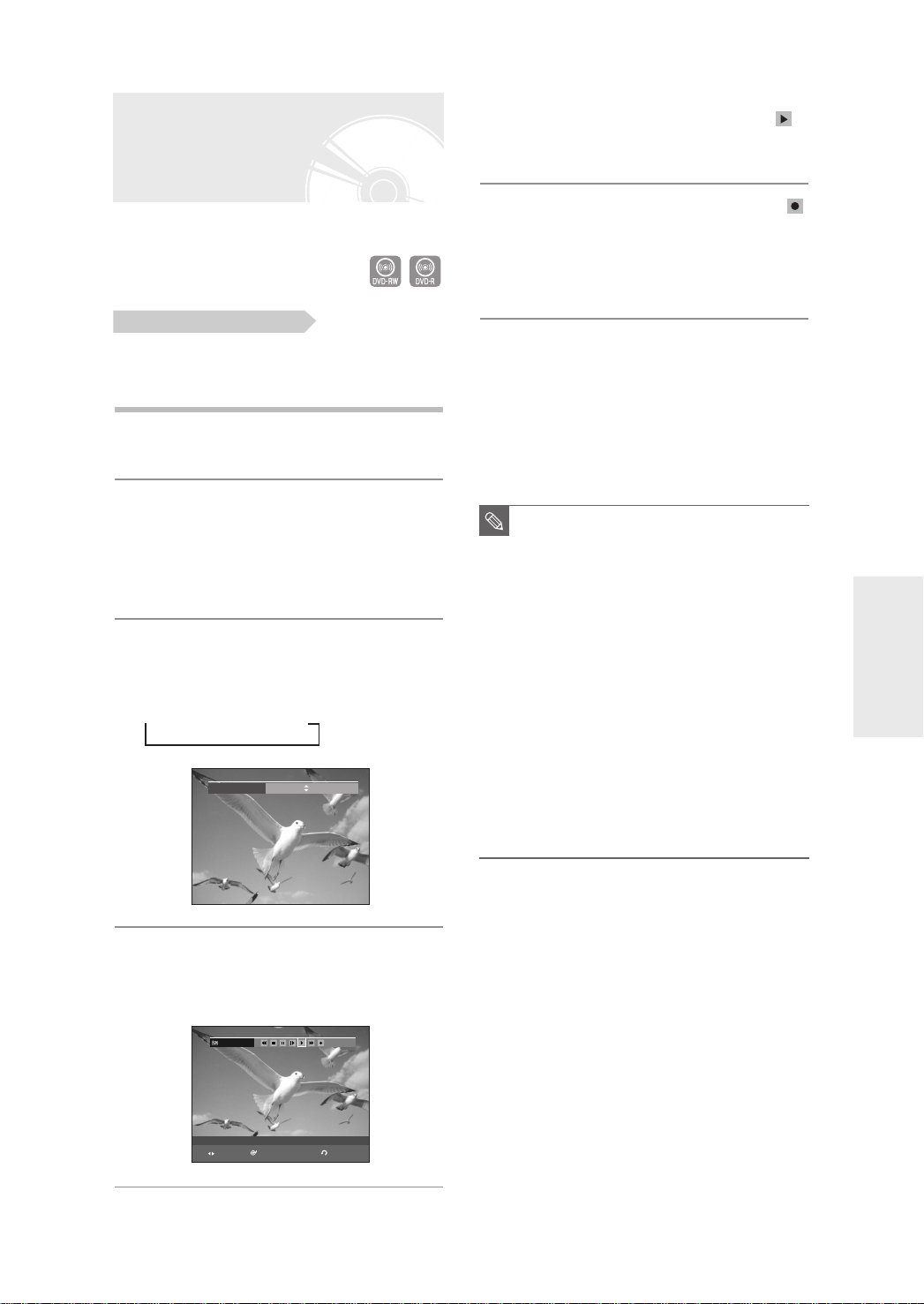

Copying from a Camcorder

You may control the Camcorder using the IEEE1394 (DV) interface.

Before you start

To play the camcorder and find the starting

point to be copied, select the play icon( ) on the top of the screen using the œ √

buttons and then press the OK button.

To start recording, select the record icon( )

on the top of the screen using the œ √ buttons and then press the OK button.

You can also use the REC button on the remote control to start recording. (If your camcorder is in stop mode, the REC button doesn't work.)

Check that the disc has enough available space for the recording. Adjust the recording mode.

Press the OPEN/CLOSE button, place a

recordable disc on the disc tray.

Press the OPEN/CLOSE button to close

the disc tray.

Wait until “LOAD” disappears from the front panel display. If an unused DVD-RW disc is used, whether to initialize or not will be asked first. (See page 37.)

Press the REC MODE button repeatedly,

(or Press the REC MODE button, then press the …† button) to select the

recording speed(quality).

➞

SP ➞ LP ➞ EP ➞ XP

Record Mode SP (02:12)

To stop recording

Press the STOP button to stop a recording in progress.

●

When using DVD-RW/DVD-R discs, the message ‘Updating the disc information. Please wait for a moment.’ is displayed

■

You can not change the recording mode and

NOTE

input source while recording.

■

Recording will stop automatically if there is no free space left for recording.

■

Up to 99 titles can be recorded onto a disc.

■

Recording will stop automatically if a copy protected image is selected.

■

DVD-RW discs must be formatted before starting to record. Most new discs are sold unformatted.

■

Do not use DVD-R authoring discs with this DVD Recorder.

■

If you connect a camcorder using DV Jack, the related control menu appears automatically. To access on the screen

controls during recording, press the button.

Recording

√

Press the INPUT SEL. button to select DV.

If the input is set to DV, a playback/record menu that enables camcorder control appears on the top of the screen.

The DV device is connected.

RETURNOKMOVE

English -

Page 42

Making a One Touch Recording (OTR)

You can set the DVD Recorder to record in preset increments by pressing the REC button repeatedly.

To view the current status of the disc and progress of recording : Press the INFO button, and information about the disc will appear.

DVD-RW(VR) Disc Info Disc Name

Total Title 16 Total Playlist 1 Recordable Time Protection Not Protected Screen PR 1 JAN 01 2006 SUN 12:00

02:12 SP

[

DUAL L

]

Recording

If you want to record a TV channel, press

the PROG (/) or number buttons to

select a desired channel. If you want to record through a connected

external component, press the INPUT SEL.

button to select an appropriate external input (AV 1, AV 2 or DV).

● TV PROGRAMME: 1 to 99

Press the REC button to start recording.

Press the REC button repeatedly to adjust

the desired recording time.

➞ 0:30 ➞ 1:00 ➞ ... 4:00 ➞ 5:00➞... 9:00 ➞normal

■

The timer counter decreases by the

NOTE

minute from 9:00 to 0:00, then the DVD Recorder stops recording and is powered off.

Press the INFO button once again. Then you can check the information about the title being recorded.

DVD-RW(VR) Recording Info Name JAN/01/2006 12:00 PR1

Recording Title 16 Created Time JAN/01/2006 12:00 Recording Time 00:00:07 JAN 01 2006 SUN 12:00

To stop recording

Press the STOP button. The message “Press STOP button once more to cancel Timer Record.” is displayed.

Press STOP button once more

to cancel Timer Record.

- English

Press the STOP button once more to stop recording.

Page 43

Making a Timer Recording

Set timer recording option.

• Fill the input items using the arrow buttons and number buttons.

œ √ : Moves to the previous/next item, …†, 0~9 : Sets a value.

Before you start

1. Check the antenna cable is connected.

2. Check the remaining time of the disc.

3. Check the date and time are correct. Make sure the Clock (Setup-Clock Set) must be set before you proceed with a timer recording. (See page 25)

With the DVD Recorder in Stop mode,

press the TIMER button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Scheduled Record List

Programme

√√

RETURNOKMOVE EXIT

Using the MENU button.

● With the DVD Recorder in Stop mode, press the

MENU button.

● Press the …† buttons to select Programme, then

press the OK or √ button.

Press the OK or √ button twice.

• The Timer Recording screen is displayed.

• Source : The video input source (AV1 or AV2), or

the broadcasting channel you want to make a timer recording from.

• Day : Timer Recording allows setting the

recording time within one month period. Set the recording day.

01 SUN Daily 02 MON MO-SA 03 TUE MO-FR 04 WED W-SA

31 TUE W-SU

• Start/End Time : Start and end time of the timer

recording.

• Speed (Recording Mode) :

- FR (Flexible Recording) : Select when you want to set video quality automatically. In FR mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. This function is selected only one mode in XP, SP, LP and EP modes. And you can use this mode for timer recording.

- XP (high quality) : Select when video quality is important. (Approx. 1 hour)

- SP (standard quality) : Select to record in standard quality. (Approx. 2 hours)

- LP (low quality) : Select when a long recording time is required.(Approx. 4 hours)

- EP (extended) : Select when a longer recording time is required. (Approx.6 hours or 8 hours)

Recording

DVD-Recorder

DVD-RW(VR)

No. Source Day Start End Speed Edit

Source Day Start End Speed

PR 01 01 SUN 12:05 14:05 SP

Available Time 00:48 SP

Scheduled Record List

Current Time 12:05

No. 01

RETURNOKMOVE EXIT

NOTE

■

When you are recording at EP mode on a DVD-RW(V)/-R disc, it may not record the full 6 or 8 hours because the DVD Recorder uses the VBR(Variable Bit Rate) ENCODING system. For example, if you record a programme with a lot of action, it uses a higher bit rate which in turn consumes more disc memory.

English -

Page 44

Recording

Press the OK button.

If the timer settings overlap

The programmes are recorded in order of priority. If timer recording is set for the first programme and then again for the second programme and both programmes overlap, the following message will appear on the screen: “This setting is identical with 1”The message shows that the first programme has priority. After recording of the first programme is complete, the second programme starts being recorded.

To exit without saving the current setting Press the MENU button.

To return to the previous menu

Press the RETURN button if you don’t want to set

a timer recording.

Turn the power off to finish the Timer

Recording setting. Timer Recording will not work when the power is on.

● will appear on the front panel. It means that a

timer recording is registered.

● will blink if disc is not inserted.

■

The timer recording time may differ from

NOTE

the set time depending on disc status and overall timer recording status (for example, recording times overlapping, or when the previous recording ends within 2 minutes before the start time of the next recording.)

■

You can make the Timer Recording up to 12 programmes.

Editing the Scheduled Record List

Follow these directions to edit the timer record list.

With the DVD Recorder in Stop mode,

press the TIMER button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Scheduled Record List

Programme

√√

RETURNOKMOVE EXIT

Using the MENU button.

● With the DVD Recorder in Stop mode mode, press

the MENU button.

● Press the …† buttons to select Programme, then

press the OK or √ button.

Press the OK or √ button.

Press the …† buttons to select the number

of the timer recording you want to edit, then

press the OK or √ button.

● The Edit and Delete items are displayed.

Flexible Recording (for Timer recording only)

In FR mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. This function is selected only one mode in XP, SP, LP and EP modes. And you can use this mode for timer recording.

The FR mode recording setup is the same as Timer Recording. When setting the mode in step 3, set FR Mode. (See page 43)

- English

02 MON

12:08 14:08 SP

Scheduled Record List

Edit

√√

Delete

√√

RETURNOKMOVE EXIT

DVD-Recorder

DVD-RW(VR) Current Time 12:27

No. Source Day Start End Speed Edit

01 PR 01 01 SUN 13:07 14:07 SP 02 PR 01 03 : :

Page 45

Press the …† buttons to select Edit, then

press the OK or √ button.

● The Timer Record Input item is displayed.

Edit the items you want to modify. See the “Making a Timer Recording” section for more information on Timer Recording Input items.

DVD-Recorder

DVD-RW(VR)

No. Source Day Start End Speed Edit

Source Day Start End Speed

PR 01 01 SUN 13:07 14:07 SP

Available Time 00:48 SP

Scheduled Record List

Current Time 12:27

No. 01

RETURNOKMOVE EXIT

Press the OK button to confirm the

edited setting.

Press the …† buttons to select the number

of the timer recording you want to delete,

then press the OK or √ button.

●

The Edit and Delete items are displayed.

02 MON

12:08 14:08 SP

Scheduled Record List

Edit

√√

Delete

√√

RETURNOKMOVE EXIT

DVD-Recorder

DVD-RW(VR) Current Time 12:27

No. Source Day Start End Speed Edit

01 PR 01 01 SUN 13:07 14:07 SP 02 PR 01 03 : :

Press the …† buttons to select Delete,

then press the OK or √ button.

●

You will be prompted with the delete confirm message such as ‘Do you want to delete No.01?’.

Press the MENU button after finishing the

operation. The menu screen will disappear.

Deleting the Scheduled Record List

Follow these directions to delete an entry from the timer record list.

With the DVD Recorder in Stop mode,

press the TIMER button.

Using the MENU button.

● With the DVD Recorder in Stop mode mode, press

the MENU button.

● Press the …† buttons to select Programme, then

press the OK or √ button.

DVD-Recorder

DVD-RW(VR)

No. Source Day Start End Speed Edit

01 PR 01 01 SUN 13:07 14:07 SP 02 PR 01 03 / / : :

Press the

press the OK button.

●

The selected entry will be deleted from the list.

œ √

Scheduled Record List

Current Time 12:27

No. 01

02 MON

12:08 14:08 SP

Do you want to delete ‘No.01’ ?

Yes No

RETURNOKMOVE EXIT

√√

buttons to select Yes, then

Press the MENU button after finishing the

operation. The menu screen will disappear.

Recording

Press the OK or √ button.

English -

Page 46

Recording the Standard Timer List

When the start time in the Scheduled record list reaches while the set is in power off, the set will be powered on and start the recording automatically.

To stop Recording

Press the STOP button. The message “Press STOP button once more to cancel Timer Record.” is displayed.

Press STOP button once more

to cancel Timer Record.

Press the STOP button once more to stop recording

■

If there is not enough disc space or a

NOTE

copy prevention signal is received during recording, recording will stop.

Recording

You cannot record copy protected movie.

■

If there is no free disc space or the disc is not recordable, recording will not operate. (You can record after replacing the disc.)

- English

Page 47

Playback

DIGITAL OUT

DIGITAL

This section introduces basic functions of playback and playback by disc type.

Before Playing

Read the following information before playing a disc.

Region code (DVD-Video only)

Both the DVD recorder and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this DVD Recorder is described on the rear panel of the DVD Recorder.

Disc types that can be played

Dolby Digital DTS Digital Audio

Stereo PAL broadcast

system in U.K,

France, Germany, etc.

MP3DivX

Before Playing...................................................47

Playing a Disc ...................................................48

Playing an Audio CD/MP3 ..............................57

Playing a Picture...............................................61

Playing a MPEG4 .............................................62

Playing the Title List..........................................63

Disc Types Disc Logo Recorded content Disc Shape Max. Playing Time

DVD-VIDEO AUDIO + VIDEO

AUDIO-CD AUDIO

DVD-RW AUDIO + VIDEO 12cm (4.7GB)

DVD-R AUDIO + VIDEO 12cm (4.7GB)

CD-R/-RW DVD-R/-RW

■

NOTE

MPEG4

Depending on the disc type, it may take up to one minute to load.

Single sided(12cm) Double sided(12cm) Single sided(8cm) 80 min

Double sided(8cm) 160 min Single sided(12cm) 74 min

Single sided(8cm) 20 min

JPEG

MP3 - -

1hr (XP: Excellent Quality) 2hr (SP: Standard Quality) 4hr(LP: Long Playback) hr

or 8hr(EP:Extended)

1hr (XP: Excellent Quality) 2hr (SP: Standard Quality) 4hr(LP: Long Playback)

or 8hr(EP:Extended)

240 min 480 min

Discs that cannot be played

● DVD-Video with a region number other than “3” or

“ALL”

● 3.9 GB DVD-R Disc for Authoring.

● DVD-RW(VR mode) not recorded following the Video

Recording Standard

● Unfinalised DVD-R,unfinalised DVD-RW(V mode)

recorded on other equipment.

● DVD-ROM/PD/MV-Disc, etc

● Video CD/SVCD/CVD/CD-ROM/CDV/CD-G/CD-I

Playback

English -

Page 48

■

Playback and/or recording may not work

NOTE

for some types of discs, or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary.

■

Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording.

■

DVD-RW/-R discs may not be able to play on some DVD Recorders, depending on the player, disc and the condition of the recording.

Playing a Disc

Press the OPEN/CLOSE button.

Place a disc gently into the tray with the

disc’s label facing up.

Press the OPEN/CLOSE button to close

the disc tray.

● Your DVD Recorder closes the disc tray and plays

the disc automatically.

● The DVD Recorder does not play discs

automatically after the initial power on.

● When the DVD Recorder is powered on and a disc

is in the tray, the DVD Recorder will be activated and wait in stop status.

● Press the PLA Y button to start playback.

● If you want the DVD Recorder to play automatically

when it is powered off with a disc in the DVD Recorder, power on with the PLAY button.

Press the STOP button to stop playback.

■

When you stop playing disc, the DVD

NOTE

Recorder remembers where you stopped. When you press the PLA Y button again, it will pick up where you left off. (unless the disc is removed or the DVD Recorder is unplugged, or if you press the STOP button twice.) This function is only applicable to DVD-VIDEO, DVD-RW, DVD-R or audio CDs (CD-DA).

Playback

- English

CAUTION

■

Do not move your DVD Recorder while playing, as this may cause damage to the disc.

■

Make sure to press the OPEN/CLOSE button to open or close the disc tray.

■

Do not push the disc tray while it is being opened or closed, as this may cause a malfunction of the DVD Recorder.

■

Do not place foreign materials on or in the disc tray.

■

Some functions may perform differently or be disabled depending on the disc type. If this occurs, refer to the instructions written on the disc case.

■

Be especially careful that children's fingers are not caught between the disc tray and the tray chassis when it closes.

■

You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the DVD Recorder.

Page 49

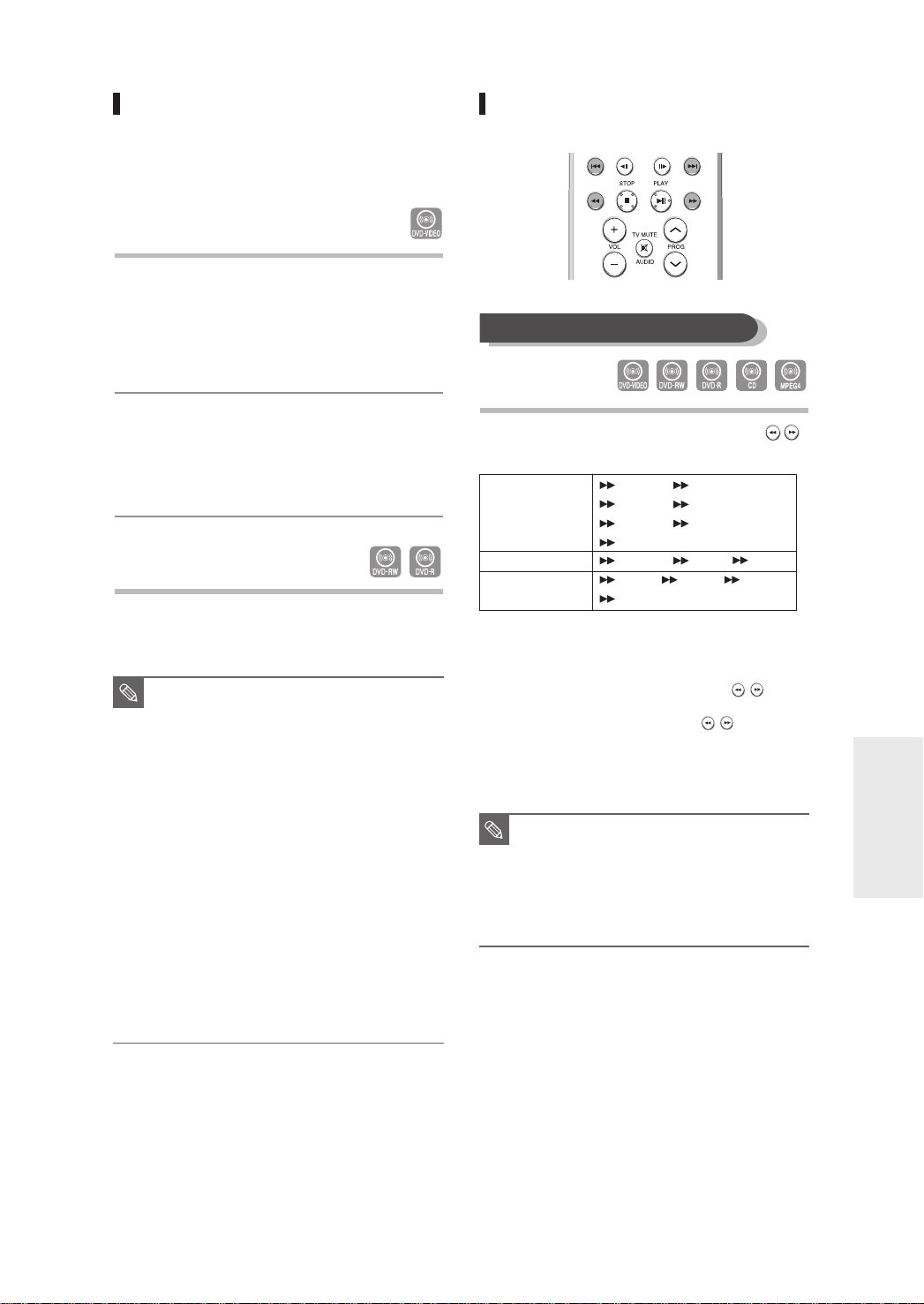

Using the Disc Menu & Title Menu

Some discs contain a dedicated menu system that allow you to select special functions for the title, such as chapters, audio tracks, subtitles, film previews, information on characters, etc.

For DVD-VIDEO discs

Press the DISC MENU button to enter the

disc menu of the disc.

● Move to the setup menu related to the playback

operation.

● You can select the audio languages and the

subtitles provided by the disc.

Press the TITLE MENU button to move to

the title menu of the disc.

● Use this button if the disc contains more than one

title. Some type of discs may not support the title menu function.

For DVD-RW/-R discs

Press the TITLE LIST button to move to the

Title List.

■

NOTE

Title List: Title List shows a list to help

■

Playlist: This refers to a unit of playback,

you select a title. Since the title list consists of the information on video that is actually recorded, if one title is deleted, that title cannot be played again.

which is made by selecting a desired scene in the entire Title List. When one playlist is played, only the scene selected by the user will play and then stop. Since only the information necessary for playing a desired scene is included in a playlist, even if that playlist is deleted, the original recording will not be deleted. (only VR mode)

Using the Search Functions

Searching through a Chapter or Track

During playback, press the SEARCH( )

button on the remote control.

DVD-VIDEO/ DVD-RW/DVD-R

MPEG4

AUDIO CD(CDDA)

● You can scan the programme in reverse.

To return to normal speed playback, press the PLAY button.

● When you press and hold the SEARCH()

button, playback is done at the default speed of Fast 2

. If you release the SEARCH() button,

playback is performed at a normal speed.

● The speed marked in this function may be different

from the actual playback speed.

■

No sound is heard during Scan(Search)

NOTE

mode except Fast 1 mode.

■

You cannot also hear during scanning MPEG4 in all mode.

■

For CD(CD-DA), you can hear sound during Scan mode.

Fast 1 ➞ Fast 2 ➞ Fast 3 ➞ Fast 4 ➞ Fast 5 ➞ Fast 6 ➞ Fast 1 Fast 1 ➞ Fast 2 Fast 3

X 2 ➞ X 4 ➞ X 8 ➞ X 2

Playback

English -

Page 50

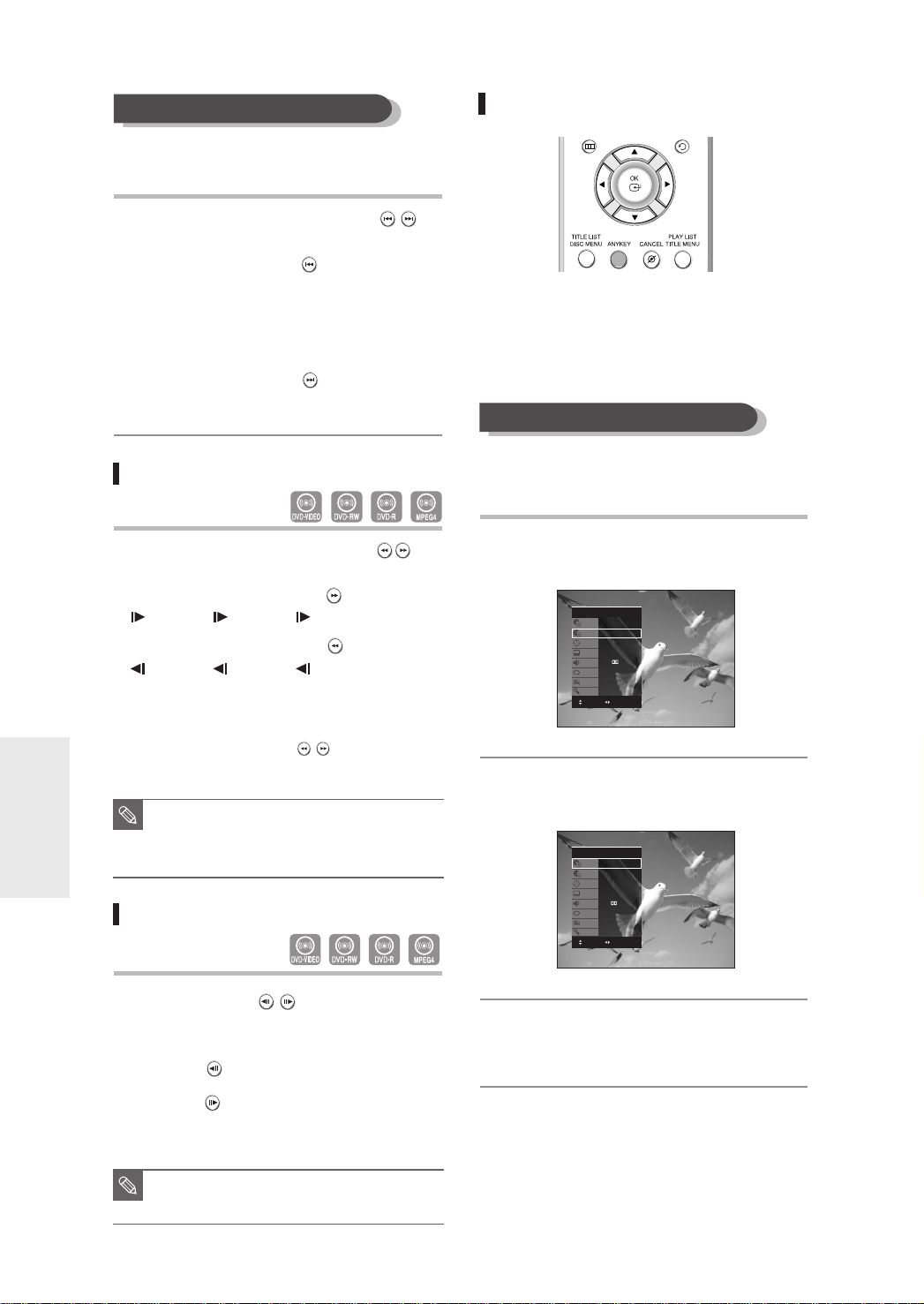

Skipping Chapters or Tracks

● During playback, you can search quickly

through a chapter or track.

During playback, press the SKIP ( )

button on the remote control.

● If you press the SKIP ( ) button,

it moves to the beginning of the chapter or track or marker(DVD-RW(VR mode)). Pressing the button once again within 3 seconds returns to the beginning of the previous chapter or track or marker(DVD-RW(VR mode)).

● If you press the SKIP ( ) button,

it moves to the next chapter or track or marker (DVD-RW(VR mode)).

About ANYKEY

The ANYKEY function allows you to easily search for a desired scene by accessing title, chapter, track, time. You can also change the subtitle and audio settings and set some features including Repeat, Angle, Zoom.

Moving to a scene directly using the ANYKEY

Playback

Slow Motion Play

In pause mode, press the SEARCH ( )

button on the remote control.

● If you press the SEARCH( ) button,

Slow 1 ➞ Slow 2 ➞ Slow 3

● If you press the SEARCH( ) button,

Slow 1 ➞ Slow 2 ➞ Slow 3

● To return to normal speed playback,

press the PLAY button.

Press and hold the SEARCH ( ) button during pause, the disc will play slowly at a Slow 1 speed. If the button is released, the pause operation will resume.

■

The speed marked in this function may be

NOTE

different from the actual playback speed.

■

Slow motion operates only in the forward direction on MPEG 4 discs.

Step Motion Play

● If you want to move to a title, a chapter

or a track to find a desired scene.

Press the ANYKEY button during

playback.

DVD-VIDEO

Title

1/2 1/28

Chapter

00:00:01

Time

Off

Subtitle

ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle

Off

Zoom

MOVE CHANGE

Press the …† buttons to select Title or

Chapter.

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle Zoom

Off

MOVE CHANGE

Press the STEP(

remote control during playback or pause.

●

Each time the button is pressed, a new frame will appear.

)

button on the

When STEP( ) is pressed, the previous frame will be activated. When

STEP( )

is pressed, the next frame will be

activated.

●

To return to normal speed playback, press the PLAY button.

■

Step motion operates only in the forward

NOTE

- English

direction on MPEG 4 discs.

Press the œ √ or number (0~9) buttons to

select the desired scene.

Press the OK button.

Page 51

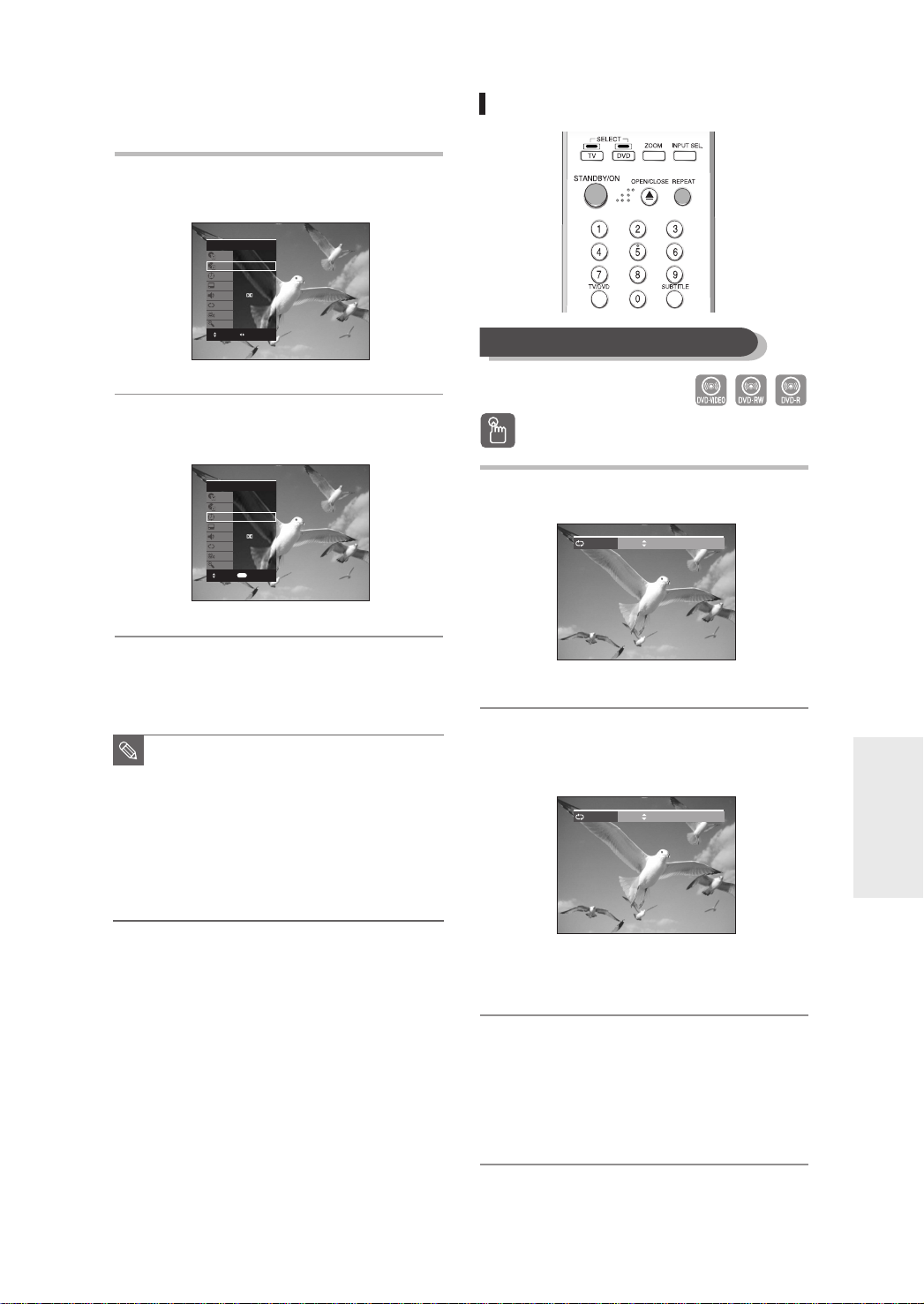

● If you want to move to a desired time to

help you find a scene.

Press the ANYKEY button during

playback.

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle Zoom

Off

MOVE CHANGE

Press the …† buttons to select Time.

Using the Repeat Function

Playing Repeatedly(Repeat Playback)

Using the REPEA

T button

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle Zoom

Off

0~9

MOVE NUMBER

Enter the time in the sequence of hours,

minutes, seconds using the number

buttons, then press the OK button.

■

This may not work for some discs.

NOTE

When an audio CD(CD-DA) or an MP3 disc is inserted, according to a disc type, the information display may not be appear.

■

The Time Search function does not operate in some discs.

■

To make the screen disappear, press the ANYKEY again

Press the REPEA T button during playback.

Repeat Off

Press the REPEA T or …† buttons to select

Title or Chapter you want to play repeatedly. Press the OK button.

Repeat Title

Title : Repeats the title that is playing. Chapter : Repeats the chapter that is playing.

Playback

- To return to normal playback -

Press the REPEA T button to select Off,

then press the …† or REPEAT button and press OK button.

Press the CANCEL button to return to normal playback.

English -

Page 52

Using the

ANYKEY

Press the ANYKEY button during

playback.

button

Playing a Certain section Repeatedly(A-B Repeat Playback)

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle Zoom

Off

MOVE CHANGE

Press the …† buttons to select Repeat,

then press the œ √ buttons to select Title or

Chapter you want to play repeatedly.

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

Title

Repeat

1/3

Angle Zoom

Off

MOVE OK

Press the OK button.

To make the screen disappear, press the ANYKEYor RETURN button. Repeat play allows you to repeat a

title or chapter.

Using the

ANYKEY

button

Press the ANYKEY button during

playback.

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle Zoom

Off

MOVE CHANGE

Press the …† buttons to select Repeat, then

press the √ button to select A-B.

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

A-B

Repeat

1/3

Angle Zoom

Off

MOVE OK

Playback

NOTE

- English

■

DVD-RW(VR mode), unfinalised DVD-R and unfinalised DVD-RW (Video mode) do not repeat a chapter.

Press the OK button.

Press the OK button at the point where you

want the repeat play to start (A), then press it again at the point where you want the repeat play to stop (B).

Repeat playback of the A-B section starts.

To return to normal playback -

Select Off on the Repeat item or press the CANCEL button.

■

If you set point (B) before five seconds

NOTE

has lapsed, the prohibition mark ( ) will appear.

■

Audio CDs(CDDA) and MP3 discs do not support the Repeat A-B function.

Page 53

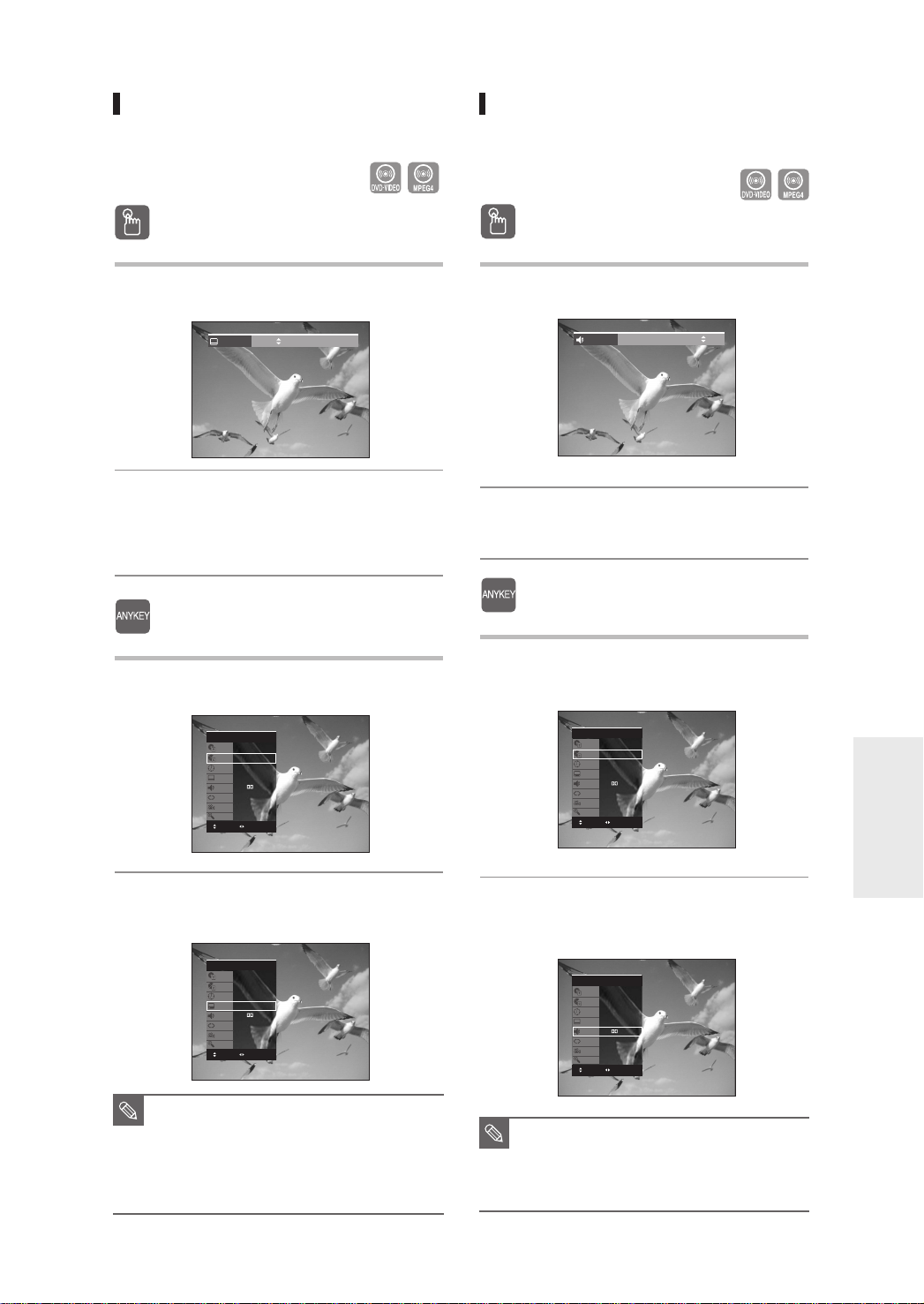

Selecting the Subtitle

Subtitle languages may not work depending on the disc type. This is only available during playback.

Selecting the Audio language

Audio languages may not work depending on the disc type. This is only available during playback.

Using the SUBTITLE button

Press the SUBTITLE button during

playback.

Subtitle Off

Press the SUBTITLE or …† buttons to

select the desired subtitle language.

To make the screen disappear, press the CANCELor

RETURN button.

Using the

ANYKEY

button

Press the ANYKEY button during

playback.

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle Zoom

Off

MOVE CHANGE

Using the

AUDIO button

Press the AUDIO button during playback.

Audio ENG Dolby Digital 5.1CH

Press the AUDIO or …† buttons to select

the desired audio language.

Using the

Press the ANYKEY button during

playback.

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle Zoom

Off

MOVE CHANGE

ANYKEY

button

Playback

Press the …† buttons to select Subtitle,

then press the œ √ buttons to select the desired subtitle language.

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

ENG ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle Zoom

Off

MOVE CHANGE

■

The subtitle display may be different

NOTE

depending on the disc type.

■

If the subtitles overlap, disable the caption function on your TV.

■

Some discs allow you to select the language for the disc menu only.

Press the …† buttons to select Audio, then

press the œ √ buttons to select the desired audio language.

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle Zoom

Off

MOVE CHANGE

■

Audio languages may be different

NOTE

depending on the disc type.

■

Some discs allow you to select the audio language for the disc menu only.

English -

Page 54

Playback

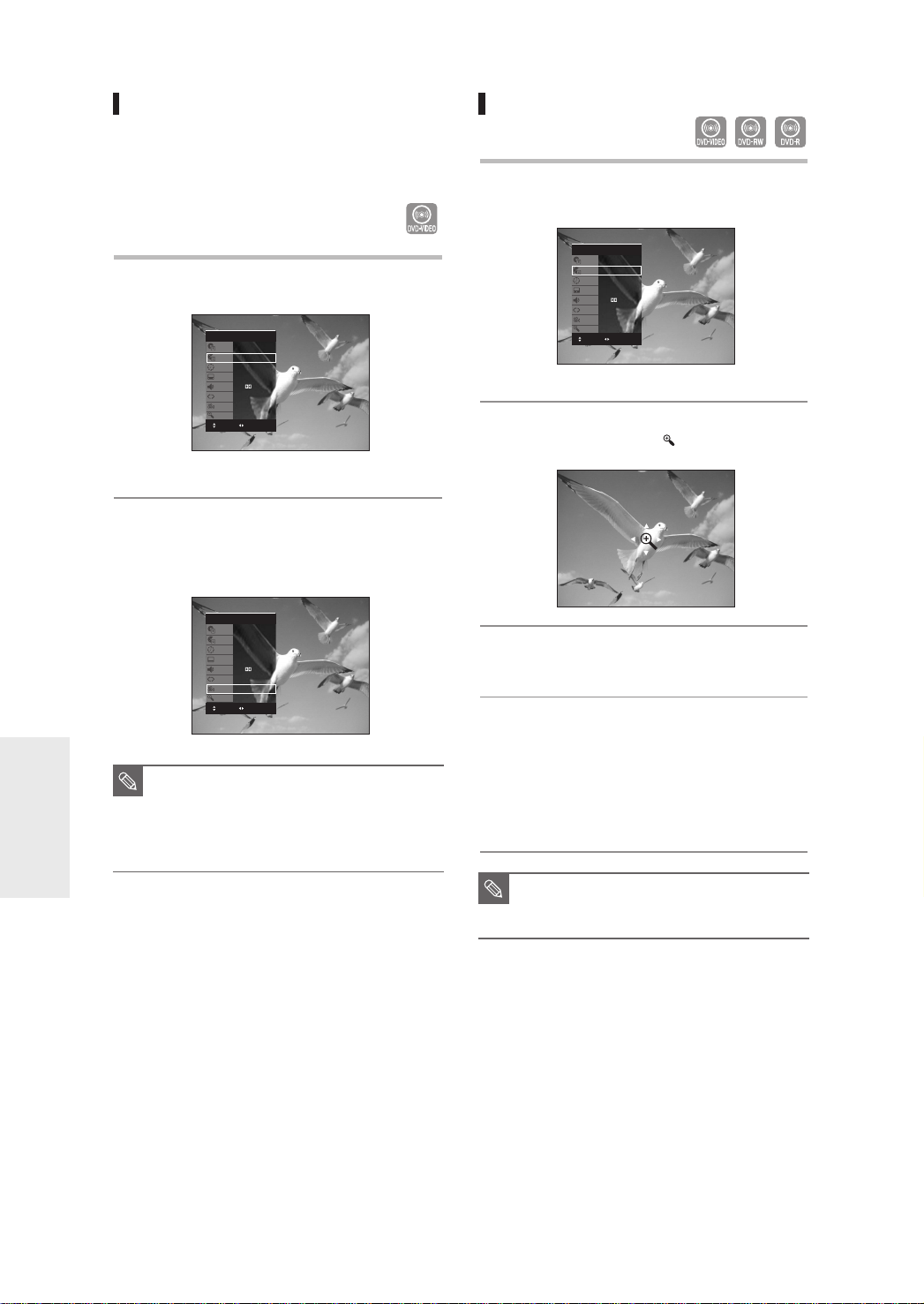

Changing the Camera Angle

When a DVD-VIDEO contains multiple angles of a particular scene, you can select the Angle function. This is only available during playback. If the disc contains multiple angles, the ANGLE mark appears on the screen.

Press the ANYKEY button during playback.

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle Zoom

Off

MOVE CHANGE

Press the …† buttons to select Angle, then

press the œ √ or number buttons to select the desired angle.

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle Zoom

Off

MOVE CHANGE

■

This function is disc-dependent, may not

NOTE

work on all DVDs.

■

This function does not work when a DVD has not been recorded with a multicamera angle system.

Zooming-In

Press the ANYKEY button during playback

or pause.

DVD-VIDEO

1/2

Title

1/28

Chapter

00:00:01

Time Subtitle

Off ENG D 5.1CH

Audio

Off

Repeat

1/3

Angle Zoom

Off

MOVE CHANGE

Press the …† buttons to select Zoom, then

press the OK button. ( ) will be displayed.

Press the …† œ √ buttons to move to the

area you want to enlarge.

Press the OK button. The screen will be

enlarged to twice the normal size.

If you press the OK button again after the screen was enlarged to twice the normal size, the screen size will be enlarged to four times the normal size.

normal size ➞ 2X ➞ 4X ➞ 2X ➞ normal size

- English

NOTE

■

You can also select Zoom function directly using ZOOM button on the remote control.

Page 55

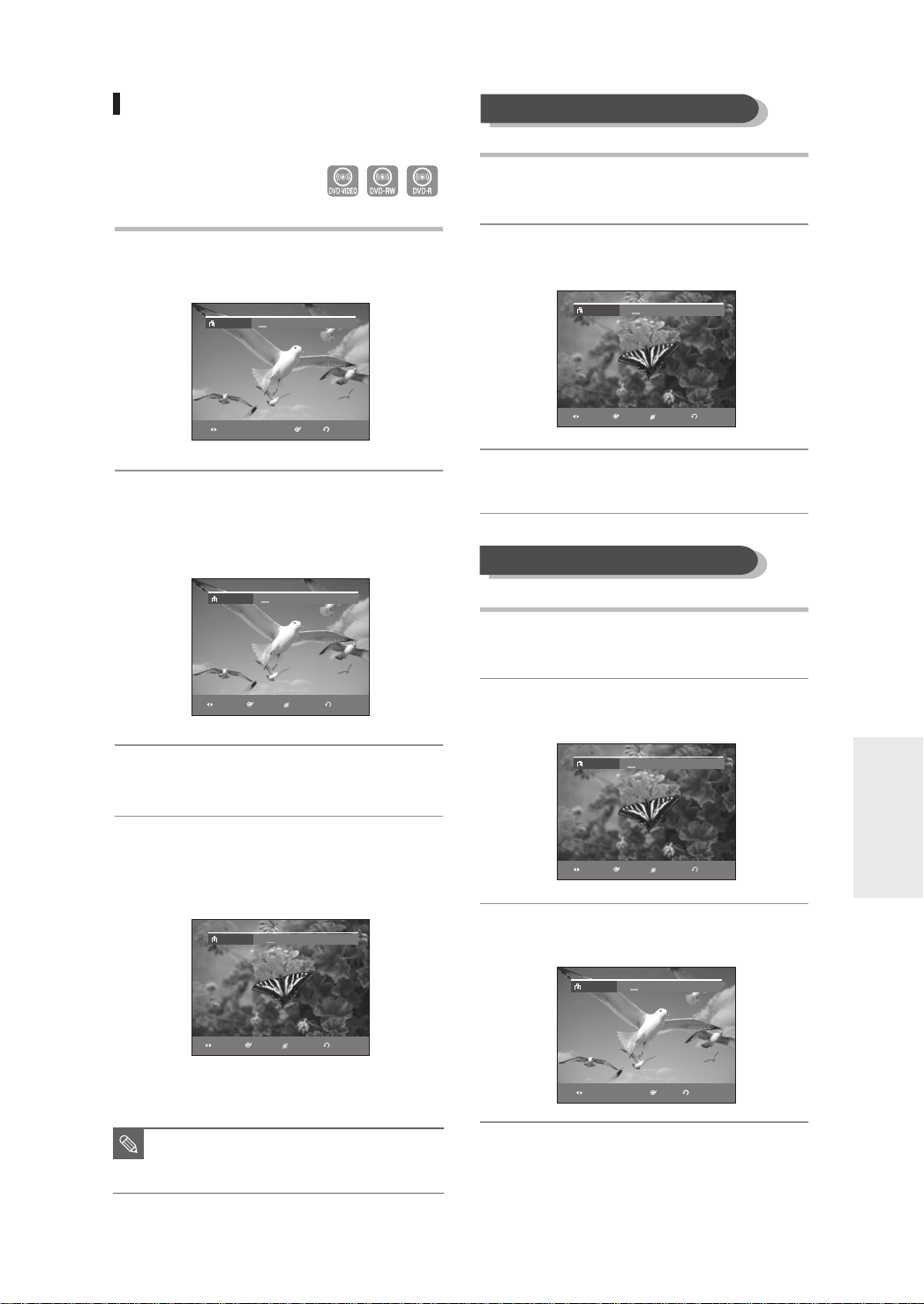

Using Bookmarks

This feature lets you bookmark sections of a DVD-VIDEO or DVD-R/-RW(V mode), so you can quickly find them.

(V mode)

Playing back a bookmark

Press the MARKER button during

playback.

Press the MARKER button during

playback.

- ----------

Bookmark

RETURNOKMOVE

Press the OK button when the desired

scene appears.

The number 1 is displayed and the scene is memorized.

----------

Bookmark

CLEARPLAYMOVE RETURN

Press the œ √ buttons to select a bookmarked scene.

1 2

Bookmark

---------

CLEARPLAYMOVE RETURN

Press the OK or PLA Ybutton to start

playing from the selected scene.

Clearing a bookmark

Press the MARKER button during

playback.

Press the œ √ buttons to select a

bookmarked scene.

Press the œ √ button to move to the next

position.

Press the OK button when the desired

scene appears.

The number 2 is displayed and the scene is memorized.

1 2

Bookmark

● Repeat above to bookmark other positions.

● You can bookmark up to 10 scenes.

■

When the disc tray is opened and then

NOTE

closed, bookmarks will disappear.

---------

CLEARPLAYMOVE RETURN

12---------

Bookmark

CLEARPLAYMOVE RETURN

Press the CANCEL button to delete the

selected bookmark.

- ---------

Bookmark

RETURNOKMOVE

English -

Playback

Page 56

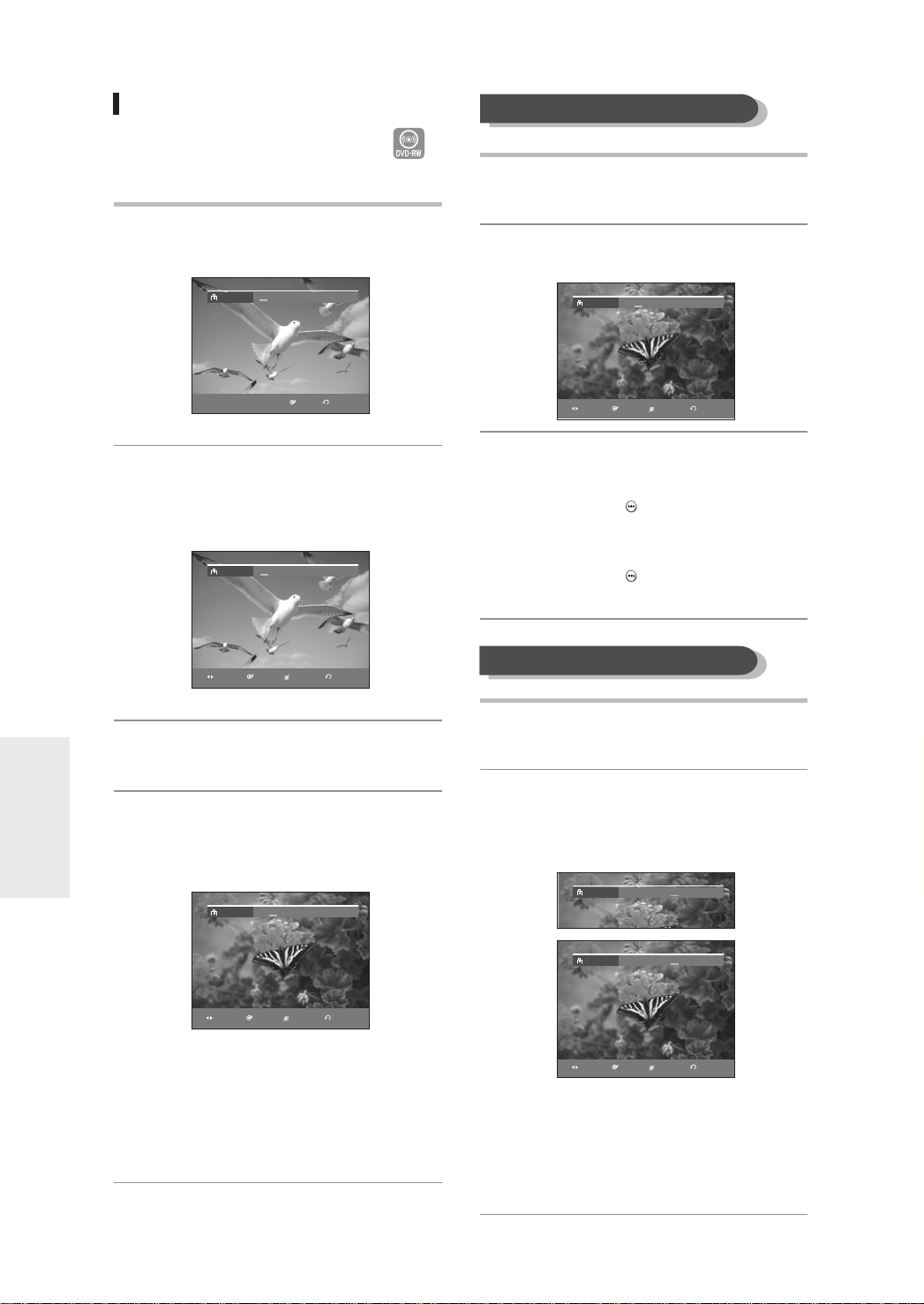

Using Markers

Playing back a Marker

Press the MARKER button during

playback.

-- -- -- -- -- -- -- -- -- --

Marker

OK RETURN

Press the OK button when the desired

scene appears.

The number 01 is displayed and the scene is memorized.

-- -- -- -- -- -- -- -- --

Marker

CLEARPLAYMOVE RETURN

N : 0

N : 1

(VR mode)

Press the MARKER button during

playback.

Press the œ √ buttons to select a bookmarked scene.

01 02

Marker

-- -- -- -- -- -- -- --

CLEARPLAYMOVE RETURN

N : 2

Press the OK or PLA Ybutton to start

playing from the selected scene.

● If you press the SKIP( ) button, it moves to the

beginning of the marker. Pressing the button once again within 3 seconds returns to the beginning of the previous marker.

● If you press the SKIP( ) button, it moves to the next

marker.

Clearing a Marker

Playback

Press the œ √ button to move to the next

position.

Press the OK button when the desired

scene appears.

The number 02 is displayed and the scene is memorized.

01 02

Marker

● DVD-RW (VR Mode) discs have the Marker function

instead of the Bookmark function. The Marker function allows you to mark up to 99 scenes. Since the scenes may be displayed as many different pages, numbering is necessary. If a disc in use is encoded with Disc Protection, Markers cannot be set

or deleted. Only playback is available.

-- -- -- -- -- -- -- --

CLEARPLAYMOVE RETURN

N : 2

Press the MARKER button during

playback.

Press the œ √ buttons to select a

bookmarked scene.

Press the CANCEL button to delete the

selected bookmark.

01 02 03 04 05 06 07 08 09 10

Marker

01 02 03 04 05 06 07 08 09

Marker

■

When a marker is cleared while DVD-RW (VR mode) is playing, marker numbers will change. For example, if the 7th marker is cleared after ten markers are registered, the marker numbers after the eighth will automatically move ahead by one and

the 8th marker becomes the 7th.

N : 10

N : 9

CLEARPLAYMOVE RETURN

- English

Page 57

Playing an Audio CD/MP3

Playing an Audio CD (CD-DA)/MP3

Each disc has a variety of menu functions available.

Playing an Audio CD(CD-DA)

Buttons on the Remote Control used for Audio CD(CD-DA) playback

Insert an audio CD (CD-DA) into the disc

tray.

The audio CD menu appears and the tracks (songs) are played automatically.

TRACK 1

CDDA

√√

0:00:01

TRACK 1

PLAYMODE

No.

002 TRACK 2 0:04:00 003 TRACK 3 0:03:49 004 TRACK 4 0:03:47 005 TRACK 5 0:04:29 006 TRACK 6 0:03:44 007 TRACK 7 0:03:44

MOVE OK RETURN EXIT

Music List

01/15

Title Length

TRACK 1 0:03:50

Press the…† buttons to select the track

you want to hear, then press the OK or √

button.

Audio CD(CD-DA) Screen Elements

TRACK 1

CDDA

√√

0:00:01

TRACK 1

PLAYMODE

No.

002 TRACK 2 0:04:00 003 TRACK 3 0:03:49 004 TRACK 4 0:03:47 005 TRACK 5 0:04:29 006 TRACK 6 0:03:44 007 TRACK 7 0:03:44

MOVE OK RETURN EXIT

Music List

01/15

Title Length

TRACK 1 0:03:50

1. Play mode icon

2. Current track(song)

3. Displays the current play index and total track number.

4. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played.

5. Displays the track list(song list) and the playing time of each track.

6. Button display.

^ &

^ *

(

……††

: Selects a track (song).

√√

: Plays the selected track (song).

3. OK button: Plays the selected track (song).

4. SKIP ( ) button: Plays the next track.

5. SKIP ( ) button: Returns to the beginning of the

current track when pressed during playback. If pressed again, your DVD recorder moves to and plays the previous track. If you press the this button within three seconds after playback starts, the previous track will be played. If you press the this button after three seconds, the current track will be replayed from the beginning.

6. Press the SEARCH ( / ) button: Fast Play (X2,

X4, X8)

7. STOP button: Stops a track(song).

8. PLAY/PAUSE button: Plays a track(song) or pauses

playback.

9. ANYKEY button: To select the sub menu on screen

display (Repeat or Play Option).

Playback

English -

Page 58

Playing an MP3 Disc

MP3 Screen Elements

Insert an MP3 Disc into the disc tray.

DVD-Recorder

Disc

DivX

Navigation


Programme

Music

Setup

Press the

Navigation, and then press the OK or √

…†

buttons to select the Disc

button.

DVD-Recorder

Disc

DivX

Navigation


Programme

Music

Setup

Press the

and then press the OK or √ button.

…†

buttons to select the Music,

Disc Navigation

RETURNOKMOVE EXIT

Disc Navigation

RETURNOKMOVE EXIT

ROOT

SONG01

Music List

01/13

MP3

√√

SONG01

MP3

√√

0:00:15

SONG01

4.0MB 01/26/2006

PLAYMODE

No. Title

002 SONG02 003 SONG03 004 SONG04 005 SONG05 006 SONG06

MOVE OK RETURN EXIT

1. Play mode icon

2. Current track(song)

3. Displays the current track(song) information.

4. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played.

5. Displays the information for the folder and its tracks.

6. Button display.

√√

Playback

ROOT

SONG01

Music List

01/13

MP3

SONG01

MP3

√√

0:00:15

SONG01

4.0MB 01/26/2006

PLAYMODE

No. Title

002 SONG02 003 SONG03 004 SONG04 005 SONG05 006 SONG06

MOVE OK RETURN EXIT

The MP3 menu appears and the tracks(songs) are played automatically.

Press the …† buttons to select the track

(song) you want to hear, then press the OK or √ button.

- English

Page 59

Buttons on the Remote Control used for MP3 playback

Playing Repeatedly(Repeat Playback)

(

……††

: Selects a track (song).

√√

: Plays the selected track (song).

3. OK button: Plays back the selected track (song) or

displays the files in the selected folder.

4. RETURN button: Moves to the folder to which the

current song belongs.

5. SKIP ( ) button: Plays the next track.

6. SKIP ( ) button: Returns to the beginning of the

current track when pressed while playing. If pressed again, your DVD recorder moves to and plays the previous track. If you press the this button within three seconds, the previous track will be played. If you press the this button after three seconds, the current track will be replayed from the beginning.

7. STOP button: Stops a track(song).

8. PLAY/PAUSE button: Plays a track(song) or pauses

playback.

9. ANYKEY button: To select the sub menu on screen

display (Repeat or Play Option).

Using the REPEA

T button

Press the REPEA T button during playback.

The Track repeat mode icon ( ) appears and the

selected track is played repeatedly.

TRACK 1

CDDA

√√

0:00:07

TRACK 1

PLAYMODE

No.

002 TRACK 2 0:04:00 003 TRACK 3 0:03:49 004 TRACK 4 0:03:47 005 TRACK 5 0:04:29 006 TRACK 6 0:03:44 007 TRACK 7 0:03:44

MOVE OK RETURN EXIT

Music List

01/15

Title Length

TRACK 1 0:03:50

Press the REPEA T button once more to

play the disc repeatedly.

The Disc repeat mode icon ( ) appears and the inserted disc is played repeatedly. For MP3 disc, the Folder repeat mode icon( )

appears and all tracks in the current folder are played repeatedly. Pressing the REPEAT button once more changes the

mode to the Disc repeat mode.

TRACK 1

CDDA

√√

0:00:07

TRACK 1

PLAYMODE

No.

002 TRACK 2 0:04:00 003 TRACK 3 0:03:49 004 TRACK 4 0:03:47 005 TRACK 5 0:04:29 006 TRACK 6 0:03:44 007 TRACK 7 0:03:44

MOVE OK RETURN EXIT

Music List

01/15

Title Length

TRACK 1 0:03:50

To return to normal playback

Press the REPEA T button repeatedly until

the repeat mode icon disappears, or press

the CANCEL button.

Playback

English -

Page 60

Using the

ANYKEY

button

Play Option Mode

Playback

Press the ANYKEY button during playback.

The PLAY MODE window appears.

TRACK 1

CDDA

√√

0:00:07

TRACK 1

PLAYMODE

No.

PLAYMODE 002 TRACK 2 0:04:00

Repeat : Off

003 TRACK 3 0:03:49

Play option : Normal

004 TRACK 4 0:03:47 005 TRACK 5 0:04:29 006 TRACK 6 0:03:44 007 TRACK 7 0:03:44

MOVE OK RETURN EXIT

Music List

Title Length

TRACK 1 0:03:50

01/15

Select the desired repeat mode (Track or

Disc) using the œ √ buttons, and then

press the OK button.

For MP3 discs, you can select Track, Folder or Disc.

To return to normal playback

Select Off in PLAY MODE window using

the œ √ buttons, and then press the OK

button.

The Play Option can be used with an audio CD or MP3 in the Stop mode.

Press the ANYKEY button in Stop mode.

The PLAY MODE window appears.

TRACK 1

CDDA

PLAYMODE

Repeat : Off

0:00:20

Play option : Normal

PLAYMODE

MOVE OK RETURN EXIT

No.

002 TRACK 2 0:04:00 003 TRACK 3 0:03:49 004 TRACK 4 0:03:47 005 TRACK 5 0:04:29 006 TRACK 6 0:03:44 007 TRACK 7 0:03:44

Music List

01/15

Title Length

TRACK 1 0:03:50

Press the œ √ buttons to select the desired

item (Normal, Random, Intro or Playlist) in the Play option, then press the OK

button.

● Normal: Tracks on a disc are played in the order in

which they were recorded on the disc.

● Intro: The first 10 seconds of each track will be

played. If you want to listen to the music that you have selected, press the OK or PLAY button. The play option will be changed to Normal Play. When Intro Play is completed, Normal Play is performed.

● Playlist: The Playlist playback option allows you to

select the order in which you want tracks to play.

● Random: The Random option plays a disc’s tracks in

random order. After a random list is generated and played completely, another random list is generated and played. Random Play is continued until the play

option is changed.

- English

Page 61

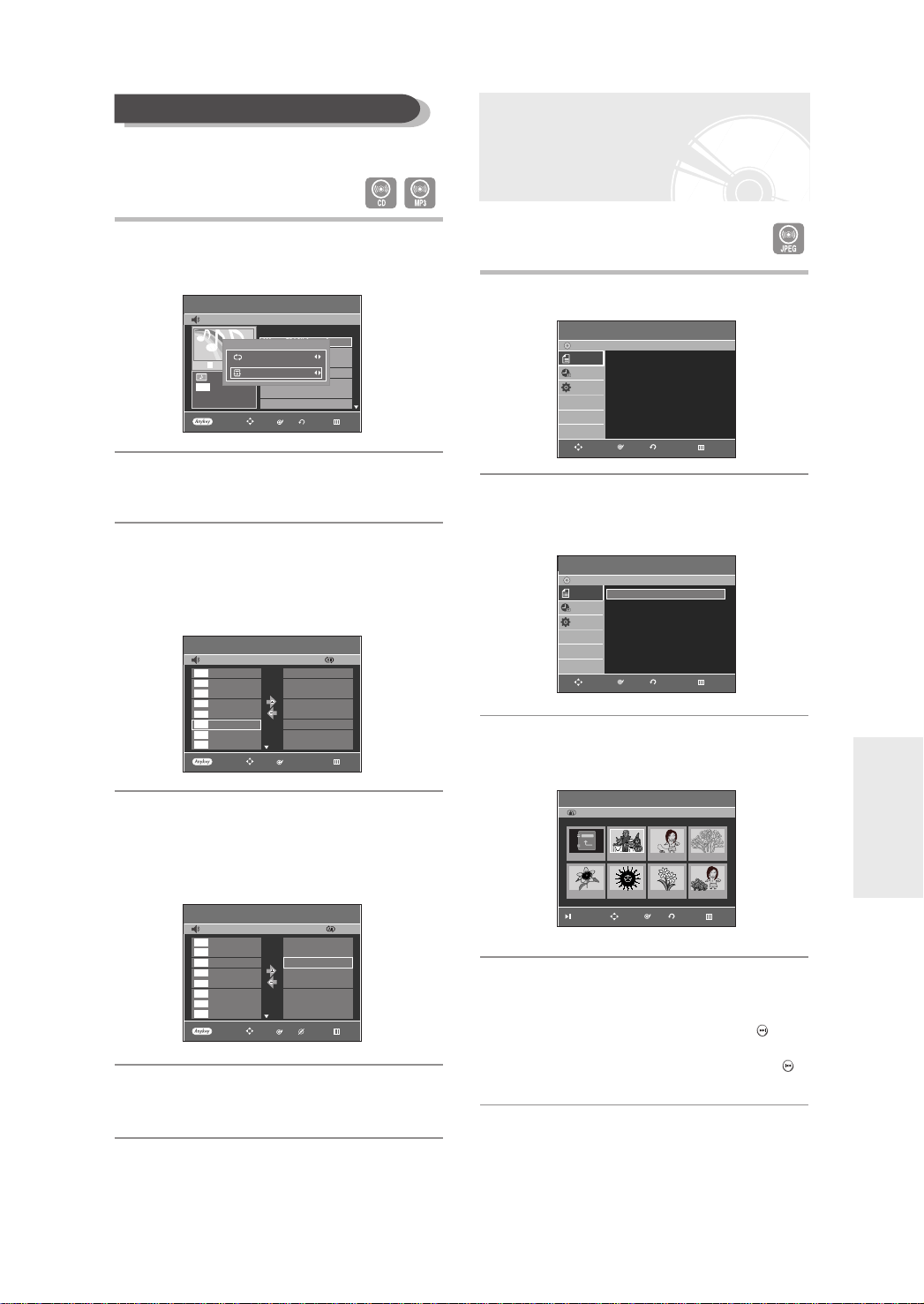

To Programme Tracks

You can register a maximum of 30 tracks in the playlist.

Press the ANYKEY button in the Stop

mode.

The PLAY MODE window appears.

Press the

Play option.

TRACK 1 01/15

CDDA

No.

001 TRACK 1 0:03:50

PLAYMODE

002 TRACK 2 0:04:00

Repeat : Off

003 TRACK 3 0:03:49

0:00:20

Play option : Normal

004 TRACK 4 0:03:47

TRACK 1

005 TRACK 5 0:04:29 006 TRACK 6 0:03:44 007 TRACK 7 0:03:44

PLAYMODE

MOVE OK RETURN EXIT

œ √

buttons to select Playlist in the

Press the OK button.

The Playlist screen will appear. Press the …† buttons to select Tracks in the order in which you want them to play. Press the OK button to add the selected track to the Playlist.

CDDA

TRACK 1

CDDA

TRACK 2

CDDA

TRACK 3

CDDA

TRACK 4

CDDA

TRACK 5

CDDA

TRACK 6

CDDA

TRACK 7

CDDA

TRACK 8

PLAYMODE

MOVE OK EXIT

If you playlisted a wrong track, press the √

button, then press the …† buttons to select the wrong track, then press the CANCEL button.

The wrong track will be removed.

CDDA

TRACK 1

CDDA

TRACK 2

CDDA

TRACK 3

CDDA

TRACK 4

CDDA

TRACK 5

CDDA

TRACK 6

CDDA

TRACK 7

CDDA

TRACK 8

PLAYMODE

MOVE OK CLEAR EXIT

Press the PLA Y button to playback the

playlist.

Music List

Title Length

001 TRACK 1 002 TRACK 3 003 TRACK 5 004 TRACK 6

001 TRACK 1 002 TRACK 3 003 TRACK 5

Playlist

06/15

Playlist

03/03

Playing a Picture

Insert a JPEG into the disc tray.

DVD-Recorder

Disc

DivX

Navigation


Programme

Music

Setup

Press the

Navigation, and then press the OK or √

…†

buttons to select the Disc

button.

DVD-Recorder

Disc

DivX

Navigation


Programme

Music

Setup

Press the

and then press the OK or √ button.

…†

buttons to select the Photo,

JPEG01 01/10

ROOT JPEG01 JPEG02 JPEG03

JPEG04 JPEG05 JPEG06 JPEG07

Slide Show

MOVE OK

Press the …† œ √ buttons to select a

picture.

● To see the next 8 pictures, press the SKIP( )

button.

● To see the previous 8 pictures, press the SKIP( )

button.

Disc Navigation

RETURNOKMOVE EXIT

Disc Navigation

RETURNOKMOVE EXIT

Photo ListJPEG

RETURN

EXIT

√√

Playback

English -

Page 62

-1 If you press the PLA Y button, the Slide

Show Speed screen will appear.

Press the œ √ buttons to set the slide show speed, then press the OK button.

Playing a MPEG4

Playback

Slide Show Speed

Slow Normal Fast

JPEG01

OKPHOTOMOVE RETURN

-2 Press the OK button with a picture

seleted in the Album sereen. And select a

display mode (Album screen, Slide show, Rotation or Zoom) using the œ √ buttons, then press the OK button.

DVD-RW(VR)

JPEG01

: Returns to the Album screen. : The DVD Recoder enters slide show mode.

Before the slide show can begin, the picture interval (Slide show speed) must be set.

: Each time the OK button is pressed, the

picture rotates 90 degrees clockwise.

: Each time the OK button is pressed, the

picture is enlarged up to 4X(Four times the normal size). (Normal ➞ Zoom X2 ➞ Zoom X4 ➞ Zoom X2 ➞ Normal)

●

Press the ANYKEY button to display the menu bar.

●

Press the RETURN button to clear the menu bar.

OKPHOTOMOVE RETURN

MPEG4 File is used to contain the audio and video data. MPEG4 File with following extensions can be played.

- .AVI, .DIVX, .avi, .divx

Insert a MPEG4 Disc into the disc tray.

DVD-Recorder

Disc

DivX

Navigation


Programme

Music

Setup

Press the

Navigation, and then press the OK or √

…†

buttons to select the Disc

button.

DVD-Recorder

Disc

DivX

Navigation


Programme

Music

Setup

Press the

then press the OK or √ button.

…†

buttons to select the DivX, and

DIVX01

MPEG4

ROOT 2006/01/01

70.8MB

Disc Navigation

RETURNOKMOVE EXIT

Disc Navigation

RETURNOKMOVE EXIT

DivX List

No. Title Size

ROOT 001 DIVX01 70.8MB 002 DIVX02 73.6MB

RETURNOKMOVE EXIT

01/02

√√

- English

Press the …† buttons to select the avi file

(DivX), then press the OK, √ or PLAY button.

When MPEG4 file is played, you can use

following functions.

Pressing the STOP button once during playback will display the file list, pressing the button again will exit the menu screen.

Page 63

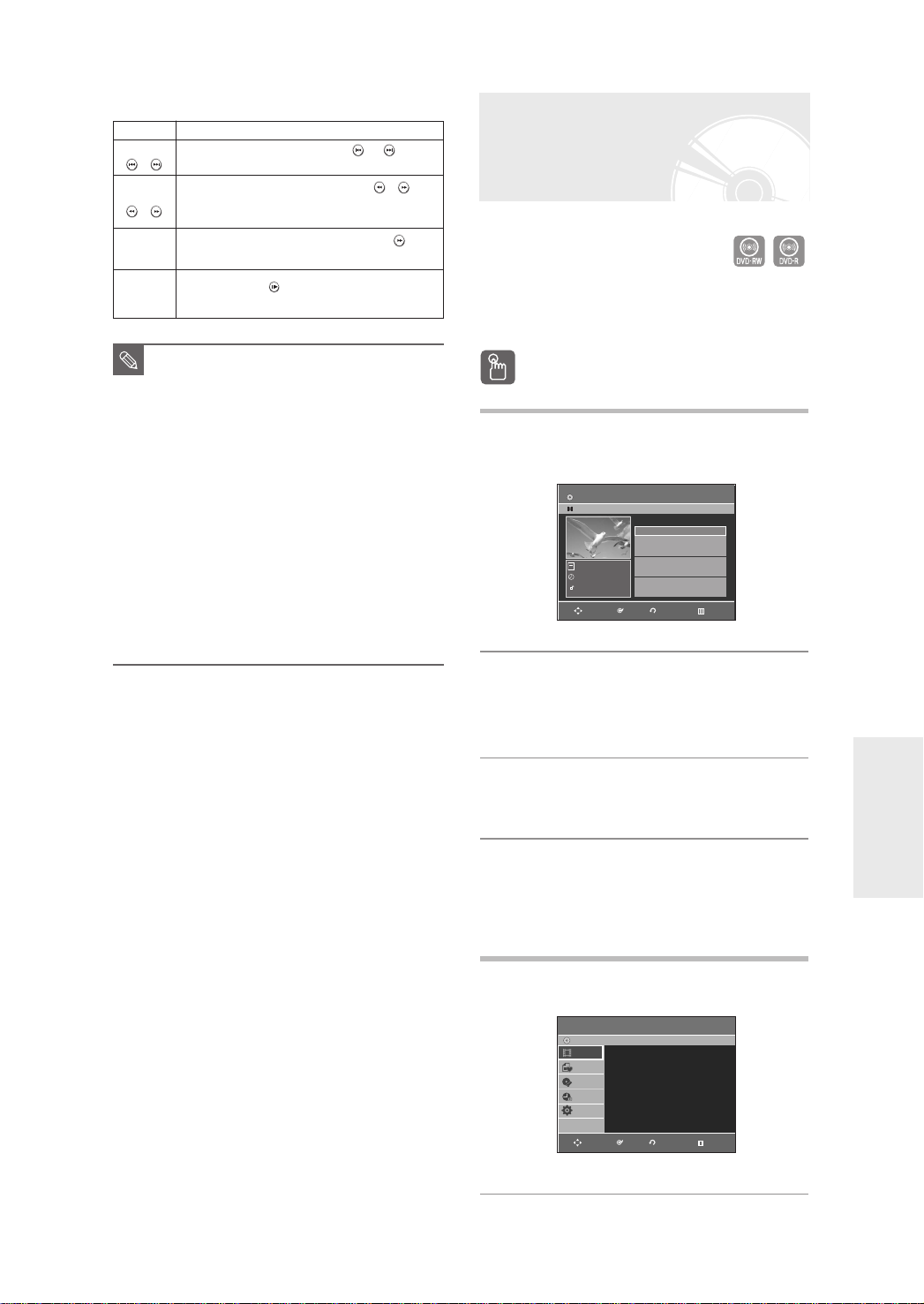

MPEG4 Function Description

Function Description

During playback, press the SKIP ( or

Skip

(or )

Slow Motion

Step Motion

NOTE

it moves forward or backward 5 minutes. During playback, press the SEARCH (

button and press again to search at a faster speed. (Fast 1, Fast 2, Fast 3)

In pause or step mode, press the SEARCH () button on the remote control. (Slow 1, Slow 2, Slow 3)

Play

Press the STEP() button on the remote control during playback or pause.

Play

■

This DVD Recorder can play the following video compression formats.

- MPEG4 Codec format : DivX 3.11 DivX

4.x DivX 5.x DivX-Pro Xvid

- Motion Compensation : QPEL, GMC

- Audio format : “MP3”, “MPEG1 Audio Layer2”, “LPCM”, “AC3”, “DTS”, “MS ADPCM”

■

Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt, .ass (The subtitle file should have exactly the same name to corresponding MPEG4 file name)

■

Some MPEG4 files created on a personal computer may not be play back. That is why Codec Type, Version and Higher resolution over specification is not supported.

)

button,

Playing the Title List

)

Follow these instructions to play back a scene from the Title List.

Using the TITLE LIST button

Press the TITLE LIST button.

The Title List screen is displayed.

DVD-RW(VR) APR/19/2006

APR/19/2006 12:00 PR1 APR/19/2006

No. Title Length Edit

01 APR/19/2006 12:00 00:00:21 02 APR/19/2006 12:30 00:00:03 03 APR/20/2006 12:00 00:00:15 04 APR/20/2006 12:30 00:00:16 05 APR/21/2006 12:00 00:06:32 06 APR/21/2006 12:30 00:08:16

Press the …† buttons to select an entry

you want to play from Title List, then press

the PLAY button.

The selected entry (title) will be played back.

Title List

RETURNOKMOVE EXIT

1/6

√√ √√ √√ √√ √√ √√

To stop title play, press the STOP button.

To return the title list screen, press the TITLE LIST button.

Using the MENU button

Press the MENU button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Title List

RETURNOKMOVE EXIT

√√

English -

Playback

Page 64

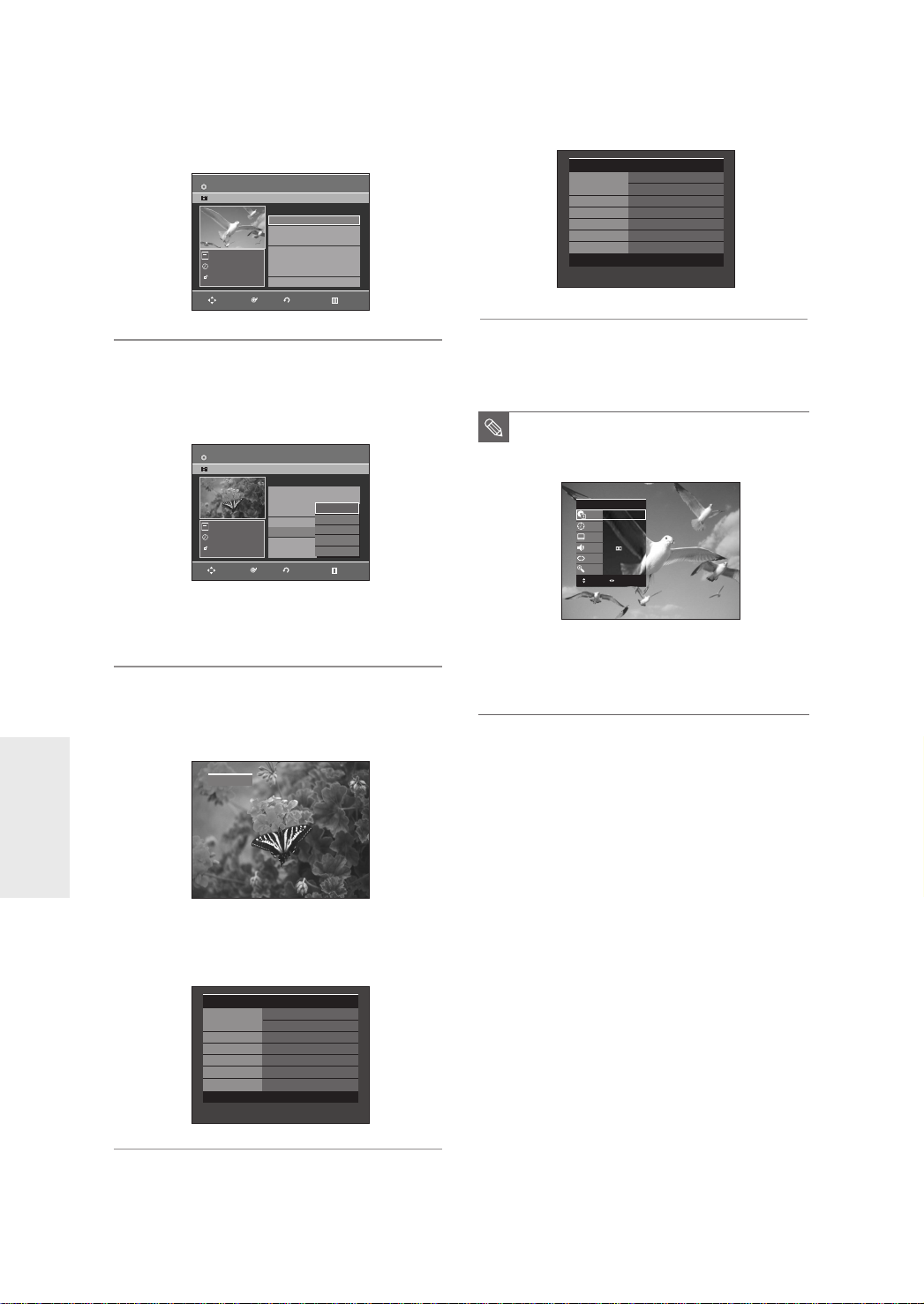

Press the …† buttons to select Title List,

then press the OK or √ button twice.

The Title List screen is displayed.

DVD-RW(VR) APR/19/2006

APR/19/2006 12:00 PR1 APR/19/2006

No. Title Length Edit

01 APR/19/2006 12:00 00:00:21 02 APR/19/2006 12:30 00:00:03 03 APR/20/2006 12:00 00:00:15 04 APR/20/2006 12:30 00:00:16 05 APR/21/2006 12:00 00:06:32 06 APR/21/2006 12:30 00:08:16

Title List

RETURNOKMOVE EXIT

1/6

√√ √√ √√ √√ √√ √√

Press the …† buttons to select an entry

you want to play from Title List, then press

the OK or √ button.

The Edit menu is displayed on the right.

APR/21/2006

APR/21/2006 12:00 PR1 APR/21/2006

No. Title Length Edit

01 APR/19/2006 12:00 00:00:21 02 APR/19/2006 12:30 00:00:03 03 APR/20/2006 12:00 00:00:15 04 APR/20/2006 12:30 00:00:16 05 APR/21/2006 12:00 00:06:32 06 APR/21/2006 12:30 00:08:16

Title ListDVD-RW(VR)

Play Rename Delete Edit Protection

RETURNOKMOVE EXIT

5/6

√√ √√ √√ √√ √√ √√

Press the INFO button once again. Then you can check the information about the title under playback.

DVD-RW(VR) Playing Info Name

Title 5/6 Created Time APR/21/2006 12:00 Length Playing Time 00:00:08 Title Protection JAN 01 2006 SUN 12:00

APR/21/200612:00 PR1

00:01:43 SP Not Protected

To stop title play, press the STOP button.

To return the title list screen, press the TITLE LIST button.

■

You can also play a recorded programme

NOTE

by pressing the ANYKEY button during playback.

DVD-RW(VR)

Title

5/6

Time

00: 00: 08

Subtitle

Off

Audio

D 1+1 L+R

***

Repeat

Off

Zoom

Off

MOVE CHANGE

Playback

(Rename, Delete, Edit, Protection : See pages

67~70)

Press the …† buttons to select Play to play

the title list, then press the OK button.

The selected entry (title) will be played back.

√√

Play

To view the current status of the disc and progress of playback : Press the INFO button, the information about the disc will appear.

DVD-RW(VR) Disc Info Disc Name

Total Title 6 Total Playlist 2 Recordable Time Protection Not Protected Screen Playback JAN 01 2006 SUN 12:00

00:28 SP

■

Press the …† buttons to select Title.

■

Press the œ √ buttons to select to play the title list, then press the OK button.

- English

Page 65

Title List Screen Elements

453

Title ListDVD-RW(VR)

Play Rename Delete Edit Protection

APR/21/2006

APR/21/2006 12:00 PR1 APR/21/2006

APR/21/2006

No. Title Length

01 APR/19/2006 12:00 00:00:21 02 APR/19/2006 12:30 00:00:03 03 APR/20/2006 12:00 00:00:15 04 APR/20/2006 12:30 00:00:16

APR/21/2006 12:00 PR12

05 APR/21/2006 12:00 00:06:32

APR/21/2006

06 APR/21/2006 12:30 00:08:16

Title ListDVD-RW(VR)

OKMOVE EXIT

RETURNOKMOVE EXIT

5/6

No. Title Length

Edit

√√

01 APR/19/2006 12:00 00:00:21

√√

02 APR/19/2006 12:30 00:00:03

√√

03 APR/20/2006 12:00 00:00:15

√√

04 APR/20/2006 12:30 00:00:16

√√

05 APR/21/2006 12:00 00:06:32

√√

06 APR/21/2006 12:30 00:08:16

1. Playback screen for recorded entries.

2. Information window for the selected entry: Title name, recording date, lock status, recording mode

3. Recorded entry No.

4. Recorded entry title

5. Recording length (i.e., the playing time)

6. Title list edit items

Play: Plays the selected entry. Rename: Renames the title of a selected entry. Delete: Deletes the selected entry from the list. Edit: Deletes a section of titles. Protection: Locks or unlocks the selected entry.

7. Button display.

■

This may depend on the the disc type.

NOTE

■

DVD-R/DVD-RW(Video) discs have limited editing function.

5/6

Edit

√√ √√ √√ √√ √√ √√

English -

Playback

Page 66

Editing

This section introduces basic functions of DVD editing and explains both edit functions for the recording on a disc and edit functions for the entire disc.

Editing

Basic Editing (Title List) .....................................67

Advanced Editing (Playlist) ................................71

Disc Manager.....................................................79

- English

● Title List

A title is a section of recorded video and audio. Title List shows a list to help you select a title. Since the title list consists of the information on stream that is actually recorded, if one title is deleted, that title cannot be played again.

● Playlist

This refers to a unit of playback, which is made by selecting a desired scene in the entire Title List. When one playlist is played, only the scene selected by the user will play and then stop. Since only the information necessary for playing a desired scene is included in a playlist, even if that playlist is deleted, the original stream will not be deleted.

Recording or editing might not be completed if an error, such as a sudden power failure occurs.

Please be aware that a material that has been damaged is unable to be retrieved to its original content.

Page 67

Basic Editing (Title List)

Renaming(Labeling) a Title

Follow these instructions to rename a title list entry, i.e., to edit the title of a recorded programme.

Press the …† œ √ buttons to select the

desired characters, then press the OK

button.

DVD-Recorder

DVD-RW(VR)

Sports(A1)

Back Space Space Delete Clear

Rename

Save

RETURNOKMOVE EXIT

Using the TITLE LIST button

Press the TITLE LIST button.

The Title List screen is displayed

Using the MENU button

● Press the MENU button.

● Press the …† buttons to select Title List, then

press the OK or √ button twice.

DVD-RW(VR)

APR/19/2006

APR/19/2006 12:00 PR1 APR/19/2006

No. Title Length Edit

01 APR/19/2006 12:00 00:00:21 02 APR/19/2006 12:30 00:00:03 03 APR/20/2006 12:00 00:00:15 04 APR/20/2006 12:30 00:00:16 05 APR/21/2006 12:00 00:06:32 06 APR/21/2006 12:30 00:08:16

Title List

RETURNOKMOVE EXIT

Press the …† buttons to select an entry

you want to rename from the Title List, then press the OK or √ button.

APR/21/2006

APR/21/2006 12:00 PR1 APR/21/2006

No. Title Length Edit

01 APR/19/2006 12:00 00:00:21 02 APR/19/2006 12:30 00:00:03 03 APR/20/2006 12:00 00:00:15 04 APR/20/2006 12:30 00:00:16 05 APR/21/2006 12:00 00:06:32 06 APR/21/2006 12:30 00:08:16

Title ListDVD-RW(VR)

Play Rename Delete Edit Protection

RETURNOKMOVE EXIT

● Back Space: Deletes the charactor before the

cursor.

● Space: Enters a blank and moves the cursor one

forward (to the right).

● Delete: Deletes the character at the cursor position.

● Clear: Deletes all the character inputs.

● Save: Registers the character inputs.

Press the …† œ √ buttons to select Save,

then press the OK button.

The changed title name is displayed on the title item of the selected entry.

1/6

√√ √√ √√ √√ √√ √√

5/6

√√ √√ √√ √√ √√ √√

Sports (A1)

Sports (A1) APR/21/2006

No. Title Length Edit

01 APR/19/2006 12:00 00:00:21 02 APR/19/2006 12:30 00:00:03 03 APR/20/2006 12:00 00:00:15 04 APR/20/2006 12:30 00:00:16 05 Sports (A1) 00:06:32 06 APR/21/2006 12:30 00:08:16

Title ListDVD-RW(VR)

RETURNOKMOVE EXIT

5/6

√√ √√ √√ √√ √√ √√

Press the …† buttons to select Rename,

then press the OK button.

The Rename screen is displayed.

DVD-Recorder

DVD-RW(VR)

APR/21/2006 12:00 PR1

Back Space

Space Delete Clear

Rename

Save

RETURNOKMOVE EXIT

English -

Editing

Page 68

Locking(Protecting) a Title

Follow these instructions to lock an entry to protect it from accidental deletion.

Press the œ √ buttons to select On, then

press the OK button. The key icon on the

information window for the selected entry changes to the locked status. ( ➝ )

Editing

Using the TITLE LIST button

Press the TITLE LIST button.

The Title List screen is displayed

Using the MENU button

● Press the MENU button.

● Press the …† buttons to select Title List, then

press the OK or √ button twice.

DVD-RW(VR)

Drama APR/19/2006

No. Title Length

01 Drama 00:00:21 02 Music 00:00:03 03 Sports 00:00:15 04 Movie 00:00:16 05 Sports(A1) 00:06:32 06 Edu 1 00:08:16

Title List

RETURNOKMOVE EXIT

1/6Drama

Edit

√√

Press the …† buttons to select an entry

you want to protect in the Title List, then press the OK or √ button.

Sports (A1)

Sports (A1) APR/21/2006

No. Title Length

01 Drama 00:00:21 02 Music 00:00:03 03 Sports 00:00:15 04 Movie 00:00:16 05 Sports(A1) 00:06:32 06 Edu 1 00:08:16

Title ListDVD-RW(VR)

Play Rename Delete Edit Protection

RETURNOKMOVE EXIT

5/6

Edit

√√

Press the …† buttons to select Protection,

then press the OK or √ button.

Sports (A1)

Sports (A1) APR/21/2006

Sports (A1) 5/6

Sports (A1) APR/21/2006

No. Title Length

01 Drama 00:00:21 02 Music 00:00:03 03 Sports 00:00:15 04 Movie 00:00:16 05 Sports(A1) 00:06:32 06 Edu 1 00:08:16

Title ListDVD-RW(VR)

Play Rename Delete Edit Protection

RETURNOKMOVE EXIT

Title ListDVD-RW(VR)

Title Protection :

Off

RETURNOKMOVE EXIT

5/6

Edit

√√

DVD-RW(VR)

Sports(A1) APR/21/2006

No. Title Length

01 Drama 00:00:21 02 Music 00:00:03 03 Sports 00:00:15 04 Movie 00:00:16 05 Sports(A1) 00:06:32 06 Edu 1 00:08:16

Title List

RETURNOKMOVE EXIT

5/6Sports (A1)

Edit

√√

Deleting a Title

Follow these instructions to delete an entry from the Title List.

Using the TITLE LIST button

Press the TITLE LIST button.

The Title List screen is displayed

Using the MENU button

● Press the MENU button.

● Press the …† buttons to select Title List, then

press the OK or √ button twice.

DVD-RW(VR)

No. Title Length

01 Drama 00:00:21 02 Music 00:00:03 03 Sports 00:00:15

04 Movie 00:00:16 05 Sports(A1) 00:06:32 06 Edu 1 00:08:16

Drama APR/19/2006

Press the …† buttons to select an entry

you want to delete in the Title List, then

press the OK or √ button.

Sports (A1)

Sports (A1) APR/21/2006

No. Title Length

01 Drama 00:00:21 02 Music 00:00:03 03 Sports 00:00:15 04 Movie 00:00:16 05 Sports(A1) 00:06:32 06 Edu 1 00:08:16

Title List

RETURNOKMOVE EXIT

Title ListDVD-RW(VR)

Play Rename Delete Edit Protection

RETURNOKMOVE EXIT

1/6Drama

Edit

√√

5/6

Edit

√√

- English

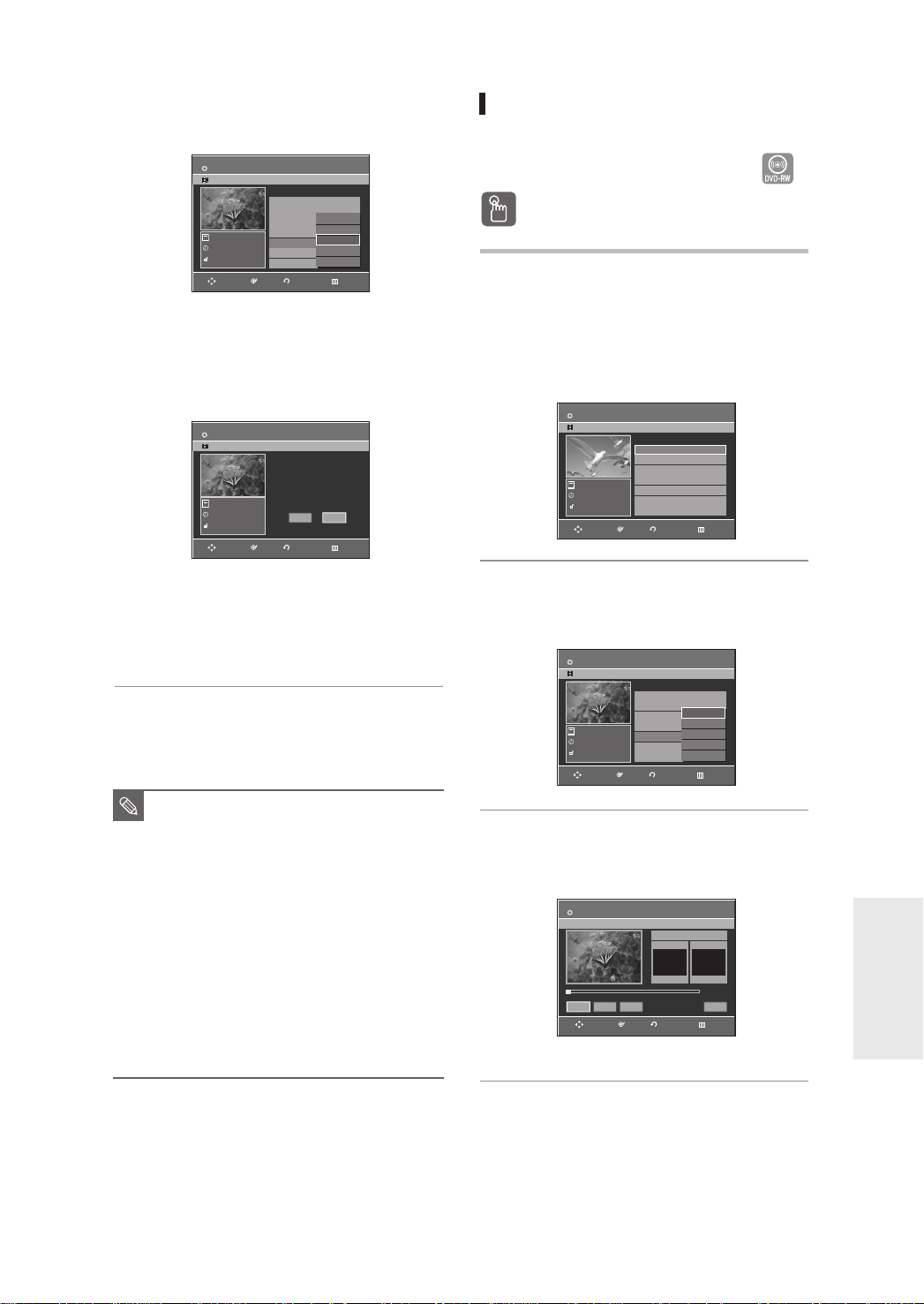

Page 69

Press the …† buttons to select Delete,

then press the OK or √ button.

Sports (A1)

Sports (A1) APR/21/2006

No. Title Length

01 Drama 00:00:21 02 Music 00:00:03

Play

03 Sports 00:00:15

Rename

04 Movie 00:00:16

Delete

05 Sports(A1) 00:06:32

Edit

06 Edu 1 00:08:16

Protection

RETURNOKMOVE EXIT

Deleting a Section of a Title

Follow these instructions to delete a section of a Title List entry.

Title ListDVD-RW(VR)

5/6

Edit

√√

Using the TITLE LIST button

Press the TITLE LIST button.

The Title List screen is displayed

(VR mode)

You will be prompted with a confirmation message. DVD-RW(VR mode) : Since Playlist is present, the message ‘Do you want to delete?(Related Playlists may be deleted.)’ is displayed.

Sports (A1)

Sports (A1) APR/21/2006

Do you want to delete?

Title ListDVD-RW(VR)

(Related playlists may be deleted.)

Yes No

RETURNOKMOVE EXIT

5/6

DVD-RW(Video mode), DVD-R: Since Playlist is not present, the message ‘Do you want to delete?’ is displayed.

● The message may depend on the type of disc.

Press the œ √ buttons to select Yes, then

press the OK button.

■

You cannot delete a protected entry.

NOTE

If you want to delete a protected entry, select “Off” in the Title Protection menu. (See page 68)

■

When the Disc Protection has been set to Protected, you cannot delete titles. (See page 80)

■

Once an entry is deleted from the Title List it cannot be recovered.

■

Once DVD-R, DVD-RW is finalised, it cannot be deleted.

■

With DVD-R, titles are only deleted from the menu however, the Title remains physically on the disc.

Using the MENU button

● Press the MENU button.

● Press the …† buttons to select Title List, then

press the OK or √ button twice.

DVD-RW(VR)

Drama APR/19/2006

No. Title Length

01 Drama 00:00:21 02 Music 00:00:03 03 Sports 00:00:15 04 Movie 00:00:16 05 Sports(A1) 00:06:32 06 Edu 1 00:08:16

Title List

RETURNOKMOVE EXIT

1/6Drama

Edit

√√

Press the …† buttons to select an entry

you want to edit from the Title List, then

press the OK or √ button.

Sports (A1)

Sports (A1) APR/21/2006

No. Title Length

01 Drama 00:00:21 02 Music 00:00:03 03 Sports 00:00:15 04 Movie 00:00:16 05 Sports(A1) 00:06:32 06 Edu 1 00:08:16

Title ListDVD-RW(VR)

Play Rename Delete Edit Protection

RETURNOKMOVE EXIT

5/6

Edit

√√

Press the …† buttons to select Edit, then

press the OK or √ button.

The Edit Title List screen is display

Edit Title ListDVD-RW(VR)

Title List No. 05

Start End

√√

Start End Delete Return

00:00:00 00:00:00

00:00:00

RETURNOKMOVE EXIT

Editing

English -

Page 70

Press the OK button at the starting point.

The image and starting point time are displayed in the section deletion starting point window.

Press the OK button at the Delete.

The message ‘Do you want to delete? (Deleted part will not be restored.)’ is displayed.

DVD-RW(VR)

√√

Start End Delete Return

Edit Title List

Title List No. 05

Start End

00:00:06

00:00:00

00:00:06

RETURNOKMOVE EXIT

Edit Title List Screen Elements

➃

➂

DVD-RW(VR)

√√

①

Start End Delete Return

Edit Title List

Title List No. 05

Start End

00:00:06

00:00:00

00:00:06

RETURNOKMOVE EXIT

1. Playback bar

2. Playtime

3. Section deletion starting point window and time

4. Section deletion end point window and time

● Select the start and end points of the section you

want to delete using the playback related buttons.

● Playback related buttons: (

, ,,,

Press the OK button at the end point.

The image and end point time are displayed in the Section deletion ending point window.

DVD-RW(VR)

Do you want to delete?

(Deleted part will not be restored.)

Yes No

Start End Delete Return

Edit Title List

Title List No. 05

Start End

00:10:15

RETURNOKMOVE EXIT

Press œ √ buttons to select Yes, then press

the OK button.

The selected section has been deleted. To return to the Title List screen, press the œ √ buttons to select Return.

■

②

NOTE

The length of the section to be deleted must be at least 5 seconds long.

■

If the length of the section to be deleted is less than 5 seconds, you will be prompted with the message 'The range is too short.'.

■

If the end time precedes the starting point, you will be prompted with the message ‘End point cannot be marked earlier than start point’.

■

The section cannot be deleted when it includes a still picture.

■

Press the MENU button after the operation has finished. The Edit Title List screen will disappear.

Editing

- English

DVD-RW(VR)

»»

Start End Delete Return

Edit Title List

Title ListNo. 05

Start End

00:00:06 00:10:15

00:10:15

RETURNOKMOVE EXIT

Page 71

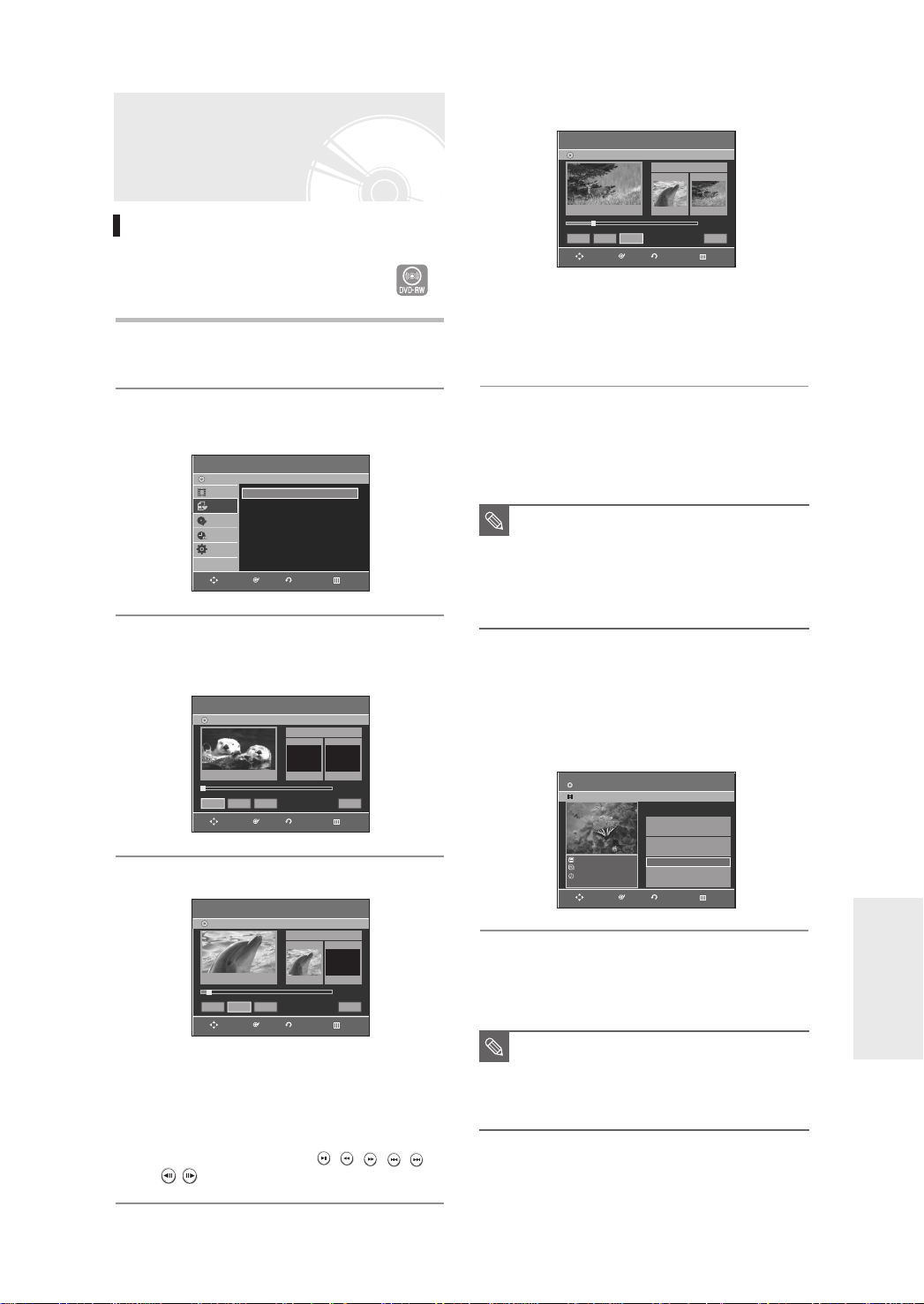

Advanced Editing (Playlist)

Press the OK button at the end point.

DVD-Recorder

DVD-RW(VR)

Make Scene

Scene No. 001

Start End

Creating a Playlist

Follow these instructions to create a new playlist entry from a recorded title.

(VR mode)

With the DVD Recorder in Stop mode,

press the MENU button.

Press the …† buttons to select Playlist, then

press the OK or √ button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

New Playlist Edit Playlist

Playlist

RETURNOKMOVE EXIT

√√

Press the …† buttons to select New

Playlist, then press the OK or √ button.

The Make Scene screen is displayed.

DVD-Recorder

DVD-RW(VR)

Title List : 1/6

√√

Start End Make Return

Make Scene

Scene No. 001

Start End

00:00:00 00:00:00

00:00:00

RETURNOKMOVE EXIT

Press the OK button at the start point.

DVD-Recorder

DVD-RW(VR)

Title List : 1/6

√√

Start End Make Return

● The image and time at the start point are

displayed on the Start window.

● The yellow-coloured selection bar moves to the

End item.

● Select the starting point of the section from

which you want to create a new scene using the playback related buttons (

Make Scene

Scene No. 001

Start End

00:00:10 00:00:00

00:00:10

RETURNOKMOVE EXIT

,,,,,

Title List : 1/6

»»

Start End Make Return

● The image and end point time are displayed in the

00:00:10 00:10:00

00:10:00

RETURNOKMOVE EXIT

End window.

● The yellow-coloured selection bar moves to the

Make item.

- To make a new playlist -

Press the OK button at the Make item.

A new Scene will be added to the current Playlist. A new Make Scene screen is displayed.

■

You can check and see all the scenes on

NOTE

Edit Playlist screen.

■

Repeat steps 1~6 if you want to make a new playlist.

■

Repeat steps 4~6 if you want to make scenes of the playlist.

- To return to Edit Playlist menu -

Press the œ √ buttons to select Return,

then press the OK button.

The Edit Playlist screen is displayed.

DVD-RW(VR) APR/25/2006 5/5

APR/25/2006 12:00 1 Scene APR/25/2006 12:00

Edit Playlist

No. Title Length Edit

01 APR/23/2006 12:00 00:00:21 02 APR/23/2006 12:30 00:00:03 03 APR/24/2006 12:00 00:00:15 04 APR/24/2006 12:30 00:00:16 05 APR/25/2006 12:00 00:00:32

RETURNOKMOVE EXIT

√√ √√ √√ √√ √√

Press the MENU or PLA Y LIST button after

the operation has finished.

The Edit Playlist screen will disappear.

■

You can create up to 99 playlist entries.

NOTE

■

Depending on the kind of disc, the displayed screen may have a slight difference.

Editing

English -

Page 72

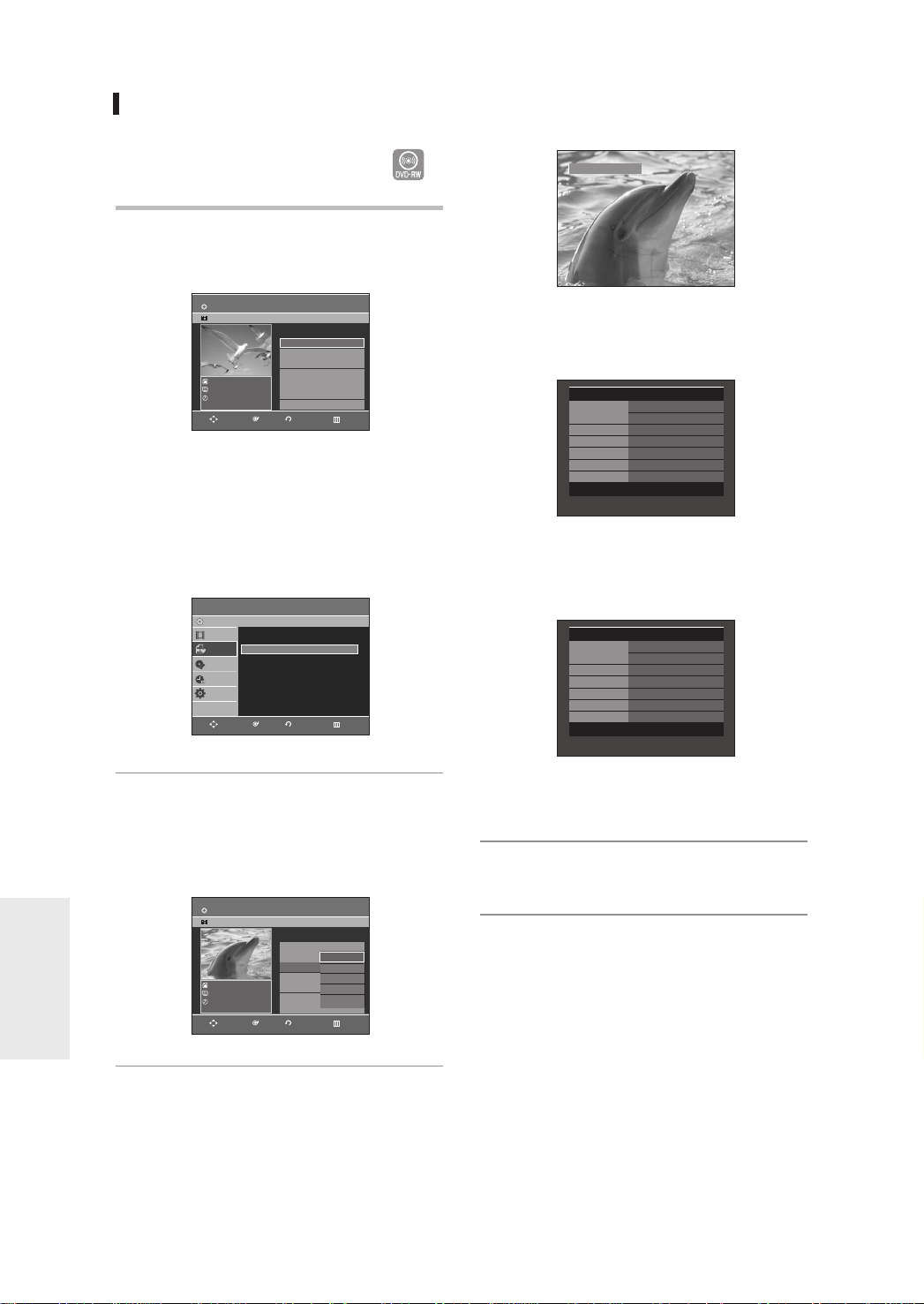

Playing Entries in the Playlist

Follow these instructions to play the playlist entries.

(VR mode)

With the DVD Recorder in Stop mode,

press the PLA YLIST button.

The Edit Playlist screen is displayed.

Press the …† buttons to select Play, then

select the OK button.

√√

Play

Editing

DVD-RW(VR) APR/23/2006 1/5

APR/23/2006 12:00 1 Scene APR/23/2006 12:00

Edit Playlist

No. Title Length

01 APR/23/2006 12:00 00:00:21 02 APR/23/2006 12:30 00:00:03 03 APR/24/2006 12:00 00:00:15 04 APR/24/2006 12:30 00:00:16 05 APR/25/2006 12:00 00:00:32

RETURNOKMOVE EXIT

Edit

√√ √√ √√ √√ √√

Using the MENU button

● With the DVD Recorder in Stop mode, press the

MENU button.

● Press the …† buttons to select Playlist, then

press the OK or √ button.

● Press the …† buttons to select Edit Playlist,

then press the OK or √ button.

DVD-Recorder

DVD-RW(VR)

Title Menu Playlist Disc Manager Programme Setup

New Playlist Edit Playlist

Playlist

RETURNOKMOVE EXIT

√√

Press the …† buttons to select the title you

want to edit from the Playlist, then press the

OK or √ button.

The Edit Playlist menu is displayed : Play, Rename, Edit Scene, Copy, Delete.

DVD-RW(VR)

APR/24/2006

APR/24/2006 12:00 1 Scene APR/24/2006 12:00

Edit Playlist

Play Rename Edit Scene Copy Delete

3/5

Edit

√√ √√ √√ √√ √√

No. Title Length

01 APR/23/2006 12:00 00:00:21 02 APR/23/2006 12:30 00:00:03 03 APR/24/2006 12:00 00:00:15 04 APR/24/2006 12:30 00:00:16 05 APR/25/2006 12:00 00:00:32

RETURNOKMOVE EXIT

● To view the current status of the disc and progress

of playback : Press the INFO button, and the information about the disc will appear.

DVD-RW(VR) Disc Info Disc Name

Total Title 19 Total Playlist 5 Recordable Time Protection Not Protected Screen Playback JAN 01 2006 SUN 13:00

● Press the INFO button once again. Then you can

01:09 SP

[

Playlist

]

check the information about the playlist currently playing back.

DVD-RW(VR) Playing Info Name APR/24/2006 12:00 PR1

Playlist 3/5 Created Time APR/24/2006 12:00 Length 00: 01: 09 SP Playing Time 00: 00: 08 Total scene 1 JAN 01 2006 SUN 13:00

● The screen returns to the Edit Playlist screen when

the playback has finished.

Press the STOP button to stop playing.

The screen returns to the Edit Playlist screen.

- English

Page 73

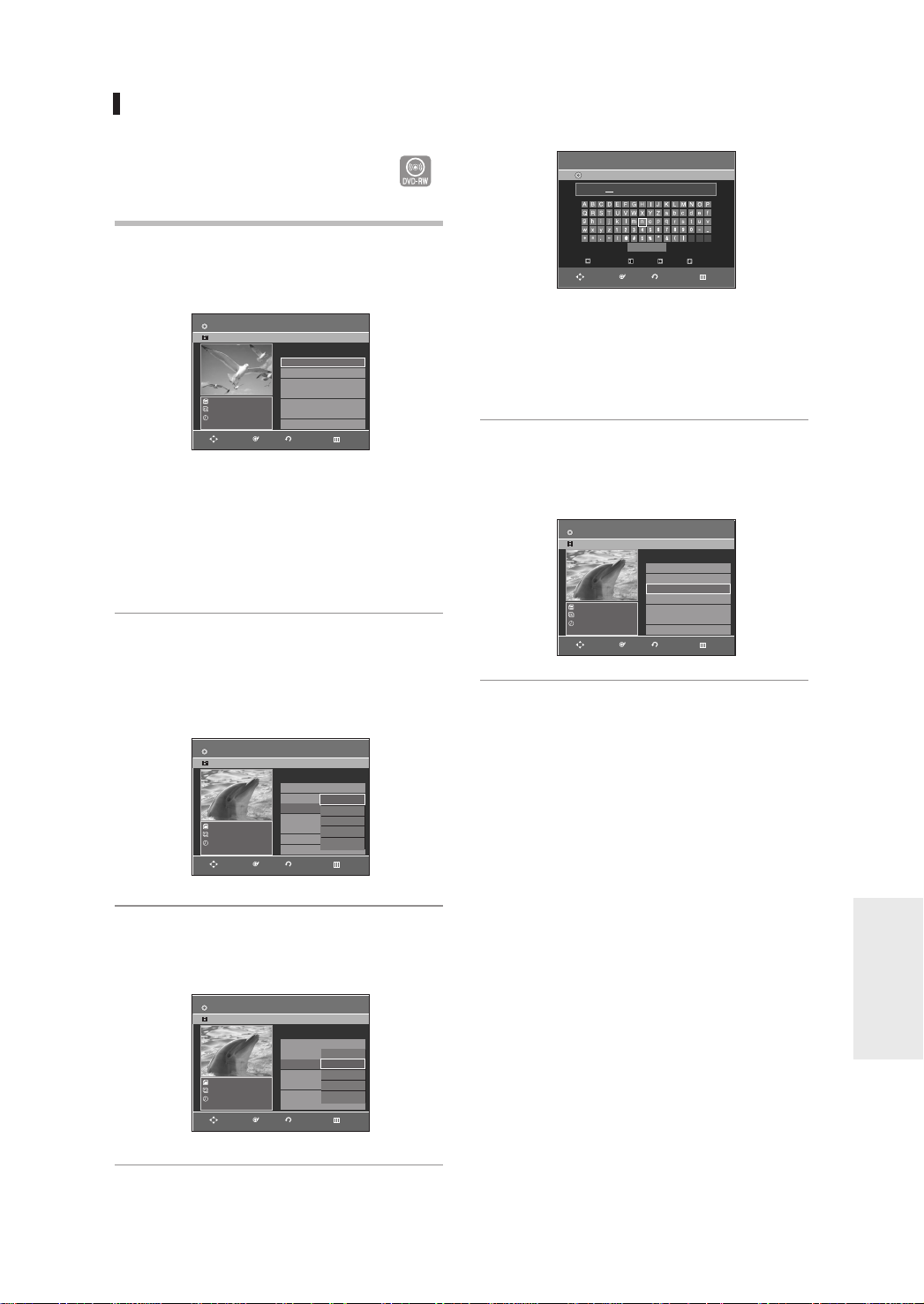

Renaming a Playlist Entry

Follow these instructions to rename a playlist entry, i.e. to edit the title of a playlist entry.

(VR mode)

Enter the desired characters using the

…† œ √ buttons.

DVD-Recorder

DVD-RW(VR)

Dolphin

Rename

With the DVD Recorder in Stop mode,

press the PLA YLIST button.

The Edit Playlist screen is displayed.

DVD-RW(VR)

APR/23/2006 1/5

APR/23/2006 12:00 1 Scene APR/23/2006 12:00

Edit Playlist

No. Title Length

01 APR/23/2006 12:00 00:00:21 02 APR/23/2006 12:30 00:00:03 03 APR/24/2006 12:00 00:00:15 04 APR/24/2006 12:30 00:00:16 05 APR/25/2006 12:00 00:00:32

RETURNOKMOVE EXIT

Edit

√√ √√ √√ √√ √√

Using the MENU button

● With the DVD Recorder in Stop mode, press the

MENU button.

● Press the …† buttons to select Playlist, then

press the OK or √ button.

● Press the …† buttons to select Edit Playlist,

then press the OK or √ button.

Press the …† buttons to select the title you

want to edit from the Playlist, then press the

OK or √ button.

The Edit Playlist menu is displayed :Play, Rename, Edit Scene, Copy, Delete

DVD-RW(VR) APR/24/2006 3/5

APR/24/2006 12:00 1 Scene APR/24/2006 12:00

Edit Playlist

No. Title Length

01 APR/23/2006 12:00 00:00:21 02 APR/23/2006 12:30 00:00:03 03 APR/24/2006 12:00 00:00:15 04 APR/24/2006 12:30 00:00:16 05 APR/25/2006 12:00 00:00:32

RETURNOKMOVE EXIT

Play Rename Edit Scene Copy Delete

Edit

√√ √√ √√ √√ √√

Save

Back Space

Space Delete Clear

RETURNOKMOVE EXIT

● This function is the same as the Rename

function in renaming the title list. (See page 67.)

● The maximum number of characters that can be

entered is 31. All 31 characters can be

displayed by pressing the INFO button twice.

Press the …† œ √ buttons to select Save,

then press the OK button.

The changed title is displayed in the title field of the selected playlist entry.

DVD-RW(VR)

Dolphin 3/5

Dolphin 1 Scene APR/24/2006 12:00

Edit Playlist

No. Title Length

01 APR/23/2006 12:00 00:00:21 02 APR/23/2006 12:30 00:00:03 03 Dolphin 00:00:15 04 APR/24/2006 12:30 00:00:16 05 APR/25/2006 12:00 00:00:32

RETURNOKMOVE EXIT

Edit

√√ √√

√√

√√ √√

Press the …† buttons to select Rename, then

press the OK button.

The Rename screen is displayed.

DVD-RW(VR)

APR/24/2006 3/5

APR/24/2006 12:00 1 Scene APR/24/2006 12:00

Edit Playlist

No. Title Length

01 APR/23/2006 12:00 00:00:21 02 APR/23/2006 12:30 00:00:03 03 APR/24/2006 12:00 00:00:15 04 APR/24/2006 12:30 00:00:16 05 APR/25/2006 12:00 00:00:32

RETURNOKMOVE EXIT

Play Rename Edit Scene Copy Delete

Edit

√√ √√ √√ √√ √√

English -

Editing

Page 74

Editing a Scene for the Playlist

Follow these instructions to edit scenes for a playlist.

(VR mode)

With the DVD Recorder in Stop mode,

press the PLA YLIST button.

The Edit Playlist screen is displayed.

DVD-RW(VR) Science 1/4

Science 7 Scene APR/24/2006 10:43

Edit Playlist

No. Title Length

01 Science 00:00:17 02 Sky 00:00:06 03 Dolphin 00:00:06 04 Natural 00:00:37

RETURNOKMOVE EXIT

Edit

√√

Playing a Selected Scene

Press the …† œ √ buttons to select the

scene you want to play, then press the OK

button.

The playlist entry to be played is selected.

DVD-RW(VR)

Scene No. 2 / 7 Playlist No. 3

02 00:00:07 03 00:00:04

01 00:00:26

04 00:00:03

05 00:00:11 06 00:00:04

Edit SceneDVD-Recorder

Play

Modify

Move

Add

Delete

RETURNOKMOVE EXIT

Editing

Using the MENU button

● With the DVD Recorder in Stop mode, press the

MENU button.

● Press the …† buttons to select Playlist, then

press the OK or √ button.

● Press the …† buttons to select Edit Playlist,

then press the OK or √ button.

Press the …† buttons to select the title you

want to edit from the Playlist, then press the

OK or √ button.

The Edit Playlist menu is displayed : Play, Rename, Edit Scene, Copy, Delete

DVD-RW(VR) Dolphin 3/4

Dolphin 7 Scene APR/24/2006 12:00

Edit Playlist

No. Title Length

01 Science 00:00:17 02 Sky 00:00:06

Play

03 Dolphin 00:00:06

Rename

04 Natural 00:00:37

Edit Scene Copy Delete

RETURNOKMOVE EXIT

Edit

√√

Press the …† buttons to select Edit

Scene, then press the OK button.

The Edit Scene screen is displayed.

DVD-RW(VR) Dolphin 3/4

Dolphin 7 Scene APR/24/2006 12:00

Edit Playlist

No. Title Length

01 Science 00:00:17 02 Sky 00:00:06

Play

03 Dolphin 00:00:06

Rename

04 Natural 00:00:37

Edit Scene Copy Delete

RETURNOKMOVE EXIT

Edit

√√

Press the OK button.

The selected scene is played.

√√

Play

● To stop scene play, press the STOP button.

- English

DVD-RW(VR)

Scene No. 1 / 7 Playlist No. 3

02 00:00:07 03 00:00:04

01 00:00:26

04 00:00:03 05 00:00:11

Edit SceneDVD-Recorder

06 00:00:04

RETURNOKMOVE EXIT

Play

Modify

Move

Add

Delete

Page 75

Modifying a Scene (Replacing a Scene)

Press the OK button at the end point of the

scene.

To setup, follow steps 1 to 3 in page 74.

Press the …† œ √ buttons to select the

scene you want to modify, then press the

OK button.

DVD-RW(VR)

Scene No. 2 / 7 Playlist No. 3

01 00:00:26

02 00:00:07 03 00:00:04

04 00:00:03 05 00:00:11 06 00:00:04

Edit SceneDVD-Recorder

Play

Modify

Move

Add

Delete

RETURNOKMOVE EXIT

Press the …† buttons to select Modify,

then press the OK button.

The Modify Scene screen is displayed.

DVD-Recorder

DVD-RW(VR)

Title List : 5/6

√√

Start End Change Cancel

Modify Scene

Scene No. 002

Start End

00:00:00 00:00:00

00:00:00

RETURNOKMOVE EXIT

DVD-Recorder

DVD-RW(VR)

Title List : 5/6

»»

Start End Change Cancel

● The image and ending point time are displayed in

Modify Scene

Scene No. 002

Start End

00:00:25 00:00:30

00:00:30

RETURNOKMOVE EXIT

the End window.

Press the

press the OK button.

● The scene you want to modify is changed with the

œ √

buttons to select Change, then

DVD-RW(VR)

Scene No. 2 / 7 Playlist No. 3

01 00:00:26

02 00:00:07 03 00:00:04

04 00:00:03 05 00:00:11 06 00:00:04

Edit SceneDVD-Recorder

Play

Modify

Move

Add

Delete

RETURNOKMOVE EXIT

selected section.

Press the OK button at the start point of the

scene.

DVD-Recorder

DVD-RW(VR)

Title List : 5/6

√√

Start End Change Cancel

● The image and starting point time are displayed

on the Start window.

● Select the starting or ending point of the section

you want to modify using the playback related buttons (

,,,,,,

Modify Scene

Scene No. 002

Start End

00:00:25

00:00:00

00:00:25

RETURNOKMOVE EXIT

Editing

English -

Page 76

Moving a Scene (Changing the Position of a Scene)

NOTE

■

To setup, follow steps 1 to 3 in page 74.

■

Press the …† œ √ buttons to select the

scene you want to move (change the

position), then press the OK button.

Adding a Scene

You cannot move the selected scene to the position of the next scene, because the selected scene should be inserted before that position, which requires no action.

Depending on the kind of disc, the displayed screen may have a slight difference.

Editing

DVD-RW(VR)

Scene No. 3/7 Playlist No. 3

01 00:00:26 02 00:00:07 03 00:00:04

04 00:00:03 05 00:00:11 06 00:00:04

Edit SceneDVD-Recorder

Play

Modify

Move

Add

Delete

RETURNOKMOVE EXIT

Press the …† buttons to select Move, then

press the OK button.

DVD-RW(VR)

Scene No. 3/7 Playlist No. 3

02 00:00:07 03 00:00:04

01 00:00:26

04 00:00:03 05 00:00:11 06 00:00:04

● A yellow selection window is displayed on the

Edit SceneDVD-Recorder

Play

Modify

Move

Add

Delete

RETURNOKMOVE EXIT

scene to be moved.

Press the …† œ √ buttons to select the

position to which you want to move the

selected scene, then press the OK button.

DVD-RW(VR)

Scene No. 6/7 Playlist No. 3

01 00:00:26 02 00:00:07 03 00:00:04

04 00:00:03 05 00:00:11 06 00:00:04

● The selected scene is moved to the selected

position.

DVD-RW(VR)

Scene No. 5/7 Playlist No. 3

01 00:00:26 02 00:00:07 03 00:00:03

04 00:00:11 05 00:00:04 06 00:00:04

Edit SceneDVD-Recorder

Play

Modify

Move

Add

Delete

RETURNOKMOVE EXIT

Edit SceneDVD-Recorder

Play

Modify

Move

Add

Delete

RETURNOKMOVE EXIT

To setup, follow steps 1 to 3 in page 74.

Press the …† œ √ buttons to select the

scene that will have a new scene inserted

before it, then press the OK button.

A yellow selection window is displayed on the scene to be added as the new scene.

DVD-RW(VR)

Scene No. 4/7 Playlist No. 3

01 00:00:26 02 00:00:07 03 00:00:04

04 00:00:03 05 00:00:11 06 00:00:04

Edit SceneDVD-Recorder

Play

Modify

Move

Add

Delete

RETURNOKMOVE EXIT

Press the …† buttons to select Add, then

press the OK button.

DVD-Recorder

DVD-RW(VR)

Title List : 4/6

√√

Start End

Add

Add Scene

Scene No. 004

Start End

00:00:00 00:00:00

00:00:00

Cancel

RETURNOKMOVE EXIT

Press the OK button at the starting point of

the scene.

DVD-Recorder

DVD-RW(VR)

Title List : 4/6

√√

Start End

● The image and starting point time are displayed in

Add

the Start window.

● Select the end point of the section where you want

to add the new scene using the playback related buttons (

, ,,,

Add Scene

Scene No. 004

Start End

00:00:15

00:00:00 00:00:15

Cancel

RETURNOKMOVE EXIT

- English

Page 77

Press the OK button at the end point of the

scene.

DVD-Recorder

DVD-RW(VR)

Title List : 4/6

Start End

● The image and time of the end point are displayed

Add

Add Scene

Scene No. 004

Start End

00:00:15 00:00:35

00:00:35

Cancel

RETURNOKMOVE EXIT

in the End window.

● To cancel, press the œ √ buttons to select cancel,

then press the OK button.

Press the œ √ buttons to select Add, then

press the OK button.

DVD-RW(VR)

Scene No. 4/8 Playlist No. 3

01 00:00:26 02 00:00:07 03 00:00:04

04 00:00:20 05 00:00:03 06 00:00:11

● The section you want to add is inserted prior to the

Edit SceneDVD-Recorder

Play

Modify

Move

Add

Delete

RETURNOKMOVE EXIT

scene selected in step 4.

Deleting a Scene

To setup, follow the steps 1 to 3 in page 74.

Press the …† œ √ buttons to select the

scene you want to delete, then press the

OK button.

DVD-RW(VR)

Scene No. 2/7 Playlist No. 3

01 00:00:26 02 00:00:07 03 00:00:04

04 00:00:03 05 00:00:11 06 00:00:04

Press the …† buttons to select Delete,

then press the OK button.

DVD-RW(VR)

Scene No. 2/6 Playlist No. 3

01 00:00:26 02 00:00:04

05 00:00:04 06 00:00:05

04 00:00:11

Edit SceneDVD-Recorder

RETURNOKMOVE EXIT

Edit SceneDVD-Recorder

03 00:00:03

RETURNOKMOVE EXIT

Play

Modify

Move

Add

Delete

Play

Modify

Move

Add

Delete

Copying a Playlist Entry to the Playlist

Using the PLAYY

Using the PLA

With the DVD Recorder in Stop mode,

press the PLA YLIST button.

The Edit Playlist screen is displayed.

DVD-RW(VR) Science 3/4

Science 1 Scene APR/23/2006 06:43

Using the MENU button

● With the DVD Recorder in Stop mode, press the

MENU button.

● Press the …† buttons to select Playlist, then press

the OK or √ button.

● Press the …† buttons to select Edit Playlist, then

press the OK or √ button.

Press the …† buttons to select the title you

want to copy to the Playlist, then press the

OK or √ button.

The Edit Playlist menu is displayed :Play, Rename, Edit Scene, Copy, Delete

DVD-RW(VR)

Dolphin 3/4

Dolphin 7 Scene APR/23/2006 06:43

Press the …† buttons to select Copy, then press the OK button.

Playlist that has been selected will be copied.

DVD-RW(VR) Dolphin 3/4

Dolphin 7 Scene APR/23/2006 06:43

DVD-RW(VR) Dolphin 5/5

Dolphin 7 Scene APR/23/2006 06:43

LIST button

Edit Playlist

No.

Title Length 01 Science 00:00:17 02 Sky 00:00:06 03 Dolphin 00:00:06 04 Natural 00:00:37

RETURNOKMOVE EXIT

Edit Playlist

No.

Title Length 01 Science 00:00:17 02 Sky 00:00:06 03 Dolphin 00:00:06 04 Natural 00:00:37

No.

01 Science 00:00:17 02 Sky 00:00:06 03 Dolphin 00:00:06 04 Natural 00:00:37

No.

01 Science 00:00:17 02 Sky 00:00:06 03 Dolphin 00:00:06 04 Natural 00:00:37 05 Dolphin 00:00:06

Play Rename Edit Scene Copy Delete

RETURNOKMOVE EXIT

Edit Playlist

Title Length

Play Rename Edit Scene Copy Delete

RETURNOKMOVE EXIT

Edit Playlist

Title Length

RETURNOKMOVE EXIT

Edit

√√

Edit

√√

Edit

√√

Edit

√√

Editing

English -

Page 78

■

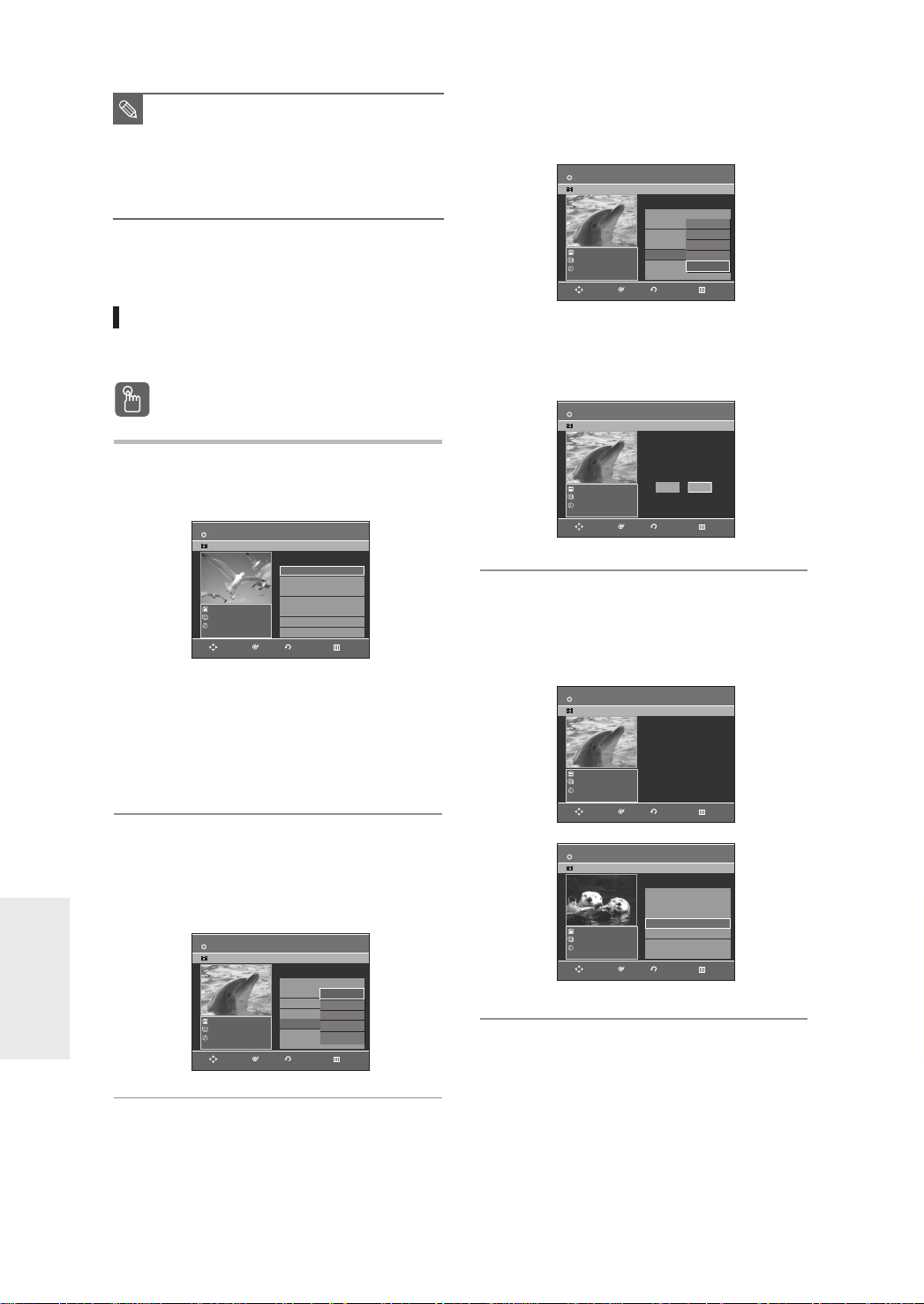

You can create up to 999 scenes on one

NOTE

disc. In some cases, this may be different from the actual numbers.

■

Press the MENU button after the operation has finished. The Edit Playlist screen will disappear.

Deleting a Playlist Entry from the Playlist

Press the …† buttons to select Delete,

then press the OK button.

DVD-RW(VR) Dolphin 5/5

Dolphin 7 Scene

APR/23/2006 06:43

● You will be prompted with the delete confirmation

message “Do you want to delete?”.

Edit Playlist

No. Title Length 01 Science 00:00:17

Play

02 Sky 00:00:06 03 Dolphin 00:00:06

Rename

04 Natural 00:00:37

Edit Scene

05 Dolphin 00:00:06

Copy Delete

RETURNOKMOVE EXIT

Edit

√√

Editing

Using the PLA

YLIST button

With the DVD Recorder in Stop mode,

press the PLA YLIST button.

The Edit Playlist screen is displayed.

DVD-RW(VR) Science 1/5

Science 1 Scene

APR/23/2006 06:43

Edit Playlist

No. Title Length

01 Science 00:00:17 02 Sky 00:00:06 03 Dolphin 00:00:06 04 Natural 00:00:37 05 Dolphin 00:00:06

RETURNOKMOVE EXIT

Edit

√√

Using the MENU button

● With the DVD Recorder in Stop mode, press the

MENU button.

● Press the …† buttons to select Playlist, then

press the OK or √ button.

● Press the …† buttons to select Edit Playlist, then

press the OK or √ button.

Press the …† buttons to select the title you want to delete from the Playlist, then press

the OK or √ button.

The Edit Playlist menu is displayed :Play, Rename, Edit Scene, Copy, Delete

DVD-RW(VR)

Dolphin 5/5

Dolphin 7 Scene

APR/23/2006 06:43

Edit Playlist

No. Title Length

01 Science 00:00:17 02 Sky 00:00:06

Play

03 Dolphin 00:00:06

Rename

04 Natural 00:00:37

Edit Scene

05 Dolphin 00:00:06

Copy Delete

RETURNOKMOVE EXIT

Edit

√√

DVD-RW(VR)

Dolphin 5/5

Dolphin 7 Scene

APR/23/2006 06:43

Edit Playlist

Do you want to delete?

Yes

RETURNOKMOVE EXIT

Press the œ √ buttons to select Yes, then

press the OK button.

It automatically returned to the Edit Playlist screen after the delete operation has finished.

DVD-RW(VR) Dolphin 5/5

Dolphin 7 Scene

APR/23/2006 06:43

DVD-RW(VR)

Natural

Natural 1 Scene

APR/23/2006 06:43

Edit Playlist

Deleting...

(Please wait)

RETURNOKMOVE EXIT

Edit Playlist

No. Title Length 01 Science 00:00:17 02 Sky 00:00:06 03 Dolphin 00:00:06 04 Natural 00:00:37

RETURNOKMOVE EXIT

4/4

Edit

√√

- English

Page 79

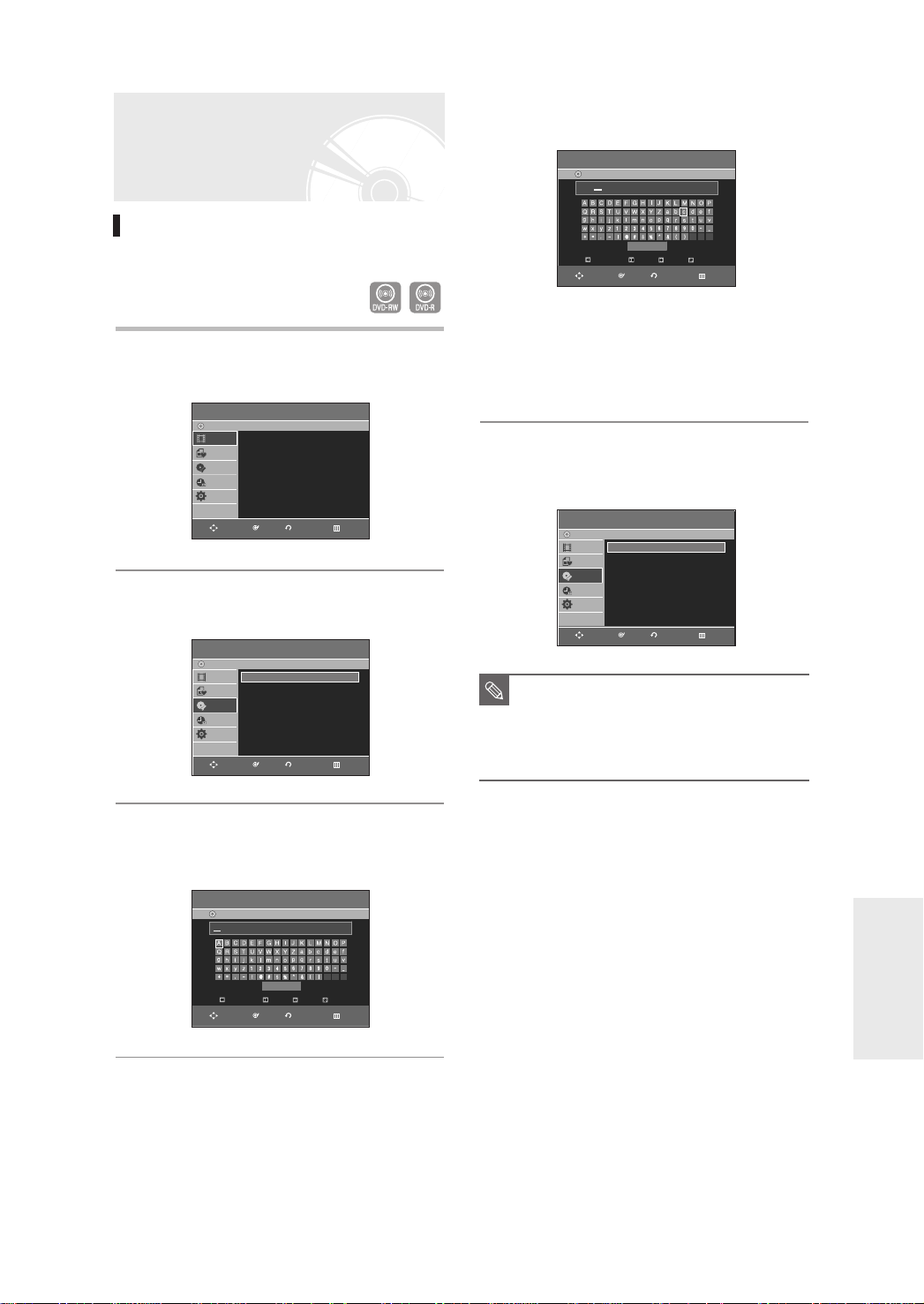

Disc Manager

Enter the desired characters using the

…† œ √ buttons.

Editing the Disc Name

Follow these instructions to give a name to a disc.

With the DVD Recorder in Stop mode,

press the MENU button.

DVD-Recorder

DVD-RW(VR)

Title List

Playlist Disc Manager Programme Setup

Press the …† buttons to select Disc

Manager, then press the OK or √ button.

DVD-Recorder

DVD-RW(VR)

Disc Name :

Title List

Disc Protection : Not Protected

Playlist

Disc Format : DVD-VR

Disc Manager

Disc Finalise

Programme

Delete All Title Lists

Setup

Title List

RETURNOKMOVE EXIT

Disc Manager

RETURNOKMOVE EXIT

√√

DVD-Recorder

DVD-RW(VR)

Disc

Back Space

Space Delete Clear

● This function is the same as the Rename

Rename

Save

RETURNOKMOVE EXIT

function in renaming the title list. (See page 67.)

● The maximum number of characters that can be

entered is 31. All 31 characters can be

displayed by pressing the INFO button.

Press the …† œ √ buttons to select Save,

then press the OK button.

A disc name is given to the disc.

Disc Manager

RETURNOKMOVE EXIT

√√

NOTE

DVD-Recorder

DVD-RW(VR)

Disc Name : Disc

Title List

Disc Protection : Not Protected

Playlist

Disc Format : DVD-VR

Disc Manager

Disc Finalise

Programme

Delete All Title Lists

Setup

■

You may need to clear disc protect before beginning editing.

■

Depending on the kind of disc, the displayed screen may be different.

Press the …† buttons to select Disc

Name, then press the OK or √ button.

The Edit Name screen is displayed.

DVD-Recorder

DVD-RW(VR)

Back Space

Rename

Save

Space Delete Clear

RETURNOKMOVE EXIT

English -

Editing

Page 80

Disc Protection

Disc Protection allows you to protect your discs from being formatted or deleted due to unintended operations.

Formatting a Disc

Use these instructions to format a disc. The disc protect should also be cleared.

With the DVD Recorder in Stop mode,

press the MENU button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Title List

√√

RETURNOKMOVE EXIT

Press the …† buttons to select Disc

Manager, then press the OK or √ button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Disc Name : Disc Protection : Not Protected Disc Format : DVD-VR Disc Finalise Delete All Title Lists

Disc Manager

RETURNOKMOVE EXIT

√√

Press the …† buttons to select Disc

Protection, then press the OK or √ button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Disc Name : Disc Protection Disc Format DVD-VR Disc Finalise Delete All Title Lists

Disc Manager

Not Protected Protected

√√

With the DVD Recorder in Stop mode,

press the MENU button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Title List

RETURNOKMOVE EXIT

Press the …† buttons to select Disc

Manager, then press the OK or √ button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Disc Name : Disc Protection : Not Protected Disc Format : DVD-VR Disc Finalise Delete All Title Lists

Disc Manager

RETURNOKMOVE EXIT

Press the …† buttons to select Disc

Format, then press the OK or √ button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Disc Name : Disc Protection : Not Protected Disc Format : DVD-VR Disc Finalise Delete All Title Lists

Disc Manager

RETURNOKMOVE EXIT

√√

Editing

RETURNOKMOVE EXIT

Press the …† button to select Protected,

then

Press the OK button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Disc Name : Disc Protection : Protected Disc Format : DVD-VR Disc Finalise Delete All Title Lists

Disc Manager

RETURNOKMOVE EXIT

- English

DVD-RW

●

You will be prompted with the confirmation message “Choose the recording format for DVD-RW.”

DVD-Recorder

DVD-RW(VR)

Disc Name :

√√

Title List

Disc Protection : Not Protected

Playlist

Disc Format : DVD-VR

Choose the recording format for DVD-RW

Disc Manager

Disc Finalize

Programme

Delete All Title Lists

DVD-VR DVD-V

Setup

Disc Manager

RETURNOKMOVE EXIT

√√

Page 81

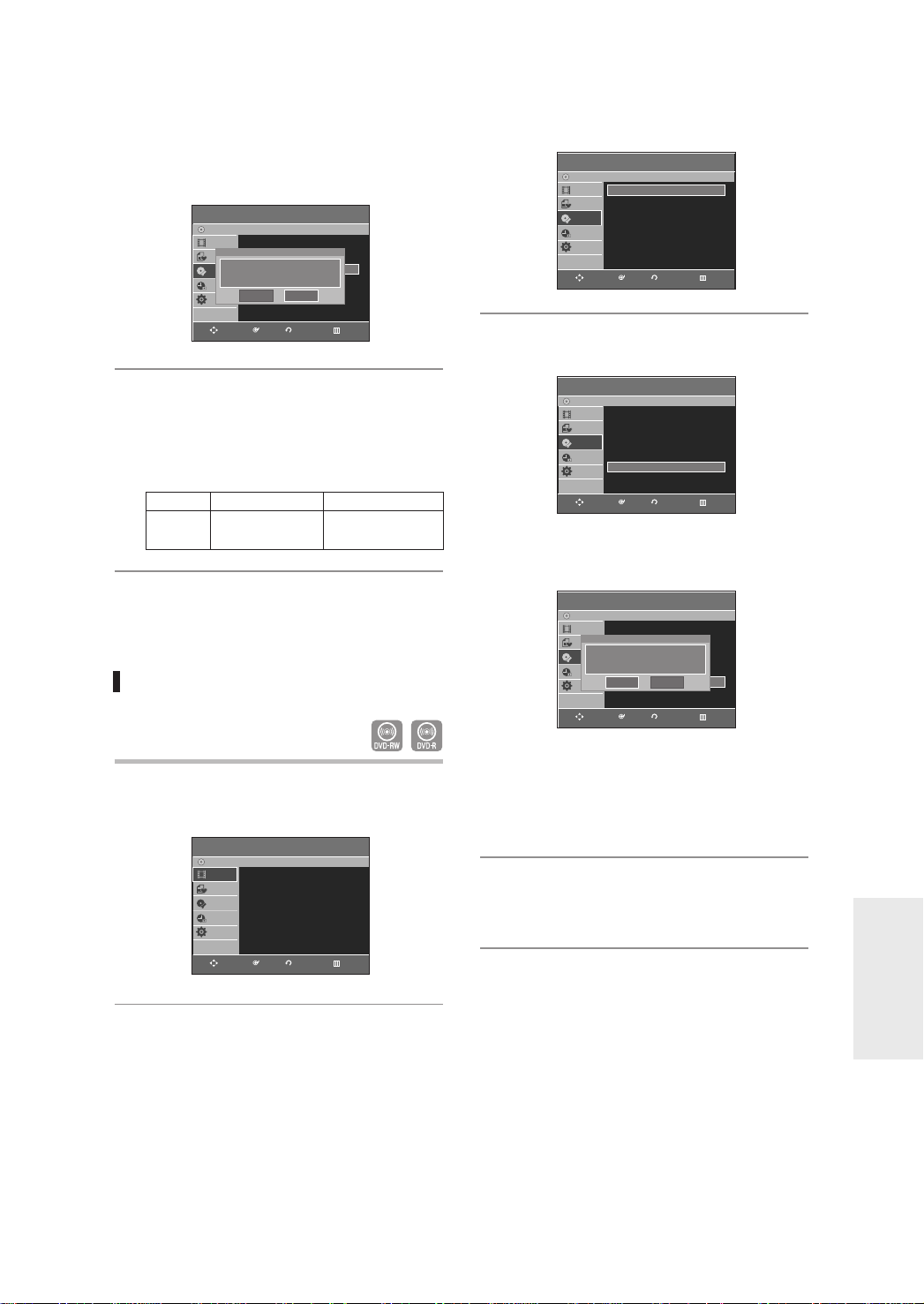

Press the œ √ buttons to select desired

mode, then press the OK button.

●

You will be prompted again with the message “All data will be deleted. Do you want to continue?”.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Disc Name : Disc Protection : Not Protected

All data will be deleted.

Disc Format : DVD-VR

Do you want to continue?

Disc Finalize Delete All Title Lists

Yes No

Disc Manager

RETURNOKMOVE EXIT

Press the …† buttons to select Disc

Manager, then press the OK or √ button.

DVD-Recorder

DVD-RW(VR)

Title List

Disc Name : Disc Protection : Not Protected

Playlist

Disc Format : DVD-VR

Disc Manager

Disc Finalise

Programme

√√

Setup

Delete All Title Lists

Disc Manager

RETURNOKMOVE EXIT

√√

Press the …† button to select Delete All

Title Lists, then press the OK or √ button.

Press the œ √ buttons to select Yes, then

press the OK button.

The disc is formatted.

DVD-VR and DVD-V are defined according to their recording format.

DVD-VR DVD-V

DISC

DVD-RW

DVD-R

Delete All Title Lists

With the DVD Recorder in Stop mode,

press the MENU button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Title List

√√

RETURNOKMOVE EXIT

DVD-Recorder

DVD-RW(VR)

Title List

Disc Name : Disc Protection : Not Protected

Playlist

Disc Format : DVD-VR

Disc Manager

Disc Finalise

Programme

Delete All Title Lists

Setup

● You will be prompted with the confirmation

Disc Manager

RETURNOKMOVE EXIT

message “Do you want to delete all title lists?”.

DVD-Recorder

DVD-RW(VR)

Title List

Disc Name : Disc Protection : Not Protected

Playlist

Disc Format : DVD-VR

Do you want to delete all title lists?

Disc Manager

Disc Finalize

Programme

Delete All Title Lists

Yes No

Setup

● When Protected Entry exists: The Delete All Title

Disc Manager

RETURNOKMOVE EXIT

List function will not operate. If there is a title

containing a still picture, however, that function will

not operate. If you want to delete a protected entry,

disable Protect for it on the Lock item.

Press the œ √ buttons to select Yes, then

press the OK button.

All title lists are deleted.

√√

Editing

English -

Page 82

Finalising a disc

After you record titles onto a DVD-RW/DVD-R disc with your DVD recorder, it needs to be finalised before it can be played back on external devices.

With the DVD Recorder in Stop mode,

press the MENU button.

You will be prompted with the message “Do you want to finalise disc?”.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Do you want to finalise disc?

Disc Name : Disc Protection : Not Protected Disc Format : DVD-VR Disc Finalize Delete All Title Lists

Yes No

Disc Manager

RETURNOKMOVE EXIT

√√

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Title List

√√

RETURNOKMOVE EXIT

Press the …† buttons to select Disc

Manager, then press the OK or √ button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Disc Name : Disc Protection : Not Protected Disc Format : DVD-VR Disc Finalise Delete All Title Lists

Disc Manager

RETURNOKMOVE EXIT

√√

Press the …† button to select Disc

Finalise, then press the OK or √ button.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Disc Name : Disc Protection : Not Protected Disc Format : DVD-VR Disc Finalise Delete All Title Lists

Disc Manager

RETURNOKMOVE EXIT

√√

If you select Yes, you will be prompted again with the message “Disc will be finalised. Do you want to continue?”.

DVD-Recorder

DVD-RW(VR)

Title List Playlist Disc Manager Programme Setup

Disc Name : Disc Protection : Not Protected

Disc will be finalised.

Disc Format : DVD-VR

Do you want to continue?

Disc Finalize Delete All Title Lists

Yes No

Disc Manager

RETURNOKMOVE EXIT

√√

Press the œ √ buttons to select Yes, then

press the OK button.

The disc is finalised.

■

Once a disc is finalised, you cannot

NOTE

delete entries from the record list.

■

After being finalised, the DVD-R/DVDRW(video mode) operates in the same manner as a DVD-Video.

■

Depending on the disc type, the displayed screen may be different.

■

Finalising time may be different depending on the amount of data recorded on the disc.

■

Data on the disc will be damaged if the DVD Recorder is powered off during finalise process.

Editing

- English

DVD-Recorder

DVD-R(V)

Title List Disc Manager Programme Setup

Disc Manager

Disc Name : Disc Protection : Not Protected Disc Finalise Delete All Title Lists

RETURNOKMOVE EXIT

√√

Page 83

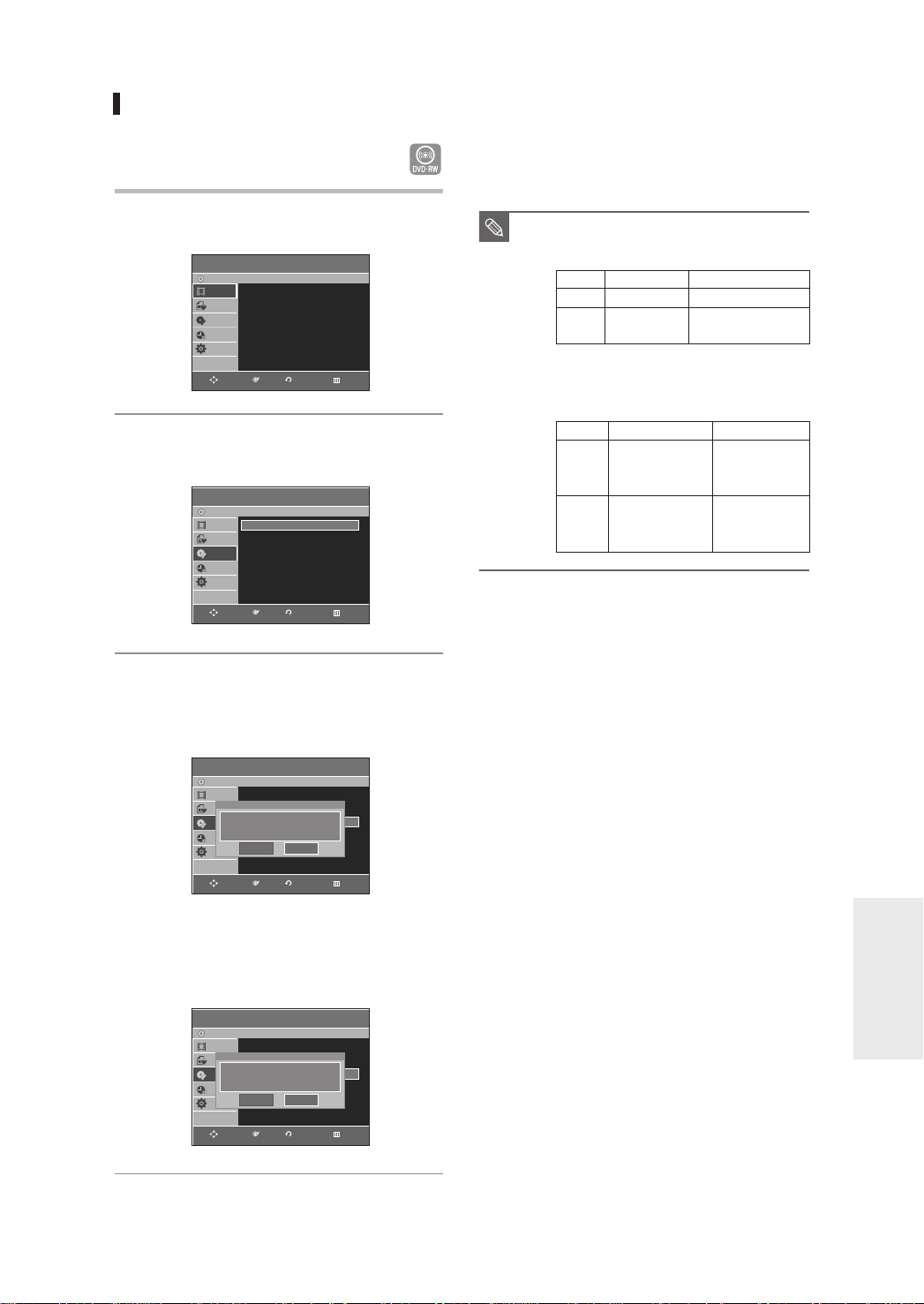

Unfinalising a disc (V/VR mode)

Press the œ √ buttons to select Yes, then

press the OK button.

The disc is unfinalised.

With the DVD Recorder in Stop mode,

press the MENU button.

DVD-Recorder

DVD-RW(VR:F)

Title List Playlist Disc Manager Programme Setup

Title List

√√

RETURNOKMOVE EXIT

Press the …† buttons to select Disc

Manager, then press the OK or √ button.

DVD-Recorder

DVD-RW(VR:F)

Title List Playlist Disc Manager Programme Setup

Disc Name : Disc Disc Format : DVD-VR Disc Unfinalise

Disc Manager

RETURNOKMOVE EXIT

√√

Press the …† button to select Disc

Unfinalise, then press the OK or √ button.

You will be prompted with the message “Do you want to unfinalise disc?”.

NOTE

■

A DVD-RW can be finalised or unfinalised in Video mode.

Finalise Unfinalise

Mark DVD-Video(RW) DVD-RW(V)

Operation Same as DVD-Video

■

A DVD-RW can be finalised or unfinalised

Additional recording, protection

and deletion are possible.

in VR mode.

Finalise Unfinalise

Mark DVD-RW(VR:F) DVD-RW(VR)

Additional recording, Additional recording,

Operation deletion, editing and deletion, editing and

protection are impossible. protection are possible.

DVD-Recorder

DVD-RW(VR:F)

Title List

Disc Name : Disc Disc Protection : Not Protected

Playlist

Disc Format : DVD-VR

Do you want to unfinalise disc?

Disc Manager

Disc Finalize

Programme Setup

Yes No

Disc Manager

RETURNOKMOVE EXIT

√√

If you select Yes, you will be prompted again with the message “Disc will be unfinalised. Do you want to continue?”.

DVD-Recorder

DVD-RW(VR:F)

Title List Playlist Disc Manager Programme Setup

Disc Name : Disc Disc Protection : Not Protected

Disc will be unfinalised.

Disc Format : DVD-VR

Do you want to continue?

Disc Finalize

Yes No

Disc Manager

RETURNOKMOVE EXIT

√√

English -

Editing

Page 84

Troubleshooting

Additional Information

If your DVD Recorder malfunctions, go through the checkpoints below before contacting a Samsung authorised service centre.

Power

The input is displayed for a while when the power is turned on.

Checkpoint 1

The DVD recorder requires some time to initialize and the input will be displayed for approx. 10 seconds after it is turned on.

Recording

Cannot record TV programmes.

Checkpoint 1

Check whether the power cord is securely plugged into the power outlet.

Troubleshooting ................................................84

Specifications....................................................88

Additional Information

- English

Checkpoint 2

Checkpoint 3

I pressed the REC button but there is no response.

Checkpoint 1

Did you set the DVD recorder channel settings correctly?

Check the free space on your DVD-RW/DVD-R discs.

Recording is possible for DVD-RW/ DVD-R discs only. If a programme is copy protected, it cannot be recorded.

Page 85

Playback

Cannot play the disc.

The angle operation does not work while playing a DVD disc.

Checkpoint 1

Check whether the disc is inserted correctly with the label facing up.

Checkpoint 2

Check the regional code of the DVD disc.

Checkpoint 3

This DVD recorder cannot play some types of discs. (See pages 5, 47.)

icon appears on the screen.

Checkpoint 1

You cannot use this operation or function due to one of the following reasons: (1) Your DVD disc restricts it. (2) Your DVD disc does not support this

feature (for example: angles)

(3) The feature is not available at the

moment.

(4) You've requested a title, chapter, or

scan time that is out of range.

Checkpoint 1

The angle operation is available only when the disc contains images captured from different angles.

The selected audio and/or subtitle language is not played.

Checkpoint 1

Audio and subtitle languages are disc-specific. Only the sound and subtitle languages contained on the DVD disc are available and displayed in the disc menu.

Play mode settings are different from the settings configured in the Settings menu.

Checkpoint 1

The disc does not support all selected functions. In this case, some settings configured in the settings menu may not work properly.

Cannot change the aspect ratio.

Checkpoint 1

The aspect ratio is fixed for DVD discs. (See pages 32~33.)

Video

The disc revolves, but no image or bad quality images are displayed.

Checkpoint 1

Checkpoint 2

Checkpoint 3

Checkpoint 4

Be sure that the Video Setting is properly set. (See pages 32~33).

Check whether there is damage to or any foreign material on your disc.

Some low quality discs may not play properly.

If scenes change from dark to bright suddenly, the screen may shake vertically temporarily, but this is not a fault.

English -

Additional Information

Page 86

Sound

No sound.

Timer recording does not work properly.

Checkpoint 1

Re-check the recording time and the end time settings again.

Checkpoint 1

Checkpoint 2

Checkpoint 3

Checkpoint 4

No audio output.

Checkpoint 1

Are you watching a programme in slow or skip mode? If you are playing a programme at a speed other than normal or Fast 1

speed,

sound will not be heard.

Check the connections and settings. (See pages 19~20, 30~31)

Check whether the disc is damaged. Clean the disc, if necessary.

Check whether the disc is inserted correctly with the label facing up.

Check whether you have selected the correct digital output options in the Audio Output Options menu. (See page 30.)

Checkpoint 2

Recording will be cancelled if the power is interrupted due to a power failure or another similar reason while recording.

HDMI

No HDMI output.

Checkpoint 1

Checkpoint 2

Checkpoint 3

Abnormal HDMI output screen.

Check the Video output is HDMI enabled.

Check the connection between the TV and the HDMI jack of the DVD Recorder.

See if your TV supports this 576p/720p/1080i DVD Recorder.

Timer Recording

Timer lamp flickers.

Checkpoint 1

Checkpoint 2

Additional Information

- English

Check there is enough space in the disc for recording.

Check whether the current disc is recordable or not. Make sure to check before the start time of recording.

Checkpoint 1

HDMI output Jitter

Checkpoint 1

Checkpoint 2

Checkpoint 3

If snow noise appears on the screen, it means that TV does not support HDCP (High-bandwidth Digital Content Protection).

Check your TV system setup correctly.

Screen Jitter may occur when the frame rate is converted from 50Hz to 60Hz for 720p/1080i HDMI (High Definition Multimedia Interface) Output.

Please refer to the user's manual of your TV.

Page 87

Remote Control

The remote control doesn't work.

Checkpoint 1

Point the remote control at the remote control sensor on your DVD recorder. Allow for proper distance. Remove obstacles between your DVD recorder and the remote control.

Other

I forgot my password for parental supervision.

Checkpoint 1

Press and hold down the PROG ( ) buttons on the front panel of the DVD Recorder simultaneously for more than 5 seconds with no disc in the DVD Recorder. All settings including the password will revert to the factory settings. Do not use this unless absolutely necessary. (Note that this function is possible only when no disc is inserted.)

Is it possible to change a subtitle and an audio signal on a recorded disc?

Checkpoint 1

A recorded disc is played with only the subtitle and the audio signal which were selected during recording.

English -

Additional Information

Page 88

Specifications

General

Input

Output

Recording

Power requirements

Power consumption

Weight

Dimensions

Operating temp.

Other conditions

Video

Audio

DV Input

Receivable Channels

Audio

Video

Picture Compression format

Audio Compression format

Recording Quality

Audio Frequency Response

AC 220-240V, 50Hz

21 Watts

2.6 kg

430mm(W) x 240mm(D) x 49mm(H)

+5°C to +35°C

Keep level when operating. Less than 75% operating humidity

Composite Video : 1.0 V p-p at 75Ω load, sync negative

Max.Audio Input Level : 2Vrms

IEEE 1394(4p) compatible jack

PAL B/G, D/K

Analogue output jacks x 2

Optical/Coaxial digital audio output

Composite Video : Video output jack x 1

S-Video output x 1 (Y:1.0Vp-p, C:0.286Vp-p at 75Ω load)

Component output x 1 (Y: 1.0Vp-p, Pb: 0.70Vp-p, Pr: 0.70Vp-p at 75Ω load)

HDMI/DVI output x 1 (576p, 720p, 1080i)

MPEG-II

Dolby Digital 2ch/256Kbps, MPEG-II

XP (about 8 Mbps), SP (about 4 Mbps), LP (about 2 Mbps),

EP (about 1.2 Mbps or about 0.8 Mbps)

20 Hz ~ 20 kHz

Audio Output

Disc Type

Analogue Audio Output

Digital Audio Output

Additional Information

- English

For DVD discs, audio signals recorded at 96kHz sampling frequency are converted and output at 48kHz.

DVD

48 / 96kHz

48kHz

AUDIO CD(CD-DA)

44.1kHz

Page 89

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Region Country Customer Care Centre

North America

Latin America

Europe

CIS

Asia Pacific

Middle East & Africa

CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca MEXICO 01-800-SAMSUNG (7267864) www.samsung.com/mx U.S.A 1-800-SAMSUNG (7267864) www.samsung.com ARGENTINE 0800-333-3733 www.samsung.com/ar BRAZIL 0800-124-421 www.samsung.com/br CHILE 800-726-7864(SAMSUNG) www.samsung.com/cl COSTA RICA 0-800-507-7267 www.samsung.com/latin ECUADOR 1-800-10-7267 www.samsung.com/latin EL SALVADOR 800-6225 www.samsung.com/latin GUATEMALA 1-800-299-0013 www.samsung.com/latin JAMAICA 1-800-234-7267 www.samsung.com/latin PANAMA 800-7267 www.samsung.com/latin PUERTO RICO 1-800-682-3180 www.samsung.com/latin REP. DOMINICA 1-800-751-2676 www.samsung.com/latin TRINIDAD & TOBAGO 1-800-7267-864 www.samsung.com/latin VENEZUELA 1-800-100-5303 www.samsung.com/latin BELGIUM 02 201 2418 www.samsung.com/be CZECH REPUBLIC 844 000 844 www.samsung.com/cz DENMARK 38 322 887 www.samsung.com/dk FINLAND 09 693 79 554 www.samsung.com/fi FRANCE 08 25 08 65 65 (0,15€/Min) www.samsung.com/fr GERMANY 01805 - 121213 (€ 0,12/Min) www.samsung.de HUNGARY 06 40 985 985 www.samsung.com/hu ITALIA 199 153 153 www.samsung.com/it

LUXEMBURG 02 261 03 710 www.samsung.lu NETHERLANDS 0900 20 200 88 (€ 0.10/Min) www.samsung.com/nl NORWAY 231 627 22 www.samsung.com/no POLAND 0 801 801 881 www.samsung.com/pl PORTUGAL 80 8 200 128 www.samsung.com/pt SLOVAKIA 0850 123 989 www.samsung.com/sk SPAIN 902 10 11 30 www.samsung.com/es SWEDEN 08 585 367 87 www.samsung.com/se U.K 0870 242 0303 www.samsung.com/uk RUSSIA 8-800-200-0400 www.samsung.ru UKRAINE 8-800-502-0000 www.samsung.com/ur AUSTRALIA 1300 362 603 www.samsung.com/au CHINA 800-810-5858, 010- 6475 1880 www.samsung.com.cn HONG KONG 2862 6001 www.samsung.com/hk

INDIA

INDONESIA 0800-112-8888 www.samsung.com/id JAPAN 0120-327-527 www.samsung.com/jp MALAYSIA 1800-88-9999 www.samsung.com/my PHILIPPINES 1800-10-SAMSUNG (7267864) www.samsung.com/ph SINGAPORE 1800-SAMSUNG (7267864) www.samsung.com/sg

THAILAND

TAIWAN 0800-329-999 www.samsung.com/tw VIETNAM 1 800 588 889 www.samsung.com/vn SOUTH AFRICA 0860 7267864 (SAMSUNG) www.samsung.com/za

U.A.E 800SAMSUNG (7267864) www.samsung.com/mea

3030 8282 1600 1100 11

1800-29-3232 02-689-3232

☎

www.samsung.com/in

www.samsung.com/th

Web Site

Page 90

English

AK68-01094A-00
