SAMSUNG DVD-E235K Service Manual Part List
This Document can not be used without Samsung’s authorization.
Loc.No Part No Description ; Specification Remark Loc.No Part No Description ; Specification Remark
Samsung Electronics
4-1
601 AK92-00337A ASSY PCB-MAIN;DVD-E235K/XEV,MAIN ASSY
CN8 3708-001364 CONNECTOR-FPC/FFC/PIC;35P,1.25MM,STRAIGH
DC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,DC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,DCN1 3708-001696 CONNECTOR-FPC/FFC/PIC;24P,1MM,STRAIGHT,S
DCN2 3708-001695 CONNECTOR-FPC/FFC/PIC;13P,1MM,STRAIGHT,S
DCN3 3711-001018 CONNECTOR-HEADER;BOX,5P,1R,2mm,STRAIGHT,
DD1 0407-000116 DIODE-ARRAY;DAP202K,80V,100mA,CK2-3,SOTDQ1 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOTDQ2 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOTDQ3 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW,SOTDR1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR3 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
DR4 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR5 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR6 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
DR7 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608
DR8 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608
FC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,FC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,FC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,FC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,FC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,FC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,FC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,FC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,FC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,FC5 2203-001222 C-CER,CHIP;820pF,10%,50V,X7R,TP,1608,FC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,FC7 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,FE1 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
FE2 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
FE3 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
FE4 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
FE5 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
FE6 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
FR1 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
FR10 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
FR11 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
FR12 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608
FR13 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608
FR14 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
FR15 2007-000655 R-CHIP;27Kohm,5%,1/10W,TP,1608
FR16 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
FR17 2007-000088 R-CHIP;7.5Kohm,5%,1/10W,TP,1608
FR18 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
FR2 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
FR3 2007-000034 R-CHIP;1OHM,5%,1/4W,DA,TP,3216
FR4 2007-000034 R-CHIP;1OHM,5%,1/4W,DA,TP,3216
FR5 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608
FR6 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
FR7 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608
FR8 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
FR9 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
FSW2 3404-001235 SWITCH-TACT;12V DC,50MA,100GF,62.6X10.8,
FSW8 3404-001164 SWITCH-TACT;12V DC,50MA,100GF,7X7X6.7MM,
JB1 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3
JP5 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
JP6 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
PC1 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
PC10 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
PC11 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
PC12 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
PC3 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
PC4 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
PC5 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,PC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,PC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,PC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,PCN1 3711-001062 CONNECTOR-HEADER;BOX,6P,1R,2mm,STRAIGHT,
PE1 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PE10 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PE3 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PE4 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PE5 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PE6 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PE8 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PE9 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
PIC1 1203-002178 IC-VOLTAGE REGULATOR;1563,SOP,7P,173MIL,
PIC2 1203-002779 IC-VOLTAGE REGULATOR;G952T63U,SOT-223,3P
PL1 2703-000398 INDUCTOR-SMD;10uH,10%,3225
PL2 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216
PL3 2703-000398 INDUCTOR-SMD;10uH,10%,3225
PR1 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
R1 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R2 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608
R3 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
R4 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608
R5 2007-001056 R-CHIP;6.2Kohm,5%,1/10W,TP,1608
RC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC13 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,RC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC15 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,RC16 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
RC17 2203-006035 C-CER,CHIP;220NF,+-10%,10V,X7R,TP,1608
RC18 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
RC19 2203-006035 C-CER,CHIP;220NF,+-10%,10V,X7R,TP,1608
RC2 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,RC21 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC23 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC24 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC25 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC27 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC28 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC29 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
RC3 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,RC31 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC32 2203-006035 C-CER,CHIP;220NF,+-10%,10V,X7R,TP,1608
RC33 2203-000715 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1608,RC34 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,RC35 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608
RC4 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,RC5 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,RC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,RE1 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

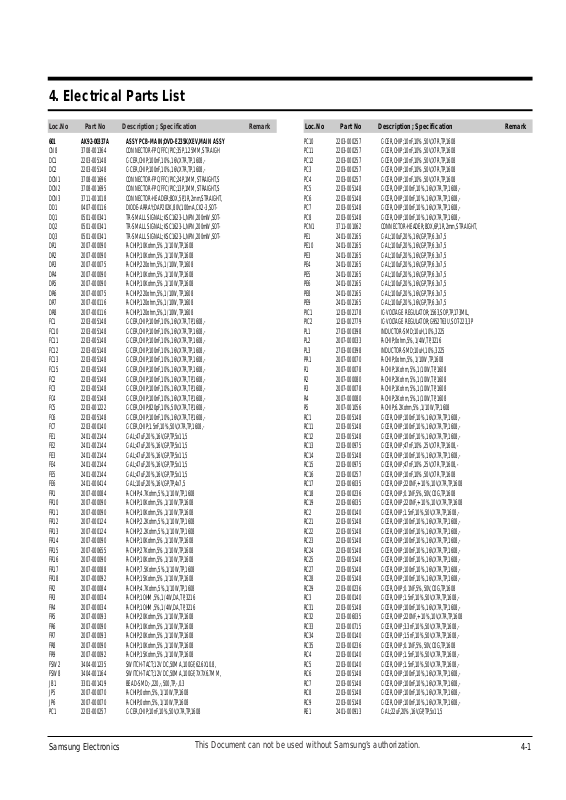

4. Electrical Parts List
This Document can not be used without Samsung’s authorization.
Loc.No Part No Description ; Specification RemarkLoc.No Part No Description ; Specification Remark
4-2
Samsung Electronics
Electrical Parts List
RE10 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
RE2 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
RE3 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
RE4 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
RE5 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5
RE6 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
RE7 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
RE8 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
RE9 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
RIC1 AH13-00009B IC ASIC;S5L1463A01,DVD-P293,80,+5V,-40
RL11 2703-000398 INDUCTOR-SMD;10uH,10%,3225
RL3 2703-000398 INDUCTOR-SMD;10uH,10%,3225
RQ1 0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150mW,SOTRQ2 0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150mW,SOTRR11 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RR12 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216
RR15 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RR16 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RR17 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
RR18 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RR19 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
RR2 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608
RR21 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
RR22 2007-000655 R-CHIP;27Kohm,5%,1/10W,TP,1608
RR23 2007-001235 R-CHIP;910Kohm,5%,1/10W,TP,1608
RR24 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
RR25 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
RR26 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RR28 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RR29 2007-000381 R-CHIP;13Kohm,5%,1/10W,TP,1608
RR3 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
RR31 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
RR32 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
RR33 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608
RR34 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
RR4 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
RR5 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
RR7 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608
RR8 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608
RR9 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216
SC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,SC11 2203-006035 C-CER,CHIP;220NF,+-10%,10V,X7R,TP,1608
SC13 2203-001634 C-CER,CHIP;33nF,10%,50V,X7R,TP,1608,1.6m
SC14 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,SC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,SC16 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
SC17 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
SC18 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
SC2 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,TP,1608
SC23 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,SC24 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608
SC25 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608
SC26 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,SC27 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
SC28 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608
SC29 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608
SC3 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
SC31 2203-000626 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1608
SC32 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608
SC33 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
SC34 2203-000626 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1608
SC35 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
SC36 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
SC38 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,SC4 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,TP,1608
SC41 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,-
SC42 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,SC43 2203-001634 C-CER,CHIP;33nF,10%,50V,X7R,TP,1608,1.6m
SC44 2203-000715 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1608,SC45 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,TP,1608
SC46 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,SC47 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,SC48 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608
SC5 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608
SC50 2203-006035 C-CER,CHIP;220NF,+-10%,10V,X7R,TP,1608
SC51 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
SC53 2203-000426 C-CER,CHIP;0.018NF,5%,50V,C0G,TP,1608
SC54 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,SC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608,SC7 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608
SC8 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,SC9 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,SE1 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
SIC1 AH13-00006B IC ASIC;S5L1455X01,DVD-P293,160,+3.3V,
SIC2 1105-001355 IC-DRAM;416256,256KX16BIT,TSOP(II),40P
SIC3 1003-001489 IC-MOTOR DRIVER;FAN8728,HQFP,48P,14X14MM
SL1 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,150mA,,,,
SL2 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,150mA,,,,
SL3 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3
SR1 2007-001235 R-CHIP;910Kohm,5%,1/10W,TP,1608
SR11 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608
SR13 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
SR14 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
SR15 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
SR16 2007-000655 R-CHIP;27Kohm,5%,1/10W,TP,1608
SR17 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
SR18 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
SR19 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
SR2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
SR20 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
SR21 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608
SR22 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
SR23 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
SR24 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
SR26 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608
SR27 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
SR28 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
SR29 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
SR3 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
SR31 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
SR32 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
SR33 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
SR34 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3
SR35 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
SR36 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
SR39 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608
SR4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
SR41 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
SR42 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
SR43 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
SR44 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
SR45 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
SR46 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608
SR48 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
SR49 2007-000305 R-CHIP;10Mohm,5%,1/10W,TP,1608
SR5 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608
SR50 2007-000305 R-CHIP;10Mohm,5%,1/10W,TP,1608
SR51 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
SR52 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
SR53 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
SR54 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
SR56 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
