Page 1
Samsung Electronics
3-1

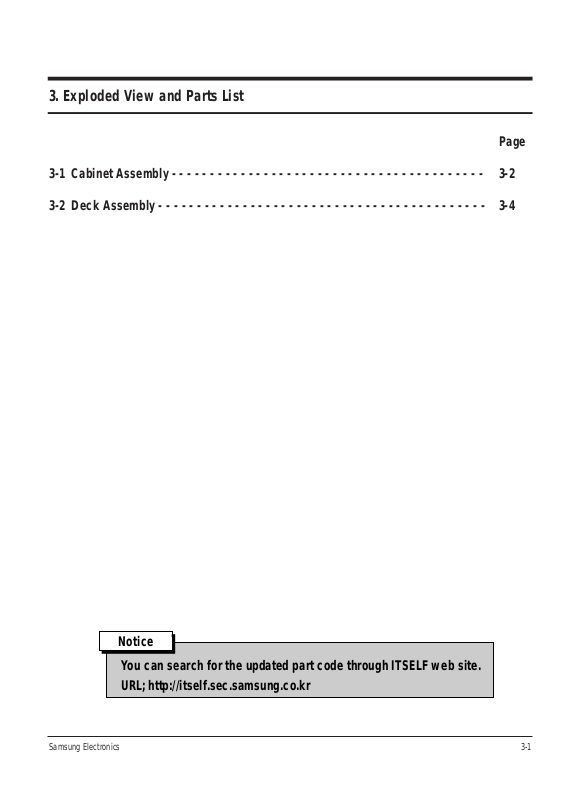

3. Exploded View and Parts List
3-1 Cabinet Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3-2 Deck Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Page
3-2
3-4
You can search for the updated part code through ITSELF web site.
URL; http://itself.sec.samsung.co.kr
Notice
Page 2
Exploded Views and Parts List
3-2
Samsung Electronics
3-1 Cabinet Assembly
S.N.A. : Service Not Available
101
150
152
150
151
150
601 (ASSY-PCB-MAIN)
152
DECK-DVD MECHA (S.N.A.)
602 (ASS'Y-PCB-JACK)
S.N.A (ASS'Y CABINET-BOTTOM)
150
CN1B
UT01
610
1
2
3
Page 3
Exploded Views and Parts List
3-3
Samsung Electronics
Loc. No Parts No. Description ; Specification Remark
1 AK97-00541B ASSY FRONT CABINET;ABS 94HB,DVD-E235K/XE
2 AK97-00396A ASSY-DOOR;ABS 94HB,DVD-E235,XEF
3 AH64-01320H KNOB-VOLUME;DVD-P393,ABS 94HB,-,-,-,-,A8
101 AK64-00101B CABINET-TOP;EXINO,PCM T0.65,-,-,-,-,SILV
150 6003-000275 SCREW-TAPTITE;BH,+,B,M3,L10,BLK ,SWCH101
151 6003-000262 SCREW-TAPTITE;BH,+,B,M3,L6,CBLACK,SWRCH1
152 6003-000283 SCREW-TAPTITE;BH,+,B,M3,L8,ZPC(YEL),SM20
601 AK92-00337A ASSY PCB-MAIN;DVD-E235K/XEV,MAIN ASSY
602 AK92-00338A ASSY PCB-JACK;DVD-E235K/XEV,JACK ASSY
610 AC39-10019A CBF POWER CORD;KKP-419C,H03VVH2-F,VDE/KE
CN1B 3809-001180 CABLE-FLAT;30V,-30to+80C,80mm,35P,1.25mm
UT01 AH59-00092X REMOCON-ASSY;DVD-E338K/ASIA,ASIA,-,-,-,-
Page 4
Exploded Views and Parts List
3-4
Samsung Electronics
3-2 Deck Assembly
H106
H105
H107
H102
H205
903
H204
900
904
903
900
H104
H108
H241
H211
H203
H210
H103
S.N.A.
H206
H207
H206
H202
H209
Page 5
Exploded Views and Parts List
3-5
Samsung Electronics
Loc. No Parts No. Description ; Specification Remark
900 6003-001157 SCREW-TAPTITE;PWH,+,B,M2,L6,ZPC(YEL),SWR
903 6001-001370 SCREW-MACHINE;CH,+,M1.7,L3.0,ZPC(YEL),SW
904 6002-001086 SCREW-TAPPING;PH,+,B,M1.7,L5.0,ZPC(YEL),
H102 AH66-00111B CLAMPER-ASSY;DP-5,POM+MAGNET,-,-,-,-,-,H103 AK66-00007A PULLEY-GEAR;DP-9,POM ,-,-,-,-,-,H104 AK31-00003A MOTOR-LOAD ASSY;SM-2412L2,DP-9,-,-,-,-,H105 6602-001076 BELT-RECTANGULAR;CR,T1.2,4.3%,1.2X25.1,B
H106 AK66-00008A GEAR-TRAY;DP-9,POM,-,-,-,-,-,-,H107 AK66-00009A SLIDER-HOUSING;DP-9,POM,-,-,-,-,H108 AK63-00008A TRAY-DISC;DP-9,ABS,-,-,-,-,BLK,DP-9
H202 AK73-00005A RUBBER-INSULATOR;DP-9,BUTYL RUBBER,-,-,H203 AH61-50327A SHAFT-P/U;DP-3,SUS420J2,L84.7,OD3,-,-,H204 AK66-00010A GEAR-FEED A;DP-9,POM ,-,-,-,-,-,-,H205 AK66-00011A GEAR-FEED B;DP-9,POM ,-,-,-,-,-,-,H206 AK61-00032A HOLDER-CAM SKEW;DP-9,POM,-,-,-,BLACK,H207 AK31-00004A MOTOR SPINDLE;RSM-2606A1,DP-9,350MA,-,-,
H209 AK64-00052A CHASSIS-SUB;DP-9,ABS(SR-0320),0,0,0,-,H210 AK31-00005A MOTOR-FEED ASSY;-,DP-9,-,-,-,-,-,-,-,-,H211 AK97-00166B ASSY-PICK UP;-,SOH-DSSB T544C,SEM,W/T
H241 3809-001409 CABLE-FLAT;30V,80C,230MM,24P,1MM,UL2896
Page 6
Exploded Views and Parts List
3-6
Samsung Electronics
MEMO
