Samsung DV90K6000CW/LE User Manual
Heat Pump Dryer
User manual
DV9*K60****/DV8*K60****
DV6000K_DC68-03709F_EN (YLE).indd 1 4/5/2016 4:41:27 PM
Contents
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 5
Instructions about the WEEE 12
Installation 13
Unpacking your dryer and installing guide 13
See dryer exterior 13
Check before installing 15
Before using the product 15
Important to installer 15
Location considerations 16
Alcove or closet installation 16
Electrical requirements 16
Grounding 17
Installation side by side 17
Final installation checklist 18
Draining water without using the water tank 18
Connecting the drain hose 19
Installation stacking 22
Before you start 25
Cleaning the lter case 25
Rack Dry (DV9 series only) 26
Load the dryer properly 27
Getting started 28
Operations 29
Overview of the control panel 29
Simple steps to start 32
Cycle overview 33
Drying guide 35
Special features 36
English2
DV6000K_DC68-03709F_EN (YLE).indd 2 4/5/2016 4:41:27 PM
Maintenance 38
Clean the heat exchange 38
Control panel 38
Stainless steel tumbler 38
Dryer exterior 38
Dumping condensed water
Cleaning the heat exchanger lter
39
40
Troubleshooting 42
Check these points if your dryer… 42
Information codes 44
Appendix 45
Fabric care chart 45
Protecting the environment 46
Specication 47
Consumption data 48
Sheet of household tumble driers 49
Contents
English 3
DV6000K_DC68-03709F_EN (YLE).indd 3 4/5/2016 4:41:28 PM
Safety information
Congratulations on your new Samsung dryer. This manual contains important information
on the installation, use, and care of your appliance. Please take the time to read this
manual to take full advantage of your dryer’s many benets and features.
What you need to know about the safety instructions
Warnings and Important Safety Instructions in this manual do not cover all possible
Safety information
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or
property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
Read the instructions
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist.
To safely operate this appliance, familiarize yourself with its operation and exercise care
when using it.
WARNING - Risk of Fire
• Clothes dryer installation must be performed by a qualied technician.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• To reduce the risk of severe injury or death, follow all installation instructions.
English4
DV6000K_DC68-03709F_EN (YLE).indd 4 4/5/2016 4:41:28 PM
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons
when using your appliance, follow basic precautions, including the
following:
1. This appliance is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
2. For use in Europe: This appliance can be used by children aged
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Safety information
3. Children should be supervised to ensure that they do not play
with the appliance.
4. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be used and
that old hose-sets should not be reused.
6. For appliances with ventilation openings in the base, that a carpet
must not obstruct the openings.
English 5
DV6000K_DC68-03709F_EN (YLE).indd 5 4/5/2016 4:41:28 PM
Safety information
7. For use in Europe: Children of less than 3 years should be kept
away unless continuously supervised.
8. CAUTION: In order to avoid a hazard due to inadvertent resetting
of the thermal cut-out, this appliance must not be supplied
Safety information
through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and off by the
utility.
9. The tumble dryer is not to be used if industrial chemicals have
been used for cleaning.
10. The lint trap has to be cleaned frequently, if applicable.
11. Lint must not to be allowed to accumulate around the tumble
dryer. (not applicable for appliances intended to be vented to the
exterior of the building)
12. Adequate ventilation has to be provided to avoid the back ow
of gases into the room from appliances burning other fuels,
including open res.
13. Do not dry unwashed items in the tumble dryer.
14. Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine,
waxes and wax removers should be washed in hot water with
an extra amount of detergent before being dried in the tumble
dryer.
15. Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows tted with
foam rubber pads should not be dried in the tumble dryer.
16. Fabric softeners, or similar products, should be used as specied
by the fabric softener instructions.
English6
DV6000K_DC68-03709F_EN (YLE).indd 6 4/5/2016 4:41:28 PM
17. The nal part of a tumble dryer cycle occurs without heat (cool
down cycle) to ensure that the items are left at a temperature
that ensures that the items will not be damaged.
18. Remove all objects from pockets such as lighters and matches.
19. WARNING: Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and spread out
so that the heat is dissipated.
20. Exhaust air must not be discharged into a ue which is used for
exhausting fumes from appliances burning gas or other fuels.
21. The appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the tumble dryer, in such a way that a full opening of the tumble
dryer door is restricted.
22. WARNING: The appliance must not be supplied through an
external switching device, such as a timer, or connected to a
Safety information
circuit that is regularly switched on and off by a utility.
Heat pump model only: The instructions shall also include the
substance of the following:
WARNING: In the appliance enclosure or in the built-in structure,
keep ventilation openings clear of obstruction.
WARNING: Do not damage the refrigerant circuit.
Critical installation warnings
WARNING
The installation of this appliance must be performed by a qualied technician or service
company.
• Failure to do so may result in electric shock, re, an explosion, problems with the
product, or injury.
Plug the power cord into an AC 220-240 V / 50 Hz wall socket or higher and use the
socket for this appliance only. In addition, do not use an extension cord.
English 7
DV6000K_DC68-03709F_EN (YLE).indd 7 4/5/2016 4:41:28 PM
Safety information
• Sharing a wall socket with other appliances using a power strip or extending the
power cord may result in electric shock or re.
• Ensure that the power voltage, frequency and current are the same as those of the
product specications. Failure to do so may result in electric shock or re. Failure Plug
the power plug into the wall socket rmly.
Safety information
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock or re.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
• If a child places a bag over its head, it may result in suffocation.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
• This may result in electric shock, re, an explosion, or problems with the product
• Never plug the power cord into a socket that is not grounded correctly and make sure
that it is in accordance with local and national codes.
Do not install or keep the product exposed to the outdoor elements.
Do not use a damaged power plug, damaged power cord or loose wall socket.
• This may result in electric shock or re.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its
service agent or a similar qualied technician in order to avoid a hazard.
This appliance should be positioned to be accessible to the power plug after installation.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
• This may result in electric shock or re.
Do not pull the power cord, when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failure to do so may result in electric shock or re.
This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately and in accordance with local and national codes. See
installation instructions for grounding this appliance.
Install this appliance in a location with solid, level oor.
• Failing to do so may result in abnormal vibrations, noise or problems with the product.
English8
DV6000K_DC68-03709F_EN (YLE).indd 8 4/5/2016 4:41:28 PM
Since an ingredient in hair spray may degrade the hydrophile property of the heat
exchanger so that dew may appear on the outer surface of the appliance when the cooling
operation is running, do not install the appliance in a beauty salon.
This appliance should be positioned so that the power plug, the water supply taps, and the
drain pipes are accessible.
Critical usage warnings
WARNING
Do not let children or pets on or into the product. In addition, when disposing of this
product, disassemble the door lock (lever).
• This may result in children falling and injuring themselves.
• If children become locked in the product, there is a danger of suffocation.
Do not try to access the inside of the product when the drum is rotating.
Do not sit on the product or lean against the door.
• This may result in the product turning over and resulting in injury.
Dry the laundry only after it was spun by an appropriate washing machine.
Do not dry unwashed items in the tumble dryer.
Do not drink the condensed water.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
Do not dry laundry contaminated by inammable materials such as gasoline, kerosene,
benzene, thinner, alcohol, etc.
• This may result in electric shock, re or explosion.
Do not let pets chew or play with the dryer.
• This may result in electric shock or injury.
When disposing of the product, separate the door and the power cord before disposing of
the product.
• Failing to do so may result in damage to the power code or an injury.
Do not touch the power plug with wet hands.
• This may result in electric shock.
When gas (city gas, propane gas, LP gas) leaks, do not touch this appliance or the power
cord, ventilate immediately.
• At this time, do not use the ventilating fan.
• A spark may cause an explosion or re.
Do not repair, replace, or attempt to service any part of the appliance unless specically
recommended in the user-repair instructions. You must also have the skills necessary to
service this appliance.
Safety information
English 9
DV6000K_DC68-03709F_EN (YLE).indd 9 4/5/2016 4:41:28 PM
Safety information
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
• When repairing or reinstalling the appliance is required, contact your nearest service
center.
• Failure to do so may result in electric shock, re, problems with the product, or injury.
Safety information
The product you have purchased is designed for domestic use only.
The use for business purposes qualies as product misuse. In this case, the product will
not be covered by the standard warranty provided by Samsung and no responsibility can
be attributed to Samsung for malfunctions or damages resulting from such misuse.
If the product generates strange noise, smells of something burning, or generates smoke,
immediately cut-off the power and contact the service center.
• Otherwise, it may cause an electric shock or re as a result.
Do not let children (or pets) play in or on your product. The product door does not open
easily from the inside and children may be seriously injured if trapped inside.
Usage cautions
CAUTION
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, re, problems with the product, or injury.
Do not touch the glass door and inside of the drum during or just after drying as it is hot.
• This may result in burns.
Do not press the buttons using sharp objects such as pins, knifes, ngernails, etc.
• This may result in electric shock or injury.
Do not dry laundry containing forming rubber (latex) or similar rubber textures.
• If forming rubber is heated, it may start a re.
Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the
oil will not be removed when washing the laundry. In addition, use the Cool Down cycle so
that the laundry is not heated.
• The oxidization heat of the oil may start a re.
Make sure that the pockets of all clothing to be dryed are empty.
• Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
Do not dry clothing with large buckles, buttons, or other heavy metal (zippers, hooks and
eyelets, button-up covers).
If necessary, use the laundry net for small and lightweight laundry such as fabric tie belt ,
apron strings, and underwire bras which can dissolve or break during a cycle.
English10
DV6000K_DC68-03709F_EN (YLE).indd 10 4/5/2016 4:41:28 PM
Recommend against using drying sheets to reduce static electricity as this could lead to
damage to your laundry and also potential damage to the appliance.
• This may result in damage to the laundry.
Do not use the dryer near dangerous powders such as coal dust, wheat our, etc.
• This may result in electric shock, re or an explosion.
Do not place inammable materials near the product.
• This may result in toxic gases from the product, damage to parts, electric shock, re or
an explosion.
• The appliance should not be placed behind lockable doors etc.
Do not touch the rear side of the appliance during or immediately after drying is
complete.
• The appliance remains hot and may cause burns.
Contains uorinated greenhouse gases.
Hermetically sealed equipment.
Do not vent gases into the atmosphere.
Refrigerant (Type): R-134a (GWP = 1430)
Refrigerant (Charging): 0.572 tCO
e
2
Critical cleaning warnings
Safety information
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
• This may result in discolouration, deformation, damage, electric shock or re.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failure to do so may result in electric shock or re.
Clean the lter case before and after using the dryer.
Clean the inside of the product on a regular basis by asking an authorized service
engineer.
Clean the Heat Exchanger with a soft brush or vacuum cleaner once a month, Do not touch
the heat exchanger with your hand. Otherwise, it may cause an injury.
The interior of the dryer should be cleaned periodically by qualied service personnel.
English 11
DV6000K_DC68-03709F_EN (YLE).indd 11 4/5/2016 4:41:28 PM
Safety information
Instructions about the WEEE
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in countries with separate collection systems)
Safety information
For information on Samsung’s environmental commitments and product specic
regulatory obligations e.g. REACH visit: samsung.com/uk/aboutsamsung/
samsungelectronics/corporatecitizenship/data_corner.html
This marking on the product, accessories or literature indicates
that the product and its electronic accessories (e.g. charger,
headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, please separate these items from
other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government ofce, for details
of where and how they can take these items for environmentally
safe recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product and its
electronic accessories should not be mixed with other commercial
wastes for disposal.
English12
DV6000K_DC68-03709F_EN (YLE).indd 12 4/5/2016 4:41:29 PM
Installation
06
01
03
02
04
05
Unpacking your dryer and installing guide
Hire a professional to install this dryer properly. If there is a service call performed as a
result of poor setup, adjustment, and connection, it is considered the responsibility of the
installer. It is recommended that a professional is called to install this appliance, especially
for more difcult installations involving draining to the mains water supply or product
stacking. If problems of installation result in a service visit to x a fault, this is typically
considered to be the responsibility of the installer.
Make sure you have everything necessary for proper installation (AC 220-240 V / 50 Hz).
A grounded electrical outlet is required. See "Electrical requirements" (See page 16).
See dryer exterior
Installation
01 Cover top 02 Water tank 03 Filter case
04 Levelling feet 05 Door 06 Control panel
English 13
DV6000K_DC68-03709F_EN (YLE).indd 13 4/5/2016 4:41:29 PM
Installation
Parts
Installation
Hose guide Cable tie Hose connector Long drain hose
(2 m)
Manual book Rack Dry (9 Series)
English14
DV6000K_DC68-03709F_EN (YLE).indd 14 4/5/2016 4:41:30 PM
Check before installing
• Do not plug the power cord into the wall outlet before completing the dryer
installation.
• Check the appearance of the product for any damaged parts before starting the
product installation.
• If there are any parts that appear to be damaged, please contact your nearest
Samsung Customer Service Center.
• When moving the product, do not move the product by yourself.
• Take care of the edges of the dryer as they can be sharp.
• Do not install the dryer in a location exposed to frost. Cold water may damage the
product.
• Use the product indoors only.
• Do not place the dryer on one side when lifting it, and do not move the dryer in such
a way that the internal parts shake. This may result in damage to the internal parts of
the product.
Before using the product
• Check if there are any accessories remaining inside the drum.
• Plug in the power cord just before operating the product.
• Do not block the air inlet hole of the cooling grill at the front of the dryer.
• Do not place inammable objects near the dryer and keep the surroundings clean.
• Keep the dryer level with the ground.
• Do not remove the adjustable levelling feet of the dryer. They are necessary to keep
the product level with the ground.
Installation
Important to installer
Please read the following instructions carefully before installing the dryer. These
instructions should be kept for future reference.
WARNING
Remove the door from all discarded appliances to avoid the danger of a child suffocating.
English 15
DV6000K_DC68-03709F_EN (YLE).indd 15 4/5/2016 4:41:30 PM
Installation
Location considerations
Because a condensing type has been adopted, which condenses and processes air inside
the dryer, external ventilation is not required.
Therefore, The dryer can be installed and used in any location where the temperature
is between 5 and 35 degrees centigrade, unlike a conventional dryer that requires an
external exhaust system.
Alcove or closet installation
Installation
To operate safely and properly, your new dryer requires minimum clearances of:
Sides – 25 mm Rear – 51 mm
Top – 25 mm Front – 490 mm
If both the washing machine and a dryer are installed together, the front of the alcove or
closet must have at least 490 mm unobstructed air opening.
Electrical requirements
Electrical requirements is AC 220-240 V / 50 Hz.
• Improper connection of the equipment grounding conductor can result in a risk of
• To prevent unnecessary risk of re, electrical shock, or personal injury, all wiring and
NOTE
WARNING
electric shock.
Check with a qualied electrician or serviceman if you are in doubt as to whether your
dryer is properly grounded. Do not modify the plug provided with your dryer – if it
doesn’t t the outlet, have a proper outlet installed by a qualied electrician.
grounding must be done in accordance with local codes, or in the absence of local
codes, It is your responsibility to provide adequate electrical services for your dryer.
Grounding
Your dryer must be grounded. If your dryer malfunctions or breaks down, grounding will
reduce the risk of electric shock by providing a path of least resistance for the electric
current.
Your dryer comes with a power cord having a three-prong grounding plug for use in a
properly installed and grounded outlet.
English16
DV6000K_DC68-03709F_EN (YLE).indd 16 4/5/2016 4:41:31 PM
NOTE
B
A
Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
Improperly connecting the equipment-grounding conductor can result electrical shock.
Check with a qualied electrician or serviceman if you are unsure if the dryer is properly
grounded. Do not modify the plug provided with the dryer. If it does not t the outlet,
have a proper outlet installed by a qualied electrician.
WARNING
If the product is not grounded, there is a danger of re or electric shock.
Installation side by side
For proper installation, we recommend that you hire a professional. To install:
1. Move your dryer to an appropriate
location for installation. Consider
installing the dryer and washer sideby-side. Lay two of the carton cushiontops on the oor. Tip your dryer on its
side so it will lay across both cushiontops.
2. Set your dryer back in an upright
position.
3. Use a level (A) to check if the dryer is
level. If not, adjust the leveling feet (B)
at the bottom of the dryer. Repeat this
adjustment until the dryer is level.
Installation
CAUTION
• To ensure optimal performance, the
dryer must be level.
A. Level
B. Levelling feet

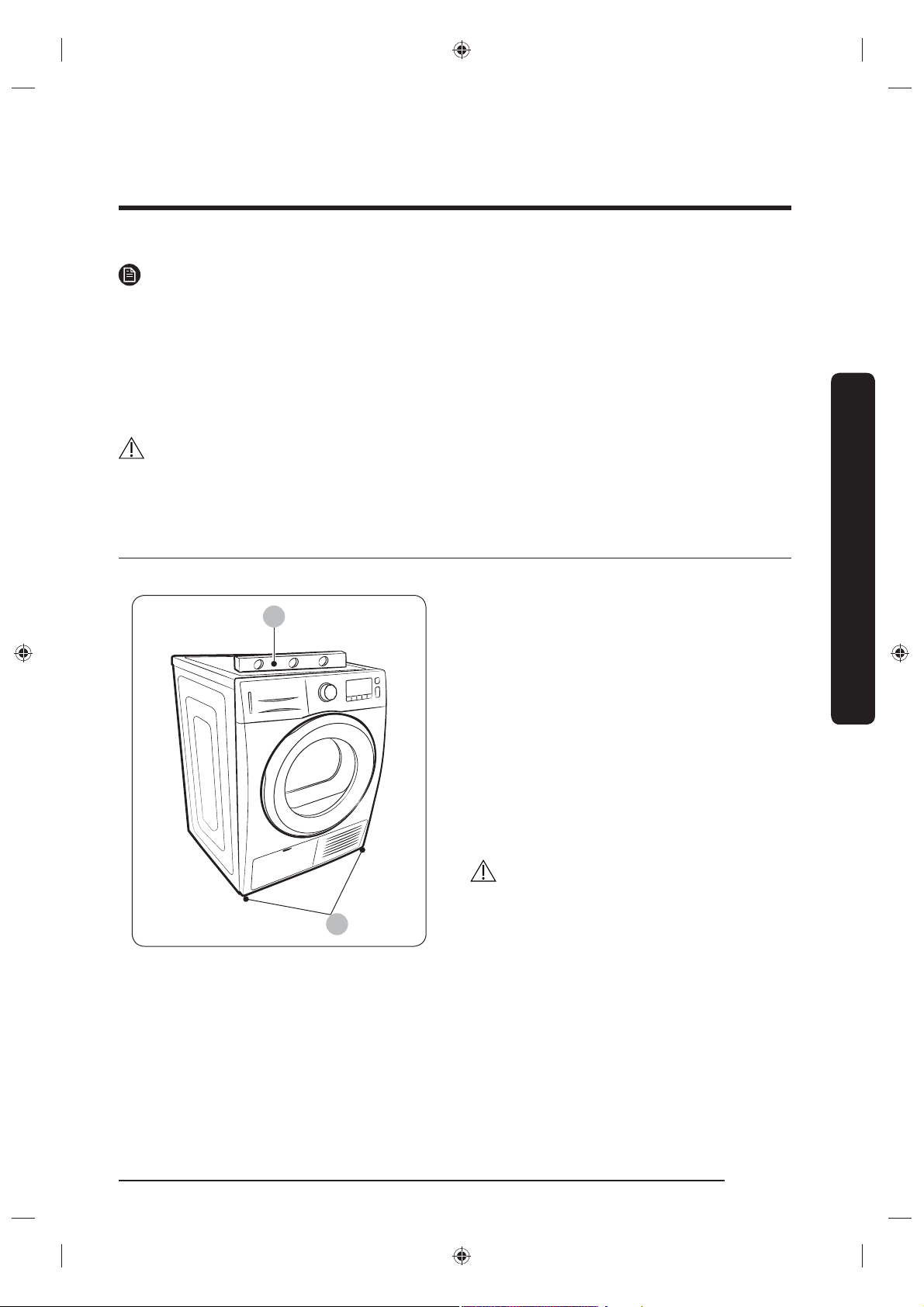

• To minimize vibration, noise, and
unwanted movement of the dryer, the
oor must be a at, solid surface.
English 17
DV6000K_DC68-03709F_EN (YLE).indd 17 4/5/2016 4:41:31 PM
Installation
A B
Installation
4. Review "Electrical requirements" section (See page 16).
5. With a level, check your dryer and make necessary adjustments to the levelling legs.
6. Plug in your dryer, and check operation by using the checklist below.
NOTE
• To set the dryer to the same height
as the washer, fully retract (A)
the levelling feet by turning them
counterclockwise, then loosen (B) the
legs by turning them clockwise.
• Adjust the levelling feet only as
much as necessary to level the dryer.
Extending the levelling feet more
than necessary can cause the dryer to
vibrate.
Before operating or testing.
Final installation checklist
• Dryer is plugged into electrical outlet and is properly grounded.
• Dryer is leveled and is sitting rmly on the oor.
• Start your dryer to conrm that it runs, heats, and shuts off.
• Finally, check if the "HC" check occurs when after running the TIME DRY
20 minutes.
cycle for
Draining water without using the water tank
You can use the dryer without using the water tank by following the procedures below.
Install the drain hose so that water can be drained well.
• Otherwise, the water may overow and it may cause damage to the properties.
English18
DV6000K_DC68-03709F_EN (YLE).indd 18 4/5/2016 4:41:31 PM

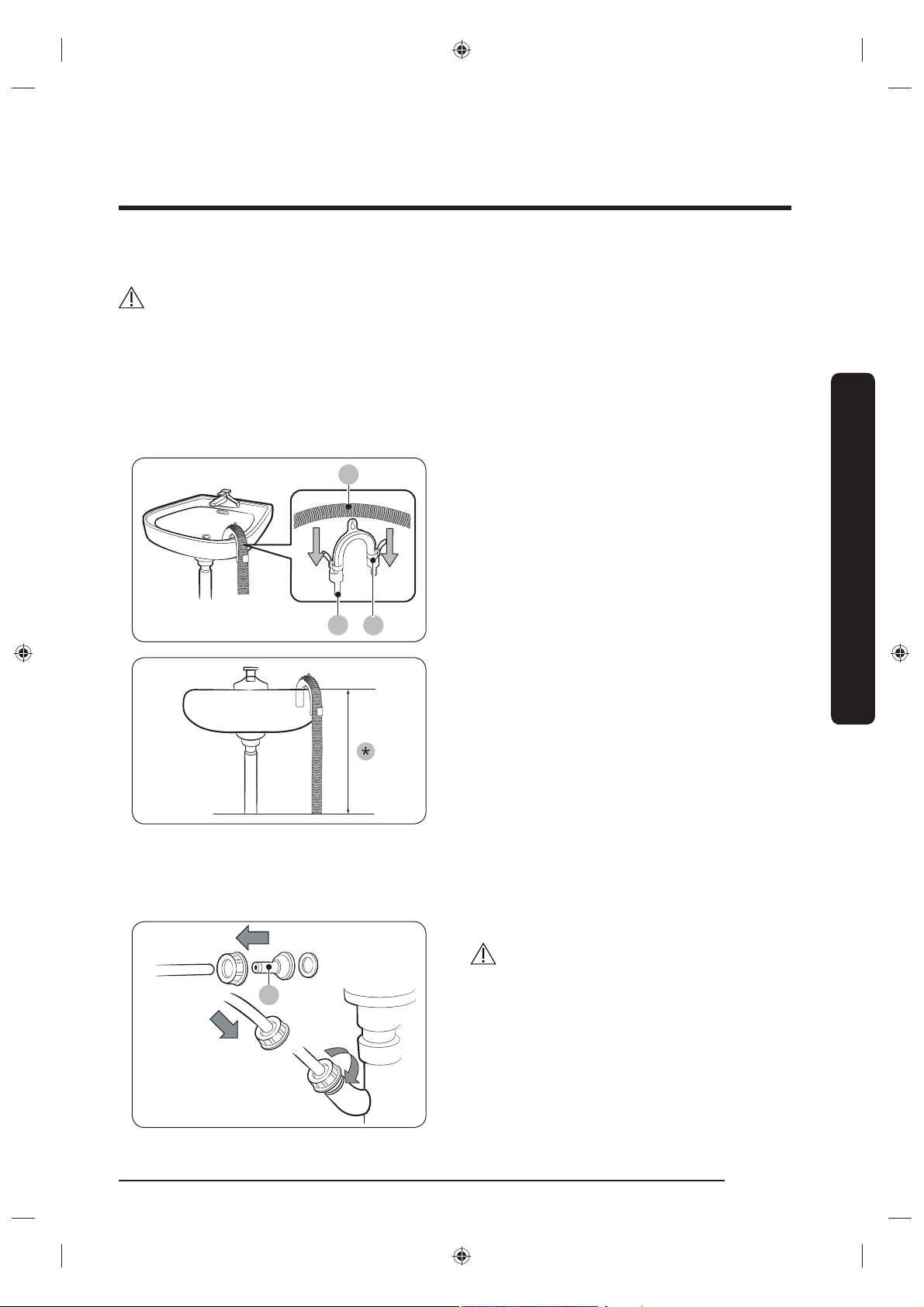

Connecting the drain hose
A
A
The dryer can pump the condensed water
outside of the dryer directly with dain
hose provide.
The procedures to connect the drain hose
are as follows.
Installation
1. Disconnect the drain hose (A).
2. Connect the drain hose (A) to the other
hole.
English 19
DV6000K_DC68-03709F_EN (YLE).indd 19 4/5/2016 4:41:32 PM
Installation
B
Installation
3. Connect accessory hose (long drain
hose) to the hole next to the hole that
is connected to drain hose (B).
CAUTION
• Because the dryer’s drain pump can
only pump up the drain water to a 90
cm height, when you connect the drain
hose (B) to the drain point, make sure
that the height of drain point does not
exceed 90 cm.
A drainage check may occur if the
drain point exceeds 90 cm. If a
drainage check occurs, the control
panel displays an check code.
• After connecting the drain hose, you
can directly drain the condensed
water via the drain-outlet through the
connected drain hose or through the
washstand or the drain-outlet of the
washstand.
English20
DV6000K_DC68-03709F_EN (YLE).indd 20 4/5/2016 4:41:32 PM
Connecting the drain hose
C
B
A
A
CAUTION
Do not extend the drain hose.
• Since water may leak from the connected part, be sure to one long drain hose instead
of connecting short ones. If you cannot help connecting more than one hose, be sure to
seal the connected parts with silicone sealant. (Do not use the electric insulating tape
for sealing.)
The end of the drain hose can be positioned in three ways:
1. Over the edge of a wash basin: The
drain hose must be placed lower than
90 cm. If the end of the drain hose
needs to be placed above the ground,
we recommend a height of 60−90 cm
(*). To keep the drain hose spout bent,
use the supplied plastic hose guide.
Secure the guide to the wall with a
hook or to the tap with a piece of
string to prevent the drain hose from
moving.
2. Assemble the drain hose (A) and the
hose guide (B) and x them with the
cable-tie (C).
3. You can drain the condensed water by
connecting the accessory hose (long
drain hose) to the drain-outlet directly.
Installation
Connecting the direct-hose
You can immediately drain the condensed water that comes out while drying, by
connecting the drain hose to the tap.
1. Assemble the hose connector (A) and
the hose.
CAUTION
Since there is a danger of water leaking
from the hose connecter and accessory
hose, make sure that they are connected
rmly.
DV6000K_DC68-03709F_EN (YLE).indd 21 4/5/2016 4:41:33 PM
English 21
Installation
2. Connect the end of the hose to the tap.
Installation
Installation stacking
In case of purchasing the additional stacking kit, contact our Samsung service center or
local distributers. (Part No. SK-DH / SK-DA / SKK-DF)
The stacking kit differs depending on the model.
Only use the product in 1 hour after installing the stacking kit by tilting the product so
that the product can run after the oil in the compressor becomes stable.
1. Carefully lay the dryer on its side.
Use the packing material so you don’t
scratch the nish on the dryer.
2. Install rubber pads to dryer base.
• Locate the 4 rubber pads in the
parts package. Insert the rubber
pads into the holes at the bottom of
the levelling legs.
• Purchase the stacking-kit package
additionally.
3. Set the dryer upright.
CAUTION
The stacking kit can only be installed for
Samsung family products.
English22
DV6000K_DC68-03709F_EN (YLE).indd 22 4/5/2016 4:41:33 PM
A
A. Bracket-Stacking
B
B. Screw

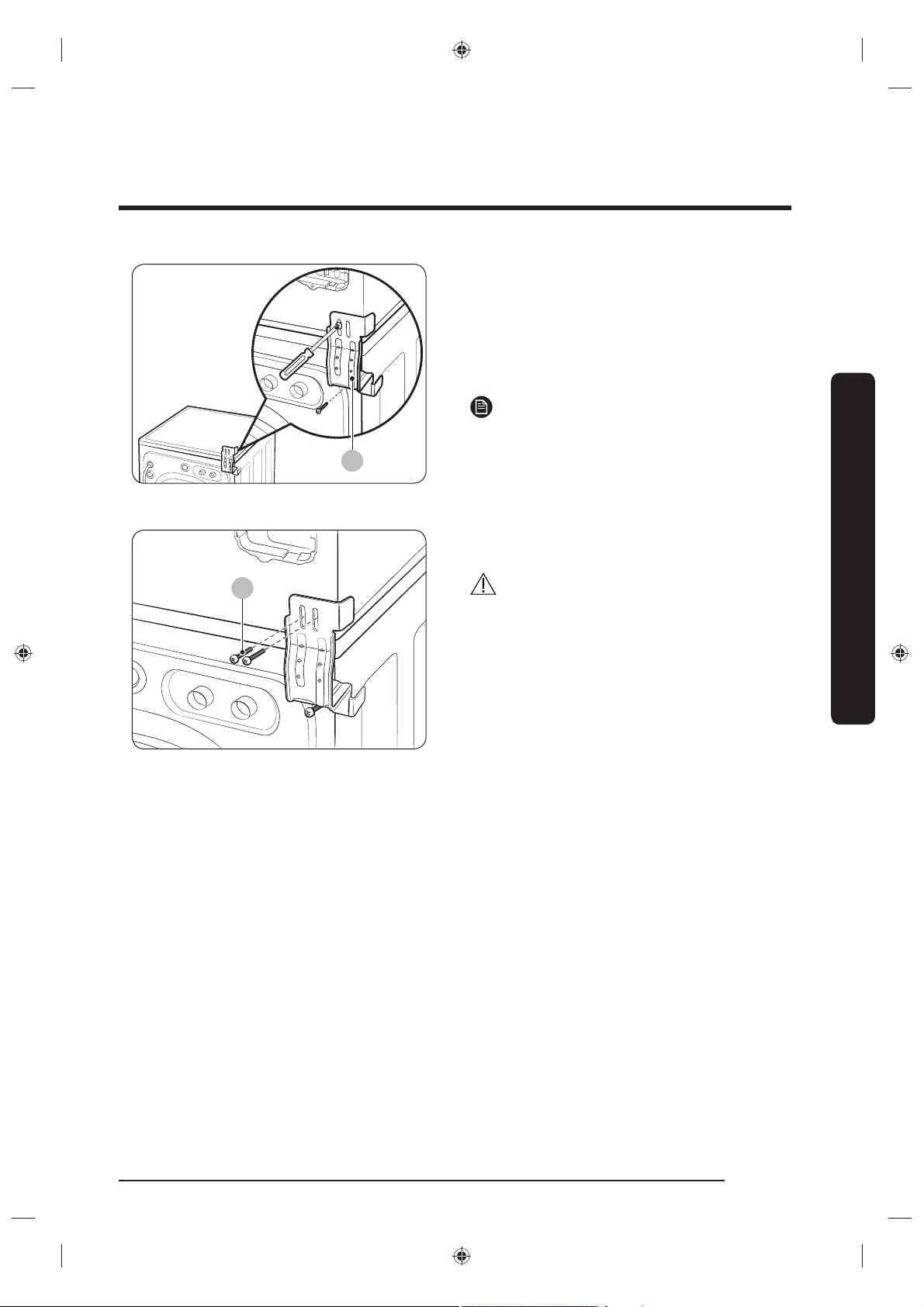

4. Install bracket to dryer.
• Remove washer top cap screw from
the rear left. Align left bracket holes
with top cap screw hole on rear left
of the unit and replace screw.
• Repeat the above step with the
right side.
NOTE
Leave screw loose so dryer hole alignment
will be easier.
Installation
5. Install dryer and bracket on washer
WARNING
• Lift the dryer on top of the washer.
Protect the washer control panel with
cardboard or other protection. Be sure
to lift the dryer high enough to clear
the washer control panel.
Personal Injury. More than two people
are recommended to lift the dryer into
position because of its weight and size.
Failure to do so could result in injury.
• Align the holes in the bracket with the
holes in the back of the dryer. Using
a Phillips screwdriver, attach the
M4 x 12 tapping screws.
• Tighten the washer bracket screws ;
then tighten all stacking kit screws.
English 23
DV6000K_DC68-03709F_EN (YLE).indd 23 4/5/2016 4:41:34 PM
Installation
C
D
Installation
C. Dryer
D. Washer

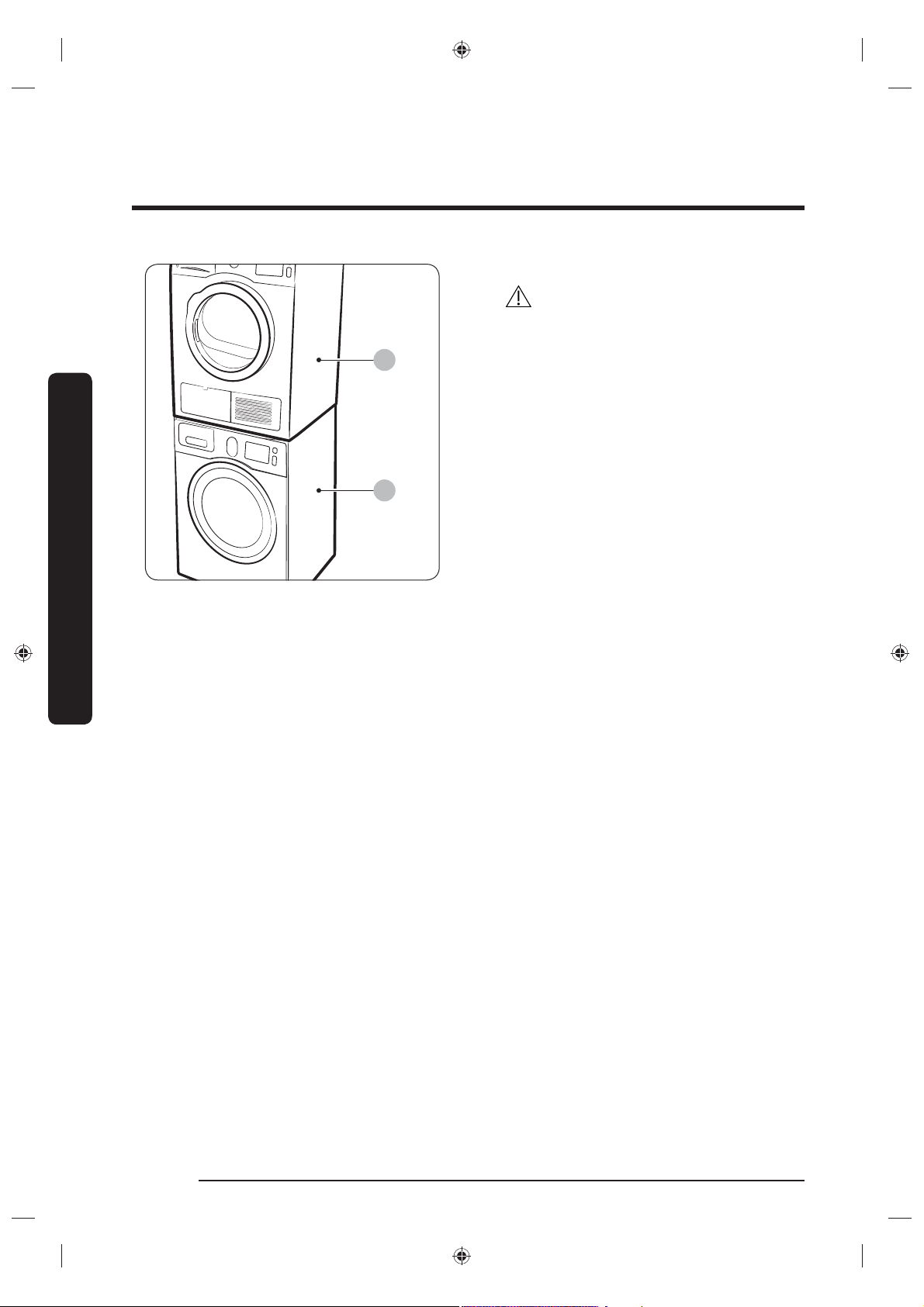

6. Finalise the installation
WARNING
• Refer to the washer Installation
Instructions to complete the washer
installation.
• Refer to the dryer Installation
Instructions to complete the dryer
installation.
• Carefully slide or walk the stacked
washer and dryer into place. Use
felt pads or other sliding device
to assist moving and to protect
ooring.
• Do not push on the dryer once
installed to top of the washer.
Pushing on the dryer may result in
pinched ngers.
English24
DV6000K_DC68-03709F_EN (YLE).indd 24 4/5/2016 4:41:34 PM
Before you start
A

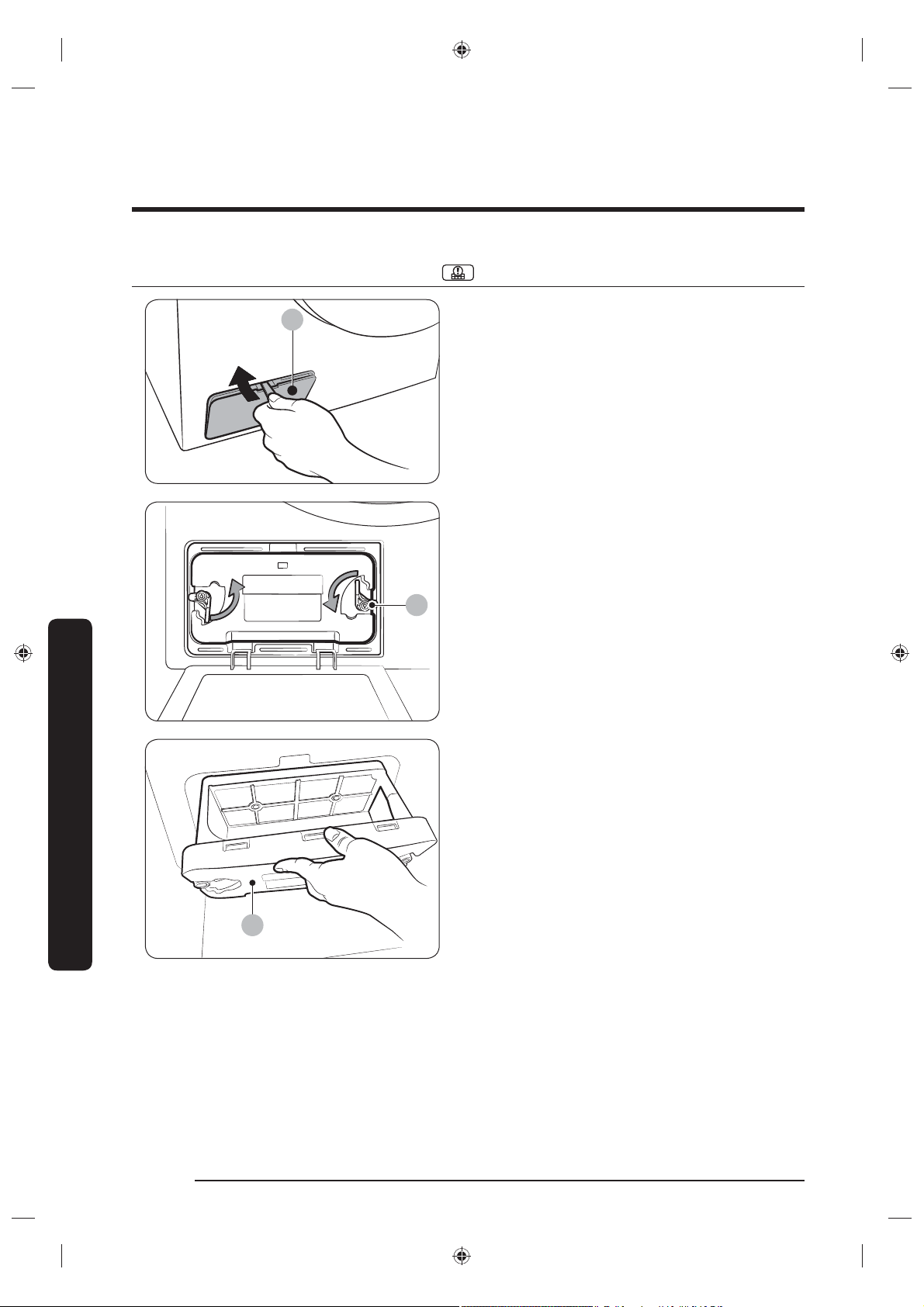

Cleaning the lter case
1. Open the door and remove the lter (A)
by pulling it upwards.
2. Open and clean the lter case.
• Clean the lter case after the
drying operation is completed.
CAUTION
• Since the drying performance may be degraded and there is a danger of re if you do
not clean the lter case after the specied period of use, clean the lter case at the
specied cleaning interval.
• Clean the lter case after every drying operation.
Before you start
NOTE
• If the surface of the lter is wet, use the lter after drying it completely.
English 25
DV6000K_DC68-03709F_EN (YLE).indd 25 4/5/2016 4:41:34 PM
Before you start
A
Rack Dry (DV9 series only)
Installing the drying rack
Before you start
A. Rack Dry
1. Open the dryer door.
2. Position the drying rack in the tumbler,
placing the front lip of the drying rack
on the top of the lint lter case.
3. Place the rear legs in the two recessed
areas of the dryer’s back wall then
push down the middle of the drying
rack to x.
4. Place the items to be dried on the rack,
leaving space between them so air can
circulate.
5. Close the dryer door.
6. Press the Power
7. Select TIME DRY by using the cycle
selector dial, set the Time button.
button.
NOTE
• You can set the drying time up to 150
minutes. Select the time according to
the moisture and weight of the items. It
may be necessary to reset the timer if
a longer drying time is needed. (When
you dry laundry using the drying rack,
using the TIME DRY
recommended.)
8. Press the Start/Pause
cycle is
button.
English26
DV6000K_DC68-03709F_EN (YLE).indd 26 4/5/2016 4:41:35 PM
Drying rack drying suggestions
Items Remarks (Max 1.5 kg)
Washable sweaters
(block to shape and lay at on rack)
Stuffed toys
(cotton or polyester berlled)
Stuffed toys
When drying the laundry using the Rack, fold
and place the clothes on the Rack to prevent the
clothing from becoming wrinkled.
(foam or rubber-lled)
Foam rubber pillows
To dry sports shoes, place the shoes on the
Sneakers
Rack so that the soles of the shoes are facing
downwards.
WARNING
Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the items
and lead to a re hazard.
CAUTION
When drying shoes, use the provided Rack Dry to prevent damage to the dryer.
Load the dryer properly
• Place only one wash load in your dryer at a time.
• Mixed loads of heavy and lightweight fabrics will dry differently, which may result in
lightweight fabrics being dry while heavy fabrics remain damp at the end of a drying
cycle.
• Add one or more similar items to your dryer when only one or two articles of clothing
need drying. This improves the tumbling action and drying efciency.
• Overloading restricts tumbling action, resulting in uneven drying as well as excessive
wrinkling of some fabrics.
• Make sure to insert laundry that has been spun by an appropriate washing machine.
• No unwashed textiles should be dried
• Textiles which have been in contact with oil, alcohol, petrol etc. should not be dried.
Before you start
English 27
DV6000K_DC68-03709F_EN (YLE).indd 27 4/5/2016 4:41:35 PM
Before you start
Getting started
1. Load your dryer loosely – DO NOT overload.
2. Close the door.
3. Select the appropriate cycle and options for the load.
4. Press the Start/Pause
5. The dryer indicator light will illuminate.
6. The estimated cycle time will appear in the display.
The time may uctuate to better indicate drying time remaining in the cycle.
NOTE
• When the cycle is complete and “End” (or “0”) will appear in the display.
• Pressing Power
• The Drying, Cooling, and Wrinkle Prevent indicator lights will illuminate during those
Before you start
portions of the cycle.
button.
cancels the cycle and stops your dryer.
English28
DV6000K_DC68-03709F_EN (YLE).indd 28 4/5/2016 4:41:35 PM
Operations
01
04 05 06 07
09
08
10
11
03
02
WARNING
To reduce the risk of re, electric shock, or injury to persons, read the safety information
before operating this appliance.
If the Wrinkle Prevent option is not selected, take out the laundry immediately after it is
washed and dried. Leaving the laundry inside the drum may produce wrinkles.
Overview of the control panel
01 Digital Graphic
Display
02 Cycle Selector
Displays the remaining drying cycle time, all cycle
information, and check messages.
The display window shows the estimated time remaining in
the cycle after you have pressed the Start/Pause
button.
The estimated time remaining may uctuates as the cycle
progresses.
The drying light will illuminate and remain lit until the cycle is
complete.
When your dryer is in the cool-down phase, the Cooling light
will illuminate. When your dryer is in the Wrinkle Prevent
phase, the Wrinkle Prevent light will illuminate.
While the dryer is running the Wrinkle Prevent
cycle, the
time display unit keeps making a big circle. When the cycle is
complete, "End" or "0" appears on the time display unit. Press
the Start/Pause or Power button to turn the dryer off,
and then open the door.
When you turn on your dryer, the Cotton
(CUPBOARD DRY
) cycle is selected as default.
Turn the Cycle Selector to select the cycle you want.
Operations
DV6000K_DC68-03709F_EN (YLE).indd 29 4/5/2016 4:41:36 PM
English 29
Operations
03 Wrinkle Prevent
04 Dry Level
Operations
05 Time
06 Mixed Load Bell
Wrinkle Prevent provides approximately 120 minutes of
intermittent tumbling in unheated air at the end of the cycle
to reduce wrinkling. Press the Wrinkle Prevent button to
activate this feature.
The indicator light will illuminate when Wrinkle Prevent
selected. Dried laundry is prevented from becoming wrinkled
by periodic drum rotations after the completion of the drying
cycle. (Note that while the dryer is running the Wrinkle
Prevent
circle.)
To select the dry level in the Cotton , Synthetics cycles,
press the Dry Level
Press the button repeatedly to scroll through level 1 to
level 3. Larger or bulkier loads may require dry level 3 for
complete dryness, which is the strongest level. Dry level 1 is
used to partially dry items that lay at or hang to dry.
When using TIME DRY , WARM AIR , COOL AIR cycles,
time can be adjusted by pressing the Time button.
30 min > 60 min > 90 min > 120 min > 150 min (120 min and
150 min time options are not available for WARM AIR
COOL AIR cycles.)
Except the TIME DRY
AIR cycle, the time indicator of manual is off because exact
drying times are determined by uctuating humidity levels.
This is an alarm that noties the user when the average
drying level is damp dry (80 % dried) when the laundry
contains various types of materials and fabric.
If the corresponding condition is satised, the Mixed Load Bell
indicator blinks.
cycle, the time display unit keeps making a big
button.
, QUICK DRY , WARM AIR , COOL
is
and
NOTE
This is available only with the CUPBOARD DRY
DRY cycle.
Lights the dryer drum while the dryer is running.
NOTE
07 Lamp
English30
DV6000K_DC68-03709F_EN (YLE).indd 30 4/5/2016 4:41:37 PM
It can be set while your dryer is not only running but also
when it is stopped. If you do not turn the Lamp
5 minutes of turning it on, it is automatically turned off.
or EXTRA
off within
Loading...
