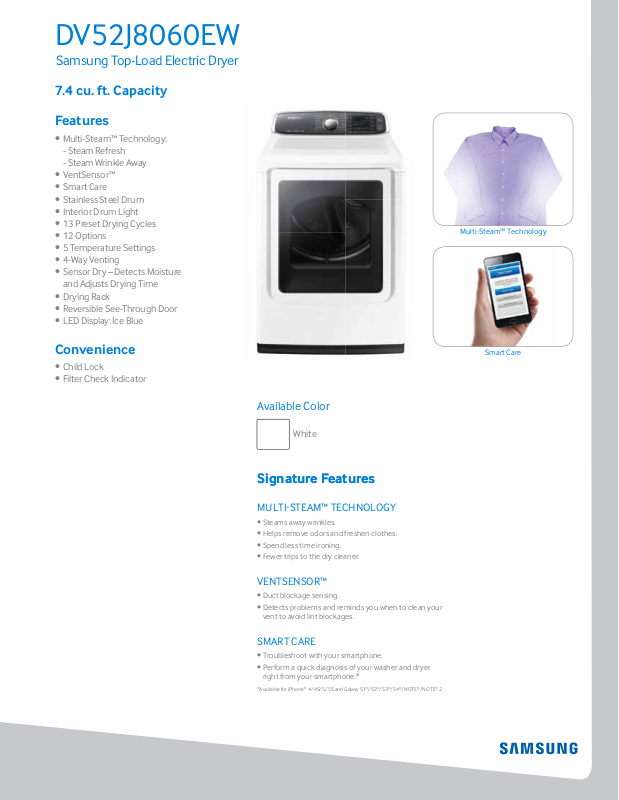

Samsung DV52J8060EW Specification Sheet

DV52J8060EW

Samsung Top-Load Electric Dryer

7.4 cu. ft. Capacity

Features

• Multi-Steam™ Technology:

- Steam Refresh

- Steam Wrinkle Away

• VentSensor™

• Smart Care

• Stainless Steel Drum

• Interior Drum Light

• 13 Preset Drying Cycles

• 12 Options

• 5 Temperature Settings

• 4-Way Venting

• Sensor Dry – Detects Moisture and Adjusts Drying Time

• Drying Rack

• Reversible See-Through Door

• LED Display: Ice Blue

Multi-Steam™ Technology

Convenience

• Child Lock

• Filter Check Indicator

Available Color

White

Signature Features

MULTI-STEAM™ TECHNOLOGY

• Steams away wrinkles.

• Helps remove odors and freshen clothes.

• Spend less time ironing.

• Fewer trips to the dry cleaner.

VENTSENSOR™

• Duct blockage sensing.

• Detects problems and reminds you when to clean your vent to avoid lint blockages.

9.5 cu. ft. Capacity Smart Care

SMART CARE

• Troubleshoot with your smartphone.

• Perform a quick diagnosis of your washer and dryer right from your smartphone.*

*Available for iPhone® 4/4S/5/5S and Galaxy S1®/S2®/S3®/S4®/NOTE®/NOTE® 2.

DV52J8060EW

DV400EWHDWR

Samsung Top-Load Electric Dryer

Installing Your Dryer

Alcove or closet installation

Recessed Area Side View Conned

27"1" 1"

Minimum clearances for closets and alcove:

Sides - 1" Top - 17" Rear - 5" Closet Front - 2"

17"

2" 5"

The closet front must have two unobstructed air openings for a combined minimum total area of 72"² with 3" minimum clearance on the top and bottom. A louvered door with equivalent space clearance isacceptable.

30"

48"*

24"*

Closet or Door

* Required spacing (External exhaust elbow requires additional space.)

7.4 cu. ft. Capacity

4-Way Venting

13 Preset Dry Cycles:

Steam Refresh, Multi-Steam™ Technology, Steam Wrinkle Away, Normal, Eco Normal,

Heavy Duty, Permanent Press, Bedding, Delicates,

Wool, Active Wear, Time Dry, Air Flu, Quick Dry

12 Options:

Mixed Load Bell, Wrinkle Prevent, Rack Dry, Adjust Time (up), Adjust Time (down), My Cycle, Child Lock, Sound On/O, Anti-Static, Eco Dry, Smart Care, Drum Light

5 Temperature Settings:

High, Medium, Medium Low, Low, Extra Low

5 Dry Levels:

Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry

2 Signal Level Settings:

On/O

Warranty

One (1) Year All Parts and Labor Two (2) Years Control Board

Dimensions

46" 46"

30"27"

Product Dimensions & Weight (WxHxD)

Dimensions: 27" x 46" x 30" Weight: 130 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 291/2" x 481/8" x 311/8" Weight: 139 lbs

Electric Model # UPC Code

White DV52J8060EW 887276075433

Gas

White DV52J8060GW 887276075440

Matching Washer

White WA52J8060AW 887276074399

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

The Emerging Technology award recognizes innovative products that have the potential to signicantly reduce greenhouse gas emissions.
