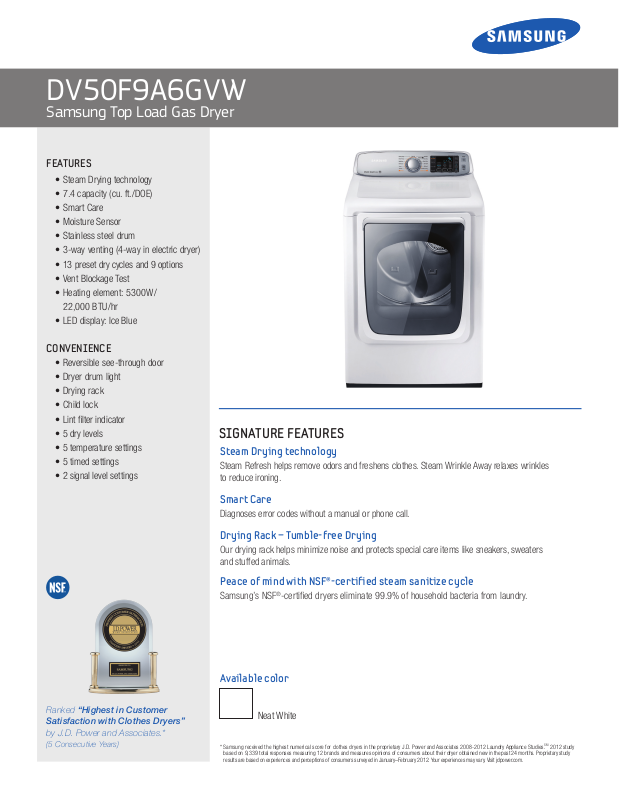

Samsung DV50F9A6EVW-A2 Specification

DV50F9A6GVW

Samsung Top Load Gas Dryer

FEATURES

• Steam Drying technology

• 7.4 capacity (cu. ft./DOE)

• Smart Care

• Moisture Sensor

• Stainless steel drum

• 3-way venting (4-way in electric dryer)

• 13 preset dry cycles and 9 options

• Vent Blockage Test

• Heating element: 5300W/ 22,000 BTU/hr

• LED display: Ice Blue

CONVENIENCE

• Reversible see-through door

• Dryer drum light

• Drying rack

• Child lock

• Lint ﬁlter indicator

• 5 dry levels

• 5 temperature settings

• 5 timed settings

• 2 signal level settings

SIGNATURE FEATURES

Steam Drying technology

Steam Refresh helps remove odors and freshens clothes. Steam Wrinkle Away relaxes wrinkles to reduce ironing.

Ranked “Highest in Customer Satisfaction with Clothes Dryers”

by J.D. Power and Associates.*

(5 Consecutive Years)

Smart Care

Diagnoses error codes without a manual or phone call.

Drying Rack – Tumble-free Drying

Our drying rack helps minimize noise and protects special care items like sneakers, sweaters and stuffed animals.

Peace of mind with NSF®-certified steam sanitize cycle

Samsung’s NSF®-certiﬁed dryers eliminate 99.9% of household bacteria from laundry.

Available color

Neat White

* Samsung received the highest numerical score for clothes dryers in the proprietary J.D. Power and Associates 2008-2012 Laundry Appliance Studies.SM 2012 study

based on 9,339 total responses measuring 12 brands and measures opinions of consumers about their dryer obtained new in the past 24 months. Proprietary study results are based on experiences and perceptions of consumers surveyed in January–February 2012. Your experiences may vary. Visit jdpower.com.

DV50F9A6GVW

Samsung Top Load Gas Dryer

INSTALLING YOUR DRYER

Alcove or closet installation

Recessed area Side-view conﬁned Closet or door

17 "

1" 1"

27"

2" 5"

29-3/8"

Minimum clearances for closets and alcoves:

Sides – 1" Top – 17" Rear – 5" Closet front – 2"

If the washer and dryer are installed together, the closet front must have at least a 72 in (465 cm) unobstructed air opening. Your washer alone does not require a speciﬁc air opening.

30"

48"*

24"*

* Required spacing.

(External exhaust elbow requires additional space)

7.4 capacity (cu. ft./DOE)

Stainless steel drum

3-way venting (4-way in electric dryer)

13 preset dry cycles:

Refresh, Wrinkle Away, Normal, Heavy Duty, Towels, Permanent Press, Bedding, Delicates, Jeans, Sanitize, Time Dry, Air Fluff, Quick Dry

9 options:

Mixed Load Bell, Wrinkle Prevent, Rack Dry, Adjust Time, My Cycle, Child Lock, Signal On/Off,

Anti Static, Drum Light

5 dry levels:

Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry

5 temperature settings:

High, Medium, Medium Low, Low, Extra Low

5 timed settings:

60 min., 50 min., 40 min., 30 min., 20 min.

2 signal level settings: On/Off

Warranty

Dimensions:

One (1) Year Parts and Labor Two (2) Years Control Board

Product dimensions & weight (WxHxD)

Dimensions: 27" x 443/4" x 30" Weight: 128.2 lbs.

44-3/4"

Shipping dimensions & weight (WxHxD)

Dimensions: 291/2" x 47" x 311/8" Weight: 139.6 lbs.

Electric/Gas Model # UPC Code

Neat White DV50F9A6EVW 887276018676 Neat White DV50F9A6GVW 887276018683

29-3/8"

27"

Actual color may vary. Design, speciﬁcations, and color availability are subject to change without notice. Non-metric weights and measurements are approximate. ©2013 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeﬁeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.

30"

Matching Washer

Neat White WA50F9A6DSW 887276018232
