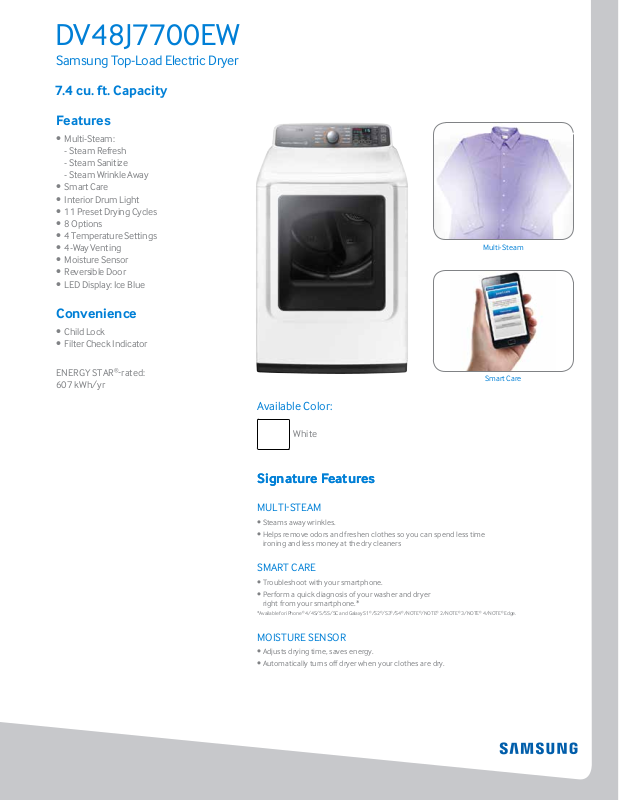

Samsung DV48J7700EW-A2 Specification
DV48J7700EW
Samsung Top-Load Electric Dryer
7.4 cu. ft. Capacity
Features
• Multi-Steam:
- Steam Refresh
- Steam Sanitize
- Steam Wrinkle Away
• Smart Care
• Interior Drum Light
• 11 Preset Drying Cycles
• 8 Options
• 4 Temperature Settings
• 4-Way Venting
• Moisture Sensor
• Reversible Door
• LED Display: Ice Blue
Convenience
• Child Lock
• Filter Check Indicator
Multi-Steam
ENERGY STAR
607 kWh/yr
®
-
rated:
Smart Care
Available Color:
White
Signature Features Signature Features
MULTI-STEAM
• Steams away wrinkles.
• Helps remove odors and freshen clothes so you can spend less time
ironing and less money at the dry cleaners
SMART CARE
• Troubleshoot with your smartphone.
• Perform a quick diagnosis of your washer and dryer
right from your smartphone.*
*Available for iPhone® 4/4S/5/5S/5C and Galaxy S1®/S2®/S3®/S4®/NOTE®/NOTE® 2/NOTE® 3/NOTE® 4/NOTE® Edge.
MOISTURE SENSOR
• Adjusts drying time, saves energy.
• Automatically turns off dryer when your clothes are dry.
DV48J7700EW
DV400EWHDWR
Samsung Top-Load Electric Dryer
Installing Your Dryer 7.4 cu. ft. Capacity
4-Way Venting
Alcove or closet installation
Recessed Area Side View Confined
17"
27"1" 1"
Minimum clearances for closets and alcoves:
Sides – 1"
Top – 17"
Rear – 5"
Closet Front – 2"
Dimensions
2" 5"
The closet front must have two unobstructed
air openings for a combined minimum total area
of 72" with 3" minimum clearance on the top
and bottom. A louvered door with equivalent
space clearance is acceptable.
30"
48"*
24"*
Closet or Door
*Required spacing
(External exhaust elbow
requires additional space.)
11 Preset Dry Cycles:
Steam Refresh, Steam Sanitize, Steam Wrinkle Away,
Normal, Heavy Duty, Towels, Permanent Press,
Bedding, Delicates, Time Dry, Quick Dry
3"
8 Options:
Wrinkle Prevent, Adjust Time Up, Adjust Time Down,
Child Lock, Sound On/O, Eco Dry, Smart Care,
Drum Light
4 Temperature Settings:
High, Medium, Low, Extra Low
3"
4 Dry Levels:
Very Dry, More Dry, Normal Dry, Damp Dry
2 Signal Level Settings:
On/O
Warranty
One (1) Year All Parts and Labor
Two (2) Years Control Board
Product Dimensions & Weight (WxHxD)
Dimensions: 27" x 441/4" x 30"
Weight: 125.7 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 291/2" x 461/2" x 313/16"
Weight: 134.5 lbs
Electric Model # UPC Code
White DV48J7700EW 887276095738
44 1/4" 44 1/4"
Gas Model # UPC Code
White DV48J7700GW 887276095745
Matching Washer
White WA48J7700AW 887276095851
30"27"
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2015 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com.
Samsung is a registered trademark of Samsung Electronics Co. Ltd.
