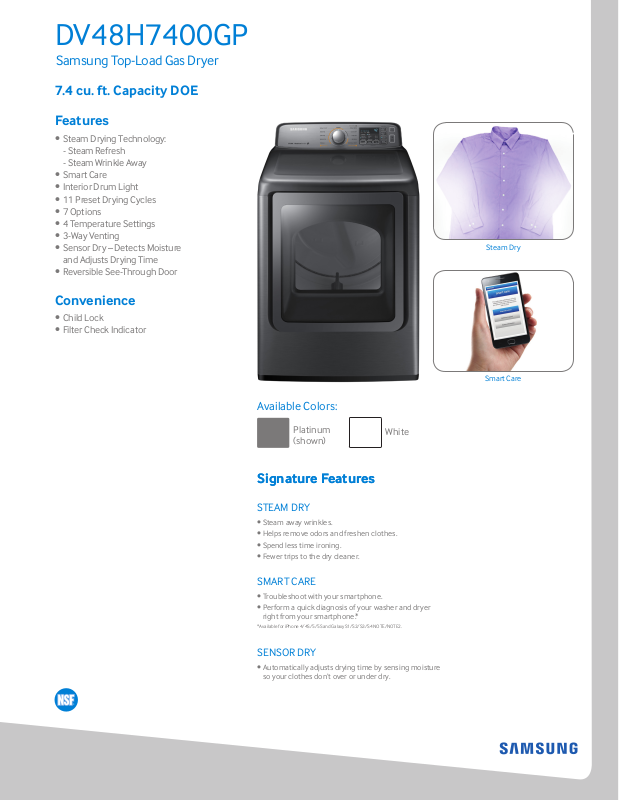

DV48H7400GP
Samsung Top-Load Gas Dryer
7.4 cu. ft. Capacity DOE Features
• Steam Drying Technology: |
|
- Steam Refresh |
|
- Steam Wrinkle Away |
|
• Smart Care |
|
• Interior Drum Light |
|
• 11 Preset Drying Cycles |
|
• 7 Options |
|
• 4 Temperature Settings |
|
• 3-Way Venting |
|
• Sensor Dry – Detects Moisture |
Steam Dry |
and Adjusts Drying Time |
|
• Reversible See-Through Door |
|
Convenience
•Child Lock
•Filter Check Indicator
Smart Care
Available Colors:
Platinum |
White |
(shown) |
|
Signature Features
STEAM DRY
•Steam away wrinkles.
•Helps remove odors and freshen clothes.
•Spend less time ironing.
•Fewer trips to the dry cleaner.
SMART CARE
•Troubleshoot with your smartphone.
•Perform a quick diagnosis of your washer and dryer right from your smartphone.*
*Available for iPhone 4/4S/5/5S and Galaxy S1/S2/S3/S4 NOTE/NOTE2.
SENSOR DRY
•Automatically adjusts drying time by sensing moisture so your clothes don’t over or under dry.
DV48H7400GW
Samsung Top-Load Gas Dryer
Installing yourY WasherDryer
Alcove or closet installation
Recessed Area |
Side View Confined |
27" |
1" |
17" |
48"² * |
|
24"² *
2" 30"
5"
3"
3 in.
Closet or Door |
Minimum clearances for closets and alcove: |
* Required spacing |
|
|
|
** External exhaust elbow |
Sides - 1" |
If the washer and dryer are |
requires additional space. |
|
||
Top - 17" |
installed together, the closet |
|
Rear - 5" |
front must have at least a 72 in² |
|
Closet Front - 2" |
(465cm²) unobstructed air |
|
|
opening. Your washer alone does |
|
|
not require a specific air opening. |
|
Dimensionsnsions
43 7/8" |
43 7/438" |
27 " |
|
|
|
|
|
30" 30" |
|
|
|
|
|
||
|
||||||
|
|
|
|
|
7.4 cu. ft. Capacity DOE
3-Way Venting
11 Preset Dry Cycles:
Steam Refresh, Steam Wrinkle Away, Normal, Heavy Duty, Towels, Permanent Press, Bedding, Delicates, Sanitize, Time Dry, Quick Dry
7 Options:
Mixed Load Bell, Wrinkle Prevent, Adjust Time,
ChildLock,SoundOn/Off,SmartCare,DrumLight
4 Temperature Settings:
High, Medium, Low, Extra Low
4 Dry Levels:
Very Dry, More Dry, Normal Dry, Damp Dry
2 Signal Level Settings:
On/Off
Warranty
One (1) Year All Parts and Labor
Two (2) Years Control Board
Product Dimensions & Weight (WxHxD)
Dimensions: 27" x 437/8" x 30" Weight: 126 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 291/2" x 461/2" x 311/8" Weight: 134 lbs
Gas |
Model # |
UPC Code |
Platinum |
DV48H7400GP |
887276038827 |
White |
DV48H7400GW |
887276857879 |
Electric |
|
|
Platinum |
DV48H7400EP |
887276038810 |
White |
DV48H7400EW |
887276857862 |
Matching Washer |
|
|
Platinum |
WA48H7400AP |
887276028286 |
White |
WA48H7400AW |
887276857961 |
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2014SamsungElectronicsAmerica,Inc.85ChallengerRoad,RidgefieldPark,NJ07660.Tel:800-SAMSUNG.samsung.com.
Samsung is a registered trademark of Samsung Electronics Co. Ltd.
