Samsung DV2130 User Manual

DV2130

User's Guide

Safety Instructions

Note to CATV system installer: This reminder is provided to call CATV system installer's attention to Article

820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical. Caution: FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.

Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert. Attention: Pour eviter les chocs electriques, introduire la lame le plus large de la fiche dans la borne

correspondante de la prise et pousser jusqu’au fond. Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws. Certain Canadian programs may be copyrighted and any unauthorized recording in whole or in part may be a violation of these rights.

To prevent damage which may result in fire or electric shock hazard,

do not expose this appliance to rain or moisture.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

Important Safety Instructions

1. Read Instructions-All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions-The safety and operating instructions should be retained for future reference.

3. Heed Warnings-All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions-All operating and using instructions should be followed.

5. Cleaning-Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments-Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture-Do not use this product near water-for example near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories-Do not place this product on an unstable cart, stand, tripod, bracket, or table.The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer.

9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

Safety Instructions

10. Ventilation-Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources-This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization-This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13. Alternate Warnings -This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

14. Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

15. Outdoor Antenna Grounding-If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharg

e unit, size of grounding conductors, location of antenna-

discharge unit,

connection to grounding electrodes, and requirements for the grounding electrode.

16. Lightning-For added protection for this product during a lightning storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

17. Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

18. Overloading-Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

19. Object and Liquid Entry-Never push objects of any kind into this product through openings as they may touch danger

ous voltage points or

short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

20. Servicing-Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

21. Damage Requiring Service-Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a When the power-supply cord or plug is damaged. b If liquid has been spilled or objects have fallen into the product. c If the product has been exposed to rain or water. d If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the

operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e If the product has been dropped or damaged in any way. f When the product exhibits a distinct change in performance-this indicates a need for service.

22. Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part.Unauthorized substitutions may result in fire, electric shock, or other hazards.

23. Safety check-Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

24. Heat-The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

25. Wall or Ceiling Mounting The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

Antenna Lead-in Wire

Ground Clamp Antenna Discharge Unit

(NEC Section 810-20) Grounding Conductors (NEC Section 810-21)

Power Service Grounding Electrode System (NEC Section 810-21)

Grounding Clamps

Electric Service Equipment

NEC-NATIONAL ELECTRICAL CODE

Table of Contents

◆ Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

◆ Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Feature Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Unpack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Disc Types and Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

◆ 1 - System Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

■ Front Panel Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

■ Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Insert Batteries into Remote. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Using the TV Buttons on the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

◆ 2 - Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

■ Basic Connections/Auto Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

◆ 3 - Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

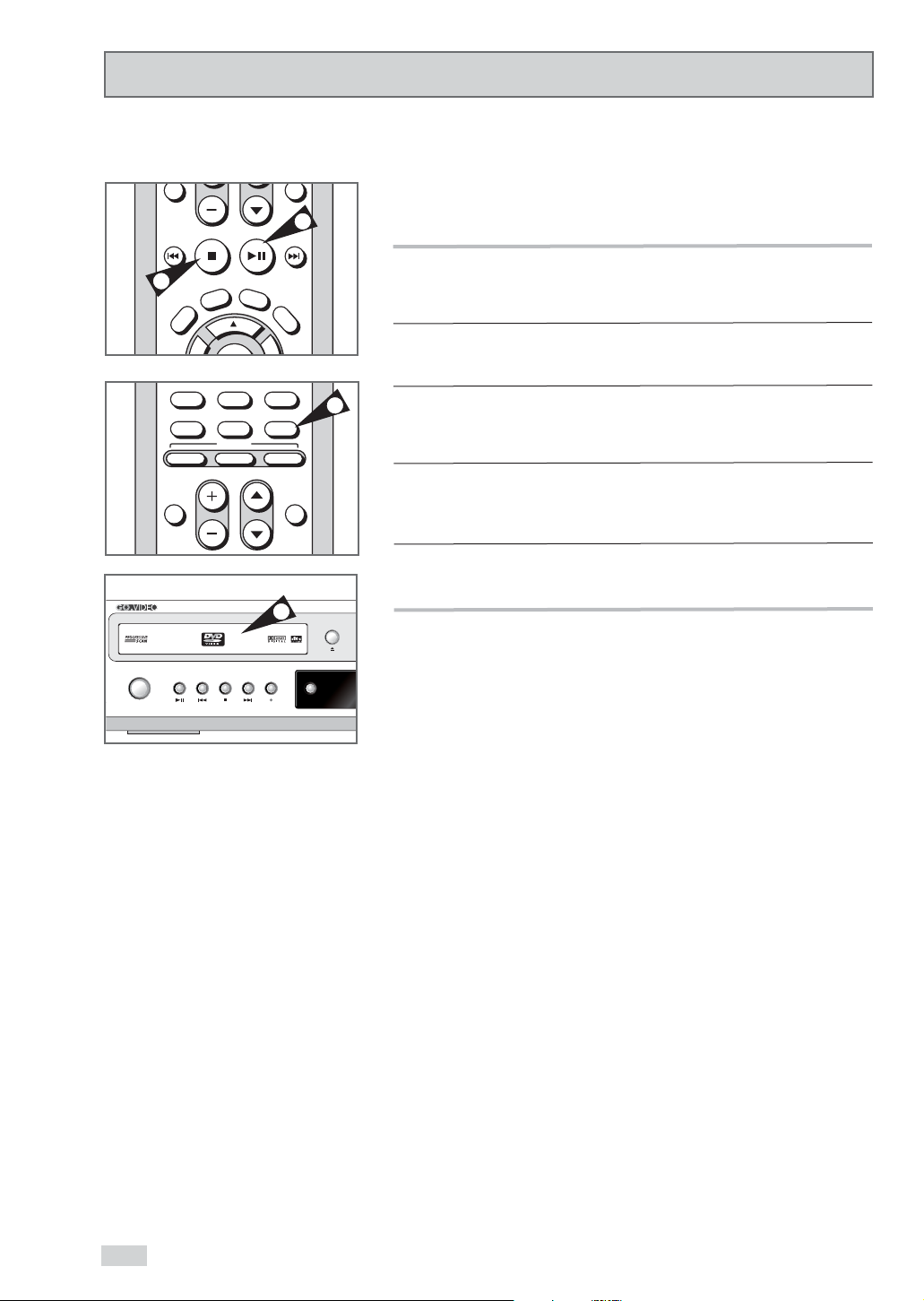

■ Deck Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Basic DVD Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Basic VCR Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

■ Basic TV Tuner Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

◆ 4 - System Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

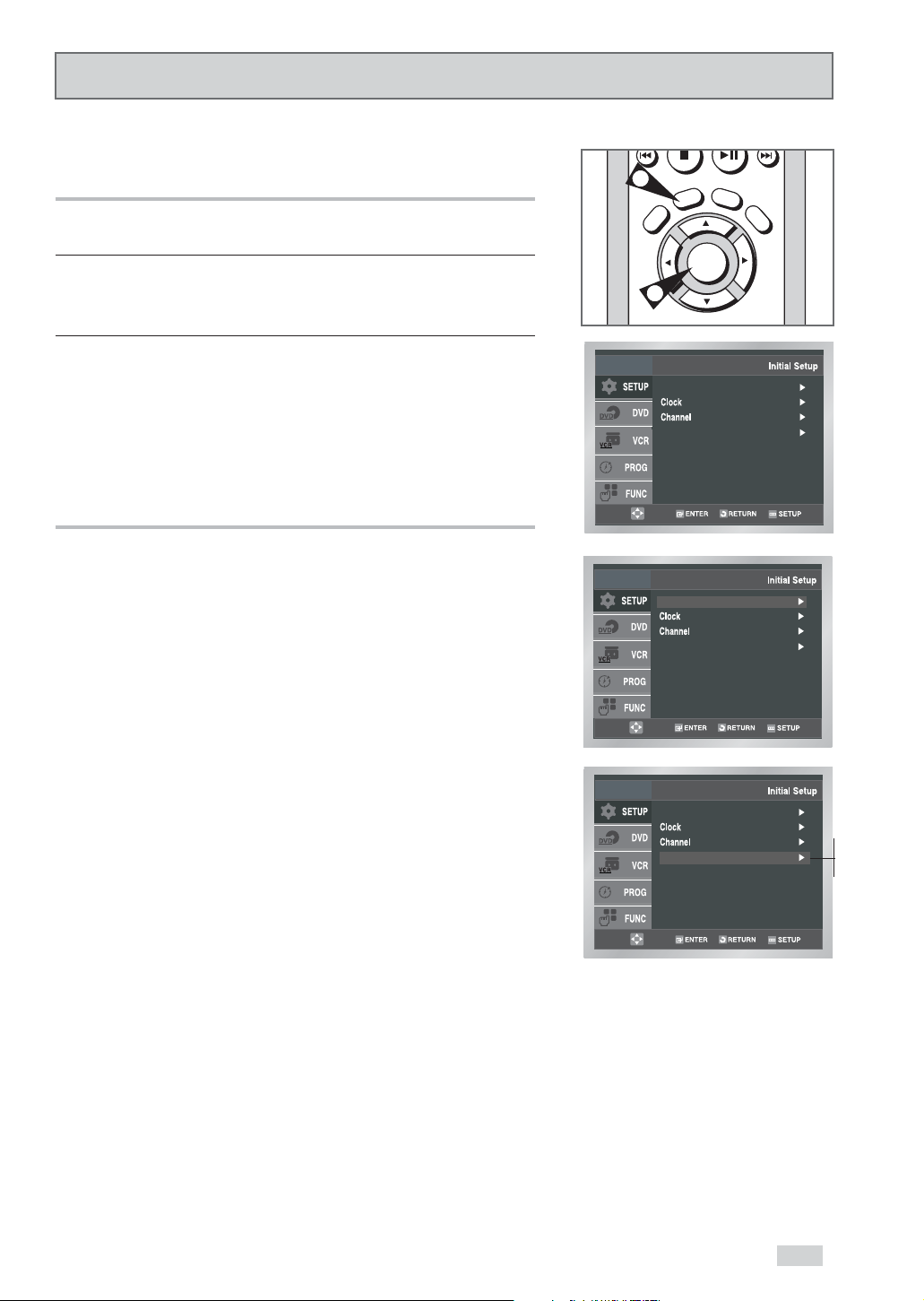

■ On-Screen Menu Navigation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

■ Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

■ Manual Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

■ Tuner Band Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

■ RF Output Channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

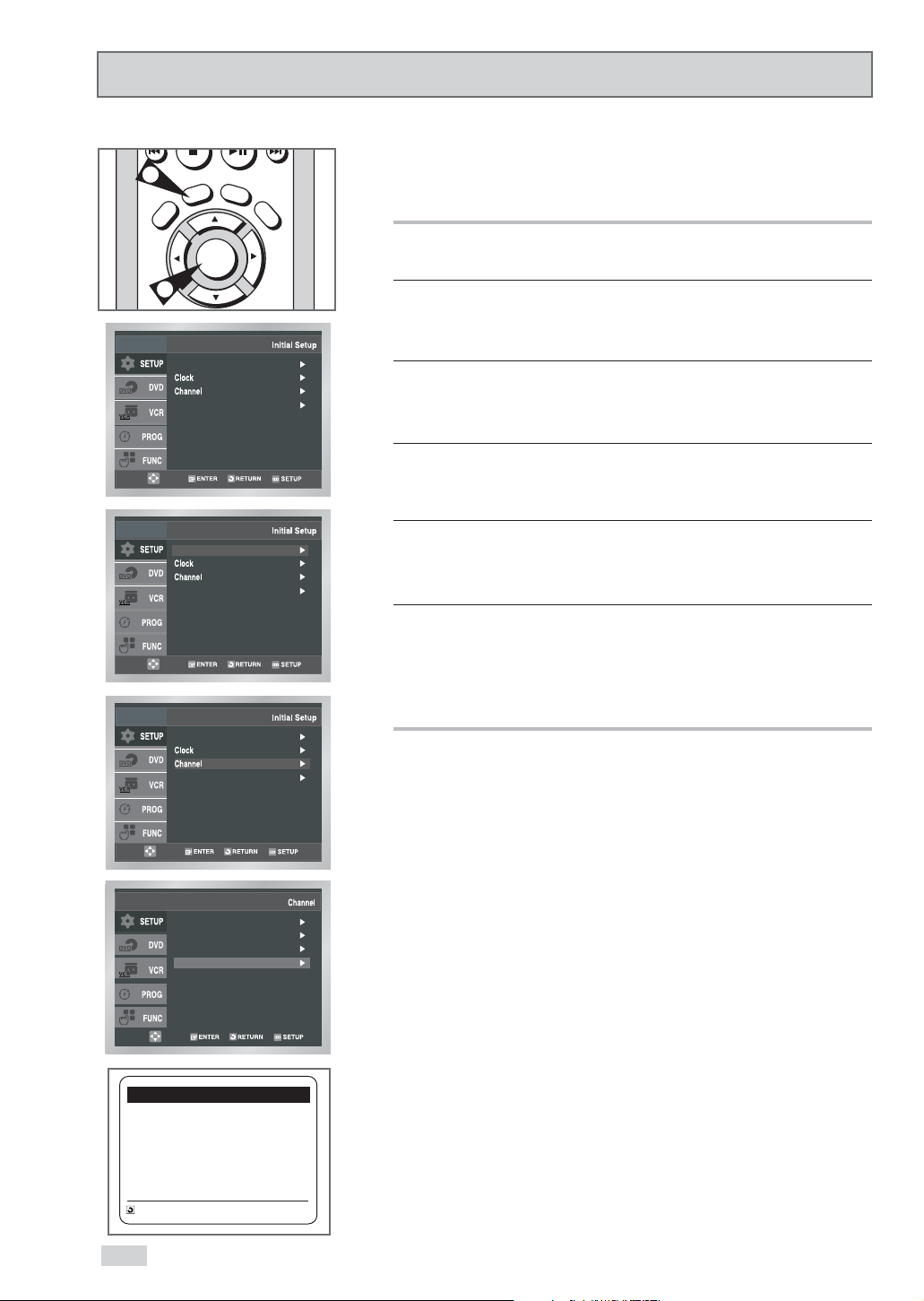

■ Auto Channel Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

■ Channel Add/Delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

■ Front Panel Dimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Table of Contents

◆ 5 - DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

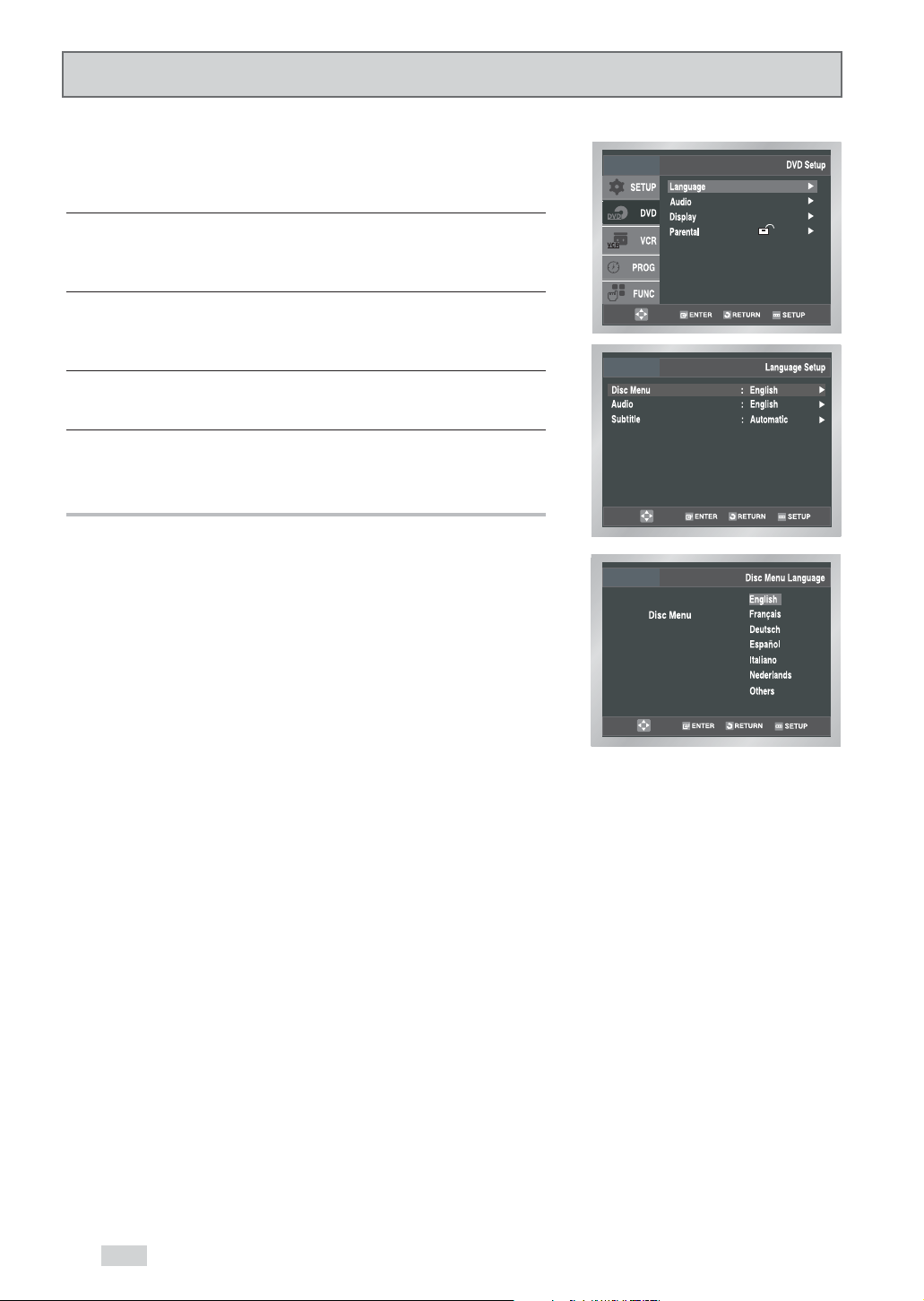

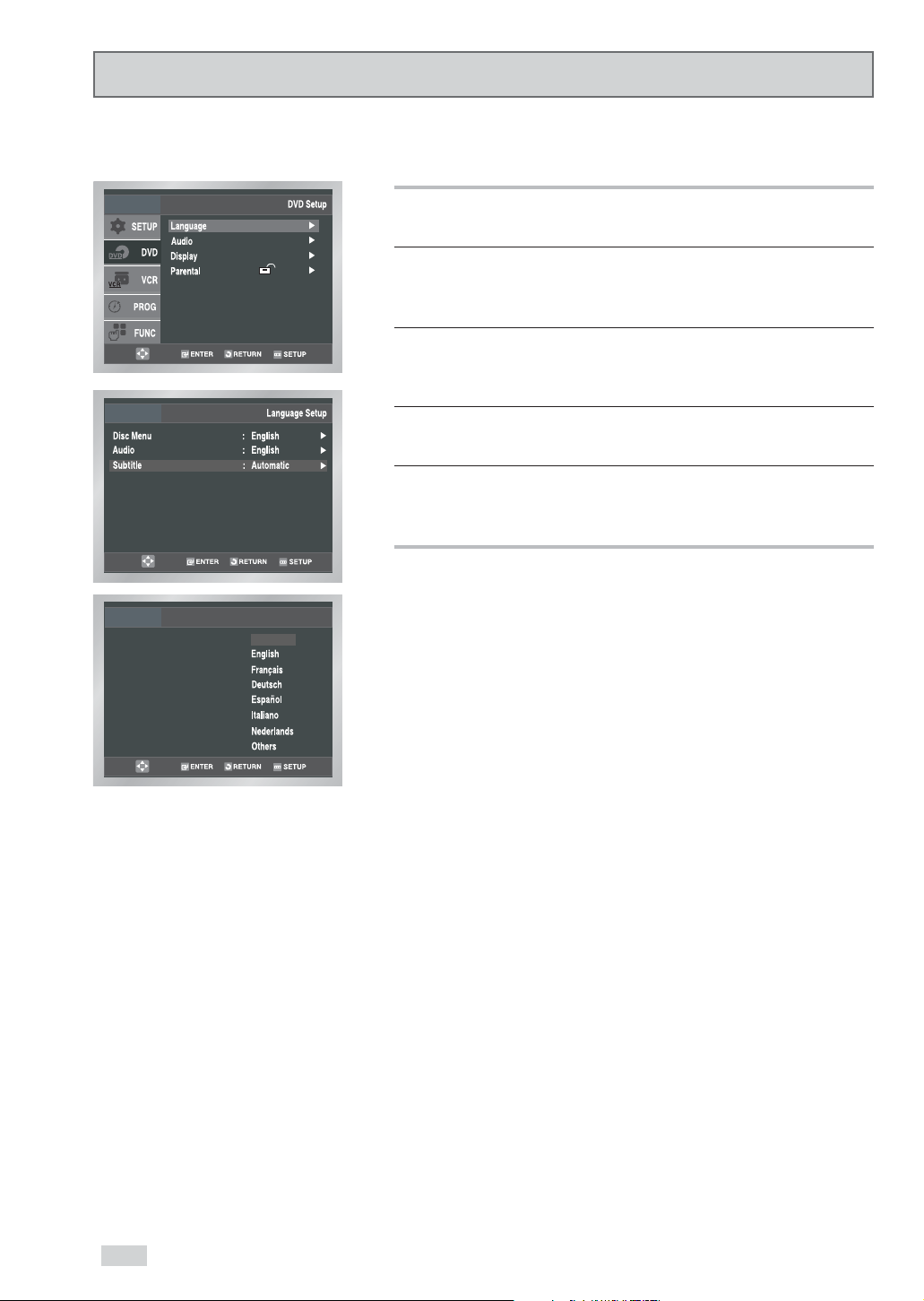

■ Disc Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

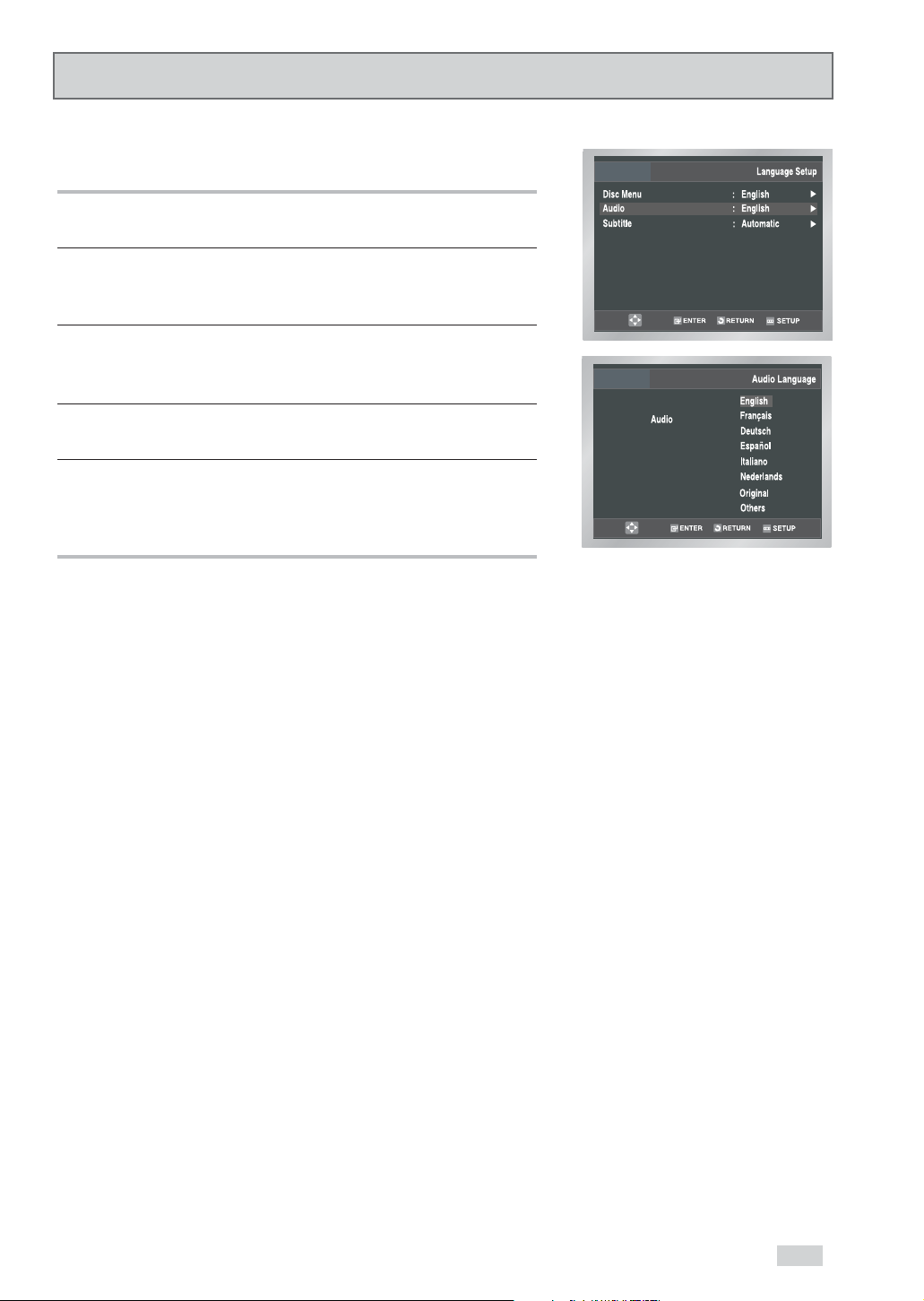

■ Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

■ Subtitle Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

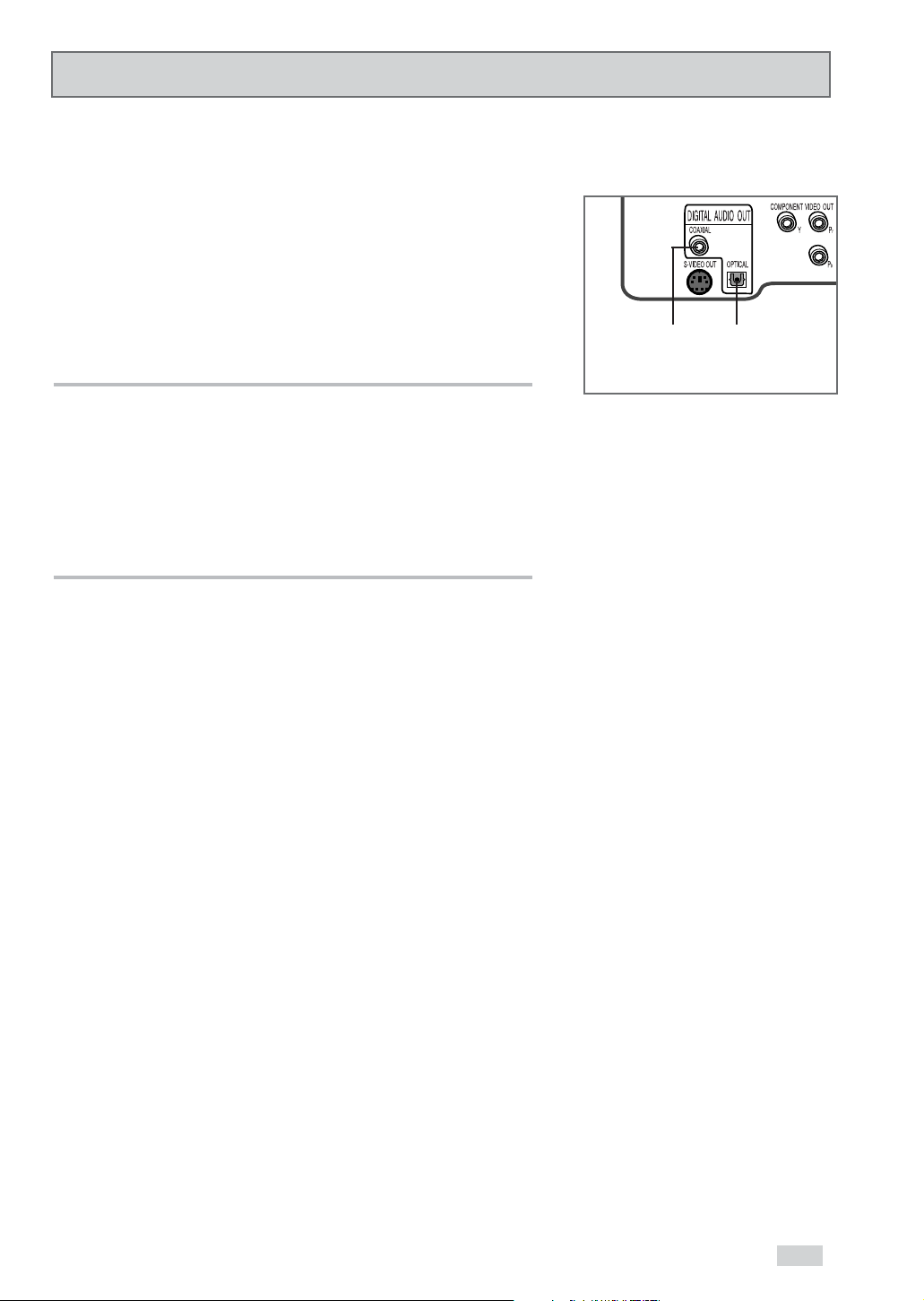

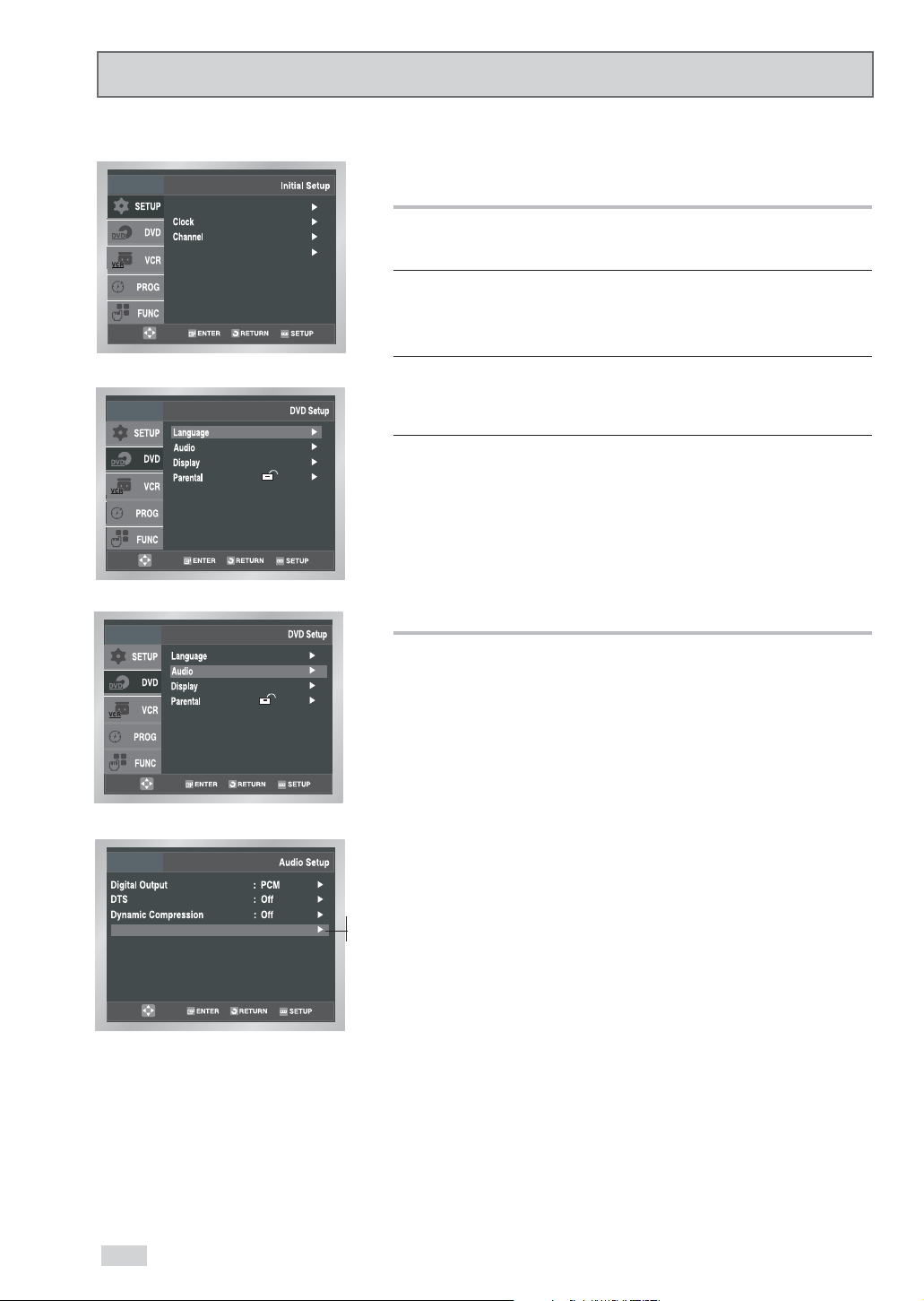

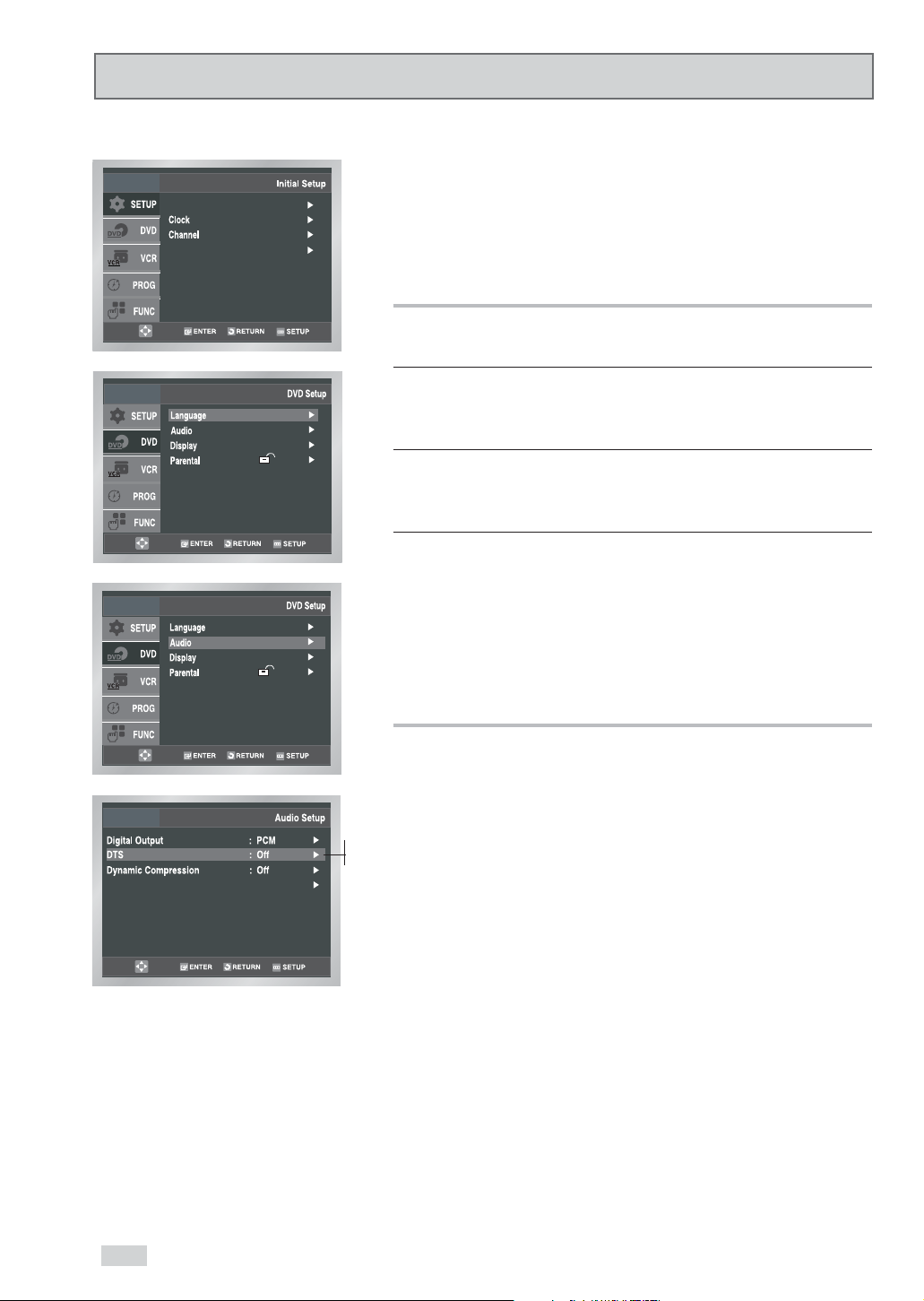

■ Digital Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

■ DTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

■ Dynamic Compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

■ PCM Down Sampling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

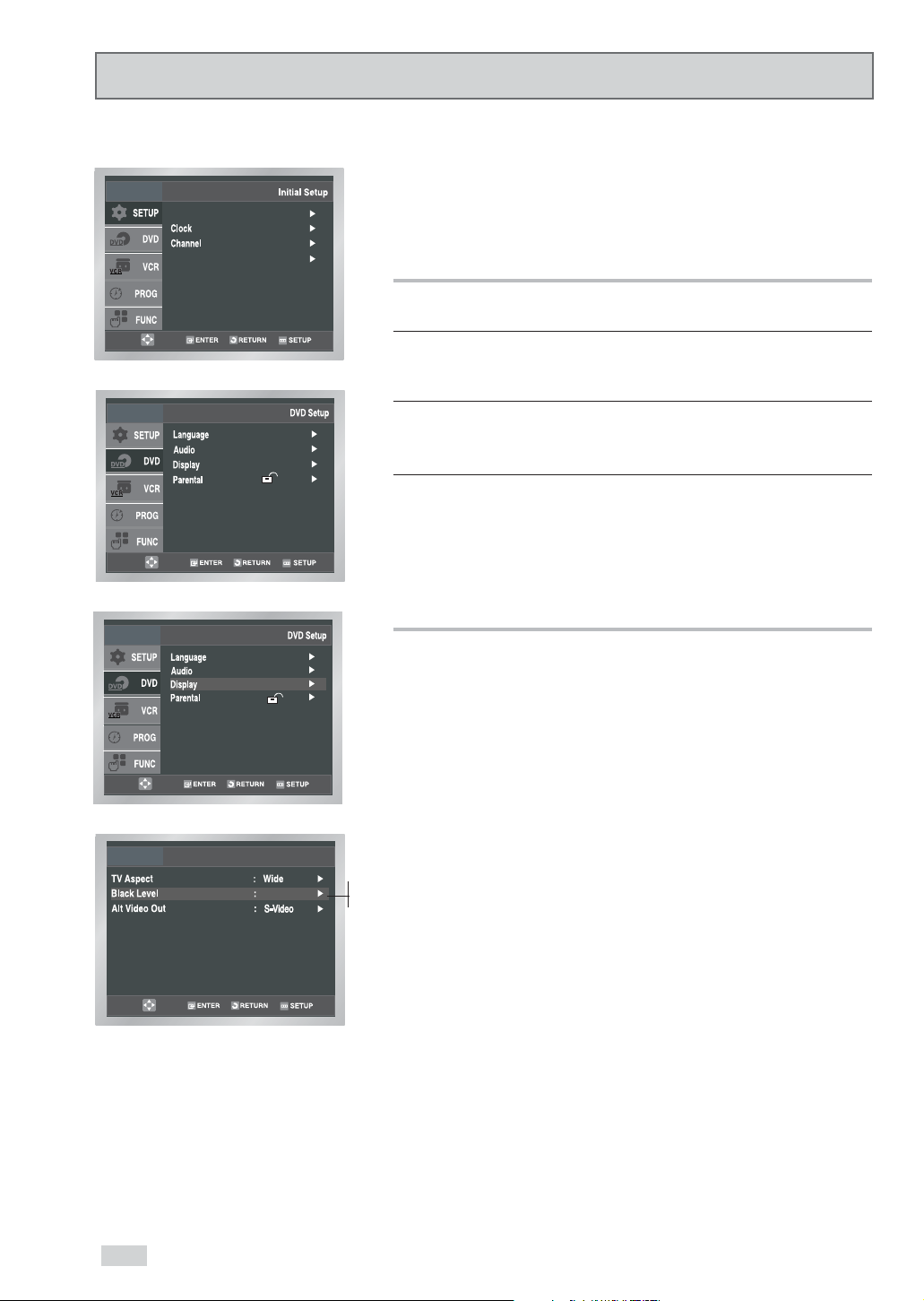

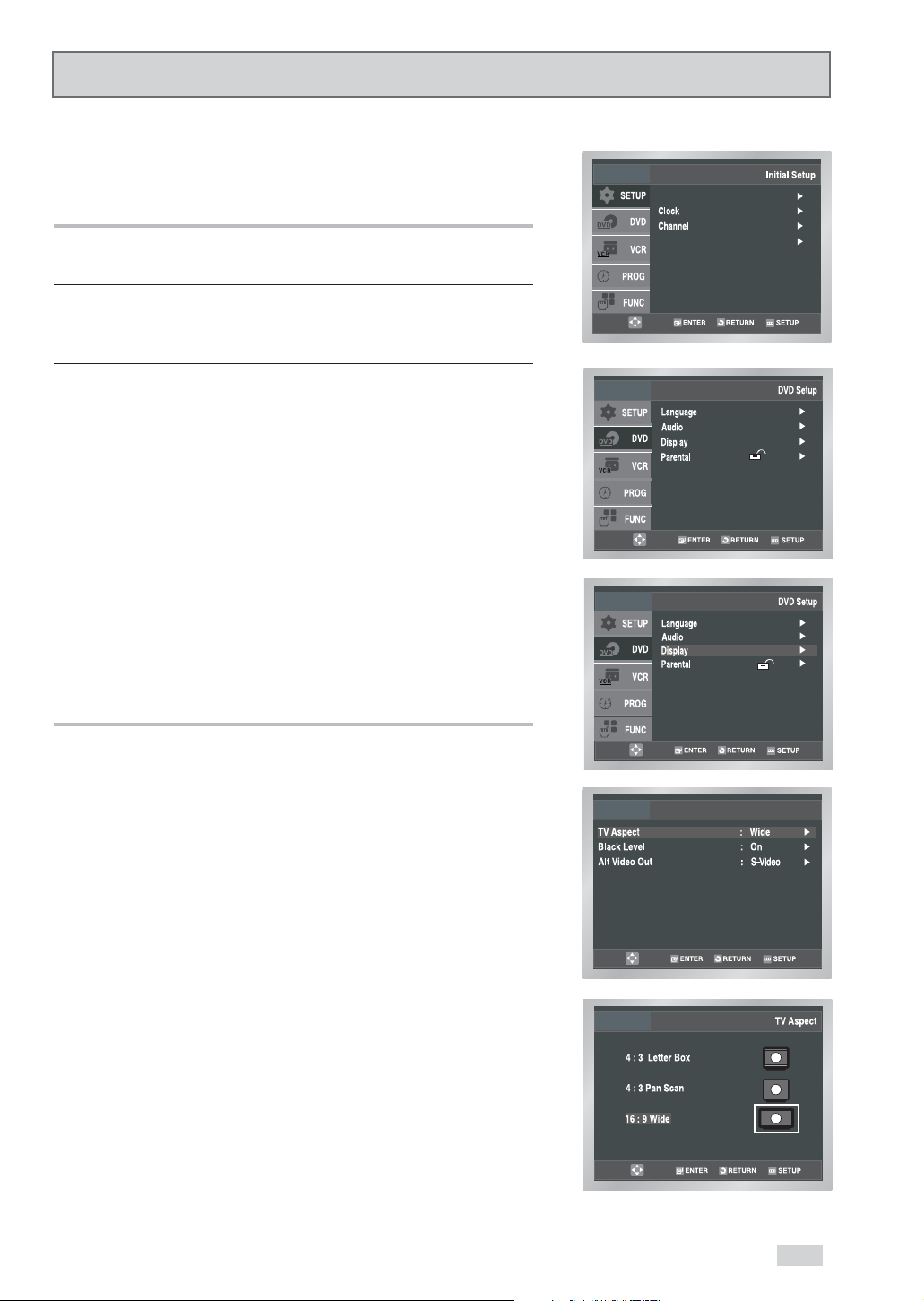

■ TV Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

■ Black Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

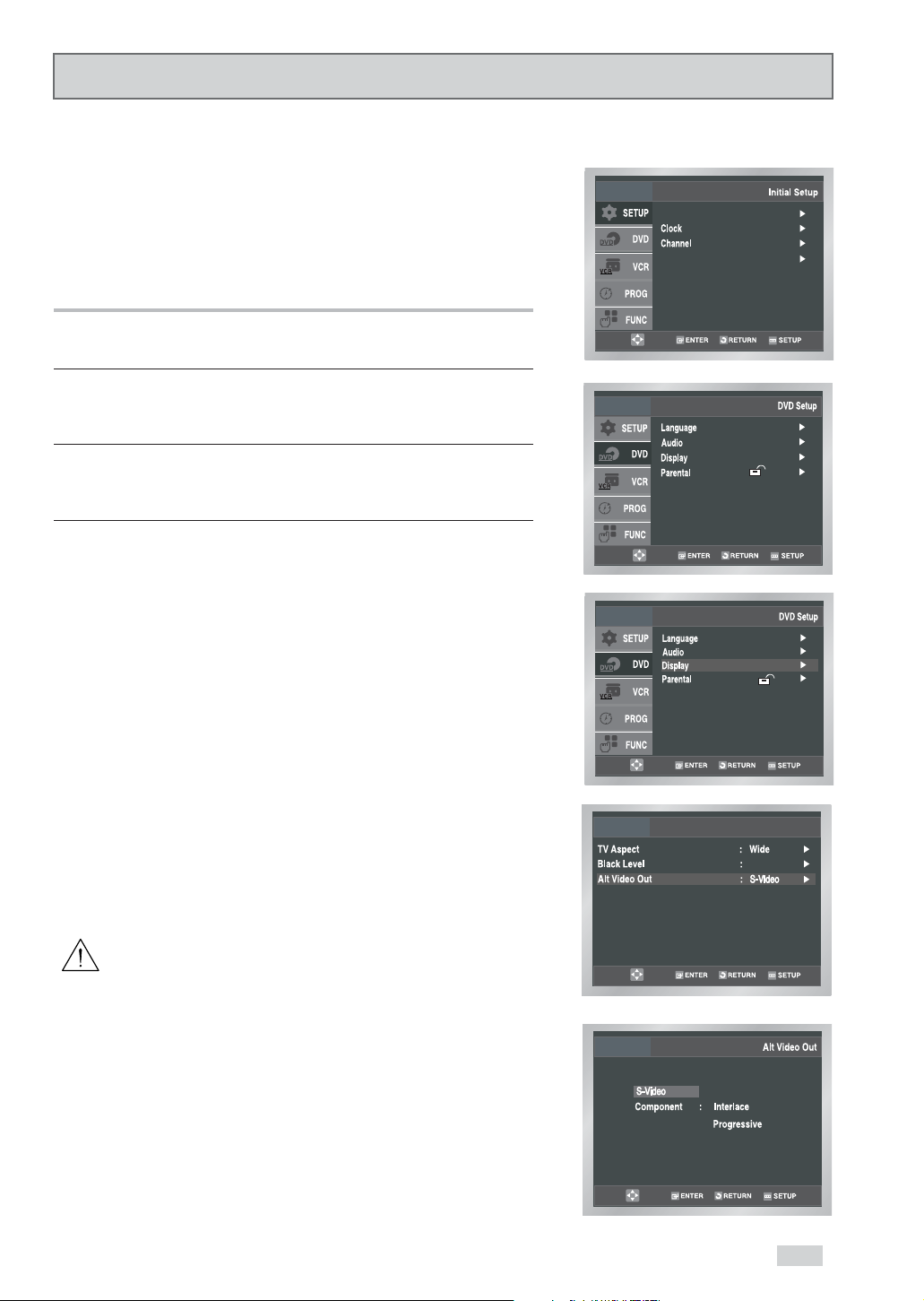

■ Alt Video Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

■ Reset Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

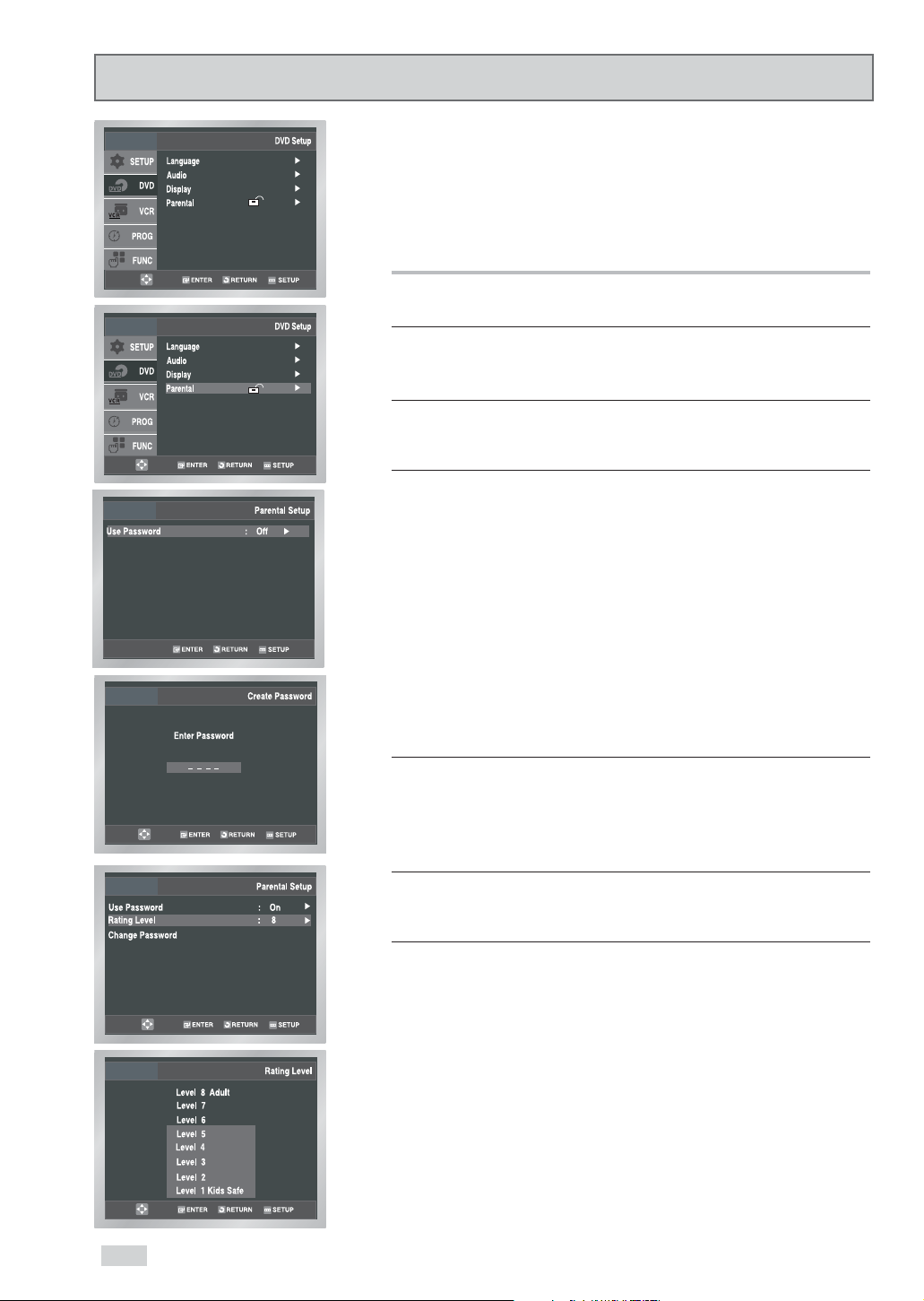

■ Parental. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

◆ 6 - DVD Sound Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

■ A/V Receiver Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

◆ 7 - DVD Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

■ Special Playback Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

■ Disc Menu Navigation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

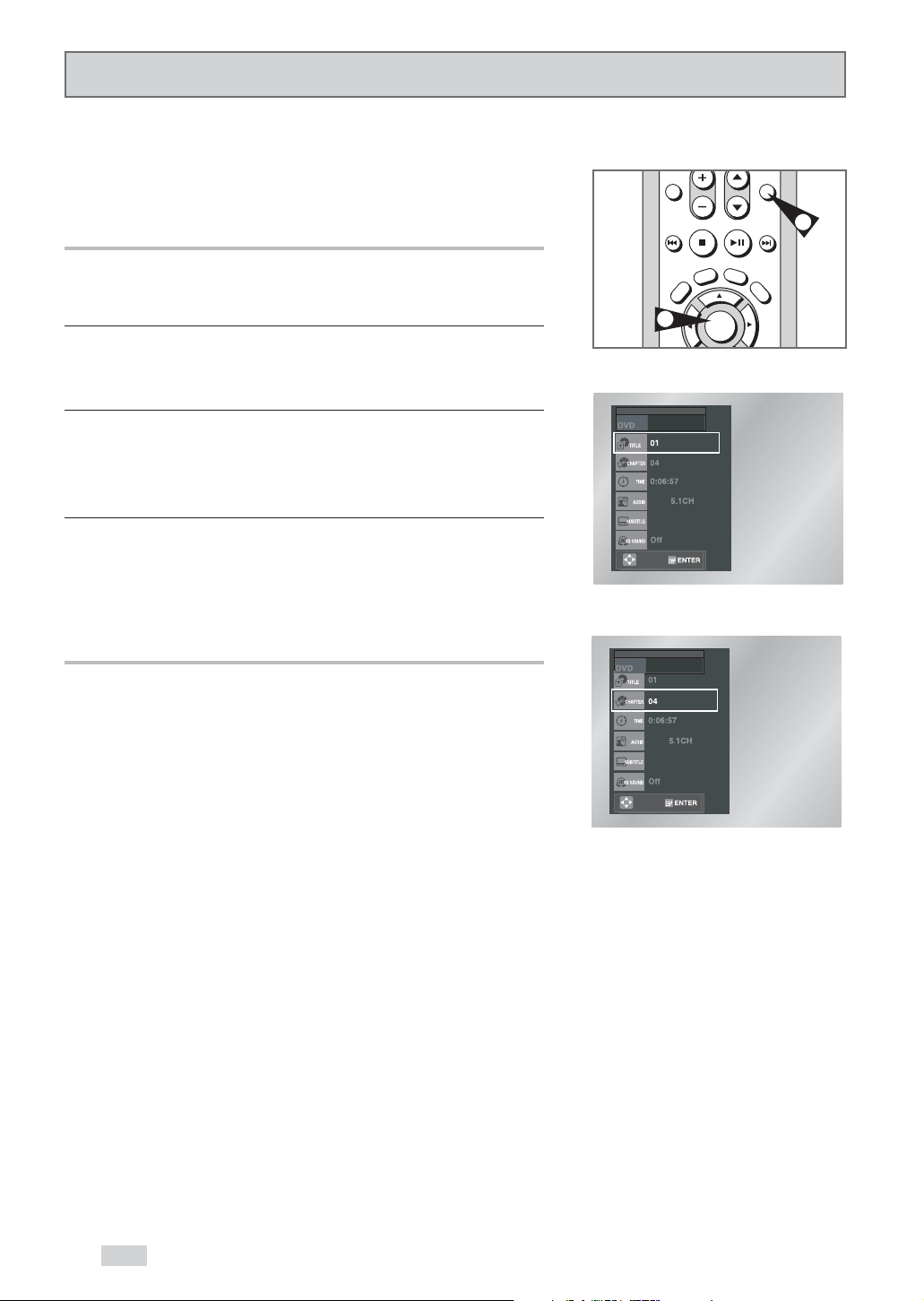

■ Title/Chapter/Time Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

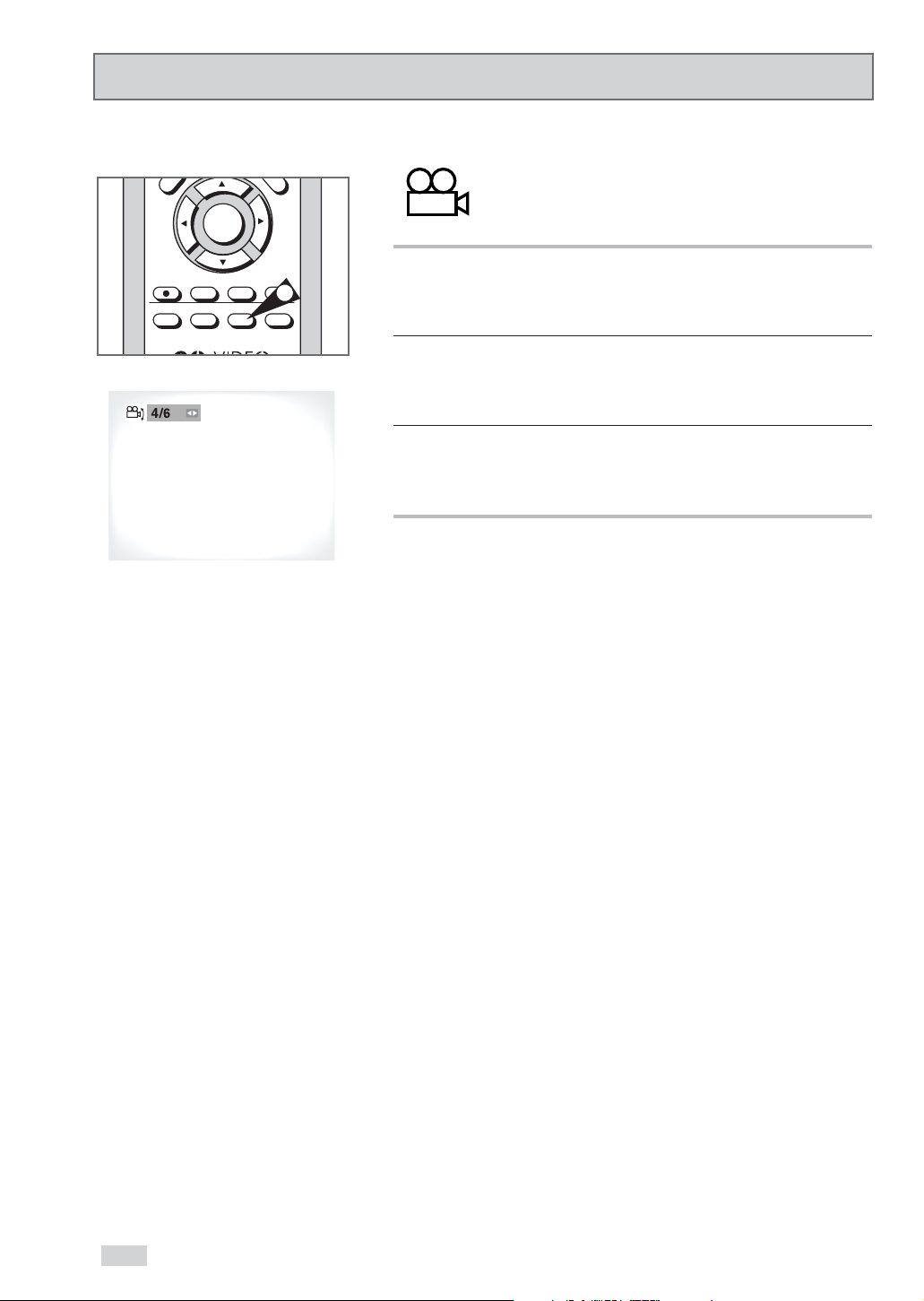

■ Angle View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

■ Subtitle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

■ A-B Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

■ Repeat Chapter/Title. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

■ Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

■ Bookmarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

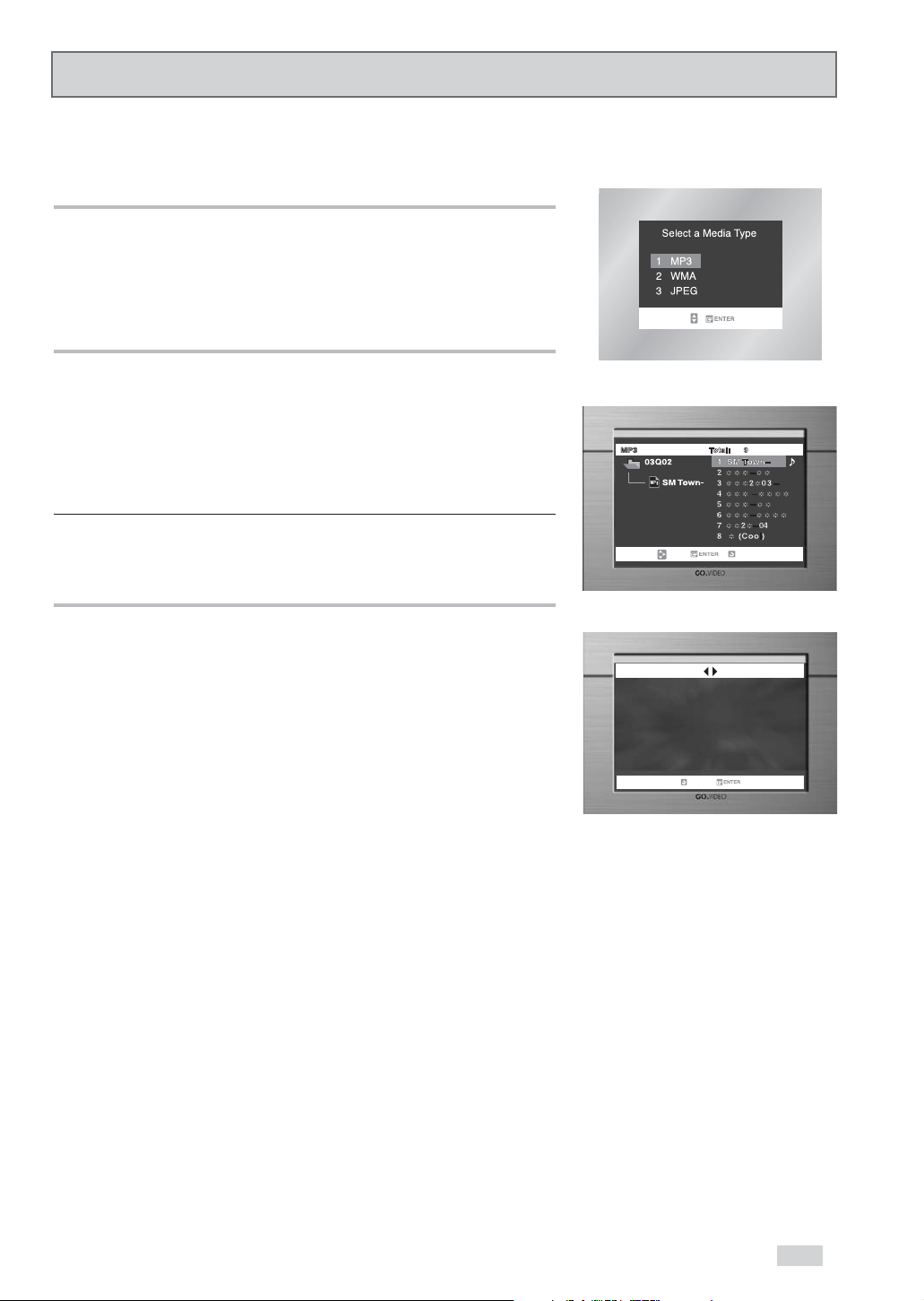

■ MP3/WMA Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

■ Program Play & Random Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

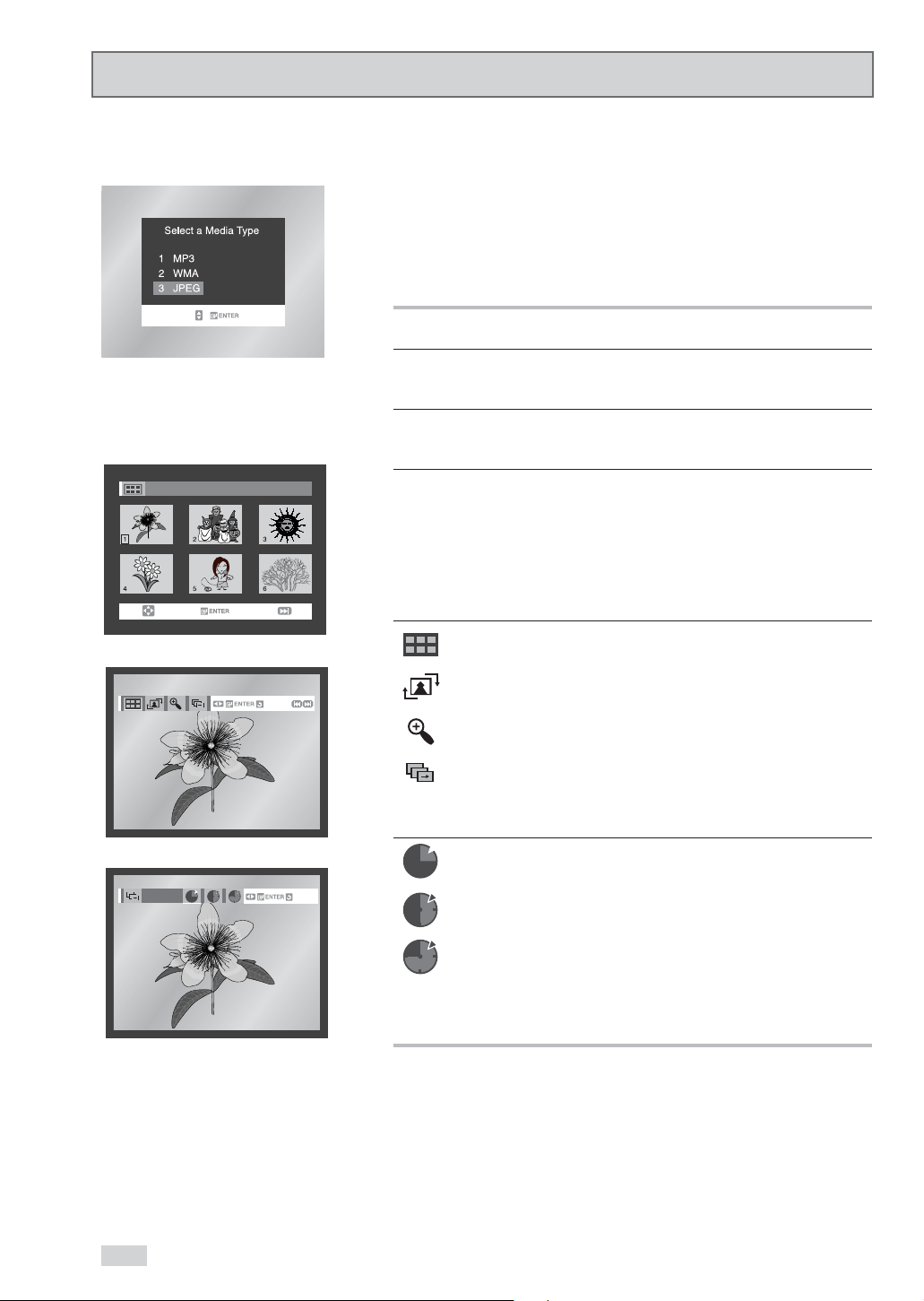

■ Picture CD Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

■ 3D Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

■ Function (DVD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

■ EZ-Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

■ MyDVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

◆ 8 - VCR Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

■ Special VCR Playback Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

■ Tracking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

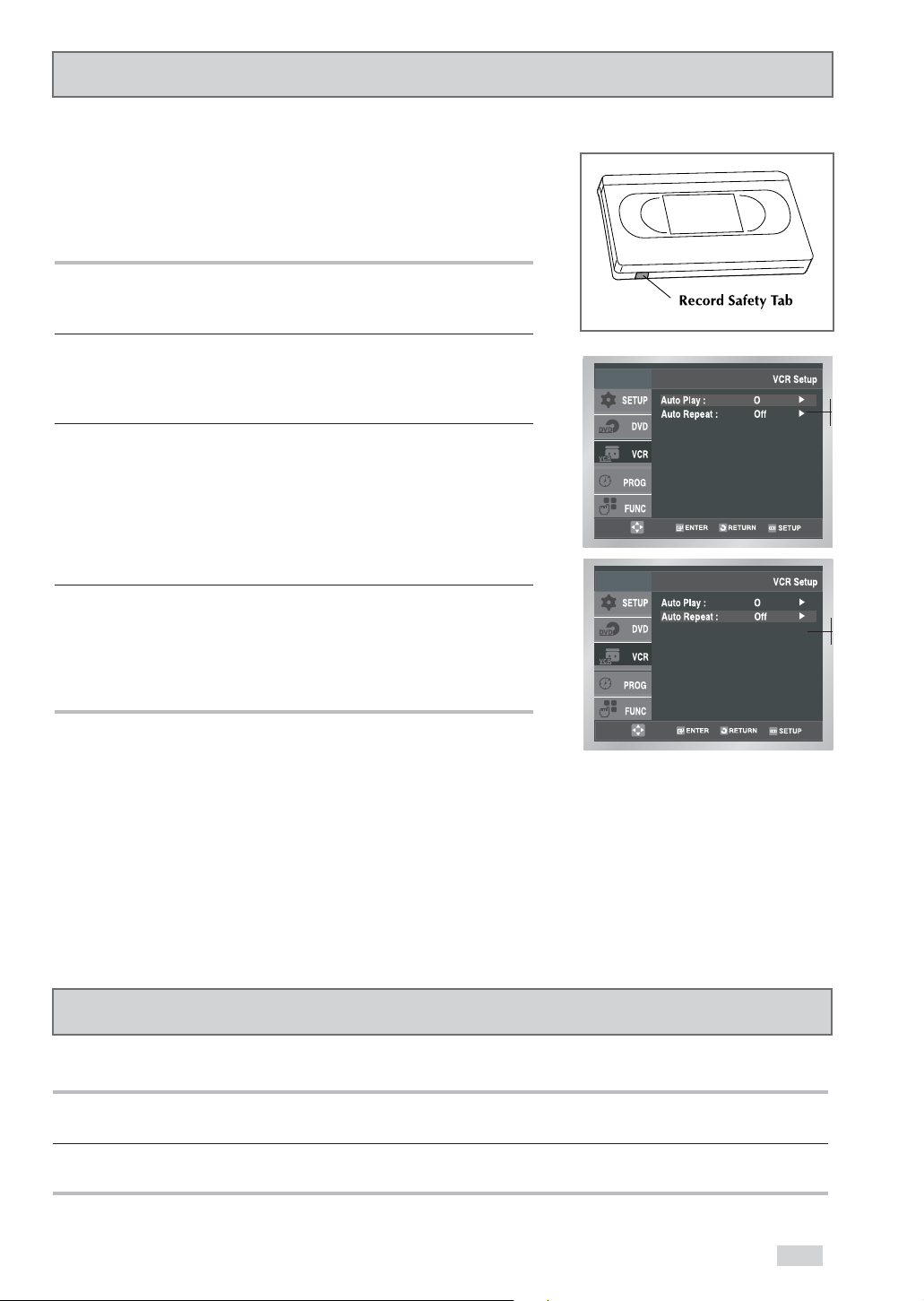

■ Auto Play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Table of Contents

■ S-VHS Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

■ Variable Search System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

◆ 9 - VCR Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

■ Basic Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

■ Special Recording Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

■ One Touch Recording (OTR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

■ Record Speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

◆ 10 - Timer Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

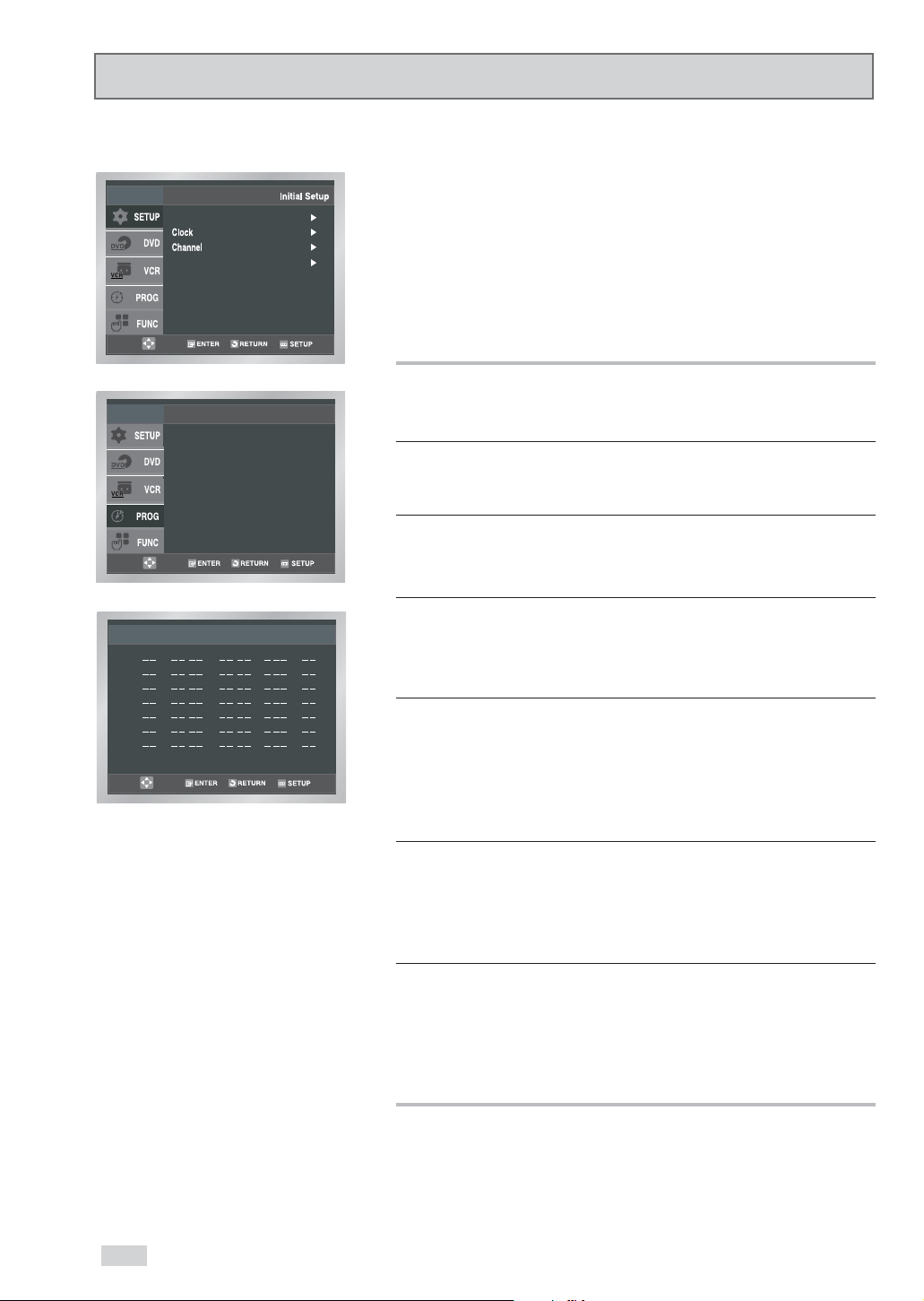

■ How to Set a Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

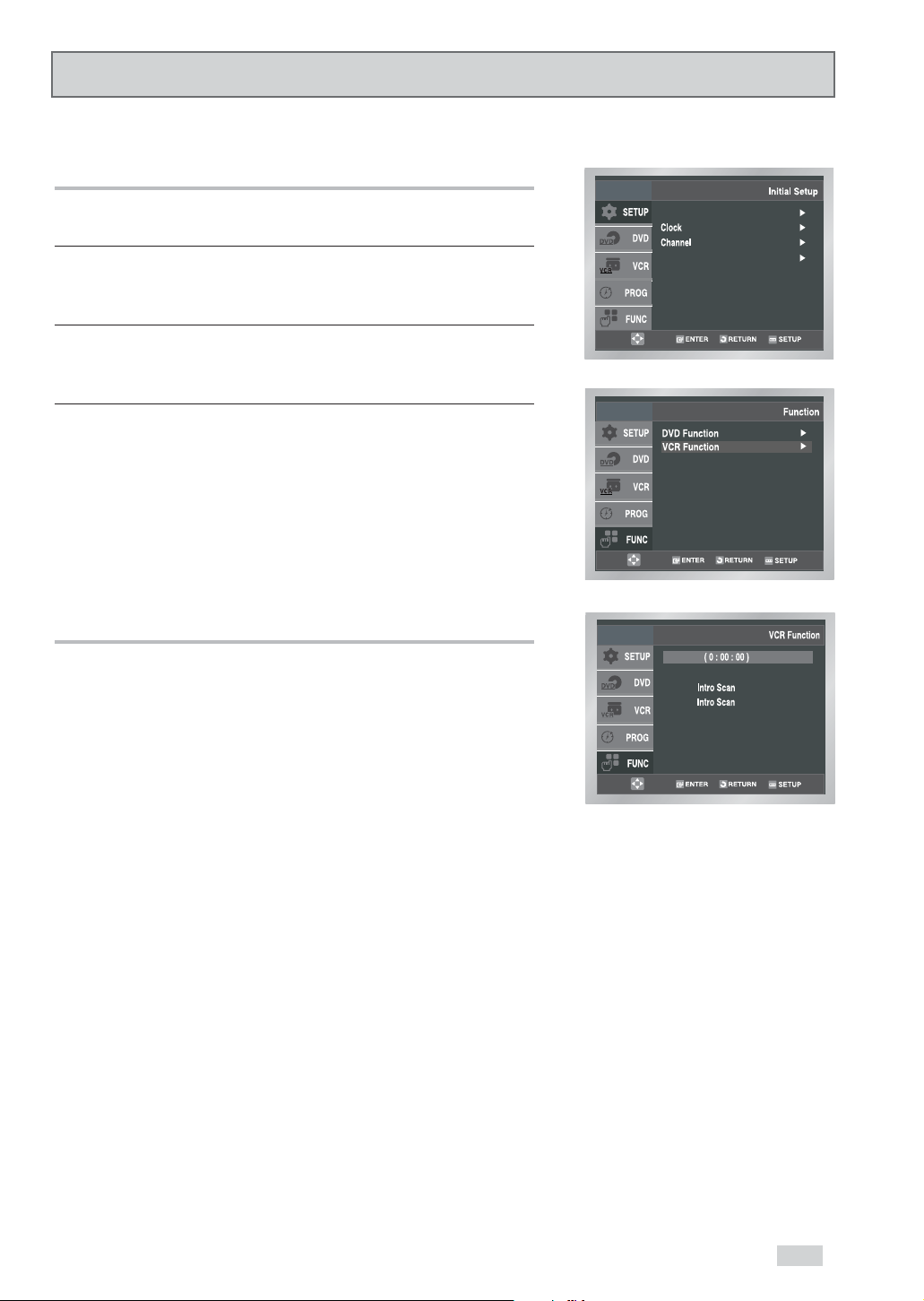

■ Function(VCR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

◆ Appendix A - Advanced Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

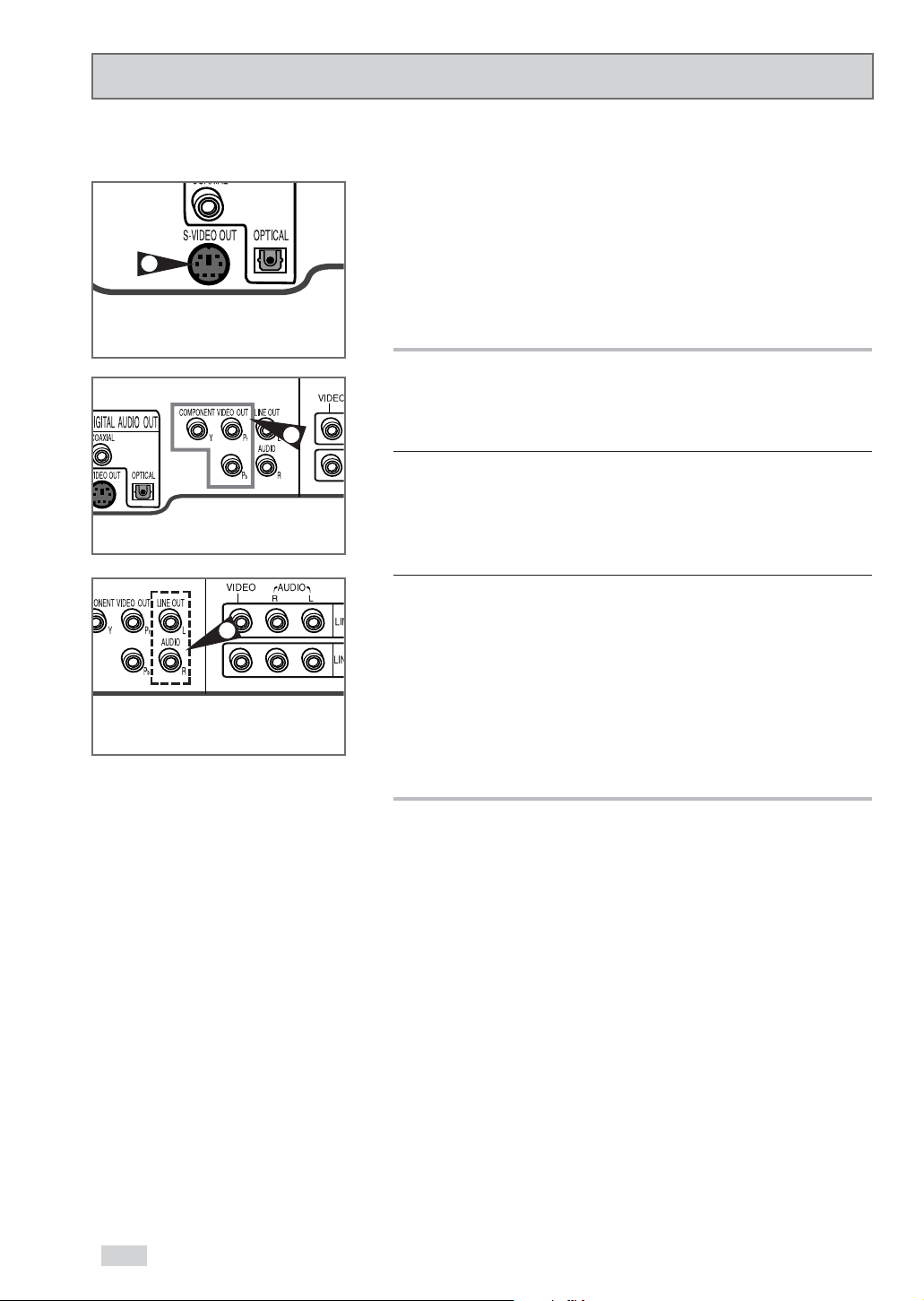

■ S-Video/Component Video Connections (for DVD). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

■ Stereo Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

■ Monitor TV Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

■ Connecting Other Video Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

◆ Appendix B - Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

■ Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

POWER EJECT

AUDIO DISPLAY

REW FF

PLAY/PAUSESTOP

ENTE

CLEAR

LAST CH REPEAT

SELECT

DVD

TV MUTE

3D SOUND TV/VCR

DISC MENU

SUBTITLE MODE ANGLE

MARK

TRACK-

VCR

AUTO

REC

SP/SLP

TIMER SEARCH/IDX

TRACK+

SHUTTLE

Feature Summary

DVD+VCR Features

• Playback of DVDs, audio CDs, MP3 discs and VHS Tapes.

• Ability to watch a DVD movie while recording a TV show to the VCR.

• Auto Setup to instantly set the time and search for channels.

• RF inputs and outputs for connecting older TVs.

• Composite, S-Video, and Component Video outputs.

• Universal remote for DVD, VCR and TV control.

• On-Screen Programming in three languages (English/French/Spanish).

DVD Features

• 10-bit video digital to analog converter and 27MHz advanced digital filter.

• Playback of 96KHz/24-bit sources.

• DTS digital output for DTS-enhanced DVDs.

• MP3-CD playback.

VCR Features

• Hi-Fi Stereo VCR.

• Superior slow motion and stop action (with 4 heads).

• Playback of S-VHS tapes with better than standard resolution.

• Intro Scan, Zero Return, and Blank Search.

• 7-event/1 month timer recording.

• Time remaining counter, real time counter.

Note

*Discs which cannot be played with this player: *Ability to play back may depend on recording

• DVD-ROM • DVD-RAM conditions.

• CD-ROM • CDV • DVD-R • CD-RW

• CDI • VCD • DVD+RW, -RW

• HD layer of Super Audio CD

• CDGs play audio only, not graphics.

Unpack

Please make sure the following items are included in the DVD+VCR packing case:

DVD+VCR Registration Card User’s Guide

RCA cable for RF (Radio Frequency) 1.5V “AAA” Batteries (2)

Audio/Video connections Antenna Cable

Remote Control

DV2130

CHPLAY REW STOP FF REC COPY DVD VCR SETUP

EJECTEJECT

LINE IN 2

L - AUDIO -R

VIDEO

POWER

Disc Types and Characteristics

Disc Markings

Player Region Number

This DVD player is capable of playing the following types of discs:

DIGITAL

SOUND

STEREO

NTSC

• Player Region Number

• NTSC broadcast system in U.S.A, Canada, Korea, Japan, etc.

• Dolby Digital discs

• Stereo discs

• Digital Audio discs

• DTS discs • MP3 discs

Both the DVD player and DVD discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is inscribed on the rear panel of the player.

31/2

Single-sided

240 min.

Double-sided

480 min.

Single-sided

80 min.

Double-sided

160 min.

Audio

Video

Audio

• CD audio is recorded as a digital signal with better quality, less distortion and less deterioration over time.

• Offers excellent sound and

video due to Dolby Digital and MPEG-2 systems.

• Various screen and audio

features can be easily accessed through on-screen disc menus.

AUDIO-CD

31/2"

74 min.

20 min.

Disc Types

(Logos)

Recording

Types

Disc Size

Max.

Playing Time

Characteristics

DVD

V I D E O

Front Panel

1 DVD DECK 2 DVD EJECT BUTTON 3 VCR DECK 4 VCR EJECT BUTTON 5 POWER BUTTON 6 PLAY/PAUSE BUTTON 7 REWIND/SKIP BACK BUTTON 8 STOP BUTTON 9 FAST-FORWARD/SKIP NEXT BUTTON 10 RECORD BUTTON 11 COPY BUTTON

12 FRONT PANEL DISPLAY 13 DVD+VCR BUTTON 14 CHANNEL

/

15 SETUP BUTTON 16 LINE IN 2 COMPOSITE VIDEO JACK 17 LINE IN 2 LEFT AUDIO JACK 18 LINE IN 2 RIGHT AUDIO JACK

1 2 3 4

5 6 7 8 9 10 11 12 13 14 15 16 17 18

DV2130

EJECTEJECT

POWER

CHPLAY REW STOP FF REC COPY DVD VCR SETUP

VIDEO

LINE IN 2

L - AUDIO -R

Front Panel Display

1 2 3 4 5

6 7 8

1 DVD deck is active. 2 DVD or CD is loaded. 3 Time, counter position or current deck status. 4 VHS videotape is loaded. 5 VCR deck is active. 6 A DVD with a DTS soundtrack is loaded.

7 The Hi-Fi track of a VHS videotape is playing

(or the current TV program or video is broadcast in Stereo.)

8 Timer Recording is in progress (blinks when the

VCR is paused during recording).

Rear Panel

1 2 3 4 5 6 7 8 9

1 S-VIDEO OUT 2 DIGITAL AUDIO OUT(COAXIAL) 3 DIGITAL AUDIO OUT(OPTICAL) 4 COMPONENT VIDEO OUT 5 AUDIO LINE OUT TO TV

(FOR USE WITH S-VIDEO OR COMPONENT)

6 LINE IN 1 (COMPOSITE) 7 LINE OUT TO TV (COMPOSITE) 8 RF ANTENNA INPUT 9 RF OUT TO TV

STEREO

Remote Control

Insert Batteries into Remote

• Remove the battery cover on the remote.

• Insert two 1.5V “

AAA” batteries as shown, making sure of the correct

polarities (+/-).

• Slide the cover back onto the remote.

1 2 3

4 5 6 7 8

9 10 11

12 13 14

15 16 17

21 22 23 24 25

27 28

29 30

1 POWER 2 TRACK-/+, AUTO TRACKING 3 SHUTTLE <</>> 4 100+, 3D SOUND

5 SELECT DVD, TV and VCR

6 VOLUME +/– 7 AUDIO, TV MUTE 8 STOP 9 REWIND, SKIP BACK 10 SETUP 11 RETURN 12

,

, ¥,



ARROWS

13 ENTER 14 SP/SLP 15 RECORD 16 SUBTITLE, LAST CH 17 MODE, REPEAT 18 EJECT 19 0-9 20 TV/VCR 21 CHANNEL

/

22 DISPLAY 23 PLAY/PAUSE 24 FAST-FORWARD, SKIP NEXT 25 SKIP, FRAME ADVANCE 26 TV VIEW 27 CLEAR 28 DISC MENU 29 MARK, SEARCH, INDEX 30 ANGLE, TIMER RECORD

POWER EJECT

TRACK-

3D SOUND TV/VCR

100+

DVD

AUDIO DISPLAY

TV MUTE

REW FF

SP/SLP

REC

SUBTITLE MODE ANGLE

LAST CH REPEAT

SHUTTLE

SELECT

AUTO

PLAY/PAUSESTOP

ENTER

TRACK+

VCR

CLEAR

DISC MENU

MARK

TIMER SEARCH/IDX

Using the TV Buttons on the Remote Control

Your VCR remote control will operate many brands of television.

To determine whether your television is compatible, follow the instructions below.

1 Turn on your television. 2 Point the remote control at the television. 3 Hold down the TV button and enter the two-digit code

corresponding to the brand of your television, by pressing the appropriate number buttons.

Brand Codes Brand Codes

SAMSUNG 01, 14, 15, 23 LOEWE 28 SHARP 02, 16, 22 ZENITH 17 SONY 03 LG 06, 08, 18 RCA 07, 29 MAGNAVOX 04 TOSHIBA 09 EMERSON 21 PANASONIC 12, 24 SANYO 05, 20 JVC 11 DAEWOO 19 HITACHI 10 NOBLEX 25 MITSUBISHI 13 TELEFUNKEN 26 NEWSAN 27

Result:

If your television is compatible with the remote control, it will turn off. The remote is now programmed to operate your television.

➢ If several codes are indicated for your television brand, try

each one until you find one that works.

☛

When you change the batteries in the remote control, you must reprogram the code, following the same procedure.

You can then control the television using the following buttons.

Button Function

A. POWER

Turns the television on and off.

B. VOL +or – Adjusts your television volume. C. CHANNEL

/

elects the desired channel on your television. D. TV MUTE Toggles the television sound on and off. E. TV VIEW Selects external sources connected to your

television.

➢

These functions do not work on all televisions.

POWER EJECT

TRACK-

3D SOUND TV/VCR

100+

DVD

AUDIO DISPLAY

TV MUTE

REW FF

REC

SUBTITLE MODE ANGLE

LAST CH REPEAT

AUTO

SP/SLP

SHUTTLE

SELECT

ENTER

PLAY/PAUSESTOP

CLEAR

TRACK+

VCR

DISC MENU

MARK

TIMER SEARCH/IDX

Basic Connections/Auto Setup

You will need to connect the DVD+VCR to a TV and run Auto Setup. Auto Setup will automatically search for channels and then set your DVD+VCR's internal clock.

NOTES:

• See Appendix A for Advanced Connections.

• In order to view the DVD+VCR setup menu, you must use either the Standard RF or Line connection between your TV and DVD+VCR, even if you use the S-Video or Component Video Output for improved picture quality.

1 Connect the RF Antenna Cable to your DVD+VCR

Connect an indoor/outdoor antenna or wall outlet antenna cable to the IN (FROM ANT.) jack on the rear panel.

2 Connect your DVD+VCR to a TV

Choose one of the following methods:

RF Connection

Using the supplied RF antenna cable, connect the OUT (TO TV) jack on the back panel of the DVD+VCR to your TV’s Antenna Input.

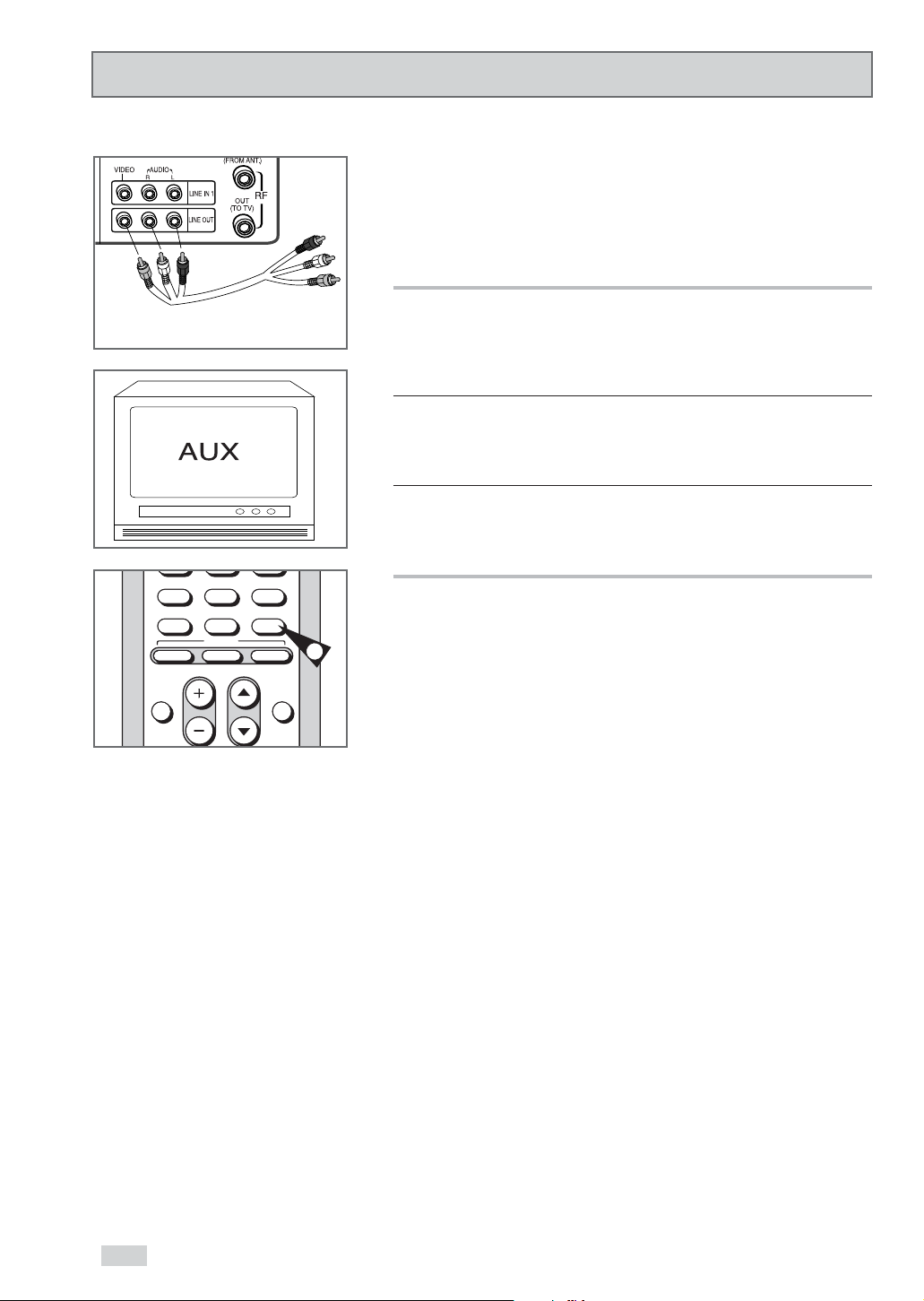

Line Connection

Using an RCA-type audio/video cable (red, white, yellow), connect the LINE OUT jacks on the back panel of your DVD+VCR to your TV's Line In jacks. Use the three cables as follows: red for right audio, white for left audio, and yellow for video. NOTE: If your TV is equipped with RCA jacks, it is better to use the

Line Connection method.

3 Plug In

Plug the DVD+VCR power cable into a standard 120V/60Hz wall outlet. Avoid pressing any buttons on the remote control or on the unit during Auto Setup. While your DVD+VCR is running Auto Setup, “AUTO” will blink on the front panel display. When Auto Setup is complete, the current time will be displayed on the front panel display. If Auto Clock Set fails to locate a channel to set the clock, you should set the clock manually. See page 18.

4 Turn On your DVD+VCR

Turn on the power by pressing the POWER button on the remote control or front panel of the unit.

5 Turn On your TV

Turn on the TV by pressing the POWER button.

6 Set the TV to Channel 3, 4 or Line

Use the same channel you selected in Step 2 above. If you are using the Line Connection method, set your TV to its Line Input.

From Antenna or Cable

To TV’s Antenna Input

POWER

PLAY REW

POWER EJ

TRACK-

AUTO TRAC

SHUTTLE

3D SOUND TV/V

100+

SELECT

DVD

AUDIO DI SPLAY

REW FF

PLAY/PAUSESTOP

SELECT

100+

DVD

TV MUTE

3D SOUND TV/VCR

VCR

The DVD+VCR uses one set of controls to operate both decks.

1 POWER Button

Press the POWER button on the remote control or front panel to turn on the DVD+VCR.

2 DVD Button

Press the DVD button on the remote control or front panel when you want to control the DVD deck.

• The DVD indicator will light on the front panel display to show that the DVD deck is selected.

3 VCR Button

Press the VCR button on the remote control or front panel when you want to control the VCR deck.

• The VCR indicator will light on the front panel display to show that the VHS deck is selected.

4 TV VIEW Button

Press the TV VIEW button repeatedly to cycle through all of your input sources, including the DVD, VCR, Tuner (Ch##), Line 1 (rear AV input), and Line 2 (front AV input).

Deck Control Buttons

EJECT

K- AUTO TRACK+

SHUTTLE

REC COPY

EJECT

PLAY/PAUSESTOP

POWER

PLAY REW STOP

Follow the instructions below to playback a DVD.

1 Open the Disc Tray

Press the EJECT button on the remote control or front panel of the unit to turn on the power and open the disc tray.

2 Insert a Disc

Put a disc in the center of the tray, with the label side facing up.

3 Close the Disc Tray

Press the EJECT button on the remote control or front panel of the unit to close the disc tray.

4 Play a DVD

Press the PLAY/PAUSE button on the remote control or front panel of the unit.

• Most discs will start playback as soon as the tray closes.

• If a DVD has a disc menu, the menu may pop up on TV screen.

5 Additional DVD Options

• See pages 24 ~ 35 for advanced DVD Setup options.

• See pages 36 ~ 51 for special DVD Playback features.

Basic DVD Operation

POWER EJECT

TRACK- AUTO TRACK+

SHUTTLE

Basic VCR Operation

To play a standard VHS videotape, simply insert it into the VCR deck and press the PLAY button. You can also turn on Auto Play to have the VCR play prerecorded tapes automatically when you insert them (the Record Safety Tab must be removed). See page 53.

1 Insert VHS Tape

Insert a standard VHS videotape into the VCR deck.

• When a videotape is inserted, the DVD+VCR will power on automatically.

2 Play Tape

Press the PLAY/PAUSE

ll

button on the remote control or front panel of the unit. The videotape will begin to play automatically if it is missing the Record Safety Tab and Auto Play is turned on. See page 53.

3 Stop Playback

Press the STOP ■button on the remote control or front panel of the unit.

4 Eject Tape

Press the EJECT button on the remote control or front panel of the unit.

5 Additional VCR Options

• See pages 52~54 for special VCR Playback features.

• See pages 55~57 for VCR Recording features.

• See page 58 for Timer Recording features.

DV2130

EJECT

CHDVD VCR SETUP

VIDEO

TV MUTE

REW FF

PLAY/PAUSESTOP

CHDVD VCR SETUP

LINE IN 2

L - AUDIO -R

VIDEO

LINE IN 2

L - AUDIO -R

DV2130

EJECT

Basic TV Tuner Operation

Use the following buttons when watching TV with the DVD+VCR's built-in TV tuner.

1 TV/VCR

Switches between your TV's tuner and the DVD+VCR's internal tuner.

•You don’t need to press the TV/VCR button in VCR mode.

2 Channel /



Moves to the next or previous channel.

3 0-9 Buttons

Selects the desired channel directly.

4 100+ Button

Tunes to channels 100 and above. First, press the 100+ button, then use the number buttons (0-9) to enter the remaining digits of the desired channel number.

• This button is only active in Cable TV Mode.

5 DISPLAY Button

Displays the current channel.

• Also works in DVD and VCR mode.

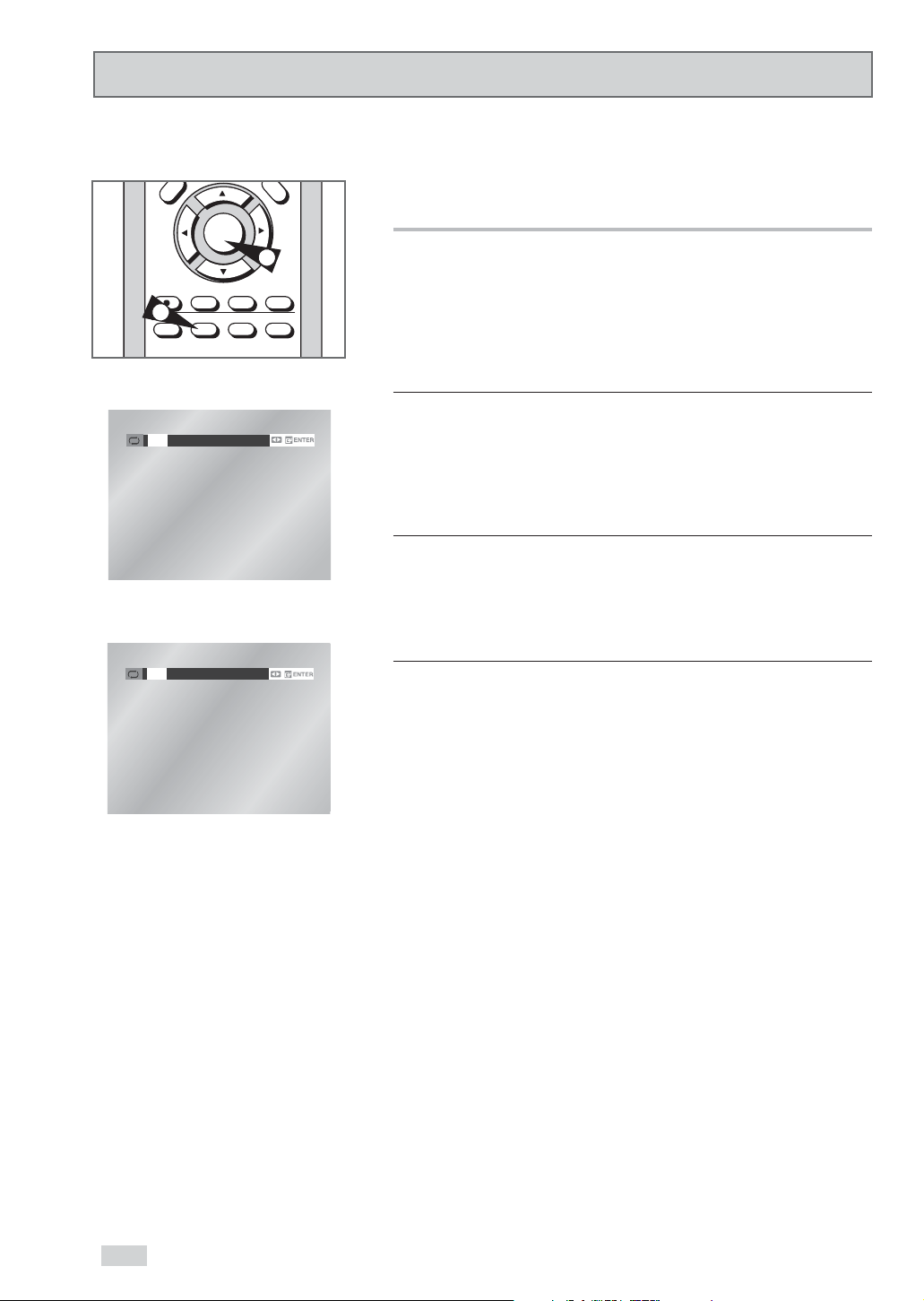

The on-screen menus allow you to enable or disable various functions on your DVD+VCR. Use the following buttons to open and navigate the on-screen menus.

1 SETUP Button

Press while the DVD is in Stop or Play mode to open the on-screen Initial Setup menu.

/

and ¥/



Moves the cursor up, down, left and right to cycle through menu options.

3 ENTER Button

Confirms menu settings.

4 RETURN Button

Returns to the last menu screen or exits the on-screen menu system.

On-Screen Menu Navigation

AUDIO DISPLAY

REW FF

PLAY/PAUSESTOP

SELECT

100+

DVD

TV MUTE

3D SOUND TV/VCR

VCR

TRACK-

3D SOUND TV/VCR

100+

DVD

AUTO TRACK+

SHUTTLE

SELECT

VCR

REC

Language : English

Front Display : Auto

ENTER

CLEAR

DISC MENU

SP/SLP

Menu Language

To change the on-screen menu language to English, French or Spanish:

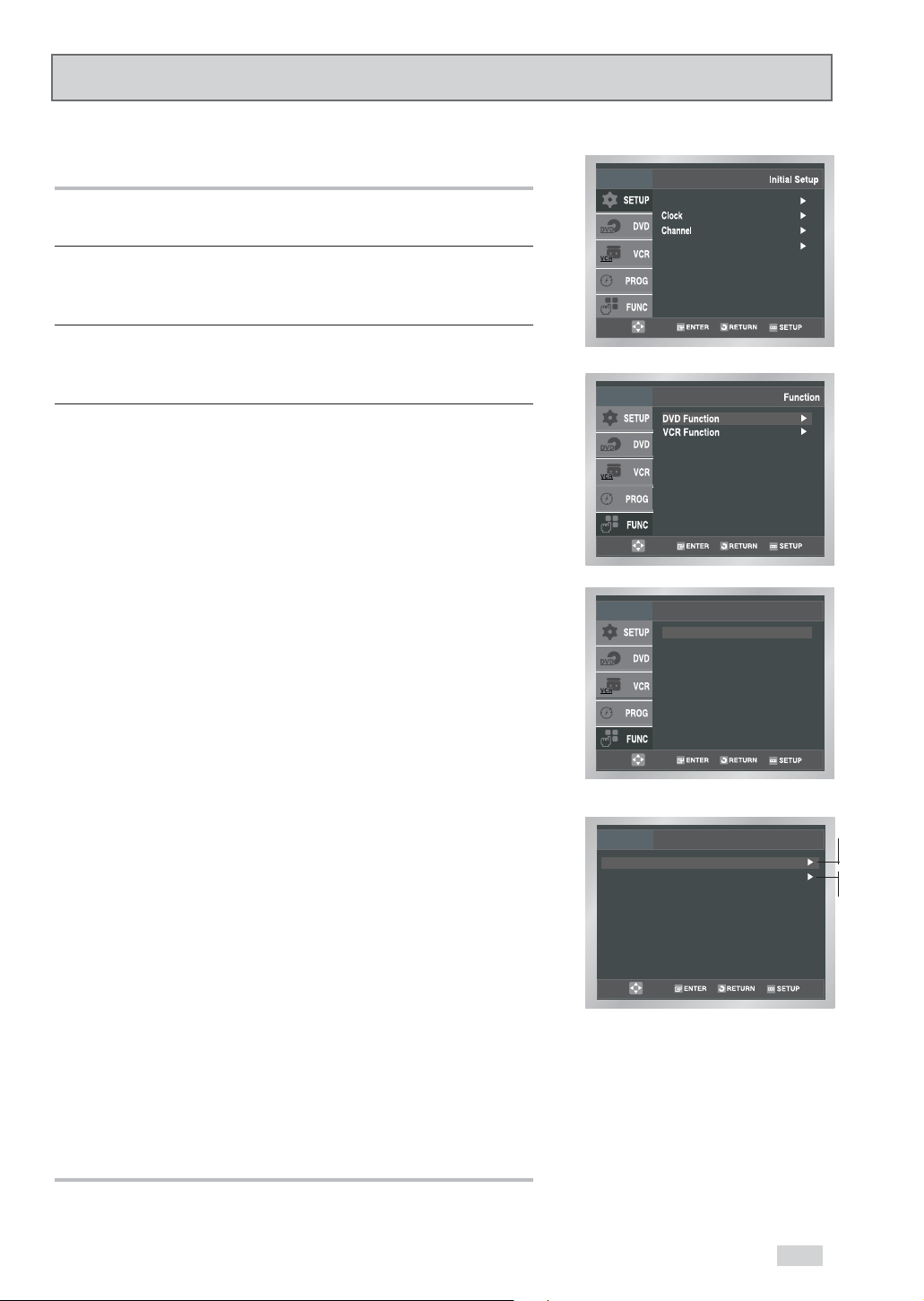

1 Open “Initial Setup” menu

Press the SETUP button while the DVD is in Stop or Play mode.

2 Select “SETUP”

Use the

/

buttons to highlight “SETUP”, then press

ENTER to select.

3 Select “Language”

Use the

/

buttons to highlight “Language”, then press ENTER

to select.

4 Set “Language”

Place the selection bar next to your desired Language, then press ENTER to select.

ENTER

Language : English

Front Display : Auto

Language : English

Front Display : Auto

Language : English

Front Display : Auto

If Auto Setup fails to set the DVD+VCR’s internal clock by locating a local TV station, follow these steps to set the date and time manually. NOTE: For accurate Timer Recording, your DVD+VCR's internal

clock must be set correctly.

1 Open “Initial Setup” menu

Press the SETUP button while the DVD is in Stop or Play mode.

2 Select “SETUP”

Use the

/

buttons to highlight “SETUP”, then press

ENTER to select.

3 Select “Clock”

Use the

/

buttons to highlight “Clock”, then press ENTER to

select.

4 Select “Manual Clock”

Use the

/

buttons to highlight “Manual Clock”, then press

ENTER to select.

• The “Clock Set/Adjust” menu will change as shown.

5 Set the Clock

Use the

¥/ 

buttons to select each of the following options,

then use the

/

buttons to set each option:

• Hour – Set the hour.

• Minute– Set the minute.

• Month– Set the month.

• Day – Set the day.

• Year – Set the year.

6 Confirm Settings

Press the RETURN button to confirm your clock settings and to return to the Initial Setup menu.

• Press the RETURN button again to exit.

Manual Clock Set

ENTER

CLEAR

SP/SLP

REC

Language : English

Front Display : Auto

Language : English

Front Display : Auto

Language : English

Front Display : Auto

DISC MENU

ENTER

Tuner Band Setting

This feature allows you to manually set the DVD+VCR’s tuner band to Antenna or Cable, whichever you connected to the IN (FROM ANT.) jack during initial setup.

• Use this setting only if Auto Setup detected the incorrect tuner

band, i.e. channels are coming in on the wrong channel numbers.

1 Open “Initial Setup” menu

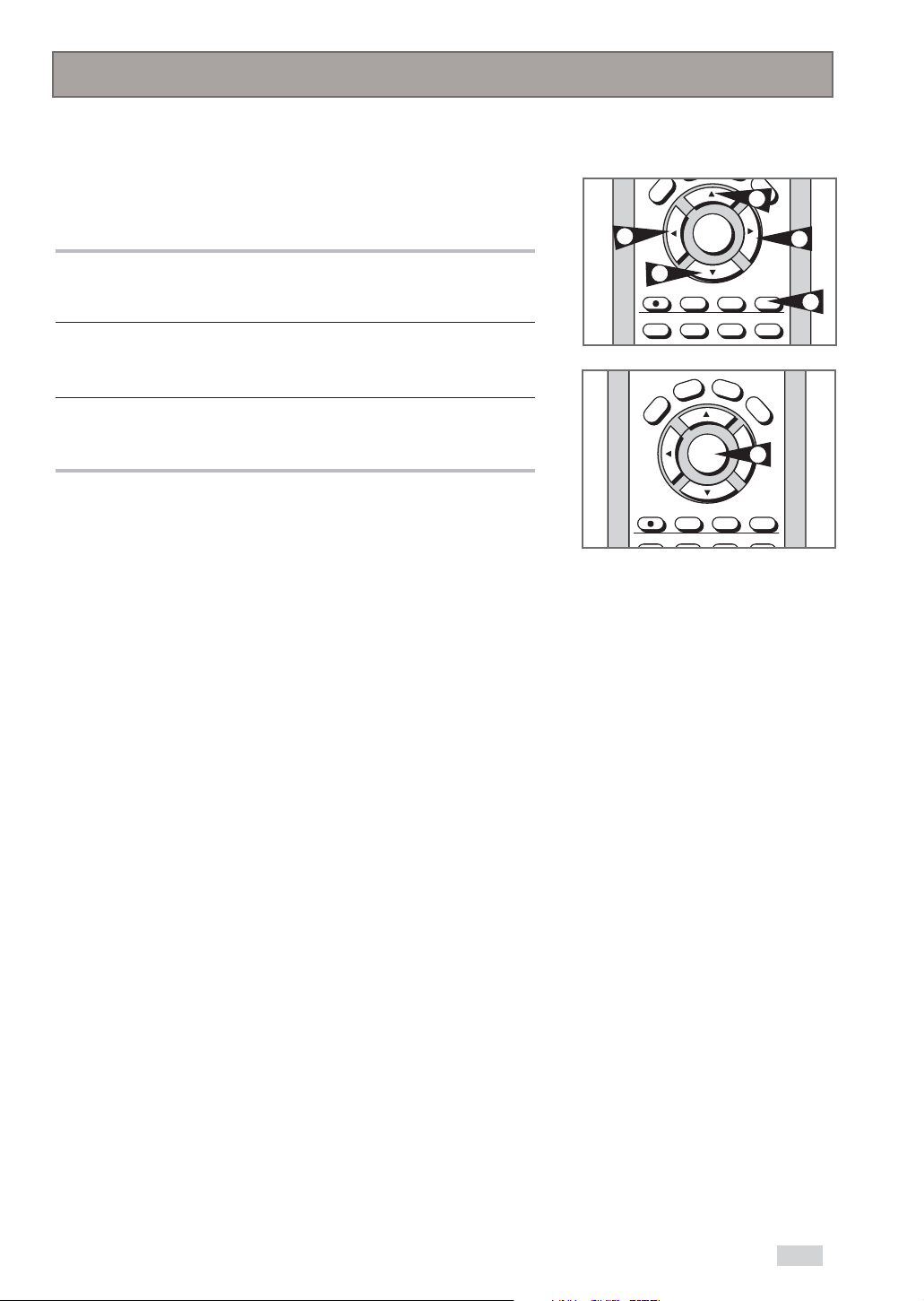

With the DVD in Stop or Play mode, press the SETUP button.

2 Select “SETUP”

Use the

/

buttons to highlight “SETUP”, then press

ENTER to select.

3 Select “Channel”

Use the

/

buttons to highlight “Channel”, then press ENTER to

select.

4 Select “Ant/Cable”

Use the

/

buttons to highlight “Ant/Cable”, then press the



button to select from the following options:

• Antenna - Indicates that the DVD+VCR is connected to an indoor or outdoor VHF/UHF antenna.

• Cable TV - Indicates that the DVD+VCR is connected to Cable TV.

Language : English

Front Display : Auto

Ant./Cable : Antenna RF Output CH : 3CH

Auto Channel Memory Channel Add/Delete

Antenna Cable TV

Language : English

Front Display : Auto

Language : English

ENTER

RF Output Channel

1 Open “Initial Setup” menu

With the DVD in Stop or Play mode, press the SETUP button.

2 Select “SETUP”

Use the

/

buttons to highlight “SETUP”, then press

ENTER to select.

3 Select “Channel”

Use the

/

buttons to highlight “Channel”, then press ENTER to

select.

4 Select “RF Output CH”

Use the

/

buttons to highlight “RF Output CH”, then press



to change.

5 Change “RF Output CH”

A message will appear on your TV. Press ENTER to change.

6 Change “TV Channel”

A message will appear on your TV. When the message disappears, change your TV to channel 3 or 4 to match the RF output channel of the player.

Language : English

Front Display : Auto

Ant./Cable : Antenna RF Output CH : 4CH

Auto Channel Memory Channel Add/Delete

3CH 4CH

Language : English

Front Display : Auto

Language : English

+ 46 hidden pages
