Samsung DP15LS, DP15LS 550V Schematic

11 Schematic Diagrams

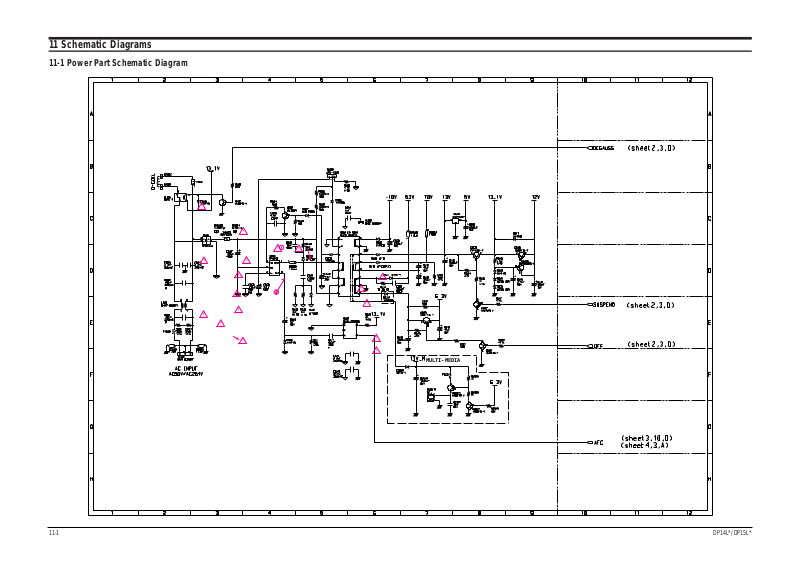

11-1 Power Part Schematic Diagram

MULTI-MEDIA

11-1	DP14L*/DP15L*

1 410 V (IC601, #1)

						CH1 = 410 V		CH1 RMS = 332.8 V

11 Schematic Diagrams

2 8.40 V (IC601, #5)

CH1 = 8.40 V CH1 RMS = 4.680 V

DP14L*/DP15L*

11-2

11 Schematic Diagrams

11-2 Micom Part Schematic Diagram

11-3	DP14L*/DP15L*

11 Schematic Diagrams

					14		5.92 V (IC201, #16, 17)		20		4.92 V (IC201, #14)		21		5.52 V (IC201, Keyin/out)		23		5.16 V (IC202, #3)

CH1 P-P = 5.92 V CH1 RMS = 3.812 V

CH1 P-P = 4.92 V CH1 RMS = 2.912 V

CH1 P-P = 5.52 V CH1 RMS = 3.696 V

CH1 P-P = 5.16 V CH1 RMS = 3.570 V

24

5.28 V (IC201, #31)

25

4.96 V (IC201, #30)

CH1 P-P = 5.28 V CH1 RMS = 1.218 V

CH1 P-P = 4.96 V CH1 RMS = 350 mV

DP14L*/DP15L*

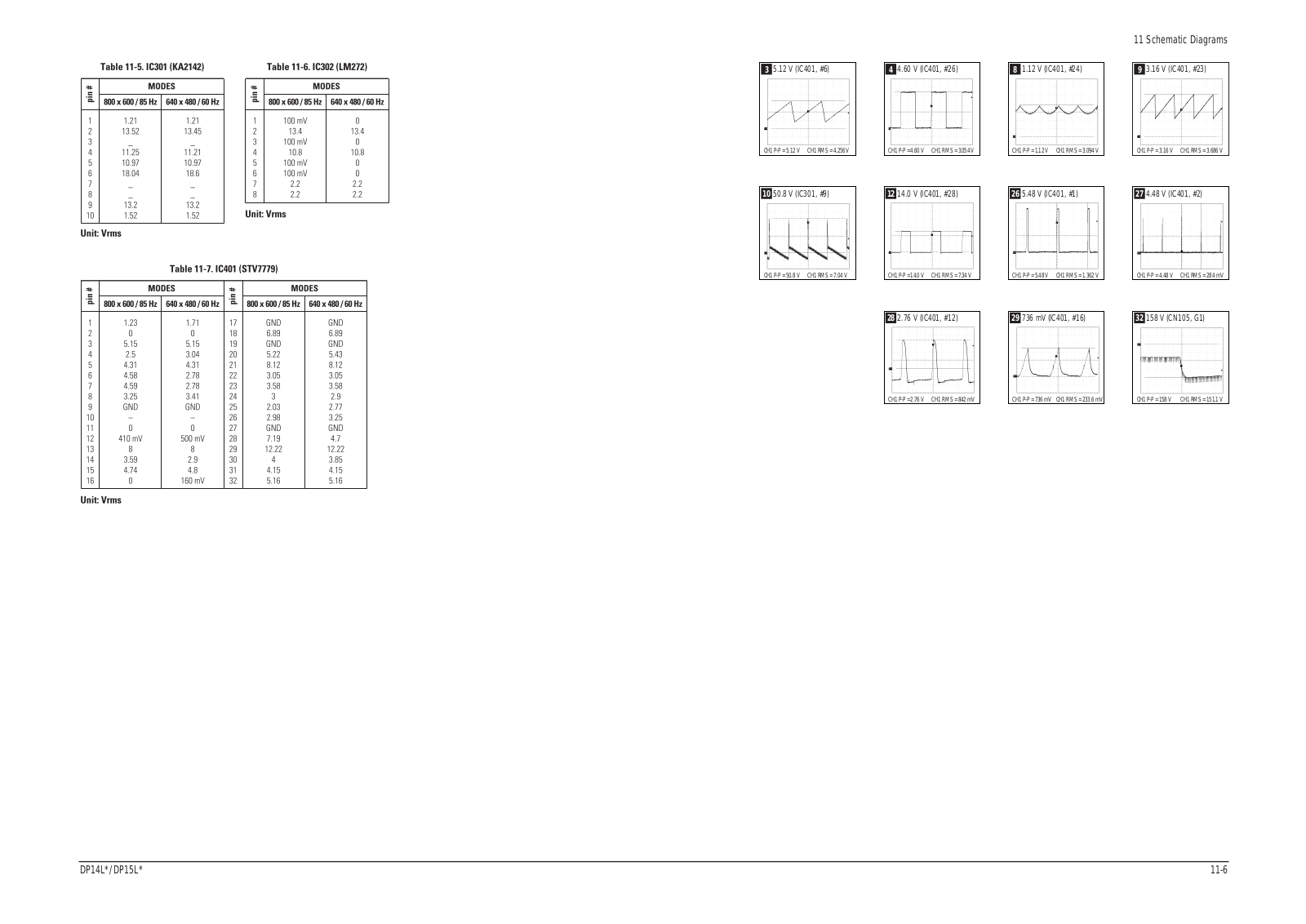

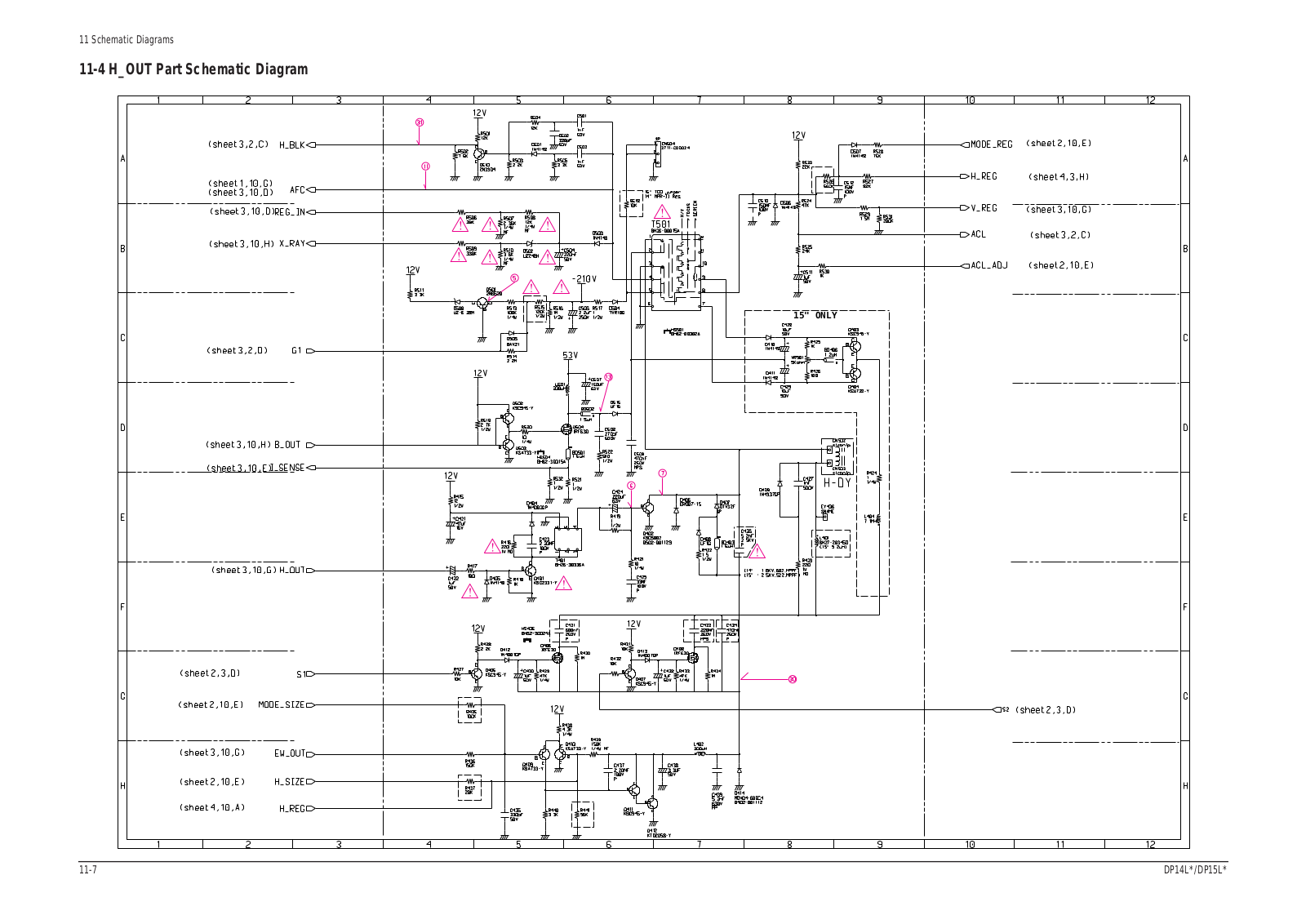

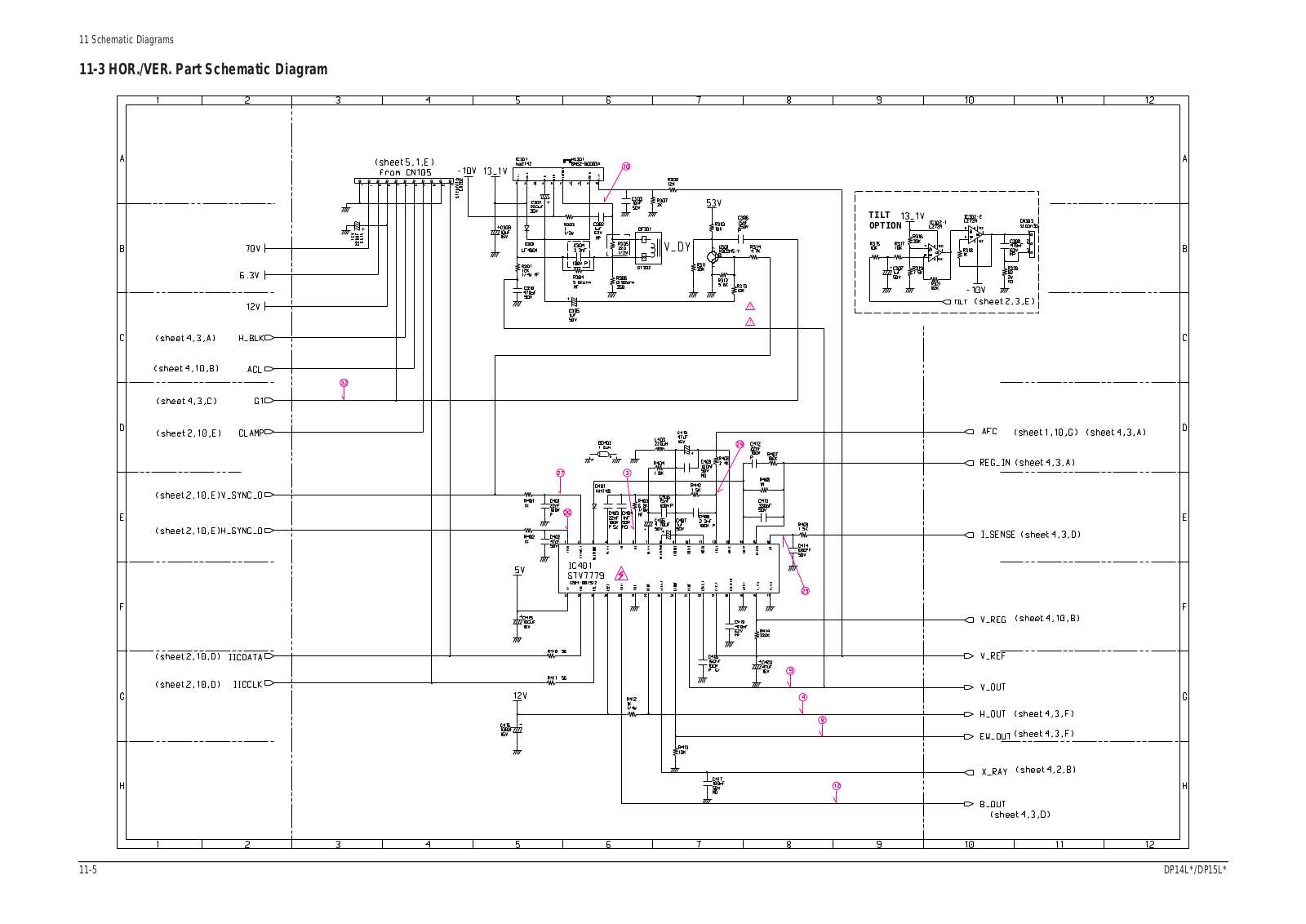

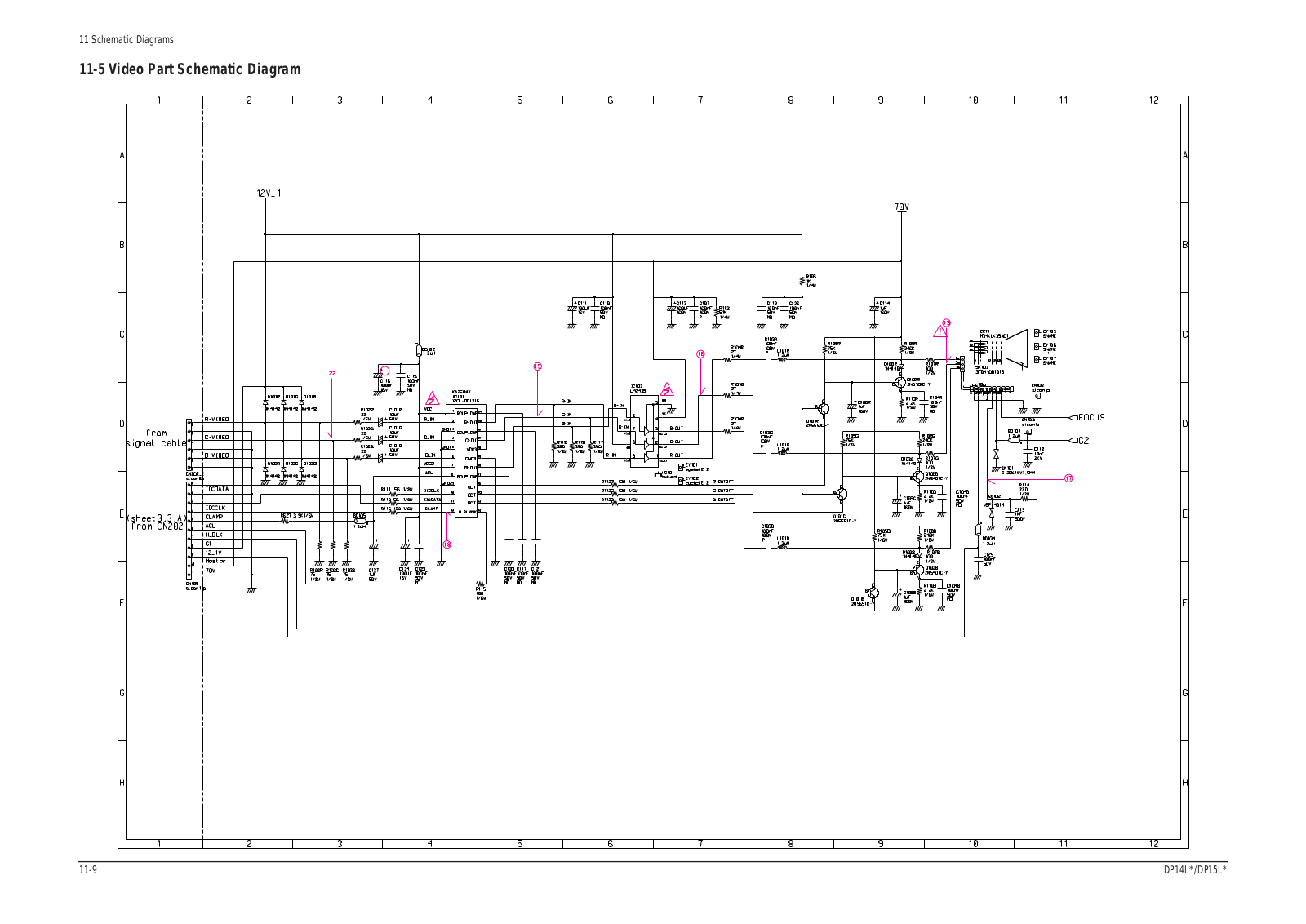

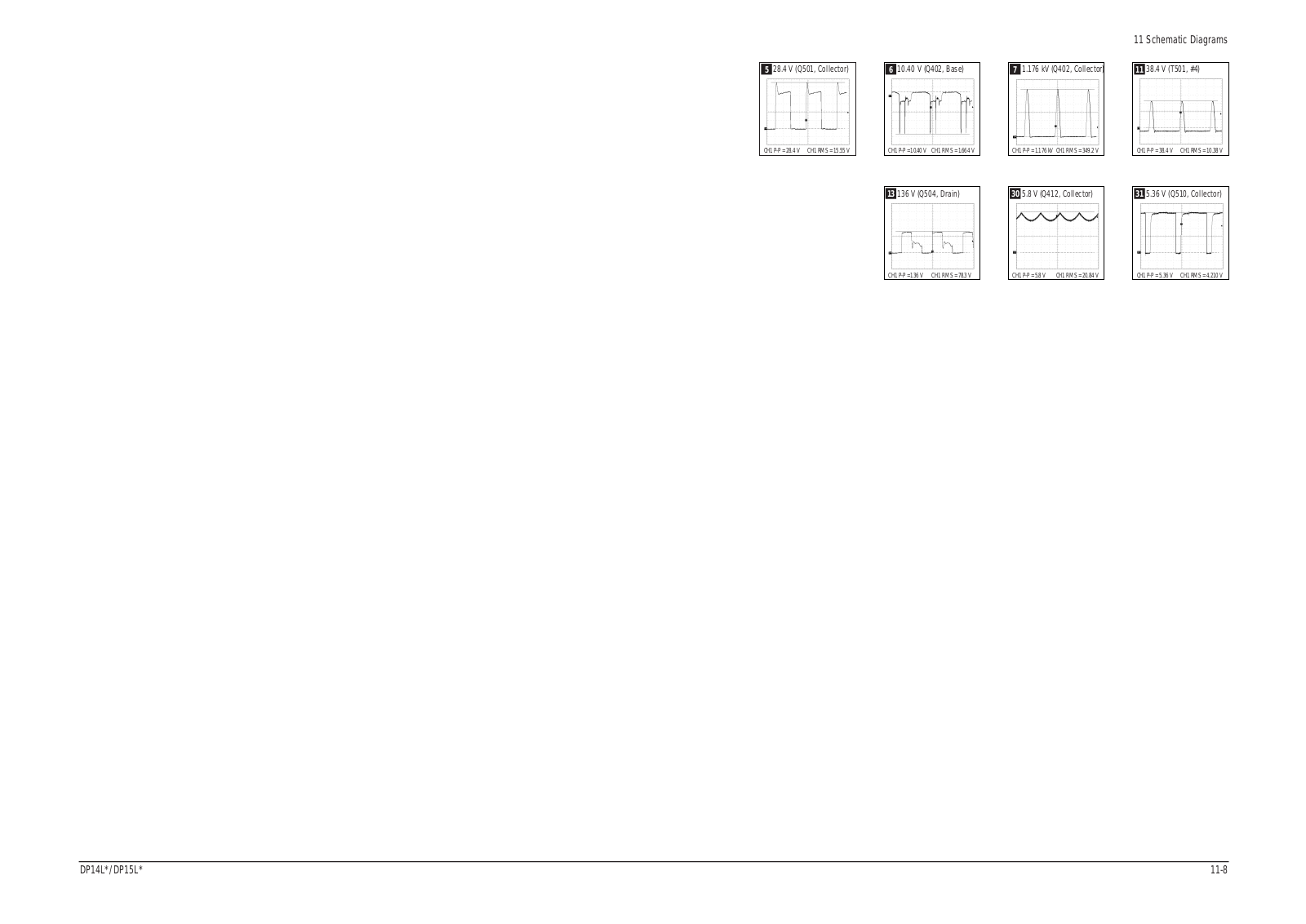

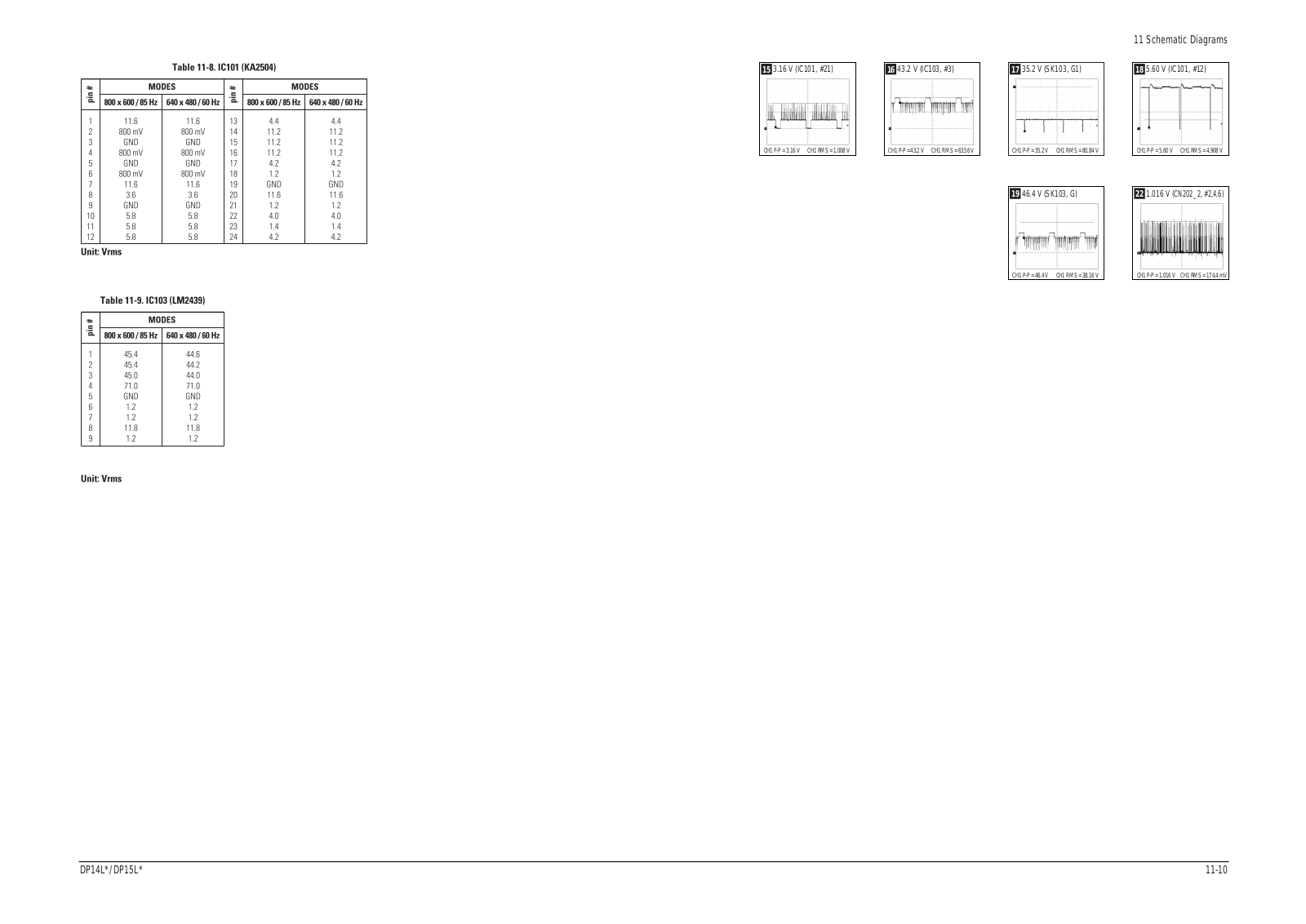

11-4
