Samsung DP14, DP15LS Specifications
DP14L*/DP15L* 2-1

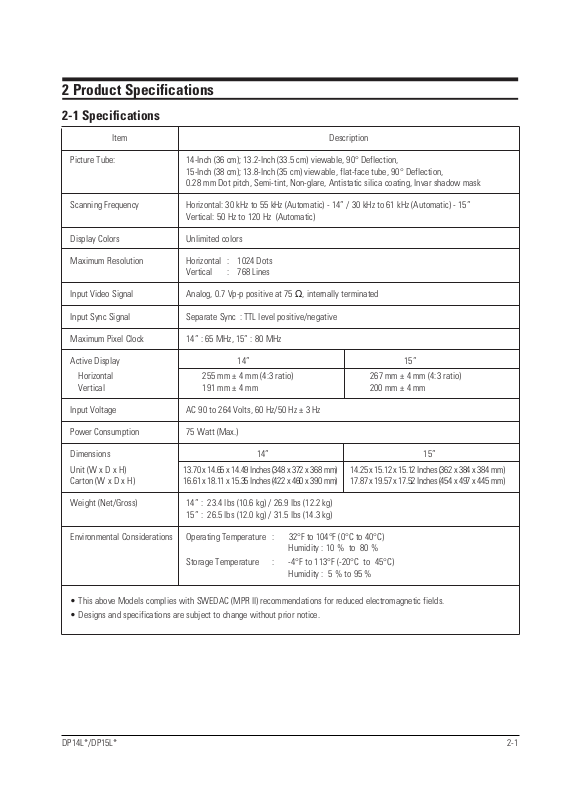

2 Product Specifications
2-1 Specifications
Picture Tube: 14-Inch (36 cm); 13.2-Inch (33.5 cm) viewable, 90° Deflection,
15-Inch (38 cm); 13.8-Inch (35 cm) viewable, flat-face tube, 90° Deflection,
0.28 mm Dot pitch, Semi-tint, Non-glare, Antistatic silica coating, Invar shadow mask
Scanning Frequency Horizontal: 30 kHz to 55 kHz (Automatic) - 14” / 30 kHz to 61 kHz (Automatic) - 15”
Vertical: 50 Hz to 120 Hz (Automatic)
Display Colors Unlimited colors
Maximum Resolution Horizontal : 1024 Dots
Vertical : 768 Lines
Input Video Signal Analog, 0.7 Vp-p positive at 75 Ω, internally terminated
Input Sync Signal Separate Sync : TTL level positive/negative
Maximum Pixel Clock 14” : 65 MHz, 15” : 80 MHz
Active Display 14” 15”
Horizontal 255 mm ± 4 mm (4:3 ratio) 267 mm ± 4 mm (4:3 ratio)
Vertical 191 mm ± 4 mm 200 mm ± 4 mm
Input Voltage AC 90 to 264 Volts, 60 Hz/50 Hz ± 3 Hz
Power Consumption 75 Watt (Max.)
Dimensions 14” 15”
Unit (W x D x H) 13.70 x 14.65 x 14.49 Inches (348 x 372 x 368 mm) 14.25 x 15.12 x 15.12 Inches (362 x 384 x 384 mm)
Carton (W x D x H) 16.61 x 18.11 x 15.35 Inches (422 x 460 x 390 mm) 17.87 x 19.57 x 17.52 Inches (454 x 497 x 445 mm)
Weight (Net/Gross) 14” : 23.4 lbs (10.6 kg) / 26.9 lbs (12.2 kg)
15” : 26.5 lbs (12.0 kg) / 31.5 lbs (14.3 kg)
Environmental Considerations Operating Temperature : 32°F to 104°F (0°C to 40°C)
Humidity : 10 % to 80 %
Storage Temperature : -4°F to 113°F (-20°C to 45°C)
Humidity : 5 % to 95 %
• This above Models complies with SWEDAC (MPR II) recommendations for reduced electromagnetic fields.
• Designs and specifications are subject to change without prior notice.

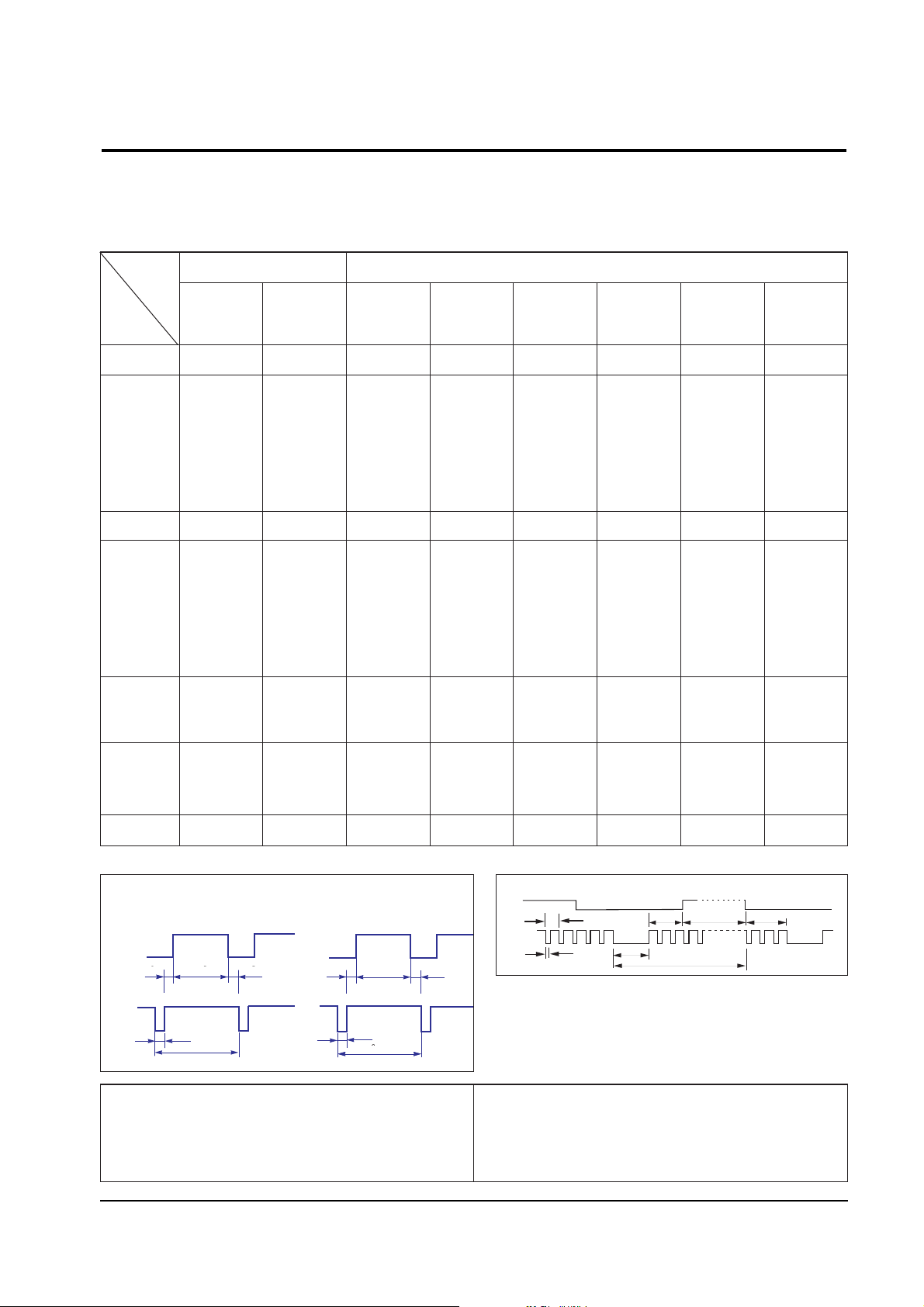

Item Description
2 Product Specifications
2-2 DP14L*/DP15L*
2-2 Pin Assignments
Sync
Type
Pin No.
15-Pin Signal Cable Connector (Figure 2-1)
Separate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Red
Green
Blue
GND
DDC Return
GND-R
GND-G
GND-B
Reserved
GND-Sync/Self-raster
GND
DDC Data
H-Sync
V-Sync
DDC Clock
5
15
Figure 2-1. Male Type
