Samsung DM75D User Guide

LFD DISPLAY

User Manual

DM65D DM75D

The colour and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.

Table of contents

Before Using the Product

» Copyright

» Safety Precautions

Preparations

» Parts

» Before Installing the Product (Installation

Guide)

» Dimensions

» Installing the Wall Mount

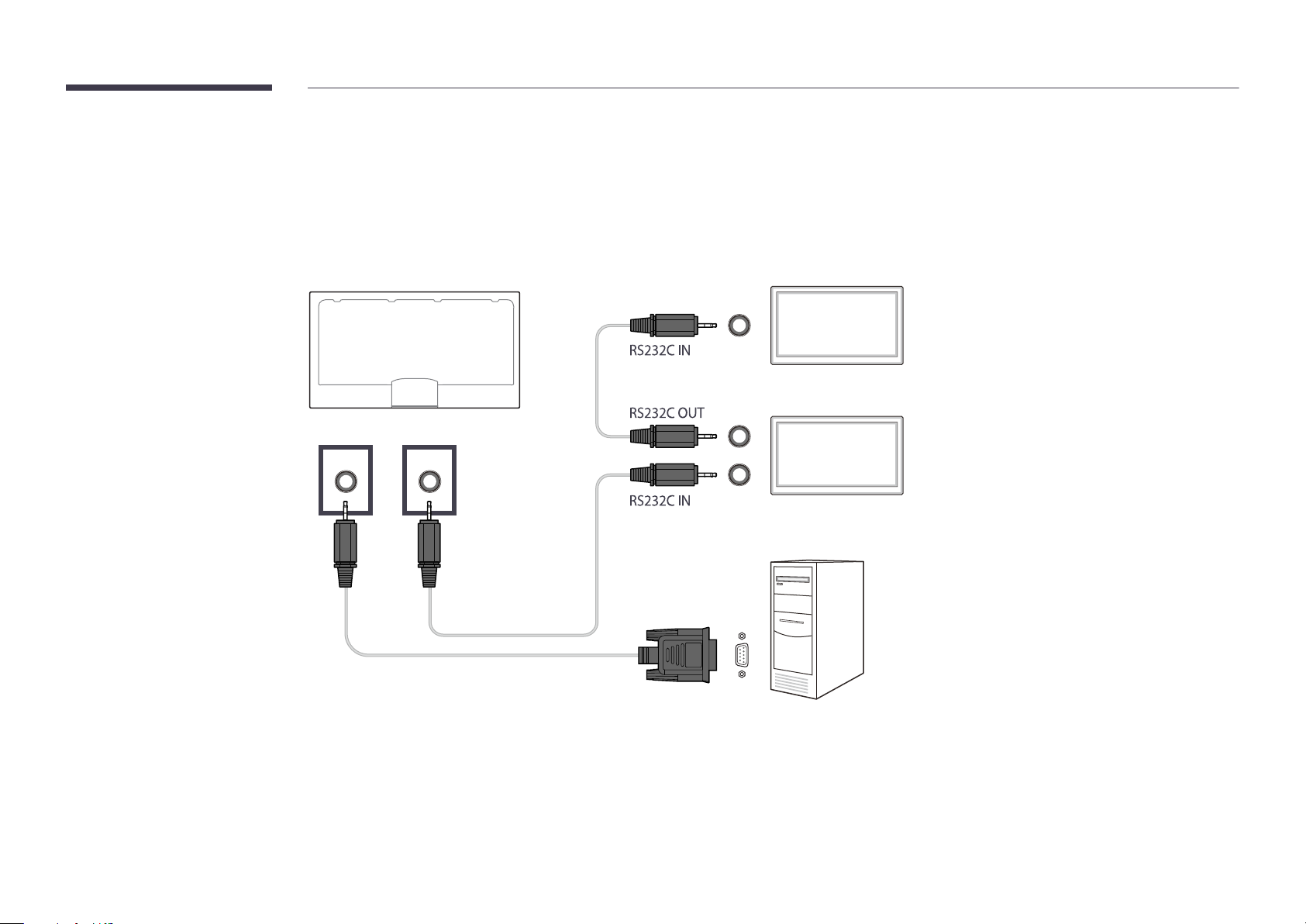

» Remote Control (RS232C)

Connecting and Using a Source Device

» Before Connecting

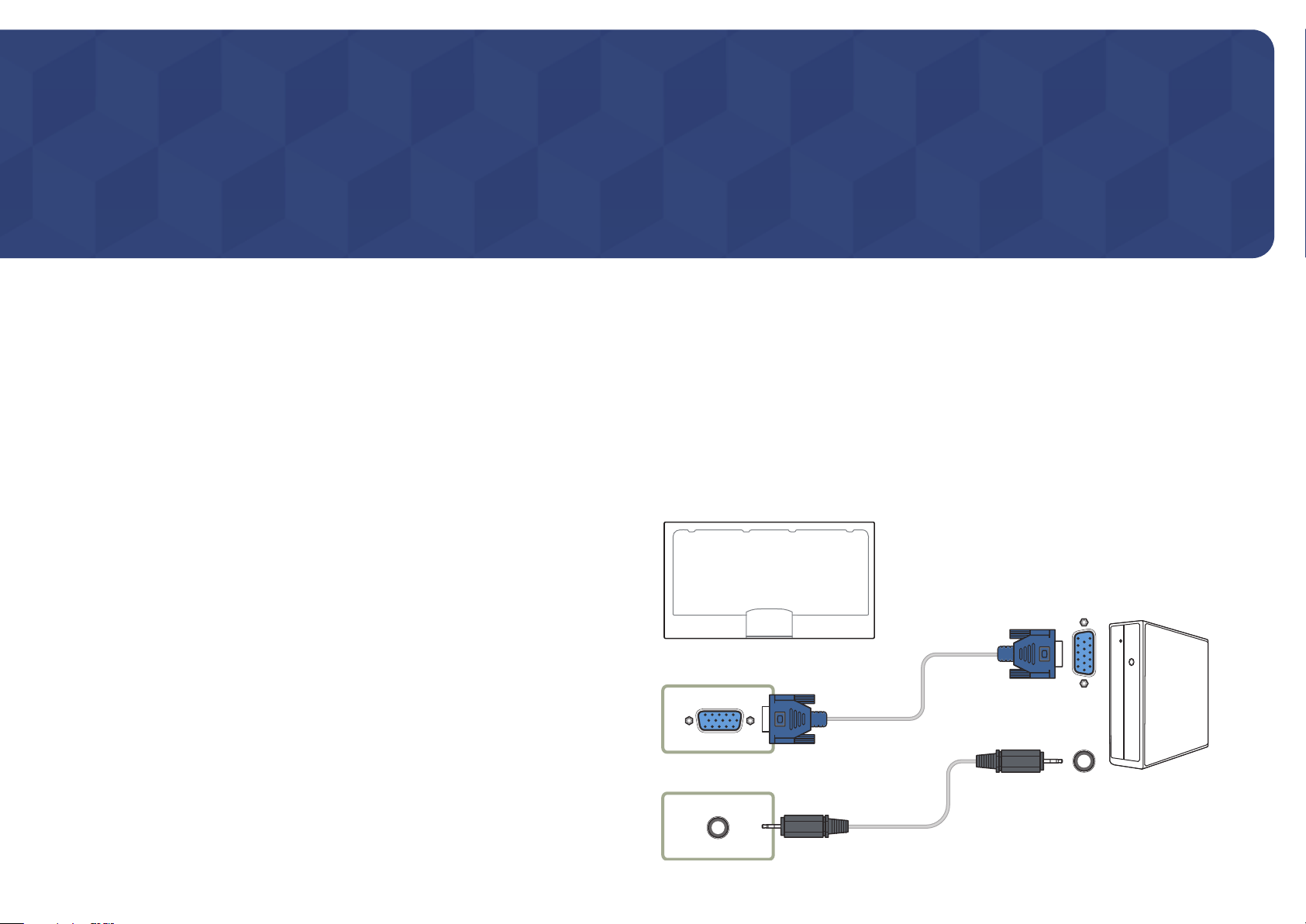

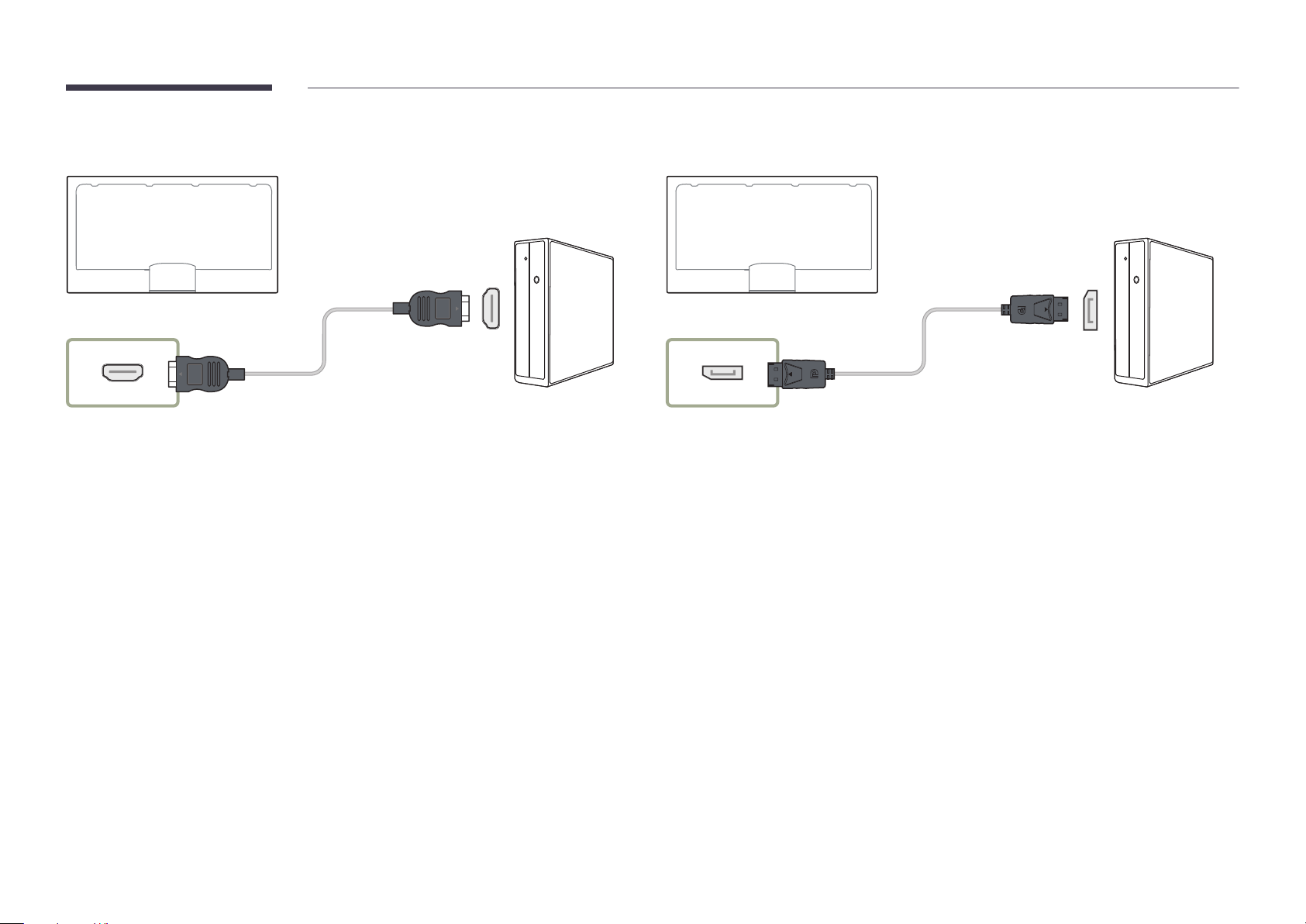

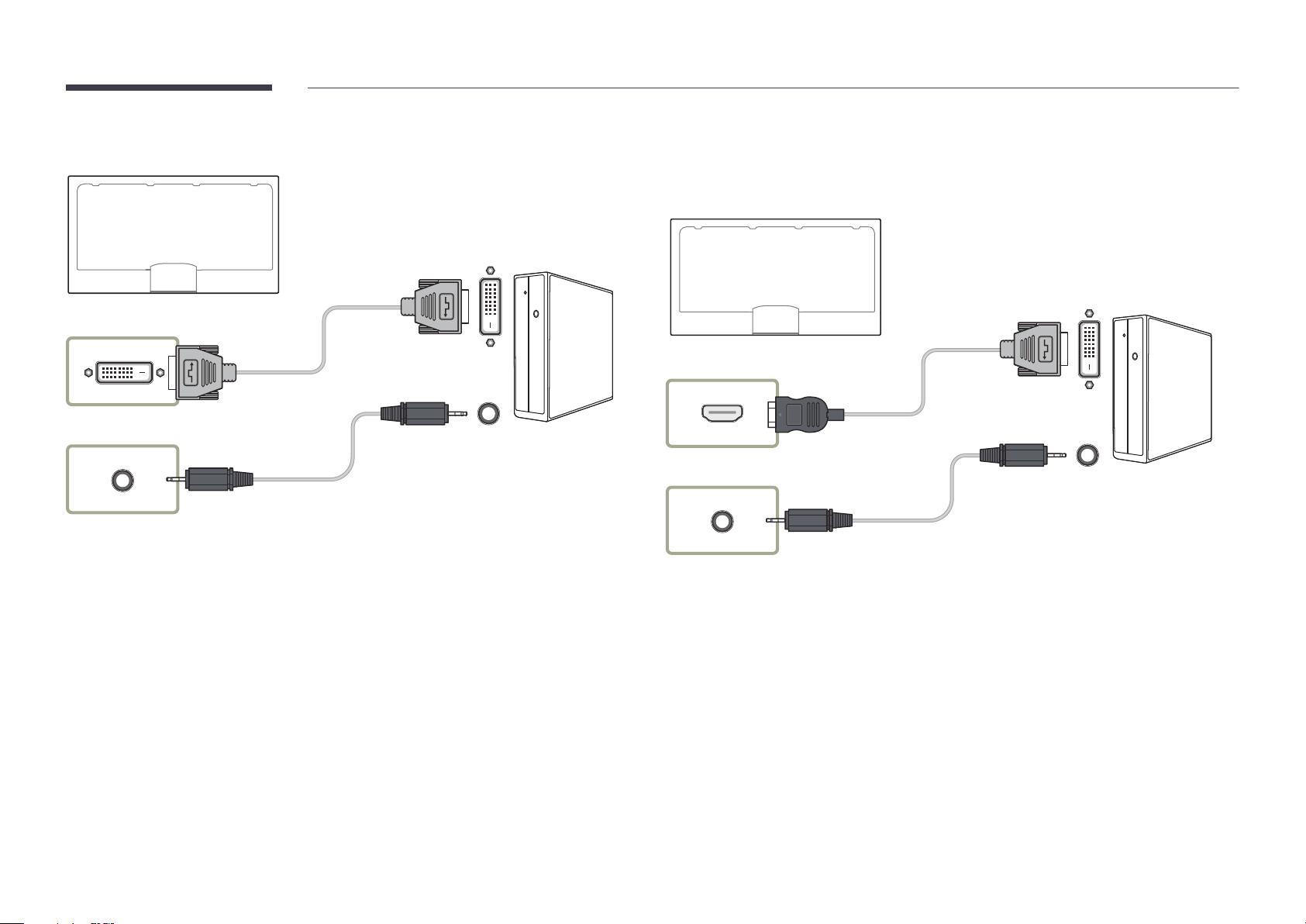

» Connecting to a PC

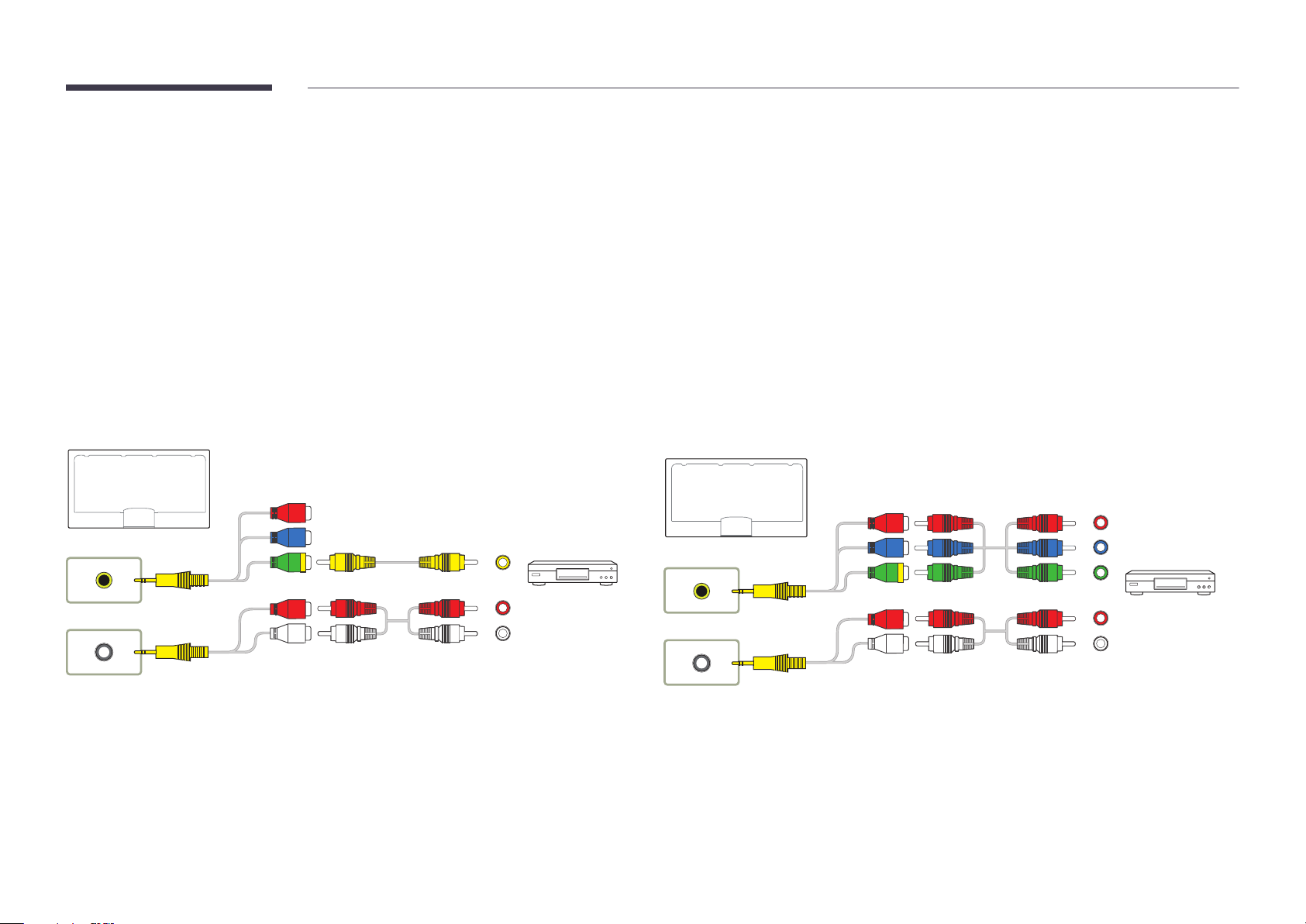

» Connecting to a Video Device

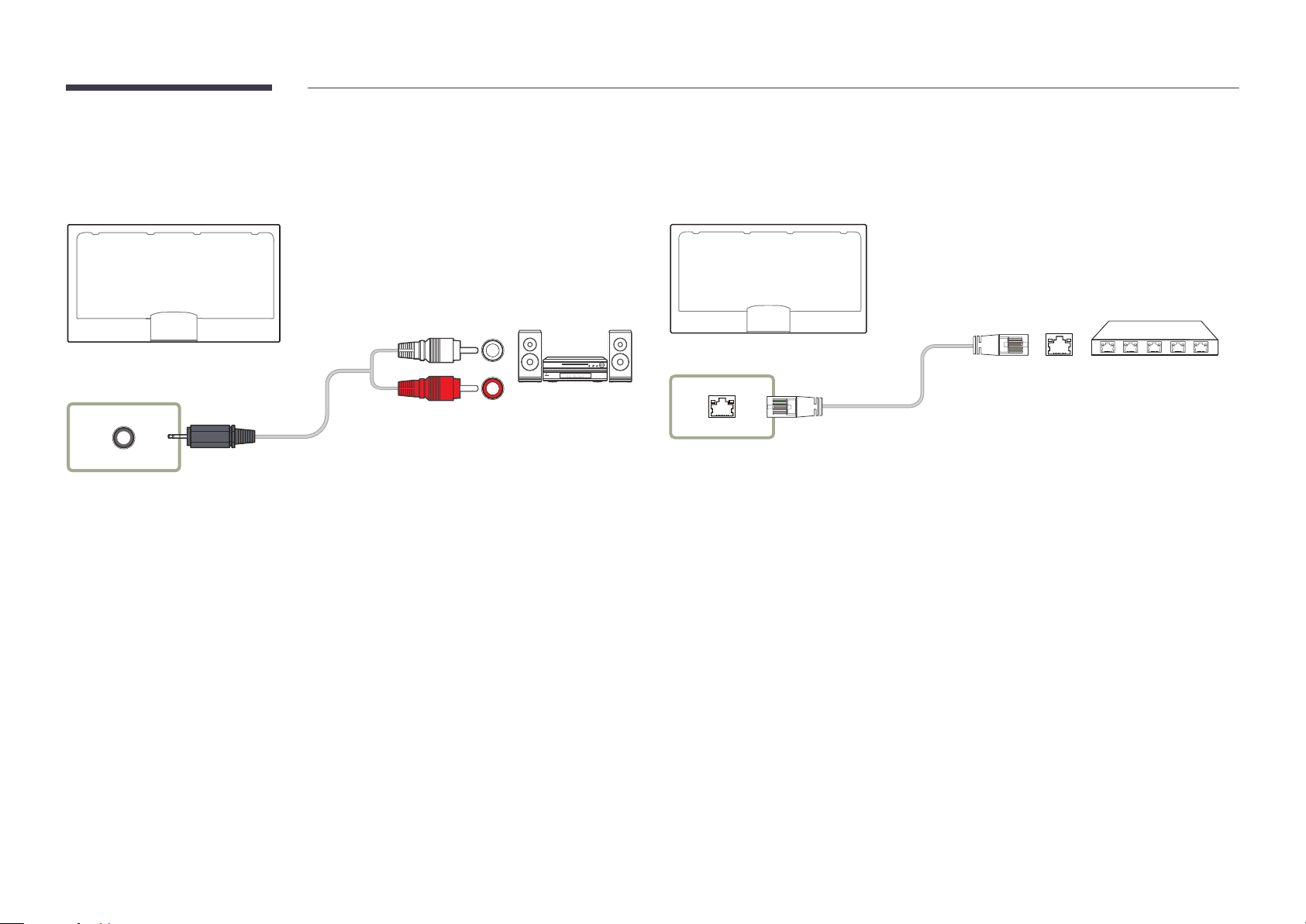

» Connecting to an Audio System

» Connecting the LAN Cable

» Connecting the network box (Sold separately)

» Changing the Input source

Using MDC

» MDC Programme Installation/Uninstallation

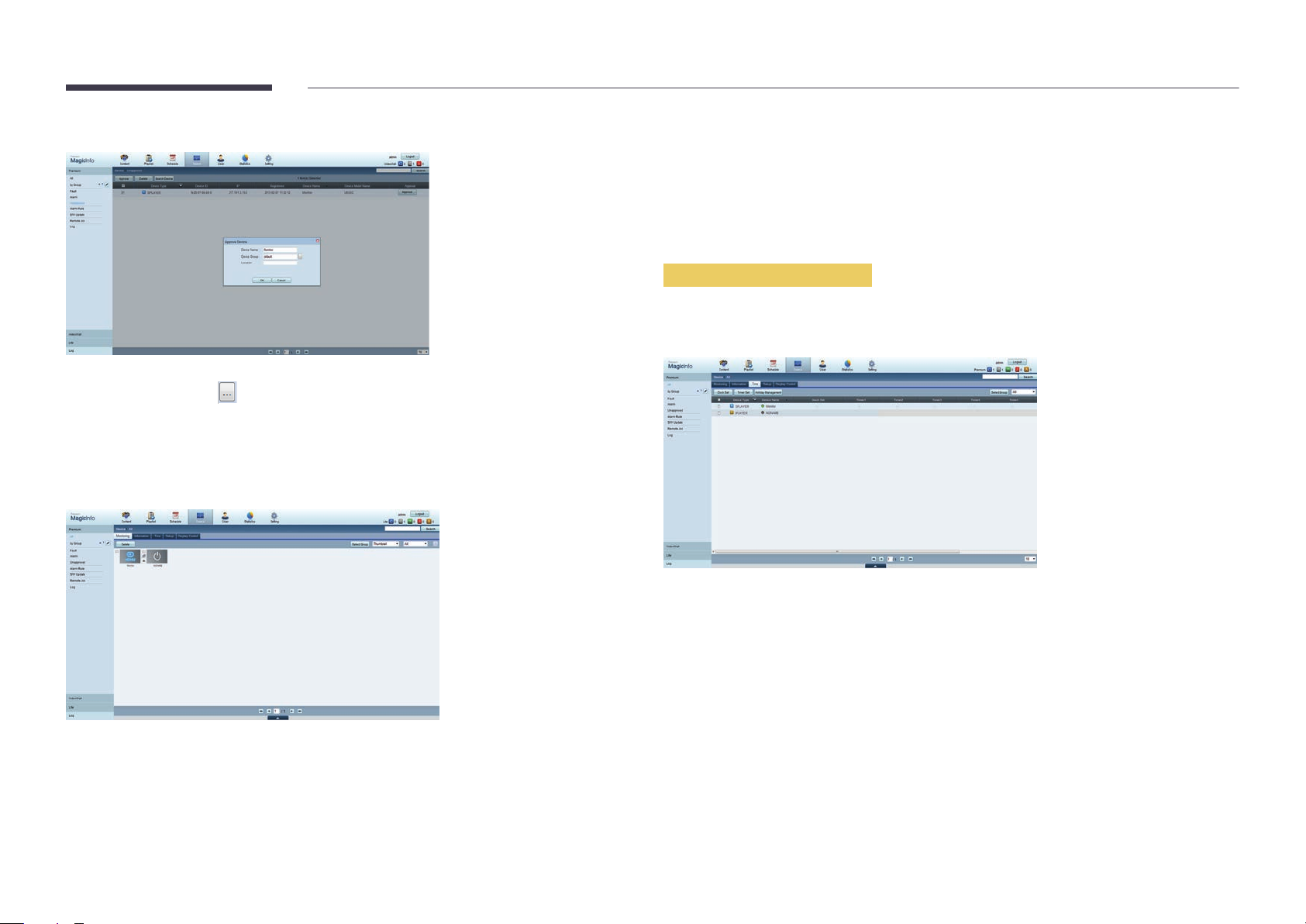

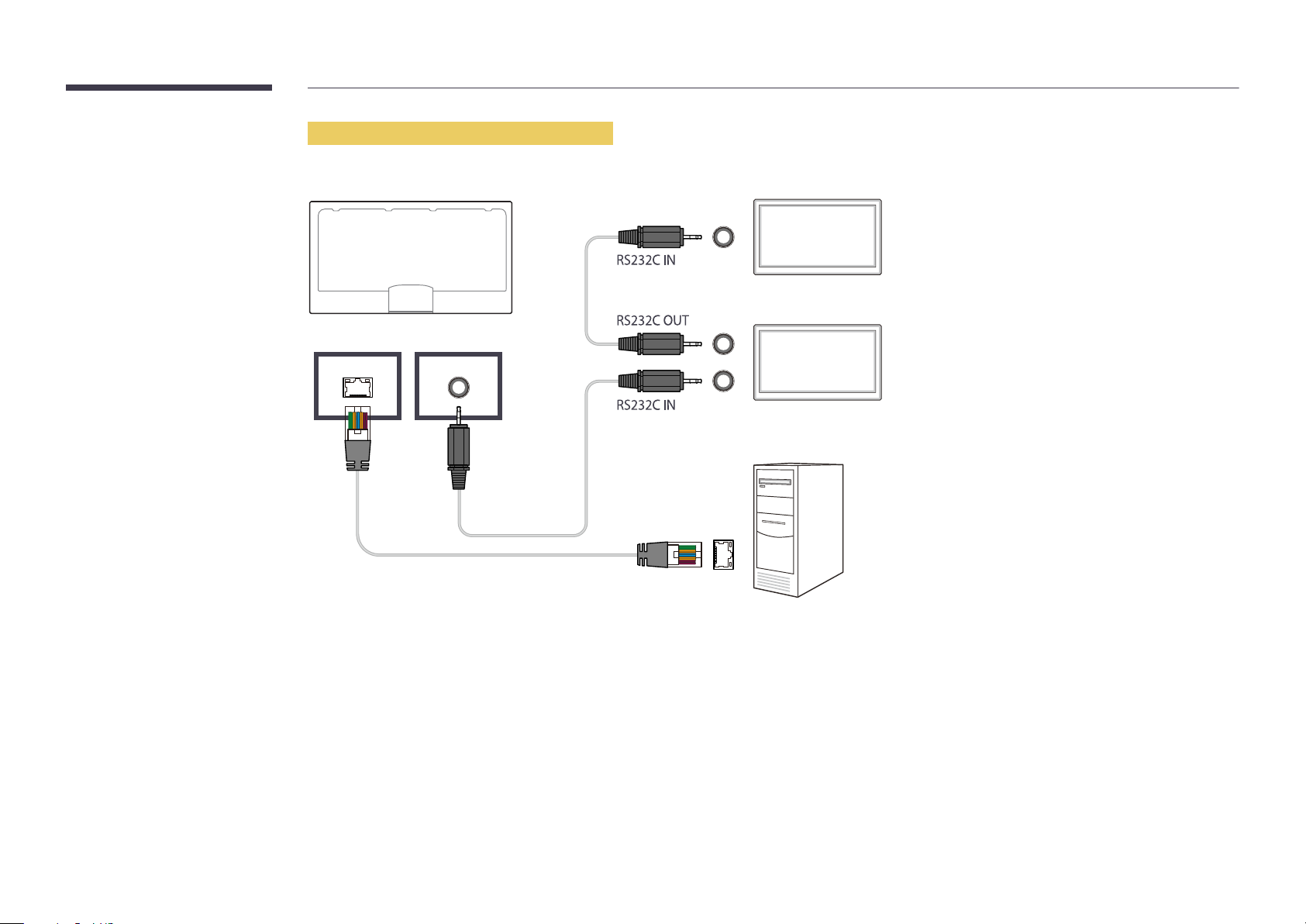

» Connecting to MDC

Home feature

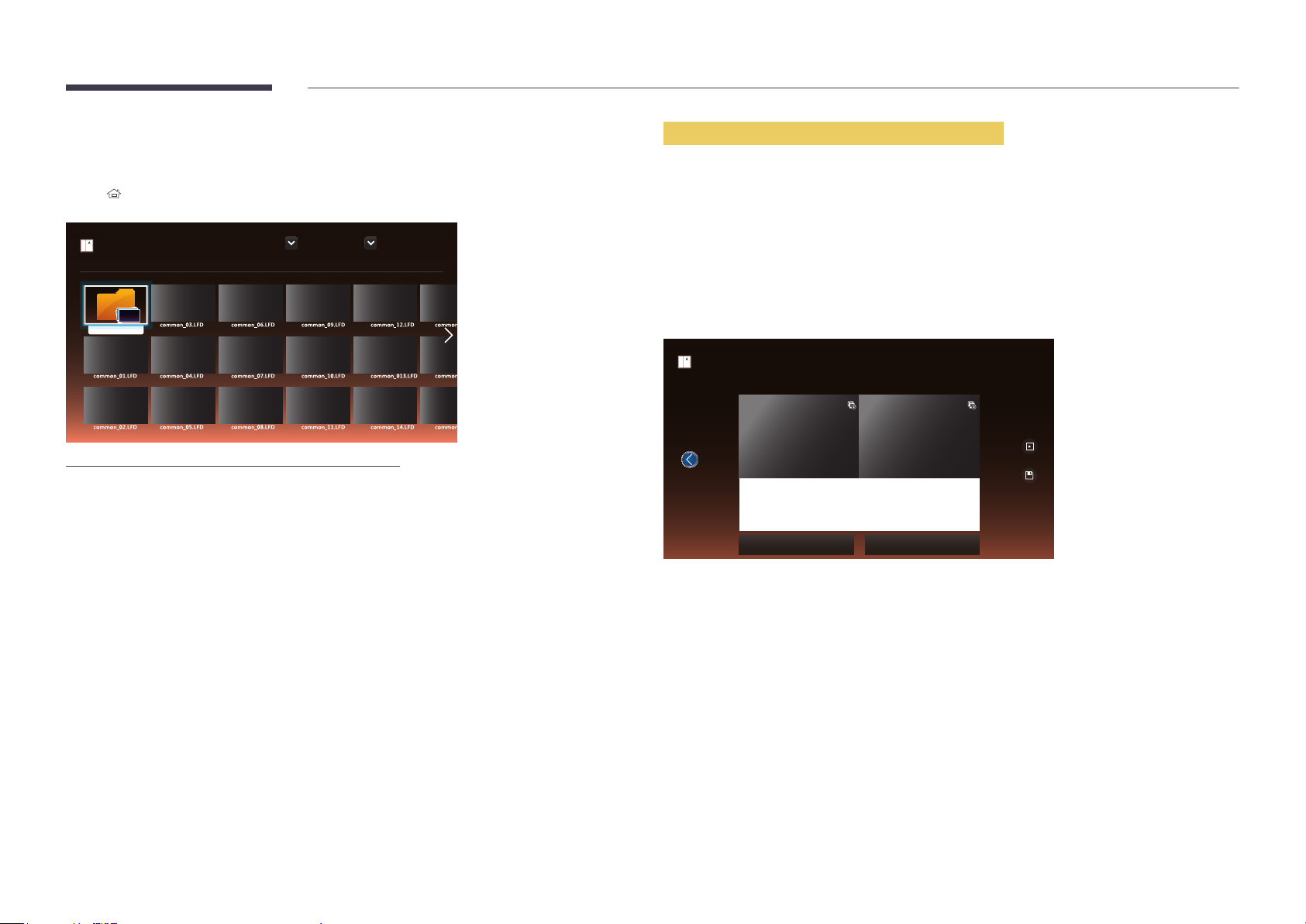

» Player

» Schedule

» Template

» Clone Product

» ID Settings

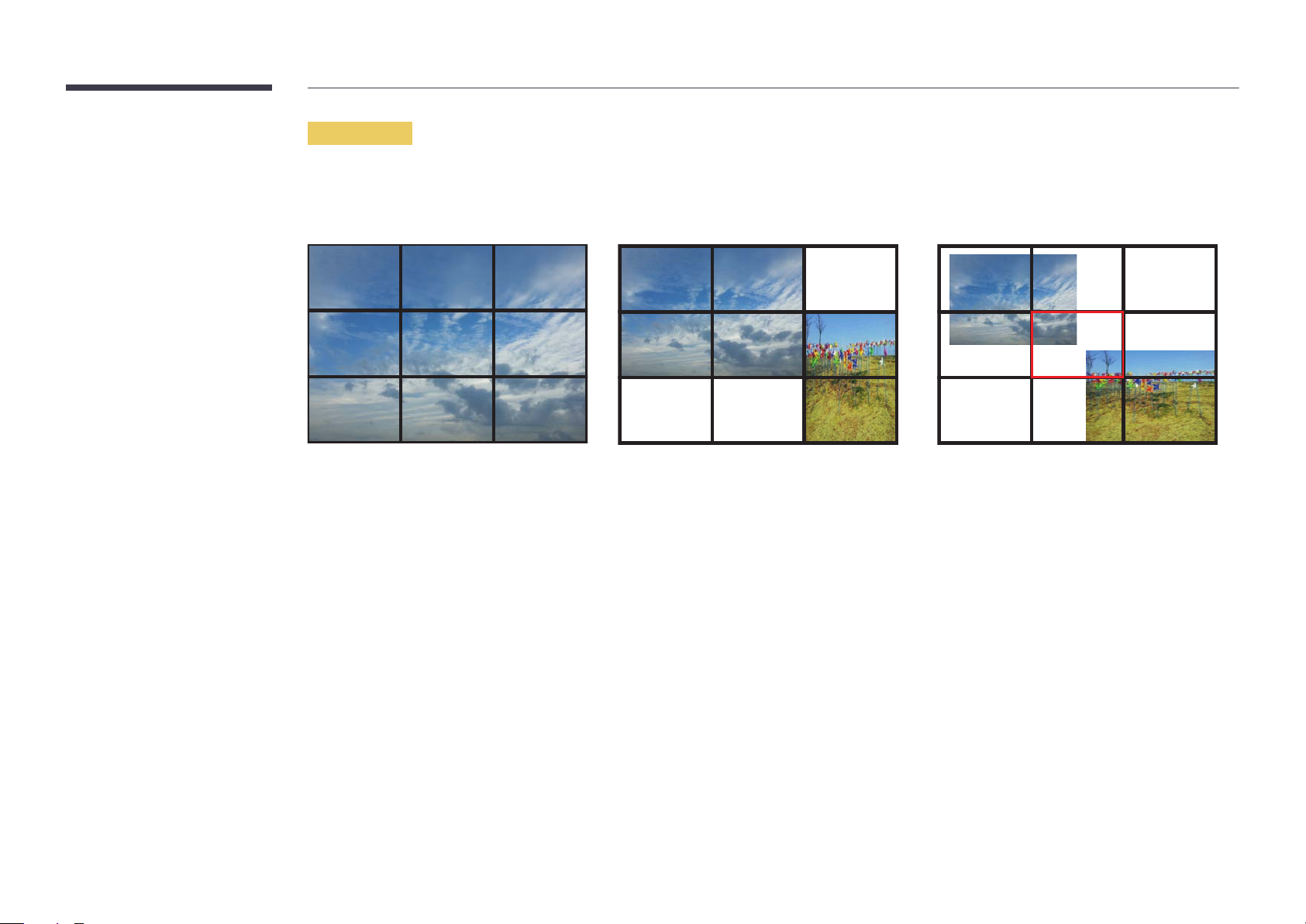

» Video Wall

» Network Status

» Picture Mode

» On/Off Timer

» Ticker

» More settings

» URL Launcher

Screen Adjustment

» Picture Mode

» Backlight / Contrast / Brightness / Sharpness /

Colour / Tint (G/R)

» Colour Temperature

» White Balance

» Gamma

» Calibrated value

» Advanced Settings

» Picture Options

» Picture Size

» Auto Adjustment

» PC Screen Adjustment

» Picture Off

» Reset Picture

OnScreen Display

» PIP

» Rotation

» Screen Protection

» Message Display

» Menu Transparency

» Menu Language

» Reset OnScreen Display

Table of contents

Sound Adjustment

» Sound Mode

» Sound Effect

» HDMI Sound

» Sound on Video Call

» Speaker Settings

» Auto Volume

» Reset Sound

Network

» Network Status

» Network Settings

» Wi-Fi Direct

» Multimedia Device Settings

» Screen Mirroring

» Server Network Settings

» Device Name

System

» Setup

» Touch Control

» Time

» Auto Source Switching

» Power Control

» Eco Solution

» Temperature Control

» Device Manager

» Play via

» Change PIN

» General

» Reset System

Support

» Software Update

» Contact Samsung

» Go to Home

» Reset All

Playing photos, videos and music (Media Play)

» Features provided in the media content list

page

» Available buttons and features during photo

playback

» Available buttons and features during video

playback

» Available buttons and features during music

playback

» Supported Subtitle and Media play file

formats

Troubleshooting Guide

» Requirements Before Contacting Samsung

Customer Service Centre

» Q & A

Specifications

» General

» PowerSaver

» Preset Timing Modes

Appendix

» Responsibility for the Pay Service

(Cost to Customers)

» WEEE

» Optimum Picture Quality and Afterimage

Burn-in Prevention

» Licence

» Terminology

Before Using the Product

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.

Microsoft, Windows are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Ownership of all other trademarks is attributed to their due owner.

•

An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual).

(b) you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user manual).

•

The amount of such administration charge will be advised to you before any work or home visit is carried out.

Safety Precautions

Caution

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. (OR BACK)

THERE ARE NO USER SERVICEABLE PARTS INSIDE.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside.

It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

Symbols

Cleaning

―

Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

―

Take the following steps when cleaning.

―

The following images are for reference only. Real-life situations may differ from what is shown in the

images.

Power off the product and computer.

Disconnect the power cord from the product.

―

Hold the power cable by the plug and do not touch the cable with wet

hands. Otherwise, an electric shock may result.

Wipe the product with a clean, soft and dry cloth.

•

Do not use detergents that contain alcohol, solvent or surface-active agents.

•

Do not spray water or detergent directly on the product.

Warning

A serious or fatal injury may result if instructions are not followed.

Caution

Personal injury or damage to properties may result if instructions are not followed.

Activities marked by this symbol are prohibited.

Instructions marked by this symbol must be followed.

Wet a soft and dry cloth in water and wring thoroughly to clean the

exterior of the product.

Connect the power cord to the product when cleaning is finished.

Power on the product and computer.

Storage

Due to the characteristics of high-glossy products, using a UV humidifier nearby may create white-coloured stains on the product.

―

Contact Customer Service Centre if the inside of the product needs cleaning (service fee will be

charged).

Electricity and Safety

―

The following images are for reference only. Real-life situations may differ from what is shown in the

images.

Warning

Do not use a damaged power cord or plug, or a loose power socket.

•

An electric shock or fire may result.

Do not use multiple products with a single power socket.

•

Overheated power sockets may cause a fire.

Connect the power plug to a grounded power socket (type 1 insulated devices only).

•

An electric shock or injury may result.

Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy object.

•

Damage to the cord may result in a fire or electric shock.

Do not place the power cord or product near heat sources.

•

A fire or electric shock may result.

Clean any dust around the pins of the power plug or the power socket with a dry cloth.

•

A fire may result.

Do not touch the power plug with wet hands. Otherwise, an electric shock may result.

Insert the power plug all the way in so it is not loose.

•

An unsecure connection may cause a fire.

Caution

Do not disconnect the power cord while the product is being used.

•

The product may become damaged by an electric shock.

Only use the power cord provided with your product by Samsung. Do not use the power cord with other products.

•

A fire or electric shock may result.

Keep the power socket where the power cord is connected unobstructed.

•

The power cord must be disconnected to cut off power to the product when an issue occurs.

•

Note that the product is not completely powered down by using only the power button on the remote.

Hold the plug when disconnecting the power cord from the power socket.

•

An electric shock or fire may result.

Installation

Warning

DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.

•

A fire may result.

Have a technician install the wall-mount hanger.

•

Installation by an unqualified person can result in an injury.

•

Only use approved cabinets.

Do not install the product in poorly ventilated spaces such as a bookcase or closet.

•

An increased internal temperature may cause a fire.

Install the product at least 10 cm away from the wall to allow ventilation.

•

An increased internal temperature may cause a fire.

Keep the plastic packaging out of the reach of children.

•

Children may suffocate.

Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)

•

The product may fall and become damaged and/or cause an injury.

•

Using the product in an area with excess vibration may damage the product or cause a fire.

Caution

Do not drop the product while moving.

•

Product failure or personal injury may result.

Do not install the product in a vehicle or a place exposed to dust, moisture

(water drips, etc.), oil, or smoke.

•

A fire or electric shock may result.

Do not set down the product on its front.

•

The screen may become damaged.

Do not expose the product to direct sunlight, heat, or a hot object such as a stove.

•

The product lifespan may be reduced or a fire may result.

Do not install the product within the reach of young children.

•

The product may fall and injure children.

•

As the front is heavy, install the product on a flat and stable surface.

Edible oil, such as soybean oil, can damage or deform the product. Do not

When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding.

•

The product may fall and become damaged and/or cause an injury.

•

Install the product only on cabinets or shelves of the right size.

Set down the product gently.

•

Product failure or personal injury may result.

install the product in a kitchen or near a kitchen counter.

Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme temperatures or a significant presence of moisture, or a place where the product will operate continuously for an

SAMSUNG

extended period of time) may seriously affect its performance.

•

Be sure to consult Samsung Customer Service Centre if you want to install the product at such a place.

Operation

Warning

Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.

•

The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a serious injury.

There is a high voltage inside the product. Never disassemble, repair or modify the product yourself.

•

A fire or electric shock may result.

•

Contact Samsung Customer Service Centre for repairs.

During a lightning or thunderstorm, power off the product and remove the power cable.

•

A fire or electric shock may result.

Before moving the product, turn off the power switch and disconnect the power cable and all other connected cables.

•

Otherwise, the power cord may be damaged and a fire or electric

Do not drop objects on the product or apply impact.

•

A fire or electric shock may result.

shock may result.

If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord immediately and contact Samsung Customer Service Centre.

•

An electric shock or fire may result.

Do not move the product by pulling the power cord or any cable.

•

Product failure, an electric shock or fire may result from a damaged cable.

Do not let children hang from the product or climb on top of it.

•

Children may become injured or seriously harmed.

GAS

If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.

•

Sparks can cause an explosion or fire.

If the product is dropped or the outer case is damaged, turn off the power switch and disconnect the power cord. Then contact Samsung Customer Service Centre.

•

Continued use can result in a fire or electric shock.

Do not lift or move the product by pulling the power cord or any cable.

•

Product failure, an electric shock or fire may result from a damaged cable.

Do not use or keep combustible spray or an inflammable substance near the product.

•

An explosion or fire may result.

Caution

Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels.

Ensure the vents are not blocked by tablecloths or curtains.

•

An increased internal temperature may cause a fire.

•

Activate power-saving mode or a moving-picture screen saver if you will not be using the product for an extended period of time.

Disconnect the power cord from the power socket if you do not plan on

-_-

100

Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper, matches, etc) into the product (via the vent or input/ output ports, etc).

•

Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product.

using the product for an extended period of time (vacation, etc).

•

Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.

Use the product at the recommended resolution and frequency.

•

Your eyesight may deteriorate.

Then contact Samsung Customer Service Centre.

•

Product failure, an electric shock or fire may result.

Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.

•

Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Centre.

•

Product failure, an electric shock or fire may result.

Do not hold the product upside-down or move it by holding the stand.

•

The product may fall and become damaged or cause an injury.

Looking at the screen too close for an extended period of time can deteriorate your eyesight.

Do not use humidifiers or stoves around the product.

•

A fire or electric shock may result.

Rest your eyes for more than 5 minutes for every 1 hour of product use.

•

Eye fatigue will be relieved.

Be careful that children do not place the battery in their mouths when removed from the remote control. Place the battery in a location that children or infants cannot reach.

•

If children have had the battery in their mouths, consult your doctor immediately.

Do not touch the screen when the product has been turned on for an extended period of time as it will become hot.

When replacing the battery, insert it with the right polarity (+, -).

•

Otherwise, the battery may become damaged or it may cause fire, personal injury or damage due to leakage of the internal liquid.

Store small accessories out of the reach of children.

Use only the specified standardized batteries, and do not use a new battery and a used battery at the same time.

•

Otherwise, the batteries may be damaged or cause fire, personal injury

Exercise caution when adjusting the product angle or stand height.

•

Your hand or finger may get stuck and injured.

•

Tilting the product at an excessive angle may cause the product to fall

and an injury may result.

or damage due to a leakage of the internal liquid.

The batteries (and rechargeable batteries) are not ordinary refuse and must be returned for recycling purposes. The customer is responsible for returning the used or rechargeable batteries for recycling.

•

The customer can return used or rechargeable batteries to a nearby public recycling centre or to a store selling the same type of the battery or rechargeable battery.

Do not place heavy objects on the product.

•

Product failure or personal injury may result.

When using headphones or earphones, do not turn the volume too high.

•

Having the sound too loud may damage your hearing.

Precautions when handling the panel

―

DM75D Model Only

Do not stand the product as shown in the image. The panel is fragile and can get damaged.

Lay the product down to handle it as shown in the image. (the packaging can be used).

Ensure you use the handles on the back when moving the product.

15 mm

Do not hold or grasp any area of the product within 15 mm from the front.

Preparations

Contact the vendor where you purchased the product if any components are missing.

The appearance of the components and items sold separately may differ from the image shown.

A stand is not provided with the product. To install a stand, you can purchase one separately.

The RS232C adapter can be used to connect to another monitor using the D-SUB (9-pin) type RS232C cable.

Ensure you connect each of the adapters to the correct RS232C IN or OUT port on the product.

Checking the Components

Components

―

Components may differ in different locations.

Quick setup guide

Batteries

(Not available in some locations)

Warranty card

(Not available in some locations)

Remote Control D-SUB cable RS232C(IN) adapter

Regulatory guide Power cord

Holder-Ring (4EA)

The following items can be purchased at your nearest retailer.

Items sold separately

Wall-mount Kit Stand RS232C-Stereo cable DVI cable HDMI-DVI cable

DP cable HDMI cable Video cable Stereo cable Component cable

RCA stereo cable RCA cable AV/Component adapter AUDIO adapter RS232C(OUT) adapter

DP-DVI cable

LAN cable Network Box

(Used to connect a network box)

External ambient sensor

Parts

Control Panel

―

The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to

improve quality.

Panel Key

Buttons Description

Power on the product.

If you press the button when the product is turned on, the control menu will be displayed.

―

To exit the OSD menu, press and hold the panel key for at least one second.

Move to the upper or lower menu. You can also adjust the value of an option.

Panel Key

Speaker

Remote sensor

Move to the left or right menu.

―

You can adjust the volume by moving the panel key left or right when the control

menu is not displayed.

Press a button on the remote control pointing at the sensor on the front of the

Remote sensor

Use the remote control within 7 m to 10 m from the sensor on the product at an angle of 30

―

Store used batteries out of reach of children and recycle.

―

Do not use a new and used battery together. Replace both batteries at the same time.

―

Remove batteries when the remote control is not to be used for an extended period of time.

product to perform the corresponding function.

―

Using other display devices in the same space as the remote control of this

product can cause the other display devices to be inadvertently controlled.

from the left and right.

―

If you press the button on the panel key when the product is turned on, the

control menu will be displayed.

Control menu

Buttons Description

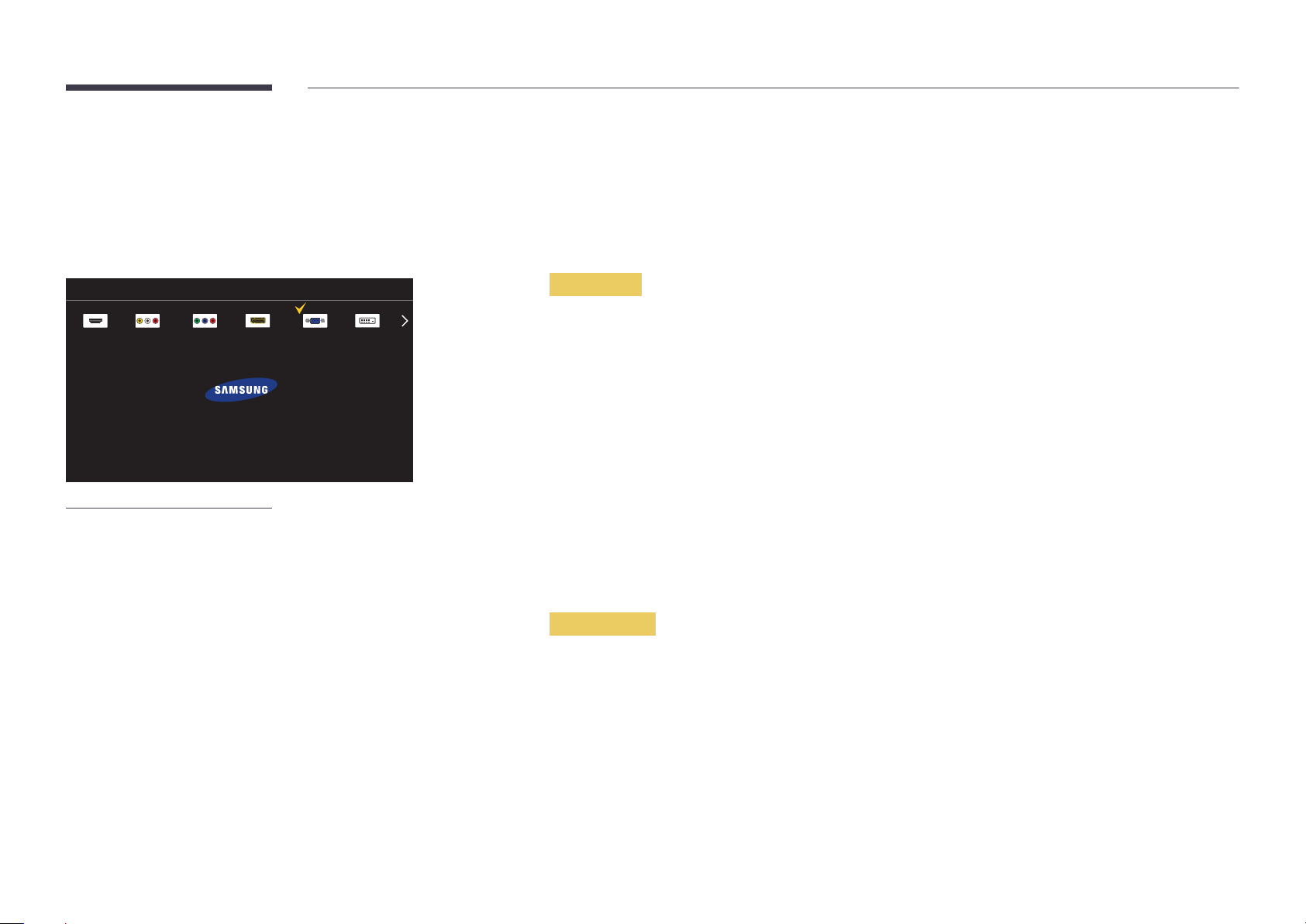

Select the connected input source.

Source

Move the panel key right to select Source input sources is displayed, move the panel key left or right to select the desired input source. Next, press the panel key.

Display the OSD menu.

Move the panel key left to select Menu screen will appear. Move the panel key right to select the desired menu. You can select a sub-menu item by moving the panel key up, down, left, or right. To change settings, select the desired menu and press the panel key.

in the control menu. When the list of

in the control menu. The OSD control

Return

Home

Power o

Return

Enter Go to Home mode.

Move the panel key up to select Home

Power off the product.

Move the panel key down to select the panel key.

Exit the control menu.

Power o

in the control menu.

in the control menu. Next, press

Reverse Side

Port Description

―

The colour and shape of parts may differ from what is shown. Specifications are

subject to change without notice to improve quality.

RS232C IN

RS232C OUT

IR /

AMBIENT

SENSOR IN

RGB / DVI / HDMI / AV /

COMPONENT

/ AUDIO IN

AUDIO OUT

SD CARD

USB

(5V, 1.5A)

DVI IN /

MAGICINFO IN

RS232C IN

RS232C OUT

IR / AMBIENT SENSOR IN

RGB / DVI / HDMI / AV / COMPONENT /

AUDIO IN

AUDIO OUT

SD CARD

USB (5V, 1.5A)

DVI IN / MAGICINFO IN

DP IN

HDMI IN

RGB IN

Connects to MDC using an RS232C adapter.

Supplies power to the External sensor board or receives the light sensor signal.

Receives sound from a PC via an audio cable.

Connects to the audio of a source device.

Connect to an SD memory card.

Connect to a USB memory device.

―

The USB ports on the product accept a maximum constant current of 1.5 A.

If the maximum value is exceeded, USB ports may not work.

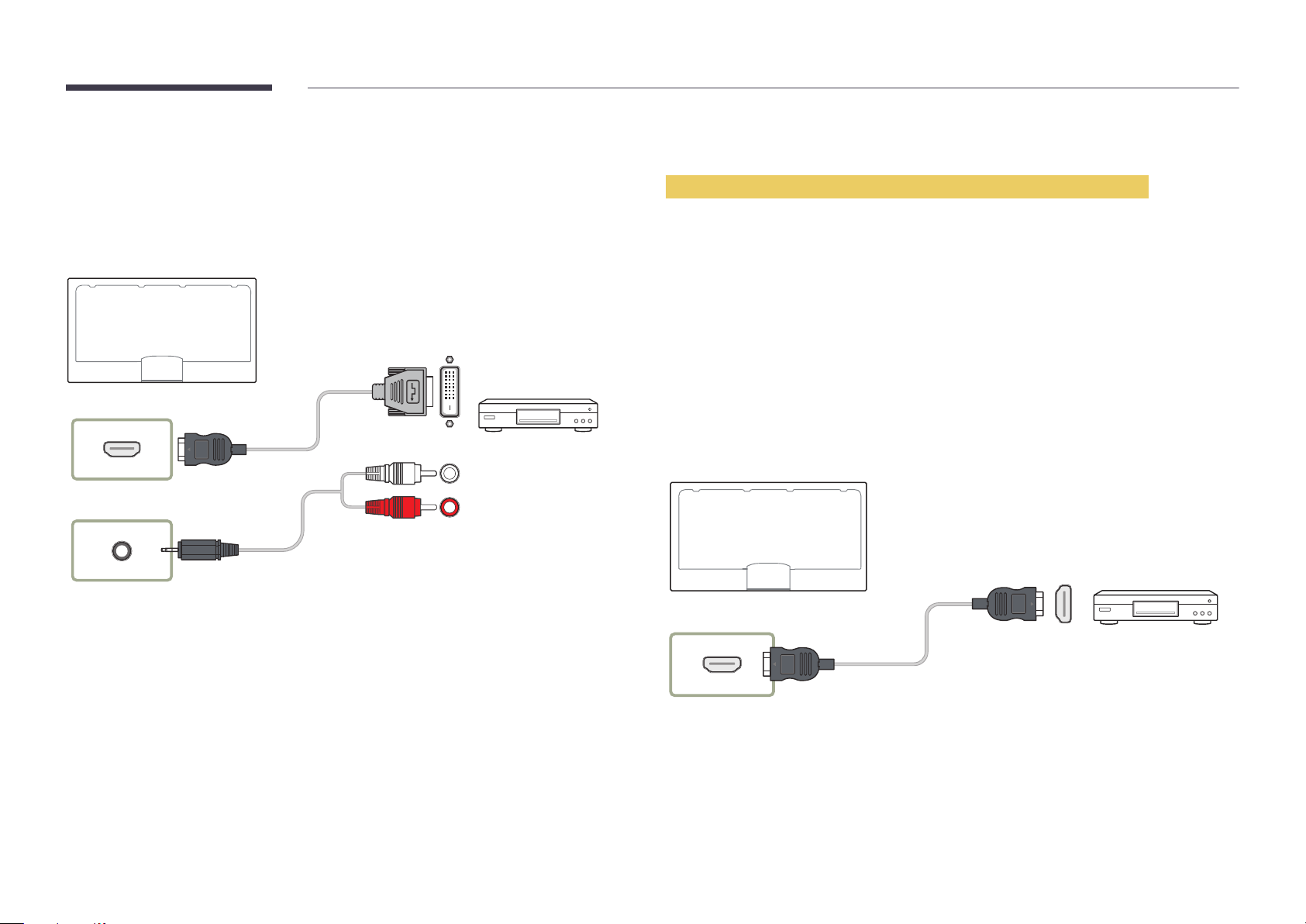

DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable.

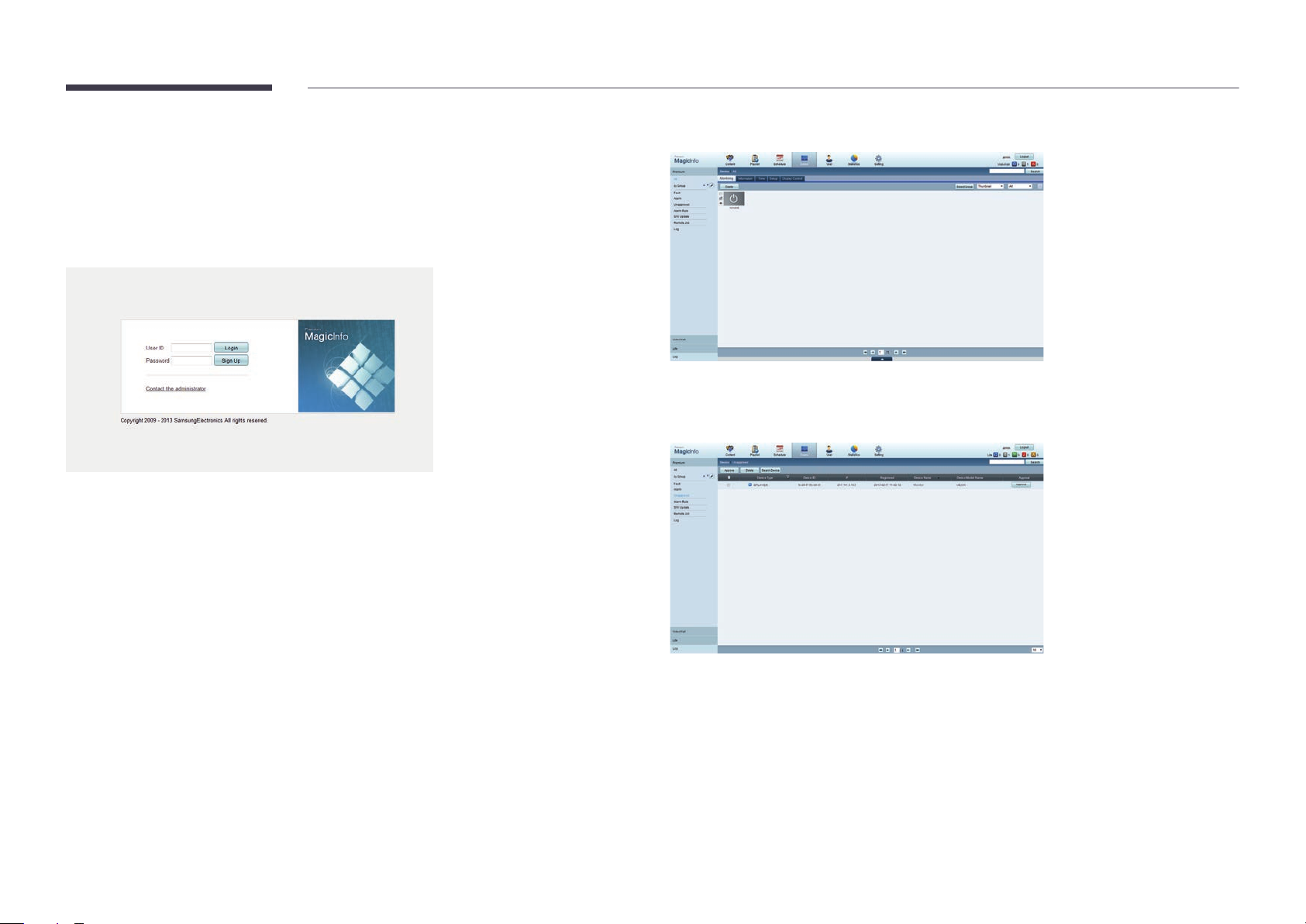

MAGICINFO IN: To use MagicInfo, make sure to connect the DP-DVI cable.

Connects to a PC using a DP cable.

Connects to a source device using an HDMI cable.

Connects to a source device using a D-SUB cable.

DP IN

HDMI IN

RGB IN RJ45DP OUT

COMPONENT IN

OUT

DP OUT

AV IN / COMPONENT IN

IR OUT

RJ45

Connects to another product using a DP cable.

Connects to a source device using the AV/Component adapter.

Receives the remote control signal via the External sensor board and outputs the signal via LOOP OUT.

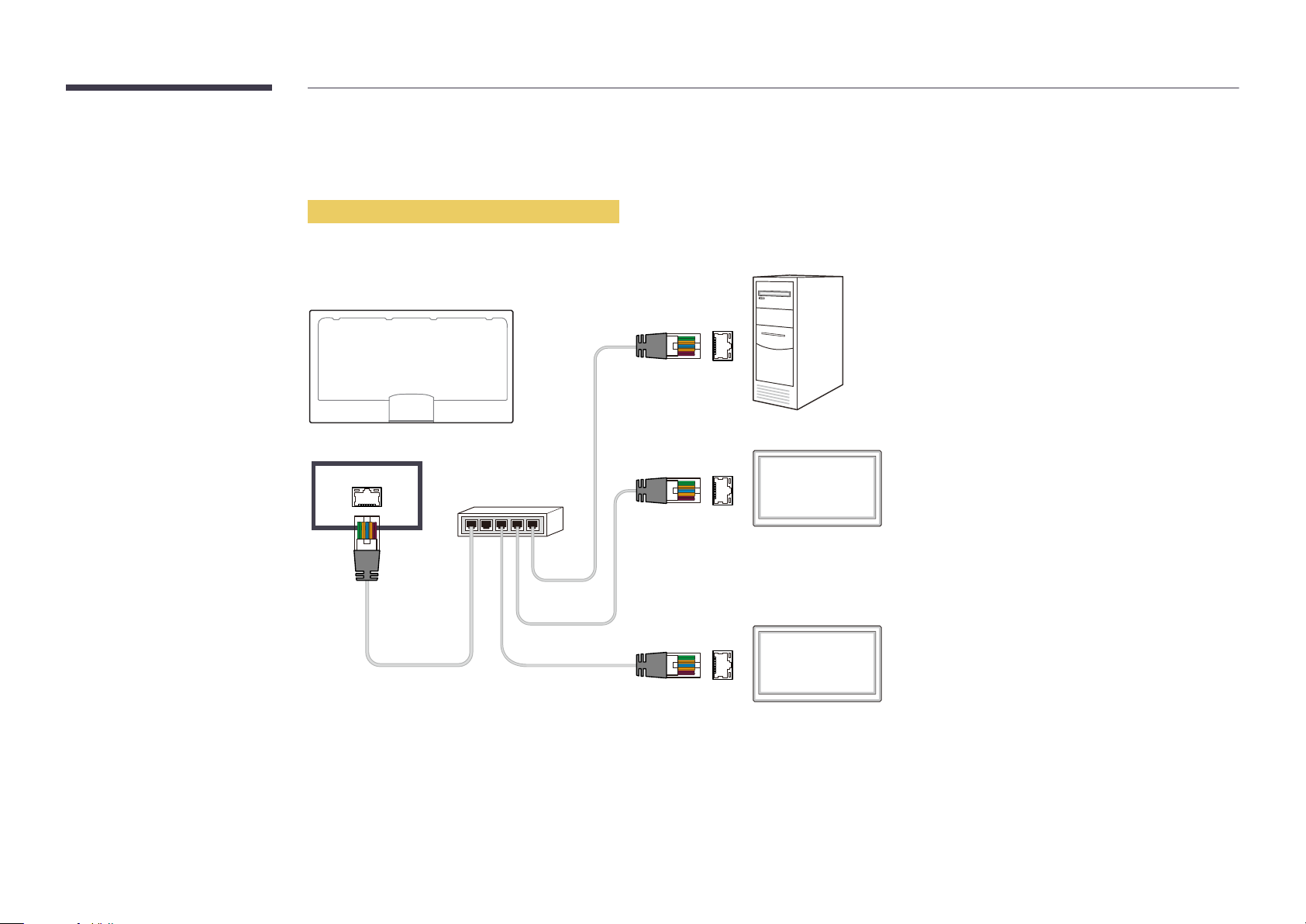

Connects to MDC using a LAN cable.

Anti-theft Lock

―

An anti-theft lock allows you to use the product securely even in public places.

―

The locking device shape and locking method depend on the manufacturer. Refer to the user guide

provided with your anti-theft locking device for details.

To lock an anti-theft locking device:

Fix the cable of your anti-theft locking device to a heavy object such as a desk.

Put one end of the cable through the loop on the other end.

Insert the locking device into the anti-theft lock slot at the back of the product.

Lock the locking device.

An anti-theft locking device can be purchased separately.

Refer to the user guide provided with your anti-theft locking device for details.

Anti-theft locking devices can be purchased at electronics retailers or online.

Remote Control

DEL-/--

CH LIST

―

Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled.

―

A button without a description in the image below is not supported on the product.

Power on the product.

Adjust the volume.

Change the input source.

Display or hide the onscreen display menu, or

return to the previous menu.

.QZ

GHI

PRS

VOL

ABC

JKL

TUV

SYMBOL

MUTE

SOURCE

HOME

POWER

OFF

DEF

MNO

WXY

MagicInfo

Player I

Power off the product.

Number buttons Enter the password in the OSD menu.

Mute the sound. Unmuting the sound: Press MUTE again or press

the volume control(+ VOL -) button.

Player Launch Button. The buttons can vary

according to the Play via settings.

Go to Home Launch Button.

Remote control button functions may differ for different products.

Quickly select frequently used functions.

TOOLS INFO

Display information about the current input source.

Move to the upper, lower, left or right menu, or adjust an option's setting.

Confirm a menu selection.

Return to the previous menu.

It sets safe lock function.

If multiple products are connected through the

Video Wall feature, press the SET button and

enter a product ID using the number buttons. Control the product using the remote control.

Cancel a value that has been set using the

SET button and control all connected products

using the remote control.

To place batteries in the remote control

SET

IR control

DVI

UNSET

HDMI

LOCK

EXITRETURN

Exit the current menu.

Manually select a connected input source from

PC, DVI, HDMI or DisplayPort.

Used in Anynet+ mode and multimedia mode.

Remote control button functions may differ for different products.

Connection Using an IR Stereo Cable (sold separately)

Make sure to connect the External ambient sensor while the product is powered off. Then, power on the product.

1 2

Controlling more than one display product using your remote control

•

Connect the IR OUT port on the product to the IR / AMBIENT SENSOR IN port on the other display product using the dedicated stereo cable.

•

A command sent from the remote control pointed at product

received by both display products

―

The appearance may differ depending on the product.

and 2.

will be

Controlling more than one display product using an External ambient sensor (sold separately)

•

A command sent from the remote control pointed at product the External ambient sensor is connected) will be received by both display

products

―

The appearance may differ depending on the product.

and 2.

(to which

IR OUT IR / AMBIENT

SENSOR IN

IR / AMBIENT SENSOR IN

POWER

IR OUT IR / AMBIENT

1 2

SENSOR IN

SOURCE

Before Installing the Product (Installation Guide)

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

•

Ensure that an authorized installation company installs the wall mount.

•

Otherwise, it may fall and cause personal injury.

•

Make sure to install the specified wall mount.

Switching between portrait and landscape

―

Contact Samsung Customer Service Centre for further details.

•

To use the product vertically (portrait), turn it clockwise so that the LED is pointing down.

Ventilation

Installation on a Perpendicular Wall

Figure 1.1 Side view

A Minimum 40 mm

B Ambient temperature: Under 35

•

When installing the product on a perpendicular wall, allow at least 40 mm of space between the product and wall surface for ventilation and ensure that the ambient A temperature is kept below 35

Figure 1.3 Side view

Installation on an Indented Wall

―

Contact Samsung Customer Service Centre for further details.

Figure 1.2 Side view

Dimensions

D D

Plane view

A Minimum 40 mm

B Minimum 70 mm

C Minimum 50 mm

D Minimum 50 mm

E Ambient temperature: Under 35

―

When installing the product on an indented wall, allow at least the space specified above between the product and wall for

ventilation and ensure that the ambient temperature is kept below 35

Model name

DM65D 1467.4 (57.77) 1431.4 (56.35) 806.5 (31.75) 848.0 (33.39) 56.2 (2.21)

DM75D 1676.2 (65.99) 1652.2 (65.05) 930.2 (36.62) 959.5 (37.78) 88.4 (3.48)

―

All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice.

Refer to the dimensions prior to performing installation of your product. Not responsible for typographical or printed errors.

Unit: mm (inches)

3 4

Installing the Wall Mount

Preparing before installing Wall-Mount

To install a wall-mount from another manufacturer, use the Holder-Ring(1).

Installing the Wall Mount

The wall mount kit (sold separately) allows you to mount the product on the wall.

For detailed information on installing the wall mount, see the instructions provided with the wall mount.

We recommend you contact a technician for assistance when installing the wall mount bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the wall mount on your own.

Wall Mount Kit Specications (VESA)

―

Install your wall mount on a solid wall perpendicular to the floor. Before

attaching the wall mount to surfaces other than plaster board, please contact your nearest dealer for additional information.

If you install the product on a slanted wall, it may fall and result in severe personal injury.

•

Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are provided.

•

Do not use screws that are longer than the standard length or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the product.

•

For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.

•

Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

•

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

•

Always have two people mount the product on a wall.

•

Standard dimensions for wall mount kits are shown in the table below.

Unit: mm (inches)

Model name VESA screw hole

Standard Screw Quantity specs (A * B) in millimeters

DM65D

400 × 400 (15.7 × 15.7) M8, L32 4 EA

DM75D

―

Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric shock.

Remote Control (RS232C)

Cable Connection

RS232C Cable

•

Pin assignment

1 2 3 4 5

Interface

Bit rate

Data bits

Parity

Stop bit

Flow control

Maximum length

RS232C (9 pins)

TxD (No.2), RxD (No.3), GND (No.5)

9600 bps

8 bit

None

1 bit

None

15 m (only shielded type)

6 7 8 9

Pin Signal

Detect data carrier

Received data

Transmitted data

Prepare data terminal

Signal ground

Prepare data set

Send request

Clear to send

Ring indicator

•

RS232C cable Connector: 9-Pin D-Sub to Stereo Cable

-P1-

-P1- -P1- -P2- -P2-

3 2 1

-P2-

LAN Cable

•

Pin assignment

1 2 3 4 5 6 7 8

Female Rx

Gnd

-------->

<--------

----------

Gnd

STEREO

PLUG

(3.5ø)

Pin No Standard Colour Signal

1 White and orange TX+

2 Orange TX-

3 White and green RX+

4 Blue NC

5 White and blue NC

6 Green RX-

7 White and brown NC

8 Brown NC

•

Connector : RJ45

Direct LAN cable (PC to HUB)

Cross LAN cable (PC to PC)

HUB

P1P2

RJ45 RJ45 MDC

Signal

TX+

TX-

RX+

RX-

P1 P2 Signal

1 <--------> 1 TX+

2 <--------> 2 TX-

3 <--------> 3 RX+

6 <--------> 6 RX-

Signal

TX+

TX-

RX+

RX-

RJ45

P1 P2

P1 P2 Signal

1 <--------> 3 RX+

2 <--------> 6 RX-

3 <--------> 1 TX+

6 <--------> 2 TX-

Connection

•

Connection 1

•

Connection 2

RJ45 RJ45

RS232C

IN OUT

RS232C

IN OUT

RS232C

IN OUT

RS232C

IN OUT

•

Connection 3

RS232C

RJ45 RS232C

OUT

IN OUT

RS232C

IN OUT

RS232C

IN OUT

Control Codes

No. Command type Command Value range

Viewing control state (Get control command)

Header Command ID Data length Checksum

0xAA Command type 0

Controlling (Set control command)

Header Command ID Data length Data Checksum

0xAA Command type 1 Value

Command

No. Command type Command Value range

Power control 0x11 0~1

Volume control 0x12 0~100

Input source control 0x14 -

Screen mode control 0x18 -

•

All communications take place in hexadecimals. The checksum is calculated by adding up all values except the header. If a checksum adds up to be more than 2 digits as shown below (11+FF+01+01=112), the first digit is removed.

E.g. Power On & ID=0

Header Command ID Data length Data 1 Checksum

0xAA 0x11 1 "Power"

Header Command ID Data length Data 1 12

0xAA 0x11 1 1

•

To control all devices connected by a serial cable simultaneously irrespective of IDs, set the ID as "0xFE" and transmit commands. Commands will be executed by each device but ACK will not respond.

Video Wall On 0x84 0~1

Video Wall User Control 0x89 -

Screen size control 0x19 0~255

PIP on/off control 0x3C 0~1

Auto adjustment control (PC and BNC only)

Video wall mode control 0x5C 0~1

Safety Lock 0x5D 0~1

0x3D 0
