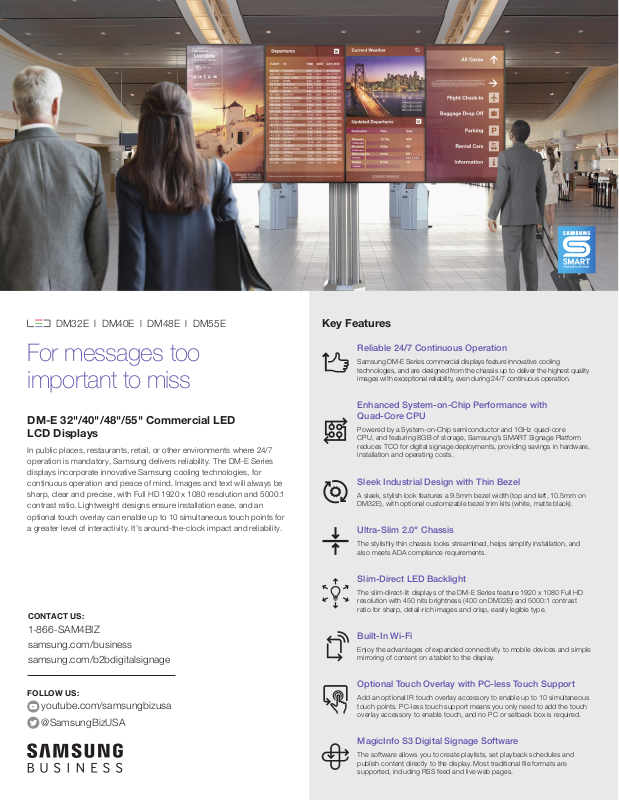

Key Features

For messages too important to miss

DM-E 32"/40"/48"/55" Commercial LED LCD Displays

In public places, restaurants, retail, or other environments where 24/7 operation is mandator y, Samsung delivers reliability. The DM-E Series displays incorporate innovative Samsung cooling technologies, for continuous operation and peace of mind. Images and text will always be sharp, clear and precise, with Full HD 1920 x 1080 resolution and 5000:1 contrast ratio. Lightweight designs ensure installation ease, and an optional touch overlay can enable up to 10 simultaneous touch points for a greater level of interactivity. It’s around-the-clock impact and reliability.

1-866-SAM4BIZ

samsung.com/business

samsung.com/b2bdigitalsignage

Reliable 24/7 Continuous Operation

Samsung DM-E Series commercial displays feature innovative cooling technologies, and are designed from the chassis up to deliver the highest quality images with exceptional reliability, even during 24/7 continuous operation.

Enhanced System-on-Chip Performance with Quad-Core CPU

Powered by a System-on-Chip semiconductor and 1GHz quad-core CPU, and featuring 8GB of storage, Samsung’s SMART Signage Platform reduces TCO for digital signage deployments, providing savings in hardware, installation and operating costs.

Sleek Industrial Design with Thin Bezel

A sleek, stylish look features a 9.5mm bezel width (top and left, 10.5mm on DM32E), with optional customizable bezel trim kits (white, matte black).

Ultra-Slim 2.0" Chassis

The stylishly thin chassis looks streamlined, helps simplify installation, and also meets ADA compliance requirements.

Slim-Direct LED Backlight

The slim-direct-lit displays of the DM-E Series feature 1920 x 1080 Full HD resolution with 450 nits brightness (400 on DM32E) and 5000:1 contrast ratio for sharp, detail-rich images and crisp, easily legible type.

Built-In Wi-Fi

Enjoy the advantages of expanded connectivity to mobile devices and simple mirroring of content on a tablet to the display.

youtube.com/samsungbizusa

@SamsungBizUSA

Optional Touch Overlay with PC-less Touch Support

Add an optional IR touch overlay accessory to enable up to 10 simultaneous touch points. PC-less touch support means you only need to add the touch overlay accessory to enable touch, and no PC or setback box is required.

MagicInfo S3 Digital Signage Software

The software allows you to create playlists, set playback schedules and publish content directly to the display. Most traditional file formats are supported, including RSS feed and live web pages.

Samsung DM-E 32"/40 "/4 8"/55" Commercial LED LCD Displays

Display

Connectivity

Power

Environmental

Conditions

Features

Dimensions

Weight

Service

Accessories

Green

Management

CONNECTIVITY

1. RS232C In

2. RS232C Out

3. IR/Ambient Sensor In

4. Audio In

5. Audio Out

6. SD Card Slot

7. USB

8. DVI In

9. DisplayPort In

10. HDMI In

Screen Size 32" 40" 48" 55"

DM32E DM40E DM48E DM55E

Panel Technology 60Hz Slim D-LED BLU 60Hz Slim D-LED BLU 60Hz Slim D-LED BLU 60Hz Slim D-LED BLU

Resolution 1920x1080 (16:9) 1920x1080 (16:9) 1920x1080 (16:9) 1920x1080 (16:9)

Brightness 400 nits 450 nits 450 nits 450 nits

Contrast Ratio 5000:1 5000:1 5000:1 5000:1

Viewing Angle (Horizontal/Vertical) 178° / 178° 178° / 178° 178° / 178° 178° / 178°

Orientation Landscape / Portrait Landscape / Portrait Landscape / Portrait Landscape / Portrait

Response Time (G-to-G) 8ms 8ms 8ms 8ms

Input VGA (D-Sub 15 Pin), DVI-D (HDMI Common), HDMI1,

Output Stereo Mini Jack DisplayPort 1.2 (Loop-Out), Stereo Mini Jack DisplayPort 1.2 (Loop-Out), Stereo Mini Jack DisplayPort 1.2 (Loop-Out), Stereo Mini Jack

External Control RS232C (In/Out) thru Stereo Jack, RJ45 RS232C (In/Out) thru Stereo Jack, RJ45 RS232C (In/Out) thru Stereo Jack, RJ45 RS232C (In/Out) thru Stereo Jack, RJ45

External Sensor IR, Ambient Light IR, Ambient Light IR, Ambient Light IR, Ambient Light

Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption (Typical/Max) 30W / 77W 44W / 121W 50W / 132W 65W / 176W

Power Consumption (Standby) < 0.5W < 0.5W < 0.5W < 0.5W

Operating Temperature 0°C - 40°C 0°C - 40°C 0°C - 40°C 0°C - 40°C

Operating Humidity 10%~80% 10%~80% 10%~80% 10%~80%

Special Hardware Super Clear Coating, Temperature Sensor, Pivot Display,

Software Magic Clone (to USB), Auto Source Switching & Recovery,

Tuner Yes Yes Yes Yes

SMART Signage Platform Compliant Yes Yes Yes Yes

Internal Media Player Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB

VESA Standard Wall Mount Interface 200 x 200mm 200 x 200mm 400 x 400mm 400 x 400mm

24/7 Operation Yes Yes Yes Yes

Product Dimensions (without stand) 28.4" x 16.5" x 2.0" 35.7" x 20.7" x 2.0" 42.3" x 24.4" x 2.0" 48.4" x 27.8" x 2.0"

Packaging Dimensions 32.1" x 19.3" x 5.2" 39.8" x 23.8" x 5.4" 46.7" x 28.1" x 5.8" 53.1" x 31.9" x 5.8"

Bezel Width 10.5mm (Top, Left), 15.0mm (Right, Bottom) 9.5mm (Top, Left), 15.0mm (Right, Bottom) 9.5mm (Top, Left), 15.0mm (Right, Bottom) 9.5mm (Top, Left), 15.0mm (Right, Bottom)

Product Weight 10.7 lbs. 16.6 lbs. 24.5 lbs. 34 lbs.

Shipping Weight 13 lbs. 20.1 lbs. 30.9 lbs. 43 lbs.

Standard Warranty 3 Years On-Site (Parts / Labor / Backlight) 3 Years On-Site (Parts / Labor / Backlight) 3 Years On-Site (Parts / Labor / Backlight) 3 Years On-Site (Parts / Labor / Backlight)

Included Quick Setup Guide, Warranty Card, D-Sub Cable,

Optional Mount WMN4070SD, WMN250MD WMN4070SD, WMN250MD WMN4270SD, WMN250MD WMN4270SD, WMN250MD

Optional Stand STN-L3240E STN-L3240E STN-L4655E STN-L4655E

External Media Player SBB-DA, SBB-DI, SBB-B32D (Not Attachable) SBB-DA, SBB-DI, SBB-B32D SBB-DA, SBB-DI, SBB-B32D SBB-DA, SBB-DI, SBB-B32D

Optional Touch Overlay CY-TD32LDAH CY-TD40LDAH CY-TD48LDAH CY-TD55LDAH

Optional Bezel Trim Kit CY-BD32BD (Matte Black), CY-BD32WD (White) CY-BD40BD (Matte Black), CY-BD40WD (White) CY-BD48BD (Matte Black), CY-BD48WD (White) CY-BD55BD (Matte Black), CY-BD55WD (White)

Emission Standard EMC EMC EMC EMC

ENERGY STAR® 6.0 Compliant Yes Yes Yes Yes

RoHS Compliant Yes Yes Yes Yes

Packaging Recyclability Packing Materials Recyclable Packing Materials Recyclable Packing Materials Recyclable Packing Materials Recyclable

11. VGA In

12. DisplayPort Out

13. Antenna In

14. AV In

15. IR Out

16. RJ45 In

Note: 32" model does not have DisplayPort In/Out.

HDMI2 (thru DVI-D Input, Adapter Not Included), Component/Composite, Stereo Mini Jack, USB 2.0 x 1

Slim and Light LFD with Built-in MagicInfo Player S3 Slim and Light LFD with Built-in MagicInfo Player S3 Slim and Light LFD with Built-in MagicInfo Player S3 Slim and Light LFD with Built-in MagicInfo Player S3

Button Lock, Clock Battery (80hrs Clock Keeping), Built in Speaker (10Wx1), Wi-Fi Module Embedded, SD Card Slot

RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Image Rotation, Built-in MagicInfo S3, Firmware Update by Network, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch

Storage, USB 2.0, Samsung Proprietary OS (VDLinux)

Power Cord, Remote Controller, Batteries

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

VGA (D-Sub 15 Pin), DVI-D(HDMI Common), DisplayPort 1.2, HDMI1, HDMI2 (thru DVI-D Input, Adapter Not Included), Component/Composite, Stereo Mini Jack, USB 2.0 x 1

Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery (80hrs Clock Keeping), Built in Speaker (10Wx1), Wi-Fi Module Embedded, SD Card Slot

Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Built-in MagicInfo S3, Firmware Update by Network, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch

Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB Storage, USB 2.0, Samsung Proprietary OS (VDLinux)

Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries

VGA (D-Sub 15 Pin), DVI-D (HDMI Common), DisplayPort 1.2, HDMI1, HDMI2 (thru DVI-D Input, Adapter Not Included), Component/Composite, Stereo Mini Jack, USB 2.0 x 1

Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery (80hrs Clock Keeping), Built in Speaker (10Wx1), Wi-Fi Module Embedded, SD Card Slot

Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB Storage, USB 2.0, Samsung Proprietary OS (VDLinux)

Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries

VGA (D-Sub 15 Pin), DVI-D(HDMI Common), DisplayPort 1.2, HDMI1, HDMI2 (thru DVI-D Input, Adapter Not Included), Component/Composite, Stereo Mini Jack, USB 2.0 x 1

Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery (80hrs Clock Keeping), Built in Speaker (10Wx1), Wi-Fi Module Embedded, SD Card Slot

Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB Storage, USB 2.0, Samsung Proprietary OS (VDLinux)

Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries
