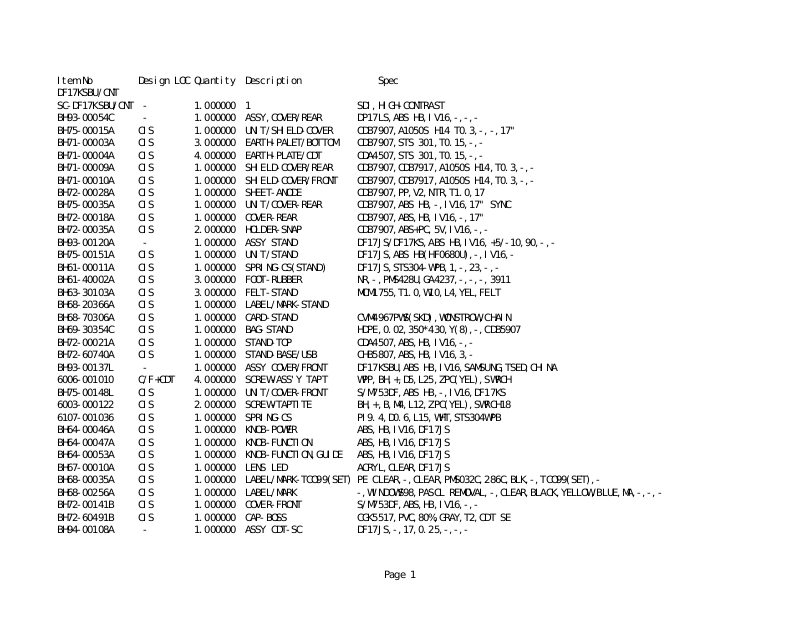

Page 1
Item No Design LOC Quantity Description Spec
DF17KSBU/CNT
SC-DF17KSBU/CNT - 1.000000 1 SDI,HIGH-CONTRAST
BH93-00054C - 1.000000 ASSY,COVER/REAR DP17LS,ABS HB,IV16,-,-,BH75-00015A CIS 1.000000 UNIT/SHIELD-COVER CDB7907,A1050S H14 T0.3,-,-,17"
BH71-00003A CIS 3.000000 EARTH-PALET/BOTTOM CDB7907,STS 301,T0.15,-,BH71-00004A CIS 4.000000 EARTH-PLATE/CDT CDA4507,STS 301,T0.15,-,BH71-00009A CIS 1.000000 SHIELD-COVER/REAR CDB7907,CDB7917,A1050S H14,T0.3,-,BH71-00010A CIS 1.000000 SHIELD-COVER/FRONT CDB7907,CDB7917,A1050S H14,T0.3,-,BH72-00028A CIS 1.000000 SHEET-ANODE CDB7907,PP,V2,NTR,T1.0,17
BH75-00035A CIS 1.000000 UNIT/COVER-REAR CDB7907,ABS HB,-,IV16,17" SYNC
BH72-00018A CIS 1.000000 COVER-REAR CDB7907,ABS,HB,IV16,-,17"
BH72-00035A CIS 2.000000 HOLDER-SNAP CDB7907,ABS+PC,5V,IV16,-,BH93-00120A - 1.000000 ASSY STAND DF17JS/DF17KS,ABS HB,IV16,+5/-10,90,-,BH75-00151A CIS 1.000000 UNIT/STAND DF17JS,ABS HB(HF0680U),-,IV16,BH61-00011A CIS 1.000000 SPRING-CS(STAND) DF17JS,STS304-WPB,1,-,23,-,BH61-40002A CIS 3.000000 FOOT-RUBBER NR,-,PMS428U,GA4237,-,-,-,3911
BH63-30103A CIS 3.000000 FELT-STAND MCM1755,T1.0,W10,L4,YEL,FELT
BH68-20366A CIS 1.000000 LABEL/MARK-STAND
BH68-70306A CIS 1.000000 CARD-STAND CVM4967PWS(SKD),WONSTROW,CHAIN
BH69-30354C CIS 1.000000 BAG-STAND HDPE,0.02,350*430,Y(8),-,CDB5907
BH72-00021A CIS 1.000000 STAND-TOP CDA4507,ABS,HB,IV16,-,BH72-60740A CIS 1.000000 STAND-BASE/USB CHB5807,ABS,HB,IV16,3,BH93-00137L - 1.000000 ASSY COVER/FRONT DF17KSBU,ABS HB,IV16,SAMSUNG,TSED,CHINA
6006-001010 C/F+CDT 4.000000 SCREW-ASS'Y TAPT WPP,BH,+,D5,L25,ZPC(YEL),SWRCH
BH75-00148L CIS 1.000000 UNIT/COVER-FRONT S/M753DF,ABS HB,-,IV16,DF17KS
6003-000122 CIS 2.000000 SCREW-TAPTITE BH,+,B,M4,L12,ZPC(YEL),SWRCH18
6107-001036 CIS 1.000000 SPRING-CS PI9.4,D0.6,L15,WHT,STS304WPB
BH64-00046A CIS 1.000000 KNOB-POWER ABS,HB,IV16,DF17JS
BH64-00047A CIS 1.000000 KNOB-FUNCTION ABS,HB,IV16,DF17JS
BH64-00053A CIS 1.000000 KNOB-FUNCTION,GUIDE ABS,HB,IV16,DF17JS
BH67-00010A CIS 1.000000 LENS LED ACRYL,CLEAR,DF17JS
BH68-00035A CIS 1.000000 LABEL/MARK-TCO99(SET) PE CLEAR,-,CLEAR,PMS032C,286C,BLK,-,TCO99(SET),BH68-00256A CIS 1.000000 LABEL/MARK -,WINDOWS98,PASCL REMOVAL,-,CLEAR,BLACK,YELLOW,BLUE,MA,-,-,BH72-00141B CIS 1.000000 COVER-FRONT S/M753DF,ABS,HB,IV16,-,BH72-60491B CIS 1.000000 CAP-BOSS CGK5517,PVC,80%,GRAY,T2,CDT SE
BH94-00108A - 1.000000 ASSY CDT-SC DF17JS,-,17,0.25,-,-,-
Page 1
Page 2
0201-001052 CIS 0.550000 ADHESIVE-CYA NO2/TOKYO/3BCO,WHT,-,0203-000005 CIS 0.080000 TAPE-ACETATE SGT730,T0.26,W19,L3000,BLK
0204-001006 CIS 0.001000 COMPOUND KS650N,-,0.9-1.1,1L,20L
3302-000006 CIS 2.000000 MAGNET-RUBBER AF,14G,1620-1980G,0.58-0.9MGOe
3309-000002 CIS 2.000000 MAGNET-SHEET 5x20x80mm,UL94V-0,2
BH03-00024D CIS 1.000000 CRT-SC M41QCJ761X172(P/5),96,17,0.25,-,29.1,FST,H/C,NH,-,TCO,TILT,4
BH27-00054A CIS 1.000000 COIL DEGAUSSING-ASS'Y 320*250*1100mm,9.6mH,-,100Ts,±10%
6501-000004 CIS 1.000000 CABLE TIE DA-80,T1,W2.5,L80,NTR,NYLON66
BH27-00047A CIS 1.000000 COIL-DEGAUSSING 320*250*1100mm,9.6mH,-,100Ts,±10%
BH39-00133A CIS 1.000000 CBF-HARNESS -,400MM,BLK,UL1015/3*0.16TA*16,AWG18,YFH800-1
BH65-00002A CIS 1.000000 CLAMP-D,COIL PET+PP L95,V2,BLACK,DELPHINUS
BH72-00038B CIS 3.000000 HOLDER-D/COIL DP17LS,NYLON66,-,WHITE,-,BH68-30003B CIS 1.000000 LABEL-HIGH VOLTAGE CKA4217(C),ART,100G,YEL,BLK,W30*L30,CDT-TUBE
BH71-00060A CIS 1.000000 EARTH-PLATE/CDT DF17JS,PBS3 ,T0.3,-,BH94-00150P - 1.000000 ASSY PCB DF17KSBU,TSED,CHINA,BH98-00125F - 1.000000 ASSY PCB/VIDEO DF17KSBU,TSED,CHINA,0202-001044 CIS 3.835000 SOLDER-WIRE. S63S-W3.0,S63S,D3,63Sn/37Pb,0202-001045 CIS 1.100000 SOLDER-WIRE. KR19-RMA,S60A,D1.2,60Sn/40Pb,0202-001046 CIS 1.725000 SOLDER-WIRE FLUX CF-110VH-2A,-,-,-,0204-001095 CIS 1.219000 THINNER #4520,-,-,3704-001116 SK01 1.000000 SOCKET-CRT 11P,22.5PI,26.5PI,NI,3711-004228 CN101 1.000000 CONNECTOR-HEADER BOX,6P,1R,2MM,ANGLE,SN
6003-000010 S/VID+H/S 2.000000 SCREW-TAPTITE BWH,+,B,M3,L10,ZPC(YEL),SWRCH1
6502-000001 S/VID 1.000000 CABLE CLAMP DAWH-5NB,D15,L35,NTR,NYLON66
BH09-00022A IC101 1.000000 IC-OSD PROCESSOR TP17L,KB2502-08,32P,BH39-00015A CN102 1.000000 CBF-HARNESS 13P/14P,200MM,WHT/BLK/RED/BLU,UL1007,AWG26,SMH200-13/YBNH200-14
BH39-40306D LJP1 1.000000 CBF-HARNESS ,80MM,BLK,1015,AWG22,-,-,-,-,BH75-00047A CIS 1.000000 UNIT/SHIELD-VIDEO/CAP CL17LO,SPTE T0.3,-,-,BH71-00006B CIS 1.000000 SHIELD-VIDEO/CAP CL17LO,SPTE,0.2,-,BH71-10311A CIS 1.000000 EARTH-PLATE PBS 3/4H,T0.2
BH75-00192H CIS 1.000000 UNIT/SHIELD-VIDEO DEL,-,SPTE,-,-,14",15",17",BH61-00002A CIS 1.000000 SPRING-VIDEO CDB7907,STS H14 ,T1.0,-,-,-,NORMAL CDT
BH71-00007A CIS 1.000000 SHIELD-VIDEO CDA4507,SPTE,T0.2,-,BH72-00024A CIS 1.000000 HOLDER-VIDEO CDA4507,ABS+PC,5V,IV16,-,NORMAL CRT
BH73-00014A CIS 1.000000 HOLDER-RUBBER(NORMAL) DEL,SILICON V2,GRAY,-,-,-,NORMAL
BH91-00084B - 1.000000 ASSY VIDEO/AUTO-SC DF17KS-08C2/0500,-,-,0203-001199 CIS 0.545000 TAPE-KRAFT #53110,T0.1,W6,L2000M,BRN
Page 2
Page 3
0203-001200 CIS 0.545000 TAPE-PAPER #53128,T0.15,W5.5,L2000M,BEIGE
0401-000004 DB03 1.000000 DIODE-SWITCHING 1SS244,250V,200mA,DO-34,TP
0401-000004 DB04 1.000000 DIODE-SWITCHING 1SS244,250V,200mA,DO-34,TP
0401-000004 DG03 1.000000 DIODE-SWITCHING 1SS244,250V,200mA,DO-34,TP
0401-000004 DG04 1.000000 DIODE-SWITCHING 1SS244,250V,200mA,DO-34,TP
0401-000004 DR03 1.000000 DIODE-SWITCHING 1SS244,250V,200mA,DO-34,TP
0401-000004 DR04 1.000000 DIODE-SWITCHING 1SS244,250V,200mA,DO-34,TP
0401-000005 D102 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 DB01 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 DB02 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 DB05 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 DG01 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 DG02 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 DG05 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 DR01 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 DR02 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 DR05 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0501-000122 Q102 1.000000 TR-SMALL SIGNAL 2N3904,NPN,625mW,TO-92,TP,1000501-000138 QB02 1.000000 TR-SMALL SIGNAL 2N5401,PNP,625mW,TO-92,TP,60-2
0501-000138 QG02 1.000000 TR-SMALL SIGNAL 2N5401,PNP,625mW,TO-92,TP,60-2
0501-000138 QR02 1.000000 TR-SMALL SIGNAL 2N5401,PNP,625mW,TO-92,TP,60-2
0501-000140 QB01 1.000000 TR-SMALL SIGNAL 2N5551,NPN,625mW,TO-92,-,80-25
0501-000140 QG01 1.000000 TR-SMALL SIGNAL 2N5551,NPN,625mW,TO-92,-,80-25
0501-000140 QR01 1.000000 TR-SMALL SIGNAL 2N5551,NPN,625mW,TO-92,-,80-25
1405-001064 SK101 1.000000 SURGE ABSORBER 400V,20%,-,-,AXIAL
2001-000034 R124 1.000000 R-CARBON 220OHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000221 RG14 1.000000 R-CARBON 1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 R102 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 RB04 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 RB11 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 RG04 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 RG11 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 RR04 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 RR11 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R116 1.000000 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000429 R107 1.000000 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000432 R123 1.000000 R-CARBON 1MOHM,5%,1/4W,AA,TP,2.4X6.4MM
Page 3
Page 4
2001-000449 RB12 1.000000 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000449 RG12 1.000000 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000449 RR12 1.000000 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000515 R117 1.000000 R-CARBON 220OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000522 R101 1.000000 R-CARBON 22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000563 R109 1.000000 R-CARBON 27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000577 R115 1.000000 R-CARBON 2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000705 RB10 1.000000 R-CARBON 39OHM,5%,1/2W,AA,TP,3.3X9MM
2001-000705 RG10 1.000000 R-CARBON 39OHM,5%,1/2W,AA,TP,3.3X9MM
2001-000705 RR10 1.000000 R-CARBON 39OHM,5%,1/2W,AA,TP,3.3X9MM
2001-000780 R114 1.000000 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000780 RB03 1.000000 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000780 RB14 1.000000 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000780 RG03 1.000000 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000780 RR03 1.000000 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000780 RR14 1.000000 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000793 RB08 1.000000 R-CARBON 47OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000793 RB15 1.000000 R-CARBON 47OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000793 RG08 1.000000 R-CARBON 47OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000793 RG15 1.000000 R-CARBON 47OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000793 RR08 1.000000 R-CARBON 47OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000793 RR15 1.000000 R-CARBON 47OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000812 R108 1.000000 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000857 R118 1.000000 R-CARBON 560OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000857 R119 1.000000 R-CARBON 560OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000947 RB20 1.000000 R-CARBON 7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000947 RG20 1.000000 R-CARBON 7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000947 RR20 1.000000 R-CARBON 7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000962 RB09 1.000000 R-CARBON 75KOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000962 RG09 1.000000 R-CARBON 75KOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000962 RR09 1.000000 R-CARBON 75KOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000969 RB01 1.000000 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000969 RB02 1.000000 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000969 RG01 1.000000 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000969 RG02 1.000000 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000969 RR01 1.000000 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000969 RR02 1.000000 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM
Page 4
Page 5
2001-001000 RB13 1.000000 R-CARBON 82KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001000 RG13 1.000000 R-CARBON 82KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001000 RR13 1.000000 R-CARBON 82KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001138 R103 1.000000 R-CARBON(S) 390OHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-001138 R104 1.000000 R-CARBON(S) 390OHM,5%,1/2W,AA,TP,2.4X6.4MM
2002-001022 R120 1.000000 R-COMPOSITION 30MOHM,5%,1/4W,AA,TP,2.5X6.5MM
2201-000019 C123 1.000000 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5
2201-000117 C126 1.000000 C-CERAMIC,DISC 1.8nF,10%,500V,Y5P,TP,8.5x3,5
2201-000119 C125 1.000000 C-CERAMIC,DISC 100nF,+80-20%,50V,Y5V,TP,8x3,5
2201-000119 C128 1.000000 C-CERAMIC,DISC 100nF,+80-20%,50V,Y5V,TP,8x3,5
2201-000119 CB01 1.000000 C-CERAMIC,DISC 100nF,+80-20%,50V,Y5V,TP,8x3,5
2201-000119 CB02 1.000000 C-CERAMIC,DISC 100nF,+80-20%,50V,Y5V,TP,8x3,5
2201-000119 CG01 1.000000 C-CERAMIC,DISC 100nF,+80-20%,50V,Y5V,TP,8x3,5
2201-000119 CG02 1.000000 C-CERAMIC,DISC 100nF,+80-20%,50V,Y5V,TP,8x3,5
2201-000119 CR01 1.000000 C-CERAMIC,DISC 100nF,+80-20%,50V,Y5V,TP,8x3,5
2201-000119 CR02 1.000000 C-CERAMIC,DISC 100nF,+80-20%,50V,Y5V,TP,8x3,5
2201-000146 CB07 1.000000 C-CERAMIC,DISC 0.1nF,5%,50V,SL,TP,5x3.5,5
2201-000146 CG07 1.000000 C-CERAMIC,DISC 0.1nF,5%,50V,SL,TP,5x3.5,5
2201-000146 CR07 1.000000 C-CERAMIC,DISC 0.1nF,5%,50V,SL,TP,5x3.5,5
2201-000177 C109 1.000000 C-CERAMIC,DISC 10nF,10%,50V,Y5P,TP,12x3.5,5
2201-000285 C120 1.000000 C-CERAMIC,DISC 1nF,10%,1kV,Y5P,TP,8x5,5
2201-000291 C119 1.000000 C-CERAMIC,DISC 1nF,10%,500V,Y5P,TP,7.5x3.5,5
2201-000411 CB08 1.000000 C-CERAMIC,DISC 0.27nF,10%,50V,Y5P,TP,4x3.5,5
2201-000411 CG08 1.000000 C-CERAMIC,DISC 0.27nF,10%,50V,Y5P,TP,4x3.5,5
2201-000411 CR08 1.000000 C-CERAMIC,DISC 0.27nF,10%,50V,Y5P,TP,4x3.5,5
2201-000471 C118 1.000000 C-CERAMIC,DISC 0.33nF,10%,50V,Y5P,TP,4x3.5,5
2202-002009 C106 1.000000 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3
2202-002009 C121 1.000000 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3
2202-002009 C151 1.000000 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3
2202-002009 C152 1.000000 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3
2202-002009 CB06 1.000000 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3
2202-002009 CG06 1.000000 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3
2202-002009 CR06 1.000000 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3
2301-000010 C105 1.000000 C-FILM,PEF 100nF,5%,100V,TP,11.5x12.5mm,5
2301-000010 CB05 1.000000 C-FILM,PEF 100nF,5%,100V,TP,11.5x12.5mm,5
2301-000010 CG05 1.000000 C-FILM,PEF 100nF,5%,100V,TP,11.5x12.5mm,5
2301-000010 CR05 1.000000 C-FILM,PEF 100nF,5%,100V,TP,11.5x12.5mm,5
Page 5
Page 6
2301-000148 C124 1.000000 C-FILM,PEF 10nF,5%,100V,TP,7x3.2x7mm,5mm
2301-000188 C116 1.000000 C-FILM,PEF 1nF,5%,100V,TP,10.5x12.5x6.5,5
2301-000188 C117 1.000000 C-FILM,PEF 1nF,5%,100V,TP,10.5x12.5x6.5,5
2301-000287 C113 1.000000 C-FILM,PEF 5.6nF,5%,100V,TP,10.5x12.5x6.5
2401-000010 C107 1.000000 C-AL 220uF,20%,16V,GP,-,6.3x11mm,2.
2401-000025 C110 1.000000 C-AL 100uF,20%,16V,GP,TP,6.3x11,5
2401-000031 C160 1.000000 C-AL 47uF,20%,16V,GP,TP,5x11,5
2401-000037 C103 1.000000 C-AL 470uF,20%,16V,GP,TP,8x11.5,5
2401-000049 C108 1.000000 C-AL 47uF,20%,100V,WT,TP,10x16,5
2401-000055 CB04 1.000000 C-AL 1uF,20%,160V,WT,TP,3x11,5mm
2401-000055 CG04 1.000000 C-AL 1uF,20%,160V,WT,TP,3x11,5mm
2401-000055 CR04 1.000000 C-AL 1uF,20%,160V,WT,TP,3x11,5mm
2401-000603 C102 1.000000 C-AL 1uF,20%,50V,GP,TP,5x11,5
2401-002075 C112 1.000000 C-AL 4.7uF,20%,50V,GP,TP,5x11,5
2701-000112 L101 1.000000 INDUCTOR-AXIAL 100uH,10%,3x7mm
2701-000164 L103 1.000000 INDUCTOR-AXIAL 27uH,10%,4.2x9.8mm
2701-000172 LB01 1.000000 INDUCTOR-AXIAL 330nH,10%,3x7mm
2701-000172 LG01 1.000000 INDUCTOR-AXIAL 330nH,10%,3x7mm
2701-000172 LR01 1.000000 INDUCTOR-AXIAL 330nH,10%,3x7mm
3301-000011 BD102 1.000000 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
3301-000011 BD103 1.000000 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
4715-000001 SK102 1.000000 SURGE ABSORBER 1KV,+50-10%,-,-,
4715-000102 SKB01 1.000000 SURGE ABSORBER 200V,20%,1000A,-,RADIAL
4715-000102 SKG01 1.000000 SURGE ABSORBER 200V,20%,1000A,-,RADIAL
4715-000102 SKR01 1.000000 SURGE ABSORBER 200V,20%,1000A,-,RADIAL
6042-000001 EY2 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000001 EY3 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000002 EY1 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
6042-000002 EY4 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
BH39-40305U JP103 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP109 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP116 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP117 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP119 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP122 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP123 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP124 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,-
Page 6
Page 7
BH39-40305U JP127 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP128 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP133 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP134 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP136 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP137 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP140 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP142 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP146 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP147 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP148 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP150 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP151 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP152 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH41-00058A MP1.2 1.000000 PCB-VIDEO TP17LT,PHENOL,-,1.6T*247*330MM,BH71-40300A G2 1.000000 PIN-HINGE -,BRASS,D2.36,SN,HEAT/SINK
BH71-40300A GND 1.000000 PIN-HINGE -,BRASS,D2.36,SN,HEAT/SINK
BH99-00004B HS103 1.000000 ASSY,HEAT/SINK H/S VIDEO,SCREW+NUT,LM2437,-,-,OIL SILICON,-,0205-001027 CIS 0.100000 OIL-SILICON G746,-,6006-001008 CIS 1.000000 SCREW-ASS'Y MACH WSP,BH,+,M3,L10,ZPC(YEL),SWRCH
6021-000118 CIS 1.000000 NUT-HEXAGON 1C,M3,ZPC(YEL),SM20C
BH13-00003A CIS 1.000000 IC-HYBRID -,LM2437,TO-220,9P,CRT DRIVER,0 TO 6.0V,BH62-00006A CIS 1.000000 HEAT SINK-VIDEO -,A1050S T2.0,-,DB
BH98-00126H - 1.000000 ASSY PCB/MAIN DF17KSBU,TSED,CHINA,0202-001044 CIS 19.500000 SOLDER-WIRE. S63S-W3.0,S63S,D3,63Sn/37Pb,0202-001045 CIS 0.532000 SOLDER-WIRE. KR19-RMA,S60A,D1.2,60Sn/40Pb,0202-001046 CIS 7.686000 SOLDER-WIRE FLUX CF-110VH-2A,-,-,-,0204-001095 CIS 7.300000 THINNER #4520,-,-,0402-000005 D609 1.000000 DIODE-RECTIFIER 31DF4,400V,3A,DO-201AD,BK
0402-000103 D601 1.000000 DIODE-BRIDGE D2SBA60,600V,1.5A,SIP-4,ST
0402-001025 D406 1.000000 DIODE-RECTIFIER ERD07-15,1.5KV,1.5A,-,TP
0402-001295 D409 1.000000 DIODE-RECTIFIER GUR460L-5700,600V,4A,DO-201AD,BK
0505-001247 Q403 1.000000 FET-SILICON IRFU210A,N,200V,2.7A,1.5ohm,26
0505-001309 Q409 1.000000 FET-SILICON IRF630,N,200V,10A,0.4OHM,100W,TO-220
0505-001309 Q410 1.000000 FET-SILICON IRF630,N,200V,10A,0.4OHM,100W,TO-220
0601-001147 OP201 1.000000 LED ROUND,GRN,4.75mm,565nm
1203-000001 IC604 1.000000 IC-POSI.FIXED REG. 7805,TO-220,3P,-,PLASTIC,4.8/5
Page 7
Page 8
1203-000165 IC602 1.000000 IC-POSI.ADJUST REG. 78R12,TO-220,3P,-,-,12V,-,0to+
1204-001509 IC401 1.000000 IC-HOR./VER.PROCESSO TDA4859,DIP,32P,400MIL,PLASTIC,16V,-,-20TO+70CC,ST,H/V DEF. PROCESSOR
1404-000002 TH601 1.000000 THERMISTOR-PTC 9ohm,20%,-,-,TR,RECT,1404-001020 TH602 1.000000 THERMISTOR-NTC 8ohm,15%,-,17mW/C,BK
2301-001195 C601 1.000000 C-FILM,MPPF 150nF,10%,275VAC,BK,26x16.5x7,
2301-001195 C602 1.000000 C-FILM,MPPF 150nF,10%,275VAC,BK,26x16.5x7,
2305-000665 C402 1.000000 C-FILM,MPEF 100nF,5%,63V,TP,7.5x4.0x5.0mm,
2306-000147 C409 1.000000 C-FILM,MPPF 1uF,5%,250V,BK,26x24x15,22.5mm
2306-000249 C430 1.000000 C-FILM,MPPF 680nF,5%,250V,TP,26x20.5x12,20
2401-003391 C608 1.000000 C-AL 220uF,20%,450V,GP,BK,25x50,10
3403-001050 SW601 1.000000 SWITCH-PUSH 30V,0.3A,SPDT,ON-OFF,PC BORD T
3406-000002 SW401 1.000000 SWITCH-ROTARY 36Vdc,200mA,SP3T,3501-001111 RL601 1.000000 RELAY-POWER 12Vdc,250mW,5A,1FormA,15mS,5mS
3601-000004 FUSE 1.000000 FUSE-CARTRIDGE 250V,3.15A,SLOW-BLOW,CERAMIC,5x20mm
3711-003873 CN202 1.000000 CONNECTOR-HEADER BOX,7P,1R,2mm,STRAIGHT,SN
3711-003895 CN201 1.000000 CONNECTOR-HEADER BOX,13P,1R,2mm,STRAIGHT,SN
3711-003989 CN403 1.000000 CONNECTOR-HEADER NOWALL,4P,1R,8mm,STRAIGHT,SN
3721-001028 CN601 1.000000 PLUG-AC POWER 3P,-,-,NI
6003-000010 B/PCB+LMF 2.000000 SCREW-TAPTITE BWH,+,B,M3,L10,ZPC(YEL),SWRCH1
6003-000010 S/BTM+PCB 5.000000 SCREW-TAPTITE BWH,+,B,M3,L10,ZPC(YEL),SWRCH1
6502-000001 FBT 2.000000 CABLE CLAMP DAWH-5NB,D15,L35,NTR,NYLON66
BH26-00026A T501 1.000000 TRANS-FBT 1.1MH,-,3763SU,SM9C,-,-,BH26-00027A T401 1.000000 TRANS-HOR.DRIVE 35.0MH,-,EI 1916,PL-3,-,310UH,BH26-00028A T402 1.000000 TRANS-H.LINEARITY 5.2UH,6P,DR1425(C:5.0),YL-81,5.2UH/68.0MH,-,HL-1425E
BH26-00057A T502 1.000000 TRANS-FOCUS 3.8MH MIN,10P,EI-2218,(SB-5S),SB-5S,3.8MH/225MH MIN,40UH MAX,BH26-00059A T601 1.000000 TRANS-POWER 350UH,18P,EER 3541,PL3,PM2,7.0UH MAX.,0.22OHM,BH26-30302S T602 1.000000 TRANS-SYNC. 3-1(250UH),-,-,SB-5S,UU1116,3BH27-00005A L401 1.000000 COIL-CHOKE 120UH,10%,AR-06*30,BULK,-,BH27-00007A L601 1.000000 COIL-LINE FILTER 25MH MIN,-,SQE 2424,BULK,-,BH27-00022A L402 1.000000 COIL-CHOKE 100UH,+/-10%,DR1523(C:9.8),BK,-,BH27-20342U L403 1.000000 COIL-CHOKE -,8.2MH(250KHz),10%,DR8*11,-,-,-,-,10.5OHM,-,-,-,BULK
BH39-00014A CIS 1.000000 CBF-HARNESS 1P,280MM,RED,UL1032,AWG22,YFH800-1,BS201R
BH39-00145A CIS 1.000000 CBF SIGNAL ATT,1500MM,15P/6P,7P,IVORY(IV01),-,D-SUB/MALE
BH39-00210A JW1 1.000000 CBF-HARNESS DP17M**,UL1015,UL/CSA,-,60MM,BLK,AWG22,-,-,-,-,-,-,-,-,CBF-JUMPER WIRE
BH39-00210A JW2 1.000000 CBF-HARNESS DP17M**,UL1015,UL/CSA,-,60MM,BLK,AWG22,-,-,-,-,-,-,-,-,CBF-JUMPER WIRE
BH39-40305Y JW3 1.000000 CBF-HARNESS ,110MM,BLK,1015,AWG22,-,-,-,-,
BH39-40306C JW4 1.000000 CBF-HARNESS ,60MM,BLK,1015,AWG22,-,-,-,-,-
Page 8
Page 9
BH68-00001A CIS 1.000000 LABEL/MARK-CDT ART-PAPER 100G,-,WHT,BLK,-,ALL,CDT
BH72-00025A CIS 1.000000 GUIDE-POWER CDA4507,ABS+PC,5V,IV16,-,BH72-00026A CIS 1.000000 SHAFT-POWER CDA4507,ABS+PC,5V,IV16,-,BH72-00078A CIS 1.000000 SHEET-LMF DP17L,AL+PC,-,-,0.5,BH73-60304C CIS 1.000000 RUBBER-SUPPORT DP15LT,CR V0,GRAY,-,14*7*10,-,BH75-00031B CIS 1.000000 UNIT/FRAME-BOTTOM DF17JS,SECC T1.0,-,-,BH71-00008A CIS 1.000000 SHIELD-BOTTOM CDA4507,SECC ,T1.0,-,BH71-00059A CIS 2.000000 EARTH-PLATE/FRONT DF17JS,STS 301,T0.15,-,BH91-00064P - 1.000000 PROCESS-S/W,DF17KS DF17KS(753DF),-,-,BH09-00028A IC201 1.000000 IC-MICOM DF17JS,DM024 DF17JSKS_01,42P,DF17JSKS_01
BH46-00001P CIS 1.000000 MICOM-S/W,DF17KS DP-FLAT(70KHz),-,BH91-00083B - 1.000000 ASSY MAIN/AUTO-SC DF17KS-08C2/0500,-,-,0203-001199 CIS 1.370000 TAPE-KRAFT #53110,T0.1,W6,L2000M,BRN
0203-001200 CIS 1.370000 TAPE-PAPER #53128,T0.15,W5.5,L2000M,BEIGE
0203-001201 CIS 0.240000 TAPE-PAPER #FB-300,T0.16,W6,L2000M,R/BLU
0401-000004 D422 1.000000 DIODE-SWITCHING 1SS244,250V,200mA,DO-34,TP
0401-000004 D505 1.000000 DIODE-SWITCHING 1SS244,250V,200mA,DO-34,TP
0401-000005 D420 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D421 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D431 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D501 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D507 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D508 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D509 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D510 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D511 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D512 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D513 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D515 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D516 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D602 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D607 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D615 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0401-000005 D616 1.000000 DIODE-SWITCHING 1N4148,100V,200MA,DO-35,TP
0402-000006 D402 1.000000 DIODE-RECTIFIER 1N4007GP,1000V,1A,DO-41,TP
0402-000006 D403 1.000000 DIODE-RECTIFIER 1N4007GP,1000V,1A,DO-41,TP
0402-000006 D404 1.000000 DIODE-RECTIFIER 1N4007GP,1000V,1A,DO-41,TP
Page 9
Page 10
0402-000012 D604 1.000000 DIODE-RECTIFIER UF4007,1KV,1A,DO-41,TP
0402-000012 D605 1.000000 DIODE-RECTIFIER UF4007,1KV,1A,DO-41,TP
0402-000012 D610 1.000000 DIODE-RECTIFIER UF4007,1KV,1A,DO-41,TP
0402-000017 D502 1.000000 DIODE-RECTIFIER RGP02-12,1200V,0.5A,DO-204AL,T
0402-000208 D405 1.000000 DIODE-RECTIFIER EK-04,40V,1.5A,DO-41
0402-000274 D301 1.000000 DIODE-RECTIFIER UF4004,400V,1A,DO-41,TP
0402-000274 D401 1.000000 DIODE-RECTIFIER UF4004,400V,1A,DO-41,TP
0402-000274 D608 1.000000 DIODE-RECTIFIER UF4004,400V,1A,DO-41,TP
0402-000274 D612 1.000000 DIODE-RECTIFIER UF4004,400V,1A,DO-41,TP
0402-000546 D410 1.000000 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP
0402-000546 D411 1.000000 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP
0402-000546 D412 1.000000 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP
0402-000546 D413 1.000000 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP
0402-000546 D432 1.000000 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP
0402-000546 D503 1.000000 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP
0402-000546 D504 1.000000 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP
0402-000546 D506 1.000000 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP
0402-000546 D606 1.000000 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP
0402-000546 D614 1.000000 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,TP
0402-001039 D617 1.000000 DIODE-RECTIFIER SB020,20V,600mA,MPG06,TP
0402-001118 D407 1.000000 DIODE-RECTIFIER UF1G,400V,1.2A,DO-204AL,TP
0402-001118 D611 1.000000 DIODE-RECTIFIER UF1G,400V,1.2A,DO-204AL,TP
0403-000361 ZD201 1.000000 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW
0403-000361 ZD202 1.000000 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW
0403-000361 ZD203 1.000000 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW
0403-000361 ZD204 1.000000 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW
0403-000361 ZD205 1.000000 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW
0403-000361 ZD601 1.000000 DIODE-ZENER UZ6.2BSB,6.2V,5.99-6.24V,500mW
0403-001068 ZD502 1.000000 DIODE-ZENER UZ4.7BSA,4.7V,4.47-4.65V,500mW
0403-001068 ZD602 1.000000 DIODE-ZENER UZ4.7BSA,4.7V,4.47-4.65V,500mW
0501-000010 Q608 1.000000 TR-SMALL SIGNAL KSC1008,NPN,800mW,TO-92,TP,120
0501-000122 Q401 1.000000 TR-SMALL SIGNAL 2N3904,NPN,625mW,TO-92,TP,1000501-000122 Q602 1.000000 TR-SMALL SIGNAL 2N3904,NPN,625mW,TO-92,TP,1000501-000140 Q407 1.000000 TR-SMALL SIGNAL 2N5551,NPN,625mW,TO-92,-,80-25
0501-000143 Q502 1.000000 TR-SMALL SIGNAL 2N6520,PNP,625mW,TO-92,-,30-20
0501-000303 Q302 1.000000 TR-SMALL SIGNAL KSA733,PNP,250mW,TO-92,TP,1200501-000303 Q405 1.000000 TR-SMALL SIGNAL KSA733,PNP,250mW,TO-92,TP,120-
Page 10
Page 11
0501-000303 Q406 1.000000 TR-SMALL SIGNAL KSA733,PNP,250mW,TO-92,TP,1200501-000303 Q423 1.000000 TR-SMALL SIGNAL KSA733,PNP,250mW,TO-92,TP,1200501-000303 Q503 1.000000 TR-SMALL SIGNAL KSA733,PNP,250mW,TO-92,TP,1200501-000321 Q413 1.000000 TR-SMALL SIGNAL KSB1116-Y,PNP,0.75W,TO-92,-,13
0501-000404 Q412 1.000000 TR-SMALL SIGNAL KSD1616-Y,NPN,750mW,TO-92,TP,1
0501-000404 Q604 1.000000 TR-SMALL SIGNAL KSD1616-Y,NPN,750mW,TO-92,TP,1
0501-000413 Q551 1.000000 TR-SMALL SIGNAL KSP44,NPN,625mW,TO-92,-,50-200
0501-000416 Q501 1.000000 TR-SMALL SIGNAL KSP92,PNP,625mW,TO-92,TP,25
0501-000586 Q301 1.000000 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,1200501-000586 Q303 1.000000 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,1200501-000586 Q414 1.000000 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,1200501-000586 Q415 1.000000 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,1200501-000586 Q416 1.000000 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,1200501-000586 Q601 1.000000 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,1200501-000586 Q610 1.000000 TR-SMALL SIGNAL KSC945,NPN,250mW,TO-92,TP,1200501-002228 Q609 1.000000 TR-SMALL SIGNAL KTA1281,PNP,1000MW,TO-92L,TP,120-240
1103-001149 IC202 1.000000 IC-EEPROM 524C80D41,4KBit,DIP,8P,300MIL,10mS,5V,10%,PLASTIC,-25to+70C,10uA,CMOS,ST
1201-000229 IC603 1.000000 IC-OP AMP 324,DIP,14P,300MIL,QUAD,100V/m
1203-000495 IC605 1.000000 IC-RESET 7045,T0-92,3P,-,PLASTIC,4.3/4.
2001-000004 R419 1.000000 R-CARBON 200KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000008 R504 1.000000 R-CARBON 15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000008 R505 1.000000 R-CARBON 15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000011 R527 1.000000 R-CARBON 75KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000020 R432 1.000000 R-CARBON(S) 22OHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-000022 R323 1.000000 R-CARBON(S) 33OHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-000023 R602 1.000000 R-CARBON 47OHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000037 R308 1.000000 R-CARBON(S) 330OHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-000038 R223 1.000000 R-CARBON 390OHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000042 R555 1.000000 R-CARBON 1KOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000052 R429 1.000000 R-CARBON(S) 3.3KOHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-000085 R570 1.000000 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-000087 R513 1.000000 R-CARBON(S) 120KOHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-000105 R410 1.000000 R-CARBON 1.5KOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000107 R416 1.000000 R-CARBON(S) 150KOHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-000109 R407 1.000000 R-CARBON(S) 470OHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-000110 R426 1.000000 R-CARBON 10OHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000114 R609 1.000000 R-CARBON(S) 180KOHM,5%,1/2W,AA,TP,2.4X6.4MM
Page 11
Page 12
2001-000114 R610 1.000000 R-CARBON(S) 180KOHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-000117 R446 1.000000 R-CARBON(S) 68OHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-000119 R425 1.000000 R-CARBON 680OHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000211 R449 1.000000 R-CARBON 1OHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000221 R418 1.000000 R-CARBON 1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000241 R231 1.000000 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000258 R423 1.000000 R-CARBON 1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000273 R525 1.000000 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 R215 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 R216 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 R217 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 R218 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 R220 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 R229 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 R316 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000281 R608 1.000000 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R202 1.000000 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R230 1.000000 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R236 1.000000 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R239 1.000000 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R412 1.000000 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R451 1.000000 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R452 1.000000 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R453 1.000000 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R603 1.000000 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000290 R632 1.000000 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000331 R233 1.000000 R-CARBON 12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000331 R320 1.000000 R-CARBON 12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000331 R417 1.000000 R-CARBON 12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000354 R620 1.000000 R-CARBON 150KOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000356 R519 1.000000 R-CARBON 150KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000395 R420 1.000000 R-CARBON 180KOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000397 R530 1.000000 R-CARBON 180KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000411 R441 1.000000 R-CARBON 18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000429 R213 1.000000 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000429 R214 1.000000 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000429 R408 1.000000 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Page 12
Page 13
2001-000429 R529 1.000000 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000429 R618 1.000000 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000429 R631 1.000000 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000432 R532 1.000000 R-CARBON 1MOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000432 R561 1.000000 R-CARBON 1MOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000435 R500 1.000000 R-CARBON 1MOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000449 R434 1.000000 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000449 R436 1.000000 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000449 R438 1.000000 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000449 R503 1.000000 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000472 R210 1.000000 R-CARBON 2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000472 R235 1.000000 R-CARBON 2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000472 R501 1.000000 R-CARBON 2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000472 R520 1.000000 R-CARBON 2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000478 R511 1.000000 R-CARBON 2.7OHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000495 R552 1.000000 R-CARBON 20KOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000508 R531 1.000000 R-CARBON 220KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000515 R206 1.000000 R-CARBON 220OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000522 R406 1.000000 R-CARBON 22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000522 R450 1.000000 R-CARBON 22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000530 R551 1.000000 R-CARBON 240KOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000546 R515 1.000000 R-CARBON 270KOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000561 R317 1.000000 R-CARBON 27KOHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000563 R234 1.000000 R-CARBON 27KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000591 R321 1.000000 R-CARBON 3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000591 R405 1.000000 R-CARBON 3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000591 R427 1.000000 R-CARBON 3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000613 R556 1.000000 R-CARBON 3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000642 R553 1.000000 R-CARBON 330KOHM,5%,1/2W,AA,TP,3.3X9MM
2001-000660 R212 1.000000 R-CARBON 33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000660 R324 1.000000 R-CARBON 33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000660 R524 1.000000 R-CARBON 33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000702 R526 1.000000 R-CARBON 39KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000734 R203 1.000000 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000734 R204 1.000000 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000734 R209 1.000000 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000734 R221 1.000000 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Page 13
Page 14
2001-000734 R222 1.000000 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000734 R605 1.000000 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000739 R444 1.000000 R-CARBON 4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000766 R318 1.000000 R-CARBON 43KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000786 R201 1.000000 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000786 R435 1.000000 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000786 R437 1.000000 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000786 R439 1.000000 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000786 R512 1.000000 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000786 R625 1.000000 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000786 R630 1.000000 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000812 R232 1.000000 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000812 R312 1.000000 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000812 R409 1.000000 R-CARBON 5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000837 R510 1.000000 R-CARBON 51KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000837 R514 1.000000 R-CARBON 51KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000857 R604 1.000000 R-CARBON 560OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000869 R200 1.000000 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000869 R207 1.000000 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000869 R208 1.000000 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000869 R224 1.000000 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000869 R225 1.000000 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000869 R301 1.000000 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000869 R402 1.000000 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000878 R211 1.000000 R-CARBON 6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000890 R303 1.000000 R-CARBON 6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000890 R304 1.000000 R-CARBON 6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000890 R311 1.000000 R-CARBON 6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000890 R322 1.000000 R-CARBON 6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000938 R459 1.000000 R-CARBON 68OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000947 R319 1.000000 R-CARBON 7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000947 R440 1.000000 R-CARBON 7.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000989 R621 1.000000 R-CARBON 820KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001006 R422 1.000000 R-CARBON 82OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001031 R518 1.000000 R-CARBON 91KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001037 R617 1.000000 R-CARBON(S) 0.39OHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-001038 R413 1.000000 R-CARBON(S) 0.56OHM,5%,1/2W,AA,TP,2.4X6.4MM
Page 14
Page 15
2001-001038 R414 1.000000 R-CARBON(S) 0.56OHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-001048 R307 1.000000 R-CARBON(S) 1.2OHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-001078 R430 1.000000 R-CARBON(S) 15KOHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-001079 R445 1.000000 R-CARBON(S) 15OHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-001079 R611 1.000000 R-CARBON(S) 15OHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-001088 R615 1.000000 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-001096 R411 1.000000 R-CARBON(S) 2.2OHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-001107 R614 1.000000 R-CARBON(S) 220ohm,5%,1/2W,AA,TP,2.4x6.4mm
2001-001108 R616 1.000000 R-CARBON(S) 22KOHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-001129 R600 1.000000 R-CARBON(S) 330KOHM,5%,1/2W,AA,TP,2.4X6.4MM
2001-001129 R601 1.000000 R-CARBON(S) 330KOHM,5%,1/2W,AA,TP,2.4X6.4MM
2002-000121 R508 1.000000 R-COMPOSITION 1Mohm,10%,1/2W,AA,TP,3.5x9.5mm
2002-000121 R509 1.000000 R-COMPOSITION 1Mohm,10%,1/2W,AA,TP,3.5x9.5mm
2002-000121 R560 1.000000 R-COMPOSITION 1Mohm,10%,1/2W,AA,TP,3.5x9.5mm
2002-001049 R554 1.000000 R-COMPOSITION 240Kohm,5%,1/2W,AA,TP,3.9x9mm
2002-001056 R516 1.000000 R-COMPOSITION 180Kohm,2%,1/4W,AA,TP,2.5x6.5mm
2003-000014 R607 1.000000 R-METAL OXIDE(S) 10Kohm,5%,3W,AA,TP,6x16mm
2003-000407 R431 1.000000 R-METAL OXIDE(S) 0.6ohm,5%,2W,AA,TP,4x12mm
2003-000432 R415 1.000000 R-METAL OXIDE(S) 1.5Kohm,5%,3W,AA,TP,6x16mm
2003-000471 R619 1.000000 R-METAL OXIDE(S) 10ohm,5%,2W,AA,TP,4x12mm
2003-000505 R428 1.000000 R-METAL OXIDE(S) 150ohm,5%,3W,AA,TP,6x16mm
2003-000578 R443 1.000000 R-METAL OXIDE(S) 220ohm,5%,2W,AA,TP,4x12mm
2003-000650 R454 1.000000 R-METAL OXIDE(S) 330ohm,5%,2W,AA,TP,4x12mm
2003-000650 R458 1.000000 R-METAL OXIDE(S) 330ohm,5%,2W,AA,TP,4x12mm
2003-000724 R460 1.000000 R-METAL OXIDE(S) 5.6ohm,5%,3W,AA,TP,6x16mm
2003-000738 R612 1.000000 R-METAL OXIDE(S) 56Kohm,5%,2W,AA,TP,4x12mm
2003-000769 R433 1.000000 R-METAL OXIDE(S) 680ohm,5%,3W,AA,TP,6x16mm
2003-000777 R447 1.000000 R-METAL OXIDE(S) 68ohm,5%,2W,AA,TP,4x12mm
2003-000777 R448 1.000000 R-METAL OXIDE(S) 68ohm,5%,2W,AA,TP,4x12mm
2003-000805 R325 1.000000 R-METAL OXIDE(S) 82ohm,5%,1W,AA,TP,3.3x9mm
2003-000805 R326 1.000000 R-METAL OXIDE(S) 82ohm,5%,1W,AA,TP,3.3x9mm
2004-000216 R507 1.000000 R-METAL 10Kohm,1%,1/4W,AA,TP,2.4x6.4mm
2004-000284 R424 1.000000 R-METAL 12Kohm,1%,1/4W,AA,TP,2.4x6.4mm
2004-000498 R404 1.000000 R-METAL 2.7Kohm,1%,1/4W,AA,TP,2.4x6.4m
2004-000580 R302 1.000000 R-METAL 22Kohm,1%,1/4W,AA,TP,2.4x6.4mm
2004-000643 R506 1.000000 R-METAL 270Kohm,1%,1/4W,AA,TP,2.4x6.4m
2004-000979 R502 1.000000 R-METAL 47Kohm,1%,1/4W,AA,TP,2.4x6.4mm
Page 15
Page 16
2004-001022 R306 1.000000 R-METAL 5.6Kohm,1%,1/4W,AA,TP,2.4x6.4m
2004-001136 R310 1.000000 R-METAL 6.8Kohm,1%,1/4W,AA,TP,2.4x6.4m
2004-001226 R403 1.000000 R-METAL 750ohm,1%,1/4W,AA,TP,2.4x6.4mm
2004-004014 R309 1.000000 R-METAL 2.4ohm,1%,1/4W,AA,TP,2.4x6.4mm
2004-004014 R315 1.000000 R-METAL 2.4ohm,1%,1/4W,AA,TP,2.4x6.4mm
2201-000017 C212 1.000000 C-CERAMIC,DISC 1nF,10%,50V,Y5P,TP,5x3.5,5
2201-000019 C445 1.000000 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5
2201-000019 C506 1.000000 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5
2201-000019 C614 1.000000 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5
2201-000019 C635 1.000000 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,TP,13.5x4mm,5
2201-000023 C616 1.000000 C-CERAMIC,DISC 2.2nF,20%,125V,Y5U,TP,11x7,5
2201-000023 C617 1.000000 C-CERAMIC,DISC 2.2nF,20%,125V,Y5U,TP,11x7,5
2201-000024 C603 1.000000 C-CERAMIC,DISC 4.7nF,20%,250VAC,Y5U,TP,16x7,7
2201-000024 C604 1.000000 C-CERAMIC,DISC 4.7nF,20%,250VAC,Y5U,TP,16x7,7
2201-000129 C613 1.000000 C-CERAMIC,DISC 0.1nF,10%,1kV,Y5P,TP,7x4,5
2201-000132 C552 1.000000 C-CERAMIC,DISC 0.1nF,10%,500V,Y5P,TP,6.5x3,5
2201-000146 C211 1.000000 C-CERAMIC,DISC 0.1nF,5%,50V,SL,TP,5x3.5,5
2201-000146 C215 1.000000 C-CERAMIC,DISC 0.1nF,5%,50V,SL,TP,5x3.5,5
2201-000210 C624 1.000000 C-CERAMIC,DISC 0.12NF,10%,1KV,Y5P,TP,6.3X4MM,5
2201-000291 C507 1.000000 C-CERAMIC,DISC 1nF,10%,500V,Y5P,TP,7.5x3.5,5
2201-000291 C513 1.000000 C-CERAMIC,DISC 1nF,10%,500V,Y5P,TP,7.5x3.5,5
2201-000291 C530 1.000000 C-CERAMIC,DISC 1nF,10%,500V,Y5P,TP,7.5x3.5,5
2201-000291 C615 1.000000 C-CERAMIC,DISC 1nF,10%,500V,Y5P,TP,7.5x3.5,5
2201-000389 C202 1.000000 C-CERAMIC,DISC 0.022nF,5%,50V,NP0,TP,5x3,5
2201-000389 C203 1.000000 C-CERAMIC,DISC 0.022nF,5%,50V,NP0,TP,5x3,5
2201-000469 C619 1.000000 C-CERAMIC,DISC 0.33nF,10%,500V,Y5P,TP,5.5x3,5
2201-000476 C447 1.000000 C-CERAMIC,DISC 0.033nF,10%,500V,SL,TP,5.5x3,5
2201-000556 C408 1.000000 C-CERAMIC,DISC 0.47nF,10%,500V,Y5P,TP,5.5x3,5
2201-000647 C446 1.000000 C-CERAMIC,DISC 0.068nF,5%,500V,NP0,TP,8x3.5mm,5
2201-000672 C436 1.000000 C-CERAMIC,DISC 0.82nF,10%,500V,Y5P,TP,6.5x3,5
2201-000823 C405 1.000000 C-CERAMIC,DISC 0.27nF,5%,50V,SL,TP,8x3.5,5
2201-002079 C435 1.000000 C-CERAMIC,DISC 0.15nF,10%,500V,Y5P,TP,6.3x4mm,5
2202-000252 C309 1.000000 C-CERAMIC,MLC-AXIAL 4.7nF,10%,50V,X7R,TP,2.5x4.3,2202-002009 C217 1.000000 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3
2202-002009 C607 1.000000 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3
2202-002009 C631 1.000000 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,TP,2.3X3
2301-000004 C308 1.000000 C-FILM,PEF 2.2nF,5%,100V,TP,5.5X10X2.9,5m
Page 16
Page 17
2301-000004 C404 1.000000 C-FILM,PEF 2.2nF,5%,100V,TP,5.5X10X2.9,5m
2301-000004 C504 1.000000 C-FILM,PEF 2.2nF,5%,100V,TP,5.5X10X2.9,5m
2301-000010 C301 1.000000 C-FILM,PEF 100nF,5%,100V,TP,11.5x12.5mm,5
2301-000010 C416 1.000000 C-FILM,PEF 100nF,5%,100V,TP,11.5x12.5mm,5
2301-000013 C406 1.000000 C-FILM,PEF 4.7nF,5%,100V,TP,10.5x12.5x6.5
2301-000016 C501 1.000000 C-FILM,PEF 22nF,5%,100V,TP,7.2x4.5x9.0mm,
2301-000016 C502 1.000000 C-FILM,PEF 22nF,5%,100V,TP,7.2x4.5x9.0mm,
2301-000020 C510 1.000000 C-FILM,PEF 27nF,5%,100V,TP,7.3x4x12.5mm,5
2301-000148 C403 1.000000 C-FILM,PEF 10nF,5%,100V,TP,7x3.2x7mm,5mm
2301-000148 C417 1.000000 C-FILM,PEF 10nF,5%,100V,TP,7x3.2x7mm,5mm
2301-000148 C512 1.000000 C-FILM,PEF 10nF,5%,100V,TP,7x3.2x7mm,5mm
2301-000174 C411 1.000000 C-FILM,PEF 15nF,5%,100V,TP,7.2x4.0x7.5mm,
2301-000284 C610 1.000000 C-FILM,PEF 47nF,5%,100V,TP,8.5x12.5mm,5mm
2301-000312 C401 1.000000 C-FILM,PEF 8.2nF,5%,100V,TP,6x12.5mm,5mm
2301-000519 C310 1.000000 C-FILM,PEF 3.3nF,5%,100V,TP,5.8x3x12.5,5m
2301-000519 C412 1.000000 C-FILM,PEF 3.3nF,5%,100V,TP,5.8x3x12.5,5m
2301-000519 C511 1.000000 C-FILM,PEF 3.3nF,5%,100V,TP,5.8x3x12.5,5m
2301-001027 C311 1.000000 C-FILM,PEF 15nF,10%,250V,TP,9.5x12x4.5,5m
2301-001305 C420 1.000000 C-FILM,PPF 2.2NF,3%,1.6KV,TP,22X15.5X8.5MM,7.5
2301-001341 C421 1.000000 C-FILM,PPF 3.3nF,5%,630V,TP,17.4x10x5.4mm,7.5
2303-000165 C419 1.000000 C-FILM,PPF 2.5nF,5%,1.6kV,TP,21x6.8x12.6mm,7.5
2305-000237 C307 1.000000 C-FILM,MPEF 1uF,5%,63V,TP,7.5x15.5mm,5mm
2305-000237 C450 1.000000 C-FILM,MPEF 1uF,5%,63V,TP,7.5x15.5mm,5mm
2305-000428 C448 1.000000 C-FILM,MPEF 47nF,5%,250V,TP,11x9x4.5,5mm
2305-001003 C433 1.000000 C-FILM,MPEF 10nF,5%,250V,TP,13x4.5x9mm,7.5
2305-001033 C432 1.000000 C-FILM,MPEF 15nF,10%,250V,TP,13X9.0X4.5mm,
2305-001041 C302 1.000000 C-FILM,MPEF 220nF,5%,63V,TP,7.5x4.5x13.5,5
2305-001041 C625 1.000000 C-FILM,MPEF 220nF,5%,63V,TP,7.5x4.5x13.5,5
2306-000131 C425 1.000000 C-FILM,MPPF 150nF,5%,250V,TP,19x16x7.5,7.5
2306-000171 C427 1.000000 C-FILM,MPPF 270nF,5%,250V,TP,21.5x12.5mm,7
2306-000179 C431 1.000000 C-FILM,MPPF 300nF,5%,250V,TP,20x18.5x10.5,
2401-000025 C201 1.000000 C-AL 100uF,20%,16V,GP,TP,6.3x11,5
2401-000025 C214 1.000000 C-AL 100uF,20%,16V,GP,TP,6.3x11,5
2401-000025 C220 1.000000 C-AL 100uF,20%,16V,GP,TP,6.3x11,5
2401-000029 C213 1.000000 C-AL 10uF,20%,100V,GP,TP,6.3x11,5
2401-000037 C305 1.000000 C-AL 470uF,20%,16V,GP,TP,8x11.5,5
2401-000037 C410 1.000000 C-AL 470uF,20%,16V,GP,TP,8x11.5,5
Page 17
Page 18
2401-000037 C626 1.000000 C-AL 470uF,20%,16V,GP,TP,8x11.5,5
2401-000039 C618 1.000000 C-AL 1000uF,20%,16V,GP,TP,10x16,5
2401-000039 C622 1.000000 C-AL 1000uF,20%,16V,GP,TP,10x16,5
2401-000039 C623 1.000000 C-AL 1000uF,20%,16V,GP,TP,10x16,5
2401-000050 C206 1.000000 C-AL 10uF,20%,16V,GP,TP,5x11,2.5
2401-000050 C551 1.000000 C-AL 10uF,20%,16V,GP,TP,5x11,2.5
2401-000059 C505 1.000000 C-AL 220nF,20%,50V,GP,-,5x11,5
2401-000142 C627 1.000000 C-AL 1000uF,20%,16V,WT,TP,10x20,5
2401-000540 C407 1.000000 C-AL 150uF,20%,63V,LZ,TP,10x25,5
2401-000540 C620 1.000000 C-AL 150uF,20%,63V,LZ,TP,10x25,5
2401-000603 C205 1.000000 C-AL 1uF,20%,50V,GP,TP,5x11,5
2401-000603 C216 1.000000 C-AL 1uF,20%,50V,GP,TP,5x11,5
2401-000603 C423 1.000000 C-AL 1uF,20%,50V,GP,TP,5x11,5
2401-000603 C426 1.000000 C-AL 1uF,20%,50V,GP,TP,5x11,5
2401-000603 C429 1.000000 C-AL 1uF,20%,50V,GP,TP,5x11,5
2401-000603 C503 1.000000 C-AL 1uF,20%,50V,GP,TP,5x11,5
2401-000613 C611 1.000000 C-AL 1uF,20%,50V,WT,TP,5x11,5
2401-000613 C612 1.000000 C-AL 1uF,20%,50V,WT,TP,5x11,5
2401-000856 C306 1.000000 C-AL 220uF,20%,35V,WT,TP,10x20,5
2401-000971 C609 1.000000 C-AL 22uF,20%,50V,WT,TP,6x11mm,5mm
2401-001012 C413 1.000000 C-AL 3.3UF,20%,50V,BP,TP,16X25,7.5
2401-001016 C312 1.000000 C-AL 3.3UF,20%,50V,BP,TP,5X11,5
2401-001016 C434 1.000000 C-AL 3.3UF,20%,50V,BP,TP,5X11,5
2401-001218 C415 1.000000 C-AL 4.7uF,20%,100V,WT,TP,5x11,5
2401-001334 C414 1.000000 C-AL 470nF,20%,50V,GP,TP,5x11,2.5
2401-001334 C514 1.000000 C-AL 470nF,20%,50V,GP,TP,5x11,2.5
2401-001561 C630 1.000000 C-AL 47uF,20%,35V,WT,TP,8x11.5,5
2401-001585 C621 1.000000 C-AL 47uF,20%,50V,WT,TP,8x11.5,5
2401-001643 C557 1.000000 C-AL 0.68uF,20%,50V,GP,TP,5x11mm,5
2401-002075 C204 1.000000 C-AL 4.7uF,20%,50V,GP,TP,5x11,5
2401-002075 C207 1.000000 C-AL 4.7uF,20%,50V,GP,TP,5x11,5
2401-002075 C209 1.000000 C-AL 4.7uF,20%,50V,GP,TP,5x11,5
2401-002075 C210 1.000000 C-AL 4.7uF,20%,50V,GP,TP,5x11,5
2401-002075 C225 1.000000 C-AL 4.7uF,20%,50V,GP,TP,5x11,5
2401-002267 C508 1.000000 C-AL 2.2uF,20%,250V,GP,TP,8x11.5,5
2401-002267 C509 1.000000 C-AL 2.2uF,20%,250V,GP,TP,8x11.5,5
2801-000005 X201 1.000000 CRYSTAL-UNIT 8MHz,50ppm,28-AAM,S,35ohm,TP
Page 18
Page 19
3301-000011 BD301 1.000000 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
3301-000011 BD401 1.000000 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
3301-000011 BD402 1.000000 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
3301-000011 BD403 1.000000 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
3301-000011 BD555 1.000000 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
3301-000011 BD601 1.000000 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
3301-000011 BD602 1.000000 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
3301-000011 BD603 1.000000 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G
3404-000244 SW201 1.000000 SWITCH-TACT 15V,20mA,90-170gf,7.5x7mm,SPST
3404-000244 SW202 1.000000 SWITCH-TACT 15V,20mA,90-170gf,7.5x7mm,SPST
3404-000244 SW203 1.000000 SWITCH-TACT 15V,20mA,90-170gf,7.5x7mm,SPST
3404-000244 SW204 1.000000 SWITCH-TACT 15V,20mA,90-170gf,7.5x7mm,SPST
3602-000001 FH1 2.000000 FUSE-CLIP -,-,30mohm
3711-000197 CN304 1.000000 CONNECTOR-HEADER 1WALL,3P,1R,2.5mm,STRAIGHT,SN
3711-000217 CN603 1.000000 CONNECTOR-HEADER 1WALL,3P,1R,3.96mm,STRAIGHT,SN
4715-000001 SK501 1.000000 SURGE ABSORBER 1KV,+50-10%,-,-,
6042-000001 EY301 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000001 EY302 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000001 EY501 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000001 EY502 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000001 EY503 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000001 EY601 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000001 EY602 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000001 EY603 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000001 EY604 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000001 EY605 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000001 EY606 1.000000 EYELET ID2.2,OD2.7,L3.1,SN,BSS3-E/EH
6042-000002 EY401 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
6042-000002 EY504 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
6042-000002 EY505 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
6042-000002 EY506 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
6042-000002 EY507 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
6042-000002 EY508 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
6042-000002 EY509 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
6042-000002 EY607 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
6042-000002 EY608 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
6042-000002 EY609 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
Page 19
Page 20
6042-000002 EY610 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
6042-000002 TP501 1.000000 EYELET ID1.5,OD2,L3.1,SN,BSS3-E/EH
BH39-40305U 70KHZ 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP1 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP10 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP11 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP13 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP14 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP15 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP16 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP17 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP18 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP19 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP2 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP20 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP22 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP23 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP24 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP25 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP26 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP27 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP28 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP29 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP3 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP30 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP31 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP32 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP33 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP34 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP35 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP36 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP37 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP38 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP39 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP4 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP40 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP41 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,-
Page 20
Page 21
BH39-40305U JP42 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP43 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP44 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP45 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP46 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP47 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP48 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP49 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP5 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP50 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP51 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP52 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP53 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP54 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP55 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP56 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP57 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP58 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP59 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP6 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP60 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP61 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP62 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP63 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP64 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP65 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP67 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP68 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP7 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP70 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP71 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP72 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP8 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH39-40305U JP9 1.000000 CBF HARNESS ,52MM,-,-,AWG22(0.6PI),-,-,-,BH41-00063A MP1.1 1.000000 PCB-MAIN DF17JS,FR-1,1 LAYER,247*247*1.6T,1.6T
BH71-40300A CN501 1.000000 PIN-HINGE -,BRASS,D2.36,SN,HEAT/SINK
BH71-40300A GT501 1.000000 PIN-HINGE -,BRASS,D2.36,SN,HEAT/SINK
Page 21
Page 22
BH71-40300A GT603 1.000000 PIN-HINGE -,BRASS,D2.36,SN,HEAT/SINK
BH71-40300A GT604 1.000000 PIN-HINGE -,BRASS,D2.36,SN,HEAT/SINK
BH99-00002A HS301 1.000000 ASSY,HEAT/SINK H/S V.IC,SCREW+NUT,KA2142,-,-,OIL SILICON,-,0205-001027 CIS 0.200000 OIL-SILICON G746,-,1204-001508 CIS 1.000000 IC-VERTICAL DEF. KA2142,SIP,10P,-,PLASTIC,35V,15W,-20TO+70C,ST,VERTICAL DEFLECTION
6006-001008 CIS 1.000000 SCREW-ASS'Y MACH WSP,BH,+,M3,L10,ZPC(YEL),SWRCH
6021-000118 CIS 1.000000 NUT-HEXAGON 1C,M3,ZPC(YEL),SM20C
BH62-00003A CIS 1.000000 HEAT/SINK-V.IC -,T1,-,A1050S,DA/DB
BH99-00003A HS601 1.000000 ASSY,HEAT/SINK H/S POWER,SPRING,DP104,-,-,RUBBER,-,BH13-00004A CIS 1.000000 IC-HYBRID -,DP104C,TO-220-5L,5P,POWER SWITCH,-,BH61-00004A CIS 1.000000 SPRING-TR CDA,CDB,SUS304,T0.5,-,-,-,BH62-00004A CIS 1.000000 HEAT/SINK-POWER -,T1,-,A1050S,DA/DB
BH62-20001B CIS 1.000000 RUBBER CSQ4357,W25*L20*T0.45,-,-,-,BH99-00006A HS401 1.000000 ASSY,HEAT/SINK H/S,SCREW+NUT,IRF630,-,-,OIL SILICON,-,0205-001027 CIS 0.100000 OIL-SILICON G746,-,0505-001309 CIS 1.000000 FET-SILICON IRF630,N,200V,10A,0.4OHM,100W,TO-220
6006-001008 CIS 1.000000 SCREW-ASS'Y MACH WSP,BH,+,M3,L10,ZPC(YEL),SWRCH
6021-000118 CIS 1.000000 NUT-HEXAGON 1C,M3,ZPC(YEL),SM20C
BH62-30024A CIS 1.000000 HEAT/SINK-TR SPC,T1,SN,CFX1577L
BH99-00009B HS501 1.000000 ASSY HEAT/SINK HS FBT,SPRING,2SC5440,DTV56F,KTD2058,OIL SILICON,-,0205-001027 CIS 0.400000 OIL-SILICON G746,-,0402-001255 CIS 1.000000 DIODE-RECTIFIER DTV56F,1.5KV,10A,TO-220AC,BK
0502-000465 CIS 1.000000 TR-POWER KTD2058-Y,NPN,25W,TO-220IS,ST,
0502-001170 CIS 1.000000 TR-POWER 2SC5440,NPN,60000mW,TOP-3E,ST,-8
BH61-00004A CIS 1.000000 SPRING-TR CDA,CDB,SUS304,T0.5,-,-,-,BH61-70003A CIS 2.000000 SPRING CVT4857,STS304-W1/2H,T0.5,W3.8
BH62-00015A CIS 1.000000 HEAT SINK-FBT A1050S,T1.0,T1.0,-,BH99-00010A HS402 1.000000 ASSY,HEAT/SINK HS TR,SPRING,IRF634A,-,-,OIL SILICON,-,0205-001027 CIS 0.100000 OIL-SILICON G746,-,0505-001181 CIS 1.000000 FET-SILICON IRF634A,N,250V,8.1A,450mohm,74
BH61-00004A CIS 1.000000 SPRING-TR CDA,CDB,SUS304,T0.5,-,-,-,BH62-00016A CIS 1.000000 HEAT SINK-TR A1050S,T1.0,-,DP17MO
BH95-00006X - 1.000000 ASSY LABEL DF17JSBU/CNT,TSED,CHINA
BH68-00307D CIS 1.000000 LABEL RATING SYNC,DP17MS@ASIA,PE ,T0.05,PE NATURE,BLK,L109*W50,-,BH95-00020K - 1.000000 ASSY MANUAL DF17JSBU/CNT,C,TSED,CHINA
BH59-00087D CIS 1.000000 UNIT/ACCESSORY 753DF/755DF,TSED,CHINA,C
0203-000214 CIS 0.050000 TAPE-OPP MASKING OPP/W50/CLR,T0.05,W50,L400000,
Page 22
Page 23
BH39-10339N CIS 1.000000 CBF-POWER/CORD DET,RVV,250V/10A,BLACK,1530MM,
BH59-10389H CIS 1.000000 S/W-DRIVER CHA5807,WINDOWS/DRIVER,SAMSUNG
BH68-00021A CIS 1.000000 CARD-TCO99 TCO99,SAMSUNG,EXPORT,ART120G,-,148X210,ENGLISH
BH68-00297C CIS 1.000000 MANUAL-ETC W/W,SAMSUNG,E/F/S/G/P/I/R/J/S_C/,W/W,MIMOJO80G,-,-,-,-,-,-,BH68-00297G CIS 1.000000 MANUAL-ETC WIN2000,SAMSUNG,E/F/S/G/P/I/R/J/T_C/,W/W,MIMOJO80G,-,148,210,-,-,-,BH68-00314D CIS 1.000000 MANUAL USERS 753DF/755DF,SyncMaster,C,China,MIMOJO80G,-,148x210,I/B,BH69-30354B CIS 1.000000 BAG-PE LDPE,T0.05,W240*L356,Y,-,CKA4217
BH75-00146B CIS 1.000000 UNIT-WARRANTY CHINA,-,ASS'Y-W/CARD,+ENVELOPE,-,-,BH68-00297E - 1.000000 MANUAL-ETC SAMSUNG BASIC,SAMSUNG,C,CHINA,ART150G,210*285,-,-,-,-,-,-,BH68-00297F CIS 1.000000 MANUAL-ETC ENVELOPE,SAMSUNG,C,CHINA,MOJO,220*110,-,-,-,-,-,-,BH95-00209U - 1.000000 ASSY BOX DF17KSBU,SW4,YEL,TSED,CHINA
BH68-00328C CIS 2.000000 LABEL BAR CODE -,ALL,TCO99,W/W,ART-PAPER 90G,-,WHT,BLACK,-,-,BH69-00211G CIS 1.010000 BOX S/M753DF,CHINA,CB-DW3,YEL,A-1,-,-,-,L666*W566*H467,BH95-00232G - 1.000000 ASSY P/MATERIAL DF17JS/DF17KS,N,-,-,INDIA/CHINA/RUSSIA
0203-001102 CIS 1.700000 TAPE-OPP MASKING OPP-2,T0.05,W100,L400M,CLR
BH69-00162A CIS 1.000000 CUSHION-L/R DF17JS,EPS,M50
BH69-00173A CIS 1.000000 PACKING-PAD EPE,DW3,W545XL430XT27,-,DF17JS
BH69-00173B CIS 1.000000 PACKING-PAD EPE,DW3,W545XL430XT80,-,DF17JS
BH69-00173C CIS 1.000000 PACKING-PAD EPE,DW3,W650XL550X T27,-,DF17JS
BH69-30002C CIS 0.100000 BAG-PE LDPE,T0.05,W2400,NO_PRINT
BH69-30350C CIS 1.000000 BAG-PE(N) PE,-,W850*L850,Y(8),-,< 15 INCH
BH69-30360A CIS 0.032000 BAG-AIR HDPE,T0.2,W1000*L1800,N,-,ALL
BH69-40380A CIS 0.010000 PACKING-PAD DW-2,500X2200X200,-,CGK5527
Page 23
Loading...
