User Manual
DE40C
DE46C
DE55C
The color and the appearance may differ depending on
the product, and the specifications are subject to
change without prior notice to improve the performance.
BN46-00299A-02
Table Of Contents
BEFORE USING THE
PRODUCT
PREPARATIONS 23 Checking the Contents
12 Copyright
13 Cleaning
13 Storage
14 Safety Precautions
14 Symbols
15 Electricity and Safety
16 Installation
18 Operation
23 Removing the Packaging (for DE40C and
DE46C models only)
24 Removing the Packaging (for DE55C models
only)
25 Checking the Components
28 Parts
28 Control Panel
30 Reverse Side
31 Anti-theft Lock
32 Remote Control
35 Connection Using an IR Stereo Cable
36 Before Installing the Product (Installation
Guide)
36 Tilting Angle and Rotation
37 Ventilation
38 Dimensions
39 Installing the Wall Mount
39 Preparing before installing Wall-Mount
39 Installing the Wall Mount Kit
39 Wall Mount Kit Specifications (VESA)
41 Remote Control
41 Cable Connection
44 Connection
46 Control Codes
Table Of Contents
2
Table Of Contents
CONNECTING AND USING
A SOURCE DEVICE
56 Before Connecting
56 Pre-connection Checkpoints
57 Connecting and Using a PC
57 Connecting to a PC
60 Changing the Resolution
62 Connecting an External Monitor
63 Connecting to a Video Device
63 Connection Using the AV Cable
63 Connection Using the Component Cable
64 Connection Using an HDMI-DVI Cable
64 Connection Using an HDMI Cable
65 Connecting to an Audio System
65 Connecting to an Antenna
66 Connecting the network box (Sold
separately)
66 MagicInfo
70 Changing the Input source
70 Source
USING MDC 71 Configuring Settings for Multi Control
71 Configuring settings for Multi Control
72 MDC Program Installation/Uninstallation
72 Installation
72 Uninstallation
Table Of Contents
3
Table Of Contents
73 What is MDC?
73 Connecting to MDC
75 Connection Management
76 Auto Set ID
77 Cloning
78 Command Retry
79 Getting Started with MDC
81 Main Screen Layout
82 Menus
84 Screen Adjustment

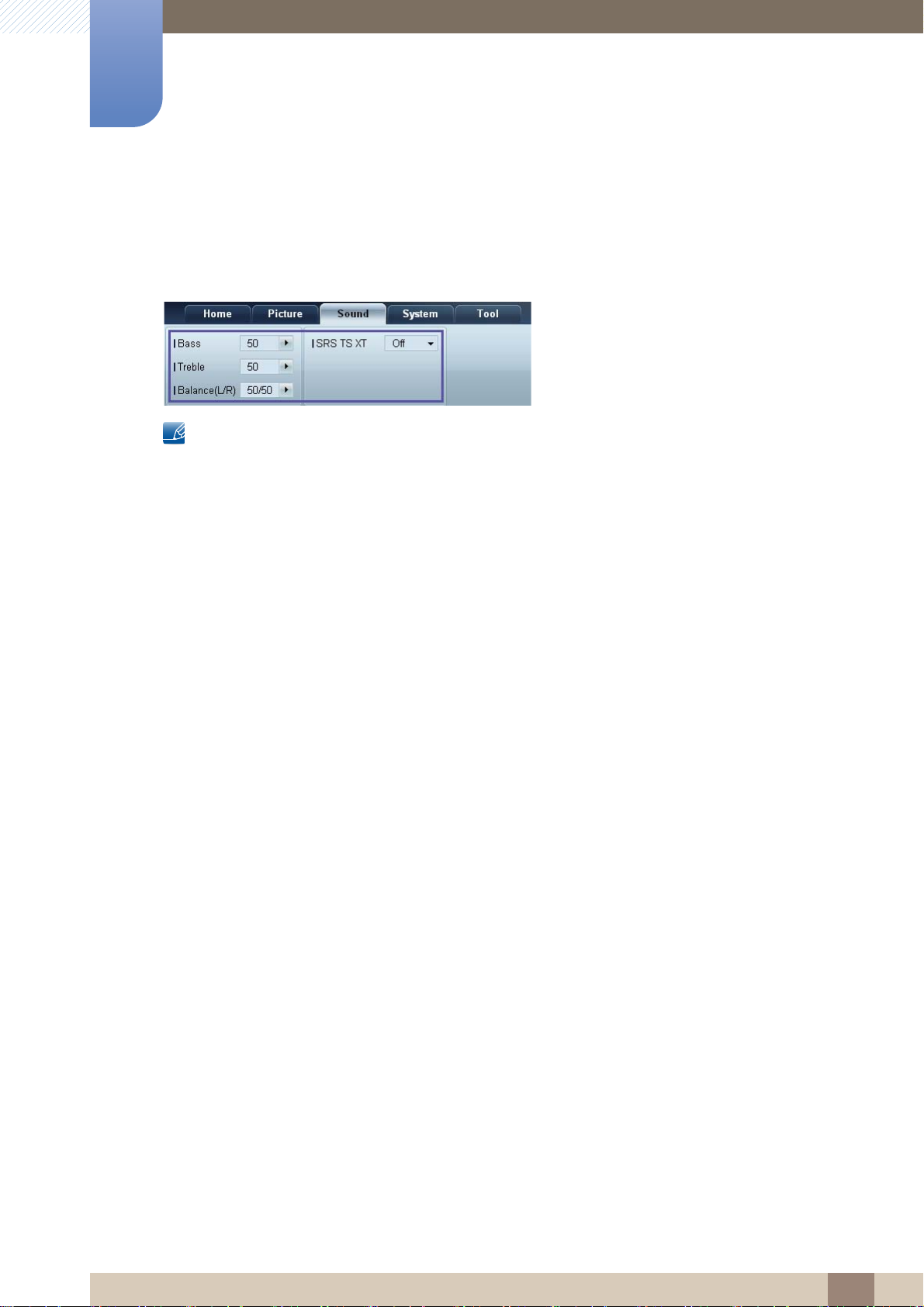

87 Sound Adjustment
88 System Setup

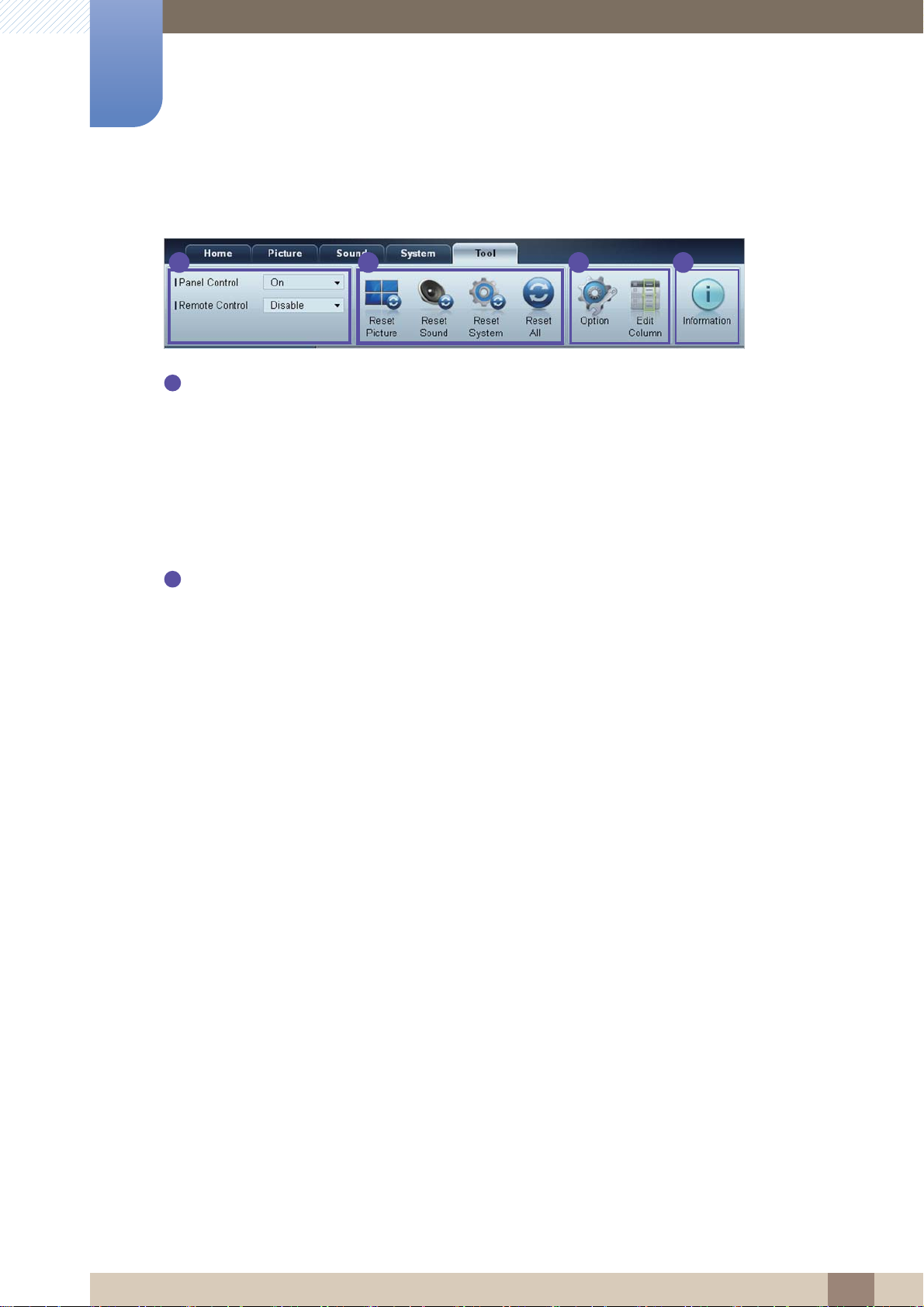

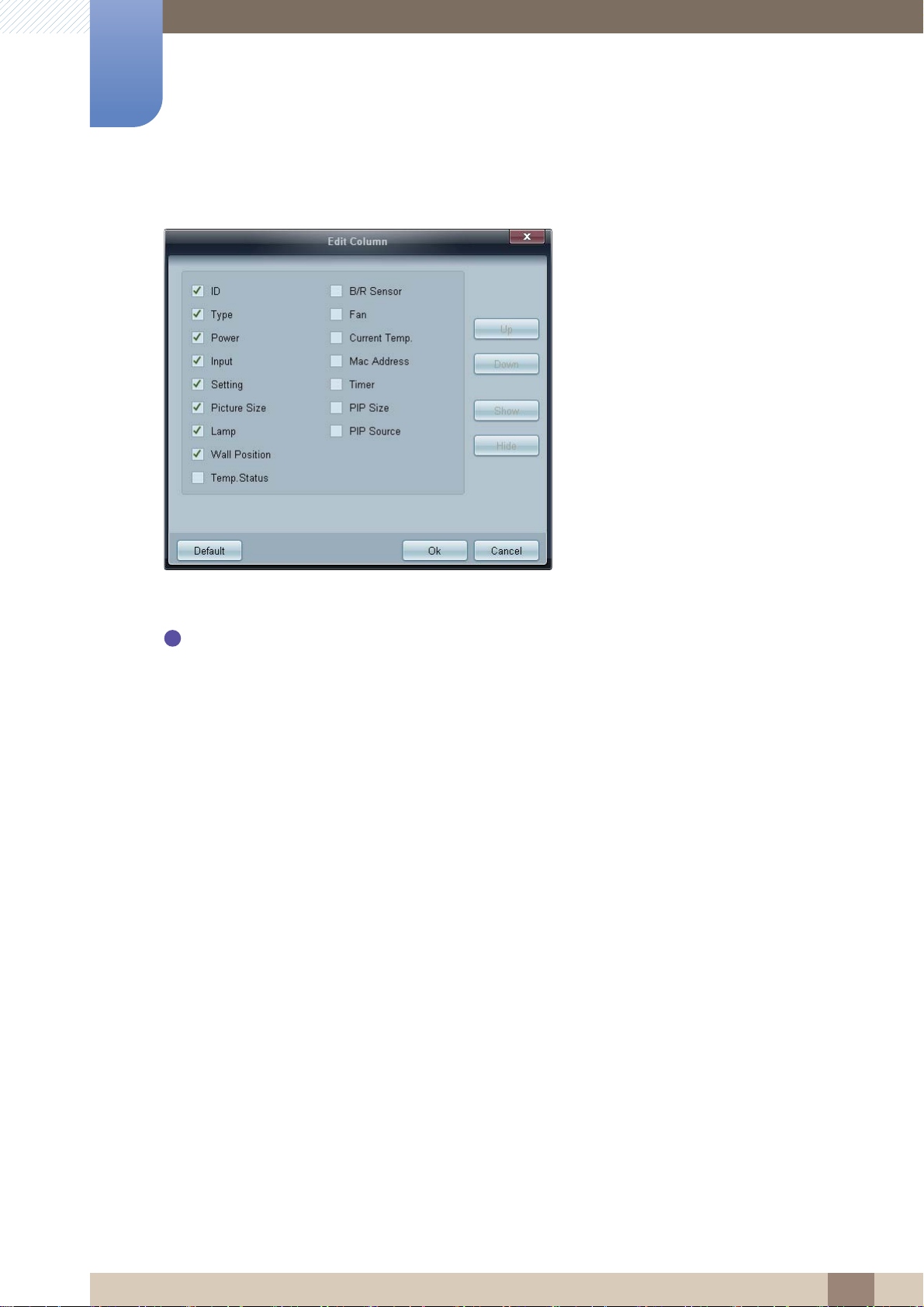

97 Tool Settings
100 Other Functions
105 Troubleshooting Guide
SCREEN ADJUSTMENT 107 Picture Mode
107 If the input source is PC, DVI or DisplayPort
108 If the input source is AV, Component, HDMI or
TV
108 Backlight / Contrast / Brightness /
Sharpness / Color / Tint (G/R)
109 Screen Adjustment
109 Picture Size
111 Zoom/Position
111 PC Screen Adjustment
112 Resolution Select
112 Auto Adjustment
Table Of Contents
4
Table Of Contents
113 Advanced Settings
114 Dynamic Contrast
114 Black Tone
114 Flesh Tone
114 RGB Only Mode
114 Color Space
114 White Balance
114 10p White Balance (Off / On)
115 Gamma
115 Expert Pattern
115 Motion Lighting (Off / On)
116 Picture Options
117 Color Tone
117 Color Temp.
117 Digital Noise Filter
117 MPEG Noise Filter
118 HDMI Black Level
118 Film Mode
118 Calibrated Value
118 Dynamic Backlight
118 Reset Picture
SOUND ADJUSTMENT 119 Sound Mode
120 Sound Effect
121 Broadcast Audio Options
121 Speaker Settings
122 Reset Sound
CHANNEL 123 Antenna (Air / Cable)
124 Auto Program
124 Clear Scrambled Channel
125 Fine Tune
125 Crosstalk Noise Reduction
Table Of Contents
5
Table Of Contents
NETWORK
126 Network Setting
126 Connecting to a Wired Network
127 Wired Network Settings
130 Connecting to a Wireless Network
131 Wireless Network Setting
133 WPS(PBC)
134 Network Status
135 MagicInfo Lite Settings
136 Wi-Fi Direct
136 Soft AP
137 AllShare Settings
137 Using the AllShare Play Function
138 Device Name
SYSTEM 139 Setup
140 Multi Control
140 Configuring settings for Multi Control
141 Time
141 Clock
142 Sleep Timer
142 On Timer
143 Off Timer
143 Holiday Management
144 Menu Language
144 Rotate Menu
145 Eco Solution
145 Energy Saving
145 Eco Sensor (Off / On)
145 No Signal Power Off
146 Auto Power Off (Off / On)
Table Of Contents
6
Table Of Contents
146 Caption
146 Caption
146 Caption Mode
147 Digital Caption Options
148 Security
148 Safety Lock (Off / On)
148 Button Lock (Off / On)
149 Program Rating Lock (Off / On)
151 Change PIN
151 PIP
152 Auto Protection Time
153 Screen Burn Protection
153 Pixel Shift
154 Timer
154 Immediate Display
155 Side Gray
155 Ticker
156 Video Wall
156 Video Wall
156 Format
157 Horizontal
157 Vertical
157 Screen Position
158 Source AutoSwitch Settings
Table Of Contents
7
Table Of Contents
159 General
159 Max. Power Saving
159 Game Mode
160 BD Wise
160 Menu Transparency
160 Sound Feedback
160 Auto Power
160 Standby Control
161 Lamp Schedule
161 OSD Display
161 Power On Adjustment
161 Temperature Control
162 Anynet+ (HDMI-CEC)
162 Anynet+ (HDMI-CEC)
163 Auto Turn Off (No / Yes)
165 DivX® Video On Demand
165 Reset System
166 Reset All
166 PC Module Power
166 Synced Power-On
166 Synced Power-Off
SUPPORT 167 Software Update
167 By USB
167 Alternative Software
167 Contact Samsung
169 Contents Home
169 Channel List
170 Channel Manager
171 MagicInfo Lite
171 AllShare Play
172 Source
Table Of Contents
8
Table Of Contents
ALLSHARE PLAY
173 What is AllShare Play?
173 Read the following before using AllShare Play
with a USB device
175 Using a USB device
176 Connecting to a PC over a network
177 Using the DLNA features
178 Using the Basic AllShare Play Features
178 Sorting the file lists
179 Playing Selected Files
179 Copying Files
180 Creating a Playlist (Playlist)
181 My List
181 My List options
182 Videos
182 Playing a Video
183 Photos
183 Viewing a Photo (or Slide Show)
184 Music
184 Playing Music
185 Videos / Photos / Music Play Option
menu
187 Supported Subtitle and AllShare Play file
formats
187 Subtitle
187 Supported image resolutions
187 Supported music file formats
188 Supported Video Formats
MAGICINFO LITE 190 File Formats Compatible with MagicInfo
Lite Player
191 Contents
Table Of Contents
9
Table Of Contents
195 MagicInfo Lite Player
195 Network Schedule
200 Local Schedule
201 Internal AutoPlay
202 USB AutoPlay
203 Local Schedule Manager
203 Registering a Local Schedule
207 Modifying a Local Schedule
209 Deleting a Local Schedule
210 Running a Local Schedule
211 Stopping a Local Schedule
212 Viewing the details of a Local Schedule
214 Copying a Local Schedule (Local Schedule)
TROUBLESHOOTING
GUIDE
216 Content Manager
216 Copying content
217 Deleting content
218 Settings
218 Content Default Duration
218 Content Ratio
218 Image Effect
218 Default Content
219 Screen Layout
219 Delete All Content
219 Safety Remove USB
220 When Content is Running
220 Viewing the details of the content that is running
221 Changing the settings for the content that is
running
222 Requirements Before Contacting
Samsung Customer Service Center
222 Testing the Product
222 Checking the Resolution and Frequency
223 Check the followings.
226 Q & A
Table Of Contents
10
Table Of Contents
SPECIFICATIONS
APPENDIX 234 Contact SAMSUNG WORLD WIDE
228 General
230 PowerSaver
231 Standard Signal Mode Table
233 License
236 Responsibility for the Pay Service (Cost
to Customers)
236 Not a product defect
236 A Product damage caused by customer's fault
236 Others
237 Optimum Picture Quality and Afterimage
Burn-in Prevention
237 Optimum Picture Quality
238 Prevention of Afterimage Burn-in
INDEX
240 Terminology
Table Of Contents
11
Copyright
The contents of this manual are subject to change without notice to improve quality.
© 2012 Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is
prohibited.
The SAMSUNG and SyncMaster logos are registered trademarks of Samsung Electronics.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
Before Using the Product
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Ownership of all other trademarks is attributed to their due owner.
Before Using the Product
12
Cleaning
!
Before Using the Product
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
1. Power off the product and computer.
2. Disconnect the power cord from the product.
Hold the power cable by the plug and do not touch the cable with wet
hands. Otherwise, an electric shock may result.
3. Wipe the product with a clean, soft and dry cloth.
Do not use detergents that contain alcohol, solvent or
surface-active agents.
Do not spray water or detergent directly on the product.
4. Wet a soft and dry cloth in water and wring thoroughly to clean the exterior
of the product.
5. Connect the power cord to the product when cleaning is finished.
6. Power on the product and computer.
Storage
High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used
nearby.
Contact Customer Service Center if the inside of the product needs cleaning (service fee will be
charged).
Before Using the Product
13
Before Using the Product
Safety Precautions
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO
QUALIFIED PERSONNEL.
This symbol indicates that high voltage is present inside. It is dangerous to
make any kind of contact with any internal part of this product.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
Symbols
Warning
Caution
This symbol alerts you that important literature concerning operation and
maintenance has been included with this product.
A serious or fatal injury may result if instructions are not followed.
Personal injury or damage to properties may result if instructions are
not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
Before Using the Product
14
Before Using the Product
!
!
!
Electricity and Safety
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning
Do not use a damaged power cord or plug, or a loose power socket.
An electric shock or fire may result.
Do not use multiple products with a single power socket.
Overheated power sockets may cause a fire.
Do not touch the power plug with wet hands. Otherwise, an electric shock may
result.
Insert the power plug all the way in so it is not loose.
An unsecure connection may cause a fire.
Connect the power plug to a grounded power socket (type 1 insulated devices
only).
An electric shock or injury may result.
Do not bend or pull the power cord with force. Be careful not to leave the power
cord under a heavy object.
Damage to the cord may result in a fire or electric shock.
Do not place the power cord or product near heat sources.
A fire or electric shock may result.
Clean any dust around the pins of the power plug or the power socket with a dry
cloth.
A fire may result.
Before Using the Product
15
Before Using the Product
!
!
!
!
!
Caution
Do not disconnect the power cord while the product is being used.
The product may become damaged by an electric shock.
Only use the power cord provided with your product by Samsung. Do not use the
power cord with other products.
A fire or electric shock may result.
Keep the power socket where the power cord is connected unobstructed.
The power cord must be disconnected to cut off power to the product when
an issue occurs.
Installation
Warning
Note that the product is not completely powered down by using only the
power button on the remote.
Hold the plug when disconnecting the power cord from the power socket.
An electric shock or fire may result.
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP
OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
A fire may result.
Have a technician install the wall-mount hanger.
Installation by an unqualified person can result in an injury.
Only use approved cabinets.
Do not install the product in poorly ventilated spaces such as a bookcase or
closet.
An increased internal temperature may cause a fire.

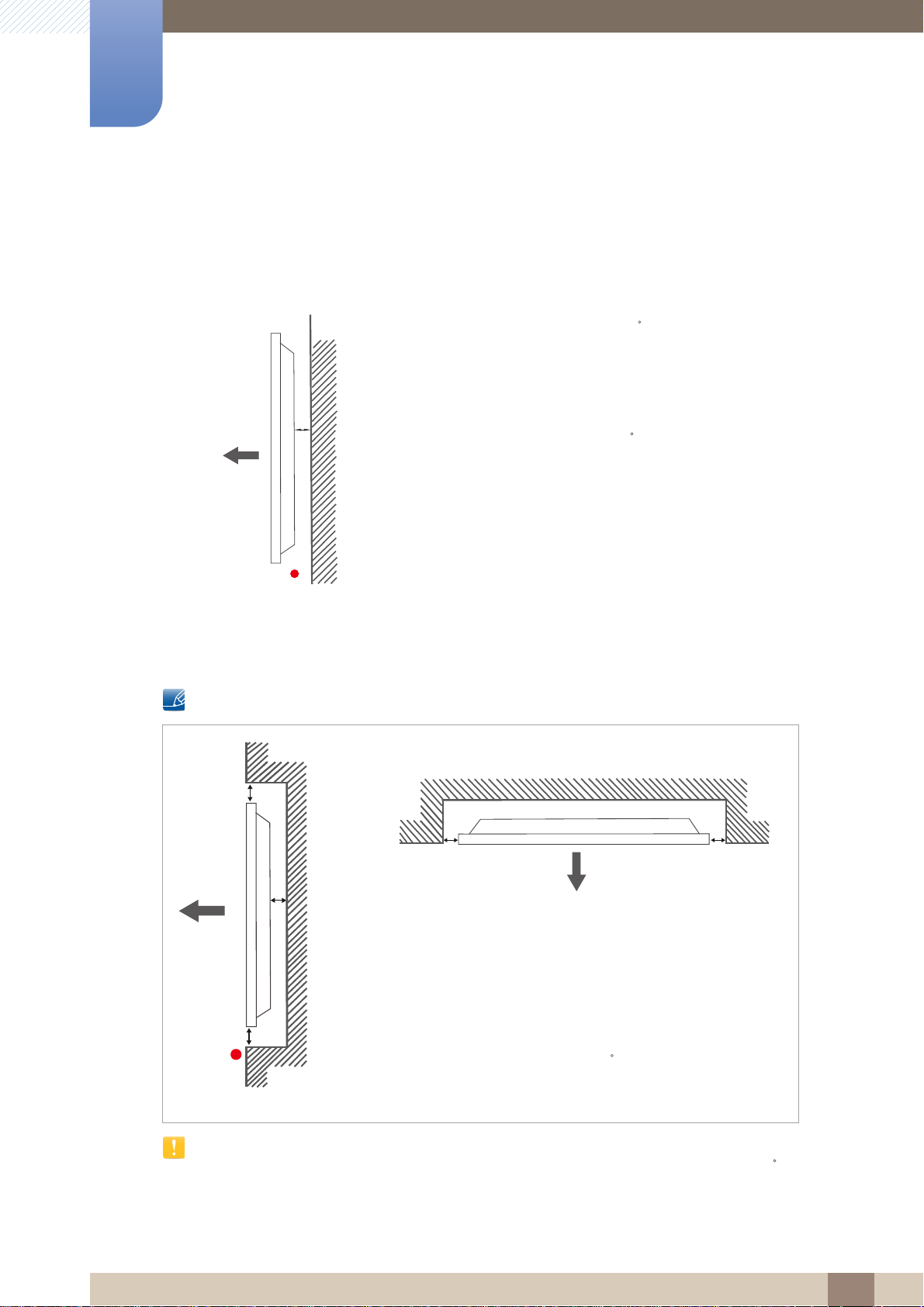

Install the product at least 10 cm away from the wall to allow ventilation.
An increased internal temperature may cause a fire.
Before Using the Product
16
Before Using the Product
!
!
!
!
Keep the plastic packaging out of the reach of children.
Children may suffocate.
Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.)
The product may fall and become damaged and/or cause an injury.
Using the product in an area with excess vibration may damage the product
or cause a fire.
Do not install the product in a vehicle or a place exposed to dust, moisture (water
drips, etc.), oil, or smoke.
A fire or electric shock may result.
Do not expose the product to direct sunlight, heat, or a hot object such as a
stove.
The product lifespan may be reduced or a fire may result.
Do not install the product within the reach of young children.
The product may fall and injure children.
As the front is heavy, install the product on a flat and stable surface.
Bend and keep part of the outdoor TV antenna cable hanging downwards (the
part inside the room) to prevent rainwater from entering the product.
If rainwater enters the product, a fire or electric shock can occur.
When using an outdoor antenna, be sure to install the antenna away from nearby
power lines to prevent the antenna from collapsing onto them in strong winds.
A collapsed antenna can cause an electric shock or injury.
Edible oil, such as soybean oil, can damage or deform the product. Do not install
the product in a kitchen or near a kitchen counter.
Before Using the Product
17
Before Using the Product
!
!
SAMSUNG
!
!
Caution
Do not drop the product while moving.
Product failure or personal injury may result.
Do not set down the product on its front.
The screen may become damaged.
When installing the product on a cabinet or shelf, make sure that the bottom
edge of the front of the product is not protruding.
Operation
Warning
The product may fall and become damaged and/or cause an injury.
Install the product only on cabinets or shelves of the right size.
Set down the product gently
Product failure or personal injury may result.
Installing the product in an unusual place (a place exposed to a lot of fine
particles, chemical substances or extreme temperatures, or an airport or train
station where the product should operate continuously for an extended period of
time) may seriously affect its performance.
Be sure to consult Samsung Customer Service Center if you want to install
the product at such a place.
There is a high voltage inside the product. Never disassemble, repair or modify
the product yourself.
A fire or electric shock may result.
Contact Samsung Customer Service Center for repairs.
Before moving the product, turn off the power switch and disconnect the power
cord, antenna cable and all other connected cables.
Damage to the cord may result in a fire or electric shock.
Before Using the Product
18
Before Using the Product
!
!
!
!
GAS
!
If the product generates abnormal sounds, a burning smell or smoke, disconnect
the power cord immediately and contact Samsung Customer Service Center.
An electric shock or fire may result.
Do not let children hang from the product or climb on top of it.
Children may become injured or seriously harmed.
If the product is dropped or the outer case is damaged, turn off the power switch
and disconnect the power cord. Then contact Samsung Customer Service
Center.
Continued use can result in a fire or electric shock.
Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of
the product.
The product or heavy objects may fall as children try to reach for the toys or
sweets resulting in a serious injury.
During a lightning or thunderstorm, power off the product and remove the power
cable.
A fire or electric shock may result.
Do not drop objects on the product or apply impact.
A fire or electric shock may result.
Do not move the product by pulling the power cord or any cable.
Product failure, an electric shock or fire may result from a damaged cable.
If a gas leakage is found, do not touch the product or power plug. Also, ventilate
the area immediately.
Sparks can cause an explosion or fire.
Do not lift or move the product by pulling the power cord or any cable.
Product failure, an electric shock or fire may result from a damaged cable.
Do not use or keep combustible spray or an inflammable substance near the
product.
An explosion or fire may result.
Before Using the Product
19
Before Using the Product
100
!
!
-_-
!
!
Ensure the vents are not blocked by tablecloths or curtains.
An increased internal temperature may cause a fire.
Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that
burn easily (paper, matches, etc) into the product (via the vent or input/output
ports, etc).
Be sure to power off the product and disconnect the power cord when water
or other foreign substances have entered the product. Then contact
Samsung Customer Service Center.
Product failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
Caution
Be sure to power off the product and disconnect the power cord when water
or other foreign substances have entered the product. Then contact
Samsung Customer Service Center.
Product failure, an electric shock or fire may result.
Leaving the screen fixed on a stationary image for an extended period of time
may cause afterimage burn-in or defective pixels.
Activate power-saving mode or a moving-picture screen saver if you will not
be using the product for an extended period of time.
Disconnect the power cord from the power socket if you do not plan on using the
product for an extended period of time (vacation, etc).
Dust accumulation combined with heat can cause a fire, electric shock or
electric leakage.
Use the product at the recommended resolution and frequency.
Your eyesight may deteriorate.
Do not hold the product upside-down or move it by holding the stand.
The product may fall and become damaged or cause an injury.
Before Using the Product
20
Before Using the Product
!
!
!
!
Looking at the screen too close for an extended period of time can deteriorate
your eyesight.
Do not use humidifiers or stoves around the product.
A fire or electric shock may result.
Rest your eyes for more than 5 minutes for every 1 hour of product use.
Eye fatigue will be relieved.
Do not touch the screen when the product has been turned on for an extended
period of time as it will become hot.
Store small accessories out of the reach of children.
Exercise caution when adjusting the product angle or stand height.
Your hand or finger may get stuck and injured.
Tilting the product at an excessive angle may cause the product to fall and
an injury may result.
Do not place heavy objects on the product.
Product failure or personal injury may result.
When using headphones or earphones, do not turn the volume too high.
Having the sound too loud may damage your hearing.
Be careful that children do not place the battery in their mouths when removed
from the remote control. Place the battery in a location that children or infants
cannot reach.
If children have had the battery in their mouths, consult your doctor
immediately.
Use only the specified standardized batteries, and do not use a new battery and
a used battery at the same time.
Otherwise, the batteries may be damaged or cause fire, personal injury or
damage due to a leakage of the internal liquid.
Before Using the Product
21
Before Using the Product
!
!
When replacing the battery, insert it with the right polarity (+, -).
Otherwise, the battery may become damaged or it may cause fire, personal
injury or damage due to leakage of the internal liquid.
The batteries (and rechargeable batteries) are not ordinary refuse and must be
returned for recycling purposes. The customer is responsible for returning the
used or rechargeable batteries for recycling.
The customer can return used or rechargeable batteries to a nearby public
recycling center or to a store selling the same type of the battery or
rechargeable battery.
Before Using the Product
22
Preparations
1
1.1 Checking the Contents
The appearance of the actual product may differ from the images shown.
1.1.1 Removing the Packaging (for DE40C and DE46C models only)
1 Open the packaging box. Be careful not to damage the product when you open the packaging with
a sharp instrument.
2 Remove the styrofoam from the product.
3 Check the product and remove the styrofoam and plastic bag.
The appearance of the actual product may differ from the image shown.
This image is for reference only.
4 Store the box in a dry area so that it can be used when moving the product in the future.
1 Preparations
23
1
321
Preparations
1.1.2 Removing the Packaging (for DE55C models only)
1 Remove the black locking device at the bottom of the box.
2 Using the grooves in the box, lift and remove the top of the box.
3 Check the components and remove the styrofoam and plastic bag.
4 Store the box in a dry area so that it can be used when moving the product in the future.
The appearance of actual components may differ from the image shown.
This image is for reference only.
1 Preparations
24
1
+
+
-
-
Preparations
1.1.3 Checking the Components
Contact the vendor where you purchased the product if any components are missing.
The appearance of the components and items sold separately may differ from the image shown.
A stand is not provided with the product. To install a stand, you can purchase one separately.
Components
Components may differ in different locations.
Quick setup guide Warranty card
(Not available in some locations)
MagicInfo Lite Edition
Holder-Wire stand Holder-Ring (4EA)
Software CD
Power cord Remote Control Batteries
(Not available in some locations)
User manual
D-SUB cable
1 Preparations
25
1
Preparations
Items sold separately
The stand is not supplied.
The following items can be purchased at your nearest retailer.
Wall-mount Kit Stand RS232C-Stereo cable
DVI cable HDMI-DVI cable DP cable
HDMI cable Video cable Component cable
Stereo cable AV cable RCA stereo cable
External sensor Kit Network Box PIM
LAN cable AV/Component Adapter AUDIO Adapter
1 Preparations
26
1
Preparations
RS232C(OUT) Adapter RS232C(IN) Adapter
The RS232C adapter can be used to connect to another monitor using the D-SUB (9-pin) type RS232C
cable. Ensure you connect each of the adapters to the correct RS232C IN or OUT port on the product.
1 Preparations
27
Preparations
POWER
Panel Key
Remote sensor
Speaker
1
1.2 Parts
1.2.1 Control Panel
Panel Key
Buttons Description
Power on the product.
If you press the [ ] button when the product is turned on, the control
menu will be displayed.
To exit the OSD menu, press and hold the panel key for at least one
second.
Move to the upper or lower menu. You can also adjust the value of an
option.
In TV mode, you can change the channel by moving the panel key up
or down when the control menu is not displayed.
Move to the left or right menu.
You can adjust the volume by moving the panel key left or right when
the control menu is not displayed.
Remote sensor
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
To control the remote control in front of the product, lower the remote
control sensor in the direction of the arrow.
1 Preparations
28
1
Return
CONTENT
CONTENT
CONTENT
Preparations
Control menu
If you press the [ ] button on the panel key ("1.2 Parts") when the product is turned on, the control
menu will be displayed.
Icons Description
Select the connected input source.
Move the panel key right to select Source [ ] in the control menu.
When the list of input sources is displayed, move the panel key up or
down to select the desired input source. Next, press the panel key.
Display the OSD menu.
Move the panel key left to select menu [ ] in the control menu.
The OSD control screen will appear. Move the panel key right to select the
desired menu. You can select a sub-menu item by moving the panel key up,
down, left, or right. To change settings, select the desired menu and press
the panel key.
Enter
Contents Home
Move the panel key up to select Contents Home [ ] in the control menu.
Power off the product.
Move the panel key down to select Power off [ ] in the control menu.
Next, press the panel key.
Exit the control menu.
mode.
1 Preparations
29
1
DP OUT RGB IN RJ45
IR /
AMBIENT
SENSOR IN
RS232C IN
RS232C
OUT
AUDIO
OUT
USB
DP IN
HDMI IN
DVI IN
RGB / DVI /
HDMI / AV /
COMPONENT
AUDIO IN
USB
POWER
COMPONENT IN
OUT
IR
ANT IN
Preparations
1.2.2 Reverse Side
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Port Description
[RS232C IN]
Connects to MDC using an RS232C-stereo cable.
[RS232C OUT]
[IR / AMBIENT SENSOR IN]
Supplies power to the external sensor board or receives the light
sensor signal.
[AUDIO OUT] Connects to the audio of a source device.
[RGB / DVI / HDMI / AV /
COMPONENT AUDIO IN]
[USB ]
Connect to audio input using an audio cable.
USB memory device port.
[DP IN] Connects to a PC using a DP cable.
[HDMI IN] Connects to a source device using an HDMI cable.
[DVI IN] Connects to a source device using a DVI cable or HDMI-DVI cable.
[DP OUT] Connects to another product using a DP cable.
[ANT IN] Connect to an antenna cable.
[RGB IN] Connects to a source device using the D-SUB cable.
[AV IN / COMPONENT IN] Connects to a source device using the AV/component adapter.
1 Preparations
30
1
Preparations
Port Description
[IR OUT]
[RJ45] Connects to MDC using a LAN cable.
Assembling the Holder-Wire stand
Receives the remote control signal via the external sensor board and
outputs the signal via LOOPOUT.
1.2.3 Anti-theft Lock
An anti-theft lock allows you to use the product securely even in public places.
The locking device shape and locking method depend on the manufacturer. Refer to the user
guide provided with your anti-theft locking device for details.
To lock an anti-theft locking device
Stand: Sold separately
1 Fix the cable of your anti-theft locking device to a heavy object
such as a desk.
2 Put one end of the cable through the loop on the other end.
3 Insert the locking device into the anti-theft lock slot at the back of
the product.
4 Lock the locking device.
An anti-theft locking device can be purchased separately.
Refer to the user guide provided with your anti-theft locking
device for details.
Anti-theft locking devices can be purchased at electronics
retailers or online.
1 Preparations
31
1
Power off the product.
Return to the previous menu.
Change the channel in TV mode.
Select a connected source device.
Display or hide the onscreen display menu,
or return to the previous menu.
Move to the upper, lower, left or right
menu, or adjust an option's setting.
Confirm a menu selection.
Mute the sound.
Unmuting the sound: Press MUTE again or
press the volume control (+ VOL -) button.
Adjust the volume.
Press to select additional
channels (digital) being broadcasted by the
same station. For example, to select channel
“54-3”, press “54”, then press “-” and “3”.
Display information on the screen.
Exit the current menu.
Use these buttons in Videos,
Photos, Music and Anynet+ modes.
MagicInfo Quick Launch Button.
MagicInfo can only be enabled when
a network box is connected.
This button is disabled for products
that do not support MagicInfo.
Quickly select frequently used functions.
Power on the product.
Temporarily turn off the video and mute the audio.
Disabling the BLANK function
- Press BLANK one more time.
- Press SOURCE.
- Turn the product off and then on again.
Not available.
Displays the Content View, which includes
Channel List, Channel Manager, MagicInfo Lite,
AllShare Play and Source.
In TV mode, settings for various functions can be configured
such as the program guide for digital channels. For other modes
(except for TV mode), source devices can be selected manually.
When using a media-related menu or the HDMI-CEC menu,
a function can be selected by pressing a color button on
the remote control that corresponds to a button of
the same color on the screen.
MagicInfo Lite Launch Button.
It sets safe lock function.
Enter the password in the OSD menu,
or change the channel.
Preparations
1.2.4 Remote Control
Using other display devices in the same space as the remote control of this product can cause the
other display devices to be inadvertently controlled.
Remote control button functions may differ for different products.
1 Preparations
32
1
1
3
2
Preparations
Adjusting the OSD with the Remote Control
1. Open the OSD menu.
2. Select from Picture, Sound, Channel, Network, System or
Support in the displayed OSD menu screen.
3. Change settings as desired.
4. Finish setting.
5. Close the onscreen display (OSD) menu.
To place batteries in the remote control
1 Preparations
33
1
7m ~ 10m
Preparations
Remote Control Reception Range
Use the remote control within 7m to 10m from the sensor on the product at an angle of 30˚ from the left
and right.
Store used batteries out of reach of children and recycle.
Do not use a new and used battery together. Replace both batteries at the same time.
Remove batteries when the remote control is not to be used for an extended period of time.
1 Preparations
34
1
12
IR OUT
IR/
AMBIENT
SENSOR IN
1
1
2
IR/
AMBIENT
SENSOR IN
12
IR OUT
IR/
AMBIENT
SENSOR IN
POWER
SOURCE
112
Preparations
1.2.5 Connection Using an IR Stereo Cable
Turn off the device before connecting the External Sensor Kit. After it is connected, turn on the device.
Controlling more than one display product using your remote control
Connect the [IR OUT] port on the product to the [IR / AMBIENT SENSOR IN] port on the other
display product using the dedicated stereo cable.
A command sent from the remote control pointed at product will be received by both display
products and .
The appearance may differ depending on the product.
Controlling more than one display product using an external sensor kit (sold separately)
A command sent from the remote control pointed at product (to which the external sensor kit is
connected) will be received by both display products and .
The appearance may differ depending on the product.
1 Preparations
35
Preparations
15
1
1.3 Before Installing the Product (Installation Guide)
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
Ensure that an authorized installation company installs the wall mount.
Otherwise, it may fall and cause personal injury.
Make sure to install the specified wall mount.
1.3.1 Tilting Angle and Rotation
Contact Samsung Customer Service Center for further details.
A The product can be tilted at a maximum angle of 15 from a perpendicular wall surface.
B To use the product vertically (portrait), turn it clockwise so that the LED is pointing down.
1 Preparations
36
1
A
B
A
B
C
E
DD
Preparations
1.3.2 Ventilation
1. Installation on a Perpendicular Wall
A
Minimum 40 mm
B Ambient temperature: Under 35 C
When installing the product on a perpendicular wall, allow
at least 40 mm of space between the product and wall
surface for ventilation and ensure that the ambient
temperature is kept below 35 C.
Figure 1.1 Side view
2. Installation on an Indented Wall
Contact Samsung Customer Service Center for further details.
Figure 1.3 Top view
Plane view
A Minimum 40 mm
B Minimum 70 mm
C Minimum 50 mm
D Minimum 50 mm
E Ambient temperature: Under 35 C
Figure 1.2 Side view
When installing the product on an indented wall, allow at least the space specified above between the
product and wall for ventilation and ensure that the ambient temperature is kept below 35 C.
1 Preparations
37
Preparations
1
2
3
4
5
1
234
5
1

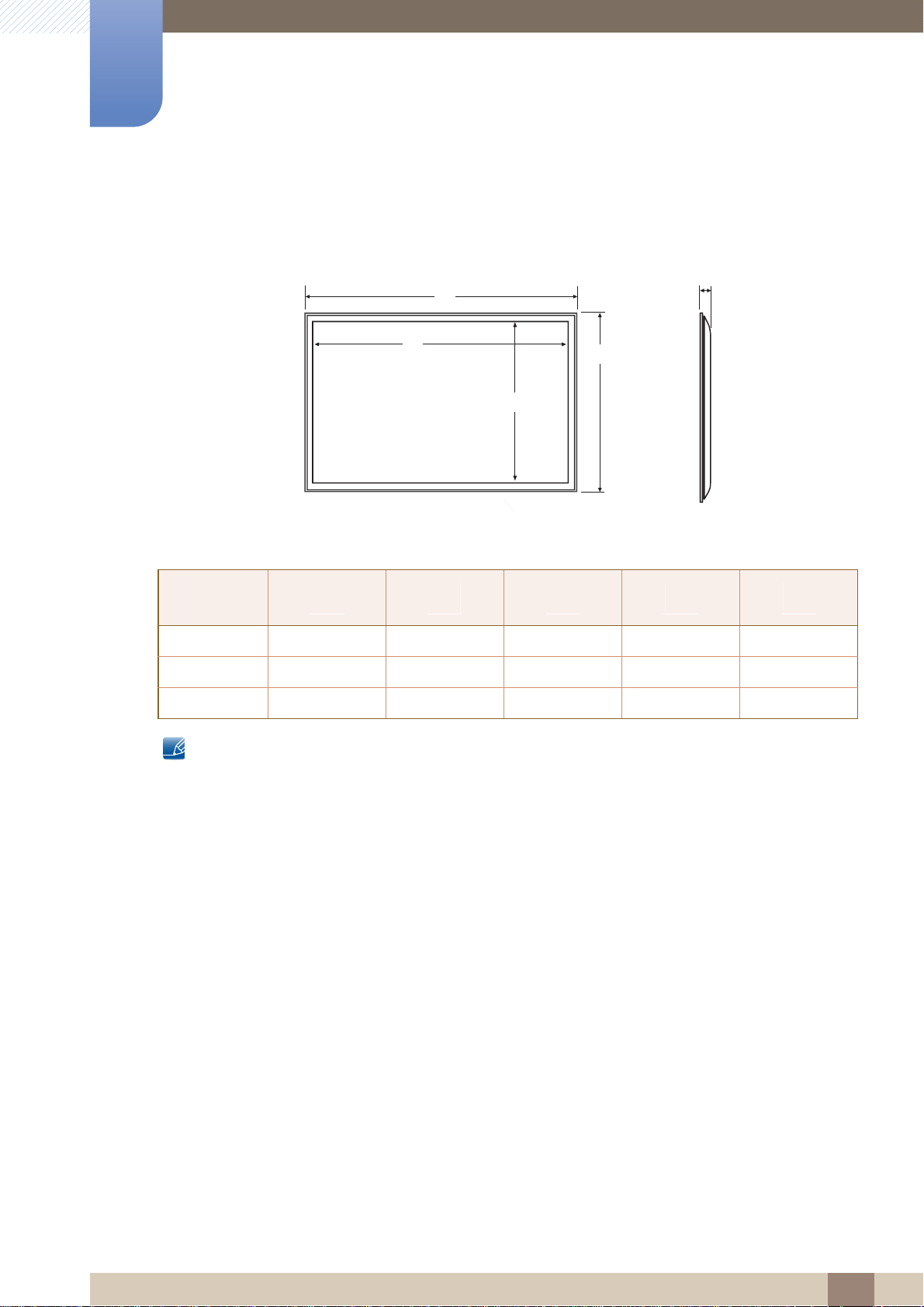

1.4 Dimensions
Unit: mm (inches)
Model
name
DE40C 919.6 (36.2) 885.6 (34.9) 498.2 (19.6) 532.0 (20.9) 35.1 (1.38)
DE46C 1054.5 (41.52) 1018.1 (40.1) 572.7 (22.5) 608.5 (24.0) 35.1 (1.38)
DE55C 1249.5 (49.19) 1209.6 (47.6) 680.4 (26.8) 721.0 (28.4) 35.1 (1.38)
All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice.
Refer to the dimensions prior to performing installation of your product. Not responsible for
typographical or printed errors.
1 Preparations
38
Preparations
1
1
1.5 Installing the Wall Mount
1.5.1 Preparing before installing Wall-Mount
To install a wall-mount from another manufacturer, use the
Holder-Ring.
1.5.2 Installing the Wall Mount Kit
The wall mount kit (sold separately) allows you to mount the product on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount.
We recommend you contact a technician for assistance when installing the wall mount bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if
you elect to install the wall mount on your own.
1.5.3 Wall Mount Kit Specifications (VESA)
Install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to
surfaces other than plaster board, please contact your nearest dealer for additional information. If you
install the product on a slanted wall, it may fall and result in severe personal injury.
1 Preparations
39
1
Preparations
Standard dimensions for wall mount kits are shown in the table
below.
Samsung wall mount kits contain a detailed installation manual
and all parts necessary for assembly are provided.
Do not use screws that do not comply with the VESA standard
screw specifications.
Do not use screws that are longer than the standard length or
do not comply with the VESA standard screw specifications.
Screws that are too long may cause damage to the inside of the
product.
For wall mounts that do not comply with the VESA standard
screw specifications, the length of the screws may differ
depending on the wall mount specifications.
Do not fasten the screws too firmly. This may damage the
product or cause the product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury
when a non-VESA or non-specified wall mount is used or the
consumer fails to follow the product installation instructions.
Do not mount the product at more than a 15 degree tilt.
Always have two people mount the product on a wall.
Unit: mm (inches)
Model name
VESA screw hole specs (A * B)
in millimeters
Standard Screw Quantity
DE40C 200 x 200 (7.9 x 7.9)
M8, L20 4
DE46C, DE55C 400 x 400 (15.7 x 15.7)
Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to
electric shock.
1 Preparations
40
Preparations
1 2345
6789
1
1.6 Remote Control
1.6.1 Cable Connection

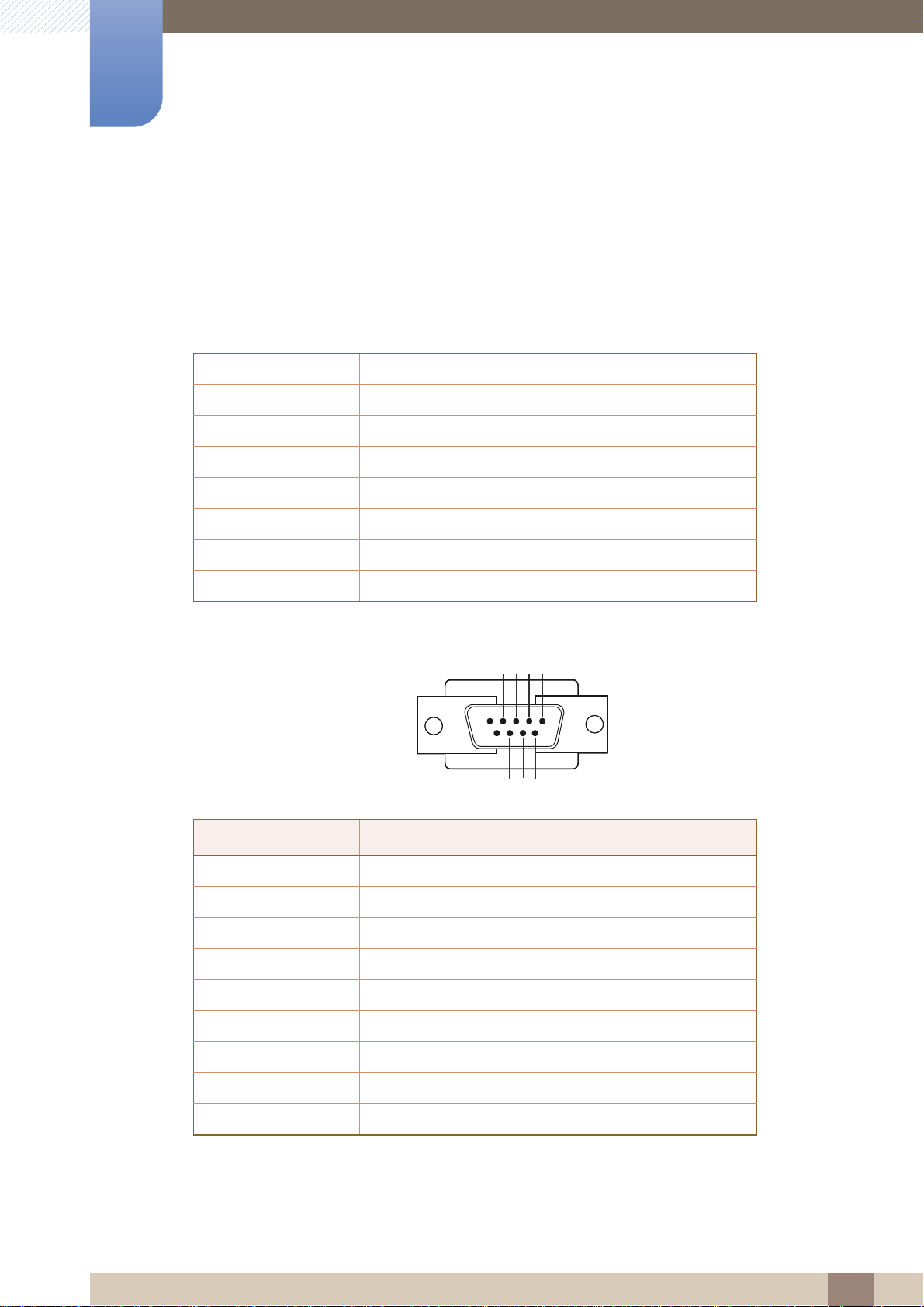

RS232C Cable
Interface RS232C (9 pins)
Pin TxD (No. 2), RxD (No. 3), GND (No. 5)
Bit rate 9600 bps
Data bits 8 bit
Parity None
Stop bit 1 bit
Flow control None
Maximum length 15m (only shielded type)
Pin assignment
Pin Signal
1 Detect data carrier
2 Received data
3 Transmitted data
4 Prepare data terminal
5 Signal ground
6 Prepare data set
7 Send request
8 Clear to send
9 Ring indicator
1 Preparations
41
1
1
59
6
-P2-
1
2
3
-P1-
12345678
Preparations
RS232C cable
Connector: 9-Pin D-Sub to Stereo Cable
-P1- -P1- -P2- -P2-
Female
LAN Cable
Pin assignment
Pin No. Standard Color Signal
1 White and orange TX+
2 Orange TX-
3 White and green RX+
Rx
Tx
Gnd
2
3
5
-------->
<--------
---------
1
2
3
Tx
Rx
Gnd
STEREO
PLUG
(3.5ø)
4 Blue NC
5 White and blue NC
6Green
7 White and brown
8Brown
RX-
NC
NC
1 Preparations
42
1
RJ45 MDC RJ45 MDC
HUB
P1
P1P2
P2
RJ45 MDC
P1 P2
Preparations
Connector: RJ45
Direct LAN cable (PC to HUB)
Signal P1 P2 Signal
TX+ 1 <--------> 1 TX+
TX- 2 <--------> 2 TX-
RX+ 3 <--------> 3 RX+
RX- 6 <--------> 6 RX-
Cross LAN cable (PC to PC)
Signal P1 P2 Signal
TX+ 1 <--------> 3 RX+
TX- 2 <--------> 6 RX-
RX+ 3 <--------> 1 TX+
RX- 6 <--------> 2 TX-
1 Preparations
43
1
RS232C
IN OUT
RS232C
IN OUT
RS232C
IN OUT
RS232C
IN OUT
RJ45 RJ45
Preparations
1.6.2 Connection
Connection 1
Connection 2
1 Preparations
44
1
RS232C
OUT
RJ45 RS232C
IN OUT
RS232C
IN OUT
RS232C
IN OUT
Preparations
Connection 3
1 Preparations
45
1
Preparations
1.6.3 Control Codes
Viewing control state (Get control command)
Header Command
0xAA
Controlling (Set control command)
Header Command
0xAA
Command
No. Command type Command Value range
1 Power control 0x11 0~1
2 Volume control 0x12 0~100
3 Input source control 0x14 -
4 Screen mode control 0x18 -
Command
type
Command
type
ID
ID
Data length
Checksum
0
Data length Data
Checksum
1Value
5 Screen size control 0x19 0~255
6 PIP on/off control 0x3C 0~1
7 Auto adjustment control 0x3D 0
8 Video wall mode control 0x5C 0~1
9 Safety Lock 0x5D 0~1
Issued IDs can be displayed in hexadecimals. However, ID 0 must be displayed as 0xFF.
All communications take place in hexadecimals. The checksum is calculated by adding up all values
except the header. If a checksum adds up to be more than 2 digits as shown below
(11+FF+01+01=112), the first digit is removed.
E.g. Power On & ID=0
Header Command
ID
0xAA 0x11 1 "Power"
Header Command
ID
0xAA 0x11 1 1
Data length Data 1
Checksum
Data length Data 1
12
1 Preparations
46
1
Preparations
To control all devices connected by a serial cable simultaneously irrespective of IDs, set the ID as
"0xFE" and transmit commands. Commands will be executed by each device but ACK will not
respond.
Power control
Function
A product can be powered on and off using a PC.
Viewing power state (Get Power ON / OFF Status)
Header Command
0xAA 0x11 0
Setting power ON/Off (Set Power ON / OFF)
Header Command
0xAA 0x11 1 "Power"
"Power": Power code to be set on a product
1: Power ON
0: Power OFF
Ack
Header
0xAA 0xFF 3 ‘A’ 0x11 "Power"
"Power": Power code to be set on a product
Nak
Command
ID
ID
ID
Data length Ack/Nak r-CMD Val1
Data length
Checksum
Data length Data
Checksum
Checksum
Header
0xAA 0xFF 3 ‘N’ 0x11 "ERR"
"ERR": A code showing what error has occurred
Command
Data length Ack/Nak r-CMD Val1
ID
Checksum
1 Preparations
47
1
Preparations
Volume control
Function
The volume of a product can be adjusted using a PC.
Viewing volume state (Get Volume Status)
Header Command
ID
0xAA 0x12 0
Setting the volume (Set Volume)
Header Command
ID
0xAA 0x12 1 "Volume"
"Volume": Volume value code to be set on a product (0-100)
Ack
Header
0xAA 0xFF 3 ‘A’ 0x12 "Volume"
"Volume": Volume value code to be set on a product (0-100)
Nak
Header
0xAA 0xFF 3 ‘N’ 0x12 "ERR"
Command
Command
Data length Ack/Nak r-CMD Val1
ID
Data length Ack/Nak r-CMD Val1
ID
Data length
Data length Data
Checksum
Checksum
Checksum
Checksum
"ERR": A code showing what error has occurred
1 Preparations
48
1
Preparations
Input source control
Function
The input source of a product can be changed using a PC.
Viewing input source state (Get Input Source Status)
Header Command
ID
0xAA 0x14 0
Setting the input source (Set Input Source)
Header Command
ID
0xAA 0x14 1
"Input Source": An input source code to be set on a product
0x14 PC
0x18 DVI
0x0C AV
0x08 Component
0x20 MagicInfo
0x1F DVI_video
0x40 DTV
Data length
Data length Data
Checksum
"Input
Source"
Checksum
0x21 HDMI1
0x22 HDMI1_PC
0x25 DisplayPort
Ack
Nak
DVI_video and HDMI1_PC cannot be used with the Set command. They only respond to
"Get" commands.
MagicInfo is only available with models that contain the MagicInfo function.
DTV are only available with models that include a TV.
Header
0xAA 0xFF 3 ‘A’ 0x14
"Input Source": An input source code to be set on a product
Command
ID
Data length Ack/Nak r-CMD Val1
"Input
Source"
Checksum
1 Preparations
49
1
Preparations
Header
0xAA 0xFF 3 ‘N’ 0x14 "ERR"
"ERR": A code showing what error has occurred
Command
ID
Data length Ack/Nak r-CMD Val1
Screen
Function
The screen mode of a product can be changed using a PC.
Screen mode cannot be controlled when the Video Wall function is enabled.
Viewing screen status (Get Screen Mode Status)
Setting the picture size (Set Picture Size)
This control can only be used on models that include a TV.
Header Command
ID
0xAA 0x18 0
Header Command
ID
0xAA 0x18 1
Data length
Data length Data
Checksum
"Screen
Mode"
Checksum
Checksum
"Screen Mode": A code that sets the product status
0x01 16 : 9
0x04 Zoom
0x31 Wide Zoom
0x0B 4 : 3
Ack
Header
0xAA 0xFF 3 ‘A’ 0x18
"Screen Mode": A code that sets the product status
Nak
Header
0xAA 0xFF 3 ‘N’ 0x18 "ERR"
Command
Command
Data length Ack/Nak r-CMD Val1
ID
Data length Ack/Nak r-CMD Val1
ID
"Screen
Mode"
Checksum
Checksum
"ERR": A code showing what error has occurred
1 Preparations
50
1
Preparations
Screen size control
Function
The screen size of a product can be changed using a PC.
Viewing the screen size (Get Screen Size Status)
Header Command
ID
0xAA 0x19 0
Ack
Header
0xAA 0xFF 3 ‘A’ 0x19
"Screen Size": product screen size (range: 0 – 255, unit: inch)
Nak
Header
0xAA 0xFF 3 ‘N’ 0x19 "ERR"
"ERR": A code showing what error has occurred
Command
Command
Data length Ack/Nak r-CMD Val1
ID
Data length Ack/Nak r-CMD Val1
ID
Data length
Checksum
"Screen
Size"
Checksum
Checksum
1 Preparations
51
1
Preparations
PIP On/Off control
Function
The PIP mode of a product can be turned on or off using a PC.
Viewing PIP on/off state (Get the PIP ON / OFF Status)
Only available on models that have the PIP function.
The mode cannot be controlled if Video Wall is set to On.
This function is not available in MagicInfo.
Header Command
0xAA 0x3C 0
Setting PIP on/off (Set the PIP ON / OFF)
Header Command
0xAA 0x3C 1 "PIP"
"PIP": A code used to turn the PIP mode of a product on or off
1: PIP ON
0: PIP OFF
Ack
Header
0xAA 0xFF 3 ‘A’ 0x3C "PIP"
"PIP": A code used to turn the PIP mode of a product on or off
Nak
Command
ID
ID
ID
Data length Ack/Nak r-CMD Val1
Data length
Data length Data
Checksum
Checksum
Checksum
Header
0xAA 0xFF 3 ‘N’ 0x3C "ERR"
"ERR": A code showing what error has occurred
Command
ID
Data length Ack/Nak r-CMD Val1
Checksum
1 Preparations
52
1
Preparations
Auto adjustment control (PC and BNC only)
Function
Automatically adjust the PC system screen using a PC.
Viewing auto adjustment state (Get Auto Adjustment Status)
None
Setting auto adjustment (Set Auto Adjustment)
Header Command
ID
0xAA 0x3D 1
"Auto Adjustment" : 0x00 (at all times)
Ack
Header
0xAA 0xFF 3 ‘A’ 0x3D
Nak
Header
0xAA 0xFF 3 ‘N’ 0x3D "ERR"
"ERR": A code showing what error has occurred
Command
Command
Data length Ack/Nak r-CMD Val1
ID
Data length Ack/Nak r-CMD Val1
ID
Data length Data
"Auto
Adjustment"
Checksum
"Auto
Adjustment"
Checksum
Checksum
1 Preparations
53
1
Preparations

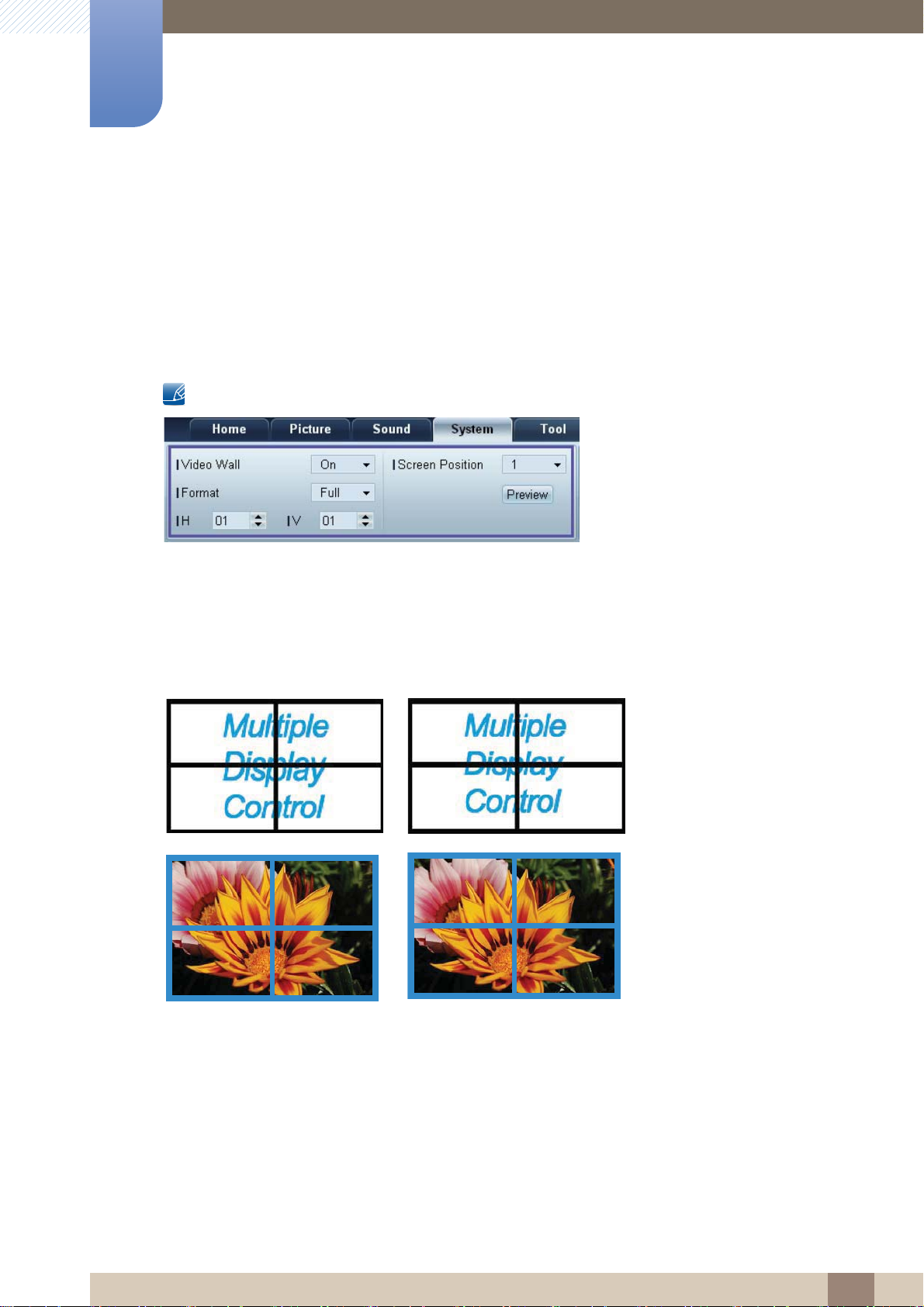

Video Wall Mode Control
Function
Video Wall mode can be activated on a product using a PC.
This control is only available on a product whose Video Wall is enabled.
This function is not available in MagicInfo.
Viewing video wall mode (Get Video Wall Mode)
Header Command
0xAA 0x5C 0
Setting the video wall (Set Video Wall Mode)
Header Command
0xAA 0x5C 1
"Video Wall Mode": A code used to activate Video Wall mode on a product
1: Full
0: Natural
Ack
Header
0xAA 0xFF 3 ‘A’ 0x5C
"Video Wall Mode": A code used to activate Video Wall mode on a product
Command
ID
ID
ID
Data length Ack/Nak r-CMD Val1
Data length
Checksum
Data length Data
"Video Wall
Mode"
Checksum
"Video Wall
Mode"
Checksum
Nak
Header
0xAA 0xFF 3 ‘N’ 0x5C "ERR"
"ERR": A code showing what error has occurred
Command
ID
Data length Ack/Nak r-CMD Val1
Checksum
1 Preparations
54
1
Preparations
Safety Lock
Function
PC can be used to turn the Safety Lock function on or off on a product.
This control is available regardless of whether or not the power is turned on.
Viewing the safety lock state (Get Safety Lock Status)
Header Command
0xAA 0x5D 0
Enabling or disabling safety lock (Set Safety Lock Enable / Disable)
Header Command
0xAA 0x5D 1
"Safety Lock": Safety lock code to be set on a product
1: ON
0: OFF
Ack
Header
0xAA 0xFF 3 ‘A’ 0x5D
"Safety Lock": Safety lock code to be set on a product
Command
ID
ID
ID
Data length Ack/Nak r-CMD Val1
Data length
Checksum
Data length Data
"Safety
Lock"
Checksum
"Safety
Lock"
Checksum
Nak
Header
0xAA 0xFF 3 ‘N’ 0x5D "ERR"
"ERR": A code showing what error has occurred
Command
ID
Data length Ack/Nak r-CMD Val1
Checksum
1 Preparations
55
Connecting and Using a Source Device
2
2.1 Before Connecting
Check the following before you connect this product with other devices.
Devices that can be connected to this product include PCs, camcorders, speakers, set top boxes and
DVD/Blu-ray Disc players.
2.1.1 Pre-connection Checkpoints
Before connecting a source device, read the user manual provided with it. The number and locations
of ports on source devices may differ from device to device.
Do not connect the power cable until all connections are completed. Connecting the power cable
during connection may damage the product.
Check the types of ports at the back of the product you want to connect.
2 Connecting and Using a Source Device
56
Connecting and Using a Source Device
RGB IN
RGB / DVI / HDMI /
AV / COMPONENT
AUDIO IN
RGB / DVI / HDMI /
AV / COMPONENT
AUDIO IN
DVI IN
2
2.2 Connecting and Using a PC
2.2.1 Connecting to a PC
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
A PC can be connected to the product in a variety of ways.
Select a connection method suitable for your PC.

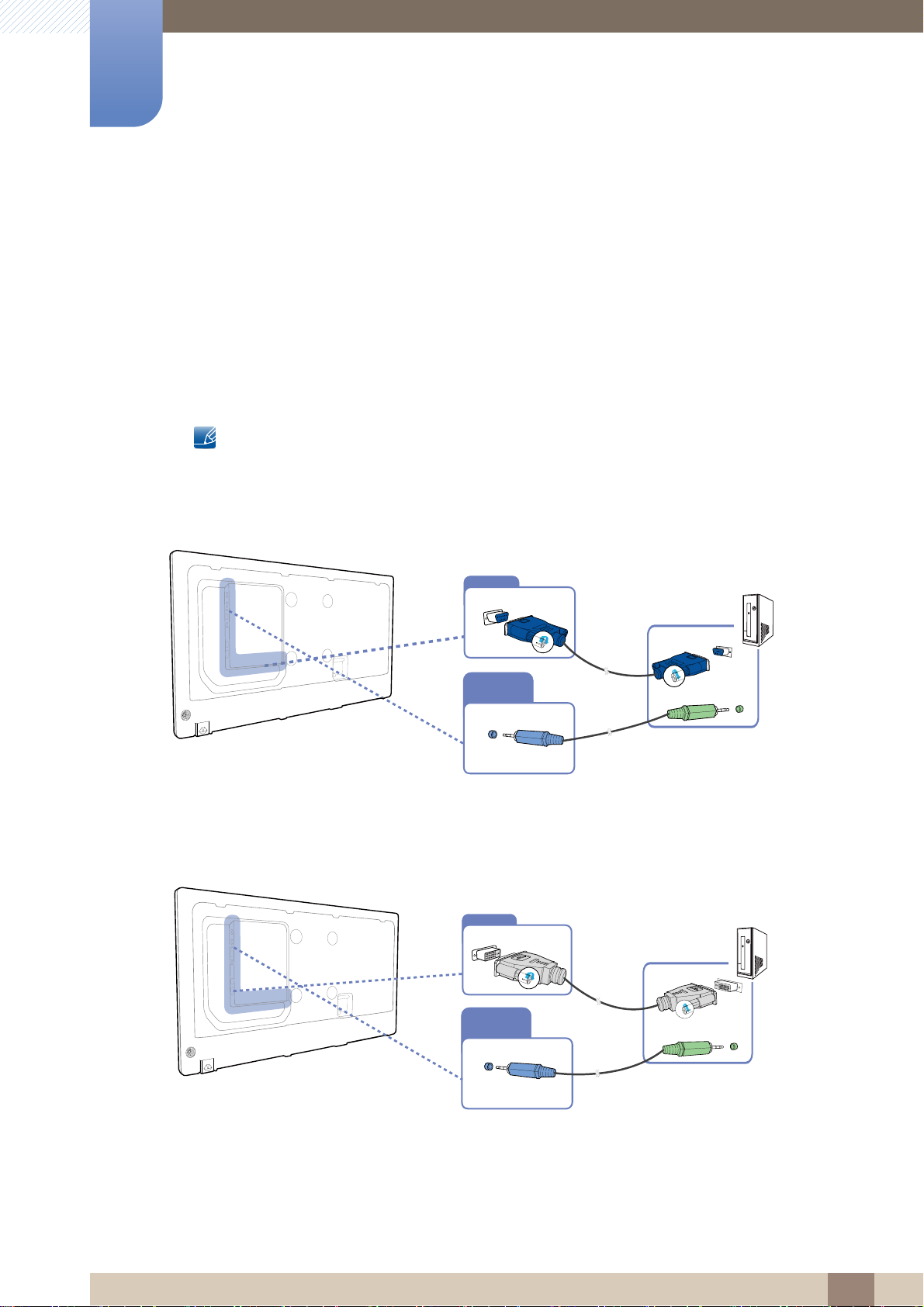

Connection using the D-SUB cable (analog type)
Connecting parts may differ in different products.
Connection using a DVI cable (digital type)
2 Connecting and Using a Source Device
57
2
RGB / DVI / HDMI /
AV / COMPONENT
AUDIO IN
HDMI IN
HDMI IN
Connecting and Using a Source Device
Connection Using an HDMI-DVI Cable
When you connect a PC to the product using an HDMI-DVI cable, set Edit Name to DVI PC to access
video and audio content stored on the PC.
Connection Using an HDMI Cable
2 Connecting and Using a Source Device
58
2
DP IN
Connecting and Using a Source Device
Connection Using an DP Cable
2 Connecting and Using a Source Device
59
2
12
3
**** ****
**********
12
34
***********
***********
Connecting and Using a Source Device
2.2.2 Changing the Resolution
Adjust the resolution and refresh rate in Control Panel on your PC to obtain optimum picture quality.
The picture quality of TFT-LCDs may degrade if the optimum resolution is not selected.
Changing the Resolution on Windows XP
Go to Control Panel Display Settings, and change the resolution.
Changing the Resolution on Windows Vista
Go to Control Panel Personal Settings Display Settings, and change the resolution.
2 Connecting and Using a Source Device
60
2
12
34
Connecting and Using a Source Device
Changing the Resolution on Windows 7
Go to Control Panel Display Screen Resolution, and change the resolution.
2 Connecting and Using a Source Device
61
Connecting and Using a Source Device
DP IN
DP OUT
2
2.3 Connecting an External Monitor
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
2 Connecting and Using a Source Device
62
Connecting and Using a Source Device
RGB / DVI / HDMI /
AV / COMPONENT
AUDIO IN
AV IN
RGB / DVI / HDMI /
AV / COMPONENT
AUDIO IN
COMPONENT IN
2
2.4 Connecting to a Video Device
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
You can connect a video device to the product using a cable.
2.4.1 Connection Using the AV Cable
Connecting parts may differ in different products.
After connecting a source device, press the SOURCE button on the remote control and
select the connected source device.
2.4.2 Connection Using the Component Cable
2 Connecting and Using a Source Device
63
2
RGB / DVI / HDMI /
AV COMPONENT
AUDIO IN
HDMI IN
HDMI IN
Connecting and Using a Source Device
2.4.3 Connection Using an HDMI-DVI Cable
Audio will not be enabled if the product is connected to a video device using an HDMI-DVI cable.
To resolve this, additionally connect an audio cable to the audio ports on the product and video
device. When you connect a video device to the product using an HDMI-DVI cable, set Edit Name
to DVI Device to access video and audio content stored on the video device.
Supported resolutions include 1080p (50/60Hz), 720p (50/60Hz), 480p, and 576p.
2.4.4 Connection Using an HDMI Cable
Using an HDMI cable or HDMI to DVI Cable (up to 1080p)
For better picture and audio quality, connect to a digital device using an HDMI cable.
An HDMI cable supports digital video and audio signals, and does not require an audio cable.
To connect the product to a digital device that does not support HDMI output, use an HDMI/
DVI and audio cables.
The picture may not display normally (if at all) or the audio may not work if an external device that
uses an older version of HDMI mode is connected to the product. If such a problem occurs, ask the
manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.
2 Connecting and Using a Source Device
64
2
AUDIO OUT
ANT IN
VHF/UHF Antenna
Connecting and Using a Source Device
Be sure to use an HDMI cable with a thickness of 14 mm or less.
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection
error may occur.
A basic high-speed HDMI cable or one with ethernet is recommended. This product does not
support the ethernet function via HDMI.

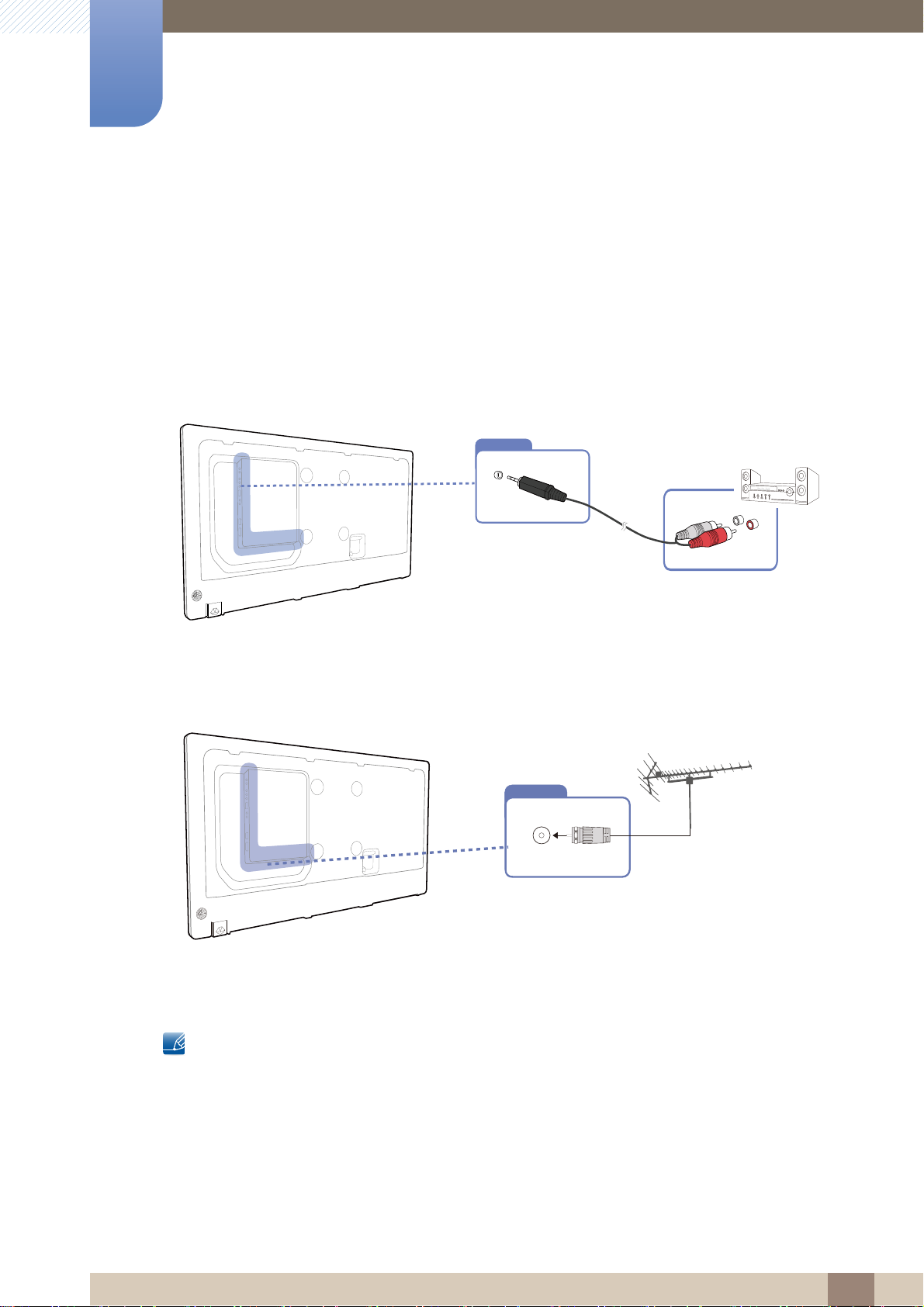

2.4.5 Connecting to an Audio System
2.4.6 Connecting to an Antenna
The initial settings process runs automatically when the product is turned on for the first time after
purchase.
Take extra care to ensure the wires inside the cable do not bend.
2 Connecting and Using a Source Device
65
Connecting and Using a Source Device
2
2.5 Connecting the network box (Sold separately)
2.5.1 MagicInfo
To use MagicInfo, a network box (sold separately) must be connected to the product.
For details on how to connect to a network box, refer to the user's manual provided with the network
box upon purchase.
To change the MagicInfo settings, run "MagicinfoSetupWizard" on the desktop.
For details on how to use MagicInfo, refer to the DVD provided with the network box.
The information in this section is subject to change without notice for quality improvement.
If a problem occurs after installing an operating system other than the one provided with the
network box, restoring the previous version of the operating system, or installing software that is
not compatible with the operating system provided, you will not be able to benefit from technical
support and will be charged a fee for a visit from a service technician. A product exchange or
refund will also not be available.
Entering MagicInfo mode
1 After installing and connecting the network box (sold separately) to the product, power on the
product.
2 Press SOURCE on the remote control, and select MagicInfo.
Connecting the network box to the [HDMI IN] port on the product will change Source from HDMI
to MagicInfo.
2 Connecting and Using a Source Device
66
2
MagicInfo Setup Wizard - v.1.12
Select Application - step 1
MagicInfo Pro (LAN, WAN based version)
MagicInfo-i Premium (Web-based version)
Select Later
< Back(B) Next(N) > Finish Cancel
MagicInfo Setup Wizard - v.1.12
Select TCP/IP - step 2
Obtain an IP address automatically
Use the following IP address:
IP address:
Subnet mask:
Default gateway:
192 . 168 . 0 . 102
255 . 255 . 255 . 0
192 . 168 . 0 . 1
Obtain DNS server address automatically
Use the following DNS server address:
Preferred DNS server:
Alternate DNS server:
10 . 44 . 33 . 22
10 . 33 . 22 . 11
< Back(B) Next(N) > Finish Cancel
Connecting and Using a Source Device

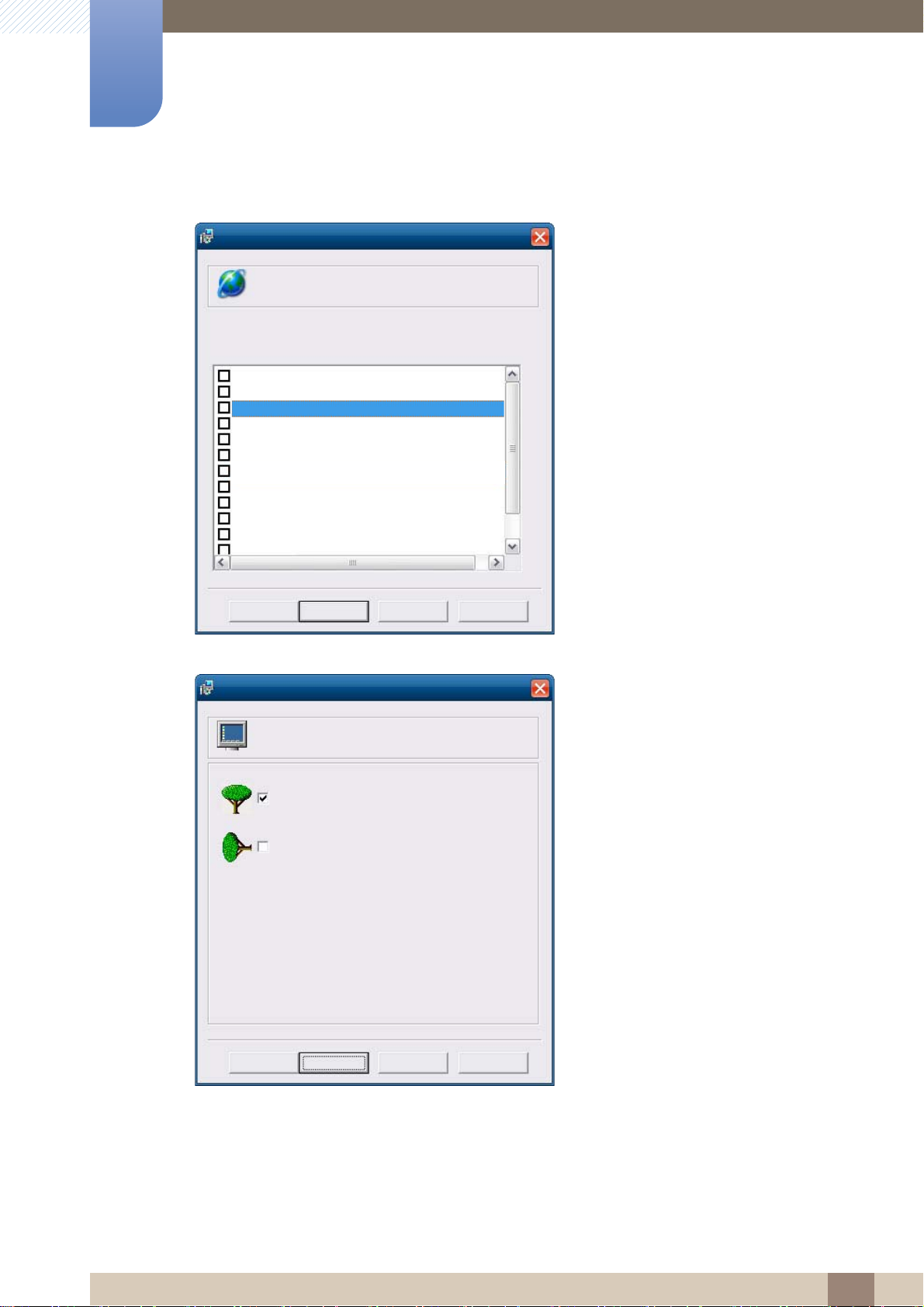

3 Select the default application you want to run when MagicInfo starts.
4 Enter the IP information.
2 Connecting and Using a Source Device
67
2
MagicInfo Setup Wizard - v.1.12
Select Language -step 3
Select the language you want to install on the system for menus and
dialogs.
Current Language : Engilsh
German
English
French
Italian
Chinese [Traditional]
Japanese
Korean
Russian
Swedish
Turkish
Chinese [Simplified]
Portuguese
< Back(B) Next(N) > Finish Cancel
MagicInfo Setup Wizard - v.1.12
Select Screen Type - step 4
Landscape
Portrait
< Back(B) Next(N) > Finish Cancel
Connecting and Using a Source Device
5 Select a language. (The default language is English.)
6 Select a display mode.
2 Connecting and Using a Source Device
68
2
MagicInfo Setup Wizard - v.1.12
Setup Information
1. Application : MagicInfo Pro [LAN,WAN based version\
2. Internet Protocol [TCP/IP]
IP : 192.168.0.102
3. Language : English
4. Screen Type : Landscape
Do not show again
< Back(B) Apply Finish Cancel
Connecting and Using a Source Device
7 Double-check the settings you have just configured.
If the execution icon does not appear, double-click the MagicInfo icon on the desktop. The icon will
appear at the bottom right of the screen.
2 Connecting and Using a Source Device
69
Connecting and Using a Source Device
Source
HDMI ----
AV ----
Component ----
DisplayPort ----
DVI ----
Tools ReturnRefresh
A
TV
PC ----
2
2.6 Changing the Input source
2.6.1 Source
MENU [] Support Contents Home Source ENTER
m
[ ]
Source allows you to select a variety of sources and change source device names.
Source
You can display the screen of a source device connected to the product. Select a source from Source
List to display the screen of the selected source.
The displayed image may differ depending on the model.
The input source can also be changed by using the SOURCE button on the remote control.
The screen may not display correctly if an incorrect source is selected for the source device you want to
convert to.
2 Connecting and Using a Source Device
70
Using MDC
3
MDC (Multiple Display Control) is an application that allows you to easily control multiple display
devices simultaneously using a PC.
3.1 Configuring Settings for Multi Control
MENU [] System Multi Control ENTER
Assign an individual ID to your product.
m
[ ]
3.1.1 Configuring settings for Multi Control
ID Setup
Assign an ID to a set. (Range: 0~99)
Press or to select a number, and press [ ].
ID Input
Enter the ID number of the product connected to the input cable for input signal reception.
Enter the number you want using the number buttons on the remote control.
MDC Connection
Select a method to connect to MDC to receive the MDC signal.

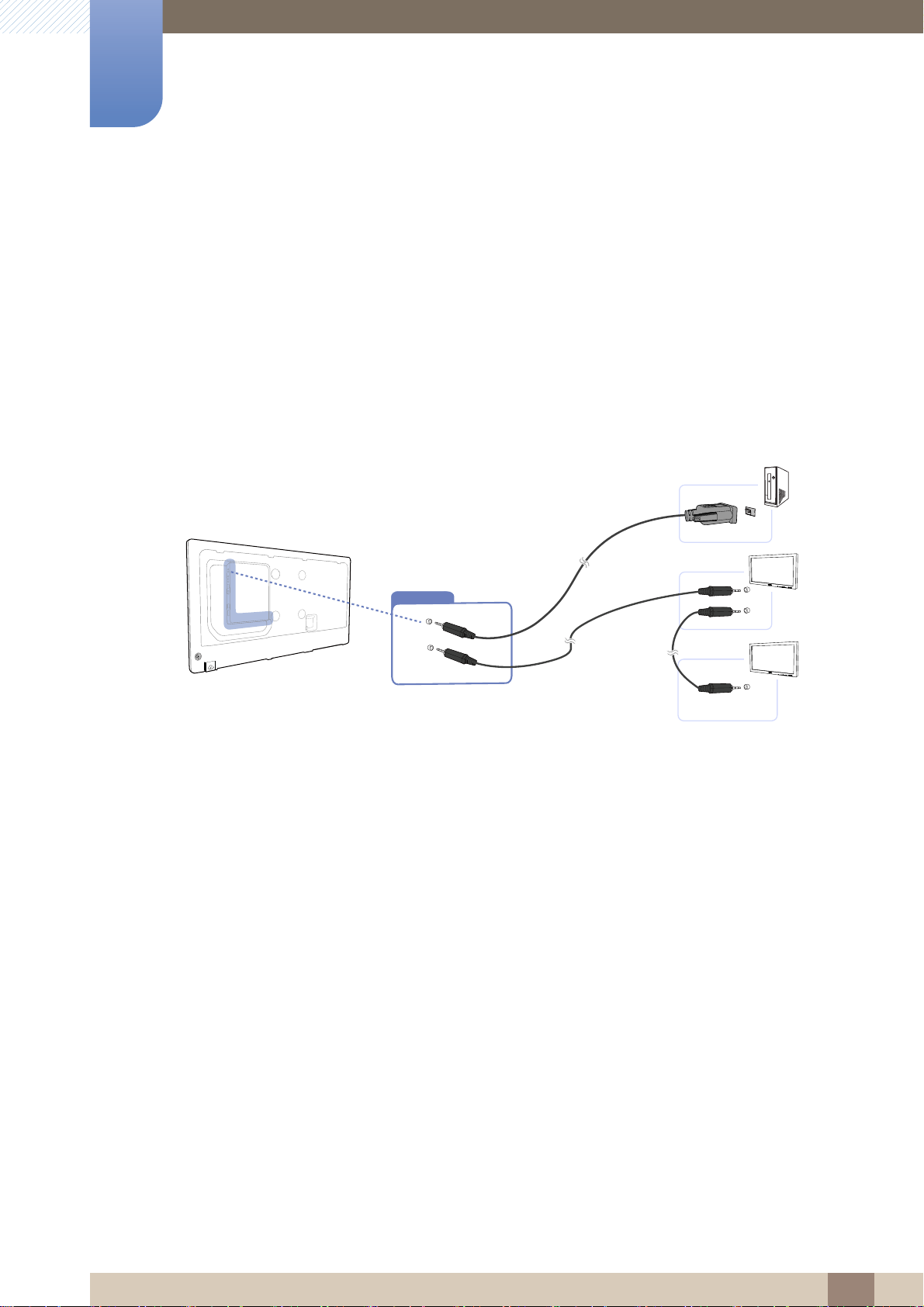

RS232C MDC
Communicate with MDC via the RS232C-stereo cable.
RJ45 MDC
Communicate with MDC via the RJ45 cable.
DisplayPort Daisy Chain
To display the [DP IN] video input through the [DP OUT] output port, select a device connection
method from Single Stream Transport (SST) and Multi Stream Transport (MST).
Clone: In this Single Stream Transport (SST) output mode, the same screen output is displayed
on two display devices connected.
Expand: In this Multi Stream Transport (MST) mode, a different screen output is displayed on
- If Clone is selected, the PC recognizes the two displays as a single monitor.
- Clone mode is enabled if the input source is a digital input other than DisplayPort, such
as DVI, HDMI, MagicInfo, or PIM.
two display devices connected.
- If Expand is selected, the PC recognizes the two displays as separate monitors.
- The mode functions only on a PC that supports DisplayPort 1.2 MST.
- For Full HD resolution (1920x1080) displays, a maximum of four displays can be
connected.
3 Using MDC
71
Using MDC
3
3.2 MDC Program Installation/Uninstallation
3.2.1 Installation
1 Insert the installation CD into the CD-ROM drive.
2 Click the MDC Unified installation program.
3 Select a language for installation. Next, click "OK".
4 When the "Welcome to the InstallShield Wizard for MDC_Unified" screen appears, click "Next".
5 In the "License Agreement" window displayed, select "I accept the terms in the license agreement"
If a software installation window is not displayed on the main screen, install with the MDC Unified
execution file in the MDC folder on the CD.
and click "Next".
6 In the displayed "Customer Information" window, fill out all the information fields and click "Next".
7 In the displayed "Destination Folder" window, select the directory path you want to install the
program in and click "Next".
If the directory path is not specified, the program will be installed in the default directory path.
8 In the displayed "Ready to Install the Program" window, check the directory path to install the
program in and click "Install".
9 Installation progress will be displayed.
10 Click "Finish" in the displayed "InstallShield Wizard Complete" window.
Select "Launch MDC Unified" and click "Finish" to run the MDC program immediately.
11 The MDC Unified shortcut icon will be created on the desktop after installation.
3.2.2 Uninstallation
The MDC execution icon may not be displayed depending on the PC system or product
specifications.
Press F5 if the execution icon is not displayed.
1 Select Settings > Control Panel on the Start menu and double-click Add/Delete Program.
2 Select MDC Unified from the list and click Change/Remove.
MDC installation can be affected by the graphics card, mother board and network conditions.
3 Using MDC
72
Using MDC
RS232C IN / OUT
3
3.3 What is MDC?
Multiple display control "MDC" is an application that allows you to easily control multiple display devices
simultaneously using a PC.
3.3.1 Connecting to MDC
Using MDC via RS-232C (serial data communications standards)
An RS-232C serial cable must be connected to the serial ports on the PC and monitor.
3 Using MDC
73
3
RJ45
RS232C OUT
RJ45
Using MDC
Using MDC via Ethernet
Enter the IP for the primary display device and connect the device to the PC. One display device can
connect to another using an RS-232C serial cable.
Connection using a direct LAN cable
Multiple products can be connected using the [RJ45] port on the product and the LAN ports on the
HUB.
Connection using a cross LAN cable
Multiple products can be connected using the [RS232C IN / OUT] port on the product.
3 Using MDC
74
3
Using MDC
3.3.2 Connection Management
Connection management includes the Connection list and Connection list modification options.
Connection list - Connection list shows the details of the connections such as connection setting (IP/
COM, Port No, MAC, and Connection Type), connection status, Set ID Range, and detected devices.
Each connection can contain a maximum of 100 devices connected in serial daisy-chain fashion. All the
LFDs detected in a connection are displayed in the Device list, where the user can make groups and
send commands to detected devices.
Connection list modification options - Connection modification options includes Add, Edit, Delete,
and Refresh.
3 Using MDC
75
3
Using MDC
3.3.3 Auto Set ID
Auto Set ID feature assigns a Set ID for all the LFDs connected in daisy-chain of a selected connection.
There can be a maximum of 100 LFDs in a connection. The Set ID is assigned sequentially in the daisy-
chain running from 1 to 99, and then finally to Set ID 0.
3 Using MDC
76
3
Using MDC
3.3.4 Cloning
Using the Cloning feature, you can copy the setting of one LFD and apply it to multiple selected LFDs.
You can select specific tab categories or all tab categories for cloning, using the copy setting option
window.
3 Using MDC
77
3
Using MDC
3.3.5 Command Retry
This feature is used to specify the maximum number of times the MDC command will be retried in case of
there being no reply or a corrupted reply from an LFD. The retry count value can be set using the MDC
options window. The retry count value must be between 1-10. The default value is 1.
3 Using MDC
78
3
Using MDC
3.3.6 Getting Started with MDC
1 To start the program, click Start Programs Samsung MDC Unified.
2 Click Add to add a display device.
If the connection is established via RS232C, go to Serial and specify the COM Port.
3 Using MDC
79
3
Using MDC

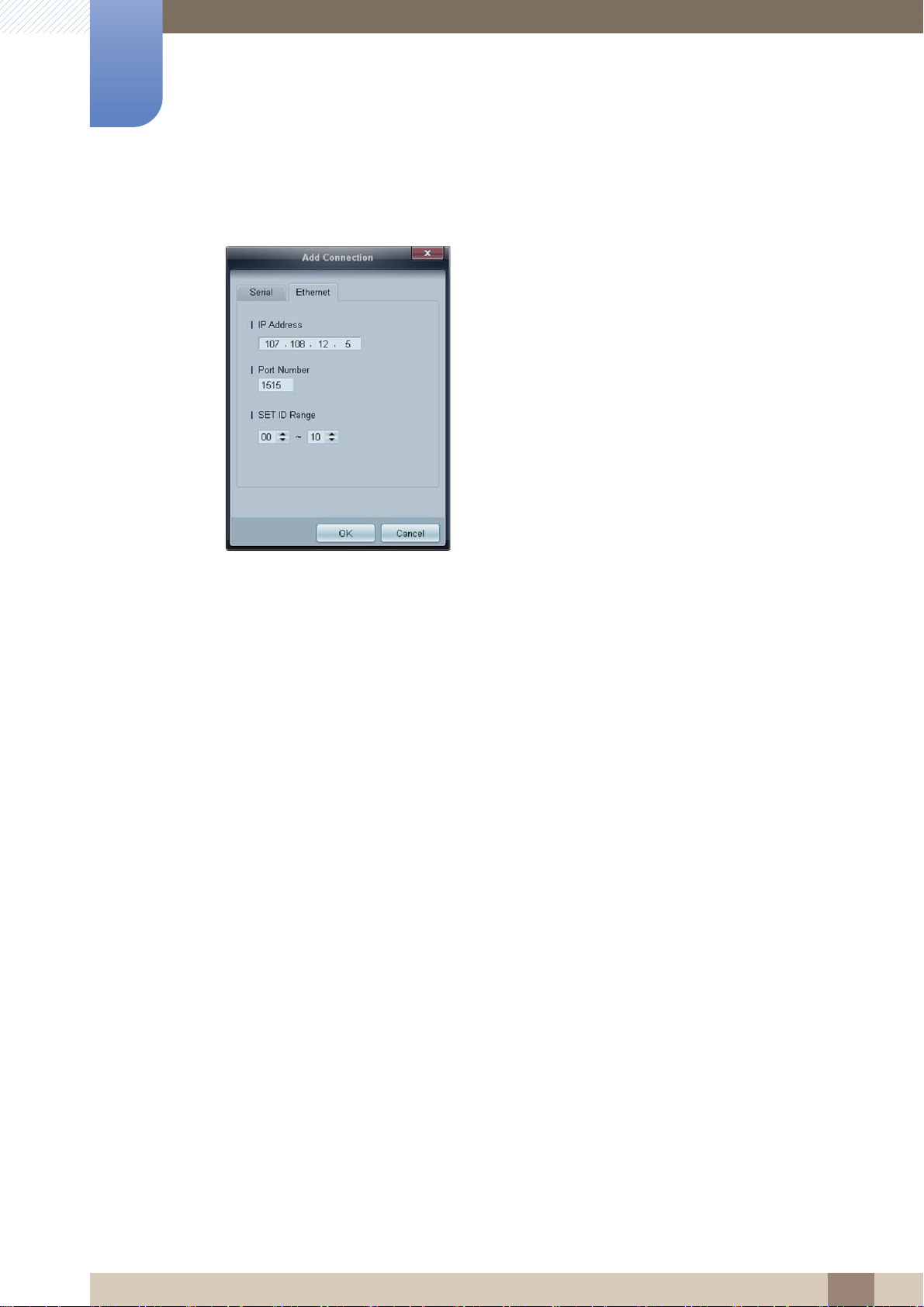

If the connection is established via Ethernet, enter the IP that was entered for the display
device.
3 Using MDC
80
3
4
3
2
1
6
5
1
2
3
4
5
6
Using MDC
3.3.7 Main Screen Layout
Menu Bar
Device Category
Schedule Category
Set List
Modify the Set List
Help Topics
Change the status of a display device or the properties of the program.
View a list of connected display devices or device groups.
View a list of schedules for display devices.
Select the display device you want to adjust.
Add, edit, regroup or delete sets.
Display help topics for the program.
3 Using MDC
81
3
1
2
Using MDC

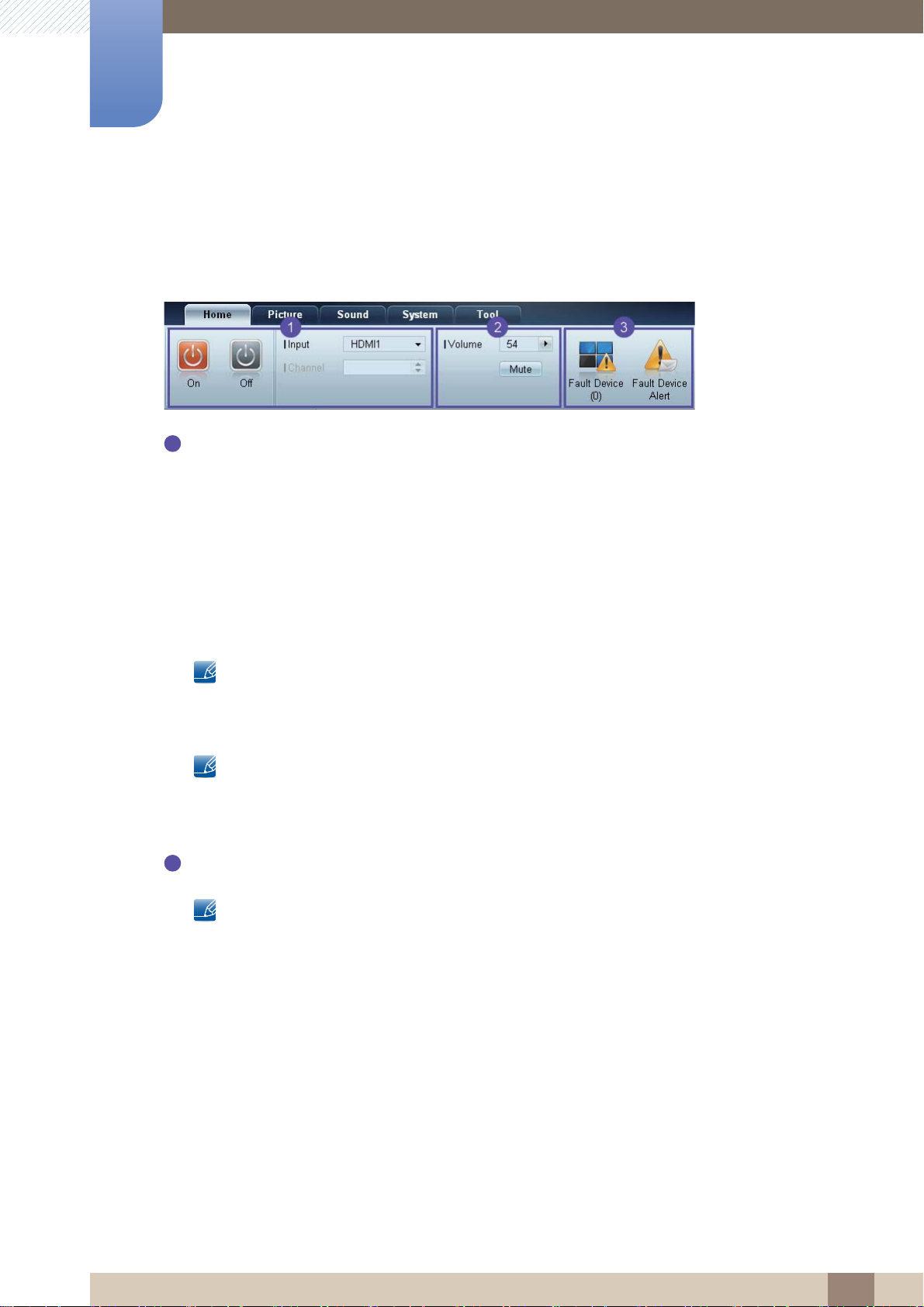

3.3.8 Menus
You can power on or off a selected device or change the input source or volume of the device.
Choose display devices from the list of sets, and select the Home tab.
Home
Select an item and change the corresponding setting.
Power
On: Power on a selected display.
Off: Power off a selected display.
Input
Input Source : Change the input source.
Channel : Change the channel.
Input sources available can vary depending on the Display Device Models.
The input source can be changed only for displays that are turned on.
The TV channel can be changed by using the up/down arrow keys.
The channel can be changed only when the input source is TV.
Only registered channels can be selected.
Volume
The volume can be changed or the sound can be muted only for displays that are turned on.
Volume
The volume can be adjusted using the slider bar in the range of 0 to 100.
Adjust the volume of a selected display.
Mute
Enable or disable Mute for a selected display.
Mute will automatically be disabled if Volume is adjusted when Mute is on.
3 Using MDC
82
3
3
Using MDC
Alert
Fault Device
This menu shows a list of display devices which have following errors - fan error, temperature
error, brightness sensor error, or lamp error.
Select a display device from the list. The Repair button will be enabled. Click the refresh button
to refresh the error status of the display device. The recovered display device will disappear
from the Fault Device List.
Fault Device Alert
Display device in which error is detected will be reported by email.
Fill in all required fields. The Test and OK buttons will be enabled. Ensure the Sender
information and at least one Recipient are entered.
3 Using MDC
83
3
Using MDC

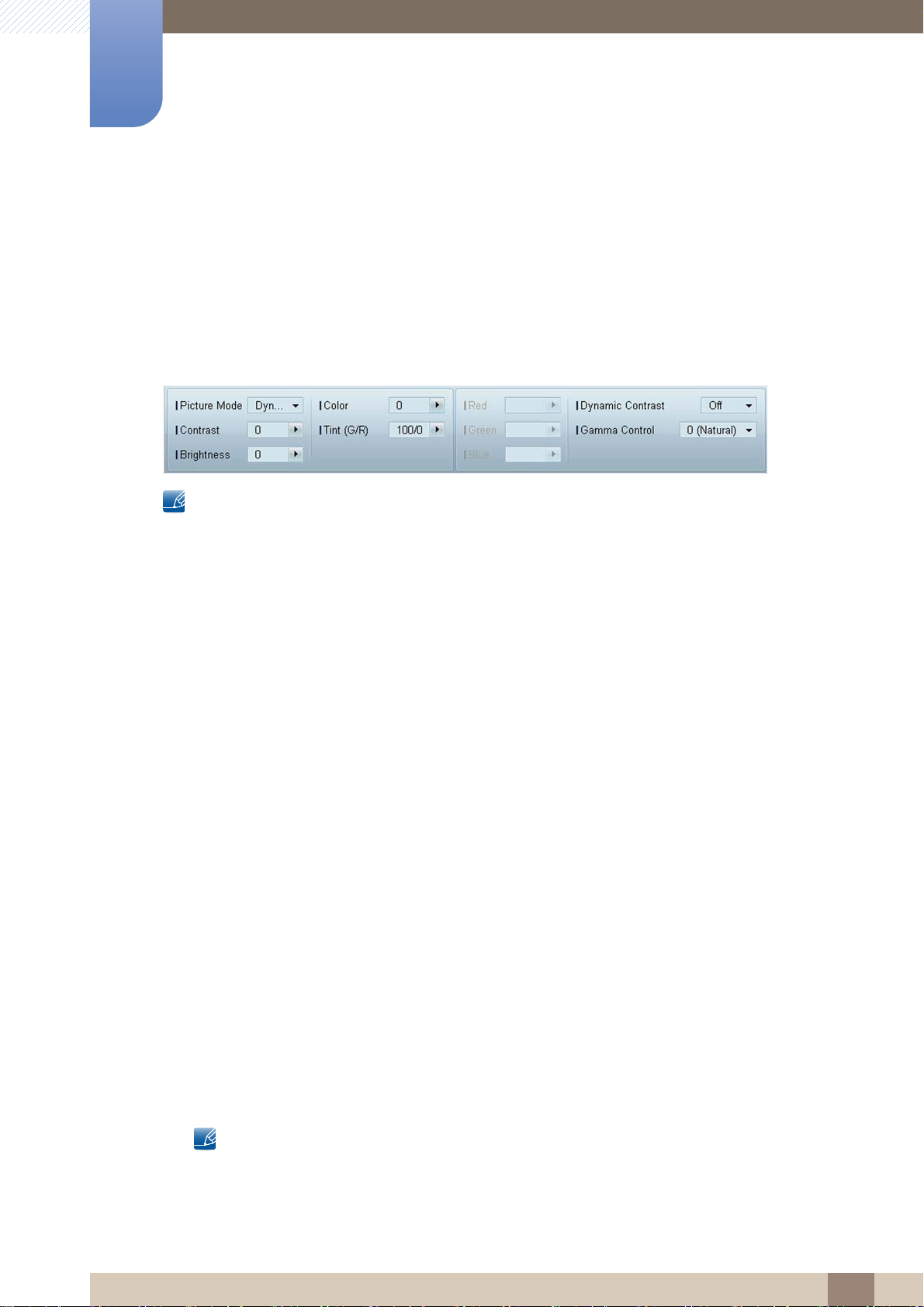

3.3.9 Screen Adjustment
The screen settings (contrast, brightness, etc.) can be adjusted.
Choose display devices from the list of sets, and select the Picture tab.
Custom
Select an item and change the corresponding screen setting.
Color and Tint are not available if the input source is PC.
Red, Green, Blue and PC Screen Adjustment are not available if the input source is Video.
Color, Tint, Color Tone, Color Temp, Red, Green, Blue and PC Screen Adjustment are not
available if both PC Source and Video Source are selected.
Picture Mode
Adjust the picture mode for the selected display device.
Contrast
Adjust the contrast for the selected display device.
Brightness
Adjust the brightness for the selected display device.
Color
Adjust the colors for the selected display device.
Tint (G/R)
Adjust the tint for the selected display device.
Color Tone
Adjust the background color tone for the selected display device.
Color Temp
Adjust the color temperature for the selected display device.
This option is enabled if Color Tone is set to Off.
Red
Customize the intensity of red color for the selected display device.
3 Using MDC
84
3
Using MDC
Green
Customize the intensity of green color for the selected display device.
Blue
Customize the intensity of blue color for the selected display device.

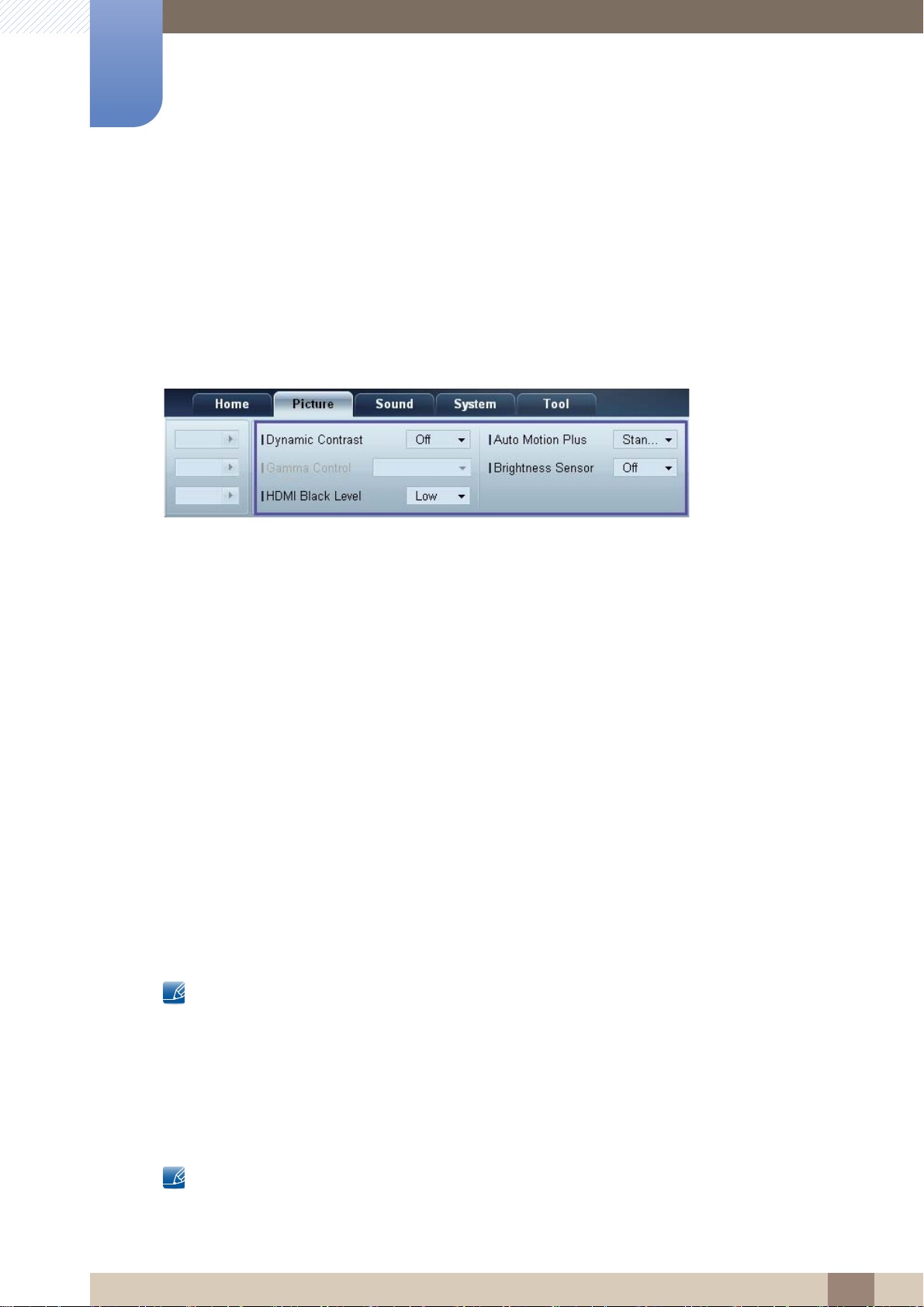

Options
Dynamic Contrast
Adjust the Dynamic Contrast for the selected display device.
Gamma Control
Change the gamma value for the selected display.
Auto Motion Plus
This option is used to view dynamic images.
Off: Disable the Auto Motion Plus function.
Clear: Set the level of Auto Motion Plus to clear. This mode is suitable to display vivid images.
Standard: Set the level of Auto Motion Plus to standard.
Smooth: Set the level of Auto Motion Plus to smooth. This mode is suitable to display smooth
images.
Custom: Customize the level of screen burn-in or flickering.
Demo: This function demonstrates the technology of Auto Motion Plus. The result when the mode
is changed can be previewed on the left side of the window.
Auto Motion Plus may not be available depending on the product.
Brightness Sensor
Enable or disable the Brightness Sensor for the selected display device.
The Brightness Sensor detects the ambient light intensity and automatically adjusts the screen
brightness.
Brightness Sensor may not be available depending on the product.
3 Using MDC
85
3
Using MDC
HDMI Black Level
Adjust the HDMI Black Level for the selected display device.

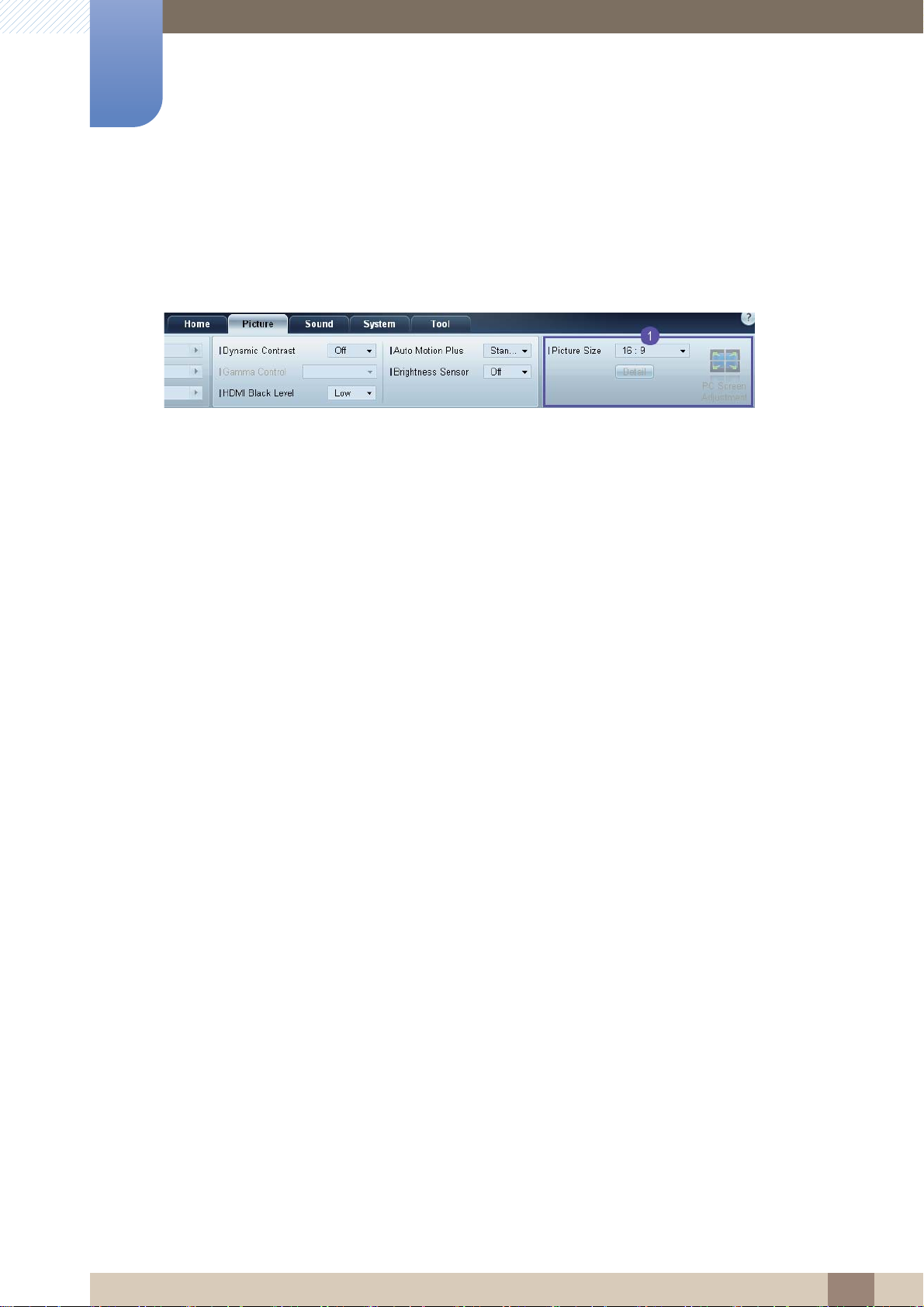

Size
Picture Size
Adjust the screen size for the selected display device.
The Detail item will be disabled if Picture Size is set to a mode that does not support detailed
configuration.
The -/+ buttons can be used to adjust Zoom.
The screen can be relocated using the up/down/left/right buttons.
Detail
You can view details of the selected screen size.
PC Screen Adjustment
Frequency adjustment or fine-tuning is available by using the -/+ buttons in Coarse or Fine.
To relocate the screen, click one of the four images below Position.
To automatically adjust the frequency, fine-tune or relocate the screen, click Auto Adjustment.
3 Using MDC
86
3
Using MDC
3.3.10 Sound Adjustment
You can change the sound settings.
Choose display devices from the list of sets, and select the Sound tab.
The Bass or Treble item will be disabled if the item is not supported by the selected set.
Bass
Adjust the bass for the selected display.
Treble
Adjust the treble for the selected display.
Balance(L/R)
Adjust the volume of the left and right speakers of the selected display device.
SRS TS XT
Enable or disable the SRS TS XT effect for the selected display device.
3 Using MDC
87
3
Full Natural
Using MDC
3.3.11 System Setup
Choose display devices from the list of sets, and select the System tab.
Video Wall
The Video Wall function can be used to display part of a whole picture or repeat the same picture on
each of connected multiple display devices.
Video Wall is enabled only when devices are in the group.
Video Wall
Enable or disable Video Wall.
Format
Select the format to display the split screen.
3 Using MDC
88
3
Using MDC
H
Select the number of horizontal display devices.
A maximum of 15 displays can be arranged in a row.
A maximum of 6 can be assigned to V if 15 is assigned to H.
V
Select the number of vertical display devices.
A maximum of 15 displays can be arranged in a row.
A maximum of 6 can be assigned to V if 15 is assigned to H.
Screen Position
View the layout of displays (configured by the screen divider) or change the layout as required.
Screen Position and Preview are enabled when Video Wall is set to on.
Note that if multiple sets are selected, Preview is enabled only if the settings for H and V match the
layout of the selected sets.
To change the Position, select a set and drag it to a new position.
The range of screen divider settings may differ depending on the model.
3 Using MDC
89
3
Using MDC
PIP
Basic information required to adjust PIP will appear in the menu screen.
PIP will be disabled when Video Wall is ON.
Note that Picture Size is disabled when PIP is ON.
PIP Size
View the PIP Size of the current display.
PIP Source
Select a PIP input source.
Sound Select
Select and enable the sound from either the primary screen or secondary screen.
Channel
The channel can be changed if PIP Source is TV.
3 Using MDC
90
3
Using MDC
General
User Auto Color
Automatically adjust the screen colors.
Available only in PC mode.
Auto Power
Set the product to automatically power on.
Standby Control
Set the standby mode to activate if an input source is not detected.
Fan & Temperature
Configure the settings required to detect the fan speed and internal temperature for the product's
protection.
Fan Control
Select a method to configure the fan speed.
Fan Speed
Configure the fan speed.
Temperature
Detect the internal temperature by specifying the range of temperature.
3 Using MDC
91
3
Using MDC
Security
Safety Lock
Lock the on-screen menus.
To unlock the menus, set Safety Lock to Off.
Button Lock
Lock the buttons on the display device.
To unlock the buttons, set Button Lock to Off.
OSD Display
Source OSD
Select whether to display a message when the Source is changed.
Not Optimum Mode OSD
Select whether to display a message when a non-compatible mode is selected.
No Signal OSD
Select whether to display a message when there is no input signal.
MDC OSD
Select whether to display a message when settings are changed by the MDC.
3 Using MDC
92
3
Using MDC
Time
Clock Set
Change the current time on the selected display device according to the time set on a PC.
If the time is not set on the display device, null values will be displayed.
Timer
On Time: Set the time to power on the selected display device.
Off Time: Set the time to power off the selected display device.
Volume: Specify the volume of the display device when it is powered on by On Time.
Source: Specify the input source of the display device when it is powered on by On Time.
Holiday: The Holiday Management settings can be applied to the Timer.
Repeat: Specify the period for which you want to repeat the selected Timer.
3 Using MDC
93
3
Using MDC
Once: Activate the timer only one time.
EveryDay: Activate the timer every day.
Mon~Fri: Activate the timer from Monday through Friday.
Mon~Sat: Activate the timer from Monday through Saturday.
Sat~Sun: Activate the timer on Saturdays and Sundays.
Manual: Customize days of the week.
The checkboxes to select days of the week below Repeat are enabled only if Manual is selected.
Holiday Management
Holiday Management allows you to prevent devices that are set to be powered on by the Timer from
turning on at a specified date.
The Holiday Management function can be enabled or disabled in the Timer settings menu.
Add: You can specify holidays:
Click the Add button in the Holiday Management window.
Delete: Delete holidays. check the corresponding checkboxes and click this button.
List of holidays: View a list of holidays you have added.
3 Using MDC
94
3
Using MDC
Screen Burn Protection
Pixel Shift
Move the screen slightly at specified time intervals to prevent screen burn-in.
Screen Saver
This function prevents screen burn-in when the screen of the selected display device is left idle for an
extended period of time.
Interval: Set the interval to activate the Screen Saver.
Mode: The Time setting can vary for each Mode.
3 Using MDC
95
3
Using MDC

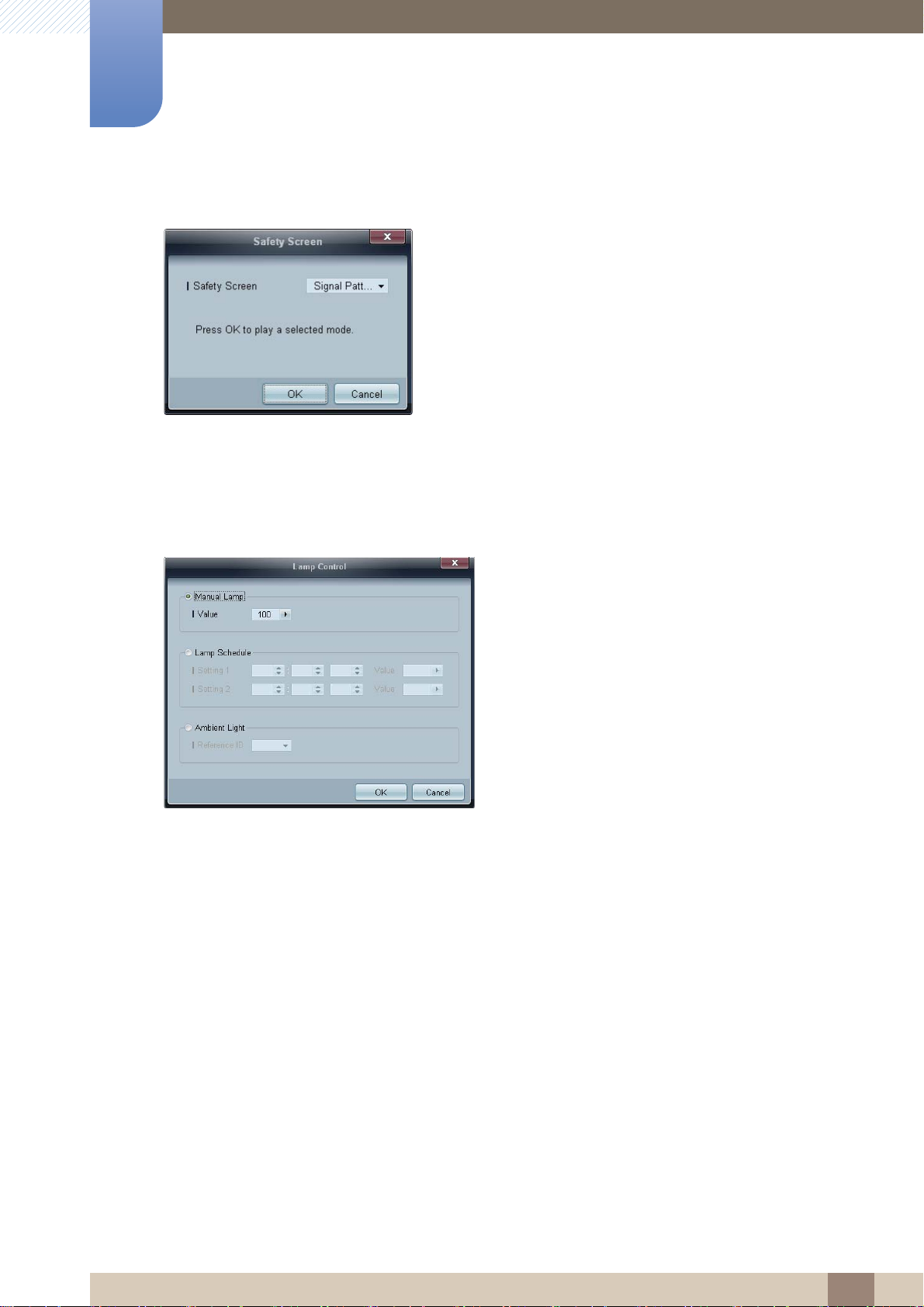

Safety Screen
The Safety Screen function can be used to prevent screen burn-in when a stationary image displays on
the screen of a display device for an extended period of time.
Lamp Control
Lamp Control is used to adjust the backlight to reduce power consumption.
Automatically adjust the backlight of the selected display device at a specified time.
If Manual Lamp Control is adjusted, Auto Lamp Control will automatically switch to Off.
Manually adjust the backlight for the selected display.
If Auto Lamp Control is adjusted, Manual Lamp Control will automatically switch to Off.
Ambient Light: Ambient Light detects ambient light intensity and automatically adjusts the screen
brightness of all the LFDs in the same serial chain.
3 Using MDC
96
3
1 2 3 4
1
2
Using MDC
3.3.12 Tool Settings
Security
Panel Control
Turn on or off the screen of a display device.
Remote Control
Enable or disable the remote control.
Reset
Reset Picture
Reset the screen settings.
Reset Sound
Reset the sound settings.
Reset System
Reset the system settings.
Reset All
Reset the screen, sound and system settings at the same time.
(Menu Language, Security, Time, Multi Control and Anynet+ will not be initialized.)
3 Using MDC
97
3
3
Using MDC
Edit Column
Options
Language: Select a language to use in the MDC program. After selecting a language, restart the MDC
program to use the selected language.
Command Retry Count: Specify the number of retry attempts when a command fails.
Error Status Interval: Specify the time interval to query the display device in order to check if "Fault
Device" has occurred.
Mail Alert Interval: Specify the time interval for email notifications in the event when "Fault Device"
occurs.
3 Using MDC
98
3
4
Using MDC
Edit Column
Select the items you want to display in the list of sets.
Information
View the program information.
3 Using MDC
99
3
Using MDC
3.3.13 Other Functions
Resizing a Window
Place the mouse pointer on a corner of the program window. An arrow will appear. Move the arrow to
customize the size of the program window.
3 Using MDC
