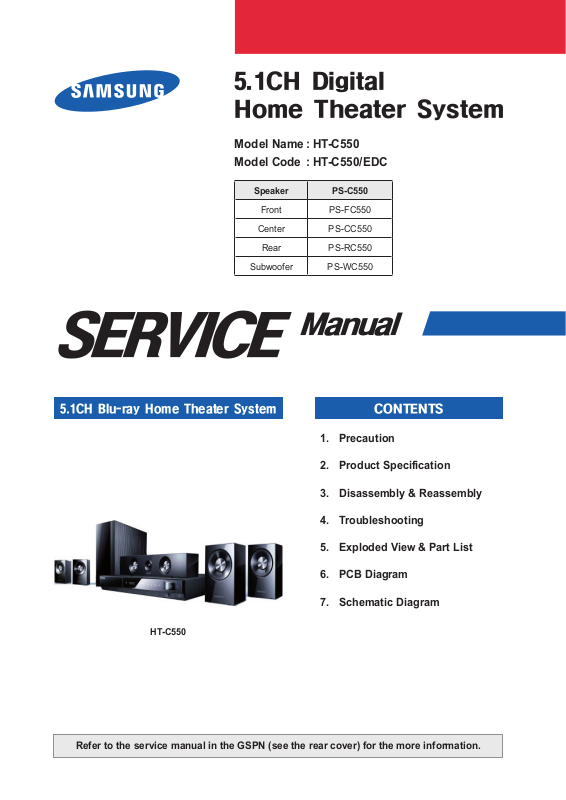

Samsung DC_ET-SB-EX-SI_1309775775 Datasheet

5.1CH Digital Home Theater System

Model Name : HT-C550 Model Code : HT-C550/EDC

Speaker PS-C550

Front PS-FC550

Center PS-CC550

Rear PS-RC550

Subwoofer PS-WC550

SERVICE

Manual

5.1CH Blu-ray Home Theater System

HT-C550

CONTENTS

1. Precaution

2. Product Specification

3. Disassembly & Reassembly

4. Troubleshooting

5. Exploded View & Part List

6. PCB Diagram

7. Schematic Diagram

Refer to the service manual in the GSPN (see the rear cover) for the more information.

GSPN (Global Service Partner Network)

Area Web Site

North America service.samsungportal.com

Latin America latin.samsungportal.com

CIS cis.samsungportal.com

Europe europe.samsungportal.com

China china.samsungportal.com

Asia asia.samsungportal.com

Mideast & Africa mea.samsungportal.com

This Service Manual is a property of Samsung Electronics

Co.,Ltd. Any unauthorized use of Manual can be punished

under applicable International and/or domestic law.

Printed in Korea

Apr. 2010

Contents

1. Precaution

1-1 Safety Precautions ...........................................................................................1-1

1-2 Servicing Precautions ......................................................................................

1-3 Precautions for Electrostatically Sensitive Devices (ESDs) .............................

2. Product Specification

2-1 Product Feature ...............................................................................................2-1

2-2 Specifications ...................................................................................................

2-3 Specifications Analysis .....................................................................................

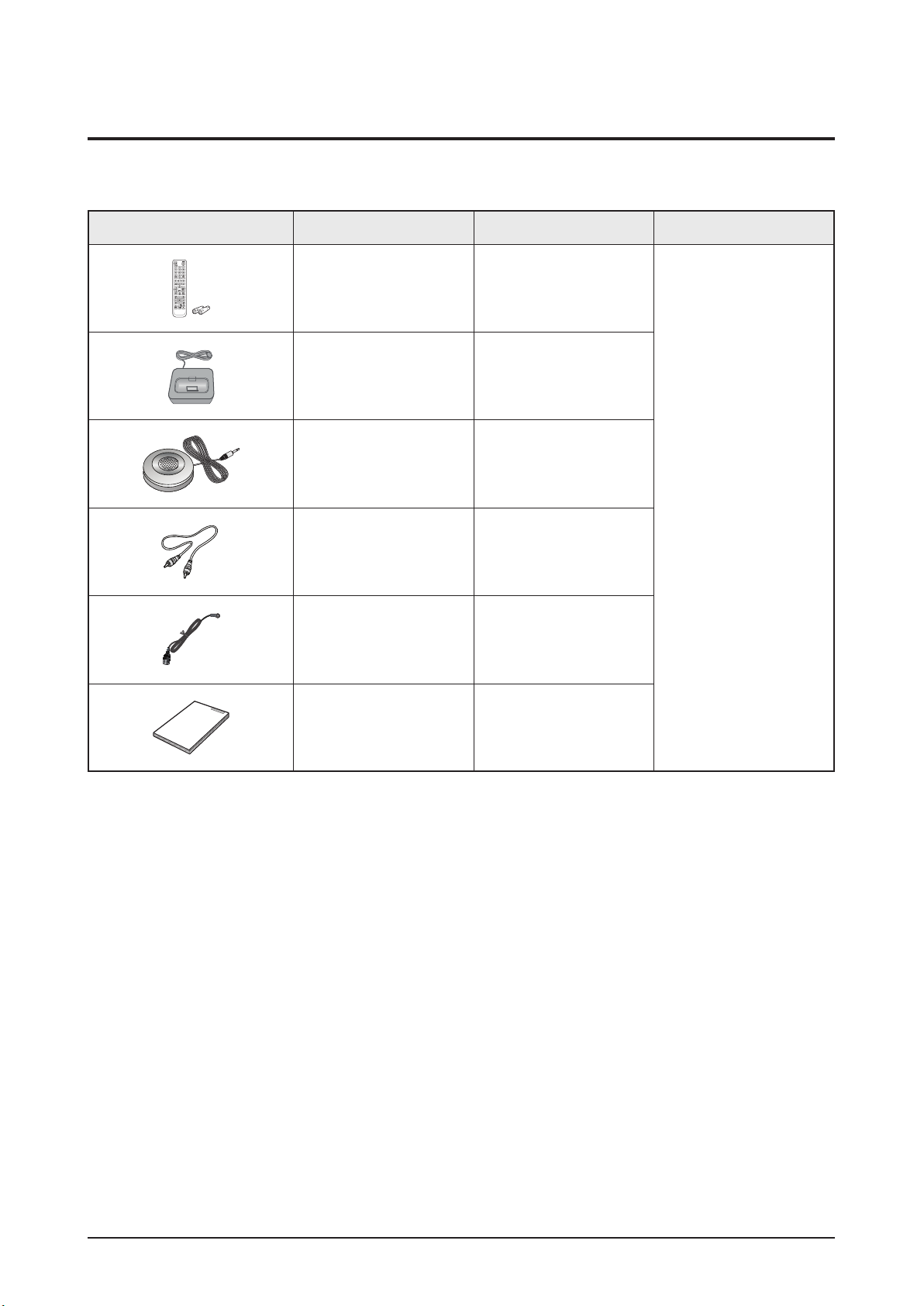

2-4 Accessories ......................................................................................................

3. Disassembly & Reassembly

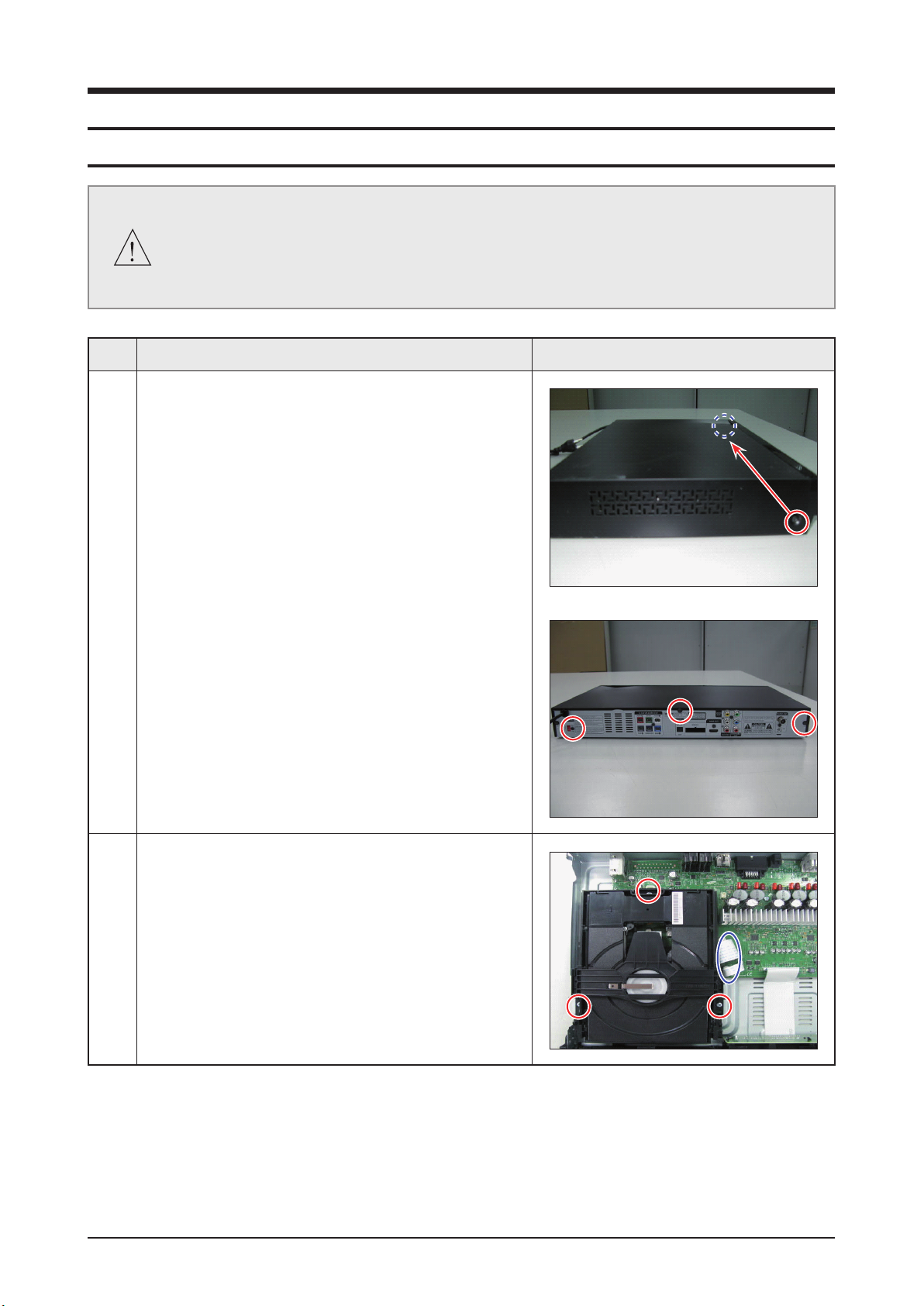

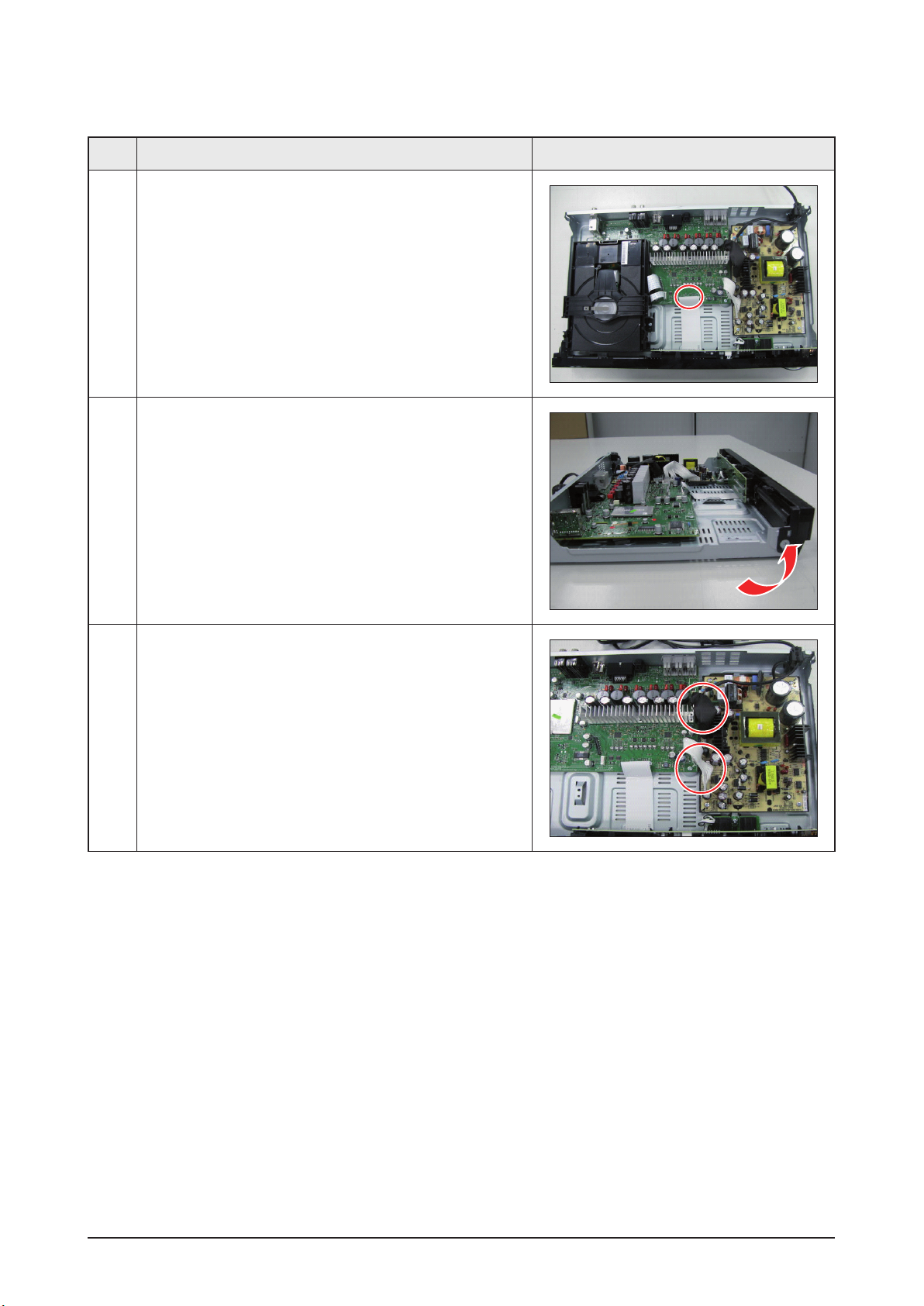

3-1 Overall Disassembly & Reassembly ................................................................3-1

1-3

1-4

2-2

2-4

2-7

4. Troubleshooting

4-1 Checkpoints by Error Mode.............................................................................. 4-1

4-2 Measures to be taken when the Protection Circuit operates ...........................

4-3 MICOM, MPEG Initialization & Update ............................................................

4-4 Buyer-Region Code Setting Method ................................................................

5. Exploded View & Part List

5-1 Product Exploded View ....................................................................................5-1

5-2 Speaker System ...............................................................................................

5-3 Electrical Part List ............................................................................................

6. PCB Diagram

6-1 Wiring Diagram ................................................................................................6-1

6-2 FRONT PCB Top ..............................................................................................

6-3 FRONT PCB Bottom ........................................................................................

6-4 KEY PCB Top ...................................................................................................

6-5 KEY PCB Bottom .............................................................................................

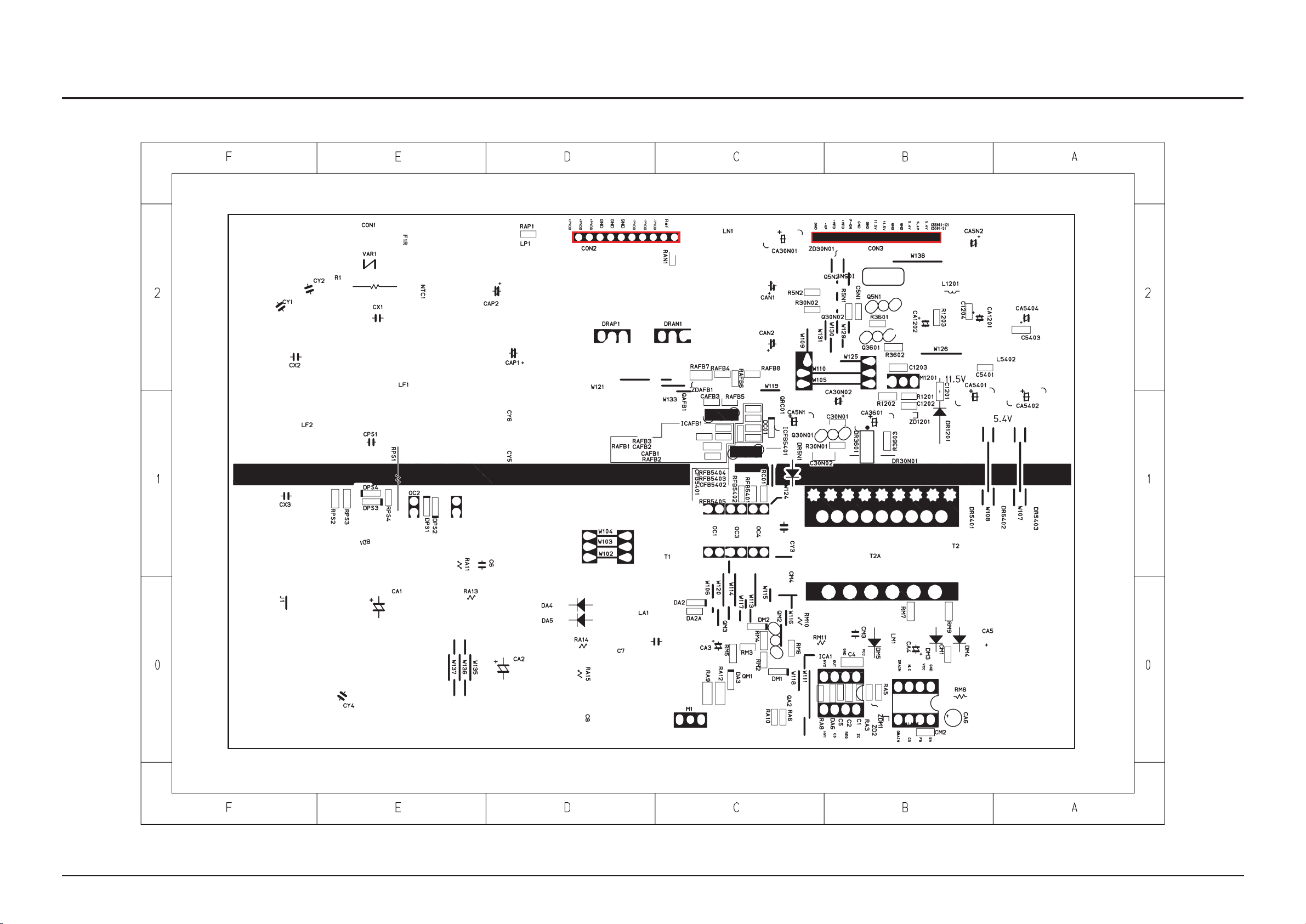

6-6 MAIN PCB

6-7 MAIN PCB Bottom ...........................................................................................

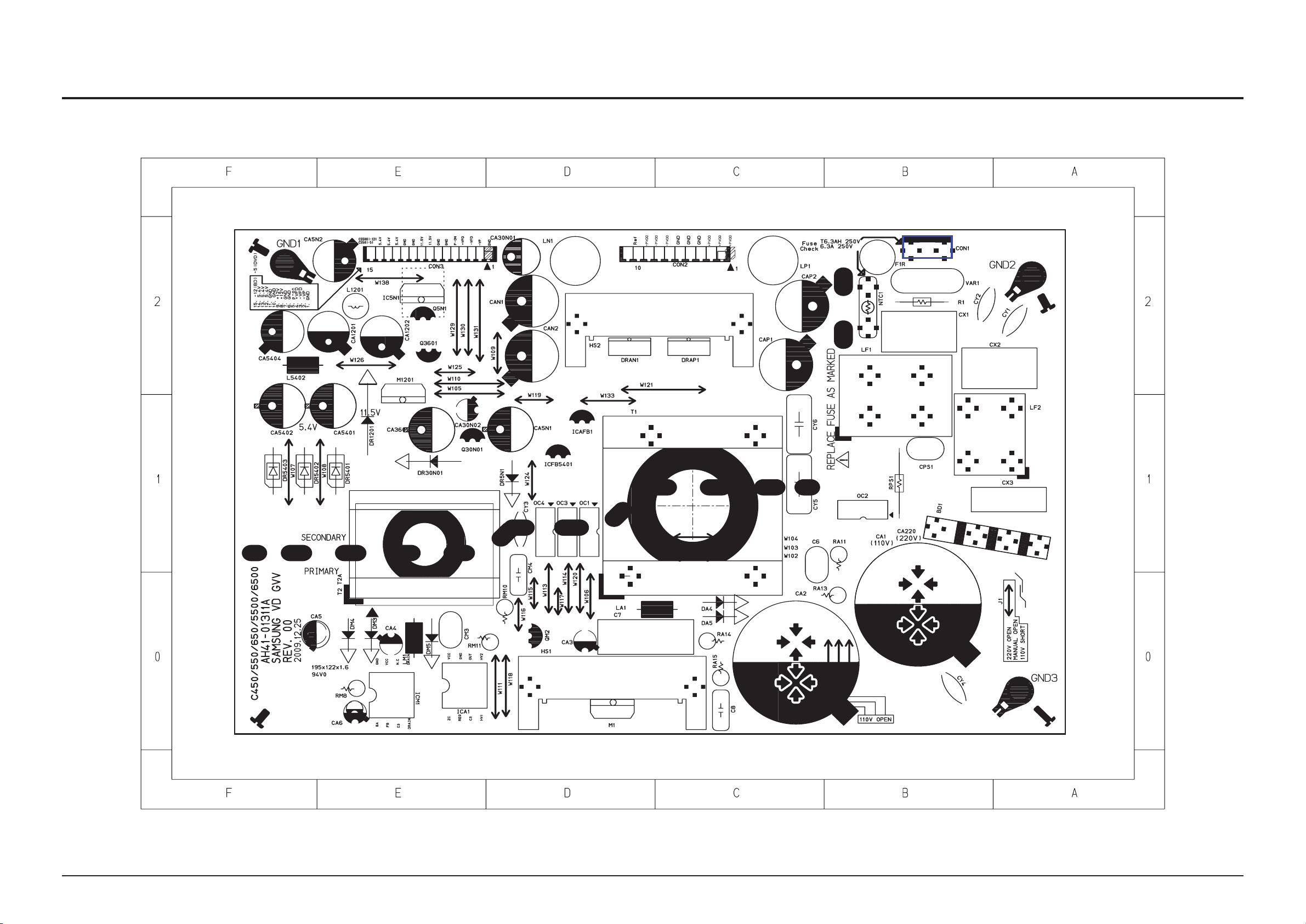

6-8 SMPS PCB Top ................................................................................................

6-9 SMPS PCB Bottom ..........................................................................................

Top ................................................................................................. 6-8

4-17

4-18

4-21

5-3

5-4

6-2

6-4

6-5

6-6

6-11

6-12

6-13

Contents

7. Schematic Diagram

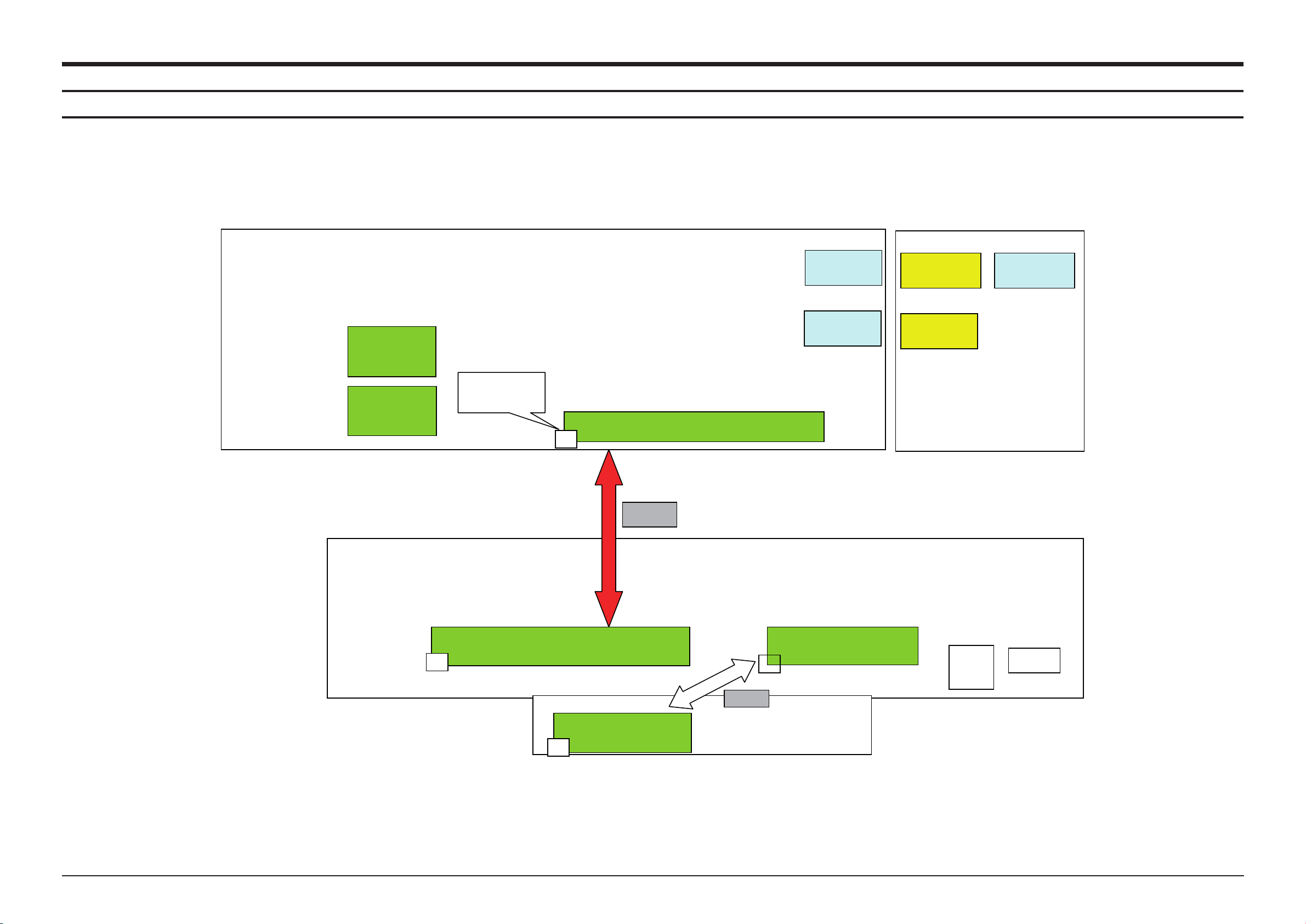

7-1 Overall Block Diagram .....................................................................................7-1

7-2 FRONT .............................................................................................................

7-3 TOUCH KEY ....................................................................................................

7-4 MAIN ................................................................................................................

7-5 MPEG

7-6 MICOM .............................................................................................................

7-7 AV I/O ...............................................................................................................

7-8 AMP .................................................................................................................

7-9 Audio AMP-1 ....................................................................................................

7-10 Audio AMP-2 ....................................................................................................

7-11 Audio AMP-3 ....................................................................................................

7-12 SMPS ...............................................................................................................

7-2

7-3

7-4

...............................................................................................................7-5

7-6

7-7

7-8

7-9

7-10

7-11

7-12

Precaution

1. Precaution

Follow these safety instructions while servicing the ESD to prevent damage and to protect against potential

hazards such as electrical shock and X-rays.

1-1 Safety Precautions

1. When reinstalling the chassis and its assemblies, be sure to restore all of the protective devices, including the

control knobs and the compartment covers.

2. Make sure that there are no cabinet openings through which people (particularly children) can make contact

with dangerous internal components.

3. Design Alteration Warning:

Never alter or add to the mechanical or electrical design of the unit.

Example: Do not add auxiliary audio or video connectors. Such alterations might create a safety hazard.

Also, any design changes or additions will void the manufacturer’s warranty.

4. Leakage Current Hot Check (Fig. 1-1):

Warning: Do not use an isolation transformer during this

test. Use a leakage-current tester or a metering system

that complies with American National Standards Institute

(ANSI C101.1, Leakage Current for Appliances), and

Underwriters Laboratories (UL Publication UL1410,

59.7).

With the unit completely reassembled, plug the AC cord

directly into a 120V AC outlet. With the unit’s power

switched from the ON to the OFF position, measure the

current between a known ground and all exposed metal

DEVICE UNDER

TEST

TEST ALL

EXPOSED METAL

SURFACES

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED

(USING AC

ADAPTER PLUG

AS REQUIRED)

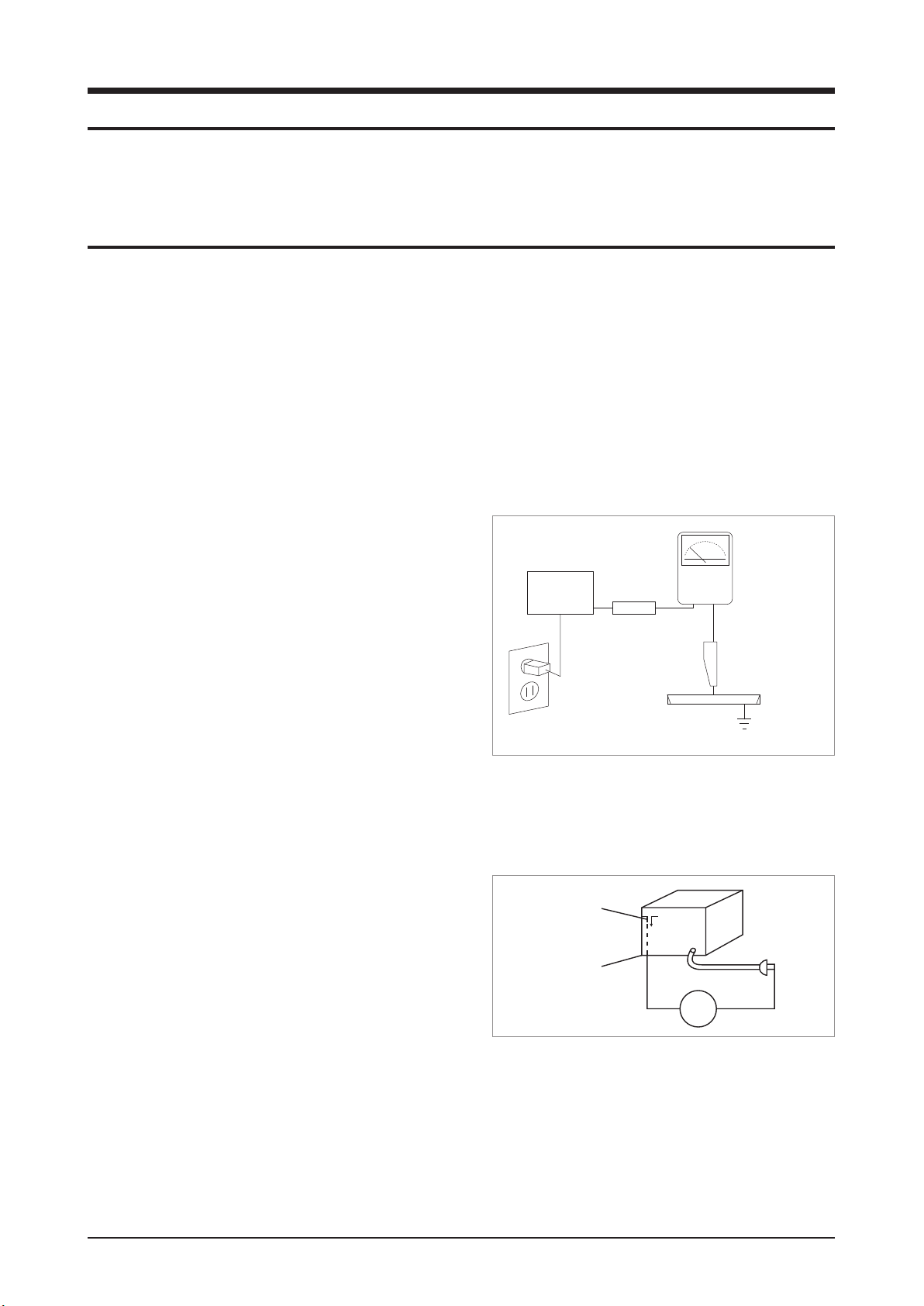

<Fig. 1-1 AC Leakage Test>

LEAKAGE

CURRENT

TESTER

(READING SHOULD NOT BE ABOVE 0.5mA)

parts.

Known Grounds - Earth

Known Metal parts - screwheads, metal cabinets, etc.

EARTH

GROUND

5. Insulation Resistance Cold Check:

(1) With the unit’s AC plug disconnected from the AC

source, connect an electrical jumper across the two AC

Antenna Terminal

prongs. (2) Set the power switch to ON. (3) Measure

the resistance between the shorted AC plug and any

Exposed

Metal Part

exposed metallic parts.

Example: screwheads, metal cabinets, antenna port

If any of the exposed metallic parts has a return path

<Fig. 1-2 Insulation Resistance Test>

ohm

Ohmmeter

to the chassis, the measured resistance should be

between 1 and 5.2 megohms. If there is no return path,

the measured resistance should be “infinite.” If the resistance is outside these limits, a shock hazard might

exist. See Fig. 1-2

Samsung Electronics 1-1

1-2 Samsung Electronics

Precaution

6. Components, parts and wiring that appear to have overheated or that are otherwise damaged should be

replaced with parts that meet the original specifications. Always determine the cause of damage or overheating,

and correct any potential hazards

7. Observe the original lead dress, especially near the following areas: Antenna wiring, sharp edges, and

especially the AC and high voltage power supplies. Always inspect for pinched, out-of-place, or frayed wiring.

Do not change the spacing between components and the printed circuit board. Check the AC power cord for

damage. Make sure that no wires or components touch thermally hot parts.

8. Product Safety Notice:

Some electrical and mechanical parts have special safety-related characteristics which might not be obvious

from visual inspection. These safety features and the protection they give might be lost if the replacement

component differs from the original--even if the replacement is rated for higher voltage, wattage, etc.

9. Components that are critical for safety are indicated in the circuit diagram by shading,

or . Use

replacement components that have the same ratings, especially for flame resistance and dielectric strength

specifications. A replacement part that does not have the same safety characteristics as the original might

create shock, fire or other hazards.

Precaution

1-2 Servicing Precautions

1. Servicing precautions are printed on the cabinet. Follow them.

2. Always unplug the unit’s AC power cord from the AC power source before attempting to: (a) Remove or reinstall

any component or assembly, (b) Disconnect an electrical plug or connector, (c) Connect a test component in

parallel with an electrolytic capacitor.

3. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes

used. The internal wiring may be clamped to prevent contact with thermally hot components. Reinstall all such

elements to their original position.

4. After servicing, always check that the screws, components and wiring have been correctly reinstalled.

Make sure that the portion around the serviced part has not been damaged.

5. Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal

panels, input terminals and earphone jacks).

6. Insulation Checking Procedure: Disconnect the power cord from the AC source. Connect an insulation

resistance meter (500V) to the blades of the AC plug.

The insulation resistance between each blade of the AC plug and accessible conductive parts (see above)

should be greater than 1 megohm.

7. Never defeat any of the B+ voltage interlocks. Do not apply AC power to the unit (or any of its assemblies)

unless all solid-state heat sinks are correctly installed.

8. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive

lead; always remove the instrument’s ground lead last.

First read the “Safety Precautions” section of this manual. If some unforeseen circumstance

creates a conflict between the servicing and safety precautions, always follow the safety

precautions.

Samsung Electronics 1-3

Precaution

1-3 Precautions for Electrostatically Sensitive Devices (ESDs)

Some semiconductor (“solid state”) devices are easily damaged by static electricity.

Such components are called Electrostatically Sensitive Devices (ESDs).

Examples include integrated circuits and some field-effect transistors. The following techniques will reduce the

occurrence of component damage caused by static electricity:

1. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from

your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. (Be sure to

remove it prior to applying power--this is an electric shock precaution.)

2. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent

accumulation of electrostatic charge.

3. Do not use freon-propelled chemicals. These can generate electrical charges that damage ESDs.

4. Use only a grounded-tip soldering iron when soldering or unsoldering ESDs.

5. Use only an anti-static solder removal device. Many solder removal devices are not rated as “anti-static” (these

can accumulate sufficient electrical charge to damage ESDs).

6. Do not remove a replacement ESD from its protective package until you are ready to install it.

Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam,

aluminum foil or other conductive materials.

7. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective

material to the chassis or circuit assembly into which the device will be installed.

8. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes

together, or lifting a foot from a carpeted floor can generate enough static electricity to damage an ESD.

1-4 Samsung Electronics

Product Specification

2. Product Specification

2-1 Product Feature

 USB Host

- Instant Entertainment through USB

- Directly rip the music in our CD’s to your USB external device

- MTP type file is also ready for play

 Playability

- Never fail, Play without trouble. Just press play and enjoy

- Rolling actuator technology adjusts the lens angle to the curved disc surface

- Defect Disc Recovery Solution can deliver a clear picture despite of scratches or other defects on the disc.

 ASC

- Using ASC, simply make sweet spot anywhere in your room

 Touch Sensor

- Emotional values by using the touch sensor button

 Portable Connection

- Easy Connectivity

- Walkman, ipod, MD etc. DRM Free

- Connect with any kinds of Portable Audio device

- Stereo Input in Front

- Made for iPod

- Easy connection w/ ipod

- Improvement : video & iPhone support

Samsung Electronics 2-1

Product Specification

2-2 Specifications

2-2-1

Specications

 Basic Specification

Power Requirements

Power Consumption

GENERAL

FM Tuner

DISC

Weight 5.5 Ibs

Dimensions 16.9 (W) x 2.3 (H) x 10.8 (D) inches

Operating Temperature Range

Operating Humidity Range

Signal/noise ratio

Usable sensitivity

Total harmonic distortion

DVD (Digital Versatile Disc)

CD: 12 cm

(COMPACT DISC)

AC 120V, 60Hz

75 W

+41°F to +95°F

10% to 75%

70 dB

10 dB

0.5 %

Reading Speed: 3.49 ~ 4.06 m/sec.

Approx. Play Time (Single Sided, Single Layer Disc):

135 min.

Reading Speed: 4.8 ~ 5.6 m/sec.

Maximum Play Time: 74 min.

VIDEO

OUTPUT

VIDEO/

AUDIO

CD: 8 cm

(COMPACT DISC)

Composite Video

Component Video

HDMI 1080p, 1080i, 720p, 480p

Reading Speed: 4.8 ~ 5.6 m/sec.

Maximum Play Time: 20 min.

576i / 480i

1 channel: 1.0 Vp-p (75Ω load)

576i / 480i

Y: 1.0 Vp-p (75Ω load)

Pr: 0.70 Vp-p (75Ω load)

Pb: 0.70 Vp-p (75Ω load)

2-2 Samsung Electronics

Product Specification

Front speaker output

Center speaker output

Rear speaker output

Subwoofer output

AMPLIFIER

Frequency range

S/N Ratio

Channel separation

Input sensitivity

 Speaker Specification

Speaker system

Impedance

Frequency range

Output sound pressure level

166W x 2 (3Ω)

166W (3Ω)

166W x 2 (3Ω)

170W (3Ω)

20Hz ~ 20kHz

70dB

60dB

(AUX) 400mV

5.1ch Speaker System

Front/Rear Center Subwoofer

3Ω 3Ω 3Ω

140Hz ~ 20KHz 140Hz ~ 20KHz 40Hz ~ 160Hz

86dB/W/M 86dB/W/M 88dB/W/M

SPEAKER

Rated input

Maximum input

Dimensions (W x H x D)

Weights

167W 167W 167W

334W 334W 334W

Front / Rear : 3.54 x 5.57 x 2.7 inches

Center: 14.17 x 2.93 x 2.7 inches

Subwoofer: 6.1 x 13.78 x 11.22 inches

Front / Surround: 1.28 Ibs

Center: 1.26 Ibs

Subwoofer: 8.38 Ibs

Samsung Electronics 2-3

Product Specification

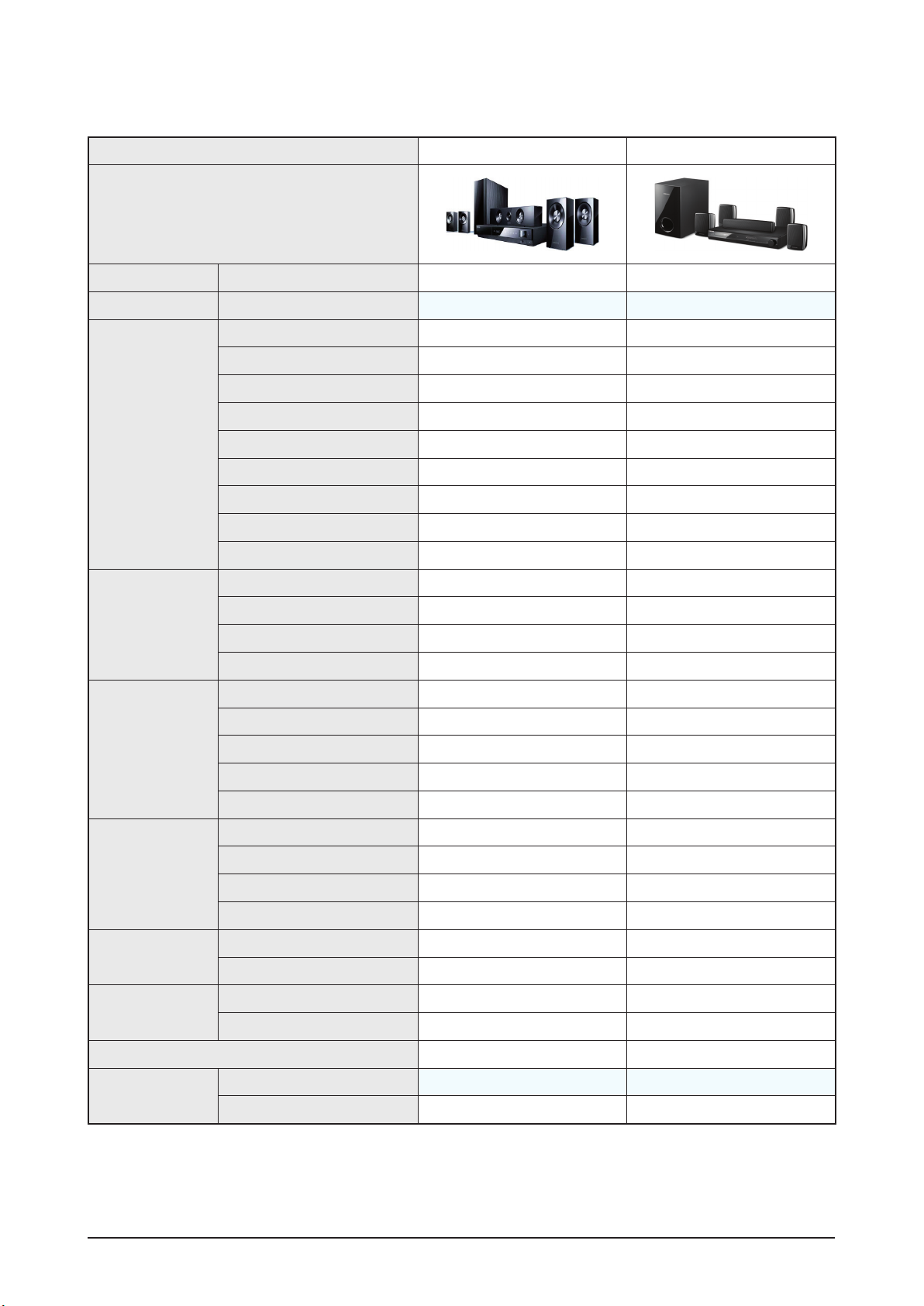

2-3 Specifications Analysis

Output

Power

General

Model Name


RMS (10% THD), REF: 1ch

Output Power (ch)

HDMI CEC

Calliope

Deck

DVD Disc Capacity

Front Display

Sleep

Dimmer

HT-C550 HT-Z320

1000W 1000W

Front: 166W x 2 (3Ω)

Center: 166W (3Ω)

Rear: 166W x 2 (3Ω)

Subwoofer: 170W (3Ω)

O O

X X

1 DISC 1 DISC

1 DVD 1 DVD

1Color-VFD 1Color-VFD

O O

Front: 166W x 2 (3Ω)

Center: 166W (3Ω)

Rear: 166W x 2 (3Ω)

Subwoofer: 170W (3Ω)

Compatible

A/V

CD/CD-R/CD-RW

VCD/SVCD

DVD/DVD-R/DVD-RW

MP3

JPEG Viewer

DVD-Audio

DVD-OK

WMA

DIVX

SACD

WIRELESS

USB HOST

Anynet

Progressive Scan (NT/PAL)

O O

X X

O O

X X

O O

Divx3.11~Divx5.1, XviD Divx3.11~Divx5.1, XviDi

V1/V2/V3/V7 V1/V2/V3/V7

X X

O O

Anynet+ Anynet+

O (only NTSC) O (only NTSC)

Logo copy

X X

DVD (Video)

NTSC ↔ PAL

PAL M (Brazil)

O O

 : Feature Included, X: Not Included

2-4 Samsung Electronics

Product Specification

Model Name HT-C550 HT-Z320


Sound Mode EQ/DSP 3Mode / 5Mode 3Mode / 5Mode

Sound effect

Audio Decoding

Video Inputs

Video Outputs

MP3ENHANCE/P.BASS O X

Dolby Digital

Dolby ProLogic-II

Dolby ProLogic-IIX

DTS O O

Dolby Digital EX

DTS ES Discrete 6.1

DTS 96/24

THX X X

DTS Neo 6

Component X X

Composite X X

S-Video X X

HDMI In

Component O O

Composite O O

HDMI Out

O O

X X

O O

Audio in/out

Optical jack

Coaxial jack

Headphone/

MIC Jack

S-Video X X

SCART Out

In X X

Line In

Multi ch Out

Out X X

In (Digital In)

Out X X

In X X

Out X X

i-Link X X

Headphone Jack (3.5Φ) X O

2 MIC Jack (6.5Φ) O (only MIC BUYER) O (only MIC BUYER)

O (only Europe) O (only Europe)

O (AUX) O (AUX)

X X

O (*1) O (*1)

 : Feature Included, X: Not Included

Samsung Electronics 2-5

Product Specification

Model Name HT-C550 HT-Z320


FM O O

Tuner

Remote Key

Speaker

Net Weight

RDS O (only Europe) O (only Europe)

AM O (Brazil only) X

Preset Memory

Universal (MBR)

Key

Dual Voltage O (Brazil only) X

Type (Sat/Tallboy)

Stand O O

Impedance (Sat/Woofer)

Active (Powered) S/W

Set 5.5 Ibs 7.7 Ibs

15 15

O O

49 Key 60 Key

Sat / Tall Sat / Tall

3Ω/ 3Ω 3Ω/ 3Ω

X X

 : Feature Included, X: Not Included

2-6 Samsung Electronics

2-4 Accessories

2-4-1 Supplied Accessories

Accessories Item Item code Remark

Product Specification

Remote Control

Battery

iPod Dock AH96-00051A

ASC Microphone AH30-00099A

Vidio Cable AH39-40001V

FM Antenna AH42-00021A

AH59-02292A

4301-001035

Local Samsung Dealer

User’s Manual AH68-02269G

Samsung Electronics 2-7

MEMO

2-8 Samsung Electronics

Disassembly & Reassembly

X

3. Disassembly & Reassembly

3-1 Overall Disassembly & Reassembly

- Be careful to follow the disassembly sequence described in the manual. Otherwise, the product

may be damaged.

- Be sure to carefully read and understand the safety instructions before performing any work as

the IC chips on the PCB are vulnerable to static electricity.

- In order to assemble reverse the order of disassembly.

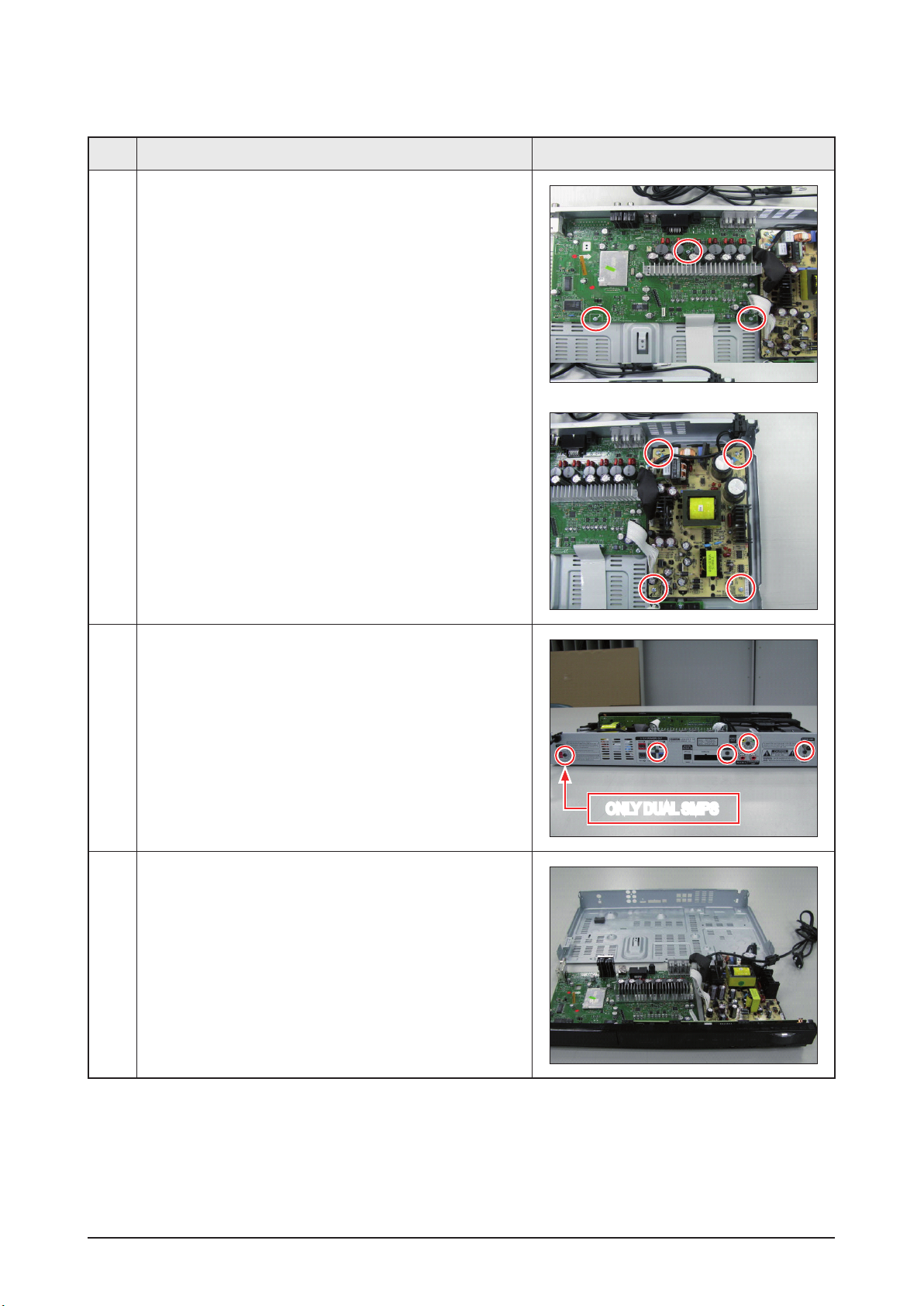

No. Description Description Photo

1 1) Side 2 points and rear 3 point screws uncrew.

2 1) Screws 3point and wire seperation.

Samsung Electronics 3-1

3-2 Samsung Electronics

Disassembly & Reassembly

No. Description Description Photo

3 1) Pull out the wire from cabinet-front and main.

4 1) Pull out the cabinet-front.

5 1) Pull out the wire between PCB.

Disassembly & Reassembly

No. Description Description Photo

6 1) Uncrew the screws on the PCB.

2) Uncrew the screws on the SMPS PCB.

7 1) Uncrew the rear screws.

8 1) Disassemble complete.

ONLY DUAL SMPS

Samsung Electronics 3-3

MEMO

3-4 Samsung Electronics

4. Troubleshooting

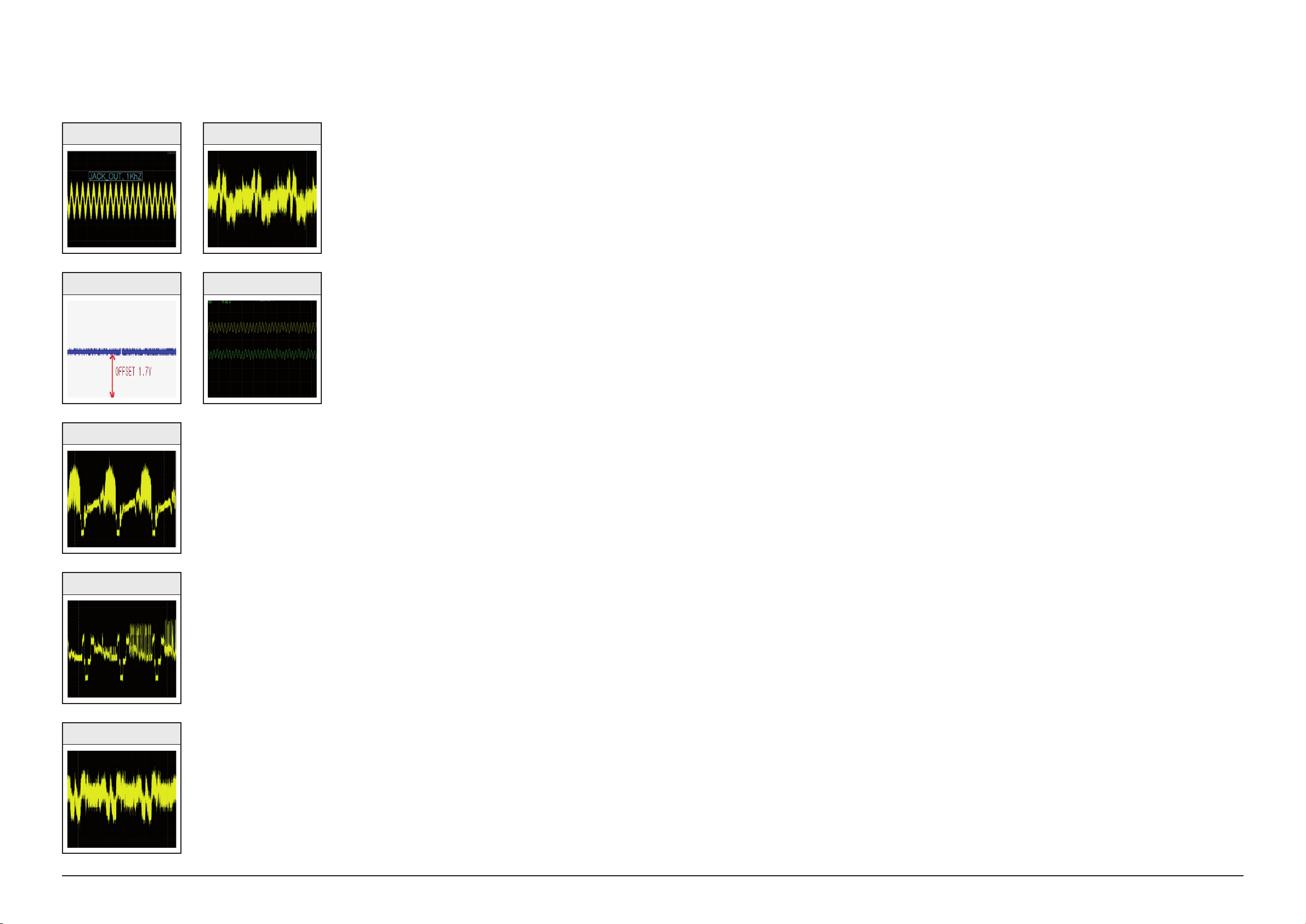

4-1 Checkpoints by Error Mode

4-1-1 Main Power

No power detected

(Stand by LED off)

Troubleshooting

FR1 is OK?

Yes

CON3 Pin 12, 13, 14 is 5.4V?

Check Main PCB

No

Change fuse

ICFB5401 Pin 1 is 2.5V

Check Main PCB

No

Change SMPS.

Samsung Electronics 4-1

Troubleshooting

4-1-2 No Sound

No Sound

Check jack Input.

Check JA5 input signals.

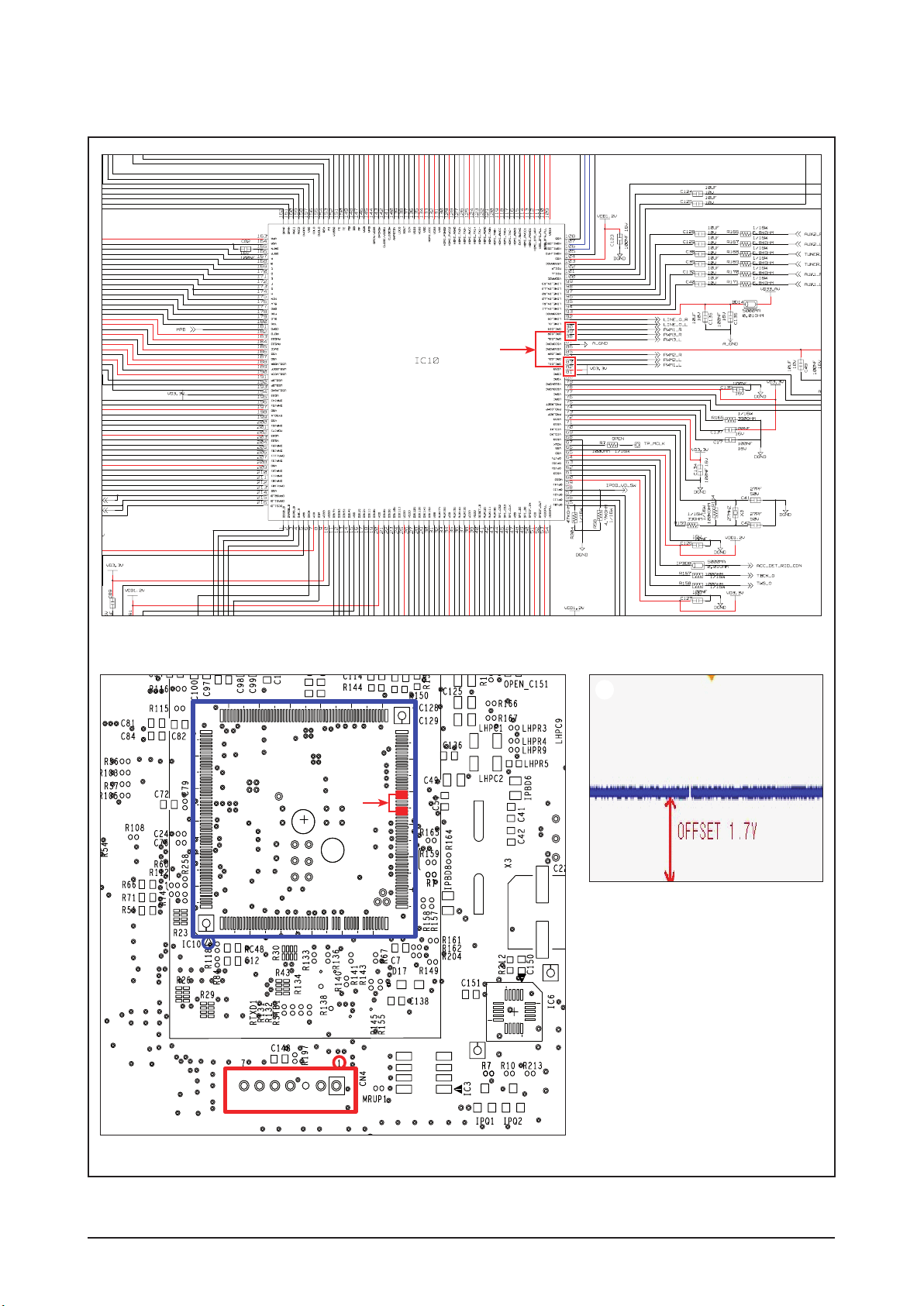

 Refer to wave pattern

image of Fig. 4-1.

Check AIC4, AIC19 input signals

(AC54, AC55, AC56,

AC1, AC2, AC3)

 Refer to wave pattern

image of Fig. 4-2 and Fig. 4-3.

Check MPEG DAC output

(1.7v offset) (pin 83, 84, 85, 88, 89, 90

of IC10 ES8398)

1

(1khz signal)

No

2

No

3

Check AMP input.

Check MPEG Ouput.

Yes

Check speakers.

(speaker change)

Replace AMP IC.

(AIC4, AIC19)

Check DAC output signal lines

between IC10 and AIC4 and

AIC19

 Refer to wave pattern

image of Fig. 4-4.

Check DAC3.3V of IC10

Check Power Lines.

(Check IC36).

No

(pin 86)

No

Check MPEG DAC

Power.

Yes

Replace IC10.

4-2 Samsung Electronics

Troubleshooting

A_GND

3.3KOHM

1/16W

FAN_CHK

10OHM

C330

16V

1UF

5267-02A

1SS355-TE-17

2

1/16W

10V

10UF

R504

IC35

C313

16V

18KOHM

S4560

1/16W

R501

A_GND

R502

33KOHM

1/16W

6

5

3

1

10UF

+12V

4.7KOHM

R503

4

LHPR13

4.7KOHM

LHPC7

1/16W

50V

680PF

S4560

6

5

2

LHPR14

220UH

1/16W

VAA+5V

8

LHPC9

10UF

1/16W

10KOHM

A_GND

100PF

50V

LHPC12

LHPR15

100PF

50V

LHPC13

7

IC32

LHPC11

22UF

LHPL1

R516

R515

R514

2

1

CN12

C320

R500

8

7

D34

LHPR16

LHPL2LHPR18

LHPR17

LHPC10

4

3

1

LHPC8

1W

6.3V

33OHM

220UH

A_GND

25V

1/16W

47KOHM

A_GND

+12V

33OHM

1/16W

50V

27OHM

+12V

1/2W

15KOHM

1/16W

33KOHM

22UF

4.7KOHM

10KOHM

1/16W

A_GND

6.3V

1NF

IN2+

VEE

OUT2

VCC

IN2-

IN1+

IN1-

OUT1

EBC

IN2+

VEE

OUT2

VCC

IN2-

IN1+

IN1-

OUT1

ACON1

1

 AMP, page 7-8

1

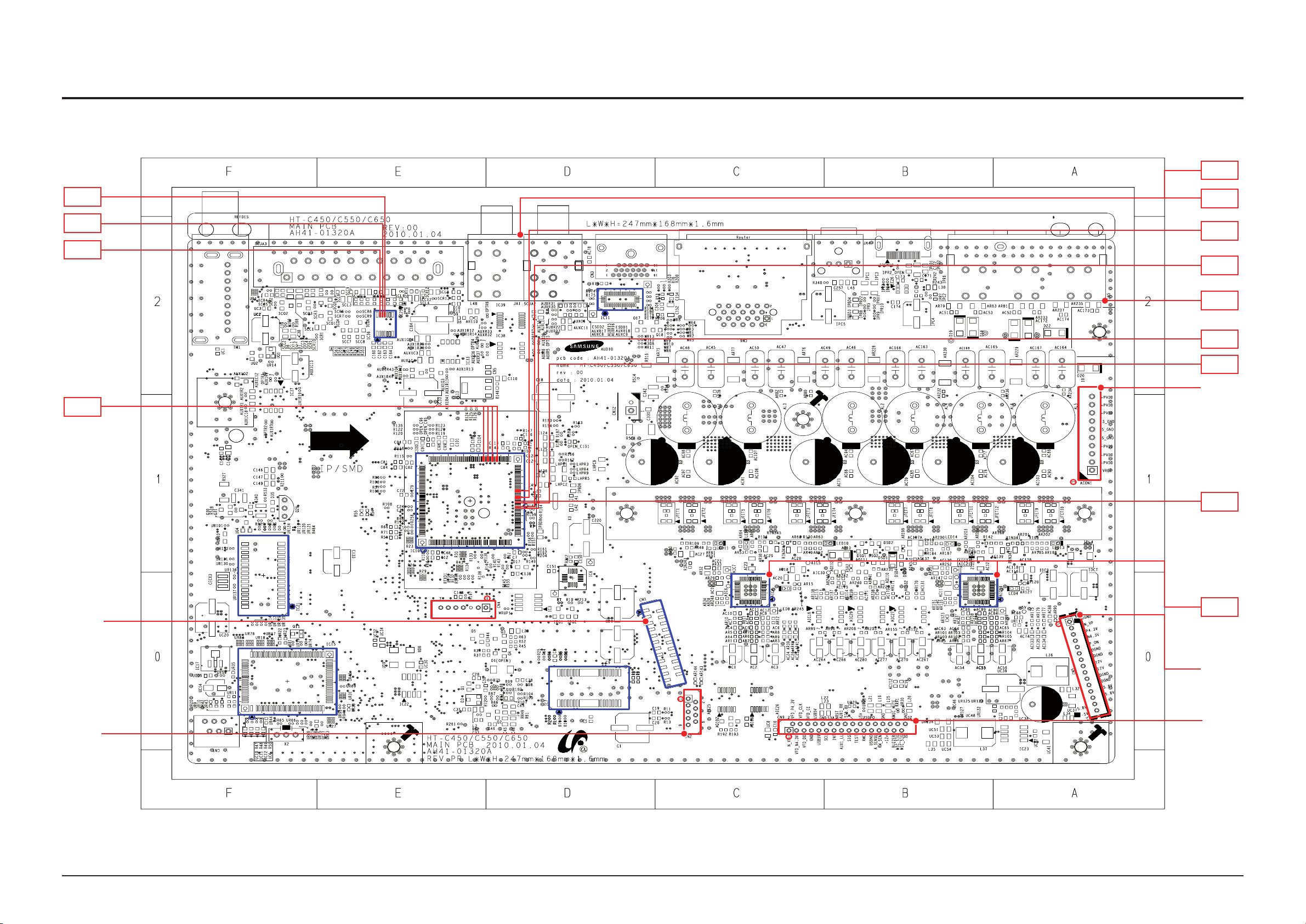

 MAIN PCB Top, page 6-8

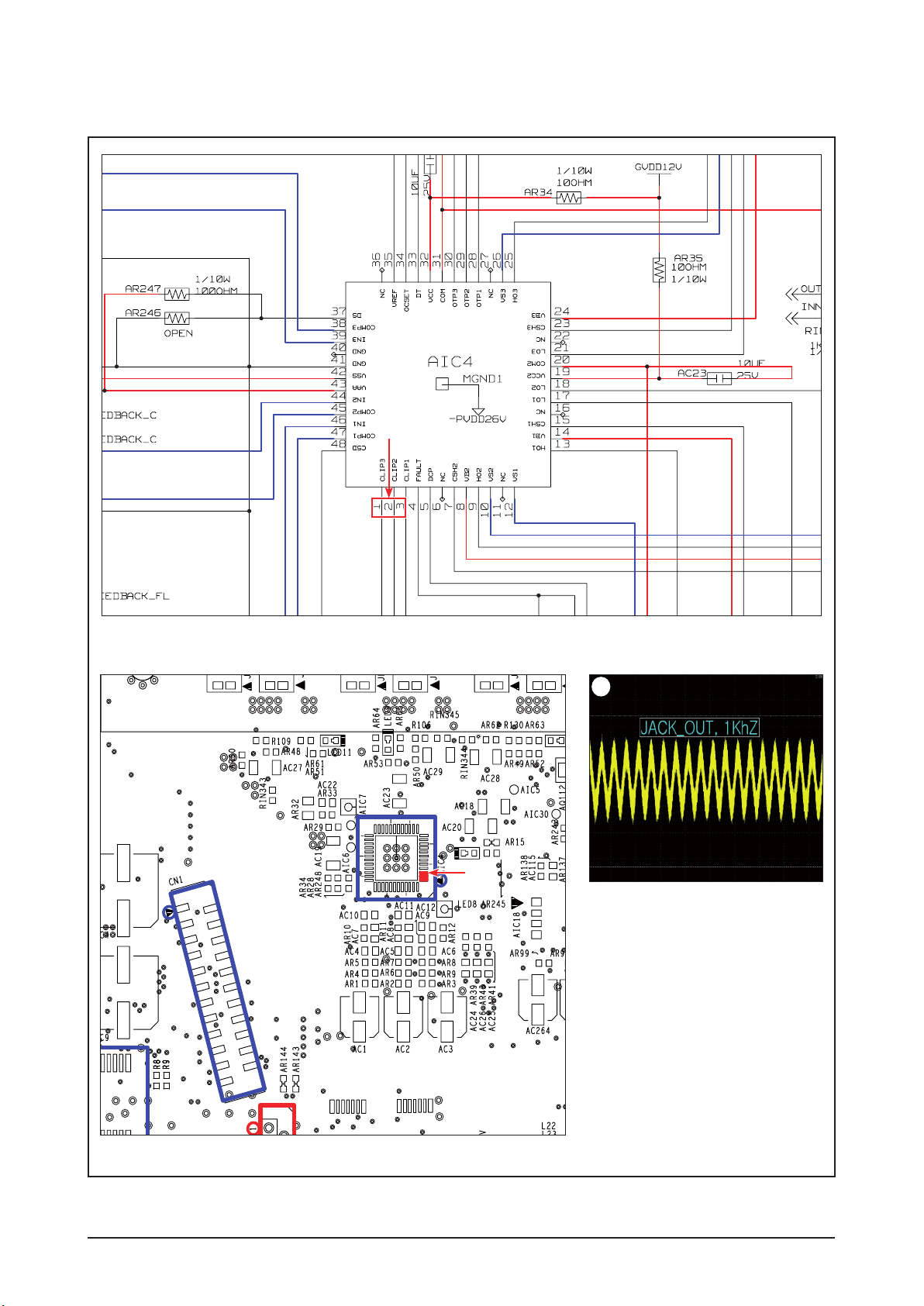

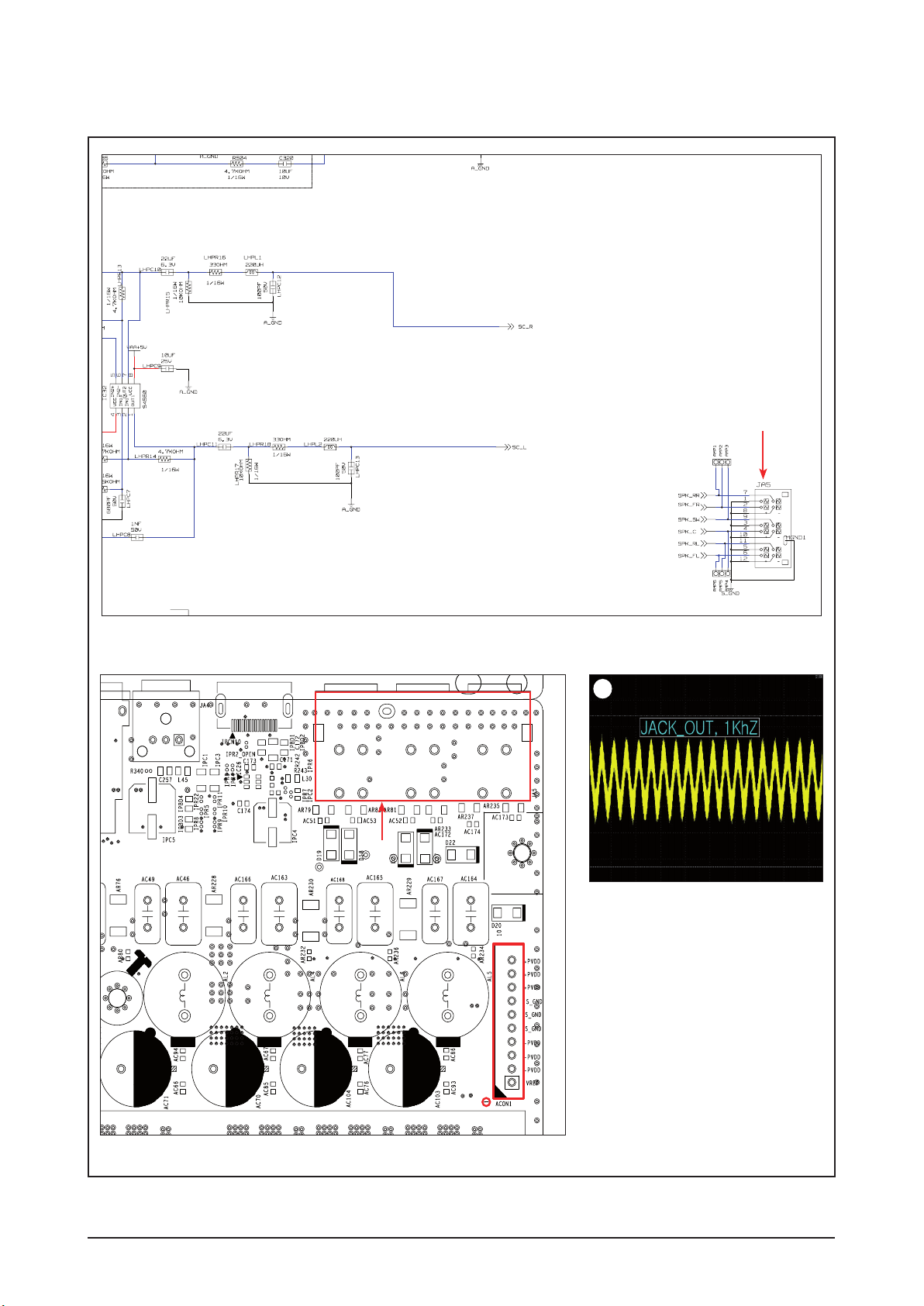

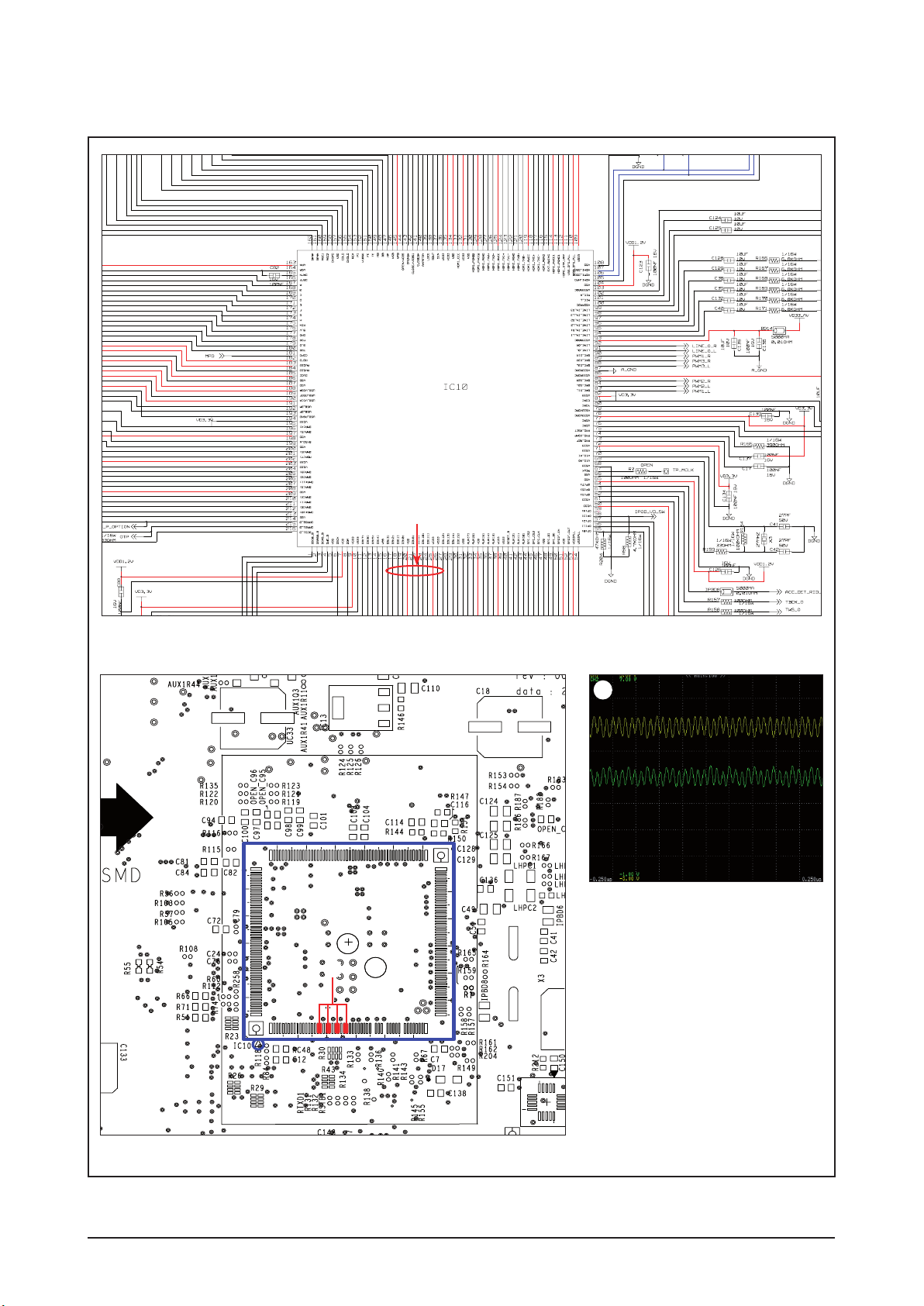

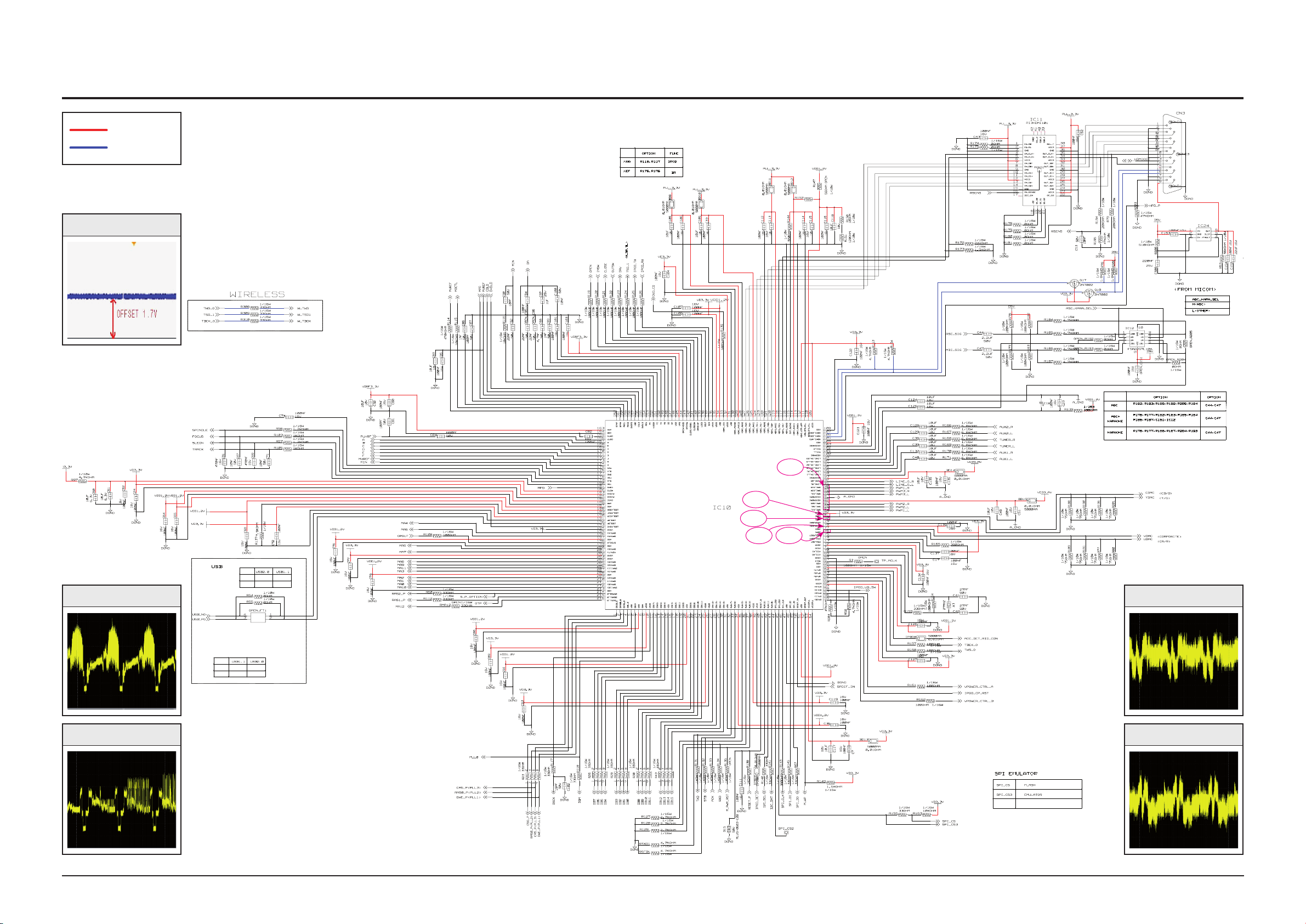

<Fig. 4-1>

Samsung Electronics 4-3

IC11

CN1

CN2

AIC4

AIC19

Troubleshooting

2

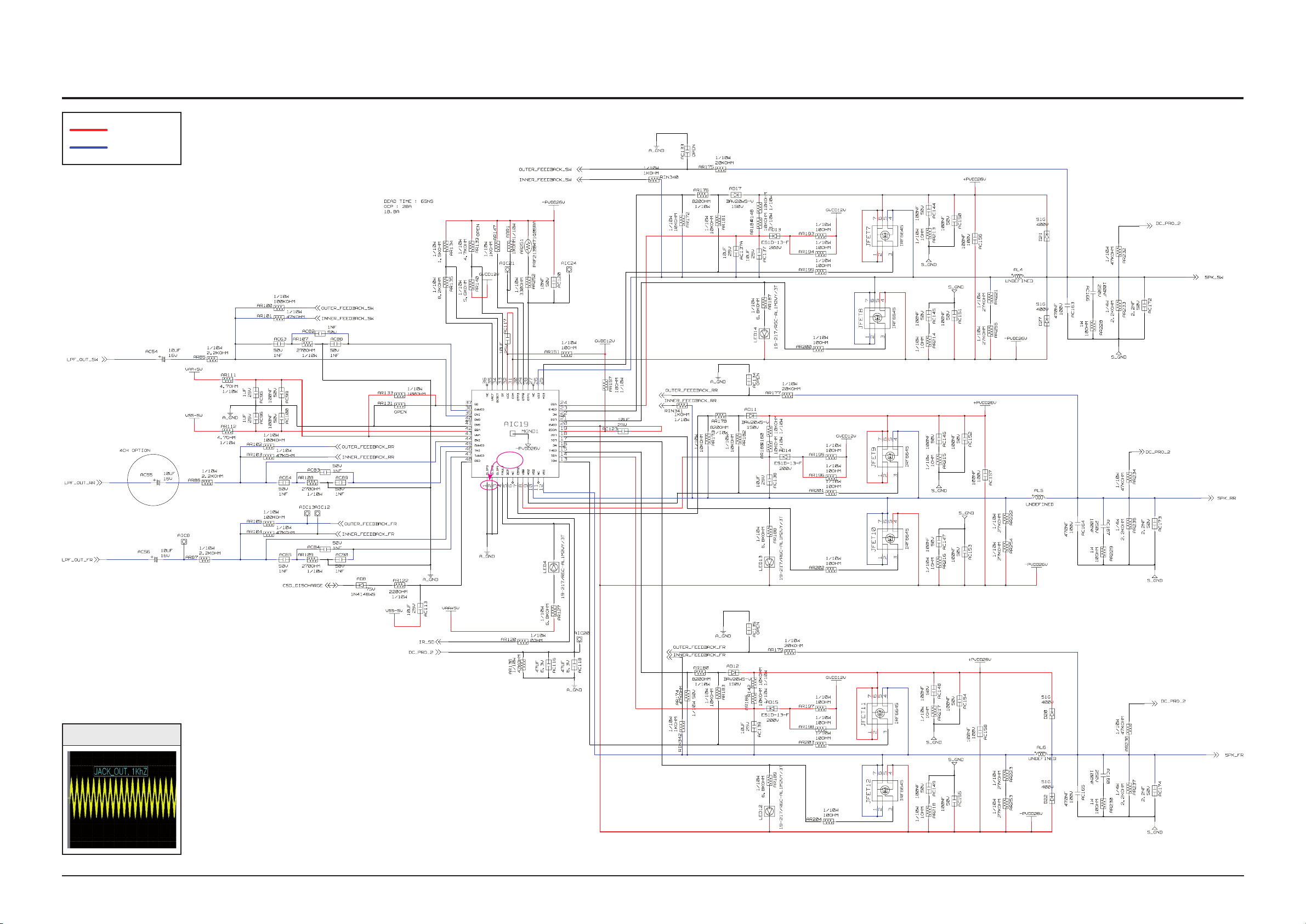

 AUDIO AMP-2, page 7-10

2

 MAIN PCB Top, page 6-8

<Fig. 4-2>

4-4 Samsung Electronics

AIC19

CN5

ACON1

2

Troubleshooting

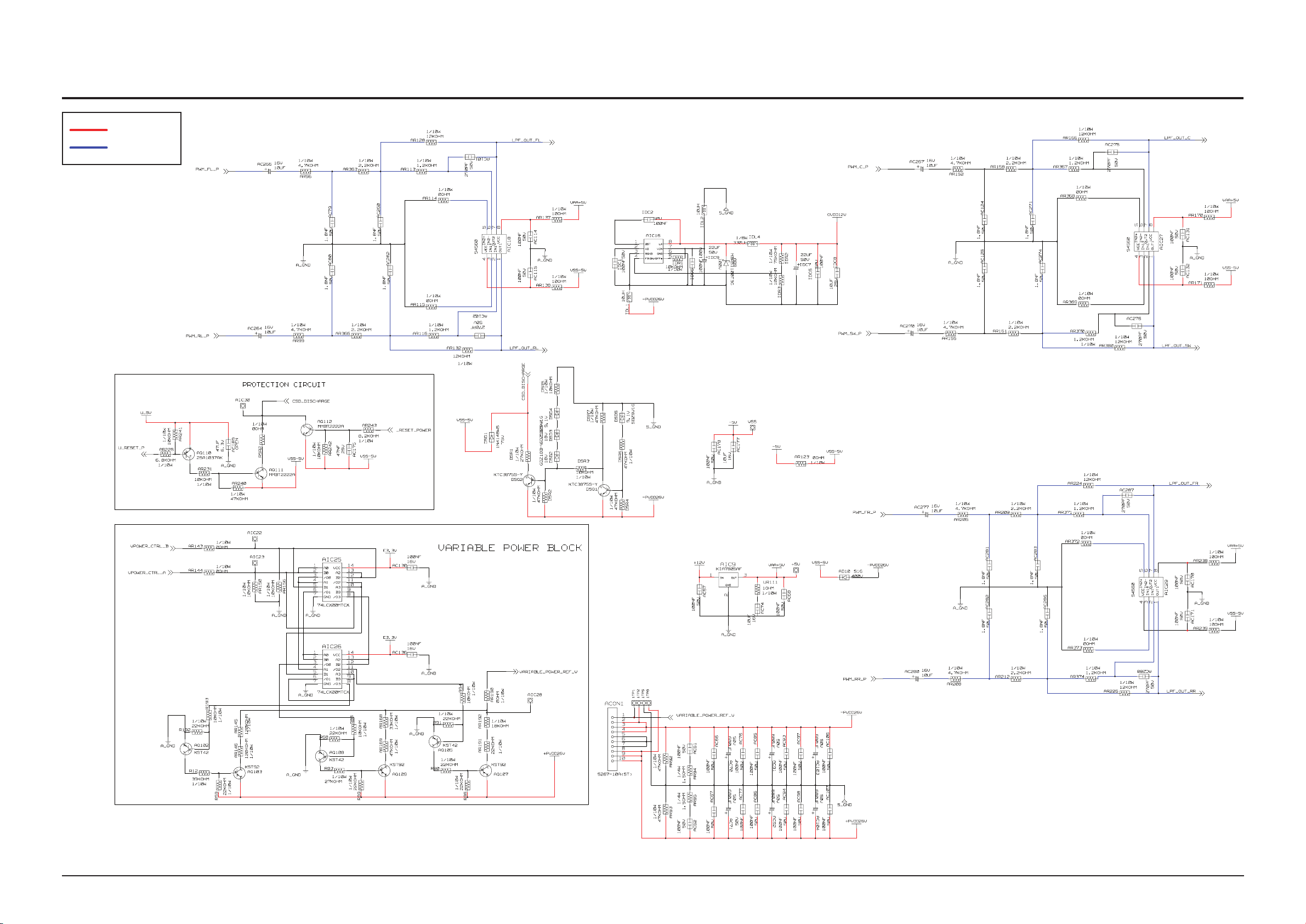

 AUDIO AMP-3, page 7-11

2

 MAIN PCB Top, page 6-8

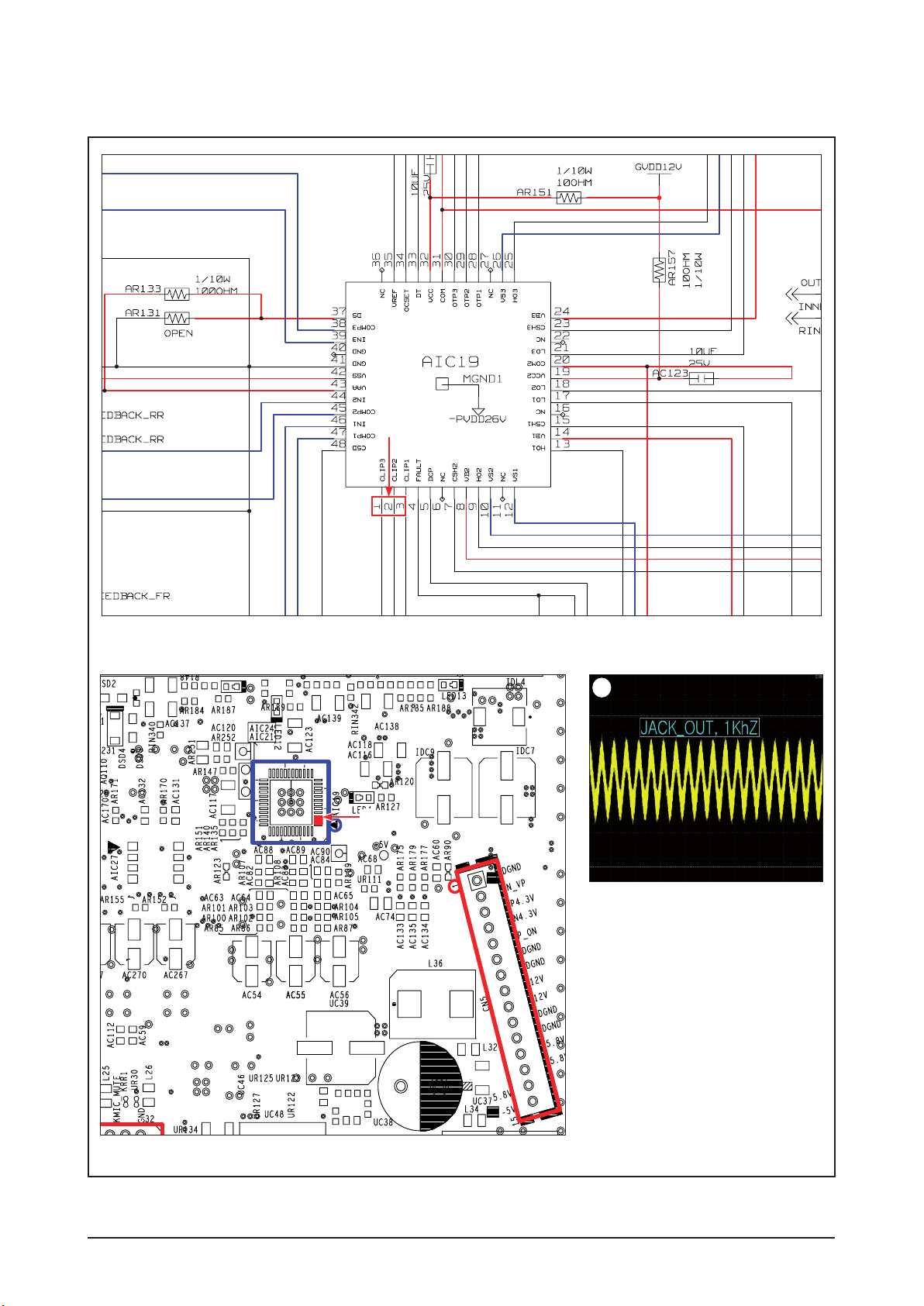

<Fig. 4-3>

Samsung Electronics 4-5

Troubleshooting

CN4

IC10

IC11

AIC4

IC36

3

 MPEG, page 7-5

3

 MAIN PCB Top, page 6-8

<Fig. 4-4>

4-6 Samsung Electronics

4-1-3 Composit (Video out)

Composit (Video out)

Check MPEG output

Troubleshooting

1

Check if VDAC output is

measured at the pin 77 of

IC10 ES8398

Yes

 Refer to wave pattern

image of Fig. 4-5.

Check Video switch.

Check if output

is measured at the pin 14

of IC36 THS7374

Yes

Check JACK Output

2

Check if composite video output is

measured at the JA1.

No

Check if VDD of 3.3V

is measured at the pin 82,

78, 72 of IC10

Yes

Replace the IC10 IC

Check if VDD of

3.3V is measured at the pin 10 of IC36.

Yes

Replace the IC36.

Check the JA1 connectivity

and replace.

No

Check if the pin 7, 8

of IC23 are 3.3V.

Replace the IC23 IC.

Check 3.3V power lines

from IC23 to IC36.

 Refer to wave pattern

image of Fig. 4-6.

Samsung Electronics 4-7

Troubleshooting

CN4

IC10

IC11

CN1

AIC4

IC36

1

 MPEG, page 7-5

1

 MAIN PCB Top, page 6-8

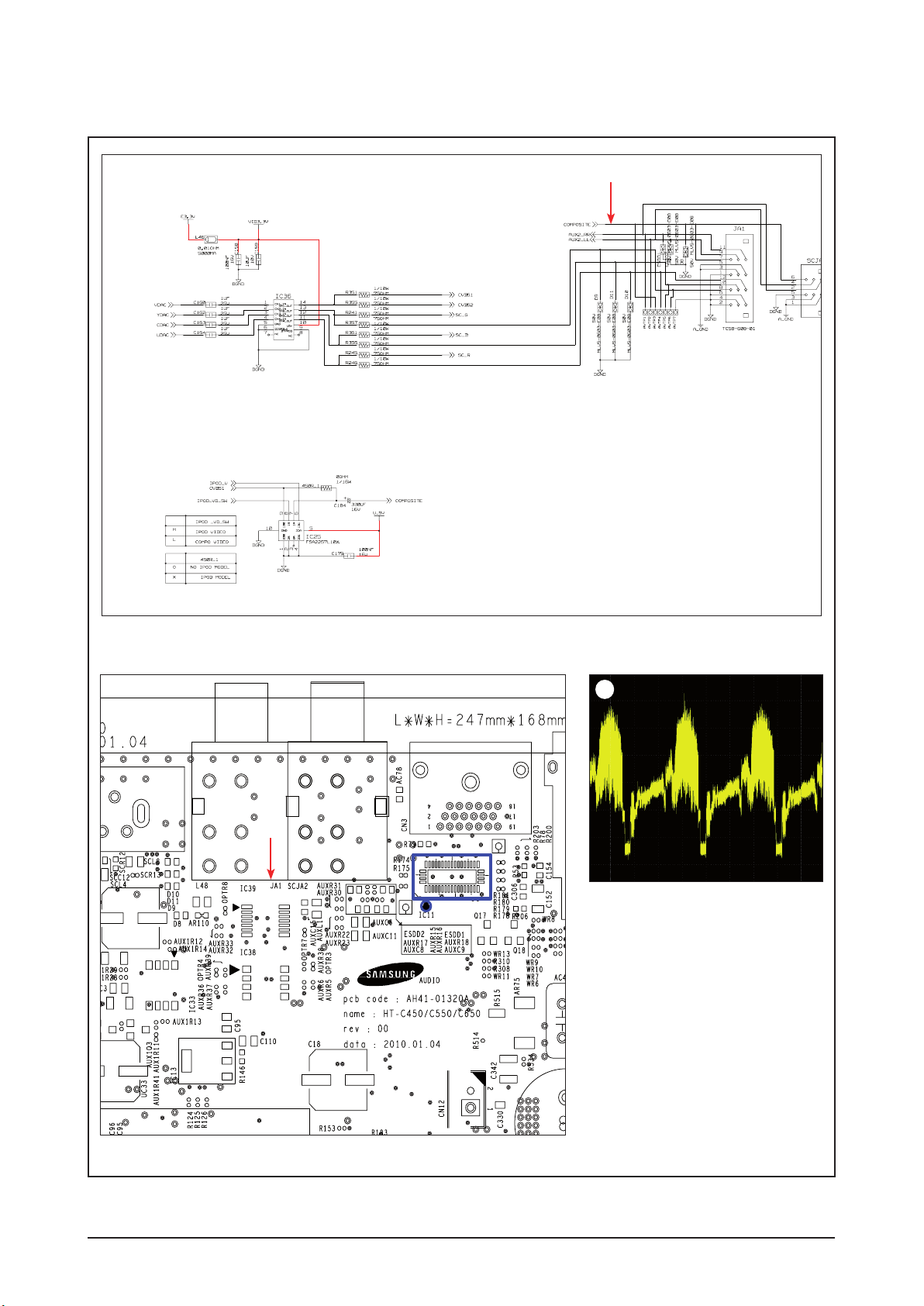

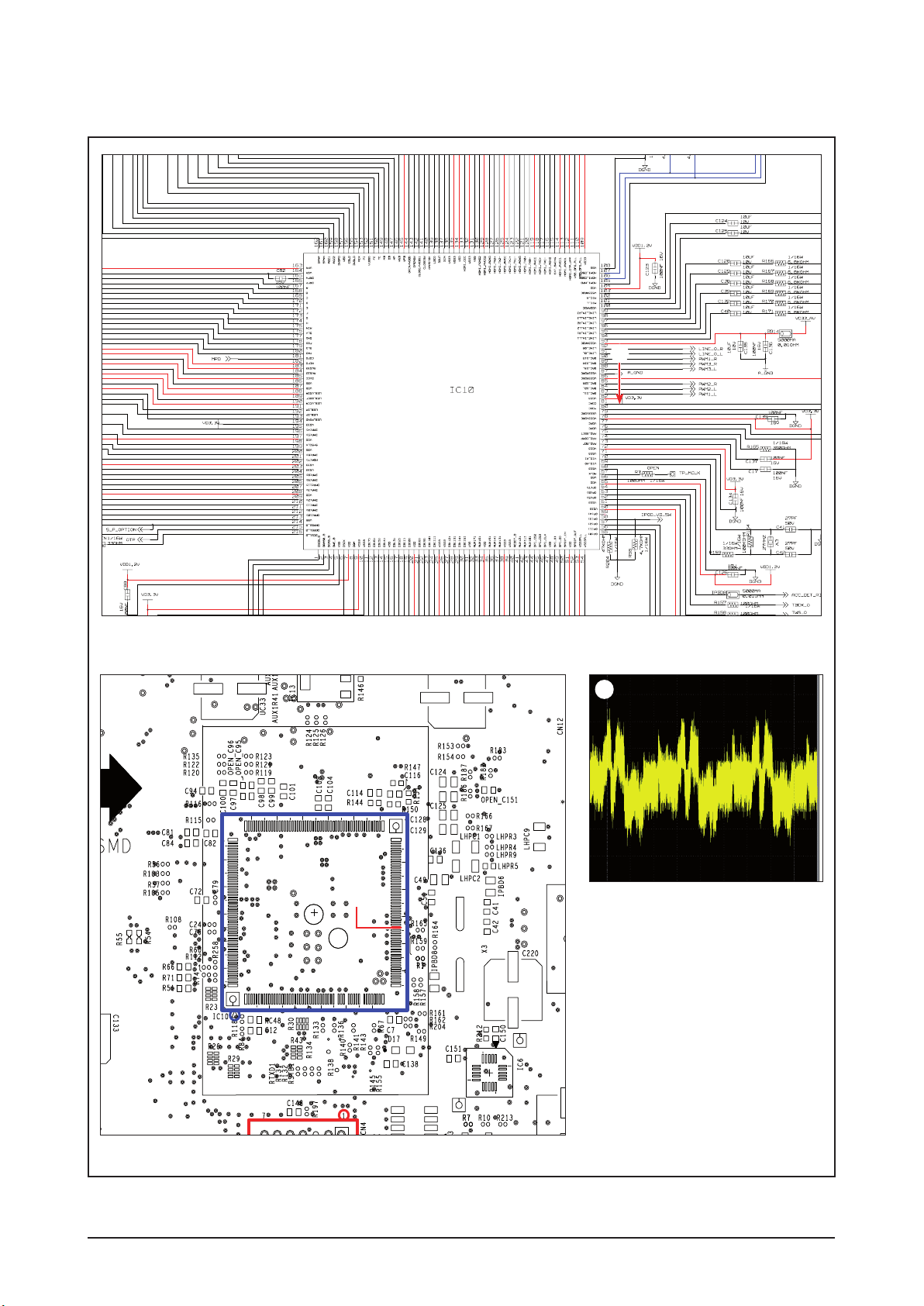

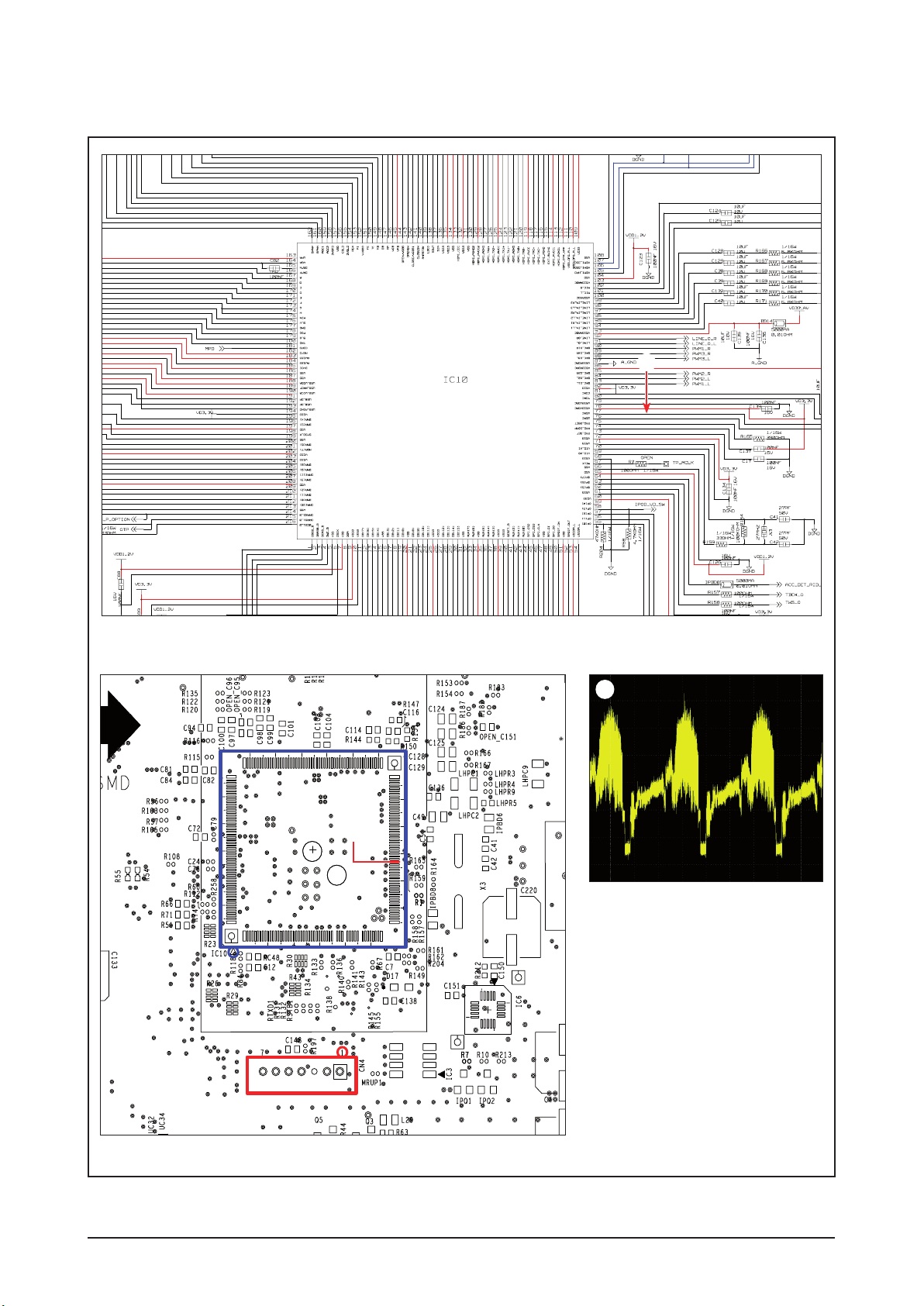

<Fig. 4-5>

4-8 Samsung Electronics

IC11

2

Troubleshooting

2

 AV I/O, page 7-7

2

 MAIN PCB Top, page 6-8

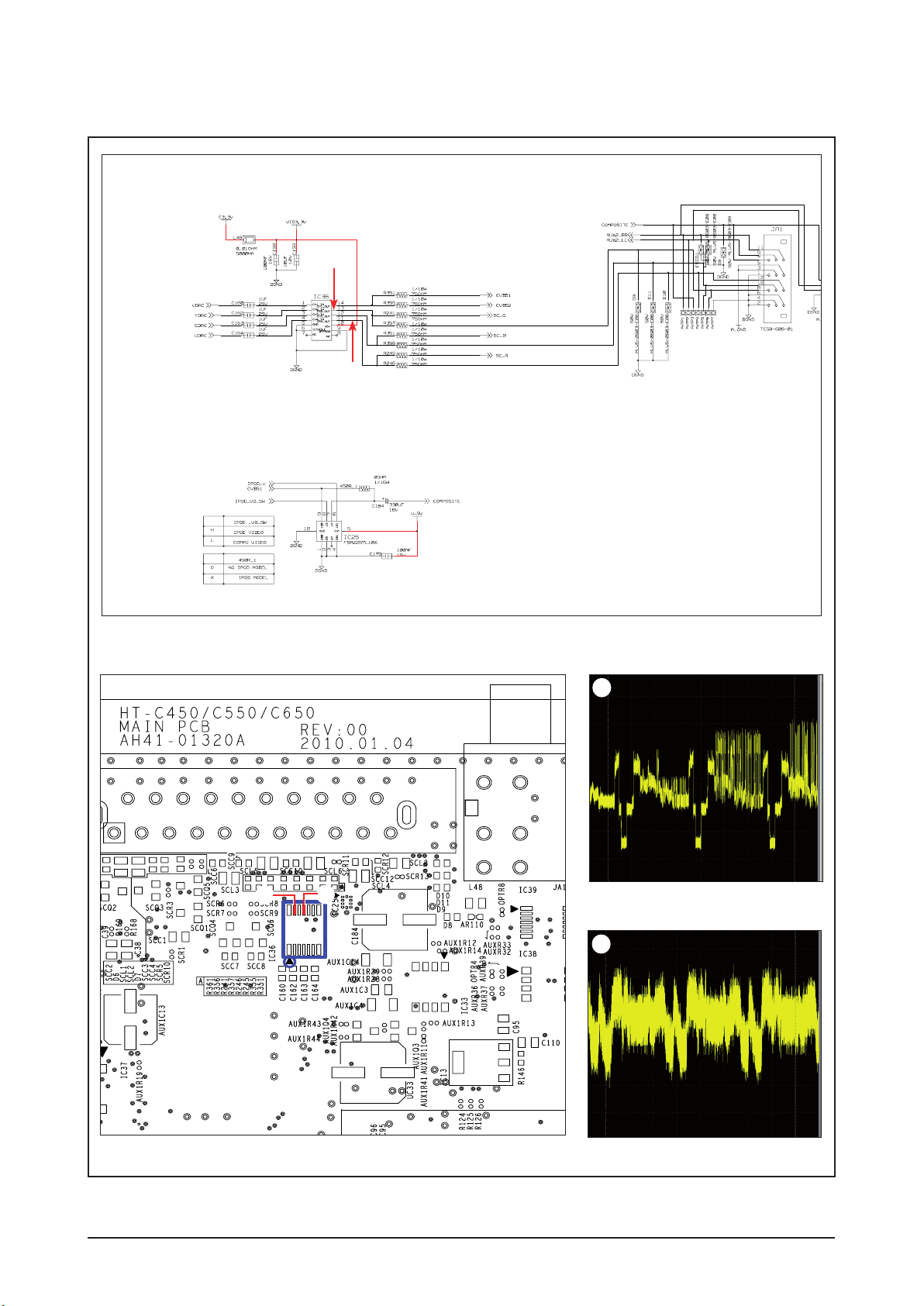

<Fig. 4-6>

Samsung Electronics 4-9

Troubleshooting

4-1-4 Component (Y, Pb, Pr)

Component (Y, Pb, Pr)

Check MPEG output

1/2/3

Check if YDAC,CADC

and UDAC output is measured

at the pin 76, 80 and 81 of

IC10 ES8398.

No

Check if VDD of 3.3V is

measured at the pin 82, 78,

72 of IC10.

No

Check if the pin 7, 8 of

IC23 are 3.3V.

 Refer to wave pattern

Yes

image of Fig. 4-7 and Fig. 4-8.

Check Video switch.

4/5/6

Check if output is measured at the pin of 11,13 and 12 of

IC36 THS7374.

 Refer to wave pattern

Yes

Check if component

video output is measured at

the JA1.

image of Fig. 4-9 and Fig. 4-10.

Check JACK Output

No

Yes

Replace the IC10 IC.

Check if VDD of 3.3V

is measured at the pin

10 of IC36.

Yes

Replace the IC36.

Check the JA1 connectivity

and replace.

No

Replace the IC23 IC.

Check 3.3V power lines

from IC23 to IC36.

4-10 Samsung Electronics

IC10

IC11

AIC4

IC36

2

Troubleshooting

1

2

1

 MPEG, page 7-5

1

2

 MAIN PCB Top, page 6-8

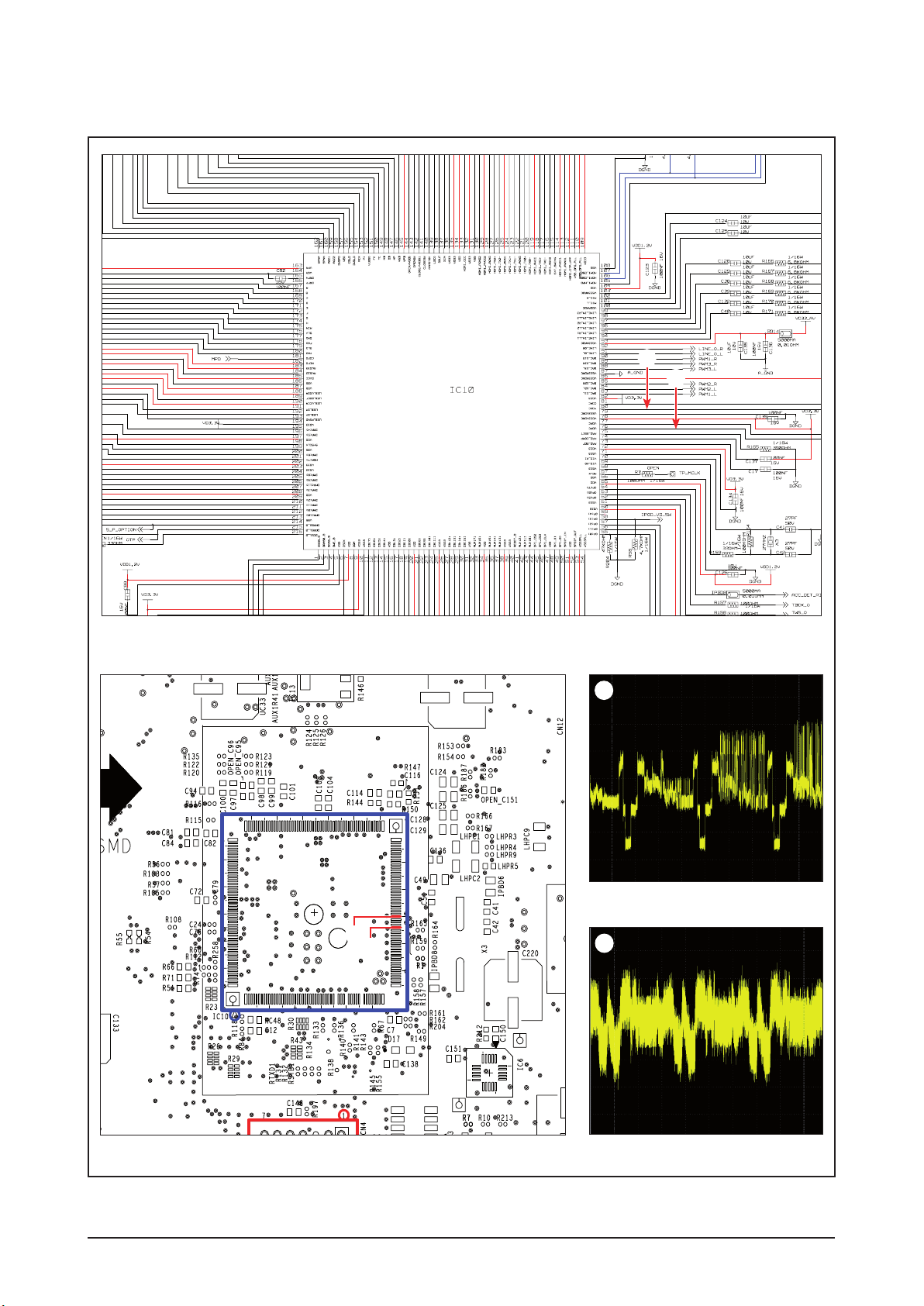

<Fig. 4-7>

Samsung Electronics 4-11

Troubleshooting

IC10

IC11

AIC4

IC36

3

 MPEG, page 7-5

3

 MAIN PCB Top, page 6-8

<Fig. 4-8>

4-12 Samsung Electronics

IC11

IC36

5

Troubleshooting

4

5

 AV I/O, page 7-7

4

5

 MAIN PCB Top, page 6-8

<Fig. 4-9>

Samsung Electronics 4-13

Troubleshooting

IC11

IC36

6

 AV I/O, page 7-7

6

 MAIN PCB Top, page 6-8

<Fig. 4-10>

4-14 Samsung Electronics

4-1-5 HDMI Video

Troubleshooting

Analog (Composite)

Video OK but HDMI

Check jack Input.

Check Pin 117, 118, 120,

121, 123, 124, 126, 127

 Refer to wave pattern

image of Fig. 4-11.

Check IC11 power

Check if 480p output

1

of IC10

No

(3.3V)

No

Is ok.

Yes

Check AMP input.

Yes

Check MPEG Ouput.

Yes

Check HDMI POWER

supply.

(PLL_3.3V, VDD1.2v)

Check 3.3V power lines

Replace MPEG IC

No

Check Voltage pin110

pin of IC10

(1.5V~1.8V)

No

Replace MPEG IC

Yes

Check PLL3.3V lines and VDD1.2V lines and R150,

R151, R152 value.

Please, Call to Samsung

A/S Center.

Samsung Electronics 4-15

Troubleshooting

IC10

IC11

AIC4

IC36

1

3

1

 MPEG, page 7-5

1

 MAIN PCB Top, page 6-8

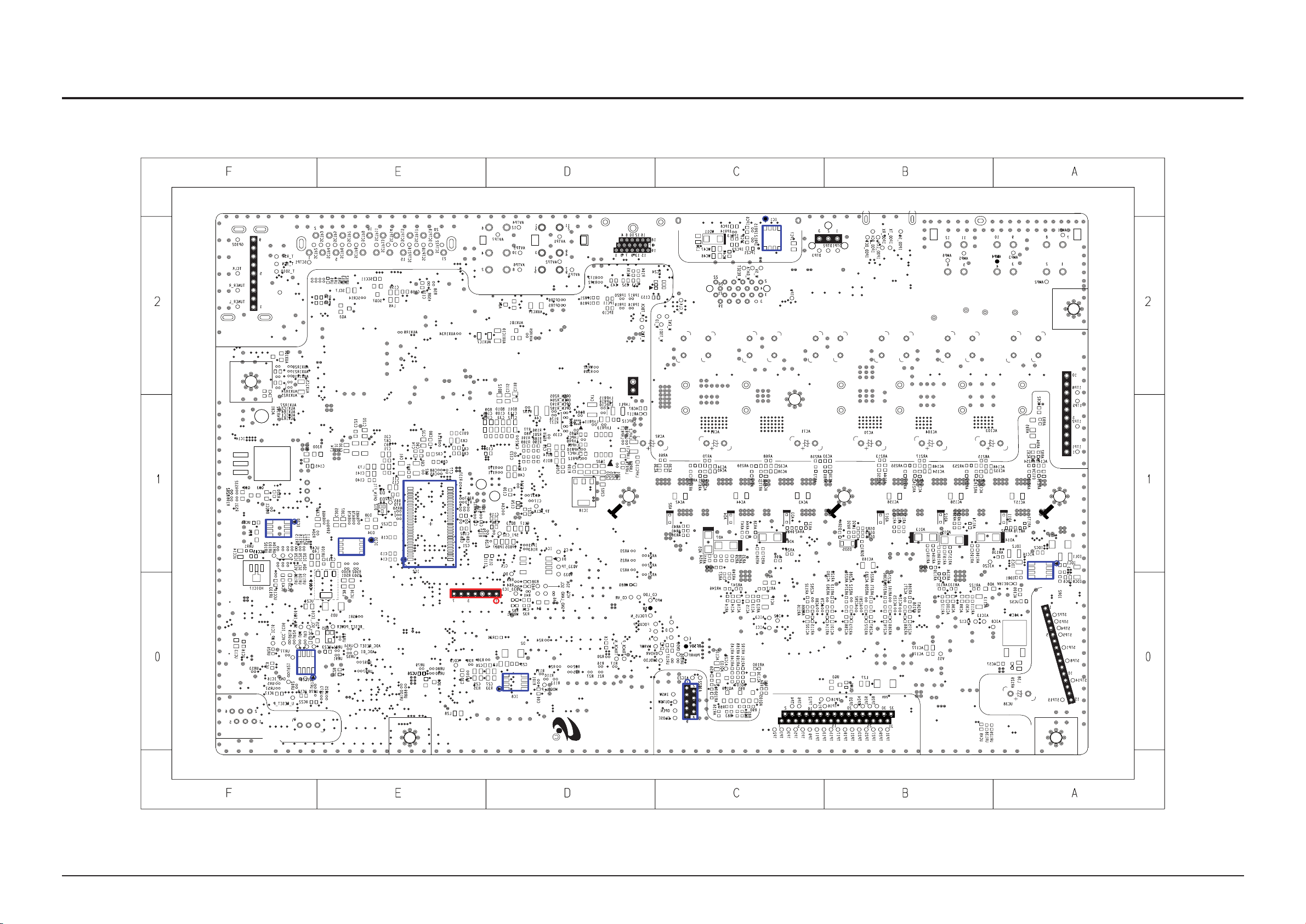

<Fig. 4-11>

4-16 Samsung Electronics

Troubleshooting

4-2 Measures to be taken when the Protection Circuit operates

4-2-1 SMPS Protection

The Condition of Power Protection Active.

1. Voltage of SMPS’s +, - PVDD (+30V, -30V) is higher or lower than Standards

Normal Condition Voltage Range: PVDD (+30V, -30V): about +30V, -30V

2. Over-current occurs to FET (Over-output or Output short)

3. FET’s temperature exceed 150°C.

4. No supply voltage on GATE DRIVER.

4-2-2 AMP Pre-Inspection relating to Power Protection

If you think, there are problems at the AMP PCB, you can check the pcb without disassemble the set.

(Caution!!: Do not connect the power cord during bellow test!)

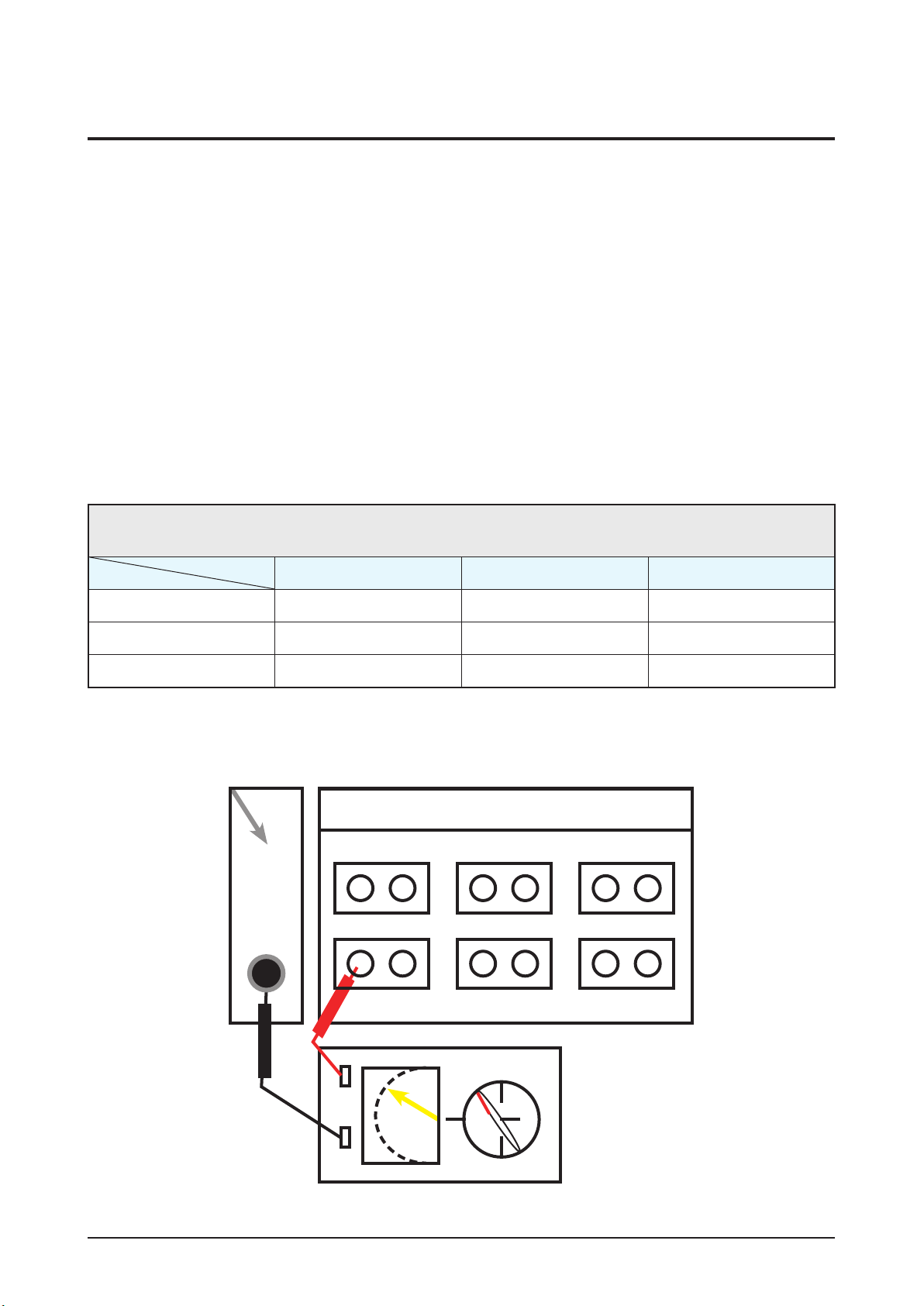

Measurement Resistance using Tester

C550

F/R CH

CENTER

SUBWOOFER

If Measured Resistance is very different from above numbers. There is a Problem.

 →AMPPCBProblem

1.8Ω 1.8Ω 1.8Ω

1.8ΩΩ 1.8Ω 1.8Ω

C650 C450

5.1CH SPEAKER OUTPUT

FRONT R CENTER FRONT L

GND

- Approximately

REAR R REAR L

Samsung Electronics 4-17

SUBWOOFER

Troubleshooting

4-3 MICOM, MPEG Initialization & Update

 Micom initial

In no Disc condition, press ‘STOP’ button of Main Unit more than 5 seconds, VF Display will happen to INIT and M

int. Then Initialization complete.

 Micom Update

1. Prepare or Make a DISC-CD or DVD or USB that contains “C550WWM.SSP’ file for update.

2. Play the USB, then “updating” will appear on the screen, then Power will go out after showing ‘complete’ on the

screen.

3. Press “Power” key and Press ‘Stop’ button of the remote control more than 5 seconds in No Disc.

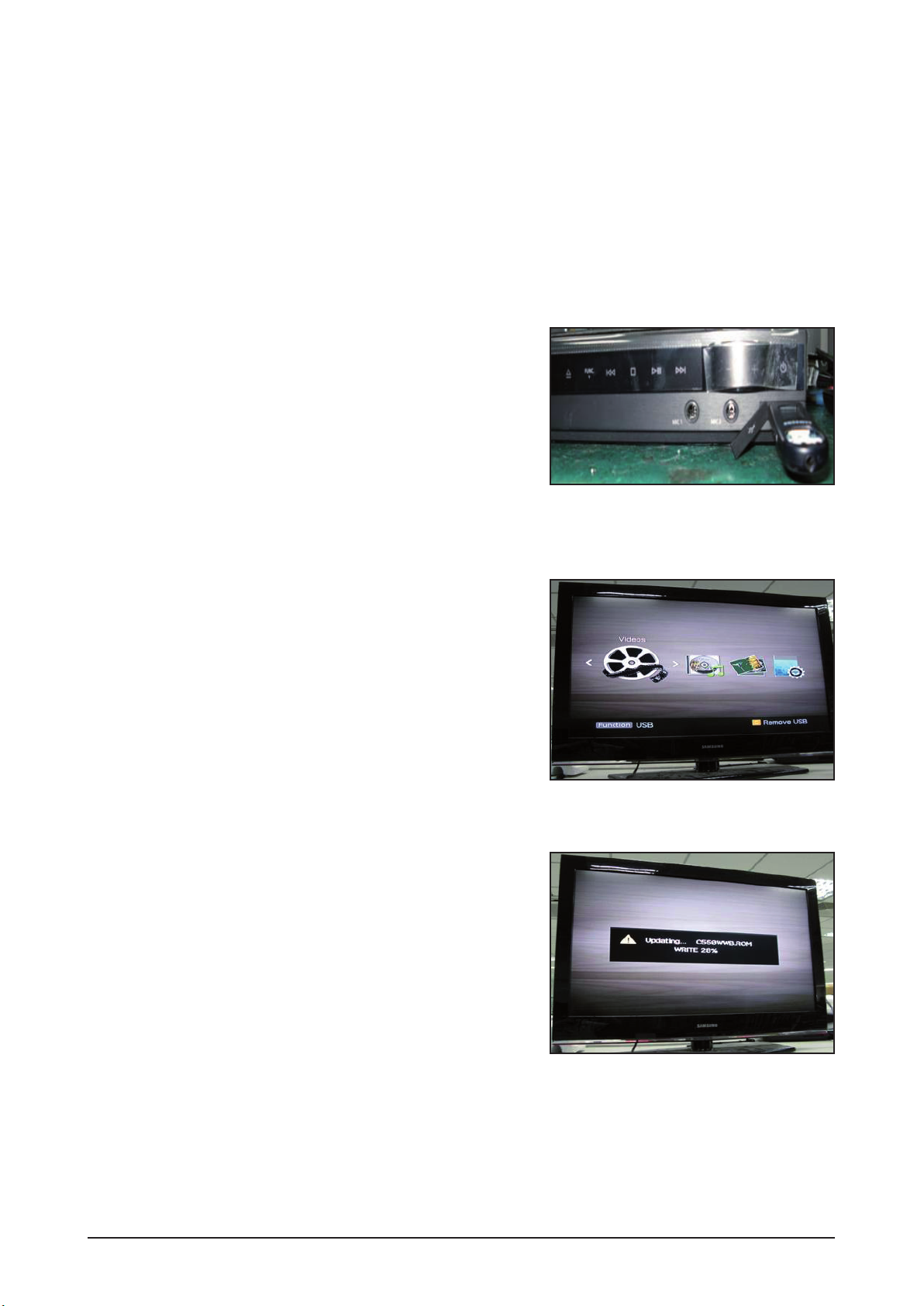

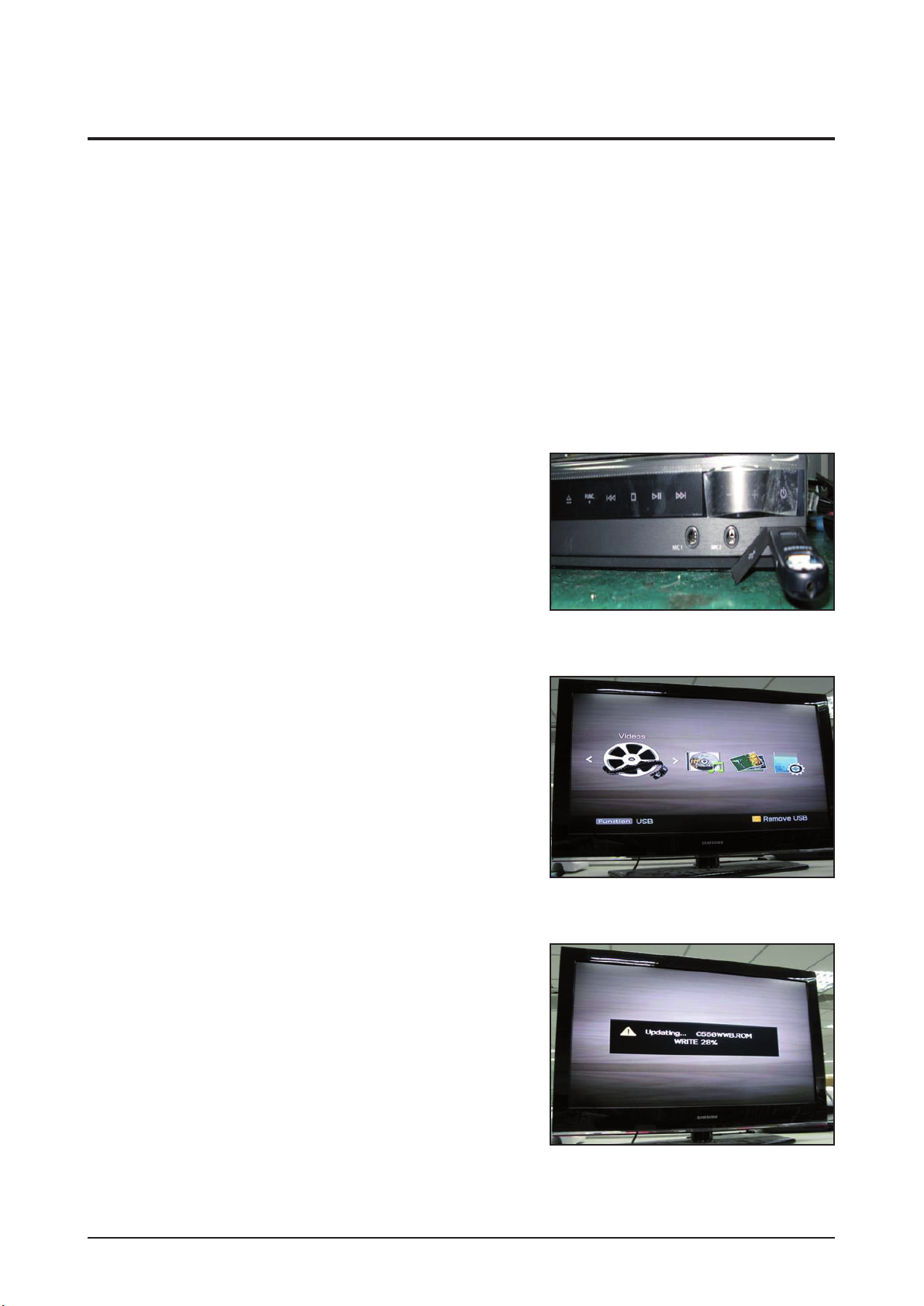

<Fig. 4-12 Connecting USB>

<Fig. 4-13 TV Display (On Updating)>

<Fig. 4-14 Update Start>

4-18 Samsung Electronics

Checking out MICOM & MPEG flash Version

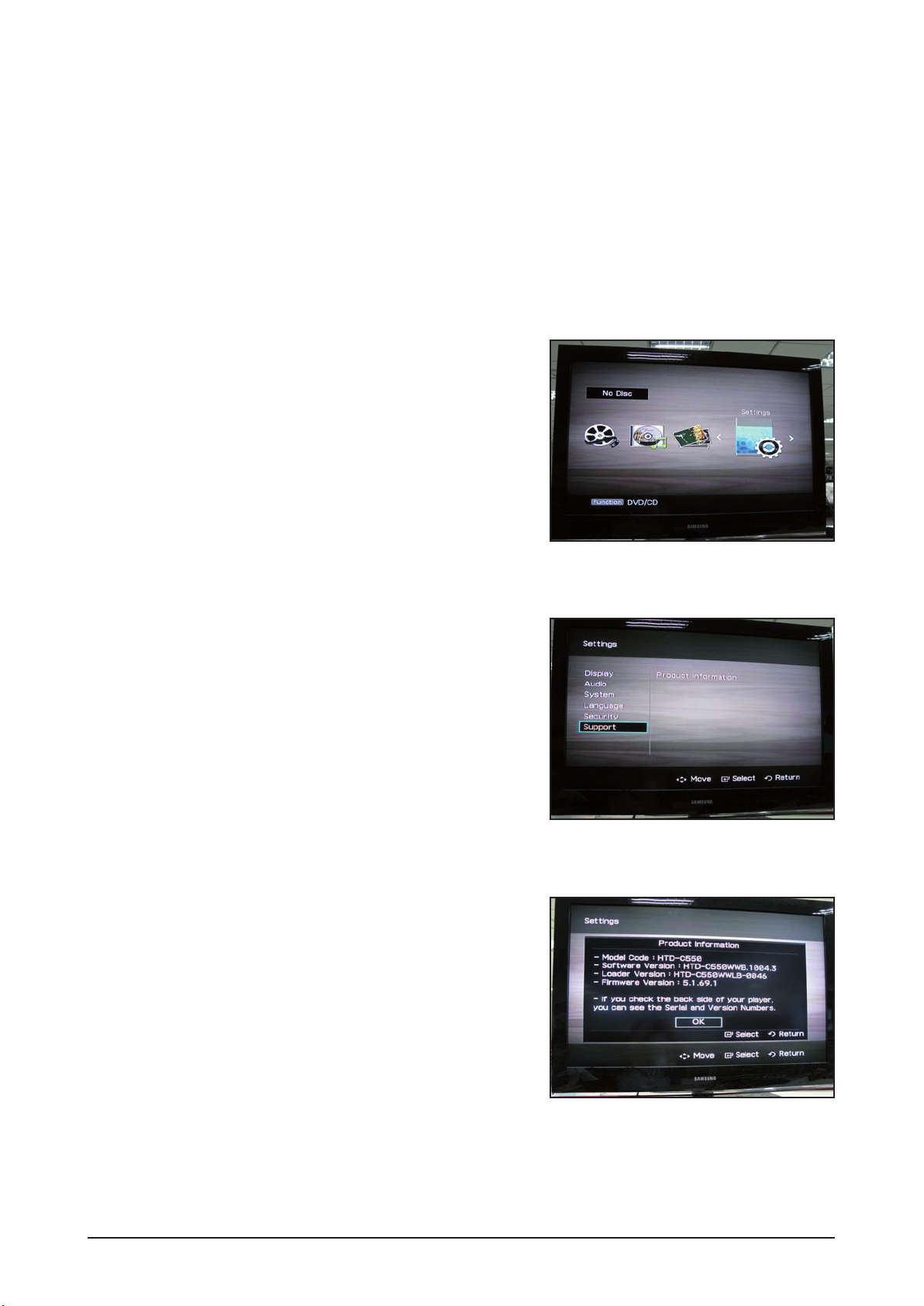

1. On Root state, Select ‘Set up’.

2. Press “Enter” and move Support.

3. Press “Enter”.

4. Check product information: “SW ver” on TV Display and “Micom SW Ver” on Front ASS’y VFD.

Troubleshooting

<Fig. 4-15 Connecting USB>

<Fig. 4-16 TV Display (On Updating)>

<Fig. 4-17 Update Start>

Samsung Electronics 4-19

Troubleshooting

 DVD flash Initialization & Update

1. Prepare a DISC-CD or DVD or USB that contains ‘C550WWB.ROM’ file for Update.

2. Play the DISC or USB, then ‘Updating’ will appear on the screen, then Power will go out and on.

3. Then DISC-TRAY will open, then remove the DISC or USB, making the Unit as ‘NO DISC’ state.

4. Press ‘STOP’ button of Main Unit for more than 5 seconds, Display Indicator shows ‘INITIALIZE’ then Power

goes out.

<Fig. 4-18 Connecting USB>

<Fig. 4-19 TV Display (On Updating)>

<Fig. 4-20 Update Start>

4-20 Samsung Electronics

4-4 Buyer-Region Code Setting Method

4-4-1 The inserting method of Region Code after replacing the Main PBA

[Reference]

- When replacing the Main PBA and System Micom should be inserted the region code.

- The set is not working properly if you don't insert the region code.

- The region code is inserted by the remote control.

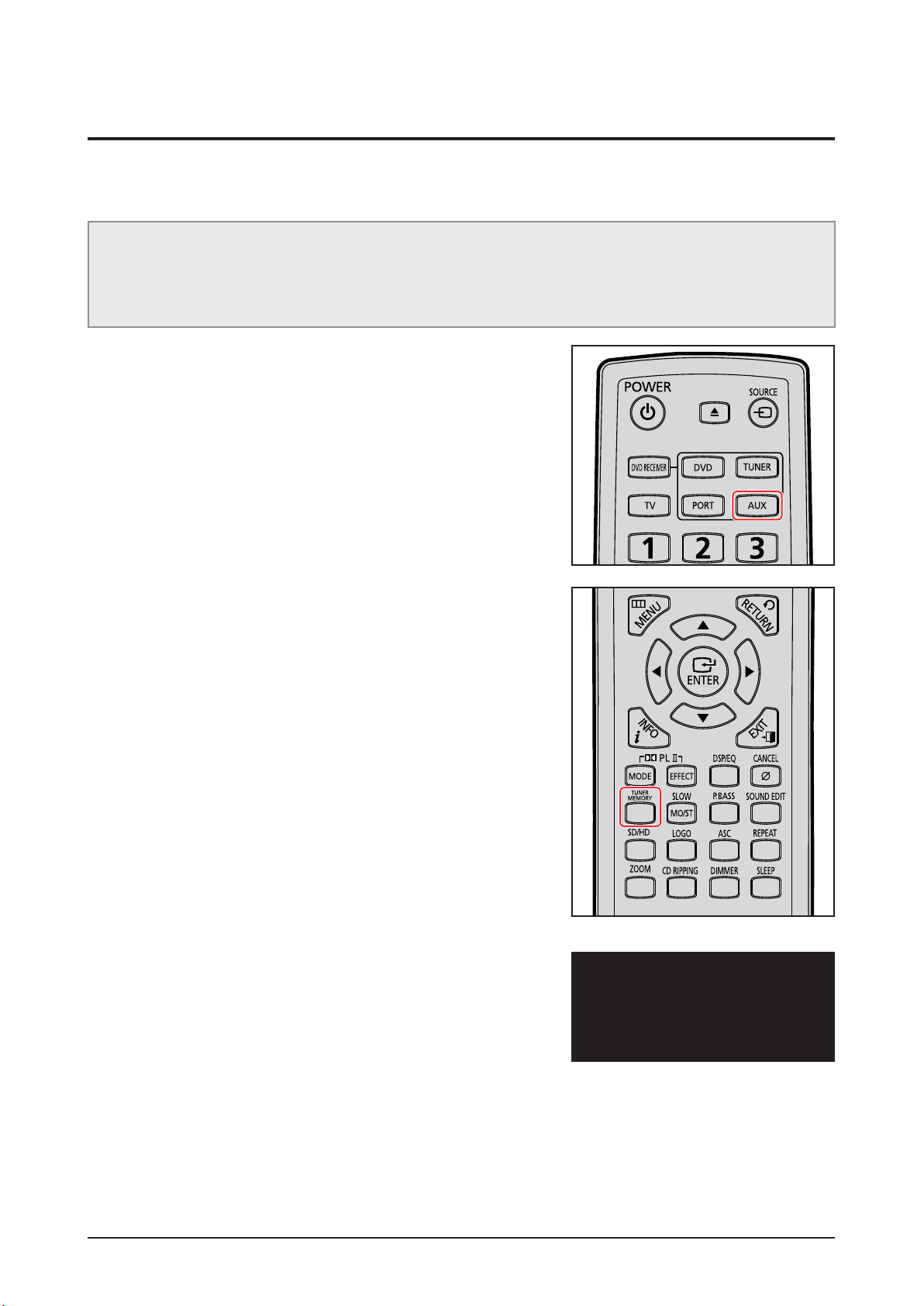

1. Press the “AUX” button on the remote control.

Troubleshooting

2. Press the "TUNER MEMORY" button on the remote control during

4~5 seconds.

3. After step (2), you can see “TEST” on the VFD.

4. When you see “TEST” on VFD, Insert number “4”, “6” to start

Region Code setting mode.

TEST

Samsung Electronics 4-21

Troubleshooting

5. Afterstep(4),youcansee“−−”ontheVFD.

Insert the Region Code (Below table) corresponding model with

“0 ~ 9” buttons on the remote control.

 Option Table

− −

Area

HT-C550

Region Code

Africa / Pakistan 00

Brazil 01

Canada 02

China (semi_mic) 03

Europe 04

Indonesia / Hongkong 05

Japan 06

Korea 07

Latin American 08

Mexico 09

Philippines 10

Russia (full_mic) 11

Russia (semi_mic) 12

HT-C650

Region Code

30

31

32

33

34

35

36

37

38

39

40

41

42

HT-C450

Region Code

60

61 C460 - 90

62

63

64

65

66

67

68

69

70

71

72

Remark

South Africa 13

Taiwan 14

USA 15

Newzealand 16

England 17

Australia 18

Iran (HACO) 19

India 20

Israel 21

Middle Asia 22

Asia 23

Singapore 24

43

44

45

46

47

48

49

50

51

52

53

54

73

74

75 C460 - 91

76

77

78

79

80

81

82

83

84

4-22 Samsung Electronics

Troubleshooting

6. After step (5), you can see “15 USA” on the VFD.

It means that currently System Micom program is installed by USA

specification.

7. Turn the Power off.

[Tip]

In case of System Micom and EEPROM problem, you can apply to this.

For example, during Updating program of System Micom, if Updating fail is happened, it is impossible to turn on

the system from stand-by status.

The system will keep the stand-by status continuously, and the touch-key function will never work.

In this case, you have to change System Micom, and set up the Buyer Region code again.

In case of EEPROM, you don't need to care about it.

After set-up the Region code, System Micom will store the information of the region code to EEPROM

automatically.

15 USA

Samsung Electronics 4-23

5-1 Samsung Electronics

Exploded View & Part List

This Document can not be used without Samsung’s authorization.

W390

AD502

HH02

FD12

HH01

HDM01

M0014

D001A

P001A

T001

W391

M0081

W391

FL06

MF01A

KF01A

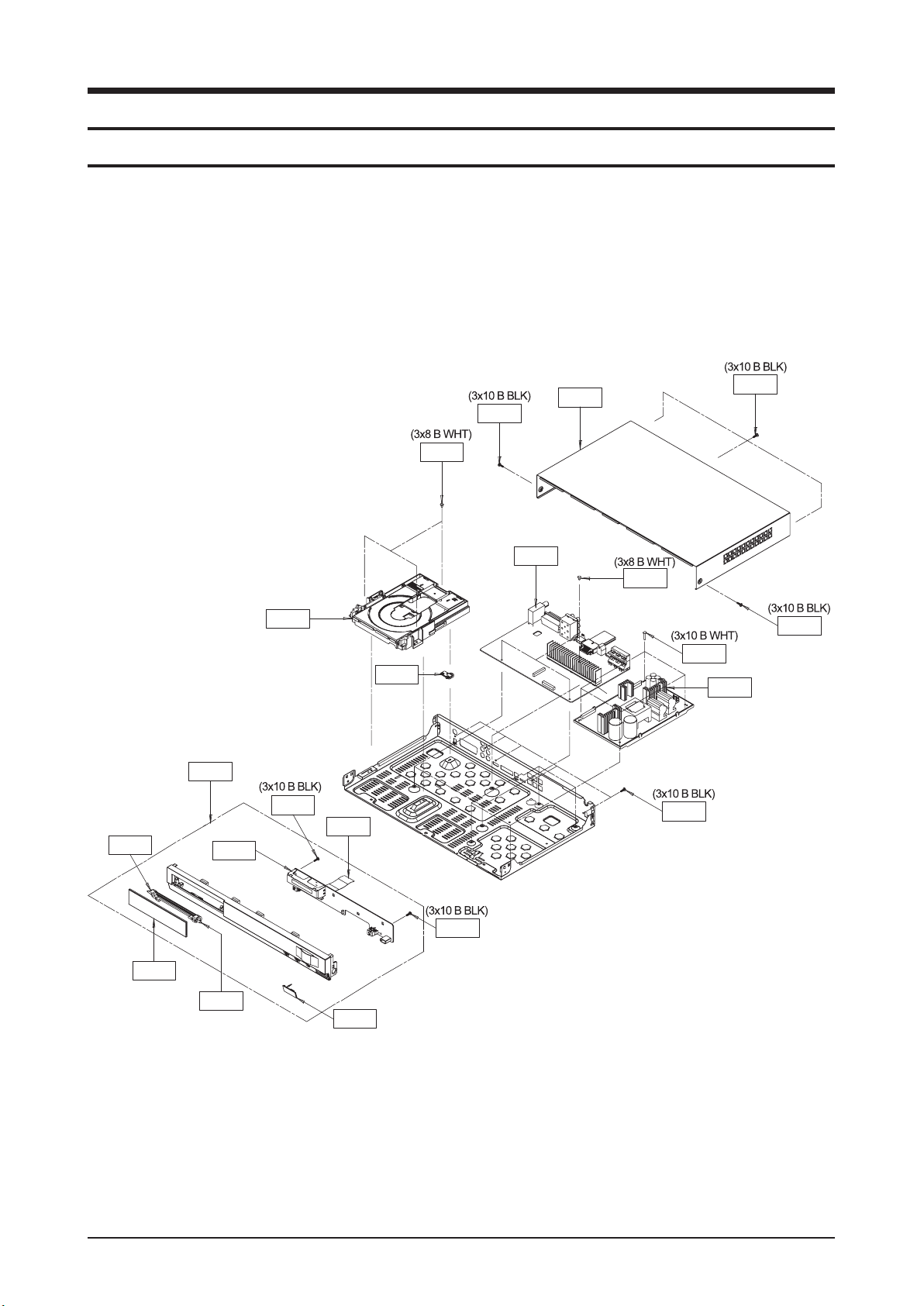

5. Exploded View & Part List

5-1 Product Exploded View

Exploded View & Part List

 Part List

Loc. No. Part No. Description;Specification Qty. SNA Remark

AD502 AH64-05240B DOOR-DVD;HT-C550,ABS+PMMA,2,45,24,150,BL 1 SA

D001A AH96-00011B ASSY DECK-CKD;MAX-DG35,NEW TRAY,CABLE R 1 SA

FD12 AH63-02049B COVER-USB;HT-C550,ELASTOMER,1,15,24,-,AL 1 SA

FL06 3809-002550 FFC CABLE-FLAT;30V,80C,150mm,32P,1mm,UL2 1 SA

HDM01 AH61-03038A HOLDER-MECHA.REA;HT-C350,ABS,10,20,10,BL 1 SA

HH01 AH61-03022A HOLDER-DOOR DN;HT-C5500,PC,2.5,130,10,BL 1 SA

HH02 AH61-03021A HOLDER-DOOR UP;HT-C5500,PC,2.5,130,10,BL 1 SA

KF01A AH90-00501B ASSY MISC-KITTING FRONT;HT-C550 1 SA

M0014 AH94-02467B ASSY PCB MAIN;HT-C550,HOME THEATER,EUR,E 1 SA

M0081 6003-001375 SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(WHT),SW 7 SA

MF01A AH94-02471F ASSY PCB FRONT;HT-C550,FRONT NO K-OK ASS 1 SA

P001A AH90-00602A ASSY MISC-SMPS PCB;DP,AH94-02517A,C550 1 SA

T001 AH63-02059A COVER-TOP;HT-C350,SECC,0.6,500,500,BLACK 1 SA

W390 6003-000276 SCREW-TAPTYPE;BH,+,-,B,M3,L10,ZPC(WHT),S 10 SA

W391 6003-000275 SCREW-TAPTYPE;BH,+,B,M3,L10,ZPC(BLK),SWR 11 SA

Samsung Electronics 5-2

This Document can not be used without Samsung’s authorization.

5-3 Samsung Electronics

Exploded View & Part List

This Document can not be used without Samsung’s authorization.

iPod

DIGITAL

AUDIO IN

OPTICAL

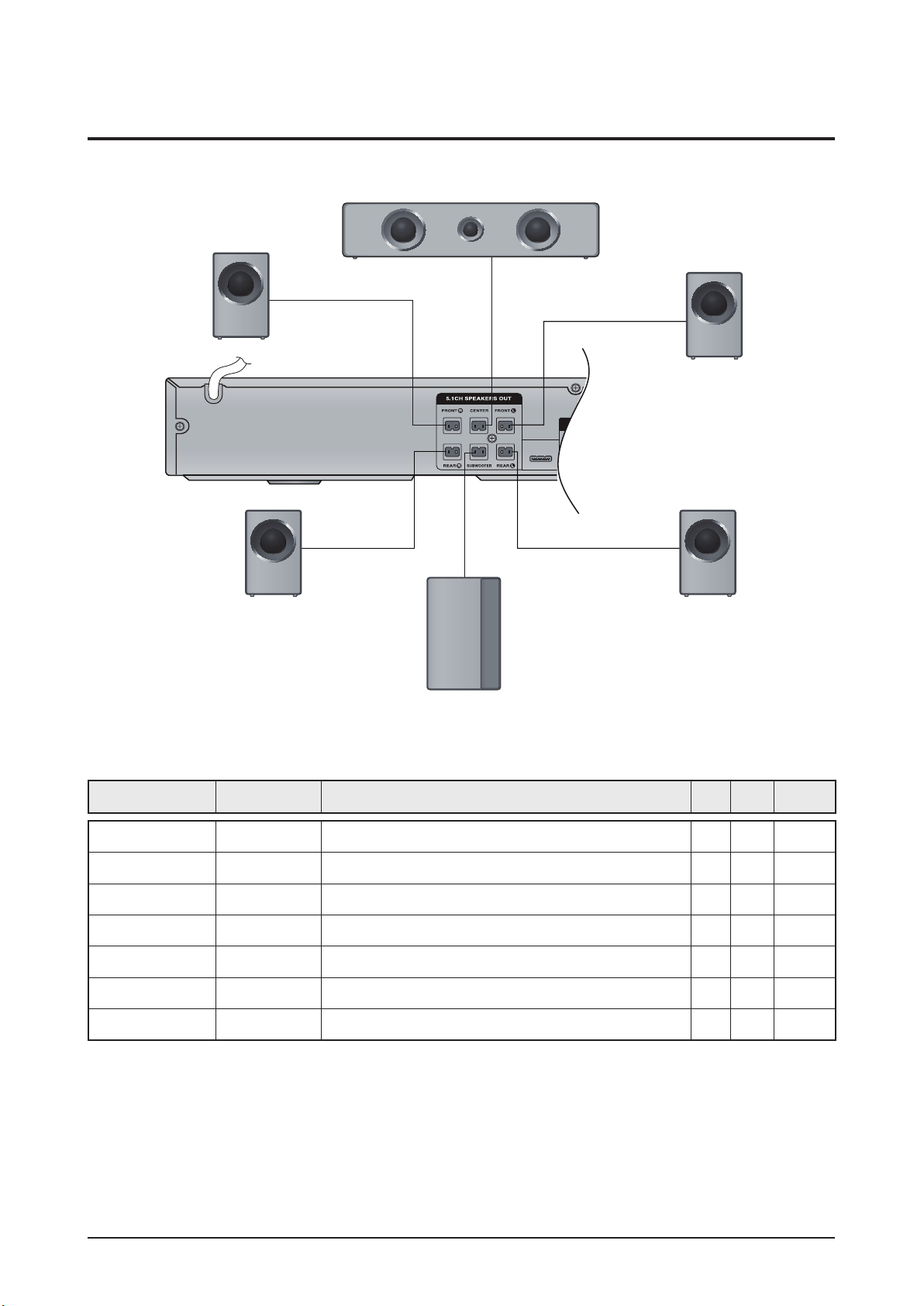

5-2 Speaker System

Front

Speaker (R)

Center Speaker

Front

Speaker (L)

Rear

Speaker (R)

Rear

Speaker (L)

Subwoofer

 Part List

Loc. No. Code No. Description;Specification Qty. SNA Remark

Front Speaker (L)

Front Speaker (R)

Center Speaker

Rear Speaker (L)

Rear Speaker (R)

Subwoofer AH96-00625A ASSY SPEAKER P-W0 SUBWOOFER SPK 1 SA

Speaker Wire AH81-02177B PS-Q20,SPK CORDCONNECTOR,FRONT/SUB W/F:4M 1 SA

AH81-05951A PS-C550,PS-FRCC550,PS-FC550,S2,FRONT-LEFT SPK

AH81-05953A PS-C550,PS-FRCC550,PS-FC550,S2,FRONT-RIGHT SPK

AH81-05955A PS-C550,PS-FRCC550,PS-CC550,C1,CENTER SPK

AH81-05957A PS-C550,PS-FRCC550,PS-RC550,S2,REAR-LEFT SPK

AH81-05959A PS-C550,PS-FRCC550,PS-RC550,S2,REAR-RIGHT SPK

1 SA

Exploded View & Part List

5-3 Electrical Part List

Loc. No. Part No. Description Specification Qty. SNA Remark

MK01A AH94-02520A ASSY PCB KEY HT-C550/C650 1 SNA

AC510 3708-001925 CONNECTOR-FPC/FFC/PIC 7p,1mm,SMD-S,SnPd, 1 SNA AR30 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 2 SA CER04 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 2 SA FL06 3809-002549 FFC CABLE-FLAT 30V,80C,70mm,7P,1mm,UL207 1 SA

FMR4 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608 1 SNA IS01 1209-001912 IC-SENSOR NTS1124N,QFN,40P,5x5x0.85mm,PL 1 SNA KAR21 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 SA L0405 0601-002422 LED SMD,White,1.50mm,1.6X 3.2mm 2 SA PC7 2203-002709 C-CER,CHIP 100nF,+80-20%,16V,Y5V,1005 2 SA

PR24 2007-002970 R-CHIP 56ohm,5%,1/16W,TP,1005 5 SA R104 2007-000148 R-CHIP 10Kohm,5%,1/16W,TP,1005 2 SA VC37 2203-006048 C-CER,CHIP 100nF,10%,10V,X7R,TP,1005 4 SA 0202-001477 SOLDER-CREAM LST309-M,D20~45um,96.5Sn/3A 0.189 SNA 0406-001128 DIODE-TVS MLVS-0603-E08,50V 6 SA

2007-002797 R-CHIP 560ohm,5%,1/16W,TP,1005 9 SA 2007-002797 R-CHIP 560ohm,5%,1/16W,TP,1005 1 SA 2007-007785 R-CHIP 249Kohm,1%,1/10W,TP,1608 1 SA 2007-008035 R-CHIP 160Kohm,1%,1/10W,TP,1608 2 SA AH41-01322C PCB-KEY HT-C550/C650,FR-4,2,0,1.6,192mm* 1 SNA

AH63-01917C SHEET-TAPE-FUNCTION HT-C550,3-M,0.1,15,1 1 SNA AH97-05136A ASSY SMD HT-C550,KEY_SMD,AH94-02520A 1 SNA AH97-05309A ASSY MICOM-TOUCH KEY (NTS1124N)HT-C550_ 1 SNA

MF01A AH94-02471F ASSY PCB FRONT HT-C550,FRONT NO K-OK ASS 1 SA

AAC1 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608 5 SNA AB335 AH61-03042B BRACKET-TOP HT-C550,PBS,0.3T,15,6 2 SNA AC28 2203-001607 C-CER,CHIP 0.22nF,5%,50V,NP0,1608 1 SA AC510 3708-001925 CONNECTOR-FPC/FFC/PIC 7p,1mm,SMD-S,SnPd, 1 SNA

AC510 3708-001939 CONNECTOR-FPC/FFC/PIC 32P,1mm,STRAIGHT,S 1 SA AD480 2203-000979 C-CER,CHIP 47nF,10%,50V,X7R,TP,2012 1 SNA AF020 AH63-01537C FILTER-VFD HT-C550,PC,0.5,55,40,VIOLET,- 1 SNA AH410 AH61-03036A HOLDER-VFD HT-C350,ABS,5,50,100,BLACK 1 SNA AR30 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 3 SA

C 2402-001260 C-AL,SMD 100uF,20%,10V,WT,REEL,6.3X5.7 1 SA C125 2203-006361 C-CER,CHIP 10000nF,10%,10V,X5R,TP,2012 1 SC C134 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,TP,1608 2 SA CEC02 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 SA CN2 3722-002313 JACK-USB 4P/1C,AU30U,BLK,STRAIGHT,A TYPE 1 SA

D1 0401-001099 DIODE-SWITCHING 1N4148WS,75V,150mA,SOD-3 2 SA EV01 AK07-00073B VF DISPLAY HNV-07SS82T,HT-C550,78.4x16.2 1 SA FL06 3809-002550 FFC CABLE-FLAT 30V,80C,150mm,32P,1mm,UL2 1 SA FU1 1003-002129 IC-VFD PT6315A,LQFP,44P,10x10mm,-40/-15m 1 SA HDC24 2402-000008 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4 1 SNA

HJ1 3722-001588 JACK-PHONE 7P,AG,BLK,STRAIGHT 1 SA IDR23 2007-000116 R-CHIP 120ohm,5%,1/10W,TP,1608 1 SNA KAR21 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 4 SA MR122 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608 1 SA

Samsung Electronics 5-4

This Document can not be used without Samsung’s authorization.

5-5 Samsung Electronics

Exploded View & Part List

This Document can not be used without Samsung’s authorization.

Loc. No. Part No. Description Specification Qty. SNA Remark

MROP1 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 5 SA

PR6 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 SNA R830 2007-000101 R-CHIP 82Kohm,5%,1/10W,TP,1608 1 SA S1H0220 2402-000120 C-AL,SMD 10UF,20%,50V,GP,TP,6.6X6.6X5.4M 3 SA UIC2 0609-001189 MODULE REMOCON HORIZONTAL,16.4mm,TR 1 SC ZC165 2203-000815 C-CER,CHIP 0.033nF,5%,50V,C0G,1608 2 SA

ZVL3 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/10 3 SA 0103-004609 RESIN-ABS BK0007,HB,ABS,High Flow ABS 15 SNA 0202-001463 SOLDER-WIRE LFC2-W3.0,-,D3,99.79Sn/0.2Cu 3.471 SNA 0202-001477 SOLDER-CREAM LST309-M,D20~45um,96.5Sn/3A 0.189 SNA 0202-001608 SOLDER-WIRE FLUX LFC7-107,D0.8,99.3Sn/0. 0.096 SNA

0204-002420 SOLVENT 1M-1000,C3H70H,96 1.2 SNA 0204-002607 FLUX DF-234U,13%,14KG,Gravity 0.82 0.93 SNA 0403-001785 DIODE-ZENER NZH5V1B,4.94/5.2V,500mW,SOD- 1 SA 0406-001128 DIODE-TVS MLVS-0603-E08,50V 2 SA 3002-001134 BUZZER-PIEZO 85dB,12V,2K-4KHz,BK 1 SA

AH41-01323B PCB DISPLAY-FRONT HT-C550,CEM-3,1,0,1.6, 1 SNA AH63-01953A SHEET-EVA HT-WS1,EVA T4.0,4,20,44 1 SNA AH97-05288A ASSY SMD HT-C550,FRONT_SMD_NOMIC,AH94-02 1 SNA AH97-05289A ASSY MANUAL INSERT HT-C550,FRONT_MANUAL_ 1 SNA

M0014 AH94-02467B ASSY PCB MAIN HT-C550,HOME THEATER,EUR,E 1 SA

AH97-04394A ASSY AUTO HT-C550,MAIN_AUTO_EUROPE,AH94- 1 SNA 2301-001760 C-FILM,MPEF 100nF,10%,250V,TP,B5xH13.5x1 6 SA AH97-04395A ASSY SMD HT-C550,MAIN_SMD_EUROPE,AH94-02 1 SNA 0202-001477 SOLDER-CREAM LST309-M,D20~45um,96.5Sn/3A 2.5 SNA AH97-05310A ASSY MICOM-NOR-FLASH (MX25L1605DM2I-12G) 1 SNA

AH97-05307D ASSY MICOM-IC MICOM HTD-C550WWM-1004.2,2 1 SNA 0403-001052 DIODE-ZENER RD8.2MB,7.7-8.7V,200mW,SOT-2 1 SA 0403-001441 DIODE-ZENER MMSZ5239B,5%,500MW,SOD-123,T 2 SA 0403-001483 DIODE-ZENER UDZS18B,17.56-18.35V,200mW,S 2 SA 0406-001128 DIODE-TVS MLVS-0603-E08,50V 6 SA

0501-000150 TR-SMALL SIGNAL 2SA1037,PNP,200mW,SOT-23 1 SA 0504-000105 TR-DIGITAL DTA114EU,PNP,200MW,10K/10K,SC 1 SA 1001-001298 IC-ANALOG SWITCH L10X,10P,2.1x1.6,1,1.65 1 SNA 1003-002161 IC-DRIVER PI3HDMI101,TQFN,42P,9x3.5mm,SI 1 SA 1003-002268 IC-GATE DRIVER IRS2053MTRPBF,MLPQ,48P,7X 2 SA

1006-001438 IC-BUS DRIVER R5H30201NA04NQ08,QFN,20P,4 1 SA 1201-002982 IC-VIDEO AMP THS7374IPWR,TSSOP,14P,5x4.4 1 SA 1203-006013 IC-DC/DC CONVERTER AOZ1031AI,SO-8,8P,4.9 1 SA 1203-006067 IC-POWER SUPERVISOR TPS2553DBVR,SOT-23,6 2 SNA 1203-006105 IC-DC/DC CONVERTER MAX5033DUSA,SO,8P,4.9 1 SNA

2007-000146 R-CHIP 6.8Kohm,5%,1/16W,TP,1005 1 SNA 2007-000253 R-CHIP 1.5ohm,5%,1/4W,TP,3216 2 SA 2007-000336 R-CHIP 120Kohm,1%,1/10W,TP,1608 2 SA 2007-000501 R-CHIP 2.2ohm,1%,1/10W,TP,1608 2 SA 2007-001319 R-CHIP 1.2Kohm,5%,1/16W,TP,1005 3 SA

2007-001329 R-CHIP 7.5Kohm,5%,1/16W,TP,1005 1 SA

Exploded View & Part List

Loc. No. Part No. Description Specification Qty. SNA Remark

2007-001333 R-CHIP 18Kohm,5%,1/16W,TP,1005 1 SNA 2007-002797 R-CHIP 560ohm,5%,1/16W,TP,1005 1 SA 2007-007065 R-CHIP 10ohm,5%,1W,TP,6432 6 SA 2007-007306 R-CHIP 100ohm,1%,1/16W,TP,1005 1 SNA

2007-007313 R-CHIP 6.8Kohm,1%,1/16W,TP,1005 6 SA 2007-007316 R-CHIP 3.3Kohm,1%,1/16W,TP,1005 1 SNA 2007-007671 R-CHIP 11Kohm,1%,1/16W,TP,1005 1 SA 2007-007723 R-CHIP 75Kohm,1%,1/10W,TP,1608 1 SA 2402-001166 C-AL,SMD 22UF,20%,50V,GP,TP,6.3MMX5.4MM 2 SNA

2402-001185 C-AL,SMD 2.2UF,20%,50V,WT,TP,4.3X4.3X6MM 1 SA 3710-002628 SOCKET-INTERFACE 18P,1R,0.5mm,SMD-A,NI 1 SNA AH41-01320E PCB MAIN HT-C550,FR-4,2,0,1.6,168X247,1 1 SNA 1204-003179 IC-PAL/NTSC DECODER ES8398SCDVA,LQFP,216 1 SA AH97-04397A ASSY MANUAL INSERT HT-C550,MAIN_MANUAL_E 1 SNA

0202-001463 SOLDER-WIRE LFC2-W3.0,-,D3,99.79Sn/0.2Cu 6.171 SNA 0202-001608 SOLDER-WIRE FLUX LFC7-107,D0.8,99.3Sn/0. 0.167 SNA 0204-002420 SOLVENT 1M-1000,C3H70H,96 3.25 SNA 0204-002607 FLUX DF-234U,13%,14KG,Gravity 0.82 2.52 SNA 0205-001366 GREASE-SILICON T4110 1 SNA

3709-001592 CONNECTOR-CARD EDGE 22P,1.27mm,ANGLE,SN, 1 SA AH27-00078A COIL FILTER 1016P-01-220L,22uH,0.1,18.5, 3 SNA AH27-00078A COIL FILTER 1016P-01-220L,22uH,0.1,18.5, 2 SNA AH62-00062R HEAT SINK-MEPG HT-C550,AL,2.8,50,35,--,- 1 SNA 0103-007285 RESIN-PC MW32020GFU,BK0007,2.0 V2,PC/GF2 3 SNA

6MC22 2203-000975 C-CER,CHIP 47nF,10%,25V,X7R,TP,1608,- 2 SNA AAC1 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608 65 SNA AAC14 2203-000888 C-CER,CHIP 4.7nF,10%,50V,X7R,TP,1608 1 SA AAL2 AH27-00067A COIL FILTER MAX-DA75,22.4uH,50m Ohm,19.0 1 SNA AAR11 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216 1 SA

AC109 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 6 SA AC139 2203-000491 C-CER,CHIP 2.2nF,10%,50V,X7R,1608 6 SA AC2 2203-002711 C-CER,CHIP 100nF,10%,25V,X7R,1608 9 SA AC28 2203-001607 C-CER,CHIP 0.22nF,5%,50V,NP0,1608 3 SA AC510 3708-001939 CONNECTOR-FPC/FFC/PIC 32P,1mm,STRAIGHT,S 1 SA

AC6 2402-001049 C-AL,SMD 10uF,20%,16V,GP,TP,3.3x3.3x5.4 12 SA ACC2 2203-001408 C-CER,CHIP 0.27nF,5%,50V,NP0,1608 6 SA AD1 0407-000116 DIODE-SWITCHING KDS181,DAP202K,SDS2836,8 1 SNA AD480 2203-000203 C-CER,CHIP 100nF,10%,16V,X7R,TP,2012,2mm 2 SA AD480 2203-001386 C-CER,CHIP 100nF,10%,100V,X7R,TP,3216,3. 7 SNA

AD480 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 2 SNA AD480 2203-005934 C-CER,CHIP 10000nF,10%,6.3V,X7R,3216 4 SA AD480 2203-006024 C-CER,CHIP 2200nF,10%,10V,X7R,2012 5 SNA AD480 2203-006333 C-CER,CHIP 10000nF,20%,16V,X5R,TP,3216 2 SNA AD480 2203-006336 C-CER,CHIP 10000nF,10%,25V,X5R,3216 19 SA

AD480 2203-006698 C-CER,CHIP 1000nF,10%,25V,X7R,1608 8 SNA AD480 2203-006706 C-CER,CHIP 2200nF,10%,50V,X7R,3225 2 SNA AD480 2203-007132 C-CER,CHIP 10000nF,10%,25V,X7R,TP,3216 1 SA AD480 2203-007176 C-CER,CHIP 10000nF,10%,16V,X5R,TP,2012 2 SNA AD480 2203-007233 C-CER,CHIP 22000nF,10%,16V,X5R,TP,3216 2 SA

Samsung Electronics 5-6

This Document can not be used without Samsung’s authorization.

5-7 Samsung Electronics

Exploded View & Part List

This Document can not be used without Samsung’s authorization.

Loc. No. Part No. Description Specification Qty. SNA Remark

AH025 AH62-00221B HEAT SINK-AMP HT-C550,AL,5,13,131,--,--, 1 SNA AH260 AH61-02854A HOLDER-HEATSINK HT-BD1250,HIPS V0,2.0mm, 3 SNA AQ7 0504-000128 TR-DIGITAL FJV3103R,NPN,200mW,22K/22Kohm 9 SA AQ8 0504-000156 TR-DIGITAL KSR2103,PNP,200MW,22K/22K,SOT 2 SA AR108 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 14 SA

AR150 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 14 SA AR161 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 16 SNA AR164 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 2 SA AR174 2007-000129 R-CHIP 27Kohm,5%,1/10W,TP,1608 15 SA AR30 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 5 SA

AR30 2007-001306 R-CHIP 150ohm,5%,1/16W,TP,1005 1 SA AR42 2007-000939 R-CHIP 47Kohm,1%,1/10W,TP,1608 10 SA AR43 2007-000155 R-CHIP 27Kohm,5%,1/16W,TP,1005 1 SNA AR49 2007-000140 R-CHIP 1Kohm,5%,1/16W,TP,1005 31 SNA AR61 2007-000869 R-CHIP 4.7Kohm,1%,1/10W,TP,1608 1 SA

ARR2 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 9 SA AS074 AH63-02184A SHEET-EMI HT-C550,EMI SHEET,0.1,55,18,YE 1 SNA AVC08 2203-002398 C-CER,CHIP 22nF,10%,50V,X7R,1608 1 SNA AVR73 2007-000142 R-CHIP 2.7Kohm,5%,1/16W,TP,1005 4 SNA C 2401-000038 C-AL 470uF,20%,25V,GP,TP,10x12.5mm, 1 SA

C 2402-001257 C-AL,SMD 470uF,20%,16V,TP,8.3x10mm 8 SA C 2402-001313 C-AL 330uF,20%,16V,WT,TP,8x10mm 1 SA C 2402-001326 C-AL,SMD 220uF,20%,16V,LZ,8.3x8.3x6.2mm 2 SA C 2401-004106 C-AL 680uF,20%,50V,-,BK,12.5 x 35,5 6 SNA C100 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 SNA

C102 2203-006158 C-CER,CHIP 100nF,10%,16V,X7R,1005 17 SNA C125 2203-006361 C-CER,CHIP 10000nF,10%,10V,X5R,TP,2012 51 SC C134 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,TP,1608 13 SA C212 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,TP,1608 10 SA C24 2203-005565 C-CER,CHIP 1nF,5%,50V,NP0,TP,1608 18 SA

C258 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 2 SA C3 2203-000384 C-CER,CHIP 0.015nF,5%,50V,C0G,1608 5 SNA C745 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012 1 SNA C802 2203-006348 C-CER,CHIP 1000nF,10%,25V,X5R,TP,1608 1 SA CEIC1 AK09-00159A IC MICOM MC80C0316-MC015 D32,44,2.7~5.5, 1 SNA

CEQ2 0505-000110 FET-SILICON 2N7002,N,60V,115mA,7.5ohm,0. 5 SA CER02 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 2 SA CER04 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 7 SA CIS3 AH40-00156A TUNER TT-705FM/RDS,MAX-DG35,FM. RDS,75 o 1 SA CN8 3708-001616 CONNECTOR-FPC/FFC/PIC 9P,1mm,STRAIGHT,SN 1 SA

CN906 0603-001164 CONNECTOR-OPTICAL 5V,16Mb/s,0m,0dB,650nm 1 SA CON23- 3708-002403 CONNECTOR-FPC/FFC/PIC 23P,1mm,SMD-S,SN,N 1 SA CQ3 0501-002184 TR-SMALL SIGNAL KTD1304,NPN,200mW,SOT-23 3 SA D0254 0402-000553 DIODE-SCHOTTKY SS24/B240,40V,2000mA,DO-2 5 SA D0254 0402-001090 DIODE-SCHOTTKY MBRS1100,100V,1000MA,DO-2 1 SNA

D1 0401-001099 DIODE-SWITCHING 1N4148WS,75V,150mA,SOD-3 3 SA D1103 0406-001239 DIODE-TVS RClamp0502B,6/-/-V,125W,SOT-52 1 SA DC18 2203-005138 C-CER,CHIP 1.8nF,10%,50V,X7R,1005 12 SA

Exploded View & Part List

Loc. No. Part No. Description Specification Qty. SNA Remark

DR01A 0402-001427 DIODE-RECTIFIER ES1D,200V,1A,DO-214AC,TP 6 SA DR1 2007-000023 R-CHIP 120ohm,5%,1/8W,TP,2012 1 SA

DR1 2007-001301 R-CHIP 68ohm,5%,1/16W,TP,1005 1 SA DR10 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 3 SA DR37 2007-000932 R-CHIP 470ohm,5%,1/16W,TP,1005 2 SNA DR39 2007-000162 R-CHIP 100Kohm,5%,1/16W,TP,1005 18 SNA DR6 2007-000831 R-CHIP 39Kohm,5%,1/16W,TP,1005 1 SA

DS01A 0401-001166 DIODE-SWITCHING BAV20WS-V,150V,250mA,SOD 6 SA DU501 1203-001824 IC-VOL. DETECTOR 7042,SOT-89,3P,PLASTIC, 1 SA EC28 AH69-02892A PAD-THERMAL HT-C550,OTHER,2,12,52 2 SNA ER19 2007-002899 R-CHIP 10ohm,1%,1/10W,TP,1608 7 SA FAR22 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 2 SNA

FR18 2007-000982 R-CHIP 5.6Kohm,5%,1/16W,TP,1005 3 SA HDC24 2402-000008 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4 3 SNA HDMI 3701-001313 CONNECTOR-HDMI 19P,2R,PLUG,ANGLE,AU30U 1 SA HDR7 2007-000139 R-CHIP 220ohm,5%,1/16W,TP,1005 7 SNA HDR8 2007-007095 R-CHIP 390ohm,5%,1/16W,TP,1005 2 SA

HQ4 0505-001930 FET-SILICON MCH3319,P,-12V,-2.6A,0.255oh 1 SNA HR10 2007-001320 R-CHIP 1.8Kohm,5%,1/16W,TP,1005 2 SA HRP2 2011-001344 R-NETWORK 100ohm,5%,1/16W,L,CHIP,8P,TP,2 8 SA IC012 1203-006057 IC-POSI.ADJUST REG. KIA1085FP00,D2PAK,3P 1 SA IC11 1001-001305 IC-ANALOG SWITCH 74HC4066PW,TSSOP,14P,5. 1 SA

IC112 1103-001410 IC-EEPROM S-24CS08AFJ-TB-1GE,8Kbit,1Kx8, 3 SNA IC520 0903-001565 IC-MICROCONTROLLER LC87F5NC8AVU,QFP,100P 1 SNA J1002 3722-002027 JACK-PIN 6P/6C,SN,YEL/GN/WH/BL/RD,ANGLE 1 SNA KAC5 2203-001126 C-CER,CHIP 0.68nF,10%,50V,X7R,1608 1 SNA KAR11 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 12 SNA

KAR21 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 28 SA KAR7 2007-000120 R-CHIP 680ohm,5%,1/10W,TP,1608 1 SNA KAR9 2007-000093 R-CHIP 20Kohm,5%,1/10W,TP,1608 2 SA KOP1 1201-000163 IC-OP AMP 4560,SOP,8P,173MIL,DUAL,100V/m 5 SA KQ6 0501-000341 TR-SMALL SIGNAL KSC1623-L,NPN,200mW,SOT- 1 SA

MC15 2203-000560 C-CER,CHIP 220nF,+80-20%,25V,Y5V,1608 2 SNA MD1 0404-001089 DIODE-SCHOTTKY RB551V-30,20V,500MA,SOD-3 6 SA MIC1 1003-001978 IC-MOTOR DRIVER AM5766,HSOP28H,28P,17.9x 1 SA MIC10 0801-002391 IC-CMOS LOGIC 74LCX00,NAND GATE,TSSOP,14 2 SNA MIC2 1105-001573 IC-DRAM K4S281632,-,128Mbit,8Mx16Bit,TSO 1 SA

MR103 2007-000308 R-CHIP 10ohm,5%,1/8W,TP,2012 4 SA MR112 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 29 SA MR122 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608 9 SA MR13 2007-000157 R-CHIP 47Kohm,5%,1/16W,TP,1005 14 SNA MR16 2007-000098 R-CHIP 56Kohm,5%,1/10W,TP,1608 2 SA

MR16 2007-000168 R-CHIP 470Kohm,5%,1/16W,TP,1005 2 SNA MR166 2007-000119 R-CHIP 560ohm,5%,1/10W,TP,1608 1 SA MR17 2007-000566 R-CHIP 220Kohm,5%,1/16W,TP,1005 9 SNA MR19 2007-000087 R-CHIP 6.8Kohm,5%,1/10W,TP,1608 10 SA MR2 2007-000130 R-CHIP 39Kohm,5%,1/10W,TP,1608 2 SA

MR306 2007-000141 R-CHIP 2.2Kohm,5%,1/16W,TP,1005 5 SNA

Samsung Electronics 5-8

This Document can not be used without Samsung’s authorization.

5-9 Samsung Electronics

Exploded View & Part List

This Document can not be used without Samsung’s authorization.

Loc. No. Part No. Description Specification Qty. SNA Remark

MR36 2007-000153 R-CHIP 22Kohm,5%,1/16W,TP,1005 7 SNA MR39 2007-000242 R-CHIP 1.5Kohm,5%,1/16W,TP,1005 3 SNA MR9 2007-000455 R-CHIP 18Kohm,1%,1/10W,TP,1608 1 SA MROP1 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 39 SA

MX1 2801-004284 CRYSTAL-SMD 27MHz,10ppm,28-AAN,20pF,30oh 1 SA ND51C2 2007-000066 R-CHIP 20Kohm,1%,1/10W,TP,1608 6 SNA OTR1 2007-001292 R-CHIP 33ohm,5%,1/16W,TP,1005 17 SNA P803T 1404-001483 THERMISTOR-PTC 470ohm,50%,32V,TP 2 SA PC11 2203-006141 C-CER,CHIP 1000nF,10%,16V,X5R,1608 2 SNA

PC69 2203-006818 C-CER,CHIP 47000nF,20%,6.3V,X5R,3216 4 SA PCW2 3711-003359 HEADER-BOARD TO CABLE BOX,10P,1R,2.5mm,S 1 SA PCW3 3711-006142 HEADER-BOARD TO CABLE BOX,15P,1R,2mm,STR 1 SA PL1 2703-003408 INDUCTOR-SMD 10uH,20%,7070 1 SNA PPC2 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608 77 SNA

PPC2 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608 1 SNA PPD1 0402-000309 DIODE-RECTIFIER 1SR154-400,400V,1A,SOD-1 7 SA PPR2 2007-000343 R-CHIP 120ohm,1%,1/10W,TP,1608 1 SA PR2 2007-000651 R-CHIP 27Kohm,1%,1/10W,TP,1608 1 SA PR4 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608 1 SA

PR6 2007-000583 R-CHIP 22Kohm,1%,1/10W,TP,1608 1 SA Q1 0501-000479 TR-SMALL SIGNAL KST42,NPN,350mW,SOT-23,T 3 SA Q101 0501-000445 TR-SMALL SIGNAL KTC3875S-Y,NPN,150mW,SOT 2 SA Q1040 0501-000457 TR-SMALL SIGNAL MMBT2222A/KST2222A,NPN,3 2 SA Q301 0501-000481 TR-SMALL SIGNAL KST92,PNP,350mW,SOT-23,T 3 SA

Q4 0501-000632 TR-SMALL SIGNAL 2SB1197K,PNP,200mW,SOT-2 2 SA Q409 0505-001170 FET-SILICON FDS9933A,P,-20V,3.8A,0.075oh 1 SA Q409 0505-002365 FET-SILICON IRF6645,N,100V,5.7A,0.035ohm 12 SNA Q806 0504-000152 TR-DIGITAL KSR2101,PNP,200mW,4.7K/4.7Koh 1 SA R1 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608 17 SNA

R102 2007-000149 R-CHIP 12Kohm,5%,1/16W,TP,1005 2 SA R104 2007-000148 R-CHIP 10Kohm,5%,1/16W,TP,1005 38 SA R105 2007-000138 R-CHIP 100ohm,5%,1/16W,TP,1005 46 SA R109 2007-000293 R-CHIP 100ohm,5%,1/4W,TP,3216 1 SNA R111 2007-000171 R-CHIP 0ohm,5%,1/16W,TP,1005 32 SNA

R123 2007-000159 R-CHIP 56Kohm,5%,1/16W,TP,1005 2 SNA R16 2007-001313 R-CHIP 330ohm,5%,1/16W,TP,1005 4 SNA R1P151 2007-000121 R-CHIP 820ohm,5%,1/10W,TP,1608 7 SA R227 2007-000086 R-CHIP 5.6Kohm,5%,1/10W,TP,1608 2 SA R299 2007-000772 R-CHIP 33Kohm,1%,1/10W,TP,1608 1 SA

R319 2007-000143 R-CHIP 4.7Kohm,5%,1/16W,TP,1005 27 SNA R326 2007-001325 R-CHIP 3.3Kohm,5%,1/16W,TP,1005 7 SNA R338 2007-000173 R-CHIP 22ohm,5%,1/16W,TP,1005 1 SNA R3A08 2007-000091 R-CHIP 12Kohm,5%,1/10W,TP,1608 6 SNA R419 2007-000882 R-CHIP 4.7ohm,5%,1/10W,TP,1608 4 SA

R505 2007-000496 R-CHIP 2.2Kohm,5%,1/4W,TP,3216 6 SA R509 2007-000170 R-CHIP 1Mohm,5%,1/16W,TP,1005 4 SNA R509 2007-001179 R-CHIP 8.2Kohm,5%,1/10W,TP,1608 3 SA R510 2007-000108 R-CHIP 510Kohm,5%,1/10W,TP,1608 2 SA R813 2007-000643 R-CHIP 270ohm,5%,1/10W,TP,1608 6 SNA

Exploded View & Part List

Loc. No. Part No. Description Specification Qty. SNA Remark

R893B 2007-000122 R-CHIP 1.2Kohm,5%,1/10W,TP,1608 6 SA RC34 2203-000280 C-CER,CHIP 0.01nF,0.5pF,50V,C0G,1608 5 SA RIC1 1201-001842 IC-OP AMP TL3472CD,SO,TP,8P,-,DUAL,-,PAL 1 SA RR2 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 2 SA S1I0240 2007-001119 R-CHIP 680ohm,5%,1/16W,TP,1005 1 SNA

T0052 2703-002238 INDUCTOR-SMD 1UH,5%,2012 4 SNA T0052 2703-003362 INDUCTOR-SMD 4.7uH,20%,7070 1 SA T0052 2703-003768 INDUCTOR-SMD 330uH,20%,6060 1 SNA T0087 1203-002835 IC-POSI.FIXED REG. KIA7805AF,DPAK,3P,6.6 1 SA T0087 1203-003695 IC-POSI.FIXED REG. NCP1117ST33T3G,SOT-22 3 SA

T0122 2802-001165 RESONATOR-CERAMIC 4MHz,0.5%,TP,4.5x2.0x1 1 SNA T0415 3716-001243 TERMINAL-BLOCK WIRE TYPE,12P,14mm,0V,0A 1 SA T0568 3301-001404 BEAD-SMD 30ohm,2012,TP,15.9OHM/30MHz 43 SA T702 3722-001373 JACK-SCART 21P,SN,BLACK 1 SA TR30 2007-007009 R-CHIP 75ohm,5%,1/16W,TP,1005 2 SA

U1502 1203-001212 IC-VOL. DETECTOR 7029,SOT-89,3P,-,PLASTI 1 SA UX2 2802-001174 RESONATOR-CERAMIC 10MHZ,0.5%,BK,8X3.5X3M 1 SA VL6 2703-000398 INDUCTOR-SMD 10uH,10%,3225 2 SA W390 6003-000276 SCREW-TAPTYPE BH,+,-,B,M3,L10,ZPC(WHT),S 3 SA WC31 2305-000407 C-FILM,LEAD-PEF 470nF,5%,100V,TP,10.5x6x 6 SA

ZC35 2203-000681 C-CER,CHIP 0.027nF,5%,50V,C0G,1608 2 SA ZIC3 1107-001709 IC-FLASH MEMORY MX25L1605DM2I-12G,16Mbit 1 SNA ZRN10 2011-001261 R-NETWORK 33ohm,5%,1/16W,L,CHIP,8P,TP,2. 5 SA

D001A AH96-00011B ASSY DECK-CKD MAX-DG35,NEW TRAY,CABLE R 1 SA

AAC1 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608 5 SNA AAR39 2007-000123 R-CHIP 1.5Kohm,5%,1/10W,TP,1608 1 SA AD480 2203-000178 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 SNA AD480 2203-000455 C-CER,CHIP 1nF,5%,50V,C0G,2012 2 SNA

AD480 2203-000592 C-CER,CHIP 0.22NF,5%,50V,C0G,TP,1608 1 SA AD480 2203-001386 C-CER,CHIP 100nF,10%,100V,X7R,TP,3216,3. 1 SNA AD480 2203-002180 C-CER,CHIP 1000nF,10%,50V,X7R,3216 1 SA AD480 2203-006698 C-CER,CHIP 1000nF,10%,25V,X7R,1608 2 SNA AH020 AH62-00201A HEAT SINK HT-Z320,A6063S-T5,1.5,18,45,40 2 SNA

AH383 AH61-02750A HOLDER-SMPS HT-Z320,HIPS,1.5,20,30,BLK 1 SNA AQ111 0501-000331 TR-SMALL SIGNAL KSC1009-Y,NPN,800mW,TO-9 1 SA AQ7 0504-000128 TR-DIGITAL FJV3103R,NPN,200mW,22K/22Kohm 1 SA AR150 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 4 SA ARR2 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 2 SA

BD707 3301-000297 BEAD-AXIAL 25ohm,3.6x1.2x5.7mm,-,TP,-,-, 3 SNA C 2401-000038 C-AL 470uF,20%,25V,GP,TP,10x12.5mm, 2 SA C 2401-000360 C-AL 100uF,20%,50V,GP,TP,8x11.5,5 1 SA C 2401-000970 C-AL 22uF,20%,50V,WT,TP,5x11,5 1 SA C 2401-003139 C-AL 1000uF,20%,25V,WT,TP,10*20,5mm 1 SA

C1S09 2401-001573 C-AL 47uF,20%,50V,GP,TP,6.3x11,2.5 1 SA C2A4 2401-001020 C-AL 3.3UF,20%,50V,GP,TP,4X7,5 1 SNA C338 2203-000609 C-CER,CHIP 22nF,10%,50V,X7R,TP,2012 1 SA C3508 2203-001658 C-CER,CHIP 0.047nF,5%,50V,NP0,TP,1608 1 SA

Samsung Electronics 5-10

This Document can not be used without Samsung’s authorization.

5-11 Samsung Electronics

Exploded View & Part List

This Document can not be used without Samsung’s authorization.

Loc. No. Part No. Description Specification Qty. SNA Remark

C3S09 2401-001324 C-AL 0.47UF,20%,50V,GP,BK,3X5,2.5 1 SA

C745 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012 1 SNA CER04 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 2 SA CF1 2301-001796 C-FILM,LEAD-PPF 0.56nF,5%,1000V,23x12mm 1 SA CX2 2301-001511 C-FILM,LEAD-PEF 330NF,10%,275V,BK,16X18X 2 SA CY5 2305-001016 C-FILM,LEAD-PEF 10nF,10%,630V,TP,12.5x6. 3 SNA

D1 0401-001099 DIODE-SWITCHING 1N4148WS,75V,150mA,SOD-3 8 SA D1SS12 0402-001439 DIODE-RECTIFIER SHK75-11,100V,3A,DO-201A 2 SA DR01A 0402-000274 DIODE-RECTIFIER UF4004,400V,1A,DO-41,TP 2 SA DR01A 0402-001427 DIODE-RECTIFIER ES1D,200V,1A,DO-214AC,TP 1 SA DR01A 0402-001604 DIODE-RECTIFIER MUR420,200V,4A,DO-201AD, 1 SA

EC11 AH39-01098A HARNESS POWER HT-C550/C5500,Flat Connect 1 SA EC11 AH39-01099A HARNESS POWER HT-C550/C5500,Flat Connect 1 SA FAR22 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 1 SNA IC1 1203-004788 IC-PWM CONTROLLER ICE2QS01,DIP,8P,9.52X6 1 SA JP21 3811-001868 WIRE-NO SHEATH CU SnCuFe,52mm,GRY 30 SNA

KAR11 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 1 SNA KAR7 2007-000120 R-CHIP 680ohm,5%,1/10W,TP,1608 1 SNA KQ6 0501-000341 TR-SMALL SIGNAL KSC1623-L,NPN,200mW,SOT- 1 SA KQ6 0501-000341 TR-SMALL SIGNAL KSC1623-L,NPN,200mW,SOT- 1 SA LF2_1 AH29-00015A FILTER LINE HT-Z110,SQ2424,1.1 OHM,9mH,2 1 SA

LF2_1 AH29-00016B FILTER LINE HT-Z320,TR16 4.0mH,0.08,4.0m 1 SA M3501 0505-002302 FET-SILICON AP9575GP,P,-60V,-16A,0.07ohm 1 SA MD1 0404-001089 DIODE-SCHOTTKY RB551V-30,20V,500MA,SOD-3 2 SA MR13 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 4 SA MROP1 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 5 SA

ND53D1 0403-001079 DIODE-ZENER UDZ3.9B,7%,200MW,SOD-323,TP 1 SA P001A AH90-00602A ASSY MISC-SMPS PCB DP,AH94-02517A,C550 1 SA P001A AH94-02517A ASSY PCB SMPS HT-C650W/C550,EUR/ASIS 1 SA PADT1 0402-001562 DIODE-BRIDGE TS6P05G,600V,6A,SIP-4,ST 1 SA PCD02 2201-000963 C-CERAMIC,DISC 1NF,20%,400V,Y5U,TP,9.5X6 3 SA

PCNS2 3711-000203 HEADER-BOARD TO CABLE 1WALL,2P/3P,1R,7.9 1 SA PDS11 0402-000012 DIODE-RECTIFIER UF4007,1000V,1A,DO-41,TP 5 SA PICS1 0604-001028 PHOTO-COUPLER TR,50-600%,250mW,DIP-4,ST 4 SC PICS2 AC14-12006D IC KA431Z,TO-92,TAPING 2 SA PLS31 AC27-12001N COIL CHOKE RA,K-30,Q80,150KHZ,150KHZ 1 SA

PRS13 2003-000994 R-METAL OXIDE(S) 33Kohm,5%,2W,AF,TP,3.9x 4 SA PTD1 AK26-00021A TRANS SWITCHING DVD-HD1080,120V,+8V,-8V, 1 SA Q1 0501-000479 TR-SMALL SIGNAL KST42,NPN,350mW,SOT-23,T 1 SA Q1042 0501-000462 TR-SMALL SIGNAL MMBT2907A,PNP,350mW,SOT- 1 SA Q1P107 0501-000362 TR-SMALL SIGNAL KSC2328A-Y,NPN,1000mW,TO 2 SA

Q409 0505-001981 FET-SILICON SPA11N80C3,N,800V,11A,0.45OH 1 SA R1 2002-001115 R-COMPOSITION 1.5Mohm,5%,1/2W,AA,TP,4x12 1 SA R1005 2007-000300 R-CHIP 10Kohm,5%,1/8W,TP,2012 1 SA R15 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608 4 SNA R1P110 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2mm 1 SA

R1S36 2007-000493 R-CHIP 2.2Kohm,5%,1/8W,TP,2012 2 SA R2007 2007-000803 R-CHIP 36Kohm,1%,1/10W,TP,1608 1 SA

Exploded View & Part List

Loc. No. Part No. Description Specification Qty. SNA Remark

R3512 2007-001206 R-CHIP 82Kohm,1%,1/10W,TP,1608 1 SNA RR17 2007-007549 R-CHIP 4.99Kohm,1%,1/10W,TP,1608 1 SNA S1G1132 0501-000295 TR-SMALL SIGNAL KSA709-Y,PNP,800mW,TO-92 1 SNA

T0010 AH27-00068A COIL CHOKE BARX20, 2.9UH,HT-Z320,2.9uH,2 2 SA T0086 1203-005211 IC-PWM CONTROLLER ICE3BR4765J,DIP,8P,9.4 1 SA T0900 1404-001195 THERMISTOR-NTC 5.1ohm,3.84A,3000K,21mW/C 1 SA U3 1203-000119 IC-NEGA.FIXED REG. 7905,TO-220,3P,PLASTI 1 SNA UC24 2401-001364 C-AL 470uF,20%,16V,GP,TP,10x12.5,5 3 SA

V1233 2203-000575 C-CER,CHIP 220nF,10%,25V,X7R,TP,2012 2 SNA V8932 2007-000857 R-CHIP 4.3Kohm,1%,1/10W,TP,1608 2 SNA VD11 0403-001083 DIODE-ZENER UDZSNP9.1B,8.85/9.23V,200mW, 2 SNA VQ4 0501-000002 TR-SMALL SIGNAL KSA812,PNP,150mW,SOT-23, 1 SNA W390 6003-000276 SCREW-TAPTYPE BH,+,-,B,M3,L10,ZPC(WHT),S 3 SA

WE08 2401-003850 C-AL 1000UF,20%,50V,WT,TP,12.5 X 25,5 4 SA ZC165 2203-000815 C-CER,CHIP 0.033nF,5%,50V,C0G,1608 2 SA 0403-001062 DIODE-ZENER UDZSNP4.7B,4.55/4.75V,200mW, 2 SA 0404-001489 DIODE-SCHOTTKY SBR20A200CTFP,200V,20000m 2 SA 0501-000251 TR-SMALL SIGNAL BC807,PNP,310mW,SOT-23,T 1 SA

1405-000152 VARISTOR 560V,2500A,14x8.5mm,TP 1 SA 2003-002053 R-METAL OXIDE(S) 1.1ohm,5%,1W,AF,TP,2.5x 1 SA 2003-002456 R-METAL OXIDE 0.18ohm,5%,2W,AF,TP,3.9x12 2 SNA 2007-000415 R-CHIP 15ohm,5%,1/8W,TP,2012 2 SNA 2007-000575 R-CHIP 220ohm,5%,1/4W,TP,3216 1 SA

2007-000656 R-CHIP 27Kohm,5%,1/4W,TP,3216 1 SNA 2007-000689 R-CHIP 3.3Mohm,5%,1/8W,TP,2012 1 SA 2007-000774 R-CHIP 33Kohm,5%,1/8W,TP,2012 2 SA 2007-000883 R-CHIP 4.7ohm,5%,1/4W,TP,3216 1 SA 2201-000152 C-CERAMIC,DISC 10NF,+80-20%,1KV,Y5V,TP,2 2 SA

2201-002213 C-CERAMIC,DISC 0.47nF,10%,400V,Y5P,8.0X6 1 SNA 2301-001220 C-FILM,LEAD-PPF 100nF,10%,275V,BK,18x6x1 1 SA 2301-002000 C-FILM,LEAD 1nF,10%,300V,BK,12.5x4x10mm 2 SNA 2401-000556 C-AL 1uF,20%,100V,GP,TP,5*11,5mm 1 SA 2401-003849 C-AL 1500UF,20%,16V,WT,TP,10X20,5 1 SA

2401-004681 C-AL 330uF,20%,450V,BK,30x35,10mm 1 SA 3601-001491 FUSE-RADIAL LEAD 250V,6.3A,TIME DELAY,RE 1 SA 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 26 SNA AH26-00338A TRANS POWER -,HT-Q9,1.2mH,15,-,VARIABLE, 1 SA AH26-00355A TRANS SWITCHING ER-4220,HT-Z320,VARIABLE 1 SA

AH41-01311B PCB MAIN HT-C5500,FR-1,1,00,T1.6,195*122 1 SNA AH63-01844A EARTH HT-Z320,C2680R-1/2H,0.5,NO 3 SNA AH90-00602B ASSY MISC-SMPS ASSY MISC-SMPS (XER),HT-C 1 SNA AH97-05128A ASSY AUTO HT-C550,SMPS_AUTO_EUR,AH94-025 1 SNA AH97-05129A ASSY SMD HT-C550,SMPS_SMD_EUR,AH94-02517 1 SNA

AH97-05130A ASSY MANUAL INSERT HT-C650W/C550,SMPS_MA 1 SNA BN81-00199H RESIN HIPS HB,BK500,HF-1690H,K2901 0.06 SNA

AH91-00120G ASSY SHIELD HT-C550 1 SNA

FIL 0203-000007 TAPE-FILAMENT T0.15,L55M,TRP 0.1 SNA

Samsung Electronics 5-12

This Document can not be used without Samsung’s authorization.

5-13 Samsung Electronics

Exploded View & Part List

This Document can not be used without Samsung’s authorization.

Loc. No. Part No. Description Specification Qty. SNA Remark

T0268 3903-000396 CBF-POWER CORD AT,EU,CP2,HOUSING(2P),250 1 SA

ACCE1 AH92-03294Q ASSY ACCESSORY HT-C550 1 SNA

REMO2 AH59-02292A REMOCON TM1051,MULTI 24P,49,3V,C550-2 1 SA CRA1A AH96-00051A ASSY MISC P-IPOD CRADLE HT-Z520,XAA,89*5 1 SA ACCE4 AH96-00515H ASSY ACCESSORY-MANUAL HT-C550/C553/C555 1 SNA AH68-02269F MANUAL USERS HT-C550,EDC,ENG/FRN/GER/ITA 1 SNA

AH68-02269G MANUAL USERS HT-C550,EDC,POL/HUN/SK/CZ/S 1 SNA AH68-50254B LABEL-SERIAL T0.1,L10,W42,SME/SEHZ 1 SNA PE I/B 6902-000385 BAG PE LDPE,T0.03,W250,L350,TRP,8,1PE MA 1 SNA ACCE4 AH96-00515Q ASSY ACCESSORY-MANUAL HT-C550/C553/C555 1 SNA 6801-001763 CARD-REGISTRATION Europe Registration,XE 1 SNA

AH30-00099A MICROPHONE-ASSY-ASC MIC 10V,150 to 450uA 1 SNA C-AUDI AH39-40001V CABLE-AUDIO CABLE -,-,1P-1P,3000mm,-,-,- 1 SA M0025 AH42-00021A ANT FM T T18011F-1,75 ohm,1800mm 1 SA AH68-02269H MANUAL USERS HT-C550,EDC,GRE/ROM/BUL/SER 1 SNA AH68-50254B LABEL-SERIAL T0.1,L10,W42,SME/SEHZ 1 SNA

AK68-01811H MANUAL FLYER-WARRANTY CARD comm,Samsung, 1 SNA S.N.A 4301-001035 BATTERY-ALKALINE 1.5V,0mAH,LR03,10.5x44. 2 SNA VS062 3301-000144 CORE-FERRITE 34.5x12.5x32.5mm,1500,2800G 1 SNA T0524 6902-000287 BAG PE LDPE,T0.05,W100,L120,TRP,0.000688 1 SNA PE I/B 6902-000385 BAG PE LDPE,T0.03,W250,L350,TRP,8,1PE MA 1 SNA

AH92-03379D ASSY BOX HT-C550 1 SNA

L-BARC AH68-00371A LABEL-BAR CODE ALL,ALL,ART PAPER,0.1,80, 1 SNA AH69-02925C BOX-SET HT-C550/XEF,CB,DW, A-1 TYPE,H309 1 SNA

AH92-03375J ASSY P/MATERIAL HT-C550 1 SNA

AH69-02912A CUSHION-SET HT-C450,EPS,WHT,16.7 g/l 1 SNA SP04A AH96-00328M ASSY SPEAKER P-SYSTEM PS-C550,PS-FRCC550 1 SNA H002 AH81-02177B SPEAKER PS-Q20,SPK CORD# CONNECTOR,FRONT 1 SNA SWFR4 AH81-05321A SPEAKER-WIRE-FRONT RIGHT PS-X725,4M*2PIN 1 SA

SWFL4 AH81-05322A SPEAKER-WIRE-FRONT LEFT PS-X725,4M*2PIN 1 SA SWRR10 AH81-05323A SPEAKER-WIRE-REAR RIGHT PS-X725,10M*2PIN 1 SA SWRL10 AH81-05324A SPEAKER-WIRE-REAR LEFT PS-X725,10M*2PIN 1 SA SWCE4 AH81-05325A SPEAKER-WIRE-CENTER PS-X725,4M*2PIN CLEA 1 SA SWWO4 AH81-05326A SPEAKER-WIRE-SUBWOOFER PS-X725,4M*2PIN C 1 SA

SPKFL AH81-05951A AUDIO-RECEIVER-PART PS-C550,PS-FRCC550,P 1 SA AH81-04849A SPEAKER-REAR FOOT PS-TZ225,REAR FOOT 2 SNA T0082 AH81-05228C SPEAKER PS-X625,SCREW(3.5*10),XAZ/SKD 1 SNA AH81-05700A SPEAKER-S2 WOOFER SPK UNIT S2 WOOFER SP 1 SNA AH81-05742B SPEAKER-PS-C5500 NETWORK_R NETWORK_R,PAR 1 SNA

AH81-05742L SPEAKER-PS-C5500 SCREW_FR SCREW_FR,PART 6 SNA AH81-05742N SPEAKER-PS-C5500 TOOLING BAG_CTOOLING B 1 SNA AH81-05952A AUDIO-RECEIVER-PART PS-C550,PS-FRCC550,P 1 SNA AH81-05996A SPEAKER-EVA-PARTITION TERMINAL,24*14,TAL 1 SNA AH81-05998A SPEAKER-EVA_REAR EVA_REAR 1 SNA

M0112 AH63-02073A COVER-FRONT PS-C230,ABS,3.0T,BLACK,S2 SP 1 SNA

Exploded View & Part List

Loc. No. Part No. Description Specification Qty. SNA Remark

0103-005096 RESIN-ABS HB,ABS+PMMA 128 SNA AH64-05257A PANEL-REAR PS-C230,ABS,3.0T,BLACK,S2 SPE 1 SNA 0103-004628 RESIN-HIPS BK0020,HB,HIPS,High Flow HIPS 81 SNA SPKFR AH81-05953A AUDIO-RECEIVER-PART PS-C550,PS-FRCC550,P 1 SA

AH81-04849A SPEAKER-REAR FOOT PS-TZ225,REAR FOOT 2 SNA T0082 AH81-05228C SPEAKER PS-X625,SCREW(3.5*10),XAZ/SKD 1 SNA AH81-05700A SPEAKER-S2 WOOFER SPK UNIT S2 WOOFER SP 1 SNA AH81-05742B SPEAKER-PS-C5500 NETWORK_R NETWORK_R,PAR 1 SNA AH81-05742L SPEAKER-PS-C5500 SCREW_FR SCREW_FR,PART 6 SNA

AH81-05742N SPEAKER-PS-C5500 TOOLING BAG_CTOOLING B 1 SNA AH81-05954A AUDIO-RECEIVER-PART PS-C550,PS-FRCC550,P 1 SNA AH81-05996A SPEAKER-EVA-PARTITION TERMINAL,24*14,TAL 1 SNA AH81-05998A SPEAKER-EVA_REAR EVA_REAR 1 SNA M0112 AH63-02073A COVER-FRONT PS-C230,ABS,3.0T,BLACK,S2 SP 1 SNA

0103-005096 RESIN-ABS HB,ABS+PMMA 128 SNA AH64-05257A PANEL-REAR PS-C230,ABS,3.0T,BLACK,S2 SPE 1 SNA 0103-004628 RESIN-HIPS BK0020,HB,HIPS,High Flow HIPS 81 SNA SPKCE AH81-05955A AUDIO-RECEIVER-PART PS-C550,PS-FRCC550,P 1 SA AH81-04849A SPEAKER-REAR FOOT PS-TZ225,REAR FOOT 2 SNA

T0082 AH81-05228C SPEAKER PS-X625,SCREW(3.5*10),XAZ/SKD 1 SNA AH81-05704A SPEAKER-CENTER SPK UNIT CENTER SPK UNIT 2 SNA AH81-05742A SPEAKER-PS-C5500 NETWORK_C NETWORK_C,PAR 1 SNA AH81-05742L SPEAKER-PS-C5500 SCREW_FR SCREW_FR,PART 12 SNA AH81-05742P SPEAKER-PS-C5500 TOOLING BAG_RTOOLING B 1 SNA

AH81-05956A AUDIO-RECEIVER-PART PS-C550,PS-FRCC550,P 1 SNA AH81-05996A SPEAKER-EVA-PARTITION TERMINAL,24*14,TAL 1 SNA AH81-05997A SPEAKER-EVA_CENTER EVA_CENTER 1 SNA M0112 AH63-02079A COVER-FRONT PS-C230,ABS,3.0T,BLACK,C1 SP 1 SNA 0103-005096 RESIN-ABS HB,ABS+PMMA 254 SNA

AH63-02143A COVER-TWEETER PS-C230,ABS,3.0T,BLACK,C1 1 SNA 0103-004628 RESIN-HIPS BK0020,HB,HIPS,High Flow HIPS 4 SNA AH64-05260A PANEL-REAR PS-C230,HIPS,3.0T,BLACK,C1 SP 1 SNA 0103-004628 RESIN-HIPS BK0020,HB,HIPS,High Flow HIPS 143 SNA SPKRL AH81-05957A AUDIO-RECEIVER-PART PS-C550,PS-FRCC550,P 1 SA

AH81-04849A SPEAKER-REAR FOOT PS-TZ225,REAR FOOT 2 SNA T0082 AH81-05228C SPEAKER PS-X625,SCREW(3.5*10),XAZ/SKD 1 SNA AH81-05700A SPEAKER-S2 WOOFER SPK UNIT S2 WOOFER SP 1 SNA AH81-05742B SPEAKER-PS-C5500 NETWORK_R NETWORK_R,PAR 1 SNA AH81-05742L SPEAKER-PS-C5500 SCREW_FR SCREW_FR,PART 6 SNA

AH81-05742N SPEAKER-PS-C5500 TOOLING BAG_CTOOLING B 1 SNA AH81-05958A AUDIO-RECEIVER-PART PS-C550,PS-FRCC550,P 1 SNA AH81-05996A SPEAKER-EVA-PARTITION TERMINAL,24*14,TAL 1 SNA AH81-05998A SPEAKER-EVA_REAR EVA_REAR 1 SNA M0112 AH63-02073A COVER-FRONT PS-C230,ABS,3.0T,BLACK,S2 SP 1 SNA

0103-005096 RESIN-ABS HB,ABS+PMMA 128 SNA AH64-05257A PANEL-REAR PS-C230,ABS,3.0T,BLACK,S2 SPE 1 SNA 0103-004628 RESIN-HIPS BK0020,HB,HIPS,High Flow HIPS 81 SNA SPKRR AH81-05959A AUDIO-RECEIVER-PART PS-C550,PS-FRCC550,P 1 SA AH81-04849A SPEAKER-REAR FOOT PS-TZ225,REAR FOOT 2 SNA

Samsung Electronics 5-14

This Document can not be used without Samsung’s authorization.

Exploded View & Part List

Loc. No. Part No. Description Specification Qty. SNA Remark

T0082 AH81-05228C SPEAKER PS-X625,SCREW(3.5*10),XAZ/SKD 1 SNA AH81-05700A SPEAKER-S2 WOOFER SPK UNIT S2 WOOFER SP 1 SNA AH81-05742B SPEAKER-PS-C5500 NETWORK_R NETWORK_R,PAR 1 SNA AH81-05742L SPEAKER-PS-C5500 SCREW_FR SCREW_FR,PART 6 SNA AH81-05742N SPEAKER-PS-C5500 TOOLING BAG_CTOOLING B 1 SNA

AH81-05960A AUDIO-RECEIVER-PART PS-C550,PS-FRCC550,P 1 SNA AH81-05996A SPEAKER-EVA-PARTITION TERMINAL,24*14,TAL 1 SNA AH81-05998A SPEAKER-EVA_REAR EVA_REAR 1 SNA M0112 AH63-02073A COVER-FRONT PS-C230,ABS,3.0T,BLACK,S2 SP 1 SNA 0103-005096 RESIN-ABS HB,ABS+PMMA 128 SNA

AH64-05257A PANEL-REAR PS-C230,ABS,3.0T,BLACK,S2 SPE 1 SNA 0103-004628 RESIN-HIPS BK0020,HB,HIPS,High Flow HIPS 81 SNA H001 AH81-05964A SPEAKER-PART PS-C550,PS-FRCC550,CUSHION 2 SNA BN69-00257B PACKING-PAD PAPER,CB-SW4,1130,820,YEL,28 1 SNA AH69-02671D CUSHION-PAD HT-C550,380,190,13 1 SNA

NITRON 6902-000062 BAG PE HDPE/NITRON/HDPE,T0.02/0.5/T0.02, 1 SNA BN69-05184H PALLET HT-C350,450,550,5200,6200,WOOD,10 1 SNA SP03A AH96-00625A ASSY SPEAKER P-W0 SUBWOOFER SPKW0 SUBW 1 SA AH81-06486A SPEAKER-SUBWOOFER PS-C553,SUBWOOFER SPEA 1 SNA AH61-03097A FRAME-NET PS-C450,HIPS,PS-WC450,NET FRAM 1 SNA

AH64-05243A PANEL FRONT-W0 W0 SUBWOOFER,ABS,3mm,154, 1 SNA ASP02 AH81-03376A SPEAKER-SYSTEM PS-AS720,DUCT_SUB/W,-,-,- 2 SNA AH81-05702A SPEAKER-SUBWOOFER SPK UNIT SubWOOFER SPK 1 SNA AH81-05888A SPEAKER-CUSHION_SW_TOP PS-C5530,345*210m 2 SNA AH81-05901A SPEAKER-WOOD CABINET_W0 SUBWOOFER CABINE 1 SNA

AH81-05983A SPEAKER-PAPER DUCT PAPER DUCT,66*60*180m 1 SNA AH81-05987A SPEAKER-TERMINAL ASS`Y TERMINAL ASS`Y,40 1 SNA AH81-05989A SPEAKER-EVA FOOT SILICON FOOT,15x3t, 5 P 4 SNA AH81-05990A SPEAKER-SCREW SCREW,4*16BA,BK,W1 SUBWOOF 4 SNA T0214 BN74-00008A TAPE-OPP MASKING OPP-2,T0.05,W100,L800M, 1.5 SNA

BN69-05418A PACKING-BAG WRAPPING -,LDPE,-,0,019,500, 1 SNA BN69-05529A PACKING-PAD-PACKING EDGE HT-C,PAPER,-,8, 1 SNA

AH92-03278J ASSY LABEL HT-C550,XER 1 SNA

CCM1 AH68-01929H LABEL RATING ALL,ELS,SILVER PET,86,53,si 1 SNA

5-15 Samsung Electronics

This Document can not be used without Samsung’s authorization.

5-1 Samsung Electronics

Exploded View & Part List

This Document can not be used without Samsung’s authorization.

W390

AD502

HH02

FD12

HH01

HDM01

M0014

D001A

P001A

T001

W391

M0081

W391

FL06

MF01A

KF01A

5. Exploded View & Part List

5-1 Product Exploded View

Exploded View & Part List

 Part List

Loc. No. Part No. Description;Specification Qty. SNA Remark

AD502 AH64-05240B DOOR-DVD;HT-C550,ABS+PMMA,2,45,24,150,BL 1 SA

D001A AH96-00011B ASSY DECK-CKD;MAX-DG35,NEW TRAY,CABLE R 1 SA

FD12 AH63-02049B COVER-USB;HT-C550,ELASTOMER,1,15,24,-,AL 1 SA

FL06 3809-002550 FFC CABLE-FLAT;30V,80C,150mm,32P,1mm,UL2 1 SA

HDM01 AH61-03038A HOLDER-MECHA.REA;HT-C350,ABS,10,20,10,BL 1 SA

HH01 AH61-03022A HOLDER-DOOR DN;HT-C5500,PC,2.5,130,10,BL 1 SA

HH02 AH61-03021A HOLDER-DOOR UP;HT-C5500,PC,2.5,130,10,BL 1 SA

KF01A AH90-00501B ASSY MISC-KITTING FRONT;HT-C550 1 SA

M0014 AH94-02467B ASSY PCB MAIN;HT-C550,HOME THEATER,EUR,E 1 SA

M0081 6003-001375 SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(WHT),SW 7 SA

MF01A AH94-02471F ASSY PCB FRONT;HT-C550,FRONT NO K-OK ASS 1 SA

P001A AH90-00602A ASSY MISC-SMPS PCB;DP,AH94-02517A,C550 1 SA

T001 AH63-02059A COVER-TOP;HT-C350,SECC,0.6,500,500,BLACK 1 SA

W390 6003-000276 SCREW-TAPTYPE;BH,+,-,B,M3,L10,ZPC(WHT),S 10 SA

W391 6003-000275 SCREW-TAPTYPE;BH,+,B,M3,L10,ZPC(BLK),SWR 11 SA

Samsung Electronics 5-2

This Document can not be used without Samsung’s authorization.

5-3 Samsung Electronics

Exploded View & Part List

This Document can not be used without Samsung’s authorization.

iPod

DIGITAL

AUDIO IN

OPTICAL

5-2 Speaker System

Front

Speaker (R)

Center Speaker

Front

Speaker (L)

Rear

Speaker (R)

Rear

Speaker (L)

Subwoofer

 Part List

Loc. No. Code No. Description;Specification Qty. SNA Remark

Front Speaker (L)

Front Speaker (R)

Center Speaker

Rear Speaker (L)

Rear Speaker (R)

Subwoofer AH96-00625A ASSY SPEAKER P-W0 SUBWOOFER SPK 1 SA

Speaker Wire AH81-02177B PS-Q20,SPK CORDCONNECTOR,FRONT/SUB W/F:4M 1 SA

AH81-05951A PS-C550,PS-FRCC550,PS-FC550,S2,FRONT-LEFT SPK

AH81-05953A PS-C550,PS-FRCC550,PS-FC550,S2,FRONT-RIGHT SPK

AH81-05955A PS-C550,PS-FRCC550,PS-CC550,C1,CENTER SPK

AH81-05957A PS-C550,PS-FRCC550,PS-RC550,S2,REAR-LEFT SPK

AH81-05959A PS-C550,PS-FRCC550,PS-RC550,S2,REAR-RIGHT SPK

1 SA
