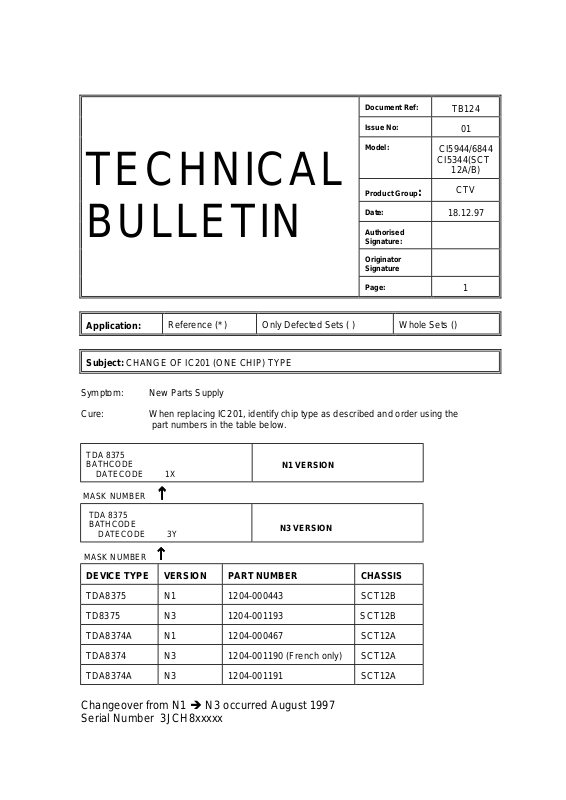

Page 1

Document Ref:

TB124

TECHNICAL BULLETIN

Application:

Subject: CHANGE OF IC201 (ONE CHIP) TYPE

Symptom: New Parts Supply

Reference (* ) Only Defected Sets ( ) Whole Sets ()

Issue No:

Model:

Product Group:

Date:

Authorised Signature:

Originator Signature

Page:

CI5944/6844

CI5344(SCT

12A/B)

CTV

18.12.97

Cure: When replacing IC201, identify chip type as described and order using the

part numbers in the table below.

TDA 8375 BATHCODE DATECODE 1X

↑↑↑↑

MASK NUMBER

TDA 8375 BATHCODE DATECODE 3Y

MASK NUMBER

DEVICE TYPE VERSION PART NUMBER CHASSIS

TDA8375 N1 1204-000443 SCT12B TD8375 N3 1204-001193 SCT12B TDA8374A N1 1204-000467 SCT12A TDA8374 N3 1204-001190 (French only) SCT12A TDA8374A N3 1204-001191 SCT12A

↑↑↑↑

N1 VERSION

N3 VERSION

Changeover from N1 ! N3 occurred August 1997 Serial Numb er 3JCH8xxxxx

Page 2

Document Ref:

TB126

TECHNICAL BULLETIN

Application:

Subject: BUZZ/WHISTLE ON SOUND

Reference ( ) Only Defected Sets ( X) Whole Sets ()

Issue No:

Model:

Product Group:

Date:

Authorised Signature:

Originator Signature

Page:

CI3373T SCT11D

(00 TO 01)

CTV

5.1.98

Symptom: Intermittent buzz/whistle on sound Cause: Inter modulation distortion traced to Micom Crystal which oscillates

at 12 MHz, a harmonic of which is beating with the SIF via a ground loop.

Cure: Remove C907 and fit a 104 (50v) ceramic capacitor as shown

In the diagram.

Condition Code

2 545 C907 DPR Y I

IRIS Code Information For Warranty Claims

Symptom Code

Circuit Ref

Section Code

Defect Code

Repair Code

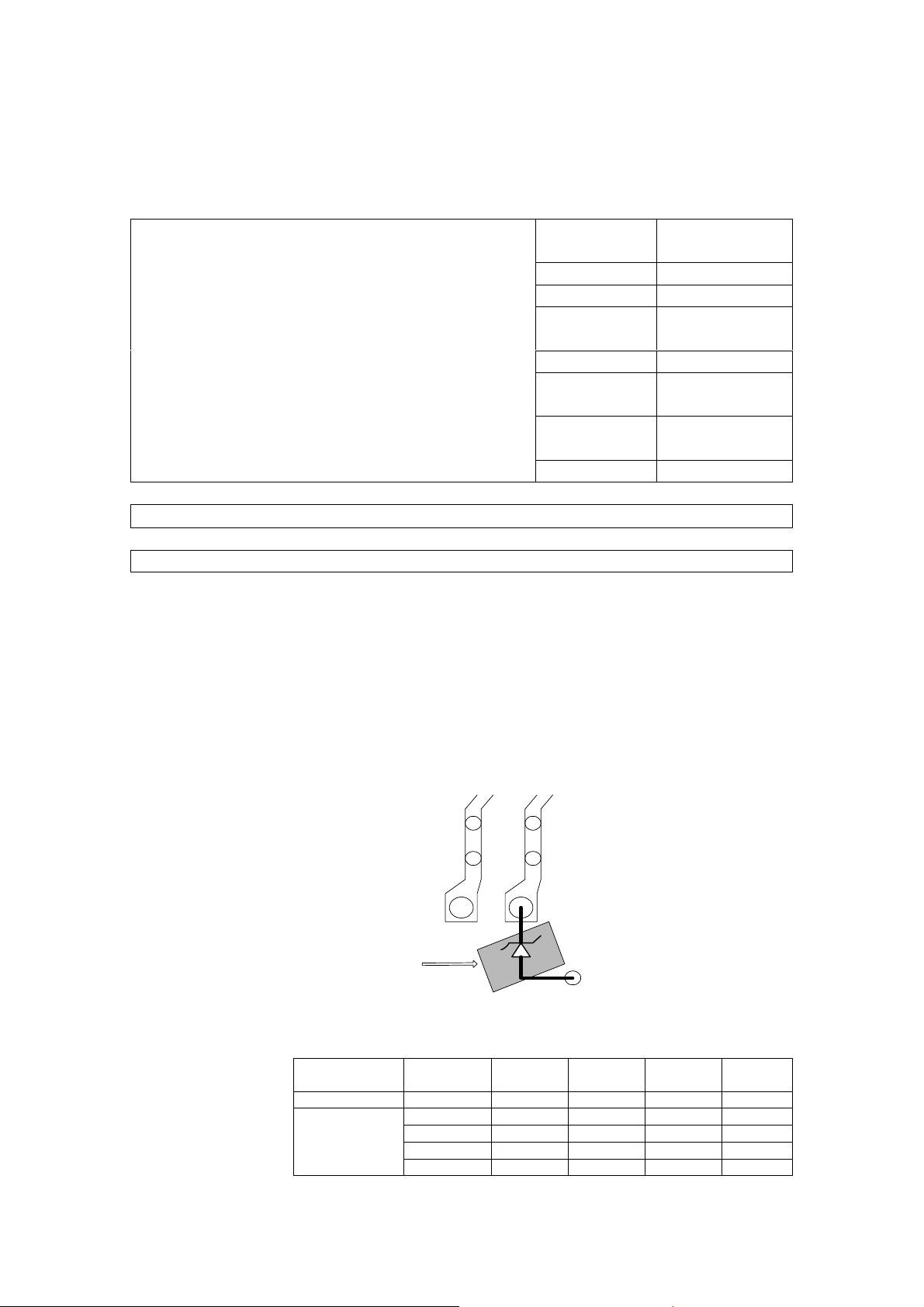

Page 3

Document Ref:

TECHNICAL

Issue No: 01 Model: CI5344

BULLETIN

Product Group: Date: 27.1.98 Authorised Signature: Originator Signature: Page: 1

Application: Reference ( ) Only Defected Sets (√ ) Whole Sets ( )

Subject: FAILURE OF FRAME IC (IC301)

Symptom: Frame Collapse Cause: Tube Flash Over

TB127

CTV

Cure: Replace frame IC301.

Solder Zener Diode onto the underside of PCB as shown. Part number 0403-001039. 56V Zener Diode.

NON-CONDUCTIVE

TAPE

Condition

Code

1 316 EY26 DFL Z I

IRIS Code

Information

For Warranty

Claims

Symptom

C 301

R 302

V2 V1

Circuit

Code

Ref

EY26

Section

Code

Defect

Code

Repair

Code

Page 4

Document Ref:

TB139

TECHNICAL BULLETIN

Application:

Subject: HIGH B+ IN STANDBY MODE

Reference ( ) Only Defected Sets ( X) Whole Sets ()

Issue No:

Model:

Product Group:

Date:

Authorised Signature:

Originator Signature

Page:

CI5079/3373

5373

SCT11B/D

CTV

9.2.98

Symptom: 125V rail at approx 180V in standby (should be 140V) Cause: Due to a mismatch in the resonubber circuit. Cure: C852 should be changed to a polyester type 182 50V

Part No: 2301-000111

Condition Code

1 110 C852 PSU Y I

IRIS Code Information For Warranty Claims

Symptom Code

Circuit Ref

Section Code

Defect Code

Repair Code

Page 5

Document Ref:

TB141

TECHNICAL BULLETIN

Application:

Reference ( ) Only Defected Sets ( X) Whole Sets ()

Issue No:

Model:

Product Group:

Date:

Authorised Signature:

Originator Signature

Pages:

CI5933/6230/

7230/6229

CTV

30.4.98

Subject: FAILURE OF FRAME OUTPUT CHIP, IC301 (TDA 3654)

Symptom: Partial or complete frame collapseTB141 Cause: Noise on V1 Line of TDA 3654 Cure: 1. Remove previous mods

2. Fit 2 parts as illustrated.

Condition Code

IRIS Code Information For Warranty Claims

Symptom Code

Circuit Ref

Section Code

Defect Code

Repair Code

Page 6

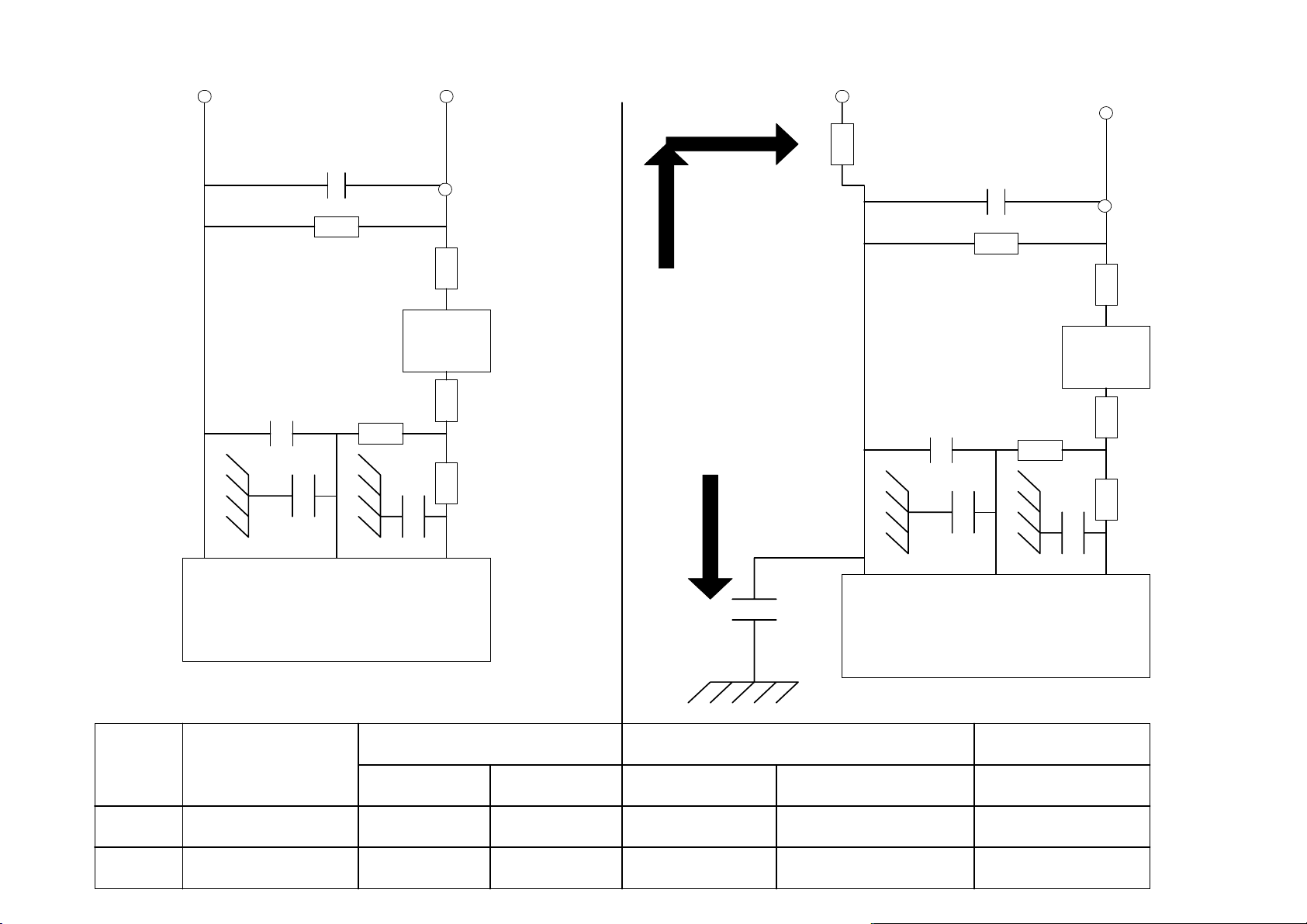

V1 V2

C305

PJ 28

C305

R316

R305

IC401

BEFORE

C306

C302

#5 #1 #3

IC301 TDA3654

R303

C303

R321

R317

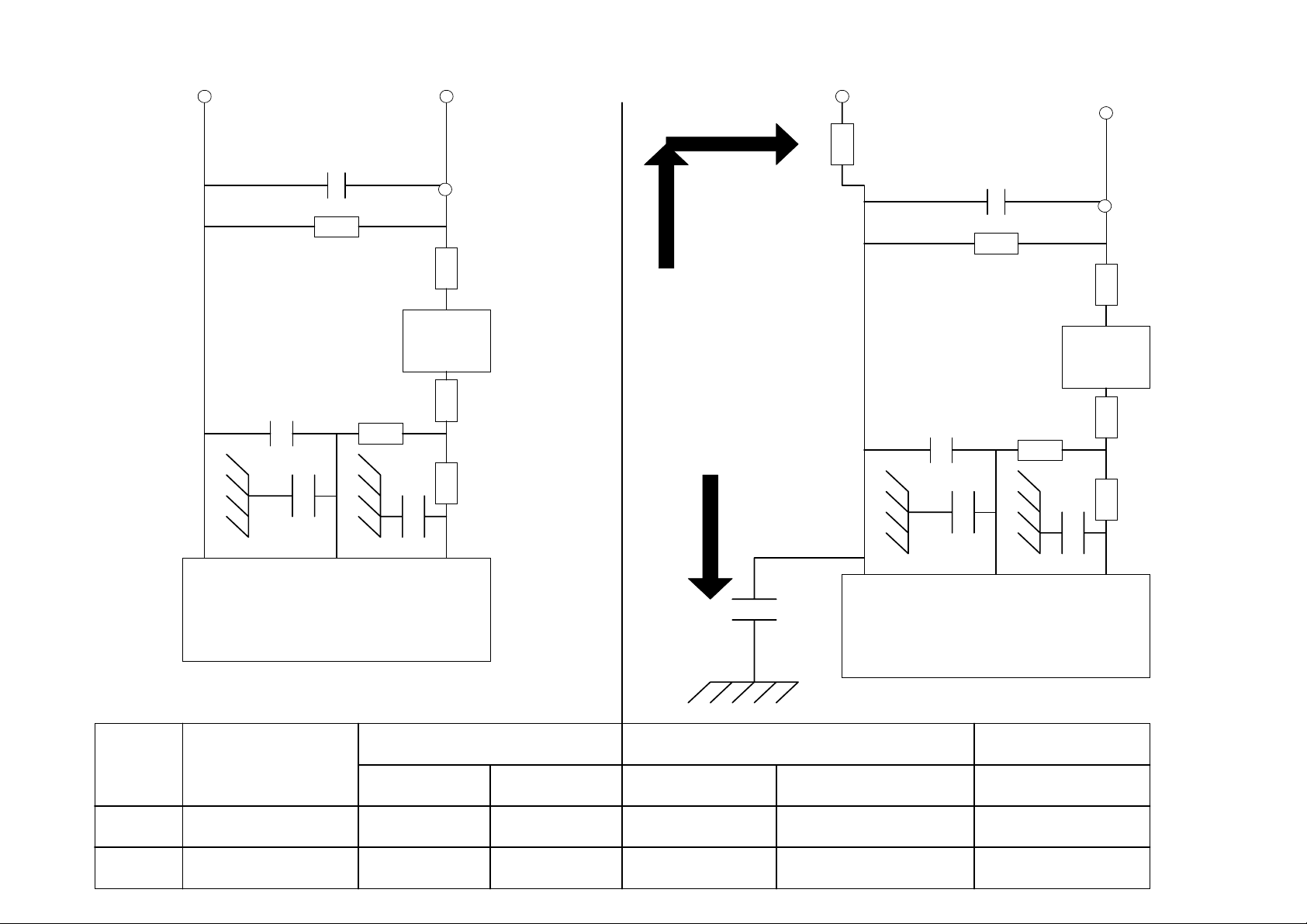

REPLACE PJ28 ->10uh

ADD 470nF CAP FIT

CLOSE TO IC PIN #5

R316

R305

IC401

AFTER

C306

C302

#5 #3

IC301 TDA3654

R303

1 2

CCT REF

ADD POLY

PJ28

BEFORE

SPEC SPEC

CODE NO CODE NO

100V 470nF

10UH AL05

AFTER

REMARKS

2305-000407 2701-001040

Page 7

Document Ref:

TB142

Issue No:

Model:

TECHNICAL

Product Group:

Date:

BULLETIN

Application:

Subject: FAILURE OF F801 MAINS INPUT FUSE

Reference ( ) Only Defected Sets ( X) Whole Sets ()

Authorised Signature:

Originator Signature

Pages:

CI5944/6844

SCT12 B

CHASSIS

CTV

16.6.98

Symptom: Dead set (no standby LED) Cause: F801 o/c Cure: Replace F801 with 4A anti surge

New part number: 3601-000-279 Replace F801 on all units for repair regardless of fault

Condition Code

2 111 F801 PSU R A

IRIS Code Information For Warranty Claims

Symptom Code

Circuit Ref

Section Code

Defect Code

Repair Code

Page 8

V1 V2

C305

PJ 28

C305

R316

R305

IC401

BEFORE

C306

C302

#5 #1 #3

IC301 TDA3654

R303

C303

R321

R317

REPLACE PJ28 ->10uh

ADD 470nF CAP FIT

CLOSE TO IC PIN #5

R316

R305

IC401

AFTER

C306

C302

#5 #3

IC301 TDA3654

R303

1 2

CCT REF

ADD POLY

PJ28

BEFORE

SPEC SPEC

CODE NO CODE NO

100V 470nF

10UH AL05

AFTER

REMARKS

2305-000407 2701-001040

Page 9

Document Ref:

Issue No:

TB147

TECHNICAL BULLETIN

Application:

Subject: DISTORTED SIBILANCE

Reference ( ) Only Defected Sets (X) Whole Sets ( )

Model:

CHASSIS

S15A

Product Group

Date:

Authorised Signature:

Originator Signature

Page:

CI14F1T

CI3373 CI5373

CTV

30/03/99

ONE

Symptom: Distorted sibilance on certain programs Cause: C614 out of tolerance Cure: Replace C 614 with new type – part no. 2201-000823

Condition Code

2 530 C614 APA Y I

Symptom Code

Circuit Ref

Section Code

Defect Code

Repair Code

Page 10

Document Ref:

Issue No:

TB148

TECHNICAL BULLETIN

Application:

Subject: WHISTLE ON SOUND

Reference ( ) Only Defected Sets (X) Whole Sets ( )

Model:

CHASSIS

SCT 13B

Product Group

Date:

Authorised Signature:

Originator Signature

Page:

CI 3373 CI 5373 CI 5079

CTV

30/03/99

ONE

Symptom: Whistle on sound. Varies with volume. Cause: Inter modulation distortion traced to micom crystal. Cure: Fit insulated wire link as shown. (From link J190 to C911-ve).

ONE CHIP IC201 MICOM IC901

J190 + C911

Condition Code

1 542 C911 DPR Y I

Symptom Code

Circuit Ref

Section Code

Defect Code

Repair Code

Page 11

Document Ref:

TB152

Issue No:

Model:

CI-3373

TECHNICAL

CI-5079 CI-5373 CI-5073

Product Group:

BULLETIN

Date:

Authorised Signature:

Originator Signature

Page:

Application:

Subject: POWER SUPPLY FAILURE/INT. FAILURE OF Q401

Reference ( ) Only Defected Sets ( ) Whole Sets ()

SCT11B,

PIB,SCT11D

CHASSIS

CTV

15.07.99

1 OF 1

Symptom: Dead. Cause: DZ801 Short Circuit/Q401 Short Circuit. Cure: Replace the following PSU parts. Check/replace Q401 as necessary.

DZ801 – 0403-000691 IC801 – AA13-20004P HC801 – AA13-20004M F801 – 3601-000261 L803 – AA27-90001G C803 – 2303-000163 C851 – 2401-002280 C852 – 2301-000111 (Q401 14” – 0502-000294 20”-21” – 0502-000295

The chassis number is printed underneath the FBT on solder side of PCB.

Condition Code Symptom Code Circuit Ref Section

1 110 DZ801 PSU Q A

IC801 - Q A

IRIS Code Information for Warranty Claims

HC801 - Q A

F801 - R A L803 - R A C803 - Q A C851 - Q A C852 - Q A

Code

Defect

Code

Repair

Code

Page 12

Document Ref:

TB153

TECHNICAL BULLETIN

Application:

Reference ( ) Only Defected Sets ( ✔ ) Whole Sets ()

Issue No:

Model:

CI-14F1Z/T CI-20S10BZ CI-20S20BT CI-21S20BT CI-5079Z/T CI-5373Z/T CI-3373Z/T

Product Group

Date:

Authorised Signature:

Originator Signature

Page:

S15A,

SCT13B

CHASSIS

CTV

26.07.99

1 OF 1

Subject: FAILURE OF IC801 (KA3S0680RF)

Symptom: Dead Set. Cause: C804 incorrectly inserted. Cure: De-solder and re-fit C804

Replace IC801 – Part No.1203-001494

Condition Code Symptom Code Circuit Ref Section

1 110 IC801 PSU A A

Code

C804 PSU T D

Defect

Code

Repair

Code

Page 13

TECHNICAL

Document Ref:

Issue No: 01

Model: Chassis

TB155

S15A,

SCT13B,

S51A

Product Group

CTV

Date:

Authorised

BULLETIN

Application:

Reference ( ) Only Defected Sets (!) Whole Sets ( )

Signature:

Originator Signature

Page:

Subject: FAILURE OF IC801 (PSU)

Symptom: No Power Cause: Surge Flow into VCC Terminal Cure: Fit a 30v, 0.5w Zener from Pin 3 (IC801) to ground.

11/11/99

Part Number 0403-000555 The chassis number is printed under the F.B.T. (on solder side)

Condition

Code

1 110 IC801 PSU Q A

IRIS Code Information For Warranty Claims

Symptom

Code

Circuit

Ref

Section

Code

Defect

Code

Repair

Code

Page 14

Document Ref:

TB82

Issue No:

Bulletin Type:

Model:

TECHNICAL

Product Group:

Date:

BULLETIN

APPLICATION: Reference ( ) Only Defected Sets (√) Whole Sets ( )

Subject: Power Supply Failure SCT11B Chassis

This Bulletin has been re-released due to changes in the versions of available components.

Authorised Signature:

Originator Signature

Page:

Information

CI3373, CI5373,

CI5079

C T V

29.1.98

Symptom: Dead Cause: DZ801 Short Circuit Cure: Replace the following parts.

Circuit Reference Part Number - Version

DZ801 0403-000691 IC801 AA13-20004P - Ver C HC801 AA13-20004M - Ver C F801 3601-000261

Condition Code

1 110 D2801 PSU Q A

IRIS Code Information For Warranty Claims

Symptom Code

Circuit Ref

IC801 PSU Q A

HC801 PSU Q A

F801 PSU R A

Section Code

Defect Code

Repair Code

Page 15

Document Ref:

TB83

Issue No:

Information

CI5344AN

SCT 12A Chassis

CI6844 / 5944

SCT 12B Chassis

C.T.V.

04.04.97

TECHNICAL BULLETIN

Bulletin Type:

Model:

Product Group:

Date:

Authorised Signature:

Originator Signature

Page:

Subject: New Crystal Types Used In Production X201, X202

Symptom: The new Crystals are not directly compatible with the old type.

The old Crystals are marked KDSI or PHILIPS The new Crystals are marked KONY

Cause: When replacing KDSI or PHILIPS Crystal to KONY, the Parallel

Resonance Capacitor must be changed to match the Crystal type.

Cure: X201 and C218 go together as a pair and similarly

X202 and C219 are a pair.

Circuit Reference

X201 2801-000231 3.579545 MHz 30 ppm X202 A1280-0173 4.433619 MHz 30 ppm C218 2201-000611 Ceramic 56 Pf, 5%, 50 V C219 2201-000139 Ceramic, 100 Pf, 2%, 50 V

Part Number Description

Condition Code

IRIS Code Information For Warranty Claims

Symptom Code

Circuit Ref

X201 CPA A A

X292 CPA A A

C218 CPA A A

C219 CPA A A

Section Code

Defect Code

Repair Code

Page 16

Document Ref:

TB83

Issue No:

Information

CI5344AN

SCT 12A Chassis

CI6844 / 5944

SCT 12B Chassis

C.T.V.

04.04.97

TECHNICAL BULLETIN

Bulletin Type:

Model:

Product Group:

Date:

Authorised Signature:

Originator Signature

Page:

Subject: New Crystal Types Used In Production X201, X202

Symptom: The new Crystals are not directly compatible with the old type.

The old Crystals are marked KDSI or PHILIPS The new Crystals are marked KONY

Cause: When replacing KDSI or PHILIPS Crystal to KONY, the Parallel

Resonance Capacitor must be changed to match the Crystal type.

Cure: X201 and C218 go together as a pair and similarly

X202 and C219 are a pair.

Circuit Reference

X201 2801-000231 3.579545 MHz 30 ppm X202 A1280-0173 4.433619 MHz 30 ppm C218 2201-000611 Ceramic 56 Pf, 5%, 50 V C219 2201-000139 Ceramic, 100 Pf, 2%, 50 V

Part Number Description

Condition Code

IRIS Code Information For Warranty Claims

Symptom Code

Circuit Ref

X201 CPA A A

X292 CPA A A

C218 CPA A A

C219 CPA A A

Section Code

Defect Code

Repair Code

Page 17

Document Ref:

TB86

TECHNICAL BULLETIN

Application:

Subject: INTER MODULATION DISTORTION

Symptom: Buzz / Whistle on sound.

Reference ( ) Only Defected Sets ( ) Whole Sets ()

Issue No:

Model:

Product Group:

Date:

Authorised Signature:

Originator Signature

Page:

CI-5373T, CII-5079T

CTV

08.07.97

Cause: Inter Modulation Distortion traced to Micom Crystal which

Oscillates at 12 MHz, a Harmonic of which is beating with the SIF via a Ground Loop.

Cure: Locate C907. Remove the Capacitor and fit in position C907A.

DISTRIBUTION:

Clive Bingham Ian Merrington Mike Stevenson Malcolm Jones Zdena Best Colin Brewer Judy Stevenson David Castle

Condition Code

Symptom Code

1 540 C907 DPR Y K

Circuit Ref

Section Code

Defect Code

Repair Code

IRIS Code Information For Warranty Claims

Page 18

Document Ref:

TB90

TECHNICAL BULLETIN

Application:

Subject: CRT ESD PROBLEM

Reference ( )

Only Defected Sets (√)

Issue No:

Model:

Product Group

Date:

Authorised Signature:

Originator Signature

Page:

Whole Sets ()

CI5079Z/T

CTV

11.8.97

Symptom: Cyclic start up from cold (can be intermittant).

Frame collapse. (Due to faulty frame IC).

Cause: Electrostatic discharge through the frame IC causing Micom to

reset.

Cure: Fit an insulated wire link between EY23 and EL07 (See diagram).

This modification is for the SCT 11B chassis version 04/05 only. See diagram for identification.

Condition Code

2 11B EL07 DFL U 1

Symptom Code

Circuit Ref

Section Code

Defect Code

Repair Code

IRIS Code Information For Warranty Claims

Page 19

Document Ref:

TB95

TECHNICAL BULLETIN

Application:

Subject: CHANGE OF MICOM TYPE

Symptom: New parts supply.

Original Type - SAA 5290ZP-026 (Part No: AA13-30005A)

Reference ( ) Only Defected Sets ( ) Whole Sets ()

New Type - SAA 5290ZP-042 (Part No: AA13-30010T)

Issue No:

Model:

Product Group

Date:

Authorised Signature:

Originator Signature

Page:

CI5373T

CTV

5.9.97

Cause: When fitting new type Micom the following adjustment should

be carried out in Factory Mode to change the option BYTE.

Cure: Switch set on and key in the following sequence using the

remote. STBY, P.STD, HELP, SLEEP, STBY Select option BYTE from the Factory Menu and change

from "5D" to "CA".

Note: The IRIS information will depend upon the fault found.

Condition Code

IRIS Code Information For Warranty Claims

Symptom Code

Circuit Ref

Section Code

Defect Code

Repair Code

Page 20

Document Ref:

TB110

Issue No:

Model:

TECHNICAL BULLETIN

Application:

Reference (* ) Only Defected Sets ( ) Whole Sets ()

Product Group:

Date:

Authorised Signature:

Originator Signature

Page:

Subject: CHASSIS CHANGE FROM SCV11A TO SCV11D

TVP5050 TVP5350

TVCR

8.10.97

Symptom: The circuit and some major parts have been changed Cause: Chassis change from SCV11A to SCV11D.

The chassis version is marked underneath F.B.T. on print side

Cure: The changes are listed below.

Old (before) Parts (SCV11A) New (changed) Parts (SV11D)Location

No.

Tuner (1) Tuner (2) FBT IC-MCU IC-Video

SEC Code Description SEC Code Description AA40-10002M

AA40-10002B AA26-30004E AA13-30011L 1201-000539

TECC2989PA19C TECC2889PA19C FTK20R008C CXP85332A-196S TDA6101Q

AA40-10005N AA40-10005M AA26-30001Y AA13-30015Y 1201-001159

Condition Code

IRIS Code Information For Warranty Claims

TECC2979PK28A(S) TECC2879PK28A(S) FSV20A001 CXP85332A-319S TDA6107Q

Symptom Code

Circuit Ref

Section Code

Defect Code

D D D D D

Repair Code

Page 21

Document Ref:

TB111

Issue No:

Model:

Product Group:

TECHNICAL

Date:

Authorised Signature:

BULLETIN

Application:

Subject: CHASSIS CHANGE FROM SCV11B TO SCV11D

Symptom: The circuit and some major parts have been changed

Reference (* ) Only Defected Sets ( ) Whole Sets ()

Originator Signature

Page:

TVP3350

TVCR

8.10.97

Cause: Chassis change from SCV11B & C to SCV11D.

The chassis version is marked underneath F.B.T. on print side

Cure: The changes are listed below.

Location No.

Tuner (1) Tuner (2) IC-MCU IC-Video

Old (before) Parts (SCV11B & C) New (changed) Parts (SV11D) SEC Code Description SEC Code Description AA40-10002M

AA40-10002B AA13-30011L 1201-000539

TECC2989PA19C TECC2889PA19C CXP85332A-196S TDA6101Q

AA40-10005N AA40-10005M AA13-30015Y 1201-001159

Condition Code

IRIS Code Information For Warranty Claims

TECC2979PK28A(S) TECC2879PK28A(S) CXP85332A-319S TDA6107Q

Symptom Code

Circuit Ref

Section Code

Defect Code

D D D D

Repair Code
