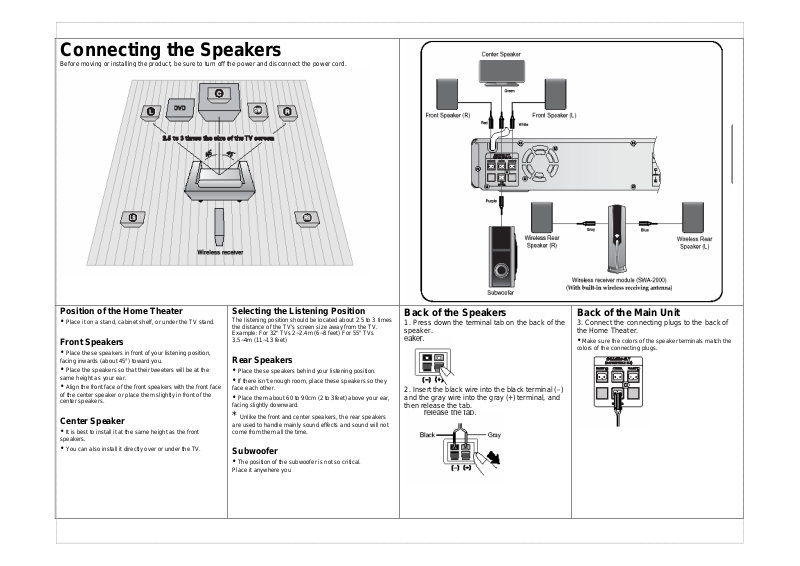

Connecting the Speakers

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Position of the Home Theater

•

Place it on a stand, cabinet shelf, or under the TV stand.

Front Speakers

•

Place these speakers in front o f your listening position,

facing inwards (about 45°) toward you.

• Place the speakers so that their tweeters will be at the

same height as your ear.

• Align the front face of the front speakers with the front face

of the center speaker or place them slightly in front of the
center speakers.

Center Speaker

•

It is best to install it at the same height as the front

speakers.

• You can also install it directly over or under the TV.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times
the distance of the TV's screen size away from the TV.
Example: For 32" TVs 2~2.4m ( 6~8 feet) For 55" TVs

3.5~4m (11~13 feet)

Rear Speakers

•

Place these speakers behind your listening position.

• If there isn't enough ro om, place these speakers so they

face each other.

• Place them about 60 to 90cm (2 to 3feet) above your ear,

facing slightly downward.

* Unlike the front and center speakers, the rear speakers

are used to handle mainly sound effects and sound will not
come from them all the time.

Subwoofer

•

The position of the subwoofer is not so critical.

Place it anywhere you

Back of the Speakers

1. Press down the terminal tab on the back of the
speaker.

2. Insert the black wire into the black terminal (–)
and the gray wire into the gray (+) terminal, and
then release the tab.

Back of the Main Unit

3. Connect the connecting plugs to the back of
the Home Theater.

• Make sure the colors of the speaker terminals m atch the

colors of the connecting plugs.

Connecting Wireless Rear Speakers

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

1. Connect your pair of wireless rear speakers,
(L) and (R), to the wireless receiver module.

2.

Connect the power cord of the wireless

receiver module to the wall outlet and turn the
power "ON".

• Do not connect the wireless rear speakers to the sp e ak er o u tpu ts on the back of the main unit. Malfunction may result.

• The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and moisture.

• For optimal listening performance, make sure that the area around the wireless receiver module location is clear of any

obstructions.

To hang the wireless receiver module on the
wall,

Separate wireless receiver module stand.

Fasten the screws on the wall.

Resetting Wireless Communication

Reset the system if a communication failure occurs, or if the synchronizing signal indicator does not light up and the
"REAR CHK" message blinks on the main unit's display.
Reset the system while the main unit and the wireless receiver module (SWA-2000) are in Power Standby mode.
Reset the system if a communication failure occurs, or if the synchronizing signal indicator does not light up and the
"REAR CHK" message blinks on the main unit's display.
Reset the system while the main unit and the wireless receiver module (SWA-2000) are in Power Standby mode.

With the main unit turned off, press and hold the remote control's REMAIN button
for 4 seconds.

• Press the button until the volume control indicator lights up blue. (The indicator will turn off in 1 second.)

With the wireless receiver module turned on, use a ball point pen or a pair of tweezers
to press the RESET button on the back of the unit 2 to 3 times.

• The Standby/On LED on the front panel of the wireless receiver module blinks 3 times.

Turn on the main unit.

• The Link LED of the wireless receiver module is lit and the setup is finished.

• If Power Standby mode continues, repeat Steps 1 to 3 above.

Caution

• Sound will be heard from the wireless rear speake r s in DVD 5.1-CH or Dolby Pro Logic II mode only.

• In 2-CH mode, no sound will be heard from the wireless rear speakers.

Fix the wireless receiver module on the wall.

• Fix the wireless receiver module firmly to prevent it from

falling.

.

Place the wireless receiver module at the rear of the

•

listening position. If the wireless receiver module is too close
to the main unit, some sound interruption may be heard due
to interference.

• If you use a device such as a microwave o ven, wireless

LAN Card, Bluetooth equipment, or any other device that
uses the same frequency (2.4GHz) nea r the system, some

sound interruption may be heard due to interference.

• The transmission distance of radio wave is about 33 feet,

but may vary depending on your operatin g envi ron m en t. If a
steel-concrete wall or metallic wall is between the main unit
and the wireless receiver module, the sy stem may not
operate at all because the radio wave cannot penetrate
metal.
