LCD TV

user manual

BN68-02663B-06

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model Serial No.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

Important Warranty Information Regarding Television Format Viewing

See the warranty card for more information on warranty terms.

✎

Wide screen format LCD Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format fullmotion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to ﬁll the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark sidebars on nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week. Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of LCD Displays that leave subtle, but permanent burned-in ghost images in the LCD picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On LCD models that offer picture sizing features, use these controls to view different formats as a full screen picture. Be careful in the selection and duration of television formats used for viewing. Uneven LCD aging as a result of format selection and use, as well as burned-in images, are not covered by your Samsung limited warranty.

SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT• Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics

(SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally speciﬁed, and to the Original Purchaser only.

The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the product.

Excluded, but not limited to, are any originally speciﬁed provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or replacements, accessories, options, upgrades, or consumables.

For the location of a SAMSUNG Authorized Service Center, please call toll-free:

In the United States : 1-800-SAMSUNG (1-800-726-7864) – In Canada : 1-800-SAMSUNG –

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of LCD screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

Avoid displaying the same TV channel for long periods.• Always try to display any image on full screen, use TV set picture format menu for best possible match.• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout •

process. Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.•

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

✎

Be careful when you contact the TV because some parts can be somewhat hot.

✎

Installation with a stand. Installation with a wall-mount.

4inches

English

Contents

English

ENGLISH

MEDIA.P

POWER

P. M O D E

S . M O D E

SLE EP

Getting Started

List of Features y ......................................................... 4

Accessories y .............................................................. 4

Installing the LCD TV Stand y ...................................... 4

Viewing the Control Panel y ......................................... 5

Viewing the Remote Control y ...................................... 6

Connecting to an Antenna y ........................................7

Plug & Play (Initial Setup) y ........................................... 7

Connections

Connecting to an AV Device y ......................................8

Connecting to an Audio Device y ................................. 9

Connecting to a PC y ..................................................9

Changing the Input source y ...................................... 10

Basic Features

How to Navigate Menus y .......................................... 11

Channel Menu y ........................................................ 11

Seeing Channels 11 Using Favorite Channels 12 Memorizing channels 12 Editing channels 12 Other Features 12

Picture Menu y .......................................................... 13

Changing the Preset Picture Mode 13 Adjusting picture settings 13 Economical Solutions 14 Setting up the TV with your PC 14 Changing the Picture Options 14

Sound Menu y ........................................................... 16

Changing the Preset Sound Mode 16 Adjusting sound settings 16 Sound Settings 16

Setup Menu y ............................................................ 17

Setting the Time 17 Using the Sleep Timer 17 Setting the On/Off Time 17 Locking Programs 18 Other Features 19 Picture In Picture (PIP) 20

Support Menu y ......................................................... 21

Advanced Features

Media Play y .............................................................. 22

Connecting a USB Device 22 Screen Display 23 Playing Multiple Files 26 Media Play - Additional Functions 26

Anynet+ y ................................................................. 28

Setting Up Anynet+ 29 Switching between Anynet+ Devices 29 Recording 29 Listening through a Receiver 30 Troubleshooting for Anynet+ 30

Other Information

Installing the Wall Mount y .........................................31

Securing the TV to the Wall (LN32C450 Only) y .........32

Securing the TV to the Wall y ..................................... 33

Anti-theft Kensington Lock y ...................................... 33

Troubleshooting y ......................................................34

Storage and Maintenance 36

Speciﬁcations y ......................................................... 37

License 37

Dimensions y ............................................................. 38

Index y ...................................................................... 39

Check the Symbol!

This function can be used by pressing the

TOOLS button on the remote control.

✎

Note :

Important information

Step by step guide :

Informs you how to access

the menu.

Getting Started

List of Features

Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed y without a cable box / STB (Set-Top-Box) satellite receiver.

Media Play y : Allows you to play music ﬁles, pictures, and movies saved on a USB device. (P. 22) Self Diagnosis y : You can check picture and sound operation. (P. 21)

Accessories

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

✎

The items' colors and shapes may vary depending on the models.

✎

Remote Control (BN59-00997A) & Batteries (AAA x 2) y Owner’s Instructions y Warranty Card / Safety Guide / Quick Setup Guide y

1 EA (M4 X L16)

Blanking Bracket (BN63-07466A) y

(LN26C450 Only)

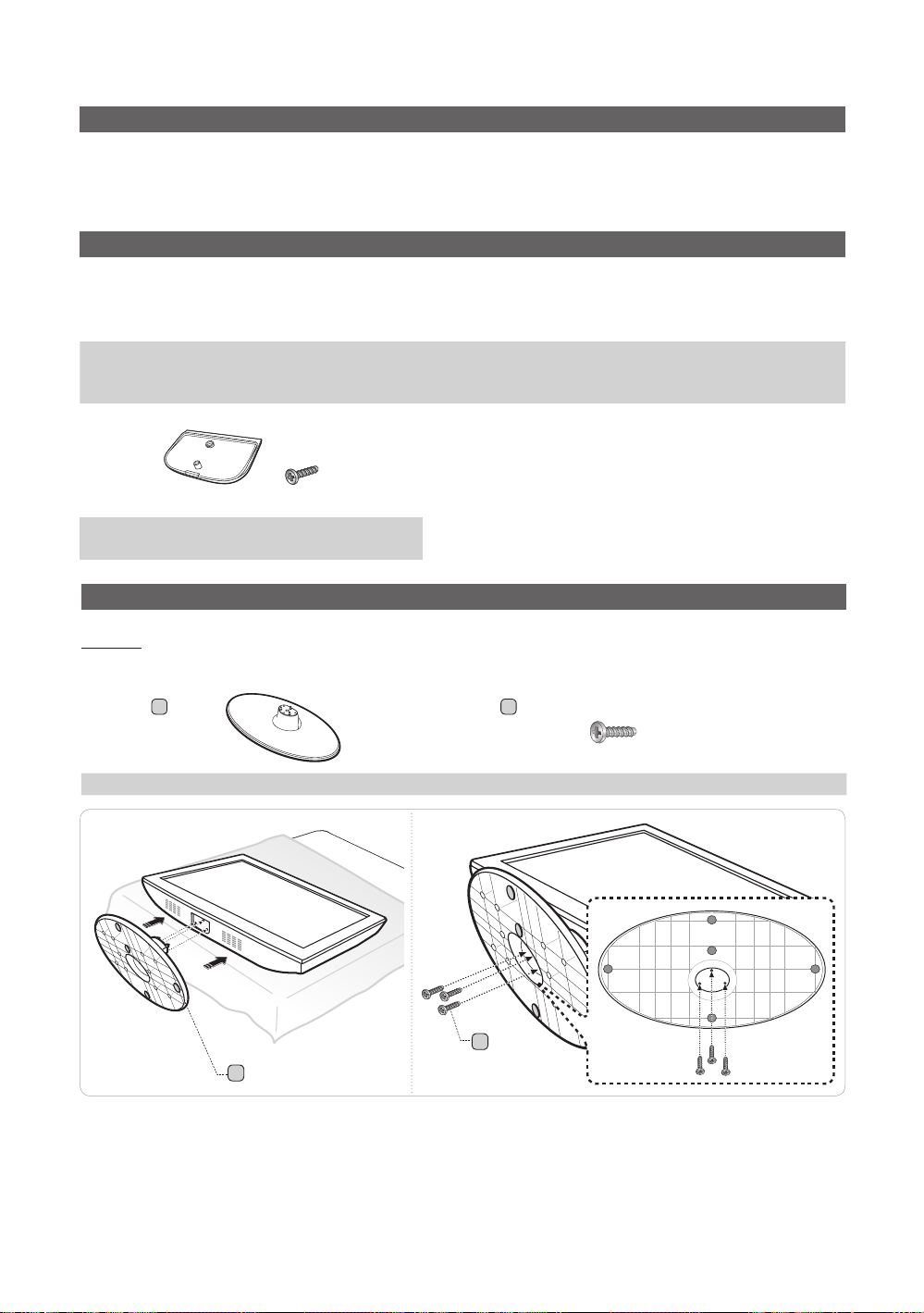

Installing the LCD TV Stand

Components

When installing the stand, use the provided components and parts.

A B

1 EA

Stand y Screws y

Cleaning Cloth (BN63-01798B) y Power Cord y

3 EA (M4 X L16)

Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.

✎

Make sure that at least two persons lift and move the LCD TV.

✎

Lay the product down, with the screen facing up and fasten the screws.

✎

English

Front

Rear

01 Getting Started

English

Viewing the Control Panel

The product color and shape may vary depending on the model.

✎

Speakers

Power IndicatorRemote control sensor

(Power)

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCE

MENU Displays an on-screen menu, the OSD (on screen display), of your TV’s features.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

Turns the TV on or off.

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTERE button on the remote control.

Adjusts the volume. In the OSD, use the ◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the ▼ and ▲ buttons on the remote control.

buttons as you would use the

Getting Started

P . M OD E

MEDIA.P

A BCD

S. MO DE

P.SI ZE

SL EE PCCMT S

Viewing the Remote Control

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel,

✎

Volume buttons.

Turns the TV on and off.

Press to directly access to channels.

Press to select additional channels

(digital) being broadcast by the same

station. For example, to select channel

‘54-3’, press ‘54’, then press '-' and ‘3’.

Adjusts the volume.

Displays the channel list on the screen. (P. 11)

View the Media Play. (P. 22)

Quickly select frequently used functions.

Select on-screen menu items and

Buttons used in the Channel list,

Use these buttons in the Media Play and

(: Controls recording on Samsung

recorders with the Anynet+ feature)

change menu values.

Return to the previous menu.

Media Play menu, etc.

Anynet+ modes.

Display and select the available video sources. (P. 10)

Return to the previous channel.

Cut off the sound temporarily.

Change channels.

Displays the main on-screen menu. Displays Favorite Channel Lists on the

screen. (P. 12) Press to display information on the TV

screen.

Exit the menu.

S.MODE: Selects the sound mode.

(P. 16)

SLEEP: Automatically shuts off the TV at

a preset time. (P. 17)

MTS: Press to choose stereo, mono or

Separate Audio Program (SAP broadcast). (P. 16)

P.MODE: Selects picture mode. (P. 13) P.SIZE: Choose the picture size. (P. 15) CC: Controls the caption decoder. (P. 19)

Installing batteries (Battery size: AAA)

English

NOTE

✎

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote

control. Avoid use when nearby fluorescent lights or neon signs.

The color and shape may vary depending on the model.

01 Getting Started

English

Connecting to an Antenna

POWER

When the TV is initially powered on, basic settings proceed automatically.

Connecting the power cord and antenna.

✎

VHF/UHF Antenna

Power Input

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWERP button. Plug & Play is available only when the Input source is set to TV.

To return to the previous step, press the red button.

✎

Selecting a language

Selecting Store Demo

or Home Use

Selecting an antenna

Selecting a channel The channel search will start automatically.

Setting the Clock

Mode

Viewing the HD

Connection Guide Enjoy your TV.

Press the ▲ or ▼ button, then press the ENTERE button. Select the desired OSD (On Screen Display) language.

Press the ◄ or ► button, then press the ENTERE button.

Select the y Home Use mode. Store Demo Mode is for retail environments.

To return the unit’s settings from y Store Demo to Home Use (standard): Press the volume button on the TV. When you see the volume in the OSD, press and hold MENU for 5 sec.

Press the ▲ or ▼ button, then press the ENTERE button. Select Air, Cable or Auto.

In ✎Cable mode, you can select the correct signal source among STD, HRC, and IRC by pressing the ▲, ▼, ◄ or ► button, then press the ENTERE button.

For more information, refer to Channel → Auto Program. (P.12)

Press the ✎ENTERE button at any time to interrupt the memorization process.

Set the Clock Mode automatically or manually.

If you select the ✎Auto, set the daylight saving time. Select the time zone where you live.

The connection method for the best HD screen quality is displayed.

Press the ENTERE button.

Cable

ANT OUT

If You Want to Reset This Feature...

O m

→ Setup → Plug & Play → ENTERE.

Setup

Plug & Play

Time Menu Language : English Caption : On Security General

PIP : Off

Connections

W W

BGRRWY

W Y

BGR

W W

BGRR

R PB Y

R-AUDIO-L

R PB Y

R-AUDIO-L

R PB Y

Connecting to an AV Device

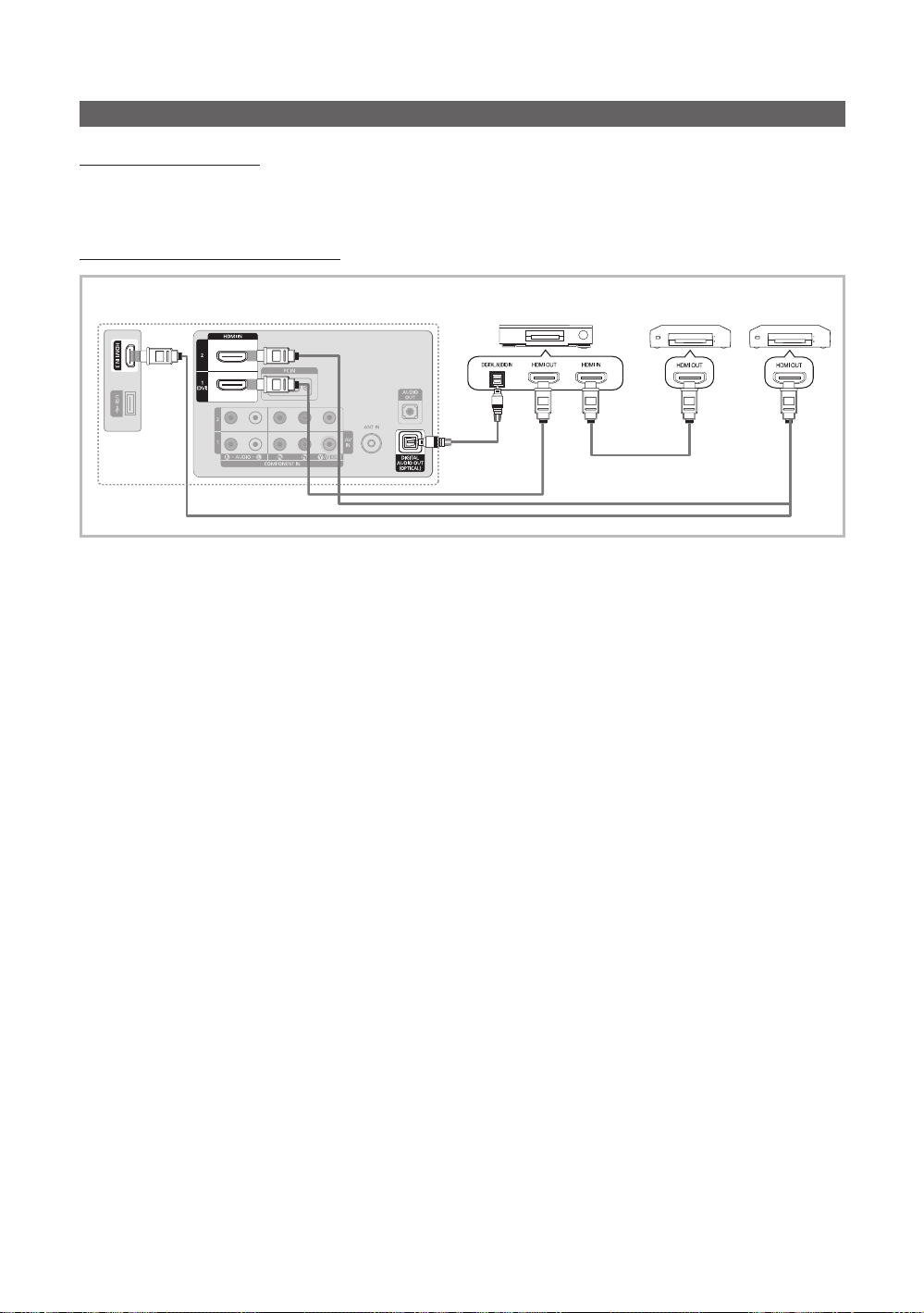

Using an HDMI / DVI Cable: HD connection (up to 1080p)

We recommend using the HDMI connection for the best quality HD picture. Available devices: DVD, Blu-ray player, HD cable box, HD satellite receiver (STB).

BD/DVD player/

HD cable/sat box

Red White

HDMI OUT

HDMI IN 1(DVI) ✎, 2, 3 / PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the xHDMI IN 1(DVI) jack for video. A DVD, Blu-ray player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The PC/DVI AUDIO IN jack is required for audio.

The picture may not display normally (if at all) or the audio may not work if an external device that uses an older

version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

Be sure to purchase a certiﬁed HDMI cable. Otherwise, the picture may not display or a connection error may

occur.

Using a Component Cable: (up to 1080p), Using an Audio/Video Cable: (480i only)

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

Device

DVI OUT

AUDIO OUT

VIDEO OUT

English

AUDIO OUT

When connecting to ✎AV IN, the color of the AV IN [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow).

For better picture quality, the

✎

Component connection is recommended over the A/V connection.

VCR

AUDIO OUT

COMPONENT OUT

Blu-ray player

Yellow Red White Red Blue Green

English

02 Connections

Connecting to an Audio Device

W W

BGRR

R-AUDIO-L

R PB Y

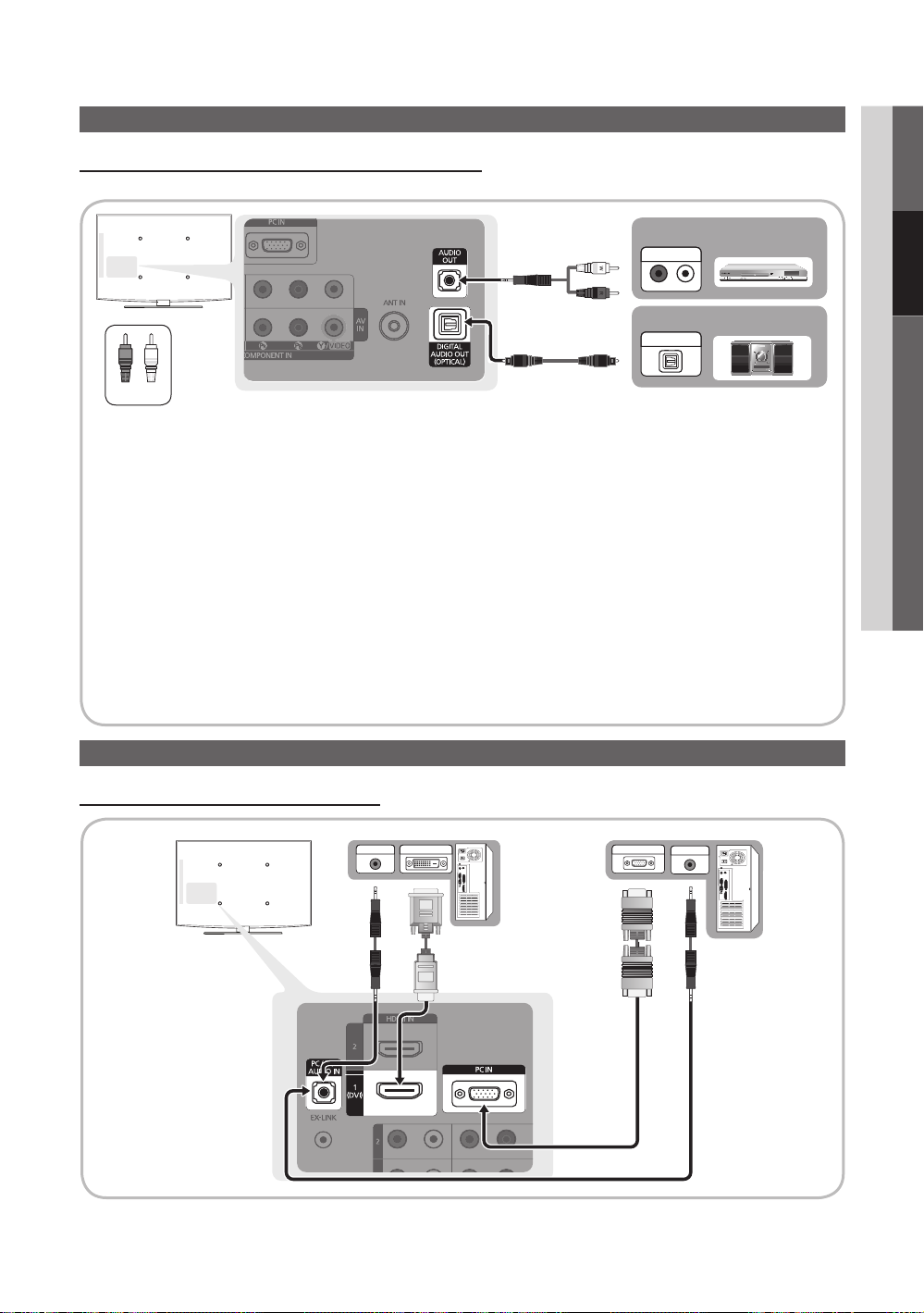

Using an Optical (Digital) or Audio (Analog) Cable Connection

Available devices: Digital Audio System, Ampliﬁer, Home Theater

Red White

DIGITAL AUDIO OUT (OPTICAL)

✎

When a Digital Audio System is connected to the xDIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theater receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theater.

AUDIO OUT ✎: Connects to the audio input jacks on your amplifier/home theater.

When connecting, use the appropriate connector (sold separately).

When an audio amplifier is connected to the xAUDIO OUT jacks: Decrease the volume of the TV and adjust the volume level with the amplifier’s volume control.

AUDIO IN

Digital audio system

OPTICAL

DVD

Home Theater

Using an HDMI/DVI Cable / a D-sub Cable

Connecting to a PC

AUDIO OUT

DVI OUT

PC OUT

AUDIO OUT

Connections

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1360x768@60Hz.

Mode Resolution

IBM

MAC

VESA DMT

VESA CVT

VESA GTF 1280 x 720 52.500 70.000 89.040 - / +

NOTE

✎✎

For HDMI/DVI cable connection x, you must use the HDMI IN 1(DVI) jack. The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes x are supported. SOG(Sync On Green) is not supported.

EX-LINK

640 x 350 31.469 70.086 25.175 + / 720 x 400 31.469 70.087 28.322 - / + 640 x 480 35.000 66.667 30.240 - / 832 x 624 49.726 74.551 57.284 - / -

640 x 480

800 x 600

1024 x 768

1280 x 720 45.000 60.000 74.250 + / + 1360 x 768 47.712 60.015 85.500 + / +

720 x 576 35.910 59.950 32.750 - / +

1280 x 720 56.456 74.777 95.750 - / +

Horizontal Frequency

(kHz)

31.469 59.940 25.175 - / -

37.861 72.809 31.500 - / -

37.500 75.000 31.500 - / -

37.879 60.317 40.000 + / +

48.077 72.188 50.000 + / +

46.875 75.000 49.500 + / +

48.363 60.004 65.000 - / -

56.476 70.069 75.000 - / -

60.023 75.029 78.750 + / +

Vertical Frequency (Hz)

Pixel Clock Frequency

(MHz)

Sync Polarity (H/V)

Connector for service only.

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA

Changing the Input source

Source List

O m

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

TV / AV / Component1 / Component2 ■ / PC / HDMI1/DVI / HDMI2 / HDMI3 / USB

→ Input → Source List → ENTER

You can only choose external

✎

devices that are connected to the TV. In the

Source List, connected inputs will be highlighted. PC ✎ always stay activated.

English

Edit Name

O m

VCR / DVD / Cable STB / Satellite STB / PVR STB / ■ AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name

the device connected to the input jacks to make your input source selection easier.

→ Input → Edit Name → ENTER

When connecting an HDMI/DVI cable to the

✎

HDMI IN 1(DVI) port, you should set to DVI PC or

DVI Devices mode under Edit Name.

EDIA.

ABCD

Basic Features

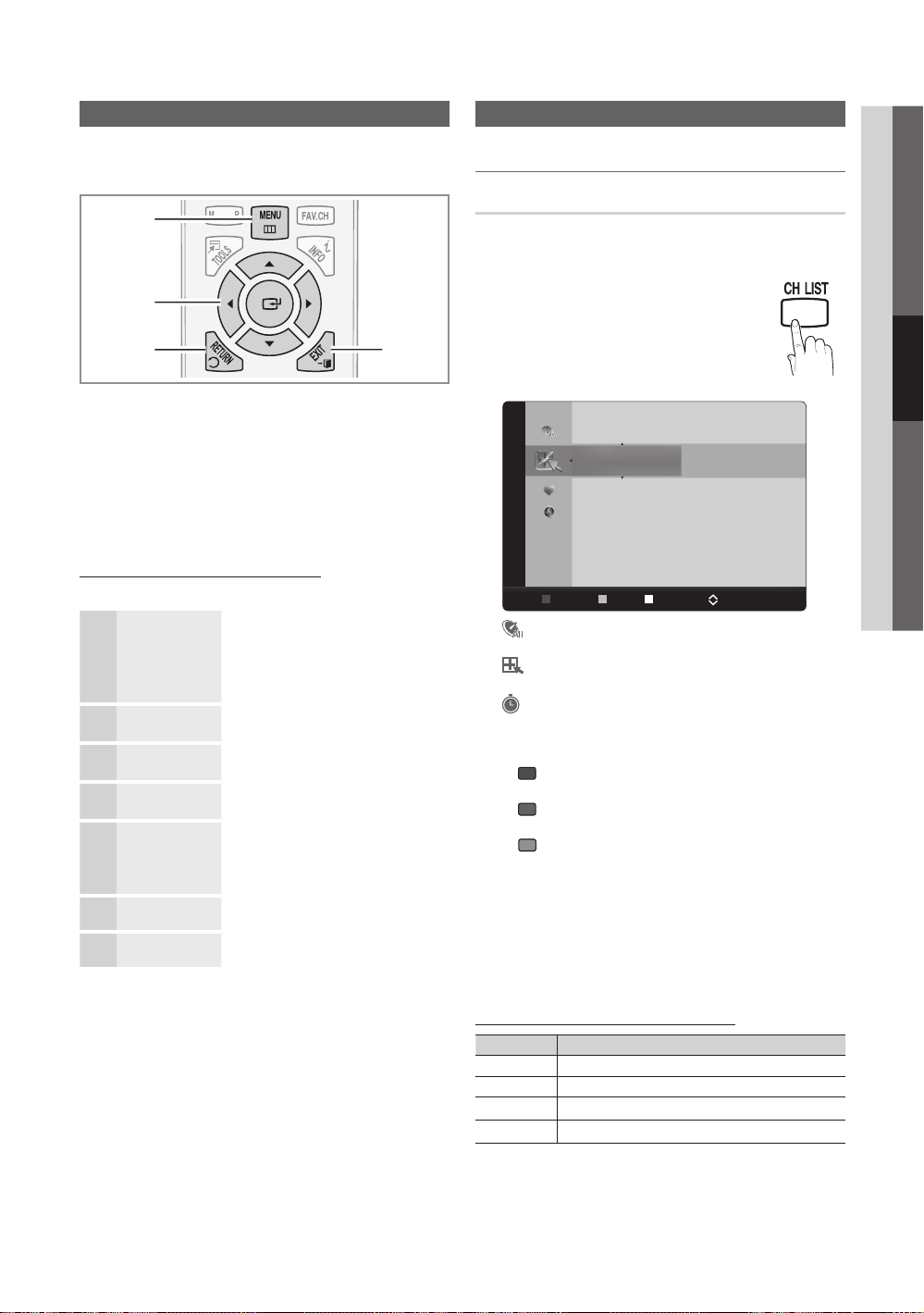

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu in order to select and adjust different functions.

Channel Menu

03 Basic Features

Seeing Channels ¦

1 MENU button: Display the main on-screen menu. 2 ENTERE / Direction button: Move the cursor and

select an item. Conﬁrm the setting.

3 RETURN button: Return to the previous menu. 4 EXIT button: Exit the on-screen menu.

How to operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

The main menu options appear the

1 2

3 4

5 6

MENU m

▲ / ▼

ENTER E

▲ / ▼

◄ / ►

ENTER E

EXIT e

screen.

Picture, Sound, Channel, Setup, Input, Application, Support.

Select an icon with the ▲ or ▼ button.

Press ENTERE to access the sub-menu.

Select the desired submenu with the ▲ or ▼ button.

Adjust the value of a particular item with the ◄ or ► button. The adjustment OSD may differ depending on the selected menu.

Press ENTERE to conﬁrm the selection.

Press EXIT to exit.

Channel List

O m

Add, delete or set Favorite channels and use the program guide for digital broadcasts.

Select a channel in the All Channels, Added Channels, Favorite or Programmed screen by pressing the ▲ / ▼ buttons, and pressing the ENTERE button. Then you can watch the selected channel.

Added Channels

Air A Antenna B Zoom C Select Page T Tools

■ All Channels: Shows all currently available

channels.

■ Added Channels: Shows all added channels.

■ Favorite: Shows all favorite channels.

■ Programmed: Shows all currently reserved

programs. Using the color buttons with the ✎Channel List

x x

number.

Select desired channels and press the Yellow button to set all the selected channels at the same time. The

T x (Tools): Displays the Channel List option menu.

(The Options menus may differ depending on the situation.)

Channel Status Display Icons

→ Channel → Channel List → ENTER

6 Air

6-1 ♥ TV #6

7 Air

8 Air 9 Air

9-1 ♥ TV #9

10 Air

10-1 ♥ TV #10 11-1 ♥ TV #11

Red (Antenna): Switches to Air or Cable. Green (Zoom): Enlarges or shrinks a channel

Yellow (Select): Selects multiple channel lists.

mark appears to the left of the selected channels.

(Page): Move to next or previous page.

Icons Operations

A channel selected.

A channel set as a Favorite.

A reserved Program.

)

A program currently being broadcast.

(

English

Basic Features

MEDIA.P

POWER

Using Favorite Channels ¦

O m

Add to Favorite / Delete from Favorite

Set channels you watch frequently as Favorites.

1. Select a channel and press the TOOLS

button.

2. Add or delete a channel using the Add to Favorite or Delete from Favorite menu

respectively.

Added Channels

Air A Antenna B Zoom C Select Page T Tools

→ Channel → Channel List → ENTER

6 Air

6-1 ♥ TV #6

7 Air

8 Air 9 Air

9-1 ♥ TV #9

10 Air

10-1 ♥ TV #10 11-1 ♥ TV #11

Delete Add to Favorite

Timer Viewing

Channel Name Edit Select All

Memorizing channels ¦

O m

Antenna (Air / Cable)

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).

→ Channel → ENTER

How to Stop Auto Programming

1. Press the ENTERE button.

2. A message will ask Stop Auto Program? Select Yes by

pressing the ◄ or ► button.

3. Press the ENTERE button.

Editing channels ¦

O m

Channel Name Edit

1. Select a channel and press the TOOLS button.

2. Edit the channel name using the Channel Name Edit

menu. Channel Name Edit ■ (analog channels only): Assign your

own channel name.

→ Channel → Channel List → ENTER

Other Features ¦

O m

→ Channel → ENTER

Clear Scrambled Channel

This function is used to ﬁlter out scrambled channels after Auto Program is completed. This process may take up to 20~30 minutes.

How to Stop Searching Scrambled Channels

1. Press the ENTERE button to select Stop.

2. Press the ◄ button to select Yes .

3. Press the ENTERE button.

This function is only available in ✎Cable mode.

Channel List

Auto Program

Air ■ : Air antenna signal. Cable ■ : Cable antenna signal. Auto ■ : Air and Cable antenna.

NOTE ✎

When selecting the Cable TV system: Selects the

cable system. STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point, the signal source has been selected.

After all the available channels are stored, it starts

to remove scrambled channels. The Auto program menu then reappears.

English

O m

Channel List Option Menu

Set each channel using the Channel List menu options (Add/ Delete, Timer Viewing, Select All/ Deselect All). Option

menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings. Add / Delete ■ : Delete or add a channel to display the

channels you want.

→ Channel → Channel List → ENTER

NOTE

✎

All deleted channels will be shown on the xAll Channels menu.

A gray-colored channel indicates the channel

has been deleted. The xAdd menu only appears for deleted

channels. Delete a channel from the xAdded Channels or

Favorite menu in the same manner.

English

03 Basic Features

Timer Viewing ■ : You can set a desired channel to be

P.MODE

SLEEP

displayed automatically at the set time; even when you are watching another channel. Set the current time ﬁrst to use this function. (P. 17)

1. Press the ◄ / ► /▲ / ▼ buttons to select the desired channel in Channel List.

2. Press the TOOLS button, then select Timer Viewing.

3. Scroll up or down to adjust the settings in the box,

or use the numeric buttons on your remote for entering the date and time.

If you selected ✎Once, Every Week or Every Day in Repeat, you can enter the date you want.

Select OK, then press the ENTERE button when done.

NOTE

✎

Only memorized channels can be reserved.

Reserved programs will be displayed in the

Programmed menu. When a digital channel is selected, press the

► button to view the digital program.

Select All ■ : Select all the channels in the channel list. Deselect All ■ : Deselect all the selected channels.

You can only select ✎Deselect All when one or more channels are selected.

Programmed

(in Channel List) You can view, modify or delete a show you have reserved to

watch.

1. Press the

2. Press the ◄ and ▼ button move to the Programmed

menu.

Change Info ■ : Change a show you have reserved to watch. Cancel Schedules ■ : Cancel a show you have reserved to

watch. Information ■ : Display a show you have reserved

to watch. (You can also change the reservation Information.)

Select All / Deselect All: ■ You can select or deselect all channels in the channel list.

ENTERE

button to select Channel List.

Picture Menu

Changing the Preset Picture Mode ¦

O m

→ Picture → Mode → ENTER

Mode

Select your preferred picture type by pressing the P.MODE button.

Dynamic ■ : Suitable for a bright room. Standard ■ : Suitable for a normal

environment. Movie ■ : Suitable for watching movies in

a dark room.

Adjusting picture settings ¦

O m

→ Picture → Backlight → ENTER

Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R)

Your television has several setting options for picture quality control.

NOTE

✎

When you make changes to xBacklight, Contrast, Brightness, Sharpness, Color or Tint (G/R), the OSD will be adjusted accordingly.

In PC mode, you can only make changes to

Backlight, Contrast and Brightness. Settings can be adjusted and stored for each

external device connected to the TV. Lowering picture brightness reduces power

consumption.

Fine Tune

(analog channels only) If the reception is clear, you do not have to ﬁne tune the

channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, ﬁne tune the channel manually.

Select y Fine Tune in the Channel menu. Fine tuned channels that have been saved are marked

✎

with an asterisk “*” on the right-hand side of the channel number in the channel banner.

To reset the fine-tuning, select ✎Reset.

Basic Features

Economical Solutions ¦

ECO Solution

O m

Energy Saving (Off / Low / Medium / High / ■ Picture Off / Auto): This adjust the brightness of the

TV in order to reduce power consumption. If you select Picture Off, the screen is turned off , but the sound remains on. Press any button to turn on the screen again.

No Signal Power Off (Off / 15 min. / 30 min. / 60 min.) ■ : Sets how quickly the TV switches to standby mode, if no picture is being received.

→ Picture → ECO Solution → ENTER

Disabled when the PC is in power saving mode.

✎

Setting up the TV with your PC ¦

Set the input source to PC.

Auto Adjustment

O m

ENTER

Adjust frequency values/positions and ﬁne tune the settings automatically.

Not available when connecting through HDMI/DVI

✎

cable.

→ Picture → Auto Adjustment →

Screen

Coarse / Fine ■ : Removes or reduces picture noise. If the

noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the center of screen.

Position ■ : Adjust the PC’s screen positioning if it does not ﬁt the TV screen. Press the ▲ or ▼ button to adjust the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position.

Image Reset ■ : Resets the image to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card,

the actual screens on your PC will probably look different, but the same basic set-up information will apply in most cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

The correct size setting (resolution) y [Optimum: 1360x768 pixels]

If a vertical-frequency option exists on your display y settings dialog box, the correct value is ‘60’ or ‘60 Hz’. Otherwise, just click ‘OK’ and exit the dialog box.

Changing the Picture Options ¦

Advanced Settings

O m

ENTER

(available in Standard / Movie mode) Compared to previous models, new Samsung TVs have a

more precise picture.

In ✎PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance.

Black Tone : Off ►

Dynamic Contrast : Medium Shadow Detail : 0 Gamma : 0 RGB Only Mode : Off Color Space : Native White Balance

Black Tone (Off / Dark / Darker / Darkest) ■ : Select the black level to adjust the screen depth.

Dynamic Contrast (Off / Low / Medium / High) ■ : Adjust the screen contrast.

Shadow Detail ■ : Increase the brightness of dark images.

Gamma ■ : Adjust the primary color intensity. RGB Only Mode (Off / Red / Green / Blue) ■ :

Displays the Red, Green and Blue color for making ﬁne adjustments to the hue and saturation.

Color Space (Auto / Native) ■ : Adjust the range of colors available to create the image.

White Balance ■ : Adjust the color temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each color's (red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each color's (red, green, blue) brightness.

Reset: Resets the White Balance to it's default settings.

Flesh Tone ■ : Emphasize pink "flesh tone". Edge Enhancement (Off / On) ■ : Emphasize object

boundaries.

→ Picture → Advanced Settings →

Advanced Settings

▼

U Move E Enter R Return

Disabled under ✎PC mode.

English

03 Basic Features

Picture Options

O m

ENTER

In ✎PC mode, you can only make changes to the Color Ton e, Size and Auto Protection Time.

Color Tone : Normal ►

Size : 16:9 Digital Noise Filter : Auto MPEG Noise Filter : Auto

HDMI Black Level : Normal

Film Mode : Off Auto Protection Time : 2 hours

Color Tone (Cool / Normal / Warm1 / Warm2) ■

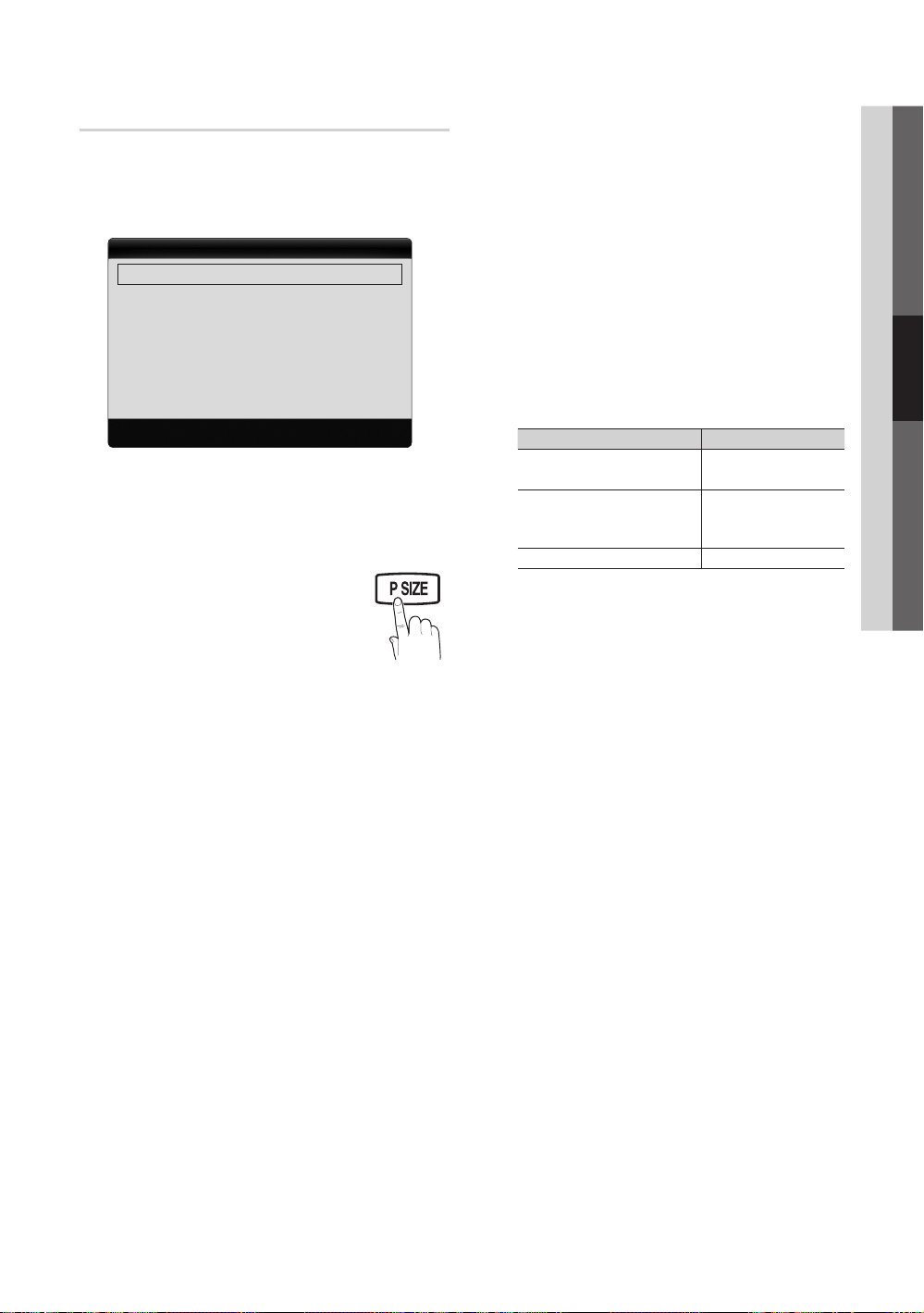

Size ■ : Your cable box/satellite receiver

may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

16:9: Sets the picture to 16:9 wide mode.

Zoom1: Use for moderate magniﬁcation. Zoom2: Use for a stronger magniﬁcation. Wide Fit: Enlarges the aspect ratio of the picture to ﬁt

the entire screen.

4:3: Sets the picture to basic (4:3) mode.

Screen Fit: Displays the full image without any cut-off

when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are input.

NOTE

✎

After selecting xZoom1, Zoom2 or Wide Fit:

1. Press the ► button to select Position.

2. Press the ENTERE button.

3. Press the ▲ or ▼ button to move the picture up

4. Press the ENTERE button.

5. Press the ► button to select Reset.

6. Press the ENTERE button to reset the picture

→ Picture → Picture Options →

Picture Options

U Move E Enter R Return

Warm1 ✎ or Warm2 will be deactivated when the

picture mode is Dynamic. Settings can be adjusted and stored for each

✎

external device connected to an input on the TV.

Do not watch in 4:3 format for a long time. Traces

✎

of borders displayed on the left, right and center of the screen may cause image retention (screen burn) which are not covered by the warranty.

or down.

to its default position.

After selecting xScreen Fit in HDMI (1080i/1080p) or Component (1080i/1080p) mode, you may need to center the picture:

1. Press the ◄ or ► button to select Position.

2. Press the ENTERE button.

3. Press the ▲, ▼, ◄ or ► button to move the

picture.

4. Press the ENTERE button.

5. Press the ◄ or ► button to select Reset.

6. Press the ENTERE button.

HD (High Definition): 16:9 - 1080i/1080p (1920x1080),

720p (1280x720) Settings can be adjusted and stored for each

external device you have connected to an input on the TV.

Input Source Picture Size

ATV, AV, Component (480i, 480p) DTV(1080i), Component (1080i, 1080p), HDMI (720p, 1080i, 1080p) PC 16:9, 4:3

Digital Noise ■ / Auto Visualization):

your TV is weak, you can activate the Digital Noise Filter feature to reduce any static and ghosting that may appear on the screen.

✎

Auto Visualization: When changing analog channels, displays signal strength.

✎ ✎

MPEG Noise Filter (Off / Low / Medium / High / ■ Auto): Reduces MPEG noise to provide an improved

picture quality.

HDMI Black Level (Normal / Low) ■ : Selects the black level on the screen to adjust the screen depth.

✎

Filter (Off / Low / Medium / High / Auto

If the broadcast signal received by

When the signal is weak, try other options until the best picture is displayed.

Only available for analog channels. When bar is green, you are receiving the best

possible signal.

Disabled under ✎PC mode.

Available only in HDMI mode.

16:9, Zoom1, Zoom2, 4:3

16:9, 4:3, Wide Fit, Screen Fit

Basic Features

MEDIA.P

POWER

P. MODE

S. M O D E

SLEEP

Film Mode (Off / Auto1 / Auto2) ■ : Sets the TV to automatically sense and process ﬁlm signals from all sources and adjusts the picture for optimum quality.

Available in TV, AV, COMPONENT (480i / 1080i)

✎

and HDMI (480i / 1080i).

Auto Protection Time (2 hours / 4 hours / 8 hours ■ / 10 hours / Off): If the screen remains idle with a still

mage for a certain period of time deﬁned by the user, the screen saver is activated to prevent the formation of ghost images on the screen.

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

Sound Menu

Changing the Preset Sound Mode ¦

O m

Mode

Standard ■ : Selects the normal sound

mode.

Music ■ : Emphasizes music over voices. Movie ■ : Provides the best sound for

movies.

Clear Voice ■ : Emphasizes voices over other sounds. Amplify ■ : Increase the intensity of high-frequency sound

to allow a better listening experience for the hearing impaired.

→ Sound → Mode → ENTER

Adjusting sound settings ¦

O m

→ Sound → Equalizer → ENTER

Equalizer

Adjusts the sound mode.

Balance L/R ■ : Adjusts the balance between the right and left speaker.

100Hz / 300Hz / 1KHz / 3KHz / 10KHz ■ (Bandwidth Adjustment): Adjusts the level of speciﬁc bandwidth frequencies.

Reset ■ : Resets the equalizer to its default settings.

Sound Settings ¦

Virtual Surround (Off / On)

(standard sound mode only) This function provides a virtual 5.1 channel surround sound

experience through a pair of speakers or headphones using HRTF (Head Related Transfer Function) technology.

Dialog Clarity (Off / On)

(standard sound mode only) Dialog Clarity emphasizes voice while maintaining the

background sound level.

Preferred Language

(digital channels only) Digital-TV broadcasts are capable of

simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages).

You can only select a language among

✎

the ones being broadcasted.

Multi-Track Sound (MTS)

(analog channels only)

Mono ■ : Choose for channels that are broadcasting in mono or if you are having difﬁculty receiving a stereo signal.

Stereo ■ : Choose for channels that are broadcasting in stereo.

SAP ■ : Choose to listen to the Separate Audio Program, which is usually a foreign-language translation.

Depending on the particular program being broadcast,

✎

you can listen to Mono, Stereo or SAP.

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

Night ■ : This mode provides an improved sound

experience compared to Normal mode, making almost no noise. It is useful at night.

English

03 Basic Features

Speaker Select

SLEEP

(External Speaker / TV Speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker.

When ✎Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited.

When ✎Speaker Select is set to External Speaker, you should use these settings.

TV Speaker: Off, External Speaker: On

When ✎Speaker Select is set to TV Speaker, you should use these settings.

TV Speaker: On, External Speaker: On

If there is no video signal, both speakers will be mute.

✎

SPDIF Output

SPDIF (Sony Philips Digital Interface) is used to provide digital sound, reducing interference going to speakers and various digital devices such as an A/V Receiver/Home theater.

Audio Format: ■ During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital.

By connecting to 5.1ch speakers in a dolby

✎

digital setup, maximize your interactive 3D sound experience.

Audio Delay ■ : Correct audio-video sync problems, when watching TV or video, and when listening to digital audio output using an external device such as an AV receiver (0ms ~ 250ms).

Sound Reset

Reset all sound settings to the factory defaults.

Setup Menu

Setting the Time ¦

O m

→ Setup → Time → ENTER

Clock Mode: Set up the current time manually or automatically.

Auto – : Set the current time automatically using the time from a digital channel.

The antenna must be connected in order to set

✎

the time automatically.

Manual – : Set the current time manually.

Depending on the broadcast station and signal,

✎

the auto time set up may not be correct. In this case, set the time manually.

Clock Set: Set the Month, Day, Year, Hour, Minute and am/pm.

Available only when ✎Clock Mode is set to Manual.

You can set the month, day, year, hour and minute

✎

directly by pressing the number buttons on the remote control.

DST (Off / On): Switches the DST(Daylight Saving Time) function on or off.

This function is only available when the ✎Clock

Mode is set to Auto.

Time Zone: Select your time zone.

This function is only available when the ✎Clock

Mode is set to Auto.

Using the Sleep Timer ¦

O m

ENTER

Sleep Timer ■

shuts off the TV after a preset period of time. (30, 60, 90, 120, 150 and 180 minutes).

→ Setup → Time → Sleep Timer →

To cancel the ✎Sleep Timer, select

Off.

: Automatically

Setting the On/Off Time ¦

O m

ENTER

Timer 1 / Timer 2 / Timer 3 ■ : Three different on / off

timer settings can be made. You must set the clock ﬁrst.

→ Setup → Time → Timer 1 →

Time

The current time will appear every time you press the

✎

INFO button.

Clock ■ : Setting the clock is for using various timer

features of the TV.

If you disconnect the power cord, you have to set

✎

the clock again.

On Time

Timer 1

▲

Inactivate 12 00 am

▼

Off Time

Inactivate 12 00 am

Volume Source Antenna Channel

10 TV Air 3

Repeat

Once

Sun Mon Tue Wed Thu Fri Sat

L Move U Adjust E Enter R Return

Basic Features

On Time / Off Time: Set the hour, minute, am/pm and activate / inactivate. (To activate the timer with the setting you have chosen, set to Activate.)

Volume: Set the desired volume level. Source: Select TV or USB content to be played when

the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV)

Antenna (when Source is set to TV): Select Air or Cable.

Channel (when the Source is set to TV): Select the

desired channel. Contents (when the Source is set to USB): Select a

folder in the USB device containing music or photo ﬁles to be played when the TV is turned on automatically.

If there is no music file on the USB device or the

✎

folder containing a music file is not selected, the Timer function does not operate correctly.

When there is only one photo file in the USB, the

✎

Slide Show will not play. If a folder name is too long, the folder cannot be

✎

selected. Each USB you use is assigned its own folder.

✎

When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you

select Manual, you can set up the day you want to activate the timer.

The

✎ c

Auto Power Off (available only when the TV is turned

✎

on by the Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

mark indicates the day is selected.

Locking Programs ¦

O m

→ Setup → Security → ENTER

Security

The PIN input screen appears, Enter your 4 digit PIN number.

V-Chip ■ : The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal identiﬁcation number) before any of the V-Chip restrictions are set up or changed.

NOTE

✎

V-Chip x is not available in HDMI, Component

or PC mode. The default PIN number of a new TV set is

“0-0-0-0”.

Allow all x: Press to unlock all TV ratings. Block all x: Press to lock all TV ratings.

V-Chip Lock (Off / On): You can block rated TV

Programs. TV Parental Guidelines: You can block TV programs

depending on their rating. This function allows you to control what your children are watching.

TV-Y – : Young children / TV-Y7: Children 7 and over / TV-G: General audience / TV-PG: Parental guidance / TV-14: Viewers 14 and over / TV-MA: Mature

audience

ALL – : Lock all TV ratings. / FV: Fantasy violence / V: Violence / S: Sexual situation / L: Adult Language / D: Sexually Suggestive Dialog

The V-Chip will automatically block certain

✎

categories dealing with more sensitive material. For example, if you block the TV-Y category, then T V-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the young adult group will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work similarly. So, if you block the L sub-rating in TV-PG, then the L sub-ratings in T V-14 and TV-MA will automatically be blocked.

MPAA Rating: You can block movies depending on their MPAA rating. The Motion Picture Association of America(MPAA) has implemented a rating system that provides parents or guardians with advanced information on which ﬁlms are appropriate for children.

G – : General audience (no restrictions). / PG: Parental guidance suggested. / PG-13: Parents strongly cautioned. / R: Restricted. Children under 17 should be accompanied by an adult. / NC-17: No children under age 17. / X: Adults only. / NR: Not rated.

The ✎V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the PG -13 category, then R, NC-17 and X will automatically be blocked.

Canadian English: You can block TV programs depending on their Anglophone Canadian.

C – : Programming intended for children under age 8. / C8+: Programming generally considered acceptable

for children 8 years and over to watch on their own. /

G: General programming, suitable for all audiences. / PG: Parental Guidance. / 14+: Programming

contains themes or content which may not be suitable for viewers under the age of 14. / 18+: Adult programming.

The ✎V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the G category, then PG, 14+ and 18+ will automatically be blocked.

English

03 Basic Features

Canadian French: You can block TV programs

depending on their French Canadian rating.

G – : General / 8 ans+: Programming generally considered acceptable for children 8 years and over to watch on their own. / 13 ans+: Programming may not be suitable for children under the age of 13. / 16 ans+: Programming is not suitable for children under the age of 16. / 18 ans+: Programming restricted to adults.

The ✎V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also.

Downloadable U.S. Rating: Parental restriction information can be used while watching DTV channels.

NOTE

✎

If information is not downloaded from the

broadcasting station, the Downloadable U.S. Rating menu is deactivated.

Parental restriction information is automatically

downloaded while watching DTV channels. It may take several seconds.

The xDownloadable U.S. Rating menu is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use.

Parental restriction levels differ depending on

the broadcasting station. The default menu name and Downloadable U.S. Rating change depending on the downloaded information.

Even if you set the on-screen display to another

language, the Downloadable U.S. Rating menu will appear in English only.

The rating will automatically block certain

categories that deal with more sensitive material.

The rating titles (For example: Humor Level..etc)

and TV ratings (For example: DH, MH, H..etc) may differ depending on the broadcasting station.

Change PIN ■ : The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them. As soon as the 4 digits are entered, the Conﬁrm New PIN screen appears. Re-enter the same 4 digits. When the Conﬁrm screen disappears, your PIN has been memorized.

How to watch a restricted channel

If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear:

This channel is blocked by V-Chip. Please enter the PIN to unblock.

If you forget the PIN, press the remote-control

✎

buttons in the following sequence, which resets the pin to “0-0-0-0” : POWER (off) → MUTE → 8 → 2 → 4 → POWER (on).

Other Features ¦

O m

→ Setup → ENTER

Menu Language

Set the menu language.

1. Select Menu Language and press the ENTERE button.

2. Choose desired language and press the ENTERE

button.

Choose between ✎English, Español and Français.

Caption

(On-Screen Text Messages)

Caption (Off / On) ■ : You can switch the caption function on or off. If captions are not available, they will not be displayed on the screen.

The ✎Caption feature does not work in Component, HDMI or PC modes.

Caption Mode ■ : You can select the desired caption mode.

The availability of captions depends on the

✎

program being broadcasted.

Default / CC1~CC4 / Text1~Text4: (analog channels only) The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device to the TV. (Depending on the broadcasting signal, the Analog Caption function may or may not work with digital channels.)

Default / Service1~Service6 / CC1~CC4 / Text1~Text4: (digital channels only) The Digital Captions

function works with digital channels.

Se rvic e1~6 ✎ may not be available in digital caption

mode depending on the broadcast.

Basic Features

Digital Caption Options ■ : (digital channels only) Size: Options include Default, Small, Standard and

Large. The default is Standard. Font Style: Options include Default and Styles 0 to 7.

The default is Style 0. Foreground Color: Options include Default, White,

Black, Red, Green, Blue, Yellow, Magenta and Cyan. You can change the color of the letter. The default is White.

Background Color: Options include Default, White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. You can change the background color of the caption. The default is Black.

Foreground Opacity: This adjusts the opacity of text. Options include Default, Transparent, Translucent, Solid and Flashing.

Background Opacity: This adjusts the opacity of the caption background. Options include Default, Transparent, Translucent, Solid and Flashing.

Return to Default: This option sets each Size, Font Style, Foreground Color, Background Color, Foreground Opacity and Background Opacity to its default.

NOTE

✎

Digital Caption Options x are available only

when Default and Service1 ~ Service6 can be selected in Caption Mode.

The availability of captions depends on the

program being broadcasted. The xDefault setting follow the standards set by

the broadcaster. The Foreground and Background cannot be set

to have the same color. You cannot set both the xForeground Opacity

and the Background Opacity to Transparent.

General

Game Mode (Off / On) ■ : When connecting to a game

console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting the game menu.

NOTE

✎

Precautions and limitations for game mode

To disconnect the game console and connect – another external device, set Game Mode to Off in the setup menu.

If you display the TV menu in – Game Mode, the screen shakes slightly.

Game Mode x is not available when the input source

is set to TV or PC. After connecting the game console, set xGame Mode

to On. Unfortunately, you may notice reduced picture qualit y.

If xGame Mode is On:

Picture – mode is set to Standard and Sound mode is set to Movie.

Equalizer – is not available.

Menu Transparency (Birght / Dark) ■ : Set the

Transparency of the menu. Melody (Off / Low / Medium / High) ■ : Set so that a

melody plays when the TV is turned on or off.

NOTE

✎

Only available when the Input source is set to TV.

To turn the melody off, set Melody to Off. The xMelody does not play.

When no sound is output from the TV because the –

MUTE button has been pressed.

When no sound is output from the TV because the – volume has been reduced to minimum with the

VOL – button.

When the TV is turned off by – Sleep Timer function.

Picture In Picture (PIP) ¦

PIP

O m

You can watch the TV tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.

NOTE

✎

For PIP sound, refer to the Sound Select instructions.

If you turn the TV off while watching in PIP mode, the

PIP window will disappear. You may notice that the picture in the PIP window

becomes slightly unnatural when you use the main screen to view a game or karaoke.

While xV-Chip operation, the PIP function cannot be used.

PIP Settings

PIP (Off / On) ■ : Activate or deactivate the PIP function. Air/Cable (Air / Cable) ■ : Select either Air or Cable as the

input source for the sub-screen.

Channel ■ : Select the channel for the sub-screen. Size ( ■ Position ( ■

sub-picture. Sound Select (Main / Sub) ■ : You can choose the

desired sound (Main or Sub) in PIP mode.

→ Setup → PIP → ENTER

Main picture Sub picture Component1,

Component2, HDMI1/DVI, HDMI2, HDMI3, PC

/ Ã): Select a size for the sub-picture.

/ – / — / œ): Select a position for the

English

03 Basic Features

Support Menu

O m

→ Support → ENTER

Self Diagnosis

Picture Test ■ : Use to check for picture problems. If the

problem continues to occur, check the Color pattern. Yes: If the test pattern does not appear or there is

noise in the test pattern, select Yes. There may be a problem with the TV. Contact Samsung’s Call Center for assistance (1-800-SAMSUNG).

No: If the test pattern is properly displayed, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

Sound Test ■ : Use the built-in melody sound to check for sound problems.

If you hear no sound from the TV’s speakers,

✎

before performing the sound test, make sure

Speaker Select is set to TV speaker in the Sound menu.

The melody will be heard during the test even if

✎

Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

Yes: If you can hear sound only from one speaker or not at all during the sound test, select Yes. There may be a problem with the TV. Contact Samsung’s Call Center for assistance (1-800-SAMSUNG).

No: If you can hear sound from the speakers, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

Signal Information ■ : (Digital channels only) An HD channel’s reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.

Troubleshooting ■ : If the TV seems to have a problem, refer to this description.

If none of these troubleshooting tips apply, contact

✎

the Samsung customer service center.

Software Upgrade

Software Upgrade can be performed by downloading the

latest ﬁrmware from samsung.com to a USB memory device. Current Version - the software already installed in the TV.

Software is represented as ‘Year/Month/Day_Version’.

✎

Software Upgrade

Current Version 2010/01/18/_000001

By USB ►

Alternative Software

U Move E Enter R Return

Installing the Latest Version

By USB ■ : Insert a

USB drive containing the ﬁrmware upgrade ﬁle, downloaded from www.samsung.com, into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the ﬁrmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to write down your settings so that you can easily reset them after the upgrade.

Alternative Software ■ (Not available)

USB device

TV Side Panel

HD Connection Guide

Refer to this information when connecting external devices to the TV.

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can ﬁnd information regarding our call centers and how to download products and software.

Advanced Features

SUM

MEDIA.P

POWER

Advanced Features

Media Play

Enjoy photos, music and/or movie ﬁles saved on a USB Mass Storage Class (MSC) device and/or your PC.

O m

→ ENTER

→ Application → Media Play

MediaPlay

Videos

Change Device

View Devices E Enter R Return

Connecting a USB Device ¦

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie ﬁles to the

USB jack on the side of the TV.

3. When USB is connected to the TV, popup window appears.

Then you can select Media Play.

It might not work properly with unlicensed multimedia files.

✎

Need-to-Know List before using ✎Media Play

MTP (Media Transfer Protocol) is not supported.

The file system supports FAT16, FAT32 and NTFS.

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Media Play xonly supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only

Transport device. Examples of MSC are Thumb drives and Flash Card Readers. Devices should be connected directly to the TV’s USB port. USB (HDD) is not supported.

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.

SAMSUNG is not responsible for any data file damage or data loss. Do not disconnect the USB device while it is loading.

The higher the resolution of the image, the longer it takes to display on the screen.

The maximum supported JPEG resolution is 15360X8640 pixels.

For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management

(DRM) is a technology that supports the creation, distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.

If more than 2 PTP devices are connected, you can only use one at a time.

If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high

power (more than 500mA or 5V) may not be supported. If an over-power warning message is displayed while you are connecting or using a USB device, the device may not

be recognized or may malfunction. If the TV has been no input during time set in xAuto Protection Time, the Screensaver will run. If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is

not played, connect the USB device to the PC, format the device and check the connection. If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC

to permanently delete the file.

USB device

TV Side Panel

English

04 Advanced Features

Jan.10.2010

/Movie 01.avi 1/1

Movie 01.avi

SUM

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

Movie 02.avi

Movie 04.avi

Movie 06.avi

Movie 08.avi

Movie 10.avi

Screen Display ¦

Movie 01.avi

00:04:03 / 00:07:38 1/1

SUM

Move to the desired ﬁle using the up/down/right/left buttons and then press the ENTERE or  (Play) button. The ﬁle is played.

Supports the ✎View Devices and Contents Mode in Media Play homepage.

You can ascertain the selected

ﬁle name and the number of

Displays the sorting standard.

The sorting standard is

✎

different depending on the contents.

Information:

ﬁles and page.

Sort List Section:

Videos

Page

File List Section: You can conﬁrm the ﬁles and groups that are sorted by category.

Change Device

Select Sorting T Tools

Operation Buttons

Red (Change Device): Selects a connected device. Green (Preference): Sets the ﬁle preference. (not supported in Basic view) Yellow (Select): Selects multiple ﬁles from ﬁle list. Selected ﬁles are marked with a symbol. Blue (Sorting): Selects the sort list.

Tools: Displays the option menu.

Using the ✎

or µ button, ﬁle list can move to next or previous page.

Videos

Playing Video

1. Press the ◄ or ► button to select Videos, then press the ENTERE button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired video in the ﬁle list.

3. Press the ENTERE button or  (Play) button.

The selected ﬁle is displayed on the top with its playing time. – If video time information is unknown, play time and progress bar are not displayed. – During video playback, you can search using – ◄ and ► button.

In this mode, you can enjoy movie clips contained on a Game,

✎

but you cannot play the Game itself. Supported Subtitle Formats y

Name File extension Format

MPEG-4 time-based text .ttxt XML

SAMI .smi HTML

SubRip .srt string-based SubViewer .sub string-based Micro DVD .sub or .txt string-based

E Pause L Jump T Tools R Return

Advanced Features

Supported Video Formats y

File Extention Container Video Codec Resolution

Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8

*.avi

*.mkv

*.asf ASF

*.wmv ASF Window Media Video v9 1920x1080 6 ~ 30 25 WMA

*.mp4 MP4

*.3gp 3GPP

*.vro

*.mpg

*.mpeg

*.ts *.tp

*.trp

AVI

MKV

VRO VOB

XviD 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8

XviD 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

XVID 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

MPEG1 1920x1080 24 / 25 / 30 30 MPEG2 1920x1080 24 / 25 / 30 30 MPEG1 1920x1080 24 / 25 / 30 30 MPEG2 1920x1080 24 / 25 / 30 30

H.264 1920x1080 6 ~ 30 25

MPEG2 1920x1080 24 / 25 / 30 30

H.264 1920x1080 6 ~ 30 25

VC1 1920x1080 6 ~ 30 25

Frame rate

(fps)

Other Restrictions

NOTE

✎

If there are problems with the contents of a codec, the codec will not be supported.

If the information for a Container is incorrect and the file is in error, the Container will not be able to play

correctly. Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec

listed in the table above.

Bit rate (Mbps)

Audio Codec

MP3 / AC3 / LPCM /

ADPCM / DTS Core

MP3 / AC3 / LPCM /

ADPCM / WMA

MP3 / ADPCM / AAC

ADPCM / AAC / HE-AAC

AC3 / MPEG / LPCM

AC3 / MPEG / LPCM / AAC

AC3 / AAC / MP3 / DD+ /

HE-AAC

Supports up to H.264, Level 4.1• H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are • not supported. H.263 is not supported.• GMC 2 is not support.•

English

Video Decoder Audio Decoder

Supports up to WMA 7, 8, 9, STD• WMA 9 PRO does not support 2 channel excess multi • channel or lossless audio. WMA sampling rate 22050Hz mono is not supported.•

+ 55 hidden pages
