LED TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model _____________ Serial No. _____________

BN68-02651B-04

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

Important Warranty Information Regarding Television Format Viewing

See the warranty card for more information on warranty terms.

✎

Wide screen format LED Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to ﬁll the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark sidebars on no expanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week. Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of LED Displays that leave subtle, but permanent burned-in ghost images in the LED picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On LED models that offer picture sizing features, use these controls to view different formats as a full screen picture. Be careful in the selection and duration of television formats used for viewing. Uneven LED aging as a result of format selection and use, as well as burned in images, are not covered by your Samsung limited warranty.

• SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT

Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG)

products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally speciﬁed, and to the Original Purchaser only.

The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited

Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the product.

Excluded, but not limited to, are any originally speciﬁed provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or

replacements, accessories, options, upgrades, or consumables.

For the location of a SAMSUNG Authorized Service Center, please call toll-free: – In the United States : 1-800-SAMSUNG (1-800-726-7864) – In Canada : 1-800-SAMSUNG

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause uneven wear of the screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try to display a full screen image.

• Reducing brightness and contrast will help to avoid the appearance of after-images.

• Use all TV features designed to reduce image retention and screen burn, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

✎

Be careful when you contact the TV because some parts can be somewhat hot.

✎

Installation with a stand Installation with a wall-mount

4 inches

English

4 inches

Contents

Getting Started

y List of Features ......................................................... 4

y Accessories .............................................................. 4

y Install the Stand ........................................................ 5

y Viewing the Control Panel ......................................... 6

y Viewing the Remote Control ...................................... 7

y Connecting to an Antenna ........................................8

y Plug & Play (Initial Setup) ........................................... 8

Connections

y Connecting to an AV Device ......................................9

y Connecting to an Audio Device ...............................11

y Connecting to a PC ................................................12

y Changing the Input Source .....................................13

Basic Features

y How to Navigate Menus .......................................... 13

y Channel Menu ........................................................ 14

Seeing Channels 14 Using Favorite Channels 14 Memorizing Channels 14 Editing Channels 15 Other Features 15

y Picture Menu ..........................................................16

Changing the Preset Picture Mode 16 Adjusting Picture Settings 16 Economical Solutions 16 Changing the Picture Options 17 Setting up the TV with Your PC 18

y Sound Menu ...........................................................19

Changing the Preset Sound Mode 19 Adjusting Sound Settings 19 Sound Settings 19

y Setup Menu ............................................................20

Setting the Time 20 Using the Sleep Timer 21 Setting the On / Off Timer 21 Locking Programs 21 Other Features 23 Picture In Picture (PIP) 24

y Support Menu ......................................................... 24

Advanced Features

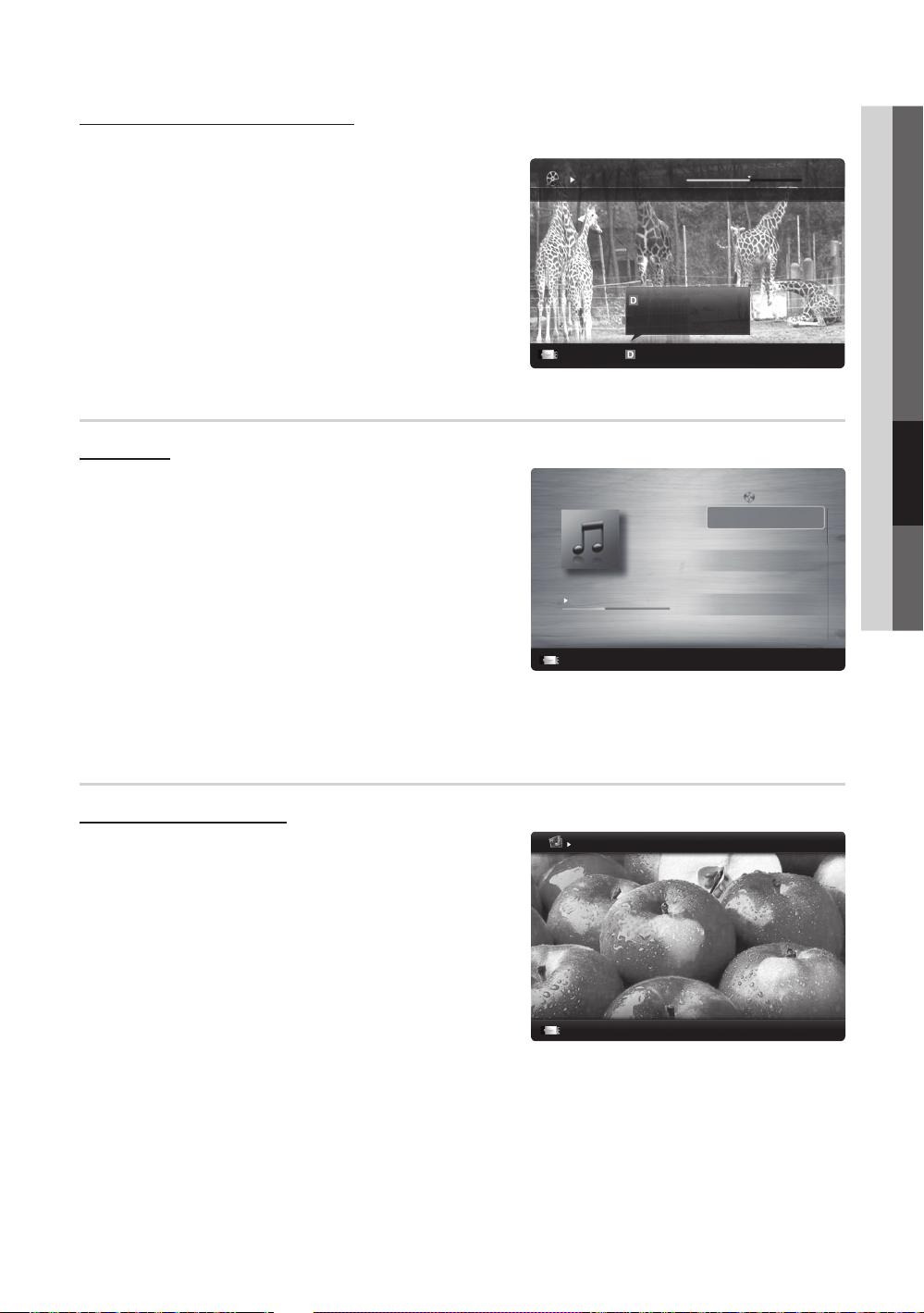

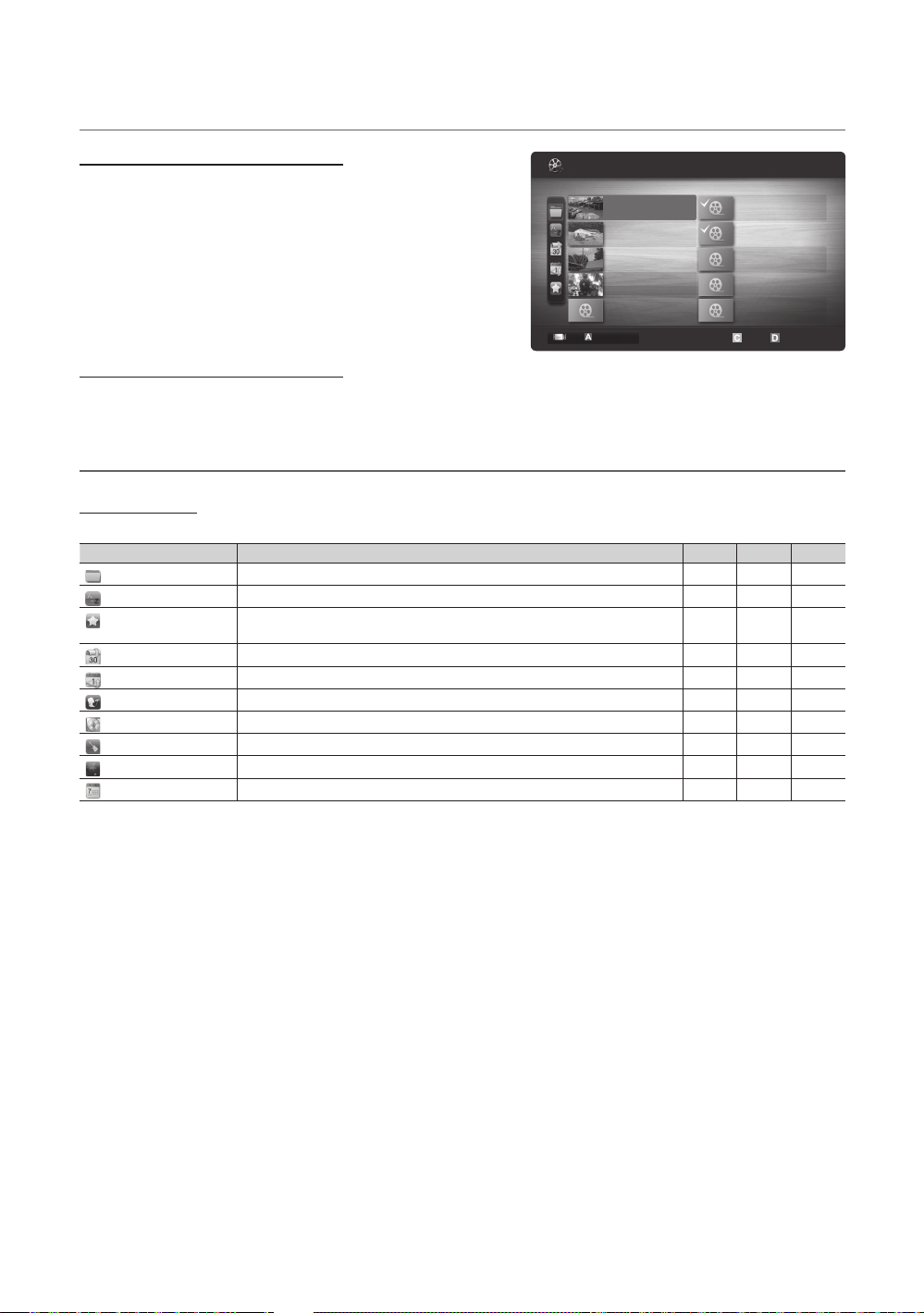

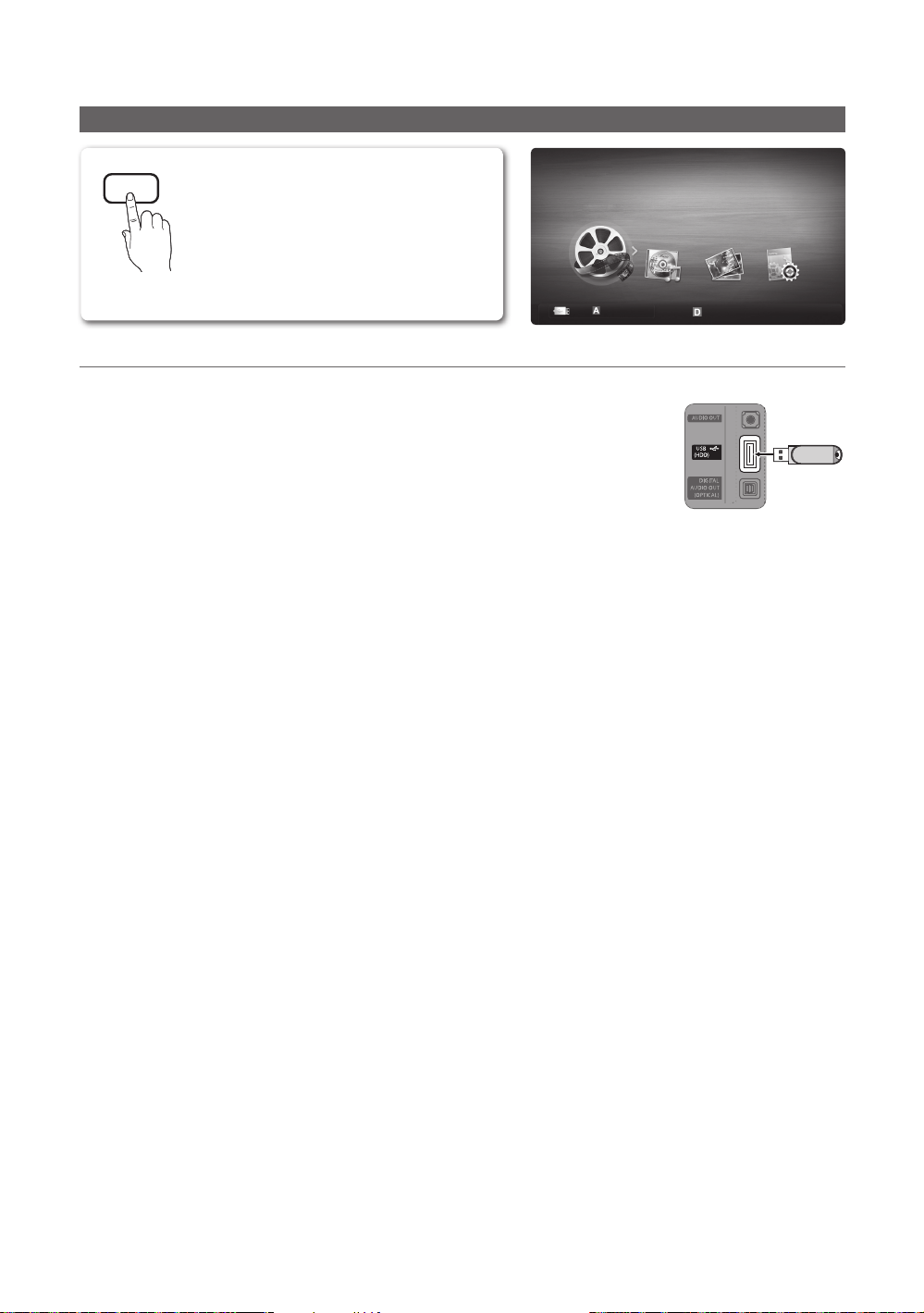

y Media Play ..............................................................26

Connecting a USB Device 26 Screen Display 27 Playing Multiple Files 30 Media Play - Additional Functions 30

y Anynet+ .................................................................. 32

Setting Up Anynet+ 33 Switching between Anynet+ Devices 33 Recording 34 Listening through a Receiver 34 Troubleshooting for Anynet+ 35

Other Information

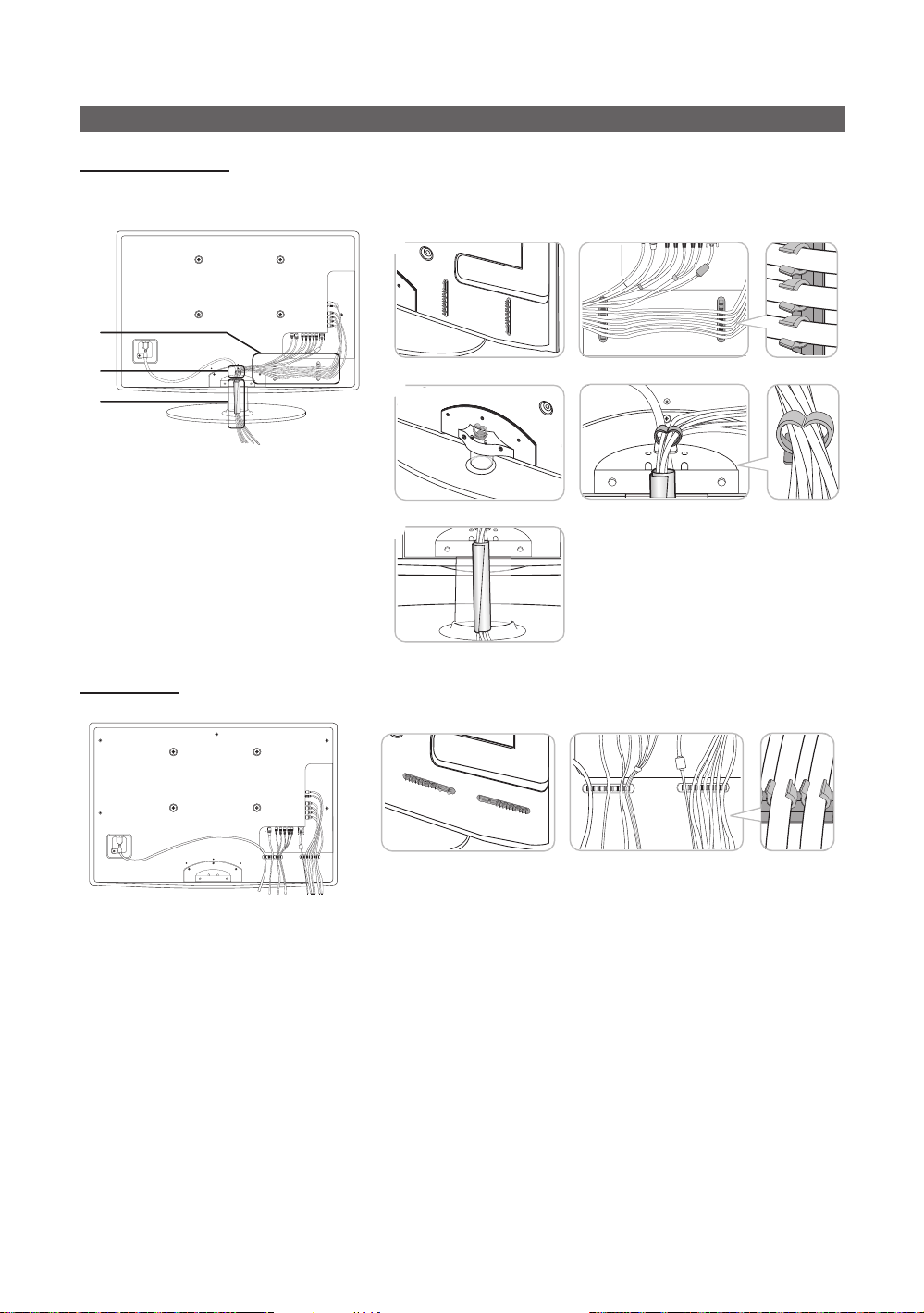

y Assembling the Cables ...........................................36

y Installing the Wall Mount .........................................37

y Anti-theft Kensington Lock ...................................... 38

y Securing the TV to the Wall ..................................... 39

y Troubleshooting ......................................................40

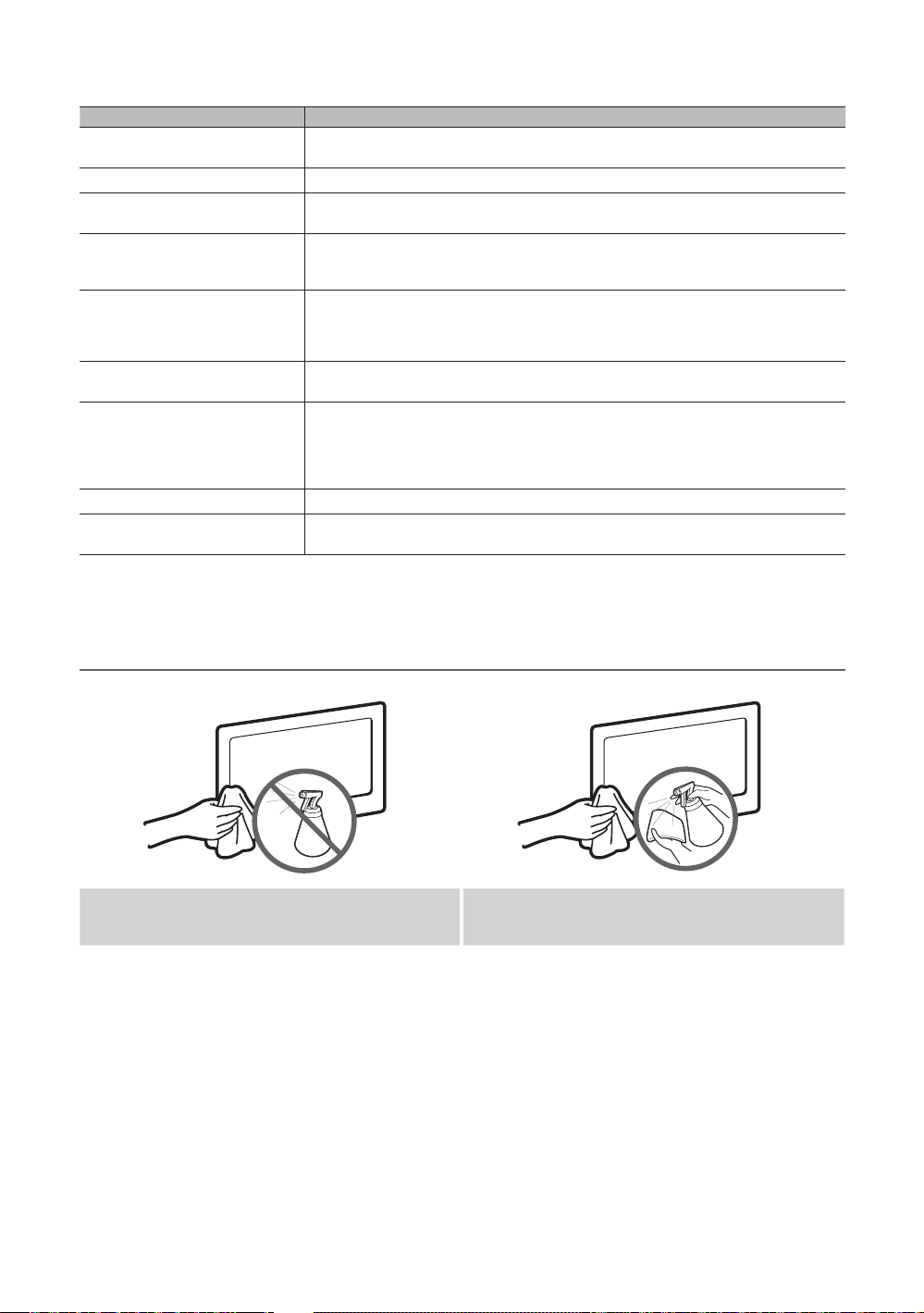

Storage and Maintenance 42

y License ................................................................... 43

y Speciﬁcations ......................................................... 43

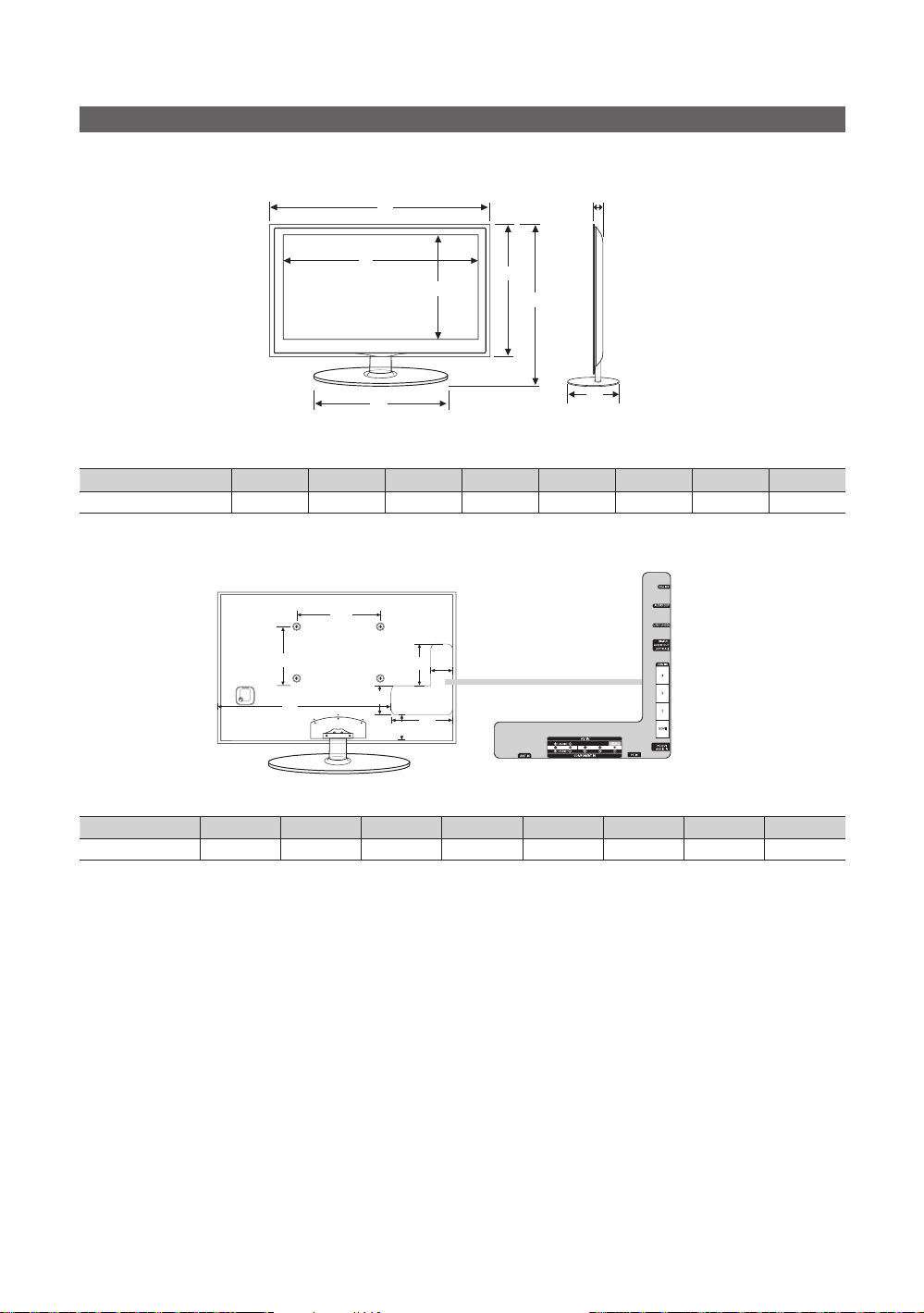

y Dimensions .............................................................44

y Index ...................................................................... 45

ENGLISH

TOOLS

This function can be used by pressing the

TOOLS button on the remote control.

Check the Symbol!

Note

Indicates additional information.

Step by Step Guide

Check here for instructions on how to open

the relevant submenu within the OSD (on

screen display).

English

Getting Started

List of Features

y Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed

without a cable box / STB (Set-Top-Box) satellite receiver.

y Media Play: Allows you to play music ﬁles, pictures, and movies saved on a USB device (p. 26). y Self Diagnosis: You can check to make sure picture and sound operate normally (p. 24).

Accessories

✎

Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.

✎

The items' colors and shapes may vary depending on the models.

y Remote Control (BN59-00996A) & Batteries (AAA x 2) y Owner’s Instructions y Warranty Card / Safety Guide / Quick Setup Guide

Holder-Wire Stand Cable Tie Holder-Wire (3EA)

(BN61-05491A) (BN61-05596A) (BN61-05373A)

M4 X L8

Blanking Bracket Holder-Ring (4EA) Power Cord Clamp

(BN63-06542B) (BN61-05280A) (AA65-30023A)

y Cleaning Cloth (BN63-01798B) y Power Cord

✎

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

y Maximum thickness - 0.55 inches (14mm)

English

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA

Install the Stand

See separate guide for installing the stand.

01 Getting Started

(A)

(B)

5EA (M4 X L12)

5EA (M4 X L8)

Stand (1EA) Guide Stand (1EA) Screws (10EA)

Follow the steps below to connect the TV to the stand.

Top view

Screws (M4 X L12)

Guide Stand

Stand

Rear

1. Connect the Guide Stand to the Stand

using ﬁve screws (M4 X L12) as shown.

2. With your TV upright,

connect the TV to the Stand as shown.

3. Fasten two screws (M4 X

L8) at position 1, and then fasten three screws (M4 X L8) at position 2.

✎

NOTE

Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.

Make sure that at least two persons lift and move the LED TV.

Stand the product up and fasten the screws. If you fasten the screws with the LED TV placed down, it may lean to

one side.

English

Getting Started

6 5 4 37 2 1

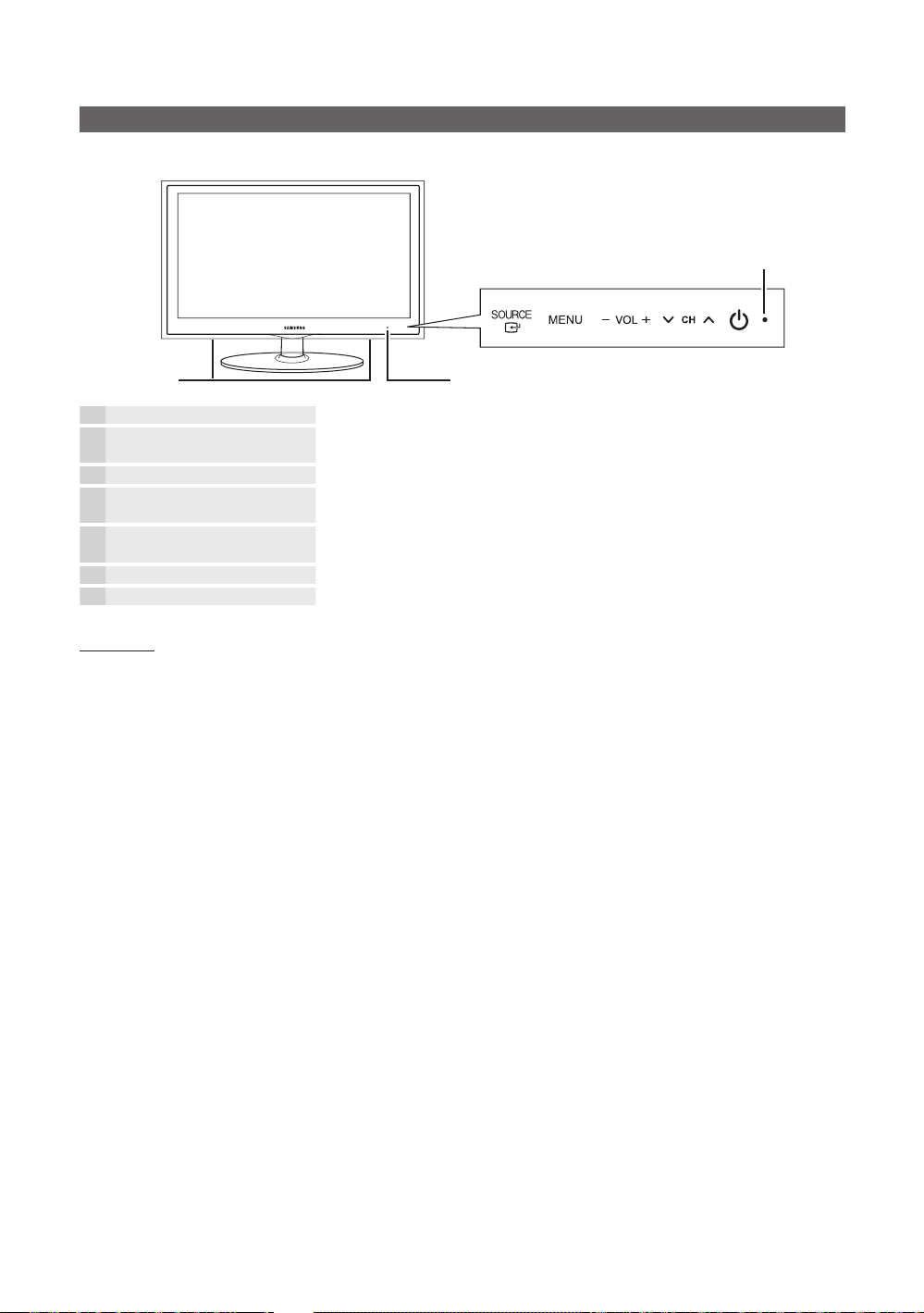

Viewing the Control Panel

✎

The product color and shape may vary depending on the model.

Power Indicator

Speakers

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCE

MENU Displays an on-screen menu, the OSD (on screen display) of your TV’s features.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

(Power)

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTERE button on the remote control.

Adjusts the volume. In the OSD, use the and ► buttons on the remote control.

Changes the channels. In the OSD, use the ▼ and ▲ buttons on the remote control.

Turns the TV on or off.

Remote control sensor

buttons as you would use the ◄

buttons as you would use the

English

Viewing the Remote Control

✎

This is a special remote control for the visually impaired and has Braille points on the Power, Channel and Volume buttons.

01 Getting Started

Turns the TV on and off.

Selects the HDMI mode directly.

Press to directly access channels.

Press to select additional channels

(digital) being broadcasted by the

same station. For example, to select

channel “54-3”, press “54”, then press

“–” and “3”.

Adjusts the volume.

Brings up the OSD.

Displays Media Play (USB) (p. 26).

Quickly select frequently used functions.

Returns to the previous menu.

POWER

MEDIA.P

TOOLS

RETURN

HDMI

MUTE

CH LIST

SOURCE

PRE-CH

FAV.CH

INFO

EXIT

Displays and selects the available video sources (p. 13).

Returns to the previous channel.

Cuts off the sound temporarily.

Changes channels.

Displays the channel list on the screen (p. 14).

Displays Favorite Channel Lists on the screen (p. 14).

Displays information on the TV screen.

Selects the on-screen menu items and changes the values seen on the menu.

Exits the menu.

Buttons used in the Channel list, Media

Play (USB) menu, etc.

Use these buttons in Media Play (USB)

and Anynet+ (HDMI-CEC) modes (p.

26, 32)

(: Controls recording for Samsung

recorders that have the Anynet+ feature)

Installing batteries (Battery size: AAA)

A B C D

S.MODE

SLEEP

P.MODE P.SIZE

✎

NOTE

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote

control. Avoid use when nearby fluorescent lights or neon signs.

The color and shape may vary depending on the model.

MTS

S.MODE: Press to select the sound

mode (p. 19).

SLEEP: Automatically shuts off the TV at

a preset time (p. 21).

MTS: Press to choose stereo, mono

or Separate Audio Program (SAP broadcast) (p. 19).

P.MODE: Press to select the picture

mode (p. 16).

P.SIZE: Selects the picture size (p. 17). CC: Controls the caption decoder (p.

23).

English

Getting Started

POWER

INFO GUIDE

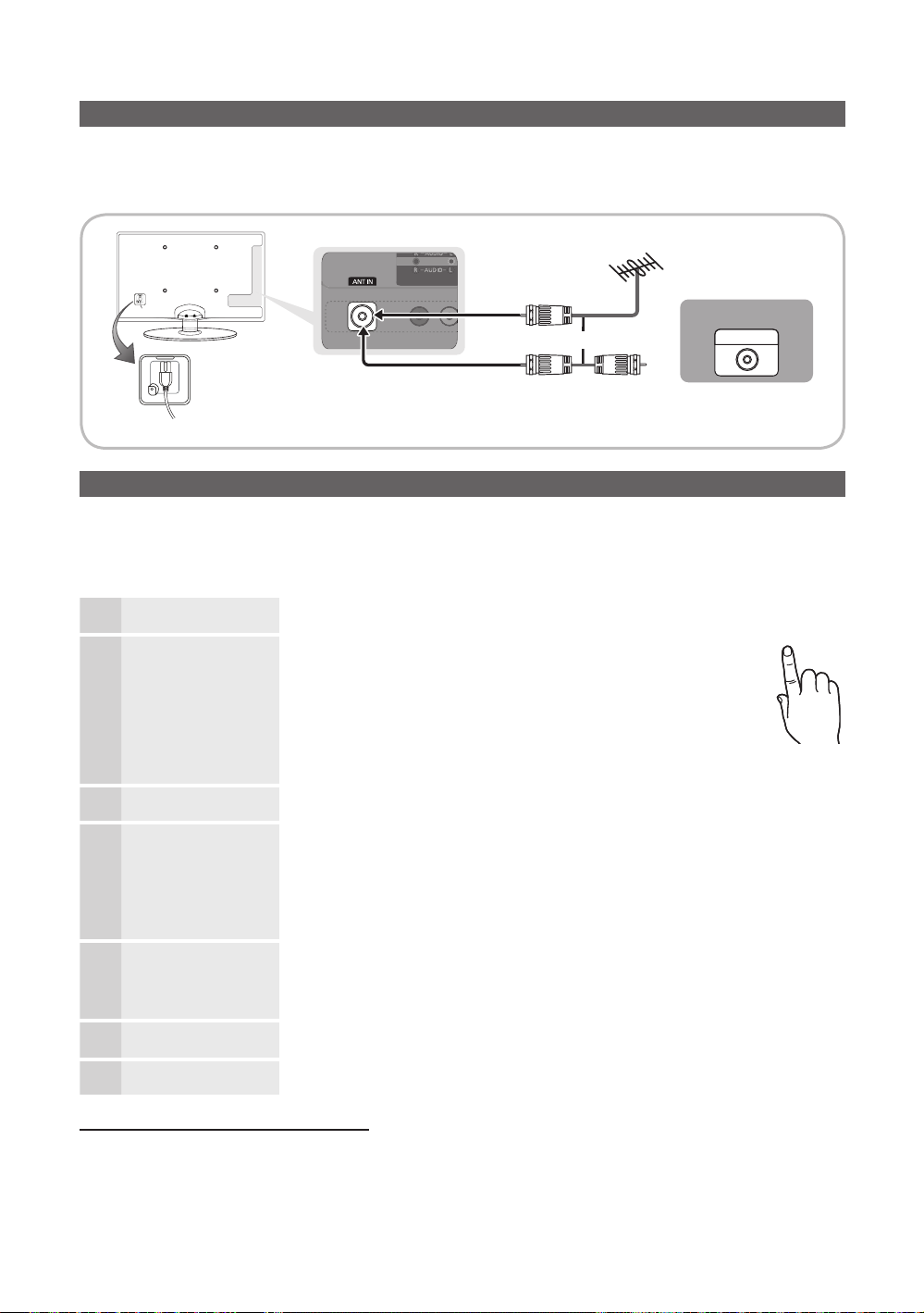

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Connecting the power cord and antenna.

✎

If the size of the cable mold part was an abnormal shape, the part may not be connected to the input port properly.

VHF/UHF Antenna

Antenna Cable (Not Supplied)

Cable

Power Input

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER

button. Plug & Play is available only when the Setup source is set to TV.

✎

To return to the previous step, press the Red button.

Selecting a language

Selecting Store Demo

or Home Use

Selecting an antenna

Press the ▲ or ▼ button, then press the ENTER Select the desired OSD (On Screen Display) language.

Press the ◄ or ► button, then press the ENTER

y Select the Home Use mode. Store Demo mode is for retail

environments.

y To return the unit’s settings from Store Demo to Home Use

(standard): Press the volume button on the TV. When you see the volume OSD, press and hold MENU for 5 sec.

Press the ▲ or ▼ button, then press the ENTER

button.

button. Select Air, Cable or Auto.

ANT OUT

Selecting a channel

Setting the Clock

Mode

Viewing the HD

Connection Guide. Enjoy your TV

Press the ▲ or ▼ button, then press the ENTER to memorize. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel → Auto Program (p.15).

✎

Press the ENTERE button at any time to interrupt the memorisation process.

Set the Clock Mode automatically or manually.

y Auto: Allows you to select DST (Daylight Saving Time) mode and time zone. y Manual: Allows you to manually set the current date and time (p. 20).

The connection method for the best HD screen quality is displayed.

Press the ENTER

button.

button. Select the channel source

If You Want to Reset This Feature...

MENUm → Setup → Plug & Play → ENTER

English

Connections

R-AUDIO-L

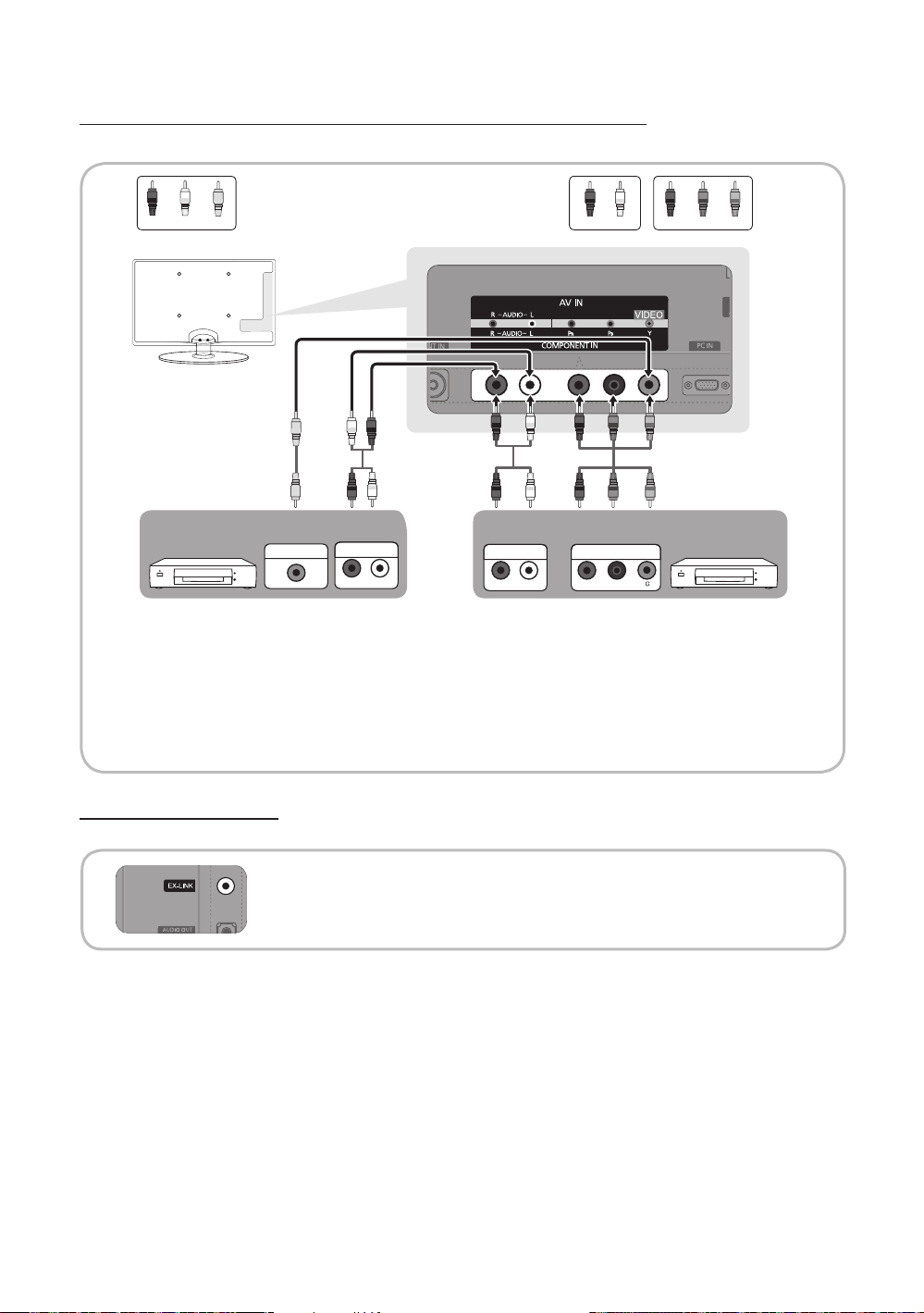

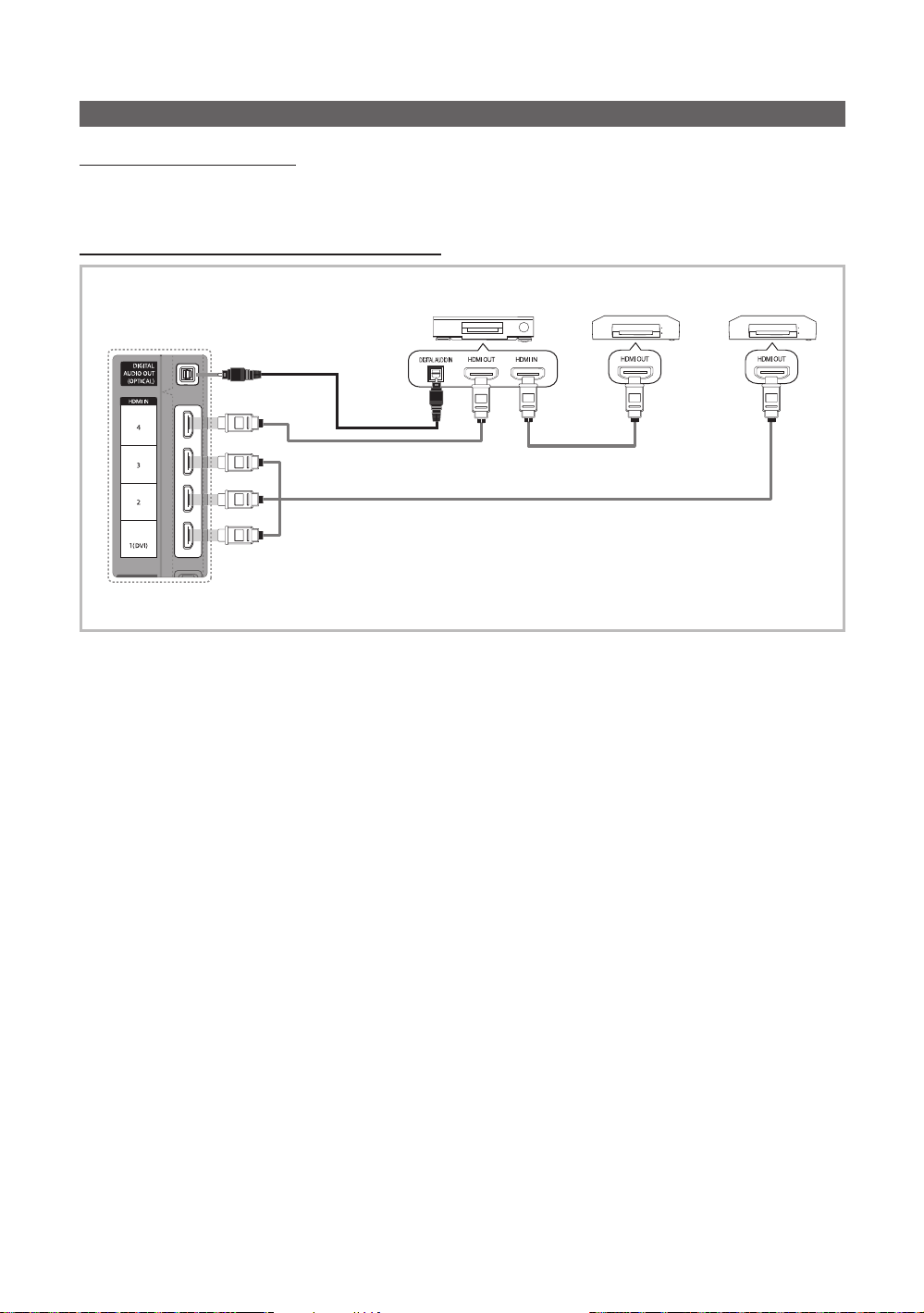

Connecting to an AV Device

Using an HDMI or HDMI/DVI cable: HD connection (up to 720p/1080i)

We recommend using the HDMI connection for the best quality HD picture. Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, STB satellite receiver

Device

02 Connections

HDMI Cable (Not Supplied)

HDMI to DVI Cable

(Not Supplied)

Red White

Audio Cable (Not Supplied)

✎

HDMI IN 1(DVI), 2, 3, 4, PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack for video. A DVD, Blu-ray

player, HD cable box, HD STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The PC/DVI AUDIO IN jack is required for audio.

Be sure to use an HDMI cable with a thickness of 14 mm or less.

The picture may not display normally (if at all) or the audio may not work if an external device that uses an older

version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

e sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.

HDMI OUT

DVI OUT

AUDIO OUT

Device

English

Connections

Using a Component (up to 720p/1080i) or Audio/Video (480i only) Cable

Available devices: Digital Audio System, Ampliﬁer, Home Theater

Red

White

Yellow

RGBWR

RedRed

BlueWhite

Green

AUDIO OUT

R-AUDIO-L

WR R GB

RGB W R

COMPONENT OUT

Component Cable (Not Supplied)

Device

Video Cable (Not Supplied)

Device

✎

When connecting to AV IN, the color of the AV IN [Y/VIDEO] jack (green) will not match the video cable (yellow).

✎

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

✎

If the size of the cable mold part was an abnormal shape, the part may not be connected to the input port

VIDEO OUT

Audio Cable (Not Supplied)

AUDIO OUT

R-AUDIO-L

properly.

Using an EX-Link Cable Connection

Available Devices: External devices that support EX-Link

EX-LINK: Connector for service only.

English

Connecting to an Audio Device

R-AUDIO-L

Using an Optical (Digital) or Audio (Analog) Cable Connection

Available devices: Digital Audio System, Ampliﬁer, DVD home theater

Optical Cable (Not Supplied)

02 Connections

Digital Audio System

OPTICAL

Red White

✎

DIGITAL AUDIO OUT (OPTICAL)

When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theater receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theater.

✎

AUDIO OUT: Connects to the audio input jacks on your amplifier/DVD home theater.

When connecting, use the appropriate connector.

When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust the

volume level with the amplifier’s volume control.

Audio Cable (Not Supplied)

AUDIO IN

Ampliﬁer / DVD home

theater

English

Connections

Using an HDMI/DVI cable or a D-sub cable

Connecting to a PC

HDMI to DVI Cable (Not Supplied)

AUDIO OUT

Audio Cable (Not Supplied)

D-Sub Cable (Not Supplied)

AUDIO OUT

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1360 x 768 @ 60 Hz.

Mode Resolution

IBM

MAC

VESA CVT

VESA DMT

VESA GTF 1280 x 720 52.500 70.000 89.040 -/+

640 x 350 720 x 400

640 x 480 832 x 624

720 x 576

1280 x 720

640 x 480 640 x 480 640 x 480 800 x 600 800 x 600

800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 720 1360 x 768

Horizontal Frequency

(KHz)

31.469

35.000

49.726

35.910

56.456

31.469

37.500

37.861

37.879

46.875

48.077

48.363

56.476

60.023

45.000

47.712

Vertical Frequency

(Hz)

70.086

70.087

66.667

74.551

59.950

74.777

59.940

75.000

72.809

60.317

75.000

72.188

60.004

70.069

75.029

60.000

60.015

Pixel Clock Frequency

(MHz)

25.175

28.322

30.240

57.284

32.750

95.750

25.175

31.500

40.000

49.500

50.000

65.000

75.000

78.750

74.250

85.500

DVI OUT

PC OUT

Sync Polarity

(H / V)

+/-

-/+

-/-

-/+

-/-

-/+/+ +/+ +/+

-/-

-/+/+ +/+ +/+

✎

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

English

Changing the Input Source

H LIST

MUTE

OWER

RE-CH

DMI

MEDIA.P

OURCE

Source List

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

MENUm → Input → Source List → ENTER

■ TV / PC / AV / Component / HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 / USB

✎

You can only choose external devices that are connected to the TV. In the Source List, connected inputs will be highlighted.

✎

In the Source List, PC is always activated.

SOURCE

Edit Name

MENUm → Input → Edit Name → ENTER

■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name

the device connected to the input jacks to make your input source selection easier.

✎

When connecting an HDMI/DVI cable to the HDMI IN

1(DVI) port, you should set the TV to DVI PC or DVI

Devices mode under Edit Name.

02 Connections

Basic Features

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

1 MENU button: Displays the main on-screen menu. 2 ENTER

3 RETURN button: Returns to the previous menu. 4 EXIT button: Exits the on-screen menu.

select an item. Conﬁrm the setting.

AV.CH

TOOL

RETURN

/ Direction button: Move the cursor and

NFO

EXIT

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

▲ / ▼ Select an icon with the ▲ or ▼

ENTER

▲ / ▼

◄ / ►

ENTER

EXIT

The main menu options appear on the screen:

Picture, Sound, Channel, Setup, Input, Application, Support.

button. Press ENTERE to access the

sub-menu. Select the desired submenu with

the ▲ or ▼ button. Adjust the value of an item with the

◄ or ► button. The adjustment in the OSD may differ depending on the selected menu.

Press ENTERE to conﬁrm the selection.

Press EXIT.

English

Basic Features

Channel Menu

¦ Seeing Channels

Channel List

Add, delete or set Favorite channels and use the program guide for digital broadcasts.

MENUm → Channel → Channel List

→ ENTER

Select a channel in the All Channels, Added Channels, Favorite or Programmed screen by

pressing the ▲ / ▼ and ENTER Then you can watch the selected channel.

Added Channels

■

Favorite: Shows all favorite channels.

■ programs.

✎

Using the color buttons with the Channel List

x x

number.

Select desired channels and press the Yellow button to set all the selected channels at the same time. The

c k

(The options menus may differ depending on the situation.)

buttons.

6 Air 6-1 * TV #6

7 Air

8 Air 9 Air

9-1 * TV #9 10 Air

10-1 * TV #10 11-1 * TV #11

Air Antenna B Zoom Select k Page

All Channels: Shows all currently available channels. Added Channels: Shows all added channels.

Programmed: Shows all currently reserved

Red (Antenna): Switches to Air or Cable. Green (Zoom): Enlarges or shrinks a channel

Yellow (Select): Selects multiple channel lists.

mark appears to the left of the selected channels.

(Page): Move to next or previous page.

(Tools): Displays the Channel List option menu.

CH LIST

Tools

Channel Status Display Icons

Icons Operations

A channel selected.

A channel set as a Favorite.

A reserved Program.

)

¦ Using Favorite Channels

MENUm → Channel → Channel List → ENTER

Add to Favorite / Delete from Favorite

Set channels you watch frequently as Favorites.

1. Select a channel and press the TOOLS button.

2. Add or delete a the channel using the Add to Favorite or Delete from Favorite menu respectively.

Added Channels

Air Antenna B Zoom Select k Page

To show all Favorite channels, click on the button shown on the rignt.

¦ Memorizing Channels

MENUm → Channel → ENTER

Antenna (Air / Cable)

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).

6 Air 6-1 * TV #6

7 Air

8 Air 9 Air

9-1 * TV #9 10 Air

10-1 * TV #10 11-1 * TV #11

Delete Add to Favorite

Timer Viewing Channel Name Edit Select All

Tools

FAV.CH

English

Auto Program

■ Air: Air antenna signal.

■ Cable: Cable antenna signal.

■ Auto: Air and Cable antenna.

✎

NOTE

When selecting the Cable TV system: STD, HRC

and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point, the signal source has been selected.

After all the available channels are stored, it starts

to remove scrambled channels. The Auto Program menu then reappears.

¦ Editing Channels

MENUm → Channel → Channel List → ENTER

Channel Name Edit

1. Select a channel and press the TOOLS button.

2. Edit the channel name using the Channel Name Edit

menu.

■ Channel Name Edit (analog channels only): Assign your

own channel name.

¦ Other Features

MENUm → Channel → ENTER

Clear Scrambled Channel

This function is used to ﬁlter out scrambled channels after Auto Program is completed. This process may take up to 20~30 minutes.

How to Stop Searching Scrambled Channels

1. Press the ENTER

2. Press the ◄ button to select Yes.

3. Press the ENTER

✎

This function is only available in Cable mode.

button to select stop.

button.

Channel List

Channel List Option Menu Set each channel using the Channel List menu options (Add

/ Delete, Timer Viewing, Select All / Deselect All). Option

menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

■ Add / Delete: Delete or add a channel to display the

channels you want.

✎

NOTE

All deleted channels will be shown on the All

Channels menu. A gray-colored channel indicates the channel

has been deleted. The Add menu only appears for deleted

channels. Delete a channel from the Added Channels or

Favorite menu in the same manner.

■ Timer Viewing: You can set a desired channel to be

displayed automatically at the reserved time. Set the current time ﬁrst to use this function.

1. Press the ◄ / ► / ▲ / ▼ buttons to select the

desired channel in Channel List.

2. Press the TOOLS button, then select Timer

Viewing.

3. Scroll up or down to adjust the settings in the box,

or use the numeric buttons on your remote to enter the date and time.

✎

If you selected Once, Every Week, or Everyday in Repeat, you can enter the date you want.

4. Select OK, then press the ENTER

done.

✎

NOTE

Only memorized channels can be reserved.

Reserved programs will be displayed in the

Programmed menu. When a digital channel is selected, press the ►

button to view the digital program.

■ Select All: Select all the channels in the channel list.

■ Deselect All: Deselect all the selected channels.

✎

You can only select Deselect All when one or more channels are selected.

button when

03 Basic Features

English

Basic Features

Programmed

(in Channel List) You can view, modify or delete a show you have reserved

to watch. Programmed timer viewing is displayed here. Highlight a program and press the TOOLS button to display Options.

■ Change Info: Change a show you have reserved to

watch. Begin with step 3 of “Timer Viewing,” above.

■ Cancel Schedules: Cancel a show you have reserved

to watch.

✎

This deletes the highlighted or selected program(s).

■ Information: Display a show you have reserved

to watch. (You can also change the reservation Information.)

✎

Alternatively, you can view Information by highlighting a program and pressing the

ENTERE button.

■ Select All / Deselect All: Select or deselect all reserved

programs.

Fine Tune

(analog channels only) If the reception is clear, you do not have to ﬁne tune the

channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, ﬁne tune the channel manually. Scroll to the left or right until the image is clear.

✎

Settings are applied to the channel you're currently watching.

✎

Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand side of the channel number in the channel banner.

✎

To reset the fine-tuning, select Reset.

Picture Menu

¦ Changing the Preset Picture Mode

MENUm → Picture → Mode → ENTER

Mode

Select your preferred picture type.

■ Dynamic: Suitable for a bright room.

■ Standard: Suitable for a normal

environment.

■ Movie: Suitable for watching movies in a

dark room.

¦ Adjusting Picture Settings

MENUm → Picture → ENTER

P.MODE

Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R)

Your television has several setting options for picture quality control.

✎

NOTE

When you make changes to Backlight, Contrast,

Brightness, Sharpness, Color or Tint (G/R) the OSD will be adjusted accordingly.

In PC mode, you can only make changes to

Backlight, Contrast and Brightness. Settings can be adjusted and stored for each

external device connected to the TV.

¦ Economical Solutions

The Eco Function can be used to enhance your power savings.

Eco Solution

MENUm → Picture → Eco Solution → ENTER

■ Energy Saving (Off / Low / Medium / High / Picture Off / Auto): This adjusts the brightness of the TV in

order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on. Press any button except the volume button to turn on the screen.

■ No Signal Power Off (Off / 15 min / 30 min / 60 min)

To avoid unnecessary energy consumption, set how long you want the TV to remain on if it's not receiving a signal.

✎

Disabled when the PC is in power saving mode.

English

¦ Changing the Picture Options

Advanced Settings

MENUm → Picture → Advanced Settings → ENTER

(Advanced Settings are available Standard / Movie mode) Compared to previous models, new Samsung TVs have a

more precise picture.

✎

In PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance.

Advanced Settings

Black Tone : Off ►

Dynamic Contrast : Medium

Shadow Detail : 0

Gamma : 0

RGB Only Mode : Off

Color Space : Native

White Balance

■ Black Tone (Off / Dark / Darker / Darkest): Select the

black level to adjust the screen depth.

■ Dynamic Contrast (Off / Low / Medium / High): Adjust

the screen contrast.

■ Shadow Detail (-2~+2): Increase the brightness of dark

images.

■ Gamma: Adjust the primary color intensity.

■ RGB Only Mode (Off / Red / Green / Blue): Displays the Red, Green and Blue color for making ﬁne adjustments to the hue and saturation.

■ Color Space (Auto / Native / Custom): Adjust the range of colors available to create the image. To adjust Color, Red, Green, Blue and Reset, set Color Space to Custom.

■ White Balance: Adjust the color temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each color's (red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each color's (red, green, blue) brightness.

Reset: Resets the White Balance to it's default settings.

▼

Move

Enter

Return

■ Flesh Tone: Emphasize pink “Flesh Tone.”

■ Edge Enhancement (Off / On): Emphasize object

boundaries.

Picture Options

MENUm → Picture → Picture Options → ENTER

✎

In PC mode, you can only make changes to the Color Tone, Size and Auto Protection Time.

Picture Options

Color Tone : Normal ►

Size : 16:9

Digital Noise Filter : Auto

MPEG Noise Filter : Auto

HDMI Black Level : Normal

Film Mode : Off

Auto Protection Time : 2 hours

Move

Enter

Return

■ Color Tone (Cool / Normal / Warm1 / Warm2)

✎

Warm1 or Warm2 will be deactivated when the picture mode is Dynamic.

✎

Settings can be adjusted and stored for each external device connected to an input on the TV.

■ Size: Your cable box/satellite receiver may

have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

16:9: Sets the picture to 16:9 wide mode. Zoom1: Use for moderate magniﬁcation. Zoom2: Use for a stronger magniﬁcation. Wide Fit: Enlarges the aspect ratio of the picture to ﬁt

the entire screen.

✎

Available with HD 1080i / 720p signals in 16:9 mode.

4:3: Sets the picture to basic (4:3) mode.

✎

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and center of the screen may cause image retention(screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.

03 Basic Features

P.SIZE

English

Basic Features

✎

NOTE

After selecting Zoom1, Zoom2 or Wide Fit:

1. Press the ► button to select Position.

2. Press the ENTER

3. Press the ▲ or ▼ button to move the picture up

or down.

4. Press the ENTER

5. Press the ► button to select Reset.

6. Press the ENTER

to its default position.

After selecting Screen Fit in HDMI (1080i/1080p) or

Component (1080i/1080p) mode, you may need to center the picture:

1. Press the ◄ or ► button to select Position.

2. Press the ENTER

3. Press the ▲, ▼, ◄ or ► button to move the

picture.

4. Press the ENTER

5. Press the ◄ or ► button to select Reset.

6. Press the ENTER

HD (High Definition): 16:9 - 1080i/1080p (1920x1080),

720p (1280x720) Settings can be adjusted and stored for each

external device you have connected to an input on the TV.

Input Source Picture Size

ATV, AV, Component (480i, 480p) DTV(1080i), Component (1080i, 1080p), HDMI (720p, 1080i, 1080p) PC 16:9, 4:3

■ Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualization): If the broadcast signal received by your TV is weak, you can activate the Digital Noise Filter feature to reduce any static and ghosting that may appear on the screen.

✎

When the signal is weak, try other options until the best picture is displayed.

Auto Visualization: When changing analog channels, displays signal strength.

✎

Only available for analog channels.

✎

When bar is green, is that the best possible signal.

button.

button to reset the picture

button.

16:9, Zoom1, Zoom2, 4:3

16:9, 4:3, Wide Fit, Screen Fit

■ MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide improved

picture quality.

■ HDMI Black Level (Normal / Low): Selects the black level on the screen to adjust the screen depth.

✎

Available only in HDMI mode.

■ Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and process ﬁlm signals from all sources and adjusts the picture for optimum quality.

✎

Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

■ Auto Protection Time (2 hours / 4 hours / 8 hours / 10 hours / Off): Set the time the screen remains idle with a still image until the screen saver is activated. The Screen Saver prevents the formation of ghost images on the screen.

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

¦ Setting up the TV with Your PC

Set the input source to PC.

MENUm → Picture → ENTER

Auto Adjustment

Adjust frequency values/positions and ﬁne tune the settings automatically.

✎

Not available when connecting with an HDMI/DVI cable.

Screen

■ Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the center of screen.

■ Position: Adjust the PC’s screen positioning if it does not ﬁt the TV screen. Press the ▲ or ▼ button to adjust the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position.

■ Image Reset: Resets the image to default settings.

English

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card,

the actual screens on your PC will probably look different, but the same basic set-up information will apply in most cases.

(If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

y The correct size setting (resolution) [Optimum: 1360 x

768 pixels]

y If a vertical-frequency option exists on your display

settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.

¦ Sound Settings

MENUm → Sound → ENTER

Virtual Surround (Off / On)

(standard sound mode only) This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF (Head

Related Transfer Function) technology.

Dialog Clarity (Off / On)

(standard sound mode only) This function allows you to increase the intensity of a voice

over background music or sound effects so that dialog can be heard more clearly.

03 Basic Features

Sound Menu

¦ Changing the Preset Sound Mode

MENUm → Sound → Mode → ENTER

Mode

■ Standard: Selects the normal sound mode.

■ Music: Emphasizes music over voices.

■ Movie: Provides the best sound for movies.

■ Clear Voice: Emphasizes voices over other

sounds.

■ Amplify: Increase the intensity of high-frequency sound

to allow a better listening experience for the hearing impaired.

S.MODE

¦ Adjusting Sound Settings

MENUm → Sound → Equalizer → ENTER

Equalizer

Adjusts the sound mode (standard sound mode only).

■ Balance L/R: Adjusts the balance between the right and

left speaker.

■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth

Adjustment): Adjusts the level of speciﬁc bandwidth frequencies.

■ Reset: Resets the equalizer to its default settings.

Preferred Language

(digital channels only) Digital-TV broadcasts are capable of

simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages).

✎

You can only select a language among the ones being broadcasted.

Multi-Track Sound (MTS)

(analog channels only)

■ Mono: Choose for channels that are broadcasting in mono or if you are having difﬁculty receiving a stereo signal.

■ Stereo: Choose for channels that are broadcasting in stereo.

■ SAP: Choose to listen to the Separate Audio Program, which is usually a foreign-language translation.

✎

Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP.

MTS

English

Basic Features

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

■ Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

Speaker Select (External Speaker / TV Speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker.

✎

When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited.

✎

When Speaker Select is set to External Speaker.

TV Speaker: Off, External Speaker: On

✎

When Speaker Select is set to TV Speaker.

TV Speaker: On, External Speaker: On

✎

If there is no video signal, both speakers will be mute.

SPDIF Output

SPDIF (Sony Philips Digital Interface) is used to provide digital sound, reducing interference going to speakers and various digital devices such as an A/V Receiver/Home theater.

■ Audio Format: During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital.

■ Audio Delay: Correct audio-video sync problems, when watching TV or video, and when listening to digital audio output using an external device such as an AV receiver (0ms ~ 250ms).

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

Setup Menu

¦ Setting the Time

MENUm → Setup → Time → ENTER

Time

■ Clock: Setting the clock is for using various timer

features of the TV.

The current time will appear every time you press the INFO button.

✎

If you disconnect the power cord, you have to set the clock again.

Clock Mode (Auto / Manual)

– Auto: Set the current time automatically using the

time from a digital channel.

✎

The antenna must be connected in order to set the time automatically.

– Manual: Set the current time manually.

✎

Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually.

Clock Set: Set the Day, Month, Year, Hour, Minute and am/pm manually.

✎

Available only when Clock Mode is set to Manual.

✎

You can set the Day, Month, Year, Hour, and Minutel directly by pressing the number buttons on the remote control.

DST (Daylight Saving Time) (Off / On): Switches the Daylight Saving Time function on or off.

✎

This function is only available when the Clock

Mode is set to Auto.

Time Zone: Select your time zone.

✎

This function is only available when the Clock Mode is set to Auto.

English

¦ Using the Sleep Timer

MENUm → Setup → Time → Sleep Timer →

ENTER

■ Sleep Timer shuts off the TV after a preset period of time. (30, 60, 90, 120, 150 and 180 minutes).

✎

To cancel the Sleep Timer, select Off.

: Automatically

SLEEP

¦ Setting the On / Off Timer

MENUm → Setup → Time → Timer 1 → ENTER

You can set the TV to turn on automatically at a preset time.

■ Timer 1 / Timer 2 / Timer 3: Three different on / off timer settings can be made. You must set the clock ﬁrst.

Timer 1

On Time

▲

Inactivate

▼

Off Time

Inactivate

Volume

20 TV Air 1

Repeat

Once

On Time / Off Time: Set the hour, minute, and activate / inactivate. (To activate the timer with the setting you’ve chosen, set to Activate.)

Volume: Set the desired volume level. Source: Select TV or USB content to be played when

the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV)

Antenna (when the Source is set to TV): Select Air or Cable.

Channel (when the Source is set to TV): Select the

desired channel. Contents (when the Source is set to USB): Select a

folder in the USB device containing music or photo ﬁles to be played when the TV is turned on automatically.

00 00 am

Source Antenna Channel

Sun Mon Tue Wed Thu Fri Sat

Move

Adjust

Enter

Return

✎

NOTE

If there is no music file on the USB device or the

folder containing a music file is not selected, the Timer function does not operate correctly.

When there is only one photo file in the USB,

the Slide Show will not play. If a folder name is too long, the folder cannot be

selected. Each USB you use is assigned its own folder.

When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you

select Manual, you can set up the day you want to activate the timer.

✎

The c mark indicates the day is selected.

✎

Auto Power Off (available only when the TV is turned on by the Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

¦ Locking Programs

MENUm → Setup → Security → ENTER

Security

■ V-Chip: The V-Chip feature automatically locks out

programs that are deemed inappropriate for children. The user must enter a PIN (personal identiﬁcation number) before any of the V-Chip restrictions are set up or changed.

✎

NOTE

V-Chip is not available in HDMI, Component

or PC mode. The default PIN number of a new TV set is

“0-0-0-0”. Allow All: Press to unlock all TV ratings.

Block All: Press to lock all TV ratings.

V-Chip Lock (Off / On): You can block rated TV Programs.

TV Parental Guidelines: You can block TV programs depending on their rating. This function allows you to control what your children are watching.

03 Basic Features

English

Basic Features

– TV-Y: Young children / TV-Y7: Children 7 and over /

TV-G: General audience / TV-PG: Parental guidance

/ TV-14: Viewers 14 and over / TV-MA: Mature audience

– ALL: Lock all TV ratings. / FV: Fantasy violence /

V: Violence / S: Sexual situation / L: Adult Language / D: Sexually Suggestive Dialog

✎

The V-Chip will automatically block certain categories dealing with more sensitive material. For example, if you block the TV-Y category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the young adult group will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work similarly. So, if you block the L sub-rating in TV-PG, then the L sub-ratings in TV-14 and TV-MA will automatically be blocked.

MPAA Rating: You can block movies depending on their MPAA rating. The Motion Picture Association of America(MPAA) has implemented a rating system that provides parents or guardians with advanced information on which ﬁlms are appropriate for children.

– G: General audience (no restrictions). / PG: Parental

guidance suggested. / PG-13: Parents strongly cautioned. / R: Restricted. Children under 17 should be accompanied by an adult. / NC-17: No children under age 17. / X: Adults only. / NR: Not rated.

✎

The V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the PG-13 category, then R, NC-17 and X will automatically be blocked.

Canadian English: You can block TV programs depending on their Anglophone Canadian rating.

– C: Programming intended for children under age 8. /

C8+: Programming generally considered acceptable for children 8 years and over to watch on their own. / G: General programming, suitable for all audiences. / PG: Parental Guidance. / 14+: Programming contains themes or content which may not be suitable for viewers under the age of 14. / 18+: Adult programming.

✎

The V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the G category, then

PG, 14+ and 18+ will automatically be blocked.

Canadian French: You can block TV programs

depending on their French Canadian rating.

– G: General / 8 ans+: Programming generally

considered acceptable for children 8 years and over to watch on their own. / 13 ans+: Programming may not be suitable for children under the age of 13. / 16 ans+: Programming is not suitable for children under the age of 16. / 18 ans+: Programming restricted to adults.

✎

The V-Chip will automatically block any category that deals with more sensitive material. For example, if you block the 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also.

Downloadable U.S. Rating: Parental restriction information can be used while watching DTV channels.

✎

NOTE

If information is not downloaded from the

broadcasting station, the Downloadable U.S. Rating menu is deactivated.

Parental restriction information is automatically

downloaded while watching DTV channels. It may take several seconds.

The Downloadable U.S. Rating menu

is available for use after information is downloaded from the broadcasting station. However, depending on the information from the broadcasting station, it may not be available for use.

Parental restriction levels differ depending on

the broadcasting station. The default menu name and Downloadable US Rating change depending on the downloaded information.

Even if you set the on-screen display to another

language, the Downloadable U.S. Rating menu will appear in English only.

The rating will automatically block certain

categories that deal with more sensitive material.

The rating titles (For example: Humor Level..etc)

and TV ratings (For example: DH, MH, H..etc) may differ depending on the broadcasting station.

■ Change PIN: The Change PIN screen will appear.

Choose any 4 digits for your PIN and enter them. As soon as the 4 digits are entered, the Conﬁrm New PIN screen appears. Re-enter the same 4 digits. When the Conﬁrm screen disappears, your PIN has been memorized.

English

How to watch a restricted channel

If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear:

This channel is blocked by V-Chip. Please enter the PIN to unblock.

✎

If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pin to “0-0-0-0” : POWER (off) → MUTE → 8 → 2 → 4 → POWER (on).

¦ Other Features

MENUm → Setup → ENTER

Menu Language

Set the menu language.

1. Select Menu Language and press the ENTER

button.

2. Choose desired language and press the ENTER

button.

✎

Choose between English, Español and Français.

Caption

(On-Screen Text Messages)

■ Caption (Off / On): You can switch the caption function on or off. If captions are not available, they will not be displayed on the screen.

✎

The Caption feature doesn’t work in Component, HDMI or PC modes.

■ Caption Mode: You can select the desired caption mode.

✎

The availability of captions depends on the program being broadcast.

Default / CC1~CC4 / Text1~Text4: (analog channels only) The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device to the TV. (Depending on the broadcasting signal, the Analog Caption function may or may not work with digital channels.)

Default / Service1~Service6 / CC1~CC4 / Text1~Text4: (digital channels only) The Digital Captions

function works with digital channels.

✎

Service1~6 may not be available in digital caption mode depending on the broadcast.

■ Digital Caption Options: (digital channels only) Size: Options include Default, Small, Standard and

Large. The default is Standard. Font Style: Options include Default and Styles 0 to 7.

The default is Style 0.

Foreground Color: Options include Default, White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. You can change the color of the letter. The default is White.

Background Color: Options include Default, White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. You can change the background color of the caption. The default is Black.

Foreground Opacity: This adjusts the opacity of text. Options include Default, Transparent, Translucent, Solid and Flashing.

Background Opacity: This adjusts the opacity of the caption background. Options include Default, Transparent, Translucent, Solid and Flashing.

Return to Default: This option sets each Size, Font Style, Foreground Color, Background Color, Foreground Opacity and Background Opacity to its default.

✎

NOTE

Digital Caption Options are available only

when Default and Service1 ~ Service6 can be selected in Caption Mode.

The availability of captions depends on the

program being broadcasted. The Default setting follows the standards set by

the broadcaster. The Foreground and Background cannot be set

to have the same color. You cannot set both the Foreground Opacity

and the Background Opacity to Transparent.

General

■ Game Mode (Off / On): When connecting to a game

console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting the game mode.

✎

NOTE

Precautions and limitations for game mode

– To disconnect the game console and connect

another external device, set Game Mode to Off in the setup menu.

– If you display the TV menu in Game Mode, the

screen shakes slightly.

Game Mode is not available when the input source

is set to TV or PC. After connecting the game console, set Game Mode

to On. Unfortunately, you may notice reduced picture quality.

If Game Mode is On:

– Picture mode is set to Standard and Sound mode

is set to Movie.

– Equalizer is not available.

03 Basic Features

English

Basic Features

■ Menu Transparency (Bright / Dark): Set the Transparency of the menu.

■ Melody (Off / Low / Medium / High): Set so that a melody plays when the TV is turned on or off.

¦ Picture In Picture (PIP)

PIP

You can watch the TV tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.

MENUm → Setup → PIP → ENTER

✎

NOTE

For PIP sound, refer to the Sound Select

instructions. If you turn the TV off while watching in PIP mode, the

PIP window will disappear. You may notice that the picture in the PIP window

becomes slightly unnatural when you use the main screen to view a game or karaoke.

While V-Chip is in operation, the PIP function cannot

be used. PIP Settings

Main picture Sub picture Component, HDMI1/DVI,

HDMI2, HDMI3, HDMI4, PCTV

■ PIP (Off / On): Activate or deactivate the PIP function.

■ Air/Cable (Air / Cable): Select either Air or Cable as the input source for the sub-screen.

■ Channel: Select the channel for the sub-screen.

■ Size (

■ Position ( sub-picture.

■ Sound Select (Main / Sub): You can choose the desired sound (Main / Sub) in PIP mode.

/ Ã): Select a size for the sub-picture.

/ – / — / œ): Select a position for the

Support Menu

MENUm → Support → ENTER

Self Diagnosis

✎

Self Diagnostic might take few seconds, this is part of the normal operation of the TV.

■ Picture Test: Use to check for picture problems. Yes: If the test pattern does not appear or there is

noise in the test pattern, select Yes. There may be a problem with the TV. Contact Samsung’s Call Center for assistance (1-800-SAMSUNG).

No: If the test pattern is properly displayed, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

■ Sound Test: Use the built-in melody sound to check for sound problems.

✎

If you hear no sound from the TV’s speakers, before performing the sound test, make sure

Speaker Select is set to TV Speaker in the Sound menu.

✎

The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

Yes: If you can hear sound only from one speaker or not at all during the sound test, select Yes. There may be a problem with the TV. Contact Samsung’s Call Center for assistance (1-800-SAMSUNG).

No: If you can hear sound from the speakers, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

■ Signal Information: (Digital channels only) An HD channel’s reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.

■ Troubleshooting: If the TV seems to have a problem, refer to this description.

✎

If none of these troubleshooting tips apply, contact the Samsung customer service center.

English

Software Upgrade

Software Upgrade can be performed downloading the

latest ﬁrmware from “www.samsung.com,” to a USB memory device.

Current Version - the software already installed in the TV.

✎

Software is represented as “Year/Month/Day_Version”.

Software Upgrade

Current Version 2010/01/18_000001

By USB ►

Alternative Software ----/--/--_------

Move

Enter

Return

Installing the Latest Version

■ By USB: Insert a USB

drive containing the ﬁrmware upgrade ﬁle, downloaded from “www. samsung.com,” into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the ﬁrmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to to write down your settings so that you can easily reset them after the upgrade.

■ Alternative Software (Not available)

TV Rear Panel

USB Drive

HD Connection Guide

Refer to this information when connecting external devices to the TV.

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can ﬁnd information regarding our call centers and how to download products and software.

04 Advanced Features

English

Advanced Features

SUM

Media Play

MediaPlay

Videos

Change Device

View Devices

MEDIA.P

Enjoy photos, music and/or movie ﬁ les saved on a USB Mass Storage Class (MSC) device.

MENUm → Application → Media Play

(USB) → ENTER

¦ Connecting a USB Device

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie ﬁ les to the USB

(HDD) port on the back or side panel of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select Media Play.

✎

It might not work properly with unlicensed multimedia files.

✎

Need-to-Know List before using Media Play (USB)

MTP (Media Transfer Protocol) is not supported.

The file system supports FAT16, FAT32 and NTFS.

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only

Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the TV’s USB port.

Before connecti ng your device to the TV, please back up your files to prevent them from damage or loss of data.

SAMSUNG is not responsible for any data file damage or data loss. Connect a USB HDD to the dedicated port, USB (HDD) port.

Do not disconnect the USB device while it is loading.

The higher the resolution of the image, the longer it takes to display on the screen.

The maximum supported JPEG resolution is 15360X8640 pixels.

For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management

(DRM) is a technology that supports the creation, distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.

If more than 2 PTP devices are connected, you can only use one at a time.

If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high

power (more than 500mA or 5V) may not be supported. If an over-power warning message is displayed while you are connecting or using a USB device, the device may not

be recognized or may malfunction. If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.

The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.

If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is

not played, connect the USB device to the PC, format the device and check the connection. If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC

to permanently delete the file.

English

TV Rear Panel

Enter

USB Drive

Return

¦ Screen Display

Movie 01.avi

00:04:03 / 00:07:38 1/1

SUM

Move to the desired ﬁle using the up/down/right/left buttons and then press the ENTERE or  (Play) button. The ﬁle is played.

✎

Supports the View Devices and Home in Media Play homepage.

You can ascertain the selected

ﬁle name and the number of ﬁles

Displays the sorting standard.

The sorting standard is

✎

different depending on the contents.

Information:

and page.

Sort List Section:

Videos

SUM

Change Device

/Movie 01.avi 1/1

Movie 01.avi

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

Jan.10.2010

Movie 02.avi

Movie 04.avi

Movie 06.avi

Movie 08.avi

Movie 10.avi

Select Sorting

Jan.10.2010

Tools

Page

Operation Buttons

Red (Change Device): Selects a connected device. Green (Preference): Sets the ﬁle preference. (not supported in Basic view) Yellow (Select): Selects multiple ﬁles from ﬁle list. Selected ﬁles are marked with a symbol. Blue (Sorting): Selects the sort list.

Tools: Displays the option menu.

Using the  (REW) or µ (FF) button, ﬁle list can move to next or previous page.

✎

File List Section: You can conﬁrm the ﬁles and groups that are sorted by category.

Videos

04 Advanced Features

Playing Video

1. Press the ◄ or ► button to select Videos, then press the ENTER

2. Press the ◄/►/▲/▼ button to select the desired video in the ﬁle list.

3. Press the ENTER

button or  (Play) button.

– The selected ﬁle is displayed on the top with its playing time. – If video time information is unknown, play time and progress bar are not displayed. – During video playback, you can search using the ◄ and ► button.

✎

In this mode, you can enjoy movie clips contained on a Game, but you cannot play the Game itself.

y Supported Subtitle Formats

Name File extension Format

MPEG-4 time-based text .ttxt XML

SAMI .smi HTML

SubRip .srt string-based SubViewer .sub string-based Micro DVD .sub or .txt string-based

button in the Media Play menu.

Pause

Jump

Tools

Return

English

Advanced Features

y Supported Video Formats

File Extension Container Video Codec Resolution

Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8

*.avi

*.mkv

*.asf ASF

*.wmv ASF Window Media Video v9 1920x1080 6 ~ 30 25 WMA

*.mp4 MP4

*.3gp 3GPP

*.vro

*.mpg

*.mpeg

*.ts *.tp

*.trp

AVI

MKV

VRO VOB

XviD 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8

XviD 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

XVID 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

MPEG1 1920x1080 24 / 25 / 30 30 MPEG2 1920x1080 24 / 25 / 30 30 MPEG1 1920x1080 24 / 25 / 30 30

H.264 1920x1080 6 ~ 30 25

MPEG2 1920x1080 24 / 25 / 30 30

H.264 1920x1080 6 ~ 30 25

VC1 1920x1080 6 ~ 30 25

Frame rate

(fps)

Bit rate (Mbps)

Audio Codec

MP3 / AC3 / LPCM /

ADPCM / DTS Core

MP3 / AC3 / LPCM /

ADPCM / WMA

MP3 / ADPCM / AACMPEG4 SP / ASP 1920x1080 6 ~ 30 8

ADPCM / AAC / HE-AAC

AC3 / MPEG / LPCM

AC3 / MPEG / LPCM / AACMPEG2 1920x1080 24 / 25 / 30 30

AC3 / AAC / MP3 / DD+ /

HE-AAC

Other Restrictions

✎

NOTE

If there are problems with the contents of a codec, the codec will not be supported.

If the information for a Container is incorrect and the file is in error, the Container will not be able to play

correctly. Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec

listed in the table above. If the Index Table is in error, the Seek (Jump) function is not supported.

Video Decoder Audio Decoder

• Supports up to H.264, Level 4.1

• H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not

supported.

• GMC is not supported.

• H.263 is not supported.

English

• Supports up to WMA 7, 8, 9, STD

• WMA 9 PRO does not support 2 channel excess multi channel or

lossless audio.

• WMA sampling rate 22050Hz mono is not supported.

+ 64 hidden pages
