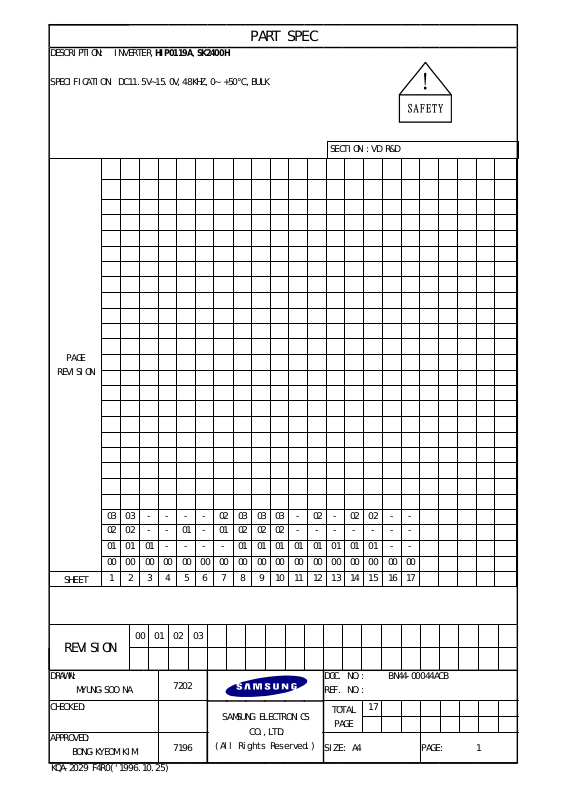

PART SPEC
DESCRIPTION: INVERTER,
SPECIFICATION: DC11.5V~15.0V,48KHZ,0~+50℃,BULK
H IP0119 A,SK 2400H
SECTION :VD R&D
PAGE
REVISION
SHEET
03 03 - - - - 02 03 03 03 - 02 - 02 02 - 02 02 - - 01 - 01 02 02 02 - - - - - - 01 01 01 - - - - 01 01 01 01 01 01 01 01 - 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
00 01 02 03
REVISION
DRAWN:
MYUNG-SOO NA
CHECKED:
APPROVED:
BONG-KYEOM KIM
KQA-2029 F4R0('1996.10.25)
DOC. NO.: BN44-00044ACB
7202
SAMSUNG ELECTRONICS
CO.,LTD.
7196 SIZE: A4 PAGE: 1
(All Rights Reserved.)
REF. NO.:
TOTAL
PAGE
17
![](/html/74/74cf/74cf261d0eee606676ba68525a3fb6a075ec6a6f1559d707b716a34a41d7ad25/bg2.png)
PART SPEC
REV. DATE CONTENTS DRAWN APPROVED
00
01
02
2000.09.27
2000.11.16
2001.04.30
REVISION BY ECO NO:BN020000265
* CHANGE THICKNESS OF PCB (1.0T → 1.6T)
* PCB REVISION (1.1-> 1.6 )
* ADD PART ; Q170,D170,C120,R123,R120,R121,R122, L8,L9
*CHANGE INDUCTANCE : L1,L2:(85uH->47uH)
*CHANGE TYPE OF PARTS : L1,L2,L3,L4 (MOLD TYPE->NON_MOLD)
*CHANGE INDUCTANCE OF TRANS
REVISION BY ECO NO:BN020010150
* CHANGED
SPEC:D2,D9,C1C,C3A,C17B,C53,C67,C4B,C4C,C18A,C18B,C18C
R62,R87,R11,R118,R36,R36B,R61,R86,R12,R37,L3,L4,L1,
L2,L8,L9
* ADDED
SPEC;D2A,D9A,Q71A,Q72A,Q73A,Q74Q,R131A,R134A,R137A,R140,
R132,R133,R135,R136,R138,R139,R141,R142,L8A,L9A
*CANCELED:C3B,C17A,C80,C81,C82,C83,C103,C104,C153,C154,
R20,R13,R13,R38,R63,R88
*CHANGED PCB PATTERN :REV1.6-> REV1.8
*CHANGED CIRCUIT,OUTPUT CURRENT, FREQUENCY
initial release
M.S NA
M.S NA
M.S NA
B.K KIM
B.K KIM
B.K KIM
03
2001.12.04
REVISION BY ECO NO :BN02001053A
* CHANGED PARTS :C3A,C17B,D2,D2A,D9,D9A
* ADD PARTS :Q6A,Q12A,D2B,D9B,C3B,C17A,
* CHANGED PCB PATTERN : REV1.8-> 1.9
* CHANGED CIRCUIT
* CHANGED TRANSFORMER INSULATOR : SR50-> SR55
M.S NA
B.J.KWAK
SAMSUNG ELECTRONICS CO.,LTD.(All Rights Reserved.)
DOC. NO.: BN44-00044ACB REF. NO.: PAGE: 2
KQA-2029 F5R0('1996.10.25)
![](/html/74/74cf/74cf261d0eee606676ba68525a3fb6a075ec6a6f1559d707b716a34a41d7ad25/bg3.png)
PART SPEC
1.0 SCOPE
1.0.1 THIS DOCUMENT DEFINES FOR INVERTER,HIP0119A,
1.0.2 USAGE : 24' OR 21.3" TFT LCD FOR PC24PS
2.0 RELATED DOCUMENTS
3.0 DIMENSIONS
S K2400H
, DC11.5~15.0V,48KHz
01
1. 6T
4.0 ELECTRICAL CHARACTERISTIC
4.0.1 MAXIMUM RATINGS
SYMBOL PARAMETER RATING UNIT
V
V
input voltage1 11.5~15.0 V
in1
input voltage2 4.9 ~5.1 V
IN2
Topr operating temperature 0 ~ +50 ℃
Tstg storage temperature -30 ~ +80 ℃
Hop operating/storage humidity 90 %RH
4.0.2 CONTROL SIGNAL
PIN N0. SYMBOL STATUS ACTION REMARKS
CN1 #4 BKLT-ON
SAMSUNG ELECTRONICS CO.,LTD.(All Rights Reserved.)
HIGH LAMP(CCFL)-ON 2.4~5.25V
LOW LAMP(CCFL)-OFF 0.8V MAX.
DOC. NO.: BN44-00044ACB REF. NO.: REV.: 01 PAGE: 3
KQA-2029 F7R0('1996.10.25)
![](/html/74/74cf/74cf261d0eee606676ba68525a3fb6a075ec6a6f1559d707b716a34a41d7ad25/bg4.png)
4.0.3 TEST CIRCUIT
PART SPEC
SAMSUNG ELECTRONICS CO.,LTD.(All Rights Reserved.)
DOC. NO.: BN44-00044ACB REF. NO.: REV.: 00 PAGE: 4
KQA-2029 F7R0('1996.10.25)
![](/html/74/74cf/74cf261d0eee606676ba68525a3fb6a075ec6a6f1559d707b716a34a41d7ad25/bg5.png)
PART SPEC
4.0.4 INPUT/OUTPUT CHARACTERISTICS
CONDITION SPECIFICATION
ITEM SYMBOL
OUTPUT
CURRENT
INPUT
CURRENT
OPEN
OUTPUT
VOLTAGE
FREQUEN
CY
※ OUTPUT CURRENT TEST CONDITION : SET CONDITION
Io1~Io6(max) 11.5~15.0 5 OV 150±0.5 6.1 7.0 7.9
Io1~Io6(min) 11.5~15.0 5 5V 150±0.5 1.5 3.0 4.5
Iin 14 5 0V 150±0.5 - 3.8 4.5 ADC
Vo(1)
V0(2)
F(1)
F(2)
Vin1(V)
(DC-IN)
11.5~15.0 5 OV
14 5 OV 150±0.5
Vin2(V) BRT-ADJ RL(㏀) MIN TYP MAX
02
∞
UNIT
mArms
15.5 19.0 22.5 Vrms
40 4 8 55
㎑
5.0 FUNCTIONAL PIN DESCRIPTION
5.0.1 CN1 CONNECTOR 12505WS-15A00(YEONHO)
PIN NO SYMBOL REMARK
2 BRT_ADJ 0 ~5V
1,3,5,6,8,9 GND GND
4 BL ON/OFF CCFL Drive SIGNAL(Active HIGHT)
7 VDD 5V
10,11,12,13,14,15 DC-IN DC INPUT Power(14V)
5.0.2 CN3-1 CONNECTOR:20015WR-050208(YEONHO)
PIN NO SYMBOL REMARK
1 HOT HIGHT 1
2 N.C NO CONNECTION
3 COLD LOW
5.0.3 CN3-2 CONNECTOR :20015WR-050208(YEONHO)
PIN NO SYMBOL REMARK
1 HOT HIGHT 1
2 N.C NO CONNECTION
3 COLD LOW
SAMSUNG ELECTRONICS CO.,LTD.(All Rights Reserved.)
DOC. NO.: BN44-00044ACB REF. NO.: REV.: 02 PAGE: 5
![](/html/74/74cf/74cf261d0eee606676ba68525a3fb6a075ec6a6f1559d707b716a34a41d7ad25/bg6.png)
PART SPEC
5.0.4 CN3-3 CONNECTOR :20015WR-070404(YEONHO)
PIN NO SYMBOL REMARK
1 HOT HIGHT 1
2 N.C NO CONNECTION
3 N.C NO CONNECTION
4 COLD LOW
5.0.5 CN4-1 CONNECTOR:20015WR-0505208(YEONHO)
PIN NO SYMBOL REMARK
1 HOT HIGHT 1
2 N.C NO CONNECTION
3 COLD LOW
5.0.6 CN4-2 CONNECTOR:20015WR-0505208(YEONHO)
PIN NO SYMBOL REMARK
1 HOT HIGHT 1
2 N.C NO CONNECTION
3 COLD LOW
5.0.7 CN4-3 CONNECTOR:20015WR-070404(YEONHO)
PIN NO SYMBOL REMARK
1 HOT HIGHT 1
2 N.C NO CONNECTION
3 N.C NO CONNECTION
4 COLD LOW
